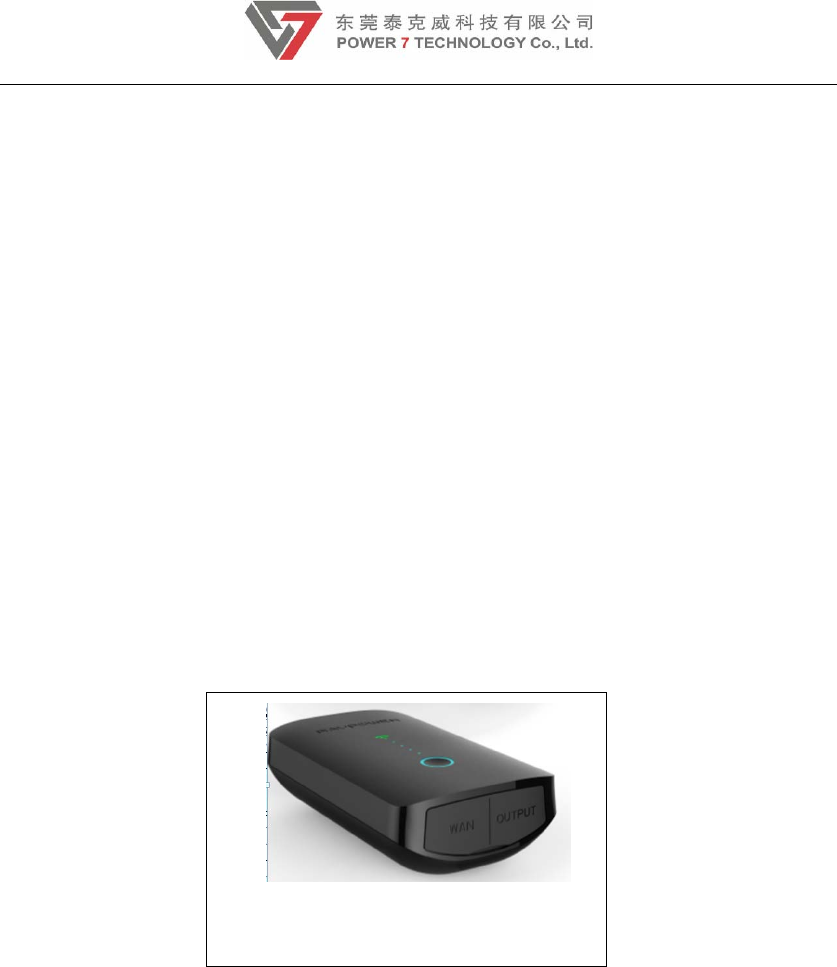

Introduction

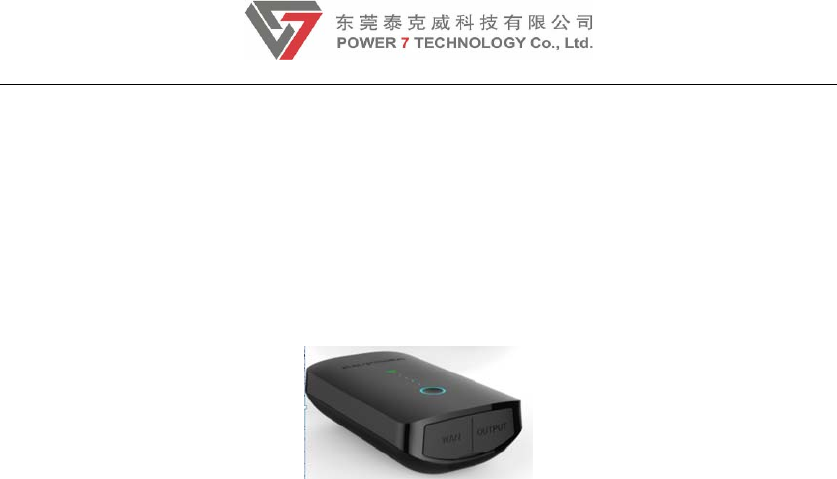

Power7 WiFi dongle device(Project Name: Seabird)is a portable wireless storage device with
one USB 2.0 host. Seabird allows you to convert any USB external storage devices into a WiFi
accessible media. Connect your USB external storage into the built-in USB port. Power the
unit on and you can now wirelessly access your videos, music, photos, data and stream it to
your iPad®, iPhone®, tablets, smartphones, and notebooks. There is no need to worry about
running out of space on your mobile devices. As simple as 1-2, you are ready to enjoy your
device and no waiting needed. Without the wired limitation, you can enjoy listening to music
while travelling with Seabird in your backpack, share photo with your family by placing it at any
house corner or lay back watching movies in the beach – with a range of up to 150ft you’ll
never feel tethered to your Seabird. Best of all, the Seabird can bridge the Internet connection
to your existing wireless/wired router, so you may access the data in the storage while surfing
the Internet simultaneously. Also it can works as a powerbank to charge your
phone/PADs,upto 1A ouput current.
Seabird
TargetUsers/Markets
Mobile Device User
iPhone®, iPad®, smartphone, tablet or notebook user may unleash from very limited storage
capacity by throwing large files such as movies, music or PowerPoint files to Seabird. Also it is
your mobile device’s powerback.
Frequent Business Traveler
Businessman may show customer the product datasheet, contract or quotation in Seabird
anytime in the coffee shop, meeting room or hotel. Also it is your mobile device’s powerback.
Movies & Music Download Mania
Have already downloaded hundreds or thousands of movies, music by BitTorrent at home but
you can not enjoy watching or listening to them while you are outside? Seabird is the solution
3
for you.
Salesman
Seabird may save mobile sales person like insurance broker, realty broker from carrying bulky
brochure or flyers.
Legacy USB External HDD Device Hater
Just can not stand anymore to be tethered by USB cable whenever you need to transfer files
between your notebook and external HDD? Seabird is the answer for you!
Small Enterprise Mobile NAS
The critical and confidential business data should not be bound to the file server or NAS in
your company. Seabird allows you to have a backup of your important data which is portable
with you.
Home Mobile NAS
With Seabird at home, you do not need to always turn on your notebook in order to share data
with your family. Moreover, Seabird can be your portable entertainment center while your
family go out for vacation.
Features
File and System Manager App
Two way file transferring between Seabird and your iPhone®, iPad®, smartphone, tablet or
computer with Wi-Fi connectivity (802.11 b/g/n). Available iOS and Android mobile app with
search utility function to find and locate specific data file.
Bridge to Internet Access
Bypass your Internet access to your existing WiFi router, so you may access any data in the
USB Storage while surfing the Internet simultaneously. (For wired only environment, we
provide optional RJ45 Ethernet port).
USB Storage Accessible while Charging
Using notebooks with available USB port or optional AC adaptor, the WiFi storage can be
accessed while charging the internal battery.
Share with Friends & Family
Allow 5 maximum concurrent connections for sharing videos, audios, photos and data.
Extended Battery Life
Up to 20 hours of continuous use battery life for maximum portability.(under USB flash
attached)
USB 2.0 Port for Battery Charging
USB 2.0 port for internal battery charging
USB 2.0 Host Port for power bank
USB 2.0 host port is also can used as your power bank to charge your mobile device,as
iPhone,iPAD(mini), android phone and PADS，up to 1A @5A current. This function is worked in
both power on /off mode.
Easy to Configure and Operate
4
Friendly user interface design with wizard guide to assure even the novice can get Seabird
start to operate in minutes.
Applications
Bridge to Internet Access

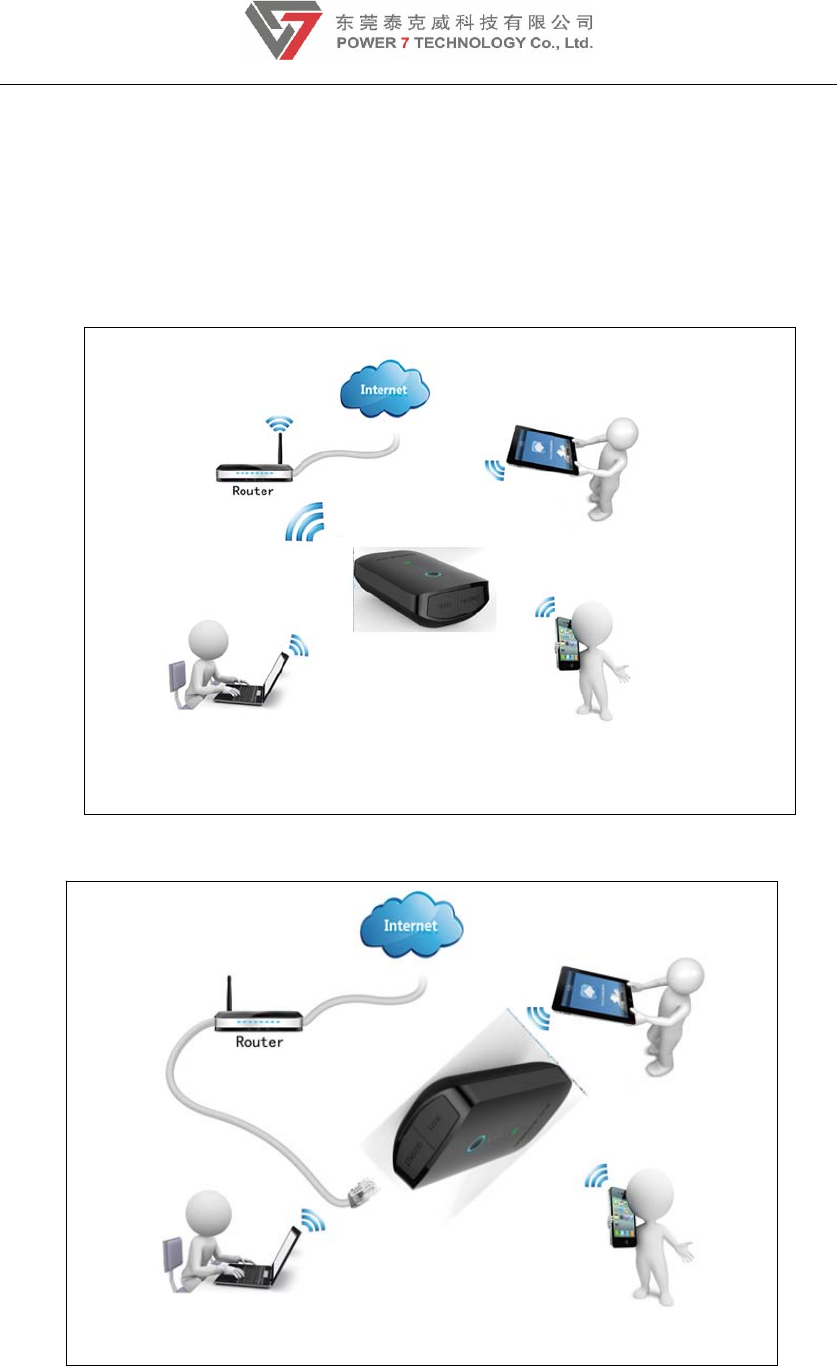

Scenario 1 - If you got an existing WiFi router for Internet access
Wirelessly Bridge to Internet Access
Scenario 2- If you got an existing wired router for Internet access
Wired Bridge to Internet Access (via RJ45 Ethernet Port)
5
HardwareSpecifications
Project name Seabird
Model name RP-WD03
CPU Model MT7620N
Frequency MIPS24KEc 580MHZ
Flash Model EN25Q64
Capacity 8MByte SPI flash
SDRAM Capacity DDR1 32MByte (256Mbit)
WiFi
standard 802.11b/g/n
Frequency 2.4GHz
Antenna Array 2T2R
Signal strength 17dBm
Speed Max 300Mbps
WAN port Protocol Ethernet
Speed 100Mbit/s
Interface
Battery
LED (White*4pcs)
LED light to show the percentage of
remaining power.
As below :
LED1: 0~25%
LED2:26~50%
LED3:51~75%
LED4:76~100%
WiFi LED (Blue/Green)
WiFi LED shows the system initiating
state:
Blue LED Start flashing: Kernel loading
in process
Blue LED Stop flashing: System
initiation completes
GreenLED：Internet is connected
successful
SD Card R/W LED Blue
SD Slot Support to SDXC, up to 2TB
Power button 1. Power on/off button (2 seconds
long pressing)
2. percentage of remaining power
button(short pressing)
Reset button Factory default reset button
USB device interface Micro USB 2.0 for charging internal
6
battery only, up to 1A current.
USB host interface In power on mode, it can connect USB
storage for WiFi accessing. In power
on &off mode, It can charge your
mobile device(iPhone/iPAD/iPAD mini,
other smart phone/PAD) , up to 1A
current.
WAN port RJ45 100Mbps
Battery Capacity 6000mAh 18650 battery
Charging current 1.0A
Power dissipation
Max power dissipation (tested
with TOSHIBA 1TB HDD) 3.7W
Standby power (without
Read/Write for TOSHIBA 1TB
HDD during the test)
2.5W
Standby power (tested with
TOSHIBA 1TB HDD,H DD
slept during the test)
2.1W
Environmental
requirements
Operating Temperature: 5°C to 35°C
Non-Operating Temperature: 0°C to 60°C
Operating Humidity: 5% to 90% (Non-condensing)
Non-operating Humidity: 5% ~ 90 % (Non-condensing)
Product dimension 93.5 L x 55mm W x 27.8mm H
Emission (EMI),
Safety & Other
Certifications
FCC Class B
CE
SoftwareSpecifications
System setting Language selection To select your native languages
Firmware upgrade Automatically upgrade firmware
Configuration setting To backup and retrieve system
7
configuration setting
Factory default
setting restore
To restore default system setting
originated in factory production
File system NTFS A) Support Microsoft Windows NTFS
file system
B) Application tools:
Tuxera NTFS tool for mounting file
system
NTFS file system inspection and
repair tool
FAT16/FAT32
A) Support Microsoft Windows
FAT16/FAT32/exFAT file system
B) Application tools:
FAT file system inspection and repair tool
exFAT(Optional) Both support Microsoft and Mac® OS file
system
File service CIFS protocol Provide shared services to files and
printers for clients on Microsoft Windows
Network
Samba service Provide shared services to files and
printers for clients on Microsoft Windows
Network and Unix-Like Network
DLNA Provide DLNA server (DMS)
HTTP(S) service OS A build-in browser which support
common operation system such as
Windows, Linux, Mac® OS and smart
terminal for easy management
WebDAV protocol Makes the Web a readable and writable
medium which allow users to edit and
manage documents and files stored on
World Wide Web servers
Access control Password protection A) WiFi access control:
None
WPA
WPA2
WPA&WPA2
B) WEB access control
Password login
C) Samba access control
Password login
Default security:
A) Authentication needed with
password 11111111
8
B) No authentication
C) No authentication
Network
Management
WiFi setting WiFi login history cache
WiFi auto login
A) Available wireless networks display
WAN side setting Static IP
Dynamic IP
PPPoE(PPTP)
3G
LAN side setting A) IP setting
B) Subnet mask setting
C) DHCP server setting
D) Default gateway setting
E) Default DNS setting
Application software Client A) Windows XP/2003/Vista/7/8, Linux,
Unix, Mac®
B) Android: tablet, smartphone
C) iOS: iPad®, iPhone®
D) WP: Window Phone
File Formats iOS Client A) Audio: Support formats of
MP3
、
AAC
、
m4a
、
wav
、
aiff
B) Video: Support formats of
AVI ,M4V,MKV,MP4,MPG,RMVB,RM,
WMV,3GP,MOV,TS
C) Photo: Support formats of jpg
、
tiff
、
bmp,gif(image)
D) Document: Support formats of
keynote
、
numbers
、
page
、
excel
、
word
、
pdf
、
txt
、
ppt
Android Client A) Audio: Support formats of MP3 only
at present
B) Video:
AVI ,M4V,MKV,MP4,MPG,RMVB,RM,
WMV,3GP,MOV,TS
C) Photo: Support formats of.jpg
、
.png
D) Document: Support formats of txt
、
word
、
excel
、
ppt and pdf
File&SystemManagerApp
Support remote access for controlling and documents accessing.
The main interface have Media sort by video,photo,music and documents
Support search function based on media type
9
File management interface supports list / thumbnail view , support pictures and
documents sharing
Support copy/delete/create function and support local/Wi-Fi Storage data transmission in
/between
Playing music/video/photos by iPhone®, iPad® and tablet and smartphone (JPG, mp3,
mp4, decoding ability more dependent on the system, file format depend on the player
software installed on you device, Power7 suggest to use RockPlayer/Mobo Player on the
Android and Oplayer/GoodPlayer on iOS).
Support the operation of long-pressing the file to invoke the third-party player
Support to play the photos by filmstrip mode and support background music playing
Support video drag and play
Support music artwork shows, circulation play set, drag operation
Support email to send out pictures/documents
Support network and device’s parameters setting
Transfer videos and photos from and to the iPhone®, iPad® to Stone
Support DLNA/ Chromecast and Airsplay(iOS only) for pushing screen to TV.
SystemRequirements
iPhone®, iPad®, smartphone, tablet or computer with Wi-Fi connectivity (802.11 b/g/n)
Mac® or PC computer running Windows 8,7, Windows Vista, Windows XP or Mac OS®
X 10.6.0 or later operating system for loading media on to Seabird via USB
ClientTools
Computer Client Tool
Auto search and access the Seabird on WLAN
Supports Windows XP/2003Vista/7 /8 and Mac® iOS operation system
Mobile Application Tool
Supports iOS (iPhone® and iPad®) and Android (smartphone and tablet)
Stream audios and videos and view photos from the Seabird
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
10
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement
This device complies with FCC SAR exposure limits set forth for an uncontrolled environment.
SAR compliance for using the equipment in close proximity to the human body has been
evaluated at 10mm.This equipment must not be co-located or operating in conjunction with
any other antenna or transmitter. End-users and installers must be provide with antenna
installation instructions and consider removing the no-collocation statement.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
Caution!
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
SeabirdontheBeach
Are you ready to have a completely relaxing vacation on the beach with Seabird?
11
USA OFFICE
World Headquarters
4601 E. Airport, Drive, Ontario, CA 91761, USA
http://www.power7tech.com
sales@power7tech.com
Tel: 909.230.6788 Fax: 909.230.6889
TAIWAN OFFICE
Power 7 Technology Corporation
5F-3, No.258, Liancheng Road, Zhonghe
District, New Taipei City 235, Taiwan(R.O.C.)
http://www.power7tech.com.tw
sales@power7tech.com.tw
Tel: 886.2.8227.1790 Fax: 886.2.8227.1026
CHINA OFFICE
Power 7 (Shenzhen)Technology Company, Ltd.
Building A, Zhangkeng Industry Zone, Minfu Road Minzhi
Village, Longhua Town, Baoan District Shenzhen, Guandong
Province PR, China
http:www.power7tech.com.cn
pm@power7tech.com.cn
Tel: 86.755.8886.8949 Fax: 86.755.8179.8032
