Users Manual

WirelessVideoTransmitter&Receiver

UserManual

ModelName：TTWM01

BrandName：TaoTronics 

FCCID:2ACIPTTWM



1. WirelessVideoTransmitter&Receiver



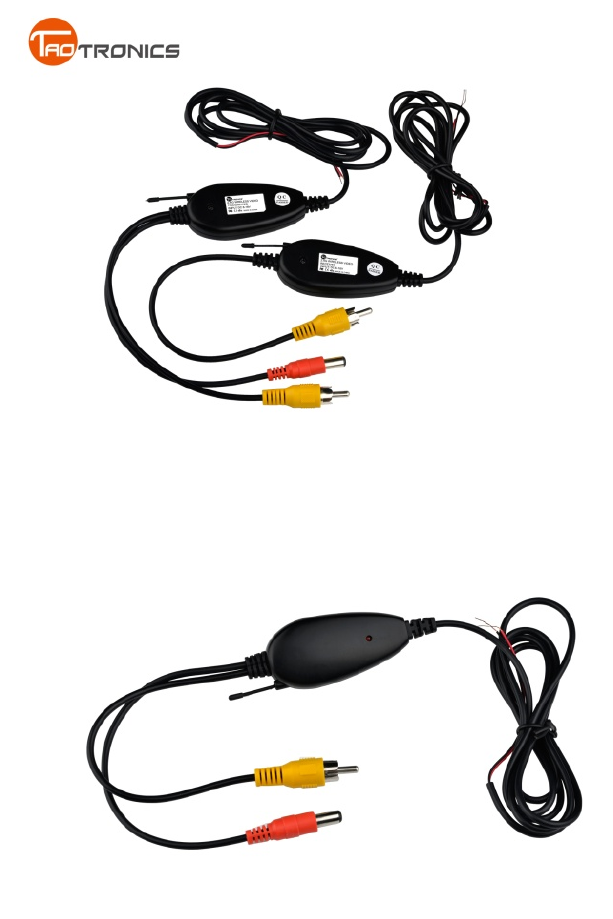

2. Transmitter



3. Receiver



4.Specifications

DC Characteristics

POWER SUPPLY 12.0V

Current Consumption 50mA , Max

Environmental Specification

Operating Temperature -10~+65 ºC

Storing Temperature -30~+85 ºC

Operating humidity 85%RH

Transmitting frequency 2414-2468MHz

Demodulationsystem FM/DLL

Video input impedance 75Ω, Typ.

Video input Level 1±0.2Vp-p

Video Polarity NEGATIVE

S/N 38dB, Min

Input port） RCA In

Dimension:61mm(L)*30mm(W)*14.5mm(H)



4. Aplication



5. FCCStatement

Thisdevicecomplieswithpart15oftheFCCrules.Operationissubjecttothefollowingtwo

conditions:

(1)thisdevicemaynotcauseharmfulinterference,and

(2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycauseundesired

operation.



ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,

pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotection

againstharmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates,usesandcan

radiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions,may

causeharmfulinterferencetoradiocommunications.However,thereisnoguaranteethat

interferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescauseharmful

interferencetoradioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoff

andon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowing

measures:



—Reorientorrelocatethereceivingantenna.

—Increasetheseparationbetweentheequipmentandreceiver.

—Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris

connected.

—Consultthedealeroranexperiencedradio/TVtechnicianforhelp.



Changesormodificationstothisunitnotexpresslyapprovedbythepartyresponsibleforcompliance

couldvoidtheuser’sauthoritytooperatetheequipment.



Importer:

ZBTInternationalTradingGmbH

Lederstr.21a

D‐22525Hamburg

Germany



Manufacture:

ShenzhenHetaiheElectronicsCo.,Ltd

4thfloor,newyongfengtianxinindustrialpark

Shenzhen,China
