Hootoo com TTSK40 Bluetooth speaker User Manual
Hootoo.com Inc. Bluetooth speaker Users Manual
UserMan
TAOTRONICS
TT-SK06 Bluetooth speaker User manual
Distinguished Customers,
Thank you for purchasing this Bluetooth speaker TT-SK06. Before getting started, please read the user's manual
carefully so as to ensure proper operation and optimized performance of this product. With stylish outer appearance,
compact structure, high fidelity sound and multi-functionality, it has obtained patents concerning its outer appearance
and adopted advanced electric and sound technology in the industry, ultimately making itself the best choice to hook
up with your devices such as tablet, cellphone and digital music player etc. perfectly by presenting you exceptional
stereo effect either you are at home, on vacation or at work.
I. Precautions
Please store and use this product at the ambient temperature;
Do not expose this product to the rain or damp surroundings;
Prevent this product from falling that could result in serious damage;
Do not dismantle, repair or modify this product on your own;
In order to avoid any risk, do not dispose this product inappropriately or toss it into the fire as there is a built-in
lithium battery.
II. Considerate Hints
1) Do not turn up the volume to a fair high level constantly as this could shorten the service life of this product or
impair your hearing;
2) When encountering any fault during operation, please cut off the power supply and disconnect the USB cable to
prevent further damage to the speaker or other components;
3) The Bluetooth transmission range or connectivity could be affected by low battery power. In that case, please
recharge immediately.

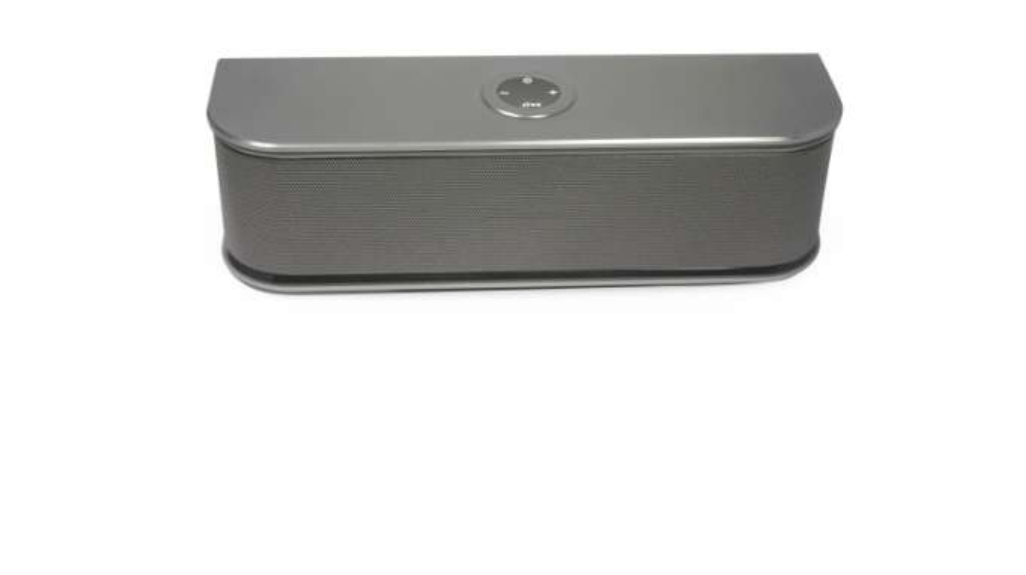

III. Outer Appearance and Function Buttons
/Upward: Press and hold the button to decrease volume, press is to select songs upwards while playing music.
/Downward: Press and hold the button to increase volume; press is to select songs downwards.
/：/play/pause/ Pick up the call/hang up the call: Press this button to pause, to resume normal operation or pick up
the incoming calls in the Bluetooth playback mode.
/： Power On and Off: Long Press to start after power supply is connected and long press to shut down in
operation.
IV: Product parameter
Model Number: TT-SK06
Bluetooth spec：Bluetooth 4.0
Transmission distance：≤10M
Power: DC 5V--500mA～1.5A
Battery: 2000mAh
Speaker standard： 8Ω、1.7inch
Frequencey response：90Hz-18KHz
Sensitivity：80db±2db
SNR：≥80dB
Distortion factor：≤0.3%
product standard：210x60x66MM
V.System composition:
1.speaker 1
2. USB charge cable 1
3． user manual 1
VI: Common function description
Power-on Status: Long press the Power Button to turn the speaker on and it beeps simultaneously with the blue
indicator Appear.
Bluetooth Connection: Once switched on, the speaker starts searching for other Bluetooth devices automatically and at
the same time, the bluetooth indicator goes on and off. When found a Bluetooth device, the
speaker prompts whether to pair up or not. If selected Yes, it pairs up with the device and
meanwhile, the blue indicator flashes slowly and a beep is also generated by the speaker. If
failed to detect any other Bluetooth device within 5minutes, the speaker will shut itself down.
Turn it back on again to start search. All the paired devices will engage in automatic connection
when the speaker is turned on.
Hints: Please recharge when the battery loses its power considerably or the connection is failed.
Bluetooth music playback: When connected, the speaker plays music immediately. Press and to select
tracks upwards or downwards. Press and hold and to adjust the volume.
While playing music, press to pause and to resume
Call Pick-up: After connected with the cellphone successfully, the speaker beeps when a call comes in. Press / to
pick it up and to terminate conversation, press / one more time.
Intelligent Quick Recharge: Recharge can be performed in the standby mode or power-off situation. Before recharging,
plug the mini-USB end of the supplied USB cable to the speaker's USB port and the other
end to the USB port of the computer or the USB recharger.
VII: Compatibility
Bluetooth V4.0 consists of protocols like A2DP, AVRCP and HFP and so on.
III. Touble shooting
Faults Phenomena
Solutions
Unable to pair up with other
devices
1. Check whether the speaker is still in the process of search or switch it off and then
on.
2. There are too many Bluetooth devices in the proximity that cause difficulty in
connection. Please turn them off.
The sound is rather low or distorted
1. Check the Bluetooth device’s volume and then adjust it to a proper level.
2. Recharge the battery
The music stops from time to time
1. Check whether the speaker’s effective transmission range is exceeded or there is
an obstacle standing between the speaker and other Bluetooth devices.
The Bluetooth indicator remains off
1. It suggests the battery power drops quite low and retry once being recharged.
2. Turn it on again.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment. This device complies with Part
15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
