USER MANUAL

IMPORTANT SAFETY REMINDERS

- 1-

This appliance should only be used for domestic cleaning, as

described in this user guide. Please ensure that this guide is

fully understood before operating the appliance.

Do not leave the appliance plugged in. Always switch off and

remove the plug from the socket after use, or before cleaning

the appliance or any maintenance task.

This appliance can be used by children aged from 8 years and

above and persons with reduced physical, sensory or mental

capabilities or lack of experience and knowledge if they have

been given supervision or instruction concerning use of the

appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user

maintenance shall not be made by children without supervision.

If the power cord is damaged stop using the appliance

immediately. To avoid a safety hazard, an authorised Hoover

service engineer must replace the power cord.

Keep hands, feet, loose clothing and hair away from rotating

brushes.

Use only attachments, consumables or spares recommended

or supplied by Hoover.

When using cleaning tools ensure that the appliance is kept in

the upright (parked) position. This will avoid possible damage

to the carpet or floor covering. When cleaning stairs, do not

position the appliance above you.

Static electricity: some carpets can cause a small build up

of static electricity. Any static discharge is not hazardous to

health.

Do not use your appliance out of doors or on any wet surface

or for wet pick up.

Do not pick up hard or sharp objects, matches, hot ashes,

cigarette ends or other similar items.

Do not spray with or pick up flammable liquids, cleaning fluids,

aerosols or their vapours.

Do not run over the power cord when using your appliance or

remove the plug by pulling on the power cord.

Do not continue to use your appliance if it appears faulty.

Hoover service: To ensure the continued safe and efficient

operation of this appliance we recommend that any servicing

or repairs are only carried out by an authorised Hoover service

engineer.

Do not stand on or wrap the cord around arms or legs when

using your appliance.

Do not use the appliance to clean animals or people.

When using the cleaning tools, ensure to always steady the

appliance with your other hand. This will ensure that the

appliance does not fall while in use.

WARNING: A thermal cut out switches off the appliance to prevent overheating

if it is used when full or there is a blockage or dirty filters. If this should

happen then switch off, unplug and correct the fault. It will take approximately

45 minutes for the cut out to automatically reset.

The Environment

The symbol on this appliance indicates that this appliance may not

be treated as household waste. Instead it must be handed over to the

applicable collection point for the recycling of electrical and electronic

equipment. Disposal must be carried out in accordance with local

environmental regulations for waste disposal. For more detailed

information about treatment, recovery and recycling of this appliance, please

contact your local city office, your household and waste disposal service or

the shop where you purchased the appliance.

This appliance complies with the European Directives 2006/95/EC,

2004/108/EC and 2011/65/EU.

HOOVER Limited, Pentrebach, Merthyr Tydfil, Mid Glamorgan, CF48 4TU, UK

This vacuum cleaner is supplied with an Energy

Label as required by European Regulation (EU)

665/2013.

(*Certain models only)

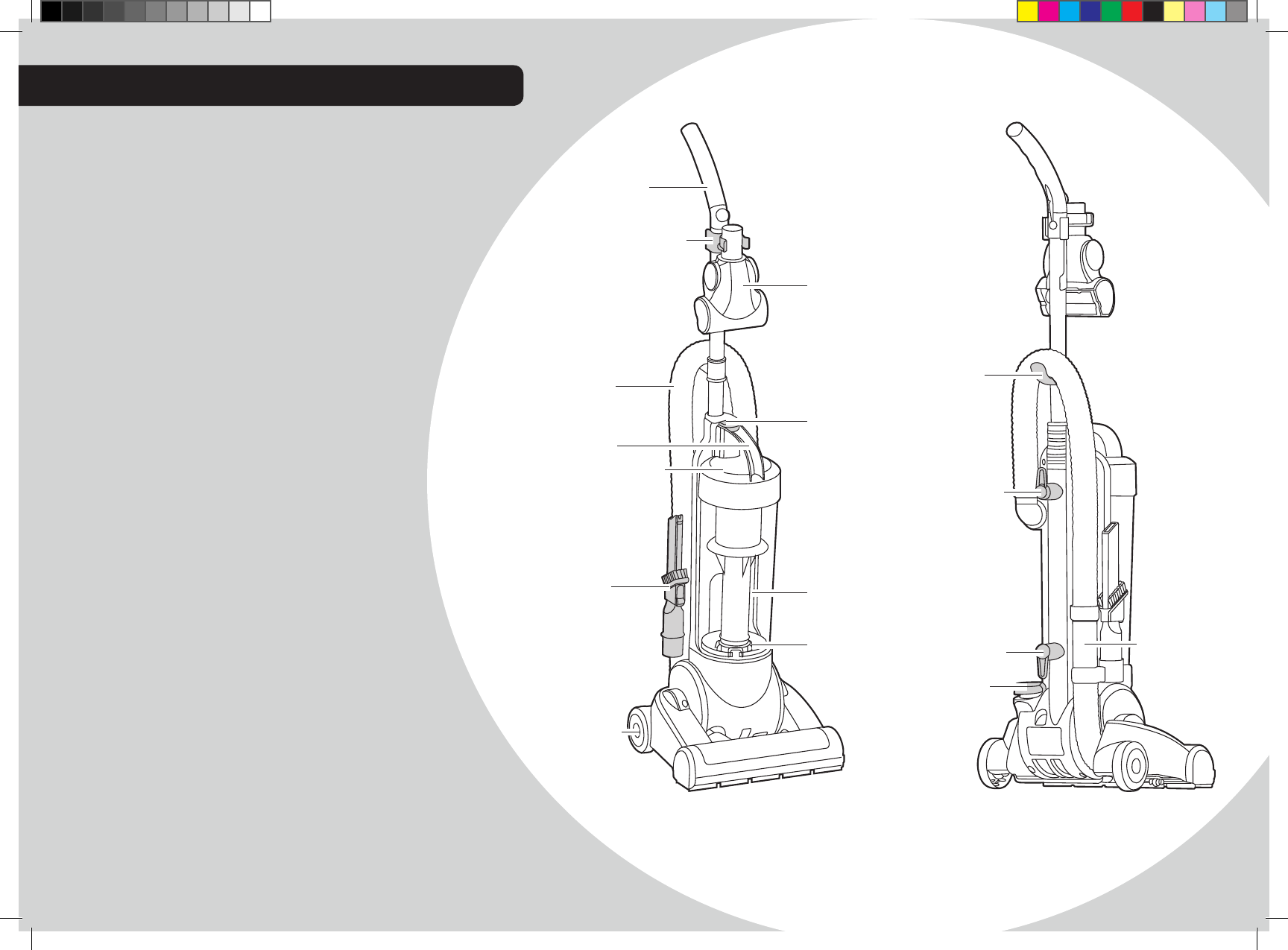

GETTING TO KNOW YOUR CLEANER

- 2 -

Effortless cleaning

with your new

Hoover

HANDLE

HOSE HOOK

CORD HOOK

CORD HOOK

HOSE

CONNECTOR

ON/ OFF BUTTON

BIN RELEASE

BUTTON

PET HAIR & ALLERGEN

REMOVER*

BIN

BIN BASE

PET HAIR & ALLERGEN

REMOVER HOLDER*

BIN HANDLE

BIN LID

HOSE

REAR WHEEL

CREVICE TOOL/

DUSTING BRUSH

- 3 -

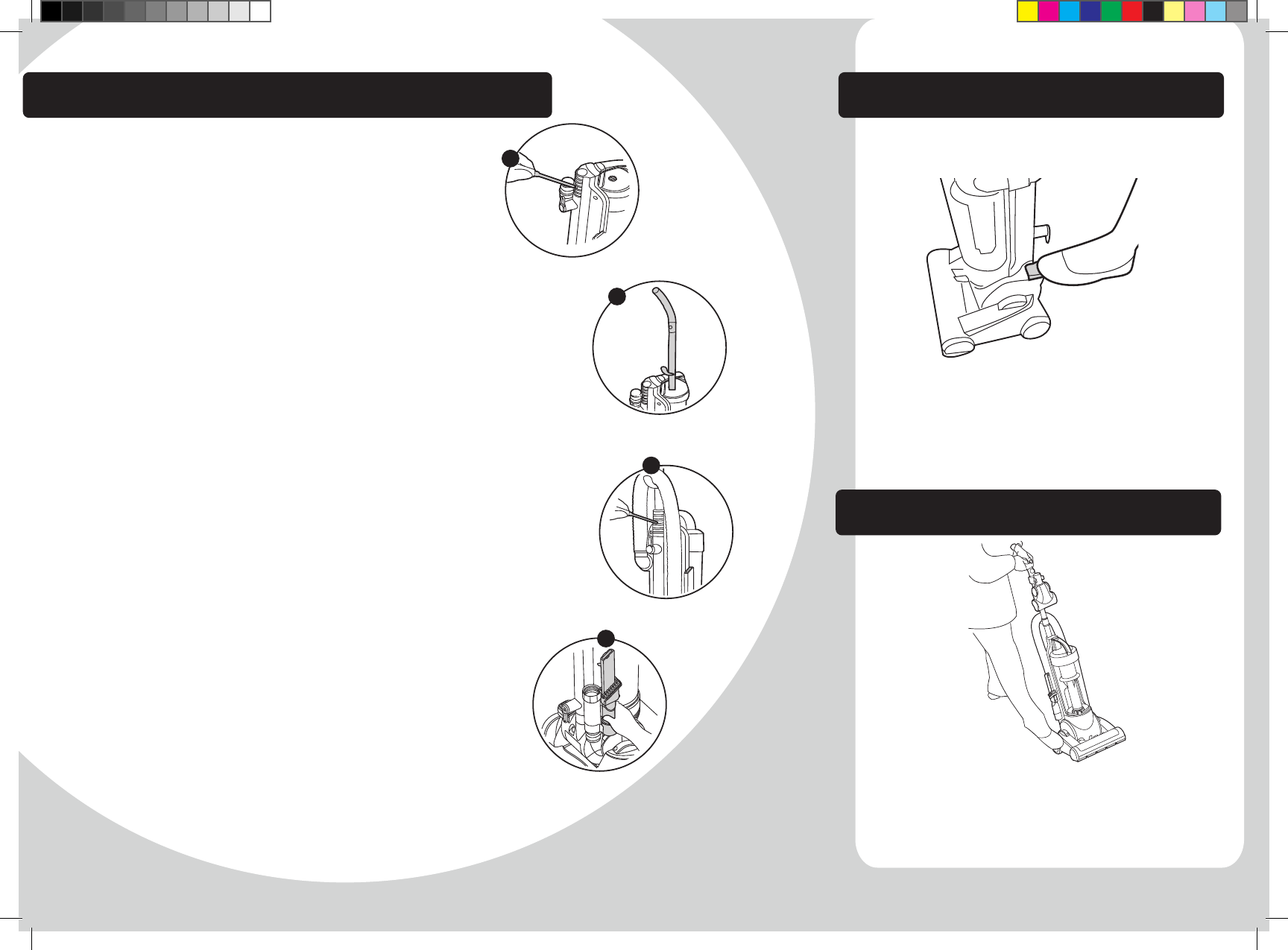

PREPARING TO USE YOUR CLEANER POWER SWITCh SETTING

CLEANER RELEASE

1. Using a cross head screw driver, remove the

screw from rear of the cleaner main body.

Switching on and off

1. Plug cord into an electrical outlet.

2.

Press the on /off switch to operate

cleaner.

2. Insert the handle into the main body of the cleaner.

3. Insert the screw through the handle and into the main

body, tighten securely.

4. Place the crevice tool /dusting brush into the

tool holder.

Unlock the cleaner by placing on the

foot on the hood and leaning the handle

backward. For cleaning under low

furniture simply lower handle to floor.

1

2

3

4

To remove the dust container

from the cleaner, press the

bin release button.

Hold the container over a

bin and push the easy open

button placed at the rear of

the dust container.

The dust container door will

open and you can empty with

no contact with dust.

(*Certain models only) - 4 -

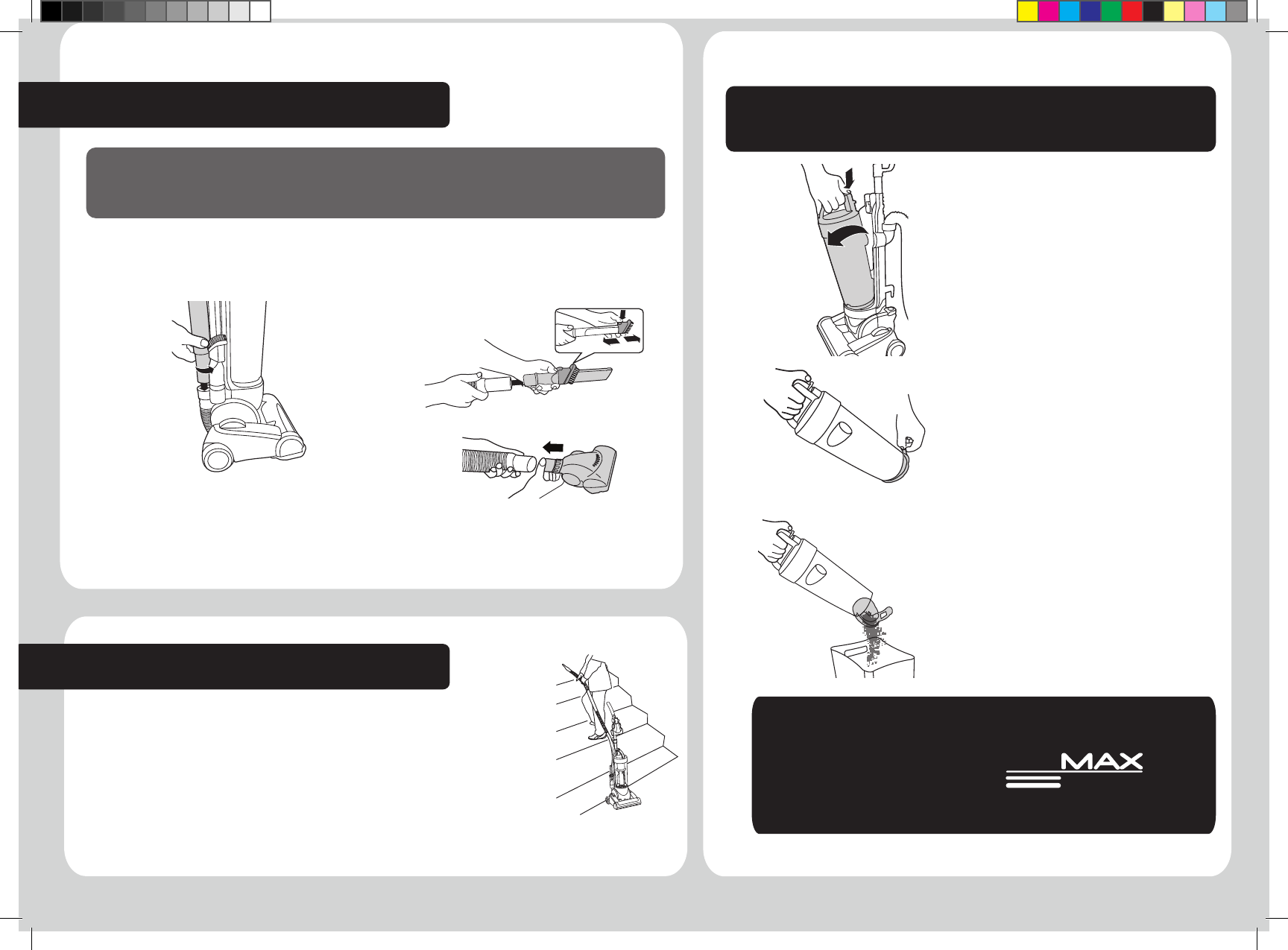

CLEANING TOOLS REMOvAL AND EMPTYING OF ThE

DUST CONTAINER

CLEANING ThE STAIRS

IMPORTANT: When using cleaning tools, the cleaner must be kept

in the upright position, particularly when cleaning stairs.

IMPORTANT: Do not fill above the MAX level

mark shown on the bin.

!

!

To Detach the cleaning

hose rotate the hose end

anti-clockwise and pull

upwards.

Attach crevice tool to the hose end connector.

To use the dusting brush function simply

press the button and slide to the end of

crevice tool .

Fit the Per Hair & Allergen Remover*

All accessories can fit on the end of the tube.

IT IS DANGEROUS TO PLACE THE CLEANER ABOVE

YOU WHEN CLEANING STAIRS.

ALWAYS work with the cleaner below you. Ensure it

is positioned up against the bottom step.

- 5 -

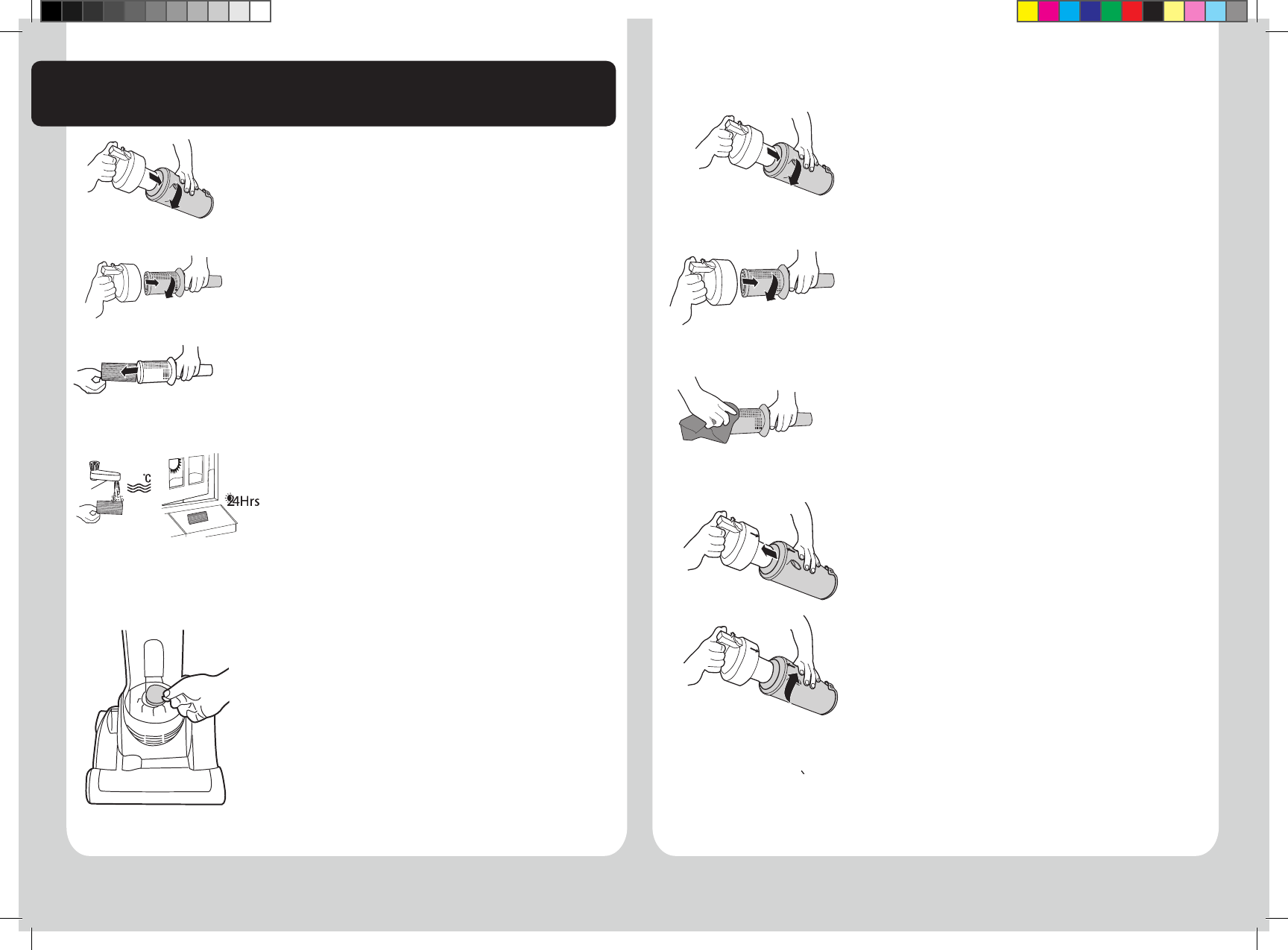

MAINTAINING ThE DUST CONTAINER AND FILTERS

( PERIODIC MAINTENANCE IS REQUIRED TO MAINTAIN OPTIMUM PERFORMANCE)

Remove the pre motor filter from inside

the separator and tap to remove any

excess dirt from the filter, it is also

recommended to clean the separator.

Once dirt is removed the filter can be

rinsed under the tap.

The pre-motor filter should be washed

after every five bin empties. Wash under

hand warm water. Remove excess water

and leave to dry for 24 hours.

When completely dry, refit the filter.

Cleaning the Exhaust Filter

Cleaning the Separator

Underneath the dust container you can

find the exhaust filter.

Lift to remove the exhaust filter.

Remove any dirt/debris by rinsing under

water(Max 40°C)

Leave to dry for 24 hours or until fully dry

before replacing back into the cleaner.

IMPORTANT: Do not operate your cleaner

without either the dust container or filters

in the right place.

Hold the container lid and rotate the

separator in an anti-clockwise direction

to release.

Turn the dust container lid anti-

clockwise to unlock and lift to take

out.

Turn the separator anti-clockwise

to remove from the dust container

lid.

Tap separator over a bin to

remove any dirt/debris.

Using a soft brush clean any dirt/

debris out of the separator.

Refit the container top.

Please pay attention to alignment

tab.

Twist the top part of the container

whilst holding the lower part to

lock together.

Remove the dust container as described

on the previous page.

Hold the dust container lid and with the

other hand rotate the container in a anti-

clockwise direction to release.

<40

<40

<40

<40

<40

<40

<40

<40

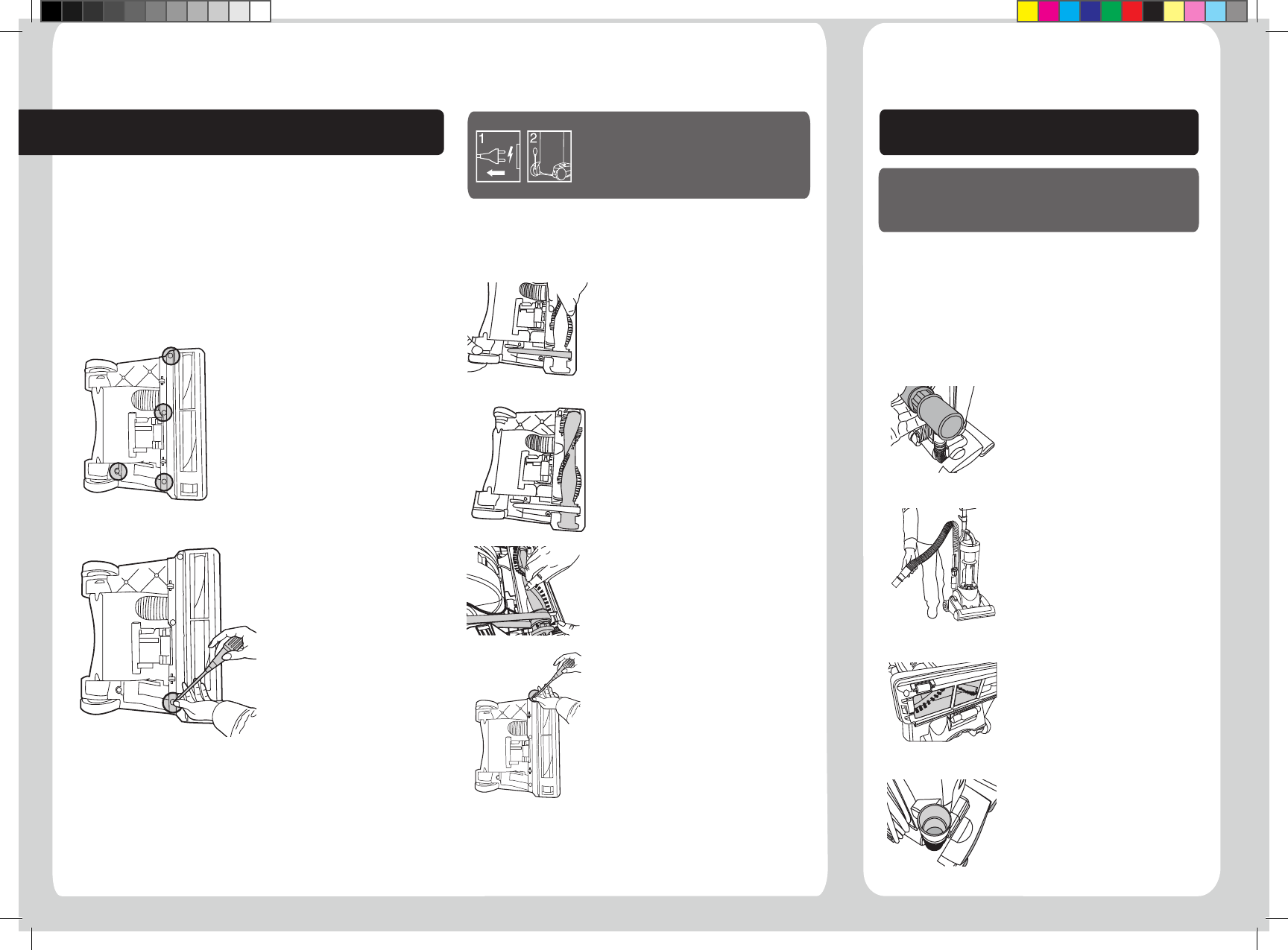

ChANGING ThE bELT OR bRUSh

CLEARING A bLOCKAGE

If your cleaner is not picking up efficiently, the

belt or brush (or both) may need replacing, but

first make sure you have:

• Emptied the dust container

• Cleaned the filters

• Checked for blockages

Turn the machine over.

Locate the four screws as

shown opposite.

This cleaner is unlikely to become

blocked, except by overfilling of dust

container or accidentally picking

up large solid objects. Cleaning a

blockage is simple.

If cleaning tools were

in use, check cleaning

tool. Next check hose

handgrip.

Turn the cleaner ON

and stretch the hose to

its full length.

Check that the brushes

are free of debris and

can rotate.

Check for a blockage

in the hose socket.

Replace belt

Remove the old belt then

locate the new belt around

the motor spindle and the

brush. Locate the right

hand of the brush into the

cleaner housing .

Hold the brush assembly

and stretch the belt until

brush mountings slot down

into the cleaner housing.

Rotate the brush to

ensure free movement of

the belt.

Replace opposite

Refit sole plate opposite

secure with screws.

Remove the screws

completely.

Remove foot plate

!

- 6 -

IM PO RTA NT: Switch cleaner off

and remove plug from electricity

supply before checking the

brushes or removing hood. IM PO R TA NT: Switch the cleaner off and

remove the plug from electricity supply

before dismantling cleaning.

- 7 -

User checklist

If your cleaner is not working properly run through the following checklist.

1 .Is there a working electricity supply to the cleaner? Check with another

electrical product.

2. Is the dust container full or choked with fine dust? To empty the dust container

sec the instructions on page 5/6.

3. Is the hose blocked? To clear a blockage, see the instructions on page 6.

4. Is there a blockage in the cleaner base? To clear a blockage, see the

instructions on page 6.

5. Are the filters blocked? To clear the fitters, see the instructions on page 5.

6. Are the brushes rotating correctly? To check the brushes, see the instructions

on page 6.

7. Has the cleaner overheated? If so, it will take about 45 minutes to reset itself.

If there is any doubt call the Hoover Service Office for advice. They may be able

to assist you over the telephone. A service charge will be made if the cleaner is

examined and found to be in

Working order, has not been assembled in accordance with these instructions or

has been used incorrectly.

WARNING!

A thermal cut out switches off the cleaner to prevent overheating if it is used when

full or there is a blockage or dirty filters. If this should happen switch off, unplug and

correct the fault.

It will take about 45 minutes for the cut out to automatically reset.

IMPORTANT: Do not run cleaner over the supply cord as this could damage the

supply cord insulation.

IMPORTANT INFORMATION

Hoover Service

Should you require service at any time, please contact your local Hoover Service

Ofce.

Hoover spares and Consumables

Always replace parts with genuine Hoover spares. These are available from your local

Hoover dealer or direct from Hoover. When ordering parts always quote your model

number.

USE ONLY HOOVER SPARES

SPARE PARTS & CONSUMABLES CODE

FILTERS KIT U76 - 35601699

HOSE D156 - 35601698

AGITATOR Y36 - 35601697

BELT V37 - 35601700

PET HAIR & ALLERGEN REMOVER J44 - 35601064

Quality

Hoover’s factories have been independently assessed for quality. Our products

are made using a quality system which meets the requirements of ISO 9001

GUARANTEE STATEMENT

The guarantee conditions for this appliance are as defined by our representative

in the country in which it is sold. Details regarding these conditions can be

obtained from the dealer from whom the appliance was purchased. The bill of

sale or receipt must be produced when making any claim under the terms of this

guarantee.

Subject to change without notice.

Hoover Limited

Pentrebach

Merthyr Tydl

Mid Glamorgan

CF48 4TU

HOOVER CUSTOMER HELPINE

03444 995599

© 2015 48017172/01
