EN
!
2
Thank-you for choosing a Hoover washing
machine. We are proud to always offer
new, innovative and technologically
advanced products, with a complete range
of home appliances to ensure true
assistance in your daily routine.
We suggest you register your product at
www.registerhoover.com to gain faster
access to supplementary services solely
reserved to our most loyal customers.
Carefully read this manual for correct and
safe appliance use and for helpful tips on
efficient maintenance.
Only use the washing machine
after carefully reading these instructions.
We recommend you always keep this
manual on hand and in good conditions for
any future owners.
Please check that the appliance is
delivered with this instruction manual,
warranty certificate, service centre address
and energy efficiency label. Also check that
plugs, curve for drain hose and liquid
detergent or bleach tray (only on some
models) are included. We recommend you
keep all these components.
Each product is identified by a unique 16-
character code, also called the “serial
number”, printed on the sticker affixed to
the appliance (porthole area) or in the
document envelope found inside the
product. This code is a sort of specific
product ID card that you will need to
register it and should you need to contact
the Hoover Customer Service Centre.
This appliance is marked according to
the European directive 2012/19/EU
on Waste Electrical and Electronic
Equipment (WEEE).
Environmental conditions
Contents
!
EN
3
1. GENERAL SAFETY
RULES
! This appliances is intended to be
used in household and similar
applications such as:
- Staff kitchen areas in shops, offices
and other working environments;
- Farm houses;
- By clients in hotels, motels and
other residential type environments;
- Bed and breakfast type environments.
A different use of this appliance
from household environment or
from typical housekeeping
functions, as commercial use by
expert or trained users, is
excluded even in the above
applications. If the appliance is
used in a manner inconsistent with
this it may reduce the life of the
appliance and may void the
manufacturer’s warranty. Any
damage to the appliance or other
damage or loss arising through
use that is not consistent with
domestic or household use (even if
located in a domestic or household
environment) shall not be
accepted by the manufacturer to
the fullest extent permitted by law.
! This appliance can be used by
children aged from 8 years and
above and persons with reduced
physical, sensory or mental
capabilities or lack of experience
and knowledge if they have been
given supervision or instruction
concerning use of the appliance in a
safe way and understand the
hazards involved.
Children shall not play with the
appliance. Cleaning and user
maintenance shall not be made by
children without supervision.
! Children should be supervised to
ensure that they do not play with
the appliance.
! Children of less than 3 years
should be kept away unless
continuously supervised.
! If the supply cord is damaged, it
must be replaced by the
manufacturer, its service agent or
similarly qualified persons in order to
avoid a hazard.
! Only use the hose-sets supplied
with the appliance for the water
supply connection (do not reuse
old hose-sets).
! Water pressure must be between
0,05 MPa and 0,8 MPa.
! Make sure that a carpet do not
obstruct the base of the machine
and ventilation openings.
!
The OFF condition is reached by
placing the reference mark on the
programmes control/knob in the
vertical position. Any other different
position of such control sets the
machine in ON condition (only for
models with programmes knob).
! After installation, the appliance
must be positioned so that the
plug is accessible.
! The maximum load capacity of
dry clothes depends on the model
used (see control panel).
!
4
! To consult the product fiche please
refer to the manufacturer website.
! Before cleaning or maintaining the
washing machine, unplug the
appliance and turn off the water
faucet.
! Make sure the electrical system is
grounded. Otherwise, seek qualified
professional assistance.
! Please do not use converters,
multiple sockets or extension
cords.
! Make sure there is no water in the
drum before opening the porthole.
! Do not pull on the power cord or
appliance to unplug the machine.
! Do not expose the washing
machine to rain, direct sunlight or
other weather elements.
! When moving, do not lift the
washing machine by the knobs or
detergent drawer; during transport,
never rest the porthole on the
trolley. We recommend two people
lift the washing machine.
! In the event of fault and/or
malfunction, turn off the washing
machine, close the water faucet
and do not tamper with the
appliance.
Immediately contact the Customer
Service Centre and only use
original spare parts. Failure to
observe these instruction may
jeopardise appliance safety.
Appliance complies with
European Directives:
! 2006/95/EC (LVD);
! 2004/108/EC (EMC);
! 2009/125/EC (ErP);
! 2011/65/EU (RoHS)
and subsequent amendments.
Safety instructions
WARNING:
water may reach very high
temperatures during the wash
cycle.
!
EN
5
2. INSTALLATION
! Cut the tube straps, being careful
not to damage the tube and
power cord.
! Unscrew the 2 or 4 screws (A) on
the back and remove the 2 or 4
shims (B) as illustrated in figure
1.
! Close the 2 or 4 holes using the
plugs included in the instruction
envelope.
! If the washing machine is built-in,
after cutting the hose straps,
unscrew the 3 or 4 screws (A)
and remove the 3 or 4 shims (B).
! In some models, 1 or more
shims will fall inside the machine:
tilt the washing machine forward
to remove them. Close the holes
using the plugs found in the
envelope.
! Place the polionda sheet on the
bottom as shown in figure 2
(according to the model, consider
version A, B or C).
WARNING:
keep packaging materials away
from children.
!
6
! Connect the water tube to the faucet, only
using the drain tube supplied with the
washing machine (fig. 3).
DO NOT OPEN THE FAUCET.
! Some models may include one or more of
the following features:
! HOT&COLD (fig. 4):
water mains connection settings with hot
and cold water for higher energy savings.
Connect the grey tube to the cold water
faucet and the red one to the hot water
faucet. The machine can be connected to
the cold water faucet only: in this case,
some programs may start a few minutes
later.
! AQUASTOP (fig. 5):
a device located on the supply tube that
stops water flow if the tube deteriorates;
in this case, a red mark will appear in the
window “A” and the tube must be
replaced. To unscrew the nut, press the
one-way lock device "B".
! AQUAPROTECT – SUPPLY TUBE WITH
GUARD (fig. 6):
Should water leak from the primary
internal tube "A", the transparent
containment sheath "B" will contain water
to permit the washing cycle to complete.
At the end of the cycle, contact the
Customer Service Centre to replace the
supply tube.
! Near the washing machine to the wall,
being careful that the tube is not bent or
crushed, and place the drain tube in the
tub or, preferably, connect it to a wall
drain at least 50 cm high with diameter
greater than the washing machine tube
(fig. 7).
3
1
4
B
A
5
B
A
6
min 50 cm
max 85 cm
+2,6 mt
max
max 100 cm
min 4 cm
Hydraulic connections
Setting
!
EN
7
! Level the appliance using the feet as
illustrated in figure 8:
a. turn the nut clockwise to release the
screw;
b. rotate the foot to raise or lower it until it
adheres to the floor;
c. lock the foot, screwing in the nut, until it
adheres to the bottom of the washing
machine.
! Plug in the appliance.
The detergent draw is split into 3
compartments as illustrated in figure 9:
! compartment "1": for prewash detergent;
! compartment “ ”: for special additives,
softeners, starch fragrances, etc.;
! compartment "2": for washing detergent.
A liquid detergent cup is also included in
some models (fig. 10). To use it, place it in
compartment "2". This way, liquid
detergent will only enter the drum at the
right time. The cup can also be used for
bleach when the “Rinse” program is
selected.
WARNING:
contact the Customer Service Centre
should the power cord need
replacement.
Detergent drawer
WARNING:
only use liquid products; the washing
machine is set to automatically dose
additives at each cycle during the last
rinse.
WARNING:
some detergents are hard to remove.
In this case we recommend using the
specific container to be placed in the
drum (example in figure 11).
!
8
3. PRACTICAL TIPS
WARNING: when sorting laundry, make
sure:
- have eliminated metallic objects such as
barrettes, pins, coins, from laundry;
- to have buttoned pillow cases, closed
zips, tied loose belts and long robe
ribbons;
- to have removed rollers from curtains;
- to have carefully read clothing washing
labels;
- to have removed any persistent stains
using specific detergents.
! When washing rugs, bedcovers or other
heavy clothing, we recommend you avoid
centrifuging.
! To wash wool, make sure the item can be
machine washed and marked by the
“Pure virgin wool” symbol with the “Does
not mat” or “Machine washable” label.
A guide environmentally friendly and
economic use of your appliance.
Maximise The Load Size
! Achieve the best use of energy, water,
detergent and time by using the
recommended maximum load size.
Save up to 50% energy by washing a full
load instead of 2 half loads.
Do you need to pre-wash?
! For heavily soiled laundry only!
SAVE detergent, time, water and
between 5 to 15% energy consumption
by NOT selecting Prewash for slight to
normally soiled laundry.
Is a hot wash required?
! Pretreat stains with stain remover or soak
dried in stains in water before washing to
reduce the necessity of a hot wash
programme.
Save up to 50% energy by using a 60°C
wash programme.
Following is a quick guide with tips and
recommendations on detergent use at the
various temperatures. In any case, always
read the instructions on the detergent for
correct use and doses.
Load tips
Helpful suggestions for the user
When washing heavily soiled whites,
we recommend using cotton
programs of 60°C or above and a
normal washing powder (heavy duty)
that contains bleaching agents that at
medium/high temperatures provide
excellent results.
For washes between 40°C and 60°C
the type of detergent used needs to be
appropriate for the type of fabric and
level of soiling.
Normal powders are suitable for “white”
or colour fast fabrics with high soiling,
while liquid detergents or “colour
protecting” powders are suitable for
coloured fabrics with light levels of
soiling.
For washing at temperatures below
40°C we recommend the use of liquid
detergents or detergents specifically
labeled as suitable for low temperature
washing.
For washing wool or silk, only use
detergents specifically formulated for
these fabrics.
!
EN
9
4. MAINTENANCE AND
CLEANING
To clean the washing machine exterior, use
a damp cloth, avoiding abrasives, alcohol
and/or solvents. The washing machine does
not require any special care for ordinary
cleaning: clean drawer compartments and
the filter; some tips on how to move the
machine or on long periods of disuse are
provided below.
! We recommend you clean the drawer to
avoid accumulating detergent and
additive residue.
! To do this, extract the drawer using slight
force, clean it with running water and
reinsert it in its housing.
! The washing machine comes with a
special filter able to trap large residue,
such as buttons or coins, which could
clog the drain.
! Only available on certain models: pull out
the corrugated hose, remove the stopper
and drain the water into a container.
! Before unscrewing the filter, we
recommend you place an absorbent cloth
under it to keep the floor dry.
! Turn the filter counter-clockwise to the
limit stop in the vertical position.
! Remove and clean the filter; when
finished, replace it turning it clockwise.
! Repeat the previous steps in reverse
order to reassemble all parts.
! Should the washing machine be stored in
an unheated room for a long period of
time, drain all water from tubes.
! Unplug the washing machine.
! Detach the tube from the strap and lower
it, fully draining water into a bowl.
! Secure the drain tube with the strap when
finished.
Drawer cleaning
Filter cleaning
Suggestions for moves or
prolonged disuse
!
10
5. QUICK USER GUIDE
This washing machine automatically adapts
the level of the water to the type and
quantity of washing. This system gives a
decrease in energy consumption and a
sensible reduction in washing times.
! Turn on the washing machine and select
the required program.
! Adjust the washing temperature if
necessary and press the required "option"
buttons.
! Press the START/PAUSE button to start
washing.
Should power go out when the washing
machine is running, a special memory
saves the settings and, when power
returns, the machine resumes the cycle
from where it left off.
! The message "end" will appear on the
display or the corresponding led will turn
on at the end of the program.
! Turn off the washing machine.
For any type of wash, see the program
table and follow the operating sequence
as indicated.
Water pressure:
min 0,05 Mpa
max 0,8 Mpa
Spin r.p.m.:
See rating plate.
Power input / Power current fuse amp /
Supply voltage:
See rating plate.
6. CONTROLS AND
PROGRAMS
B
DCEFGHI
M
L
A
Programme selector with OFF
position
B
START/PAUSE button
C
SPIN SPEED button
D
TEMPERATURE SELECTION
button
E
DELAY START button
F
WASH TIME button
G
EXTRA RINSE button
H
OPTIONS button
I
EASY IRON button
L
Digital display
M
DOOR LOCKED indicator light
Program selection
Wait until the porthole locked light
turns off: about 2 minutes after the
program ends.
Technical data
!
EN
11
! Press the START/PAUSE button to start
the selected cycle.
! Once a programme is selected the
programme selector remains stationary on
the selected programme till cycle ends.
! Switch off the washing machine by
turning the selector to OFF.
! Press to start the selected cycle.
ADD OR REMOVE ITEMS AFTER THE
PROGRAMMES HAS STARTED (PAUSE)
! Press and hold the START/PAUSE
button for about 2 seconds (some
indicator light and the time remaining
indicator will flash, showing that the
machine has been paused).
! Wait 2 minutes until the safety device
unlocks the door.
! After you have added or removed items,
close the door and press the
START/PAUSE button (the programme
will start from where it left off).
CANCELLING THE PROGRAMME
! To cancel the programme, set the
selector to the OFF position.
WARNING:
Don’t touch the display while inserting
the plug because the machines
calibrates the systems during the first
seconds: touching the display, the
machine couldn’t work property. In
this case, remove the plug and repeat
the operation.
Opening the door
A special safety device prevents the
door from being opened immediately
after the end of the cycle.
Wait for 2 minutes after the wash
cycle has finished and the "Door
Security" light has gone out before
opening the door.
PROGRAMME selector with OFF
position
When the programme selector is turned
the display lights up to show the settings
for the programme selected.
For energy saving, at the end of the
cycle or with an inactivity period, the
display level contrast will decrease.
N.B.: To switch the machine off, turn the
programme selector to the OFF
position.
The programme selector must be
returned to the OFF position at the end
of each cycle or when starting a
subsequent wash cycle prior to the next
programme being selected and started.
START/PAUSE button
Close the door BEFORE selecting the
button START/PAUSE.
When the START/PAUSE button has
been pressed, the appliance can take
few seconds before it starts working.
!
12
! By pressing this button, it is possible to
reduce the maximum speed, and if you
wish, the spin cycle can be cancelled.
! To reactivate the spin cycle press the button
until you reach the spin speed you would
like to set.
! It is possible to modify the spin speed
without pausing the machine.
! This button allows you to change the
temperature of the wash cycles.
! It is not possible to raise the temperature
over the maximum allowed for every
programme, in order to save the fabrics.
! This button allows you to pre-programme
the wash cycle to delay the start of the
cycle for up to 24 hours.
! To delay the start use the following
procedure:
- Set the required programme.
- Press the button once to activate it (h00
appears on the display) and then press
it again to set a 1 hour delay (h01
appears on the display). The pre-set
delay increases by 1 hour each time the
button is pressed, until h24 appears on
the display, at which point pressing the
button again will reset the delay start to
zero.
- Confirm by pressing the START/PAUSE
button (the light on the display starts to
flash). The countdown will begin and
when it has finished the programme will
start automatically.
! It is possible to cancel the delay start by
turning the programme selector to OFF.
If there is any break in the power supply
while the machine is operating, a special
memory stores the selected programme
and, when the power is restored, it
continues where it left OFF
The option buttons should be selected
before pressing the START/PAUSE
button.
If an option is selected that is
not compatible with the selected
programme then the option indicator
first flashes and then goes off.
SPIN SPEED button
To prevent damage to the fabrics, it is
not possible to increase the speed
over that which is automatically
suitable during the selection of the
program.
The machine is fitted with a special
electronic device, which prevents the
spin cycle should the load be
unbalanced.
This reduces the noise and vibration in
the machine and so prolongs the life of
your machine.
TEMPERATURE SELECTION button
DELAY START button
!
EN
13

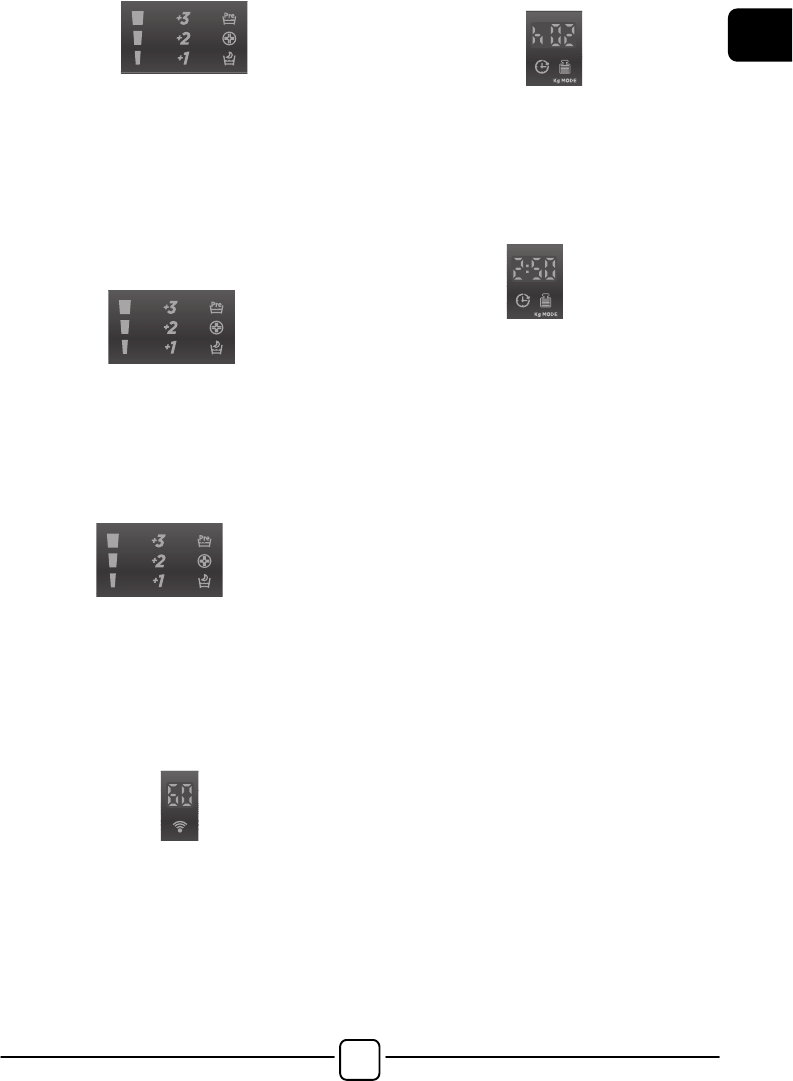

! By selecting this button there is a choice
of 3 levels of wash intensity, depending
on how much the fabrics are soiled (can
be used only on some programmes as
shown in the table of programmes).
! Once the programme has been selected
the indicator light will automatically show
the wash time set for that programme.
! Selecting a different wash time the
relevant indicator will light up.
! This button allows you to add rinses at
the end of the washing cycle. The
maximum number of extra rinses is
related to the programme selected.
! This function has been studied for the
people with delicate and sensitive skin,
for which also a least residue of detergent
can cause irritations or allergies.
! It advises to also use this function for the
children items and in case of washings of
very dirty items, for which it is due to use
a lot of detergent, or in the washing of
toweling items whose fibres mostly have
the tendency to hold the detergent.
You can choose between three different
options:
- PREWASH
! This option allows you to make a prewash
and it is particularly useful for heavily
soiled loads (can be used only on some
programmes as shown in the table of
programmes).
! We recommend you use only 20% of the
recommended quantities shown on the
detergent pack.
- HYGIENE PLUS
! With this option it is possible to hygienize
the clothes, the washing programme
reach a temperature of 60°C.
- NIGHT & DAY
! This option reduces the intermediate spin
speed to 400 rpm, where applicable,
increase the water level during rinsing and
keep the laundry immersed in water after the
final rinse, in order to spread the fibre
sevenly.
! During the phase in which the water is
held in the tub, the relevant indicator light
blink to show that the machine is at a
standstill.
! Deselect the option to end the cycle with a
spin dry (which may be reduced or cancelled
using the appropriate button) and emptying
phase.
! Thanks to electronic control, the water
in the intermediate phases is emptied
silently, making this option very useful for
washing at night.
This function allows you to minimizes
creases as much as possible, eliminating
the intermediate spins or reducing the
intensity of the last one.
WASH TIME button
EXTRA RINSE button
OPTIONS button
EASY IRON button
!
14
The display’s indicator system allows you to
be constantly informed about the status of
the machine.
1) DOOR LOCKED INDICATOR LIGHT
1
! The indicator light is illuminated when the
door is fully closed.
! When START/PAUSE is pressed on
the machine with the door closed, the
indicator will flash momentarily and then
illuminate.
! A special safety device prevents the door
from being opened immediately after the
end of the cycle. Wait for 2 minutes after
the wash cycle has finished and the
DOOR LOCKED light has gone out before
opening the door. At the end of the cycle
turn the programme selector to OFF.
2) SPIN SPEED
2
This show the spin speed of the selected
programme that can be changed or omitted
by the relevant button.
3) WASH TEMPERATURE
3
This show the washing temperature of the
selected programme that can be changed
(where allowed) by the relevant button.
4) CYCLE DURATION
4
! When a programme is selected the
display automatically shows the cycle
duration, which can vary, depending on
the options selected.
! Once the programme has started you will
be kept informed constantly of the time
remaining to the end of the wash.
! The appliance calculates the time to the
end of the selected programme based
upon a standard loading, during the cycle,
the appliance corrects the time to that
applicable to the size and composition of
the load.
Digital Display
Close the door BEFORE selecting the
START/PAUSE button.
If the door is not properly closed,
the light will continue to flash for
about 7 seconds, after which the
start command will be automatically
delete. In this case, close the door
in the proper way and press the
START/PAUSE button.
!
EN
15
5) WASH TIME
{
5
! Once the programme has been selected
the indicator light will automatically show
the wash time set for that programme.
! Selecting a different wash time the
relevant indicator will light up.
6) EXTRA RINSES
{
6
The indicator lights show the extra rinses
selected by the relevant button.
7) OPTIONS
}
7
The indicator lights show the option
that can be selected by the relevant
button (PREWASH, HYGIENE PLUS and
NIGHT & DAY).
8) WI-FI (some models only)
8
! In the models with the Wi-Fi option, the
icon indicates that the Wi-Fi system is
working.
! For all other information in the Wi-Fi
system, there is a specific manual inside
the machine.
9) DELAY START
9
This flashes when delay start has been set.
10) Kg MODE (function active only on
Cotton and Synthetics programmes)
10
! During the first minutes of the cycle, the
"Kg MODE" indicator remain on while the
intelligent sensor will weigh the laundry
and adjust the cycle time, water and
electricity consumption accordingly.
! Through every wash phase "Kg MODE"
allows to monitor information on the wash
load in the drum and in the first minutes
of the wash it:
- adjusts the amount of water required;
- determines the length of the wash cycle;
- controls rinsing according to the type of
fabric selected to be washed it;
- adjusts the rhythm of drum rotation for
the type of fabric being washed;
- recognizes the presence of lather,
increasing, if necessary, the amount of
water during rinsing;
- adjusts the spin speed according to the
load, thus avoiding any imbalance.
!
16
2
1
PROGRAM
kg*
(MAX.)
TEMP.°C
DETERGENT
Recommended
Max.
2
1
All in One 20°C
5,5
6
6,5
7
20°
20°
All Baby 60°C
5,5
6
6,5
7
60°
60°
All in One 59 Min.
8
9
10
11
40°
40°
Rapid 30 Min.
2,5
2,5
2,5
2,5
30°
30°
Rapid 14 Min.
1,5
1,5
1,5
1,5
30°
30°
Dark Colours
4
4,5
5
5,5
40°
40°
( )
Auto Clean
Rinse
-
-
-
-
-
-
Drain & Spin
-
-
-
-
-
-
Shirts
1)
4
4,5
5
5,5
30°
30°
( )
Lingerie
1)
2,5
2,5
3
3
40°
60°
Wool & Silk
2
2
2
2
30°
30°
Delicates
2,5
2,5
2,5
2,5
40°
40°
Mixed
1)
4
4,5
5
5,5
40°
60°
( )
**
1)
8
9
10
11
40°
90°
( )
Table of programmes
!
EN
17
( )
Only with PREWASH option
selected (programmes with
PREWASH option available).
(Only for models with liquid
detergent compartment)
When only a limited number of
articles have stains which require
treatment with liquid bleaching
agents, preliminary removal of
stain can be carried out in the
washing machine.
Pour the bleach into the liquid
bleach container, inserted into the
compartment marked "2" in the
detergent drawer, and set the
special programme RINSE.
When this phase has terminated,
turn the programme selector on
the OFF position, add the rest of
the fabrics and proceed with a
normal wash on the most suitable
programme.
1)
For the programmes shown you
can adjust the duration and
intensity of the wash using the
WASH TIME button.
** STANDARD COTTON PROGRAMMES
ACCORDING TO (EU) No 1015/2010 and
No 1061/2010.
COTTON PROGRAMME WITH A
TEMPERATURE OF 60°C.
COTTON PROGRAMME WITH A
TEMPERATURE OF 40°C.
These programmes are suitable to
clean normally soiled cotton laundry and
they are the most efficient programmes
in terms of combined energy and water
consumptions for washing cotton
laundry.
These programmes have been
developed to be compliant with the
temperature on the wash label on the
garments and the actual water
temperature may slightly differ from the
declared temperature of the cycle.
!
18
To clean different types of fabrics and
various levels of dirt, the washing machine
has specific programs to meet every need
of washing (see table of programmes).
ALL IN ONE technology
This washing machine is equipped with an
innovative system with an high pressure jet
that sprays a mixture of water and
detergent directly into the load.
The special motor movement used in this
machine manages the drum movement
during the start up of each programme, in
conjunction with the high pressure jet
spraying the detergent mixture into the load,
the cycle includes a set of spin actions that
helps the detergent solution to penetrate
into the fibers, helping dirt removal and
ensuring the best available wash
performance.
The ALL IN ONE system is also used
during the water load phases where the
high pressure jet aids the complete removal
of detergent residues trapped in the clothes
All In One 20°C
Thanks to ALL IN ONE technology, this
innovative programme, allows you to wash
fabrics such as cottons, synthetics and
mixed fabrics at 20°C with a performance
which is comparable to a 40°C wash.
The consumption of this program is about
50% of a conventional 40°C. Cottons wash.
IMPORTANT WASH PERFORMANCE
ADVICE:
! New, coloured garments should be
washed separately for at least 5 or 6
washes.
! Certain large dark items such as jeans
and towels should always be washed
separately.
! Never mix NON COLOURFAST fabrics.
All Baby 60°C
You can wash all baby clothes together, at
medium temperature, resulting in hygienic
and perfectly clean items when combined
with heavy duty soap. This is possible
thanks to the ideal pre-dose of water and
detergent, that is sprayed onto the laundry
through the jet activating the enzymes at
50°C.
All In One 59 Min.
This programme allows you to wash mixed
fabrics such as cottons, synthetics and
mixed fabrics in only 59 minutes, using the
full load of the washing machine, at 40°C
(or less) temperature. This programme is
particularly suited to slightly dirty fabrics.
Rapid 30 Min.
A complete washing cycle (wash, rinse and
spin). This programme is particularly suited
to slightly dirty cottons and mixed fabrics.
With this programme it is recommended to
use only 20% of the detergent normally
used to avoid waste.
Rapid 14 Min.
A complete washing cycle (wash, rinse and
spin). This programme is suited to slightly dirty
cottons and mixed fabrics. With this programme
it is recommended to use only 20% of the
detergent normally used to avoid waste.
Dark Colours
Program designed to mix all dark garments and to
avoid the loss of colour and the formation of creases.
We recommend the use of liquid detergent.
Auto Clean
This program is suited to clean the drum of your
appliance. It is recommended to use this
program every 50 washing cycles, to ensure a
long service life and avoid bad odors. Make sure
to start the program exclusively without laundry in
the machine, using only powder detergent for
washing machine. When the washing cycle
finishes, open the door of the washing machine
to dry the drum.
Rinse
This program performs 3 rinses with an
intermediate spin (which can be reduced or
excluded by using the appropriate button) . It
is used for rinsing any type of fabric, for
example after a wash carried out by hand.
Drain & Spin
The program completes the drain and a
maximum spin. It is possible to delete or reduce
the spin with the SPIN SPEED button.
Programmes selection
!
EN
19
!
20
7. CUSTOMER SERVICE CENTRE AND WARRANTY
If you believe the washing machine is not working correctly, consult the quick guide
provided below with some practical tips on how to fix the most common problems.
Problem
Possible causes and practical solutions
The washing machine
does not work/start
Make sure it is correctly plugged in.
Make sure power is on.
Check whether the required program was correctly selected and to
have correctly started the machine.
Make sure the fuse has not blown and that the wall socket is working,
testing it with another appliance such as a lamp.
The porthole may not be correctly closed: open and close it again.
The washing machine
does not fill with
water
Make sure the water faucet is open.
Make sure the timer is correct set.
The washing machine
does not drain water
Make sure the filter is not clogged.
Make sure the drain hose is not bent.
Make sure there are no foreign objects in the filter.
Water leaked on the
floor near the washing
machine
This may be due to a leak in the gasket between the faucet and supply
tube; in this case, replace it and tighten the tube and faucet.
The washing machine
does not centrifuge
This could be due to the fact that water has not been completely
drained: wait a few minutes.
Some models include a "no centrifuge" function: make sure it is not on.
An excessive amount of detergent could prevent centrifuge: reduce the
amount at the next wash.
Strong vibrations are
heard during centrifuge
The washing machine may not be fully levelled: if necessary, adjust
the feet as indicated in the specific section.
Make sure transport brackets were removed.
Make sure the load is evenly distributed.
If a specific ERROR
appears of blinks
If error no. 0, 1, 5, 7 or 8 appears or blinks, contact the Customer
Service Centre directly.
If error no. 2 appears or blinks, the machine does not load water.
Make sure the water faucet is open.
If error no. 3 appears or blinks, the machine does not correctly drain.
Make sure the drain is free and that the drain hose is not bent.
If error no. 4 appears or blinks, the machine is too full. Close the
water faucet and contact the Customer Service Centre.
If error no. 9 appears or blinks, turn off the washing machine, wait 10
– 15 seconds and restart the program.
!
EN
21
The use of ecological detergents without
phosphates may cause the following effects:
- cloudier rinse drain water: This effect is
tied to the suspended zeolites which do
not have negative effects on rinse
efficiency.
- white powder (zeolites) on laundry at
the end of the wash: this is normal, the
powder is not absorbed by fabric and
does not change its colour.
- foam in the water at last rinse: this
does not necessary indicate poor rinsing.
- abundant foam: This is often due to the
anionic surfactants found in the
detergents which are hard to eliminate
from laundry.
In this case, do not re-rinse to eliminate
these effects: it will not help at all.
If the problem persists or if you suspect a
malfunction, immediately contact the
Hoover Customer Service Centre.
You can also register for the Hoover
service plan to receive free home service
after the warranty expires.
Attention: the call is not toll-free. The cost
will be communicated in a voice message
by your telephone operator's customer
service.
Hoover recommends you always use
original spare parts available at our
Customer Service Centre.
The manufacturer declines all
responsibility for any printing errors in
the booklet included with this product.
Moreover, it also reserves the right to
make any changes deemed useful to its
products without changing their essential
characteristics.
Warranty
The product is guaranteed under the
terms and conditions stated on the
certificate included with the product. The
warranty certificate must be duly filled in
and stored, so as to be shown to the
Authorised Hoover Service Centre in
case of need.
Register your product!
Don’t waste time. Register your washing
machine at once, and discover the
benefits to which you are entitled.
Discover how at www.registerhoover.com
or by calling the number stated on the
related material.
hldsk
hldsk
- DXA/DWA - A (8÷11) -
15.03 - 43009914 - Canon Italia - Business Services Channel - Printed in Italy

Navigation menu
