User Manual: Hoover F5826-900 F5826-900 HOOVER UPRIGHT EXTRACTOR - Manuals and Guides View the owners manual for your HOOVER UPRIGHT EXTRACTOR #F5826900. Home:Vacuums & Floor Care Parts:Hoover Parts:Hoover UPRIGHT EXTRACTOR Manual

Open the PDF directly: View PDF PDF.
Page Count: 14

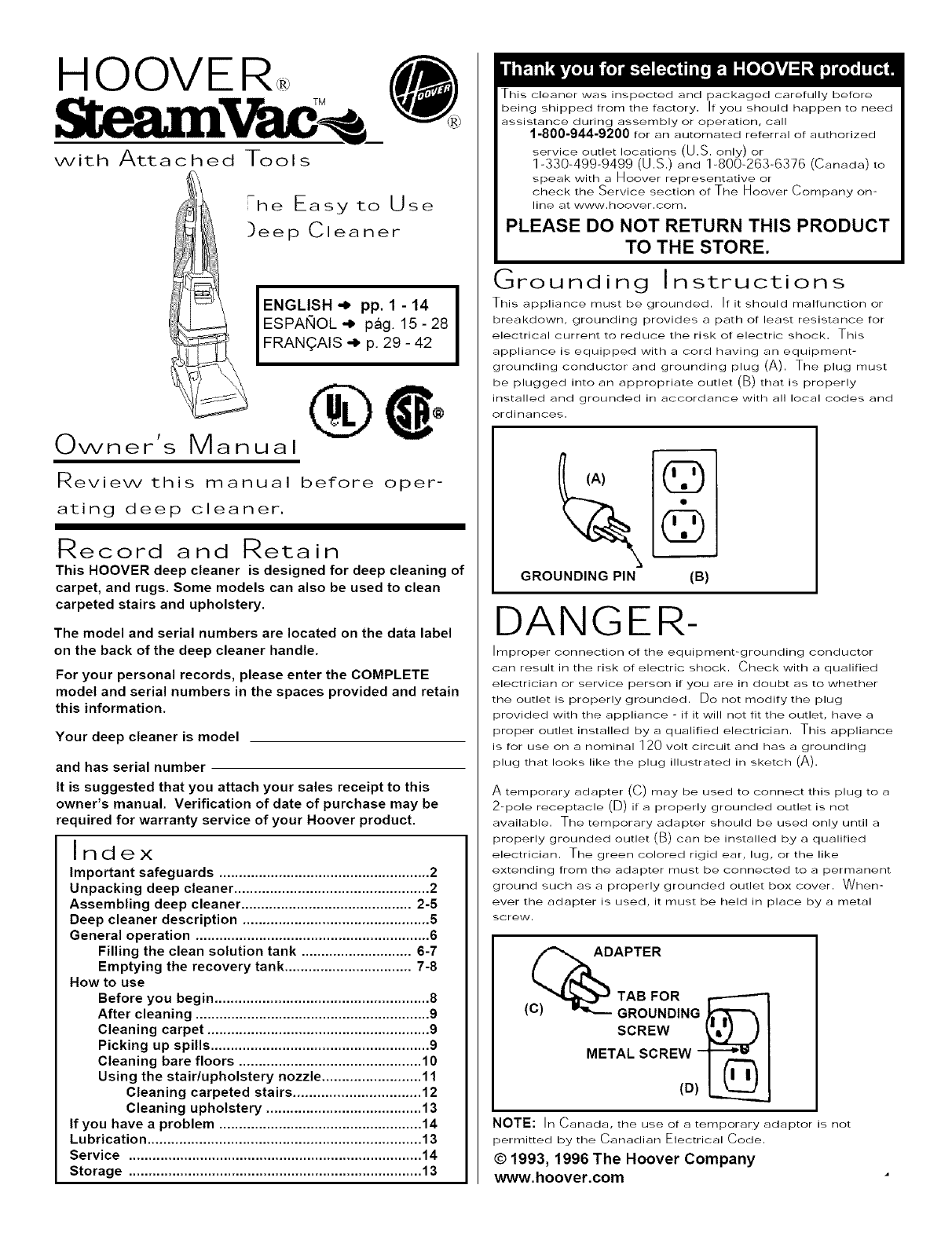

HOOVE
with Attached Tools
-he Easy to Use
)eep Cleaner
ENGLISH -_ pp. 1 - 14
ESPANOL -_ pag. 15 - 28
FRAN(_AtS -_ p. 29 - 42
Owner's Manual
Review this manual before oper-
ating deep cleaner,
Record and Retain
This HOOVER deep cleaner is designed for deep cleaning of
carpet, and rugs. Some models can also be used to clean
carpeted stairs and upholstery.
The model and serial numbers are located on the data label
on the back of the deep cleaner handle.
For your personal records, please enter the COMPLETE
model and serial numbers in the spaces provided and retain
this information.
Your deep cleaner is model
and has serial number
It is suggested that you attach your sales receipt to this
owner's manual. Verification of date of purchase may be
required for warranty service of your Hoover product.
Index
Important safeguards ..................................................... 2
Unpacking deep cleaner ................................................. 2
Assembling deep cleaner ........................................... 2-5
Deep cleaner description ............................................... 5

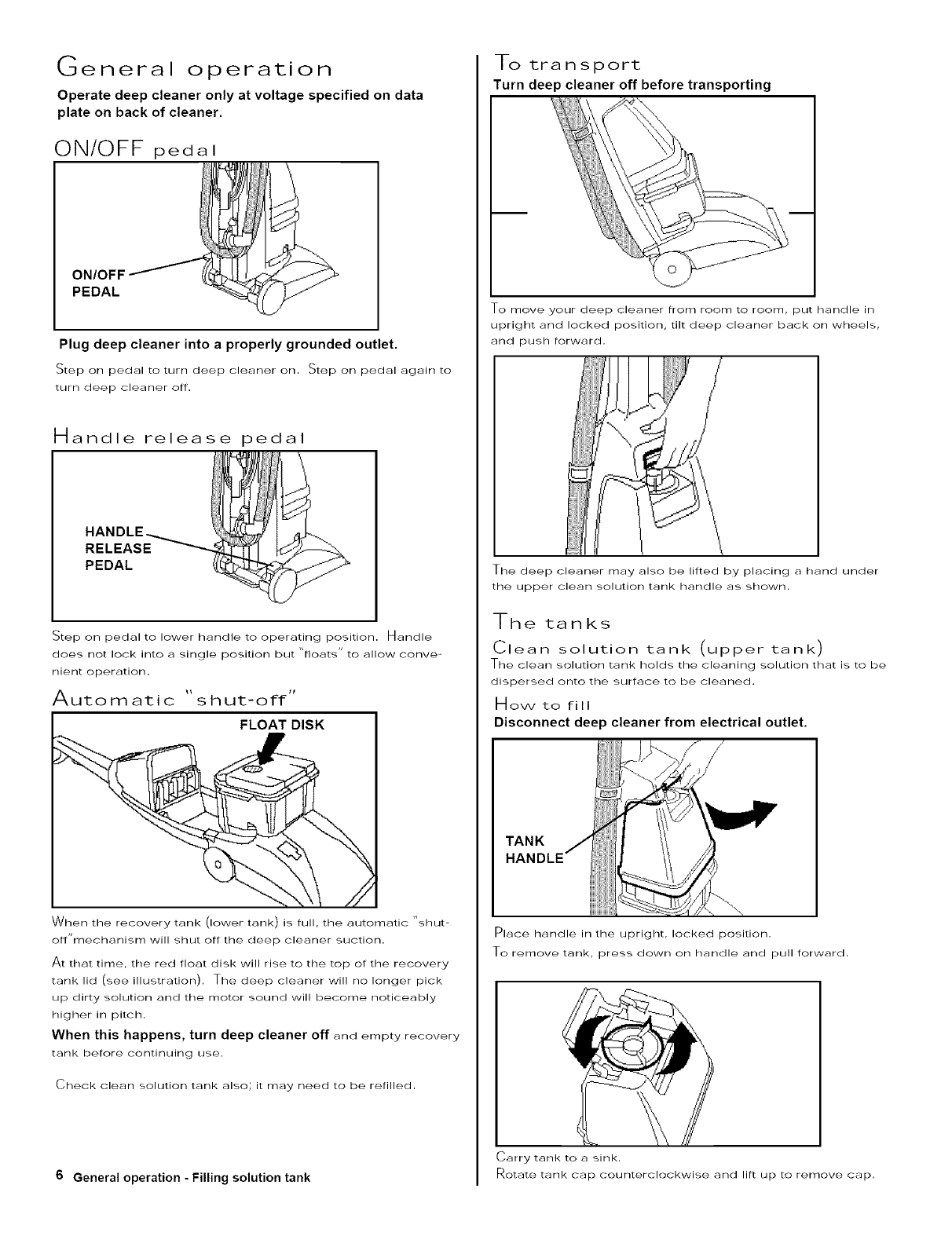

General operation ........................................................... 6

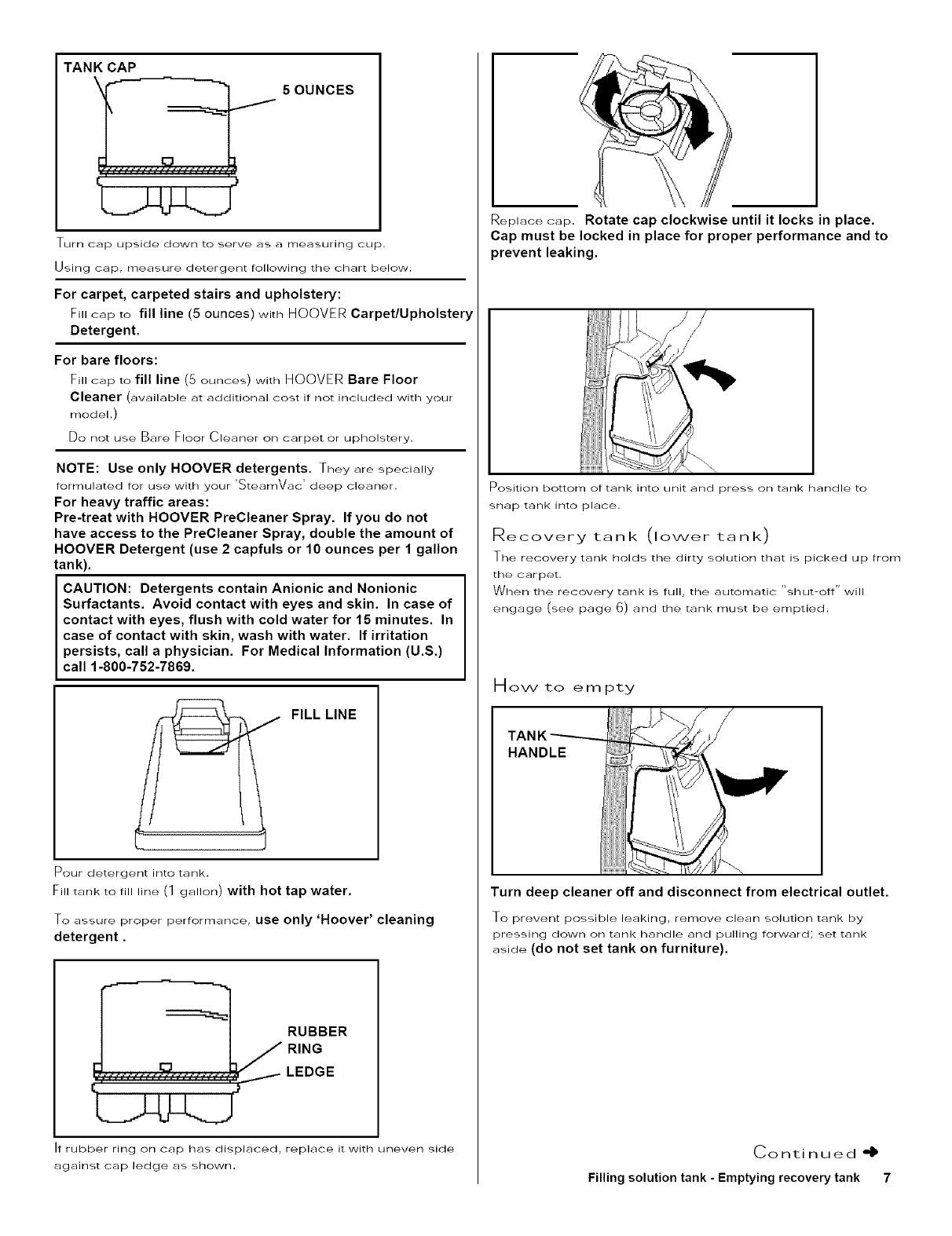

Filling the clean solution tank ............................ 6-7

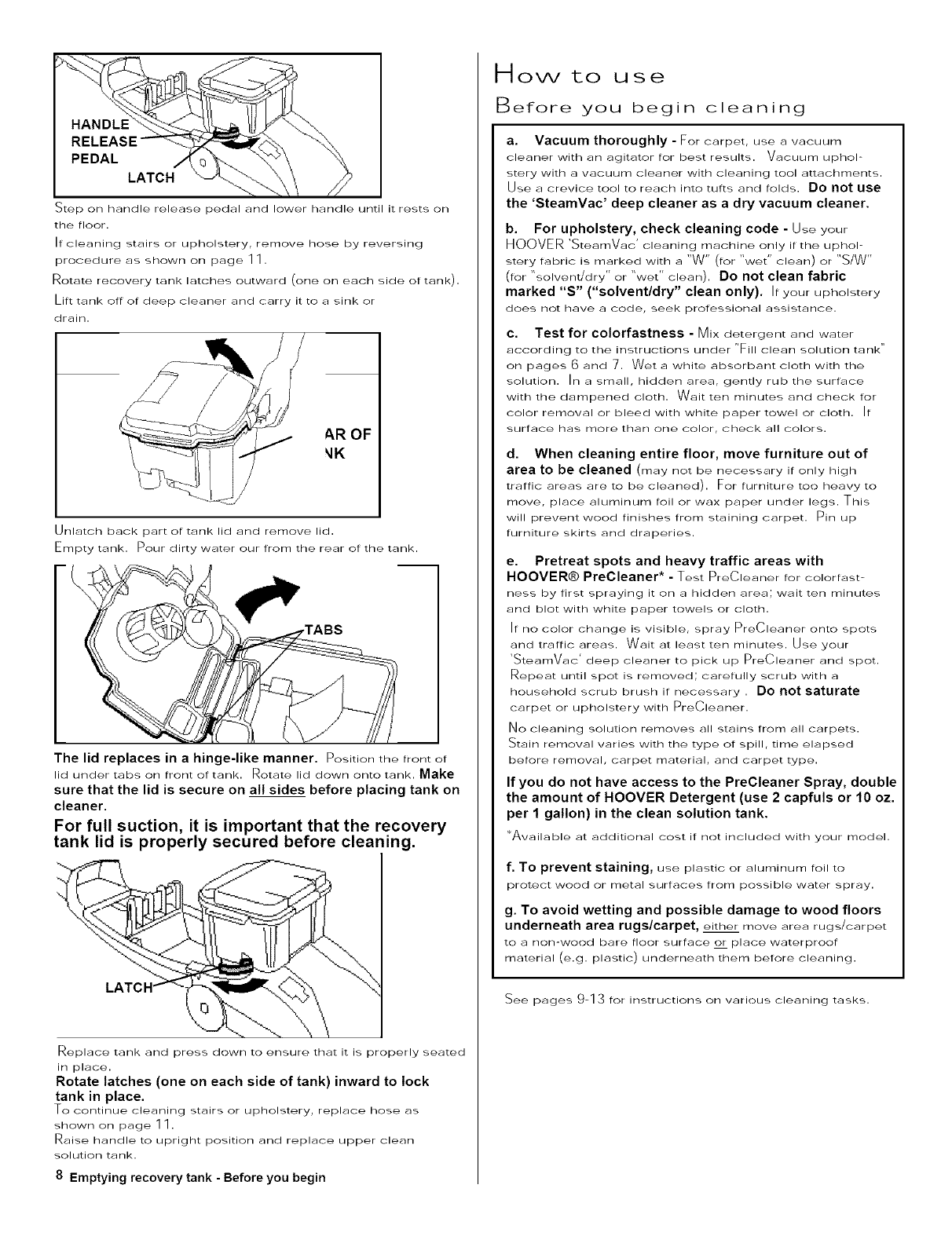

Emptying the recovery tank ................................ 7-8
How to use
Before you begin ...................................................... 8
After cleaning ........................................................... 9
Cleaning carpet ........................................................ 9
Picking up spills ....................................................... 9

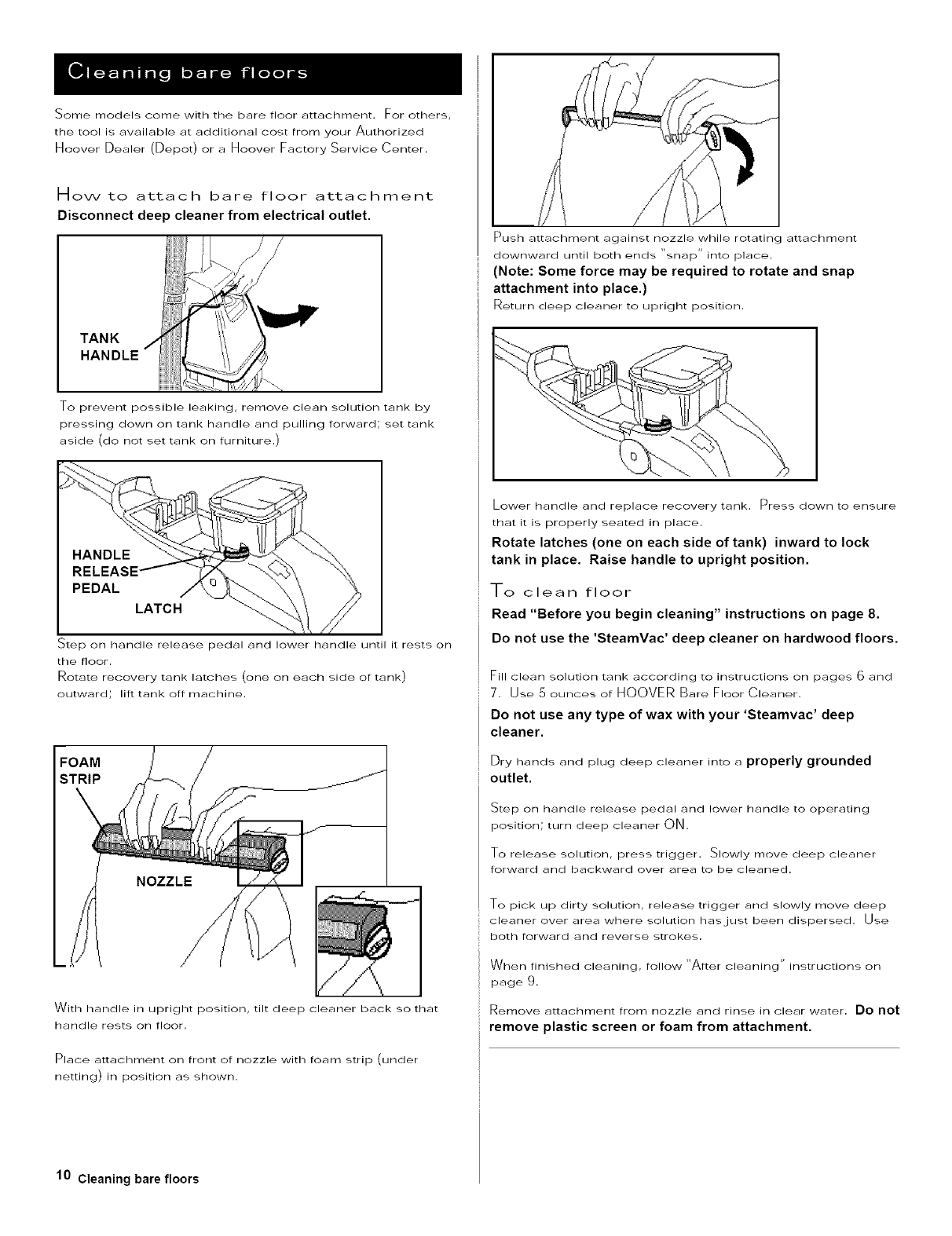

Cleaning bare floors .............................................. 10
Using the stair/upholstery nozzle ......................... 11
Cleaning carpeted stairs ................................ 12

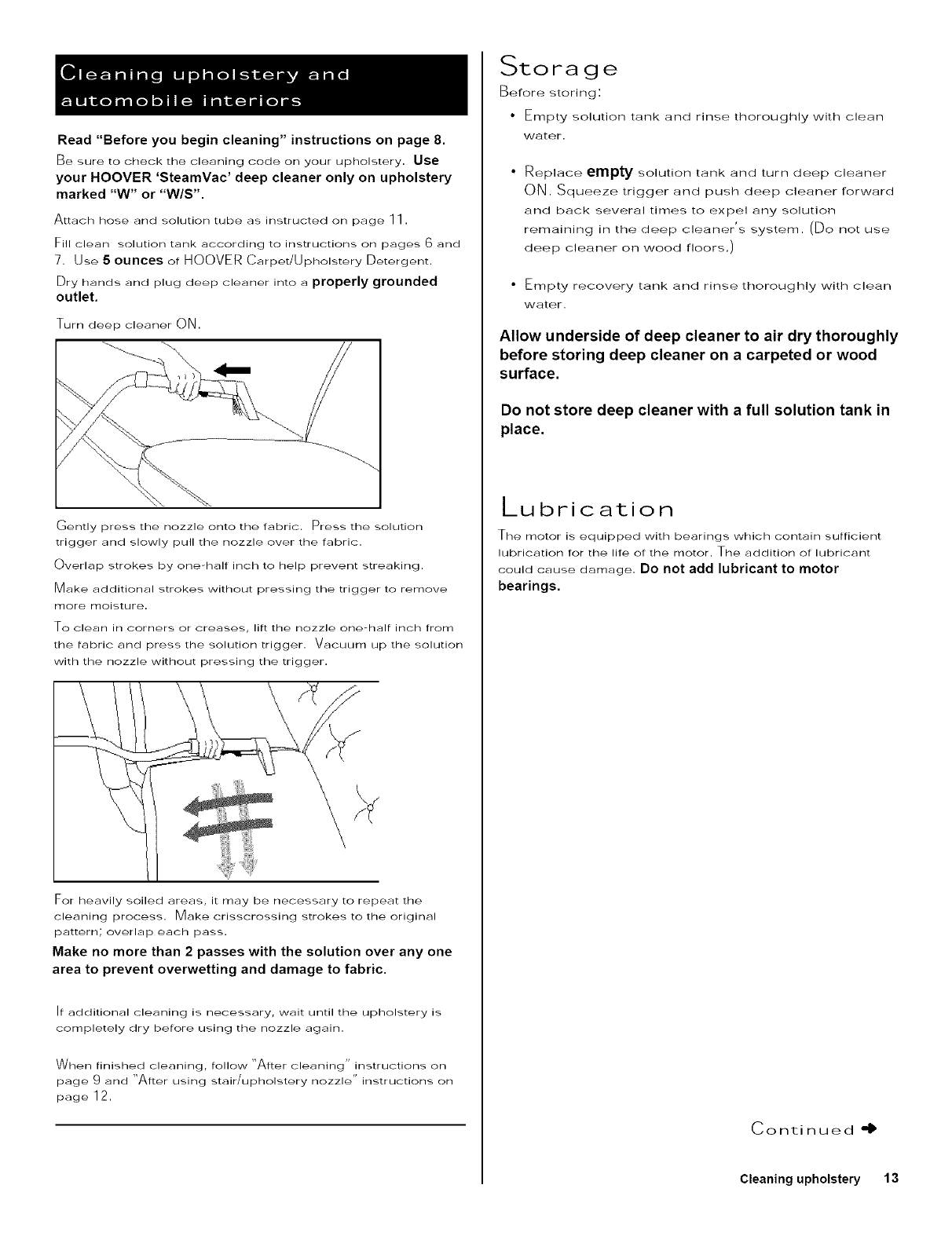

Cleaning upholstery ....................................... 13

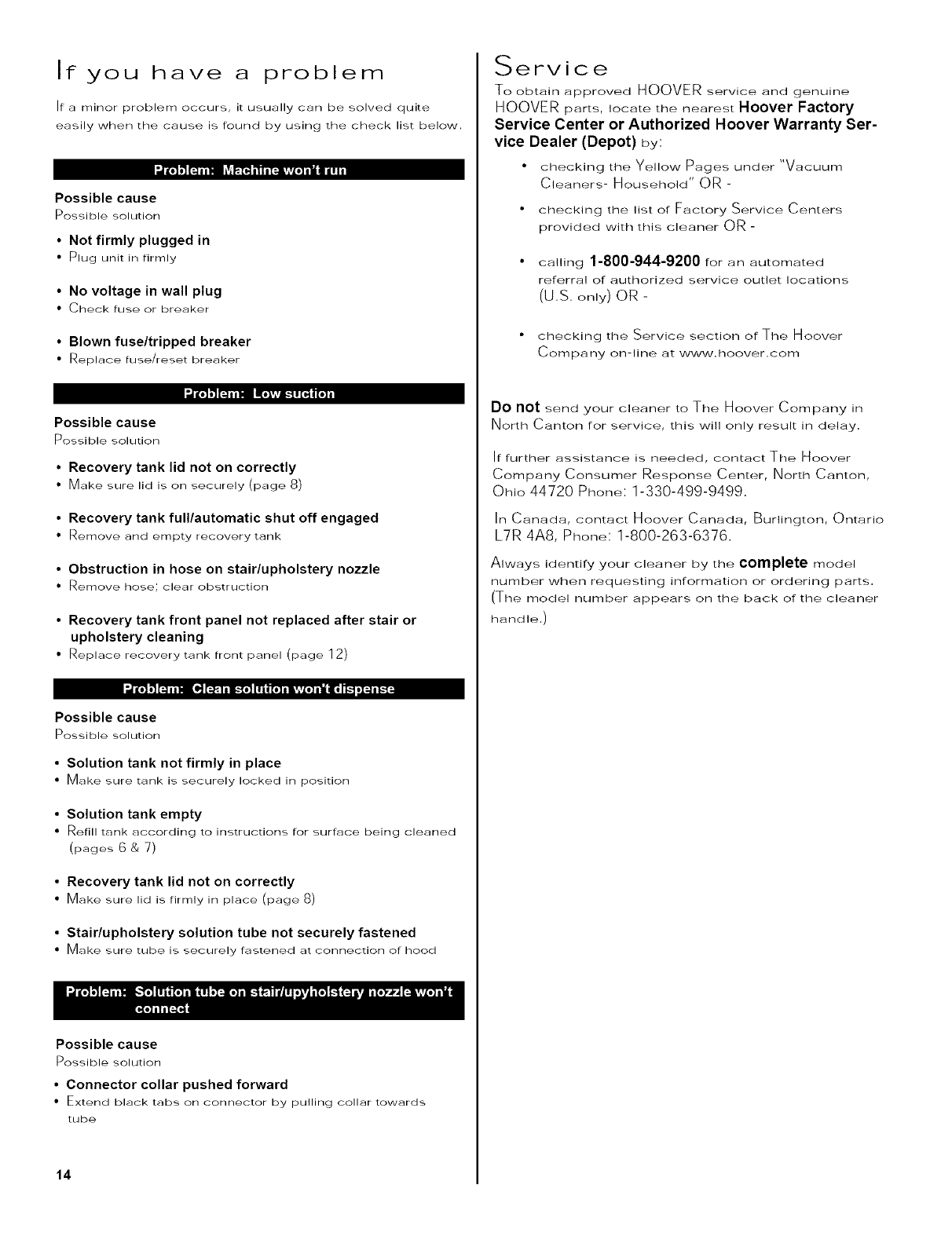

If you have a problem ................................................... 14
Lubrication ..................................................................... 13
Service .......................................................................... 14
Storage .......................................................................... 13
This cleaner was inspected and packaged carefully before
being shipped from the factory. If you should happen to need
assistance during assembly or operation, call
1-800-944-9200 for an automated referral of authorized
service outlet locations (U.S. only) or
1-330-499-9499 (U.S.) and 1-800-263-6376 (Canada) to
speak with a Hoover representative or
check the Service section of The Hoover Cornpany on-
line at www.hoover.oom.
PLEASE DO NOT RETURN THIS PRODUCT
TO THE STORE.
Grounding Instructions
This appliance must be grounded. If it should malfunction or
breakdown, grounding provides a path of least resistance for
electrical current to reduce the risk of electric shock. This
appliance is equipped with a cord having an equipment-
grounding conductor and grounding plug (A). The plug must
be plugged into an appropriate outlet (B) that is properly
installed and grounded in accordance with all local codes and
ordinances.
GROUNDING PIN (B)
DANGER-
Improper connection of the equipment-grounding conductor
can result in the risk of electric shock. Check with a qualified
electrician or service person if you are in doubt as to whether
the outlet is properly grounded. Do not modify the plug
provided with the appliance -if it will not fit the outlet, have a
proper outlet installed by a qualified electrician. This appliance
is for use on a nominal 120 volt circuit and has a grounding
plug that looks like the plug illustrated in sketch (A).
Atemporary adapter (C) may be used to connect this plug to a
2-pole receptacle (U) if a properly grounded outlet is not
available. The temporary adapter should be used only until a
properly grounded outlet (B) can be installed by a qualified
electrician. The green colored rigid ear, lug, or the like
extending from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover. When-
ever the adapter is used, it must be held in place by a metal
screw.
DAPTER
TAB FOR
(C) _GROUNDING
SCREW
METAL SCREW -
(D)
NOTE: In Canada, the use of a temporary adaptor is not
permitted by the Canadian Electrical Code.
© 1993, 1996 The Hoover Company
www.hoover.com

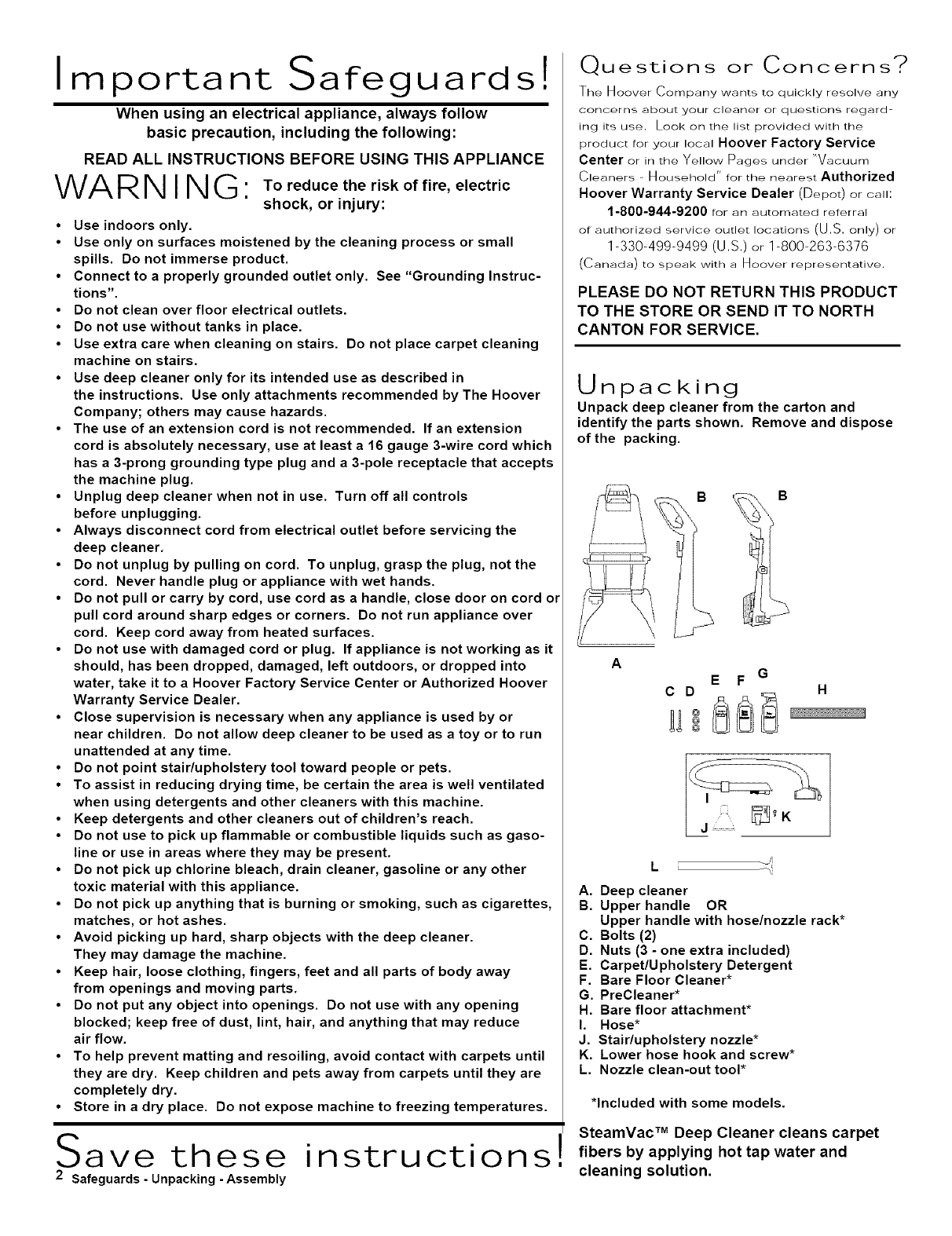

Important Safeguards!
When using an electrical appliance, always follow
basic precaution, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE
WA R N IN G Toreduce the risk of fire, electric
shock, or injury:
Use indoors only.
Use only on surfaces moistened by the cleaning process or small
spills. Do not immerse product.
Connect to a properly grounded outlet only. See "Grounding Instruc-
tions".
Do not clean over floor electrical outlets.
Do not use without tanks in place.
Use extra care when cleaning on stairs. Do not place carpet cleaning
machine on stairs.
Use deep cleaner only for its intended use as described in
the instructions. Use only attachments recommended by The Hoover
Company; others may cause hazards.
The use of an extension cord is not recommended. If an extension
cord is absolutely necessary, use at least a 16 gauge 3-wire cord which
has a 3-prong grounding type plug and a 3-pole receptacle that accepts
the machine plug.
Unplug deep cleaner when not in use. Turn off all controls
before unplugging.
Always disconnect cord from electrical outlet before servicing the
deep cleaner.
Do not unplug by pulling on cord. To unplug, grasp the plug, not the
cord. Never handle plug or appliance with wet hands.
Do not pull or carry by cord, use cord as a handle, close door on cord or
pull cord around sharp edges or corners. Do not run appliance over
cord. Keep cord away from heated surfaces.
Do not use with damaged cord or plug. If appliance is not working as it
should, has been dropped, damaged, left outdoors, or dropped into
water, take it to a Hoover Factory Service Center or Authorized Hoover
Warranty Service Dealer.
Close supervision is necessary when any appliance is used by or
near children. Do not allow deep cleaner to be used as a toy or to run
unattended at any time.
Do not point stair/upholstery tool toward people or pets.
To assist in reducing drying time, be certain the area is well ventilated
when using detergents and other cleaners with this machine.
Keep detergents and other cleaners out of children's reach.
Do not use to pick up flammable or combustible liquids such as gaso-
line or use in areas where they may be present.
Do not pick up chlorine bleach, drain cleaner, gasoline or any other
toxic material with this appliance.
Do not pick up anything that is burning or smoking, such as cigarettes,
matches, or hot ashes.
Avoid picking up hard, sharp objects with the deep cleaner.
They may damage the machine.
Keep hair, loose clothing, fingers, feet and all parts of body away
from openings and moving parts.
Do not put any object into openings. Do not use with any opening
blocked; keep free of dust, lint, hair, and anything that may reduce
air flow.
To help prevent matting and resoiling, avoid contact with carpets until
they are dry. Keep children and pets away from carpets until they are
completely dry.
Store in a dry place. Do not expose machine to freezing temperatures.
Save these instructions
2 Safeguards - Unpacking -Assembly
Questions or Concerns?
The Hoover Company wants to quickly resolve any
concerns about your cleaner or questions regard-
ing its use. Look on the list provided with the
product for your local Hoover Factory Service
Center or in the Yellow Pages under "Vacuum
Cleaners - Household" for the nearest Authorized
Hoover Warranty Service Dealer (Depot) or call:
1-800-944-9200 for an automated referral
of authorized service outlet locations (U.S. only) or
1-330-499-9499 (U.S.) or 1-800-263-6376
(Canada) to speak with a Hoover representative.
PLEASE DO NOT RETURN THIS PRODUCT
TO THE STORE OR SEND IT TO NORTH
CANTON FOR SERVICE.
Unpacking
Unpack deep cleaner from the carton and
identify the parts shown. Remove and dispose
of the packing.
AG
E F
C D H
L_
A. Deep cleaner
B. Upper handle OR
Upper handle with hose/nozzle rack*
C. Bolts (2)
D. Nuts (3 - one extra included)
E. Carpet/Upholstery Detergent
F. Bare Floor Cleaner*
G. PreCleaner*
H. Bare floor attachment*
I. Hose*
J. Stair/upholstery nozzle*
K. Lower hose hook and screw*
L. Nozzle clean-out tool*
*Included with some models.
SteamVac TM Deep Cleaner cleans carpet
fibers by applying hot tap water and
cleaning solution.

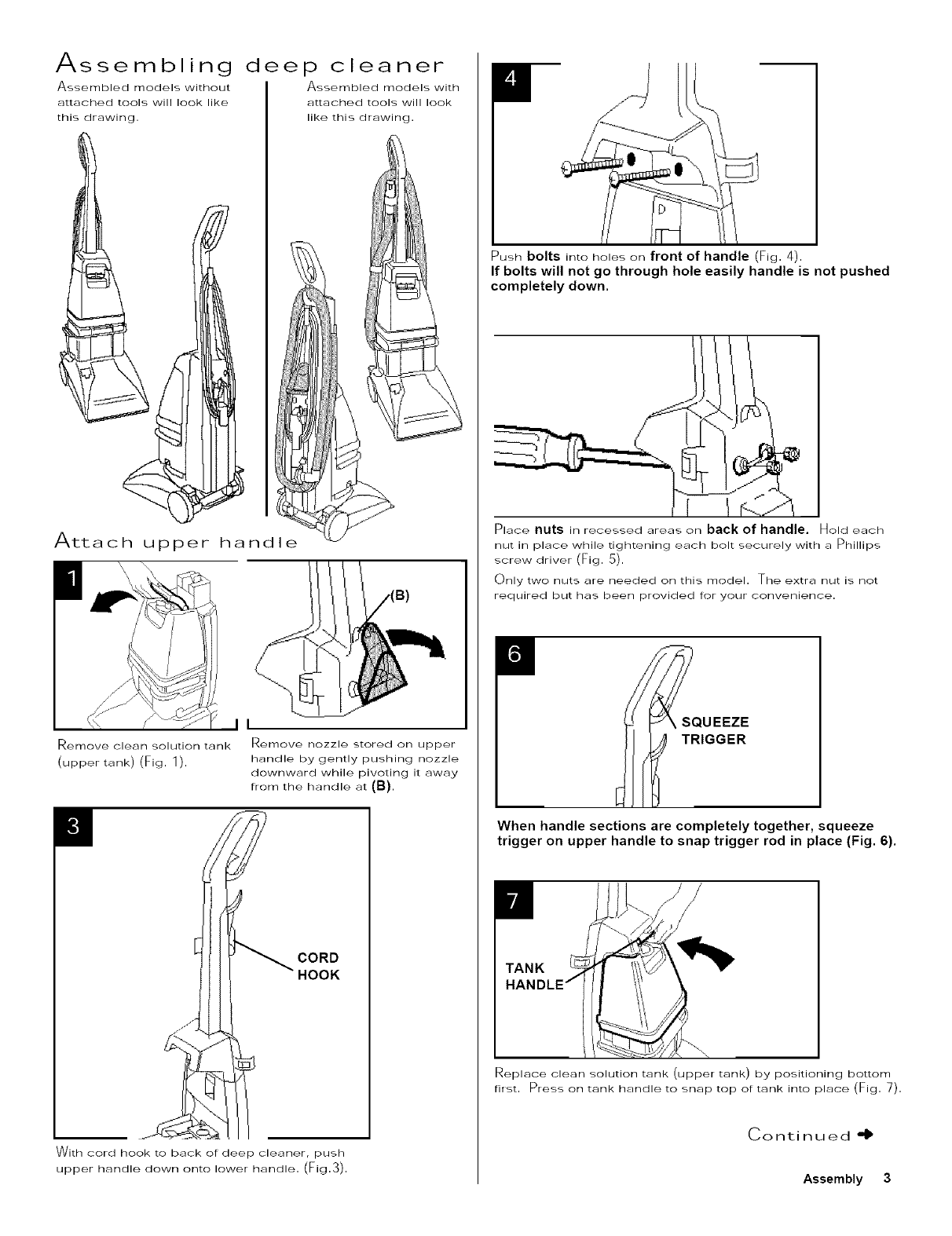

Assembling
Assembled models without
attached tools will look like
this drawing.
deep cleaner
Assembled models with
attached tools will look
like this drawing.
Attach upper handle
Remove clean solution tank
(upper tank)(Fig. 1).
I
Remove nozzle stored on upper
handle by gently pushing nozzle
downward while pivoting it away
From the handle at (B).
II
CORD
HOOK
With cord hook to back of deep cleaner, push
upper handle down onto lower handle. (Fig.3).
Push bolts into holes on front of handle (Fig. 4).
If bolts will not go through hole easily handle is not pushed
completely down.
Place nuts in recessed areas on back of handle, Hold each
nut in place while tightening each bolt securely with a Phillips
screw driver (Fig. 5).
Only two nuts are needed on this model. The extra nut is not
required but has been provided for your convenience.
il
QU EEZE
IGGER
When handle sections are completely together, squeeze
trigger on upper handle to snap trigger rod in place (Fig. 6).
II
TANK
Replace clean solution tank (upper tank) by positioning bottom
first. Press on tank handle to snap top of tank into place (Fig. 7).
Continued -I_
Assembly 3
I

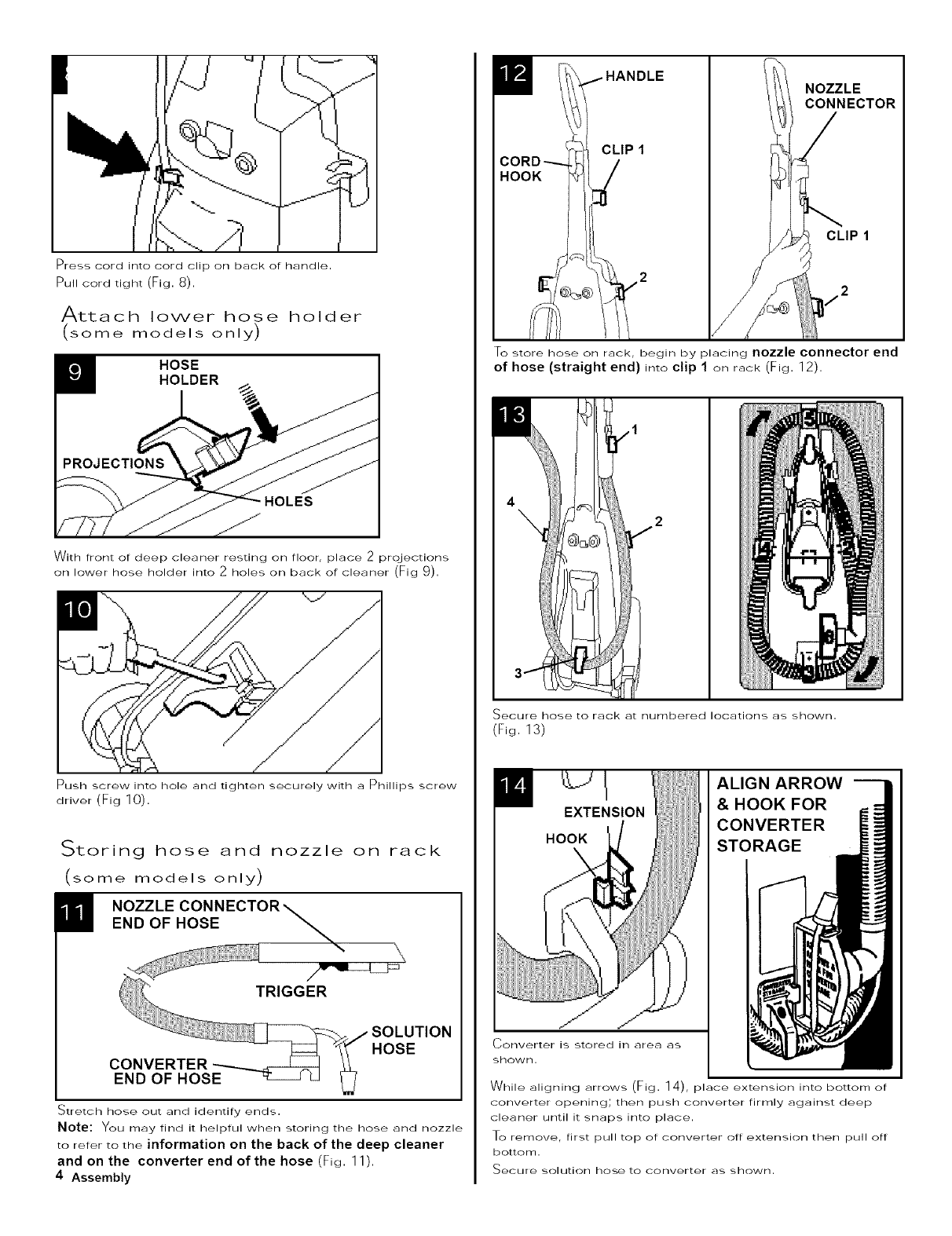

Press cord into cord clip on back of handle.
Pull cord tight (Fig. 8).
Attach lower hose holder
(some models only)
II_ HOSE
HOLDER
With front of deep cleaner resting on floor, place 2 projections
on lower hose holder into 2 holes on back of cleaner (Fig 9).
Push screw into hole and tighten securely with a Phillips screw
driver (Fig 10).
Storing hose and
(some models only)
/
nozzle on rack
Stretch hose out and identify ends.
Note: You may find it helpful when storing the hose and nozzle
to refer to the information on the back of the deep cleaner
and on the converter end 0fthe hose (Fig. 11).
4Assembly
Ill NOZZLE
CONNECTOR
HOOK
To store hose on rack, begin by placing nozzle connector end
of hose (straight end) into clip I on rack (Fig. 12).
1
Secure hose to rack at numbered locations as shown.
(Fig. 13)
Converter is stored in area as
shown.
ALIGN ARROW--
&HOOKFOR
CONVERTER
STORAGE
While aligning arrows (Fig. 14), place extension into bottom of
converter opening; then push converter firmly against deep
cleaner until it snaps into place.
To remove, first pull top of converter off extension then pull off
bottom.
Secure solution hose to converter as shown.
m
The nozzle is stored in the area between the cord hooks (Fig. 15).
Place brushes or nozzle on top of Tab (A) as shown. Oently
push the nozzle downward while pivoting it into the nozzle
holder (B).
Deep cleaner description
The assembled deep Gleaner will look like the drawing .
Models without hose rack
17
8
--10
11
_12
14
15
IL2
5
9
18
Models with hose rack
17_
167
m _'i_iiiiiiI
11
13 4
-14 /
18
"15 19
17
1. Hand grip
2. Solution trigger: press to rele_Jse clean solution.
3, Hose*
4. Hose holders*: wrap hose around holers for storage.
5. Cord hooks: wrap cord around hooks for storage.
The top hook can be rotated right or leR for quick and easy
cord release.
6. Stair/upholstery nozzle*
7. Carrying handle
8. Clean solution tank handle
9. Clean solution tank cap/measuring cup
10. Clean solution tank: holds cleaning solution.
11. Recovery tank lid
12. Recovery tank: holds dirty solution.
13. Recovery tank "front panel"
14. Hood
15. Nozzle
16. Upholstery and stair cleaning connection*: push door
open to connect stair/upholstery nozzle "solution tube".
17. Recovery tank latches: one on each side of tank.
18. ON/OFF pedal
19. Handle release pedal: step on pedal to lower handle
to operating position.
*Some models only
This deep cleaner is intended for household use.
Assembly - Deep cleaner description 5
General operation
Operate deep cleaner only at voltage specified on data
plate on back of cleaner.
ON/OFF pedal
ON/OFF '
PEDAL
Plug deep cleaner into a properly grounded outlet.
Step on pedal to turn deep cleaner on. Step on pedal again to
turn deep cleaner off.
Handle release pedal
RELEASE
PEDAL
Step on pedal to lower handle to operating position. Handle
does not lock into a single position but floats to allow conve-
nient operation.
Auto m ati c " s h ut-off"
FLOAT DISK
When the recovery tank (lower tank) is full, the automatic "shut-
oft"mechanism will shut off the deep cleaner suction.
At that time, the red float disk will rise to the top of the recovery
tank lid (see illustration). The deep cleaner will no longer pick
up dirty solution and the motor sound will become noticeably
higher in pitch.
When this happens, turn deep cleaner off and empty recovery
tank before continuing use.
Check clean solution tank also; it may need to be refilled.
6 General operation -Filling solution tank
To transport
Turn deep cleaner off before transporting
m
To move your deep cleaner from room to room, put handle in
upright and locked position, tilt deep cleaner back on wheels,
and push forward.
The deep cleaner Rlay also be lifted by placing a hand under
the upper clean solution tank handle as shown.
The tanks
Clean solution tank (upper tank)
The clean solution tank holds the cleaning solution that is to be
dispersed onto the surface to be cleaned.
How to fill
Disconnect deep cleaner from electrical outlet.
TANK
Place handle in the upright, locked position.
To remove tank, press down on handle and pull forward.
Carry tank to a sink.
Rotate tank cap counterclockwise and lift up to remove cap.
TANK CAP
5OUNCES
Turn cap upside down to serve as a measuring cup.
Using cap, measure detergent following the chart below.
For carpet, carpeted stairs and upholstery:
Fill cap to fill line (5 ounces) with HOOVER Carpet/Upholstery
Detergent.
For bare floors:
Fill cap to fill line (5 ounces) with HOOVER Bare Floor
Cleaner (available at additional cost if not included with your
model.)
Do not use Bare Floor Cleaner on carpet or upholstery.
NOTE: Use only HOOVER detergents. They are specially
formulated for use with your 'SteamVac' deep cleaner.
For heavy traffic areas:
Pre-treat with HOOVER PreCleaner Spray. If you do not
have access to the PreOleaner Spray, double the amount of
HOOVER Detergent (use 2 capfuls or 10 ounces per 1 gallon
tank).
CAUTION: Detergents contain Anionic and Nonionic
Surfactants. Avoid contact with eyes and skin. In case of
contact with eyes, flush with cold water for 15 minutes. In
case of contact with skin, wash with water. If irritation
persists, call a physician. For Medical Information (U.S.)
call 1-800-752-7869.
FILL LINE
Pour detergent into tank.
Fi, tank to fill line (1 gallon) with hot tap water.
To assure proper performance, use only 'Hoover' cleaning
detergent.
RUBBER
RING
.._-.._.._.._.._ ..... .;.-. LEDGE
rubber ring on cap has displaced, replace it with uneven side
against cap ledge as shown.
Replace cap. Rotate cap clockwise until it locks in place.
Cap must be locked in place for proper performance and to
prevent leaking.
Position bottom of tank into unit and press on tank handle to
snap tank into place.
Recovery tank (lower tank)
The recovery tank holds the dirty solution that is picked up from
the carpet.
When the recovery tank is full, the automatic "shut-off" will
engage (see page 6) and the tank must be emptied.
How to empty
TAN K
HANDLE
Turn deep cleaner off and disconnect from electrical outlet.
To prevent possible leaking, remove clean solution tank by
pressing down on tank handle and pulling forward; set tank
aside {do not set tank on furniture).
Continued dl,
Filling solution tank - Emptying recovery tank 7
PEDAL
LATCH
Step on handle release pedal and lower handle until it rests on
the floor.
If Gleaning stairs or upholstery, remove hose by reversing
procedure as shown on page ] 1
Rotate recovery tank latches outward (one on each side of tank).
Lift tank off of deep Gleaner and carry it to a sink or
drain.
AR OF
_K
Unlatch back part of tank lid and remove lid.
Empty tank. Pour dirty water our from the rear of the tank.
-k
The lid replaces in a hinge-like manner. Position the front of
lid under tabs on front of tank. Rotate lid down onto tank. Make
sure that the lid is secure on all sides before placing tank on
cleaner.
For full suction, it is important that the recovery
tank lid is properly secured before cleaning.
Replace tank and press down to ensure that it is properly seated
in place.
Rotate latches (one on each side of tank) inward to lock
tank in place,
To continue cleaning stairs or upholstery, replace hose as
shown on page 11.
Raise handle to upright position and replace upper Glean
solution tank.
8 Emptying recovery tank - Before you begin
How to use
Before you begin cleaning
a. Vacuum thoroughly - For carpet, use a vacuurn
cleaner with an agitator for best results. Vacuum uphol-
stery with a vacuurn cleaner with cleaning tool attachments.
Use a crevice tool to reach into tufts and folds. Do not use
the 'SteamVac' deep cleaner as a dry vacuum cleaner.
b. For upholstery, check cleaning code - Use your
HOOVER 'SteamVac' cleaning machine only if the uphol-
stery fabric is marked with a "W" (for "wet" clean) or "S/W"
(for "solvent/dry" or "wet" clean). DO not clean fabric
marked "S" ("solvent/dry" clean only). It your upholstery
does not have El code, seek professional assistance.
c. Test for colorfastness - Mix detergent and water
according to the instructions under "Fill clean solution tank"
on pages 6 and 7. Wet a white absorbant cloth with the
solution. In a small, hidden area, gently rub the surface
with the dampened cloth. Wait ten minutes and check for
color removal or bleed with white paper towel or cloth. If
surface has more than one color, check all colors.
d. When cleaning entire floor, move furniture out of
area to be cleaned (may not be necessary if only high
traffic areas are to be Gleaned). For furniture too heavy to
move, place aluminum foil or wax paper under legs. This
will prevent wood finishes from staining carpet. Pin up
furniture skirts and draperies.
e. Pretreat spots and heavy traffic areas with
HOOVER@ PreCleaner* - Test PreCleaner for colorfast-
ness by first spraying it on a hidden area; wait ten minutes
and blot with white paper towels or cloth.
If no color change is visible, spray PreOleaner onto spots
and traffic areas. Wait at least ten minutes. Use your
'SteamVac' deep cleaner to pick up PreOleaner and spot.
Repeat until spot is removed; carefully scrub with a
household scrub brush if necessary . DO not saturate
carpet or upholstery with PreOleaner.
No Gleaning solution removes all stains from all carpets.
Stain removal varies with the type of spill, time elapsed
before removal, carpet material, and carpet type.
If you do not have access to the PreCleaner Spray, double
the amount of HOOVER Detergent (use 2 capfuls or 10 oz.
per 1 gallon) in the clean solution tank.
_Available at additional cost if not included with your model.
f. To prevent staining, use plastic or aluminum foil to
protect wood or metal surfaces from possible water spray.
g. To avoid wetting and possible damage to wood floors
underneath area rugs/carpet, either move area rugs/carpet
to a non-wood bare floor surface or place waterproof
rnaterial (e.g. plastic) underneath thern before cleaning.
See pages 9-13 for instructions on various cleaning tasks.

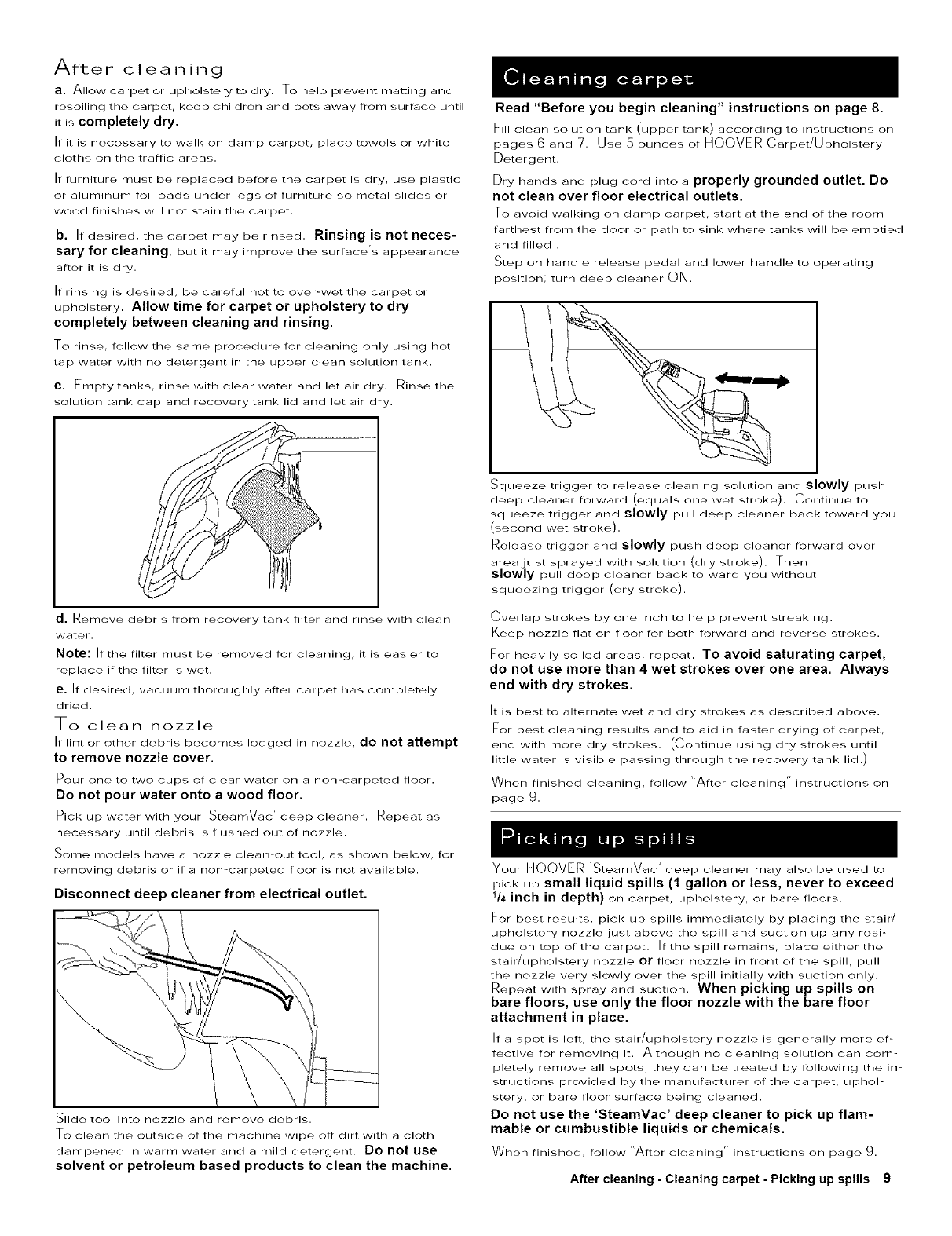

After cleaning
a. Allow carpet or upholstery to dry. To help prevent matting and
resoiling the carpet, keep children and pets away from surface until
it is completely dry.
If it is necessary to walk on damp carpet, place towels or white
cloths on the traffic areas.
If furniture must be replaced before the carpet is dry, use plastic
or aluminum foil pads under legs of furniture so metal slides or
wood finishes will not stain the carpet.
b, Ir desired, the carpet may be rinsed. Rinsing is not neces-
sary for cleaning, but it may improve the surface's appearance
after it is dry.
If rinsing is desired, be careful not to over-wet the carpet or
upholstery. Allow time for carpet or upholstery to dry
completely between cleaning and rinsing.
To rinse, follow the same procedure for cleaning only using hot
tap water with no detergent in the upper clean solution tank.
C. Empty tanks, rinse with clear water and let air dry. Rinse the
solution tank cap and recovery tank lid and let air dry.
../-
d. Remove debris from recovery tank filter and rinse with clean
welter.
Note: If the filter must be removed for Gleaning, it is easier to
replace if the filter is wet.
e. If desired, vacuum thoroughly after carpet has completely
dried.
To clean nozzle
If lint or other debris becomes lodged in nozzle, do not attempt
to remove nozzle cover.
Pour one to two cups of clear water on a non-carpeted floor.
Do not pour water onto a wood floor.
Pick up water with your 'SteamVac' deep cleaner. Repeat as
necessary until debris is flushed out of nozzle.
Some models have a nozzle clean-out tool, as shown below, for
removing debris or if a non-carpeted floor is not available.
Disconnect deep cleaner from electrical outlet.
Slide tool into nozzle and remove debris.
To clean the outside of the machine wipe off dirt with a cloth
dampened in warm water and a mild detergent. DO not use
solvent or petroleum based products to clean the machine.
Read "Before you begin cleaning" instructions on page 8.
Fill clean solution tank (upper tank) according to instructions or]
pages 6 and 7. Use 5ounces of HOOVER Carpet/Upholstery
Detergent.
Dry hands and plug cord into a properly grounded outlet. Do
not clean over floor electrical outlets.
To avoid walking on damp carpet, start at the end of the room
farthest from the door or path to sink where tanks will be emptied
and filled .
Step on handle release pedal and lower handle to operating
position; turn deep cleaner ON.
Squeeze trigger to release cleaning solution and slowly push
deep cleaner forward (equals one wet stroke). Continue to
squeeze trigger and slowly pull deep Gleaner back toward you
(second wet stroke).
Release trigger and slowly push deep cleaner forward over
area just sprayed with solution (dry stroke). Then
slowly pull deep cleaner back to ward you without
squeezing trigger (dry stroke).
Overlap strokes by one inch to help prevent streaking.
Keep nozzle flat on floor for both forward and reverse strokes.
For heavily soiled areas, repeat. TO avoid saturating carpet,
do not use more than 4 wet strokes over one area. Always
end with dry strokes.
It is best to alternate wet and dry strokes as described above.
For best cleaning results and to aid in faster drying of carpet,
end with more dry strokes. (Continue using dry strokes until
little water is visible passing through the recovery tank lid.)
When finished cleaning, follow "ARer cleaning" instructions on
page 9.
Your HOOVER 'SteamVac' deep cleaner may also be used to
pick up small liquid spills (1 gallon or less, never to exceed
1/4 inch in depth) on carpet, upholstery, or bare floors.
For best results, pick up spills immediately by placing the stair/
upholstery nozzle just above the spill and suction up any resi-
due on top of the carpet. If the spill remains, place either the
stair/upholstery nozzle or floor nozzle in front of the spill, pull
the nozzle very slowly over the spill initially with suction only.
Repeat with spray and suction. When picking up spills on
bare floors, use only the floor nozzle with the bare floor
attachment in place.
If a spot is left, the stair/upholstery nozzle is generally more ef-
fective for removing it. Although no cleaning solution can corn-
pletely remove all spots, they can be treated by following the in-
structions provided by the manufacturer of the carpet, uphol-
stery, or bare floor surface being cleaned.
Do not use the 'SteamVac' deep cleaner to pick up flam-
mable or cumbustible liquids or chemicals,
When finished, follow "After cleaning" instructions or] page 9.
After cleaning - Cleaning carpet - Picking up spills 9
Some models come with the bare floor attachment. For others,
the tool is available at additional cost from your Authorized
Hoover Dealer (Depot) or a Hoover Factory Service Center.
How to attach bare floor attachment
Disconnect deep cleaner from electrical outlet.
TANK
To prevent possible leaking, remove clean solution tank by
pressing down on tank handle and pulling forward; set tank
aside (do not set tank on furniture.)
HANDLE
RELEASE
PEDAL
LATCH
Step on handle release pedal and lower handle until it rests on
the floor.
Rotate recovery tank latches (one on each side of tank)
outward; lift tank off machine.
FOAM
STRIP
With handle in upright position, tilt deep cleaner back so that
handle rests on floor.
Place attachment on front of nozzle with foam strip (under
netting) in position as shown.
10 Cleaning bare floors
Push attachment against nozzle while rotating attachment
downward until both ends "snap" into place.
(Note: Some force may be required to rotate and snap
attachment into place.)
Return deep Gleaner to upright position.
Lower handle and replace recovery tank. Press down to ensure
that it is properly seated in place.
Rotate latches (one on each side of tank) inward to lock
tank in place. Raise handle to upright position.
To clean floor
Read "Before you begin cleaning" instructions on page 8.
Do not use the 'SteamVac' deep cleaner on hardwood floors.
Fill clean solution tank according to instructions on pages 6 and
7. Use 5 ounces of HOOVER Bare Floor Cleaner.
Do not use any type of wax with your 'Steamvac' deep
cleaner.
Dry hands and plug deep cleaner into a properly grounded
outlet,
Step on handle release pedal and lower handle to operating
position; turn deep cleaner ON.
To release solution, press trigger. Slowly move deep cleaner
forward and backward over area to be cleaned.
To pick up dirty solution, release trigger and slowly move deep
Gleaner over area where solution hasjust been dispersed. Use
both forward and reverse strokes.
When finished cleaning, follow "After cleaning" instructions on
page 9.
Remove attachment from nozzle and rinse in clear water. DO not
remove plastic screen or foam from attachment.
Some models corrle with a hose and stair/upholstery nozzle.
How to attach hose
Disconnect deep cleaner from electrical outlet.
TANK _/
HANDLE
To prevent possible leaking, remove clean solution tank by
pressing down on tank handle and pulling forward; set tank
aside (do not set tank on furniture).
Remove hose from storage rack.
HANDLE
RELEASE
PEDAL
Step on handle release pedal and lower deep cleaner handle
until it rests on the floor.
Unlatch back part of recovery tank lid and remove lid.
Remove recovery tank front panel by sliding it straight up.
Replace panel with converter. Slide converter halfway down
opening until it is firmly in place.
ISOLUTION
TUBE
Before connecting tube to cleaner,
make sure black tabs are extended
by pulling tan collar toward tube.
Open door on hood labeled "Stair/Upholstery Cleaning
Connection". Press round solution tube connector onto round
projection inside door.
Press connector collar down firmly to ensure that it is fully
connected.
TABS
The tank lid replaces in a hinge-like manner. Position front of
lid under tabs on front of tank. Rotate lid down onto tank.
Make sure lid is secure on all sides before cleaning,
For full suction, it is important that the recovery
tank lid is properly secured before cleaning.
Reverse procedure to remove hose and solution tube.
Raise deep cleaner handle to upright position.
ITAB
\
Attach nozzle to connector end or hose by sliding it onto connec-
tor until the tab locks it securely.
Using your thumb, push forward and up on the latch to
remove nozzle.
Follow the instructions on pages 12 and 13 for the appropriate
cleaning task. Using stair/uph01stery nozzle 11
After using stair/upholstery nozzle
Disconnect deep cleaner from electrical outlet.
Follow the instructions for "After cleaning" on page 9.
Drain suction hose by turning deep Gleaner on and holding
nozzle up for several minutes. DO not press trigger.
Disconnect cleaner from electrical outlet.
Disconnect hose and solution tube from deep Gleaner.
I
Drain solution tube by placing round end in sink, and raising
nozzle above your head. Press the trigger.
CONVERTER
CLIP
Occasionally, debris may become lodged inside of the hose at
the converter end.
To clean-out the hose, lift bottom of converter clip with a screw
driver and remove clip. Remove debris as shown.
SOLUTION
HOSE
Snap clip back into positon making sure solution hose is not
pinched and moves freely.
Replace recovery tank front panel. Slide panel down until it
snaps firmly in place.
12 Stair/upholstery nozzle -Cleaning carpeted stairs
Read "Before you begin cleaning" instructions on page 8.
Attach hose and solution tube as instructed on page 11
Fill clean solution tank according to instructions on pages 6 and
7. Use 5 ounces of HOOVER Carpet/Upholstery Detergent.
Hose length may require that machine be placed at the top of
the stairs to clean upper half of stairway and at bottom of stairs
to clean lower half.
To prevent machine from falling, use extra caution when
cleaning on stairs. Do not place deep cleaner on stairs.
Do not point stair/upholstery nozzle at people or pets.
Dry hands and plug deep cleaner into a properly grounded
outlet.
Turn deep cleaner ON.
Pre-spray the carpeted stair by holding the nozzle about one
inch above the carpet and push the wand forward while
pressing the solution trigger (equals one wet stroke).
i
Position nozzle against the riser and slightly press nozzle into
carpet pile. Press the solution trigger and pull the nozzle
slowly over the carpet (second wet stroke).
Release the trigger, lift nozzle, and position it against riser.
Pull nozzle slowly over carpet without pressing trigger (dry
stroke).
It is best to alternate wet and dry strokes as described above.
End with more dry strokes to aid in faster drying of carpet.
Overlap strokes by one-half inch to help prevent streaking.
To avoid saturating carpet, do not use more than 4 wet
strokes over any one area. Always end with dry strokes.
If additional cleaning is necessary, wait until the carpet is
completely dry before using the nozzle again.
When finished cleaning, follow "After cleaning" instructions on
page 9 and "After using stair/upholstery nozzle" instructions on
page 12.
Read "Before you begin cleaning" instructions on page 8.
Be sure to check the Gleaning code on your upholstery. Use
your HOOVER 'SteamVac' deep cleaner only on upholstery
marked "W" or "WlS'.
Attach hose and solution tube as instructed on page 11
Fill clean solution tank according to instructions on pages 6 and
7. Use 5 ounces of HOOVER Carpet/Upholstery Detergent.
Dry hands and plug deep cleaner into a properly grounded
outlet.
Turn deep cleaner ON.
Gently press the nozzle onto the fabric. Press the solution
trigger and slowly pull the nozzle over the fabric.
Overlap strokes by one-half inch to help prevent streaking.
Make additional strokes without pressing the trigger to remove
more moisture.
To clean in corners or creases, lift the nozzle one-half inch from
the fabric and press the solution trigger. Vacuum up the solution
with the nozzle without pressing the trigger.
For heavily soiled areas, it may be necessary to repeat the
cleaning process. Make crisscrossing strokes to the original
pattern; overlap each pass.
Make no more than 2 passes with the solution over any one
area to prevent overwetting and damage to fabric.
It additional cleaning is necessary, wait until the upholstery is
completely dry before using the nozzle again.
When finished cleaning, follow "After cleaning" instructions on
page 9 and "After using stair/upholstery nozzle" instructions on
page 12.
Sto ra g e
Before storing:
Empty solution tank and rinse thoroughly with clean
water.
Replace empty solution tank and turn deep cleaner
ON. Squeeze trigger and push deep cleaner forward
and back several times to expel any solution
remaining in the deep cleaner's system. (Do not use
deep cleaner on wood floors,)
• Empty recovery tank and rinse thoroughly with clean
water.
Allow underside of deep cleaner to air dry thoroughly
before storing deep cleaner on a carpeted or wood
surface.
Do not store deep cleaner with a full solution tank in
place.
Lubrication
The motor is equipped with bearings which contain sufficient
lubrication for the life of the motor. The addition of lubricant
could cause damage. Do not add lubricant to motor
bearings.
Continued "!)
Cleaning upholstery 13
If you have a problem
If a minor problem occurs, it usually carl be solved quite
easily when the cause is found by using the check list below.
I_'I_I_'i_ IL'_I_IIIII_ IIT/_"_IIIII_
Possible cause
Possible solution
Not firmly plugged in
Plug unit in firmly
No voltage in wall plug
• Check fuse or breaker
Blown fuse/tripped breaker
Replace fuse/reset breaker
Ia"tV1,3F41m _irBTil
Possible cause
Possible solution
Recovery tank lid not on correctly
• Make sure lid is on securely (page 8)
Recovery tank full/automatic shut off engaged
Remove and empty recovery tank
• Obstruction in hose on stair/upholstery nozzle
• Remove hose; clear obstruction
Recovery tank front panel not replaced after stair or
upholstery cleaning
• Replace recovery tank front panel (page 12)
Possible cause
Possible solution
Solution tank not firmly in place
• Make sure tank is securely locked in position
Solution tank empty
Refill tank _Jocording to instructions for surface being cleaned
(pages 6 & 7)
Recovery tank lid not on correctly
Make sure lid is firmly in place (page 8)
Stair/upholstery solution tube not securely fastened
Make sure tube is securely fastened _Jt connection of hood
Possible cause
Possible solution
• Connector collar pushed forward
Extend black tabs on connector by pulling collar towards
tube
14
Service
To obtain approved HOOVER service and genuine
HOOVER parts, locate the nearest Hoover Factory
Service Center or Authorized Hoover Warranty Ser-
vice Dealer (Depot) by:
• checking the Yellow Pages under "Vacuum
Cleaners- Household" OR -
checking the list of Factory Service Centers
provided with this cleaner OR -
• calling 1-800-944-9200 for an automated
referral of authorized service outlet locations
(U.S. only) OR -
checking the Service section of The Hoover
Company on-line at www.hoover.com
Do not send your cleaner to The Hoover Company in
North Canton for service, this will only result in delay.
If further assistance is needed, contact The Hoover
Company Consumer Response Center, North Canton,
Ohio 44720 Phone: 1-330-499-9499.
In Canada, contact Hoover Canada, Burlington, Ontario
L7R 4A8, Phone: 1-800-263-6376.
Always identify your cleaner by the complete model
number when requesting information or ordering parts.
(The model number appears on the back of the cleaner
handle,)

Navigation menu
