OWNER'S
MANUAl
Operating and Servicing
Instructions
Espafiol - p_gina EI /Frances - pag FI
www.hoover.com
_lease visit Hoover.com
for video instructions
for this cleaner.
IMPORTANT:READCAREFULLYBEFOREASSEMBLYAND USE.
Questionsor concerns?Forassistance,pleasecallCustomerServiceat
1-800-944-9200Mon-Fri8am-7pmEST beforereturningthis productto the store.
THIS PRODUCTIS INTENDEDFORHOUSEHOLDUSEONLY.
IF USEDCOMMERCIALLYWARRANTYIS VOID.
@2012 Techtronic Floor Care Technology Limited. All rights reserved, #961151062 ID106115-R0

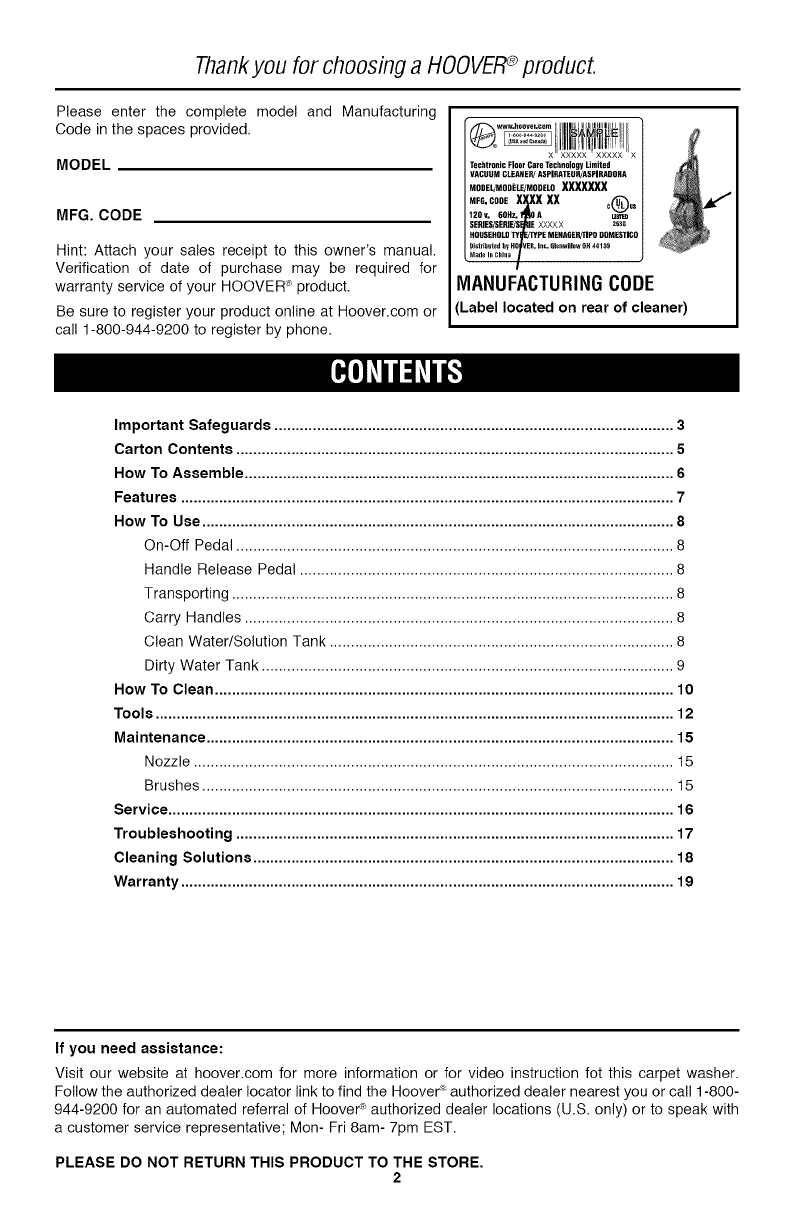

Thankyou for choosing a HOOVER°product.
Please enter the complete model and Manufacturing
Code in the spaces provided.
MODEL
MFG. CODE
Hint: Attach your sales receipt to this owner's manual.
Verification of date of purchase may be required for
warranty service of your HOOVER _ product.
Be sure to register your product online at Hoover.corn or
call 1-800-944-9200 to register by phone.
Techtronic Floor Care Technology Umited
VACUUM CIEANER/ASPIRATEUR!ASPI RADORA
MODEL/MOUEIE/MUUELO XXXXXXX
Myu.oo°EX_XXXX °®_
12Gv. 60Hz.. !_ Au_
SEUIES/SEUIE/S_E XY,XX X 2_sG
HOUSEHOLD _E MENAUER!TIPO OOMESTICU
Distributed _V HO ER,Inc. Gle,wiUow OH 44139
Made hi C hllla
MANUFACTURINGCODE
Label located on rear of cleaner)
Important Safeguards .............................................................................................. 3
Carton Contents ....................................................................................................... 5
How To Assemble ..................................................................................................... 6
Features .................................................................................................................... 7
How To Use ............................................................................................................... 8
On-Off Pedal ....................................................................................................... 8
Handle Release Pedal ........................................................................................ 8
Transporting ........................................................................................................ 8
Carry Handles ..................................................................................................... 8
Clean Water/Solution Tank ................................................................................. 8
Dirty Water Tank ................................................................................................. 9
How To Clean ............................................................................................................ 10
Tools .......................................................................................................................... 12
Maintenance .............................................................................................................. 15
Nozzle ................................................................................................................. 15
Brushes ............................................................................................................... 15
Service ....................................................................................................................... 16
Troubleshooting ....................................................................................................... 17
Cleaning Solutions ................................................................................................... 18
Warranty .................................................................................................................... 19
If you need assistance:
Visit our website at hoover.com for more information or for video instruction fot this carpet washer.
Follow the authorized dealer Iocator link to find the Hoove¢ "_authorized dealer nearest you or call 1-800-
944-9200 for an automated referral of Hoover _ authorized dealer locations (U.S. only) or to speak with
a customer service representative; Mon- Fri 8am- 7pm EST.
PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE.
2

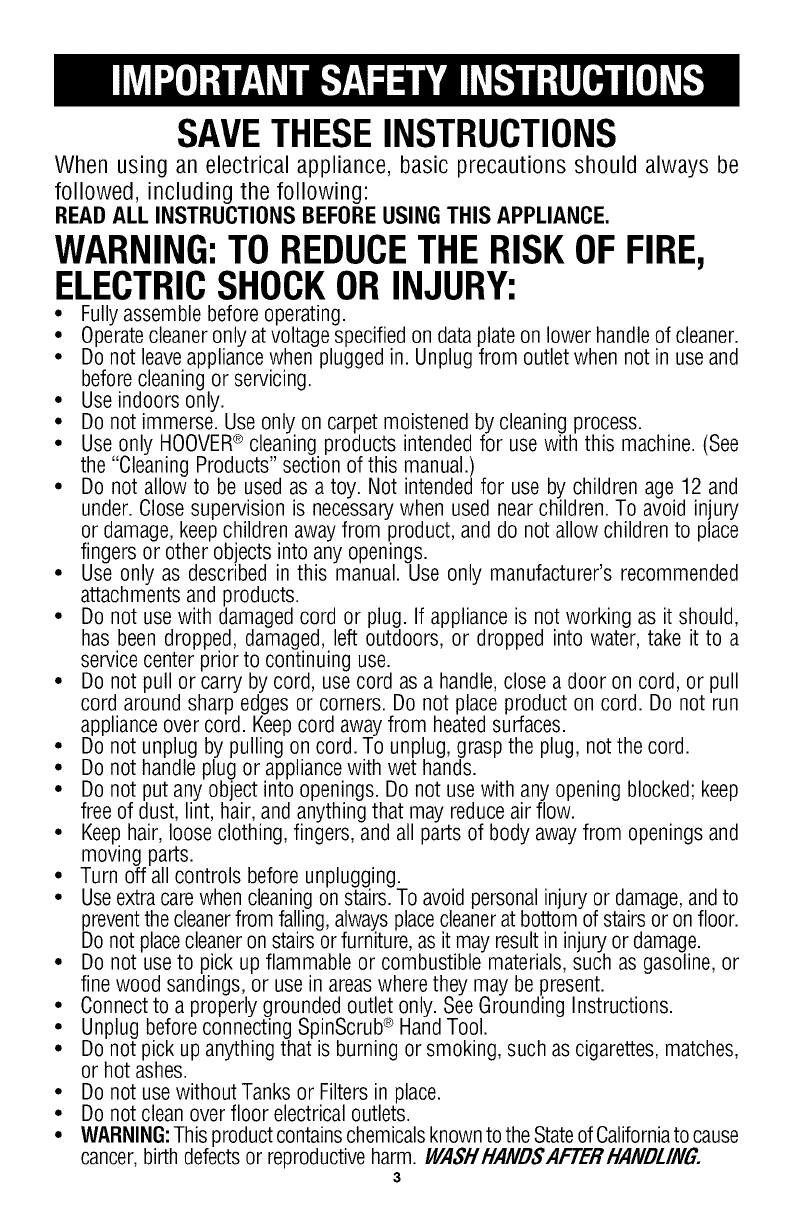

SAVETHESEINSTRUCTIONS
When using an electrical appliance, basic precautions should always be
followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE.
WARNING:TOREDUCETHERISKOFFIRE,
ELECTRICSHOCKORINJURY:
•Fully assemble before operating.
• Operatecleaner only at voltage specified on data plate on lower handle of cleaner.
• Do not leave appliance when plugged in. Unplug from outlet when not in use and
before cleaning or servicing.
• Useindoors only.
• Do not immerse. Use only on carpet moistened by cleaning process.
• Use only HOOVER_ cleaning products intended for use with this machine. (See
the "Cleaning Products" section of this manual.)
• Do not allow to be used as a toy. Not intended for use by children age 12 and
under. Close supervision is necessary when used near children. To avoid injury
or damage, keep children away from product, and do not allow children to place
fingers or other objects into any openings.
• Use only as described in this manual. Use only manufacturer's recommended
attachments and products.
• Do not use with damaged cord or plug. If appliance is not working as it should,
has been dropped, damaged, left outdoors, or dropped into water, take it to a
service center prior to continuing use.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull
cord around sharp edges or corners. Do not place product on cord. Do not run
appliance over cord. Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep
free of dust, lint, hair, and anything that may reduce air flow.
• Keephair, loose clothing, fingers, and all parts of body away from openings and
moving parts.
• Turn off all controls before unplugging.
• Useextra care when cleaning on stairs. To avoid personal injury or damage,and to
preventthe cleanerfrom falling, always placecleaner at bottom of stairs or on floor.
Do not placecleaner on stairs or furniture, as it may result in injury or damage.
• Do not use to pick up flammable or combustible materials, such as gasoline, or
fine wood sandings, or use in areas where they may be present.
• Connect to a properly grounded outlet only. See Grounding Instructions.
• Unplug before connecting SpinScrub_)Hand Tool.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches,
or hot ashes.
• Do not use without Tanks or Filters in place.
• Do not clean over floor electrical outlets.
• WARNING:This product contains chemicalsknown to the Stateof Californiato cause
cancer, birth defects or reproductive harm. WASHHANDSAFfER HANDLING.
3
CAUTION-TOREDUCETHERISKOFDAMAGE:
•Avoid picking up hard, sharp objects with this product, as they may causedamage.
• Store appropriately indoors in a dry place. Do not expose machine to freezing
temperatures.
• Do not use sharp objects to clean out hose as they can cause damage.
• To assist in reducing drying time, becertain the area is well ventilated when using
detergents and other cleaners with this machine.
• To help prevent matting and resoiling, avoid contact with carpets until they are
dry. Keep children and pets away from carpets until they are completely dry.
• Do not store extractor with solution in tanks.
• With brushes on, do not allow cleaner to sit in one location for an extended
period of time, as damage to the floor can result.
• Do not use this extractor and accessories on hard floors. Using this machine on
hard floors without proper attachment may scratch or damage your floor.
• Water will drip from the brushes and underside of the product after use and may
puddle. To avoid damage to wood and laminate flooring and to avoid potential
slip hazard, after use (a) do not leavethe product on wood and laminate surfaces
and remove to a hard surface and (b) place unit on absorbent material (such as
a towel) to soak up drips.
GROUNDINGINSTRUCTIONS
This appliance must be grounded. If it should malfunction or breakdown,
grounding provides a path of least resistance for electric current to reduce
the risk of electric shock. This appliance is equipped with a cord having an
equipment-grounding conductor (C) and grounding plug (A). The plug must be
inserted into an appropriate outlet (B) that is properly installed and grounded in
accordance with all local codes and ordinances.
WARNING:Improper connection of the equipment-grounding conductor
can result in the risk of electric shock. Check with a qualified electrician or service
person if you are in doubt as to whether the outlet is properly grounded. Do not
modify the plug provided with the appliance - if it will not fit the outlet, have a
proper outlet installed by a qualified electrician. This appliance is for use on a
nominal 120-volt circuit and has a grounding plug that looks like the plug (A)
illustrated in Fig. 1. A temporary adapter (D) may be used to connect this plug to
a 2-pole receptacle (E) if a properly grounded outlet is not available (Fig. 2). The
temporary adapter should be used only until a properly grounded outlet (B) can
be installed by a qualified electrician (Fig. 1). The green colored rigid ear, lug, or
the like (F) extending from the adapter must be connected to a permanent ground
(G) such as a properly grounded outlet box cover (Fig. 2). Whenever the adapter
is used, it must be held in place by a metal screw. NOTE:In Canada, the use of a
temporary adapter is not permitted by the Canadian Electrical Code.

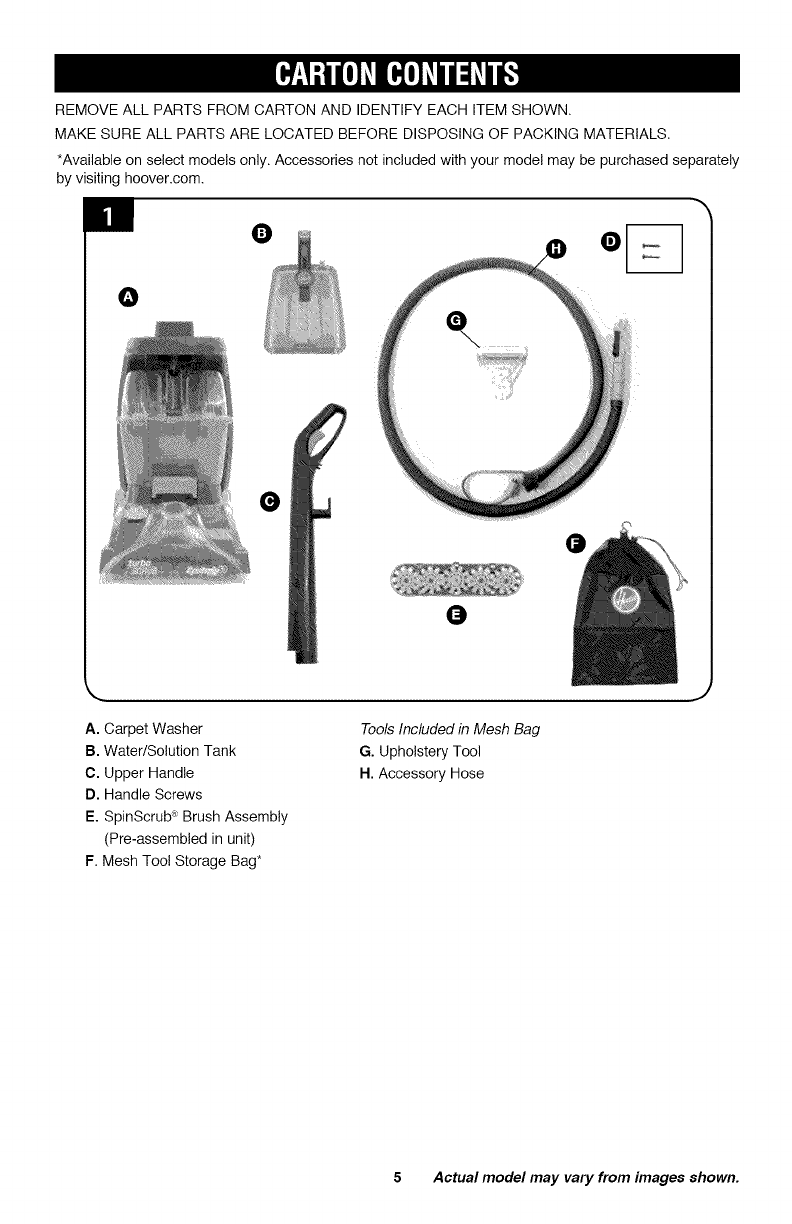

REMOVE ALL PARTS FROM CARTON AND IDENTIFY EACH ITEM SHOWN.
MAKE SURE ALL PARTS ARE LOCATED BEFORE DISPOSING OF PACKING MATERIALS.
*Available on select models only. Accessories not included with your model may be purchased separately
by visiting hoover.com.
O
O
e
A. Carpet Washer
B. Water/Solution Tank
C. Upper Handle
D. Handle Screws
E. SpinScrub_ Brush Assembly
(Pre-assembled in unit)
F. Mesh Too! Storage Bag*
Tools Included in Mesh Bag
G. Upholstery Tool
H. Accessory Hose
5Actual model may vary from images shown.

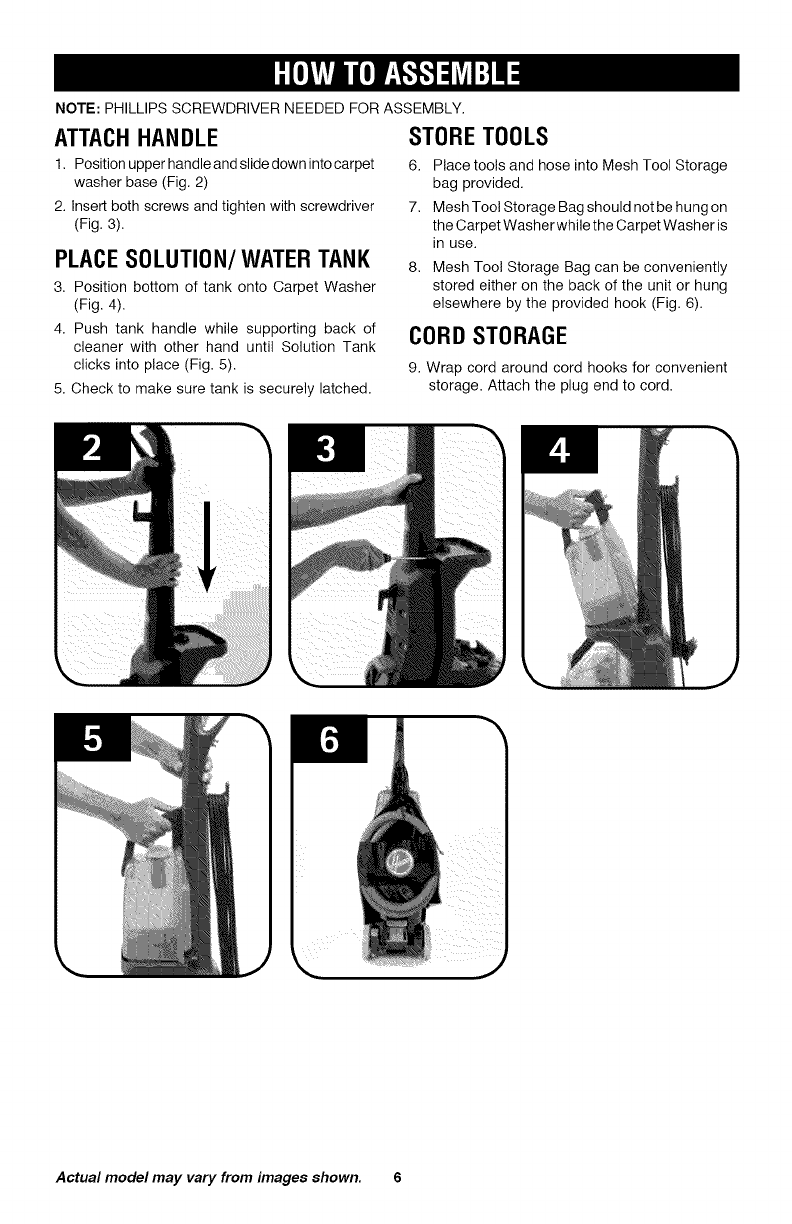

NOTE: PHILLIPS SCREWDRIVER NEEDED FOR ASSEMBLY.
ATTACHHANDLE STORETOOLS
1. Position upper handleand slide down intocarpet
washer base (Fig. 2)
2. Insert both screws and tighten with screwdriver
(Fig. 3).
PLACESOLUTION/WATER TANK
3. Position bottom of tank onto Carpet Washer
(Fig. 4).
4. Push tank handle while supporting back of
cleaner with other hand until Solution Tank
clicks into place (Fig. 5).
5. Check to make sure tank is securely latched,
6. Place tools and hose into Mesh Tool Storage
bag provided.
7. Mesh Tool Storage Bag should not be hung on
the Carpet Washer while the Carpet Washer is
in use.
8. Mesh Tool Storage Bag can be conveniently
stored either on the back of the unit or hung
elsewhere by the provided hook (Fig. 6).
CORD STORAGE
9. Wrap cord around cord hooks for convenient
storage. Attach the plug end to cord.
Actual model may vary from images shown. 6
12
9
3
4
5 2
6
7
FRONT BACK
LIST OF FEATURES
1. Solution Trigger: Press to release
cleaning solution
2. ON/OFF Pedal
3. Clean Water/Solution Tank
4. Dirty Water Tank
5. Dirty Water Tank Latch
6. Solution Tube Connection Port
7. Nozzle
8. Accessory Hose Connection Port
9. Cord Storage Hook
10. Cord Storage Hook
(Does not rotate)
11. Handle Release Pedal
12. Cord Clip
11
10
J
7Actual model may vary from images shown.
ON-OFF PEDAL (Fig.13,A)
1. To turn cleaner ON, step on pedal.
2. To turn cleaner OFF, step on pedal agian.
HANDLE RELEASEPEDAL (Fig13,8)
1. Grasp handle.
2. Step on Handle Release Pedal to release lower
handle to operating position.
3. Do not release grip on handle until handle is
returned into locked upright position
TRANSPORTING
1. To move your cleaner from room to room, put
handle in upright and locked position.
2. Tilt cleaner back on wheels and push forward
(Fig. 14).
CARRY HANDLES
The carpet washer may also be lifted by any of
several carry handles as shown. Be sure tanks are
properly latched in place before attempting to lift
(Fig 15).
A. Upper Handle
B. Solution Tank Handle
C. Dirty Water Tank Handle
D. Solution Tank Shelf
Howto Fill
1. Turn off and unplug cleaner from electrical
outlet.
2. To remove tank, press down on Solution Tank
Latch and pull forward. (Fig. 17).
3. Fill Clean Water Tank (Fig. 18) with hot tap
water to fill line. The use of hot water as
opposed to cold, significantly improves cleaning
performance.
4. Fill Solution Tank (Fig. 16-E) with Hoover _
Clean Plus 2X Solution or any other Hoover
solution by following the directions on the
cleaning solution bottle (see "Cleaning
Solutions" page 19 in manual for details).
Replace container cap and tighten.
5. Place Solution/Water Tank back on to the unit
using the method described on page 6.
NOTE: There may be a small amount of water on
the base when the tank is removed from the unit.
This is a normal condition.
Actual model may vary from images shown.
DIRTY WATER TANK
The Dirty Water Tank holds the dirty water that is
picked up from the surface being cleaned.
When the Dirty Water Tank is full, the automatic
shut-off will engage, suction will stop and the tank
must be emptied (see Automatic Shut-Off section).
Howto Empty
1. Turn cleaner off and unplug from electrica!
outlet.
2. Release Dirty Water Tank Latch (Fig. 20).
3. Grab the Dirty Water Tank Handle and remove
from carpet washer (Fig. 21).
4. Unplug the Quick Spout Pour Cap (A), rotate it
away from drain hole and empty the Tank (Fig. 22).
5. Place Recovery Tank back on to cleaner
making sure to do so with the retaining features
(B, Fig. 23)pointing down to ensure proper sealing.
6. Latch the Recovery Tank back in to place.
HowtoClean
1. Empty Dirty Water Tank.
2. Place on flat surface and unlatch Dirty Water
Tank lid latch located below the Quick Spout
Pour Cap (Fig. 24).
3. Pivot and lift off Dirty Water Tank Lid (Fig. 25).
4. Remove lint from filter screen located on the
bottom of the Dirty Water Tank Lid (C, Fig. 25).
5. Rinse debris from Dirty Water Tank Lid and Dirty
Water Tank bottom (Fig. 26).
6. Insert tabs on Dirty Water Tank lid and reattach
lid to Dirty Water Tank bottom (D, Fig. 27a).
7. Reattach Recovery Tank Lid Latch.
AUTOMATIC SHUT OFF
When the Dirty Water Tank is full the yellow float
disk will rise and shut off the carpet washer's suction.
The carpet washer will no longer pick up dirty water
and the motor sound will become noticeably higher
in pitch.
When this happens, turn carpet washer off and
empty Dirty Water Tank before continuing use.
Check Clean Water/Solution Tank also; it may need
to be refilled.
Do not use without float and float retainer in place.
If broken or dislodged, take to an Authorized Dealer
for repair.
Actual model may vary from images shown.
BEFOREYOU BEGINCLEANING
1. Vacuum thoroughly - For carpet, use a HOOVER _
vacuum cleaner with an agitator for best results.
Vacuum upholstery with a vacuum cleaner with
cleaning tool attachments. Use a crevice tool to
reach into tufts and folds. Do not use the carpet
cleaner as a dry vacuum cleaner.
2. For upholstery, check cleaning code - Use your
HOOVER _ carpet washer only if the upholstery
fabric is marked with a "W" (for "wet" clean) or "S/W"
(for "solvent/dry" or "wet" clean). Do not clean fabric
marked "S" ("solvent/dry" clean only). If your
upholstery does not have a code, seek professional
assistance.
3. Test for colorfastness - Wet a white absorbent
cloth with the solution. In a small, hidden area,
gently rub the surface with the dampened cloth.
Wait ten minutes and check for color removal or
bleed with white paper towel or cloth. If surface has
more than one color, check all colors.
4. When cleaning entire floor, move furniture out of
area to be cleaned (may not be necessary if only
high traffic areas are to be cleaned). For furniture
too heavy to move, place aluminum foil or wax
paper under legs. This will prevent wood finishes
from staining carpet. Pin up furniture skirts and
draperies.
5. Pretreat spots and heavy traffic areas with an
appropriate Hoover Cleaning Solutions, see
"Cleaning Solutions" section. Follow Directions on
bottle.
*Available at additional cost if not included with your
model.
6. To prevent staining, use plastic or aluminum foil
to protect wood or metal surfaces from possible
water spray.
7. To avoid wetting and possible damage to wood
floors underneath area rugs/carpet, either move area
rugs/ carpet to a non-wood hard floor surface or
place waterproof material (e.g. plastic) underneath
them before cleaning.
WASHING CARPET
Read "Before You Begin Cleaning" instructions.
1. Fill Clean Water Tank according to instructions (Pg. 8).
2. Fill solution tank with Hoover® solution according to
instructions (Pg. 8).
3. Dry hands and plug cord into a properly grounded outlet.
NOTE: To avoid walking on damp carpet, start at the end of the
room farthest from the door or path to sink where tanks will be
emptied and filled.
4. Step on handle release pedal and lower handle to operating
position.
Step1
5. Turn cleaner ON.
6. Squeeze trigger to apply cleaning solution and slowly push
cleaner forward (equals one wet stroke) (Fig. 29).
7. Continue to squeeze trigger and slowly pull cleaner back
toward you (second wet stroke).
Actual model may vary from images shown. 1O
Step 2
8. Release trigger and slowly push cleaner
forward over area just sprayed with solution
(dry stroke). Then slowly pull cleaner back
toward you without squeezing trigger (dry
stroke). Continue using dry strokes until little
water is visible passing through the Dirty Water
Tank lid (Pass over the same area a minimum
of 4 times = 2 while squeezing the trigger and
2 without).
NOTE: For best results, use straight, parallel
strokes. Overlap strokes by 1 inch to help prevent
streaking.
9. Keep nozzle flat on floor for both forward and
reverse strokes.
For best cleaning results and to aid in faster
drying of carpet, end with more dry strokes.
(Continue using dry strokes until little water is
visible passing through the Dirty Water Tank lid.)
Empty Dirty Water Tank when the motor sound
becomes higher pitched and there is a loss in
suction (see "Automatic shut-off").
When finished cleaning, follow "After Cleaning"
instructions on page 12.
10. For best cleaning results, Hoover recommends
to rinse the carpet with water only. This will
remove residual carpet cleaning solution from
your carpets. To Rinse with water only, fil!
solution tank with hot tap water only and
repeat cleaning strokes.
11. For heavily soiled areas, repeat cleaning
process. Avoid saturating carpet.
NOTE: It is best to alternate wet and dry strokes
as described above.
AFTER USE
Allow carpet or upholstery to dry. To help prevent
matting and resoiling the carpet, keep children and
pets away from surface until it is completely dry. If it
is necessary to walk on damp carpet, place towels
or white cloths on the traffic areas.
If furniture must be replaced before the carpet is dry,
place plastic or aluminum foil under legs of furniture
so metal slides or wood finishes will not stain the
carpet.
1. See "Dirty Water Tank: How to Empty" page 9.
2. See "Dirty Water Tank: How to Clean" page 9.
NOTE: Let Dirty Water Tank and Dirty Water Tank
Lid air dry before Carpet Washer is stored.
3. See "Cleaning Nozzle" page 16.
4. See "Cleaning Brushes" page 16.
5. Remove lint from filter screen located behind
nozzle.
11 Actual model may vary from images shown.
CONNECT HOSE FOR TOOL USE
Howto Attach
1. Open Accessory Hose Suction Port (A, Fig. 31).
Insert hose end, aligning the indicator with the
unlock arrows.
2. Rotate clockwise to lock position (B, Fig. 31).
3. Hold open the Accessory Hose Solution Port
door (Fig. 32).
4. Plug Accessory Hose Solution Tube connector
firmly into Hose Solution Port (C, Fig. 32).
Howto Remove
1. Disconnect Accessory Hose Solution Tube
Connector from Accessory Hose Solution Port
by pulling up firmly. Do not pull on tube, this
may cause damage. Accessory port door wi!!
automatically close.
2. Rotate accessory Hose end counterclockwise
from the locked position to the unlocked
position and remove by pulling out.
3. Snap Accessory Hose Suction Port door back
into place. Make sure to snap both sides to
unsure proper suction, unit may lose suction if
not closed properly.
TOOLS(*Available on select models only.)
A. Stair Tool*: 6 inches wide,2 built-in rows of brushes
to help provide the scrubbing action that some spots
may need for removal on your carpeted stairs.
B. Upholstery Tool has a built-in brush to help
provide the scrubbing action some spots may need
for removal.
C. SpinScrub _°_Hand Tool* has rotating brush(s)
for extra scrubbing action on small carpet areas,
carpeted stairs and upholstery. For some models,
the brush(s) can be removed for converting to the
scrub module.
D. Crevice Tool*: Great for use around baseboards
and those hard to reach areas.
NOTE: Tools located and stored in Mesh Bag.
Howto AttachTools
k.
1. To ensure maximum performance and to protect your carpet,
be sure to place the handle in the upright position while using
the accessory hose. Placing handle in the upright position
shuts off the SpinScrub brushes.
NOTE: All tools attach to the hose in the same manner:
2. Connect tool to hose by sliding it onto connector unti! the
tab locks it securely (E, Fig. 34).
3. Using your thumb, push forward and up on the latch to
remove tool (F, Fig. 34).
Actual model may vary from images shown. 12

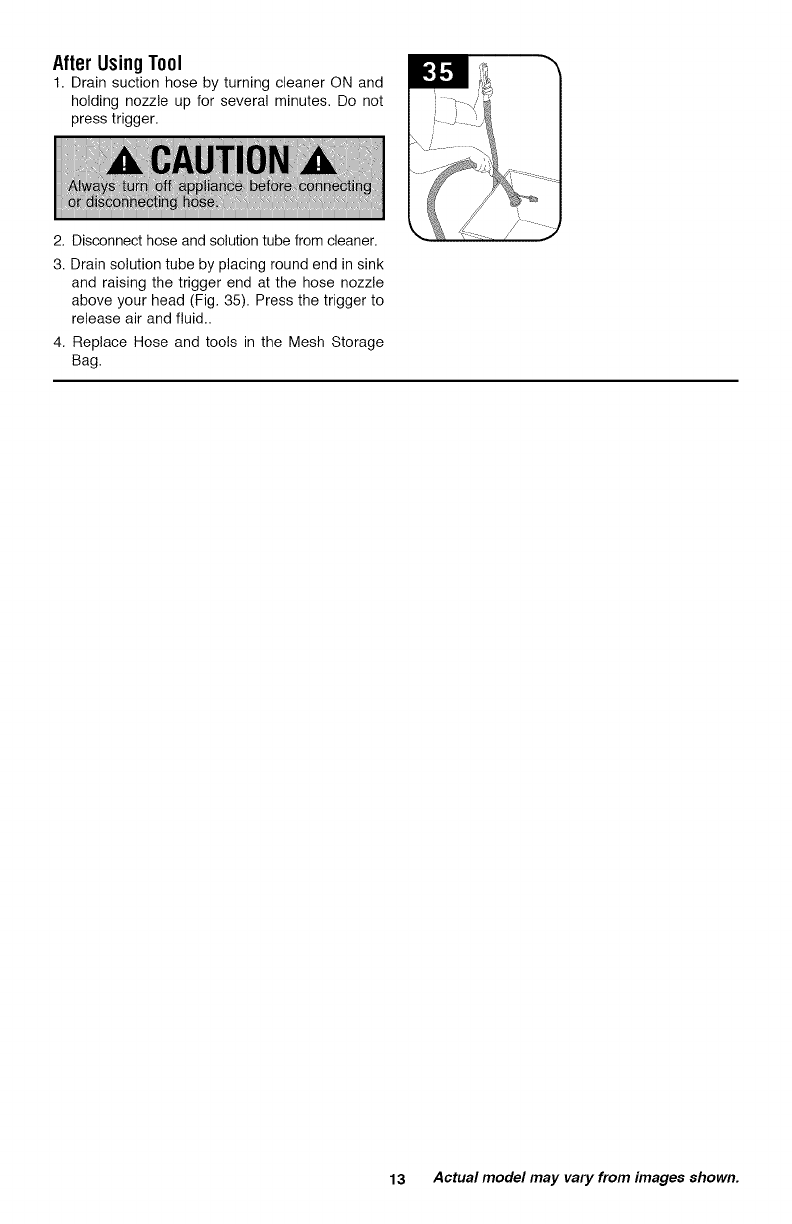

AfterUsingTool
1. Drain suction hose by turning cleaner ON and
holding nozzle up for several minutes. Do not
press trigger.
2. Disconnect hose and solution tube from cleaner.
3. Drain solution tube by placing round end in sink
and raising the trigger end at the hose nozzle
above your head (Fig. 35). Press the trigger to
release air and fluid..
4. Replace Hose and tools in the Mesh Storage
Bag.
13 Actual model may vary from images shown.

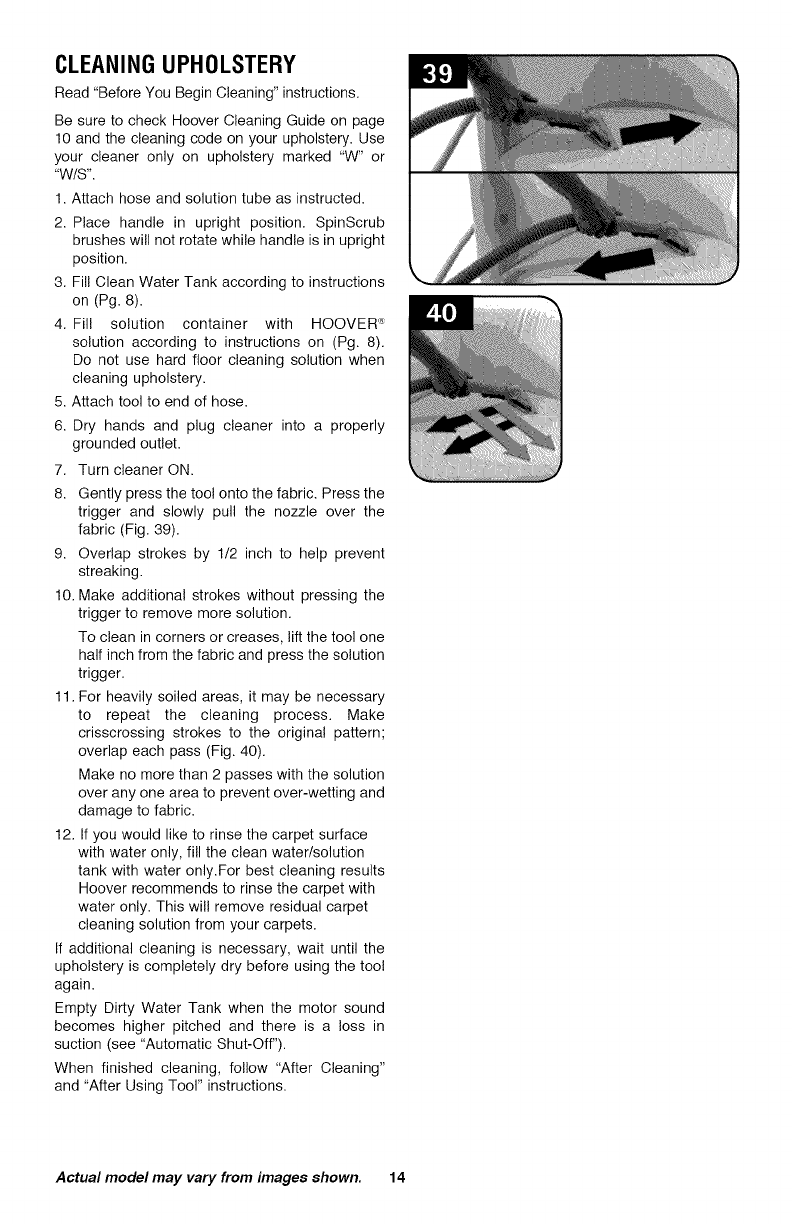

CLEANING UPHOLSTERY
Read "Before You Begin Cleaning" instructions.
Be sure to check Hoover Cleaning Guide on page
10 and the cleaning code on your upholstery. Use
your cleaner only on upholstery marked "W" or
"W/S".
1. Attach hose and solution tube as instructed.
2. Place handle in upright position. SpinScrub
brushes will not rotate while handle is in upright
position.
3. Fill Clean Water Tank according to instructions
on (Pg. 8).
4. Fill solution container with HOOVER _
solution according to instructions on (Pg. 8).
Do not use hard floor cleaning solution when
cleaning upholstery.
5. Attach tool to end of hose.
6. Dry hands and plug cleaner into a properly
grounded outlet.
7. Turn cleaner ON.
8. Gently press the tool onto the fabric. Press the
trigger and slowly pull the nozzle over the
fabric (Fig. 39).
9. Overlap strokes by 1/2 inch to help prevent
streaking.
10. Make additional strokes without pressing the
trigger to remove more solution.
To clean in corners or creases, lift the tool one
half inch from the fabric and press the solution
trigger.
11. For heavily soiled areas, it may be necessary
to repeat the cleaning process. Make
crisscrossing strokes to the original pattern;
overlap each pass (Fig. 40).
Make no more than 2 passes with the solution
over any one area to prevent over-wetting and
damage to fabric.
12. If you would like to rinse the carpet surface
with water only, fill the clean water/solution
tank with water only.For best cleaning results
Hoover recommends to rinse the carpet with
water only. This will remove residual carpet
cleaning solution from your carpets.
If additional cleaning is necessary, wait until the
upholstery is completely dry before using the too!
again.
Empty Dirty Water Tank when the motor sound
becomes higher pitched and there is a loss in
suction (see "Automatic Shut-Off").
When finished cleaning, follow "After Cleaning"
and "After Using Tool" instructions.
Actual model may vary from images shown. 14
Familiarize yourself with these home maintenance tasks as proper use and care of your cleaner will ensure
continued cleaning effectiveness.
Any other servicing should be done by an authorized service representative.
If appliance is not working as it should, has been dropped, damaged, leftoutdoors, or dropped into water, take
it to a service center prior to continuing use.
NOZZLE: How to Clean
If lint or other debris becomes lodged in nozzle, it
can be removed for cleaning.
1. To prevent possible leaking, remove Clean
Water Tank and Dirty Water Tank.
2. With handle in upright position, tilt carpet
washer back so that handle rests on the floor.
3. Rotate nozzle latch to unlock position (Fig. 41).
4. Pull up on nozzle slightly to unsnap nozzle from
foot of carpet washer.
5. Pull nozzle forward to remove from carpet
washer. Be sure the nozzle does not get caught
on retention tank latch (Fig. 42).
6. Rinse debris from nozzle.
7. Position nozzle on to foot, making sure to align
the tabs at the bottom of the nozzle with the
notches on the foot (Fig. 43).
8. Snap nozzle to foot.
9. Rotate nozzle latch to lock position.
BRUSHES: Howto Change and Clean
Your cleaner is equipped with removable brushes.
Follow these directions for changing brush
assemblies or for easy cleaning.
HOWto Remove
1. To prevent possible leaking, remove Clean
Water Tank and Dirty Water Tank.
2. With handle in upright position, tilt cleaner back
until handle rests on the floor.
3. Grab brush assembly and pull firmly (Fig. 44).
4. The brushes can be cleaned under running water.
C
Howto Replace
1. Align posts (A) on both ends of brush assembly
with slots (B) in cleaner housing (Fig. 44).
2. Make sure that the hexagonal post (C) also
aligns with the hexagonal hole (D). Turn
brushes slightly until post fits easily into hole.
3. Press brush assembly firmly to snap into place.
15 Actual model may vary from images shown.
STORAGE
Before storing:
• Empty Clean Water Tank and let air dry.
Replace on cleaner.
• Empty Dirty Water Tank, rinse tank and lid
thoroughly with clean water and let air dry.
Allow brushes and underside of carpet cleaner
to air dry thoroughly before storing carpet
cleaner on a carpeted or wood surface.
LUBRICATION
The motor is equipped with bearings that contain
sufficient lubrication for the life of the motor.
The addition of lubricant could cause damage.
Therefore, do not add lubricant to motor
bearings.
To obtain approved Hoover _; service and genuine Hoover _ parts, locate the nearest Authorized Hoover _
Warranty Service Dealer (Depot) by:
• Checking the Yellow Pages under "Vacuum Cleaners" or "Household".
• Visit our website at hoover.corn (U.S. Customers) or hoover.ca (Canadian customers).
Follow the service center link to find the service outlet nearest you.
• For an automated referral of authorized service outlet locations call 1-800-944-9200.
Do not send your vacuum to Hoover% Inc., Company in Glenwillow for service. This will only result in delay.
If you need further assistance:
To speak with a customer service representative call 1-800-944-9200; Mon-Fri 8am-7pm EST. In Canada,
contact Hoover _'_Canada, Toronto: 755 Progress Ave., Scarborough, ON M1 H 2W7 OR Hoover ®Canada,
Edmonton: 18129-111 Ave., Edmonton, AB T5W 2P2, Phone: 1-800-944-9200, Mon-Fri 8am-7pm EST.
Always identify your vacuum by the complete model number when requesting information or ordering parts.
(The model number appears on the bottom of the vacuum.)
PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE.
Actual model may vary from images shown. 16
If a minor problem occurs, it usually can be solved quite easily when the cause is found by using the
checklist below.
Any other servicing should be done by an authorized service representative.
If appliance is not working as it should, has been dropped, damaged, leftoutdoors, or dropped into water, take
it to a service center prior to continuing use.
AWARNINGA
To reduce risk of personal injury - Unplug before cleaning or servicing.
PROBLEM
Cleaner won't run.
Low suction.
Hose nozzle stops
spraying liquid
during use.
Hose nozzle will
not spray after
filling the Clean
Water Tank or
Detergent Con-
tainer.
Hose nozzle will
not spray after
priming pump.
Clean water won't
dispense.
POSSIBLECAUSE POSSIBLESOLUTION
2. No voltage in wall plug.
4. Fuse in cleaner blown.
2. Blockage In tool on end of
hose.
4. Dirty Water Tank Debris Filter
Clogged.
ka_i
6. Recovery Tank not properly
secured.
2. Check fuse or breaker in home.
4. Take to service center,
2. Remove tool and clear blockage.
4. See "How to Clean" page 5.
i_ii_i_iii!iiiii_i_i_ilii_i_i__!_!_i_!Y_i!!ii_i_i_!_i!i!ili!i!!_!!i_ii_ii_il_ii_ii_ii_ii_il_ii_ii_il_ii_ii_ii_ili!!_!_i_i_!_ii_ii_!i_!i_!i_!i_!i_!i_!i_!ili_i_iiii!!_i_ii!_il_i!iii!iiiiiiiiiiiiiiiiiii_ii_ii_i!_i!_i_i_i_i!_i!_i!_!_!;!;!;!;!__i!_i_i
6. Replace Recovoery Tank as per instructions
on page 9.
torg i i i
1. Air is trapped in the pump 1. Turn on the cleaner. If hose does not spray,
and hose. prime the pump by lowering the hose down to
the floor and hold the trigger for up to 1 minute.
1. Clean Water Tank not firmly 1. Make sure tank is securely locked in
tnplace. _osition.
Brushes won't 1. Dirty filter screen on front of 1. Clean screen.
rotate during floor unit behind nozzle.
cleaning.
17 Actual model may vary from images shown.
WARNING: To reduce the risk of fire and electric shock due to internal component damage, use only
Hoover _ cleaning products intended for use with the appliance as noted below.
;: [.I.1,L_] ,i[_ [_] ,] i,_,m"F']rri; [.] ,s _-'qlG[:
Clean Pet Pro
Plus 2x Plus 2x Plus 2x
32oz/64oz 32oz/64oz 32oz/64oz
Hoovere Power
Scrub Deluxe If If
For optimal performance
use Hoover ®brand
detergents, wipes, and
spot cleaners available at
Hoover.corn
and retailers nationwide.
J
18
LIMITED TWO YEAR WARRANTY
(Domestic Use)
WHAT THIS WARRANTY COVERS
When used and maintained in normal household
use and in accordance with the Owner's Manual,
your HOOVER® product is warranted against
original defects in material and workmanship for a
full two year from date of purchase (the "Warranty
Period"). During the Warranty Period, Hoove¢_will
provide labor and parts, at no cost to you, to
correct any such defect in products purchased in
the United States, U.S. Military Exchanges and
Canada.
HOW TO MAKE AWARRANTY CLAIM
If this product is not as warranted, take or send
the product to either a Hoover_;Sales and Service
Center or Hoover®Authorized Warranty Service
Dealer along with proof of purchase. For an
automated referral to authorized service outlets in
the U.S.A., phone: 1-800-944-9200 OR visit
Hoover®online at www.hoover.com. For additional
assistance or information concerning this
Warranty or the availability of warranty service
outlets, phone the Hoover_ Consumer Response
Center, Phone 1-800-944-9200, Mon-Fri
8am-7pm EST. In Canada, contact Hoover®
Canada, Carson Building, 100 Carson St.,
Etobicoke, Ontario M8W 3R9, Phone: 1-800-944-
9200, Mon-Fri 8am-7pm EST.
WHAT THIS WARRANTY DOES NOT COVER
This Warranty does not cover: use of the product
in a commercial operation (such as maid, janitorial
and equipment rental services), improper
maintenance of the product, damage due to
misuse, acts of God, nature, vandalism or other
acts beyond the control of Hoover_, owner's acts
or omissions, use outside the country in which the
product was initially purchased and resales of the
product by the original owner. This warranty does
not cover pick up, delivery,transportation or house
calls. However, if you mail your product to a
HooveP Sales and Service Center for warranty
service, cost of shipping will be paid one way.
This warranty does not apply to products
purchased outside the United States, including its
territories and possessions, outside a U.S. Military
Exchange and outside of Canada. This warranty
does not cover products purchased from a party
that is not an authorized retailer, dealer, or
distributor of Hoove#; products.
OTHER IMPORTANT TERMS
This Warranty is not transferable and may not be
assigned. This Warranty shall be governed and
construed under the laws of the state of Ohio. The
Warranty Period will not be extended by any
replacement or repair performed under this
Warranty.
THIS WARRANTY IS THE EXCLUSIVE
WARRANTY AND REMEDY PROVIDED BY
HOOVER _. ALL OTHER WARRANTIES,
EXPRESSED OR IMPLIED, INCLUDING
WARRANTIES OF MERCHANTABILITY OR
FITNESS FOR PARTICULAR PURPOSE, ARE
DISCLAIMED. IN NO EVENT WILL HOOVER <_;
BE LIABLE FOR ANY SPECIAL, INDIRECT,
INCIDENTAL OR CONSEQUENTIAL DAMAGES
OF ANY KIND OR NATURE TO OWNER OR
ANY PARTY CLAIMING THROUGH OWNER,
WHETHER BASED IN CONTRACT,
NEGLIGENCE, TORT OR STRICT PRODUCTS
LIABILITY OR ARISING FROM ANY CAUSE
WHATSOEVER. Some states do not allow the
exclusion of consequential damages, so the
above exclusion may not apply to you. This
warranty gives you specific rights; you may also
have others that vary from state to state.
19

Navigation menu
