INSTRUCTIONS BOOKLET
BUILT-IN COOKTOPS
GB
![](asset-2.png)
Important warnings and tips for use
♦ IMPORTANT! This manual constitutes an integral part of the appliance. It must be kept intact and
within easy reach during the entire life of the cooktop. Please carefully read this manual and all the
instructions contained herein before using the appliance. Keep any spare parts supplied with the
appliance. Installation must be carried out by a qualified technician and in compliance with current
regulations. This appliance is intended solely for domestic use and is designed for the following
functions: cooking and reheating food. Any other use is considered as improper.
The manufacturer declines all liability resulting from poor installation, tampering, inexpert
use and use for purposes other than those specifically stated.
♦ Check that the appliance has not been damaged during transport.
♦ Keep all packaging materials (plastic bags, polystyrene foam, nylon, etc.) away from children, as
they are potentially dangerous.
♦ The packaging material is recyclable, and marked with the recycling symbol . Dispose of the
appliance responsibly.
♦ This appliance must be used by adults only. Make sure children do not touch the controls or
play with the appliance.
♦ Installation and gas/electrical connections must be carried out by a qualified technician in
accordance with the manufacturer's instructions and in full compliance with current laws and
safety regulations.
♦ Electrical safety can only be guaranteed if the product is connected to a suitable earth connection.
♦ It is dangerous to modify or attempt to modify the appliance. In the event of a malfunction, do not
attempt to repair the appliance yourself, but contact a qualified technician.
♦ After using the cooktop, ensure the indicator on the knob is turned to the "off" position and close
the mains gas delivery tap or the gas cylinder tap.
♦ Should you decide not to use the appliance any longer, before scrapping it make it unusable in
accordance with current environmental health and safety laws, ensuring any parts which might
constitute a danger to children are rendered harmless.
♦ The appliance data plate, with technical specifications, is positioned at a visible point under the
safety cover and is also enclosed with this manual. The data plate below the safety cover must
under no circumstances be removed.
♦ Illustrations for the use of the appliance are grouped together at the end of this manual.
Declaration of Conformity
This appliance conforms to the following EC directives:
− 90/396/EEC “Gas safety requirements”
− 73/23/EEC “Low voltage” - Replace from 2006/95/EC and modifications
− 89/336/EEC “Electromagnetic compatibility” - Replaced from 2004/108/EC and modifications
− 89/109/EEC “Materials or objects destined to come into contact with foodstuffs”
− Regulation EC N°1935/2004 “Materials or objects destined to come into contact with foodstuffs”
These instructions are valid only for those countries whose ID
initials appear on the data plate found on the instructions
handbook and on the appliance.
49
![](asset-3.png)
COOKTOP SPECIFICATIONS
Warnings:
This appliance is designed to be built into a housing unit.
♦ The installation class is type 3 for gas and type Y for electric parts.
♦ Housing units must be designed to withstand temperatures of up to 90°C or over.
♦ For correct installation, refer to the relevant paragraph and reference drawings.
♦ The use of a gas cooking appliance produces heat and humidity in the room in which it is installed.
Ensure the kitchen is well ventilated: keep natural ventilation openings open, or install a
mechanical ventilation device (extractor hood with exhaust duct). In the case of intensive or
prolonged use of the appliance it may be necessary to provide additional ventilation, for example,
by opening a window, or more efficient ventilation, for example by increasing the hood speed.
This handbook is valid for several types of cooktop. Refer to the data plate on the back in order to
identify the model that corresponds to your appliance. These initials, together with the instructions in
the following paragraphs and the illustrations at the back of the manual (Fig 1) will show the particular
composition of your appliance.
An Example:
COOKING POINTS
60 cm cooktops with side controls
Mod: HGL60AM X - HGL60AM W - HGL60AM N (Fig. 1)
1. Semirapid right burner (SR)
2. Semirapid left burner (SR)
3. Rapid burner (R)
4. Auxiliary burner (A)
50
![](asset-4.png)
USING THE COOKTOP
Gas burners
The delivery of gas to the burners is controlled by the knobs shown in fig. 4 that in turn control the
taps. The symbols, depending on the various versions, may be printed on the knobs or on the control
panel. By moving the indicator to coincide with the printed symbols, the following adjustments can be
made:
Tap closed, no gas delivery
Maximum capacity, maximum gas delivery
Minimum capacity, minimum gas delivery
Burner ignition
- Burners without safety valve
To light burners without electric ignition, or to light those with ignition during a power cut, place a
naked flame next to the top of the burner, press the corresponding knob down and turn anti-clockwise
until the symbol coincides with the reference mark on the control panel.
For minimum gas delivery, turn the knob until the indicator points to the small flame.
The setting must always be positioned between the maximum and minimum, and never
between the maximum setting and the off position.
To switch the burner off, turn the knob clockwise to the position
“tap closed”
- Burners with electric ignition
Models with ignition switch
To light one of the burners, press the ignition switch and turn the corresponding knob to the maximum
delivery position (symbol ). Hold the switch down until the burner lights, then adjust the flame by
turning the knob to obtain the desired intensity.
Models with ignition incorporated in the control knobs
These models are identified by the symbol next to the symbol ( Maximum delivery).
To light one of the burners, press the knob down and turn it to the maximum delivery position, holding
down until the burner lights. Next adjust the flame by turning the knob to obtain the desired intensity.
Note:
If the particular nature of the local gas supply makes it difficult to ignite the burners with the knob
turned to the maximum setting, repeat the operation without a pan in position and with the knob turned
to the minimum setting.
- Burners with safety valves
Some models are equipped with safety valves which automatically shut off the gas delivery in the
event the burner should, for any reason, go out.
To relight the burner, turn the knob to position O and repeat the ignition procedure explained in the
following paragraphs.
Using the burners
For models fitted with ignition incorporated in the knobs, turn the gas tap knob to the maximum
delivery position, then press and hold down for about 4÷5 seconds. Release the knob and adjust the
flame by turning the knob to the desired intensity.
51
![](asset-5.png)
For models fitted with ignition switch, turn the gas tap knob to the maximum delivery position, then
press the ignition switch and the knob, holding down for about 4÷5 seconds. Then release the knob
and adjust the flame by turning the knob to the desired intensity.
) 'Warning':
The ignition device must not be used for more than 15 seconds.
If after this length of time the burner does not light, or if it goes out again accidentally, wait
1 minute before trying to ignite the burner again.
Choosing the right burner
The symbols stamped on the control panel (fig. 4) next to the knobs indicate which knob corresponds
to which burner. To choose the most suitable burner, take into account the diameter of the pan as well
as the pan capacity (see table).
The diameter of the pan must be proportionate to the burner power in order to ensure high yield.
ADJUSTMENT TO DIFFERENT TYPES OF GAS
If a different type of gas from the one indicated on the rating plate is used, the injectors must be
replaced.
If spare injectors are not supplied with the appliance, they are available from the After-sales service.
For the choice of replacement injectors, refer to the injectors table.
The injectors are identified by their diameter, which is expressed in hundredths of mm, stamped on the
body of the injector itself.
Replacing the injectors
Remove the grids and burner caps from the cooktop
Using a socket wrench, replace the injectors “J” (fig. 11) with the suitable ones for the gas used.
Replace the burners ( see fig. 13 )
The burners do non require primary air adjustment.
Adjustment of minimum setting
After replacing the injectors, light the burner and remove the knob. Turn the tap to the minimum setting
and insert a screwdriver in the rod: tighten to reduce the flame, loosen to increase the flame. (fig. 11)
For gas G30/G31, tighten the adjustment screw fully
The flame must be small, uniform and regular all around the burner crown.
Finally, check that the flame does not go out by rapidly turning the tap from the maximum setting to
the minimum. For burners with a safety device, check that the flame slightly licks the thermocouple.
Make sure that the adjustment is correct by leaving the burner alight for a few minutes. If it goes out,
increase the minimum setting.
Pan diameter
Burner Minimum diameter Maximum diameter
Auxiliary 60 mm (with reducer) 140 mm
Semirapid 160 mm 200 mm
Rapid 200 mm 240 mm
52
![](asset-6.png)
Using the grids
The panstand grids are designed to make the appliance easy and safe to use. Always check the
panstand grids are properly positioned before using the appliance. Furthermore, always check the
protective rubber feet are all present and correctly positioned.
Grid for small pots or pans (Fig. 3)
This is placed on top of the auxiliary burner grid (the smallest one) when pots or pans of reduced
diameter are used, to avoid unbalancing.
INSTALLATION INSTRUCTIONS
Important!
These instructions are intended for qualified technicians.
The appliance must be installed correctly, in compliance with current laws.
Before carrying out any operation on the appliance, it must be disconnected from the
electricity supply.
Fitting the appliance in the worktop
The cooktop may be fitted into any worktop, as long as it is heat resistant (minimum temperature of
90°C).

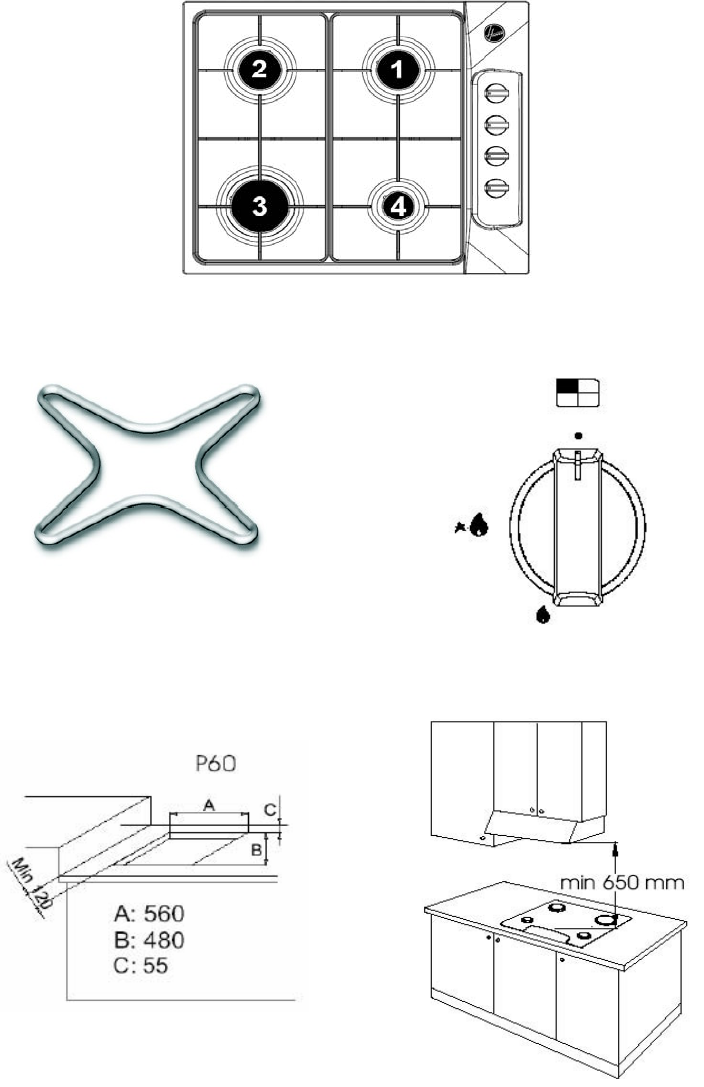

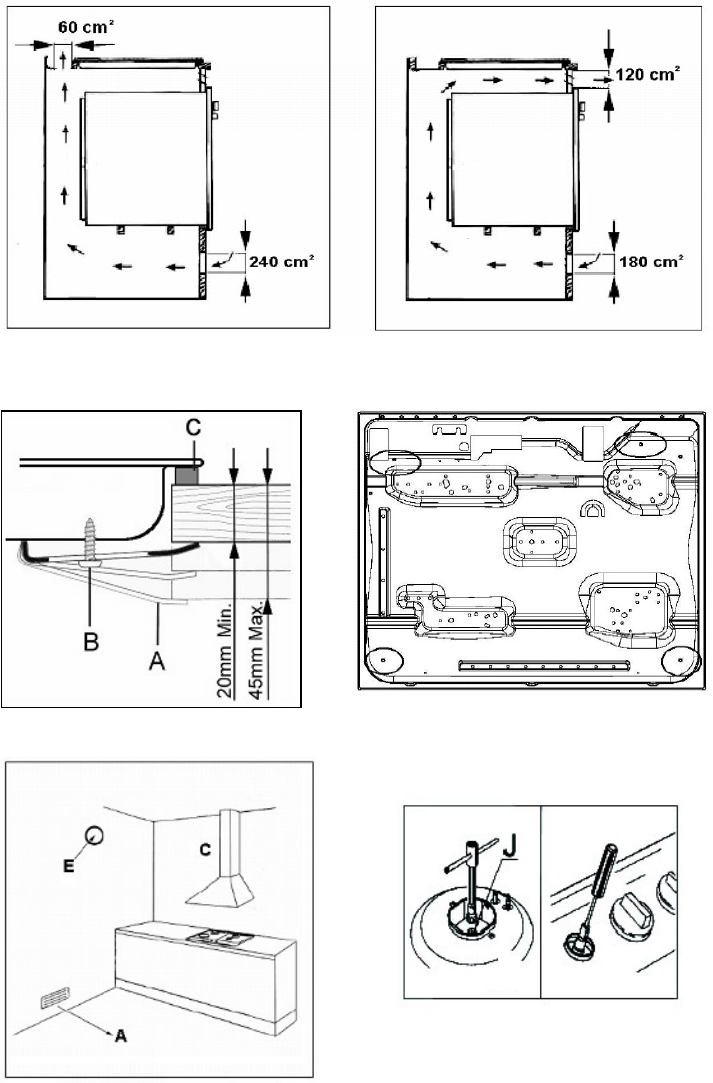

The dimensions of the hole to be made in the worktop and the minimum distances between rear and
side walls and those above the appliance are shown in figures 5 and 6.
Bear in mind that:
) If the cooktop is installed without an oven below it, a separator panel must be placed between the
bottom of the cooktop and the housing below it, at a minimum distance of 10 mm.
If the cooktop is installed over an oven, place a separator panel at a minimum distance of 15 mm and
follow the oven manufacturer's instructions, ensuring nonetheless sufficient aeration as specified in fig.
7.
In any event, the electrical connection of the two appliances must be carried out separately,
both for electrical purposes and to facilitate removal.
It is advisable to use an oven equipped with an internal forced cooling system.
Fixing the cooktop
To fix the cooktop in the housing, proceed as follows:
) Position the special gasket supplied along the outer perimeter of the worktop, following the
diagram shown in fig. 5, so that the ends of the gasket meet exactly without overlapping.
) Position the cooktop into the worktop, taking care to ensure it is placed exactly in the centre.
) Fix the cooktop to the worktop using the special brackets supplied (A), as shown in fig. 8.
Correct installation of the sealing gasket (C) ensures complete protection against infiltration of
liquids.
) The brackets must be fixed in the holes mark to you from the fig. 8
53
![](asset-7.png)
Installation area and removal of combustion fumes
) The appliance must be installed and operated in suitable areas, and in compliance with
current laws.
The installation technician must observe current laws governing ventilation and removal of
combustion fumes.
The air required for combustion is 2m
3
/h per kW of power (gas) installed.
Installation area
In the room where the gas appliance is installed, there must be a sufficient natural air supply to allow
the gas to burn correctly.
The natural flow of air must take place through an opening made on an outside wall of the room and
having a working section of at least 100 cm2 (A). In the case of appliances without safety valves, this
opening must have a minimum working section of 200 cm2 (fig. 10).
This opening must be made in such a way that it cannot be obstructed from inside or outside. It should
be positioned near floor level, preferably on the side opposite the fume exhaust devices.
If it is not possible to make the necessary openings, the air can be supplied from an adjacent, suitably
ventilated room, as long as this room is not a bedroom, a dangerous area or a low-pressure area.
Removal of combustion fumes
Combustion fumes produced by gas appliances must be removed by means of a hood connected
directly either to an exhaust duct or to the outside (fig. 10).
If a hood cannot be installed, an electric extractor fan must be fitted to the outside wall or the window.
This electric extractor fan must have a sufficient capacity to guarantee a change of air of the kitchen of
at least 3-5 times its volume.
Components shown in fig. 10
A: Opening for air supply
C: Hood for exhaust removal of combustion fumes
E: Electric extractor fan for removal of combustion fumes
Connection to gas supply
) Before installation, make sure the type and pressure of the local gas supply are compatible
with the cooktop settings. To do this, check the data on the appliance data plate on the
cooktop as well as on this handbook.
The gas connection must be carried out by a qualified technician in compliance with local current
regulations.
If using metal hoses, ensure these do not come into contact with any movable parts and are at no
point crushed.
Carry out the connection in such a way as does not cause any stress whatsoever on the appliance.
The gas supply connector is threaded G½”. ( fig. 14)
For ISO R7 connections, the gasket is not required.
For ISO R228 connections, the washer supplied must be fitted.
) After connection operations, check for leaks using a soapy solution.
Electrical connection
Before connecting the appliance to the electricity supply, check that the voltage corresponds to that on
the data plate and that the power supply cable is suitable for the appliance load also stated on the
data plate.
If the appliance is connected directly to the mains, fit an all-pole disconnect switch with minimum
contact gap of 3 mm, adequate for the appliance load and complying to regulations.
54
![](asset-8.png)
) Do not use reducers, adapters or switches for connection to the mains, since these could
overheat and cause burns.
) Regulations require that the appliance is earthed. The manufacturer declines all liability
resulting from failure to observe this regulation. ( fig.12 )
If the power cable must be replaced, use a cable having identical characteristics to the original
supplied by the manufacturer, suitable for the load and temperature (type T90°C). This is available
from After-sales service. Furthermore, the end of the power cable to be connected to the appliance
must have the Yellow-Green earth conductor 20 mm longer than the other conductors.
Refer to the table below for the size of the power cable
Type of cooktop Size
Only gas burners 3X0.50 mm2
H05 V2V2-F
CLEANING
To maintain the cooktop in optimum condition, clean it regularly after each use, allowing it to cool
before cleaning.
Never remove the knobs from their seats
Enamelled parts
All enamelled parts should be cleaned with a sponge and soapy water or specific detergents. Never
use abrasive cleaning products. Dry thoroughly after cleaning.
Stainless steel top
The stainless steel top should be cleaned with a damp cloth and proprietary detergents commercially
available.
After rinsing, dry preferably with a chamois leather.
Grids
The enamelled panstand grids of the cooktop are dishwasher safe.
Stainless steel panstand grids may take on a bluish tinge on parts around the burners as a result of
the high temperatures. This effect can be reduced by using commercially available steel wool pads.
Burners
The burners, comprising two parts, can be removed and cleaned using suitable detergents. After
cleaning, dry the burners thoroughly and reposition them carefully in their seats.
In models with electric ignition, always check that the electrode “E” (fig. 13) is clean.
In models with safety device, clean the probe “T” (fig. 13) in order to allow regular operation of the
safety valve. Both the electrode and probe must be cleaned with care.
Upon completion of cleaning, replace the burners accurately in their seats.(see fig.13 )
To prevent damaging the electric ignition, avoid using it when the burners are not in place.
55
![](asset-9.png)
MAINTENANCE
The appliances do not require any particular maintenance, nonetheless it is advisable to have them
checked at least once every two years.
If the knobs become difficult to turn, or if there is a smell of gas, shut the gas supply tap and call After-
sales service.
Faulty taps must be replaced along with their gasket.
AFTER-SALES SERVICE
Before calling in the After-Sales Service
If the hob fails to operate, we advise you to:
- Check that the plug is correctly inserted into the power socket.
- Check that the flow of gas is normal
If you are unable to find the cause of the problem;
switch the appliance off, do not tamper with it and call in the After-Sales Service.
56
![](asset-a.png)
0,50
0,650,50
0,903,00
0,30
0,44
0,75
Category
Country
GB
II 2H 3+
gasdüse - mlaznica
bocas de gás-Gorilniki
0,85
Queimadores-Plamenici
Optere enje - Kapacitet - zmogljivost
0,97
1,15
A
SR
A
SR
R
1,00
1,75
0,37
R
1,00 0,72
Bruciatori-burners-bruleurs
Portata - power inputs - débit gas
Ø Iniettori
1,75
3,00
Bruciatori-burners-bruleurs
Portata - power inputs - débit gas
Ø Iniettori
brenner-quemodores
capacidad - vazão - debiet- vermogen
injecteur - inyector
branders- - Capacidade - gaszufuhr
injectors - sproeier
Max (kW)
Min (kW)
brizgalica - obe
brenner-quemodores
capacidad - vazão - debiet- vermogen
injecteur - inyector
branders- - Capacidade - gaszufuhr
injectors - sproeier
Queimadores-Plamenici
Optere enje - Kapacitet - zmogljivost
gasdüse - mlaznica
bocas de gás-Gorilniki
Max (kW)
Min (kW)
brizgalica - obe
20 mbar
G20
Tipo di gas/ Gas type / Gassoort / Gasart / Type de gaz / /
Tipo de gás / Gaz type / Vrsta gasa / Vrsta plina
Pressione gas / Gas pressure / Pression gaz / Gasdruck / Presion gas /
/ Press
ão gás / Tlak gas
G30 G31
28-30/37 mbar
Tipo di gas/ Gas type / Gassoort / Gasart / Type de gaz / /
Tipo de gás / Gaz type / Vrsta gasa / Vrsta plina
Pressione gas / Gas pressure / Pression gaz / Gasdruck / Presion gas /
/ Press
ão gás / Tlak gas
![](asset-b.png)
Fig.3 Fig.4
Fig.5 Fig.6
Fig.1
![](asset-c.png)
Fig.7
Fig.8 Fig.9
Fig.10 Fig.11
![](asset-d.png)

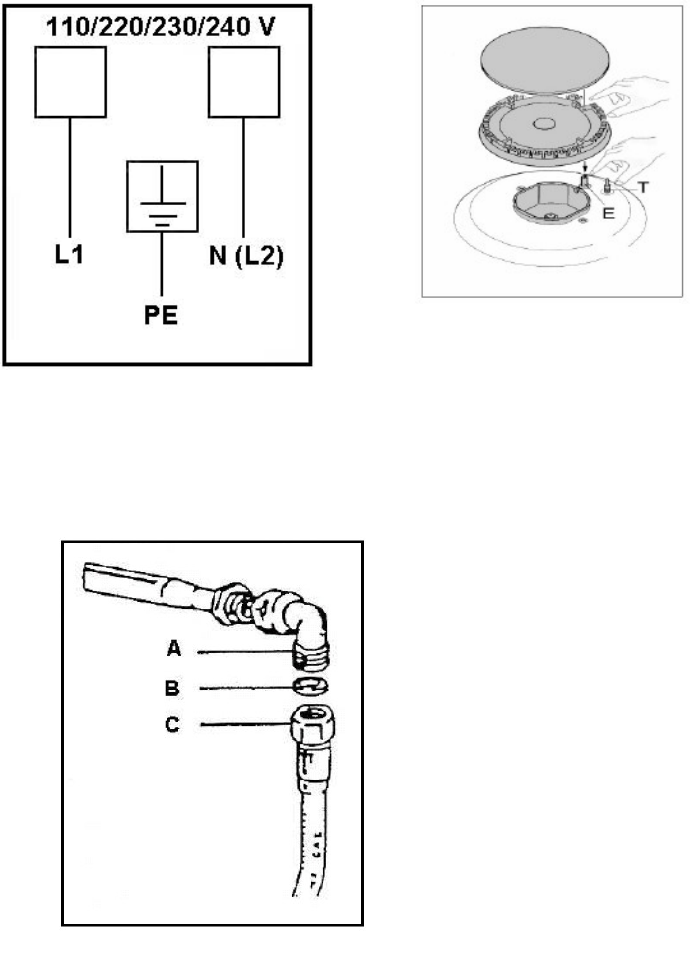

Fig.12 Fig.13
Fig.14
A: Raccord
B: Joint
C: Tuyau rigide ou flexible
![](asset-e.png)
In Übereinstimmung mit den Anforderungen der Europäischen
Richtlinie 2002/96/EG über Elektro- und Elektronik-Altgeräte
(WEEE) ist vorliegendes Gerät mit einer Markierung versehen.
Sie leisten einen positiven Beitrag für den Schutz der Umwelt und die
Gesundheit des Menschen, wenn Sie dieses Gerät einer gesonderten
Abfallsammlung zuführen. Im unsortierten Siedlungsmüll könnte ein
solches Gerät durch unsachgemäße Entsorgung negative
Konsequenzen nach sich ziehen.
Auf dem Produkt oder der beiliegenden Produktdokumentation ist
folgendes Symbol einer durchgestrichenen Abfalltonne
abgebildet. Es weist darauf hin, dass eine Entsorgung im normalen
Haushaltsabfall nicht zulässig ist Entsorgen Sie dieses Produkt im
Recyclinghof mit einer getrennten Sammlung für Elektro- und
Elektronikgeräte.
Die Entsorgung muss gemäß den örtlichen Bestimmungen zur
Abfallbeseitigung erfolgen.
Bitte wenden Sie sich an die zuständigen Behörden Ihrer
Gemeindeverwaltung, an den lokalen Recyclinghof für Haushaltsmüll
oder an den Händler, bei dem Sie dieses Gerät erworben haben, um
weitere Informationen über Behandlung, Verwertung und
Wiederverwendung dieses Produkts zu erhalten.
This appliance is marked according to the European directive
2002/96/EC on Waste Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent
potential negative consequences for the environment and human
health, which could otherwise be caused by inappropriate waste
handling of this product.
The symbol on the product, or on the documents
accompanying the product, indicates that this appliance may not be
treated as household waste. Instead it shall be handed over to the
applicable collection point for the recycling of electrical and electronic
equipment.
Disposal must be carried out in accordance with local environmental
regulations for waste disposal.
For more detailed information about treatment, recovery and
recycling of this product, please contact your local city office, your
household waste disposal service or the shop where you purchased
the product.
Cet appareil porte le symbole du recyclage conformément à la
Directive Européenne 2002/96/CE concernant les Déchets
d'Équipements Électriques et Électroniques (DEEE ou WEEE).
En procédant correctement à la mise au rebut de cet appareil, vous
contribuerez à empêcher toute conséquence nuisible pour
l'environnement et la santé de l'homme.
Le symbole présent sur l'appareil ou sur la documentation qui
l'accompagne indique que ce produit ne peut en aucun cas être traité
comme déchet ménager. Il doit par conséquent être remis à un centre
de collecte des déchets chargé du recyclage des équipements
électriques et électroniques.
Pour la mise au rebut, respectez les normes relatives à l'élimination
des déchets en vigueur dans le pays d'installation.
Pour obtenir de plus amples détails au sujet du traitement, de la
récupération et du recyclage de cet appareil, veuillez vous adresser au
bureau compétent de votre commune, à la société de collecte des
déchets ou directement à votre revendeur.
Dit apparaat is voorzien van het merkteken volgens de Europese
richtlijn 2002/96/EG inzake Afgedankte elektrische en elektronische
apparaten (AEEA).
Door ervoor te zorgen dat dit product op de juiste manier als afval
wordt verwerkt, helpt u mogelijk negatieve consequenties voor het
milieu en de menselijke gezondheid te voorkomen die anders zouden
kunnen worden veroorzaakt door onjuiste verwerking van dit
product als afval.
Het symbool op het product of op de bijbehorende
documentatie geeft aan dat dit product niet als huishoudelijk afval mag
worden behandeld. In plaats daarvan moet het worden afgegeven bij
een verzamelpunt voor recycling van elektrische en elektronische
apparaten.
Afdanking moet worden uitgevoerd in overeenstemming met de
plaatselijke milieuvoorschriften voor afvalverwerking.
Voor nadere informatie over de behandeling, terugwinning en
recycling van dit product wordt u verzocht contact op te nemen met
het stadskantoor in uw woonplaats, uw afvalophaaldienst of de winkel
waar u het product heeft aangeschaft.
Este aparato lleva el marcado CE en conformidad con la Directiva
2002/96/EC del Parlamento Europeo y del Consejo sobre residuos de
aparatos eléctricos y electrónicos (RAEE).
La correcta eliminación de este producto evita consecuencias
negativas para el medioambiente y la salud.
El símbolo en el producto o en los documentos que se incluyen
con el producto, indica que no se puede tratar como residuo
doméstico. Es necesario entregarlo en un punto de recogida para
reciclar aparatos eléctricos y electrónicos.
Deséchelo con arreglo a las normas medioambientales para
eliminación de residuos.
Para obtener información más detallada sobre el tratamiento,
recuperación y reciclaje de este producto, póngase en contacto con
el ayuntamiento, con el servicio de eliminación de residuos urbanos o
la tienda donde adquirió el producto.
Este aparelho está classificado de acordo com a Directiva Europeia
2002/96/EC sobre Resíduos de equipamento eléctrico e electrónico
(REEE).
Ao garantir a eliminação adequada deste produto, estará a ajudar a
evitar potenciais consequências negativas para o ambiente e para a
saúde pública, que poderiam derivar de um manuseamento de
desperdícios inadequado deste produto.
O símbolo no produto, ou nos documentos que acompanham
o produto, indica que este aparelho não pode receber um tratamento
semelhante ao de um desperdício doméstico.
Pelo contrário, deverá ser depositado no respectivo centro de
recolha para a reciclagem de equipamento eléctrico e electrónico.
A eliminação deverá ser efectuada em conformidade com as normas
ambientais locais para a eliminação de desperdícios.
Para obter informações mais detalhadas sobre o tratamento, a
recuperação e a reciclagem deste produto, contacte o Departamento
na sua localidade, o seu serviço de eliminação de desperdícios
domésticos ou a loja onde adquiriu o produto.
Questo apparecchio è contrassegnato in conformità alla Direttiva Europea
2002/96/EC, Waste Electrical and Electronic Equipment (WEEE).
Assicurandosi che questo prodotto sia smaltito in modo corretto,
l'utente contribuisce a prevenire le potenziali conseguenze negative
per l'ambiente e la salute.
Il simbolo sul prodotto o sulla documentazione di
accompagnamento indica che questo prodotto non deve essere
trattato come rifiuto domestico ma deve essere consegnato presso
l'idoneo punto di raccolta per il riciclaggio di apparecchiature
elettriche ed elettroniche.
Disfarsene seguendo le normative locali per lo smaltimento dei rifiuti.
Per ulteriori informazioni sul trattamento, recupero e riciclaggio di
questo prodotto, contattare l'idoneo ufficio locale, il servizio di
raccolta dei rifiuti domestici o il negozio presso il quale il prodotto è
stato acquistato.
Αυτή η συσκευή φέρει σήµανση σύµφωνα µε την Ευρωπαϊκή
οδηγία 2002/96/ΕΕ σχετικά µε Απορριπτόµενα ηλεκτρικά και
ηλεκτρονικά εξαρτήµατα (WEEE).
Εξασφαλίζοντας ότι το προϊόν αυτό απορρίπτεται σωστά, θα βοηθήσετε
στην πρόληψη πιθανά αρνητικών επιπτώσεων για το περιβάλλον και
την ανθρώπινη υγεία, οι οποίες θα µπορούσαν να δηµιουργηθούν από
τον ακατάλληλο χειρισµό αυτού του προϊόντος ως απόρριµµα.
Το σύµβολο πάνω στο προϊόν, ή στα έγγραφα που συνοδεύουν
το προϊόν, υποδεικνύει ότι αυτή η συσκευή δεν µπορεί να θεωρηθεί
οικιακό απόρριµµα. Αντί γι αυτό θα πρέπει να παραδοθεί στο κατάλληλο
σηµείο περισυλλογής για την ανακύκλωση των ηλεκτρικών και
ηλεκτρονικών εξαρτηµάτων.
∆ιαλύστε το τηρώντας την τοπική νοµοθεσία για τη διάθεση των
απορριµµάτων.
Για πιο λεπτοµερείς πληροφορίες σχετικά µε την επεξεργασία, την
περισυλλογή και την ανακύκλωση αυτού του προϊόντος, παρακαλούµε
επικοινωνήστε µε το αρµόδιο γραφείο της τοπικής σας αυτοδιοίκησης,
την τοπική σας υπηρεσία αποκοµιδής οικιακών απορριµµάτων ή το
κατάστηµα όπου αγοράσατε αυτό το προϊόν.
Denna produkt är märkt enligt EG-direktiv 2002/96/EEC beträffande
elektriskt och elektroniskt avfall (Waste Electrical and Electronic
Equipment, WEEE).
Genom att säkerställa en korrekt kassering av denna produkt bidrar
du till att förhindra potentiella, negativa konsekvenser för vår miljö
och vår hälsa, som annars kan bli följden om produkten inte hanteras
på rätt sätt.
Symbolen på produkten, eller i medföljande dokumentation,
indikerar att denna produkt inte får behandlas som vanligt hushållsavfall.
Den skall i stället lämnas in på en lämplig uppsamlingsplats för återvinning
av elektrisk och elektronisk utrustning.
Produkten måste kasseras enligt lokala miljöbestämmelser för
avfallshantering.
För mer information om hantering, återvinning och återanvändning av
denna produkt, var god kontakta de lokala myndigheterna, ortens
sophanteringstjänst eller butiken där produkten inhandlades.
D
GB
F
NL
E
P
I
GR
S
96
![](asset-f.png)
Dette apparatet er merket i samsvar med EU-direktiv 2002/96/EC
om avhending av elektrisk og elektronisk utstyr (Waste Electrical and
Electronic Equipment - WEEE).
Forsikre deg om at dette produktet blir avhendet på korrekt vis, slik
at det ikke kan utgjøre noen helse- eller miljørisiko.
Symbolet på produktet eller på dokumentene som følger med
det, viser at dette produktet ikke må behandles som
husholdningsavfall. Lever det til et autorisert mottak for resirkulering
av elektrisk og elektronisk utstyr.
Avhending må skje iht. de lokale renovasjonsforskriftene.
For nærmere informasjon om håndtering, kassering og resirkulering
av dette produktet, kontakt kommunen, renovasjonsvesenet eller
forretningen der du anskaffet det.
Dette produkt er mærket i henhold til EU-direktiv 2002/96/EF om
Kasseret elektrisk og elektronisk udstyr (WEEE).
Ved at sikre, at dette produkt bliver skrottet korrekt, hjælper man
med til at forhindre potentielle, negative konsekvenser for miljøet og
folkesundheden, der kunne opstå gennem uhensigtsmæssig
bortskaffelse af dette produkt.
Symbolet på produktet eller på dokumenterne, der ledsager
produktet, angiver, at produktet ikke må bortskaffes sammen med
husholdningsaffaldet. Det skal i stedet afleveres på en genbrugsstation
for elektrisk og elektronisk udstyr.
Det skal skrottes i henhold til gældende lokale miljøregler for
bortskaffelse af affald.
For yderligere oplysninger om håndtering, genvinding og genbrug af
dette produkt bedes man kontakte de lokale myndigheder,
renovationsselskabet eller forretningen, hvor produktet er købt.
Tämä laite on merkitty WEEE-direktiivin (Waste Electrical and
Electronic Equipment) 2002/96/EC mukaisesti.
Varmistamalla, että tuote poistetaan käytöstä asianmukaisesti, voidaan
auttaa estämään sellaiset ympäristö- ja terveyshaitat, jotka saattaisivat
aiheutua jätteiden asiattomasta käsittelystä.
Symboli tuotteessa tai sen dokumentaatiossa tarkoittaa, ettei
laitetta saa hävittää kotitalousjätteiden mukana. Sen sijaan tuote on
toimitettava sähkö- ja elektroniikkakomponenttien keräys- ja
kierrätyspisteeseen.
Laitteen käytöstäpoiston suhteen on noudatettava paikallisia
jätehuoltomääräyksiä
Lisätietoja tuotteen käsittelystä, talteenotosta ja kierrätyksestä saa
kaupungin- tai kunnanvirastosta, paikallisesta jätehuoltoliikkeestä tai
liikkeestä, josta tuote ostettiin.
Niniejsze urządzenie posiada oznaczenia zgodnie z Dyrektywą
Europejską 2002/96/EC w sprawie zużytego sprzętu elektrycznego i
elektronicznego (WEEE).
Zapewniając prawidłowe złomowanie niniejszego urządzenia
przyczynią się Państwo do ograniczenia ryzyka wystąpienia
negatywnego wpływu produktu na środowisko i zdrowie ludzi, które
mogłoby zaistnieć w przypadku niewłaściwej utylizacji urządzenia.
Symbol umieszczony na produkcie lub na dołączonych do niego
dokumentach oznacza, że niniejszy produkt nie jest klasyfikowany jako
odpad z gospodarstwa domowego.
Urządzenie, w celu jego złomowania, należy zdać w odpowiednim
punkcie utylizacji odpadów w celu recyklingu komponentów
elektrycznych i elektronicznych.
Urządzenie należy złomować zgodnie z lokalnymi przepisami dot.
utylizacji odpadów.
Dodatkowe informacje na temat utylizacji, złomowania i recyklingu
opisywanego urządzenia można uzyskać w lokalnym urzędzie miasta,
w miejskim przedsiębiorstwie utylizacji odpadów lub w sklepie, w którym
produkt został zakupiony.
Tento spotřebič je označený v souladu s evropskou směrnicí 2002/96/
ES o likvidaci elektrického a elektronického zařízení (WEEE).
Zajištěním správné likvidace tohoto výrobku pomůžete zabránit případným
negativním důsledkům na životní prostředí a lidské zdraví, ke kterým by
nevhodnou likvidací tohoto výrobku mohlo dojít.
Symbol na výrobku nebo na dokumentech přiložených k výrobku
udává, že tento spotřebič nepatří do domácího odpadu. Spotřebič je
nutné odvézt do sběrného místa pro recyklaci elektrického a
elektronického zařízení.
Likvidace musí být provedena v souladu s místními předpisy o ochraně
životního prostředí, které se týkají likvidace odpadu.
Podrobnější informace o zpracování, rekuperaci a recyklaci tohoto
výrobku zjistíte u příslušného místního úřadu, služby pro likvidaci
domovního odpadu nebo v obchodě, kde jste výrobek zakoupili.
Tento spotrebič je označený v súlade s Európskou smernicou
2002/96/ES o likvidácii elektrických a elektronických zariadení (WEEE).
Zabezpečením, že tento výrobok bude zlikvidovaný správnym spôsobom,
pomôžete predchádzat' potenciálnym negatívnym dopadom na životné
prostredie a ľudské zdravie, ktoré by sa v inom prípade mohli vyskytnút' pri
nevhodnom zaobchádzaní pri likvidácii tohto výrobku.
Symbol na výrobku alebo na sprievodných dokumentoch
znamená, že s týmto výrobkom sa nesmie zaobchádzat' ako s
domovým odpadom. Naopak, treba ho odovzdat' v zbernom stredisku
na recykláciu elektrických alebo elektronických zariadení.
Likvidácia musí byt' vykonaná v súlade s predpismi na ochranu
životného prostredia pre likvidáciu odpadov.
Podrobnejšie informácie o zaobchádzaní, regenerácii a recyklácii tohto
výrobku si vyžiadajte na Vašom miestnom úrade, v zberných surovinách
alebo v obchode, kde ste výrobok kúpili.
A készüléken található jelzés megfelel az elektromos és elektronikus
berendezések hulladékairól szóló 2002/96/EK európai irányelvben
(WEEE) foglalt előírásoknak.
A hulladékká vált termék szabályszerű elhelyezésével Ön segít elkerülni
a környezettel és az emberi egészséggel kapcsolatos azon esetleges
negatív következményeket, amelyeket a termék nem megfelelő
hulladékkezelése egyébként okozhatna.
A terméken vagy a termékhez mellékelt dokumentumokon feltüntetett
jelzés arra utal, hogy ez a termék nem kezelhető háztartási
hulladékként. Ehelyett a terméket a villamos és elektronikus
berendezések újrahasznosítását végző telephelyek valamelyikén kell
leadni.
Kiselejtezéskor a hulladékeltávolításra vonatkozó helyi
környezetvédelmi előírások szerint kell eljárni.
A termék kezelésével, hasznosításával és újrahasznosításával
kapcsolatos bővebb tájékoztatásért forduljon a lakóhelye szerinti
polgármesteri hivatalhoz, a háztartási hulladékok kezelését végző
társasághoz vagy ahhoz a bolthoz, ahol a terméket vásárolta.
Данное изделие промаркировано в соответствии с Европейской
директивой 2002/96/EC по утилизации электрического и
электронного оборудования (WEEE).
Обеспечив правильную утилизацию данного изделия, Вы
поможете предотвратить потенциальные негативные
последствия для окружающей среды и здоровья человека,
которые могли бы иметь место в противном случае.
Символ на самом изделии или сопроводительной
документации указывает, что при утилизации данного изделия
с ним нельзя обращаться как с обычными бытовыми отходами
Вместо этого, его следует сдавать в соответствующий пункт
приемки электрического и электронного оборудования для
последующей утилизации.
Сдача на слом должна производиться в соответствии с
местными правилами по утилизации отходов.
За более подробной информацией о правилах обращения с
такими изделиями, их утилизации и переработки обращайтесь
в местные органы власти, в службу по утилизации отходов или
в магазин, в котором Вы приобрели данное изделие.
Този уред е маркиран в съответствие с Европейска директива
2002/96/ЕО "Електрическо и електронно оборудване за
отпадъци" (WEEE).
Като се погрижите това изделие да бъде изхвърлено по
правилен начин, вие ще помогнете за предотвратяване на
възможните негативни последствия за околната среда и
здравето на хората, което в противен случай може да бъде
предизвикано от неправилно изхвърляне на това изделие.
Символът върху изделието или върху документите,
приложени към изделието, показва, че това изделие не бива да
се третира като битови отпадъци. Вместо това, то трябва да се
предава в специализиран пункт за рециклиране на
електрическо и електронно оборудване.
При изхвърлянето му спазвайте местните норми за изхвърляне
на отпадъци.
За по1подробна информация за третирането, възстановяването и
рециклирането на това изделие се обърнете към вашата местна
градска управа, към вашата служба за изхвърляне на битови
отпадъци или към магазина, откъдето сте закупили изделието.
Acest aparat este marcat în conformitate cu Directiva Europeană 2002/96/
CE referitoare la Deșeurile de Echipament Electric și Electronic (WEEE).
Asigurându-vă că acest produs este eliminat în mod corect, contribuiţi la
prevenirea potenţialelor consecinţe negative asupra mediului înconjurător
și sănătăţii persoanelor, consecinţe care ar putea fi provocate de aruncarea
necorespunzătoare la gunoi a acestui produs.
Simbolul de pe produs, sau de pe documentele care însoţesc
produsul, indică faptul că acesta nu poate fi aruncat împreună cu deșeurile
menajere. Trebuie predat la punctul de colectare corespunzător, pentru
reciclarea echipamentului electric și electronic.
Aruncarea la gunoi a aparatului trebuie făcută în conformitate cu
normele locale pentru eliminarea deșeurilor.
Pentru informaţii mai detaliate privind eliminarea, valorificarea și
reciclarea acestui produs, vă rugăm să contactaţi administraţia locală,
serviciul de eliminare a deșeurilor menajere sau magazinul de unde aţi
cumpărat produsul.
N
DK
FIN
PL
CZ
SK
H
RUS
BG
RO
97
