INSTRUCTION BOOK
VTV 590NC
Vented Tumble Dryer
EN 2
Introduction
Delivery Information
Safety Reminders
Use
Installation
The Laundry
Environmental Issues
Gias Service
Installation
Electrical Requirements
Adjusting the Feet
Installation of the Discharge Hose
Preparing the Load
Clothes Preparation
Drying Guide
Do Not Tumble Dry
Energy Saving
Sorting the Load
Controls and Indicators
Selecting the Programme
Door and Filter
Opening the Door
Filter
Filter Care Indicator
Operation
Delay Start Function
Cancelling and Resetting the Programme
Cleaning and Routine Maintenance
Cleaning the Dryer
Technical Specifications
Troubleshooting
Customer Service
Spares
Gias Service
Ventilation
3
3
3
4
5
5
6
7
7
7
7
7
8
8
8
9
9
9
9
10
11
12
12
12
12
12
13
13
13
13
13
14
14
14
14
INTRODUCTION
Please check that the following items are
delivered with the appliance:
● Instruction manual
● Guarantee card
● Vent kit and instructions
● Energy label
Please read and follow these instructions carefully and operate the machine accordingly. This
booklet provides important guidelines for safe use, installation, maintenance and some useful
advice for best results when using your machine.
Keep all documentation in a safe place for future reference or for any future owners.
Delivery Information
Failure to comply with the above can
compromise the safety of the appliance. You
may be charged for a service call if a problem
with your machine is caused by misuse.
Check that no damage has occurred to the
machine during transit. If it has, call for service
by GIAS.
EN 3
SAFETY REMINDERS
●This appliance can be used by children aged from 8 years and above
and persons with reduced physical,sensory or mental capabilities or lack
of experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand
the hazards involved.Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children without
supervision.Children of less than 3 years should be kept away unless
continuously supervised.
● .
●This appliances is intended to be used in household and similar
applications such as:
- Staff kitchen areas in shops , offices and other working environments;
- Farm houses
- By clients in hotels, motels and other residential type environments;
- Bed and breakfast type environments"
A different use of this appliance from household environment or from
typical housekeeping functions,as commercial use by expert or trained
users, is excluded even in the above applications.
WARNING Misuse of a tumble dryer may create a fire hazard
Use
INTRODUCTION
If the appliance is used in a manner inconsistent with this it may reduce
the life of the appliance and may void the manufacturer’s warranty. Any
damage to the appliance or other damage or loss arising through use that
is not consistent with domestic or household use ( even if located in a
domestic or household environment) shall not be accepted by the
manufacturer to the fullest extent permitted by law.''
●This machine should only be used for its intended purpose as described
in this manual. Ensure that the instructions for installation and use are
fully understood before operating the appliance.
● Do not touch the appliance when hands or feet are damp or wet.
● Do not lean on the door when loading the machine or use the door to lift or
move the machine.
●Do not allow children to play with the machine or its controls.
● WARNING Do not use the product if the fluff filter is not in position or is
damaged; fluff could be ignited.
●WARNING Where the hot surface symbol is located the temperature
rise during operation of the tumble dryer may be in excess of 60 degrees C.
●Remove the plug from the electricity supply. Always remove the plug
before cleaning the appliance.
● Do not continue to use this machine if it appears to be faulty.
● Lint and fluff must not be allowed to collect on the floor around the outside
of the machine.
●The final part of a tumble dryer cycle occurs without heat (cool down
cycle) to ensure that the items are left at a temperature that ensures that
the items will not be damaged.
● Maximum load drying weight : 9 kg
●The tumble dryer is not to be used if industrial chemicals have been used
for cleaning.
● WARNING: Never stop a tumble dryer before the end of the drying cycle
unless all items are quickly removed and spread out so that the heat is
dissipated.
Use
SAFETY REMINDERS
EN 4
EN 5
●Do not dry unwashed items in the
tumble dryer.
●WARNING Do not tumble dry
fabrics treated with dry cleaning
fluids.
●WARNING Foam rubber materials
can, under certain circumstances,
when heated become ignited by
spontaneous combustion. Items
such as foam rubber (latex foam),
shower caps, waterproof textiles,
rubber backed articles and clothes
or pillows fitted with foam rubber
pads MUST NOT be dried in the
tumble dryer.
●Always refer to the laundry care
labels for directions on suitability for
drying.
●Clothes should be spin dried or
thoroughly wrung before they are
put into the tumble dryer. Clothes
that are dripping wet should not be
put into the dryer.
● Lighters and matches must not be
left in pockets and NEVER use
flammable liquids near the
machine.
●Glass fibre curtains should
NEVER be put in this machine. Skin
irritation may occur if other
garments are contaminated with the
glass fibres.
● Items that have been soiled with
substances such as cooking oil,
acetone, alcohol, petrol, kerosene,
spot removers, turpentine, waxes
and wax removers should be
washed in hot water with an extra
amount of detergent before being
dried in the tumble dryer.
●Fabric softeners, or similar
products, should be used as
specified by the fabric softener
instructions.
The Laundry
● Check that the product has no
visible signs of damage before use.
If damaged do not use and please
call GIAS Service.
● Do not use adapters, multiple
connectors and/or extensions.
● Never install the dryer against
curtains and be sure to prevent
items from falling or collecting
behind the dryer.
●The appliance must not be
installed behind a lockable door, a
sliding door or a door with a hinge
on the opposite side to that of the
tumble dryer.
Installation
INTRODUCTION
SAFETY REMINDERS
INTRODUCTION
SAFETY REMINDERS
Ventilation
Do not plug the machine in and
switch it on at the mains until the
installation is completed.For your
safety, this dryer must be correctly
installed. If there is any doubt
about installation, call GIAS
Service for advice.
EN 6
• Adequate ventilation must be
provided in the room where the
tumble dryer is located to prevent
gases from appliances burning other
fuels, including open fires, being
drawn into the room during operation
of the tumble dryer.
• Installing the rear of the appliance
close to a wall or vertical surface.
•There should be a gap of at least 12
mm between the machine and any
obstrubtions.The inlet and outlet
should be kept clear of obstruction.To
ensure adequate ventilation the
space between the bottom of the
machine and the floor must not be
obstructed.
• Check regularly that the air flowing
through the dryer is not restricted.
• Check frequently the fluff filter after
use, and clean, if necessary.
•Prevent items from falling or
collecting behind the dryer as these
may obstruct the air inlet and outlet
• NEVER install the dryer up against
curtains.
• In cases where the dryer is installed
on top of a washing machine, a
suitable stacking kit must be used
according to the follow configuration.
-Stacking kit Mod 35100019: for
minimum washing machine depth
49 cm
-Stacking kit Mod 35900120: for
minimum washing machine depth
51 cm.
The stacking kit shall be one of that
above, obtainable from our spare
service.
The instructions for installation and
any fixing attachments, are provided
with the staking kit.
INSTALLATION
EN 7

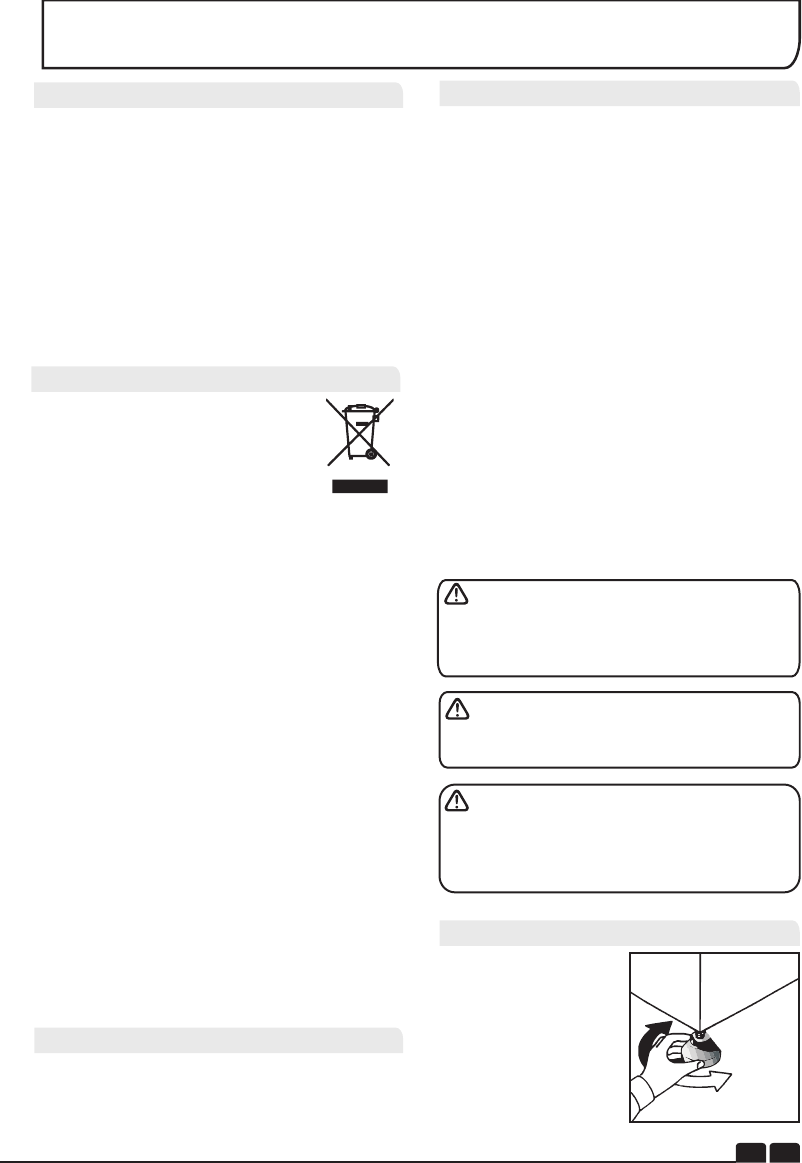

Tumble dryers are supplied to operate at a
voltage of 220-240V, 50 Hz single phase.
Check that the supply circuit is rated to at least
13A.
● Electricity can be extremely dangerous.
● This appliance must be earthed.
●The socket outlet and the plug on the
appliance must be of the same type.
●Do not use multiple adapters and/or
extension leads.
●The plug should be accessible for
disconnection after the appliance has been
installed.
CE Appliance complies with European
Directive 2004/108/EC, 2006/95/EC and
subsequent amendments.
Electrical Requirements
If the mains cord on this appliance is
damaged, it must be replaced by a special cord
which is ONLY obtainable from the spares
service. It must be installed by a competent
person.
You may be charged for a service call if a
problem with your machine is caused by
incorrect installation.
Once the machine is in
place the feet should
be adjusted to ensure
that the machine is
level.
Adjusting the Feet
● To ensure the continued safe and efficient
operation of this appliance we recommend that
any servicing or repairs are only carried out by
an authorised GIAS service engineer.
GIAS Service
If the appliance is not running properly or
breaks down, switch it off and disconnect the
plug from the socket. Consult GIAS Service for
possible repair.
●Al l packa gi ng ma te rials used are
environmentally-friendly and recyclable.
Please help dispose of the packaging via
environmentally-friendly means. Your local
council will be able to give you details of current
means of disposal.
● To ensure safety when disposing of an old
tumble dryer disconnect the mains plug from
the socket, cut the mains power cable and
destroy this together with the plug. To prevent
children shutting themselves in the machine
break the door hinges or the door lock.
Environmental Issues
This appliance is marked according
to the European directive 2012/19/EU
on Waste Electrical and Electronic
Equipment (WEEE).
WEEE contains both polluting substances
(which can cause negative consequences for
the environment) and basic components (which
can be re-used). It is important to have WEEE
subjected to specific treatments, in order to
remove and dispose properly all pollutants, and
recover and recycle all materials.
Individuals can play an important role in
ensuring that WEEE does not become an
environmental issue; it is essential to follow
some basic rules:
- WEEE should not be treated as household
waste.
- WEEE should be handed over to the relevant
collection points managed by the municipality
or by registered companies. In many countries,
for large WEEE, home collection could be
present.
In many countries, when you buy a new
appliance, the old one may be returned to the
retailer who has to collect it free of charge on a
one-to-one basis, as long as the equipment is of
equivalent type and has the same functions as
the supplied equipment.
European Directive 2012/19/EU
VENTILATION
It is essential to use a venting hose to carry the hot moist air away from the dryer unless the dryer is
situated in a open space with a good air flowaround it. Recirculation of the moist air will prevent the
efficient operation of the dryer.
The hose is assembled to the machine as shown. The hose may be fitted through a wall or through
an open door or window. The hose is 110mm in diameter and will extend 1.8 meters.
The following guidelines should be followed when installing the
discharge hose.
● Do not use two hoses joined together as the drying performance will
be reduced.
● Do not restrict the flow of air through the hose e.g. by kinking it or fitting
a smaller diameter connector to mount to a wall opening.
● Avoid the hose making U shaped curves as this will restrict the flow of
air and increase the chance that water will collect in the hose.
● Check the hose regularly to remove any build-up of fluff or water that
may have collected in it.

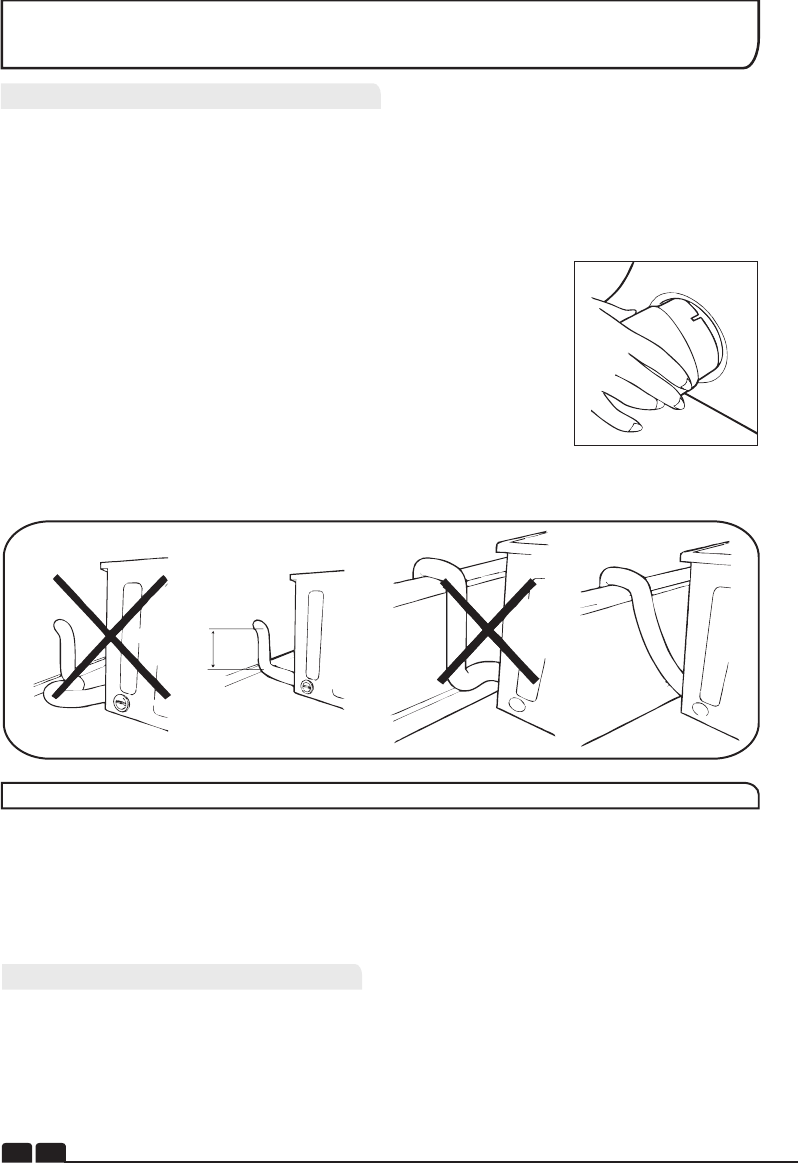

The following diagrams give examples of good and bad installations.
Installation of the Discharge Hose
H max
20 inches
(50.80cm)
PREPARING THE LOAD
Before using the tumble dryer for the first time:
● Please read this instruction book thoroughly.
● Remove all items packed inside drum.
● Wipe the inside of the drum and door with a damp cloth to remove any dust which may have
settled in transit.
Make sure that the laundry you are going to dry is suitable for drying in a tumble dryer, as shown by
the care symbols on each item.
Check that all fastenings are closed and that pockets are empty. Turn the articles inside out. Place
clothes loosely in the drum to make sure that they don't get tangled.
Clothes Preparation
EN 8
PREPARING THE LOAD
EN 9
● Cottons Max .9 kg
● Synthetics Max. 4 kg
Sort the Load as Follows
Maximum Drying Weight
. .
.
Do not overload the drum, large items
when wet can exceed the maximum admissible
clothes load (for example: sleeping bags,
duvets).
● By care symbols
These can be found on the collar or inside
seam:
Suitable for tumble drying.
Tumble drying at high temperature.
Tumble drying at low temperature only.
Do not tumble dry.
If the item does not have a care label it must be
assumed that it is not suitable for tumble
drying.
● By amount and thickness
Whenever the load is bigger than the dryer
capacity, separate clothes according to
thickness (e.g. towels from thin underwear).
● By type of fabric
Cottons/linen: Towels, cotton jersey, bed and
table linen.
Synthetics: Blouses, shirts, overalls, etc.
made of polyester or polyamid, as well as for
cotton/synthetic mixes.
● By drying level
Sort into: iron dry, cupboard dry, etc. For delicate
articles press the Delicados button to select low
drying temperature.
Woollens, silk, delicate fabrics, nylon stockings,
delicate embroidery, fabrics with metallic dec-
orations, garments with PVC or leather
trimmings, training shoes, bulky items such as
sleeping bags, etc.
Do Not Tumble Dry:
IMPORTANT: Do not dry articles which
have been treated with a dry cleaning fluid or
rubber clothes (danger of fire or explosion).
During the last 15 minutes the load is always
tumbled in cool air.
Only put into the tumble dryer laundry which
has been thoroughly wrung or spin-dried. The
drier the laundry the shorter the drying time thus
saving electricity.
ALWAYS
● Try to dry the maximum weight of laundry, this
will save time and electricity.
● Check that the filter is clean before every
drying cycle.
NEVER
● Exceed the maximum weight, this will waste
time and electricity.
● Put dripping wet items into the tumble dryer,
this may damage the appliance.
Energy Saving
The standard cycle CUPBOARD DRY ( ) is the
most energy efficient and best suited for drying
normal wet cotton laundry.
The table below shows the approximate time and
energy consumption of the main drying
programmes.
Drying Guide
Power consumption of "left on-mode"
Power consumption of "off-mode" 0,20 W
0,80 W
CYCLE LOAD ENERGY TIME
(kWh) (Min)
Bone Dry
Extra Dry
Cupboard dry
Cupboard dry
Iron dry FULL
FULL
FULL
FULL
6,69 200
6,05 180
5,35 157
2,90 89
4,28 129
HALF

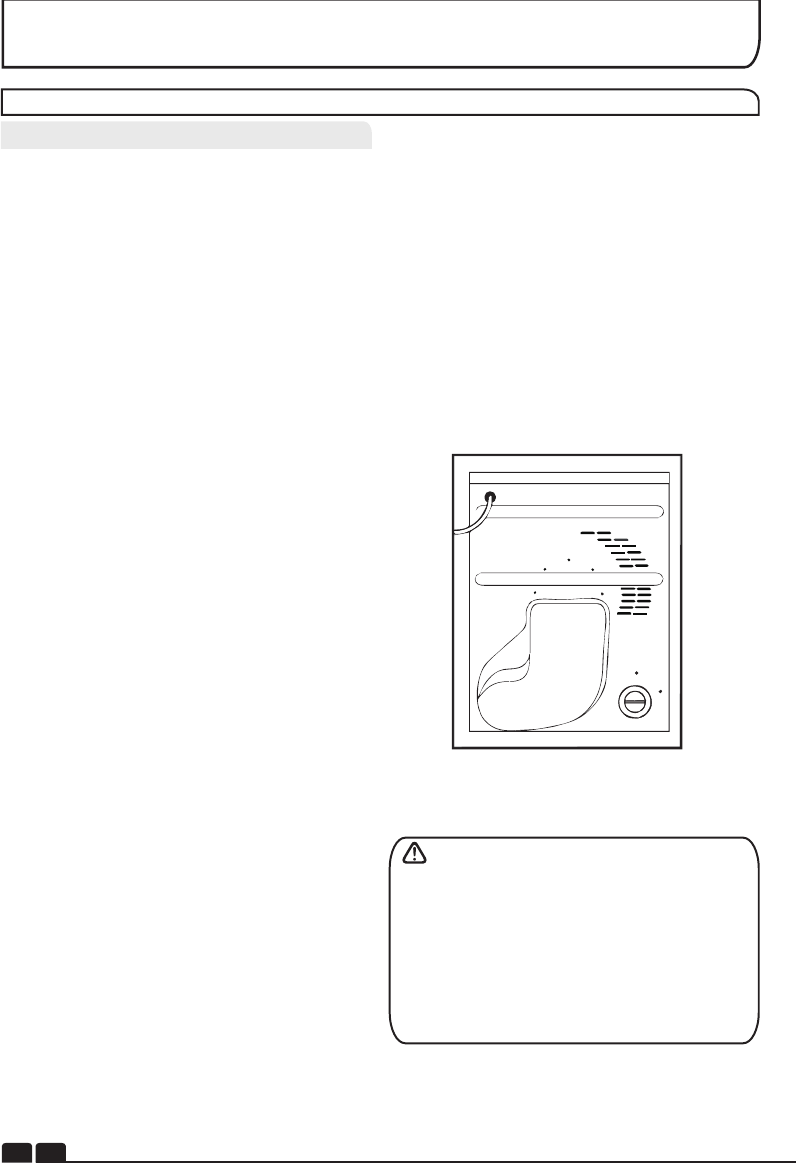

CONTROLS AND INDICATORS
EN 10
Programme Selector – Select the required
programme
Delay Start button – Allows the user to
delay the start of the drying cycle (see details
of Operation on page 10)
Start/Pause button – Press to commence
the selected drying programme
Delicates button – Press to reduce
the heat level for delicate items, the indicator
above the button will light up. To change the
heat setting the programme must be reset
Low Heat – Indicator light ON
High Heat – Indicator light OFF
Filter Care indicator – Lights when the
filter needs cleaning
Progress display
DRY – When the programme is selected the
DRY indicator will flash, when the programme
starts the DRY indicator will light up.
– Indicator lights when there is a short
time left until completion of the programme. At
this stage of the drying cycle the machine
enters the Cool Down phase.
The length of the Cool Down phase varies
between 10 and 15 minutes depending on the
programme.
END – Indicator lights when the programme
is finished.
Control Panel and Indicator Lights
The Sensor Dry machine gives many options
for drying the laundry to suit all circumstances.
The table on the next page lists the program-
mes and the function of each programme.
Note: The sensor may not detect a small load of
small articles. For small loads and separate
items or pre-dried fabrics with low moisture
content, use the timed programmes.
Set the programme between 30 and 75 minutes
depending on the load size and dryness
required, and select high or low heat depending
upon the fabric type.
If the sensor does not detect the item the dryer
will only operate for 10 minutes before going
into cooldown.
If the load is too large or too wet to tumble dry
the dryer will automatically go into cooldown
after approximately 3 hours.

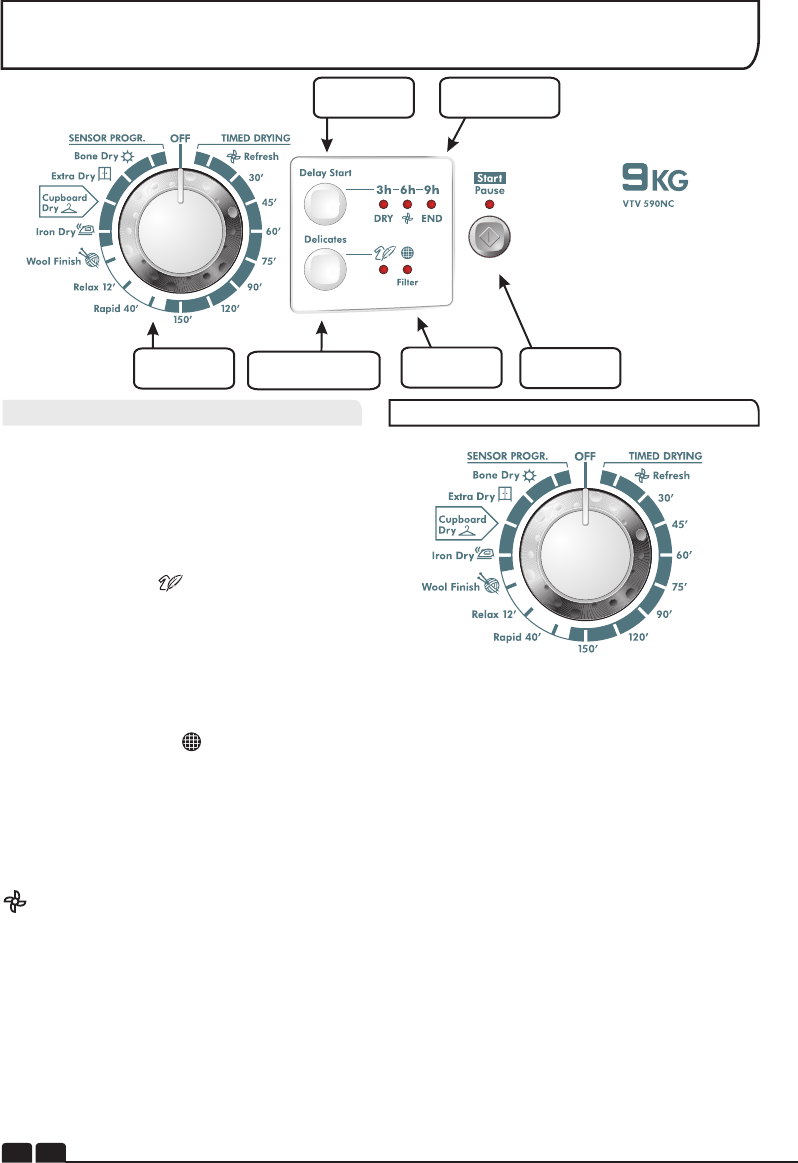

SELECTING THE PROGRAMME
Start/Pause
Button
Progress
Display
Filter Care
Indicator
Delay Start
Button
Programme
Selector
Delicates
Button
SELECTING THE PROGRAMME
PROGRAMME
Bone Dry
Extra Dry
Cupboard Dry
Iron Dry
Wool Finish
Rapid 40
150'
120'
90'
75'
60'
45'
30'
Refresh
Relax 12
DESCRIPTION
A gentle programme specially created to get woollens softer after
air-drying.This delicate warm air cycle, lasting 12 minutes, can
also be used to get woollens 'refreshed' after being stored in the
wardrobe.
The programme provides a conditioning and anticrease function.
The dryer will heat the load for 9 minutes followed by a 3 minute
cool down period and is especially good for garments which may
have been left for some time prior to ironing, in a linen basket for
example. Garments may also become stiffened when dried
outside on a washing line or inside on radiators.
This programme relaxes the creases in the fabric making ironing
quicker and easier.
The 40’ Rapid programme allows a drying cycle to be completed
quickly. This is an ideal programme for having dry, refreshed and
ready-to-wear clothes in less than 40'. This special programme
constantly monitors the dryness and temperature in the drum
thanks to the sensor using, using the exact time and energy you
need! The machine finishes the cycle when the cupboard dry level
is reached. The stated cycle length could vary according to fabric
types, load size and residual moisture in the garments.The
maximum load is 2kg and the programme is suitable for all types of
fabric where tumble drying is appropriate.
150' minutes of drying
120' minutes of drying
90' minutes of drying
75' minutes of drying
60' minutes of drying
45' minutes of drying
30' minutes of drying
Tumbling the laundry in cool air for 20 minutes
EN 11
Select the degree of dryness that you require. This ranges from
Bone Dry cycle for bath towels and bathrobes, Extra Dry cycle
through for items that will be put away without ironing, to the
programme that leaves the laundry suitable for ironing.

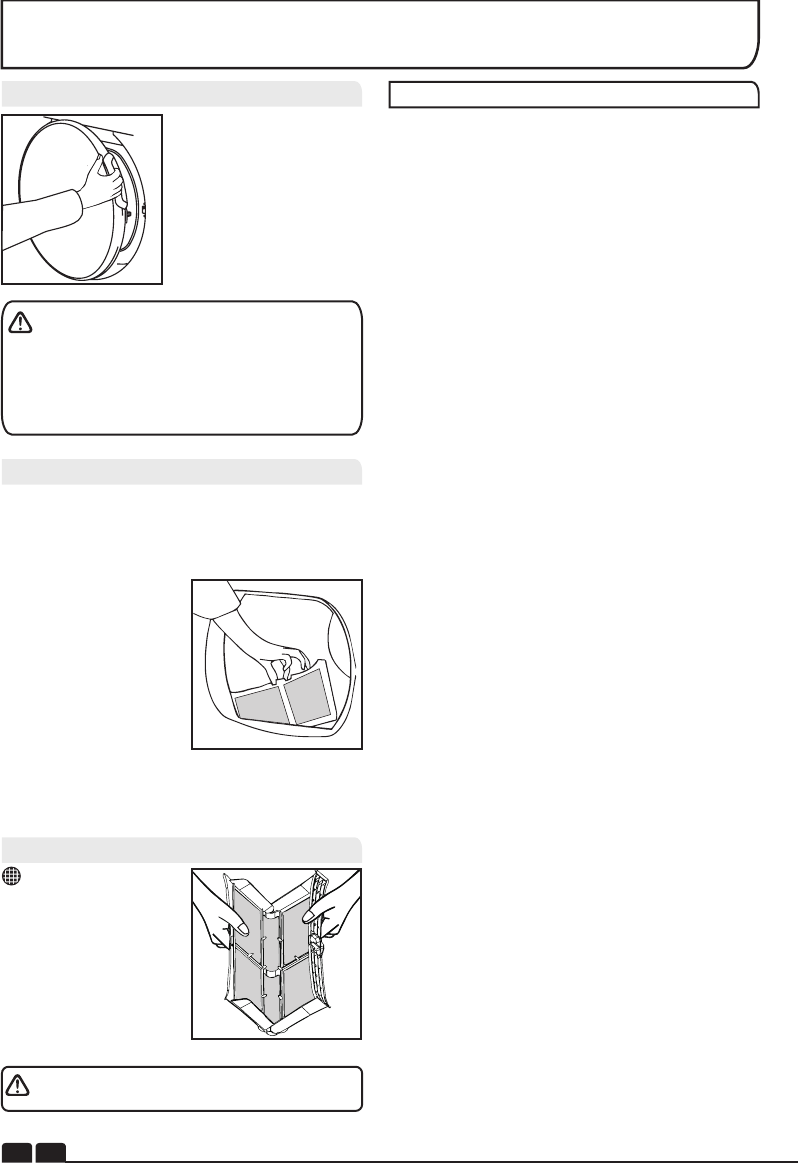

DOOR and FILTER
OPERATION
Opening the Door
Pull on handle to open
the door.
To restart the dryer,
close the door and
press Start/Pause
button .
WARNING! When the tumble dryer is in
use the drum and door may be VERY HOT.
Never stop a tumble dryer before the end of the
drying cycle unless all items are quickly
removed and spread out so that the heat is
dissipated.
Filter Care Indicator
Lights when the
filter needs cleaning.
If the laundry is not
drying check that the
filter is not clogged.The
indicator will also light
when the venting hose
is blocked or kinked.
DO NOT USE WATER TO CLEAN THE FILTER.
Filter
IMPORTANT: To maintain the efficiency of the
dryer check that the fluff filter is clean before
each drying cycle.
1.Pull the filter up-
wards.
2. Open filter as shown.
3.Gently remove lint
using a soft brush or
your fingertips.
4 . S n a p t h e f i l t e r
together and push
back into place.
EN 12
1. Open the door and load the drum with
laundry. Ensure that garments do not hinder
closure of the door.
2. Gently close the door pushing it slowly until
you hear the door 'click' shut.
3. Turn the Programme Selector dial to select
the required drying programme (see Program-
me Guide).
4. If drying synthetics, acrylics or delicate items,
Press the Delicates button to reduce the heat
level.
The light next to the push button will light up
when the machine is in low heat setting. To
deselect in the first few minutes of the
programme, press the Delicates button, after
this time reset the machine to change the
setting.
5. Press the Start/Pause button. The dryer will
start automatically and the DRY indicator will be
continuously lit.
6. If the door is opened during the programme to
check the laundry, it is necessary to press
Start/Pause to recommence drying after the
door has been closed.
7. When the cycle is nearing completion the
machine will enter the cool down phase, the
clothes will be tumbled in cool air allowing the
load to cool down.
8. When the programme is complete the END
indicator will light.
9. Following the completion of the cycle the
drum will rotate intermittently to minimize
creasing. This will continue until the machine is
switched OFF or the door is Opened.
IMPORTANT Always switch off and
remove the plug from the electricity supply
before cleaning this appliance.
For electrical data refer to the rating label
on the front of the dryer cabinet (with the door
open).
Technical Specifications
Cleaning the Dryer
Drum capacity 115 litres
Maximum load 9 kg
Height 85 cm
Width 60 cm
Depth 60 cm
Energy Label Band C
OPERATION
● Clean the filter every drying cycle.
● Regularly clean the condenser.
● After each period of use, wipe the inside of
the drum and leave the door open for a while to
allow circulation of air to dry it.
● Wipe the outside of the machine and the
door with a soft cloth.
● DO NOT use abrasive pads or cleaning
agents.
● To prevent the door sticking or the build up of
fluff, clean the inner door and gasket with a
damp cloth after every drying cycle.
WARNING! The Drum, door and load may
be very hot.
CLEANING AND ROUTINE MAINTENANCE
EN 13
Delay Start Function
The Delay Start Function allows the user to delay the start of the drying cycle by 3, 6 or 9 hours.
When the function is first selected the display will show a delay of 3 hours, subsequent presses of
the button will increase the delay to 6 or 9 hours.
To commence the programme press Start/Pause and the appliance will complete the drying cycle
at the end of this time. The 3, 6 or 9 hour indicator light will flash to indicate that the start delay is in
progress.
Cancelling and Resetting the Programme
To cancel a programme press the Start/Pause button for 3 seconds. The DRY light will flash to
indicate that it has been reset.
Information for Test Laboratory
EN 61121 Programme Programme to Use
-DRY COTTON
-IRON DRY COTTON
-EASY-CARE TEXTILE
-CUPBOARD DRY
-IRON DRY
-CUPBOARD DRY+SYNTHETIC
TROUBLESHOOTING
What Might be the Cause of...
Defects you can remedy yourself
Before calling GIAS Service for technical
advice please run through the following
checklist. A charge will be made if the machine
is found to be working or has been installed
incorrectly or used incorrectly.
If the problem persists after completing the
recommended checks, please call GIAS
Service, they may be able to assist you over
the telephone.
Drying time is too long/clothes are not dry
enough…
●Have you selected the correct drying
time/programme?
● Were the clothes too wet? Were the clothes
thoroughly wrung or spindried?
● Does the filter need cleaning?
● Is the dryer overloaded?
● Is the venting hose kinked or blocked?
●Has the Delicates option been selected from
a previous cycle?
The dryer does not operate…
● Is there a working electricity supply to the
dryer? Check using another appliance such as
a table lamp.
● Is the plug properly connected to the mains
supply?
● Is there a power failure?
● Has the fuse blown?
● Is the door fully closed?
● Is the dryer switched on, both at the mains
supply and at the machine?
● Has the drying time or the programme been
selected?
● Has the machine been switched on again
after opening the door?
The dryer is noisy…
● Switch off the dryer and contact GIAS
Service for advice.
The filter Indicator is on…
● Does the filter need cleaning?
● Is the venting hose kinked or blocked?
CUSTOMER SERVICE
Should there still be a problem with your dryer
after completing all the recommended checks,
please call GIAS Service for advice.
They may be able to assist you over the
telephone or arrange for a suitable appointment
for an engineer to call under the terms of your
guarantee. However, a charge may be made if
any of the following applies to your machine:
● Is found to be in working order.
● Has not been installed in accordance with the
installation instructions.
● Has been used incorrectly.
EN 14
Spares
GIAS Service
Always use genuine spares, available direct
from GIAS Service.
Spares Service Tel: 08443 712758
For service and repairs call your local GIAS
Service engineer.
Phone GIAS on 08444 995599
Eire – 0818 2000021
If the supply cord on this appliance is
damaged, it must be replaced by a special cord
which is only available from GIAS Service or an
authorised Hoover Dealer.
The manufacturer declines all responsibility
in the event of any printing mistakes in this
booklet. The manufacturer also reserves the
right to make appropriate modifications to
its products without changing the essential
characteristics.
40009136

Navigation menu
