Users Manual

C6304WirelessMagneticTowLight

ForVehiclesUnder80”inwidth



Thisproductisintendedfortemporaryusetoprovidetaillampfunctionaswellasstopandturnindicationwhentowingavehicle

narrowerthan80incheswide.SomekitsdonotcontainalllightsrequiredbytheDepartmentofTransportation.Pleasecheckwith

yourdealerconcerningadditionallightingrequirements.

Aspecialnoteaboutbatteries:

ItisrecommendedtouseAAlithiumbatteriesandhaveasparesetofbatteriesonhand.Whileinusebesuretocheck

everytwohoursthattheamberbatteryindicatorLEDisNOTblinking.AblinkingLEDindicatesthebatteriesarenot

functioningproperly.IfthebatteryindicatorLEDisblinkingwhenattemptingtoturnthelightsonyouwillneedtoreplace

alleightbatteriesimmediatelytocomplywithSAE/FMVSS108safetystandards.Fourbatteriesarefoundineachoftwo

magneticbases.

UsingtheWirelessTowLights:

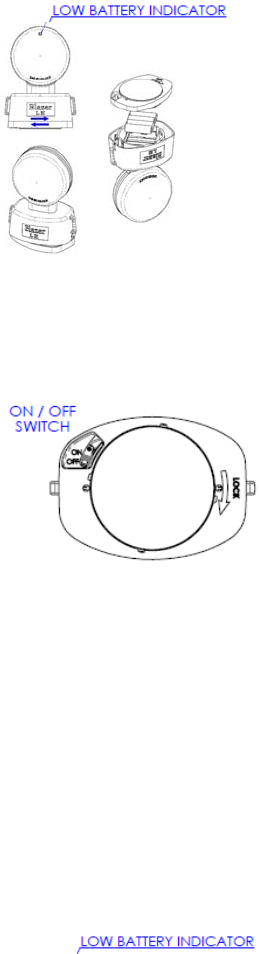

1. InstallfreshAAbatteriesintoeachlightbaseperindicatedpolarity.Thebatterytraymaybeaccessedbytwistingtheentire

basecounter‐clockwisewhileholdingthelight’shousing.(Seeillustration).MakesuretoreplacethebatteriesinBOTH

“RH”and“LH”units!

 



2. Connectthetransmittertoyour“four‐flat”trailerplugonthevehicle.



3. Attachthetransmittertosteelsurfaceintherearofthetowingvehicleabovethebumpersothatthemagnetholdsitfirmly

inplaceafterfirstcleaningthemountingsurfaceandtransmitter’smagneticbase.Forbestresultsplaceatorabovethe

leveloftherearbumper.

4. Turntheswitchlocatedonthebottomofthe“LH”baseto“On”.



5. Checkthatthemagneticlightbasesareclearofanydebristhatmayscratchthemountingsurface.Attachtheleft“LH”and

right“RH”lightsonaflatsurfaceasfarapartaspracticalandatanequaldistancefromthesidesofthevehiclebeing

towed.Lightsshouldbeplacedatthesameheight.Donotmountlightshigherthan6feet(381mm)fromthegroundor

lowerthan1.25feet(1829mm)fromtheground.Theentiremagnetmustbetouchingasteelsurfaceforoptimalholding

performance.Placelightstoallowfollowingvehiclesoptimalvisibilityatalltimes.



6. Ifthelightsarenotalignedproperlydetachthembytippingthelighttodisengagethemagneticbasebeforeplacingthem

again.

7. Useatiewraptocollectanyloosecablebetweenthelights.Donotcoverorobstructthelightsduringoperation.

8. Verifytheoperationoftaillights,stoplightsandbothleftandrightturnsignals.DONOTdriveyourvehicleunlessalllights

function!

9. EverytwohourscheckthatthebatteryLEDindicatornearthetopofthe“LH”lightisnotflashingandthattail,leftturn,

rightturnandbrakefunctionsareoperational.IfthelowbatteryLEDindicatorisflashingorthetrailerlightsdonot

functiontheninstalleightnewAAbatteriesimmediately.

 



10. Switchoffthelightsaftereachusethenreturnthelightsandtransmittertotheoriginalpackage.Ifpackagingis

unavailable,placelightsinsidebagswhennotinusetokeepthemagnetsclearofdebris.Donotallowthemagneticbases

tocomeincontactwitheachother.Iflightsarestoredforlongerthanonemonth,removethebatteriestoavoidbattery

leakage.Storebatteriesatroomtemperaturetoavoidleakage.



ImportantConsiderations:

1. TheWirelessMagneticTowLightkitisdesignedtobeusedwithstandard12‐voltvehiclesystems.

2. Every2hoursconfirmthatyourbrake,turnsignalandrunninglightsareoperatingcorrectly.Donotoperateyourtow

lightsifthevehiclehasfaultywiringorifsomeorallofthelightsdonotlight.

3. BatteryPerformance:Fortemperaturesbelow20°Fbatteriesmayneedtobechangedmoreoften.TheLEDnearthetop

centerofthe“LH”lightwillblinkamberifbatterypowerislow.Immediatelyinstallallnewbatteriesinbothtowlightsto

ensuresafeoperationandtomeetSAE/FMVSS108safetystandards.

4. Donotsubmergethelightsortransmitterinwater.Damagemayoccur.

5. AlwayshaveasparesetofeightAAbatteriesonhand,especiallyiftravellingforanextendedperiodoftime.

6. IfyoustillhavequestionspleasecallourCustomerServicedepartmentat800‐241‐3808.



Transmitter&VehicularPlugWiringScheme:

White‐‐‐Ground

Brown‐‐‐Tail/RunningLights

Yellow‐‐‐LeftBrake/LeftTurnSignal

Green‐‐‐RightBrake/RightTurnSignal



Troubleshooting:

1. Ifoneorbothtowlightsdonotfunctioncheckand/orreplaceALLbatteries.Loadeightnewbatteriesbyplacingfourinto

eachbasewithpolarityasindicated.

2. Ifleftturnandrightturnfunctionsarereversed,thenreversetheyellowandgreenwirestothetransmitter.

3. Ifonlysomelampfunctionsworkwhileothersdonot,lookoverthewiringdiagramandcheckthatthefour‐flattrailer

connectoriswiredcorrectly.

4. Checktheconnectionbetweenthe“four‐flat”plugsforcorrosion.Removecorrosionwithbakingsodaandasmall

disposablebrushwhilewearinggloves.



Limitations:

Donotoperatetowinglightsfartherthan65feet(19.8meters)fromthetransmitter.



PursuanttoFCC15.21oftheFCCrules,changesnotexpresslyapprovedbyTigerAccessoryGroupmightcause

harmfulinterferenceandvoidtheFCCauthorizationtooperatethisproduct.

ThisproductcomplieswithFCCOETBulletin65&IndustryCanada’sRSS‐102radiationexposurelimits

setforthforanuncontrolledenvironment

ThisdevicecomplieswithIndustryCanadalicense‐exemptRSSstandard(s).Operationissubjecttothe

followingtwoconditions:(1)Thisdevicemaynotcauseharmfulinterference.and(2)thisdevicemust

acceptanyinterferencereceived,includinginterferencethatmaycauseundesiredoperation



ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:(1)thisdevice

maynotcauseharmfulinterference,and(2)thisdevicemustacceptanyinterferencereceived,includinginterference

thatmaycauseundesiredoperation.
