GOAL SERIES
TREADMILL USER’S GUIDE
FOR MODEL :
GS 1040T
GS_1040T_Treadmill_Rev.1.7.indd 1 4/3/08 9:13:06 AM
3
INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
TREADMILL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
CONGRATULATIONS and THANK YOU for your purchase of this Horizon Goal Series Treadmill!
Whether your goal is to win races or simply enjoy a fuller, healthier lifestyle, a Horizon Goal Series
treadmill can help you attain it adding club-quality performance to your at-home workouts, with
the ergonomics and innovative features you need to get stronger and healthier, faster. Because
we're committed to designing fitness equipment from the inside out, we use only the highest quality
components. It's a commitment we back with one of the strongest frame-to-motor warranty packages
in the industry.
You want exercise equipment that offers the most comfort, the best reliability and the highest quality
in its class.
The Horizon Goal Series delivers.
INTRODUCTION
Important Precautions
Assembly
Before You Begin
Treadmill Operation
Conditioning Guidelines
Troubleshooting & Maintenance
Limited Warranty
CONTACT INFORMATION
4
6
13
16
25
31
34
Back Panel
TABLE OF CONTENTS
GS_1040T_Treadmill_Rev.1.7.indd 2-3 4/3/08 9:13:07 AM
4
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN TREADMILL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
5
INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
TREADMILL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
At NO time should pets or children under the age of 12 be closer to the treadmill than 10 feet.
At NO time should children under the age of 12 use the treadmill.
Children over the age of 12 should not use the treadmill without adult supervision.
To reduce the risk of burns, fire, electrical shock or injury to persons:
Never use the treadmill before securing the safety tether clip to your clothing.
If you experience any kind of pain, including but not limited to chest pains, nausea, dizziness, or shortness
of breath, stop exercising immediately and consult your physician before continuing.
Do not wear clothes that might catch on any part of the treadmill.
Always wear athletic shoes while using this equipment.
Do not jump on the treadmill.
Keep power cord away from heated surfaces.
Do not insert or drop any object into any opening.
• Unplug treadmill before moving or cleaning it. To clean, wipe surfaces down with soap and slightly damp
cloth only; never use solvents. (See MAINTENANCE)
At no time should more than one person be on treadmill while in operation.
• This treadmill should not be used by persons weighing more than 300 pounds. Failure to comply will void
the warranty.
This treadmill is intended for in-home use only. Do not use this treadmill in any commercial, rental, school
or institutional setting. Failure to comply will void the warranty.
Do not use the treadmill in any location that is not temperature controlled, such as but not limited to
garages, porches, pool rooms, bathrooms, car ports or outdoors. Failure to comply may void the warranty.
Use the treadmill only as described in this manual.
OTHER SAFETY TIPS FOR YOUR TREADMILL
OPERATION
To reduce the risk of damaging important components on your treadmill, it is
strongly recommended that your treadmill is plugged into a dedicated 20 amp
circuit, without the use of an additional extension cord and/or power strip. Failure
to comply may void the warranty.
IMPORTANT: The treadmill is not compatible with GFCI-equipped outlets.
It is essential that your treadmill is used only indoors, in a climate controlled room. If your treadmill has been
exposed to colder temperatures or high moisture climates, it is strongly recommended that the treadmill is
warmed up to room temperature before first time use. Failure to do so may cause premature electronic failure.
SAVE THESE INSTRUCTIONS
Read all instructions before using this treadmill. When using an electrical product, basic precautions
should always be followed, including the following: Read all instructions before using this treadmill. It is the
responsibility of the owner to ensure that all users of this treadmill are adequately informed of all warnings
and precautions. If you have any questions after reading this manual, contact Customer Tech Support at the
number listed on the back panel of this manual.
Connect this exercise product to a properly grounded outlet only. See grounding
instructions.
GROUNDING INSTRUCTIONS
This product must be grounded. If a treadmill should malfunction or breakdown, grounding provides a path
of least resistance for electrical current to reduce the risk of electrical shock. This product is equipped with
a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an
appropriate outlet that is properly installed and grounded in accordance with local codes and ordinances.
Improper connection of the equipment-grounding conductor can result in a risk of
electric shock. Check with a qualified electrician or serviceman if you are in doubt
as to whether the product is properly grounded. Do not modify the plug provided
with the product. If it will not fit the outlet, have a proper outlet installed by a
qualified electrician.
This product is for use on a nominal 110-volt circuit and
has a grounding plug that looks like the illustration
below. This product must be used on a dedicated
circuit. To determine if you are on a dedicated circuit,
shut off the power to that circuit and observe if any other
devices lose power. If so, move devices to a different
circuit. Note: There are usually multiple outlets on one
circuit. It is recommended that the treadmill be used
with a 20 amp circuit for optimal performance.

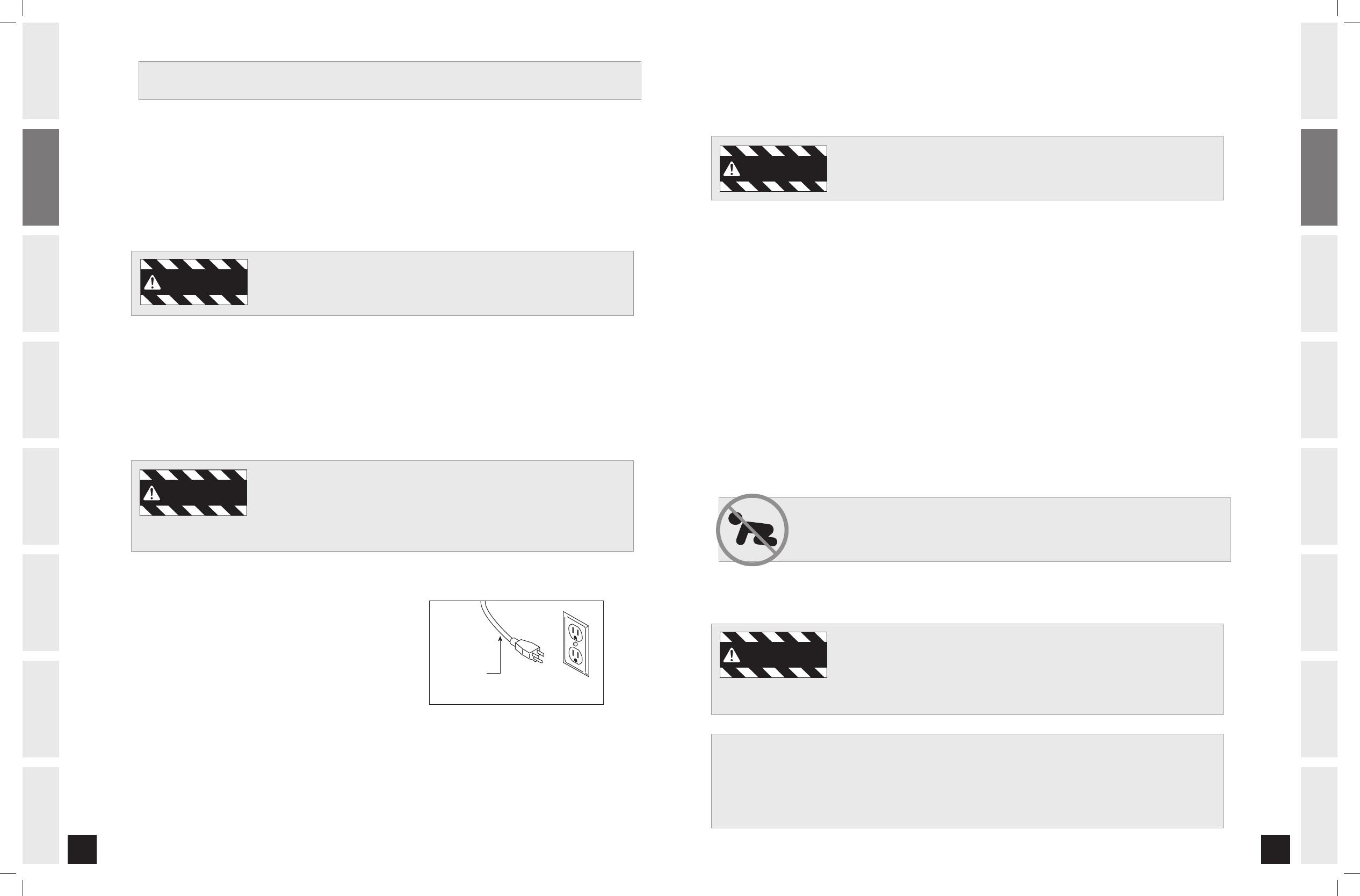

IMPORTANT PRECAUTIONS
WARNING
WARNING
WARNING
WARNING
3-Pole Grounded Outlet
GROUNDED
TREADMILL
POWER CORD
GS_1040T_Treadmill_Rev.1.7.indd 4-5 4/3/08 9:13:09 AM
6
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN TREADMILL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
7
INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
TREADMILL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY

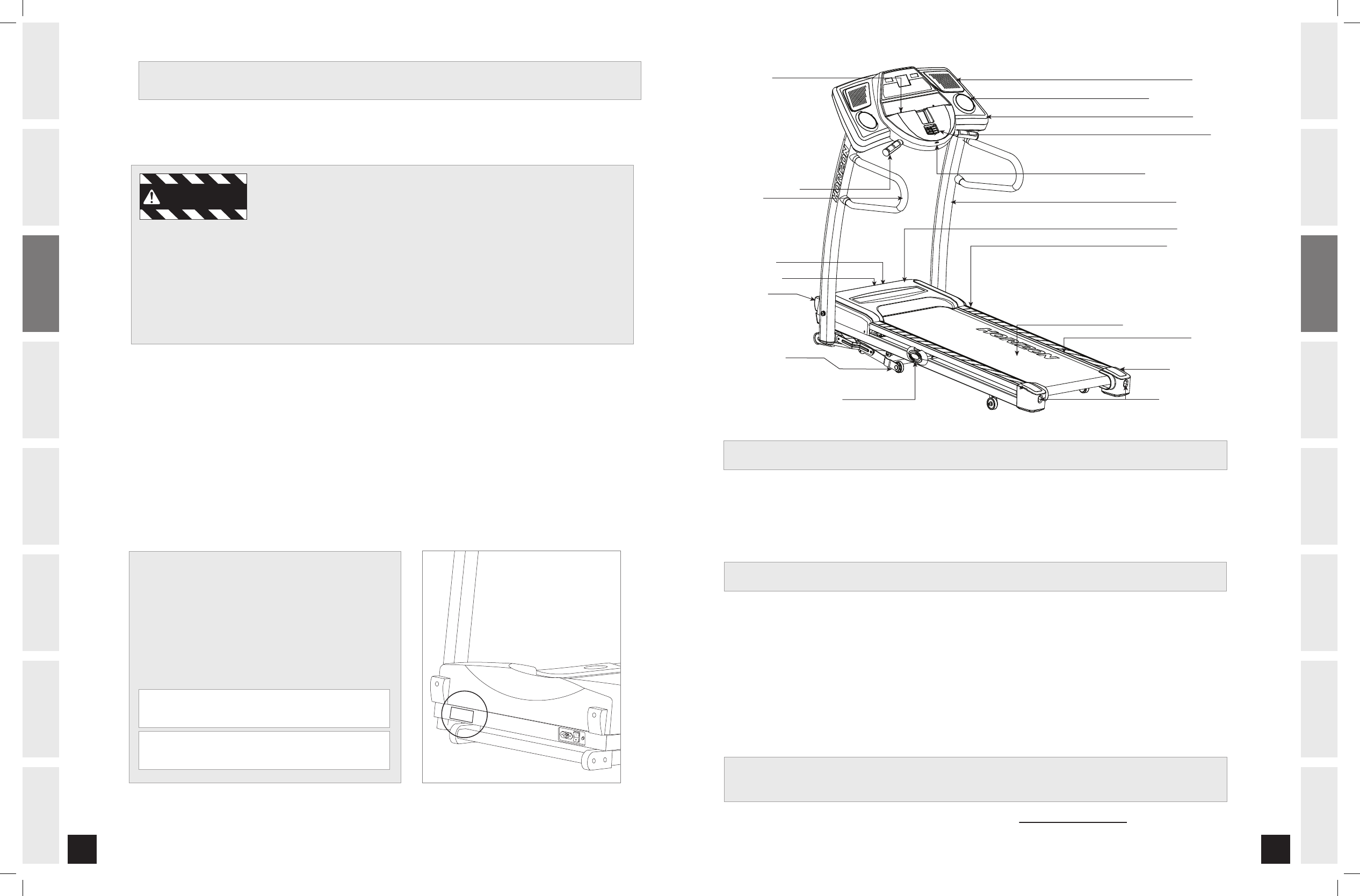

ASSEMBLY
IMPORTANT: READ THESE SAFETY INSTRUCTIONS BEFORE USE!
During the assembly process of the treadmill there are several areas that special attention must be paid.
It is very important to follow the assembly instructions correctly and to make sure all parts are firmly
tightened. If the assembly instructions are not followed correctly, the treadmill could have frame parts that
are not tightened and will seem loose and may cause irritating noises. There should be no side-to-side play
in the console masts or any forward and back play in the console assembly or handlebars. If there is any
play in these areas, the treadmill has not been properly assembled. To prevent damage to the treadmill, the
assembly instructions must be reviewed and corrective actions should be taken.
UNPACKING
Place the treadmill carton on a level flat surface. It is recommended that you place a protective covering on
your floor. Take CAUTION when handling and transporting this unit. Never open box when it is on its side.
Once the banding straps have been removed, do not lift or transport this unit unless it is fully assembled
and in the upright folded position, with the lock latch secure. Unpack the unit where it will be used. The
enclosed treadmill is equipped with high-pressure shocks and may spring open if mishandled. Never grab
hold of any portion of the incline frame and attempt to lift or move the treadmill. FAILURE TO FOLLOW THESE
INSTRUCTIONS COULD RESULT IN INJURY!
Before proceeding, find your treadmill’s serial number
and model name located under the deck on the frame
crossbar and enter it in the space provided below.
ENTER YOUR SERIAL NUMBER AND
MODEL NAME IN THE BOXES BELOW:
SERIAL NUMBER :
MODEL NAME:
* Refer to the SERIAL NUMBER and MODEL NAME when calling for service.
* Also enter this serial number on your Warranty Card.
TOOLS INCLUDED
PARTS INCLUDED
READING RACK
GRIP PULSE HANDRAILS
HANDLEBAR
ON/OFF SWITCH
CIRCUIT BREAKER
TRANSPORT WHEEL
FLEXZONE ADJUSTABLE CUSHIONING
POWER CORD
CONSOLE
SPEAKERS
FAN
SAFETY KEY PLACEMENT
MOTOR COVER
RUNNING BELT / RUNNING DECK
SIDE RAIL
ROLLER END CAP
CONSOLE MAST
REAR ROLLER
ADJUSTMENT BOLTS
FOOT LOCK LATCH
WATER BOTTLE HOLDER
If you have questions or if there are any missing parts, contact Customer Tech Support.
Contact information is located on the back panel of this manual.
For a complete exploded diagram, visit us at www.horizonfitness.com
c 5 mm T-wrench
c 6 mm T-wrench
(Used to adjust the rear roller adjustment bolts.)
c 10 mm L-wrench
c 1 Console Assembly
(located under treadmill deck)
c 2 Console Masts
c 2 Handlebars
c 4 Hardware Bags
c 1 Bottle of Silicone Lubricant
c 1 Power Cord
c 1 Audio Adaptor Cable
c 1 Safety Key
WARNING
GS_1040T_Treadmill_Rev.1.7.indd 6-7 4/3/08 9:13:12 AM
8
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN TREADMILL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
9
INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
TREADMILL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY

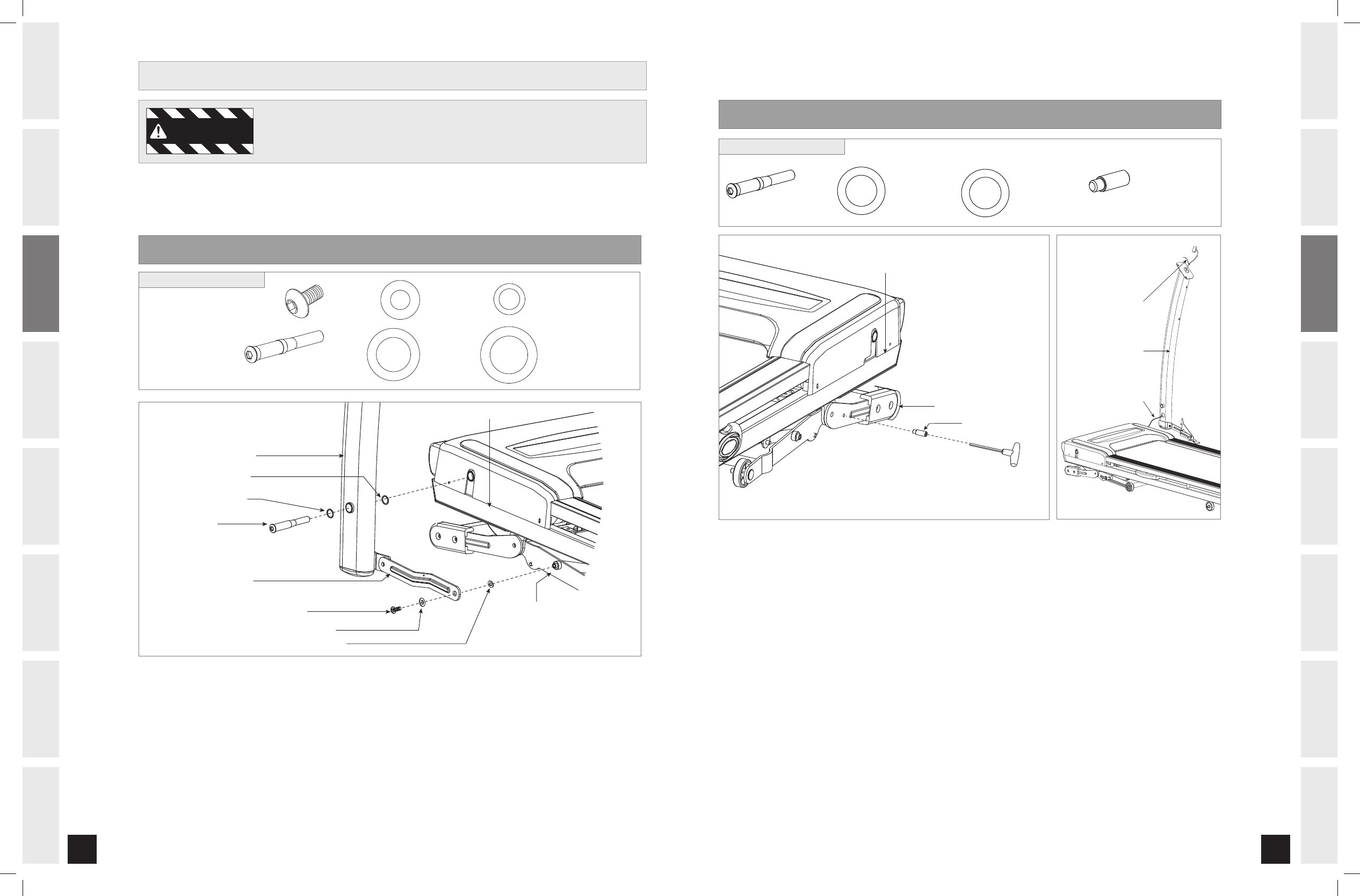

PRE-ASSEMBLY
ASSEMBLY STEP 1
FLAT WASHER (B)
20 mm
Qty: 1
WAVY WASHER (F)
29 mm
Qty: 1
BOLT (D)
Qty: 1
BOLT (A)
15 mm
Qty: 1
TEFLON WASHER (C)
18 mm
Qty: 1
FLAT WASHER (E)
27 mm
Qty: 1
HARDWARE BAG 1 CONTENTS :
TEFLON WASHER (C)
FLAT WASHER (B)
BOLT (A)
LEFT CONSOLE MAST
BOLT (D)
MAIN FRAME
LEFT LINKAGE ARM
FLAT WASHER (E)
WAVY WASHER (F)
ELEVATION FRAME
DO NOT ATTEMPT TO LIFT THE TREADMILL!* Do not move or lift treadmill
from packaging until specified to do so in the assembly instructions. Failure to do
so may result in injury! Remove plastic wrap from console masts.
NOTE: During each assembly step, ensure that ALL nuts and bolts are in place and partially threaded in before
completely tightening any ONE bolt. NOTE: A light application of grease may aid in the installation of hardware.
Any grease, such as lithium bike grease is recommended.
WARNING
Open HARDWARE BAG 1.
Cut banding straps. Do not move or lift treadmill from packaging.
Move LEFT LINKAGE ARM into position. Insert 1 BOLT (A) and 1 FLAT WASHER (B) into LEFT
LINKAGE ARM followed by 1 TEFLON WASHER (C) and attach to ELEVATION FRAME.
Lift LEFT CONSOLE MAST into upright position. Be sure to hold the console mast firmly, as
it will not stay in the upright position on its own.
Insert 1 BOLT (D) and 1 FLAT WASHER (E) through LEFT CONSOLE MAST followed by
1 WAVY WASHER (F) and attach to MAIN FRAME.
A
B
C
D
E
ASSEMBLY STEP 2
MAIN FRAME
LOCK LATCH PIN (G)
RIGHT FOLDING FRAME
HARDWARE BAG 2 CONTENTS :
A Open HARDWARE BAG 2.
B Attach LOCK LATCH PIN (G) into RIGHT FOLDING FRAME using T-wrench and
tighten completely.
Pull LEAD WIRE through RIGHT CONSOLE MAST. After pulling the LEAD WIRE through the
mast, the top of the CONSOLE CABLE should be located at the top of the mast. Detach and
discard LEAD WIRE.
Continue STEP 2 on next page.
C
D
RIGHT CONSOLE MAST
LEAD WIRE
CONSOLE CABLE
GS_1040T_Treadmill_Rev.1.7.indd 8-9 4/3/08 9:13:21 AM
10
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN TREADMILL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
11
INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
TREADMILL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY

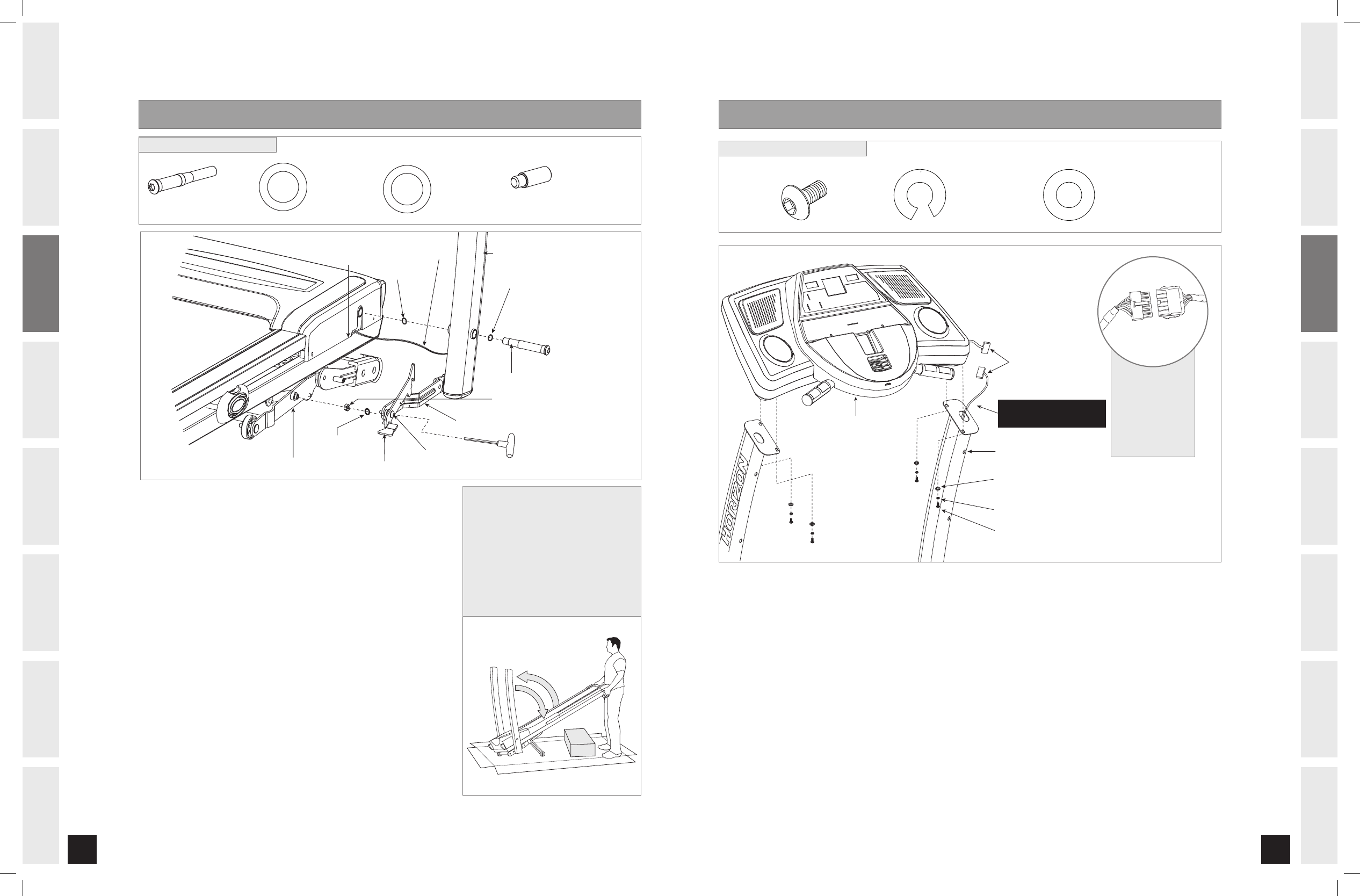

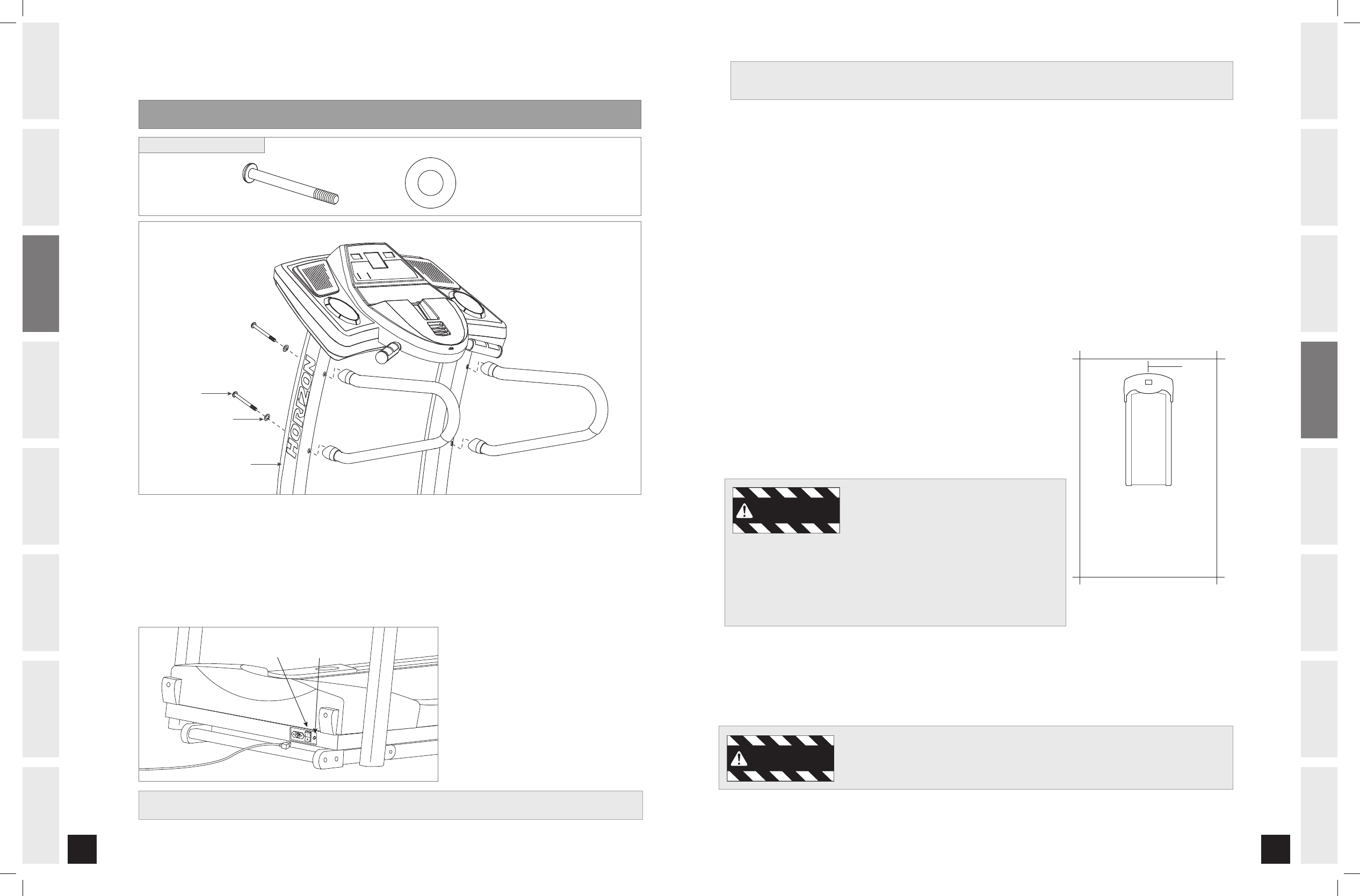

ASSEMBLY STEP 3ASSEMBLY STEP 2 (CONTINUED)
CONSOLE
FLAT WASHER (B)
CONSOLE MAST
SPRING WASHER (J)
BOLT (I)
DO NOT ATTACH
THIS SIDE UNTIL STEP 3-D
CONSOLE CABLES
FLAT WASHER (B)
20 mm
Qty: 4
SPRING WASHER (J)
20 mm
Qty: 4
BOLT (I)
20 mm
Qty: 4
HARDWARE BAG 3 CONTENTS:
A Open HARDWARE BAG 3.
B With running deck in lowered position, place CONSOLE on upright masts. Align the brackets
that are underneath the console with the top holes of the upright masts.
C To assemble the LEFT CONSOLE MAST to the CONSOLE, insert 1 BOLT (I),
1 SPRING WASHER (J) and 1 FLAT WASHER (B) into the 2 holes in the
LEFT CONSOLE MAST and lightly tighten.
D Gently lift RIGHT side of the CONSOLE to connect the CONSOLE CABLES. Carefully tuck
wires in mast to avoid damage. NOTE: Do not pinch console cable.
E Repeat STEP C above to attach the RIGHT CONSOLE MAST to the CONSOLE.
* NOTE: Be
careful not to
pinch any
wires while
attaching the
console.
FLAT WASHER (E)
BOLT (D)
RIGHT CONSOLE MAST
MAIN FRAME
WAVY WASHER (F)
ELEVATION FRAME
CONSOLE CABLE
PRE-ATTACHED BOLT
FOOT LOCK LATCH
RIGHT LINKAGE ARM
PRE-ATTACHED NUT
PRE-ATTACHED
TEFLON WASHER
1
3
2
NOTE: If you have attempted to
move the treadmill from the box
and the machine has sprung
open and cannot be assembled,
refer to the troubleshooting
section in order to restore the
treadmill to its proper position.
*
Insert 1 BOLT (D) and 1 FLAT WASHER (E) through
RIGHT CONSOLE MAST followed by 1 WAVY WASHER (F)
and attach to MAIN FRAME.
Unscrew PRE-ATTACHED NUT and remove from RIGHT
LINKAGE ARM and discard. Carefully move RIGHT LINKAGE
ARM and PRE-ATTACHED TEFLON WASHER into position
and attach to ELEVATION FRAME.
NOTE: While holding RIGHT CONSOLE MAST in the
upright position, tighten PRE-ATTACHED BOLT using
T-wrench to attach RIGHT LINKAGE ARM.
Cut band holding FOOT LOCK LATCH assembly. Lift the
RUNNING DECK until lock latch on side of treadmill is
fully engaged.
Remove CONSOLE from box and place out of the way.
Lower the treadmill RUNNING DECK from the folded
position by stepping on LOCK LATCH on lower right side.
E
F
G
H
I
HARDWARE BAG 2 CONTENTS:
LOCK LATCH PIN (G)
Qty: 1
WAVY WASHER (F)
29 mm
Qty: 1
BOLT (D)
Qty: 1
FLAT WASHER (E)
27 mm
Qty: 1
GS_1040T_Treadmill_Rev.1.7.indd 10-11 4/3/08 9:13:27 AM
12
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN TREADMILL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
13
INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
TREADMILL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
BEFORE YOU BEGIN
CONGRATULATIONS! on choosing your treadmill. You’ve taken an important step in developing and
sustaining an exercise program! Your treadmill is a tremendously effective tool for achieving your personal
fitness goals. Regular use of your treadmill can improve the quality of your life in so many ways.
HERE ARE JUST A FEW OF THE HEALTH BENEFITS OF EXERCISE:
Weight Loss
A Healthier Heart
Improved Muscle Tone
Increased Daily Energy Levels
The key to reaping these benefits is to develop an exercise habit. Your new treadmill will help you eliminate
obstacles that prevent you from exercising. Inclement weather and darkness won't interfere with your
workout when you use your treadmill in the comfort of your home. This guide provides you with basic
information for using and enjoying your new machine.
LOCATION OF THE TREADMILL
Place the treadmill on a level surface. There should be 6 feet of clearance
behind the treadmill, 3 feet on each side and one foot in front for folding
and the power cord. Do not place the treadmill in any area that will block
any vent or air openings. The treadmill should not be located in a garage,
covered patio, near water or outdoors.
DO NOT STAND ON THE BELT
While you are preparing to use the treadmill, do not stand on the belt.
Place your feet on the side rails before starting the treadmill. Start
walking on the belt only after the belt has begun to move. Never start the
treadmill at a fast running speed and attempt to jump on!
SAFETY KEY
Your treadmill will not start unless the safety key is placed in position. Attach the clip end securely to your
clothing. This safety key is designed to cut the power to the treadmill if you should fall. Check the operation
of the safety key every 2 weeks.
NEVER USE THE TREADMILL WITHOUT SECURING THE SAFETY KEY CLIP TO YOUR
CLOTHING. PULL ON THE SAFETY KEY CLIP FIRST TO MAKE SURE IT WILL NOT
COME OFF YOUR CLOTHING.
WARNING
3 feet
6 feet
3 feet
1 foot
WARNING
YOU’RE FINISHED!
POWER SWITCH CIRCUIT BREAKER
Connect power plug to the treadmill
and connect the cord to a power
outlet. The on/off switch is located
next to the power cord. Flip this
switch to the 'ON' position, so that
the switch is lit. You will hear a beep
and the console will light up.
ASSEMBLY STEP 4
BOLT (K)
120 mm
Qty: 4
ARC WASHER (L)
17 mm
Qty: 4
HARDWARE BAG 4 CONTENTS :
A Open HARDWARE BAG 4.
B Attach LEFT HANDLEBAR to CONSOLE MAST using 2 BOLTS (K) and 2 ARC WASHERS (L).
C Repeat on other side.
NOTE: Look into holes in the right mast before inserting bolts to avoid pinching cables.
D Tighten all bolts completely.
CONSOLE MAST
BOLT (K)
ARC WASHER (L)
GS_1040T_Treadmill_Rev.1.7.indd 12-13 4/3/08 9:13:30 AM
14
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN TREADMILL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
15
INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
TREADMILL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
PROPER USAGE
Your treadmill is capable of reaching high speeds. Always start off using a slower speed and adjust the speed in
small increments to reach a higher speed level. Never leave the treadmill unattended while it is running. When
not in use, remove the safety key, turn the on/off switch to off and unplug the power cord. Make sure to follow
the MAINTENANCE schedule located on page 33 in this manual. Keep your body and head facing forward. Do not
attempt to turn around or look backwards while the treadmill is running. Stop your workout immediately if you
feel pain, faint, dizzy or are short of breath.
Do not operate the treadmill if the power cord or plug is damaged.
If the treadmill appears to not be working properly, do not use the treadmill.

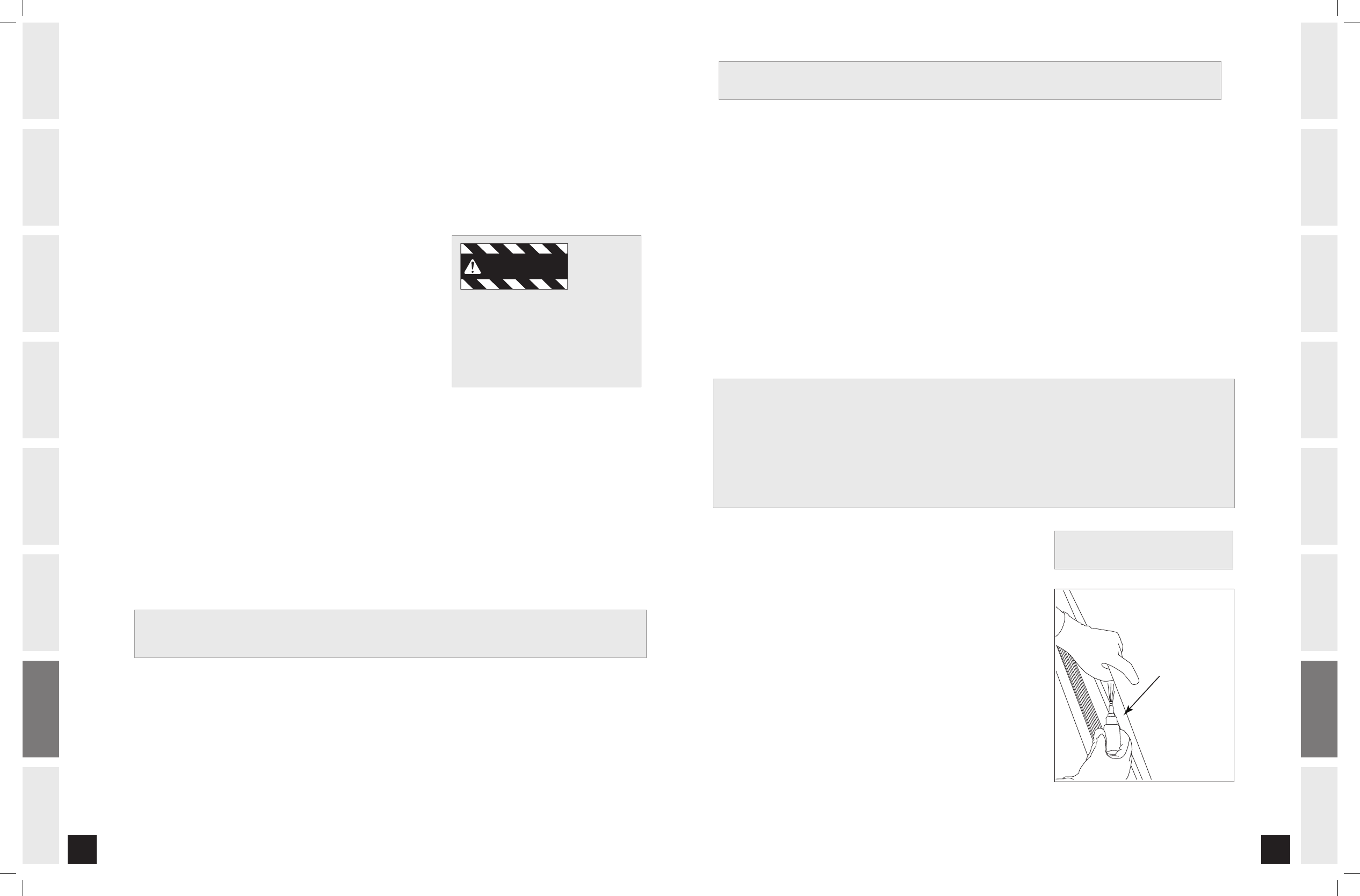

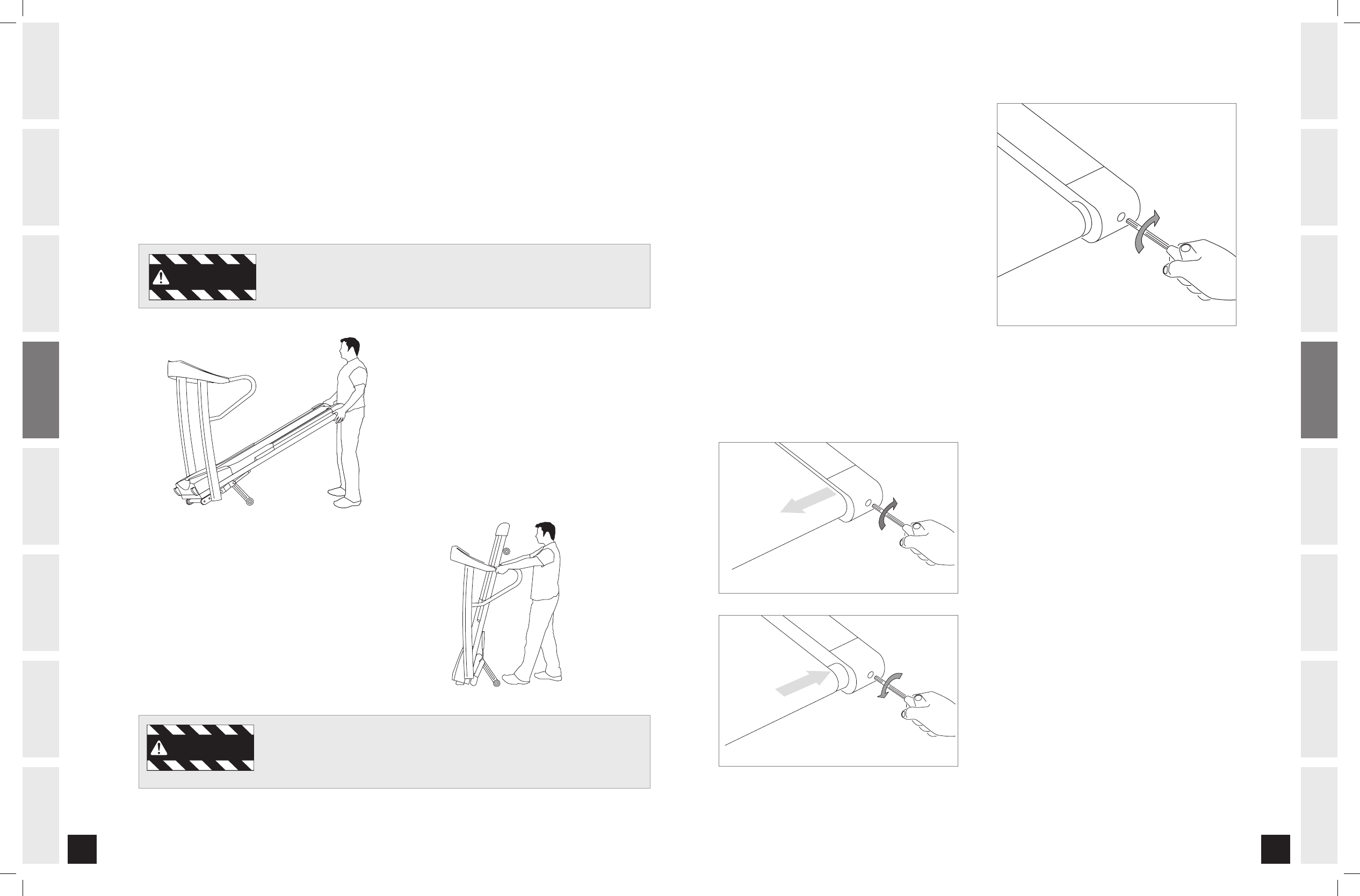

FOLDING
Firmly grasp the back end of the treadmill. Carefully
lift the end of the treadmill deck into the upright
position until the foot lock latch engages and
securely locks the deck into position. Make sure the
deck is securely latched before letting go. To unfold,
firmly grasp the back end of the treadmill. Gently
press down on the foot lock latch with your foot until
the lock latch disengages. Carefully lower the deck
to the ground. NOTE: The foot lock latch is located
on the bottom right side of the deck.
MOVING
Your treadmill has a pair of transport wheels
built into the frame. To move, make sure the
treadmill is folded and securely latched. Then firmly
grasp the handlebars, tilt the treadmill back and
roll. NOTE: Do not attempt to disassemble and
transport treadmill.
Our Treadmills are heavy, use care and additional help if necessary when moving.
Do not attempt to move or transport treadmill unless it is in the upright, folded
position with the lock latch secured. Failure to follow these instructions could
result in injury.
WARNING
WARNING
CENTERING THE RUNNING BELT
The running belt has been properly adjusted at the
factory before it was shipped. At times the belt can
move off-center during shipment. Before operating the
treadmill, make sure the belt is centered and remains
centered to maintain smooth operation.
CAUTION: Do not run belt faster than 1/2 mph while
centering. Keep fingers, hair and clothing away from
belt at all times.
If the running belt is too far to the right side:
With the treadmill running at 1/2 mph, turn the right
adjustment bolt clockwise 1/4 TURN at a time (using
the supplied Allen wrench). Check the belt alignment.
Allow belt to run a full cycle to gauge if more adjustment
is needed. Repeat if necessary, until the belt remains
centered during use.
If the running belt is too far to the left side:
With the treadmill running at 1/2 mph, turn the right
adjustment bolt counter-clockwise 1/4 TURN at a time
(using the supplied Allen wrench). Check the belt
alignment. Allow belt to run a full cycle to gauge if more
adjustment is needed. Repeat if necessary, until the
belt remains centered during use.
Belt is too far to the right side
Belt is too far to the left side
TENSIONING THE RUNNING BELT
The running belt has been properly adjusted at the
factory before it was shipped. At times the belt can
move off-center during shipment.
CAUTION: Running belt should NOT be moving during
tensioning. Over-tightening the running belt can
cause excessive wear on the treadmill as well as its
components. Never over-tighten the belt.
If you can feel a slipping sensation when running on the
treadmill, the running belt must be tightened. In most
cases, the belt has stretched from use, causing the
belt to slip. This is a normal and common adjustment.
To eliminate this slipping, TURN THE TREADMILL OFF
and tension BOTH THE REAR ROLLER BOLTS using the
supplied allen wrench, turning them 1/4 TURN to the
right as shown. Turn the treadmill on and check for
slipping. Repeat if necessary, but NEVER TURN the
roller bolts more than 1/4 turn at a time. Belt is properly
tensioned when the slipping sensation is gone.
GS_1040T_Treadmill_Rev.1.7.indd 14-15 4/3/08 9:13:34 AM
16
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN TREADMILL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
17
INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
TREADMILL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
TIME Shown as Minutes: Seconds. View the time remaining or the time elapsed in your workout.
DISTANCE • Shown as Miles. Indicates distance traveled or distance remaining during your workout.
SPEED Shown as MPH. Indicates how fast your walking or running surface is moving.
CALORIES Total Calories burned or calories remaining left to burn during your workout.
INCLINE Shown as Percent. Indicates the incline of your walking or running surface.
PULSE Shown as Beats Per Minute. Used to monitor your heart rate
(displayed when contact is made with both pulse grips).
SCROLL When the scroll option is highlighted, the display will automatically scroll through the six feedback options.
PROGRAM PROFILES Represents the profile of the program being used
(speed during speed based programs and incline during incline based programs).
TIME TO COMPLETE GOAL Shown as Days and Hours. Indicates time remaining to reach your goal.

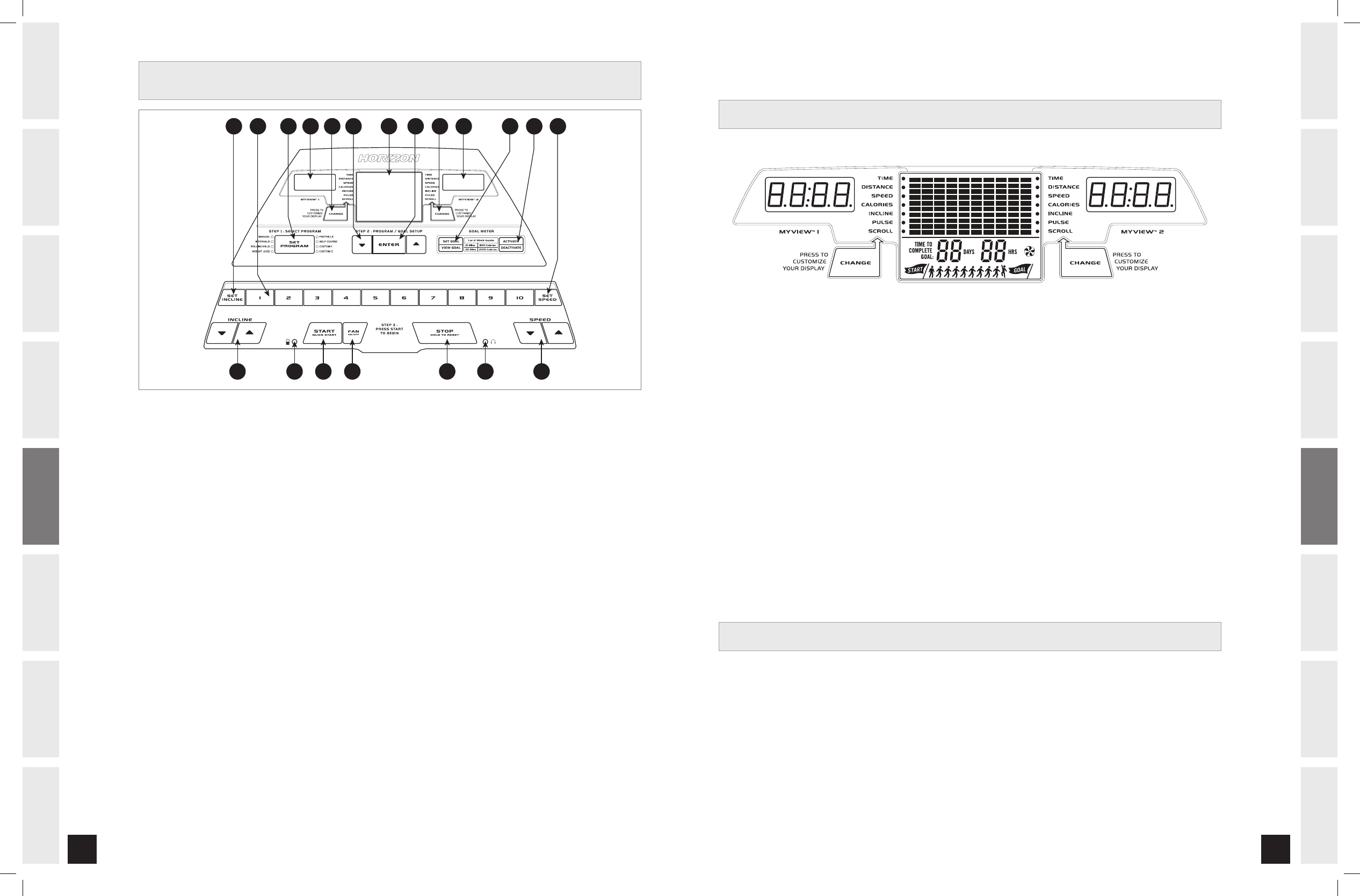

MONITOR DISPLAY
MONITOR DISPLAY: Time, Distance, Speed, Calories, Incline, Pulse, Workout Profiles and
Time to Complete Goal.
MYVIEW 1 AND MYVIEW 2 LCD DISPLAYS: Customizable user feedback windows.
CHANGE DISPLAY KEYS: Used to adjust LCD window to customize desired feedback.
START: Simply press to begin exercising.
STOP: Press to pause/end your workout. Hold for 3 seconds to reset the treadmill.
SET PROGRAM KEY: Used to select a program.
ENTER: Used to select Program, Level, Time and Weight.
PROGRAM SETTING KEYS: Press to adjust program settings.
SET / VIEW GOAL KEY: Used to set and view goal information.
ACTIVATE / DEACTIVATE KEY: Used to turn off WEEKLY GOAL CENTER.
INCLINE ARROW KEYS: Used to adjust incline in small increments (0.5% increments).
SPEED ARROW KEYS: Used to adjust speed in small increments (0.1 mph increments).
SET INCLINE KEY: Used to reach desired incline more quickly. Press before NUMBER KEYS.
SET SPEED KEY: Used to reach desired speed more quickly. Press before NUMBER KEYS.
NUMBER KEYS: After pressing SET SPEED or SET INCLINE, press desired number to set speed or incline.
FAN BUTTON: Turns fan on or off.
AUDIO IN: Plug your CD / MP3 player into the console using the included audio adaptor cable.
AUDIO OUT / HEADPHONE JACK: Plug your headphones into this jack to listen to your music through the
headphones. NOTE: When headphones are plugged into the headphone jack the sound will no
longer come out through the speakers.
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
TREADMILL OPERATION
A G
E R LK Q D P
C
HO F B C IB NJM
MY VIEW
Customize your display and see the feedback that matters most with the Sports Authority’s exclusive MyView
display. MyView allows you to view the feedback you need to reach your fitness goals.
CUSTOMIZING THE MY VIEW DISPLAY To change the “My View” display, press the “Change” key on either
side of the display. You can customize both sides of the display at any time to provide you with the feedback
desired. For example: if distance and calories are the feedback you would like to display, simply press either
“Change” key repeatedly until the display is customized to your liking. The light on the right and left side
of the display will illuminate next to the feedback that is currently being displayed. The feedback available
includes time, distance, speed, calories, incline, pulse and scroll.
GS_1040T_Treadmill_Rev.1.7.indd 16-17 4/3/08 9:13:35 AM
18
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN TREADMILL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
19
INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
TREADMILL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
Check to make sure nothing is on the treadmill or will hinder the movement of the treadmill.
Plug in the power cord and turn the treadmill ON.
Stand on the side rails of the treadmill.
Attach the safety key clip to part of your clothing.
Insert the safety key into the safety keyhole in the console.
You have two options to start your workout:
QUICK START UP
Simply press the START key to begin working out. OR...
SELECT A PROGRAM
Select a PROGRAM using the SET PROGRAM key.
Once a PROGRAM has been chosen, press ENTER.
NOTE: Setup steps may differ depending on which program is chosen.
SELECT A TIME
Select a Time using the ARROW keys or use the default time.
Once a TIME has been chosen, press ENTER.
SELECT A LEVEL (WEIGHT OR SPEED)
Select a PROGRAM LEVEL using the ARROW keys.
Once a PROGRAM LEVEL has been chosen, press START.
FINISHING YOUR WORKOUT
When your workout is complete, the MONITOR DISPLAY will beep. Your workout information will stay
displayed on the console for 30 seconds and then reset.
CLEAR CURRENT SELECTION
To clear the current program selection or screen, hold the STOP button for 3-5 seconds.
1)
2)
3)
4)
5)
6)
A)
B)
C)
D)
GETTING STARTED / SELECTING A PROGRAM
PROGRAM INFORMATION
PROGRAM: MANUAL
MANUAL
INTERVALS
ROLLING
WEIGHT LOSS
GOLF COURSE
RACE
CUSTOM 1
CUSTOM 2
THR ZONE 1
THR ZONE 2
VALLEY
TOUR
Walk or run a series of alternating SPEED levels. Time-based goal with 10 difficulty levels to choose from.
INTERVALS PROGRAM SEGMENTS
(peak segments last 30 seconds, valley segments last 90 seconds)
2:00 2:00 2:00 2:00
WARM-UP 1 2
SEGMENTS ARE REPEATED UNTIL SELECTED
TIME IS REACHED
COOL DOWN
Level 1 1.0 1.5 2.0 4.0 1.5 1.0
Level 2 1.0 1.5 2.0 4.5 1.5 1.0
Level 3 1.3 1.9 2.5 5.0 1.9 1.3
Level 4 1.3 1.9 2.5 5.5 1.9 1.3
Level 5 1.5 2.3 3.0 6.0 2.3 1.5
Level 6 1.5 2.3 3.0 6.5 2.3 1.5
Level 7 1.8 2.6 3.5 7.0 2.6 1.8
Level 8 1.8 2.6 3.5 7.5 2.6 1.8
Level 9 2.0 3.0 4.0 8.0 3.0 2.0
Level 10 2.0 3.0 4.0 8.5 3.0 2.0
(WARM-UP and COOL-DOWN last 4:00 minutes each and are included in program times)
PROGRAM: INTERVALS
MANUAL
INTERVALS
ROLLING
WEIGHT LOSS
GOLF COURSE
RACE
CUSTOM 1
CUSTOM 2
THR ZONE 1
THR ZONE 2
VALLEY
TOUR
Motivates with different combinations of SPEED. Time-based goal with 10 difficulty levels to choose from.
ROLLING HILLS PROGRAM SEGMENTS
(Segments last 30 seconds, segments 1-8 are repeated until selected time is reached)
2:00 2:00 2:00 2:00
WARM UP 1 2 3 4 5 6 7 8 COOL DOWN
Level 1 1.0 1.5 2.0 2.5 3.0 3.5 4.0 3.5 3.0 2.5 2.3 1.5
Level 2 1.3 1.9 2.5 3.0 3.5 4.0 4.5 4.0 3.5 3.0 2.6 1.8
Level 3 1.5 2.3 3.0 3.5 4.0 4.5 5.0 4.5 4.0 3.5 3.0 2.0
Level 4 1.8 2.6 3.5 4.0 4.5 5.0 5.5 5.0 4.5 4.0 3.4 2.3
Level 5 2.0 3.0 4.0 4.5 5.0 5.5 6.0 5.5 5.0 4.5 3.8 2.5
Level 6 2.3 3.4 4.5 5.0 5.5 6.0 6.5 6.0 5.5 5.0 4.1 2.8
Level 7 2.5 3.8 5.0 5.5 6.0 6.5 7.0 6.5 6.0 5.5 4.5 3.0
Level 8 2.8 4.1 5.5 6.0 6.5 7.0 7.5 7.0 6.5 6.0 4.9 3.3
Level 9 3.0 4.5 6.0 6.5 7.0 7.5 8.0 7.5 7.0 6.5 5.3 3.5
Level 10 3.3 4.9 6.5 7.0 7.5 8.0 8.5 8.0 7.5 7.0 5.6 3.8
(WARM-UP AND COOL-DOWN LAST 4:00 MINUTES EACH)
PROGRAM: ROLLING HILLS
MANUAL
INTERVALS
ROLLING
WEIGHT LOSS
GOLF COURSE
RACE
CUSTOM 1
CUSTOM 2
THR ZONE 1
THR ZONE 2
VALLEY
TOUR
Allows ‘On The Fly’ manual SPEED and INCLINE changes. Time-based goal.
HEART RATE
PULSE GRIPS
Place the palm of your hands directly on the grip pulse handlebars. Both hands must grip the bars for your heart
rate to register. It takes 5 consecutive heart beats (15-20 seconds) for your heart rate to register. When gripping
the pulse handlebars, do not grip tightly. Holding the grips tightly may elevate your blood pressure. Keep a loose,
cupping hold. You may experience an erratic readout if consistently holding the grip pulse handlebars. Make sure
to clean the pulse sensors to ensure proper contact can be maintained.
IMPORTANT: The heart rate function on this product is not a medical device. While heart rate grips can
provide a relative estimation of your actual heart rate, they should not be relied on when accurate readings are
necessary. Some people, including those in a cardiac rehab program, may benefit from using an alternate heart
rate monitoring system like a chest or wrist strap. Various factors, including movement of the user, may affect
the accuracy of your heart rate reading. The heart rate reading is intended only as an exercise aid in determining
heart rate trends in general. Please consult your physician.
GS_1040T_Treadmill_Rev.1.7.indd 18-19 4/3/08 9:13:37 AM
20
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN TREADMILL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
21
INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
TREADMILL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
Challenges with various combinations of hills and valleys (INCLINE & SPEED levels). Time-based goal with 10
difficulty levels to choose from.
WEIGHT LOSS PROGRAM SEGMENTS (all non warm-up and cool-down segments last 30 seconds each)
2:00 2:00 2:00 2:00
WARM-UP 12345678
SEGMENTS ARE REPEATED UNTIL SELECTED TIME IS REACHED
COOL-DOWN
Level 1 Elevation 0.0 0.5 1.5 1.5 1.0 0.5 0.5 0.5 1.0 1.5 0.5 0.0
Speed 1.0 1.5 2.0 2.5 3.0 3.5 4.0 3.5 3.0 2.5 2.3 1.5
Level 2 Elevation 0.0 0.5 1.5 1.5 1.0 0.5 1.0 0.5 1.0 1.5 0.5 0.0
Speed 1.3 1.9 2.5 3.0 3.5 4.0 4.5 4.0 3.5 3.0 2.6 1.8
Level 3 Elevation 0.5 1.0 2.0 2.0 1.5 1.0 1.0 1.0 1.5 2.0 1.0 0.5
Speed 1.5 2.3 3.0 3.5 4.0 4.5 5.0 4.5 4.0 3.5 3.0 2.0
Level 4 Elevation 0.5 1.0 2.0 2.0 1.5 1.0 1.0 1.0 1.5 2.0 1.0 0.5
Speed 1.8 2.6 3.5 4.0 4.5 5.0 5.5 5.0 4.5 4.0 3.4 2.3
Level 5 Elevation 1.0 1.5 2.5 2.5 2.0 1.5 1.5 1.5 2.0 2.5 1.5 1.0
Speed 2.0 3.0 4.0 4.5 5.0 5.5 6.0 5.5 5.0 4.5 3.8 2.5
Level 6 Elevation 1.0 1.5 2.5 2.5 2.0 1.5 1.5 1.5 2.0 2.5 1.5 1.0
Speed 2.3 3.4 4.5 5.0 5.5 6.0 6.5 6.0 5.5 5.0 4.1 2.8
Level 7 Elevation 1.5 2.0 3.0 3.0 2.5 2.0 2.0 2.0 2.5 3.0 2.0 1.5
Speed 2.5 3.8 5.0 5.5 6.0 6.5 7.0 6.5 6.0 5.5 4.5 3.0
Level 8 Elevation 1.5 2.0 3.0 3.0 2.5 2.0 2.0 2.0 2.5 3.0 2.0 1.5
Speed 2.8 4.1 5.5 6.0 6.5 7.0 7.5 7.0 6.5 6.0 4.9 3.3
Level 9 Elevation 2.0 2.5 3.5 3.5 3.0 2.5 2.5 2.5 3.0 3.5 2.5 2.0
Speed 3.0 4.5 6.0 6.5 7.0 7.5 8.0 7.5 7.0 6.5 5.3 3.5
Level 10 Elevation 2.0 2.5 3.5 3.5 3.0 2.5 2.5 2.5 3.0 3.5 2.5 2.0
Speed 3.3 4.9 6.5 7.0 7.5 8.0 8.5 8.0 7.5 7.0 5.6 3.8
(WARM-UP and COOL-DOWN last 4:00 minutes each and are included in program times)
PROGRAM: WEIGHT LOSS
MANUAL
INTERVALS
ROLLING
WEIGHT LOSS
GOLF COURSE
RACE
CUSTOM 1
CUSTOM 2
THR ZONE 1
THR ZONE 2
VALLEY
TOUR
Motivates with different INCLINES. Time-based goal with 10 difficulty levels to choose from.
(WARM-UP and COOL-DOWN last 4:00 minutes each and are included in program times)
PROGRAM: FOOTHILLS
MANUAL
INTERVALS
ROLLING
WEIGHT LOSS
GOLF COURSE
RACE
CUSTOM 1
CUSTOM 2
THR ZONE 1
THR ZONE 2
VALLEY
TOUR
FOOTHILLS PROGRAM SEGMENTS (all segments last 30 seconds)
2:00 2:00 Segments 1-15 repeated until selected time is reached 2:00 2:00
Warm Up 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 Cool Down
Level 1 0.0 0.5 0.0 0.5 1.0 3.0 1.0 3.0 2.0 3.0 2.0 3.5 2.0 3.0 2.0 3.0 1.0 3.0 1.0 0.5 0.0 0.5 0.0
Level 2 0.0 0.5 0.0 0.5 1.0 3.0 2.0 3.0 2.0 3.0 2.5 3.5 2.5 3.0 2.0 3.0 2.0 3.0 1.0 0.5 0.0 0.5 0.0
Level 3 0.5 1.0 0.5 1.0 1.5 3.5 1.5 3.5 2.5 3.5 2.5 4.0 2.5 3.5 2.5 3.5 1.5 3.5 1.5 1.0 0.5 1.0 0.5
Level 4 0.5 1.0 0.5 1.0 1.5 3.5 2.5 3.5 2.5 3.5 3.0 4.0 3.0 3.5 2.5 3.5 2.5 3.5 1.5 1.0 0.5 1.0 0.5
Level 5 1.0 1.5 1.0 1.5 2.0 4.0 2.0 4.0 3.0 4.0 3.0 4.5 3.0 4.0 3.0 4.0 2.0 4.0 2.0 1.5 1.0 1.5 1.0
Level 6 1.0 1.5 1.0 1.5 2.0 4.0 3.0 4.0 3.0 4.0 3.5 4.5 3.5 4.0 3.0 4.0 3.0 4.0 2.0 1.5 1.0 1.5 1.0
Level 7 1.5 2.0 1.5 2.0 2.5 4.5 2.5 4.5 3.5 4.5 3.5 5.0 3.5 4.5 3.5 4.5 2.5 4.5 2.5 2.0 1.5 2.0 1.5
Level 8 1.5 2.0 1.5 2.0 2.5 4.5 3.5 4.5 3.5 4.5 4.0 5.0 4.0 4.5 3.5 4.5 3.5 4.5 2.5 2.0 1.5 2.0 1.5
Level 9 2.0 2.5 2.0 2.5 3.0 5.0 3.0 5.0 4.0 5.0 4.0 5.5 4.0 5.0 4.0 5.0 3.0 5.0 3.0 2.5 2.0 2.5 2.0
Level 10 2.0 2.5 2.0 2.5 3.0 5.0 4.0 5.0 4.0 5.0 4.5 5.5 4.5 5.0 4.0 5.0 4.0 5.0 3.0 2.5 2.0 2.5 2.0
Simulates various INCLINES and yardages for holes on a golf course, with 4 tee-off boxes and 9 or 18 holes to choose
from. Distance-based goal.
GOLF COURSE PROGRAM SEGMENTS
HOLE
NUMBER: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 TOTAL
DISTANCE
Red tee
9 holes
Elevation 0.0 1.0 2.0 3.0 2.5 1.0 2.0 2.5 1.5 2482
Distance 309 359 283 256 113 387 91 351 333
White tee
9 holes
Elevation 0.0 1.0 2.0 3.0 2.5 1.0 2.0 2.5 1.5 2875
Distance 331 427 330 295 129 466 97 369 431
Blue tee
9 holes
Elevation 0.0 1.0 2.0 3.0 2.5 1.0 2.0 2.5 1.5 3003
Distance 345 460 337 308 142 484 97 389 441
Black tee
9 holes
Elevation 0.0 1.0 2.0 3.0 2.5 1.0 2.0 2.5 1.5 3250
Distance 376 502 374 327 187 500 106 416 462
Red tee
18 holes
Elevation 0.0 1.0 2.0 3.0 2.5 1.0 2.0 2.5 1.5 3.5 2.5 2.0 4.0 2.5 3.0 2.0 5.0 2.0 5198
Distance 309 359 283 256 113 387 91 351 333 301 301 165 288 434 312 310 150 455
White tee
18 holes
Elevation 0.0 1.0 2.0 3.0 2.5 1.0 2.0 2.5 1.5 3.5 2.5 2.0 4.0 2.5 3.0 2.0 5.0 2.0 6116
Distance 331 427 330 295 129 466 97 369 431 407 339 179 368 548 349 376 166 509
Blue tee
18 holes
Elevation 0.0 1.0 2.0 3.0 2.5 1.0 2.0 2.0 1.5 3.5 2.5 2.0 4.0 2.5 3.0 2.0 5.0 2.0 6348
Distance 345 460 337 308 142 484 97 389 441 413 349 187 376 560 373 383 172 532
Black tee
18 holes
Elevation 0.0 1.0 2.0 3.0 2.5 1.0 2.0 2.5 1.5 3.5 2.5 2.0 4.0 2.5 3.0 2.0 5.0 2.0 6737
Distance 376 502 374 327 187 500 106 416 462 430 373 201 393 572 396 401 178 543
Distance = Yards
PROGRAM: GOLF COURSE
MANUAL
INTERVALS
ROLLING
WEIGHT LOSS
GOLF COURSE
RACE
CUSTOM 1
CUSTOM 2
THR ZONE 1
THR ZONE 2
VALLEY
TOUR
GS_1040T_Treadmill_Rev.1.7.indd 20-21 4/3/08 9:13:40 AM
22
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN TREADMILL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
23
INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
TREADMILL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
Lets you create and reuse a perfect workout for you with specific speed, incline and
time combination. The ultimate in personal programming. Time-based goal.
Once the CUSTOM 1 or 2 program has been chosen, press ENTER.
Choose the desired TIME using the PROGRAM SETTING KEYS and press ENTER.
Choose the Weight, using the ARROW KEYS and press ENTER.
Choose the desired SPEED for all 15 segments using the ARROW KEYS and press
ENTER. Note: You will need to press ENTER after each segment.
The STOP key will take you back to the previous segment.
Choose the desired INCLINE for all 15 segments using the ARROW KEYS and press
ENTER. Note: You will need to press ENTER after each segment.
The STOP key will take you back to the previous segment.
Press START to begin your program. At this time, your program has been
successfully saved into memory, and can be used for future workouts.
To RESET your program information and delete it from memory, press and hold
the ENTER key for 5 seconds (after you have selected the
CUSTOM 1 or 2 program).
While using your saved program, you are able to adjust the speed or incline, but
any changes will not be saved.
1.
2.
3.
4.
6.
7.
PROGRAM: CUSTOM 1 & 2
MANUAL
INTERVALS
ROLLING
WEIGHT LOSS
GOLF COURSE
RACE
CUSTOM 1
CUSTOM 2
THR ZONE 1
THR ZONE 2
VALLEY
TOUR
Reaching your fitness goals just got easier!
Research shows that those who set fitness goals and monitor their results, on average, will achieve a higher
level of success than those who do not. Because your new treadmill is equipped with Horizon’s exclusive Weekly
Goal Center, you’ve taken an important step towards achieving your personal fitness goals. Congratulations
on your purchase decision!
Horizon’s Weekly Goal Center is a new software program that is integrated into your treadmill’s console. It will
allow you to set a distance-based or calorie-burning goal to work towards each week. Your treadmill will then
monitor your progress electronically and notify you once you’ve met your goal, without the need for paper journals
or logs. The Weekly Goal Center will help motivate you so that you can reach your ultimate goal of better health.
Read further to learn how the Weekly Goal Center can enhance your fitness experience.
SETUP:
To activate the Weekly Goal Center press the ACTIVATE key once. Now hold the SET GOAL key for 5 seconds to clear
out any existing data. To cycle through the 8 goal options (1 or 2 Weeks: 10 Miles, 20 Miles, 1200 Calories, 2400
Calories at 1 or 2 Week Intervals) press the SET GOAL key or UP/DOWN ARROWS on the keypad. Press ENTER to
select goal.
*Note – The Weekly Goal Center will be active from this point forward. Once the ENTER key is pressed the time
will start to count down.
**Note - The 1 Week and 2 Weeks options will be displayed on the LCD as 7 Days and 14 Days
***Note - The Weekly Goal Center must be active to reset any existing data.
DEACTIVATION:
To suspend the Weekly Goal Center press the DEACTIVATE key once. This allows another individual to use
the treadmill without the weekly goal being active. NOTE: Deactivating the goal center will only suspend the
mileage / calories being accumulated. The time will not be suspended when deactivated.
ACTIVATION:
To resume the Weekly Goal Center press the ACTIVATE key again. This will resume the current workout data saved.
WEEKLY GOAL CENTER OPERATION
GOAL OPTIONS:
GOALS
1 WEEK (7 DAYS) 2 WEEKS (14 DAYS)
10 MILES 10 MILES
20 MILES 20 MILES
1200 CALORIES 1200 CALORIES
2400 CALORIES 2400 CALORIES
GS_1040T_Treadmill_Rev.1.7.indd 22-23 4/3/08 9:13:41 AM
24
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN TREADMILL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
25
INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
TREADMILL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
ALWAYS CONSULT YOUR PHYSICIAN BEFORE BEGINNING AN EXERCISE PROGRAM.
HOW OFTEN? (Frequency of Workouts)
The American Heart Association recommends that you exercise at least 3 to 4 days per week to maintain
cardiovascular fitness. If you have other goals such as weight or fat loss, you will achieve your goal faster with
more frequent exercise. Whether it’s 3 days or 6 days, remember that your ultimate goal should be to make
exercise a lifetime habit. Many people are successful staying with a fitness program if they set aside a specific
time of day to exercise. It doesn’t matter whether it’s in the morning before breakfast, during lunch hour or while
watching the evening news. What’s more important is that it’s a time that allows you to keep a schedule, and a
time when you won’t be interrupted. To be successful with your fitness program, you have to make it a priority in
your life. So decide on a time, pull out your day planner and pencil in your exercise times for the next month!
HOW LONG? (Duration of Workouts)
For aerobic exercise benefits, it’s recommended that you exercise from between 24 and 60 minutes per session.
But start slowly and gradually increase your exercise times. If you’ve been sedentary during the past year, it may
be a good idea to keep your exercise times to as little as five minutes initially. Your body will need time to adjust
to the new activity. If your goal is weight loss, a longer exercise session at lower intensities has been found to
be most effective. A workout time of 48 minutes or more is recommended for best weight loss results.
HOW HARD? (Intensity of Workouts)
How hard you workout is also determined by your goals. If you use your treadmill to prepare for a 5K run, you
will probably work out at a higher intensity than if your goal is general fitness. Regardless of your long term
goals, always begin an exercise program at low intensity. Aerobic exercise does not have to be painful to be
beneficial! There are two ways to measure your exercise intensity. The first is by monitoring your heart rate (using
the grip pulse handlebars and the second is by evaluating your perceived exertion level (this is simpler than
it sounds!).
PERCEIVED EXERTION LEVEL
A simple way to gauge your exercise intensity is to evaluate your perceived exertion level. While exercising, if you
are too winded to maintain a conversation without gasping, you are working out too hard. A good rule of thumb
is to work to the point of exhilaration, not exhaustion. If you cannot catch your breath, it’s time to slow down.
Always be aware of these warning signs of overexertion.
CONDITIONING GUIDELINES
RESET:
To reset the Weekly Goal Center information, press and hold the SET GOAL/VIEW GOAL key for 5 seconds.
When reset the display will return to the goal setup screen.
PROGRESS TOWARDS YOUR GOAL:
Once your goal is set, the Weekly Goal Center will subtract all mileage or calorie data accumulated from that
point forward. Whether you choose quick start or one of the preset programs, the progress you make will be
accounted for in the goal program electronically.
VIEWING GOAL:
To view your current goal status, press the VIEW GOAL key. The mileage or calories needed to reach your goal
will scroll in the main window.
*Note - ”Time to complete goal” will be displayed as days and hours. Hours will be rounded to the nearest whole
number.
GOAL ACHIEVED OR NOT ACHIEVED:
Once the time has expired on your goal, you may view the goal data information by pressing the VIEW GOAL key.
The current goal’s data will remain in the software until the goal is reset.
If the goal was not completed and the VIEW GOAL key is pressed, GOAL NOT COMPLETEDwill scroll through
the main window. All the remaining mileage or calories will be displayed whenever the VIEW GOAL key is pressed
from that point forward.
*Note: If the goal is completed in the middle of a workout the results will scroll across the screen three times
and you may continue your workout. If you would like to set a new goal, the treadmill must be stopped and you
must re-start your workout after re-setting your goal.
USING SPEAKER/MP3 AUDIO FUNCTION
Connect the included AUDIO ADAPTER CABLE to the AUDIO IN JACK on the side of the CONSOLE and the
HEADPHONE JACK on your CD / MP3 player.
Use your CD / MP3 player buttons to adjust song settings.
NOTE: If you don’t want to use the speakers, you can plug your headphones into the AUDIO OUT JACK at the
bottom of the CONSOLE.
Remove the AUDIO ADAPTOR CABLE when not in use.
1.
2.
3.
GS_1040T_Treadmill_Rev.1.7.indd 24-25 4/3/08 9:13:41 AM
26
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN TREADMILL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
27
INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
TREADMILL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY

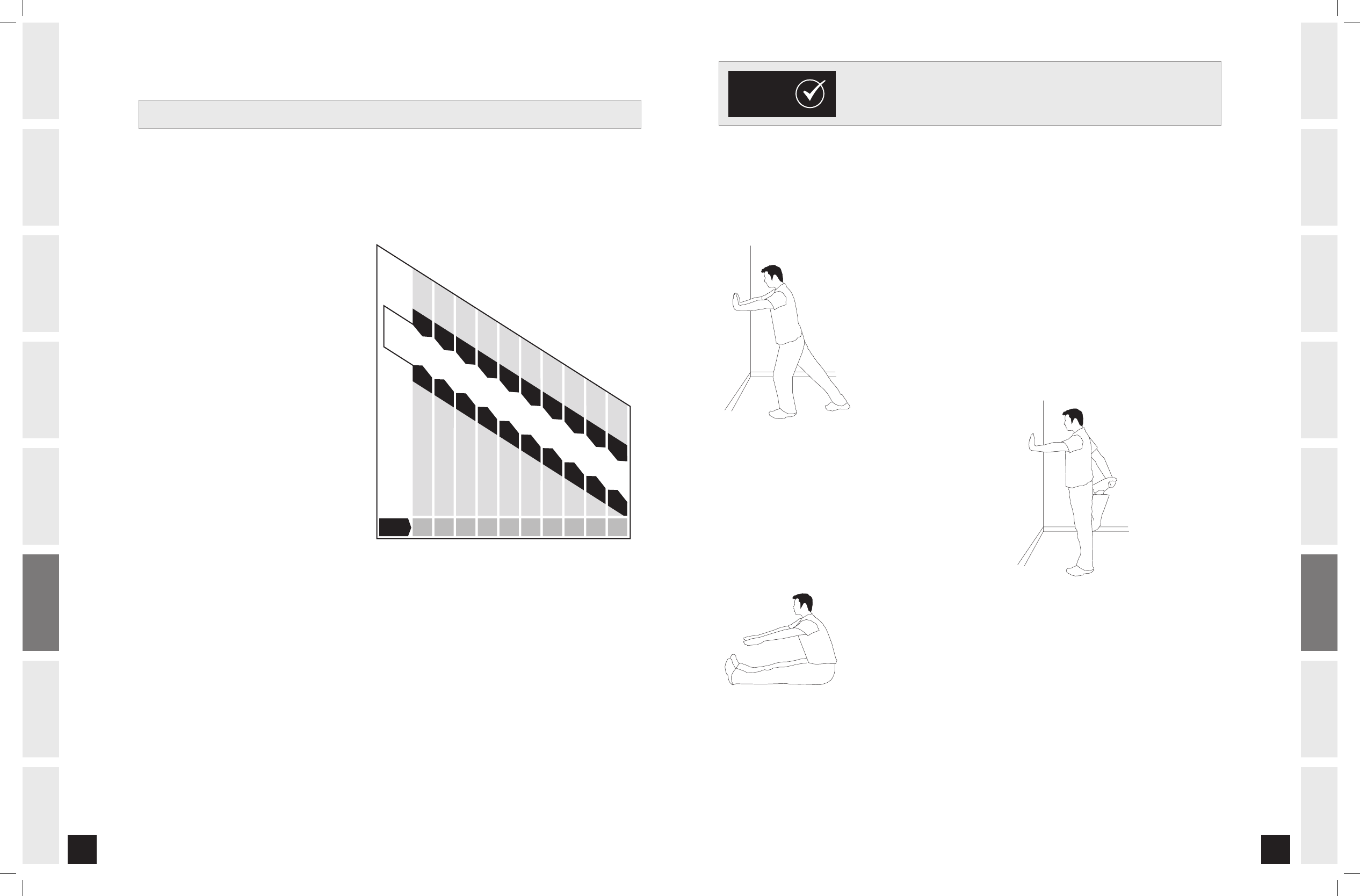

STRETCH FIRST
Before using your product, it is best to take a few minutes doing a few gentle stretching exercises.
Stretching prior to exercise will improve flexibility and reduce chances of exercise related injury. Ease into
each of these stretches with a slow gentle motion. Do not stretch to the point of pain. Make sure not to
bounce while doing these stretches.
1. STANDING CALF MUSCLE STRETCH
Stand near a wall with the toes of your left foot about 18" from the wall, and
the right foot about 12" behind the other foot. Lean forward, pushing against
the wall with your palms. Keep your heels flat and hold this position for a
count of 15 seconds. Make sure that you do not bounce while stretching.
Repeat on the other side.
2. STANDING QUADRICEP STRETCH
Using a wall to provide balance, grasp your right ankle
with your right hand and hold your foot against the back
of your thigh for 15 seconds. Repeat with your left ankle
and hand.
3. SITTING HAMSTRING & LOWER BACK MUSCLE STRETCH
Sit on the floor with your legs together and straight out in front of you. Do
not lock your knees. Extend your fingers towards your toes and hold for a
count of 15 seconds. Make sure that you do not bounce while stretching. Sit
upright again. Repeat one time.
STRETCHING
What is Target Heart Rate Zone?
Target Heart Rate Zone tells you
the number of times per minute
your heart needs to beat to
achieve a desired workout effect.
It is represented as a percentage
of the maximum number of times
your heart can beat per minute.
Target Zone will vary for each
individual, depending on age,
current level of conditioning,
and personal fitness goals. The
American Heart Association
recommends working-out at a
Target Heart Rate Zone of between
60% and 75% of your maximum
heart rate. A beginner will want to
workout in the 60% range while
a more experienced exerciser will
want to workout in the 70-75%
range. See chart for reference.
EXAMPLE:
For a 42-year-old user: Find age along the bottom of the chart (round to 40), follow age column up to
the target zone bar. Results: 60% of maximum Heart Rate = 108 Beats Per Minute, 75% of maximum
Heart Rate = 135 Beat Per Minute.
ALWAYS CONSULT YOUR PHYSICIAN BEFORE BEGINNING AN EXERCISE PROGRAM.
TARGET HEART RATE ZONE CHART
100%
75%
60%
BEATS PER MINUTE
20 25 30 35 40 45 50 55 60 65
AGE
TARGET ZONE
120 117 114 111 108105102 99 97 93
150 146 143 139135131128 124120116
TIPS
GS_1040T_Treadmill_Rev.1.7.indd 26-27 4/3/08 9:13:44 AM
28
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN TREADMILL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
29
INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
TREADMILL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
WEEKLY LOG SHEETS
WEEK # WEEKLY GOAL
WEEKLY TOTALS :
D AY
SUNDAY
MONDAY
TUESDAY
WEDNESDAY
THURSDAY
FRIDAY
SATURDAY
DATE DISTANCE CALORIES TIME COMMENTS
WEEK # WEEKLY GOAL
WEEKLY TOTALS :
D AY
SUNDAY
MONDAY
TUESDAY
WEDNESDAY
THURSDAY
FRIDAY
SATURDAY
DATE DISTANCE CALORIES TIME COMMENTS
WEEK # WEEKLY GOAL
WEEKLY TOTALS :
D AY
SUNDAY
MONDAY
TUESDAY
WEDNESDAY
THURSDAY
FRIDAY
SATURDAY
DATE DISTANCE CALORIES TIME COMMENTS
WARM UP
The first 2 to 5 minutes of a workout should be devoted to warming up. The warm-up will limber your
muscles and prepare them for more strenuous exercise. Make sure that you warm-up on your product at a
slow pace. The warm up should gradually bring your heart rate into your Target Heart Rate Zone.
COOL DOWN
Never stop exercising suddenly! A cool-down period of 3-5 minutes allows your heart to readjust to the
decreased demand. Make sure that your cool down period consists of a very slow pace to allow your heart
rate to lower. After the cool-down, repeat the stretching exercises listed above to loosen and relax your
muscles.
An important step in developing a long term fitness program is to determine your goals. Is your primary
goal for exercising to lose weight? Improve muscle? Reduce stress? Prepare for the spring racing schedule?
Knowing what your goals are will help you develop a more successful exercise program. Below are some
common exercise goals:
Weight Loss - lower intensity, longer duration workouts
Improve Body Shape and Tone - interval workouts, alternate between high and low intensities
Increased Energy Level - more frequent daily workouts
Improved Sports Performance - high intensity workouts
Improved Cardiovascular Endurance - moderate intensity, longer duration workouts
If possible try to define your personal goals in precise, measurable terms, and then put your goals in writing.
The more specific you can be, the easier it will be to track your progress. If your goals are long term, divide
them up into monthly and weekly segments. Longer term goals can lose some of the immediate motivation
benefits. Short term goals are easier to achieve. Your console provides you with several readouts that can
be used to record your progress. You can track Distance, Calories or Time.
KEEPING AN EXERCISE DIARY
To make your personal exercise log book, photocopy the weekly and monthly log sheets, which are located
on the following pages, or you can print them off of your computer by going to:
www.horizonfitness.com/guides/weeklylog.pdf
www.horizonfitness.com/guides/monthlylog.pdf
As your fitness improves, you can look back and see how far you’ve come!
THE IMPORTANCE OF WARM UP & COOL DOWN
ACHIEVING YOUR FITNESS GOALS
TIPS
TIPS
GS_1040T_Treadmill_Rev.1.7.indd 28-29 4/3/08 9:13:45 AM
30
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN TREADMILL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
31
INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
TREADMILL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY

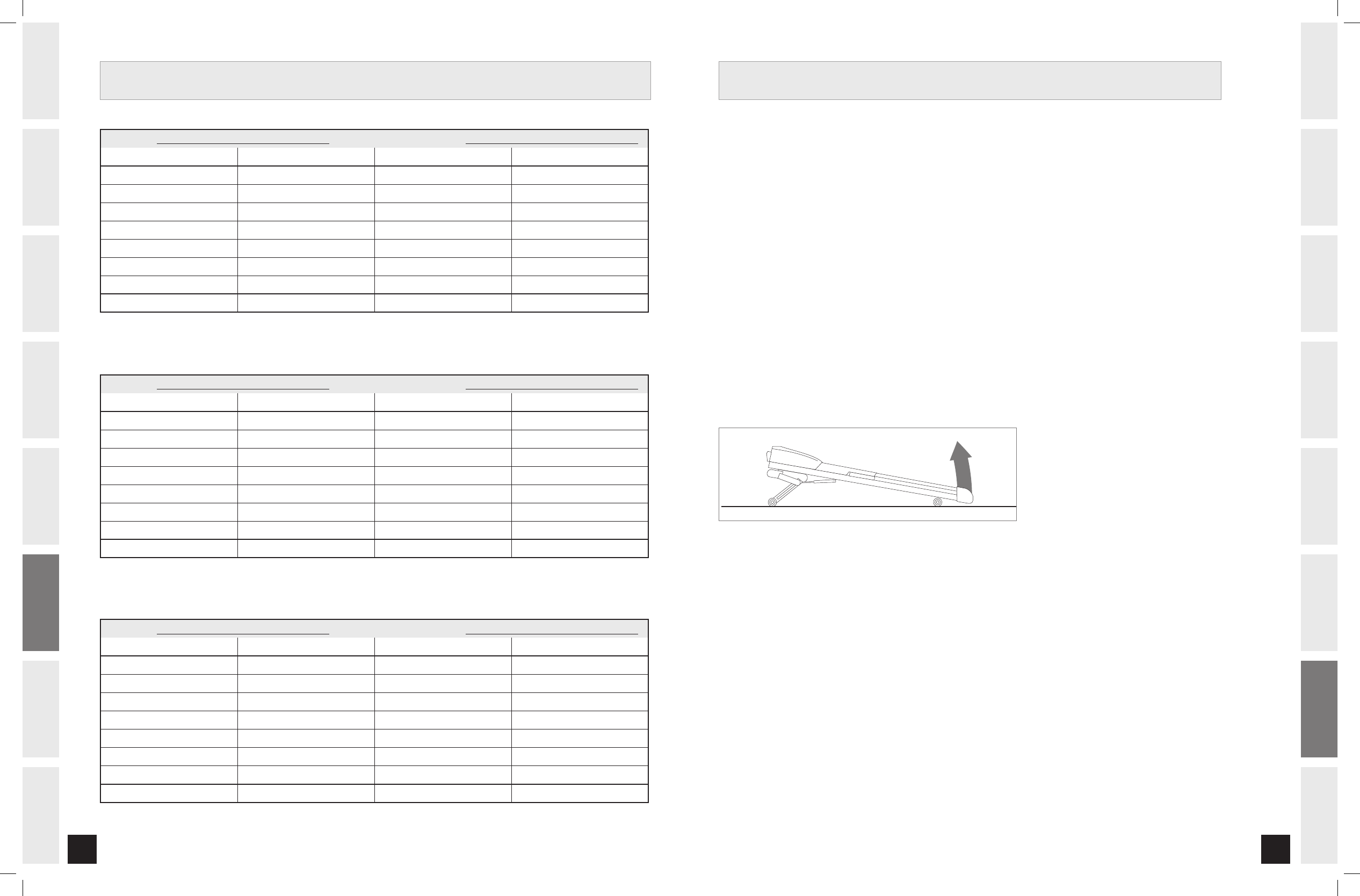

MONTHLY LOG SHEETS TROUBLESHOOTING
MONTH MONTHLY GOAL
MONTHLY TOTALS :
WEEK # DISTANCE CALORIES TIME
MONTH MONTHLY GOAL
MONTHLY TOTALS :
WEEK # DISTANCE CALORIES TIME
MONTH MONTHLY GOAL
MONTHLY TOTALS :
WEEK # DISTANCE CALORIES TIME
COMMON PRODUCT QUESTIONS
ARE THE SOUNDS MY TREADMILL MAKES NORMAL?
All treadmills make a certain type of thumping noise due to the belt riding over the rollers, especially new
treadmills. This noise will diminish over time, although may not totally go away. Over time, the belt will
stretch, causing the belt to ride smoother over the rollers.
WHY IS THE TREADMILL I PURCHASED LOUDER THAN THE ONE AT THE STORE?
All fitness products seem quieter in a large store showroom because there is generally more background noise
than in your home. Also, there will be less reverberation on a carpeted concrete floor than on a wood overlay
floor. Sometimes a heavy rubber mat will help reduce reverberation through the floor. If a fitness product is
placed close to a wall, there will be more reflected noise.
WHEN SHOULD I BE WORRIED ABOUT A NOISE?
As long as the sounds your treadmill makes are no louder than a normal conversational tone of voice, it is
considered normal noise.
TROUBLESHOOTING - TREADMILL
Your treadmill is designed to be reliable and easy to use. However, if you experience a problem, please reference the
troubleshooting guide listed below.
PROBLEM: If you have attempted to
move the treadmill from the box and
the machine has sprung open and
cannot be assembled.
SOLUTION: The air shocks have been engaged prematurely. To correct this, tilt the machine on its nose by lifting
the deck (light end) upwards. Fold down the deck so that it is horizontal. You may now proceed with the assembly.
PROBLEM: The console does not light up and/or the belt does not move.
SOLUTION: Verify the following:
DOES THE RED LIGHT ON THE ON/OFF SWITCH LIGHT UP?
IF YES:
• Double check that all connections are secure, especially the console cable. Unplug and reconnect the console
cable to verify.
• Make sure the console cable is not pinched or damaged in any way.
Turn the power off, unplug the power cable and wait 60 seconds. Remove motor cover. Wait until all red LED
lights have gone off on the motor control board before proceeding. Next, verify that none of the wires connected
to the lower board are loose or disconnected.
IF NO:
• Verify that the outlet the machine is plugged into is functional. Double check that the breaker has not tripped,
it is on a dedicated 20-amp circuit, it is not on a GFCI-equipped outlet, and it is not plugged into a power
strip/surge protector or extension cord.
• The power cord is not pinched or damaged and is properly plugged into the outlet AND the machine.
• The power switch is turned to the ON position.
LIFT
GS_1040T_Treadmill_Rev.1.7.indd 30-31 4/3/08 9:13:46 AM
32
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN TREADMILL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
33
INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
TREADMILL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
PROBLEM: The treadmill circuit breaker trips during a workout.
SOLUTION: Verify the following:
• Make sure the treadmill is plugged into a dedicated 20-amp circuit.
• Verify that you do not have the machine on an extension cord or surge protector.
• Confirm that the machine is not plugged into a GFCI-equipped outlet or on a circuit that has a GFCI-equipped outlet on it.
• Lubricate treadmill deck if necessary
PROBLEM: The running belt does not stay centered during a workout.
SOLUTION: Verify the following:
• Make sure the treadmill is on a level surface.
• Verify that the belt is properly tightened and centered (Refer to the Adjustment section for detailed directions).
PROBLEM: Operating speed appears inaccurate.
SOLUTION: Auto-calibrate the treadmill:
• Power on the treadmill and have the safety key in position on the
console. Press and hold the elevation “+” and speed “-” buttons for
approximately 5 seconds to enter the Engineering Mode. The console
will beep and “ENG0” appears in the display.
• Press the Speed “+” or “-” button until “ENG2” appears in the display.
• Press, “ENTER” to select. Press, “START” to begin. The treadmill
running belt will begin to move automatically and the auto-calibration
sequence will properly set and store the speed values.
• Upon successful calibration, the treadmill will beep several times. The
console will automatically exit Engineering Mode and return to the
start-up screen.
TROUBLESHOOTING - HEART RATE
Check your exercise environment for sources of interference such as fluorescent lights, computers, underground fencing, home
security systems or appliances containing large motors. These items may cause erratic heart rate readouts.
You may experience an erratic readout under the following conditions:
Gripping the heart rate handlebars too tight. Try to maintain moderate pressure while holding onto the heart rate handlebars.
Constant movement and vibration due to constantly holding the heart rate handlebars while exercising. If you are receiving
erratic heart rate readouts, try to only hold the grips long enough to monitor your heart rate.
When you are breathing heavily during a workout.
When your hands are constricted by wearing a ring.
When your hands are dry or cold. Try to moisten your palms by rubbing them together to warm.
Anyone with heavy arrhythmia.
Anyone with arteriosclerosis or peripheral circulation disorder.
Anyone whose skin on the measuring palm is especially thick.
If the above troubleshooting section does not remedy the problem, discontinue use and turn the power off.
PLEASE CALL CUSTOMER TECH SUPPORT AT THE NUMBER ON THE BACK PANEL.
The following information may be asked of you when you call. Please have these items readily available:
Model Name
Serial Number
Date of Purchase (receipt or credit card statement)
In order for Customer Tech Support to service your treadmill they may need to ask detailed questions about the symptoms that are
occurring. Some troubleshooting questions that may be asked are:
How long has this problem been occurring?
Does this problem occur with every use? With every user?
If you are hearing a noise, does it come from the front or the back? What kind of noise is it (thumping, grinding, squeaking,
chirping etc.)?
Has the machine been lubricated and maintained per the maintenance schedule?
Answering these and other questions will give the technicians the ability to send proper replacement parts and the service necessary
to get you and your Horizon Fitness treadmill running again!
MAINTENANCE
WARNING
DO NOT stand on running belt while
calibrating – stand on the guide
rails. Treadmill will fluctuate between
low and high speeds for several
minutes until calibration is complete.
Cleanliness of your treadmill and its operation environment will keep maintenance problems and service calls to a
minimum. For this reason, we recommend that the following preventive maintenance schedule be followed.
AFTER EACH USE (DAILY)
Clean and inspect, following these steps:
Turn off the treadmill with the on/off switch, then unplug the power cord at the wall outlet.
Wipe down the running belt, deck, motor cover, and console casing with a damp cloth. Never use solvents, as they
can cause damage to the treadmill.
Inspect the power cord. If the power cord is damaged, contact Horizon Fitness.
Make sure the power cord is not underneath the treadmill or in any other area where it can become pinched or cut.
Check the tension and alignment of the running belt. Make sure that the treadmill belt will not damage any other
components on the treadmill by being misaligned.
EVERY WEEK
Clean underneath the treadmill, following these steps:
Turn off the treadmill with the on/off switch, then unplug the power cord at the wall outlet.
Fold the treadmill into the upright position, making sure that the lock latch is secure.
Move the treadmill to a remote location.
Wipe or vacuum any dust particles or other objects that may have accumulated underneath the treadmill.
Return the treadmill to its previous position.
EVERY MONTH - IMPORTANT!
Turn off the treadmill with the on/off switch, then unplug the power cord at the wall outlet.
Inspect all assembly bolts of the machine for proper tightness.
Turn off the treadmill and wait 60 seconds.
Remove the motor cover. Wait until ALL display screens turn off.
Clean the motor and lower board area to eliminate any lint or dust particles that may have accumulated. Failure to
do so may result in premature failure of key electrical components.
Vacuum and wipe down the belt with a damp cloth. Vacuum any black/white particles that may accumulate around
the unit. These particles may accumulate from normal treadmill use.
EVERY 6 MONTHS OR 150 MILES
It is necessary to lubricate your treadmill running deck every six months or
150 miles to maintain optimal performance. Once the treadmill reaches
150 miles, the console will display the message “LUBE” or “LUBE BELT”.
The treadmill will not operate while the message is showing. Hold Stop for
5 seconds to suspend message for 5 miles. Your treadmill came with a
bottle of lubricant which can be used for two applications. If you need
lubricant, contact Horizon Fitness. Only use lubricant provided by
Horizon Fitness.
Turn off the treadmill with the on/off switch, then unplug the power cord
at the wall outlet.
Loosen both the rear roller bolts. (For best results, place two removable
marks on both sides of the frame and note roller position). Once the belt
is loosened, take the bottle of lubricant and apply it to the entire top
surface of the running deck. Tighten both rear roller bolts (matching up
the marks for proper position) to original position. After you have applied
lubricant, plug in the power cord, insert the safety key, start the treadmill
and walk on the belt for two minutes to spread the lubricant.
• Lubricate the air shocks with Teflon based spray.
• Once lubrication is complete, reset the console by pressing and holding ‘STOP’ and Speed ‘+’ buttons for 5 seconds.
Please contact Horizon Fitness with questions about applying lubricant to your treadmill.
RUNNING BELT
RUNNING DECK
LUBRICATION
GS_1040T_Treadmill_Rev.1.7.indd 32-33 4/3/08 9:13:47 AM
34
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN TREADMILL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
Weight Capacity = 300 LBS
FRAME • LIFETIME
Horizon Fitness warrants the frame against defects in
workmanship and materials for the lifetime of the original
purchase, so long as the device remains in the possession
of the original owner. (The frame is defined as the welded
metal base of the unit and does not include any parts that
can be removed.)
MOTOR • LIFETIME
Horizon Fitness warrants the motor against defects in
workmanship and materials for the lifetime of the device
as long as it remains in the possession of the original
owner.
ELECTRONICS & OTHER PARTS 1 YEAR
Horizon Fitness warrants the electronic components, finish
and all original parts for a period of one year from the date
of original purchase, so long as the device remains in the
possession of the original owner.
LABOR • 1 YEAR
Horizon Fitness shall cover the labor cost for the repair
of the device for a period of one year from the date of the
original purchase, so long as the device remains in the
possession of the original owner.
LIMITED HOME-USE WARRANTY
EXCLUSIONS AND LIMITATIONS
Who IS covered:
• The original owner and is not transferable.
What IS covered:
• Repair or replacement of a defective motor, electronic component,
or defective part and is the sole remedy of the warranty.
What IS NOT covered:
• Normal wear and tear, improper assembly or maintenance, or
installation of parts or accessories not originally intended or
compatible with the equipment as sold.
• Damage or failure due to accident, abuse, corrosion, discoloration
of paint or plastic, neglect, theft, vandalism, fire, flood, wind,
lightning, freezing, or other natural disasters of any kind, power
reduction, fluctuation or failure from whatever cause, unusual
atmospheric conditions, collision, introduction of foreign objects
into the covered unit, or modifications that are unauthorized or not
recommended by Horizon Fitness.
• Incidental or consequential damages. Horizon Fitness is not
responsible or liable for indirect, special or consequential damages,
economic loss, loss of property, or profits, loss of enjoyment or use,
or other consequential damages of whatsoever nature in connection
with the purchase, use, repair or maintenance of the equipment.
• Equipment used for commercial purposes or any use other than a
single family or Household, unless endorsed by Horizon Fitness for
coverage.
• Equipment owned or operated outside the US and Canada.
• Delivery, assembly, installation, setup for original or replacement
units or labor or other costs associated with removal or replacement
of the covered unit.
• Any attempt to repair this equipment creates a risk of injury.
Horizon Fitness is not responsible or liable for any damage, loss or
liability arising from any personal injury incurred during the course
of, or as a result of any repair or attempted repair of your fitness
equipment by other than an authorized service technician. All
repairs attempted by you on your fitness equipment are undertaken
AT YOUR OWN RISK and Horizon Fitness shall have no liability for
any injury to the person or property arising from such repairs.
SERVICE/RETURNS
• In-home service is available within 150 miles of the nearest
authorized repair center (Mileage beyond 150 miles from an
authorized service center is the responsibility of the consumer).
• All returns must be pre-authorized by Horizon Fitness.
• Horizon Fitness’ obligation under this warranty is limited to
replacing or repairing, at Horizon Fitness’ option, the same or
comparable model at one of its authorized service centers.
• A Horizon Fitness authorized service center must receive all
equipment for which a warranty claim is made. This equipment
must be received with all freight and other transportation charges
prepaid, accompanied by sufficient proof of purchase.
• Replacement units, parts and electronic components reconditioned
to As-new Condition by Horizon Fitness or its vendors may
sometimes be supplied as warranty replacement and constitute
fulfillment of warranty terms.
• This warranty gives you specific legal rights, and your rights may
vary from state to state.
GS_1040T_Treadmill_Rev.1.7.indd 34-35 4/3/08 9:13:47 AM
GS 1040T: Rev. 1.7 | © 2008 Horizon Fitness Products | Designed & Engineered in the U.S.A. | Made in China
1620 Landmark Drive,
Cottage Grove WI, 53527
Tel: 1.866.998.3676
Every employee at Horizon Fitness takes pride in providing you with a high quality product.
We want to know if you have a problem and we want to have an opportunity to correct it for you.
NOTE: Please read the TROUBLESHOOTING section before contacting Customer Tech Support.
To receive additional product information, visit us at www.horizonfitness.com
CUSTOMER TECH SUPPORT
DO NOT RETURN TO THE RETAILER
if you have any problems during
assembly or if parts are missing.
For fast and friendly service, please contact one of our
trained customer technicians via phone, email or our website.
Customer Tech Support Hotline: 1-866-998-3676
Email: comments@horizonfitness.com
Website: www.horizonfitness.com
MAY BE COVERED BY ONE OR MORE
PATENTS OR PATENTS PENDING
US 6273843
TW 494765
CN 03206094.7
US 6682460
TW 586429
US 7104930
CN 01230904.4
GS_1040T_Treadmill_Rev.1.7.indd 36 4/3/08 9:13:48 AM

Navigation menu
