SPMAS6410NBL User Guide
The AS6410NBL 6-channel Ultra Micro AS3X® Receiver with brushless speed
control and X-Port technology is designed for ultra micro aircraft. Featuring
DSM2®/DSMX® technology, the AS6410NBL is compatible with all Spektrum,
JR®, E-fl ite® and ParkZone® 2.4GHz DSM2®/DSMX® technology transmitters.
NOTICE: The AS6410NBL receiver is not compatible with the DX6 park fl yer
radio system.
AS3X Stabilization
DELIVERS BREAKTHROUGH PERFORMANCE
The AS6410NBL features AS3X technology, an electronic enhancement
system that makes it possible for you to experience super-smooth fl ight
performance, yet still have full control authority for sport, scale or 3D fl ight.
Turbulence, torque and tip stalls are just some of the many complications
to assess when trying to achieve smooth fl ight. The Horizon Hobby world
class team of RC pilots developed the AS3X System for airplanes based
on the successful use of AS3X with ultra micro fl ybarless helicopters. The
AS3X System invisibly helps with complicated corrections, allowing you to
experience ultra smooth fl ight performance that feels so natural, that you’ll
quickly build confi dence in the capability of the airplane. The AS6410NBL
setup is easy. Just bind your DSM2/DSMX transmitter to your AS6410NBL
using a basic airplane program and AS3X will assure that the locked-in feel
and control authority you want is instantly at your command to help show
off your RC pilot skills. The AS6410NBL will innovate the way you’ll want to
y now and in the future.
The AS6410NBL receiver defaults the AS3X system to OFF. To activate
AS3X, the optional Spektrum AS6410NBL USB Interface (SPMA3060) is
required. The X-port must be active to program the AS6410NBL using the
USB interface SPMA3060).
The AS6410NBL includes an RF telemetry data feature. RF telemetry data
displays Frame Losses and Holds. No Fade or Receiver Voltage information
will be available.
Features
• 6-channel ultra micro AS3X
receiver
• Integrated programmable brush-
less speed control
Weighs just 6.4 grams
AS3X stabilization technology
• Compatible with optional Spektrum
2.3-Gram Performance Linear
Long Throw Servo (SPMSA2030L)
• Smart Bind™ technology
• X-Port allows for future expansion
• RF telemetry data (Frame losses
and Holds only).
EN
4
Applications
The AS6410NBL is designed for ultra micro aircraft and is ideal for
scratch-built ultra micro projects. The AS6410NBL is designed to utilize a
two-cell LiPo battery. You can use the integrated brushless speed controller
to power a brushless motor up to 4.9 amps of continuous current. An
integrated X-Port feature allows for future expansion.
When X-Port is active, CH5 and CH6 are not available; however, reversed
aileron (CH2) is still available.
SPMAS6410NBL Specifi
cations
Type: .................................................................DSM2/DSMX ultra micro
AS3X receiver with
integrated brushless speed
controller
Channels: ..........................................................6 or 4 channels, plus X-Port
Modulation: ......................................................DSM2/DSMX
Dimension: .......................................................(WxLxH): 25.00 x 35.00 x
8.00 mm
Weight: ..............................................................6.4 g
Input Voltage Range: .......................................2-cell LiPo 6.4 to 8.4V
Antenna Length: ..............................................31mm
Resolution: .......................................................1024
Compatibility: ...................................................All DSM2/DSMX aircraft
transmitters
Speed Controller
Type: ..................................................................Integrated programmable
brushless
Max continuous current: .................................4.9 amps
Overload protection current: ...........................5.8A for 1ms
BEC continuous current: .................................1A
BEC overload protection current: ...................1A, 4.2V
Low-voltage cutoff: .........................................At <6.3V, the motor begins
to pulse
At <6.1V, the motor cuts off
and the LED flashes
Over-current protection: .................................At 5.8A, the motor cuts off
until the throttle stick is
pulled down to idle
Temperature protection: .................................at 120°C, the motor cuts off
Programming features: ...................................See “Programming the
Brushless ESC”
EN
5
ReceiverInstallation
We recommend using double-sided foam tape and/or minimal hot glue
in the corners to install your receiver in the fuselage. The servos must be
in the appropriate position to attach to and drive the elevator and rudder
pushrods.
The motor wires must be aligned parallel to the fuselage of the aircraft for
correct AS3X Stabilization.
CAUTION: If AS3X is active and the receiver is not installed correctly,
the aircraft will crash.
Servos
Specially designed servos are available from Spektrum.
NOTICE: Using any other servo(s) may cause damage to the receiver and/or
void the servo warranty.

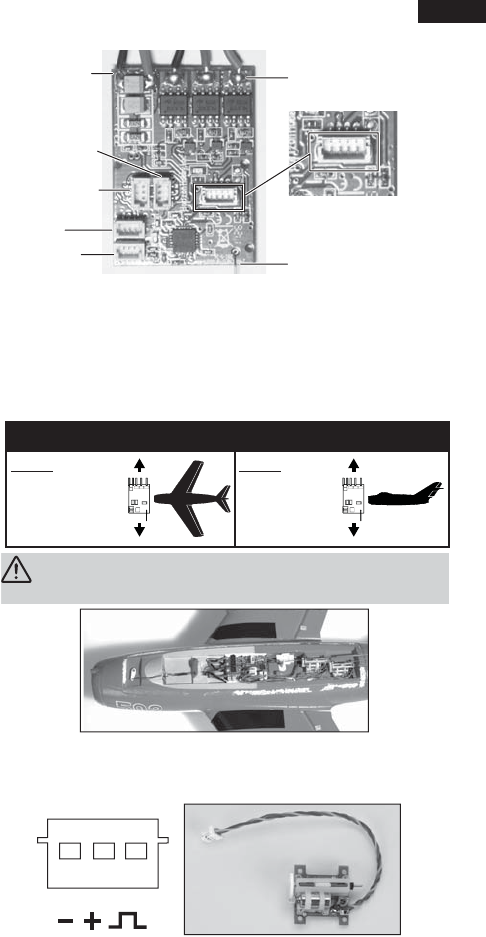

SPMAS6410NBL Features and Ports
Antenna
Rudder (CH4) Servo
Elevator (CH3) Servo
X-Port (all 4 pins)
OR
Gear (CH5) (3 pins to the left)
Reversed Aileron
(CH2) or Aux1 (CH6)
Battery Input
Aileron (CH2)
Brushless
Motor Leads
Do not install the receiver in the aircraft as shown.
Do Not install
with motor wires
parallel to the
wings
Do Not install
with motor wires
perpendicular
to the wings.
EN
6

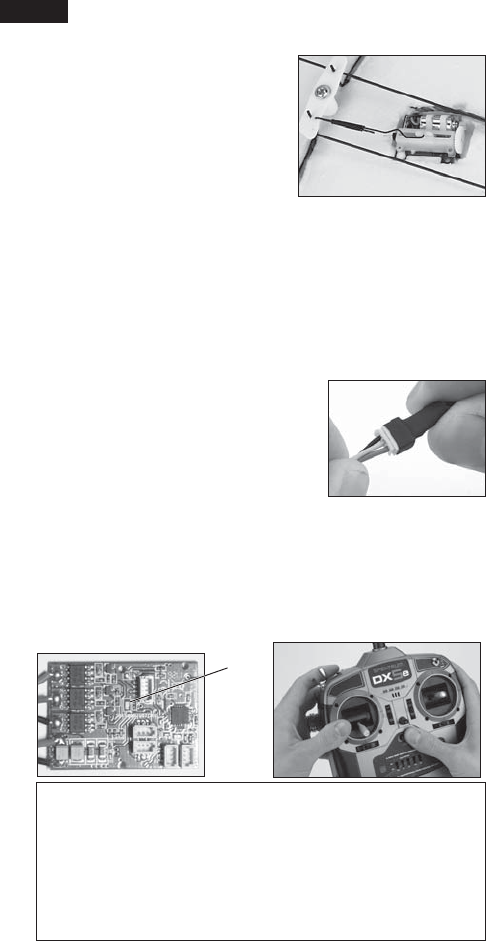

Installing and Plugging in the Optional Servos
Use double-sided foam tape strips and/
or minimal hot glue to mount the servos in
place. The servos must be in the appropriate
position to attach to the corresponding
pushrods. Plug the servo leads into the
appropriate servo ports in the receiver,
noting the polarity of the servo connector.
Installation will vary depending on
application.
Smart Bind
You must fi rst bind the receiver to the transmitter for it to operate. Binding is
programming the receiver of the control unit to recognize the GUID (Globally
Unique Identifi er) code of a single specifi c transmitter. The AS6410NBL
features Smart Bind technology. When the receiver is fi rst powered on, the
receiver looks for the signal of its previously bound transmitter for 5 seconds.
If no signal is found, the receiver automatically goes into bind mode, indicated
by a fl ashing LED.
Binding
1. Make sure the fl ight battery is fully charged.
2. Confi rm the fl ight battery is disconnected
from the receiver/ESC unit and the transmit-
ter is turned off.
3. Plug the fl ight battery into the receiver’s
battery connector. After 5 seconds, the LED
on the receiver begins to fl ash.
4. After verifying the LED is fl ashing on the
receiver, bind the receiver to the transmitter.
5. If you entered bind mode correctly, you will see a solid LED within about
10 seconds. You should now be bound to the transmitter and have full
control and function.
IMPORTANT:
Once the system is bound, ALWAYS turn the transmitter on fi rst
and then the receiver to prevent the receiver from re-entering bind mode.
If your receiver inadvertently enters bind mode, unplug the battery from the
receiver and reconnect it with the transmitter turned on.
Transmitter Specifi c Binding Instructions
1. To bind the AS6410NBL to the transmitter, plug the battery into the
receiver. The LED on the receiver will begin fl ashing.
2. Move the sticks and switches on the transmitter to the desired failsafe
positions (low throttle and neutral control positions).
3. Put the transmitter into bind mode. Refer to your transmitter instruction
manual for more information.
4. The LED on the receiver will turn solid and the system will connect after
several seconds.
LED
EN
7

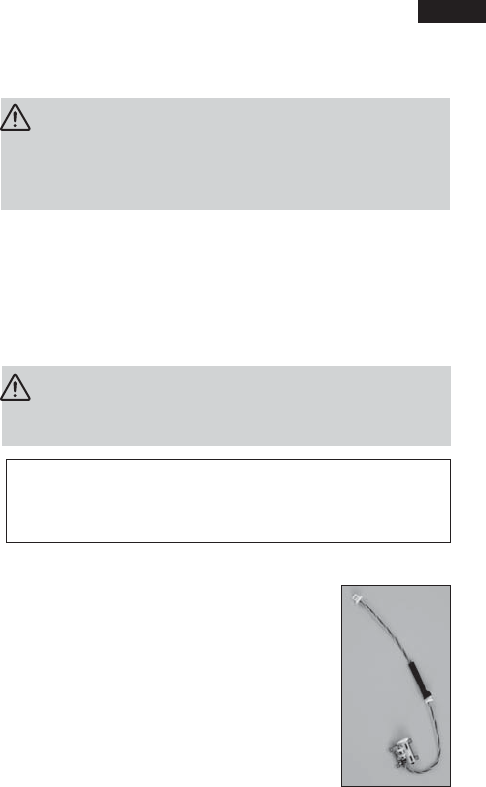

Advanced Programming Features
NOTICE:
To make these changes, enlist the use of a helper to either hold the
aircraft to prevent unintended fl yaways or to make the changes on the transmitter.
CAUTION:
Make sure your receiver is off BEFORE making any advanced
programming changes in order to prevent the motor from arming.

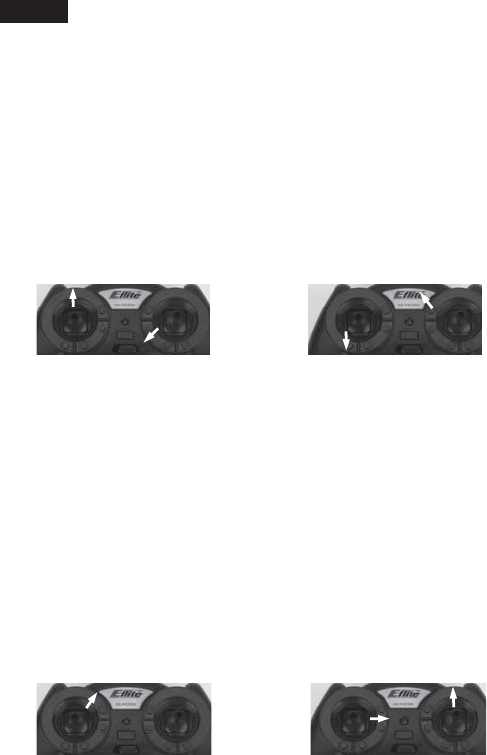

The following programming features are only recommended for advanced radio
users. The photos in this section show the E-fl ite
®
MLP4DSM transmitter; however,
the procedures apply to all compatible transmitters.
Computer Transmitters
Prior to making any advanced programming feature changes, it is necessary to:
1. Choose an empty model location.
2. Select model type ACRO.
3. Perform a model reset.
4. Set all channels to normal.
5. Ensure the transmitter and receiver are bound.
CAUTION: Secure the aircraft safely to a work bench or enlist the use of a
helper while accessing the advanced programming features. Mistakes in
programming could cause the motor to run unexpectedly, which could result in
injury or a crash.
Reversing Servos
Servo reversing is done through your transmitter’s servo reversing
function.
You may also reverse the actual servos by following the instructions below.
Reversing Linear Servos
Reversing the servo is useful when implementing certain
installations, such as dual ailerons, aps, etc. Spektrum
offers a servo reversing lead that you can plug in between
the receiver and the optional servo.
To reverse the servo using the reversing lead:
1. Plug the reversing lead into the servo
2. Plug the servo into the servo port(s)
3. Power the receiver using a charged battery
4. Once the receiver connects, the servo is now reversed
5. Disconnect the battery from the receiver
6. Remove the servo reversing lead (be sure to store
your reversing lead in a safe place for future use)
7. Reinstall the servo lead into the servo port(s)
EN
8
To Change CH6 to a Reversed CH2 for Dual Ailerons or Reversed CH2 to
CH6
1. Ensure the receiver and transmitter are bound
2. Turn the transmitter on
3. Move the THRO stick to the full throttle position
4. Move the Control sticks to the corresponding position to change between
the available options (see illustration)
5. Hold this position and plug the battery into the receiver
6. The LED on the receiver will turn solid within 5 seconds and the LED will
ash 3 times, indicating the option is now changed
7. Disconnect the battery from the receiver
8. Turn the transmitter off
THRO/RUDD ELEV/AILE ELEV/RUDD THRO/AILE
Rev. CH2/CH6
1. Full THRO
2. Up ELEV
3. Left AILE
Mode 1Mode 2
To Change CH5 to X-port or X-port to CH5
When X-Port is active, CH5 and CH6 are not available; however, reversed
aileron (CH2) is still available.
1. Ensure the receiver and transmitter are bound.
2. Plug the X-Port accessory or the optional servo into the X-Port/CH5 port.
3. Turn the transmitter on.
4. Move the
THRO
stick to the full throttle position.
5. Move the control sticks to the corresponding position to change between
the available options (see illustration).
6. Hold this position and plug the battery into the receiver.
7. The LED on the receiver will turn solid within 5 seconds and the LED will
ash 3 times quickly, indicating the option is now changed.
8. Disconnect the battery from the receiver.
9. Turn the transmitter off.
THRO/RUDD ELEV/AILE ELEV/RUDD THRO/AILE
1. Full THRO
2. Right RUDD
CH5/X-port
Mode 1Mode 2
Optional Support Items
Please see www.horizonhobby.com for a complete list of items.
EN
9
To access a programmable feature, power on with full throttle (musical confirmation sound).
t
Pull throttle to center (1 long beep).
To assign No Brake: Push throttle to full (1 short beep). (Default)
Pull back to center throttle to confirm setting (Hi Lo Hi Lo sound).
To assign Soft Brake: Keep throttle at full for 5 seconds (2 short beeps).
Pull back to center throttle to confirm setting (Hi Lo Hi Lo sound).
To assign Center Brake: Keep throttle at full for 10 seconds (3 short beeps).
Pull back to center throttle to confirm setting (Hi Lo Hi Lo sound).
To assign Hard Brake: Keep throttle at full for 15 seconds (4 short beeps).
Pull back to center throttle to confirm setting (Hi Lo Hi Lo sound).
t
Pull throttle to center, hold for 5 seconds (2 long beeps).
: Push throttle to full (1 short beep).
Pull back to center throttle to confirm setting (Hi Lo Hi Lo sound).
10°: Keep throttle at full for 5 seconds (2 short beeps).
Pull back to center throttle to confirm setting (Hi Lo Hi Lo sound).
15°: Keep throttle at full for 10 seconds (3 short beeps). (Default)
Pull back to center throttle to confirm setting (Hi Lo Hi Lo sound).
20°: Keep throttle at full for 15 seconds (4 short beeps).
Pull back to center throttle to confirm setting (Hi Lo Hi Lo sound).
25°: Keep throttle at full for 20 seconds (5 short beeps).
Pull back to center throttle to confirm setting (Hi Lo Hi Lo sound).
t
Pull throttle to center, hold for 10 seconds (3 long beeps).
1.2–1.8ms: Push throttle to full (1 short beep). (Default)
Pull back to center throttle to confirm setting (Hi Lo Hi Lo sound)
1.1–1.9ms: Keep throttle at full for 5 seconds (2 short beeps).
Pull back to center throttle to confirm setting (Hi Lo Hi Lo sound).
t
Pull throttle to center, hold for 15 seconds (4 long beeps).
0.25s: Push throttle to full (1 short beep). (Default)
Pull back to center throttle to confirm setting (Hi Lo Hi Lo sound).
1.0s: Keep throttle at full for 5 seconds (2 short beeps).
Pull back to center throttle to confirm setting (Hi Lo Hi Lo sound).
t
Pull throttle to center, hold for 20 seconds (5 long beeps).
8kHz: Push throttle to full (1 short beep). (Default)
Pull back to center throttle to confirm setting (Hi Lo Hi Lo sound).
16kHz: Keep throttle at full for 5 seconds (2 short beeps).
Pull back to center throttle to confirm setting (Hi Lo Hi Lo sound).
32kHz: Keep throttle at full for 10 seconds (3 short beeps).
Pull back to center throttle to confirm setting (Hi Lo Hi Lo sound).
t
Pull throttle to center, hold for 25 seconds (6 long beeps).
Normal Mode: Push throttle to full (1 short beep). (Default)
Pull back to center throttle to confirm setting (Hi Lo Hi Lo sound).
Heli Mode: Keep throttle at full for 5 seconds (2 short beeps).
Pull back to center throttle to confirm setting (Hi Lo Hi Lo sound).
Cutoff voltage: 6.1V is unchangeable.
Recycle ESC power with throttle idle after changing settings.
Recycle the power after you hear the Hi Lo Hi Lo confirming beeps after changing the settings.
Programming the Brushless ESC
Brake Timing
Throttle
Range
Starting
Rate
PWM Switching
Frequency
Mode
EN
10
2.4GHz Troubleshooting Guide
Problem Possible Cause Solution
Aircraft will not
“throttle up”but
all other controls
seem to function
User did not lower
throttle trim and throttle
stick prior to initializing
the aircraft
Lower throttle stick and
throttle trim to their lowest
settings before initializing
Throttle channel
is reversed. Futaba
transmitters (equipped
with Spektrum
modules) may require
you to reverse the
throttle channel
Reverse throttle channel
on specifi c transmitter if
applicable
LED on aircraft
remains fl ashing
and cannot be
controlled by
transmitter
User did not wait at
least 5 seconds after
powering the transmit-
ter prior to connecting
the fl ight battery to
the aircraft
Unplug, then reconnect
ight battery
User bound the aircraft
to a different trans-
mitter
Rebind aircraft to your
desired compatible
transmitter
Transmitter was too
close to aircraft during
the initialization process
Move transmitter (powered
on) a few feet from the
aircraft prior to reconnect-
ing the fl ight battery
Controls appear
to be reversed
after binding
to a different
transmitter
User did not initially set
up transmitter prior to
binding to the aircraft
See the “Advanced
Programming” section of
this manual
Aircraft does not
function after
connecting fl ight
battery and
aircraft smells
burnt
User may have
accidentally plugged
the fl ight battery in with
the wrong polarity
Replace AS6410NBL board
and ensure the RED polar-
ity marks are facing the
same direction when
connecting the fl ight bat-
tery to the AS6410NBL
board
EN
11
Problem Possible Cause Solution
The system will
not connect
Your transmitter
and receiver are
too close together
Move transmitter 8 to 12
feet from receiver
You are around metal
objects
Move to an area with less
metal
Model selected is not
the model bound to
Check model selected and
ensure you are bound to
that model
Your transmitter was
accidentally put into
bind mode and is not
bound to your receiver
anymore
Rebind your transmitter
and receiver
Receiver quits
responding
during operation
Inadequate battery
voltage
Charge batteries. Spektrum
receivers require at least
3.5V to operate. An
inadequate power supply
can allow voltage to mo-
mentarily drop below 3.5V
and cause the receiver to
brown out and reconnect
Loose or damaged
wires or connectors
between
battery and receiver
Check the wires and
connection between bat-
tery and receiver. Repair or
replace wires and/or
connectors
Receiver loses
its bind
Transmitter stand or
tray could be depress-
ing the bind button
If stand is depressing bind
button, remove from stand
and rebind
Bind button pressed
before transmitter
turned on
Rebind your system follow-
ing binding instructions
Receiver blinking
at landing
System turned on and
connected, then receiv-
er turned off without
turning off transmitter
Turn off transmitter when
receiver is turned off
EN
12
1-Year Limited Warranty
What this Warranty Covers
Horizon Hobby, Inc., (Horizon) warrants to the original purchaser that the
product purchased (the “Product”) will be free from defects in materials and
workmanship for a period of 1 years from the date of purchase.
What is Not Covered
This warranty is not transferable and does not cover (i) cosmetic damage,
(ii) damage due to acts of God, accident, misuse, abuse, negligence,
commercial use, or due to improper use, installation, operation or
maintenance, (iii) modifi cation of or to any part of the Product, (iv)
attempted service by anyone other than a Horizon Hobby authorized service
center, (v) Product not purchased from an authorized Horizon dealer, or (vi)
Product not compliant with applicable technical regulations.
OTHER THAN THE EXPRESS WARRANTY ABOVE, HORIZON MAKES NO OTHER
WARRANTY OR REPRESENTATION, AND HEREBY DISCLAIMS ANY AND ALL
IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, THE IMPLIED
WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE. THE PURCHASER ACKNOWLEDGES THAT
THEY ALONE HAVE DETERMINED THAT THE PRODUCT WILL SUITABLY MEET
THE REQUIREMENTS OF THE PURCHASER’S INTENDED USE.
Purchaser’s Remedy
Horizon’s sole obligation and purchaser’s sole and exclusive remedy shall
be that Horizon will, at its option, either (i) service, or (ii) replace, any
Product determined by Horizon to be defective. Horizon reserves the right
to inspect any and all Product(s) involved in a warranty claim. Service
or replacement decisions are at the sole discretion of Horizon. Proof of
purchase is required for all warranty claims. SERVICE OR REPLACEMENT
AS PROVIDED UNDER THIS WARRANTY IS THE PURCHASER’S SOLE AND
EXCLUSIVE REMEDY.
Limitation of Liability
HORIZON SHALL NOT BE LIABLE FOR SPECIAL, INDIRECT, INCIDENTAL
OR CONSEQUENTIAL DAMAGES, LOSS OF PROFITS OR PRODUCTION
OR COMMERCIAL LOSS IN ANY WAY, REGARDLESS OF WHETHER SUCH
CLAIM IS BASED IN CONTRACT, WARRANTY, TORT, NEGLIGENCE, STRICT
LIABILITY OR ANY OTHER THEORY OF LIABILITY, EVEN IF HORIZON HAS
BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Further, in no
event shall the liability of Horizon exceed the individual price of the Product
on which liability is asserted. As Horizon has no control over use, setup,
nal assembly, modifi cation or misuse, no liability shall be assumed nor
accepted for any resulting damage or injury. By the act of use, setup or
assembly, the user accepts all resulting liability. If you as the purchaser or
user are not prepared to accept the liability associated with the use of the
Product, purchaser is advised to return the Product immediately in new and
unused condition to the place of purchase.
Law
These terms are governed by Illinois law (without regard to confl ict of law
principals). This warranty gives you specifi c legal rights, and you may also
have other rights which vary from state to state. Horizon reserves the right
to change or modify this warranty at any time without notice.
EN
13
WARRANTY SERVICES
Questions, Assistance, and Services
Your local hobby store and/or place of purchase cannot provide warranty
support or service. Once assembly, setup or use of the Product has been
started, you must contact your local distributor or Horizon directly. This will
enable Horizon to better answer your questions and service you in the event
that you may need any assistance. For questions or assistance, please visit
our website at www.horizonhobby.com, submit a Product Support Inquiry, or
call 877.504.0233 toll free to speak to a Product Support representative.
Inspection or Services
If this Product needs to be inspected or serviced and is compliant in the
country you live and use the Product in, please use the Horizon Online
Service Request submission process found on our website or call Horizon to
obtain a Return Merchandise Authorization (RMA) number. Pack the Product
securely using a shipping carton. Please note that original boxes may be
included, but are not designed to withstand the rigors of shipping without
additional protection. Ship via a carrier that provides tracking and insurance
for lost or damaged parcels, as Horizon is not responsible for merchandise
until it arrives and is accepted at our facility. An Online Service Request
is available at Horizon Hobby Service Center. If you do not have internet
access, please contact Horizon Product Support to obtain a RMA number
along with instructions for submitting your product for service. When
calling Horizon, you will be asked to provide your complete name, street
address, email address and phone number where you can be reached
during business hours. When sending product into Horizon, please include
your RMA number, a list of the included items, and a brief summary of the
problem. A copy of your original sales receipt must be included for warranty
consideration. Be sure your name, address, and RMA number are clearly
written on the outside of the shipping carton.
NOTICE: Do not ship LiPo batteries to Horizon. If you have any issue
with a LiPo battery, please contact the appropriate Horizon Product
Support offi ce.
Warranty Requirements
For Warranty consideration, you must include your original sales
receipt verifying the proof-of-purchase date. Provided warranty condit-
ions have been met, your Product will be serviced or replaced free of charge.
Service or replacement decisions are at the sole discretion of Horizon.
Non-Warranty Service
Should your service not be covered by warranty, service will be
completed and payment will be required without notifi cation or
estimate of the expense unless the expense exceeds 50% of the retail
purchase cost. By submitting the item for service you are agreeing to
payment of the service without notifi cation. Service estimates are available
upon request. You must include this request with your item submitted for
service. Non-warranty service estimates will be billed a minimum of ½ hour
of labor. In addition you will be billed for return freight. Horizon accepts
money orders and cashier’s checks, as well as Visa, MasterCard, American
Express, and Discover cards. By submitting any item to Horizon for service,
you are agreeing to Horizon’s Terms and Conditions found on our website
Horizon Hobby Service Center.
NOTICE: Horizon service is limited to Product compliant in the country
of use and ownership. If non-compliant product is received by Horizon
for service, it will be returned unserviced at the sole expense of the
purchaser.
EN
14
Country of
Purchase
Horizon
Hobby Address Phone Number/Email
Address
United
States of
America
Horizon Ser-
vice Center
(Electronics
and engines)
4105 Fieldstone Rd
Champaign, Illinois
61822 USA
877-504-0233
Online Repair Request:
visit www.horizonhobby.
com/service
Horizon
Product
Support (All
other prod-
ucts)
4105 Fieldstone Rd
Champaign, Illinois
61822 USA
877-504-0233
productsupport@hori-
zonhobby.com
Sales
Customer
Service
4105 Fieldstone Rd
Champaign, Illinois
61822 USA
(800) 338-4639
sales@horizonhobby.
com
United
Kingdom
Horizon
Hobby Lim-
ited
Units 1-4 Ployters Rd
Staple Tye
Harlow, Essex
CM18 7NS
United Kingdom
+44 (0) 1279 641 097
sales@horizonhobby.
co.uk
Germany
Horizon
Technischer
Service
––––––––
Horizon
Hobby
GmbH
Christian-Junge-
Straße 1
25337 Elmshorn
Germany
+49 (0) 4121 2655 100
service@horizonhobby.
de
France Horizon
Hobby SAS
14 Rue Gustave
Eiffel
Zone d’Activité du
Réveil Matin
91230 Montgeron
+33 (0) 1 60 47 44 70
infofrance@horizon-
hobby.com
China Horizon
Hobby China
Room 506, No. 97
Changshou Rd.
Shanghai, China
200060
+86 (021) 5180 9868
info@horizonhobby.
com.cn
www.horizonhobby.
com.cn
Warranty, Service and Customer Service
Contact Information
EN
15
FCC Information
This device complies with part 15 of the FCC rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
CAUTION: Changes or modifi cations not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
This product contains a radio transmitter with wireless technology which has been tested
and found to be compliant with the applicable regulations governing a radio transmitter
in the 2.400GHz to 2.4835GHz frequency range.
Steven A. Hall
Vice President
International Operations and Risk Management
Horizon Hobby, Inc.
Compliance Information for the European Union
Declaration of Conformity
(in accordance with ISO/IEC 17050-1)
No. HH2011110403
Product(s):
Item Number(s): SPMAS6410NBL
The objects of declaration described above are in conformity with the requirements of
the specifi cations listed below, following the provisions of the European R&TTE directive
1999/5/EC:
EN 301 489-1 V1.7.1: 2006
EN 301 489-17 V1.3.2: 2008
Signed for and on behalf of:
Horizon Hobby, Inc.
Champaign, IL USA
November 4, 2011
Instructions for disposal of WEEE by users in
the European Union
This product must not be disposed of with other waste. Instead, it is the
user’s responsibility to dispose of their waste equipment by handing it over
to a designated collections point for the recycling of waste electrical and
electronic equipment. The separate collection and recycling of your waste
equipment at the time of disposal will help to conserve natural resources and
ensure that it is recycled in a manner that protects human health and the
environment. For more information about where you can drop off your waste
equipment for recycling, please contact your local city offi ce, your household
waste disposal service or where you purchased the product.
Receiver
© 2012 Horizon Hobby, Inc.
AS3X, DSM2, X-Port, E-fl ite, JR, Smart Bind and ParkZone are trademarks or registered trademarks
of Horizon Hobby, Inc. DSMX is a trademark of Horizon Hobby, Inc., registered in the US.
The Spektrum trademark is used with permission of Bachmann Industries, Futaba is a registered
trademark of Futaba Denshi Kogyo Kabushiki Kaisha Corporation of Japan.
US 7,898,130. US D578,146. PRC ZL 200720069025.2. Other patents pending.
Created 4/12 34172

Navigation menu
