READY-TO-FLY

WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before

operating. Failure to operate the product correctly can result in damage to the product, personal property and

cause serious injury.

This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic

mechanical ability. Failure to operate this Product in a safe and responsible manner could result in injury or damage

to the product or other property. This product is not intended for use by children without direct adult supervision. Do

not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon

Hobby, LLC. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow

all the instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid

damage or serious injury.

The following terms are used throughout the product literature to indicate various levels of potential harm when

operating this product:

WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage,

and serious injury OR create a high probability of superﬁ cial injury.

CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a

possibility of serious injury.

NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND a little or no

possibility of injury.

NOTICE

All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon

Hobby, LLC. For up-to-date product literature, visit horizonhobby.com and click on the support tab for this product.

Meaning of Special Language

Age Recommendation: Not for children under 14 years. This is not a toy.

3EN

• Always keep a safe distance in all directions around

your model to avoid collisions or injury. This model is

controlled by a radio signal subject to interference from

many sources outside your control. Interference can

cause momentary loss of control.

• Always operate your model in open spaces away from

full-size vehicles, trafﬁ c and people.

• Always carefully follow the directions and warnings for

this and any optional support equipment

(chargers, rechargeable battery packs, etc.).

• Always keep all chemicals, small parts and anything

electrical out of the reach of children.

• Always avoid water exposure to all equipment not

speciﬁ cally designed and protected for this purpose.

Moisture causes damage to electronics.

• Never place any portion of the model in your mouth as it

could cause serious injury or even death.

• Never operate your model with low transmitter

batteries.

• Always keep aircraft in sight and under control.

• Always move the throttle fully down at rotor strike.

• Always use fully charged batteries.

• Always keep transmitter powered on while aircraft is

powered.

• Always remove batteries before disassembly

• Always keep moving parts clean.

• Always keep parts dry.

• Always let parts cool after use before touching.

• Always remove batteries after use.

• Never operate aircraft with damaged wiring.

• Never touch moving parts.

Safety Precautions and Warnings

USB Li-Po

Charger

EFLC1013

SOLID RED LED

–Charging

DC Input:5.0V 500mA

DC Output:4.2V 500mA

LED OFF

–Charge

Complete

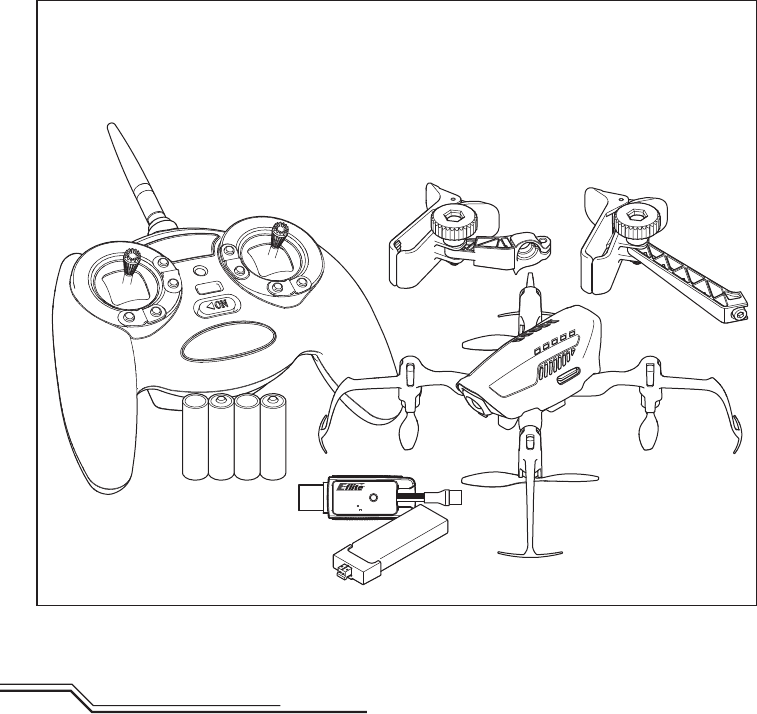

Box Contents:

• Blade® Glimpse™ Quadcopter

• 500mAh 1S 3.7V 25C Li-Po Battery

• 1S 500 mAh USB Charger

• MLP4DSM Trasnsmitter (RTF)

• MLP4DSM Smart Phone Holder (RTF)

• 4 AA Batteries (RTF)

• Smart Phone Holder (BNF)

• Micro-SD card

• Micro-SD USB Reader

5EN

Table of Contents

First Flight Preparation ...................................................... 6

Flying Checklist ................................................................. 6

Charging Warnings ............................................................ 6

Battery Charging ............................................................... 7

Installing the Transmitter Batteries (RTF) ............................. 7

Installing the Flight Battery ................................................ 8

Transmitter and Receiver Binding ....................................... 9

SAFE™ Technology ........................................................ 10

Transmitter Control.......................................................... 11

Rate Selection (RTF) ........................................................ 12

Understanding the Primary Flight Controls ........................ 13

LED Codes...................................................................... 14

Flying the Glimpse .......................................................... 14

Low Voltage Cutoff (LVC) .................................................. 15

Camera Control and App Function ................................... 15

Post-Flight Inspection and Maintenance Checklist ............. 17

Troubleshooting Guide ..................................................... 17

Exploded View................................................................. 19

Parts Listings .................................................................. 20

Optional Parts ................................................................. 20

Limited Warranty ............................................................. 20

Warranty and Service Contact Information ........................ 22

FCC Information .............................................................. 23

IC Information ................................................................. 23

Compliance Information for the European Union ................ 24

Length 6.29 in (160mm)

Height 1.97 in (50mm)

Propeller Diameter 2.36 in (60mm)

Flying Weight 1.83 oz (52 g)

Specifications

Components RTF BNF

Airframe – Blade Glimpse Included Included

Motors – 8mm Brushed Installed Installed

On-board Electronics – 4-in-1 mixer/ESCs/Gyro Installed Installed

Battery – 500mAh 1S 3.7V 25C Li-Po Included Included

Charger – 1S USB Li-Po Charger, 500 mAh Included Included

Transmitter – MLP4DSM Included Required

Micro SD card Installed Installed

Smart Device – 5.8 GHz Wi-Fi Capable Required Required

To register your product online,visit www.bladehelis.com

First Flight Preparation

• Remove and inspect contents

• Begin charging the ﬂ ight battery

• Install the ﬂ ight battery in the quadcopter

(once it has been fully charged)

• Program your computer transmitter

• Bind your transmitter

• Familiarize yourself with the controls

• Find a suitable area for ﬂ ying

Flying Checklist

❏Always turn the transmitter on ﬁ rst

❏ Plug the ﬂ ight battery into the lead from the

4-in-1 control unit

❏ Allow the 4-in-1 control unit to initialize and

arm properly

❏Fly the model

❏Land the model

❏ Unplug the ﬂ ight battery from the 4-in-1 control unit

❏Always turn the transmitter off last

CAUTION: All instructions and warnings must be

followed exactly. Mishandling of Li-Po batteries can

result in a ﬁ re, personal injury and/or property damage.

• NEVER LEAVE CHARGING BATTERIES UNATTENDED.

• NEVER CHARGE BATTERIES OVERNIGHT.

• By handling, charging or using the included Li-Po

battery, you assume all risks associated with lithium

batteries.

• If at any time the battery begins to balloon or swell,

discontinue use immediately. If charging or discharging,

discontinue and disconnect. Continuing to use, charge

or discharge a battery that is ballooning or swelling can

result in ﬁ re.

• Always store the battery at room temperature in a dry

area for best results.

• Always transport or temporarily store the battery in a

temperature range of 40–120º F (5–49° C).

• Do not store battery or model in a car or direct sunlight.

If stored in a hot car, the battery can be damaged or

even catch ﬁ re.

• Always charge batteries away from ﬂ ammable

materials.

• Always inspect the battery before charging

• Always disconnect the battery after charging, and

let the charger cool between charges.

• Always constantly monitor the temperature of the

battery pack while charging.

• ONLY USE A CHARGER SPECIFICALLY DESIGNED TO

CHARGE LI-PO BATTERIES. Failure to charge the battery

with a compatible charger may cause a ﬁ re resulting in

personal injury and/or property damage.

• Never discharge Li-Po cells to below 3V under load.

• Never cover warning labels with hook and loop strips.

• Never charge batteries outside recommended levels.

• Never charge damaged batteries.

• Never attempt to dismantle or alter the charger.

• Never allow minors to charge battery packs.

• Never charge batteries in extremely hot or cold places

(recommended between 40–120° F or

(5–49° C) or place in direct sunlight.

Charging Warnings

7EN

Installing the Transmitter Batteries (RTF)

Install 4 AA batteries into the transmitter, noting polarity. Replace the

transmitter batteries when the power LED ﬂ ashes and the transmitter beeps.

We recommend using only alkaline AA batteries in the transmitter,

however, it is possible to use rechargeable NiMH batteries.

CAUTION: If using rechargeable batteries, charge only recharge-

able batteries. Charging non-rechargeable batteries may cause the

batteries to burst, resulting in injury to persons and/or damage to property.

Battery Charging

CAUTION: Only use chargers speciﬁ cally designed to charge the included Li-Po battery.

Failure to do so could result in ﬁ re, causing injury or property damage.

CAUTION: Never exceed the recommended charge rate.

The Battery Charger (EFLC1013) included with your quadcopter has been designed to safely charge the 1S 3.7V 500mAh 25C

Li-Po ﬂ ight battery. Refer to the charging warnings. It is recommended to charge the battery pack while you are inspecting

the aircraft. The ﬂ ight battery will be required to conﬁ rm proper aircraft operation in future steps.

NOTICE: Inspect the battery to make sure it is not damaged e.g., swollen, bent, broken or punctured.

Charge only batteries that are cool to the touch and are not damaged.

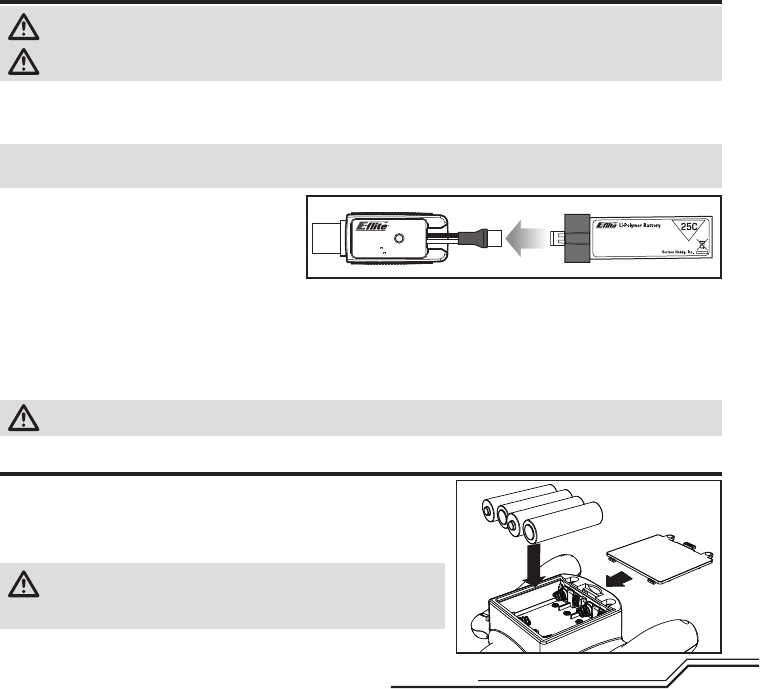

1. Insert the charger into a USB port. The charger

only uses power from the USB port. USB power

supplies, such as those used to charge cellular

phones, can also be used.

2. Connect the battery to the charger as shown in the illustration above. When you make the connection successfully, the

LED on the charger turns solid red, indicating charging has begun. Charging a fully discharged (not over-discharged)

500mAh battery takes approximately 60 minutes. The LED goes out when the charge is complete.

CHARGING (Solid Red LED)

MAX CHARGE (LED OFF )

3. Always disconnect the ﬂ ight battery from the charger immediately upon completion of charging.

CAUTION: Once charging is complete, immediately remove the battery. Never leave a battery connected to the charger.

USB Li-Po

Charger

1S 3.7V 500 mAh

EFLB5001S25UM

EFLC1013

SOLID RED LED

–Charging

DC Input:5.0V 500mA

DC Output:4.2V 500mA

LED OFF

–Charge

Complete

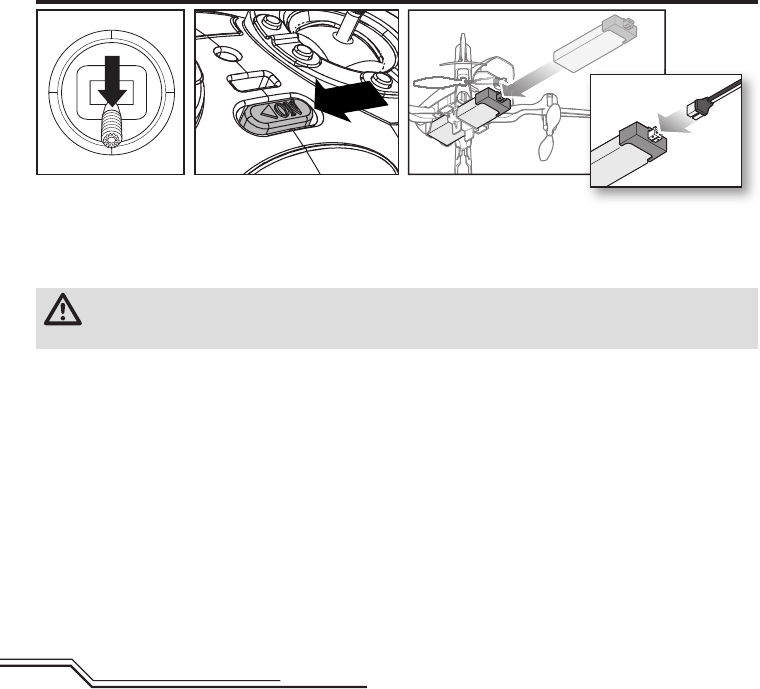

1. Lower the throttle and throttle trim to the lowest settings.

2. Power on the transmitter.

3. Install the battery by sliding it into the battery mounting slot.

4. Connect the battery cable to the 4-in-1 control unit as shown.

5. Place the quadcopter upright on a ﬂ at surface and leave the aircraft still until the LED on the 4-in-1 control unit is

solid blue (not blinking).

CAUTION: Always disconnect the Li-Po battery from the aircraft when not ﬂ ying to avoid over-discharging

the battery. Batteries discharged to a voltage lower than the lowest approved voltage may become damaged,

resulting in loss of performance and potential ﬁ re when the batteries are charged.

Installing the Flight Battery

123

9EN

Transmitter and Receiver Binding

The Glimpse quadcopter requires no radio-speciﬁ c setup for basic ﬂ ight. If you are using a computer transmitter,

simply bind the quadcopter to your transmitter with the model type set to "Acro" or "Airplane" mode.

Binding is the process of programming the receiver to recognize the GUID (Globally Unique Identiﬁ er) code of a

speciﬁ c transmitter. You need to ‘bind’ your chosen Spektrum™ or DSM2 ®

/DSMX ® technology equipped aircraft

transmitter to the receiver for proper operation. If you purchased an RTF model, the transmitter is bound to the

model at the factory.

To bind or re-bind your aircraft to your chosen transmitter, please follow the directions below.

General Binding Procedure

1. Disconnect the ﬂ ight battery from the quadcopter.

2. Set the model type in your transmitter settings to "Acro" mode.

3. Center all trims on your transmitter.

4. Power off the transmitter and fully lower the throttle.

5. Connect the ﬂ ight battery in the quadcopter. The blue LED on the 4-in-1 control unit ﬂ ashes rapidly, indicating it

is in bind mode.

6. Put the transmitter into bind mode while powering on the transmitter.

7. Release the bind button/switch after 2–3 seconds. The quadcopter is bound when the blue LED on the

4-in-1 control unit turns solid.

8. Disconnect the ﬂ ight battery and power the transmitter off.

CAUTION: When using a Futaba® transmitter with a Spektrum module, you must reverse the throttle channel

and rebind. Refer to your Spektrum module manual for binding and failsafe instructions. Refer to your Futaba

transmitter manual for instructions on reversing the throttle channel.

MLP4DSM Binding Procedure

1. Disconnect the ﬂ ight battery from the quadcopter.

2. Center all trims on your transmitter.

3. Power off the transmitter and fully lower the throttle.

4. Connect the ﬂ ight battery in the quadcopter. The LED on the 4-in-1 control unit ﬂ ashes red during

initialization, then ﬂ ashes blue when it is ready to bind.

5. When the blue light is ﬂ ashing, push in and hold down the left stick while powering on the transmitter

(you will hear a ‘click’).

6. Release the left stick. The transmitter will beep and the power LED will blink. The quadcopter is bound when the

blue LED on the 4-in-1 control unit turns solid.

7. Disconnect the ﬂ ight battery and power the transmitter off.

If you encounter problems, obey the binding instructions and refer to the troubleshooting guide for other instructions.

If needed, contact the appropriate Horizon Product Support ofﬁ ce. For a list of compatible DSM transmitters, please

visit www.bindnﬂ y.com.

Revolutionary SAFE® (Sensor Assisted Flight Envelope) technology uses an innovative combination of multi-axis sensors and

software that allows model aircraft to know its position relative to the horizon. This spatial awareness is utilized to create

a controlled ﬂ ight envelope the aircraft uses to maintain a safe region of bank and pitch angles so you can ﬂ y more safely.

Far beyond stability, this level of protection offers multiple modes so the pilot can choose to develop his or her skills with a

greater degree of security and ﬂ ight control that always feels crisp and responsive.

SAFE technology delivers:

• Flight envelope protection you can enable at the ﬂ ip of a switch.

• Multiple modes to let you adapt SAFE technology to your skill level instantly.

Best of all, sophisticated SAFE technology doesn’t require any work to enjoy. Every aircraft with SAFE technology is ready to

use and optimized to offer the best possible ﬂ ight experience.

FlySAFERC.com

RTF

® Technology

11 EN

RTF

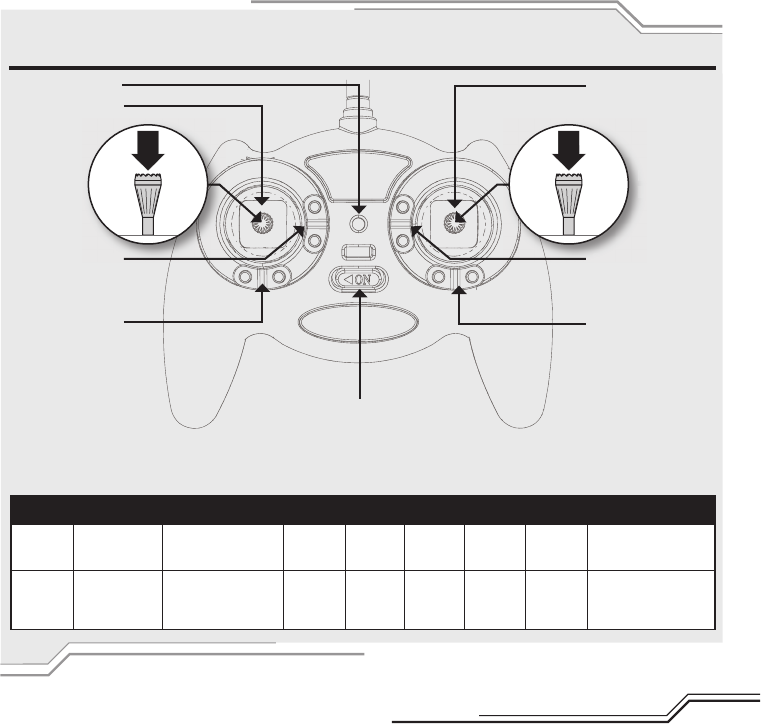

Transmitter Control

Dual rate

selection

HABCDEFGH

Mode 1 Power LED

indicator

Aileron (Left/Right)

Throttle (Up/Down)

Throttle

Trim

Aileron

Trim

ON/OFF

Switch

Rudder

Trim

Eleva-

tor Trim

Rudder (Left/Right)

Elevator (Up/Down)

Mode 2 Power LED

indicator

Aileron (Left/Right)

Elevator (Up/

Down)

Eleva-

tor Trim

Aileron

Trim

ON/OFF

Switch

Rudder

Trim

Throttle

Trim

Rudder (Left/Right)

Throttle (Up/Down)

When pressed down, trim buttons make a sound that increases or decreases in pitch at each pressing. The middle or

neutral trim position is heard as a middle tone in the pitch range of the sounds. The end of the control range is sounded

by a series of beeps.

Bind

RTF

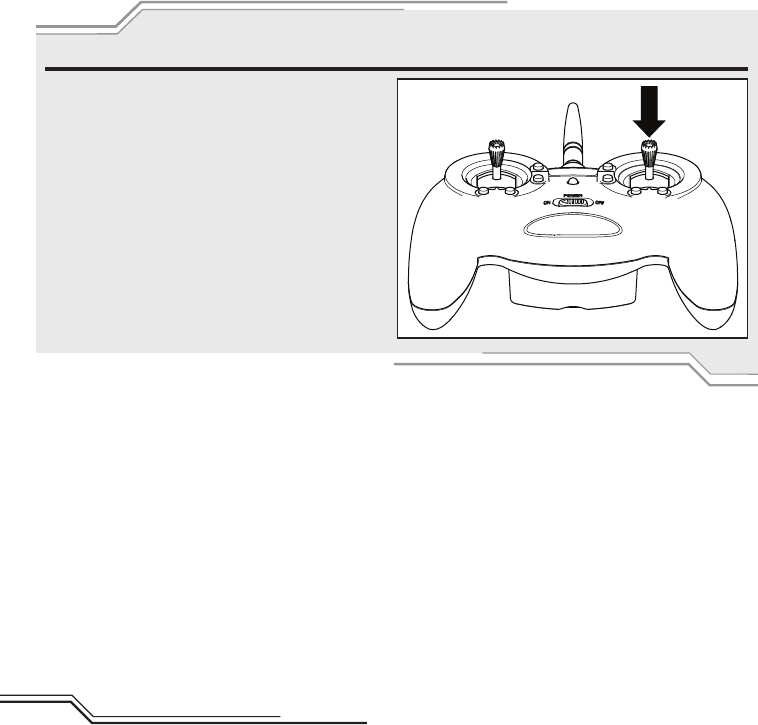

Rate Selection – RTF

The Glimpse™ RTF quadcopter comes with the Blade®

MLP4DSM transmitter.

• When powered on, this transmitter is automatically

high rate.

• Change rates by pressing and releasing the right

control stick.

• In low-rate mode, the controls cannot reach their

maximum values. This mode is typically preferred by

pilots looking for smoother/easier control response

during ﬁ rst time use.

• In high-rate mode, the controls can reach their

maximum values. This mode is typically preferred by

experienced pilots who are ready for fast forward ﬂ ight

and aerobatic maneuvers (loops, rolls, etc.).

Dual rate

selection

13 EN

Elevator

ForwardElevator down Elevator up Backward

Left Side View Left Side View

Rudder

Rudder left Rudder right

Nose Yaws Right

Nose Yaws Left

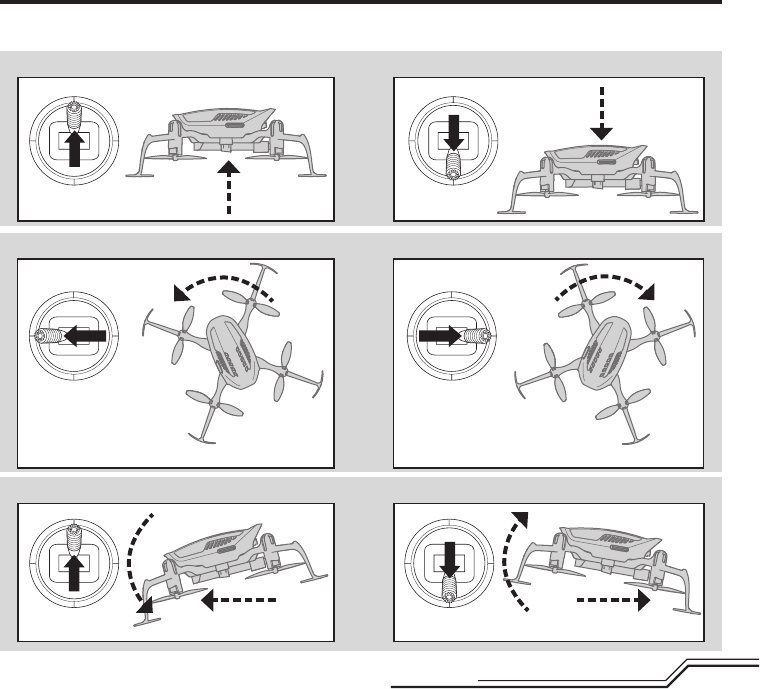

Understanding the Primary Flight Controls

If you are not familiar with the controls of your Glimpse quadcopter, take a few minutes to familiarize yourself with them

before attempting your ﬁ rst ﬂ ight.

Throttle

Throttle down

Throttle up

Left Side View Left Side View

Descend

Climb

Aileron

Aileron left Left Aileron right Right

Rear ViewRear View

LED Codes

Equipment LED Color LED Status Operation

Quadcopter Blue

Rapid Blink Bind Mode

Slow Blink No Link To Transmitter

Solid Stability Mode

Red Blink Low Battery

RTF Transmitter Red Blink Low Rate

Solid Hi Rate

Takeo

Increase the throttle until the model is approximately 2 ft. (600mm) off the ground in a low-level hover and concentrate on

balancing the throttle stick’s position so that the quadcopter holds a steady hover altitude. In some cases, you may need

to make a few short “hops” to an altitude of just a few inches until you become familiar with the control inputs and trim

settings required to maintain a steady hover and altitude.

Hovering

The Glimpse quadcopter requires minor throttle adjustments to maintain its altitude in hover. Remember to keep these

throttle adjustments as minimal as possible. Large adjustments could result in a loss of control and/or a possible crash.

Flying the Quadcopter

15 EN

Low Voltage Cuto (LVC)

Once the battery reaches 3V under load, the ESC will continuously lower power supplied to the motor until complete

shutdown occurs. This helps prevent over-discharge of the Li-Po battery. Land immediately once the ESC activates LVC.

Continuing to ﬂ y after LVC can damage the battery, cause a crash or both. Crash damage and batteries damaged due to

over-discharge are not covered under warranty.

Repeatedly ﬂ ying the aircraft until LVC activates will damage the ﬂ ight battery.

Disconnect and remove the Li-Po battery from the aircraft after use to prevent trickle discharge. During storage, make

sure the battery charge does not fall below 3V per cell.

While attempting to establish a low-level hover, check to see if any trim adjustments are required to help keep the

quadcopter from constantly drifting in various directions. If you ﬁ nd that it constantly drifts without any directional control

input, land the model before making any adjustments to the trim settings.

• If the nose of the quadcopter rotates to the left or right, adjust the rudder trim.

• If the quadcopter continually drifts forward or backward, adjust the elevator trim.

• If the quadcopter continually drifts to the left or right, adjust the aileron trim.

Continue making minor trim adjustments until the machine hovers at a low altitude with very little drifting and directional

control input. If this is your ﬁ rst multicopter or helicopter, seek the help of an experienced pilot to trim the model for you

before making your ﬁ rst ﬂ ight.

With your quadcopter properly trimmed and maintaining a stable low-level hover, practice using the rudder, elevator and

aileron controls to familiarize yourself with the machine’s responses to control inputs. Remember to keep the control

inputs as minimal as possible.

NOTICE: Crash damage is not covered under warranty.

Camera Control and App Function

• Download and install the Glimpse app to your 5.8GHz Wi-Fi capable smartphone or tablet by searching for “Glimpse” at

the Apple App Store for your iOS device or at Google Play for your Android device.

• Power on your transmitter and the Glimpse.

• Open the Wi-Fi settings on your smartphone or tablet and connect to the Glimpse network (Glimpse_######) using the

password “12345678”.

• Open the Glimpse App on your smartphone or tablet.

• Place your smartphone in the transmitter holder as shown.

• Use the onscreen controls as shown on the following page to take photos and video.

SD card capacity used

Photo button

Video record button

App Controls

Retrieving Your Photos and Video

The Glimpse quadcopter comes with a micro SD card installed. To retrieve your photos and video from the micro SD card,

you may do either of the following:

Remove the micro SD card.

• Press and release the

micro SD card to remove it

from the quadcopter.

• Insert the micro SD card

into the provided SD card

adapter.

• Insert the SD card adapter

into an SD capable device.

Connect a micro USB cable to the quadcopter.

• Insert a micro USB cable

(not included) into the

micro USB port located on

the back of the quadcopter.

Install the Phone Holder

RTF BNF

17 EN

Post-Flight Inspection and Maintenance Checklist

√

Cleaning Make sure the battery is not connected before cleaning. Remove dust and debris with a soft brush or a dry, lint-free

cloth.

Motors Replace the motor when the model will not ﬂ y steady or veers off when doing a climb out.

Wiring Make sure the wiring does not block moving parts. Replace damaged wiring and loose connectors.

Fasteners Make sure there are no loose screws, other fasteners or connectors. Do not over-tighten metal screws in plastic

parts. Tighten screws so the parts are mated together, then turn screw only 1/8th of a turn more.

Propellers Make sure there is no damage to the propellers or other parts that move at high speed. Damage to these parts

includes cracks, burrs, chips or scratches. Replace damaged parts before ﬂ ying.

Troubleshooting Guide

Problem Possible Cause Solution

Control response is

inconsistent or requires extra

trim to neutralize movement

Aircraft not initialized on a level surface Disconnect the ﬂ ight battery, center the con-

trol trim and re-initialize the quadcopter

Battery not correctly placed in

battery slot

Adjust battery position so quadcopter bal-

ances in the center of the frame

Will not respond to throttle

Throttle too high and/or throttle trim is

too high

Reset controls with the throttle stick

and throttle trim at the lowest setting

Quadcopter moved during initialization

Disconnect the flight battery and

re-initialize the quadcopter while

keeping it from moving

Throttle channel is reversed

Disconnect ﬂ ight battery, reverse the throttle

channel on the transmitter,

recconnect ﬂ ight battery

Does not function and smells

burnt after connecting the ﬂ ight

battery

Flight battery connected with the wrong

polarity

Replace the 4-in-1 board. Connect the ﬂ ight

battery noting proper polarity

Problem Possible Cause Solution

Reduced ﬂ ight time

or is underpowered

Flight battery charge is low Completely recharge the ﬂ ight battery

Inadequate power to ﬂ ight battery

charger

Use a different USB power source for the

charger

Flight battery is damaged Replace the ﬂ ight battery and follow the

ﬂ ight battery instructions

Flight conditions might be too cold Make sure the battery is warm (room tem-

perature) before use

LED on receiver ﬂ ashes rapidly

and quadcopter will not respond

to transmitter (during binding)

Transmitter too near aircraft during

binding process

Power off the transmitter. Move the transmit-

ter a larger distance from the aircraft. Dis-

connect and reconnect the ﬂ ight battery to

the aircraft. Follow the binding instructions

Bind switch or button was not held

while transmitter was powered on

Power off transmitter and repeat bind

process

Aircraft or transmitter is too close to

large metal object, wireless source or

another transmitter

Move aircraft and transmitter to another

location and attempt binding again

LED on the receiver ﬂ ashes

rapidly and the quadcopter will

not respond to the transmitter

(after binding)

Less than a 5-second wait between

ﬁ rst powering on the transmitter and

connecting the ﬂ ight battery to the

quadcopter

Leave the transmitter powered on. Discon-

nect and reconnect the ﬂ ight battery to the

quadcopter

The quadcopter is bound to a different

model memory (ModelMatch™ trans-

mitters only)

Select the correct model memory on the

transmitter. Disconnect and reconnect the

ﬂ ight battery to the quadcopter

Flight battery or transmitter battery

charge is too low Replace or recharge batteries

Aircraft or transmitter is too close to

large metal object, wireless source or

another transmitter

Move aircraft and transmitter to another

location and attempt connecting again

Crashes immediately upon

lift-off

Propellers in wrong locations or

incorrect ﬂ ight mode selected Make necessary adjustments

19 EN

Exploded View

Limited Warranty

What this Warranty Covers

Horizon Hobby, LLC, (Horizon) warrants to the original purchaser

that the product purchased (the “Product”) will be free from

defects in materials and workmanship at the date of purchase.

What is Not Covered

This warranty is not transferable and does not cover (i) cosmetic

damage, (ii) damage due to acts of God, accident, misuse,

abuse, negligence, commercial use, or due to improper use,

installation, operation or maintenance, (iii) modification of or to

any part of the Product, (iv) attempted service by anyone other

than a Horizon Hobby authorized service center, (v) Product not

purchased from an authorized Horizon dealer, (vi) Product not

compliant with applicable technical regulations, or (vii) use that

violates any applicable laws, rules, or regulations.

OTHER THAN THE EXPRESS WARRANTY ABOVE, HORIZON

MAKES NO OTHER WARRANTY OR REPRESENTATION, AND

HEREBY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES,

INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES

OF NON-INFRINGEMENT, MERCHANTABILITY AND FITNESS FOR

A PARTICULAR PURPOSE. THE PURCHASER ACKNOWLEDGES

THAT THEY ALONE HAVE DETERMINED THAT THE PRODUCT

WILL SUITABLY MEET THE REQUIREMENTS OF THE

PURCHASER’S INTENDED USE.

Purchaser’s Remedy

Horizon’s sole obligation and purchaser’s sole and exclusive

remedy shall be that Horizon will, at its option, either (i) service,

or (ii) replace, any Product determined by Horizon to be defec-

tive. Horizon reserves the right to inspect any and all Product(s)

Parts Listings

Part # Description

BLH2200 Glimpse RTF

BLH2280 Glimpse BNF

1 BLH2201 4-in-1 Control Unit: Glimpse

2 BLH2202 Camera Board: Glimpse

3 BLH2203 Canopy: Glimpse

4 BLH2204 Clockwise Motor: Glimpse

Part # Description

5 BLH2205 Counter-Clockwise Motor: Glimpse

6 BLH2206 Props (4): Glimpse

7 BLH2207 Main Frame: Glimpse

8EFLB-

5001S25UM

500mAh 1S 3.7V 25C LiPo

High Current UMX Connector

Part # Description

DXe DSMX Transmitter Only

DX6e DSMX 6-Channel Transmitter Only

DX6 DSMX 6-Channel Transmitter Only

DX8 DSMX 8-Channel Transmitter Only

Part # Description

DX9 DSMX 9-Channel Transmitter Only

iX12 DSMX 12-Channel Transmitter Only

DX20 DSMX 20-Channel Transmitter Only

DX18 DSMX 18-Channel Transmitter Only

Optional Parts

21 EN

involved in a warranty claim. Service or replacement decisions

are at the sole discretion of Horizon. Proof of purchase is

required for all warranty claims. SERVICE OR REPLACEMENT AS

PROVIDED UNDER THIS WARRANTY IS THE PURCHASER’S SOLE

AND EXCLUSIVE REMEDY.

Limitation of Liability

HORIZON SHALL NOT BE LIABLE FOR SPECIAL, INDIRECT,

INCIDENTAL OR CONSEQUENTIAL DAMAGES, LOSS OF

PROFITS OR PRODUCTION OR COMMERCIAL LOSS IN ANY

WAY, REGARDLESS OF WHETHER SUCH CLAIM IS BASED IN

CONTRACT, WARRANTY, TORT, NEGLIGENCE, STRICT LIABILITY OR

ANY OTHER THEORY OF LIABILITY, EVEN IF HORIZON HAS BEEN

ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Further, in no

event shall the liability of Horizon exceed the individual price of the

Product on which liability is asserted. As Horizon has no control

over use, setup, final assembly, modification or misuse, no liability

shall be assumed nor accepted for any resulting damage or injury.

By the act of use, setup or assembly, the user accepts all resulting

liability. If you as the purchaser or user are not prepared to accept

the liability associated with the use of the Product, purchaser is

advised to return the Product immediately in new and unused

condition to the place of purchase.

Law

These terms are governed by Illinois law (without regard to

conflict of law principals). This warranty gives you specific legal

rights, and you may also have other rights which vary from state

to state. Horizon reserves the right to change or modify this war-

ranty at any time without notice.

WARRANTY SERVICES

Questions, Assistance, and Services

Your local hobby store and/or place of purchase cannot provide

warranty support or service. Once assembly, setup or use of the

Product has been started, you must contact your local distributor

or Horizon directly. This will enable Horizon to better answer your

questions and service you in the event that you may need any

assistance. For questions or assistance, please visit our website

at www.horizonhobby.com, submit a Product Support Inquiry, or

call the toll free telephone number referenced in the Warranty

and Service Contact Information section to speak with a Product

Support representative.

Inspection or Services

If this Product needs to be inspected or serviced and is compli-

ant in the country you live and use the Product in, please use

the Horizon Online Service Request submission process found

on our website or call Horizon to obtain a Return Merchandise

Authorization (RMA) number. Pack the Product securely using a

shipping carton. Please note that original boxes may be included,

but are not designed to withstand the rigors of shipping without

additional protection. Ship via a carrier that provides tracking and

insurance for lost or damaged parcels, as Horizon is not respon-

sible for merchandise until it arrives and is accepted at our facility.

An Online Service Request is available at http://www.horizonhobby.

com/content/service-center_render-service-center. If you do not

have internet access, please contact Horizon Product Support to

obtain a RMA number along with instructions for submitting your

product for service. When calling Horizon, you will be asked to

provide your complete name, street address, email address and

phone number where you can be reached during business hours.

When sending product into Horizon, please include your RMA

number, a list of the included items, and a brief summary of the

problem. A copy of your original sales receipt must be included

for warranty consideration. Be sure your name, address, and RMA

number are clearly written on the outside of the shipping carton.

NOTICE: Do not ship LiPo batteries to Horizon. If you have any

issue with a LiPo battery, please contact the appropriate Horizon

Product Support office.

Warranty and Service Contact Information

Warranty Requirements

For Warranty consideration, you must include your original sales

receipt verifying the proof-of-purchase date. Provided warranty

conditions have been met, your Product will be serviced or

replaced free of charge. Service or replacement decisions are at

the sole discretion of Horizon.

Non-Warranty Service

Should your service not be covered by warranty, service will

be completed and payment will be required without notifica-

tion or estimate of the expense unless the expense exceeds

50% of the retail purchase cost. By submitting the item for

service you are agreeing to payment of the service without

notification. Service estimates are available upon request. You

must include this request with your item submitted for service.

Non-warranty service estimates will be billed a minimum of ½

hour of labor. In addition you will be billed for return freight.

Horizon accepts money orders and cashier’s checks, as well as

Visa, MasterCard, American Express, and Discover cards. By

submitting any item to Horizon for service, you are agreeing to

Horizon’s Terms and Conditions found on our website http://

www.horizonhobby.com/content /service-center_render-service-

center.

ATTENTION: Horizon service is limited to Product compli-

ant in the country of use and ownership. If received, a

non-compliant Product will not be serviced. Further, the

sender will be responsible for arranging return ship-

ment of the un-serviced Product, through a carrier of the

sender’s choice and at the sender’s expense. Horizon will

hold non-compliant Product for a period of 60 days from

notification, after which it will be discarded. 10/15

Country of

Purchase Horizon Hobby Contact Information Address

United States

of America

Horizon Service Center

(Repairs and Repair Requests)

servicecenter.horizonhobby.com/

RequestForm/

4105 Fieldstone Rd Champaign,

Illinois, 61822 USA

Horizon Product Support

(Product Technical Assistance)

productsupport@horizonhobby.com

877-504-0233

Sales

websales@horizonhobby.com

800-338-4639

Horizon Technischer Service service@horizonhobby.eu Hanskampring 9

D 22885 Barsbüttel, Germany

Sales: Horizon Hobby GmbH +49 (0) 4121 2655 100

23 EN

This device complies with part 15 of the FCC rules. Operation

is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received,

including interference that may cause undesired operation.

CAUTION: Changes or modiﬁ cations not expressly

approved by the party responsible for compliance

could void the user’s authority to operate the equipment.

This product contains a radio transmitter with wireless

technology which has been tested and found to be compliant

with the applicable regulations governing a radio transmitter

in the 2.400GHz to 2.4835GHz, and 5725MHz to 5875MHz

frequency range.

Antenna Separation Distance

When operating your Spektrum transmitter, please be sure

to maintain a separation distance of at least 20 cm between

your body (excluding ﬁ ngers, hands, wrists, ankles and feet)

and the antenna to meet RF exposure safety requirements as

determined by FCC regulations.

This device complies with Industry Canada license-exempt

RSS standard(s). Operation is subject to the following two

conditions: (1) this device may not cause interference, and (2)

this device must accept any interference, Including interfer-

ence that may cause undesired operation of the device.

FCC Information

IC Information

This equipment has been tested and found to comply with the

limits for Part 15 of the FCC rules. These limits are designed to

provide reasonable protection against harmful interference in

a residential installation. This equipment generates uses and

can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful

interference to radio communications.

However, there is no guarantee that interference will not occur

in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of

the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and

receiver.

• Connect the equipment to an outlet on a circuit different

from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician

for help.

Information IC

Le présent appareil est conforme aux CNR d’Industrie

Canada applicables aux appareils radio exempts de licence.

L’exploitation est autorisée aux deux conditions suivantes

: (1) l’appareil ne doit pas produire de brouillage, et (2)

l’utilisateur de l’appareil doit accepter tout brouillage

radioélectrique subi, même si le brouillage est susceptible

d’en compromettre le fonctionnement.

Compliance Information for the European Union

Horizon Hobby, LLC hereby declares that this product is in compliance with the essential require-

ments and other relevant provisions of the RED and EMC Directives.

A copy of the EU Declaration of Conformity is available online at:

http://www.horizonhobby.com/content/support-render-compliance.

Instructions for disposal of WEEE by users in the European Union

This product must not be disposed of with other waste. Instead, it is the user’s responsibility to dispose of their waste equip-

ment by handing it over to a designated collections point for the recycling of waste electrical and electronic

equipment. The separate collection and recycling of your waste equipment at the time of disposal will help

to conserve natural resources and ensure that it is recycled in a manner that protects human health and the

environment. For more information about where you can drop off your waste equipment for recycling, please

contact your local city ofﬁ ce, your household waste disposal service or where you purchased the product.

25 EN

Blade, E-ﬂ ite, Glimpse, SAFE, the SAFE logo, DSM2, DSMX, Bind-N-Fly, the BNF logo, ModelMatch

and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC.

The Spektrum trademark is used with permission of Bachmann Industries, Inc. Futaba is a registered trademark of Futaba Denshi

Kogyo Kabushiki Kaisha Corporation of Japan. All other trademarks, service marks or logos are property of their respective owners.

Patents pending. Created 02/18 47233.4 BLH2200, BLH2280

Horizon Hobby BLH2202MD Glimpse User Manual 47233 4 BLH Glimpse EN indd

Horizon Hobby, LLC Glimpse 47233 4 BLH Glimpse EN indd

User Manual

Navigation menu

Namespaces

Views

Navigation
