Horizon Hobby DASRX11 R/C Transmitter User Manual
Horizon Hobby, LLC R/C Transmitter
user manual
Spektrum AR6100ML Instructions
Note: The AR6100ML receiver is designed for parkflyer aircraft only. This
includes all types of compact electric airplanes as well as mini and micro
helicopters. While the AR6100ML receiver has more than adequate range
for parkflyer aircraft, it is imperative that it not be used in larger aircraft that
could exceed its operational range.
IMPORTANT: The AR6100 features DSM®2 second-generation
Spektrum® technology and is not compatible with the DX6 parkflyer
radio. The AR6100ML is only compatible with Spektrum aircraft
transmitters that support DSM2 technology, like the DX7.
Binding
Before using the AR6100, it’s necessary to bind the receiver to the desired
transmitter (or specific model memory if Model Match™ is available).
Binding is the process of programming the receiver to recognize the specific
transmitter you wish to use. During binding, the receiver learns the specific
transmitter’s code (GUID) and, when bound, the receiver will only respond to its
bound transmitter, ignoring all other types of interfering signals. During binding
the fail-safe positions are stored (see SmartSafe™ below).
Note: Receivers can be re-bound at any time, allowing them to be used
with other transmitters or to store different fail-safe positions.

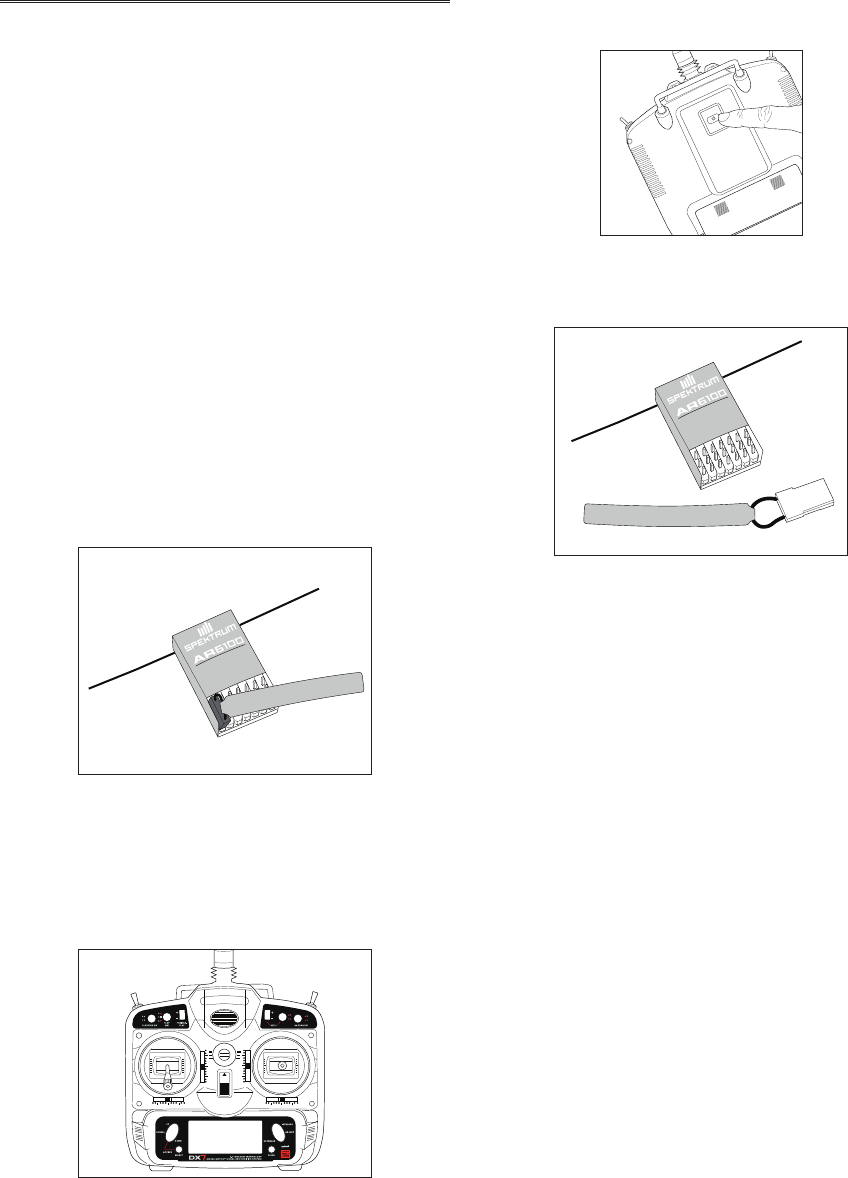

How to Bind
With the power off, plug the bind plug into the BATT port.
BATT
THRO
BATT
AILE
ELEV
RUDD
MICROLITE RECEIVER
2.4GHz DSM2
GEAR
AUX1
BIND PLUG
Power on the receiver. If the receiver is installed in an electric aircraft, turn on the
speed controller to power up the receiver. If the receiver is going to be powered
by a separate battery, plug the battery into any unused port. The amber light will
blink, indicating the AR6100 is in bind mode.
Position the transmitter’s control sticks and switches in the desired fail-safe
positions (normally low throttle and all other controls at neutral).
POWER
Press and hold the bind button on the back of the transmitter while turning on
the transmitter. The button will flash for several seconds, then the LED on the
transmitter and receiver will remain solid on, indicating a successful bind.
$3#
").$2!.'%4%34
IMPORTANT: Remove the bind plug to prevent the system from rebinding
the next time the power is turned on.
BATT
THRO
BATT
AILE
ELEV
RUDD
MICROLITE RECEIVER
2.4GHz DSM2
GEAR
AUX1
BIND PLUG
Model Match
Some Spektrum transmitters (such as the DX7) offer a patented feature called
Model Match™. Model Match prevents the possibility of operating a model using
the wrong model memory, potentially preventing a crash. With Model Match
each model memory has its own unique code (GUID) and during the binding
process the code is programmed into the receiver. Later, when the system is
turned on, the receiver will only connect to the transmitter if the corresponding
model memory is programmed on screen.
Note: If at any time you turn on the system and it fails to connect, check to
be sure the correct model memory is selected in the transmitter.
SmartSafe
Your AR6100ML features SmartSafe™ fail-safe programming. SmartSafe
prevents accidental motor operation before the system connects and, in the
unlikely event of signal loss, SmartSafe drives the throttle to a preset (off)
position. With SmartSafe if the receiver is turned on before the transmitter, all
channels but throttle will go to their fail-safe position stored during binding,
while the throttle channel will not generate a pulse so as to not arm the electronic
speed control. After the system is connected, if loss of signal occurs, the throttle
will be driven to a preset fail-safe position, normally low throttle (set during
binding) while all other channels will hold their last known position.
Range Check
Before each flying session and especially with a new model, it is important to
perform a range check. Follow the procedures as outlined in the radio
instruction manual.
Specifications:
Model: AR6100
Type: 6-channel DSM2 Parkflyer
Dimensions: 30mm x 18mm x 10mm
Weight: 3.5 grams
Voltage: 3.5–9.0 volts
Inspection or Repairs
If this Product needs to be inspected or repaired, please call for a Return Merchandise Authorization
(RMA). Pack the Product securely using a shipping carton. Please note that original boxes may be
included, but are not designed to withstand the rigors of shipping without additional protection.
Ship via a carrier that provides tracking and insurance for lost or damaged parcels, as Horizon is not
responsible for merchandise until it arrives and is accepted at our facility. A Service Repair Request is
available at www.horizonhobby.com on the “Support” tab. If you do not have internet access, please
include a letter with your complete name, street address, email address and phone number where
you can be reached during business days, your RMA number, a list of the included items, method
of payment for any non-warranty expenses and a brief summary of the problem. Your original sales
receipt must also be included for warranty consideration. Be sure your name, address, and RMA
number are clearly written on the outside of the shipping carton.
Warranty Inspection and Repairs
To receive warranty service, you must include your original sales receipt verifying the proof-of-
purchase date. Provided warranty conditions have been met, your Product will be repaired or
replaced free of charge. Repair or replacement decisions are at the sole discretion of Horizon Hobby.
Non-Warranty Repairs
Should your repair not be covered by warranty the repair will be completed and payment will be
required without notification or estimate of the expense unless the expense exceeds 50% of the
retail purchase cost. By submitting the item for repair you are agreeing to payment of the repair
without notification. Repair estimates are available upon request. You must include this request
with your repair. Non-warranty repair estimates will be billed a minimum of ½ hour of labor. In
addition you will be billed for return freight. Please advise us of your preferred method of payment.
Horizon accepts money orders and cashiers checks, as well as Visa, MasterCard, American
Express, and Discover cards. If you choose to pay by credit card, please include your credit card
number and expiration date. Any repair left unpaid or unclaimed after 90 days will be considered
abandoned and will be disposed of accordingly. Please note: non-warranty repair is only available
on electronics and model engines.
Electronics and engines requiring inspection or repair should be shipped to the following address:
Horizon Service Center
4105 Fieldstone Road
Champaign, Illinois 61822
All other Products requiring warranty inspection or repair should be shipped to the
following address:
Horizon Product Support
4105 Fieldstone Road
Champaign, Illinois 61822
Please call 877-504-0233 with any questions or concerns regarding this product or warranty.
FCC Information
This device complies with part 15 of the FCC rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Caution: Changes or modifications not expressly approved by Horizon Hobby, Inc
could void the user’s authority to operate the equipment.
This product contains a radio transmitter with wireless technology which has been tested and found
to be compliant with the applicable regulations governing a radio transmitter in the 2.400GHz to
2.4835GHz frequency range.
The associated regulatory agencies of the following countries recognize the noted certifications for
this product as authorized for sale and use:
Instructions for Disposal of WEEE by Users in the European Union
This product must not be disposed of with other waste. Instead, it is the user’s responsibility to
dispose of their waste equipment by handing it over to a designated collection point for the recycling
of waste electrical and electronic equipment. The separate collection and recycling of your waste
equipment at the time of disposal will help to conserve natural resources and ensure that it is
recycled in a manner that protects human health and the environment. For more information about
where you can drop off your waste equipment for recycling, please contact your local city office, your
household waste disposal service or where you purchased the product.
