Manual
SR310 Instruction Manual
SR310 Bedienungsanleitung
Manuel d’utilisation SR310
Manuale di istruzioni SR310
EN
The following terms are used throughout the product literature to indicate
various levels of potential harm when operating this product:
NOTICE: Procedures, which if not properly followed, create a possibility
of physical property damage AND a little or no possibility of injury.
CAUTION: Procedures, which if not properly followed, create the probability
of physical property damage AND a possibility of serious injury.
WARNING: Procedures, which if not properly followed, create the probability
of property damage, collateral damage, and serious injury OR create a high
probability of superficial injury.
NOTICE
All instructions, warranties and other collateral documents are subject to
change at the sole discretion of Horizon Hobby, Inc. For up-to-date product
literature, visit horizonhobby.com and click on the support tab for this
product.
Meaning of Special Language
Age Recommendation: Not for children under 14 years. This is not a toy.
WARNING: Read the ENTIRE instruction manual to become familiar
with the features of the product before operating. Failure to operate the
product correctly can result in damage to the product, personal property and
cause serious injury.
This is a sophisticated hobby product. It must be operated with caution and
common sense and requires some basic mechanical ability. Failure to oper-
ate this Product in a safe and responsible manner could result in injury or
damage to the product or other property. This product is not intended for use
by children without direct adult supervision. Do not attempt disassembly, use
with incompatible components or augment product in any way without the
approval of Horizon Hobby, Inc. This manual contains instructions for safety,
operation and maintenance. It is essential to read and follow all the instruc-
tions and warnings in the manual, prior to assembly, setup or use, in order to
operate correctly and avoid damage or serious injury.
WARNING AGAINST COUNTERFEIT PRODUCTS
Always purchase from a Horizon Hobby, Inc. authorized dealer to ensure
authentic high-quality Spektrum product. Horizon Hobby, Inc. disclaims all
support and warranty with regards, but not limited to, compatibility and
performance of counterfeit products or products claiming compatibility with
DSM or Spektrum technology.
NOTICE: This product is only intended for use with unmanned, hobby-grade,
remote-controlled vehicles and aircraft. Horizon Hobby disclaims all liability
outside of the intended purpose and will not provide warranty service related
thereto.
WARRANTY REGISTRATION
Visit community.spektrumrc.com today to register your product.
EN
Specifications
Type: DSMR
Dimensions (LxWxH): 1.30 x .80 x .53 in (32.8 x 20.3 x 13.5mm)
Channels: 4 Weight: 0.25 oz (7.2 g)
Band: 2.4GHz Voltage Range: 3.2–9.6V
Receiver Connection and Installation
Install the Receiver in your vehicle using double-sided foam servo tape. Foam
servo tape will hold the receiver in place and help isolate it from vibrations.
Mount the antenna up and away from the vehicle in an antenna tube. The
higher up the antenna is, the better signal it will receive. The last 31mm of
the antenna is the portion that receives the signal from the transmitter.
NOTICE: Do not cut or modify the antenna.
Failsafe
The throttle failsafe position is set during binding. In the unlikely event that
the radio link is lost during use, the receiver will drive the the throttle servo
to its pre-programmed failsafe position (normally full brakes) and all other
channels will have no servo output. If the receiver is turned on prior to turning
on the transmitter, the receiver will enter the failsafe mode, driving the the
throttle servo to its preset failsafe position. When the transmitter is turned on,
normal control is resumed.
IMPORTANT: Failsafe activates only in the event that signal is lost from the
transmitter. Failsafe will NOT activate in the event that receiver battery power
decreases below the recommended minimums or power to the receiver is lost.
SR310 Instruction Manual
The Spektrum™ SR310 4-channel DSMR® Sport Surface receiver is compat-
ible with all Spektrum DSMR surface transmitters. The SR310 receiver is NOT
compatible with DSM® or DSM2® transmitters.

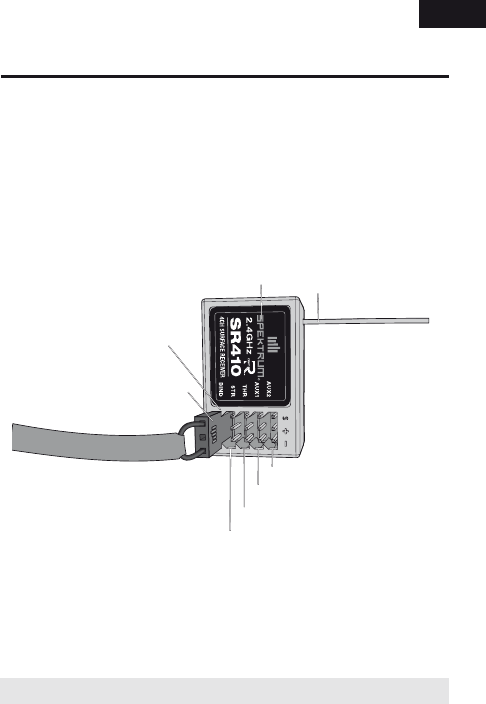

Antenna
LED
Bind Plug
Bind/Battery Port
Steering Port
Throttle Port
Aux 1 Port
Aux 2 Port
FPO
EN
Binding Receiver to Transmitter
In order to operate, the receiver must be bound to the transmitter. Binding
is the process of programming the receiver to recognize the GUID (Globally
Unique Identifier) code of a single specific transmitter. When areceiver is
bound to atransmitter/model memory, the receiver will only respond to that
specific transmitter/model memory.
Binding
1. With the receiver off, insert the bind plug into the BIND port in the receiver.
2. Power the receiver through any port. If an ESC is being used, power on the
ESC with the ESC lead plugged in the throttle channel port. The orange LED
will flash continuously, indicating that the receiver is in bind mode.
3. With the throttle channel in the desired preset failsafe position (generally
full brake and neutral steering), initiate the bind process with your Spektrum
transmitter. This stores the failsafe position. Continue to hold the failsafe
position until the binding process is complete.
4. The LED on the receiver should now be solid, indicating asuccessful bind
has taken place.
5. When the bind process is complete, remove the bind plug from the receiver
and store it in a convenient place. Failure to remove the bind plug will result in
the receiver going back into bind mode.
The only time it is necessary to rebind is if different failsafe positions are
desired e.g., servo travel has been reversed after the initial bind, or if you want
to use the receiver with a different model memory.

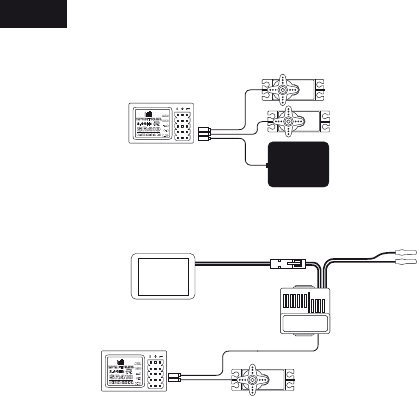

Powering the receiver with an ESC
Battery To Motor
Electronic
Speed Control
Receiver
Steering Servo
Receiver
Steering Servo
Throttle Servo
Battery
Powering the receiver with a separate receiver pack
FPO
EN
2.4GHz Troubleshooting Guide
Problem Possible Cause Solution
The system
will not con-
nect
Your transmitter and receiver
are too close together
Move transmitter 8 to 12
feet from receiver
You are around metal objects Move to an area with less
metal
The model selected is not the
model bound to
Check model selected and
ensure you are bound to
that model
Your transmitter was
accidentally put into bind
mode and is no longer bound
to your receiver
Rebind your transmitter
and receiver
The receiver
goes into
failsafe mode
a short dis-
tance away
from the
transmitter
Check the receiver antenna
to be sure it is not cut or
damaged
Replace the receiver or
contact Horizon Product
Support
Make sure your receiver
antenna is in an antenna
tube and is above the
vehicle
The
receiver quits
responding
during opera-
tion
Inadequate battery voltage Charge batteries.
Spektrum receivers require
at least 3.5V to operate. An
inadequate power supply
can allow voltage to mo-
mentarily drop below 3.5V
and cause the receiver to
brown out and reconnect
Loose or damaged wires
or connectors between
battery and receiver
Check the wires and
connection between the
battery and receiver. Repair
or replace wires and/or
connectors
1-Year Limited Warranty
What this Warranty Covers
Horizon Hobby, Inc., (Horizon) warrants to the original purchaser that the
product purchased (the “Product”) will be free from defects in materials and
workmanship for a period of 1 years from the date of purchase.
FPO
EN
What is Not Covered
This warranty is not transferable and does not cover (i) cosmetic damage, (ii)
damage due to acts of God, accident, misuse, abuse, negligence, commercial
use, or due to improper use, installation, operation or maintenance, (iii) modi-
fication of or to any part of the Product, (iv) attempted service by anyone other
than a Horizon Hobby authorized service center, (v) Product not purchased
from an authorized Horizon dealer, or (vi) Product not compliant with applicable
technical regulations.
OTHER THAN THE EXPRESS WARRANTY ABOVE, HORIZON MAKES NO OTHER
WARRANTY OR REPRESENTATION, AND HEREBY DISCLAIMS ANY AND ALL
IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WAR-
RANTIES OF NON-INFRINGEMENT, MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE. THE PURCHASER ACKNOWLEDGES THAT THEY ALONE
HAVE DETERMINED THAT THE PRODUCT WILL SUITABLY MEET THE REQUIRE-
MENTS OF THE PURCHASER’S INTENDED USE.
Purchaser’s Remedy
Horizon’s sole obligation and purchaser’s sole and exclusive remedy shall be
that Horizon will, at its option, either (i) service, or (ii) replace, any Product
determined by Horizon to be defective. Horizon reserves the right to inspect
any and all Product(s) involved in a warranty claim. Service or replacement
decisions are at the sole discretion of Horizon. Proof of purchase is required for
all warranty claims. SERVICE OR REPLACEMENT AS PROVIDED UNDER THIS
WARRANTY IS THE PURCHASER’S SOLE AND EXCLUSIVE REMEDY.
Limitation of Liability
HORIZON SHALL NOT BE LIABLE FOR SPECIAL, INDIRECT, INCIDENTAL OR
CONSEQUENTIAL DAMAGES, LOSS OF PROFITS OR PRODUCTION OR COM-
MERCIAL LOSS IN ANY WAY, REGARDLESS OF WHETHER SUCH CLAIM IS
BASED IN CONTRACT, WARRANTY, TORT, NEGLIGENCE, STRICT LIABILITY OR
ANY OTHER THEORY OF LIABILITY, EVEN IF HORIZON HAS BEEN ADVISED OF
THE POSSIBILITY OF SUCH DAMAGES. Further, in no event shall the liability of
Horizon exceed the individual price of the Product on which liability is asserted.
As Horizon has no control over use, setup, final assembly, modification or
misuse, no liability shall be assumed nor accepted for any resulting damage
or injury. By the act of use, setup or assembly, the user accepts all resulting
liability. If you as the purchaser or user are not prepared to accept the liability
associated with the use of the Product, purchaser is advised to return the
Product immediately in new and unused condition to the place of purchase.
Law
These terms are governed by Illinois law (without regard to conflict of law
principals). This warranty gives you specific legal rights, and you may also
have other rights which vary from state to state. Horizon reserves the right to
change or modify this warranty at any time without notice.
WARRANTY SERVICES
Questions, Assistance, and Services
Your local hobby store and/or place of purchase cannot provide warranty
support or service. Once assembly, setup or use of the Product has been
started, you must contact your local distributor or Horizon directly. This will
enable Horizon to better answer your questions and service you in the event
EN
that you may need any assistance. For questions or assistance, please visit our
website at www.horizonhobby.com, submit a Product Support Inquiry, or call
877.504.0233 toll free to speak to a Product Support representative.
Inspection or Services
If this Product needs to be inspected or serviced and is compliant in the
country you live and use the Product in, please use the Horizon Online Service
Request submission process found on our website or call Horizon to obtain a
Return Merchandise Authorization (RMA) number. Pack the Product securely
using a shipping carton. Please note that original boxes may be included, but
are not designed to withstand the rigors of shipping without additional protec-
tion. Ship via a carrier that provides tracking and insurance for lost or damaged
parcels, as Horizon is not responsible for merchandise until it arrives and is ac-
cepted at our facility. An Online Service Request is available at Horizon Hobby
Service Center. If you do not have internet access, please contact Horizon
Product Support to obtain a RMA number along with instructions for submitting
your product for service. When calling Horizon, you will be asked to provide
your complete name, street address, email address and phone number where
you can be reached during business hours. When sending product into Horizon,
please include your RMA number, a list of the included items, and a brief
summary of the problem. A copy of your original sales receipt must be included
for warranty consideration. Be sure your name, address, and RMA number are
clearly written on the outside of the shipping carton.
NOTICE: Do not ship LiPo batteries to Horizon. If you have any issue with a
LiPo battery, please contact the appropriate Horizon Product Support office.
Warranty Requirements
For Warranty consideration, you must include your original sales
receipt verifying the proof-of-purchase date. Provided warranty condit-
ions have been met, your Product will be serviced or replaced free of charge.
Service or replacement decisions are at the sole discretion of Horizon.
Non-Warranty Service
Should your service not be covered by warranty, service will be com-
pleted and payment will be required without notification or estimate
of the expense unless the expense exceeds 50% of the retail purchase
cost. By submitting the item for service you are agreeing to payment of the
service without notification. Service estimates are available upon request. You
must include this request with your item submitted for service. Non-warranty
service estimates will be billed a minimum of ½ hour of labor. In addition you
will be billed for return freight. Horizon accepts money orders and cashier’s
checks, as well as Visa, MasterCard, American Express, and Discover cards. By
submitting any item to Horizon for service, you are agreeing to Horizon’s Terms
and Conditions found on our website Horizon Hobby Service Center.
NOTICE: Horizon service is limited to Product compliant in the country of use
and ownership. If non-compliant product is received by Horizon for service, it
will be returned unserviced at the sole expense of the purchaser.
EN
Warranty, Service and Customer Service Contact Information
Country of
Purchase Horizon Hobby Address Phone Number/Email Address
United
States of
America
Horizon Service
Center
(Electronics and
engines)
4105 Fieldstone Rd
Champaign, Illinois
61822 USA
877-504-0233
Online Repair Request:
visit www.horizonhobby.com/
service
Horizon Product
Support (All
other products)
4105 Fieldstone Rd
Champaign, Illinois
61822 USA
877-504-0233
productsupport@horizonhobby.
com
United
Kingdom
Horizon Hobby
Limited
Units 1-4 Ployters Rd
Staple Tye
Harlow, Essex
CM18 7NS
United Kingdom
+44 (0) 1279 641 097
sales@horizonhobby.co.uk
Germany Horizon Tech-
nischer Service
Christian-Junge-
Straße 1
25337 Elmshorn
Germany
+49 (0) 4121 2655 100
service@horizonhobby.de
France Horizon Hobby
SAS
11 Rue Georges
Charpak
77127 Lieusaint,
France
+33 (0) 1 60 18 34 90
infofrance@horizonhobby.com
China Horizon Hobby
China
Room 506, No. 97
Changshou Rd.
Shanghai, China
200060
+86 (021) 5180 9868
info@horizonhobby.com.cn
www.horizonhobby.com.cn
FCC Information
This device complies with part 15 of the FCC rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interfer-
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
This product contains a radio transmitter with wireless technology which has
been tested and found to be compliant with the applicable regulations gov-
erning a radio transmitter in the 2.400GHz to 2.4835GHz frequency range.
IC Information
This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interfer-
ence that may cause undesired operation of the device.
CAUTION: Changes or modifications not expressly approved by the
party responsible for compliance could void the user’s authority to
operate the equipment.
EN
Declaration of Conformity
(in accordance with ISO/IEC 17050-1)
No. HH2012110404
Product(s): SPM SR310 4-Channel Receiver
Item Number(s): SPMSR310
Equipment class: 1
The object of declaration described above is in conformity with the require-
ments of the specifications listed below, following the provisions of the
European R&TTE directive 1999/5/EC:
EN301 489-1 V1.7.1: 2006
EN301 489-17 V1.3.2: 2008
Signed for and on behalf of:
Horizon Hobby, Inc.
Champaign, IL USA
November 4, 2012
Steven A. Hall
Executive Vice President and Chief Operating Officer
International Operations and Risk Management
Horizon Hobby, Inc.
Instructions for Disposal of WEEE by Users in the
European Union
This product must not be disposed of with other waste. Instead, it is the
user’sresponsibility to dispose of their waste equipment by handing it over to
adesignated collection point for the recycling of waste electrical and electronic
equipment. The separate collection and recycling of your waste equipment at
the time of disposal will help to conserve natural resources and ensure that it is
recycled in amanner that protects human health and the environment. For more
information about where you can drop off your waste equipment for recycling,
please contact your local city office, your household waste disposal service or
where you purchased the product.
Compliance Information for the
European Union
FPO
