User Manual 1 of 3
ASCENT™ MTX
EN
2
WARNING: Read the ENTIRE instruction manual to become familiar with the features of the
product before operating. Failure to operate the product correctly can result in damage to the product,
personal property and cause serious injury.
This is a sophisticated hobby product. It must be operated with caution and common sense and requires
some basic mechanical ability. Failure to operate this product in a safe and responsible manner could
result in injury or damage to the product or other property. This product is not intended for use by
children without direct adult supervision. Do not use with incompatible components or alter this product
in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains instructions
for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings
in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious
injury.
• Always keep a safe distance in all directions
around your model to avoid collisions or injury.
This model is controlled by a radio signal subject
to interference from many sources outside your
control. Interference can cause momentary loss
of control.
• Always operate your model in open spaces away
from full-size vehicles, trafc and people.
• Always carefully follow the directions and
warnings for this and any optional support
equipment (chargers, rechargeable battery
packs, etc.).
• Always keep all chemicals, small parts and
anything electrical out of the reach of children.
• Always avoid water exposure to all equipment
not specically designed and protected for this
purpose. Moisture causes damage to electronics.
• Never place any portion of the model in your
mouth as it could cause serious injury or even
death.
• Never operate your model with low transmitter
batteries.
• Always keep aircraft in sight and under control.
• Always use fully charged batteries.
• Always keep the transmitter powered on while
aircraft is powered.
• Always remove batteries before disassembly.
• Always keep moving parts clean.
• Always keep parts dry.
• Always let parts cool after use before touching.
• Always remove batteries after use.
• Always ensure failsafe is properly set before
ying.
• Never operate aircraft with damaged wiring.
• Never touch moving parts.
The following terms are used throughout the product literature to indicate various levels of potential
harm when operating this product:
Procedures, which if not properly followed, create a possibility of physical property damage
AND little or no possibility of injury.
Procedures, which if not properly followed, create the probability of physical property
damage AND a possibility of serious injury.
WARNING: Procedures, which if not properly followed, create the probability of property damage,
collateral damage, and serious injury OR create a high probability of supercial injury.
All instructions, warranties and other collateral documents are subject to change at the sole discretion
of Horizon Hobby, LLC. For up-to-date product literature, visit www.horizonhobby.com and click on the
support tab for this product.
EN
3
Ascent MTxTransmitter 300 mAh 3.7V
Li-Po Battery USB ChargerAA Alkaline
Batteries (4)
To register your product online,
go to www.horizonhobby.com
Fly in this area
(upwind of pilot)
Stand here
300 feet
(91 m)
Wind 0–5 mph
(0–8 km/h)
395mm
483mm
47 g
• Consult local laws and ordinances before
choosing a location to y your aircraft.
• Fly your aircraft outside in no greater than
light winds.
• For indoor ight, y the aircraft inside in a
large gymnasium
• Keep your aircraft in plain sight and up wind.
Do not exceed the 300 foot (91 m) radio
range. If the connection is lost, the motors
will power off and the aircraft will descend.
Leave your transmitter powered on and move
closer to your aircraft to regain control.
• Always avoid ying near houses, trees, wires
and buildings.
• Always avoid ying in areas where there
are many people, such as busy parks,
schoolyards or soccer elds.
1. Find a safe and open area.
2. Charge ight battery.
3. Install ight battery in aircraft.
4. Perform Control Test.
5. Plan ight for ying eld conditions.
6. Set a ight timer for 10 minutes.
7. Have fun!
EN
4

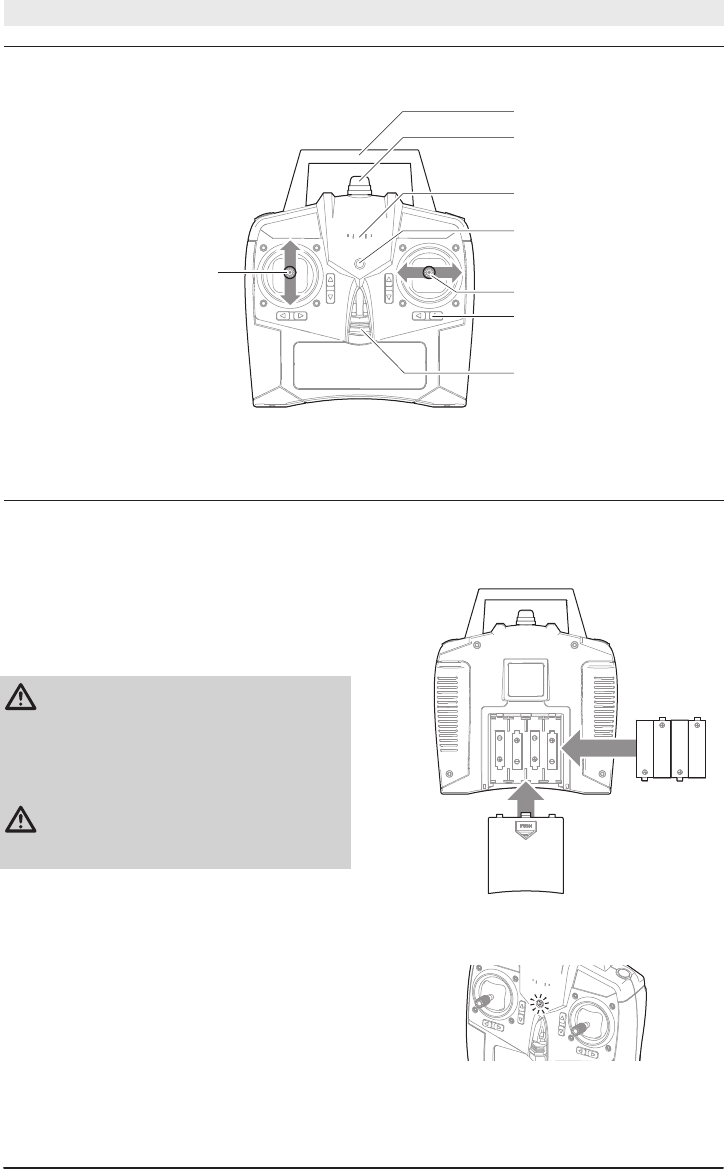

Remove the battery cover, install the four included
AA batteries (noting proper polarity) and reinstall the
battery cover.
When the transmitter battery voltage drops too low,
an alarm sounds and the LED ashes. The batteries
must be replaced immediately. If this happens while
ying, land your aircraft as soon and as safely as
possible.
A
H
G
F
D
A: Throttle
B: Handle
C: Antenna
D: Speaker
E: LED
F: Steering
G: Steering Trim
H: Power Switch
If using rechargeable batteries,
charge only rechargeable batteries.
Charging non-rechargeable batteries may cause
the batteries to burst, resulting in injury to
persons and/or damage to property.
Risk of explosion if battery is
replaced by an incorrect type. Dispose of
used batteries according to national regulations.
EN
5

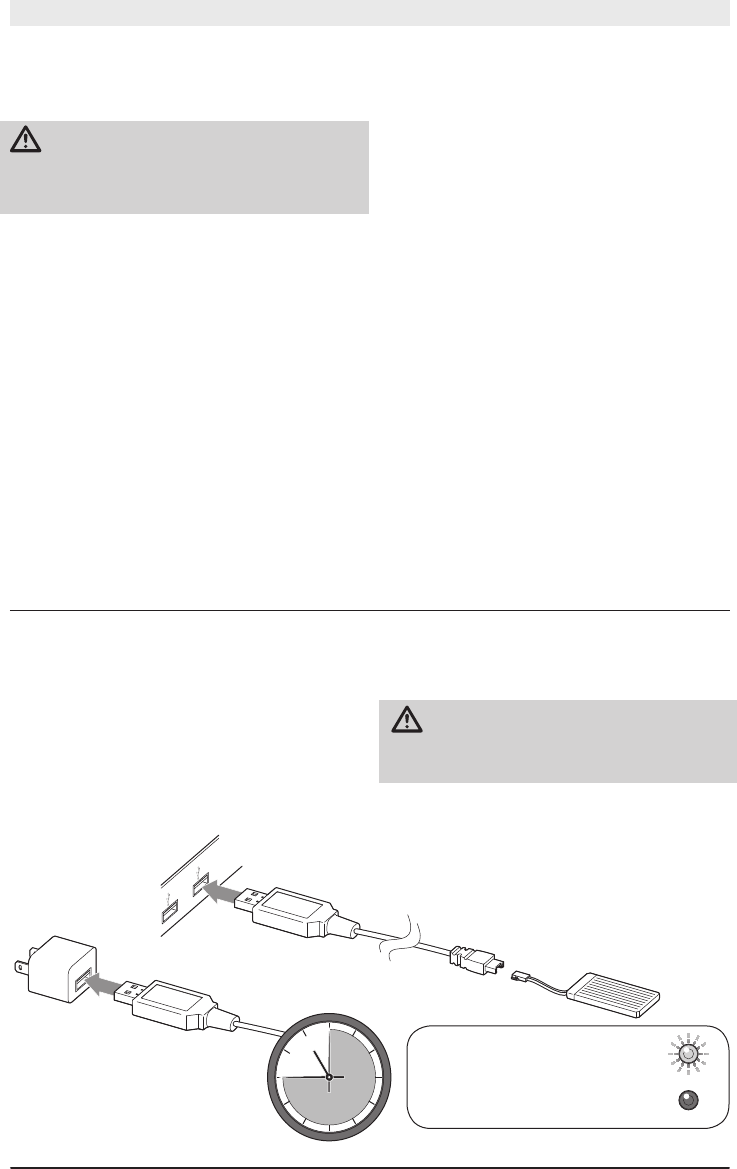

Always charge the aircraft battery before ying.
Do not store the Li-Po battery in
the charger. Doing so could over-discharge the
Li-Po battery.
1. Connect the Li-Po battery to the included USB
charger.
2. Connect the USB charger to a phone USB charge
adapter (not included) or into any powered USB
port.
3. The LED on the charger will glow solid red while
charging and will turn off when charging is
complete.
(Solid Red) .........................
(off)
45
MIN.
The USB charger has been designed to safely
charge the included Li-Po battery.
All instructions and warnings must
be followed exactly. Mishandling of Li-Po batteries
can result in a re, personal injury and/or property
damage.
• By handling, charging or using the included Li-Po
battery, you assume all risks associated with
lithium batteries.
• If at any time the battery begins to balloon or
swell, discontinue use immediately. If charging
or discharging, discontinue and disconnect.
Continuing to use, charge or discharge a battery
that is ballooning or swelling can result in re.
• Always store the battery at room temperature in a
dry area for best results.
• Always transport or temporarily store the battery
in a temperature range of 40–120° F. Do not store
the battery or model in a car or direct sunlight. If
stored in a hot car, the battery can be damaged or
even catch re.
• Always charge batteries away from ammable
materials.
• Always inspect the battery before charging.
• Always disconnect the battery after charging, and
let the charger cool between charges.
• Always constantly monitor the temperature of the
battery pack while charging.
• ONLY USE A CHARGER SPECIFICALLY DESIGNED
TO CHARGE LI-PO BATTERIES. Failure to charge
the battery with a compatible charger may cause
a re resulting in personal injury and/or property
damage.
• Never discharge Li-Po cells to below 3V under
load.
• Never cover warning labels with hook and loop
strips.
• Never charge batteries outside recommended
levels.
• Never charge damaged batteries.
• Never attempt to dismantle or alter the charger.
• Never allow minors to charge battery packs.
• Never charge batteries in extremely hot or cold
places (recommended between 40–120° F or
5–49° C) or place in direct sunlight.
EN
6

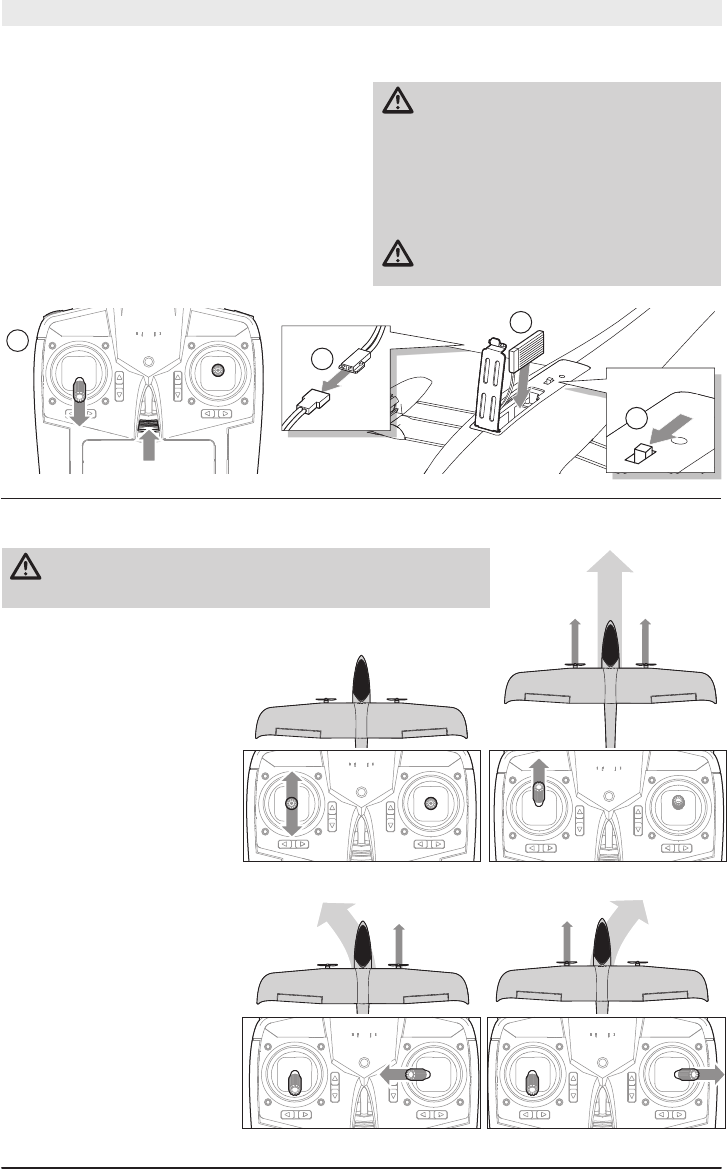

1. Make sure the throttle is in the off position and
turn on the transmitter.
2. Open the battery hatch on the bottom of the
aircraft and plug in the ight battery.
3. Install the ight battery into the aircraft as shown
and close the hatch.
4. Power on the aircraft.
3
2
Always disconnect the ight
battery from the aircraft when not ying to avoid
over-discharging the battery. Batteries
discharged to a voltage lower than the lowest
approved voltage may become damaged,
resulting in loss of performance and potential re
when batteries are charged.
Keep away from the propellers.
Arm the motors
Turn Left/ Right motor spins
Throttle on (100%)
Turn Right/ Left motor spins
1. Turn the aircraft on as shown
above.
2. Turn the transmitter on.
3. Hold the aircraft so it does not
escape your control.
4. Arm the motors by rst moving
the left stick to 100% and then
back down to 0%.
5. Move the sticks on the
transmitter to ensure the
motors respond as shown.
To check the Left and Right
turn, keep the throttle at 0% and
note which motor spins.
If the motors do not react as
shown, refer to the Binding
instructions and Troubleshooting
Guide in this manual.
Keep away from the propellers, they will spin up
during the control test.
The Ascent™ MTx aircraft relies on motor thrust to climb, descend and
turn. Always perform a control test before ight to ensure the motors
are working properly.
EN
7

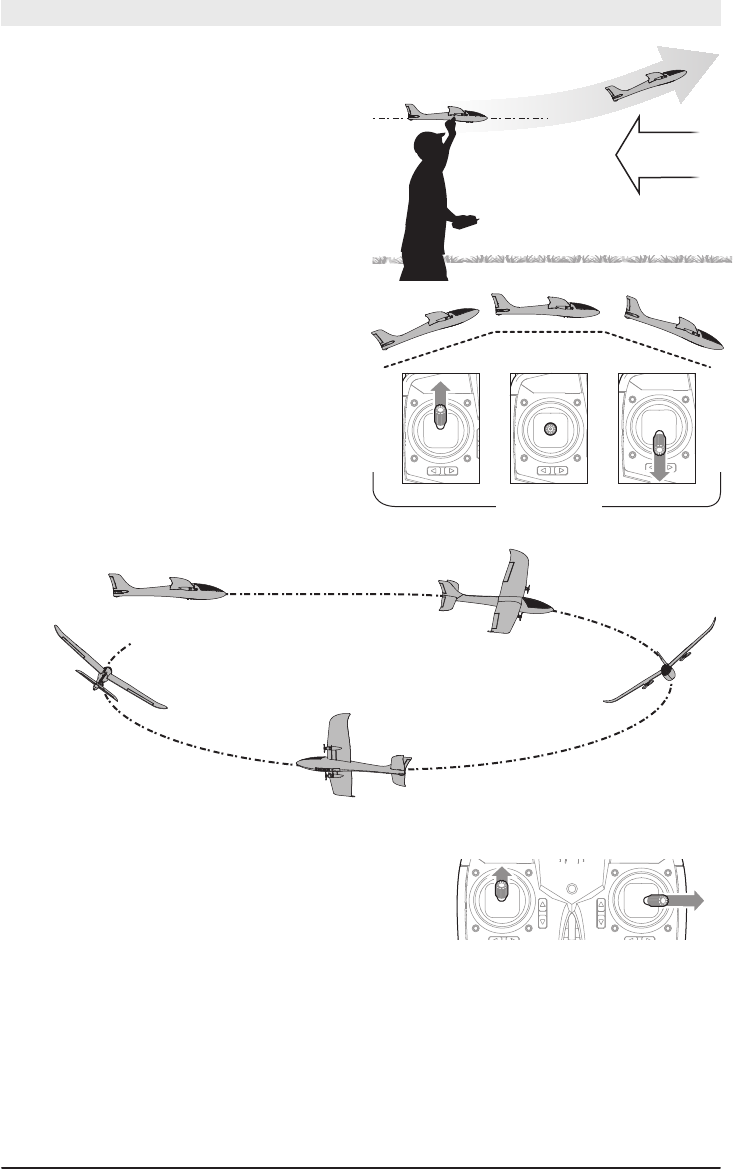

Get help to hand launch your aircraft so you can
concentrate on ying. If you must hand launch the
aircraft alone, hold the model in your dominant hand
and the transmitter in your other hand.
1. Face into the wind and apply 1/2 (50%) throttle.
2. Hold the plane horizontal and launch straight and
level into the wind.
3. The aircraft will climb under full throttle (100%).
4. Reduce to 50% throttle once the plane is at a
safe altitude (50-75 feet) to level out.
5. Use the throttle to control altitude.
To turn the aircraft make small controlled movements with the right stick.
For a right hand turn:
1. Move the right stick slowly to the right.
2. Once the turn begins, add in a little throttle to maintain
altitude.
3. Use gentle stick movements to continue the turn to the right.
• If the turn is too wide, add more right stick.
• If the turn is too tight, add less right stick.
4. To stop the turn, gently release the right stick and lower the throttle to maintain level ight.
Try to nish the turn at the same altitude it was started from.
Wind 0–5 mph
(0–8 km/h)
For a left hand turn, follow steps above, moving the stick to the left.
