Horng Technical Enterprise Co., Ltd. Wireless Keyboard
User Manual
Wireless Keyboard
Model Name: HTK-3001
Users Manual
Yahoo! and all related marks, designs and indicia are trademarks of Yahoo! Inc., 2003 Yahoo! Inc,
701 First Avenue, Sunnyvale, CA 94089. All rights reserved. All other trademarks are the property
of their respective owners.

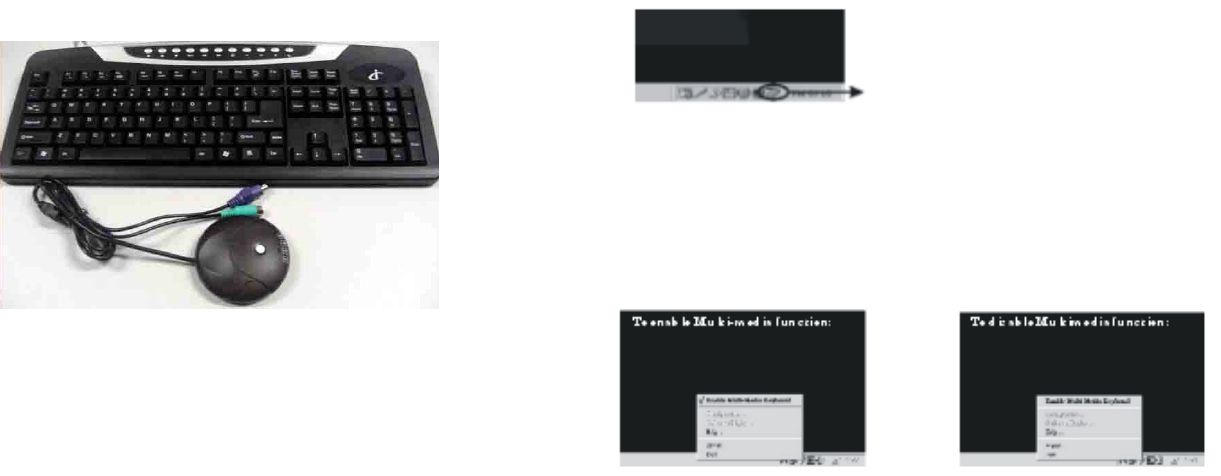

SETTING UP YOUR KEYBOARD
Connecting your Keyboard:
You can easily set up your keyboard by following the instructions in this section.
1. Make sure the computer is turned off. Caution: Plugging or unplugging cables to the computer's
PS/2 port while the computer is running can damage the computer.
2. Connect the receiver's cable to the computer's PS/2 port.
ADJUSTING THE KEYBOARD LEGS
The keyboard legs provided are designed to accommodate various body size, chairs, and desks while
using this keyboard.
To adjust the keyboard legs, see the instructions on the underside of the keyboard. Choose the option
that promotes the least bending of the wrists while typing.
INSTALLATION OF THE DRIVER:
Step 1: Remove any keyboard drivers prior to installing your new keyboard driver.
Step 2: Insert the device driver diskette into your floppy disk drive, and then start the SETUP.
Step3: Follow the directions in the installation program step by step.
Step4: Restart your computer.
● After restarting, there will be a figure of keyboard on the
right bottom corner of your screen, which indicates the
installation has been completed successfully.
ADDITIONAL KEYS:
The keyboard includes additional keys that enable you to use Microsoft operating systems and
applications more efficiently.
ADDITIONAL INTERNET & MULTIMEDIA KEYS:
Your iConcepts keyboard includes 18 multimedia & Internet functions. Before access these hot keys,
please press enable Multi-media function:
After enabling multimedia, you can use the After disabling multimedia, the keyboard
media and internet functions works under normal mode.
MULTIMEDIA & INTERNET
Sleep
Mute
Browser
Volume d own
E-Mail
Volume up
Previous track
Stop
Play/Pause
Next track
Calculator
Installing the Batteries
1. Remove the battery cover.
2. Insert two AAA alkaline batteries. Follow the diagram inside the battery compartment for correct
battery orientation.
3. Replace cover.
4. When you are not using the mouse for long periods of time, remove the batteries.
Connect the Radio Receiver
1. Make sure the computer is turned off. Caution: Plugging or unplugging cables to the computer's
PS/2 port while the computer is running can damage the computer.
2. Connect the receiver's cable to the computer's PS/2 port.
Installing "4D-mouse" Software
1. Start Windows 95/98/2000/NT4.0 and insert software diskette into drive A or B.
2. Click Start on the Taskbar and select Run.
3. From the Run dialog box, select (or type) A:\SETUP or
B:\SETUP and click OK. Follow the on-screen instructions.
4. The "4D-mouse" software must be installed to use all the
features of your 4D-mouse.
General Function Setting:
* Press middle or right button
to set the functions below.
* Press middle or right button
once to practice the functions.
* To stop the function just
press middle button.
Wheel Function Setting:
•Choose wheel 4D and press the task button to
•view the window below.
On computers with a power management program, the " Sleep"
Hot key enables you to: Start your screen saver / Log off
Windows / Shut down Windows.
Toggle the sound mute or not mute.
Launch the default Internet Browser.
Decrease the main volume of the sound.
Launch the default mail application.
Increase the main volume of the sound.
Skip to the beginning position of the previous track.
Stop playing and return to the beginning position of the track.
Start to play a CD title, continue playing the title,
or Pause the current play status.
Skip to the beginning position of the next track.
Launch the Windows Calculator application.
Choose Wheel Mode/Parameters:
Enable Background wheel
Set window Active
Wheel Page Scroll
Wheel Scroll lines
•Choose wheel To Scroll and press the task button to set the speed
Troubleshooting
When your wireless mouse does not work after installation
• Make sure you have connected the receiver correctly. The receiver
cable goes into the computer's PS/2 mouse port. For optimal
performance, place the receiver at least 8 inches or 20 centimeters away
from other electrical devices, such as the computer, the computer
monitor, or external storages drives.
• Make sure that the batteries you use are new and fresh (not outdated). If
you are not getting a response from the mouse or keyboard, please
replace the batteries.
TECHNICAL SUPPORT
The quickest way to have your questions answered is to visit our tech support
web site at www.sakarhelp.com. There you will find most frequently asked
questions and answers about your product. If you cannot find a solution you may
email us at help@sakar.com or call 877-397-8200. Email and web inquiries are
the FASTEST way to get your problems resolved.
Yahoo! Limited Two Year Warranty
This Warranty covers for the original consumer purchaser only and is not
transferable. Products that fail to function properly UNDER NORMAL
USAGE, due to defects in material or workmanship. Your product will be
repaired at no charge for parts or labor for two years.
What Is Not Covered by Warranty
Damages or malfunctions not resulting from defects in material or workmanship
and damages or malfunctions from other than normal use, including but not
limited to, repair by unauthorized parties, tampering, modification or accident.
What To Do When Service Required
When returning your defective product (postage pre-paid) for service, your
package should include:
1. Copy of the original bill of sale.
2. A detailed written description of the problem.
3. Your return address and telephone number. (Daytime)
4. A check or money order for USD $9.00 payable to iConcepts to cover
shipping, handling and insurance. (Other fees may apply for shipments
outside the US, pleas email, write or call for exact shipping charges. )
MAIL TO ADDRESS BELOW:
Yahoo! / Sakar International
Attention: Service Department
195 Carter Driver
Edison, NJ 08817
15.105 Federal Communications Commission (FCC) Requirements, Part 15
This equipment has been tested and found to comply with the limits for a class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
---Reorient or relocate the receiving antenna.
---Increase the separation between the equipment and receiver.
---Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
---Consult the dealer or an experienced radio/TV technician for help.
Regulatory information / Disclaimers
Installation and use of this Wireless Keyboard Mouse device must be in strict accordance with the
instructions included in the user documentation provided with the product. Any changes or
modifications (including the antennas) made to this device that are not expressly approved by the
manufacturer may void the user’s authority to operate the equipment. The manufacturer is not
responsible for any radio or television interference caused by unauthorized modification of this
device, or the substitution of the connecting cables and equipment other than manufacturer specified.
It is the responsibility of the user to correct any interference caused by such unauthorized
modification, substitution or attachment. Manufacturer and its authorized resellers or distributors
will assume no liability for any damage or violation of government regulations arising from failing
to comply with these guidelines.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause
undesired operation.
