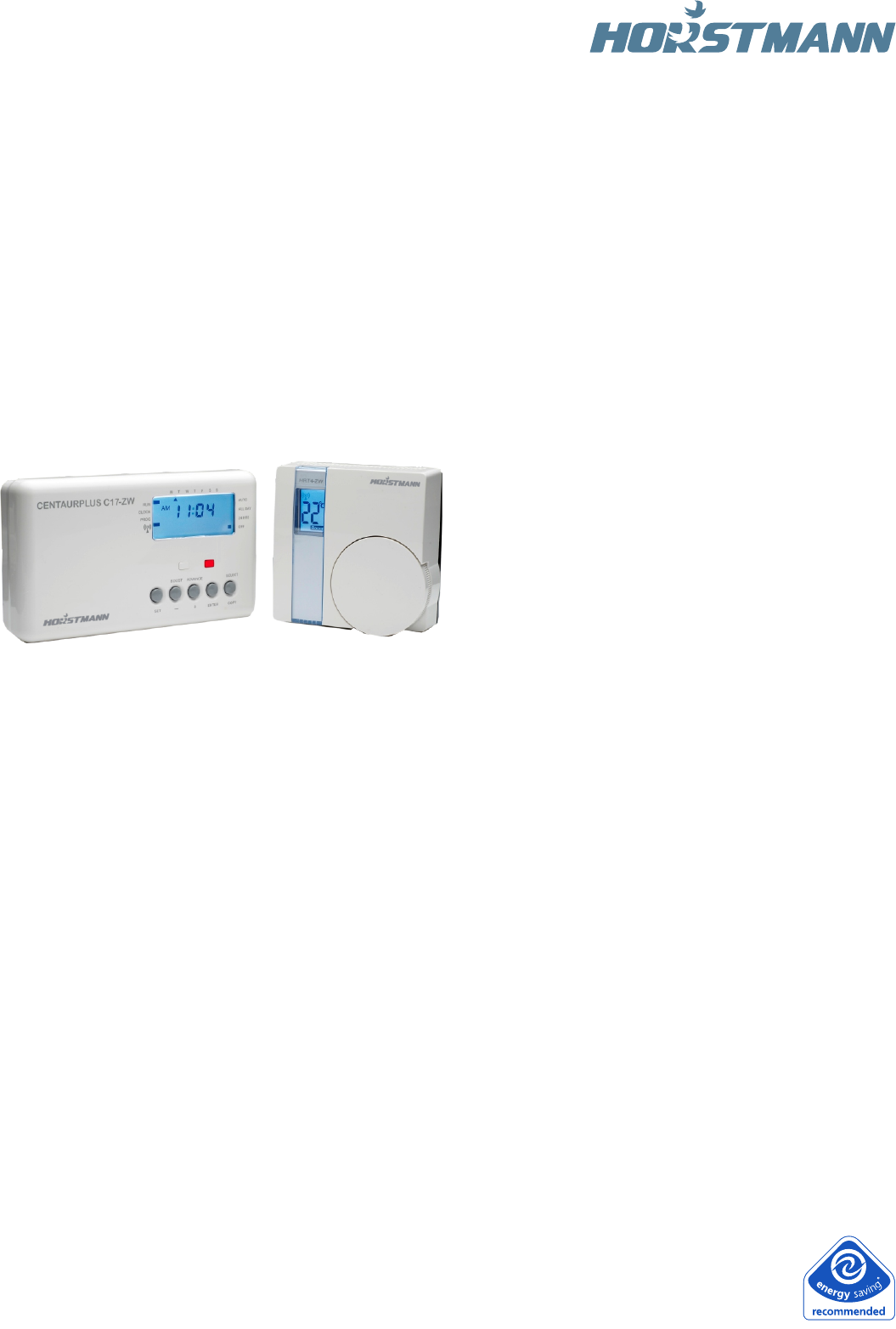

The innovative Horstmann CentaurPlus ZW combined

wireless room stat and timeswitch offers installers and

householders the opportunity to easily and cost effectively

upgrade existing combi boiler control systems.

There are millions of combi boilers currently installed in the

UK with no room thermostat. The CentaurPlus ZW combined

timeswitch and wireless room thermostat offers a quick,

simple and cost effective solution. Simply replace the

existing timeswitch and install the wire free room

thermostat which will then start to save energy of up to

10%* compared with the installation with no room

thermostat.

The timeswitch features an upgraded back lit display and

incorporates an automatic GMT/BST clock. It uses proven Z

wave wireless technology to communicate with the energy

saving room thermostat that uses the latest TPI energy

saving software.

(*Source: TACMA)

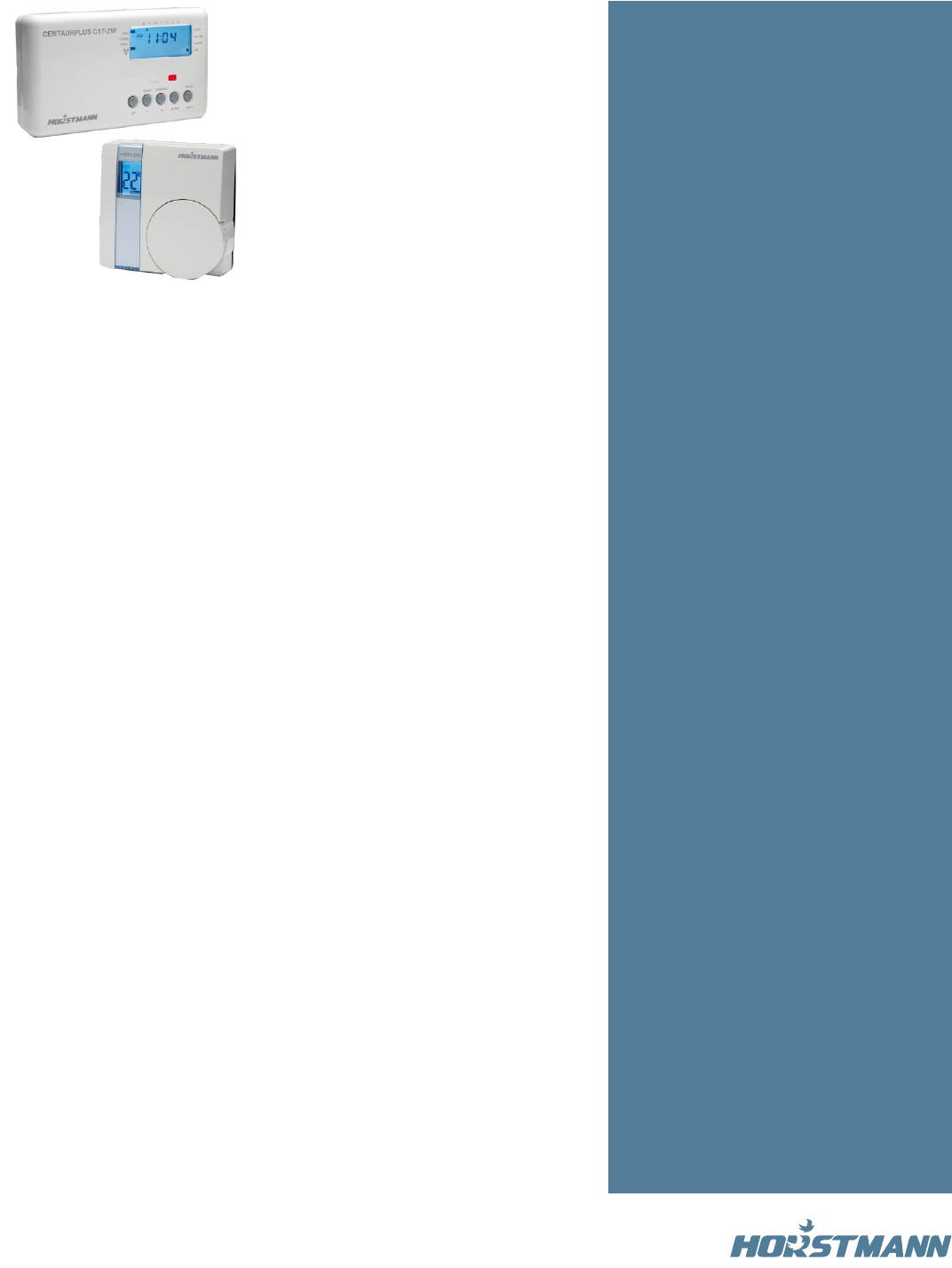

CentaurPlus ZW

Combined wireless room stat and timeswitch

CentaurPlus ZW

The CentaurPlus ZW timeswitch and thermostat

communicate using proven Z wave wireless technology

with the installation highly suited for use with combi

boilers. It is ideal as a system upgrade, in most cases

requiring no wiring. The back plate on the CentaurPlus

ZW is an industry standard 6 pin unit usually enabling a

simple push fit replacement. The HRT4-ZW is battery

powered and requires no disruptive wiring, enabling it

to be positioned in the most efficient area of a room.

The thermostat incorporates the latest TPI energy

saving software and Z wave wireless technology. It

features a back lit display, conventional knob

temperature adjustment, set temperature display and

displays the actual room temperature at a touch of the

dial.

CentaurPlus ZW combined wireless room stat and

timeswitch

ŸSuitable for combi boilers

ŸVolt free contacts

ŸAutomatic BST/GMT time change

ŸBack lit display

ŸBoost and Advance

ŸHelps to meet Part L of Building Regs

ŸBuilt in Z wave receiver

ŸIndustry standard 6 terminal wall plate

ŸZW wireless technology

ŸTPI energy saving software

ŸClear backlit display

ŸTemperature range 5-30°C

ŸBattery operated for wire free installation

Specification

CONTACT RATING 3 (1) Amps 230V AC

CONTACT TYPE Micro-disconnection

Voltage free

SUPPLY 230V AC 50Hz only

POLLUTION DEGREE Degree 2

CLASS A SOFTWARE Type 1 Control

OPERATING TEMPERATURE 0°C to +40°C

RANGE

BATTERY LIFE Minimum 10 months

continuous operation

CASE MATERIAL Thermoplastic flame

retardant

DIMENSIONS 84 x 150 x 29mm

DISPLAY Back lit liquid crystal

CLOCK 12 Hour AM/PM

Auto BST/GMT

changeover

DISPLAYED TIME 1 minute steps

ADJUSTMENTS

SWITCHED TIME 10 minute steps

ADJUSTMENTS

OPERATING PERIODS PER 3 per day (Separate

DAY programmes possible

for each day of the

week)

OVERRIDE 1 hour boost, 1 hour

extension to ON

period & Instant

Advance

MOUNTING Industry standard 6

terminal plug wall

plate

TRANSMITTER FREQUENCY 868MHz

HRT4-ZW ROOM THERMOSTAT

POWER SUPPLY 2 x AAA alkaline

batteries

OPERATING TEMPERATURE 0°C to +40°C

RANGE

TEMPERATURE RANGE 5°C to 30°C

CASE MATERIAL Thermoplastic flame

retardant

DIMENSIONS 86 x 86 x 36.25mm

RATED IMPULSE VOLTAGE Cat 1 – 1500v

ENCLOSURE PROTECTION Ip30

TRANSMITTER FREQUENCY 868MHz

DESIGN STANDARD EN60730 – 2-9

Part No. P84390 Issue 3
