PARTS LIST

ISSUED: FEB. 11, 2004

REVISED: AUG. 16, 2004

CUBELET ICE DISPENSER

Reliability is a

beautiful thing

TM

Model

DCM-270BAH-OS

ITEM #: 71231

HA

2

CONTENTS

MATERIAL ABBREVIATIONS................................................................................................ 4

A. ICE DISPENSER ASSEMBLY .......................................................................................... 5

B. FRAME ASSEMBLY ......................................................................................................... 7

C. ICE MAKING UNIT ASSEMBLY ........................................................................................ 9

D. REFRIGERATION CIRCUIT ............................................................................................ 11

E. WATER CIRCUIT ............................................................................................................ 13

F. CONTROL BOX (A) ASSEMBLY ..................................................................................... 15

G. CONTROL BOX (B) ASSEMBLY..................................................................................... 17

H. MIDDLE FRONT PANEL ASSEMBLY ............................................................................. 18

J. APRON PANEL ASSEMBLY ........................................................................................... 19

K. LABEL LOCATION ......................................................................................................... 20

L. SHUTTER ASSEMBLY ................................................................................................... 22

M. COVER ASSEMBLY BIN TOP ....................................................................................... 24

N. LITERATURE AND PACKAGING .................................................................................... 26

HA

3

P-1 JAN., 2004

P-2 FEB., 2004

HA

4

MATERIAL ABBREVIATIONS

ALUMINUM

AL = Aluminum

COPPER

CU = Copper

PLASTIC

ABS = Acrylonitritrile -butadiene - styrene

AC = Polyacetal

EVA = Ethylene vinyl acetate

PA = Polyamide = Nylon

PC = Polycarbonate

PE = Polyethylene

PES = Polyester

PETP = Polyethylene terephthalate = Tetlon

PP = Polypropylene

PS = Polystyrene

PTFE = Polytetrafluoroethylene = Teflon

PUR = Polyurethane

PVC = Polyvinyl chloride

RUBBER

VN = Vinyl Nitrile

EPDM = EP rubber

NBR = Nitrile butadiene rubber

NR = Natural rubber

NP = Neoprene

SI.R = Silicone rubber

SY.R = Synthetic rubber

EPH = Epichlorohydrin

STEEL

GS = Galvanized steel

SS = Stainless steel

PS = Plated steel

PAS = Primed steel

AUXILIARY CODE

K-0

Designates the year. "K" indicates the year 2000. Years progress or regress in alphabetical order.

"J" is 1999, “L” is 2001, “M” is 2002, and so on. The letters "I" and "O" were skipped.

Designates non-interchangeable part changes within the same year. Base is 0 and this

number advances for each change.

Example: N-1

"N" indicates 2003.

"1" indicates the first non-interchangeble part change for 2003.

MARKS LOCATED UNDER THE AUXILIARY CODE

- = Part deleted.

x

= Part deleted and replaced by "o" (interchangeable)

part.

o

= New part for "x" in the same auxiliary code.

HA

5

A. ICE DISPENSER ASSEMBLY

DCM-270BAH-OS

P-1, P-2

99A

10

88A

17

52

433A

1

6

D

13

E

B

C

C1

C2

11

15

12

77A

FF1

K

GG1

HH1

JJ1

14

16

18

19

19A 20

20A

HA

6

INDEX

NO.

DESCRIPTION MATERIAL OR

MODEL NUMBER

PART

NUMBER

P-1 P-2

B FRAME ASSEMBLY - 1A0786A01 1 1

C ICE MAKING UNIT ASSEMBLY - 229689A08 1 1

C1 SOCKET HEAD HEX BOLT SS, 8 x 95 7S12-0895 3 3

C2 SPRING WASHER SS, 8 7L22-0800 3 3

D REFRIGERATION CIRCUIT - 1A0569A01 1 1

E WATER CIRCUIT ASSEMBLY - 2A2782A02 1 1

F CONTROL BOX (A) ASSEMBLY - 2A2857A01 1 1

F1 TRUSS HEAD SCREW 4 x 8 7C31-0408 4 4

G CONTROL BOX (B) ASSEMBLY - 2A2933A01 1 1

G1 TRUSS HEAD SCREW 4 x 8 7C31-0408 2 2

H MIDDLE FRONT FRAME ASSEMBLY - 2A2847A01 1 1

H1 TRUSS HEAD SCREW SS, 4 x 8 7C32-0408 2 2

J APRON PANEL ASSEMBLY - 3A2774A01 1 1

J1 TRUSS HEAD SCREW SS, 4 x 6 7C32-0406 4 4

K LABEL LOCATION - 3A2908A01 1 1

1 DRAIN PAN - G.M. - 3A0766G01 1 1

2 THUMBSCREW - 415949G08 2 2

3 POWER SUPPLY CORD - 4A1773-01 1 1

3A TRUSS HEAD SCREW 4 X 8 7C31-0408 1 1

4 BUSHING - 420472-02 1 1

5 BUSHING - 420470-03 2 2

6 COLLAR - 4H0171-01 2 2

7 RIGHT PANEL SS 2A2918-01 1 1

7A TRUSS HEAD SCREW SS, 4 x 8 7C32-0408 1 1

8 LEFT PANEL SS 2A2919-01 1 1

8A TRUSS HEAD SCREW SS, 4 x 8 7C32-0408 2 2

9 FRONT PANEL SS 3A2902G01 1 1

9A TRUSS HEAD SCREW SS, 4 x 8 7C32-0408 1 1

10 TOP PANEL SS 2A2916-01 1 1

11 LOUVER (A) - 103344-07 1 1

12 AIR FILTER (A) - 208840G03 1 1

13 TAPPING SCREW - BLACK STEEL 433954-01 1 1

14 GRILLE ABS 102936-04 1 1

15 ADJUSTABLE LEG A60-0631 4A2145-01 4 4

16 SILICONE HOSE L=350 7730-0912 1 1

17 REAR PANEL SS 2A2917-01 1 1

18 SPOUT (A) PP 105409-01 1 1

19 SPOUT (B) PP 105410-01 1 1

19A THUMBSCREW - 415949G08 1 1

20 SPOUT (B) PP 105410-01 1 1

20A THUMBSCREW - 415949G08 1 1

TITLE: A. ICE DISPENSER ASSEMBLY MODEL: DCM-270BAH-OS

REQUIRED NUMBER

HA

7

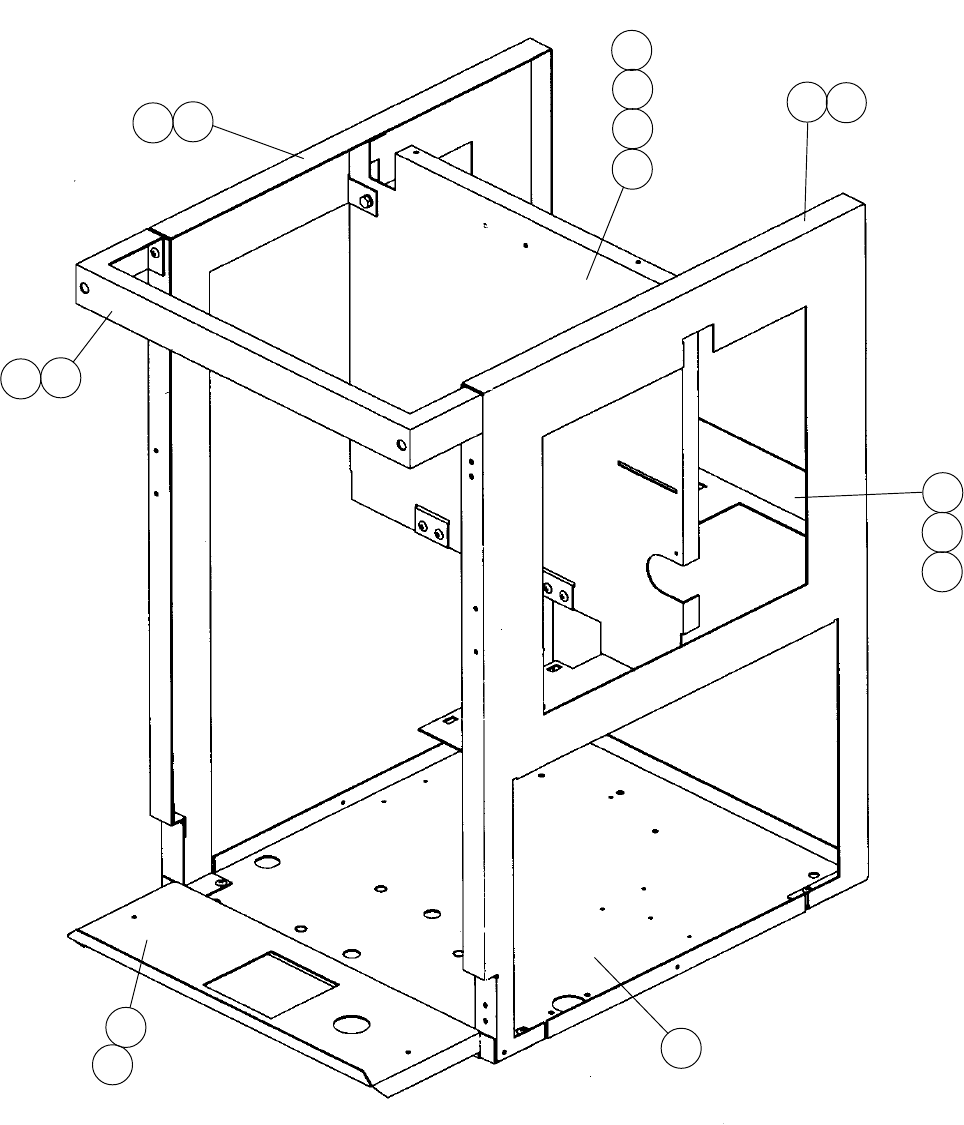

B. FRAME ASSEMBLY

DCM-270BAH-OS

P-1, P-2

2A

2

7A

7

5

6A

6

4A

4B

4C

4

11A

3

3A

3B

HA

8

INDEX

NO.

DESCRIPTION MATERIAL OR

MODEL NUMBER

PART

NUMBER

P-1 P-2

1 RIGHT SUPPORT ASSEMBLY - 2A2920G01 1 1

1A FT SCREW SS, 4 x 8 7F32-0408 4 4

2 LEFT SUPPORT ASSEMBLY - 2A2921G01 1 1

2A FT SCREW SS, 4 x 8 7F32-0408 4 4

3 COMPRESSOR SUPPORT - 4A3215G01 1 1

3A TRUSS HEAD SCREW 4 x 8 7C31-0408 4 4

3B TRUSS HEAD SCREW SS, 5 x 8 7C32-0508 4 4

4 PANEL - 2A2922G01 1 1

4A TRUSS HEAD SCREW 4 x 8 7C31-0408 2 2

4B HEX BOLT SS, 6 x 12 7B02-0612 2 2

4C LOCK WASHER SS, 6 7L22-0600 2 2

5 BASE - 2A2923G01 1 1

6 DRAIN SUPPORT - 3A0710-01 1 1

6A FT SCREW SS, 4 x 8 7F32-0408 3 3

7 TOP SUPPORT SS 3A2903-01 1 1

7A TRUSS HEAD SCREW 4 x 8 7C31-0408 2 2

TITLE: B. FRAME ASSEMBLY MODEL: DCM-270BAH-OS

REQUIRED NUMBER

HA

9

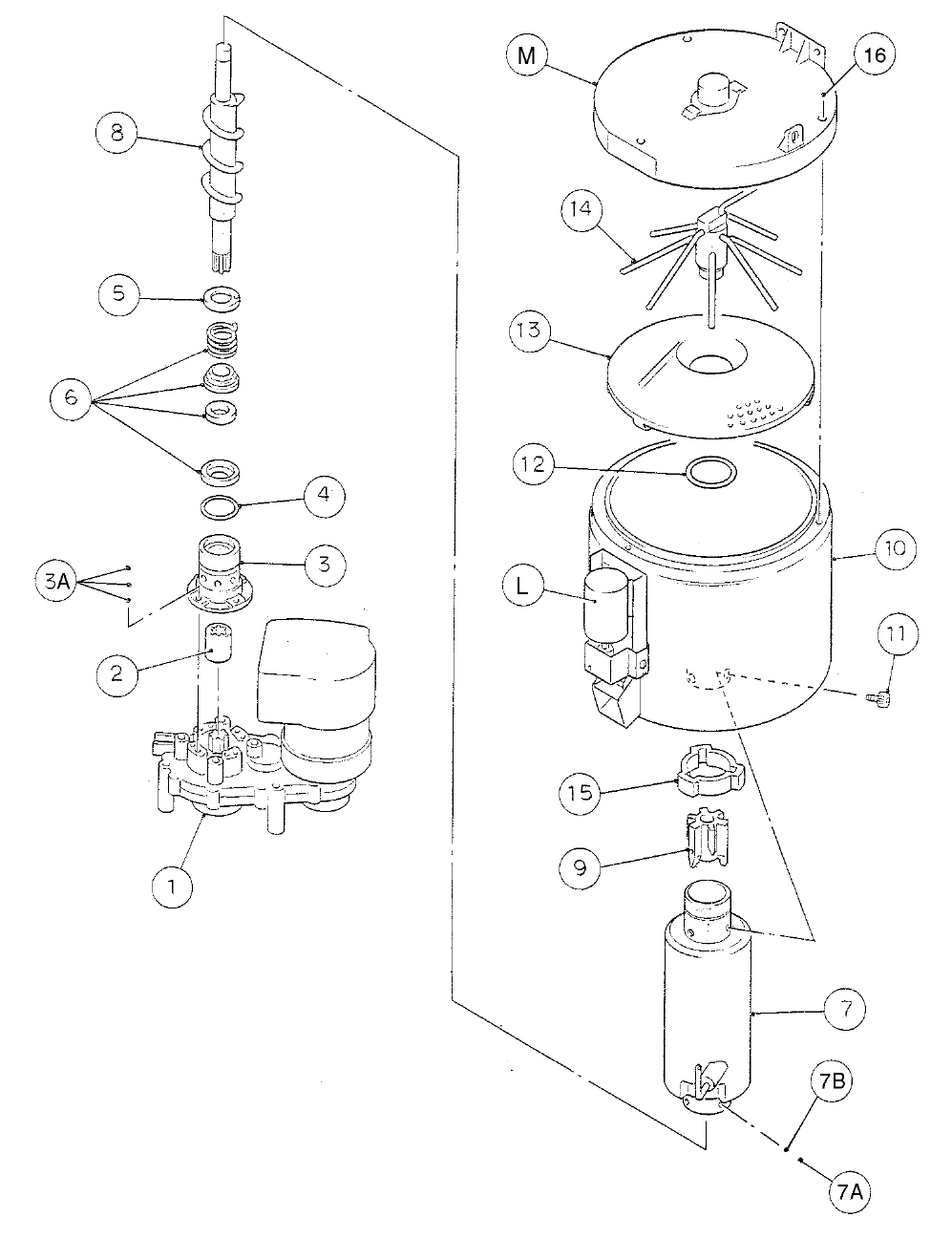

C. ICE MAKING UNIT ASSEMBLY

DCM-270BAH-OS

P-1, P-2

HA

10

INDEX

NO.

DESCRIPTION MATERIAL OR

MODEL NUMBER

PART

NUMBER

P-1 P-2

L SHUTTER ASSEMBLY - 237274A02 1 1

MCOVER ASSEMBLY - BIN TOP - 240921A01 1 1

1 GEAR MOTOR TC1185 1 Ø 120V

80W

2U0147-01 1 1

2 COUPLING - SPLINE - 418316-01 1 1

3 HOUSING - 206013G03 1 1

3A BOLT 6 x 20 458660-01 4 4

4 "O" RING G40 7616-G040 1 1

5 RING (B) - 432494-01 1 1

6 MECHANICAL SEAL HK9A-MS Ø 22 432491-01 1 1

7 EVAPORATOR - 332576G01 1 1

7A SOCKET HEAD CAP SCREW SS, 6 X 10 7S12-0610 4 4

7B SPLIT LOCK WASHER SS, 6 7L22-0600 4 4

8 AUGER - 341449G01 1 1

9 EXTRUDING HEAD – 45C - 327236G02 1 1

10 STORAGE BIN - 228516G07 1 1

11 SOCKET HEAD CAP SCREW SS, 8 X 14 429121-01 3 3

12 "O" RING P48 7616-P048 1 1

13 DRIP RING - 207754-03 1 1

14 AGITATOR - 354209G02 1 1

15 COVER - UPPER EVAPORATOR - 413446-01 1 1

16 THUMBSCREW - 430825G01 3 3

TITLE: C. ICE MAKING UNIT ASSEMBLY MODEL: DCM-270BAH-OS

REQUIRED NUMBER

HA

11

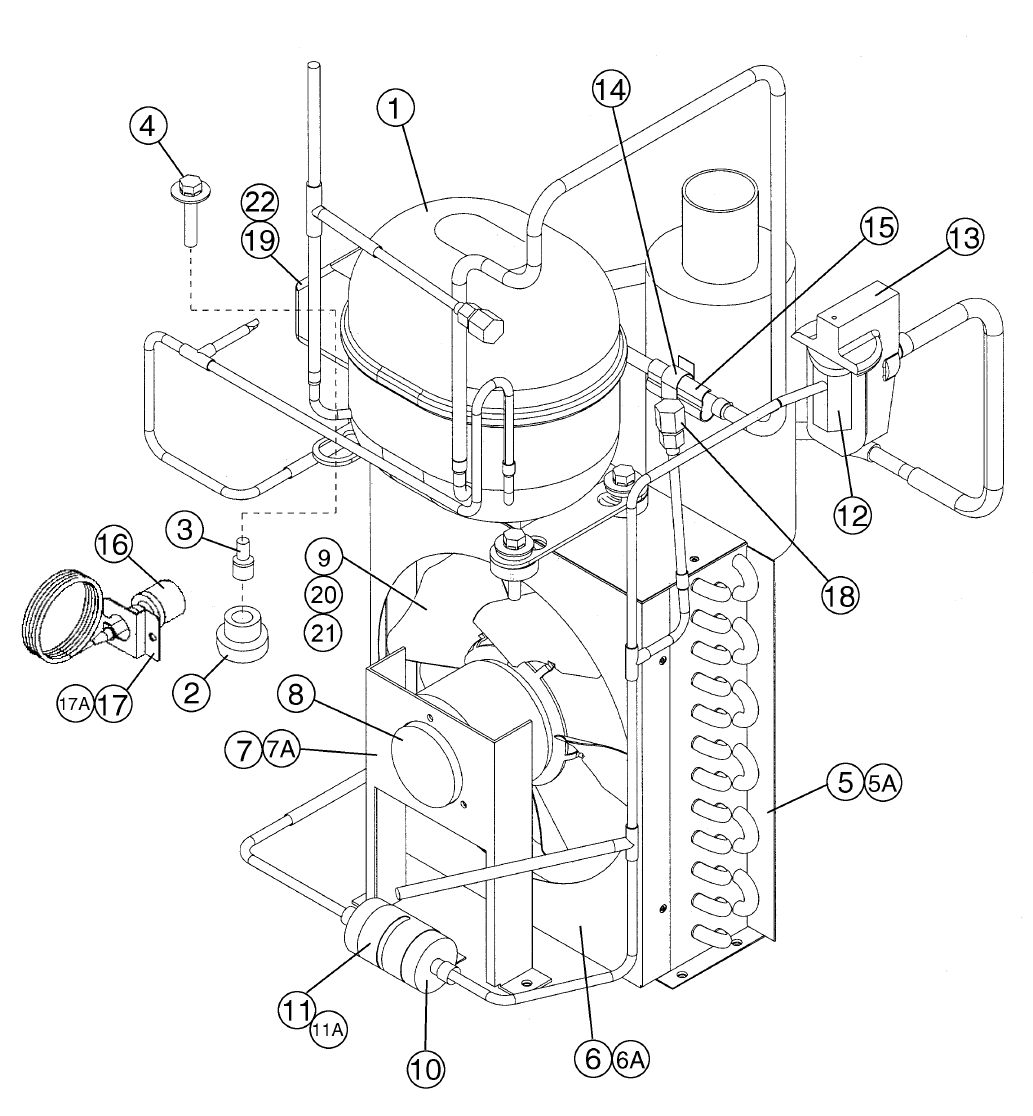

D. REFRIGERATION CIRCUIT

DCM-270BAH-OS

P-1, P-2

HA

12

INDEX

NO.

DESCRIPTION MATERIAL OR

MODEL NUMBER

PART

NUMBER

P-1 P-2

1 COMPRESSOR ASE24C3E 4A2272-01 1 1

2 GROMMET 027-C210-03 4A2282-01 4 4

3 SPACER 028-0188-13 4A2281-01 4 4

4 BOLT - 437889-01 4 4

5 CONDENSER 3CR-7-24B 2A0780-01 1 1

5A FT SCREW SS, 4 x 8 7F32-0408 2 2

6 FAN SHROUD - 3A0715-01 1 1

6A T2 SCREW 4 X 8 7P31-0408 6 6

7 FAN MOTOR BRACKET - 3A0716-01 1 1

7A HEX HEAD BOLT W/WASHER SS, 5 X 10 7B0230510 2 2

8 FAN MOTOR SP-B16EM1 4A0815-01 1 1

9 FAN BLADE AD9CW38UBA 3A0608-01 1 1

10 DRIER A-TCH-032S 4A1113-01 1 1

11 DRIER BRACKET - 445847-01 1 1

11A T2 SCREW SS, 4 X 8 7P32-0408 1 1

12 EXPANSION VALVE AN-ISC 4A1117-01 1 1

13 EXPANSION VALVE COVER - 4A1168-01 1 1

14 CLAMP - 443461-02 1 1

15 HOLDER EXPANSION VALVE-3/8 - 3A0107-01 1 1

16 PRESSURE SWITCH ACB-2UB04 433441-05 1 1

17 PRESSURE SWITCH BRACKET - 434938-01 1 1

17A T2 SCREW 4 X 8 7P31-0408 1 1

18 ACCESS VALVE FV180-0001 457729-01 1 1

19 STARTER 040-C411-82 4A2294-01 1 1

20 HEX NUT Zinc Plated Steel 4A1345-01 1 1

21 WASHER - 435983-01 1 1

22 PAN HEAD SCREW #6 – 32 x 1/4 Brass 4A0898-03 3 3

TITLE: D. REFRIGERATION CIRCUIT MODEL: DCM-270BAH-OS

REQUIRED NUMBER

HA

13

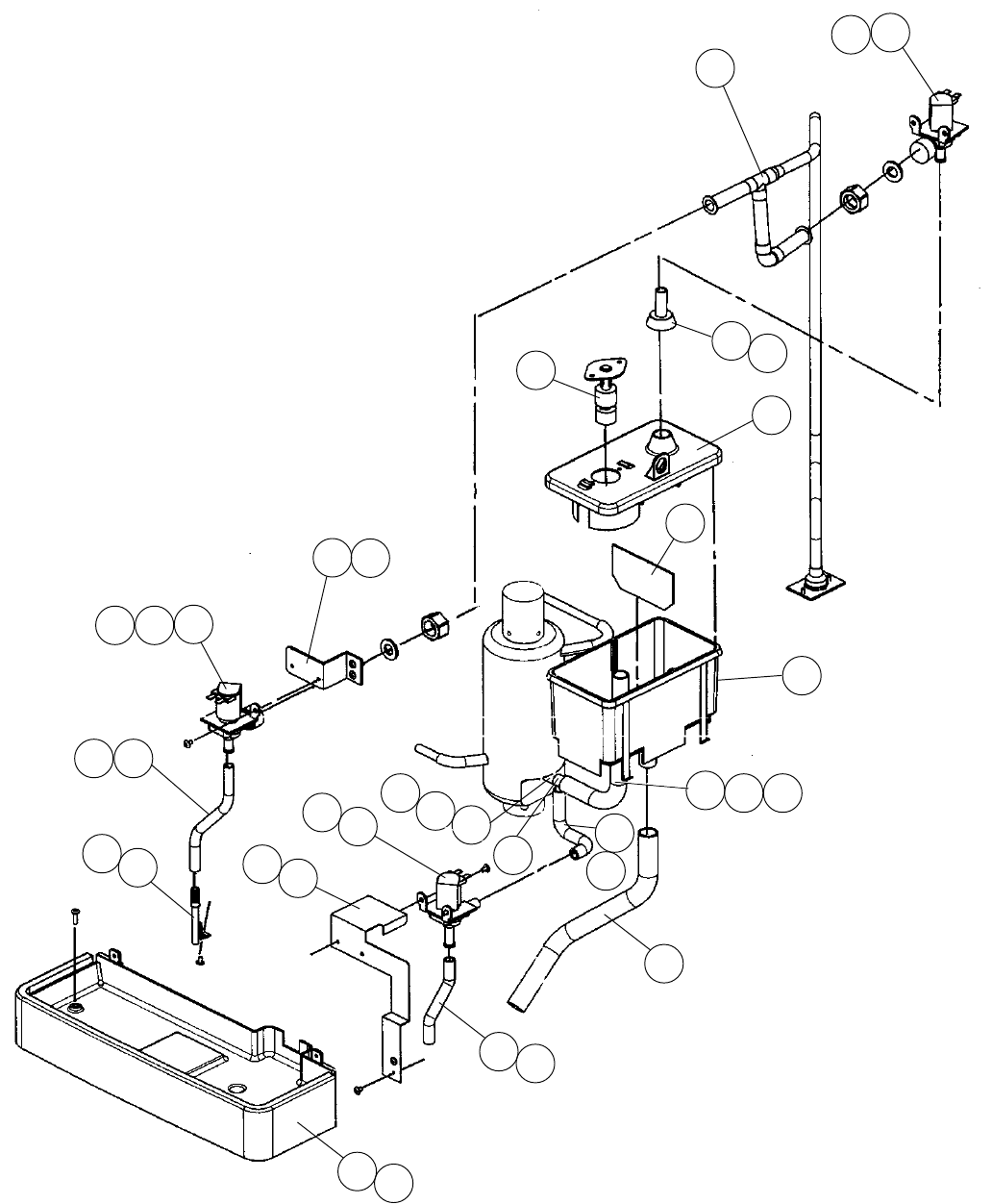

E. WATER CIRCUIT

DCM-270BAH-OS

P-1, P-2

4

9

77A

26

25

1

11 18

10

12

13

2A2

2318

8A

8

16A

16

3A

3

6

18

2019

15

58

21

22 22A

24

19

14

17

HA

14

INDEX

NO.

DESCRIPTION MATERIAL OR

MODEL NUMBER

PART

NUMBER

P-1 P-2

1 WATER PIPE - 2A0787G01 1 1

2 WATER VALVE - DISPENSE S-30 4A0865-01 1 1

2A TRUSS HEAD SCREW 4 X 8 7C31-0408 2 -

3 WATER VALVE - FLUSH DSVP12 4A2772-01 1 1

3A TRUSS HEAD SCREW 4 X 8 7C31-0408 2 2

4 WASHER K-59963 4A0867-01 1 1

5 VINYL HOSE L=75 7716-0913 1 1

6 VINYL HOSE L=85 7730I3896 1 1

7 SIDE SUPPORT BRACKET - 4A2315-01 1 -

7A T2 SCREW 4 X 8 7P31-0408 2 2

8 WATER TUBE ASSEMBLY - 4A3216G01 1 1

8A T2 SCREW SS, 4 X 8 7P32-0408 1 1

9 RESERVOIR - 2A0753-01 1 1

10 RESERVOIR COVER - 214810-01 1 1

11 RESERVOIR INLET - 4A0869-01 1 1

12 SEPARATOR - RESERVOIR - 4A1255-01 1 1

13 FLOAT SWITCH TW-1221-101 435490-01 1 1

14 SILICONE HOSE L=35 7730-1114 1 1

15 RESERVOIR HOSE - 4A1165-03 1 1

16 FLUSH VALVE HOLDER - 3A2904-01 1 1

16A T2 SCREW 4 X 8 7P31-0408 2 2

17 TEE N8TUB6 4A1140-01 1 1

18 HOSE CLAMP 2314 HC 468 4A2017-04 6 6

19 HOSE CLAMP 2326 HC 672 4A2017-05 2 2

20 HOSE CLAMP 2330 HC 750 4A2017-06 1 1

21 VINYL HOSE L=280 7725-1923 1 1

22 DRAIN PAN - 318857G04 1 1

22A TRUSS HEAD SCREW SS, 4 X 16 7C32-0416 2 2

23 VINYL HOSE L=215 7725-0912 1 1

24 HOSE CLAMP 2322 HC 593 4A2017-07 1 1

25 WATER VALVE - RESERVOIR S-30 4A0865-01 1 1

26 WASHER K-59963 4A0867-01 1 1

TITLE: E. WATER CIRCUIT ASSEMBLY MODEL: DCM-270BAH-OS

REQUIRED NUMBER

HA

15

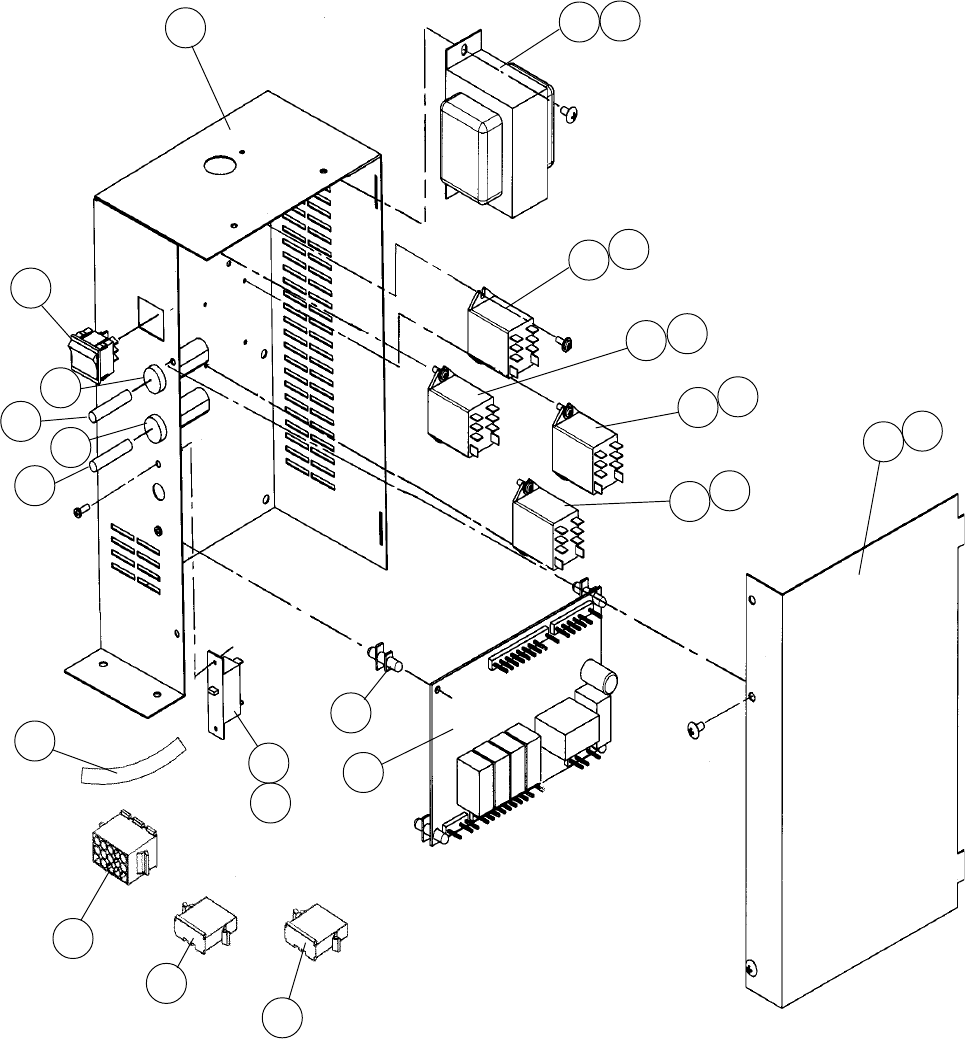

F. CONTROL BOX (A) ASSEMBLY

DCM-270BAH-OS

P-1, P-2

8A

8

47

37

67

57

2A

2

9

11

11A

16

14

15

20

10

19

18

12

17

1

13

HA

16

INDEX

NO.

DESCRIPTION MATERIAL OR

MODEL NUMBER

PART

NUMBER

P-1 P-2

1 CONTROL BOX (A) GS 2A2926-01 1 1

2 CONTROL BOX COVER GS 3A2905-01 1 1

2A TRUSS HEAD SCREW 4 X 8 7C31-0408 2 2

3 RELAY - ICE DISPENSE LY2F 24V 406132-03 1 1

4 RELAY - WATER CONTROL LY2F 24V 406132-03 1 1

5 RELAY - DRAIN CONTROL LY2F 24V 406132-03 1 1

6 RELAY - GEAR MOTOR PROTECT LY1F 120V 418271-03 1 1

7 TAPPING SCREW - 431415-01 8 8

8 TRANSFORMER TR5 267-1 2U0042-01 1 1

8A TRUSS HEAD SCREW 4 X 8 7C31-0408 2 2

9 TIMER BOARD H2AA144C02 2A2867-01 1 1

10 BOARD SUPPORT - 4A0336-03 4 4

11 PROTECTOR NW-3P-2 1.6A 427253-01 1 1

11A PAN HEAD SCREW 3 X 8 7C11-0308 2 2

12 FUSEHOLDER HTB921 250V 15A 4A0892-01 1 1

13 FUSE AGC-1 250V 1A 4A0893-01 1 1

14 PLUG HOUSING 3191-15P 412832-01 1 1

15 PLUG HOUSING 3191-03P 412832-06 1 1

16 PVC TUBING L=150 8104-0006 1 1

17 ROCKER SWITCH - 4A1034-01 1 1

18 FUSE HOLDER HTB92M 4A0892-02 1 1

19 FUSE GMC-500mA 0.5A 4A0893-02 1 1

20 PLUG HOUSING 3191-04P 412832-11 1 1

TITLE: F. CONTROL BOX (A) ASSEMBLY MODEL: DCM-270BAH-OS

REQUIRED NUMBER

HA

17

1

33A

2

5

5A

4

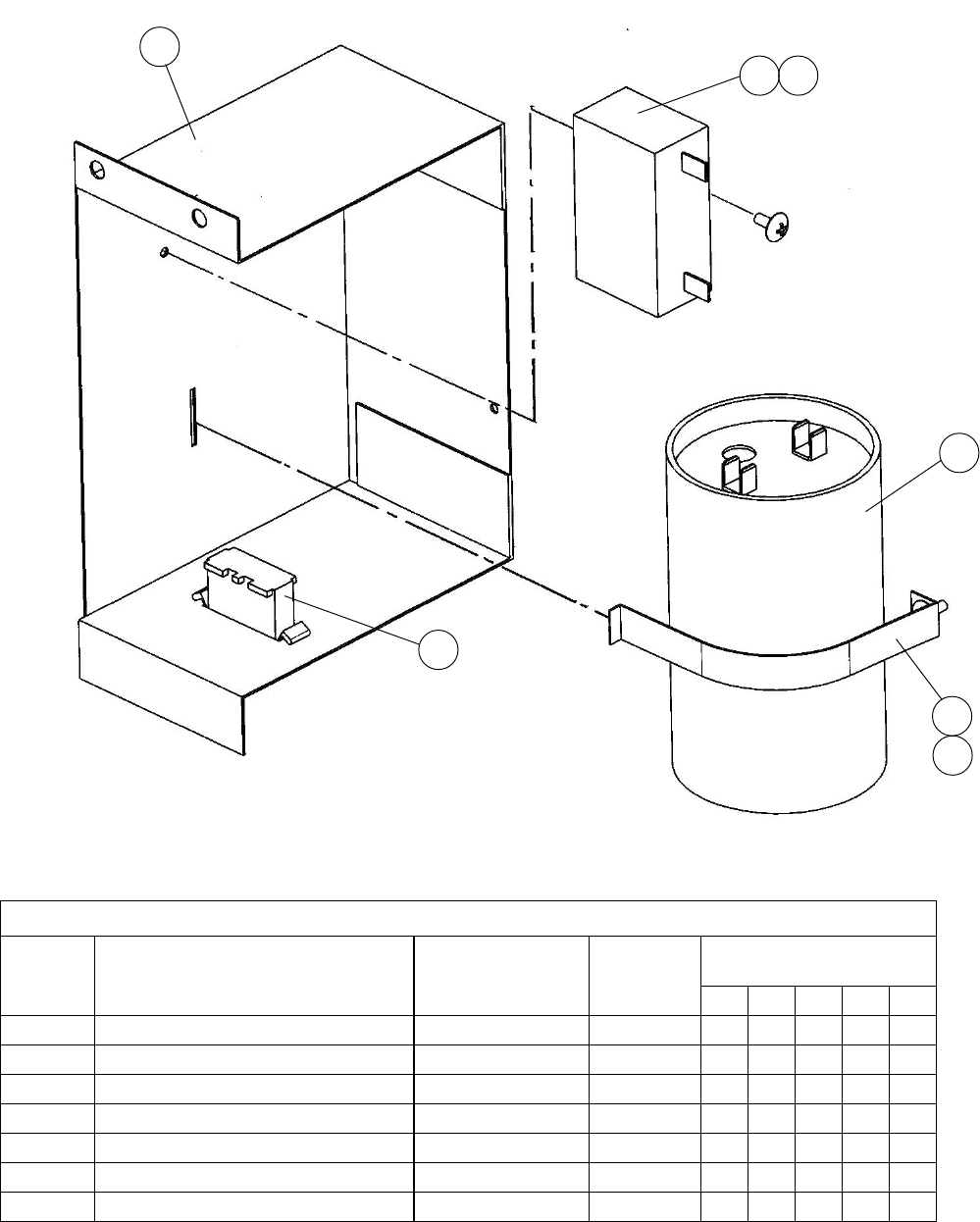

G. CONTROL BOX (B) ASSEMBLY

DCM-270BAH-OS

P-1, P-2

INDEX

NO.

DESCRIPTION MATERIAL OR

MODEL NUMBER

PART

NUMBER

P-1 P-2

1 CONTROL BOX (B) GS 2A2927-01 1 1

2 START CAPACITOR 145-174mf 250VAC 3A0076-01 1 1

3 CAPACITOR 10mf 280V 416921-05 1 1

3A T2 SCREW 4 X 8 7P31-0408 1 1

4 PLUG HOUSING 3191-04P 412832-05 1 1

5 STRAP GS 4A2262-01 1 1

5A T2 SCREW 4 X 8 7P31-0408 1 1

TITLE: G. CONTROL BOX (B) ASSEMBLY MODEL: DCM-270BAH-OS

REQUIRED NUMBER

HA

18

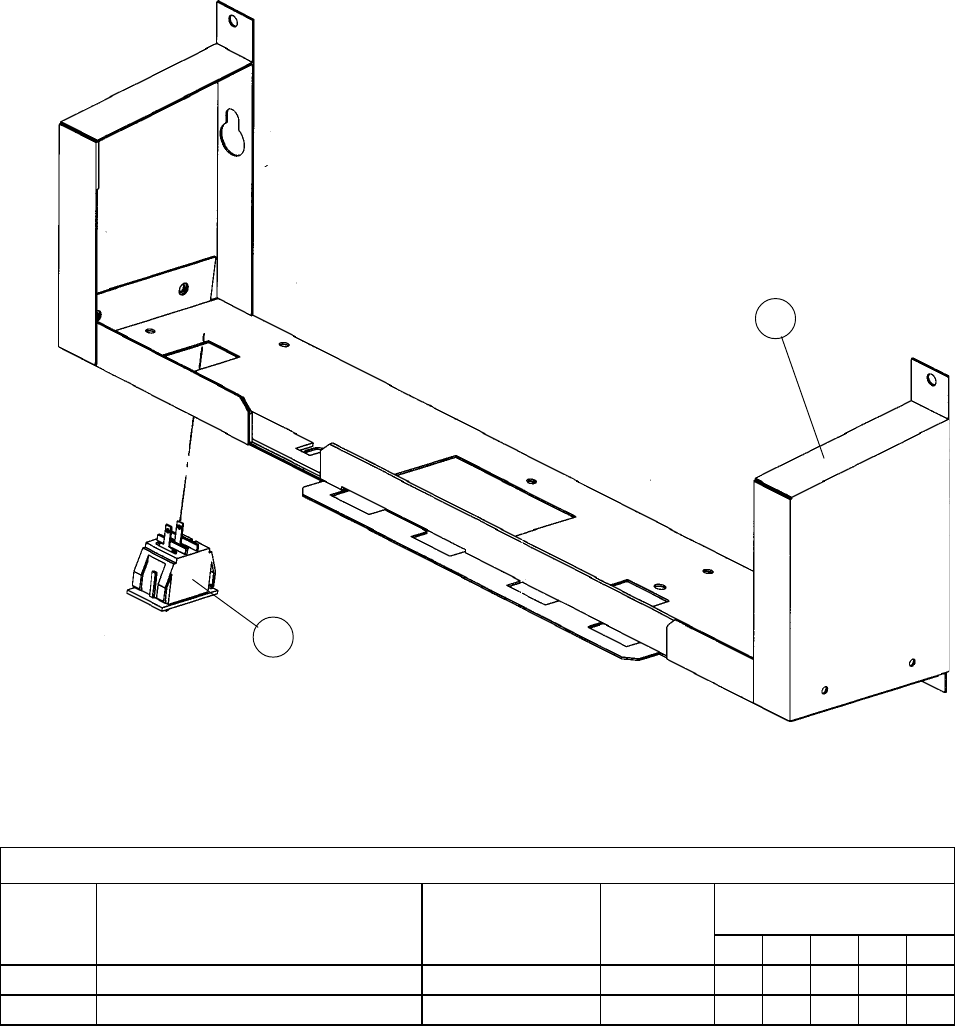

H. MIDDLE FRONT PANEL ASSEMBLY

DCM-270BAH-OS

P-1, P-2

1

2

INDEX

NO.

DESCRIPTION MATERIAL OR

MODEL NUMBER

PART

NUMBER

P-1 P-2

1 MIDDLE FRONT FRAME SS 2A2928G01 1 1

2 ROCKER SWITCH HLS112D 421491-08 1 1

TITLE: H. MIDDLE FRONT PANEL ASSEMBLY MODEL: DCM-270BAH-OS

REQUIRED NUMBER

HA

19

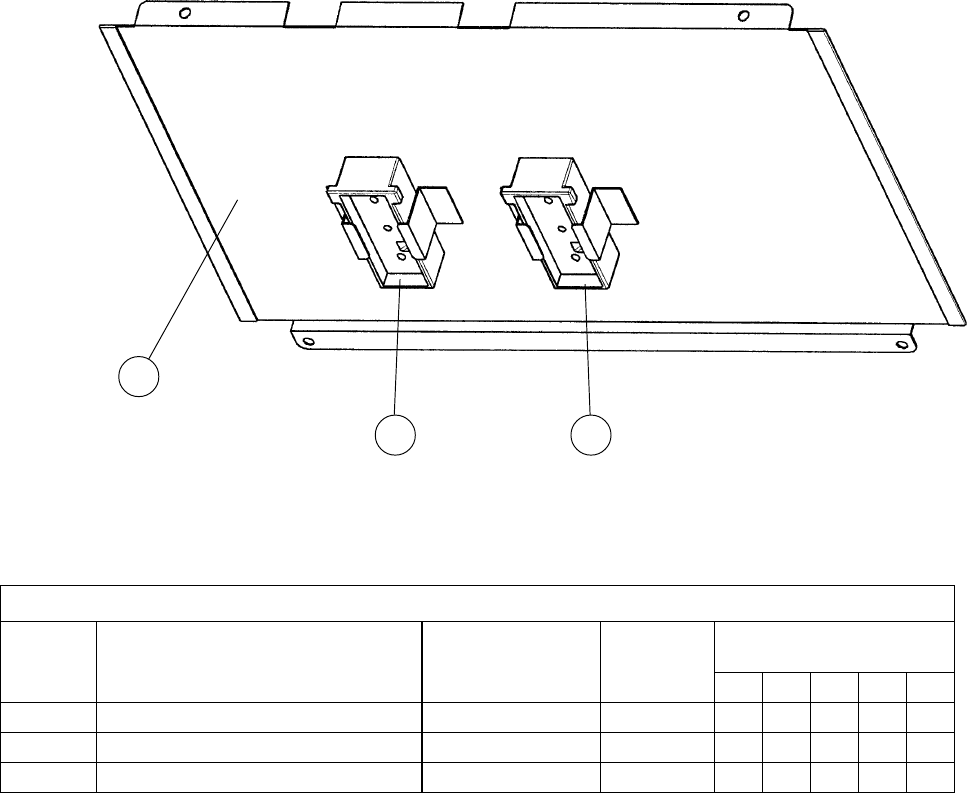

J. APRON PANEL ASSEMBLY

DCM-270BAH-OS

P-1, P-2

1

2 3

INDEX

NO.

DESCRIPTION MATERIAL OR

MODEL NUMBER

PART

NUMBER

P-1 P-2

1 APRON PANEL SS 3A2773G01 1 1

2 SENSOR ASSEMBLY - WATER 4A2849G04 1 1

3 SENSOR ASSEMBLY - ICE 4A2849G03 1 1

TITLE: J. APRON PANEL ASSEMBLY MODEL: DCM-270BAH-OS

REQUIRED NUMBER

HA

20

K. LABEL LOCATION

DCM-270BAH-OS

P-1, P-2

HA

21

INDEX

NO.

DESCRIPTION MATERIAL OR

MODEL NUMBER

PART

NUMBER

P-1 P-2

1 LABEL – PENGUIN - R PETP FILM 456246-01 1 1

2 LABEL - AIR FILTER PETP FILM 426177-01 1 1

3 LABEL - R404A PES FILM 4A0960-01 1 1

4 CONTROL LABEL PVC FILM 4A3233-01 1 1

5 LABEL POWER PVC FILM 4A3234-01 1 1

6 NAME PLATE PES FILM 4A3253-01 1 1

7 RATING LABEL PES FILM 4A3254-01 1 1

8 CAUTION LABEL (L) PVC FILM 441560-01 1 1

9 WIRING LABEL PVC FILM 3A2910-01 1 1

10 INSTRUCTION SHEET PAPER 2A2952-01 1 1

11 INSTRUCTION LABEL PVC FILM 2A2953-01 1 1

12 LABEL - CLEANING PVC FILM 2A2954-01 1 1

13 ICE – WATER LABEL PVC FILM 4A2954-01 1 1

TITLE: K. LABEL LOCATION MODEL: DCM-270BAH-OS

REQUIRED NUMBER

HA

22

L. SHUTTER ASSEMBLY

DCM-270BAH-OS

P-1, P-2

HA

23

INDEX

NO.

DESCRIPTION MATERIAL OR

MODEL NUMBER

PART

NUMBER

P-1 P-2

1 BRACKET - SOLENOID - 351479G01 1 1

SCREW SS, 4 X 12 434838-02 4 4

2- - -

3 SOLENOID SSD-18TUS 462560-01 1 1

4 SHAFT SOLENOID 462257-01 1 1

5 BUSHING 462258-01 2 2

6 COLLAR – SOLENOID 462259-01 1 1

7 SPLIT PIN SS, 1.6 X 15 711SP1612 3 3

8 SPACER (C) 461232-01 2 2

9 SHAFT - 462262G01 1 1

10 HOOK - SHUTTER - 438406-02 1 1

11 SPACER (D) 461233-01 1 1

12 SPACER - 454943-01 2 2

13 SHAFT – PLUNGER 462258-01 1 1

14 TUBE - 451284-06 1 1

15 SPRING - 411532-01 1 1

"E" RING SS, 4 721S-0004 1 1

16 - - -

17 STOPPER - 351480-01 1 1

18 SPACER (A) 461230-01 3 3

19 PLAIN WASHER SS, 6 7W22-0600 1 1

20 PLATE (A1) - SHUTTER - 414756-01 1 1

21 PLATE (B) - SHUTTER - 423948-01 1 1

22 PLATE (C) - SHUTTER - 419150-01 1 1

23 PLATE (D) - SHUTTER - 419151-01 1 1

24 - - -

25 FLAT HEAD SCREW SS, 3 X 20 441581-01 2 2

26 PLAIN WASHER 7W22-0300 3 3

27 NUT 7N12-0300 4 4

28 SPACER (B) 461231-01 1 1

29 SHAFT (B) - 462561-01 1 1

30 TUBE - 451284-05 1 1

31 COLLAR - 454942-01 1 1

32 SPRING (R) - 452502-01 1 1

33 - - -

34 SHAFT (B2) 432520-02 1 1

35 COVER - 457272-01 1 1

36 TRUSS HEAD SCREW SS, 4X 8 7C32-0408 2 2

TITLE: L. SHUTTER ASSEMBLY MODEL: DCM-270BAH-OS

REQUIRED NUMBER

HA

24

M. COVER ASSEMBLY BIN TOP

DCM-270BAH-OS

P-1, P-2

HA

25

INDEX

NO.

DESCRIPTION MATERIAL OR

MODEL NUMBER

PART

NUMBER

P-1 P-2

1 COVER - BIN TOP - 341039G02 1 1

2 BALANCE PLATE - 465782-01 1 1

3 SHAFT - 465781-01 1 1

4 SNAP PIN SS 715S-0004 1 1

5 E RING SS 721S-0005 1 1

6 BALANCE PLATE - 417473-01 1 1

7 MICRO SWITCH - 461294-01 1 1

8 PAN HEAD SCREW 3 x 16 7C12-0316 2 2

9 BRACKET – SWITCH - 465783-01 1 1

10 PLAIN WASHER SS,

Φ13XΦ6.5Xt1.0

22

11 SLEEVE - 465784-01 1 1

12 PUSH RIVET - 411399-08 2 2

TITLE: M. COVER ASSEMBLY - BIN TOP MODEL: DCM-270BAH-OS

REQUIRED NUMBER

HA

26

N. LITERATURE AND PACKAGING

DCM-270BAH-OS

P-1, P-2

INDEX

NO.

DESCRIPTION MATERIAL OR

MODEL NUMBER

PART

NUMBER

P-1 P-2

1 INSTRUCTION MANUAL - 91A2AC10A 1 1

1A0576A01 1 1

1 CARTON 2A2903-09 1 1

2 BAR CODE LABEL 4A2999-01 1 1

3 CORNER POST 3A0788-16 4 4

4 TOP PROTECTOR 3A0965-01 1 1

5 PALLET 2A0962-01 1 1

6 TRAY 2A2127G01 1 1

TITLE: N. LITERATURE AND PACKAGING MODEL: DCM-270BAH-OS

REQUIRED NUMBER

PACKAGING (AVAILABLE ONLY ON MODELS CURRENTLY IN

PRODUCTION)
