Hosiden HRM1034 Bluetooth module User Manual Operational description

Hosiden Corporation Bluetooth module Operational description

(Short-Term Confidential) User Manual

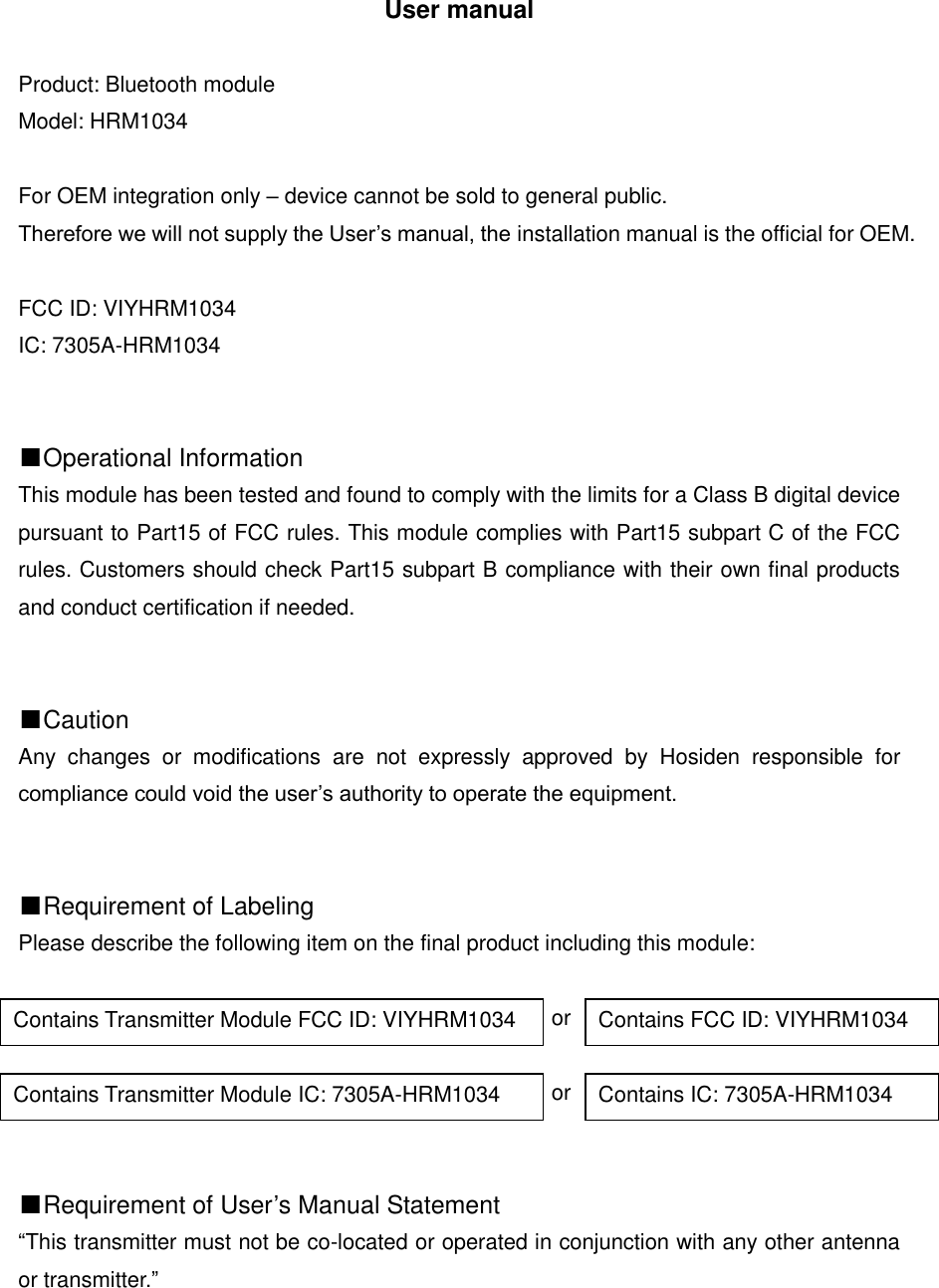

User manual  Product: Bluetooth module Model: HRM1034  For OEM integration only – device cannot be sold to general public.   Therefore we will not supply the User’s manual, the installation manual is the official for OEM.  FCC ID: VIYHRM1034 IC: 7305A-HRM1034   ■Operational Information This module has been tested and found to comply with the limits for a Class B digital device pursuant to Part15 of FCC rules. This module complies with Part15 subpart C of the FCC rules. Customers should check Part15 subpart B compliance with their own final products and conduct certification if needed.   ■Caution Any  changes  or  modifications  are  not  expressly  approved  by  Hosiden  responsible  for compliance could void the user’s authority to operate the equipment.   ■Requirement of Labeling Please describe the following item on the final product including this module:                                                   or                                                   or   ■Requirement of User’s Manual Statement “This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.”      Contains Transmitter Module FCC ID: VIYHRM1034 Contains FCC ID: VIYHRM1034 Contains Transmitter Module IC: 7305A-HRM1034 Contains IC: 7305A-HRM1034

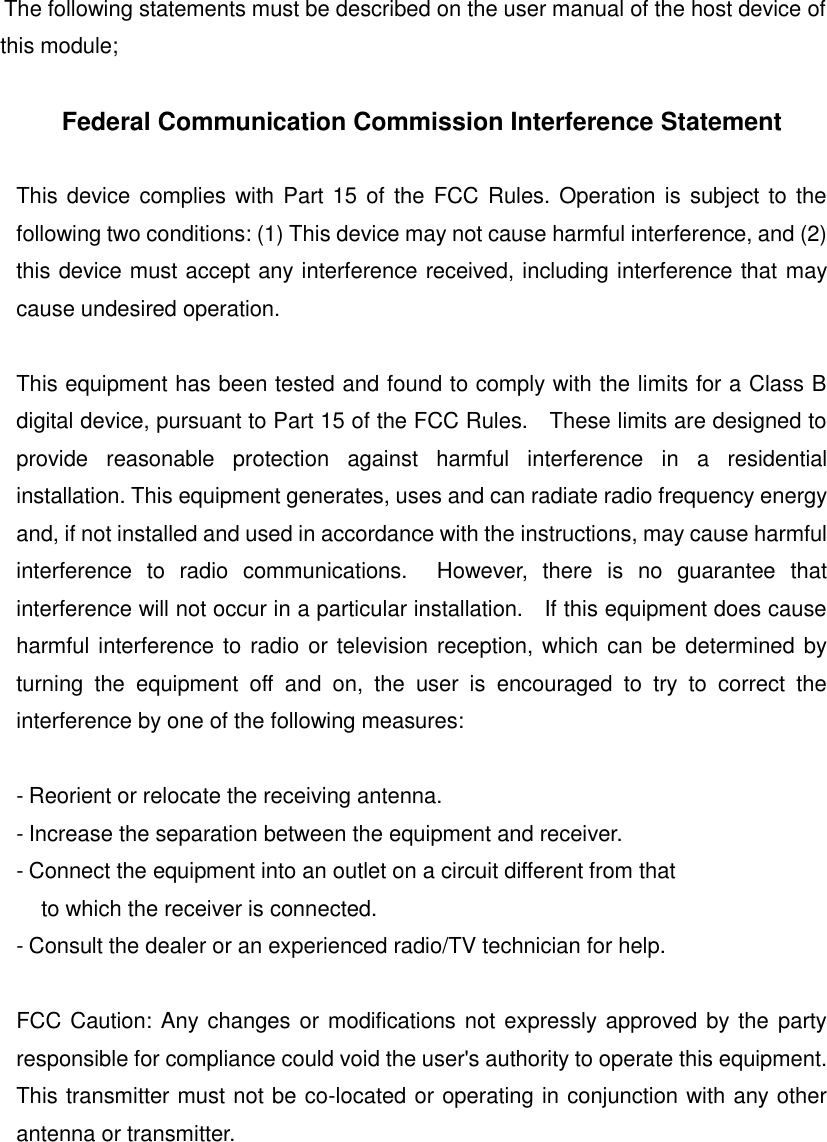

The following statements must be described on the user manual of the host device of this module;  Federal Communication Commission Interference Statement  This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.  This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.    These limits are designed to provide  reasonable  protection  against  harmful  interference  in  a  residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference  to  radio  communications.    However,  there  is  no  guarantee  that interference will not occur in a particular installation.    If this equipment does cause harmful interference to radio or television reception, which can be determined by turning  the  equipment  off  and  on,  the  user  is  encouraged  to  try  to  correct  the interference by one of the following measures:  - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help.  FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

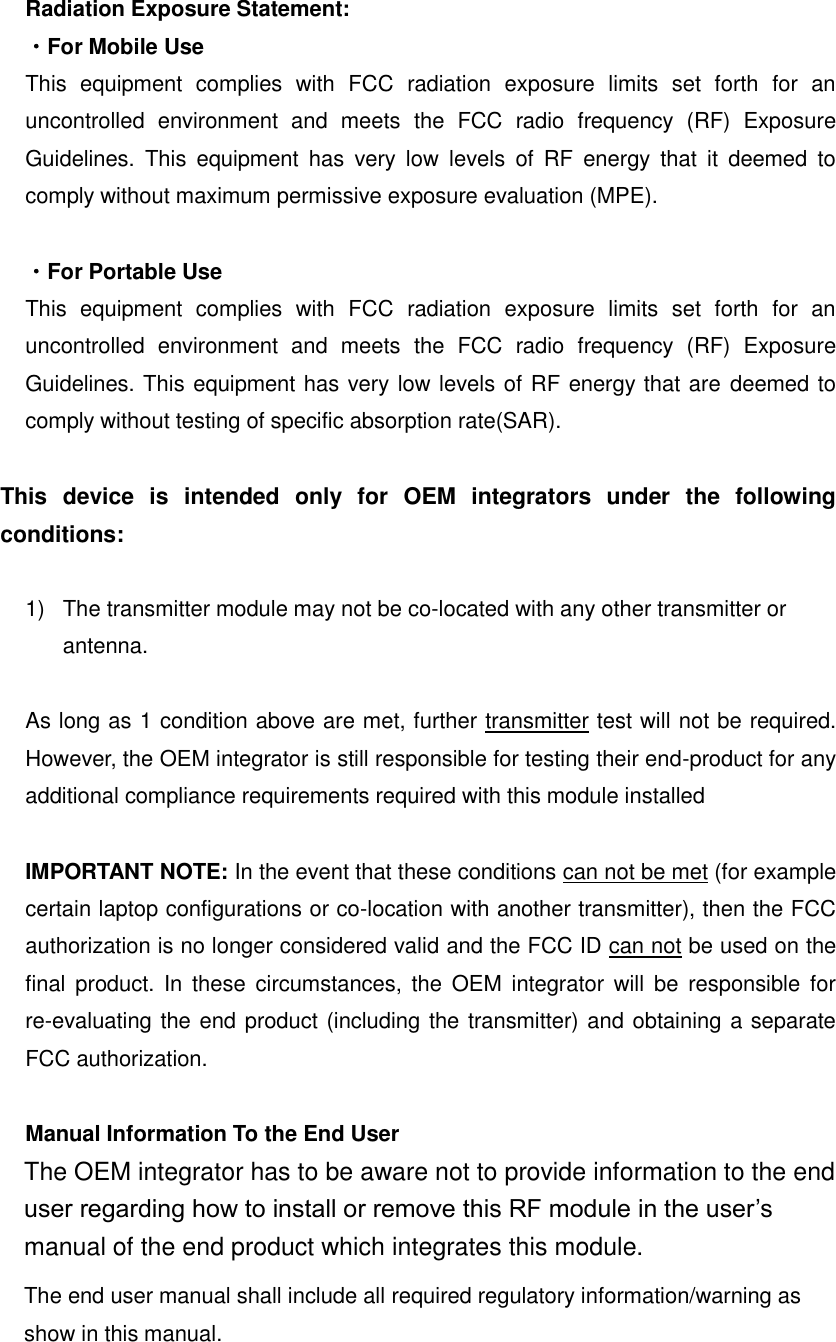

Radiation Exposure Statement: ・For Mobile Use This  equipment  complies  with  FCC  radiation  exposure  limits  set  forth  for  an uncontrolled  environment  and  meets  the  FCC  radio  frequency  (RF)  Exposure Guidelines.  This  equipment  has  very  low  levels  of  RF  energy  that  it  deemed  to comply without maximum permissive exposure evaluation (MPE).  ・For Portable Use This  equipment  complies  with  FCC  radiation  exposure  limits  set  forth  for  an uncontrolled  environment  and  meets  the  FCC  radio  frequency  (RF)  Exposure Guidelines. This equipment has very low levels of RF energy that are deemed to comply without testing of specific absorption rate(SAR).  This  device  is  intended  only  for  OEM  integrators  under  the  following conditions:  1)  The transmitter module may not be co-located with any other transmitter or antenna.  As long as 1 condition above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed  IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final  product.  In  these  circumstances,  the OEM  integrator will  be  responsible  for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization.  Manual Information To the End User The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the end product which integrates this module. The end user manual shall include all required regulatory information/warning as show in this manual.

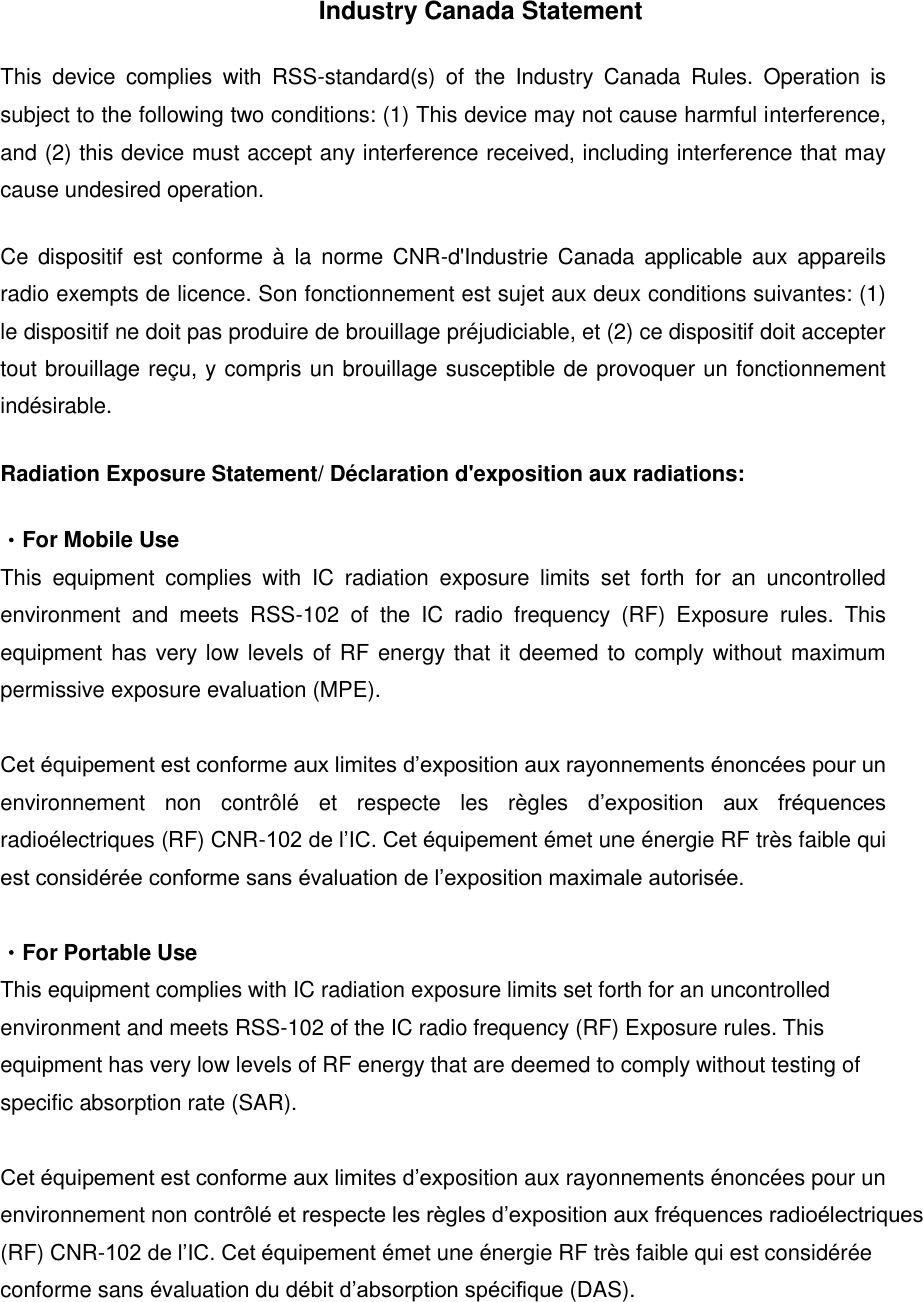

Industry Canada Statement This  device  complies  with  RSS-standard(s)  of  the  Industry  Canada  Rules.  Operation  is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Ce  dispositif  est conforme à  la norme CNR-d'Industrie Canada  applicable  aux  appareils radio exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement indésirable.   Radiation Exposure Statement/ Déclaration d'exposition aux radiations: ・For Mobile Use This  equipment  complies  with  IC  radiation  exposure  limits  set  forth  for  an  uncontrolled environment  and  meets  RSS-102  of  the  IC  radio  frequency  (RF)  Exposure  rules.  This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE).  Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées pour un environnement  non  contrôlé  et  respecte  les  règles  d’exposition  aux  fréquences radioélectriques (RF) CNR-102 de l’IC. Cet équipement émet une énergie RF très faible qui est considérée conforme sans évaluation de l’exposition maximale autorisée.  ・For Portable Use This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment and meets RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that are deemed to comply without testing of specific absorption rate (SAR).  Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées pour un environnement non contrôlé et respecte les règles d’exposition aux fréquences radioélectriques (RF) CNR-102 de l’IC. Cet équipement émet une énergie RF très faible qui est considérée conforme sans évaluation du débit d’absorption spécifique (DAS).

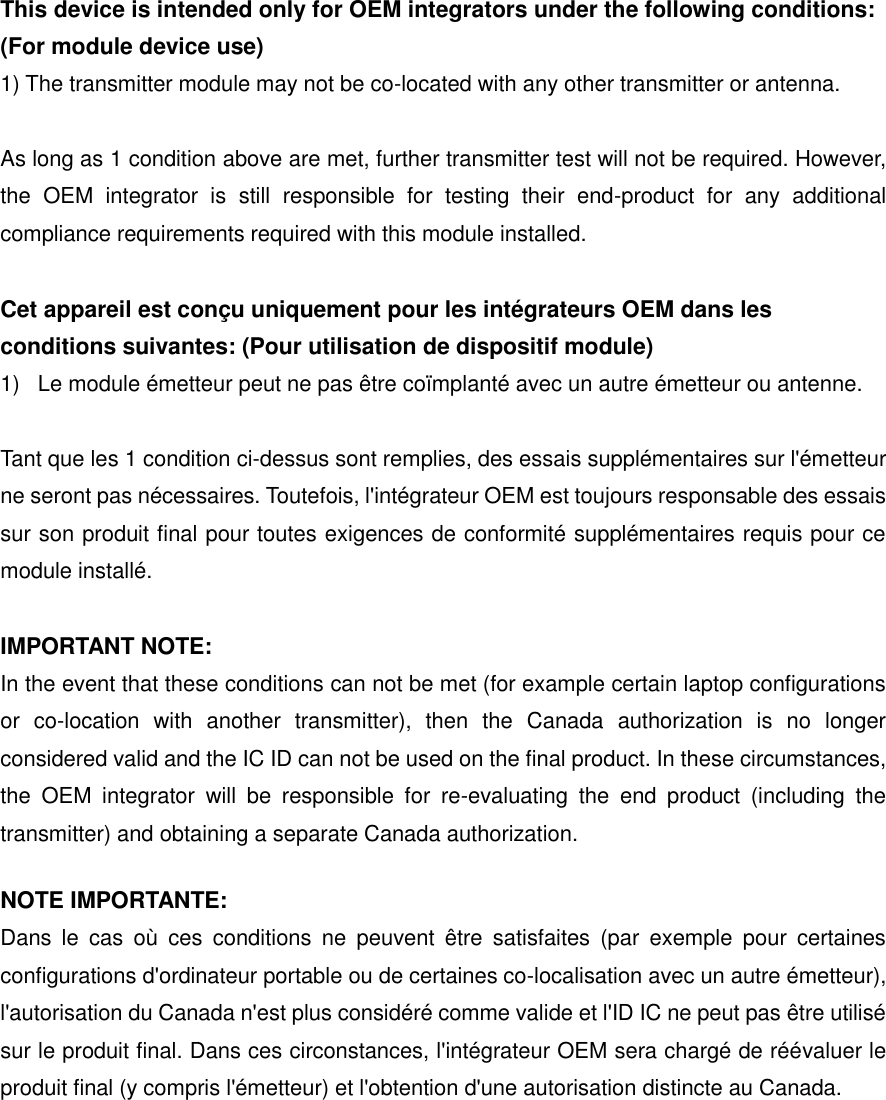

This device is intended only for OEM integrators under the following conditions: (For module device use) 1) The transmitter module may not be co-located with any other transmitter or antenna.  As long as 1 condition above are met, further transmitter test will not be required. However, the  OEM  integrator  is  still  responsible  for  testing  their  end-product  for  any  additional compliance requirements required with this module installed.  Cet appareil est conçu uniquement pour les intégrateurs OEM dans les conditions suivantes: (Pour utilisation de dispositif module) 1)  Le module émetteur peut ne pas être coïmplanté avec un autre émetteur ou antenne.  Tant que les 1 condition ci-dessus sont remplies, des essais supplémentaires sur l'émetteur ne seront pas nécessaires. Toutefois, l'intégrateur OEM est toujours responsable des essais sur son produit final pour toutes exigences de conformité supplémentaires requis pour ce module installé.  IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or  co-location  with  another  transmitter),  then  the  Canada  authorization  is  no  longer considered valid and the IC ID can not be used on the final product. In these circumstances, the  OEM  integrator  will  be  responsible  for  re-evaluating  the  end  product  (including  the transmitter) and obtaining a separate Canada authorization. NOTE IMPORTANTE: Dans  le  cas  où  ces  conditions  ne  peuvent  être  satisfaites  (par  exemple  pour  certaines configurations d'ordinateur portable ou de certaines co-localisation avec un autre émetteur), l'autorisation du Canada n'est plus considéré comme valide et l'ID IC ne peut pas être utilisé sur le produit final. Dans ces circonstances, l'intégrateur OEM sera chargé de réévaluer le produit final (y compris l'émetteur) et l'obtention d'une autorisation distincte au Canada.

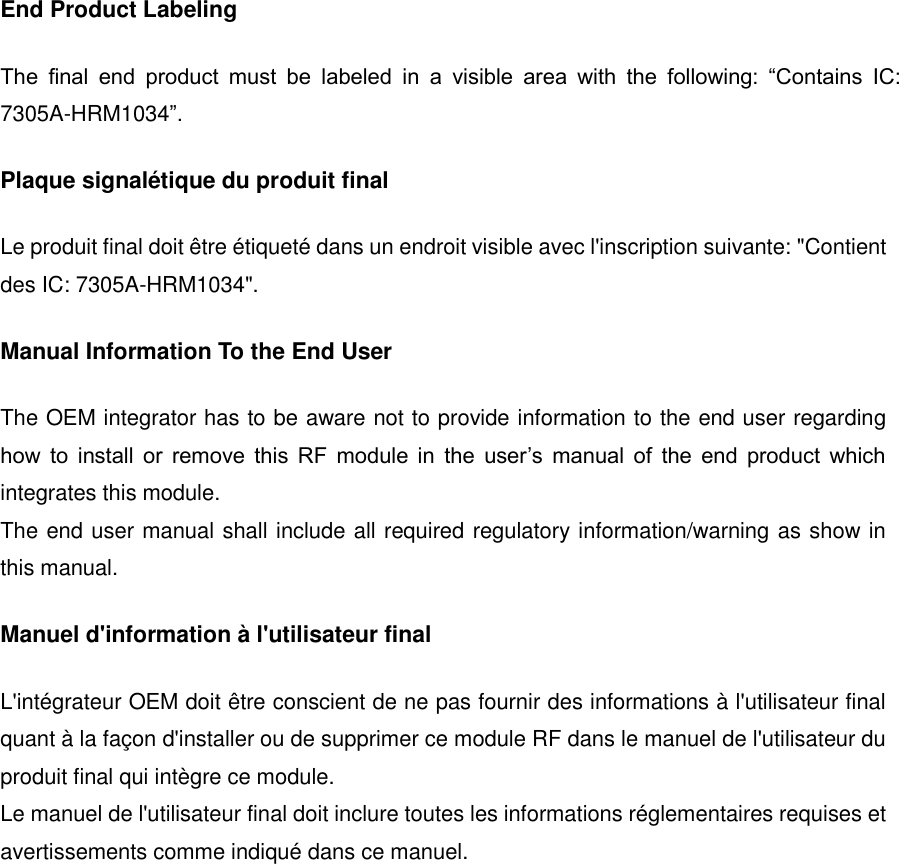

End Product Labeling The  final  end  product  must  be  labeled  in  a  visible  area  with  the  following:  “Contains  IC: 7305A-HRM1034”. Plaque signalétique du produit final Le produit final doit être étiqueté dans un endroit visible avec l'inscription suivante: "Contient des IC: 7305A-HRM1034". Manual Information To the End User The OEM integrator has to be aware not to provide information to the end user regarding how  to  install  or  remove  this  RF  module  in  the  user’s  manual  of  the  end  product  which integrates this module. The end user manual shall include all required regulatory information/warning as show in this manual. Manuel d'information à l'utilisateur final L'intégrateur OEM doit être conscient de ne pas fournir des informations à l'utilisateur final quant à la façon d'installer ou de supprimer ce module RF dans le manuel de l'utilisateur du produit final qui intègre ce module. Le manuel de l'utilisateur final doit inclure toutes les informations réglementaires requises et avertissements comme indiqué dans ce manuel.

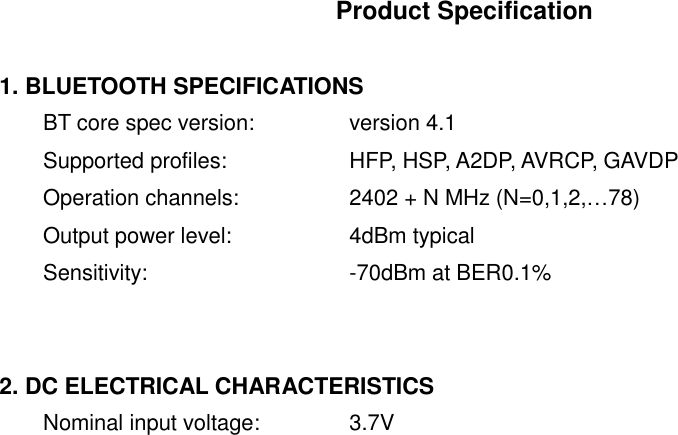

Product Specification  1. BLUETOOTH SPECIFICATIONS BT core spec version:   version 4.1 Supported profiles:    HFP, HSP, A2DP, AVRCP, GAVDP Operation channels:    2402 + N MHz (N=0,1,2,…78) Output power level:    4dBm typical Sensitivity:      -70dBm at BER0.1%   2. DC ELECTRICAL CHARACTERISTICS Nominal input voltage:   3.7V
