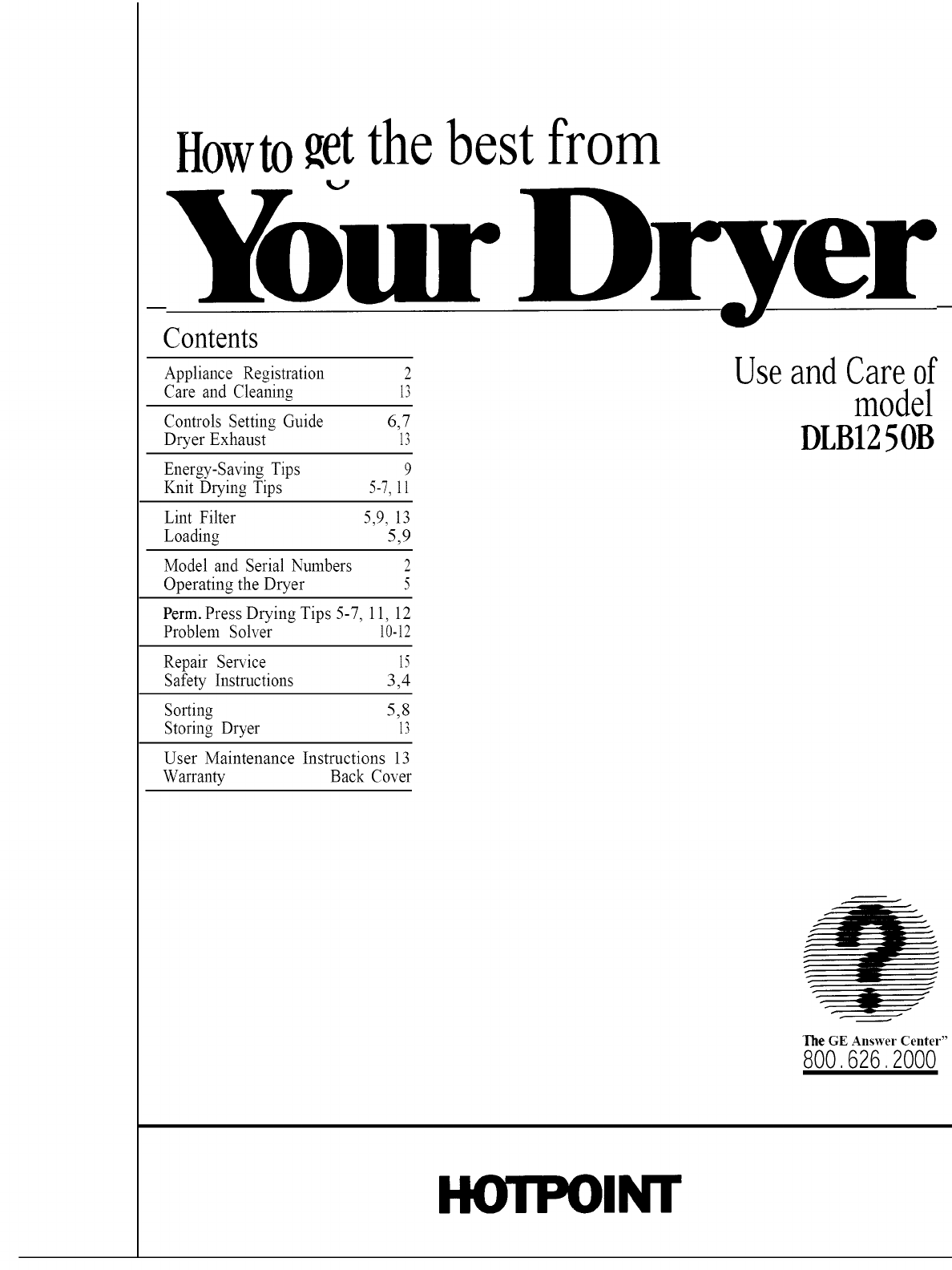

Howto_etthe best from
v
_Your -- --
Contents
Appliance Registration 2

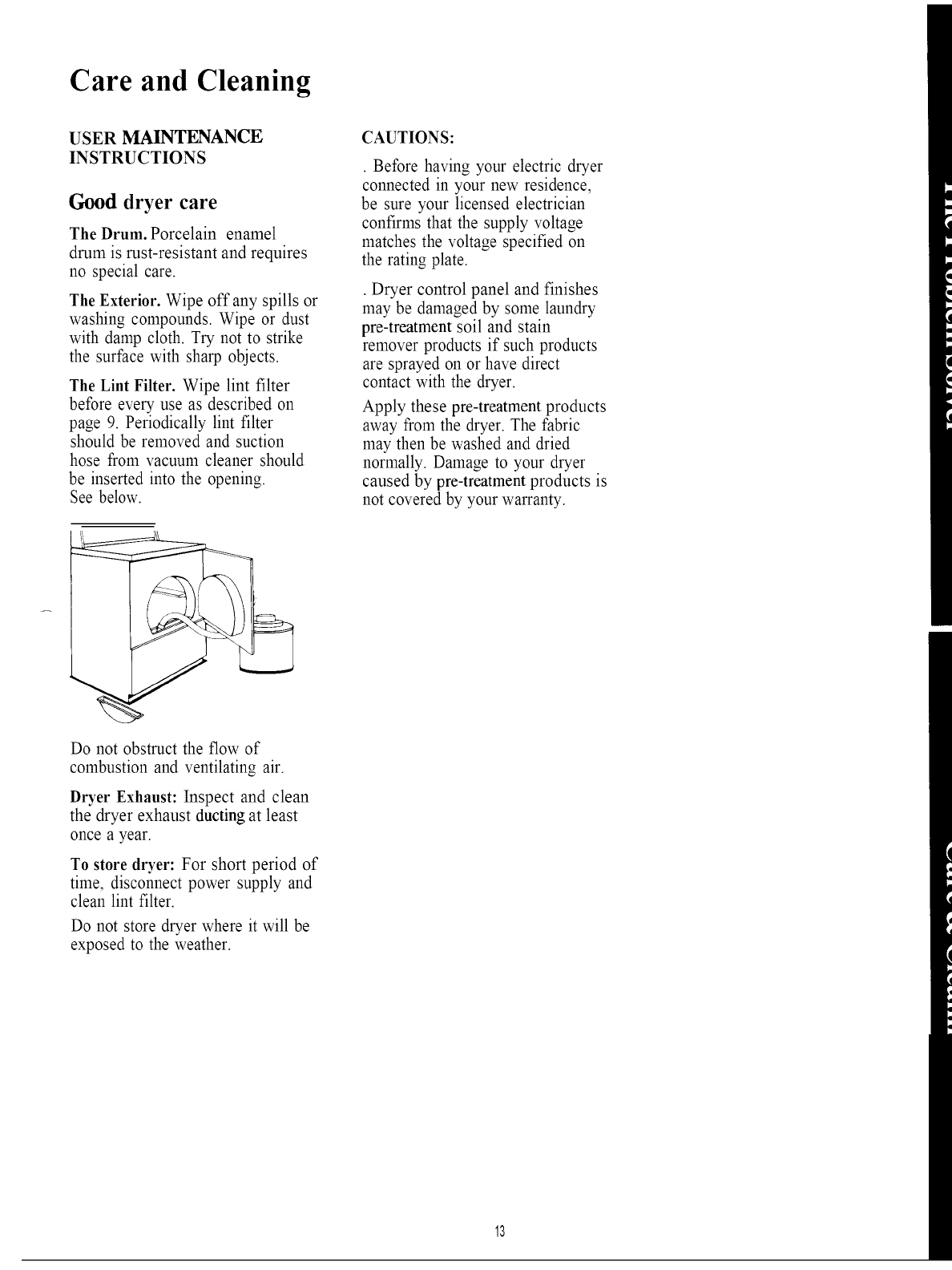

Care and Cleaning 13
Controls Setting Guide 6,7
Dryer Exhaust 13
Energy-Saving Tips 9
Knit Drying Tips 5-7, 11
Lint Filter 5,9, 13
Loading 5,9
Model and Serial Numbers 2
Operating the Dryer 5
Perm. Press Drying Tips 5-7, 11, 12

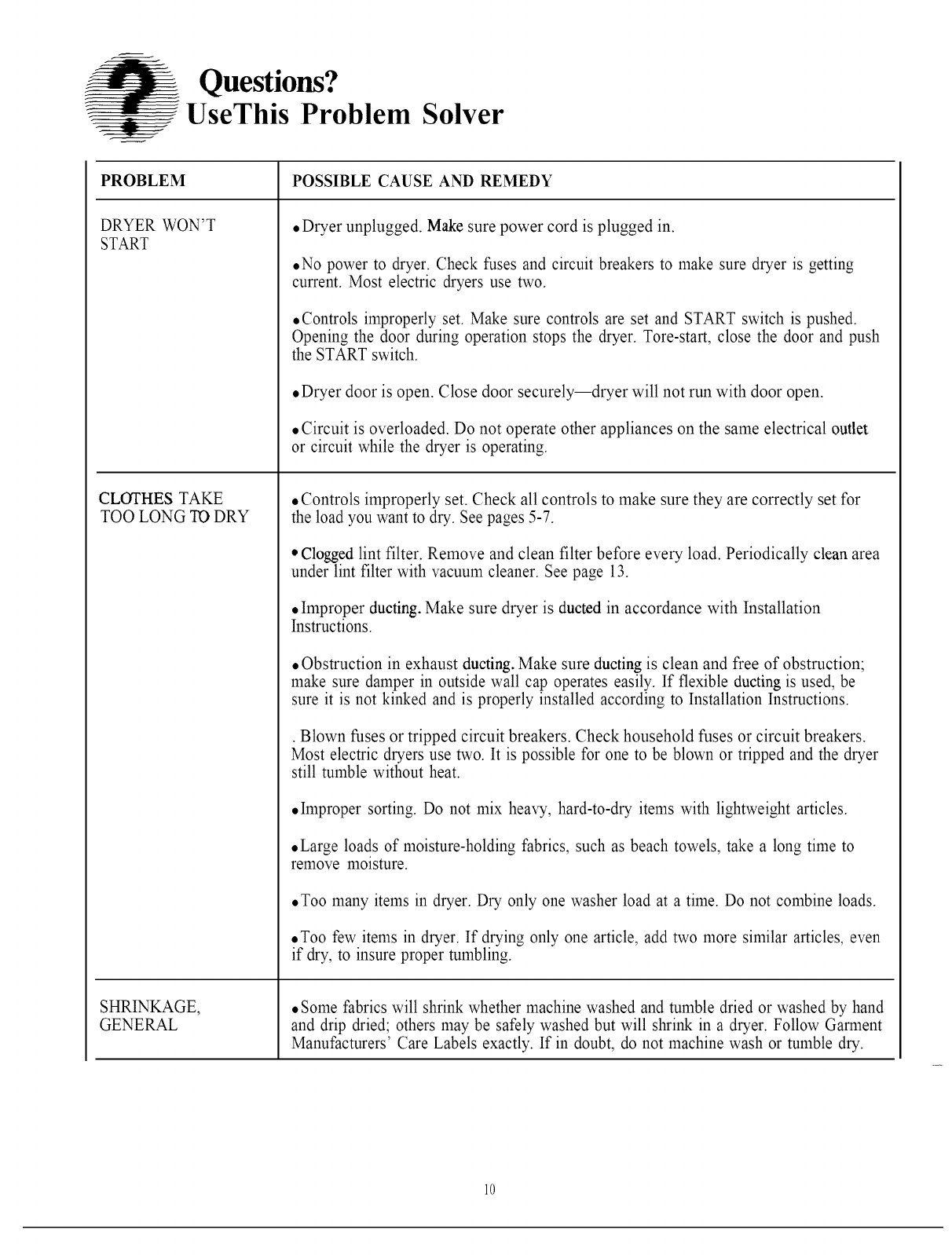

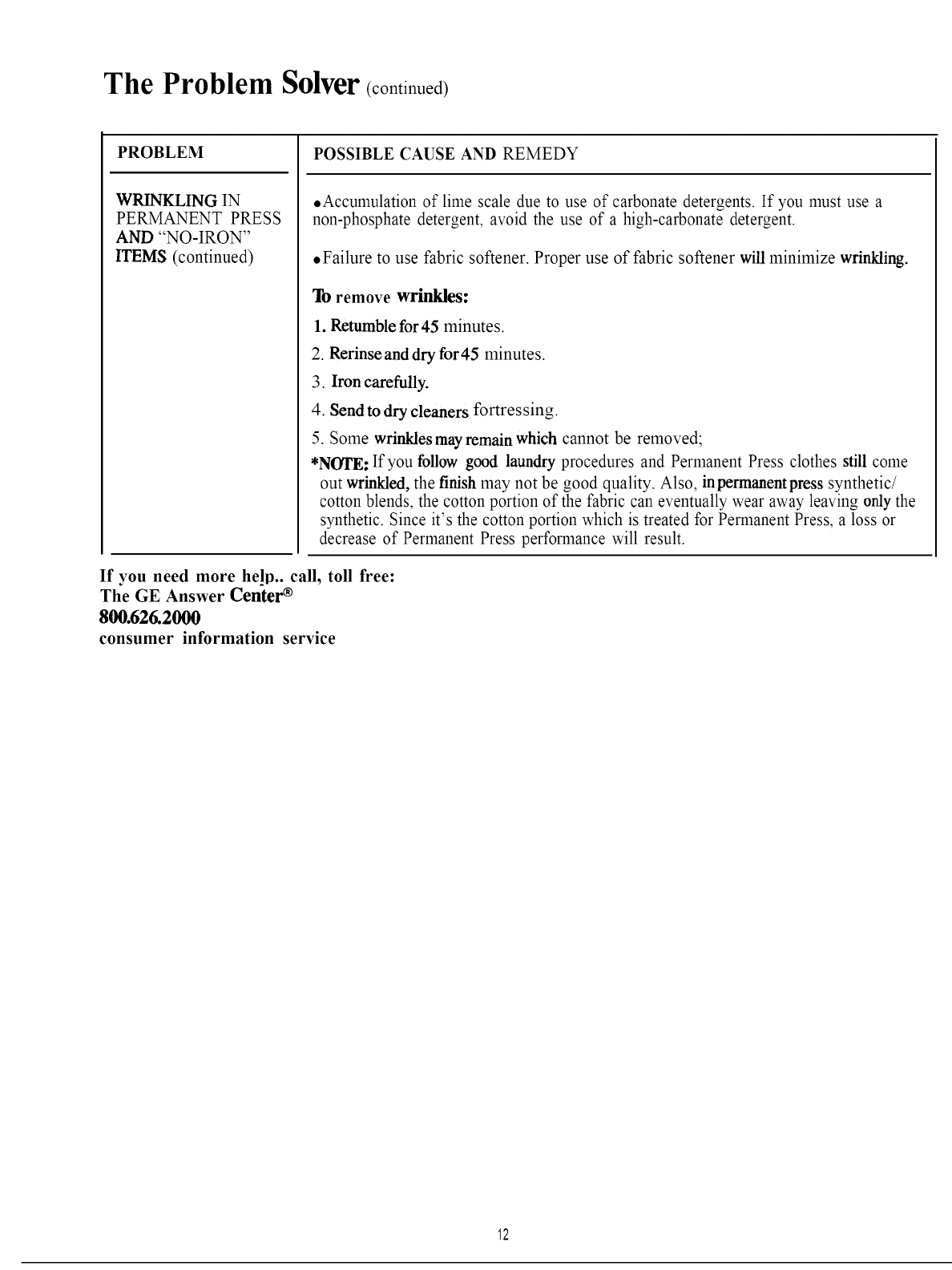

Problem Solver 10-12

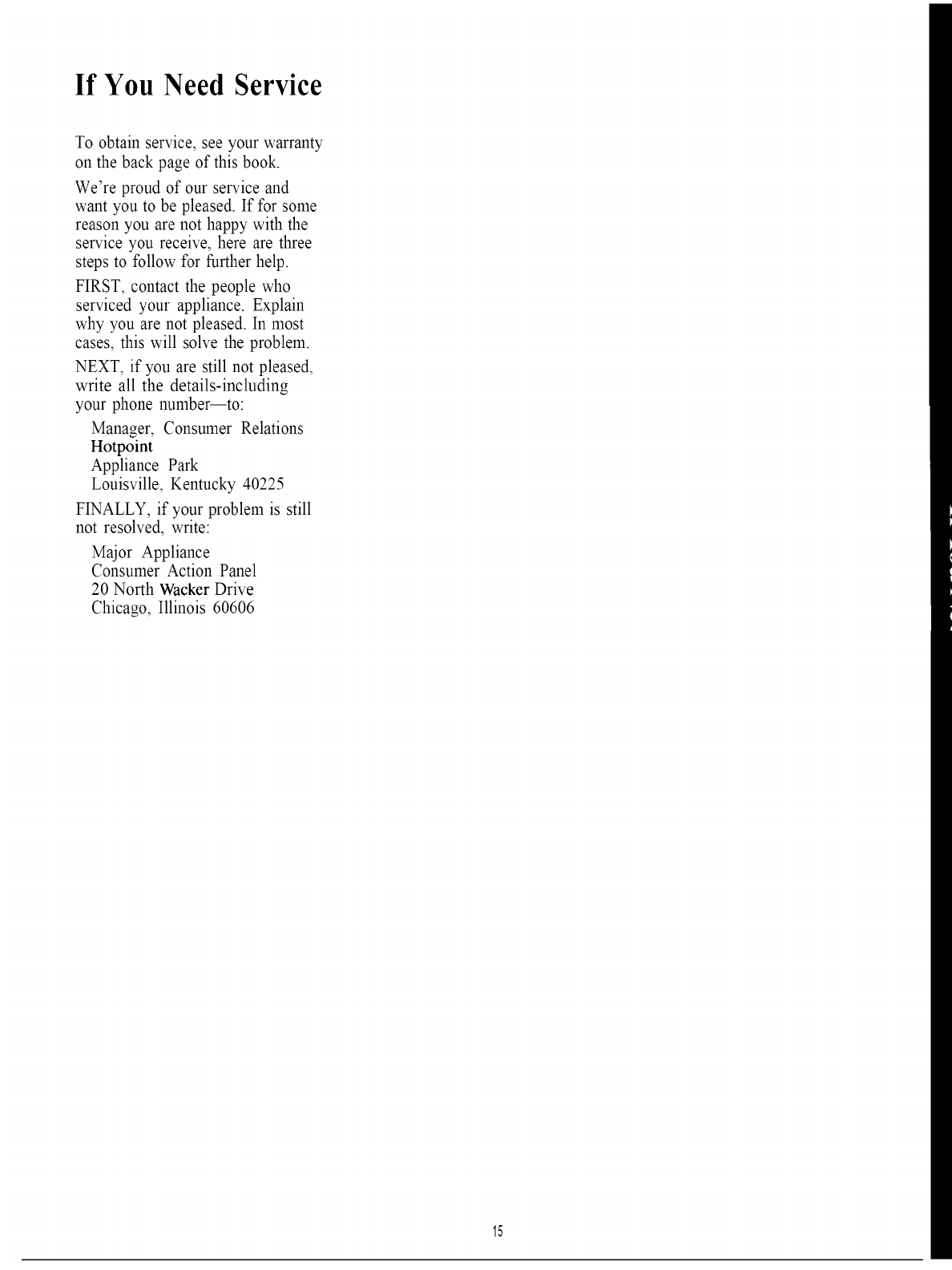

Repair Service 15
Safety Instructions 3,4
Sorting 5,8
Storing Dryer 13
User Maintenance Instructions 13
Warranty Back Cover
Use and Care of
model
DLB1250B
rile GE Answer Center"
800,626,2000
Help us
help you...
Before using your dryer,
read this book carefully.
It is intended to help you operate
and maintain your new dryer
properly.
Keep it handy for answers to your
questions.
If you don't understand something
or need more help, write (include
your phone number):
Consumer Affairs
Hotpoint
Appliance Park
Louisville, KY40225
If you received a
damaged dryer...
Immediately contact the dealer
(or builder) that sold you the
dryer.
Save time and money.
Before you request service...
check the Problem Solver on
pages 10-12. It lists causes of
minor operating problems that
you can correct yourself.
Write down the model
and serial numbers.
You'll find them on a label on the
front of the dryer behind the door.
These numbers are also on the
Consumer Product Ownership
Registration Card that came with
your dryer. Before sending in this
card, please write these numbers
here:
Model Number
Serial Number
Use these numbers in any
correspondence or service calls
concerning your dryer.
FOR YOUR SAFETY
Ifyousmellgas:
1. Openwindows.
2Don'ttouch
electricalswitches.*
3. Extinguishany
openflame.
4. Immediatelycall
yourgassupplier.
• Don't turn electric switches
on or off because sparks may
ignite the gas.
FOR YOUR SAFETY
Do notstore or use
gasolineor other
flammable vaporsand
liquidsin thevicinity
of thisor anyother
appliance.
All drying instruction terms in this book conform to the Care Labeling
Rule established by the Federal Trade Commission, January 1984.

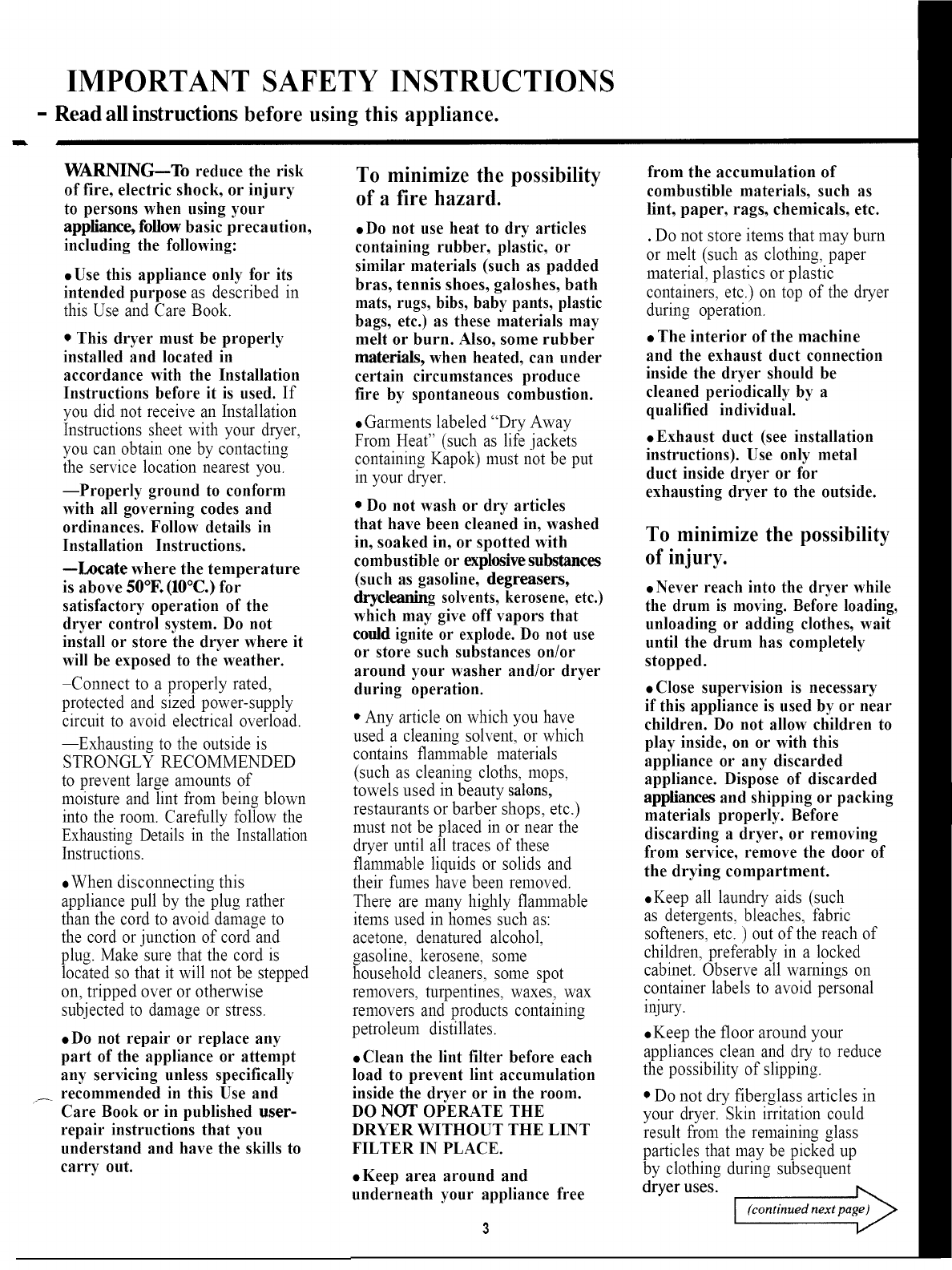

IMPORTANT SAFETY INSTRUCTIONS
-Read all instructions before using this appliance.
WARNING--To reduce the risk
of fire, electric shock, or injury
to persons when using your
appliance, follow basic precaution,
including the following:
•Use this appliance only for its
intended purpose as described in
this Use and Care Book.
•This dryer must be properly
installed and located in
accordance with the Installation
Instructions before it is used. If
you did not receive an Installation
Instructions sheet with your dryer,
you can obtain one by contacting
the service location nearest you.
--Properly ground to conform
with all governing codes and
ordinances. Follow details in
Installation Instructions.
--Locate where the temperature
is above 50°E (10°C.) for
satisfactory operation of the
dryer control system. Do not
install or store the dryer where it
will be exposed to the weather.
-Connect to a properly rated,
protected and sized power-supply
circuit to avoid electrical overload.
--Exhausting to the outside is
STRONGLY RECOMMENDED
to prevent large amounts of
moisture and lint from being blown
into the room. Carefully follow the
Exhausting Details in the Installation
Instructions.
• When disconnecting this
appliance pull by the plug rather
than the cord to avoid damage to
the cord or junction of cord and
plug. Make sure that the cord is
located so that it will not be stepped
on, tripped over or otherwise
subjected to damage or stress.
•Do not repair or replace any
part of the appliance or attempt
any servicing unless specifically
recommended in this Use and
Care Book or in published user-
repair instructions that you
understand and have the skills to
carry out.
To minimize the possibility
of a fire hazard.
•Do not use heat to dry articles
containing rubber, plastic, or
similar materials (such as padded
bras, tennis shoes, galoshes, bath
mats, rugs, bibs, baby pants, plastic
bags, etc.) as these materials may
melt or burn. Also, some rubber
materials, when heated, can under
certain circumstances produce
fire by spontaneous combustion.
• Garments labeled "Dry Away
From Heat" (such as life jackets
containing Kapok) must not be put
in your dryer.
•Do not wash or dry articles
that have been cleaned in, washed
in, soaked in, or spotted with
combustible or explosive substances
(such as gasoline, degreasers,
drycleaning solvents, kerosene, etc.)
which may give off vapors that
could ignite or explode• Do not use
or store such substances on/or
around your washer and/or dryer
during operation.
• Any article on which you have
used a cleaning solvent, or which
contains flammable materials
(such as cleaning cloths, mops,
towels used in beauty salons,
restaurants or barber shops, etc.)
must not be placed in or near the
dryer until all traces of these
flammable liquids or solids and
their fumes have been removed.
There are many highly flammable
items used in homes such as:
acetone, denatured alcohol,
gasoline, kerosene, some
household cleaners, some spot
removers, turpentines, waxes, wax
removers and products containing
petroleum distillates.
• Clean the lint filter before each
load to prevent lint accumulation
inside the dryer or in the room.
DO NOT OPERATE THE
DRYER WITHOUT THE LINT
FILTER IN PLACE.
• Keep area around and
underneath your appliance free
from the accumulation of
combustible materials, such as
lint, paper, rags, chemicals, etc.
• Do not store items that may burn
or melt (such as clothing, paper
material, plastics or plastic
containers, etc.) on top of the dryer
during operation.
•The interior of the machine
and the exhaust duct connection
inside the dryer should be
cleaned periodically by a
qualified individual.
• Exhaust duct (see installation
instructions). Use only metal
duct inside dryer or for
exhausting dryer to the outside.
To minimize the possibility
of injury.
•Never reach into the dryer while
the drum is moving. Before loading,
unloading or adding clothes, wait
until the drum has completely
stopped.
• Close supervision is necessary
if this appliance is used by or near
children. Do not allow children to
play inside, on or with this
appliance or any discarded
appliance. Dispose of discarded
appliances and shipping or packing
materials properly. Before
discarding a dryer, or removing
from service, remove the door of
the drying compartment.
• Keep all laundry aids (such
as detergents, bleaches, fabric
softeners, etc. ) out of the reach of
children, preferably in a locked
cabinet. Observe all warnings on
container labels to avoid personal
injury.
• Keep the floor around your
appliances clean and dry to reduce
the possibility of slipping.
• Do not dry fiberglass articles in
your dryer. Skin irritation could
result from the remaining glass
particles that may be picked up
by clothing during subsequent
dryer uses.
(continued next pa_e )_
I
Important Safety Instructions (continued)
• The laundry process can reduce
the flame retardancy of fabrics• To
avoid such a result, the ga_ent
manufacturer's care instructions
should be followed very carefully•
• Never climb on or stand on the
dryer top or door•
•Do not tamper with controls.
•To minimize the possibility
of electric shock, unplug this
appliance from the power supply
before attempting any maintenance
or cleaning (except the removal and
cleaning of the lint filter), NOTE:
Turning the Cycle Selector knob
to an OFF position does NOT
disconnect the appliance from
the power supply.
• Do not operate this appliance
if it is damaged, malfunctioning,
partially disassembled, or has
missing or broken parts, including
a damaged cord or plug.
Dryer-applied fabric
softeners or anti-static
conditioners
You may wish to soften your
laundered fabrics or reduce the
static electricity in them. We
recommend you use either a
fabric softener in the wash cycle,
according to the manufacturer's
instructions for those products, or
try a dryer-added product for
which the manufacturer gives
written assurance on the package
that their product can be safely
used in your dryer.
Service or performance problems
caused by the use of these products
are the responsibility of the
manufacturers of those oroducts
and are not covered under the
warranty of this appliance.
SAVE THESE
INSTRUCTIONS
How to operate your dryer
-WARNING--To reduce the risk of fire, electric shock, or injury to persons,
read the IMPORTANT SAFETY INSTRUCTIONS before operating this appliance.
PUSH • _ TO START
Heav VDut=i
_ Automatic Dryer J
0
Load Your Dryer Properly.
•Clean the lint filter each time the
dryer is used. Always be sure the
lint filter is in place. Don't use the
dryer without it.
• Good sorting for the dryer begins
at the washer. Generally, if clothes
are sorted right for washing, they're

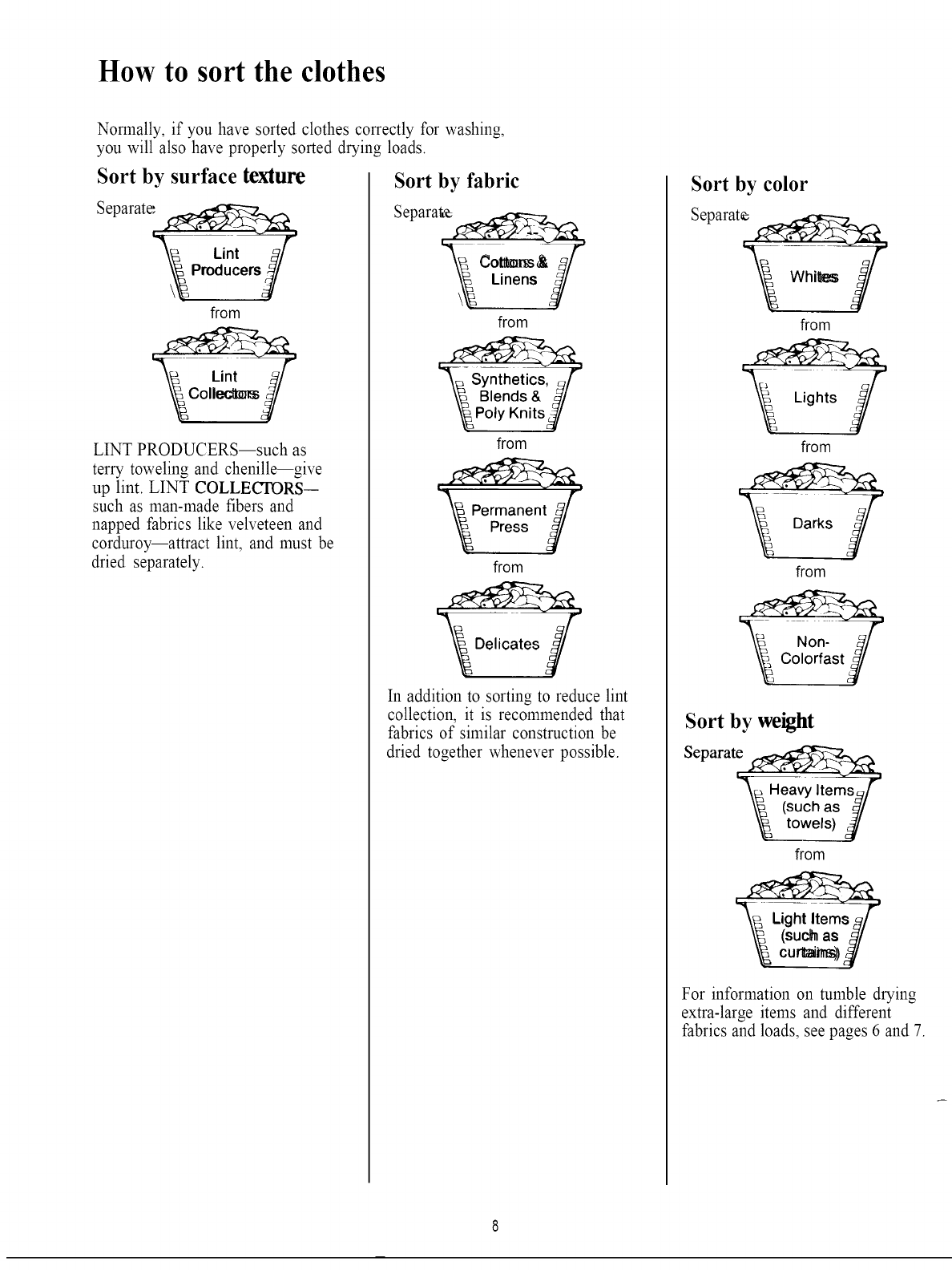

sorted right for drying. See page 8
for sorting help. (If you do mix
various types of fabrics in your
load, set the controls for the
_- lighter-weight fabrics and remove
when dry. Reset controls for the
remaining heavier fabrics. )
Set the Controls.
See the Controls Setting Guide on
pages 6 and 7.
OTurn Cycle Selector to desired
cycle setting. The selector may be
turned in either direction.
O Push START switch to start
dryer. (Opening the door during
operation stops the dryer. To
restart, close the door and push the
START switch.)
O
I
Polyester Knits &
Permanent Press drying tips
• DO NOT OVERLOAD--
Garments being dried or
dewrinkled should tumble freely.
oREMOVE CLOTHES
PROMFFLY--To help prevent
wrinkling, remove from the dryer
promptly at the end of the drying
cycles.
• PLACE ON HANGERS--
Permanent Press and Polyester
Knit garments look best if placed
on hangers after drying.
I TURN THE PAGEfor Controls Setting Guide
Controls Setting Guide for different fabrics and loads
Load Drying Time
Cottons& Linens 45 minutes for average-weight loads; 55 minutes
for work clothes and thick knitted cottons. Damp Dry for
ironing: 20 minutes lightweight cottons;
25 minutes medium weight; 30 minutes heavy cottons.
Permanent Press, Treated Cottons, Blends with Cotton 45 minutes
Synthetics Polyester, Nylon, Acrylic Knits and Woven Fabrics
Sturdy
Delicate
Silks and Wools, Blends including Silks and Wools
Rayon and Acetate
Down-filled garments, if machine washing and drying are recommended.
Baby Clothes Sturdy: Diapers, Nightgowns, Shirts, Pads, Sheets, Receiving
Blankets, Coveralls. See Special Instructions.
Baby Clothes Delicate
Blankets Wool, Part Wool, Cotton, Electric, Synthetic. See Below Under
"Extra-large Items?'
Curtains, Slipcovers, Draperies. DO NOT MACHINE DRY FIBERGLASS.
Chenille Bedspreads, Robes. See below under "Extra-large Items'?'
Rubber-coated items, laminated fabrics, vinyl, plastics and articles with
plastic trim.
Bathmats and Rugs. See below under High heat "Extra-large Items_'
Extra-large Items queen or king size sheets, blankets or spreads, sleeping
bags, insulated jackets or suits, mattress covers (pads), quilted bedspreads.
Pillows_eather and Polyester-filled (if manufacturer recommends they be
dried in a dryer). See Special Instructions,
45 minutes
20 minutes
20 minutes
20 minutes
25 minutes
45 minutes
20 minutes
20-25 minutes
For first setting set at 20 minutes; for second
setting set at 15 minutes.
For first setting set at 20 minutes; additional
settings set at 5 minutes.
Set for time desired
For first setting set at 20 minutes; additional
settings set at 5 minutes.
For first setting set at 20 minutes; second setting--
15 minutes; additional settings set at 5 minutes.
90 minutes
NOTE: The drying times indicated above are to be used as a guide. You may find that best results are obtained for certain of your
fabrics by setting the dial to either side of the recommended times.
Special Instructions
Do not dry non-colorfast items with whites or light-colored items.
Do not overload dryer; clothes should tumble fleety. Remove promptly as soon as dryer stops; place clothes on haugers to
minimize wrinkling.
Do not overload dryer; clothes should tumble freely. Remove promptly as soon as dryer stops; place clothes on hangers to
minimize wrinkling.
Dry silks and wools in your dryer only if recommended by the garment manufacturer. Follow instructions carefully.
Tumble drying is mandatory. Down must be thoroughly dried to remove odor and prevent mildewing. Place two large dry towels in the
dryer to improve tumbling and shorten drying time. Two clean, dry tennis shoes added to dryer also help to fluff up the down. Be sure to
dry thoroughly.
IMPORTANT. If children's sleepwear is made of Modacrylic, tumble dry only on Low/Knits. Normal Heat temperature can damage these
fabrics. Cheek manufacturer's drying instructions.
See above instructions.
Place in dryer with 3 or 4 dry towels which have been heated for 5 minutes. Set timer for 20 to 25 minutes. Do not set control for more than 25
minutes. Do only one btauket at a time. Remove blanket at end of cycle and block blanket back to original shape. Press binding with warm iron.
Allow to dry before storing.
Use dry towels as buffers. Set time for 20 minutes. If items are still wet, reset for 15 minutes and cheek again. Items should be removed while still
damp. Place slipcovers on furniture immediately. Hang draperies and curtains so that creases will fall out. Stop dryer periodically and cheek filter
for excess lint. Remove and restart dryer.
Tumble dry on No Heat/Fluff setting as heat may cause alteration in shape, color and appearance of such articles.
Stop dryer periodically and check filter for excess lint. Remove and restart dryer.
Specialprecautions must be taken to dry extra large items. Set dryer for 20 minutes then check carefully. Set 15 minutes for second setting, check
again; and 5 minutes for each additional setting. Make sure that article does not fill drum. Many large articles, when wet, have ample room in
dryer, but as they dry and fluff up may not have room to tmnble. Check carefully every few minutes and if article is still wet or damp and fills
dryer, finish drying on line. Do not, under any circumstances operate dryer for longer times without checking. CAUTION: If large items do not
have room to tumble, the air flow maybe blocked which could result in scorching your valuable items. Many large items, like shag rugs, cannot be
dried in home size dryers. DO NOTtumble dry jackets containing Kapok. (See filter cleaning instructions above. )
Check ticking for holes or weak seams where feathers or filling could escape. Dry no more than one pillow at a time and set dryer for maximum
time. Stop dryer occasionally and shake pillows to redistribute filling for more even drying. Cheek pillows at end of drying time. If they are not
completely dry, return them to dryer and reset for more drying time. Feather pillows dry very slowly and must be dried completely to prevent
mildewing. DO NOT tumble dl3' pillow,s containing Kapok.
Refer to Garment Manufacturers' Care Labels
For more information on care labeling, send for "What's New About CARE LABELS?'
For sale by the Superintendent of Documents, U.S. Government Printing Office, Washington, D.C. 20402.
How to sort the clothes
Normally, if you have sorted clothes correctly for washing,
you will also have properly sorted drying loads.
Sort by surface texture
Separate
Lint
from
Lint
LINT PRODUCERS--such as
terry toweling and chenille--give
up lint. LINT COLLECIDRS--
such as man-made fibers and
napped fabrics like velveteen and
corduroy--attract lint, and must be
dried separately.
Sort by fabric
Separat,_,_
__ Cot_,_s__/
_ Linens _
from
\E=_Blends & H/
from
Press
from
Delicates
In addition to sorting to reduce lint
collection, it is recommended that
fabrics of similar construction be
dried together whenever possible.
Sort by color
Separate
from
Lights
from
from
Colorfast
Sort by weight
Separate
%Isuohas J/
L_ towels)_[
from
%(sua,as _/
For information on tumble drying
extra-large items and different
fabrics and loads, see pages 6 and 7.
How to load the
clothes
Don't overload your dryer.
Crowded loads don't dry efficiently
and clothes may be unnecessarily
wrinkled.
Loads should look like this:
Drum with
Cottons & Linens
Drum with
Permanent Press Load
Clean the lint filter before
drying every load.
Clean lint filter (see shaded area)
by putting your moistened fingers
at the corner of filter and wiping in
a downward motion all the way
across to the other corner.
Lint Filter
For additional information on lint
filter, see page 13.
Energy-Saving Tips
• Sort clothes by weight so you won't
have to run an extra cycle for one or
two heavier, slower-drying items.
See page 8.
oDo not overload dryer. For
efficient drying, clothes need to
tumble freely.
•To help prevent ironing, remove
garments promptly at end of drying
cycle and place on hangers.
• Dry your clothes in consecutive
loads. Using a "warm" dryer will
save energy.
• Clean dryer lint filter each time
you dry.
•Clean dryer exhaust ducting
occasionally. A partially clogged
exhaust can lengthen drying time.
9
Questions?
UseThis Problem Solver
PROBLEM POSSIBLE CAUSE AND REMEDY
DRYER WON'T
START
CLOTHES TAKE
TOO LONG TO DRY
SHRINKAGE,
GENERAL
• Dryer unplugged• Make sure power cord is plugged in.
• No power to dryer• Check fuses and circuit breakers to make sure dryer is getting
current• Most electric dryers use two•
• Controls improperly set• Make sure controls are set and START switch is pushed•
Opening the door during operation stops the dryer• Tore-start, close the door and push
the START switch•
• Dryer door is open• Close door securely--dryer will not run with door open•
• Circuit is overloaded• Do not operate other appliances on the same electrical outlet
or circuit while the dryer is operating•
• Controls improperly set. Check all controls to make sure they are correctly set for
the load you want to dry• See pages 5-7•
•Clogged lint filter. Remove and clean filter before every load. Periodically clean area
under lint filter with vacuum cleaner. See page 13•
•Improper ducting. Make sure dryer is ducted in accordance with Installation
Instructions•
• Obstruction in exhaust ducting. Make sure ducting is clean and free of obstruction;
make sure damper in outside wall cap operates easily• If flexible ducting is used, be
sure it is not kinked and is properly installed according to Installation Instructions•
• Blown fuses or tripped circuit breakers. Check household fuses or circuit breakers.
Most electric dryers use two• It is possible for one to be blown or tripped and the dryer
still tumble without heat.
,Improper sorting. Do not mix heavy, hard-to-dry items with lightweight articles.
,Large loads of moisture-holding fabrics, such as beach towels, take a long time to
remove moisture.
•Too many items in dryer. Dry only one washer load at a time• Do not combine loads•
• Too few items in dryer. If drying only one article, add two more similar articles, even
if dry, to insure proper tumbling.
• Some fabrics will shrink whether machine washed and tumble dried or washed by hand
and drip dried; others may be safely washed but will shrink in a dryer• Follow Garment
Manufacturers' Care Labels exactly• If in doubt, do not machine wash or tumble dry.
10
PROBLEM
SHRINKAGE,
KNITS
WRINKLING IN
PERMANENT PRESS
AND "NO-IRON"
ITEMS
POSSIBLE CAUSE AND REMEDY
•Relaxation shrinkage can occur in knit fabrics that have been improperly stretched
and elongated by the manufacturer• When this occurs, garment maybe pressed back into
shape after each wash and dry cycle•
•Progressive or delayed shrinkage is caused when starch or sizing (in some fabrics) is
gradually removed by laundering. Maybe noticed in older garments that have been
laundered many times without previous shrinkage. Treat as for Relaxa_-onShrinkage above.
• Shrinkage caused by overheating occurs in certain knit fabrics that have been heat-
shaped. When washing, drying or ironing temperatures exceed the temperatures used to
shape set, shrinkage may occur. This cannot be corrected, but it can be prevented by
washing in cold or warm water; drying in as short a time as possible.
• Leaving clothes in dryer after tumbling stops• Remove clothes promptly and hang
them immediately•
• Too many items in dryer. Dry only one washer load at a time. Do not combine loads.
• Too few items in dryer• If drying only one article, add two or more similar articles, even
if dry, to insure proper tumbling.
• Improper loads. Avoid laundering heavy Permanent Press items, such as work clothes,
with lighter Permanent Press items, such as shirts or blouses. Do not wash or dry
Permanent Press with regular laundry.
• Too many clothes in washer. Items must have room to move freely. Permanent Press
loads should always be smaller than regular loads.. ,no more than medium loads.
• Use of incorrect wash cycle. Use Permanent Press Wash Cycle which provides a cool-
down rinse to minimize wrinkling. Dry in as short a time as possible.
• Incorrect water level. Use Full Water Fill for medium load; Medium Fill for
small load.
• Washing repeatedly in too hot water• Wash in cool or warm water with plenty of detergent.
(contimted nextpage]
The Problem Solver (continued)
PROBLEM
WRINKLING IN
PERMANENT PRESS
AND "NO-IRON"
ITEMS (continued)
POSSIBLE CAUSE AND REMEDY
•Accumulation of lime scale due to use of carbonate detergents. If you must use a
non-phosphate detergent, avoid the use of a high-carbonate detergent.
• Failure to use fabric softener. Proper use of fabric softener will minimize wrinkling.
To remove wrinkles:
1. Retumble for 45 minutes.
2. Rerinse and dry for45 minutes.
3. Iron carefully.
4. Send todry cleaners fortressing.
5. Some wrinkles may remain which cannot be removed;
*NOTE: If you follow good laundry procedures and Permanent Press clothes still come
out wrinkled, the finish may not be good quality. Also, in permanent press synthetic/
cotton blends, the cotton portion of the fabric can eventually wear away leaving only the
synthetic. Since it's the cotton portion which is treated for Permanent Press, a loss or
decrease of Permanent Press performance will result.
If you need more helo., call, toll free:
The GE Answer Center ®
800.626.2000
consumer information service
12
Care and Cleaning
USER MAINTENANCE
INSTRUCTIONS
Good dryer care
The Drum. Porcelain enamel
drum is rust-resistant and requires
no special care•
The Exterior. Wipe off any spills or
washing compounds• Wipe or dust
with damp cloth. Try not to strike
the surface with sharp objects.
The Lint Filter. Wipe lint filter
before every use as described on
page 9. Periodically lint filter
should be removed and suction
hose from vacuum cleaner should
be inserted into the opening•
See below.
Do not obstruct the flow of
combustion and ventilating air.
Dryer Exhaust: Inspect and clean
the dryer exhaust ducting at least
once a year•
To store dryer: For short period of
time, disconnect power supply and
clean lint filter.
Do not store dryer where it will be
exposed to the weather.
CAUTIONS:
• Before having your electric dryer
connected in your new residence,
be sure your licensed electrician
confirms that the supply voltage
matches the voltage specified on
the rating plate.
• Dryer control panel and finishes
may be damaged by some laundry
pre-treatment soil and stain
remover products if such products
are sprayed on or have direct
contact with the dryer.
Apply these pre-treatment products
away from the dryer. The fabric
may then be washed and dried
normally. Damage to your dryer
caused by pre-treatment products is
not covered by your warranty.

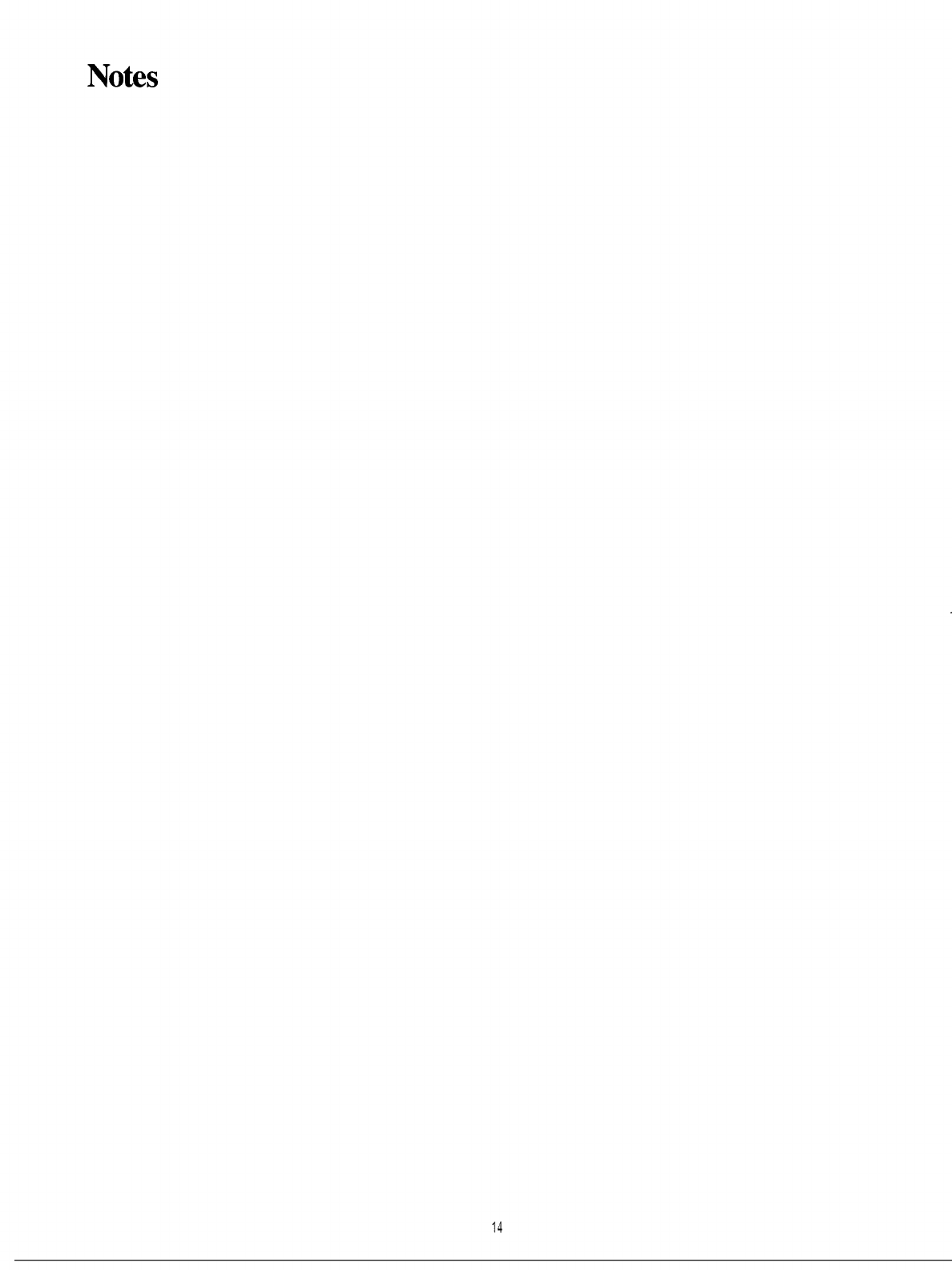

Notes
14
If You Need Service
To obtain service, see your warranty
on the back page of this book.
We're proud of our service and
want you to be pleased. If for some
reason you are not happy with the
service you receive, here are three
steps to follow for further help.
FIRST, contact the people who
serviced your appliance. Explain
why you are not pleased. In most
cases, this will solve the problem.
NEXT, if you are still not pleased,
write all the details-including
your phone number--to:
Manager, Consumer Relations
Hotpoint
Appliance Park
Louisville, Kentucky 40225
FINALLY, if your problem is still
not resolved, write:
Major Appliance
Consumer Action Panel
20 North Wacker Drive
Chicago, Illinois 60606
15
YOUR HOTPOINT AUTOMATIC CLOTHES DRYER
WARRANTY
Save proof of original purchasedate such as your sales slip or cancelledcheck to establishwarranty period.
WHAT IS COVERED FULL ONE-YEAR WARRANTY
For one year from date of original
purchase, we will provide, free of
charge, parts and service labor
in your home to repair or replace
any part of the dryer that fails
because of a manufacturing
defect.
This warranty is extended to
the original purchaser and any
succeeding owner for products
purchased for ordinary home use
in the 48 mainland states, Hawaii
and Washington, D.C. In Alaska the
warranty is the same except that it
is LIMITED because you must pay to
ship the product to the service shop
or for the service technician's travel
costs to your home.
All warranty service will be provided
by our Factory Service Centers or
by our authorized Customer Care ®
servicers during normal working
hours.
Look in the White or Yellow Pages
of your telephone directory for
HOTPOINT FACTORY SERVICE,
GENERAL ELECTRIC-HOTPOINT
FACTORY SERVICE or HOTPOINT
CUSTOMER CARE _SERVICE•
WHAT I$ NOT COVERED • Service trips to your home to
teach you how to use the product.
Read your Use and Care material.
If you then have any questions
about operating the product,
please contact your dealer or our
Consumer Affairs office at the
address below, or call, toll free:
The GE Answer Center e
800.626.2000
consumer information service
•Improper installation,
If you have an installation problem,
contact your dealer or installer.
You are responsible for providing
adequate electrical, gas, exhausting
and other connecting facilities.
• Replacement of house fuses or
resetting of circuit breakers.
• Failure of the product if it is used
for other than its intended purpose
or used commercially.
• Damage to product caused
by accident, fire, floods or acts
of God.
WARRANTOR IS NOT RESPONSIBLE
FOR CONSEQUENTIAL DAMAGES.
Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion
may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
To know what your legal rights are in your state, consult your local or state consumer affairs office or your state's Attorney General.
Warrantor: General Electric Company
If further help is needed concerning this warranty, write:
ManagermConsumer Affairs, General Electric Company, Appliance Park, Louisville, KY 40225
Part No. 113 D5497P091
Pub. No. 39-9273
1-88
I-IOTPOINT DLB1250B

Navigation menu
