Instruction booklet

DISHWASHER

Contents

Installation, 2-5

Positioning and levelling

Technical data

Electrical connection

Connecting the water supply

Description of the appliance, 6

Overall view

Control panel

Loading the racks, 7

Lower rack

Cutlery basket

Upper rack

Start-up and use, 8

Starting the dishwasher

Loading the detergent

Washing options

Wash cycles, 9

Wash cycle table

Rinse aid and refined salt, 10

Loading the rinse aid

Loading the refined salt

Care and maintenance, 11

Shutting off the water and electricity supplies

Cleaning the dishwasher

Preventing unpleasant odours

Cleaning the sprayer arms

Cleaning the water inlet filter

Cleaning the filters

Leaving the machine unused for extended periods

Precautions and advice, 12

General safety

Disposal

Saving energy and respecting the environment

Troubleshooting, 13

After Sales Service, 14

After Sales Service

Essential Contact Information

Parts and Accessories

Appliance Registration

Recycling and Disposal Information

Hotpoint Guarantee, 15

FDM 550

EN

English, 1

2

EN

Positioning and levelling

1. Remove the appliance from all packaging and check

that it has not been damaged during transportation.

If it has been damaged, contact the retailer and do not

proceed any further with the installation process.

2. Check the dishwasher by placing it so that its sides or

back panel are in contact with the adjacent cabinets or

even with the wall. This appliance can also be recessed

under a single worktop* (see the Assembly instruction

sheet).

3. Position the dishwasher on a level and sturdy floor. If

the floor is uneven, the front feet of the appliance may be

adjusted until it reaches a horizontal position (the angle of

inclination must not exceed 2 degrees). If the appliance is

levelled correctly, it will be more stable and much less

likely to move or cause vibrations and noise while it is

operating.

4*. Adjust the height of the rear foot from the front of the

appliance* on the central lower part of the dishwasher,

turning a hexagonal spanner (red color) with an opening

of 8 mm in a clockwise direction to increase the height

or in an anticlockwise direction to decrease the height.

Anti-condensation strip*

After installing the dishwasher, open the door and stick

the adhesive transparent strip under the wooden shelf in

order to protect it from any condensation that may form.

Keep this instruction manual in a safe place for

future reference. If the appliance is sold, given away or

moved, please ensure the manual is kept with the

machine, so that the new owner may benefit from the

advice contained within it.

Please read this instruction manual carefully: it

contains important information regarding the safe

installation, use and maintenance of the appliance.

If the appliance must be moved at any time, keep it

in an upright position; if absolutely necessary, it may be

tilted onto its back.

This appliance is intended to be used in household

and similar applications such as:

- staff kitchen areas in shops, offices and other working

environments;

- farm houses;

- by clients in hotels, motels and other residential type

environments;

- bed and breakfast type environments.

Advice regarding the first wash cycle

After the appliance has been installed, immediately

before running the first wash cycle, completely fill the

salt dispenser with water and add only then

approximately 1 kg of salt (see chapter entitled Rinse aid

and refined salt). The water may overflow: this is normal

and is not a cause for concern. Select the water

hardness value (see chapter entitled Rinse aid and

refined salt). - After the salt has been poured into the

machine, the LOW SALT indicator light* switches off.

If the salt container is not filled, the water softener

and the heating element may be damaged as a result.

* Only available in selected models.

Installation

Technical data

Dimensions

width 60 cm

height 85 cm

depth 60 cm

Capacity 12 standard place-settings

Water supply

pressure

0,05 ÷ 1MPa (0.5 ÷ 10 bar)

7,25 – 145 psi

Power supply

voltage See appliance data plate

Total absorbed

power See appliance data plate

Fuse See appliance data plate

This dishwasher conforms to the

following European Community

Directives:

-2006/95/EC (Low Voltage)

-2004/108/EC (Electromagnetic

Compatibility)

-2005/32/EC (Comm. Reg.

1275/2008) (Ecodesign)

-97/17/EC (Labelling)

-2002/96/EC (Waste Electrical

and Electronic Equipment)

(WEEE)

3

EN

The dishwasher meets the requirements set out by

the regulations in force concerning safety and electrical

equipment.

Any technical checks should be conducted

exclusively by a trained and authorised technician:

Repairs carried out by unaithorised persons will

invalidate the guarantee, as well as posing a potential

hazard to the user.

The manufacturer declines all responsibility for

damage to persons or property resulting from failure to

observe the above precautions, from tampering with

even a single component or from the use of non-original

spare parts.

Electrical Connection

Before inserting the plug into the electrical socket, make

sure that:

 the socket is earthed and complies with current

regulations;

 the socket can withstand the maximum load of the

appliance, which is indicated on the data plate

located on the inside of the door (see Description of

the appliance);

 the power supply voltage falls within the values

indicated on the data plate on the inside of the door;

 the socket is compatible with the plug of the

appliance. If this is not the case, ask an authorised

technician to replace the plug (see After Sales

Service); do not use extension cables or multiple

sockets.

Once the appliance has been installed, the power

supply cable and the electrical socket should be easily

accessible.

The cable should not be bent or compressed.

If the power supply cable is damaged, it must be

replaced by the manufacturer or its Technical

Assistance Service in order to prevent all potential

hazards. (See After Sales Service)

This appliance must be earthed

Fuses:your appliance comes fitted with a plug and a 13A

fuse. If you need to replace the fuse, only those rated at

13A and ASTA approved to BS1362 should be used. If

you lose the fuse cover, a replacement may be obtained

from your local authorised Service Centre or Electrical

company. Correct replacement is identified by colour

coding or the marking on base of plug.

DO NOT use the plug unless the fuse cover is fitted.

Changing the Plug

Cut off and dispose of the supplied plug if it does not

fit your socket.

To avoid a shock hazard DO NOT insert the

discarded plug into a socket anywhere else.

Wires in the mains lead are coloured accordance

with the following code:

Green/Yellow - Earth

Blue - Neutral

Brown - Live

If you change the plug, the colour of the wires in the

mains lead may not correspond with the terminal

markings in the plug, which if not coloured, could be:

EARTH E or

NEUTRAL N

LIVE L

Changing the Mains Lead

A lead can be ordered from Hotpoint Service

UK: 08709 066 066 or

Republic of Ireland: 1850 302 220

- If you have damaged the existing lead or require a

longer one a charge will be made. It is strongly advised

that this work is carried out by a qualified electrician.

- If the domestic wiring includes a residual current-

operated circuit breaker, ensure that it conforms to the

latest regulations.

The dishwasher must not be connected to the

electricity supply while installation is being carried out.

- This appliance should only be connected to a 230/

240V AC source, via a properly installed earthed socket.

- Use the dishwasher solely in a domestic environment.

- DO NOT stand or place heavy objects on the door

when it is open, this could damage the door or cause the

appliance to tip forward.

The Company shall not be held responsible for any

incidents that occur if these regulations are not

observed.

4

EN Connecting the water supplies

Connection to the water and electricity supplies

should only be performed by a qualified technician.

The dishwasher should not stand on top of the water

hoses or the electricity supply cable.

Connecting the water inlet hose

The water inlet and outlet hoses and the electricity

supply cable may be positioned towards the right or the

left in order to achieve the best possible installation.

 To a suitable cold water connection point: before

attaching the hose, run the water until it is perfectly

clear so that any impurities that may be present in the

water do not clog the appliance; after performing this

operation, screw the inlet hose tightly onto a tap with

a ¾ gas threaded connection.

 To a suitable hot water connection point: your

dishwasher may be provided with hot water from the

mains supply (if you have a central heating system

with radiators) provided that it does not exceed a

temperature of 60°C.

Screw the hose to the tap as described for

connection to a cold water supply.

If the inlet hose is not long enough, contact a

specialist store or an authorised technician (see After

Sales Service).

The water pressure must be within the values

indicated in the Technical data table (see Installation).

The hose should not be bent or compressed.

The appliance must be connected to the water

supply network using new hoses.

Do not use old hoses.

Ensure that the new hose supplied is connected and the

old hose is disposed of safely.

DO NOT overtighten the hose connector, hand tight

is sufficient.

Ensure the fill hose is not kinked.

Tap connections*: A range of adaptors are available

to suit your tap.

DO NOT connect the dishwasher to a single outlet

instantaneous water heater or an electric heater.

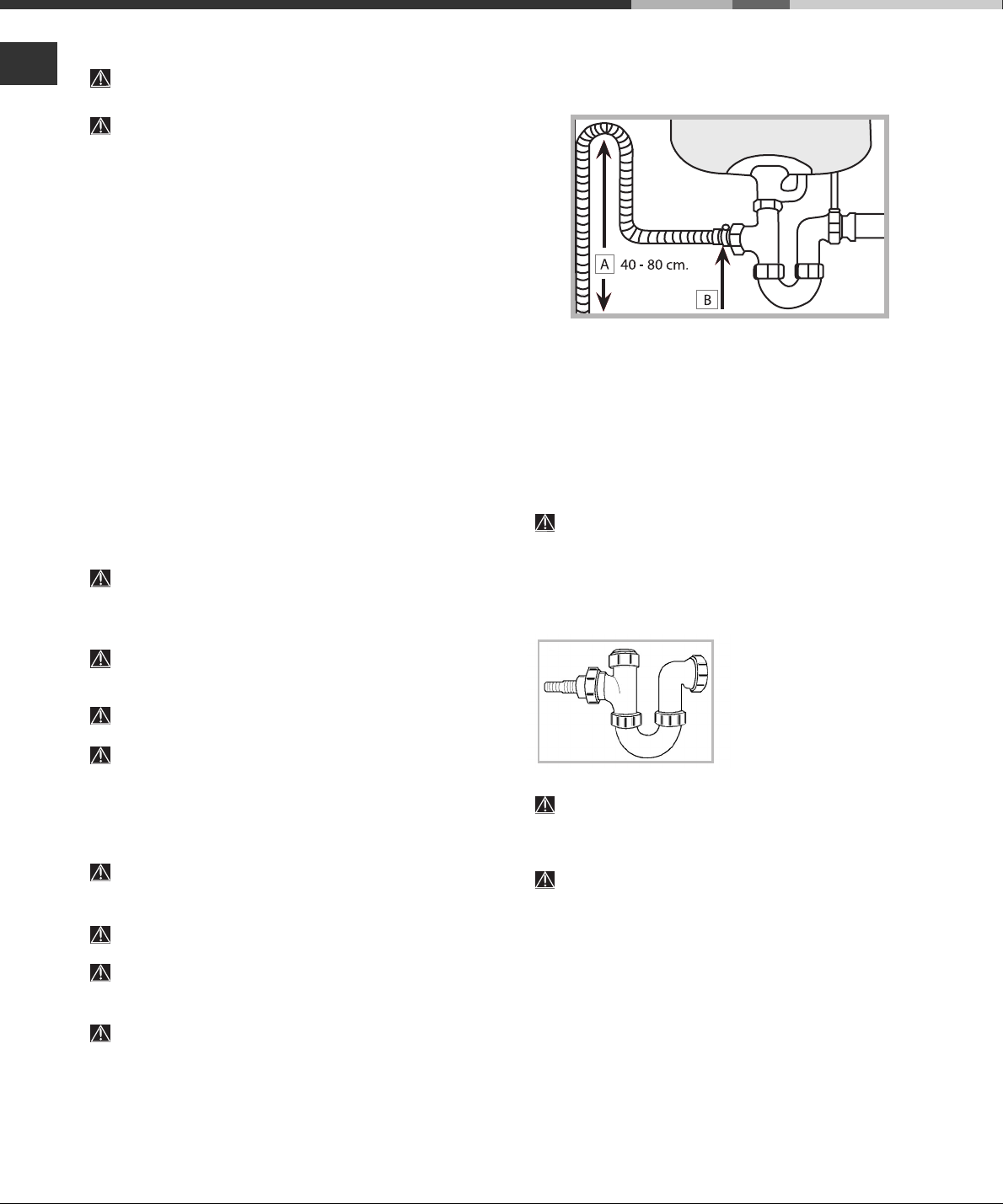

Sink Waste System

Connect the outlet hose (without bending it) to a drain

duct with a minimum diameter of 32 mm.

The outlet hose must be at a height ranging from 40 to

80 cm (from 15 to 31) from the floor / surface where

the dishwasher rests (A).

 before connecting the drain hose, remove any

internal restrictions; this will prevent a build up of

debris which could cause a blockage

 remove any restrictions from the waste spigot and

ensure that the sealing bung is removed (B).

It MUST NOT be connected to a surface water drain.

 Untie the end of the GREY drainage hose from the rear

of the appliance.

 If fitting an under sink

waste disposal unit, cut

out the membrane, bung

or blanking plug.

Ensure the drain hose is securely attached, to

prevent it coming away while the machine is in use and

causing a flood.

Fit hose to waste securely using a Jubilee type

clip.

* Only available in selected models.

5

EN

Anti-flooding protection*

To ensure floods do not occur, the dishwasher:

- is provided with a special system which blocks the

water supply in the event of anomalies or leaks from

inside the appliance.

Some models are also equipped with the supplementary

safety device New Acqua Stop*, which guarantees anti-

flooding protection even in the event of a supply hose

rupture.

* Only available in selected models.

WARNING: HAZARDOUS VOLTAGE!

Under no circumstance should the water inlet hose be

cut as it contains live electrical parts.

The Company shall not be held responsible for any

incidents that occur if these regulations are not

observed.

6

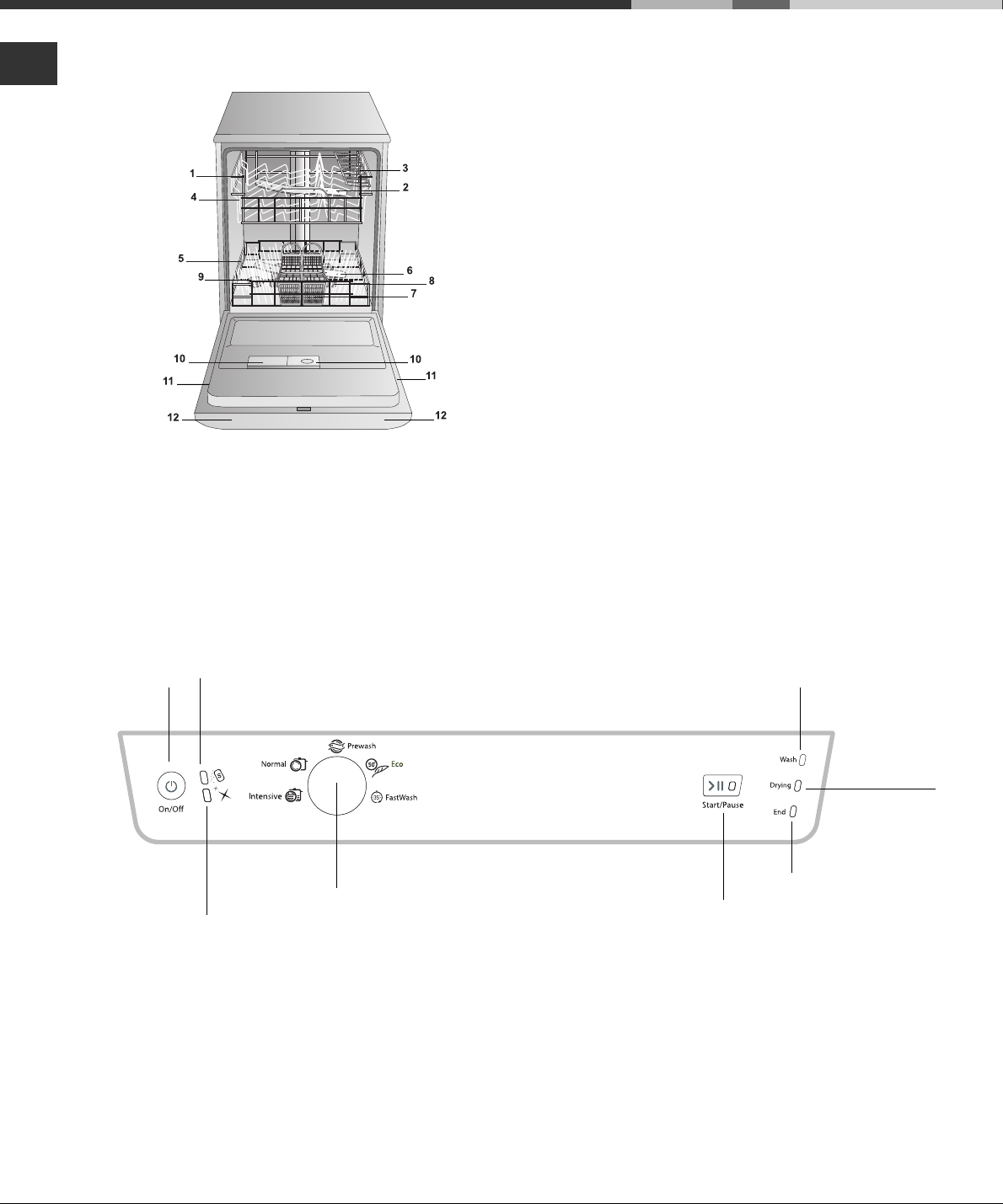

EN Overall view

1. Upper rack

2. Upper sprayer arm

3. Tip-up compartments

4. Rack height adjuster

5. Lower rack

6. Lower sprayer arm

7. Cutlery basket

8. Washing filter

9. Salt dispenser

10. Detergent and rinse aid dispensers

11. Data plate

12. Control panel***

***Only in completely built-in models.

* Only available in selected models.

Description of the appliance

Control panel

The number and type of wash cycles and options may vary depending on the dishwasher model.

End indicator light

Washing

indicator light

Drying

indicator light

Start/Pause

button and

indicator light

ON/OFF/

RESET button

WASH CYCLE SELECT

knob

Low rinse aid

indicator light

Low salt

indicator light

7

EN

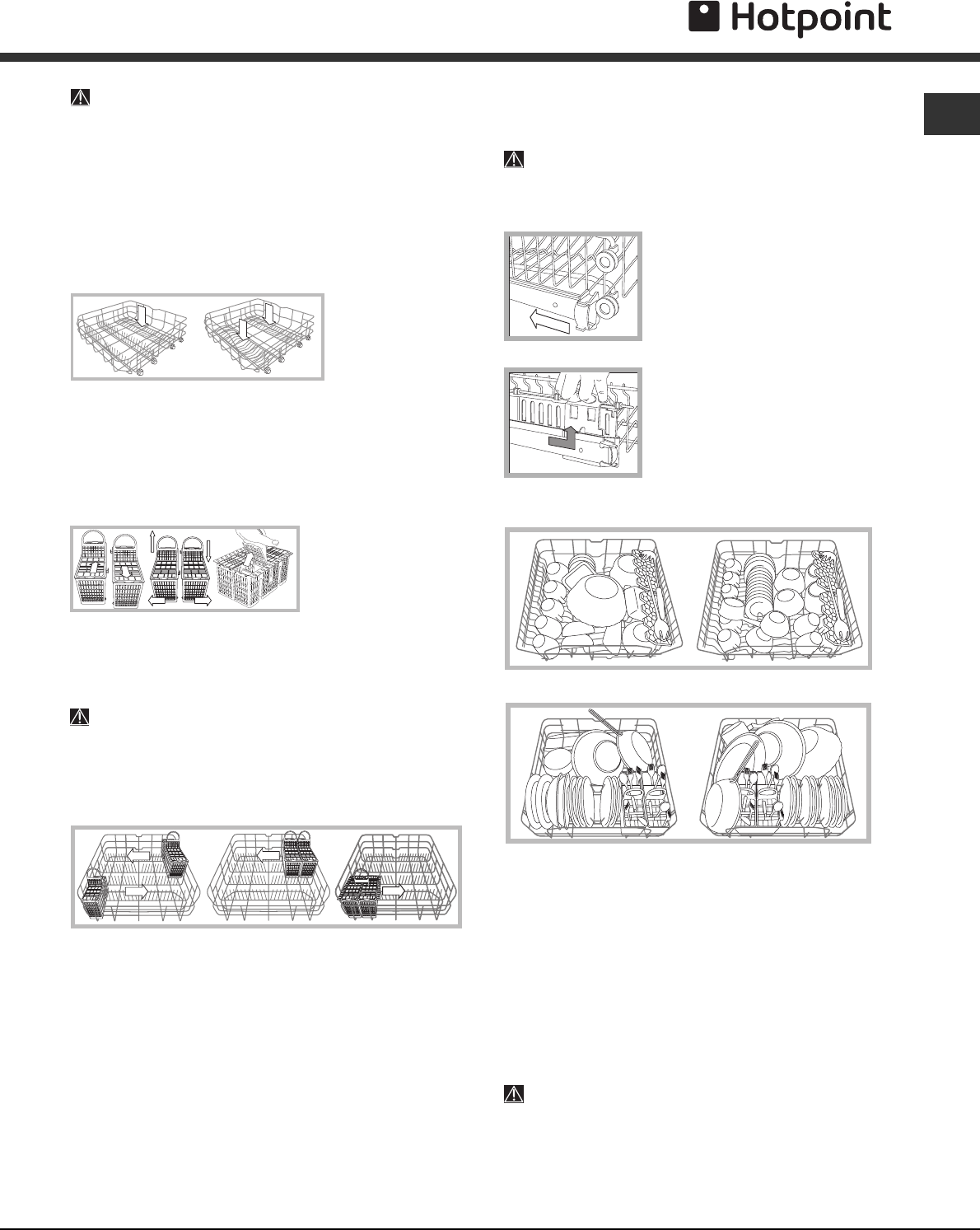

Loading the racks

* Only available in selected models.

** The number and position may vary.

Before loading the racks, remove all food residues from the

crockery and empty liquids from glasses and cups.

After loading the appliance, check that the sprayer arms

can rotate freely.

Lower rack

The lower rack can hold pans, lids, plates, salad bowls, cutlery,

etc. as seen in the Loading examples.

Plates and large covers should be placed at the sides of the

rack, ensuring that they do not block the rotation of the upper

sprayer arm.

Some dishwasher

models are fitted

with tip-up

sections*, which

can be used in a

vertical position when arranging plates or in a horizontal position

when arranging pans and salad bowls.

Cutlery basket

The type of cutlery basket may vary according to the

dishwasher model: it may be modular, non-modular or a sliding

version. The non-modular basket must only be positioned at

the front of the lower rack.

The modular basket

may be separated into

two parts, a solution

which is recommended

when performing a half

load wash (only in models offering this option), is available in a

sliding version (positioned at any point on the lower rack by

sliding it between the fixed or tip-up inserts.

- Both versions are fitted with a collapsible sliding system which

means the cutlery can be arranged in the best possible way.

Knives and other utensils with sharp edges must be placed

in the cutlery basket with the points facing downwards, or they

must be positioned horizontally in the tip-up compartments on

the upper rack.

Cutlery basket positioning examples

Upper rack

Load this rack with delicate and lightweight crockery: glasses,

tea and coffee cups, saucers, small salad bowls, saucepans

and small saucepans which are not too soiled, using the

Loading examples as a guide.

 Mugs and cups, long sharp knives and serving utensils:

place these on the tip-up compartments**.

Adjusting the height of the upper rack

In order to make it easier to arrange the crockery, the upper

rack may be moved to a higher or lower level.

The height of the upper rack should ideally be

adjusted WHEN THE RACK IS EMPTY.

Never lift or lower the rack on one side only.

Open the left and right guide rail

stops and pull out the rack; position it

higher or lower as required, slide it

along the guide rails until the front

wheels are in place and close the

stops (see figure).

If the rack is fitted with Dual Space

handles* (see figure), pull out the

upper rack until it reaches its stop

point, grip the handles at the sides of

the rack and move it upwards or

downwards, then slowly let it fall back

into place.

Loading examples for the upper rack

Loading examples for the upper rack

Items which should not be washed in the

dishwasher

 Wooden items, objects with wooden or horn handles or

glued-on parts.

 Items made from aluminium, copper, brass, pewter or tin.

 Items made from plastic material which is not heat-

resistant.

 Antique or hand-painted porcelain.

 Antique silver. Silver which is not antique may, however,

be washed in the dishwasher using a delicate wash cycle,

provided that it does not come into contact with other

metals.

We recommend the use of crockery which is dishwasher

safe.

8

EN

Start-up and use

Measuring out the detergent

A good wash result also depends on the correct

amount of detergent being used; exceeding the

stated amount does not result in a more effective

wash and increases environmental pollution.

Only use detergent which has been

specifically designed for dishwashers.

DO NOT USE washing up liquid.

Using excessive detergent may result in foam

residue remaining in the machine after the cycle

has ended.

The use of tablets is only recommended for

models which offer the MULTI-FUNCTIONAL

TABLETS option.

To achieve the best results from each washing

and drying cycle, powder detergent, rinse aid

liquid and salt should be used.

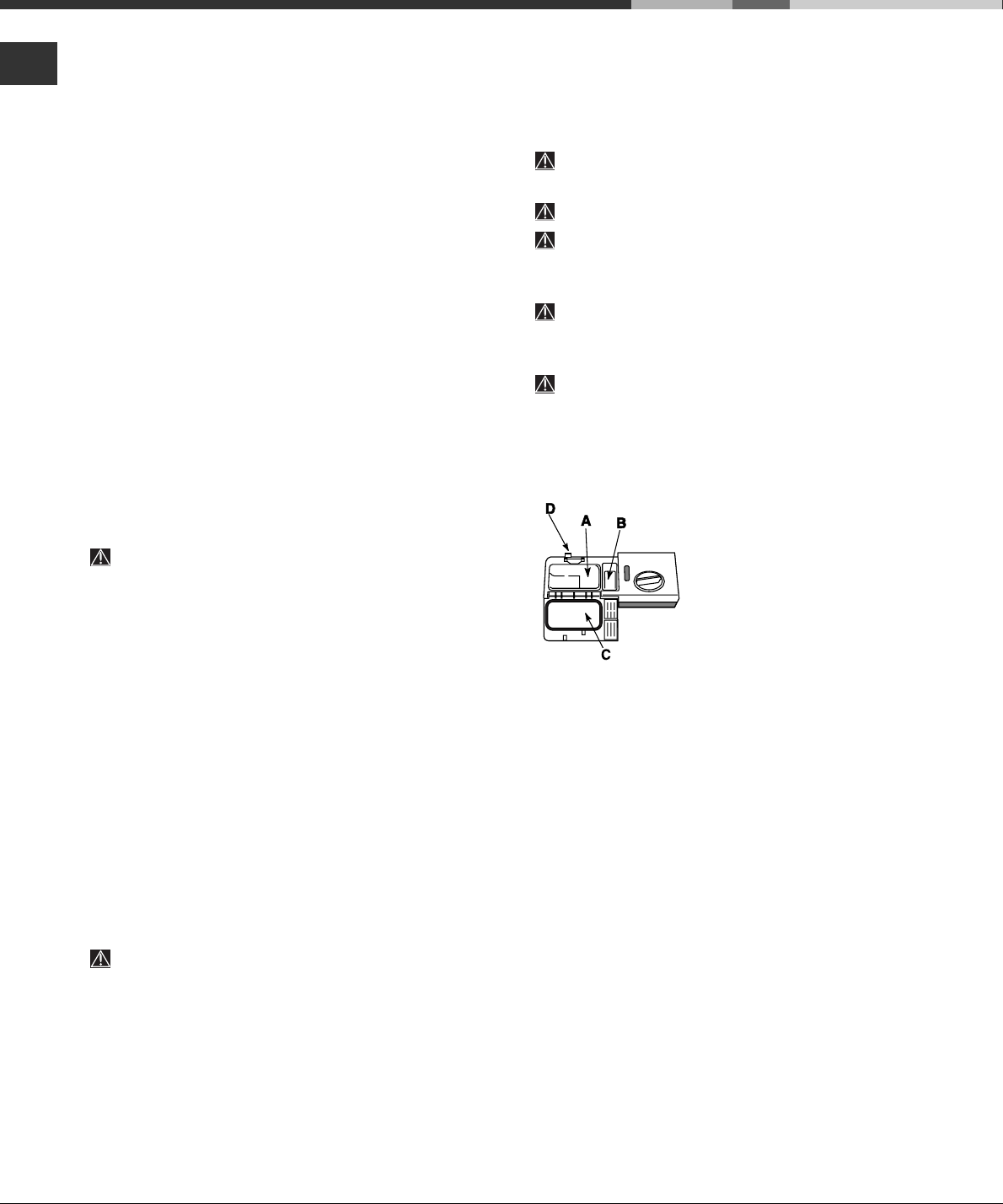

Compartment A: Washing detergent

Compartment B: Pre-wash detergent

1. Open cover C by pressing

button D.

2. Pour in the detergent after

consulting the Table of wash

cycles:

 For powder detergent use

compartments A and B.

 For detergent in tablet form:

when the cycle requires 1 tablet,

place it in compartment A and close the cover; when it

requires 2, place the second tablet at the bottom of the

appliance.

3. Remove detergent residues from the edges of the

compartment and close the cover until it clicks.

* Only available in selected models.

Starting the dishwasher

1. Turn the water tap on.

2. Press the ON/OFF button: all the indicator lights on

the control panel will light up for a few seconds.

3. Open the door and pour in a suitable amount of

detergent (see below).

4. Load the racks (see Loading the racks) and shut the

door.

5. Select the wash cycle by turning the WASH CYCLE

SELECT knob in a clockwise direction: align the notch

on the knob with the number or symbol representing the

desired wash cycle. The START/PAUSE indicator light

will flash.

6. Select the wash options* (see adjacent information).

7. Start the cycle by pressing the START button; the

indicator light will flash and remain lit in a fixed manner.

The indicator light corresponding to the wash phase will

switch on, signalling that the wash cycle has begun.

8. At the end of the wash cycle the END indicator light

will switch on (fixed light). Switch off the appliance by

pressing the ON/OFF button, shut off the water valve and

unplug the appliance from the electricity socket.

9. Wait for a few minutes before removing the crockery,

in order to avoid burns. Unload the racks, beginning with

the lower level.

- The machine will switch off automatically

during certain periods of inactivity, in order to

minimise electricity consumption.

Modifying a wash cycle in progress

If a mistake was made during the wash cycle selection

process it is possible to change the cycle, provided that

it has only just begun: once the wash cycle has started,

switch off the machine by pressing and holding the ON/

OFF/Reset button. Switch it back on using the same

button and select the desired wash cycle and options.

Adding extra crockery

Press the Start/Pause button (the corresponding

indicator light will flash). Open the door, taking care to

avoid the escaping steam, and place the crockery inside

the appliance. Close the door and press the Start/Pause

button (fixed light): the cycle starts from the point at

which it was interrupted.

If the Start/Pause button is pressed so as to pause the

machine, the wash cycle or the Delayed Start function

(if selected) is interrupted.

At this stage it is not possible to change the wash cycle.

Accidental interruptions

If the door is opened during the wash cycle, or if there is

a power cut, the cycle stops. It starts again from the point

at which it was interrupted once the door has been shut

or once the electricity supply is restored.

9

EN

Wash cycles

The number and type of wash cycles and options may vary depending on the dishwasher model.

Notes:

To make it easier to measure out the detergent, it is worth remembering that:

1 tablespoon = 15 gr. of powder = approximately 15 ml of liquid - 1 teaspoon = 5 gr. of powder = approximately 5 ml of liquid

Optimum performance levels when using the "Fast" cycle can be achieved by observing the maximum amounts of crockery

specified.

* The Eco wash cycle adheres to the regulation EN-50242. Although it has a longer duration than other wash cycles it uses less

energy and is les harmful to the environment.

Note for Test Laboratories: for information relating to comparative EN testing conditions, please send an email to the

following address: ASSISTENZA_EN_LVS@indesitcompany.com

If the crockery is only lightly soiled or if it has been rinsed with water before being placed in the dishwasher,

reduce the amount of detergent used accordingly.

Detergent

(A) = compartment A

(B) = compartment B

Wash cycle selection

instructions Wash cycle

Powder Liquid Tablets

Wash

cycles

which

include

drying

Options

Wash cycle

duration

(tolerance

±10%)

Hrs. Min.

Heavily soiled dishes and

pans (not to be used for

delicate items). Intensive

30 g (A)

30 ml (A)

1 (A)

Yes

NO

2:25’

Normally soiled pans and

dishes. Standard daily wash

cycle.

Normal

25 g (A)

5 g (B)

25 ml (A)

5 ml (B)

1 (A)

Yes

NO

1:50’

Pre-wash for dishes while

awaiting completion of the

load with the dishes from the

next meal. Prewash

No

No

No

No

NO

0:08’

Environmentally-friendly

wash cycle with low energy

consumption levels, suitable

for pans and dishes. Eco*

25 g (A)

5 g (B)

25 ml (A)

5 ml (B)

1 (A)

Yes

NO

2:55’

Economic and fast wash to

be used for lightly soiled

dishes. (Run cycle

immediately after use) (2

plates + 2 glasses + 4 pieces

of cutlery + 1 saucepan + 1

small frying pan). Fast

25 g (A)

25 ml (A)

1 (A)

No

NO

0:35’

10

EN

G

H

F

Rinse aid and refined salt

Water Hardness Table

°dH °fH mmol/l level

0 6 0 10 0 1 1

6 11 11 20 1.1 2 2

12 17 21 30 2.1 3 3

17 34 31 60 3.1 6 4

34 50 61 90 6.1 9 5*

For values between 0°f and 10°f, we do not

recommend the use of salt.

* this setting may cause a slight increase in the

duration of the cycle.

Only use products which have been

specifically designed for dishwashers.

Do not use table salt or industrial salt, or

washing up liquid.

Follow the instructions given on the packaging.

If using a multi-functional product it is not necessary to

add rinse aid; however, we recommend that you add salt,

especially if you live in an area where the water is hard or

very hard. Follow the instructions given on the packaging.

If you do not add salt or rinse aid, the LOW

SALT* and LOW RINSE AID* indicator lights

remain lit.

Measuring out the rinse aid

Rinse aid makes it easier for the crockery to dry, as water

runs off surfaces more readily and therefore does not leave

streaks or marks.

The rinse aid dispenser should be filled:

 When the LOW RINSE AID* indicator light on the control

panel is illuminated;

1. Open the dispenser by

turning the lid (G) in an

anticlockwise direction.

2. Pour in the rinse aid, making

sure it does not overflow from

the dispenser. If this happens,

clean the spill immediately with a

dry cloth.

3. Screw the lid back on.

NEVER pour the rinse aid

directly into the appliance tub.

Adjusting the amount of rinse aid

If you are not completely satisfied with the drying results, you

may adjust the quantity of rinse aid used. Use a screwdriver

to turn the dosage adjuster (F) to one of the 6 pre-set

positions (the default position is set to 4):

 If there are streaks on the crockery, set the adjustment

device to a lower number (1-3).

 If drops of water remain on the crockery or if there are

limescale marks present after the cycle has finished, set the

adjuster to a higher number (4-6).

Setting the water hardness

Every dishwasher is equipped with a water softener which, by

using refined salt designed especially for this type of

appliance, supplies water without limescale which is then used

to wash the crockery.

This dishwasher offers a setting which helps to reduce

pollution and optimises washing performance in accordance

with the water hardness level in your area. This information can

be obtained from the organisation which supplies your

household with water.

- Switch the machine off using the ON/OFF button and open

the door.

- Set the SELECT WASH CYCLE knob first to wash cycle 5, then

to wash cycle 1, then to wash cycle 5 again.

- Press the ON/OFF button; the wash cycle phase indicator

lights will flash. It is now possible to select the water hardness

level. There is a water hardness level for every wash cycle:

E.g.: wash cycle 1, water hardness level 1

wash cycle 2, water hardness level 2, etc. etc., up to a maximum

of five levels.

(The default water softener setting is level 3).

- To exit the function, wait approximately few seconds or press

another option* button, or switch off the machine using the ON/

OFF button.

Even if using multi-functional tablets, the salt dispenser should

still be filled.

(°dH = hardness measured in German degrees - °f =

hardness measured in French degrees - mmol/l = millimoles

per litre)

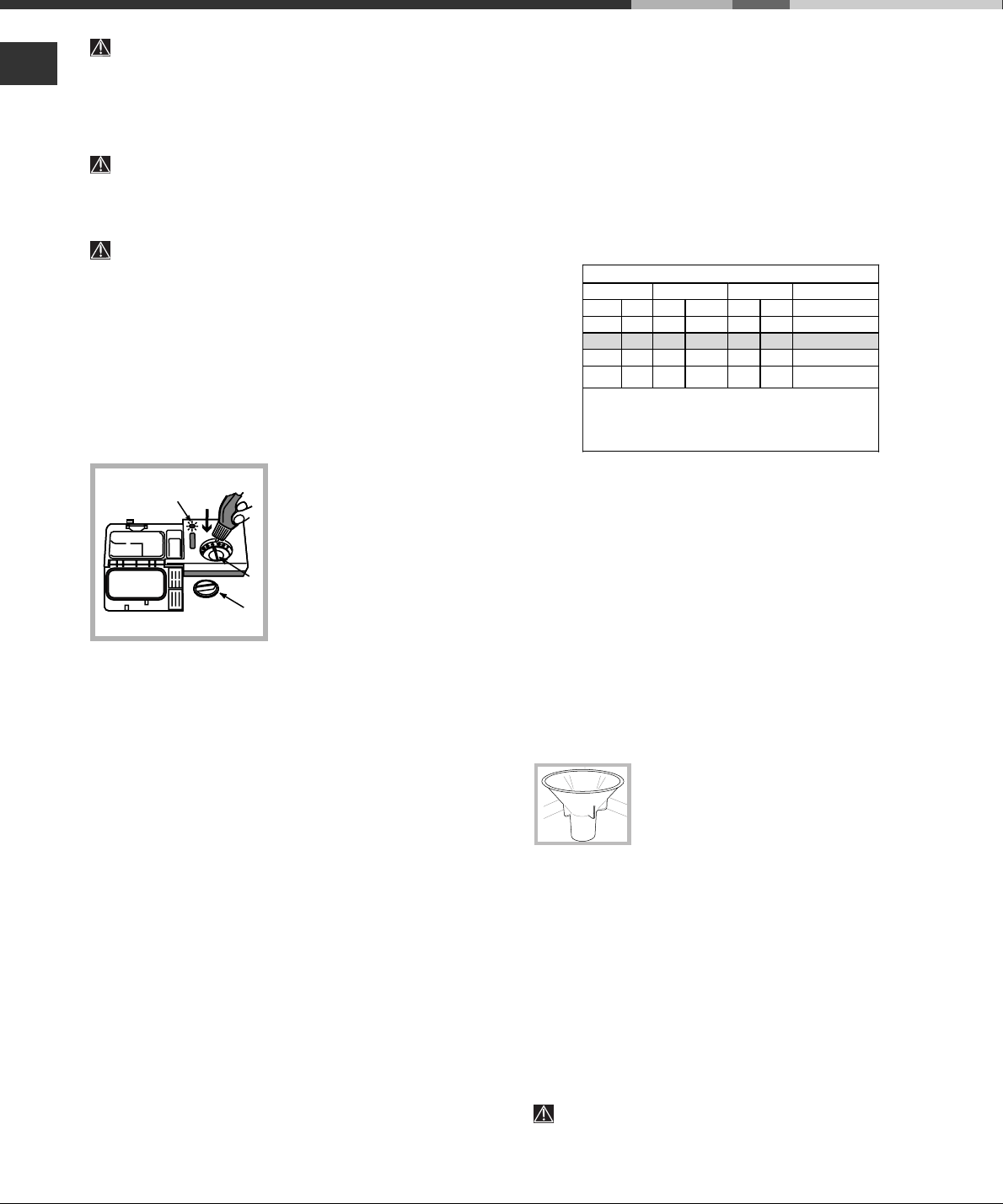

Measuring out the refined salt

In order to achieve the best possible results using a wash

cycle, make sure that the dispenser is never empty. Refined

salt removes limescale from the water, thus avoiding the

formation of deposits on crockery.

The salt dispenser is located in the lower part of the

dishwasher (see Description) and should be filled:

 When the green float* cannot be seen by simply looking at

the cap of the salt dispenser.

 When the LOW SALT* indicator light on the control panel is

illuminated;

1. Remove the lower rack and unscrew the

container cap (anticlockwise).

2. The first time you do this: fill the water

tank right up to its edge.

3. Position the funnel* (see figure) and fill

the salt container right up to its edge (this should hold

approximately 1 kg); it is not unusual for a little water to leak

out.

4. Remove the funnel* and wipe any salt residue away from

the opening; rinse the cap under running water and then

screw it on, the head facing downwards so as to let the water

flow out of the four cracks which are arranged in a star shape

on the lower part of the cap. (Salt cap with green float*)

It is advisable to perform this procedure every time you

add salt to the container.

Make sure the cap is screwed on tightly, so that no detergent

can get into the container during the wash cycle (this could

damage the water softener beyond repair).

When necessary, measure out the salt before a wash

cycle so that any saline solution which has leaked out of the

salt dispenser is removed.

* Only available in selected models.

11

EN

Care and maintenance

Shutting off the water and electricity

supplies

 Turn off the water tap after every wash cycle to avoid

leaks.

 Always unplug the appliance when cleaning it and

when performing maintenance work.

Cleaning the dishwasher

 The external surfaces of the machine and the control

panel may be cleaned using a non-abrasive cloth

which has been dampened with water. Do not use

solvents or abrasive products.

 Any marks on the inside of the appliance may be

removed using a cloth dampened with water and a

little vinegar.

Preventing unpleasant odours

 Always keep the door of the appliance ajar in order

to avoid moisture from forming and being trapped

inside the machine.

 Clean the seals around the door and detergent

dispensers regularly using a damp sponge. This will

avoid food becoming trapped in the seals, which is

the main cause behind the formation of unpleasant

odours.

Cleaning the sprayer arms

Food residue may become encrusted onto the sprayer

arms and block the holes used to spray the water. It is

therefore recommended that the arms are checked from

time to time and cleaned with a small non-metallic

brush.

The two sprayer arms may both be removed.

To remove the upper sprayer

arm, rotate the locking ring in

an anti-clockwise direction.

The upper sprayer arm should

be replaced with the holes

facing upwards.

The lower sprayer arm can be

removed by pressing on the

side tabs and pulling it

upwards.

Cleaning the water inlet filter*

If the water hoses are new or have not been used for an

extended period of time, let the water run to make sure it

is clear and free of impurities before performing the

necessary connections. If this precaution is not taken,

the water inlet could become blocked and damage the

dishwasher.

Clean the water inlet filter at the tap outlet regularly.

- Turn off the water tap.

- Unscrew the end of the water inlet hose, remove the

filter and clean it carefully under running water.

- Replace the filter and screw the water hose back into

position.

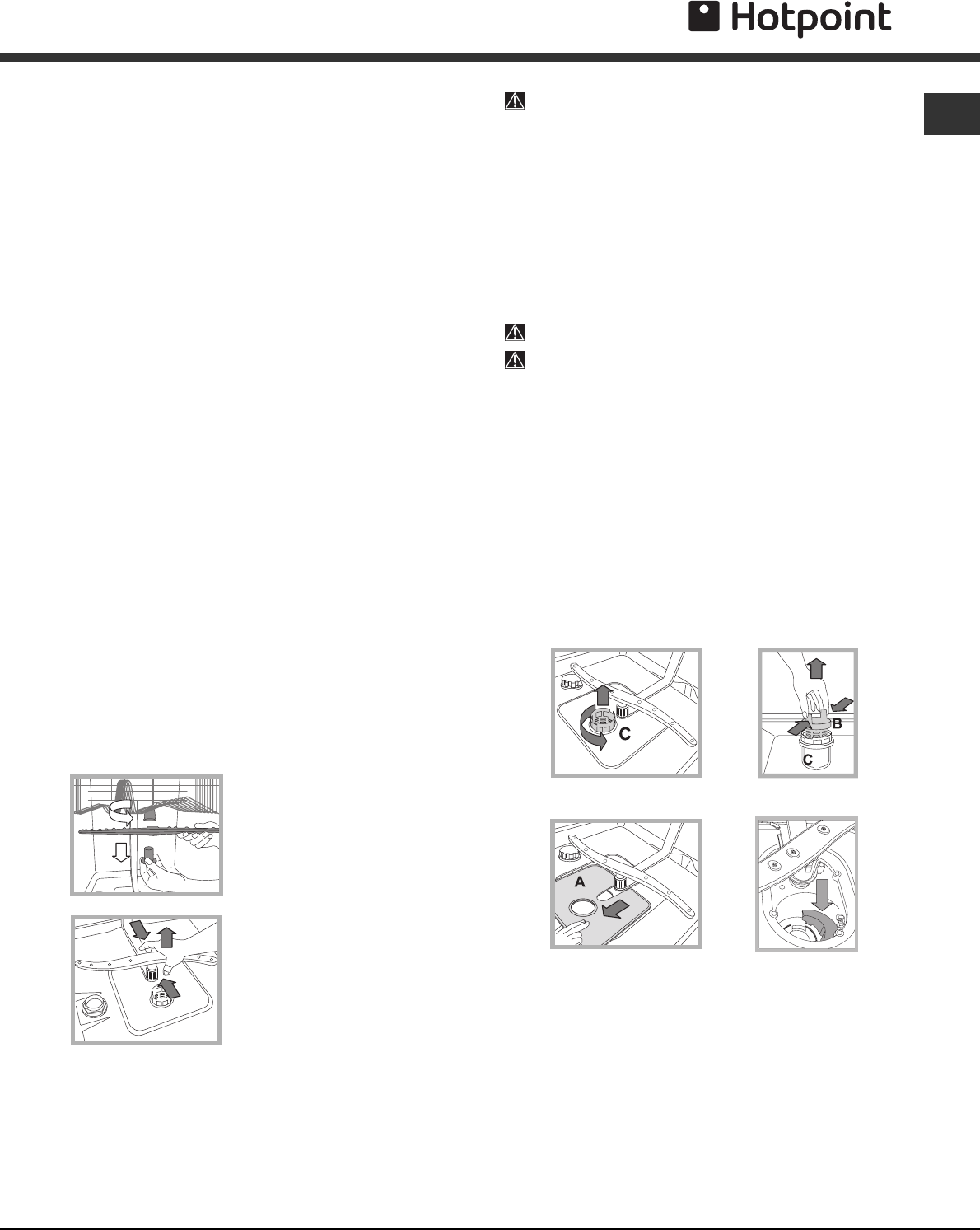

Cleaning the filters

The filter assembly consists of three filters which remove

food residues from the washing water and then

recirculate the water. They should be cleaned if you wish

to achieve the best results in every wash.

Clean the filters regularly.

The dishwasher should not be used without filters, or

if the filter is loose.

After cleaning the filters, replace the filter assembly and

fix it in position correctly; this is essential for maintaining

the efficient operation of the dishwasher.

Leaving the machine unused for

extended periods

 Disconnect the appliance from the electricity supply

and shut off the water tap.

 Leave the door of the appliance ajar.

 When you return, run a wash cycle when the

dishwasher is empty.

* Only available in selected models.

 After several washes, check the filter assembly and if

necessary clean it thoroughly under running water,

using a non-metallic brush and following the instructions

below:

1. Turn the cylindrical filter C in an anti-clockwise

direction and pull it out (fig. 1).

2. Remove the cup filter B by exerting a slight pressure

on the side flaps (fig. 2).

3. Slide out the stainless steel plate filter A (fig. 3).

4. Inspect the trap and remove any food residue. NEVER

REMOVE the wash cycle pump (black detail) (fig. 4).

2

4

1

3

12

EN

The appliance was designed and manufactured in

compliance with current international safety standards. The

following information has been provided for safety reasons

and should therefore be read carefully.

General safety

 This appliance is not intended for use by persons

(including children) with reduced physical, sensory or

mental capabilities, or lack of experience and knowledge,

unless they have been given supervision or instruction

concerning use of the appliance by a person responsible

for their safety.

 Children should be supervised to ensure that they do not

play with the appliance.

 The appliance was designed for domestic use inside the

home and is not intended for commercial or industrial use.

 The appliance must be used by adults only, to wash

domestic crockery according to the instructions in this

manual.

 The appliance must not be installed outdoors, even in

covered areas. It is extremely dangerous to leave the

machine exposed to rain and storms.

 Do not touch the appliance when barefoot.

 When unplugging the appliance always pull the plug from

the mains socket, do not pull on the cable.

 The water supply tap must be shut off and the plug should

be removed from the electrical socket before cleaning the

appliance or carrying out any maintenance work.

 If the appliance breaks down, do not under any

circumstances touch the internal parts in an attempt to

carry out the repair work yourself.

 Never touch the heating element.

 Do not lean or sit on the open door of the appliance: this

may cause the appliance to overturn.

 The door should not be left open as it may create a

dangerous obstacle.

 The packaging material should not be used as a toy: it can

become a choking or suffocation hazard.

If your family includes children:

 DO NOT allow children to play with the appliance or tamper

with its controls.

 Keep detergents and rinse aids away from children.

 Keep children away from the open door of a dishwasher,

there could still be some detergent left inside.

Disposal of old electrical appliances

The European Directive 2002/96/EC on Waste Electrical and

Electronic Equipment (WEEE), requires that old household

electrical appliances must not be disposed of in the normal

unsorted municipal waste stream. Old appliances must be

collected separately in order to optimise the recovery and

recycling of the materials they contain and reduce the impact

on human health and the environment. The crossed out

"wheeled bin" symbol on the product reminds you of your

obligation, that when you dispose of the appliance it must be

separately collected.

Consumers should contact their local authority or retailer for

information concerning the correct disposal of their old

appliance.

Saving energy and respecting the

environment

Saving water and energy

 Only start a wash cycle when the dishwasher is full. While

waiting for the dishwasher to be filled, prevent unpleasant

odours with the Soak cycle (see Wash Cycles).

 Select a wash cycle that is suited to the type of crockery

and to the soil level of the crockery using the Wash cycle

table:

- for dishes with a normal soil level, use the Eco wash

cycle, which guarantees low energy and water

consumption levels.

- if the load is smaller than usual activate the Half load*

option (see Start-up and use).

 If your electricity supply contract gives details of electricity

saving time bands, run wash cycles during the periods

when a lower tariff is applied. The Delayed start* button

(see Start-up and use) helps you organise the wash

cycles accordingly.

Precautions and advice

* Only available in selected models.

Phosphate-free and chlorine-free detergents

containing enzymes

 We strongly recommend that you use detergents that do

not contain phosphates or chlorine, as these products are

harmful to the environment.

 Enzymes provide a particularly effective action at

temperatures around 50°C, and as a result detergents

containing enzymes can be used in conjunction with low-

temperature wash cycles in order to achieve the same

results as a normal 65°C wash cycle.

 To avoid wasting detergent, use the product in

appropriate quantities based on the manufacturers

recommendations, the hardness of the water and the soil

level and quantity of the crockery. Even if they are

biodegradable, detergents contain substances that may

alter the balance of nature.

Recycling & Disposal Information

As part of Hotpoint's continued commitment to helping the

environment, Hotpoint reserves the right to use quality

recycled components to keep down customer costs and

minimise material wastage.

Please dispose of packaging and old appliances carefully.

To minimise risk of injury to children, remove the door, plug

and cut mains cable off flush with the appliance. Dispose of

these parts separately to ensure that the appliance can no

longer be plugged into a mains socket and the door cannot be

locked shut.

13

EN

Whenever the appliance fails to work, check for a solution from the following list before calling for Assistance

(see After Sales Service).

Troubleshooting

* Only available in selected models.

Problem: Possible causes / Solutions:

The dishwasher does not start

or cannot be controlled

• Switch off the appliance by pressing the ON/OFF button, switch it back on after

approximately one minute and reset the program.

• The appliance has not been plugged in properly.

• The dishwasher door has not been shut properly.

The door won’t close • The lock was released. Strongly push the door until a “clacking” noise is heard.

No water drains out from the

dishwasher.

• The dishwasher cycle has not yet finished.

• The water inlet hose is bent (see Installation).

• The drain duct is blocked.

• The filter is clogged up with food residues.

The dishwasher makes

excessive noise.

• The dishes are rattling against each other or against the sprayer arms.

• An excessive amount of foam has been produced: the detergent has not been

measured out correctly or it is not suitable for use in dishwashers (see Start-up

and use).

The dishes and glasses are

covered in a white film or

limescale deposits.

• The level of the refined salt is low or the dosage setting is not suited to the

hardness of the water (see Rinse aid and salt).

• The lid on the salt dispenser is not closed properly.

• The rinse aid has been used up or the dosage is too low.

The dishes and glasses are

streaked or have a bluish tinge.

• The rinse aid dosage is too high.

The crockery has not been

dried properly.

• A wash cycle without a drying program has been selected.

• The rinse aid has been used up or the dosage is too low (see Rinse aid and salt).

• The rinse aid dispenser setting is not suitable.

• The crockery is made from non-stick material or plastic.

The dishes are not clean. • The racks are overloaded (see Loading the racks).

• The crockery has not been arranged well.

• The sprayer arms cannot move freely.

• The wash cycle is too gentle (see Wash cycles).

• An excessive amount of foam has been produced: the detergent has not been

measured out correctly or it is not suitable for use in dishwashers (see Start-up

and use).

• The lid on the rinse aid compartment has not been shut correctly.

• The filter is dirty or blocked (see Care and maintenance).

• The refined salt level is low (see Rinse aid and salt).

The dishwasher does not take

any water in/Tap shut-off alarm

(the Drying and End indicator

lights flashes).

• There is no water in the mains supply.

• The water inlet hose is bent (see Installation).

• Turn on the tap and the appliance will start after a few minutes.

• The appliance is locked because no action was taken when the indicator lights

were flashing. Switch off the machine using the ON/OFF button, turn on the tap

and switch the machine back on after 20 seconds by pressing the same button.

Re-programme the machine and restart the wash cycle.

Water inlet hose alarm/Water

inlet filter blocked.

(the Washing, Drying and End

indicator lights flashes).

• Switch off the appliance by pressing the ON/OFF button. Shut off the water tap to

eliminate the risk of flooding and remove the plug from the electrical socket. Make

sure the water inlet filter has not become blocked by various impurities. (see “Care

and maintenance” chapter).

14

EN

After Sales Service

After Sales Service

No one is better placed to care for your Hotpoint

appliance during the course of its working life

than us - the manufacturer.

Essential Contact Information

Hotpoint Service

We are the largest service team in the country

offering you access to 400 skilled telephone

advisors and 1000 fully qualified engineers on call to

ensure you receive fast, reliable, local service.

UK: 08448 224 224

Republic of Ireland: 0818 313 413

www.hotpointservice.co.uk

Please note: Our advisors will require the

following information:

Model number:

Serial number:

Parts and Accessories

We supply a full range of genuine replacement

parts as well as accessory products that protect

and hygienically clean your appliance to keep it

looking good and functioning efficiently throughout

its life.

UK: 08448 225 225

Republic of Ireland: 0818 313 413

www.hotpointservice.co.uk

Appliance Registration

We want to give you additional benefits of Hotpoint

ownership. To activate your free 5 year parts

guarantee you must register your appliance with us.

UK: 08448 24 24 24

Republic of Ireland: 01 230 0800

www.hotpointservice.co.uk

Indesit Company UK Ltd. Morley Way,

Peterborough, PE2 9JB

Indesit Company Unit 49 Airways Industrial

Estate,Dublin 17

Recycling and Disposal Information

As part of Hotpoint's continued commitment to

helping the environment, Hotpoint reserves the right

to use quality recycled components to keep down

customer costs and minimise material wastage.

Please dispose of packaging and old appliances

carefully.

To minimise risk of injury to children, remove the

door, plug and cut mains cable off flush with the

appliance. Dispose of these parts separately to

ensure that the appliance can no longer be plugged

into a mains socket and the door cannot be locked

shut.

15

EN

Guarantee

Guarantee

12 months Parts and Labour Guarantee

Your appliance has the benefit of our manufacturers guarantee, which covers the cost of breakdown repairs for

twelve months from the date of purchase.

This gives you the reassurance that if, within that time, your appliance is proven to be defective because

of either workmanship or materials, we will, at our discretion, either repair or replace the appliance at no cost to

you.

This guarantee is subject to the following conditions:

- The appliance has been installed and operated correctly and in accordance with our operating and

maintenance instructions.

- The appliance is used only on the electricity or gas supply printed on the rating plate.

- The appliance has been used for normal domestic purposes only.

- The appliance has not been altered, serviced, maintained, dismantled, or otherwise interfered with by any

person not authorised by us.

- Any repair work must be undertaken by us or our appointed agent.

- Any parts removed during repair work or any appliance that is replaced become our property.

- The appliance is used in the United Kingdom or Republic of Ireland.

The guarantee does not cover:

- Damage resulting from transportation, improper use, neglect or interference or as a result of improper

installation.

- Replacement of any consumable item or accessory. These included but not limited to: plugs, cables,

batteries, light bulbs, fluorescent tubes and starters, covers and filters.

- Replacement of any removable parts made of glass or plastic.

THIS GUARANTEE WILL NOT APPLY IF THE APPLIANCE HAS BEEN USED IN COMMERCIAL OR NON-

DOMESTIC PREMISES.

5 Year Parts Guarantee

Hotpoint also offers you a free 5 year parts guarantee. This additional guarantee is conditional on you

registering your appliance with us and the parts being fitted by one of our authorised engineers. There will be a

charge for our engineers time. To activate the extra parts warranty on your appliance, simply call our

registration line on 08448 24 24 24 (Republic of Ireland 01 230 0800)

Extended Guarantees

We offer a selection of protection plans that enable you to fully cover yourself against the expense of

repair bills for the life of your policy. To find the ideal plan for you please call our advice line on 08448 226 226

(Republic of Ireland 01 230 0233).

Free Helpdesk Service

We have a dedicated team who can provide free advice and assistance with your appliance if you

experience any technical difficulties within the first 90 days of ownership. Simply call our Hotpoint Service

Hotline on 08448 224 224 (Republic of Ireland 0818 313 413) for telephone assistance, or, where necessary, to

arrange for an engineer to call.

16

EN

195088086.01

03/2011 - Xerox Fabriano
