Instruction booklet

TUMBLE DRYER

Contents

Important information, 2-3

Installation, 4

Where to put your dryer

Ventilation

Door reversal instructions

Water drain

Electrical connection

Before you start using your dryer

Dryer description, 5

To open the door

The features

Control panel

Start and programmes, 6

Choosing a programme

Laundry, 7-8

Sorting your laundry

Wash care labels

Special clothing items

Drying times

Warnings and Suggestions, 9

General safety

Disposal

Saving energy and respecting the environment

Maintenance and Care, 10

Switching off the electricity

Cleaning the filter after each cycle

Check the drum after each cycle

Empty the water container after each cycle

Cleaning the condenser unit

Cleaning the dryer

Troubleshooting, 11

Service, 12

GB

English

TCM570

!Keep this instruction booklet on hand in order to refer to it when necessary. Take it with you when you move, and

should you sell this appliance or pass it on to another party, make sure that this booklet is supplied along with the

dryer so that the new owner may be informed about warnings and suggestions on how the appliance works.

!Read these instructions carefully; the following pages contain important information on installation and suggestions

on how the appliance works.

1

Important

Information Installation Description Start and

Programmes Laundry Warnings and

Suggestions Maintenance

and Care Service

Troubleshooting

GB

2

GB

Important Information

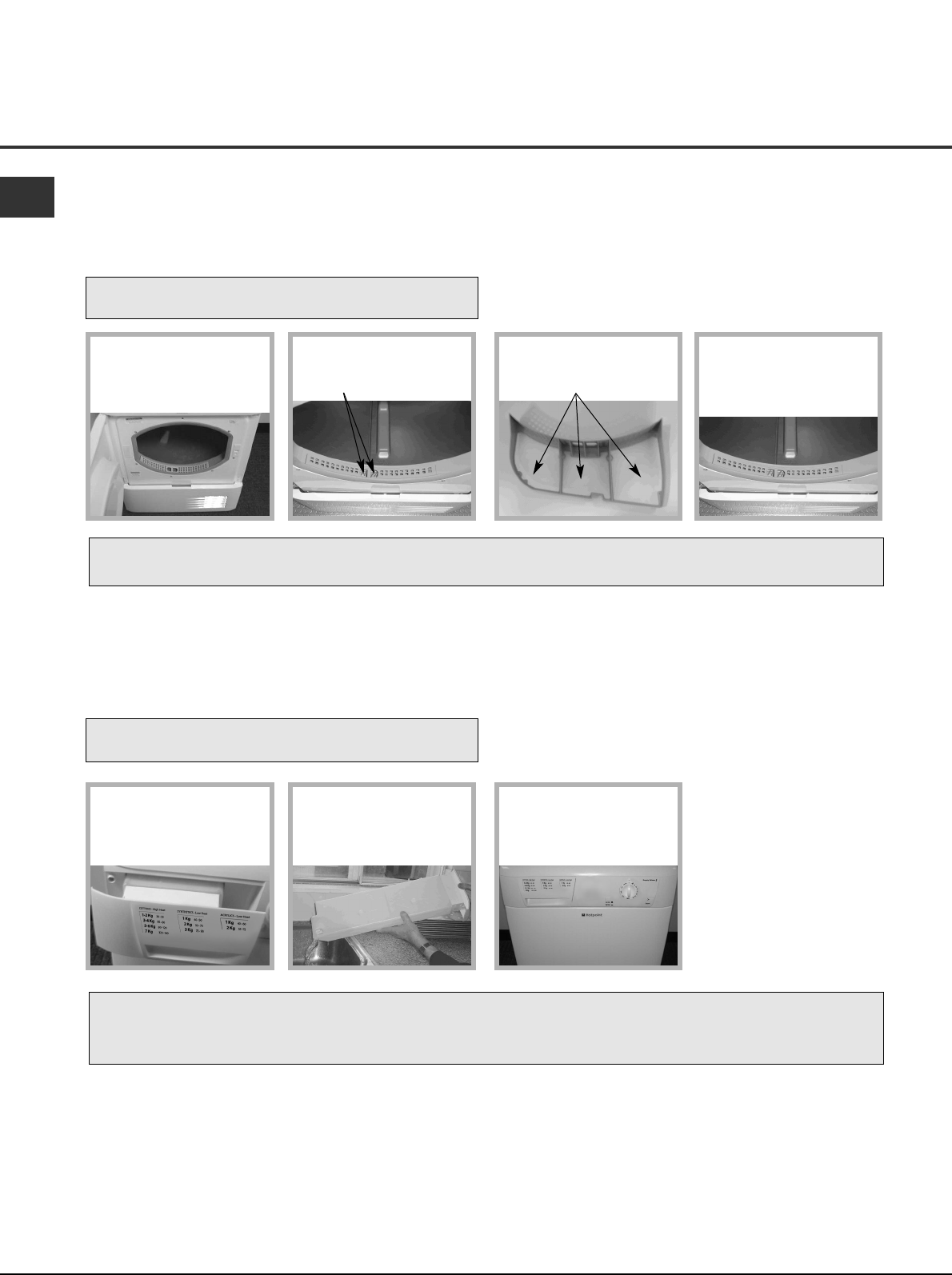

!You MUST clean the fluff filter after EVERY drying

cycle.

Fluff filter...

!Failure to clean the filter after EVERY drying cycle will affect the drying performance of your machine.

- It will take longer to dry and as a result will use more electricity during drying.

!You MUST empty the water container after EVERY

drying cycle.

Water Container...

Priming the Water Collection System

When your dryer is new, the water container will not collect water until the system is primed... this will take 1 or 2 drying

cycles. Once primed it will collect water during every drying cycle.

STEP 1.

Open the door of your

dryer.

STEP 2.

Pull out the filter (using

the two finger grips).

STEP 3.

Clean any fluff deposits

from the filter mesh.

STEP 4.

Refit the filter - NEVER

run the dryer without the

filter in position.

For your Condenser dryer to operate efficiently, you must follow the regular maintenance schedule shown below:

STEP 1.

Pull the water container

towards you and remove it

fully from the dryer.

STEP 2.

Empty all the water

collected in the water

container.

STEP 3.

Refit the water container,

ensuring that it is pushed

fully back into position.

!Failure to empty the water container will result in:

- The machine will stop heating (so the load may still be wet at the end of the drying cycle).

- The ‘Empty Water’ light will illuminate to tell you that the water container is full.

3

Important

Information Installation Description Start and

Programmes Laundry Warnings and

Suggestions Maintenance

and Care Service

Troubleshooting

GB

Important Information

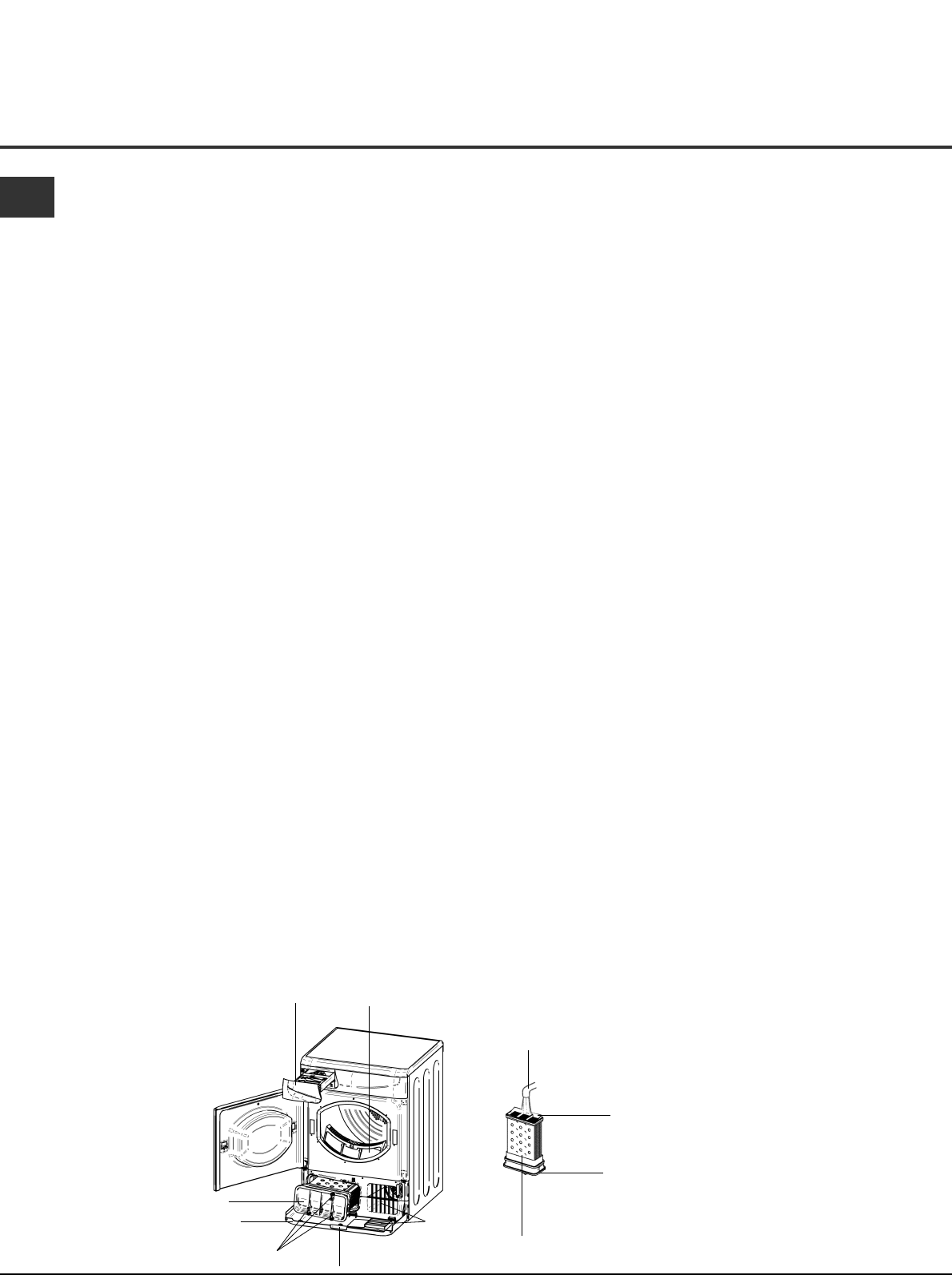

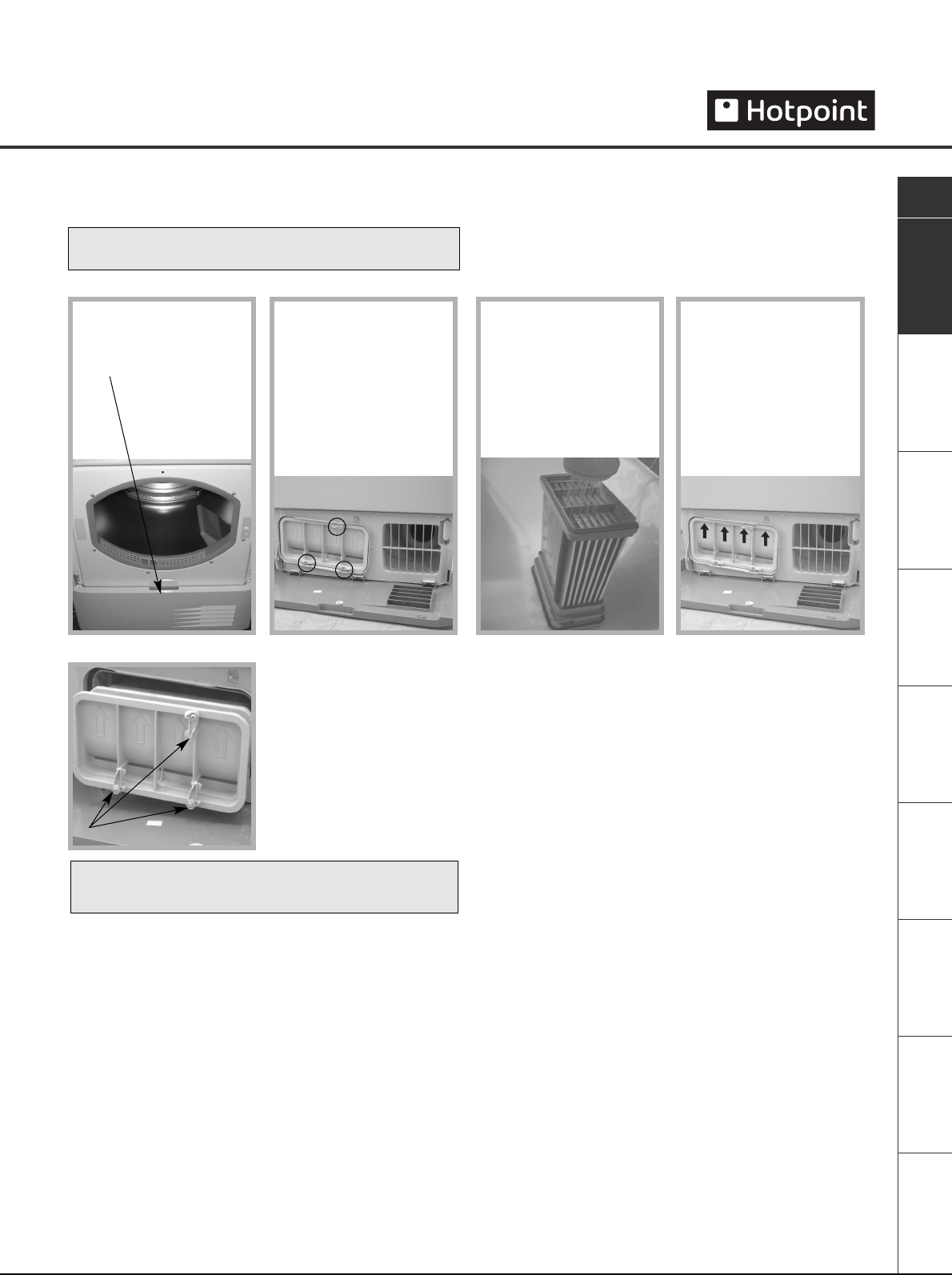

Condenser Unit...

!You MUST clean the fluff from the condenser EVERY

month.

!Failure to clean the condenser could cause premature

failure of your dryer.

●Check that:

- The positioning arrows are pointing upwards.

- The 3 clips are re-secured back into their ‘lock’ position.

STEP 3.

Flush the condenser, from

the rear with water, to

remove any fluff deposits.

STEP 4.

Refit the condenser unit

- ensure that the unit is

pushed in fully, all 3 clips

are re-secured and the

positiong arrows on the

front of the condenser are

pointing upwards.

Rotate 3 clips

STEP 1.

Open the condenser cover

- hold the handle and

pull towards you.

STEP 2.

Remove the condenser by

rotating the 3 clips then

pulling the condenser

towards you.

(There may be some water

in the tubes, this is normal).

4

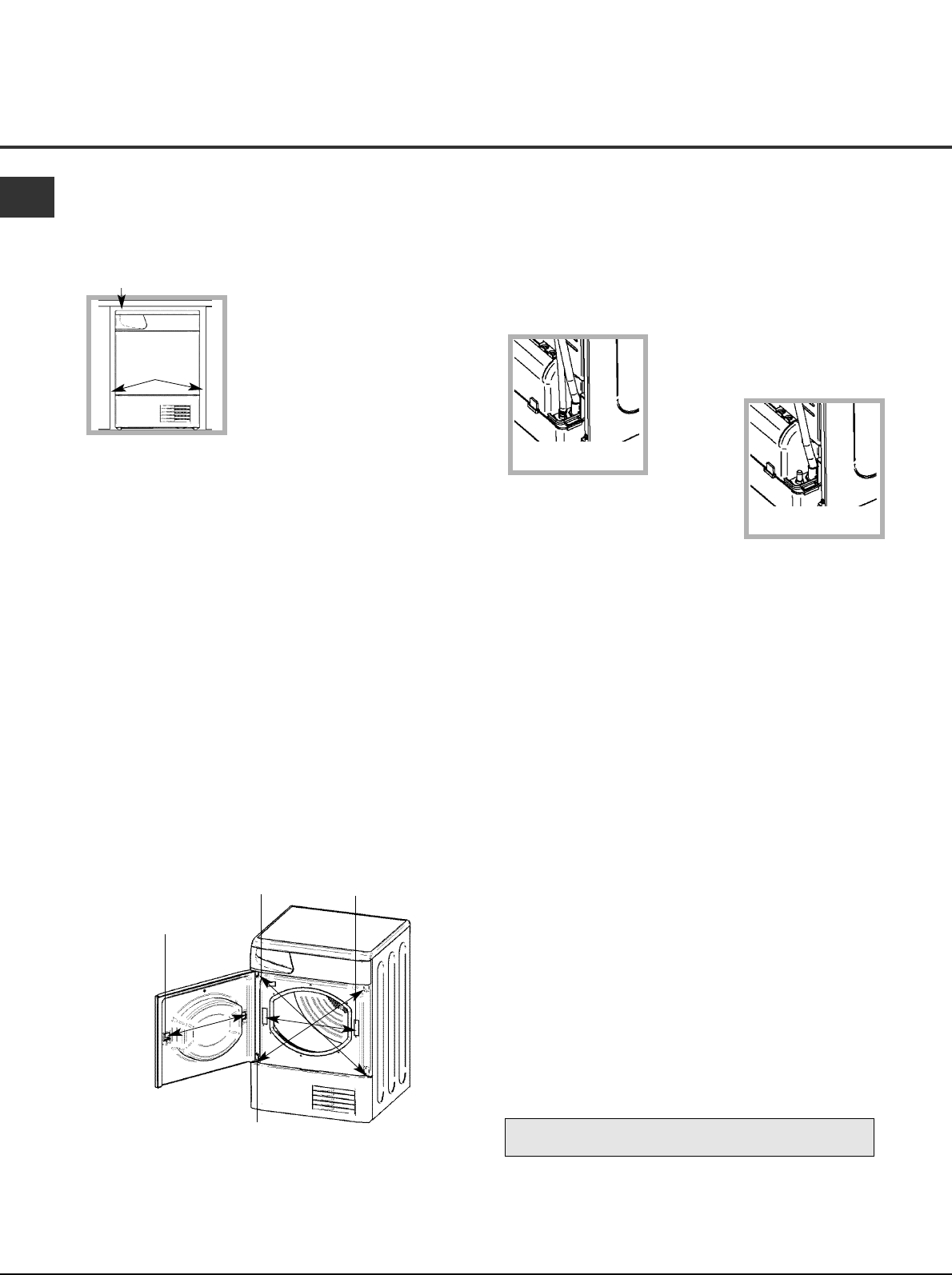

GB Where to put your dryer

●Place your dryer at a distance from gas ranges,

stoves, heaters, or cook tops because flames can

damage the appliance.

●If you are going to install

the appliance under a work

counter, be sure to leave a

10mm space between the

top and any other objects

on or above the machine and

a 15mm space between the

sides and lateral furnishings

or walls. This is to ensure

proper air circulation. Make sure that the back vents

are not obstructed.

Ventilation

When the dryer is in use, there has to be adequate

ventilation. Make sure you put your dryer in an

environment that is not damp and has proper air

circulation throughout. Airflow around the dryer is

essential to condense the water produced during the

washing, the dryer will not operate efficiently in an

enclosed space or cupboard.

!We do not recommend that the dryer is installed in a

cupboard but the dryer must never be installed

behind a lockable door, a sliding door or a door with a

hinge on the opposite side to that of the dryer door.

!If using the dryer in a small or cold room some

condensation could be experienced.

Door Reversal Instructions

The door of your dryer is reversible and can easily be

changed. Exchange diagonally hinge brackets and

blanking screws. Exchange door latch and catch with

their opposite blanking plates (see diagram above).

Door catch

Door latch

Hinge

Hinge

Water drain

If your dryer is installed next to a drain the water can be

plumbed into this drain. This does away with the need to

empty the water container. If the dryer is stacked onto or

installed next to a washing machine it can share the same

drain. The height of the drain must be less than 3' (1m)

from the bottom of the dryer.

Remove the existing clip and hose

from position shown (see diagram).

Fit a suitable length of hose to the

new location shown (see diagram)

and refit clip.

!Make sure that the hose is not squashed or kinked when

the dryer is in its final location.

Electrical connections

Make sure of the following before you insert the plug

into the the electrical socket:

●The socket must be grounded.

●The socket must be able to sustain the machines

maximum power, which is indicated on the rating

label (see Dryer Description).

●Power voltage must be within the values indicated

on the rating label (see Dryer Description).

●The socket must be compatible with the dryers plug.

Should this not be the case, replace the plug or the

socket.

!The dryer must not be installed outdoors, even if the

space is sheltered. It can be very dangerous if it is

exposed to rain or storms.

!Once installed, the dryers electrical wire and plug

must be within easy reach.

!Do not use extension cords.

!The power cord must not be bent or squashed.

!The power cord supplied should be checked

periodically and replaced by a cord specially prepared

for this dryer and fitted only by authorised technicians

(see Service). New or longer power cords are supplied

at an extra charge by authorised dealers.

!The manufacturer denies any responsibility should any

of these rules not be followed.

!If in doubt about any of the above consult a qualified

electrician.

Before you start using your dryer

Once you have installed your dryer and before you

use it, clean the inside of the drum to remove any dust

that could have accumulated during transport.

Installation

Minimum gap 10mm

Minimum gaps

15mm

Remove clip and hose

from here...

...fit new hose and refit

clip here.

5

Important

Information Installation Description Start and

Programmes Laundry Warnings and

Suggestions Maintenance

and Care Service

Troubleshooting

GB

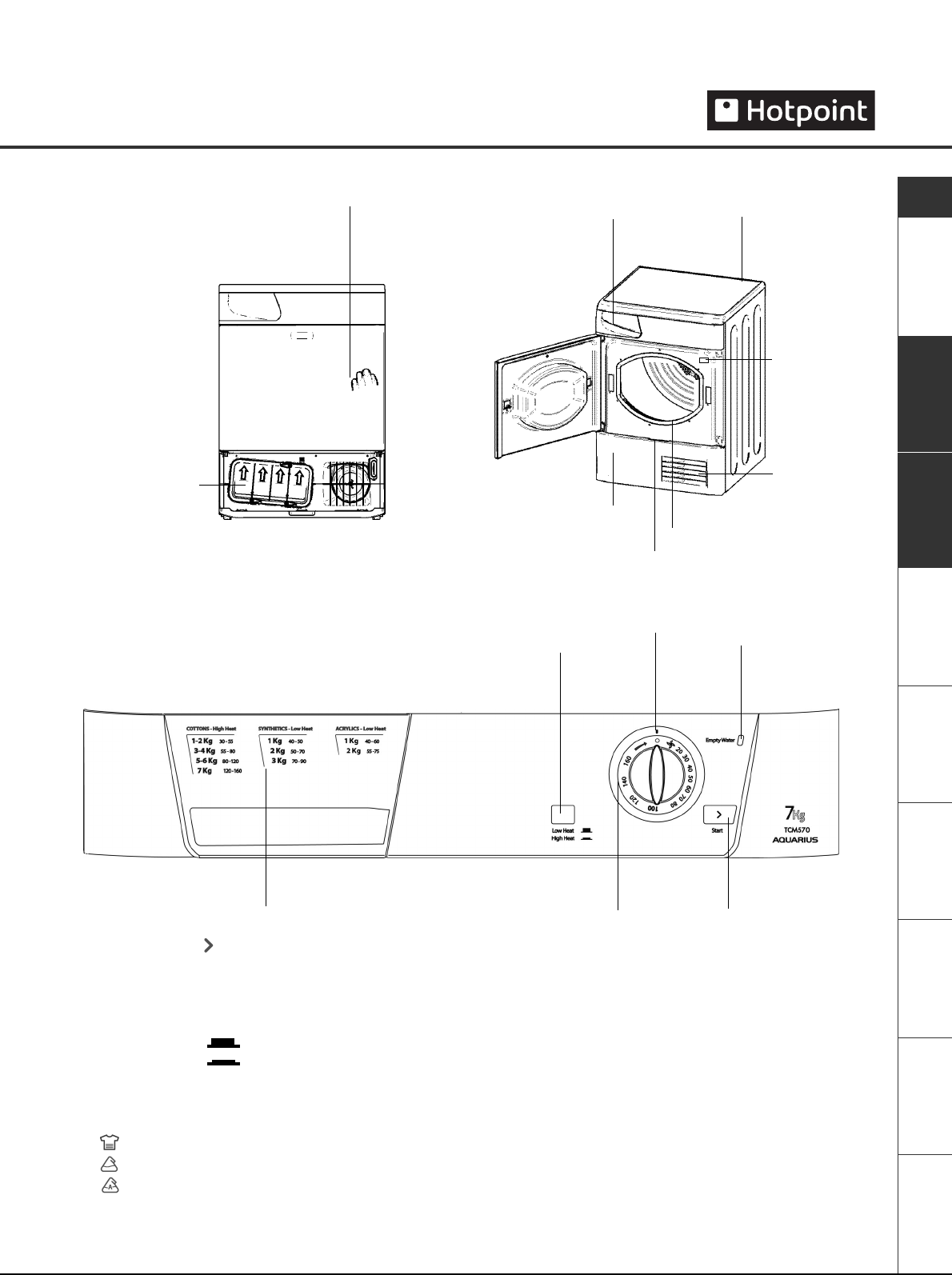

Control panel

To open the door The features

The Empty Water indicator light signals that the water

container is full and must be emptied. The light will

take a few seconds to go out after replacing the

empty water container, the dryer must be running for

this to happen.

Note: If the water container fills, the light illuminates,

the heat is turned off and your laundry will not dry.

The TIMER knob sets a drying time.

Rotate it clockwise, never counter-clockwise, until

the indicator is pointing to the drying time you want to

select (see Start and Programmes).

Dryer Description

The START button begins drying a selected

programme (see Start and Programmes).

The HEAT button selects drying temperature (see

Start and Programmes).

OUT: Low heat

IN: High heat

The Drying Guide allows you to consult a user

friendly table of fabric types and load capacities.

Cottons

Synthetics

Acrylics and other delicates

Water container

Air intake

grille

Rating plate

Filter

Model &

Serial

numbers

Condenser cover handle

(Pull to open)

Condenser cover

Press and release the front

panel in position shown

Condenser Unit

(cover open)

Drying Guide TIMER

Knob

START

Button

Indicator Empty Water

Light

HEAT

Button

6

GB Choosing a programme

1. Plug the dryer into the electrical socket.

2. Sort your laundry according to fabric type (see

Laundry).

3. Open the door make sure the filter is clean and

in place and the water container is empty and in

place (see Maintenance).

4. Load the machine and make sure items are not

in the way of the door seal. Close the door.

5. Choose the drying time by checking the

Drying Guide table for the type of fabric you are

drying (see Laundry).

- Set the temperature with the HEAT button.

- Select a drying time by rotating the TIMER knob

clockwise*.

6. Press the START button to begin.

During the drying programme, you can check on

your laundry and take out items that are dry

while others continue drying. When you close

the door again, press the START button in order

to resume drying.

7. About 10 minutes before the programme is

completed, it enters the final COOL TUMBLE

phase (fabrics are cooled), which should always

be allowed to complete.

8. Open the door, take the laundry out, clean the

filter and replace it. Empty the water container

and replace it (see Maintenance).

9. Unplug the dryer.

Start and Programmes

Note: The COOL TUMBLE programme can be used to refresh fibres of clothing.

- Set the TIMER with the cool tumble symbol inline with the indicator at Step 5 above* if you need this feature.

7

Important

Information Installation Description Start and

Programmes Laundry Warnings and

Suggestions Maintenance

and Care Service

Troubleshooting

GB

Sorting your laundry

●Check symbols on clothing labels to make sure

that the articles can be tumble dried.

●Sort laundry by fabric type.

●Empty pockets and check buttons.

●Close zippers and hooks and tie loose belts and

strings.

●Wring out each item in order to eliminate as much

excess water as possible.

!Do not load dripping wet clothes into the dryer.

Maximum load size

Do not load more than maximum capacity.

These numbers refer to dry weight:

Natural fibres: 7kg max (15lb)

Synthetic fibres: 3kg max (6.6lb)

!DO NOT overload the dryer as this could result in

reduced drying performance.

Typical weights

Note: 1kg = 1000g (1lb = 16oz)

Clothes

Blouse Cotton 150g (5oz)

Other 100g (3oz)

Dress Cotton 500g (1lb 2oz)

Other 350g (12oz)

Jeans 700g (1lb 6oz)

10 nappies 1000g (2lb 3oz)

Shirt Cotton 300g (10oz)

Other 200g (7oz)

T-Shirt 125g (4oz)

Household Items

Duvet cover Cotton 1500g (3lb 5oz)

(Double) Other 1000g (2lb 3oz)

Large Tablecloth 700g (1lb 6oz)

Small Tablecloth 250g (9oz)

Tea Towel 100g (3oz)

Bath Towel 700g (1lb 6oz)

Hand Towel 350g (12oz)

Double Sheet 500g (1lb 2oz)

Single Sheet 350g (12oz)

At the end of a drying cycle, cottons could still be

damp if you grouped cottons and synthetics together.

If this happens simply give them an additional short

period of drying.

●Note: The last 10 minutes of any time set is the

Cool Tumble, so allow for this when setting the time,

as this period will not dry your laundry.

Wash Care Labels

Look at the labels on your garments, especially when

tumble drying for the first time. The following symbols

are the most common:

May be tumble dried

Do not tumble dry

Tumble dry at high heat setting

Tumble dry at low heat setting

Items not suitable for tumble drying

●Articles that containing rubber or rubber-like

materials or plastic film (pillows, cushions, or PVC

rainwear), any other flammable articles or objects

that contain flammable substances (towels soiled

with hair spray).

●Glass fibres (certain types of draperies)

●Items which have been dry cleaned

●Items with the ITCL Code (see Special

clothing items). These can be cleaned with special

at-home dry cleaning products. Follow instructions

carefully.

●Large bulky items (quilts, sleeping bags, pillows,

cushions, large bedspreads etc). These expand

when drying and would prevent airflow through

the dryer.

Laundry

8

GB Special clothing items

Blankets and Bedspreads: acrylic items (Acilan,

Courtelle, Orion, Dralon) must be dried with special

care on LOW heat setting. Avoid drying for a long

period of time.

Pleated or creased garments: read the manufacturer’s

drying instructions on the garment.

Starched articles: do not dry these with non-starched

items. Make sure that as much of the starch solution is

removed from the load as possible before placing it in

the dryer. Do not over-dry: the starch will become

powdery and leave your clothing limp, which defeats

the purpose of starch.

Drying times

The table below presents APPROXIMATE drying times

in minutes. Weights refer to dry garments:

Cottons

High (full) Heat

Drying times 800-1000rpm in washing machine

Half Load Full Load

1kg 2kg 3kg 4kg 5kg 6kg 7kg

30-40 40-55 55-70 70-80 80-90 95-120120-140

Synthetics

Low (gentle) Heat

Drying times on reduced spin in washing machine

Half Load Full Load

1kg 2kg 3kg

40-50 50-70 70-90

Acrylics

Low (gentle) Heat

Drying times on reduced spin in washing machine

Half Load Full Load

1kg 2kg

40-60 55-75

Times are approximate and can vary depending

upon:

●Amount of water retained in clothes after spin

cycle: towels and delicates retain a lot of water.

●Fabrics: items that are the same type of fabric but

different textures and thicknesses may not have

the same drying time.

●Quantity of laundry: single items or small loads

may take longer to dry.

●Dryness: If you are going to iron some of your

clothes, they can be taken out while still a bit

damp. Others can be left longer if you need them

to be completely dry.

●Heat setting.

●Room temperature: if the room where the dryer is

located is cold, it will take longer for the dryer to

dry your clothes.

●Bulk: some bulky items can be tumble dried with

care. We suggest that you remove these items

several times, shake them out, and return them to

the dryer until finished.

!Do not over-dry your clothes.

All fabrics contain a little natural moisture, which

keeps them soft and fluffy.

Laundry

9

Important

Information Installation Description Start and

Programmes Laundry Warnings and

Suggestions Maintenance

and Care Service

Troubleshooting

GB

!The appliance has been designed and built according

to international safety standards.

These warnings are given for safety reasons and must

be followed carefully.

General safety

●This tumble dryer is not intended for use by

persons (including children) with reduced physical,

sensory or mental capabilities, or lack of experience

and knowledge, unless they have been given

supervision or instruction concerning use of the

appliance by a person responsible for their safety.

●This tumble dryer has been designed for home,

and not professional use.

●Do not touch the appliance while barefoot or with

wet hands or feet.

●Unplug the machine by pulling on the plug, not

the cord.

●Children must not be in proximity of the dryer

when in use. After using the dryer, turn it off and

unplug it. Keep the door closed to make sure that

children do not use it as a toy.

●Children should be supervised to ensure that they

do not play with the dryer.

●The appliance must be installed correctly and

have proper ventilation. The air intake at the front

of the dryer and rear vent behind the dryer should

never be obstructed (see Installation).

●Never use the dryer on carpeting where the pile

height would prevent air from entering the dryer

from the base.

●Check to see if the dryer is empty before loading it.

●The back of the dryer could become very

hot. Never touch it while in use.

●Do not use the dryer unless the filter, water

container and condenser are securely in place

(see Maintenance).

●Do not use liquid fabric softeners in the dryer, add

it to the final rinse of your wash.

●Do not overload the dryer (see Laundry for

maximum loads).

●Do not load items that are dripping wet.

●Tumble dry items only if they have been washed

with detergent and water, rinsed and been through

the spin cycle. It is a fire hazard to dry items that

HAVE NOT been washed with water.

●Carefully check all instructions on clothing labels

(see Laundry).

●Do not dry garments that have been treated with

chemical products.

●Never dry articles that are contaminated with

flammable substances (cooking oil, acetone, alcohol,

petrol, kerosene, spot removers, turpentine, waxes,

wax removers and hair sprays), unless washed in

hot water with an extra amount of detergent.

●Do not tumble dry rubber, rubber backed articles and

clothes, pillows fitted with foam rubber pads, foam

(latex foam), rubber, plastic, shower caps, waterproof

textiles, nappy pants or liners, polythene or paper.

●Do not tumble dry large, very bulky items.

●Do not tumble dry acrylic fibres at high temperatures.

●Remove all objects from pockets, especially

lighters (risk of explosion).

●Complete each programme with its Cool Tumble Phase.

●Do not turn off the dryer when there are still warm

items inside.

●Clean the filter after each use (see Maintenance).

●Empty the water container after each use (see

Maintenance).

●Clean the condenser unit at regular intervals

(see Maintenance).

●Do not allow lint to collect around the dryer.

●Never climb on top of the dryer. It could result in damage.

●Always follow electrical standards and requirements

(see Installation).

●Always buy original spare parts and accessories

(see Service).

!WARNING: Never stop the dryer before the end of the

drying cycle unless all items are quickly removed and

spread out so that the heat is dissipated.

Recycling and disposal information

As part of our continued commitment to helping the

environment, we reserve the right to use quality recycled

components to keep down customer costs and minimise

material wastage.

●Disposing of the packaging material: follow local

regulations, so the packaging can be recycled.

●To minimise risk of injury to children, remove the

door and plug - then cut off mains cable, flush

with the appliance. Dispose of these parts separately

to ensure that the appliance can no longer be

plugged into a mains socket.

Disposal of old electrical appliances

The European Directive 2002/96/EC on Waste Electrical

and Electronic Equipment (WEEE), requires that old

household electrical appliances must not be disposed

of in the normal unsorted municipal waste stream. Old

appliances must be collected separately in order to

optimise the recovery and recycling of the materials

they contain and reduce the impact on human health

and the environment.

The crossed out “wheeled bin” symbol on

the product reminds you of your obligation,

that when you dispose of the appliance it

must be separately collected.

Consumers should contact their local authority or

retailer for information concerning the correct disposal

of their old appliance.

Saving energy and respecting the

environment

●Wring out items to eliminate excess water before

tumble drying (if you use a washing machine first,

select a high spin cycle). Doing this will save time

and energy during drying.

●Always dry full loads - you save energy: single

items or small loads take longer to dry.

●Clean the filter after each use to contain energy

consumption costs (see Maintenance).

Warnings and Suggestions

10

GB Cleaning the drum

!Do not use abrasives, steel wool or stainless steel

cleaning agents to clean the drum.

A coloured film may start to appear on the stainless

steel drum, this may be caused by a combination of

water and, or cleaning agents such as fabric conditioner

from the wash. This coloured film will not affect the

dryer performance.

Cleaning the condenser unit

Periodically (every month) remove the condenser unit

and clean any build up of fluff from between the plates

by rinsing it under the tap with cold water.

This should be done with cold water from the rear of

the condenser.

Removing the condenser:

1. Unplug the dryer and open the door.

2. Pull open the condenser cover (see diagram).

Release the three catches by turning 90˚ counter-

clockwise then pull on the grip and remove from

the dryer.

3. Clean the surface of the seals and replace, making

sure that the catches have been secured.

Cleaning the dryer

●External parts in metal or plastic and rubber parts

can be cleaned with a damp cloth.

●Periodically (every 6 months) vacuum the front air

intake grille and vents at the rear of the dryer, to

remove any build up of fluff, lint or dust. Also to

remove accumulation of fluff from the front of the

condenser and filter areas, clean occasionally with

a vacuum cleaner.

!Do not use solvents or abrasives.

!Your dryer uses special bearing components which

do not need lubrication.

!Have your dryer checked regularly by authorised

technicians to ensure electrical and mechanical safety

(see Service).

Switching off the electricity

!Unplug your dryer when not using it, when cleaning

it and during all maintenance operations.

Clean the filter after each cycle

The filter is an important part of your dryer:

it accumulates lint and fluff that is formed while drying.

When finished drying, clean the filter by rinsing it

under running water or with your vacuum cleaner.

Should the filter become clogged up, the airflow inside

the dryer will be seriously compromised: drying times

lengthen and you will consume more energy. It may

also damage your dryer.

The filter is found in front of the dryer trim (see diagram).

Removing the filter:

1. Pull the plastic grip of the filter upwards (see diagram).

2. Clean the filter and replace it correctly.

Ensure the filter is fully located flush into the tumble

dryer trim.

!Do not use the dryer without replacing the filter.

Empty the water container after each

cycle

Pull the container out of the dryer and empty it into a

sink or other suitable drain.

Replace the water container securely.

Always check and empty the container before you

start a new drying programme.

Check the drum after each cycle

Turn the drum manually in order to remove small items

(handkerchiefs) that could have been left behind.

Maintenance and Care

Water container

Handle

Condenser cover

Catches

Air intake

Filter

Tap

Rear

Front

Condenser unit

Condenser unit

11

Important

Information Installation Description Start and

Programmes Laundry Warnings and

Suggestions Maintenance

and Care Service

Troubleshooting

GB

Troubleshooting

Problem:

The tumble dryer won’t start.

Its taking a long time to dry.

Possible causes / Solution:

●The plug is not plugged into the socket, or not making contact.

●There has been a power failure.

●The fuse has blown. Try to plug another appliance into the socket.

●You are using an extension cord? Try to plug the dryer’s power cord

directly into the socket.

●The door is not closed securely?

●The TIMER knob has not been set properly (see Start and Programmes).

●The START button has not been pressed (see Start and Programmes).

●The filter has not been cleaned (see Maintenance).

●The water container needs emptying? The empty water light is on? (see

Maintenance).

●The condenser needs cleaning? (see Maintenance).

●The temperature setting is not ideal for the type of fabric you are drying

(see Start and Programmes, and see Laundry).

●The correct drying time has not been selected for the load (see Laundry).

●The air intake grille or rear vents are obstructed (see Installation, and see

Maintenance).

●The items were too wet (see Laundry).

●The dryer was overloaded (see Laundry).

One day your dryer seems not to be working. Before you call your Service Centre (see Service), go through the

following troubleshooting suggestions:

12

GB Spare Parts

This dryer is a complex machine. Repairing it yourself

or having a non-authorised person try to repair it could

cause harm to one or more persons, could damage

the machine and could invalidate the spare parts

warranty.

Call an authorised technician if you experience problems

while using the machine.

The spare parts have been designed exclusively for

this appliance and not for other uses.

Service

Before calling the Service Centre:

●Use the troubleshooting guide to see if you can

solve the problem yourself (see Troubleshooting).

●If not, turn off the dryer and call the Service Centre

closest to you.

What to tell the Service Centre:

●name, address and post code.

●telephone number.

●the type of problem.

●the date of purchase.

●the appliance model (Mod.).

●the serial number (S/N).

This information can be found on the data label inside

the door of the machine.

This appliance conforms to the following EC Directives:

- 2006/95/EC (Low Voltage Equipment)

- 89/336/EEC, 92/31/EEC and 93/68/EEC (Electromagnetic Compatibility)

Service

Indesit Company UK Limited, Morley Way, Peterborough, PE2 9JB

Key Contacts

After Sales Service

Over 1100 trained specialists, directly employed by us, ensure that you can have complete

confidence in both the appliances and services we offer.

www.hotpoint.co.uk

Repair Service and Information Help Desk

UK: 08709 066 066

Monday to Friday, 8am to 7.30pm

Saturday, 8.30am to 5.30pm

Sunday, 9.30am to 3.30pm

www.hotpointservice.co.uk

Republic of Ireland: 0818 313 413

Note: Our operators will require the following information:

Model number

Serial number

Extended Warranties

UK: 08709 088 088

Monday to Sunday, 8am to 8pm

www.hotpointservice.co.uk

Republic of Ireland: 0123 002 333

Genuine Parts and Accessories

UK: 08709 077 077

Monday to Friday, 8.30am to 5pm

Saturday, 8.30am to 12noon

www.hotpointservice.co.uk

Republic of Ireland: 0818 313 413

195067258.00 W

01/2008 - SIMLEX . Four Ashes, Wolverhampton
