Contents

Installation, 2-3-4-5

Unpacking and levelling

Connecting the electricity and water supplies

The first wash cycle

Technical data

Description of the washing machine

and starting a wash cycle, 6-7

Control panel

Indicator lights

Starting a wash cycle

Wash cycles, 8

Table of wash cycles

Personalisation, 9

Setting the temperature

Setting the spin speed

Functions

Detergents and laundry, 10

Detergent dispenser drawer

Preparing the laundry

Garments requiring special care

Load balancing system

Precautions and tips, 11

General safety

Disposal

Opening the porthole door manually

Care and maintenance, 12

Cutting off the water or electricity supply

Cleaning the washing machine

Cleaning the detergent dispenser drawer

Caring for the door and drum of your appliance

Cleaning the pump

Checking the water inlet hose

Troubleshooting, 13-14

Assistance, 15-16

WMYL 8552

Instructions for use

WASHING MACHINE

English,1

Installation

Levelling your appliance correctly will provide it with sta-

bility and avoid any vibrations, noise and shifting during

operation. If it is placed on a fitted or loose carpet, adjust

the feet in such a way as to allow enough room for ventila-

tion beneath the washing machine.

Electric and water connections

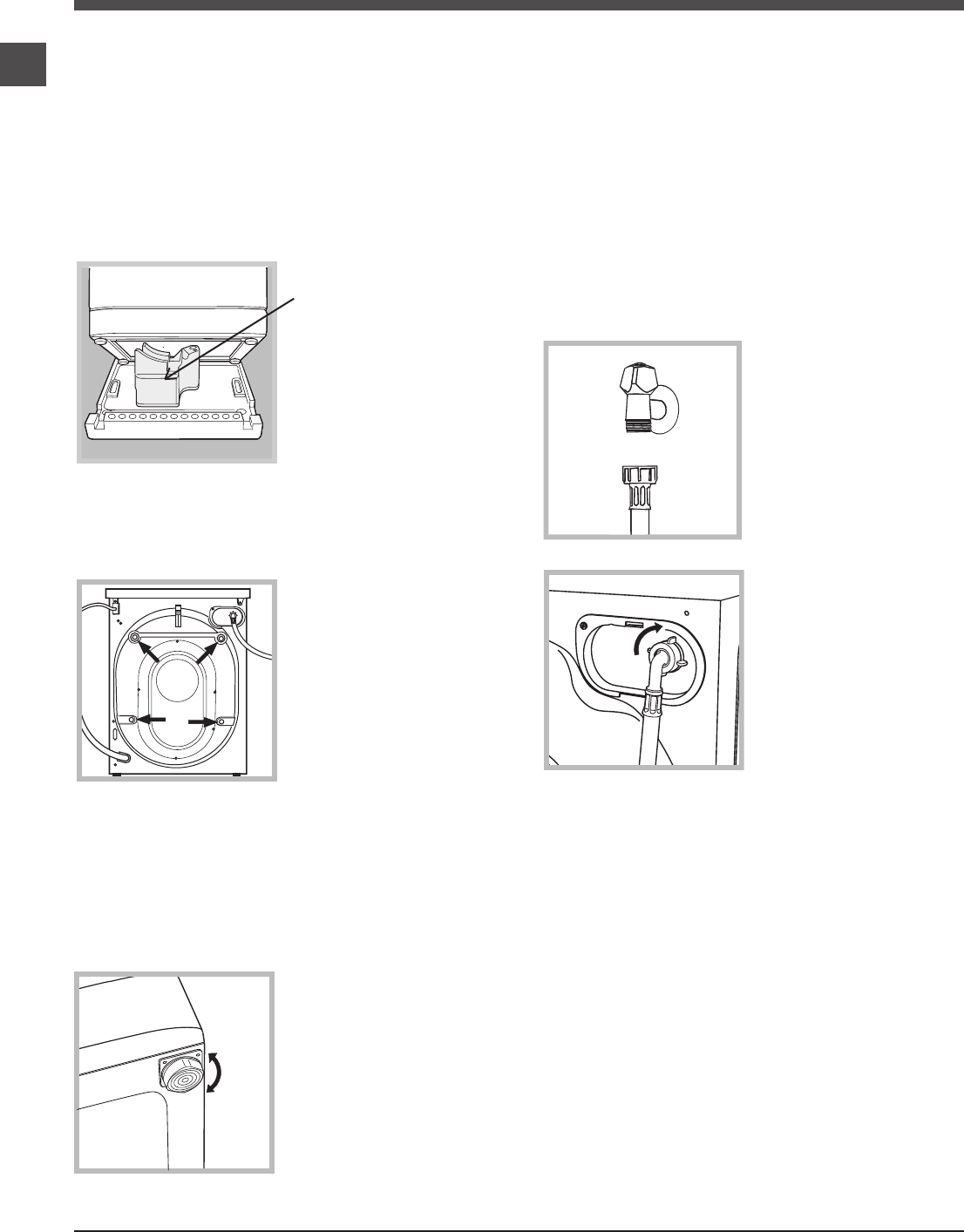

Connecting the water inlet hose

1. Connect the supply pipe

by screwing it to a cold

water tap using a 3/4 gas

threaded connection (see

figure).

Before performing the con-

nection, allow the water to

run freely until it is perfectly

clear.

2. Connect the other end of

the water inlet hose to the

washing machine,

screwing it onto the ap-

pliance’s cold water inlet,

situated on the top right-

hand side on the rear of the

appliance (see figure).

3. Make sure there are no kinks or bends in the hose.

! The water pressure at the tap must be within the values

indicated in the Technical details table (on the page 5).

! If the water inlet hose is not long enough, contact a spe-

cialist store or an authorised serviceman.

! Ensure that the supply taps are allowing water through.

Old taps may seize in the closed position and thus pre-

vent water reaching the machine.

! Never use second-hand or old inlet hoses; use the pro-

ducts supplied with the machine.

! Keep this instruction manual in a safe place for future refe-

rence. Should the appliance be sold, transferred or moved,

make sure the instruction manual accompanies the washing

machine to inform the new owner as to its operation and

features.

! Read these instructions carefully: they contain vital infor-

mation on installation, use and safety.

Unpacking and levelling

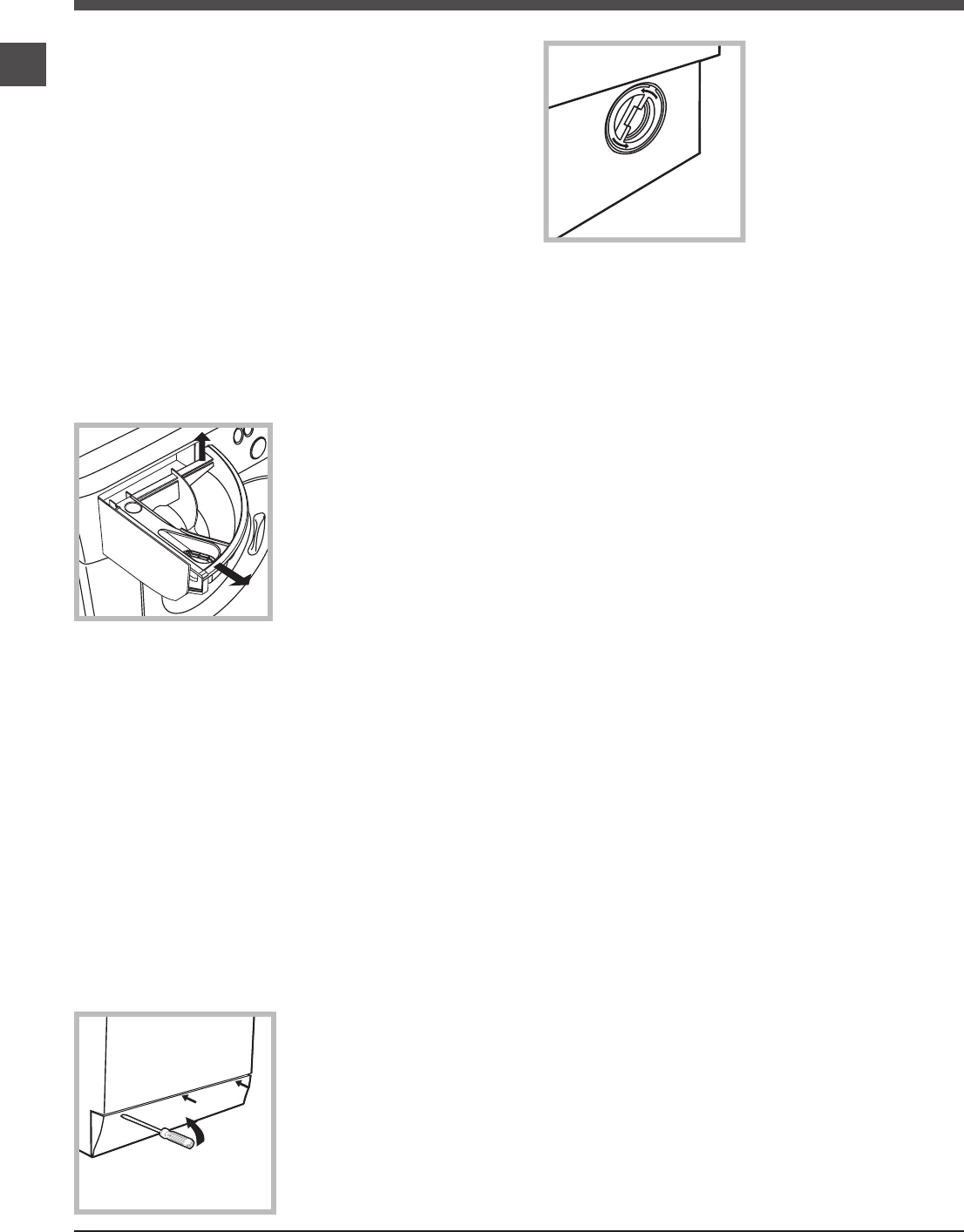

Unpacking

! This is a separate part of

the polystyrene base and

should be removed with

the base.

! IMPORTANT check

when unpacking your

machine.

1. Unpack the washing machine.

2. Check whether the washing machine has been dama-

ged during transport. If this is the case, do not install it and

contact your retailer.

3. Remove the 4 protective

screws and the rubber bush

with the respective spacer,

situated on the rear of the

appliance (see also the

installation leaflet).

4. Seal the gaps using the plastic plugs provided.

5. Keep all the parts: you will need them again if the wa-

shing machine needs to be moved to another location.

! Packaging materials are not children’s toys.

Levelling

Your machine may make a considerable amount of noise if

the two front feet have not been adjusted correctly.

1. Install the washing machine

on a flat sturdy floor, without

resting it up against walls,

cabinets or anything else.

2. If the floor is not perfectly level, compensate for any

unevenness by tightening or loosening the adjustable front

feet (see figure); the angle of inclination, measured accor-

ding to the worktop, must not exceed 2°.

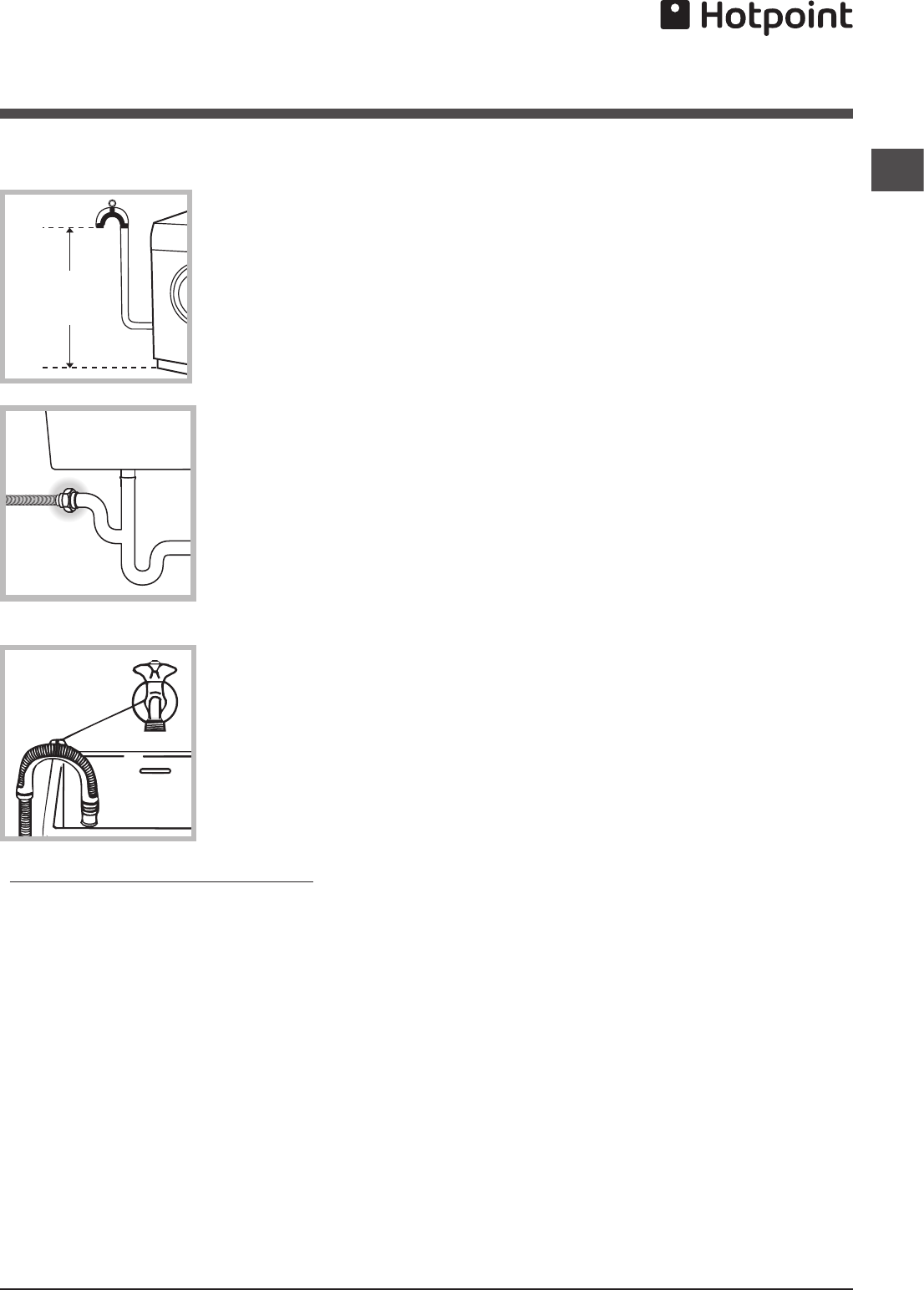

Connecting the drain hose

Connect the drain hose,

without bending it, to a

draining duct or a wall drain

situated between 65 and

100 cm from the floor;

The drain hose may be

connected to an under-

sink trap. Before connec-

ting the drain hose from

the machine ensure that

any blanks or removable

ends have been taken off

the spigot.

If it is placed over the edge

of a basin or sink be sure

the free end of the hose

should not be underwater.

! We advise against the use of hose extensions; in case of

absolute need, the extension must have the same diameter

as the original hose and must not exceed 150 cm in length.

Ensure that if the drain hose is pushed into a standpipe, that

the end does not go down more than 15cms (6 inches). If

the hose is pushed down too far, this may cause the machi-

ne to self -syphon ie. continuously empty as it is filling.

Electric connection

Before plugging the appliance into the mains socket, make

sure that:

• the socket is earthed and in compliance with the appli-

cable law;

• the socket is able to sustain the appliance’s maximum

power load indicated on the Technical Data Plate fixed

on the machine;

• the supply voltage is included within the values indica-

ted on the Technical Data Plate fixed on the machine.

• the socket is compatible with the washing machine’s

plug. If this is not the case, replace the socket or the

plug.

Your appliance is now supplied with a 13 amp fused plug

it can be plugged into a 13 amp socket for immediate use.

Before using the appliance please read the instructions

below.

WARNING - THIS APPLIANCE MUST BE EARTHED.

THE FOLLOWING OPERATIONS SHOULD BE CARRIED

OUT BY A QUALIFIED ELECTRICIAN.

Replacing the fuse:

When replacing a faulty fuse, a 13 amp ASTA approved

fuse to BS 1362 should always be used, and the fuse

cover re-fitted. If the fuse cover is lost, the plug must not

be used until a replacement is obtained.

Replacement fuse covers:

If a replacement fuse cover is fitted, it must be of the

correct colour as indicated by the coloured marking or the

colour that is embossed in words on the base of the plug.

Replacements can be obtained directly from your nearest

Service Depot.

Removing the plug:

If your appliance has a non-rewireable moulded plug and

you should wish to re-route the mains cable through parti-

tions, units etc., please ensure that either:

the plug is replaced by a fused 13 ampere rewireable plug

bearing the BSI mark of approval.

or:

the mains cable is wired directly into a 13 amp cable out-

let, controlled by a switch, (in compliance with BS 5733)

which is accessible without moving the appliance.

Disposing of the plug:

Ensure that before disposing of the plug itself, you make

the pins unusable so that it cannot be accidentally inserted

into a socket.

Instructions for connecting cable to an alternative plug:

Important: the wires in the mains lead are coloured in

accordance with the following code:

Green & Yellow Earth

Blue Neutral

Brown Live

65 - 100 cm

Where it connects to

the waste water pipe

cut end off spigot or

remove the blanking cap

As the colours of the wires in the lead may not correspond

with the coloured markings identifying the terminals in your

plug, proceed as follows:

Connect Green & Yellow wire to terminal marked E or

or coloured Green or Green & Yellow.

Connect Brown wire to terminal marked L or coloured

Red.

Connect Blue wire to terminal marked N or coloured Black.

If a 13 amp plug (BS 1363) is used it must be fitted with a

13 amp fuse, either in the plug or adaptor or at the distri-

bution board.

If you are in any doubt regarding the electrical supply to

your machine, consult a qualified electrician before use.

How to connect an alternative plug:

The wires in this mains lead are coloured in accordance

with the following code:

BLUE NEUTRAL (N)

BROWN LIVE (L)

GREEN & YELLOW EARTH (E)

Disposing of the appliance:

When disposing of the appliance please remove the plug

by cutting the mains cable as close as possible to the plug

body and dispose of it as described on the previous page.

! The washing machine should not be installed in an ou-

tdoor environment, not even where the area is sheltered,

because it may be very dangerous to leave it exposed to

damp, rain and thunderstorms.

! When the washing machine is installed, the mains socket

must be within easy reach.

! Do not use extensions or multiple sockets.

! The power supply cable must never be bent or dange-

rously compressed.

! The power supply cable must only be replaced by an

authorised serviceman.

Warning! The company denies all liability if and when these

norms are not respected.

The first wash cycle

Once the appliance has been installed, and before you use

it for the first time, run a wash cycle with detergent and no

laundry, setting the 60°C programme.

GREEN &

YELLOW

BROWN

BLUE

13 ampere fuse

CROSS-BAR

CORD GRIP

Technical data

Model WMYL 8552

Dimensions

width 59.5 cm

height 85 cm

depth 60.5 cm

Capacity from 1 to 8 kg

Electrical

connections

please refer to the technical data plate

fixed to the machine

Water connections

maximum pressure 1 MPa (10 bar)

minimum pressure 0.05 MPa (0.5 bar)

drum capacity 62 litres

Spin speed up to 1550 rotations per minute

Test wash cycles

in accordance

with directives

1061/2010 and

1015/201

Programme ; Cotton Standard 60°.

Programme ; Cotton Standard 40

This appliance conforms to the following

EC Directives:

- 2004/108/EC (Electromagnetic Compa-

tibility)

- 2006/95/EC (Low Voltage)

- 2002/96/EC

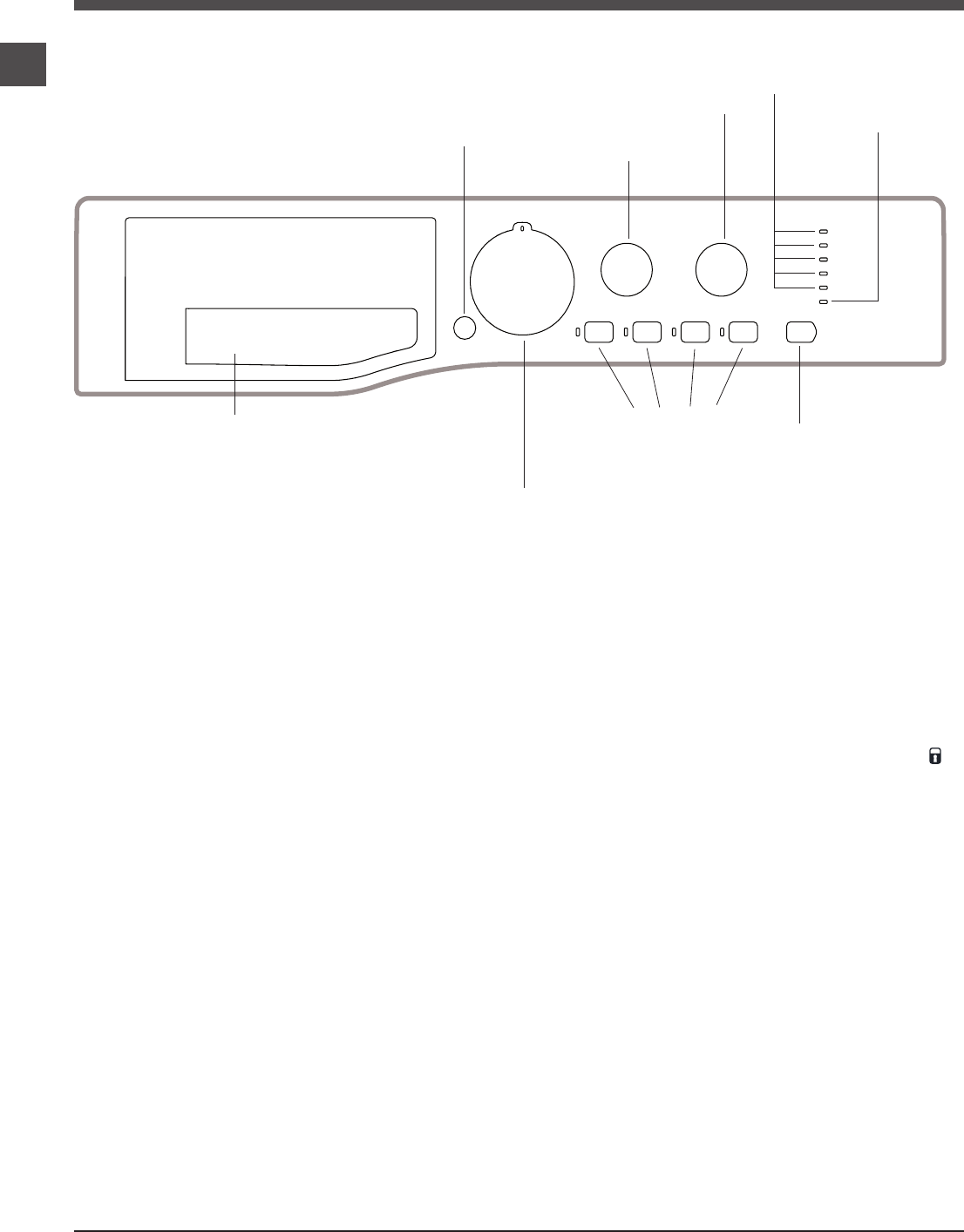

Detergent dispenser drawer: used to dispense

detergents and washing additives (see “Detergents and

laundry”).

ON/OFF button: switches the washing machine on and off.

WASH CYCLE knob: programmes the wash cycles. Du-

ring the wash cycle, the knob does not move.

FUNCTION buttons with indicator light: used to select the

available functions. The indicator light corresponding to the

selected function will remain lit.

TEMPERATURE knob: sets the temperature or the cold

wash cycle (see “Personalisation”).

SPIN SPEED knob: sets the spin speed or exclude the

spin cycle completely (see “Personalisation”).

WASH CYCLE PROGRESS

indicator light

s: used to

monitor the progress of the wash cycle.

The illuminated indicator light shows which phase is in

progress.

DOOR LOCKED indicator light: indicates whether the

door may be opened or not (see next page).

START/PAUSE button with indicator light: starts or tem-

porarily interrupts the wash cycles.

N.B. To pause the wash cycle in progress, press this

button; the corresponding indicator light will flash orange,

while the indicator light for the current wash cycle phase

will remain lit in a fixed manner. If the DOOR LOCKED

indicator light is switched off, the door may be opened.

To start the wash cycle from the point at which it was

interrupted, press this button again.

Standby mode

This washing machine, in compliance with new energy sa-

ving regulations, is fitted with an automatic standby system

which is enabled after about 30 minutes if no activity is

detected. Press the ON-OFF button briefly and wait for the

machine to start up again.

Consumption in off-mode: 0.5 W

Consumption in Left-on: 0.5 W

Description of the washing

machine and starting a wash cycle

TEMPERATURE

knob

Detergent dispenser drawer

WASH CYCLE

PROGRESS indicator lights

FUNCTION

buttons with

indicator lights

ON/OFF

button

SPIN SPEED

knob

DOOR

LOCKED

indicator light

START/PAUSE

button with indicator

light

Control panel

WASH CYCLE

knob

Indicator lights

The indicator lights provide important information.

This is what they can tell you:

Wash cycle phase indicator lights

Once the desired wash cycle has been selected and has

begun, the indicator lights switch on one by one to indicate

which phase of the cycle is currently in progress.

Function buttons and corresponding indicator lights

When a function is selected, the corresponding indicator

light will illuminate.

If the selected function is not compatible with the pro-

grammed wash cycle, the corresponding indicator light will

flash and a sound alert (3 beeps); the function will not be

activated.

If a function which is incompatible with another function

selected previously, only the most recent selection will

remain active.

Door locked indicator light

If this indicator light is on, the appliance door is locked to

prevent it from being opened accidentally; to avoid any

damage, wait for the indicator light to switch off before you

open the appliance door.

! If the START/PAUSE indicator light (orange) flashes

rapidly at the same time as the function indicator light, this

indicates a problem has occurred (see “Troubleshooting”).

Starting a wash cycle

1. Turn the washing machine on by pressing the ON/OFF button. All the indicator lights will turn on for a few seconds, then only

the indicator lights relative to the selected programme settings will remain lit and the START/PAUSE indicator light will flash.

2. Load the laundry and close the door.

3. Set the WASH CYCLE knob to the desired programme.

4. Set the washing temperature (see “Personalisation”).

5. Set the spin speed (see “Personalisation”).

6. Measure out the detergent and washing additives (see “Detergents and laundry”).

7. Select the desired functions.

8. Start the wash cycle by pressing the START/PAUSE button and the corresponding indicator light will remain lit in a fixed

manner, in green.

To cancel the set wash cycle, pause the machine by pressing the START/PAUSE button and select a new cycle.

9. At the end of the wash cycle the indicator light will switch on. The DOOR LOCKED indicator light will switch off, indi-

cating that the door may be opened. Take out your laundry and leave the appliance door ajar to make sure the drum dries

completely. Switch the washing machine off by pressing the ON/OFF button.

Wash

Rinse

Spin

Pump out

End of wash cycle

END

Wash cycles

Table of wash cycles

The length of cycle shown on the display or in this booklet is an estimation only and is calculated assuming standard working conditions. The actual duration can vary accor-

ding to factors such as water temperature and pressure, the amount of detergent used, the amount and type of load inserted, load balancing and any wash options selected.

Wash cycles

Description of the wash cycle

Max.

temp.

(°C)

Max.

speed

(rpm)

Detergents

Max. load (kg)

Residual

dampness %

Energy

consumption

kWh

Total water lt

Cycle

duration

Wash

Fabric

softener

CLEAN Plus

1Anti Stain 40° 1550 - - 5 - - - 180’

2Whites 60° 1550 - - 5 - - - 180’

Cotton Standard 60° (1): heavily soiled whites and resistant colours. 60°

(Max. 90°) 1550 - - 8 44 1.23 73 200’

Cotton Standard 40° (2): lightly soiled resistant and delicate colours. 40° 1550 - - 8 44 1.01 84 185’

5Cotton Standard 20°: lightly soiled resistant and delicate colours. 20° 1550 - - 8 - - - 175’

6Synthetics: heavily soiled resistant colours. 60° 800 - - 4 46 1.03 60 110’

6Synthetics (3): lightly soiled resistant colours. 40° 800 - - 4 46 0.56 60 95’

SPECIALS

7Anti Allergy 60° 1550 - - 5- - - 195’

8Baby 40° 1000 - - 5- - - 145’

9Bed&Bath: washes bathroom laundry and bedlinen. 60° 1550 - - 8 - - - 140’

10 Fastwash 60’: to refresh normal soiled garments quickly (not suitable

for wool, silk and clothes which require washing by hand). 60° 1550 - - 3.5 44 0.84 44 60’

11 Fastwash 30’: to refresh lightly soiled garments quickly (not suitable

for wool, silk and clothes which require washing by hand). 30° 800 - - 3.5 71 0.20 38 30’

EXTRAS

12 Shirts 40° 600 - - 2- - - 70’

13 Wool: for wool, cashmere, etc. 40° 800 - - 2- - - 90’

14 Delicates 30° 0 - - 1- - - 80’

Partials cycles

Rinse - 1550 - -8- - - 36’

Spin+Pump out - 1550 - - 8- - - 16’

1) Test wash cycle in compliance with directive 1061/2010: set wash cycle with a temperature of 60°C.

This cycle is designed for cotton loads with a normal soil level and is the most efficient in terms of both electricity and water consumption; it should be used for

garments which can be washed at 60°C. The actual washing temperature may differ from the indicated value.

2) Test wash cycle in compliance with directive 1061/2010: set wash cycle with a temperature of 40°C.

This cycle is designed for cotton loads with a normal soil level and is the most efficient in terms of both electricity and water consumption; it should be used for

garments which can be washed at 40°C. The actual washing temperature may differ from the indicated value.

For all Test Institutes:

2) Long wash cycle for cottons: set wash cycle with a temperature of 40°C.

3) Long wash cycle for synthetics: set wash cycle 6 with a temperature of 40°C.

Setting the temperature

Turn the TEMPERATURE knob to set the wash temperature (see Table of wash cycles).

The temperature may be lowered, or even set to a cold wash ( ).

The washing machine will automatically prevent you from selecting a temperature which is higher than the maximum value

set for each wash cycle.

! Exception: if the

programme is selected, the temperature can be increased up to a value of 90°C.

Setting the spin speed

Turn the SPIN SPEED knob to set the spin speed for the selected wash cycle.

The maximum spin speeds available for each wash cycle are as follows:

Wash cycles Maximum spin speed

Cottons 1550 rpm

Synthetics 800 rpm

Wool 800 rpm

Silk drain only

The spin speed may be lowered, or the spin cycle can be excluded altogether by selecting the symbol .

The washing machine will automatically prevent you from selecting a spin speed which is higher than the maximum speed

set for each wash cycle.

Functions

The various wash functions available with this washing machine will help to achieve the desired results, every time.

To activate the functions:

1. Press the button corresponding to the desired function;

2. the function is enabled when the corresponding indicator light is illuminated.

Note: If the indicator light flashes rapidly, this signals that this particular function may not be selected in conjunction with the

selected wash cycle.

Super Wash

This option offers a high-performance wash due to the greater quantity of water used in the initial phase of the cycle, and due

to the increased wash cycle duration, is particularly useful for the removal of stubborn stains.

! This function may not be used in conjunction with wash cycles 2, 7, 10, 11, 13, 14, .

Extra Rinse

By selecting this function, the efficiency of the rinse is increased and optimal detergent removal is guaranteed. It is particularly

useful for sensitive skin.

! This function may not be used in conjunction with wash cycles 7, 11, 14, .

Easy Iron

By selecting this function, the wash and spin cycles will be modified in order to reduce the formation of creases. At the end

of the cycle the washing machine will perform slow rotations of the drum; the EASY IRON and START/PAUSE indicator lights

will flash (orange) and the phase will remain lit in a fixed manner. To end the cycle, press the START/PAUSE button or

the EASY IRON button.

! This function may not be used in conjunction with wash cycles 1, 2, 7, 11, 13, , .

Time Saver

If you select this option, the wash cycle duration will be reduced by up to 50%, depending on the selected cycle, thereby gua-

ranteeing simultaneous water and energy saving. Use this cycle for lightly soiled garments.

! This function may not be used in conjunction with wash cycles 1, 2, 7, 8, 10, 12, 13, 14, , .

Personalisation

Detergents and laundry

Detergent dispenser drawer

Successful washing results also depend on the correct

dose of detergent: adding too much detergent will not

necessarily result in a more efficient wash, and may in fact

cause build up on the inside of your appliance and contri-

bute to environmental pollution.

! Use powder detergent for white cotton garments, for pre-

washing, and for washing at temperatures over 60°C.

! Follow the instructions given on the detergent packaging.

! Do not use hand washing detergents; they create too

much foam.

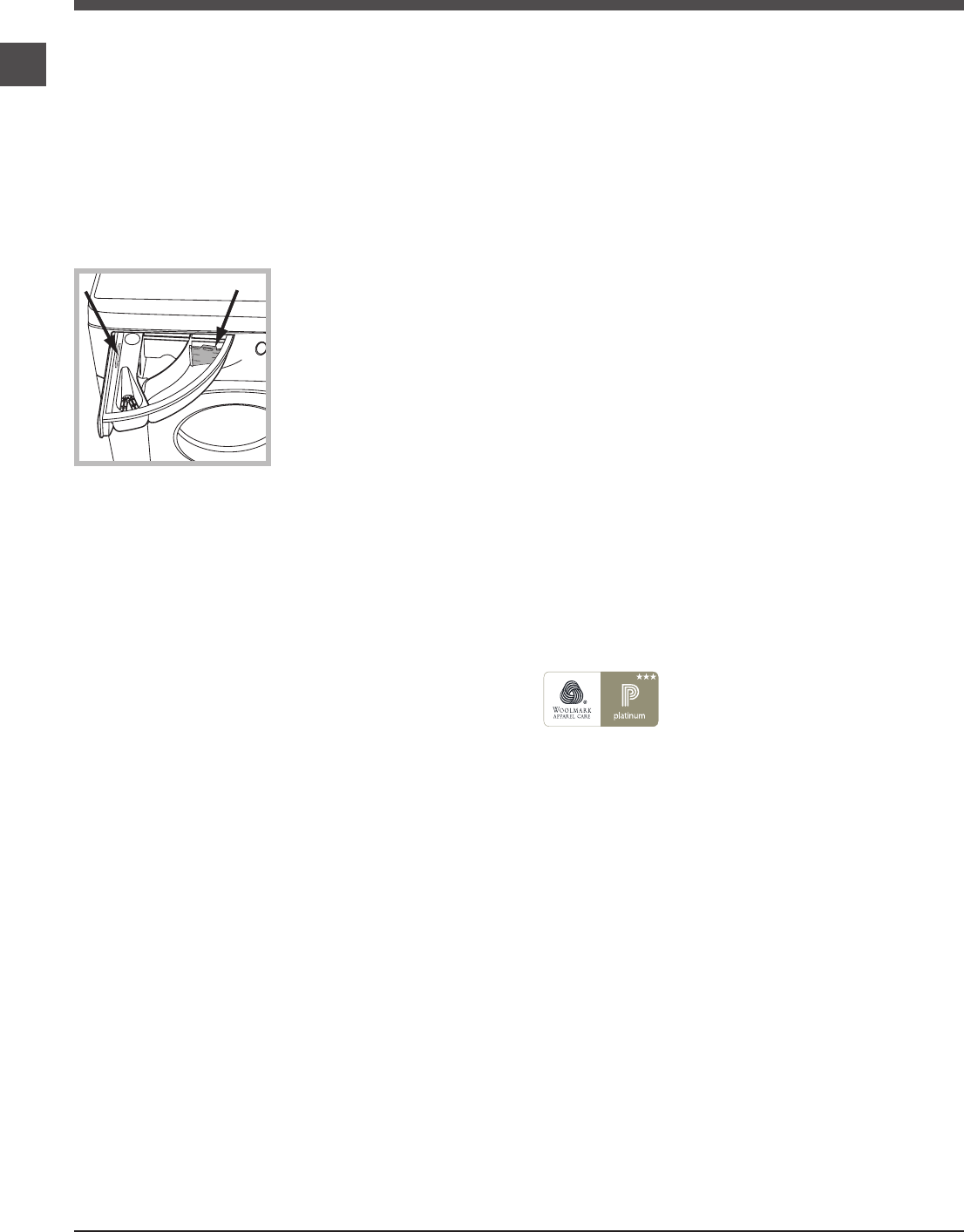

Open the detergent dispenser

drawer and pour in the deter-

gent or washing additive, as

follows.

! Do not pour detergent into the

middle compartment (*). Deter-

gent should only be poured into

the compartment 1.

compartment 1: Detergent for the wash cycle

(powder or liquid)

If liquid detergent is used, it is recommended that the

removable plastic partition A (supplied) be used for proper

dosage.

If powder detergent is used, place the partition into slot B.

compartment 2: Additives (fabric softeners, etc.)

The fabric softener should not overflow the grid.

Preparing the laundry

• Divide the laundry according to:

- the type of fabric/the symbol on the label

- the colours: separate coloured garments from whites.

• Empty all garment pockets and check the buttons.

• Do not exceed the listed values, which refer to the

weight of the laundry when dry:

Durable fabrics: max. 8 kg

Synthetic fabrics: max. 4 kg

Wool: max. 2 kg

Silk: max. 2 kg

How much does your laundry weigh?

1 sheet 400-500 g

1 pillow case 150-200 g

1 tablecloth 400-500 g

1 bathrobe 900-1,200 g

1 towel 150-250 g

Garments requiring special care

Anti Stain: the programme 1 is suitable to heavily-soiled

garments with resistant colours. It ensures a washing

class that is higher than the standard class (A class). When

running the programme, do not mix garments of different

colours. We recommend the use of powder detergent.

Pre-treatment with special additives is recommended if

there are obstinate stains.

Whites: use this cycle 2 to wash white clothes. The pro-

gramme is designed to maintain the brightness of white

clothes over time. Use powder detergent for best results.

Cotton Standard 20°: use this cycle 5 for heavily soiled

cotton loads. The effective performance levels achieved at

cold temperatures, which are comparable to washing at

40°, are guaranteed by a mechanical action which opera-

tes at varying speed, with repeated and frequent peaks.

Anti Allergy: use programme 7 to remove major allergens

such as pollen, mites, cat’s and dog’s hair.

Baby: use the special wash cycle 8 to remove the remove

the soiling typically caused by babies, while removing all

traces of detergent from nappies in order to prevent the

delicate skin of babies from suffering allergic reactions. The

cycle has been designed to reduce the amount of bacteria

by using a greater quantity of water and optimising the ef-

fect of special disinfecting additives added to the detergent.

Bed&Bath: use programme 9 to wash bed linen and to-

wels in one single cycle: it optimises softener performance

and helps you save time and energy. We recommend the

use of powder detergent.

Shirts: use the special 12 wash cycle to wash shirts in

different fabrics and colours to guarantee they receive the

best possible care.

Wool: the wool wash cycle on this Hotpoint machine has

been tested and approved by The Woolmark Company

for washing wool garments labelled as hand washable

provided that the garments are washed according to the

instructions on the garment label and those issued by the

manufacturer of this washing machine. Hotpoint is the first

washing machine brand to be approved by The Woolmark

Company for Apparel Care- Platinum for its washing per-

formance and consumption of energy and water. (M1127)

Delicates: use programme 14 to wash very delicate

garments having strasses or sequins.

We recommend turning the garments inside out before

washing and placing small items into the special bag for

washing delicates.

Use liquid detergent on delicate garments for best results.

To wash silk garments and curtains select cycle 14 and

then function “Easy Iron” (in this case it will also be possible

to enable the “Extra Rinse” option); the machine will end

the cycle while the laundry is soaking, the “Easy Iron” and

START/PAUSE indicator lights will flash (orange) and the

RINSE phase will remain lit in a fixed manner. To drain

the water so that the laundry may be removed, press the

START/PAUSE button or the “Easy Iron” button.

Load balancing system

Before every spin cycle, to avoid excessive vibrations

before every spin and to distribute the load in a uniform

manner, the drum rotates continuously at a speed which

is slightly greater than the washing rotation speed. If,

after several attempts, the load is not balanced correctly,

the machine spins at a reduced spin speed. If the load is

excessively unbalanced, the washing machine performs

the distribution process instead of spinning. To encourage

improved load distribution and balance, we recommend

small and large garments are mixed in the load.

Precautions and tips

! This washing machine was designed and constructed in

accordance with international safety regulations. The fol-

lowing information is provided for safety reasons and must

therefore be read carefully.

General safety

• This appliance is not intended for use by persons (inclu-

ding children) with reduced physical, sensory or mental

capabilities, or lack of experience and knowledge, unless

they have been given supervision or instruction concer-

ning use of the appliance by a person responsible for

their safety. Children should be supervised to ensure that

they do not play with the appliance.

• This appliance was designed for domestic use only.

• Do not touch the machine when barefoot or with wet or

damp hands or feet.

• Do not pull on the power supply cable when unplugging

the appliance from the electricity socket. Hold the plug

and pull.

• Do not open the detergent dispenser drawer while the

machine is in operation.

• Do not touch the drained water as it may reach extreme-

ly high temperatures.

• Never force the porthole door. This could damage the

safety lock mechanism designed to prevent accidental

opening.

• If the appliance breaks down, do not under any circum-

stances access the internal mechanisms in an attempt to

repair it yourself.

• Always keep children well away from the appliance while

it is operating.

• The door can become quite hot during the wash cycle.

• If the appliance has to be moved, work in a group of

two or three people and handle it with the utmost care.

Never try to do this alone, because the appliance is very

heavy.

• Before loading laundry into the washing machine, make

sure the drum is empty.

Disposal

• Disposing of the packaging materials: observe local

regulations so that the packaging may be re-used.

• The European Directive 2002/96/EC on Waste Electrical

and Electronic Equipment, requires that old household

electrical appliances must not be disposed of in the

normal unsorted municipal waste stream. Old applian-

ces must be collected separately in order to optimise

the recovery and recycling of the materials they contain

and reduce the impact on human health and the envi-

ronment. The crossed out “wheeled bin” symbol on the

product reminds you of your obligation, that when you

dispose of the appliance it must be separately collected.

Opening the porthole door manually

In the event that it is not possible to open the porthole

door due to a powercut, and if you wish to remove the

laundry, proceed as follows:

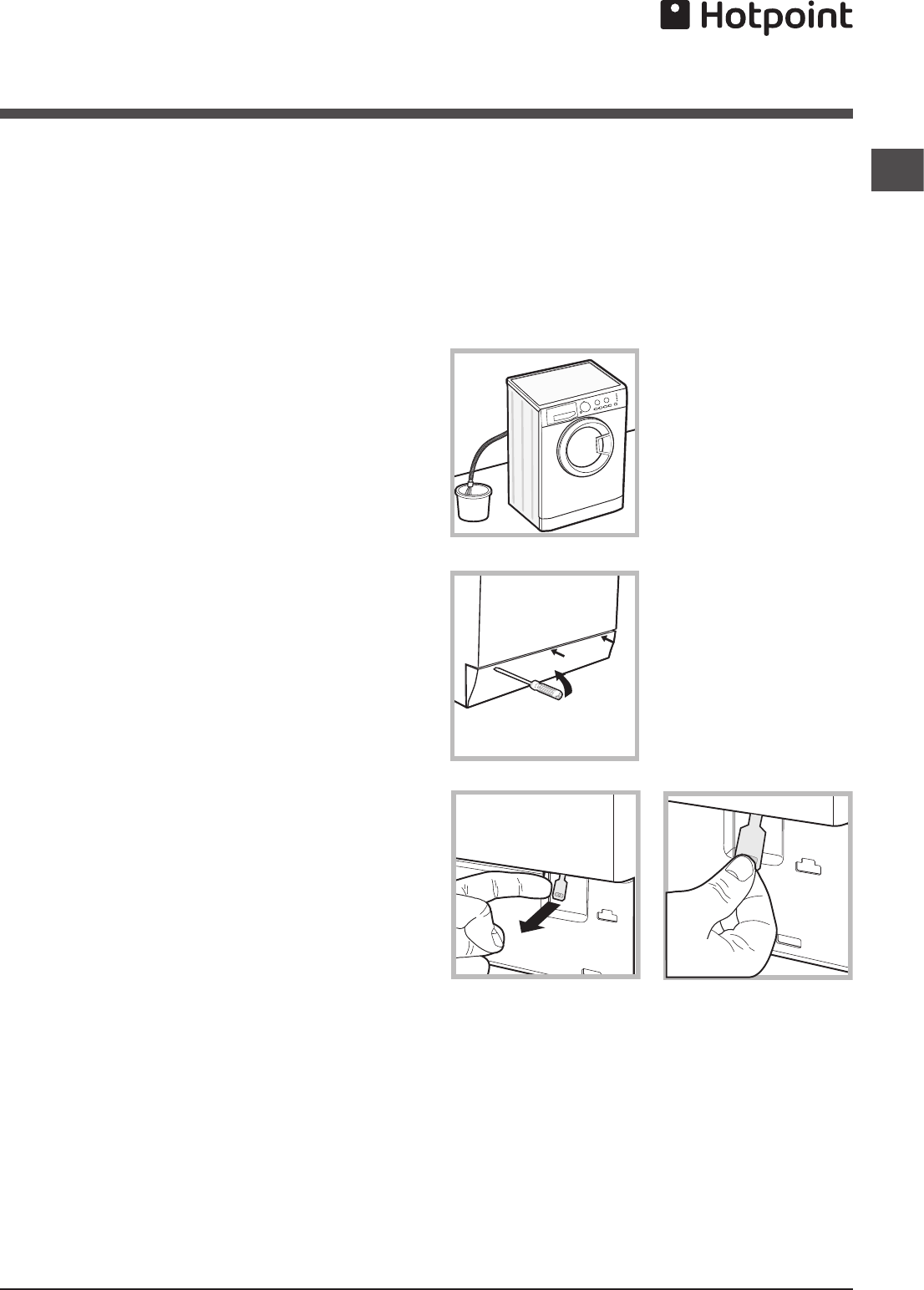

1. remove the plug from the

electrical socket.

2. make sure the water level

inside the machine is lower

than the door opening; if it

is not, remove excess water

using the drain hose, collec-

ting it in a bucket as indicated

in the figure.

3. using a screwdriver, remo-

ve the cover panel on the lo-

wer front part of the washing

machine (see figure).

4. pull outwards using the tab as indicated in the figure,

until the plastic tie-rod is freed from its stop position; pull

downwards and open the door at the same time.

5. reposition the panel, making sure the hooks are securely

in place before you push it onto the appliance.

Consumers should contact their local authority or retailer

for information concerning the correct disposal of their

old appliance.

Care and maintenance

Cutting off the water and electricity

supplies

• Turn off the water tap after every wash cycle. This will limit

wear on the hydraulic system inside the washing machine

and help to prevent leaks.

• Unplug the washing machine when cleaning it and du-

ring all maintenance work.

Cleaning the washing machine

The outer parts and rubber components of the appliance

can be cleaned using a soft cloth soaked in lukewarm

soapy water. Do not use solvents or abrasives.

Cleaning the detergent dispenser drawer

Remove the dispenser by

raising it and pulling it out

(see figure).

Wash it under running wa-

ter; this operation should be

repeated frequently.

Caring for the door and drum of your

appliance

• Always leave the porthole door ajar in order to prevent

unpleasant odours from forming.

Cleaning the pump

The washing machine is fitted with a self-cleaning pump

which does not require any maintenance. Sometimes, small

items (such as coins or buttons) may fall into the pre-chamber

which protects the pump, situated in its bottom part.

! Make sure the wash cycle has finished and unplug the

appliance.

To access the pre-chamber:

1. using a screwdriver,

remove the cover panel

on the lower front part of

the washing machine (see

figure);

2. unscrew the lid by rota-

ting it anti-clockwise (see

figure): a little water may

trickle out. This is perfectly

normal;

3. clean the inside thoroughly;

4. screw the lid back on;

5. reposition the panel, making sure the hooks are securely

in place before you push it onto the appliance.

Checking the water inlet hose

Check the inlet hose at least once a year. If there are any

cracks, it should be replaced immediately: during the wash

cycles, water pressure is very strong and a cracked hose

could easily split open.

! Never use second-hand hoses.

Troubleshooting

Your washing machine could fail to work. Before contacting the Technical Assistance Centre (see “Assistance”), make sure

that the problem cannot be solved easily using the following list.

Problem:

The machine does not switch on.

The wash cycle does not start.

The machine does not fill with wa-

ter or the indicator light for the first

wash cycle stage flashes rapidly.

The machine continuously fills with

water and continually drains away

or Water left in the drum

or Stuck on wash.

The machine does not drain or

spin.

The machine does not heat or poor

wash results.

The programme takes too long.

The machine vibrates a lot during

the spin cycle.

Possible causes / Solutions:

• The appliance is not plugged into the socket fully, or not enough to make contact.

• There is no power to the socket, or the fuse has blown in the mains plug.

• The door is not closed properly.

• The ON/OFF button has not been pressed.

• The START/PAUSE button has not been pressed.

• The water tap has not been turned on to allow water to flow into the machine.

• The water inlet hose is kinked.

• The water inlet hose is not connected to the water supply.

• The water pressure is too low.

• The water tap has not been turned on to allow water to flow into the machine.

• There is no water supply to the house.

• The inlet valve filter is blocked.

• The START/PAUSE button has not been pressed.

• The top of the drain hose is too low - It must be fitted at a height between 65

and 100 cm from the floor (see “Installation”).

• The drain hose is connected incorrectly to the sink trap allowing water to run

into the machine, the drain hose must be positioned higher than the bottom of

the sink to prevent water flowing down the drain hose.

• The end of the drain hose has been pushed too far down the standpipe, the

‘U’ bracket should be fitted 100 mm from the end of the drain hose.

• The Pump filter is blocked.

• The drain hose is kinked (see “Installation”).

• New Installation - The blanking cap or spigot has not been removed if con-

nected under a sink.

• The drain hose or sink trap is blocked.

• The wash cycle does not include draining, some wash cycles require the drain

phase to be started manually.

• The EASY IRON function button has been activated. To complete the wash

cycle, press the START/PAUSE button.

• The ‘Spin Speed’ selector knob is in the “ ” position.

• The ‘Temperature’ selector knob is in the “ ” position.

• Programme times will vary due to water pressure, the incoming water tempe-

rature and if the wash load goes out of balance. This will increase the pro-

gramme times accordingly (see ‘ The machine wont spin properly’ below).

• The feet have not been adjusted, enabling the machine to rock.

• New Installation - Either the Transit Bolts including the plastic spacers, or the

Polystyrene Packaging have not been removed when installing the machine.

• The machine is trapped between cabinets and/or walls.

• The load is in a slight out of balance condition and machine is spinning, but at

a lower speed.

The machine is noisy.

The machine wont spin properly.

The machine leaks from the

dispenser.

The machine leaks (other than

dispenser).

The indicator lights on the console

are flashing rapidly.

The machine smells.

The machine door cannot be

opened.

Door Seal damaged at the bottom.

The water level is too low when

the machine is washing.

There is too much foam.

After completing the programme,

or before starting a programme,

the machine has turned itself off

(no lights).

General.

• There will always be some motor, pump and drum noise during spin.

• Out of Balance detected when attempting to go into a spin cycle - If this

happens the machine will continue to try to repeat the distribution of the load

required before the machine will go into higher spin speeds - This will increase

the programme time accordingly. This is a safety feature to prevent damage.

Out of Balance can be caused by washing a single heavy item (eg duvet, quilt,

etc). - Try the programme again using a different load.

• The dispenser drawer is blocked with detergent and requires cleaning.

• The water pressure is too high and requires turning down - turn down the tap

on the water supply pipe slightly and try again.

• The machine is tilting forwards - It must be level when in its final position.

• The fill hose is loose, check both the cabinet and tap ends.

• The fill hose is tight but still leaks, if so replace the rubber washers, or the fill

hose is missing the rubber washer.

• The drain hose is not fixed in properly.

• Switch off the machine and unplug it, wait for approximately 1 minute and then

switch it back on again If the problem persists contact the Technical Assistance

Service.

• The machine requires a service wash. Run a 60 degree wash cycle with deter-

gent and no laundry.

• The door will not open until the door lock indicator light goes out shortly after

the program has finished.

• The door seal has drainage holes at the bottom - This is normal.

• The water level is correct if it can be seen at the bottom of the door.

• The detergent is not suitable for machine washing (it should display the text

‘for washing machines’ or ‘hand and machine wash’ or the like).

• Too much detergent was used - less detergent is required in soft water.

• To comply with new energy saving regulations the machine is fitted with an

automatic standby system. Press ‘ON/OFF’ button for 3 seconds to activate

the machine, it can then either be switched off or a new programme selected.

• Your washing machine contains sensors that monitor progress during the wash

cycle (eg: Water Levels, Temperatures, Out of Balance loads, Wash time/pro-

gress).

Normally, if your machine successfully completes the cycle, there is unlikely to

be anything wrong!

Remember, you will be charged for a service call for problems caused by incorrect installation, as listed above.

Not emptying contents from pockets may cause pump or drain blockages, or may damage the machine.

Do not wash items which do not have a wash label, or wash items that are not intended as machine washable.

Assistance

Guarantee

12 Months Parts and Labour Guarantee

Your appliance has the benefit of our manufacturer’s guarantee, which covers the cost of breakdown repairs

for twelve months from the date of purchase.

This gives you the reassurance that if, within that time, your appliance is proven to be defective because of

either workmanship or materials, we will, at our discretion, either repair or replace the appliance at no cost

to you.

This guarantee is subject to the following conditions:

- The appliance has been installed and operated correctly and in accordance with our

operating and maintenance instructions.

- The appliance is used only on the electricity or gas supply printed on the rating plate.

- The appliance has been used for normal domestic purposes only.

- The appliance has not been altered, serviced, maintained, dismantled, or otherwise

interfered with by any person not authorised by us.

- Any repair work must be undertaken by us or our appointed agent.

- Any parts removed during repair work or any appliance that is replaced become our property.

- The appliance is used in the United Kingdom or Republic of Ireland.

The guarantee does not cover:

- Damage resulting from transportation, improper use, neglect or interference or as a result

of improper installation.

- Replacement of any consumable item or accessory . These include but are not limited to: plugs,

cables, batteries, light bulbs, fluorescent tubes and starters, covers and filters.

- Replacement of any removable parts made of glass or plastic.

THIS GUARANTEE WILL NOT APPLY IF THE APPLIANCE HAS BEEN USED IN COMMERCIAL

OR NON-DOMESTIC PREMISES.

5 Year Parts Guarantee

Hotpoint also offers you a free 5 year parts guarantee. This additional guarantee is conditional on you

registering your appliance with us and the parts being fitted by one of our authorised engineers. There will

be a charge for our engineer’s time. To activate the extra parts warranty on your appliance, simply call our

registration line on 08448 24 24 24 (ROI 01 230 0800).

Extended Guarantees

We offer a selection of repair protection plans that enable you to fully cover yourself against the expense of repair

bills for the life of your policy. To find the ideal plan for you please call our advice line on

08448 226 226 (Republic of Ireland 01 230 0233).

Free Helpdesk Service

We have a dedicated team who can provide free advice and assistance with your appliance if you

experience any technical difficulties within the first 90 days of ownership. Simply call our Hotpoint Service

Hotline on 08448 224 224 (Republic of Ireland 0818 313 413) for telephone assistance, or, where

necessary, to arrange for an engineer to call. If we cannot resolve the technical problem we will replace your

machine or, if you prefer, give you your money back.

195100089.00

02/2012 - Xerox Fabriano

After Sales Service

No one is better placed to care for your Hotpoint appliance during the course of its working

life than us - the manufacturer.

Essential Contact Information

Hotpoint Service

We are the largest service team in Europe offering you access to 400 skilled telephone advisors and 1000

fully qualified engineers on call to ensure you receive fast, reliable, local service.

UK: 08448 224 224

Republic of Ireland: 0818 313 413

www.hotpointservice.co.uk

Please note: Our advisors will require the following information:

Model number:

Serial number:

Parts and Accessories

We supply a full range of genuine replacement parts as well as accessory products that protect and

hygienically clean your appliance to keep it looking good and functioning efficiently throughout its life.

UK: 08448 225 225

Republic of Ireland: 0818 313 413

www.hotpointservice.co.uk

Appliance Registration

We want to give you additional benefits of Hotpoint ownership. To activate your free 5 year parts guarantee

you must register your appliance with us.

UK: 08448 24 24 24

Republic of Ireland: 01 230 0800

www.hotpointservice.co.uk

Indesit Company UK Ltd. Morley Way, Peterborough, PE2 9JB

Indesit Company Unit 49 Airways Industrial Estate,Dublin 17

Recycling & Disposal Information

As part of Hotpoint’s continued commitment to helping the environment, Hotpoint reserves the right to use

quality, recycled components to keep down customer costs and minimise material wastage.

Please dispose of packaging and old appliances carefully. To minimise the risk of injury to children, remove

the door, plug and cut the mains cable off flush with the appliance. Dispose of these parts separately to

ensure that the appliance can no longer be plugged into a mains socket, and the door

Hotpoint Washer Wmyl 8552 Users Manual

Hotpoint Washer WMYL 8552 WMYL8552_19510008900_GB

WMYL 8552 to the manual ca79d4cb-5b2b-4669-b6d2-0d81bf94776d

Navigation menu

Versions of this User Manual:

Views

Navigation
