1

GB

Contents

Installation, 2-3-4-5

Unpacking and levelling

Connecting the electricity and water supplies

The first wash cycle

Technical data

Care and maintenance, 6

Cutting off the water or electricity supply

Cleaning the washing machine

Cleaning the detergent dispenser drawer

Caring for the door and drum of your appliance

Cleaning the pump

Checking the water inlet hose

Precautions and tips, 7

General safety

Disposal

Description of the washing machine

and starting a wash cycle, 8-9

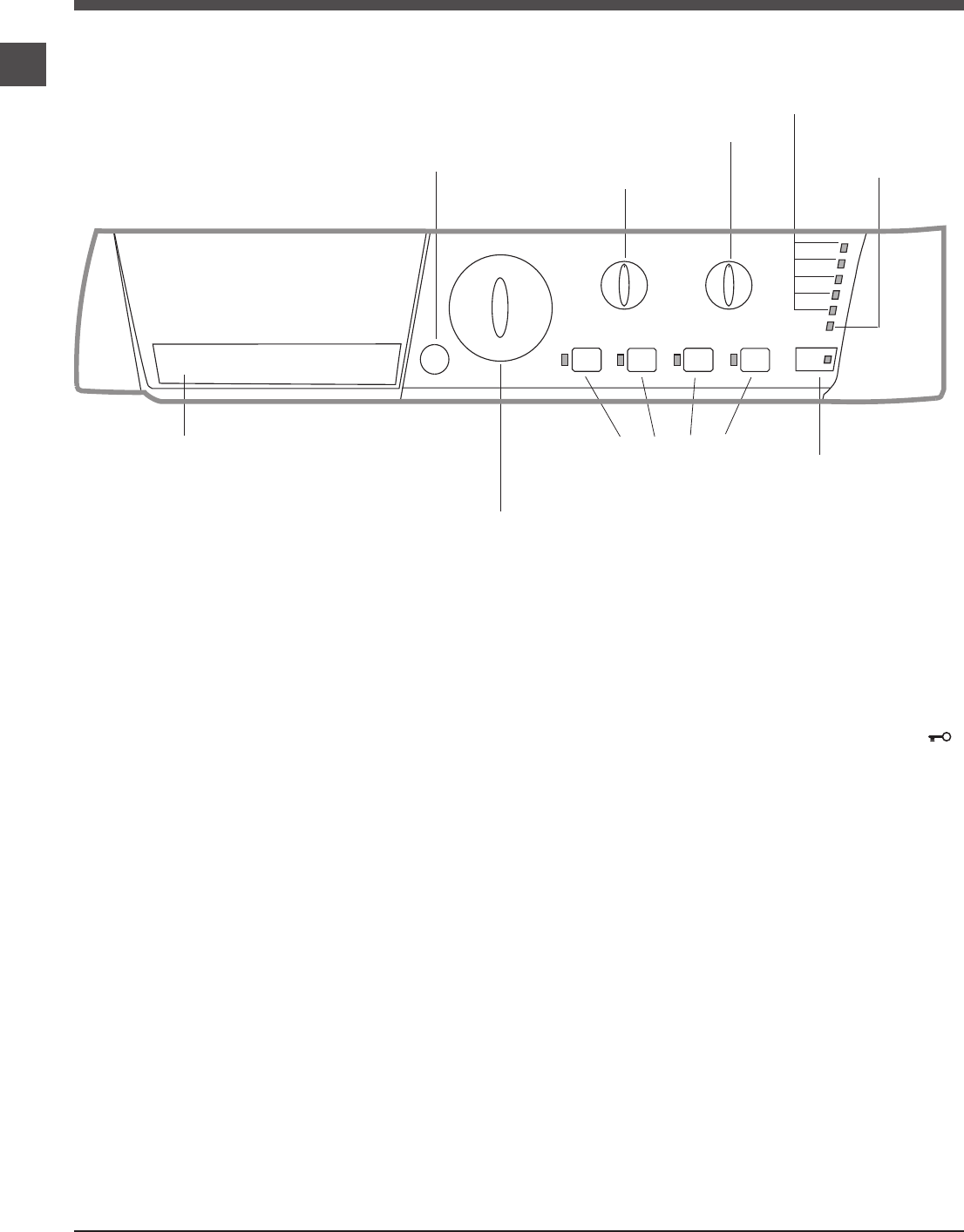

Control panel

Indicator lights

Starting a wash cycle

Wash cycles, 10

Table of wash cycles

Personalisation, 11

Setting the temperature

Setting the spin speed

Functions

Detergents and laundry, 12

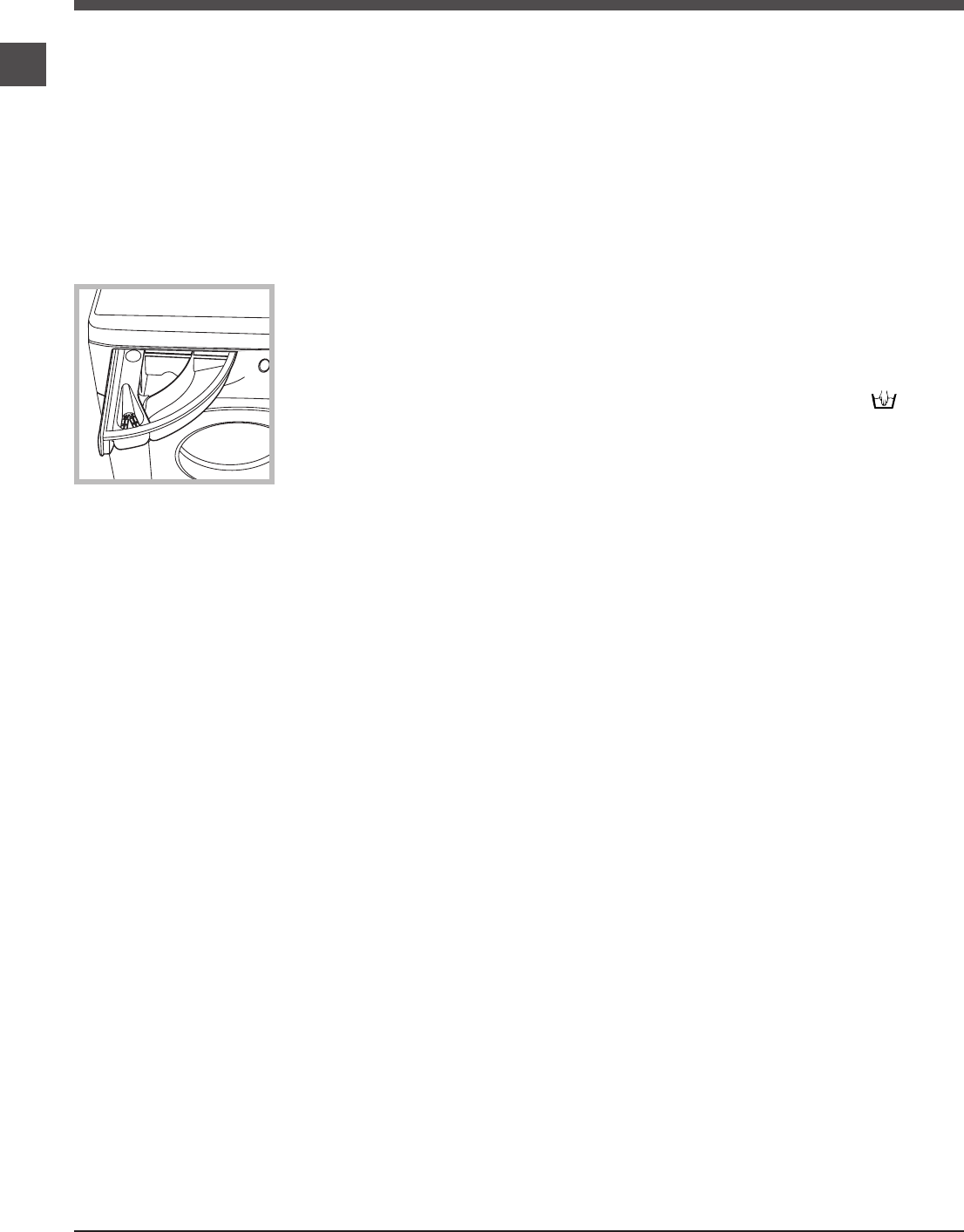

Detergent dispenser drawer

Preparing the laundry

Garments requiring special care

Load balancing systemy

Troubleshooting, 13-14

Assistance, 15-16

HV7L 145

Instructions for use

WASHING MACHINE

English,1

GB

2

GB

Installation

2. If the floor is not perfectly level, compensate

for any unevenness by tightening or loosening

the adjustable front feet (see figure); the an-

gle of inclination, measured according to the

worktop, must not exceed 2°.

Levelling your appliance correctly will provide

it with stability and avoid any vibrations, noise

and shifting during operation. If it is placed on

a fitted or loose carpet, adjust the feet in such

a way as to allow enough room for ventilation

beneath the washing machine.

Electric and water connections

Connecting the water inlet hose

1. Connect the supply

pipe by screwing it to

a cold water tap using

a 3/4 gas threaded

connection (see figu-

re).

Before performing the

connection, allow the

water to run freely until

it is perfectly clear.

2. Connect the other

end of the water inlet

hose to the washing

machine,

screwing it onto the

appliance’s cold water

inlet, situated on the

top right-hand side on

the rear of the ap-

pliance (see figure).

3. Make sure there are no kinks or bends in the

hose.

! The water pressure at the tap must be within

the values indicated in the Technical details

table (on the page 5).

! If the water inlet hose is not long enough,

contact a specialist store or an authorised

serviceman.

! Ensure that the supply taps are allowing wa-

ter through. Old taps may seize in the closed

position and thus prevent water reaching the

machine.

! Never use second-hand or old inlet hoses;

use the products supplied with the machine.

! Keep this instruction manual in a safe place

for future reference. Should the appliance be

sold, transferred or moved, make sure the

instruction manual accompanies the washing

machine to inform the new owner as to its

operation and features.

! Read these instructions carefully: they contain

vital information on installation, use and safety.

Unpacking and levelling

Unpacking

! This is a separate

part of the polystyre-

ne base and should

be removed with the

base.

! IMPORTANT check

when unpacking

your machine.

1. Unpack the washing

machine.

2. Check whether the

washing machine has

been damaged during

transport. If this is the

case, do not install

it and contact your

retailer.

3. Remove the 4 pro-

tective screws and the rubber bush with the

respective spacer, situated on the rear of the

appliance (see also the installation leaflet).

4. Seal the gaps using the plastic plugs provi-

ded.

5. Keep all the parts: you will need them again

if the washing machine needs to be moved to

another location.

! Packaging materials are not children’s toys.

Levelling

Your machine may

make a considerable

amount of noise if the

two front feet have not

been adjusted correct-

ly.

1. Install the washing

machine on a flat sturdy

floor, without resting it up

against walls, cabinets

or anything else.

3

GB

Connecting the drain hose

Connect the drain

hose, without bending

it, to a draining duct

or a wall drain situa-

ted between 65 and

100 cm from the floor;

The drain hose may

be connected to an

under-sink trap. Be-

fore connecting the

drain hose from the

machine ensure that

any blanks or remo-

vable ends have been

taken off the spigot.

If it is placed over

the edge of a basin

or sink be sure the

free end of the hose

should not be under-

water.

! We advise against the use of hose extensions;

in case of absolute need, the extension must

have the same diameter as the original hose

and must not exceed 150 cm in length.

Ensure that if the drain hose is pushed into

a standpipe, that the end does not go down

more than 15cms (6 inches). If the hose is pu-

shed down too far, this may cause the machine

to self -syphon ie. continuously empty as it is

filling.

Electric connection

Before plugging the appliance into the mains

socket, make sure that:

• the socket is earthed and in compliance with

the applicable law;

• the socket is able to sustain the appliance’s

maximum power load indicated on the Tech-

nical Data Plate fixed on the machine;

• the supply voltage is included within the

values indicated on the Technical Data Plate

fixed on the machine.

• the socket is compatible with the washing

machine’s plug. If this is not the case, repla-

ce the socket or the plug.

Your appliance is now supplied with a 13 amp

fused plug it can be plugged into a 13 amp

socket for immediate use. Before using the

appliance please read the instructions below.

WARNING - THIS APPLIANCE MUST BE

EARTHED.

THE FOLLOWING OPERATIONS SHOULD

BE CARRIED OUT BY A QUALIFIED ELECTRI-

CIAN.

Replacing the fuse:

When replacing a faulty fuse, a 13 amp ASTA

approved fuse to BS 1362 should always be

used, and the fuse cover re-fitted. If the fuse

cover is lost, the plug must not be used until a

replacement is obtained.

Replacement fuse covers:

If a replacement fuse cover is fitted, it must be

of the correct colour as indicated by the colou-

red marking or the colour that is embossed in

words on the base of the plug. Replacements

can be obtained directly from your nearest

Service Depot.

Removing the plug:

If your appliance has a non-rewireable moul-

ded plug and you should wish to re-route the

mains cable through partitions, units etc.,

please ensure that either:

the plug is replaced by a fused 13 ampere

rewireable plug bearing the BSI mark of ap-

proval.

or:

the mains cable is wired directly into a 13

amp cable outlet, controlled by a switch, (in

compliance with BS 5733) which is accessible

without moving the appliance.

Disposing of the plug:

Ensure that before disposing of the plug itself,

you make the pins unusable so that it cannot

be accidentally inserted into a socket.

Instructions for connecting cable to an alternati-

ve plug:

Important: the wires in the mains lead are co-

loured in accordance with the following code:

Green & Yellow Earth

Blue Neutral

Brown Live

65 - 100 cm

Where it connects to

the waste water pipe

cut end off spigot or

remove the blanking cap

4

GB

As the colours of the wires in the lead may not

correspond with the coloured markings iden-

tifying the terminals in your plug, proceed as

follows:

Connect Green & Yellow wire to terminal

marked E or or coloured Green or Green &

Yellow.

Connect Brown wire to terminal marked L or

coloured Red.

Connect Blue wire to terminal marked N or

coloured Black.

If a 13 amp plug (BS 1363) is used it must be

fitted with a

13 amp fuse, either in the plug or adaptor or

at the distribution board.

If you are in any doubt regarding the electrical

supply to your machine, consult a qualified

electrician before use.

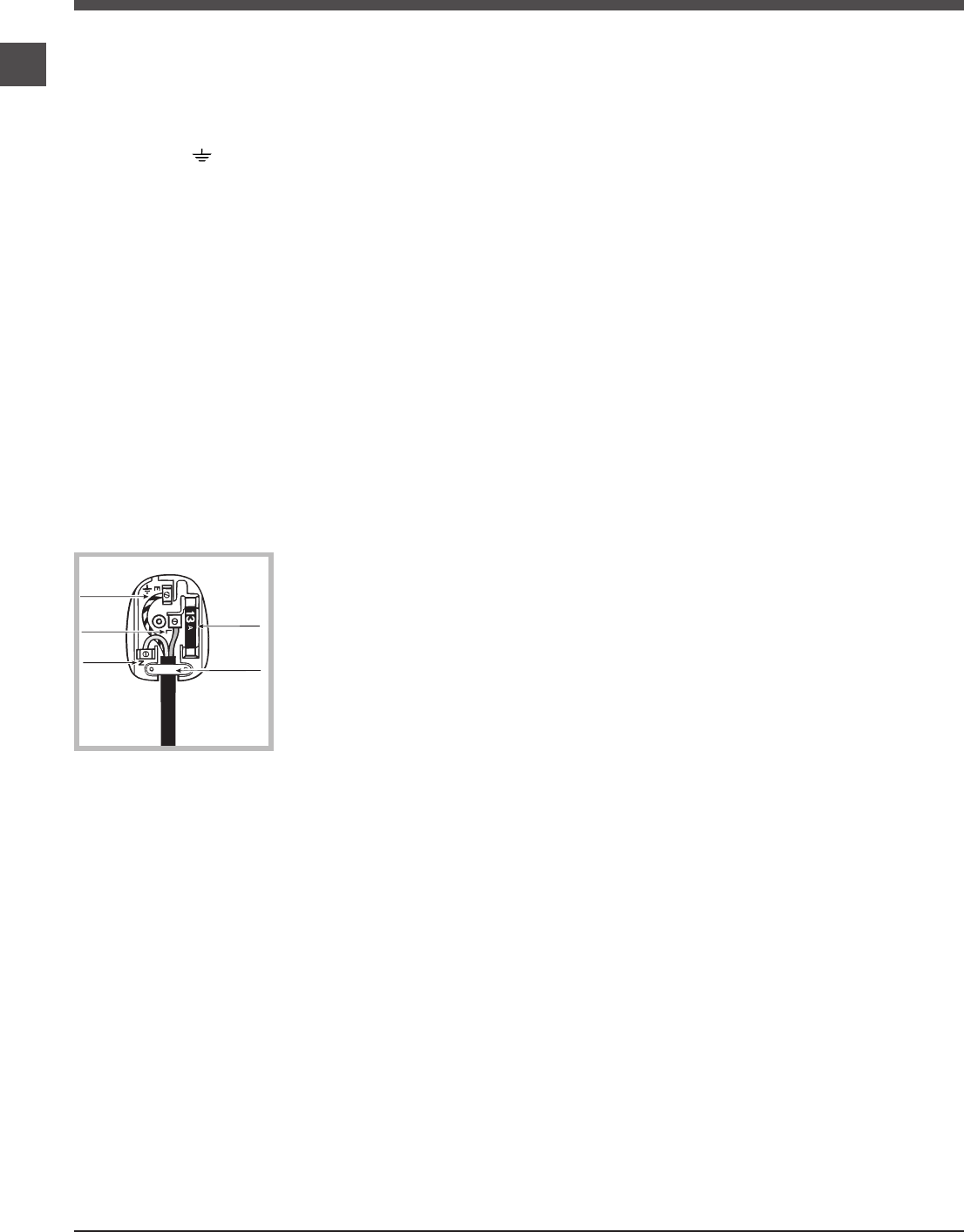

How to connect an alternative plug:

The wires in this mains lead are coloured in

accordance with the following code:

BLUE NEUTRAL (N)

BROWN LIVE (L)

GREEN & YELLOW EARTH (E)

Disposing of the appliance:

When disposing of the appliance please re-

move the plug by cutting the mains cable as

close as possible to the plug body and dispo-

se of it as described on the previous page.

! The washing machine should not be installed

in an outdoor environment, not even where

the area is sheltered, because it may be very

dangerous to leave it exposed to damp, rain

and thunderstorms.

! When the washing machine is installed, the

mains socket must be within easy reach.

! Do not use extensions or multiple sockets.

! The power supply cable must never be bent

or dangerously compressed.

! The power supply cable must only be repla-

ced by an authorised serviceman.

Warning! The company denies all liability if and

when these norms are not respected.

The first wash cycle

Once the appliance has been installed, and

before you use it for the first time, run a wash

cycle with detergent and no laundry, setting

the n°1 programme.

GREEN &

YELLOW

BROWN

BLUE

13 ampere fuse

CROSS-BAR

CORD GRIP

5

GB

Technical data

Model HV7L 145

Dimensions

width 59.5 cm

height 85 cm

depth 53.5 cm

Capacity from 1 to 7 kg

Electrical

connections

please refer to the technical

data plate fixed to the ma-

chine

Water con-

nections

maximum pressure

1 MPa (10 bar)

minimum pressure

0.05 MPa (0.5 bar)

drum capacity 52 litres

Spin speed up to 1400 rotations per

minute

Test wash

cycles in

accordan-

ce with

directives

1061/2010

and

1015/201

Programme 2;

Cotton Standard 60°.

Programme 3;

Cotton Standard 40

°

.

This appliance conforms to

the following EC Directives:

- 2004/108/EC (Electroma-

gnetic Compatibility)

- 2006/95/EC (Low Voltage)

- 2012/19/EU

6

GB

Care and maintenance

Cutting off the water and electri-

city supplies

• Turn off the water tap after every wash cycle.

This will limit wear on the hydraulic system in-

side the washing machine and help to prevent

leaks.

• Unplug the washing machine when cleaning

it and during all maintenance work.

Cleaning the washing machine

The outer parts and rubber components of the

appliance can be cleaned using a soft cloth

soaked in lukewarm soapy water. Do not use

solvents or abrasives.

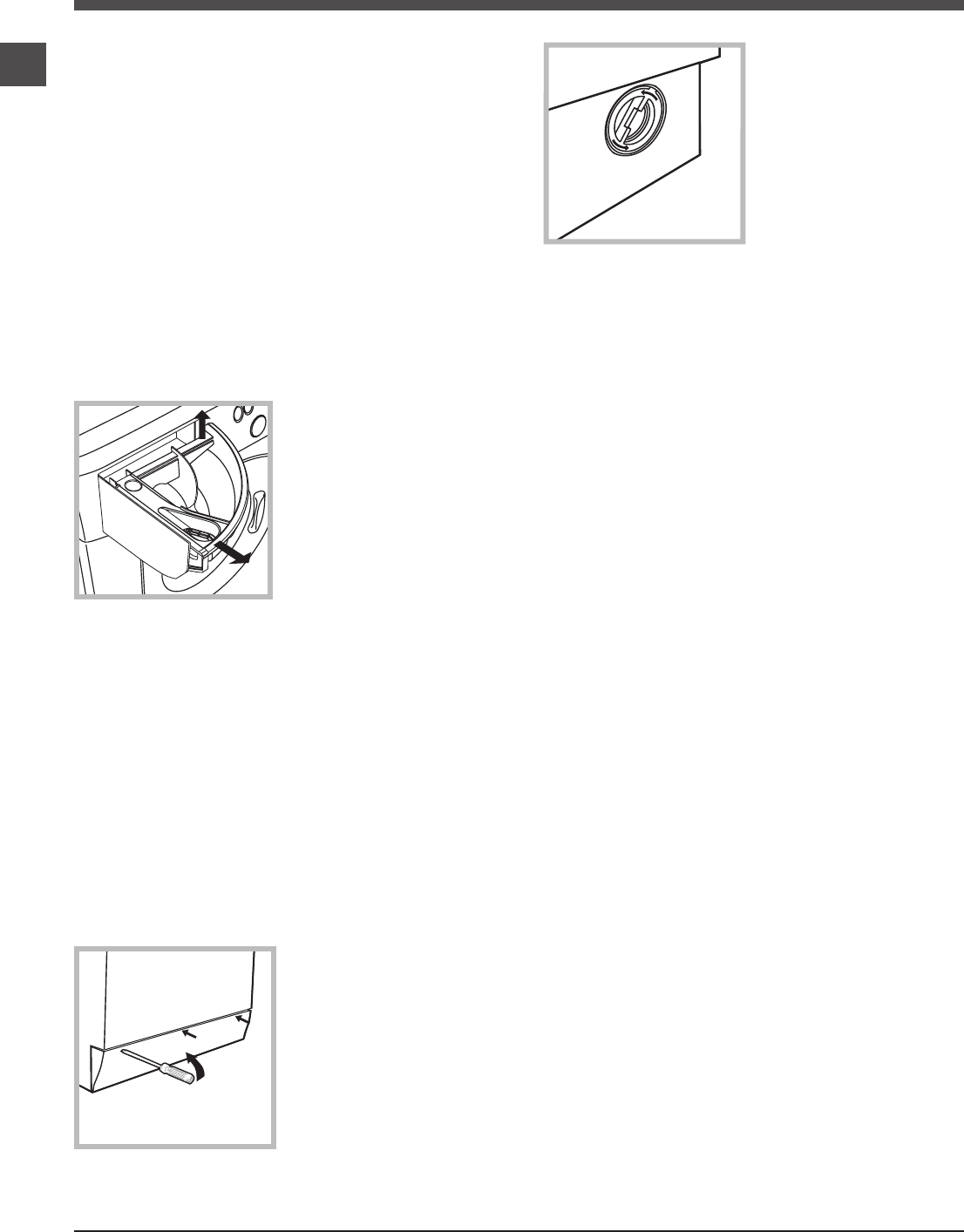

Cleaning the detergent dispenser

drawer

Remove the dispenser

by raising it and pul-

ling it out (see figure).

Wash it under running

water; this operation

should be repeated

frequently.

Caring for the door and drum of

your appliance

• Always leave the porthole door ajar in order

to prevent unpleasant odours from forming.

Cleaning the pump

The washing machine is fitted with a self-clea-

ning pump which does not require any mainte-

nance. Sometimes, small items (such as coins

or buttons) may fall into the pre-chamber which

protects the pump, situated in its bottom part.

! Make sure the wash cycle has finished and

unplug the appliance.

To access the pre-chamber:

1. using a screwdri-

ver, remove the cover

panel on the lower

front part of the wa-

shing machine (see

figure);

1

2

2. unscrew the lid

by rotating it anti-

clockwise (see figu-

re): a little water may

trickle out. This is

perfectly normal;

3. clean the inside thoroughly;

4. screw the lid back on;

5. reposition the panel, making sure the hooks

are securely in place before you push it onto

the appliance.

Checking the water inlet hose

Check the inlet hose at least once a year. If

there are any cracks, it should be replaced

immediately: during the wash cycles, water

pressure is very strong and a cracked hose

could easily split open.

! Never use second-hand hoses.

7

GB

Precautions and tips

! This washing machine was designed and constructed in

accordance with international safety regulations. The fol-

lowing information is provided for safety reasons and must

therefore be read carefully.

General safety

• This appliance was designed for domestic use only.

• This appliance can be used by children aged

from 8 years and above and persons with re-

duced physical, sensory or mental capabilities

or lack of experience and knowledge if they

have been given supervision or instruction

concerning use of the appliance in a safe way

and understand the hazards involved. Chil-

dren shall not play with the appliance. Clea-

ning and user maintenance shall not be made

by children without supervision.

• Do not touch the machine when barefoot or with wet or

damp hands or feet.

• Do not pull on the power supply cable when unplugging

the appliance from the electricity socket. Hold the plug

and pull.

• Do not open the detergent dispenser drawer while the

machine is in operation.

• Do not touch the drained water as it may reach extreme-

ly high temperatures.

• Never force the porthole door. This could damage the safety

lock mechanism designed to prevent accidental opening.

• If the appliance breaks down, do not under any circum-

stances access the internal mechanisms in an attempt

to repair it yourself.

• Always keep children well away from the appliance while

it is operating.

• The door can become quite hot during the wash cycle.

• If the appliance has to be moved, work in a group of two

or three people and handle it with the utmost care. Never

try to do this alone, because the appliance is very heavy.

• Before loading laundry into the washing machine, make

sure the drum is empty.

Disposal

• Disposing of the packaging materials: observe local regu-

lations so that the packaging may be re-used.

• The European Directive 2012/19/EU on Waste Electrical

and Electronic Equipment, requires that old household

electrical appliances must not be disposed of in the normal

unsorted municipal waste stream. Old appliances must be

collected separately in order to optimise the recovery and

recycling of the materials they contain and reduce the im-

pact on human health and the environment. The crossed

out “wheeled bin” symbol on the product reminds you of

your obligation, that when you dispose of the appliance it

must be separately collected. Consumers should contact

their local authority or retailer for information concerning the

correct disposal of their old appliance.

8

GB

Description of the washing

machine and starting a wash cycle

Detergent dispenser drawer: used to dispense

detergents and washing additives (see “Detergents and

laundry”).

ON/OFF button: switches the washing machine on and off.

WASH CYCLE knob: programmes the wash cycles.

During the wash cycle, the knob does not move.

FUNCTION buttons with indicator light: used to select the

available functions. The indicator light corresponding to the

selected function will remain lit.

SPIN SPEED knob: sets the spin speed or exclude the

spin cycle completely (see “Personalisation”).

TEMPERATURE knob: sets the temperature or the cold

wash cycle (see “Personalisation”).

WASH CYCLE PROGRESS

indicator light

s: used to

monitor the progress of the wash cycle.

The illuminated indicator light shows which phase is in

progress.

DOOR LOCKED indicator light: indicates whether the

door may be opened or not (see next page).

START/PAUSE button with indicator light: starts or tem-

porarily interrupts the wash cycles.

N.B. To pause the wash cycle in progress, press this

button; the corresponding indicator light will flash orange,

while the indicator light for the current wash cycle phase

will remain lit in a fixed manner. If the DOOR LOCKED

indicator light is switched off, the door may be opened

(wait approximately 3 minutes).

To start the wash cycle from the point at which it was inter-

rupted, press this button again.

Standby mode

This washing machine, in compliance with new energy sa-

ving regulations, is fitted with an automatic standby system

which is enabled after about 30 minutes if no activity is

detected. Press the ON-OFF button briefly and wait for the

machine to start up again.

Consumption in off-mode: 0.5 W

Consumption in Left-on: 8 W

TEMPERATURE

knob

Detergent dispenser drawer

WASH CYCLE PROGRESS indicator

lights

FUNCTION

buttons with

indicator lights

ON/OFF

button

SPIN SPEED

knob

DOOR

LOCKED

indicator light

START/PAUSE

button with

indicator light

Control panel

WASH CYCLE

knob

9

GB

Indicator lights

The indicator lights provide important information.

This is what they can tell you:

Wash cycle phase indicator lights

Once the desired wash cycle has been selected and has

begun, the indicator lights switch on one by one to indicate

which phase of the cycle is currently in progress.

Function buttons and corresponding indicator lights

When a function is selected, the corresponding indicator

light will illuminate.

If the selected function is not compatible with the program-

med wash cycle, the corresponding indicator light will flash

and the function will not be activated.

If a function which is incompatible with another function

selected previously, only the most recent selection will

remain active.

Door locked indicator light

If this indicator light is on, the appliance door is locked to

prevent it from being opened accidentally; to avoid any

damage, wait for the indicator light to switch off before you

open the appliance door (wait approximately 3 minutes).

! If the START/PAUSE indicator light (orange) flashes

rapidly at the same time as the function indicator light, this

indicates a problem has occurred (see “Troubleshooting”).

Starting a wash cycle

1. Switch the washing machine on by pressing the ON/OFF button. All the indicator lights will turn on for a few seconds,

then only the indicator lights relative to the selected programme settings will remain lit and the START/PAUSE indicator light

will flash.

2. Load the laundry and close the door.

3. Set the WASH CYCLE knob to the desired programme.

4. Set the washing temperature (see “Personalisation”).

5. Set the spin speed (see “Personalisation”).

6. Measure out the detergent and washing additives (see “Detergents and laundry”).

7. Select the desired functions.

8. Start the wash cycle by pressing the START/PAUSE button and the corresponding indicator light will remain lit in a fixed

manner, in green.

To cancel the set wash cycle, pause the machine by pressing the START/PAUSE button and select a new cycle.

9. At the end of the wash cycle the indicator light will switch on. The DOOR LOCKED indicator light will switch off, indi-

cating that the door may be opened (wait approximately 3 minutes). Take out your laundry and leave the appliance door ajar

to make sure the drum dries completely. Switch the washing machine off by pressing the ON/OFF button.

Wash

Rinse

Spin

Pump out

End of wash cycle

10

GB

Wash cycles

Table of wash cycles

Eco Wash cycles

The Eco Cycles assure energy saving by eliminating the need to heat the water and it’s an advantage both to your energy

bill and the environment!

These innovative Eco programmes (Cotton, Synthetics and Fast Wash) are available for various fabrics and different

quantity of garments; they have been designed to guarantee a high cleaning action even at low temperature and can

be used for lightly to medium soiled loads.

Eco Cycles give the best results thanks to an intensified wash action, water optimization and are carried out in the

same average time of a standard cycle.

For the best washing results with Eco programmes we recommend the usage of a liquid detergent.

Wash cycles

Description of the wash cycle

Max.

temp.

(°C)

Max.

speed

(rpm)

Detergents

Max. load (kg)

Residual

dampness %

Energy

consumption

kWh

Total water lt

Cycle

duration

Wash Fabric

softener

Essentials

1Cottons: extremely soiled whites. 90° 1400 - - 7 53 2,16 72 160’

2 Cotton Standard 60° (1): heavily soiled whites. 60° 1400 - - 7 53 1,31 52.5 195’

3 Cotton Standard 40° (2): lightly soiled whites and delicate colours. 40° 1400 - - 7 53 1,00 72 190’

4Cotton Standard 20°: lightly soiled whites and delicate colours. 20° 1400 - - 7 - - - 170’

5Synthetics: heavily soiled resistant colours. 50° 800 - - 3.5 - - - 110’

5Synthetics (3): lightly soiled resistant colours. 40° 800 - - 3.5 44 0,57 46 100’

6Fastwash 60': to refresh lightly soiled garments quickly (not suitable for

wool, silk and clothes which require washing by hand). 60° 1400 - - 3 53 0,81 40 60’

Specials

7Baby cycle: heavily soiled delicate colours. 40° 800 - - 2 - - - 120’

8Shirts 40° 600 - - 2 - - - 70’

9Lingerie Cycle 30° 600 - - 1 - - - 75’

10 Wool: for wool, cashmere, etc. 40° 800 - - 1.5 - - - 70’

11 Silk: for garments in silk and viscose, lingerie. 30° 0 - - 1 - - - 55’

Eco cycle

12 Cottons Cold

Water 1400 - - 7 53 0,17 63 80’

13 Synthetics Cold

Water 800 - - 3 48 0,07 30 70’

14 Fast Wash Cold

Water 800 - - 3 71 0,04 34 30’

Partials wash cycles

ARinse - 1400 - -7 - - - 36’

BSpin + Pump out - 1400 - - 7 - - - 16’

1) Test wash cycle in compliance with directive 1061/2010: set wash cycle 2 with a temperature of 60°C.

This cycle is designed for cotton loads with a normal soil level and is the most efficient in terms of both electricity and water consumption; it should be used for garments

which can be washed at 60°C . The actual washing temperature may differ from the indicated value.

2) Test wash cycle in compliance with directive 1061/2010: set wash cycle 3 with a temperature of 40°C.

This cycle is designed for cotton loads with a normal soil level and is the most efficient in terms of both electricity and water consumption; it should be used for garments

which can be washed at 40°C . The actual washing temperature may differ from the indicated value.

For all Test Institutes:

2) Long wash cycle for cottons: set wash cycle 3 with a temperature of 40°C.

3) Long wash cycle for synthetics: set wash cycle 5 with a temperature of 40°C.

The length of cycle shown in this booklet is an estimation only and is calculated assuming standard working conditions. The actual duration can vary according to factors such as water temperature

and pressure, the amount of detergent used, the amount and type of load inserted, load balancing and any wash options selected.

11

GB

Personalisation

Setting the temperature

Turn the TEMPERATURE knob to set the wash temperature (see Table of wash cycles).

The temperature may be lowered, or even set to a cold wash ( ).

The washing machine will automatically prevent you from selecting a temperature which is higher than the maximum value

set for each wash cycle.

Setting the spin speed

Turn the SPIN SPEED knob to set the spin speed for the selected wash cycle.

The maximum spin speeds available for each wash cycle are as follows:

Wash cycles Maximum spin speed

Cottons 1400 rpm

Synthetics 800 rpm

Wool 800 rpm

Silk drain only

The spin speed may be lowered, or the spin cycle can be excluded altogether by selecting the symbol .

The washing machine will automatically prevent you from selecting a spin speed which is higher than the maximum speed

set for each wash cycle.

Functions

The various wash functions available with this washing machine will help to achieve the desired results, every time.

To activate the functions:

1. Press the button corresponding to the desired function;

2. The function is enabled when the corresponding indicator light is illuminated.

Note: If the indicator light flashes rapidly, this signals that this particular function may not be selected in conjunction with the

selected wash cycle.

Reduced creases

By selecting this function, the wash and spin cycles will be modified in order to reduce the formation of creases. At the end of

the cycle the washing machine will perform slow rotations of the drum; the REDUCED CREASES and START/PAUSE indi-

cator lights will flash (orange) and the phase will remain lit in a fixed manner. To end the cycle, press the START/PAUSE

button or the REDUCED CREASES button.

For the Silk and Lingerie wash cycles, the machine will end the cycle while the laundry is soaking, the REDUCED CREASES

and START/PAUSE indicator lights will flash (orange) and the RINSE phase will remain lit in a fixed manner. To drain the water

so that the laundry may be removed, press the START/PAUSE button or the REDUCED CREASES button.

! This function may not be used in conjunction with wash cycles 7, 10, 12, 13, 14, A, B.

Mini load

This function is recommended for when the load of laundry is equal to half, or less than half, of the maximum recommended

load (see Table of wash cycles).

! This function may not be used in conjunction with wash cycles 6, 9, 10, 11, 12, 13, 14, B.

Extra rinse

By selecting this function, the efficiency of the rinse is increased and optimal detergent removal is guaranteed. It is particularly

useful for sensitive skin.

! This function may not be used in conjunction with wash cycles 14, B.

Super Wash

Because a greater quantity of water is used in the initial phase of the cycle, and because of the increased cycle duration, this

function offers a high-performance wash.

! This function may not be used in conjunction with wash cycles 6, 9, 10, 11, 12, 13, 14, B.

12

GB

Detergents and laundry

Detergent dispenser drawer

Good washing results also depend on the correct dose of

detergent: adding too much detergent will not necessarily

result in a more efficient wash, and may in fact cause a

build up on the inside of your appliance and contribute to

environmental pollution.

! Do not use hand washing detergents because these create

too much foam.

! Follow the instructions given on the detergent packaging.

! Use powder detergent for white cotton garments, for pre-

washing, and for washing at temperatures over 60°C.

Open the detergent di-

spenser drawer and pour

in the detergent or washing

additive, as follows.

! Do not pour detergent into the middle compartment (*).

Detergent should only be poured into the compartment 1.

compartment 1: Detergent for the wash cycle (powder

or liquid)

For best results liquid detergent should be poured in the

dispenser immediately before the start of the programme.

compartment 2: Additives (fabric softeners, etc.)

The fabric softener should not overflow the grid.

Preparing the laundry

• Divide the laundry according to:

- the type of fabric/the symbol on the label

- the colours: separate coloured garments from whites.

• Empty all garment pockets and check the buttons.

• Do not exceed the listed values, which refer to the

weight of the laundry when dry: see “Table of wash

cycles”.

How much does your laundry weigh?

1 sheet 400-500 g

1 pillow case 150-200 g

1 tablecloth 400-500 g

1 bathrobe 900-1200 g

1 towel 150-250 g

Garments requiring special care

Cotton Standard 20°: this wash cycle 4 ideal for lightly soi-

led cotton loads. The effective performance levels achieved

at cold temperatures, which are comparable to washing at

40°, are guaranteed by a mechanical action which operates

at varying speed, with repeated and frequent peaks.

Baby cycle: this wash cycle 7 can be used to remove the

soiling typically caused by babies, while ensuring that all

detergent is removed from nappies in order to prevent the

delicate skin of babies from suffering allergies. The cycle

has been designed to reduce the amount of bacteria by

using a greater quantity of water and optimising the effect

of special disinfecting additives added to the detergent.

At the end of the wash cycle, the machine will slowly rotate

the drum to prevent the formation of creases; to end the

cycle press the START/PAUSE button.

Shirts: use special wash cycle 8 to wash shirts in various

fabrics and colours.

It guarantees maximum care is taken of the garments and

minimises the formation of creases.

Lingerie cycle: for undergarments of any colour, in any

fabric. Use special wash cycle 9.

Wool: all wool garments can be washed using programme

10, even those carrying the “hand-wash only” label.

For best results, use special detergents and do not exceed

1,5 kg of laundry.

Silk: use special wash cycle 11 to wash all silk garments.

We recommend the use of special detergent which has

been designed to wash delicate clothes.

Curtains: fold curtains and place them in a pillow case or

mesh bag. Use wash cycle 11.

Load balancing system

Before every spin cycle, to avoid excessive vibrations and

to distribute the load in a uniform manner, the drum rotates

continuously at a speed which is slightly greater than the

washing rotation speed. If, after several attempts, the load

is not balanced correctly, the machine spins at a reduced

spin speed. If the load is excessively unbalanced, the

washing machine performs the distribution process instead

of spinning. To encourage improved load distribution and

balance, we recommend small and large garments are

mixed in the load.

1

2

*

13

GB

Troubleshooting

Your washing machine could fail to work. Before contacting the Technical Assistance Centre (see “Assistance”), make sure

that the problem cannot be solved easily using the following list.

Problem

The machine does not switch on.

The wash cycle does not start.

The machine does not fill with

water or the indicator light for

the first wash cycle stage flashes

rapidly.

The machine continuously fills

with water and continually drains

away or Water left in the dru or

Stuck on wash.

The machine does not drain or

spin.

The machine does not heat or

poor wash results.

The programme takes too long.

The machine vibrates a lot during

the spin cycle.

Possible causes/Solution:

• The appliance is not plugged into the socket fully, or not enough to

make contact.

• There is no power to the socket, or the fuse has blown in the mains plug.

• The door is not closed properly.

• The ‘ON/OFF’ button has not been pressed.

• The ‘START/PAUSE’ button has not been pressed.

• The water tap has not been turned on to allow water to flow into the machine.

• The water inlet hose is kinked.

• The water inlet hose is not connected to the water supply.

• The water pressure is too low.

• The water tap has not been turned on to allow water to flow into the machine.

• There is no water supply to the house.

• The inlet valve filter is blocked.

• The ‘START/PAUSE’ button has not been pressed.

• The top of the drain hose is too low - It must be fitted at a height

between 65 and 100 cm from the floor.

• The drain hose is connected incorrectly to the sink trap allowing

water to run into the machine, the drain hose must be positioned

higher than the bottom of the sink to prevent water flowing down the

drain hose.

• The end of the drain hose has been pushed too far down the standpipe,

the ‘U’ bracket should be fitted 100 mm from the end of the drain hose.

• The Pump filter is blocked.

• The drain hose is kinked.

• New Installation - The blanking cap or spigot has not been removed

if connected under a sink.

• The drain hose or sink trap is blocked.

• The wash cycle does not include draining, some wash cycles require

the drain phase to be started manually.

• The REDUCED CREASES function button has been activated. To complete

the wash cycle, press the START/PAUSE button.

• The ‘Spin Speed’ selector knob is in the position.

• The ‘Temperature’ selector knob is in the position.

• Programme times will vary due to water pressure, the incoming

water temperature and if the wash load goes out of balance.

This will increase the programme times accordingly (see ‘ The

machine wont spin properly’ below).

• The feet have not been adjusted, enabling the machine to rock.

• New Installation - Either the Transit Bolts including the plastic spacers, or the

Polystyrene Packaging have not been removed when installing the machine.

• The machine is trapped between cabinets and/or walls.

• The load is in a slight out of balance condition and machine is spinning, but

at a lower speed.

14

GB

The machine is noisy.

The machine wont spin properly.

The machine leaks from the di-

spenser.

The machine leaks (other than

dispenser).

The indicator lights on the conso-

le are flashing rapidly.

The machine smells.

The machine door cannot be

opened.

Door Seal damaged at the bottom.

The water level is too low when

the machine is washing.

There is too much foam.

After completing the programme,

or before starting a programme,

the machine has turned itself

off (no lights).

General.

• There will always be some motor, pump and drum noise during spin.

• Out of Balance detected when attempting to go into a spin cycle -

If this happens the machine will continue to try to repeat the

distribution of the load required before the machine will go into

higher spin speeds - This will increase the programme time

accordingly. This is a safety feature to prevent damage. Out of

Balance can be caused by washing a single heavy item (eg duvet,

quilt, etc). - Try the programme again using a different load.

• The dispenser drawer is blocked with detergent and requires cleaning.

• The water pressure is too high and requires turning down - turn

down the tap on the water supply pipe slightly and try again.

• The machine is tilting forwards - It must be level when in its final position.

• The fill hose is loose, check both the cabinet and tap ends.

• The fill hose is tight but still leaks, if so replace the rubber

washers, or the fill hose is missing the rubber washer.

• The drain hose is not fixed in properly.

• Switch off the machine and unplug it, wait for approximately 1

minute and then switch it back on again If the problem persists

contact the Technical Assistance Service.

• The machine requires a service wash. Run n°1 wash cycle with

detergent and no laundry.

• The door will not open until the door lock indicator light goes out

shortly after the program has finished.

• The door seal has drainage holes at the bottom - This is normal.

• The water level is correct if it can be seen at the bottom of the door

• The detergent is not suitable for machine washing (it should

display the text ‘for washing machines’ or ‘hand and machine

wash’ or the like).

• To comply with new energy saving regulations the machine is fitted with an

automatic standby system. Press ‘ON/OFF’ button for 3 seconds to activate

the machine, it can then either be switched off or a new programme selected.

• Your washing machine contains sensors that monitor progress

during the wash cycle (eg: Water Levels, Temperatures, Out of

Balance loads, Wash time/progress). Normally, if your machine

successfully completes the cycle, there is unlikely to be anything

wrong!

Remember, you will be charged for a service call for problems caused by incorrect installation,

as listed above.

Not emptying contents from pockets may cause pump or drain blockages, or may damage the machine.

Do not wash items which do not have a wash label, or wash items that are not intended as machine wa-

shable.

15

GB

Assistance

Guarantee

12 Months Parts and Labour Guarantee

Your appliance has the benefit of our manufacturer’s guarantee, which covers the cost of breakdown repairs

for twelve months from the date of purchase.

This gives you the reassurance that if, within that time, your appliance is proven to be defective because of

either workmanship or materials, we will, at our discretion, either repair or replace the appliance at no cost

to you.

This guarantee is subject to the following conditions:

- The appliance has been installed and operated correctly and in accordance with our

operating and maintenance instructions.

- The appliance is used only on the electricity or gas supply printed on the rating plate.

- The appliance has been used for normal domestic purposes only.

- The appliance has not been altered, serviced, maintained, dismantled, or otherwise

interfered with by any person not authorised by us.

- Any repair work must be undertaken by us or our appointed agent.

- Any parts removed during repair work or any appliance that is replaced become our property.

- The appliance is used in the United Kingdom or Republic of Ireland.

The guarantee does not cover:

- Damage resulting from transportation, improper use, neglect or interference or as a result

of improper installation.

- Replacement of any consumable item or accessory . These include but are not limited to: plugs,

cables, batteries, light bulbs, fluorescent tubes and starters, covers and filters.

- Replacement of any removable parts made of glass or plastic.

THIS GUARANTEE WILL NOT APPLY IF THE APPLIANCE HAS BEEN USED IN COMMERCIAL

OR NON-DOMESTIC PREMISES.

5 Year Parts Guarantee

Hotpoint also offers you a free 5 year parts guarantee. This additional guarantee is conditional on you

registering your appliance with us and the parts being fitted by one of our authorised engineers. There will

be a charge for our engineer’s time. To activate the extra parts warranty on your appliance, simply call our

registration line on 08448 24 24 24 (ROI 01 230 0800).

Extended Guarantees

We offer a selection of repair protection plans that enable you to fully cover yourself against the expense of repair

bills for the life of your policy. To find the ideal plan for you please call our advice line on

08448 226 226 (Republic of Ireland 01 230 0233).

Free Helpdesk Service

We have a dedicated team who can provide free advice and assistance with your appliance if you

experience any technical difficulties within the first 90 days of ownership. Simply call our Hotpoint Service

Hotline on 08448 224 224 (Republic of Ireland 0818 313 413) for telephone assistance, or, where

necessary, to arrange for an engineer to call. If we cannot resolve the technical problem we will replace your

machine or, if you prefer, give you your money back.

16

GB

195112639.01

02/2012 - Xerox Fabriano

After Sales Service

No one is better placed to care for your Hotpoint appliance during the course of its working

life than us - the manufacturer.

Essential Contact Information

Hotpoint Service

We are the largest service team in Europe offering you access to 400 skilled telephone advisors and 1000

fully qualified engineers on call to ensure you receive fast, reliable, local service.

UK: 08448 224 224

Republic of Ireland: 0818 313 413

www.hotpointservice.co.uk

Please note: Our advisors will require the following information:

Model number:

Serial number:

Parts and Accessories

We supply a full range of genuine replacement parts as well as accessory products that protect and

hygienically clean your appliance to keep it looking good and functioning efficiently throughout its life.

UK: 08448 225 225

Republic of Ireland: 0818 313 413

www.hotpointservice.co.uk

Appliance Registration

We want to give you additional benefits of Hotpoint ownership. To activate your free 5 year parts guarantee

you must register your appliance with us.

UK: 08448 24 24 24

Republic of Ireland: 01 230 0800

www.hotpointservice.co.uk

Indesit Company UK Ltd. Morley Way, Peterborough, PE2 9JB

Indesit Company Unit 49 Airways Industrial Estate,Dublin 17

Recycling & Disposal Information

As part of Hotpoint’s continued commitment to helping the environment, Hotpoint reserves the right to use

quality, recycled components to keep down customer costs and minimise material wastage.

Please dispose of packaging and old appliances carefully. To minimise the risk of injury to children, remove the

door, plug and cut the mains cable off flush with the appliance. Dispose of these parts separately to ensure

that the appliance can no longer be plugged into a mains socket, and the door cannot be locked shut.
