Howen Technologies HERO-MDT Mobile Data Terminal User Manual CMS Installation Manual
Howen Technologies Co., Ltd. Mobile Data Terminal CMS Installation Manual
Users Manual
User Manual
User Manual
Hero-MDT-AT2
Version: V1.0
Howen Technology Co., Ltd
All Rights Reserved
User Manual
2
www.howentech.com
Content
1 Technical Specification ....................................................................................................................................... 3
1.1 Application ........................................................................................................................................................ 3
1.2 Technical specification ....................................................................................................................................... 3
2 Device Interface ................................................................................................................................................. 6
2.1 Front interface ................................................................................................................................................... 6
2.2 Back interface .................................................................................................................................................... 6
2.3 Card slots ........................................................................................................................................................... 7
2.4 Side ports ........................................................................................................................................................... 7
2.5 Bottom interface:............................................................................................................................................... 7
3 Cable Interface ................................................................................................................................................... 8
3.1 5557 2x5 pin, 2x4pin, 2x3 pin MALE connectors ............................................................................................... 8
3.2 5557 2x5 pin FEMALE connector ....................................................................................................................... 8
3.3 5557 2x4 pin FEMALE port ................................................................................................................................ 9
3.4 5557 2x3 pin FEMALE port .............................................................................................................................. 10
4 System Operation ..............................................................................................................................................12
4.1 Startup ............................................................................................................................................................. 12
4.2 System APP list ................................................................................................................................................ 12
4.3 System Setting ................................................................................................................................................. 12
4.4 Howen Test ...................................................................................................................................................... 13
User Manual
www.howentech.com Email: info@howentech.com
Tel: +86-755-86315495, Fax: +86-755-86315496
Copyright 2015, All rights reserved. Howen Technologies CO., Ltd
Page 3/14

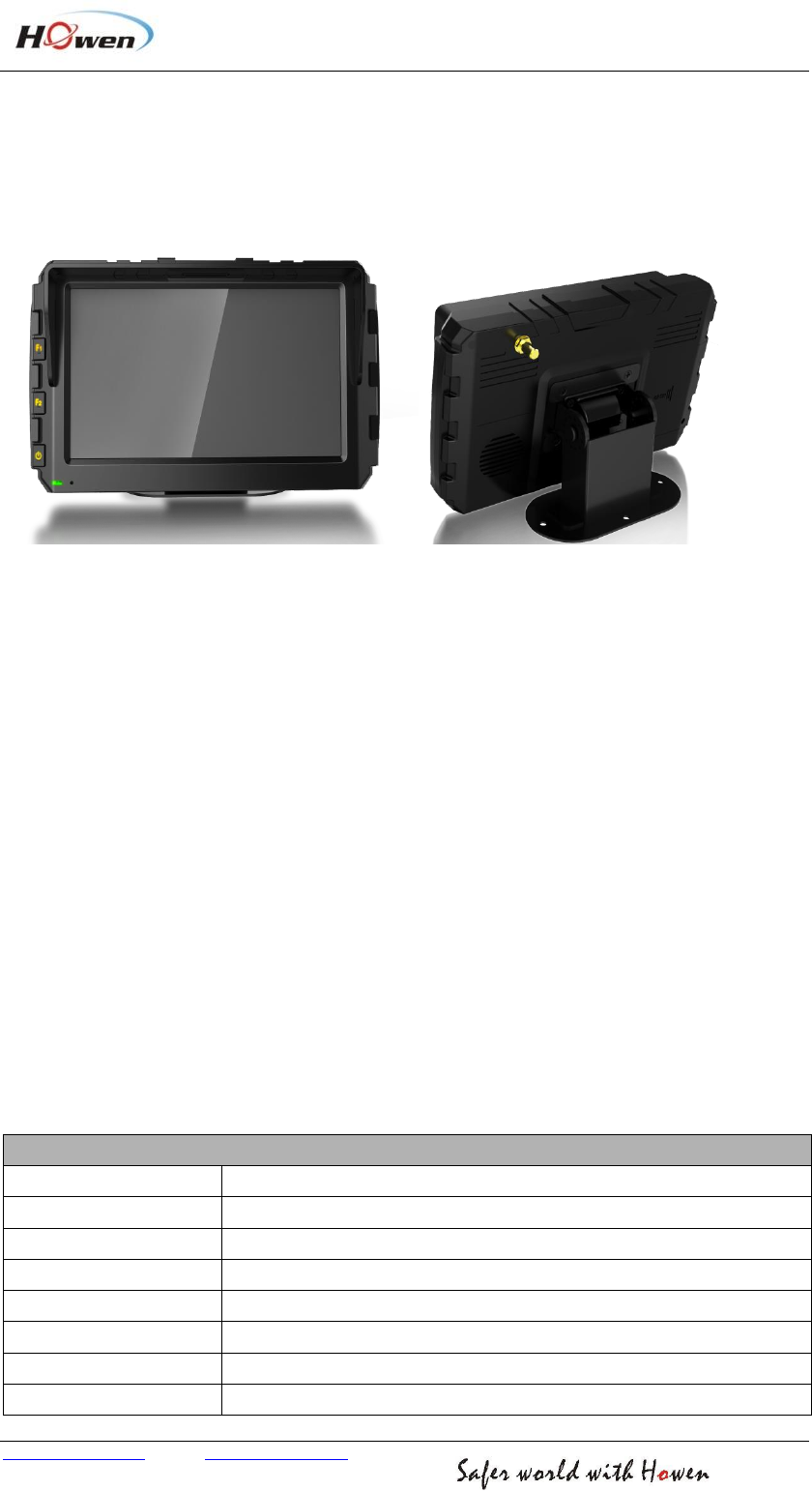

1 Technical Specification
Model: Hero-MDT-AT2
Overview
This product is an intelligent all in one navigator that provides various interfaces including
serial, IO, for connection to an external host computer to achieve functions like navigation
and communication. The product is based on the Android operating system, adopting Dual
core ARM Cortex-A7 processor, with main frequency up to 1GHz; 7-inch HD display with a
resolution up to 480 * 800; hard and soft keyboard input; built-in 4GB of storage space; the
external 5557 interface, providing stable and reliable connection.
1.1 Application
Taxi dispatch
Logistics vehicle dispatch
Personal Location Services
Real-time monitoring
Vehicle Management
Real-time TMC traffic service
Other mobile operation services, etc.
1.2 Technical specification
Hardware
ARM
Dual core Cortex-A7, 1GHz
RAM Memory
DDR3 1GB
Nand-Flash Memory
4GB
TFT With TP
LCD 7.0’ 800*480 / Four-wire resistive single touch screen
Storage
support TF Card and SD Card, Max 32G Byte
UART
2 x RS232
RS485
1 optional
Data Output control
1 x 12V control, 1 x 5V control
User Manual
www.howentech.com Email: info@howentech.com
Tel: +86-755-86315495, Fax: +86-755-86315496
Copyright 2015, All rights reserved. Howen Technologies CO., Ltd
Page 4/14
Data Input Detect
3 x input status detection
Speaker
8R/1.5W size, 32mm
CVBS
Max. 4 channel
GSM Antenna
built-in antenna, SMA port external antenna alternative
GPS Antenna
built-in active GPS antenna, SMA external active GPS antenna
optional
Software
OS
Android V4.2
Audio format
MPEG-3, WMA, etc.
Video format
MPEG-4, AVI, RMVB, etc.
Picture format
JPG, BMP, GIF, etc.
Text format
TXT
TTS voice
TTS support voice broadcast Chinese characters, Chinese
grammar, numbers, English letter"
hand-written
support full screen hand-written input
Image hard decoding
H.264
Navigation
Support Android navigation system
Communication
3G
WCDMA 3G module, support UMTS/HSDPA:900/2100MHz,
GSM/GPRS:900/1800MHz
DATA
HSDPA, UMTS, EDGE, GPRS, CSD; Max.384Kbps (UL);
Max.3.6Mbps (DL).
Voice
HR, FR, EFR, AMR, AMR-WB
SMS
Point-to-point MO and MT, SMS Cell Broadcast, Text and PDU
Mode
Output Power
Class 3(24dBm, +1/-3dB); Class 4(33dBm, +/-2dB); Class 1(30dBm,
+/-2dB)
Sensitivity
-110dBm
Wi-Fi
Built-in
GPS
Receiver Type
L1 frequency band, C/A code, 22 tracking
Sensitivity
-165dBm (tracking),-148dBm (Acquisition)
Accuracy
≥15m(position),0.1m/s(velocity)
Acquisition Time
36s (cold start)
33s (warm start)
1s (hot start)
＜1s (Re-Acquisition)
Data Update Rate
1Hz
General
Power
8-32V
Power consumption
<6W
Dimension
29*123*193mm
User Manual
www.howentech.com Email: info@howentech.com
Tel: +86-755-86315495, Fax: +86-755-86315496
Copyright 2015, All rights reserved. Howen Technologies CO., Ltd
Page 5/14
Working temperature
-20℃～ +70℃
Storage temperature
-40℃～ +80℃
Vibration test
5-300HZ, 2G
User Manual
www.howentech.com Email: info@howentech.com
Tel: +86-755-86315495, Fax: +86-755-86315496
Copyright 2015, All rights reserved. Howen Technologies CO., Ltd
Page 6/14

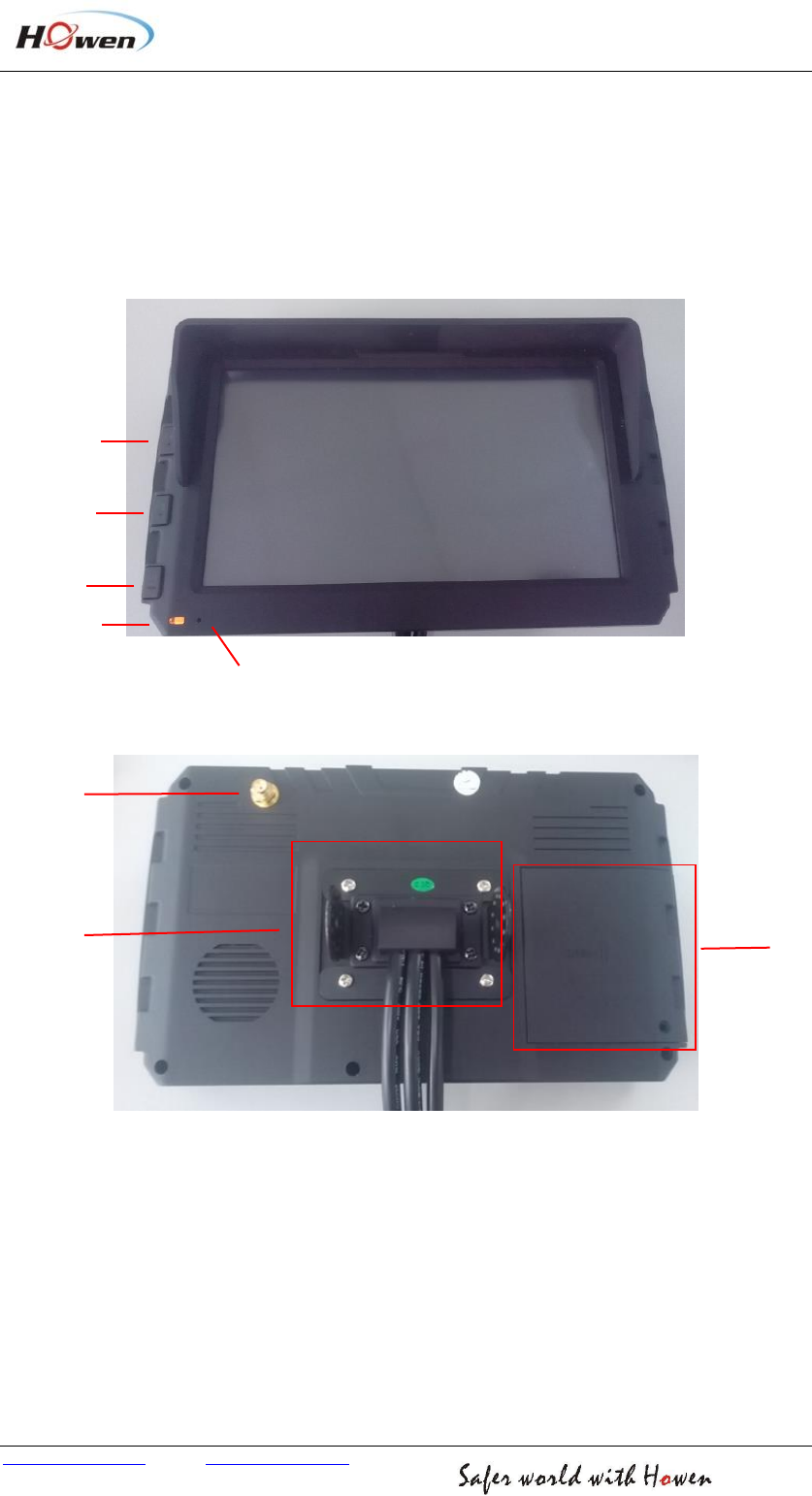

2 Device Interface
2.1 Front interface
2.2 Back interface
Power on/off
F2: Volume -
F1: Volume +
Power indicator
Microphone
GPS external
antenna port
Mounting base
Back cover
User Manual
www.howentech.com Email: info@howentech.com
Tel: +86-755-86315495, Fax: +86-755-86315496
Copyright 2015, All rights reserved. Howen Technologies CO., Ltd
Page 7/14

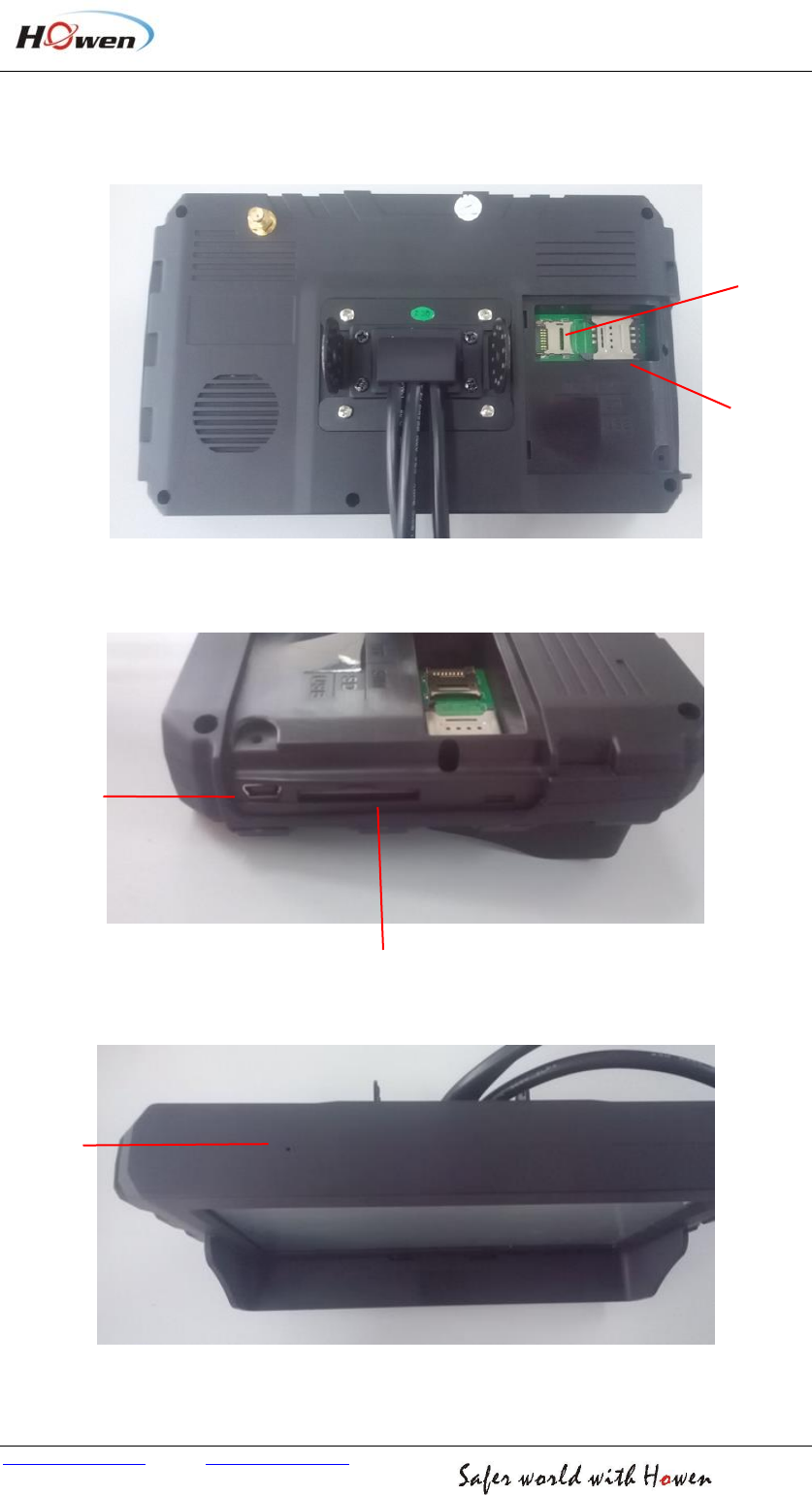

2.3 Card slots
2.4 Side ports
2.5 Bottom interface:
TF card slot
SIM card slot
Mini USB
(only for charge)
SD card slot
Reset
User Manual
www.howentech.com Email: info@howentech.com
Tel: +86-755-86315495, Fax: +86-755-86315496
Copyright 2015, All rights reserved. Howen Technologies CO., Ltd
Page 8/14

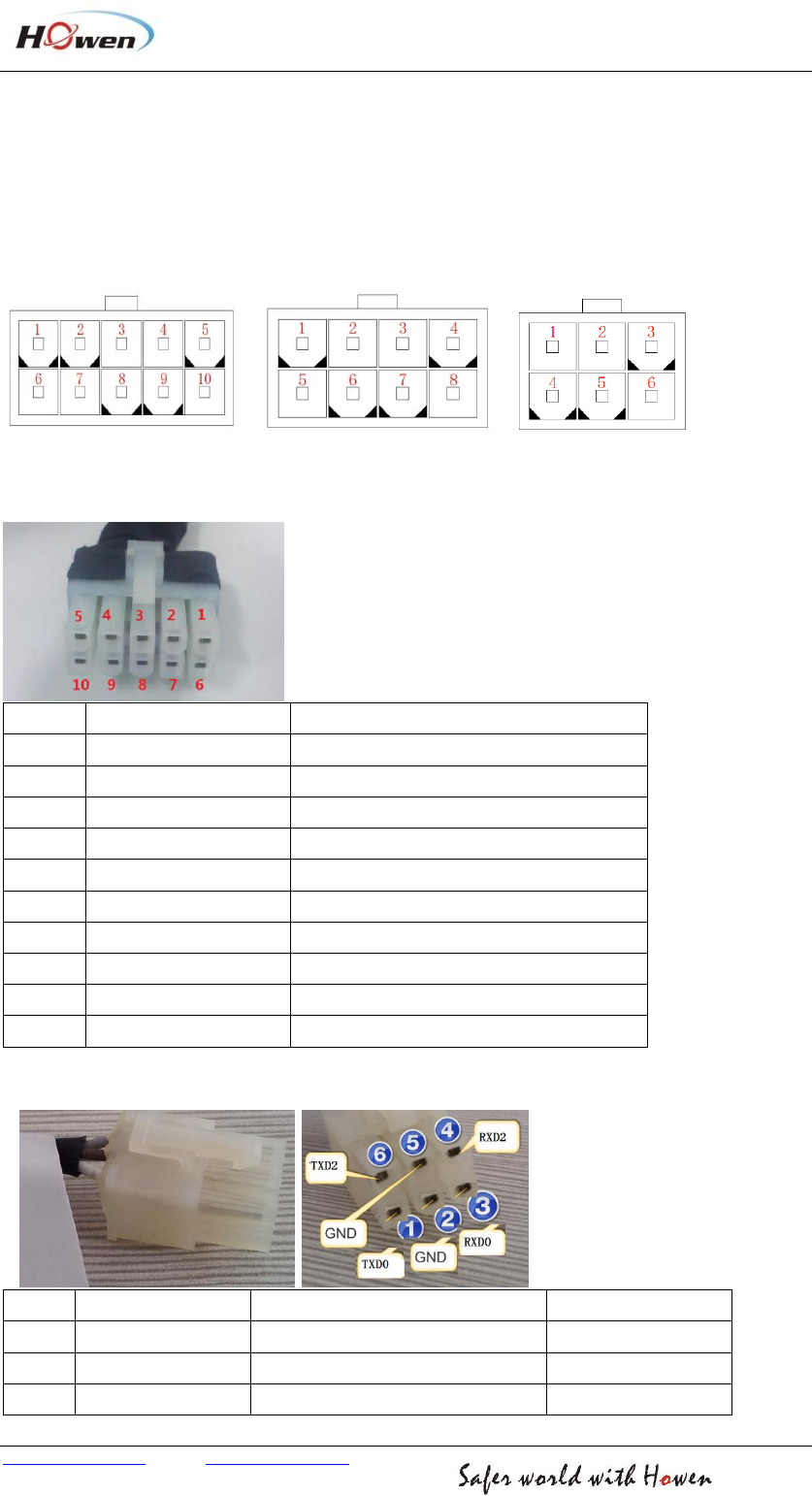

3 Cable Interface
3.1 5557 2x5 pin, 2x4pin, 2x3 pin MALE connectors
3.2 5557 2x5 pin FEMALE connector
Pin No
Definition
Description
1
UART1_RXD0
RS232 receiving, COM2
2
UART1_TXD0
RS232 transmission, COM2
3
UART1_RXD2
RS232 receiving, COM4
4
UART1_TXD2
RS232 transmission, COM4
5
NC
6
OUTPUT0
+12V output control
7
NC
8
NC
9
NC
10
GND
Ground
3.2.1 UART
Pin No
Definition
Description
2x5 FEMALE No.
1
TXD0
RS232 transmission, COM2
2
2
GND
Ground
10
3
RXD0
RS232 receiving, COM2
1
User Manual
www.howentech.com Email: info@howentech.com
Tel: +86-755-86315495, Fax: +86-755-86315496
Copyright 2015, All rights reserved. Howen Technologies CO., Ltd
Page 9/14
4
RXD2
RS232 receiving, COM4
3
5
GND
GND
10
6
TXD2
RS232 transmission, COM4
4

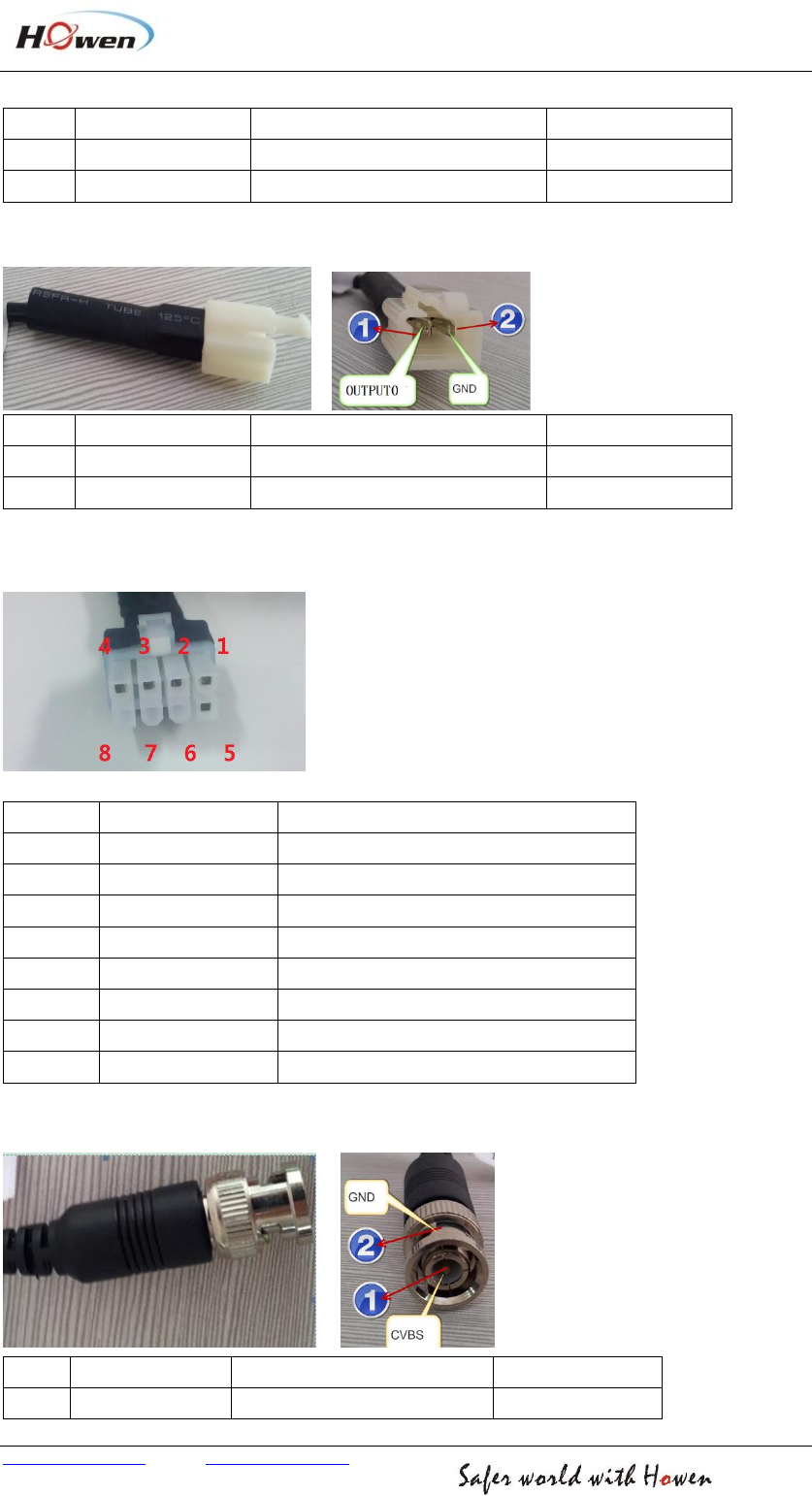

3.2.2 Output
Pin No
Definition
Description
2x5 FEMALE No.
1
Output0
+12V output control
10
2
GND
Ground
6
3.3 5557 2x4 pin FEMALE port
Pin No.
Definition
Description
1
CVBS3
External mixed video signal input 3
2
GND
Ground
3
CVBS4
External mixed video signal input 4
4
CVBS1
External mixed video signal input 1
5
GND
Ground
6
NC
7
NC
8
CVBS2
External mixed video signal input 2
3.3.1 CVBS input
Pin No
Definition
Description
2x4 FEMALE No.
1
CVBS-1, 2, 3, 4
External mixed video signal input
1, 3, 4, 8
User Manual
www.howentech.com Email: info@howentech.com
Tel: +86-755-86315495, Fax: +86-755-86315496
Copyright 2015, All rights reserved. Howen Technologies CO., Ltd
Page 10/14
2
GND
Ground
2

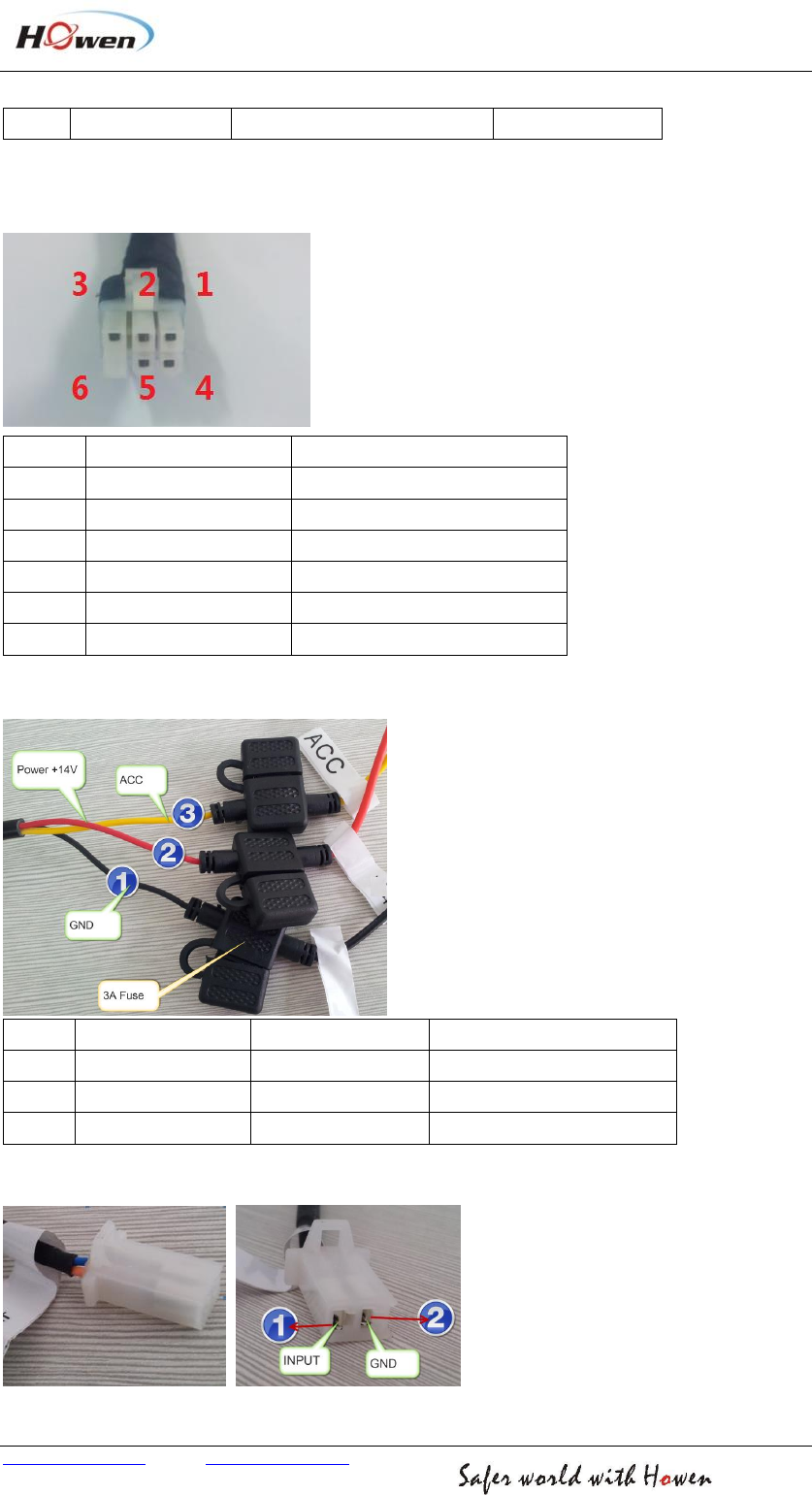

3.4 5557 2x3 pin FEMALE port
Pin No.
Cable label
Description
1
Car_14V_IN
Battery positive pole
2
Car_ACC
ACC input
3
GND
Ground
4
INPUT_2
Status detection input 2
5
INPUT_3
Status detection input 3
6
INPUT_1
Status detection input 1
3.4.1 Power
Pin No
Definition
Description
2x3 FEMALE No.
1
GND
GND
3
2
Power+
Battery positive pole
1
3
ACC
ACC input
2

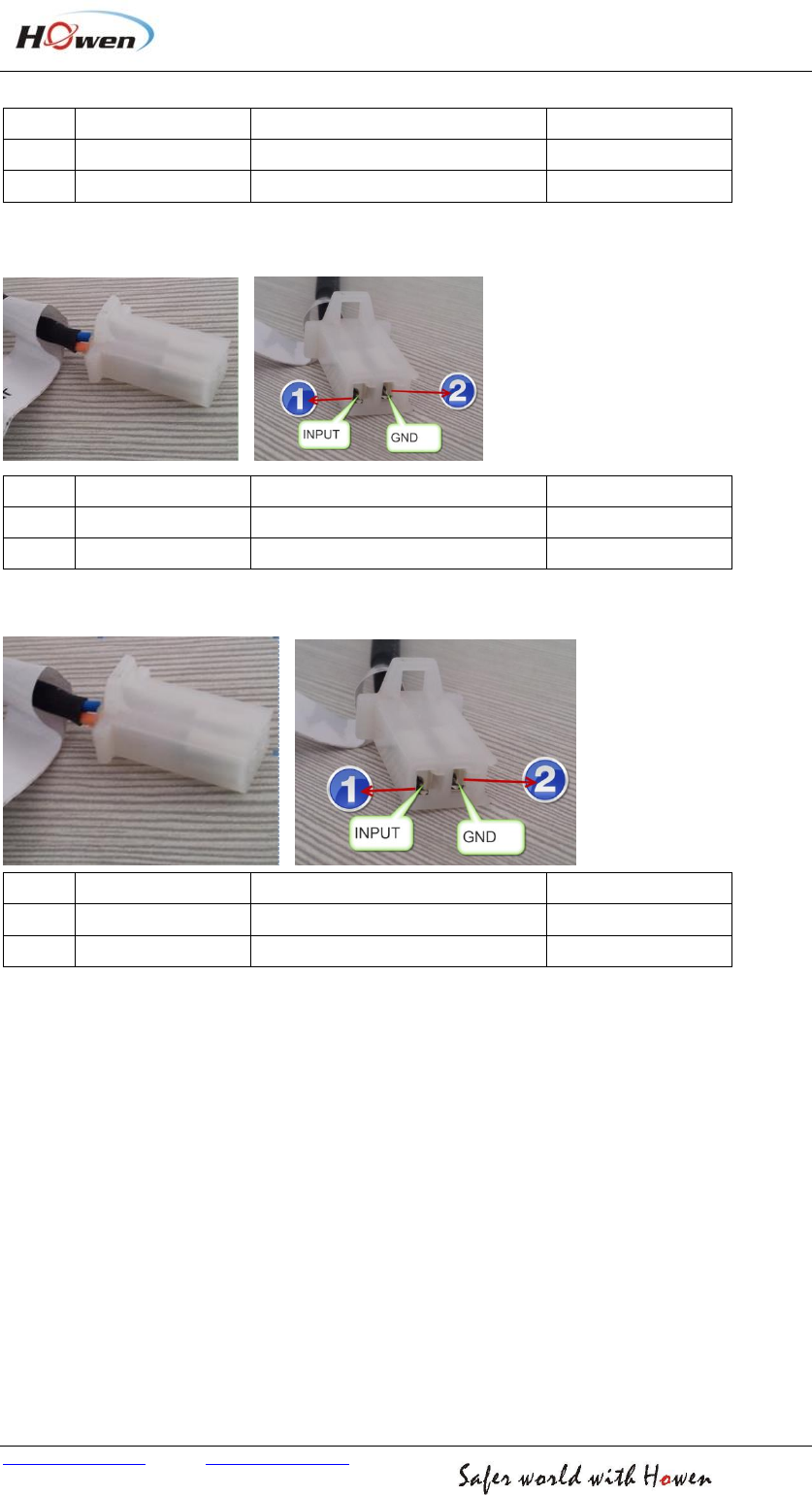

3.4.2 Empty/Load
User Manual
www.howentech.com Email: info@howentech.com
Tel: +86-755-86315495, Fax: +86-755-86315496
Copyright 2015, All rights reserved. Howen Technologies CO., Ltd
Page 11/14
Pin No
Definition
Description
2x3 FEMALE No.
1
Input 2
To external alarm button
4
2
GND
Ground
3
3.4.3 External alarm
Pin No
Definition
Description
2x3 FEMALE No.
1
Input 3
To external alarm button
5
2
GND
Ground
3
3.4.4 Door
Pin No
Definition
Description
2x3 FEMALE No.
1
Input 1
To door status
6
2
GND
Ground
3
User Manual
www.howentech.com Email: info@howentech.com
Tel: +86-755-86315495, Fax: +86-755-86315496
Copyright 2015, All rights reserved. Howen Technologies CO., Ltd
Page 12/14
4 System Operation
4.1 Startup
Press and hold [Power] button to startup the system.
In first Startup, the system may require connection to Wi-Fi hotpot and logon Google
Account. Use can ignore these steps and enter the Home Interface.

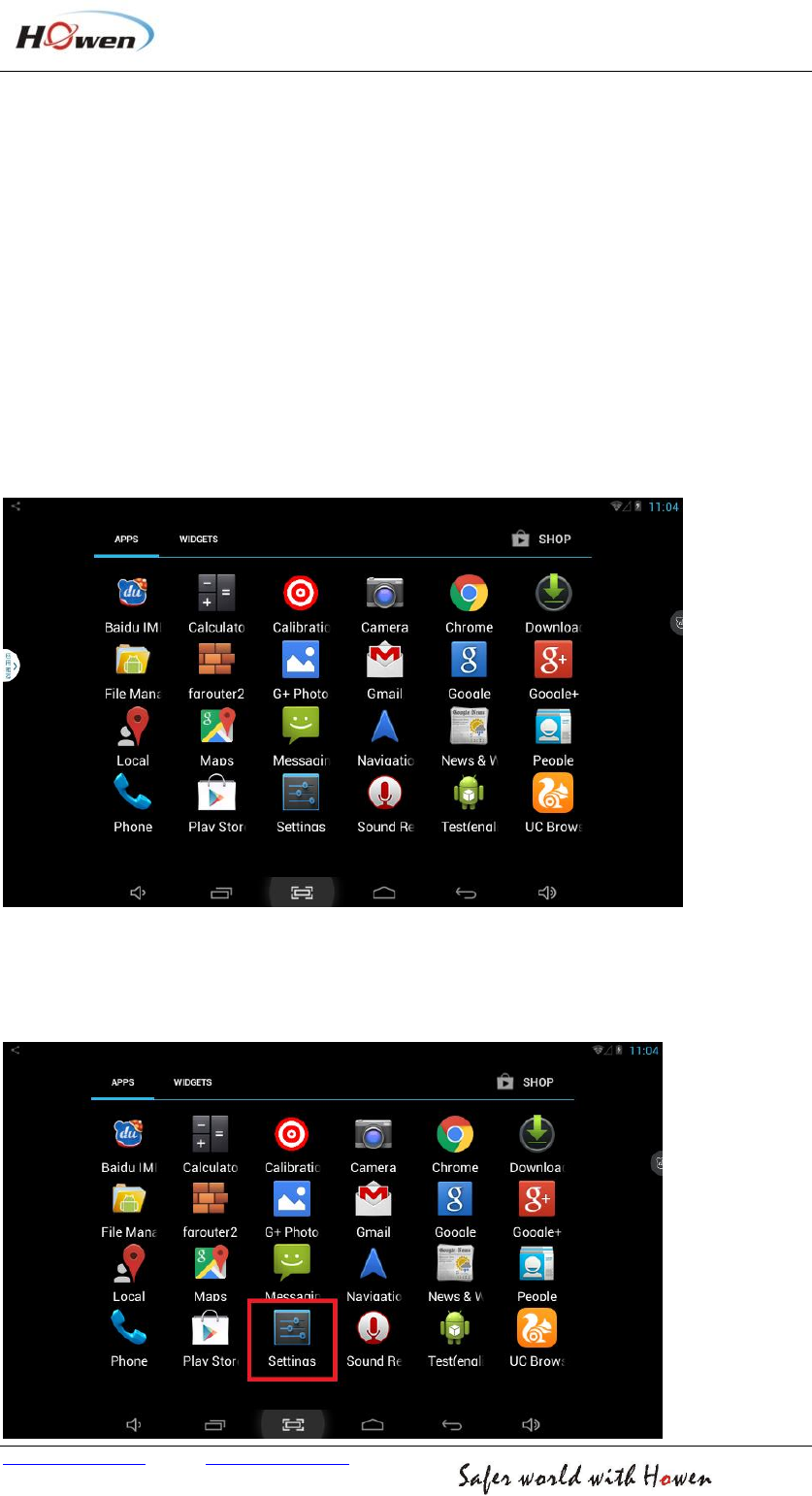

4.2 System APP list
Click APP list in the desktop, to enter the APP list of device:
4.3 System Setting
Click [Setting] Icon, to enter system setting.
User Manual
www.howentech.com Email: info@howentech.com
Tel: +86-755-86315495, Fax: +86-755-86315496
Copyright 2015, All rights reserved. Howen Technologies CO., Ltd
Page 13/14

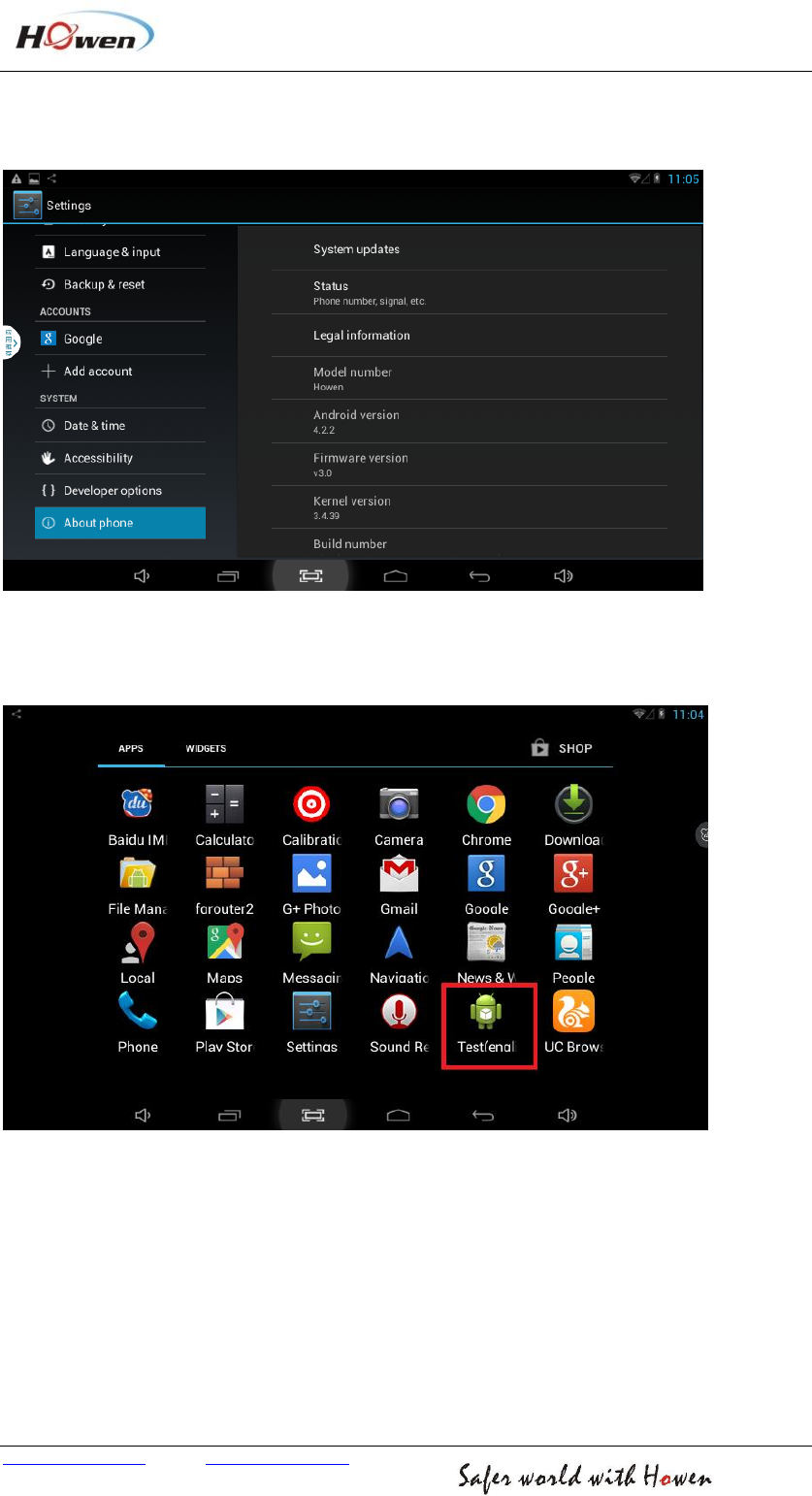

In the Setting of Android OS, Click [About Phone], to Check the System info of the device.

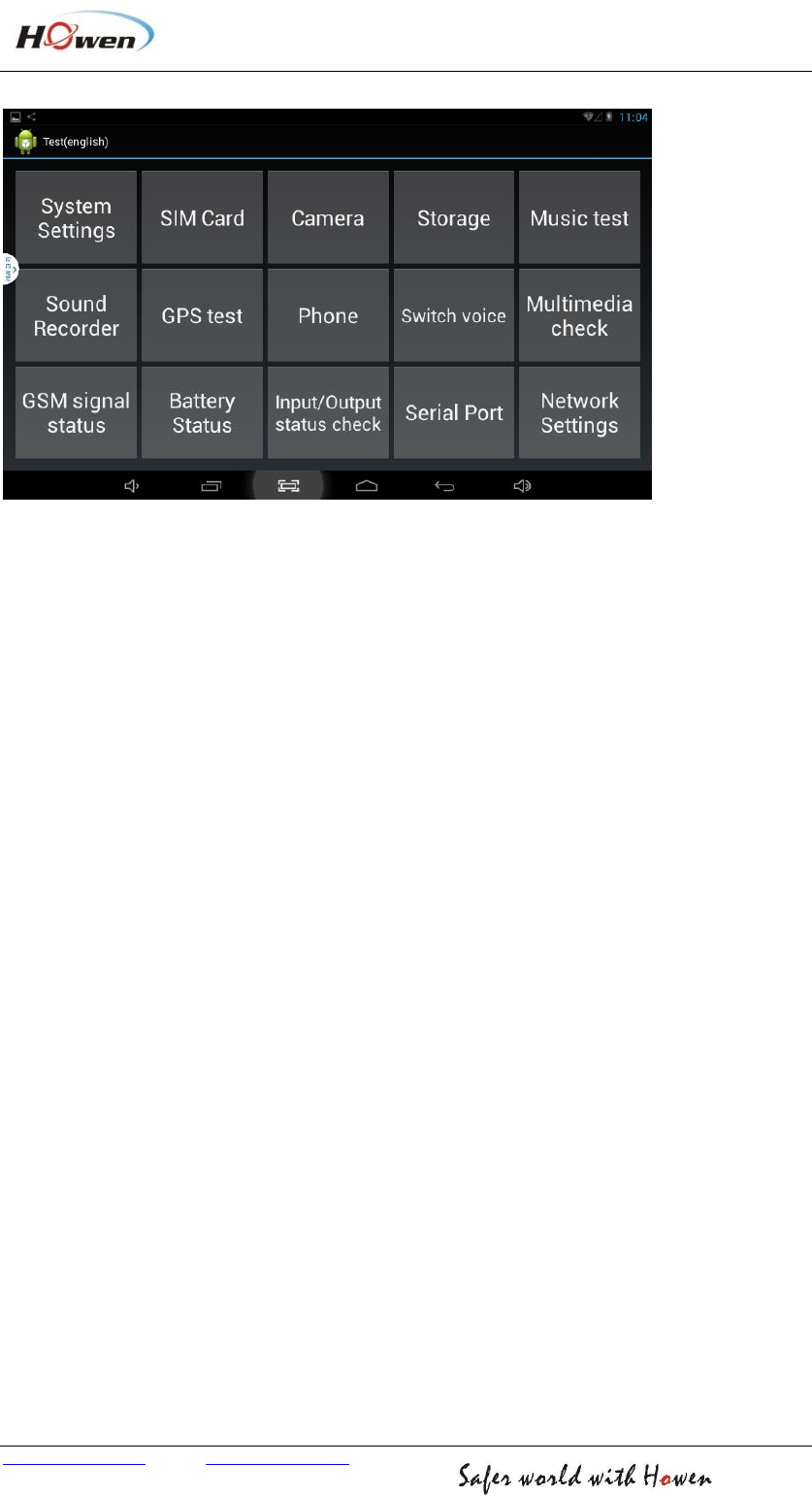

4.4 Howen Test
User can use Test APP to check the device info and support customization.
User Manual
www.howentech.com Email: info@howentech.com
Tel: +86-755-86315495, Fax: +86-755-86315496
Copyright 2015, All rights reserved. Howen Technologies CO., Ltd
Page 14/14
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses, and can radiate radio
frequency energy, and if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures: – Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver. – Connect the equipment into an outlet
on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced
radio/TV technician for help. You are cautioned that changes or modifications not expressly approved by
the party responsible for compliance could void your authority to operate the equipment. This device
complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
This modular complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
This modular must be installed and operated with a minimum distance of 20 cm between the radiator and user body.
