HP EVA 4000/6000/8000 and EVA
4100/6100/8100 User Guide
Abstract
This document is intended for customers who operate and manage the EVA 4000/6000/8000 and EVA 4100/6100/8100
storage systems. These models are sometimes referred to as EVA4x00, EVA6x00, and EVA8x00 or as EVAx000 and x100.
IMPORTANT: With the release of the P6300/P6500 EVA, the EVA family name has been rebranded to HP P6000 EVA. The
names for all existing EVA array models will not change. The rebranding also affects related EVA software. The following
product names have been rebranded:
•HP P6000 Command View (formerly HP StorageWorks Command View EVA)
•HP P6000 Business Copy (formerly HP StorageWorks Business Copy EVA)
•HP P6000 Continuous Access (formerly HP StorageWorks Continuous Access EVA)
•HP P6000 Performance Data Collector (formerly EVAPerf)
HP Part Number: 5697-1119
Published: January 2012
Edition: 12
© Copyright 2005, 2012 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express
warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall
not be liable for technical or editorial errors or omissions contained herein.
Warranty
To obtain a copy of the warranty for this product, see the warranty information website:
http://www.hp.com/go/storagewarranty
Acknowledgements
Microsoft® and Windows® are U.S. registered trademarks of Microsoft Corporation.
UNIX® is a registered trademark of The Open Group.
Contents
1 Enterprise Virtual Array startup...................................................................11

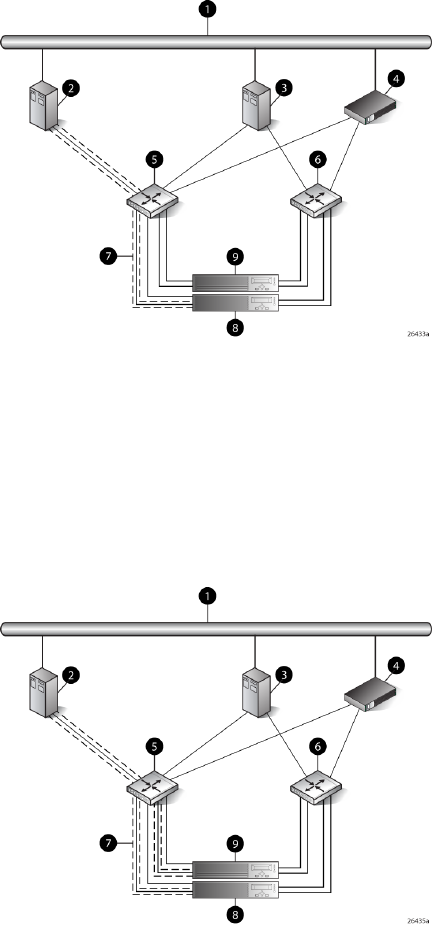

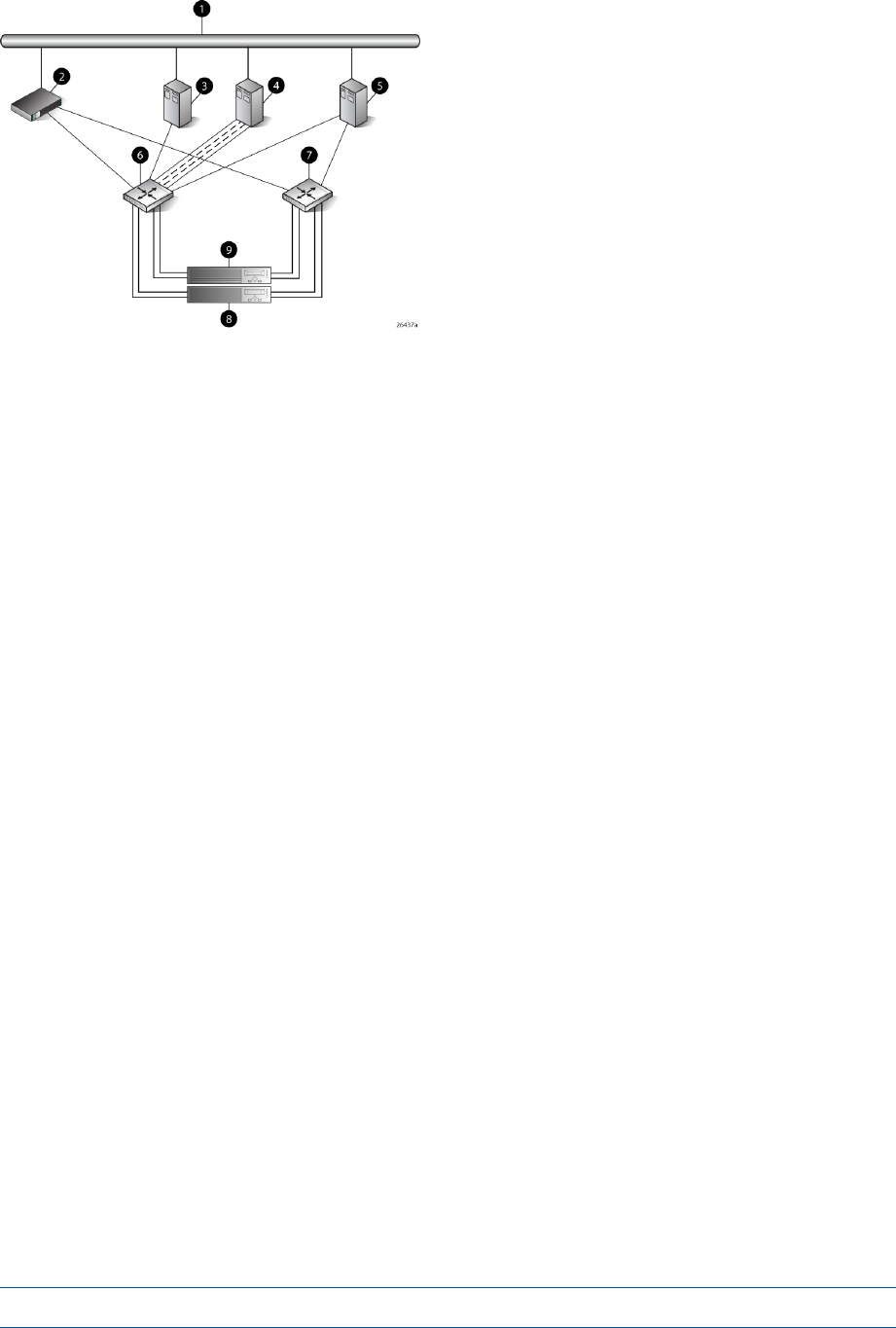

EVA8000/8100 storage system connections..............................................................................11

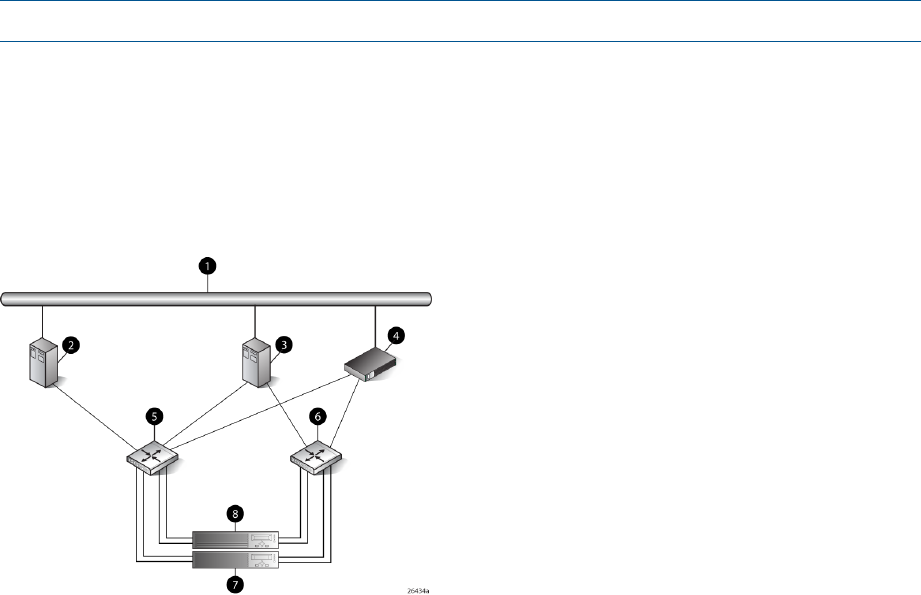

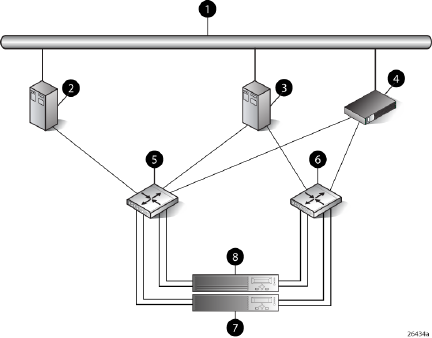

EVA6000/6100 storage system connections...............................................................................12
EVA4000/4100 storage system connections..............................................................................12
Direct connect........................................................................................................................13

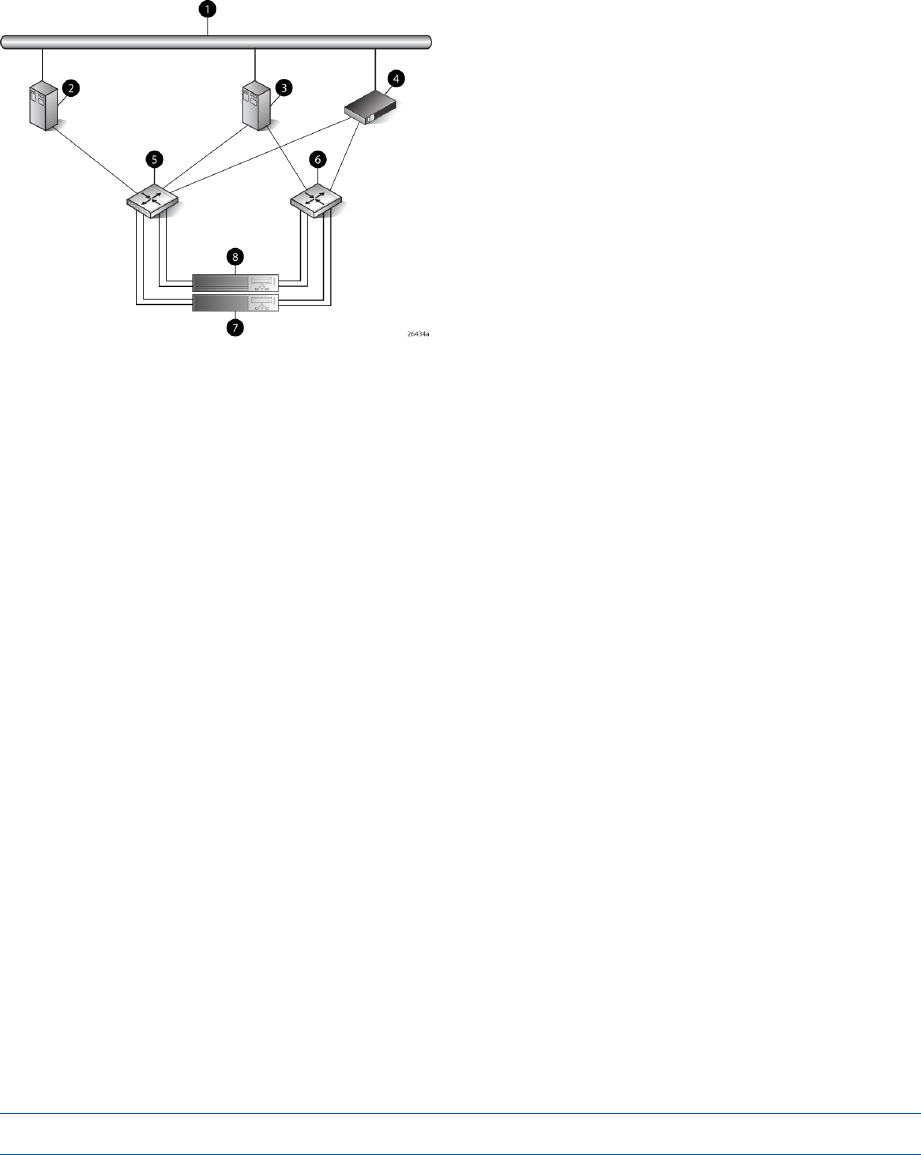

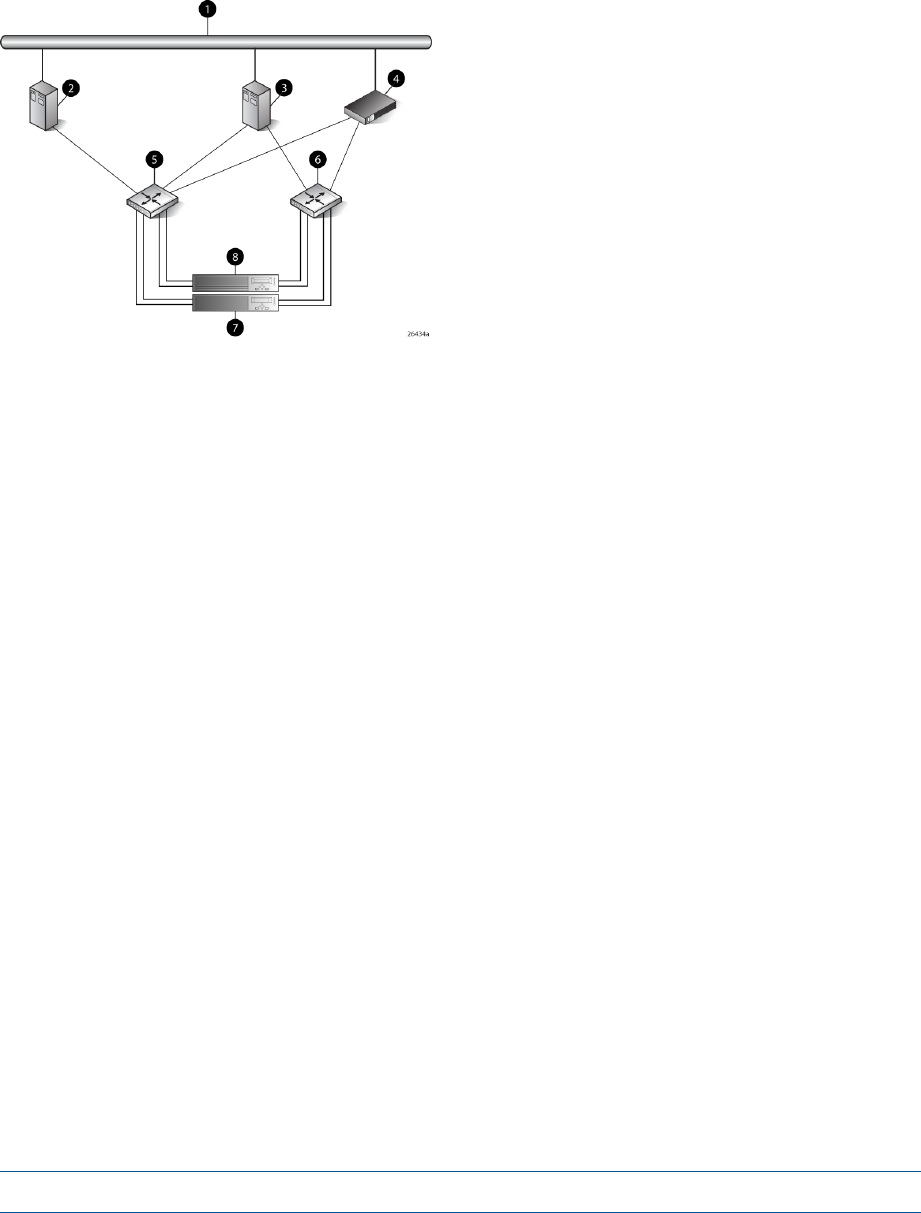

iSCSI connection configurations................................................................................................14

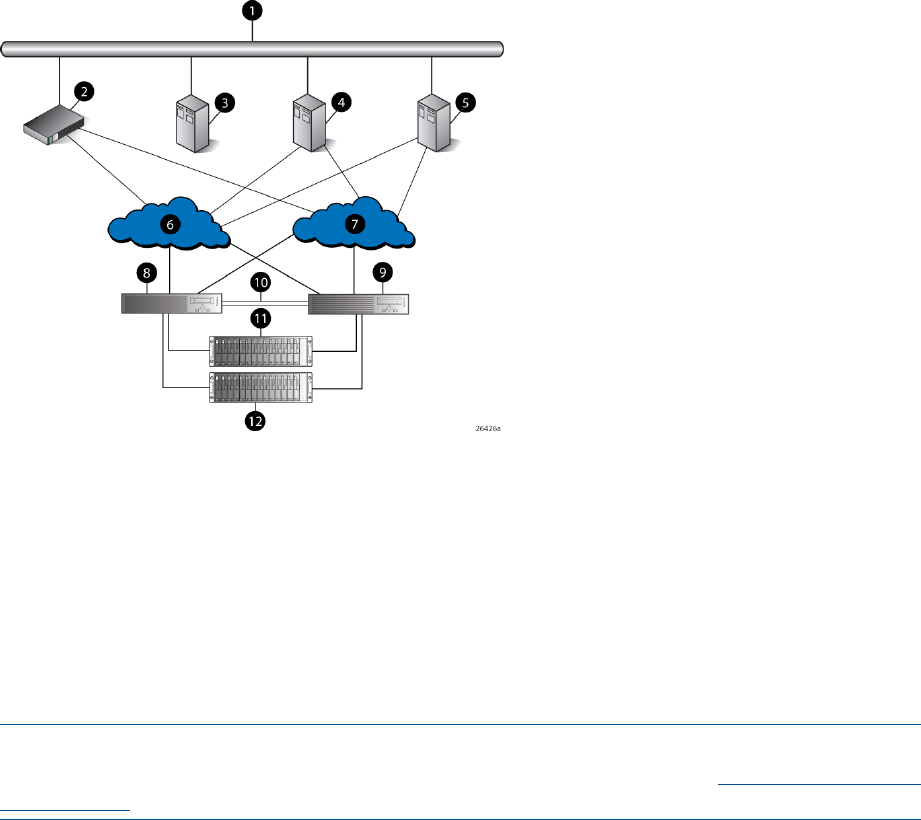

Fabric connect iSCSI..........................................................................................................14
Direct connect iSCSI...........................................................................................................14
Procedures for getting started...................................................................................................15
Gathering information........................................................................................................15
Host information...........................................................................................................15
Setting up a controller pair using the OCP............................................................................15
Entering the WWN.......................................................................................................16
Entering the WWN checksum.........................................................................................17
Entering the storage system password..............................................................................17
Installing HP P6000 Command View....................................................................................17
Installing optional EVA software licenses...............................................................................18
2 Enterprise Virtual Array hardware components.............................................19
Physical layout of the storage system.........................................................................................19
Fibre Channel drive enclosures.................................................................................................20

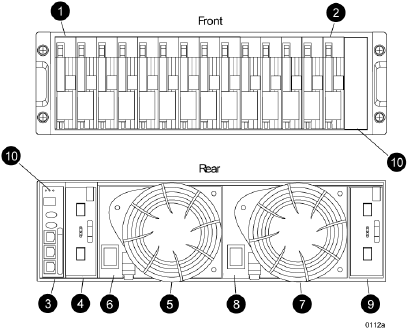

Enclosure layout.................................................................................................................20
I/O modules.....................................................................................................................21
I/O module status indicators..........................................................................................22
Fiber Optic Fibre Channel cables.........................................................................................23
Copper Fibre Channel cables..............................................................................................23
Fibre Channel disk drives....................................................................................................23
Disk drive status indicators..............................................................................................24
Disk drive status displays................................................................................................24
Disk drive blank............................................................................................................25
Power supplies and blowers................................................................................................25

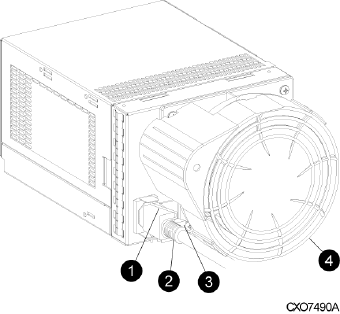

Power supplies..............................................................................................................25
Blowers........................................................................................................................26
Drive enclosure EMU..........................................................................................................26
Controls and displays....................................................................................................27
EMU functions..............................................................................................................27
EMU monitoring functions..............................................................................................28
EMU displays...............................................................................................................28
EMU indicator displays..................................................................................................29
Using the alphanumeric display......................................................................................29
Alphanumeric display description...............................................................................29
Display groups.........................................................................................................29
EMU pushbutton status indicators....................................................................................30
Audible alarm operations ..............................................................................................30
Audible alarm patterns..............................................................................................30
Controlling the audible alarm.....................................................................................31
Enabling the audible alarm............................................................................................31
Muting or unmuting the audible alarm.............................................................................31
Disabling the audible alarm...........................................................................................32
Enclosure number feature...............................................................................................32
En description..........................................................................................................32
Enclosure address bus...............................................................................................33
Contents 3
Enclosure address bus connections..............................................................................34
Error Condition Reporting...............................................................................................34
Error condition categories..........................................................................................35
Error queue.............................................................................................................35
Error condition report format......................................................................................36

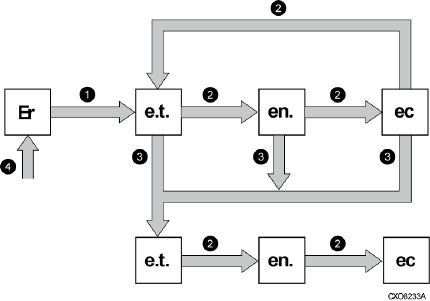

Navigating the error condition display........................................................................36
Reporting group feature.................................................................................................37
Reporting group numbers..........................................................................................37
Fibre Channel loop switches.....................................................................................................38
30-10022-01 loop switch.....................................................................................................38
Power-on self test (POST).................................................................................................39
30-10010-02 loop switch....................................................................................................39
Power-on self test (POST).................................................................................................40
Reading the switch status indicators.................................................................................40
Problem isolation..........................................................................................................41
HSV controllers.......................................................................................................................41
High availability features....................................................................................................43
Operator control panel.......................................................................................................43
Status indicators............................................................................................................44
Navigation buttons........................................................................................................45
Alphanumeric display....................................................................................................45
Displaying the OCP menu tree........................................................................................45
Displaying system information.........................................................................................47
Displaying versions system information.............................................................................47
Shutting down the system...............................................................................................47
Shutting the controller down...........................................................................................48
Restarting the system......................................................................................................48
Uninitializing the system.................................................................................................48
Password options..........................................................................................................49
Changing a password...................................................................................................49
Clearing a password.....................................................................................................49
Power supplies...................................................................................................................50
Blowers............................................................................................................................50
Cache battery...................................................................................................................51
HSV controller cabling........................................................................................................51
Racks....................................................................................................................................52
Rack configurations............................................................................................................52
Power distribution...............................................................................................................52
PDUs...........................................................................................................................54
PDU 1.....................................................................................................................54
PDU 2.....................................................................................................................54
PDMs..........................................................................................................................54
Rack AC power distribution............................................................................................55
Rack System/E power distribution components..................................................................56
Rack AC power distribution........................................................................................56

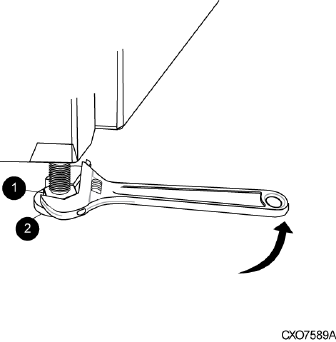

Moving and stabilizing a rack.............................................................................................56
3 Enterprise Virtual Array operation...............................................................59
Best practices.........................................................................................................................59
Operating tips and information................................................................................................59
Reserving adequate free space............................................................................................59
Using FATA disk drives........................................................................................................59
Changing the host port topology..........................................................................................59
Host port connection limit on B-series 3200 and 3800 switches...............................................59
Enabling Boot from SAN for Windows direct connect.............................................................60
4 Contents
Windows 2003 MSCS cluster installation..............................................................................60
Connecting to C-series switches...........................................................................................60
HP Insight Remote Support software.....................................................................................60
Failback preference setting for HSV controllers............................................................................62
Changing virtual disk failover/failback setting.......................................................................64
Storage system shutdown and startup........................................................................................64
Shutting down the storage system.........................................................................................64
Starting the storage system..................................................................................................65
Saving storage system configuration data...................................................................................65
Adding disk drives to the storage system....................................................................................67
Creating disk groups..........................................................................................................68
Adding a disk drive...........................................................................................................69
Removing the drive blank...............................................................................................69
Changing the Device Addition Policy...............................................................................69
Installing the disk drive...................................................................................................69
Checking status indicators..............................................................................................70
Adding the disk to a disk group......................................................................................71
Handling fiber optic cables......................................................................................................71
4 Configuring application servers..................................................................72
Overview..............................................................................................................................72
Clustering..............................................................................................................................72
Multipathing..........................................................................................................................72
Installing Fibre Channel adapters..............................................................................................72
Testing connections to the EVA.................................................................................................73
Adding hosts..........................................................................................................................73
Creating and presenting virtual disks.........................................................................................73
Verifying virtual disk access from the host...................................................................................74
Configuring virtual disks from the host.......................................................................................74
HP-UX...................................................................................................................................74
Scanning the bus...............................................................................................................74
Creating volume groups on a virtual disk using vgcreate.........................................................75
IBM AIX................................................................................................................................75
Accessing IBM AIX utilities..................................................................................................75
Adding hosts.....................................................................................................................76
Creating and presenting virtual disks....................................................................................76
Verifying virtual disks from the host.......................................................................................76
Linux.....................................................................................................................................77
Driver failover mode...........................................................................................................77
Installing a Qlogic driver....................................................................................................77
Upgrading Linux components..............................................................................................78
Upgrading qla2x00 RPMs..............................................................................................78
Detecting third-party storage...........................................................................................78
Compiling the driver for multiple kernels...........................................................................79
Uninstalling the Linux components........................................................................................79
Using the source RPM.........................................................................................................79
Verifying virtual disks from the host.......................................................................................80
OpenVMS.............................................................................................................................80
Updating the AlphaServer console code, Integrity Server console code, and Fibre Channel FCA
firmware...........................................................................................................................80
Verifying the Fibre Channel adapter software installation........................................................80
Console LUN ID and OS unit ID...........................................................................................80
Adding OpenVMS hosts.....................................................................................................81
Scanning the bus...............................................................................................................81
Configuring virtual disks from the OpenVMS host...................................................................82
Contents 5
Setting preferred paths.......................................................................................................83
Oracle Solaris........................................................................................................................83
Loading the operating system and software...........................................................................83
Configuring FCAs with the Oracle SAN driver stack...............................................................83
Configuring Emulex FCAs with the lpfc driver....................................................................84
Configuring QLogic FCAs with the qla2300 driver.............................................................85
Fabric setup and zoning.....................................................................................................87
Oracle StorEdge Traffic Manager (MPxIO)/Sun Storage Multipathing.......................................87
Configuring with Veritas Volume Manager............................................................................87
Configuring virtual disks from the host...................................................................................89
Verifying virtual disks from the host..................................................................................90
Labeling and partitioning the devices...............................................................................91
VMware................................................................................................................................92
Installing or upgrading VMware .........................................................................................92
Configuring the EVA with VMware host servers......................................................................92
Configuring an ESX server ..................................................................................................93
Loading the FCA NVRAM..............................................................................................93
Setting the multipathing policy........................................................................................93
Specifying DiskMaxLUN.................................................................................................94
Verifying connectivity.....................................................................................................94
Verifying virtual disks from the host.......................................................................................95
5 Customer replaceable units........................................................................96
Customer self repair (CSR).......................................................................................................96
Parts only warranty service..................................................................................................96
Best practices for replacing hardware components......................................................................96
Component replacement videos...........................................................................................96
Verifying component failure.................................................................................................96
Procuring the spare part......................................................................................................96
Replaceable parts.........................................................................................................97
Replacing the failed component...........................................................................................99
Returning the defective part...............................................................................................100
6 Support and other resources....................................................................101
Contacting HP......................................................................................................................101
Subscription service..............................................................................................................101
Documentation feedback.......................................................................................................101
Related information...............................................................................................................101
Documents......................................................................................................................101
Websites........................................................................................................................101
Document conventions and symbols........................................................................................102
Rack stability........................................................................................................................102
Customer self repair..............................................................................................................103
A Regulatory notices and specifications........................................................104
Regulatory notices................................................................................................................104
Federal Communications Commission (FCC) notice...............................................................104
FCC Class A certification.............................................................................................104
Class A equipment......................................................................................................104
Class B equipment......................................................................................................104
Declaration of conformity for products marked with the FCC logo, United States only...........105
Modifications.............................................................................................................105
Cables.......................................................................................................................105
Laser device....................................................................................................................105
Laser safety warnings..................................................................................................105
Compliance with CDRH regulations...............................................................................105
6 Contents
Certification and classification information..........................................................................106
Canadien notice (avis Canadien).......................................................................................106
Class A equipment......................................................................................................106
Class B equipment......................................................................................................106
European union notice......................................................................................................106
Notice for France.............................................................................................................106
WEEE Recycling Notices...................................................................................................106
English notice.............................................................................................................106
Dutch notice...............................................................................................................107
Czechoslovakian notice...............................................................................................107
Estonian notice...........................................................................................................107
Finnish notice.............................................................................................................107
French notice..............................................................................................................108
German notice............................................................................................................108
Greek notice..............................................................................................................108
Hungarian notice .......................................................................................................109
Italian notice..............................................................................................................109
Latvian notice.............................................................................................................109
Lithuanian notice.........................................................................................................109
Polish notice...............................................................................................................109
Portuguese notice........................................................................................................110
Slovakian notice.........................................................................................................110
Slovenian notice.........................................................................................................110
Spanish notice............................................................................................................110
Swedish notice............................................................................................................111
Germany noise declaration...............................................................................................111
Japanese notice...............................................................................................................111
Harmonics conformance (Japan)...................................................................................111
Taiwanese notice.............................................................................................................111
Japanese power cord notice..............................................................................................111
Country-specific certifications.............................................................................................112
Storage system specifications..................................................................................................112
Physical specifications......................................................................................................112
Environmental specifications..............................................................................................112
Power specifications.........................................................................................................113
B EMU-generated condition reports..............................................................117
Condition report format.........................................................................................................117
Correcting errors..................................................................................................................117
Drive conditions...............................................................................................................118
0.1.en.01 CRITICAL condition—Drive configuration or drive link rate...................................118
0.1.en.02 INFORMATION condition—Drive missing.........................................................119
0.1.en.03 INFORMATION condition—Drive software lock active........................................119
0.1.en.04 CRITICAL condition—Loop a drive link rate incorrect..........................................119
0.1.en.05 CRITICAL condition—Loop b drive link rate incorrect..........................................120
Power supply conditions....................................................................................................120
0.2.en.01 NONCRITICAL Condition—Power supply AC input missing................................120
0.2.en.02 UNRECOVERABLE condition—Power supply missing ........................................121
0.2.en.03 CRITICAL condition—Power supply load unbalanced .......................................121
Blower conditions............................................................................................................121
0.3.en.01 NONCRITICAL condition—Blower speed.........................................................122
0.3.en.02 CRITICAL condition—Blower speed.................................................................122
0.3.en.03 UNRECOVERABLE condition—Blower failure ..................................................122
0.3.en.04 UNRECOVERABLE condition—Blower internal..................................................122
0.3.en.05 NONCRITICAL condition—Blower missing......................................................122
Contents 7
0.3.en.06 UNRECOVERABLE condition—No blowers installed .........................................123
Temperature conditions.....................................................................................................123
0.4.en.01 NONCRITICAL condition—High temperature...................................................123
0.4.en.02 CRITICAL condition—High temperature...........................................................124
0.4.en.03 NONCRITICAL condition—Low temperature....................................................124
0.4.en.04 CRITICAL condition—Low temperature............................................................124
0.4.en.05 UNRECOVERABLE condition—High temperature .............................................124
EMU conditions...............................................................................................................125
Resetting the EMU.......................................................................................................125
07.01.01 CRITICAL condition—EMU internal clock...........................................................125
07.01.02 UNRECOVERABLE condition—EMU interrupted ................................................125
0.7.01.03 UNRECOVERABLE Condition—Power supply shutdown .....................................126
0.7.01.04 INFORMATION condition—EMU internal data.................................................126
0.7.01.05 UNRECOVERABLE condition—Backplane NVRAM ...........................................126
0.7.01.10 NONCRITICAL condition—NVRAM invalid read data .......................................126
0.7.01.11 NONCRITICAL condition—EMU NVRAM write failure .......................................126
0.7.01.12 NONCRITICAL condition—EMU cannot read NVRAM data ...............................127
0.7.01.13 UNRECOVERABLE condition—EMU load failure ...............................................127
0.7.01.14 NONCRITICAL condition—EMU enclosure address ...........................................127
0.7.01.15 UNRECOVERABLE condition—EMU hardware failure ........................................127
0.7.01.16 INFORMATION condition—EMU internal ESI data corrupted ..............................127
0.7.01.17 UNRECOVERABLE condition—Power shutdown failure........................................128
0.7.01.18 UNRECOVERABLE condition—EMU hardware failure.........................................128
0.7.01.19 UNRECOVERABLE condition—EMU ESI driver failure.........................................128
Transceiver conditions.......................................................................................................128
0.F.en.01 CRITICAL condition—Transceiver incompatibility ...............................................129
0.F.en.02 CRITICAL condition—Transceiver data signal lost ..............................................129
0.F.en.03 CRITICAL condition—Transceiver fibre channel drive enclosure bus fault...............129
0.F.en.04 CRITICAL condition—Transceiver removed........................................................129
0.F.en.05 CRITICAL condition—Invalid fibre channel character..........................................130
CAN bus communication port conditions............................................................................130
Resetting the EMU.......................................................................................................130
1.1.03.01 NONCRITICAL condition—Communication error...............................................130
1.1.03.02 INFORMATION condition—Recovery completed...............................................130
1.1.03.03 INFORMATION condition—Overrun recovery...................................................131
Voltage sensor and current sensor conditions.......................................................................131
1.2.en.01 NONCRITICAL condition—High voltage .........................................................131
1.2.en.02 CRITICAL condition—High voltage .................................................................131
1.2.en.03 NONCRITICAL condition—Low voltage ..........................................................131
1.2.en.04 CRITICAL condition—Low voltage ..................................................................132
1.3.en.01 NONCRITICAL condition—High current ..........................................................132
1.3.en.02 CRITICAL condition—High current ..................................................................132
Backplane conditions.......................................................................................................132
8.2.01.10 NONCRITICAL condition—Backplane NVRAM read .........................................132
8.2.01.11 NONCRITICAL condition—Backplane NVRAM write failure ...............................132
8.2.01.12 NONCRITICAL condition—Backplane NVRAM read failure ...............................132
8.2.01.13 NONCRITICAL condition—Backplane WWN is blank.......................................132
I/O Module conditions.....................................................................................................133
8.7.en.01 CRITICAL condition—I/O module unsupported ................................................133
8.7.en.02 CRITICAL condition—I/O module communication ............................................133
8.7.en.10 NONCRITICAL condition—I/O module NVRAM read ......................................133
8.7.en.11 NONCRITICAL condition—I/O module NVRAM write........................................133
8.7.en.12 NONCRITICAL condition—I/O Module NVRAM read failure .............................134
8.7.en.13 NONCRITICAL condition—I/O module removed...............................................134
Host conditions................................................................................................................134
8 Contents
C Controller fault management....................................................................135
Using HP P6000 Command View ..........................................................................................135
GUI termination event display................................................................................................135
GUI event display............................................................................................................135
Fault management displays...............................................................................................136
Displaying Last Fault Information...................................................................................136
Displaying Detailed Information....................................................................................136
Interpreting fault management information......................................................................137
D Non-standard rack specifications..............................................................138
Rack specifications................................................................................................................138
Internal component envelope.............................................................................................138
EIA310-D standards..........................................................................................................138
EVA cabinet measures and tolerances.................................................................................138
Weights, dimensions and component CG measurements.......................................................138
Airflow and Recirculation..................................................................................................139
Component Airflow Requirements..................................................................................139
Rack Airflow Requirements...........................................................................................139
Configuration Standards...................................................................................................139
Environmental and operating specifications..............................................................................139
Power requirements..........................................................................................................140
UPS Selection.............................................................................................................141
Environmental specifications..............................................................................................143
Shock and vibration specifications......................................................................................144
E Single Path Implementation......................................................................145
High-level solution overview...................................................................................................145
Benefits at a glance..............................................................................................................145
Installation requirements........................................................................................................146
Recommended mitigations.....................................................................................................146
Supported configurations.......................................................................................................146
General configuration components.....................................................................................146
Connecting a single path HBA server to a switch in a fabric zone..........................................146
HP-UX configuration.........................................................................................................148
Requirements..............................................................................................................148
HBA configuration.......................................................................................................148
Risks..........................................................................................................................148
Limitations..................................................................................................................148
Windows Server (32-bit) configuration................................................................................149
Requirements..............................................................................................................149
HBA configuration.......................................................................................................149
Risks..........................................................................................................................149
Limitations..................................................................................................................149
Windows Server (64-bit) configuration................................................................................150
Requirements..............................................................................................................150
HBA configuration.......................................................................................................150
Risks..........................................................................................................................150
Limitations..................................................................................................................150
Oracle Solaris configuration..............................................................................................151
Requirements..............................................................................................................151
HBA configuration.......................................................................................................151
Risks..........................................................................................................................151
Limitations..................................................................................................................152
Tru64 UNIX configuration.................................................................................................152
Requirements..............................................................................................................152
HBA configuration.......................................................................................................152
Contents 9
Risks..........................................................................................................................152
OpenVMS configuration...................................................................................................153
Requirements..............................................................................................................153
HBA configuration.......................................................................................................153
Risks..........................................................................................................................153
Limitations..................................................................................................................154
Linux (32-bit) configuration................................................................................................154
Requirements..............................................................................................................154
HBA configuration.......................................................................................................154
Risks..........................................................................................................................154
Limitations..................................................................................................................155
Linux (64-bit) configuration................................................................................................155
Requirements..............................................................................................................155
HBA configuration.......................................................................................................155
Risks..........................................................................................................................155
Limitations..................................................................................................................156
IBM AIX configuration......................................................................................................156
Requirements..............................................................................................................156
HBA configuration.......................................................................................................156
Risks..........................................................................................................................157
Limitations..................................................................................................................157
VMware configuration......................................................................................................157
Requirements..............................................................................................................157
HBA configuration.......................................................................................................157
Risks..........................................................................................................................158
Limitations..................................................................................................................158
Failure scenarios...................................................................................................................158
HP-UX.............................................................................................................................158
Windows Server..............................................................................................................159
Oracle Solaris.................................................................................................................159
OpenVMS and Tru64 UNIX..............................................................................................160
Linux..............................................................................................................................160
IBM AIX..........................................................................................................................161
VMware.........................................................................................................................161
Glossary..................................................................................................163
Index.......................................................................................................175
10 Contents
1 Enterprise Virtual Array startup
This chapter describes the procedures to install and configure the Enterprise Virtual Array. When
these procedures are complete, you can begin using your storage system.
NOTE: Installation of the Enterprise Virtual Array should be done only by an HP authorized
service representative. The information in this chapter provides an overview of the steps involved
in the installation and configuration of the storage system.
This chapter consists of:
EVA8000/8100 storage system connections
Figure 1 (page 11) shows how the storage system is connected to other components of the storage
solution.
•The HSV210-A and HSV210-B controllers connect via four host ports (FP1, FP2, FP3, and FP4)
to the Fibre Channel fabrics. The hosts that will access the storage system are connected to
the same fabrics.
•The HP P6000 Command View management server also connects to the fabric.
•The controllers connect through two loop pairs to the drive enclosures. Each loop pair consists
of two independent loops, each capable of managing all the disks should one loop fail. Four
FC loop switches are used to connect the controllers to the disk enclosures.
Figure 1 EVA8000/8100 configuration
8 Controller A1 Network interconnection
9 Controller B2 Management server
10 Cache mirror ports3 Non-host
11 FC loop switch4 Host X
12 Drive enclosure 15 Host Z
13 Drive enclosure 26 Fabric 1
14 FC loop switch7 Fabric 2
EVA8000/8100 storage system connections 11
EVA6000/6100 storage system connections
Figure 2 (page 12) shows a typical EVA6000/6100 SAN topology:
•The HSV200-A and HSV200-B controllers connect via two host ports (FP1 and FP2) to the
Fibre Channel fabrics. The hosts that will access the storage system are connected to the same
fabrics.
•The HP Command View EVA management server also connects to both fabrics.
•The controllers connect through one loop pair to the drive enclosures. The loop pair consists
of two independent loops, each capable of managing all the disks should one loop fail. Two
FC loop switches are used to connect the controllers to the disk enclosures.
Figure 2 EVA6000/6100 configuration
8 Controller A1 Network interconnection
9 Controller B2 Management server
10 Cache mirror ports3 Non-host
11 FC loop switch4 Host X
12 Drive enclosure 15 Host Z
13 Drive enclosure 26 Fabric 1
7 Fabric 2
EVA4000/4100 storage system connections
Figure 3 (page 13) shows a typical EVA 4000/4100 SAN topology:
•The HSV200-A and HSV200-B controllers connect via two host ports (FP1 and FP2) to the
Fibre Channel fabrics. The hosts that will access the storage system are connected to the same
fabrics.
•The HP P6000 Command View management server also connects to both fabrics.
•The controllers connect through one loop pair to the drive enclosures. The loop pair consists
of two independent loops, each capable of managing all the disks should one loop fail. The
controllers connect directly to the disk enclosures.
12 Enterprise Virtual Array startup
Figure 3 EVA4000/4100 configuration
7 Fabric 21 Network interconnection
8 Controller A2 Management server
9 Controller B3 Non-host
10 Cache mirror ports4 Host X
11 Drive enclosure 15 Host Z
12 Drive enclosure 26 Fabric 1
Direct connect
NOTE: Direct connect is currently supported on Microsoft Windows only. For more information
on direct connect, go the Single Point of Connectivity Knowledge (SPOCK) at: http://www.hp.com/
storage spock.
Direct connect provides a lower cost solution for smaller configurations. When using direct connect,
the storage system controllers are connected directly to the host(s), not to SAN Fibre Channel
switches. Make sure the following requirements are met when configuring your environment for
direct connect:
•A management server running HP P6000 Command View must be connected to one port on
each EVA controller. The management host must use dual HBAs for redundancy.
•To provide redundancy, it is recommended that dual HBAs be used for each additional host
connected to the storage system. Using this configuration, up to four hosts (including the
management host) can be connected to an EVA8x00, and up to two hosts can be connected
to an EVA6x00 or EVA4x00.
•The Host Port Configuration must be set to Direct Connect using the OCP.
•HP P6000 Continuous Access cannot be used with direct connect configurations.
•The HSV controller firmware cannot differentiate between an empty host port and a failed
host port in a direct connect configuration. As a result, the Connection state dialog box on
the Controller Properties window displays Connection failed for an empty host port. To fix this
problem, insert an optical loop-back connector into the empty host port; the Connection state
will display Connected. For more information about optical loop-back connectors, contact
your HP-authorized service provider.
Direct connect 13
iSCSI connection configurations
The EVA4x00/6x00/8x00 support iSCSI attach configurations using the HP MPX100. Both fabric
connect and direct connect are supported for iSCSI configurations. For complete information on
iSCSI configurations, go to the following website:
http://h18006.www1.hp.com/products/storageworks/evaiscsiconnect/index.html
NOTE: An iSCSI connection configuration supports mixed direct connect and fabric connect.
Fabric connect iSCSI
Fabric connect provides an iSCSI solution for EVA Fibre Channel configurations that want to
continue to use all EVA ports on FC or if the EVA is also used for HP P6000 Continuous Access.
Make sure the following requirements are met when configuring your MPX100 environment for
fabric connect:
•A maximum of two MPX100s per storage system are supported
•Each storage system port can connect to a maximum of two MPX100 FC ports.
•Each MPX100 FC port can connect to a maximum of one storage system port.
•In a single MPX100 configuration, if both MPX100 FC ports are used, each port must be
connected to one storage system controller.
•In a dual MPX100 configuration, at least one FC port from each MPX100 must be connected
to one storage system controller.
•The Host Port Configuration must be set to Fabric Connect using the OCP.
•HP P6000 Continuous Access is supported on the same storage system connected in MPX100
fabric connect configurations.
Direct connect iSCSI
Direct connect provides a lower cost solution for configurations that want to dedicate controller
ports to iSCSI I/O. When using direct connect, the storage system controllers are connected directly
to the MPX100(s), not to SAN Fibre Channel switches.
Make sure the following requirements are met when configuring your MPX100 environment for
direct connect:
•A maximum two MPX100s per storage system are supported.
•In a single MPX100 configuration, if both MPX100 FC ports are used each port must be
connected to one storage system controller.
•In a dual MPX100 configuration, at least one FC port from each MPX100 must be connected
to one storage system controller.
•The Host Port Configuration must be set to Direct Connect using the OCP.
•HP P6000 Continuous Access cannot be used with direct connect configurations.
•EVAs cannot be directly connected to each other to create an HP P6000 Continuous Access
configuration. However, hosts can be directly connected to the EVA in an HP P6000 Continuous
Access configuration. At least one port from each array in an HP P6000 Continuous Access
configuration must be connected to a Fabric connection for remote array connectivity.
14 Enterprise Virtual Array startup
Procedures for getting started
ResponsibilityStep
Customer1. Gather information and identify all related storage
documentation.
Customer2. Contact an authorized service representative for
hardware configuration information.
HP Service Engineer3. Enter the World Wide Name (WWN) into the OCP.
HP Service Engineer4. Configure HP P6000 Command View.
Customer5. Prepare the hosts.
HP Service Engineer6. Configure the system through HP P6000 Command
View.
HP Service Engineer7. Make virtual disks available to their hosts. See the
storage system software documentation for each host's
operating system.
Gathering information
The following items should be available when installing and configuring an Enterprise Virtual Array.
They provide information necessary to set up the storage system successfully.
•HP 4x00/6x00/8x00 Enterprise Virtual Array World Wide Name label, which is shipped
with the system
•HP EVA 4000/6000/8000 and EVA 4100/6100/8100 Read Me First
•HP EVA 4000/6000/8000 and EVA 4100/6100/8100 Release Notes (XCS 6.250)
•The latest HP P6000 Command View software (Check the HP P6000 Enterprise Virtual Array
Compatibility Reference for controller software and HP P6000 Command View compatibility.)
Locate these items and keep them handy. You will need them for the procedures in this manual.
Host information
Make a list of information for each host computer that will be accessing the storage system. You
will need the following information for each host:
•The LAN name of the host
•A list of World Wide Names of the FC adapters, also called host bus adapters, through which
the host will connect to the fabric that provides access to the storage system, or to the storage
system directly if using direct connect.
•Operating system type
•Available LUN numbers
Setting up a controller pair using the OCP
NOTE: This procedure should be performed by an HP authorized service representative.
Two pieces of data must be entered during initial setup using the controller OCP:
•World Wide Name (WWN) — Required to complete setup. This procedure should be
performed by an HP authorized service representative.
•Storage system password — Optional. A password provides security allowing only specific
instances of HP P6000 Command View to access the storage system.
Procedures for getting started 15
The OCP on either controller can be used to input the WWN and password data. For more
information about the OCP, see “Operator control panel” (page 43).
Table 1 (page 16) lists the push-button functions when entering the WWN, WWN checksum, and
password data.
Table 1 Push button functions
FunctionButton
Selects a character by scrolling up through the character list one character at a time.
Moves forward one character. If you accept an incorrect character, you can move through all 16
characters, one character at a time, until you display the incorrect character. You can then change
the character.
Selects a character by scrolling down through the character list one character at a time.
Moves backward one character.
Returns to the default display.ESC
Accepts all the characters entered.ENTER
Entering the WWN
Fibre Channel protocol requires that each controller pair have a unique WWN. This 16-character
alphanumeric name identifies the controller pair on the storage system. Two WWN labels attached
to the rack identify the storage system WWN and checksum. See Figure 4 (page 16).
NOTE:
•The WWN is unique to a controller pair and cannot be used for any other controller pair or
device anywhere on the network.
•This is the only WWN applicable to any controller installed in a specific physical location,
even a replacement controller.
•Once a WWN is assigned to a controller, you cannot change the WWN while the controller
is part of the same storage system.
Figure 4 Location of the World Wide Name labels
1. World Wide Name labels
Complete the following procedure to assign the WWN to each pair of controllers.
1. Turn the power switches on both controllers off.
2. Apply power to the rack.
3. Turn the power switch on both controllers on.
NOTE: Notifications of the startup test steps that have been executed are displayed while
the controller is booting. It may take up to two minutes for the steps to display. The default
WWN entry display has a 0 in each of the 16 positions.
16 Enterprise Virtual Array startup
4. Press or until the first character of the WWN is displayed. Press to accept this character
and select the next.
5. Repeat Step 4 to enter the remaining characters.
6. Press Enter to accept the WWN and select the checksum entry mode.
Entering the WWN checksum
The second part of the WWN entry procedure is to enter the two-character checksum, as follows.
1. Verify that the initial WWN checksum displays 0 in both positions.
2. Press or until the first checksum character is displayed. Press to accept this character
and select the second character.
3. Press or until the second character is displayed. Press Enter to accept the checksum and
exit.
4. Verify that the default display is automatically selected. This indicates that the checksum is
valid.
NOTE: If you enter an incorrect WWN or checksum, the system will reject the data and you must
repeat the procedure.
Entering the storage system password
The storage system password feature enables you to restrict management access to the storage
system. The password must meet the following requirements:
•8 to 16 characters in length
•Can include upper or lower case letters
•Can include numbers 0 - 9
•Can include the following characters: ! “ # $ % &amp ‘ ( ) * + , - . / : ; < = > ? @ [ ] ^ _ ` {
| }
•Cannot include the following characters: space ~ \
NOTE: You must be running HP Command View EVA 6.0 or later to use passwords of more than
eight characters. HP Command View EVA 8.0.1 is required with XCS 6.200. If you set a password
longer than eight characters, you will no longer be able to manage the storage system with an
earlier version of HP P6000 Command View. In this case, it will be necessary to clear the long
password and reenter a password of no more than eight characters.
Complete the following procedure to enter the password:
1. Select a unique password of 8 to 16 characters.
2. With the default menu displayed, press three times to display System Password.
3. Press to display Change Password?
4. Press Enter for yes.
The default password, AAAAAAAA~~~~~~~~, is displayed.
5. Press or to select the desired character.
6. Press to accept this character and select the next character.
7. Repeat the process to enter the remaining password characters.
8. Press Enter to enter the password and return to the default display.
Installing HP P6000 Command View
HP P6000 Command View is installed on a management server. Installation may be skipped if
the latest version of HP P6000 Command View is running. Verify the latest version at the HP website:
http://h18006.www1.hp.com/storage/software.html.
Procedures for getting started 17
See the HP P6000 Command View Installation Guide for information on installing the software.
Installing optional EVA software licenses
If you purchased optional EVA software, it will be necessary to install the license. Optional software
available for the Enterprise Virtual Array includes HP Business Copy EVA and HP P6000 Continuous
Access. Installation instructions are included with the license.
18 Enterprise Virtual Array startup
2 Enterprise Virtual Array hardware components
The Enterprise Virtual Array includes the following hardware components:
•Fibre Channel drive enclosure — Contains disk drives, power supplies, blowers, I/O modules,
and an Environmental Monitoring Unit (EMU).
•Fibre Channel loop switches — Provides twelve-port central interconnect for Fibre Channel
drive enclosure FC Arbitrated Loops. The loop switches are required for EVA6000/6100 and
EVA8000/8100 configurations with more than four disk enclosures.
•HSV controller — Manages all aspects of storage system operation, including communications
between host systems and other devices. A pair of HSV controllers is included in the Enterprise
Virtual Array.
•Rack — A variety of free-standing racks are available.
Physical layout of the storage system
The basic physical components are shown in Figure 5 (page 19). The disk drives are installed in
the disk enclosures, which connect to Fibre Channel loop switches, except on the EVA4000/4100
which does not use switches. The controller pair also connects to the loop switches.
Figure 5 Storage system hardware components
1. controllers
2. loop switches
3. disk enclosures
The EVA8000/8100, EVA6000/6100, and EVA4000/4100 are available as follows:
•EVA8000/8100 — available in multiple configurations ranging from the single-rack 2C2D
configuration to the multi-rack 2C18D. The EVA8000 includes two HSV210-A controllers and
four Fibre Channel loop switches. The EVA8100 includes two HSV210-B controllers and four
Fibre Channel loop switches.
•EVA6000/6100 — available in configurations ranging from the 2C4D configuration to the
2C8D configuration. The EVA6000 includes two HSV200-A controllers and two Fibre Channel
Physical layout of the storage system 19
loop switches. The EVA6100 includes two HSV200-B controllers with two Fibre Channel loop
switches.
•EVA4000/4100 — available in configurations ranging from the 2C1D configuration to the
2C4D configuration without loop switches. The EVA4000 includes two HSV200-A controllers.
The EVA4100 includes two HSV200-B controllers. Multiple EVA4000/4100s can be installed
in a single rack.
See the HP 4x00/6x00/8x00 Enterprise Virtual Array Hardware Configuration Guide for more
information about configurations. See “Related information” (page 101) for links to this document.
Fibre Channel drive enclosures
The drive enclosure contains the disk drives used for data storage. A storage system includes
multiple drive enclosures. The major components of the enclosure are:
•3U enclosure
•Dual redundant, active-to-active 2 Gbps FC loops
•2.125-Gbps, dual loop, 14-drive enclosure
•Dual 2 Gbps FC I/O modules (A and B loops)
•Copper Fibre Channel cables
•Fibre Channel disk drives and drive blanks
•Dual redundant power supplies
•Dual redundant blowers
•Environmental Monitoring Unit (EMU)
Enclosure layout
The disk drives mount in bays in the front of the enclosure. The bays are numbered sequentially
from left to right. A drive is referred to by its bay number. Enclosure status indicators are located
in the lower-right, front corner. Figure 6 (page 20) shows the front and rear views of the FC drive
enclosure.
Figure 6 FC drive enclosure—front and rear views
2. Drive bay 141. Drive bay 1
4. I/O module B3. EMU
6. Power supply 15. Blower 1
20 Enterprise Virtual Array hardware components
8. Power supply 27. Blower 2
10. Status indicators (EMU, enclosure power, enclosure
fault)
9. I/O module A
I/O modules
Two I/O modules provide the interface between the drive enclosure and the host controllers. See
Figure 7 (page 21). They route data to and from the disk drives using Loop A and Loop B, the
dual-loop configuration. For redundancy, only dual-controller, dual-loop operation is supported.
Each controller is connected to both I/O modules in the drive enclosure.
Figure 7 I/O module
1. Status indicators (Upper port, Power, and Lower port)
2. Upper port
3. Lower port
The I/O modules are functionally identical, but are not interchangeable. Module A can only be
installed at the right end of the enclosure, and module B can only be installed at the left end of the
enclosure. See Figure 6 (page 20).
Each I/O module has two ports that can both transmit and receive data for bidirectional operation.
Activating a port requires connecting a FC cable to the port. The port function depends upon the
loop. See Figure 8 (page 21).
Figure 8 Input and output ports
2. Loop A upper port1. Loop A lower port
4. Loop B upper port3. Loop B lower port
Fibre Channel drive enclosures 21
I/O module status indicators
There are three status indicators on the I/O module. See Figure 7 (page 21). The status indicator
states for an operational I/O module are shown in Table 2 (page 22).Table 3 (page 22) shows
the status indicator states for a non-operational I/O module.
Table 2 Operational I/O module status indicators
DescriptionsLowerPowerUpper
•I/O Module is operational.
OffOnOff
OnFlashing, then OnOn •Top port—Fibre Channel drive enclosure signal detected.
•Power—Flashes for about 90 seconds after initial power application,
then remains constant.
•Bottom port—Fibre Channel drive enclosure signal detected.
OnOnOn •Top port—Fibre Channel drive enclosure signal detected.
•Power—Present.
•Bottom port—Fibre Channel drive enclosure signal detected.
•When the locate function is active, all three indicators flash
simultaneously. The Locate function overrides all other indicator
functions. Therefore, an error could be detected while the Locate
function is active and not be indicated until the Locate action terminates.
FlashingFlashingFlashing
Table 3 Non-operational I/O module status indicators
DescriptionsLowerPowerUpper
OffOnOn •Top port—Fibre Channel drive enclosure signal detected.
•Power—Present.
•Bottom port—No Fibre Channel drive enclosure signal detected. Check
transceiver and fiber cable connections.
NOTE: This status applies to configurations with and without FC loop switches.
OnOnOff •Top port—No Fibre Channel drive enclosure signal detected. Check transceiver
and fiber cable connections.
•Power—Present.
•Bottom port—Fibre Channel drive enclosure signal detected .
OnOnFlashing •Top port—EMU detected possible transceiver problem. Check transceiver and
fiber cable connections.
•Power—Present.
•Bottom port—Fibre Channel drive enclosure signal detected .
FlashingOnOn •Top port—Fibre Channel drive enclosure signal detected.
•Power—Present.
•Bottom port—EMU detected possible transceiver problem. Check transceiver
and fiber cable connections.
NOTE: The EMU will not flash the lower indicator on its own. It will flash only
in response to a locate command. You can flash each of the lights independently
during a locate action.
OffOffOff •No I/O module power.
•I/O module is nonoperational.
•Check power supplies. If power supplies are operational, replace I/O module.
22 Enterprise Virtual Array hardware components
Fiber Optic Fibre Channel cables
The Enterprise Virtual Array uses orange, 50-µm, multi-mode, fiber optic cables for connection to
the SAN. The fiber optic cable assembly consists of two 2-m fiber optic strands and small form-factor
connectors on each end. See Figure 9 (page 23).
To ensure optimum operation, the fiber optic cable components require protection from
contamination and mechanical hazards. Failure to provide this protection can cause degraded
operation. Observe the following precautions when using fiber optic cables.
•To avoid breaking the fiber within the cable:
Do not kink the cable◦
◦Do not use a cable bend-radius of less than 30 mm (1.18 in)
•To avoid deforming, or possibly breaking the fiber within the cable, do not place heavy objects
on the cable.
•To avoid contaminating the optical connectors:
Do not touch the connectors◦
◦Never leave the connectors exposed to the air
◦Install a dust cover on each transceiver and fiber cable connector when they are
disconnected
If an open connector is exposed to dust, or if there is any doubt about the cleanliness of the
connector, clean the connector as described in “Handling fiber optic cables” (page 71).
Figure 9 Fiber Optic Fibre Channel cable
Copper Fibre Channel cables
The Enterprise Virtual Array uses copper Fibre Channel cables to connect the drive enclosures to
each other, or to the loop switches and to the HSV controllers. The cables are available in 0.6-meter
and 2.0-meter lengths. Copper cables provide performance comparable to fiber optic cables.
Copper cable connectors differ from fiber optic small form-factor connectors (see Figure 10 (page
23)).
Figure 10 Copper Fibre Channel cable
Fibre Channel disk drives
The Fibre Channel disk drives are hot-pluggable and include the following features:
•Dual-ported 2-Gbps Fibre Channel drive enclosure interface that allows up to 120 disk drives
to be supported per Fibre Channel drive enclosure pair
•Compact, direct-connect design for maximum storage density and increased reliability and
signal integrity
•Both online high-performance disk drives and FATA disk drives in a variety of capacities and
spindle speeds
•Better vibration damping for improved performance
Fibre Channel drive enclosures 23
Up to 14 disk drives can be installed in a drive enclosure.
Disk drive status indicators
Three status indicators display the drive operational status. Figure 11 (page 24) shows the disk
drive status indicators. Table 4 (page 24) provides a description of each status indicator.
Figure 11 Disk drive status indicators
2. Online1. Activity
3. Fault
Table 4 Disk drive status indicator descriptions
DescriptionStatus indicator
This green status indicator flashes when the disk drive is being
accessed. It is on when the drive is idle.
Activity
The green status indicator is on when the disk drive is online
and operating normally. This indicator will be off in the
following situations:
Online
•There is no controller on the bus.
•+5.1 VDC is not available.
•The drive is not properly installed in the enclosure.
This amber status indicator is on when there is a disk drive
failure. Depending on the host controller, this indicator may
flash when the controller detects an error condition.
The amber status indicator flashes in synchronization with
the other two status indicators in response to the EMU locate
command.
Fault
Disk drive status displays
The disk drive status indicators can assume three states: on, off, or flashing. The status indicators
states for operational drive status are shown in Table 5 (page 24). See Table 6 (page 25) for the
non-operational drive status indicator states.
Table 5 Operational disk drive status indications
DescriptionFaultOnlineActivity
Initial startup.OffOnFlashing
The drive is online but is not being accessed.OffOnOn
The drive is being located.FlashingFlashingFlashing
The drive is operational and active.OffOnFlashing
24 Enterprise Virtual Array hardware components
Table 6 Non-operational disk drive status indications
DescriptionFaultOnlineActivity
Indicates no connection or the controllers are offline.
Recommended corrective actions:
OnOnOn
1. Check power supplies for proper operation.
2. If defective, replace disk drive.
Indicates disk drive error/not active. Recommended
corrective actions:
FlashingOffOn
1. Verify FC loop continuity.
2. Replace disk drive.
Disk drive blank
To maintain the proper enclosure air flow, a disk drive or a disk drive blank must be installed in
each drive bay. The disk drive blank maintains proper airflow within the disk enclosure.
Power supplies and blowers
This section describes the function and operation of the disk enclosure power supplies and blowers.
Figure 12 (page 25) illustrates the major power supply and cooling components.
Figure 12 Power supply and blower assembly components
1. Power supply
2. Status indicator
3. AC Input connector with bail
4. Module latch (red wine-colored)
5. Blower tabs (red wine-colored)
6. Blower
Power supplies
The two power supplies mount in the rear of the enclosure. See Figure 23 (page 50). The supplies
are autoranging and operate on a country-specific AC input voltage of 202 to 240 VAC ±10%,
50 to 60 Hz, ±5%, (188 to 264 VAC, 47 to 63 Hz).
The DC outputs of this power supply are:
•+5.1 VDC for the EMU, I/O module, backplane, and disk drives
•+12.1 VDC for the disk drives
•+12.5 VDC for the disk drives
Fibre Channel drive enclosures 25
The output of each power supply is 499 W, with a peak output of 681 W. A single power supply
can support an enclosure with a full complement of disks.
The power supply circuitry provides protection against:
•Overloads
•Short circuits
•Overheating
Power supply status and diagnostic information is reported to the EMU with voltage, current, and
temperature signals.
See “Regulatory notices and specifications” (page 104) for the enclosure power specifications.
The power supply temperature sensor provides a temperature range signal to the EMU, which uses
this signal to set the blower speed.
The power supply internal temperature can also control the speed of the blower. The higher the
power supply temperature, the faster the speed of the blower. If the power supply temperature
exceeds a preset value, the power supply automatically shuts down.
Blowers
The power supply-mounted blowers cool the enclosure by circulating air through the enclosure.
The blowers, under the control of the EMU or the associated power supply, can operate at multiple
speeds. This ensures that, when the enclosure temperature changes, the blowers can automatically
adjust the air flow.
If a blower is operating too slowly or has stopped (a “blower failure”), internal circuitry automatically
operates the remaining blower at a higher speed. Simultaneously, the error condition is reported
in several ways, including the power supply indicator, the audible alarm, the enclosure fault
indicators, and the EMU alphanumeric display.
Should both blowers fail, the power supplies automatically shut down.
NOTE: The blowers are field-replaceable units and can be replaced, individually, while the
system is running. The blowers are also interchangeable. The failure of a power supply +12.5
VDC circuit disables the associated blower.
The status indicator on the blower displays the status of both the power supply and the blower.
See Figure 12 (page 25). See Table 7 (page 26) for definitions of the indicator displays.
Table 7 Power supply/blower status indicators
DescriptionBlower status
indicator
Both the power supply and the blower are operational.On
The power supply or the blower locate function is active.Flashing
The power supply or the blower is non-operational. When there
is a blower problem, the other blower runs at a higher speed.
Recommended corrective actions:
Off
•Check blower for proper operation. Replace if defective.
•Check power supplies for proper operation. Replace if
defective.
Drive enclosure EMU
The EMU provides increased protection against catastrophic failures. The EMU detects conditions
such as failed power supplies, failed blowers, elevated temperatures, and external air sense faults
and communicates these conditions to the storage system controllers.
26 Enterprise Virtual Array hardware components
The EMU for Fibre Channel-Arbitrated Loop (FC-AL) drive enclosures is fully compliant with SCSI-3
Enclosure Services (SES), and mounts in the left rear bay of a drive enclosure. See Figure 6 (page
20).
Controls and displays
Figure 13 (page 27) illustrates the location and function of the EMU displays, controls, and
connectors.
Figure 13 EMU controls and displays
1. Status indicators:
a. EMU — This flashing green is the heartbeat for an operational EMU.
b. Enclosure power— When both the +5 VDC and +12 VDC are correct, this green indicator is on.
c. Enclosure fault — This amber indicator is normally off. The indicator is lit when an enclosure error condition exists.
2. Alphanumeric display — A two-character, seven-segment alphanumeric display of the enclosure functions and status.
3. Function select button — The primary function of this button is to select a display group function. The indicator is on
when an error condition exists.
4. Display group select button — This button is used to view display groups and control the audible alarm. The indicator
is on when the audible alarm is muted or disabled.
5. RS232 – For use by HP-authorized service representatives
6. LCD ONLY – Unused
7. CAB ONLY – Enclosure address bus connector
WARNING! To reduce the risk of electrical shock, fire, or damage to the equipment, do not plug
telephone or telecommunications connectors into the RS232 ONLY receptacle.
EMU functions
The primary functions of the EMU include:
•Using the Enclosure Services Processor (ESP) to control the Enclosure Services Interface (ESI)
and communicate with the controllers.
•Assigning the Enclosure Number (En), based upon the cabinet address bus feature.
•Displaying the bay 1 loop ID.
•Monitoring enclosure operation.
•Detecting, reporting, recording, and displaying conditions.
•Displaying EMU, enclosure, and element status.
•Implementing automatic corrective actions for some conditions.
Fibre Channel drive enclosures 27
•Providing enclosure status data to the controllers.
•Reporting the WWN and the logical address of all disk drives.
NOTE: Although the EMU can determine the logical address of a drive, the EMU can neither
display nor change this information. HP P6000 Command View can display the addresses from
the EMU-supplied status information.
EMU monitoring functions
The internal EMU circuitry monitors the enclosure and component functions listed in Table 8 (page
28).
Table 8 EMU monitoring functions
Monitored FunctionsComponent
Blowers •Type•Installation
• •Removal Speed (rpm)
Disk drives •Loop ID•Installation
• •Removal Temperature
•• Drive faultBypass status
EMU •Type•Temperature
• •Operation Revision level
Enclosure •Backplane type•Enclosure power
• •Enclosure fault Backplane revision level
I/O module •Type•Installation
• •Removal Revision level
•Status
Power supplies •+5 VDC voltage and current•Installation
• •Removal +12 VDC voltage and current
•• Total powerStatus
• •Type Temperature
•Revision level
•Link status•Type
Transceiver
EMU displays
The EMU uses a combination of status indicators, alphanumeric display, and an audible alarm to
indicate the operational status of the enclosure and its components. See Table 9 (page 28).
Table 9 EMU status displays
FunctionDisplay
Any EMU-detected condition causes this alarm to
sound.
Audible alarm (For information on the audible alarm, see “Audible
alarm operations ” (page 30).)
Display enclosure and EMU status.Status indicators (For a description of the status indicators, see
“EMU indicator displays” (page 29).)
The two-character, seven-segment display displays
alphanumeric characters.
Alphanumeric display (For a description of the alphanumeric
display, see “Using the alphanumeric display” (page 29).)
28 Enterprise Virtual Array hardware components
EMU indicator displays
The EMU status indicators are located above the alphanumeric display. See Figure 13 (page 27).
These indicators present the same information as those on the front, lower right corner of the
enclosure.
You can determine the EMU and enclosure status using the information in Table 10 (page 29).
Table 10 EMU status indications
Status and recommended actionsFault indicator
(amber)
Power indicator
(green)
EMU indicator (green)
The EMU Locate function is active. This display
has precedence over all others. Fault conditions
FlashingFlashingFlashing
cannot be displayed when the Locate function is
active.
The EMU is operational. The enclosure power
(both +5 VDC and +12 VDC) is present and
correct. There are no enclosure faults.
OffOnFlashing
The EMU is operational. There is an enclosure
fault. Check the alphanumeric display error code
for information about the problem.
OnOnFlashing
The EMU is operational. This display may be
present when power is initially applied to the
OffOffFlashing
enclosure. Note: When the +5 VDC is incorrect,
all the indicators are off.
There is an EMU fault. There is no enclosure fault.OffOnOn
There is an EMU fault. There is no enclosure fault.OffOnOff
There is an enclosure fault. Either +5 VDC is
incorrect, or both +5 VDC and +12 VDC are
incorrect. Other error conditions may exist.
OffOffOff
Using the alphanumeric display
The two-character alphanumeric display is located at the top of the EMU (see Figure 13 (page
27)). This seven-segment display provides information about multiple enclosure functions. The
push-button control the data displayed or entered.
Alphanumeric display description
The top-level, two-character alphanumeric display (En, Li, rG, Au, and Er), is the display group.
The function of the other displays is display-group dependent. The default display is the enclosure
number, a decimal number in the range 00 through 14. The push-button allow you to select the
alphanumeric display or to enter data.
•The bottom push-button sequentially moves between groups and selects a display group.
See Table 11 (page 30) for a description of these display groups.
•he top push-button moves between the levels within a display group (see 2, Figure 13 (page
27)).
Display groups
When you press and release the bottom push-button, the alphanumeric display selects a different
display group. Table 11 (page 30) describes the display groups.
Fibre Channel drive enclosures 29
Table 11 EMU display groups
DescriptionDisplay groupDisplay
The enclosure number is the default display and is a decimal number
in the range 00 through 14. See “Enclosure number feature” (page
32) for detailed information.
Enclosure NumberEn
This display group has a single sublevel display that defines the
enclosure bay 1 loop ID. Valid loop IDs are in the range 00 through
7F.
Bay 1 Loop IDLi
This display group has two two-digit displays that define the reporting
group number in the range 0000 through 4095.
Reporting GrouprG
This display group provides control over the audible alarm or horn.
The sublevel displays are audible alarm enabled (on) or audible alarm
Audible AlarmAu
disabled (oF). See “Audible alarm operations ” (page 30) for detailed
information.
This display group defines the EMU code firmware version.Firmware RevisionFr
This display group reads Er when there is an error condition.Error ConditionEr
NOTE: Any time you press and release the bottom pushbutton, the display will change to En, Li,
rG, Au, or Er.
A flashing alphanumeric display indicates that you can edit an address or state, or view a condition
report.
EMU pushbutton status indicators
The pushbutton status indicators display error conditions and the state of the audible alarm.
•When an error condition exists, the top pushbutton status indicator is On.
For a single error condition, the status indicator is On until the error condition is viewed.◦
◦For multiple errors, the status indicator is On until the last error condition is viewed.
•The bottom pushbutton indicator is On only when the alarm is muted or disabled.
Audible alarm operations
Whenever an error condition exists, the audible alarm automatically sounds until all errors are
corrected. You have the option of either muting or disabling the alarm.
•Disabling the audible alarm prevents it from sounding for any error condition.
•Muting the alarm silences it for the existing condition, but any new condition causes the alarm
to sound.
Audible alarm patterns
The audible alarm sound pattern differs depending on the type of error condition. See
Table 12 (page 30) for the duration and the approximate relationship of these alarms. The most
severe, active error condition controls the alarm pattern.
Table 12 Audible alarm sound patterns
Cycle 2Cycle 1Condition type
UNRECOVERABLE
CRITICAL
30 Enterprise Virtual Array hardware components
Table 12 Audible alarm sound patterns (continued)
Cycle 2Cycle 1Condition type
NONCRITICAL
INFORMATION
Legend
Alarm Off
Alarm On
Controlling the audible alarm
You can control the alarm with the push-button. This process includes muting, enabling, and
disabling. When an error condition exists, the alphanumeric display reads Er, the alarm sounds,
and you can:
•Correct all errors, thereby silencing the alarm until a new error occurs.
•Mute, or temporarily disable, the alarm by pressing and holding the bottom push-button. The
alarm remains off until another error occurs, or until you enable (unmute) the alarm. When a
new error occurs, the alarm sounds and the push-button indicator is off.
Using the mute feature ensures that you are aware of the more severe errors and provides
you with the capability of correcting them promptly.
•Disable the alarm to prevent any error condition from sounding the alarm.
NOTE: Disabling the alarm does not prevent the EMU alphanumeric display from displaying Er,
nor does it prevent HP P6000 Command View from displaying the error condition report.
When the alarm is enabled (on), the bottom push-button status indicator is off.
Enabling the audible alarm
To enable the alarm:
1. Press and release the bottom push-button until the alphanumeric display is Au.
2. Press and hold the top push-button until the alphanumeric display is a Flashing oF (Audible
Alarm Off).
NOTE: When the alarm display is flashing, press and hold the top push-button to cause the
display to toggle between On and oF. Press and release the top push-button to cause the
display to select the next state.
3. Press and release the top push-button to change the display to a flashing On (Audible Alarm
On).
4. Press and release the bottom push-button to accept the change and to display Au. The bottom
push-button indicator is now off.
Muting or unmuting the audible alarm
You may want to mute the alarm in the following situations:
•The error does not require immediate corrective action.
•You cannot correct the error at this time. For example, the error may require a replacement
part.
To mute the audible alarm:
Fibre Channel drive enclosures 31
NOTE: Er is displayed in the alphanumeric display when an error condition is present.
1. Press and hold the bottom push-button until the status indicator is On.
A muted alarm will remain off until a new condition report exists.
2. To unmute the alarm, press and hold the bottom push-button until the status indicator is Off.
When a new error condition occurs, the alarm will sound.
Disabling the audible alarm
CAUTION: Disabling the audible alarm increases the potential of damage to equipment from a
reported but unobserved fault. HP does not recommend disabling the audible alarm.
Disabling the audible alarm affects only one enclosure. This action does not affect condition report
displays on the EMU alphanumeric display or errors reported by HP P6000 Command View.
To disable the alarm:
1. Press and release the bottom push-button until the alphanumeric display is Au.
2. Press and hold the top push-button until the alphanumeric display is a Flashing on (Audible
Alarm On).
NOTE: When the alarm display is flashing, pressing and holding the top push-button causes
the display to rapidly change between on and oF and also causes the display to select the
next state.
3. Press and release the top push-button to change the display to a Flashing oF (Audible Alarm
Off).
4. Press and release the bottom push-button to accept the change and display Au. The bottom
push-button indicator is now on.
NOTE: A disabled audible alarm (the bottom push-button indicator is on) cannot sound for
any error condition. To ensure that you are immediately alerted to error conditions, it is
recommended that the alarm mute function be used rather than the alarm disable function. If
you must use the disable function, remember to enable the audible alarm as soon as possible
to ensure that you are alerted to errors.
Enclosure number feature
This section provides a description of the purpose, function, and operation of the EMU enclosure
number (En) feature.
En description
In a single rack configuration, the En is a decimal number in the range 00 through 14, which is
automatically assigned by the enclosure address bus.
NOTE: Your storage system may use an enclosure address bus higher than 14 if your configuration
includes an optional expansion cabinet. The enclosure address bus connection determines the En.
For a single rack, the display is a decimal number in the range 01 through 14. For a multiple (two)
rack configuration, the display is decimal number in the range 01 through 24.
By default, the two-character alphanumeric display shows this number. Pressing the bottom
push-button changes the display to En, the En display mode.
When the display is En, pressing and releasing the top push-button displays the enclosure number.
A display of 00 indicates that the enclosure is not connected to the enclosure address bus. When
this condition exists, there is no EMU-to-EMU communication over the enclosure address bus.
32 Enterprise Virtual Array hardware components
A display of 01 through 14 indicates that the enclosure is connected to the enclosure address bus
and can exchange information with other enclosures on the enclosure address bus. The decimal
number indicates the physical position of the enclosure in relation to the bottom of the rack.
•01 is the address of the enclosure connected to the lower connector in the first (lower) enclosure
ID expansion cable.
•14 is the address of the enclosure closest to end of the bus, the upper connector in the last
(upper) ID expansion cable.
Unless there is an error condition, the display automatically returns to the enclosure number (01
through 14) one minute after a push-button was last pressed.
Enclosure address bus
The enclosure address bus provides a means for managing and reporting environmental conditions
within the rack. It is composed of enclosure ID expansion cables that interconnect the drive enclosures
and controller enclosures. Two drive enclosures connect to each enclosure ID expansion cable.
The drive enclosure numbers are always assigned by the enclosure address bus. Connecting the
EMU CAB connector to an enclosure address bus enclosure ID expansion cable automatically
establishes an enclosure number of 01 through 14. Any drive enclosure not connected to the
enclosure address bus has the enclosure number 00.
NOTE: The enclosure number is automatically assigned. You cannot manually assign an enclosure
number.
The enclosures are numbered as shown in Figure 14 (page 33).

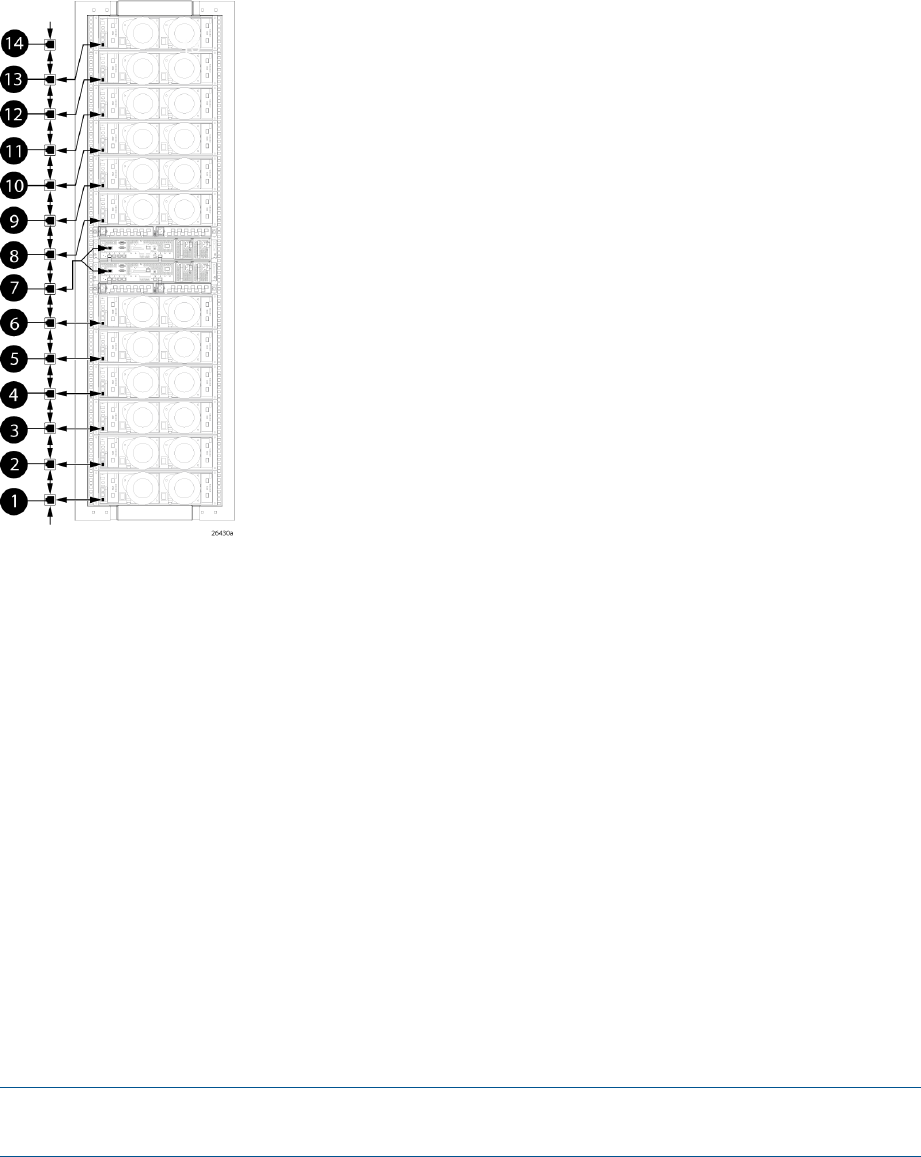

Figure 14 Enclosure numbering with enclosure ID expansion cables
NOTE: If an expansion rack is used, the enclosure numbering shown above may change or
contain additional numbering. See the HP Enterprise Virtual Array Hardware Configuration Guide
for more information.
For more information about the reporting group number, see “Reporting group feature” (page 37).
Fibre Channel drive enclosures 33
Enclosure address bus connections
Connecting the enclosures to the enclosure ID expansion cables establishes the enclosure address
bus. The enclosures are automatically numbered based on the enclosure ID expansion cable to
which they are connected. Figure 15 (page 34) shows the typical configuration of a 42U cabinet
with 14 enclosures.
Figure 15 Enclosure address bus components with enclosure ID expansion cables
2. Shelf ID expansion cable port 2—Disk enclosure 21. Shelf ID expansion cable port 1—Disk enclosure 1
4. Shelf ID expansion cable port 4—Disk enclosure 43. Shelf ID expansion cable port 3—Disk enclosure 3
6. Shelf ID expansion cable port 6—Disk enclosure 65. Shelf ID expansion cable port 5—Disk enclosure 5
8. Shelf ID expansion cable port 8—Disk enclosure 87. Shelf ID expansion cable port 7—Controller enclosures
10. Shelf ID expansion cable port 10—Disk enclosure 109. Shelf ID expansion cable port 9—Disk enclosure 9
12. Shelf ID expansion cable port 12—Disk enclosure 1211. Shelf ID expansion cable port 11—Disk enclosure 11
13. Shelf ID expansion cable port 13—Disk enclosure 13
Error Condition Reporting
The EMU constantly monitors enclosure operation and notifies you of conditions that could affect
operation. When an error condition is detected, the following action is taken:
•The EMU alphanumeric display is changed to Er. A condition report has precedence over all
other displays.
•The audible alarm sounds (if it is not disabled).
•The error is stored in the error queue.
•The error is passed to the controllers for processing and display by HP Command View EVA.
NOTE: An error always generates a condition report. Not all condition reports are generated
by errors.
34 Enterprise Virtual Array hardware components
Error condition categories
Each error condition is assigned to a category based on its impact on disk enclosure operation.
The following four error categories are used:
•Unrecoverable — the most severe error condition, it occurs when one or more enclosure
components have failed and have disabled some enclosure functions. The enclosure may be
incapable of correcting, or bypassing the failure, and requires repairs to correct the error.
NOTE: To maintain data integrity, corrective action should be implemented immediately for
an UNRECOVERABLE condition.
•Critical — occurs when one or more enclosure components have failed or are operating
outside of their specifications. The failures impact the normal operation of some components
in the enclosure. Other components within the enclosure may be able to continue normal
operations. Prompt corrective action should be taken to prevent system degradation.
•Noncritical — occurs when one or more components inside the enclosure have failed or are
operating outside of their specifications. The failure of these components does not impact
continued normal operation of the enclosure. All components in the enclosure continue to
operate according to their specifications. The ability of the components to operate correctly
may be reduced should other errors occur. Prompt corrective action should be taken to prevent
system degradation.
•Information — the least severe condition indicates a condition exists that does not reduce the
capability of a component. However, the condition can become an error and require corrective
action. An INFORMATION condition provides an early warning, which enables you to prepare
to implement corrective action before a component fails. Correction of the reported problem
may be delayed.
The error conditions are prioritized by severity—from most severe to least. The most severe condition
takes precedence and is reported first when multiple errors are detected. The reporting characteristics
for each error condition are listed in Table 13 (page 35).
Table 13 Error condition reporting characteristics
Audible alarm pattern1
Takes precedence overError condition
On continuouslyAll other conditionsUNRECOVERABLE
Sounds three times per alarm cycleNONCRITICAL and INFORMATIONCRITICAL
Sounds two times per alarm cycleINFORMATIONNONCRITICAL
Sounds once per alarm cycleNo other conditionsINFORMATION
1The pattern occurs when the condition is the most severe active condition.
Error queue
The EMU maintains an internal error queue for storing error conditions. Each error condition remains
in the error queue until the problem is corrected, or for at least 15 seconds after the error is reported.
This ensures that, when there are multiple errors or a recurring error, each can be displayed. Each
entry in the error queue can be displayed using a combination of the top and bottom buttons. Each
error entry in the queue contains the element type, the element number, and the error code.
Correcting the error removes the associated condition from the error queue. Replacing the EMU
will also clear the error conditions. The order in which the EMU displays the error queue information
is based on two factors:
•The severity of the error
•The time the error occurred
Fibre Channel drive enclosures 35
The most severe error in the queue always has precedence, regardless of how long less severe
errors have been in the queue. This ensures that the most severe errors are displayed immediately.
NOTE: When viewing an error, the occurrence of a more severe error takes precedence and
the display changes to the most severe error.
The earliest reported condition within an error type has precedence over errors reported later. For
example, if errors at all levels have occurred, the EMU displays them in the following order:
1. UNRECOVERABLE errors in the sequence they occurred.
2. CRITICAL errors in the sequence they occurred.
3. NONCRITICAL errors in the sequence they occurred.
4. INFORMATION conditions in the sequence they occurred.
Error condition report format
Each EMU detected condition generates a condition report containing three pieces of information.
•Element type The first two-digit hexadecimal display defines the element type reporting the
problem. The format for this display is e.t. with a period after each character. Valid element
types are 0.1. through F.F.
•Element number The second display is a two-digit decimal number that defines the specific
element reporting the problem. The format for this display is en. with a period after the second
character.
•Error code The third display is a two-digit decimal number that defines the specific error code.
The format for this display is ec without any periods.
For detailed information about each condition report, including recommended corrective actions,
see “EMU-generated condition reports” (page 117).
Navigating the error condition display
When an error condition occurs, the alphanumeric display changes to Er and the error menu is
active. The buttons are used to display the error condition values.
Perform the following procedure to display error conditions. Figure 16 (page 37) illustrates the
sequence for displaying error conditions.
1. With Er in the display, press and hold the top push-button until the first element type is
displayed. The most severe error in the queue will be displayed.
2. Release the top push-button when the element type is displayed. The element type has both
decimal points lit.
3. Press and release the top push-button to display the element number. This display has only
the right decimal point lit.
4. Press and release the top push-button again to display the error code. This display has no
decimal points lit. Repeated press/release operations will cycle through these three values.
5. Press and hold the top push-button from any of the three display states to move to the element
type for the next error condition in the queue.
6. Use the top push-button to display the values for the error condition.
7. When all error conditions have been displayed, press and release the bottom pushbutton to
return to the Er display.
36 Enterprise Virtual Array hardware components
Figure 16 Displaying error condition values
Press and hold top push-button to view first error in queue.1
Press and release top push-button.2
Press and hold top push-button to view next error.3
Press and release the bottom push-button at any time to return to the Er display.4
e.t. = element type, en. = element number, ec = error code
Analyzing condition reports
Analyzing each error condition report involves three steps:
1. Identifying the element.
2. Determining the major problem.
3. Defining additional problem information.
Reporting group feature
Another function of the enclosure address bus is to provide communications within a reporting
group. A Reporting Group (rG) is an HSV controller pair and the associated drive enclosures. The
controller pair automatically assigns a unique (decimal) four-digit Reporting Group Number (RGN)
to each EMU on a Fibre Channel drive enclosure.
Each of the drive enclosures on a loop pair are in one reporting group:
•All of the drive enclosures on loop pair 1, both loop 1A and loop 1B, share a unique reporting
group number.
•All of the drive enclosures on loop pair 2, both loop 2A and loop 2B, share a unique reporting
group number.
Each EMU collects environmental information from the associated enclosure and broadcasts the
information to reporting group members using the enclosure address bus. Information from enclosures
in other reporting groups is ignored.
Reporting group numbers
The reporting group number (RGN) range is 0000 through 4099, decimal.
•0000 is reserved for enclosures that are not part of any reporting group.
•0001 through 0015 are RGNs reserved for use by the EMU.
•0016 through 4095 are valid RGNs.
•4096 through 4099 are invalid RGNs.
Fibre Channel drive enclosures 37
The reporting group numbers are displayed on the EMU alphanumeric display as a pair of two-digit
displays. These two displays are identified as rH and rL.
•Valid rH displays are in the range 00 through 40, and represent the high-order (most significant)
two digits of the RGN.
•Valid rL displays are in the range 00 through 99, and represent the low-order (least significant)
two digits of the RGN.
To view a reporting group number:
1. Press and release the bottom push-button until the alphanumeric display is rG.
2. To display the two most significant digits of the Reporting Group Number, press and hold the
top pushbutton unit the display is rH.
3. Press and release the top push-button to display the first two digits of the RGN.
4. Press and release the top push-button until the alphanumeric display is rH.
5. Press and hold the top push-button until the alphanumeric display is rL.
6. Press and release the top push-button to display the last two digits of the Reporting Group
Number.
7. To exit the display, press and release the bottom push-button until the alphanumeric display
is rG.
Fibre Channel loop switches
The loop switches act as a central point of interconnection and establish a fault-tolerant physical
loop topology between the controllers and the disk enclosures. The loop switches are required in
any configuration with more than four disk enclosures. The EVA8000/8100 uses four loop switches
and the EVA6000/6100 uses two switches to connect the drive enclosures to the controller pair.
The loop switches provide the following features:
•2.125-Gbps operating speed
•Twelve ports
•Half-width, 1U size
•System and port status indicators
•Universal power supply that operates between 100 to 250 VAC and 50 to 60 Hz
NOTE: Each bezel covers two FC loop switches in a space of 1U.
The EVA8000 uses four loop switches to connect all of the drive enclosures to the controller pair
using FC cables. The EVA 6000 includes two loop switches. Each switch acts as a central point
of interconnection and establishes a fault-tolerant physical loop topology. The EVA6100/8100
use the 30-10022-01 loop switch only.
The half-rack form factor switch is controlled by firmware loaded into the on-board flash memory.
The switch is designed as a central interconnect following the ANSI FC-AL standard. Disk enclosures
are connected to the switch through Small Form-factor Pluggable (SFP) transceivers and cables.
The storage system uses one of the following loop switches:
•30-10022-01 loop switch–used with 2 Gb and 4 Gb controllers (requires XCS 5.110 or later)
•30-10010-02 loop switch–used with 2 Gb and 4Gb controllers
30-10022-01 loop switch
The 30-10022-01 loop switch contains both system indicators and port indicators. The system
indicators indicate the status of the switch, and the port indicators provide status of a specific port.
Figure 17 (page 39) shows the 30-10022-01 loop switch with the system and port indicators.
38 Enterprise Virtual Array hardware components
Figure 17 30-10022-01 loop switch status indicators
1. Ethernet activity •Flashing—the Ethernet port is receiving data.
•Flashing rapidly—the traffic level is high.
•On—the port is connected to an operational Ethernet.
2. Ethernet link
3. Port status •Off—SFP is not installed in the port.
•On (green)—Normal port operational status when an SFP is installed and a link has been
established.
•On (yellow)—port has an SFP installed but a link has not been established.
•Flashing (green)—activity. Data is being transferred between the port and device.
4. System status
•On—the switch is plugged in and the internal power supply is functional.
Power
•On—an event has occurred that meets or exceeds the current Fault threshold setting. The
default Fault threshold setting is critical. The switch will continue to operate. Switch
functionality may be impaired depending on the event that triggered the Fault condition.
Regardless of the cause, the switch requires immediate attention.
Fault
•On—the internal temperature has exceeded acceptable levels. The switch will continue to
operate. Switch functionality may be impaired depending on the event that triggered the
Temp condition. Regardless of the cause, the switch requires immediate attention.
Temp
Power-on self test (POST)
When the switch powers on, it runs Power-On Self-Test (POST) diagnostics to verify the fundamental
integrity of the switch ports. All switch LEDs turn on (LEDs illuminate). Then, excluding the Ethernet
Link and Power LEDs, the LEDs turn off (LEDs extinguish). Once the switch is operational, the LEDs
display current status. See Figure 17 (page 39).
30-10010-02 loop switch
The 30-10010-02 loop switch contains both system indicators and port indicators. The system
indicators indicate the status of the switch, and the port indicators provide status of a specific port.
Figure 18 (page 40) shows the 30-10010-02 loop switch with the system and port indicators.
The Fibre Channel loop switch acts as a central point of interconnection and establishes a
fault-tolerant physical loop topology between the controllers and the disk enclosures.
Fibre Channel loop switches 39
Figure 18 30-10010-02 loop switch status indicators
2. Bezel snaps1. Handle
4. Walk-up RS232 port3. Alignment tabs
6. Port Bypassed indicator5. SFP status indicator
8. Over Temp indicator7. POST fault indicator
10. Loop operational indicator9. Power indicator
Power-on self test (POST)
When you power on the 30-10010-02 loop switch, it performs a Power-on Self Test (POST) to
verify that the switch is functioning properly. During a POST, all of the indicators turn on for
approximately two seconds. Then, turn off all of the indicators, except the power indicator.
If the Port Bypass indicators are blinking at a constant rate and the POST Fault indicator is on, the
switch detected a fault during the POST. In this case, you need to contact your HP authorized
service representative.
Reading the switch status indicators
Figure 18 (page 40) shows the Fibre Channel switch with the system and port indicators.
Table 14 (page 40) lists and describes the system indicators.
Table 14 30-10010-02 loop switch status indicators
DescriptionSystem indicator
A green indicator. When lit, this indicates that the switch is plugged in and the internal
power is functional.
Power
A green indicator. When lit, this indicates that the Fibre Channel loop has completed
initialization and is now operational.
Loop operational
An amber indicator. When lit, this indicates that the internal hardware self-test failed
and the switch will not function.
POST fault
An amber indicator. When lit, this indicates that the ambient temperature has exceeded
40° C. The switch is still functional; however, you should correct the problem immediately.
The OverTemp indicator turns off when the problem is corrected.
OverTemp
Table 15 (page 41) describes the port indicators.
40 Enterprise Virtual Array hardware components
Table 15 30-10010-02 loop switch port status indicators
DescriptionPort bypass indicator
(Amber)
SFP status
indicator (Green)
Indicates that the port does not have an SFP installed and is bypassed
by the loop.
OffOff
Indicates that the port is operating normally. The port and device are
fully operational.
OffOn
Indicates the that port is in a bypassed state. The port is non-operational
due to loss of signal, poor signal integrity, or the Loop Initialization
Procedure (LIP).
NOTE: This condition is also normal when the SFP is present but not
attached to a Fibre Channel drive enclosure node, or when the SFP is
present and attached to only a cable assembly. Attaching the SFP to a
device and plugging it into the port should initiate the LIP by the attached
device.
OnOn
Indicates a Tx fault. The port is non-operational due to an SFP transmitter
fault, improperly-seated SFP, or another failed device.
OnOff
Problem isolation
Table 16 (page 41) lists several basic problems and their solutions.
Table 16 30-10010-02 loop switch basic troubleshooting
Recommended actionProblem
SFPs are installed in ports but no indicators
are lit. 1. Verify that the power cord is firmly seated in the switch and is
connected to the power outlet.
2. Check the power indicator to verify that the switch is on.
Re-seat the SFP. If the same condition occurs, the SFP is probably faulty
and should be replaced.
SFP is installed, but the Port Bypassed
indicator is lit.
This condition indicates that the switch is not receiving a valid Fibre
Channel signal or that the switch is receiving an LIP.
SFP is installed, but the SFP status indicator
and the Port Bypassed indicator are lit.
1. Ensure that the switch is powered on.
2. Contact your HP authorized service representative for further
assistance.
This condition indicates that the switch is receiving a valid Fibre Channel
signal, but there are no upper level protocols active.
SFP is installed and the SFP status indicator
is lit, but the devices are not communicating.
1. Verify that you are running the correct firmware on all storage system
hardware.
2. Check the Loop Operational indicator.
a. If the Loop Operational indicator is lit, the devices have completed
initialization.
b. If the Loop Operational indicator is off, the devices were not
initialized. Disconnect the devices from the switch. Reconnect the
devices one at a time. This allows you to isolate the device that
is responsible for the loop failure.
3. Contact your authorized service representative for further assistance.
HSV controllers
Two controllers (HSV210-A/B or HSV200-A/B) are contained in each rack. Each controller is
contained in a separate controller and provides the following features:
•High-performance microprocessor
•An Operator Control Panel (OCP)
HSV controllers 41
•Four 4 Gbps Fibre Channel-Switched fabric host ports (two host ports in HSV200-A or
HSV200-B controller)
•Four 2 Gbps Fibre Channel drive enclosure device ports (two device ports in HSV200-A or
HSV200- B controller)
◦Arranged in redundant pairs
◦Data load/performance balanced across a pair
◦Support for up to 240 disks with HSV210-A or HSV210-B and 112 with HSV200-A or
HSV200- B
•2 GB cache per controller, mirrored, with battery backup (1-GB cache in HSV200-A or
HSV200- B controller)
•2 Gbps FC cache mirroring ports with device port backups
•Dual power supplies
In addition to managing the operation of the storage system, the HSV controllers serve as the
interface between the storage system hardware and the SAN. All host I/Os and all HP P6000
Command View management commands are processed by the controllers. Up to 18 drive enclosures
are supported by one controller pair.
Figure 19 (page 42) shows the HSV210-A/B controller rear view. Figure 20 (page 43) shows the
HSV200-A/B controller rear view. The front view of both controllers is shown in Figure 21 (page
43).
NOTE: The EVA4000/6000/8000 and EVA4100/6100/8100 use controllers with 2 Gb and
4 Gb host port capability. The 4 Gb controller can be distinguished from the earlier 2 Gb controllers
by the “-A” and “-B” suffixes used on the controller bezel. The 4 Gb EVA4000 and EVA6000
controllers are identified as the HSV200-A. The 4 Gb EVA4100 and EVA6100 are identified as
HSV200-B. The 4 Gb EVA8000 is identified as the HSV210-A and the 4 Gb EVA8100 is identified
as HSV210-B.
IMPORTANT: To upgrade from an HSV200-A or HSV210-A controller to an HSV200-B or
HSV210-B controller, HP requires that you also upgrade the I/O modules (A and B) to AD623C
and AD624C on each shelf. If you are upgrading to an EVA6100 (HSV200-B) or EVA8100
(HSV210-B) and you do not already have the 30-10022-01 loop switches installed, you must also
upgrade the loop switches to 30-10022-01.
Figure 19 HSV210-A/B controller—rear view
2. CAB (cabinet address bus)1. Dual controller interconnect
4. Power ON3. Unit ID
6. FC cache mirror ports5. FC device ports
8. Power supply 07. FC host ports
10. Service connectors (not for customer use)9. Power supply 1
42 Enterprise Virtual Array hardware components
Figure 20 HSV200-A/B controller—rear view
2. CAB (cabinet address bus)1. Dual controller interconnect
4. Power ON3. Unit ID
6. FC cache mirror ports5. FC device ports
8. Power supply 07. FC host ports
10. Service connectors (not for customer use)9. Power supply 1
Figure 21 HSV controller—front view
2. Battery 1 (EVA8000/8100 only)1. Battery 0
4. Blower 13. Blower 0
6. Status indicators5. Operator Control Panel (OCP)
7. Unit ID
High availability features
Two interconnected controllers ensure that the failure of a controller component does not disable
the system. A single controller can fully support an entire system until the defective controller, or
controller component, is repaired. For EVA8x00 configurations with more than four disk drive
enclosures, the complete data redundancy configuration includes device loop switches on the two
Loop A and two Loop B data paths. For EVA4x00 and EVA6x00 configurations, data redundancy
is accomplished with device loop switches on the two Loop A data paths.
Each HSV210-A/B controller has two lead-acid cache batteries that provide power to the cache
memory. Each HSV200-A/B controller has one battery. When the batteries are fully charged, they
can provide power to the cache for up to 96 hours.
Operator control panel
The operator control panel (OCP) provides a direct interface to each controller. From the OCP you
can display storage system status and configuration information, shut down the storage system,
and manage the password.
The OCP includes a 40-character LCD alphanumeric display, six push-buttons, and five status
indicators. See Figure 22 (page 44).
HP Command View EVA is the tool you will typically use to display storage system status and
configuration information or perform the tasks available from the OCP. However, if HP P6000
Command View is not available, the OCP can be used to perform these tasks.
HSV controllers 43
Figure 22 Controller OCP
1. Status indicators (see Table 17 (page 44)) and UID button
2. 40-character alphanumeric display
3. Left, right, top, and bottom push-buttons
4. Esc
5. Enter
Status indicators
The status indicators display the operational status of the controller. The function of each indicator
is described in Table 17 (page 44). During initial setup, the status indicators might not be fully
operational.
The following sections define the alphanumeric display modes, including the possible displays,
the valid status indicator displays, and the pushbutton functions.
Table 17 Controller status indicators
DescriptionIndicator
When this indicator is on, there is a controller problem. Check either HP P6000 Command
View or the LCD Fault Management displays for a definition of the problem and
recommended corrective action.
Fault
When this indicator is flashing slowly, a heartbeat, the controller is operating normally.
When this indicator is not flashing, there is a problem.
Controller
When this indicator is green, there is at least one physical link between the storage
system and hosts that is active and functioning normally. When this indicator is off, there
Physical link to hosts
established are no links between the storage system and hosts that are active and functioning
normally.
When this indicator is green, all virtual disks that are presented to hosts are healthy and
functioning normally. When this indicator is amber, at least one virtual disk is not
Virtual disks presented to
hosts functioning normally. When this indicator is off, there are no virtual disks presented to
hosts and this indicates a problem with the Vdisk on the array.
When this indicator is off, the battery assembly is charged. When this indicator is on,
the battery assembly is discharged.
Cache Battery Assembly
Press to light the blue LED on the front and back of the controller. This indicator comes
on in response to a Locate command issued by HP P6000 Command View.
Unit ID
Each port on the rear of the controller has an associated status indicator located directly above it.
Table 18 (page 45) lists the port and its status description.
44 Enterprise Virtual Array hardware components
Table 18 Controller port status indicators
DescriptionPort
Fibre Channel host ports •Green—Normal operation
•Amber—No signal detected
•Off—No SFP1detected or the Direct Connect OCP setting is incorrect
Fibre Channel device ports •Green—Normal operation
•Amber—No signal detected or the controller has failed the port
•Off—No SFP 1detected
Fibre Channel cache mirror ports •Green—Normal operation
•Amber—No signal detected or the controller has failed the port
•Off—No SFP1detected
Dual controller interconnect port •Green—Normal operation
•Amber—Interconnect cable not connected
1On copper Fibre Channel cables, the SFP is integrated into the cable connector.
Navigation buttons
The operation of the navigation buttons is determined by the current display and location in the
menu structure. Table 19 (page 45) defines the basic pushbutton functions when navigating the
menus and options.
To simplify presentation and to avoid confusion, the pushbutton reference names, regardless of
labels, are left, right, top, and bottom.
Table 19 Navigation button functions
FunctionButton
Moves down through the available menus and options
Moves up through the available menus and options
Selects the displayed menu or option.
Returns to the previous menu.
Used for “No” selections and to return to the default display.Esc
Used for “Yes” selections and to progress through menu items.Enter
Alphanumeric display
The alphanumeric display uses two LCD rows, each capable of displaying up to 20 alphanumeric
characters. By default, the alphanumeric display alternates between displaying the Storage System
Name and the World Wide Name. An active (flashing) display, an error condition message, or
a user entry (pressing a push-button) overrides the default display. When none of these conditions
exist, the default display returns after approximately 10 seconds.
Displaying the OCP menu tree
The Storage System Menu Tree lets you select information to be displayed, configuration settings
to change, or procedures to implement. To enter the menu tree, press any navigation push-button
when the default display is active.
HSV controllers 45
The menu tree is organized into the following major menus:
•System Info—displays information and configuration settings.
•Fault Management—displays fault information. Information about the Fault Management menu
is included in “Controller fault management” (page 135).
•Shutdown Options—initiates the procedure for shutting down the system in a logical, sequential
manner. Using the shutdown procedures maintains data integrity and avoids the possibility
of losing or corrupting data.
•System Password—create a system password to ensure that only authorized personnel can
manage the storage system using HP P6000 Command View.
To enter and navigate the storage system menu tree:
1. Press any push-button while the default display is in view. System Information becomes the
active display.
2. Press to sequence down through the menus.
Press to sequence up through the menus.
Press to select the displayed menu.
Press to return to the previous menu.
NOTE: To exit any menu, press Esc or wait ten seconds for the OCP display to return to the default
display.
Table 20 (page 46) identifies all the menu options available within the OCP display.
CAUTION: Many of the configuration settings available through the OCP impact the operating
characteristics of the storage system. You should not change any setting unless you understand
how it will impact system operation. For more information on the OCP settings, contact your
HP-authorized service representative.
Table 20 Menu options within the OCP display
System PasswordShutdown OptionsFault ManagementSystem Information
Change PasswordRestartLast FaultVersions
Clear PasswordPower OffDetail ViewHost Port Config
(Sets Fabric or Direct
Connect)
Current Password
(Set or not)
Uninitialize SystemDevice Port Config
(Enables/disables device
ports)
IO Module Config
(Enables/disables
auto-bypass)
Loop Recovery Config
(Enables/disables recoveries)
Unbypass Devices
UUID Unique Half
Debug Flags
Print Flags
Mastership Status (Displays
controller role — master or
slave)
46 Enterprise Virtual Array hardware components
Displaying system information
NOTE: The purpose of this information is to assist the HP-authorized service representative when
servicing your system.
The system information displays show the system configuration, including the XCS version, the OCP
firmware and application programming interface (API) versions, and the enclosure address bus
programmable integrated circuit (PIC) configuration. You can only view, not change, this information.
Displaying versions system information
When you press , the active display is Versions. From the Versions display you can determine
the:
•OCP firmware version
•Controller version
•XCS version
NOTE: The terms PPC, Sprite, Glue, SDC, CBIC, and Atlantis are for development purposes and
have no significance for normal operation.
NOTE: When viewing the software or firmware version information, pressing displays the
Versions Menu tree.
To display System Information:
1. The default display alternates between the Storage System Name display and the World Wide
Name display.
Press any push-button to display the Storage System Menu Tree.
2. Press until the desired Versions Menu option appears, and then press or to move to
submenu items.
Shutting down the system
CAUTION: To power off the system for more than 96 hours, use HP P6000 Command View.
You can use the Shutdown System function to implement the shutdown methods listed below. These
shutdown methods are explained in Table 21 (page 47).
•Shutting down the controller (see “Shutting the controller down” (page 48)).
•Restarting the system (see “Restarting the system” (page 48)).
•Uninitializing the system (see “Uninitializing the system” (page 48)).
To ensure that you do not mistakenly activate a shutdown procedure, the default state is always
NO, indicating do not implement this procedure. As a safeguard, implementing any shutdown
method requires you to complete at least two actions.
Table 21 Shutdown methods
DescriptionLCD prompt
Implementing this procedure establishes communications between the storage system
and HP P6000 Command View. This procedure is used to restore the controller to
an operational state where it can communicate with HP P6000 Command View.
Restart System?
Implementing this procedure initiates the sequential removal of controller power.
This ensures no data is lost. The reasons for implementing this procedure include
replacing a drive enclosure.
Power off system?
Implementing this procedure will cause the loss of all data. For a detailed discussion
of this procedure, see “Uninitializing the system” (page 48).
Uninitialize?
HSV controllers 47
Shutting the controller down
Use the following procedure to access the Shutdown System display and execute a shutdown
procedure.
CAUTION: If you decide NOT to power off while working in the Power Off menu, Power Off
System NO must be displayed before you press Esc. This reduces the risk of accidentally powering
down.
NOTE: HP P6000 Command View offers the preferred method for shutting down the controller.
Shut down the controller from the OCP only if HP P6000 Command View cannot communicate
with the controller.
Shutting down the controller from the OCP removes power from the controller on which the procedure
is performed only. To restore power, toggle the controller’s power.
1. Press three times to scroll to the Shutdown Options menu.
2. Press to display Restart.
3. Press to scroll to Power Off.
4. Press to select Power Off.
5. Power off system is displayed. Press Enter to power off the system.
Restarting the system
To restore the controller to an operational state, use the following procedure to restart the system.
1. Press three times to scroll to the Shutdown Options menu.
2. Press to select Restart.
3. Press to display Restart system?.
4. Press Enter to go to Startup.
No user input is required. The system will automatically initiate the startup procedure and
proceed to load the Storage System Name and World Wide Name information from the
operational controller.
Uninitializing the system
Uninitializing the system is another way to shut down the system. This action causes the loss of all
storage system data. Because HP P6000 Command View cannot communicate with the disk drive
enclosures, the stored data cannot be accessed.
CAUTION: Uninitializing the system destroys all user data. The WWN will remain in the controller
unless both controllers are powered off. The password will be lost. If the controllers remain powered
on until you create another storage system (initialize via GUI), you will not have to re-enter the
WWN.
Use the following procedure to uninitialize the system.
1. Press three times to scroll to the Shutdown Options menu.
2. Press to display Restart.
3. Press twice to display Uninitialize System.
4. Press to display Uninitialize?
5. Select Yes and press Enter.
The system displays Delete all data? Enter DELETE:_______
48 Enterprise Virtual Array hardware components
6. Press the arrow keys to navigate to the open field and type DELETE and then press ENTER.
The system uninitializes.
NOTE: If you do not enter the word DELETE or if you press ESC, the system does not
uninitialize. The bottom OCP line displays Uninit cancelled.
Password options
The password entry options are:
•Entering a password during storage system initialization (see “Entering the storage system
password” (page 17)).
•Displaying the current password.
•Changing a password (see “Changing a password” (page 49)).
•Removing password protection (see “Clearing a password” (page 49)).
Changing a password
For security reasons, you may need to change a storage system password. The password must
contain eight to 16 characters consisting of any combination of alpha, numeric, or special. See
“Entering the storage system password” (page 17) for more information on valid password
characters.
Use the following procedure to change the password.
NOTE: Changing a system password on the controller requires changing the password on any
HP P6000 Command View with access to the storage system.
1. Select a unique password of 8 to 16 characters.
2. With the default menu displayed, press three times to display System Password.
3. Press to display Change Password?
4. Press Enter for yes.
The default password, AAAAAAAA~~~~~~~~, is displayed.
5. Press or to select the desired character.
6. Press to accept this character and select the next character.
7. Repeat the process to enter the remaining password characters.
8. Press Enter to enter the password and return to the default display.
Clearing a password
Use the following procedure to remove storage system password protection.
NOTE: Changing a system password on the controller requires changing the password on any
HP P6000 Command View with access to the storage system.
1. Press four times to scroll to the System Password menu.
2. Press to display Change Password?
3. Press to scroll to Clear Password.
4. Press to display Clear Password.
5. Press Enter to clear the password.
The Password cleared message will be displayed.
HSV controllers 49
Power supplies
Two power supplies provide the necessary operating voltages to all controller enclosure components.
If one power supply fails, the remaining supply is capable of operating the enclosure.
Figure 23 Power supplies
2. Power supply 01. Status indicator
3. Power supply 1
Table 22 Power supply status indicators
DescriptionStatus indicator
Normal operationGreen
Power supply failureAmber
The power cord is disconnected from the power supplyFlashing amber
Blowers
Two blowers provide the cooling necessary to maintain the proper operating temperature within
the controller enclosure. If one blower fails, the remaining blower is capable of cooling the enclosure.
Figure 24 Blower
2. Fault indicator1. Status indicator
4. Blower 13. Blower 0
Table 23 Blower status indicators
DescriptionFault indicatorStatus indicator
Normal operationOffOn
Blower failureOnOff
50 Enterprise Virtual Array hardware components
Cache battery
Batteries provide backup power to maintain the contents of the controller cache when AC power
is lost and the storage system has not been shutdown properly. When fully charged the batteries
can sustain the cache contents for to 96 hours. Two batteries are used on the EVA8x00 and a
single battery is used on the EVA6x00 and EVA4x00. Figure 25 (page 51) illustrates the location
of the cache batteries and the battery status indicators. See Table 24 (page 51) for additional
information on the status indicators.
Figure 25 Cache batteries
2. Fault indicator1. Status indicator
4. Battery 13. Battery 0
The table below describes the battery status indicators. When a battery is first installed, the fault
indicator goes on (solid) for approximately 30 seconds while the system discovers the new battery.
Then, the battery status indicators display the battery status as described in the table below.
Table 24 Battery status indicators
DescriptionFault indicatorStatus indicator
Normal operation. A maintenance charge process keeps the battery fully
charged.
OffOn
Battery is undergoing a full charging process. This is the indication you
typically see after installing a new battery.
OffFlashing
Battery fault. The battery has failed and should be replaced.OnOff
The battery has experienced an over temperature fault.FlashingOff
Battery code is being updated. When a new battery is installed, it may
be necessary for the controllers to update the code on the battery to the
Flashing (fast)Flashing (fast)
correct version. Both indicators flash rapidly for approximately 30
seconds.
Battery is undergoing a scheduled battery load test, during which the
battery is discharged and then recharged to ensure it is working properly.
FlashingFlashing
During the discharge cycle, you will see this display. The load test occurs
infrequently and takes several hours.
HSV controller cabling
All data cables and power cables attach to the rear of the controller. Adjacent to each data
connector is a two-colored link status indicator. Table 18 (page 45) identifies the status conditions
presented by these indicators.
NOTE: These indicators do not indicate whether there is communication on the link, only whether
the link can transmit and receive data.
HSV controllers 51
The data connections are the interfaces to the disk drive enclosures or loop switches (depending
on your configuration), the other controller, and the fabric. Fiber optic cables link the controllers
to the fabric, and, if an expansion cabinet is part of the configuration, link the expansion cabinet
drive enclosures to the loop es in the main cabinet. Copper cables are used between the controllers
(mirror port) and between the controllers and the drive enclosures or loop switches.
Racks
All storage system components are mounted in a rack. The rack provides the capability for mounting
standard 483 mm (19 in) wide controller and drive enclosures. Each configuration includes two
controller enclosures (the controller pair), drive enclosures, FC loop switches (if required), and an
expansion bulkhead. Each controller pair and all the associated drive enclosures form a single
storage system.
The following racks are available for the EVA8000/8100:
•36U Rack
•42U Rack
NOTE:
•Although the 22U, 25U, 33U, and 41U rack configurations are no longer available, existing
storage systems in these racks are still supported.
•Racks and rack-mountable components are typically described using “U” measurements. “U”
measurements are used to designate panel or enclosure heights.
The racks provide the following:
•Unique frame and rail design — Allows fast assembly, easy mounting, and outstanding
structural integrity.
•Thermal integrity — Front-to-back natural convection cooling is greatly enhanced by the
innovative multi-angled design of the front door.
•Security provisions — The front and rear door are lockable, which prevents unauthorized
entry.
•Flexibility — Provides easy access to hardware components for operation monitoring.
•Custom expandability — Several options allow for quick and easy expansion of the racks to
create a custom solution.
Rack configurations
Each system configuration depends on the number of disk enclosures included in the storage system.
For more information about racks and configurations, including expansion and interconnection,
see the HP Enterprise Virtual Array Hardware Configuration Guide.
Power distribution
AC power is distributed to the rack through a dual Power Distribution Unit (PDU) assembly mounted
at the bottom rear of the rack. The characteristics of the fully-redundant rack power configuration
are as follows:
•Each PDU is connected to a separate circuit breaker-protected, 30-A AC site power source
(220–240 VAC ±10%, 50 or 60-Hz, ±5%). Figure 26 (page 53) illustrates the compatible
60-Hz and 50-Hz wall receptacles.
52 Enterprise Virtual Array hardware components
Figure 26 60-Hz and 50-Hz wall receptacles
NEMA L6-30R receptacle, 3-wire, 30-A, 60-Hz
IEC 309 receptacle, 3-wire, 30-A, 50-Hz
•The standard power configuration for any Enterprise Virtual Array rack is the fully redundant
configuration. Implementing this configuration requires:
◦Two separate circuit breaker-protected, 30-A site power sources with a compatible wall
receptacle (see Figure 26 (page 53)).
◦One dual PDU assembly. Each PDU connects to a different wall receptacle.
◦Six Power Distribution Modules (PDM) per rack. Three PDMs mount vertically on each
side of the rack. Each set of PDMs connects to a different PDU.
◦The drive enclosure power supplies on the left (PS 1) connect to the PDMs on the left with
a gray, 66 cm (26 in) power cord.
◦The drive enclosure power supplies on the right (PS 2) connect to the PDMs on the right
with a black, 66 cm (26 in) power cord.
◦The upper controller connects to a PDM on the left with a gray, 152 cm (60 in) power
cord.
◦The lower controller connects to a PDM on the right with a black, 66 cm (26 in) power
cord.
NOTE: Drive enclosures, when purchased separately, include one 50 cm black cable and one
50 cm gray cable.
The configuration provides complete power redundancy and eliminates all single points of failure
for both the AC and DC power distribution.
CAUTION: Operating the array with a single PDU will result in the following conditions:
•No redundancy
•Louder controllers and disk enclosures due to increased fan speed
•HP P6000 Command View will continuously display a warning condition, making issue
monitoring a labor-intensive task
Although the array is capable of doing so, HP strongly recommends that an array operating with
a single PDU should not:
•Be put into production
•Remain in this state for more than 24 hours
Racks 53
PDUs
Each Enterprise Virtual Array rack has either a 50- or 60-Hz, dual PDU mounted at the bottom rear
of the rack. The 228481-002/228481-003 PDU placement is back-to-back, plugs facing down,
with switches on top.
•The standard 50-Hz PDU cable has an IEC 309, 3-wire, 30-A, 50-Hz connector.
•The standard 60-Hz PDU cable has a NEMA L6-30P, 3-wire, 30-A, 60-Hz connector.
If these connectors are not compatible with the site power distribution, you must replace the PDU
power cord cable connector.
Each of the two PDU power cables has an AC power source specific connector. The circuit
breaker-controlled PDU outputs are routed to a group of four AC receptacles (see Figure 27 (page
54)). The voltages are then routed to PDMs, sometimes referred to as AC power strips, mounted
on the two vertical rails in the rear of the rack.
Figure 27 Dual PDU assembly
2. PDU 21. PDU 1
4. AC receptacles3. Circuit breakers
5. Mounting hardware
PDU 1
PDU 1 connects to AC power distribution source 1. A PDU 1 failure:
•Disables the power distribution circuit.
•Removes power from PDMs 1, 2, and 3.
•Disables PS 1 in the drive enclosures.
•Disables the upper controller power supply.
PDU 2
PDU 2 connects to AC power distribution source 2. A PDU 2 failure:
•Disables the power distribution circuit.
•Removes power from PDMs 4, 5, and 6.
•Disables PS 2 in the drive enclosures.
•Disables the lower controller power supply.
PDMs
There are six PDMs mounted in the rear of each rack:
•Three mounted on the left vertical rail connect to PDU 1.
•Three mounted on the right vertical rail connect to PDU 2.
54 Enterprise Virtual Array hardware components
Each PDM has eight AC receptacles and one thermal circuit breaker. The PDMs distribute the AC
power from the PDUs to the enclosures. Two power sources exist for each controller pair and drive
enclosure. If a PDU fails, the system will remain operational.
CAUTION: The AC power distribution within a rack ensures a balanced load to each PDU and
reduces the possibility of an overload condition. Changing the cabling to or from a PDM could
cause an overload condition. HP supports only the AC power distributions defined in this user
guide.
Figure 28 Rack PDM
2. Thermal circuit breakers1. Power receptacles
3. AC power connector
Rack AC power distribution
The power distribution in an Enterprise Virtual Array rack is the same for all variants. The site AC
input voltage is routed to the dual PDU assembly mounted in the rack lower rear. Each PDU
distributes AC to a maximum of four PDMs mounted on the left and right vertical rails (see
Figure 29 (page 56)).
•PDMs 1 through 3 connect to receptacles A through D on PDU 1. Power cords connect these
PDMs to the number 1 drive enclosure power supplies and to the upper controller enclosure.
•PDMs 4 through 6 connect to receptacles A through D on PDU 2. Power cords connect these
PDMs to the number 2 drive enclosure power supplies and to the lower controller enclosure.
NOTE: The locations of the PDUs and the PDMs are the same in all racks.
Racks 55
Figure 29 Rack AC power distribution
2. PDM 21. PDM 1
4. PDU 13. PDM 3
6. PDM 55. PDM 4
8. PDU 27. PDM 6
Rack System/E power distribution components
AC power is distributed to the Rack System/E rack through Power Distribution Units (PDU) mounted
on the two vertical rails in the rear of the rack. Up to four PDUs can be mounted in the rack—two
mounted on the right side of the cabinet and two mounted on the left side.
Each of the PDU power cables has an AC power source specific connector. The circuit
breaker-controlled PDU outputs are routed to a group of ten AC receptacles. The storage system
components plug directly into the PDUs.
Rack AC power distribution
The power distribution configuration in a Rack System/E rack depends on the number of storage
systems installed in the rack. If one storage system is installed, only two PDUs are required. If
multiple storage systems are installed, four PDUs are required.
The site AC input voltage is routed to each PDU mounted in the rack. Each PDU distributes AC
through ten receptacles directly to the storage system components.
•PDUs 1 and 3 (optional) are mounted on the left side of the cabinet. Power cords connect
these PDUs to the number 1 drive enclosure power supplies and to the controller enclosures.
•PDUs 2 and 4 (optional) are mounted on the right side of the cabinet. Power cords connect
these PDUs to the number 2 drive enclosure power supplies and to the controller enclosures.
Moving and stabilizing a rack
WARNING! The physical size and weight of the rack requires a minimum of two people to move.
If one person tries to move the rack, injury may occur.
To ensure stability of the rack, always push on the lower half of the rack. Be especially careful
when moving the rack over any bump (e.g., door sills, ramp edges, carpet edges, or elevator
openings). When the rack is moved over a bump, there is a potential for it to tip over.
56 Enterprise Virtual Array hardware components
Moving the rack requires a clear, uncarpeted pathway that is at least 80 cm (31.5 in) wide for
the 60.3 cm (23.7 in) wide, 42U rack. A vertical clearance of 203.2 cm (80 in) should ensure
sufficient clearance for the 200 cm (78.7 in) high, 42U rack.
CAUTION: Ensure that no vertical or horizontal restrictions exist that would prevent rack movement
without damaging the rack.
Make sure that all four leveler feet are in the fully raised position. This process will ensure that the
casters support the rack weight and the feet do not impede movement.
Each rack requires an area 600 mm (23.62 in) wide and 1000 mm (39.37 in) deep (see
Figure 30 (page 57)).
Figure 30 Single rack configuration floor space requirements
2. Rear door1. Front door
4. Service area width 813 mm3. Rack width 600 mm
6. Rack depth 1000 mm5. Rear service area depth 300 mm
8. Total rack depth 1706 mm7. Front service area depth 406 mm
If the feet are not fully raised, complete the following procedure:
1. Raise one foot by turning the leveler foot hex nut counterclockwise until the weight of the rack
is fully on the caster (see Figure 31 (page 58)).
2. Repeat Step 1 for the other feet.
Racks 57
Figure 31 Raising a leveler foot
2. Leveler foot1. Hex nut
3. Carefully move the rack to the installation area and position it to provide the necessary service
areas (see Figure 30 (page 57)).
To stabilize the rack when it is in the final installation location:
1. Use a wrench to lower the foot by turning the leveler foot hex nut clockwise until the caster
does not touch the floor. Repeat for the other feet.
2. After lowering the feet, check the rack to ensure it is stable and level.
3. Adjust the feet as necessary to ensure the rack is stable and level.
58 Enterprise Virtual Array hardware components
3 Enterprise Virtual Array operation
This chapter presents the tasks that you might need to perform during normal operation of the
storage system.
Best practices
For useful information on managing and configuring your storage system, see the HP Enterprise
Virtual Array configuration best practices white paper available from
http://h18006.www1.hp.com/storage/arraywhitepapers.html
Operating tips and information
Reserving adequate free space
To ensure efficient storage system operation, a certain amount of unallocated capacity, or free
space, should be reserved in each disk group. The recommended amount of free space is influenced
by your system configuration. For guidance on how much free space to reserve, see the HP Enterprise
Virtual Array configuration best practices white paper. See “Best practices” (page 59).
Using FATA disk drives
FATA drives are designed for lower duty cycle applications such as near online data replication
for backup. These drives should not be used as a replacement for EVA's high performance, standard
duty cycle, Fibre Channel drives. Doing so could shorten the life of the drive.
Changing the host port topology
Before changing the topology settings of an array host port, physically disconnect the host port
from its existing connection, change the topology setting, and then reconnect the host port.
For example, to change from a fabric (switched) topology to a direct connect topology, do the
following:
1. Disconnect the host port(s) from the Fibre Channel switch.
2. Using the operator control panel (OCP), change the controller host port mode from fabric
to direct connect.
3. Connect the host HBA(s) directly to the array host port(s).
Host port connection limit on B-series 3200 and 3800 switches
The B-series 3200 and 3800 switches are limited to a maximum of three EVA4x00/6x00/8x00
host ports on a single B-series 3200 and 3800 switch running version 3.2.x. HP recommends not
exceeding more than one storage host port connection on a single switch. If you are required to
connect more than one storage host port to a single affected switch, separate the connection into
different quadrants. Connections are typically dropped following an array controller
resynchronization or when an event impacts the fabric, such as rebooting or adding a switch.
Use the following options to avoid or manage the port limitation:
•For all hosts, zone by HBA as defined in the HP SAN Design Reference Guide.
•Limit affected switches to only one HBA connection per host.
•Limit placement of the switch as an edge device and not part of the core.
If the switch drops a connection, reestablish as follows:
1. Disconnect the Fibre Channel cable from the failed port.
2. Wait 10 seconds and reconnect the cable. This will cause the port to relog into the fabric
and reestablish connection to the array.
Best practices 59
Enabling Boot from SAN for Windows direct connect
To ensure that Boot from SAN is successful for Windows hosts that are directly connected to an
array, enable the Spin up delay setting in the HBA BIOS. This applies to QLogic and Emulex HBAs.
This workaround applies to all supported Windows operating systems and all supported QLogic
and Emulex HBAs. For support details, go to the Single Point of Connectivity Knowledge (SPOCK)
website:
http://www.hp.com/support/spock
Windows 2003 MSCS cluster installation
The MSCS cluster installation wizard on Windows 2003 may fail to find the shared quorum device
and disk resources may not be auto-created by the cluster setup wizard. This is a known Windows
Cluster Setup issue that has existed since Windows 2003 was released.
There are two possible workarounds for this problem:
•The issue and recommended workaround are described in the following Microsoft support
article entitled Shared disks are missing or are marked as "Failed" when you create a server
cluster in Windows Server 2003 (ID 886807), which can be downloaded from the following
website:
http://support.microsoft.com/default.aspx?scid=KB;EN-US;886807
•You can bypass this issue by setting the load balancing policy for each LUN to NLB using the
MPIO DSM CLI.
Microsoft is currently working on a resolution to address this issue.
Connecting to C-series switches
If C-series switches are not set correctly, the EVA host ports may not log back in to the fabric after
changes occur in the fabric. This issue involves the following C-series switch model families: 90xx,
91xx, 92xx, and 95xx. You may also need to restart the controller if you move the array Fibre
Channel cable to a different port on a C-series switch, or to a port on a different C-series switch,
which causes the corresponding controller host port to become unavailable.
If the switch does not log into the array, disconnect and then reconnect the FC cable on the array
or the switch.
If the above recommendations do not correct the problem, it will be necessary to restart the controller
to restore host port operation. You only need to restart the controller experiencing the host port
problem. This can be done from HP P6000 Command View as follows:
To restart the controller:
1. Open HP P6000 Command View and click the icon of the appropriate storage system. You
can select either an initialized or unintialized storage system.
2. On the Initialized Storage System Properties page, click Shut down.
3. Under Controller Shutdown, select the appropriate controller (A or B) for restart.
4. Click Restart.
The controller is restarted. After the restart, the host port should be operating normally.
NOTE: If HP P6000 Command View cannot be used to restart the storage system, use the controller
operator control panel (OCP). The Restart option is located under the Shutdown Options menu on
the OCP.
HP Insight Remote Support software
HP strongly recommends that you install HP Insight Remote Support software to complete the
installation or upgrade of your product and to enable enhanced delivery of your HP Warranty,
60 Enterprise Virtual Array operation
HP Care Pack Service or HP contractual support agreement. HP Insight Remote Support supplements
your monitoring, 24x7 to ensure maximum system availability by providing intelligent event
diagnosis, and automatic, secure submission of hardware event notifications to HP, which will
initiate a fast and accurate resolution, based on your product’s service level. Notifications may be
sent to your authorized HP Channel Partner for on-site service, if configured and available in your
country. The software is available in two variants:
•HP Insight Remote Support Standard: This software supports server and storage devices and
is optimized for environments with 1-50 servers. Ideal for customers who can benefit from
proactive notification, but do not need proactive service delivery and integration with a
management platform.
•HP Insight Remote Support Advanced: This software provides comprehensive remote monitoring
and proactive service support for nearly all HP servers, storage, network, and SAN
environments, plus selected non-HP servers that have a support obligation with HP. It is
integrated with HP Systems Insight Manager. A dedicated server is recommended to host both
HP Systems Insight Manager and HP Insight Remote Support Advanced.
Details for both versions are available at:
http://www.hp.com/go/insightremotesupport
To download the software, go to Software Depot:
http://www.software.hp.com
Select Insight Remote Support from the menu on the right.
Operating tips and information 61
Failback preference setting for HSV controllers
Table 25 (page 62) describes the failback preference behavior for the controllers.
Table 25 Failback preference behavior
BehaviorPoint in timeSetting
The units are alternately brought online to
Controller A or to Controller B.
At initial presentationNo preference
If cache data for a LUN exists on a particular
controller, the unit will be brought online there.
On dual boot or controller resynch
Otherwise, the units are alternately brought
online to Controller A or to Controller B.
All LUNs are brought online to the surviving
controller.
On controller failover
All LUNs remain on the surviving controller.
There is no failback except if a host moves the
LUN using SCSI commands.
On controller failback
The units are brought online to Controller A.At initial presentationPath A - Failover Only
If cache data for a LUN exists on a particular
controller, the unit will be brought online there.
On dual boot or controller resynch
Otherwise, the units are brought online to
Controller A.
All LUNs are brought online to the surviving
controller.
On controller failover
All LUNs remain on the surviving controller.
There is no failback except if a host moves the
LUN using SCSI commands.
On controller failback
The units are brought online to Controller B.At initial presentationPath B - Failover Only
If cache data for a LUN exists on a particular
controller, the unit will be brought online there.
On dual boot or controller resynch
Otherwise, the units are brought online to
Controller B.
All LUNs are brought online to the surviving
controller.
On controller failover
All LUNs remain on the surviving controller.
There is no failback except if a host moves the
LUN using SCSI commands.
On controller failback
The units are brought online to Controller A.At initial presentationPath A -
Failover/Failback If cache data for a LUN exists on a particular
controller, the unit will be brought online there.
On dual boot or controller resynch
Otherwise, the units are brought online to
Controller A.
All LUNs are brought online to the surviving
controller.
On controller failover
All LUNs remain on the surviving controller.
After controller restoration, the units that are
On controller failback
online to Controller B and set to Path A are
brought online to Controller A. This is a one
time occurrence. If the host then moves the LUN
using SCSI commands, the LUN will remain
where moved.
The units are brought online to Controller B.At initial presentationPath B -
Failover/Failback
62 Enterprise Virtual Array operation
Table 25 Failback preference behavior (continued)
BehaviorPoint in timeSetting
If cache data for a LUN exists on a particular
controller, the unit will be brought online there.
On dual boot or controller resynch
Otherwise, the units are brought online to
Controller B.
All LUNs are brought online to the surviving
controller.
On controller failover
All LUNs remain on the surviving controller.
After controller restoration, the units that are
On controller failback
online to Controller A and set to Path B are
brought online to Controller B. This is a one
time occurrence. If the host then moves the LUN
using SCSI commands, the LUN will remain
where moved.
Table 26 (page 63) describes the failback default behavior and supported settings when
AULA-compliant multipath software is running with each operating system. Recommended settings
may vary depending on your configuration or environment.
Table 26 Failback Settings by operating system
Supported settingsDefault behaviorOperating system
No Preference
Path A/B – Failover Only
Host follows the unit1
HP-UX
Path A/B – Failover/Failback
No Preference
Path A/B – Failover Only
Host follows the unit1
IBM AIX
Path A/B – Failover/Failback
No Preference
Path A/B – Failover Only
Host follows the unit 1
Linux
Path A/B – Failover/Failback
No PreferenceHost follows the unitOpenVMS
Path A/B – Failover Only
Path A/B – Failover/Failback
(recommended)
No PreferenceHost follows the unit1
Oracle Solaris
Path A/B – Failover Only
Path A/B – Failover/Failback
No Preference
Path A/B – Failover Only
Host follows the unit1
VMware
Path A/B – Failover/Failback
No PreferenceFailback performed on the hostWindows
Path A/B – Failover Only
Path A/B – Failover/Failback
Failback preference setting for HSV controllers 63
1If preference has been configured to ensure a more balanced controller configuration, the Path A/B – Failover/Failback setting is
required to maintain the configuration after a single controller reboot.
Changing virtual disk failover/failback setting
Changing the failover/failback setting of a virtual disk may impact which controller presents the
disk. Table 27 (page 64) identifies the presentation behavior that results when the failover/failback
setting for a virtual disk is changed.
NOTE: If the new setting causes the presentation of the virtual disk to move to a new controller,
any snapshots or snapclones associated with the virtual disk will also be moved.
Table 27 Impact on virtual disk presentation when changing failover/failback setting
Impact on virtual disk presentationNew setting
None. The disk maintains its original presentation.No Preference
If the disk is currently presented on controller B, it is moved to controller
A. If the disk is on controller A, it remains there.
Path A Failover
If the disk is currently presented on controller A, it is moved to controller
B. If the disk is on controller B, it remains there.
Path B Failover
If the disk is currently presented on controller B, it is moved to controller
A. If the disk is on controller A, it remains there.
Path A Failover/Failback
If the disk is currently presented on controller A, it is moved to controller
B. If the disk is on controller B, it remains there.
Path B Failover/Failback
Storage system shutdown and startup
The storage system is shut down using HP P6000 Command View. The shutdown process performs
the following functions in the indicated order:
1. Flushes cache
2. Removes power from the controllers
3. Disables cache battery power
4. Removes power from the drive enclosures
5. Disconnects the system from HP P6000 Command View
NOTE:
•The storage system may take a long time to complete the necessary cache flush during controller
shutdown when snapshots are being used. The delay may be particularly long if multiple child
snapshots are used, or if there has been a large amount of write activity to the snapshot source
virtual disk.
•Individual EVA storage array components should not be powered off during normal operation.
Before powering off any storage system component, contact your HP-authorized service
representative for assistance.
Shutting down the storage system
To shut the storage system down, perform the following steps:
1. Start HP P6000 Command View.
2. Select the appropriate storage system in the Navigation pane.
The Initialized Storage System Properties window for the selected storage system opens.
3. Click Shut down.
The Shutdown Options window opens.
64 Enterprise Virtual Array operation
4. Under System Shutdown click Power Down. If you want to delay the initiation of the shutdown,
enter the number of minutes in the Shutdown delay field.
The controllers complete an orderly shutdown and then power off. The disk enclosures then
power off. Wait for the shutdown to complete.
5. Turn off the power switch (callout 4 in Figure 17 (page 39)) on the rear of each HSV controller.
6. Turn off the circuit breakers on both of the EVA rack Power Distribution Units (PDU).
7. If your management server is an SMA and you are not using it to manage other storage arrays,
shut down the SMA. From the SMA user interface, click Settings > Maintenance > Shutdown.
Starting the storage system
To start a storage system, perform the following steps:
1. Verify that each fabric Fibre Channel switch to which the HSV controllers are connected is
powered up and fully booted. The power indicator on each switch should be on.
If you must power up the SAN switches, wait for them to complete their power-on boot process
before proceeding. This may take several minutes.
2. If the management server you shut down is an SMA, power it on and wait for it to completely
boot. Verify the SMA is running by logging into it using the web interface.
NOTE: Before applying power to the rack, ensure that the power switch on each HSV
controller is off.
3. Power on the circuit breakers on both EVA rack PDUs. Verify that all drive enclosures are
operating properly. The status indicator and the power indicator should be on (green).
4. Wait three minutes and then verify that all disk drives are ready. The drive ready indicator
and the drive online indicator should be on (green).
5. Power on the upper controller. It takes the role of primary controller.
6. If you want the preferred path setting to be applied, wait three seconds and power on the
lower controller. (Otherwise, wait 10 seconds before powering on the lower controller.) It
takes the role of secondary controller.
7. Verify that the Operator Control Panel (OCP) display on each controller displays the storage
system name and the EVA WWN.
8. Start HP P6000 Command View and verify connection to the storage system. If the storage
system is not visible, click HSV Storage Network in the Navigation pane, and then click
Discover in the Content pane to discover the array.
NOTE: If the storage system is still not visible, reboot the management server to re-establish
the communication link.
9. Check the storage system status using HP P6000 Command View to ensure everything is
operating properly. If any status indicator is not normal, check the log files or contact your
HP-authorized service provider for assistance.
Saving storage system configuration data
As part of an overall data protection strategy, storage system configuration data should be saved
during initial installation, and whenever major configuration changes are made to the storage
system. This includes adding or removing disk drives, creating or deleting disk groups, and adding
or deleting virtual disks. The saved configuration data can save substantial time should it ever
become necessary to re-initialize the storage system. The configuration data is saved to a series
of files stored in a location other than on the storage system.
This procedure can be performed from the Storage Management Appliance (SMA) or management
server where HP P6000 Command View is installed, or any host that can run the Storage System
Scripting Utility (SSSU) to communicate with the HP P6000 Command View.
Saving storage system configuration data 65
NOTE: For more information on using SSSU, see the HP Storage System Scripting Utility reference.
See “Related information” (page 101).
1. Double-click on the SSSU desktop icon to run the application. When prompted, enter Manager
(management server name or IP address), User name, and Password.
2. Enter LS SYSTEM to display the EVA storage systems managed by the management server.
3. Enter SELECT SYSTEM system name, where system name is the name of the storage
system.
The storage system name is case sensitive. If there are spaces between the letters in the name,
quotes must enclose the name: for example, SELECT SYSTEM “Large EVA”.
4. Enter CAPTURE CONFIGURATION, specifying the full path and filename of the output files
for the configuration data.
The configuration data is stored in a series of from one to five files, which are SSSU scripts.
The file names begin with the name you select, with the restore step appended. For example,
if you specify a file name of LargeEVA.txt, the resulting configuration files would be
LargeEVA_Step1A.txt, LargeEVA_Step1B, etc.
The contents of the configuration files can be viewed with a text editor.
NOTE: If the storage system contains disk drives of different capacities, the SSSU procedures
used do not guarantee that disk drives of the same capacity will be exclusively added to the same
disk group. If you need to restore an array configuration that contains disks of different sizes and
types, you must manually recreate these disk groups. The controller software and the utility’s
CAPTURE CONFIGURATION command are not designed to automatically restore this type of
configuration. For more information, see the HP Storage System Scripting Utility Reference.
66 Enterprise Virtual Array operation
Example 1 Saving configuration data using SSSU on a Windows Host
To save the storage system configuration:
1. Double-click on the SSSU desktop icon to run the application. When prompted, enter Manager
(management server name or IP address), User name, and Password.
2. Enter LS SYSTEM to display the EVA storage systems managed by the management server.
3. Enter SELECT SYSTEM system name, where system name is the name of the storage
system.
4. Enter CAPTURE CONFIGURATION pathname\filename, where pathname identifies the
location where the configuration files will be saved, and filename is the name used as the
prefix for the configurations files: for example, CAPTURE CONFIGURATION
c:\EVAConfig\LargeEVA
5. Enter EXIT to close the command window.
Example 2 Restoring configuration data using SSSU on a Windows Host
To restore the storage system configuration:
1. Double-click on the SSSU desktop icon to run the application.
2. Enter FILE pathname\filename, where pathname identifies the location where the
configuration files are be saved and filename is the name of the first configuration file: for
example, FILE c:\EVAConfig\LargeEVA_Step1A.txt
3. Repeat the preceding step for each configuration file.
Adding disk drives to the storage system
As your storage requirements grow, you may be adding disk drives to your storage system. Adding
new disk drives is the easiest way to increase the storage capacity of the storage system. Disk
drives can be added online without impacting storage system operation.
CAUTION: When adding disks to an expansion cabinet on an EVA8000/8100, do not install
a disk in bays 12, 13, and 14 in enclosures 17, 20, and 24. These bays in enclosures 17, 20,
and 24 do not receive a hard assigned AL_PA. Installing a disk in any of these slots may impact
the operation of the storage system. HP also recommends that you keep three additional bays open
to maintain the maximum device count of 120. For ease of use and consistency in configurations,
HP recommends keeping bays 12, 13, and 14 open in enclosures 16 and 19.
Consider the following best practices to improve availability when adding disk to an array:
•Install high performance and FATA disk drives in separate groups. These different drive types
must be in separate disk groups. You may also want to consider separating different drive
capacities and spindle speeds into different groups.
•High performance and FATA disk drives can be installed in the same disk enclosure.
•The disk drives should be distributed evenly across the disk enclosures. The number of disks
of a given type in each enclosure should not differ by more than one. For example, no enclosure
should have two disks until all the other enclosures have at least one.
•Disk drives should be installed in vertical columns within the disk enclosures. Add drives
vertically in multiples of eight, completely filling columns if possible. Disk groups are more
robust if filled with the same number of disk drives in each enclosure. See Figure 33 (page
68) for an example.
•For growing existing applications, if the operating system supports virtual disk growth, increase
virtual disk size. Otherwise, use a software volume manager to add new virtual disks to
applications.
Adding disk drives to the storage system 67
•Set the add disk option to manual. See “Changing the Device Addition Policy” (page 69) for
more information.
•When adding multiple disk drives, add a disk and wait for its activity indicator (1) to stop
flashing (up to 90 seconds) before installing the next disk (see Figure 32 (page 68)). This
procedure must be followed to avoid unexpected EVA system behavior.
Figure 32 Disk drive activity indicator
Creating disk groups
The new disks you add will typically be used to create new disk groups. Although you cannot
select which disks will be part of a disk group, you can control this by building the disk groups
sequentially.
Add the disk drives required for the first disk group, and then create a disk group using these disk
drives. Now add the disk drives for the second disk group, and then create that disk group. This
process gives you control over which disk drives are included in each disk group. Figure 33 (page
68) shows the sequential building of vertical disk groups.
NOTE: Standard and FATA disk drives must be in separate disk groups. Disk drives of different
capacities and spindle speeds can be included in the same disk group, but you may want to
consider separating them into separate disk groups.
Figure 33 Sequential building of vertical disk groups
1. Disks installed in first group
2. Disks installed in second group
68 Enterprise Virtual Array operation
Adding a disk drive
This section describes the procedure for adding a Fibre Channel disk drive.
Removing the drive blank
1. Grasp the drive blank by the two mounting tabs (see Figure 34 (page 69)).
2. Lift up on the lower mounting tab and pull the blank out of the enclosure.
Figure 34 Removing the drive blank
2. Lower mounting tab1. Upper mounting tab
Changing the Device Addition Policy
To prevent the storage system from automatically grouping a new disk drive that may have the
incorrect firmware on it, the Device Addition Policy must be checked and set to manual if necessary:
1. Open HP P6000 Command View and in the navigation pane, select the storage system.
The Initialized Storage System Properties window opens.
2. Click System Options.
3. Select Set system operational policies.
4. If the Device Addition Policy is set to Automatic, change it to Manual.
5. Click Save changes.
NOTE: After the Device Addition Policy has been changed to manual mode, HP recommends as
a best practice not returning the policy to the automatic device addition setting. This will eliminate
the need to make this change for future code load operations. However, if you prefer returning
the Device Addition Policy to automatic, repeat steps 1 through 5 after verifying the disk drive has
the correct firmware version.
Installing the disk drive
1. Push in the ejector button on the disk drive and pull the release lever down to the full open
position.
2. Insert the drive into the enclosure as far as it will go (1, Figure 35 (page 70)).
3. Close the release lever until it engages the ejector button, and the disk drive seats in the
backplane (2, Figure 35 (page 70)).
4. Press in firmly on the disk drive to ensure it is seated properly.
Adding disk drives to the storage system 69
Figure 35 Installing the disk drive
Checking status indicators
Check the following to verify that the disk drive is operating normally:
NOTE: It may take up to 10 minutes for the component to display good status.
•Check the disk drive status indicators. See Figure 36 (page 71).
Activity indicator (1) should be on or flashing◦
◦Online indicator (2) should be on or flashing
◦Fault indicator (3) should be off
•Check the following using HP P6000 Command View.
Navigate to the disk drive and check the operational state. It should be .◦
◦Ensure the disk drive is using the correct firmware. Record the Model number and the
Firmware version of the disk. Check the firmware version against the supported disk
firmware in the HP Enterprise Virtual Array Disk Drive Firmware Support. See “Related
information” (page 101) for a link to this document.
If the disk drive is using an unsupported version of firmware, download the correct
firmware from the following website and install it using the instructions included with the
firmware file. Do not add the disk drive to a disk group if it is using an unsupported
firmware version.
http://www.hp.com/support/evadiskfirmware
NOTE: When downloading the firmware, make sure you use the disk model number
to locate the correct firmware file. If you have difficulty locating the correct firmware,
contact your HP-authorized service representative for assistance. If you are running XCS
6.000, verify that leveling is not in progress before upgrading the disk drive firmware.
In HP P6000 Command View, go to the General tab of the Disk Group Properties window
and verify that the Leveling field displays Inactive. If it displays Active, wait for leveling
to complete before performing the upgrade. This does not apply if you are running XCS
6.100 or later.
70 Enterprise Virtual Array operation
Figure 36 Disk drive status indicators
2. Online1. Activity
3. Fault
Adding the disk to a disk group
After replacing the disk, use HP P6000 Command View to add it to a disk group.
1. In the Navigation pane, select Storage system > Hardware > Rack > Disk enclosure > Bay
2. In the Content pane, select the Disk Drive tab.
3. Click Group to initiate the process for adding the disk to a disk group.
NOTE: If the Device Addition Policy is set to automatic, the disk will automatically be added to
a disk group. In this case the Group option will not be available.
Handling fiber optic cables
This section provides protection and cleaning methods for fiber optic connectors.
Contamination of the fiber optic connectors on either a transceiver or a cable connector can impede
the transmission of data. Therefore, protecting the connector tips against contamination or damage
is imperative. The tips can be contaminated by touching them, by dust, or by debris. They can be
damaged when dropped. To protect the connectors against contamination or damage, use the
dust covers or dust caps provided by the manufacturer. These covers are removed during installation,
and are installed whenever the transceivers or cables are disconnected. Cleaning the connectors
should remove contamination.
The transceiver dust caps protect the transceivers from contamination. Do not discard the dust
covers.
CAUTION: To avoid damage to the connectors, always install the dust covers or dust caps
whenever a transceiver or a fiber cable is disconnected. Remove the dust covers or dust caps from
transceivers or fiber cable connectors only when they are connected. Do not discard the dust covers.
To minimize the risk of contamination or damage, do the following:
•Dust covers — Remove and set aside the dust covers and dust caps when installing an I/O
module, a transceiver or a cable. Install the dust covers when disconnecting a transceiver or
cable.
•When to clean — If a connector may be contaminated, or if a connector has not been protected
by a dust cover for an extended period of time, clean it.
•How to clean:
1. Wipe the connector with a lint-free tissue soaked with 100% isopropyl alcohol.
2. Wipe the connector with a dry, lint-free tissue.
3. Dry the connector with moisture-free compressed air.
Handling fiber optic cables 71
4 Configuring application servers
Overview
This chapter provides general connectivity information for all the supported operating systems.
Where applicable, an OS-specific section is included to provide more information.
Clustering
Clustering is connecting two or more computers together so that they behave like a single computer.
Clustering is used for parallel processing, load balancing, and fault tolerance.
See the Single Point of Connectivity Knowledge (SPOCK) website (http://www.hp.com/storage/
spock) for the clustering software supported on each operating system.
NOTE: For OpenVMS, you must make the Console LUN ID and OS unit IDs unique throughout
the entire SAN, not just the controller subsystem.
Multipathing
Multipathing software provides a multiple-path environment for your operating system. See the
following website for more information:
http://h18006.www1.hp.com/products/sanworks/multipathoptions/index.html
See the Single Point of Connectivity Knowledge (SPOCK) website (http://www.hp.com/storage/
spock) for the multipathing software supported on each operating system.
Installing Fibre Channel adapters
For all operating systems, supported Fibre Channel adapters (FCAs) must be installed in the host
server in order to communicate with the EVA.
NOTE: Traditionally, the adapter that connects the host server to the fabric is called a host bus
adapter (HBA). The server HBA used with the EVA4x00/6x00/8x00 is called a Fibre Channel
adapter (FCA). You might also see the adapter called a Fibre Channel host bus adapter (Fibre
Channel HBA) in other related documents.
Follow the hardware installation rules and conventions for your server type. The FCA is shipped
with its own documentation for installation. See that documentation for complete instructions. You
need the following items to begin:
•FCA boards and the manufacturer’s installation instructions
•Server hardware manual for instructions on installing adapters
•Tools to service your server
The FCA board plugs into a compatible I/O slot (PCI, PCI-X, PCI-E) in the host system. For instructions
on plugging in boards, see the hardware manual.
You can download the latest FCA firmware from the following website: http://www.hp.com/
support/downloads. Enter HBA in the Search Products box and then select your product. See the
Single Point of Connectivity Knowledge (SPOCK) website (http://www.hp.com/storage/spock)
for supported FCAs by operating system.
72 Configuring application servers
Testing connections to the EVA
After installing the FCAs, you can create and test connections between the host server and the
EVA. For all operating systems, you must:
•Add hosts
•Create and present virtual disks
•Verify virtual disks from the hosts
The following sections provide information that applies to all operating systems. For OS-specific
details, see the applicable operating system section.
Adding hosts
To add hosts using HP P6000 Command View:
1. Retrieve the world-wide names (WWNs) for each FCA on your host. You need this information
to select the host FCAs in HP P6000 Command View.
2. Use HP P6000 Command View to add the host and each FCA installed in the host system.
NOTE: To add hosts using HP P6000 Command View, you must add each FCA installed in
the host. Select Add Host to add the first adapter. To add subsequent adapters, select Add
Port. Ensure that you add a port for each active FCA.
3. Select the applicable operating system for the host mode.
Table 28 Operating system and host mode selection
Host mode selection in HP P6000 Command ViewOperating System
HP-UXHP-UX
IBM AIXIBM AIX
LinuxLinux
LinuxMac OS X
OVMSOpenVMS
Oracle SolarisOracle Solaris
VMwareVMware
LinuxCitrix XenServer
Microsoft WindowsMicrosoft Windows
Microsoft Windows 2008
4. Check the Host folder in the Navigation pane of HP P6000 Command View to verify that the
host FCAs are added.
NOTE: More information about HP P6000 Command View is available at http://
www.hp.com/support/manuals. Click Storage Software under Storage, and then select HP
Command View EVA Software under Storage Device Management Software.
Creating and presenting virtual disks
To create and present virtual disks to the host server:
Testing connections to the EVA 73
1. From HP P6000 Command View, create a virtual disk on the EVA4x00/6x00/8x00.
2. Specify values for the following parameters:
•Virtual disk name
•Vraid level
•Size
3. Present the virtual disk to the host you added.
4. If applicable (OpenVMS) select a LUN number if you chose a specific LUN on the Virtual Disk
Properties window.
Verifying virtual disk access from the host
To verify that the host can access the newly presented virtual disks, restart the host or scan the bus.
If you are unable to access the virtual disk:
•Verify that all cabling is connected to the switch, EVA, and host.
•Verify that all firmware levels are appropriate for your configuration. For more information,
refer to the Enterprise Virtual Array QuickSpecs and associated release notes. See “Related
information” (page 101) for the location of these documents.
•Ensure that you are running a supported version of the host operating system. For more
information, see the HP P6000 Enterprise Virtual Array Compatibility Reference.
•Ensure that the correct host is selected as the operating system for the virtual disk in HP P6000
Command View.
•Ensure that the host WWN number is set correctly (to the host you selected).
•Verify that the FCA switch settings are correct.
•Verify that the virtual disk is presented to the host.
•Verify that the zoning is correct for your configuration.
Configuring virtual disks from the host
After you create the virtual disks on the EVA4x00/6x00/8x00 and rescan or restart the host,
follow the host-specific conventions for configuring these new disk resources. For instructions, see
the documentation included with your server.
HP-UX
To create virtual disks for HP-UX, scan the bus and then create volume groups on a virtual disk.
Scanning the bus
To scan the FCA bus and display information about the EVA4x00/6x00/8x00 devices:
1. Enter the command # ioscan -fnCdisk to start the rescan.
All new virtual disks become visible to the host.
2. Assign device special files to the new virtual disks using the insf command:
# insf -e
NOTE: Lowercase eassigns device special files only to the new devices—in this case, the
virtual disks. Uppercase Ereassigns device special files to all devices.
The following is a sample output from an ioscan command:
# ioscan -fnCdisk
# ioscan -fnCdisk
Class I H/W Patch Driver S/W H/W Type Description
74 Configuring application servers
State
========================================================================================
ba 3 0/6 lba CLAIMED BUS_NEXUS Local PCI Bus
Adapter (782)
fc 2 0/6/0/0 td CLAIMED INTERFACE HP Tachyon XL@ 2 FC
Mass Stor Adap /dev/td2
fcp 0 0/6/0/0.39 fcp CLAIMED INTERFACE FCP Domain
ext_bus 4 0/6/00.39.13.0.0 fcparray CLAIMED INTERFACE FCP Array Interface
target 5 0/6/0/0.39.13.0.0.0 tgt CLAIMED DEVICE
ctl 4 0/6/0/0.39.13.0.0.0.0 sctl CLAIMED DEVICE HP HSV300 /dev/rscsi/c4t0d0
disk 22 0/6/0/0.39.13.0.0.0.1 sdisk CLAIMED DEVICE HP HSV300 /dev/dsk/c4t0d1
/dev/rdsk/c4t0d
ext_bus 5 0/6/0/0.39.13.255.0 fcpdev CLAIMED INTERFACE FCP Device Interface
target 8 0/6/0/0.39.13.255.0.0 tgt CLAIMED DEVICE
ctl 20 0/6/0/0.39.13.255.0.0.0 sctl CLAIMED DEVICE HP HSV300 /dev/rscsi/c5t0d0
ext_bus 10 0/6/0/0.39.28.0.0 fcparray CLAIMED INTERFACE FCP Array Interface
target 9 0/6/0/0.39.28.0.0.0 tgt CLAIMED DEVICE
ctl 40 0/6/0/0.39.28.0.0.0.0 sctl CLAIMED DEVICE HP HSV300 /dev/rscsi/c10t0d0
disk 46 0/6/0/0.39.28.0.0.0.2 sdisk CLAIMED DEVICE HP HSV300 /dev/dsk/c10t0d2
/dev/rdsk/c10t0d2
disk 47 0/6/0/0.39.28.0.0.0.3 sdisk CLAIMED DEVICE HP HSV300 /dev/dsk/c10t0d3
/dev/rdsk/c10t0d3
disk 48 0/6/0/0.39.28.0.0.0.4 sdisk CLAIMED DEVICE HP HSV300 /dev/dsk/c10t0d4
/dev/rdsk/c10t0d4
disk 49 0/6/0/0.39.28.0.0.0.5 sdisk CLAIMED DEVICE HP HSV300 /dev/dsk/c10t0d5
/dev/rdsk/c10t0d5
disk 50 0/6/0/0.39.28.0.0.0.6 sdisk CLAIMED DEVICE HP HSV300 /dev/dsk/c10t0d
/dev/rdsk/c10t0d6
disk 51 0/6/0/0.39.28.0.0.0.7 sdisk CLAIMED DEVICE HP HSV300 /dev/dsk/c10t0d7
/dev/rdsk/c10t0d7
Creating volume groups on a virtual disk using vgcreate
You can create a volume group on a virtual disk by issuing a vgcreate command. This builds
the virtual group block data, allowing HP-UX to access the virtual disk. See the pvcreate,
vgcreate, and lvcreate man pages for more information about creating disks and file systems.
Use the following procedure to create a volume group on a virtual disk:
NOTE: Italicized text is for example only.
1. To create the physical volume on a virtual disk, enter the following command:
# pvcreate -f /dev/rdsk/c32t0d1
2. To create the volume group directory for a virtual disk, enter the command:
# mkdir /dev/vg01
3. To create the volume group node for a virtual disk, enter the command:
# mknod /dev/vg01/group c 64 0x010000
The designation 64 is the major number that equates to the 64-bit mode. The 0x01 is the
minor number in hex, which must be unique for each volume group.
4. To create the volume group for a virtual disk, enter the command:
# vgcreate –f /dev/vg01 /dev/dsk/c32t0d1
5. To create the logical volume for a virtual disk, enter the command:
# lvcreate -L1000 /dev/vg01/lvol1
In this example, a 1-Gb logical volume (lvol1) is created.
6. Create a file system for the new logical volume by creating a file system directory name and
inserting a mount tap entry into /etc/fstab.
7. Run the command mkfs on the new logical volume. The new file system is ready to mount.
IBM AIX
Accessing IBM AIX utilities
You can access IBM AIX utilities such as the Object Data Manager (ODM), on the following website:
IBM AIX 75
http://www.hp.com/support/downloads
In the Search products box, enter MPIO, and then click AIX MPIO PCMA for HP Arrays. Select IBM
AIX, and then select your software storage product.
Adding hosts
To determine the active FCAs on the IBM AIX host, enter:
# lsdev -Cc adapter |grep fcs
Output similar to the following appears:
fcs0 Available 1H-08 FC Adapter
fcs1 Available 1V-08 FC Adapter
# lscfg -vl
fcs0 fcs0 U0.1-P1-I5/Q1 FC Adapter
Part Number.................80P4543
EC Level....................A
Serial Number...............1F4280A419
Manufacturer................001F
Feature Code/Marketing ID...280B
FRU Number.................. 80P4544
Device Specific.(ZM)........3
Network Address.............10000000C940F529
ROS Level and ID............02881914
Device Specific.(Z0)........1001206D
Device Specific.(Z1)........00000000
Device Specific.(Z2)........00000000
Device Specific.(Z3)........03000909
Device Specific.(Z4)........FF801315
Device Specific.(Z5)........02881914
Device Specific.(Z6)........06831914
Device Specific.(Z7)........07831914
Device Specific.(Z8)........20000000C940F529
Device Specific.(Z9)........TS1.90A4
Device Specific.(ZA)........T1D1.90A4
Device Specific.(ZB)........T2D1.90A4
Device Specific.(YL)........U0.1-P1-I5/Q1b.
Creating and presenting virtual disks
When creating and presenting virtual disks to an IBM AIX host, be sure to:
1. Set the OS unit ID to 0.
2. Set Preferred path/mode to No Preference.
3. Select a LUN number if you chose a specific LUN on the Virtual Disk Properties window.
Verifying virtual disks from the host
To scan the IBM AIX bus and list all EVA devices, enter: cfgmgr -v
The -v switch (verbose output) requests a full output.
Output similar to the following is displayed:
hdisk1 Available 1V-08-01 HP HSV300 Enterprise Virtual Array
hdisk2 Available 1V-08-01 HP HSV300 Enterprise Virtual Array
hdisk3 Available 1V-08-01 HP HSV300 Enterprise Virtual Array
76 Configuring application servers
Linux
Driver failover mode
If you use the INSTALL command without command options, the driver’s failover mode depends
on whether a QLogic driver is already loaded in memory (listed in the output of the lsmod
command). Possible driver failover mode scenarios include:
•If an hp_qla2x00src driver RPM is already installed, the new driver RPM uses the failover of
the previous driver package.
•If there is no QLogic driver module (qla2xxx module) loaded, the driver defaults to failover
mode. This is also true if an inbox driver is loaded that does not list output in the
/proc/scsi/qla2xxx directory.
•If there is a driver loaded in memory that lists the driver version in /proc/scsi/qla2xxx
but no driver RPM has been installed, then the driver RPM loads the driver in the failover mode
that the driver in memory currently uses.
Installing a Qlogic driver
NOTE: The HP Emulex driver kit performs in a similar manner; use ./INSTALL -h to list all
supported arguments.
1. Download the appropriate driver kit for your distribution. The driver kit file is in the format
hp_qla2x00-yyyy-mm-dd.tar.gz.
2. Copy the driver kit to the target system.
3. Uncompress and untar the driver kit using the following command:
# tar zxvf hp_qla2x00-yyyy-mm-dd.tar.gz
4. Change directory to the hp_qla2x00-yyyy-mm-dd directory.
5. Execute the INSTALL command.
The INSTALL command syntax varies depending on your conguration.
If a previous driver kit is installed, you can invoke the INSTALL command without any
arguments. To use the currently loaded conguration:
# ./INSTALL
To force the installation to failover mode, use the -f ag:
# ./INSTALL -f
To force the installation to single-path mode, use the -s ag:
# ./INSTALL -s
To list all supported arguments, use the -h flag:
# ./INSTALL -h
The INSTALL script installs the appropriate driver RPM for your conguration, as well as the
appropriate fibreutils RPM.
6. Once the INSTALL script is finished, you will either have to reload the QLogic driver modules
(qla2xxx, qla2300, qla2400, qla2xxx_conf) or reboot your server.
To reload the driver use one or more of the following commands, as applicable:
# /opt/hp/src/hp_qla2x00src/unload.sh
# modprobe qla2xxx_conf
# modprobe qla2xxx
# modprobe qla2300
Linux 77
# modprobe qla2400
To reboot the server, enter the reboot command.
CAUTION: If the boot device is attached to the SAN, you must reboot the host.
7. To verify which RPM versions are installed, use the rpm command with the -q option. For
example:
# rpm -q hp_qla2x00src
# rpm –q fibreutils
Upgrading Linux components
If you have any installed components from a previous solution kit or driver kit, such as the qla2x00
RPM, invoke the INSTALL script with no arguments, as shown in the following example:
# ./INSTALL
To manually upgrade the components, select one of the following kernel distributions:
•For 2.4 kernel based distributions, use version 7.xx.
•For 2.6 kernel based distributions, use version 8.xx.
Depending on the kernel version you are running, upgrade the driver RPM as follows:
•For the hp_qla2x00src RPM:
# rpm -Uvh hp_qla2x00src- version-revision.linux.rpm
•For fibreutils RPM, you have two options:
To upgrade the driver:
# rpm -Uvh fibreutils-version-revision.linux.architecture.rpm
◦
◦To remove the existing driver, and install a new driver:
# rpm -e fibreutils
# rpm -ivh fibreutils-version-revision.linux.architecture.rpm
Upgrading qla2x00 RPMs
If you have a qla2x00 RPM from HP installed on your system, use the INSTALL script to upgrade
from qla2x00 RPMs. The INSTALL script removes the old qla2x00 RPM and installs the new
hp_qla2x00src while keeping the driver settings from the previous installation. The script takes
no arguments. Use the following command to run the INSTALL script:
# ./INSTALL
NOTE: IF you are going to use the failover functionality of the QLA driver, uninstall Secure Path
and reboot before you attempt to upgrade the driver. Failing to do so can cause a kernel panic.
Detecting third-party storage
The preinstallation portion of the RPM contains code to check for non-HP storage. The reason for
doing this is to prevent the RPM from overwriting any settings that another vendor may be using.
You can skip the detection process by setting the environmental variable HPQLAX00FORCE to y
by issuing the following commands:
# HPQLA2X00FORCE=y
# export HPQLA2X00FORCE
You can also use the -F option of the INSTALL script by entering the following command:
# ./INSTALL -F
78 Configuring application servers
Compiling the driver for multiple kernels
If your system has multiple kernels installed on it, you can compile the driver for all the installed
kernels by setting the INSTALLALLKERNELS environmental variable to y and exporting it by
issuing the following commands:
# INSTALLALLKERNELS=y
# export INSTALLALLKERNELS
You can also use the -a option of the INSTALL script as follows:
# ./INSTALL -a
Uninstalling the Linux components
To uninstall the components, use the INSTALL script with the -u option as shown in the following
example:
# ./INSTALL -u
To manually uninstall all components, or to uninstall just one of the components, use one or all of
the following commands:
# rpm -e fibreutils
# rpm -e hp_qla2x00
# rpm -e hp_qla2x00src
Using the source RPM
In some cases, you may have to build a binary hp_qla2x00 RPM from the source RPM and use
that manual binary build in place of the scripted hp_qla2x00src RPM. You need to do this if
your production servers do not have the kernel sources and gcc installed.
If you need to build a binary RPM to install, you will need a development machine with the same
kernel as your targeted production servers. You can install the binary RPM-produced RPM methods
on your production servers.
NOTE: The binary RPM that you build works only for the kernel and configuration that you build
on (and possibly some errata kernels). Ensure that you use the 7.xx version of the hp_qla2x00
source RPM for 2.4 kernel-based distributions and the 8.xx version of the hp_qla2x00 source
RPM for 2.6 kernel-based distributions.
Use the following procedure to create the binary RPM from the source RPM:
1. Select one of the following options:
•Enter the #./INSTALL -S command. The binary RPM creation is complete. You do not
have to perform 2through 4.
•Install the source RPM by issuing the # rpm -ivh
hp_qla2x00-version-revision.src.rpm command. Continue with 2.
2. Select one of the following directories:
•For Red Hat distributions, use the /usr/src/redhat/SPECS directory.
•For SUSE distributions, use the /usr/src/packages/SPECS directory.
3. Build the RPM by using the # rpmbuild -bb hp_qla2x00.spec command.
NOTE: In some of the older Linux distributions, the RPM command contains the RPM build
functionality.
At the end of the command output, the following message appears:
"Wrote: ...rpm".
Linux 79
This line identifies the location of the binary RPM.
4. Copy the binary RPM to the production servers and install it using the following command:
# rpm -ivh hp_qla2x00-version-revision.architecture.rpm
Verifying virtual disks from the host
To verify the virtual disks, first verify that the LUN is recognized and then verify that the host can
access the virtual disks.
•To ensure that the LUN is recognized after a virtual disk is presented to the host, do one of
the following:
◦Reboot the host.
◦Enter the /opt/hp/hp_fibreutils/hp_rescan -a command.
•To verify that the host can access the virtual disks, enter the # more /proc/scsi/scsi
command.
The output lists all SCSI devices detected by the server. An EVA4x00/6x00/8x00 LUN entry
looks similar to the following:
Host: scsi3 Channel: 00 ID: 00 Lun: 01
Vendor: HP Model: HSV300 Rev:
Type: Direct-Access ANSI SCSI revision: 02
OpenVMS
Updating the AlphaServer console code, Integrity Server console code, and Fibre
Channel FCA firmware
The firmware update procedure varies for the different server types. To update firmware, follow
the procedure described in the Installation instructions that accompany the firmware images.
Verifying the Fibre Channel adapter software installation
A supported FCA should already be installed in the host server. The procedure to verify that the
console recognizes the installed FCA varies for the different server types. Follow the procedure
described in the Installation instructions that accompany the firmware images.
Console LUN ID and OS unit ID
HP P6000 Command View software contains a box for the Console LUN ID on the Initialized
Storage System Properties window.
It is important that you set the Console LUN ID to a number other than zero (0). If the Console LUN
ID is not set or is set to zero (0), the OpenVMS host will not recognize the controller pair. The
Console LUN ID for a controller pair must be unique within the SAN. Table 29 (page 81) shows
an example of the Console LUN ID.
You can set the OS unit ID on the Virtual Disk Properties window. The default setting is 0, which
disables the ID field. To enable the ID field, you must specify a value between 1 and 32767,
ensuring that the number you enter is unique within the SAN. An OS Unit ID greater than 9999
is not capable of being served by MSCP.
CAUTION: It is possible to enter a duplicate Console LUN ID or OS unit ID number. You must
ensure that you enter a Console LUN ID and OS Unit ID that is not already in use. A duplicate
Console LUN ID or OS Unit ID can allow the OpenVMS host to corrupt data due to confusion about
LUN identity. It can also prevent the host from recognizing the controllers.
80 Configuring application servers
Table 29 Comparing console LUN to OS unit ID
System DisplayID type
$1$GGA100:Console LUN ID set to 100
$1$DGA50:OS unit ID set to 50
Adding OpenVMS hosts
To obtain WWNs on AlphaServers, do one of the following:
•Enter the show device fg/full OVMS command.
•Use the WWIDMGR -SHOW PORT command at the SRM console.
To obtain WWNs on Integrity servers, do one of the following:
1. Enter the show device fg/full OVMS command.
2. Use the following procedure from the server console:
a. From the EFI boot Manager, select EFI Shell.
b. In the EFI Shell, enter “Shell> drivers”.
A list of EFI drivers loaded in the system is displayed.
3. In the listing, find the line for the FCA for which you want to get the WWN information.
For a Qlogic HBA, look for HP 4 Gb Fibre Channel Driver or HP 2 Gb Fibre
Channel Driver as the driver name. For example:
T D
D Y C I
R P F A
V VERSION E G G #D #C DRIVER NAME IMAGE NAME
== ======== = = = == == =================================== ===================
22 00000105 B X X 1 1 HP 4 Gb Fibre Channel Driver PciROM:0F:01:01:002
4. Note the driver handle in the first column (22 in the example).
5. Using the driver handle, enter the drvdfg driver_handle command to find the Device
Handle (Ctrl). For example:
Shell> drvcfg 22
Configurable Components
Drv[22] Ctrl[25] Lang[eng]
6. Using the driver and device handle, enter the drvdfg —sdriver_handle device_handle
command to invoke the EFI Driver configuration utility. For example:
Shell> drvcfg -s 22 25
7. From the Fibre Channel Driver Configuration Utility list, select item 8 (Info)
to find the WWN for that particular port.
Output similar to the following appears:
Adapter Path: Acpi(PNP0002,0300)/Pci(01|01)
Adapter WWPN: 50060B00003B478A
Adapter WWNN: 50060B00003B478B
Adapter S/N: 3B478A
Scanning the bus
Enter the following command to scan the bus for the OpenVMS virtual disk:
$ MC SYSMAN IO AUTO/LOG
A listing of LUNs detected by the scan process is displayed. Verify that the new LUNs appear on
the list.
OpenVMS 81
NOTE: The EVA4x00/6x00/8x00 console LUN can be seen without any virtual disks presented.
The LUN appears as $1$GGAx(where xrepresents the console LUN ID on the controller).
After the system scans the fabric for devices, you can verify the devices with the SHOW DEVICE
command:
$ SHOW DEVICE NAME-OF-VIRTUAL-DISK/FULL
For example, to display device information on a virtual disk named $1$DGA50, enter $ SHOW
DEVICE $1$DGA50:/FULL.
The following output is displayed:
Disk $1$DGA50: (BRCK18), device type HSV210, is online, file-oriented device,
shareable, device has multiple I/O paths, served to cluster via MSCP Server,
error logging is enabled.
Error count 2 Operations completed 4107
Owner process "" Owner UIC [SYSTEM]
Owner process ID 00000000 Dev Prot S:RWPL,O:RWPL,G:R,W
Reference count 0 Default buffer size 512
Current preferred CPU Id 0 Fastpath 1
WWID 01000010:6005-08B4-0010-70C7-0001-2000-2E3E-0000
Host name "BRCK18" Host type, avail AlphaServer DS10 466 MHz, yes
Alternate host name "VMS24" Alt. type, avail HP rx3600 (1.59GHz/9.0MB), yes
Allocation class 1
I/O paths to device 9
Path PGA0.5000-1FE1-0027-0A38 (BRCK18), primary path.
Error count 0 Operations completed 145
Path PGA0.5000-1FE1-0027-0A3A (BRCK18).
Error count 0 Operations completed 338
Path PGA0.5000-1FE1-0027-0A3E (BRCK18).
Error count 0 Operations completed 276
Path PGA0.5000-1FE1-0027-0A3C (BRCK18).
Error count 0 Operations completed 282
Path PGB0.5000-1FE1-0027-0A39 (BRCK18).
Error count 0 Operations completed 683
Path PGB0.5000-1FE1-0027-0A3B (BRCK18).
Error count 0 Operations completed 704
Path PGB0.5000-1FE1-0027-0A3D (BRCK18).
Error count 0 Operations completed 853
Path PGB0.5000-1FE1-0027-0A3F (BRCK18), current path.
Error count 2 Operations completed 826
Path MSCP (VMS24).
Error count 0 Operations completed 0
You can also use the SHOW DEVICE DG command to display a list of all Fibre Channel disks
presented to the OpenVMS host.
NOTE: Restarting the host system shows any newly presented virtual disks because a hardware
scan is performed as part of the startup.
If you are unable to access the virtual disk, do the following:
•Check the switch zoning database.
•Use HP P6000 Command View to verify the host presentations.
•Check the SRM console firmware on AlphaServers.
•Ensure that the correct host is selected for this virtual disk and that a unique OS Unit ID is used
in HP P6000 Command View.
Configuring virtual disks from the OpenVMS host
To set up disk resources under OpenVMS, initialize and mount the virtual disk resource as follows:
1. Enter the following command to initialize the virtual disk:
$ INITIALIZE name-of-virtual-disk volume-label
82 Configuring application servers
2. Enter the following command to mount the disk:
MOUNT/SYSTEM name-of-virtual-disk volume-label
NOTE: The /SYSTEM switch is used for a single stand-alone system, or in clusters if you
want to mount the disk only to select nodes. You can use the /CLUSTER switch for OpenVMS
clusters. However, if you encounter problems in a large cluster environment, HP recommends
that you enter a MOUNT/SYSTEM command on each cluster node.
3. View the virtual disk’s information with the SHOW DEVICE command. For example, enter the
following command sequence to configure a virtual disk named data1 in a stand-alone
environment:
$ INIT $1$DGA1: data1
$ MOUNT/SYSTEM $1$DGA1: data1
$ SHOW DEV $1$DGA1: /FULL
Setting preferred paths
You can use one of the following options for setting, changing, or displaying preferred paths:
•To set or change the preferred path, use the following command:
$ SET DEVICE $1$DGA83: /PATH=PGA0.5000-1FE1-0007-9772/SWITCH
This allows you to control which path each virtual disk uses.
•To display the path identifiers, use the SHOW DEV/FULL command.
•For additional information on using OpenVMS commands, see the OpenVMS help file:
$ HELP TOPIC
For example, the following command displays help information for the MOUNT command:
$ HELP MOUNT
Oracle Solaris
NOTE: The information in this section applies to both SPARC and x86 versions of the Oracle
Solaris operating system.
Loading the operating system and software
Follow the manufacturer’s instructions for loading the operating system (OS) and software onto the
host. Load all OS patches and configuration utilities supported by HP and the FCA manufacturer.
Configuring FCAs with the Oracle SAN driver stack
Oracle-branded FCAs are supported only with the Oracle SAN driver stack. The Oracle SAN
driver stack is also compatible with current Emulex FCAs and QLogic FCAs. Support information
is available on the Sun website:
http://www.oracle.com/technetwork/server-storage/solaris/overview/index-136292.html
To determine which non-Oracle branded FCAs HP supports with the Oracle SAN driver stack, see
the latest MPxIO application notes or contact your HP representative.
Oracle Solaris 83
Update instructions depend on the version of your OS:
•For Solaris 9, install the latest Oracle StorEdge SAN software with associated patches. To
locate the software, log into My Oracle Support:
https://support.oracle.com/CSP/ui/flash.html
1. Select the Patches & Updates tab and then search for StorEdge SAN Foundation Software
4.4 (formerly called StorageTek SAN 4.4).
2. Reboot the host after the required software/patches have been installed. No further activity
is required after adding any new LUNs once the array ports have been configured with
the cfgadm –ccommand for Solaris 9.
Examples for two FCAs:
cfgadm -c configure c3
cfgadm -c configure c4
3. Increase retry counts and reduce I/O time by adding the following entries to the
/etc/system file:
set ssd:ssd_retry_count=0xa
set ssd:ssd_io_time=0x1e
4. Reboot the system to load the newly added parameters.
•For Solaris 10, go the Oracle Software Downloads website (http://www.oracle.com/
technetwork/indexes/downloads/index.html) to install the latest patches. Under Servers and
Storage Systems, select Solaris 10. Reboot the host once the required software/patches have
been installed. No further activity is required after adding any new LUNs, as the controller
and LUN recognition are automatic for Solaris 10.
1. For Solaris 10 x86/64, ensure patch 138889-03 or later is installed. For SPARC, ensure
patch 138888-03 or later is installed.
2. Increase the retry counts by adding the following line to the /kernel/drv/sd.conf
file:
sd-config-list="HP HSV","retries-timeout:10";
3. Reduce the I/O timeout value to 30 seconds by adding the following line to the
/etc/system file:
set sd:sd_io_time=0x1e
4. Reboot the system to load the newly added parameters.
Configuring Emulex FCAs with the lpfc driver
To configure Emulex FCAs with the lpfc driver:
1. Ensure that you have the latest supported version of the lpfc driver (see http://www.hp.com/
storage/spock).
You must sign up for an HP Passport to enable access. For more information on how to use
SPOCK, see the Getting Started Guide (http://h20272.www2.hp.com/Pages/spock_overview/
introduction.html).
2. Edit the following parameters in the /kernel/drv/lpfc.conf driver configuration file to
set up the FCAs for a SAN infrastructure:
topology=2;
scan-down=0;
nodev-tmo=60;
linkdown-tmo=60;
84 Configuring application servers
3. If using a single FCA and no multipathing, edit the following parameter to reduce the risk of
data loss in case of a controller reboot:
nodev-tmo=120;
4. If using Veritas Volume Manager (VxVM) DMP for multipathing (single or multiple FCAs), edit
the following parameter to ensure proper VxVM behavior:
no-device-delay=0;
5. In a fabric topology, use persistent bindings to bind a SCSI target ID to the world wide port
name (WWPN) of an array port. This ensures that the SCSI target IDs remain the same when
the system reboots. Set persistent bindings by editing the configuration file or by using the
lputil utility.
NOTE: HP recommends that you assign target IDs in sequence, and that the EVA has the
same target ID on each host in the SAN.
The following example for an EVA4x00/6x00/8x00 illustrates the binding of targets 20 and
21 (lpfc instance 2) to WWPNs 50001fe100270938 and 50001fe100270939, and the
binding of targets 30 and 31 (lpfc instance 0) to WWPNs 50001fe10027093a and
50001fe10027093b:
fcp-bind-WWPN="50001fe100270938:lpfc2t20",
"50001fe100270939:lpfc2t21",
"50001fe10027093a:lpfc0t30",
"50001fe10027093b:lpfc0t31";
NOTE: Replace the WWPNs in the example with the WWPNs of your array ports.
6. For each LUN that will be accessed, add an entry to the /kernel/drv/sd.conf file. For
example, if you want to access LUNs 1 and 2 through all four paths, add the following entries
to the end of the file:
name="sd" parent="lpfc" target=20 lun=1;
name="sd" parent="lpfc" target=21 lun=1;
name="sd" parent="lpfc" target=30 lun=1;
name="sd" parent="lpfc" target=31 lun=1;
name="sd" parent="lpfc" target=20 lun=2;
name="sd" parent="lpfc" target=21 lun=2;
name="sd" parent="lpfc" target=30 lun=2;
name="sd" parent="lpfc" target=31 lun=2;
7. Reboot the server to implement the changes to the configuration files.
8. If LUNs have been preconfigured in the /kernel/drv/sd.conf file, use the devfsadm
command to perform LUN rediscovery after configuring the file.
NOTE: The lpfc driver is not supported for Oracle StorEdge Traffic Manager/Oracle Storage
Multipathing. To configure an Emulex FCA using the Oracle SAN driver stack, see “Configuring
FCAs with the Oracle SAN driver stack” (page 83).
Configuring QLogic FCAs with the qla2300 driver
Check the Single Point of Connecitivty Knowledge (SPOCK) website or contact your HP
representative to determine which QLogic FCAs and which driver version HP supports with the
qla2300 driver. To configure QLogic FCAs with the qla2300 driver:
Oracle Solaris 85
1. Ensure that you have the latest supported version of the qla2300 driver.
You must sign up for an HP Passport to enable access. For more information on how to use
SPOCK, see the Getting Started Guide (http://www.qlogic.com).
2. Edit the following parameters in the /kernel/drv/qla2300.conf driver configuration file
to set up the FCAs for a SAN infrastructure (HBA0 is used in the example, but the parameter
edits apply to all HBAs):
NOTE: If you are using a Oracle-branded QLogic FCA, the configuration file is
\kernal\drv\qlc.conf.
hba0-connection-options=1;
hba0-link-down-timeout=60;
hba0-persistent-binding-configuration=1;
NOTE: If you are using Solaris 10, editing the persistent binding parameter is not required.
3. If using a single FCA and no multipathing, edit the following parameters to reduce the risk of
data loss in case of a controller reboot:
hba0-login-retry-count=60;
hba0-port-down-retry-count=60;
hba0-port-down-retry-delay=2;
The hba0-port-down-retry-delay parameter is not supported with the 4.13.01 driver;
the time between retries is fixed at approximately 2 seconds.
4. In a fabric topology, use persistent bindings to bind a SCSI target ID to the world wide port
name (WWPN) of an array port. This ensures that the SCSI target IDs remain the same when
the system reboots. Set persistent bindings by editing the configuration file or by using the
SANsurfer utility.
NOTE: Persistent binding is not required for QLogic FCAs if you are using Solaris 10.
The following example for an EVA4x00/6x00/8x00 illustrates the binding of targets 20 and
21 (hba instance 0) to WWPNs 50001fe100270938 and 50001fe100270939, and the
binding of targets 30 and 31 (hba instance 1) to WWPNs 50001fe10027093a and
50001fe10027093b:
hba0-SCSI-target-id-20-fibre-channel-port-name="50001fe100270938";
hba0-SCSI-target-id-21-fibre-channel-port-name="50001fe10027093a";
hba1-SCSI-target-id-30-fibre-channel-port-name="50001fe100270939";
hba1-SCSI-target-id-31-fibre-channel-port-name="50001fe10027093b";
NOTE: Replace the WWPNs in the example with the WWPNs of your array ports.
5. If the qla2300 driver is version 4.13.01 or earlier, for each LUN that users will access add
an entry to the /kernel/drv/sd.conf file:
name="sd" class="scsi" target=20 lun=1;
name="sd" class="scsi" target=21 lun=1;
name="sd" class="scsi" target=30 lun=1;
name="sd" class="scsi" target=31 lun=1;
If LUNs are preconfigured in the/kernel/drv/sd.conf file, after changing the configuration
file. use the devfsadm command to perform LUN rediscovery.
86 Configuring application servers
6. If the qla2300 driver is version 4.15 or later, verify that the following or a similar entry is
present in the /kernel/drv/sd.conf file:
name="sd" parent="qla2300" target=2048;
To perform LUN rediscovery after configuring the LUNs, use the following command:
/opt/QLogic_Corporation/drvutil/qla2300/qlreconfig –d qla2300 -s
7. Reboot the server to implement the changes to the configuration files.
NOTE: The qla2300 driver is not supported for Oracle StorEdge Traffic Manager/Oracle Storage
Multipathing. To configure a QLogic FCA using the Oracle SAN driver stack, see “Configuring
FCAs with the Oracle SAN driver stack” (page 83).
Fabric setup and zoning
To set up the fabric and zoning:
1. Verify that the Fibre Channel cable is connected and firmly inserted at the array ports, host
ports, and SAN switch.
2. Through the Telnet connection to the switch or switch utilities, verify that the WWN of the EVA
ports and FCAs are present and online.
3. Create a zone consisting of the WWNs of the EVA ports and FCAs, and then add the zone
to the active switch configuration.
4. Enable and then save the new active switch configuration.
NOTE: There are variations in the steps required to configure the switch between different
vendors. For more information, see the HP SAN Design Reference Guide, available for downloading
on the HP website: http://www.hp.com/go/sandesign.
Oracle StorEdge Traffic Manager (MPxIO)/Sun Storage Multipathing
Oracle StorEdge Traffic Manager (MPxIO)/Sun Storage Multipathing can be used for FCAs
configured with the Oracle SAN driver and depending on the operating system version, architecture
(SPARC/x86), and patch level installed. For configuration details, see the HP MPxIO application
notes, available on the HP support website: http://www.hp.com/support/manuals.
NOTE: MPxIO is included in the SPARC and x86 Oracle SAN driver. A separate installation of
MPxIO is not required.
In the Search products box, enter MPxIO, and then click the search symbol. Select the
application notes from the search results.
Configuring with Veritas Volume Manager
The Dynamic Multipathing (DMP) feature of Veritas Volume Manager (VxVM) can be used for all
FCAs and all drivers. EVA disk arrays are certified for VxVM support. When you install FCAs,
ensure that the driver parameters are set correctly. Failure to do so can result in a loss of path
failover in DMP. For information about setting FCA parameters, see “Configuring FCAs with the
Oracle SAN driver stack” (page 83) and the FCA manufacturer’s instructions.
The DMP feature requires an Array Support Library (ASL) and an Array Policy Module (APM). The
ASL/APM enables Asymmetric Logical Unit Access (ALUA). LUNs are accessed through the primary
controller. After enablement, use the vxdisk list <device> command to determine the
primary and secondary paths. For VxVM 4.1 (MP1 or later), you must download the ASL/APM
from the Symantec/Veritas support site for installation on the host. This download and installation
is not required for VxVM 5.0 or later.
To download and install the ASL/APM from the Symantec/Veritas support website:
Oracle Solaris 87
1. Go to http://support.veritas.com.
2. Enter Storage Foundation for UNIX/Linux in the Product Lookup box.
3. Enter EVA in the Enter keywords or phrase box, and then click the search symbol.
4. To further narrow the search, select Solaris in the Platform box and search again.
5. Read TechNotes and follow the instructions to download and install the ASL/APM.
6. Run vxdctl enable to notify VxVM of the changes.
7. Verify the configuration of VxVM as shown in Example 3 “Verifying the VxVM configuration”
(the output may be slightly different depending on your VxVM version and the array
configuration).
Example 3 Verifying the VxVM configuration
# vxddladm listsupport all | grep HP
libvxhpevale.so HP HSV200, HSV210
# vxddladm listsupport libname=libvxhpevale.so
ATTR_NAME ATTR_VALUE
=======================================================================
LIBNAME libvxhpevale.so
VID HP
PID HSV200, HSV210
ARRAY_TYPE A/A-A-HP
ARRAY_NAME EVA4K6K, EVA8000
# vxdmpadm listapm all | grep HP
dmphpalua dmphpalua 1 A/A-A-HP Active
# vxdmpadm listapm dmphpalua
Filename: dmphpalua
APM name: dmphpalua
APM version: 1
Feature: VxVM
VxVM version: 41
Array Types Supported: A/A-A-HP
Depending Array Types: A/A-A
State: Active
# vxdmpadm listenclosure all
ENCLR_NAME ENCLR_TYPE ENCLR_SNO STATUS ARRAY_TYPE
============================================================================
Disk Disk DISKS CONNECTED Disk
EVA8100 EVA8100 50001FE1002709E0 CONNECTED A/A-A-HP
By default, the EVA I/O policy is set to Round-Robin. For VxVM 4.1 MP1, only one path is used
for the I/Os with this policy. Therefore, HP recommends that you change the I/O policy to
Adaptive in order to use all paths to the LUN on the primary controller. Example 4 “Setting the
iopolicy” shows the commands you can use to check and change the I/O policy.
88 Configuring application servers
Example 4 Setting the iopolicy
# vxdmpadm getattr arrayname EVA8100 iopolicy
ENCLR_NAME DEFAULT CURRENT
============================================
EVA8100 Round-Robin Round-Robin
# vxdmpadm setattr arrayname EVA8100 iopolicy=adaptive
# vxdmpadm getattr arrayname EVA8100 iopolicy
ENCLR_NAME DEFAULT CURRENT
============================================
EVA8100 Round-Robin Adaptive
Configuring virtual disks from the host
The procedure used to configure the LUN path to the array depends on the FCA driver. For more
information, see “Installing Fibre Channel adapters” (page 72).
To identify the WWLUN ID assigned to the virtual disk and/or the LUN assigned by the storage
administrator:
•Oracle SAN driver, with MPxIO enabled:
You can use the luxadm probe command to display the array/node WWN and
associated array for the devices.
◦
◦The WWLUN ID is part of the device file name. For example:
/dev/rdsk/c5t600508B4001030E40000500000B20000d0s2
◦If you use luxadm display, the LUN is displayed after the device address. For example:
50001fe1002709e9,5
•Oracle SAN driver, without MPxIO:
The EVA WWPN is part of the file name (which helps you to identify the controller). For
example:
/dev/rdsk/c3t50001FE1002709E8d5s2
/dev/rdsk/c3t50001FE1002709ECd5s2
◦
/dev/rdsk/c4t50001FE1002709E9d5s2
/dev/rdsk/c4t50001FE1002709EDd5s2
If you use luxadm probe, the array/node WWN and the associated device files are
displayed.
◦You can retrieve the WWLUN ID as part of the format -e (scsi, inquiry) output; however,
it is cumbersome and hard to read. For example:
09 e8 20 04 00 00 00 00 00 00 35 30 30 30 31 46 .........50001F
45 31 30 30 32 37 30 39 45 30 35 30 30 30 31 46 E1002709E050001F
45 31 30 30 32 37 30 39 45 38 36 30 30 35 30 38 E1002709E8600508
42 34 30 30 31 30 33 30 45 34 30 30 30 30 35 30 B4001030E4000050
30 30 30 30 42 32 30 30 30 30 00 00 00 00 00 00 0000B20000
◦The assigned LUN is part of the device file name. For example:
/dev/rdsk/c3t50001FE1002709E8d5s2
You can also retrieve the LUN with luxadm display. The LUN is displayed after the
device address. For example:
Oracle Solaris 89
50001fe1002709e9,5
•Emulex (lpfc)/QLogic (qla2300) drivers:
You can retrieve the WWPN by checking the assignment in the driver configuration file
(the easiest method, because you then know the assigned target) or by using
HBAnyware/SANSurfer.
◦
◦You can retrieve the WWLUN ID by using HBAnyware/SANSurfer.
You can also retrieve the WWLUN ID as part of the format -e (scsi, inquiry) output;
however, it is cumbersome and difficult to read. For example:
09 e8 20 04 00 00 00 00 00 00 35 30 30 30 31 46 .........50001F
45 31 30 30 32 37 30 39 45 30 35 30 30 30 31 46 E1002709E050001F
45 31 30 30 32 37 30 39 45 38 36 30 30 35 30 38 E1002709E8600508
42 34 30 30 31 30 33 30 45 34 30 30 30 30 35 30 B4001030E4000050
30 30 30 30 42 32 30 30 30 30 00 00 00 00 00 00 0000B20000
◦The assigned LUN is part of the device file name. For example:
/dev/dsk/c4t20d5s2
Verifying virtual disks from the host
Verify that the host can access virtual disks by using the format command. See Example 5 “Format
command ”.
90 Configuring application servers
Example 5 Format command
# format
Searching for disks...done
c2t50001FE1002709F8d1: configured with capacity of 1008.00MB
c2t50001FE1002709F8d2: configured with capacity of 1008.00MB
c2t50001FE1002709FCd1: configured with capacity of 1008.00MB
c2t50001FE1002709FCd2: configured with capacity of 1008.00MB
c3t50001FE1002709F9d1: configured with capacity of 1008.00MB
c3t50001FE1002709F9d2: configured with capacity of 1008.00MB
c3t50001FE1002709FDd1: configured with capacity of 1008.00MB
c3t50001FE1002709FDd2: configured with capacity of 1008.00MB
AVAILABLE DISK SELECTIONS:
0. c0t0d0 <SUN18G cyl 7506 alt 2 hd 19 sec 248> /pci@1f,4000/scsi@3/sd@0,0
1. c2t50001FE1002709F8d1 <HSV210-6240 cyl 126 alt 2 hd 128 sec 128>
/pci@1f,4000/QLGC,qla@4/fp@0,0/ssd@w50001fe1002709f8,1
2. c2t50001FE1002709F8d2 <HSV210-6240 cyl 126 alt 2 hd 128 sec 128>
/pci@1f,4000/QLGC,qla@4/fp@0,0/ssd@w50001fe1002709f8,2
3. c2t50001FE1002709FCd1 <HSV210-6240 cyl 126 alt 2 hd 128 sec 128>
/pci@1f,4000/QLGC,qla@4/fp@0,0/ssd@w50001fe1002709fc,1
4. c2t50001FE1002709FCd2 <HSV210-6240 cyl 126 alt 2 hd 128 sec 128>
/pci@1f,4000/QLGC,qla@4/fp@0,0/ssd@w50001fe1002709fc,2
5. c3t50001FE1002709F9d1 <HSV210-6240 cyl 126 alt 2 hd 128 sec 128>
/pci@1f,4000/lpfc@5/fp@0,0/ssd@w50001fe1002709f9,1
6. c3t50001FE1002709F9d2 <HSV210-6240 cyl 126 alt 2 hd 128 sec 128>
/pci@1f,4000/lpfc@5/fp@0,0/ssd@w50001fe1002709f9,2
7. c3t50001FE1002709FDd1 <HSV210-6240 cyl 126 alt 2 hd 128 sec 128>
/pci@1f,4000/lpfc@5/fp@0,0/ssd@w50001fe1002709fd,1
8. c3t50001FE1002709FDd2 <HSV210-6240 cyl 126 alt 2 hd 128 sec 128>
/pci@1f,4000/lpfc@5/fp@0,0/ssd@w50001fe1002709fd,2
Specify disk (enter its number):
If you cannot access the virtual disks:
•Verify the zoning.
•For Oracle Solaris, verify that the correct WWPNs for the EVA (lpfc,qla2300 driver) have
been configured and the target assignment is matched in /kernel/drv/sd.conf (lpfc
and qla2300 4.13.01).
Labeling and partitioning the devices
Label and partition the new devices using the Sun format utility:
CAUTION: When selecting disk devices, be careful to select the correct disk because using the
label/partition commands on disks that have data can cause data loss.
1. Enter the format command at the root prompt to start the utility.
2. Verify that all new devices are displayed. If not, enter quit or press Ctrl+D to exit the format
utility, and then verify that the configuration is correct (see “Configuring virtual disks from the
host” (page 89)).
3. Record the character-type device file names (for example, c1t2d0) for all new disks.
You will use this data to create the file systems or to use the file systems with the Solaris or
Veritas Volume Manager.
4. When prompted to specify the disk, enter the number of the device to be labeled.
5. When prompted to label the disk, enter Y.
6. Because the virtual geometry of the presented volume varies with size, select autoconfigure
as the disk type.
Oracle Solaris 91
7. For each new device, use the disk command to select another disk, and then repeat Step 1
through Step 6.
8. Repeat this labeling procedure for each new device. (Use the disk command to select another
disk.)
9. When you finish labeling the disks, enter quit or press Ctrl+D to exit the format utility.
For more information, see the System Administration Guide: Devices and File Systems for your
operating system, available on the Oracle website:
http://www.oracle/com/technetwork/indexes/documentation/index.html
NOTE: Some format commands are not applicable to the EVA storage systems.
VMware
Installing or upgrading VMware
For installation instructions, see the VMware installation guide for your server.
If you have already installed VMware, use the following procedure to patch or upgrade the system:
1. Extract the upgrade-tarball on the system. A sample command extract follows:
esx-n.n.n-14182-upgrade.tar.gz
2. Boot the system in Linux mode by selecting the Linux boot option from the boot menu selection
window.
3. Extract the tar file and enter the following command:
upgrade.pl
4. Reboot the system using the default boot option (esx).
Configuring the EVA with VMware host servers
To configure an EVA4x00/6x00/8x00 on a VMware ESX server:
1. Using HP P6000 Command View, configure a host for one ESX server.
2. Verify that the Fibre Channel Adapters (FCAs) are populated in the world wide port name
(WWPN) list. Edit the WWPN, if necessary.
3. Set the connection type to VMware.
4. To configure additional ports for the ESX server:
a. Select a host (defined in Step 1).
b. Select the Ports tab in the Host Properties window.
c. Add additional ports for the ESX server.
5. Perform one of the following tasks to locate the WWPN:
•From the service console, enter the wwpn.pl command.
Output similar to the following is displayed:
[root@gnome7 root]# wwpn.plvmhba0: 210000e08b09402b (QLogic)
6:1:0vmhba1: 210000e08b0ace2d (QLogic) 6:2:0[root@gnome7 root]#
•Check the SCSI device information section of the /proc/scsi/qla2300/Xdirectory,
where Xis a bus instance number.
Output similar to the following is displayed:
SCSI Device Information:
scsi-qla0-adapter-node=200000e08b0b0638;
scsi-qla0-adapter-port=210000e08b0b0638;
6. Repeat this procedure for each ESX server.
92 Configuring application servers
Configuring an ESX server
This section provides information about configuring the ESX server.
Loading the FCA NVRAM
The FCA stores configuration information in the non-volatile RAM (NVRAM) cache. You must
download the configuration for HP Storage products.
Perform one of the following procedures to load the NVRAM:
•If you have a ProLiant blade server:
Download the supported FCA BIOS update, available on http://www.hp.com/support/
downloads, to a virtual floppy.
For instructions on creating and using a virtual floppy, see the HP Integrated Lights-Out
User Guide.
1.
2. Unzip the file.
3. Follow the instructions in the readme file to load the NVRAM configuration onto each
FCA.
•If you have a blade server other than a ProLiant blade server:
Download the supported FCA BIOS update, available on http://www.hp.com/support/
downloads.
1.
2. Unzip the file.
3. Follow the instructions in the readme file to load the NVRAM configuration onto each
FCA.
Setting the multipathing policy
You can set the multipathing policy for each LUN or logical drive on the SAN to one of the following:
•Most recently used (MRU)
•Fixed
•Preferred
ESX 2.5.x commands
•The # vmkmultipath –s vmhba0:0:1 –p mru command sets vmhba0:0:1 with an
MRU multipathing policy for all LUNs on the SAN.
•The # vmkmultipath -s vmhba1:0:1 -p fixed command sets vmhba1:0:1 with a
Fixed multipathing policy.
•The # vmkmultipath -s vmhba1:0:1 -r vmhba2:0:1 -e vmhba2:0:1 command
sets and enables vmhba2:0:1 with a Preferred multipathing policy.
ESX 3.x commands
•The # esxcfg-mpath --policy=mru --lun=vmhba0:0:1 command sets vmhba0:0:1
with an MRU multipathing policy.
•The # esxcfg-mpath --policy=fixed --lun=vmhba0:0:1 command sets
vmhba1:0:1 with a Fixed multipathing policy.
•The # esxcfg-mpath --preferred --path=vmhba2:0:1 --lun=vmhba2:0:1
command sets vmhba2:0:1 with a Preferred multipathing policy.
VMware 93
ESX 4.x commands
•The # esxcli nmp device setpolicy --device
naa.6001438002a56f220001100000710000 --psp VMW_PSP_MRU command sets
device naa.6001438002a56f220001100000710000 with an MRU multipathing policy.
•The # esxcli nmp device setpolicy --device
naa.6001438002a56f220001100000710000 --psp VMW_PSP_FIXED command sets
device naa.6001438002a56f220001100000710000 with a Fixed multipathing policy.
•The # esxcli nmp fixed setpreferred --device
naa.6001438002a56f220001100000710000 --path vmhba1:C0:T2:L1 command
sets device naa.6001438002a56f220001100000710000 with a Preferred multipathing
policy.
NOTE: Each LUN can be accessed through both EVA storage controllers at the same time;
however, each LUN path is optimized through one controller. To optimize performance, if the LUN
multipathing policy is Fixed, all servers must use a path to the same controller.
You can also set the multipathing policy from the VMware Management User Interface (MUI) by
clicking the Failover Paths tab in the Storage Management section and then selecting Edit… link
for each LUN whose policy you want to modify.
Specifying DiskMaxLUN
The DiskMaxLUN setting specifies the highest-numbered LUN that can be scanned by the ESX
server.
•For ESX 2.5.x, the default value is 8. If more than eight LUNs are presented, you must change
the setting to an appropriate value. To set DiskMaxLUN, select Options> Advanced Settings
in the MUI, and then enter the highest-numbered LUN.
•For ESX 3.x or ESX 4.x, the default value is set to the Max set value of 256. To set
DiskMaxLun to a different value, in Virtual Infrastructure Client, select Configuration> Advance
Settings> Disk> Disk.MaxLun, and then enter the new value.
Verifying connectivity
To verify proper configuration and connectivity to the SAN:
•For ESX 2.5.x, enter the # vmkmultipath -q command.
•For ESX 3.x, enter the # esxcfg-mpath -l command.
•For ESX 4.x, enter the # esxcfg-mpath -b command.
For each LUN, verify that the multipathing policy is set correctly and that each path is marked on.
If any paths are marked dead or are not listed, check the cable connections and perform a rescan
on the appropriate FCA. For example:
•For ESX 2.5.x, enter the # cos-rescan.sh vmhba0 command.
•For ESX 3.x or ESX 4.x, enter the # esxcfg-rescan vmhba0 command.
If paths or LUNs are still missing, see the VMware or HP documentation for troubleshooting
information.
94 Configuring application servers
Verifying virtual disks from the host
To verify that the host can access the virtual disks, enter the more /proc/scsi/scsi command.
The output lists all SCSI devices detected by the server. An EVA8100 LUN entry looks similar to
the following:
Host: scsi3 Channel: 00 ID: 00 Lun: 01
Vendor: HP Model: HSV210 Rev:
Type: Direct-Access ANSI SCSI revision: 02
VMware 95
5 Customer replaceable units
This chapter describes customer replaceable units. Information about initial enclosure installation,
ESD protection, and common replacement procedures is also included.
Customer self repair (CSR)
Table 30 (page 97) identifies which hardware components are customer replaceable. Using
WEBES, ISEE or other diagnostic tools, a support specialist will work with you to diagnose and
assess whether a replacement component is required to address a system problem. The specialist
will also help you determine whether you can perform the replacement.
Parts only warranty service
Your HP Limited Warranty may include a parts only warranty service. Under the terms of parts
only warranty service, HP will provide replacement parts free of charge.
For parts only warranty service, CSR part replacement is mandatory. If you request HP to replace
these parts, you will be charged for travel and labor costs.
Best practices for replacing hardware components
The following information will help you replace the hardware components on your storage system
successfully.
CAUTION: Removing a component significantly changes the air flow within the enclosure. All
components must be installed for the enclosure to cool properly. If a component fails, leave it in
place in the enclosure until a new component is available to install.
Component replacement videos
To assist you in replacing the components, videos have been produced of the procedures. You
can view the videos at the following website.
http://www.hp.com/go/sml
Verifying component failure
•Consult HP technical support to verify that the hardware component has failed and that you
are authorized to replace it yourself.
•Additional hardware failures can complicate component replacement. Check HP P6000
Command View and/or HP remote support software as follows to detect any additional
hardware problems:
◦When you have confirmed that a component replacement is required, you may want to
clear the Real Time Monitoring view. This makes it easier to identify additional hardware
problems that may occur while waiting for the replacement part.
◦Before installing the replacement part, check the Real Time Monitoring view for any new
hardware problems. If additional hardware problems have occurred, contact HP support
before replacing the component.
◦See the HP remote support software online help for additional information.
Procuring the spare part
Parts have a nine-character spare component number on their label (Figure 37 (page 97)). The
first six characters (123479) identify the element; the last three characters (002) define the revision
96 Customer replaceable units
level. The replacement component revision level must be the same as, or greater than, the number
on the element being replaced. The higher the revision level, the later the revision.
Figure 37 Typical product label
The spare part number for each disk drive is listed on the capacity label attached to each drive.
See Figure 38 (page 97).
Figure 38 Disk drive label
Replaceable parts
This product contains the replaceable parts listed in Table 30 (page 97). Parts that are available
for customer self repair (CSR) are indicated as follows:
✓ Mandatory CSR as enabled by XCS 6.000 or later and HP Command View EVA 6.0.2 or later
and where geography permits. Order the part directly from HP and repair the product yourself.
On-site or return-to-depot repair is not provided under warranty.
• Optional CSR. You can order the part directly from HP and repair the product yourself, or you
can request that HP repair the product. If you request repair from HP, you may be charged for the
repair depending on the product warranty.
-- No CSR. The replaceable part is not available for self repair. For assistance, contact an
HP-authorized service provider.
Table 30 Hardware component CSR support
CSRSpare part number (non
RoHS/RoHS)Description
--30-10013-S1/30-10013-T1Cache battery (non-CSR)
✓390852-001,12-10008-S1 or
390852-005,12-10008-T1 (all
RoHS)
Controller blower
✓349800-001/406442-001Controller power supply
•123482-001,70-40085-S1/
123482-005,70-40085-T1
Disk enclosure blower
•212398-001 or 30-50872-S1Disk enclosure power supply
✓244448-001/244448-002Disk drive – 72 GB 10K
✓300590-001/300590-002Disk drive – 146 GB 10K
Best practices for replacing hardware components 97
Table 30 Hardware component CSR support (continued)
CSRSpare part number (non
RoHS/RoHS)Description
✓366023-001/366023-002Disk drive – 300 GB 10K
✓518736-001Disk drive – 450 GB 10K
✓518737-001Disk drive – 600 GB 10K
✓300588-001/300588-002Disk drive – 72 GB 15K
✓366024-001/366024-002Disk drive – 146 GB 15K
✓416728-001Disk drive – 300 GB 15K
✓454415-001Disk drive – 450 GB 15K
✓531995-001Disk drive – 600 GB 15K
✓366022-001/366022-002Disk drive – 250 GB FATA
✓382262-001Disk drive – 400 GB FATA
✓371142-001Disk drive – 500 GB FATA
✓454416-001Disk drive – 1 TB. 7.2K, FATA
--408515-001, 70-41260-T1
(both RoHS)
Chassis with backplane
✓390859-001,70-41143-S1 or
390859-005,70-41143-T1
Operator control panel
--375393-001,
70-40145-S2/375393-005,
70-40145-T2
EMU
--364549-005,70-40616-T4 or
364549-009,70-40616-T5 (all
RoHS)
FC I/O module A
--364548-005,70-40615-T4 or
364548-009,70-40615-T5 (all
RoHS)
FC I/O module B
•372631-0012GB SFP FC copper cable assembly, 0.6M
•372630-0012GB SFP FC copper cable assembly, 2.0M
•17-05405-S2 (RoHS)4GB SFP FC copper cable assembly, 0.6M
•17-05405-S1 (RoHS)4GB SFP FC copper cable assembly, 2.0M
•229204-001 or 416729-001
(both RoHS)
2GB SFP Transceiver
•416729-001 (RoHS)4GB SFP Transceiver
--390855-001, 70-41138-S1/
390855-005, 70-41138-T1
Controller EVA8000
--390855-006, 70-41138-Y1
(both RoHS)
Controller EVA8100
--390856-001,70-41138-S2/
390856-005,70-41138-T2
Controller EVA6000/4000
--390856-006, 70-41138-Y2
(both RoHS)
Controller EVA6100/4100
98 Customer replaceable units
Table 30 Hardware component CSR support (continued)
CSRSpare part number (non
RoHS/RoHS)Description
✓390853-001, 70-41140-S1/
411632-005, 70-41140-S3
Front panel bezel EVA8000
✓390854-001, 70-41140-S2/
411632-006, 70-41140-S5
Front panel bezel EVA8100
✓411633-005, 70-41140-S4
(both RoHS)
Front panel bezel EVA4000/6000
✓411633-006, 70-41140-S6
(both RoHS)
Front panel bezel EVA4100/6100
For more information about CSR, contact your local service provider. For North America, see the
CSR website:
http://www.hp.com/go/selfrepair
To determine the warranty service provided for this product, see the warranty information website:
http://www.hp.com/go/storagewarranty
To order a replacement part, contact an HP-authorized service provider or see the HP Parts Store
online:
http://www.hp.com/buy/parts
Replacing the failed component
CAUTION: Components can be damaged by electrostatic discharge. Use proper anti-static
protection.
•Always transport and store CRUs in an ESD protective enclosure.
•Do not remove the CRU from the ESD protective enclosure until you are ready to install it.
•Always use ESD precautions, such as a wrist strap, heel straps on conductive flooring, and
an ESD protective smock when handling ESD sensitive equipment.
•Avoid touching the CRU connector pins, leads, or circuitry.
•Do not place ESD generating material such as paper or non anti-static (pink) plastic in an ESD
protective enclosure with ESD sensitive equipment.
•HP recommends waiting until periods of low storage system activity to replace a component.
•When replacing components at the rear of the rack, cabling may obstruct access to the
component. Carefully move any cables out of the way to avoid loosening any connections.
In particular, avoid cable damage that may be caused by:
◦Kinking or bending.
◦Disconnecting cables without capping. If uncapped, cable performance may be impaired
by contact with dust, metal or other surfaces.
◦Placing removed cables on the floor or other surfaces, where they may be walked on or
otherwise compressed.
•Replacement procedures are provided with each component. You can also download the
following replacement instructions from the Manuals page of the HP Business Support Center
website. See “Related information” (page 101) for more information.
◦HP Controller Blower Replacement Instructions
◦HP Controller Enclosure Cache Battery Replacement Instructions
Best practices for replacing hardware components 99
◦HP Controller Power Supply Replacement Instructions
◦HP Disk Enclosure Power Supply/Blower Replacement Instructions
◦HP Fibre Channel Disk Drive Replacement Instructions
◦HP Operator Control Panel Replacement Instructions
Returning the defective part
In the materials shipped with a replacement CSR part, HP specifies whether the defective component
must be returned to HP. Where required, you must ship the defective component back to HP within
a defined period of time, normally five (5) business days. The defective component must be returned
with the associated documentation provided in the shipping material. Failure to return the defective
component may result in HP billing you for the replacement. With a customer self repair, HP will
pay all shipping and component return costs and determine the courier/carrier to be used.
100 Customer replaceable units
6 Support and other resources
Contacting HP
For worldwide technical support information, see the HP support website:
http://www.hp.com/support
Before contacting HP, collect the following information:
•Product model names and numbers
•Technical support registration number (if applicable)
•Product serial numbers
•Error messages
•Operating system type and revision level
•Detailed questions
Subscription service
HP recommends that you register your product at the Subscriber's Choice for Business website:
http://www.hp.com/go/e-updates
After registering, you will receive e-mail notification of product enhancements, new driver versions,
firmware updates, and other product resources.
Documentation feedback
HP welcomes your feedback.
To make comments and suggestions about product documentation, please send a message to
storagedocsfeedback@hp.com. All submissions become the property of HP.
Related information
Documents
You can find related documents from the Manuals page of the HP Business Support Center website:
http://www.hp.com/support/manuals
Click Disk Storage Systems or Storage Software under storage, and then select your product.
Websites
For additional information, see the following HP websites:
•http://www.hp.com
•http://www.hp.com/go/storage
•http://www.hp.com/service_locator
•http://www.hp.com/support/manuals
•http://www.software.hp.com
Contacting HP 101
Document conventions and symbols
Table 31 Document conventions
ElementConvention
Cross-reference links and e-mail addressesBlue text: Table 31 (page 102)
website addressesBlue, underlined text: http://www.hp.com
Bold text •Keys that are pressed
•Text typed into a GUI element, such as a box
•GUI elements that are clicked or selected, such as menu
and list items, buttons, tabs, and check boxes
Text emphasisItalic text
Monospace text •File and directory names
•System output
•Code
•Commands, their arguments, and argument values
Monospace, italic text •Code variables
•Command variables
Emphasized monospace textMonospace, bold text
WARNING! Indicates that failure to follow directions could result in bodily harm or death.
CAUTION: Indicates that failure to follow directions could result in damage to equipment or data.
IMPORTANT: Provides clarifying information or specific instructions.
NOTE: Provides additional information.
TIP: Provides helpful hints and shortcuts.
Rack stability
WARNING! To reduce the risk of personal injury or damage to equipment:
•Extend leveling jacks to the floor.
•Ensure that the full weight of the rack rests on the leveling jacks.
•Install stabilizing feet on the rack.
•In multiple-rack installations, secure racks together.
•Extend only one rack component at a time. Racks may become unstable if more than one
component is extended.
102 Support and other resources
Customer self repair
HP customer self repair (CSR) programs allow you to repair your product. If a CSR part needs
replacing, HP ships the part directly to you so that you can install it at your convenience. Some
parts do not qualify for CSR. Your HP-authorized service provider will determine whether a repair
can be accomplished by CSR.
For more information about CSR, contact your local service provider. For North America, see the
CSR website:
http://www.hp.com/go/selfrepair
Customer self repair 103
A Regulatory notices and specifications
This appendix includes regulatory notices and product specifications for the HP Enterprise Virtual
Array family.
Regulatory notices
Federal Communications Commission (FCC) notice
Part 15 of the Federal Communications Commission (FCC) Rules and Regulations has established
Radio Frequency (RF) emission limits to provide an interference-free radio frequency spectrum.
Many electronic devices, including computers, generate RF energy incidental to their intended
function and are, therefore, covered by these rules. These rules place computers and related
peripheral devices into two classes, A and B, depending upon their intended installation. Class A
devices are those that may reasonably be expected to be installed in a business or commercial
environment. Class B devices are those that may reasonably be expected to be installed in a
residential environment (for example, personal computers). The FCC requires devices in both classes
to bear a label indicating the interference potential of the device as well as additional operating
instructions for the user.
The rating label on the device shows the classification (A or B) of the equipment. Class B devices
have an FCC logo or FCC ID on the label. Class A devices do not have an FCC logo or FCC ID
on the label. After the class of the device is determined, see the corresponding statement in the
following sections.
FCC Class A certification
This equipment generates, uses, and may emit radio frequency energy. The equipment has been
type tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of
the FCC rules, which are designed to provide reasonable protection against such radio frequency
interference.
Operation of this equipment in a residential area may cause interference, in which case the user
at the user’s own expense will be required to take whatever measures may be required to correct
the interference.
Any modifications to this device—unless approved by the manufacturer—can void the user’s
authority to operate this equipment under Part 15 of the FCC rules.
NOTE: Additional information on the need to interconnect the device with shielded (data) cables
or the need for special devices, such as ferrite beads on cables, is required if such means of
interference suppression was used in the qualification test for the device. This information will vary
from device to device and needs to be obtained from the HP EMC group.
Class A equipment
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference, in which
case the user will be required to correct the interference at personal expense.
Class B equipment
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
104 Regulatory notices and specifications
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit that is different from that to which the receiver
is connected.
•Consult the dealer or an experienced radio or television technician for help.
Declaration of conformity for products marked with the FCC logo, United States only
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
For questions regarding your product, see http://thenew.hp.com.
For questions regarding this FCC declaration, contact:
•Hewlett-Packard Company Product Regulations Manager, 3000 Hanover St., Palo Alto, CA
94304
•Or call 1-650-857-1501
To identify this product, see the part, series, or model number found on the product.
Modifications
The FCC requires the user to be notified that any changes or modifications made to this device
that are not expressly approved by Hewlett-Packard Company may void the user's authority to
operate the equipment.
Cables
Connections to this device must be made with shielded cables with metallic RFI/EMI connector
hoods in order to maintain compliance with FCC Rules and Regulations.
Laser device
All Hewlett-Packard systems equipped with a laser device comply with safety standards, including
International Electrotechnical Commission (IEC) 825. With specific regard to the laser, the equipment
complies with laser product performance standards set by government agencies as a Class 1 laser
product. The product does not emit hazardous light; the beam is totally enclosed during all modes
of customer operation and maintenance.
Laser safety warnings
Heed the following warning:
WARNING! WARNING: To reduce the risk of exposure to hazardous radiation:
• Do not try to open the laser device enclosure. There are no user-serviceable components inside.
• Do not operate controls, make adjustments, or perform procedures to the laser device other than
those specified herein.
• Allow only HP authorized service technicians to repair the laser device.
Compliance with CDRH regulations
The Center for Devices and Radiological Health (CDRH) of the U.S. Food and Drug Administration
implemented regulations for laser products on August 2, 1976. These regulations apply to laser
products manufactured from August 1, 1976. Compliance is mandatory for products marketed in
the United States.
Regulatory notices 105
Certification and classification information
This product contains a laser internal to the Optical Link Module (OLM) for connection to the Fibre
communications port.
In the USA, the OLM is certified as a Class 1 laser product conforming to the requirements contained
in the Department of Health and Human Services (DHHS) regulation 21 CFR, Subchapter J. The
certification is indicated by a label on the plastic OLM housing.
Outside the USA, the OLM is certified as a Class 1 laser product conforming to the requirements
contained in IEC 825-1:1993 and EN 60825-1:1994, including Amendment 11:1996.
The OLM includes the following certifications:
•UL Recognized Component (USA)
•CSA Certified Component (Canada)
•TUV Certified Component (European Union)
•CB Certificate (Worldwide)
Canadien notice (avis Canadien)
Class A equipment
This Class A digital apparatus meets all requirements of the Canadian Interference-Causing
Equipment Regulations.
Cet appareil numérique de la classe A respecte toutes les exigences du Règlement sur le matériel
brouilleur du Canada.
Class B equipment
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing
Equipment Regulations.
Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel
brouilleur du Canada.
European union notice
Products with the CE Marking comply with both the EMC Directive (89/336/EEC) and the Low
Voltage Directive (73/23/EEC) issued by the Commission of the European Community.
Compliance with these directives implies conformity to the following European Norms (the equivalent
international standards are in parenthesis):
•EN55022 (CISPR 22) - Electromagnetic Interference
•EN55024 (IEC61000-4-2, 3, 4, 5, 6, 8, 11) - Electromagnetic Immunity
•EN61000-3-2 (IEC61000-3-2) - Power Line Harmonics
•EN61000-3-3 (IEC61000-3-3) - Power Line Flicker
•EN60950 (IEC950) - Product Safety
Notice for France
DECLARATION D'INSTALLATION ET DE MISE EN EXPLOITATION d'un matériel de traitement de
l'information (ATI), classé A en fonction des niveaux de perturbations radioélectriques émis, définis
dans la norme européenne EN 55022 concernant la Compatibilité Electromagnétique.
WEEE Recycling Notices
English notice
Disposal of waste equipment by users in private household in the European Union
106 Regulatory notices and specifications
This symbol on the product or on its packaging indicates that this product must not be disposed
of with your other household waste. Instead, it is your responsibility to dispose of your waste
equipment by handing it over to a designated collection point for recycling of waste electrical and
electronic equipment. The separate collection and recycling of your waste equipment at the time
of disposal will help to conserve natural resources and ensure that it is recycled in a manner that
protects human health and the environment. For more information about where you can drop off
your waste equipment for recycling, please contact your local city office, your household waste
disposal service, or the shop where you purchased the product.
Dutch notice
Verwijdering van afgedankte apparatuur door privé-gebruikers in de Europese Unie
Dit symbool op het product of de verpakking geeft aan dat dit product niet mag worden
gedeponeerd bij het normale huishoudelijke afval. U bent zelf verantwoordelijk voor het inleveren
van uw afgedankte apparatuur bij een inzamelingspunt voor het recyclen van oude elektrische en
elektronische apparatuur. Door uw oude apparatuur apart aan te bieden en te recyclen, kunnen
natuurlijke bronnen worden behouden en kan het materiaal worden hergebruikt op een manier
waarmee de volksgezondheid en het milieu worden beschermd. Neem contact op met uw gemeente,
het afvalinzamelingsbedrijf of de winkel waar u het product hebt gekocht voor meer informatie
over inzamelingspunten waar u oude apparatuur kunt aanbieden voor recycling.
Czechoslovakian notice
Likvidace zařízení soukromými domácími uživateli v Evropské unii
Tento symbol na produktu nebo balení označuje výrobek, který nesmí být vyhozen spolu s
ostatním domácím odpadem. Povinností uživatele je předat takto označený odpad na předem
určené sběrné místo pro recyklaci elektrických a elektronických zařízení. Okamžité třídění a
recyklace odpadu pomůže uchovat přírodní prostředí a zajistí takový způsob recyklace, který
ochrání zdraví a životní prostředí člověka. Další informace o možnostech odevzdání odpadu k
recyklaci získáte na příslušném obecním nebo městském úřadě, od firmy zabývající se sběrem a
svozem odpadu nebo v obchodě, kde jste produkt zakoupili.
Estonian notice
Seadmete jäätmete kõrvaldamine eramajapidamistes Euroopa Liidus
See tootel või selle pakendil olev sümbol näitab, et kõnealust toodet ei tohi koos teiste
majapidamisjäätmetega kõrvaldada. Teie kohus on oma seadmete jäätmed kõrvaldada, viies
need elektri- ja elektroonikaseadmete jäätmete ringlussevõtmiseks selleks ettenähtud kogumispunkti.
Seadmete jäätmete eraldi kogumine ja ringlussevõtmine kõrvaldamise ajal aitab kaitsta
loodusvarasid ning tagada, et ringlussevõtmine toimub viisil, mis kaitseb inimeste tervist ning
keskkonda. Lisateabe saamiseks selle kohta, kuhu oma seadmete jäätmed ringlussevõtmiseks viia,
võtke palun ühendust oma kohaliku linnakantselei, majapidamisjäätmete kõrvaldamise teenistuse
või kauplusega, kust Te toote ostsite.
Finnish notice
Laitteiden hävittäminen kotitalouksissa Euroopan unionin alueella
Jos tuotteessa tai sen pakkauksessa on tämä merkki, tuotetta ei saa hävittää kotitalousjätteiden
mukana. Tällöin hävitettävä laite on toimitettava sähkölaitteiden ja elektronisten laitteiden
kierrätyspisteeseen. Hävitettävien laitteiden erillinen käsittely ja kierrätys auttavat säästämään
Regulatory notices 107
luonnonvaroja ja varmistamaan, että laite kierrätetään tavalla, joka estää terveyshaitat ja suojelee
luontoa. Lisätietoja paikoista, joihin hävitettävät laitteet voi toimittaa kierrätettäväksi, saa ottamalla
yhteyttä jätehuoltoon tai liikkeeseen, josta tuote on ostettu.
French notice
Élimination des appareils mis au rebut par les ménages dans l'Union européenne
Le symbole apposé sur ce produit ou sur son emballage indique que ce produit ne doit pas
être jeté avec les déchets ménagers ordinaires. Il est de votre responsabilité de mettre au rebut
vos appareils en les déposant dans les centres de collecte publique désignés pour le recyclage
des équipements électriques et électroniques. La collecte et le recyclage de vos appareils mis au
rebut indépendamment du reste des déchets contribue à la préservation des ressources naturelles
et garantit que ces appareils seront recyclés dans le respect de la santé humaine et de
l'environnement. Pour obtenir plus d'informations sur les centres de collecte et de recyclage des
appareils mis au rebut, veuillez contacter les autorités locales de votre région, les services de
collecte des ordures ménagères ou le magasin dans lequel vous avez acheté ce produit.
German notice
Entsorgung von Altgeräten aus privaten Haushalten in der EU
Das Symbol auf dem Produkt oder seiner Verpackung weist darauf hin, dass das Produkt nicht
über den normalen Hausmüll entsorgt werden darf. Benutzer sind verpflichtet, die Altgeräte an
einer Rücknahmestelle für Elektro- und Elektronik-Altgeräte abzugeben. Die getrennte Sammlung
und ordnungsgemäße Entsorgung Ihrer Altgeräte trägt zur Erhaltung der natürlichen Ressourcen
bei und garantiert eine Wiederverwertung, die die Gesundheit des Menschen und die Umwelt
schützt. Informationen dazu, wo Sie Rücknahmestellen für Ihre Altgeräte finden, erhalten Sie bei
Ihrer Stadtverwaltung, den örtlichen Müllentsorgungsbetrieben oder im Geschäft, in dem Sie das
Gerät erworben haben.
Greek notice
Απόρριψη άχρηστου εξοπλισμού από χρήστες σε ιδιωτικά νοικοκυριά στην Ευρωπαϊκή Ένωση
Το σύμβολο αυτό στο προϊόν ή τη συσκευασία του υποδεικνύει ότι το συγκεκριμένο προϊόν δεν
πρέπει να διατίθεται μαζί με τα άλλα οικιακά σας απορρίμματα. Αντίθετα, είναι δική σας ευθύνη να
απορρίψετε τον άχρηστο εξοπλισμό σας παραδίδοντάς τον σε καθορισμένο σημείο συλλογής για
την ανακύκλωση άχρηστου ηλεκτρικού και ηλεκτρονικού εξοπλισμού. Η ξεχωριστή συλλογή και
ανακύκλωση του άχρηστου εξοπλισμού σας κατά την απόρριψη θα συμβάλει στη διατήρηση των
φυσικών πόρων και θα διασφαλίσει ότι η ανακύκλωση γίνεται με τρόπο που προστατεύει την ανθρώπινη
υγεία και το περιβάλλον. Για περισσότερες πληροφορίες σχετικά με το πού μπορείτε να παραδώσετε
108 Regulatory notices and specifications
τον άχρηστο εξοπλισμό σας για ανακύκλωση, επικοινωνήστε με το αρμόδιο τοπικό γραφείο, την
τοπική υπηρεσία διάθεσης οικιακών απορριμμάτων ή το κατάστημα όπου αγοράσατε το προϊόν.
Hungarian notice
Készülékek magánháztartásban történő selejtezése az Európai Unió területén
A készüléken, illetve a készülék csomagolásán látható azonos szimbólum annak jelzésére
szolgál, hogy a készülék a selejtezés során az egyéb háztartási hulladéktól eltérő módon kezelendő.
A vásárló a hulladékká vált készüléket köteles a kijelölt gyűjtőhelyre szállítani az elektromos és
elektronikai készülékek újrahasznosítása céljából. A hulladékká vált készülékek selejtezéskori
begyűjtése és újrahasznosítása hozzájárul a természeti erőforrások megőrzéséhez, valamint
biztosítja a selejtezett termékek környezetre és emberi egészségre nézve biztonságos feldolgozását.
A begyűjtés pontos helyéről bővebb tájékoztatást a lakhelye szerint illetékes önkormányzattól, az
illetékes szemételtakarító vállalattól, illetve a terméket elárusító helyen kaphat.
Italian notice
Smaltimento delle apparecchiature da parte di privati nel territorio dell’Unione Europea
Questo simbolo presente sul prodotto o sulla sua confezione indica che il prodotto non può
essere smaltito insieme ai rifiuti domestici. È responsabilità dell'utente smaltire le apparecchiature
consegnandole presso un punto di raccolta designato al riciclo e allo smaltimento di apparecchiature
elettriche ed elettroniche. La raccolta differenziata e il corretto riciclo delle apparecchiature da
smaltire permette di proteggere la salute degli individui e l'ecosistema. Per ulteriori informazioni
relative ai punti di raccolta delle apparecchiature, contattare l'ente locale per lo smaltimento dei
rifiuti, oppure il negozio presso il quale è stato acquistato il prodotto.
Latvian notice
Nolietotu iekārtu iznīcināšanas noteikumi lietotājiem Eiropas Savienības privātajās mājsaimniecībās
Šāds simbols uz izstrādājuma vai uz tā iesaiņojuma norāda, ka šo izstrādājumu nedrīkst izmest
kopā ar citiem sadzīves atkritumiem. Jūs atbildat par to, lai nolietotās iekārtas tiktu nodotas speciāli
iekārtotos punktos, kas paredzēti izmantoto elektrisko un elektronisko iekārtu savākšanai otrreizējai
pārstrādei. Atsevišķa nolietoto iekārtu savākšana un otrreizējā pārstrāde palīdzēs saglabā dabas
resursus un garantēs, ka šīs iekārtas tiks otrreizēji pārstrādātas tādā veidā, lai pasargātu vidi un
cilvēku veselību. Lai uzzinātu, kur nolietotās iekārtas var izmest otrreizējai pārstrādei, jāvēršas
savas dzīves vietas pašvaldībā, sadzīves atkritumu savākšanas dienestā vai veikalā, kurā
izstrādājums tika nopirkts.
Lithuanian notice
Vartotojų iš privačių namų ūkių įrangos atliekų šalinimas Europos Sąjungoje
Šis simbolis ant gaminio arba jo pakuotės rodo, kad šio gaminio šalinti kartu su kitomis namų
ūkio atliekomis negalima. Šalintinas įrangos atliekas privalote pristatyti į specialią surinkimo vietą
elektros ir elektroninės įrangos atliekoms perdirbti. Atskirai surenkamos ir perdirbamos šalintinos
įrangos atliekos padės saugoti gamtinius išteklius ir užtikrinti, kad jos bus perdirbtos tokiu būdu,
kuris nekenkia žmonių sveikatai ir aplinkai. Jeigu norite sužinoti daugiau apie tai, kur galima
pristatyti perdirbtinas įrangos atliekas, kreipkitės į savo seniūniją, namų ūkio atliekų šalinimo
tarnybą arba parduotuvę, kurioje įsigijote gaminį.
Polish notice
Pozbywanie się zużytego sprzętu przez użytkowników w prywatnych gospodarstwach domowych
w Unii Europejskiej
Regulatory notices 109
Ten symbol na produkcie lub jego opakowaniu oznacza, że produktu nie wolno wyrzucać
do zwykłych pojemników na śmieci. Obowiązkiem użytkownika jest przekazanie zużytego sprzętu
do wyznaczonego punktu zbiórki w celu recyklingu odpadów powstałych ze sprzętu elektrycznego
i elektronicznego. Osobna zbiórka oraz recykling zużytego sprzętu pomogą w ochronie zasobów
naturalnych i zapewnią ponowne wprowadzenie go do obiegu w sposób chroniący zdrowie
człowieka i środowisko. Aby uzyskać więcej informacji o tym, gdzie można przekazać zużyty
sprzęt do recyklingu, należy się skontaktować z urzędem miasta, zakładem gospodarki odpadami
lub sklepem, w którym zakupiono produkt.
Portuguese notice
Descarte de Lixo Elétrico na Comunidade Européia
Este símbolo encontrado no produto ou na embalagem indica que o produto não deve ser
descartado no lixo doméstico comum. É responsabilidade do cliente descartar o material usado
(lixo elétrico), encaminhando-o para um ponto de coleta para reciclagem. A coleta e a reciclagem
seletivas desse tipo de lixo ajudarão a conservar as reservas naturais; sendo assim, a reciclagem
será feita de uma forma segura, protegendo o ambiente e a saúde das pessoas. Para obter mais
informações sobre locais que reciclam esse tipo de material, entre em contato com o escritório
da HP em sua cidade, com o serviço de coleta de lixo ou com a loja em que o produto foi
adquirido.
Slovakian notice
Likvidácia vyradených zariadení v domácnostiach v Európskej únii
Symbol na výrobku alebo jeho balení označuje, že daný výrobok sa nesmie likvidovať s
domovým odpadom. Povinnosťou spotrebiteľa je odovzdať vyradené zariadenie v zbernom mieste,
ktoré je určené na recykláciu vyradených elektrických a elektronických zariadení. Separovaný
zber a recyklácia vyradených zariadení prispieva k ochrane prírodných zdrojov a zabezpečuje,
že recyklácia sa vykonáva spôsobom chrániacim ľudské zdravie a životné prostredie. Informácie
o zberných miestach na recykláciu vyradených zariadení vám poskytne miestne zastupiteľstvo,
spoločnosť zabezpečujúca odvoz domového odpadu alebo obchod, v ktorom ste si výrobok
zakúpili.
Slovenian notice
Odstranjevanje odslužene opreme uporabnikov v zasebnih gospodinjstvih v Evropski uniji
Ta znak na izdelku ali njegovi embalaži pomeni, da izdelka ne smete odvreči med gospodinjske
odpadke. Nasprotno, odsluženo opremo morate predati na zbirališče, pooblaščeno za recikliranje
odslužene električne in elektronske opreme. Ločeno zbiranje in recikliranje odslužene opreme
prispeva k ohranjanju naravnih virov in zagotavlja recikliranje te opreme na zdravju in okolju
neškodljiv način. Za podrobnejše informacije o tem, kam lahko odpeljete odsluženo opremo na
recikliranje, se obrnite na pristojni organ, komunalno službo ali trgovino, kjer ste izdelek kupili.
Spanish notice
Eliminación de residuos de equipos eléctricos y electrónicos por parte de usuarios particulares en
la Unión Europea
Este símbolo en el producto o en su envase indica que no debe eliminarse junto con los
desperdicios generales de la casa. Es responsabilidad del usuario eliminar los residuos de este
tipo depositándolos en un "punto limpio" para el reciclado de residuos eléctricos y electrónicos.
110 Regulatory notices and specifications
La recogida y el reciclado selectivos de los residuos de aparatos eléctricos en el momento de su
eliminación contribuirá a conservar los recursos naturales y a garantizar el reciclado de estos
residuos de forma que se proteja el medio ambiente y la salud. Para obtener más información
sobre los puntos de recogida de residuos eléctricos y electrónicos para reciclado, póngase en
contacto con su ayuntamiento, con el servicio de eliminación de residuos domésticos o con el
establecimiento en el que adquirió el producto.
Swedish notice
Bortskaffande av avfallsprodukter från användare i privathushåll inom Europeiska Unionen
Om den här symbolen visas på produkten eller förpackningen betyder det att produkten inte
får slängas på samma ställe som hushållssopor. I stället är det ditt ansvar att bortskaffa avfallet
genom att överlämna det till ett uppsamlingsställe avsett för återvinning av avfall från elektriska
och elektroniska produkter. Separat insamling och återvinning av avfallet hjälper till att spara på
våra naturresurser och gör att avfallet återvinns på ett sätt som skyddar människors hälsa och
miljön. Kontakta ditt lokala kommunkontor, din närmsta återvinningsstation för hushållsavfall eller
affären där du köpte produkten för att få mer information om var du kan lämna ditt avfall för
återvinning.
Germany noise declaration
Schalldruckpegel Lp = 70 dB(A)
Am Arbeitsplatz (operator position)
Normaler Betrieb (normal operation)
Nach ISO 7779:1999 (Typprüfung)
Japanese notice
Harmonics conformance (Japan)
Taiwanese notice
Japanese power cord notice
Regulatory notices 111
Country-specific certifications
HP tests electronic products for compliance with country-specific regulatory requirements, as an
individual item or as part of an assembly. The product label (see Figure 39 (page 112)) specifies
the regulations with which the product complies.
NOTE: Components without an individual product certification label are qualified as part of the
next higher assembly (for example, enclosure, rack, or tower).
Figure 39 Typical enclosure certification label
NOTE: The certification symbols on the label depend upon the certification level. For example,
the FCC Class A certification symbol is not the same as the FCC Class B certification symbol.
Storage system specifications
This appendix defines the physical, environmental, and power specifications of the EVA
4x00/6x00/8x00 storage systems.
Physical specifications
This section describes the physical specifications of the drive enclosure and elements.
Table 32 (page 112) defines the dimensions and weights of the storage system components.
Table 32 Enterprise Virtual Array 4x00/6x00/8x00 Product Dimensions, Weight and Clearance
Req. Rear
Clearance
in/cm
Req. Front
Clearance
in/cm
Max Weight
lb/kg
Depth in/cmWidth in/cmHeight in/cmPhysical Dimensions
30 (76.2)30 (76.2)537 (244.1)40.2 (102.2)23.7 (60.3)78.75
(200.03)
Evacuees and
EVA8x00 2C2D
(42U rack)
30 (76.2)30 (76.2)854 (308.2)40.2 (102.2)23.7 (60.3)78.75
(200.03)
EVA6x00 and
EVA8x00 2C6D
(42U rack)
30 (76.2)30 (76.2)1290 (586.4)40.2 (102.2)23.7 (60.3)78.75
(200.03)
EVA8x00 2C12D
(42U rack)
N/AN/A120/54.5527.5/69.8517.6/44.707.0/17.78EVA4x00/6x00/8x00
Controller Assembly
N/AN/A71/32.2120/50.819.0/42.265.25/13.34M5314B/M5314C
Drive Enclosure
Environmental specifications
To ensure optimum product operation, you must maintain the operational environmental
specifications listed in Table 33 (page 112). The ambient temperature (the enclosure air intake or
room temperature) is especially critical.
Table 33 Environmental specifications
50° to 95° F (10° to 35° C) - Reduce rating by 1° F for each 1000 ft. altitude (1.8°
C/1,000 m)
Operating Temperature
-40° to 150° F (-40° to 66° C)Shipping Temperature
112 Regulatory notices and specifications
Table 33 Environmental specifications (continued)
10% to 90% non-condensingHumidity
5% to 90% non-condensingShipping Humidity
Up to 8,000 ft. (2,400 m)Altitude
Not to exceed 500,000 particles per cubic foot of air at a size of 0.5 micron or largerAir Quality
Power specifications
The input voltage is a function of the country-specific input voltage to Enterprise storage system
rack power distribution units (PDUs). Table 34 (page 113) defines the AC input power available to
the drive enclosure power supplies.
CAUTION: The AC power distribution within a rack ensures balance to each PDA and reduces
the possibility of an overload condition. Changing the cabling to or from a PDM could cause an
overload condition.
Table 34 Enterprise storage system AC input line voltages
MaximumNominalMinimalSpecification
60 Hz service
63 Hz60 Hz57 HzAC Line Voltage
220 VAC202 VAC180 VACAC Line Voltage—Japan
220 VAC208 VAC180 VACAC Line Voltage–North America
254 VAC240 VAC208 VACAC Line Voltage–Europe
50 Hz service
53 Hz50 Hz47 HzAC Line Frequency
220 VAC202 VAC180 VACAC Line Voltage–Japan
235 VAC220 VAC190 VACAC Line Voltage–North America
244 VAC230 VAC200 VACAC Line Voltage–North America
254 VAC240 VAC208 VACAC Line Voltage–Europe
Table 35 Power Data (North America/Europe/Japan) maximum configuration
North America – 3 wire NEMA No. L6-30P, 30 amp (208 to 240V 50–60Hz 30A)
Europe – 3 wire, 2 pole IEC 309, 30 amp, (220 to 240V 50Hz 32A)
AC plug type (quantity 2)
SingleNumber of phases
17A @ 200V-240V AC, 60Hz total, 4.25 A per power cordRated current
North America – 208 or 230V
Europe – 230V
Nominal Line Voltage
Japan – 206V
187 to 256VRange Line Voltage
North America 60Hz, Europe 50Hz, Japan 50 or 60 HzLine Frequency
Storage system specifications 113
Table 36 EVA4x00 power specifications — 208 Volts
2C4D2C3D2C2D2C1DSpecification
176713901013638Total System WattageTypical1
5585430030141729Total System BTU/hour
4.43.52.61.6Input Current (A) -
Typical per line
22017013298In Rush Current (A)
7.55.94.32.7Input Current (A) -
Maximum per line
Failover Mode
1Typical is described as a system in normal steady state operation. (i.e., both PDUs operating normally, the array
reading/writing to disk drives in a production environment).
This data represents fully populated drive enclosures with 15K RPM disk drives. Other drive types may vary slightly. For
example, if you are using 10K RPM drives, the power specifications will be approximately 20% less than the 15K RPM
drives.
Table 37 EVA4x00 power specifications — 230 Volts
2C4D2C3D2C2D2C1DSpecification
176713901013638Total System
Wattage
Typical1
5585430030141729Total System
BTU/hour
4.23.32.41.5Input Current (A) -
Typical per line
244190147104In Rush Current (A)
7.15.54.12.6Input Current (A) -
Maximum per line
Failover Mode
1Typical is described as a system in normal steady state operation. (i.e., both PDUs operating normally, the array
reading/writing to disk drives in a production environment).
This data represents fully populated drive enclosures with 15K RPM disk drives. Other drive types may vary slightly. For
example, if you are using 10K RPM drives, the power specifications will be approximately 20% less than the 15K RPM
drives.
Table 38 EVA6x00 power specifications — 208 Volts
2C8D2C7D2C6D2C5D2C4DSpecification
33442967259022141837Total System
Wattage
Typical1
1140910124883875536268Total System
BTU/hour
8.47.46.55.54.6Input Current (A) -
Typical per line
363321280250220In Rush Current (A)
14.212.611.09.47.8Input Current (A) -
Maximum per line
Failover Mode
1Typical is described as a system in normal steady state operation. (i.e., both PDUs operating normally, the array
reading/writing to disk drives in a production environment).
114 Regulatory notices and specifications
This data represents fully populated drive enclosures with 15K RPM disk drives. Other drive types may vary slightly. For
example, if you are using 10K RPM drives, the power specifications will be approximately 20% less than the 15K RPM
drives.
Table 39 EVA6x00 power specifications — 230 Volts
2C8D2C7D2C6D2C5D2C4DSpecification
33442967259022141837Total System
Wattage
Typical1
1140910124883875536268Total System
BTU/hour
7.97.06.15.24.3Input Current (A) -
Typical per line
403357311272244In Rush Current (A)
13.311.910.08.87.3Input Current (A) -
Maximum per line
Failover Mode
1Typical is described as a system in normal steady state operation. (i.e., both PDUs operating normally, the array
reading/writing to disk drives in a production environment).
This data represents fully populated drive enclosures with 15K RPM disk drives. Other drive types may vary slightly. For
example, if you are using 10K RPM drives, the power specifications will be approximately 20% less than the 15K RPM
drives.
Table 40 EVA8x00 power specifications — 208 Volts
2C12D2C10D2C8D2C6D2C2DSpecification
49204167341426601153Total System
Wattage
Typical1
16789142181164890773936Total System
BTU/hour
12.310.48.56.72.9Input Current (A) -
Typical per line
528451363280132In Rush Current (A)
20.817.714.511.34.9Input Current (A) -
Maximum per line
Failover Mode
1Typical is described as a system in normal steady state operation. (i.e., both PDUs operating normally, the array
reading/writing to disk drives in a production environment).
This data represents fully populated drive enclosures with 15K RPM disk drives. Other drive types may vary slightly. For
example, if you are using 10K RPM drives, the power specifications will be approximately 20% less than the 15K RPM
drives.
Table 41 EVA8x00 power specifications — 230 Volts
2C12D2C10D2C8D2C6D2C2DSpecification
49204167341426601153Total System
Wattage
Typical1
16789142181164890773936Total System
BTU/hour
11.69.88.16.32.7Input Current (A) -
Typical per line
586500403311147In Rush Current (A)
19.716.713.710.64.6Input Current (A) -
Maximum per line
Failover Mode
Storage system specifications 115
1Typical is described as a system in normal steady state operation. (i.e., both PDUs operating normally, the array
reading/writing to disk drives in a production environment).
This data represents fully populated drive enclosures with 15K RPM disk drives. Other drive types may vary slightly. For
example, if you are using 10K RPM drives, the power specifications will be approximately 20% less than the 15K RPM
drives.
116 Regulatory notices and specifications
B EMU-generated condition reports
This section provides a description of the EMU generated condition reports that contain the following
information:
•Element type (et), a hexadecimal number in the range 01 through FF.
•Element number (en), a decimal number in the range 00 through 99 that identifies the specific
element with a problem.
•Error code (ec), a decimal number in the range 00 through 99 that defines a specific problem.
•The recommended corrective action.
NOTE: The conventions used to differentiate between the elements of the condition report are:
• Element type—period after each character
• Element number—period after the second character
• Error code—no periods
The EMU can send error messages to the controller for transmission to HP P6000 Command View.
The messages displayed are specific to HP P6000 Command View and are not within the scope
of this publication.
The I/O modules have the built-in intelligence to:
•Observe fibre channel events
•Bypass drive ports based on events
•Perform drive port testing and monitoring to prevent poor-performing drives from participating
in the loop
•Communicate fibre channel events to the controllers
This appendix explains the condition report format, correcting problems, and how to identify
element types. The error codes are arranged in element type sequence (that is, 0.1., 0.2., 0.3.,
etc.).
Condition report format
When the EMU alphanumeric display is Er, three additional displays identify the possible cause
of the problem: the element type, the specific element, and the error code, which defines the
possible cause of the problem.
•The first-level display identifies the type of element affected with two alphanumeric characters
separated by periods such as 0.1., 0.2., 1.3., F.F., and so forth. A disk drive problem would
display an element type number of 0.1.
•The second-level display identifies the element affected with a two-digit, decimal number
followed by a period. For example, when a bay 6 drive error occurs, the element number
display is 06.; a display of 14. indicates a bay 14 problem.
•The third-level display identifies a specific problem, the error code with a two-digit, decimal
number. For example, should the problem be either the installation of an incorrectly configured
drive or one that cannot operate at the loop link rate, the display is 01.
Correcting errors
Correcting an error may require you to perform a specific set of actions. In some cases, the only
available corrective action is to replace the element.
Table 42 (page 118) lists the element type codes assigned to the drive enclosure elements.
Condition report format 117
Table 42 Assigned element type codes
ElementCode
Disk Drives0.1.
Power Supplies0.2.
Blowers0.3.
Temperature Sensors0.4.
Audible Alarm 1
0.6
EMU0.7.
Controller OCP LCD1
0.C.
Transceivers0.F.
Language1
1.0.
Communication Port1.1.
Voltage Sensors1.2.
Current Sensors1.
Drive Enclosure1
8.0
Drive Enclosure Backplane8.2.
I/O Modules8.7.
1Does not generate a condition report. However, for any error, you should record the error code. Then, implement the
recommended corrective action.
Drive conditions
The format of a disk drive condition report is 0.1.en.ec, where:
•0.1. is the disk drive element type number
•en. is the two-character disk drive element
•ec is the error code
A direct correlation exists between the disk drive element number and the bay number. However,
no direct correlation exists between the disk drive bay number and the device Fibre Channel drive
enclosure physical address. The Fibre Channel drive enclosure physical address is assigned by
negotiation during system initialization.
The following sections define the disk drive error codes.
0.1.en.01 CRITICAL condition—Drive configuration or drive link rate
As each drive spins up and comes on-line, the EMU determines if the drive is Fibre Channel
compatible and can operate at the link rate (1 Gbps or 2 Gbps) established by the I/O module.
If either of these conditions are not met, the EMU issues the condition report 0.1.en.01.
The corrective actions for these conditions are:
•When the drive is not Fibre Channel-compatible you must install a Fibre Channel compatible
drive or a drive blank.
•When the drive is Fibre Channel-compatible, the EMU compares the drive link rate with the
I/O module link rate, the loop link rate.
118 EMU-generated condition reports
If the EMU cannot determine the drive link rate, the EMU activates the drive bypass function for
one minute. During this time the EMU continually checks the drive to determine the link rate.
•If the EMU determines the drive cannot operate at the Fibre Channel link rate set by the I/O
module, the drive bypass function ends and the drive is placed on the loop. This does not
generate a condition report.
•The EMU issues the condition report 0.1.en.01 when the drive link rate is incompatible with
Fibre Channel link rate.
•When the EMU cannot determine the drive link rate during the one-minute drive bypass time,
the EMU places the drive on the loop. This process allows the drive to negotiate for an address.
◦If negotiation indicates the link rates are compatible, the EMU rechecks the drive link rate
to verify compatibility.
◦If negotiation indicates the link rates are incompatible, an error condition exists and drive
loop data transfers stop.
This condition report remains active until the problem is corrected. The problem affects disk drive
en. Therefore, correction to prevent the possible failure of other elements is not required.
Complete the following procedure to correct this problem:
1. Record all six characters of the condition report.
2. Replace the defective drive with:
•A Fibre Channel-compatible drive.
•A Fibre Channel drive capable of operating at a link rate supported by I/O modules and
transceivers.
3. Observe the EMU to ensure the error is corrected.
4. If unable to correct the problem, contact your authorized service representative.
0.1.en.02 INFORMATION condition—Drive missing
The drive is improperly installed or missing. Either option could affect the enclosure air flow and
cause an over temperature condition for another element.
•This error remains active for one minute, or until the problem is corrected, whichever occurs
first.
•Immediate correction is not required. However, correction cannot be delayed indefinitely.
Complete the following procedure to correct this problem.
1. Record all six characters of the condition report.
2. Remove and install the drive to ensure that it is properly installed.
3. Observe the EMU to ensure the error is corrected.
4. If removing and installing the drive did not correct the problem, install a replacement drive or
a drive blank.
5. Observe the EMU to ensure the error is corrected.
6. If unable to correct the problem, contact your authorized service representative.
0.1.en.03 INFORMATION condition—Drive software lock active
Some enclosures have a software-activated lock that prevents physically removing a drive while
this feature is active. This feature can be activated even when an enclosure does not have a physical
lock. Removing a drive when this feature is active generates a condition report. This error remains
active for 15 seconds.
No action is required to correct this condition.
0.1.en.04 CRITICAL condition—Loop a drive link rate incorrect
The drive is capable of operating at the loop link rate but is running at a different rate. For example,
the drive is operating at 1 Gbps, and the loop is operating at 2 Gbps. Only when the drive is
operating at the Fibre Channel link rate established by the I/O module can this drive transfer data.
Correcting errors 119
This error remains active until the problem is corrected.
Complete the following procedure to correct this problem:
1. Record all six characters of the condition report.
2. Remove and replace the drive in the enclosure.
3. Observe the drive status indicators to ensure the drive is operational.
4. Observe the EMU to ensure the error is corrected.
5. If removing and replacing the drive did not correct the problem, replace the drive.
6. Observe the drive status indicators to ensure the drive is operational.
7. Observe the EMU to ensure the error is corrected.
8. If unable to correct the problem, contact your authorized service representative.
0.1.en.05 CRITICAL condition—Loop b drive link rate incorrect
The drive is capable of operating at the loop link rate but is running at a different rate. For example,
the drive is operating at 1 Gbps, and the loop is operating at 2 Gbps. Only when the drive is
operating at the Fibre Channel link rate established by the I/O module can this drive transfer data.
This error remains active until the problem is corrected.
Complete the following procedure to correct this problem:
1. Record all six characters of the condition report.
2. Remove and replace the drive in the enclosure.
3. Observe the drive status indicators to ensure the drive is operational.
4. Observe the EMU to ensure the error is corrected.
5. If removing and replacing the drive did not correct the problem, replace the drive.
6. Observe the drive status indicators to ensure the drive is operational.
7. Observe the EMU to ensure the error is corrected.
8. If unable to correct the problem, contact your authorized service representative.
Power supply conditions
The format of a power supply condition report is 0.2.en.ec, where:
•0.2. is the power supply element type number
•en. is the two-character power supply element number
•ec is the error code
Figure 40 (page 120) shows the location of power supply 1 and power supply 2.
Figure 40 Power supply element numbering
The following sections define the power supply condition reports.
0.2.en.01 NONCRITICAL Condition—Power supply AC input missing
The loss of the AC input to a power supply makes the remaining power supply a single point of
failure.
This condition report remains active until AC power is applied to the power supply.
Complete the following procedure to correct this problem:
1. Record all six characters of the condition report.
120 EMU-generated condition reports
2. Ensure that there is AC power to the rack PDU, and from the PDU to the PDMs, and that the
PDU and PDM circuit breakers are not reset.
If there is no AC power to the PDU, contact building facilities management.
Verify that the power supply AC power cord is properly connected.
3. If AC is present, and the rack power distribution circuitry is functioning properly, the power
supply indicator should be on.
4. Observe the EMU to ensure the error is corrected.
5. Contact your authorized service representative.
0.2.en.02 UNRECOVERABLE condition—Power supply missing
This condition report indicates a power supply is not installed or installed incorrectly. Both of these
conditions affect air flow within the enclosure and can cause an over-temperature condition.
Enclosure shutdown is imminent.
The operational power supply will automatically shut down after seven minutes, thereby disabling
the enclosure. This condition report remains active until either the problem is corrected, or the
operational power supply shuts down, whichever occurs first.
To correct this problem, record all six characters of the condition report, then contact your authorized
service representative.
CAUTION: Removing power from an enclosure may cause the loss or corruption of data. To
avoid this condition, shut down the system using HP P6000 Command View. An automatic shutdown
and possible data corruption may result if the power supply is removed before a replacement is
available.
0.2.en.03 CRITICAL condition—Power supply load unbalanced
This condition report indicates that a component within a power supply may have failed. This can
make the remaining power supply a single point of failure.
This condition report remains active until corrected.
Complete the following procedure to correct this problem:
1. Record all six characters of the condition report.
2. Ensure that the blower on the power supply is functioning properly. If not, correct the blower
condition and wait one minute.
3. Contact your authorized service representative.
Blower conditions
The format of a blower condition report is 0.3.en.ec, where:
•0.3. is the blower element type number
•en. is the two-character blower element number
•ec is the error code
As shown in Figure 41 (page 122),blower 1 is in location 1 and blower 2 is in location 2.
Correcting errors 121
Figure 41 Blower element numbering
CAUTION: A single blower operating at high speed can provide sufficient air flow to cool an
enclosure and the elements for up to 100 hours. However, operating an enclosure at temperatures
approaching an overheating threshold can damage elements and may reduce the MTBF of a
specific element. Immediate replacement of the defective blower is required.
The following sections define the power supply condition reports.
0.3.en.01 NONCRITICAL condition—Blower speed
Ablower is operating at a speed outside of the EMU specified range, possibly because of a
bearing problem. This can affect enclosure cooling and cause an element to fail. This condition
report remains active until the problem is corrected.
This error does not normally require immediate correction. However, an error of this type could
contribute to an element overheating.
HP recommends replacing the blower as soon as possible.
To correct this problem, record all six characters of the condition report, then contact your HP
authorized service representative.
0.3.en.02 CRITICAL condition—Blower speed
Ablower is operating at a speed that is significantly outside the EMU specified range, possibly
because of a bearing problem. This can cause the loss of cooling and cause an element to fail.
The error remains active until the problem is corrected.
HP recommends replacing the blower as soon as possible.
To correct this problem, record all six characters of the condition report, then contact your authorized
service representative.
0.3.en.03 UNRECOVERABLE condition—Blower failure
Ablower has stopped. The operational blower now operates at high speed and is a single point
of failure. This condition report remains active until the problem is corrected.
To correct this problem, record all six characters of the condition report, then contact your authorized
service representative.
0.3.en.04 UNRECOVERABLE condition—Blower internal
A power supply reported an internal blower error that could affect enclosure cooling and cause
an element to fail. HP recommends correcting the problem before the blower fails. This condition
report remains active until the problem is corrected.
To correct this problem, record all six characters of the condition report, then contact your HP
authorized service representative.
0.3.en.05 NONCRITICAL condition—Blower missing
Ablower has been removed or is improperly installed. Even though the blower flaps close to
maintain the proper air flow, the reduced cooling capability can cause overheating, causing an
element to fail. This condition report remains active until the problem is corrected.
To correct this problem, record all six characters of the condition report, then contact your HP
authorized service representative.
122 EMU-generated condition reports
0.3.en.06 UNRECOVERABLE condition—No blowers installed
NOTE: IMPORTANT
When this condition exists there will be two error messages.
The first message will be 0.3.en.05 and will identify the first blower.
The second message will be 0.3.en.06 and will identify the second blower.
The EMU cannot detect any installed blowers.Shutdown is imminent! The EMU will shut down the
enclosure in seven minutes unless you correct the problem. This condition report remains active
until you correct the problem or the EMU shuts down the power supplies, whichever occurs first.
Complete the following procedure to correct this problem.
1. Record all six characters of the condition report.
2. Use the controller shutdown procedure to shut down the controllers.
3. Contact your authorized service representative.
CAUTION: An automatic shutdown and possible data corruption may result if the blower is
removed before a replacement is available.
Temperature conditions
The format of a temperature condition report is 0.4.en.ec, where:
•0.4. is the temperature sensor element type
•en. is the two-character temperature sensor element
•ec is the error code
See Table 43 (page 123) to determine the location of each temperature sensor.
Table 43 Temperature sensor element numbering
Sensor locationSensorSensor locationSensor
Drive Bay 710.Power Supply 1 Exhaust01.
Drive Bay 811.Power Supply 2 Exhaust02.
Drive Bay 912.EMU03.
Drive Bay 1013.Drive Bay 104.
Drive Bay 1114.Drive Bay 205.
Drive Bay 1215.Drive Bay 306.
Drive Bay 1316.Drive Bay 407.
Drive Bay 1417.Drive Bay 508.
Drive Bay 609.
The following sections list the temperature condition reports and the default temperature thresholds.
Use HP P6000 Command View to view the temperature sensor ranges for the disk drives, EMU,
and power supplies.
0.4.en.01 NONCRITICAL condition—High temperature
This condition report indicates that an element temperature is approaching, but has not reached,
the high temperature CRITICAL threshold. Continued operation under these conditions may result
in a CRITICAL condition. This condition report remains active until the problem is corrected.
Complete the following procedure to correct this problem.
1. Record all six characters of the condition report.
2. Ensure that all elements are properly installed to maintain proper air flow.
Correcting errors 123
3. Ensure that nothing is obstructing the air flow at either the front of the enclosure or the rear of
the blower.
4. Ensure that both blowers are operating properly (the indicators are on) and neither blower is
operating at high speed.
5. Verify that the ambient temperature range is +10° C to +35° C (+50° F to +95° F). Correct
the ambient conditions.
6. Observe the EMU to ensure the error is corrected.
7. If unable to correct the problem, contact your authorized service representative.
0.4.en.02 CRITICAL condition—High temperature
This condition report indicates that an element temperature is above the high temperature CRITICAL
threshold. Continued operation under these conditions may result in element failure and may reduce
an element MTBF. This condition report remains active until the problem is corrected.
Complete the following procedure to correct this problem.
1. Record all six characters of the condition report.
2. Ensure that all elements are properly installed to maintain proper air flow.
3. Ensure that nothing is obstructing the air flow at either the front of the enclosure or the rear of
the blower.
4. Ensure that both blowers are operating properly (the indicators are on) and neither blower is
operating at high speed.
5. Verify that the ambient temperature range is +10° C to +35° C (+50° F to +95° F). Adjust as
necessary.
6. Observe the EMU to ensure the error is corrected.
7. If unable to correct the problem, contact your authorized service representative.
0.4.en.03 NONCRITICAL condition—Low temperature
This condition report indicates that an element temperature is approaching, but has not reached,
the low temperature CRITICAL threshold. Continued operation under these conditions may result
in a CRITICAL condition. This condition report remains active until the problem is corrected.
Complete the following procedure to correct this problem.
1. Record all six characters of the condition report.
2. Verify that the ambient temperature range is +10° C to +35° C (+50° F to +95° F). Adjust as
necessary.
3. Observe the EMU to ensure the error is corrected.
4. If the ambient temperature is correct and the problem persists, contact your Authorized Service
Representative.
0.4.en.04 CRITICAL condition—Low temperature
This condition report indicates that an element temperature has reached the low temperature
CRITICAL threshold. HP recommends correcting this error to prevent affecting other elements. This
condition report remains active until the problem is corrected.
Complete the following procedure to correct this problem.
1. Record all six characters of the condition report.
2. Verify that the ambient temperature range is +10° C to +35° C (+50° F to +95° F). Adjust as
necessary.
3. Observe the EMU to ensure the error is corrected.
4. If the ambient temperature is correct and the problem persists, contact your authorized service
representative.
0.4.en.05 UNRECOVERABLE condition—High temperature
This condition report indicates that the EMU has evaluated the temperature of the three temperature
groups (EMU, disk drives, and power supplies), and determined that the average temperature of
two of the three groups exceeds the critical level (use HP P6000 Command View to view the
124 EMU-generated condition reports
temperature thresholds). Under these conditions the EMU starts a timer that will automatically shut
down the enclosure in seven minutes unless you correct the problem. Enclosure shutdown is imminent!
CAUTION: An automatic shutdown and possible data corruption may result if the procedure
below is not performed immediately.
Complete the following procedure to correct this problem.
1. Ensure that all disk drives, I/O modules, and power supply elements are fully seated.
2. Ensure that all blowers are operating properly.
3. Verify that the ambient temperature range is +10° C to +35° C (+50° F to +95° F). Adjust as
necessary.
4. If steps 1, 2 or 3 did not reveal a problem, use HP P6000 Command View to request the HSV
controller to shut down the drive enclosure. Completing this action will halt the drive enclosure
data transfers.
5. Contact your authorized service representative and request assistance.
EMU conditions
The format of an EMU condition report is 0.7.01.ec, where:
•0.7. is the EMU element type number
•01. is the two-character EMU element number
•ec is the error code
NOTE: There is only one EMU in a drive enclosure. Therefore, the element number is always 01.
Resetting the EMU
In some cases, the only corrective action for an EMU error is to replace the EMU. Call your
authorized service representative if this action is required. Another option is to reset the EMU using
the following procedure.
1. Firmly grasp the EMU mounting handle and pull the EMU partially out of the enclosure.
NOTE: You do not need to remove the EMU from the enclosure or disconnect the cables.
You must avoid putting any strain on the cables or connectors.
2. Wait 30 seconds, and then push the EMU in and fully seat the element in the backplane. The
EMU should display any enclosure condition report within two minutes.
07.01.01 CRITICAL condition—EMU internal clock
There is an internal EMU clock error that will remain active until the problem is corrected.
Complete the following procedure to correct this problem.
1. Record all six characters of the condition report.
2. Reset the EMU.
3. If resetting the EMU did not correct the problem, replace the EMU.
4. Observe the EMU to ensure the error is corrected.
5. If unable to correct the problem, contact your HP authorized service representative.
07.01.02 UNRECOVERABLE condition—EMU interrupted
The Inter-IC (I2C) bus is not processing data and the EMU is unable to monitor or report the status
of the elements or enclosures. IMMEDIATE corrective action is required to ensure proper enclosure
operation. This condition report remains active until the problem is corrected.
Complete the following procedure NOW to correct this problem.
1. Record all six characters of the condition report.
2. Reset the EMU.
3. Observe the EMU to ensure the error is corrected.
Correcting errors 125
4. If resetting the EMU did not correct the problem, replace the EMU.
5. If unable to correct the problem, contact your HP authorized service representative.
0.7.01.03 UNRECOVERABLE Condition—Power supply shutdown
This message only appears in HP P6000 Command View to report a power supply has already
shut down. This message can be the result of the controller shutdown command or an EMU or
power supply initiated power shutdown.
This message cannot be displayed until after restoration of power. Therefore, there is no corrective
action required.
0.7.01.04 INFORMATION condition—EMU internal data
The EMU is unable to collect data for the SCSI-3 Engineering Services (SES) page. This condition
report remains active for 15 seconds. The condition report affects only internal EMU operations.
There is no degradation of enclosure operations.
The EMU initiates automatic recovery procedures.
If the problem is not automatically corrected after one minute, contact your HP authorized service
representative.
0.7.01.05 UNRECOVERABLE condition—Backplane NVRAM
NOTE: IMPORTANT
Backplane NVRAM errors usually occur during manufacture. At this time they are identified and
corrected. They rarely occur during normal operation.
When a backplane NVRAM is not programmed or cannot be read by the EMU, there is no
communication with the disk drives. This condition report remains active until the problem is
corrected.
Complete the following procedure to correct this problem.
1. Record all six characters of the condition report.
2. Reset the EMU.
3. Observe the EMU to ensure the error is corrected.
4. If resetting the EMU did not correct the problem, contact your HP authorized service
representative.
0.7.01.10 NONCRITICAL condition—NVRAM invalid read data
The data read from the EMU NVRAM is invalid. This error initiates an automatic recovery process.
This condition report remains active until the problem is corrected.
If the automatic recovery process does not correct the problem, complete the following procedure.
1. Record all six characters of the condition report.
2. Reset the EMU.
3. Observe the EMU to ensure the error is corrected.
4. If resetting the enclosure did not correct the problem, contact your HP authorized service
representative.
0.7.01.11 NONCRITICAL condition—EMU NVRAM write failure
The EMU cannot write data to the NVRAM. This condition report remains active until the problem
is corrected.
Complete the following procedure to correct this problem:
1. Record all six characters of the condition report.
2. Reset the EMU.
3. Observe the EMU to ensure the error is corrected.
4. If resetting the enclosure did not correct the problem, contact your HP authorized service
representative.
126 EMU-generated condition reports
0.7.01.12 NONCRITICAL condition—EMU cannot read NVRAM data
The EMU is unable to read data from the NVRAM. This condition report remains active until the
problem is corrected.
Complete the following procedure to correct this problem:
1. Record all six characters of the condition report.
2. Reset the EMU.
3. Observe the EMU to ensure the error is corrected.
4. If resetting the enclosure did not correct the problem, contact your HP authorized service
representative.
0.7.01.13 UNRECOVERABLE condition—EMU load failure
The EMU Field Programmable Gate Array (FPGA) that controls the ESI bus failed to load information
required for EMU operation. This condition report remains active until the problem is corrected.
Complete the following procedure to correct this problem:
1. Record all six characters of the condition report.
2. Reset the EMU.
3. Observe the EMU to ensure the error is corrected.
4. If resetting the enclosure did not correct the problem, contact your HP authorized service
representative.
0.7.01.14 NONCRITICAL condition—EMU enclosure address
Either the enclosure address is incorrect or the enclosure has no address. Possible causes include
a defective enclosure address bus cable, an incorrectly connected cable, or a defective enclosure
address bus enclosure ID expansion cable. This condition report remains active until the problem
is corrected.
Complete the following procedure to correct this problem:
1. Record all six characters of the condition report.
2. Remove and reconnect the cable between the address bus enclosure ID expansion cable and
the EMU.
NOTE: The EMU display may not display a change in condition for up to 30 seconds.
3. Observe the EMU to ensure the error is corrected.
4. If the problem is not corrected, remove and reinstall the lower and upper terminators, and all
the enclosure ID expansion cable-to-enclosure ID expansion cables.
5. Observe the EMU to ensure the error is corrected.
6. Reset the EMU, then observe the EMU to ensure the error is corrected.
7. If resetting the EMU did not correct the problem, contact your HP authorized service
representative.
0.7.01.15 UNRECOVERABLE condition—EMU hardware failure
The EMU has detected an internal hardware problem. This condition report remains active until
the problem is corrected.
Complete the following procedure to correct this problem:
1. Record all six characters of the condition report.
2. Reset the EMU.
3. Observe the EMU to ensure the error does not recur within the first minute.
4. If the error does recur, contact your HP authorized service representative. The EMU is
inoperative and must be replaced as soon as possible.
0.7.01.16 INFORMATION condition—EMU internal ESI data corrupted
The EMU ESI data is corrupted. This condition does not affect any other element and no action is
required.
Correcting errors 127
0.7.01.17 UNRECOVERABLE condition—Power shutdown failure
The power supply did not respond to a controller, EMU, or power supply shut down command.
Shutting down the supply is required to prevent overheating.
Complete the following procedure to correct the problem:
1. Record all six characters of the condition report.
2. Move the power cord bail lock 1, Figure 42 (page 128), to the left.
3. Disconnect the AC power cord 2 from the supply.
Figure 42 Disconnecting AC power
0.7.01.18 UNRECOVERABLE condition—EMU hardware failure
The EMU has detected an internal hardware problem. This condition report remains active until
the problem is corrected.
Complete the following procedure to correct this problem:
1. Record all six characters of the condition report.
2. Reset the EMU.
3. Observe the EMU to ensure the error does not recur within the first minute.
4. If the error does recur, contact your HP authorized service representative. The EMU is
inoperative and must be replaced as soon as possible.
0.7.01.19 UNRECOVERABLE condition—EMU ESI driver failure
The EMU has detected an internal hardware problem. This condition report remains active until
the problem is corrected.
Complete the following procedure to correct this problem:
1. Record all six characters of the condition report.
2. Reset the EMU.
3. Observe the EMU to ensure the error does not recur within the first minute.
4. If the error does recur, contact your HP authorized service representative. The EMU is
inoperative and must be replaced as soon as possible.
Transceiver conditions
The format of a transceiver condition report is 0.F.en.ec, where:
•0.F. is the transceiver element type number
•en. is the two-character transceiver element number (see Figure 43 (page 129))
•ec is the error code
128 EMU-generated condition reports
Figure 43 Transceiver element numbering
2. Transceiver 021. Transceiver 01
4. Transceiver 043. Transceiver 03
0.F.en.01 CRITICAL condition—Transceiver incompatibility
The transceivers on this link are not the same type or they are incompatible with the I/O module.
This error prevents the controller from establishing a link with the enclosure disk drives and eliminates
the enclosure dual-loop capability. This error remains active until the problem is corrected.
To correct this problem, record all six characters of the condition report, then contact your HP
authorized service representative.
0.F.en.02 CRITICAL condition—Transceiver data signal lost
This symptom can occur when a controller has been powered off or a cable has been removed
from the transceiver. The transceiver can no longer detect a data signal. This error prevents the
controller from transferring data on a loop and eliminates the enclosure dual-loop capability. This
error remains active until the problem is fixed.
To correct this problem, record all six characters of the condition report, then contact your HP
authorized service representative.
0.F.en.03 CRITICAL condition—Transceiver fibre channel drive enclosure bus fault
The system has detected a Fibre Channel drive enclosure bus fault involving a transceiver. This
error prevents the controller from transferring data on a loop and eliminates the enclosure dual-loop
capability.
Complete the following procedure to correct this problem:
1. Record all six characters of the condition report.
2. Check all the transceivers and cables to ensure they are properly connected.
3. Check all the transceivers on the loop to ensure they are compatible with the I/O module.
4. If the problem persists, contact your HP authorized service representative.
0.F.en.04 CRITICAL condition—Transceiver removed
The EMU detects that a transceiver has been removed. This error remains active until the problem
is fixed.
The error can be cleared by doing one of the following:
1. Install a new transceiver,
or
Reconfigure the system by moving from a loop topology to one with Vixel switches. This change
makes the transceiver is unnecessary.
2. Clear the error by resetting the EMU or by removing and then re-installing the I/O module.
Correcting errors 129
0.F.en.05 CRITICAL condition—Invalid fibre channel character
This symptom can occur under the following conditions:
•The incoming data stream is corrupted.
•A cable is not completely connected.
•The signal is degraded.
This error prevents the controller from transferring data on a loop and eliminates the enclosure
dual-loop capability. This error remains active until the problem is fixed.
To correct this problem, record all six characters of the condition report, then contact your HP
authorized service representative.
CAN bus communication port conditions
The format of a CAN bus communication port report is 1.1.03.ec , where:
•1.1. is the communication port element type
•03. is the two-character CAN bus element number
•ec is the error code
NOTE: The only communication port for which conditions are reported is the CAN bus. Therefore,
the element number is always 03.
Resetting the EMU
In some cases, the only corrective action for an EMU error is to replace the EMU. Call your
authorized service representative if this action is required. Another option is to reset the EMU using
the following procedure:
1. Firmly grasp the EMU mounting handle and pull the EMU partially out of the enclosure.
NOTE: You do not need to remove the EMU from the enclosure or disconnect the cables.
You must avoid putting any strain on the cables or connectors.
2. Wait 30 seconds, and then push the EMU in and fully seat the element in the backplane. The
EMU should display any enclosure condition report within two minutes.
1.1.03.01 NONCRITICAL condition—Communication error
This condition report indicates that the EMU is unable to communicate over the CAN bus. Continued
operation under these conditions may result in the failure to restore loop functionality when there
is a disk drive disrupting the loop. This error initiates an automatic recovery process. This condition
report remains active until the automatic recovery process is complete or until the EMU is reset.
Complete the following procedure to correct this problem:
1. Record all six characters of the condition report.
2. Reset the EMU.
3. Observe the EMU to ensure the error does not recur within the first minute.
4. If the error does recur, contact your HP authorized service representative. The EMU is
inoperative and must be replaced as soon as possible.
1.1.03.02 INFORMATION condition—Recovery completed
This condition report notes completion of the automatic recovery initiated by the occurrence of the
1.1.03.01 condition. This condition report remains active until one of the following occurs:
•90 seconds elapses
•The CURRENT ALARM QUEUE is read via SES
•The RECENT ALARM LOG is read via SES
No action is required.
130 EMU-generated condition reports
1.1.03.03 INFORMATION condition—Overrun recovery
This condition report notes automatic recovery initiated by the occurrence of too many data overruns
with respect to received messages on the CAN bus. This condition report remains active until one
of the following occurs:
•90 seconds elapses
•The CURRENT ALARM QUEUE is read via SES
•The RECENT ALARM LOG is read via SES
No action is required.
Voltage sensor and current sensor conditions
The format of these sensor condition reports is 1.2.en.ec for a voltage sensor, and 1.3.en.ec for
a current sensor, where:
•1.2. is the voltage sensor element type
•1.3. is the current sensor element type number
•en. is the sensor element number
•ec is the error code
Table 44 (page 131) lists the location of the power supply voltage and current sensors.
Table 44 Voltage and current sensor locations
Sensor Element LocationSensor
Power Supply 1 +5 VDC01.
Power Supply 1 +12 VDC02.
Power Supply 2 +5 VDC03.
Power Supply 2 +12 VDC04.
Use HP P6000 Command View to view the voltage and current error thresholds for both +5 VDC
and +12 VDC power supplies.
1.2.en.01 NONCRITICAL condition—High voltage
This condition report indicates that an element voltage is approaching, but has not reached, the
high voltage CRITICAL threshold. Continued operation under these conditions may result in a
CRITICAL condition. This condition report remains active until the problem is corrected.
To correct this problem, record all six characters of the condition report, then contact your
HP-authorized service representative.
1.2.en.02 CRITICAL condition—High voltage
This condition report indicates that an element voltage has reached the high voltage CRITICAL
threshold. This report remains active until the problem is corrected.
To correct this problem, record all six characters of the condition report, then contact your
HP-authorized service representative.
1.2.en.03 NONCRITICAL condition—Low voltage
This condition report indicates that an element voltage is approaching, but has not reached, the
low voltage CRITICAL threshold. Continued operation under these conditions may result in a
CRITICAL condition. This condition report remains active until the problem is corrected.
To correct this problem, record all six characters of the condition report, then contact your
HP-authorized service representative.
Correcting errors 131
1.2.en.04 CRITICAL condition—Low voltage
This condition report indicates that an element voltage has reached the low voltage CRITICAL
threshold. This condition report remains active until the problem is corrected.
To correct this problem, record all six characters of the condition report, then contact your
HP-authorized service representative.
1.3.en.01 NONCRITICAL condition—High current
This condition report indicates that an element current is approaching, but has not reached, the
high current CRITICAL threshold. Continued operation under these conditions may result in a
CRITICAL condition. This condition report remains active until the problem is corrected.
To correct this problem, record all six characters of the condition report, then contact your
HP-authorized service representative.
1.3.en.02 CRITICAL condition—High current
This condition report indicates that an element current has reached the high current CRITICAL
threshold. This condition report remains active until the problem is corrected.
To correct this problem, record all six characters of the condition report, then contact your
HP-authorized service representative.
Backplane conditions
IMPORTANT: Backplane NVRAM errors usually occur during manufacture. At this time they are
identified and corrected. They rarely occur during normal operation.
The format of a backplane condition report is 8.2.01.ec, where:
•8.2. is the backplane element type number
•01. is the two-character backplane element number
•ec is the error code
The only corrective action available for this error is to replace the drive enclosure.
8.2.01.10 NONCRITICAL condition—Backplane NVRAM read
An invalid NVRAM read occurred and an automatic recovery process has begun. This condition
report is active for 15 seconds.
If the automatic recovery process does not correct the problem, record all six characters of the
condition report, then contact your HP-authorized service representative.
8.2.01.11 NONCRITICAL condition—Backplane NVRAM write failure
The system is unable to write data to the NVRAM. This problem prevents communication between
elements in the enclosure. This condition report is active for 15 seconds.
To correct this problem, record all six characters of the condition report, then contact your
HP-authorized service representative.
8.2.01.12 NONCRITICAL condition—Backplane NVRAM read failure
The system is unable to read data from the NVRAM. This problem prevents communication between
elements in the enclosure. This condition report is active for 15 seconds.
To correct this problem, record all six characters of the condition report, then contact your
HP-authorized service representative.
8.2.01.13 NONCRITICAL condition—Backplane WWN is blank
The system is unable to read valid data from the NVRAM. This report is active until corrected. This
condition can result in incorrect device location data being displayed.
132 EMU-generated condition reports
To correct this problem, record all six characters of the condition report, then contact your
HP-authorized service representative.
I/O Module conditions
The format of an I/O module condition report is 8.7.en.ec, where:
•8.7. is the I/O module element type number
•en. is the two-character I/O module element number (see Figure 44 (page 133))
•ec is the error code
Figure 44 I/O module element numbering
2. I/O Module B (02)1. I/O Module A (01)
Correction of an I/O module problem normally requires replacing the module. The following
sections define the I/O module problem by I/O module location.
8.7.en.01 CRITICAL condition—I/O module unsupported
The I/O module Fibre Channel link speed is not supported by the backplane. This error prevents
the controller from establishing a link with enclosure drives and eliminates the enclosure dual-loop
capability. This condition report remains active until the problem is corrected.
To correct this problem, record all six characters of the condition report, then contact your
HP-authorized service representative.
8.7.en.02 CRITICAL condition—I/O module communication
The I/O module is unable to communicate with the EMU.
Complete the following procedure to correct this problem:
1. Record all six characters of the condition report.
2. Contact your HP-authorized service representative.
IMPORTANT: Multiple erroneous error messages indicating I2C bus errors, such as NVRAM
errors, blowers missing, and so forth, could indicate an EMU problem.
8.7.en.10 NONCRITICAL condition—I/O module NVRAM read
An invalid NVRAM read occurred and automatic recovery was initiated.
Complete the following procedure to correct this problem:
1. Record all six characters of the condition report.
2. Observe the I/O module status indicators for an operational display.
3. Contact your HP-authorized service representative.
8.7.en.11 NONCRITICAL condition—I/O module NVRAM write
The system is unable to write data to the I/O module NVRAM.
Complete the following procedure to correct this problem:
1. Record all six characters of the condition report.
2. Observe the I/O module status indicators for an operational display.
Correcting errors 133
3. Contact your HP-authorized service representative.
8.7.en.12 NONCRITICAL condition—I/O Module NVRAM read failure
The system is unable to read data from the I/O module NVRAM.
Complete the following procedure to correct this problem:
1. Record all six characters of the condition report.
2. Contact your HP-authorized service representative.
8.7.en.13 NONCRITICAL condition—I/O module removed
The system detects that an I/O module has been removed.
To correct the problem, install an I/O module.
Host conditions
The EMU has the capability of displaying host controller defined condition reports on the EMU
alphanumeric display.
The format of a host condition report is F.F.en.ec, where:
•F.F. is the host element type number
•en. is the two-character host element number
•ec is the error code
The host controller can display host controller defined error codes on the EMU alphanumeric display
134 EMU-generated condition reports
C Controller fault management
This appendix describes how the controller displays events and termination event information.
Termination event information is displayed on the LCD. HP P6000 Command View enables you
to view controller events. This appendix also discusses how to identify and correct problems.
Once you create a storage system, an error condition message has priority over other controller
displays.
HP P6000 Command View provides detailed descriptions of the storage system error conditions,
or faults. The Fault Management displays provide similar information on the LCD, but not in as
much detail. Whenever possible, see HP P6000 Command View for fault information.
Using HP P6000 Command View
HP P6000 Command View provides detailed information about each event affecting system
operation in either a Termination Event display or an Event display. These displays are similar, but
not identical.
GUI termination event display
A problem that generates the Termination Event display prevents the system from performing a
specific function or process. You can use the information in this display (see Figure 45 (page 135))
to diagnose and correct the problem.
NOTE: The major differences between the Termination Event display and the Event display are:
• The Termination Event display includes a Code Flag field; it does not include the EIP Type field.
• The Event display includes an EIP type field; it does not include a Code Flag field.
• The Event display includes a Corrective Action Code field.
Figure 45 GUI termination event display
DescriptionCode FlagEvt NoSWCIDTimeDate
The fields in the Termination Event display include:
•Date—The date the event occurred.
•Time—The time the event occurred.
•SWCID—Software Identification Code. A hexadecimal number in the range 0–FF that identifies
the controller software component reporting the event.
•Evt No—Event Number. A hexadecimal number in the range 0–FF that is the software
component identification number.
•Code Flag—An internal code that includes a combination of other flags.
•Description—The condition that generated the event. This field may contain information about
an individual field’s content and validity.
GUI event display
A problem that generates the Event display reduces the system capabilities. You can use the
information in this display (see Figure 46 (page 136)) to diagnose and correct problems.
NOTE: The major differences between the Event Display and the Termination Event display are:
• The Event display includes an EIP type field; it does not include a Code Flag field.
• The Event display includes a Corrective Action Code (CAC) field.
• The Termination Event display includes a Code Flag field; it does not include the EIP Type field.
Using HP P6000 Command View 135
Figure 46 Typical HP P6000 Command View Event display
DescriptionEIP TypeCACEvt NoSWCIDTimeDate
The Event display provides the following information:
•Date—The date the event occurred.
•Time—The time the even occurred.
•SWCID—Software Identification Code. A number in the range 1–256 that identifies the internal
firmware module affected.
•Evt No—Event Number. A hexadecimal number in the range 0–FF that is the software
component identification number.
•CAC—Corrective Action Code. A specific action to correct the problem.
•EIP Type—Event Information Packet Type. A hexadecimal character that defines the event
information format.
•Description—The problem that generated the event.
Fault management displays
When you do not have access to the GUI, you can display and analyze termination codes (TCs)
on the OCP LCD display. You can then use the event text code document, as described in the
section titled “Interpreting Fault Management Information” to determine and implement corrective
action. You can also provide this information to the authorized service representative should you
require additional support. This lets the service representative identify the tools and components
required to correct the condition in the shortest possible time.
When the fault management display is active, you can either display the last fault or display
detailed information about the last 32 faults reported.
Displaying Last Fault Information
Complete the following procedure to display Last Fault information
1. When the Fault Management display is active, press to select the Last Fault menu.
2. Press to display the last fault information.
The first line of the TC display contains the eight-character TC error code and the two-character
IDX (index) code. The IDX is a reference to the location in the TC array that contains this error.
The second line of the TC display identifies the affected parameter with a two-character
parameter number (0–30), the eight-character parameter code affected, and the parameter
code number.
3. Press to return to the Last Fault menu.
Displaying Detailed Information
The Detail View menu lets you examine detailed fault information stored in the Last Termination
Event Array (LTEA). This array stores information for the last 32 termination events.
Complete the following procedure to display the LTEA information about any of the last 32
termination events:
1. When the Fault Management display is active (flashing), press to select the Detail View
menu.
The LTEA selection menu is active (LTEA 0 is displayed).
2. Press or to increment to a specific error.
3. Press to observe data about the selected error.
136 Controller fault management
Interpreting fault management information
Each version of HP P6000 Command View includes an ASCII text file that defines all the codes
that the authorized service representative can view either on the GUI or on the OCP.
IMPORTANT: This information is for the exclusive use of the authorized service representative.
The file name identifies the controller model, file type, XCS baselevel id, and XCS version. For
example, the file name hsv210_event_cr08d3_5020.txt provides the following information:
•hsv210_—The EVA controller model number
•event_—The type of information in the file
•w010605_—The base level build string (the file creation date).
01—The creation year◦
◦06—The creation month
◦05—The creation date
•5020—The XCS version
Table 45 (page 137) describes types of information available in this file.
Table 45 Controller event text description file
DescriptionInformation type
This hexadecimal code identifies the reported event type.Event Code
This hexadecimal code specifies the condition that generated the termination
code. It might also define either a system or user initiated corrective action.
Termination Code (TC)
This single digit, decimal character defines the requirement for the other controller
to initiate a coupled crash control.0. Other controller SHOULD NOT complete
a coupled crash.1. Other controller SHOULD complete a coupled crash.
Coupled Crash Control Codes
This single decimal character (0, 1, 3) defines the requirement to:0. Perform a
crash dump and then restart the controller.1. DO NOT perform a crash dump;
Dump/Restart Control Codes
just restart the controller.3. DO NOT perform a crash dump; DO NOT restart
the controller.
These hexadecimal codes supplement the Termination Code information to
identify the faulty element and the recommended corrective action.
Corrective Action Codes (CAC)
These decimal codes identify software associated with the event.Software Component ID Codes
(SWCID)
These codes specify the packet organization for specific type events.Event Information Packets (EIP)
GUI termination event display 137
D Non-standard rack specifications
The appendix provides information on the requirements when installing the EVA4x00/6x00/8x00
in a non-standard rack. All the requirements must be met to ensure proper operation of the storage
system.
Rack specifications
Internal component envelope
EVA component mounting brackets require space to be mounted behind the vertical mounting rails.
Room for the mounting of the brackets includes the width of the mounting rails and needed room
for any mounting hardware, such as screws, clip nuts, etc. Figure 47 (page 138) shows the
dimensions required for the mounting space for the EVA product line. It does not show required
space for additional HP components such as servers.
Figure 47 Mounting space dimensions
EIA310-D standards
The rack must meet the Electronic Industries Association, (EIA), Standard 310-D, Cabinets, Racks
and Associated Equipment. The standard defines rack mount spacing and component dimensions
specified in U units.
Copies of the standard are available for purchase at http://www.eia.org/.
EVA cabinet measures and tolerances
EVA component rack mount brackets are designed to fit cabinets with mounting rails set at depths
from 27.5 inches to 29.6 inches, inside rails to inside rails.
Weights, dimensions and component CG measurements
Cabinet CG dimensions are reported as measured from the inside bottom of the cabinet (Z), the
leading edge of the vertical mounting rails (Y), and the centerline of the cabinet mounting space
(X). Component CG measurements are measured from the bottom of the U space the component
is to occupy (Z), the mounting surface of the mounting flanges (Y), and the centerline of the
component (X). Table 46 (page 139) lists the CG dimensions for the EVA components.
138 Non-standard rack specifications
Determining the CG of a configuration may be necessary for safety considerations. CG
considerations for CG calculations do not include cables, PDU’s and other peripheral components.
Some consideration should be made to allow for some margin of safety when estimating
configuration CG.
Estimating the configuration CG requires measuring the CG of the cabinet the product will be
installed in. Use the following formula:
ΣdcomponentW = dsystem cgW
where dcomponent= the distance of interest and W = Weight
The distance of a component is its CG’s distance from the inside base of the cabinet. For example,
if a loaded disk enclosure is to be installed into the cabinet with its bottom at 10U, the distance
for the enclosure would be (10*1.75)+2.7 inches.
Table 46 Component data
Component Data
Z (in)Y (in)X (in)Weight (Lb)U height1
14.2125.75-0.108233HP 10K cabinet CG
02.62501.43Filler panel , 3U
7.952.7-0.288743Fully loaded drive enclosure
11.890.365-0.02524.61FC loop pair
00.87500.471Filler panel, 1U
10.642.53-0.0941204XL Controller Pair
11U = 1.75 inches
Airflow and Recirculation
Component Airflow Requirements
Component airflow must be directed from the front of the cabinet to the rear. Components vented
to discharge airflow from the sides must discharge to the rear of the cabinet.
Rack Airflow Requirements
The following requirements must be met to ensure adequate airflow and to prevent damage to the
equipment:
•If the rack includes closing front and rear doors, allow 830 square inches (5,350 sq cm) of
hole evenly distributed from top to bottom to permit adequate airflow (equivalent to the required
64 percent open area for ventilation).
•For side vented components, the clearance between the installed rack component and the
side panels of the rack must be a minimum of 2.75 inches (7 cm).
•Always use blanking panels to fill all empty front panel U-spaces in the rack. This ensures
proper airflow. Using a rack without blanking panels results in improper cooling that can lead
to thermal damage.
Configuration Standards
EVA configurations are designed considering cable length, configuration CG, serviceability and
accessibility, and to allow for easy expansion of the system. If at all possible, it is best to configure
non HP cabinets in a like manner.
Environmental and operating specifications
This section identifies the product environmental and operating specifications.
Environmental and operating specifications 139
NOTE: Further testing is required to update the information in Tables 45-47. Once testing is
complete, these tables will be updated in a future release.
Power requirements
The following tables list the wattage and BTU/hour power requirements for the three supported
operating voltages.
NOTE: Failover amperage can be estimated at approximately 90% of operational amperage
listed.
Table 47 208V Wattage and BTU/Hour
EVA8x00EVA6x00EVA4x00Enclosures
BTU/hWattsVAAmpsBTU/hWattsVAAmpsBTU/hWattsVAAmps
167894920510424.512
150604414457822.011
137754037418820.110
124893660379718.39
112043284340616.4109653214333416.08
99192907301514.596802837294314.17
86332530262512.683942460255212.36
73482153223410.771092083216110.45
6063177718438.95824170717708.55585163716988.24
4777140014527.04538133013806.64300126013076.33
3492102310625.132539539894.830148839164.42
22076476713.219685775982.917295075262.51
Table 48 230V Wattage and BTU/Hour
EVA8x00EVA6x00EVA4x00Enclosures
BTU/hWattsVAAmpsBTU/hWattsVAAmpsBTU/hWattsVAAmps
163454790496921.612
150604414457819.911
137754037418818.210
124893660379716.59
112043284340614.8109653214333414.58
99192907301513.196802837294312.87
86332530262511.483942460255211.16
7348215322349.77109208321619.45
6063177718438.05824170717707.75585163716987.44
477140014526.34538133013806.04300126013075.73
3492102310624.632539539894.330148839164.02
22076476712.919685775982.617295075262.31
140 Non-standard rack specifications
Table 49 100V Wattage and BTU/Hour
EVA8x00EVA6x00EVA4x00Enclosures
BTU/hWattsVAAmpsBTU/hWattsVAAmpsBTU/hWattsVAAmps
EVA8x00 not supported
118553474354535.58
105183082314531.57
91812691274627.56
78452299234623.55
65081907194619.562691837187518.74
51711516154615.549331446147514.83
38351124114711.535961054107510.82
24987327477.522596626766.81
UPS Selection
This section provides information that can be used when selecting a UPS for use with the EVA. The
four HP UPS products listed in Table 50 (page 141) are available for use with the EVA and are
included in this comparison. Table 51 (page 141) identifies the amount of time each UPS can sustain
power under varying loads and with various UPS ERM (Extended Runtime Module) options.
The load imposed on the UPS for different disk enclosure configurations are listed in Table 52 (page
142),Table 53 (page 142), and Table 54 (page 143).
NOTE: The specified power requirements reflect fully loaded enclosures (14 disks) .
Table 50 HP UPS models and capacities
Capacity (in watts)UPS Model
1340R1500
2700R3000
4500R5500
12000R12000
Table 51 UPS operating time limits
Minutes of operation
Load (percent) With 2 ERMsWith 1 ERMWith standby battery
R1500
49235100
6332680
161571350
2901463420
R3000
205100
306.580
451250
1204020
Environmental and operating specifications 141
Table 51 UPS operating time limits (continued)
Minutes of operation
Load (percent) With 2 ERMsWith 1 ERMWith standby battery
R5500
46247100
6031980
106611950
3031695920
R12000
18115100
2415780
41281450
101694320
Table 52 EVA 8x00 UPS loading
% of UPS capacity
WattsEnclosures R12000R5500
41.0492012
36.898.1441411
33.689.7403710
30.581.336609
27.473.032848
24.264.629077
21.156.225306
17.947.921535
14.839.517774
11.731.114003
8.522.710232
5.414.46471
Table 53 EVA 6x00 UPS loading
% of UPS capacity
WattsEnclosures R12000R5500R3000
26.871.432148
23.663.028377
20.554.691.124606
17.346.277.220835
14.237.963.217074
11.129.549.313303
142 Non-standard rack specifications
Table 53 EVA 6x00 UPS loading (continued)
% of UPS capacity
WattsEnclosures R12000R5500R3000
7.921.235.39532
4.812.821.45771
Table 54 EVA 4x00 UPS loading
% of UPS capacity
WattsEnclosures R3000R1500
60.616374
46.694.012603
32.765.98832
18.737.95071
Environmental specifications
Table 55 Environmental specifications
50° to 95° F (10° to 35° C) - Reduce rating by 1° F for each 1000 ft. altitude (1.8°
C/1,000 m)
Operating temperature
-40° to 150° F (-40° to 66° C)Shipping temperature
10% to 90% non-condensingOperating humidity
5% to 90% non-condensingShipping humidity
Up to 8,000 ft. (2,400 m)Altitude
Not to exceed 500,000 particles per cubic foot of air at a size of 0.5 micron or largerAir quality
Environmental and operating specifications 143
Shock and vibration specifications
Table 56 (page 144) lists the product operating shock and vibration specifications. This information
applies to products weighing 45 Kg (100 lbs) or less.
NOTE: HP EVA products are designed and tested to withstand the operational shock and vibration
limits specified in Table 56 (page 144). Transmission of site vibrations through non-HP racks
exceeding these limits could cause operational failures of the system components.
Table 56 Operating Shock/Vibration
Shock test with half sine pulses of 10 G magnitude and 10 ms duration applied in all three axes (both positive and
negative directions).
Sine sweep vibration from 5 Hz to 500 Hz to 5 Hz at 0.1 G peak, with 0.020” displacement limitation below 10
Hz. Sweep rate of 1 octave/minute. Test performed in all three axes.
Random vibration at 0.25 G rms level with uniform spectrum in the frequency range of 10 to 500 Hz. Test performed
for two minutes each in all three axes.
Drives and other items exercised and monitored running appropriate exerciser (UIOX, P-Suite, etc.) with appropriate
operating system and hardware.
144 Non-standard rack specifications
E Single Path Implementation
This appendix provides guidance for connecting servers with a single path host bus adapter (HBA)
to the Enterprise Virtual Array (EVA) storage system with no multi-path software installed. A single
path HBA is defined as an HBA that has a single path to its LUNs. These LUNs are not shared by
any other HBA in the server or in the SAN.
The failure scenarios demonstrate behavior when recommended configurations are employed, as
well as expected failover behavior if guidelines are not met. To implement single adapter servers
into a multi-path EVA environment, configurations should follow these recommendations.
NOTE: The purpose of single HBA configurations for non-mission critical storage access is to
control costs. This appendix describes the configurations, limitations, and failover characteristics
of single HBA servers under different operating systems. Much of the description herein are based
upon a single HBA configuration resulting in a single path to the device, but such is not the case
with OpenVMS and Tru64 UNIX.
HP OpenVMS and Tru64 UNIX have native multi-path features by default.
With OpenVMS and Tru64 UNIX, a single HBA configuration will result in two paths to the device
by virtue of having connections to both EVA controllers. Single HBA configurations are not single
path configurations with these operating systems.
In addition, cluster configurations of both OpenVMS and Tru64 UNIX provide enhanced availability
and security. To achieve availability within cluster configurations, each member should be configured
with its own HBA(s) and connectivity to shared LUNs. Cluster configuration will not be discussed
further within this appendix as the enhanced availability requires both additional server hardware
and HBAs which is contrary to controlling configuration costs for non-mission critical applications.
For further information on cluster configurations and attributes, see the appropriate operating
system guides and the SAN design guide.
NOTE: HP continually makes additions to its storage solution product line. For more information
about the HP Fibre Channel product line, the latest drivers, and technical tips, and to view other
documentation, see the HP website at
http://www.hp.com/country/us/eng/prodserv/storage.html
High-level solution overview
EVA was designed for highly dynamic enterprise environments requiring high data availability,
fault tolerance, and high performance; thus, the EVA controller runs only in multi-path failover
mode. Multi-path failover mode ensures the proper level of fault tolerance for the enterprise with
mission-critical application environments. However, this appendix addresses the need for
non-mission-critical applications to gain access to the EVA system running mission-critical production
applications.
The non-mission-critical applications gain access to the EVA from a single path HBA server without
running a multi-path driver. When a single path HBA server uses the supported configurations, a
fault in the single path HBA server does not result in a fault in the other servers.
Benefits at a glance
The EVA is a high-performance array controller utilizing the benefits of virtualization. Virtualization
within the storage system is ideal for environments needing high performance, high data availability,
fault tolerance, efficient storage management, data replication, and cluster support. However,
enterprise-level data centers incorporate non-mission-critical applications as well as applications
that require high availability.
Single-path capability adds flexibility to budget allocation. There is a per-path savings as the
additional cost of HBAs and multi-path software is removed from non-mission−critical application
requirements. These servers can still gain access to the EVA by using single path HBAs without
multi-path software. This reduces the costs at the server and infrastructure level.
High-level solution overview 145
Installation requirements
•The host must be placed in a zone with any EVA worldwide IDs (WWIDs) that access storage
devices presented by the hierarchical storage virtualization (HSV) controllers to the single path
HBA host. The preferred method is to use HBA and HSV WWIDs in the zone configurations.
•On HP-UX, Solaris, Microsoft Windows Server 2003 (32-bit), , Linux and IBM AIX operating
systems, the zones consist of the single path HBA systems and one HSV controller port.
•On OpenVMS and Tru64 UNIX operating systems, the zones consist of the single HBA systems
and two HSV controller ports. This will result in a configuration where there are two paths per
device, or multiple paths.
Recommended mitigations
EVA is designed for the mission-critical enterprise environment. When used with multi-path software,
high data availability and fault tolerance are achieved. In single path HBA server configurations,
neither multi-path software nor redundant I/O paths are present. Server-based operating systems
are not designed to inherently recover from unexpected failure events in the I/O path (for example,
loss of connectivity between the server and the data storage). It is expected that most operating
systems will experience undesirable behavior when configured in non-high-availability configurations.
Because of the risks of using servers with a single path HBA, HP recommends the following actions:
•Use servers with a single path HBA that are not mission-critical or highly available.
•Perform frequent backups of the single path server and its storage.
Supported configurations
All examples detail a small homogeneous Storage Area Network (SAN) for ease of explanation.
Mixing of dual and single path HBA systems in a heterogeneous SAN is supported. In addition to
this document, reference and adhere to the SAN Design Reference Guide for heterogeneous SANs,
located at:
http://h18006.www1.hp.com/products/storageworks/san/documentation.html
General configuration components
All configurations require the following components:
•Enterprise VCS software
•HBAs
•Fibre Channel switches
Connecting a single path HBA server to a switch in a fabric zone
Each host must attach to one switch (fabric) using standard Fibre Channel cables. Each host has
its single path HBA connected through switches on a SAN to one port of an EVA.
Because a single path HBA server has no software to manage the connection and ensure that only
one controller port is visible to the HBA, the fabric containing the single path HBA server, SAN
switch, and EVA controller must be zoned. Configuring the single path by switch zoning and the
LUNs by Selective Storage Presentation (SSP) allows for multiple single path HBAs to reside in the
same server. A single path HBA server with OpenVMS or Tru64 UNIX operating system should
be zoned with two EVA controllers. See the HP SAN Design Reference Guide at the following HP
website for additional information about zoning:
http://h18006.www1.hp.com/products/storageworks/san/documentation.html
To connect a single path HBA server to a SAN switch:
1. Plug one end of the Fibre Channel cable into the HBA on the server.
2. Plug the other end of the cable into the switch.
Figure 48 (page 147) and Figure 49 (page 147) represent configurations containing both single path
HBA server and dual HBA server, as well as a SAN appliance, connected to redundant SAN
146 Single Path Implementation
switches and EVA controllers. Whereas the dual HBA server has multi-path software that manages
the two HBAs and their connections to the switch (with the exception of OpenVMS and Tru64 UNIX
servers), the single path HBA has no software to perform this function. The dashed line in the figure
represents the fabric zone that must be established for the single path HBA server. Note that in
Figure 49 (page 147), servers with OpenVMS or Tru64 UNIX operating system should be zoned
with two controllers.
Figure 48 Single path HBA server without OpenVMS or Tru64 UNIX
6 SAN switch 21 Network interconnection
7 Fabric zone2 Single HBA server
8 Controller A3 Dual HBA server
9 Controller B4 Management server
5 SAN switch 1
Figure 49 Single path HBA server with OpenVMS or Tru64 UNIX
6 SAN switch 21 Network interconnection
7 Fabric zone2 Single HBA server
8 Controller A3 Dual HBA server
9 Controller B4 Management server
5 SAN switch 1
Supported configurations 147
HP-UX configuration
Requirements
•Proper switch zoning must be used to ensure each single path HBA has an exclusive path to
its LUNs.
•Single path HBA server can be in the same fabric as servers with multiple HBAs.
•Single path HBA server cannot share LUNs with any other HBAs.
•In the use of snapshots and snapclones, the source virtual disk and all associated snapshots
and snapclones must be presented to the single path hosts that are zoned with the same
controller. In the case of snapclones, after the cloning process has completed and the clone
becomes an ordinary virtual disk, you may present that virtual disk as you would any other
ordinary virtual disk.
HBA configuration
•Host 1 is a single path HBA host.
•Host 2 is a multiple HBA host with multi-pathing software.
See Figure 50 (page 148).
Risks
•Disabled jobs hang and cannot umount disks.
•Path or controller failure may results in loss of data accessibility and loss of host data that has
not been written to storage.
NOTE: For additional risks, see Table 57 (page 158).
Limitations
•HP P6000 Continuous Access is not supported with single-path configurations.
•Single path HBA server is not part of a cluster.
•Booting from the SAN is not supported.
Figure 50 HP-UX configuration
5 SAN switch 11 Network interconnection
6 SAN switch 22 Host 1
7 Controller A3 Host 2
8 Controller B4 Management server
148 Single Path Implementation
Windows Server (32-bit) configuration
Requirements
•Switch zoning or controller level SSP must be used to ensure each single path HBA has an
exclusive path to its LUNs.
•Single path HBA server can be in the same fabric as servers with multiple HBAs.
•Single path HBA server cannot share LUNs with any other HBAs.
•In the use of snapshots and snapclones, the source virtual disk and all associated snapshots
and snapclones must be presented to the single path hosts that are zoned with the same
controller. In the case of snapclones, after the cloning process has completed and the clone
becomes an ordinary virtual disk, you may present that virtual disk as you would any other
ordinary virtual disk.
HBA configuration
•Host 1 is a single path HBA host.
•Host 2 is a multiple HBA host with multi-pathing software.
See Figure 51 (page 149).
Risks
•Single path failure will result in loss of connection with the storage system.
•Single path failure may cause the server to reboot.
•Controller shutdown puts controller in a failed state that results in loss of data accessibility
and loss of host data that has not been written to storage.
NOTE: For additional risks, see Table 58 (page 159).
Limitations
•HP P6000 Continuous Access is not supported with single path configurations.
•Single path HBA server is not part of a cluster.
•Booting from the SAN is not supported on single path HBA servers.
Figure 51 Windows Server (32-bit) configuration
5 SAN switch 11 Network interconnection
6 SAN switch 22 Host 1
Supported configurations 149
7 Controller A3 Host 2
8 Controller B4 Management server
Windows Server (64-bit) configuration
Requirements
•Switch zoning or controller level SSP must be used to ensure each single path HBA has an
exclusive path to its LUNs.
•Single path HBA server can be in the same fabric as servers with multiple HBAs.
•Single path HBA server cannot share LUNs with any other HBAs.
HBA configuration
•Hosts 1 and 2 are single path HBA hosts.
•Host 3 is a multiple HBA host with multi-pathing software.
See Figure 52 (page 151).
NOTE: Single path HBA servers running the Windows Server 2003 (x64) operating system will
support multiple single path HBAs in the same server. This is accomplished through a combination
of switch zoning and controller level SSP. Any single path HBA server will support up to four single
path HBAs.
Risks
•Single path failure will result in loss of connection with the storage system.
•Single path failure may cause the server to reboot.
•Controller shutdown puts controller in a failed state that results in loss of data accessibility
and loss of host data that has not been written to storage.
NOTE: For additional risks, see Table 58 (page 159).
Limitations
•HP P6000 Continuous Access is not supported with single path configurations.
•Single path HBA server is not part of a cluster.
•Booting from the SAN is not supported on single path HBA servers.
150 Single Path Implementation
Figure 52 Windows Server (64-bit) configuration
6 SAN switch 11 Network interconnection
7 SAN switch 22 Management server
8 Controller A3 Host 1
9 Controller B4 Host 2
5 Host 3
Oracle Solaris configuration
Requirements
•Switch zoning or controller level SSP must be used to ensure each single path HBA has an
exclusive path to its LUNs.
•Single path HBA server can be in the same fabric as servers with multiple HBAs.
•Single path HBA server cannot share LUNs with any other HBAs.
•In the use of snapshots and snapclones, the source virtual disk and all associated snapshots
and snapclones must be presented to the single path hosts that are zoned with the same
controller. In the case of snapclones, after the cloning process has completed and the clone
becomes an ordinary virtual disk, you may present that virtual disk as you would any other
ordinary virtual disk.
•HBA must be properly configured to work in a single HBA server configuration. The user is
required to:
◦Download and extract the contents of the TAR file.
HBA configuration
•Host 1 is a single path HBA host.
•Host 2 is a multiple HBA host with multi-pathing software.
See Figure 53 (page 152).
Risks
•Single path failure may result in loss of data accessibility and loss of host data that has not
been written to storage.
•Controller shutdown results in loss of data accessibility and loss of host data that has not been
written to storage.
NOTE: For additional risks, see Table 59 (page 159).
Supported configurations 151
Limitations
•HP P6000 Continuous Access is not supported with single path configurations.
•Single path HBA server is not part of a cluster.
•Booting from the SAN is not supported.
Figure 53 Oracle Solaris configuration
5 SAN switch 11 Network interconnection
6 SAN switch 22 Host 1
7 Controller A3 Host 2
8 Controller B4 Management server
Tru64 UNIX configuration
Requirements
•Switch zoning or controller level SSP must be used to ensure each HBA has exclusive access
to its LUNs.
•All nodes with direct connection to a disk must have the same access paths available to them.
•Single HBA server can be in the same fabric as servers with multiple HBAs.
•In the use of snapshots and snapclones, the source virtual disk and all associated snapshots
and snapclones must be presented to the single host that are zoned with the same controller.
In the case of snapclones, after the cloning process has completed and the clone becomes an
ordinary virtual disk, you may present that virtual disk as you would any other ordinary virtual
disk.
HBA configuration
•Host 1 is single HBA host with Tru64.
•Host 2 is a dual HBA host.
See Figure 54 (page 153).
Risks
•For nonclustered nodes with a single HBA, a path failure from the HBA to the SAN switch will
result in a loss of connection with storage devices.
•If a host crashes or experiences a power failure, or if the path is interrupted, data will be lost.
Upon re-establishment of the path, a retransmit can be performed to recover whatever data
may have been lost during the outage. The option to retransmit data after interruption is
application-dependent.
152 Single Path Implementation
NOTE: For additional risks, see Table 60 (page 160).
Figure 54 Tru64 UNIX configuration
5 SAN switch 11 Network interconnection
6 SAN switch 22 Host 1
7 Controller A3 Host 2
8 Controller B4 Management server
OpenVMS configuration
Requirements
•Switch zoning or controller level SSP must be used to ensure each single path HBA has an
exclusive path to its LUNs.
•All nodes with direct connection to a disk must have the same access paths available to them.
•Single path HBA server can be in the same fabric as servers with multiple HBAs.
•In the use of snapshots and snapclones, the source virtual disk and all associated snapshots
and snapclones must be presented to the single path hosts that are zoned with the same
controller. In the case of snapclones, after the cloning process has completed and the clone
becomes an ordinary virtual disk, you may present that virtual disk as you would any other
ordinary virtual disk.
HBA configuration
•Host 1 is a single path HBA host.
•Host 2 is a dual HBA host.
See Figure 55 (page 154).
Risks
•For nonclustered nodes with a single path HBA, a path failure from the HBA to the SAN switch
will result in a loss of connection with storage devices.
NOTE: For additional risks, see Table 60 (page 160).
Supported configurations 153
Limitations
•HP P6000 Continuous Access is not supported with single path configurations.
Figure 55 OpenVMS configuration
5 SAN switch 11 Network interconnection
6 SAN switch 22 Host 1
7 Controller A3 Host 2
8 Controller B4 Management server
Linux (32-bit) configuration
Requirements
•Switch zoning or controller level SSP must be used to ensure each single path HBA has an
exclusive path to its LUNs.
•All nodes with direct connection to a disk must have the same access paths available to them.
•Single path HBA server can be in the same fabric as servers with multiple HBAs.
•In the use of snapshots and snapclones, the source virtual disk and all associated snapshots
and snapclones must be presented to the single path hosts that are zoned with the same
controller. In the case of snapclones, after the cloning process has completed and the clone
becomes an ordinary virtual disk, you may present that virtual disk as you would any other
ordinary virtual disk.
HBA configuration
•Host 1 is a single path HBA.
•Host 2 is a dual HBA host with multi-pathing software.
See Figure 56 (page 155).
Risks
•Single path failure may result in data loss or disk corruption.
NOTE: For additional risks, see Table 61 (page 160).
154 Single Path Implementation
Limitations
•HP P6000 Continuous Access is not supported with single path configurations.
•Single path HBA server is not part of a cluster.
•Booting from the SAN is supported on single path HBA servers.
Figure 56 Linux (32-bit) configuration
5 SAN switch 11 Network interconnection
6 SAN switch 22 Host 1
7 Controller A3 Host 2
8 Controller4 Management server
Linux (64-bit) configuration
Requirements
•Switch zoning or controller level SSP must be used to ensure each single path HBA has an
exclusive path to its LUNs.
•All nodes with direct connection to a disk must have the same access paths available to them.
•Single path HBA server can be in the same fabric as servers with multiple HBAs.
•In the use of snapshots and snapclones, the source virtual disk and all associated snapshots
and snapclones must be presented to the single path hosts that are zoned with the same
controller. In the case of snapclones, after the cloning process has completed and the clone
becomes an ordinary virtual disk, you may present that virtual disk as you would any other
ordinary virtual disk.
•Linux 64-bit servers can support up to14 single or dual path HBAs per server. Switch zoning
and SSP are required to isolate the LUNs presented to each HBA from each other.
HBA configuration
•Host 1 and 2 are single path HBA hosts.
•Host 3 is a dual HBA host with multi-pathing software.
See Figure 57 (page 156).
Risks
•Single path failure may result in data loss or disk corruption.
NOTE: For additional risks, see Table 61 (page 160).
Supported configurations 155
Limitations
•HP P6000 Continuous Access is not supported with single path configurations.
•Single path HBA server is not part of a cluster.
•Booting from the SAN is supported on single path HBA servers.
Figure 57 Linux (64-bit) configuration
6 SAN switch 11 Network interconnection
7 SAN switch 22 Host 3
8 Controller A3 Host 2
9 Controller B4 Host 1
5 Management server
IBM AIX configuration
Requirements
•Switch zoning or controller level SSP must be used to ensure each single path HBA has an
exclusive path to its LUNs.
•Single path HBA server can be in the same fabric as servers with multiple HBAs.
•Single path HBA server cannot share LUNs with any other HBAs.
•In the use of snapshots and snapclones, the source virtual disk and all associated snapshots
and snapclones must be presented to the single path hosts that are zoned with the same
controller. In the case of snapclones, after the cloning process has completed and the clone
becomes an ordinary virtual disk, you may present that virtual disk as you would any other
ordinary virtual disk.
•HBA must be properly configured to work in a single HBA server configuration. The single
path adapter driver from the AIX 2.0B EVA Kit should be installed: PC1000.image.
HBA configuration
•Host 1 is a single path HBA host.
•Host 2 is a dual HBA host with multi-pathing software.
See Figure 58 (page 157).
156 Single Path Implementation
Risks
•Single path failure may result in loss of data accessibility and loss of host data that has not
been written to storage.
•Controller shutdown results in loss of data accessibility and loss of host data that has not been
written to storage.
NOTE: For additional risks, see Table 62 (page 161).
Limitations
•HP P6000 Continuous Access is not supported with single path configurations.
•Single path HBA server is not part of a cluster.
•Booting from the SAN is not supported.
Figure 58 IBM AIX Configuration
5 SAN switch 11 Network interconnection
6 SAN switch 22 Single HBA server
7 Controller A3 Dual HBA server
8 Controller B4 Management server
VMware configuration
Requirements
•Switch zoning or controller level SSP must be used to ensure each single path HBA has an
exclusive path to its LUNs.
•All nodes with direct connection to a disk must have the same access paths available to them.
•Single path HBA server can be in the same fabric as servers with multiple HBAs.
•In the use of snapshots and snapclones, the source virtual disk and all associated snapshots
and snapclones must be presented to the single path hosts that are zoned with the same
controller. In the case of snapclones, after the cloning process has completed and the clone
becomes an ordinary virtual disk, you may present that virtual disk as you would any other
ordinary virtual disk.
HBA configuration
•Host 1 is a single path HBA.
•Host 2 is a dual HBA host with multi-pathing software.
See Figure 59 (page 158).
Supported configurations 157
Risks
•Single path failure may result in data loss or disk corruption.
NOTE: For additional risks, see Table 63 (page 161).
Limitations
•HP P6000 Continuous Access is not supported with single path configurations.
•Single path HBA server is not part of a cluster.
•Booting from the SAN is supported on single path HBA servers.
Figure 59 VMware configuration
5 SAN switch 11 Network interconnection
6 SAN switch 22 Single HBA server
7 Controller A3 Dual HBA server
8 Controller B4 Management server
Failure scenarios
HP-UX
Table 57 HP-UX failure scenarios
Failure effectFault stimulus
Extremely critical event on UNIX. Can cause loss of system disk.Server failure (host power-cycled)
Short term: Data transfer stops. Possible I/O errors.
Long term: Job hangs, cannot umount disk, fsck failed, disk corrupted,
need mkfs disk.
Switch failure (SAN switch disabled)
Short term: Data transfer stops. Possible I/O errors.
Long term: Job hangs, cannot umount disk, fsck failed, disk corrupted,
need mkfs disk.
Controller failure
Short term: Data transfer stops. Possible I/O errors.
Long term: Job hangs, cannot umount disk, fsck failed, disk corrupted,
need mkfs disk.
Controller restart
158 Single Path Implementation
Table 57 HP-UX failure scenarios (continued)
Failure effectFault stimulus
Short term: Data transfer stops. Possible I/O errors.
Long term: Job hangs, cannot umount disk, fsck failed, disk corrupted,
need mkfs disk.
Server path failure
Short term: Data transfer stops. Possible I/O errors.
Long term: Job hangs, replace cable, I/O continues. Without cable
replacement job must be aborted; disk seems error free.
Storage path failure
Windows Server
Table 58 Windows Server failure scenarios
Failure effectFault stimulus
OS runs a command called chkdsk when rebooting. Data lost, data that
finished copying survived.
Server failure (host power-cycled)
Write delay, server hangs until I/O is cancelled or cold reboot.Switch failure (SAN switch disabled)
Write delay, server hangs or reboots. One controller failed, other
controller and shelves critical, shelves offline. Volume not accessible.
Server cold reboot, data lost. Check disk when rebooting.
Controller failure
Controller momentarily in failed state, server keeps copying. All data
copied, no interruption. Event error warning error detected during paging
operation.
Controller restart
Write delay, volume inaccessible. Host hangs and restarts.Server path failure
Write delay, volume disappears, server still running. When cables
plugged back in, controller recovers, server finds volume, data loss.
Storage path failure
Oracle Solaris
Table 59 Oracle Solaris failure scenarios
Failure effectFault stimulus
Check disk when rebooting. Data loss, data that finished copying survived.Server failure (host power-cycled)
Short term: Data transfer stops. Possible I/O errors.
Long term: Repeated error messages on console, no access to CDE.
System reboot causes loss of data on disk. Must newfs disk.
Switch failure (SAN switch disabled)
Short term: Data transfer stops. Possible I/O errors.
Long term: Repeated error messages on console, no access to CDE.
System reboot causes loss of data on disk. Must newfs disk.
Controller failure
Short term: Data transfer stops. Possible I/O errors.
Long term: Repeated error messages on console, no access to CDE.
System reboot causes loss of data on disk. Must newfs disk.
Controller restart
Short term: Data transfer stops. Possible I/O errors.
Long term: Repeated error messages on console, no access to CDE.
System reboot causes loss of data on disk. Must newfs disk.
Server path failure
Short term: Job hung, data lost.
Long term: Repeated error messages on console, no access to CDE.
System reboot causes loss of data on disk. Must newfs disk.
Storage path failure
Failure scenarios 159
OpenVMS and Tru64 UNIX
Table 60 OpenVMS and Tru64 UNIX failure scenarios
Failure effectFault stimulus
All I/O operations halted. Possible data loss from unfinished or unflushed
writes. File system check may be needed upon reboot.
Server failure (host power-cycled)
OpenVMS—OS will report the volume in a Mount Verify state until the
MVTIMEOUT limit is exceeded, when it then marks the volume as Mount
Verify Timeout. No data is lost or corrupted.
Switch failure (SAN switch disabled)
Tru64 UNIX—All I/O operations halted. I/O errors are returned back to
the applications. An I/O failure to the system disk can cause the system
to panic. Possible data loss from unfinished or unflushed writes. File system
check may be needed upon reboot.
I/O fails over to the surviving path. No data is lost or corrupted.Controller failure
OpenVMS—OS will report the volume in a Mount Verify state until the
MVTIMEOUT limit is exceeded, when it then marks the volume as Mount
Verify Timeout. No data is lost of corrupted.
Controller restart
Tru64 UNIX—I/O retried until controller back online. If maximum retries
exceeded, I/O fails over to the surviving path. No data is lost or
corrupted.
OpenVMS—OS will report the volume in a Mount Verify state until the
MVTIMEOUT limit is exceeded, when it then marks the volume as Mount
Verify Timeout. No data is lost or corrupted.
Server path failure
Tru64 UNIX—All I/O operations halted. I/O errors are returned back to
the applications. An I/O failure to the system disk can cause the system
to panic. Possible data loss from unfinished or unflushed writes. File system
check may be needed upon reboot.
OpenVMS—OS will report the volume in a Mount Verify state until the
MVTIMEOUT limit is exceeded, when it then marks the volume as Mount
Verify Timeout. No data is lost or corrupted.
Storage path failure
Tru64 UNIX—I/O fails over to the surviving path. No data is lost or
corrupted.
Linux
Table 61 Linux failure scenarios
Failure effectFault stimulus
OS reboots, automatically checks disks. HSV disks must be manually
checked unless auto mounted by the system.
Server failure (host power-cycled)
Short: I/O suspended, possible data loss.
Long: I/O halts with I/O errors, data loss. HBA driver must be reloaded
before failed drives can be recovered, fsck should be run on any failed
drives before remounting.
Switch failure (SAN switch disabled)
Short term: I/O suspended, possible data loss.
Long term: I/O halts with I/O errors, data loss. Cannot reload driver,
need to reboot system, fsck should be run on any failed disks before
remounting.
Controller failure
Short term: I/O suspended, possible data loss.
Long term: I/O halts with I/O errors, data loss. Cannot reload driver,
need to reboot system, fsck should be run on any failed disks before
remounting.
Controller restart
160 Single Path Implementation
Table 61 Linux failure scenarios (continued)
Failure effectFault stimulus
Short: I/O suspended, possible data loss.
Long: I/O halts with I/O errors, data loss. HBA driver must be reloaded
before failed drives can be recovered, fsck should be run on any failed
drives before remounting.
Server path failure
Short: I/O suspended, possible data loss.
Long: I/O halts with I/O errors, data loss. HBA driver must be reloaded
before failed drives can be recovered, fsck should be run on any failed
drives before remounting.
Storage path failure
IBM AIX
Table 62 IBM AIX failure scenarios
Failure effectFault stimulus
Check disk when rebooting. Data loss, data that finished copying survivedServer failure (host power-cycled)
Short term: Data transfer stops. Possible I/O errors.
Long term: Repeated error messages in errpt output. System reboot causes
loss of data on disk. Must crfs disk.
Switch failure (SAN switch disabled)
Short term: Data transfer stops. Possible I/O errors.
Long term: Repeated error messages in errpt output. System reboot causes
loss of data on disk. Must crfs disk.
Controller failure
Short term: Data transfer stops. Possible I/O errors.
Long term: Repeated error messages in errpt output. System reboot causes
loss of data on disk. Must crfs disk.
Controller restart
Short term: Data transfer stops. Possible I/O errors.
Long term: Repeated error messages in errpt output. System reboot causes
loss of data on disk. Must crfs disk.
Server path failure
Short term: Data transfer stops. Possible I/O errors.
Long term: Repeated error messages in errpt output. System reboot causes
loss of data on disk. Must crfs disk.
Storage path failure
VMware
Table 63 VMware failure scenarios
Failure effectFault stimulus
OS reboots, automatically checks disks. HSV disks must be manually
checked unless auto mounted by the system.
Server failure (host power-cycled)
Short: I/O suspended, possible data loss.
Long: I/O halts with I/O errors, data loss. HBA driver must be reloaded
before failed drives can be recovered, fsck should be run on any failed
drives before remounting.
Switch failure (SAN switch disabled)
Short term: I/O suspended, possible data loss.
Long term: I/O halts with I/O errors, data loss. Cannot reload driver,
need to reboot system, fsck should be run on any failed disks before
remounting.
Controller failure
Short term: I/O suspended, possible data loss.
Long term: I/O halts with I/O errors, data loss. Cannot reload driver,
need to reboot system, fsck should be run on any failed disks before
remounting.
Controller restart
Failure scenarios 161
Table 63 VMware failure scenarios (continued)
Failure effectFault stimulus
Short: I/O suspended, possible data loss.
Long: I/O halts with I/O errors, data loss. HBA driver must be reloaded
before failed drives can be recovered, fsck should be run on any failed
drives before remounting.
Server path failure
Short: I/O suspended, possible data loss.
Long: I/O halts with I/O errors, data loss. HBA driver must be reloaded
before failed drives can be recovered, fsck should be run on any failed
drives before remounting.
Storage path failure
162 Single Path Implementation
Glossary
This glossary defines terms used in this guide or related to this product and is not a
comprehensive glossary of computer terms.
A
active member of
a virtual disk
family
An active member of a virtual disk family is a simulated disk drive created by the controllers as
storage for one or more hosts. An active member of a virtual disk family is accessible by one or
more hosts for normal storage. An active virtual disk member and its snapshot, if one exists,
constitute a virtual disk family. An active member of a virtual disk family is the only necessary
member of a virtual disk family.
See also virtual disk,virtual disk family, and snapshot.
adapter See controller.
AL_PA Arbitrated Loop Physical Address. A 1-byte value the arbitrated loop topology uses to identify
the loop ports. This value becomes the last byte of the address identifier for each public port on
the loop.
allocation policy Storage system rules that govern how virtual disks are created. Allocate Completely and Allocate
on Demand are the two rules used in creating virtual disks.
•Allocate Completely—The space a virtual disk requires on the physical disks is reserved,
even if the virtual disk is not currently using the space.
•Allocate on Demand—The space a virtual disk requires on the physical disks is not reserved
until needed.
ambient
temperature The air temperature in the area where a system is installed. Also called intake temperature or
room temperature.
ANSI American National Standards Institute. A non-governmental organization that develops standards
(such as SCSI I/O interface standards and Fibre Channel interface standards) used voluntarily
by many manufacturers within the United States.
arbitrated loop A Fibre Channel topology that links multiple ports (up to 126) together on a single shared simplex
media. Transmissions can only occur between a single pair of nodes at any given time. Arbitration
is the scheme that determines which node has control of the loop at any given moment
arbitrated loop
physical address See AL_PA.
arbitrated loop
topology See arbitrated loop.
array All the physical disk drives in a storage system that are known to and under the control of a
controller pair.
array controller See controller.
asynchronous Events scheduled as the result of a signal requesting the event or that which is without any specified
time relation.
audible alarm The Environmental Monitoring Unit (EMU) alarm that sounds when there is a drive enclosure
element condition report. The audible alarm can be muted or disabled.
B
backplane An electronic printed circuit board that distributes data, control, power, and other signals to
element connectors.
bad block A data block that contains a physical defect.
bad block
replacement A replacement routine that substitutes defect-free disk blocks for those found to have defects. This
process takes place in the controller and is transparent to the host.
bail lock Part of the power supply AC receptacle that engages the AC power cord connector to ensure
that the cord cannot be accidentally disconnected.
163
baud The maximum rate of signal state changes per second on a communication circuit. If each signal
state change corresponds to a code bit, then the baud rate and the bit rate are the same. It is
also possible for signal state changes to correspond to more than one code bit so the baud rate
may be lower than the code bit rate.
bay The physical location of an element, such as a drive, I/O module, EMU or power supply in a
drive enclosure. Each bay is numbered to define its location.
bidirectional Also called Bi-Di. The movement of optical signals in opposite directions through a common fiber
cable such as the data flow path typically on a parallel printer port. A parallel port can provide
two-way data flow for disk drives, scanning devices, FAX operations and even parallel modems.
block Also called a sector. The smallest collection of consecutive bytes addressable on a disk drive. In
integrated storage elements, a block contains 512 bytes of data, error codes, flags, and the
block address header.
blower A variable speed airflow device that pulls air into an enclosure or element. It usually pulls air in
from the front and exhausts the heated air out the rear.
C
cabinet An alternate term used for a rack.
cable assembly A fiber optic cable that has connectors installed on one or both ends. General use of these cable
assemblies includes the interconnection of multimode fiber optic cable assemblies with either LC
or SC type connectors.
•When there is a connector on only one end of the cable, the cable assembly is referred to
as a pigtail.
•When there is a connector on each end of the cable, the cable assembly is referred to as
a jumper.
CAC Corrective Action Code. An HP P6000 Command View graphical user interface (GUI) display
component that defines the action required to correct a problem.
See also read cache,write cache, and mirrored cache.
cache High-speed memory that sets aside data as an intermediate data buffer between a host and the
storage media. The purpose of cache is to improve performance.
cache battery A rechargeable unit mounted within a controller enclosure that supplies back-up power to the
cache module in case of primary power shortage.
cache battery
indicator An orange light emitting diode (indicator) that illuminates on the controller operator control
panel (OCP) to define the status of the HSV Controller cache batteries.
1.
2. An amber status indicator that illuminates on a cache battery. When illuminated, it indicates
that one or more cache battery cells have failed and the battery must be replaced with a
new battery.
carrier A drive-enclosure-compatible assembly containing a disk drive or other storage devices.
client A software program that uses the services of another software program. The HP P6000 Command
View client is a standard internet browser.
communication
logical unit number
(LUN)
See console LUN.
condition report A three-element code generated by the EMU in the form where e.t. is the element type (a
hexadecimal number), en. is the element number (a decimal number), and ec is the condition
code (a decimal number).
console LUN A SCSI-3 virtual object that makes a controller pair accessible by the host before any virtual disks
are created. Also called a communication LUN.
console LUN ID The ID that can be assigned when a host operating system requires a unique ID. The console
LUN ID is assigned by the user, usually when the storage system is initialized.
See also console LUN.
164 Glossary
controller A hardware/firmware device that manages communications between host systems and other
devices. Controllers typically differ by the type of interface to the host and provide functions
beyond those the devices support.
controller
enclosure A unit that holds one or more controllers, power supplies, blowers, cache batteries, transceivers,
and connectors.
controller event A significant occurrence involving any storage system hardware or software component reported
by the controller to HP P6000 Command View.
controller fault
indicator An amber fault indicator that illuminates on the controller OCP to indicate when there is an HSV
Controller fault.
controller pair Two interconnected controller modules which together control the disk enclosures in the storage
system.
corrective action
code See CAC.
CRITICAL Condition A drive enclosure EMU condition that occurs when one or more drive enclosure elements have
failed or are operating outside of their specifications. The failure of the element makes continued
normal operation of at least some elements in the enclosure impossible. Some enclosure elements
may be able to continue normal operations. Only an UNRECOVERABLE condition has precedence.
This condition has precedence over NONCRITICAL errors and INFORMATION condition.
CRU Customer Replaceable Unit. A storage system element that a user can replace without using
special tools or techniques, or special training.
customer
replaceable unit See CRU.
D
data entry mode The state in which controller information can be displayed or controller configuration data can
be entered. On the Enterprise Storage System, the controller mode is active when the LCD on the
HSV Controller OCP is Flashing.
default disk group The first disk group created at the time the system in initialized. The default disk group can contain
the entire set of physical disks in the array or just a few of the disks.
See also disk group.
Detailed Fault
View An HSV Controller OCP display that permits a user to view detailed information about a controller
fault.
device channel A channel used to connect storage devices to a host I/O bus adapter or intelligent controller.
device ports Controller pair device ports connected to the storage system’s physical disk drive array through
the Fibre Channel drive enclosure. Also called a device-side port.
device-side ports See device ports.
DIMM Dual Inline Memory Module. A small circuit board holding memory chips.
dirty data The write-back cached data that has not been written to storage media even though the host
operation processing the data has completed.
disk drive A carrier-mounted storage device supporting random access to fixed size blocks of data.
disk drive blank A carrier that replaces a disk drive to control airflow within a drive enclosure whenever there is
less than a full complement of storage devices.
disk failure
protection A method by which a controller pair reserves drive capacity to take over the functionality of a
failed or failing physical disk. For each disk group, the controllers reserve space in the physical
disk pool equivalent to the selected number of physical disk drives.
disk group A physical disk drive set or pool in which a virtual disk is created. A disk group may contain all
the physical disk drives in a controller pair array or a subset of the array.
disk migration
state A physical disk drive operating state. A physical disk drive can be in a stable or migration state:
Stable—The state in which the physical disk drive has no failure nor is a failure predicted.•
•Migration—The state in which the disk drive is failing, or failure is predicted to be imminent.
Data is then moved off the disk onto other disk drives in the same disk group.
165
disk replacement
delay The time that elapses between a drive failure and when the controller starts searching for spare
disk space. Drive replacement seldom starts immediately in case the “failure” was a glitch or
temporary condition.
drive blank See disk drive blank.
drive enclosure A unit that holds storage system devices such as disk drives, power supplies, blowers, I/O modules,
transceivers, or EMUs.
drive enclosure See drive enclosure.
drive enclosure
event A significant operational occurrence involving a hardware or software component in the drive
enclosure. The drive enclosure EMU reports these events to the controller for processing.
dual power supply
configuration See redundant power configuration.
dual-loop A configuration where each drive is connected to a pair of controllers through two loops. These
two Fibre Channel loops constitute a loop pair.
dynamic capacity
expansion A storage system feature that provides the ability to increase the size of an existing virtual disk.
Before using this feature, you must ensure that your operating system supports capacity expansion
of a virtual disk (or LUN).
E
EIA Electronic Industries Alliance. A standards organization specializing in the electrical and functional
characteristics of interface equipment.
EIP Event Information Packet. The event information packet is an HSV element hexadecimal character
display that defines how an event was detected. Also called the EIP type.
electromagnetic
interference See EMI.
electrostatic
discharge See ESD.
element In a drive enclosure, a device such as an EMU, power supply, disk, blower, or I/O module.
The object can be controlled, interrogated, or described by the enclosure services process.
1.
2. In the Open SAN Manager, a controllable object, such as the Enterprise storage system.
EMI Electromagnetic Interference. The impairment of a signal by an electromagnetic disturbance.
EMU Environmental Monitoring Unit. An element which monitors the status of an enclosure, including
the power, air temperature, and blower status. The EMU detects problems and displays and
reports these conditions to a user and the controller. In some cases, the EMU implements corrective
action.
enclosure A unit used to hold various storage system devices such as disk drives, controllers, power supplies,
blowers, an EMU, I/O modules, or blowers.
enclosure address
bus An Enterprise storage system bus that interconnects and identifies controller enclosures and disk
drive enclosures by their physical location. Enclosures within a reporting group can exchange
environmental data. This bus uses enclosure ID expansion cables to assign enclosure numbers to
each enclosure. Communications over this bus do not involve the Fibre Channel drive enclosure
bus and are, therefore, classified as out-of-band communications.
enclosure number
(En) One of the vertical rack-mounting positions where the enclosure is located. The positions are
numbered sequentially in decimal numbers starting from the bottom of the cabinet. Each disk
enclosure has its own enclosure number. A controller pair shares an enclosure number. If the
system has an expansion rack, the enclosures in the expansion rack are numbered from 15 to
24, starting at the bottom.
enclosure services Those services that establish the mechanical environmental, electrical environmental, and external
indicators and controls for the proper operation and maintenance of devices with an enclosure
as described in the SES SCSI-3 Enclosure Services Command Set (SES), Rev 8b, American National
Standard for Information Services.
Enclosure Services
Interface See ESI.
166 Glossary
Enclosure Services
Processor See ESP.
Enterprise Virtual
Array The Enterprise Virtual Array is a product that consists of one or more storage systems. Each storage
system consists of a pair of HSV controllers and the disk drives they manage. A storage system
within the Enterprise Virtual Array can be formally referred to as an Enterprise storage system,
or generically referred to as the storage system.
Enterprise Virtual
Array rack A unit that holds controller enclosures, disk drive enclosures, power distribution supplies, and
enclosure address buses that, combined, comprise an Enterprise storage system solution. Also
called the Enterprise storage system rack.
See also rack.
environmental
monitoring unit See EMU.
error code The portion of an EMU condition report that defines a problem.
ESD Electrostatic Discharge. The emission of a potentially harmful static electric voltage as a result of
improper grounding.
ESI Enclosure Services Interface. The SCSI-3 engineering services interface implementation developed
for Storage products. A bus that connects the EMU to the disk drives.
ESP Enclosure Services Processor. An EMU that implements an enclosure’s services process.
event Any significant change in the state of the Enterprise storage system hardware or software
component reported by the controller to HP P6000 Command View.
See also controller event, drive enclosure event, management agent event, and termination event..
Event Information
Packet See EIP.
Event Number See Evt No.
Evt No. Event Number. A sequential number assigned to each Software Code Identification (SWCID)
event. It is a decimal number in the range 0-255.
exabyte A unit of storage capacity that is the equivalent of 260 bytes or 1,152,921,504,606,846,976
bytes. One exabyte is equivalent to 1,024 petabytes.
F
fabric A Fibre Channel fabric or two or more interconnected Fibre Channels allowing data transmission.
fabric port A port which is capable of supporting an attached arbitrated loop. This port on a loop will have
the AL_PA hexadecimal address 00 (loop ID 7E), giving the fabric the highest priority access to
the loop. A loop port is the gateway to the fabric for the node ports on a loop.
failover The process that takes place when one controller assumes the workload of a failed companion
controller. Failover continues until the failed controller is operational.
fan The variable speed airflow device that cools an enclosure or element by forcing ambient air into
an enclosure or element and forcing heated air out the other side.
See also blower.
Fault Management
Code See FMC.
FC HBA Fibre Channel Host Bus Adapter. An interchangeable term for Fibre Channel adapter.
See also FCA.
FCA Fibre Channel Adapter. An adapter used to connect the host server to the fabric. Also called a
Host Bus Adapter (HBA) or a Fibre Channel Host Bus Adapter (FC HBA).
See also FC HBA.
FCC Federal Communications Commission. The federal agency responsible for establishing standards
and approving electronic devices within the United States.
FCP Fibre Channel Protocol. The mapping of SCSI-3 operations to Fibre Channel.
fiber The optical media used to implement Fibre Channel.
167
fiber optic cable A transmission medium designed to transmit digital signals in the form of pulses of light. Fiber
optic cable is noted for its properties of electrical isolation and resistance to electrostatic
contamination.
fiber optics The technology where light is transmitted through glass or plastic (optical) threads (fibers) for data
communication or signaling purposes.
fibre The international spelling that refers to the Fibre Channel standards for optical media.
Fibre Channel A data transfer architecture designed for mass storage devices and other peripheral devices that
require very high bandwidth.
Fibre Channel
adapter See FCA.
Fibre Channel
drive enclosure Fibre Channel Arbitrated Loop. The American National Standards Institute’s (ANSI) document
that specifies arbitrated loop topology operation.
Fibre Channel Loop An enclosure that provides twelve-port central interconnect for Fibre Channel Arbitrated Loops
following the ANSI Fibre Channel drive enclosure standard.
field replaceable
unit See FRU.
flush The act of writing dirty data from cache to a storage media.
FMC Fault Management Code. The HP P6000 Command View display of the Enterprise Storage System
error condition information.
form factor A storage industry dimensional standard for 3.5inch (89 mm) and 5.25inch (133 mm) high
storage devices. Device heights are specified as low-profile (1inch or 25.4 mm), half-height
(1.6inch or 41 mm), and full-height (5.25inch or 133 mm).
FPGA Field Programmable Gate Array. A programmable device with an internal array of logic blocks
surrounded by a ring of programmable I/O blocks connected together through a programmable
interconnect.
frequency The number of cycles that occur in one second expressed in Hertz (Hz). Thus, 1 Hz is equivalent
to one cycle per second.
FRU Field Replaceable Unit. A hardware element that can be replaced in the field. This type of
replacement can require special training, tools, or techniques. Therefore, FRU procedures are
usually performed only by an Authorized Service Representative.
H
HBA Host Bus Adapter.
See also FCA.
host A computer that runs user applications and uses (or can potentially use) one or more virtual disks
created and presented by the controller pair.
Host Bus Adapter See FCA.
host computer See host.
host link indicator The HSV Controller display that indicates the status of the storage system Fibre Channel links.
host ports A connection point to one or more hosts through a Fibre Channel fabric. A host is a computer
that runs user applications and that uses (or can potentially use) one or more of the virtual disks
that are created and presented by the controller pair.
host-side ports See host ports.
hot-pluggable A method of element replacement whereby the complete system remains operational during
element removal or insertion. Replacement does not interrupt data transfers to other elements.
hub A communications infrastructure device to which nodes on a multi-point bus or loop are physically
connected. It is used to improve the manageability of physical cables.
I
I/O module Input/Output module. The enclosure element that is the Fibre Channel drive enclosure interface
to the host or controller. I/O modules are bus speed specific, either 1 Gb or 2 Gb.
168 Glossary
IDX A 2-digit decimal number portion of the HSV controller termination code display that defines one
of 32 locations in the Termination Code array that contains information about a specific event.
See also param and TC.
in-band
communication The method of communication between the EMU and controller that utilizes the Fibre Channel
drive enclosure bus.
INFORMATION
condition A drive enclosure EMU condition report that may require action. This condition is for information
only and does not indicate the failure of an element. All condition reports have precedence over
an INFORMATION condition.
initialization A process that prepares a storage system for use. Specifically, the system binds controllers together
as an operational pair and establishes preliminary data structures on the disk array. Initialization
also sets up the first disk group, called the default disk group.
input/output
module See I/O module.
intake temperature See ambient temperature.
interface A set of protocols used between components such as cables, connectors, and signal levels.
J
JBOD Just a Bunch of Disks. A number of disks connected to one or more controllers.
L
indicator Light Emitting Diode. A semiconductor diode, used in an electronic display, that emits light when
a voltage is applied to it.
LAN Local area network. A group of computers and associated devices that share a common
communications line and typically share the resources of a single processor or server within a
small geographic area.
laser A device that amplifies light waves and concentrates them in a narrow, very intense beam.
Last Fault View An HSV Controller display defining the last reported fault condition.
Last Termination
Error Array See LTEA.
License Key A WWN-encoded sequence that is obtained from the license key fulfillment website.
link A connection between ports on Fibre Channel devices. The link is a full duplex connection to a
fabric or a simplex connection between loop devices.
logon Also called login, it is a procedure whereby a user or network connection is identified as being
an authorized network user or participant.
loop See arbitrated loop.
loop ID Seven-bit values numbered contiguous from 0 to 126 decimal that represent the 127 valid AL_PA
values on a loop (not all 256 hexadecimal values are allowed as AL_PA values per Fibre Channel).
loop pair A Fibre Channel attachment between a controller and physical disk drives. Physical disk drives
connect to controllers through paired Fibre Channel arbitrated loops. There are two loop pairs,
designated loop pair 1 and loop pair 2. Each loop pair consists of two loops (called loop A and
loop B) that operate independently during normal operation, but provide mutual backup in case
one loop fails.
LTEA Last Termination Event Array. A two-digit HSV Controller number that identifies a specific event
that terminated an operation. Valid numbers range from 00 to 31.
LUN Logical Unit Number. A SCSI convention used to identify elements. The host sees a virtual disk
as a LUN. The LUN address a user assigns to a virtual disk for a particular host will be the LUN
at which that host will see the virtual disk.
169
M
management
agent The HP P6000 Command View software that controls and monitors the Enterprise storage system.
The software can exist on more than one management server in a fabric. Each installation is a
management agent.
management
agent event Significant occurrence to or within the management agent software, or an initialized storage cell
controlled or monitored by the management agent.
mean time
between failures See MTBF.
metadata Information that a controller pair writes on the disk array. This information is used to control and
monitor the array and is not readable by the host.
micro meter See µm.
mirrored caching A process in which half of each controller’s write cache mirrors the companion controller’s write
cache. The total memory available for cached write data is reduced by half, but the level of
protection is greater.
mirroring The act of creating an exact copy or image of data.
MTBF Mean Time Between Failures. The average time from start of use to first failure in a large population
of identical systems, components, or devices.
multi-mode fiber A fiber optic cable with a diameter large enough (50 microns or more) to allow multiple streams
of light to travel different paths from the transmitter to the receiver. This transmission mode enables
bidirectional transmissions.
N
Network Storage
Controller See NSC.
node port A device port that can operate on the arbitrated loop topology.
non-OFC (Open
Fibre Control) A laser transceiver whose lower-intensity output does not require special open Fibre Channel
mechanisms for eye protection. The Enterprise storage system transceivers are non-OFC compatible.
NONCRITICAL
Condition A drive enclosure EMU condition report that occurs when one or more elements inside the enclosure
have failed or are operating outside of their specifications. The failure does not affect continued
normal operation of the enclosure. All devices in the enclosure continue to operate according to
their specifications. The ability of the devices to operate correctly may be reduced if additional
failures occur. UNRECOVERABLE and CRITICAL errors have precedence over this condition. This
condition has precedence over INFORMATION condition. Early correction can prevent the loss
of data.
NSC Network Storage Controller. The HSV Controllers used by the Enterprise storage system.
NVRAM Nonvolatile Random Access Memory. Memory whose contents are not lost when a system is
turned Off or if there is a power failure. This is achieved through the use of UPS batteries or
implementation technology such as flash memory. NVRAM is commonly used to store important
configuration parameters.
O
occupancy alarm
level A percentage of the total disk group capacity in blocks. When the number of blocks in the disk
group that contain user data reaches this level, an event code is generated. The alarm level is
specified by the user.
OCP Operator Control Panel. The element that displays the controller’s status using indicators and an
LCD. Information selection and data entry is controlled by the OCP push-button.
online/nearonline An online drive is a normal, high-performance drive, while a near-online drive is a
lower-performance drive.
operator control
panel See OCP.
170 Glossary
P
param That portion of the HSV controller termination code display that defines:
•The 2-character parameter identifier that is a decimal number in the 0 through 30 range.
•The 8-character parameter code that is a hexadecimal number.
See also IDX and TC.
password A security interlock where the purpose is to allow:
•A management agent to control only certain storage systems
•Only certain management agents to control a storage system
PDM Power Distribution Module. A thermal circuit breaker-equipped power strip that distributes power
from a PDU to Enterprise Storage System elements.
PDU Power Distribution Unit. The rack device that distributes conditioned AC or DC power within a
rack.
physical disk A disk drive mounted in a drive enclosure that communicates with a controller pair through the
device-side Fibre Channel loops. A physical disk is hardware with embedded software, as opposed
to a virtual disk, which is constructed by the controllers. Only the controllers can communicate
directly with the physical disks.
The physical disks, in aggregate, are called the array and constitute the storage pool from which
the controllers create virtual disks.
physical disk array See array.
port A Fibre Channel connector on a Fibre Channel device.
port-colored A convention of applying the color of port or red wine to a CRU tab, lever, or handle to identify
the unit as hot-pluggable.
port_name A 64-bit unique identifier assigned to each Fibre Channel port. The port_name is communicated
during the login and port discovery processes.
power distribution
module See PDM.
power distribution
unit See PDU.
power supply An element that develops DC voltages for operating the storage system elements from either an
AC or DC source.
preferred address An AL_PA which a node port attempts to acquire during loop initialization.
preferred path A preference for which controller of the controller pair manages the virtual disk. This preference
is set by the user when creating the virtual disk. A host can change the preferred path of a virtual
disk at any time. The primary purpose of preferring a path is load balancing.
protocol The conventions or rules for the format and timing of messages sent and received.
Q
quiesce The act of rendering bus activity inactive or dormant. For example, “quiesce the SCSI bus
operations during a device warm-swap.”
R
rack A floorstanding structure primarily designed for, and capable of, holding and supporting storage
system equipment. All racks provide for the mounting of panels per Electronic Industries Alliance
(EIA) Standard RS310C.
rack-mounting unit A measurement for rack heights based upon a repeating hole pattern. It is expressed as “U”
spacing or panel heights. Repeating hole patterns are spaced every 1.75 inches (44.45 mm)
and based on EIA’s Standard RS310C. For example, a 3U unit is 5.25inches (133.35 mm) high,
and a 4U unit is 7.0inches (177.79 mm) high.
171
read ahead
caching A cache management method used to decrease the subsystem response time to a read request
by allowing the controller to satisfy the request from the cache memory rather than from the disk
drives.
read caching A cache method used to decrease subsystem response times to a read request by allowing the
controller to satisfy the request from the cache memory rather than from the disk drives. Reading
data from cache memory is faster than reading data from a disk. The read cache is specified as
either On or Off for each virtual disk. The default state is on.
reconstruction The process of regenerating the contents of a failed member data. The reconstruction process
writes the data to a spare set disk and incorporates the spare set disk into the mirrorset, striped
mirrorset or RAID set from which the failed member came.
redundancy Element Redundancy—The degree to which logical or physical elements are protected by
having another element that can take over in case of failure. For example, each loop of a
1.
device-side loop pair normally works independently but can take over for the other in case
of failure.
2. Data Redundancy—The level to which user data is protected. Redundancy is directly
proportional to cost in terms of storage usage; the greater the level of data protection, the
more storage space is required.
redundant power
configuration A capability of the Enterprise storage system racks and enclosures to allow continuous system
operation by preventing single points of power failure.
•For a rack, two AC power sources and two power conditioning units distribute primary and
redundant AC power to enclosure power supplies.
•For a controller or drive enclosure, two power supplies ensure that the DC power is available
even when there is a failure of one supply, one AC source, or one power conditioning unit.
Implementing the redundant power configuration provides protection against the loss or
corruption of data.
reporting group An Enterprise Storage System controller pair and the associated disk drive enclosures. The
Enterprise Storage System controller assigns a unique decimal reporting group number to each
EMU on its loops. Each EMU collects disk drive environmental information from its own
sub-enclosure and broadcasts the data over the enclosure address bus to all members of the
reporting group. Information from enclosures in other reporting groups is ignored.
room temperature See ambient temperature.
S
SCSI-3 The ANSI standard that defines the operation and function of Fibre Channel systems.
SCSI-3 Enclosure
Services See SES.
selective
presentation The process whereby a controller presents a virtual disk only to the host computer which is
authorized access.
serial transmission A method of transmission in which each bit of information is sent sequentially on a single channel
rather than simultaneously as in parallel transmission.
SES SCSI-3 Enclosures Services. Those services that establish the mechanical environment, electrical
environment, and external indicators and controls for the proper operation and maintenance of
devices within an enclosure.
snapclone A virtual disk that can be manipulated while the data is being copied. Only an Active member
of a virtual disk family can be snapcloned.
The Snapclone, like a snapshot, reflects the contents of the source virtual disk at a particular point
in time. Unlike the snapshot, the Snapclone is an actual clone of the source virtual disk and
immediately becomes an independent Active member of its own virtual disk family.
snapshot A temporary virtual disk (Vdisk) that reflects the contents of another virtual disk at a particular
point in time. A snapshot operation is only done on an active virtual disk. Up to seven snapshots
of an active virtual disk can exist at any point. The active disk and its snapshot constitute a virtual
family.
See also active virtual disk, and virtual disk family.
172 Glossary
SSN Storage System Name. An HP P6000 Command View-assigned, unique 20-character name that
identifies a specific storage system.
storage carrier See carrier.
storage pool The aggregated blocks of available storage in the total physical disk array.
storage system The controllers, storage devices, enclosures, cables, and power supplies and their software.
Storage System
Name See SSN.
switch An electro-mechanical device that initiates an action or completes a circuit.
symbols and numbers
3U A unit of measurement representing three “U” spaces. “U” spacing is used to designate panel or
enclosure heights. Three “U” spaces is equivalent to 5.25 inches (133 mm).
See also rack-mounting unit.
µm A symbol for micrometer; one millionth of a meter. For example, 50 µm is equivalent to 0.000050
m.
T
TC Termination Code. An Enterprise Storage System controller 8-character hexadecimal display that
defines a problem causing controller operations to halt.
See also IDX and param.
Termination Code See TC.
termination event Occurrences that cause the storage system to cease operation.
terminator Interconnected elements that form the ends of the transmission lines in the enclosure address bus.
topology An interconnection scheme that allows multiple Fibre Channel ports to communicate. Point-to-point,
arbitrated loop, and ed fabric are all Fibre Channel topologies.
transceiver The device that converts electrical signals to optical signals at the point where the fiber cables
connect to the FC elements such as hubs, controllers, or adapters.
U
uninitialized
system A state in which the storage system is not ready for use.
See also initialization.
UNRECOVERABLE
Condition A drive enclosure EMU condition report that occurs when one or more elements inside the enclosure
have failed and have disabled the enclosure. The enclosure may be incapable of recovering or
bypassing the failure and will require repairs to correct the condition.
This is the highest level condition and has precedence over all other errors and requires immediate
corrective action.
unwritten cached
data Also called unflushed data.
See also dirty data.
UPS Uninterruptible Power Supply. A battery-operated power supply guaranteed to provide power to
an electrical device in the event of an unexpected interruption to the primary power supply.
Uninterruptible power supplies are usually rated by the amount of voltage supplied and the length
of time the voltage is supplied.
V
virtual disk Variable disk capacity that is defined and managed by the array controller and presented to
hosts as a disk. May be called Vdisk in the user interface.
virtual disk family A virtual disk and its snapshot, if a snapshot exists, constitute a family. The original virtual disk
is called the active disk. When you first create a virtual disk family, the only member is the active
disk.
See also active virtual disk, and virtual disk snapshot.
173
virtual disk
snapshot See snapshot.
Vraid0 A virtualization technique that provides no data protection. Data host is broken down into chunks
and distributed on the disks comprising the disk group from which the virtual disk was created.
Reading and writing to a Vraid0 virtual disk is very fast and makes the fullest use of the available
storage, but there is no data protection (redundancy) unless there is parity.
Vraid1 A virtualization technique that provides the highest level of data protection. All data blocks are
mirrored or written twice on separate physical disks. For read requests, the block can be read
from either disk, which can increase performance. Mirroring takes the most storage space because
twice the storage capacity must be allocated for a given amount of data.
Vraid5 A virtualization technique that uses parity striping to provide moderate data protection. Parity is
a data protection mechanism for a striped virtual disk. A striped virtual disk is one where the
data to and from the host is broken down into chunks and distributed on the physical disks
comprising the disk group in which the virtual disk was created. If the striped virtual disk has
parity, another chunk (a parity chunk) is calculated from the set of data chunks and written to the
physical disks. If one of the data chunks becomes corrupted, the data can be reconstructed from
the parity chunk and the remaining data chunks.
W
World Wide Name See WWN.
write back caching A controller process that notifies the host that the write operation is complete when the data is
written to the cache. This occurs before transferring the data to the disk. Write back caching
improves response time since the write operation completes as soon as the data reaches the
cache. As soon as possible after caching the data, the controller then writes the data to the disk
drives.
write caching A process when the host sends a write request to the controller, and the controller places the data
in the controller cache module. As soon as possible, the controller transfers the data to the physical
disk drives.
WWN World Wide Name. A unique Fibre Channel identifier consisting of a 16-character hexadecimal
number. A WWN is required for each Fibre Channel communication port.
174 Glossary
Index
Symbols
+12.5 VDC for the drives, 25
+5.1 VDC, 25
A
AC input missing, 120
AC power
distributing, 52
frequency, 25
voltage, 25
accessing
multipathing, 72
Secure Path, 72
adding
hosts, 81
adding hosts, 73
air flow
adjusting automatically, 26
affecting temperature, 26
alarm code cycles, 30
alphanumeric display
controlling, 29
description, 28, 29
API versions, 47
ASCII, error codes definitions, 137
audible alarm
disabling, 32
enabling, 31
muting, 31
selecting display group, 29
sound patterns, 30
unmuting, 31
automatically correcting errors, 27
B
backplane
NONCRITICAL conditions, 132
NVRAM conditions, 126, 132
bays
locating, 20
numbering, 20
bidirectional operation, 21
blowers
cooling enclosures, 26
CRITICAL conditions, 122
failure, 122
missing, 122, 123
monitored functions, 28
NONCRITICAL conditions, 122
speed, 122
status indicators, 26
UNRECOVERABLE conditions, 122, 123
C
cables
FCC compliance statement, 105
cabling controller, 51
CAC, 135, 137
cache battery assembly indicator, 44
CAUTIONs
initializing the system, 48
CDRH, compliance regulations, 105
Center for Devices and Radiological Health see CDRH
certification product labels, 112
changing passwords, 49
checksum, 17
Class A equipment, Canadian compliance statement, 106
Class B equipment, Canadian compliance statement, 106
cleaning fiber optic connectors, 71
clearing passwords, 49
code flag, 135
Command View GUI
displaying events, 135
displaying termination events, 135
condition reporting
backplane, 132
current sensors, 131
drives, 118
element types, 117
EMU, 125
hosts, 134
I/O modules, 133
power supplies, 120
temperature, 123
transceivers, 128
voltage sensor, 131
conditions, EMU detection of, 27
configuration
physical layout, 19
configuring EVA, 92
configuring the ESX server, 93
connectivity
verifying, 94
connectors
power IEC 309 receptacle, 53
power NEMA L6-30R, 53
protecting, 71
controller
cabling, 51
connectors, 51
defined, 19
initial setup, 15
status indicators, 44
controls, 27
conventions
document, 102
text symbols, 102
cooling
blowers, 25
enclosures, 26
power supplies, 26
175
Corrective Action Code see CAC
Corrective Action Codes see CAC
country-specific certifications, 112
coupled crash control codes, 137
creating virtual disks, 73
creating volume groups, 75
CRITICAL conditions
audible alarm, 30
blowers speed, 122
drive link rate, 118, 119, 120
drives configuration, 118
EMU internal clock, 125
high current, 132
high temperature, 124
high voltage, 131
I/O modules communication, 133
I/O modules unsupported, 133
low temperature, 124
low voltage, 132
transceivers, 129
current sensors, 131
customer self repair, 103
parts list, 97
D
DC power
+5.1 VDC, 25
detail view, 136
detail view menu, 136
diagnostic information, 26
disabling the audible alarm, 32
disk drives
defined, 23
power usage, 25
reporting status, 24
DiskMaxLUN, 94
disks
labeling, 91
partinioning, 91
display groups
audible alarm, Au, 29
enclosure number, En, 29
error code, Er, 29
loop ID, Li, 29
reporting group, rG, 29
displaying errors, 27
displays
audible alarm, 28, 30
EMU status, 28
enclosure status, 28
DMP, 87
document
conventions, 102
documentation
providing feedback, 101
drive enclosures
defined, 19
front view, 20
drives
detecting configuration error, 118
detecting drive link error, 119, 120
detecting link rate error, 118
missing, 119
monitoring functions, 28
reporting conditions, 118
dump/restart control codes, 137
dust covers, using, 71
E
EIP, 136, 137
element condition reporting;, 117
EMU
alphanumeric display, 28
conditions, 125
controls, 27
CRITICAL conditions, 125
displaying status, 27
INFORMATION conditions, 126, 127
NONCRITICAL conditions, 126, 127
resetting, 125
status indicators, 28
UNRECOVERABLE conditions, 125, 127
EMU indicator displays, 29
EMU monitoring functions , 28
En description, 32
enabling the audible alarm, 31
enclosure address bus
defined, 33
detecting errors with, 127
enclosure certification label, 112
enclosure functions, 28
enclosure number description, 32
enclosure number display group, 29
Enclosure Services Interface see ESI
Enclosure Services Processor see ESP
enclosures
adjusting temperature, 26
bays, 20
cooling, 26
managing air flow, 26
sensing temperature, 26
enclosures, physical specifications, 112
Enterprise rack
physical layout, 19
environmental specifications
drive enclosure, 112
error code
selecting display group, 29
error codes, defined, 137
error messages, 27
errors
correcting automatically, 27
displaying, 27
ESI, 27
ESP, 27
event code, defined, 137
event GUI display, 135
Event Information Packet see EIP
176 Index
Event Information Packets see EIP
event number, 135
F
fabric setup, 87
failure, 132
FATA drives, using, 59
fault management
details, 136
display, 46
displays, 136
FC loops, 11, 21
FCA
configuring, 83
configuring QLogic, 85
configuring, Emulex, 84
FCC
Class A Equipment, compliance notice, 104
Class B Equipment, compliance notice, 104
Declaration of Conformity, 105
modifications, 105
FCC Class A certification, 104
Federal Communications Commission (FCC) notice, 104
fiber optics
cleaning cable connectors, 71
protecting cable connectors, 71
Fibre Channel Drive Enclosure
defined, 19
Fibre Channel drive enclosures, 27
Fibre Channel loop switch
connecting to, 19
Fibre Channel Loop Switches, 39
defined, 19, 38
reading indicators, 40
testing, 40
file name, error code definitions, 137
firmware version display, 47
functions monitoring, 28
H
hardware components, 19
harmonics conformance
Japan, 111
help
obtaining, 101
high availability
HSV Controllers, 43
high current conditions, 132
high temperature conditions, 123, 124
high voltage conditions, 131
host bus adapters, 15
hosts
adding, 81
HPtechnical support, 101
HP P6000 Command View
adding hosts with, 73
creating virtual disk with, 73
location of, 11
using, 73
HSV controller
OCP
shutting down the controller, 48
shutdown, 48
HSV Controllers
defined, 19
initial setup, 15
I
I/O modules
bidirectional, 21
CRITICAL conditions, 133
element numbering, 133
monitored functions, 28
NONCRITICAL conditions, 133, 134
IDX code display, 136
indicators
battery status, 44
EMU displays, 29
push-buttons, 45
pushbutton, 30
INFORMATION conditions
audible alarm, 31
drive missing, 119
EMU, 126, 127
INITIALIZE LCD, 47
initializing the system
defined, 47
installing VMware, 92
internal clock, 125
iopolicy
setting, 88
iSCSI configurations, 14
L
labels
enclosure certification, 112
product certification, 112
laser device
regulatory compliance notice, 105
lasers
radiation, warning, 105
last fault information, 136
Last Termination Event Array see LTEA
LCD
default display, 45
Li display group, 29
Loop ID
display group, 29
loop switch, 19
loop switches
defined, 19
low temperature
CRITICAL conditions, 124
NONCRITICAL conditions, 124
low voltage
CRITICAL conditions, 132
177
NONCRITICAL conditions, 131
lpfc driver, 84
LTEA, 136
LUN numbers, 15
M
Management Server, 17
Management Server, HP P6000 Command View, 11
missing
AC input, 120
power supplies, 121
monitored functions
blowers, 28
I/O module, 28
power supply, 28
multipathing
accessing, 72
policy, 93
N
non-standard rack, specifications, 138
NONCRITICAL conditions
audible alarm, 31
backplane, 132
NVRAM conditions, 132
blowers
missing, 122
speed, 122
EMU
cannot read NVRAM data, 127
enclosure address, 127
NVRAM invalid read data, 126
NVRAM write failure, 126
enclosure address, 127
high current, 132
high temperature, 123
high voltage, 131
I/O modules, 133
low temperature, 124
low voltage, 131
NVRAM, 126
NVRAM read, 132
NVRAM read failure, 132
NVRAM write failure, 126
power supplies, 120
not installed
power supplies, 121
NVRAM read failure, 134
NVRAM write failure, 126
O
OCP
fault management displays, 136
using, 15
OpenView Storage Management Server, 17
Oracle San driver stack, 83
Oracle StorEdge, 83
Traffic Manager, 87
P
parameter code, 136
parameter code number, 136
parts
replaceable, 97
password
changing, 49
clearing, 49
entering, 17, 49
removing, 49
PDUs, 52
physical configuration, 19
physical specifications
enclosures, 112
PIC, 47
port indicators, 38, 39, 40
POST, 40
power connectors
IEC 309 receptacle, 53
NEMA L6-30R, 53
POWER OFF LCD, 47
power specifications
drive enclosure, 113
power supplies, 26
AC frequency, 25
AC input missing, 120
AC voltage, 25
cooling, 26
DC outputs, 25
missing, 121
monitored functions, 28
NONCRITICAL conditions, 120
not installed, 121
overload, 26
protection, 26
sensing temperature, 26
status indicators, 26
thermal protection, 26
UNRECOVERABLE conditions, 126, 128
Power-On Self Test see POST
powering off the system
defined, 47
presenting virtual disks, 73
product certification, 112
protecting
power supplies, 26
protecting fiber optic connectors
dust covers, 71
how to clean, 71
push-button
indicators, 45
push-buttons
definition, 45
navigating with, 45
pushbutton
EMU, 30
Q
qla2300 driver, 85
178 Index
R
rack
non-standard specifications, 138
physical layout, 19
rack configurations, 52
regulatory compliance notices
cables, 105
Class A, 104
Class B, 104
European Union, 106
Japan, 111
laser devices, 105
modifications, 105
Taiwan, 111
WEEE recycling notices, 106
regulatory notices, 104
resetting EMU, 125
RESTART LCD, 47
restarting the system, 47, 48
defined, 47
rH displays, 38
rL displays, 38
S
Secure Path
accessing, 72
sensing
power supply temperature, 26
SES compliance, 27
setting password, 17
SFP, 41
short circuit, 26
shutdown
controllers, 48
shutdown failure, 128
shutdown system, 46
shutting down the system, 47
restarting, 48
signals, diagnostic, 26
slots see enclosures, bays
Software Component ID Codes see SWCID
Software Identification Code see SWCID
software version display, 47
specifications
physical, 112
power, 113
speed conditions, blower, 122
status indicators
power supplies, 26
status, disk drives, 24
storage system
initializing, 48
restarting, 48
shutting down, 47
storage system menu tree
fault management, 46
system information, 46
Storage System Name, 45
Subscriber's Choice, HP, 101
SWCID, 135, 136, 137
symbols in text, 102
system information
display, 46
firmware version, 47
software version, 47
versions, 47
system menu tree
shut down system, 46
system password, 46
system password, 46
system rack configurations, 52
T
TC, 137
TC display, 136
TC error code, 136
technical support
HP, 101
service locator website, 101
temperature
condition reports, 123
effect of air flow, 26
sensing, 26
Termination Code see TC
termination event GUI display, 135
text symbols, 102
transceivers
CRITICAL conditions, 129
monitored functions, 28
turning off power, 47
U
Uninitializing, 48
unitializing the system, 48
universal disk drives, 23
UNRECOVERABLE conditions
audible alarm, 30
backplane NVRAM, 126
blowers
failure, 122
no blowers installed, 123
EMU
communications interrupted, 125
hardware failure, 127
load failure, 127
high temperature, 124
power supplies
missing, 121
shutdown, 126
shutdown failure, 128
shutdown, 126
upgrading VMware, 92
UPS, selecting, 141
using the OCP, 15
V
verifying operation, 26
verifying virtual disks, 89
179
Veritas Volume Manager, 87
version information
Controller, 47
displaying, 47
firmware, 47
OCP, 47
software, 47
XCS, 47
version information: firmware, 47
vgcreate, 75
virtual disks
configuring, 74, 82, 89
presenting, 73
verifying, 89, 90, 95
VMware
installing, 92
upgrading, 92
voltage sensors, 131
volume groups, 75
W
warnings
lasers, radiation, 105
website
Oracle documentation, 92
Symantec/Veritas, 87
websites
customer self repair, 103
HP , 101
HP Subscriber's Choice for Business, 101
WEEE recycling notices, 106
WWLUN ID
identitying, 89
WWN labels, 16
WWN, backplane, 132
WWN, blank, 132
X
XCS version, 47
Z
zoning, 87
