Technical Reference Guide

HP Compaq 8100 Elite Series

Business Desktop Computers

Document Part Number: 601198-001

February 2010

This document provides information on the design, architecture, function,

and capabilities of the HP Compaq 8100 Elite Series Business Desktop

Computers. This information may be used by engineers, technicians,

administrators, or anyone needing detailed information on the products

covered.

© Copyright 2010 Hewlett-Packard Development Company, L.P.

The information contained herein is subject to change without notice.

Microsoft, MS-DOS, Windows, Windows NT, Windows XP, Windows Vista, and Windows 7 are trademarks of

Microsoft Corporation in the U.S. and other countries.

Intel, Intel Core 2 Duo, Intel Core 2 Quad, Pentium Dual-Core, Intel Inside, and Celeron are trademarks of Intel

Corporation in the U.S. and other countries.

Adobe, Acrobat, and Acrobat Reader are trademarks or registered trademarks of Adobe Systems Incorporated.

The only warranties for HP products and services are set forth in the express warranty statements accompanying

such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall

not be liable for technical or editorial errors or omissions contained herein.

This document contains proprietary information that is protected by copyright. No part of this document may be

photocopied, reproduced, or translated to another language without the prior written consent of Hewlett-Packard

Company.

Technical Reference Guide

HP Compaq 8100 Elite Series Business Desktop Computers

First Edition (February 2010)

Document Part Number: 601198-001

Technical Reference Guide www.hp.com iii

Contents

1Introduction

1.1 About this Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–1

1.1.1 Online Viewing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–1

1.1.2 Hardcopy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–1

1.2 Additional Information Sources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–1

1.3 Serial Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–2

1.4 Notational Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–2

1.5.1 Special Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–2

1.5.2 Values. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–2

1.5.2 Ranges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–2

1.5 Common Acronyms and Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–3

2 System Overview

2.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–1

2.2 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–2

2.3 System Architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–4

2.3.1 Intel Processor Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–6

2.3.2 Chipset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–6

2.3.3 Support Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–7

2.3.4 System Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–7

2.3.5 Mass Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–8

2.3.6 Serial Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–8

2.3.7 Universal Serial Bus Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–8

2.3.8 Network Interface Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–8

2.3.9 Graphics Subsystem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–9

2.3.10 Audio Subsystem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–9

2.4 Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–10

iv www.hp.com Technical Reference Guide

Contents

3 Processor/Memory Subsystem

3.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–1

3.2 Intel Processors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–2

3.2.1 Intel Processor Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–2

3.2.2 Processor Changing/Upgrading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–3

3.3 Memory Subsystem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–4

3.3.1 Memory Upgrading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–5

3.3.2 Memory Mapping and Pre-allocation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–5

4 System Support

4.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–1

4.2 PCI Bus Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–1

4.2.1 PCI 2.3 Bus Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–1

4.2.2 PCI Express Bus Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–3

4.2.3 Option ROM Mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–4

4.2.4 PCI Interrupts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–4

4.2.5 PCI Power Management Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–4

4.2.6 PCI Connectors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–5

4.3 System Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–7

4.3.1 Interrupts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–7

4.3.2 Direct Memory Access. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–8

4.4 Real-Time Clock and Configuration Memory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–9

4.4.1 Clearing CMOS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–9

4.4.2 Standard CMOS Locations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–10

4.5 System Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–10

4.5.1 Security Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–10

4.5.2 Power Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–12

4.5.3 System Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–12

4.5.4 Thermal Sensing and Cooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–13

4.6 Register Map and Miscellaneous Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–14

4.6.1 System I/O Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–14

4.6.2 GPIO Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–16

5 Input/Output Interfaces

5.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–1

5.2 SATA/eSATA Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–2

5.2.1 SATA Inteerface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–2

5.5.2 eSATA Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–3

5.3 Serial Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–4

5.4 Parallel Interface Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–5

5.4.1 Standard Parallel Port Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–5

5.4.2 Enhanced Parallel Port Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–5

5.4.3 Extended Capabilities Port Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–5

5.4.4 Parallel Interface Connector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–6

5.5 Keyboard/Pointing Device Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–7

5.5.1 Keyboard Interface Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–7

5.5.2 Pointing Device Interface Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–8

Technical Reference Guide www.hp.com v

Contents

5.5.3 Keyboard/Pointing Device Interface Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–8

5.6 Universal Serial Bus Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–9

5.6.1 USB Connector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–9

5.6.2 USB Cable Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–10

5.7 Audio Subsystem. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–11

5.7.1 HD Audio Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–12

5.7.2 HD Audio Link Bus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–12

5.7.3 Audio Multistreaming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–12

5.7.4 Audio Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–13

5.8 Network Interface Controller. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–14

5.8.1 Wake-On-LAN Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–15

5.8.2 Alert Standard Format Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–15

5.8.3 Power Management Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–15

5.8.4 NIC Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–16

5.8.5 NIC Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–16

6 Integrated Graphics Subsystem

6.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–1

6.2 Functional Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–2

6.3 Upgrading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–5

6.4 Monitor Connectors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–6

6.5.1 Analog Monitor Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–6

6.5.2 DisplayPort Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–7

7 Power and Signal Distribution

7.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–1

7.2 Power Distribution. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–1

7.3 Power Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–4

7.3.1 Power Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–4

7.3.2 Wake Up Events. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–6

7.4 Power Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–6

7.5 Signal Distribution. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–8

vi www.hp.com Technical Reference Guide

Contents

8SYSTEM BIOS

8.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–1

8.2 ROM Flashing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–2

8.2.1 Upgrading. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–2

8.2.2 Changeable Splash Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–2

8.3 Boot Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–3

8.3.1 Boot Device Order . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–3

8.3.2 Network Boot (F12) Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–3

8.3.3 Memory Detection and Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–3

8.3.4 Boot Error Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–4

8.4 Client Management Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–5

8.4.1 System ID and ROM Type. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–6

8.4.2 Temperature Status. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–6

8.5 SMBIOS support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–7

8.6 USB Legacy Support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–8

8.7 Management Engine Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–8

A Error Messages and Codes

Index

Technical Reference Guide www.hp.com 1-1

1

Introduction

1.1 A b o u t t h i s G u i d e

This guide provides technical information about HP Compaq 8100 Elite Business PC personal

computers that feature the Intel® Q57 chipset and support select Intel Pentium®, Core™ i3,

Core i5, and Core i7 processors. This document describes in detail the system's design and

operation for programmers, engineers, technicians, and system administrators, as well as

end-users wanting detailed information.

This guide primarily describes the hardware and firmware elements and primarily deal with the

system board and the power supply assembly. This guide can be used either as an online

document or in hardcopy form.

1.1.1 O n l i n e V i ew i n g

Online viewing allows for quick navigating and convenient searching through the document. A

color monitor will also allow the user to view the color shading used to highlight differential

data. A softcopy of the latest edition of this guide is available for downloading in .pdf file format

at the following URL: www.hp.com

Viewing the file requires a copy of Adobe Acrobat Reader available at no charge from Adobe

Systems, Inc. at the following URL: www.adobe.com

1.1. 2 H a r d c o py

A hardcopy of this guide may be obtained by printing from the .pdf file. The document is

designed for printing in an 8 ½ x 11-inch format.

1.2 Additional Information Sources

For more information on components mentioned in this guide refer to the indicated

manufacturers' documentation, which may be available at the following online sources:

■HP Corporation: www.hp.com

■Intel Corporation: www.intel.com

■Serial ATA International Organization (SATA-IO): www.serialATA.org.

■USB user group: www.usb.org

1-2 www.hp.com Technical Reference Guide

Introduction

1. 3 S e r i a l N u m b e r

The serial number is located on a sticker placed on the exterior cabinet. The serial number is also

written into firmware and may be read with HP Diagnostics or Insight Manager utilities.

1.4 Notational Conventions

The notational guidelines used in this guide are described in the following subsections.

1.4.1 Special Notices

The usage of warnings, cautions, and notes is described as follows:

ÅWARNING: Text set off in this manner indicates that failure to follow directions could result in bodily

harm or loss of life.

ÄCAUTION: Text set off in this manner indicates that failure to follow directions could result in damage to

equipment or loss of information.

✎Text set off in this manner provides information that may be helpful.

1.4.2 Values

Differences between bytes and bits are indicated as follows:

MB = megabytes

Mb = megabits

1.4.3 Ranges

Ranges or limits for a parameter are shown using the following methods:

Example A: Bits <7..4> = bits 7, 6, 5, and 4.

Example B: IRQ3-7, 9 = IRQ signals 3, 4, 5, 6, 7, and 9

Technical Reference Guide www.hp.com 1-3

Introduction

1.5 Common Acronyms and Abbreviations

Table 1-1 lists the acronyms and abbreviations used in this guide.

Table 1-1

Acronyms and Abbreviations

Acronym or

Abbreviation Description

Aampere

AC alternating current

ACPI Advanced Configuration and Power Interface

A/D analog-to-digital

ADC Analog-to-digital converter

ADD or ADD2 Advanced digital display (card)

AGP Accelerated graphics port

AHCI SATA Advanced Host controller Interface

AMT Active Management Technology

API application programming interface

APIC Advanced Programmable Interrupt Controller

APM advanced power management

AOL Alert-On-LAN™

ASIC application-specific integrated circuit

ASF Alert Standard Format

AT 1. attention (modem commands) 2. 286-based PC architecture

ATA AT attachment (IDE protocol)

ATAPI ATA w/packet interface extensions

AVI audio -video interleaved

AVGA Advanced VGA

AWG American Wire Gauge (specification)

BAT Basic assurance test

BCD binary-coded decimal

BIOS basic input/output system

bis second/new revision

BNC Bayonet Neill-Concelman (connector type)

bps or b/s bits per second

BSP Bootstrap processor

BTO Built to order

CAS column address strobe

CD compact disk

CD-ROM compact disk read-only memory

1-4 www.hp.com Technical Reference Guide

Introduction

CDS compact disk system

CGA color graphics adapter

Ch Channel, chapter

cm centimeter

CMC cache/memory controller

CMOS complimentary metal-oxide semiconductor (configuration memory)

Cntlr controller

Cntrl control

codec 1. coder/decoder 2. compressor/decompressor

CPQ Compaq

CPU central processing unit

CRIMM Continuity (blank) RIMM

CRT cathode ray tube

CSM 1. Compaq system management 2. Compaq server management

DAC digital-to-analog converter

DC direct current

DCH DOS compatibility hole

DDC Display Data Channel

DDR Double data rate (memory)

DIMM dual inline memory module

DIN Deutche IndustriNorm (connector type)

DIP dual inline package

DMA direct memory access

DMI Desktop management interface

dpi dots per inch

DRAM dynamic random access memory

DRQ data request

DVI Digital video interface

dword Double word (32 bits)

EDID extended display identification data

EDO extended data out (RAM type)

EEPROM electrically erasable PROM

EGA enhanced graphics adapter

EIA Electronic Industry Association

Table 1-1 (Continued)

Acronyms and Abbreviations

Acronym or

Abbreviation Description

Technical Reference Guide www.hp.com 1-5

Introduction

EISA extended ISA

EPP enhanced parallel port

EIDE enhanced IDE

ESCD Extended System Configuration Data (format)

EV Environmental Variable (data)

ExCA Exchangeable Card Architecture

FIFO first in/first out

FL flag (register)

FM frequency modulation

FPM fast page mode (RAM type)

FPU Floating point unit (numeric or math coprocessor)

FPS Frames per second

ft Foot/feet

GB gigabyte

GMCH Graphics/memory controller hub

GND ground

GPIO general purpose I/O

GPOC general purpose open-collector

GART Graphics address re-mapping table

GUI graphic user interface

hhexadecimal

HDD hard disk drive

HW hardware

hex hexadecimal

Hz Hertz (cycles-per-second)

ICH I/O controller hub

IDE integrated drive element

IEEE Institute of Electrical and Electronic Engineers

IF interrupt flag

I/F interface

IGC integrated graphics controller

in inch

INT interrupt

I/O input/output

IOPS Input/output Operations Per Second

Table 1-1 (Continued)

Acronyms and Abbreviations

Acronym or

Abbreviation Description

1-6 www.hp.com Technical Reference Guide

Introduction

IPL initial program loader

IrDA Infrared Data Association

IRQ interrupt request

ISA industry standard architecture

Kb/KB kilobits/kilobytes (x 1024 bits/x 1024 bytes)

Kb/s kilobits per second

kg kilogram

KHz kilohertz

kV kilovolt

lb pound

LAN local area network

LCD liquid crystal display

LED light-emitting diode

LPC Low pin count

LSI large scale integration

LSb/LSB least significant bit/least significant byte

LUN logical unit (SCSI)

m Meter

MCH Memory controller hub

MMX multimedia extensions

MPEG Motion Picture Experts Group

ms millisecond

MSb/MSB most significant bit/most significant byte

mux multiplex

MVA motion video acceleration

MVW motion video window

nvariable parameter/value

NIC network interface card/controller

NiMH nickel-metal hydride

NMI non-maskable interrupt

NRZI Non-return-to-zero inverted

ns nanosecond

NT nested task flag

NTSC National Television Standards Committee

Table 1-1 (Continued)

Acronyms and Abbreviations

Acronym or

Abbreviation Description

Technical Reference Guide www.hp.com 1-7

Introduction

NVRAM non-volatile random access memory

ODD optical disk drive

OS operating system

PAL 1. programmable array logic 2. phase alternating line

PATA Parallel ATA

PC Personal computer

PCA Printed circuit assembly

PCI peripheral component interconnect

PCI-E PCI Express

PCM pulse code modulation

PCMCIA Personal Computer Memory Card International Association

PEG PCI express graphics

PFC Power factor correction

PIN personal identification number

PIO Programmed I/O

PN Part number

POST power-on self test

PROM programmable read-only memory

PTR pointer

RAID Redundant array of inexpensive disks (drives)

RAM random access memory

RAS row address strobe

rcvr receiver

RDRAM (Direct) Rambus DRAM

RGB red/green/blue (monitor input)

RH Relative humidity

RMS root mean square

ROM read-only memory

RPM revolutions per minute

RTC real time clock

R/W Read/Write

SATA Serial ATA

SCSI small computer system interface

SDR Singles data rate (memory)

Table 1-1 (Continued)

Acronyms and Abbreviations

Acronym or

Abbreviation Description

1-8 www.hp.com Technical Reference Guide

Introduction

SDRAM Synchronous Dynamic RAM

SDVO Serial digital video output

SEC Single Edge-Connector

SECAM sequential colour avec memoire (sequential color with memory)

SF sign flag

SGRAM Synchronous Graphics RAM

SIMD Single instruction multiple data

SIMM single in-line memory module

SMART Self Monitor Analysis Report Technology

SMI system management interrupt

SMM system management mode

SMRAM system management RAM

SODIMM small outline DIMM

SPD serial presence detect

SPDIF Sony/Philips Digital Interface (IEC-958 specification)

SPN Spare part number

SPP standard parallel port

SRAM static RAM

SSD solid state disk (drive)

SSE Streaming SIMD extensions

STN super twist pneumatic

SVGA super VGA

SW software

TAD telephone answering device

TAFI Temperature-sensing And Fan control Integrated circuit

TCP tape carrier package, transmission control protocol

TF trap flag

TFT thin-film transistor

TIA Telecommunications Information Administration

TPE twisted pair ethernet

TPI track per inch

TPM Trusted Platform Module

TTL transistor-transistor logic

TV television

Table 1-1 (Continued)

Acronyms and Abbreviations

Acronym or

Abbreviation Description

Technical Reference Guide www.hp.com 1-9

Introduction

TX transmit

UART universal asynchronous receiver/transmitter

UDMA Ultra DMA

UDIMM unbuffered/unregistered DIMM

URL Uniform resource locator

us/µsmicrosecond

USB Universal Serial Bus

UTP unshielded twisted pair

Vvolt

VAC Volts alternating current

VDC Volts direct current

VESA Video Electronic Standards Association

VGA video graphics adapter

VLSI very large scale integration

VRAM Video RAM

Wwatt

WOL Wake-On-LAN

WRAM Windows RAM

ZF zero flag

ZIF zero insertion force (socket)

Table 1-1 (Continued)

Acronyms and Abbreviations

Acronym or

Abbreviation Description

1-10 www.hp.com Technical Reference Guide

Introduction

Technical Reference Guide www.hp.com 2-1

2

System Overview

2.1 Introduction

The HP Compaq 8100 Elite Business PC personal computers (Figure 2-1) deliver an outstanding

combination of manageability, serviceability, and compatibility for enterprise environments.

Based on the the Intel Q57 chipset and supporting select Intel Pentium®, Core™ i3, Core i5, and

Core i7 processors, these systems emphasize performance along with industry compatibility.

These models feature a similar architecture incorporating both PCI 2.3 and PCIe 2.0 buses. All

models are easily upgradeable and expandable to keep pace with the needs of the office

enterprise.

Figure 2-1. HP Compaq 8100 Elite Business PCs

This chapter includes the following topics:

■Features (2.2)

■System architecture (2.3)

■Specifications (2.4)

HP 8100 Elite CMT

HP 8100 Elite SFF

2-2 www.hp.com Technical Reference Guide

System Overview

2.2 Features

The following standard features are included on all models unless otherwise indicated:

■Intel Pentium Dual-Core G6950, Core i3, Core i5, or Core i7 processor (LGA1156 package)

■Dual monitor support:

❏One VGA connector

❏One DisplayPort (DP) connector with Multimode support

■PC3-6400 and PC3-8500 (DDR3) DIMM support

■Hard drive fault prediction

■Ten externally-accessible USB 2.0-compliant ports (four front, six rear)

■High definition (HD) audio processor with one headphone output, at least one microphone

input, one line output, and one line input

■Network interface controller providing 10/100/1000Base T support

■Plug 'n Play compatible (with ESCD support)

■Intelligent Manageability support

■PS/2 enhanced keyboard

■PS/2 optical scroll mouse

■Management/security features including:

❏Flash ROM Boot Block

❏Diskette drive disable, boot disable, write protect

❏Power-on password

❏Administrator password

❏Serial port disable

❏Smart Cover (hood) Sense

❏Smart Cover (hood) Lock

❏USB port disable

❏Intel Standard Manageability support

❏Intel vPro Technology

❏HP Virtual Safe Browser

❏HP ProtectTools Embedded Security

Technical Reference Guide www.hp.com 2-3

System Overview

Table 2-1 shows the differences in features between the different PC series based on form factor:

NOTES:

[1] 2nd serial port requires optional cable/bracket assembly.

[2] Low-profile, 25 W maximum.

[3] Low profile, 10-watt maximum

[4] Full-length;

75-watt maximum if PCIe x4 slot is not populated,

35-watt maximum if PCIe x4 slot is populated

[5] 35-watt maximum

[6] Half-height, half-length, 10-watt maximum

[7] 3.5” devices supported with adapters

[8] 2.5” solid state drives supprted with adapter brackets

[9] Can hold a 2nd hard drive

Table 2-1

Feature Differences by Form Factor

SFF CMT

Processor types supported Intel Core i5 Intel Core i5

Processor wattage (max) 95 W 95 W

Memory:

# & type of sockets

Maximum memory

4 DDR3 UDIMMs

16 G B

4 DDR3 UDIMMs

16 G B

Serial ports 1 std., 1 opt. [1] 1 std., 1 opt. [1]

Parallel ports optional optional

Drive bays:

Externally accessible

Internal

1 - 5.25”, 1 - 3.5” [9]

1 - 3.5” 3 - 5.25” [7]

3 - 5.25” [8]

Drive types supported 2 HDDs,

1ODD,

RAID1

2 HDDs,

2 ODDs,

RAID1

PCIe slots:

x16 (graphics)

x4 (x16 connector)

x1 connector

(all low profile)

1 [2]

1 [2]

1 [3]

(all full height)

1 [4]

1 [5]

1 [6]

PCI 2.3 32-bit 5-V slot, 25-watt maximum 1 3 full-height

Power Supply Unit:

Module type

power rating

internal

240-watt

internal

320-watt

2-4 www.hp.com Technical Reference Guide

System Overview

2.3 System Architecture

The systems covered in this guide feature an architecture based on the Intel Core i5 processor

and the Intel Q57 Platform Controller Hub (PCH) shown in Figure 2-2. All systems covered in

this guide include the following key components:

■Intel Pentium Dual-Core G6950, Core i3, Core i5, or Core i7 processor.

■Intel Q57 PCH-DO chipset

■Super I/O (SIO) controller supporting PS/2 keyboard and mouse peripherals

■ALC261 audio controller supporting line in, line out, microphone in, and headphones out

■Intel 82567LM GbE network interface controller

■HP ProtectTools Embedded Security

The Q57 PCH provides a major portion of system functionality. Designed to complement the

latest Intel processors, the Q57 PCH communicates with the processor through a

800/1066/1333-MHz Front-Side Bus (FSB). The integrated graphics controller of the Q57 can be

upgraded through a PCI Express (PCIe) x16 graphics slot. All systems include a serial ATA

(SATA) hard drive in the standard configuration.

Table 2-2 lists the differences between models by form factor.

Notes:

[1] Low-profile slot.

Table 2-2.

Architectural Differences by Form Factor

Function SFF CMT

Memory sockets 4 UDIMMs 4 UDIMMs

PCIe 2.0 x16 graphics slots 1 [1] 1

PCIe x4 (x16 connector) slots 0 1

# of PCIe 2.0 x1 slots 1 [1] 1

# of PCI 2.3 slots 1 [1] 3

SATA interfaces 4 5

Technical Reference Guide www.hp.com 2-5

System Overview

Figure 2-2. HP Compaq 8100 Elite Business PC Architecture, Block diagram

Parallel I/F

Intel

Processor

Q57

PCH-D0

Mem.

Cntlr.

PCIe 2.0

SATA

SATA

USB

I/F

Ch A DDR3

SDRAM

Ch B DDR3

SDRAM

SIO Controller

Cntlr.

VGA

Hard Drive

USB 2.0

Serial I/F

Kybd-Mouse I/F

x16 slot (PEG)

PCIe 2.0 x1 slot

SATA

ALC261

Subsystem

PCI 2.3 slot [2]

Keyboard

NIC

I/F

Mouse

Audio I/F

LPC

PCI Cntlr.

Power Supply

Notes:

[2] 1 in SFF, 3 in CMT

SATA

Devices

Graphics

Audio

Analog

Digital DisplayPort

FDI

PCIe 2.0 x4 slot (x16 conn.)

(6 rear ports, 4 front ports,

[1] 3 SATA ports in SFF, 4 SATA ports in CMT, and 1 eSATA port in SFF and CMT.

I/F [1]

SATA

SATA/eSATA

Additional

12 VDC

System board

Monitor

Monitor

HP ProtectTools

Embedded Security

DMI

I/F

LCI

4 internal ports via header)

PCIe

I/F

2-6 www.hp.com Technical Reference Guide

System Overview

2.3.1 Intel Processor Support

The models covered in this guide can support an Intel Pentium Dual-Core G6950, Core i3, Core

i5, or Core i7 processor. These processors are backward-compatible with software written for

earlier x86 microprocessors and include streaming SIMD extensions (SSE, SSE2, and SSE3) for

enhancing 3D graphics and speech processing performance. Intel processors with vPro

Technology include hardware-based tools that allow corporate IT organizations to remotely

manage and protect systems.

The system board includes a zero-insertion-force (ZIF) Socket-T designed for mounting an

LGA1156-type processor package.

ÄCAUTION: These systems can support a processor rated up to 95 watts. Exceeding these limits can

result in system damage and loss of data.

✎The processor heatsink/fan assembly mounting differs between form factors. Always use the

same assembly or one of the same type when replacing the processor. Refer to the applicable

Service Reference Guide for detailed removal and replacement procedures of the heatsink/fan

assembly and the processor.

2.3.2 Chipset

The Intel Q57 PCH-D0 integrates a Graphics Memory Controller Hub (GMCH) and an enhanced

I/O controller hub (ICH) into a single component that provides the following functions:

■PCI 2.3 bus controller

■PCIe bus controller

■LPC bus controller

■SMBus interface

■SATA interface

■HD audio interface

■RTC/CMOS function

■IRQ controller

■Power management logic

■USB 1.1/2.0 controllers supporting 14 ports

■Gigabit Ethernet controller

Technical Reference Guide www.hp.com 2-7

System Overview

2.3.3 Support Components

Input/output functions not provided by the chipset are handled by other support components.

Some of these components also provide “housekeeping” and various other functions as well.

Table 2-3 shows the functions provided by the support components.

NOTE: [1] COM2 requires external bracket/cable assembly.

[2] Requires external bracket/cable assembly.

2.3.4 System Memory

These systems implement a dual-channel Double Data Rate (DDR3) memory architecture. All

models support DDR3 1333-, 1066, and 800-MHz memory modules and provide four UDIMM

sockets and support a total of 16 gigabytes of memory.

Table 2-3

Support Component Functions

Component Name Function

WPCD376H SIO Controller Keyboard and pointing device I/F

Serial I/F (COM1and COM2) [1]

Parallel I/F (LPT1, LPT2, or LPT3) [2]

PCI reset generation

Interrupt (IRQ) serializer

Power button and front panel LED logic

GPIO ports

Processor over temperature monitoring

Fan control and monitoring

Power supply voltage monitoring

SMBus and Low Pin Count (LPC) bus I/F

Intel 82578LM Network Interface

Controller

10/100/1000 Fast Ethernet network interface controller.

ALC261 HD Audio Codec Audio mixer

Two digital-to-analog stereo converters

Two analog-to-digital stereo converters

Analog I/O

Supports stereo (two-channel) audio streams

2-8 www.hp.com Technical Reference Guide

System Overview

2.3.5 Mass Storage

All models support at least two mass storage devices, with one being externally accessible for

removable media. The hard drive controller supports SATA 1.5- and 3.0-Gb/s hard drives in the

following quantities:

SFF: four SATA interfaces (one SATA port available for eSATA port option)

CMT: five SATA interfaces (one SATA port available for eSATA port option)

These systems may be preconfigured or upgraded with a SATA hard drive and one removable

media drive such as a CD-ROM drive.

2.3.6 Serial Interface

Aserial port is accessible at the rear of the chassis. These systems may be upgraded with a second

serial port option. The serial interface is RS-232-C/16550-compatible and supports standard

baud rates up to 115,200 as well as two high-speed baud rates of 230K and 460K.

2.3.7 Universal Serial Bus Interface

All models provide ten Universal Serial Bus (USB) ports. Two ports are accessible at the front of

the unit, six ports are accessible on the rear panel, and two ports are accessible through a header

on the system board. These systems support a media card reader module that connects to the

internal header. These systems support USB 1.1 and 2.0 functionality on all ports.

BIOS Setup allows for the disabling of USB ports individually or in groups. In order to secure

the system against a physical attack, ports may be disabled even if there is nothing physically

connected to them, such as the two front ports for the media card reader module when the

module is not present.

2.3.8 Network Interface Controller

All models feature an Intel 82578 gigabit (GbE) Network Interface Controller (NIC) integrated

on the system board. The controller provides automatic selection of 10BASE-T, 100BASE-TX,

or 1000BASE-T operation with a local area network and includes power-down, wake-up,

Alert-On-LAN (AOL), Alert Standard Format (ASF), and AMT features. An RJ-45 connector

with status LEDs is provided on the rear panel.

Technical Reference Guide www.hp.com 2-9

System Overview

2.3.9 Graphics Subsystem

Systems pre-configured with an Intel processor with integrated graphics controller can drive both

an external VGA monitor and a DisplayPort digital display. The controller implements Dynamic

Video Memory Technology (DVMT 3.0) for video memory. Table 2-4 lists the key features of the

integrated graphics subsystem.

All systems include a legacy VGA connector and a DisplayPort connector and support dual

monitor operation. The DisplayPort includes a multimode feature that allows a DVI or VGA

adapter to be connected to the DisplayPort.

✎These systems include two PCIe graphics slots (one x16, one x4/x16 connector). System s

preconfigured with an Intel Core i5-750 or Core i7 processor will include a PCIe graphics

adapter card installed in one of these slots.

2.3.10 Audio Subsystem

These systems use the integrated High Definition audio controller of the chipset and the ADI

ADL261 High Definition audio codec. HD audio provides enhanced audio performance with

higher sampling rates, refined signal interfaces, and audio processors with increased

signal-to-noise ratio. The audio line input jack can be re-configured as a microphone input, and

multi-streaming is supported. These systems include a 1.5-watt output amplifier driving an

internal speaker, which can be muted with the F10 BIOS control. All models include a front

panel accessible stereo microphone input jack (re-taskable as a Line-In input) and a headphone

output audio jack.

Table 2-4

Intel Integrated Graphics Controller Statistics

Intel Core i5-661 Processor

Integrated Graphics Controller

Recommended for Hi 2D, Entry 3D

Bus Type Int. PCI Express

Memory Amount 32 MB pre-allocated

Memory Type DVMT 3.0

Maximum 2D Resolution 2560x1600

Hardware Acceleration Quick Draw,

DirectX DX10,

Direct Draw,

Direct Show,

Open GL 2.1,

MPEG 1-2,

Indeo

Outputs 1 VGA, 1 DisplayPort 1.1 [see text]

2-10 www.hp.com Technical Reference Guide

System Overview

2.3.11 HP ProtectTools Embedded Security

HP ProtectTools Embedded Security is a hardware/software solution providing file and folder

encrypytion service that integrates with the operating system. The software component—the HP

ProtectTools Embedded Security Manager (preinstalled), controls the basic operation of the

hardware component—the Trusted Platform Module (TPM) security chip. These components are

compliant with the Trusted Computing Group (TCG) security standards organization.

HP ProtectTools Embedded Security includes the following features:

■Enhanced Windows operating system files and folder encryption

■Enhanced email encryption—built-in authentication for Outlook, Outlook Express, Lotus

Notes, Eudora

■Strengthends defense against hacking, system attacks, denial of service and network attacks

■“Embedded smart card” functionality

■Strengthens authentication with LANs, WANs.

■Works with/enhances third-party security solutions

HP ProtectTools Embedded Security Manager is acecssed through a Windows Control Panel

applet. The management functions are accessible thro;ugh establishlished protocols such as

DMI, SNMP, or WEBEM.

2.4 Specifications

This section includes the environmental, electrical, and physical specifications for the systems

covered in this guide. Where provided, metric statistics are given in parenthesis. Specifications

are subject to change without notice.

NOTE:

[1] Peak input acceleration during an 11 ms half-sine shock pulse.

[2] Maximum rate of change: 1500 ft/min.

Table 2-5

Environmental Specifications (Factory Configuration)

Parameter Operating Non-operating

Ambient Air Temperature 50o to 95o F (10o to 35o C, max.

rate of change < 10°C/Hr) -22o to 140o F (-30o to 60o C, max.

rate of change < 20°C/Hr)

Shock (w/o damage) 5 Gs [1] 20 Gs [1]

Vibration 0.000215 G2/Hz, 10-300 Hz 0.0005 G2/Hz, 10-500 Hz

Humidity 10-90% Rh @ 28o C max.

wet bulb temperature

5-95% Rh @ 38.7o C max.

wet bulb temperature

Maximum Altitude 10,000 ft (3048 m) [2] 30,000 ft (9144 m) [2]

Technical Reference Guide www.hp.com 2-11

System Overview

NOTE:

Energy Star 4.0 with 80Plus Bronze-level compliancy option available.

NOTES:

[1] System configured with 1 hard drive, 1 optical media drive, and no PCI cards.

[2] Desktop (horizontal) configuration.

[3] Minitower configuration. For desktop configuration, swap Height and Width dimensions.

[4] Applicable to unit in desktop orientation only and assumes reasonable type of load such as a monitor.

Table 2-6

Power Supply Electrical Specifications

Parameter Value

Input Line Voltage:

Nominal:

Maximum

100–240 VAC

90–264 VAC

Input Line Frequency Range:

Nominal

Maximum

50–60 Hz

47–63 Hz

Energy Star 4.0 with 80Plus Bronze-level compliancy Optional

Maximum Continuous Power:

SFF

CMT

240 watts

320 watts

Table 2-7

Physical Specifications

Parameter SFF [2] CMT [3]

Height 3.95 in

(10.03 c m)

17.63 i n

(44.8 cm)

Width 13.3 in

(33.78 cm)

7.0 i n

(17.8 cm)

Depth 14.9 in

(37.85 cm)

17.5 i n

(44.5 cm)

Weight [1] 16.72 lb

(7.6 kg)

26.2 lb

(11.5 kg)

Load-bearing ability of

chassis [4]

77.1 lb

(35 kg)

77.1 lb

(35 kg)

2-12 www.hp.com Technical Reference Guide

System Overview

Technical Reference Guide www.hp.com 3-1

3

Processor/Memory Subsystem

3.1 Introduction

This systems support an Intel Pentium Dual-Core G6950, Core i3, Core i5, or Core i7 processor.

These processors include an integrated dual-channel DDR3 memory controller (Figure 3-1) and

support PC3-6400, PC3-8500, and PC3-10600 memory modules. This chapter describes the

processor/memory subsystem.

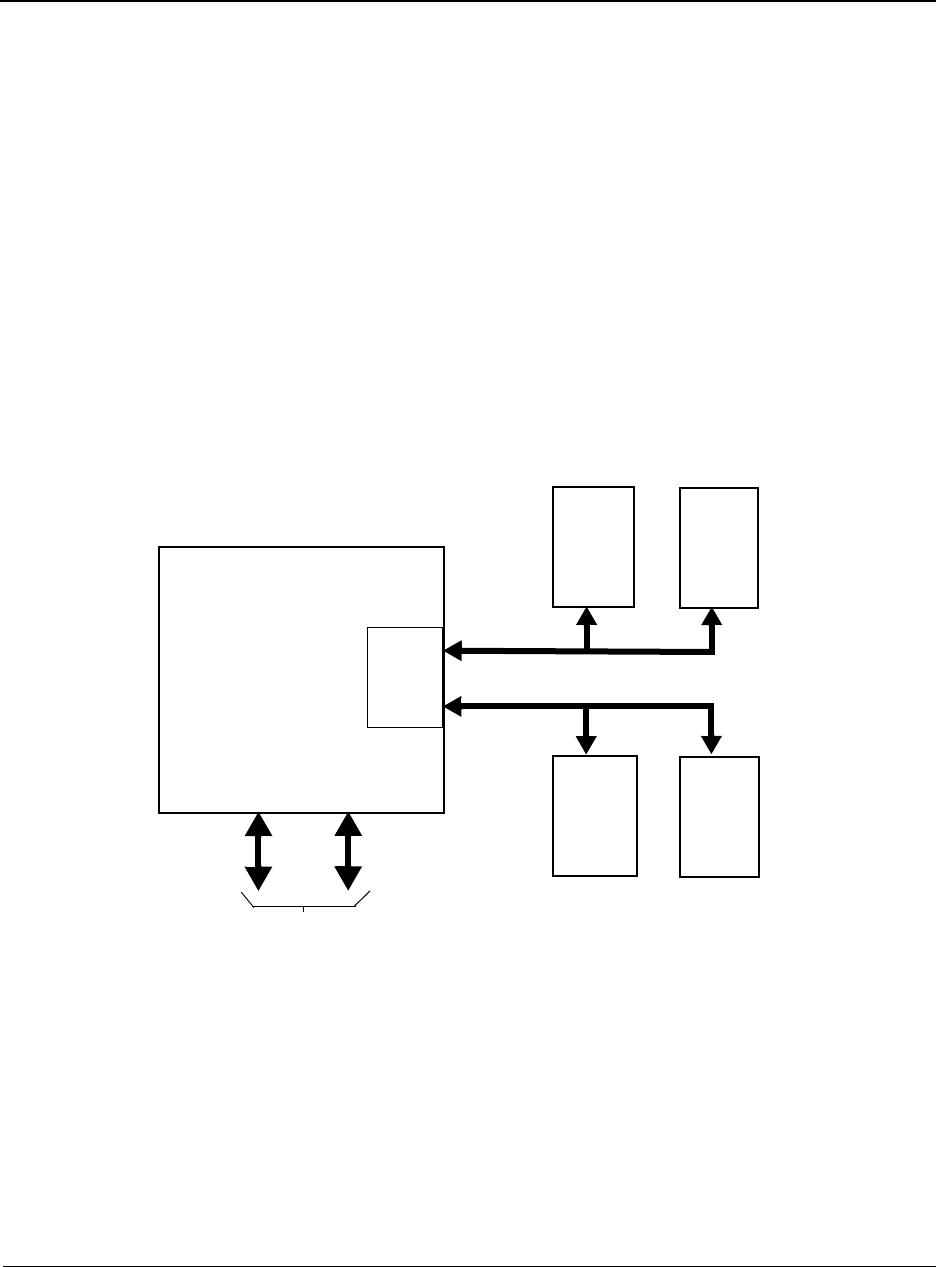

Figure 3-1. Processor/Memory Subsystem Architecture

This chapter includes the following topics:

■Intel processor(3.2)

■Memory subsystem (3.3)

Processor Cntlr

SDRAM

XMM1

Channel A

DIMM

DIMM

DIMM DIMM

XMM3 XMM4

XMM2

Intel

Channel B

or

SODIMM

or

SODIMM

DDR3

DMI

FDI

PCH

3-2 www.hp.com Technical Reference Guide

Processor/Memory Subsystem

3.2 Intel Processor

These systems support an Intel Pentium Dual-Core G6950, Core i3, Core i5, or Core i7 processor

in an LGA1156 package mounted with a heat sink in a zero-insertion force socket. The mounting

socket allows the processor to be easily changed for upgrading.

3.2.1 Intel Processor Features

Primary features of the processors supported by these systems include:

■Execution Trace Cache— A new feature supporting the branch prediction mechanism, the

trace cache stores translated sequences of branching micro-operations (ops) and is checked

when suspected re-occurring branches are detected in the main processing loop. This feature

allows instruction decoding to be removed from the main processing loop.

■Rapid Execution Engine—Arithmetic Logic Units (ALUs) run at twice (2x) processing

frequency for higher throughput and reduced latency.

■Up to 8 MB of L3 cache—Using a 32-byte-wide interface at processing speed, the large L3

cache provides a substantial increase in processing power over earlier processor versions.

■Advanced dynamic execution—Using a larger (4K) branch target buffer and improved

prediction algorithm, branch mis-predictions are significantly reduced

■Additional Streaming SIMD extensions (SSE2, SSE3, SSE4.1, and SSE4.2)—In addition to

the SSE support provided by earlier processors, the latest processors include additional

MMX instructions that enhance the following operations:

❏Streaming video/audio processing

❏Photo/video editing

❏Speech recognition

❏3D processing

❏Encryption processing

■Integrated dual-channel DDR3 memory controller

■Direct Media Interface (DMI) bus speeds up to 2.5 GT/s.

■Flexible Display Inteface (FDI) supporting integrated and/or separate graphcis controllers

Technical Reference Guide www.hp.com 3-3

Processor/Memory Subsystem

3.2.2 Processor Changing/Upgrading

These systems use the LGA1156 ZIF (Socket T) mounting socket and require that the processor

use an integrated heatsink/fan assembly. A replacement processor must use the same type

heatsink/fan assembly as the original to ensure proper cooling. The heatsink and attachment

mechanism are specially designed provide maximum heat transfer from the processor

component.

ÄCAUTION: Attachment of the heatsink to the processor is critical on these systems. Improper attachment

of the heatsink will likely result in a thermal condition. Although the system is designed to detect thermal

conditions and automatically shut down, such a condition could still result in damage to the processor

component. Refer to the applicable Service Reference Guide for processor installation instructions.

Table 3-1 provides a sample listing of processors supported by these systems.

[

ÄCAUTION: These systems can support a processor with a maximum power consumption of 95 watts.

Exceeding these limits can result in system damage and lost data.

Table 3-1

Supported Processors

Intel

Series

# Cores /

# of threads

Base

Clock Speed

L3

Cache

Integrated

Graphics

Controller?

Hyper-

Threading?

Pentium

G6950

2 / 2 2.80 GHz 3 MB Yes No

Core i3-530 2 / 4 2.93 GHz 4 MB Yes Yes

Core i3-540 2 / 4 3.06 GHz 4 MB Yes Yes

Core i5-650 2 / 4 3.20 GHz 4 MB Yes Yes

Core i5-660 2 / 4 3.33 GHz 4 MB Yes Yes

Core i5-670 2 / 4 3.46 GHz 4 MB Yes Yes

Core i5-750 4 / 4 2.66 GHz 8 MB No No

Core i7-860 4 / 8 2.80 GHz 8 MB No Yes

Core i7-870 4 / 8 2.93 GHz 8 MB No Yes

3-4 www.hp.com Technical Reference Guide

Processor/Memory Subsystem

3.3 Memory Subsystem

All models support non-ECC DDR3-800 (PC3-6400), DDR3-1066 (PC3-8500), and

DDR3-1333 (PC3-10600) memory modules. These systems support up to 16 gigabytes of

memory.

✎In these systems, DDR3-1333 modules operate at the same speed/rate as DDR3-1066 modules.

✎DDR3 memory modules are not compatible with DDR2 memory modules used on previous

systems.

■DIMM1, channel A (black)

■DIMM2, channel A (white)

■DIMM3, channel B (black)

■DIMM4, channel B (white)

Memory modules do not need to be installed in pairs although installation of pairs (especially

matched sets) provides the best performance. Black sockets must be populated first. The BIOS

will detect the module population and set the system accordingly as follows:

■Single-channel mode - memory installed for one channel only

■Dual-channel asymetric mode - memory installed for both channels but of unequal channel

capacities.

■Dual-channel interleaved mode (recommended) - memory installed for both channels and

offering equal channel capacities, proving the highest performance.

These systems support memory modules with the following parameters:

■Unbuffered, compatible with SPD rev. 1.0

■512-Mb, and 1-Gb memory technologies for x8 and x16 devices

■CAS latency (CL) of 5 or 6 (depending on memory speed)

■Single or double-sided

■Non-ECC memory only

The SPD format supported by these systems complies with the JEDEC specification for 128-byte

EEPROMs. This system also provides support for 256-byte EEPROMs to include additional

HP-added features such as part number and serial number.

If BIOS detects an unsupported memory module, a “memory incompatible” message will be

displayed and the system will halt. These systems are shipped with non-ECC modules only.

An installed mix of memory module types is acceptable but operation will be constrained to the

level of the module with the lowest (slowest) performance.

If an incompatible memory module is detected the NUM LOCK will blink for a short period of

time during POST and an error message may or may not be displayed before the system hangs.

Technical Reference Guide www.hp.com 3-5

Processor/Memory Subsystem

3.3.1 Memory Upgrading

Table 3-2 shows suggested memory configurations for these systems.

✎Table 3-2 does not list all possible configurations.

NOTE:

[1] Dual-channel symetrical.

HP recommends using symmetrical loading (same-capacity, same-speed modules across both

channels) to achieve the best performance.

CAUTION: Always power down the system and disconnect the power cord from the AC outlet before

adding or replacing memory modules. Changing memory modules while the unit is plugged into an

active AC outlet could result in equipment damage.

✎Memory amounts over 3 GB may not be fully accessible with 32-bit operating systems due to

system resource requirements. Addressing memory above 4 GB requires a 64-bit operating

system.

3.3.2 Memory Mapping and Pre-allocation

Figure 3-2 shows the system memory map. The Q57 PCH-D0 includes a Management Engine

that pre-allocates a portion of system memory (16 MB for one module, 32 MB for two modules)

for managment functions. In addition, the internal graphics controller pre-allocates a portion of

system memory for video use (refer to chapter 6). Pre-allocated memory is not available to the

operating system. The amount of system memory reported by the OS will be the total amount

installed less the pre-allocated amount.

Table 3-2.

Memory Socket Loading

Channel A Channel B

Socket 1 Socket 2 Socket 3 Socket 4 Total

1 GB none none none 1 GB

1 GB none 1 GB none 2 GB [1]

1 GB 1 GB 1 GB 1 GB 4 GB [1]

2 GB 2 GB 2 GB 2 GB 8 GB [1]

4 GB 4 GB 4 GB 4 GB 16 GB [1]

3-6 www.hp.com Technical Reference Guide

Processor/Memory Subsystem

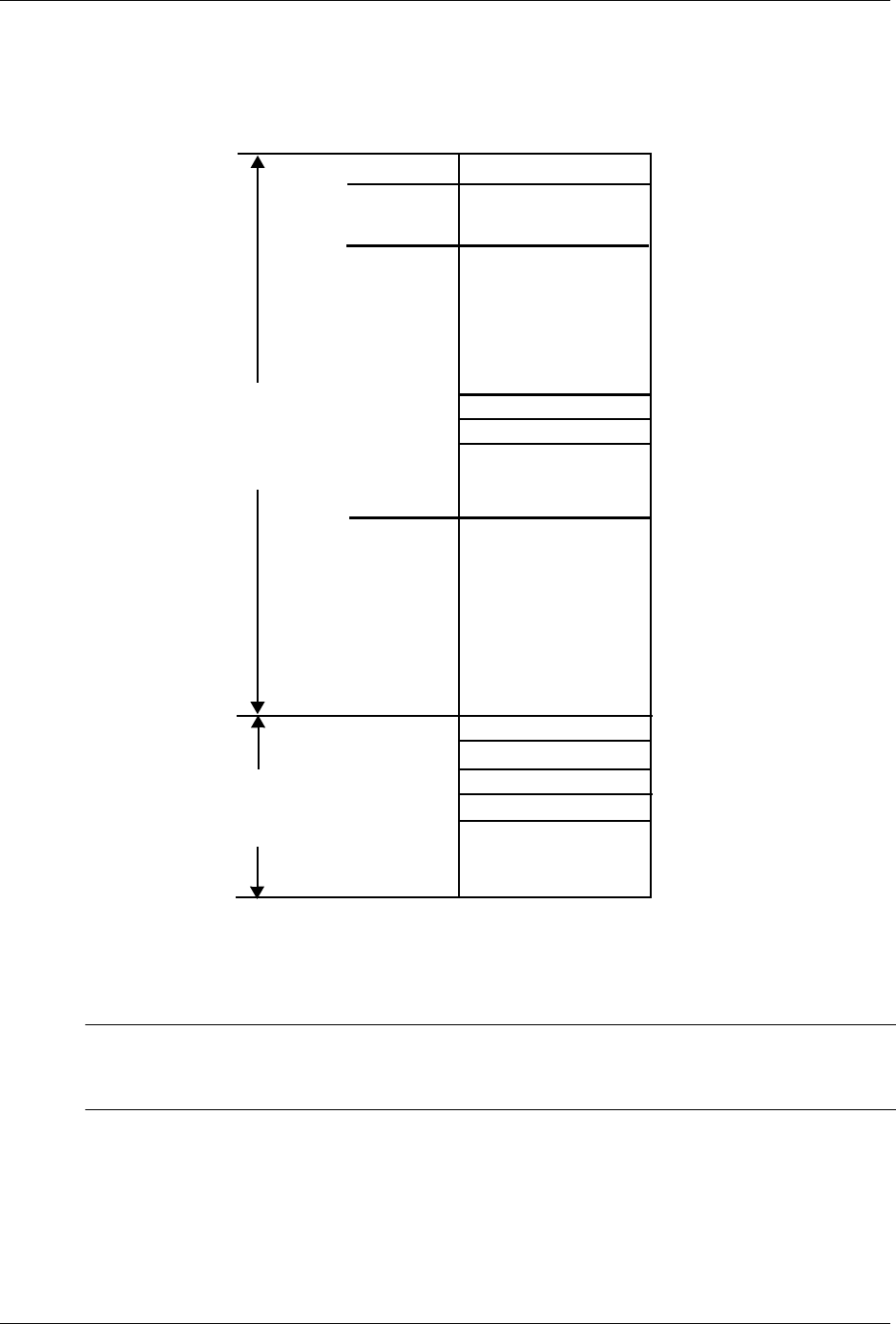

Figure 3-2. System Memory Map (for maximum of 8 gigabytes)

✎All locations in memory are cacheable. Base memory is always mapped to DRAM. The next 128

KB fixed memory area can be mapped to DRAM or to PCI space. Graphics RAM area is mapped

to PCI locations.

High BIOS Area

DMI/APIC

PCI

Top of DRAM

16 MB

8 GB

TSEG

IGC (1-64 MB)

DOS

640 KB

1 FFFF FFFEh

1 MB

Main

BIOS

00FF FFFFh

FFE0 0000h

000F FFFFh

Base Memory

Extended BIOS

Legacy Video

Expansion Area

0000 0000h

0010 0000h

0100 0000h

Main

Area

F000 0000h

Memory

Area

Memory

Memory

Area

Compatibilty

Area

Main

Memory

Technical Reference Guide www.hp.com 4-1

4

System Support

4.1 Introduction

This chapter covers subjects dealing with basic system architecture and covers the following

topics:

■PCI bus overview (4.2)

■System resources (4.3)

■

Real-time clock and configuration memory (4.4

)

■System management (4.5)

■

Register map and miscellaneous functions (4.6

)

This chapter covers functions provided by off-the-shelf chipsets and therefore describes only

basic aspects of these functions as well as information unique to the systems covered in this

guide. For detailed information on specific components, refer to the applicable manufacturer's

documentation.

4.2 PCI Bus Overview

✎This section describes the PCI bus in general and highlights bus implementation for systems

covered in this guide. For detailed information regarding PCI bus operation, refer to the

appropriate PCI specification or the PCI web site: www.pcisig.com.

These systems implement the following types of PCI buses:

■PCI 2.3 - Legacy parallel interface operating at 33-MHz

■PCI Express - High-performance interface capable of using multiple TX/RX high-speed

lanes of serial data streams

4.2.1 PCI 2.3 Bus Operation

The PCI 2.3 bus consists of a 32-bit path (AD31-00 lines) that uses a multiplexed scheme for

handling both address and data transfers. A bus transaction consists of an address cycle and one

or more data cycles, with each cycle requiring a clock (PCICLK) cycle. High performance is

achieved during burst modes in which a transaction with contiguous memory locations requires

that only one address cycle be conducted and subsequent data cycles are completed using

auto-incremented addressing.

Devices on the PCI bus must comply with PCI protocol that allows configuration of that device

by software. In this system, configuration mechanism #1 (as described in the PCI Local Bus

specification Rev. 2.3) is employed.

4-2 www.hp.com Technical Reference Guide

System Support

Table 4-1 shows the standard configuration of device numbers and IDSEL connections for

components and slots residing on a PCI 2.3 bus.

NOTES:

[1] Function not used in these systems.

[2] USB 1.1 controllers in 6+6 configuration. 8+4 configuration will have USB 1.1 controller #6 use Function 26, Device 2.

[3] CMT form factor only

[4] Function is only visible in IDE mode (not visible in AHCI orRAID SATA emulation mode).

Table 4-1

PCI Component Configuration Access

PCI Component Notes Function # Device #

PCI Bus

#

IDSEL

Wired to:

Processor:

Host/DMI Bridge

Host/PCI Expr. Bridge

Integrated Graphics Cntlr.

PCI Express x16 (PEG) slot

0

0

0

0

28

1

2

0

0

0

0

1

--

Q57 PCH-D0:

PCI Bridge

LPC Bridge

SATA Controller #1

SMBus Controller

SATA/eSATA Controller #2

Thermal System

USB 1.1 Controller #1

USB 1.1 Controller #2

USB 1.1 Controller #3

USB 1.1 Controller #4

USB 1.1 Controller #5

USB 1.1 Controller #6

USB 2.0 Controller #1

USB 2.0 Controller #2

GbE NIC

Intel HD audio controller

PCIe port 1

PCIe port 2

PCIe port 3

PCIe port 4

PCIe port 5

PCIe port 6

[4]

[1]

[1]

[1]

0

0

2

3

5

6

0

1

2

0

1

3 [2]

7

7

0

0

0

1

2

3

4

5

30

31

31

31

31

31

29

29

29

26

26

29 [2]

29

26

25

27

28

28

28

28

28

28

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

--

PCI 2.3 slot 1 0 4 7 AD16

PCI 2.3 slot 2 0 11 7 AD17

PCI 2.3 slot 3 [3] 0 10 7 AD18

PCIe x1 slot 1 0 0 32

PCIe x1 slot 2 0 0 48

Technical Reference Guide www.hp.com 4-3

System Support

The PCI bus supports a bus master/target arbitration scheme. A bus master is a device that has

been granted control of the bus for the purpose of initiating a transaction. A target is a device that

is the recipient of a transaction. The Request (REQ), Grant (GNT), and FRAME signals are used

by PCI bus masters for gaining access to the PCI bus. When a PCI device needs access to the PCI

bus (and does not already own it), the PCI device asserts its REQn signal to the PCI bus arbiter (a

function of the system controller component). If the bus is available, the arbiter asserts the GNTn

signal to the requesting device, which then asserts FRAME and conducts the address phase of the

transaction with a target. If the PCI device already owns the bus, a request is not needed and the

device can simply assert FRAME and conduct the transaction. Table 4-2 shows the grant and

request signals assignments for the devices on the PCI bus.

NOTE:

[1] CMT form factor only

PCI bus arbitration is based on a round-robin scheme that complies with the fairness algorithm

specified by the PCI specification. The bus parking policy allows for the current PCI bus owner

(excepting the PCI/ISA bridge) to maintain ownership of the bus as long as no request is asserted

by another agent. Note that most CPU-to-DRAM accesses can occur concurrently with PCI

traffic, therefore reducing the need for the Host/PCI bridge to compete for PCI bus ownership.

4.2.2 PCI Express Bus Operation

The PCI Express (PCIe) v1.1 bus is a high-performace extension of the legacy PCI bus

specification. The PCIe bus uses the following layers:

■Software/driver layer

■Transaction protocol layer

■Link layer

■Physical layer

Software/Driver Layer

The PCIe bus maintains software compatibility with PCI 2.3 and earlier versions so that there is

no impact on existing operating systems and drivers. During system intialization, the PCIe bus

uses the same methods of device discovery and resource allocation that legacy PCI-based

operating systems and drivers are designed to use.

Transaction Protocol Layer

The transaction protocol layer processes read and write requests from the software/driver layer

and generates request packets for the link layer. Each packet includes an identifier allowing any

required responcse packets to be directed to the originator.

Table 4-2.

PCI Bus Mastering Devices

Device REQ/GNT Line Note

PCI Connector Slot 1 REQ0/GNT0

PCI Connector Slot 2 REQ1/GNT1 [1]

PCI Connector Slot 3 REQ2/GNT2 [1]

4-4 www.hp.com Technical Reference Guide

System Support

Link Layer

The link layer provides data integrity by adding a sequence information prefix and a CRC suffix

to the packet created by the transaction layer. Flow-control methods ensure that a packet will

only be transferred if the receiving device is ready to accomodate it. A corrupted packet will be

automatically re-sent.

Physical Layer

The PCIe bus uses a point-to-point, high-speed TX/RX serial lane topology. One or more

full-duplex lanes transfer data serially, and the design allows for scalability depending on

end-point capabilities. Each lane consists of two differential pairs of signal paths; one for

transmit, one for receive (Figure 4-1).

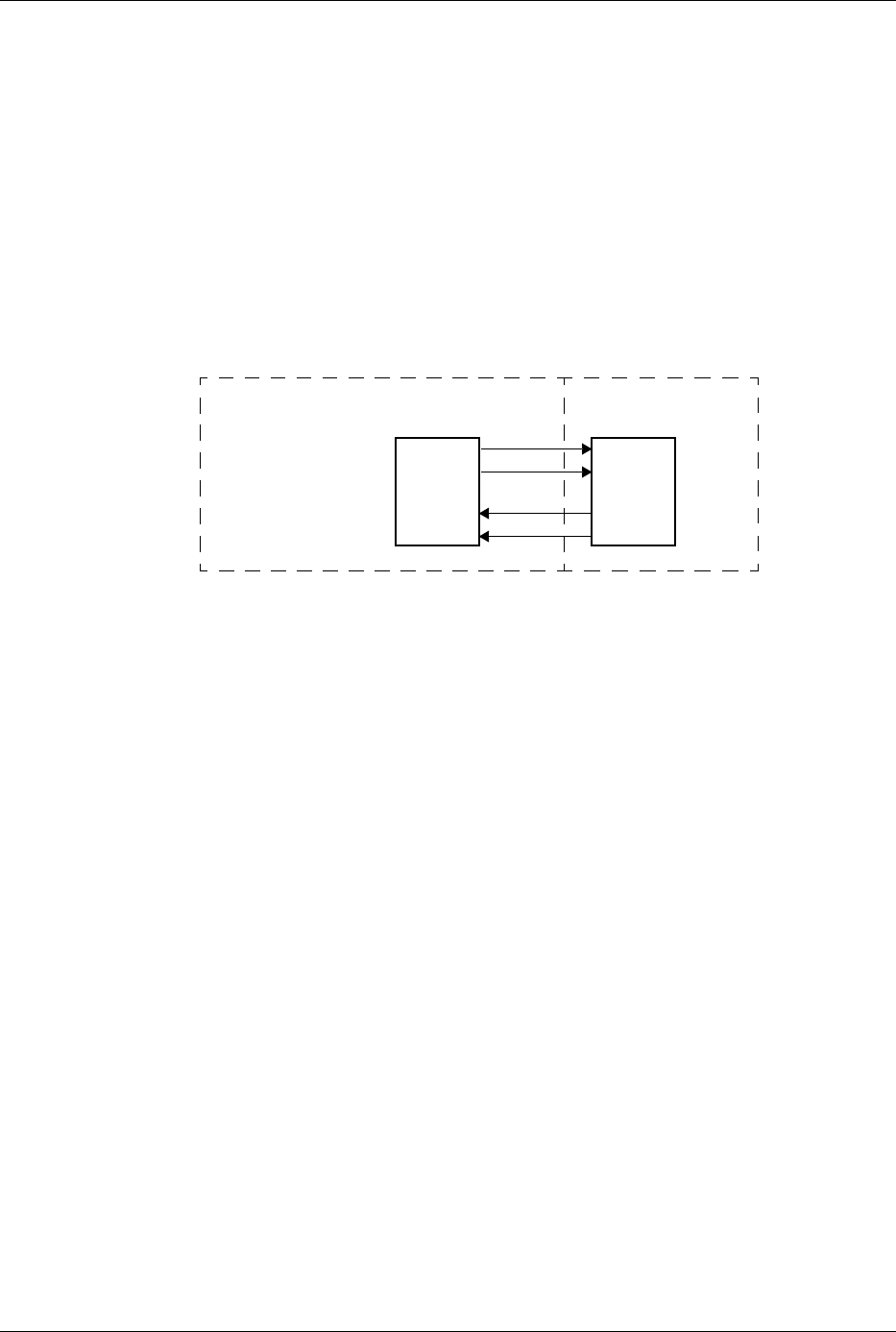

Figure 4-1. PCIe Bus Lane

Each byte is transferred using 8b/10b encoding. which embeds the clock signal with the data.

Operating at a 2.5 Gigabit transfer rate, a single lane can provide a data flow of 200 MBps. The

bandwidth is increased if additional lanes are available for use. During the initialization process,

two PCIe devices will negotiate for the number of lanes available and the speed the link can

operate at. In a x1 (single lane) interface, all data bytes are transferred serially over the lane. In a

multi-lane interface, data bytes are distributed across the lanes using a multiplex scheme.

4.2.3 Option ROM Mapping

During POST, the PCI bus is scanned for devices that contain their own specific firmware in

ROM. Such option ROM data, if detected, is loaded into system memory's DOS compatibility

area (refer to the system memory map shown in chapter 3).

4.2.4 PCI Interrupts

Eight interrupt signals (INTA- thru INTH-) are available for use by PCI devices. These signals

may be generated by on-board PCI devices or by devices installed in the PCI slots. For more

information on interrupts including PCI interrupt mapping refer to the “System Resources”

section 4.3.

4.2.5 PCI Power Management Support

This system complies with the PCI Power Management Interface Specification (rev 1.0). The

PCI Power Management Enable (PME-) signal is supported by the chipset and allows compliant

PCI peripherals to initiate the power management routine.

Device A Device B

TX

System Board PCI Express Card

RX

Technical Reference Guide www.hp.com 4-5

System Support

4.2.6 PCI Connectors

PCI 2.3 Connector

Figure 4-2. 32-bit, 5.0-volt PCI 2.3 Bus Connector

Table 4-3.

PCI 2.3 Bus Connector Pinout

Pin B Signal A Signal Pin B Signal A Signal Pin B Signal A Signal

01 -12 VDC TRST- 22 GND AD28 43 +3.3 VDC PAR

02 TCK +12 VDC 23 AD27 AD26 44 C/BE1- AD15

03 GND TMS 24 AD25 GND 45 AD14 +3.3 VDC

04 TDO TDI 25 +3.3 VDC AD24 46 GND AD13

05 +5 VDC +5 VDC 26 C/BE3- IDSEL 47 AD12 AD11

06 +5 VDC INTA- 27 AD23 +3.3 VDC 48 AD10 GND

07 INTB- INTC- 28 GND AD22 49 GND AD09

08 INTD- +5 VDC 29 AD21 AD20 50 Key Key

09 PRSNT1- Reserved 30 AD19 GND 51 Key Key

10 RSVD +5 VDC 31 +3.3 VDC AD18 52 AD08 C/BE0-

11 PRSNT2- Reserved 32 AD17 AD16 53 AD07 +3.3 VDC

12 GND GND 33 C/BE2- +3.3 VDC 54 +3.3 VDC AD06

13 GND GND 34 GND FRAME- 55 AD05 AD04

14 RS V D + 3 . 3 AU X 35 I R DY- G N D 5 6 A D 0 3 G N D

15 GND RST- 36 +3.3 VDC TRDY- 57 GND AD02

16 CLK +5 VDC 37 DEVSEL- GND 58 AD01 AD00

17 GND GNT- 38 GND STOP- 59 +5 VDC +5 VDC

18 R E Q - G N D 39 LO C K- + 3.3 VD C 60 AC K 64 - R EQ 6 4 -

19 +5 VDC PME- 40 PERR- SDONE n 61 +5 VDC +5 VDC

20 AD31 AD30 41 +3.3 VDC SBO- 62 +5 VDC +5 VDC

21 A D29 +3. 3 VD C 42 S E R R- GND

A62

A49

B49 B62

B2

A1

B52

A52

4-6 www.hp.com Technical Reference Guide

System Support

PCIe Connectors

Figure 4-3. PCIe Bus Connectors

Table 4-4.

PCIe Bus Connector Pinout

Pin B Signal A Signal Pin B Signal A Signal Pin B Signal A Signal

01 +12 VDC PRSNT1# 29 GND PERp3 57 GND PERn9

02 +12 VDC +12 VDC 30 RSVD PERn3 58 PETp10 GND

03 RSVD +12 VDC 31 PRSNT2# GND 59 PETn10 GND

04 GND GND 32 GND RSVD 60 GND PERp10

05 SMCLK +5 VDC 33 PETp4 RSVD 61 GND PERn10

06 +5 VDC JTAG2 34 PETn4 GND 62 PETp11GND

07 GND JTAG4 35 GND PERp4 63 PETn11 GND

08 +3.3 VDC JTAG5 36 GND PERn4 64 GND PERp11

09 JTAG1 +3.3 VDC 37 PETp5 GND 65 GND PERn11

10 3.3 Vaux +3.3 VDC 38 PETn5 GND 66 PETp12 GND

11WAKE PERST#39 GND PERp567PETn12 GND

12 RSVD GND 40 GND PERn5 68 GND PERp12

13 GND REFCLK+ 41 PETp6 GND 69 GND PERn12

14 PETp0 REFCLK- 42 PETn6 GND 70 PETp13 GND

15 PETn0 GND 43 GND PERp6 71 PETn13 GND

16 GND PERp0 44 GND PERn6 72 GND PERp13

17 PRSNT2# PERn0 45 PETp7 GND 73 GND PERn13

18 GND GND 46 PETn7 GND 74 PETp14 GND

19 P E T p 1 R SV D 47 G N D P E R p 7 75 P ET n 14 G N D

20 PETn1 GND 48 PRSNT2# PERn7 76 GND PERp14

21 GND PERp1 49 GND GND 77 GND PERn14

22 GND PERn1 50 PETp8 RSVD 78 PETp15 GND

23 PETp2 GND 51 PETn8 GND 79 PETn15 GND

24 PETn2 GND 52 GND PERp8 80 GND PERp15

25 GND PERp2 53 GND PERn8 81 PRSNT2# PERn15

26 GND PERn2 54 PETp9 GND 82 RSVD GND

27 PETp3 GND 55 PETn9 GND

28 PETn3 GND 56 GND PERp9

A18

A11

B11 B82

B1

A1

B12

A12

x1 Connector

x16 Connector

A82

Technical Reference Guide www.hp.com 4-7

System Support

4.3 System Resources

This section describes the availability and basic control of major subsystems, otherwise known as

resource allocation or simply “system resources.” System resources are provided on a priority

basis through hardware interrupts and DMA requests and grants.

4.3.1 Interrupts

The microprocessor uses two types of hardware interrupts; maskable and nonmaskable. A

maskable interrupt can be enabled or disabled within the microprocessor by the use of the STI

and CLI instructions. A nonmaskable interrupt cannot be masked off within the microprocessor,

but may be inhibited by legacy hardware or software means external to the microprocessor.

The maskable interrupt is a hardware-generated signal used by peripheral functions within the

system to get the attention of the microprocessor. Peripheral functions produce a unique INTA-H

(PCI) or IRQ0-15 (ISA) signal that is routed to interrupt processing logic that asserts the

interrupt (INTR-) input to the microprocessor. The microprocessor halts execution to determine

the source of the interrupt and then services the peripheral as appropriate.

Most IRQs are routed through the I/O controller of the super I/O component, which provides the

serializing function. A serialized interrupt stream is then routed to the ICH component.

Interrupts may be processed in one of two modes (selectable through the F10 Setup utility):

■8259 mode

■APIC mode

These modes are described in the following subsections.

8259 Mode

The 8259 mode handles interrupts IRQ0-IRQ15 in the legacy (AT-system) method using

8259-equivalent logic. If more than one interrupt is pending, the highest priority (lowest number)

is processed first.

APIC Mode

The Advanced Programmable Interrupt Controller (APIC) mode provides enhanced interrupt

processing with the following advantages:

■Eliminates the processor's interrupt acknowledge cycle by using a separate (APIC) bus

■Programmable interrupt priority

■Additional interrupts (total of 24)

The APIC mode accommodates eight PCI interrupt signals (PIRQA-..PIRQH-) for use by PCI

devices. The PCI interrupts are evenly distributed to minimize latency and wired as shown in

Table 4-5.

4-8 www.hp.com Technical Reference Guide

System Support

NOTES:

[1] CMT only

The PCI interrupts can be configured by PCI Configuration Registers 60h..63h to share the

standard ISA interrupts (IRQn).

✎The APIC mode is supported by Windows NT, Windows 2000, and Windows XP, Windows

Vista, and Windows 7 operating systems. Systems running the Windows 95 or 98 operating

system will need to run in 8259 mode.

4.3.2 Direct Memory Access

Direct Memory Access (DMA) is a method by which a device accesses system memory without

involving the microprocessor. Although the DMA method has been traditionally used to transfer

blocks of data to or from an ISA I/O device, PCI devices may also use DMA operation as well.

The DMA method reduces the amount of CPU interactions with memory, freeing the CPU for

other processing tasks. For detailed information regarding DMA operation, refer to the data

manual for the Intel 82801 PCH I/O Controller Hub.

Table 4-5.

PCI Interrupt Distribution

System Interrupts

System Board

Connector

PIRQ

A

PIRQ

B

PIRQ

C

PIRQ

D

PIRQ

E

PIRQ

F

PIRQ

G

PIRQ

H

PCI slot 1 (J20) A B C D

PCI slot 2 (J21) [1] D A B C

PCI slot 3 (J22) [1] C D A B

Technical Reference Guide www.hp.com 4-9

System Support

4.4 Real-Time Clock and Configuration Memory

The Real-time clock (RTC) and configuration memory (also referred to as “CMOS”) functions

are provided by the 82801 component and is MC146818-compatible. As shown in the following

figure, the 82801 PCH component provides 256 bytes of battery-backed RAM divided into two

128-byte configuration memory areas. The RTC uses the first 14 bytes (00-0Dh) of the standard

memory area. All locations of the standard memory area (00-7Fh) can be directly accessed using

conventional OUT and IN assembly language instructions through I/O ports 70h/71h, although

the suggested method is to use the INT15 AX=E823h BIOS call.

Figure 4 4. Configuration Memory Map

A lithium 3-VDC battery is used for maintaining the RTC and configuration memory while the

system is powered down. During system operation a wire-Ored circuit allows the RTC and

configuration memory to draw power from the power supply. The battery is located in a battery

holder (XBT1) on the system board and has a life expectancy of three or more years. When the

battery has expired it is replaced with a CR2032 or equivalent 3-VDC lithium battery.

4.4.1 Clearing CMOS

The contents of configuration memory (including the Power-On Password) can be cleared by the

following procedure:

1. Turn off the unit.

2. Disconnect the AC power cord from the outlet and/or system unit.

3. Remove the chassis hood (cover) and insure that no LEDs on the system board are

illuminated.

4. On the system board, press and hold the CMOS clear button (switch SW50, colored yellow)

for at least 5 seconds.

5. Replace the chassis hood (cover).

6. Reconnect the AC power cord to the outlet and/or system unit.

7. Turn the unit on.

To clear only the Power-On Password refer to section 4.5.1.

RTC Area

(14 bytes)

Standard Config.

Memory Area

(114 bytes)

Extended Config.

Memory Area

(128 bytes)

00h

0Dh

0Eh

80h

FFh

7Fh

Seconds (Timer)

Minutes (Timer)

Seconds (Alarm)

Hours (Alarm)

Hours (Timer)

Minutes (Alarm)

Day of Week

Date of Month

Month

Year

Register A

Register B

Register C

Register D

00h

0Bh

01h

02h

03h

04h

05h

06h

07h

08h

09h

0Ah

0Dh

0Ch

82801

CMOS

4-10 www.hp.com Technical Reference Guide

System Support

4.4.2 Standard CMOS Locations

Table 4-6 describes standard configuration memory locations 0Ah-3Fh. These locations are

accessible through using OUT/IN assembly language instructions using port 70/71h or BIOS

function INT15, AX=E823h.

NOTES:

Assume unmarked gaps are reserved.

Higher locations (>3Fh) contain information that should be accessed using the INT15, AX=E845h

BIOS function (refer to Chapter 8 for BIOS function descriptions).

4.5 System Management

This section describes functions having to do with security, power management, temperature,

and overall status. These functions are handled by hardware and firmware (BIOS) and generally

configured through the Setup utility.

4.5.1 Security Functions

These systems include various features that provide different levels of security. Note that this

subsection describes only the hardware functionality (including that supported by Setup) and

does not describe security features that may be provided by the operating system and application

software.

Table 4-6.

Configuration Memory (CMOS) Map

Location Function Location Function

00-0Dh Real-time clock 24h System board ID

0Eh Diagnostic status 25h System architecture data

0Fh System reset code 26h Auxiliary peripheral configuration

10h Diskette drive type 27h Speed control external drive

11h Reserved 28h Expanded/base mem. size, IRQ12

12h Hard drive type 29h Miscellaneous configuration

13h Security functions 2Ah Hard drive timeout

14h Equipment installed 2Bh System inactivity timeout

15h Base memory size, low byte/KB 2Ch Monitor timeout, Num Lock Cntrl

16h Base memory size, high byte/KB 2Dh Additional flags

17h Extended memory, low byte/KB 2Eh-2Fh Checksum of locations 10h-2Dh

18h Extended memory, high byte/KB 30h-31h Total extended memory tested

19h Hard drive 1, primary controller 32h Century

1Ah Hard drive 2, primary controller 33h Miscellaneous flags set by BIOS

1Bh Hard drive 1, secondary controller 34h International language

1Ch Hard drive 2, secondary controller 35h APM status flags

1Dh Enhanced hard drive support 36h ECC POST test single bit

1Eh Reserved 37h-3Fh Power-on password

1Fh Power management functions 40-FFh Feature Control/Status

Technical Reference Guide www.hp.com 4-11

System Support

Power-On / Setup Password

These systems include a power-on and setup passwords, which may be enabled or disabled

(cleared) through a jumper on the system board. The jumper controls a GPIO input to the 82801

PCH that is checked during POST. The password is stored in configuration memory (CMOS) and

if enabled and then forgotten by the user will require that either the password be cleared

(preferable solution and described below) or the entire CMOS be cleared (refer to section 4.4.1).

To clear the password, use the following procedure:

1. Turn off the system and disconnect the AC power cord from the outlet and/or system unit.

2. Remove the cover (hood) as described in the appropriate User Guide or Maintainance And

Service Reference Guide. Insure that all system board LEDs are off (not illuminated).

3. Locate the password clear jumper (header is colored green and labeled E49 on these systems)

and move the jumper from pins 1 and 2 and place on (just) pin 2 (for safekeeping).

4. Replace the cover.

5. Re-connect the AC power cord to the AC outlet and/or system unit.

6. Turn on the system. The POST routine will clear and disable the password.

7. To re-enable the password feature, repeat steps 1-6, replacing the jumper on pins 1 and 2 of

header E49.

Setup Password

The Setup utility may be configured to be always changeable or changeable only by entering a

password. Refer to the previous procedure (Power On / Setup Password) for clearing the Setup

password.

Cable Lock Provision

These systems include a chassis cutout on the rear panel for the attachment of a cable lock

mechanism.

I/O Interface Security

The SATA, serial, parallel, USB, and diskette interfaces may be disabled individually through the

Setup utility to guard against unauthorized access to a system. In addition, the ability to write to

or boot from a removable media drive (such as the diskette drive) may be enabled through the

Setup utility. The disabling of the serial, parallel, and diskette interfaces are a function of the SIO

controller. The USB ports are controlled through the 82801.

Chassis Security

Some systems feature Smart Cover (hood) Sensor and Smart Cover (hood) Lock mechanisms to

inhibit unauthorized tampering of the system unit.

Smart Cover Sensor

These systems support an optional plunger switch assembly that, when the cover (hood) is

removed, closes and grounds an input of the 82801 component. The battery-backed logic will

record this “intrusion” event by setting a specific bit. This bit will remain set (even if the cover is

replaced) until the system is powered up and the user completes the boot sequence successfully,

at which time the bit will be cleared. Through Setup, the user can set this function to be used by

Alert-On-LAN and or one of three levels of support for a “cover removed” condition:

4-12 www.hp.com Technical Reference Guide

System Support

Level 0—Cover removal indication is essentially disabled at this level. During POST, status bit is

cleared and no other action is taken by BIOS.

Level 1—During POST the message “The computer's cover has been removed since the last

system start up” is displayed and time stamp in CMOS is updated.

Level 2—During POST the “The computer's cover has been removed since the last system start

up” message is displayed, time stamp in CMOS is updated, and the user is prompted for the

administrator password. (A Setup password must be enabled in order to see this option).

Smart Cover Lock (Optional)

These systems support an optional solenoid-operated locking bar that, when activated, prevents

the cover (hood) from being removed. The GPIO ports 44 and 45 of the SIO controller provide

the lock and unlock signals to the solenoid. A locked hood may be bypassed by removing special

screws that hold the locking mechanism in place. The special screws are removed with the Smart

Cover Lock Failsafe Key.

4.5.2 Power Management

These systems provide baseline hardware support of ACPI- and APM-compliant firmware and

software. Key power-consuming components (processor, chipset, I/O controller, and fan) can be

placed into a reduced power mode either automatically or by user control. The system can then

be brought back up (“wake-up”) by events defined by the ACPI 2.0 specification. The ACPI

wake-up events supported by this system are listed as follows:

Table 4-7.

ACPI Wake-Up Events

ACPI Wake-Up Event System Wakes From

Power Button Suspend or soft-off

RTC Alarm Suspend or soft-off

Wake On LAN (w/NIC) Suspend or soft-off

PME Suspend or soft-off

Serial Port Ring Suspend or soft-off

USB Suspend only

Keyboard Suspend only

Mouse Suspend only

Technical Reference Guide www.hp.com 4-13

System Support

4.5.3 System Status

These systems provide a visual indication of system boot, ROM flash, and operational status

through the power LED and internal speaker, as described in Table 4-8.

.

NOTES:

Beeps are repeated for 5 cycles, after which only blinking LED indication continues.

[1] Repeated after 2 second pause.

[2] Beeps are produced by the internal chassis speaker.

[3] Check that CPU power connector P3 is plugged in.

Table 4-8.

System Operational Status LED Indications

System Status PowerLED Beeps [2] Action Required

S0: System on (normal

operation)

Steady green None None

S1: Suspend Blinks green @ .5 Hz None None

S3: Suspend to RAM Blinks green @ .5 Hz None None

S4: Suspend to disk Off – clear None None

S5: Soft off Off – clear None None

Processor thermal shutdown Blinks red 2 times @ 1 Hz [1] 2 Check air flow, fans, heatsink

Processor not seated / installed Blinks red 3 times @ 1 Hz [1] 3 Check processor

presence/seating

Power supply overload failure Blinks red 4 times @ 1 Hz [1] 4 Check system board problem

[3],

Memory error (pre-video) Blinks red 5 times @ 1 Hz [1] 5 Check DIMMs, system board

Video error Blinks red 6 times @ 1 Hz [1] 6 Check graphics card or

system board

PCA failure detected by BIOS

(pre-video)

Blinks red 7 times @ 1 Hz [1] 7 Replace system board

Invalid ROM checksum error Blinks red 8 times @ 1 Hz [1] 8 Reflash BIOS ROM

Boot failure (after power on) Blinks red 9 times @ 1 Hz [1] 9 Check power supply,

processor, sys. bd

Bad option card Blinks red 10 times @ 1 Hz [1] None Replace option card

4-14 www.hp.com Technical Reference Guide

System Support

4.5.4 Thermal Sensing and Cooling

All systems feature a variable-speed fan mounted as part of the processor heatsink assembly. All

systems also provide or support an auxiliary chassis fan. All fans are controlled through

temperature sensing logic on the system board and/or in the power supply. There are some

electrical differences between form factors and between some models, although the overall

functionally is the same. Typical cooling conditions include the following:

1. Normal—Low fan speed.

2. Hot processor—ASIC directs Speed Control logic to increase speed of fan(s).

3. Hot power supply—Power supply increases speed of fan(s).

4. Sleep state—Fan(s) turned off. Hot processor or power supply will result in starting fan(s).

The RPM (speed) of all fans is the result of the temperature of the CPU as sensed by speed

control circuitry. The fans are controlled to run at the slowest (quietest) speed that will maintain

proper cooling.

✎Units using chassis and CPU fans must have both fans connected to their corresponding headers

to ensure proper cooling of the system.

4.6 Register Map and Miscellaneous Functions

This section contains the system I/O map and information on general-purpose functions of the

PCH and I/O controller.

4.6.1 System I/O Map

Table 4-9 lists the fixed addresses of the input/output (I/O) ports.

Technical Reference Guide www.hp.com 4-15

System Support

NOTE:

Assume unmarked gaps are unused, reserved, or used by functions that employ variable I/O

address mapping. Some ranges may include reserved addresses.

Table 4-9

System I/O Map

I/O Port Function

0000..001Fh DMA Controller 1

0020..002Dh Interrupt Controller 1

002E, 002Fh Index, Data Ports to SIO Controller (primary)

0030..003Dh Interrupt Controller

0040..0042h Timer 1

004E, 004Fh Index, Data Ports to SIO Controller (secondary)

0050..0052h Timer / Counter

0060..0067h Microcontroller, NMI Controller (alternating addresses)

0070..0077h RTC Controller

0080..0091h DMA Controller

0092h Port A, Fast A20/Reset Generator

0093..009Fh DMA Controller

00A0..00B1h Interrupt Controller 2

00B2h, 00B3h APM Control/Status Ports

00B4..00BDh Interrupt Controller

00C0..00DFh DMA Controller 2

00F0h Coprocessor error register

0170..0177h IDE Controller 2 (active only if standard I/O space is enabled for secondary controller)

01F0..01F7h IDE Controller 1 (active only if standard I/O space is enabled for primary controller)

0278..027Fh Parallel Port (LPT2)

02E8..02EFh Serial Port (COM4)

02F8..02FFh Serial Port (COM2)

0370..0377h Diskette Drive Controller Secondary Address

0376h IDE Controller 2 (active only if standard I/O space is enabled for primary drive)

0378..037Fh Parallel Port (LPT1)

03B0..03DFh Graphics Controller

03BC..03BEh Parallel Port (LPT3)

03E8..03EFh Serial Port (COM3)

03F0..03F5h Diskette Drive Controller Primary Addresses

03F6h IDE Controller 1 (active only if standard I/O space is enabled for sec. drive)

03F8..03FFh Serial Port (COM1)

04D0, 04D1h Interrupt Controller

0678..067Fh Parallel Port (LPT2)

0778..077Fh Parallel Port (LPT1)

07BC..07BEh Parallel Port (LPT3)

0CF8h PCI Configuration Address (dword access only )

0CF9h Reset Control Register

0CFCh PCI Configuration Data (byte, word, or dword access)

4-16 www.hp.com Technical Reference Guide

System Support

4.6.2 GPIO Functions

PCH-DO Functions

The PCH-D0 provides various functions through the use of programmable general purpose

input/output (GPIO) ports. These systems use GPIO ports and associate registers of the PCH for

the following functions:

■PCI interupt request control

■Chassis and board ID

■Hood (cover) sensor and lock detect

■Media card reader detect

■S4 state indicator

■USB port over-current detect

■Flash security override

■Serial port detect

■REQn#/GNTn# sigal control

■Password enable

■Boot block enable

SIO Controller Functions

In addition to the serial and parallel port functions, the SIO controller provides the following

specialized functions through GPIO ports:

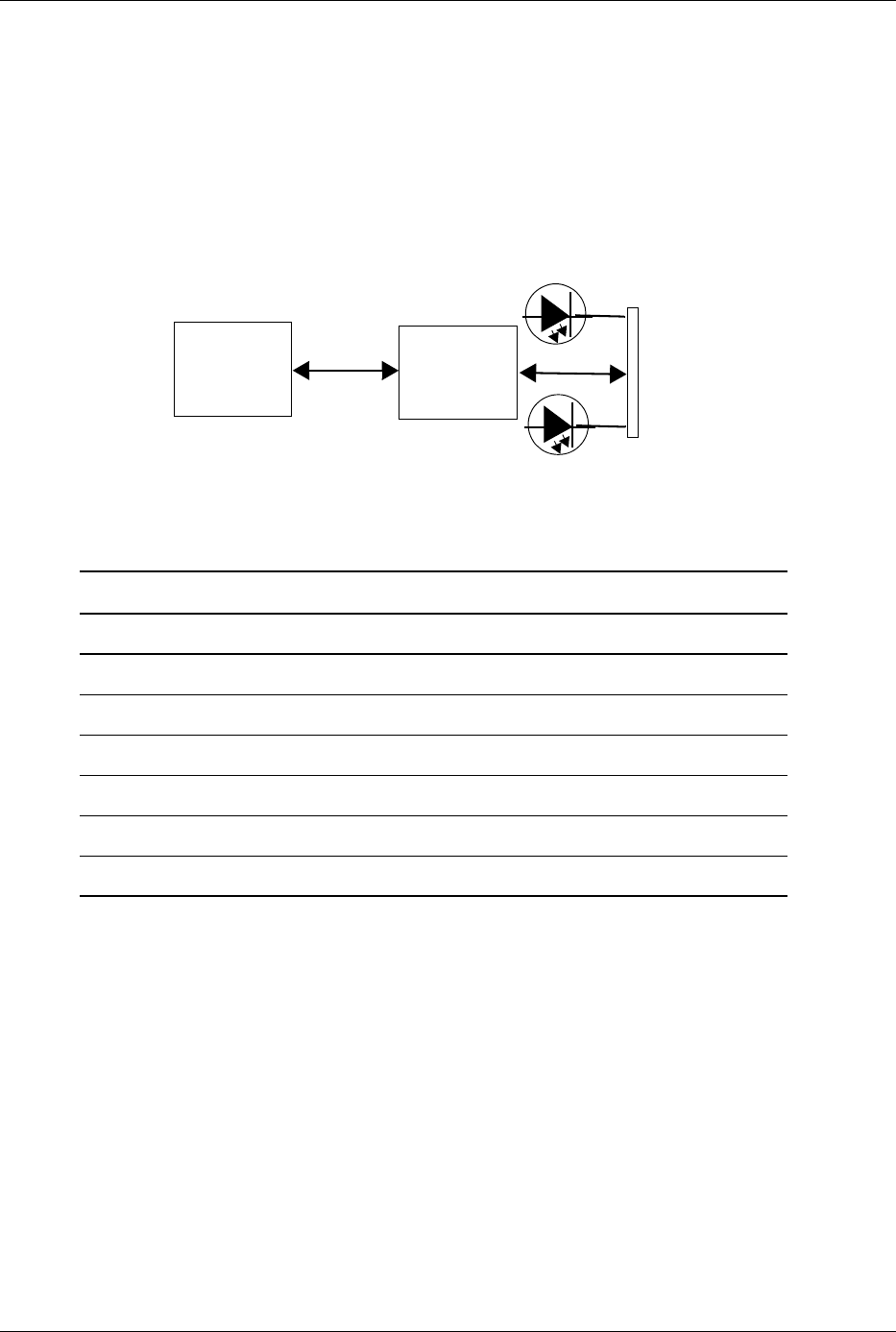

■Power/Hard drive LED control for indicating system events (refer to Table 4-8)

■Hood lock/unlock controls the lock bar mechanism

■Thermal shutdown control turns off the CPU when temperature reaches certain level

■Processor present/speed detection detects if the processor has been removed. The occurrence

of this event will, during the next boot sequence, initiate the speed selection routine for the

processor.

■Legacy/ACPI power button mode control uses the pulse signal from the system's power

button and produces the PS On signal according to the mode (legacy or ACPI) selected.

Refer to chapter 7 for more information regarding power management.

Technical Reference Guide www.hp.com 5-1

5

Input/Output Interfaces

5.1 Introduction

This chapter describes the standard interfaces that provide input and output (I/O) porting of data

and that are controlled through I/O-mapped registers. The following I/O interfaces are covered in

this chapter:

■SATA/eSATA interfaces (5.2)

■Serial interfaces (5.3)

■Parallel interface support (5.4)

■Keyboard/pointing device interface (5.5)

■Universal serial bus interface (5.6)

■Audio subsystem (5.7)

■Network interface controller (5.8)

5-2 www.hp.com Technical Reference Guide

Input/Output Interfaces

5.2 SATA/eSATA Interfaces

These systems provide two, three, or four serial ATA (SATA) interfaces that support tranfer rates

up to 3.0 Gb/s and RAID data protection functionality. These systems can also support an

external SATA (eSATA) device through an optional bracket/cable assembly.

5.2.1 SATA interface

The SATA interface duplicates most of the functionality of the EIDE interface through a register

interface that is equivalent to that of the legacy IDE host adapter. The PCH DO component

includes Intel RAID migration technology that simplifies the migration from a single hard to a

RAID0 or RAID1 dual hard drive array without requiring OS reinstallation. Intel Matrix RAID

provides exceptional storage performance with increased data protection for configurations using

dual drive arrays. A software solution is included that provides full management and status

reporting of the RAID array, and the BIOS ROM also supports RAID creation, naming, and

deletion of RAID arrays.

The standard 7-pin SATA connector is shown in the figure below.

Figure 5-1. 7-Pin SATA Connector (P60-P63 on system board).

Table 5-1.

7-Pin SATA Connector Pinout

Pin Description Pin Description

1Ground 6RX positive

2 TX positive 7 Ground

3TX negative AHolding clip

4 Ground B Holding clip

5RX negative ----

Pin 1 Pin 7

AB

Technical Reference Guide www.hp.com 5-3

Input/Output Interfaces

5.2.2 eSATA interface

These systems provide a SATA/eSATA port (connector P64 on the system board) that can

support an external SATA (eSATA) storage device. The eSATA interface provides higher

bandwidth than USB 2.0 and Firewire (1394) interfaces.

An optional bracket/cable assembly (Figure 5-2) is required to attach an eSATA device to the

system.

Figure 5-2. Optional eSATA Bracket/Cable Assembly.

The following operating parameters of the eSATA interface can be set in the ROM-based Setup

utility:

■Transfer speed: 1.5 or 3 Gbps (default set to 1.5 Gbps for reliability)

■Emulation mode: IDE, AHCI, or RAID (default set to AHCI)

■Port availability: Available or Hidden (default set to Available)

In the IDE or AHCI modes, the system BIOS ROM controls the hard drives and Removeable

Media Boot setting applies. In the RAID mode, the RAID option ROM controls the hard drives

and the Removeable Media Boot setting does not apply.

For hot-plug functionality, the eSATA port must be set to the AHCI or RAID mode and an AHCI

driver with hot-plug support must be loaded onto the system. This driver is pre-loaded on

systems shipped with a Windows XP or Vista image. If the system is wiped clean or the Windows

OS is re-installed, the AHCI driver can be loaded by installing the OS while the eSATA

emulation mode is set to AHCI.

5-4 www.hp.com Technical Reference Guide

Input/Output Interfaces

5.3 Serial Interface

Systems covered in this guide may include one RS-232-C type serial interface to transmit and

receive asynchronous serial data with external devices. Some systems may allow the installation

of a second serial interface through an optional bracket/cable assembly that attaches to header

P52 on the system board. The serial interface function is provided by the super I/O controller

component that includes two NS16C550-compatible UARTs.

The UART supports the standard baud rates up through 115200, and also special high speed rates

of 239400 and 460800 baud. The baud rate of the UART is typically set to match the capability

of the connected device. While most baud rates may be set at runtime, baud rates 230400 and

460800 must be set during the configuration phase.

The serial interface uses a DB-9 connector as shown in the following figure with the pinout listed

in Table 5-4.

Figure 5-3. DB-9 Serial Interface Connector (male, as viewed from rear of chassis)

The standard RS-232-C limitation of 50 feet (or less) of cable between the DTE (computer) and

DCE (modem) should be followed to minimize transmission errors. Higher baud rates may

require shorter cables.

Table 5-2.

DB-9 Serial Connector Pinout

Pin Signal Description Pin Signal Description

1 CD Carrier Detect 6 DSR Data Set Ready

2 RX Data Receive Data 7 RTS Request To Send

3 TX Data Transmit Data 8 CTS Clear To Send

4 DTR Data Terminal Ready 9 RI Ring Indicator

5 GND Ground -- -- --

Technical Reference Guide www.hp.com 5-5

Input/Output Interfaces

5.4 Parallel Interface Support

These systems include a system board header (J50) that supports an optional parallel

bracket/cable assembly that provides a parallel interface for a peripheral device such as a printer.

The parallel interface supports bi-directional 8-bit parallel data transfers with a peripheral device.

The parallel interface supports three main modes of operation:

■Standard Parallel Port (SPP) mode

■Enhanced Parallel Port (EPP) mode

■Extended Capabilities Port (ECP) mode

These three modes (and their submodes) provide complete support as specified for an IEEE 1284

parallel port.

5.4.1 Standard Parallel Port Mode

The Standard Parallel Port (SPP) mode uses software-based protocol and includes two

sub-modes of operation, compatible and extended, both of which can provide data transfers up to

150 KB/s. In the compatible mode, CPU write data is simply presented on the eight data lines. A

CPU read of the parallel port yields the last data byte that was written.

5.4.2 Enhanced Parallel Port Mode

In Enhanced Parallel Port (EPP) mode, increased data transfers are possible (up to 2 MB/s) due

to a hardware protocol that provides automatic address and strobe generation. EPP revisions 1.7

and 1.9 are both supported. For the parallel interface to be initialized for EPP mode, a negotiation

phase is entered to detect whether or not the connected peripheral is compatible with EPP mode.

If compatible, then EPP mode can be used. In EPP mode, system timing is closely coupled to

EPP timing. A watchdog timer is used to prevent system lockup.

5.4.3 Extended Capabilities Port Mode

The Extended Capabilities Port (ECP) mode, like EPP, also uses a hardware protocol-based

design that supports transfers up to 2 MB/s. Automatic generation of addresses and strobes as

well as Run Length Encoding (RLE) decompression is supported by ECP mode. The ECP mode

includes a bi-directional FIFO buffer that can be accessed by the CPU using DMA or

programmed I/O. For the parallel interface to be initialized for ECP mode, a negotiation phase is

entered to detect whether or not the connected peripheral is compatible with ECP mode. If

compatible, then ECP mode can be used.

The ECP mode includes several sub-modes as determined by the Extended Control register. Two

submodes of ECP allow the parallel port to be controlled by software. In these modes, the FIFO

is cleared and not used, and DMA and RLE are inhibited.

5-6 www.hp.com Technical Reference Guide

Input/Output Interfaces

5.4.4 Parallel Interface Connector

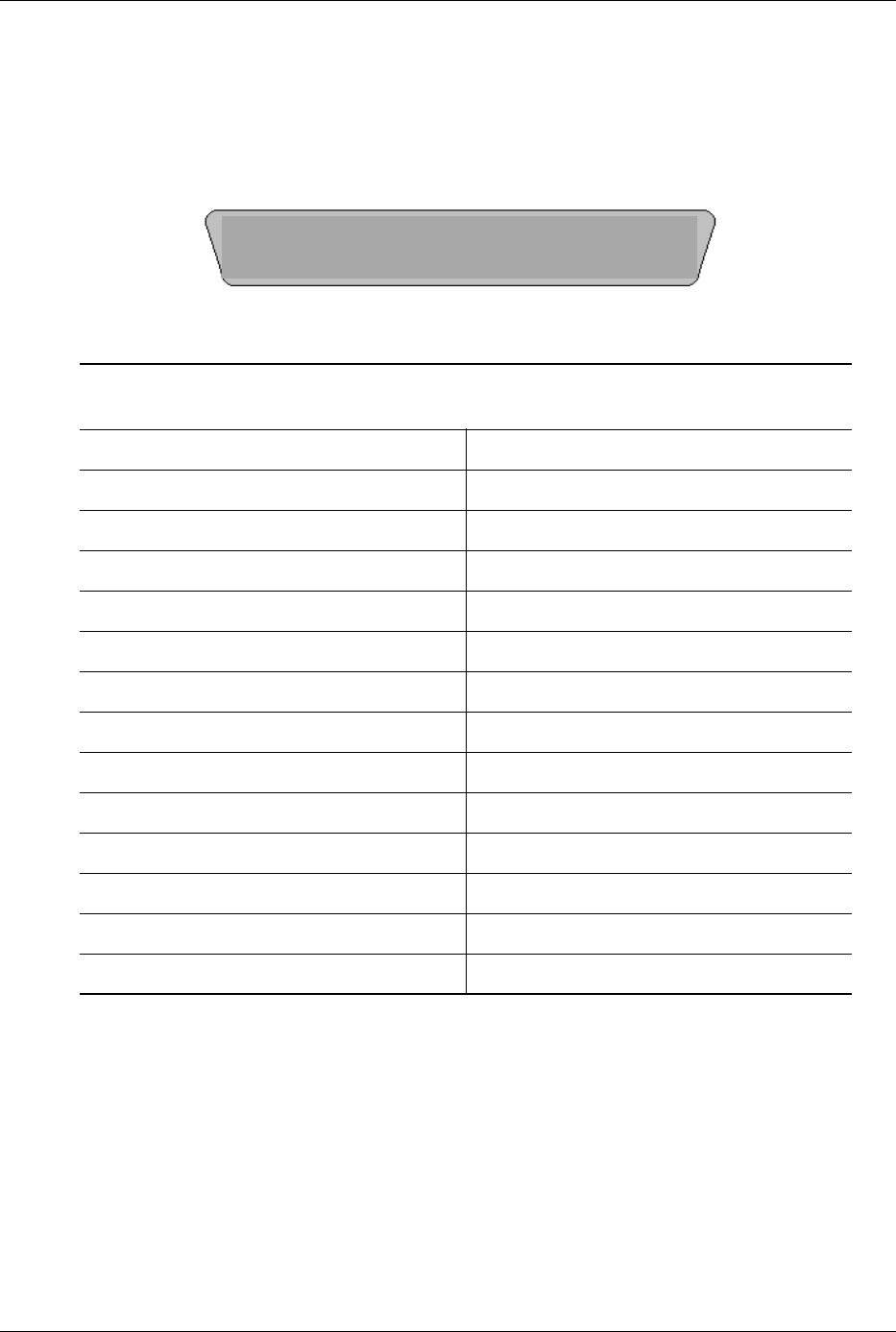

Figure 5-4 and Table 5-3 show the connector and pinout of the parallel connector provided on the

optional parallel bracket/cable assembly. Note that some signals are redefined depending on the

port's operational mode.

Figure 5-4. DB-25 Parallel Interface Connector (female, as viewed from rear of chassis)

NOTES:

[1] Standard and ECP mode function / EPP mode function

[2] EPP mode function: Data Strobe

ECP modes: Auto Feed or Host Acknowledge

[3] EPP mode: user defined

ECP modes:Fault or Peripheral Req.

[4] EPP mode: Reset

ECP modes: Initialize or Reverse Req.

Table 5-3.

DB-25 Parallel Connector Pinout

Pin Signal Function Pin Signal Function

1 STB- Strobe / Write [1] 14 LF- Line Feed [2]

2D0 Data 0 15ERR- Error [3]

3 D1 Data 1 16 INIT- Initialize Paper [4]

4 D2 Data 2 17 SLCTIN- Select In / Address. Strobe [1]

5D3 Data 3 18GNDGround

6D4 Data 4 19GNDGround

7D5 Data 5 20GNDGround

8D6 Data 6 21GNDGround

9D7 Data 7 22GNDGround

10 ACK- Acknowledge / Interrupt [1] 23 GND Ground

11 B S Y B u s y / W a i t [ 1 ] 2 4 G N D G r o u n d

12 PE Paper End / User defined [1] 25 GND Ground

13 S LC T S e l e c t / U s e r d e fi n e d [ 1 ] - - - - - -

1

23456789-qw

e

rtyuiopasdf

g

Technical Reference Guide www.hp.com 5-7

Input/Output Interfaces

5.5 Keyboard/Pointing Device Interface

The keyboard/pointing device interface function is provided by the SIO controller component,

which integrates 8042-compatible keyboard controller logic (hereafter referred to as simply the

“8042”) to communicate with the keyboard and pointing device using bi-directional serial data

transfers. The 8042 handles scan code translation and password lock protection for the keyboard

as well as communications with the pointing device.

5.5.1 Keyboard Interface Operation

The data/clock link between the 8042 and the keyboard is uni-directional for Keyboard Mode 1

and bi-directional for Keyboard Modes 2 and 3. (These modes are discussed in detail in

Appendix C). This section describes Mode 2 (the default) mode of operation.

Communication between the keyboard and the 8042 consists of commands (originated by either

the keyboard or the 8042) and scan codes from the keyboard. A command can request an action

or indicate status. The keyboard interface uses IRQ1 to get the attention of the CPU.

The 8042 can send a command to the keyboard at any time. When the 8042 wants to send a

command, the 8042 clamps the clock signal from the keyboard for a minimum of 60 us. If the

keyboard is transmitting data at that time, the transmission is allowed to finish. When the 8042 is

ready to transmit to the keyboard, the 8042 pulls the data line low, causing the keyboard to

respond by pulling the clock line low as well, allowing the start bit to be clocked out of the 8042.

The data is then transferred serially, LSb first, to the keyboard (Figure 5-5). An odd parity bit is

sent following the eighth data bit. After the parity bit is received, the keyboard pulls the data line

low and clocks this condition to the 8042. When the keyboard receives the stop bit, the clock line

is pulled low to inhibit the keyboard and allow it to process the data.

Figure 5-5. 8042-To-Keyboard Transmission of Code EDh, Timing Diagram

Control of the data and clock signals is shared by the 8042 and the keyboard depending on the

originator of the transferred data. Note that the clock signal is always generated by the keyboard.

After the keyboard receives a command from the 8042, the keyboard returns an ACK code. If a

parity error or timeout occurs, a Resend command is sent to the 8042.

Parameter Minimum Maximum

Tcy (Cycle Time) 0 us 80 us

Tcl (Clock Low) 25 us 35 us

Tch (Clock High) 25 us 45 us

Th (Data Hold) 0 us 25 us

Tss (Stop Bit Setup) 8 us 20 us

Tsh (Stop Bit Hold) 15 us 25 us

Start

Bit D0

(LSb) D1 D2 D3 D4 D5 D6 D7

(MSb) Parity Stop

Bit

0 1 0 1 1 0 1 1 1 1 0

Data

Clock

Th Tcl TchTcy Tss Tsh

5-8 www.hp.com Technical Reference Guide

Input/Output Interfaces

5.5.2 Pointing Device Interface Operation

The pointing device (typically a mouse) connects to a 6-pin DIN-type connector that is identical

to the keyboard connector both physically and electrically. The operation of the interface (clock

and data signal control) is the same as for the keyboard. The pointing device interface uses the

IRQ12 interrupt.

5.5.3 Keyboard/Pointing Device Interface Connector

The legacy-light model provides separate PS/2 connectors for the keyboard and pointing device.

Both connectors are identical both physically and electrically. Figure 5-6 and Table 5-4 show the

connector and pinout of the keyboard/pointing device interface connectors.

Figure 5-6. PS/2 Keyboard or Pointing Device Interface Connector (as viewed from rear of chassis)

Table 5-4.

Keyboard/Pointing Device Connector Pinout

Pin Signal Description Pin Signal Description

1DATA Data 4+ 5 VDCPower

2 NC Not Connected 5 CLK Clock

3 GND Ground 6 NC Not Connected

Technical Reference Guide www.hp.com 5-9

Input/Output Interfaces

5.6 Universal Serial Bus Interface

The Universal Serial Bus (USB) interface provides asynchronous/isochronous data transfers with

compatible peripherals such as keyboards, printers, or modems. This high-speed interface

supports hot-plugging of compatible devices, making possible system configuration changes

without powering down or even rebooting systems.

These systems provide ten externally-accessible USB ports; four front panel USB ports (which

may be disabled) and six USB ports on the rear panel. In addition, these systems support a media

reader accessory that uses two USB ports through a system board header connection. The USB

2.0 controller provides a maximum transfer rate of 480 Mb/s. Table 5-5 shows the mapping of

the USB ports.

USB

Table 5-5.

PCH USB Port Mapping

USB Signals USB Connector Location (all form factors

Data 0P, 0N System board header P151

Data 1P, 1N System board header P151

Data 2P, 2N System board header P150

Data 3P, 3N System board header P150

Data 4P, 4N Front panel

Data 5P, 5N Front panel

Data 6P, 6N Front panel

Data 7P, 7N Front panel

Data 8P, 8N Rear panel, quad

Data 9P, 9N Rear panel, quad

Data 10P, 10N Rear panel, quad

Data 11P, 11N Rear panel, quad

D a t a 12 P, 12N Re a r p a n e l , d u a l

Data 13P, 13N Rear panel, dual

5-10 www.hp.com Technical Reference Guide

Input/Output Interfaces

5.6.1 USB Connector

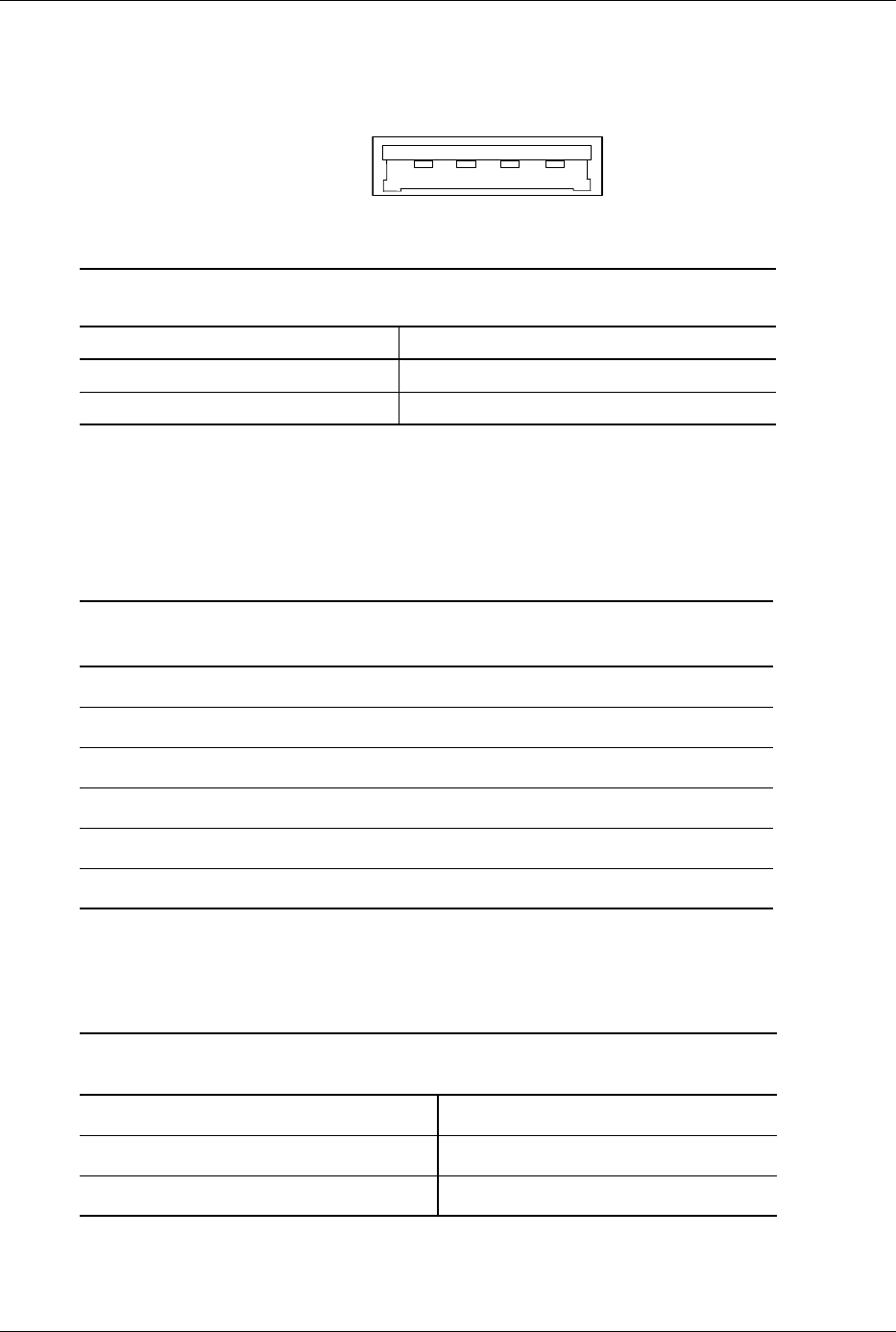

These systems provide type-A USB ports as shown in Figure 5-7.

Figure 5-7. Universal Serial Bus Connector (as viewed from rear of chassis)

5.6.2 USB Cable Data

The recommended cable length between the host and the USB device should be no longer than

sixteen feet for full-channel (12 MB/s) operation, depending on cable specification (see

following table).

NOTE: For sub-channel (1.5 MB/s) operation and/or when using sub-standard cable shorter

lengths may be allowable and/or necessary.

The shield, chassis ground, and power ground should be tied together at the host end but left

unconnected at the device end to avoid ground loops.

Table 5-6.

USB Connector Pinout

Pin Signal Description Pin Signal Description

1 Vcc +5 VDC 3 USB+ Data (plus)

2USB- Data (minus) 4GNDGround

1 2 3 4

Table 5-7.

USB Cable Length Data

Conductor Size Resistance Maximum Length

20 AWG 0.036 Ω16.4 ft (5.00 m)

22 AWG 0.057 Ω9.94 ft (3.03 m)

24 AWG 0.091 Ω6.82 ft (2.08 m)

26 AWG 0.145 Ω4.30 ft (1.31 m)

28 AWG 0.232 Ω2.66 ft (0.81 m)

Table 5-8.

USB Color Code

Signal Insulation color Signal Insulation Color

Data + Green Vcc Red

Data - White Ground Black

Technical Reference Guide www.hp.com 5-11

Input/Output Interfaces

5.7 Audio Subsystem

These systems use the HD audio controller of the 82801 component to access and control a

Realtek ALC261 HD Audio Codec, which provides 2-channel high definition analog-to-digital

(ADC) and digital-to-analog (DAC) conversions. A block diagram of the audio subsystem is

shown in Figure 5-8. All control functions such as volume, audio source selection, and sampling

rate are controlled through software through the HD Audio Interface of the 82801 ICH

component. Control data and digital audio streams (record and playback) are transferred between

the ICH and the Audio Codec over the HD Audio Interface. The codec’s speaker output is

applied to a 1.5-watt amplifier that drives the internal speaker. A device plugged into the

Headphone jack or the line input jack is sensed by the system, which will inhibit the Speaker

Audio signal.

These systems provide the following analog interfaces for external audio devices:

Microphone In—This input uses a three-conductor 1/8-inch mini-jack that accepts a stereo

microphone. This input can be retasked to a headphones out or line in funciton.

Line In—This input uses a three-conductor (stereo) 1/8-inch mini-jack designed for connection

of a high-impedance audio source such as a tape deck. This jack can be re-tasked to a

Microphone In function.

Headphones Out—This input uses a three-conductor (stereo) 1/8-inch mini-jack that is

designed for connecting a set of 32-ohm (nom.) stereo headphones. Plugging into the

Headphones jack mutes the signal to the internal speaker and the Line Out jack as well.

Line Out—This output uses a three-conductor (stereo) 1/8-inch mini-jack for connecting left

and right channel line-level signals. Typical connections include a tape recorder's Line In

(Record In) jacks, an amplifier's Line In jacks, or to powered speakers that contain amplifiers.

Figure 5-8. Audio Subsystem Functional Block Diagram

82801 ICH

HD Audio

Interface

Headphone

Mic In

Audio (L/R)

HD Audio

Codec

ALC261

Speaker

Audio (L+R)

Header

Header

Rear Panel

NOTES:

L/R = Separate left and right channels (stereo). L+R = Combined left and right channels (mono).

P23

P6

Audio

Amp

HD Audio I/F

Front Panel

Line In [1] Headphones Out

Front Panel

Mic Audio (L/R)

[1] Can be re-configured as Microphone In

PC Beep

Header

P23

Out (L/R)

Line Audio

Line Out

Line Audio (L/R)

Rear Panel

5-12 www.hp.com Technical Reference Guide

Input/Output Interfaces

5.7.1 HD Audio Controller

The HD Audio Controller is a PCI Express device that is integrated into the 82801 ICH

component and supports the following functions:

■Read/write access to audio codec registers

■Support for greater than 48-KHz sampling

■HD audio interface

5.7.2 HD Audio Link Bus

The HD audio controller and the HD audio codec communicate over a five-signal HD Audio

Link Bus (Figure 5-9). The HD Audio Interface includes two serial data lines; serial data out

(SDO, from the controller) and serial data in (SDI, from the audio codec) that transfer control

and PCM audio data serially to and from the audio codec using a time-division multiplexed

(TDM) protocol. The data lines are qualified by the 24-MHz BCLK signal driven by the audio

controller. Data is transferred in frames synchronized by the 48-KHz SYNC signal, which is

derived from the clock signal and driven by the audio controller. When asserted (typically during

a power cycle), the RESET- signal (not shown) will reset all audio registers to their default

values.

Figure 5-9. HD Audio Link Bus Protocol

5.7.3 Audio Multistreaming

The audio subsystem can be configured (through the ADI control panel) for processing audio for

multiple applications (multi-tasking). The Headphone Out jack can provide audio for one

application while the Line Out jack can provide external speaker audio from another application.

BCLK

SYNC

SDO

SDI

RST#

Command Stream

Response Stream Tag C Stream C

Tag A Tag B

Frame

Start Start

Frame

Frame

Stream A Stream B

NOTE: Clock not drawn to scale.

Technical Reference Guide www.hp.com 5-13

Input/Output Interfaces

5.7.4 Audio Specifications

The specifications for the HD Audio subsystem are listed in Table 5-9.

Table 5-9.

HD Audio Subsystem Specifications

Parameter Measurement

Sampling Rates (DAC and ADC): 8 kHz to 192 kHz

Resolution:

DAC

ADC

24-bit

24-bit

Nominal Input Voltage:

Mic In (w/+20 db gain)

Line In

.283 Vp-p

2.83 Vp-p

Subsystem Impedance:

Mic In

Line In

Line Out (minimum expected load)

Headphones Out (minimum expected load)

150K ohms

150K ohms

10K ohms

32 ohms

Signal-to-Noise Ratio

Line out

Headphone out

Microphone / line in

90 db (nom)

90 db (nom)

85 db (nom)

Total Harmonic Distortion (THD)

Line out

Headphone out

Microphone / line in

-84 db

-80 db

-78 db

Max. Subsystem Power Output to 4-ohm Internal

Speaker (with 10% THD):

1.5 w a t t s

Gain Step 1.5 db

Master Volume Range -58.5 db

Frequency Response:

ADC/DAC

Internal Speaker

20– 20000 Hz

450–20000 Hz

5-14 www.hp.com Technical Reference Guide

Input/Output Interfaces

5.8 Network Interface Controller

These systems provide 10/100/1000 Mbps network support through an Intel 82578V network

interface controller (NIC), a PHY component, and a RJ-45 jack with integral status LEDs (Figure

5-10). The support firmware is contained in the system (BIOS) ROM. The NIC can operate in

half- or full-duplex modes, and provides auto-negotiation of both mode and speed. Half-duplex

operation features an Intel-proprietary collision reduction mechanism while full-duplex

operation follows the IEEE 802.3x flow control specification.

Figure 5-10. Network Interface Controller Block Diagram

The Network Interface Controller includes the following features:

■VLAN tagging with Windows XP and Linux

■Multiple VLAN support with Windows XP (and later)

■Power management support for ACPI 1.1, PXE 2.0, WOL, ASF 1.0, and IPMI

■Cisco Etherchannel support

■Speed and Activity LED indicator drivers

The controller features high and low priority queues and provides priority-packet processing for

networks that can support that feature. The controller's micro-machine processes transmit and

receive frames independently and concurrently. Receive runt (under-sized) frames are not passed

on as faulty data but discarded by the controller, which also directly handles such errors as

collision detection or data under-run.

Table 5-10. LAN LED Indications

Function Activity LED Speed LED

10 MB link Green (steady) Off

100 MB link Green (steady) Yellow (steady)

1000 MB link Green (steady) Green (steady)

10 MB data transfer Green (blinking) Off

100 MB data transfer Green (blinking) Yellow (steady)

1000 MB data transfer Green (blinking Green (steady)

Intel

LAN I/F

Activity (green) LED

NIC

RJ-45

Connector

Speed (yellow/green) LED

Tx/Rx Data Tx/Rx Data

82568V

Technical Reference Guide www.hp.com 5-15

Input/Output Interfaces

✎For the features in the following paragraphs to function as described, the system unit must be

plugged into a live AC outlet. Controlling unit power through a switchable power strip will, with

the strip turned off, disable any wake, alert, or power mangement functionality.

5.8.1 Wake-On-LAN Support

The NIC supports the Wired-for-Management (WfM) standard of Wake-On-LAN (WOL) that

allows the system to be booted up from a powered-down or low-power condition upon the

detection of special packets received over a network. The detection of a Magic Packet by the

NIC results in the PME- signal on the PCI bus to be asserted, initiating system wake-up from an

ACPI S1 or S3 state.

5.8.2 Alert Standard Format Support

Alert Standard Format (ASF) support allows the NIC to communicate the occurrence of certain

events over a network to an ASF 1.0-compliant management console and, if necessary, take

action that may be required. The ASF communications can involve the following:

■Alert messages sent by the client to the management console.

■Maintenance requests sent by the management console to the client.

■Description of client's ASF capabilities and characteristics.

The activation of ASF functionality requires minimal intervention of the user and requires only

booting a client system connected to a network with an ASF-compliant management console.

5.8.3 Power Management Support

The NIC features Wired-for-Management (WfM) support providing system wake up from

network events (WOL) as well as generating system status messages (AOL) and supports ACPI

power management environments. The controller receives 3.3 VDC (auxiliary) power as long as

the system is plugged into a live AC receptacle, allowing support of wake-up events occurring

over a network while the system is powered down or in a low-power state.

The Advanced Configuration and Power Interface (ACPI) functionality of system wake up is

implemented through an ACPI-compliant OS and is the default power management mode. The

following wakeup events may be individually enabled/disabled through the supplied software

driver:

■Magic Packet—Packet with node address repeated 16 times in data portion

✎The following functions are supported in NDIS5 drivers but implemented through remote

management software applications (such as LanDesk).

■Individual address match—Packet with matching user-defined byte mask

■Multicast address match—Packet with matching user-defined sample frame

■ARP (address resolution protocol) packet

■Flexible packet filtering—Packets that match defined CRC signature

The PROSet Application software (pre-installed and accessed through the System Tray or

Windows Control Panel) allows configuration of operational parameters such as WOL and

duplex mode.

5-16 www.hp.com Technical Reference Guide

Input/Output Interfaces

5.8.4 NIC Connector

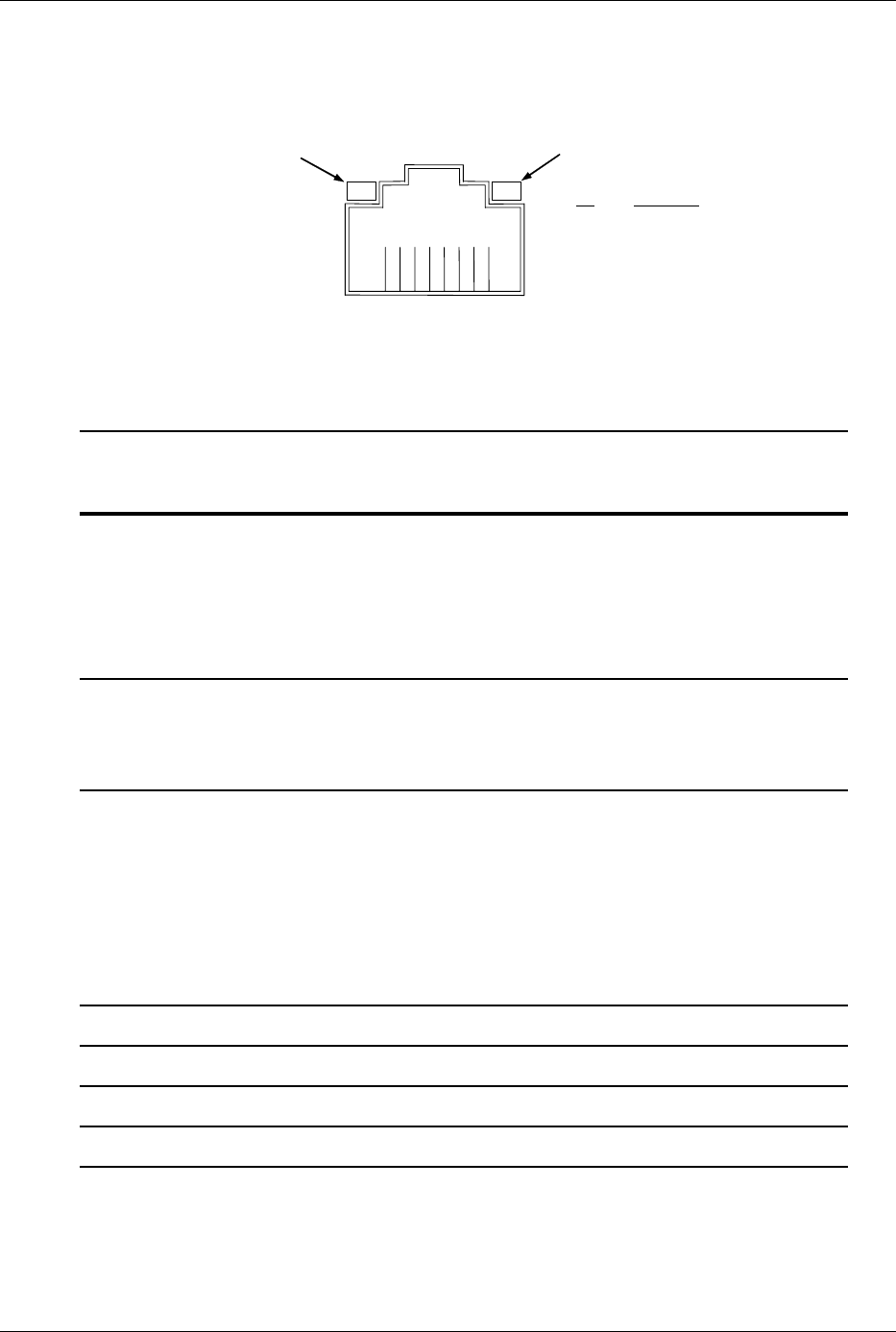

Figure 5-11 shows the RJ-45 connector used for the NIC interface. This connector includes the

two status LEDs as part of the connector assembly.

Figure 5-11. RJ-45 Ethernet TPE Connector (as viewed from rear of chassis)

5.8.5 NIC Specifications

124 38 7 6 5

Pin Description

1 Transmit+

2 Transmit-

3 Receive+

6 Receive-

Activity LED

Speed LED

4, 7, 8 Not used

Table 5-11. NIC Specifications

Parameter Compatibility standard orprotocol

Modes Supported 10BASE-T half duplex @ 10 Mb/s

10Base-T full duplex @ 20 Mb/s

100BASE-TX half duplex @ 100 Mb/s

100Base-TX full duplex @ 200 Mb/s

1000BASE-T half duplex @ 1 Gb/s

1000BASE-TX full duplex @ 2 Gb/s

Standards Compliance IEEE 1588

IEEE 802.1ae

IEEE 802.3, 802.3ab, 802.3af, 802.3i, 802.3u, 802.3x,

802.3z

OS Driver Support MS-DOS

MS Windows XP Home/Pro, Vista Home/Pro, Windows 7

MS Windows NT 3.51 & 4.0

Novell Netware 3.x, 4.x, 5x

Novell Netware/IntraNetWare

SCO UnixWare 7

Linux 2.2, 2.4

PXE 2.0

Boot ROM Support Intel PRO/100 Boot Agent (PXE 3.0, RPL)

F12 BIOS Support Yes

Bus Inteface PCI Express x1

Power Management Support ACPI, PCI Power Management Spec.

Technical Reference Guide www.hp.com 6-1

6

Integrated Graphics Subsystem

6.1 Introduction

This chapter describes the graphics subsystem that is integrated into the Intel Pentium Dual-Core

G6950, Core i3, and select Core i5 processors. This graphics subsystem employs the use of

system memory to provide efficient, economical 2D and 3D performance.

All systems provide dual-monitor support in the standard configuration. These systems can be

upgraded by installing a PCIe x16 graphics card in the PCIe x16 graphics slot, which disables the

integrated graphics controller

This chapter covers the following subjects:

■Functional description (6.2)

■Upgrading (6.3)

■Monitor connectors (6.4)

✎Systems shipped with the Intel Core i5-750 or Core i7 processors require a separate PCI graphics

adapter card. This adapter is not discribed in this guide.

6-2 www.hp.com Technical Reference Guide

Integrated Graphics Subsystem

6.2 Functional Description

The integrated HD Graphics controller (hereafter referred to as an internal graphics controller)

featured in select Intel processors supported by these systems operates off the internal PCIe x16

bus of the processor and, through the Flexible Display Interface (FDI) and the Q57 PCH

component, can drive an external analog multi-scan monitor and/or a DisplayPort-compatible

digital monitor. The integrated graphics controller includes a memory management feature that

allocates portions of system memory for use as the frame buffer and for storing textures and 3D

effects.

Figure 6-1. Integrated Graphics Subsystem, Block diagram

The integrated graphic controller of the Intel i5-661 provides the following features:

■DirectX DX10 support

■OpenGL 2.1 support

■Dynamic video memory allocation, where the amount of memory required by the application

is acquired (or released) by the controller

■Intelligent memory management allowing tiled memory addressing, deep display buffering,

and dynamic data management

■Core engine operating up to 900 MHz

■2560 x 1600 maximum resolution

The integrated graphics controller uses a portion of system memory for instructions, textures,

and frame (display) buffering. At boot time, 32 megabytes of system memory is pre-allocated for

the graphics controller whether using Windows XP, Windows Vista, or Windows 7. Using a

process called Dynamic Video Memory Technology (DVMT), the integrated graphics controller

dynamically allocates display and texture memory amounts according to the needs of the

application running on the system.

RGB Q57 PCH-D0

Monitor

PCIe 2.0 x16 Graphics slot

DisplayPort

Monitor

Analog

Digital

Intel Processor

PCIe

I/F

FDI

PCIe 2.0 x4 slot (x16 conn.)

HD Graphics

Controller

Technical Reference Guide www.hp.com 6-3

Integrated Graphics Subsystem

The total memory allocation is determined by the amount of system memory installed in a

system, along with the BIOS settings, operating system, and system load. Table 6-1 shows the

pre-allocation memory amounts.

System memory that has been pre-allocated is not seen by the operating system, which will

report the total amount of memory installed less the amount of pre-allocated memory.

Systems running Windows Vista or Windows 7 use Protected Audio Video Path (PAVP) to

ensure smooth playback of high-definition video by off-loading video decoding from the

processor to the integrated graphics controller. BIOS can allocate addtional memory for PAVP,

which can be set through RBSU to run in Lite mode (default) or in Heavy mode. Table 6-2 shows

the PAVP memory usage for Windows Vista and Windows 7.

NOTES:

Dedicated Video Memory (memory owned and locked for graphics use and reported by the OS):

PAVP Lite setting = 32 MB

PAVP Heavy setting = 122 MB

System Video Memory (memory locked and dedicated for gtraphics use):

PAVP Lite setting = 96 MB

PAVP Heavy setting = 6 MB

[1] Total amount of memory available for graphics as reported by the OS.

[2] Shared System Memory (memory dynamically allocated for graphics use).

Table 6-1.

Integrated Graphics Controller

Memory Allocation with Windows XP

System Memory Installed Pre-allocated DVMT

0.5 GB 32 MB 128 MB

1.0 G B 32 M B 512 M B

1.5 GB 32 MB 768 MB

> 2GB 32 MB 1024 MB

Table 6-2.

Integrated Graphics Controller

Memory Allocation with Windows Vista or Windows 7

System Memory

Installed

PAVP

Setting

Available

System

Memory

Total

Available

Graphics Memory [1]

Shared

System

Memory [2]

1 GB Lite 952 MB 252 MB 124 MB

Heavy 856 MB 294 MB 166 MB

2 GB Lite 1976 MB 764 MB 636 MB

Heavy 1880 MB 806 MB 678 MB

4 GB Lite 4024 MB 1759 MB 1631 MB

Heavy 3928 MB 1759 MB 1631 MB

6 GB Lite 6072 MB 1759 MB 1631 MB

Heavy 5976 MB 1759 MB 1631 MB

8 G B L i t e 812 0 M B 1759 MB 1631 M B

Heavy 8024 MB 1759 MB 1631 MB

6-4 www.hp.com Technical Reference Guide

Integrated Graphics Subsystem

The integrated graphics controller will use, in standard VGA/SVGA modes, pre-allocated

memory as a true dedicated frame buffer. If the system boots with the OS loading the Extreme

Graphics drivers, the pre-allocated memory will then be re-claimed by the drivers and may or

may not be used in the “extended” graphic modes. However, it is important to note that

pre-allocated memory is available only to the integrated graphics controller, not to the OS.

The DVMT function is an enhancement over the Unified Memory Architecture (UMA) of earlier

systems. The DVMT of the Q57 selects, during the boot process, the maximum graphics memory

allocation possible according on the amount of system memory installed:

The actual amount of system memory used in the “extended” or “extreme” modes will increase

and decrease dynamically according to the needs of the application. The amount of memory used

solely for graphics (video) may be reported in a message on the screen, depending on the

operating system and/or applications running on the machine.

For viewing the maximum amount of available frame buffer memory MS Windows go to the

Control Panel and select the Display icon, then > Settings > Advanced > Adapter.

The Microsoft Direct Diagnostic tool included in most versions of Windows may be used to

check the amount of video memory being used. The Display tab of the utility the “Approx. Total

Memory” label will indicate the amount of video memory. The value will vary according to OS.

✎Some applications, particularly games that require advanced 3D hardware acceleration, may not

install or run correctly on systems using the integrated graphics controller.

Table 6-3 listed the relostions supported by the integrated graphic controller. Other resolutions

may be possible have not been tested or qualified by HP.

NOTES:

Other resolutions may be possible but have not been tested or qualified by HP.

[1] Only supported when using a DisplayPort connection.

Table 6-3.

Integrated Graphics Controller

Supported Resolutions

Resolution

Maximum Refresh Rate

Analog Digital

640 x 480 85 60

800 x 600 85 60

1024 x 768 85 60

128 0 x 72 0 85 6 0

128 0 x 1024 85 6 0

14 40 x 9 0 0 75 6 0

160 0 x 12 0 0 85 60

168 0 x 1050 75 6 0

1920 x 1080 85 60-R

1920 x 1200 85 60-R

1920 x 1440 85 n/ a

2048 x 1536 75 n/a

2560 x 1600 n/a 60 [1]

Technical Reference Guide www.hp.com 6-5

Integrated Graphics Subsystem

6.3 Upgrading

These systems provide direct, dual-monitor support; a VGA montor and a DisplayPort monitor

can be connected and driven simultaneously. These systems also include a PCIe x16 graphics

connector that specifically supports a PCIe x16 graphics card and a PCIe x16 connector that

provides PCIe x4 operation for an x4 or x16 PCIe card.

The upgrade procedure is as follows:

1. Shut down the system through the operating system.

2. Unplug the power cord from the rear of the system unit.

3. Remove the chassis cover.

4. Install the graphics card into the PCIe x16 graphics slot or the PCIe x4/x16 slot.

5. Replace the chassis cover.

6. Reconnect the power cord to the system unit.

7. Power up the system unit:

✎If a PCIe graphics controller card is installed in the PCIe x16 graphics slot, the BIOS will detect

the presence of the PCIe card and disable the integrated graphics controller of the processor. In

this configuration, the integrated graphics controller cannot be enabled.

If a PCIe graphics controller card is installed in the PCIe x4 /x16 slot, the integrated graphics

controller of the processor will be disabled by default, but can be re-enabled through the BIOS

settings to allow an alternate method of multi-monitor operation. Press the F10 key during the

boot process to enter the ROM-based Setup utility and re-enable the GMA for multi-monitor

operation. A PCIe x16 card installed in the PCIe x4/x16 slot will be limited to x4 operation.

✎Two PCIe graphics can be installed simultaneously to provide an alternate method for

multi-monitor support. In this configuration, the integrated graphics controller (if present) will be

disabled.

6-6 www.hp.com Technical Reference Guide

Integrated Graphics Subsystem

6.4 Monitor Connectors

All form factors provide an analog VGA connector and a DisplayPort connector, and can drive

both types of monitors simultaneously.

6.4.1 Analog Monitor Connector

All form factors include a legacyVGA connector (Figure 6-2) for attaching an analog video

monitor:

Figure 6-2. DB-15 Analog VGA Monitor Connector, (as viewed from rear of chassis).

NOTE:

[1] Fuse automatically resets when excessive load is removed.

Table 6-4.

DB-15 Monitor Connector Pinout

Pin Signal Description Pin Signal Description

1 R Red Analog 9 PWR +5 VDC (fused) [1]

2 G Blue Analog 10 GND Ground

3 B Green Analog 11 NC Not Connected

4 NC Not Connected 12 SDA DDC Data

5 GND Ground 13 HSync Horizontal Sync

6 R GND Red Analog Ground 14 VSync Vertical Sync

7 G GND Blue Analog Ground 15 SCL DDC Clock

8 B GND Green Analog Ground -- -- --

Technical Reference Guide www.hp.com 6-7

Integrated Graphics Subsystem

6.4.2 DisplayPort Connector

All systems include a DisplayPort connector (Figure 6-3) for attaching a digital monitor. This

interface also supports the use of an optional adapter/dongle for converting the DisplayPort

output to a DVI, HDMI, or analog VGA output.

Figure 6-3. DisplayPort Connector, (as viewed from rear of chassis).

Table 6-5.

DB-15 Monitor Connector Pinout

Pin Signal Pin Signal

1 ML Lane (p) 0 11 Ground

2 Ground 12 ML Lane (n) 3

3 ML Lane (n) 0 13 Ground

4 ML Lane (p) 1 14 Ground

5Ground 15AUX Ch (p)

6 ML Lane (n) 1 16 Ground

7 ML Lane (p) 2 17 AUX Ch (n)

8 Ground 18 Hot Plug Detect

9 ML Lane (n) 2 19 DP Power Return

10 ML Lane (p) 3 20 DP Power

6-8 www.hp.com Technical Reference Guide

Integrated Graphics Subsystem

Technical Reference Guide www.hp.com 7-1

7

Power and Signal Distribution

7.1 Introduction

This chapter describes the power supplies and discusses the methods of general power and signal

distribution. Topics covered in this chapter include:

■Power distribution (7.2)

■Power Control (7.3)

■Signal distribution (7.4)

7.2 Powe r Dis tr ib u tion

These systems use a common power source power supply unit contained within the system

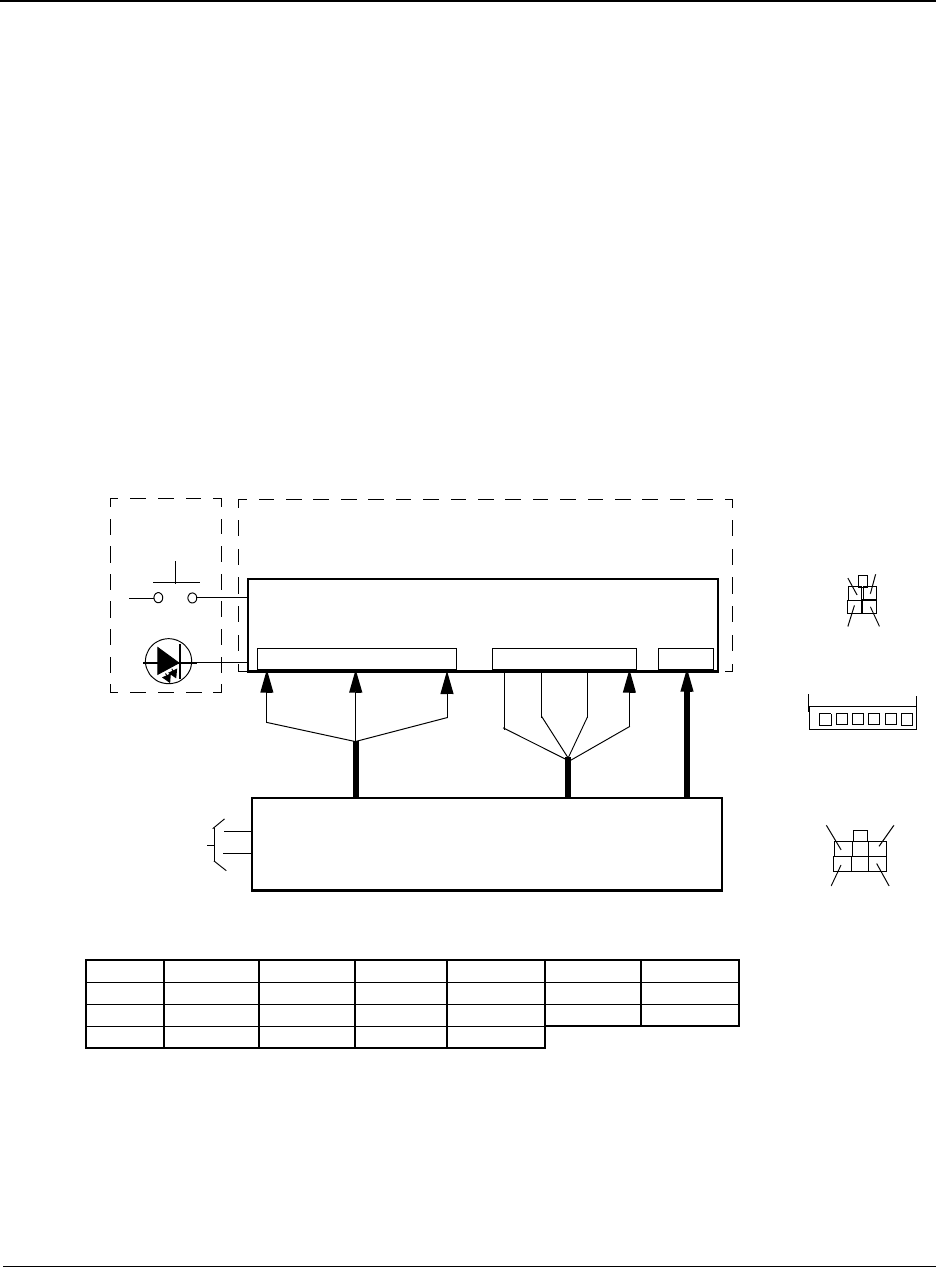

chassis. Figure 7-1 shows the block diagram for power generation.

NOTES:

Connectors not shown to scale.

All + and – values are VDC.

RTN = Return (signal ground)

Figure 7-1. Power Distribution and Cabling, Block Diagram

Conn Pin 1 Pin 2 Pin 3 Pin 4 Pin 5 Pin 6

P1 RTN RTN –12 V + 12 V m a i n + 12 V m a i n + 12 V s b

P2 FANcmd Fan Speed PS On Pwr Good RTN RTN

P3 RTN RTN +12 Vcpu +12 Vcpu

System Board

Power On

Power Control Logic, DC/DC Converter

Front Bezel

& Voltage Regulators

Fan

PS +12 Vcpu

Power Button

Spd

+12 Vmain +12 Vsb

90 - 264 VAC

NOTE: Return (RTN or ground) not shown.

-12 V

P1

On Pwr

Good

P2 P3

P3

12

34

1

2

3

4

P2

56

P1 6

13

4

Fan

Cmd

Power Supply Unit

7-2 www.hp.com Technical Reference Guide

Power and Signal Distribution

Table 7-1 lists the specifications of the 240-watt power supply used in the SFF unit.

NOTES:

Total continuous power should not exceed 240 watts. Total surge power (<10 seconds w/duty cycle < 5 %) should not exceed

265 watts.

[1] The minimum current loading figures apply to a PS On start up only.

[2] Maximum surge duration for +12Vcpu is 1 second with 12-volt tolerance +/- 10%.

Table 7-2 lists the specifications for the 320-watt power supply used in the CMT form factor.

NOTES:

Total continuous output power should not exceed 320 watts.

[1] Minimum loading requirements must be met at all times to ensure normal operation and specification compliance.

[2] Maximum surge duration for +12Vcpu is 1 second with 12-volt tolerance +/- 10%.

Table 7-1.

SFF 240-Watt Power Supply Unit Specifications

AC Range or

DC Regulation

Min.

Current

Loading [1]

Max.

Current

Surge

Current [2]

Max.

Ripple

Input voltage:

115 V A C

230 VAC

90–140 VAC

180 – 26 4 VAC

-- -- -- --

Line Frequency 47–63 Hz -- -- -- --

Input (AC) Current Requirement

(100 VAC rms @ 60 Hz)

-- -- 4 A rms -- --

Output voltage (VDC):

+12 Vmain

+12 Vcpu

+12 Vsb (aux)

–12 V

11. 6 2 t o 12 . 5 7

11. 6 2 t o 12 . 5 7

11. 0 6 t o 11. 74

–10.8 to –13.2

0.5 A

1 A

0.1 A

0 A

14 A

12 A

1.3 A

0.15 A

16 A

16 A

1.5 A

0.5 A

12 0 m V

12 0 m V

12 0 m V

12 0 m V

Table 7-2.

CMT 320-Watt Power Supply Unit Specifications

AC Range or

DC Regulation

Min.

Current

Loading [1]

Max.

Current

Surge

Current [2]

Max.

Ripple

Input voltage:

115 V A C

230 VAC

90–140 VAC

180 – 26 4 VAC

-- -- -- --

Line Frequency 47–63 Hz -- -- -- --

Input (AC) Current Requirement

(100 VAC rms @ 60 Hz)

-- -- 5.5 A rms -- --

Output voltage (VDC):

+12 Vmain

+12 Vcpu

+12 Vsb (aux)

–12 V

11. 6 2 t o 12 . 5 7

11. 6 2 t o 12 . 5 7

11. 0 6 t o 11. 74

–10.8 to –13.2

0.5 A

1 A

0.1 A

0 A

16 A

14 A

1.3 A

0.15 A

18 A

18 A

1.5 A

0.5 A

12 0 m V

12 0 m V

12 0 m V

12 0 m V

Technical Reference Guide www.hp.com 7-3

Power and Signal Distribution

The +12Vsb (auxilary) voltage is always produced by the power supply unit as long as the

system is connected to a live AC source. When the PS On signal is asserted, the power supply

unit produces the +12 Vmain, +12 Vcpu, and -12 V outputs.

The standard 240-watt and 320-watt power suppies have a 70% minimum efficiency rating at

100% of the rated load, measured while operating from 100 VAC @60 Hz and 230 VAC @ 50

Hz.

The optional high-efficiency 240-watt and 320-watt power supplies operate at the following

efficiencies while operating from 100 VAC @60 Hz and 230 VAC @ 50 Hz :

100% of rated load: 85% efficient

50% of rated load: 89% efficient

20% of rated load: 87% efficient

7.3 Power Con trol

System power is controlled through the power button and though external events.

7.3.1 Power But ton

Pressing and releasing the power button applies a negative (grounding) pulse to the power

control logic on the system board. The resultant action of pressing the power button depends on

the state and mode of the system at that time and is described as follows:

Table 7-3.

Power Button Actions

System State Pressed Power Button Results In:

Off Negative pulse, of which the falling edge results in power control logic

asserting PS On signal to Power Supply Assembly, which then initializes. ACPI

four-second counter is not active.

On, ACPI Disabled Negative pulse, of which the falling edge causes power control logic to

de-assert the PS On signal. ACPI four-second counter is not active.

On, ACPI Enabled Pressed and Released Under Four Seconds:

Negative pulse, of which the falling edge causes power control logic to

generate SMI-, set a bit in the SMI source register, set a bit for button status,

and start four-second counter. Software should clear the button status bit within

four seconds and the Suspend state is entered. If the status bit is not cleared by

software in four seconds PS On is de-asserted and the power supply assembly

shuts down (this operation is meant as a guard if the OS is hung).

Pressed and Held At least Four Seconds Before Release:

If the button is held in for at least four seconds and then released, PS On is

negated, de-activating the power supply.

7-4 www.hp.com Technical Reference Guide

Power and Signal Distribution

A dual-color LED located on the front panel (bezel) is used to indicate system power status. The

front panel (bezel) power LED provides a visual indication of key system conditions listed as

follows:

NOTE:

[1] Will be accompanied by the same number of beeps, with 2-second pause between cycles.

Beeps stop after 5 cycles.

Table 7-4.

Power LED Indications

Power LED Condition

Steady green Normal full-on operation

Blinks green @ 0.5 Hz Suspend state (S1) or suspend to RAM (S3)

Blinks red 2 times @ 1 Hz [1] Processor thermal shut down. Check air flow, fan

operation, and CPU heat sink.

Blinks red 3 times @ 1 Hz [1] Processor not installed. Install or reseat CPU.

Blinks red 4 times @ 1 Hz [1] Power failure (power supply is overloaded). Check storage

devices, expansion cards and/or system board (CPU

power connector P3).

Blinks red 5 times @ 1 Hz [1] Pre-video memory error. Incompatible or incorrectly seated

DIMM.

Blinks red 6 times @ 1 Hz [1] Pre-video graphics error. On system with integrated

graphics, check/replace system board. On system with

graphics card, check/replace graphics card.

Blinks red 7 times @ 1 Hz [1] PCA failure. Check/replace system board.

Blinks red 8 times @ 1 Hz [1] Invalid ROM (checksum error). Reflash ROM using CD or

replace system board.

Blinks red 9 times @ 1 Hz [1] System powers on but fails to boot. Check power supply,

CPU, system board.

Blinks red 10 times @ 1 Hz [1] Bad option card.

No light System dead. Press and hold power button for less than 4

seconds. If HD LED turns green then check voltage select

switch setting or expansion cards. If no LED light then check

power button/power supply cables to system board or

system board.

Technical Reference Guide www.hp.com 7-5

Power and Signal Distribution

7.3. 2 Wake U p Events

The system can be activated with a power “wake-up” of the system due to the occurrence of a

magic packet, serial port ring, or PCI power management event (PME). These events can be

individually enabled through the Setup utility to wake up the system from a sleep (low power)

state.

✎Wake-up functionality requires that certain circuits receive auxiliary power while the system is

turned off. The system unit must be plugged into a live AC outlet for wake up events to function.

Using an AC power strip to control system unit power will disable wake-up event functionality.

The wake up sequence for each event occurs as follows:

Wake-On-LAN

The network interface controller (NIC) can be configured for detection of a “Magic Packet” and

wake the system up from sleep mode through the assertion of the PME- signal on the PCI bus.

Refer to Chapter 5, “Network Support” for more information.

Modem Ring

A ring condition on a serial port can be detected by the power control logic and, if so configured,

cause the power control logic to wake up the system.

Power Management Event

A power management event that asserts the PME- signal on the PCI bus can be enabled to cause

the power control logic to wake up the system. Note that the PCI card must be PCI ver. 2.2 (or

later) compliant to support this function.

7.4 Powe r Ma n age men t

These systems include power management functions that conserve energy by turning off or

inhibiting power to various subsystems and components. These functions are provided by a

combination of hardware, firmware (BIOS) and software. These systems provide the following

power management support:

■ACPI v2.0 compliant (ACPI modes C1, S1, and S3-S5)

■APM 1.2 compliant

■U.S. EPA Energy Star 3.0 and 4.0 compliant

Table 7-5 shows the comparison in power states.

7-6 www.hp.com Technical Reference Guide

Power and Signal Distribution

NOTES:

Gn = Global state.

Sn = Sleep state.

Cn = ACPI state.

Dn = PCI state.

[1] Power cord is disconnected for this condition.

[2] Actual transition time dependent on OS and/or application software.

Table 7-5.

System Power States

Power

State System Condition Power

Consumption

Transition

To S0 by [2]

OS Restart

Required

G0, S0, C0, D0 System fully on. OS and

application is running, all

components.

Maximum N/A No

G1, S1, C1, D1 System on, CPU is executing and

data is held in memory. Some

peripheral subsystems may be on

low power. Monitor is blanked.

Low < 2 sec after

keyboard or

pointing device

action

No

G1, S2/3, C2,

D2 (Standby/or

suspend)

System on, CPU not executing,

cache data lost. Memory is

holding data, display and I/O

subsystems on low power.

Low < 5 sec. after

keyboard, pointing

device, or power

button action

No

S4, D3

(Hibernation)

System off. CPU, memory, and

most subsystems shut down.

Memory image saved to disk for

recall on power up.

Low <25 sec. after

power button

action

Yes

G2, S5, D3cold System off. All components either

completely shut down or receiving

minimum power to perform system

wake-up. PCI and PCIe 3.3V slot

power (for wake-up events) can be

selectively disabled in BIOS

configuration.

Minimum <35 sec. after

power button

action

Yes

G3 System off (mechanical). No power

to any internal components except

RTC circuit. [1]

None — —

Technical Reference Guide www.hp.com 7-7

Power and Signal Distribution

7.5 Signal Distribution

Table 7-6 lists the reference designators for LEDs, connectors, indicators, and switches used on

the system boards for systems covered in this guide. Unless otherwise indicated, components are

present on all system boards.

Table 7-6.

System Board Connector, Indicator, and Switch Designations

Designator Component function Notes

CR1 +5 VDC LED

E1 Descriptor table override header

E14 SPI ROM boot block header

E49 / JP49 Password clear header / jumper

J9 Stacked RJ-45 & dual USB connectors

J10 Stacked quad USB connectors

J20 PCI 2.3 connector

J21 PCI 2.3 connector CMT only

J22 PCI 2.3 connector CMT only

J31 PCIe x1 connector

J32 PCIe x1 connector

J41 PCIe x16 graphics connector

J42 PCIe x4 graphics (x16) connector

J50 Parallel port

J68 Stacked keyboard, mouse PS/2 connectors

J69 VGA monitor DB-15 connector

J78 Stacked audio line-in, headphone/line-out 1/8” jacks

P1 Power supply header

P2 Power supply header

P3 Power supply header

P5 Control panel (power button, power LED) header

P6 Internal speaker header

P8 CPU fan header

P9 Chassis fan, primary, header

P23 Front panel audio header

P24 Front panel USB header

P52 Serial port, secondary, header

P53 Serial port, primary connector

P54 Serial port, primary header SFF only

P60 SATA0 (controller 1, primary master) connector (dark blue)

P61 SATA1 (controller 1, secondary master) connector (white)

P62 SATA2 (controller 1, primary slave) connector (light blue)

P63 SATA3 (controller 1, secondary slave) connector (orange) CMT only

P64 SATA4 / eSATA (controller 2, primary master) connector (black)

P124 Hood lock header

P125 Hood sense header

P126 Parallel port header

P150 Internal USB header

P151 Internal USB header

P160 SATA power

7-8 www.hp.com Technical Reference Guide

Power and Signal Distribution

Figure 7-2 shows pinouts of headers used on the sytem boards.

NOTE:

No polarity consideration required for connection to speaker header P6.

NC = Not connected

Figure 7-2. System Board Header Pinouts

P161 SATA power

SW50 Clear CMOS switch

XMM1 Memory slot (black)

XMM2 Memory slot (white)

XMM3 Memory slot (white)

XMM4 Memory slot (white)

XU1 Processor socket

XBT1 Battery socket

Table 7-6. (Continued)

System Board Connector, Indicator, and Switch Designations

UART1 RX DATA 3

UART1 TX DATA 5

UART1 DTR 7

GND 9

4 UART1 RTS-

8 UART1 RI-

6 UART1 CTS-

10 Comm A Detect-

Serial Port A

Header P54

UART1 DCD- 1 2 UART1 DSR-

UART2 DTR- 1

UART2 CTS- 3

UART2 TX DATA 5

GND 7

+5.0V 9

2 UART2 RX DATA

4 UART2 DSR-

8 GND

6 UART2 RI-

10 +3.3V aux

UART2 RTS- 11

UART2 DCD- 13

12 Comm B Detect

+12V 15

14 -12V

Serial Port B

Header P52

Hood Lock 1

GND 5

2 Coil Conn

4 +12V

6 Hood Unlock

Hood Lock

Header P124

1 Hood SW Detect

2 GND

3 Hood Sensor

Hood Sense

Header P125

HD LED + 1

HD LED - 3

GND5

2 PS LED +

4 PS LED -

8 GND

Pwr Btn 7

GND 11

Therm Diode A 13

12 NC

Chassis ID0 9

14 Therm Diode C

Power Button/LED, HD LED

Header P5 (SFF)

10 Chassis ID1

HD LED Cathode 1

HD LED Anode 3

GND5

M Reset 7

+5 VDC 9

2 PS LED Cathode

4 PS LED Anode

8 GND

6 Pwr Btn

10 NC

NC 11

GND 13

12 GND

Chassis ID2 15 16 +5 VDC

Power Button/LED, HD LED

Header P5 (CMT)

18 Chassis ID1Chassis ID0 17

Mic In Right (Sleeve) 3

HP Out Right 5

Sense Send 7

HP Out Left 9

4 Front Audio Detect#

6 Sense_1 Return

10 Sense_2 Return

Front Panel Audio

Header P23

Mic In Left (Tip) 1 2 Analog GND

Technical Reference Guide www.hp.com 8-1

8

System BIOS

8.1 Introduction

The Basic Input/Output System (BIOS) of the computer is a collection of machine language

programs stored as firmware in read-only memory (ROM). The system BIOS includes such

functions as Power-On Self Test (POST), PCI device initialization, Plug 'n Play support, power

management activities, and the Setup utility. The firmware contained in the system BIOS ROM

supports the following operating systems and specifications:

■Windows XP (Home and Professional versions)

■Windows Vista Business 32-/64-Bit

■Windows Vista Enterprise 32-/64-bit

■Windows Vista Home Basic 32-/64-Bit

■Windows Vista Home Premium 32-/64-Bit

■Windows Vista Ultimate 32-/64-Bit

■Windows 7 32-Bit Enterprise/Home Basic/Home Premium/Professional/Ultimate

■Windows 7 64-Bit Enterprise/Home Basic/Home Premium/Professional/Ultimate

■SCO Unix

■DMI 2.1

■Intel Wired for Management (WfM) ver. 2.2

■Alert Standard Format (ASF) 2.0

■ACPI and OnNow

■SMBIOS 2.5

■Intel PXE boot ROM for the integrated LAN controller

■BIOS Boot Specification 1.01

■Enhanced Disk Drive Specification 3.0

■“El Torito” Bootable CD-ROM Format Specification 1.0

■ATAPI Removeable Media Device BIOS Specification 1.0

■Serial ATA Advanced Host Controller Interface (AHCI) 1.2

■ATA with Packet Interface (ATA/ATAPI-7)

The BIOS firmware is contained in a 32 Mb flash ROM part. The runtime portion of the BIOS

resides in a 128KB block from E0000h to FFFFFh.

8-2 www.hp.com Technical Reference Guide

System BIOS

8.2 ROM Flashing

The system BIOS firmware is contained in a flash ROM device that can be re-written with new

BIOS code using a flash utility locally (with F10 setup), with the HPQFlash program in a

Windows environment, or with the FLASHBIN.EXE utility in a DOS or DOS-like environment.

8.2.1 Upgrading

Upgrading the BIOS is not normally required but may be necessary if changes are made to the

unit's operating system, hard drive, or processor. All System BIOS upgrades are available

directly from HP. Flashing is done either locally through F10 setup, the HPQFlash program in a

Windows environment, or with the FLASHBIN.EXE utility in a DOS or DOS-like environment.

Flashing may also be done by deploying either HPQFlash or FLASHBIN.EXE through the

network boot function. This system includes 64 KB of write-protected boot block ROM that

provides a way to recover from a failed flashing of the system BIOS ROM. If the system BIOS

ROM fails the flash check, the boot block code provides the minimum amount of support

necessary to allow booting the system and re-flashing the system BIOS ROM with a CD or USB

disk/thumb drive.

8.2.2 Changeable Splash Screen

✎A corrupted splash screen may be restored by reflashing the BIOS image through F10 setup,

running HPQFlash, or running FLASHBIN.EXE. Depending on the system, changing

(customizing) the splash screen may only be available with asistance from HP.

The splash screen (image displayed during POST) is stored in the system BIOS ROM and may

be replaced with another image of choice by using the Image Flash utility (Flashi.exe). The

Image Flash utility allows the user to browse directories for image searching and pre-viewing.

Background and foreground colors can be chosen from the selected image's palette.

The splash screen image requirements are as follows:

■Format = Windows bitmap with 4-bit RLE encoding

■Size = 424 (width) x 320 (height) pixels

■Colors = 16 (4 bits per pixel)

■File Size = < 64 KB

The Image Flash utility can be invoked at a command line for quickly flashing a known image as

follows:

>\Flashi.exe [Image_Filename] [Background_Color] [Foreground_Color]

The utility checks to insure that the specified image meets the splash screen requirements listed

above or it will not be loaded into the ROM.

Technical Reference Guide www.hp.com 8-3

System BIOS

8.3 Boot Functions

The BIOS supports various functions related to the boot process, including those that occur

during the Power On Self-Test (POST) routine.

8.3.1 Boot Device Order

The default boot device order is as follows:

1. CD-ROM drive (EL Torito CD images)

2. Diskette drive (A:)

3. USB device

4. Hard drive (C:)

5. Network interface controller (NIC)

✎The above order assumes all devices are present in the initial configuration. If, for example, a

diskette drive is not initially installed but added later, then drive A would be added to the end of

the order (after the NIC).

The order can be changed in the ROM-based Setup utility (accessed by pressing F10 when so

prompted during POST). The options are displayed only if the device is attached, except for USB

devices. The USB option is displayed even if no USB storage devices are present. The hot IPL

option is available through the F9 utility, which allows the user to select a hot IPL boot device.

8.3.2 Network Boot (F12) Support

The BIOS supports booting the system to a network server. The function is accessed by pressing

the F12 key when prompted at the lower right hand corner of the display during POST. Booting

to a network server allows for such functions as:

■Flashing a ROM on a system without a functional operating system (OS).

■Installing an OS.

■Installing an application.

These systems include, as standard, an integrated Intel 82562-equivalent NIC with Preboot

Execution Environment (PXE) ROM and can boot with a NetPC-compliant server.

8.3.3 Memory Detection and Configuration

This system uses the Serial Presence Detect (SPD) method of determining the installed DIMM

configuration. The BIOS communicates with an EEPROM on each DIMM through the SMBus

to obtain data on the following DIMM parameters:

■Presence

■Size

■Type

■Timing/CAS latency

✎Refer to Chapter 3, “Processor/Memory Subsystem” for the SPD format and DIMM data specific

to this system.

8-4 www.hp.com Technical Reference Guide

System BIOS

The BIOS performs memory detection and configuration with the following steps:

1. Program the buffer strength control registers based on SPD data and the DIMM slots that are

populated.

2. Determine the common CAS latency that can be supported by the DIMMs.

3. Determine the memory size for each DIMM and program the GMCH accordingly.

4. Enable refresh.

8.3.4 Boot Error Codes

The BIOS provides visual and audible indications of a failed system boot by using the system’s

power LED and the system board speaker. The error conditions are listed in the following table.

NOTE: Audible indications occur only for the five cycles of the error indication. Visual indications

occur indefinitely until power is removed or until error is corrected.

Table 8-1

Boot Error Codes

Visual (power LED) Audible (speaker) Meaning

Blinks red 2 times @ 1 Hz 2 beeps Processor thermal shut down. Check air flow, fan

operation, and CPU heat sink.

Blinks red 3 times @ 1 Hz 3 beeps Processor not installed. Install or reseat CPU.

Blinks red 4 times @ 1 Hz None Power failure (power supply is overloaded). Check

storage devices, expansion cards and/or system

board (CPU power connector P3).

Blinks red 5 times @ 1 Hz 5 beeps Pre-video memory error. Incompatible or

incorrectly seated DIMM.

Blinks red 6 times @ 1 Hz 6 beeps Pre-video graphics error. On system with

integrated graphics, check/replace system board.

On system with graphics card, check/replace

graphics card.

Blinks red 7 times @ 1 Hz 7 beeps PCA failure. Check/replace system board.

Blinks red 8 times @ 1 Hz 8 beeps Invalid ROM (checksum error). Reflash ROM using

CD or replace system board.

Blinks red 9 times @ 1 Hz 9 beeps System powers on but fails to boot. Check power

supply, CPU, system board.

Blinks red 10 times @ 1 Hz 10 beeps Bad option card.

Technical Reference Guide www.hp.com 8-5

System BIOS

8.4 Client Management Functions

Table 8-2 provides a partial list of the client management BIOS functions supported by the

systems covered in this guide. These functions, designed to support intelligent manageability

applications, are HP-specific unless otherwise indicated.

NOTE:

[1] Industry standard function.

All 32-bit protected-mode functions are accessed by using the industry-standard BIOS32 Service

Directory. Using the service directory involves three steps:

1. Locating the service directory.

2. Using the service directory to obtain the entry point for the client management functions.

3. Calling the client management service to perform the desired function.

The BIOS32 Service Directory is a 16-byte block that begins on a 16-byte boundary between the

physical address range of 0E0000h-0FFFFFh.

The following subsections provide a brief description of key Client Management functions.

Table 8-2.

Client Management Functions (INT15)

AX Function Mode

E800h Get system ID Real, 16-, & 32-bit Prot.

E813h Get monitor data Real, 16-, & 32-bit Prot.

E814h Get system revision Real, 16-, & 32-bit Prot.

E816h Get temperature status Real, 16-, & 32-bit Prot.

E819h Get chassis serial number Real, 16-, & 32-bit Prot.

E820h [1] Get system memory map Real

E81Ah Write chassis serial number Real

E827h DIMM EEPROM Access Real, 16-, & 32-bit Prot.

8-6 www.hp.com Technical Reference Guide

System BIOS

8.4.1 System ID and ROM Type

Diagnostic applications can use the INT 15, AX=E800h BIOS function to identify the type of

system. This function will return the system ID in the BX register. Systems have the following

IDs and ROM family types:

NOTE: For all systems, BIOS ROM Family = 786G7, PnP ID = CPQ????, and Subsystem vendor ID = ????h.

The ROM family and version numbers can be verified with the Setup utility or the System Insight

Manager or Diagnostics applications.

8.4.2 Temperature Status

The BIOS includes a function (INT15, AX=E816h) to retrieve the status of a system's interior

temperature. This function allows an application to check whether the temperature situation is at

a Normal, Caution, or Critical condition.

Table 8-3

System ID Numbers

System (Form Factor) System ID

SFF 304Ah

CMT 304Bh

Technical Reference Guide www.hp.com 8-7

System BIOS

8.5 SMBIOS

In support of the DMI specification, PnP functions 50h and 51h are used to retrieve the SMBIOS

data. Function 50h retrieves the number of structures, size of the largest structure, and SMBIOS

version. Function 51h retrieves a specific structure. This system supports SMBIOS version 2.5

and the structure types listed in the following table:

✎System information on these systems is handled exclusively through the SMBIOS.

Table 8-3

SMBIOS Functions

Type Data

0 BIOS Information

1System Information

2 Base board information

3 System Enclosure or Chassis

4 Processor Information

7Cache Information

8 Port Connector Information

9System Slots

13 BIOS Language Information

15 System Event Log Information

16 Physical Memory Array

17 Memory Devices

19 Memory Array Mapped Addresses

20 Memory Device Mapped Addresses

24 Cooling Device Structure

27 Hardware Security Structure

31 Boot Integrity Service Entry Point

32 System Boot Information

8-8 www.hp.com Technical Reference Guide

System BIOS

8.6 USB Legacy Support

The system BIOS ROM checks the USB port, during POST, for the presence of a USB keyboard.

This allows a system with only a USB keyboard to be used during ROM-based setup and also on

a system with an OS that does not include a USB driver.

On such a system a keystroke will generate an SMI and the SMI handler will retrieve the data

from the device and convert it to PS/2 data. The data will be passed to the keyboard controller

and processed as in the PS/2 interface. Changing the delay and/or typematic rate of a USB

keyboard though BIOS function INT 16 is not supported.

8.7 Management Engine Functions

The management engine function of Intel AMT allows a system unit to be managed remotely

over a network, where or not the system is powered up or not1. The system BIOS can request the

management engine to generate the following alerts:

■Temperature alert

■Fan failure alert

■Chassis intrusion alert

■Watchdog timer alert

■No memory installed alert

1.Assumes the unit is connected to an active AC outlet.

Technical Reference Guide www.hp.com A-1

A

Error Messages and Codes

A.1 Introduction

This appendix lists the error codes and a brief description of the probable cause of the error.

✎Errors listed in this appendix are applicable only for systems running HP/Compaq BIOS.

Not all errors listed in this appendix may be applicable to a particular system model and/or

configuration.

A.2 Beep/Power LED Codes

✎Beep and Power LED indictions listed in Table A-1 apply only to HP-branded models.

NOTE: Audible indications occur only for the first five cycles of the error indication. Visual

indications occur indefinitely until power is removed or until error is corrected.

Table A-1.

Beep/Power LED Codes

Beeps Power LED Probable Cause

2 beeps Blinks red 2 times @ 1 Hz Processor thermal shut down. Check air flow, fan operation,

and CPU heatsink

3 beeps Blinks red 3 times @ 1 Hz Processor not installed. Install or reseat CPU.

4 beeps Blinks red 4 times @ 1 Hz Power failure (power supply is overloaded). Check storage

devices, expansion cards and/or system board (CPU power

connector P3).

5 beeps Blinks red 5 times @ 1 Hz Pre-video memory error. Incompatible or incorrectly seated

DIMM.

6 beeps Blinks red 6 times @ 1 Hz Pre-video graphics error. On system with integrated graphics,

check/replace system board. On system with graphics card,

check/replace graphics card.

7 beeps Blinks red 7 times @ 1 Hz PCA failure. Check/replace system board.

8 beeps Blinks red 8 times @ 1 Hz Invalid ROM (checksum error). Reflash ROM using CD or

replace system board.

9 beeps Blinks red 9 times @ 1 Hz System powers on but fails to boot. Check power supply, CPU,

system board.

10 beeps Blinks red 10 times @ 1 Hz Bad option card.

A-2 www.hp.com Technical Reference Guide

Error Messages and Codes

A.3 Power-On Self Test (POST) Messages

Table A-2.

Power-On Self Test (POST) Messages

Error Message Probable Cause

Invalid Electronic Serial Number Chassis serial number is corrupt. Use Setup to enter a valid number.

Network Server Mode Active (w/o

kybd)

System is in network mode.

101-Option ROM Checksum Error A device’s option ROM has failed/is bad.

110-Out of Memory Space for

Option ROMs

Recently added PCI card contains and option ROM too large to

download during POST.

102-system Board Failure Failed ESCD write, A20, timer, or DMA controller.

150-Safe POST Active An option ROM failed to execute on a previous boot.

162-System Options Not Set Invalid checksum, RTC lost power, or invalid configuration.

163-Time & Date Not Set Date and time information in CMOS is not valid.

164-Memory Size Error Memory has been added or removed.

201-Memory Error Memory test failed.

213-Incompatible Memory Module BIOS detected installed DIMM(s) as being not compatible.

214-DIMM Configuration Warning A specific error has occurred in a memory device installed in the

identified socket.

216-Memory Size Exceeds Max Installed memory exceeds the maximum supported by the system.

217-DIMM Configuration Warning Unbalanced memory configuration.

219-ECC Memory Module

Detected ECC Modules not

supported on this platform

Recently added memory module(s) support ECC memory error

correction.

301-Keyboard Error Keyboard interface test failed (improper connection or stuck key).

303-Keyboard Controller Error Keyboard buffer failed empty (8042 failure or stuck key).

304-Keyboard/System Unit Error Keyboard controller failed self-test.

404-Parallel Port Address Conflict Current parallel port address is conflicting with another device.

417-Network Interface Card Failure NIC BIOS could not read Device ID of embedded NIC.

501-Display Adapter Failure Graphics display controller.

510-Splash Image Corrupt Corrupted splash screen image. Restore default image w/flash utility.

511-CPU Fan Not Detected Processor heat sink fan is not connected.

512-Chassis Fan Not Detected Chassis fan is not connected.

Technical Reference Guide www.hp.com A-3

Error Messages and Codes

514-CPU or Chassis Fan not

detected.

CPU fan is not connected or may have malfunctioned.

601-Diskette Controller Error Diskette drive removed since previous boot.

605-Diskette Drive Type Error Mismatch in drive type.

912-Computer Cover Removed

Since Last System Start Up

Cover (hood) removal has been detected by the Smart Cover Sensor.

914-Hood Lock Coil is not

Connected

Smart Cover Lock mechanism is missing or not connected.

916-Power Button Not Connected Power button harness has been detached or unseated from the system

board.

919-Front Panel, MultiPort, and/or

MultiBay Risers not Detected

Riser card has been removed or has not been reinstalled properly in

the system.

1156-Serial Port A Cable Not

Detected

Cable from serial port header to I/O connector is missing or not

connected properly.

1157-Front Cables Not Detected Cable from front panel USB and audio connectors is missing or not

connected properly.

172 0 -S M ART H ard D rive D e t ec t s

Imminent Failure

SMART circuitry on an IDE drive has detected possible equipment

failure.

1721-SMART SCSI Hard Drive

Detects Imminent Failure

SMART circuitry on a SCSI drive has detected possible equipment

failure.

1785-MultiBay incorrectly installed For integrated MultiBay/ USDT systems:

MultiBay device not properly seated.

or

MultiBay riser not properly seated.

1794--Inaccessible device attached

to SATA 1

(for systems with 2 SATA ports)

A device is attached to SATA 1. Any device attached to this connector

will be inaccessible while “SATA Emulation” is set to “Combined IDE

Controller” in Computer Setup.

1794-Inaccessible devices attached

to SATA 1 and/or SATA 5 (for

systems with 4 SATA ports)

A device is attached to SATA 1 and/or SATA 5.

Devices attached to these connectors will be inaccessible while “SATA

Emulation” is set to “Combined IDE Controller” in Computer Setup

1796-SATA Cabling Error One or more SATA devices are improperly attached. For optimal

performance, the SATA 0 and SATA 1 connectors must be used before

SATA 2 and SATA 3.

1801-Microcode Patch Error A processor is installed for which the BIOS ROM has no patch.

Check for ROM update.

Table A-2. (Continued)

Power-On Self Test (POST) Messages

Error Message Probable Cause

A-4 www.hp.com Technical Reference Guide

Error Messages and Codes

Invalid Electronic Serial

Number

Electronic serial number has become corrupted.

Network Server Mode Active

and No Keyboard Attached

Keyboard failure while Network Server Mode enabled.

Parity Check 2 Keyboard failure while Network Server Mode enabled.

Table A-2. (Continued)

Power-On Self Test (POST) Messages

Error Message Probable Cause

Technical Reference Guide www.hp.com A-5

Error Messages and Codes

A.4 System Error Messages (1xx-xx)

NOTES:

[1] 102 message code may be caused by one of a variety of processor-related problems that may be solved by replacing the

processor, although system board replacement may be needed.

Table A-3.

System Error Messages

Message Probable Cause Message Probable Cause

101 Option ROM error 109-02 CMOS clock rollover test failed

102 System board failure [1] 109-03 CMOS not properly initialized (clk test)

103 System board failure 110-01 Programmable timer load data test failed

104-01 Master int. cntlr. test failed 110-02 Programmable timer dynamic test failed

104-02 Slave int. cntlr. test failed 110-03 Program timer 2 load data test failed

104-03 Int. cntlr. SW RTC inoperative 111-01 Refresh detect test failed

105-01 Port 61 bit <6> not at zero 112-01 Speed test Slow mode out of range

105-02 Port 61 bit <5> not at zero 112-02 Speed test Mixed mode out of range

105-03 Port 61 bit <3> not at zero 112-03 Speed test Fast mode out of range

105-04 Port 61 bit <1> not at zero 112-04 Speed test unable to enter Slow mode

105-05 Port 61 bit <0> not at zero 112-05 Speed test unable to enter Mixed mode

105-06 Port 61 bit <5> not at one 112-06 Speed test unable to enter Fast mode

105-07 Port 61 bit <3> not at one 112-07 Speed test system error

105-08 Port 61 bit <1> not at one 112-08 Unable to enter Auto mode in speed test

105-09 Port 61 bit <0> not at one 112-09 Unable to enter High mode in speed test

105-10 Port 61 I/O test failed 112-10 Speed test High mode out of range

105-11 Port 61 bit <7> not at zero 112-11 Speed test Auto mode out of range

105-12 Port 61 bit <2> not at zero 112-12 Speed test variable speed mode inop.

105-13 No int. generated by failsafe timer 113-01 Protected mode test failed

105-14 NMI not triggered by timer 114-01 Speaker test failed

106-01 Keyboard controller test failed 116-xx Way 0 read/write test failed

107-01 CMOS RAM test failed 162-xx Options failed (mismatch in drive type)

108-02 CMOS interrupt test failed 163-xx Time and date not set

108-03 CMOS not properly initialized 164-xx Memory size

109-01 CMOS clock load data test failed 199-00 Installed devices test failed

A-6 www.hp.com Technical Reference Guide

Error Messages and Codes

A.5 Memory Error Messages (2xx-xx)

Table A-4.

Memory Error Messages

Message Probable Cause

200-04 Real memory size changed

200-05 Extended memory size changed

200-06 Invalid memory configuration

200-07 Extended memory size changed

200-08 CLIM memory size changed

201-01 Memory machine ID test failed

202-01 Memory system ROM checksum failed

202-02 Failed RAM/ROM map test

202-03 Failed RAM/ROM protect test

203-01 Memory read/write test failed

203-02 Error while saving block in read/write test

203-03 Error while restoring block in read/write test

204-01 Memory address test failed

204-02 Error while saving block in address test

204-03 Error while restoring block in address test

204-04 A20 address test failed

204-05 Page hit address test failed

205-01 Walking I/O test failed

205-02 Error while saving block in walking I/O test

205-03 Error while restoring block in walking I/O test

206-xx Increment pattern test failed

207-xx ECC failure

210-01 Memory increment pattern test

210-02 Error while saving memory during increment pattern test

210-03 Error while restoring memory during increment pattern test

211-01 Memory random pattern test

Technical Reference Guide www.hp.com A-7

Error Messages and Codes

A.6 Keyboard Error Messages (30x-xx)

211-02 Error while saving memory during random memory pattern test

211-03 Error while restoring memory during random memory pattern test

213-xx Incompatible DIMM in slot x

214-xx Noise test failed

215-xx Random address test

Table A-4. (Continued)

Memory Error Messages

Message Probable Cause

Table A-5.

Keyboard Error Messages

Message Probable Cause Message Probable Cause

300-xx Failed ID test 303-05 LED test, LED command test failed

301-01 Kybd short test, 8042 self-test

failed

303-06 LED test, LED command test failed

301-02 Kybd short test, interface test

failed

303-07 LED test, LED command test failed

301-03 Kybd short test, echo test failed 303-08 LED test, command byte restore test failed

301-04 Kybd short test, kybd reset failed 303-09 LED test, LEDs failed to light

301-05 Kybd short test, kybd reset failed 304-01 Keyboard repeat key test failed

302-xx Failed individual key test 304-02 Unable to enter mode 3

302-01 Kybd long test failed 304-03 Incorrect scan code from keyboard

303-01 LED test, 8042 self-test failed 304-04 No Make code observed

303-02 LED test, reset test failed 304-05 Cannot /disable repeat key feature

303-03 LED test, reset failed 304-06 Unable to return to Normal mode

303-04 LED test, LED command test failed -- --

A-8 www.hp.com Technical Reference Guide

Error Messages and Codes

A.7 Printer Error Messages (4xx-xx)

A.8 Video (Graphics) Error Messages (5xx-xx)

See Table A-14 for additional video (graphics) messages.

Table A-6

Printer Error Messages

Message Probable Cause Message Probable Cause

401-01 Printer failed or not connected 402-11 Interrupt test, data/cntrl. reg. failed

402-01 Printer data register failed 402-12 Interrupt test and loopback test failed

402-02 Printer control register failed 402-13 Int. test, LpBk. test., and data register failed

402-03 Data and control registers failed 402-14 Int. test, LpBk. test., and cntrl. register failed

402-04 Loopback test failed 402-15 Int. test, LpBk. test., and data/cntrl. reg.

failed

402-05 Loopback test and data reg.

failed

402-16 Unexpected interrupt received

402-06 Loopback test and cntrl. reg.

failed

402-01 Printer pattern test failed

402-07 Loopback tst, data/cntrl. reg.

failed

403-xx Printer pattern test failed

402-08 Interrupt test failed 404-xx Parallel port address conflict

402-09 Interrupt test and data reg. failed 498-00 Printer failed or not connected

402-10 Interrupt test and control reg.

failed

-- --

Table A-7.

Video (Graphics) Error Messages

Message Probable Cause Message Probable Cause

501-01 Video controller test failed 508-01 320x200 mode, color set 0 test failed

502-01 Video memory test failed 509-01 320x200 mode, color set 1 test failed

503-01 Video attribute test failed 510-01 640x200 mode test failed

504-01 Video character set test failed 511-01 Screen memory page test failed

505-01 80x25 mode, 9x14 cell test

failed

512-01 Gray scale test failed

506-01 80x25 mode, 8x8 cell test failed 514-01 White screen test failed

507-01 40x25 mode test failed 516-01 Noise pattern test failed

Technical Reference Guide www.hp.com A-9

Error Messages and Codes

A.9 Diskette Drive Error Messages (6xx-xx)

600-xx = Diskette drive ID test 609-xx = Diskette drive reset controller test

601-xx = Diskette drive format 610-xx = Diskette drive change line test

602-xx = Diskette read test 611-xx = Pri. diskette drive port addr. conflict

603-xx = Diskette drive R/W compare test 612-xx = Sec. diskette drive port addr. conflict

604-xx = Diskette drive random seek test 694-00 = Pin 34 not cut on 360-KB drive

605-xx = Diskette drive ID media 697-00 = Diskette type error

606-xx = Diskette drive speed test 698-00 = Drive speed not within limits

607-xx = Diskette drive wrap test 699-00 = Drive/media ID error (run Setup)

608-xx = Diskette drive write-protect test

Table A-8.

Diskette Drive Error Messages

Message Probable Cause Message Probable Cause

6xx-01 Exceeded maximum soft error limit 6xx-20 Failed to get drive type

6xx-02 Exceeded maximum hard error

limit

6xx-21 Failed to get change line status

6xx-03 Previously exceeded max soft limit 6xx-22 Failed to clear change line status

6xx-04 Previously exceeded max hard limit 6xx-23 Failed to set drive type in ID media

6xx-05 Failed to reset controller 6xx-24 Failed to read diskette media

6xx-06 Fatal error while reading 6xx-25 Failed to verify diskette media

6xx-07 Fatal error while writing 6xx-26 Failed to read media in speed test

6xx-08 Failed compare of R/W buffers 6xx-27 Failed speed limits

6xx-09 Failed to format a tract 6xx-28 Failed write-protect test

6xx-10 Failed sector wrap test -- --

A-10 www.hp.com Technical Reference Guide

Error Messages and Codes

A.10 Serial Interface Error Messages (11xx-xx)

Table A-9.

Serial Interface Error Messages

Message Probable Cause Message Probable Cause

1101-01 UART DLAB bit failure 1101-13 UART cntrl. signal interrupt failure

1101-02 Line input or UART fault 1101-14 DRVR/RCVR data failure

1101-03 Address line fault 1109-01 Clock register initialization failure

1101-04 Data line fault 1109-02 Clock register rollover failure

1101-05 UART cntrl. signal failure 1109-03 Clock reset failure

1101-06 UART THRE bit failure 1109-04 Input line or clock failure

1101-07 UART Data RDY bit failure 1109-05 Address line fault

1101-08 UART TX/RX buffer failure 1109-06 Data line fault

1101-09 Interrupt circuit failure 1150-xx Comm port setup error (run Setup)

1101-10 COM1 set to invalid INT 1151-xx COM1 address conflict

11 0 1 -11 COM2 set to invalid INT 1152-xx COM2 address conflict

1101-12 DRVR/RCVR cntrl. signal failure 1155-xx COM port address conflict

Technical Reference Guide www.hp.com A-11

Error Messages and Codes

A.11 Modem Communications Error Messages (12xx-xx)

Table A-10.

Modem Communications Error Messages

Message Probable Cause Message Probable Cause

1201-XX Modem internal loopback test 1204-03 Data block retry limit reached [4]

1201-01 UART DLAB bit failure 1204-04 RX exceeded carrier lost limit

1201-02 Line input or UART failure 1204-05 TX exceeded carrier lost limit

1201-03 Address line failure 1204-06 Time-out waiting for dial tone

1201-04 Data line fault 1204-07 Dial number string too long

1201-05 UART control signal failure 1204-08 Modem time-out waiting for remote

response

1201-06 UART THRE bit failure 1204-09 Modem exceeded maximum redial limit

1201-07 UART DATA READY bit failure 1204-10 Line quality prevented remote response

1201-08 UART TX/RX buffer failure 1204-11 Modem time-out waiting for remote

connection

1201-09 Interrupt circuit failure 1205-XX Modem auto answer test

1201-10 COM1 set to invalid inturrupt 1205-01 Time-out waiting for SYNC [5]

1201-11 COM2 set to invalid 1205-02 Time-out waiting for response [5]

1201-12 DRVR/RCVR control signal failure 1205-03 Data block retry limit reached [5]

1201-13 UART control signal interrupt

failure

1205-04 RX exceeded carrier lost limit

1201-14 DRVR/RCVR data failure 1205-05 TX exceeded carrier lost limit

1201-15 Modem detection failure 1205-06 Time-out waiting for dial tone

1201-16 Modem ROM, checksum failure 1205-07 Dial number string too long

1201-17 Tone detect failure 1205-08 Modem time-out waiting for remote

response

1202-XX Modem internal test 1205-09 Modem exceeded maximum redial limit

1202-01 Time-out waiting for SYNC [1] 1205-10 Line quality prevented remote response

1202-02 Time-out waiting for response [1] 1205-11 Modem time-out waiting for remote

connection

1202-03 Data block retry limit reached [1] 1206-XX Dial multi-frequency tone test

12 02-11 Time-out waiting for SYNC [2] 1206-17 Tone detection failure

1202-12 Time-out waiting for response [2] 1210-XX Modem direct connect test

A-12 www.hp.com Technical Reference Guide

Error Messages and Codes

NOTES:

[1] Local loopback mode [4] Modem auto originate test

[2] Analog loopback originate mode [5] Modem auto answer test

[3] Analog loopback answer mode [6] Modem direct connect test

A.12 System Status Error Messages (16xx-xx)

1202-13 Data block retry limit reached [2] 1210-01 Time-out waiting for SYNC [6]

1202-21 Time-out waiting for SYNC [3] 1210-02 Time-out waiting for response [6]

1202-22 Time-out waiting for response [3] 1210-03 Data block retry limit reached [6]

1202-23 Data block retry limit reached [3] 1210-04 RX exceeded carrier lost limit

1203-XX Modem external termination test 1210-05 TX exceeded carrier lost limit

12 0 3 - 01 M o d e m e x t e rn a l T I P /R I N G

failure

1210-06 Time-out waiting for dial tone

1203-02 Modem external data TIP/RING

fail

1210-07 Dial number string too long

1203-03 Modem line termination failure 1210-08 Modem time-out waiting for remote

response

1204-XX Modem auto originate test 1210-09 Modem exceeded maximum redial limit

1204-01 Time-out waiting for SYNC [4] 1210-10 Line quality prevented remote response

1204-02 Time-out waiting for response [4] 1210-11 Modem time-out waiting for remote

connection

Table A-10. (Continued)

Modem Communications Error Messages

Message Probable Cause Message Probable Cause

Table A-11

System Status Error Messages

Message Probable Cause

1601-x x Te m p erat u re vi o l a t io n

1611-x x Fa n fa i lu re

Technical Reference Guide www.hp.com A-13

Error Messages and Codes

A.13 Hard Drive Error Messages (17xx-xx)

Table A-12

Hard Drive Error Messages

Message Probable Cause Message Probable Cause

17xx-01 Exceeded max. soft error limit 17xx-51 Failed I/O read test

17xx-02 Exceeded max. Hard error limit 17xx-52 Failed file I/O compare test

17xx-03 Previously exceeded max. soft error

limit

17xx-53 Failed drive/head register test

17xx-04 Previously exceeded max.hard error

limit

17xx-54 Failed digital input register test

17xx-05 Failed to reset controller 17xx-55 Cylinder 1 error

17xx-06 Fatal error while reading 17xx-56 Failed controller RAM diagnostics

17xx-07 Fatal error while writing 17xx-57 Failed controller-to-drive diagnostics

17xx-08 Failed compare of R/W buffers 17xx-58 Failed to write sector buffer

17xx-09 Failed to format a track 17xx-59 Failed to read sector buffer

17xx-10 Failed diskette sector wrap during

read

17xx-60 Failed uncorrectable ECC error

17xx-19 Cntlr. failed to deallocate bad sectors 17xx-62 Failed correctable ECC error

17xx-40 Cylinder 0 error 17xx-63 Failed soft error rate

17xx-41 Drive not ready 17xx-65 Exceeded max. bad sectors per track

17xx-42 Failed to recalibrate drive 17xx-66 Failed to initialize drive parameter

17xx-43 Failed to format a bad track 17xx-67 Failed to write long

17xx-44 Failed controller diagnostics 17xx-68 Failed to read long

17xx-45 Failed to get drive parameters from

ROM

17xx-69 Failed to read drive size

17xx-46 Invalid drive parameters from ROM 17xx-70 Failed translate mode

17xx-47 Failed to park heads 17xx-71 Failed non-translate mode

17xx-48 Failed to move hard drive table to

RAM

17xx-72 Bad track limit exceeded

17xx-49 Failed to read media in file write test 17xx-73 Previously exceeded bad track limit

17xx-50 Failed I/O write test -- --

A-14 www.hp.com Technical Reference Guide

Error Messages and Codes

NOTE:

xx = 00, Hard drive ID test xx = 19, Hard drive power mode test

xx = 01, Hard drive format test xx = 20, SMART drive detects imminent failure

xx = 02, Hard drive read test xx = 21, SCSI hard drive imminent failure

xx = 03, Hard drive read/write compare test xx = 24, Network preparation test

xx = 04, Hard drive random seek test xx = 36, Drive monitoring test

xx = 05, Hard drive controller test xx = 71, Pri. IDE controller address conflict

xx = 06, Hard drive ready test xx = 72, Sec. IDE controller address conflict

xx = 07, Hard drive recalibrate test xx = 80, Disk 0 failure

xx = 08, Hard drive format bad track test xx = 81, Disk 1 failure

xx = 09, Hard drive reset controller test xx = 82, Pri. IDE controller failure

xx = 10, Hard drive park head test xx = 90, Disk 0 failure

xx = 14, Hard drive file write test xx = 91, Disk 1 failure

xx = 15, Hard drive head select test xx = 92, Sec. controller failure

xx = 16, Hard drive conditional format test xx = 93, Sec. Controller or disk failure

xx = 17, Hard drive ECC test xx = 99, Invalid hard drive type

Technical Reference Guide www.hp.com A-15

Error Messages and Codes

A.14 Hard Drive Error Messages (19xx-xx)

1900-xx = Tape ID test failed 1904-xx = Tape BOT/EOT test failed

1901-xx = Ta p e se r vo wri t e f a i led 1905 -x x = Tap e rea d t e s t fa ile d

1902-xx = Tape format failed 1906-xx = Tape R/W compare test failed

1903-xx = Tape drive sensor test failed 1907-xx = Tape write-protect failed

Table A-13

Hard Drive Error Messages

Message Probable Cause Message Probable Cause

19xx-01 Drive not installed 19xx-21 Got servo pulses second time but not first

19xx-02 Cartridge not installed 19xx-22 Never got to EOT after servo check

19xx-03 Tape motion error 19xx-23 Change line unset

19xx-04 Drive busy error 19xx-24 Write-protect error

19xx-05 Track seek error 19xx-25 Unable to erase cartridge

19xx-06 Tape write-protect error 19xx-26 Cannot identify drive

19xx-07 Tape already Servo Written 19xx-27 Drive not compatible with controller

19xx-08 Unable to Servo Write 19xx-28 Format gap error

19xx-09 Unable to format 19xx-30 Exception bit not set

19xx-10 Format mode error 19xx-31 Unexpected drive status

19xx-11 Drive recalibration error 19xx-32 Device fault

19xx-12 Tape not Servo Written 19xx-33 Illegal command

19xx-13 Tape not formatted 19xx-34 No data detected

19xx-14 Drive time-out error 19xx-35 Power-on reset occurred

19xx-15 Sensor error flag 19xx-36 Failed to set FLEX format mode

19xx-16 Block locate (block ID) error 19xx-37 Failed to reset FLEX format mode

19xx-17 Soft error limit exceeded 19xx-38 Data mismatch on directory track

19xx-18 Hard error limit exceeded 19xx-39 Data mismatch on track 0

19xx-19 Write (probably ID ) error 19xx-40 Failed self-test

19xx-20 NEC fatal error 19xx-91 Power lost during test

A-16 www.hp.com Technical Reference Guide

Error Messages and Codes

A.15 Video (Graphics) Error Messages (24xx-xx)

A.16 Audio Error Messages (3206-xx)

Table A-14

Video (Graphics) Error Messages

Message Probable Cause Message Probable Cause

2402-01 Video memory test failed 2418-02 EGA shadow RAM test failed

2403-01 Video attribute test failed 2419-01 EGA ROM checksum test failed

2404-01 Video character set test failed 2420-01 EGA attribute test failed

2405-01 80x25 mode, 9x14 cell test failed 2421-01 640x200 mode test failed

2406-01 80x25 mode, 8x8 cell test failed 2422-01 640x350 16-color set test failed

2407-01 40x25 mode test failed 2423-01 640x350 64-color set test failed

2408-01 320x200 mode color set 0 test failed 2424-01 EGA Mono. text mode test failed

2409-01 320x200 mode color set 1 test failed 2425-01 EGA Mono. graphics mode test failed

2410-01 640x200 mode test failed 2431-01 640x480 graphics mode test failed

2411-01 Screen memory page test failed 2432-01 320x200 256-color set test failed

2412-01 Gray scale test failed 2448-01 Advanced VGA controller test failed

2414-01 White screen test failed 2451-01 132-column AVGA test failed

2416-01 Noise pattern test failed 2456-01 AVGA 256-color test failed

2417-01 Lightpen text test failed, no response 2458-xx AVGA BitBLT test failed

2417-02 Lightpen text test failed, invalid

response

2468-xx AVGA DAC test failed

2417-03 Lightpen graphics test failed, no resp. 2477-xx AVGA data path test failed

2417-04 Lightpen graphics tst failed, invalid

resp.

2478-xx AVGA BitBLT test failed

2418-01 EGA memory test failed 2480-xx AVGA linedraw test failed

Table A-15

Audio Error Messages

Message Probable Cause

3206-xx Audio subsystem internal error

Technical Reference Guide www.hp.com A-17

Error Messages and Codes

A.17 DVD/CD-ROM Error Messages (33xx-xx)

A.18 Network Interface Error Messages (60xx-xx)

Table A-16

DVD/CD-ROM Error Messages

Message Probable Cause

3301-xx Drive test failed

3305-xx Seek test failed

Table A-17

Network Interface Error Messages

Message Probable Cause Message Probable Cause

6000-xx Pointing device interface error 6054-xx Token ring configuration test failed

6014-xx Ethernet configuration test failed 6056-xx Token ring reset test failed

6016-xx Ethernet reset test failed 6068-xx Token ring int. loopback test failed

6028-xx Ethernet int. loopback test failed 6069-xx Token ring ext. loopback test failed

6029-xx Ethernet ext. loopback test failed 6089-xx Token ring open

A-18 www.hp.com Technical Reference Guide

Error Messages and Codes

A.19 SCSI Interface Error Messages (65xx-xx, 66xx-xx,

67xx-xx)

n = 5, Hard drive

= 6, CD-ROM drive

= 7, Tape drive

yy = 00, ID

= 03, Power check

= 05, Read

= 06, SA/Media

= 08, Controller

= 23, Random read

= 28, Media load/unload

Table A-18

SCSI Interface Error Messages

Message Probable Cause Message Probable Cause

6nyy-02 Drive not installed 6nyy-33 Illegal controller command

6nyy-03 Media not installed 6nyy-34 Invalid SCSI bus phase

6nyy-05 Seek failure 6nyy-35 Invalid SCSI bus phase

6nyy-06 Drive timed out 6nyy-36 Invalid SCSI bus phase

6nyy-07 Drive busy 6nyy-39 Error status from drive

6nyy-08 Drive already reserved 6nyy-40 Drive timed out

6nyy-09 Reserved 6nyy-41 SSI bus stayed busy

6nyy-10 Reserved 6nyy-42 ACK/REQ lines bad

6nyy-11 Media soft error 6nyy-43 ACK did not deassert

6nyy-12 Drive not ready 6nyy-44 Parity error

6nyy-13 Media error 6nyy-50 Data pins bad

6nyy-14 Drive hardware error 6nyy-51 Data line 7 bad

6nyy-15 Illegal drive command 6nyy-52 MSG, C/D, or I/O lines bad

6nyy-16 Media was changed 6nyy-53 BSY never went busy

6nyy-17 Tape write-protected 6nyy-54 BSY stayed busy

6nyy-18 No data detected 6nyy-60 Controller CONFIG-1 register fault

6nyy-21 Drive command aborted 6nyy-61 Controller CONFIG-2 register fault

6nyy-24 Media hard error 6nyy-65 Media not unloaded

6nyy-25 Reserved 6nyy-90 Fan failure

6nyy-30 Controller timed out 6nyy-91 Over temperature condition

6nyy-31 Unrecoverable error 6nyy-92 Side panel not installed

6nyy-32 Controller/drive not connected 6nyy-99 Autoloader reported tape not loaded properly

Technical Reference Guide www.hp.com A-19

Error Messages and Codes

A.20 Pointing Device Interface Error Messages

(8601-xx)

Table A-19

Pointing Device Interface Error Messages

Message Probable Cause Message Probable Cause

8601-01 Mouse ID fails 8601-07 Right block not selected

8601-02 Left mouse button is inoperative 8601-08 Timeout occurred

8601-03 Left mouse button is stuck closed 8601-09 Mouse loopback test failed

8601-04 Right mouse button is inoperative 8601-10 Pointing device is inoperative

8601-05 Right mouse button is stuck closed 8602-xx I/F test failed

8601-06 Left block not selected -- --

A-20 www.hp.com Technical Reference Guide

Error Messages and Codes
