Updates to the Documentation

Disabling Wake on LAN in the OFF State

In order to obtain the lowest power consumption available on your computer

while it is in the OFF state (S5), you must disable the "S5 Wake on LAN" feature

in the BIOS settings. Disabling "S5 Wake on LAN" will not affect the ability of

your computer to Wake on LAN from suspend or hibernation, but will prevent it

from waking from the OFF state (S5) via the network. This will also not affect

the operation of your network connection while the computer is powered on.

If a network connection is not required, you may change the BIOS settings to

hide the network controller (NIC) from the operating system. This reduces the

amount of power consumed by the computer while it is running or in the OFF

state. By default, the computer ships with the "S5 Wake on LAN" feature enabled

and the network controller available (not hidden).

To change these settings, access Computer (F10) Setup according to the

instructions in the Computer Setup (F10) Utilities guide on the Documentation

Library CD.

To disable the Wake-on-LAN feature during S5, use the arrow (left and right)

keys to select the Advanced > Device Options menu and set the S5 Wake

On Lan feature to "Disable." This places the network controller in a very low

power state while your computer is off.

To completely disable the network controller, use the arrow (left and right) keys

to select the Security > Device Security menu and set the Network

Controller option to "Device Hidden." This prevents the network controller from

being used by the operating system and places it in a very low power state.

Using the HP Compaq Business Desktop

d530 Small Form Factor Computer in a

Minitower Configuration

The HP Compaq Business Desktop d530 Small Form Factor computer can be

used in either a minitower or desktop configuration. To use it in the minitower

configuration, you must purchase a tower stand from HP (part number

316593-001).

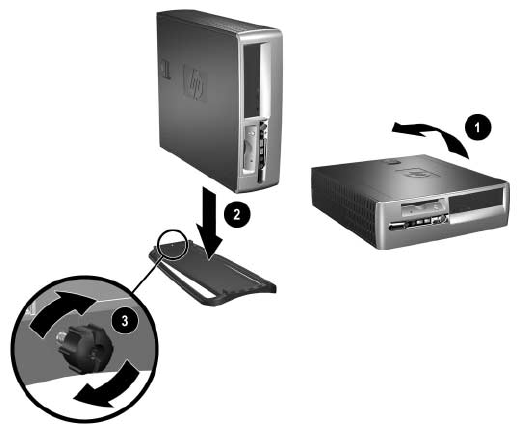

To install the tower stand:

1. Align the hole at the base of the computer with the post and thumbscrew in

the stand 12.

2. Tighten the screw to secure the computer to the stand 3. This adds stability

and helps to ensure proper airflow to the internal components.
