Hardware Reference Guide - dc5700 Small
Form Factor Model
HP Compaq Business PC
© Copyright 2006 Hewlett-Packard
Development Company, L.P. The
information contained herein is subject to
change without notice.
Microsoft and Windows are trademarks of
Microsoft Corporation in the U.S. and other
countries.
The only warranties for HP products and
services are set forth in the express warranty
statements accompanying such products
and services. Nothing herein should be
construed as constituting an additional
warranty. HP shall not be liable for technical
or editorial errors or omissions contained
herein.
This document contains proprietary
information that is protected by copyright. No
part of this document may be photocopied,
reproduced, or translated to another
language without the prior written consent of
Hewlett-Packard Company.
Hardware Reference Guide
HP Compaq Business PC
dc5700 Small Form Factor Model
First Edition (October 2006)
Document Part Number: 433186-001
About This Book
This guide provides basic information for upgrading this computer model.
WARNING! Text set off in this manner indicates that failure to follow directions could result in
bodily harm or loss of life.
CAUTION Text set off in this manner indicates that failure to follow directions could result in
damage to equipment or loss of information.
NOTE Text set off in this manner provides important supplemental information.
ENWW iii
iv About This Book ENWW
Table of contents
1 Product Features
Standard Configuration Features ......................................................................................................... 1
Front Panel Components ..................................................................................................................... 2
Rear Panel Components ...................................................................................................................... 3
Keyboard .............................................................................................................................................. 4
Using the Windows Logo Key .............................................................................................. 5
Special Mouse Functions ..................................................................................................................... 6
Serial Number Location ........................................................................................................................ 6
2 Hardware Upgrades
Serviceability Features ......................................................................................................................... 7
Warnings and Cautions ........................................................................................................................ 7
Using the Small Form Factor Computer in a Tower Orientation .......................................................... 8

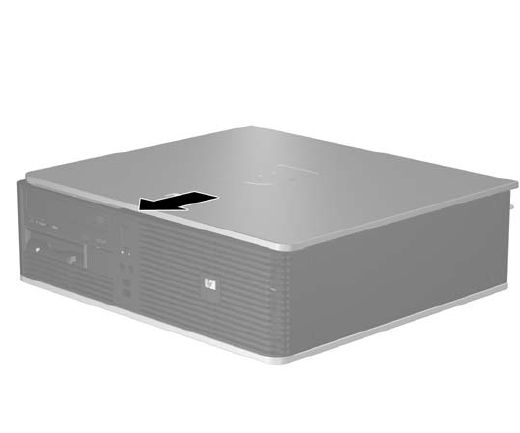

Removing the Computer Access Panel .............................................................................................. 10
Replacing the Computer Access Panel .............................................................................................. 11

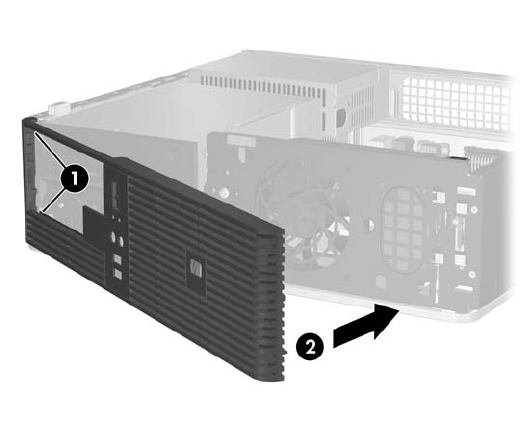

Removing the Front Bezel .................................................................................................................. 12
Removing Bezel Blanks ..................................................................................................................... 13
Replacing the Front Bezel .................................................................................................................. 14
Installing Additional Memory .............................................................................................................. 15
DIMMs ............................................................................................................................... 15
DDR2-SDRAM DIMMs ...................................................................................................... 15

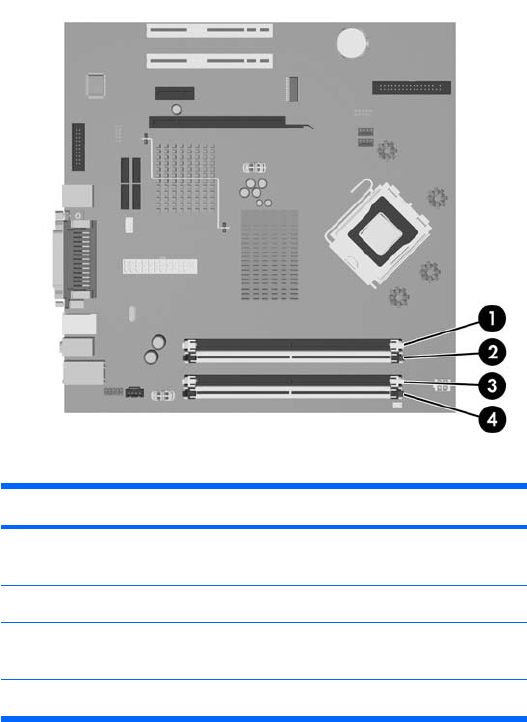

Populating DIMM Sockets ................................................................................................. 16
Installing DIMMs ................................................................................................................ 17

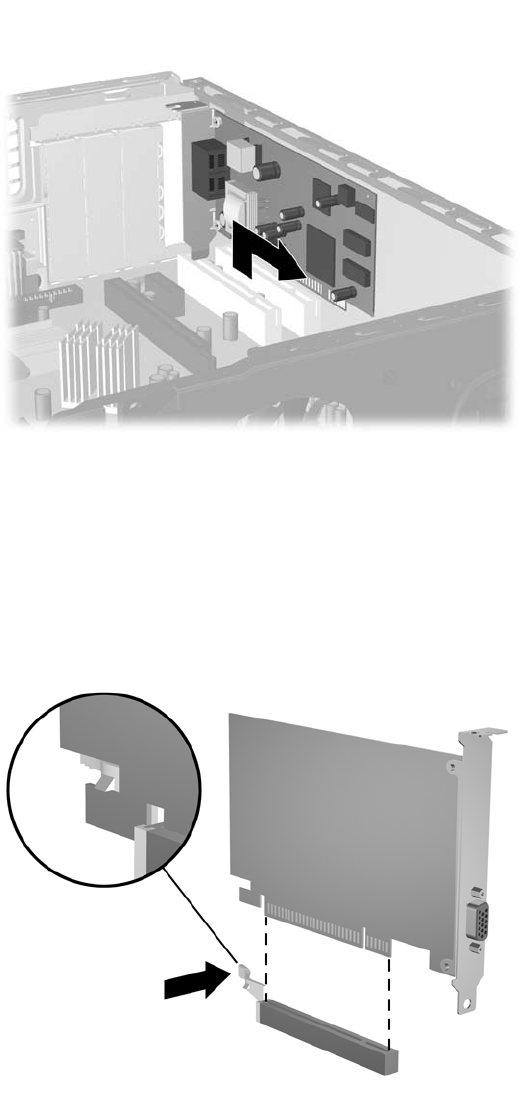

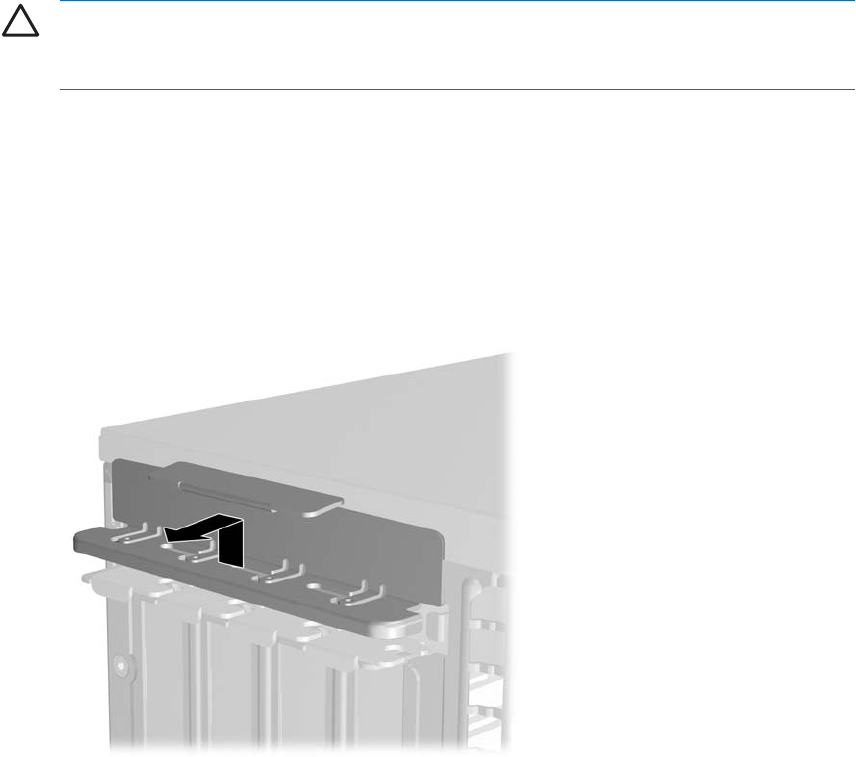

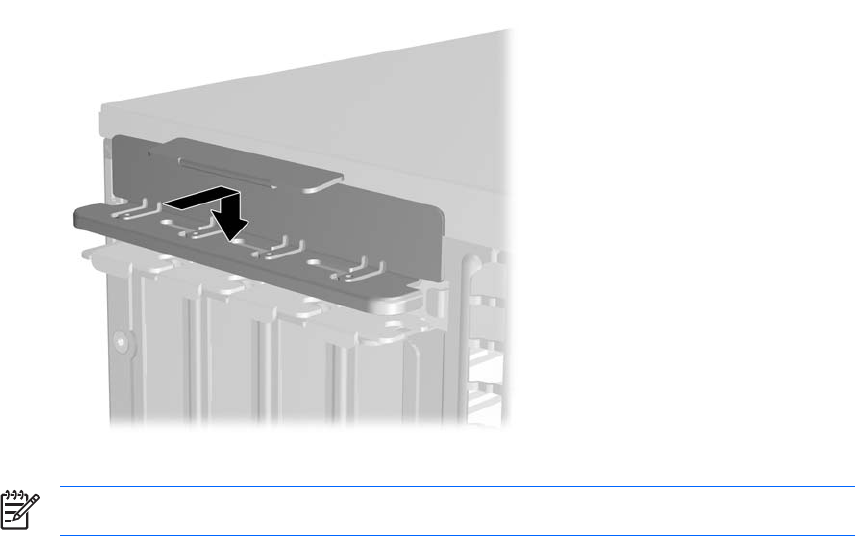

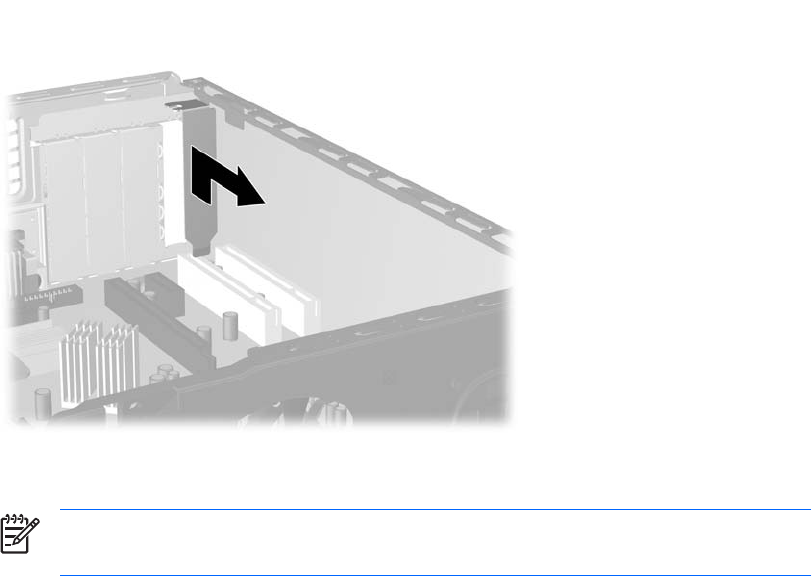

Removing or Installing an Expansion Card ........................................................................................ 20
Drive Positions ................................................................................................................................... 26
Installing and Removing Drives .......................................................................................................... 27

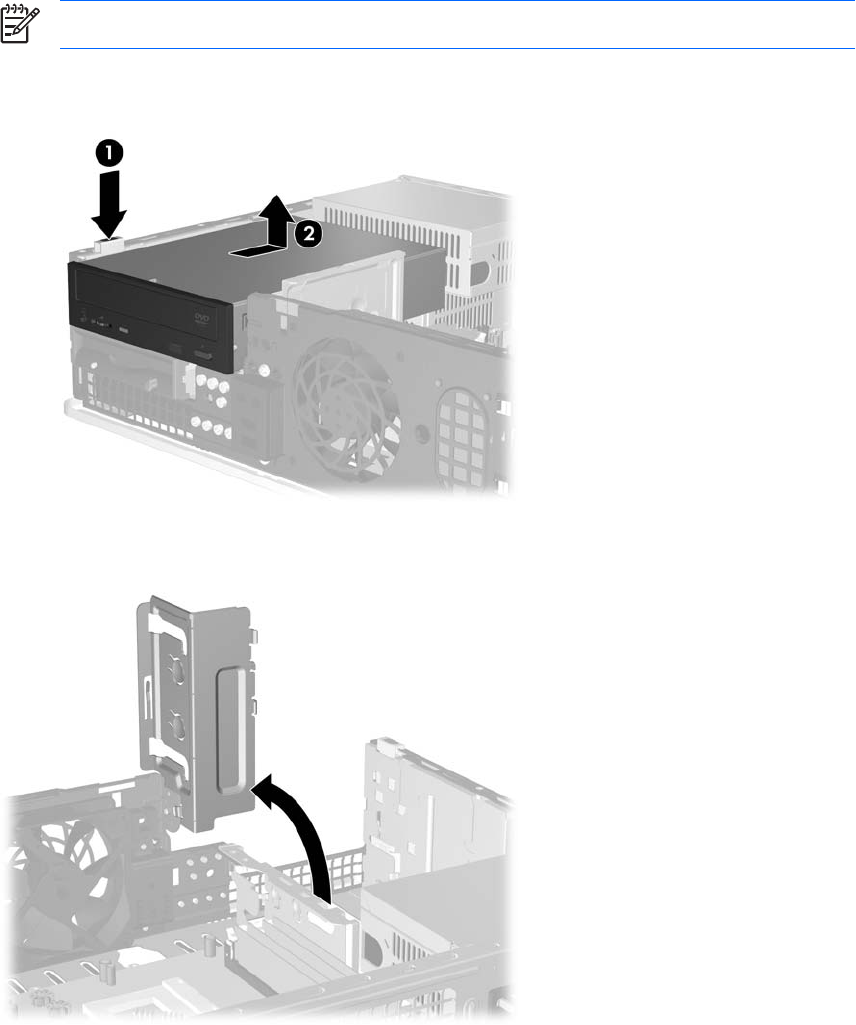

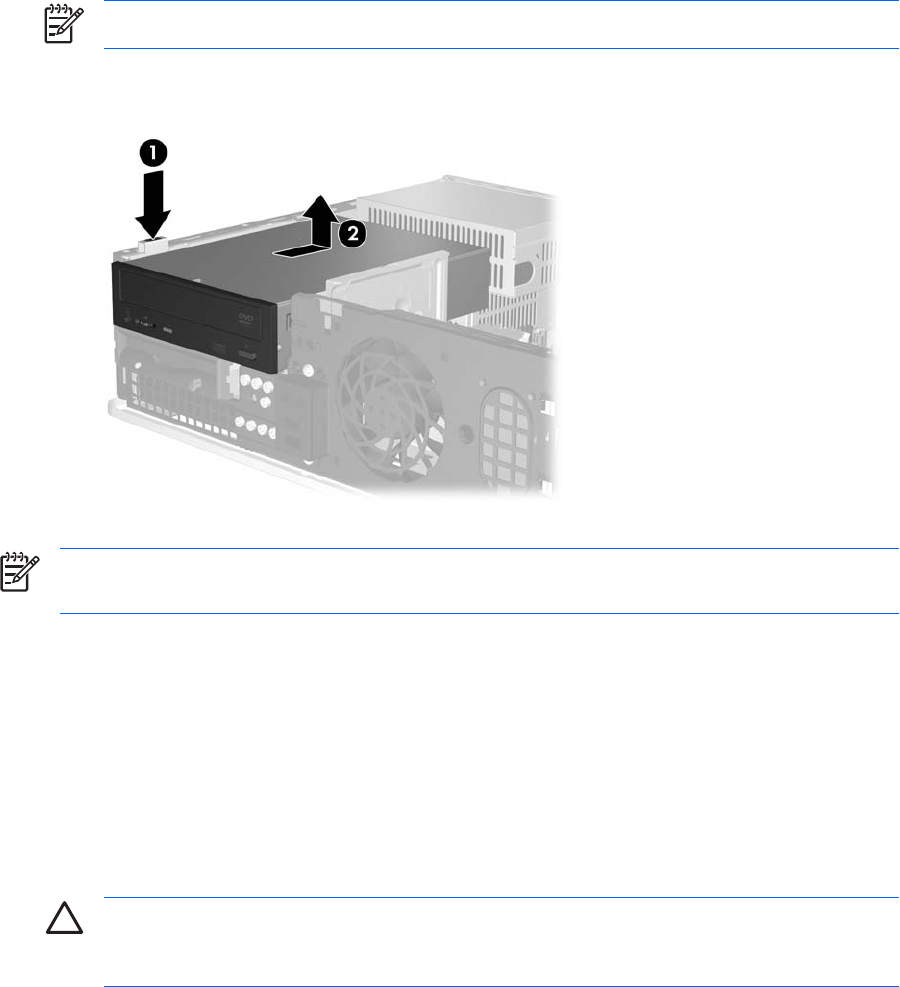

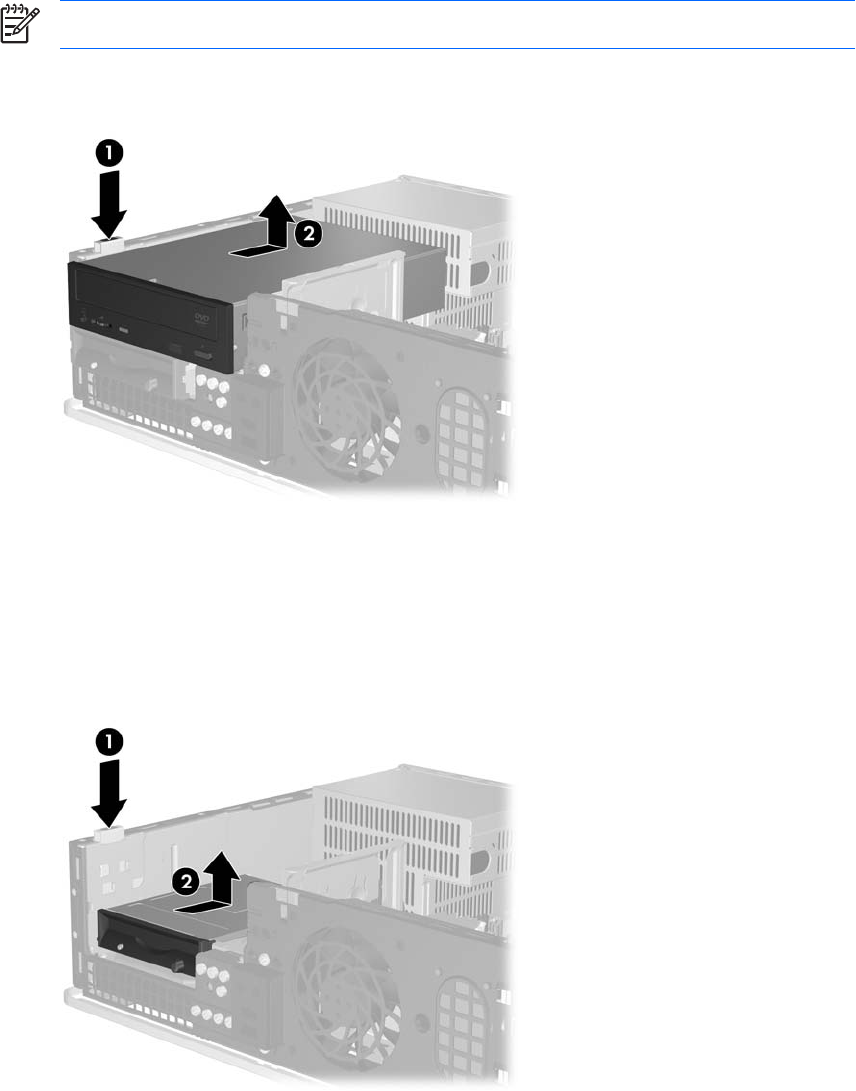

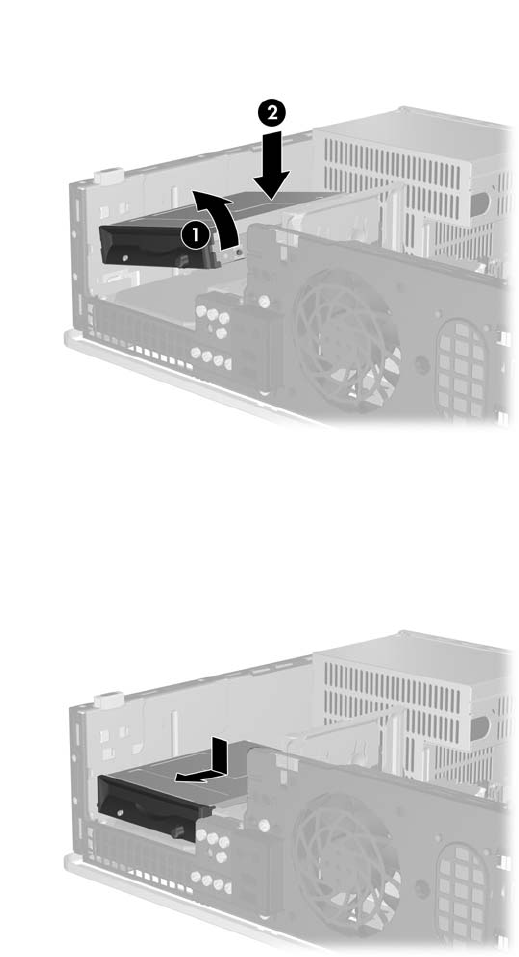

Removing an Optical Drive ................................................................................................ 28

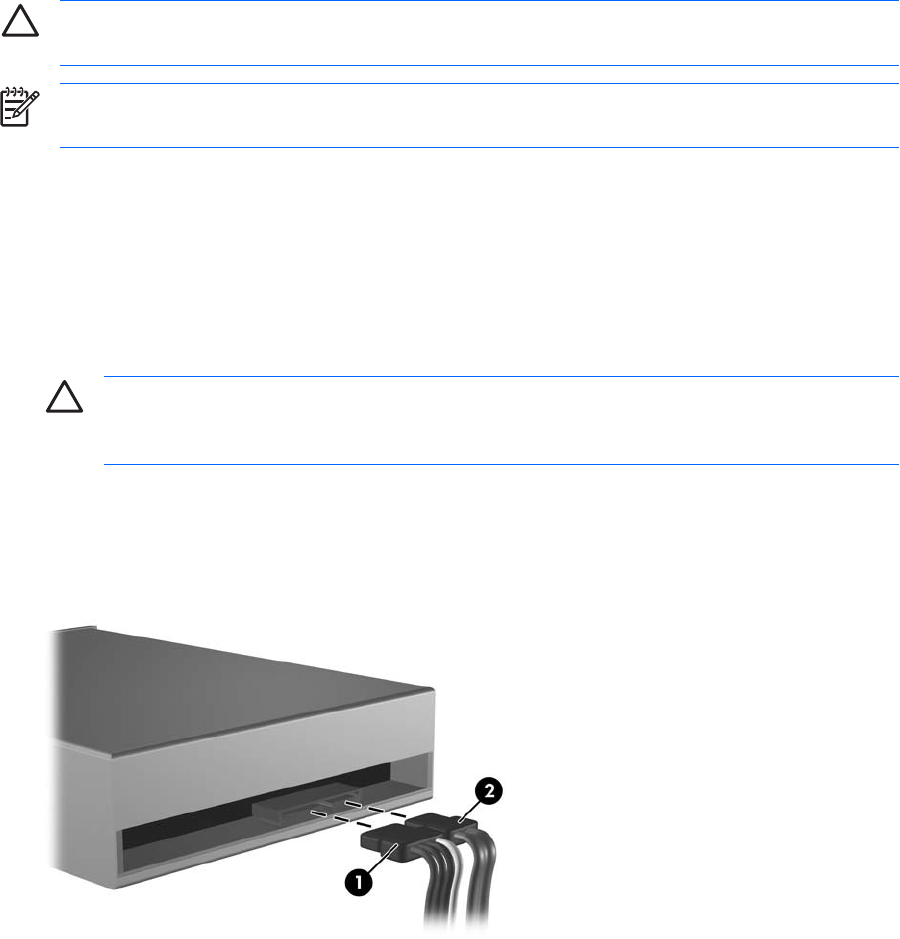

Installing an Optical Drive into the 5.25-inch External Drive Bay ....................................... 29

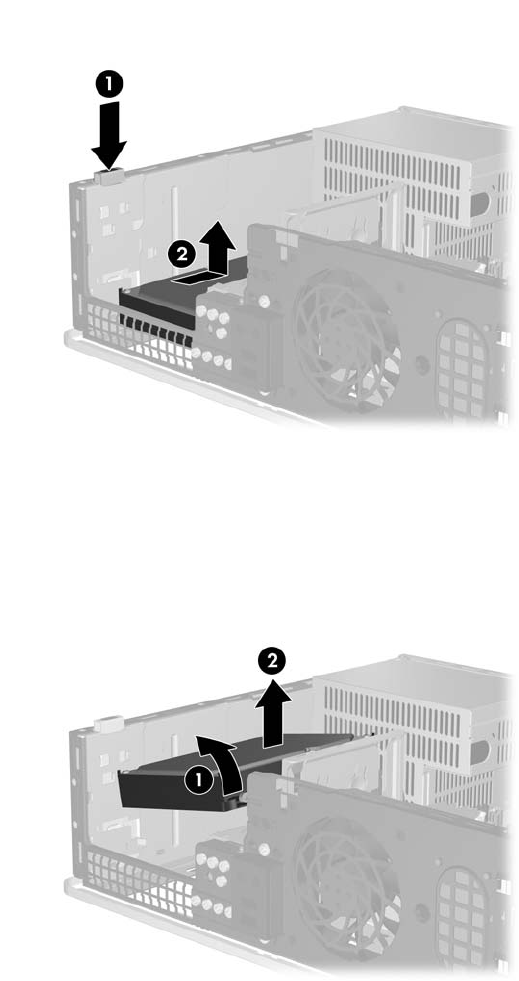

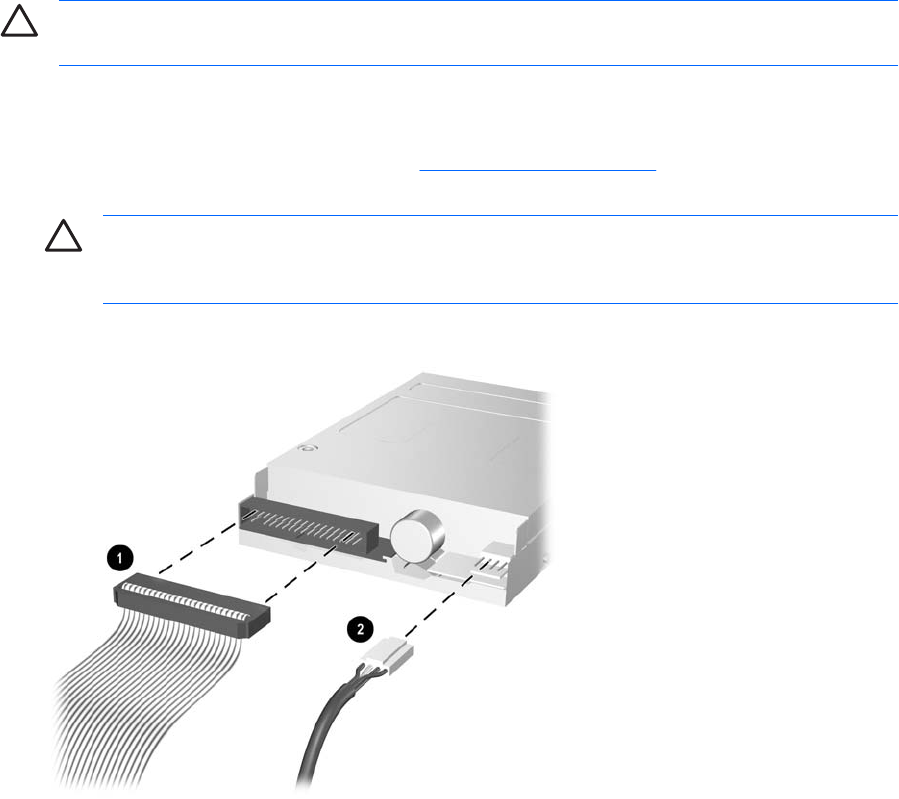

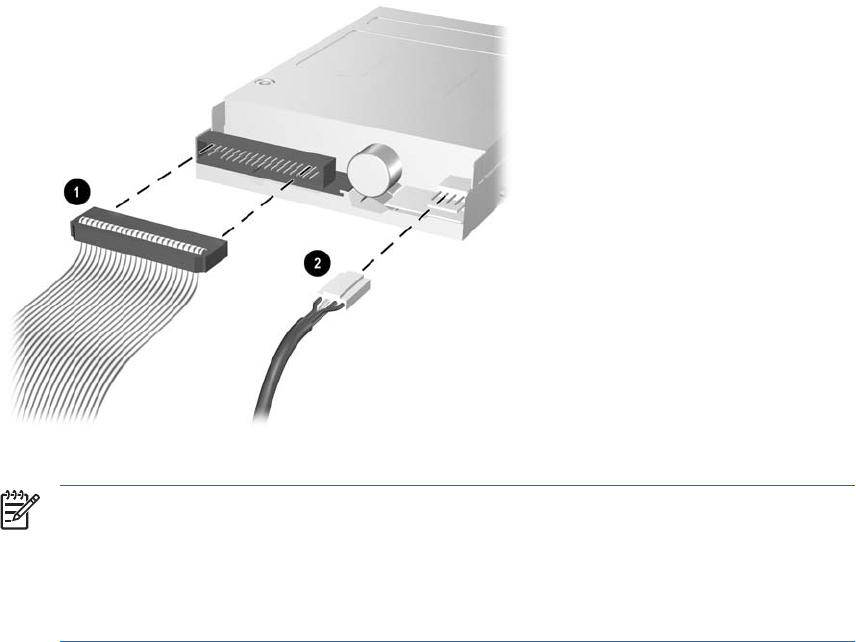

Removing a Diskette Drive ................................................................................................ 32
Installing a Diskette Drive into the 3.5-inch External Drive Bay ......................................... 34

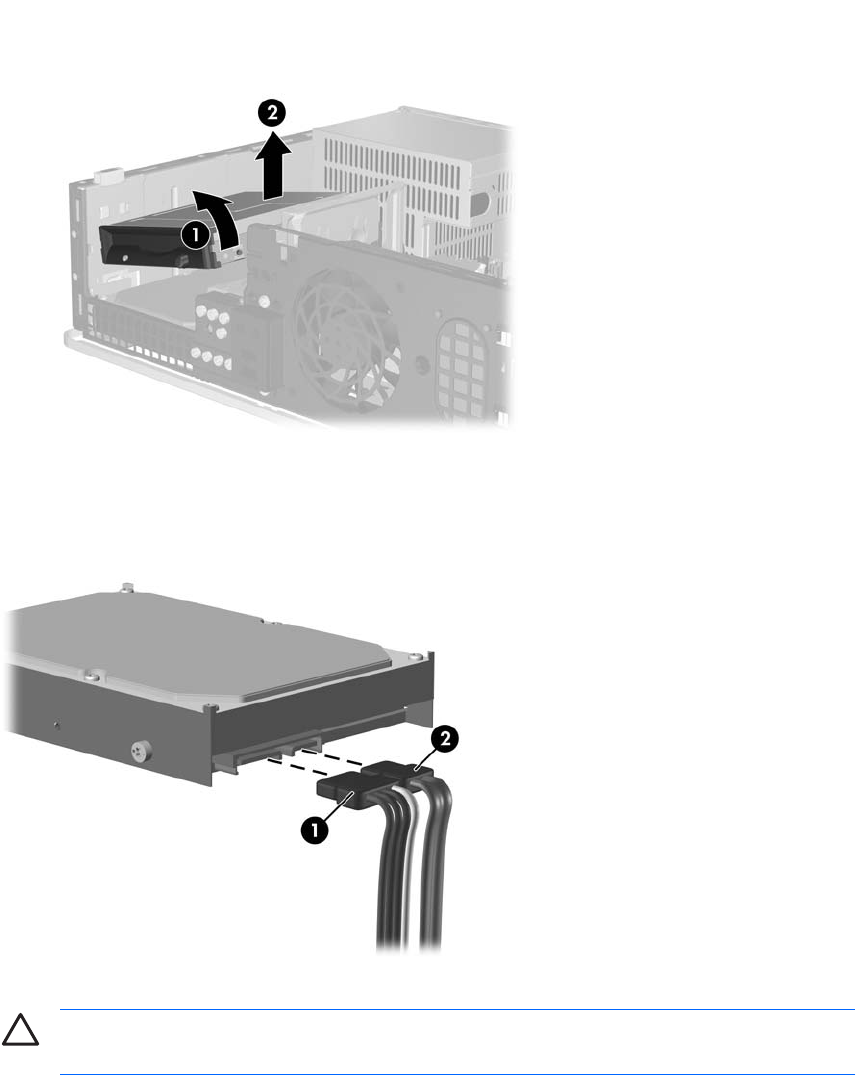

Removing and Replacing the Primary 3.5-inch Internal SATA Hard Drive ........................ 37
Appendix A Specifications
Appendix B Battery Replacement
Appendix C External Security Devices
Installing a Security Lock .................................................................................................................... 49
ENWW v

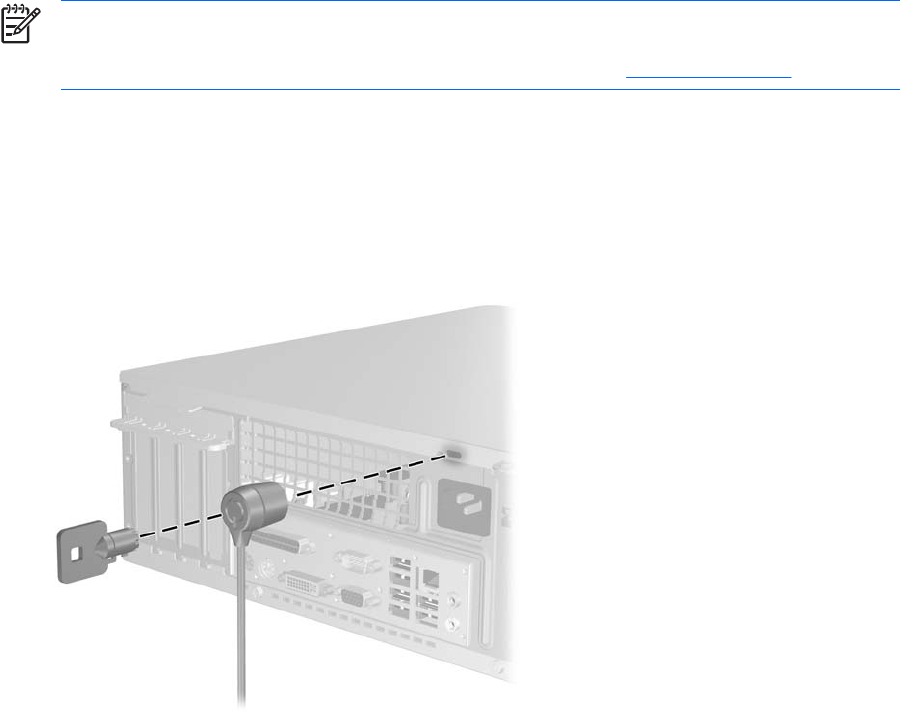

Cable Lock ......................................................................................................................... 49

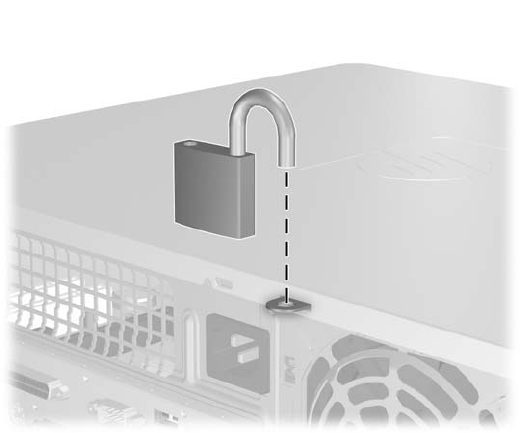

Padlock .............................................................................................................................. 50
Appendix D Electrostatic Discharge
Preventing Electrostatic Damage ....................................................................................................... 51
Grounding Methods ............................................................................................................................ 51
Appendix E Computer Operating Guidelines, Routine Care and Shipping Preparation
Computer Operating Guidelines and Routine Care ............................................................................ 53
Optical Drive Precautions ................................................................................................................... 54
Operation ........................................................................................................................... 54
Cleaning ............................................................................................................................. 54
Safety ................................................................................................................................. 54
Shipping Preparation .......................................................................................................................... 54
Index ................................................................................................................................................................... 55
vi ENWW
1 Product Features
Standard Configuration Features
The HP Compaq Small Form Factor features may vary depending on the model. For a complete listing
of the hardware and software installed in the computer, run the diagnostic utility (included on some
computer models only). Instructions for using the utility are provided in the Troubleshooting Guide on
the Documentation and Diagnostics CD.
NOTE The Small Form Factor computer can also be used in a tower orientation. For more
information, see the Using the Small Form Factor Computer in a Tower Orientation section in
this guide.

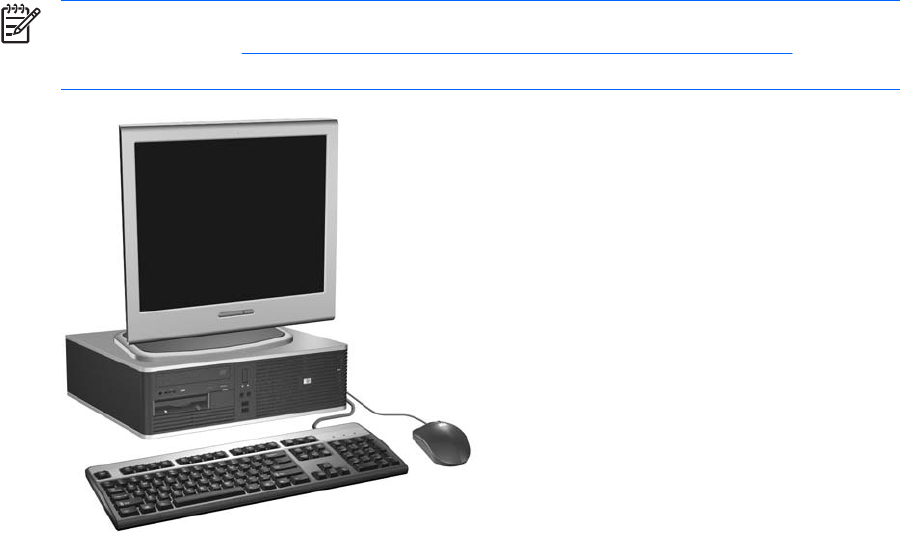

Figure 1-1 Small Form Factor Configuration
ENWW Standard Configuration Features 1

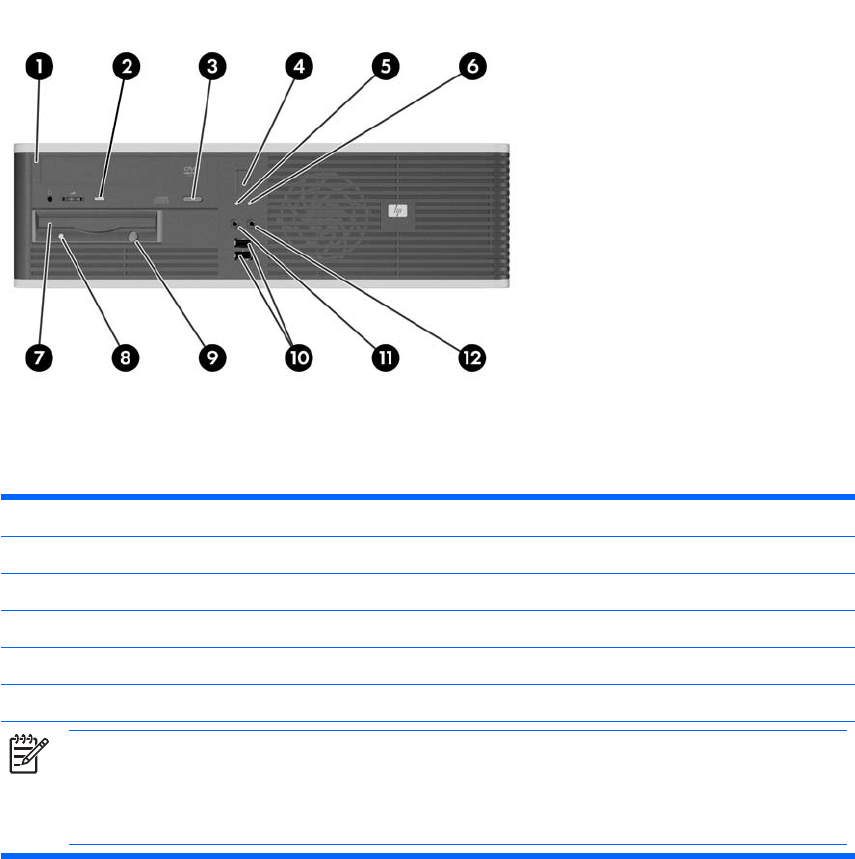

Front Panel Components
Drive configuration may vary by model.
Table 1-1 Front Panel Components
15.25-inch Optical Drive
1
73.5-inch Diskette Drive (optional)
2
2Optical Drive Activity Light 8Diskette Drive Activity Light (optional)
3Optical Drive Eject Button 9Diskette Eject Button (optional)
4Dual-State Power Button 10 USB (Universal Serial Bus) 2.0 Ports
5Hard Drive Activity Light 11 Microphone Connector
6Power On Light 12 Headphone Connector
NOTE An optical drive is a CD-ROM , CD-R/RW, DVD-ROM , DVD+R/RW, or CD-RW/DVD Combo drive.
The Power On Light is normally green when the power is on. If it is flashing red, there is a problem with the
computer and it is displaying a diagnostic code. Refer to the Troubleshooting Guide on the Documentation and
Diagnostics CD to interpret the code.
1
Some models have a bezel blank covering the 5.25-inch drive bay.
2
Some models have a bezel blank covering the 3.5-inch drive bay. An optional media card reader is
available from HP for this drive bay. You can also install a second SATA hard drive in this drive bay.
2 Chapter 1 Product Features ENWW

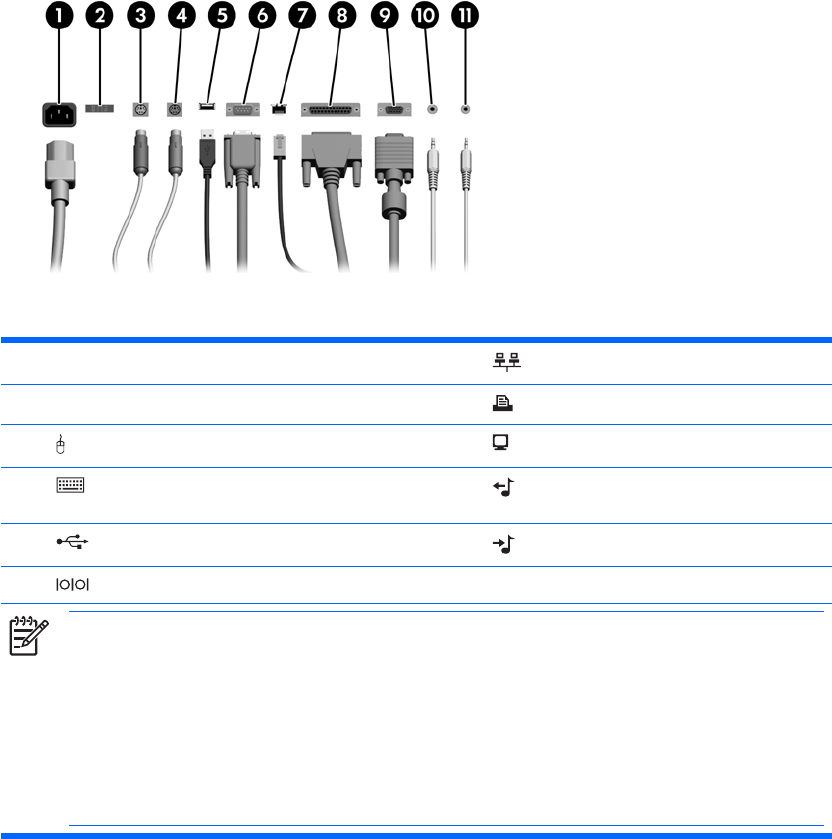

Rear Panel Components
Table 1-2 Rear Panel Components
1Power Cord Connector 7RJ-45 Network Connector
2Voltage Select Switch 8Parallel Connector
3PS/2 Mouse Connector (green) 9Monitor Connector
4PS/2 Keyboard Connector (purple) 10 Line-Out Connector for powered audio
devices (green)
5Universal Serial Bus (USB) 11 Line-In Audio Connector (blue)
6Serial Connector
NOTE Arrangement and number of connectors may vary by model.
If a PCI graphics card is installed, the connectors on the card and the system board may be used at the same
time. Some settings may need to be changed in Computer Setup to use both connectors. For information
about Boot Order, refer to the Computer Setup (F10) Utility Guide on the Documentation and Diagnostics
CD.
The Line-In and Line-Out audio connectors can be “retasked” to work as either Line-In, Line-Out, or
Microphone connectors by clicking the Realtek HD Audio Manager icon (a red speaker) in the task tray or
the Realtek entry in the operating system's Control Panel and selecting the Retasking Enable button.
ENWW Rear Panel Components 3

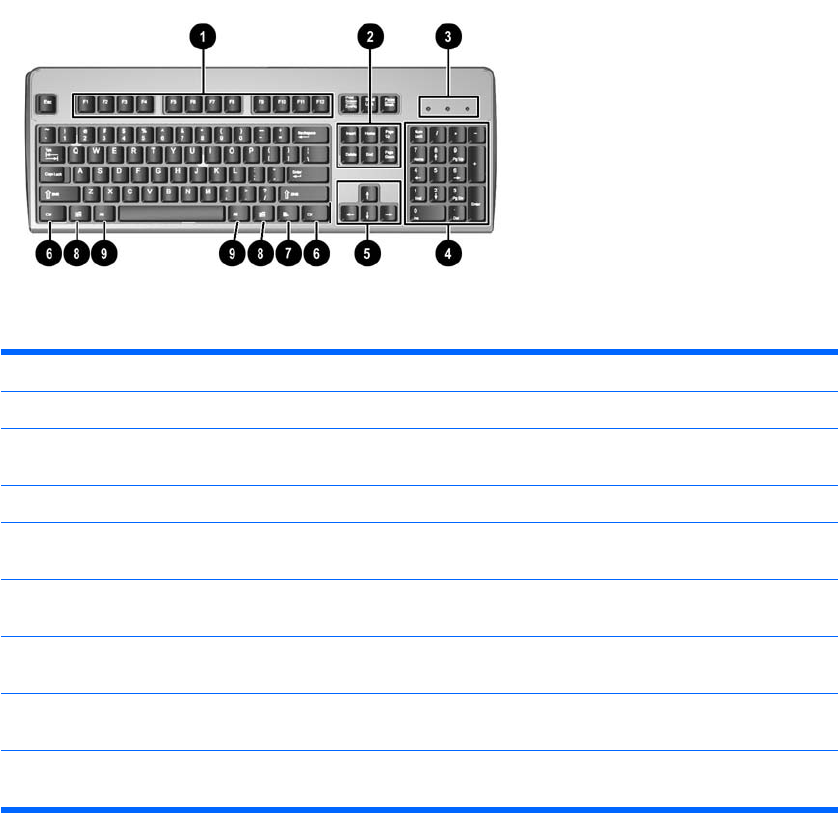

Keyboard
Table 1-3 Keyboard Components
1Function Keys Perform special functions depending on the software application being used.
2Editing Keys Includes the following: Insert, Home, Page Up, Delete, End, and Page Down.
3Status Lights Indicate the status of the computer and keyboard settings (Num Lock, Caps Lock,
and Scroll Lock).
4Numeric Keys Work like a calculator keypad.
5Arrow Keys Used to navigate through a document or Web site. These keys allow you to move
left, right, up, and down, using the keyboard instead of the mouse.
6Ctrl Keys Used in combination with another key; their effect depends on the application
software you are using.
7Application Key
1
Used (like the right mouse button) to open pop-up menus in a Microsoft Office
application. May perform other functions in other software applications.
8Windows Logo Keys
1
Used to open the Start menu in Microsoft Windows. Used in combination with other
keys to perform other functions.
9 Alt Keys Used in combination with another key; their effect depends on the application
software you are using.
1
Keys available in select geographic regions.
4 Chapter 1 Product Features ENWW
Using the Windows Logo Key
Use the Windows Logo key in combination with other keys to perform certain functions available in the
Windows operating system. Refer to the Keyboard section to identify the Windows Logo key.
Windows Logo Key Displays or hides the Start menu
Windows Logo Key + dDisplays the Desktop
Windows Logo Key + mMinimizes all open applications
Shift + Windows Logo Key + mUndoes Minimize All
Windows Logo Key + eLaunches My Computer
Windows Logo Key + fLaunches Find Document
Windows Logo Key + Ctrl + fLaunches Find Computer
Windows Logo Key + F1 Launches Windows Help
Windows Logo Key + lLocks the computer if you are connected to a network domain, or
allows you to switch users if you are not connected to a network
domain
Windows Logo Key + rLaunches the Run dialog box
Windows Logo Key + uLaunches the Utility Manager
Windows Logo Key + Tab Activates the next Taskbar button
ENWW Keyboard 5
Special Mouse Functions
Most software applications support the use of a mouse. The functions assigned to each mouse button
depend on the software applications you are using.
Serial Number Location
Each computer has a unique serial number and product ID number located on the left side of the
computer. Keep these numbers available for use when contacting customer service for assistance.

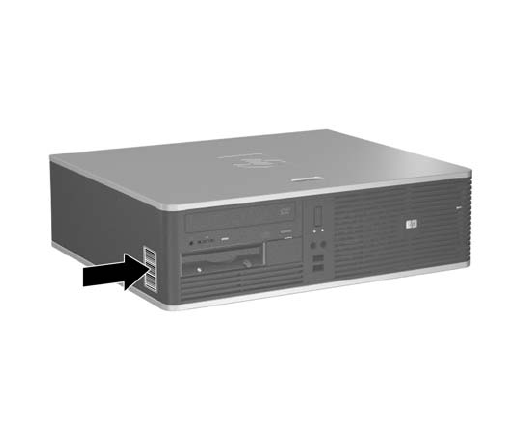

Figure 1-2 Serial Number and Product ID Location
6 Chapter 1 Product Features ENWW
2 Hardware Upgrades
Serviceability Features
The computer includes features that make it easy to upgrade and service. No tools are needed for most
of the installation procedures described in this chapter.
Warnings and Cautions
Before performing upgrades be sure to carefully read all of the applicable instructions, cautions, and
warnings in this guide.
WARNING! To reduce the risk of personal injury from electrical shock, hot surfaces, or fire:
Disconnect the power cord from the wall outlet and allow the internal system components to cool
before touching.
Do not plug telecommunications or telephone connectors into the network interface controller
(NIC) receptacles.
Do not disable the power cord grounding plug. The grounding plug is an important safety feature.
Plug the power cord in a grounded (earthed) outlet that is easily accessible at all times.
To reduce the risk of serious injury, read the Safety & Comfort Guide. It describes proper
workstation, setup, posture, and health and work habits for computer users, and provides
important electrical and mechanical safety information. This guide is located on the Web at
http://www.hp.com/ergo and on the Documentation and Diagnostics CD.
CAUTION Static electricity can damage the electrical components of the computer or optional
equipment. Before beginning these procedures, ensure that you are discharged of static
electricity by briefly touching a grounded metal object. See Appendix D, Electrostatic
Discharge for more information.
When the computer is plugged into an AC power source, voltage is always applied to the system
board. You must disconnect the power cord from the power source before opening the computer
to prevent damage to internal components.
ENWW Serviceability Features 7

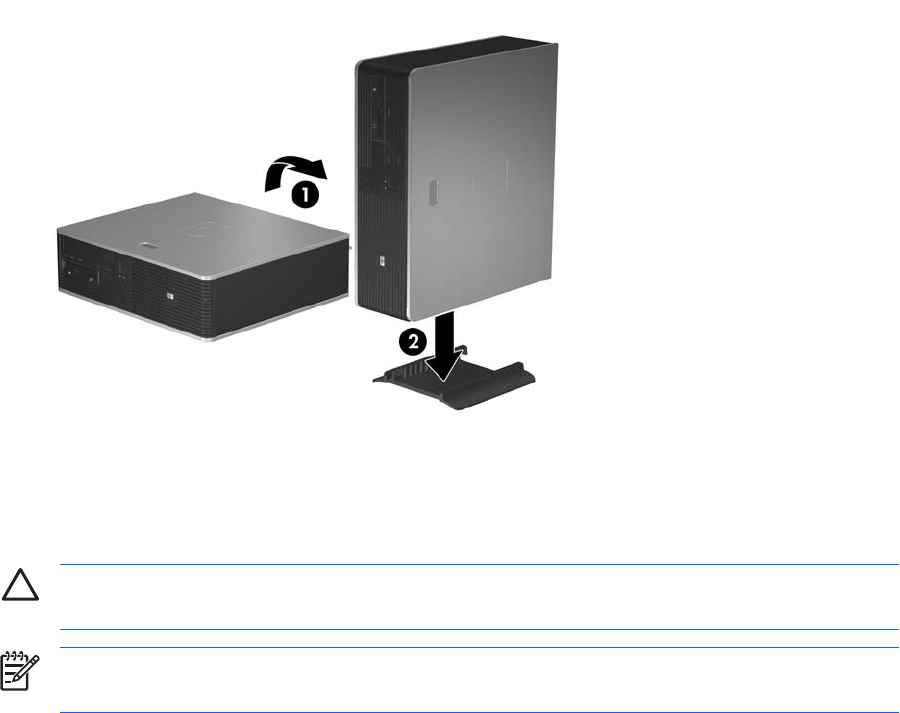

Using the Small Form Factor Computer in a Tower
Orientation
The Small Form Factor computer can be used in a tower orientation by purchasing an optional tower

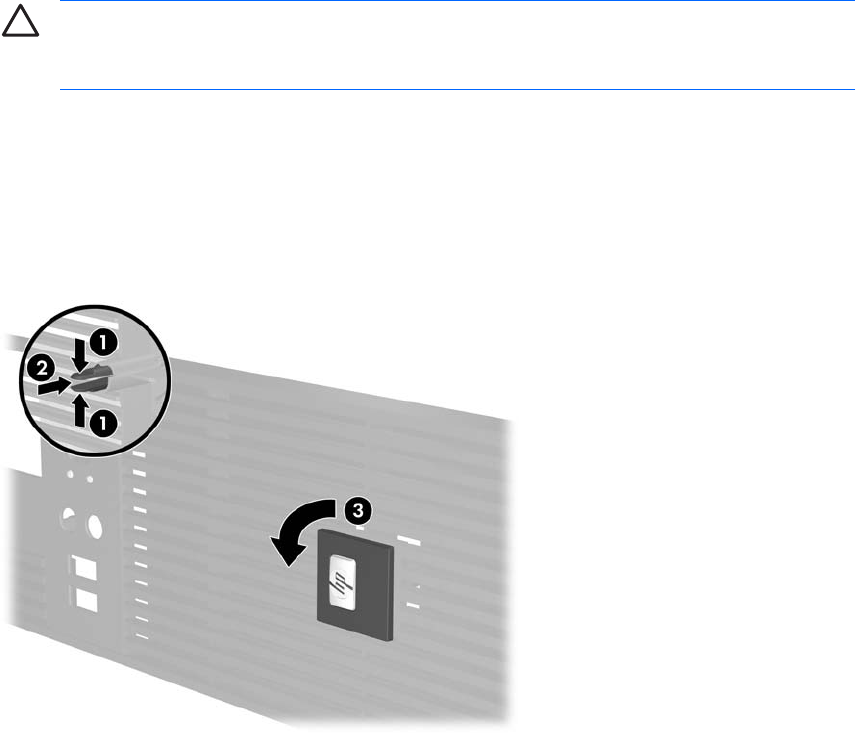

stand. The HP logo plate on the front bezel is adjustable for either desktop or tower orientation.
1. Remove/disengage any security devices that prohibit opening the computer.
2. Remove all removable media, such as diskettes or compact discs, from the computer.
3. Turn off the computer properly through the operating system, then turn off any external devices.
4. Disconnect the power cord from the power outlet and disconnect any external devices.
CAUTION Regardless of the power-on state, voltage is always present on the system
board as long as the system is plugged into an active AC outlet. You must disconnect the
power cord to avoid damage to the internal components of the computer.
5. Remove the access panel.
6. Remove the front bezel.
7. Squeeze together the two sides of the peg on the back side of the logo plate (1) and push the peg
inwards towards the front side of the bezel (2).
8. Rotate the plate 90 degrees (3) then pull back on the peg to lock the logo plate in place.
9. Replace the front bezel.
10. Replace the access panel.
8 Chapter 2 Hardware Upgrades ENWW
11. Lift the computer so that its right side is facing down (1) and place it on the stand (2).
Figure 2-1 Changing from Desktop to Tower Orientation
12. Reconnect the power cord and any external devices, then turn on the computer.
13. Lock any security devices that were disengaged when the access panel was removed.
CAUTION Do not place the computer on its side without the tower stand. The stand is required
to prevent the computer from falling on its side and damaging the unit.
NOTE Ensure at least 10.2 centimeters (4 inches) of space on all sides of the computer remains
clear and free of obstructions.
ENWW Using the Small Form Factor Computer in a Tower Orientation 9
Removing the Computer Access Panel
1. Remove/disengage any security devices that prohibit opening the computer.
2. Remove all removable media, such as diskettes or compact discs, from the computer.
3. Turn off the computer properly through the operating system, then turn off any external devices.
4. Disconnect the power cord from the power outlet and disconnect any external devices.
CAUTION Regardless of the power-on state, voltage is always present on the system
board as long as the system is plugged into an active AC outlet. You must disconnect the
power cord to avoid damage to the internal components of the computer.

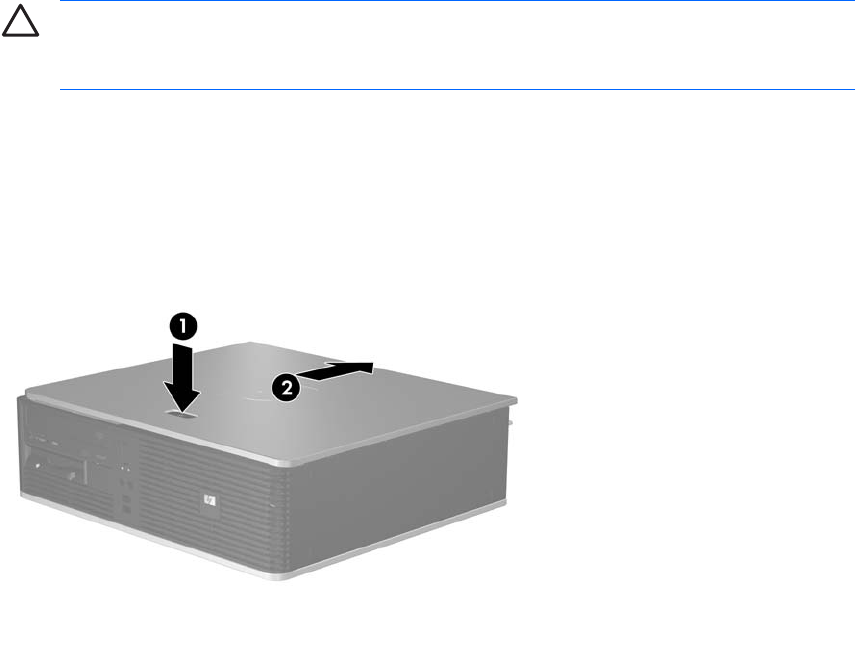

5. Push down on the button (1) to release the latch that secures the access panel to the computer
chassis.
6. Slide the access panel back (2) about 1.3 cm (1/2 inch), then lift it off the unit.
Figure 2-2 Removing the Computer Access Panel
10 Chapter 2 Hardware Upgrades ENWW
Replacing the Computer Access Panel
Place the access panel in the proper position on the chassis with about 1.3 cm (1/2 inch) of the access
panel hanging off the back of the computer and slide it into place.
Figure 2-3 Replacing the Computer Access Panel
ENWW Replacing the Computer Access Panel 11
Removing the Front Bezel
1. Remove/disengage any security devices that prohibit opening the computer.
2. Remove all removable media, such as diskettes or compact discs, from the computer.
3. Turn off the computer properly through the operating system, then turn off any external devices.
4. Disconnect the power cord from the power outlet and disconnect any external devices.
CAUTION Regardless of the power-on state, voltage is always present on the system
board as long as the system is plugged into an active AC outlet. You must disconnect the
power cord to avoid damage to the internal components of the computer.
5. Remove the access panel.

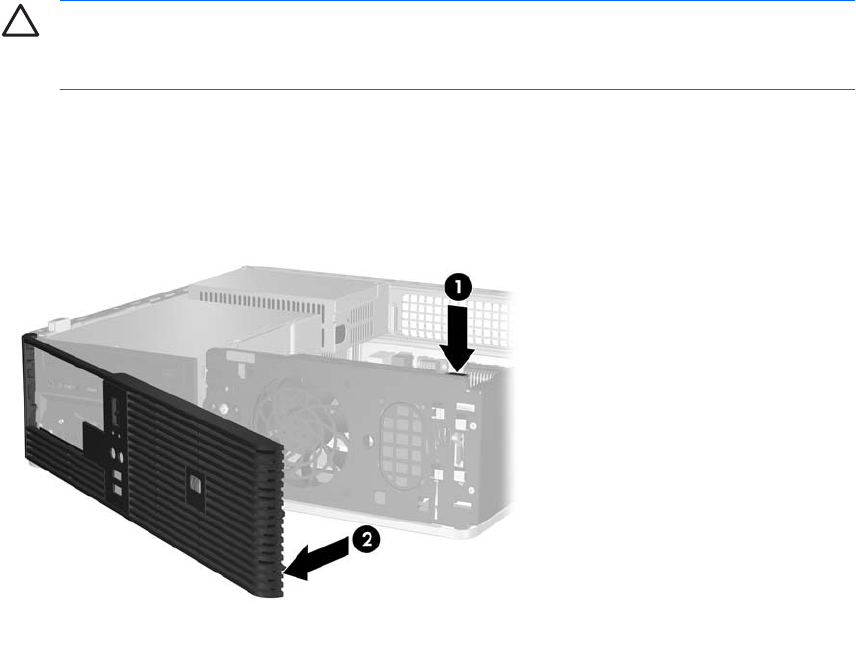

6. Press the green latch behind the upper right side of the bezel (1) and pull the right side of the bezel
off the chassis (2), then the left side.
Figure 2-4 Removing the Front Bezel
12 Chapter 2 Hardware Upgrades ENWW
Removing Bezel Blanks
On some models, there are bezel blanks covering the 3.5-inch and 5.25-inch external drive bays that
need to be removed before installing a drive. To remove a bezel blank:
1. Remove the front bezel.

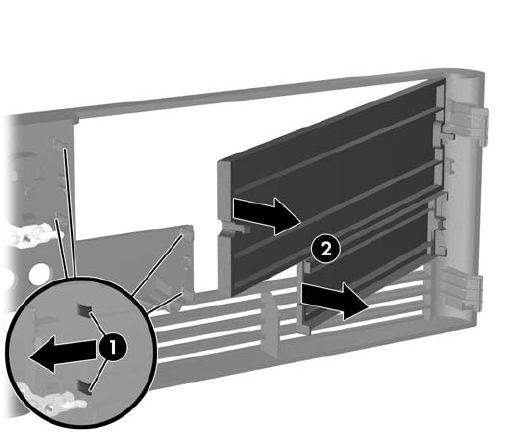

2. Push the two retaining tabs that hold the bezel blank in place towards the outer left edge of the
bezel (1) and pull the bezel blank inwards to remove it (2).
Figure 2-5 Removing a Bezel Blank
3. Replace the front bezel.
ENWW Removing Bezel Blanks 13
Replacing the Front Bezel
Insert the two hooks on the left side of the bezel into the rectangular holes on the chassis (1) then rotate
the right side of the bezel onto the chassis (2) and snap it into place.
Figure 2-6 Replacing the Front Bezel
14 Chapter 2 Hardware Upgrades ENWW
Installing Additional Memory
The computer comes with double data rate 2 synchronous dynamic random access memory (DDR2-
SDRAM) dual inline memory modules (DIMMs).
DIMMs
The memory sockets on the system board can be populated with up to four industry-standard DIMMs.
These memory sockets are populated with at least one preinstalled DIMM. To achieve the maximum
memory support, you can populate the system board with up to 4 GB of memory configured in a high-
performing dual channel mode.
DDR2-SDRAM DIMMs
For proper system operation, the DDR2-SDRAM DIMMs must be:
industry-standard 240-pin
unbuffered PC2-5300 667 MHz-compliant
1.8 volt DDR2-SDRAM DIMMs
The DDR2-SDRAM DIMMs must also:
support CAS latency 4 and 5 for DDR2/667 MHz
contain the mandatory JEDEC SPD information
In addition, the computer supports:
256Mbit, 512Mbit, and 1Gbit non-ECC memory technologies
single-sided and double-sided DIMMs
DIMMs constructed with x8 and x16 DDR devices; DIMMs constructed with x4 SDRAM are not
supported
NOTE The system will not start if you install unsupported DIMMs.
ENWW Installing Additional Memory 15
Populating DIMM Sockets
There are four DIMM sockets on the system board, with two sockets per channel. The sockets are
labeled XMM1, XMM2, XMM3, and XMM4. Sockets XMM1 and XMM2 operate in memory channel A.
Sockets XMM3 and XMM4 operate in memory channel B.
Figure 2-7 DIMM Socket Locations
Item Description Socket Color
1DIMM socket XMM1, Channel A
(populate first)
Black
2DIMM socket XMM2, Channel A White
3DIMM socket XMM3, Channel B
(populate second)
Black
4 DIMM socket XMM4, Channel B White
The system will automatically operate in single channel mode, dual channel mode, or flex mode,
depending on how the DIMMs are installed.
The system will operate in single channel mode if the DIMM sockets are populated in one channel
only.
The system will operate in a higher-performing dual channel mode if the total memory capacity of
the DIMMs in Channel A is equal to the total memory capacity of the DIMMs in Channel B. The
technology and device width can vary between the channels. For example, if Channel A is
populated with two 256MB DIMMs and Channel B is populated with one 512MB DIMM, the system
will operate in dual channel mode.
The system will operate in flex mode if the total memory capacity of the DIMMs in Channel A is not
equal to the total memory capacity of the DIMMs in Channel B. In flex mode, the channel populated
with the least amount of memory describes the total amount of memory assigned to dual channel
and the remainder is assigned to single channel. For optimal speed, the channels should be
balanced so that the largest amount of memory is spread between the two channels. For example,
if you are populating the sockets with one 1GB DIMM, two 512MB DIMMs, and one 256MB DIMM,
16 Chapter 2 Hardware Upgrades ENWW
one channel should be populated with the 1GB DIMM and one 256MB DIMM and the other channel
should be populated with the two 512MB DIMMs. With this configuration, 2 GB will run as dual
channel and 256 MB will run as single channel.
In any mode, the maximum operational speed is determined by the slowest DIMM in the system.
Installing DIMMs
CAUTION You must disconnect the power cord and wait approximately 30 seconds for the
power to drain before adding or removing memory modules. Regardless of the power-on state,
voltage is always supplied to the memory modules as long as the computer is plugged into an
active AC outlet. Adding or removing memory modules while voltage is present may cause
irreparable damage to the memory modules or system board. If you see an LED light on the
system board, voltage is still present.
The memory module sockets have gold-plated metal contacts. When upgrading the memory, it
is important to use memory modules with gold-plated metal contacts to prevent corrosion and/or
oxidation resulting from having incompatible metals in contact with each other.
Static electricity can damage the electronic components of the computer or optional cards. Before
beginning these procedures, ensure that you are discharged of static electricity by briefly touching
a grounded metal object. For more information, refer to Appendix D, Electrostatic Discharge.
When handling a memory module, be careful not to touch any of the contacts. Doing so may
damage the module.
NOTE You must remove the optical drive to add or remove memory modules.
1. Remove/disengage any security devices that prohibit opening the computer.
2. Remove all removable media, such as diskettes or compact discs, from the computer.
3. Turn off the computer properly through the operating system, then turn off any external devices.
4. Disconnect the power cord from the power outlet and disconnect any external devices.
CAUTION You must disconnect the power cord and wait approximately 30 seconds for
the power to drain before adding or removing memory modules. Regardless of the power-
on state, voltage is always supplied to the memory modules as long as the computer is
plugged into an active AC outlet. Adding or removing memory modules while voltage is
present may cause irreparable damage to the memory modules or system board. If you see
an LED light on the system board, voltage is still present.
5. If the computer is on a stand, remove the computer from the stand.
6. Remove the access panel.
7. Locate the memory module sockets on the system board.
WARNING! To reduce risk of personal injury from hot surfaces, allow the internal system
components to cool before touching.

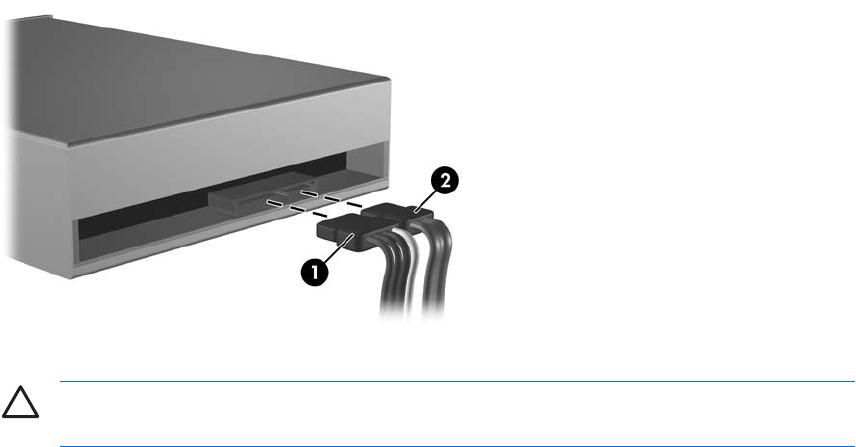

8. Disconnect the power and data cables from the back of the optical drive.
ENWW Installing Additional Memory 17

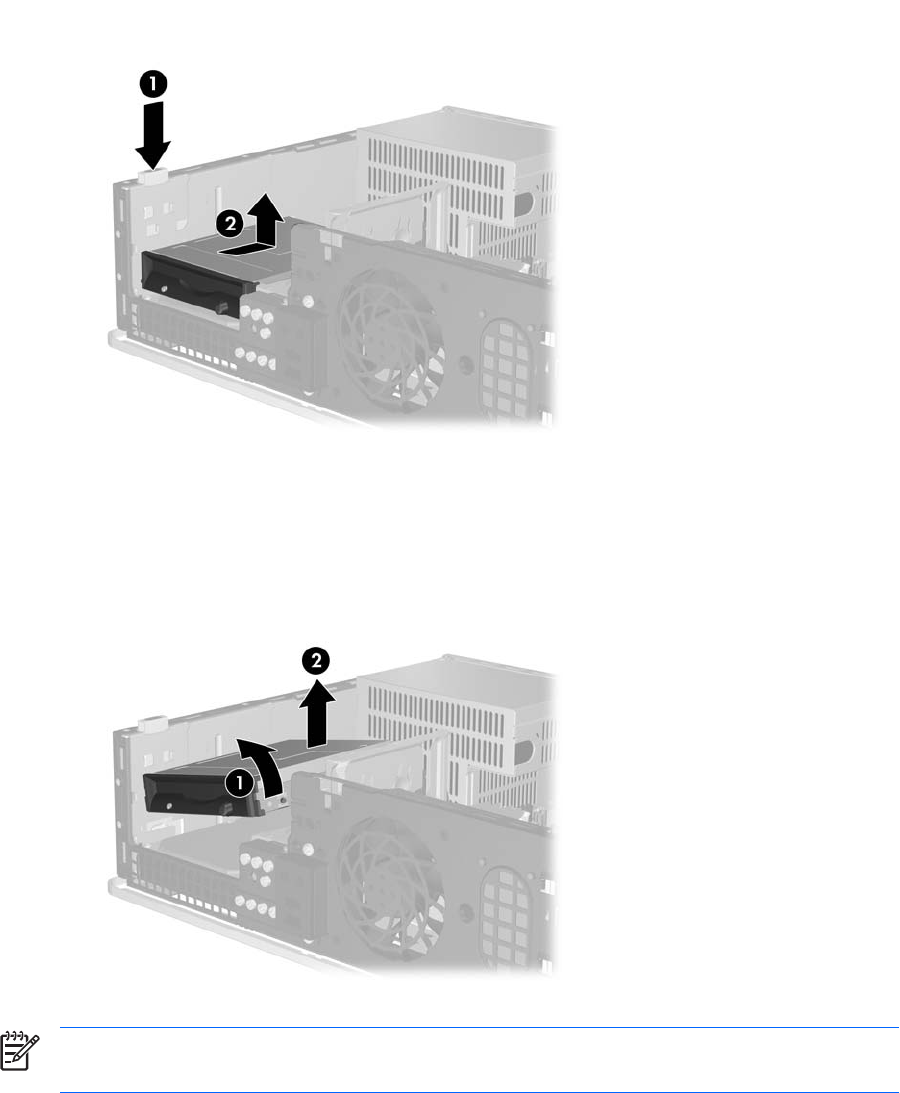

9. Press down on the lever to the left of the drive (1), slide the drive back until it stops, and lift it straight
up and out the drive bay (2).
NOTE Hold the front and back of the drive when lifting it out of the drive bay.
Figure 2-8 Removing the Optical Drive
10. Rotate the optical drive retainer to its upright position to access the memory module sockets.
Figure 2-9 Rotating Optical Drive Retainer Up
18 Chapter 2 Hardware Upgrades ENWW

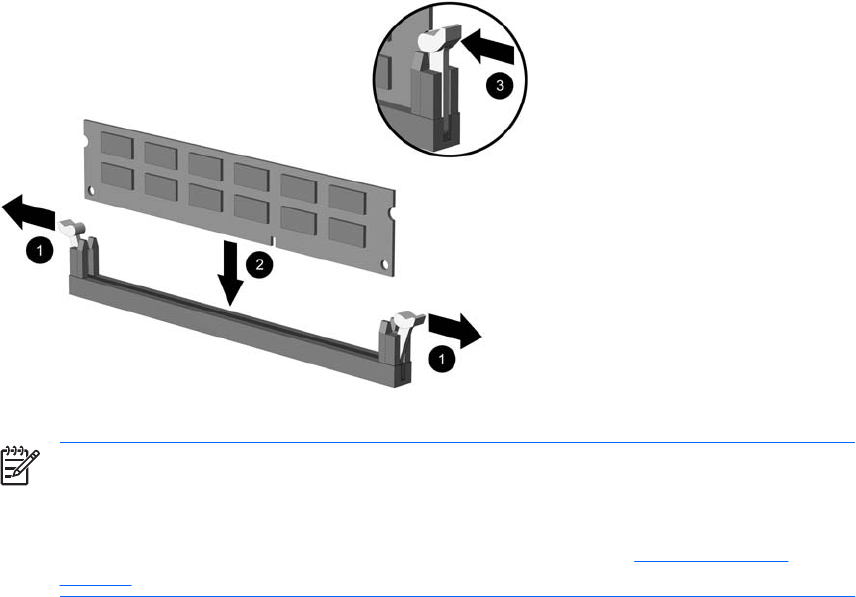

11. Open both latches of the memory module socket (1), and insert the memory module into the socket
(2).
Figure 2-10 Installing a DIMM
NOTE A memory module can be installed in only one way. Match the notch on the module
with the tab on the memory socket.
For maximum performance, populate the sockets so that the memory capacity is spread as
equally as possible between Channel A and Channel B. Refer to Populating DIMM
Sockets for more information.
12. Push the module down into the socket, ensuring that the module is fully inserted and properly
seated. Make sure the latches are in the closed position (3).
13. Repeat steps 11 and 12 to install any additional modules.
14. Replace the access panel.
15. If the computer was on a stand, replace the stand.
16. Reconnect the power cord and any external devices, then turn on the computer. The computer
should automatically recognize the additional memory when you turn on the computer.
17. Lock any security devices that were disengaged when the access panel was removed.
ENWW Installing Additional Memory 19
Removing or Installing an Expansion Card
The computer has two standard low-profile PCI expansion slots that can accommodate an expansion
card up to 17.46 cm (6.875 inches) in length. The computer also has one PCI Express x1 expansion
slot and one ADD2/SDVO expansion slot.
Figure 2-11 Expansion Slot Locations
Item Description
1PCI expansion slot
2PCI expansion slot
3PCI Express x1 expansion slot
4 ADD2/SDVO expansion slot
NOTE The dc5700 platform only supports the use of normal (or non-reversed) layout ADD2
(Advanced Digital Display 2) adapter cards inserted into the SDVO (Serial Digital Video Output)
connector on the platform's system board. ADD2 cards are used to give multi-monitor capabilities
to the integrated graphics controller.
The ADD2/SDVO connector on the system board has the physical appearance of a PCI Express
x16 connector; however, the platform does NOT support the use of conventional PCI Express
cards or reversed-layout ADD2 cards.
To install an expansion card:
1. Remove/disengage any security devices that prohibit opening the computer.
2. Remove all removable media, such as diskettes or compact discs, from the computer.
3. Turn off the computer properly through the operating system, then turn off any external devices.
4. Disconnect the power cord from the power outlet and disconnect any external devices.
20 Chapter 2 Hardware Upgrades ENWW
CAUTION Regardless of the power-on state, voltage is always present on the system
board as long as the system is plugged into an active AC outlet. You must disconnect the
power cord to avoid damage to the internal components of the computer.
5. If the computer is on a stand, remove the computer from the stand.
6. Remove the access panel.
7. Locate the correct vacant expansion socket on the system board and the corresponding expansion
slot on the back of the computer chassis.
8. Remove the slot cover retainer that secures the slot covers by lifting the retainer up then out and
away from the chassis.
Figure 2-12 Removing the Expansion Slot Retainer
ENWW Removing or Installing an Expansion Card 21
9. Before installing an expansion card, remove the expansion slot cover or the existing expansion
card.
a. If you are installing an expansion card in a vacant socket, remove the appropriate expansion
slot cover on the back of the chassis. Pull the slot cover straight up then back toward the inside
of the chassis.
Figure 2-13 Removing an Expansion Slot Cover
NOTE Before removing an installed expansion card, disconnect any cables that may
be attached to the expansion card.
22 Chapter 2 Hardware Upgrades ENWW
b. If you are removing a standard PCI card, hold the card at each end, and carefully rock it back
and forth until the connectors pull free from the socket. Pull the expansion card straight up
from the socket then back toward the inside of the chassis to release it from the chassis frame.
Be sure not to scrape the card against the other components.
Figure 2-14 Removing a Standard PCI Expansion Card
c. If your are removing a ADD2/SDVO card, pull the retention arm on the back of the expansion
socket away from the card and carefully rock the card back and forth until the connectors pull
free from the socket. Pull the expansion card straight up from the socket then back toward
the inside of the chassis to release it from the chassis frame. Be sure not to scrape the card
against the other components.
Figure 2-15 Removing a ADD2/SDVO Expansion Card
ENWW Removing or Installing an Expansion Card 23
10. Store the removed card in anti-static packaging.
11. If you are not installing a new expansion card, install an expansion slot cover to close the open
slot.
CAUTION After removing an expansion card, you must replace it with a new card or
expansion slot cover for proper cooling of internal components during operation.
12. To install a new expansion card, hold the card just above the expansion socket on the system
board then move the card toward the rear of the chassis so that the bracket on the card is aligned
with the open slot on the rear of the chassis. Press the card straight down into the expansion socket
on the system board.

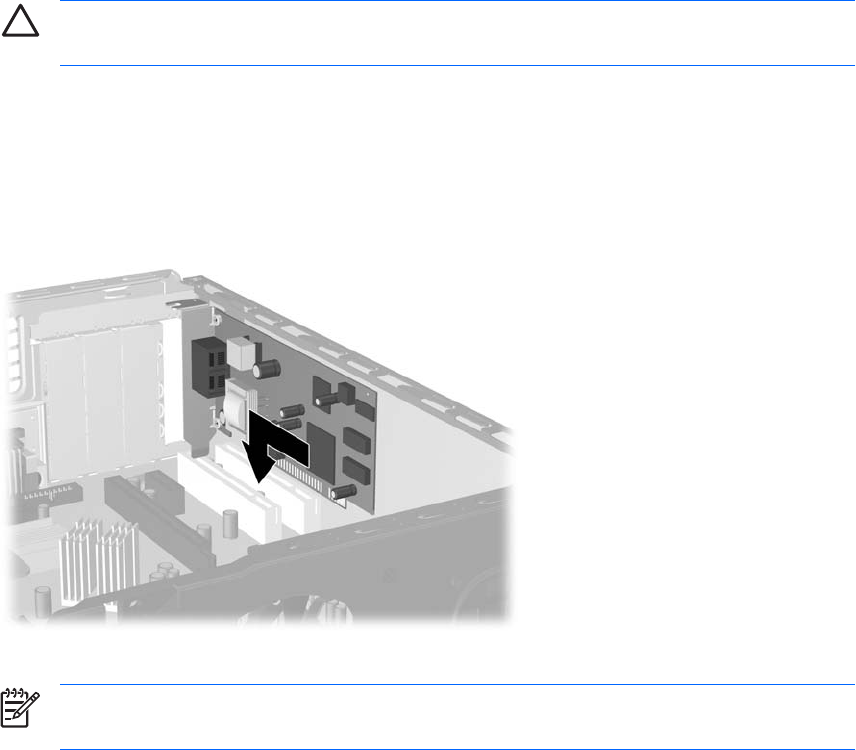

Figure 2-16 Installing an Expansion Card
NOTE When installing an expansion card, press firmly on the card so that the whole
connector seats properly in the expansion card slot.
24 Chapter 2 Hardware Upgrades ENWW
13. Replace the slot cover retainer.
Figure 2-17 Replacing the Slot Cover Retainer
NOTE The slot cover retainer is secured in place by the access panel.
14. Connect external cables to the installed card, if needed. Connect internal cables to the system
board, if needed.
15. Replace the access panel.
16. If the computer was on a stand, replace the stand.
17. Reconnect the power cord and any external devices, then turn on the computer.
18. Lock any security devices that were disengaged when the access panel was removed.
19. Reconfigure the computer, if necessary. Refer to the Computer Setup (F10) Utility Guide on the
Documentation and Diagnostics CD for instructions about using Computer Setup.
ENWW Removing or Installing an Expansion Card 25
Drive Positions
Figure 2-18 Drive Positions
15.25-inch external drive bay for optional drives (optical drive shown)
23.5-inch external drive bay for optional drives (diskette drive shown)
1
3 3.5-inch internal hard drive bay
1
You can install a diskette drive, a media card reader, or a second SATA hard drive in the external
3.5-inch bay.
To verify the type, size, and capacity of the storage devices installed in the computer, run Computer
Setup. Refer to the Computer Setup (F10) Utility Guide on the Documentation and Diagnostics CD for
more information.
26 Chapter 2 Hardware Upgrades ENWW
Installing and Removing Drives
When installing additional drives, follow these guidelines:
The primary Serial ATA (SATA) hard drive must be connected to the dark blue SATA connector
on the system board labeled SATA0.
Connect a SATA optical drive to the white SATA connector on the system board labeled SATA1.
Always populate the dark blue SATA0 and white SATA1 connectors before the light blue SATA4
and orange SATA5 connectors.
Connect additional SATA hard drives to the next available (unpopulated) SATA connector on the
system board in the following order: SATA0, SATA1, SATA5, SATA4.
Connect a diskette drive to the connector labeled FLOPPY P10.
The system does not support Parallel ATA (PATA) optical drives or PATA hard drives.
You may install either a third-height or a half-height drive into a half-height bay.
You must install guide screws to ensure the drive will line up correctly in the drive cage and lock
in place. HP has provided eight extra guide screws installed on the chassis behind the front bezel.
Four of the guide screws are silver 6-32 standard screws used for hard drives only. The other four
guide screws are black M3 metric screws used for all other drives.
CAUTION To prevent loss of work and damage to the computer or drive:
If you are inserting or removing a drive, shut down the operating system properly, turn off the
computer, and unplug the power cord. Do not remove a drive while the computer is on or in
standby mode.
Before handling a drive, ensure that you are discharged of static electricity. While handling a
drive, avoid touching the connector. For more information about preventing electrostatic damage,
refer to Appendix D, Electrostatic Discharge.
Handle a drive carefully; do not drop it.
Do not use excessive force when inserting a drive.
Avoid exposing a hard drive to liquids, temperature extremes, or products that have magnetic
fields such as monitors or speakers.
If a drive must be mailed, place the drive in a bubble-pack mailer or other protective packaging
and label the package “Fragile: Handle With Care.”
NOTE It is not necessary to remove the front bezel when removing or installing drives unless
you need to remove a bezel blank or need to retrieve the extra guide screws under the front bezel.
The illustrations in the following sections show the front bezel off the chassis so that it is easier
to see the drives being removed or installed.
ENWW Installing and Removing Drives 27
Removing an Optical Drive
CAUTION All removable media should be taken out of a drive before removing the drive from
the computer.
NOTE An optical drive is a CD-ROM, CD-R/RW, DVD-ROM, DVD+R/RW, or CD-RW/DVD
Combo drive.
To remove an optical drive:
1. Remove/disengage any security devices that prohibit opening the computer.
2. Remove all removable media, such as diskettes or compact discs, from the computer.
3. Turn off the computer properly through the operating system, then turn off any external devices.
4. Disconnect the power cord from the power outlet and disconnect any external devices.
CAUTION Regardless of the power-on state, voltage is always present on the system
board as long as the system is plugged into an active AC outlet. You must disconnect the
power cord to avoid damage to the internal components of the computer.
5. If the computer is on a stand, remove the computer from the stand.
6. Remove the access panel.
7. Disconnect the power cable (1) and data cable (2) from the rear of the optical drive.
Figure 2-19 Disconnecting the Optical Drive Power and Data Cables
28 Chapter 2 Hardware Upgrades ENWW
8. Press down on the lever to the left of the drive (1), slide the drive back until it stops, and lift it straight
up and out the drive bay (2).
NOTE Hold the front and back of the drive when lifting it out of the drive bay.
Figure 2-20 Removing the Optical Drive
NOTE To replace the optical drive, reverse the removal procedure. When replacing a drive,
transfer the four guide screws from the old drive to the new one.
Installing an Optical Drive into the 5.25-inch External Drive Bay
To install an optional 5.25-inch optical drive:
1. Remove/disengage any security devices that prohibit opening the computer.
2. Remove all removable media, such as diskettes or compact discs, from the computer.
3. Turn off the computer properly through the operating system, then turn off any external devices.
4. Disconnect the power cord from the power outlet and disconnect any external devices.
CAUTION Regardless of the power-on state, voltage is always present on the system
board as long as the system is plugged into an active AC outlet. You must disconnect the
power cord to avoid damage to the internal components of the computer.
5. If the computer is on a stand, remove the computer from the stand.
6. Remove the access panel.
7. If necessary, remove the bezel blank covering the 5.25-inch drive bay.
ENWW Installing and Removing Drives 29
8. Install two M3 metric guide screws in the lower holes on each side of the drive. HP has provided
four extra M3 metric guide screws on the front of the chassis, under the front bezel. The M3 metric
guide screws are black.
CAUTION Use only 5-mm long screws as guide screws. Longer screws can damage the
internal components of the drive.
NOTE When replacing the drive, transfer the four M3 metric guide screws from the old
drive to the new one.
Figure 2-21 Installing Guide Screws in the Optical Drive
9. Align the guide screws on the drive with the slots on the chassis. Slide the drive all the way down
(1) then slide it forward (2) until it locks into place.
Figure 2-22 Installing the Optical Drive
30 Chapter 2 Hardware Upgrades ENWW
10. Connect the power cable (1) and data cable (2) to the rear of the optical drive.
Figure 2-23 Connecting the Power and Data Cables
CAUTION Never crease or bend a SATA data cable tighter than a 30 mm (1.18 in) radius.
A sharp bend can break the internal wires.
11. Connect the other end of the SATA data cable to the white system board connector labeled SATA1.
12. Replace the access panel.
13. If the computer was on a stand, replace the stand.
14. Reconnect the power cord and any external devices, then turn on the computer.
15. Lock any security devices that were disengaged when the access panel was removed.
The system automatically recognizes the drive and reconfigures the computer.
ENWW Installing and Removing Drives 31
Removing a Diskette Drive
CAUTION All removable media should be taken out of a drive before removing the drive from
the computer.
The diskette drive is located underneath the optical drive. You must remove the optical drive before
removing the diskette drive.
1. Follow the procedure in the above section, Removing an Optical Drive, to remove the optical drive
and access the diskette drive.
CAUTION Regardless of the power-on state, voltage is always present on the system
board as long as the system is plugged into an active AC outlet. You must disconnect the
power cord to avoid damage to the internal components of the computer.
2. Disconnect the data cable (1) and power cable (2) from the back of the drive.
Figure 2-24 Disconnecting the Diskette Drive Cables
32 Chapter 2 Hardware Upgrades ENWW
3. Press down on the lever to the left of the drive (1), slide the drive back until it stops, and lift it straight
up (2).
Figure 2-25 Disengaging the Diskette Drive
4. Tilt the left side of the drive down slightly (1) so that the top lips of the guide screws are not caught
behind the metal frame, then pull the drive out of the drive bay (2).
Figure 2-26 Removing the Diskette Drive
NOTE To replace the diskette drive, reverse the removal procedure. When replacing a drive,
transfer the four guide screws from the old drive to the new one.
ENWW Installing and Removing Drives 33
Installing a Diskette Drive into the 3.5-inch External Drive Bay
If the computer was not configured with a 3.5-inch drive, you can install a media card reader, diskette
drive, or secondary hard drive into the drive bay.
The diskette drive is located underneath the optical drive. To install a diskette drive (or any other 3.5-
inch drive) into the 3.5-inch external bay:
1. Follow the procedure described in the Removing an Optical Drive section to remove the optical
drive and access the 3.5-inch drive bay.
CAUTION Regardless of the power-on state, voltage is always present on the system
board as long as the system is plugged into an active AC outlet. You must disconnect the
power cord to avoid damage to the internal components of the computer.
2. If necessary, remove the bezel blank covering the 3.5-inch drive bay.
3. Install two M3 metric guide screws in the lower holes on each side of the drive. HP has provided
four extra M3 metric guide screws on the front of the chassis, under the front bezel. The M3 metric
guide screws are black.
CAUTION Use only 5-mm long screws as guide screws. Longer screws can damage the
internal components of the drive.
NOTE When replacing the drive, transfer the four M3 metric guide screws from the old
drive to the new one.

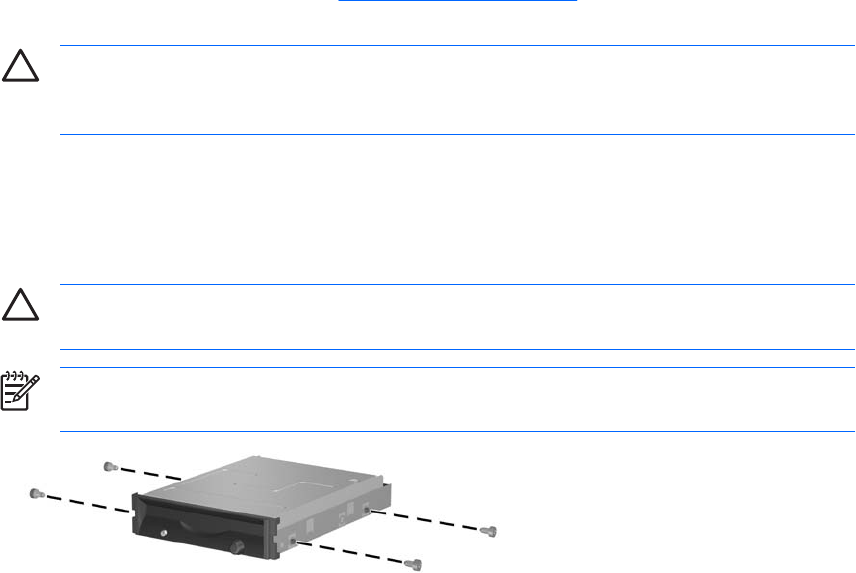

Figure 2-27 Installing Guide Screws in the Diskette Drive
34 Chapter 2 Hardware Upgrades ENWW
4. Align the guide screws with the slots on the chassis. Tilt the drive so that the left side is lower than
the right side (1) and slide the left guide screws into the slots then the right guide screws into the
slots (2).
Figure 2-28 Installing a Diskette Drive
5. Slide the drive all the way down then slide it forward until it locks into place.
Figure 2-29 Installing a Diskette Drive
ENWW Installing and Removing Drives 35
6. Connect the data cable (1) and power cable (2) to the rear of the drive. Connect the other end of
the data cable to the connector on the system board labeled FLOPPY P10.
Figure 2-30 Connecting Diskette Drive Cables
NOTE If installing a second hard drive in the 3.5-inch external drive bay, connect the power
and data cables to the rear of the drive and connect the other end of the data cable to the
next available (unpopulated) SATA connector on the system board in the following order:
SATA0, SATA1, SATA5, SATA4. Ensure that a bezel blank is installed in the front bezel to
cover the opening for the external 3.5-inch drive bay.
7. Replace the optical drive.
8. Replace the access panel.
9. If the computer was on a stand, replace the stand.
10. Reconnect the power cord and any external devices, then turn on the computer.
11. Lock any security devices that were disengaged when the access panel was removed.
36 Chapter 2 Hardware Upgrades ENWW
Removing and Replacing the Primary 3.5-inch Internal SATA Hard Drive
NOTE The system does not support Parallel ATA (PATA) hard drives.
Before you remove the old hard drive, be sure to back up the data from the old hard drive so that
you can transfer the data to the new hard drive. Also, if you are replacing the primary hard drive,
make sure you have the Restore Plus! CD set that you created when you initially set up the
computer to restore the operating system, software drivers, and any software applications that
were preinstalled on the computer. If you do not have this CD set, create it now. Refer to the HP
Backup and Recovery Manager User Guide in the Windows Start menu for more information.
You may wish to print this guide for easy reference.
The preinstalled 3.5-inch hard drive is located under the external drives. To remove and replace the
hard drive:
1. Remove/disengage any security devices that prohibit opening the computer.
2. Remove all removable media, such as diskettes or compact discs, from the computer.
3. Turn off the computer properly through the operating system, then turn off any external devices.
4. Disconnect the power cord from the power outlet and disconnect any external devices.
CAUTION Regardless of the power-on state, voltage is always present on the system
board as long as the system is plugged into an active AC outlet. You must disconnect the
power cord to avoid damage to the internal components of the computer.
5. If the computer is on a stand, remove the computer from the stand.
6. Remove the access panel.
7. Disconnect the power and data cables from the back of the optical drive.
ENWW Installing and Removing Drives 37
8. Press down on the lever to the left of the optical drive (1), slide the optical drive back until it stops,
and lift it straight up and out the drive bay (2).
NOTE Hold the front and back of the drive when lifting it out of the drive bay.
Figure 2-31 Removing the Optical Drive
9. Disconnect the power and data cables from the back of the diskette drive.
10. Press down on the lever to the left of the diskette drive (1), slide the diskette drive back until it stops,
and lift it straight up (2).
Figure 2-32 Disengaging the Diskette Drive
38 Chapter 2 Hardware Upgrades ENWW
11. Tilt the left side of the diskette drive down slightly (1) so that the top lips of the guide screws are
not caught behind the metal frame, then pull the drive out of the drive bay (2).
Figure 2-33 Removing the Diskette Drive
12. Disconnect the power cable (1) and data cable (2) from the back of the hard drive.
Figure 2-34 Disconnecting the Hard Drive Power Cable and Data Cable
CAUTION Never crease or bend a SATA data cable tighter than a 30 mm (1.18 in) radius.
A sharp bend can break the internal wires.
ENWW Installing and Removing Drives 39
13. Press down on the lever to the left of the hard drive (1), slide the drive back until it stops, and lift it
straight up (2).
Figure 2-35 Disengaging the Hard Drive
14. Tilt the left side of the hard drive down slightly (1) so that the top lips of the guide screws are not
caught behind the metal frame, then pull the drive out of the drive bay (2).
Figure 2-36 Removing the Hard Drive
15. To install a hard drive, reverse the above procedure.
40 Chapter 2 Hardware Upgrades ENWW
NOTE If the system has only one SATA hard drive, the data cable must be connected to the
dark blue connector labeled SATA0 on the system board to avoid any hard drive performance
problems. If you are adding a second hard drive, connect the other end of the data cable to the
next available (unpopulated) SATA connector on the system board in the following order: SATA0,
SATA1, SATA5, SATA4.
When replacing the hard drive, transfer the four screws from the old drive to the new one. You
will need a Torx T-15 screwdriver to remove and re-install the guide screws. HP has provided
four extra 6-32 standard guide screws on the front of the chassis, under the front bezel. The 6-32
standard guide screws are silver.
If you replaced the primary hard drive, use the Restore Plus! CD set that you created when you
initially set up the computer to restore the operating system, software drivers, and any software
applications that were preinstalled on the computer. When the restore process has completed,
reinstall any personal files that you backed up before replacing the hard drive.
ENWW Installing and Removing Drives 41
42 Chapter 2 Hardware Upgrades ENWW
A Specifications
Desktop Dimensions
Height
Width
Depth
4.5 in
15.5 in
13.5 in
11.43 cm
39.37 cm
34.29 cm
Approximate Weight 19 lb 8.62 kg
Temperature Range
Operating
Nonoperating
50° to 95°F
-22° to 140°F
10° to 35°C
-30° to 60°C
Relative Humidity (noncondensing)
Operating
Nonoperating (38.7°C max wet bulb)
10-90%
5-95%
10-90%
5-95%
Maximum Altitude (unpressurized)
Operating
Nonoperating
10,000 ft
30,000 ft
3048 m
9144 m
NOTE Operating temperature is derated 1.0° C per 300 m (1000 ft) to 3000 m (10,000 ft) above sea level;
no direct sustained sunlight. Maximum rate of change is 10° C/Hr. The upper limit may be limited by the type
and number of options installed.
Heat Dissipation
Maximum
Typical (idle)
1260 BTU/hr
315 BTU/hr
317 kg-cal/hr
80 kg-cal/hr
Power Supply
Operating Voltage Range
1
Rated Voltage Range
Rated Line Frequency
115V
90-132 VAC
100-127 VAC
50-60 Hz
230V
180-264 VAC
200-240 VAC
50-60 Hz
Power Output 240 W 240 W
ENWW 43
Rated Input Current (maximum)
1
6A @ 100 VAC 3A @ 200 VAC
1
This system utilizes a passive power factor corrected power supply. The power factor correction is
present in the 230V operating mode only. This allows the system to pass the CE mark requirements
for use in the countries of the European Union. This supply requires the use of an input voltage range
select switch.
44 Appendix A Specifications ENWW
B Battery Replacement
The battery that comes with the computer provides power to the real-time clock. When replacing the
battery, use a battery equivalent to the battery originally installed in the computer. The computer comes
with a 3-volt lithium coin cell battery.
WARNING! The computer contains an internal lithium manganese dioxide battery. There is a
risk of fire and burns if the battery is not handled properly. To reduce the risk of personal injury:
Do not attempt to recharge the battery.
Do not expose to temperatures higher than 60°C (140ºF).
Do not disassemble, crush, puncture, short external contacts, or dispose of in fire or water.
Replace the battery only with the HP spare designated for this product.
CAUTION Before replacing the battery, it is important to back up the computer CMOS settings.
When the battery is removed or replaced, the CMOS settings will be cleared. Refer to the
Computer Setup (F10) Utility Guide on the Documentation and Diagnostics CD for information
on backing up the CMOS settings.
Static electricity can damage the electronic components of the computer or optional equipment.
Before beginning these procedures, ensure that you are discharged of static electricity by briefly
touching a grounded metal object.
NOTE The lifetime of the lithium battery can be extended by plugging the computer into a live
AC wall socket. The lithium battery is only used when the computer is NOT connected to AC
power.
HP encourages customers to recycle used electronic hardware, HP original print cartridges, and
rechargeable batteries. For more information about recycling programs, go to http://www.hp.com/
recycle.
1. Remove/disengage any security devices that prohibit opening the computer.
2. Remove all removable media, such as diskettes or compact discs, from the computer.
3. Turn off the computer properly through the operating system, then turn off any external devices.
4. Disconnect the power cord from the power outlet and disconnect any external devices.
CAUTION Regardless of the power-on state, voltage is always present on the system
board as long as the system is plugged into an active AC outlet. You must disconnect the
power cord to avoid damage to the internal components of the computer.
ENWW 45
5. If the computer is on a stand, remove the computer from the stand.
6. Remove the access panel.
7. Locate the battery and battery holder on the system board.
NOTE On some computer models, it may be necessary to remove an internal component
to gain access to the battery.
8. Depending on the type of battery holder on the system board, complete the following instructions
to replace the battery.

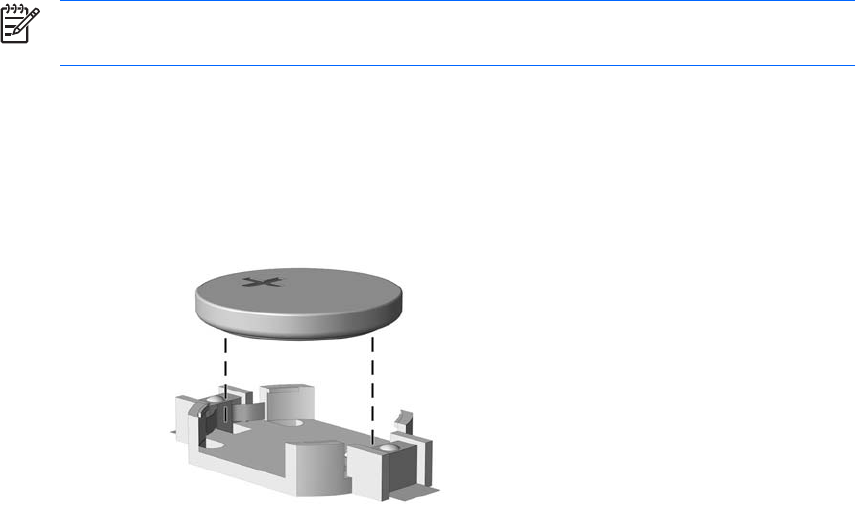

Type 1
a. Lift the battery out of its holder.
Figure B-1 Removing a Coin Cell Battery (Type 1)
b. Slide the replacement battery into position, positive side up. The battery holder automatically
secures the battery in the proper position.

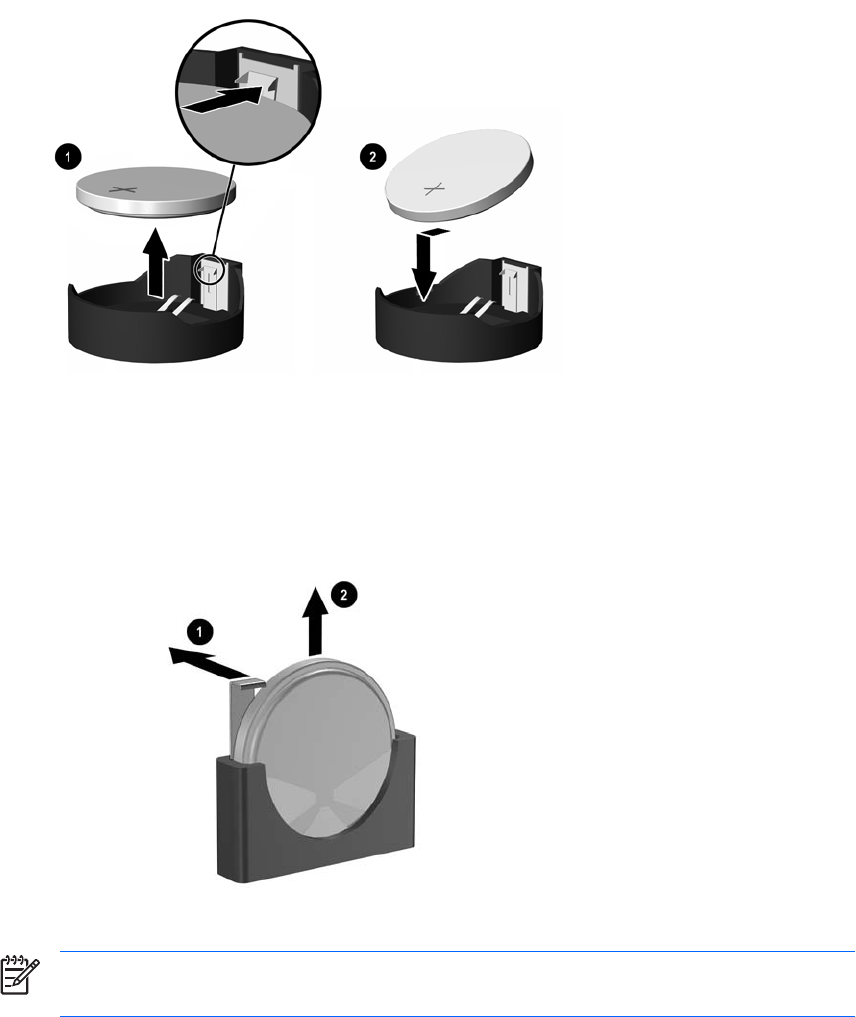

Type 2
a. To release the battery from its holder, squeeze the metal clamp that extends above one edge
of the battery. When the battery pops up, lift it out (1).
46 Appendix B Battery Replacement ENWW
b. To insert the new battery, slide one edge of the replacement battery under the holder’s lip with
the positive side up. Push the other edge down until the clamp snaps over the other edge of
the battery (2).
Figure B-2 Removing and Replacing a Coin Cell Battery (Type 2)
Type 3
a. Pull back on the clip (1) that is holding the battery in place, and remove the battery (2).
b. Insert the new battery and position the clip back into place.
Figure B-3 Removing a Coin Cell Battery (Type 3)
NOTE After the battery has been replaced, use the following steps to complete this
procedure.
9. Replace the access panel.
10. If the computer was on a stand, replace the stand.
11. Plug in the computer and turn on power to the computer.
ENWW 47
12. Reset the date and time, your passwords, and any special system setups using Computer Setup.
Refer to the Computer Setup (F10) Utility Guide on the Documentation and Diagnostics CD.
13. Lock any security devices that were disengaged when the access panel was removed.
48 Appendix B Battery Replacement ENWW
C External Security Devices
NOTE For information on data security features, refer to the Computer Setup (F10) Utility
Guide and the Desktop Management Guide on the Documentation and Diagnostics CD and
the HP ProtectTools Security Manager Guide (some models) at http://www.hp.com.
Installing a Security Lock
The security locks displayed below and on the following page can be used to secure the computer.
Cable Lock
Figure C-1 Installing a Cable Lock
ENWW Installing a Security Lock 49
Padlock
Figure C-2 Installing a Padlock
50 Appendix C External Security Devices ENWW
D Electrostatic Discharge
A discharge of static electricity from a finger or other conductor may damage system boards or other
static-sensitive devices. This type of damage may reduce the life expectancy of the device.
Preventing Electrostatic Damage
To prevent electrostatic damage, observe the following precautions:
Avoid hand contact by transporting and storing products in static-safe containers.
Keep electrostatic-sensitive parts in their containers until they arrive at static-free workstations.
Place parts on a grounded surface before removing them from their containers.
Avoid touching pins, leads, or circuitry.
Always be properly grounded when touching a static-sensitive component or assembly.
Grounding Methods
There are several methods for grounding. Use one or more of the following methods when handling or
installing electrostatic-sensitive parts:
Use a wrist strap connected by a ground cord to a grounded workstation or computer chassis. Wrist
straps are flexible straps with a minimum of 1 megohm +/- 10 percent resistance in the ground
cords. To provide proper ground, wear the strap snug against the skin.
Use heelstraps, toestraps, or bootstraps at standing workstations. Wear the straps on both feet
when standing on conductive floors or dissipating floor mats.
Use conductive field service tools.
Use a portable field service kit with a folding static-dissipating work mat.
If you do not have any of the suggested equipment for proper grounding, contact an HP authorized
dealer, reseller, or service provider.
NOTE For more information on static electricity, contact an HP authorized dealer, reseller, or
service provider.
ENWW Preventing Electrostatic Damage 51
52 Appendix D Electrostatic Discharge ENWW
E Computer Operating Guidelines,
Routine Care and Shipping Preparation
Computer Operating Guidelines and Routine Care
Follow these guidelines to properly set up and care for the computer and monitor:
Keep the computer away from excessive moisture, direct sunlight, and extremes of heat and cold.
Operate the computer on a sturdy, level surface. Leave a 10.2-cm (4-inch) clearance on all vented
sides of the computer and above the monitor to permit the required airflow.
Never restrict the airflow into the computer by blocking any vents or air intakes. Do not place the
keyboard, with the keyboard feet down, directly against the front of the desktop unit as this also
restricts airflow.
Never operate the computer with the cover or side panel removed.
Do not stack computers on top of each other or place computers so near each other that they are
subject to each other’s re-circulated or preheated air.
If the computer is to be operated within a separate enclosure, intake and exhaust ventilation must
be provided on the enclosure, and the same operating guidelines listed above will still apply.
Keep liquids away from the computer and keyboard.
Never cover the ventilation slots on the monitor with any type of material.
Install or enable power management functions of the operating system or other software, including
sleep states.
Turn off the computer before you do either of the following:
Wipe the exterior of the computer with a soft, damp cloth as needed. Using cleaning products
may discolor or damage the finish.
Occasionally clean the air vents on all vented sides of the computer. Lint, dust, and other
foreign matter can block the vents and limit the airflow.
ENWW Computer Operating Guidelines and Routine Care 53
Optical Drive Precautions
Be sure to observe the following guidelines while operating or cleaning the optical drive.
Operation
Do not move the drive during operation. This may cause it to malfunction during reading.
Avoid exposing the drive to sudden changes in temperature, as condensation may form inside the
unit. If the temperature suddenly changes while the drive is on, wait at least one hour before you
turn off the power. If you operate the unit immediately, it may malfunction while reading.
Avoid placing the drive in a location that is subject to high humidity, extreme temperatures,
mechanical vibration, or direct sunlight.
Cleaning
Clean the panel and controls with a soft, dry cloth or a soft cloth lightly moistened with a mild
detergent solution. Never spray cleaning fluids directly on the unit.
Avoid using any type of solvent, such as alcohol or benzene, which may damage the finish.
Safety
If any object or liquid falls into the drive, immediately unplug the computer and have it checked by an
authorized HP service provider.
Shipping Preparation
Follow these suggestions when preparing to ship the computer:
1. Back up the hard drive files on PD discs, tape cartridges, CDs, or diskettes. Be sure that the backup
media is not exposed to electrical or magnetic impulses while stored or in transit.
NOTE The hard drive locks automatically when the system power is turned off.
2. Remove and store all removable media.
3. Insert a blank diskette into the diskette drive to protect the drive while in transit. Do not use a diskette
on which you have stored or plan to store data.
4. Turn off the computer and external devices.
5. Disconnect the power cord from the electrical outlet, then from the computer.
6. Disconnect the system components and external devices from their power sources, then from the
computer.
NOTE Ensure that all boards are seated properly and secured in the board slots before
shipping the computer.
7. Pack the system components and external devices in their original packing boxes or similar
packaging with sufficient packing material to protect them.
54 Appendix E Computer Operating Guidelines, Routine Care and Shipping Preparation ENWW
Index
A
access panel
locking and unlocking 49
removing 10
replacing 11
ADD2/SDVO card 20, 23
audio connectors 2, 3
B
backup and recovery 41
battery replacement 45
C
computer operating guidelines 53
connecting drive cables 27
D
DIMMs. See memory
diskette drive
installing 34
removing 32
drives
connecting cables 27
installing 27
locations 26
E
electrostatic discharge, preventing
damage 51
expansion card
installing 20
removing 20
slot locations 20
expansion slot cover
removing 22
replacing 24
F
front bezel
removing 12
removing blanks 13
replacing 14
front panel components 2
G
guide screws 27
H
hard drive
installing 37
installing secondary 34
removing 37
restoring software 41
headphone connector 2
I
installation guidelines 7
installing
battery 45
diskette drive 34
drive cables 27
expansion card 20
guide screws 27
hard drive 37
memory 15
optical drive 29
restore software 41
security locks 49
K
keyboard
components 4
connector 3
L
line-in connector 3
line-out connector 3
locks
cable lock 49
padlock 50
M
memory
installing 15
populating sockets 16
specifications 15
microphone connector 2
monitor connector 3
mouse
connector 3
special functions 6
N
network connector 3
O
optical drive
cleaning 54
defined 2
installing 29
precautions 54
removing 28
P
parallel connector 3
PCI card 20, 23
PCI Express card 20
power supply 43
product ID location 6
R
rear panel components 3
removing
access panel 10
ADD2/SDVO card 23
battery 45
bezel blanks 13
diskette drive 32
expansion card 20
expansion slot cover 22
front bezel 12
ENWW Index 55
hard drive 37
optical drive 28
PCI card 23
S
security
cable lock 49
padlock 50
serial connector 3
serial number location 6
shipping preparation 54
specifications
computer 43
memory 15
T
tower orientation 8
U
unlocking access panel 49
USB ports
front panel 2
rear panel 3
V
ventilation guidelines 53
W
Windows Logo key 5
56 Index ENWW

Navigation menu
