HP Business Desktop d325 Series

QuickSpecs HP Business Desktop d325 Series

DA-11642 North America — Version 7 — August 22, 2003 1

Overview

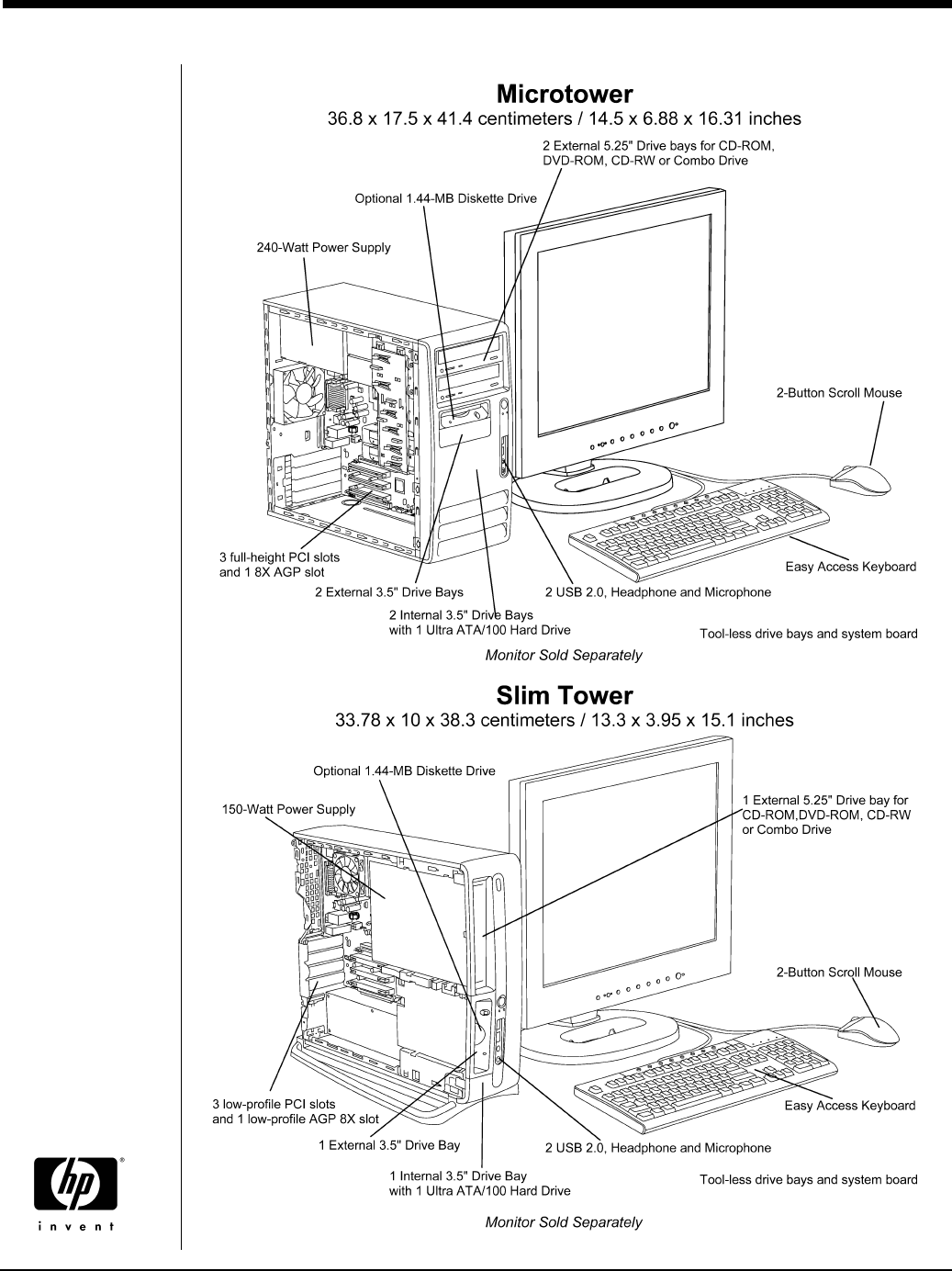

At A Glance

•

AMD Athlon XP

processors

•

NVIDIA nForce2 chipset

with Integrated 64-MB

NVIDIA GeForce4 MX

Graphics

• Integrated dual-monitor

VGA connections built in

with NVIDIA nView Multi-

display software standard

•

Supports up to 2-GB of PC

2700 (DDR 333) Synch

DRAM Memory

•

Dual channel memory

support

•

4 rear USB 2.0 ports and 2

front USB 2.0 ports

•

Integrated audio with

internal speaker

•

Integrated 3COM 10/100

NICLOM (Lan on

Motherboard)

•

8X AGP slot

•

Energy Star compliant with

energy-saving features

•

Protected by HP Services,

including a 3-1-1, standard

warranty. Certain

restrictions and exclusions

apply.

QuickSpecs HP Business Desktop d325 Series

DA-11642 North America — Version 7 — August 22, 2003 2

Standard Features – Select Models

Pre-Configured Models

DE643A#ABA d325m/A2600/40c/256/4U HP d325 Microtower, nVidia nForce2 chipset, AMD Athlon XP 2600+ (2.13GHz), 256KB ECC L2

cache, 266MHz Front Side Bus, 256MB PC2700 DDR (1x256), Integrated nVidia GeForce4 Dual-Head

Graphics, 40GB Ultra ATA Hard Drive (7200 rpm), 48X CD-ROM Drive, Integrated SoundMax III audio

with internal speaker, Integrated 3Com 10/100 networking, Microsoft Windows XP Professional SP1,

Microsoft Works v7.0, Norton Antivirus 2003, PS/2 Easy Access Internet Keyboard, USB Optical Scroll

Mouse, 3-year Parts, 1-year Labor, 1-year Onsite warranty

DE644A#ABA d325m/A2800/40c/512/4U HP d325 Microtower, nVidia nForce2 chipset, AMD Athlon XP 2800+ (2.08GHz), 512KB ECC L2

cache, 333MHz Front Side Bus, 512MB PC2700 DDR

(

1x512

)

, Inte

rated nVidia GeForce4 Dual-Head

Graphics, 40GB Ultra ATA Hard Drive (7200 rpm), 48X CD-ROM Drive, Integrated SoundMax III audio

with internal speaker, Integrated 3Com 10/100 networking, Microsoft Windows XP Professional SP1,

Microsoft Works v7.0, Norton Antivirus 2003, PS/2 Easy Access Internet Keyboard, USB Optical Scroll

Mouse, 3-year Parts, 1-year Labor, 1-year Onsite warranty

DN718A#ABA d325sT/A2400/40c/256/4U HP d325 Slim Tower, nVidia nForce2 chipset, AMD Athlon XP 2400+ (2.00GHz), 266KB ECC L2

cache, 266MHz Front Side Bus, 256MB PC2700 DDR

(

1x256

)

, Inte

rated nVidia GeForce4 Dual-Head

Graphics, 40GB Ultra ATA Hard Drive (7200 rpm), 48X CD-ROM Drive, Integrated SoundMax III audio

with internal speaker, Integrated 3Com 10/100 networking, Microsoft Windows XP Professional SP1,

Microsoft Works v7.0, Norton Antivirus 2003, PS/2 Easy Access Internet Keyboard, USB Optical Scroll

Mouse, 3-year Parts, 1-year Labor, 1-year Onsite warranty

QuickSpecs HP Business Desktop d325 Series

DA-11642 North America — Version 7 — August 22, 2003 3

Standard Features – Custom Components

Processor and Speed - One of the following Microtower Slim Tower

AMD Athlon Processors Front Side Bus Standard L2 Cache

AMD Athlon XP 2400+ (2.00-GHz) 266-MHz 256-KB ECC

AMD Athlon XP 2600+ (2.13-GHz) 266-MHz 256-KB ECC

AMD Athlon XP 2800+ (2.08-GHz) 333-MHz 512-KB ECC

AMD Athlon XP 3000+ (2.17-GHz) 333-MHz 512-KB ECC

AMD Athlon XP 3200+ (2.33-GHz) 333-MHz 512-KB ECC

Hard Drives

40-GB 7200 rpm SMART III Ultra ATA/100

40-GB 5400 rpm SMART III Ultra ATA/100

80-GB 7200 rpm SMART III Ultra ATA/100

160-GB 7200 rpm SMART III Ultra ATA/100

Standard Memory - One of the following

128-MB DDR Synch DRAM PC2700 (333-MHz) Non ECC (1 x 128 DIMM)

256-MB DDR Synch DRAM PC2700 (333-MHz) Non ECC (1 x 256 DIMM)

256-MB DDR Synch DRAM PC2700 (333-MHz) Non ECC (2 x 128 DIMM)

512-MB DDR Synch DRAM PC2700 (333-MHz) Non ECC (1 x 512 DIMM)

512-MB DDR Synch DRAM PC2700 (333-MHz) Non ECC (2 x 256 DIMM)

1-GB DDR Synch DRAM PC2700 (333-MHz) Non ECC (1 x 1024 DIMM)

1-GB DDR Synch DRAM PC2700 (333-MHz) Non ECC (2 x 512 DIMM)

2-GB DDR Synch DRAM PC2700 (333-MHz) Non ECC (2 x 1024 DIMM)

Removable Storage

Optional 1.44-MB Diskette Drive

Zip 250 Drive (available in 3.5”)

16-MB, 64-MB, or 128-MB Drive Keys

Optical Storage - One of the following

48X Max CD-ROM Drive

48X/24X/48X CD-RW Drive

16X/40X DVD-ROM with +R Read

48X/24X/48X/16X Combo CD-RW/DVD-ROM Drive

4X DVD+R/+RW Drive

NOTE: All DVD devices will be restricted to 256-MB or more system memory.

I/O Card

IEEE 1394a (FireWire 400) PCI Card

QuickSpecs HP Business Desktop d325 Series

DA-11642 North America — Version 7 — August 22, 2003 4

Standard Features – Custom Components

Keyboard Microtower Slim Tower

PS/2 Easy Access Keyboard

Wireless Easy Access Keyboard

Mouse

PS/2 2-Button Scroll Mouse

USB Optical Scroll Mouse

Wireless Optical Scroll Mouse

Modem

Lucent V.90 56K Win Modem

Audio

Integrated Soundmax AC97 audio with premium internal speaker

NIC

Integrated 3COM 3C920B-EMB Fast Ethernet Controller

Intel Pro 1000 MT NIC FH PCI adapter

Intel Pro 1000 MT NIC LP PCI adapter

Graphics

NVIDIA nForce2 GT chipset with Integrated NVIDIA GeForce4 MX 64-MB Graphics

NVIDIA GeForce4 MX-440-8 64-MB DDR Full Height 8X AGP VGA w/TV-out

NVIDIA GeForce4 MX-440-8 64-MB DDR Low Profile 8X AGP VGA w/TV-out

Operating System – One of the following

Microsoft Windows XP Home SP1

Microsoft Windows 2000 SP3

Microsoft Windows XP Professional SP1

QuickSpecs HP Business Desktop d325 Series

DA-11642 North America — Version 7 — August 22, 2003 5

Standard Features – Custom Components

Software (Microsoft Windows system only) Microtower Slim Tower

Norton AntiVirus 2003

Microsoft Works v7.0 (US only)

Microsoft Office XP Small Business Edition

Microsoft Office XP Professional

PDF Complete

Roxio EZ CD Creator v6 (included with all re-writeable optical drives)

CorelWordPerfect (US English only) (on CD)

Intervideo WinDVD v4 (included with all DVD drives)

MyDVD Suite v4 (included on CD with all DVD +R/+RW drives)

HP Restore Plus! Kit / OS CD

Dantz Restrospect Backup v6 (included on CD with all re-writeable optical drives)

Open Office Productivity Suite on CD (LA only)

Security

Chassis Clamp Lock with Cable (sold as an accessory)

Chassis Clamp Lock without Cable (sold as an accessory)

Rear Port Controller Cover

Solenoid Lock (sold as an accessory)

Miscellaneous

Tower Stand (included in all configuration)

Wall Mount Bracket with Security Sleeve ( sold as an accessory)

Intelligent Manageability

Downloadable from HP Intelligent Manageability at: http://h18000.www1.hp.com/im/

QuickSpecs HP Business Desktop d325 Series

DA-11642 North America — Version 7 — August 22, 2003 6

Standard Features – Base Unit Details

Base Unit Contents Microtower Slim Tower

AMD processor, heatsink

System board with NVIDIA nForce2 chipset

(2) ATA Cables

Optional diskette drive with cable

Audio cable

Quick Setup booklet

Getting Started guide

Product Documentation on CD

HP OS CD and HP Restore CD

Warranty booklet

Power Cord

PS/2 Easy Access Keyboard

PS/2 Scroll Mouse or USB Optical Mouse (North

America)

Expansion Capability

Memory Expansion Slots (Non-ECC) 2 DIMM slots 2 DIMM slots

Maximum Memory 2-GB (1-GB per slot maximum) 2-GB (1-GB per slot maximum)

Slots

PCI 3 full-height, full-length 3 low-profile

AGP 1 full-height, full length 8X AGP 1 low-profile AGP 8X

Bays Total Bays = 6 Total Bays = 3

Internal (2) 3.5-inch hard drive bays (1) 3.5 inch ATA Hard Drive

External (2) full-length 5.25-inch (1) 5.25 inch full-length

(2) full-length 3.5-inch (1) 3.5 inch full length

Wireless Support PCI card or external USB PCI card or external USB

USB Support (2) Front USB 2.0 Ports (2) Front USB 2.0 Ports

(4) Rear USB 2.0 Ports (4) Rear USB 2.0 Ports

NOTE: 2 USB ports can be high-speed, (USB 2.0), and divide the total possible 480Mb/s bandwidth. The remaining 4 ports, if used at the same time, are USB

1.1 and divide up a total of 12Mb/s between them.

Interfaces (Legacy)

Parallel Port 1 1

Serial Port 1 1

PS/2 Keyboard 1 1

PS/2 Mouse 1 1

VGA Adapter 2 2

Chassis Dimensions (H x W x D) Centimeters 36.8 x 17.5 x 41.4 33.78 x 10 x 38.3

Chassis Dimensions (H x W x D) Inches 14.5 x 6.88 x 16.31 13.3 x 3.95 x 15.1

System Weight 24.0 lbs 22.2 lbs

System Volume 1651 sq. in. (27.0 liters) 859 sq. in. (14.1 liters)

Shipping Weight 32 lbs 30.5 lbs.

Packaged Unit Dimensions (H x W x D) 22.20 x 13.00 x 23.50 in 22.125 x 18.75 x 13.375 in

QuickSpecs HP Business Desktop d325 Series

DA-11642 North America — Version 7 — August 22, 2003 7

Standard Features – Base Unit Details

System Memory Microtower Slim Tower

Type/Speed DDR Synch DRAM PC2700 (333-MHz) Non-ECC

and DDR Synch DRAM PC2100 (266-MHz) Non-

ECC

DDR Synch DRAM PC2700 (333-MHz) Non-ECC and

DDR Synch DRAM PC2100 (266-MHz) Non-ECC

Maximum Memory 2 GB (1-GB per slot maximum) 2 GB (1-GB per slot maximum)

Memory Parity Not Needed for non-ECC Not Needed for non-ECC

ECC Memory Not Supported by chipset Not Supported by chipset

Serial Presence Detect Support Supported Supported

Dual channel memory Support Yes. Requires two equal size and type memory

modules Yes. Requires two equal size and type memory

modules.

Supported Features

Processor AMD Athlon XP AMD Athlon XP

CPU Bus Speed Supported 333 or 266-MHz FSB 333 or 266-MHz FSB

Memory Type Supported DDR (ECC not supported by Chipset) DDR (ECC not supported by Chipset)

Memory Speed Supported DDR Synch DRAM PC2700 (333 MHz) or PC2100

(266-MHz) Non-ECC DDR Synch DRAM PC2700 (333 MHz) or PC2100 (266-

MHz) Non-ECC

Serial Presence Detect Support Yes Yes

Hard Drive Interfaces Supported SMART III Ultra ATA/100/66/33 SMART III Ultra ATA/100/66/33

Hard Drive Controller (PCI) Supported SMART III Ultra ATA/100/66/33 SMART III Ultra ATA/100/66/33

AMD Athlon XP

Coprocessor Integrated Integrated

CPU Socket Type/Number Socket A Socket A

CPU Package FC-PGA FC-PGA

Front Side Bus Speed 333 or 266-MHz 333 or 266-MHz

Standard L2 Cache 512-KB ECC or 256-KB ECC, depending on

processor 512-KB ECC or 256-KB ECC, depending on processor

L2 Cache Architecture / Speed Full core clock speed Full core clock speed

Cache Upgradeable To Not upgradeable - Integrated into Processor Not upgradeable - Integrated into Processor

System Board

Architecture Athlon XP / PCI / AGP 4X and 8X Athlon XP / PCI / AGP 4X and 8X

Chipset NVIDIA nForce2 chipset NVIDIA nForce2 chipset

I/O Controller SMSC LPC47B367 Super I/O SMSC LPC47B367 Super I/O

System Board Form Factor Standard uATX Standard uATX

Processor Socket - 462 Pin ZIF Yes Yes

DIMM Connectors (2.5V) Yes (2) Yes (2)

AGP Connector (1.5V) Yes (1) 8X AGP Yes (1) 8X AGP

Integrated AGP Graphics Yes Yes

PCI Connectors Yes (3 on system board) Yes (3 on system board)

Flash ROM Yes Yes

Audio Yes Yes

CD ROM IN (Audio) Yes Yes

Clear CMOS Yes Yes

CPU Fan Header Yes Yes

Chassis Fan Header Yes Yes

Chassis Speaker Header Yes Yes

CMOS Battery Holder - Lithium Yes Yes

Hood Lock Header Yes Yes

Hood Sense Header Yes Yes

QuickSpecs HP Business Desktop d325 Series

DA-11642 North America — Version 7 — August 22, 2003 8

Standard Features – Base Unit Details

System Board (continued) Microtower Slim Tower

Multibay Header No No

Multport Header No No

NIC supported features:

WOL (Wake-On-Lan

®)

Yes Yes

AOL (Alert-On-LAN

®)

No No

SOS

Network based alerting Yes Yes

ASF (Alert Standards Format) No No

PXE (Pre-Boot Execution Environment) Yes Yes

Power Supply Header Yes Yes

Power Switch, Power LED and Hard Drive LED

Header Yes Yes

Password Clear Header Yes Yes

Riser Connector No No

SCSI LED Header No No

ACPI-Ready Hardware

•

Advanced Configuration and Power

Management Interface (ACPI).

•

It allows the system to wake from a low

power mode.

•

It controls system power consumption,

making it possible to place individual

cards and peripherals in a low-power or

powered-off state without affecting other

elements of the system.

Yes Yes

Dual-State Power Button

•

Power button acts as both an on/off

button and suspend-to-sleep button.

Yes Yes

Chassis

Color Carbonite/Silver Carbonite/Silver

System Board Form Factors Supported Standard uATX Standard uATX

Cooling Solutions Supported

Power Supply Fan (Variable Speed) Yes Yes

Processor Fan-Heatsink (Variable Speed) Yes Yes

Chassis Fan Yes Yes

Front I/O Standard Front Headphone, Microphone, and (2)

USB 2.0 Standard Front Headphone, Microphone, and (2) USB

2.0

Rear I/O Standard ATX I/O Connectors (4 USB 2.0, 1 VGA,

1 Audio Out, 1 Audio In, 1 Microphone, 1 Serial, 1

Parallel, 2 PS2, 1 RJ45)

Standard ATX I/O Connectors (4 USB 2.0, 1 VGA, 1

Audio Out, 1 Audio In, 1 Microphone, 1 Serial, 1 Parallel,

2 PS2, 1 RJ45)

Internal Speaker Yes Yes

Security Locks Supported Kensington Cable Lock (optional) Kensington Cable Lock (optional)

Hood Cover Security Loop (standard but Lock not

included) Hood Cover Security Loop (standard but Lock not

included)

Solenoid Hood lock (optional) Solenoid Hood lock (optional)

QuickSpecs HP Business Desktop d325 Series

DA-11642 North America — Version 7 — August 22, 2003 9

Standard Features – Base Unit Details

Interfaces Microtower Slim Tower

I/O Chip SMSC LPC47B367 Super I/O SMSC LPC47B367 Super I/O

Serial Port / UART Type One Serial Port One Serial Port

Parallel Port One Parallel Port One Parallel Port

USB 6 USB 2.0 ports (4 rear/2 front) 6 USB 2.0 ports (4 rear/2 front)

Infrared Port No No

Network RJ-45 RJ-45

Keyboard Yes (PS2 and USB) Yes (PS2 and USB)

Mouse Yes (PS2 and USB) Yes (PS2 and USB)

Multibay No No

Video Yes Yes

Audio Yes Yes

Power Supply

Power Supply 240-watt ATX power supply – PFC 115v/230v line

switch 150-watt ATX power supply – PFC 115v/230v line switch

Full Ranging Input (No Line Select Switch) No No

Active Power Factor Correction (APFC) (Input

Current is nearly 1/2 a non-APFC PS) No No

Passive Power Factor Correction (PFC) Yes (with line switch set to 230V - No PFC in

115V line switch position) Yes (with line switch set to 230V - No PFC in 115V line

switch position)

Operating Voltage Range 90 to 132VAC, or 180 to 264VAC 90 to 132VAC, or 180 to 264VAC

Rated Voltage Range 100 to 127VAC, or 200 to 240VAC 100 to 127VAC, or 200 to 240VAC

Rated Line Frequency 50-60 Hz 50-60 Hz

Operating Line Frequency Range 47-63 Hz 47-63 Hz

Rated Input Current 6A @ 100VAC/3A @ 200VAC 5A @ 100VAC/2.5A @ 200VAC

Maximum Rated Power 240 watt 150 watt (system rated for 130W maximum)

Heat Dissipation Max (369W input): 1260 BTU/hr Typical (75W

input): 256 BTU/hr Max (369W input): 317 kg-

cal/hr Typical (75W input): 65 kg-cal/hr

Max (200W input): 683 BTU/hr Typical (75W input): 256

BTU/hr Max (200W input): 172 kg-cal/hr Typical (75W

input): 65 kg-cal/hr

PS Fan 92mm fan integrated in power supply - variable

speed for optimum acoustics PS cooling achieved via ducting of airflow from processor

fan.

Processor Fan Variable speed fan Variable speed fan

Environmental and Mechanical Engineering

Support Center http://env-webserver.ccm.cpqcorp.net/EMESC/default.htm

Power Conservation ‘Energy Saver’

Energy Star Compliant Yes Yes

APM 1.2 Support No No

Screen Blanking Yes Yes

Hard Disk ‘Idle’ Mode Yes Yes

System Idle Mode Yes Yes

Cache Memory Power-Down No No

Blue Angel Compliant (<5w in S5--Power Off) Yes Yes

Power Consumption in ES Mode - Suspend to

RAM (S3) (Instantly Available PC) ~2W ~2W

Processor/Cache Memory Power-Down (S3) Yes Yes

CD-Rom Spins Down when not in use Yes Yes

QuickSpecs HP Business Desktop d325 Series

DA-11642 North America — Version 7 — August 22, 2003 10

Standard Features – Base Unit Details

Supported Operating System Microtower Slim Tower

DOS No No

Windows 3.1 No No

Windows 95 No No

Windows 98 No No

Windows NT 4.X No No

Windows 2000 / Windows XP Pro dual-install No No

Windows 2000 Yes Yes

Windows XP Pro Yes Yes

Windows XP Home Yes Yes

Mandrake Linux 9.1.4 light Yes Yes

Intelligent Manageability

Intelligent Manageability Home Page http://h18000.www1.hp.com/im/ http://h18000.www1.hp.com/im/

Insight Management Agent Yes (via web download) Yes (via web download)

Plug and Play Ready Yes Yes

Windows 2000 Yes Yes

Windows XP Pro Yes Yes

Windows XP Home No No

Mandrake Linux 9.1 No No

Boot Support

Local Diskette Boot Yes Yes

Network Boot Yes (with PXE supported NICs) Yes (with PXE supported NICs)

QuickSpecs HP Business Desktop d325 Series

DA-11642 North America — Version 7 — August 22, 2003 11

Standard Features – Base Unit Details

ROM Features Description Microtower Slim Tower

Instantly Available PC (Suspend to

RAM - S3) Allows for very low power consumption with quick resume time Yes Yes

ROM Based F10 Setup Allows for reviewing and customizing BIOS settings Yes Yes

Replicated Setup

Saves BIOS settings to diskette or USB disk-on-key in human-

readable file. Repset.exe utility can then replicate these settings

on machines being deployed without entering ROM based F10

Setup

Yes Yes

Remote System Installation via F12

(PXE)

Allows a new or existing system to boot over the network and

download software, including the operating system, that is stored

on a management server Yes Yes

Failsafe Boot Block ROM ----- Yes Yes

Emergency ROM Flash Recovery

(BootBlock) User is alerted with audible tones and keyboard LEDs only Yes Yes

CMOS Archive and CMOS Restore By holding the power button down, allows the last known good

BIOS settings (from previous restart) to be restored if the system

gets into a locked up state after configuration changes are made Yes Yes

Save and Restore CMOS Setup via

Diskette ----- Yes Yes

Auto Setup when New Hardware

Installed System automatically detects addition of new hardware (e.g.

memory, floppy, etc.) Yes Yes

Serial, Parallel, USB Enable/Disable

Port Control Allows the user to enable or disable serial, parallel or USB ports Yes Yes

Removable Media Write / Boot Control Prevents the computer from being booted from removable media

on supported devices (and can disable writes to media) Yes Yes

Remote Boot from Server Allows a new or existing system to boot over the network and

download software, including the operating system, that is stored

on a management server Yes Yes

Network Server Mode Allows for secured keyboard-less operation on PS/2 devices Yes Yes

Power-On Password Prevents an unauthorized person from booting up the computer Yes Yes

Setup Password Prevents an unauthorized person from changing the system

configuration Yes Yes

Memory Change Alert (Requires

Insight Management Agent) Alerts management console if memory is removed or changed Yes Yes

Thermal Alert (Requires Insight

Management Agent)

• Monitors the temperature within the chassis.

• There are three operational states that a computer can

experience:

−

NORMAL – operating under under normal temperature

ranges

−

ALERTED - operation when excessive temperatures are

detected. Will raise a flag so that appropriate action can be

taken to avoid shutdown or provide for a smoother system

shutdown

−

SHUTDOWN – when excessive temperatures are

encountered. Will automatically shutdown the computer

without warning before hardware component damage occurs

Yes Yes

Cover Removal Alert (Requires

Insight Management Agent for

network alerts)

• Assists with asset security and control by notifying the Network

Administrator and end user when the cover has been removed

without authorization.

• Is an electronic switch residing inside the computer which can

be set to any one-of-three modes depending on the amount of

control desired:

−

DISABLED - the user/network administrator does not want to

be made aware of the computer hood removal

−

NOTIFY USER – notifies user/network administrator that the

hood has been removed, but no action required before re-

booting the computer

−

SETUP PASSWORD – notifies user/network administrator

that the hood has been removed and administrator

password is required before the computer will continue to

boot

Yes Yes

QuickSpecs HP Business Desktop d325 Series

DA-11642 North America — Version 7 — August 22, 2003 12

Standard Features – Base Unit Details

ROM Features Description Microtower Slim Tower

Master Boot Record Security Allows for detection of changes to MBR and optional restoration,

useful in protecting from viruses Yes Yes

Remote ROM Flash Provides secure, fail-safe ROM image management from a central

network console Yes Yes

Power Management ----- Yes Yes

ACPI Ready ----- Yes Yes

SMBIOS (previously known a DMI) System Management BIOS, previously known as DMI BIOS, for

system management information Yes Yes

Keyboard-less Operation The system can be operated without a keyboard Yes Yes

Remote ROM Flash Provides secure, fail-safe ROM image management from a

central network console Yes Yes

Remote Wakeup /

Remote Shutdown • Allow a system administrator to power on, restart, and power

off a client computer from a remote location.

• This enables cost-effective power consumption when the

administrator needs to distribute software, perform security

management, or update the ROM.

Yes Yes

ROM Based Setup (F10) and Start-

up Diagnostics ----- Yes Yes

System Environmental Specs

Acoustics: Advanced Power

Management – On Seated operator position Idle (Hard drive

spinning but not

seeking) = 23 dBA

Idle (Hard drive spinning

but not seeking) = 27

dBA

Shock

Operating

(*Using 11-ms half-sine shock pulse) ----- 5 G’s* (with no

damage being

incurred)

5 G’s* (with no damage

being incurred)

Non-Operating

(*Using 11-ms half-sine shock pulse) ----- 10 G’s*, positive and

negative directions

front to back axis: 20

G’s* in all other axes

10 G’s*, positive and

negative directions front

to back axis: 20 G’s* in

all other axes

Vibration

Operating ----- Random vibration at

0.000215 G²/Hz, 10Hz

to 300Hz, (0.25G’s

nominal)

Random vibration at

0.000215 G²/Hz, 10Hz

to 300Hz, (0.25G’s

nominal)

Non-Operating ----- Random vibration at

0.0005 G²/Hz, 10Hz to

500Hz, (0.5G’s

nominal)

Random vibration at

0.0005 G²/Hz, 10Hz to

500Hz, (0.5G’s nominal)

Relative Humidity

Operating

(maximum wet bulb temp., non-

condensing)

----- 10% to 90% relative

humidity (Rh), 28°C 10% to 90% relative

humidity (Rh), 28°C

Non-operating

(maximum wet bulb temp., non-

condensing)

----- 5% to 95% relative

humidity (Rh), 38.7°C 5% to 95% relative

humidity (Rh), 38.7°C

Altitude Max (un-pressurized)

Operating

(Maximum allowable altitude change

rate is 1500 ft/min.)

----- 0 to 3,048 meters/

10,000 feet – This

value may be limited

by the type and

number of options

installed.

0 to 3,048 meters/

10,000 feet – This value

may be limited by the

type and number of

options installed.

Non-operating

(Maximum allowable altitude change

rate is 1500 ft/min) ----- 0 to / 9,144 m/30,000 ft 0 to / 9,144 m/30,000 ft

QuickSpecs HP Business Desktop d325 Series

DA-11642 North America — Version 7 — August 22, 2003 13

Standard Features – Base Unit Details

Initial Configuration and Deployment Microtower Slim Tower

Replicated Setup Saves BIOS settings to diskette or USB disk-on-key in human-

readable file. Repset.exe utility can then replicate these settings

on machines being deployed without entering ROM based F10

Setup

Yes Yes

Support Software CD ----- Yes Yes

HP Software Restore CD Allows the computer to be restored to its original factory

shipping image Yes Yes

Altiris eXpress Solutions (30-day trial

version) A suite of solutions that focus on business needs in four areas,

saving time and freeing resources to address other crucial

issues:

• Deployment & Migration

• Software & Operations Management

• Inventory & Asset Management

• Help Desk & Problem Resolution

http://h18000.www1.

hp.com/im/ http://h18000.www1.hp

.com/im/

sset Tracking

Asset Tracking and Security Home

Page ----- http://h18000.www1.

hp.com/im/swdeploy/

dt_nb.html

http://h18000.www1.hp

.com/im/swdeploy/dt_n

b.html

Asset Tag

• Intended to be used as a repository for storing company-

specific property asset numbers for easy tracking

• Initially set equal to the system serial number

• Stored in a protected section of non-volatile memory which

can be accessed and modified with the F10 Setup program

Yes Yes

DIMM Serial Presence Detect Detects whether or not memory DIMMs are present and their

type Yes Yes

Hard drive serial number, model,

and manufacturer Hard drive manufacturer, model, and serial number is stored in

the hard drive firmware and reported in ROM based F10 setup Yes Yes

Monitor serial number, model &

manufacturer Yes Yes

System serial number, model, &

manufacturer

System serial number, model, & manufacturer stored in a non-

volatile memory and can be retrieved with management

software or viewed in ROM based F10 setup Yes Yes

ROM revision levels

• System ROM revision levels are identified by a version

number (xx.yy) and reported in ROM based F10 Setup

• Version is stored in an industry standard memory location

(SMBIOS) so that management SW applications can use and

report this information

Yes Yes

System board revision level

• Allows management SW to read the revision level of the

system board

• Revision level is digitally encoded into the hardware and

cannot be modified

Yes Yes

Memory Change Alert (Intelligent

Manageability needed to work) Alerts management console if memory is removed or changed Yes Yes

Ownership Tag A user defined string stored in a non-volatile memory that is

displayed on the BIOS splash screen Yes Yes

QuickSpecs HP Business Desktop d325 Series

DA-11642 North America — Version 7 — August 22, 2003 14

Standard Features – Base Unit Details

Security Features of Chassis Microtower Slim Tower

Solenoid Hood Lock ----- Yes Yes

Hood Sensor ----- Yes Yes

Kensington Lock Support ----- Yes Yes

Cable Lock Provision Allows the user to physically secure computer hardware from

theft via a loop on the chassis. With lock installed, this loop

also prevents the hood from being removed.

Yes Yes

Serial, Parallel, USB Enable/Disable Allows the user to enable or disable serial, parallel or USB ports

and hide them from the operating system Yes Yes

Port Control Device which attaches to back of chassis covering external

ports and thereby preventing unauthorized access; also aids in

cable management

Yes Yes

Removable Media Write / Boot

Control Prevents the computer from being booted from removable

media on supported devices (and can disable writes to media) Yes Yes

Power-On Password Prevents an unauthorized person from booting up the computer Yes Yes

Setup Password Prevents an unauthorized person from changing the system

configuration Yes Yes

SmartCard Reader Security device that prevents system access into the operating

system unless the user has the appropriate Smartcard

Optional Optional

Fault Notification and Recovery

Fault Management Home Page ----- http://h18000.www1.

hp.com/im/ http://h18000.www1.h

p.com/im/

SMART Hard Drives, Fault

Notification, & Prefailure Warranty • Allows hard drives to monitor their own health and to raise

flags if imminent failures were predicted

• Predicts failures before they occur. Tracks fault prediction

and failure indication parameters such as re-allocated sector

count, spin retry count, calibration retry count

• By helping users avoid actual hard drive failures, SMART

hard drives act as “insurance” against unplanned user

downtime and potential data loss from hard drive failure

Yes Yes

Surge Tolerant Full Ranging Power

Supply Withstands power surges up to 2000V Yes Yes

Ultra ATA Integrity Monitoring (CRC

Checking) • Provides data transfer verification.

• Provides proactive notification of hard drive data

transmission problems and recommendations for enhancing

system performance

• Detects all the following errors types:

−

single bit errors

−

double bit errors

−

an odd number of errors

−

error bursts up to 32-bits long

Yes Yes

ATA RAID Controller Option ----- No No

System Software Updating

Support Software CD & website ----- Yes Yes

QuickSpecs HP Business Desktop d325 Series

DA-11642 North America — Version 7 — August 22, 2003 15

Standard Features – Base Unit Details

Serviceability Features – System Microtower Slim Tower

Dual Color Power LED on Front of

Computer Indicates normal operations and fault conditions Yes Yes

Blinking Power LED Codes Allows for easy problem resolution Yes Yes

Diagnostic LED Explanation Table Number of 1-second blinks (red LED) Diagnosis – followed by a

2 second pause/ repeat:

2 = Processor Thermal Protection Activated

3 = Processor not installed

4 = Power Supply Failure

5 = Memory Error

6 = Video Error

7 = PCA failure (ROM detected failure prior to video)

8 = Invalid ROM, bootblock recover mode

Yes (Available at

http://www.compaq.c

om/support/techpubs

/illustrated_parts_ma

Yes (Available at

http://www.compaq.co

m/support/techpubs/ill

ustrated_parts_map)

Emergency ROM Flash Recovery ----- Yes Yes

Compaq Diagnostic for Windows

Software ----- Yes Yes

Compaq Configuration Record

Software ----- Yes Yes

Over-Temp Warning on Screen

(Requires IM Agents) ----- Yes Yes

HP OS CD (Restore OS CD) Allows the computer to be restored to its original factory

shipping image Yes Yes

HP Restore CD (Restores Drivers

CD) Allows the computer to be restored to its original factory

shipping image Yes Yes

Flash ROM ----- Yes Yes

3.3V Aux Power LED on

System PCA ----- Yes Yes

Dual Function 5V Aux Power LED

(ON) / PS_ON LED (OFF) on

System PCA

----- Yes Yes

Diagnostic Power Switch LED on

board ----- Yes (On when

power switch

pushed)

Yes (On when power

switch pushed)

Clear Password Jumper ----- Yes Yes

Clear CMOS Button Yes Yes

CMOS Battery Holder for easy

Replacement ----- Yes Yes

Processor ZIP Socket for easy

Upgrade ----- Yes Yes

DIMM Connectors for easy Upgrade ----- Yes Yes

NIC LEDs (integrated) (Green &

Amber) Used to determine NIC status Yes (Green On =

Network Activity;

Amber On =

100Base-TX; Amber

Off = 10Base-TX)

Yes (Green On =

Network Activity;

Amber On = 100Base-

TX; Amber Off =

10Base-TX)

QuickSpecs HP Business Desktop d325 Series

DA-11642 North America — Version 7 — August 22, 2003 16

Standard Features – Base Unit Details

Serviceability Features Microtower Slim Tower

Tool-less PCI Card Removal ----- Yes Yes

Tool-less AGP Card Removal ----- Yes Yes

Dual Color Power and Hard Drive

LED Indicates Normal Operations and Fault Conditions Yes Yes

Diagnostic LED Explanation Table ----- Yes (Available at

http://www.compaq.c

om/support/techpubs

/illustrated_parts_ma

Yes (Available at

http://www.compaq.co

m/support/techpubs/ill

ustrated_parts_map)

Emergency ROM Flash Recovery ----- Yes Yes

Smart Cover Sensor (Requires

Insight Management Agent for

network alerts)

• Assists with asset security and control by notifying the

Network Administrator and end user when the cover has

been removed without authorization.

• Is an electronic switch residing inside the computer which

can be set to any one-of-three modes depending on the

amount of control desired:

−

DISABLED - the network administrator does not want to

be made aware of the computer hood removal

−

NOTIFY USER - notifies network administrator that the

hood has been removed, but no administrator action

required before re-booting the computer

−

SETUP PASSWORD – notifies network administrator that

the hood has been removed and administrator password

is required before re-booting the computer

Yes Yes

Solenoid Hood Lock Remote operated system lock Yes Yes

Green Pull Tabs, and Quick Release

Latches for easy Identification ----- Yes Yes

System memory can be upgraded

without removing the system board

or any internal components

Eases memory upgrading Yes Yes

Tool-less Hood Removal Eases entry to the chassis without use of special tools Yes (with captive

thumbscrews) Yes

Tool-less Hard Drive, CD & Diskette

Removal No special tools required for removal of devices in the 3.5” and

5.25” bays Yes Yes

Tool-less System Board Removal No special tools required for system board removal Yes Yes

Industry-standard CD Bay ----- Yes Yes

Serviceability Features – Hard Drives

Drive Self Tests (DPS) Yes Yes

DPS Access through F10 Setup

during Boot Yes Yes

DPS Access through Diagnostics for

Windows

• Drive Protection System

• A diagnostic hard drive self test. It scans critical physical

components and every sector of the hard drive for physical

faults and then reports any faults to the user.

• Running independently of the operating system, it can be

accessed through a Windows-based diagnostics utility or

through the computer's setup procedure. It produces an

evaluation on whether the hard disk drive is the source of the

problem and needs to be replaced.

• The system expands on the Self-Monitoring, Analysis, and

Reporting Technology (SMART), a continuously running

systems diagnostic that alerts the user to certain types of

failures

Yes Yes

SMART Technology

(Self-Monitoring, Analysis and

Reporting Technology)

Yes Yes

SMART I - Drive Failure Prediction Yes Yes

SMART II - Off-Line Data Collection Yes Yes

SMART III - Off-Line Read Scanning

with Defect Reallocation

• Allows hard drives to monitor their own health and to raise

flags if imminent failures were predicted

• Predicts failures before they occur. Tracks fault prediction

and failure indication parameters such as re-allocated sector

count, spin retry count, calibration retry count

• By helping users avoid actual hard drive failures, SMART

hard drives act as “insurance” against unplanned user

downtime and potential data loss from hard drive failure

Yes Yes

QuickSpecs HP Business Desktop d325 Series

DA-11642 North America — Version 7 — August 22, 2003 17

Standard Features – Base Unit Details

Service and Support On-site Warranty and Service

Note 1

: This three-year (3-1-1), limited warranty and service offering delivers three

years of parts and one year of both labor and on-site repair. Response time is next business-day

Note 2

and

includes free telephone support

Note 3

24 x 7. Global coverage

Note 2

ensures that any product purchased in one

country and transferred to another non-restricted country will remain fully covered under the original warranty and

service offering.

NOTE 1: Terms and conditions may vary by country. Certain restrictions and exclusions apply.

NOTE 2: On-site service may be provided pursuant to a service contract between HP and an authorized HP third-

party provider, and is not available in certain countries. Global service response times are based on commercially

reasonable best effort and may vary by country.

NOTE 3: Technical telephone support applies only to HP-configured, HP and HP-qualified, third-party hardware and

software. Toll-free calling and 24 x 7 support may not be available in some countries.

QuickSpecs HP Business Desktop d325 Series

DA-11642 North America — Version 7 — August 22, 2003 18

After-Market Options

Communications Wireless Microtower Slim Tower

HP Wireless LAN 802.11b WL215 (WiFi) USB 191810-B22

HP Wireless LAN 802.11b WL220 (WiFi) FH PCI DC756B

Networking

Intel Pro 1000 MT NIC FH PCI adapter DC193A

Broadcom NetXtreme Gigabit Ethernet NIC Full Height PCI DC194A

Modem

V.90 56K FH PCI Win Modem 239137-001 or

DC131A#ABA

V.92 56K USB Fax Modem 228141-001 or

DE585A#ABA

Graphics 2D Single Head Graphics

NVIDIA GeForce4 MX-440-8 64-MB DDR FH&LP 8X AGP

VGA w/TV-out DC663A

NVIDIA GeForceFX 128-MB DDR FH&LP 8X AGP VGA w/TV-

out DK906A

2D Multi-Display Graphics

NVIDIA Quadro4 100NVS 64-MB DDR FH&LP AGP dualhead

with VGA cables DC665A

NVIDIA Quadro4 100NVS DVI connector cables (for use with

DC665A) DC157A

Hard Drives & Controllers SMART III Ultra ATA/100 Hard Drives with Drive Protection System (DPS)

40-GB 7200 rpm Ultra ATA/100 Hard Drive 201066-B21

DC180A

80-GB 7200 rpm Ultra ATA/100 Hard Drive 250020-B21

DC181A

160-GB 7200 rpm Ultra ATA/100 Hard Drive DC189A

Input/Output Devices Keyboards

PS/2 Easy Access Keyboard DC167B#ABA

USB Easy Access Keyboard DC168B#ABA

USB Smartcard Keyboard DC169B

Wireless Easy Access Keyboard with wireless optical mouse DC170B

Mice

PS/2 2-Button Scroll Mouse DD440B

Memory (DIMMs) 333-MHz (PC2700) DDR DIMMs Non-ECC

128-MB DDR Synch DRAM PC2700 (333-MHz) Non ECC

(1 x 128 DIMM) DC338A

256-MB DDR Synch DRAM PC2700 (333-MHz) Non ECC

(1 x 256 DIMM) DC339A

512-MB DDR Synch DRAM PC2700 (333-MHz) Non ECC

(1 x 512 DIMM) DC340A

266-MHz (PC2100) DDR DIMMs Non-ECC

128-MB DDR Synch DRAM PC2100 (266-MHz) Non ECC

(1 x 128 DIMM) 282433-B21

256-MB DDR Synch DRAM PC2100 (266-MHz) Non ECC

(1 x 256 DIMM) 282434-B21

DC164A

512-MB DDR Synch DRAM PC2100 (266-MHz) Non ECC

(1 x 512 DIMM) 282435-B21

DC165A

1-GB DDR Synch DRAM PC2100 (266-MHz) Non ECC

(1 x 1024 DIMM) 282436-B21

QuickSpecs HP Business Desktop d325 Series

DA-11642 North America — Version 7 — August 22, 2003 19

After-Market Options

Multimedia Microtower Slim Tower

JBL Platinum Series Speakers (carbon) DE893B

PC Comm Station Pro (speaker, headphone, wireless

keyboard and mouse) 302002-008

P8815A

PC Comm Station (speaker and headphone) 304251-008

P8814A

Optical Drives DVD-ROM Drives

16X/40X DVD-ROM with +R Read Drive (carbonite) DC151B 33

CD-ROM Drives

48X Max CD-ROM Drive (carbonite) DC143B 33

CD-RW Drives

48X/24X/48X CD-RW Drive (carbonite) DC196B 33

DVD+RW Drives

4X DVD+R/+RW Drive DC517B 33

Combo Drives

48X/24X/48X/16X Combo Drive CD-RW & DVD-ROM

(carbonite) DC197B

Removable Storage ZIP 250 Drive (carbonite) DC140B

ZIP 750 Drive (carbonite) DC518B

TR5 10/20 GB IDE Tape Drive (carbonite) DC139B

Security Chassis clamp lock, universal, with cable DE818A

Chassis clamp lock, universal, no cable DE817A

Solenoid Lock 252076-B21

Solenoid Lock DE472A

Rear Port Controller Cover DE897A

Rear Port Controller Cover DE899A

Wall Mount Bracket and Security Sleeve DK412A

PCI Card PCI to PCMCIA Universal adapter for 3.5inch bay DC680B

1394 Firewire PCI Card DE471A

USB Storage Options 128-MB USB Drive Key (Carbonite) "New Disk-On-Key ID" DC190B

QuickSpecs HP Business Desktop d325 Series

DA-11642 North America — Version 7 — August 22, 2003 20

emory

HP Business Desktopd325 Series

DDR SYNCH DRAM DIMM N

-ECC M

EMORY

The HP business desktop d325 PC has two memory DIMM slots and supports dual channel memory configurations. It is not necessary to add memory in

pairs or kits, but for best performance, memory should be added in pairs and should be the same type. For example, 2x128-MB memory modules will

perform better on some applications than 1x256-MB memory module because of the dual channel memory support on the d325.

TANDARD

EMORY

Configurations can be selected with either a 128-MB, 256-MB, 512-MB, 1024-MB, or 2048-MB memory. Memory types supported include PC2100

(DDR266) and PC2700 (DDR333).

Various combinations of single-DIMM (for future upgradeability) and double-DIMM (for enhanced dual-channel memory performance) will be offered.

Other “mis-matched” memory combinations, such as 384MB (using 1x128-MB and 1x256-MB) will not be offered due to performance limitations of the d325.

In these mis-matched configurations, the maximum operation speed is determined by slowest DIMM. After installing a mis-matched configuration, the

following message will appear on the screen: “217 Memory DIMM Configuration Warning: Installed memory DIMM configuration is unbalanced. Multiple

DIMMs installed of unequal size. For best performance, use a balanced DIMM configuration.”

Memor

Confi

uration Slot 1 Slot 2

128-MB DDR266 128-MB Em

256-MB DDR266 128-MB 128-MB

256-MB DDR266 256-MB Em

128-MB DDR333 128-MB Em

256-MB DDR333 128-MB 128-MB

256-MB DDR333 256-MB Em

512-MB DDR333 256-MB 256-MB

512-MB DDR333 512-MB Em

NOTE: It is not necessary to add memory in pairs or kits. Memory upgrades are accomplished by adding single or multiple DIMMs of the same or

varied sizes. This chart does not represent all possible memory configurations.

QuickSpecs HP Business Desktop d325 Series

DA-11642 North America — Version 7 — August 22, 2003 21

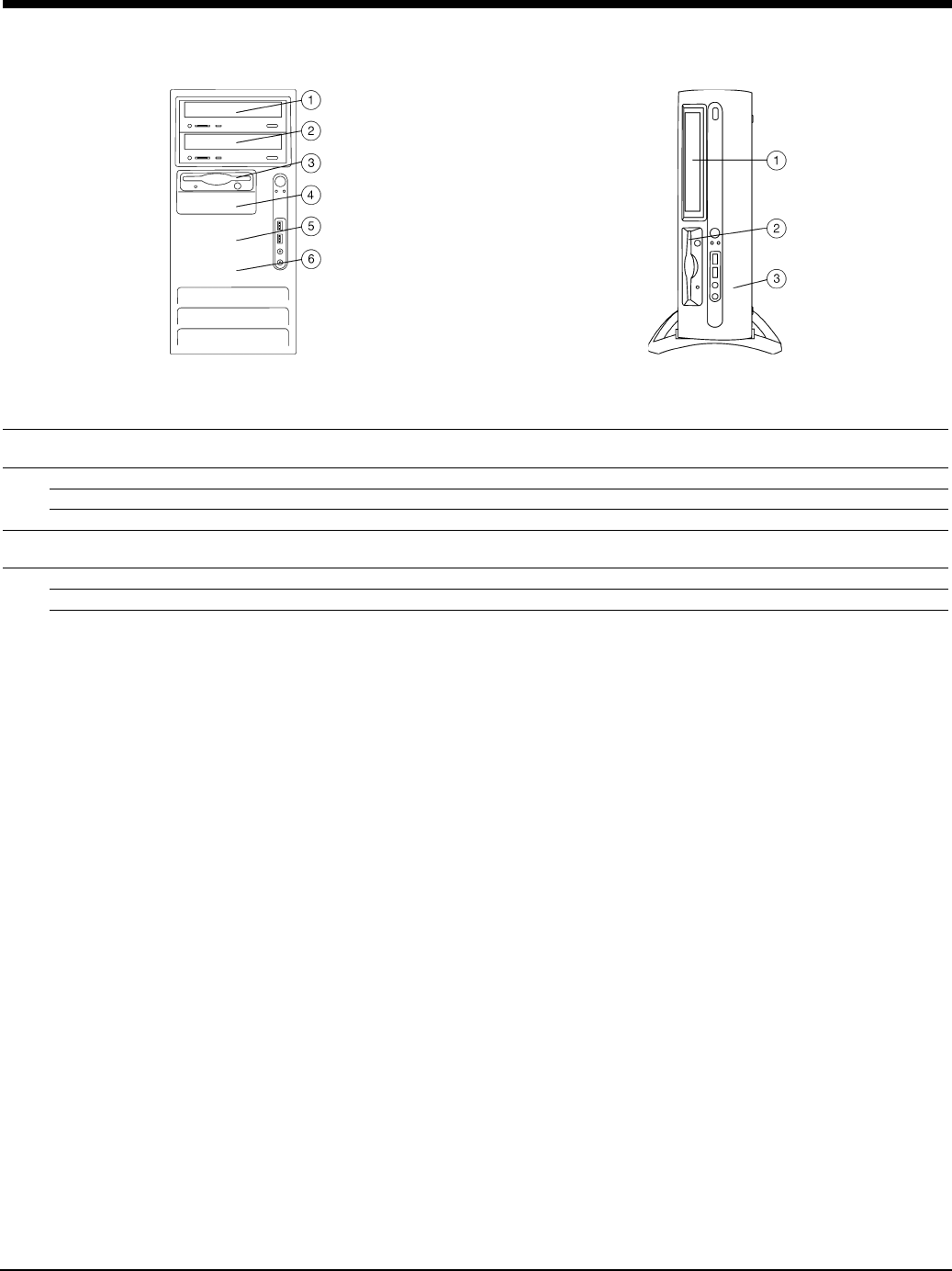

Storage

Microtower Slim Tower

Quantity Supported Position Supported Controller

Microtower

Diskette Drive 1 3 Diskette

5.25” Storage Drive Bays 2 1, 2 IDE

3.5” Storage Drive Bays 3 4, 5, 6 IDE

Slim Tower

Diskette Drive 1 2 Diskette

5.25” Storage Bays 1 1 IDE

3.5” Storage Bay 2 3 IDE

QuickSpecs HP Business Desktop d325 Series

DA-11642 North America — Version 7 — August 22, 2003 22

Technical Specifications – Audio

Integrated ADI 1981A Audio Type Integrated

AC97 Stereo Codec Yes

OPL3 FM Synthesis Support Yes

Sound Blaster Compatibility Yes

Audio Jacks Mic-In (20-K ohm Input Impedance)

Line-In (12-K ohm Input Impedance)

Line-Out *

(

less than 800 ohms Output Impedance, expects at least a 10-K ohm

load)

Headphone-Out (2.5 Ohms Output Impedance, expects at least a 32 ohm load)

NOTE: *Internal Speaker Amplifier is for Internal Speaker only. External Speakers need to be powered

externally.

Sampling 7 kHz – 48 kHz

Compression ADPCM, ESPCM

Wavetable Syntheses

(software) Yes

3D Positional Sound No

Analog Audio Number of Channels on Line-

Out (mono/stereo) Stereo (Left & Right channels)

Internal Audio Speaker Power

Rating 3W

Internal Speaker Yes

Internal Tuned Port Speaker Yes

Hardware Equalizer for

Internal Speaker 5 Band EQ

External Speaker Jack

(Line-Out) Yes

QuickSpecs HP Business Desktop d325 Series

DA-11642 North America — Version 7 — August 22, 2003 23

Technical Specifications – Communications

Manufacturer 3Com

Integrated 3Com 3C920B-EMB Fast

Ethernet Controller Connector RJ-45

Bus 32-bit PCI

Media 10BASE-T/100BASE-TX

Management capabilities ACPI, WOL and DMI 2.0, PXE 2.0, WfM 2.0, SOS alerting

Configuration Network transfer rate 10BaseT (half-duplex) 10 Mbps

10BaseT (full-duplex) 20 Mbps

100BaseTX (half-duplex) 100 Mbps

100BaseTX (full-duplex) 200 Mbps

Data interface PCI, 32-bit bus mastering

I/O address Automatic I/O address

Interrupt level Automatic IRQ setup

Standards compliance PCI 2.2, PC’99, RWU

Drivers Microsoft Windows Me, Microsoft Windows

2000, Microsoft Windows 9x, Microsoft

Windows NT, Windows XP, Linux

Remote wakeup Yes, PME

Operating distance 10BASE-T/100BASE-TX up to 100 meters

(328 feet)

Proactive alert technology No

Temperature 32º to 131º F (0º to 55º C)

Environmental operating

requirements Humidity (non-condensing) 10% to 90%

Power management ACPI

Network management Any SNMP management medium including

3Com DynamicAccess® boot services, and

3Com DynamicAccess Managed PC Boot

Agent

Power + 3.3 V, 340 mA

LED indicators 100-Mbps link, 10-Mbps link, activity

Dimensions 4.7 x 2.2 inches (12.0 x 5.6 cm)

QuickSpecs HP Business Desktop d325 Series

DA-11642 North America — Version 7 — August 22, 2003 24

Technical Specifications – Communications

Intel Pro 1000 MT NIC Connector RJ-45

Controller Intel 82540EM Gigabit Controller

Memory Integrated 96Kb frame buffer memory

Data rates supported 10/100/1000 Mbps

Compliance IEEE 802.1A, 802.1P, 802.1P, 802.1Q, 802.2, 802.3, 802.3AB and 802.3u

compliant, 802.3x flow control

Bus architecture PCI 2.2

Data path width 32-bit, 33/66 MHz bus interface

Data transfer mode Bus-master DMA

Hardware certifications FCC, B, CE, TUV- cTUVus Mark Canada and United States, TUV- GS Mark for

European Union

Power requirement 5V_PCI with 4.75V to 5.25V operating range

Boot ROM support Yes

Network transfer rate 10BASE-T (half-duplex) 10 Mbps

10BASE-T (full-duplex) 20 Mbps

100BASE-TX (half-duplex) 100 Mbps

100BASE-TX (full-duplex) 200 Mbps

1000BASE-T, 1000 Mbps

Environmental Operating temperature 32° to 131°F (0° to 55° C)

Operating humidity 85% at 131° F (55° C)

Dimensions 4.7 x 4.7 x 0.8 inches (12.1 x 12.1 x 1.9 cm)

Operating system driver

support Microsoft Windows NT 4.0, Microsoft Windows 98, Microsoft 2000, Microsoft XP,

Linux 2.2, Linux 2.4

Management capabilities ACPI, WOL and DMI 2.0, PXE 2.0, WfM 2.0, Intel PROset II utility

QuickSpecs HP Business Desktop d325 Series

DA-11642 North America — Version 7 — August 22, 2003 25

Technical Specifications – Communications

Connector RJ-45

Controller Broadcom 5782 PCI LAN Controller

Broadcom NetXtreme Gigabit Ethernet

Memory Integrated 96Kb frame buffer memory

Data rates supported 10/100/1000 Mbps

Compliance IEEE 802.1A, 802.1P, 802.1P, 802.1Q, 802.2, 802.3, 802.3AB and 802.3u

compliant, 802.3x flow control

Bus architecture PCI 2.2

Data path width 32-bit, 33/66 MHz bus interface

Data transfer mode Bus-master DMA

Hardware certifications FCC, B, CE, TUV- cTUVus Mark Canada and United States, TUV- GS Mark for

European Union

Power requirement 1.48 watts @ +3.3V AUX supply with 5V tolerance

Boot ROM support Yes

Network transfer rate 10BASE-T (half-duplex) 10 Mbps

10BASE-T (full-duplex) 20 Mbps

100BASE-TX (half-duplex) 100 Mbps

100BASE-TX (full-duplex) 200 Mbps

1000BASE-T, 1000 Mbps

Environmental Operating temperature 32° to 131°F (0° to 55° C)

Operating humidity 85% at 131° F (55° C)

Dimensions 4.7 x 2.0 x 0.08 inches (12 x 5 x 1.9 cm)

Operating system driver

support Microsoft Windows NT 4.0, Microsoft Windows 98, Microsoft 2000, Microsoft XP,

Linux 2.2, Linux 2.4

Management capabilities ACPI, WOL and DMI 2.0, PXE 2.0, WfM 2.0, Broadcom mgmt utility

Alerting ASF 1.0

QuickSpecs HP Business Desktop d325 Series

DA-11642 North America — Version 7 — August 22, 2003 26

Technical Specifications – Communications

Lucent V.90 56K PCI Win Modem Data Transmission V.90/K56flex technology speeds: 56,000 Kbps maximum downstream data,

controllerless

NOTE: 56 Kbps technology refers to download speeds only and requires compatible modems at server sites.

Other conditions may limit modem speed. FCC limitations allow a maximum of 53 Kbps during download

transmissions.

Data Speeds (Upload only) 33,600 / 31,200 / 28,800 / 26,400 / 21,600 / 19,200 / 16,800 /

14,400 / 12,000 / 9,600 / 7,200 / 4,800 / 2,400 / 1,200 / 300

Data Standards ITU V.90, ITU-T, V.34bis, V.22bis, V.22bis, V.21, V.23, Bell 212A, and Bell 103

Fax speeds 14,400 / 12,000 / 9,600 / 7,200 / 4,800 / 2,400 / 1,200 / 300 b/s

Fax mode capabilities Group3 FAX, V. 17, V.29, V.27ter, and V.21 Channel 2, Class 1

Error Correction and Data

Compression V.44 (software upgradeable), 4.2bis, V.42 and MNP2-5

Power Management APM and ACPI states D0, D1, D2, and D3; meets PCI 2.2 requirements and

PC'99 requirements

Upgradability Software driver upgradeable for v.92 and future enhancements

Video ITU-T V.80 video ready interface

Other TIA/EIA 602 standard AT command set

Integrated DTE interface with speeds of up to 115.2 Kbps, parallel 16550a

UART-compatible interface

Optional ring wakeup signal

Operating temperature 32° to 104° F/0° to 40° C

Operating humidity 20% to 80%, non-condensing

Power Requires a 3.3-V auxiliary power rail on PCI bus

Uses only one PCI load (i.e., one grant/request pair), one shared IRQ, one

electrical load

Chipset Agere Systems 1648C (Mars 3.2)—Integrated PCI interface with 5-V tolerant

buffers and CardBus support

Dimensions (L X H) Complies with PCI low profile specifications—6.7 x 2.3 inches (17.0 x 5.8 cm)

and supports high- and low-profile brackets

Connection Dual, parallel RJ-11 support with auxiliary Tip/Ring connector

Other features Digital line protection, call progress monitoring via on-board piezo device,

transformer-based DAA design, support for high profile and low profile

brackets, PnP ID supports via external EEPROM

Safety UL recognized to UL 1950, 3rd edition (U.S. and Canada); IEC 950 (TUV,

NEMKO, DEMKO, SEMKO); CE Mark, EC 950 (TUV, NEMKO, DEMKO,

SEMKO, CE mark

EMC FCC Part 15, IC ES003, EN 55022, 3rd edition, EN 55024, annex A, EN 61000-

4-6, EN 61000-4-8

Telecom FCC Part 68, IC-CS-03 (Canada); Worldwide PTT approvals

Health Bare PCB material compliant to 94V-0 or better (marked as such), Microsoft

Windows Me health compliant

Other PC'99 compliant, PCI version 2.2, WHQL approved; support for ACPI revision

1.1,

QuickSpecs HP Business Desktop d325 Series

DA-11642 North America — Version 7 — August 22, 2003 27

Technical Specifications – Graphics

3D/2D Controller Integrated GeForce4 MX Graphics Processing Unit (GPU)

Integrated NVIDIA GeForce4 MX 64-MB

Graphics VGA Controller Integrated

Bus Type AGP8X for external graphics cards (Internal graphics is disabled if external AGP

Graphics card is installed)

RAMDAC Integrated 300-MHz DAC

Memory Graphics memory is shared with system memory. Graphics memory usage can

vary from 16 – 128MB depending on the amount of system memory installed

and system BIOS settings.

Memory (Shared) 16-128MB DDR

Memory Bandwidth (max

Shared) 5.3 GB/second

Triangles/Second (Max) 24 million

Fill Rate (Max) 760 Million texels/second

Controller Clock Speed 200 MHz

Overlay Planes Support is fully compliant with Microsoft standard API such as Direct Draw and

Direct Show.

Max Color Depth 32-bits/pixel

Maximum Vertical Refresh

Rate 85 Hz at 1920x1200, 75Hz at 1920x1440, 60Hz at 2048x1536

Multi-display Support “Yes. Two VGA ports integrated in system motherboard.”

Operating Systems Microsoft Windows XP and Windows 2000

Graphics API Support Complete Microsoft DirectX support, including DirectX 8.1; complete

OpenGL 1.3 support. Compatible with DirectX 9.

NVIDIA Shading Rasterizer with 24 of 26 DX8 pixel shading functions and full

set of OpenGL1.3 pixel combiner operations in hardware.

Resolutions

Supported Resolution Maximum Refresh

Rate (Hz) Resolution Maximum Refresh

Rate (Hz)

320 x 200

320 x 240

400 x 300

480 x 360

512 x 384

640 x 400

640 x 480

800 x 600

1024 x 768

1280 x 1024

1600 x 900

1600 x 1200

1920 x 1200

1920 x 1440

2048 x 1536

QuickSpecs HP Business Desktop d325 Series

DA-11642 North America — Version 7 — August 22, 2003 28

Technical Specifications – Graphics

3D/2D Controller NV18 128-bit Graphics Processing Unit (GPU)

NVIDIA GeForce4 MX 440 Graphics

Controller VGA Controller Integrated

Bus Type AGP8X

RAMDAC 350-MHz DAC

Memory 64-MB 128-bit DDR frame buffer memory

Controller Clock Speed 275 MHz

Overlay Planes 1

Stencil Planes 8-bit

Alpha Planes 8-bit

Z-buffer 32-bit

Total Bits/Pixel 32-bits/pixel

Maximum Vertical Refresh

Rate 75 Hz at 2048 x 1536

Maximum Colors 32-bit color

Multi-display Support Includes support for one CRT and TV simultaneously (VGA and S-Video

connectors)

Operating Systems Microsoft Windows XP and Windows 2000

Graphics API Support Complete Microsoft DirectX support, including DirectX 8.1; complete

OpenGL 1.3 support

Resolutions Supported Resolution Maximum Refresh Rate (Hz)

640 x 480

800 x 600

1024 x 768

1280 x 1024

1600 x 1200

1920 x 1080

1920 x 1200

1920 x 1440

150

120

100

QuickSpecs HP Business Desktop d325 Series

DA-11642 North America — Version 7 — August 22, 2003 29

Technical Specifications – Graphics

3D/2D Controller Integrated Quadro4 2D/3D 128-bit graphics processor unit (GPU)

NVIDIA Quadro4 100 NVS

Graphics Controller VGA Controller Integrated into the Quadro4 GPU

Bus Type AGP 4x or PCI

RAMDAC Dual 350 MHz

Memory Speed and Type 166MHz 8Mx16 DDR

Memory Amount 64 MB

Texture Memory Unified with frame buffer

Form Factor ATX and SFF

Controller Clock Speed 250 MHz

Color Planes 32-bit color buffer

Overlay Planes 1 16-bit Video overlay plane, software emulation for OpenGL overlay planes

Stencil Planes 8-bit stencil buffer

Alpha Planes 8-bit alpha buffer

Z-buffer 24-bit

Total bits/pixel 64

Maximum Vertical

Refresh Rate 120 MHz

Maximum Pixel Clock 350 MHz

Dual Screen Support Yes, with nView

Single DVI Support Yes

Dual DVI Support Yes

Operating Systems Microsoft Windows XP, Microsoft Windows 2000

32-bit color

nView Hardware

Architecture 2048 x 1536 @ 60 Hz maximum resolution

2D rendering engine optimized for 32-, 24-, 16-, 15-, and 8-bpp modes

Full-screen, full-frame video playback of HDTV and DVD content

High-definition Video

Processor (HDVP) DVD-ready motion compensation for MPEG-2

Independent hardware color controls for video overlay

Hardware color-space conversion (YUV 4:2:2 and 4:2:0)

IDCT motion compensation

5-tap horizontal by 3-tap vertical filtering

8:1 up/down scaling

Resolution Maximum Colors Supported Maximum Refresh Rate

640 x 480

800 x 600

1024 x 768

1152 x 864

1280 x 1024

1600 x 1200

1920 x 1080

1920 x 1200

1920 x 1440

2048 x 1536

16.7 M

64 K

16.7 M

64 K

16.7 M

64 K

16.7 M

64 K

16.7M

64 K

120 Hz

100 Hz

85 Hz

100 Hz

75 Hz

85 Hz

70 Hz

75Hz

60Hz

QuickSpecs HP Business Desktop d325 Series

DA-11642 North America — Version 7 — August 22, 2003 30

Technical Specifications – Hard Drives

160-GB Capacity 160,000 MB7200 rpm SMART III Ultra ATA/100 Hard

Drives Rotational Speed 7200 rpm

Interface Ultra ATA/100

Height 1 in/25.4 mm

Width 3.5 in/88.9 mm

Transfer Rate Synchronous

(Maximum) 100 MB/s

Single Track 1.2 ms

Average 8 ms

Seek Time (typical reads,

including settling)

Full-Stroke 18 ms

Physical Configuration Logical Blocks 157,278,240

Operating Temperature 41° to 131°F/5° to 55°C

80-GB Capacity 80,000 MB

Rotational Speed 7200 rpm

Interface Ultra ATA/100

Height 1 in/25.4 mm

Width 3.5 in/88.9 mm

Transfer Rate Synchronous

(Maximum) 100 MB/s

Single Track 1.2 ms

Average 8 ms

Seek Time (typical reads,

including settling)

Full-Stroke 18 ms

Physical Configuration Logical Blocks 157,278,240

Operating Temperature 41° to 131°F/5° to 55°C

40-GB Capacity 40,000 MB

Rotational Speed 7200 rpm

Interface Ultra ATA/100

Height 1 in/25.4 mm

Width 3.5 in/88.9 mm

Transfer Rate Synchronous

(Maximum) 100 MB/s

Single Track 1.2 ms

Average 8 ms

Seek Time (typical reads,

including settling)

Full-Stroke 18 ms

Physical Configuration Logical Blocks 78,165,360

Operating Temperature 41° to 131°F/5° to 55°C

QuickSpecs HP Business Desktop d325 Series

DA-11642 North America — Version 7 — August 22, 2003 31

Technical Specifications – Hard Drives

80-GB Capacity 80,000 MB5400 rpm SMART III Ultra ATA/100 Hard

Drives Rotational Speed 5400 rpm

Interface Ultra ATA/100

Height 1 in/25.4 mm

Width 3.5 in/88.9 mm

Transfer Rate Synchronous

(Maximum) 100 MB/s

Single Track 1.2 ms

Average 8 ms

Seek Time (typical reads,

including settling)

Full-Stroke 18 ms

Physical Configuration Logical Blocks 78,165,360

Operating Temperature 41° to 131°F/5° to 55°C

40-GB Capacity 40,000 MB

Rotational Speed 5400 rpm

Interface Ultra ATA/100

Transfer Rate Synchronous

(Maximum) 66 MB/s

Height 1 in/25.4 mm

Width 3.5 in/88.9 mm

Seek Time (typical reads,

including settling) Single Track 1.5 ms

Average 10.5 ms

Full-Stroke 23 ms

Physical Configuration Logical Blocks 39,102,336

Operating Temperature 41° to 131°F/5° to 55°C

QuickSpecs HP Business Desktop d325 Series

DA-11642 North America — Version 7 — August 22, 2003 32

Technical Specifications – Input/Output Devices

Physical characteristics Keys 104, 105, 106, 107, 109 layout (depending

upon country) plus eight programmable keys

for Internet, shortcuts, or multimedia

USB Easy Access Smartcard Keyboard

Form factor USB basic smartcard keyboard

Colors Carbon

Dimensions (H x W x D) 18.2 x 6.3 x 1.3 in (46.3 x 16.1 x 3.3 cm)

Weight 2 lb (0.9 kg) minimum

Dimensions (HxWxD) 1.4 x 18.3 x 6.3 in/36 x 465 x160 mm

Easy Access Keyboard

(PS/2 or USB) Weight Approximately 2 lbs/0.9 kg

Electrical Operating Voltage +5VDC ± 5%

Power Consumption 50 mA maximum (with 3 LEDs on)

System Interface PS/2 mini-din connector

ESD CE level 4, 15 kV air discharge

EMI-RFI Conforms to FCC rules for a Class B computin

device

PC98 Functionally compliant

Mechanical Languages 30+ available

Keycaps Low-profile design

Switch Actuation 55 g nominal peak force with tactile feedback

Switch Life 20 million keystrokes (using Hasco modified

tester)

Switch Type Contamination resistant membrane

Key Leveling Mechanism For all double wide and greater length keys

Cable Length 6 ft/1.8 m

PC98-99 Mechanically compliant

Acoustics 50 dBA maximum sound pressure level

Environmental Operating Temperature 50° to 122° F/10° to 50° C

Non-operating Temperature −22° to 140° F/−30° to 60° C

Operating Humidity 10% to 90% (non condensing at ambient)

Non-operating Humidity 20% to 80% (non condensing at ambient)

Operating Shock 40 g, 6 surfaces

Non-operating Shock 80 g, 6 surfaces

Operating Vibration 2 g peak acceleration

Non-operating Vibration 4 g peak acceleration

Dimensions (H x L x W) 1.76 x 5.11 x 2.92 in (44.7 x 130.0 x 74.2 mm)Wireless/Optical Mouse Weight - Without Two AA

Alkaline Batteries 0.24 lb (110 g)

System requirements Microsoft Windows 2000 or XP

Available USB port for the receiver

Approvals Product Safety UL, CSA, TUV (Europe only), CE Mark

Ergonomics ANSI; ISO (Europe only); GS Mark (Germany

only)

EMC FCC; CISPR; ACA, BSMI, MIC, VCCI

CE Mark EN 55022:1998; EN 55024

Design Guidelines for PCs PC 99 – connector overmold colors; PC 2001 –

full functionality

Telecom All local telecom requirements and approvals

for intended markets

USA FCC Part 15 Equipment Certificate; CFR 47,

Part 15; other local requirements

QuickSpecs HP Business Desktop d325 Series

DA-11642 North America — Version 7 — August 22, 2003 33

Technical Specifications – Input/Output Devices

Scroll Wheel 8 mm

2-Button Scroll Mouse (PS/2 or USB) Maximum Rotation Speed 30 mm/s

Switch Type Light force micro-switch

Switch Life 1 million operations

Mechanical Life Minimum 200,000 revolutions

Environmental Operating Temperature 50° to 122° F/10° to 50° C

Non-operating Temperature −22° to 140° F/−30° to 60° C

Operating Humidity 10% to 90% (non condensing at ambient)

Non-operating Humidity 20% to 80% (non condensing at ambient)

Operating Shock 40 g, 6 surfaces

Non-operating Shock 80 g, 6 surfaces

Operating Vibration 2 g peak acceleration

Non-operating Vibration 4 g peak acceleration

Electrical Operating Voltage +5VDC ± 10%

Power Consumption 15mA

System Consumption PS/2 mini-din connector

ESD CE level 4, 15 kV air discharge

EMI-RFI Conforms to FCC rules for a Class B

computing device

PC98 Functionally compliant

Mechanical Resolution 400 ± 20% DPI

Tracking Speed 10 in/s maximum

Acceleration 100 in/s

Switch Actuation 85 g nominal peak force

Switch Life 1,000,000 operations (using Hasco modified

tester)

Cable Length 2 m

PC98-99 Mechanically compliant

Regulatory Approvals UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BCIQ, C-Tick

USB Optical Scroll Mouse Dimensions (H x L x W) 1.5 x 4.5 x 2.5 in/3.8 x 11.6 x 6.3 cm

Weight 0.27 lb/0.12 kg

Cable length 72.8 in/185 cm

System requirements IBM-compatible PC

Microsoft



Windows



95, 98, 2000, Me, and XP

Available USB port

QuickSpecs HP Business Desktop d325 Series

DA-11642 North America — Version 7 — August 22, 2003 34

Technical Specifications – Optical Storage

48X Max CD-ROM Drive Interface ATAPI IDE

Data Buffer 16.6 Mbps

Data Transfer Rate Sustained—150 Kbps minimum

(audio) Variable (CD)—3,000 to 7,200 Kbps

Disk Rotation Technology CAV (Constant Angular Velocity)

Access Time (ms) Random: <100 ms Full-stroke seek: <150 ms

Average Access Time < 80 ms

Cache Buffer

(standard/maximum) 128 KB

Disk Formats Read Multi-session Photo CD, multi-read CD-ROM, CD text, audio CD, CD-I, CD-RW,

CD-R, CD-Extra, CD-ROM XA

Disk Formats Written None

Disk Capacity (CD) 650 MB

Block Size Mode 1—2,048 bytes

Mode 2—2,340/2,336 bytes

CD-DA—2,352 bytes

CD-XA—2,328 bytes

Diameter 12 cm; 8 cm

Thickness 1.2 mm

Track Pitch 1.6 µm

Audio Output Level Line-out—0.7 V @ 47 Kohm Headphone—0.6 V @ 32 ohm

Startup Time <7 seconds (typical); < 30 seconds with multi-session

Operating Conditions Temperature 41° to 113° F (5° to 45° C)

Relative Humidity 10% to 80%

Dimensions (H x W x D,

maximum) 1.7 x 5.9 x 8.2 inches (4.3 x 15.0 x 20.8 cm)

Weight 2.6 pounds (1200 g)

Operating Systems

Supported Microsoft Windows NT 4.0, Microsoft Windows 2000, and Microsoft

Windows XP.

MPEG Playback Graphics

Solution Support None

QuickSpecs HP Business Desktop d325 Series

DA-11642 North America — Version 7 — August 22, 2003 35

Technical Specifications – Optical Storage

48X/24X/48X CD-RW Drive Orientation Either horizontal or vertical

Disc Loading Mechanism Half-height, tray load

Interface Type ATAPI IDE

Dimensions—external

(W x H x D) 7.99 x 5.88 x 1.71 in/203 x 149.5 x 43.5 mm

Weight 2.6 lb/1.2 kg

Disc Diameter 12 cm, 8 cm

Disc Thickness 1.2 mm

Track Pitch 1.6 µm

Disc Center Hole Diameter 15 mm

Reference Scanning Velocity 1.2 m/s

Recording/Playing Time 80 minutes with CD-R media

Read Only Disc Parameters Formats and Modes Supported CD-ROM—Mode 1; CD-ROM XA—Mode 2

(forms 1 and 2); CD digital audio; CD Extra;

CD-I—Mode 2 (forms 1 and 2) and CD-I-

Ready; Photo CD (single and multi-session);

video CD

Capacity 185 MB (Mode 2, 8cm); 540 MB (Mode 1, 12

cm); 650 MB (Mode 2, 12 cm); 700 MB (Mode

2, 12 cm)

Block Size Mode 1—2,048 and 2,352 bytes; mode 2, form

1—2,048; 2,328; 2,336; 2,340 and 2,352 b

tes;

mode 2, form 2—2,328; 2,336; 2,340 and

2,352 bytes; CD-DA—2,352 and 2,368 bytes

Writeable Disc Parameters Disc Type CD-R and CD-RW

Write Methods Disc at Once, Track at Once, Session at Once,

Variable Packet, Fixed Packet

Format and Modes Supported CD-ROM (mode 1); CD-ROM XA (mode 2,

forms 1 and 2

)

; CD di

ital audio, CD-I

(

mode 2,

forms 1 and 2); video CD

Capacity 185 MB (Mode 2, 8cm); 540 MB (Mode 1, 12

cm); 650 MB (Mode 2, 12 cm); 700 MB (Mode

2, 12 cm)

Block Size Mode 1—2,048 bytes; mode 2, form 1—2,048

and 2,352 b

tes; mode 2, form 2—2,352 b

tes;

CD-DA ---2,352 bytes

Random < 120 ms

Access Times (typical) Full Stroke < 200 ms

Data Transfer Rates Sustained CD-R write—1,800 KB/s (12X)

CD-R write—2400 KB/s (16X)

CD-RW write (1-4X media) —600 KB/s (4X)

CD-RW write (4-10X media) —1,500 KB/s

(10X)

CD-RW write (4-12X media) —1,800 KB/s

(12X)

CD-RW read—3,600 KB/s (24X)

Digital audio extraction (minimum) —7,200

KB/s (48X)

Variable CD-RW write—2,400 to 3,600 KB/s (16X to

24X)

CD-RW write—2,400 to 4,800 KB/s (16X to

32X)

CD-RW write—2,400 to 6,000 KB/s (16X to

40X)

CD-RW write—2,400 to 7,200 KB/s (16X to

48X)

CD-ROM, CD-R read—1,500 to 7,200 KB/s

(10X to 48X)

QuickSpecs HP Business Desktop d325 Series

DA-11642 North America — Version 7 — August 22, 2003 36

Technical Specifications – Optical Storage

48X/24X/48X CD-RW Drive (continued) Data Transfer Modes ATA PIO mode 4 (16.7MB/s) ; ATA multi-word DMA mode 2 (16.7 MB/s); ATA

UltraDMA mode 0 (16.7 MB/s) ;ATA UltraDMA mode 1 (24 MB/s) ; ATA

UltraDMA mode 2 (33 MB/s) – default.

Cache Buffer 2 MB (minimum)

Start-up Time (single) < 7 seconds typical

Start-up Time (multi-session) < 30 seconds typical

Stop Time < 4 seconds

Power Source Four-pin, DC power receptacle

DC power requirement 5 VDC ± 5%—100 mV ripple p-p

12 VDC ± 5%—200 mV ripple p-p

DC current 5 VCD < 1A (typical)

< 1200 mA (maximum)

12 VCD < 600 mA (typical)

< 1.2A (maximum)

Total Drive Powe

(Standby mode) < 2.5 watt

Audio Output Level 0.7 Vrms

Configuration Jumper Block Master, slave and cable select modes

Data Interface Connector 50-pin IDE interface

Temperature (operating) Operating 41° to 122° F (5° to 50° C)

Relative Humidity (operating) 10% to 85%

Environmental

(all conditions, non-condensing) Maximum Wet Bulb

Temperature (operating) 84° F (29° C)

QuickSpecs HP Business Desktop d325 Series

DA-11642 North America — Version 7 — August 22, 2003 37

Technical Specifications – Optical Storage

16X/40X DVD-ROM with +R Read Drive Height 5.25-in, half-height

Interface Type ATAPI

Dimensions– External,

Excluding Bezel (W x H) 5.88 x 1.71 in (149.5 x 43.5 mm)

Disc Diameter 12 cm, 8 cm

Disc Thickness 1.2 mm

Track Pitch 1.6 µm (CD), 0.74 µm (DVD)

Disc Center Hole Diameter 15 mm

Disc Formats DVD-ROM (single and dual layer); DVD-video; DVD-R version 1.0 and 2.0; DVD-

RW version 1.0 and 1.1; DVD-R multi-border; DVD+RW; DVD+R ; CD-ROM

Mode 1 and 2; CD-DA; CD-ROM XA Mode 2, Form 1 and 2; CD-extra; CD-text;

CD-I Mode 2, Form 1 and 2; CD-I ready; video CD, CD-bridge; PhotoCD (single

and multi-session); CD-R; CD-RW

Disc Capacity DVD-ROM 4.7 GB (DVD-5), 8.54 GB (DVD-9), 9.4 GB

(DVD-10), 3.95 GB (DVD-R version 1.0), 4.7

GB (DVD-R version 2.0), 4.7 GB (DVD-RW

version 1.0 and 1.1), 4.7 GB (DVD+RW), 4.7G

(DVD+R)

CD-ROM 540 MB (Mode 1, 12 cm), 640 MB (Mode 2, 12

cm), 700 MB (80 minimum CD-R and CD-RW),

180 MB (8 cm)

Block Size (bytes) DVD-ROM – 2048; CD-ROM Mode 0 – 2352; CD-ROM Mode 1 – 2352, 2340,

2336, 2048; CD-ROM Mode

2 – 2352, 2340, 2336, 2048

DVD-ROM Single Layer < 120 ms

Access Times

(typical reads, including

settling) CD-ROM Mode 1 < 90 ms

Full Stroke DVD < 240 ms (seek)

Full Stroke CD < 160 ms (seek)

Data Transfer Rates 2600 – 6000 KB/s (40X CAV CD-ROM mode)

8100 – 21,600 KB/s (16X CAV DVD-ROM mode)

Data Transfer Modes PIO Mode 4 (16.6 MB/s); Multi-word DMA mode 2 (16.6 MB/s); UltraDMA Mode

3 (44.4 MB/s)

Power Source Four-pin, DC power receptacle

5 VDC ± 5% – 100 mV ripple p-pDC Power Requirement 12 VDC ± 5% – 200 mV ripple p-p

DC Current 5 VDC – <800 mA typical, < 1000 mA maximum

12 VDC – < 870 mA typical

Audio Output Level 0.7 Vrms (typical)

Configuration Jumper Block Master, slave, and cable select modes

Data Interface Connector 40-pin, shrouded and keyed, flat ribbon

Temperature (operating) 41° to 122° F (5° to 50° C)

Relative Humidity (operating) 10% to 85%

Environmental

(all conditions non-

condensing) Maximum Wet Bulb

Temperature (operating) 86° F (30° C)

Certifications, Approvals MMC II support, multi-read certification, Microsoft WHQL certification, ACA

AS/NZS 3548 class B, CNS 13438, C.I.S.P.R. Pub 22, TUV or VDE EN60950,

EN 55022, EN55024, SEMKO, NEMKO, DEMKO, FIMKO, EN 60825-1, UL

60950, and CSA C22.2 60950-2000.

Operating Systems Supported Microsoft Windows NT, Microsoft Windows 2000, and Microsoft Windows XP.

QuickSpecs HP Business Desktop d325 Series

DA-11642 North America — Version 7 — August 22, 2003 38

Technical Specifications – Optical Storage

48X Combo CD-RW/DVD-ROM 5.25-inch, half-height, tray-load

Color Carbonite

Orientation Either horizontal or vertical

Interface Type ATAPI

Dimensions (W x H x D) 5.77 x 1.71 x 7.36 in (146.5 x 43.5 x 187 mm) (external, excluding bezel)

Disc Diameter 12 cm, 8 cm

Disc Thickness 0.05 in (1.2 mm)

Track Pitch 1.6 um (CD), 0.74 um (DVD)

Disc Center Hole Diameter 0.6 in (15 mm)

Reference Scanning Velocity 1.2 m/s (CD); 3.49 m/s (DVD SL); 3.84 m/s (DVD DL)

Read Only Disc Parameters Formats and Modes

Supported CD-ROM—Mode 1; CD-ROM XA—Mode 2

(forms 1 and 2); CD-Bridge; CD digital audio;

CD Extra; CD-I—Mode 2 (forms 1 and 2) and

CD-I-Ready; Photo CD (single and multi-

session); video CD; DVD (single- and double-

layer); DVD-R; DVD-RW; DVD-RW Multi-

Border; DVD+R; DVD+R Multi-Session , and

DVD+RW

Capacity 180 MB (mode 2, 8 cm); 540 MB (mode 1, 12

cm); 650 MB (mode 2, 12 cm); 700 MB (Mode

2, 12 cm); 4.7 GB (DVD-5); 8.54 GB (DVD-9);

9.4 GB (DVD-10)

Block Size Mode 1—2,048 and 2,352 bytes; mode 2, form

1—2,048; 2,328; 2,336; 2,340 and 2,352 bytes;

mode 2, form 2—2,328; 2,336; 2,340 and 2,352

bytes; CD-DA—2,352 bytes; DVD—2,048 bytes

Disc Type CD-R and CD-RW

Writeable Disc Parameters

Write Methods Disc at Once, Track at Once, Session at Once,

Variable Packet, Fixed Packet

Format and Modes Supported CD-ROM (mode 1); CD-ROM XA (mode 2,

forms 1 and 2); CD digital audio, CD-I (mode 2,

forms 1 and 2); video CD; CD-Bridge; Video

Capacity 180 MB (mode 2, 8 cm); 540 MB (mode 1, 12

cm); 650 MB (mode 2, 12 cm); 700 MB (mode

2, 12 cm);

Block Size CD-DA—2,352 bytes; mode 0— 2,336 and

2,352 bytes; mode 1—2,048 and 2,352 bytes;

mode 2—2,336 and 2,352; mode 2, form 1—

2,048 and 2,352 bytes; mode 2, form 2—2,324

and 2,352 bytes

Random DVD < 140 ms (typical)

Random CD < 125 ms, (typical)

Access Times

(typical reads, including settling)

Full Stroke DVD < 250 ms (seek)

Full Stroke CD < 210 ms (seek)

CD-R write 7200 KB/s (48X) MaxMaximum Data Transfer Rates

CD-RW write 1500 KB/s (10X) Max

CD-ROM, CD-R, CD-RW read 7200 KB/s (48X) Max

DVD ROM read 21,632 KB/s (16X ) Max

QuickSpecs HP Business Desktop d325 Series

DA-11642 North America — Version 7 — August 22, 2003 39

Technical Specifications – Optical Storage

48X Combo CD-RW/DVD-ROM

(continued) Data Transfer Modes ATA PIO mode 4 (16.7 MB/s); ATA Multi-word DMA mode 2 (16.7 MB/s); ATA

UltraDMA mode 0 (16.7 MB/s); ATA UltraDMA mode 1 (24 MB/s), mode 2 (33

MB/s); ATA UltraDMA Mode 3 44 Mbytes/s (default)

Cache Buffer 2 MB (minimum)

Startup Time (single) < 7 seconds (typical)

Startup Time (multi-session) < 30 seconds (typical)

Stop Time < 4 seconds

Power Source Four-pin, DC power receptacle

DC Power Requirement 5 VDC ± 5%—100 mV ripple p-p

12 VDC ± 5%—200 mV ripple p-p

DC Current 5 VDC (< 1000 mA typical, < 1600 mA

maximum)

12 VDC (< 600 mA typical, < 1400 mA

maximum)

Total Drive Power

(standby mode) < 2.5 Watt

Audio Output Level 0.7 Vrms (typical)

Configuration Jumper

Block Master, slave, and cable select modes

Data Interface Connector 40-pin, shrouded and keyed, flat ribbon

Temperature (operating) 41° to 122° F (5° to 50° C)

Relative humidity (operating) 10% to 90%

Environmental

(all conditions non-condensing)

Maximum wet bulb

temperature (operating) 86° F (30° C)

Certifications,

Requirements MPC-3 compliant, multi-read requirements, ACA AS/NZS 3548, ANSI C63.4–

1992, ATAPI Spec SFF-8020, ATA Spec X3T9.2, CB Bulletin No. 92A, CSA

C22.2 No. 950-1995, C.I.S.P.R. Pub 22, EMKO-TSE 207/94, TUV or VDE EN60

950, EN60825-1, Microsoft PC2001 certification, Microsoft Logo for Windows

XP, 2000, and NT4

Operating Systems

Supported Microsoft Windows 2000, Windows XP Professional, Windows XP Home

QuickSpecs HP Business Desktop d325 Series

DA-11642 North America — Version 7 — August 22, 2003 40

Technical Specifications – Optical Storage

4X DVD+R/+RW Drive Recording Method Disc-at-once, Track-at-once, and Session-at-once; Variable Packet and Fixed

Packet

Interface ATAPI ATA/ATAPI-5 and SFF-8090 Version 5

Disc Recording Capacity 4.7 GB

Write Support DVD+R, DVD+RW, CD-R, CD-RW

Read Support DVD-ROM (single- and dual-layer), DVD+R, DVD+RW, DVD-R, DVD-RW, CD-

ROM Mode 1, CD-ROM XA (Mode 2, forms 1 and 2), CD TEXT, Photo CD

single- and multi-session), CD-DA (Audio CD), CD-Extra,

CD-R, CD-RW (supports AM2)

Write Speed DVD+R 4X CLV (5400 KB/s)

DVD+RW 2.4X CLV (3250 KB/s)

CD-R 16X CLV (2400 KB/s)

CD-RW 10X CLV (1500 KB/s)

Read Speed DVD-ROM (single) 12X CAV (6750 - 16200 KB/s)

DVD-ROM (dual) 7X CAV (4050 - 9450 KB/s)

DVD+R, DVD+RW, DVD-R,

DVD-RW 5X CAV (2700 - 6750 KB/s)

CD-ROM, CD-R 40X CAV (2550 to 6000 KB/s)

CD-RW 32X CAV (1950 to 4800 KB/s)

CD-Audio 32X CAV (1950 to 4800 KB/s)

Data Buffer Read 2 MB

Write 2 MB

Access Time

(random average) DVD-ROM — 140 ms

CD-ROM — 125 ms (CD-ROM Mode 1 disc are used)

Data Transfer Rates 2400 Kbytes/sec. (maximum) to CD-R media

1500 Kbytes/sec. (maximum) to CD-RW media

System Configuration Intel Pentium III Processor or later with 128 MB of memory (required); 256 MB

recommended 2-D or 3-D graphics cards on primary disk drive for operating

system and application software; second disk drive for audio and video data

Operating Systems

Support Microsoft Windows 2000, Windows XP Professional, Windows XP Home

Mounting Orientation Horizontal and vertical

Power Requirement 5 V, +12 V (1.6A, 1.4A)

Size 8.0 x 5.9 x 1.7 in (20.3 x 15.0 x 4.4 cm)

Front Panel Features Disc loading tray, forced eject hole read/write indicator, eject button

Rear Panel Features ATAPI interface, digital audio output 1, analog audio output, device configuration

jumper, DC input

DC Power Connector, 4 pin; Line Out Connector, 4 pin; IDE Bus Connector, 40

pin; Configuration Jumper Pins; Label to identify each connector

Regulatory Approvals UL, CSA, CB Report, FIMKO, SEMKO, FCC Class B, FDA, CE Marking, C-Tick,

CISPR-229, Korean EMC, Taiwan EMC

QuickSpecs HP Business Desktop d325 Series

DA-11642 North America — Version 7 — August 22, 2003 41

Technical Specifications – Removable Storage

1.44-MB Diskette Drive LED Indicators (front panel) 3.5 in.

Read/Write Capacity per

diskette (high/low density) Green

Drive Supported 1.44 MB/720 KB

Drive Height One

Drive Rotation One-third

Transfer Rate (high/low) 300 rpm

Bytes/Sector 500/250 Kb/s

Sectors/Track (high/low) 512

Tracks/Side (high/low) 18/9

Access Times 80/80

Track-to-Track (high/low) 3/6 ms

Average (high/low) 169/94 ms

Settling Time 15 ms

Latency Average 100 ms

USB Drive Key Dimensions (HxWxD) 0.9 x 0.6 x 3.2 inches(2.3 x 1.5 x 8.2 cm)

Weight 0.05 pounds (0.02 kg)

USB Specification 1.1

Transfer Rate Read-1023 KB/Sec; Write-850 KB/Sec

Storage Media Solid state flash memory, no moving parts

Power Supply USB Bus-powered, no external power required

Capacity 64MB and 128MB

Zip 250 Drive Interface ATAPI IDE

Media format supported Zip disk

Media capacity 250 MB

Access time 29 ms (average)

Drive rotational speed 2,941 rpm

Size Fits into a 5.25-inch bay (with bracket)

Data transfer rate Maximum sustained 2.4 Mbps

1.4 Mbps

1.4 Mbps (100 MB), 2.4 MB/s (250 MB)

0.3 Mbps (100 MB), 2.4 MB/s (250 MB)

11.1 Mbps

Operating conditions Temperature 50° to 125° F (10° to 51.5° C)

Humidity 20% to 80%

Compatible operating system Microsoft Windows 2000 and Windows NT 4.0

The information contained herein is subject to change without notice.

The only warranties for HP products and services are set forth in the express warranty statements accompanying

such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not

be liable for technical or editorial errors or omissions contained herein.

Intel, the Intel Inside Logo, and Pentium are registered trademarks of Intel Corporation.

Microsoft, MS, Windows and Windows NT are registered trademarks of the Microsoft Corporation in the U.S. and

other countries.

Other product names mentioned herein may be trademarks and/or registered trademarks of their respective

companies.

Hp D325 Series Users Manual DA 11642 North America

d325 Series to the manual bcaac3f7-d786-4dba-93d4-33d8ffb35971

Navigation menu

Versions of this User Manual:

Views

Navigation
