HP Deskjet F2400 All-in-One series
Windows Help
HP Deskjet F2400 All-in-One series
Contents
1 How Do I?..................................................................................................................................3
2 Get to know the HP All-in-One
Printer parts................................................................................................................................5
Control panel features................................................................................................................6
3Print
Print documents..........................................................................................................................7
Print photos.................................................................................................................................8
Print envelopes.........................................................................................................................10
Print on specialty media...........................................................................................................11
Print a Web page......................................................................................................................17
5Scan
Scan to a computer..................................................................................................................27
6Copy
Copy documents or photos.......................................................................................................29
7 Work with cartridges
Check the estimated ink levels.................................................................................................31
Order ink supplies.....................................................................................................................31
Automatically clean print cartridges..........................................................................................32
Manually clean print cartridges.................................................................................................33
Replace the cartridges..............................................................................................................34
Use ink-backup mode...............................................................................................................36
Cartridge warranty information.................................................................................................36
8 Solve a problem
HP support................................................................................................................................39
Setup troubleshooting...............................................................................................................40
Print troubleshooting.................................................................................................................44
Scan troubleshooting................................................................................................................48
Copy troubleshooting................................................................................................................50
Errors........................................................................................................................................51
10 Technical information
Notice........................................................................................................................................57
Specifications...........................................................................................................................57
Environmental product stewardship program...........................................................................58
Regulatory notices....................................................................................................................61
Index..............................................................................................................................................65
1
Contents
2
Contents
Chapter 1
4 How Do I?
How Do I?
2 Get to know the HP All-in-One
•Printer parts
•Control panel features
Printer parts
1Control panel
2Attention light
3Check cartridge lights
4Front access door
5Paper-width guide for the main input tray
6Input tray
7Paper tray extender (also referred to as the tray extender)
8Cartridges
9Glass
10 Lid backing
11 Rear access door
12 Rear USB port
13 Power connection (Use only with the power adapter supplied by HP.)
14 Lid
Printer parts 5
Get to know the HP All-in-One
Control panel features
1On: Turns the product on or off. When the product is off, a minimal amount of power is still
used. To completely remove power, turn off the product, then unplug the power cord.
2Cancel: Stops the current operation.
3Start Copy Black: Starts a black-and-white copy job.
4Start Copy Color: Starts a color copy job.
5Attention light: Shows attention event, such as paper jam or out of paper.
6Ink attention light: Indicates low ink or a print cartridge problem.
Chapter 2
6 Get to know the HP All-in-One
Get to know the HP All-in-One
3Print
Choose a print job to continue.
“Print documents” on page 7
“Print photos” on page 8
“Print envelopes” on page 10
“Print on specialty media” on page 11
“Print a Web page” on page 17
Related topics
•“
Load media” on page 23
•“
Recommended papers for printing” on page 21
Print documents
To print from a software application
1. Make sure you have paper loaded in the input tray.
2. On the File menu in your software application, click Print.
3. Make sure the product is the selected printer.
4. If you need to change settings, click the button that opens the Properties dialog box.
Depending on your software application, this button might be called Properties,
Options, Printer Setup, Printer, or Preferences.
NOTE: When printing a photo, you must select options for the specific photo
paper and photo enhancement.
Print documents 7
Print
5. Select the appropriate options for your print job by using the features available in the
Advanced, Printing Shortcuts, Features, and Color tabs.
TIP: You can easily select the appropriate options for your print job by choosing
one of the predefined print tasks on the Printing Shortcuts tab. Click a type of
print task in the Printing Shortcuts list. The default settings for that type of print
task are set and summarized on the Printing Shortcuts tab. If necessary, you
can adjust the settings here and save your custom settings as a new printing
shortcut. To save a custom printing shortcut, select the shortcut and click Save
As. To delete a shortcut, select the shortcut and click Delete.
6. Click OK to close the Properties dialog box.
7. Click Print or OK to begin printing.
Related topics
•“
Recommended papers for printing” on page 21
•“
Load media” on page 23
•“
View the print resolution” on page 19
•“
Use printing shortcuts” on page 19
•“
Set the default print settings” on page 20
•“
Stop the current job” on page 55
Print photos
To print a photo on photo paper
1. Remove all paper from the input tray, and then load the photo paper print side down.
2. On the File menu in your software application, click Print.
3. Make sure the product is the selected printer.
4. Click the button that opens the Properties dialog box.
Depending on your software application, this button might be called Properties,
Options, Printer Setup, Printer, or Preferences.
5. Click the Features tab.
6. In the Basic Options area, select the appropriate photo paper type from the Paper
Type drop-down list.
Chapter 3
8Print
Print
7. In the Resizing Options area, click the appropriate paper size from the Size list.
If the paper size and paper type are not compatible, the product software displays an
alert and allows you to select a different type or size.
8. In the Basic Options area, select a high print quality, such as Best, from the Print
Quality drop-down list.
NOTE: For maximum dpi resolution, go to the Advanced tab, and then select
Enabled from the Maximum dpi drop-down list. For more information, see “Print
using the maximum dpi” on page 18.
9. Click OK to return to the Properties dialog box.
10. (Optional) If you want to print the photo in black and white, click the Color tab and
select the Print in grayscale check box. From the drop-down list, select one of the
following options:
•High Quality: uses all the available colors to print your photo in grayscale. This
creates smooth and natural shades of gray.
•Black Ink Only: uses black ink to print your photo in grayscale. The gray shading
is created by varying patterns of black dots, which might result in a grainy image.
11. Click OK, and then click Print or OK in the Print dialog box.
NOTE: Do not leave unused photo paper in the input tray. The paper might start to
curl, which could reduce the quality of your printout. Photo paper should be flat before
printing.
To print a borderless image
1. Remove all paper from the paper tray.
2. Place the photo paper print side down on the right side of the paper tray.
3. On the File menu in your software application, click Print.
4. Make sure the product is the selected printer.
5. Click the button that opens the Properties dialog box.
Depending on your software application, this button might be called Properties,
Options, Printer Setup, Printer, or Preferences.
6. Click the Features tab.
7. In the Size list, click the size of photo paper loaded in the paper tray.
If a borderless image can be printed on the specified size, the Borderless printing
check box is enabled.
Print photos 9
Print
8. In the Paper Type drop-down list, click More, and then select the appropriate paper
type.
NOTE: You cannot print a borderless image if the paper type is set to Plain
paper or to a type of paper other than a photo paper.
9. Select the Borderless printing check box if it is not already checked.
If the borderless paper size and paper type are not compatible, the product software
displays an alert and allows you to select a different type or size.
10. Click OK, and then click Print or OK in the Print dialog box.
NOTE: Do not leave unused photo paper in the paper tray. The paper might start
to curl, which could reduce the quality of your printout. Photo paper should be flat
before printing.
Related topics
•“
Load media” on page 23
•“
Print using the maximum dpi” on page 18
•“
View the print resolution” on page 19
•“
Use printing shortcuts” on page 19
•“
Set the default print settings” on page 20
•“
Stop the current job” on page 55
Print envelopes
You can load one or more envelopes into the input tray of the HP All-in-One. Do not use
shiny or embossed envelopes or envelopes that have clasps or windows.
NOTE: For specific details on how to format text for printing on envelopes, consult
the help files in your word processing software. For best results, consider using a label
for the return address on envelopes.
To print envelopes
1. Slide the paper guide all the way to the left.
2. Place the envelopes in the right side of the tray. The side to be printed on should face
down. The flap should be on the left side.
3. Push the envelopes into the printer until they stop.
4. Slide the paper guide firmly against the edge of the envelopes.
Chapter 3
10 Print
Print
5. Open the Printer Properties dialog box.
6. Click the Features tab, and then select the following print settings:
•Paper Type: Plain paper
•Size: An appropriate envelope size
7. Select any other print settings that you want, and then click OK.
Related topics
•“
Load media” on page 23
•“
View the print resolution” on page 19
•“
Use printing shortcuts” on page 19
•“
Set the default print settings” on page 20
•“
Stop the current job” on page 55
Print on specialty media
Print transparencies
1. Slide the paper guide all the way to the left.
2. Place the transparencies in the right side of the tray. The side to be printed should
face down and the adhesive strip should face up and toward the printer.
3. Carefully push the transparencies into the printer until they stop, so that the adhesive
strips do not catch on one another.
4. Slide the paper guide firmly against the edge of the transparencies.
5. Open the Printer Properties dialog box.
6. Click the Printing Shortcuts tab.
7. In the Printing Shortcuts list, click Presentation Printing, and then specify the
following print settings:
•Paper Type: Click More, and then select an appropriate transparency film.
•Paper Size: An appropriate paper size
8. Select any other print settings that you want, and then click OK.
Print on specialty media 11
Print
Print postcards
1. Slide the paper guide all the way to the left.
2. Place the cards in the right side of the tray. The side to be printed on should face
down and the short edge should point toward the printer.
3. Push the cards into the printer until they stop.
4. Slide the paper guide firmly against the edge of the cards.
5. Open the Printer Properties dialog box.
6. Click the Features tab, and then specify the following print settings:
•Paper Type: Click More, click Specialty Papers, and then select an appropriate
card type.
•Print Quality: Normal or Best
•Size: An appropriate card size
7. Select any other print settings that you want, and then click OK.
Print labels
1. Slide the paper guide all the way to the left.
2. Fan the edges of the label sheets to separate them, and then align the edges.
3. Place the label sheets in the right side of the tray. The label side should face down.
4. Push the sheets into the printer until they stop.
5. Slide the paper guide firmly against the edge of the sheets.
6. Open the Printer Properties dialog box.
7. Click the Printing Shortcuts tab.
Chapter 3
12 Print
Print
8. In the Printing Shortcuts list, click General Everyday Printing, and then specify
the following print settings:
•Paper Type: Plain Paper
•Paper Size: An appropriate paper size
9. Click OK.
Print brochures
1. Slide the paper guide all the way to the left.
2. Place the paper in the right side of the tray. The side to be printed on should face
down.
3. Push the paper into the printer until it stops.
4. Slide the paper guide firmly against the edge of the paper.
5. Open the Printer Properties dialog box.
6. Click the Features tab.
7. Specify the following print settings:
•Print Quality: Best
•Paper Type: Click More, and then select an appropriate HP inkjet paper.
•Orientation: Portrait or Landscape
•Size: An appropriate paper size
•Two-sided printing: Manual
8. Click OK to print.
Print greeting cards
1. Slide the paper guide all the way to the left.
2. Fan the edges of the greeting cards to separate them, and then align the edges.
3. Place the greeting cards in the right side of the tray. The side to be printed on should
face down.
4. Push the cards into the printer until they stop.
5. Slide the paper guide firmly against the edge of the cards.
Print on specialty media 13
Print
6. Open the Printer Properties dialog box.
7. Click the Features tab, and then specify the following print settings:
•Print Quality: Normal
•Paper Type: Click More, and then select an appropriate card type.
•Size: An appropriate card size
8. Select any other print settings that you want, and then click OK.
Print booklets
1. Slide the paper guide all the way to the left.
2. Place plain paper in the right side of the tray. The side to be printed on should face
down.
3. Push the paper into the printer until it stops.
4. Slide the paper guide firmly against the edge of the paper.
5. Open the Printer Properties dialog box.
6. Click the Printing Shortcuts tab.
7. In the Printing Shortcuts list, click Booklet Printing.
8. In the Print On Both Sides drop-down list, select one of the following binding options:
•Left Edge Booklet
•Right Edge Booklet
9. Select any other print settings that you want, and then click OK.
10. When prompted, reload the printed pages in the paper tray as shown below.
Chapter 3
14 Print
Print
11. Click Continue to finish printing the booklet.
Print posters
1. Slide the paper guide all the way to the left.
2. Place plain paper in the right side of the tray. The side to be printed on should face
down.
3. Push the paper into the printer until it stops.
4. Slide the paper guide firmly against the edge of the paper.
5. Open the Printer Properties dialog box.
6. Click the Features tab, and then specify the following print settings:
•Paper Type: Plain Paper
•Orientation: Portrait or Landscape
•Size: An appropriate paper size
7. Click the Advanced tab, and then click Printer Features.
8. In the Poster Printing drop-down list, select the number of sheets for the poster.
9. Click the Select Tiles button.
10. Check that the number of tiles that are selected matches the number of sheets for
the poster, and then click OK.
Print on specialty media 15
Print
11. Select any other print settings that you want, and then click OK.
Print iron-on transfers
1. Slide the paper guide all the way to the left.
2. Place the iron-on transfer paper in the right side of the tray. The side to be printed on
should face down.
3. Push the paper into the printer until it stops.
4. Slide the paper guide firmly against the edge of the paper.
5. Open the Printer Properties dialog box.
Chapter 3
16 Print
Print
6. Click the Features tab, and then specify the following print settings:
•Print Quality: Normal or Best
•Paper Type: Click More, click Specialty Papers, and then click Other specialty
paper.
•Size: An appropriate paper size
7. Click the Advanced tab.
8. Click Printer Features, and then set Mirror Image to On.
NOTE: Some iron-on transfer software programs do not require you to print a
mirror image.
9. Select any other print settings that you want, and then click OK.
Related topics
•“
Recommended papers for printing” on page 21
•“
Load media” on page 23
•“
Use printing shortcuts” on page 19
•“
Set the default print settings” on page 20
•“
Stop the current job” on page 55
Print a Web page
You can print a Web page from your Web browser on the HP All-in-One.
If you use Internet Explorer (6.0 or higher) or Firefox (2.0 or higher) for Web browsing,
you can use HP Smart Web Printing to ensure simple, predictable web printing with
control over what you want and how you want it printed. You can access HP Smart Web
Printing from the toolbar in Internet Explorer. For more information about HP Smart Web
Printing, see the help file provided with it.
To print a Web page
1. Make sure you have paper loaded in the input tray.
2. On the File menu in your Web browser, click Print.
TIP: For best results, select HP Smart Web Printing on the File menu. A check
mark appears when it is selected.
The Print dialog box appears.
3. Make sure the product is the selected printer.
4. If your Web browser supports it, select the items on the Web page that you want to
include in the printout.
For example, in Internet Explorer, click the Options tab to select options such as As
laid out on screen, Only the selected frame, and Print all linked documents.
5. Click Print or OK to print the Web page.
TIP: To print Web pages correctly, you might need to set your print orientation to
Landscape.
Print a Web page 17
Print
Related topics
•“
Recommended papers for printing” on page 21
•“
Load media” on page 23
•“
View the print resolution” on page 19
•“
Use printing shortcuts” on page 19
•“
Set the default print settings” on page 20
•“
Stop the current job” on page 55
Print using the maximum dpi
Use maximum dpi mode to print high-quality, sharp images.
To get the most benefit from maximum dpi mode, use it to print high-quality images such
as digital photographs. When you select the maximum dpi setting, the printer software
displays the optimized dots per inch (dpi) that the HP All-in-One printer will print. Printing
in maximum dpi is supported on the following paper-types only:
•HP Premium Plus Photo Paper
•HP Premium Photo Paper
•HP Advanced Photo Paper
•Photo Hagaki
Printing in maximum dpi takes longer than printing with other settings and requires a large
amount of disk space.
To print in Maximum dpi mode
1. Make sure you have paper loaded in the input tray.
2. On the File menu in your software application, click Print.
3. Make sure the product is the selected printer.
4. Click the button that opens the Properties dialog box.
Depending on your software application, this button might be called Properties,
Options, Printer Setup, Printer, or Preferences.
5. Click the Advanced tab.
6. In the Printer Features area, select Enabled from the Maximum dpi drop-down list.
7. Click the Features tab.
8. In the Paper Type drop-down list, click More, and then select the appropriate paper
type.
9. In the Print Quality drop-down list, click Maximum dpi.
NOTE: To view the maximum dpi that the product will print, click Resolution.
10. Select any other print settings that you want, and then click OK.
Related topics
“View the print resolution” on page 19
Chapter 3
18 Print
Print
View the print resolution
The printer software displays the print resolution in dots per inch (dpi). The dpi varies
according to the paper type and print quality that you select in the printer software.
To view the print resolution
1. Make sure you have paper loaded in the input tray.
2. On the File menu in your software application, click Print.
3. Make sure the product is the selected printer.
4. Click the button that opens the Properties dialog box.
Depending on your software application, this button might be called Properties,
Options, Printer Setup, Printer, or Preferences.
5. Click the Features tab.
6. In the Print Quality drop-down list, select the appropriate print quality setting for your
project.
7. In the Paper Type drop-down list, select the type of paper that you have loaded.
8. Click the Resolution button to view the print resolution dpi.
Use printing shortcuts
Use printing shortcuts to print with print settings that you use often. The printer software
has several specially designed printing shortcuts that are available in the Printing
Shortcuts list.
NOTE: When you select a printing shortcut the appropriate printing options are
automatically displayed. You can leave them as is, change them, or create your own
shortcuts for commonly used tasks.
Use the Printing Shortcuts tab for the following print tasks:
•General Everyday Printing: Print documents quickly.
•Paper-saving Printing: Print two-sided documents with mutliple pages on same
sheet to reduce paper usage.
•Photo Printing–With White Borders: Print a photo with a white border around the
edges.
•Fast/Economical Printing: Produce draft-quality printouts quickly.
•Presentation Printing: Print high-quality documents, including letters and
transparencies.
To create a printing shortcut
1. On the File menu in your software application, click Print.
2. Make sure the product is the selected printer.
3. Click the button that opens the Properties dialog box.
Depending on your software application, this button might be called Properties,
Options, Printer Setup, Printer, or Preferences.
4. Click the Printing Shortcuts tab.
Use printing shortcuts 19
Print
5. In the Printing Shortcuts list, click a printing shortcut.
The print settings for the selected printing shortcut are displayed.
6. Change the print settings to those you want in the new printing shortcut.
7. Click Save as and type a name for the new printing shortcut, and then click Save.
The printing shortcut is added to the list.
To delete a printing shortcut
1. On the File menu in your software application, click Print.
2. Make sure the product is the selected printer.
3. Click the button that opens the Properties dialog box.
Depending on your software application, this button might be called Properties,
Options, Printer Setup, Printer, or Preferences.
4. Click the Printing Shortcuts tab.
5. In the Printing Shortcuts list, click the printing shortcut that you want to delete.
6. Click Delete.
The printing shortcut is removed from the list.
NOTE: Only the shortcuts that you have created can be deleted. The original HP
shortcuts cannot be deleted.
Set the default print settings
If there are settings that you frequently use for printing, you might want to make them the
default print settings so they are already set when you open the Print dialog box from
within your software application.
To change the default print settings
1. In the HP Solution Center, click Settings, point to Print Settings, and then click
Printer Settings.
2. Make changes to the print settings, and click OK.
Chapter 3
20 Print
Print
4 Paper basics
You can load many different types and sizes of paper in the HP All-in-One, including letter
or A4 paper, photo paper, transparencies, and envelopes.
This section contains the following topics:
“Load media” on page 23
Recommended papers for printing
If you want the best print quality, HP recommends using HP papers that are specifically
designed for the type of project you are printing.
Depending on your country/region, some of these papers might not be available.
HP Advanced Photo Paper
This thick photo paper features an instant-dry finish for easy handling without smudging.
It resists water, smears, fingerprints, and humidity. Your prints have a look and feel
comparable to a store-processed photo. It is available in several sizes, including A4, 8.5
x 11 inch, 10 x 15 cm (4 x 6 inch) (with or without tabs), 13 x 18 cm (5 x 7 inch), and two
finishes - glossy or soft gloss (satin matte). It is acid-free for longer lasting documents.
HP Everyday Photo Paper
Print colorful, everyday snapshots at a low cost, using paper designed for casual photo
printing. This affordable, photo paper dries quickly for easy handling. Get sharp, crisp
images when you use this paper with any inkjet printer. It is available in semi-gloss finish
in several sizes, including A4, 8.5 x 11 inch, and 10 x 15 cm (4 x 6 inch) (with or without
tabs). For longer-lasting photos, it is acid-free.
HP Brochure Paper or HP Superior Inkjet Paper
These papers are glossy-coated or matte-coated on both sides for two-sided use. They
are the perfect choice for near-photographic reproductions and business graphics for
report covers, special presentations, brochures, mailers, and calendars.
HP Premium Presentation Paper or HP Professional Paper
These papers are heavy two-sided matte papers perfect for presentation, proposals,
reports, and newsletters. They are heavyweight for an impressive look and feel.
HP Bright White Inkjet Paper
HP Bright White Inkjet Paper delivers high-contrast colors and sharp text. It is opaque
enough for two-sided color usage with no show-through, which makes it ideal for
newsletters, reports, and flyers. It features ColorLok Technology for less smearing, bolder
blacks, and vivid colors.
HP Printing Paper
HP Printing Paper is a high-quality multifunction paper. It produces documents that look
and feel more substantial than documents printed on standard multipurpose or copy
Recommended papers for printing 21
Paper basics
paper. It features ColorLok Technology for less smearing, bolder blacks, and vivid colors.
It is acid-free for longer lasting documents.
HP Office Paper
HP Office Paper is a high-quality multifunction paper. It is suitable for copies, drafts,
memos, and other everyday documents. It features ColorLok Technology for less
smearing, bolder blacks, and vivid colors. It is acid-free for longer lasting documents.
HP Iron-On Transfers
HP Iron-on Transfers (for color fabrics or for light or white fabrics) are the ideal solution
for creating custom T-shirts from your digital photos.
HP Premium Inkjet Transparency Film
HP Premium Inkjet Transparency Film make your color presentations vivid and even more
impressive. This film is easy to use and handle and dries quickly without smudging.
HP Photo Value Pack
HP Photo Value Packs conveniently package original HP cartridges and HP Advanced
Photo Paper to save you time and take the guesswork out of printing affordable
professional photos with your HP All-in-One. Original HP inks and HP Advanced Photo
Paper have been designed to work together so your photos are long lasting and vivid,
print after print. Great for printing out an entire vacation’s worth of photos or multiple prints
to share.
ColorLok
HP recommends plain papers with the ColorLok logo for printing and copying of everyday
documents. All papers with the ColorLok logo are independently tested to meet high
standards of reliability and print quality, and produce documents with crisp, vivid color,
bolder blacks, and dry faster than ordinary plain papers. Look for papers with the ColorLok
logo in a variety of weights and sizes from major paper manufacturers.
NOTE: At this time, some portions of the HP Web site are available in English only.
To order HP papers and other supplies, go to www.hp.com/buy/supplies. If prompted,
choose your country/region, follow the prompts to select your product, and then click one
of the shopping links on the page.
Chapter 4
22 Paper basics
Paper basics
Load media
▲Select a paper size to continue.
Load small-size paper
a. Slide paper-width guide to the left.
Slide paper-width guide to the left.
b. Load paper.
Insert stack of photo paper into photo tray with short edge forward and print
side down.
Slide stack of paper forward until it stops.
NOTE: If the photo paper you are using has perforated tabs, load photo
paper so that tabs are closest to you.
Slide paper-width guide to the right until it stops at edge of paper.
Load full-size paper
a. Slide paper-width guide to the left
Slide paper-width guide to the left.
Load media 23
Paper basics
b. Load paper.
Insert stack of paper into input tray with short edge forward and print side
down.
Slide stack of paper forward until it stops.
Slide paper-width guide to the right until it stops at edge of paper.
Load envelopes
a. Slide paper-width guide to the left.
Slide paper-width guide to the left.
Chapter 4
24 Paper basics
Paper basics
Remove all paper from the main input tray.
b. Load envelopes.
Insert one or more envelopes into far-right side of the input tray, with envelope
flaps on left and facing up.
Slide stack of envelopes forward until it stops.
Slide paper-width guide to the right against stack of envelopes until it stops.
Load media 25
Paper basics
Chapter 4
26 Paper basics
Paper basics
5 Scan
•Scan to a computer
Scan to a computer
NOTE: To scan to a computer, the HP All-in-One and computer must be connected
and turned on. The HP Photosmart Software must also be installed and running on
your computer prior to copying.
▲To scan to a computer:
Single page scan
a. Load original.
Lift lid on product.

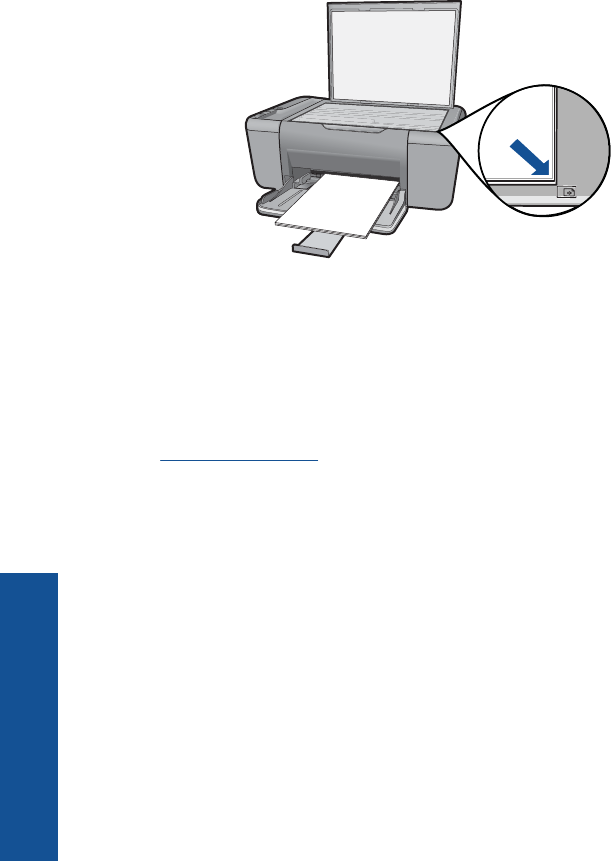

Load original print side down on right front corner of glass.
Scan to a computer 27
Scan
6Copy
“Copy documents or photos” on page 29
Copy documents or photos
NOTE: To make copies, the HP All-in-One and computer must be connected and
turned on. The HP Photosmart Software must also be installed and running on your
computer prior to copying.
NOTE: Enlarge and reduce copy functionality is not available on all models.
▲Do one of the following:
1-sided original to 1-sided copy
a. Load paper.
Load either small photo paper or full-size paper in the main input tray.
b. Load original.

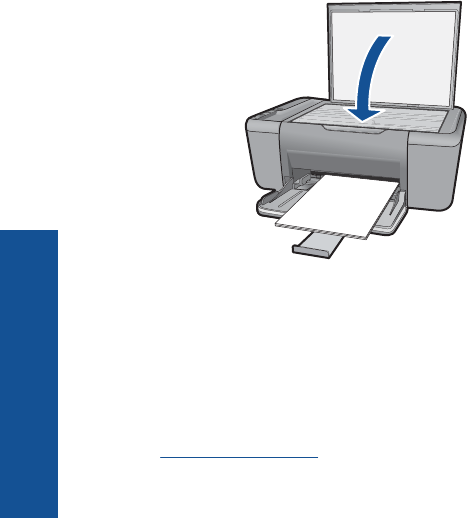

Lift lid on product.
Load original print side down on right front corner of glass.
Copy documents or photos 29
Copy
7 Work with cartridges
•Check the estimated ink levels
•Order ink supplies
•Automatically clean print cartridges
•Manually clean print cartridges
•Replace the cartridges
•Use ink-backup mode
•Cartridge warranty information
Check the estimated ink levels
You can easily check the ink supply level to determine how soon you might need to
replace a cartridge. The ink supply level shows an estimate of the amount of ink remaining
in the cartridges.
NOTE: If you have installed a refilled or remanufactured cartridge, or a cartridge that
has been used in another printer, the ink level indicator might be inaccurate or
unavailable.
NOTE: Ink level warnings and indicators provide estimates for planning purposes
only. When you receive a low-ink warning message, consider having a replacement
cartridge available to avoid possible printing delays. You do not have to replace the
cartridges until the print quality is unacceptable.
NOTE: Ink from the cartridges is used in the printing process in a number of different
ways, including in the initialization process, which prepares the product and cartridges
for printing, and in printhead servicing, which keeps print nozzles clear and ink flowing
smoothly. In addition, some residual ink is left in the cartridge after it is used. For more
information, see www.hp.com/go/inkusage.
To check the ink levels from the HP Photosmart Software
▲In the HP Solution Center, click the Estimated Ink Levels icon.
NOTE: You can also open the Printer Toolbox from the Print Properties dialog
box. In the Print Properties dialog box, click the Features tab, and then click the
Printer Services button.
Related topics
“Order ink supplies” on page 31
Order ink supplies
For a list of cartridge numbers, use the software that came with the HP All-in-One to find
out the reorder number.
Order ink supplies 31
Work with cartridges
Find the cartridge number
1. In the HP Solution Center, click Settings, point to Print Settings, and then click
Printer Toolbox.
NOTE: You can also open the Printer Toolbox from the Print Properties dialog
box. In the Print Properties dialog box, click the Features tab, and then click the
Printer Services button.
The Printer Toolbox appears.
2. Click the Estimated Ink Level tab.
The estimated ink levels for the print cartridges appear. Use the menu at the bottom
to select Cartridge details.
To order genuine HP supplies for the HP All-in-One, go to www.hp.com/buy/supplies. If
prompted, choose your country/region, follow the prompts to select your product, and
then click one of the shopping links on the page.
NOTE: Ordering cartridges online is not supported in all countries/regions. If it is not
available in your country/region, you may still view supplies information and print a
list for reference when shopping at a local HP reseller.
To order ink cartridges from your desktop
▲To learn which HP supplies work with your printer, order supplies online, or create a
printable shopping list, open HP Solution Center and select the online shopping
feature.
Cartridge information and links to online shopping also appear on ink alert messages.
In addition, you can find cartridge information and order online by visiting
www.hp.com/buy/supplies.
NOTE: Ordering cartridges online is not supported in all countries/regions. If it
is not available in your country/region, you may still view supplies information and
print a list for reference when shopping at a local HP reseller.
Related topics
“Choose the right cartridges” on page 32
Choose the right cartridges
HP recommends that you use original HP cartridges. Original HP cartridges are designed
and tested with HP printers to help you easily produce great results, time after time.
Related topics
“Order ink supplies” on page 31
Automatically clean print cartridges
If your printed pages are faded or if they contain ink streaks, the print cartridges might be
low on ink or might need to be cleaned. For more information, see “Check the estimated
ink levels” on page 31.
If the print cartridges are not low on ink, clean the print cartridges automatically.
Chapter 7
32 Work with cartridges
Work with cartridges
CAUTION: Clean print cartridges only when necessary. Unnecessary cleaning
wastes ink and shortens the life of the cartridge.
To clean the print cartridges
1. In the HP Solution Center, click Settings. In the Print Settings area, click Printer
Toolbox.
2. Click Clean the Print Cartridges.
3. Click Clean, and then follow the onscreen instructions.
Manually clean print cartridges
Make sure you have the following materials available:
•Dry foam rubber swabs, lint-free cloth, or any soft material that will not come apart or
leave fibers.
TIP: Coffee filters are lint-free and work well for cleaning print cartridges.
•Distilled, filtered, or bottled water (tap water might contain contaminants that can
damage the print cartridges).
CAUTION: Do not use platen cleaners or alcohol to clean the print cartridge
contacts. These can damage the print cartridge or the product.
To clean the print cartridge contacts
1. Turn on the product and open the print cartridge door.
The print carriage moves to the center of the product.
2. Wait until the print carriage is idle and silent, and then unplug the power cord from
the back of the product.
3. Lightly press down on the print cartridge to release it, and then pull it towards you out
of the slot.
NOTE: Do not remove both print cartridges at the same time. Remove and clean
each print cartridge one at a time. Do not leave a print cartridge outside the HP
All-in-One for more than 30 minutes.
4. Inspect the print cartridge contacts for ink and debris buildup.
5. Dip a clean foam rubber swab or lint-free cloth into distilled water, and squeeze any
excess water from it.
6. Hold the print cartridge by its sides.
7. Clean only the copper-colored contacts. Allow the print cartridges to dry for
approximately ten minutes.
Manually clean print cartridges 33
Work with cartridges
1Copper-colored contacts
2Ink nozzles (do not clean)
8. Hold the print cartridge with the HP logo on top, and insert the print cartridge back
into the slot. Make sure you push the print cartridge in firmly until it snaps into place.
9. Repeat if necessary for the other print cartridge.
10. Gently close the print cartridge door and plug the power cord into the back of the
product.
Replace the cartridges
To replace the cartridges
1. Check power.
2. Remove cartridge.
a. Open cartridge door.
Chapter 7
34 Work with cartridges
Work with cartridges
Wait for print carriage to move to center of the product.
b. Press down to release cartridge, then remove it from slot.
3. Insert new cartridge.
a. Remove cartridge from packaging.
b. Remove plastic tape using pink pull tab.
c. Line up colored shaped icons, then slide cartridge into slot until it clicks into place.
Replace the cartridges 35
Work with cartridges
d. Close cartridge door.
4. Align cartridges.
Related topics
•“
Choose the right cartridges” on page 32
•“
Order ink supplies” on page 31
Use ink-backup mode
Use the ink-backup mode to operate the HP All-in-One with only one print cartridge. The
ink-backup mode is initiated when a print cartridge is removed from the print cartridge
carriage. During ink-backup mode, the product can only print jobs from the computer.
NOTE: When the HP All-in-One operates in ink-backup mode, a message is
displayed on screen. If the message is displayed and two print cartridges are installed
in the product, verify that the protective piece of plastic tape has been removed from
each print cartridge. When plastic tape covers the print cartridge contacts, the product
cannot detect that the print cartridge is installed.
Exit ink-backup mode
Install two print cartridges in the HP All-in-One to exit ink-backup mode.
Related topics
“Replace the cartridges” on page 34
Cartridge warranty information
The HP cartridge warranty is applicable when the product is used in its designated HP
printing device. This warranty does not cover HP ink products that have been refilled,
remanufactured, refurbished, misused, or tampered with.
Chapter 7
36 Work with cartridges
Work with cartridges
During the warranty period the product is covered as long as the HP ink is not depleted
and the end of warranty date has not been reached. The end of warranty date, in YYYY/
MM/DD format, may be found on the product as indicated:
For a copy of the HP Limited Warranty Statement, see the printed documentation that
came with the product.
Cartridge warranty information 37
Work with cartridges
Chapter 7
38 Work with cartridges
Work with cartridges
8 Solve a problem
This section contains the following topics:
•HP support
•Setup troubleshooting
•Print troubleshooting
•Scan troubleshooting
•Copy troubleshooting
•Errors
HP support
•Support process
•HP support by phone
•Additional warranty options
Support process
If you have a problem, follow these steps:
1. Check the documentation that came with the product.
2. Visit the HP online support Web site at www.hp.com/support. HP online support is
available to all HP customers. It is the fastest source for up-to-date product
information and expert assistance and includes the following features:
• Fast access to qualified online support specialists
• Software and driver updates for the product
• Valuable product and troubleshooting information for common problems
• Proactive product updates, support alerts, and HP newsgrams that are available
when you register the product
3. Call HP support. Support options and availability vary by product, country/region, and
language.
HP support by phone
Phone support options and availability vary by product, country/region, and language.
This section contains the following topics:
•Phone support period
•Placing a call
•Support phone numbers
•After the phone support period
Phone support period
One year of phone support is available in North America, Asia Pacific, and Latin America
(including Mexico). To determine the duration of phone support in Europe, the Middle
East, and Africa, go to www.hp.com/support. Standard phone company charges apply.
HP support 39
Solve a problem
Placing a call
Call HP support while you are in front of the computer and the product. Be prepared to
provide the following information:
•Product name (HP Deskjet F2400 All-in-One series)
•Serial number (located on the back or bottom of the product)
•Messages that appear when the situation occurs
•Answers to these questions:
◦Has this situation happened before?
◦Can you re-create it?
◦Did you add any new hardware or software to your computer at about the time
that this situation began?
◦Did anything else occur prior to this situation (such as a thunderstorm, product
was moved, etc.)?
Support phone numbers
For the most current HP list of telephone support numbers and call costs information, see
www.hp.com/support.
After the phone support period
After the phone support period, help is available from HP at an additional cost. Help may
also be available at the HP online support Web site: www.hp.com/support. Contact your
HP dealer or call the support phone number for your country/region to learn more about
support options.
Additional warranty options
Extended service plans are available for the HP All-in-One at additional costs. Go to
www.hp.com/support, select your country/region and language, then explore the services
and warranty area for information about the extended service plans.
Setup troubleshooting
This section contains setup troubleshooting information for the product.
Many issues are caused when the product is connected to the computer using a USB
cable before the HP Photosmart software is installed on the computer. If you connected
the product to your computer before the software installation screen prompts you to do
so, you must follow these steps:
Troubleshooting common setup issues
1. Disconnect the USB cable from the computer.
2. Uninstall the software (if you have already installed it).
For more information, see “Uninstall and reinstall the software” on page 43.
3. Restart your computer.
4. Turn off the product, wait one minute, then restart it.
5. Reinstall the HP Photosmart software.
Chapter 8
40 Solve a problem
Solve a problem
CAUTION: Do not connect the USB cable to the computer until prompted by the
software installation screen.
This section contains the following topics:
•The product will not turn on
•After setting up the product, it does not print
•The registration screen does not appear
•Uninstall and reinstall the software
The product will not turn on
Try the following solutions to resolve the issue. Solutions are listed in order, with the most
likely solution first. If the first solution does not solve the problem, continue trying the
remaining solutions until the issue is resolved.
•Solution 1: Make sure the power cord is connected
•Solution 2: Press the On button more slowly
Solution 1: Make sure the power cord is connected
Solution:
•Make sure the power cord is firmly connected to both the product and the power
adapter. Plug the power cord into a power outlet, surge protector, or power strip.
1Power connection
2Power cord and adapter
•If you are using a power strip, make sure the power strip is on. Or, try plugging
the product directly into a power outlet.
Setup troubleshooting 41
Solve a problem
•Test the power outlet to make sure it is working. Plug in an appliance that you
know works, and see if the appliance has power. If not, then there might be a
problem with the power outlet.
•If you plugged the product into a switched outlet, make sure the outlet is switched
on. If it is switched to on but still does not work, then there might be a problem
with the power outlet.
Cause: The product was not properly connected to a power supply.
If this did not solve the issue, try the next solution.
Solution 2: Press the On button more slowly
Solution: The product might not respond if you press the On button too quickly.
Press the On button once. It might take a few minutes for the product to turn on. If
you press the On button again during this time, you might turn the product off.
CAUTION: If the product still does not turn on, it might have a mechanical failure.
Unplug the product from the power outlet.
Contact HP support for service.
Go to: www.hp.com/support. If prompted, choose your country/region, and then
click Contact HP for information on calling for technical support.
Cause: You pressed the On button too quickly.
After setting up the product, it does not print
Try the following solutions to resolve the issue. Solutions are listed in order, with the most
likely solution first. If the first solution does not solve the problem, continue trying the
remaining solutions until the issue is resolved.
•Step 1: Press the On button to turn on the product
•Step 2: Set your product as the default printer
•Step 3: Check the connection between the product and computer
Step 1: Press the On button to turn on the product
Solution: Look at the On button located on the product. If it is not lit, the product is
turned off. Make sure the power cord is firmly connected to the product and plugged
into a power outlet. Press the On button to turn on the product.
Cause: The product might not have been turned on.
If this did not solve the issue, try the next solution.
Step 2: Set your product as the default printer
Solution: Use the system tools on your computer to change your product to be the
default printer.
Chapter 8
42 Solve a problem
Solve a problem
Cause: You sent the print job to the default printer, but this product was not the
default printer.
If this did not solve the issue, try the next solution.
Step 3: Check the connection between the product and computer
Solution: Check the connection between the product and computer.
Cause: The product and computer were not communicating with each other.
If this did not solve the issue, try the next solution.
The registration screen does not appear
Solution: You can access the registration (Sign up now) screen from the Windows
taskbar by clicking Start, pointing to Programs or All Programs, HP, Deskjet F2400
All-in-One series, and then clicking Product Registration.
Cause: The registration screen did not launch automatically.
Uninstall and reinstall the software
If your installation is incomplete, or if you connected the USB cable to the computer before
prompted by the software installation screen, you might need to uninstall and then
reinstall the software. Do not simply delete the HP All-in-One application files from your
computer. Make sure to remove them properly using the uninstall utility provided when
you installed the software that came with the HP All-in-One.
To uninstall and reinstall the software
1. On the Windows taskbar, click Start, Settings, Control Panel (or just Control
Panel).
2. Double-click Add/Remove Programs (or click Uninstall a program).
3. Select HP Photosmart All-In-One Driver Software, and then click Change/
Remove.
Follow the onscreen instructions.
4. Disconnect the product from your computer.
5. Restart your computer.
NOTE: It is important that you disconnect the product before restarting your
computer. Do not connect the product to your computer until after you have
reinstalled the software.
Setup troubleshooting 43
Solve a problem
6. Insert the product CD-ROM into your computer’s CD-ROM drive and then start the
Setup program.
NOTE: If the Setup program does not appear, locate the setup.exe file on the
CD-ROM drive and double-click it.
NOTE: If you no longer have the installation CD, you can download the software
from www.hp.com/support.
7. Follow the onscreen instructions and the instructions provided in the printed
documentation that came with the product.
When the software installation is complete, the HP Digital Imaging Monitor icon appears
in the Windows system tray.
Print troubleshooting
Try the following solutions to resolve the issue. Solutions are listed in order, with the most
likely solution first. If the first solution does not solve the problem, continue trying the
remaining solutions until the issue is resolved.
•Check cartridges
•Check paper
•Check product
•Check printer settings
•Reset the product
•Contact HP support
Check cartridges
Try the following solutions.
•Step 1: Make sure you are using genuine HP ink cartridges
Chapter 8
44 Solve a problem
Solve a problem
•Step 2: Check the ink levels
Step 1: Make sure you are using genuine HP ink cartridges
Solution: Check to see if your ink cartridges are genuine HP ink cartridges.
HP recommends that you use genuine HP ink cartridges. Genuine HP ink cartridges
are designed and tested with HP printers to help you easily produce great results,
time after time.
NOTE: HP cannot guarantee the quality or reliability of non-HP supplies. Product
service or repairs required as a result of using a non-HP supply will not be covered
under warranty.
If you believe you purchased genuine HP ink cartridges, go to:
www.hp.com/go/anticounterfeit
Cause: Non-HP ink cartridges were being used.
If this did not solve the issue, try the next solution.
Step 2: Check the ink levels
Solution: Check the estimated ink levels in the cartridges.
NOTE: Ink level warnings and indicators provide estimates for planning
purposes only. When you receive a low-ink warning message, consider having a
replacement cartridge available to avoid possible printing delays. You do not need
to replace the cartridges until print quality becomes unacceptable.
For more information, see:
“Check the estimated ink levels” on page 31
Cause: The ink cartridges might have insufficient ink.
If this did not solve the issue, try the next solution.
Check paper
Try the following solutions.
•Step 1: Make sure only one type of paper is loaded
•Step 2: Load the stack of paper correctly
Step 1: Make sure only one type of paper is loaded
Solution: Load only one type of paper at a time.
Cause: More than one type of paper was loaded in the input tray.
If this did not solve the issue, try the next solution.
Print troubleshooting 45
Solve a problem
Step 2: Load the stack of paper correctly
Solution: Remove the stack of paper from the input tray, reload the paper, and then
slide the paper width guide inward until it stops at the edge of the paper.
For more information, see:
“Load media” on page 23
Cause: The paper guides were not positioned correctly.
Check product
Try the following solutions.
•Solution 1: Align the print cartridges
•Solution 2: Automatically clean the print cartridges.
Solution 1: Align the print cartridges
Solution: Aligning the print cartridges can help ensure high-quality output.
To align the print cartridges from the HP Photosmart Software
1. Load letter or A4 unused plain white paper into the paper tray.
2. In the HP Solution Center, click Settings.
3. In the Print Settings area, click Printer Toolbox.
NOTE: You can also open the Printer Toolbox from the Print Properties
dialog box. In the Print Properties dialog box, click the Features tab, and
then click Printer Services.
The Printer Toolbox appears.
4. Click the Device Services tab.
5. Click Align the Print Cartridges.
6. Click Align, and then follow the onscreen instructions.
The HP All-in-One prints a test page, aligns the print cartridges, and calibrates
the printer. Recycle or discard the test page.
Cause: The printer needed to be aligned.
If this did not solve the issue, try the next solution.
Solution 2: Automatically clean the print cartridges.
Solution: Clean the print cartridges.
For more information, see “Automatically clean print cartridges” on page 32
Cause: The print cartridge nozzles needed to be cleaned.
If this did not solve the issue, try the next solution.
Chapter 8
46 Solve a problem
Solve a problem
Check printer settings
Try the following solutions.
•Step 1: Check the print settings
•Step 2: Verify the paper size setting
•Step 3: Check the printer margins
Step 1: Check the print settings
Solution: Check the print settings.
•Check the print settings to see if the color settings are incorrect.
For example, check to see if the document is set to print in grayscale. Or, check
to see if advanced color settings such as saturation, brightness, or color tone, are
set to modify the appearance of colors.
•Check the print quality setting and make sure it matches the type of paper loaded
in the product.
You might need to choose a lower print quality setting, if colors are running into
each other. Or, choose a higher setting if you are printing a high-quality photo,
and then make sure photo paper such as HP Advanced Photo Paper, is loaded
in the input tray.
NOTE: On some computer screens, colors might appear differently than they do
when printed on paper. In this case, there is nothing wrong with the product, print
settings, or ink cartridges. No further troubleshooting is required.
Cause: The print settings were set incorrectly.
If this did not solve the issue, try the next solution.
Step 2: Verify the paper size setting
Solution: Verify that you have selected the proper paper size setting for your
project. Make sure that you have loaded the correct paper size in the input tray.
Cause: The paper size setting might not have been set correctly for the project you
were printing.
If this did not solve the issue, try the next solution.
Step 3: Check the printer margins
Solution: Check the printer margins.
Print troubleshooting 47
Solve a problem
Make sure the margin settings for the document do not exceed the printable area of
the product.
To check your margin settings
1. Preview your print job before sending it to the product.
In most software applications, click the File menu, and then click Print Preview.
2. Check the margins.
The product uses the margins you have set in your software application, as long
as they are greater than the minimum margins the product supports. For more
information about setting margins in your software application, see the
documentation that came with the software.
3. Cancel the print job if the margins are not satisfactory, and then adjust the margins
in your software application.
Cause: The margins were not set correctly in your software application.
If this did not solve the issue, try the next solution.
Reset the product
Solution: Turn off the product, and then unplug the power cord. Plug the power
cord back in, and then press the On button to turn on the product.
Cause: The product experienced an error.
If this did not solve the issue, try the next solution.
Contact HP support
Solution: Contact HP support for service.
Go to: www.hp.com/support.
If prompted, choose your country/region, and then click Contact HP for information
on calling for technical support.
Cause: The ink cartridges were not intended for use in this product.
Scan troubleshooting
Use this section to solve these scan problems:
•Scanned image is incorrectly cropped
•Scanned image shows dotted lines instead of text
•Text format is incorrect
•Text is incorrect or missing
Scanned image is incorrectly cropped
Solution: The autocropping feature in the HP Solution Center software crops
anything that is not part of the main image. Sometimes this might not be what you
Chapter 8
48 Solve a problem
Solve a problem
want. In that case, turn off autocropping in the HP Solution Center software and crop
the scanned image manually, or not at all.
Cause: The software was set to automatically crop scanned pictures.
Scanned image shows dotted lines instead of text
Solution: Make a black-and-white copy of the original and then scan the copy.
Cause: If you used the Text image type to scan text that you planned to edit, the
scanner might not have recognized color text. The Text image type scans at 300 x 300
dpi, in black and white.
If you scanned an original that has graphics or artwork surrounding the text, the
scanner might not have recognized the text.
Text format is incorrect
Solution: Some applications cannot handle framed text formatting. Framed text is
one of the scan document settings in the software. It maintains complex layouts, such
as multiple columns from a newsletter, by putting the text in different frames (boxes)
in the destination application. In the software, select the correct format so that the
scanned text layout and formatting are retained.
Cause: The scan document settings were incorrect.
Text is incorrect or missing
Try the following solutions to resolve the issue. Solutions are listed in order, with the most
likely solution first. If the first solution does not solve the problem, continue trying the
remaining solutions until the issue is resolved.
•Solution 1: Adjust the brightness in the software
•Solution 2: Clean the glass and lid
Solution 1: Adjust the brightness in the software
Solution: Adjust the brightness in the software, and then rescan the original.
Cause: The brightness was not set correctly.
If this did not solve the issue, try the next solution.
Solution 2: Clean the glass and lid
Solution: Turn off the product, unplug the power cord, and use a soft cloth to wipe
the glass and the back of the document lid.
Cause: Debris might have been stuck on the glass or on the back of the document
lid. This can cause poor-quality scans.
Scan troubleshooting 49
Solve a problem
Copy troubleshooting
Use this section to solve these copy problems:
•Parts of the original do not appear or are cut off
•The printout is blank
Parts of the original do not appear or are cut off
Try the following solutions to resolve the issue. Solutions are listed in order, with the most
likely solution first. If the first solution does not solve the problem, continue trying the
remaining solutions until the issue is resolved.
•Solution 1: Place the original correctly on the glass
•Solution 2: Clean the scanner glass
Solution 1: Place the original correctly on the glass
Solution: Load your original print side down on the right front corner of the glass.
Cause: The original was placed incorrectly on the glass.
If this did not solve the issue, try the next solution.
Solution 2: Clean the scanner glass
Solution: Clean the scanner glass and make sure that there are no foreign
materials adhering to it.
Cause: The scanner glass was dirty, causing the product to include an area in the
copy that was larger than the document.
The printout is blank
Try the following solutions to resolve the issue. Solutions are listed in order, with the most
likely solution first. If the first solution does not solve the problem, continue trying the
remaining solutions until the issue is resolved.
Chapter 8
50 Solve a problem
Solve a problem
•Solution 1: Place the original correctly on the glass
•Solution 2: Check the ink levels in the print cartridges
Solution 1: Place the original correctly on the glass
Solution: Load your original print side down on the right front corner of the glass.
Cause: The original was placed incorrectly on the glass.
If this did not solve the issue, try the next solution.
Solution 2: Check the ink levels in the print cartridges
Solution: Check the estimated ink levels remaining in the print cartridges.
NOTE: Ink level warnings and indicators provide estimates for planning
purposes only. When you receive a low-ink warning message, consider having a
replacement cartridge available to avoid possible printing delays. You do not need
to replace the print cartridges until print quality becomes unacceptable.
If there is ink remaining in the print cartridges, but you are still noticing a problem,
print a self-test report to determine if there is a problem with the print cartridges. If the
self-test report shows a problem, clean the print cartridges. If the problem persists,
you might need to replace the print cartridges.
Cause: The print cartridges needed to be cleaned or there was insufficient ink.
Errors
This section contains the following categories of messages about your product:
•Flashing lights
•Printing in ink-backup mode
Errors 51
Solve a problem
Flashing lights
The lights on the product flash in special sequences to inform you about various error
conditions. Refer to the following table for information on solving your error condition
based on which lights are on or flashing on the product.
On light Attention
light
Ink
attention
lights
Description Solution
Off Off Off The product is
turned off.
Press the On button
to turn the product
on.
Blinking Off Off The product is
processing a job.
Wait for the product
to finish.
On Fast
blinking
On The tape was not
removed from one
or both print
cartridges.
Remove the print
cartridge, remove
tape, and reinsert the
print cartridge.
On Fast
blinking
Off The product is out
of paper.
The product has a
paper jam.
Load paper and
press any button to
continue.
Clear the paper jam,
and then press
Resume.
On Fast
blinking
Off The front access
door or the print
cartridge access
door is open.
Close the front
access door or the
print cartridge
access door.
On Fast
blinking
Fast
blinking
The print cartridges
are missing or not
seated correctly.
The print cartridge
might be defective.
The tape was not
removed from one
or both print
cartridges.
The print cartridge
is not intended for
use in this product.
Install or remove and
reinsert print
cartridges. For
information about
manually cleaning
the print cartridges,
see “Manually clean
print cartridges”
on page 33.
Remove the print
cartridge, remove
tape, and reinsert the
print cartridge.
The print cartridge
might not be
supported for use in
the product. For
more information
about compatible
print cartridges, see
“Order ink supplies”
on page 31
On Fast
blinking
Both fast
blinking
The print carriage is
stalled.
Open the front
access door, and
Chapter 8
52 Solve a problem
Solve a problem
On light Attention
light
Ink
attention
lights
Description Solution
check that the
carriage is not
blocked.
Fast
blinking
Fast
blinking
Both fast
blinking
The product has a
fatal error.
1. Turn off the
product.
2. Unplug the
power cord.
3. Wait a minute,
then plug the
power cord back
in.
4. Turn on the
product.
If the problem
persists, contact HP
Support.
On Off On Print cartridge(s)
are getting low on
ink.
Replace one or both
print cartridges when
print quality is no
longer acceptable.
On Off Tri-color
print
cartridge
light On
Black print
cartridge
light Off
The tri-color print
cartridge is getting
low on ink.
The tri-color print
cartridge has been
removed.
Replace the tri-color
print cartridge when
print quality is no
longer acceptable.
Replace the tri-color
print cartridge, or
print in ink-backup
mode with the black
print cartridge. For
more information,
see “Printing in ink-
backup mode”
on page 54.
On Off Tri-color
print
cartridge
light Off
Black print
cartridge
light On
The black print
cartridge is getting
low on ink.
The black print
cartridge has been
removed.
Replace the black
print cartridge when
print quality is no
longer acceptable.
Replace the black
print cartridge, or
print in ink-backup
mode with the tri-
color print cartridge.
For more
information, see
“Printing in ink-
backup mode”
on page 54.
(continued)
Errors 53
Solve a problem
Printing in ink-backup mode
Solution: If you receive the ink-backup mode message and two print cartridges are
installed in the product, verify that the protective piece of plastic tape has been
removed from each print cartridge. When plastic tape covers the print cartridge
contacts, the product cannot detect that the print cartridge is installed.
1Copper-colored contacts
2Plastic tape with pink pull tab (must be removed before installing)
3Ink nozzles under tape
Cause: When the product detected that only one print cartridge is installed, ink-
backup mode is initiated. This printing mode lets you print with a single print cartridge,
but it slows the product and affects the quality of printouts.
Chapter 8
54 Solve a problem
Solve a problem
9 Stop the current job
To stop a print job from the HP All-in-One
▲Press Cancel on the control panel. If the print job does not stop, press Cancel again.
It can take a few moments for printing to be cancelled.
Stop the current job 55
Stop the current job
Chapter 9
56 Stop the current job
Stop the current job
10 Technical information
The technical specifications and international regulatory information for the HP All-in-One are
provided in this section.
For additional specifications, see the printed documentation that came with the HP All-in-One.
This section contains the following topics:
•Notice
•Specifications
•Environmental product stewardship program
•Regulatory notices
Notice
Hewlett-Packard Company notices
The information contained in this document is subject to change without notice.
All rights reserved. Reproduction, adaptation, or translation of this material is prohibited without prior written permission
of Hewlett-Packard, except as allowed under copyright laws. The only warranties for HP products and services are set forth
in the express warranty statements accompanying such products and services. Nothing herein should be construed as
constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
© 2009 Hewlett-Packard Development Company, L.P.
Windows, Windows 2000, and Windows XP are U.S. registered trademarks of Microsoft Corporation.
Windows Vista is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other
countries.
Intel and Pentium are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and
other countries.
Specifications
Technical specifications for the HP All-in-One are provided in this section. For complete product
specifications, see the Product Data Sheet at www.hp.com/support.
System requirements
Software and system requirements are located in the Readme file.
For information about future operating system releases and support, visit the HP online support Web
site at www.hp.com/support.
Environmental specifications
•Recommended operating temperature range: 15 ºC to 32 ºC (59 ºF to 90 ºF)
•Allowable operating temperature range: 5 ºC to 40 ºC (41 ºF to 104 ºF)
•Humidity: 15% to 80% RH non-condensing; 28 ºC maximum dewpoint
•Non-operating (Storage) temperature range: –40 ºC to 60 ºC (–40 ºF to 140 ºF)
•In the presence of high electromagnetic fields, it is possible the output from the HP All-in-One
may be slightly distorted
•HP recommends using a USB cable less than or equal to 3 m (10 feet) in length to minimize
injected noise due to potential high electromagnetic fields
Paper tray capacity
Plain paper sheets (75 g/m² [20 lb]): Up to 80
Envelopes: Up to 10
Index cards: Up to 30
Photo paper sheets: Up to 30
Specifications 57
Technical information
Paper size
For a complete list of supported media sizes, see the printer software.
Paper weights
Plain Paper: 75 to 90 g/m² (20 to 24 lb)
Envelopes: 75 to 90 g/m² (20 to 24 lb)
Cards: Up to 200 g/m² (110-lb index maximum)
Photo Paper: Up to 280 g/m² (75 lb)
Print specifications
•Print speeds vary according to the complexity of the document
•Panorama-size printing
•Method: drop-on-demand thermal inkjet
•Language: PCL3 GUI
Copy specifications
•Digital image processing
•Maximum number of copies varies by model
•Copy speeds vary according to the complexity of the document and model
•Maximum copy enlargement ranging from 200-400% (depends on model)
•Maximum copy reduction ranging from 25-50% (depends on model)
•Copy enlargement and reduction functionality not available on all models
Scan specifications
•Image editor included
•Twain-compliant software interface
•Resolution: up to 1200 x 2400 ppi optical (HP Deskjet F2420/2423 models up to 1200 x 1200
ppi)
For more information about ppi resolution, see the scanner software.
•Color: 48-bit color, 8-bit grayscale (256 levels of gray)
•Maximum scan size from glass: 21.6 x 29.7 cm (8.5 x 11.7 inches)
Print resolution
To find out about the printer resolution, see the printer software. For more information, see “View
the print resolution” on page 19.
Cartridge yield
Visit www.hp.com/go/learnaboutsupplies for more information on estimated cartridge yields.
Acoustic information
If you have Internet access, you can get acoustic information from the HP Web site. Go to:
www.hp.com/support.
Environmental product stewardship program
Hewlett-Packard is committed to providing quality products in an environmentally sound manner.
Design for recycling has been incorporated into this product. The number of materials has been kept
to a minimum while ensuring proper functionality and reliability. Dissimilar materials have been
designed to separate easily. Fasteners and other connections are easy to locate, access, and
remove using common tools. High priority parts have been designed to access quickly for efficient
disassembly and repair.
For more information, visit HP’s Commitment to the Environment Web site at:
www.hp.com/hpinfo/globalcitizenship/environment/index.html
This section contains the following topics:
Chapter 10
58 Technical information
Technical information
•Eco-Tips
•Paper use
•Plastics
•Material safety data sheets
•Recycling program
•HP inkjet supplies recycling program
•Power consumption
•Disposal of waste equipment by users in private households in the European Union
•Chemical Substances
Eco-Tips
HP is committed to helping customers reduce their environmental footprint. HP has provided the
Eco-Tips below to help you focus on ways to assess and reduce the impact of your printing choices.
In addition to specific features in this product, please visit the HP Eco Solutions web site for more
information on HP’s environmental initiatives.
www.hp.com/hpinfo/globalcitizenship/environment/
Your product's Eco features
•Smart Web printing: The HP Smart Web Printing interface includes a Clip Book and Edit
Clips window where you can store, organize, or print clips you have gathered from the Web.
For more information, see “Print a Web page” on page 17.
•Energy Savings information: To determine the ENERGY STAR® qualification status for this
product, see “Power consumption” on page 59.
•Recycled Materials: For more information regarding recycling of HP products, please visit:
www.hp.com/hpinfo/globalcitizenship/environment/recycle/
Paper use
This product is suited for the use of recycled paper according to DIN 19309 and EN 12281:2002.
Plastics
Plastic parts over 25 grams are marked according to international standards that enhance the ability
to identify plastics for recycling purposes at the end of product life.
Material safety data sheets
Material safety data sheets (MSDS) can be obtained from the HP Web site at:
www.hp.com/go/msds
Recycling program
HP offers an increasing number of product return and recycling programs in many countries/regions,
and partners with some of the largest electronic recycling centers throughout the world. HP
conserves resources by reselling some of its most popular products. For more information regarding
recycling of HP products, please visit:
www.hp.com/hpinfo/globalcitizenship/environment/recycle/
HP inkjet supplies recycling program
HP is committed to protecting the environment. The HP Inkjet Supplies Recycling Program is
available in many countries/regions, and lets you recycle used print cartridges and ink cartridges
free of charge. For more information, go to the following Web site:
www.hp.com/hpinfo/globalcitizenship/environment/recycle/
Power consumption
Power usage drops significantly while in Sleep mode, which saves natural resources and saves
money without affecting the high performance of this product. To determine the ENERGY STAR®
Environmental product stewardship program 59
Technical information
qualification status for this product see the Product Data Sheet or Specifications Sheet. Qualified
products are also listed at www.hp.com/go/energystar.
Disposal of waste equipment by users in private households in the European Union
Disposal of Waste Equipment by Users in Private Households in the European Union
This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste
equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment
at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where
you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
Évacuation des équipements usagés par les utilisateurs dans les foyers privés au sein de l'Union européenne
La présence de ce symbole sur le produit ou sur son emballage indique que vous ne pouvez pas vous débarrasser de ce produit de la même façon que vos déchets courants.
Au contraire, vous êtes responsable de l'évacuation de vos équipements usagés et, à cet effet, vous êtes tenu de les remettre à un point de collecte agréé pour le recyclage des
équipements électriques et électroniques usagés. Le tri, l'évacuation et le recyclage séparés de vos équipements usagés permettent de préserver les ressources naturelles et de s'assurer
que ces équipements sont recyclés dans le respect de la santé humaine et de l'environnement. Pour plus d'informations sur les lieux de collecte des équipements usagés, veuillez contacter
votre mairie, votre service de traitement des déchets ménagers ou le magasin où vous avez acheté le produit.
Entsorgung von Elektrogeräten durch Benutzer in privaten Haushalten in der EU
Dieses Symbol auf dem Produkt oder dessen Verpackung gibt an, dass das Produkt nicht zusammen mit dem Restmüll entsorgt werden darf. Es obliegt daher Ihrer Verantwortung, das
Gerät an einer entsprechenden Stelle für die Entsorgung oder Wiederverwertung von Elektrogeräten aller Art abzugeben (z.B. ein Wertstoffhof). Die separate Sammlung und das
Recyceln Ihrer alten Elektrogeräte zum Zeitpunkt ihrer Entsorgung trägt zum Schutz der Umwelt bei und gewährleistet, dass sie auf eine Art und Weise recycelt werden, die keine
Gefährdung für die Gesundheit des Menschen und der Umwelt darstellt. Weitere Informationen darüber, wo Sie alte Elektrogeräte zum Recyceln abgeben können, erhalten Sie bei
den örtlichen Behörden, Wertstoffhöfen oder dort, wo Sie das Gerät erworben haben.
Smaltimento di apparecchiature da rottamare da parte di privati nell'Unione Europea
Questo simbolo che appare sul prodotto o sulla confezione indica che il prodotto non deve essere smaltito assieme agli altri rifiuti domestici. Gli utenti devono provvedere allo
smaltimento delle apparecchiature da rottamare portandole al luogo di raccolta indicato per il riciclaggio delle apparecchiature elettriche ed elettroniche. La raccolta e il riciclaggio
separati delle apparecchiature da rottamare in fase di smaltimento favoriscono la conservazione delle risorse naturali e garantiscono che tali apparecchiature vengano rottamate
nel rispetto dell'ambiente e della tutela della salute. Per ulteriori informazioni sui punti di raccolta delle apparecchiature da rottamare, contattare il proprio comune di residenza,
il servizio di smaltimento dei rifiuti locale o il negozio presso il quale è stato acquistato il prodotto.
Eliminación de residuos de aparatos eléctricos y electrónicos por parte de usuarios domésticos en la Unión Europea
Este símbolo en el producto o en el embalaje indica que no se puede desechar el producto junto con los residuos domésticos. Por el contrario, si debe eliminar este tipo de residuo, es
responsabilidad del usuario entregarlo en un punto de recogida designado de reciclado de aparatos electrónicos y eléctricos. El reciclaje y la recogida por separado de estos residuos
en el momento de la eliminación ayudará a preservar recursos naturales y a garantizar que el reciclaje proteja la salud y el medio ambiente. Si desea información adicional sobre los
lugares donde puede dejar estos residuos para su reciclado, póngase en contacto con las autoridades locales de su ciudad, con el servicio de gestión de residuos domésticos o con la
tienda donde adquirió el producto.
Likvidace vysloužilého zařízení uživateli v domácnosti v zemích EU
Tato značka na produktu nebo na jeho obalu označuje, že tento produkt nesmí být likvidován prostým vyhozením do běžného domovního odpadu. Odpovídáte za to, že vysloužilé
zařízení bude předáno k likvidaci do stanovených sběrných míst určených k recyklaci vysloužilých elektrických a elektronických zařízení. Likvidace vysloužilého zařízení samostatným
sběrem a recyklací napomáhá zachování přírodních zdrojů a zajišťuje, že recyklace proběhne způsobem chránícím lidské zdraví a životní prostředí. Další informace o tom, kam můžete
vysloužilé zařízení předat k recyklaci, můžete získat od úřadů místní samosprávy, od společnosti provádějící svoz a likvidaci domovního odpadu nebo v obchodě, kde jste produkt
zakoupili.
Bortskaffelse af affaldsudstyr for brugere i private husholdninger i EU
Dette symbol på produktet eller på dets emballage indikerer, at produktet ikke må bortskaffes sammen med andet husholdningsaffald. I stedet er det dit ansvar at bortskaffe affaldsudstyr
ved at aflevere det på dertil beregnede indsamlingssteder med henblik på genbrug af elektrisk og elektronisk affaldsudstyr. Den separate indsamling og genbrug af dit affaldsudstyr på
tidspunktet for bortskaffelse er med til at bevare naturlige ressourcer og sikre, at genbrug finder sted på en måde, der beskytter menneskers helbred samt miljøet. Hvis du vil vide mere
om, hvor du kan aflevere dit affaldsudstyr til genbrug, kan du kontakte kommunen, det lokale renovationsvæsen eller den forretning, hvor du købte produktet.
Afvoer van afgedankte apparatuur door gebruikers in particuliere huishoudens in de Europese Unie
Dit symbool op het product of de verpakking geeft aan dat dit product niet mag worden afgevoerd met het huishoudelijk afval. Het is uw verantwoordelijkheid uw afgedankte apparatuur
af te leveren op een aangewezen inzamelpunt voor de verwerking van afgedankte elektrische en elektronische apparatuur. De gescheiden inzameling en verwerking van uw afgedankte
apparatuur draagt bij tot het sparen van natuurlijke bronnen en tot het hergebruik van materiaal op een wijze die de volksgezondheid en het milieu beschermt. Voor meer informatie over
waar u uw afgedankte apparatuur kunt inleveren voor recycling kunt u contact opnemen met het gemeentehuis in uw woonplaats, de reinigingsdienst of de winkel waar u het product
hebt aangeschaft.
Eramajapidamistes kasutuselt kõrvaldatavate seadmete käitlemine Euroopa Liidus
Kui tootel või toote pakendil on see sümbol, ei tohi seda toodet visata olmejäätmete hulka. Teie kohus on viia tarbetuks muutunud seade selleks ettenähtud elektri- ja elektroonikaseadmete
utiliseerimiskohta. Utiliseeritavate seadmete eraldi kogumine ja käitlemine aitab säästa loodusvarasid ning tagada, et käitlemine toimub inimeste tervisele ja keskkonnale ohutult.
Lisateavet selle kohta, kuhu saate utiliseeritava seadme käitlemiseks viia, saate küsida kohalikust omavalitsusest, olmejäätmete utiliseerimispunktist või kauplusest, kust te seadme
ostsite.
Hävitettävien laitteiden käsittely kotitalouksissa Euroopan unionin alueella
Tämä tuotteessa tai sen pakkauksessa oleva merkintä osoittaa, että tuotetta ei saa hävittää talousjätteiden mukana. Käyttäjän velvollisuus on huolehtia siitä, että hävitettävä laite
toimitetaan sähkö- ja elektroniikkalaiteromun keräyspisteeseen. Hävitettävien laitteiden erillinen keräys ja kierrätys säästää luonnonvaroja. Näin toimimalla varmistetaan myös,
että kierrätys tapahtuu tavalla, joka suojelee ihmisten terveyttä ja ympäristöä. Saat tarvittaessa lisätietoja jätteiden kierrätyspaikoista paikallisilta viranomaisilta, jäteyhtiöiltä tai tuotteen
jälleenmyyjältä.
Απόρριψη άχρηστων συσκευών στην Ευρωπαϊκή Ένωση
Το παρόν σύμβολο στον εξοπλισμό ή στη συσκευασία του υποδεικνύει ότι το προϊόν αυτό δεν πρέπει να πεταχτεί μαζί με άλλα οικιακά απορρίμματα. Αντίθετα, ευθύνη σας είναι να
απορρίψετε τις άχρηστες συσκευές σε μια καθορισμένη μονάδα συλλογής απορριμμάτων για την ανακύκλωση άχρηστου ηλεκτρικού και ηλεκτρονικού εξοπλισμού. Η χωριστή συλλογή και
ανακύκλωση των άχρηστων συσκευών θα συμβάλει στη διατήρηση των φυσικών πόρων και στη διασφάλιση ότι θα ανακυκλωθούν με τέτοιον τρόπο, ώστε να προστατεύεται η υγεία των
ανθρώπων και το περιβάλλον. Για περισσότερες πληροφορίες σχετικά με το πού μπορείτε να απορρίψετε τις άχρηστες συσκευές για ανακύκλωση, επικοινωνήστε με τις κατά τόπους αρμόδιες
αρχές ή με το κατάστημα από το οποίο αγοράσατε το προϊόν.
A hulladékanyagok kezelése a magánháztartásokban az Európai Unióban
Ez a szimbólum, amely a terméken vagy annak csomagolásán van feltüntetve, azt jelzi, hogy a termék nem kezelhető együtt az egyéb háztartási hulladékkal. Az Ön feladata,
hogy a készülék hulladékanyagait eljuttassa olyan kijelölt gyűjtőhelyre, amely az elektromos hulladékanyagok és az elektronikus berendezések újrahasznosításával foglalkozik.
A hulladékanyagok elkülönített gyűjtése és újrahasznosítása hozzájárul a természeti erőforrások megőrzéséhez, egyúttal azt is biztosítja, hogy a hulladék újrahasznosítása az
egészségre és a környezetre nem ártalmas módon történik. Ha tájékoztatást szeretne kapni azokról a helyekről, ahol leadhatja újrahasznosításra a hulladékanyagokat, forduljon
a helyi önkormányzathoz, a háztartási hulladék begyűjtésével foglalkozó vállalathoz vagy a termék forgalmazójához.
Lietotāju atbrīvošanās no nederīgām ierīcēm Eiropas Savienības privātajās mājsaimniecībās
Šis simbols uz ierīces vai tās iepakojuma norāda, ka šo ierīci nedrīkst izmest kopā ar pārējiem mājsaimniecības atkritumiem. Jūs esat atbildīgs par atbrīvošanos no nederīgās ierīces,
to nododot norādītajā savākšanas vietā, lai tiktu veikta nederīgā elektriskā un elektroniskā aprīkojuma otrreizējā pārstrāde. Speciāla nederīgās ierīces savākšana un otrreizējā pārstrāde
palīdz taupīt dabas resursus un nodrošina tādu otrreizējo pārstrādi, kas sargā cilvēku veselību un apkārtējo vidi. Lai iegūtu papildu informāciju par to, kur otrreizējai pārstrādei var
nogādāt nederīgo ierīci, lūdzu, sazinieties ar vietējo pašvaldību, mājsaimniecības atkritumu savākšanas dienestu vai veikalu, kurā iegādājāties šo ierīci.
Europos Sąjungos vartotojų ir privačių namų ūkių atliekamos įrangos išmetimas
Šis simbolis ant produkto arba jo pakuotės nurodo, kad produktas negali būti išmestas kartu su kitomis namų ūkio atliekomis. Jūs privalote išmesti savo atliekamą įrangą atiduodami ją
į atliekamos elektronikos ir elektros įrangos perdirbimo punktus. Jei atliekama įranga bus atskirai surenkama ir perdirbama, bus išsaugomi natūralūs ištekliai ir užtikrinama, kad įranga
yra perdirbta žmogaus sveikatą ir gamtą tausojančiu būdu. Dėl informacijos apie tai, kur galite išmesti atliekamą perdirbti skirtą įrangą kreipkitės į atitinkamą vietos tarnybą, namų ūkio
atliekų išvežimo tarnybą arba į parduotuvę, kurioje pirkote produktą.
Utylizacja zużytego sprzętu przez użytkowników domowych w Unii Europejskiej
Symbol ten umieszczony na produkcie lub opakowaniu oznacza, że tego produktu nie należy wyrzucać razem z innymi odpadami domowymi. Użytkownik jest odpowiedzialny za
dostarczenie zużytego sprzętu do wyznaczonego punktu gromadzenia zużytych urządzeń elektrycznych i elektronicznych. Gromadzenie osobno i recykling tego typu odpadów
przyczynia się do ochrony zasobów naturalnych i jest bezpieczny dla zdrowia i środowiska naturalnego. Dalsze informacje na temat sposobu utylizacji zużytych urządzeń można
uzyskać u odpowiednich władz lokalnych, w przedsiębiorstwie zajmującym się usuwaniem odpadów lub w miejscu zakupu produktu.
Descarte de equipamentos por usuários em residências da União Européia
Este símbolo no produto ou na embalagem indica que o produto não pode ser descartado junto com o lixo doméstico. No entanto, é sua responsabilidade levar os equipamentos
a serem descartados a um ponto de coleta designado para a reciclagem de equipamentos eletro-eletrônicos. A coleta separada e a reciclagem dos equipamentos no momento do
descarte ajudam na conservação dos recursos naturais e garantem que os equipamentos serão reciclados de forma a proteger a saúde das pessoas e o meio ambiente. Para obter mais
informações sobre onde descartar equipamentos para reciclagem, entre em contato com o escritório local de sua cidade, o serviço de limpeza pública de seu bairro ou a loja em que
adquiriu o produto.
Postup používateľov v krajinách Európskej únie pri vyhadzovaní zariadenia v domácom používaní do odpadu
Tento symbol na produkte alebo na jeho obale znamená, že nesmie by vyhodený s iným komunálnym odpadom. Namiesto toho máte povinnos odovzda toto zariadenie na zbernom
mieste, kde sa zabezpečuje recyklácia elektrických a elektronických zariadení. Separovaný zber a recyklácia zariadenia určeného na odpad pomôže chráni prírodné zdroje a
zabezpečí taký spôsob recyklácie, ktorý bude chráni ľudské zdravie a životné prostredie. Ďalšie informácie o separovanom zbere a recyklácii získate na miestnom obecnom úrade,
vo firme zabezpečujúcej zber vášho komunálneho odpadu alebo v predajni, kde ste produkt kúpili.
Ravnanje z odpadno opremo v gospodinjstvih znotraj Evropske unije
Ta znak na izdelku ali embalaži izdelka pomeni, da izdelka ne smete odlagati skupaj z drugimi gospodinjskimi odpadki. Odpadno opremo ste dolžni oddati na določenem zbirnem
mestu za recikliranje odpadne električne in elektronske opreme. Z ločenim zbiranjem in recikliranjem odpadne opreme ob odlaganju boste pomagali ohraniti naravne vire in zagotovili,
da bo odpadna oprema reciklirana tako, da se varuje zdravje ljudi in okolje. Več informacij o mestih, kjer lahko oddate odpadno opremo za recikliranje, lahko dobite na občini,
v komunalnem podjetju ali trgovini, kjer ste izdelek kupili.
Kassering av förbrukningsmaterial, för hem- och privatanvändare i EU
Produkter eller produktförpackningar med den här symbolen får inte kasseras med vanligt hushållsavfall. I stället har du ansvar för att produkten lämnas till en behörig återvinningsstation
för hantering av el- och elektronikprodukter. Genom att lämna kasserade produkter till återvinning hjälper du till att bevara våra gemensamma naturresurser. Dessutom skyddas både
människor och miljön när produkter återvinns på rätt sätt. Kommunala myndigheter, sophanteringsföretag eller butiken där varan köptes kan ge mer information om var du lämnar
kasserade produkter för återvinning.
Изхвърляне на оборудване за отпадъци от потребители в частни домакинства в Европейския съюз
Този символ върху продукта или опаковката му показва, чепродуктът не трябва да се изхвърля заедно с домакинските отпадъци. Вие имате отговорността да изхвърлите
оборудването за отпадъци, като го предадете на определен пункт за рециклиране на електрическо или механично оборудване за отпадъци. Отделното събиране и рециклиране
на оборудването за отпадъци при изхвърлянето му помага за запазването на природни ресурси и гарантира рециклиране, извършено така, чеда не застрашава човешкото
здраве и околната среда. За повече информация къде можете да оставите оборудването за отпадъци за рециклиране се свържете със съответния офис в града ви, фирмата за
събиране на отпадъци или смагазина, от който сте закупили продукта
Înlăturarea echipamentelor uzate de către utilizatorii casnici din Uniunea Europeană
Acest simbol de pe produs sau de pe ambalajul produsului indică faptul că acest produs nu trebuie aruncat alături de celelalte deşeuri casnice. În loc să procedaţi astfel, aveţi
responsabilitatea să vă debarasaţi de echipamentul uzat predându-l la un centru de colectare desemnat pentru reciclarea deşeurilor electrice şi aechipamentelor electronice.
Colectarea şi reciclarea separată aechipamentului uzat atunci când doriţi să îl aruncaţi ajută la conservarea resurselor naturale şi asigură reciclarea echipamentului într-o manieră care
protejează sănătatea umană şi mediul. Pentru informaţii suplimentare despre locul în care se poate preda echipamentul uzat pentru reciclare, luaţi legătura cu primăria locală, cu
serviciul de salubritate sau cu vânzătorul de la care aţi achiziţionat produsul.
English
Français
Deutsch
Italiano
Español
Česky
Dansk
Nederlands
Eesti
Suomi
Ελληνικά
Magyar
Latviski
Lietuviškai
Polski
Português
Slovenčina
Slovenščina
Svenska
Български
Română
Chapter 10
60 Technical information
Technical information
Chemical Substances
HP is committed to providing our customers with information about the chemical substances in our
products as needed to comply with legal requirements such as REACH (Regulation EC No
1907/2006 of the European Parliament and the Council). A chemical information report for this
product can be found at: www.hp.com/go/reach.
Regulatory notices
The HP All-in-One meets product requirements from regulatory agencies in your country/region.
This section contains the following topics:
•Regulatory model identification number
•FCC statement
•Notice to users in Korea
•VCCI (Class B) compliance statement for users in Japan
•Notice to users in Japan about the power cord
•HP Deskjet F2400 All-in-One series declaration of conformity
Regulatory model identification number
For regulatory identification purposes, your product is assigned a Regulatory Model Number. The
Regulatory Model Number for your product is SNPRH-0806. This regulatory number should not be
confused with the marketing name (HP Deskjet F2400 All-in-One series, etc.) or product numbers
(CB730A, etc.).
Regulatory notices 61
Technical information
FCC statement
FCC statement
The United States Federal Communications Commission (in 47 CFR 15.105) has specified
that the following notice be brought to the attention of users of this product.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reason-
able protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
For further information, contact:
Manager of Corporate Product Regulations
Hewlett-Packard Company
3000 Hanover Street
Palo Alto, Ca 94304
(650) 857-1501
Modifications (part 15.21)
The FCC requires the user to be notified that any changes or modifications made to this
device that are not expressly approved by HP may void the user's authority to operate the
equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation.
Notice to users in Korea
VCCI (Class B) compliance statement for users in Japan
Chapter 10
62 Technical information
Technical information
Notice to users in Japan about the power cord
Regulatory notices 63
Technical information
HP Deskjet F2400 All-in-One series declaration of conformity
DECLARATION OF CONFORMITY
according to ISO/IEC 17050-1 and EN 17050-1
DoC #: SNPRH-0806
Supplier's Name: Hewlett-Packard Company
Supplier's Address:
declares, that the product
20, Jia Feng Road Waigaoqiao Free Trade Zone Pudong, Shanghaiˈ PRC
200131
Product Name and Model: HP Deskjet F2400 Series and HP Deskjet Ink Advantage AiO
Regulatory Model Number: 1) SNPRH-0806
Product Options: All
Conforms to the following Product Specifications and Regulations:
EMC:
CISPR 22: 2005 / EN 55022: 2006 Class B
EN 55024:1998 + A1:2001 + A2:2003
EN 61000-3-2: 2006
EN61000-3-3:1995+A1:2001+A2:2005
FCC CFR 47 Part 15 Class B / ICES-003,Issue 4 Class B
Safety:
EN 60950-1:2001+A11: 2004 / IEC 60950-1:2001
EN 60825-1 1994+A1:2002+A2:2001
Environment˖
˖
WEEE Directive 2002/96/EC
RoHS Directive 2002/95/EC.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
The product herewith complies with the requirements of the Low Voltage Directive 2006/95/EC, the EMC Directive
2004/108/EC, and carries the mark accordingly.
Additional Information:
1) his product is assigned a Regulatory Model Number which stays with the regulatory aspects of the design. The
Regulatory Model Number is the main product identifier in the regulatory documentation and test reports, this
number should not be confused with the marketing name or the product numbers.
23 Oct 2008
Pen
g
Con
g
IPMO (China) Product Regulations Manager
Local contact for regulatory topics only:
EMEA: Hewlett-Packard GmbH, HQ-TRE, Herrenberger Strasse 140, 71034 Boeblingen, Germany www.hp.com/go/certificates
U.S.: Hewlett –Packard, 3000 Hanover St., Palo Alto 94304, U.S.A. 650-857-1501
Chapter 10
64 Technical information
Technical information
Index
A
after the support period 40
B
blank
copy 50
C
connection problems
HP All-in-One will not turn
on 41
copy
blank 50
missing information 50
specifications 58
troubleshooting 50
customer support
warranty 40
E
environment
Environmental product
stewardship program 58
environmental
specifications 57
error messages 51
I
ink-backup mode 36
M
missing
information from copy 50
text from scan 49
P
paper
recommended types 21
phone support 39
phone support period
period for support 39
print
specifications 58
troubleshooting 44
printing
with one print cartridge 36
problems
copy 50
error messages 51
print 44
scan 48
R
recycle
ink cartridges 59
regulatory notices
regulatory model
identification number 61
reinstall software 43
S
scan
crop incorrect 48
scan specifications 58
text appears as dotted
lines 49
text format incorrect 49
text incorrect 49
troubleshooting 48
software installation
reinstall 43
uninstall 43
start copy
black 6
color 6
support process 39
system requirements 57
T
technical information
copy specifications 58
environmental
specifications 57
print specifications 58
scan specifications 58
system requirements 57
text
dotted lines on scan 49
incorrect format on scan 49
incorrect or missing on
scan 49
troubleshoot
setup 40
troubleshooting
copy 50
error messages 51
print 44
scan 48
U
uninstall software 43
W
warranty 40
65
Index
66
Index
