HP recommends
Windows Vista
®
Business
1.
Dual-microphone array
14.
Optional optical drive available with 1.8-in internal storage,
or additional USB 2.0 port available without optical drive
2.
Volume mute button with LED indicator
15.
USB 2.0 Port (powered on select models)
3.
Volume scroll zone with up/down LED indicators
16.
RJ-11/modem port
4.
Pointstick
17.
Power connector
5.
HP Fingerprint Sensor
18.
Power button with LED
6.
Speaker
19.
HP Info / HP QuickLook button with LED indicator
7.
Touchpad buttons
20.
Wireless on/off button with LED indicator
8.
Touchpad with scroll zone
21.
Ambient Light Sensor
9.
Pointstick buttons
22.
HP Presentation button with LED indicator
10.
Hard drive / optical drive activity / HP 3D DriveGuard LED
23.
Touchpad on/off button
11.
Battery charging LED
24.
Two WLAN/WWAN combo antennas
12.
Power/standby LED
25.
Optional 2 MP Webcam with LED
13.
Wireless on/off LED
26.
HP NightLight and on/off button
QuickSpecs
HP EliteBook 2530p Notebook PC
Overview
DA - 13101 Worldwide QuickSpecs — Version 8 — 2.5.2009
Page 1

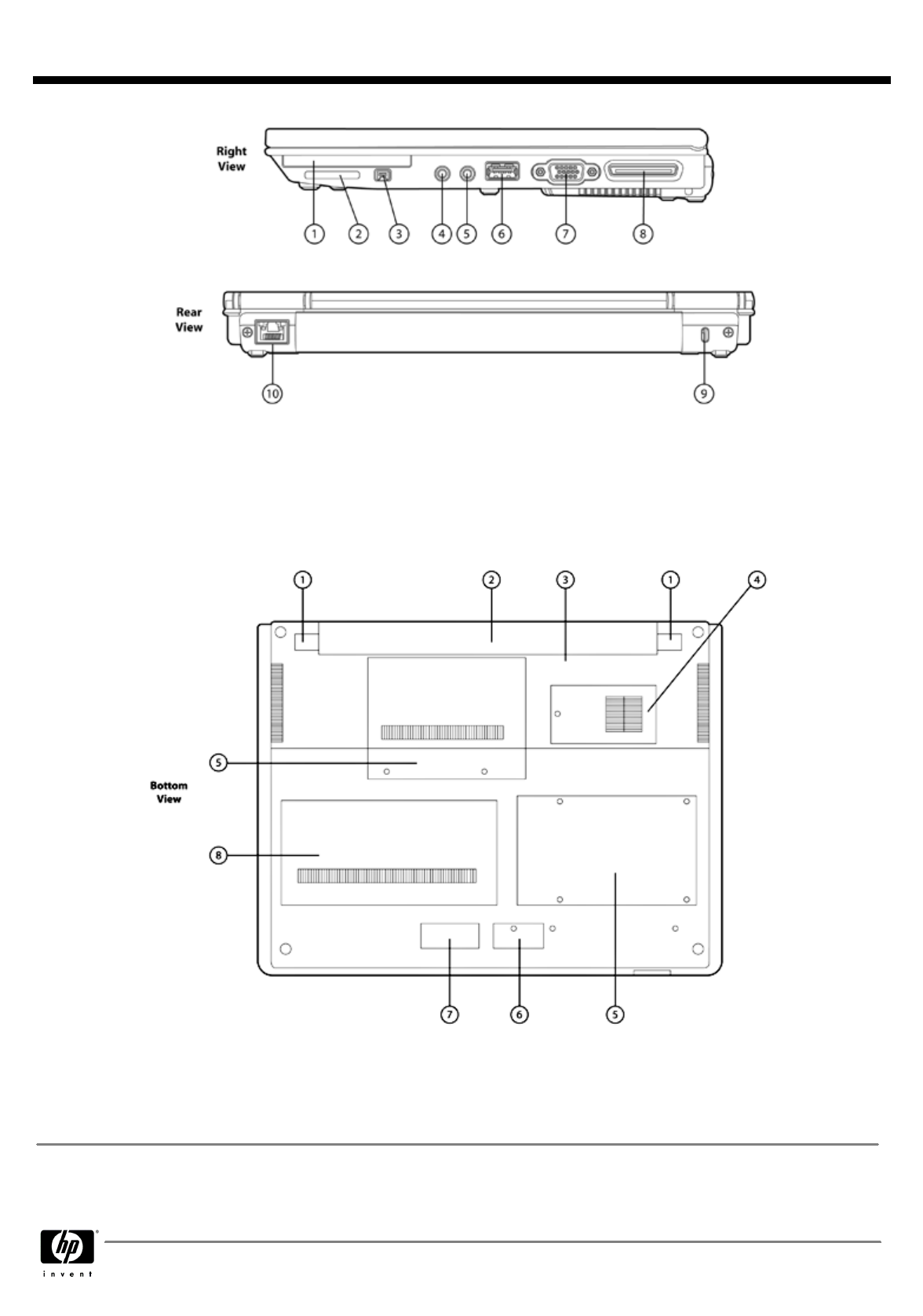

1.
ExpressCard/54 slot
6.
USB 2.0 port
2.
Secure Digital (SD) slot
7.
VGA/external monitor connector
3.
IEEE 1394a port
8.
Docking connector
4.
Stereo headphone/line out
9.
Kensington Lock slot
5.
Stereo microphone in
10.
RJ-45/Ethernet port
1.
Battery release latch
5.
Hard drive bay
2.
Battery bay
6.
Bluetooth compartment
3.
SIM slot for WWAN (select models) - inside battery bay
7.
Speaker
4.
WWAN module compartment
8.
Memory module and WLAN compartment
QuickSpecs
HP EliteBook 2530p Notebook PC
Overview
DA - 13101 Worldwide QuickSpecs — Version 8 — 2.5.2009
Page 2
At A Glance
Genuine Windows Vista Business 32, Genuine Windows Vista Home Basic, Genuine Windows Vista Business with
downgrade to Windows XP Professional custom installed, or FreeDOS
Starting at 3.19lb/1.45 kg and 0.99-inch/25.2 mm thin at front
Business Rugged – designed to meet the military standard Mil-Std-810F for drop, shock, vibration, sand and dust, humidity,
altitude, and high temperature operation
*
Intel® Centrino® 2 with vPro™ technology capable, with Intel Core™2 Duo ULV and LV processors
Two memory slots support up to 8 GB of 800 MHz DDR2 SDRAM, dual channel memory
Choice of 1.8-inch or 2.5-inch SMART SATA II hard drive up to 160-GB, protected by HP 3D DriveGuard;
or 80 GB 1.8-inch Solid State Drive
Optional integrated optical drive in models with1.8-inch hard drive or SSD; additional USB port in models without optical drive
Enhanced security features including HP ProtectTools, HP SpareKey, HP Fingerprint Sensor, TPM 1.2 Embedded Security
Chip**, and optional integrated Smart Card Reader
Optional 2 MP Webcam with Business Card Reader Software
HP QuickLook 2 for instant access to email, calendar, and contact information
Dual pointing devices (touchpad with scroll zone and pointstick)
HP Night Light
Enhanced reliability with HP DuraCase, HP DuraKeys and HP DuraFinish
Flexible wireless connectivity options:
Integrated HP un2400 EV-DO/HSDPA Mobile Broadband Module provides worldwide Gobi mobile Internet technology
Integrated 802.11 a/b/g/draft-n, a/b/g, or b/g wireless LAN module
Bluetooth®
12.1-inch diagonal Illumi-Lite WXGA display with Ambient Light Sensor and HP Privacy Filter support
3-, 6-, and 9-cell battery options
Connector for HP 2400/2500 Ultra-Light Docking Station
Integrated Intel Gigabit Network Connection (10/100/1000 NIC)
Secure Digital (SD) slot
* Testing was not intended to demonstrate fitness for DOD contracts requirements or for military use. Test results are not a guarantee
of future performance under these test conditions.
** TPM module disabled where use is restricted by law; for example, Russia and China.
QuickSpecs
HP EliteBook 2530p Notebook PC
Overview
DA - 13101 Worldwide QuickSpecs — Version 8 — 2.5.2009
Page 3
Processors
Intel Core 2 Duo LV Processor SL9400 (1.86 GHz, 6 MB L2 cache, 1066 MHz FSB)
*
Intel Core 2 Duo LV Processor SL9300 (1.60 GHz, 6 MB L2 cache, 1066 MHz FSB)
*
Intel Core 2 Duo ULV Processor SU9300 (1.20 GHz, 3 MB L2 cache, 800 MHz FSB)
*
* Intel's numbering is not a measurement of higher performance.
NOTE:
Processor speed denotes maximum performance mode; processors will run at lower speeds in
battery optimization mode.
Operating System
Preinstalled
Genuine Windows Vista Business 32*
Genuine Windows Vista Home Basic*
Genuine Windows Vista Business with downgrade to Windows XP
Professional custom installed
*
†
FreeDOS
Supported
Genuine Windows Vista Business 64
*
Genuine Windows Vista Enterprise 32
*
Genuine Windows Vista Enterprise 64
*
Certified
SuSE Linux Enterprise Desktop 10
* Certain Windows Vista product features require advanced or additional hardware. See:
http://www.microsoft.com/windowsvista/getready/hardwarereqs.mspx
and
http://www.microsoft.com/windowsvista/getready/capable.mspx
for details. Windows Vista Upgrade
Advisor can help you determine which features of Windows Vista will run on your computer. To
download the tool, visit:
http://www.windowsvista.com/upgradeadvisor
.
†
Windows Vista Business disk may be included for future upgrade if desired. To qualify for this
downgrade an end user must be a business (including governmental or educational institutions) and is
expected to order at least 25 customer systems with the same custom image.
Chipset
Mobile Intel GS45 Express Chipset ICH9M-Enhanced
Intel Centrino 2 with vPro
technology capable
Intel Centrino 2 with vPro technology is a selectable feature that is available on units configured with an
Intel WiFi Link 5100. It provides advances in remote manageability, security, energy efficient
performance, and wireless connectivity. Intel Active Management Technology (AMT) offers built-in
manageability and proactive security for networked notebook PCs, even when they are powered off
*
or
when the operating system is inoperable. It can help identify threats before they reach the operating
system, isolate infected systems, and update PCs regardless of their power state.
*Requires a Windows operating system, network hardware and software, connection with a power
source, and a direct (non-VPN) corporate network connection which is either cable or wireless LAN.
NOTE:
Some functionality of Intel Centrino 2 and vPro technology, such as Intel Active Management
technology and Intel Virtualization technology, requires additional 3rd party software in order to run.
Availability of future "virtual appliances" applications for Centrino 2 and vPro technology is dependant on
3rd party software providers. Compatibility with future "virtual appliances" and Microsoft Windows Vista
operating system is yet to be determined.
QuickSpecs
HP EliteBook 2530p Notebook PC
Standard Features
DA - 13101 Worldwide QuickSpecs — Version 8 — 2.5.2009
Page 4
Business Rugged
Meets the military standard Mil-Std-810F* for:
Drop: Method 516.5 Proc. IV (26 drops from 30")
Shock: Method 515.5 Proc. I (Functional)
Vibration: Method 514.5, Proc I, Cat. 20 & 24
High Temperature: Method 501.4, Proc I & II (140°F/60°C operational)
Sand and Dust: Method 510.4, Proc. I (Blowing Dust)
Humidity: Method 507.4 (95% relative humidity)
Altitude: Method 500.4 Low Pressure, Proc. I & II (15,000 feet operational)
*
Testing was not intended to demonstrate fitness for DOD contracts requirements or for military use. Test
results are not a guarantee of future performance under these test conditions.
Graphics
Mobile Intel Graphics Media Accelerator 4500MHD, up to 384 MB of shared system memory
Microsoft DirectX 10 (Shader 4.0) and OpenGL 2.0 capable
Display
Internal
12.1-inch diagonal Illumi-Lite WXGA anti-glare (1280 × 800 resolution)
Ambient light sensor
HP Privacy Filter support
External
Up to 32-bit per pixel color depth
VGA
port supports resolutions up to 2048 x 1536 at 75 Hz, and lower
resolutions at up to 100 Hz
NOTE:
Resolutions are dependent upon monitor capability, and resolution
and color depth settings.
Memory
Standard
800 MHz DDR2 SDRAM; two slots supporting dual channel memory
1024 MB, 2048 MB, 4096 MB, or 8192 MB
Maximum
Upgradeable to 8192 MB with 4096 MB SODIMMs in slots 1 and 2
Dual-channel
Maximized dual-channel performance requires SODIMMs of the same size
and speed in both memory slots.
NOTE:
Due to the non-industry standard nature of some third-party memory modules, we recommend HP
branded memory to ensure compatibility. If you mix memory speeds, the system will perform at the lower
memory speed. Availability of 4 GB or more of memory requires Windows Vista Business 64-bit or Linux.
With Windows 32-bit operating systems, memory above 3 GB may not all be available due to system
resource requirements.
Communications
Integrated Intel Gigabit Network Connection (10/100/1000 NIC)
*
56K V.92 modem
**
* The term "10/100/1000" or "Gigabit" Ethernet indicates compliance with IEEE standard 802.3ab for
Gigabit Ethernet, and does not connote actual operating speed of 1 Gb/s. For high-speed transmission,
connection to a Gigabit Ethernet server and network infrastructure is required.
** Designed for downloads from 56K modem compliant sources. Maximum achievable download
transmission rates currently do not reach 56 KB/s, and will vary with line conditions. Modem availability
is subject to country regulatory approval.
QuickSpecs
HP EliteBook 2530p Notebook PC
Standard Features
DA - 13101 Worldwide QuickSpecs — Version 8 — 2.5.2009
Page 5
Wireless Devices
Support for a broad range of secure, integrated wireless LAN and wireless WAN options featuring
support for the latest industry standards. Wireless LAN is factory configurable or available as an option to
be added later. Mobile Broadband (WWAN) requires Windows Vista Business or Windows XP
Professional and is available in select countries as a standard, factory configurable feature or as an
option to be added later. Integrated Bluetooth is also available (factory configurable only) and can be
combined with any of the supported wireless LAN and wireless WAN options.
HP un2400
EV-DO/HSPA Mobile
Broadband Module
Integrated mobile broadband module with Gobi global mobile Internet
technology that provides worldwide connection to both CDMA (EVDO) and
UMTS (HSPA) networks.
NOTE:
Separately purchased mobile network operator service is required.
Two 850/900/1800/1900/2100 MHz antennas integrated in the top of
the display panel support current and future WWAN technologies.
All 802.11 integrated
wireless LAN options
Wi-Fi CERTIFIED
*
Cisco Compatible Extensions support
Wired Equivalent Privacy (WEP) support up to 128-bit keys
Wi-Fi Protected Access (WPA) and WPA2 support
802.1x authentication support, including EAP-TLS, EAP-TTLS, PEAP-GTC,
PEAP-MSCHAPv2, and LEAP
Advanced Encryption Standard (AES) support
Two antennas integrated in the display enclosure
Intel WiFi Link 5100
Integrated support for 802.11 a, b g, and n draft 2.0
*
Up to 300 mbps data rate
Broadcom 4322AGN
802.11a/b/g/draft-n
Wi-Fi Adapter
Integrated support for 802.11a, b, g, and n draft 2.0
*
Up to 300 mbps data rate
Broadcom 4312G
802.11b/g
WiFi Adapter
Integrated support for 802.11 b and g
Up to 54 mbps data rate
HP Integrated Module
with Bluetooth Wireless
Technology
Bluetooth Specification v2.0 compliant
Works with a wide range of Bluetooth devices
* The specifications for 802.11n draft 2.0 are draft specifications and are not final. If the final
specifications differ from the draft specifications, it may affect the ability of the notebook to communicate
with other 802.11n WLAN devices. In countries where n draft 2.0 is not allowed, this capability is not
enabled (Intel 802.11a/b/g only).
QuickSpecs
HP EliteBook 2530p Notebook PC
Standard Features
DA - 13101 Worldwide QuickSpecs — Version 8 — 2.5.2009
Page 6
Keyboard
The 101/102-key compatible keyboard features an industry standard, full-pitch key layout with desktop
keyboard features, such as the isolated inverted-T cursor control keys, editing keys, both left and right
control and alt keys, and 12 function keys. US and International key layouts are available. Other features
include an integrated numeric keypad, hotkeys for instant access to power conservation, brightness, and
other features, 19 mm x 19 mm key pitch (center-to-center spacing), 2.0 mm stroke, and comfort-dished
keycaps.
HP DuraKeys is a clear coating applied over the notebook keyboard that helps protect the finish and the
printed characters on the keys.
HP DuraFinish helps protect the finish on the keyboard deck, graphics, and icons from normal wear and
tear.
HP Night Light shines directly on keyboard for low-light conditions.
Touch-sensitive controls
Touch-sensitive controls provide easy access to the following features: HP Info Center, HP QuickLook,
wireless on/off, HP Presentation button, touchpad on/off, volume up, volume down, and mute
Pointing device
Enhanced dual pointing devices:
Touchpad with scroll zone, two pick buttons
and
Pointstick, two pick buttons
Expansion card slots
ExpressCard/54 slot
Supports ExpressCard/54 and ExpressCard/34
or
Optional Integrated Smart
Card Reader
(replaces
ExpressCard slot)
Compatible with ISO 7816 compliant Smart Cards
Secure Digital slot
Supports SD (Secure Digital), MMC (MultiMedia Card)
Storage
Internal Storage Device
80/120 GB 5400 rpm 1.8-inch SMART SATA II Hard Drive
120 GB 5400 rpm 2.5-inch SMART SATA II Hard Drive
160 GB 7200 rpm 2.5-inch SMART SATA II Hard Drive
80 GB 1.8-inch Solid State Drive
NOTE:
Hard drives are customer removable and will withstand multiple insertion/removal cycles. Up to
10 GB is reserved for the system recovery software.
HP 3D DriveGuard
The hard drive is mounted to the notebook frame, reducing the transmission of
shock away from the hard drive. Uses three-axis digital motion detection with
intelligent sensitivity to help protect the hard drive during normal use from
shock and vibration. The digital accelerometer temporarily halts all data
transfer and parks the hard drive when abrupt motion is detected.
Optical drives
(9.5mm SATA)
DVD-ROM Drive
DVD+/-RW SuperMulti DL Drive
NOTE:
Optical drive available only with 1.8-inch hard drive or Solid State Drive.
QuickSpecs
HP EliteBook 2530p Notebook PC
Standard Features
DA - 13101 Worldwide QuickSpecs — Version 8 — 2.5.2009
Page 7
Interfaces
ExpressCard/54 slot
Supports ExpressCard/54 and ExpressCard/34
Smart Card Reader
Optional (replaces ExpressCard/54 slot)
External monitor
One – VGA
1394a
One
Stereo microphone in
One
Stereo headphone/line
out
One
Power connector
One
RJ-11/modem
One
RJ-45/Ethernet
One
USB 2.0
Two (including one powered USB 2.0 port to support HP External MultiBay II
on units without an integrated optical drive)
Third USB 2.0 port available without optical drive
Docking connector
For HP 2400/2500 Ultra-Light Docking Station
LED status indicators
Sixteen
Audio/Visual
High Definition Audio support w/24-bit DAC
Integrated mono speaker
Integrated dual-microphone array
Touch-sensitive controls for volume up, volume down, and mute
Stereo headphone/line out
Stereo microphone in
Optional 2 MP Webcam with Business Card Reader Software
Supports videoconferencing and still image capture
Large image sensor for excellent color matching and good low light sensitivity
Up to 30 frames/sec
AutoMacro focus lens
Video capture at VGA, 1.3 Mpixel, and 2 Mpixel resolutions
16-bit true color (camera sensors output YCrCb format among others)
QuickSpecs
HP EliteBook 2530p Notebook PC
Standard Features
DA - 13101 Worldwide QuickSpecs — Version 8 — 2.5.2009
Page 8
Software
Preinstalled software with
Windows Vista or
Windows XP
HP Recovery Manager (Vista only)
HP Help and Support Center
HP QuickLook 2
HP Universal Print Driver
HP ProtectTools Security Manager
HP Quick Launch Buttons
HP Wireless Assistant
Microsoft Office Ready with 60-day Office Professional 2007 Trial Edition
(select models)
PDF Complete Special Edition
Intervideo WinDVD – DVD Player
Roxio Creator Business (for optional DVD+/-RW and DVD/CD-RW drives)
McAfee Total Protection
*
Microsoft Windows Live Messenger (select models)
HP Webcam Software
Additional software
available from the web
HP SoftPaq Download Manager
HP Client Manager Software
HP Client Management Solutions
Java Card Security for HP ProtectTools
* 60 day trial period for McAfee Total Protection for Small Business software. Internet access required to
receive updates. First update included. Subscription required for updates thereafter.
HP Recovery Manager
Each Vista unit is shipped with HP Recovery Manager. HP Recovery Manager enables fast recovery of
the factory preinstalled image if the system becomes corrupted or if important system files are accidentally
deleted. Up to 10 GB of the hard drive is reserved for the system recovery software.
SMBIOS Version 2.4
System Management BIOS, previously known as DMI BIOS, is used to store system management
information.
HP ProtectTools Security
Manager
HP ProtectTools Security Manager is the security platform for business notebooks and desktops. The HP
ProtectTools Security Manager is an extensible client security console that delivers enhanced security
capabilities through add-on software modules. Modules currently available are:
BIOS Configuration for HP ProtectTools
Credential Manager for HP ProtectTools
Device Access Manager for HP ProtectTools
Drive Encryption for HP ProtectTools
File Sanitizer for HP ProtectTools
Set-up Wizard for HP ProtectTools
Privacy Manager for HP ProtectTools (Chat & Sign)
Embedded Security for HP ProtectTools
Java Card Security for HP ProtectTools
QuickSpecs
HP EliteBook 2530p Notebook PC
Standard Features
DA - 13101 Worldwide QuickSpecs — Version 8 — 2.5.2009
Page 9
Security
Standard Features
HP ProtectTools Security Manager
Enhanced Pre-Boot Security
HP SpareKey
One-Step Logon
HP Fingerprint Sensor
Integrated Smart Card Reader
Configuration Control Hardware
Memory Change Alert
Ownership Tag
Setup Password
Power-On Password
TPM 1.2 Embedded Security Chip
*
TPM Enhanced DriveLock
*
HP Disk Sanitizer
HP 3D DriveGuard
Kensington Lock Slot
Support for Computrace / LoJack for Laptops (must be purchased separately)
Optional Features
Smart Card Reader
(replaces ExpressCard/54
slot)
Compatible with ISO 7816 compliant Smart
Cards
HP Privacy Filter
Narrows viewing area so that screen data is
visible only to persons directly in front of the
monitor
* TPM module disabled where use is restricted by law; for example, Russia and China.
For more information on HP security solutions refer to:
http://www.hp.com/go/security
.
Power Supply
External 65-watt Smart AC adapter, 6-foot (1.8-meter) power cord included.
Total length including external AC adapter is 12 feet (3.66 meter).
HP Fast Charge
*
* HP Fast Charge recharges your battery up to 90% within 90 minutes when the system is off. Fast
Charge Technology does not apply to 9 cell primary batteries.
Battery
Primary Battery
3-cell (31 WHr) high capacity Lithium-Ion
6-cell (55 WHr) high capacity Lithium-Ion
9-cell (83 WHr) high capacity Lithium-Ion
Battery Fuel Gauge LEDs
6-cell high capacity and 9-cell high capacity
QuickSpecs
HP EliteBook 2530p Notebook PC
Standard Features
DA - 13101 Worldwide QuickSpecs — Version 8 — 2.5.2009
Page 10
Battery Life
Intel Core 2 Duo ULV Processor
Intel Core 2 Duo LV Processor
3-cell Primary Battery
Up to 4 hours and 30 minutes Up to 4 hours and 30 minutes
6-cell Primary Battery
Up to 8 hours and 45 minutes Up to 8 hours and 15 minutes
9-cell Primary Battery
Up to 13 hours and 30 minutes Up to 12 hours and 45 minutes
NOTE:
The listed battery life measurements were taken on models running Microsoft Windows XP
Professional. Battery life will vary depending on the product configuration, product model, applications
loaded on the product, power management settings of the product, and the product features used by the
customer. As with all batteries, the maximum capacity of this battery will decrease with time and usage.
System Standby Time
Up to 1 week
Power Conservation
Supports enhanced Intel SpeedStep technology with Intel Core 2 Duo ULV processors (allows Battery
Optimized Mode, Maximum Performance Mode, or Automatic mode)
Intel Display Power Saving technology
Hibernation
Standby
ACPI compliance
Docking
(optional)
HP 2400/2500 Ultra-Light Docking Station
Service and Support
HP Services offers limited 3-year, 1-year and 90-day warranty options depending on country;
1-year limited warranty on primary battery. On-site service and warranty upgrades are also available. HP
Care Pack Services extend service contracts beyond the standard warranties. To choose the right level of
service for your HP product, use the HP Care Pack Services Lookup Tool at:
http://www.hp.com/go/lookuptool
. Additional HP Care Pack Services information by product is
available at:
http://www.hp.com/hps/carepack
.
NOTE:
Certain restrictions and exclusions apply. Consult the HP Customer Support Center for details.
http://h20000.www2.hp.com/bizsupport/TechSupport/ProductRoot.jsp
.
Select Model(s)
HP's Global Product Offer includes Global Series Preconfigured (GS-P) and Configurable (GS-C)
products. GPO delivers globally consistent products, services, and solutions with End-of-Life (EOL)
transition management. These products reduce IT complexity, lower management costs, increase
productivity, and simplify product transitions.
QuickSpecs
HP EliteBook 2530p Notebook PC
Standard Features
DA - 13101 Worldwide QuickSpecs — Version 8 — 2.5.2009
Page 11
2530p
FV879AW#xxx
Global SKU (see
exceptions below)
FV880AW#xxx
(for Latin America,
Australia, New Zealand,
and Singapore)
NOTE:
Components may
vary based on local
regulatory requirements
Processor
Intel Core 2 Duo LV Processor SL9400 (1.86 GHz, 6 MB L2 cache, 1066
MHz FSB)
Intel Centrino 2 Pro
processor technology
Enabled
Operating System
Genuine Windows Vista Business 32 with Office Ready
System Memory
2048 MB 800 MHz DDR2 (1 DIMM)
Hard Drive
120 GB 5400 rpm 1.8" SMART SATA II
Optical Drive
DVD+/-RW SuperMulti DL Drive
Display
12.1-inch diagonal Illumi-Lite WXGA anti-glare
Graphics
Mobile Intel GMA 4500MHD
Webcam
No
Audio
ADI High Definition CODEC
Stereo headphone/line out and microphone in
Integrated microphone
Communications
Integrated Intel Gigabit Network Connection (10/100/1000 NIC)
56K V.92 modem
Integrated Wireless
Intel WiFi Link 5100 (802.11 a/b/g/n draft 2.0)
Integrated Security
Drive Encryption for HP ProtectTools
HP Fingerprint Sensor
TPM 1.2
*
Pointing Device
Dual pointing devices (Touchpad and Pointstick)
Battery
6-cell (55 WHr) Lithium-Ion
Power
External 65W adapter
Warranty
3/3/0 or 3/3/3 depending on country
* TPM module disabled where use is restricted by law; for example, Russia.
QuickSpecs
HP EliteBook 2530p Notebook PC
Standard Features
DA - 13101 Worldwide QuickSpecs — Version 8 — 2.5.2009
Page 12
Memory
HP 1 GB (DDR2 800 MHz) SODIMM
KT292AA
HP 2 GB (DDR2 800 MHz) SODIMM
KT293AA
HP 4 GB (DDR2 800 MHz) SODIMM
KT294AA
Storage
HP Notebooks USB Diskette Drive
DC361B
HP 250GB Pocket Media Drive
FE477AA
MultiBay II Storage
(9.5-mm)
NOTE:
Requires HP
External MultiBay II
HP MultiBay II DVD-ROM Drive
PA849A
HP MultiBay II DVD+/-RW SuperMulti DL Drive
PA851A
Expansion Solutions
HP 2400/2500 Ultra-Light Docking Station
EQ773AA#xxx
HP Standard Monitor Stand
PA507A
HP Adjustable Notebook Stand
PA508A
HP External MultiBay II
PA509A#xxx
Communications
Intel WiFi Link 5300
KM591AA#xxx
HP un2400 EVDO/HSUPA Mobile Broadband Module
FN556AA
Power
HP 65W Smart AC Adapter
ED494AA#xxx
HP 90W Smart Auto Adapter
ED493AA
HP 90W Smart AC/Auto/Air Combo Adapter
AJ652AA#xxx
65W Smart AC/Auto/Air Combo Adapter
ED993AA#xxx
HP 3-Cell Li-Ion Primary Battery
RW556AA
HP 6-Cell Li-Ion Primary Battery
EH767AA
HP 9-Cell Li-Ion Primary Battery
EH768AA
HP 2500 Series 9-cell Primary Battery
KU529AA
HP 1-bay Battery Charging Station
RW635AA#xxx
HP 5-bay Battery Charging Station
RW636AA#ABA
Battery Adapter Kit
RW640AA
Carrying Cases
HP Basic Carrying Case
AJ078AA
HP Value Nylon Case
RR314AA
HP Universal Nylon Case
RR315AA
HP Executive Leather Case
RR316AA
HP Deluxe Nylon Backpack
RR317AA
HP Deluxe Roller Case
GD405AA
QuickSpecs
HP EliteBook 2530p Notebook PC
Options
DA - 13101 Worldwide QuickSpecs — Version 8 — 2.5.2009
Page 13
Security
HP ExpressCard Smart Card Reader with Java Card
AJ451AA
HP ProtectTools Java Card – 10 units
EL348AA
HP/Kensington MicroSaver Security Lock
PC766A
HP Privacy Filter
AJ356AA
Input/Output Devices
HP USB Keyboard & Mouse Bundle
RC465AA#xxx
HP USB/PS2 Optical 2-Button Scroll Mouse
DC369A
HP USB Optical Travel Mouse
RH304AA
QuickSpecs
HP EliteBook 2530p Notebook PC
Options
DA - 13101 Worldwide QuickSpecs — Version 8 — 2.5.2009
Page 14
800-MHz DDR2 SDRAM
Two DIMM slots supporting dual channel memory
DIMM sizes supported: 1024 MB, 2048 MB, and 4096 MB
Standard Memory
1024 MB (1024 MB x 1)
2048 MB (2048 MB x 1)
4096 MB (4096 MB x 1 or 2048 MB x 2)
Optional Memory
Upgrades
Support for up to 8192 MB of memory with the installation of optional DDR2 SDRAM memory kits. Both
memory slots are user accessible. Please refer to the Hardware and Software Guide for installation
procedures. Maximized dual-channel performance requires SODIMMs of the same size and speed in
both memory slots.
Up to
Slot 1 Slot 2
1024 MB 1024 MB
Empty
2048 MB 1024 MB 1024 MB
3072 MB 2048 MB 1024 MB
4096 MB 2048 MB 2048 MB
8192 MB 4096 MB 4096 MB
NOTE:
This chart does not represent all possible memory configurations. Due to the non-industry standard nature of some third-party
memory modules, we strongly recommend using only HP branded memory modules to ensure compatibility. If you mix memory
speeds, the system will perform at the lower memory speed. Availability of 4 GB or more of memory requires Windows Vista Business
64-bit or Linux. With Windows 32-bit operating systems, memory above 3 GB may not all be available due to system resource
requirements.
Memory Upgrades
HP 1 GB (DDR2 800 MHz) SODIMM
KT292AA
HP 2 GB (DDR2 800 MHz) SODIMM
KT293AA
HP 4 GB (DDR2 800 MHz) SODIMM
KT294AA
QuickSpecs
HP EliteBook 2530p Notebook PC
Memory
DA - 13101 Worldwide QuickSpecs — Version 8 — 2.5.2009
Page 15
Optical Drive Support
Fixed optical drives
(95mm SATA)
Quantity Supported
Drive Bay
DVD-ROM Drive
One
Fixed optical drive bay
DVD+/-RW SuperMulti DL Drive
One
Fixed optical drive bay
NOTE:
Optical drive available only with 1.8-inch hard drive or Solid State Drive.
Internal Storage Device
1.8-inch SMART SATA II Hard Drives
Quantity Supported
Drive Bay
80-GB 5400 rpm
One
Dedicated hard drive bay
120-GB 5400 rpm
One
Dedicated hard drive bay
- or -
2.5-inch SMART SATA II Hard Drives
120-GB 5400 rpm
One
Dedicated hard drive bay
160-GB 7200 rpm
One
Dedicated hard drive bay
- or -
1.8-inch Solid State Drive
80 GB Solid State Drive
One
Dedicated hard drive bay
QuickSpecs
HP EliteBook 2530p Notebook PC
Storage
DA - 13101 Worldwide QuickSpecs — Version 8 — 2.5.2009
Page 16
System Unit
Dimensions
(HxWxD)
0.99 in (at front) x 11.11 in x 8.44 in
25.2 mm (at front) x 282.3 mm x 214.3 mm
Weight
Starting from 3.19 lb (1.45 kg)
NOTE:
Height varies depending upon where on the notebook the measurement is made. Starting weight
includes 3-cell battery, hard drive, 1 GB memory, 802.11 wireless communications module. Weight
varies by configuration and components.
Stand-Alone Power
Requirements
(AC Power)
Nominal Operating
Voltage
18.5 V
Average Operating Power
14.0 W
Max Operating Power
< 65 W
Temperature
Operating
32° to 95° F (0° to 35° C) (not writing optical)
41° to 95° F (5° to 35° C) (writing optical)
Non-operating
–4° to 140° F (–20° to 60° C)
Relative Humidity
Operating
10% to 90%, non-condensing
Non-operating
5% to 95%, 101.6° F (38.7° C) maximum wet
bulb temperature
Shock
Operating
125 G, 2 ms, half-sine
Non-operating
200 G, 2 ms, half-sine
Random Vibration
Operating
0.75 grms
Non-operating
1.50 grms
Altitude
(unpressurized)
Operating
–50 to 10,000 ft (–15.24 to 3,048 m)
Non-operating
–50 to 40,000 ft (–15.24 to 12,192 m)
Industry Standard
Certifications
UL
Yes
CSA
Yes
FCC Compliance
Yes
ENERGY STAR
®
Yes
EPEAT
Gold
ICES
Yes
GS Yes
Australia / NZ A-Tick
Compliance
Yes
CCC
Yes
Japan VCCI Compliance
Yes
MIC
Yes
BSMI
Yes
CE Marking Compliance
Yes
BNCI or BELLIS
Yes
CIT
Yes
GOST
Yes
Saudi Arabian
Compliance (ICCP)
Yes
SABS
Yes
UKRSERTCOMPUTER
Yes
QuickSpecs
HP EliteBook 2530p Notebook PC
Technical Specifications
DA - 13101 Worldwide QuickSpecs — Version 8 — 2.5.2009
Page 17
For accessibility information on HP products, please visit:
http://www.hp.com/accessibility
.
HP 65W Smart AC
Adapter
Dimensions
4.17 x 1.85 x 1.1 in (10.6 x 4.7 x 2.8 cm)
Weight
0.62 lb (280 g)
Input
100 to 240 VAC
Input Efficiency
83% min at 115 VAC
Input frequency range
47 to 63 Hz
Input AC current
1.7 A at 90 VAC, 0.85 A at 180 VAC
Output
Output power 65W
65W
DC output
18.5V
Hold-up time
5 msec at 115 VAC inputOutput current limit
Output current limit
<11A, Over voltage protection- 29V max
automatic shutdown
Connector
3 pin/grounded, mates with interchangeable cords
Environmental Design
Operating temperature
32° to 104° F (0° to 40° C)
Non-operating (storage)
temperature
–4° to 149° F (–20° to 65° C)
Altitude
0 to 10,000 ft (0 to 3,048 m)
Humidity
20% to 80%
Storage Humidity
10% to 90%
EMI and Safety
Certifications
CE Mark – full compliance with LVD and EMC directives; Worldwide safety
standards – IEC60950, EN60950, UL60950, Class1, SELV; Agency
approvals – C-UL-US, NORDICS, DENAN, EN55022 Class B, FCC Class
B, CISPR22 Class B, CCC, NOM-1 NYCE; MTBF – over 200,000 hours at
25°C ambient condition.
9-Cell (83 WHr) Lithium-
Ion battery
Dimensions
(H x W x L)
1.6 x 2.3 x 8.1 in (4.1 x 5.9 x 20.6 cm)
Weight
1.07 lb (0.488 kg)
Cells/Type
9-cell Lithium-Ion
Energy
Watt-hour Capacity
83 WHr
Temperature
Operating (Charging)
32° to 113° F (0° to 45° C)
Operating (Discharging)
14° to 140° F (–10° to 60° C)
Non-operating
–4° to 140° F (–20° to 60° C)
Battery Re-Charge Time
System in OFF mode or
Standby
3 to 4 hours
System ON
4 to 5 hours (depending on system power
consumption)
Fuel Gauge
When pressed, LEDs light indicating level of charge remaining on battery
QuickSpecs
HP EliteBook 2530p Notebook PC
Technical Specifications
DA - 13101 Worldwide QuickSpecs — Version 8 — 2.5.2009
Page 18
6-Cell (55 WHr) Lithium-
Ion battery
Dimensions
(H x W x L)
0.8 x 2.3 x 8.1 in (2.1 x 5.9 x 20.6 cm)
Weight
0.73 lb (0.332 kg)
Cells/Type
6-cell Lithium-Ion
Energy
Watt-hour Capacity
55 WHr
Temperature
Operating (Charging)
32° to 113° F (0° to 45° C)
Operating (Discharging)
14° to 140° F (–10° to 60° C)
Non-operating
–4° to 140° F (–20° to 60° C)
Battery Re-Charge Time
System in OFF mode or
Standby
2.5 hours
System ON
3 to 5 hours (depending on system power
consumption)
HP Fast Charge
Technology
Charges the battery up to 90% within 90 minutes
when system is OFF
Fuel Gauge
When pressed, LEDs light indicating level of charge remaining on battery
Displays
12.1-inch Illumi-Lite
WXGA anti-glare
Active Area
(W x H)
10.3 x 6.4 in (26.1 x 16.3 cm)
Diagonal Size
12.1 in (30.7 cm)
Surface Treatment
Anti-glare
Contrast Ratio
300:1 (typical)
Refresh Rate
60 Hz
Brightness
200 nit (typical)
Pixel Resolution
Pitch
0.204 mm
Format
1280 x 800
Configuration
RGB Stripe
Backlight
LED
PPI
125
Viewing Angle
±30° Horizontal, ±10° Vertical (minimum)
30/30/20/10 (Left/Right/Down/Up) (minimum) or
45/45/35/25 (Left/Right/Down/Up) (typical)
Internal Storage
QuickSpecs
HP EliteBook 2530p Notebook PC
Technical Specifications
DA - 13101 Worldwide QuickSpecs — Version 8 — 2.5.2009
Page 19
160 GB 7200 rpm SATA
Hard Drive
Drive Weight
0.25 lb (115 g)
Capacity
160 GB
Height
0.37 in (9.5 mm)
Width
2.75 in (70 mm)
Interface
ATA-8, SATA 2.6, 3.0 Gb/s, NCQ
Transfer Rate
Synchronous
(maximum)
100 MB/s (Drive Capability)
Seek Time
(typical reads, including
settling)
Single Track
1.5 ms
Average
11 ms
Maximum
22 ms
Rotational Speed
7200 rpm
Logical Blocks
312,581,808
Operating Temperature
32° to 140° F (0° to 60° C) [case temp]
Features
ATA Security
120 GB 5400 rpm SATA
Hard Drive
Drive Weight
0.22 lb (101 g)
Capacity
120 GB
Height
0.37 in (9.5 mm)
Width
2.75 in (70 mm)
Interface
ATA-8, SATA 2.6, 3.0 Gb/s, NCQ
Transfer Rate
Synchronous
(maximum)
100 MB/s (Drive Capability)
Seek Time
(typical reads, including
settling)
Single Track
3 ms
Average
13 ms
Maximum
24 ms
Rotational Speed
5400 rpm
Logical Blocks
234,441,648
Operating Temperature
32° to 140° F (0° to 60° C) [case temp]
Features
ATA Security
QuickSpecs
HP EliteBook 2530p Notebook PC
Technical Specifications
DA - 13101 Worldwide QuickSpecs — Version 8 — 2.5.2009
Page 20
120 GB 5400 rpm
1.8" SATA Hard Drive
Drive Weight
0.13 lb (62 g)
Capacity
120 GB
Height
0.31 in (8 mm)
Width
2.12 in (54 mm)
Interface
ATA-8, SATA 2.5, 1.5 Gb/s
Transfer Rate
Synchronous
(maximum)
100 MB/s (Drive Capability)
Seek Time
(typical reads, including
settling)
Single Track
3 ms
Average
15 ms
Maximum
26 ms
Rotational Speed
5400 rpm
Logical Blocks
234,441,648
Operating Temperature
32° to 140° F (0° to 60° C) [case temp]
Features
ATA Security
80 GB 5400 rpm
1.8" SATA Hard Drive
Drive Weight
0.13 lb (62 g)
Capacity
80 GB
Height
0.31 in (8 mm)
Width
2.12 in (54 mm)
Interface
ATA-8, SATA 2.5, 1.5 Gb/s
Transfer Rate
Synchronous
(maximum)
100 MB/s (Drive Capability)
Seek Time
(typical reads, including
settling)
Single Track
3 ms
Average
15 ms
Maximum
26 ms
Rotational Speed
5400 rpm
Logical Blocks
156,301,488
Operating Temperature
32° to 140° F (0° to 60° C) [case temp]
Features
ATA Security
80 GB 1.8” SATA Solid
State Drive
Weight
0.08 lb (35 g)
Capacity
80 GB
Height
0.19 in (5 mm)
Width
2.12 in (54 mm)
Interface
ATA-8 / SATA 2.6
Performance
Maximum Sequential
Read
Maximum Sequential Write
250 MB/s
70 MB/s
Logical Blocks
156,301,488
Operating Temperature
32° to 158°F (0° to 70°C) [case temp]
Features
ATA Security
QuickSpecs
HP EliteBook 2530p Notebook PC
Technical Specifications
DA - 13101 Worldwide QuickSpecs — Version 8 — 2.5.2009
Page 21
Optical Drives
DVD+/-RW SuperMulti DL
Drive
Access Times
Random
<150 ms CD (typical)
<125 ms DVD (typical)
Max Data Transfer Rate
24X CD-ROM
Up to 3,600 KB/s
8X DVD
Up to 10,800 KB/s
24X CD-R
Up to 3,600 KB/s
10X CD-RW
Up to 1,500 KB/s
4X DVD+R
Up to 5,400 KB/s
2.4X DVD+RW
Up to 3,240 KB/s
4X DVD-R
Up to 5,400 KB/s
2X DVD-RW
Up to 2,700 KB/s
2X DVD-RAM
Up to 2,700 KB/s
Transfer Mode
UDMA Mode 5
Interface
Gen 1 SATA
Supported Media
(read)
CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CD-ROM XA, MIXED
MODE CD, CD-I, CD-I Bridge (Photo-CD, Video CD), Multisession CD (Photo-
CD, CD-EXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVD-ROM (DVD-5,
DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW, DVD+R, DVD+RW, DVD-RAM
Supported Media
(write)
CD-R, CD-RW, DVD+R, DVD+RW, DVD-R, DVD-RW, DVD-RAM
Max Media Capacity
(read)
8.5 GB
Max Media Capacity
(write)
8.5 GB
Transport
Tray Loading
DVD-ROM Drive
Access Times
Random
<120 ms CD (typical)
<200 ms DVD (typical)
Max Data Transfer Rate
24X-CD-ROM
Up to 3,600 KB/s
8X-DVD
Up to 10,800 KB/s
Transfer Mode
UDMA Mode 5
Interface
Gen 1 SATA
Supported Media
(read)
CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CD-ROM XA, MIXED
MODE CD, CD-I, CD-I Bridge (Photo-CD, Video CD), Multisession CD (Photo-
CD, CD-EXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVD-ROM (DVD-5,
DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW, DVD+R, DVD+RW
Supported Media
(write)
None
Max Media Capacity
(read)
8.5 GB
Transport
Tray Loading
Security
QuickSpecs
HP EliteBook 2530p Notebook PC
Technical Specifications
DA - 13101 Worldwide QuickSpecs — Version 8 — 2.5.2009
Page 22
HP Fingerprint Sensor
Mobile Voltage
Operation
3.0V-3.6V Single Supply
Operating Temperature
32° – 158°F (0° – 70°C)
Current Consumption @
3.3V
Less than 70 mA peak imaging and scrolling
Less than 25 mA hardware finger detection
Advanced Power Management
High-Rate Image Capture
Up to 240 image frames /sec
ESD Resistance
IEC 61000-4-2 Level 4 (±15KV)
Detection Matrix
192 x 16 Pixels
9.7 mm x 0.81 mm
500 ppi High-Resolution Images
Audio
Hardware
Implementation
ADI1984A High Definition CODEC
Touch-Sensitive Volume
Controls
Volume up, volume down, and mute
Full Duplex
Yes
Sound Blaster Pro
compatible
Yes
Microphone In
Stereo
Headphone/Line Out
Stereo
Integrated Mono Speaker
Power Rating
2 Watts
Impedance
4 Ohms
Communications
Integrated Intel Gigabit
Network Connection
(10/100/1000 NIC)
82567LM
Ethernet Features
10 Mbit/s operation (10BASE-T; IEEE 802.3i; IEEE 802.3 clauses 13-14)
100 Mbit/s operation (100BASE-TX; IEEE 802.3u; IEEE 802.3 clauses 21-
30)
1000 Mbit/s operation (1000BASE-T; IEEE 802.3z and 802.3ab; IEEE
802.3 clauses 34-42)
Auto-Negotiation (Automatic Speed Selection)
Full Duplex Operation at all Speeds, Half Duplex operation at 10 and 100
Mbit/s
IEEE 802.1p QoS (Quality of Service) Support
IEEE 802.3x Flow Control (IEEE 802.3 clauses 31-32; configurable)
Power Management
ACPI compliant -- multiple power modes
Situation-sensitive features reduce power consumption
Performance Features
TCP/IP/UDP Checksum Offload (configurable)
Manageability
Wake-on-LAN from standby and hibernation (Magic Packet and Microsoft
Wake-Up Frame); Wake-on-LAN from off (Magic Packet only)
PXE 2.1 Remote Boot
Statistics Gathering (SNMP MIB II, Ethernet-like MIB, Ethernet MIB (802.3x,
QuickSpecs
HP EliteBook 2530p Notebook PC
Technical Specifications
DA - 13101 Worldwide QuickSpecs — Version 8 — 2.5.2009
Page 23
clause 30))
Comprehensive diagnostic and configuration software suite
Intel Advanced Management Technology (iAMT)
Interface
PCI Express x1
NIC Device Driver Name
Intel 82567 Gigabit Network Connection
V.92 56K Data/Fax
Modem
Form Factor
MDC 1.5 Daughtercard
Power Management
Support
APM Revision 1.2, ACPI
Approvals/
Certifications
UL, CSA, NEMKO, CCIB, Industry Canada, FCC Part 68, CTR21, FCC Part
15 Class B, Canadian ICES-003 Class B, C.I.S.P.R.22, Australian ACA, CE
Mark, Other Countries
Data Mode Capabilities
V.92 data
V.8bis
V.80
V44, V.42bis, MNP5 (Compression)
V.42 (LAPM, MNP2-4) (Error Correction)
Optional symbol rates:
2800, 3429
Asymmetric Symbol rates
Synchronous primary channel data signaling rates:
3600, 31200
Automatic rate re-negotiation
V.34
V.32bis
V.32
V.23
V.22bis
V.22
V.21
Bell 212A
Bell 103J
Fax Mode Capabilities
TIA/EIA-578-B (Class 1)
T.30, T.4 (Group 3)
V.17
V.29
V.27ter
V.21 Channel 2
Command Set
V.250 (Partial)
TIA-602
Identification: +GMI, +GMM, +GMR
Port control: +IPR, +ICF, +IFC, +ILRR
Modulation: +MS, +MR, +MA
Error control: +ES, +ER, +EB, +ESR, +ETBM
Data compression: +DS, +DR
V.251
QuickSpecs
HP EliteBook 2530p Notebook PC
Technical Specifications
DA - 13101 Worldwide QuickSpecs — Version 8 — 2.5.2009
Page 24
HP un2400
EV-DO/HSPA Mobile
Broadband Module
Technology/Operating
Bands
GSM/GPRS/EDGE: 850MHz(Cell), 900MHz(EGSM), 1800MHz(DCS),
1900MHz (PCS)
UMTS/WCDMA with receive diversity: 2100MHz (UTRA FDD Band I),
1900MHz (UTRA FDD Band II), 850MHz (UTRA FDD Band V)
1xEVDO/1xRTT with receive diversity: 850MHz (Band Class0-Cell),
1900MHz (Band Class1-PCS)
Wireless Protocol
Standards
GSM/GPRS/EDGE: Class B, Multi-slot operation, coding schemes CS1 –
CS4 and MSC1 – MSC9.
UMTS/WCDMA: Release 99 and Release 5
CDMA: 1xEVDO Release 0 and Release A, IS-95A, IS-95B, IS-2000
Wireless Parametric
Standards
Meets or exceeds TIA/EIA IS-98-D
Maximum Data Rates
UMTS (HSPA) – 7.2 Mbps (Download ), 2.0Mbps (Upload)
CDMA (EVDO Release A) – 3.1 Mbps (Download), 1.8Mbps (Upload)
Maximum Output Power
GSM/GPRS/EDGE: 32dBm (+/-1)
WCDMA: 24dBm (+/-1)
CDMA: 24dBm (+/-1)
Maximum Power
Consumption
2500mA (peak); 1000mA (average)
Power Consumption,
Sleep Mode
5 mA
Power Management
USB selective suspend
Integrated notebook wireless button
Antenna Type
Dual high efficiency 5 band antennae with spatial diversity, mounted in the
display enclosure
Form Factor
PCI-Express MiniCard
Weight
11.5 g
Dimensions
(Length x
Width x Thickness)
2.01 x 1.18 x 0.18 in (51 x 30 x 4.5 mm)
Voltage, Operating
3.3v +/- 10%
Temperature, Operating
(from TIA/EIA/IS-98-D)
–22° to 140° F (–30° to 60° C) (full RF performance)
–22° to 167° F (–30° to 75° C) (reduced RF performance)
Temperature, Non-
operating, 96 hours
(from
MIL-STD 202 Method
108)
–40° to 185° F (–40° to 85° C)
Humidity, Non-operating
85% relative humidity for 48 hours @ 185° F (85° C) (non-condensing)
Configuration Utilities
HP Connection Manager
LED Activity
LED Off – Radio Off;
Solid LED On – Radio On
Intel WiFi Link 5100
Wireless LAN Standards
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n (draft 2.0)
Interoperability
Wi-Fi certified (802.11abg only)
Cisco Compatible Extensions Program compliant (802.11abg only) with
QuickSpecs
HP EliteBook 2530p Notebook PC
Technical Specifications
DA - 13101 Worldwide QuickSpecs — Version 8 — 2.5.2009
Page 25
Microsoft Windows Vista and XP (details at:
http://www.hp.com/go/notebooks/WLAN
)
Tested with wireless access points from several major manufacturers
(details at:
http://www.hp.com/go/notebooks/WLAN/draft-n
)
Frequency Band
2.4 GHz and 5 GHz
Antenna Structure
1 transmit; 2 receive (1x2)
Data Rates
802.11b: 1, 2, 5.5, 11 Mbps
802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (draft): 66 possible data rates, ranging from 6 Mbps to 300
Mbps, depending on the combination of Bandwidth, Modulation Coding
Scheme, and Guard Interval used, as defined in IEEE 802.11n (draft)
specification
Modulation
Direct Sequence Spread Spectrum
DBPSK, DQPSK, CCK, OFDM, BPSK, QPSK, 16-QAM, 64-QAM
Security
1
Supports 64- and 128-bit WEP, WPA, WPA2, hardware-accelerated AES
(support for key sizes of 128, 192, and 256 bits), 802.1x authentication
types EAP-TLS, EAP-TTLS, PEAP-GTC, PEAP-MSCHAPv2, LEAP, EAP-FAST.
Support for Cisco Security Features (proven compatibility with Cisco Aironet
infrastructure products through the Cisco Compatible Extensions Program
Version 4) with Microsoft Windows Vista and XP only.
Sub-channels
Multinational support with frequency bands and channels compliant to local
regulations.
Media Access Protocol
CSMA/CA (Collision Avoidance) with ACK
Network Architecture
Models
Ad-hoc (Peer to Peer)
Infrastructure (Access Point Required)
Roaming
IEEE 802.11 compliant roaming between access points
Output Power
(for CCK)
2
15 dBm
Output Power
(for OFDM;
power varies by data
rate)
2
15 dBm
Power Consumption
Transmit: 2.3 Watts (average, with one spatial streams)
Receive: 1.9 Watts (average with two receive chains)
Idle mode
3
: 30 mW (average)
Radio off: 20 mW (max)
Power Management
ACPI compliant power management
802.11 compliant power saving mode
Receiver Sensitivity
4
300 Mbps: -68 dBm, 54 Mbps: -74 dBm, 6 Mbps: -90 dBm
Antenna Connections
3 U.FL type connectors, 50 ohm nominal impedance
Range
802.11 a – Typical
(@6 Mbps)
600 feet – Outdoor Open Area
150 feet – Indoor, Office environment
802.11 b – Typical
(@1 Mbps)
1200 feet – Outdoor Open Area
300 feet – Indoor, Office environment
802.11 g – Typical
(@1 Mbps)
1200 feet – Outdoor Open Area
300 feet – Indoor, Office environment
Form Factor
PCI-Express MiniCard
Weight
0.013 lb (6 g)
QuickSpecs
HP EliteBook 2530p Notebook PC
Technical Specifications
DA - 13101 Worldwide QuickSpecs — Version 8 — 2.5.2009
Page 26
Dimensions
0.19 x 1.2 x 2.0 in (4.75 x 29.85 x 50.8 mm)
Operating Voltage
3.3V +/- 9%, 1.5V +/- 5%
Temperature
Operating
Non-operating
32° to 176° F (0° to 80° C)
–40° to 176° F (–40° to 80° C)
Humidity
Operating
Non-operating
10% to 90% (non-condensing)
5% to 90% (non-condensing)
Altitude
Operating
Non-operating
0 to 10,000 ft (3,048 m)
0 to 50,000 ft (15,240 m)
Configuration Utility
5
Microsoft Windows XP
Choice of Configuration Utility:
Microsoft Windows XP Wireless Network Connection Manager
Intel PROSet for Microsoft Windows XP (required for Cisco Compatible
Extensions support)
Microsoft Windows Vista
Microsoft Windows Vista Wireless Network Connection Manager.
Intel IHV extensions for Windows Vista available to support Cisco
Compatible Extensions.
LED Activity
LED Off – Radio OFF; Solid LED On – Radio ON
Check latest software/driver release for updates on supported security features.
1.
Maximum output power may vary by country according to local regulations.
2.
In Power Save Polling mode and on battery power.
3.
Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CCK modulation) and a
packet error rate of 10% for 802.11a/g (OFDM modulation).
4.
WLAN supplier's client utility is required for Cisco Compatible Extensions support with Microsoft
Windows XP. WLAN may also be compatible with certain third-party software supplicants. WLAN
supplier IHV extensions required for Cisco Compatible Extensions support for Microsoft Windows
Vista.
5.
Broadcom 4322AGN
802.11a/b/g/draft-n
WiFi Adapter
Wireless LAN Standards
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n (draft 2.0)
Interoperability
Wi-Fi certified (802.11abg only)
Cisco Compatible Extensions Program compliant (802.11abg only) with
Microsoft Windows Vista and XP (details at:
http://www.hp.com/go/notebooks/WLAN
)
Tested with wireless access points from several major manufacturers
(details at:
http://www.hp.com/go/notebooks/WLAN/draft-n
)
Frequency Band
2.4 GHz and 5 GHz
Data Rates
802.11b: 1, 2, 5.5, 11 Mbps
802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (draft): 6, 6.5, 9, 12, 13, 13.5, 18, 19.5, 24, 26, 27, 36, 39,
40.5, 48, 52, 54, 58.5, 65, 78, 81, 104, 108, 117, 121.5, 130,
135, 162, 216, 243, 270, 300 Mbps
Frequency Support
20 MHz: 2.4 GHz and 5 GHz bands
40 MHz: 2.4 GHz and 5 GHz band
QuickSpecs
HP EliteBook 2530p Notebook PC
Technical Specifications
DA - 13101 Worldwide QuickSpecs — Version 8 — 2.5.2009
Page 27
Modulation
Direct Sequence Spread Spectrum
DBPSK, DQPSK, CCK, OFDM, BPSK, QPSK, 16-QAM, 64-QAM
Security
1
Supports 64- and 128-bit WEP, WPA, WPA2, hardware-accelerated AES,
802.1x authentication types EAP-TLS, EAP-TTLS, PEAP-GTC, PEAP-
MSCHAPv2, LEAP, EAP-FAST.
Support for Cisco Security Features (proven compatibility with Cisco Aironet
infrastructure products through the Cisco Compatible Extensions Program
Version 4) with Microsoft Windows Vista and XP only.
Sub-channels
Multinational support with frequency bands and channels compliant to local
regulations.
Media Access Protocol
CSMA/CA (Collision Avoidance) with ACK
Network Architecture
Models
Ad-hoc (Peer to Peer)
Infrastructure (Access Point Required)
Roaming
IEEE 802.11 compliant roaming between access points
Output Power
(for CCK)
2
17 dBm
Output Power
(for OFDM;
power varies by data
rate)
2
15 dBm
Power Consumption
Idle associated: 250 mW
Idle unassociated: 150 mW
Transmit/Receive 20 MHz channel: 2.0 W (max)
Transmit/Receive 40 MHz channel: 2.0 W (max)
Power Management
ACPI compliant power management
802.11 compliant power saving mode
Receiver Sensitivity
3
270 Mbps: -66dBm, 162 Mbps: -72 dBm, 54 Mbps: -72 dBm, 11 Mbps: -
85 dBm , 1 Mbps: -94 dBm
Antenna type
High efficiency dual band antenna with spatial diversity, mounted in the
display enclosure
Range
802.11 a – Typical
(@6 Mbps)
600 feet – Outdoor Open Area
150 feet – Indoor, Office environment
802.11 b – Typical
(@1 Mbps)
1200 feet – Outdoor Open Area
300 feet – Indoor, Office environment
802.11 g – Typical
(@1 Mbps)
1200 feet – Outdoor Open Area
300 feet – Indoor, Office environment
Form Factor
PCI-Express MiniCard
Weight
0.026 lb (12 g)
Dimensions
0.19 x 1.2 x 2.0 in (4.75 x 29.85 x 50.8 mm)
Operating Voltage
3.3v +/- 10%
Temperature
Operating
Non-operating
14° to 149° F (–10° to 65° C)
–40° to 176° F (–40° to 80° C)
Humidity
Operating
Non-operating
10% to 90% (non-condensing)
5% to 95% (non-condensing)
Altitude
Operating
Non-operating
0 to 10,000 ft (3,048 m)
0 to 50,000 ft (15,240 m)
Configuration Utility
4
Microsoft Windows XP
Choice of Configuration Utility:
QuickSpecs
HP EliteBook 2530p Notebook PC
Technical Specifications
DA - 13101 Worldwide QuickSpecs — Version 8 — 2.5.2009
Page 28
Microsoft Windows XP Wireless Network Connection Manager
Broadcom Wireless Configuration Utility (required for Cisco
Compatible Extensions support)
Microsoft Windows Vista
Microsoft Windows Vista Wireless Network Connection Manager
Broadcom IHV extensions for Windows Vista available to support
Cisco Compatible Extensions.
LED Activity
LED Off – Radio OFF; Solid LED On – Radio ON
Check latest software/driver release for updates on supported security features.
1.
Maximum output power may vary by country according to local regulations.
2.
Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CCK modulation) and a
packet error rate of 10% for 802.11a/g (OFDM modulation).
3.
WLAN supplier's client utility is required for Cisco Compatible Extensions support with Microsoft
Windows XP. WLAN may also be compatible with certain third-party software supplicants. WLAN
supplier IHV extensions required for Cisco Compatible Extensions support for Microsoft Windows
Vista.
4.
Broadcom 4312G
802.11b/g WiFi
Adapter
Wireless LAN Standards
IEEE 802.11b
IEEE 802.11g
Interoperability
Wi-Fi certified (802.11abg only)
Cisco Compatible Extensions Program compliant (802.11abg only) with
Microsoft Windows Vista and XP (details at:
http://www.hp.com/go/notebooks/WLAN
)
Tested with wireless access points from several major manufacturers
(details at:
http://www.hp.com/go/notebooks/WLAN/draft-n
)
Frequency Band
2.4 GHz
Data Rates
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Modulation
Direct Sequence Spread Spectrum
DBPSK, DQPSK, CCK, OFDM
Security
1
Supports 64- and 128-bit WEP, WPA, WPA2, hardware-accelerated AES,
802.1x authentication types EAP-TLS, EAP-TTLS, PEAP-GTC, PEAP-
MSCHAPv2, LEAP, EAP-FAST.
Support for Cisco Security Features (proven compatibility with Cisco Aironet
infrastructure products through the Cisco Compatible Extensions Program
Version 4) with Microsoft Windows Vista and XP only.
Sub-channels
Multinational support with frequency bands and channels compliant to local
regulations.
Media Access Protocol
CSMA/CA (Collision Avoidance) with ACK
Network Architecture
Models
Ad-hoc (Peer to Peer)
Infrastructure (Access Point Required)
Roaming
IEEE 802.11 compliant roaming between access points
Output Power
(for CCK)
2
17 dBm
QuickSpecs
HP EliteBook 2530p Notebook PC
Technical Specifications
DA - 13101 Worldwide QuickSpecs — Version 8 — 2.5.2009
Page 29
Output Power
(for OFDM;
power varies by data
rate)
2
15 dBm
Power Consumption
Idle associated: 250 mW
Idle unassociated: 150 mW
Transmit: 2.0 W (max)
Receive: 2.0 W (max)
Power Management
ACPI compliant power management
802.11 compliant power saving mode
Receiver Sensitivity
3
54 Mbps: -71 dBm, 11 Mbps: -85 dBm , 1 Mbps: -95 dBm
Antenna type
High efficiency dual band antenna with spatial diversity, mounted in the
display enclosure
Range
802.11 b – Typical
(@1 Mbps)
1200 feet – Outdoor Open Area
300 feet – Indoor, Office environment
802.11 g – Typical
(@1 Mbps)
1200 feet – Outdoor Open Area
300 feet – Indoor, Office environment
Form Factor
PCI-Express MiniCard
Weight
0.026 lb (12 g)
Dimensions
0.19 x 1.2 x 2.0 in (4.75 x 29.85 x 50.8 mm)
Operating Voltage
3.3v +/- 10%
Temperature
Operating
Non-operating
14° to 149° F (–10° to 65° C)
–40° to 176° F (–40° to 80° C)
Humidity
Operating
Non-operating
10% to 90% (non-condensing)
5% to 95% (non-condensing)
Altitude
Operating
Non-operating
0 to 10,000 ft (3,048 m)
0 to 50,000 ft (15,240 m)
Configuration Utility
4
Microsoft Windows XP
Choice of Configuration Utility:
Microsoft Windows XP Wireless Network Connection Manager
Broadcom Wireless Configuration Utility (required for Cisco
Compatible Extensions support)
Microsoft Windows Vista
Microsoft Windows Vista Wireless Network Connection Manager
Broadcom IHV extensions for Windows Vista available to support
Cisco Compatible Extensions.
LED Activity
LED Off – Radio OFF; Solid LED On – Radio ON
Check latest software/driver release for updates on supported security features.
1.
Maximum output power may vary by country according to local regulations.
2.
Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CCK modulation) and a
packet error rate of 10% for 802.11a/g (OFDM modulation).
3.
WLAN supplier's client utility is required for Cisco Compatible Extensions support with Microsoft
Windows XP. WLAN may also be compatible with certain third-party software supplicants. WLAN
supplier IHV extensions required for Cisco Compatible Extensions support for Microsoft Windows
Vista.
4.
QuickSpecs
HP EliteBook 2530p Notebook PC
Technical Specifications
DA - 13101 Worldwide QuickSpecs — Version 8 — 2.5.2009
Page 30
HP Integrated Module
with Bluetooth Wireless
Technology
Bluetooth Specification
2.0 Compliant
Dimensions
1.02 x 0.55 x 0.22 in (26 x 14 x 5.7 mm)
Frequency Band
2402 to 2480 MHz
Number of Available
Channels
79 (1 MHz) available channels
Data Rates and
Throughput
3 Mbps data rate; throughput up to 2.17 Mbps
Synchronous Connection Oriented links up to 3, 64 kbps, voice channels
Asynchronous Connection Less links 2178.1 kbps/177.1 kbps asymmetric
or 1306.9 kbps symmetric
Transmit Power
-6 dBm to 4 dBm (Bluetooth Class II)
Receiver Sensitivity
Better than -80 dBM at 0.1 % raw bit error rate
Power Consumption
Peak (Tx) 264 mW
Peak (Rx) 231 mW
Sleep <1 mW
Antenna
Internally integrated within module
Range
Up 33 ft (10 m)
Electrical Interface
USB 2.0 compliant
Microsoft Windows Plug and Play compliant
OS Support
Microsoft Windows XP Professional and Home
Microsoft Windows 2000
Bluetooth Software
Supported
Broadcom Bluetooth for Windows
Microsoft Windows XP Bluetooth Software
Link Topology
Point to Point, Multipoint Pico Nets up to 7 slaves
Security
Full support of Bluetooth Security Provisions
Power Management
Microsoft Windows ACPI, and USB Bus Support
Self configurable to optimize power conservation in all operating modes,
including Standby, Hold, Park, and Sniff
Certifications
All necessary regulatory approvals for supported countries, including:
FCC (47 CFR) Part 15C, Section 15.247 & 15.249
ETS 300 328, ETS 300 826
Low Voltage Directive IEC950
UL, CSA, and CE Mark
Temperature
Operating
–4° to 158° F (–20° to 70° C)
Non-operating
–40° to 176° F (–40° to 80° C)
Humidity
Operating
10% to 90%
Non-operating
5% to 95%
Altitude
Operating
15,000 ft (4,572 m)
Non-operating
40,000 ft (12,192 m)
Bluetooth Profiles
Supported
(with Bluetooth for Windows 4.0 software)
Serial Port Profile (SPP)*
Dial-Up Networking (DUN)*
Generic Object Exchange Profile (GOEP)
Object Push Profile (OPP)*
QuickSpecs
HP EliteBook 2530p Notebook PC
Technical Specifications
DA - 13101 Worldwide QuickSpecs — Version 8 — 2.5.2009
Page 31
File Transfer Profile (FTP)
Synchronization Profile (SYNC)
Hard Copy Cable Replacement (HCRP)*
Personal Area Networking Profile (PAN)*
Human Interface Device Profile (HID)*
FAX Profile (FAX)
Basic Imaging Profile (BIP)
Headset Profile (HSP)
Hands Free Profile (HFP)
Advanced Audio Distribution Profile (A2DP)
* indicates the profile is also supported by Microsoft Windows XP SP2
Eco Data
Eco-Label Certifications
This product has received or is in the process of being certified to the
following approvals and may be labeled with one or more of these marks:
US Energy Star
Taiwan Green Mark
IT ECO declaration
EPEAT - Gold
System Configuration
The configuration used for the Energy Consumption and Declared Noise
Emissions data is based on a "Typically Configured Notebook"
Energy Consumption
115 VAC 230 VAC 100 VAC
Normal Operation
7.134 W
7.41 W 7.03 W
Sleep (Energy Star low
power mode)
1.573 W 1.652 W 1.583 W
Off
0.579 W 0.643 W 0.579 W
Heat Dissipation
*
115 VAC 230 VAC 100 VAC
Normal Operation
24 BTU/hr 25 BTU/hr 24 BTU/hr
Sleep
5 BTU/hr 6 BTU/hr 5 BTU/hr
Off
2 BTU/hr 2 BTU/hr 2 BTU/hr
* Heat dissipation is calculated based on the measured watts, assuming the
service level is attained for one hour.
This product is in compliance with US executive order 13221, WOL (wake
on LAN) disabled.
Declared Noise Emissions
(in accordance with
ISO 7779 and ISO
9296)
System Fan Off
Sound Power
(LWAd, bels)
Sound Pressure
(LpAm, decibels)
Idle
2.5 20
Fixed Disk
(random writes)
2.7 27
QuickSpecs
HP EliteBook 2530p Notebook PC
Technical Specifications
DA - 13101 Worldwide QuickSpecs — Version 8 — 2.5.2009
Page 32
System fan is usually off except when charging the battery
Batteries
This product complies with ISO standards:
EU Directive 91/ 157/ EEC
EU Directive 93/ 86/ EEC
EU Directive 98/ 101/ EEC
Batteries used in the product do not contain:
Mercury greater the 5ppm by weight
Cadmium greater than 10ppm by weight
Lead greater than 4000 ppm by weight.
The battery type and chemistry used in the product is:
CR2032 (coin cell), Lithium
Additional
information:
This product is in compliance with the Restrictions of Hazardous Substances
(RoHS) directive - 2002/95/EC.
This HP product is designed to comply with the Waste Electrical and
Electronic Equipment (WEEE) Directive - 2002/96/EC.
This product is in compliance with California Proposition 65 (State of
California; Safe Drinking Water and Toxic Enforcement Act of 1986).
This product is in compliance with the IEEE 1680 (EPEAT) standard at the
Gold level, see:
www.epeat.net
Keyboard complies with ISO standard: ISO 9995, EN 29241-4, and
ISO/IEC 15412
Input devices of this product comply with ISO 9241, part 9.
Plastics parts weighing over 25 grams used in the product are marked per
ISO 11469 and ISO1043.
This product contains 0% recycled materials (by wt.)
This product is greater than 91.8% recycle-able when properly disposed of at
end of life.
Packaging Materials
External:
Polyethylene low density 13 g
Internal:
Corrugated 458 g
EPE-Expanded Polyethylene 64 g
The EPE foam packaging material is made from 100% recycled
content.
The corrugated paper packaging materials contains at least 80%
recycled content.
QuickSpecs
HP EliteBook 2530p Notebook PC
Technical Specifications
DA - 13101 Worldwide QuickSpecs — Version 8 — 2.5.2009
Page 33
HP follows these guidelines to decrease the environmental impact of product
packaging:
Eliminate the use of heavy metals such as lead, chromium, mercury and
cadmium in packaging materials.
Eliminate the use of ozone-depleting substances (ODS) in packaging
materials.
Design packaging materials for ease of disassembly.
Maximize the use of post-consumer recycled content materials in
packaging materials.
Use readily recyclable packaging materials such as paper and
corrugated materials.
Reduce size and weight of packages to improve transportation fuel
efficiency.
Plastic packaging materials are marked according to ISO 11469 and
DIN 6120 standards.
Material Usage
This product does not contain any of the following substances in excess of
regulatory limits (for reference of these limits please refer to the HP General
Specification of the
Environment (
http://www.hp.com/hpinfo/globalcitizenship/environment/
supplychain/gen_specifications.html
):
Asbestos
Certain Azo Colorants
Certain Brominated Flame Retardants - may not be used as flame
retardants in plastics
Cadmium
Chlorinated Hydrocarbons
Chlorinated Paraffins
Formaldehyde
Halogenated Diphenyl Methanes
Lead carbonates and sulfates
Lead and Lead compounds
Mercuric Oxide Batteries
Nickel - finishes must not be used on the external surface designed to
be frequently handled or carried by the user.
Ozone Depleting Substances
Polybrominated Biphenyls (PBBs)
Polybrominated Biphenyl Ethers (PBBEs)
Polybrominated Biphenyl Oxides (PBBOs)
Polychlorinated Biphenyl (PCB)
Polychlorinated Terphenyls (PCT)
Polyvinyl Chloride (PVC) - except for wires and cables, and certain
retail packaging has been voluntarily removed from most applications.
Radioactive Substances
Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)
End-of-life Management
and Recycling
Hewlett-Packard offers end-of-life HP product return and recycling programs in
many geographic areas. To recycle your product, please go to:
http://www.hp.com/go/reuse-recycle
or contact your nearest HP sales
office. Products returned to HP will be recycled, recovered or disposed of in a
responsible manner.
QuickSpecs
HP EliteBook 2530p Notebook PC
Technical Specifications
DA - 13101 Worldwide QuickSpecs — Version 8 — 2.5.2009
Page 34
The EU WEEE directive (2002/95/EC) requires manufacturers to provide
treatment information for each product type for use by treatment facilities. This
information (product disassembly instructions) is posted on the Hewlett
Packard web site at:
http://www.hp.com/go/recyclers
. These instructions
may be used by recyclers and other WEEE treatment facilities as well as HP
OEM customers who integrate and re-sell HP equipment.
Hewlett-Packard
Corporate Environmental
Information
For more information about HP's commitment to the environment:
Global Citizenship Report
http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html
Environment website
http://www.hp.com/environment
Eco-label certifications
http://www.hp.com/hpinfo/globalcitizenship/environment/
productdesign/ecolabels.html
ISO 14001 certificates:
http://www.hp.com/hpinfo/globalcitizenship/environment/
operations/envmanagement.html
Copyright © 2009 Hewlett-Packard Development Company, L.P.
All rights reserved. Microsoft, Windows, Windows Vista and Windows XP are registered trademarks or trademarks of Microsoft
Corporation in the U.S. and/or other countries. Core 2 Duo is a registered trademark or trademark of Intel Corporation in the U.S.
and/or other countries. Bluetooth is a registered trademark of Bluetooth SIG, Inc., in the U.S. and other countries. All other product
names mentioned herein may be trademarks of their respective companies.
The information contained herein is subject to change without notice and is provided "as is" without warranty of any kind. The
warranties for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein
should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions
contained herein.
QuickSpecs
HP EliteBook 2530p Notebook PC
Technical Specifications
DA - 13101 Worldwide QuickSpecs — Version 8 — 2.5.2009
Page 35

Navigation menu
