HP recommends Windows Vista

®

Business

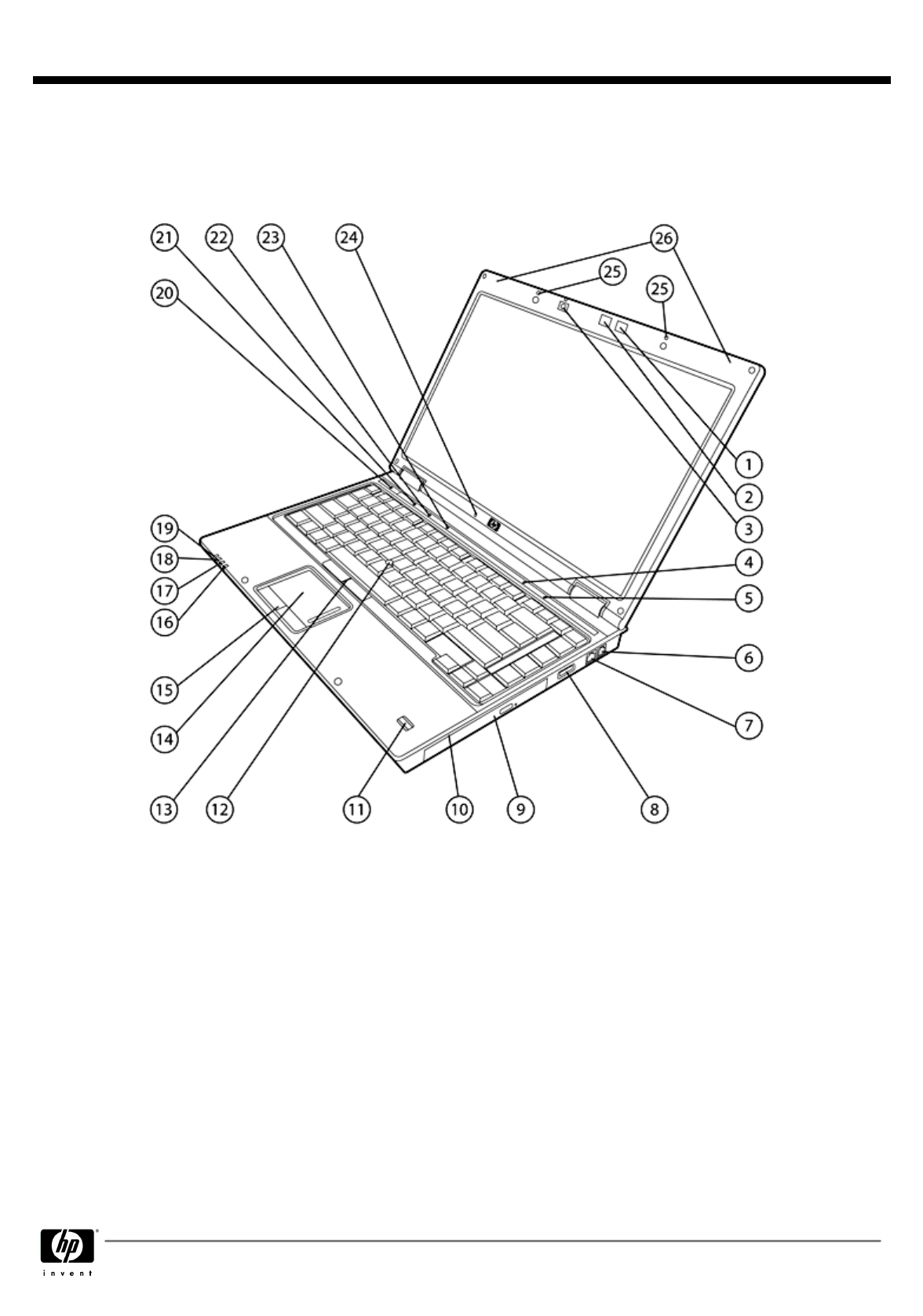

1.

HP NightLight on/off button

14.

Touchpad with scroll zone

2.

HP NightLight

15.

Touchpad buttons

3.

Optional 2 MP Webcam

16.

Hard drive activity / HP 3D DriveGuard LED indicator

4.

Volume mute button with LED indicator

17.

Battery charging LED indicator

5.

Volume scroll zone with up/down LED indicators

18.

Power/standby LED indicator

6.

RJ-11/modem port

19

Wireless on/off LED indicator

7.

RJ-45/Ethernet port

20.

Power button with LED indicator

8.

USB 2.0 port

21.

HP Info / HP QuickLook 2 button with LED indicator

9.

Upgrade Bay (optical drive, second hard drive)

22.

Wireless on/off button with LED indicator

10.

Integrated Smart Card Reader

23.

HP Presentation button with LED indicator

11.

HP Fingerprint Sensor

24.

Ambient Light Sensor

12.

Pointstick

25.

Dual-microphone array

13.

Pointstick buttons

26.

WLAN and WWAN antennas

QuickSpecs

HP EliteBook 6930p Notebook PC

Overview

DA - 13061 Worldwide QuickSpecs — Version 8 — 10.10.2008

Page 1

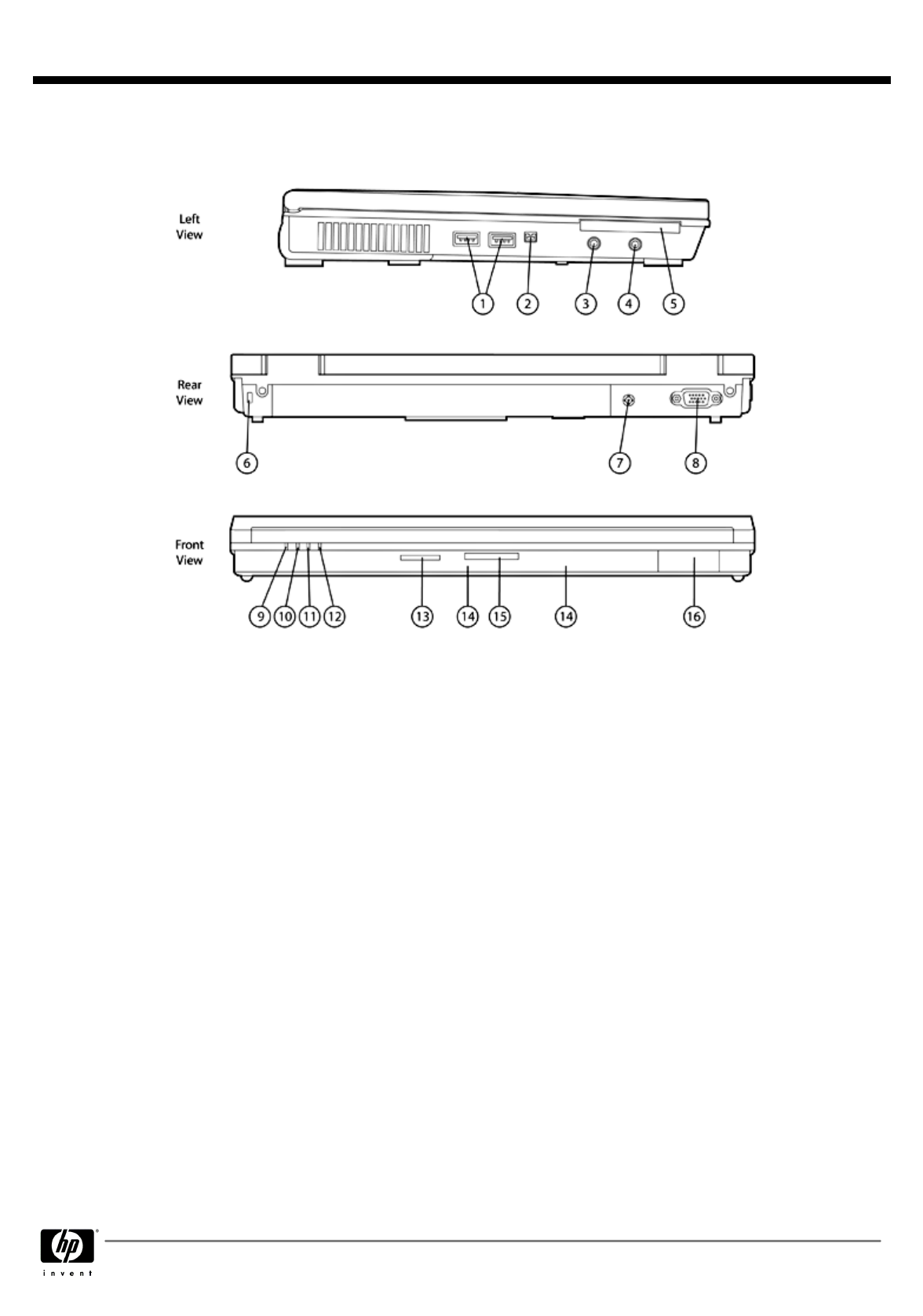

1.

(2) USB 2.0 ports

9.

Wireless on/off LED indicator

2.

1394a port

10.

Power/standby LED indicator

3.

Stereo microphone in

11.

Battery charging LED indicator

4.

Stereo headphone/line out

12.

Hard drive activity / HP 3D DriveGuard LED

5.

ExpressCard/54 slot

13.

Secure Digital (SD) slot

6.

Kensington Lock slot

14.

Integrated stereo speakers

7.

Power connector

15.

Display release latch

8.

VGA connector (external monitor/projector)

16.

Bluetooth module compartment

QuickSpecs

HP EliteBook 6930p Notebook PC

Overview

DA - 13061 Worldwide QuickSpecs — Version 8 — 10.10.2008

Page 2

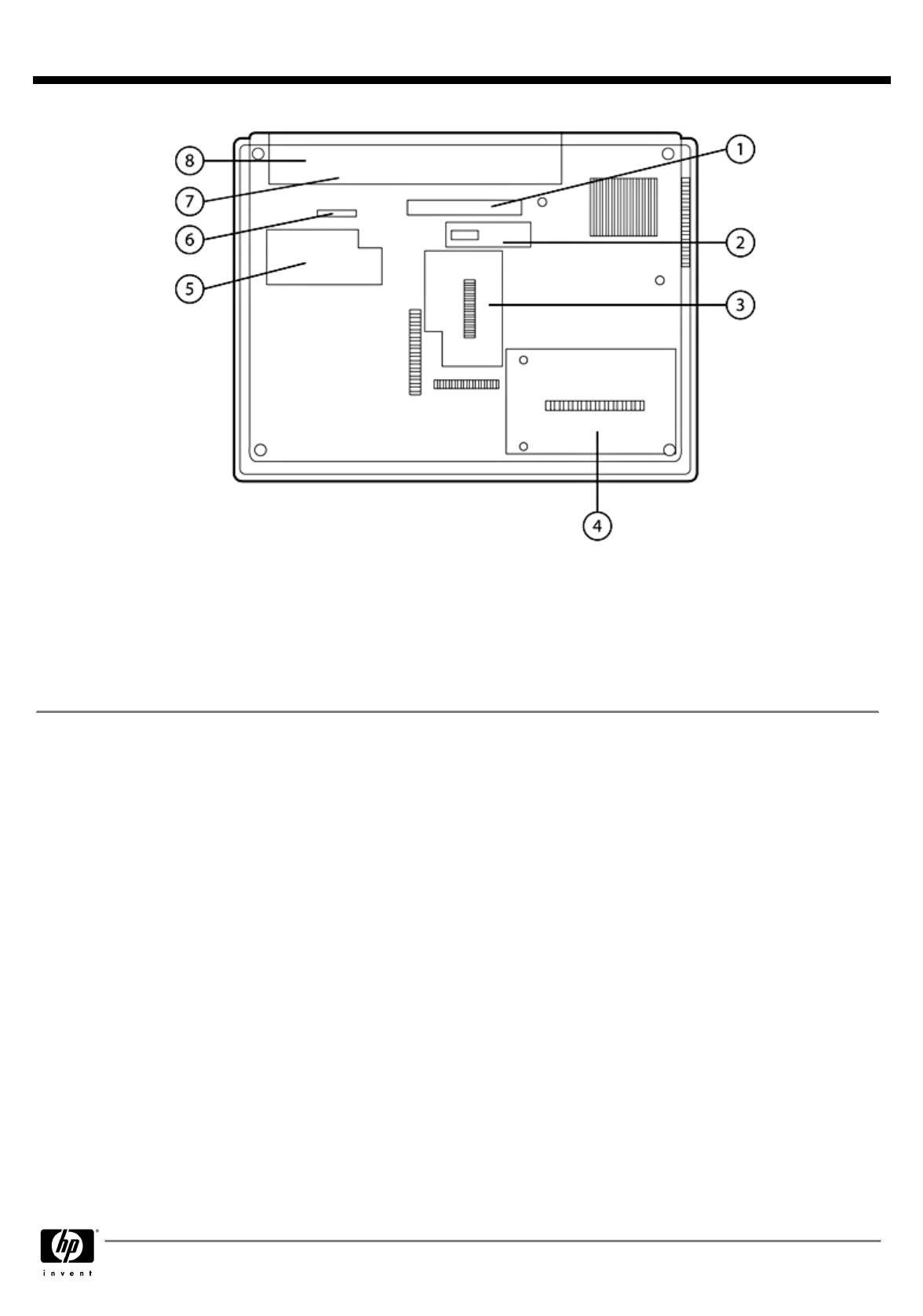

Bottom View

1.

Docking connector

5.

WWAN module compartment

2.

Secondary battery connector

6.

Battery release latch

3.

Memory module compartment

7.

SIM slot for WWAN (select models) – inside battery bay

4.

Hard drive bay

8.

Battery bay

NOTE:

WLAN module connector is located under the keyboard (not shown)

QuickSpecs

HP EliteBook 6930p Notebook PC

Overview

DA - 13061 Worldwide QuickSpecs — Version 8 — 10.10.2008

Page 3

At A Glance

Genuine Windows Vista Business 32, Genuine Windows Vista Home Basic 32, Genuine Windows Vista Business with

downgrade to Windows XP Professional custom installed, or FreeDOS

Business Rugged –

designed to meet the military standard Mil-Std-810F for drop, shock, vibration, sand and dust, humidity,

altitude, and high and low temperature operation

*

ATI Mobility Radeon™ HD 3450 graphics with 128 or 256 MB dedicated memory or Mobile Intel GMA 4500MHD

graphics

Flexible wireless connectivity options:

Integrated HP un2400 EV-DO/HSDPA Mobile Broadband Module provides worldwide Gobi mobile Internet technology

Integrated 802.11 a/b/g/n draft 2.0, a/b/g, or b/g wireless LAN module

Bluetooth® 2.0

Intel® Centrino® 2 with vPro™ technology capable, with Intel Core™2 Duo processors

Optional HP Illumi-Lite LED 14.1-inch diagonal widescreen display with Ambient Light Sensor and optional HP Privacy Filter

Upgrade Bay for easy optical drive upgrade or optional second hard drive for RAID 1 Mirroring or RAID 0 Striping

Enhanced security features including integrated Smart Card Reader, HP ProtectTools, HP SpareKey, HP Fingerprint Sensor, TPM

1.2 Embedded Security Chip

**

Optional 2 MP Webcam with Business Card Reader Software, HP Night Light

HP QuickLook 2 for instant access to email, calendar, and contact information

Enhanced reliability with HP DuraCase, HP DuraKeys and HP DuraFinish

Up to 8 GB of 800 MHz DDR2 SDRAM supported, dual channel memory support

Up to 160 GB 7200 rpm or 250 GB 5400 rpm user-removable hard drive with HP 3D DriveGuard protection

Integrated Intel Gigabit Network Connection (10/100/1000 NIC)

Enhanced dual pointing devices (touchpad with scroll zone and pointstick)

ExpressCard/54 slot, Secure Digital (SD) slot

Designed for common image for corporate environments

* Testing was not intended to demonstrate fitness for DOD contracts requirements or for military use. Test results are not a guarantee

of future performance under these test conditions.

** TPM module disabled where not permitted by law (for example, Russia and China).

QuickSpecs

HP EliteBook 6930p Notebook PC

Overview

DA - 13061 Worldwide QuickSpecs — Version 8 — 10.10.2008

Page 4

Processors

Intel Core 2 Duo Processor T9600 (2.80 GHz, 6 MB L2 cache, 1066 MHz FSB)

*

Intel Core 2 Duo Processor T9400 (2.53 GHz, 6 MB L2 cache, 1066 MHz FSB)

*

Intel Core 2 Duo Processor P8600 (2.40 GHz, 3 MB L2 cache, 1066 MHz FSB)

*

Intel Core 2 Duo Processor P8400 (2.26 GHz, 3 MB L2 cache, 1066 MHz FSB)

*

* Intel's numbering is not a measurement of higher performance.

NOTE:

Processor speed denotes maximum performance mode; processors will run at lower speeds in

battery optimization mode.

Operating System

Preinstalled

Genuine Windows Vista Business 32

*

Genuine Windows Vista Home Basic 32

*

Genuine Windows Vista Business with downgrade to Windows XP

Professional custom installed

*

†

FreeDOS

Supported

Genuine Windows Vista Business 64

*

Genuine Windows Vista Enterprise

*

Certified

SuSE Linux Enterprise Desktop 10

* Certain Windows Vista product features require advanced or additional hardware. See:

http://www.microsoft.com/windowsvista/getready/hardwarereqs.mspx

and:

http://www.microsoft.com/windowsvista/getready/capable.mspx

for details. Windows Vista Upgrade

Advisor can help you determine which features of Windows Vista will run on your computer. To

download the tool, visit:

http://www.windowsvista.com/upgradeadvisor

.

†

Windows Vista Business disk may be included for future upgrade if desired. To qualify for this

downgrade an end user must be a business (including governmental or educational institutions) and is

expected to order annually at least 25 customer systems with the same custom image.

Chipset

Mobile Intel PM45 Express Chipset with ICHM9-Enhanced, 1066 MHz front side bus (models with

discrete graphics)

or

Mobile Intel GM45 Express Chipset with ICHM9-Enhanced, 1066 MHz front side bus (models with

integrated graphics)

Intel Centrino 2 with vPro

technology capable

Intel Centrino 2 with vPro technology is a selectable feature that is available on units configured with an

Intel WiFi Link 5300 or 5100. It provides advances in remote manageability, security, energy efficient

performance, and wireless connectivity. Intel Active Management Technology (AMT) offers built-in

manageability and proactive security for networked notebook PCs, even when they are powered off

*

or

when the operating system is inoperable. It can help identify threats before they reach the operating

system, isolate infected systems, and update PCs regardless of their power state.

NOTE:

Some functionality of Intel Centrino 2 with vPro technology, such as Intel Active Management

technology and Intel Virtualization technology, requires additional 3rd party software in order to run.

Availability of future "virtual appliances" applications for Intel Centrino 2 with vPro technology is

dependant on 3rd party software providers. Compatibility with future "virtual appliances" is yet to be

determined.

QuickSpecs

HP EliteBook 6930p Notebook PC

Standard Features

DA - 13061 Worldwide QuickSpecs — Version 8 — 10.10.2008

Page 5

Business Rugged

Meets the military standard Mil-Std-810F* for:

Drop: Method 516.5 Proc. IV (26 drops from 30")

Shock: Method 515.5 Proc. I (Functional)

Vibration: Method 514.5, Proc I, Cat. 20 & 24

High Temperature: Method 501.4, Proc I & II (140°F/60°C operational)

Low Temperature: Method 502.4, Proc I & II (-20°F/-29°C operational)

Sand and Dust: Method 510.4, Proc. I (Blowing Dust)

Humidity: Method 507.4 (95% relative humidity)

Altitude: Method 500.4 Low Pressure, Proc. I & II (15,000 feet operational)

* Testing was not intended to demonstrate fitness for DOD contracts requirements or for military use. Test

results are not a guarantee of future performance under these test conditions.

Graphics

Models with discrete graphics:

ATI Mobility Radeon HD 3450 with 128 MB or 256 MB dedicated video memory

Microsoft DirectX 10.1 (Shader 4.1) and OpenGL 2.1 capable

Models with integrated graphics:

Mobile Intel Graphics Media Accelerator 4500MHD

Microsoft DirectX 10 (Shader 4.0) and OpenGL 2.0 capable

Display

Internal

14.1-inch diagonal WXGA anti-glare (1280 x 800 resolution)

14.1-inch diagonal Illumi-Lite LED WXGA anti-glare (1280 x 800 resolution)

14.1-inch diagonal WXGA+ anti-glare (1440 x 900 resolution)

Ambient Light Sensor

Optional HP Privacy Filter

External

Up to 32-bit per pixel color depth

VGA

port supports resolutions up to 2048 x 1536 at 75 Hz, and lower

resolutions at up to 100 Hz

DVI-D

(single link) video signal available through DVI port in optional HP

Docking Station (sold separately); supports resolutions up to

1600 x 1200 at both full and reduced blanking, and 1920 x 1200 at

reduced blanking

Supports 2 external displays (optional HP Docking Station required)

NOTE:

Resolutions are dependent upon monitor capability, and resolution

and color depth settings.

Memory

Standard

800 MHz DDR2 SDRAM; two slots supporting dual channel memory

1024 MB, 2048 MB, 4096 MB, or 8192 MB

Maximum

Upgradeable to 8192 MB with 4096 MB SODIMMs in slots 1 and 2

Dual-channel

Maximized dual-channel performance requires SODIMMs of the same size

and speed in both memory slots.

NOTE:

Due to the non-industry standard nature of some third-party memory modules, we recommend HP

branded memory to ensure compatibility. If you mix memory speeds, the system will perform at the lower

memory speed. Availability of 4 GB or more of memory requires Windows Vista Business 64-bit or Linux.

With Windows 32-bit operating systems, memory above 3 GB may not all be available due to system

resource requirements.

QuickSpecs

HP EliteBook 6930p Notebook PC

Standard Features

DA - 13061 Worldwide QuickSpecs — Version 8 — 10.10.2008

Page 6

Communications

Integrated Intel Gigabit Network Connection (10/100/1000 NIC)

*

56K V.92 modem

**

* The term "10/100/1000" or "Gigabit" Ethernet indicates compliance with IEEE standard 802.3ab for

Gigabit Ethernet, and does not connote actual operating speed of 1 Gb/s. For high-speed transmission,

connection to a Gigabit Ethernet server and network infrastructure is required.

** Designed for downloads from 56K modem compliant sources. Maximum achievable download

transmission rates currently do not reach 56 KB/s, and will vary with line conditions. Modem availability

is subject to country regulatory approval.

Wireless Devices

Support for a broad range of secure, integrated wireless LAN and wireless WAN options featuring

support for the latest industry standards. Wireless LAN is factory configurable or available as an option to

be added later. Broadband Wireless (WWAN) requires Windows Vista Business or Windows XP

Professional and is available in select countries as a standard, factory configurable feature or as an

option to be added later. Integrated Bluetooth is also available (factory configurable only) and can be

combined with any of the supported wireless LAN and wireless WAN options.

HP un2400

EV-DO/HSPA Mobile

Broadband Module

Integrated WWAN module with Gobi global mobile Internet technology that

provides worldwide connection to both CDMA (EVDO) and UMTS (HSPA)

wireless networks.

NOTE:

Separately purchased mobile network operator service is required.

Two 850/900/1800/1900/2100 MHz antennas integrated in the top of

the display panel support current and future WWAN technologies.

All 802.11 integrated

wireless LAN options

Wi-Fi CERTIFIED

*

Cisco Compatible Extensions support

Wired Equivalent Privacy (WEP) support up to 128-bit keys

Wi-Fi Protected Access (WPA) and WPA2 support

802.1x authentication support, including EAP-TLS, EAP-TTLS, PEAP-GTC,

PEAP-MSCHAPv2, and LEAP

Advanced Encryption Standard (AES) support

Three antennas integrated in the display enclosure

Intel WiFi Link 5300

Integrated support for 802.11a, b, g, and n draft 2.0

*

Up to 450 mbps data rate

Intel WiFi Link 5100

Integrated support for 802.11 a, b g, and n draft 2.0

*

Up to 300 mbps data rate

Broadcom 4322AGN

802.11a/b/g/draft-n

Wi-Fi Adapter

Integrated support for 802.11a, b, g, and n draft 2.0

*

Up to 300 mbps data rate

Broadcom 4312G

802.11b/g

Wi-Fi Adapter

Integrated support for 802.11 b and g

Up to 54 mbps data rate

HP Integrated Module

with Bluetooth Wireless

Technology

Bluetooth Specification v2.0 compliant

Works with a wide range of Bluetooth devices

* The specifications for 802.11n draft 2.0 are draft specifications and are not final. If the final

specifications differ from the draft specifications, it may affect the ability of the notebook to communicate

with other 802.11n WLAN devices. In countries where n draft 2.0 is not allowed, this capability is not

enabled (Intel 802.11a/b/g only).

QuickSpecs

HP EliteBook 6930p Notebook PC

Standard Features

DA - 13061 Worldwide QuickSpecs — Version 8 — 10.10.2008

Page 7

Keyboard

The 101/102-key compatible keyboard features an industry standard, full-pitch key layout with desktop

keyboard features, such as the isolated inverted-T cursor control keys, editing keys, both left and right

control and alt keys, and 12 function keys. US and International key layouts are available. Other features

include an integrated numeric keypad, hotkeys for instant access to power conservation, brightness, and

other features, 19 x 19 mm key pitch (center-to-center spacing), 2.5 mm stroke, and comfort-dished

keycaps.

HP DuraKeys is a clear coating applied over the notebook keyboard that helps protect the finish and the

printed characters on the keys. HP DuraFinish helps protect the finish on the keyboard deck, graphics,

and icons from normal wear and tear.

HP Night Light shines directly on the keyboard for low-light conditions.

Touch-sensitive controls

Touch-sensitive controls provide easy access to the following features: HP Info Center, HP QuickLook 2,

wireless on/off, HP Presentation button, external volume up, volume down, and mute

Pointing device

Enhanced dual pointing devices:

Touchpad with scroll zone, two pick buttons

and

Pointstick, two pick buttons

Expansion card slots

ExpressCard/54 slot

Supports ExpressCard/54 and ExpressCard/34

Integrated Smart Card

Reader

Compatible with ISO 7816 compliant Smart Cards

PC/SC interface support

Secure Digital slot

Supports SD (Secure Digital), MMC (MultiMedia Card)

Storage

Internal Storage Device

120/160/250 GB 5400 rpm SMART SATA II Hard Drive

160 GB 7200 rpm SMART SATA II Hard Drive

80 GB Solid State Drive

NOTE:

Hard drives are customer removable and will withstand multiple insertion/removal cycles. Up to

10 GB is reserved for the system recovery software.

HP 3D DriveGuard

The hard drive is mounted directly to the notebook frame, reducing the

transmission of shock away from the hard drive. Uses three-axis digital motion

detection with intelligent sensitivity to help protect the hard drive during

normal use from shock and vibration. The digital accelerometer temporarily

halts all data transfer and parks the hard drive when abrupt motion is

detected.

Upgrade Bay

Fixed 12.7 mm SATA

optical drive

Blu-ray R/RE DVD+/-RW SuperMulti DL Drive

DVD+/-RW SuperMulti DL LightScribe Drive

DVD/CD-RW Combo Drive

DVD-ROM Drive

or

Second hard drive

*

250 GB 5400 rpm SMART SATA II Hard Drive

160 GB 7200 rpm SMART SATA II Hard Drive

* For RAID configurations, both hard drive capacities must be equal.

QuickSpecs

HP EliteBook 6930p Notebook PC

Standard Features

DA - 13061 Worldwide QuickSpecs — Version 8 — 10.10.2008

Page 8

Interfaces

ExpressCard/54 slot

One

Smart Card Reader

One

External monitor

One (VGA)

1394a

One

Stereo microphone in

One

Stereo headphone/line

out

One

Power connector

One

RJ-11/modem

One

RJ-45/Ethernet

One

USB 2.0

Three

Docking connector

One

Secondary battery

connector

One

LED status indicators

Fifteen

Audio/Visual

High Definition Audio support w/24-bit DAC

Integrated stereo speakers

Integrated dual-microphone array

Touch-sensitive controls for volume up, volume down, and mute

Stereo headphone/line out

Stereo microphone in

Optional 2 MP Webcam with Business Card Reader Software

Supports videoconferencing and still image capture

Large image sensor for excellent color matching and good low light sensitivity

Up to 30 frames/sec

AutoMacro focus lens

Video capture at VGA, 1.3 Mpixel, and 2 Mpixel resolutions

16-bit true color (camera sensors output YCrCb format among others)

QuickSpecs

HP EliteBook 6930p Notebook PC

Standard Features

DA - 13061 Worldwide QuickSpecs — Version 8 — 10.10.2008

Page 9

Software

Preinstalled software with

Windows Vista or

Windows XP

HP Recovery Manager (Vista only)

HP Help and Support Center

HP QuickLook 2

HP Universal Print Driver

HP ProtectTools Security Manager:

BIOS Configuration for HP ProtectTools

Credential Manager for HP ProtectTools

Device Access Manager for HP ProtectTools

Drive Encryption for HP ProtectTools

Embedded Security for HP ProtectTools

HP Quick Launch Buttons

HP Wireless Assistant

Microsoft Office Ready with 60-day Office Professional 2007 Trial Edition

(select models)

PDF Complete Special Edition

Intervideo WinDVD – DVD Player

Roxio Creator Business (for optional DVD+/-RW and DVD/CD-RW drives)

McAfee Total Protection*

Synaptics Touchpad Driver

Microsoft Windows Live Messenger (select models)

HP Webcam Software (select models)

Additional software

available from the web

HP SoftPaq Download Manager

HP Client Manager Software

HP Client Management Solutions

Java Card Security for HP ProtectTools

* 60 day trial period for McAfee Total Protection for Small Business software. Internet access required to

receive updates. First update included. Subscription required for updates thereafter.

HP Recovery Manager

(Vista only)

Each unit is shipped with HP Recovery Manager. HP Recovery Manager enables fast recovery of the

factory preinstalled image if the system becomes corrupted or if important system files are accidentally

deleted. Up to 10 GB of the hard drive is reserved for the system recovery software.

SMBIOS Version 2.4

System Management BIOS, previously known as DMI BIOS, is used to store system management

information.

QuickSpecs

HP EliteBook 6930p Notebook PC

Standard Features

DA - 13061 Worldwide QuickSpecs — Version 8 — 10.10.2008

Page 10

HP ProtectTools Security

Manager

HP ProtectTools Security Manager is the security platform for business notebooks and desktops. The HP

ProtectTools Security Manager is an extensible client security console that delivers enhanced security

capabilities through add-on software modules. Modules currently available are:

BIOS Configuration for HP ProtectTools

Credential Manager for HP ProtectTools

Device Access Manager for HP ProtectTools

Drive Encryption for HP ProtectTools

File Sanitizer for HP ProtectTools

Set-up Wizard for HP ProtectTools

Privacy Manager for HP ProtectTools (Chat & Sign)

Embedded Security for HP ProtectTools

Java Card Security for HP ProtectTools

Security

Standard Features

HP ProtectTools Security Manager

Enhanced Pre-Boot Security

HP SpareKey

One-Step Logon

HP Fingerprint Sensor

Integrated Smart Card Reader

Configuration Control Hardware

Memory Change Alert

Ownership Tag

Setup Password

Power-On Password

TPM 1.2 Embedded Security Chip*

TPM Enhanced DriveLock*

HP Disk Sanitizer

HP 3D DriveGuard

Kensington Lock Slot

Support for Computrace / LoJack for Laptops (must be purchased separately)

Optional Features

HP Privacy Filter

Narrows viewing area so that screen data is

visible only to persons directly in front of the

monitor

* TPM module disabled where use is restricted by law; for example, Russia and China.

For more information on HP security solutions refer to:

http://www.hp.com/go/security

.

Power Supply

External 90-watt Smart AC adapter, 6-foot (1.8 meter) power cord included.

Total length including external AC adapter is 12 feet (3.66 meter).

HP Fast Charge*

* HP Fast Charge recharges your battery up to 90% within 90 minutes when the system is off. HP Fast Charge does not apply to 12-

cell Ultra-Capacity batteries.

QuickSpecs

HP EliteBook 6930p Notebook PC

Standard Features

DA - 13061 Worldwide QuickSpecs — Version 8 — 10.10.2008

Page 11

Battery

Primary battery

6-cell (55 WHr) Li-Ion battery

4-cell (37 WHr) Li-Ion battery

Optional HP Extended Life

Battery

8-cell (52 WHr) high capacity Li-Ion battery

Optional HP Ultra-

Capacity Battery

12-cell (95 WHr) high capacity Li-Ion battery

Battery Life

6-cell Primary with integrated

graphics and CCFL display

6-cell Primary with integrated

graphics and Illumi-Light LED display

and Intel 80 GB Solid State Drive

Primary battery

Up to 6 hours and 15 minutes Up to 8 hours and 45 minutes

Primary battery and

optional HP Extended Life

Battery

Up to 13 hours

Up to 17 hours and 30 minutes

Primary battery and

optional HP Ultra-

Capacity Battery

Up to 17 hours and 15 minutes

Up to 24 hours

NOTE:

The listed battery life measurements were taken on models running Microsoft Windows XP

Professional. Battery life will vary depending on the product configuration, product model, applications

loaded on the product, power management settings of the product, and the product features used by the

customer. As with all batteries, the maximum capacity of this battery will decrease with time and usage.

System Standby Time

Up to 1 week

Power Conservation

Supports enhanced Intel SpeedStep technology with Intel Core 2 Duo (allows Battery Optimized Mode,

Maximum Performance Mode, or Automatic mode)

Intel Display Power Saving technology (models with integrated graphics)

ATI PowerPlay technology (models with discrete graphics)

Hibernation

Standby

ACPI compliance

Docking and Stands

HP Advanced Docking Station

HP Docking Station

HP Standard Monitor Stand

HP Adjustable Notebook Stand

HP External MultiBay II

HP's shared docking solutions provide simple and convenient port replication and cable management.

Features include Gigabit NIC pass through, modem pass through, legacy parallel and serial ports, USB

2.0 ports, integrated security mechanism

*

, integrated MultiBay II and ExpressCard

**

slots. These

docking solutions are compatible across multiple Business Notebook platforms enabling a lower total cost

of ownership.

* HP/Kensington Cable Lock required (purchased separately)

** HP Advanced Docking Station only

QuickSpecs

HP EliteBook 6930p Notebook PC

Standard Features

DA - 13061 Worldwide QuickSpecs — Version 8 — 10.10.2008

Page 12

Service and Support

HP Services offers limited 3-year, 1-year and 90-day warranty options depending on country;

1-year limited warranty on primary battery. On-site service and warranty upgrades are also available. HP

Care Pack Services extend service contracts beyond the standard warranties. To choose the right level of

service for your HP product, use the HP Care Pack Services Lookup Tool at:

http://www.hp.com/go/lookuptool

. Additional HP Care Pack Services information by product is

available at:

http://www.hp.com/hps/carepack

.

NOTE:

Certain restrictions and exclusions apply. Consult the HP Customer Support Center for details.

http://h20000.www2.hp.com/bizsupport/TechSupport/ProductRoot.jsp

.

Select Model(s)

HP's Global Product Offer includes Global Series Preconfigured (GS-P) and Configurable (GS-C)

products. GPO delivers globally consistent products, services, and solutions with End-of-Life (EOL)

transition management. These products reduce IT complexity, lower management costs, increase

productivity, and simplify product transitions.

6930p

FL488AW#xxx

Global SKU (see

exceptions below)

FL489AW#xxx

(for Latin America,

Australia, New Zealand)

NOTE:

Components may

vary based on local

regulatory requirements

Processor

Intel Core 2 Duo Processor P8600 (2.40 GHz, 3 MB L2 cache, 1066 MHz

FSB)

Intel Centrino 2 with vPro

technology

Enabled

Operating System

Genuine Windows Vista Business 32 with Office Ready

System Memory

2048 MB 800 MHz DDR2 (1 DIMM)

Hard Drive

160 GB 5400 rpm SMART SATA II

Upgrade Bay

DVD+/-RW SuperMulti DL LightScribe Drive

Display

14.1-inch diagonal WXGA anti-glare

Graphics

Mobile Intel GMA 4500MHD

Webcam

No

Audio

ADI High Definition CODEC

Stereo headphone/line out and microphone in

Integrated microphone

Communications

Integrated Intel Gigabit Network Connection (10/100/1000 NIC)

56K V.92 modem

Integrated Wireless

Intel WiFi Link 5300 (802.11 a/b/g/n draft 2.0)

Integrated Security

Drive Encryption for HP ProtectTools

HP Fingerprint Sensor

TPM 1.2

*

Pointing Device

Dual pointing devices (Touchpad and Pointstick)

Battery

6-cell (55 WHr) Li-Ion

Power

External 90W adapter

Warranty

3/3/0 or 3/3/3 depending on country

* TPM module disabled where use is restricted by law; for example, Russia and China.

QuickSpecs

HP EliteBook 6930p Notebook PC

Standard Features

DA - 13061 Worldwide QuickSpecs — Version 8 — 10.10.2008

Page 13

6930p

FL490AW#xxx

Global SKU (see

exceptions below)

FL491AW#xxx

(for Latin America,

Australia, New Zealand)

NOTE:

Components may

vary based on local

regulatory requirements

Processor

Intel Core 2 Duo Processor T9400 (2.53 GHz, 6 MB L2 cache, 1066 MHz

FSB)

Intel Centrino 2 with vPro

technology

Enabled

Operating System

Genuine Windows Vista Business 32 with Office Ready

System Memory

2048 MB 800 MHz DDR2 (1 DIMM)

Hard Drive

250 GB 5400 rpm SMART SATA II

Upgrade Bay

DVD+/-RW SuperMulti DL LightScribe Drive

Display

14.1-inch diagonal WXGA anti-glare

Graphics

Mobile Intel GMA 4500MHD

Webcam

2 MP Webcam

Audio

ADI High Definition CODEC

Stereo headphone/line out and microphone in

Integrated microphone

Communications

Integrated Intel Gigabit Network Connection (10/100/1000 NIC)

56K V.92 modem

Integrated Wireless

Intel WiFi Link 5300 (802.11 a/b/g/n draft 2.0)

Integrated Security

Drive Encryption for HP ProtectTools

HP Fingerprint Sensor

TPM 1.2

*

Pointing Device

Dual pointing devices (Touchpad and Pointstick)

Battery

6-cell (55 WHr) Li-Ion

Power

External 90W adapter

Warranty

3/3/0 or 3/3/3 depending on country

* TPM module disabled where use is restricted by law; for example, Russia and China.

6930p

FL492AW#xxx

Global SKU (see

exceptions below)

FL493AW#xxx

(for Latin America,

Australia, New Zealand)

NOTE:

Components may

vary based on local

regulatory requirements

Processor

Intel Core 2 Duo Processor P8600 (2.40 GHz, 3 MB L2 cache, 1066 MHz

FSB)

Intel Centrino 2 with vPro

technology

Enabled

Operating System

Genuine Windows Vista Business 32 with Office Ready

System Memory

2048 MB 800 MHz DDR2 (1 DIMM)

Hard Drive

160 GB 5400 rpm SMART SATA II

Upgrade Bay

DVD+/-RW SuperMulti DL LightScribe Drive

Display

14.1-inch diagonal WXGA anti-glare

Graphics

ATI Mobility Radeon HD 3450 with 128 MB

Webcam

No

Audio

ADI High Definition CODEC

Stereo headphone/line out and microphone in

Integrated microphone

Communications

Integrated Intel Gigabit Network Connection (10/100/1000 NIC)

56K V.92 modem

Integrated Wireless

Intel WiFi Link 5300 (802.11 a/b/g/n draft 2.0)

QuickSpecs

HP EliteBook 6930p Notebook PC

Standard Features

DA - 13061 Worldwide QuickSpecs — Version 8 — 10.10.2008

Page 14

Integrated Security

Drive Encryption for HP ProtectTools

HP Fingerprint Sensor

TPM 1.2

*

Pointing Device

Dual pointing devices (Touchpad and Pointstick)

Battery

6-cell (55 WHr) Li-Ion

Power

External 90W adapter

Warranty

3/3/0 or 3/3/3 depending on country

* TPM module disabled where use is restricted by law; for example, Russia and China.

6930p

FL494AW#xxx

Global SKU (see

exceptions below)

FL495AW#xxx

(for Latin America,

Australia, New Zealand)

NOTE:

Components may

vary based on local

regulatory requirements

Processor

Intel Core 2 Duo Processor T9400 (2.53 GHz, 6 MB L2 cache, 1066 MHz

FSB)

Intel Centrino 2 with vPro

technology

Enabled

Operating System

Genuine Windows Vista Business 32 with Office Ready

System Memory

2048 MB 800 MHz DDR2 (1 DIMM)

Hard Drive

160 GB 7200 rpm SMART SATA II

Upgrade Bay

DVD+/-RW SuperMulti DL LightScribe Drive

Display

14.1-inch diagonal WXGA anti-glare

Graphics

ATI Mobility Radeon HD 3450 with 256 MB

Webcam

2 MP Webcam

Audio

ADI High Definition CODEC

Stereo headphone/line out and microphone in

Integrated microphone

Communications

Integrated Intel Gigabit Network Connection (10/100/1000 NIC)

56K V.92 modem

Integrated Wireless

Intel WiFi Link 5300 (802.11 a/b/g/n draft 2.0)

Integrated Security

Drive Encryption for HP ProtectTools

HP Fingerprint Sensor

TPM 1.2

*

Pointing Device

Dual pointing devices (Touchpad and Pointstick)

Battery

6-cell (55 WHr) Li-Ion

Power

External 90W adapter

Warranty

3/3/0 or 3/3/3 depending on country

* TPM module disabled where use is restricted by law; for example, Russia and China.

QuickSpecs

HP EliteBook 6930p Notebook PC

Standard Features

DA - 13061 Worldwide QuickSpecs — Version 8 — 10.10.2008

Page 15

Memory

HP 1 GB (DDR2 800 MHz) SODIMM

KT292AA

HP 2 GB (DDR2 800 MHz) SODIMM

KT293AA

HP 4 GB (DDR2 800 MHz) SODIMM

KT294AA

Storage

HP Notebooks USB Diskette Drive

DC361B

HP Primary SATA 120 GB 5400 rpm Hard Drive

RT080AA

HP Primary SATA 120 GB 7200 rpm Hard Drive

AH920AA

HP Primary SATA 250 GB 5400 rpm Hard Drive

AK072AA

HP Upgrade Bay SATA 250 GB 5400 rpm Hard Drive

AK868AA

HP Upgrade Bay SATA DVD+/-RW SuperMulti DL LightScribe Drive

AK869AA

MultiBay II Storage

(9.5-mm)

NOTE:

Requires HP

Advanced Docking Station

or HP External MultiBay II

HP MultiBay II DVD-ROM Drive

PA849A

HP MultiBay II DVD+/-RW SuperMulti DL Drive

PA851A

Expansion Solutions

HP 2008 120W Docking Station

KP080AA#xxx

HP 2008 150W Docking Station

KQ751AA#xxx

HP 2008 150W Advanced Docking Station

KP081AA#xxx

HP 2008 180W Advanced Docking Station

KQ752AA#xxx

HP External MultiBay II

PA509A#xxx

HP Standard Monitor Stand

PA507A

HP Adjustable Notebook Stand

PA508A

Communications

Intel WiFi Link 5300

KM591AA#xxx

HP un2400 EVDO/HSUPA Mobile Broadband Module

FN556AA

Power

HP 1-Bay Battery Charging Station

RW635AA#xxx

HP 5-Bay Battery Charging Station

RW636AA#ABA

HP Battery Adapter Kit

RW637AA

HP 90W Smart AC Adapter

ED495AA#xxx

HP 90W Smart Auto Adapter

ED493AA

HP 6700b/6500b Series 6-cell Primary Battery

KU531AA

HP Extended Life Battery

AJ359AA

HP 8-cell Extended Life Battery

PB993A

HP 12-cell Ultra-Capacity Battery

EJ092AA

QuickSpecs

HP EliteBook 6930p Notebook PC

Options

DA - 13061 Worldwide QuickSpecs — Version 8 — 10.10.2008

Page 16

Carrying Cases

HP Basic Carrying Case

AJ078AA

HP Value Nylon Case

RR314AA

HP Universal Nylon Case

RR315AA

HP Executive Leather Case

RR316AA

HP Deluxe Nylon Backpack

RR317AA

HP Deluxe Roller Case

GD405AA

Security

HP ExpressCard Smart Card Reader with Java Card

AJ451AA

HP ProtectTools Java Card – 10 units

EL348AA

HP/Kensington MicroSaver Security Lock

PC766A

HP Privacy Filter

AJ357AA

Input/Output Devices

HP PS/2 Keyboard & Mouse Bundle

RC464AA#xxx

HP USB Keyboard & Mouse Bundle

RC465AA#xxx

HP USB/PS2 Optical 2-Button Scroll Mouse

DC369A

HP USB Optical Travel Mouse

RH304AA

QuickSpecs

HP EliteBook 6930p Notebook PC

Options

DA - 13061 Worldwide QuickSpecs — Version 8 — 10.10.2008

Page 17

800-MHz DDR2 SDRAM

Two DIMM slots supporting dual channel memory

DIMM sizes supported: 1024 MB, 2048 MB, and 4096 MB

Standard Memory

1024 MB (1024 MB x 1)

2048 MB (2048 MB x 1 or 1024 MB x 2)

4096 MB (4096 MB x 1 or 2048 MB x 2)

8192 MB (4096 MB x 2)

Optional Memory

Upgrades

Support for up to 8192 MB of memory with the installation of optional DDR2 SDRAM memory kits. Both

memory slots are user accessible. Please refer to the Hardware and Software Guide for installation

procedures. Maximized dual-channel performance requires SODIMMs of the same size and speed in

both memory slots.

Up to

Slot 1 Slot 2

1024 MB 1024 MB

Empty

2048 MB 1024 MB 1024 MB

3072 MB 2048 MB 1024 MB

4096 MB 2048 MB 2048 MB

8192 MB 4096 MB 4096 MB

NOTE:

This chart does not represent all possible memory configurations. Due to the non-industry standard nature of some third-party

memory modules, we strongly recommend using only HP branded memory modules to ensure compatibility. If you mix memory

speeds, the system will perform at the lower memory speed. Availability of 4 GB or more of memory requires Windows Vista Business

64-bit or Linux. With Windows 32-bit operating systems, memory above 3 GB may not all be available due to system resource

requirements.

Memory Upgrades

HP 1 GB (DDR2 800 MHz) SODIMM

KT292AA

HP 2 GB (DDR2 800 MHz) SODIMM

KT293AA

HP 4 GB (DDR2 800 MHz) SODIMM

KT294AA

QuickSpecs

HP EliteBook 6930p Notebook PC

Memory

DA - 13061 Worldwide QuickSpecs — Version 8 — 10.10.2008

Page 18

Upgrade Bay Drive Support

Quantity Supported

Drive Bay

Blu-ray R/RE DVD+/--RW

SuperMulti DL Drive

One

Upgrade Bay

DVD+/-RW SuperMulti DL

LightScribe Drive

One

Upgrade Bay

DVD/CD-RW Combo

Drive

One

Upgrade Bay

DVD-ROM Drive

One

Upgrade Bay

250 GB 5400 rpm

SMART SATA Hard Drive

One

Upgrade Bay

160 GB 7200 rpm

SMART SATA Hard Drive

One

Upgrade Bay

Internal Storage Device

Quantity Supported

Drive Bay

Hard Drives

250 GB 5400 rpm

SMART SATA II Hard Drive

One

Dedicated hard drive bay

160 GB 5400 rpm

SMART SATA II Hard Drive

One

Dedicated hard drive bay

120 GB 5400 rpm

SMART SATA II Hard Drive

One

Dedicated hard drive bay

160 GB 7200 rpm

SMART SATA II Hard Drive

One

Dedicated hard drive bay

Solid State Drive

80 GB Solid State Drive

One

Dedicated hard drive bay

QuickSpecs

HP EliteBook 6930p Notebook PC

Storage

DA - 13061 Worldwide QuickSpecs — Version 8 — 10.10.2008

Page 19

System Unit

Dimensions

(HxWxD)

1.23 in (at front) x 13.03 in x 9.57 in

31.3 mm (at front) x 331.0 mm x 243.0 mm

Weight

with Upgrade Bay weight-

saver and 4-cell battery

Starting at 4.7 lb (2.1 kg)

with Upgrade Bay optical

drive and 6-cell battery

Starting at 5.1 lb (2.3 kg)

NOTE:

Height varies depending upon where on the notebook the measurement is made. Starting weight

includes integrated graphics, hard drive, one memory DIMM, 802.11 wireless communications module.

Weight varies by configuration and components.

Stand-Alone Power

Requirements

(AC Power)

Nominal Operating

Voltage

18.5 V

Average Operating Power

18 W (integrated graphics)

19.5 W (discrete graphics)

Max Operating Power

< 90 W

Temperature*

Operating

32° to 95° F (0° to 35° C) (not writing optical)

41° to 95° F (5° to 35° C) (writing optical)

Non-operating

–4° to 140° F (–20° to 60° C)

Relative Humidity*

Operating

10% to 90%, non-condensing

Non-operating

5% to 95%, 101.6° F (38.7° C) maximum wet

bulb temperature

Shock

Operating

125 G, 2 ms, half-sine

Non-operating

200 G, 2 ms, half-sine

Random Vibration*

Operating

0.75 grms

Non-operating

1.50 grms

Altitude

*

(unpressurized)

Operating

–50 to 10,000 ft (–15.24 to 3,048 m)

Non-operating

–50 to 40,000 ft (–15.24 to 12,192 m)

* These ranges represent the recommended operating conditions. Although this notebook meets the

military standard MIL-STD 810F for vibration, dust, humidity, altitude, and high temperature, HP does not

guarantee future performance under those extreme conditions.

Industry Standard

Certifications

UL

Yes

CSA

Yes

FCC Compliance

Yes

ENERGY STAR

®

Yes

EPEAT

Gold with Illumi-Lite LED display

Silver without Illumi-Lite LED display

ICES

Yes

GS Yes

Australia / NZ A-Tick

Compliance

Yes

CCC

Yes

Japan VCCI Compliance

Yes

MIC

Yes

BSMI

Yes

CE Marking Compliance

Yes

QuickSpecs

HP EliteBook 6930p Notebook PC

Technical Specifications

DA - 13061 Worldwide QuickSpecs — Version 8 — 10.10.2008

Page 20

BNCI or BELUS

Yes

CIT

Yes

GOST

Yes

Saudi Arabian

Compliance (ICCP)

Yes

SABS

Yes

UKRSERTCOMPUTER

Yes

For accessibility information on HP products, please visit:

http://www.hp.com/accessibility

.

HP 90W Smart AC

Adapter

Dimensions

5.00 x 1.97 x 1.1 in (12.7 x 5.0 x 2.9 cm)

Weight

0.82 lb (370 g)

Input

100 to 240 VAC

Input Efficiency

83% min at 115 VAC

Input frequency range

47 to 63 Hz

Input AC current

1.5 A at 90 VAC, 0.75 A at 180 VAC PFC

Version

2.4 A at 90 VAC, 1.2 A at 180 VAC NON

PFC Version

Output

Output power 65W

90W

DC output

19.0V

Hold-up time

5 msec at 115 VAC input

Output current limit

<11A, Over voltage protection- 29V max

automatic shutdown

Connector

3 pin/grounded, mates with interchangeable cords

Environmental Design

Operating temperature

32° to 104° F (0° to 40° C)

Non-operating (storage)

temperature

–4° to 149° F (–20° to 65° C)

Altitude

0 to 10,000 ft (0 to 3,048 m)

Humidity

20% to 80%

Storage Humidity

10% to 90%

EMI and Safety

Certifications

CE Mark – full compliance with LVD and EMC directives; Worldwide safety

standards – IEC60950, EN60950, UL60950, Class1, SELV; Agency

approvals – C-UL-US, NORDICS, DENAN, EN55022 Class B, FCC Class

B, CISPR22 Class B, CCC, NOM-1 NYCE; MTBF– over 200,000 hours at

25°C ambient condition.

QuickSpecs

HP EliteBook 6930p Notebook PC

Technical Specifications

DA - 13061 Worldwide QuickSpecs — Version 8 — 10.10.2008

Page 21

Optional HP Ultra-

Capacity Battery

Dimensions

(H x W x L)

1.3 x 6.0 x 10.6 in (3.33 x 15.25 x 26.88 cm)

Weight

1.77 lb (0.803 kg)

Cells/Type

12-cell Li-Ion

Energy

Watt-hour Capacity

95 WHr

Temperature

Operating (Charging)

32° to 113° F (0° to 45° C)

Operating (Discharging)

14° to 140° F (–10° to 60° C)

Non-operating

–4° to 140° F (–20° to 60° C)

Battery Re-Charge Time

Smart Adapter

3 to 4 hours

System ON

4 to 5 hours (depending on system power

consumption)

Fuel Gauge

When pressed, LEDs light indicating level of charge remaining on battery

Optional HP Extended Life

Battery

Dimensions

(H x W x L)

1.0 x 3.9 x 8.7 in (2.5 x 10.0 x 22.0 cm)

Weight

1.00 lb (0.455 kg)

Cells/Type

8-cell Li-Ion

Energy

Watt-hour Capacity

52 WHr

Temperature

Operating (Charging)

32° to 113° F (0° to 45° C)

Operating (Discharging)

14° to 140° F (–10° to 60° C)

Non-operating

–4° to 140° F (–20° to 60° C)

Battery Re-Charge Time

System in OFF mode or

Standby

3 hours

System ON

3 to 5 hours (depending on system power

consumption)

HP Fast Charge

Technology

Charges the battery up to 90% within 90 minutes

when system is OFF

Fuel Gauge

When pressed, LEDs light indicating level of charge remaining on battery

6-Cell (55 WHr) Li-Ion

battery

Dimensions

(H x W x L)

0.8 x 2.1 x 8.0 in (2.0 x 5.3 x 20.3 cm)

Weight

0.737 lb (0.335 kg)

Cells/Type

6-cell Li-Ion

Energy

Watt-hour Capacity

55 WHr

Temperature

Operating (Charging)

32° to 113° F (0° to 45° C)

Operating (Discharging)

14° to 140° F (–10° to 60° C)

Non-operating

–4° to 140° F (–20° to 60° C)

Battery Re-Charge Time

System in OFF mode or

Standby

2.5 hours

System ON

3 to 5 hours (depending on system power

consumption)

HP Fast Charge

Technology

Charges the battery up to 90% within 90 minutes

when system is OFF

QuickSpecs

HP EliteBook 6930p Notebook PC

Technical Specifications

DA - 13061 Worldwide QuickSpecs — Version 8 — 10.10.2008

Page 22

4-Cell (37 WHr) Li-Ion

battery

Dimensions

(H x W x L)

0.8 x 2.1 x 8.0 in (2.0 x 5.3 x 20.3 cm)

Weight

0.55 lb (0.249 kg)

Cells/Type

4-cell Li-Ion

Energy

Watt-hour Capacity

37 WHr

Temperature

Operating (Charging)

32° to 113° F (0° to 45° C)

Operating (Discharging)

14° to 140° F (–10° to 60° C)

Non-operating

–4° to 140° F (–20° to 60° C)

Battery Re-Charge Time

System in OFF mode or

Standby

2.5 hours

System ON

3 to 5 hours (depending on system power

consumption)

HP Fast Charge

Technology

Charges the battery up to 90% within 90 minutes

when system is OFF

Displays

14.1-inch Illumi-Lite

WXGA anti-glare

Active Area

(W x H)

11.9 x 7.5 in (30.3 x 19.0 cm)

Diagonal Size

14.1 in (35.7 cm)

Surface Treatment

Anti-glare

Contrast Ratio

400:1 (typical)

Refresh Rate

60 Hz

Brightness

200 nit (typical)

Pixel Resolution

Pitch

0.237 mm

Format

1280 x 800

Configuration

RGB Stripe

Backlight

LED

PPI

107

Viewing Angle

±30° Horizontal, ±10° Vertical (minimum)

30/30/20/10 (Left/Right/Down/Up) (minimum) or

45/45/35/25 (Left/Right/Down/Up) (typical)

QuickSpecs

HP EliteBook 6930p Notebook PC

Technical Specifications

DA - 13061 Worldwide QuickSpecs — Version 8 — 10.10.2008

Page 23

14.1-inch WXGA anti-

glare

Active Area

(W x H)

11.9 x 7.5 in (30.3 x 19.0 cm)

Diagonal Size

14.1 in (35.7 cm)

Surface Treatment

Anti-glare

Contrast Ratio

300:1 (typical)

Refresh Rate

60 Hz

Brightness

200 nit (typical)

Pixel Resolution

Pitch

0.237 mm

Format

1280 x 800

Configuration

RGB Stripe

Backlight

CCFL

PPI

107

Viewing Angle

±30° Horizontal, ±10° Vertical (minimum)

30/30/20/10 (Left/Right/Down/Up) (minimum) or

45/45/35/25 (Left/Right/Down/Up) (typical)

14.1-inch WXGA+ anti-

glare

Active Area

(W x H)

11.9 x 7.5 in (30.3 x 19.0 cm)

Diagonal Size

14.1 in (35.7 cm)

Surface Treatment

Anti-glare

Contrast Ratio

300:1 (typical)

Refresh Rate

60 Hz

Brightness

200 nit (typical)

Pixel Resolution

Pitch

0.210 mm

Format

1440 x 900

Configuration

RGB Stripe

Backlight

CCFL

PPI

121

Viewing Angle

±30° Horizontal, ±10° Vertical (minimum)

30/30/20/10 (Left/Right/Down/Up) (minimum) or

45/45/35/25 (Left/Right/Down/Up) (typical)

Hard Drives

QuickSpecs

HP EliteBook 6930p Notebook PC

Technical Specifications

DA - 13061 Worldwide QuickSpecs — Version 8 — 10.10.2008

Page 24

160 GB 7200 rpm SATA

Hard Drive

Drive Weight

0.25 lb (115 g)

Capacity

160 GB

Height

0.37 in (9.5 mm)

Width

2.75 in (70 mm)

Interface

ATA-8, SATA 2.6, 3.0 Gb/s, NCQ

Transfer Rate

Synchronous

(maximum)

100 MB/s (Drive Capability)

Seek Time

(typical reads, including

settling)

Single Track

1.5 ms

Average

11 ms

Maximum

22 ms

Rotational Speed

7200 rpm

Logical Blocks

312,581,808

Operating Temperature

32° to 140° F (0° to 60° C) [case temp]

Features

ATA Security

250 GB 5400 rpm SATA

Hard Drive

Drive Weight

0.22 lb (101 g)

Capacity

250 GB

Height

0.37 in (9.5 mm)

Width

2.75 in (70 mm)

Interface

ATA-8, SATA 2.6, 3.0 Gb/s, NCQ

Transfer Rate

Synchronous

(maximum)

100 MB/s (Drive Capability)

Seek Time

(typical reads, including

settling)

Single Track

3 ms

Average

13 ms

Maximum

24 ms

Rotational Speed

5400 rpm

Logical Blocks

488,397,168

Operating Temperature

32° to 140° F (0° to 60° C) [case temp]

Features

ATA Security

QuickSpecs

HP EliteBook 6930p Notebook PC

Technical Specifications

DA - 13061 Worldwide QuickSpecs — Version 8 — 10.10.2008

Page 25

160 GB 5400 rpm SATA

Hard Drive

Drive Weight

0.22 lb (101 g)

Capacity

160 GB

Height

0.37 in (9.5 mm)

Width

2.75 in (70 mm)

Interface

ATA-8, SATA 2.6, 3.0 Gb/s, NCQ

Transfer Rate

Synchronous

(maximum)

100 MB/s (Drive Capability)

Seek Time

(typical reads, including

settling)

Single Track

3 ms

Average

13 ms

Maximum

24 ms

Rotational Speed

5400 rpm

Logical Blocks

312,581,808

Operating Temperature

32° to 140° F (0° to 60° C) [case temp]

Features

ATA Security

120 GB 5400 rpm SATA

Hard Drive

Drive Weight

0.22 lb (101 g)

Capacity

120 GB

Height

0.37 in (9.5 mm)

Width

2.75 in (70 mm)

Interface

ATA-8, SATA 2.6, 3.0 Gb/s, NCQ

Transfer Rate

Synchronous

(maximum)

100 MB/s (Drive Capability)

Seek Time

(typical reads, including

settling)

Single Track

3 ms

Average

13 ms

Maximum

24 ms

Rotational Speed

5400 rpm

Logical Blocks

234,441,648

Operating Temperature

32° to 140° F (0° to 60° C) [case temp]

Features

ATA Security

80 GB 2.5” SATA Solid

State Drive

Weight

0.19 lbs (86 g)

Capacity

80 GB

Height

0.37 in (9.5 mm)

Width

2.75 in (70 mm)

Interface

ATA-7 / SATA 2.6

Performance

Maximum Sequential Read

Maximum Sequential Write

250 MB/s

70 MB/s

Logical Blocks

156,301,488

Operating Temperature

32° to 158°F (0° to 70°C) [case temp]

Features

ATA Security

Removable Storage Drives

QuickSpecs

HP EliteBook 6930p Notebook PC

Technical Specifications

DA - 13061 Worldwide QuickSpecs — Version 8 — 10.10.2008

Page 26

DVD-ROM Drive

Access Times

Random

<116 ms CD (typical)

<125 ms DVD (typical)

Max Data Transfer Rate

24X CD-ROM

Up to 3,600 KB/s

8X-DVD

Up to 10,800 KB/s

Transfer Mode

UDMA Mode 5

Interface

Gen 1 SATA

Supported Media

(read)

CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CD-ROM XA, MIXED

MODE CD, CD-I, CD-I Bridge (Photo-CD, Video CD), Multisession CD (Photo-

CD, CD-EXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVD-ROM (DVD-5,

DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW, DVD+R, DVD+RW, DVD-RAM

Supported Media

(write)

None

Max Media Capacity

(read)

4.7 GB

Transport

Tray Loading

DVD/CD-RW Combo

Drive

Access Times

Random

<110 ms CD (typical)

<130 ms DVD (typical)

Max Data Transfer Rate

24X CD-ROM

Up to 3,600 KB/s

8X DVD

Up to 10,800 KB/s

24X CD-R

Up to 3,600 KB/s

24X CD-RW

Up to 3,600 KB/s

Transfer Mode

UDMA Mode 5

Interface

Gen 1 SATA

Supported Media

(read)

CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CD-ROM XA, MIXED

MODE CD, CD-I, CD-I Bridge (Photo-CD, Video CD), Multisession CD (Photo-

CD, CD-EXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVD-ROM (DVD-5,

DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW, DVD+R, DVD+RW

Supported Media

(write)

CD-R, CD-RW

Max Media Capacity

(read)

8.5 GB

Max Media Capacity

(write)

700 MB

Transport

Tray loading

QuickSpecs

HP EliteBook 6930p Notebook PC

Technical Specifications

DA - 13061 Worldwide QuickSpecs — Version 8 — 10.10.2008

Page 27

DVD+/-RW SuperMulti DL

LightScribe Drive

Access Times

Random

<175 ms CD (typical)

<230 ms DVD (typical)

Max Data Transfer Rate

24X CD-ROM

Up to 3,600 KB/s

8X DVD

Up to 10,800 KB/s

24X CD-R

Up to 3,600 KB/s

16X CD-RW

Up to 2,400 KB/s

8X DVD+R

Up to 10,800 KB/s

4X DVD+RW

Up to 5,400 KB/s

8X DVD-R

Up to 10,800 KB/s

4X DVD-RW

Up to 5,400 KB/s

2.4X DVD+R(9)

Up to 2,700 KB/s

5X DVD-RAM

Up to 6,750 KB/s

Transfer Mode

UDMA Mode 5

Interface

Gen 1 SATA

Supported Media

(read)

CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CD-ROM XA, MIXED

MODE CD, CD-I, CD-I Bridge (Photo-CD, Video CD), Multisession CD (Photo-

CD, CD-EXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVD-ROM (DVD-5,

DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW, DVD+R, DVD+RW, DVD-RAM

Supported Media

(write)

CD-R, CD-RW, DVD+R, DVD+RW, DVD-R, DVD-RW, DVD-RAM, LightScribe

Max Media Capacity

(read)

8.5 GB

Max Media Capacity

(write)

8.5 GB

Transport

Tray Loading

Blu-ray R/RE DVD+/-RW

SuperMulti DL Drive

Access Times

Random

<140 ms CD-ROM (typical)

<160 ms DVD-ROM (typical)

<300 ms BD-ROM (typical)

Max Data Transfer Rate

24X CD-ROM

Up to 3,600 KB/s

8X DVD-ROM

Up to 10,800 KB/s

8X CD-R

Up to 1,200 KB/s

8X CD-RW

Up to 1,200 KB/s

8X DVD+R

Up to 10,800 KB/s

4X DVD+RW

Up to 5,400 KB/s

8X DVD-R

Up to 10,800 KB/s

4X DVD-RW

Up to 5,400 KB/s

2.4X DVD+R(9)

Up to 2,700 KB/s

5X DVD-RAM

Up to 6,750 KB/s

1X BD-ROM

Up to 4,500 KB/s

1X BD-R

Up to 4,500 KB/s

1X BD-RE

Up to 4,500 KB/s

Transfer Mode

UDMA Mode 5

Interface

Gen 1 SATA

QuickSpecs

HP EliteBook 6930p Notebook PC

Technical Specifications

DA - 13061 Worldwide QuickSpecs — Version 8 — 10.10.2008

Page 28

Supported Media

(read)

CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CD-ROM XA, MIXED

MODE CD, CD-I, CD-I Bridge (Photo-CD, Video CD), Multisession CD (Photo-

CD, CD-EXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVD-ROM (DVD-5,

DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW, DVD+R, DVD+RW. DVD-RAM,

BD-ROM, BD-R, BD-RE

Supported Media

(write)

CD-R, CD-RW, DVD+R, DVD+R(9), DVD+RW, DVD-R, DVD-R(9), DVD-RW,

DVD-RAM, BD-R, BD-RE

Max Media Capacity

(read)

50.0 GB

Max Media Capacity

(write)

50.0 GB

Transport

Tray Loading

Security

HP Fingerprint Sensor

Mobile Voltage Operation

3.0V–3.6V Single Supply

Operating Temperature

32° – 158°F (0° – 70°C)

Current Consumption @

3.3V

Less than 70 mA peak imaging and scrolling

Less than 25 mA hardware finger detection

Advanced Power Management

High-Rate Image Capture

Up to 240 image frames /sec

ESD Resistance

IEC 61000-4-2 Level 4 (±15KV)

Detection Matrix

192 x 16 Pixels

9.7 mm x 0.81 mm

500 ppi High-Resolution Images

Audio

Hardware

Implementation

ADI1981HD High Definition CODEC

Touch-Sensitive Volume

Controls

Volume up, volume down, and mute

Full Duplex

Yes

Microphone In

Stereo

Headphone/Line Out

Stereo

Integrated Microphone

Yes, dual-microphone array

QuickSpecs

HP EliteBook 6930p Notebook PC

Technical Specifications

DA - 13061 Worldwide QuickSpecs — Version 8 — 10.10.2008

Page 29

Audio Output Quality

Frequency Response

20 Hz – 20 kHz

Signal to Noise Ratio

>85 dB

Total Harmonic Distortion

0.01%

Noise Floor

-110 dB

Play/Record Sampling

Rate

(s)

8 kHz – 48kHz

DAC

16, 20 or 24-bit

ADC

16 or 20-bit

Communications

Integrated Intel Gigabit

Network Connection

(10/100/1000 NIC)

82567LM

Ethernet Features

10 Mbit/s operation (10BASE-T; IEEE 802.3i; IEEE 802.3 clauses 13-14)

100 Mbit/s operation (100BASE-TX; IEEE 802.3u; IEEE 802.3 clauses 21-

30)

1000 Mbit/s operation (1000BASE-T; IEEE 802.3z and 802.3ab; IEEE

802.3 clauses 34-42)

Auto-Negotiation (Automatic Speed Selection)

Full Duplex Operation at all Speeds, Half Duplex operation at 10 and 100

Mbit/s

IEEE 802.1p QoS (Quality of Service) Support

IEEE 802.3x Flow Control (IEEE 802.3 clauses 31-32; configurable)

Power Management

ACPI compliant -- multiple power modes

Situation-sensitive features reduce power consumption

Performance Features

TCP/IP/UDP Checksum Offload (configurable)

Manageability

Wake-on-LAN from standby and hibernation (Magic Packet and Microsoft

Wake-Up Frame); Wake-on-LAN from off (Magic Packet only)

PXE 2.1 Remote Boot

Statistics Gathering (SNMP MIB II, Ethernet-like MIB, Ethernet MIB (802.3x,

clause 30))

Comprehensive diagnostic and configuration software suite

Intel Advanced Management Technology (iAMT)

Interface

PCI Express x1

NIC Device Driver Name

Intel 82567 Gigabit Network Connection

QuickSpecs

HP EliteBook 6930p Notebook PC

Technical Specifications

DA - 13061 Worldwide QuickSpecs — Version 8 — 10.10.2008

Page 30

V.92 56K Data/Fax

Modem

Form Factor

MDC 1.5 Daughtercard

Power Management

Support

APM Revision 1.2, ACPI

Approvals/

Certifications

UL, CSA, NEMKO, CCIB, Industry Canada, FCC Part 68, CTR21, FCC Part

15 Class B, Canadian ICES-003 Class B, C.I.S.P.R.22, Australian ACA, CE

Mark, Other Countries

Data Mode Capabilities

V.92 data

V.8bis

V.80

V44, V.42bis, MNP5 (Compression)

V.42 (LAPM, MNP2-4) (Error Correction)

Optional symbol rates:

2800, 3429

Asymmetric Symbol rates

Synchronous primary channel data signaling rates:

3600, 31200

Automatic rate re-negotiation

V.34

V.32bis

V.32

V.23

V.22bis

V.22

V.21

Bell 212A

Bell 103J

Fax Mode Capabilities

TIA/EIA-578-B (Class 1)

T.30, T.4 (Group 3)

V.17

V.29

V.27ter

V.21 Channel 2

Command Set

V.250 (Partial)

TIA-602

Identification: +GMI, +GMM, +GMR

Port control: +IPR, +ICF, +IFC, +ILRR

Modulation: +MS, +MR, +MA

Error control: +ES, +ER, +EB, +ESR, +ETBM

Data compression: +DS, +DR

V.251

QuickSpecs

HP EliteBook 6930p Notebook PC

Technical Specifications

DA - 13061 Worldwide QuickSpecs — Version 8 — 10.10.2008

Page 31

HP un2400

EV-DO/HSPA Mobile

Broadband Module

Technology/Operating

Bands

GSM/GPRS/EDGE: 850MHz(Cell), 900MHz(EGSM), 1800MHz(DCS),

1900MHz (PCS)

UMTS/WCDMA with receive diversity: 2100MHz (UTRA FDD Band I),

1900MHz (UTRA FDD Band II), 850MHz (UTRA FDD Band V)

1xEVDO/1xRTT with receive diversity: 850MHz (Band Class0-Cell),

1900MHz (Band Class1-PCS)

Wireless Protocol

Standards

GSM/GPRS/EDGE: Class B, Multi-slot operation, coding schemes CS1 –

CS4 and MSC1 – MSC9.

UMTS/WCDMA: Release 99 and Release 5

CDMA: 1xEVDO Release 0 and Release A, IS-95A, IS-95B, IS-2000

Wireless Parametric

Standards

Meets or exceeds TIA/EIA IS-98-D

Maximum Data Rates

UMTS (HSPA) – 7.2 Mbps (Download ), 2.0Mbps (Upload)

CDMA (EVDO Release A) – 3.1 Mbps (Download), 1.8Mbps (Upload)

Maximum Output Power

GSM/GPRS/EDGE: 32dBm (+/-1)

WCDMA: 24dBm (+/-1)

CDMA: 24dBm (+/-1)

Maximum Power

Consumption

2500mA (peak); 1000mA (average)

Power Consumption,

Sleep Mode

5 mA

Power Management

USB selective suspend

Integrated notebook wireless button

Antenna Type

Dual high efficiency 5 band antennae with spatial diversity, mounted in the

display enclosure

Form Factor

PCI-Express MiniCard

Weight

11.5 g

Dimensions

(Length x

Width x Thickness)

2.01 x 1.18 x 0.18 in (51 x 30 x 4.5 mm)

Voltage, Operating

3.3v +/- 10%

Temperature, Operating

(from TIA/EIA/IS-98-D)

–22° to 140° F (–30° to 60° C) (full RF performance)

–22° to 167° F (–30° to 75° C) (reduced RF performance)

Temperature, Non-

operating, 96 hours

(from

MIL-STD 202 Method

108)

–40° to 185° F (–40° to 85° C)

Humidity, Non-operating

85% relative humidity for 48 hours @ 185° F (85° C) (non-condensing)

Configuration Utilities

HP Connection Manager

LED Activity

LED Off – Radio Off;

Solid LED On – Radio On

Intel WiFi Link 5300

Wireless LAN Standards

IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

IEEE 802.11n draft 2.0*

QuickSpecs

HP EliteBook 6930p Notebook PC

Technical Specifications

DA - 13061 Worldwide QuickSpecs — Version 8 — 10.10.2008

Page 32

* The specifications for 802.11n draft 2.0 are draft specifications and are

not final. If the final specifications differ from the draft specifications, it may

affect the ability of the notebook to communicate with other 802.11n WLAN

devices. In countries where n draft 2.0 is not allowed, this capability is not

enabled.

Interoperability

Wi-Fi certified (802.11abg only)

Cisco Compatible Extensions Program compliant (802.11abg only) with

Microsoft Windows Vista and XP (details at:

http://www.hp.com/go/notebooks/WLAN

)

Tested with wireless access points from several major manufacturers

(details at:

http://www.hp.com/go/notebooks/WLAN/draft-n

)

Frequency Band

2.4 GHz and 5 GHz

Antenna Structure

3 transmit; 3 receive (3x3)

Data Rates

802.11b: 1, 2, 5.5, 11 Mbps

802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n (draft): 66 possible data rates, ranging from 6 Mbps to 450

Mbps, depending on the combination of Bandwidth, Modulation Coding

Scheme, and Guard Interval used, as defined in IEEE 802.11n (draft)

specification

Modulation

Direct Sequence Spread Spectrum

DBPSK, DQPSK, CCK, OFDM, BPSK, QPSK, 16-QAM, 64-QAM

Security

1

Supports 64- and 128-bit WEP, WPA, WPA2, hardware-accelerated AES

(support for key sizes of 128, 192, and 256 bits), 802.1x authentication

types EAP-TLS, EAP-TTLS, PEAP-GTC, PEAP-MSCHAPv2, LEAP, EAP-FAST.

Support for Cisco Security Features (proven compatibility with Cisco Aironet

infrastructure products through the Cisco Compatible Extensions Program

Version 4) with Microsoft Windows Vista and XP only.

Sub-channels

Multinational support with frequency bands and channels compliant to local

regulations.

Media Access Protocol

CSMA/CA (Collision Avoidance) with ACK

Network Architecture

Models

Ad-hoc (Peer to Peer)

Infrastructure (Access Point Required)

Roaming

IEEE 802.11 compliant roaming between access points

Output Power

(for CCK)

2

15 dBm

Output Power

(for OFDM;

power varies by data

rate)

2

15 dBm

Power Consumption

Transmit: 2.3 Watts (average, with three spatial streams)

Receive: 1.9 Watts (average with three receive chains)

Idle mode

3

: 30 mW (average)

Radio off: 20 mW (max)

Power Management

ACPI compliant power management

802.11 compliant power saving mode

Receiver Sensitivity

4

300 Mbps: -68 dBm, 54 Mbps: -74 dBm, 6 Mbps: -90 dBm

Antenna Connections

3 U.FL type connectors, 50 ohm nominal impedance

Range

802.11 a – Typical

(@6 Mbps)

600 feet – Outdoor Open Area

150 feet – Indoor, Office environment

QuickSpecs

HP EliteBook 6930p Notebook PC

Technical Specifications

DA - 13061 Worldwide QuickSpecs — Version 8 — 10.10.2008

Page 33

802.11 b – Typical

(@1 Mbps)

1200 feet – Outdoor Open Area

300 feet – Indoor, Office environment

802.11 g – Typical

(@1 Mbps)

1200 feet – Outdoor Open Area

300 feet – Indoor, Office environment

Form Factor

PCI-Express MiniCard

Weight

0.013 lb (6 g)

Dimensions

0.19 x 1.2 x 2.0 in (4.75 x 29.85 x 50.8 mm)

Operating Voltage

3.3V +/- 9%, 1.5V +/- 5%

Temperature

Operating

Non-operating

32° to 176° F (0° to 80° C)

–40° to 176° F (–40° to 80° C)

Humidity

Operating

Non-operating

10% to 90% (non-condensing)

5% to 90% (non-condensing)

Altitude

Operating

Non-operating

0 to 10,000 ft (3,048 m)

0 to 50,000 ft (15,240 m)

Configuration Utility

5

Microsoft Windows XP

Choice of Configuration Utility:

Microsoft Windows XP Wireless Network Connection Manager

Intel PROSet for Microsoft Windows XP (required for Cisco Compatible

Extensions support)

Microsoft Windows Vista

Microsoft Windows Vista Wireless Network Connection Manager.

Intel IHV extensions for Windows Vista available to support Cisco

Compatible Extensions.

LED Activity

LED Off – Radio OFF; Solid LED On – Radio ON

Check latest software/driver release for updates on supported security features.

1.

Maximum output power may vary by country according to local regulations.

2.

In Power Save Polling mode and on battery power.

3.

Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CCK modulation) and a

packet error rate of 10% for 802.11a/g (OFDM modulation).

4.

WLAN supplier's client utility is required for Cisco Compatible Extensions support with Microsoft

Windows XP. WLAN may also be compatible with certain third-party software supplicants. WLAN

supplier IHV extensions required for Cisco Compatible Extensions support for Microsoft Windows

Vista.

5.

Intel WiFi Link 5100

Wireless LAN Standards

IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

IEEE 802.11n draft 2.0*

* The specifications for 802.11n draft 2.0 are draft specifications and are

not final. If the final specifications differ from the draft specifications, it may

affect the ability of the notebook to communicate with other 802.11n WLAN

devices. In countries where n draft 2.0 is not allowed, this capability is not

enabled.

Interoperability

Wi-Fi certified (802.11abg only)

Cisco Compatible Extensions Program compliant (802.11abg only) with

Microsoft Windows Vista and XP (details at:

QuickSpecs

HP EliteBook 6930p Notebook PC

Technical Specifications

DA - 13061 Worldwide QuickSpecs — Version 8 — 10.10.2008

Page 34

http://www.hp.com/go/notebooks/WLAN

)

Tested with wireless access points from several major manufacturers

(details at:

http://www.hp.com/go/notebooks/WLAN/draft-n

)

Frequency Band

2.4 GHz and 5 GHz

Antenna Structure

1 transmit; 2 receive (1x2)

Data Rates

802.11b: 1, 2, 5.5, 11 Mbps

802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n (draft): 66 possible data rates, ranging from 6 Mbps to 300

Mbps, depending on the combination of Bandwidth, Modulation Coding

Scheme, and Guard Interval used, as defined in IEEE 802.11n (draft)

specification

Modulation

Direct Sequence Spread Spectrum

DBPSK, DQPSK, CCK, OFDM, BPSK, QPSK, 16-QAM, 64-QAM

Security

1

Supports 64- and 128-bit WEP, WPA, WPA2, hardware-accelerated AES

(support for key sizes of 128, 192, and 256 bits), 802.1x authentication

types EAP-TLS, EAP-TTLS, PEAP-GTC, PEAP-MSCHAPv2, LEAP, EAP-FAST.

Support for Cisco Security Features (proven compatibility with Cisco Aironet

infrastructure products through the Cisco Compatible Extensions Program

Version 4) with Microsoft Windows Vista and XP only.

Sub-channels

Multinational support with frequency bands and channels compliant to local

regulations.

Media Access Protocol

CSMA/CA (Collision Avoidance) with ACK

Network Architecture

Models

Ad-hoc (Peer to Peer)

Infrastructure (Access Point Required)

Roaming

IEEE 802.11 compliant roaming between access points

Output Power

(for CCK)

2

15 dBm

Output Power

(for OFDM;

power varies by data

rate)

2

15 dBm

Power Consumption

Transmit: 2.3 Watts (average, with one spatial streams)

Receive: 1.9 Watts (average with two receive chains)

Idle mode

3

: 30 mW (average)

Radio off: 20 mW (max)

Power Management

ACPI compliant power management

802.11 compliant power saving mode

Receiver Sensitivity

4

300 Mbps: -68 dBm, 54 Mbps: -74 dBm, 6 Mbps: -90 dBm

Antenna Connections

3 U.FL type connectors, 50 ohm nominal impedance

Range

802.11 a – Typical

(@6 Mbps)

600 feet – Outdoor Open Area

150 feet – Indoor, Office environment

802.11 b – Typical

(@1 Mbps)

1200 feet – Outdoor Open Area

300 feet – Indoor, Office environment

802.11 g – Typical

(@1 Mbps)

1200 feet – Outdoor Open Area

300 feet – Indoor, Office environment

Form Factor

PCI-Express MiniCard

Weight

0.013 lb (6 g)

Dimensions

0.19 x 1.2 x 2.0 in (4.75 x 29.85 x 50.8 mm)

QuickSpecs

HP EliteBook 6930p Notebook PC

Technical Specifications

DA - 13061 Worldwide QuickSpecs — Version 8 — 10.10.2008

Page 35

Operating Voltage

3.3V +/- 9%, 1.5V +/- 5%

Temperature

Operating

Non-operating

32° to 176° F (0° to 80° C)

–40° to 176° F (–40° to 80° C)

Humidity

Operating

Non-operating

10% to 90% (non-condensing)

5% to 90% (non-condensing)

Altitude

Operating

Non-operating

0 to 10,000 ft (3,048 m)

0 to 50,000 ft (15,240 m)

Configuration Utility

5

Microsoft Windows XP

Choice of Configuration Utility:

Microsoft Windows XP Wireless Network Connection Manager

Intel PROSet for Microsoft Windows XP (required for Cisco Compatible

Extensions support)

Microsoft Windows Vista

Microsoft Windows Vista Wireless Network Connection Manager.

Intel IHV extensions for Windows Vista available to support Cisco

Compatible Extensions.

LED Activity

LED Off – Radio OFF; Solid LED On – Radio ON

Check latest software/driver release for updates on supported security features.

1.

Maximum output power may vary by country according to local regulations.

2.

In Power Save Polling mode and on battery power.

3.

Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CCK modulation) and a

packet error rate of 10% for 802.11a/g (OFDM modulation).

4.

WLAN supplier's client utility is required for Cisco Compatible Extensions support with Microsoft

Windows XP. WLAN may also be compatible with certain third-party software supplicants. WLAN

supplier IHV extensions required for Cisco Compatible Extensions support for Microsoft Windows

Vista.

5.

Broadcom 4312G

802.11b/g WiFi

Adapter

Wireless LAN Standards

IEEE 802.11b

IEEE 802.11g

Interoperability

Wi-Fi certified (802.11abg only)

Cisco Compatible Extensions Program compliant (802.11abg only) with

Microsoft Windows Vista and XP (details at:

http://www.hp.com/go/notebooks/WLAN

)

Tested with wireless access points from several major manufacturers

(details at:

http://www.hp.com/go/notebooks/WLAN/draft-n

)

Frequency Band

2.4 GHz

Data Rates

802.11b: 1, 2, 5.5, 11 Mbps

802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Modulation

Direct Sequence Spread Spectrum

DBPSK, DQPSK, CCK, OFDM

Security

1

Supports 64- and 128-bit WEP, WPA, WPA2, hardware-accelerated AES,

802.1x authentication types EAP-TLS, EAP-TTLS, PEAP-GTC, PEAP-

MSCHAPv2, LEAP, EAP-FAST.

Support for Cisco Security Features (proven compatibility with Cisco Aironet

infrastructure products through the Cisco Compatible Extensions Program

QuickSpecs

HP EliteBook 6930p Notebook PC

Technical Specifications

DA - 13061 Worldwide QuickSpecs — Version 8 — 10.10.2008

Page 36

Version 4) with Microsoft Windows Vista and XP only.

Sub-channels

Multinational support with frequency bands and channels compliant to local

regulations.

Media Access Protocol

CSMA/CA (Collision Avoidance) with ACK

Network Architecture

Models

Ad-hoc (Peer to Peer)

Infrastructure (Access Point Required)

Roaming

IEEE 802.11 compliant roaming between access points

Output Power

(for CCK)

2

17 dBm

Output Power

(for OFDM;

power varies by data

rate)

2

15 dBm

Power Consumption

Idle associated: 250 mW

Idle unassociated: 150 mW

Transmit: 2.0 W (max)

Receive: 2.0 W (max)

Power Management

ACPI compliant power management

802.11 compliant power saving mode

Receiver Sensitivity

3

54 Mbps: -71 dBm, 11 Mbps: -85 dBm , 1 Mbps: -95 dBm

Antenna type

High efficiency dual band antenna with spatial diversity, mounted in the

display enclosure

Range

802.11 b – Typical

(@1 Mbps)

1200 feet – Outdoor Open Area

300 feet – Indoor, Office environment

802.11 g – Typical

(@1 Mbps)

1200 feet – Outdoor Open Area

300 feet – Indoor, Office environment

Form Factor

PCI-Express MiniCard

Weight

0.026 lb (12 g)

Dimensions

0.19 x 1.2 x 2.0 in (4.75 x 29.85 x 50.8 mm)

Operating Voltage

3.3v +/- 10%

Temperature

Operating

Non-operating

14° to 149° F (–10° to 65° C)

–40° to 176° F (–40° to 80° C)

Humidity

Operating

Non-operating

10% to 90% (non-condensing)

5% to 95% (non-condensing)

Altitude

Operating

Non-operating

0 to 10,000 ft (3,048 m)

0 to 50,000 ft (15,240 m)

Configuration Utility

4

Microsoft Windows XP

Choice of Configuration Utility:

Microsoft Windows XP Wireless Network Connection Manager

Broadcom Wireless Configuration Utility (required for Cisco

Compatible Extensions support)

Microsoft Windows Vista

Microsoft Windows Vista Wireless Network Connection Manager

Broadcom IHV extensions for Windows Vista available to support

Cisco Compatible Extensions.

LED Activity

LED Off – Radio OFF; Solid LED On – Radio ON

1.

2.

3.

QuickSpecs

HP EliteBook 6930p Notebook PC

Technical Specifications

DA - 13061 Worldwide QuickSpecs — Version 8 — 10.10.2008

Page 37

Check latest software/driver release for updates on supported security features.

1.

Maximum output power may vary by country according to local regulations.

2.

Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CCK modulation) and a

packet error rate of 10% for 802.11a/g (OFDM modulation).

3.

WLAN supplier's client utility is required for Cisco Compatible Extensions support with Microsoft

Windows XP. WLAN may also be compatible with certain third-party software supplicants. WLAN

supplier IHV extensions required for Cisco Compatible Extensions support for Microsoft Windows

Vista.

4.

Broadcom 4322AGN

802.11a/b/g/draft-n

WiFi Adapter

Wireless LAN Standards

IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

IEEE 802.11n (draft 2.0)

Interoperability

Wi-Fi certified (802.11abg only)

Cisco Compatible Extensions Program compliant (802.11abg only) with

Microsoft Windows Vista and XP (details at:

http://www.hp.com/go/notebooks/WLAN

)

Tested with wireless access points from several major manufacturers

(details at:

http://www.hp.com/go/notebooks/WLAN/draft-n

)

Frequency Band

2.4 GHz and 5 GHz

Data Rates

802.11b: 1, 2, 5.5, 11 Mbps

802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n (draft): 6, 6.5, 9, 12, 13, 13.5, 18, 19.5, 24, 26, 27, 36, 39,

40.5, 48, 52, 54, 58.5, 65, 78, 81, 104, 108, 117, 121.5, 130,

135, 162, 216, 243, 270, 300 Mbps

Frequency Support

20 MHz: 2.4 GHz and 5 GHz bands

40 MHz: 2.4 GHz and 5 GHz band

Modulation

Direct Sequence Spread Spectrum

DBPSK, DQPSK, CCK, OFDM, BPSK, QPSK, 16-QAM, 64-QAM

Security

1

Supports 64- and 128-bit WEP, WPA, WPA2, hardware-accelerated AES,

802.1x authentication types EAP-TLS, EAP-TTLS, PEAP-GTC, PEAP-

MSCHAPv2, LEAP, EAP-FAST.

Support for Cisco Security Features (proven compatibility with Cisco Aironet

infrastructure products through the Cisco Compatible Extensions Program

Version 4) with Microsoft Windows Vista and XP only.

Sub-channels

Multinational support with frequency bands and channels compliant to local

regulations.

Media Access Protocol

CSMA/CA (Collision Avoidance) with ACK

Network Architecture

Models

Ad-hoc (Peer to Peer)

Infrastructure (Access Point Required)

Roaming

IEEE 802.11 compliant roaming between access points

Output Power

(for CCK)

2

17 dBm

Output Power

(for OFDM;

power varies by data

rate)

2

15 dBm

QuickSpecs

HP EliteBook 6930p Notebook PC

Technical Specifications

DA - 13061 Worldwide QuickSpecs — Version 8 — 10.10.2008

Page 38

Power Consumption

Idle associated: 250 mW

Idle unassociated: 150 mW

Transmit/Receive 20 MHz channel: 2.0 W (max)

Transmit/Receive 40 MHz channel: 2.0 W (max)

Power Management

ACPI compliant power management

802.11 compliant power saving mode

Receiver Sensitivity

3

270 Mbps: -66dBm, 162 Mbps: -72 dBm, 54 Mbps: -72 dBm, 11 Mbps: -

85 dBm , 1 Mbps: -94 dBm

Antenna type

High efficiency dual band antenna with spatial diversity, mounted in the

display enclosure

Range

802.11 a – Typical

(@6 Mbps)

600 feet – Outdoor Open Area

150 feet – Indoor, Office environment

802.11 b – Typical

(@1 Mbps)

1200 feet – Outdoor Open Area

300 feet – Indoor, Office environment

802.11 g – Typical

(@1 Mbps)

1200 feet – Outdoor Open Area

300 feet – Indoor, Office environment

Form Factor

PCI-Express MiniCard

Weight

0.026 lb (12 g)

Dimensions

0.19 x 1.2 x 2.0 in (4.75 x 29.85 x 50.8 mm)

Operating Voltage

3.3v +/- 10%

Temperature

Operating

Non-operating

14° to 149° F (–10° to 65° C)

–40° to 176° F (–40° to 80° C)

Humidity

Operating

Non-operating

10% to 90% (non-condensing)

5% to 95% (non-condensing)

Altitude

Operating

Non-operating

0 to 10,000 ft (3,048 m)

0 to 50,000 ft (15,240 m)

Configuration Utility

4

Microsoft Windows XP

Choice of Configuration Utility:

Microsoft Windows XP Wireless Network Connection Manager

Broadcom Wireless Configuration Utility (required for Cisco

Compatible Extensions support)

Microsoft Windows Vista

Microsoft Windows Vista Wireless Network Connection Manager

Broadcom IHV extensions for Windows Vista available to support

Cisco Compatible Extensions.

LED Activity

LED Off – Radio OFF; Solid LED On – Radio ON

Check latest software/driver release for updates on supported security features.

1.

Maximum output power may vary by country according to local regulations.

2.

Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CCK modulation) and a

packet error rate of 10% for 802.11a/g (OFDM modulation).

3.

WLAN supplier's client utility is required for Cisco Compatible Extensions support with Microsoft

Windows XP. WLAN may also be compatible with certain third-party software supplicants. WLAN

supplier IHV extensions required for Cisco Compatible Extensions support for Microsoft Windows

Vista.

4.

QuickSpecs

HP EliteBook 6930p Notebook PC

Technical Specifications

DA - 13061 Worldwide QuickSpecs — Version 8 — 10.10.2008

Page 39

HP Integrated Module

with Bluetooth Wireless

Technology

Bluetooth Specification

2.0 Compliant

Dimensions

1.02 x 0.55 x 0.22 in (26 x 14 x 5.7 mm)

Frequency Band

2402 to 2480 MHz

Number of Available

Channels

79 (1 MHz) available channels

Data Rates and

Throughput

3 Mbps data rate; throughput up to 2.17 Mbps

Synchronous Connection Oriented links up to 3, 64 kbps, voice channels

Asynchronous Connection Less links 2178.1 kbps/177.1 kbps asymmetric

or 1306.9 kbps symmetric

Transmit Power

-6 dBm to 4 dBm (Bluetooth Class II)

Receiver Sensitivity

Better than -80 dBM at 0.1 % raw bit error rate

Power Consumption

Peak (Tx) 264 mW

Peak (Rx) 231 mW

Sleep <1 mW

Antenna

Internally integrated within module

Range

Up 33 ft (10 m)

Electrical Interface

USB 2.0 compliant

Microsoft Windows Plug and Play compliant

OS Support

Microsoft Windows XP Professional and Home

Microsoft Windows 2000

Bluetooth Software

Supported

Broadcom Bluetooth for Windows

Microsoft Windows XP Bluetooth Software

Link Topology

Point to Point, Multipoint Pico Nets up to 7 slaves

Security

Full support of Bluetooth Security Provisions

Power Management

Microsoft Windows ACPI, and USB Bus Support

Self configurable to optimize power conservation in all operating modes,

including Standby, Hold, Park, and Sniff

Certifications

All necessary regulatory approvals for supported countries, including:

FCC (47 CFR) Part 15C, Section 15.247 & 15.249

ETS 300 328, ETS 300 826

Low Voltage Directive IEC950

UL, CSA, and CE Mark

Temperature

Operating

–4° to 158° F (–20° to 70° C)

Non-operating

–40° to 176° F (–40° to 80° C)

Humidity

Operating

10% to 90%

Non-operating

5% to 95%

Altitude

Operating

15,000 ft (4,572 m)

Non-operating

40,000 ft (12,192 m)

Bluetooth Profiles

Supported

(with Bluetooth for Windows 4.0 software)

Serial Port Profile (SPP)*

Dial-Up Networking (DUN)*

Generic Object Exchange Profile (GOEP)

Object Push Profile (OPP)*

QuickSpecs

HP EliteBook 6930p Notebook PC

Technical Specifications

DA - 13061 Worldwide QuickSpecs — Version 8 — 10.10.2008

Page 40

File Transfer Profile (FTP)

Synchronization Profile (SYNC)

Hard Copy Cable Replacement (HCRP)*

Personal Area Networking Profile (PAN)*

Human Interface Device Profile (HID)*

FAX Profile (FAX)

Basic Imaging Profile (BIP)

Headset Profile (HSP)

Hands Free Profile (HFP)

Advanced Audio Distribution Profile (A2DP)

* indicates the profile is also supported by Microsoft Windows XP SP2

Eco Data

Eco-Label Certifications

This product has received or is in the process of being certified to the

following approvals and may be labeled with one or more of these marks:

US Energy Star

Taiwan Green Mark

China Energy Conservation Program

IT ECO declaration

EPEAT – Gold with Illumi-Lite LED display

Silver without Illumi-Lite LED display

Korea ECO label

System Configuration

The configuration used for the Energy Consumption and Declared Noise

Emissions data for the Convertible Mini tower Desktop model is based on a

"Typically Configured Notebook"

Energy Consumption

115 VAC 230 VAC 100 VAC

Normal Operation

10.614 W 11.826 W 10.792 W

Sleep (Energy Star low

power mode)

1.8621 W 1.9193 W 1.8764 W

Off

0.8042 W 0.8435 W 0.8106 W

Heat Dissipation*

115 VAC 230 VAC 100 VAC

Normal Operation

36 BTU/hr 40 BTU/hr 36 BTU/hr

Sleep

6 BTU/hr 6 BTU/hr 6 BTU/hr

Off

3 BTU/hr 3 BTU/hr 3 BTU/hr

* Heat dissipation is calculated based on the measured watts, assuming the

service level is attained for one hour.

This product is in compliance with US executive order 13221, WOL (wake

on LAN) disabled.

QuickSpecs

HP EliteBook 6930p Notebook PC

Technical Specifications

DA - 13061 Worldwide QuickSpecs — Version 8 — 10.10.2008

Page 41

Declared Noise Emissions

(in accordance with ISO

7779 and ISO 9296)

Sound Power

(LWAd, bels)

Sound Pressure

(LpAm, decibels)

System Fan Off

Idle

2.8 31.3

Fixed Disk

(random writes)

3.7 30.5

NOTE:

System fan is usually off except when charging the battery

Batteries

This product complies with ISO standards:

EU Directive 91/ 157/ EEC

EU Directive 93/ 86/ EEC

EU Directive 98/ 101/ EEC

Batteries used in the product do not contain:

Mercury greater the 5ppm by weight

Cadmium greater than 10ppm by weight

Lead greater than 4000 ppm by weight.

The battery type and chemistry used in the product is:

Battery type – CR2032 (coin cell)

Battery Chemistry – Lithium, Li Ion

Additional

information:

This product is in compliance with the Restrictions of Hazardous Substances

(RoHS) directive – 2002/95/EC.

This HP product is designed to comply with the Waste Electrical and

Electronic Equipment (WEEE) Directive – 2002/96/EC.

This product is in compliance with California Proposition 65 (State of

California; Safe Drinking Water and Toxic Enforcement Act of 1986).

This product is in compliance with the IEEE 1680 (EPEAT) standard at the

Gold level with Illumi-Lite LED display and Silver level without Illumi-Lite LED

display, see

www.epeat.net

Keyboard complies with ISO standard: ISO 9995, EN 29241-4, and

ISO/IEC 15412

Input devices of this product comply with ISO 9241, part 9.

Plastics parts weighing over 25 grams used in the product are marked per

ISO 11469 and ISO1043.

This product contains 0% recycled materials (by wt.)

This product is greater than 95.4% recycle-able when properly disposed of

at end of life.

Packaging Materials

QuickSpecs

HP EliteBook 6930p Notebook PC

Technical Specifications

DA - 13061 Worldwide QuickSpecs — Version 8 — 10.10.2008

Page 42

External:

Corrugated Carton – 0.81 lb (182 g)

Internal:

EPE-Expanded Polyethylene – 0.15 lb (33 g)

Corrugated Carton – 0.03 lb (488 g)

The EPE foam packaging material is made from 100% recycled

content.

The corrugated paper packaging materials contains at least 80%

recycled content.

HP follows these guidelines to decrease the environmental impact of product

packaging:

Eliminate the use of heavy metals such as lead, chromium, mercury

and cadmium in packaging materials.

Eliminate the use of ozone-depleting substances (ODS) in packaging

materials.

Design packaging materials for ease of disassembly.

Maximize the use of post-consumer recycled content materials in

packaging materials.

Use readily recyclable packaging materials such as paper and

corrugated materials.

Reduce size and weight of packages to improve transportation fuel

efficiency.

Plastic packaging materials are marked according to ISO 11469 and

DIN 6120 standards.

Material Usage

This product does not contain any of the following substances in excess of

regulatory limits (for reference of these limits please refer to the HP General

Specification of the Environment

(

http://www.hp.com/hpinfo/globalcitizenship/environment/

supplychain/gen_specifications.html

):

Asbestos

Certain Azo Colorants

Certain Brominated Flame Retardants – may not be used as flame

retardants in plastics

Cadmium

Chlorinated Hydrocarbons

Chlorinated Paraffins

Formaldehyde

Halogenated Diphenyl Methanes

Lead carbonates and sulfates

Lead and Lead compounds

Mercuric Oxide Batteries

Nickel – finishes must not be used on the external surface designed to

be frequently handled or carried by the user.

Ozone Depleting Substances

Polybrominated Biphenyls (PBBs)

Polybrominated Biphenyl Ethers (PBBEs)

Polybrominated Biphenyl Oxides (PBBOs)

Polychlorinated Biphenyl (PCB)

Polychlorinated Terphenyls (PCT)

Polyvinyl Chloride (PVC) – except for wires and cables, and certain

QuickSpecs

HP EliteBook 6930p Notebook PC

Technical Specifications

DA - 13061 Worldwide QuickSpecs — Version 8 — 10.10.2008

Page 43

retail packaging has been voluntarily removed from most applications.

Radioactive Substances

Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)

End-of-life Management

and Recycling

Hewlett-Packard offers end-of-life HP product return and recycling programs in

many geographic areas. To recycle your product, please go to:

http://www.hp.com/go/reuse-recycle

or contact your nearest HP sales

office. Products returned to HP will be recycled, recovered or disposed of in

a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide

treatment information for each product type for use by treatment facilities. This

information (product disassembly instructions) is posted on the Hewlett

Packard web site at:

http://www.hp.com/go/recyclers

. These instructions

may be used by recyclers and other WEEE treatment facilities as well as HP

OEM customers who integrate and re-sell HP equipment.

Hewlett-Packard

Corporate Environmental

Information

For more information about HP's commitment to the environment:

Global Citizenship Report

http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html

Environment website

http://www.hp.com/environment

Eco-label certifications

http://www.hp.com/hpinfo/globalcitizenship/environment/

productdesign/ecolabels.html

ISO 14001 certificates:

http://www.hp.com/hpinfo/globalcitizenship/environment/

operations/envmanagement.html

Copyright © 2008 Hewlett-Packard Development Company, L.P.

All rights reserved. Microsoft, Windows, Windows Vista and Windows XP are registered trademarks or trademarks of Microsoft

Corporation in the U.S. and/or other countries. Core 2 Duo, Centrino 2 and vPro are registered trademarks or trademarks of Intel

Corporation in the U.S. and/or other countries. Bluetooth is a registered trademark of Bluetooth SIG, Inc., in the U.S. and other

countries. All other product names mentioned herein may be trademarks of their respective companies.

The information contained herein is subject to change without notice and is provided "as is" without warranty of any kind. The

warranties for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should

be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained

herein.

QuickSpecs

HP EliteBook 6930p Notebook PC

Technical Specifications

DA - 13061 Worldwide QuickSpecs — Version 8 — 10.10.2008

Page 44
