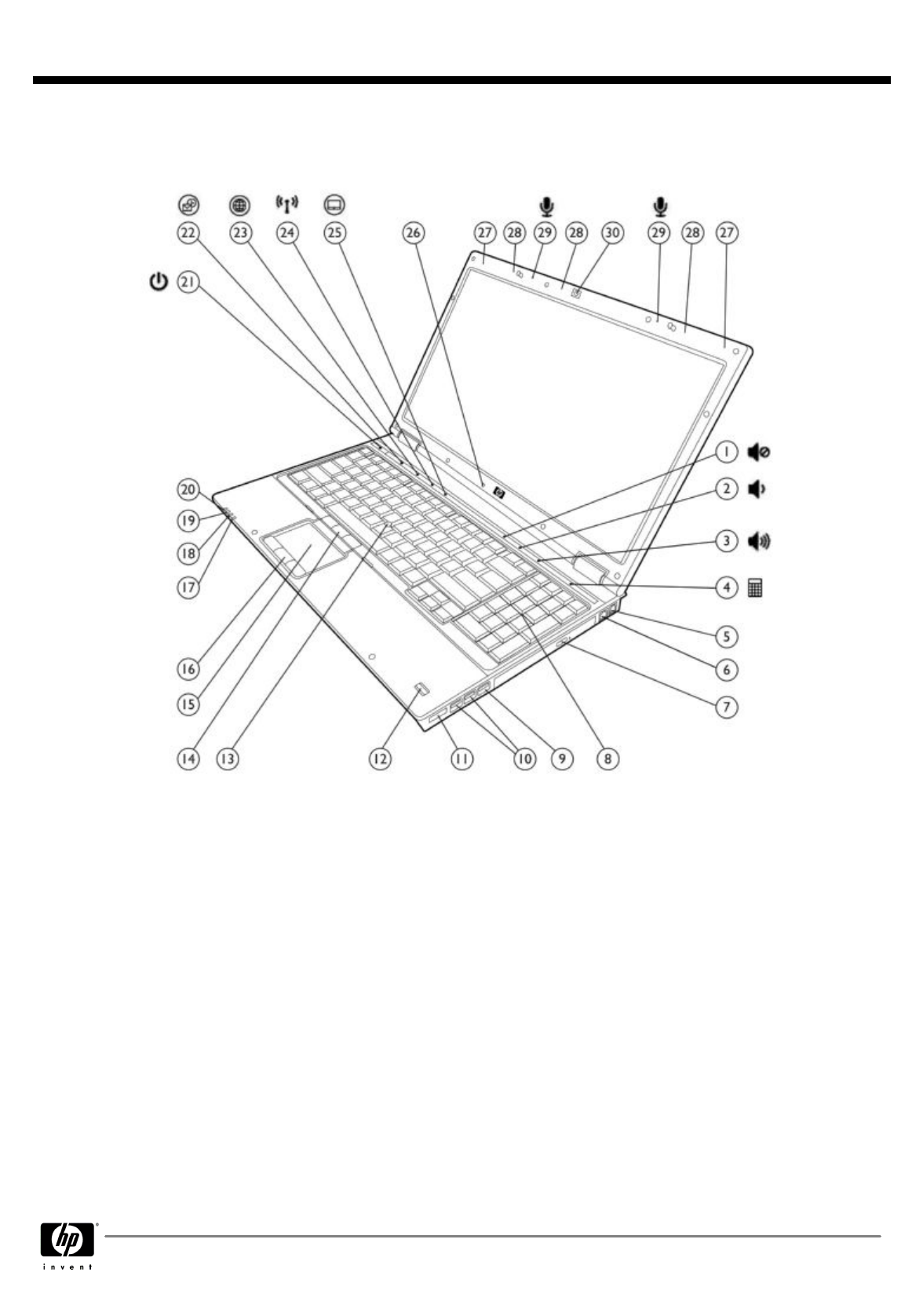

1.
Volume mute button with LED indicator
16.
Touchpad buttons (3)
2.
Volume down button with LED indicator
17.
Drive activity / HP 3D DriveGuard LED indicator
3.
Volume up button with LED indicator
18.
Battery charging LED indicator
4.
Calculator button with LED indicator
19.
Power/standby LED indicator
5.
RJ-11/modem port
20.
Wireless on/off LED indicator
6.
RJ-45/Ethernet port
21.
Power button with LED indicator
7.
Upgrade Bay (optical drive or second hard drive)
22.
HP QuickLook 3 button with LED indicator
8.
Full numeric keypad
23.
HP QuickWeb button with LED indicator
9.
USB 2.0 port
24.
Wireless on/off button with LED indicator
10.
(2) USB 3.0 ports
25.
Touchpad on/off button with LED indicator
11.
eSATA port
26.
Ambient Light Sensor
12.
HP Fingerprint Sensor
27.
WWAN antennas
13.
Pointstick
28.
Three WLAN antennas
14.
Pointstick buttons (3)
29.
Dual-microphone array
15.
Touchpad with scroll zone
30.
2 MP Webcam with LED
QuickSpecs
HP EliteBook 8740w Mobile Workstation
Overview
DA - 13543 Europe, Middle East and Africa QuickSpecs — Version 5 — 5.26.2010
Page 1

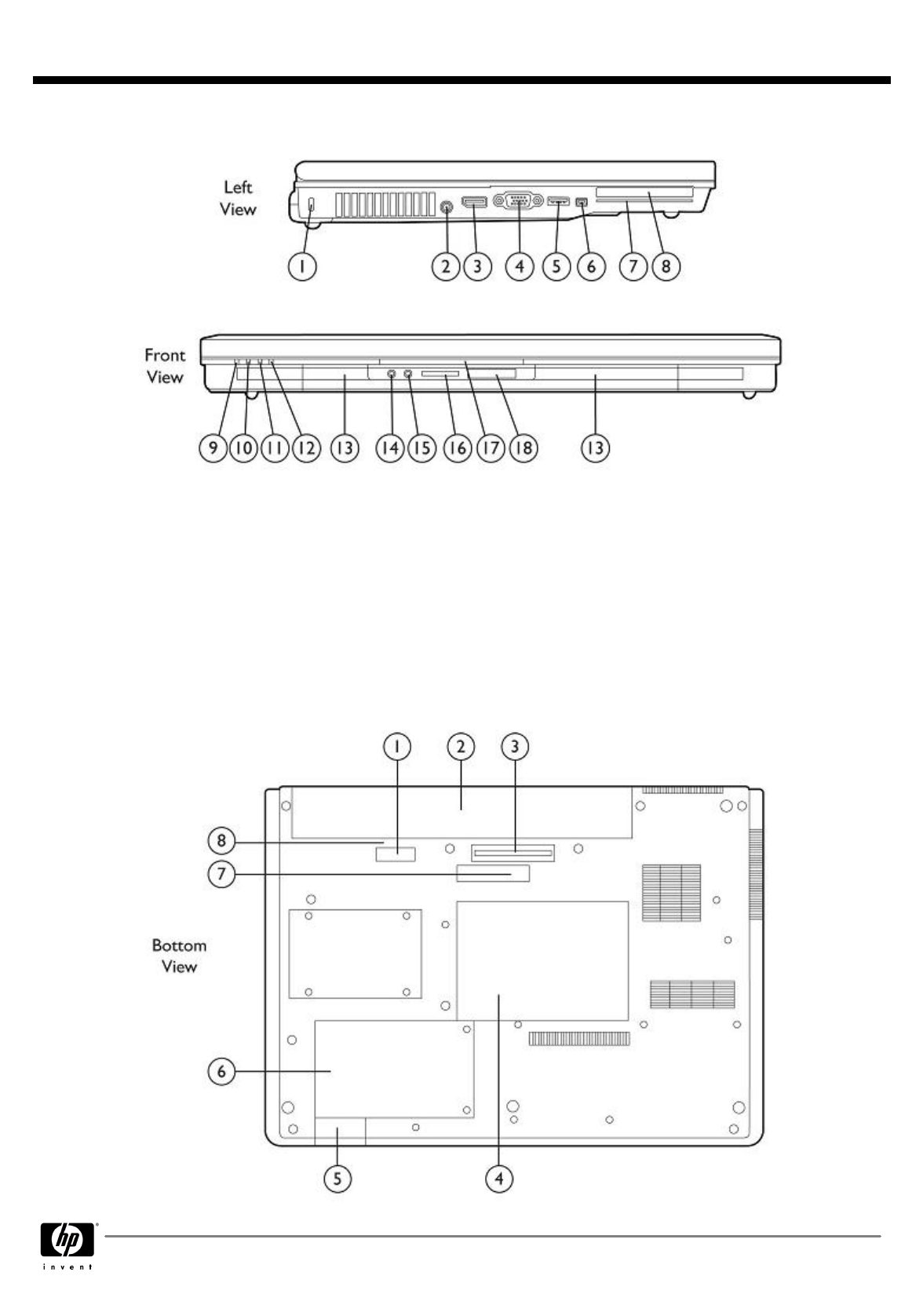

1.
Kensington Lock slot
10.
Power/standby LED indicator
2.
Power connector
11.
Battery charging LED indicator
3.
DisplayPort
12.
Dive activity / HP 3D DriveGuard LED indicator
4.
VGA/external monitor connector
13.
Integrated stereo speakers
5.
USB 2.0 port
14.
Stereo headphone/line out
6.
1394a port
15.
Stereo microphone in
7.
Integrated Smart Card Reader
16.
Media Card Reader
8.
ExpressCard/54 slot
17.
Business Card Reader slot
9.
Wireless on/off LED indicator
18.
Display release latch
QuickSpecs
HP EliteBook 8740w Mobile Workstation
Overview
DA - 13543 Europe, Middle East and Africa QuickSpecs — Version 5 — 5.26.2010
Page 2
1.
Battery release latch
5.
Bluetooth compartment
2.
Battery bay
6.
Hard drive bay
3.
Docking connector
7.
Secondary battery connector
4.
Memory module and WWAN/WLAN module
compartment
8.
SIM slot for WWAN (select models) - inside battery bay
under the battery
At A Glance
Genuine Windows 7 versions, Genuine Windows Vista versions, Genuine Windows XP Professional available
through downgrade rights from Windows 7 Professional, or FreeDOS
Widescreen 43.2 cm (17.0-inch) diagonal LED-backlit WXGA+, WSXGA+ WVA, or WUXGA WVA display with
optional HP DreamColor; Ambient Light Sensor
Intel® Core™ i7 or Core i5 processor with Intel Turbo Boost Technology
ATI FirePro M7820 graphics with 1 GB dedicated GDDR5 memory, NVIDIA Quadro FX 3800M or FX2800
graphics with 1 GB dedicated GDDR3 memory
Industrial, business rugged construction features a full magnesium alloy chassis, magnesium/aluminum display
enclosure, metal alloy hinges, gun metal finish; designed to meet the military standard Mil-Std-810G for vibration,
dust, humidity, altitude, and high and low temperature operation*
DisplayPort for external monitors, eSATA port for external storage, two USB 3.0 ports for faster transfer speeds to
USB 3.0 peripherals and compatibility with USB 2.0 peripherals, two USB 2.0 ports
Choice of 7200 rpm user-removable hard drive up to 500 GB with HP 3D DriveGuard protection,
or 256 GB Solid State Drive
Flexible wireless connectivity options:
Integrated HP un2420 EV-DO/HSPA Mobile Broadband Module provides worldwide Gobi mobile Internet
technology with GPS
Integrated Intel Centrino® Ultimate-N / Advanced-N 6000 Series 802.11 a/b/g/n wireless LAN module
Bluetooth® v2.1
Choice of standard 8-cell primary battery or HP Long Life battery, plus optional external batteries - HP Ultra-
Capacity Battery, HP Extended Life Battery
Touch-sensitive controls for HP QuickLook 3 (instant access to email, calendar, contacts and tasks), HP QuickWeb,
wireless on/off, touchpad on/off, mute, volume down, volume up, and calculator
Optional backlit keyboard
Optional 2 MP Webcam with Business Card Reader Software
Dual pointing devices (touchpad with scroll zone and gesture support; pointstick)
Upgrade Bay for easy optical drive upgrade or optional second hard drive for RAID 1 Mirroring or RAID 0 Striping
ExpressCard/54 slot, Media Card Reader
Fully ISV certified for workstation reliability and graphics-intense applications
HP Performance Advisor for optimal configuration, compatibility and performance
HP Power Tuning Framework to conserve power, increase battery run-time, monitor power needs, report workforce
power
consumption
Enhanced security features including integrated Smart Card Reader, HP ProtectTools, Computrace LoJack Pro
ready, HP SpareKey, HP Disk Sanitizer, TPM 1.2 ;** HP Fingerprint Sensor
New central management software for HP ProtectTools to manage the secutiry of multiple notebooks from a single
point
HP SkyRoom full version for professional quality visual collaboration built on HP Video and Image processing
engines for hi-fi audio, hi-def video, and hi-performance 3D application sharing
* Testing was not intended to demonstrate fitness for DOD contracts requirements or for military use. Test results are not a
guarantee of future performance under these test conditions.
** TPM module disabled where not permitted by law (for example, Russia and China).
QuickSpecs
HP EliteBook 8740w Mobile Workstation
Overview
DA - 13543 Europe, Middle East and Africa QuickSpecs — Version 5 — 5.26.2010
Page 3
Processors
Intel Quad-Core Processors
Intel Core i7-920XM Processor (2.00 GHz, 8 MB L3 cache)
*
Up to 3.20 GHz with Intel Turbo Boost Technology
Intel Core i7-820QM Processor (1.73 GHz, 8 MB L3 cache)
*
Up to 3.06 GHz with Intel Turbo Boost Technology
Intel Core i7-720QM Processor (1.60 GHz, 6 MB L3 cache)
*
Up to 2.8 GHz with Intel Turbo Boost Technology
Intel Dual-Core Processors
Intel Core i7-620M Processor (2.66 GHz, 4 MB L3 cache)
*
Up to 3.33 GHz with Intel Turbo Boost Technology
Intel Core i5-540M Processor (2.53 GHz, 3 MB L3 cache)
*
Up to 3.06 GHz with Intel Turbo Boost Technology
Intel Core i5-520M Processor (2.4 GHz, 3 MB L3 cache)
*
Up to 2.93 GHz with Intel Turbo Boost Technology
* Intel's numbering is not a measurement of higher performance.
NOTE:
Processor speed denotes maximum performance mode; processors will run at lower
speeds in battery optimization mode.
Operating System
Preinstalled
Genuine Windows 7 Professional Edition 32
*
Genuine Windows 7 Professional Edition 64
*
Genuine Windows XP Professional available through downgrade rights
from Windows 7 Professional
*†
Genuine Windows Vista Business 32
**
Genuine Windows Vista Home Basic 32
**
FreeDOS
Supported
Genuine Windows Vista Enterprise 32
**
Genuine Windows Vista Enterprise 64
**
Genuine Windows Vista Business 64
**
Genuine Windows XP Professional 64
Certified
SuSE Linux Enterprise Desktop 11
* System may require upgraded and/or separately purchased hardware and/or a DVD drive to
install the Windows 7 software and take full advantage of Windows 7 functionality. See:
http://www.microsoft.com/windows/windows-7/
for details.
** Certain Windows Vista product features require advanced or additional hardware. See:
http://www.microsoft.com/windowsvista/getready/hardwarereqs.mspx
and
http://www.microsoft.com/windowsvista/getready/capable.mspx
for details. Windows Vista
Upgrade Advisor can help you determine which features of Windows Vista will run on your
computer. To download the tool, visit:
http://www.windowsvista.com/upgradeadvisor
.
† Windows XP Professional is preinstalled on this system and includes end user rights and
media for Windows 7 Professional. You may only use one version at a time. You must back up all
data (files, photos, etc.) before uninstalling and installing operating systems to avoid loss of your
data.
Chipset
Mobile Intel QM57 Express Chipset
QuickSpecs
HP EliteBook 8740w Mobile Workstation
Standard Features
DA - 13543 Europe, Middle East and Africa QuickSpecs — Version 5 — 5.26.2010
Page 4
Intel Core i5 with
vPro/Core i7 with vPro
technology capable
Intel Core i5 with vPro and Core i7 with vPro technology is a selectable feature that is available on
units configured with an Intel Centrino® Ultimate-N/Advanced-N 6000 series WLAN module and a
preinstalled Windows operating system. It provides advances in remote manageability, security,
energy efficient performance, and wireless connectivity. Intel Active Management Technology
(AMT) offers built-in manageability and proactive security for networked notebook PCs, even when
they are powered off* or when the operating system is inoperable. It can help identify threats
before they reach the network, isolate infected systems, and update PCs regardless of their power
state.
*Requires a Windows operating system, network hardware and software, connection with a power
source, and a direct (non-VPN) corporate network connection which is either cable or wireless
LAN.
NOTE:
Some functionality of Intel Core i5 with vPro/Core i7 with vPro technology, such as Intel
Active Management technology and Intel Virtualization technology, requires additional 3rd party
software in order to run. Availability of future "virtual appliances" applications for Intel Core i5 with
vPro/Core i7 with vPro technology is dependent on 3rd party software providers. Compatibility with
future "virtual appliances" is yet to be determined.
Graphics
ATI FirePro M7820 graphics with 1 GB dedicated GDDR5 video memory
Microsoft DirectX 11 (Shader Model 4.1) and OpenGL 3.2 capable
NVIDIA Quadro FX 3800M graphics with 1 GB dedicated GDDR3 video memory
NVIDIA Quadro FX 2800M graphics with 1 GB dedicated GDDR3 video memory
Microsoft DirectX 10.1 (Shader Model 4.1) and OpenGL 3.1 capable
Display
Internal
43.2 cm (17.0-inch) diagonal LED-backlit WXGA+ anti-glare
(1440 x 900 resolution)
43.2 cm (17.0-inch) diagonal LED-backlit WSXGA+ wide-viewing
angle anti-glare
(1680 x 1050 resolution)
43.2 cm (17.0-inch) diagonal LED-backlit WUXGA wide-viewing angle
anti-glare
(1920x1200 resolution)
(optional HP DreamColor* available May 2010)
Ambient Light Sensor
Integrated lid switch
Optional HP Privacy Filter
* HP EliteBook 8740w Mobile Workstations with DreamColor
technology are not available with HP Mobile Broadband.
External
Up to 32-bit per pixel color depth
DisplayPort
supports resolutions up to 2560 x 1600, 30-bit color depth
at 60 Hz, and full HD (1920 x 1080) monitors, 24-bit color depth at 120
Hz
VGA
port supports resolutions up to 2048 x 1536 at 75 Hz, and lower
resolutions at up to 100 Hz
DVI-D
(single link) video signal available through DVI port in optional HP
Docking Station (sold separately)
supports resolutions up to 1600 x 1200 at both full and reduced
blanking, and 1920 x 1200 at reduced blanking
NOTE:
Resolutions are dependent upon monitor capability, and
resolution and color depth settings.
QuickSpecs
HP EliteBook 8740w Mobile Workstation
Standard Features
DA - 13543 Europe, Middle East and Africa QuickSpecs — Version 5 — 5.26.2010
Page 5
Memory
Standard
DDR3 PC3-10600 SDRAM (1333 MHz)
*
Two or four SODIMM slots supporting dual-channel memory
2048 MB and 4096 MB SODIMMs
NOTE:
Four memory slots only on models with quad-core processor.
Maximum
Upgradeable to 16384 MB with Intel quad-core processor configuration
with four memory slots – (4) 4096 MB SODIMMs.
Maximum memory is 8192 MB with Intel dual-core processor
configuration with two memory slots – (2) 4096 SODIMMs.
Dual-channel
Maximized dual-channel performance requires SODIMMs of the same
size and speed in both memory channels.
* With some processors, memory bus runs at a maximum of 1066 MHz.
NOTE:
Due to the non-industry standard nature of some third-party memory modules, we
recommend HP branded memory to ensure compatibility. If you mix memory speeds, the system
will perform at the lower memory speed. Full availability of 4 GB or more of memory requires a
Windows 64-bit operating system or Linux. With Windows 32-bit operating systems, the amount of
usable memory is dependent upon your configuration, so that above 3 GB all memory may not be
available due to system resource requirements.
Communications
Integrated Intel Gigabit Ethernet (10/100/1000 NIC)
*
56K V.92 modem
**
* The term "10/100/1000" or "Gigabit" Ethernet indicates compliance with IEEE standard 802.3ab
for Gigabit Ethernet, and does not connote actual operating speed of 1 Gb/s. For high-speed
transmission, connection to a Gigabit Ethernet server and network infrastructure is required.
** Designed for downloads from 56K modem compliant sources. Maximum achievable download
transmission rates currently do not reach 56 KB/s, and will vary with line conditions. Modem
availability is subject to country regulatory approval.
Wireless Devices
Support for a broad range of secure, integrated wireless LAN and wireless WAN options featuring
support for the latest industry standards. Mobile Broadband (WWAN) requires a Windows
operating system and is available in select countries as a standard, factory configurable feature or
as an option to be added later. Integrated Bluetooth is also available (factory configurable only)
and can be combined with any of the supported wireless LAN and wireless WAN options.
HP un2420 EV-
DO/HSPA Mobile
Broadband Module*
Integrated mobile broadband module with Gobi global mobile Internet
technology that provides connectivity to both CDMA (EVDO) and UMTS
(HSPA) networks. It also provides GPS functionality for various mapping
applications and security applications such as Computrace LoJack Pro
Premium for HP ProtectTools.
NOTE:
Separately purchased mobile network operator service is
required.
Two 850/900/1575/1800/1900/2100 MHz antennas integrated in the top
of the display panel support current and future WWAN technologies.
All 802.11 integrated
wireless LAN options
Wi-Fi Certified
**
Cisco Compatible Extensions support
Wired Equivalent Privacy (WEP) support up to 128-bit keys
Wi-Fi Protected Access (WPA) and WPA2 support
802.1x authentication support, including EAP-TLS, EAP-TTLS, PEAP-
GTC, PEAP-MSCHAPv2, and LEAP
Advanced Encryption Standard (AES) support
Three antennas integrated in the display enclosure
Intel Centrino Ultimate-
N 6300 (3x3)
Integrated support for 802.11a, b, g, and n
3 transmit, 3 receive antennas
Up to 450 mbps data rate
QuickSpecs
HP EliteBook 8740w Mobile Workstation
Standard Features
DA - 13543 Europe, Middle East and Africa QuickSpecs — Version 5 — 5.26.2010
Page 6
Intel Centrino
Advanced-N 6200 (2x2)
Integrated support for 802.11a, b, g, and n
**
2 transmit, 2 receive antennas
Up to 300 mbps data rate
HP Integrated Module
with Bluetooth
Wireless Technology
Bluetooth Specification v2.1 compliant
Works with a wide range of Bluetooth devices
* HP EliteBook 8740w Mobile Workstations with DreamColor technology are not available
with HP Mobile Broadband.
** In countries where 802.11n is not allowed, this capability is not enabled (802.11a/b/g
only).
Keyboard
The HP spill-resistant keyboard is designed using a thin layer of Mylar film under the keyboard
and a drain system that funnels fluid through a hole in the bottom of the notebook. This minimizes
the risk of damage to sensitive components underneath. The 101/102-key compatible keyboard
features an industry standard, full-pitch key layout with desktop keyboard features, such as the
isolated inverted-T cursor control keys, editing keys, both left and right control and alt keys, and
12 function keys. U.S. and International key layouts are available. Includes a full numeric keypad,
hotkeys for instant access to power conservation, brightness, and other features. It has 19.05 x
19.05 mm key pitch (center-to-center spacing) and 3.0 mm stroke.
HP DuraKeys is a clear coating applied over the notebook keyboard that helps protect the finish
and the printed characters on the keys. HP DuraFinish helps protect the finish on the keyboard
deck, graphics, and icons from normal wear and tear.
Optional backlit keyboard available May 2010.
Touch-sensitive
controls
Touch-sensitive controls provide easy access to the following features: HP QuickLook 3, HP
QuickWeb, wireless on/off, touchpad on/off, volume mute, volume down, volume up, and
calculator button.
Dual Pointing devices
Touchpad with scroll zone and gesture support, three pick buttons
Pointstick with three additional pointstick buttons
Expansion card slots
ExpressCard/54 slot
Supports ExpressCard/54
Integrated Smart Card
Reader
Compatible with ISO 7816 compliant Smart Cards
PC/SC interface support
Media Card Reader
Supports SD (Secure Digital), MMC (MultiMedia Card), Memory Stick,
Memory Stick Pro, Memory Stick Duo
*
, xD-Picture card
* Memory Stick Duo Adapters are required and sold separately. Inserting a Memory Stick Duo
Card directly into your notebook could damage the memory card and/or notebook.
QuickSpecs
HP EliteBook 8740w Mobile Workstation
Standard Features
DA - 13543 Europe, Middle East and Africa QuickSpecs — Version 5 — 5.26.2010
Page 7
Internal Storage
Hard Drives
250/320/500 GB 7200 rpm SMART SATA II
NOTE:
These hard drives are customer removable and will withstand multiple insertion/removal
cycles. Up to 15 GB is reserved for the system recovery software.
HP 3D DriveGuard
(Windows only)
The hard drive is mounted directly to the notebook frame, reducing the
transmission of shock to the hard drive. Uses three-axis digital motion
detection with intelligent sensitivity to help protect the hard drive during
normal use from shock and vibration. The digital accelerometer
temporarily halts all data transfer and parks the hard drive when abrupt
motion is detected.
Solid State Drives
256 GB Solid State Drive
Upgrade Bay
Fixed 12.7 mm SATA
optical drive
Blu-ray R/RE DVD+/-RW SuperMulti DL Drive
Blu-ray ROM DVD+/-RW SuperMulti DL LightScribe Drive
DVD+/-RW SuperMulti DL LightScribe Drive
DVD-ROM Drive
or
Second hard drive
*
500 GB 7200 rpm SMART SATA II Hard Drive
* For RAID configurations, both hard drive capacities must be equal.
Interfaces
ExpressCard/54 slot
One
Smart Card Reader
One
External monitor
Two – (1) DisplayPort, (1) VGA
Media Card Reader
One
1394a
One
Stereo microphone in
One
Stereo headphone/line
out
One
Power connector
One
RJ-11/modem
One
RJ-45/Ethernet
One
USB 2.0
Two
USB 3.0
Two (for USB 2.0 and USB 3.0 peripherals)
eSATA
One
Docking connector
One
Secondary battery
connector
One
QuickSpecs
HP EliteBook 8740w Mobile Workstation
Standard Features
DA - 13543 Europe, Middle East and Africa QuickSpecs — Version 5 — 5.26.2010
Page 8
Audio/Visual
High definition audio
Integrated stereo speakers
Integrated dual-microphone array
Touch-sensitive controls for volume up, volume down, and mute
Stereo headphone/line out
Stereo microphone/line in
Optional 2 MP webcam with Business Card Reader software
Supports videoconferencing and still image capture
Large image sensor for excellent color matching and good low light sensitivity
Up to 30 frames/sec
AutoMacro focus lens
Video capture at VGA, 1.3 Mpixel, and 2 Mpixel resolutions
16-bit true color (camera sensors output YCrCb format among others)
HP SkyRoom full version for professional quality visual collaboration built on HP Video and Image
processing engines for hi-fi audio, hi-def video, and hi-performance 3D application sharing
Software
Preinstalled software
with Windows
operating system
HP Recovery Manager (available with Windows 7 or Vista only)
HP Support Assistant (available with Windows 7 or Vista only)
HP ProtectTools Security Manager
HP QuickLaunch Buttons Software
HP QuickLook 3
HP QuickWeb
HP Power Assistant
HP Connection Manager
HP Wireless Assistant
HP SkyRoom
Microsoft Office Professional 2007 60-day Convertible Trial
McAfee Total Protection
*
PDF Complete SE
Roxio Creator Business 10 (select models)
InterVideo WinDVD (select models)
Synaptics Touchpad Driver
HP Webcam Software
WinZip 12
Additional software
available from the web
HP SoftPaq Download Manager
HP Client Manager Software
HP Client Management Solutions
* 60 day trial period for McAfee Total Protection for Small Business software. Internet access
required to receive updates. First update included. Subscription required for updates thereafter.
QuickSpecs
HP EliteBook 8740w Mobile Workstation
Standard Features
DA - 13543 Europe, Middle East and Africa QuickSpecs — Version 5 — 5.26.2010
Page 9
Planned Workstation
ISV Certifications
MCAD
(Mechanical
CAD/Architectural
Engineering and
Construction)
AutoDesk AutoCAD
AutoDesk Inventor
AutoDesk Revit
AutoDesk AliasStudio
AutoDesk Map 3D
AutoDesk Civil 3D
Bentley InRoads XM
Bentley Microstation
Bentley Navigator
CEI
CoCreate OneSpace
Dassault Systemes CATIA V5
ICEM Surf
Intelligent Light
MSC Software MSC.Patran
MSC Software SimXpert
PTC Pro/ENGINEER Wildfire
SensAble
Siemans PLMS NX
Siemans PLMS NX I-deas
Siemans PLMS Solid Edge
Siemans PLMS TeamCenter Visualization
Solidworks
DCC
(Digital Content
Creation)
Adobe Premiere
Adobe After effects
Adobe Encore
Adobe Photoshop
AutoDesk 3DS MAX/Combustion
AutoDesk Maya
Avid Xpress Pro
Avid Media Composer
SoftImage XSI
GIS
(Geographic Information
Systems)
ESRI ArcGIS
Oil and Gas
Landmark R5000
Paradigm EPOS, GoCAD
Schlumberger / GeoFrame
Schlumberger Petrel
SeismicMicro Technology
HP Performance
Tuning Framework
HP Performance Tuning Framework (PTF) enables optimal configuration of HP Mobile
Workstations delivering stability and best performance. HP PTF will guide your system setup
allowing a "custom" configuration that best matches the workstation to user requirements.
HP Recovery Manager
Models shipped with Windows 7 or Windows Vista include HP Recovery Manager. HP Recovery
Manager enables fast recovery of the factory preinstalled image if the system becomes corrupted
or if important system files are accidentally deleted. Up to 15 GB of the hard drive is reserved for
the system recovery software.
QuickSpecs
HP EliteBook 8740w Mobile Workstation
Standard Features
DA - 13543 Europe, Middle East and Africa QuickSpecs — Version 5 — 5.26.2010
Page 10
Security
Standard Features
HP ProtectTools Security Manager
HP Fingerprint Sensor
Integrated Smart Card Reader
Enhanced Pre-Boot Security
HP SpareKey
One-Step Logon
Setup Password
DriveLock Password
TPM 1.2 Embedded Security Chip
*
TPM Enhanced DriveLock
*
HP Disk Sanitizer
Kensington Lock slot
Support for Computrace
**
LoJack Pro for HP ProtectTools
Optional Features
HP Privacy Filter
Narrows viewing area so that screen data is
visible only to persons directly in front of the
monitor.
Computrace
**
LoJack
Pro Premium for HP
ProtectTools with GPS
Tracking
Subscription based security solution providing
the ability to track, initiate physical recovery,
conduct asset management, and perform
remote data delete by utilizing GPS
technology. GPS functionality requires HP
un2420 EV-DO/HSPA Mobile Broadband
Module.
* TPM module disabled where use is restricted by law; for example, Russia and China.
** The Computrace agent is shipped turned off, and must be activated by customers when they
purchase a subscription with terms ranging from one to five years.
For more information on HP security solutions refer to:
http://www.hp.com/go/security
.
HP ProtectTools
Security Manager with
Central Management
HP ProtectTools Security Manager is the security platform for business notebooks and desktops.
The HP ProtectTools Security Manager is an extensible client security console that delivers
enhanced security capabilities through add-on software modules. The following modules are
available on the hard drive (also downloadable from the web) and can be configured in Software
Setup:
Credential Manager for HP ProtectTools
Device Access Manager for HP ProtectTools
Drive Encryption for HP ProtectTools
File Sanitizer for HP ProtectTools
Privacy Manager for HP ProtectTools (Chat & Sign)
Embedded Security for HP ProtectTools
Computrace LoJack Pro for HP ProtectTools
HP ProtectTools is now centrally manageable with the capability to manage notebooks from a
single point. On the HP EliteBook 8740w, Security is management ready out of the box, in
partnership with Digital Persona. New features address requirements that customers expect from
a centrally managed security solution such as user provisioning, credential reset, and credential
revocation.
HP ProtectTools provides two separate management solutions, targeted at the enterprise and the
SMB:
Digital Persona Pro AD: Designed for the enterprise customer. A fee-based solution that
integrates with Active Directory and gives IT Managers the ability to provision users, create
login policies based on passwords, biometrics or smartcards. Management features also
include remote credential recovery in case the user forgets the password, loses the
smartcard or cannot use the fingerprint reader for any reason. In addition, advanced
QuickSpecs
HP EliteBook 8740w Mobile Workstation
Standard Features
DA - 13543 Europe, Middle East and Africa QuickSpecs — Version 5 — 5.26.2010
Page 11
auditing capabilities are also built in. Digital Persona Pro AD is available now.
Digital Persona Pro Workgroup: Designed for the small business customer. Provides
features similar to the Active Directory version, but for workgroups. Workgroup activation is
built into HP ProtectTools, and activation of up to 5 seats is completely free.
Power Supply
External 200-watt Slim Smart AC adapter
External 230-watt Slim Smart AC adapter (available only with Intel Core XM Processor, NVIDIA
Quadro FX 3800M graphics, and HP DreamColor display option)
Power cord included is 1.8 meter (6-foot).
Total length including external AC adapter is 3.66 meter (12 feet).
HP Fast Charge
*
*HP Fast Charge recharges your battery up to 90% within 90 minutes when the system is off. HP
Fast Charge does not apply to the HP Ultra-Capacity Battery.
Battery
Primary battery
HP 8-cell 73 WHr Li-Ion Primary Battery
HP Long Life 8-cell 68 WHr Li-Ion Primary Battery
Optional secondary
battery
HP Extended Life Battery (8-cell 52 WHr)
HP Ultra-Capacity Battery (12-cell 95 WHr)
Battery Life
HP 8-cell 73 WHr Primary
HP Long Life 8-cell 68 WHr
Primary
Primary battery only
Up to 3 hours and 30 minutes Up to 3 hours and 15 minutes
Primary battery and
optional HP Extended
Life Battery
Up to 6 hours
**
Primary battery and
optional HP Ultra-
Capacity Battery
Up to 8 hours
**
NOTE:
Battery life will vary depending on the product model, configuration, loaded applications,
features, use, wireless functionality and power management settings. The maximum capacity of
the battery will naturally decrease with time and usage. See MobileMark07 battery benchmark
www.bapco.com/products/mobilemark2007
for additional details.
** This configuration not tested for battery life.
System Standby Time
Up to 2 weeks
Power Conservation
Supports enhanced Intel SpeedStep technology (allows Battery Optimized Mode, Maximum
Performance Mode, or Automatic mode)
NVIDIA PowerMizer 7.0 technology
ATI PowerXpress technology
Hibernation
Standby
ACPI compliance
QuickSpecs
HP EliteBook 8740w Mobile Workstation
Standard Features
DA - 13543 Europe, Middle East and Africa QuickSpecs — Version 5 — 5.26.2010
Page 12
Docking and Stands
HP Docking Station
HP Advanced Docking Station
HP USB 2.0 Docking Station
HP Essential USB 2.0 Port Replicator
HP Dual Hinge Notebook Stand
HP Display and Notebook Stand
HP Adjustable Display Stand
HP Adjustable Dual Display Stand
Service and Support
3 years carry-in; pick-up and return in some countries (upgrades available, sold separately) 1-year
limited warranty on primary battery. On-site service and warranty upgrades are also available. HP
Care Pack Services extend service contracts beyond the standard warranties. To choose the right
level of service for your HP product, use the HP Care Pack Services Lookup Tool at:
http://www.hp.com/go/lookuptool
. Additional HP Care Pack Services information by
product is available at:
http://www.hp.com/hps/carepack
.
NOTE:
Certain restrictions and exclusions apply. Consult the HP Customer Support Center for
details.
http://h20000.www2.hp.com/bizsupport/TechSupport/ProductRoot.jsp
.
QuickSpecs
HP EliteBook 8740w Mobile Workstation
Standard Features
DA - 13543 Europe, Middle East and Africa QuickSpecs — Version 5 — 5.26.2010
Page 13
Memory
HP 2 GB (DDR3 1333 MHz) SODIMM
AT912AA
HP 4 GB (DDR3 1333 MHz) SODIMM
AT913AA
Storage
HP Upgrade Bay SATA DVD+/-RW SuperMulti DL LightScribe Drive
AK869AA
HP External USB Drive CD/DVD R/RW
FS943AA
HP Upgrade Bay SATA 500 GB 7200 rpm Hard Drive
AU097AA
HP Primary SATA 500 GB 7200 rpm Hard Drive
AU098AA
HP Primary SATA 320 GB 7200 rpm Hard Drive
AS282AA
Expansion Solutions
HP Docking Station
VB043AA
HP Advanced Workstation Docking Station
NZ223AA
HP Dual Hinge Notebook Stand
AW661AA
HP Display and Notebook Stand
AW662AA
HP Adjustable Display Stand
AW663AA
HP Adjustable Dual Display Stand
AW664AA
Communications
HP un2420 EVDO/HSPA Mobile Broadband Module
WD301AA
Power
HP 230W Smart Adapter
AT895AA
90W Smart AC/Auto/Air Combo Adapter
AJ652AA
HP Smart 65W Travel AC Adapter
AU155AA
90W Smart AC Adapter
ED495AA
HP 8500/8700 Series 8-Cell Primary Battery
KU533AA
HP Extended Life Battery
AJ359AA
Carrying Cases
HP Deluxe Roller Case
GD405AA
HP Basic Backpack
AM863AA
HP Basic Messenger
AP355AA
HP Basic Carrying Case
AJ078AA
HP Professional Series Carrying Case
AT886AA
HP Professional Series Backpack
AT887AA
HP Executive Learther Case
RR316AA
HP Professional Series Designer Tote
AT889AA
HP Professional Series Slip Case
AT890AA
HP Elite Series Designer Tote
AT891AA
HP Elite Leather Messenger
AX676AA
HP Elite Slim Top Load Case
AX680AA
HP Professional Slim Top Load Case
AY530AA
Security
HP/Kensington MicroSaver Security Lock
PC766A
HP ExpressCard Smart Card Reader
AJ451AA
HP Compaq Notebook Cable Lock
AY475AA
QuickSpecs
HP EliteBook 8740w Mobile Workstation
Options
DA - 13543 Europe, Middle East and Africa QuickSpecs — Version 5 — 5.26.2010
Page 14
Input/Output Devices
HP USB Optical Travel Mouse
RH304AA
HP Mobile Audio Speakers
FS944AA
HP Mobile Bluetooth Presenter Mouse
GK872AA
HP Notebook Companion Projector
AX325AA
HP DreamColor Advanced Profiling Solution
KZ300AA
QuickSpecs
HP EliteBook 8740w Mobile Workstation
Options
DA - 13543 Europe, Middle East and Africa QuickSpecs — Version 5 — 5.26.2010
Page 15
DDR3 PC3-10600 SDRAM (1333 MHz)
*
Two or four SODIMM slots supporting dual-channel memory
SODIMM sizes supported: 2048 MB and 4096 MB
NOTE:
Four memory slots only on models with quad-core processor.
Standard Memory
2048 MB (2048 MB x 1)
4096 MB (4096 MB x 1)
4096 MB (2048 MB x 2)
8192 MB (4096 MB x 2)
8192 MB (2048 MB x 4)
**
12288 MB (4096 MB x 2 + 2048 MB x 2)
**
16384 MB (4096 MB x 4)
**
Optional Memory Upgrades
Support for up to 16384 MB
**
of memory with the installation of optional DDR3 SDRAM
memory kits. All memory slots are user-accessible. Please refer to the Hardware and
Software Guide for installation procedures. Maximized dual-channel performance requires
SODIMMs of the same size and speed in both memory channels.
Channel A Channel B
Up to
Slot 1 Slot 2 Slot 3 Slot 4
2048 MB 2048 MB
Empty
4096 MB 4096 MB
Empty
4096 MB 2048 MB
2048 MB
8192 MB 4096 MB
4096 MB
8192 MB
**
2048 MB 2048 MB 2048 MB 2048 MB
12288 MB
**
4096 MB 2048 MB 4096 MB 2048 MB
16384 MB
**
4096 MB 4096 MB 4096 MB 4096 MB
* With some processors, memory bus runs at a maximum of 1066 MHz.
** Requires quad-core processor configuration with four memory slots.
NOTE:
This chart does not represent all possible memory configurations. Due to the non-
industry standard nature of some third-party memory modules, we strongly recommend using
only HP- branded memory modules to ensure compatibility. If you mix memory speeds, the
system will perform at the lower memory speed. Full availability of 4 GB or more of memory
requires a Windows 64-bit operating system or Linux. With Windows 32-bit operating
systems, the amount of usable memory is dependent upon your configuration, so that above
3 GB all memory may not be available due to system resource requirements.
Memory Upgrades
HP 2 GB (DDR3 1333 MHz) SODIMM
AT912AA
HP 4 GB (DDR3 1333 MHz) SODIMM
AT913AA
QuickSpecs
HP EliteBook 8740w Mobile Workstation
Memory
DA - 13543 Europe, Middle East and Africa QuickSpecs — Version 5 — 5.26.2010
Page 16
Upgrade Bay Drive Support
Quantity Supported
Drive Bay
Blu-ray R/RE DVD+/-RW
SuperMulti DL Drive
One
Upgrade Bay
Blu-ray ROM DVD+/-RW
SuperMulti DL LightScribe Drive
One
Upgrade Bay
DVD+/-RW SuperMulti DL
LightScribe Drive
One
Upgrade Bay
DVD-ROM Drive
One
Upgrade Bay
500 GB 7200 rpm SMART SATA
II Hard Drive
One
Upgrade Bay
Internal Storage Device
Quantity Supported
Drive Bay
Hard Drives
500 GB 7200 rpm SMART SATA
II Hard Drive
One
Dedicated hard drive bay
320 GB 7200 rpm SMART SATA
II Hard Drive
One
Dedicated hard drive bay
250 GB 7200 rpm SMART SATA
II Hard Drive
One
Dedicated hard drive bay
Solid State Drive
256 GB Solid State Drive
One
Dedicated hard drive bay
QuickSpecs
HP EliteBook 8740w Mobile Workstation
Storage
DA - 13543 Europe, Middle East and Africa QuickSpecs — Version 5 — 5.26.2010
Page 17
System Unit
Dimensions
(HxWxD)
36.5 mm (at front) x 397.5 mm x 285.5 mm
1.4 in (at front) x 15.6 in x 11.2 in
Weight
Starting at 3.57 kg (7.8 lb)
NOTE:
Height varies depending upon where on the notebook the measurement is made. Weight
varies by configuration and components. Weight includes hard drive, optical drive, and wireless.
Stand-Alone Power
Requirements
(AC
Power)
Nominal Operating
Voltage
18.5 V
Average Operating
Power
35.5 W
Max Operating Power
< 90 W
or
< 120 W
or
< 150 W
Temperature
Operating
0° to 35° C (32° to 95° F) (not writing optical)
5° to 35° C (41° to 95° F) (writing optical)
Non-operating
–20° to 60° C (–4° to 140° F)
Relative Humidity
Operating
10% to 90%, non-condensing
Non-operating
5% to 95%, 38.7° C (101.6° F) maximum wet
bulb temperature
Shock
Operating
125 G, 2 ms, half-sine
Non-operating
200 G, 2 ms, half-sine
Random Vibration
Operating
0.75 grms
Non-operating
1.50 grms
Altitude
(unpressurized)
Operating
–15.24 to 3,048 m (–50 to 10,000 ft)
Non-operating
–15.24 to 12,192 m (–50 to 40,000 ft)
Industry Standard
Certifications
UL
Yes
CSA
Yes
FCC Compliance
Yes
ENERGY STAR®
Select models
*
EPEAT
Registered TBD in United States
**
ICES
Yes
GS
Yes
Australia / NZ A-Tick
Compliance
Yes
CCC
Yes
Japan VCCI Compliance
Yes
KCC
Yes
BSMI
Yes
CE Marking Compliance
Yes
BNCI or BELUS
Yes
CIT
Yes
GOST
Yes
Saudi Arabian
Compliance (ICCP)
Yes
SABS
Yes
UKRSERTCOMPUTER
Yes
* Configurations of the HP EliteBook 8740w that are ENERGY STAR qualified are identified as
QuickSpecs
HP EliteBook 8740w Mobile Workstation
Technical Specifications
DA - 13543 Europe, Middle East and Africa QuickSpecs — Version 5 — 5.26.2010
Page 18
HP EliteBook 8740w ENERGY STAR on HP websites and on
www.energystar.gov
.
** EPEAT TBD Registered in U.S. EPEAT registration varies by country. See
www.epeat.net
for
registration status by country.
NOTE:
For accessibility information on HP products, please visit:
http://www.hp.com/accessibility
.
HP 230W Slim Smart
AC Adapter
Dimensions
20.0 x 10.0 x 4.0 cm (7.87 x 3.94 x 1.57 in)
Weight
1300 g (2.87 lb)
Input
100 to 240 VAC
Input Efficiency
87% min at 115 VAC
Input frequency range
47 to 63 Hz
Input AC current
3.5 A at 90 VAC, 1.75 A at 180 VAC
Output
Output power
230W
DC output
19.5V
Hold-up time
5 msec at 115 VAC input
Output current limit
<18A, Over voltage protection- 29V max
automatic shutdown
Connector
3 pin/grounded, mates with interchangeable cords
Environmental Design
Operating temperature
0° to 35° C (32° to 104° F)
Non-operating (storage)
temperature
-20° to 65° C (-4° to 149° F)
Altitude
0 to 3,048 m (0 to 10,000 ft)
Humidity
20% to 80%
Storage Humidity
10% to 90%
EMI and Safety
Certifications
CE Mark- full compliance with LVD and EMC directives; Worldwide
safety standards- IEC950, EN60950, UL1950, Class 1, SELV; Agency
approvals- C-UL-US, NORDICS, DENAN, EN55022 Class B, FCC
Class B, CISPR22 Class B, CCIB, NOM-1 NYCE; MTBF- over 200,000
hours at 25°C ambient condition.
HP 200W Slim Smart
AC Adapter
Dimensions
17.0 x 8.5 x 3.5 cm (6.69 x 3.35 x 1.38 in)
Weight
920 g (2.03 lb)
Input
100 to 240 VAC
Input Efficiency
87% min at 115 VAC
Input frequency range
47 to 63 Hz
Input AC current
2.9 A at 90 VAC, 1.45 A at 180 VAC
Output
Output power
200W
DC output
19.5V
Hold-up time
5 msec at 115 VAC input
Output current limit
<16A, Over voltage protection- 29V max
automatic shutdown
Connector
3 pin/grounded, mates with interchangeable cords
Environmental Design
Operating temperature
0° to 35° C (32° to 104° F)
Non-operating (storage)
temperature
-20° to 65° C (-4° to 149° F)
Altitude
0 to 3,048 m (0 to 10,000 ft)
Humidity
20% to 80%
QuickSpecs
HP EliteBook 8740w Mobile Workstation
Technical Specifications
DA - 13543 Europe, Middle East and Africa QuickSpecs — Version 5 — 5.26.2010
Page 19
Storage Humidity
10% to 90%
EMI and Safety
Certifications
CE Mark- full compliance with LVD and EMC directives; Worldwide
safety standards- IEC950, EN60950, UL1950, Class 1, SELV; Agency
approvals- C-UL-US, NORDICS, DENAN, EN55022 Class B, FCC
Class B, CISPR22 Class B, CCIB, NOM-1 NYCE; MTBF- over 200,000
hours at 25°C ambient condition.
Displays
43.2 cm (17.0-inch)
WXGA+ anti-glare
Active Area
(W x H)
36.7 x 22.9 cm (14.5 x 9.0 in)
Diagonal Size
43.2 cm (17.0 in)
Surface Treatment
Anti-glare
Contrast Ratio
400:1 typical
Refresh Rate
60 Hz
Brightness
200 nit typical
Pixel Resolution
Pitch
0.255 mm
Format
1440 x 900
Configuration
RGB Stripe
Backlight
LED
PPI
100
Viewing Angle
±60° Horizontal, ±50° Vertical (minimum) or
±70° Horizontal, ±60° Vertical (typical)
43.2 cm (17.0-inch)
WSXGA+ wide-viewing
angle, anti-glare
Active Area
(W x H)
36.7 x 22.9 cm (14.5 x 9.0 in)
Diagonal Size
43.2 cm (17.0 in)
Surface Treatment
Anti-glare
Contrast Ratio
400:1 (typical)
Refresh Rate
60 Hz
Brightness
200 nit typical
Pixel Resolution
Pitch
0.21825 mm
Format
1680 x 1050
Configuration
RGB Stripe
Backlight
LED
PPI
117
Viewing Angle
±60° Horizontal, ±50° Vertical (minimum) or
±70° Horizontal, ±60° Vertical (typical)
QuickSpecs
HP EliteBook 8740w Mobile Workstation
Technical Specifications
DA - 13543 Europe, Middle East and Africa QuickSpecs — Version 5 — 5.26.2010
Page 20
43.2 cm (17.0-inch)
WUXGA wide-viewing
angle, anti-glare
Active Area
(W x H)
36.7 x 22.9 cm (14.5 x 9.0 in)
Diagonal Size
43.2 cm (17.0 in)
Surface Treatment
Anti-glare
Contrast Ratio
400:1 typical
Refresh Rate
60 Hz
Brightness
200 nit typical
Pixel Resolution
Pitch
0.191 mm
Format
1920 x 1200
Configuration
RGB Stripe
Backlight
LED
PPI
133
Viewing Angle
±65° Horizontal, ±55° Vertical (typical)
Internal Storage
500 GB 7200 rpm SATA
Hard Drive
Drive Weight
115g (0.25 lbs)
Capacity
500 GB
Height
9.5 mm (0.37 in)
Width
70 mm (2.75 in)
Interface
ATA-8, SATA 2.6, 3.0 Gb/s, NCQ
Transfer Rate
Synchronous
(maximum)
150 MB/s (Drive Capability)
Seek Time
(typical reads, including
settling)
Single Track
1.5ms
Average
11ms
Maximum
22ms
Rotational Speed
7200 rpm
Logical Blocks
976,773,168
Operating Temperature
0° to 60° C (32° to 140° F) [case temp]
Features
ATA Security
320 GB 7200 rpm SATA
Hard Drive
Drive Weight
115g (0.25 lbs)
Capacity
250 GB
Height
9.5 mm (0.37 in)
Width
70 mm (2.75 in)
Interface
ATA-8, SATA 2.6, 3.0 Gb/s, NCQ
Transfer Rate
Synchronous
(maximum)
150 MB/s (Drive Capability)
Seek Time
(typical reads, including
settling)
Single Track
1.5ms
Average
11ms
Maximum
22ms
Rotational Speed
7200 rpm
Logical Blocks
625,142,448
Operating Temperature
0° to 60° C (32° to 140° F) [case temp]
Features
ATA Security
QuickSpecs
HP EliteBook 8740w Mobile Workstation
Technical Specifications
DA - 13543 Europe, Middle East and Africa QuickSpecs — Version 5 — 5.26.2010
Page 21
250 GB 7200 rpm SATA
Hard Drive
Drive Weight
115g (0.25 lbs)
Capacity
250 GB
Height
9.5 mm (0.37 in)
Width
70 mm (2.75 in)
Interface
ATA-8, SATA 2.6, 3.0 Gb/s, NCQ
Transfer Rate
Synchronous
(maximum)
100 MB/s (Drive Capability)
Seek Time
(typical reads, including
settling)
Single Track
1.5 ms
Average
11 ms
Maximum
22 ms
Rotational Speed
7200 rpm
Logical Blocks
488,397,168
Operating Temperature
0° to 60° C (32° to 140° F) [case temp]
Features
ATA Security
256 GB
2.5-Inch SATA Solid
State Drive
Weight
80.1 Grams
Capacity
256 GB
Height
9.5 mm (0.37 in)
Width
70 mm (2.75 in)
Interface
SATA
Performance
Maximum Sequential
Read
Maximum Sequential Write
220 MB/s 200 MB/s
Logical Blocks
500,118,192
Operating Temperature
0° to 70°C (32° to 158°F) [case temp]
Features
ATA Security; ATA-7;SATA 2.6; DIPM
Optical Drives
DVD-ROM Drive
Access Times
Random
< 140 ms CD (typical)
< 160 ms DVD (typical)
Max Data Transfer Rate
24X CD-ROM
Up to 3,600 KB/s
8X-DVD
Up to 10,800 KB/s
Transfer Mode
UDMA Mode 5
Interface
Gen 1 SATA
Supported Media
(read)
CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CD-ROM XA, MIXED
MODE CD, CD-I, CD-I Bridge (Photo-CD, Video CD), Multisession CD
(Photo-CD, CD-EXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW,
DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW,
DVD+R, DVD+RW, DVD-RAM
Supported Media
(write)
None
Max Media Capacity
(read)
8.5GB
Transport
Tray Loading
QuickSpecs
HP EliteBook 8740w Mobile Workstation
Technical Specifications
DA - 13543 Europe, Middle East and Africa QuickSpecs — Version 5 — 5.26.2010
Page 22
DVD+/-RW SuperMulti
DL LightScribe Drive
Access Times
Random
< 150ms CD (typical)
< 160 ms DVD (typical)
Max Data Transfer Rate
24X CD-ROM
Up to 3,600 KB/s
8X DVD
Up to 10,800 KB/s
24X CD-R
Up to 3,600 KB/s
16X CD-RW
Up to 2,400 KB/s
8X DVD+R
Up to 10,800 KB/s
8X DVD+RW
Up to 10,800 KB/s
8X DVD-R
Up to 10,800 KB/s
6X DVD-RW
Up to 8100KB/s
4X - DVD+R Dual Layer
Up to 5,400 KB/s
4X - DVD-R Dual Layer
Up to 5,400 KB/s
5X DVD-RAM
Up to 6,750 KB/s
Transfer Mode
UDMA Mode 5
Interface
Gen 1 SATA
Supported Media
(read)
CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CD-ROM XA, MIXED
MODE CD, CD-I, CD-I Bridge (Photo-CD, Video CD), Multisession CD
(Photo-CD, CD-EXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW,
DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW,
DVD+R, DVD+RW, DVD-RAM
Supported Media
(write)
CD-R, CD-RW, DVD+R, DVD+RW, DVD-R, DVD-RW, DVD-RAM,
LightScribe
Max Media Capacity
(read)
8.5 GB
Max Media Capacity
(write)
8.5 GB
Transport
Tray Loading
Blu-ray R/RE DVD+/-
RW SuperMulti DL
Drive
Access Times
Random
<180 ms CD-ROM (typical)
<180 ms DVD-ROM (typical)
<230 ms BD-ROM (typical)
Max Data Transfer Rate
24X CD-ROM
Up to 3,600 KB/s
8X DVD-ROM
Up to 10,800 KB/s
24X CD-R
Up to 3,600 KB/s
16X CD-RW
Up to 2,400 KB/s
8X DVD+R
Up to 10,800 KB/s
6X DVD+RW
Up to 8,100 KB/s
8X DVD-R
Up to 10,800 KB/s
6X DVD-RW
Up to 8,100 KB/s
4X DVD+R Dual Layer
Up to 5,400 KB/s
4X DVD-R Dual Layer
Up to 5,400 KB/s
5X DVD-RAM
Up to 6,750 KB/s
2X BD-ROM
Up to 9,000 KB/s
2X BD-R
Up to 9,000 KB/s
2X BD-RE
Up to 9,000 KB/s
Transfer Mode
UDMA Mode 5
Interface
Gen 1 SATA
QuickSpecs
HP EliteBook 8740w Mobile Workstation
Technical Specifications
DA - 13543 Europe, Middle East and Africa QuickSpecs — Version 5 — 5.26.2010
Page 23
Supported Media
(read)
CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CD-ROM XA, MIXED
MODE CD, CD-I, CD-I Bridge (Photo-CD, Video CD), Multisession CD
(Photo-CD, CD-EXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW,
DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW,
DVD+R, DVD+RW. DVD-RAM, BD-ROM, BD-R, BD-RE
Supported Media
(write)
CD-R, CD-RW, DVD+R, DVD+R(9), DVD+RW, DVD-R, DVD-R(9),
DVD-RW, DVD-RAM, BD-R, BD-RE
Max Media Capacity
(read)
50.0 GB
Max Media Capacity
(write)
50.0 GB
Transport
Tray Loading
Blu-ray ROM DVD+/-RW
SuperMulti DL
LightScribe Drive
Access Times
Random
<190 ms CD-ROM (typical)
< 190ms DVD-ROM (typical)
<230 ms BD-ROM (typical)
Max Data Transfer Rate
24X CD-ROM
Up to 3600KB/s
8X DVD-ROM
Up to 10800 KB/s
16X CD-R
Up to 1,200KB/s
10X CD-RW
Up to 1500 KB/s
8X DVD+R
Up to 10800 KB/s
8X DVD+RW
Up to 10,800KB/s
8X DVD-R
Up to 10800 KB/s
6X DVD-RW
Up to 8,100 KB/s
4X - DVD+R Dual Layer
4X - DVD-R Dual Layer
Up to 5400 KB/s
5X DVD-RAM
Up to 6750 KB/s
4X BD-ROM
Up to 18,000KB/s
Transfer Mode
UDMA Mode 5
Interface
Gen 1 SATA
Supported Media
(read)
CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CD-ROM XA, MIXED
MODE CD, CD-I, CD-I Bridge (Photo-CD, Video CD), Multisession CD
(Photo-CD, CD-EXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW,
DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW,
DVD+R, DVD+RW. DVD-RAM, BD-ROM, BD-R, BD-RE
Supported Media
(write)
CD-R, CD-RW, DVD+R, DVD+R(9), DVD+RW, DVD-R, DVD-R(9),
DVD-RW, DVD-RAM, LightScribe
Max Media Capacity
(read)
50.0 GB
Max Media Capacity
(write)
8.5GB
Transport
Tray Loading
Security
QuickSpecs
HP EliteBook 8740w Mobile Workstation
Technical Specifications
DA - 13543 Europe, Middle East and Africa QuickSpecs — Version 5 — 5.26.2010
Page 24
HP Fingerprint Sensor
Mobile Voltage
Operation
3.0V-3.6V Single Supply
Operating Temperature
0° - 70°C (32° - 158°F)
Current Consumption
@ 3.3V
Less than 70 mA peak imaging and scrolling
Less than 25 mA hardware finger detection
Advanced Power Management
High-Rate Image
Capture
Up to 240 image frames /sec
ESD Resistance
IEC 61000-4-2 Level 4 (±15KV)
Detection Matrix
192 x 16 Pixels
9.7 mm x 0.81 mm
500 ppi High-Resolution Images
Audio
Hardware
Implementation
IDT 92HD75B High Definition CODEC
Touch-Sensitive
Volume Controls
Volume up, volume down, and mute
Full Duplex
Yes
Microphone In
Stereo
Headphone/Line Out
Stereo
Integrated Microphone
Yes, dual-microphone array when equipped with optional webcam
Audio Output Quality
Frequency Response
20 Hz - 20 kHz
Signal to Noise Ratio
>85 dB
Total Harmonic
Distortion
0.01%
Noise Floor
-110 dB
Play/Record Sampling
Rate
(s)
8 kHz - 48kHz
DAC
16, 20 or 24-bit
ADC
16 or 20-bit
Integrated Stereo
Speakers
Power Rating
2 Watts
Impedance
4 Ohms
Communications
QuickSpecs
HP EliteBook 8740w Mobile Workstation
Technical Specifications
DA - 13543 Europe, Middle East and Africa QuickSpecs — Version 5 — 5.26.2010
Page 25
Integrated Intel Gigabit
Network Connection
(10/100/1000 NIC)
Ethernet Features
10 Mbit/s operation (10BASE-T; IEEE 802.3i; IEEE 802.3 clauses 13-
14)
100 Mbit/s operation (100BASE-TX; IEEE 802.3u; IEEE 802.3 clauses
21-30)
1000 Mbit/s operation (1000BASE-T; IEEE 802.3z and 802.3ab; IEEE
802.3 clauses 34-42)
Auto-Negotiation (Automatic Speed Selection)
Full Duplex Operation at all Speeds, Half Duplex operation at 10 and
100 Mbit/s
IEEE 802.1p QoS (Quality of Service) Support
IEEE 802.3x Flow Control (IEEE 802.3 clauses 31-32; configurable)
Power Management
ACPI compliant -- multiple power modes
Situation-sensitive features reduce power consumption
Performance Features
TCP/IP/UDP Checksum Offload (configurable)
Manageability
Wake-on-LAN from standby and hibernation (Magic Packet and
Microsoft Wake-Up Frame); Wake-on-LAN from off (Magic Packet only)
PXE 2.1 Remote Boot
Statistics Gathering (SNMP MIB II, Ethernet-like MIB, Ethernet MIB
(802.3x, clause 30))
Comprehensive diagnostic and configuration software suite
Intel Advanced Management Technology 6.0 (iAMT)
Interface
PCI Express x1 based, SMBUS dedicated connection with Intel® 5
Series Chipset
NIC Device Driver
Name
Intel 82577 Gigabit Network Connection
V.92 56K Data/Fax
Modem
Form Factor
MDC 1.5 Daughtercard
Power Management
Support
APM Revision 1.2, ACPI
Approvals/
Certifications
UL, CSA, NEMKO, CCIB, Industry Canada, FCC Part 68, CTR21, FCC
Part 15 Class B, Canadian ICES-003 Class B, C.I.S.P.R.22, Australian
ACA, CE Mark, Other Countries
Data Mode Capabilities
V.92 data
V.8bis
V.80
V44, V.42bis, MNP5 (Compression)
V.42 (LAPM, MNP2-4) (Error Correction)
Optional symbol rates
:
2800, 3429
Asymmetric Symbol rates
Synchronous primary channel data signaling rates
:
3600, 31200
Automatic rate re-negotiation
V.34
V.32bis
V.32
V.23
V.22bis
V.22
V.21
Bell 212A
Bell 103J
QuickSpecs
HP EliteBook 8740w Mobile Workstation
Technical Specifications
DA - 13543 Europe, Middle East and Africa QuickSpecs — Version 5 — 5.26.2010
Page 26
Fax Mode Capabilities
TIA/EIA-578-B (Class 1)
T.30, T.4 (Group 3)
V.17
V.29
V.27ter
V.21 Channel 2
Command Set
V.250 (Partial)
TIA-602
Identification: +GMI, +GMM, +GMR
Port control: +IPR, +ICF, +IFC, +ILRR
Modulation: +MS, +MR, +MA
Error control: +ES, +ER, +EB, +ESR, +ETBM
Data compression: +DS, +DR
V.251
HP un2420
EV-DO/HSPA Mobile
Broadband Module
Technology/Operating
Bands
GSM/GPRS/EDGE: 850MHz(Cell), 900MHz(EGSM), 1800MHz(DCS),
1900MHz (PCS)
UMTS/WCDMA with receive diversity: 2100MHz (UTRA FDD Band I),
1900MHz (UTRA FDD Band II), 900Mhz (UTRA FDD Band VIII),
850MHz (UTRA FDD Band V)
1xEVDO/1xRTT with receive diversity: 850MHz (Band Class0-Cell),
1900MHz (Band Class1-PCS)
Wireless Protocol
Standards
GSM/GPRS/EDGE: Class B, Multi-slot operation, coding schemes CS1
- CS4 and MSC1 - MSC9.
UMTS/WCDMA: Release 99 and Release 6
CDMA: 1xEVDO Release 0 and Release A, IS-95A, IS-95B, IS-2000
Wireless Parametric
Standards
Meets or exceeds TIA/EIA IS-98-D
Maximum Data Rates
UMTS (HSPA) - 7.2 Mbps (Download ), 2.0Mbps (Upload)
CDMA (EVDO Release A) - 3.1 Mbps (Download), 1.8Mbps (Upload)
GPS
Standalone GPS enabled
GPS Bands
L1 - 1575.42 MHz
Maximum Output
Power
GSM/GPRS/EDGE: 32dBm (+/-1)
WCDMA: 24dBm (+/-1)
CDMA: 24dBm (+/-1)
Maximum Power
Consumption
2500mA (peak); 1000mA (average)
Power Consumption,
Sleep Mode
5 mA
Power Management
USB selective suspend
Integrated notebook wireless button
Antenna Type
Dual high efficiency 5 band antennae with spatial diversity, mounted in
the display enclosure
Form Factor
PCI-Express MiniCard, USB 2.0 interface
Weight
11.5 g
Dimensions
(Length x
Width x Thickness)
51 x 30 x 5 mm (2.01 x 1.18 x 0.18 in)
Voltage, Operating
3.3v +/- 10%
Temperature,
Operating
(from
TIA/EIA/IS-98-D)
-30° to 60° C (-22° to 140° F) (full RF performance)
-30° to 75° C (-22° to 167° F) (reduced RF performance)
QuickSpecs
HP EliteBook 8740w Mobile Workstation
Technical Specifications
DA - 13543 Europe, Middle East and Africa QuickSpecs — Version 5 — 5.26.2010
Page 27
Temperature, Non-
operating, 96 hours
(from MIL-STD 202
Method 108)
-40° to 85° C (-40° to 185° F)
Humidity, Non-
operating
85% relative humidity for 48 hours @ 85° C (185° F) (non-condensing)
Configuration Utilities
HP Connection Manager
LED Activity
LED Off - Radio Off;
Solid LED On - Radio On
Intel Centrino Ultimate-
N 6300
Wireless LAN
Standards
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
*
* In countries where 802.11n is not allowed, this capability is not
enabled.
Interoperability
Wi-Fi certified (802.11bgn only)
Cisco Compatible Extensions Program compliant (802.11bgn only) with
Microsoft Windows Vista and XP (details at:
http://www.hp.com/go/notebooks/WLAN
)
Frequency Band
2.4 GHz and 5GHz
Antenna Structure
3 transmit; 3 receive (3x3)
Data Rates
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: many possible data rates, ranging from 6 Mbps to 450 Mbps,
depending on the combination of Bandwidth, Modulation Coding
Scheme, and Guard Interval used, as defined in IEEE 802.11n
specification
Modulation
Direct Sequence Spread Spectrum
DBPSK, DQPSK, CCK, OFDM, BPSK, QPSK, 16-QAM, 64-QAM
Security
1
Authentication: WPA and WPA2, 802.1x (EAP_TLS, TTLS, PEAP,
LEAP, EAP-FAST)
Authentication Protocols: PAP, CHAP, TLS, GTC, MS-CHAP, MS-
CHAPv2
Encryption: 64 and 128-bit WEP, AES-CCMP, CKIP, TKIP
Support for Cisco Security Features (proven compatibility with Cisco
Aironet infrastructure products through the Cisco Compatible
Extensions Program Version 4) with Microsoft Windows Vista and XP
only.
Sub-channels
Multinational support with frequency bands and channels compliant to
local regulations.
Media Access Protocol
CSMA/CA (Collision Avoidance) with ACK
Network Architecture
Models
Ad-hoc (Peer to Peer)
Infrastructure (Access Point Required)
Roaming
IEEE 802.11 compliant roaming between Access Points
Output Power
(for CCK
and OFDM)
2
17 dBm max
QuickSpecs
HP EliteBook 8740w Mobile Workstation
Technical Specifications
DA - 13543 Europe, Middle East and Africa QuickSpecs — Version 5 — 5.26.2010
Page 28
Power Consumption
Transmit: 2.4 Watts (max, with three spatial streams)
Receive: 1.4 Watts (max with three spatial streams)
Idle mode
3
: 35 mW (average)
Radio off: 20 mW (max)
Power Management
ACPI compliant power management
802.11 compliant power saving mode
Receiver Sensitivity
4
54 Mbps: -76 dBm, 6 Mbps: -92 dBm
Antenna Connections
3 U.FL type connectors, 50 ohm nominal impedance
Form Factor
PCI-Express Half-MiniCard
Weight
3.4 g (0.0075 lb)
Dimensions
3.1 x 26.8 x 30.0 mm (0.12 x 1.06 x 1.18 in)
Operating Voltage
3.3V +/- 9%
Temperature
Operating
Non-operating
0° to 80° C (32° to 176° F)
-40° to 80° C (-40° to 176° F)
Humidity
Operating
Non-operating
10% to 90% (non-condensing)
5% to 90% (non-condensing)
Altitude
Operating
Non-operating
3,048 m (0 to 10,000 ft)
15,240 m (0 to 50,000 ft)
LED Activity
LED Off - Radio OFF; Solid LED On - Radio ON
Check latest software/driver release for updates on supported security features.
1.
Maximum output power may vary by country according to local regulations.
2.
In Power Save Polling mode and on battery power.
3.
Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CCK modulation)
and a packet error rate of 10% for 802.11a/g (OFDM modulation).
4.
WLAN supplier's client utility is required for Cisco Compatible Extensions support with
Microsoft Windows XP. WLAN may also be compatible with certain third-party software
supplicants. WLAN supplier IHV extensions required for Cisco Compatible Extensions
support for Microsoft Windows Vista.
5.
Intel Centrino
Advanced-N 6200
Wireless LAN
Standards
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
*
* In countries where 802.11n is not allowed, this capability is not
enabled.
Interoperability
Wi-Fi certified
Cisco Compatible Extensions Program compliant with Microsoft
Windows Vista and XP (details at:
http://www.hp.com/go/notebooks/WLAN
)
Frequency Band
2.4 GHz and 5GHz
Antenna Structure
2 transmit; 2 receive (2x2)
Data Rates
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: 66 possible data rates, ranging from 6 Mbps to 300 Mbps,
depending on the combination of Bandwidth, Modulation Coding
Scheme, and Guard Interval used, as defined in IEEE 802.11n
specification
Modulation
Direct Sequence Spread Spectrum
DBPSK, DQPSK, CCK, OFDM, BPSK, QPSK, 16-QAM, 64-QAM
Security
1
Authentication: WPA and WPA2, 802.1x (EAP_TLS, TTLS, PEAP,
LEAP, EAP-FAST)
QuickSpecs
HP EliteBook 8740w Mobile Workstation
Technical Specifications
DA - 13543 Europe, Middle East and Africa QuickSpecs — Version 5 — 5.26.2010
Page 29
Authentication Protocols: PAP, CHAP, TLS, GTC, MS-CHAP, MS-
CHAPv2
Encryption: 64 and 128-bit WEP, AES-CCMP, CKIP, TKIP
Support for Cisco Security Features (proven compatibility with Cisco
Aironet infrastructure products through the Cisco Compatible
Extensions Program Version 4) with Microsoft Windows Vista and XP
only.
Sub-channels
Multinational support with frequency bands and channels compliant to
local regulations.
Media Access Protocol
CSMA/CA (Collision Avoidance) with ACK
Network Architecture
Models
Ad-hoc (Peer to Peer)
Infrastructure (Access Point Required)
Roaming
IEEE 802.11 compliant roaming between 2.4GHz band Access Points
Output Power
(for CCK
and OFDM)
2
17 dBm max
Power Consumption
Transmit: 2.3 Watts (max, with two spatial streams)
Receive: 1 Watt (max with two spatial streams)
Idle mode
3
: 35 mW (average)
Radio off: 20 mW (max)
Power Management
ACPI compliant power management
802.11 compliant power saving mode
Receiver Sensitivity
4
54 Mbps: -76 dBm, 6 Mbps: -92 dBm
Antenna Connections
2 U.FL type connectors, 50 ohm nominal impedance
Form Factor
PCI-Express Half-MiniCard
Weight
0.0075 lb (3.4 g)
Dimensions
0.12 x 1.06 x 1.18 in (3.1 x 26.8 x 30.0 mm)
Operating Voltage
3.3V +/- 9%
Temperature
Operating
Non-operating
32° to 176° F (0° to 80° C)
-40° to 176° F (-40° to 80° C)
Humidity
Operating
Non-operating
10% to 90% (non-condensing)
5% to 90% (non-condensing)
Altitude
Operating
Non-operating
0 to 10,000 ft (3,048 m)
0 to 50,000 ft (15,240 m)
LED Activity
LED Off - Radio OFF; Solid LED On - Radio ON
Check latest software/driver release for updates on supported security features.
1.
Maximum output power may vary by country according to local regulations.
2.
In Power Save Polling mode and on battery power.
3.
Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CCK modulation)
and a packet error rate of 10% for 802.11a/g (OFDM modulation).
4.
WLAN supplier's client utility is required for Cisco Compatible Extensions support with
Microsoft Windows XP. WLAN may also be compatible with certain third-party software
supplicants. WLAN supplier IHV extensions required for Cisco Compatible Extensions
support for Microsoft Windows Vista.
5.
HP Integrated Module
with Bluetooth 2.1
Wireless Technology
Bluetooth Specification
2.1 Compliant
Dimensions
30 x 6.5 x 3.25 mm (1.18 x 0.26 x 0.13 in)
Frequency Band
2402 to 2480 MHz
Number of Available
Channels
79 (1 MHz) available channels
QuickSpecs
HP EliteBook 8740w Mobile Workstation
Technical Specifications
DA - 13543 Europe, Middle East and Africa QuickSpecs — Version 5 — 5.26.2010
Page 30
Data Rates and
Throughput
3 Mbps data rate; throughput up to 2.17 Mbps
Synchronous Connection Oriented links up to 3, 64 kbps, voice
channels
Asynchronous Connection Less links 2178.1 kbps/177.1 kbps
asymmetric or 1306.9 kbps symmetric
Transmit Power
-6 dBm to 4 dBm (Bluetooth Class II)
Receiver Sensitivity
Better than -80 dBM at 0.1 % raw bit error rate
Power Consumption
Peak (Tx) 264 mW
Peak (Rx) 231 mW
Sleep <1 mW
Antenna
Internally integrated within module
Range
Up 10 m (33 ft)
Electrical Interface
USB 2.0 compliant
Microsoft Windows Plug and Play compliant
Bluetooth Software
Supported
Broadcom Bluetooth for Windows
Microsoft Windows Bluetooth Software
Link Topology
Point to Point, Multipoint Pico Nets up to 7 slaves
Security
Full support of Bluetooth Security Provisions
Power Management
Microsoft Windows ACPI, and USB Bus Support
Self configurable to optimize power conservation in all operating modes,
including Standby, Hold, Park, and Sniff
Certifications
All necessary regulatory approvals for supported countries, including:
FCC (47 CFR) Part 15C, Section 15.247 & 15.249
ETS 300 328, ETS 300 826
Low Voltage Directive IEC950
UL, CSA, and CE Mark
Temperature
Operating
-20° to 70° C (-4° to 158° F)
Non-operating
-40° to 80° C (-40° to 176° F)
Humidity
Operating
10% to 90%
Non-operating
5% to 95%
Altitude
Operating
4,572 m (15,000 ft)
Non-operating
12,192 m (40,000 ft)
Bluetooth Profiles
Supported
Serial Port Profile (SPP)
1
Service Discovery Applicaton Profile (SDAP)
Dial-Up Networking (DUN)
1,2
Generic Object Exchange Profile (GOEP)
1,2
Object Push Profile (OPP)
1,2
File Transfer Profile (FTP)
Synchronization Profile (SYNC)
Hard Copy Cable Replacement (HCRP)
1,2
Personal Area Networking Profile (PAN)
1,2
Human Interface Device Profile (HID)
1,2,3
FAX Profile (FAX)
Basic Imaging Profile (BIP)
2
Headset Profile (HSP)
Hands Free Profile (HFP)
Advanced Audio Distribution Profile (A2DP)
QuickSpecs
HP EliteBook 8740w Mobile Workstation
Technical Specifications
DA - 13543 Europe, Middle East and Africa QuickSpecs — Version 5 — 5.26.2010
Page 31
indicates the profile is supported by Microsoft Windows XP SP2
1.
indicates the profile is part of Windows Vista
2.
Environmental Data
Eco-Label
Certifications
This product has received or is in the process of being certified to the
following approvals and may be labeled with one or more of these
marks:
US Energy Star
IT ECO declaration
EPEAT - Gold where HP registers commercial desktop products.
See
http://www.epeat.net
for registration status in your country.
Energy Consumption
115 VAC 230 VAC 100 VAC
Normal Operation
28.16 W 29.19 W 28.19 W
Sleep (Energy Star low
power mode)
1.08 W 1.15 W 1.09 W
Off
0.80 W 0.84 W 0.80 W
Heat Dissipation
*
115 VAC 230 VAC 100 VAC
Normal Operation
96 BTU/hr
100 BTU/hr
96 BTU/hr
Sleep
4 BTU/hr 4 BTU/hr 4 BTU/hr
Off
3 BTU/hr 3 BTU/hr 3 BTU/hr
* Heat dissipation is calculated based on the measured watts, assuming
the service level is attained for one hour.
Declared Noise
Emissions
(in accordance with
ISO 7779 and ISO 9296)
System Fan Off
Sound Power
(LWAd, bels)
Sound Pressure
(LpAm, decibels)
Idle
3.5
32.2
Fixed Disk
(random writes)
3.5
32.3
System fan is usually off except when charging the battery
Batteries
This battery(s) in this product comply with EU Directive 2006/66/EC
Batteries used in the product do not contain:
Mercury greater the 5ppm by weight
Cadmium greater than 10ppm by weight
The battery type and chemistry used in the product is:
CR2032 (coin cell), Li-ion
6-cell high capacity Lithium-Ion battery (optional 8 cell available)
Additional
information
This product is in compliance with the Restrictions of Hazardous
Substances (RoHS) directive - 2002/95/EC.
This HP product is designed to comply with the Waste Electrical and
Electronic Equipment (WEEE) Directive - 2002/96/EC.
This product is in compliance with California Proposition 65 (State of
California; Safe Drinking Water and Toxic Enforcement Act of 1986).
This product is in compliance with the IEEE 1680 (EPEAT) standard at
QuickSpecs
HP EliteBook 8740w Mobile Workstation
Technical Specifications
DA - 13543 Europe, Middle East and Africa QuickSpecs — Version 5 — 5.26.2010
Page 32
the Gold level, see:
www.epeat.net
Plastics parts weighing over 25 grams used in the product are marked
per ISO 11469 and ISO1043.
This product contains 0% post consumer recycled plastic (by wt.)
This product is greater than 95% recycle-able when properly disposed of
at end of life.
Packaging Materials
External:
Corrugated carton 745 g
Cardboard & misc 120 g
Internal:
Polyethylene low density foam 15 g
EPE-Expanded Polyethylene 75 g
The Corrugated carton packaging material is made from 70~80%
recycled content.
The Cardboard & misc packaging material is made from 70~80%
recycled content.
The Polyethylene low density foam packaging material is made
from 0% recycled content.
The EPE-Expanded Polyethylene packaging material is made
from 0% recycled content.
HP follows these guidelines to decrease the environmental impact of
product packaging:
Eliminate the use of heavy metals such as lead, chromium,
mercury and cadmium in packaging materials.
Eliminate the use of ozone-depleting substances (ODS) in
packaging materials.
Design packaging materials for ease of disassembly.
Maximize the use of post-consumer recycled content materials in
packaging materials.
Use readily recyclable packaging materials such as paper and
corrugated materials.
Reduce size and weight of packages to improve transportation
fuel efficiency.
Plastic packaging materials are marked according to ISO 11469
and DIN 6120 standards.
Material Usage
This product does not contain any of the following substances in excess
of regulatory limits (for reference of these limits please refer to the HP
General Specification of the Environment:
(
http://www.hp.com/hpinfo/globalcitizenship/environment/supplychain/
gen_specifications.html
):
Asbestos
Certain Azo Colorants
Certain Brominated Flame Retardants - may not be used as flame
retardants in plastics
Cadmium
Chlorinated Hydrocarbons
Chlorinated Paraffins
Formaldehyde
Halogenated Diphenyl Methanes
QuickSpecs
HP EliteBook 8740w Mobile Workstation
Technical Specifications
DA - 13543 Europe, Middle East and Africa QuickSpecs — Version 5 — 5.26.2010
Page 33
Lead carbonates and sulfates
Lead and Lead compounds
Mercuric Oxide Batteries
Nickel - finishes must not be used on the external surface
designed to be frequently handled or carried by the user.
Ozone Depleting Substances
Polybrominated Biphenyls (PBBs)
Polybrominated Biphenyl Ethers (PBBEs)
Polybrominated Biphenyl Oxides (PBBOs)
Polychlorinated Biphenyl (PCB)
Polychlorinated Terphenyls (PCT)
Polyvinyl Chloride (PVC) - except for wires and cables, and
certain retail packaging has been voluntarily removed from most
applications.
Radioactive Substances
Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)
End-of-life
Management and
Recycling
Hewlett-Packard offers end-of-life HP product return and recycling
programs in many geographic areas. To recycle your product, please go
to:
http://www.hp.com/go/reuse-recycle
or contact your nearest HP sales
office. Products returned to HP will be recycled, recovered or disposed
of in a responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to
provide treatment information for each product type for use by treatment
facilities. This information (product disassembly instructions) is posted
on the Hewlett Packard web site at:
http://www.hp.com/go/recyclers
.
These instructions may be used by recyclers and other WEEE treatment
facilities as well as HP OEM customers who integrate and re-sell HP
equipment.
Hewlett-Packard
Corporate
Environmental
Information
For more information about HP's commitment to the environment:
Global Citizenship Report
http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html
Environment website
http://www.hp.com/environment
Eco-label certifications
http://www.hp.com/hpinfo/globalcitizenship/environment/productdesign/
ecolabels.html
ISO 14001 certificates:
http://www.hp.com/hpinfo/globalcitizenship/environment/operations/
envmanagement.html
Copyright © 2010 Hewlett-Packard Development Company, L.P.
All rights reserved. Microsoft, Windows, Windows 7, Windows Vista and Windows XP are registered trademarks or
trademarks of Microsoft Corporation in the U.S. and/or other countries. Intel, Centrino and Core are registered trademarks
or trademarks of Intel Corporation in the U.S. and/or other countries. Bluetooth is a registered trademark of Bluetooth SIG,
Inc., in the U.S. and other countries. All other product names mentioned herein may be trademarks of their respective
companies.
The information contained herein is subject to change without notice and is provided "as is" without warranty of any kind.
The warranties for HP products are set forth in the express limited warranty statements accompanying such products.
Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
QuickSpecs
HP EliteBook 8740w Mobile Workstation
Technical Specifications
DA - 13543 Europe, Middle East and Africa QuickSpecs — Version 5 — 5.26.2010
Page 34

Navigation menu
