Overview
Configurable Components - Select Models (localized by Regions)
Standard Features and Configurable Components
After-Market Options (availability may vary by region)
Technical Specifications
Technical Specifications - Audio
Technical Specifications - Communications
Technical Specifications - Hard Drives
Technical Specifications - Graphics
Technical Specifications - Input/Output Devices
Technical Specifications - Optical Storage
Technical Specifications - Removable Storage
Technical Specifications - Environmental Data

HP recommends

Windows Vista® Business

Ultra-slim Desktop

Rear I/O: (6) USB 2.0, (1) DisplayPort, (2) PS/2, (1) RJ-45, (1)

VGA port, (1) audio in, (1) audio out

(1) Optical disk drive (slimline)

(1) 2.5” internal hard disk drive bay

HP 2-button optical scroll mouse

Front I/O: (2) USB 2.0, headphone and microphone

HP keyboard

135W 87% efficient external power adapter

HP Monitor (sold separately)

Tower stand (sold separately)

QuickSpecs

HP Compaq dc7900 Business PC

Overview

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 1

Small Form Factor

HP Monitor (sold separately)

HP keyboard

Rear I/O: (6) USB 2.0, (1) serial port, (2) PS/2, (1) RJ-45,

(1) VGA port, (1) DisplayPort, (1) audio in, (1) audio out

Optional: 2

serial port, (1) parallel port, (1) eSATA port

(1) 3.5-inch external drive bay supporting media card

reader, diskette drive, or secondary hard disk drive

(1) low profile PCI slot, (1) low profile PCI Express x1 slot, (2)

low profile PCI Express x16 slots

(

NOTE:

x16 slot has x4 connectivity.

)

(1) Optical disk drive

Front I/O: (2) USB 2.0, headphone and microphone

(1) 3.5-inch internal drive bay supporting primary hard disk

drive

HP 2-button optical scroll mouse

10.

240-watt standard efficiency power supply

Optional: 85% efficient energy saving power supply

QuickSpecs

HP Compaq dc7900 Business PC

Overview

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 2

Convertible Minitower

(2) Optical disk drives

(2) 3.5” internal hard disk drive bays

Front I/O: (2) USB 2.0, headphone and microphone

365-watt standard efficiency power supply, Active Power

Factor Correction (PFC)

Optional: 85% efficient energy saving power supply

(3) full-height PCI slots, (1) full-height PCI Express x1 slot, (2)

full-height PCI Express x16 slots

(

NOTE:

x16 slot has x4 connectivity.

)

(1) 5.25” removable media drive bay

HP 2-button optical scroll mouse

Rear I/O: (6) USB 2.0, (1) serial port, (2) PS/2, (1) RJ-45,

(1) VGA, (1) DisplayPort, (1) audio in, (1) audio out

Optional: 2

serial port, (1) parallel port, (1) eSATA port

HP keyboard

Media card reader or Floppy disk drive

10.

HP Monitor (sold separately)

QuickSpecs

HP Compaq dc7900 Business PC

Overview

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 3

At A Glance

Designed for long-term deployment within commercial and institutional organizations

Guaranteed lengthy purchase lifecycles and image stability

Integrated dual monitor support via both a VGA and DisplayPort monitor interface

Optional 85% efficient power supplies

ENERGY STAR qualification for dc7900e models

Intel® Q45 Express chipset featuring Intel's Graphics Media Accelerator 4500

Software image fully compatible across all models and form factors

BIOS developed and engineered by HP for better security, manageability and software image stability

Created using industry leading Design for Environment standards

Supports industry standard management protocols including DASH, Intel Standard Manageability, and Intel Core 2 Processor

with vPro Technology (on select models)

CMT and SFF models can be configured with multiple hard disk drives in a RAID array

Selected configurations with global availability easily set up and ordered through HP.com Business to Business portals

(

http://h10019.www1.hp.com/business-site/index.html

)

Tailored HP Factory Express deployment and lifecycle services available

(

http://h71028.www7.hp.com/enterprise/cache/97688-0-0-225-121.aspx

)

Protected by HP Services, including standard warranties up to 5-5-5 (terms and conditions vary by country; certain restrictions

and exclusions apply)

Tool-less serviceability features for easier upgrades and repairs

Choice of professional chassis form factors to accommodate the desired mix between expandability and size

* TPM module and cryptographic software disabled where use is restricted by law; for example, Russia and China.

QuickSpecs

HP Compaq dc7900 Business PC

Overview

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 4

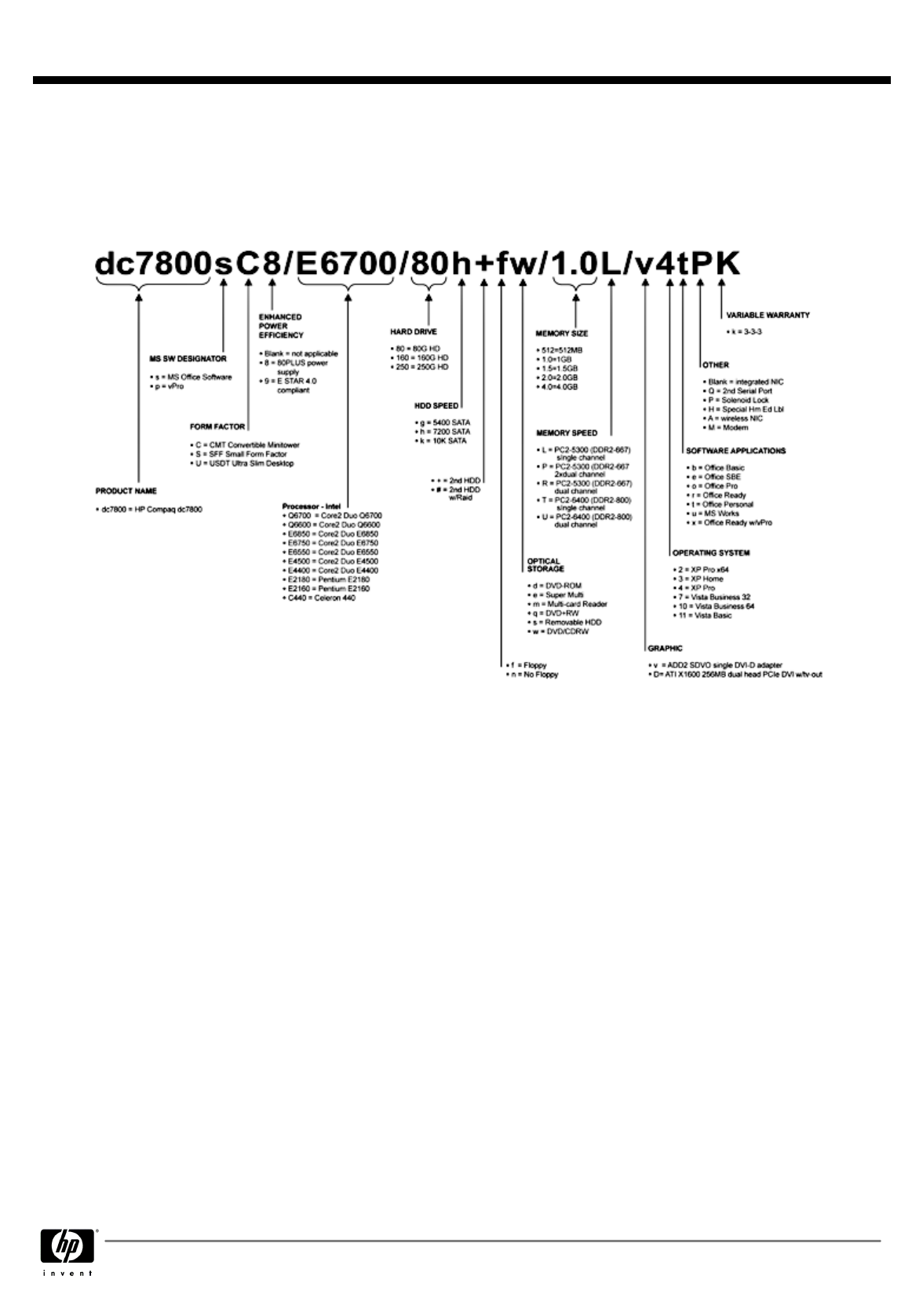

Model Key and Example

NOTE:

This diagram is an example that illustrates how to read the model number. It is not intended to give every available

configuration choice specified in the body of this document and may include references to modules that are out of date and no

longer available.

QuickSpecs

HP Compaq dc7900 Business PC

Configurable Components - Select Models (localized by Regions)

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 5

Operating System -

One of the following

Preinstalled

Genuine Windows Vista Business 32

Genuine Windows Vista Business 64

Genuine Windows Vista Home Basic 32

Genuine Windows Vista Ultimate 32

Genuine Windows Vista Business with downgrade to Windows XP

Professional custom installed

FreeDOS

†

Supported

Genuine Windows XP Home Edition

Genuine Windows XP Professional

Certified

SUSE Linux Enterprise Desktop

†

* Certain Windows Vista product features require advanced or additional hardware. See:

www.microsoft.com/windowsvista/getready/hardwarereqs.mspx

and

www.microsoft.com/windowsvista/getready/capable.mspx

for details. WindowsVista Upgrade Advisor

can help you determine which features of Windows Vista will run on your computer. To download the

tool, visit:

www.windowsvista.com/upgradeadvisor

+ Windows Vista Business disk may be included for future upgrade if desired. To qualify for this

downgrade an end user must be a business (including governmental or educational institutions) and is

expected to order at least 25 customer systems with the same custom image.

† The following features are not supported on Linux certified systems:

HP 22-in-1 Media Card Reader

HP 1.44-MB External USB Diskette Drive

TPM 1.2 Security Chip

Intel Pro 1000 PT PCIe x1 Gigabit NIC

Broadcom NetXtreme Gigabit Ethernet Plus PCIe NIC

HP 802.11b/g/n Wireless PCIe x1 Card

Intel WiFi Link 5100 a/b/g/n (USDT) Wireless NIC

Agere PCI 56K International SoftModem

LSI PCIe x1 56K International SoftModem

ATI Radeon 3470 256MB SH PCIe x16 graphics card

ATI Radeon HD 2400XT 256MB DH PCIe x16 graphics card

ATI Radeon HD 3650 512MB DH PCIe x16 graphics card

NVIDIA Quadro NVS 290 256MB dual head graphics adapter

HP USB Smartcard Keyboard

HP 2nd Serial Port

Parallel port adapter

eSATA port adapter

HP FireWire / IEEE 1394 PCI Card

Value-added Software

(included with all models;

not included with

FreeDOS)

HP ProtectTools Security Suite

†

HP Software Management Agent

HP Backup and Recovery Manager

PDF Complete

HP Insight Diagnostics

Computrace for Desktops (in the HP BIOS)

† Not included on models configured with less than 1 GB system memory.

* Computrace agent is in HP BIOS. For tracking and tracing services, available in select countries,

separate software and purchase of a subscription is required.

QuickSpecs

HP Compaq dc7900 Business PC

Standard Features and Configurable Components

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 6

Value-added Software

(included with select

models; not included with

FreeDOS)

Computer Setup Utility

Microsoft Office 2007 Personal

McAfee Total Protection Anti-Virus

†*

Microsoft Office 2007 Professional

Sonic/Roxio Easy Media Creator 9

Roxio Business Creator 10

Microsoft Office 2007 Small Business

HP Power Manager v2.0

Microsoft Works 8.5

HP Total Care Advisor

†

Firefox-HP Virtual Browser

Microsoft Office 2007 Basic

Corel WinDVD 8

† Not included on models configured with less than 1 GB system memory.

* 60 day trial period for McAfee Total Protection for Small Business software. Internet access required to

receive updates. First update included. Subscription required for updates thereafter.

HP Client Management

Solutions

(available for free

download from the Web

http://www.hp.com/go/

easydeploy

)

HP Client Configuration Manager Basic Edition

HP Out-of-Band Management Console

(for Intel management technology enabled models)

HP Client Manager for Altiris

Altiris Out-of-Band Management Solution (for Intel

AMT enabled models)

HP SoftPaq Download Manager

HP Systems Software Manager

HP Client Catalog for Microsoft SMS

Value-added Services and

Features

HP Stable Platform Program

Factory Express Deployment and Lifecycle Services

Business-to-Business Portals

Intel Standard Manageability

HP Global Series Services

Intel Core 2 processor with vPro Technology

TPM 1.2 security module

* TPM module disabled where use is restricted by law; for example, Russia.

Service and Support

On-site Warranty and Service

: This three-year (3-3-3), limited warranty and service offering delivers three

years of parts, labor and on-site repair. Response time is next business-day

and includes free telephone

support

24 x 7. Global coverage

ensures that any product purchased in one country and transferred to

another non-restricted country will remain fully covered under the original warranty and service offering.

Some countries/regions do not offer one year onsite and labor.

Terms and conditions may vary by country. Certain restrictions and exclusions apply.

On-site service may be provided pursuant to a service contract between HP and an authorized HP third-

party provider, and is not available in certain countries. Global service response times are based on

commercially reasonable best effort and may vary by country.

Technical telephone support applies only to HP-configured, HP and HP-qualified, third-party hardware

and software. Toll-free calling and 24 x 7 support may not be available in some countries.

Ultra-slim Desktop

Small Form Factor

Convertible Minitower

Dimensions

Chassis Dimensions

(H x W x D)

2.60 x 9.90 x 10 in

(66.0 x 251.5 x 254 mm)

3.95 x 13.3 x 14.9 in

(100.3 x 337.8 x 378.5)

17.63 x 7.0 x 17.8 in

(447.8 x 177.8 x 452.12 mm)

Optional Tower Stand

Dimensions (H x W x D)

1.26 x 4.82 x 6.69 in

(32.0 x122.3 x 170.0 mm)

1.05 x 6.95 x 7.83 in

(26.75 x 176.46 x 198.87 mm)

N/A

System weight

7.0 lb (3.18 kg)

18.75 lb (8.50 kg) 26.2 lb (11.89 kg)

System volume

4.21 liters

13 liters 36 liters

QuickSpecs

HP Compaq dc7900 Business PC

Standard Features and Configurable Components

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 7

Shipping weight

14.34 lb (6.52 kg)

26.10 lb (11.86 kg) 34.60 lb (15.72 kg)

Maximum supported weight

(desktop orientation)

77.1 lb (35 kg) 77.1 lb (35 kg) 77.1 lb (35 kg)

Shipping box dimensions

(H x W x D)

8.60 x 15.68 x 19.68 in

(218.4 x 398.3 x 499.9 mm)

9.00 x 19.68 x 23.38 in

(228.6 x 499.9 x 593.85 mm)

24.25 x 12.33 x 22.13 in

(616.0 x 313.2 x 562.1 mm)

* Configured with 1 hard drive, 1 optical drive, no diskette drive, and no PCI card.

Ultra-slim Desktop

Small Form Factor

Convertible Minitower

Standard Efficiency Power

Supply

N/A

240W active PFC 365W active PFC

Energy Efficient Power

Supply

135W active PFC

87% efficient

240W active PFC

85% efficient

365W active PFC

85% efficient

External power supply dimensions:

6.7 x 2.6 x 1.5 in

Total length of external power

supply and power cord:

12 feet 8 inches

Ports

USB 2.0

(8) Total

(2) front, (6) rear

Serial

N/A

(1) Standard

Optional 2

port available

Parallel

N/A

Optional (1)

eSATA

N/A

Optional (1)

PS/2

(1) keyboard; (1) mouse

Video

(1) VGA; (1) DisplayPort

DVI output

available via optional DisplayPort to DVI adapter

Support for Multi-Monitor

Dual monitor support standard; > 2 via optional graphics cards

Audio

Front – mic and headphone

Rear – input (supports microphone or line input), line out

NIC (RJ-45)

Integrated Intel 82567LM GbE Network Connection

Slots

Type and quantity

(1) mini PCI Express

(1) PCI

(1) PCI Express x1

(2) PCI Express x16

(3) PCI

(1) PCI Express x1

(2) PCI Express x16

Slot specifications

Accommodates low profile

cards only

Graphics slots support 35W

cards

PCIe x16 slot functions

electrically as a x4

Accommodates full height

cards

graphics slot supports

75W card; 2

graphics

slot support 35W card

PCIe x16 slot functions

electrically as a x4

USDT

SFF

CMT

Chipset

Intel Q45 Express chipset featuring Intel GMA 4500 DirectX 10 graphics

XXX

Processor and Speed

One of the following

Intel Celeron Processors:

QuickSpecs

HP Compaq dc7900 Business PC

Standard Features and Configurable Components

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 8

One of the following

Intel Celeron 440 processor

2.0 GHz, 512 KB L2 cache, 800 MHz FSB

XXX

Intel Celeron 450 processor

2.2 GHz, 512 KB L2 cache, 800 MHz FSB

XXX

Intel Celeron Dual-Core Processors:

Intel Celeron dual-core E1200 processor

1.6 GHz, 512 KB L2 cache, 800 MHz FSB

XXX

Intel Celeron dual-core E1400 processor

2.0 GHz, 512 KB L2 cache, 800 MHz FSB

XXX

Intel Celeron dual-core E1500 processor

2.2 GHz, 512 KB L2 cache, 800 MHz FSB

XXX

Intel Pentium dual-core Processors:

Intel Pentium dual-core E2200 processor

2.2 GHz, 1 MB L2 cache, 800 MHz FSB

XXX

Intel Pentium dual-core E2220 processor

2.4 GHz, 1 MB L2 cache, 800 MHz FSB

XXX

Intel Pentium dual-core E5200 processor

2.5 GHz, 2 MB L2 cache, 800 MHz FSB

XXX

Intel Pentium dual-core E5300 processor

2.6 GHz, 2 MB L2 cache, 800 MHz FSB

XXX

Intel Core 2 Duo Processors:

Intel Core 2 Duo E7200 processor

2.53 GHz, 3 MB L2 cache, 1066 MHz FSB

XXX

Intel Core 2 Duo E7300 processor

2.66 GHz, 3 MB L2 cache, 1066 MHz FSB

XXX

Intel Core 2 Duo E7400 processor

2.80 GHz, 3 MB L2 cache, 1066 MHz FSB

XXX

Intel Core 2 Duo E8300 processor

2.83 GHz, 6 MB L2 cache, 1333 MHz FSB

XXX

Intel Core 2 Duo E8400 processor

3.0 GHz, 6 MB L2 cache, 1333 MHz FSB

Featuring Core 2 Processor with vPro Technology

XXX

Intel Core 2 Duo E8500 processor

3.16 GHz, 6 MB L2 cache, 1333 MHz FSB

Featuring Core 2 Processor with vPro Technology

XXX

Intel Core 2 Duo E8600 processor

3.33 GHz, 6 MB L2 cache, 1333 MHz FSB

Featuring Core 2 Processor with vPro Technology

XXX

Intel Core 2 Quad Processors:

Intel Core 2 Quad Q8200 processor

2.33 GHz, 4 MB L2 cache, 1333 MHz FSB

X X

Intel Core 2 Quad Q8300 processor

2.50 GHz, 4 MB L2 cache, 1333 MHz FSB

X X

Intel Core 2 Quad Q9400 processor

2.66 GHz, 6 MB L2 cache, 1333 MHz FSB

Featuring Core 2 Processor with vPro Technology

X X

QuickSpecs

HP Compaq dc7900 Business PC

Standard Features and Configurable Components

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 9

Intel Core 2 Quad Q9550 processor

2.83 GHz, 12 MB L2 cache, 1333 MHz FSB

Featuring Core 2 Processor with vPro Technology

X X

Intel Core 2 Quad Q9650 processor

3.0 GHz, 12 MB L2 cache, 1333 MHz FSB

Featuring Core 2 Processor with vPro Technology

X X

Intel Core 2 Processor

with vPro Technology

All dc7900 Series models featuring this technology include processors which are

part of the Intel 2008 Stable Image Platform Program (SIPP) designed to ensure the

stability promise inherent in the value proposition of the HP Compaq dc7900

Series business desktop, thus making these model the most stable, secure, and

manageable platforms available to enterprises today.

The 2008 SIPP processors are:

Core 2 Duo E8400, E8500, E8600

Core 2 Quad Q9400, Q9550, Q9650

Intel's Core 2 Processor with vPro Technology suite of features includes:

Intel Active Management Technology

an advanced set of remote management features and functionality which

provides network administrators the latest and most effective tools to remotely

discover, heal, and protect networked client systems regardless of the

system's health or power state. Intel Active Management Technology

includes all features described as part of Intel Standard Manageability plus

the following advanced management functions:

Fast Call for Help

– a client inside or outside the firewall may initiate

a call for help via BIOS screen, periodic connections, or alert

triggered connection

Remote Scheduled Maintenance

– pre-schedule when the PC

connects to the IT or service provider console for maintenance.

Remote PCs can get required patches, be inventoried, etc by

connecting to their IT console or Service Provider when it's convenient

Remote Alerts

– automatically alert IT or service provider if issues arise

Access Monitor

– Provides oversight into Intel® AMT actions to

support security requirements

Microsoft NAP Support

Allows Intel Active Management Technology to gain access to a Microsoft

NAP enabled 802.1x network OOB to enable OOB SW updates,

inventories, remote diagnostics, etc. NAP is a new platform and solution that

controls access to network resources based on a client computer's identity

and compliance with corporate governance policy. NAP allows network

administrators to define granular levels of network access based on who a

client is, the groups to which the client belongs, and the degree to which

that client is compliant with corporate governance policy. If a client is not

compliant, NAP provides a mechanism to automatically bring the client back

into compliance and then dynamically increase its level of network access.

When a client attempts to access the network or communicate on the

network, it must present its system health state or proof of health compliance.

XXX

QuickSpecs

HP Compaq dc7900 Business PC

Standard Features and Configurable Components

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 10

If a client cannot prove it is compliant with system health requirements (for

example, that it has the latest operating system and antivirus updates

installed), its access to the network or communication on the network can be

limited to a restricted network containing server resources so that health

compliance issues can be remedied. After the updates are installed, the

client requests access to the network or attempts the communication again. If

compliant, the client is granted unlimited access to the network or the

communication is allowed.

Memory

DDR2 SYNCH DRAM NON-ECC MEMORY

Memory upgrades are accomplished by adding single or multiple DIMMs of the same or varied sizes.

This chart does not represent all possible memory configurations. The HP Compaq dc7900 business

desktop supports non-ECC DDR2 PC2-5300 (667-MHz) and PC2-6400 (800-MHz) memory.

CAUTION:

You must shut down the computer and disconnect the power cord before adding or removing

memory modules. Regardless of the power-on state, voltage is always supplied to the memory modules as

long as the computer is plugged in to an active AC outlet. Adding or removing memory modules while

voltage is present may cause irreparable damage to the memory modules or system board.

HP recommends dual-channel symmetric configurations for maximum performance.

For best performance, add the same amount of total memory to each channel and do not mix speeds. For

dual-channel symmetric performance, the total amount of memory in each channel must be equal. If

speeds are mixed, speed will default to the slowest DIMM.

RAID

Redundant Array of Independent Drives

exible implementation:

DriveLock is supported while in RAID mode. Users can manage DriveLock password from within

F10 Setup. Locked drives will be displayed as such in the RAID option ROM interface.

Hard drive information can be viewed within F10 Setup while in RAID mode. Previously, the hard

drives will not appear in Drive Configuration when switching to RAID mode.

DPS Self Test can be executed on physical hard drives while in RAID mode.

The RAID Setup Utility (accessed through CTRL-I) can be protected by the F10 Setup password.

NOTE:

RAID 1 is the only RAID configuration that HP Compaq dc7900 Business PC products offer as

factory configurations. The pre-configured systems:

Are only available on the CMT and SFF form factors. The USDT does not support RAID as it does

not allow for more than one hard disk drive.

Are complete RAID systems and have both drives installed.

Have the necessary Option ROM configuration.

Are pre-loaded and pre-installed with all required Intel software.

Include a preinstalled operating system that is mirrored mode out of the box.

Please refer to the HP White Paper titled "Advanced Host Controller Interface (AHCI) and Redundant

Array of Independent Disks (RAID) on HP Compaq dc7900 Business PCs" at

http://www.hp.com

for

more information and instructions.

Ultra-slim Desktop

QuickSpecs

HP Compaq dc7900 Business PC

Standard Features and Configurable Components

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 11

Maximum Memory

Supports up to 8 GB of DDR2 SYNCH DRAM using SO-DIMM modules. Slot 1 is black and must always

be populated. Not all memory configurations possible are represented below.

NOTE:

For systems configured with more than 3 GB of memory and a 32-bit operating system, all

memory may not be available due to system resource requirements.

SO-DIMM Size

Slot

Channel A

Channel B

(black)

(white)

512-MB

1-GB

2-GB

(dual-channel symmetric)

1-GB 1-GB

4-GB

(dual channel symmetric)

2-GB 2-GB

8-GB maximum

(dual channel symmetric)

4-GB 4-GB

* The Intel Q45 Express chipset includes a built-in Management Engine (ME), which allocates memory for manageability functions.

Management Engine memory is shared with system memory. If the PC contains a single SO-DIMM, 16 MB of memory is pre-

allocated for it at system startup. If the PC contains two SO-DIMMs, 32 MB of memory is pre-allocated. This memory is not made

available to the operating system, just as pre-allocated video memory is not available.

Small Form Factor and Convertible Minitower

Maximum Memory

Supports up to 16 GB of DDR2 SYNCH DRAM using DIMM modules. Slot 1 is black and must

always be populated. Not all memory configurations possible are represented below.

NOTE:

For systems configured with more than 3 GB of memory and a 32-bit operating system, all

memory may not be available due to system resource requirements. Addressing memory above 4 GB

requires a 64-bit operating system.

DIMM Size

Slot

Channel A

Channel B

(black)

(white)

512-MB

1-GB

2-GB

(dual-channel

symmetric)

1-GB

4-GB

(dual-channel

symmetric)

1-GB 1-GB 1-GB 1-GB

8-GB

(dual-channel

symmetric)

2-GB 2-GB 2-GB 2-GB

16-GB maximum

(dual-channel symmetric)

4-GB 4-GB 4-GB 4-GB

* The Intel Q45 Express chipset includes a built-in Management Engine (ME), which allocates memory for manageability functions.

Management Engine memory is shared with system memory. If the PC contains a single DIMM, 16 MB of memory is pre-allocated for

it at system startup. If the PC contains two DIMMs, 32 MB of memory is pre-allocated. This memory is not made available to the

operating system, just as pre-allocated video memory is not available.

QuickSpecs

HP Compaq dc7900 Business PC

Standard Features and Configurable Components

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 12

USDT

SFF

CMT

Memory Configurations –

One of the following

512-MB DDR2 Synch Dram PC2-6400 (800-MHz) Non ECC (1 x 512)

XXX

1-GB DDR2 Synch Dram PC2-6400 (800-MHz) Non ECC (1 x 1GB)

XXX

2-GB DDR2 Synch Dram PC2-6400 (800-MHz) Non ECC (1 x 2GB)

XXX

2-GB DDR2 Synch Dram PC2-6400 (800-MHz) Non ECC (2 x 1GB)

XXX

3-GB DDR2 Synch Dram PC2-6400 (800-MHz) Non ECC (3 x 1GB)

X X

4-GB DDR2 Synch Dram PC2-6400 (800-MHz) Non ECC (4 x 1GB)

X X

4-GB DDR2 Synch Dram PC2-6400 (800-MHz) Non ECC (2 x 2GB)

XXX

8-GB DDR2 Synch Dram PC2-6400 (800-MHz) Non ECC (4 x 2GB)

X X

16-GB DDR2 Synch Dram PC2-6400 (800-Mhz) Non ECC (4 x 4GB)

X X

Expandability

USDT

SFF

CMT

PCI slots

N/A

(1) LP (2.5”), length (6.6”)

standard;

(2) FH (4.2”), length (6.875”) via

optional riser card.

NOTE:

With optional riser card,

PCIe x1 and PCIe x16 slots are

not accessible.

(3) FH (4.2"), length (10.5”)

Max power per slot

N/A

25W 25W

PCI Express x16 slot

N/A

(2) LP (2.5”), length (6.6”)

(2) FH (4.2”), full-length

Max power per slot

N/A

35W

75W max if 1 16x slot,

35W each if both PCIe 16 slots

PCI Express x1 slot

N/A

(1) LP (2.5”), length (6.6”)

(1) FH (4.2”), full-length

Max power per slot

N/A

10W 10W

External Bays

(1) Total (2) Total (4) Total

3.5”

N/A

(1)

unless used for a secondary hard

drive

(1)

5.25”

N/A

(1) 8.189” length (2) 8.189” length

(1) 5.71” length

Slimline

128w x 127d x 12.7h mm

N/A N/A

Internal 2.5” HDD Bays

(1)

N/A N/A

Internal 3.5” HDD Bays

N/A

(1) for primary hard drive

NOTE:

Secondary hard drive can

be installed in 3.5”

external bay if not used for

external device.

(2) dedicated for HDDs

NOTE:

A third hard drive

can be installed in 3.5”

external bay if not used for

external device.

Hard Drive Controller (PCI)

Supported

Serial ATA

support for SATA 1.5-Gb/s and 3.0-Gb/s hard drives

Hard Drive and Optical

SATA Interfaces Supported

(1) Serial ATA interface

(3) Serial ATA interfaces

(1) Serial ATA for eSATA

(4) Serial ATA interfaces

(1) Serial ATA for eSATA

Host Controller for SATA

Advanced Host Controller Interface (AHCI) Revision 1.2. The specification includes a description of the

hardware/software interface between system software and the host controller hardware.

QuickSpecs

HP Compaq dc7900 Business PC

Standard Features and Configurable Components

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 13

Ultra-slim Desktop

Small Form Factor

Convertible Minitower

Storage - Drive Support

USDT

SFF

CMT

Slimline

Optical

Drives

2.5” Hard

Disk Drive or

Solid State

Drive (right

angle, no

cable)

Diskette

Drive or

Media Card

Reader

5.25”

Optical

Drives

Hard Disk

Drives

Diskette

Drive or

Media Card

Reader

5.25”

Optical

Drives

Hard Disk

Drives

Quantity Supported

11112123

Position Supported

, , , ,

Controller

SATA SATA

Diskette

Controller or

USB header

on PCA

SATA SATA

Diskette

Controller or

USB header

on PCA

SATA SATA

* To have both a diskette drive and a media card reader in the Convertible Minitower, it is necessary to order it with a diskette drive

in position 4 and then purchase a media card reader as an after-market option kit (which contains a 5.25" bracket) and install it in

position 3.

QuickSpecs

HP Compaq dc7900 Business PC

Standard Features and Configurable Components

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 14

USDT

SFF

CMT

Hard Drives (SATA)

80 GB Hard Drive (2.5”)

8MB cache, 7200 RPM, 3.0 GB/s, NCQ, Smart IV

160 GB Hard Drive (2.5”)

8MB cache, 7200 RPM, 3.0 GB/s, NCQ, Smart IV

250 GB Hard Drive (2.5”)

8MB cache, 7200 RPM, 3.0 GB/s, NCQ, Smart IV

80 GB Hard Drive

8MB cache, 7,200 RPM, 3.0 GB/s, NCQ, Smart IV

X X

80 GB Hard Drive

16MB cache, 10,000 RPM, 3.0 GB/s, NCQ, Smart III

X X

80 GB Hard Drive (removable)

8MB cache, 7,200 RPM, 3.0 GB/s, NCQ, Smart IV

X X

160 GB Hard Drive

8MB cache, 7,200 RPM, 3.0 GB/s, NCQ, Smart IV

X X

160 GB Hard Drive

16MB cache, 10,000 RPM, 3.0 GB/s, NCQ, Smart III

X X

160 GB Hard Drive (removable)

8MB cache, 7,200 RPM, 3.0 GB/s, NCQ, Smart IV

X X

250 GB Hard Drive

8MB cache, 7,200 RPM, 3.0 GB/s, NCQ, Smart IV

X X

250 GB Hard Drive (removable)

8MB cache, 7,200 RPM, 3.0 GB/s, NCQ, Smart IV

X X

500 GB Hard Drive

16MB cache, 7,200 RPM, 3.0 GB/s, NCQ, Smart IV

X X

Removable Storage

–

One or more of the

following depending on

form factor (see Storage –

Drive Support section

above)

Diskette Drives

1.44-MB Diskette Drive

X X

5.25” Optical Drives (SATA)

DVD-ROM Drive

X X

SuperMulti LightScribe DVD Writer Drive

1,2,3

X X

Slimline Optical Drives (SATA)

DVD-ROM Drive

SuperMulti LightScribe DVD Writer Drive

1,2,3

For playing DVDs, Corel WinDVD 8

For writing CDs, choice of Sonic/Roxio Easy Media Creator 9 or

Roxio Business Creator 10

For writing CDs and DVDs, video editing and authoring DVDs, choice of

Sonic/Roxio Easy Media Creator 9

Roxio Business Creator 10

QuickSpecs

HP Compaq dc7900 Business PC

Standard Features and Configurable Components

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 15

Media Card Reader –

One of the following

HP 22-in-1 Media Card Reader

X X

HP 22-in-1 Media Card Reader with 1394 port

X X

Security

TPM 1.2 TPM Security Chip

XXX

TPM Pre-Boot Authentication (via BIOS)

XXX

Smartcard Pre-boot Authentication (via BIOS)

XXX

Stringent Security

(via BIOS)

XXX

SATA port disablement (via BIOS)

XXX

Drive Lock

XXX

RAID configurations

X X

HP ProtectTools Embedded Security Software

XXX

Serial, Parallel, USB Enable/Disable (via BIOS)

XXX

Optional USB Port Disable at factory (user configurable via BIOS)

XXX

Removable Media Write/Boot Control

XXX

Power-On Password (via BIOS)

XXX

Setup Password (via BIOS)

XXX

Solenoid Hood Lock / Sensor

XXX

HP Security Lock Kit

XXX

Support for chassis padlocks and cable lock devices

XXX

* TPM module disabled where use is restricted by law; for example, Russia.

** This setting is defaulted to disable, but when enabled, the PW jumper will not

clear the BIOS pre-boot authentication passwords.

NIC

Intel 82567LM GbE Network Connection (integrated on system board)

XXX

Intel Gigabit CT Desktop NIC

X X

NOTE:

The integrated network connection is required to support the vPro

technology features.

* Available after initial product release; use of this network card disables the vPro

technology features.

Wireless

HP 802.11 b/g/n PCIe x1 Wireless card

X X

Intel WiFi Link 5100 a/b/g/n (USDT) Wireless NIC

NOTE:

These wireless network solutions disable the vPro technology features.

Modem

Agere 2006 PCI 56K International SoftModem

X X

LSI PCIe x1 Hi-Speed 56K International SoftModem

X X

QuickSpecs

HP Compaq dc7900 Business PC

Standard Features and Configurable Components

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 16

Graphics

Intel Graphics Media Accelerator 4500 (integrated on chipset)

XXX

ATI Radeon 3470 256MB SH PCIe x16 graphics card

X X

ATI Radeon HD 2400XT 256MB DH PCIe x16 graphics card

X X

ATI Radeon HD 3650 512MB DH PCIe x16 graphics card

NVIDIA Quadro NVS 290 256MB DH PCIe x16 graphics card

X X

Audio

Integrated HD audio with AD1884A codec (all ports are stereo)

XXX

Microphone and Headphone front ports

XXX

Line-out and Line-In rear ports

XXX

Multistreaming capable

XXX

Internal Speaker (standard)

XXX

HP Thin USB Powered Speakers

XXX

* Rear audio input ports are re-taskable as Line-in or Microphone-in. External

speakers must be powered externally. Multistreaming can be enabled in the ADI

control panel to allow independent audio streams to be sent to/from the front and

rear jacks. This allows for different audio applications to use separate audio ports

on the system. For example, the front jacks could be used with a headset for a

communications application while the rear jacks are being used with external

speakers and a multimedia application.

Input Devices

Keyboard

HP PS/2 Standard Keyboard

XXX

HP USB Standard Keyboard

XXX

HP USB Smartcard Keyboard

XXX

Mouse

- One of the following

HP PS/2 2-button Optical Scroll Mouse

XXX

HP USB 2-button Optical Scroll Mouse

XXX

HP USB 2-Button Laser Scroll Mouse

XXX

Miscellaneous

HP FireWire (IEEE 1394) PCI Card

X X

PCI riser card for SFF - adds 2 full-height PCI slots

NOTE:

Low profile slots are unusable with riser card installed.

Serial port adapter

X X

Parallel port adapter

X X

eSATA port adapter

X X

Tower stand

X X

Configure dc7900 CMT in desktop orientation

Rear Port Control Cover

QuickSpecs

HP Compaq dc7900 Business PC

Standard Features and Configurable Components

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 17

USDT

SFF

CMT

After-Market

Options Part

Number

Communications

Wireless

HP Wireless 802.11 b/g/n PCIe x1

X X

FH971AA

NICs

Broadcom NetXtreme Gigabit Ethernet Plus PCIe NIC

X X

FS215AA

Intel Pro 1000 PT PCIe Gigabit NIC

X X

EH352AA

Modem

LSI PCIe x1 Hi-Speed 56K International SoftModem

X X

FH970AA

HP RJ11 Modem Adapter Kit

X X

DC131C#xxx

* available after initial product release

NOTE:

The use of a PCI Express network card (wired or wireless) will disable the vPro

technology features.

Graphics

Single head solutions

ATI Radeon 3470 256MB SH PCIe x16

X X

FH972AA

Multi head solutions

ATI Radeon HD 2400XT 256MB DH PCIe x16

X X

KD060AA

ATI Radeon HD 3650 512MB DH PCIe x16

KS505AA

NVIDIA Quadro NVS 290 256MB DH PCIe x16

X X

KG748AA

Hard Disk Drives

Serial ATA Hard Drives

HP 80-GB SATA (NCQ/Smart IV) 3.0-Gb/s HDD

X X

PY276AA

HP 160-GB SATA (NCQ/Smart IV) 3.0-Gb/s HDD

X X

PY277AA

HP 250-GB SATA (NCQ/Smart IV) 3.0-Gb/s HDD

X X

PY278AA

HP 320-GB SATA (NCQ/Smart IV) 3.0-GB/s HDD

X X

FH963AA

HP 500-GB SATA (NCQ/Smart IV) 3.0-GB/s HDD

X X

KW347AA

HP eSATA Adapter

X X

FH966AA

HP Removable SATA Hard Drive Enclosure (Frame & Carrier)

X X

RY102AA

HP Removable SATA Hard Drive Enclosure (Carrier Only)

X X

RY103AA

Input/Output Devices

HP PS/2 Standard Keyboard

XXX

DT527A

HP USB Standard Keyboard

XXX

DT528A

HP USB Gray Keyboard

XXX

DT529A

HP 2.4 GHz Wireless Keyboard and Mouse

XXX

NB896AA#xxx

HP PS/2 2-Button Optical Scroll Mouse

XXX

EY703AA

HP USB 2-Button Optical Scroll Mouse

XXX

DC172B

HP USB 2-Button Laser Mouse

XXX

GW405AA

QuickSpecs

HP Compaq dc7900 Business PC

After-Market Options (availability may vary by region)

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 18

Memory (non-ECC)

PC2-6400 (DDR2, 800 MHz) DIMM

HP 1 GB PC2-6400 (DDR2 800 MHz) DIMM

X X

AH058AA

HP 2 GB PC2-6400 (DDR2 800 MHz) DIMM

X X

AH060AA

HP 4 GB PC2-6400 (DDR2 800) DIMM

X X

FH977AA

PC2-6400 (DDR2, 800 MHz) SODIMM

HP 1 GB PC2-6400 (DDR2 800 MHz) SODIMM

GM254AA

HP 2 GB PC2-6400 (DDR2 800 MHz) SODIMM

GV576AA

HP 4 GB PC2-6400 (DDR2 800 MHz) SODIMM

FH978AA

Monitors

All HP monitors are supported that accept a graphics output

provided by this PC. The LP3065 monitor can be supported by

installing a graphics card that supports a dual-link DVI-D output.

Multimedia

HP Thin USB Powered Speakers

XXX

KK912AA

Slimline Optical Drives

DVD-ROM Drive

HP Slim 8X SATA DVD-ROM Drive

FH967AA

Combo Drive

HP Slim 24X SATA CD-RW/DVD-ROM Combo Drive

KV842AA

DVD Writer

HP Slim 8X SATA SuperMulti LightScribe Drive

KV843AA

Standard Optical Drives

DVD-ROM Drive

HP SATA DVD-ROM Drive

X X

AH047AA

DVD Writer

HP SATA SuperMulti LightScribe DVD Writer Drive

X X

GF343AA

Removable Storage

Diskette and Digital Drives

HP 1.44-MB External USB Diskette Drive

XXX

DC141B

HP 1.44-MB Standard Internal Diskette Drive

X X

AH053AA

Multimedia

HP 22-in-1 Media Card Reader

X X

FX273AA

HP 22-in-1 Media Card Reader with FireWire (IEEE 1394)

X X

KN518AA

Security

Kensington Lock

XXX

PC766A

HP Business PC Security Lock

XXX

PV606AA

HP Rear Port Controller Cover (USDT)

GJ121AA

HP 2008 Wall Mount/Security Sleeve (SFF)

GF344AA

HP ProtectTools Version 4.0 (1 User)

XXX

FH974AA

HP USB Smartcard Keyboard

XXX

ED707AA

QuickSpecs

HP Compaq dc7900 Business PC

After-Market Options (availability may vary by region)

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 19

Software

HP Client Configuration Manager, Premium Edition

XXX

T3488AA

(use T3489AA

for 1000

licenses)

Altiris Client Management Suite Level 1

Includes:

Altiris Deployment Solution

Altiris Inventory Solution

Altiris Application Metering Solution

Altiris Carbon Copy Solution

Altiris Software Delivery Solution

Altiris Application Management Solution

Altiris Patch Management Solution

XXX

DR605A

(use DR606A for

1000+ licenses)

Brackets/Stands

HP Compaq Integrated Work Center Stand

GN783AA

HP Tower Stand for USDT

GJ117AA

HP Tower Stand for SFF

GJ118AA

Miscellaneous

Accessories

HP Serial Port adapter kit

X X

PA716A

HP Parallel Port Adapter

X X

KD061AA

HP 5.25” Blank Bezel Kit (50 pack)

X X

DC177B

HP FireWire (IEEE 1394) PCI Card

X X

PA997A

Graphics – Cables

HP DMS59 DVI Dual-head Connector Cable

X X

DL139A

HP DVI to DVI Cable

X X

DC198A

HP DisplayPort To DVI-D Adapter

XXX

FH973AA

QuickSpecs

HP Compaq dc7900 Business PC

After-Market Options (availability may vary by region)

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 20

Unit Environment and Operating

Conditions

Ultra-slim Desktop

Small Form Factor

Convertible Minitower

General Unit Operating Guidelines

Keep the computer away from excessive moisture, direct moisture and the extremes of heat and cold, to ensure that unit is

operated within the specified operating range.

Leave a 10.2 cm (4 in) clearance on all vented sides of the computer to permit the required airflow.

Never restrict airflow into the computer by blocking any vents or air intakes.

Do not stack computers on top of each other or place computers so near each other that they are subject to each other's re-

circulated or preheated air.

Occasionally clean the air vents on the front, back, and any other vented side of the computer. Lint, dust and other foreign

matter can block the vents and limit the airflow.

If the computer is to be operated within a separate enclosure, intake and exhaust ventilation must be provided on the enclosure,

and the same operating guidelines listed above will still apply.

Temperature Range

Operating: 50° to 95° F (10° to 35° C)*

Non-operating: –22° to 140° F(–30° to 60° C)

Relative Humidity

Operating: 10% to 90% (non-condensing at ambient)

Non-operating: 5% to 95% (non-condensing at ambient)

Maximum Altitude (unpressurized)

Operating: 10,000 ft (3048 m)

Non-operating: 30,000 ft (9144 m)

* Operating temperature is de-rated 1.0 deg C per 300 m (1000 ft) to 3000 m (10,000 ft) above sea level, no direct sustained

sunlight. Maximum rate of change is 10 deg C/Hr. The upper limit may be limited by the type and number of options installed.

Power Supply

Ultra-slim Desktop

Small Form Factor

Convertible Minitower

Standard Efficiency

N/A

240W standard efficiency

active PFC

365W standard efficiency

active PFC

Energy Efficient

135W 87% efficient

active PFC

(external)

240W 85% efficient

active PFC

365W 85% efficient

active PFC

Operating Voltage Range

90 – 264 VAC 90 – 264 VAC 90 – 264 VAC

Rated Voltage Range

100 – 240 VAC 100 – 240 VAC 100 – 240 VAC

Rated Line Frequency

50/60 Hz 50/60 Hz 50/60 Hz

Operating Line Frequency Range

47 – 63 Hz 47 – 63 Hz 47 – 63 Hz

Rated Input Current

N/A

4A 6A

Rated Input Current with Energy

Efficient

Power Supply

1.5A 3.5A

Current Leakage

(NFPA 99)

< 275 µA < 275 µA < 450 µA

System Heat Dissipation

N/A

Typical 198 btu/hr

(50 kg-cal/hr)

Maximum 1260 btu/hr

(318 kg-cal/hr

Typical 222 btu/hr

(56 kg-cal/hr)

Maximum 1916 btu/hr

(483 kg-cal/hr)

System Heat Dissipation

with Energy Efficient

Power

Supply

Typical 133 btu/hr

(33.5 kg-cal/hr)

Maximum 549 btu/hr

(132 kg-cal/hr)

Typical 150 btu/hr

(38 kg-cal/hr)

Maximum 1024 btu/hr

(258 kg-cal/hr)

Typical 171 btu/hr

(43 kg-cal/hr)

Maximum 1557 btu/hr

(392 kg-cal/hr)

Ultra-slim Desktop

Small Form Factor

Convertible Minitower

Power Supply Fan

N/A

80mm variable speed 92mm variable speed

QuickSpecs

HP Compaq dc7900 Business PC

Technical Specifications

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 21

FEMP Standby Power Compliant

(<2W in S5 – Power Off)

XXX

Power Consumption in ES Mode

– Suspend to RAM (S3) (Instantly

Available PC)

< 2.7W < 2.7W < 2.7W

* Energy efficient power supply is a requirement for ENERGY STAR qualification in conjunction with a select range of processors and

modules; ENERGY STAR models branded HP Compaq dc7900e

ROM BIOS Information

Key features of the HP BIOS in the dc7900 include:

Deployment and manageability – HP BIOS provides several technologies that help integrate the HP Business desktop computer

into the enterprise, such as PXE, remote configuration, remote control, and F10 Setup support for 12 languages.

Select models feature either Intel Standard Manageability or Core 2 processor with vPro Technology.

Stability – HP BIOS supports the HP stable product roadmap by releasing only critical BIOS changes to the factory and

advanced change notification.

Security – HP BIOS Configuration for ProtectTools offers a robust and flexible set of security features to help the system

administrator secure their systems from removal of sensitive data, and help prevent access by unauthorized users.

Computrace agent – For tracking and tracing services, available in select countries, separate software and purchase of a

subscription is required.

Thermal and power management – The HP BIOS provides and enables thermal and power management technologies so

component temperatures are managed for high reliability and to assist in operating the HP Business Desktop computer in any

enterprise environment.

Acoustic performance – Industry leading acoustic emissions across the range of operating conditions.

Serviceability – HP BIOS provides diagnostic and detailed service information.

Upgrades and recovery – HP BIOS provides numerous ways to upgrade HP Business Desktop computers, including BIOS

updates from within DOS (Flashbin), BIOS updates from within Windows (HPQFlash, SSM), HP Client Manager, and fail-safe

recovery. In addition, the HP Business Desktop BIOS Utilities tool enables replicated BIOS setup throughout the Enterprise; it is

available from within the BIOS software and from the support website.

Additional HP BIOS Features

Power-On password – Helps prevent an unauthorized user from powering on the system. After a TPM Basic User password is

established in windows, the user or admin can require TPM hardware based authentication during the power-on process.

Administrator password – Also known as the setup password, this helps prevent unauthorized changes to the system

configuration. If the administrator password is not known, the BIOS version cannot be changed and changes cannot be made

to BIOS settings using F10 setup or under the OS.

Advanced Configuration and Power Interface (ACPI) – Represents a significant innovation in power and configuration

management, allowing operating systems and applications to manage power based on activity and usage. HP Compaq

dc7900 models use ACPI to provide power conservation features.

Other Features

Description

ACPI-Ready Hardware

Advanced Configuration and Power Management Interface (ACPI).

Allows the system to wake from a low power mode.

Controls system power consumption, making it possible to place individual cards and

peripherals in a low-power or powered-off state without affecting other elements of the system.

SMBIOS Ver. 2.5

System Management BIOS, for system management information

Wired for Management Support

Intel-driven, industry-wide initiative to make Intel architecture-based PCs, servers and mobile

computers more inherently manageable right out of the box and over the network

Dual-State Power Button

Power button acts as both an on/off button and suspend-to-sleep button

QuickSpecs

HP Compaq dc7900 Business PC

Technical Specifications

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 22

Serviceability Features of System

Dual Color Power LED on Front of Computer (Indicates Normal Operations and Fault Conditions)

Diagnostic LED Explanation Table

Number of 1-second red LED blinks followed by 2-second pause, then repeats:

2-processor thermal protection activated

3-processor not installed

4-power supply failure

5-memory error

6-video error

7-PCA failure (ROM detected failure prior to video)

8-invalid ROM, bootblock recover mode

System/Emergency ROM

Flash ROM

CMOS Battery Holder for easy

Replacement

Flash Recovery with Video

Configuration Record SW

5 Aux Power LED on System PCA

Processor ZIF Socket for easy

Upgrade

Over-Temp Warning on Screen

(Requires IM Agents)

Clear Password Jumper

DIMM Connectors for easy Upgrade

HP Backup and Recovery Manager

Clear CMOS Button

NIC LEDs (integrated) (Green &

Amber)

Serviceability Features of Chassis

Dual Color Power and HD LED - To

Indicate Normal Operations and

Fault Conditions

Color coordinated cables and

connectors

Tool-less Hood Removal

Front power switch

System memory can be upgraded

without removing the system board or

any internal components

Tool-less Hard Drive, CD & Diskette

Removal

Green Pull Tabs, and Quick Release

Latches for easy Identification

NOTE:

Thumb screw release mechanism is used with the Ultra-slim Desktop chassis cover.

Additional Features

Description

Intel Standard Manageability

NOTE:

Requires the utilization of the

integrated network connection.

Select models feature Intel's Standard Manageability technology including the following:

DASH 1.0

DASH compliance for support of industry standards. Support for profile updates.

Host VPN

Support for local management VPN tunneling

Intel Core 2 Processor with vPro Technology

NOTE:

Requires the utilization of the

integrated network connection.

Select models feature Intel's Core 2 Processor with vPro Technology including the

following:

Intel Advanced Management Technology (AMT) 5.0

All Intel Standard Manageability technologies

Fast call for help – client outside the firewall may initiate a call for help via BIOS

screen, periodic connections, or alert triggered connection

Audit Logs – policy based log of AMT actions to deter rogue administrator actions

Microsoft NAP Support – allows AMT to gain access to a Microsoft NAP enabled

QuickSpecs

HP Compaq dc7900 Business PC

Technical Specifications

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 23

802.1x network OOB to enable OOB SW updates, inventories, remote

diagnostics, etc.

DASH 1.0 support (Desktop and Mobile

Architecture for System Hardware)

A standards initiative for representing out-of-band management capability for computer

systems. It is a secure, web-services based successor to ASF.

ASF 2.0 support (Alert Standard Format)

Industry-standard specification for network alerting in operating system-absent

environments

TXT (Trusted Execution Technology) and VT-d

(Virtualized devices)

TXT allows for secure management (via TPM) and measured launch of VMM, as

well as teardown of secrets in unexpected reset case. TXT support provided in

select Intel processors.

VT-d is a chipset technology that virtualizes directed I/O

Together, TXT and VT-d may be used to support verified launch of a known trusted VMM

that also may protect VMs from accessing each other's memory.

Computrace

Computrace agent support standard

Tower

Product can be oriented as a tower (in addition to desktop orientation)

Drive Lock

Implementation of the industry standard ATA Security feature set. When enabled, it

prevents software access to user data on the drive until one or two user-defined

passwords are provided.

Drive Self Tests (DPS)

Drive Protection System

A diagnostic hard drive self test. It scans critical physical components and every

sector of the hard drive for physical faults and then reports any faults to the user.

Running independently of the operating system, it can be accessed through a

Windows-based diagnostics utility or through the computer's setup procedure. It

produces an evaluation on whether the hard drive is the source of the problem and

needs to be replaced.

The system expands on the Self-Monitoring, Analysis, and Reporting Technology

(SMART), a continuously running systems diagnostic that alerts the user to certain

types of failures.

DPS Access through F10 Setup during Boot

SMART Technology

(Self-Monitoring, Analysis and Reporting

Technology)

Allows hard drives to monitor their own health and to raise flags if imminent failures were

predicted

Predicts failures before they occur. Tracks fault prediction and failure indication

parameters such as re-allocated sector count, spin retry count, calibration retry

count

By avoiding actual hard drive failures, SMART hard drives act as "insurance"

against unplanned user downtime and potential data loss from hard drive failure

IOEDC: I/O Error Detection Circuitry

Detects errors in Read/Write buffers on HDD cache RAM

Interface in F10 setup for all dc7900 platforms provides confirmation of SMART IV

support.

SMART I – Drive Failure Prediction

SMART II – Off-Line Data Collection

SMART III – Off-Line Read Scanning with

Defect Reallocation

SMART IV – End-to-End CRC for hard drives

* This feature is inoperable when a RAID (Redundant Array of Independent Disks) configuration is enabled.

QuickSpecs

HP Compaq dc7900 Business PC

Technical Specifications

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 24

High Definition Audio

Type

Integrated

High Definition Stereo

Codec

Yes – ADI 4-channel ADI 1884 codec

Audio Jacks

Front microphone-In (150-K ohm Input Impedance)

Rear Line-In/Microphone input (150-K ohm Input Impedance, function is

configurable by audio driver)

Rear Line-Out

(190 ohms Output Impedance, expects at least a 10-K ohm

load)

Front Headphone-Out (0.5 Ohm Output Impedance, expects at least a 32

ohm load)

* Internal Speaker Amplifier is for Internal Speaker only. External Speakers need to be powered

externally. Rear Line in audio port is re-taskable as Line-in or Microphone-in.

Multistreaming Capable

Multistreaming can be enabled in the ADI control panel to allow independent

audio streams to be sent to/from the front and rear jacks.

Sampling

8 kHz – 192 kHz

Wavetable Syntheses

(software)

Yes – Uses OS soft wavetable

Analog Audio

Yes

Number of Channels on

Line-Out

(mono/stereo)

Stereo (Left & Right channels)

Internal Audio Speaker

Power Rating

1.5 W

Internal Speaker

Yes

External Speaker Jack

(Line-Out)

Yes

HP Thin USB Powered

Speakers

On/Off/Volume Controls

Right side of right speaker

Power LED

Front of right speaker (green)

Frequency response

FO to 20kHz

Watts

2/3 watt (normal/maximum)

Dimensions

(H x W x D)

Speakers: 5.72 x 3.74 x 0.96 in (14.52 x 9.50 x 2.45 cm) per speaker

Net weight

0.68 lbs (0.31kg)

Environmental

(all conditions

non-condensing)

Temperature

(operating)

14° to 104° F (-10° to 40° C)

Relative Humidity

(operating)

40% to 90%

Speaker cable length

Input cord: 5.91 ft (1800mm±35mm)

L-channel cord: 3.28 ft (1000mm±35mm)

USB cord: 5.91 ft (1800mm±35mm)

Color

HP Carbonite

QuickSpecs

HP Compaq dc7900 Business PC

Technical Specifications - Audio

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 25

Integrated Intel 82567LM

Gigabit Network

Connection

Connector

RJ-45

Controller

Intel 82567LM Gigabit platform LAN Connect Networking Controller

Memory

Integrated 96KbB on chip buffer memory

Data rates supported

10/100/1000 Mbps

Compliance

IEEE 802.1P, 802.1Q, 802.2, 802.3, 802.3 ab and 802.3u compliant

Bus architecture

GLCI, LCI interface. Intel specific MAC to PHY interface

Data transfer mode

At gigabit GLCI (802.3 serdes) is for Data, LCI (parallel bus) for MDIO, at

10/100 LCI for both data and MDIO, GLCI is idle.

Hardware certifications

FCC, B, CE, TUV- cTUVus Mark Canada and United States, TUV- GS Mark

for European Union

Power requirement

Require 3.3Vaux,1.8V and 1.0V or just 3.3V with integrated regulators

Power consumption 1.16 Watts for 82566, whole LOM 2.53 Watts

ACBS

Intel Auto Connect Battery Saving feature

Boot ROM support

Yes

Network transfer mode

Full-duplex

Half-duplex (not available for the 1000BASE-T transceiver)

Network transfer rate

10BASE-T (half-duplex) 10 Mbps

10BASE-T (full-duplex) 20 Mbps

100BASE-TX (half-duplex) 100 Mbps

100BASE-TX (full-duplex) 200 Mbps

1000BASE-T (full-duplex) 2000 Mbps

Environmental

Operating temperature

32° to 131°F (0° to 55° C)

To 70° C for external regulator

Operating humidity

85% at 131° F (55° C)

Management capabilities

WOL, auto MDI crossover, PXE, Muti-port teaming, RSS, Advanced cable

diagnostic.

Alerting

ASF 2.0 support, AMT 3.0 support

Intel Pro 1000 PT PCIe

Gigabit NIC

Connector

RJ-45

Controller

Intel 82572EI Gigabit Ethernet Controller

Memory

Integrated Dual 48K configurable transmit receive FIFO Buffers

Data rates supported

10/100/1000 Mbps

Compliance

IEEE 802.1P, 802,1Q, 802.2, 802.3, 802.3AB and 802.3u compliant,

802.3x flow control

Bus architecture

PCI-E 1.0a

Data path width

X1, 250 MB/s, Bi-directional interface

Data transfer mode

Bus-master DMA

Hardware certifications

FCC, B, CE, TUV- cTUVus Mark Canada and United States, TUV- GS Mark

for European Union

Power requirement

Aux 3.3V, 3.0 Watts in 1000base-T and 2.0 Watts in 100Base-T

Boot ROM support

Yes

Network transfer rate

10BASE-T (half-duplex) 10 Mbps

10BASE-T (full-duplex) 20 Mbps

QuickSpecs

HP Compaq dc7900 Business PC

Technical Specifications - Communications

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 26

100BASE-TX (half-duplex) 100 Mbps

100BASE-TX (full-duplex) 200 Mbps

1000BASE-T (full-duplex) 2000 Mbps (actual rate limited by PCI Bus)

Environmental

Operating temperature

32° to 131°F (0° to 55° C)

Operating humidity

85% at 131° F (55° C)

Dimensions

6.4 x 2.6 x 0.8 in (16.3 x 6.6 x 1.9 cm)

Management capabilities

WOL, PXE, DMI, WFM 2.0

HP 802.11b/g/n

Wireless PCIe x1 Card

Dimensions (L x H)

3.3 x 4.7 inches (8.5 x 12 cm)

Weight

0.08 pounds (40 g)

Controller

Ralink RT2790

System interface

PCIExpress x1

Network standard

802.11 b/g/n

Frequency band

2.400 - 2.497 GHz

Operating temperature

14° to 149°F, operating (–10° to 65°C, operating)

Storage temperature

–40° to 176°F, non-operating (-40° to 80°C, non-operating)

Humidity

10–90% operating

5–95% non-operating

Operating voltage

3.3V +/- 9%

12V +/- 8%

Power consumption

Platform/WLAN Mode

Power Consumption

Maximum Power

Consumption

10 Watts

Transmit Only

4 Watts maximum averaged power over 1

second

Transmit Packet or Active

Scanning

1000 mA peak current for 100 microseconds or

longer

Receive Only Mode or Idle

without IEEE PSP mode

enabled

3 Watts maximum averaged over 1 second

Idle, with IEEE PSP mode

enabled

1.0 Watts maximum averaged over 1 second

Transmit Disabled (turned

off in software)

50 mW maximum, averaged over 1 second

Platform in S3 or S4

(power removed from Low

Profile PCI Express Card)

5 mW maximum, averaged over 1 second

Output power

(approximately)

802.11b modes

802.11g modes

EWC modes

+19 dBm +/- 1.0 dB

maximum

+17 dBm +/- 1.0 dB

maximum

+17 dBm +/- 1.0 dB

maximum (total power in

all transmit chains)

Receive sensitivity

Mode

Data rate

Sensitivity

802.11b

1 Mbps

-94 dBm

802.11b

11 Mbps

-85 dBm

QuickSpecs

HP Compaq dc7900 Business PC

Technical Specifications - Communications

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 27

802.11g

6 Mbps

-91 dBm

802.11g

18 Mbps

-85 dBm

802.11g

48 Mbps

-75 dBm

802.11g

54 Mbps

-72 dBm

EWC (2.4 GHz)

6.5 Mbps

-87 dBm

EWC (2.4 GHz)

54 Mbps

-82 dBm

EWC (2.4 GHz)

81 Mbps

-78 dBm

EWC (2.4 GHz)

162 Mbps

-74 dBm

EWC (2.4 GHz)

270 Mbps

-68 dBm

EWC (2.4 GHz)

300 Mbps

-64 dBm

Data transfer rate

Data Rate (MCS)

Minimum Throughput

1 Mbps (802.11 b)

700 kbps

2 Mbps (802.11 b)

1.4 Mbps

5.5 Mbps (802.11 b)

3.5 Mbps

11 Mbps (802.11 b)

5.9 Mbps

12 Mbps (802.11 g)

6 Mbps

18 Mbps (802.11 g)

9 Mbps

24 Mbps (802.11 g)

12 Mbps

36 Mbps (802.11 g)

18 Mbps

48 Mbps (802.11 g)

21 Mbps

54 Mbps (802.11 g)

22.5 Mbps

6.5 Mbps (20 MHz

EWC)

4.5 Mbps

13 Mbps (20 MHz EWC)

9 Mbps

19.5 Mbps (20 MHz

EWC)

13.5 Mbps

26 Mbps (20 MHz EWC)

18 Mbps

39 Mbps (20 MHz EWC)

27 Mbps

52 Mbps (20 MHz EWC)

36 Mbps

58.5 Mbps (20 MHz

EWC)

40 Mbps

65 Mbps (20 MHz EWC)

45 Mbps

78 Mbps (20 MHz EWC)

54 Mbps

104 Mbps (20 MHz

EWC)

72 Mbps

117 Mbps (20 MHz

EWC)

81 Mbps

130 Mbps (20 MHz

EWC)

91 Mbps

13.5 Mbps (40 MHz

EWC)

8 Mbps

27 Mbps (40 MHz EWC)

16 Mbps

40.5 Mbps (40 MHz

EWC)

24 Mbps

QuickSpecs

HP Compaq dc7900 Business PC

Technical Specifications - Communications

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 28

54 Mbps (40 MHz EWC)

32 Mbps

81 Mbps (40 MHz EWC)

48 Mbps

108 Mbps (40 MHz

EWC)

64 Mbps

121.5 Mbps (40 MHz

EWC)

72 Mbps

135 Mbps (40 MHz

EWC)

81 Mbps

Security

IEEE and WiFi compliant 64 / 128 bit WEP encryption

AES: CCM

802.1x authentication

WPA: 802.1x. WPA-PSK and TKIP

WPA2 certification

IEEE 802.11i

Cisco Certified Extensions, all versions through V5

Antenna

HP part number 497792-001

Certifications

Wi-Fi certified

Certifications for use by

country

United States, Canada, Peru, Taiwan

Intel WiFi Link 5100

a/b/g/n (USDT)

Wireless NIC

Wireless LAN Standards

IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

IEEE 802.11n (draft 2.0)

* The specifications for 802.11n draft 2.0 are draft specifications and are

not final. If the final specifications differ from the draft specifications, it may

affect the ability of the notebook to communicate with other 802.11n WLAN

devices. In countries where n draft 2.0 is not allowed, this capability is not

enabled.

Interoperability

Wi-Fi certified (802.11abg only)

Cisco Compatible Extensions Program compliant (802.11abg only) with

Microsoft Windows Vista and XP

Tested with wireless access points from several major manufacturers

Frequency Band

2.4 GHz and 5 GHz

Antenna Structure

1 transmit; 2 receive (1x2)

Data Rates

802.11b: 1, 2, 5.5, 11 Mbps

802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n (draft): 66 possible data rates, ranging from 6 Mbps to 300

Mbps, depending on the combination of Bandwidth, Modulation Coding

Scheme, and Guard Interval used, as defined in IEEE 802.11n (draft)

specification

Modulation

Direct Sequence Spread Spectrum

DBPSK, DQPSK, CCK, OFDM, BPSK, QPSK, 16-QAM, 64-QAM

Security

Supports 64- and 128-bit WEP, WPA, WPA2, hardware-accelerated AES

(support for key sizes of 128, 192, and 256 bits), 802.1x authentication

types EAP-TLS, EAP-TTLS, PEAP-GTC, PEAP-MSCHAPv2, LEAP, EAP-FAST.

Support for Cisco Security Features (proven compatibility with Cisco Aironet

QuickSpecs

HP Compaq dc7900 Business PC

Technical Specifications - Communications

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 29

infrastructure products through the Cisco Compatible Extensions Program

Version 4) with Microsoft Windows Vista and XP only.

Sub-channels

Multinational support with frequency bands and channels compliant to local

regulations.

Media Access Protocol

CSMA/CA (Collision Avoidance) with ACK

Network Architecture

Models

Ad-hoc (Peer to Peer)

Infrastructure (Access Point Required)

Roaming

IEEE 802.11 compliant roaming between access points

Output Power

(for CCK)

15 dBm

Output Power

(for OFDM;

power varies by data

rate)

15 dBm

Power Consumption

Transmit: 2.3 Watts (average, with one spatial streams)

Receive: 1.9 Watts (average with two receive chains)

Idle mode

: 30 mW (average)

Radio off: 20 mW (max)

Power Management

ACPI compliant power management

802.11 compliant power saving mode

Receiver Sensitivity

300 Mbps: -68 dBm, 54 Mbps: -74 dBm, 6 Mbps: -90 dBm

Antenna Connections

3 U.FL type connectors, 50 ohm nominal impedance

Range

802.11 a – Typical

(@6 Mbps)

600 feet – Outdoor Open Area

150 feet – Indoor, Office environment

802.11 b – Typical

(@1 Mbps)

1200 feet – Outdoor Open Area

300 feet – Indoor, Office environment

802.11 g – Typical

(@1 Mbps)

1200 feet – Outdoor Open Area

300 feet – Indoor, Office environment

Form Factor

PCI-Express MiniCard

Weight

0.013 lb (6 g)

Dimensions

0.19 x 1.2 x 2.0 in (4.75 x 29.85 x 50.8 mm)

Operating Voltage

3.3V +/- 9%, 1.5V +/- 5%

Temperature

Operating

Non-operating

32° to 176° F (0° to 80° C)

–40° to 176° F (–40° to 80° C)

Humidity

Operating

Non-operating

10% to 90% (non-condensing)

5% to 90% (non-condensing)

Altitude

Operating

Non-operating

0 to 10,000 ft (3,048 m)

0 to 50,000 ft (15,240 m)

Configuration Utility

Microsoft Windows XP

Choice of Configuration Utility:

Microsoft Windows XP Wireless Network Connection Manager

Intel PROSet for Microsoft Windows XP (required for Cisco Compatible

Extensions support)

Microsoft Windows Vista

Microsoft Windows Vista Wireless Network Connection Manager.

Intel IHV extensions for Windows Vista available to support Cisco

Compatible Extensions.

QuickSpecs

HP Compaq dc7900 Business PC

Technical Specifications - Communications

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 30

Check latest software/driver release for updates on supported security features.

Maximum output power may vary by country according to local regulations.

In Power Save Polling mode and on battery power.

Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CCK modulation) and a

packet error rate of 10% for 802.11a/g (OFDM modulation).

WLAN supplier's client utility is required for Cisco Compatible Extensions support with Microsoft

Windows XP. WLAN may also be compatible with certain third-party software supplicants. WLAN

supplier IHV extensions required for Cisco Compatible Extensions support for Microsoft Windows

Vista.

Agere 2006 PCI 56K

International SoftModem

Data Transmission

Technology speeds: 56,000 Kbps maximum downstream data, controllerless

NOTE:

56 Kbps technology refers to download speeds only and requires compatible modems at server

sites. Other conditions may limit modem speed. FCC limitations allow a maximum of 53 Kbps during

download transmissions.

Data Speeds

(Upload only) 33,600/31,200/28,800/26,400/21,600/19,200/

16,800/14,400/12,000/9,600/7,200/4,800/2,400/1,200/300

Data Standards

ITU-T V.90, ITU-T, ITU-T V.34, V.44, V.42, V.42bis21, V.32bis, Bell 212A,

and Bell 103

Fax Speeds

14,400/12,000/9,600/7,200/4,800/2,400/1,200/300 b/s

Fax Mode Capabilities

ITU-T T.31 class 1 FAX, V. 17, V.29, V.27ter, and V.21 Channel 2

Error Correction and Data

Compression

V.44, 42bis, V.42 and MNP2-5

Power Management

ACPI; PPMI 1.1 and wake support with PME and Vaux; meets PCI 2.3

requirements and PC 2001 requirements

Upgradeability

Driver upgradeable for future enhancements

Video

ITU-T V.80 video ready interface

Other

TIA/EIA 602 standard AT command set

Integrated DTE interface with speeds of up to 115.2 Kbps, parallel 16550a

UART-compatible interface

Optional ring wakeup signal

Operating Temperature

32° to 158° F (0° to 70° C)

Operating Humidity

20% to 90%, non-condensing

Power

Requires a 3.3-V auxiliary power rail on PCI bus

Uses only one PCI load (i.e., one grant/request pair), one shared IRQ, one

electrical load

Chipset

Agere Systems SV92PL – Integrated PCI interface with 5-V tolerant buffers and

CardBus support

Dimensions

(L X H)

Complies with PCI low profile specifications-6.7 x 2.3 in (17.0 x 5.8 cm)

and supports high- and low-profile brackets

Connection

Single RJ-11 connector

Other Features

Digital line protection, call progress monitoring via on-board piezo device,

support for high profile and low profile brackets, PnP ID support

Safety

UL recognized to UL 1950, 3

edition (U.S. and Canada); IEC 950 (TUV,

NEMKO, DEMKO, SEMKO); CE Mark, EC 950 (TUV, NEMKO, DEMKO,

SEMKO, CE mark

QuickSpecs

HP Compaq dc7900 Business PC

Technical Specifications - Communications

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 31

EMC

FCC Part 15, IC ES003, EN 55022, 3

edition, EN 55024, annex A, EN

61000-4-6, EN 61000-4-8

Telecom

FCC Part 68, IC-CS-03 (Canada); Worldwide PTT approvals

Not available in Korea or the Republic of South Africa.

Health

Bare PCB material compliant to 94V-0 or better (marked as such)

Other

PC 2001 compliant, PCI version 2.3, WHQL approved; ACPI compliant

LSI PCIe x1 56K

International SoftModem

Data Transmission

Technology speeds: 56,000 Kbps maximum downstream data, controllerless

NOTE:

56 Kbps technology refers to download speeds only and requires

compatible modems at server sites. Other conditions may limit modem speed.

FCC limitations allow a maximum of 53 Kbps during download

transmissions.

Data Speeds

(Upload only) 33,600/31,200/28,800/26,400/21,600/19,200/

16,800/14,400/12,000/9,600/7,200/4,800/2,400/1,200/300

Data Standards

ITU-T V.90, ITU-T, ITU-T V.34, V.44, V.42, V.42bis21, V.32bis, Bell 212A,

and Bell 103

Fax Speeds

14,400/12,000/9,600/7,200/4,800/2,400/1,200/300 b/s

Fax Mode Capabilities

ITU-T T.31 class 1 FAX, V. 17, V.29, V.27ter, and V.21 Channel 2

Error Correction and Data

Compression

V.44, 42bis, V.42 and MNP2-5

Power Management

PCI Bus Power Management Interface Specification (PCI-PM) Revision 1.2,

Appendix A. D0, D3hot, and D3cold. Wake on Ring state when in D3cold.

If the power management event (PME) feature is enabled in D3cold, a

modem can wake the system via WAKE# (WAKEN) or beacon. Meets PCI

Express 1.1 standard.

Upgradeability

Driver upgradeable for future enhancements

Video

ITU-T V.80 video ready interface

Other

TIA/EIA 602 standard AT command set

Integrated DTE interface with speeds of up to 115.2 Kbps, parallel 16550a

UART-compatible interface

Optional ring wakeup signal

Operating Temperature

32° to 158° F (0° to 70° C)

Operating Humidity

20% to 90%, non-condensing

Power

Requires a 3.3-V auxiliary power rail on PCI express bus

Uses only one PCI express load (i.e., one grant/request pair), one shared

IRQ, one electrical load

Chipset

LSI SV92EX – Integrated PCI interface with 3.3-V tolerant buffers and CardBus

support

Dimensions

(L X H)

Complies with PCI express low profile specifications-—6.7 x 2.3 in (17.0 x

5.8 cm) and supports high- and low-profile brackets

Connection

Single RJ-11 connector

Other Features

Digital line protection, call progress monitoring via on-board piezo device,

support for high profile and low profile brackets, PnP ID support

QuickSpecs

HP Compaq dc7900 Business PC

Technical Specifications - Communications

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 32

Safety

UL recognized to UL 1950, 3

edition (U.S. and Canada); IEC 950 (TUV,

NEMKO, DEMKO, SEMKO); CE Mark, EC 950 (TUV, NEMKO, DEMKO,

SEMKO, CE mark

EMC

FCC Part 15, IC ES003, EN 55022, 3

edition, EN 55024, annex A, EN

61000-4-6, EN 61000-4-8

Telecom

FCC Part 68, IC-CS-03 (Canada); Worldwide PTT approvals

Not available in Korea or the Republic of South Africa.

Other

The SV92EX device is packaged in a 32-pin micro leadless chip carrier

(MLCC). The SV92EX is fully compliant with the PCI Express revision 1.1

specification. WHQL approved; ASPM compliant.

QuickSpecs

HP Compaq dc7900 Business PC

Technical Specifications - Communications

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 33

2.5” 7200 RPM Serial

ATA Hard Drives

250 GB

Capacity

250,059,350,016 bytes

Height

(Nominal)

0.374 in (9.5 mm)

Width

(Nominal)

Media diameter: 2.5 in (63.5 mm)

Physical size: 2.75 in (70 mm)

Interface

Serial ATA (3.0 Gb/s)

Synchronous Transfer Rate

(Maximum)

Up to 3 Gb/s

Cache

8 MB

Seek Time

(typical reads,

includes controller

overhead, including

settling)

Single Track

2.0 ms

Average

12 ms

Full-Stroke

22 ms

Rotational Speed

7,200 rpm

Logical Blocks

488,397,168

Operating Temperature

41° to 131° F (5° to 55° C)

160 GB

Capacity

160,041,885,696 bytes

Height

(Nominal)

0.374 in (9.5 mm)

Width

(Nominal)

Media diameter: 2.5 in (63.5 mm)

Physical size: 2.75 in (70 mm)

Interface

Serial ATA (3.0 Gb/s)

Synchronous Transfer Rate

(Maximum)

Up to 3 Gb/s

Cache

8 MB

Seek Time

(typical reads,

includes controller

overhead, including

settling)

Single Track

2.0 ms

Average

12 ms

Full-Stroke

22 ms

Rotational Speed

7,200 rpm

Logical Blocks

312,581,808

Operating Temperature

41° to 131° F (5° to 55° C)

80 GB

Capacity

80,026,361,856 bytes

Height

(Nominal)

0.374 in (9.5 mm)

Width

(Nominal)

Media diameter: 2.5 in (63.5 mm)

Physical size: 2.75 in (70 mm)

Interface

Serial ATA (3.0 Gb/s)

Synchronous Transfer Rate

(Maximum)

Up to 3 Gb/s

Cache

8 MB

Seek Time

(typical reads,

includes controller

overhead, including

settling)

Single Track

2.0 ms

Average

12 ms

Full-Stroke

22 ms

QuickSpecs

HP Compaq dc7900 Business PC

Technical Specifications - Hard Drives

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 34

Rotational Speed

7,200 rpm

Logical Blocks

156,301,488

Operating Temperature

41° to 131° F (5° to 55° C)

3.5” 7200 RPM Serial

ATA Hard Drives

500 GB

Capacity

500,107,862,016 bytes

Height

1 in (2.54 cm)

Width

Media diameter: 3.5 in (8.89 cm)

Physical size: 4 in (10.2 cm)

Interface

Serial ATA (3.0 Gb/s)

Synchronous Transfer Rate

(Maximum)

Up to 3 Gb/s

Buffer

16 MB

Seek Time

(typical reads,

includes controller

overhead, including

settling)

Single Track

2.0 ms

Average

11 ms

Full-Stroke

21 ms

Rotational Speed

7,200 RPM

Logical Blocks

976,773,168

Operating Temperature

41° to 131° F (5° to 55° C)

250 GB

Capacity

250,059,350,016 bytes

Height

1 in (2.54 cm)

Width

Media diameter: 3.5 in (8.89 cm)

Physical size: 4 in (10.2 cm)

Interface

Serial ATA (3.0 Gb/s)

Synchronous Transfer Rate

(Maximum)

Up to 3 Gb/s

Buffer

8 MB

Seek Time

(typical reads,

includes controller

overhead, including

settling)

Single Track

1.0 ms

Average

8.5 ms

Full-Stroke

18 ms

Rotational Speed

7,200 RPM

Logical Blocks

488,397,168

Operating Temperature

41° to 131° F (5° to 55° C)

160 GB

Capacity

160,041,885,696 bytes

Height

1 in (2.54 cm)

Width

Media diameter: 3.5 in (8.89 cm)

Physical size: 4 in (10.2 cm)

Interface

Serial ATA (3.0 Gb/s)

Synchronous Transfer Rate

(Maximum)

Up to 3 Gb/s

Buffer

8 MB

QuickSpecs

HP Compaq dc7900 Business PC

Technical Specifications - Hard Drives

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 35

Seek Time

(typical reads,

includes controller

overhead, including

settling)

Single Track

0.9 ms

Average

9.3 ms

Full-Stroke

18 ms

Rotational Speed

7,200 RPM

Logical Blocks

312,581,808

Operating Temperature

41° to 131° F (5° to 55° C)

80 GB

Capacity

80,026,361,856 bytes

Height

1 in (2.54 cm)

Width

Media diameter: 3.5 in (8.89 cm)

Physical size: 4 in (10.2 cm)

Interface

Serial ATA (3.0 Gb/s)

Synchronous Transfer Rate

(Maximum)

Up to 3 Gb/s

Buffer

8 MB

Seek Time

(typical reads,

includes controller

overhead, including

settling)

Single Track

2.0 ms

Average

9.3 ms

Full-Stroke

21 ms

Rotational Speed

7,200 RPM

Logical Blocks

156,301,488

Operating Temperature

41° to 131° F (5° to 55° C)

10,000 RPM Serial ATA

Hard Drives

160 GB

Capacity

160,041,885,696 bytes

Height

1 in (2.54 cm)

Width

Media diameter: 3.0 in (7.62 cm)

Physical size: 4 in (10.2 cm)

Interface

Serial ATA (1.5 Gb/s), Native Command Queuing

enabled

Synchronous Transfer Rate

(Maximum)

Up to 3.0 Gb/s

Cache

16 Mbytes

Seek Time

(typical reads,

includes controller

overhead, including

settling)

Single Track

0.3 ms

Average

4.6 ms

Full-Stroke

10.2 ms

Rotational Speed

10,000 RPM

Logical Blocks

312,581,808

Operating Temperature

41° to 131° F (5° to 55° C)

80 GB

Capacity

80,026,361,856 bytes

Height

1 in (2.54 cm)

Width

Media diameter: 3.0 in (7.62 cm)

Physical size: 4 in (10.2 cm)

QuickSpecs

HP Compaq dc7900 Business PC

Technical Specifications - Hard Drives

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 36

Interface

Serial ATA (1.5 Gb/s), Native Command Queuing

enabled

Synchronous Transfer Rate

(Maximum)

Up to 3.0 Gb/s

Cache

16 Mbytes

Seek Time

(typical reads,

includes controller

overhead, including

settling)

Single Track

0.3 ms

Average

4.6 ms

Full-Stroke

10.2 ms

Rotational Speed

10,000 RPM

Logical Blocks

156,301,488

Operating Temperature

41° to 131° F (5° to 55° C)

QuickSpecs

HP Compaq dc7900 Business PC

Technical Specifications - Hard Drives

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 37

Integrated Intel

Graphics Media

Accelerator 4500

3D/2D Controller

Microsoft DirectX® 10 based with support for Pixel Shader 3.0

VGA Controller

Integrated

DisplayPort

Integrated, Multimode capable; supports HDCP

Bus Type

PCI Express™ x16

RAMDAC

Integrated, 350 MHz

Memory

Graphics memory is shared with system memory. Graphics memory usage varies

depending on the amount of system memory installed, BIOS settings, operating

system, and system load. 32 MB is pre-allocated for graphics use at system boot time.

Additional memory can be allocated at boot time by the BIOS for PAVP (Protected

Audio Video Playback) support for playback of protected video content. For Vista, use

of PAVP heavy mode preallocates an additional 96MB.

Additional memory is allocated for graphics as needed using Intel's Dynamic Video

Memory Technology (DVMT), to provide an optimal balance between graphics and

system memory use.

Windows XP Memory Usage:

Total System Memory

Pre-Allocated (MB)

DVMT (MB)

.5GB

32 128

1.0GB

32 512

1.5GB

32 768

2 GB & more

32 1024

Windows Vista Memory Usage:

(Assumes Management Engine , VT-d enabled and other memory allocated for other

BIOS usage )

System

Memory

PVAP

Avail

System

Memory

(MB)

Total Avail

GFX

Memory

(MB)

Dedicated

Video

Memory

(MB)

System

Video

Memory

(MB)

Shared

System

Memory

(MB)

1 GB

Lite

952 252 32 96 124

Heavy

856 294 122 6 166

2 GB

Lite

1976 764 32 96 636

Heavy

1880 806 122 6 678

4 GB

Lite

4024 1759 32 96 1631

Heavy

3928 1759 122 6 1631

6 GB

Lite

6072 1759 32 96 1631

Heavy

5976 1759 122 6 1631

8 GB

Lite

8120 1759 32 96 1631

Heavy

8024 1759 122 6 1631

Total Available GFX Memory:

Total graphics memory available to the system as

reported by the OS.

Dedicated Video Memory:

Memory owned and locked for graphics use as reported

by the OS. (Preallocated)

System Video Memory:

System memory locked and dedicated for graphics use.

QuickSpecs

HP Compaq dc7900 Business PC

Technical Specifications - Graphics

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 38

Shared System Memory:

Memory dynamically allocated for Graphics use

HW Video Decode

Hardware Accelerated decode for MPEG2 encrypted video; support for PAVP Lite

(default) and Heavy ( or Paranoid) modes

Maximum Color Depth

32 bits/pixel

Maximum Vertical

Refresh Rate

85 Hz at up to 1920x1440, 75 Hz at 2048x1536. Varies with mode and

configuration. See table below.

Multi-display Support

Dual monitor support facilitated via one VGA port and one DisplayPort integrated on

the back plane of the system board and presented as part of the rear I/O set of

interfaces. DVI supported via optional HP DisplayPort to DVI-D adapter.

Graphics/Video API

Support

Microsoft DirectX® 10, OpenGL® 1.5 (OpenGL® 2.0 available in a driver update)

Resolutions Supported

NOTE:

Other resolutions may be available but are not recommended as the may not have been tested and qualified by HP.

Maximum Refresh Rate (Hz)

Resolution

Analog Connection

Digital Connection

640x480

85 60

800x600

85 60

1024x768

85 60

1280x720

85 60

1280x1024

85 60

1440x900

75 60

1600x1200

85 60

1680x1050

75 60

1920x1080

60-R

1920x1200

60-R

1920x1440

N/A

2048x1536

N/A

2560x1600

N/A

* Only supported when using a DisplayPort connection

NOTE:

60-R denotes reduced blanking timings are used on single-link DVI connections and may be used with other digital

connections

ATI Radeon HD 2400XT

(256MB DH) PCIe

Graphics Card

Bus type

PCI Express (x16 lanes)

Maximum vertical refresh rate

85 Hz

Display support

Integrated 400 MHz RAMDAC

Display max resolution

1900 x 1200 digital, 2048 x 1536 analog

ATI Radeon HD 2400XT (256MB DH) PCIe Graphics Card display resolutions and refresh rates

NOTE:

Other resolutions may be available but are not recommended as the may not have been tested and qualified by HP

QuickSpecs

HP Compaq dc7900 Business PC

Technical Specifications - Graphics

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 39

Resolution

Maximum Refresh Rate (Hz)

Analog Connection

Digital Connection

640x480

85 60

800x600

85 60

1024x768

85 60

1280x720

85 60

1280x1024

85 60

1440x900

75 60

1600x1200

85 60

1680x1050

75 60

1920x1080

60-R

1920x1200

60-R

1920x1440

N/A

2048x1536

N/A

2560x1600

N/A

* Only supported when using a dual-link DVI or DP connection

NOTE:

60-R denotes reduced blanking timings are used on single-link DVI connections and may be used with other digital

connections

Board display options

Supports two displays via included DMS-59 to dual VGA cable or 2 DVI

monitors via optional DMS-59 to dual DVI cable kit part number: DL139A.

4-pin mini-DIN S-video connector for TV output

Board configuration

Specification

Description

Graphics Chip

RV610

Core clock

650 MHz

Memory clock

500 MHz

Frame buffer

256 MB DDR2, 128 bit wide

Languages supported

24 languages: English, Arabic, Chinese Simplified, Chinese Traditional,

Czechoslovakian, Danish, Dutch, Finnish, French, German, Greek,

Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish,

Portuguese, Russian, Spanish, Swedish, Thai, Turkish

Core power

21 W

Compliance standards

EMC Emissions:

FCC Part 15, Subpart B – Unintentional Radiators, Class B

Computing Devices for Home & Office Use

CISPR22: 1997/EN 55022:1998 – Class B – Limits and methods

of measurement of radio disturbance characteristics of Information

Technology Equipment

Canadian Standard ICES-003 is equivalent to CISPR22

Taiwanese Standard BSMI

Japanese VCCI

Australian C-Tick

Korean (MIC)

EMC Immunity:

CISPR 24:1997/EN 55024:1998 – Information Technology Equipment –

Immunity Characteristics – Limits and Methods of Measurement.

QuickSpecs

HP Compaq dc7900 Business PC

Technical Specifications - Graphics

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 40

ATI Radeon HD

3470 (256MB

SH) PCIe x16

Graphics Card

Bus type

PCI Express (x16 lanes)

Maximum vertical

refresh rate

85 Hz

Display support

Integrated 400 MHz RAMDAC

Display max resolution

2560x1600 digital, 2048 x 1536 analog

ATI Radeon HD 3470 (256MB SH) PCIe x16 Graphics Card display resolutions and refresh rates

NOTE:

Other resolutions may be available but are not recommended as the may not have been tested and qualified by HP

Resolution

Maximum Refresh Rate (Hz)

Analog Connection

Digital Connection

640x480

85 60

800x600

85 60

1024x768

85 60

1280x720

85 60

1280x1024

85 60

1440x900

75 60

1600x1200

85 60

1680x1050

75 60

1920x1080

60-R

1920x1200

60-R

1920x1440

N/A

2048x1536

N/A

2560x1600

N/A

* Only supported when using a dual-link DVI or DP connection

NOTE:

60-R denotes reduced blanking timings are used on single-link DVI connections and may be used with other digital

connections

Board display options

Supports two displays via the DisplayPort and DVI connectors

Board configuration

Specification

Description

Graphics Chip

RV620

Core clock

750 MHz

Memory clock

500 MHz

Frame buffer

256 MB DDR2, 64 bit wide

Languages supported

24 languages: English, Arabic, Chinese Simplified, Chinese Traditional,

Czechoslovakian, Danish, Dutch, Finnish, French, German, Greek, Hebrew, Hungarian,

Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish,

Thai, Turkish

Operating systems

support

Windows Vista Business 64

, Windows Vista Business 32

, Windows Vista Home

Basic 32

, Windows XP Professional or Windows XP Home 32

* Certain Windows Vista product features require advanced or additional hardware.

Windows Vista Upgrade Advisor can help you determine which features of Windows

Vista will run on your computer. To download the tool, visit:

http://www.windowsvista.com/upgradeadvisor

. For Windows Vista system

requirements, visit:

http://www.windowsvista.com/systemrequirements

Linux x86 and x86_64 distributions using XFree86 or X.Org**.

** Linux drivers are available from ATI's website and may be available in a Linux

QuickSpecs

HP Compaq dc7900 Business PC

Technical Specifications - Graphics

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 41

distribution. Refer to the Open Source and Linux from HP website:

http://www.hp.com/wwsolutions/linux/products/clients/

for support information.

Core power

22 W (max)

Dimensions

(H x D)

2.71 in x 6.60 in (68.90 mm x 167.65 mm)

Weight

0.30 lb (134.3 g)

Option kit contents

ATI Radeon HD 3470 (256MB SH) PCIe x16 Graphics Card with full height

bracket attached

DVI to VGA adapter

Software CD with graphics drivers

Low profile bracket to convert the card for using in a low profile chassis

Warranty documentation

Compliance standards

EMC Emissions:

FCC Part 15, Subpart B - Unintentional Radiators, Class B Computing Devices for

Home & Office Use

CISPR22: 1997/EN 55022:1998 - Class B - Limits and methods of measurement

of radio disturbance characteristics of Information Technology Equipment

Canadian Standard ICES-003 is equivalent to CISPR22

Taiwanese Standard BSMI

Japanese VCCI

Australian C-Tick

Korean (MIC)

EMC Immunity:

CISPR 24:1997/EN 55024:1998 - Information Technology Equipment - Immunity

Characteristics - Limits and Methods of Measurement.

ATI Radeon HD 3650

(512MB DH) PCIe x16

Graphics Card

Bus type

PCI Express (x16 lanes)

Maximum vertical refresh rate

85 Hz

Display support

Integrated 400 MHz RAMDAC

Display max resolution

2560 x 1600 digital, 1920 x 1440 analog

Supports two displays via included two DisplayPort and one Dual Link DVII

connectors.

Board configuration

Specification

Description

Graphics Chip

RV635

Core clock

600 MHz

Memory clock

500 MHz

Frame buffer

512 MB DDR2, 128 bit wide

Languages supported

24 languages: English, Arabic, Chinese Simplified, Chinese Traditional,

Czechoslovakian, Danish, Dutch, Finnish, French, German, Greek,

Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish,

Portuguese, Russian, Spanish, Swedish, Thai, Turkish

Core power

56 W

Compliance standards

EMC Emissions:

FCC Part 15, Subpart B – Unintentional Radiators, Class B

Computing Devices for Home & Office Use

CISPR22: 1997/EN 55022:1998 – Class B – Limits and methods

QuickSpecs

HP Compaq dc7900 Business PC

Technical Specifications - Graphics

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 42

of measurement of radio disturbance characteristics of Information

Technology Equipment

Canadian Standard ICES-003 is equivalent to CISPR22

Taiwanese Standard BSMI

Japanese VCCI

Australian C-Tick

Korean (MIC)

EMC Immunity:

CISPR 24:1997/EN 55024:1998 – Information Technology Equipment –

Immunity Characteristics – Limits and Methods of Measurement.

ATI Radeon HD 3650 (512MB DH) PCIe x16 Graphics Card display resolutions and refresh rates

NOTE:

Other resolutions may be available but are not recommended as the may not have been tested and qualified by HP

Resolution

Maximum Refresh Rate (Hz)

Analog Connection

Digital Connection

640x480

85 60

800x600

85 60

1024x768

85 60

1280x720

85 60

1280x1024

85 60

1440x900

75 60

1600x1200

85 60

1680x1050

75 60

1920x1080

60-R

1920x1200

60-R

1920x1440

N/A

2048x1536

N/A

2560x1600

N/A

* Only supported when using a dual-link DVI or DP connection

NOTE:

60-R denotes reduced blanking timings are used on single-link DVI connections and may be used with other digital

connections

QuickSpecs

HP Compaq dc7900 Business PC

Technical Specifications - Graphics

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 43

NVIDIA Quadro NVS

290 256MB PCIe Dual

Head

Form Factor

Low Profile

Bus Type

PCIe x16

Memory

256 MB 400MHz DDR2 SDRAM unified frame buffer, Z-buffer and Texture

storage

Connector

DMS-59, includes DMS-59 to Dual DVI-I cable. DMS-59 to Dual VGA cable

available as an option.

Display resolution support

Dual integrated analog display controllers supporting up to two analog

displays at 2048x1536 @ 85Hz on both displays or dual digital displays at

1920x1200 (single-link).

NVIEW advanced multi-display desktop and application management

seamlessly integrated into Microsoft Windows

RAMDAC

Integrated dual 400MHz

Color planes

32-bit color buffer

Overlay planes

Hardware supported

nView architecture

Advanced multi-display desktop & application management seamlessly

integrated into Microsoft Windows.

Multi-Monitor support

Dual monitor support

DVI support

DMS-59 (to dual DVI-SL)

High-definition Video

Processor

(HDVP)

Full-screen, full-frame video playback of HDTV and DVD content

DVD-ready motion compensation for MPEG-2

Independent hardware color controls for video overlay

Hardware color-space conversion (YUV 4:2:2 and 4:2:0)

IDCT motion compensation

5-tap horizontal by 3-tap vertical filtering

8:1 up/down scaling

Supported graphics APIs

OGL 2.1 & DX10 Support; Shader Model 4.0

QuickSpecs

HP Compaq dc7900 Business PC

Technical Specifications - Graphics

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 44

USB Standard Keyboard

Physical

characteristics

Keys

104, 105, 106, 107, 109 layout (depending

upon country)

Dimensions

(L x W x H)

18.0 x 6.4 x 0.98 in (45.8 x 16.3 x 2.5 cm)

Weight

2 lb (0.9 kg) minimum

Electrical

Operating voltage

+ 5VDC ± 5%

Power consumption

50-mA maximum (with three LEDs ON)

System interface

USB Type A plug connector

ESD

CE level 4, 15-kV air discharge

EMI – RFI

Conforms to FCC rules for a Class B computing

device

Microsoft® PC 99 –

2001

Functionally compliant

Mechanical

Languages

38 available

Keycaps

Low-profile design

Switch actuation

55-g nominal peak force with tactile feedback

Switch life

20 million keystrokes (using Hasco modified

tester)

Switch type

Contamination-resistant switch membrane

Key-leveling mechanisms

For all double-wide and greater-length keys

Cable length

6 ft (1.8 m)

Microsoft PC 99 – 2001

Mechanically compliant

Acoustics

43-dBA maximum sound pressure level

Environmental

Operating temperature

50° to 122° F (10° to 50° C)

Non-operating

temperature

-22° to 140° F (-30° to 60° C)

Operating humidity

10% to 90% (non-condensing at ambient)

Non-operating humidity

20% to 80% (non-condensing at ambient)

Operating shock

40 g, six surfaces

Non-operating shock

80 g, six surfaces

Operating vibration

2-g peak acceleration

Non-operating vibration

4-g peak acceleration

Drop

(out of box)

26 in (66 cm) on carpet, six-drop sequence

Drop

(in box)

42 in (107 cm) on concrete, 16-drop sequence

Approvals

UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, C-Tick, MIC

Ergonomic compliance

ANSI HFS 100, ISO 9241-4, and TUVGS

Kit contents

Keyboard, installation guide, warranty card, safety and comfort guide

QuickSpecs

HP Compaq dc7900 Business PC

Technical Specifications - Input/Output Devices

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 45

PS/2 Standard Keyboard

Physical

characteristics

Keys

104, 105, 106, 107, 109 layout (depending

upon country)

Dimensions

(L x W x H)

18.0 x 6.4 x 0.98 in (45.8 x 16.3 x 2.5 cm)

Weight

2 lb (0.9 kg) minimum

Electrical

Operating voltage

+ 5VDC ± 5%

Power consumption

50-mA maximum (with three LEDs ON)

System interface

PS/2 6-pin mini din connector

ESD

CE level 4, 15-kV air discharge

EMI - RFI

Conforms to FCC rules for a Class B computing

device

Microsoft PC 99 - 2001

Functionally compliant

Mechanical

Languages

38 available

Keycaps

Low-profile design

Switch actuation

55-g nominal peak force with tactile feedback

Switch life

20 million keystrokes (using Hasco modified

tester)

Switch type

Contamination-resistant switch membrane

Key-leveling mechanisms

For all double-wide and greater-length keys

Cable length

6 ft (1.8 m)

Microsoft PC 99 - 2001

Mechanically compliant

Acoustics

43-dBA maximum sound pressure level

Environmental

Operating temperature

50° to 122° F (10° to 50° C)

Non-operating

temperature

-22° to 140° F (-30° to 60° C)

Operating humidity

10% to 90% (non-condensing at ambient)

Non-operating humidity

20% to 80% (non-condensing at ambient)

Operating shock

40 g, six surfaces

Non-operating shock

80 g, six surfaces

Operating vibration

2-g peak acceleration

Non-operating vibration

4-g peak acceleration

Drop

(out of box)

26 in (66 cm) on carpet, six-drop sequence

Drop

(in box)

42 in (107 cm) on concrete, 16-drop sequence

Approvals

UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, C-Tick, MIC

Ergonomic compliance

ANSI HFS 100, ISO 9241-4, and TUVGS

HP USB Smartcard

Keyboard

Physical

characteristics

Keys

104, 105, 106, 107, 109 layout (depending

upon country)

Form factor

USB basic Smart Card keyboard

Colors

Carbonite/Silver

Dimensions

(H x W x D)

18.2 x 6.3 x 1.3 in (46.3 x 16.1 x 3.3 cm)

Weight

2 lb (0.9 kg) minimum

Electrical

Operating voltage

+ 5VDC ± 5%

Power consumption

100-mA maximum (with four LEDs ON)

QuickSpecs

HP Compaq dc7900 Business PC

Technical Specifications - Input/Output Devices

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 46

System interface

USB Type A plug connector

ESD

CE level 4, 15-kV air discharge

EMI - RFI

Conforms to FCC rules for a Class B computing

device

Microsoft PC 99 - 2001

Functionally compliant

Mechanical

Languages

30+ available

Keycaps

Low-profile design

Switch actuation

55 g nominal peak force with tactile feedback

Switch life

20 million keystrokes (using Hasco modified

tester)

Switch type

Contamination-resistant membrane

Key-leveling mechanisms

For all double-wide and greater-length keys

Cable length

6 ft (1.8 m)

Microsoft PC 99 - 2001

Mechanically compliant

Acoustics

43-dBA maximum sound pressure level

Environmental

Operating temperature

50° to 122° F (10° to 50° C)

Non-operating

temperature

-22° to 140° F (-30° to 60° C)

Operating humidity

10% to 90% (non-condensing at ambient)

Non-operating humidity

20% to 80% (non-condensing at ambient)

Operating shock

40 g, six surfaces

Non-operating shock

80 g, six surfaces

Operating vibration

2-g peak acceleration

Non-operating vibration

4-g peak acceleration

Drop

(out of box)

26 in (66 cm) on carpet, six-drop sequence

Drop

(in box)

42 in (107 cm) on concrete, 16-drop sequence

SMARTCARD function

Support

All ISO 7816 smart cards

Interface

Reads from and writes to all ISO7816-1, 2, 3, 4

memory and microprocessor smart cards (T=0,

T=1)

Chipset

SCM STCII

Standard APIs supported

PC/SC, EMV2000, SET

Power

USB Port

Short circuit detection (protects smart card and

reader)

Power supply compliant with ISO7816 and EMV

(5V, 60 mA)

Supports 3-V and 5-V cards

Power consumption

250-mA maximum draw (50 mA for the

keyboard with three LEDs ON and 200-mA

maximum startup current using a high-current, 60-

mA smart card)

QuickSpecs

HP Compaq dc7900 Business PC

Technical Specifications - Input/Output Devices

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 47

Communication

From card

Programmable from

9,600 baud to

115,200 baud

From computer

Up to 38,400 baud

Landing mechanism

Contact device

Friction contact

Card insertions rating

Up to 100,000

insertion cycles

Interface modes

USB communications through USB port

SCM protocol

Automatic card insertion/removal detection

Reader performance

interface

USB connection

Electro-magnetic

standards

Europe

89/336/CEE

guideline

USA

USAFCC part 15

HP PS/2 Optical Scroll

Mouse

Dimensions

(H x L x W)

3.95 x 6.21 x 11.7 cm (1.56 x 2.44 x 4.61 in)

Weight

4.44 oz (126 g)

Environmental

Operating temperature

-32° to 104°F (0° to 40° C)

Non-operating

temperature

-4° to 140°F ( -20° to 60° C)

Operating humidity

10% to 90% (non condensing at ambient)

Non-operating humidity

10% to 90% non condensing

Operating shock

40 g, 6 surfaces

Non-operating shock

80 g, 6 surfaces

Operating vibration

2 g peak acceleration

Non-operating vibration

4 g peak acceleration

Drop

(out of box)

80 cm height onto asphalt tile over concrete or

equivalent, 5-drop in 5 direction except the cable

face

Electrical

Operating voltage

5 VDC ± 10%

Power consumption

100mA

System consumption

PS/2 mini-din connector

ESD

CE level 4, 15 kV air discharge

EMI-RFI

Conforms to FCC rules for a Class B computing

device

Microsoft PC99 - 2001

Functionally compliant

Mechanical

Resolution

400 ± 20% DPI

Tracking speed

10 in/s (25.4 cm/s) maximum

Acceleration

100 in/s/s (2.54 m/s/s)

Switch actuation

61 g nominal peak force

Switch life

3,000,000 operations (using Hasco modified

tester)

Switch type

Low force micro-switches

QuickSpecs

HP Compaq dc7900 Business PC

Technical Specifications - Input/Output Devices

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 48

Tracking mechanism life

155 mi (250 km) at average speed of 10 in/s

Cable length

6 ft (1.8 m)

Microsoft PC99 - 2001

Mechanically compliant

Scroll wheel

Width

8 mm

Diameter

1.01 in (25.6 mm)

Maximum rotation speed

48 rats/sec

Switch type

Light force micro-switch

Switch life

1 million operations

Mechanical life

Minimum 200,000 revolutions

Regulatory approvals

Compliant

UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI,

BSMI, C-Tick, MIC

HP USB Optical Scroll

Mouse

Dimensions

(H x L x W)

1.5 x 4.5 x 2.5 in (3.8 x 11.6 x 6.3 cm)

Weight

0.27 lb (0.12 kg)

Cable length

72.8 in (185 cm)

System requirements

Microsoft Windows 95, 98, 2000, Me, XP and Vista

Available USB port

QuickSpecs

HP Compaq dc7900 Business PC

Technical Specifications - Input/Output Devices

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 49

HP SATA SuperMulti

LightScribe DVD Writer

Drive

Height

5.25-inch, half-height, tray-load

Orientation

Either horizontal or vertical

Interface type

SATA/ATAPI

Disc capacity

8.5 GB DL or 4.7 GB standard

Dimensions

(W x H x D)

5.9 x 1.7 x 8.0 in (15.0 x 4.4 x 20.3 cm)

Weight

(max)

2.6 lb (1.2 kg)

Write speeds

DVD-RAM

Up to 12X

DVD+R

Up to 16X

DVD+RW

Up to 8X

DVD+R DL

Up to 8X

DVD-R DL

Up to 8X

DVD-R

Up to 16X

DVD-RW

Up to 6X

CD-R

Up to 48X

CD-RW

Up to 32X

Read speeds

DVD-RAM

Up to 12X

DVD+RW, DVD-RW,

DVD+R DL, DVD-R DL

Up to 8X

DVD-ROM DL

Up to 8X

DVD-ROM, DVD+R,

DVD-R

Up to 16X

CD-ROM, CD-R

Up to 48X

CD-RW

Up to 32X

Access time

(typical reads, including

settling)

Random

DVD: < 140 ms (typical), CD: < 125 ms (typical)

Full Stroke

DVD: < 250 ms (seek), CD: < 210 ms (seek)

Power

Source

SATA DC power receptacle

DC Power Requirement

5 VDC ± 5%-100 mV ripple p-p

12 VDC ± 5%-200 mV ripple p-p

DC Current

5 VDC (< 1000 mA typical, 1600 mA

maximum)

12 VDC (< 600 mA typical, 1400 mA

maximum)

Environmental conditions

(operating - non-

condensing)

Temperature

41° to 122° F (5° to 50° C)

Relative Humidity

10% to 90%

Maximum Wet Bulb

Temperature

86° F (30° C)

QuickSpecs

HP Compaq dc7900 Business PC

Technical Specifications - Optical Storage

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 50

SATA DVD-ROM Drive

Height

5.25-inch, half-height, tray-load

Orientation

Either horizontal or vertical

Interface type

SATA/ATAPI

Disc capacity

Single layer: Up to 4.7 GB (6 times capacity of CD-ROM)

Double layer: Up to 8.5 GB (12 times capacity of CD-ROM)

Dimensions

(W x H x D)

5.9 x 1.7 x 8.0 in (15.0 x 4.4 x 20.3 cm)

Weight

(max)

2.6 lb (1.2 kg)

Read speeds

DVD+R/-R/+RW/

-RW/+R DL /-R DL

Up to 8X

DVD-ROM

Up to 16X

DVD-RAM

Up to 4X

CD-ROM, CD-R

Up to 48X

CD-RW

Up to 32X

Removable Storage -

Media Compatibility -

DVD-ROM

Media

Read

Write

CD-ROM

Yes

CD-R

Yes

CD-RW

Yes

DVD-ROM

Yes

DVD-ROM DL

Yes

DVD-RAM

Yes

DVD+R

Yes

DVD+R DL

Yes

DVD+RW

Yes

DVD-R

Yes

DVD-RW

Yes

DVD-R DL

Yes

Access times

(typical reads, including

setting)

Random

DVD: < 140 ms (typical), CD: < 125 ms (typical)

Full Stroke

DVD: < 250 ms (seek), CD: < 210 ms (seek)

Cache Buffer

2 MB (minimum)

Data Transfer Modes

ATA PIO mode 4 (16.7 MB/s); ATA Multi-word

DMA mode 2 (16.7 MB/s); ATA UltraDMA

Mode 3 (44.4 MB/s -default)

Power

Source

SATA DC power receptacle

DC Power Requirement

5 VDC ± 5%-100 mV ripple p-p

12 VDC ± 5%-200 mV ripple p-p

DC Current

5 VDC - <1000 mA typical, < 1600 mA

maximum

12 VDC -< 600 mA typical, < 1400 mA

maximum

Environmental

(all conditions

non-condensing)

Temperature

41° to 122° F (5° to 50° C)

Relative Humidity

10% to 90%

Maximum Wet Bulb

Temperature

86° F (30° C)

QuickSpecs

HP Compaq dc7900 Business PC

Technical Specifications - Optical Storage

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 51

SATA Slim SuperMulti

LightScribe DVD Writer

Drive

Height

12.7mm height

Orientation

Either horizontal or vertical

Interface type

SATA/ATAPI

Disc recording capacity

Up to 8.5 GB DL or 4.7 GB standard

Dimensions

(W x H x D)

5.0 x 0.5 x 5.0 in (128 x 13.6 x 129 mm)

Weight

(max)

0.42 lb (190 g)

Write speeds

DVD-RAM

Up to 5X

DVD-R DL

Up to 4X

DVD+R

Up to 8X

DVD+RW

Up to 4X

DVD+R DL

Up to 4X

DVD-R

Up to 8X

DVD-RW

Up to 6X

CD-R

Up to 24X

CD-RW

Up to 16X

Read speeds

DVD-RAM

Up to 5X

DVD-RW, DVD+RW

Up to 8X

DVD-R DL, DVD+R DL

Up to 6X

DVD+R, DVD-R

Up to 8X

DVD-ROM DL, DVD-ROM

Up to 8X

CD-ROM, CD-R

Up to 24X

CD-RW

Up to 24X

Access time

(typical reads, including

settling)

Random

DVD: < 140 ms (typical), CD: < 125 ms (typical)

Full Stroke

DVD: < 250 ms (seek), CD: < 210 ms (seek)

Stop Time

< 4 seconds

Cache Buffer

2 MB (minimum)

Data Transfer Modes

ATA PIO mode 4 (16.7 MB/s); ATA Multi-word

DMA mode 2 (16.7 MB/s); ATA UltraDMA

Mode 3 (44.4 MB/s - default)

Power

Source

Four-pin, DC power receptacle

DC Power Requirement

5 VDC ± 5%-100 mV ripple p-p

12 VDC ± 5%-200 mV ripple p-p

DC Current

5 VDC (< 1000 mA typical, 1600 mA

maximum)

12 VDC (< 600 mA typical, 1400 mA

maximum)

Total Drive Power

(standby mode)

< 2.5 Watt

Audio output

Line-Out

0.7 VRMS

Signal-to-Noise Ratio

74 dB

Channel Separation

65 dB

QuickSpecs

HP Compaq dc7900 Business PC

Technical Specifications - Optical Storage

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 52

Environmental conditions

(operating - non-

condensing)

Temperature

41° to 122° F (5° to 50° C)

Relative Humidity

10% to 90%

Maximum Wet Bulb

Temperature

86° F (30° C)

SATA CD-RW/DVD-ROM

Combo Slim Drive

Height

12.7mm height slim CD-RW

Orientation

Either horizontal or vertical

Interface type

SATA/ATAPI

Disc capacity

Single layer: Up to 4.7 GB (6 times capacity of CD-ROM)

Dimensions

(W x H x D)

5.0 x 0.5 x 5.0 in (128 x 13.6 x 129 mm)

Weight

(max)

0.42 lb (190 g)

Write speeds

CD-R

Up to 24X

CD-RW

Up to 24X

Read speeds

DVD+R/-R/+RW/

-RW/+R DL /-R DL

Up to 4X

DVD-ROM

Up to 8X

CD-ROM, CD-R

Up to 24X

CD-RW

Up to 24X

Access time

(typical reads, including

settling)

Random DVD

DVD: < 140 ms (typical), CD: < 125 ms (typical)

Random CD

DVD: < 250 ms (typical), CD: < 210 ms (typical)

Cache Buffer

2 MB (minimum)

Data Transfer Modes

ATA PIO mode 4); ATA Multi-word DMA mode

2; ATA UltraDMA mode 0; ATA UltraDMA mode

1, mode 2; ATA UltraDMA Mode 3 (default)

Power

Source

Four-pin, DC power receptacle

DC Power Requirement

5 VDC ± 5%-100 mV ripple p-p

DC Current

5 VDC (< 1000 mA typical, < 1600 mA

maximum)

Total Drive Power

(standby mode)

< 2.5 Watt

Audio output level

0.7 Vrms (typical)

Environmental

(all

conditions non-condensing)

Temperature

41° to 122° F (5° to 50° C)

Relative Humidity

5% to 85%

Maximum Wet Bulb

Temperature

(operating)

86° F (30° C)

QuickSpecs

HP Compaq dc7900 Business PC

Technical Specifications - Optical Storage

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 53

SATA DVD-ROM Slim

Drive

Height

12.7mm

Orientation

Either horizontal or vertical

Interface type

SATA/ATAPI

Dimensions

(W x H x D)

5.0 x 0.5 x 5.0 in (128 x 13.6 x 129 mm)

Weight

(max)

0.42 lb (190 g)

Read speeds

DVD+R/-R/+RW/

-RW/+R DL /-R DL

Up to 4X

DVD-ROM

Up to 8X

CD-ROM, CD-R

Up to 24X

CD-RW

Up to 24X

Access time

(typical reads, including

settling)

Random DVD

DVD: < 140 ms (typical), CD: < 125 ms (typical)

Random CD

DVD: < 250 ms (seek), CD: < 210 ms (seek)

Data Transfer Modes

ATA PIO mode 4 (16.7 MB/s); ATA Multi-word

DMA mode 2 (16.7 MB/s)

Power

Source

Four-pin, DC power receptacle

DC Power Requirement

5 VDC ± 5%-100 mV ripple p-p

DC Current

5 VDC - <1000 mA typical, < 1600 mA

maximum

Total Drive Power

(standby mode)

< 2.5 Watt

Audio output

Line-Out

0.7 VRMS

Signal-to-Noise Ratio

74 dB

Channel Separation

65 dB

Environmental

(all

conditions non-condensing)

Temperature

41° to 122° F (5° to 50° C)

Relative Humidity

5% to 85%

Maximum Wet Bulb

Temperature

(operating)

86° F (30° C)

QuickSpecs

HP Compaq dc7900 Business PC

Technical Specifications - Optical Storage

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 54

HP 22-in-1 (with 1394)

Media Card Reader

USB Interface

USB 2.0 High-speed interface

NOTE:

Requires the USB cable to be connected to the internal USB 2.0 port

or a USB 2.0 PCI card.

1394 Interface

Two IEEE-1394a external ports; 1 IEEE-1394a internal port (connects to the

pass through cable on the media card reader)

Advance protocol support

Supports hardware ECC (Error Correction Code) function

Supports hardware CRC (Cyclic Redundancy Check) function

Supports MS 4-bit parallel transfer mode

Supports MS-PRO 4-bit parallel transfer mode

Supports MS PRO-HG Duo 4-bit parallel transfer mode

Supports SD 4-bit parallel transfer mode

Supports high-speed 50Mhz SD 4-bit card (version 2.0)

Supports high-speed 52Mhz MMC 8-bit card (version 4.2)

Supports CF v4.0 with PIO mode 6 and Ultra DMA mode

Supported media type

CompactFlash Type I

CompactFlash Type II

Microdrive

MultiMediaCard (MMC)

Reduced Size MultiMediaCard (RS MMC)

MultiMediaCard 4.2 (MMC Plus, including MMC Plus HC)

Reduced Size MultiMediaCard 4.2 (MMC Mobile, including MMC

Mobile HC)

Secure Digital Card (SD)

Secure Digital High Capacity (SDHC)

miniSD

miniSD High Capacity

Micro SD (T-Flash)

Micro SD HC

Memory Stick

Memory Stick Select

Memory Stick Duo (MS Duo)

Memory Stick PRO (MS PRO)

Memory Stick PRO Duo (MS PRO Duo)

Memory Stick PRO-HG Duo

MagicGate Memory Stick (MG)

MagicGate Memory Stick Duo

xD-Picture Card

Supported media type

with card adapter

Memory Stick Micro (M2)

MMC Micro

Environmental

Operational

Environmental Extremes

Test Parameters/Conditions - Power applied, unit

operating on system ±5%

nominal supply voltage.

10°C 10% R.H. ? 24 hours

10°C 90% R.H. ? 24 hours

20°C 90% R.H. ? 24 hours

30°C 90% R.H. ? 24 hours

40°C 90% R.H. ? 24 hours

50°C 90% R.H. ? 24 hours

50°C 10% R.H. ? 24 hours

QuickSpecs

HP Compaq dc7900 Business PC

Technical Specifications - Removable Storage

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 55

Storage Environmental

Extremes

Test Parameters/Conditions

140°F (60°C) @ 80% R.H. for 96 hours

-22°F (-30°C) @ 20% R.H. for 48 hours

No power applied

Delta °C < 1.0°C/min

Delta % R.H. < 1.5% R.H./min

Approvals

USB-IF, WHQL, Compliant with USB Mass Storage Class Bulk only Transport

Specification Rev. 1.0, Compliant Intel Front Panel I/O Connectivity Design

Guide V. 1.3

FCC, CE, BSMI, C-Tick, VCCI, MIC, cUL, TUV-T

QuickSpecs

HP Compaq dc7900 Business PC

Technical Specifications - Removable Storage

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 56

Eco-Label Certifications &

declarations

This product has received or is in the process of being certified to the following approvals and may be

labeled with one or more of these marks:

US ENERGY STAR ®

IT ECO declaration

EPEAT – Gold

NOTE:

This product conforms to the examination standards (2003 version) under JEITA's ‘PC Green Label

System.'

¹ EPEAT certification is conditional upon ENERGY STAR qualification. Only dc7900e models which

qualify for ENERGY STAR will be certified EPEAT

–

Gold

Ultra-Slim Desktop

System Configuration

The configuration used for the Energy Consumption and Declared Noise Emissions data for the Ultra-slim

Desktop model is based on a typically configured product

Energy Consumption

115 VAC 230 VAC 100 VAC

Normal Operation

40.68 W 40.07 W 39.94 W

Sleep (Energy Star low

power mode)

2.95 W 2.96 W 2.96 W

Off

1.67 W 1.68 W 1.68 W

Heat Dissipation

115 VAC 230 VAC 100 VAC

Normal Operation

139 BTU/hr 137 BTU/hr 137 BTU/hr

Sleep

10 BTU/hr 10 BTU/hr 10 BTU/hr

Off

6 BTU/hr 6 BTU/hr 6 BTU/hr

* Heat dissipation is calculated based on the measured watts, assuming the service level is attained for

one hour.

This product is in compliance with US executive order 13221, WOL (wake on LAN) disabled.

Declared Noise Emissions

(in accordance with

ISO 7779 and ISO

9296)

System Fan Off

Sound Power

(LWAd, bels)

Sound Pressure

(LpAm, decibels)

Idle

3.1 23

Fixed Disk

(random writes)

3.1 24

Optical Drive

(sequential reads)

4.8 42

Batteries

This product complies with ISO standards:

EU Directive 91/ 157/ EEC

EU Directive 93/ 86/ EEC

EU Directive 98/ 101/ EEC

Batteries used in the product do not contain:

QuickSpecs

HP Compaq dc7900 Business PC

Technical Specifications - Environmental Data

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 57

Mercury greater the 5ppm by weight

Cadmium greater than 10ppm by weight

Lead greater than 4000ppm by weight.

Battery size: CR2032 (coin cell)

Battery type: Lithium

Additional Information

This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive –

2002/95/EC.

This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE)

Directive – 2002/96/EC.

This product is in compliance with California Proposition 65 (State of California; Safe Drinking

Water and Toxic Enforcement Act of 1986).

This product is in compliance with the IEEE 1680 (EPEAT) standard at the Gold level

, see

www.epeat.net

Plastics parts weighing over 25 grams used in the product are marked per ISO 11469 and

ISO1043.

This product contains 0% recycled materials (by wt.)

This product is 90.6% recyclable when properly disposed of at end of life.

Packaging Materials

External:

Corrugated carton – 1476 g

Polyethylene low density – 105 g

Wood(pallet) – 13,000 g

Internal:

The EPE foam packaging material is made from 100% recycled content.

The corrugated paper packaging materials contains at least 100% recycled content.

¹ EPEAT certification is conditional upon ENERGY STAR qualification. Only dc7900e models which

qualify for ENERGY STAR will be certified EPEAT – Gold.

Small Form Factor

System Configuration

The configuration used for the Energy Consumption and Declared Noise Emissions data for the Small

Form Factor Desktop model is based on a typically configured product

Energy Consumption

115 VAC 230 VAC 100 VAC

Normal Operation

55.58 W 56.06 W 58.60 W

Sleep (Energy Star low

power mode)

2.47 W 2.76 W 2.51 W

Off

1.23 W 1.51 W 1.26 W

Heat Dissipation

115 VAC 230 VAC 100 VAC

Normal Operation

190 BTU/hr 192 BTU/hr 200 BTU/hr

Sleep

8 BTU/hr 9 BTU/hr 8 BTU/hr

Off

4 BTU/hr 5 BTU/hr 4 BTU/hr

* Heat dissipation is calculated based on the measured watts, assuming the service level is attained for

one hour.

This product is in compliance with US executive order 13221, WOL (wake on LAN) disabled.

QuickSpecs

HP Compaq dc7900 Business PC

Technical Specifications - Environmental Data

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 58

Declared Noise Emissions

(in accordance with

ISO 7779 and ISO

9296)

“Typical Configuration“ with 7200 rpm HDD

System Fan Off

Sound Power

(LWAd, bels)

Sound Pressure

(LpAm, decibels)

Idle

3.7 27

Fixed Disk

(random writes)

3.8 28

Configuration with optional 10,000 rpm HDD

System Fan Off

Sound Power

(LWAd, bels)

Sound Pressure

(LpAm, decibels)

Idle

3.8 27

Fixed Disk

(random writes)

4.2 32

Batteries

This product complies with ISO standards:

EU Directive 91/ 157/ EEC

EU Directive 93/ 86/ EEC

EU Directive 98/ 101/ EEC

Batteries used in the product do not contain:

Mercury greater the 5ppm by weight

Cadmium greater than 10ppm by weight

Lead greater than 4000ppm by weight.

Battery size: CR2032 (coin cell)

Battery type: Lithium

Additional Information

This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive –

2002/95/EC.

This product is in compliance with California Proposition 65 (State of California; Safe Drinking

Water and Toxic Enforcement Act of 1986).

This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE)

Directive – 2002/96/EC.

This product is in compliance with the IEEE 1680 (EPEAT) standard at the Gold level

, see

www.epeat.net

Plastics parts weighing over 25 grams used in the product are marked per ISO 11469 and

ISO1043.

This product contains 0% recycled materials (by wt.)

This product is 93.4% recyclable when properly disposed of at end of life.

Packaging Materials

External:

Corrugated – 1736 g

Polyethylene low density foam – 35 g

Internal:

EPE-Expanded Polyethylene – 293 g

The EPE foam packaging material is made from 0% recycled content.

QuickSpecs

HP Compaq dc7900 Business PC

Technical Specifications - Environmental Data

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 59

The corrugated paper packaging materials contains at least 25% recycled content.

¹ EPEAT certification is conditional upon ENERGY STAR qualification. Only dc7900e models which

qualify for ENERGY STAR will be certified EPEAT – Gold.

Convertible Minitower

System Configuration

The configuration used for the Energy Consumption and Declared Noise Emissions data for the

Convertible Mini tower Desktop model is based on a typically configured product

Energy Consumption

115 VAC 230 VAC 100 VAC

Normal Operation

56.815 W 56.054 W 57.984 W

Sleep (Energy Star low

power mode)

2.319 W 2.626 W 2.296 W

Off

1.097 W

1.31 W

1.075 W

Heat Dissipation

115 VAC 230 VAC 100 VAC

Normal Operation

194 BTU/hr 192 BTU/hr 198 BTU/hr

Sleep

8 BTU/hr 9 BTU/hr 7 BTU/hr

Off

4 BTU/hr 5 BTU/hr 4 BTU/hr

* Heat dissipation is calculated based on the measured watts, assuming the service level is attained for

one hour.

This product is in compliance with US executive order 13221, WOL (wake on LAN) disabled.

Declared Noise Emissions

(in accordance with

ISO 7779 and ISO

9296)

System Fan Off

Sound Power

(LWAd, bels)

Sound Pressure

(LpAm, decibels)

Idle

3.7 22

Fixed Disk

(random writes)

3.8 22

Configuration with optional 10,000 rpm HDD

System Fan Off

Sound Power

(LWAd, bels)

Sound Pressure

(LpAm, decibels)

Idle

3.9 21

Fixed Disk

(random writes)

4.4 25

Batteries

This product complies with ISO standards:

EU Directive 91/ 157/ EEC

EU Directive 93/ 86/ EEC

EU Directive 98/ 101/ EEC

Batteries used in the product do not contain:

Mercury greater the 5ppm by weight

Cadmium greater than 10ppm by weight

Lead greater than 4000ppm by weight.

QuickSpecs

HP Compaq dc7900 Business PC

Technical Specifications - Environmental Data

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 60

Battery size: CR2032 (coin cell)

Battery type: Lithium

Additional Information

This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive –

2002/95/EC.

This product is in compliance with California Proposition 65 (State of California; Safe Drinking

Water and Toxic Enforcement Act of 1986).

This product is in compliance with the IEEE 1680 (EPEAT) standard at the Gold level

, see

www.epeat.net

This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE)

Directive – 2002/96/EC.

Plastics parts weighing over 25 grams used in the product are marked per ISO 11469 and

ISO1043.

This product contains 0% recycled materials (by wt.)

This product is 96.6% recyclable when properly disposed of at end of life.

Packaging Materials

External:

Corrugated carbon – 1687.37 g

Polyethylene low density solid – 63.5 g

Internal:

EPE-Expanded Polyethylene – 308 g

The EPE foam packaging material is made from 0% recycled content.

The corrugated paper packaging materials contains at least 25% recycled content.

¹ EPEAT certification is conditional upon ENERGY STAR qualification. Only dc7900e models which

qualify for ENERGY STAR will be certified EPEAT – Gold.

Ultra-Slim Desktop, Small Form Factor, Convertible Minitower

RoHS Compliance

Hewlett-Packard is committed to compliance with all applicable environmental laws and regulations,

including the European Union Restriction of Hazardous Substances (RoHS) Directive. HP's goal is to

exceed compliance obligations by meeting the requirements of the RoHS Directive on a worldwide basis.

By July 1, 2006, RoHS substances will be virtually eliminated (virtually = to levels below legal limits) for all

HP electronic products subject to the RoHS Directive, except where it is widely recognized that there is no

technically feasible alternative (as indicated by an exemption under the EU RoHS Directive).

Material Usage

This product does not contain any of the following substances in excess of regulatory limits (refer to the HP

General Specification for the

Environment at

http://www.hp.com/hpinfo/globalcitizenship/environment/

supplychain/gen_specifications.html

Asbestos

Certain Azo Colorants

Certain Brominated Flame Retardants – may not be used as flame retardants in plastics

Cadmium

Chlorinated Hydrocarbons

Chlorinated Paraffins

Formaldehyde

Halogenated Diphenyl Methanes

Lead carbonates and sulfates

Lead and Lead compounds

Mercuric Oxide Batteries

Nickel – finishes must not be used on the external surface designed to be frequently handled or

QuickSpecs

HP Compaq dc7900 Business PC

Technical Specifications - Environmental Data

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 61

carried by the user.

Ozone Depleting Substances

Polybrominated Biphenyls (PBBs)

Polybrominated Biphenyl Ethers (PBBEs)

Polybrominated Biphenyl Oxides (PBBOs)

Polychlorinated Biphenyl (PCB)

Polychlorinated Terphenyls (PCT)

Polyvinyl Chloride (PVC) – except for wires and cables, and certain retail packaging has been

voluntarily removed from most applications.

Radioactive Substances

Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)

Packaging

HP follows these guidelines to decrease the environmental impact of product packaging:

Eliminate the use of heavy metals such as lead, chromium, mercury and cadmium in packaging

materials.

Eliminate the use of ozone-depleting substances (ODS) in packaging materials.

Design packaging materials for ease of disassembly.

Maximize the use of post-consumer recycled content materials in packaging materials.

Use readily recyclable packaging materials such as paper and corrugated materials.

Reduce size and weight of packages to improve transportation fuel efficiency.

Plastic packaging materials are marked according to ISO 11469 and DIN 6120 standards.

End-of-life Management

and Recycling

Hewlett-Packard offers end-of-life HP product return and recycling programs in many geographic areas.

To recycle your product, please go to:

http://www.hp.com/go/reuse-recycle

or contact your nearest HP

sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each

product type for use by treatment facilities. This information (product disassembly instructions) is posted on

the Hewlett Packard web site at:

http://www.hp.com/go/recyclers

. These instructions may be used by

recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP

equipment.

Hewlett-Packard

Corporate Environmental

Information

For more information about HP's commitment to the environment:

Global Citizenship Report

http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html

Eco-label certifications

http://www.hp.com/hpinfo/globalcitizenship/environment/productdesign/ecolabels.html

ISO 14001 certificates:

http://www.hp.com/hpinfo/globalcitizenship/environment/operations/envmanagement.html

The information contained herein is subject to change without notice.

Intel and Pentium are U.S. registered trademarks of Intel Corporation. Microsoft and Windows are U.S. registered trademarks of

Microsoft Corporation. The only warranties for HP products and services are set forth in the express warranty statements

accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not

be liable for technical or editorial errors or omissions contained herein.

QuickSpecs

HP Compaq dc7900 Business PC

Technical Specifications - Environmental Data

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 62

Hp Hewlett Packard Business Desktop Dc7900 Users Manual Compaq PC

dc7900 to the manual 113b1722-649f-44e9-852e-9da1b519d73b

Navigation menu

Versions of this User Manual:

Views

Navigation
