About This Book

This guide provides basic information for upgrading HP ProDesk Business PCs.

WARNING! Text set off in this manner indicates that failure to follow directions could result in bodily

harm or loss of life.

CAUTION: Text set off in this manner indicates that failure to follow directions could result in

damage to equipment or loss of information.

NOTE: Text set off in this manner provides important supplemental information.

ENWW iii

iv About This Book ENWW

Table of contents

1 Product features ............................................................................................................................................. 1

Standard configuration features ........................................................................................................... 1

Tower (TWR) ....................................................................................................................... 1

Small Form Factor (SFF) ..................................................................................................... 2

Tower (TWR) front panel components ................................................................................................. 3

Small Form Factor (SFF) front panel components ............................................................................... 4

Tower (TWR) rear panel components .................................................................................................. 5

Small Form Factor (SFF) rear panel components ................................................................................ 6

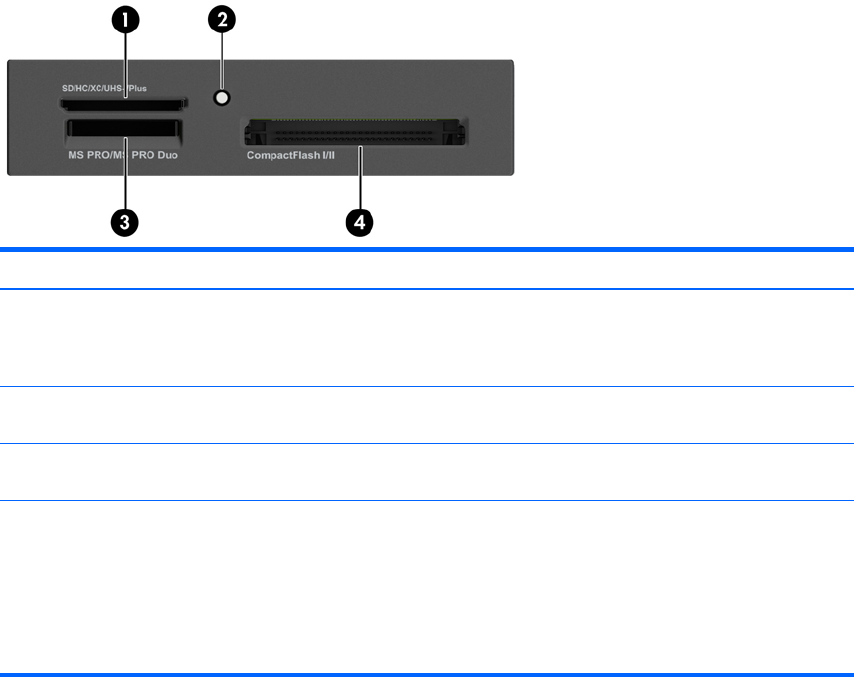

Media card reader components ............................................................................................................ 7

Keyboard .............................................................................................................................................. 8

Using the Windows logo key ................................................................................................ 8

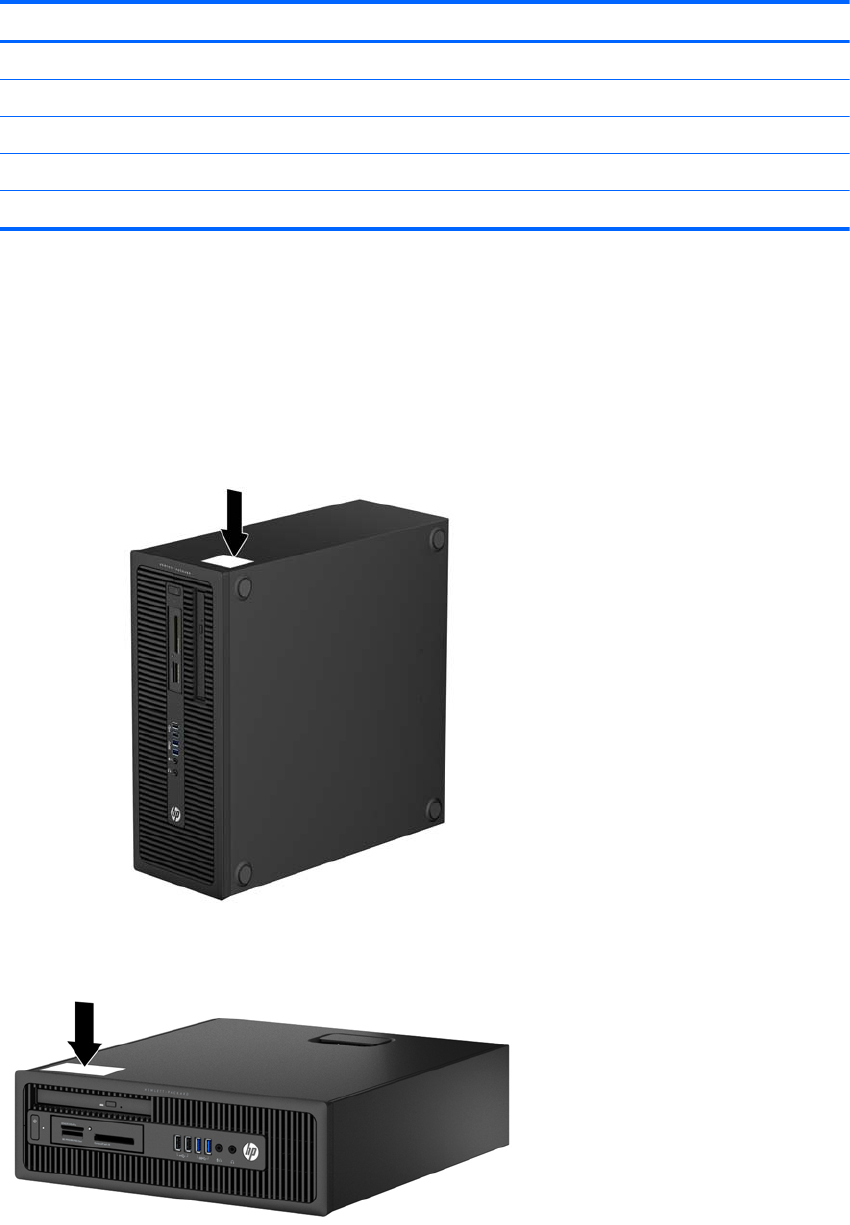

Serial number location ........................................................................................................................ 10

Tower (TWR) ..................................................................................................................... 10

Small Form Factor (SFF) ................................................................................................... 10

2 Tower (TWR) hardware upgrades ................................................................................................................ 11

Serviceability features ........................................................................................................................ 11

Warnings and cautions ....................................................................................................................... 11

Removing the computer access panel ............................................................................................... 12

Replacing the computer access panel ............................................................................................... 13

Removing the front bezel ................................................................................................................... 14

Removing bezel blanks ...................................................................................................................... 15

Replacing the front bezel .................................................................................................................... 16

System board connections ................................................................................................................. 17

Installing additional memory ............................................................................................................... 18

DIMMs ............................................................................................................................... 18

DDR3-SDRAM DIMMs ...................................................................................................... 18

Populating DIMM sockets .................................................................................................. 18

Installing DIMMs ................................................................................................................ 19

Removing or installing an expansion card .......................................................................................... 21

Drive positions .................................................................................................................................... 25

Installing and removing drives ............................................................................................................ 26

ENWW v

Removing a 5.25-inch drive ............................................................................................... 28

Installing a 5.25-inch drive ................................................................................................. 29

Removing a 3.5-inch device .............................................................................................. 32

Installing a 3.5-inch device ................................................................................................ 34

Removing a slim optical drive ............................................................................................ 36

Installing a slim optical drive .............................................................................................. 37

Removing a 3.5-inch or 2.5-inch hard drive ....................................................................... 40

Installing a 3.5-inch or 2.5-inch hard drive ......................................................................... 41

Installing a security lock ..................................................................................................................... 46

Cable lock .......................................................................................................................... 46

Padlock .............................................................................................................................. 46

HP business PC security lock ............................................................................................ 47

Front bezel security ........................................................................................................... 51

3 Small Form Factor (SFF) hardware upgrades ............................................................................................ 53

Serviceability features ........................................................................................................................ 53

Warnings and cautions ....................................................................................................................... 53

Removing the computer access panel ............................................................................................... 54

Replacing the computer access panel ............................................................................................... 55

Removing the front bezel ................................................................................................................... 56

Removing bezel blanks ...................................................................................................................... 57

Replacing the front bezel .................................................................................................................... 58

Changing from desktop to tower configuration ................................................................................... 59

System board connections ................................................................................................................. 60

Installing additional memory ............................................................................................................... 61

DIMMs ............................................................................................................................... 61

DDR3-SDRAM DIMMs ...................................................................................................... 61

Populating DIMM sockets .................................................................................................. 61

Installing DIMMs ................................................................................................................ 62

Removing or installing an expansion card .......................................................................................... 64

Drive positions .................................................................................................................................... 68

Installing and removing drives ............................................................................................................ 69

Removing a 3.5-inch device .............................................................................................. 71

Installing a 3.5-inch device ................................................................................................ 73

Removing a slim optical drive ............................................................................................ 76

Installing a slim optical drive .............................................................................................. 77

Removing and replacing a 3.5-inch hard drive .................................................................. 78

Removing a 2.5-inch hard drive ......................................................................................... 82

Installing a 2.5-inch hard drive ........................................................................................... 84

Installing a security lock ..................................................................................................................... 87

Cable lock .......................................................................................................................... 87

vi ENWW

Padlock .............................................................................................................................. 87

HP business PC security lock ............................................................................................ 88

Front bezel security ........................................................................................................... 92

Appendix A Battery replacement ................................................................................................................... 94

Appendix B Unlocking the Smart Cover Lock .............................................................................................. 97

Smart Cover FailSafe Key .................................................................................................................. 97

Using the Smart Cover FailSafe Key to remove the Smart Cover Lock ............................................. 98

Appendix C Electrostatic discharge ............................................................................................................ 100

Preventing electrostatic damage ...................................................................................................... 100

Grounding methods .......................................................................................................................... 100

Appendix D Computer operating guidelines, routine care and shipping preparation ............................ 101

Computer operating guidelines and routine care ............................................................................. 101

Optical drive precautions .................................................................................................................. 102

Operation ......................................................................................................................... 102

Cleaning ........................................................................................................................... 102

Safety ............................................................................................................................... 102

Shipping preparation ........................................................................................................................ 102

Index ................................................................................................................................................................. 103

ENWW vii

viii ENWW

1 Product features

Standard configuration features

Features may vary depending on the model. For a complete listing of the hardware and software

installed in the computer, run the diagnostic utility (included on some computer models only).

NOTE: Both computer models can be used in a tower orientation or a desktop orientation.

Tower (TWR)

ENWW Standard configuration features 1

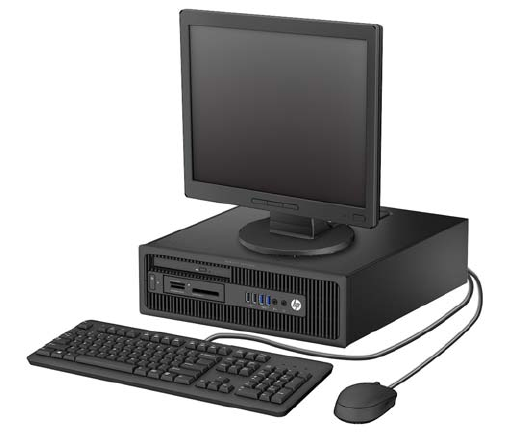

Small Form Factor (SFF)

2 Chapter 1 Product features ENWW

Tower (TWR) front panel components

Drive configuration may vary by model. Some models have a bezel blank covering one or more drive

bays.

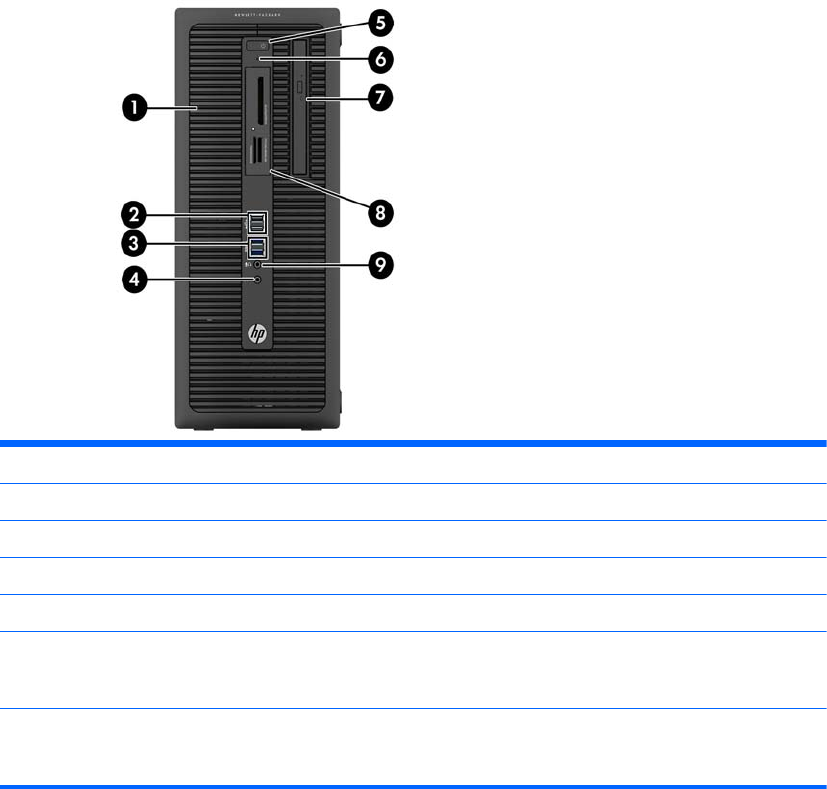

1 5.25-inch Half-Height Drive Bay (behind bezel) 6 Hard Drive Activity Light

2 USB 2.0 Ports (black) 7 Slim Optical Drive (optional)

3 USB 3.0 Ports (blue) 8 3.5-inch Media Card Reader (optional)

4 Headphone Connector 9 Microphone/Headphone Connector

5 Dual-State Power Button

NOTE: When a device is plugged into the Microphone/Headphone Connector, a dialog box will pop up asking if

you want to use the connector for a microphone Line-In device or a headphone. You can reconfigure the

connector at any time by double-clicking the Audio Manager icon in the Windows taskbar.

NOTE: The Power On Light is normally white when the power is on. If it is flashing red, there is a problem with

the computer and it is displaying a diagnostic code. Refer to the Maintenance and Service Guide to interpret the

code.

ENWW Tower (TWR) front panel components 3

Small Form Factor (SFF) front panel components

Drive configuration may vary by model. Some models have a bezel blank covering one or more drive

bays.

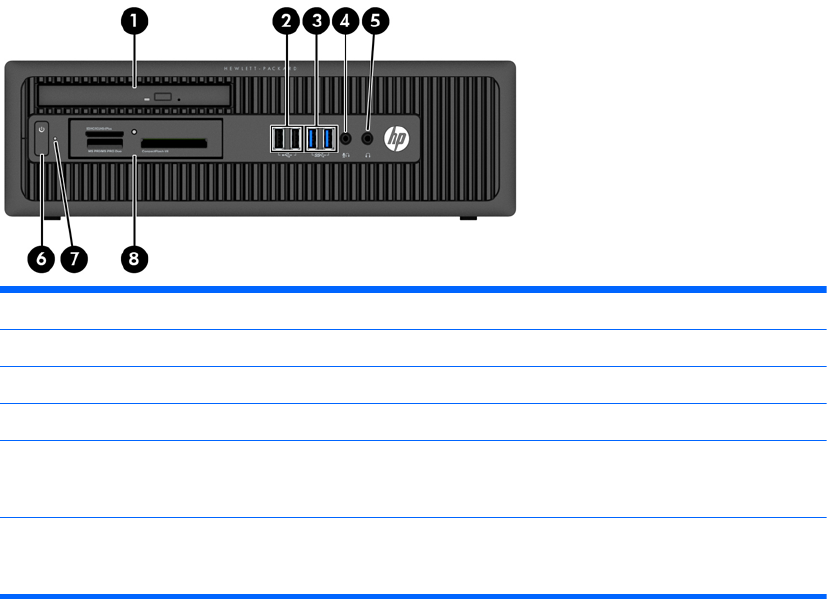

1 Slim Optical Drive (optional) 5 Headphone Connector

2 USB 2.0 Ports (black) 6 Dual-State Power Button

3 USB 3.0 Ports (blue) 7 Hard Drive Activity Light

4 Microphone/Headphone Connector 8 3.5-inch Media Card Reader (optional)

NOTE: When a device is plugged into the Microphone/Headphone Connector, a dialog box will pop up asking if

you want to use the connector for a microphone Line-In device or a headphone. You can reconfigure the

connector at any time by double-clicking the Audio Manager icon in the Windows taskbar.

NOTE: The Power On Light is normally white when the power is on. If it is flashing red, there is a problem with

the computer and it is displaying a diagnostic code. Refer to the Maintenance and Service Guide to interpret the

code.

4 Chapter 1 Product features ENWW

Tower (TWR) rear panel components

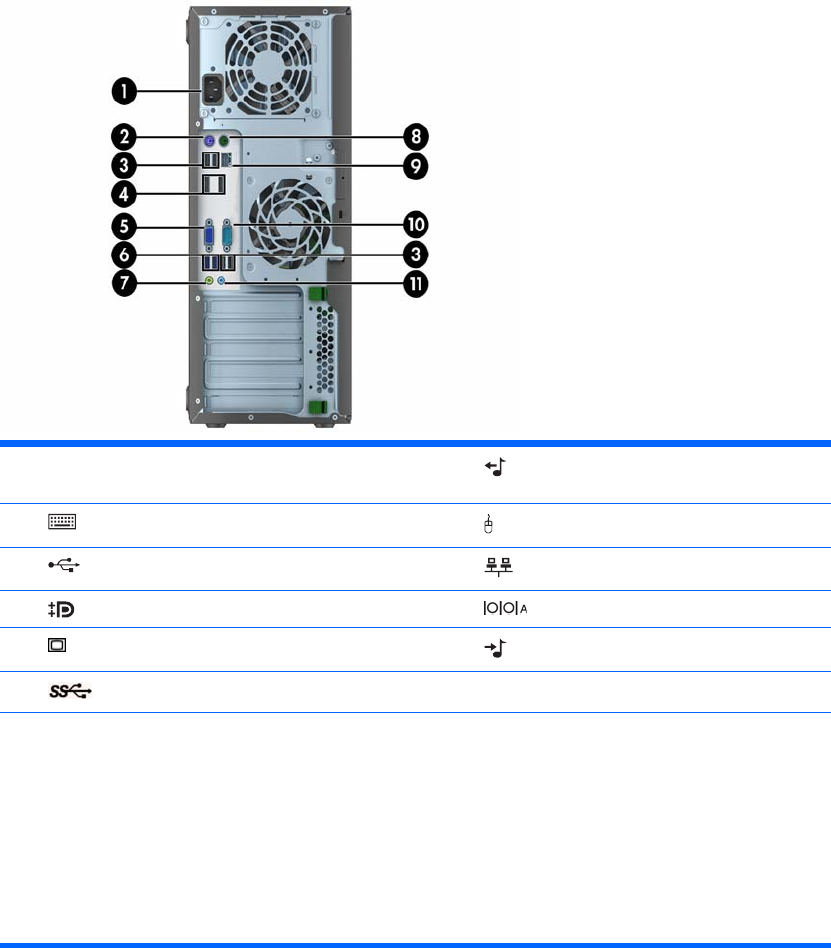

1 Power Cord Connector 7 Line-Out Connector for powered audio

devices (green)

2PS/2 Keyboard Connector (purple) 8 PS/2 Mouse Connector (green)

3USB 2.0 Ports (black) 9 RJ-45 Network Connector

4DisplayPort Monitor Connectors 10 Serial Connector

5VGA Monitor Connector 11 Line-In Audio Connector (blue)

6USB 3.0 Ports (blue)

NOTE: An optional second serial port and an optional parallel port are available from HP.

When a device is plugged into the blue Line-In Audio Connector, a dialog box will pop up asking if you want to use

the connector for a line-in device or a microphone. You can reconfigure the connector at any time by double-

clicking the Audio Manager icon in the Windows taskbar.

When a graphics card is installed in one of the system board slots, the video connectors on the graphics card and

the integrated graphics on the system board may be used at the same time. However, for such a configuration,

only the display connected to the discrete graphics card will display POST messages.

The system board graphics can be disabled by changing settings in Computer Setup.

ENWW Tower (TWR) rear panel components 5

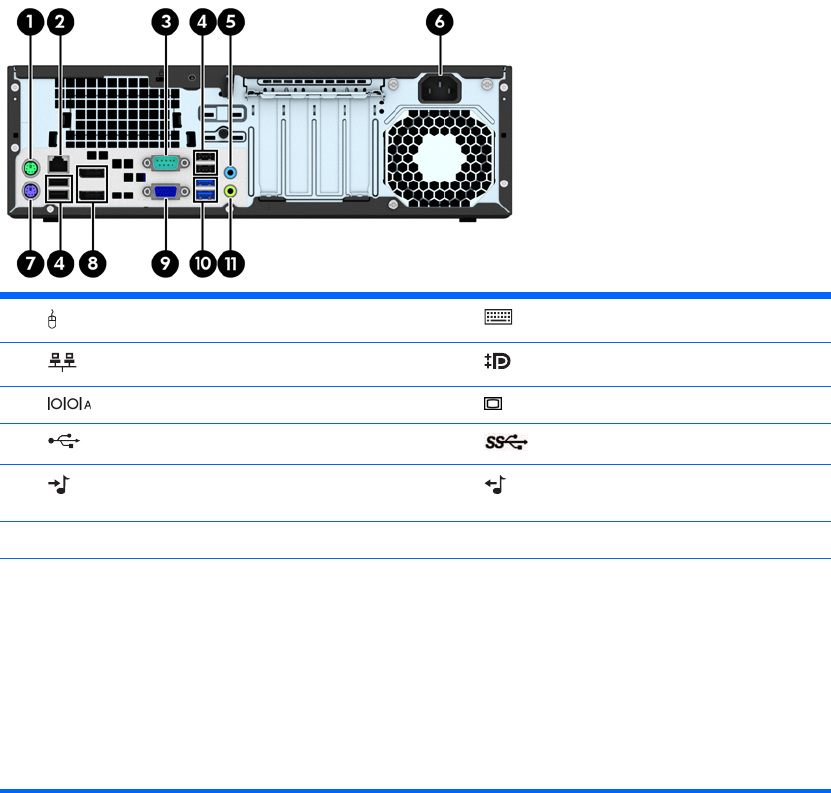

Small Form Factor (SFF) rear panel components

1PS/2 Mouse Connector (green) 7 PS/2 Keyboard Connector (purple)

2RJ-45 Network Connector 8 DisplayPort Monitor Connectors

3Serial Connector 9 VGA Monitor Connector

4USB 2.0 Ports (black) 10 USB 3.0 Ports (blue)

5Line-In Audio Connector (blue) 11 Line-Out Connector for powered audio

devices (green)

6 Power Cord Connector

NOTE: An optional second serial port and an optional parallel port are available from HP.

When a device is plugged into the blue Line-In Audio Connector, a dialog box will pop up asking if you want to use

the connector for a line-in device or a microphone. You can reconfigure the connector at any time by double-

clicking the Audio Manager icon in the Windows taskbar.

When a graphics card is installed in one of the system board slots, the video connectors on the graphics card and

the integrated graphics on the system board may be used at the same time. However, for such a configuration,

only the display connected to the discrete graphics card will display POST messages.

The system board graphics can be disabled by changing settings in Computer Setup.

6 Chapter 1 Product features ENWW

Media card reader components

The media card reader is an optional device available on some models only. Refer to the following

illustration and table to identify the media card reader components.

No. Slot Media

1SD/HC/XC/UHS-1/Plus ●Secure Digital (SD) ●Secure Digital High

Capacity (SDHC)

●Secure Digital

Extended Capacity

Memory Card

(SDXC)

2Media Card Reader

Activity Light

3CompactFlash I/II ●CompactFlash Card

Type 1

●CompactFlash Card

Type 2

●MicroDrive

4MS PRO/MS PRO Duo ●Memory Stick (MS)

●Memory Stick Select

●Memory Stick PRO

(MS PRO)

●Memory Stick

MagicGate

●Memory Stick Duo

(MS Duo)

●Memory Stick PRO

Duo (MS PRO Duo)

●Memory Stick

MagicGate Duo

●Memory Stick PRO-

HG Duo

ENWW Media card reader components 7

Keyboard

Component Component

1 Sleep 6 Mute volume

2 Fast reverse 7 Decrease volume

3 Play/pause 8 Increase volume

4 Stop 9 Windows logo key

5 Fast forward 10 Function

Using the Windows logo key

Use the Windows Logo key in combination with other keys to perform certain functions available in

the Windows operating system.

Windows Logo Key + Windows 7 Windows 8

no other key Displays the Start menu Displays the Start screen

c Opens charms

dDisplays the Desktop Displays the Desktop

eLaunches My Computer Opens Windows Explorer

fLaunches Find Document Goes to files in Search charm

Ctrl + fLaunches Find Computer Launches Find Computer

gCycles through gadgets Cycles through gadgets

h Goes to Share charm

i Goes to Settings charm

k Goes to Devices charm

8 Chapter 1 Product features ENWW

Windows Logo Key + Windows 7 Windows 8

lLocks the computer if you are connected to

a network domain, or allows you to switch

users if you are not connected to a network

domain

Locks the computer if you are connected to

a network domain, or allows you to switch

users if you are not connected to a network

domain

mMinimizes all open applications Minimizes all open applications

o Locks screen orientation

pChoose a presentation display mode Opens projection options

q Goes to Search charm

rLaunches the Run dialog box Launches the Run dialog box

tCycles through programs on the taskbar Cycles through programs on the taskbar

uLaunches Ease of Access Center Launches Ease of Access Center

v Cycles through notifications

w Goes to Settings in Search charm

xOpens Windows Mobility Center if present Opens Windows Mobility Center if present

z Opens applications bar

F1 Launches Windows Help Launches Windows Help

Tab Cycles through programs on the Taskbar

using the Windows Flip 3-D

Cycles through metro application history

Ctrl + Tab Use the arrow keys to cycle through

programs on the Taskbar by using Windows

Flip 3-D

Use the arrow keys to cycle through metro

application history

Spacebar Brings all gadgets to the front and select

Windows Sidebar

Switches input language and keyboard

layout

any number key Goes to the application at the given position

on the taskbar

Goes to the application at the given position

on the taskbar

up arrow Maximizes the window Maximizes the desktop window

left arrow Snaps the window to the left side of the

screen

Snaps the desktop window to the left side of

the screen

right arrow Snaps the window to the right side of the

screen

Snaps the desktop window to the right side

of the screen

down arrow Minimizes the window Minimizes the desktop window

Shift + left arrow or right

arrow

Moves a window from one monitor to

another

Moves a window from one monitor to

another

, (comma) Peeks at the desktop

. (period) Snap a metro application to the right

Shift + . (period) Snap a metro application to the left

Enter Launches Narrator

Esc Exits Magnifier

+ (on numpad) Zooms in Zooms in (Magnifier)

ENWW Keyboard 9

Windows Logo Key + Windows 7 Windows 8

- (on numpad) Zooms out Zooms out (Magnifier)

Home Minimizes non-active desktop windows Minimizes non-active desktop windows

Break Displays System Properties Displays System Properties

PgUp Moves Start screen to left monitor

PgDn Moves Start screen to right monitor

Serial number location

Each computer has a unique serial number and a product ID number that are located on the exterior

of the computer. Keep these numbers available for use when contacting customer service for

assistance.

Tower (TWR)

Small Form Factor (SFF)

10 Chapter 1 Product features ENWW

2 Tower (TWR) hardware upgrades

Serviceability features

The computer includes features that make it easy to upgrade and service. No tools are needed for

most of the installation procedures described in this chapter.

Warnings and cautions

Before performing upgrades be sure to carefully read all of the applicable instructions, cautions, and

warnings in this guide.

WARNING! To reduce the risk of personal injury from electrical shock, hot surfaces, or fire:

Disconnect the power cord from the wall outlet and allow the internal system components to cool

before touching.

Do not plug telecommunications or telephone connectors into the network interface controller (NIC)

receptacles.

Do not disable the power cord grounding plug. The grounding plug is an important safety feature.

Plug the power cord in a grounded (earthed) outlet that is easily accessible at all times.

To reduce the risk of serious injury, read the Safety & Comfort Guide. It describes proper workstation,

setup, posture, and health and work habits for computer users, and provides important electrical and

mechanical safety information. This guide is located on the Web at http://www.hp.com/ergo.

WARNING! Energized and moving parts inside.

Disconnect power to the equipment before removing the enclosure.

Replace and secure the enclosure before re-energizing the equipment.

CAUTION: Static electricity can damage the electrical components of the computer or optional

equipment. Before beginning these procedures, ensure that you are discharged of static electricity by

briefly touching a grounded metal object. See Electrostatic discharge on page 100 for more

information.

When the computer is plugged into an AC power source, voltage is always applied to the system

board. You must disconnect the power cord from the power source before opening the computer to

prevent damage to internal components.

ENWW Serviceability features 11

Removing the computer access panel

To access internal components, you must remove the access panel:

1. Remove/disengage any security devices that prohibit opening the computer.

2. Remove all removable media, such as compact discs or USB flash drives, from the computer.

3. Turn off the computer properly through the operating system, then turn off any external devices.

4. Disconnect the power cord from the power outlet and disconnect any external devices.

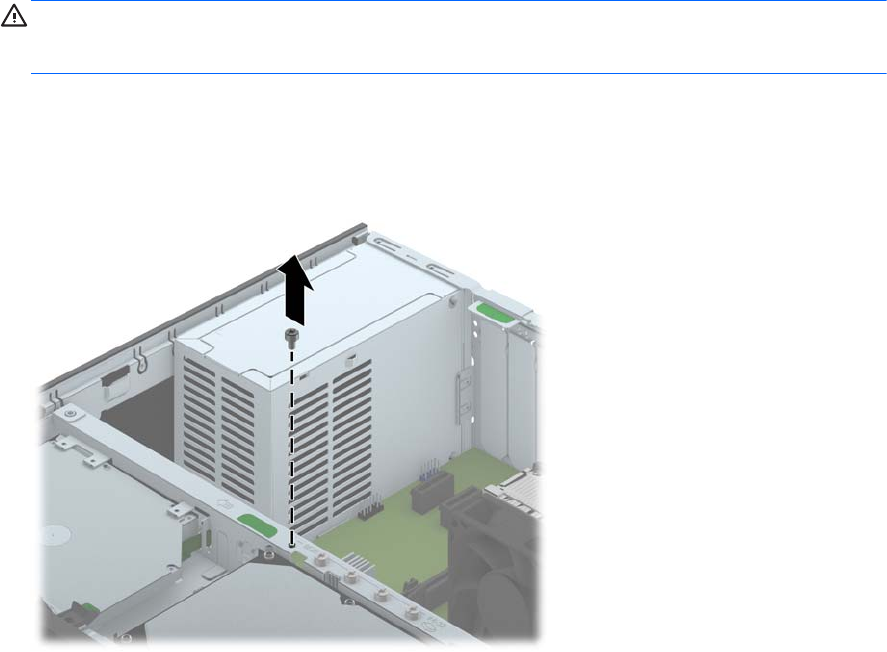

CAUTION: Regardless of the power-on state, voltage is always present on the system board

as long as the system is plugged into an active AC outlet. You must disconnect the power cord

to avoid damage to the internal components of the computer.

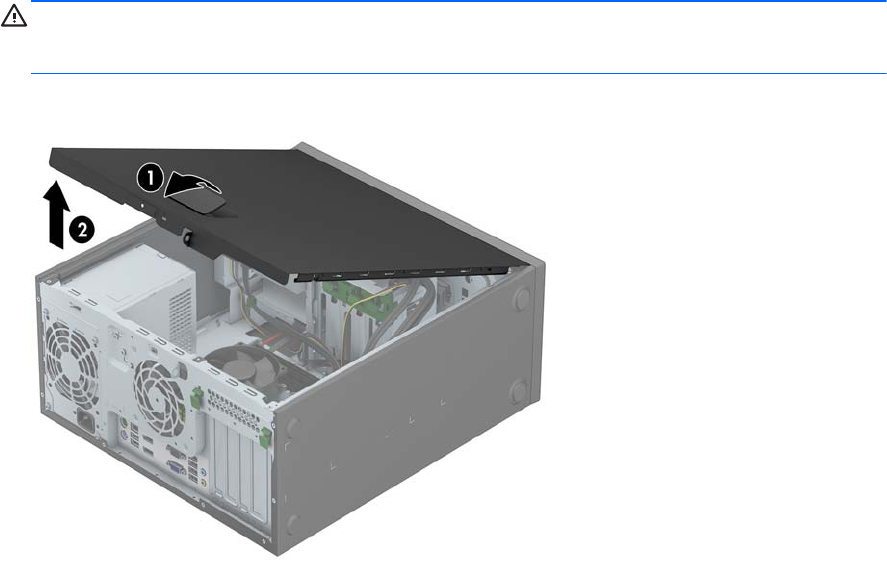

5. Lift up on the access panel handle (1) then lift the access panel off the computer (2).

12 Chapter 2 Tower (TWR) hardware upgrades ENWW

Replacing the computer access panel

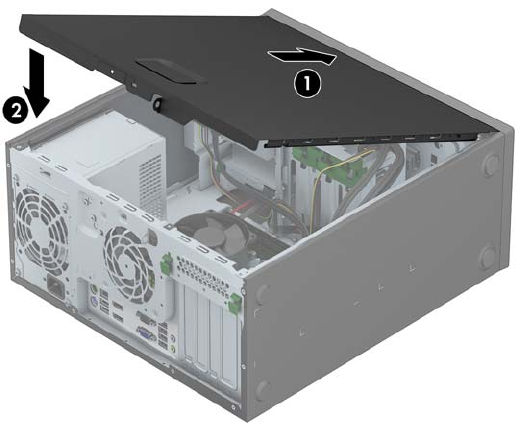

Slide the lip on the front end of the access panel under the lip on the front of the chassis (1) then

press the back end of the access panel onto the unit so that it locks into place (2).

ENWW Replacing the computer access panel 13

Removing the front bezel

1. Remove/disengage any security devices that prohibit opening the computer.

2. Remove all removable media, such as compact discs or USB flash drives, from the computer.

3. Turn off the computer properly through the operating system, then turn off any external devices.

4. Disconnect the power cord from the power outlet and disconnect any external devices.

CAUTION: Regardless of the power-on state, voltage is always present on the system board

as long as the system is plugged into an active AC outlet. You must disconnect the power cord

to avoid damage to the internal components of the computer.

5. Remove the computer access panel.

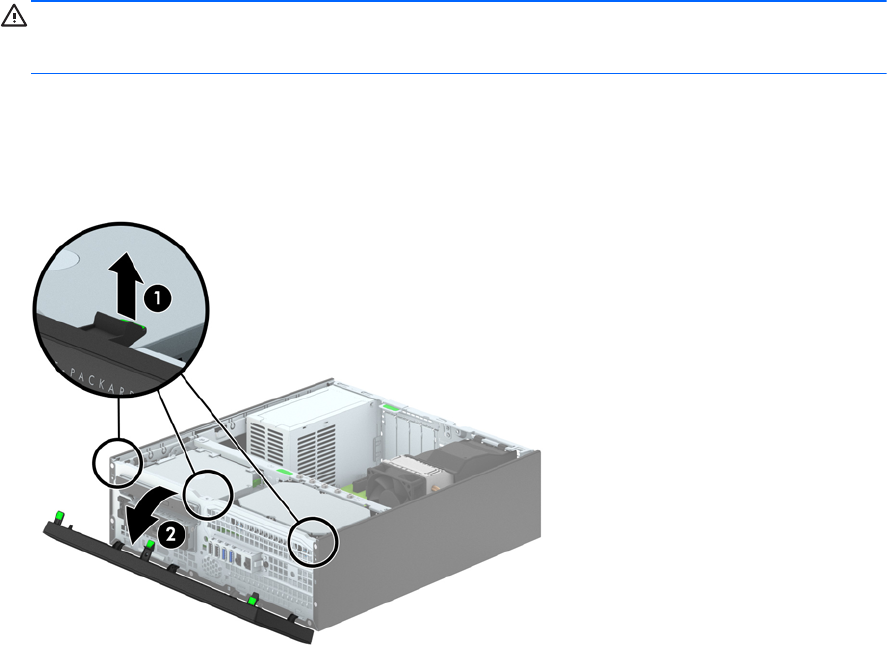

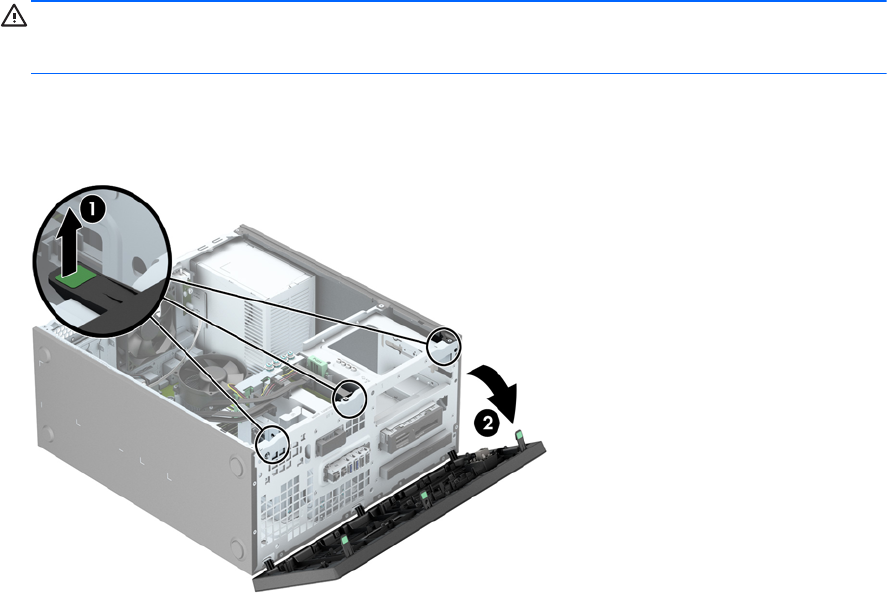

6. Lift up the three tabs on the side of the bezel (1), then rotate the bezel off the chassis (2).

14 Chapter 2 Tower (TWR) hardware upgrades ENWW

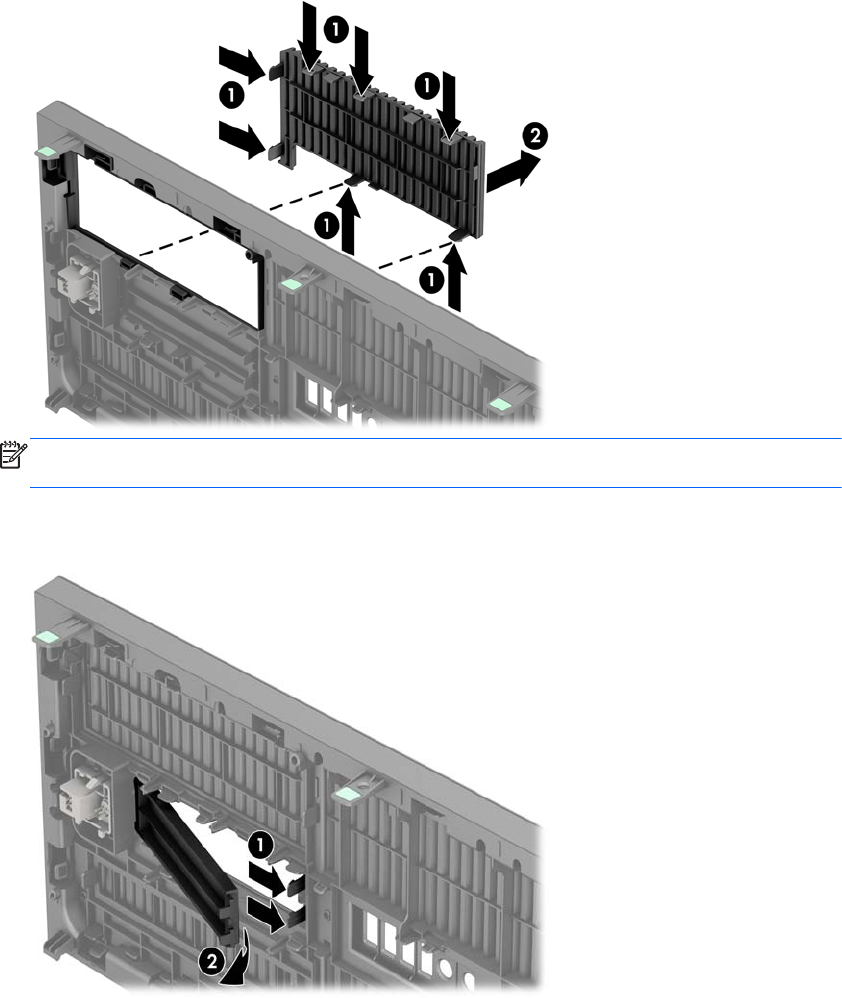

Removing bezel blanks

On some models, there are bezel blanks covering one or more drive bays that need to be removed

before installing a drive. To remove a bezel blank:

1. Remove the access panel and front bezel.

2. Remove the bezel blank for the appropriate drive:

●To remove a 5.25-inch bezel blank, press inward on the retaining tabs that hold the bezel

blank in place (1) then pull the bezel blank from the front bezel (2).

NOTE: After removing the 5.25-inch drive bezel blank and installing a drive, you can

install an optional bezel trim piece (available from HP) that surrounds the front of the drive.

●To remove a 3.5-inch bezel blank, press outward on the two retaining tabs that hold the

bezel blank in place (1) and rotate the bezel blank back and to the right to remove it (2).

ENWW Removing bezel blanks 15

●To remove a slim optical drive bezel blank, press inward on the retaining tabs that hold the

bezel blank in place (1) then pull the bezel blank from the front bezel (2).

NOTE: After removing the slim optical drive bezel blank and installing a slim optical drive,

you can install an optional bezel trim piece (available from HP) that surrounds the front of

the slim optical drive.

Replacing the front bezel

Insert the three hooks on the bottom side of the bezel into the rectangular holes on the chassis (1)

then rotate the top side of the bezel onto the chassis (2) and snap it into place.

16 Chapter 2 Tower (TWR) hardware upgrades ENWW

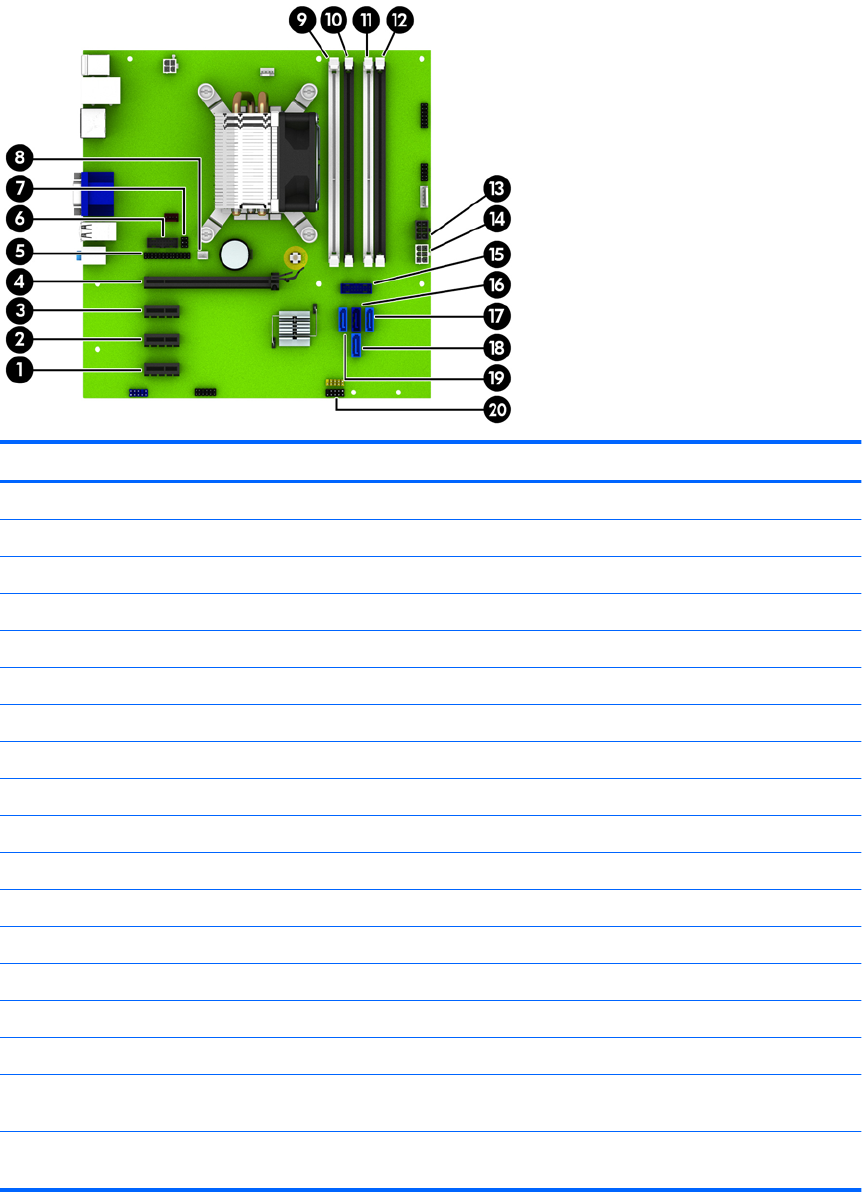

System board connections

Refer to the following illustration and table to identify the system board connectors for your model.

No. System Board Connector System Board Label Color Component

1 PCI Express x1 X1PCIEXP3 white Expansion Card

2 PCI Express x1 X1PCIEXP2 black Expansion Card

3 PCI Express x1 X1PCIEXP1 black Expansion Card

4 PCI Express x16 X16PCIEXP black Expansion Card

5 Parallel Port PAR black Parallel Port

6 Serial Port COMB black Serial Port

7 Hood Lock HLCK black Hood Lock

8 Hood Sensor HSENSE white Hood Sensor

9 DIMM4 (Channel A) DIMM4 white Memory Module

10 DIMM3 (Channel A) DIMM3 black Memory Module

11 DIMM2 (Channel B) DIMM2 white Memory Module

12 DIMM1 (Channel B) DIMM1 black Memory Module

13 Power SATAPWR0 black SATA Drives

14 Power PWR white System Board

15 USB 3.0 FRONT USB3.0 blue Front USB 3.0 Ports

16 SATA 3.0 SATA0 dark blue Primary Hard Drive

17 SATA 3.0 SATA3 light blue Any SATA Device other than the

Primary Hard Drive

18 SATA 3.0 SATA1 light blue Any SATA Device other than the

Primary Hard Drive

ENWW System board connections 17

No. System Board Connector System Board Label Color Component

19 SATA 3.0 SATA2 light blue Any SATA Device other than the

Primary Hard Drive

20 USB 2.0 MEDIA black USB 2.0 Device, such as a Media

Card Reader

Installing additional memory

The computer comes with double data rate 3 synchronous dynamic random access memory (DDR3-

SDRAM) dual inline memory modules (DIMMs).

DIMMs

The memory sockets on the system board can be populated with up to four industry-standard DIMMs.

These memory sockets are populated with at least one preinstalled DIMM. To achieve the maximum

memory support, you can populate the system board with up to 32-GB of memory configured in a

high-performing dual channel mode.

DDR3-SDRAM DIMMs

For proper system operation, the DDR3-SDRAM DIMMs must be:

●industry-standard 240-pin

●unbuffered non-ECC PC3-12800 DDR3-1600 MHz-compliant

●1.35 volt or 1.5 volt DDR3/DDR3L-SDRAM DIMMs

The DDR3-SDRAM DIMMs must also:

●support CAS latency 11 DDR3 1600 MHz (11-11-11 timing)

●contain the mandatory JEDEC SPD information

In addition, the computer supports:

●512-Mbit, 1-Gbit, and 2-Gbit non-ECC memory technologies

●single-sided and double-sided DIMMs

●DIMMs constructed with x8 and x16 DDR devices; DIMMs constructed with x4 SDRAM are not

supported

NOTE: The system will not operate properly if you install unsupported DIMMs.

Populating DIMM sockets

There are four DIMM sockets on the system board, with two sockets per channel. The sockets are

labeled DIMM1, DIMM2, DIMM3, and DIMM4. Sockets DIMM1 and DIMM2 operate in memory

channel B. Sockets DIMM3 and DIMM4 operate in memory channel A.

The system will automatically operate in single channel mode, dual channel mode, or flex mode,

depending on how the DIMMs are installed.

18 Chapter 2 Tower (TWR) hardware upgrades ENWW

NOTE: Single channel and unbalanced dual channel memory configurations will result in inferior

graphics performance.

●The system will operate in single channel mode if the DIMM sockets are populated in one

channel only.

●The system will operate in a higher-performing dual channel mode if the total memory capacity

of the DIMMs in Channel A is equal to the total memory capacity of the DIMMs in Channel B.

The technology and device width can vary between the channels. For example, if Channel A is

populated with two 1-GB DIMMs and Channel B is populated with one 2-GB DIMM, the system

will operate in dual channel mode.

●The system will operate in flex mode if the total memory capacity of the DIMMs in Channel A is

not equal to the total memory capacity of the DIMMs in Channel B. In flex mode, the channel

populated with the least amount of memory describes the total amount of memory assigned to

dual channel and the remainder is assigned to single channel. For optimal speed, the channels

should be balanced so that the largest amount of memory is spread between the two channels.

If one channel will have more memory than the other, the larger amount should be assigned to

Channel A. For example, if you are populating the sockets with one 2-GB DIMM, and three 1-GB

DIMMs, Channel A should be populated with the 2-GB DIMM and one 1-GB DIMM, and Channel

B should be populated with the other two 1-GB DIMMs. With this configuration, 4-GB will run as

dual channel and 1-GB will run as single channel.

●In any mode, the maximum operational speed is determined by the slowest DIMM in the system.

Installing DIMMs

CAUTION: You must disconnect the power cord and wait approximately 30 seconds for the power

to drain before adding or removing memory modules. Regardless of the power-on state, voltage is

always supplied to the memory modules as long as the computer is plugged into an active AC outlet.

Adding or removing memory modules while voltage is present may cause irreparable damage to the

memory modules or system board.

The memory module sockets have gold-plated metal contacts. When upgrading the memory, it is

important to use memory modules with gold-plated metal contacts to prevent corrosion and/or

oxidation resulting from having incompatible metals in contact with each other.

Static electricity can damage the electronic components of the computer or optional cards. Before

beginning these procedures, ensure that you are discharged of static electricity by briefly touching a

grounded metal object. For more information, refer to Electrostatic discharge on page 100.

When handling a memory module, be careful not to touch any of the contacts. Doing so may damage

the module.

1. Remove/disengage any security devices that prohibit opening the computer.

2. Remove all removable media, such as compact discs or USB flash drives, from the computer.

3. Turn off the computer properly through the operating system, then turn off any external devices.

4. Disconnect the power cord from the power outlet and disconnect any external devices.

CAUTION: You must disconnect the power cord and wait approximately 30 seconds for the

power to drain before adding or removing memory modules. Regardless of the power-on state,

voltage is always supplied to the memory modules as long as the computer is plugged into an

active AC outlet. Adding or removing memory modules while voltage is present may cause

irreparable damage to the memory modules or system board.

ENWW Installing additional memory 19

5. Remove the computer access panel.

WARNING! To reduce risk of personal injury from hot surfaces, allow the internal system

components to cool before touching.

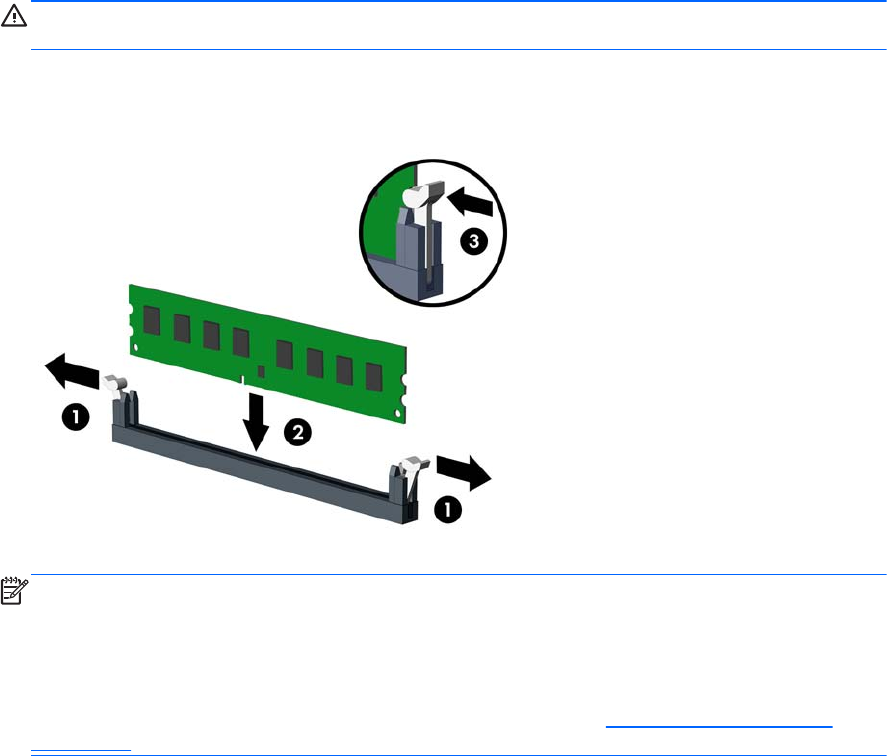

6. Open both latches of the memory module socket (1), and insert the memory module into the

socket (2).

NOTE: A memory module can be installed in only one way. Match the notch on the module

with the tab on the memory socket.

Populate the black DIMM sockets before the white DIMM sockets.

For maximum performance, populate the sockets so that the memory capacity is spread as

equally as possible between Channel A and Channel B. Refer to Populating DIMM sockets

on page 18 for more information.

7. Push the module down into the socket, ensuring that the module is fully inserted and properly

seated. Make sure the latches are in the closed position (3).

8. Repeat steps 6 and 7 to install any additional modules.

9. Replace the computer access panel.

10. Reconnect the power cord and turn on the computer.

11. Lock any security devices that were disengaged when the access panel was removed.

The computer should automatically recognize the additional memory the next time you turn on the

computer.

20 Chapter 2 Tower (TWR) hardware upgrades ENWW

Removing or installing an expansion card

The computer has three PCI Express x1 expansion slots and one PCI Express x16 expansion slot.

NOTE: You can install a PCI Express x1, x8, or x16 expansion card in the PCI Express x16 slots.

For dual graphics card configurations, the first (primary) card must be installed in the PCI Express

x16 slot.

To remove, replace, or add an expansion card:

1. Remove/disengage any security devices that prohibit opening the computer.

2. Remove all removable media, such as compact discs or USB flash drives, from the computer.

3. Turn off the computer properly through the operating system, then turn off any external devices.

4. Disconnect the power cord from the power outlet and disconnect any external devices.

CAUTION: Regardless of the power-on state, voltage is always present on the system board

as long as the system is plugged into an active AC outlet. You must disconnect the power cord

to avoid damage to the internal components of the computer.

5. Remove the computer access panel.

6. Locate the correct vacant expansion socket on the system board and the corresponding

expansion slot on the back of the computer chassis.

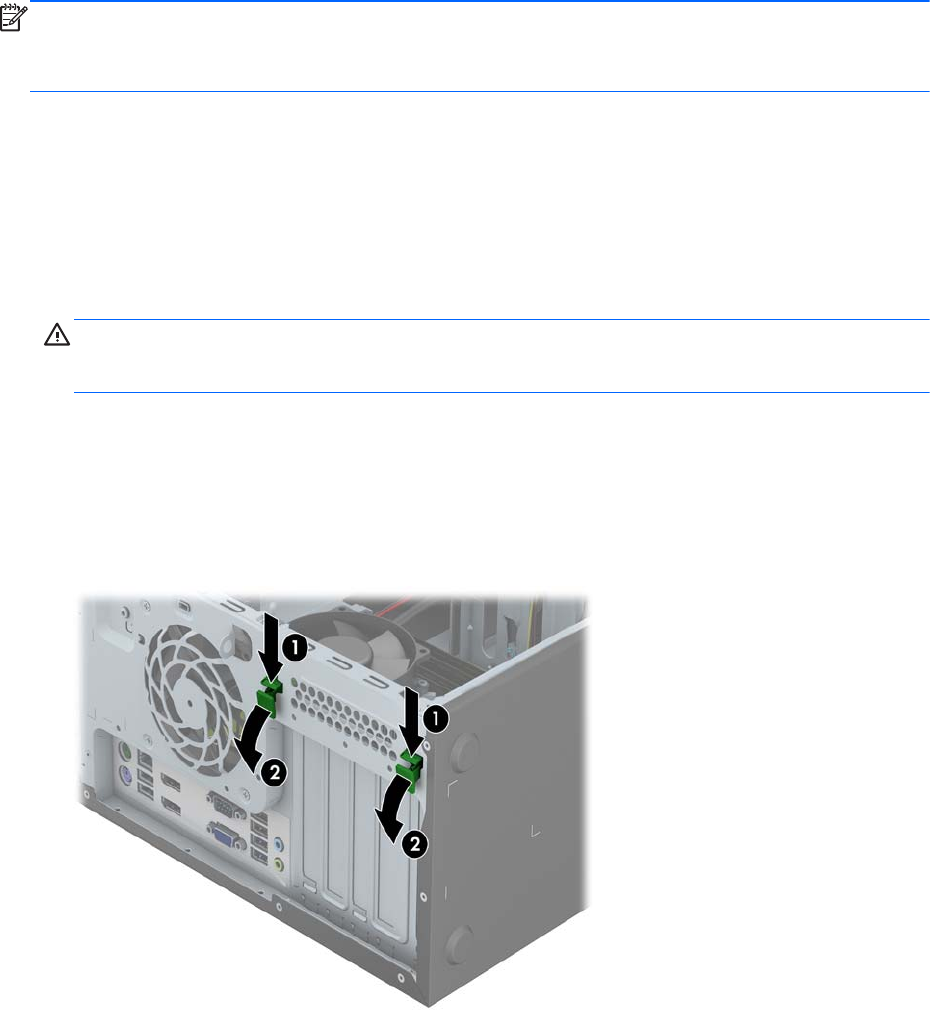

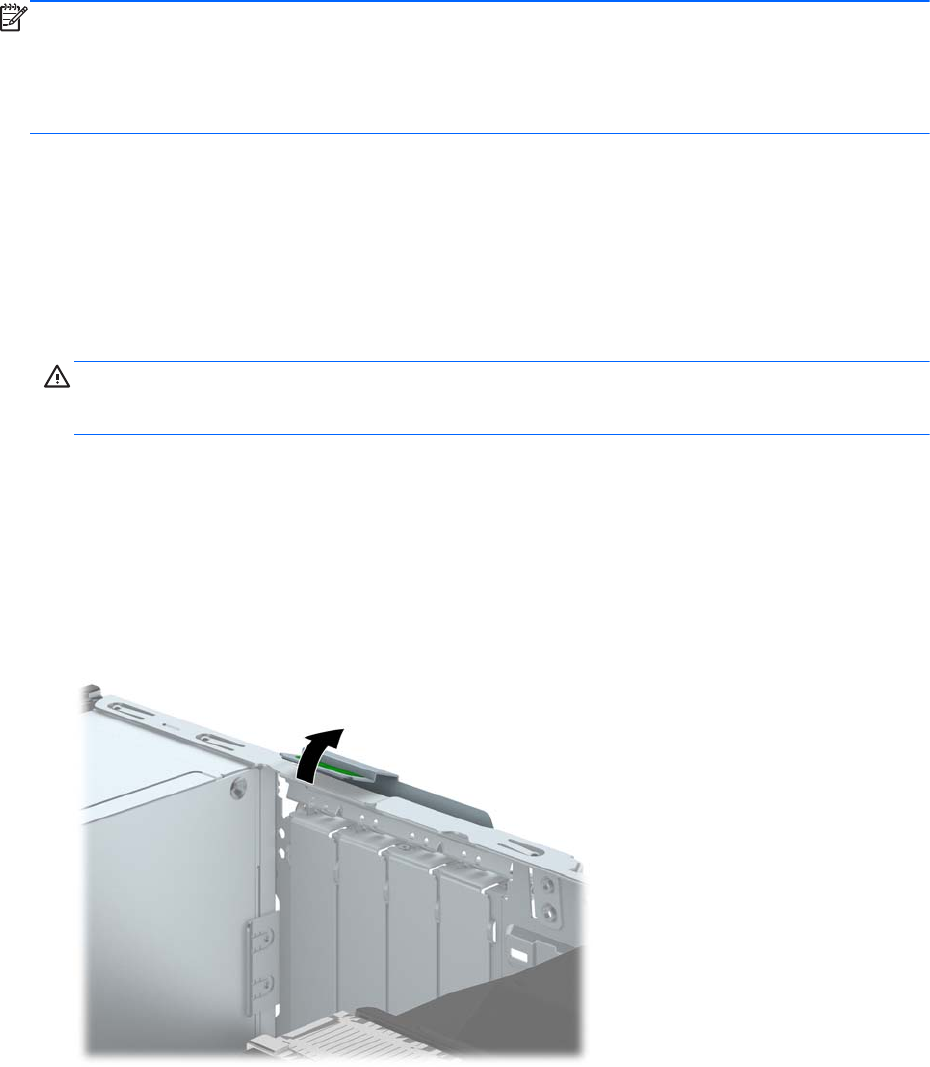

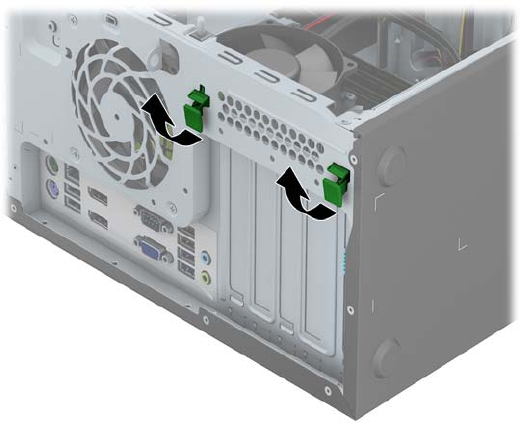

7. Press straight down on the two green thumb tabs on the exterior of the chassis (1) and rotate the

expansion card retention latch open (2).

ENWW Removing or installing an expansion card 21

8. Before installing an expansion card, remove the expansion slot cover or the existing expansion

card.

NOTE: Before removing an installed expansion card, disconnect any cables that may be

attached to the expansion card.

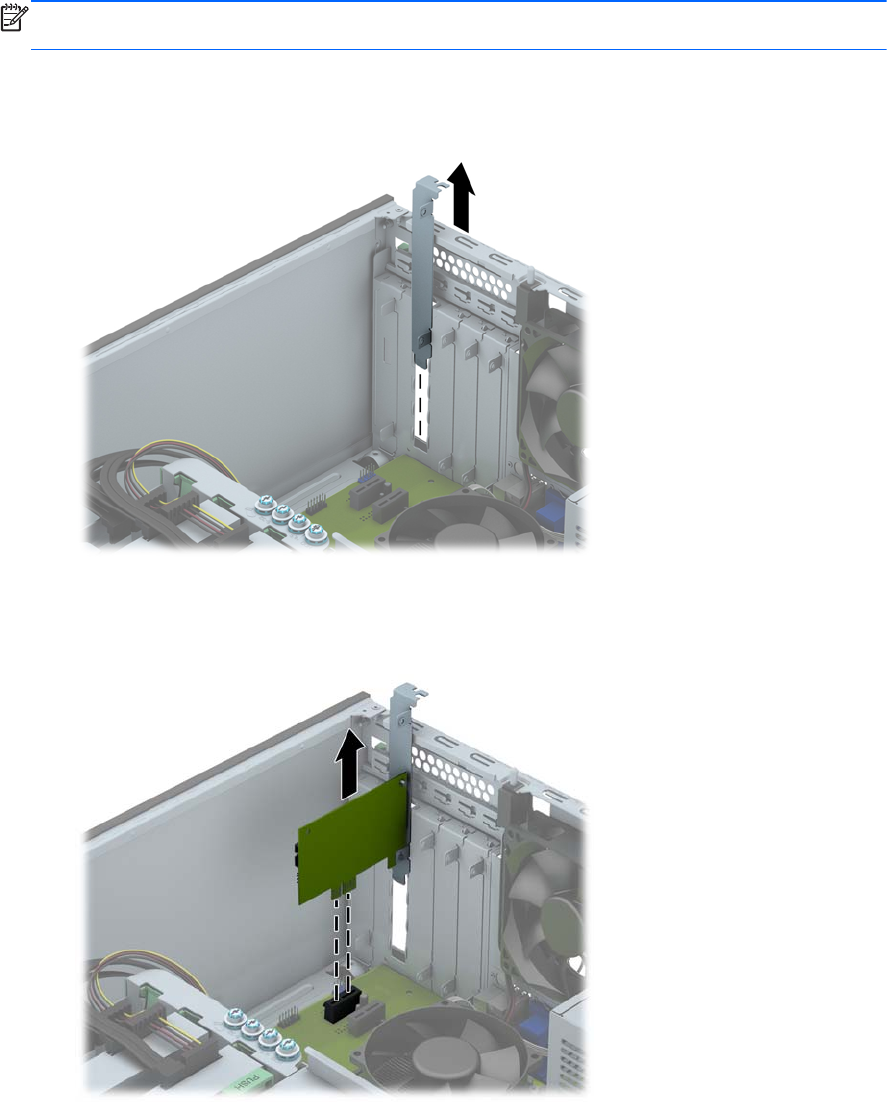

a. If you are installing an expansion card in a vacant socket, remove the appropriate

expansion slot cover on the back of the chassis. Lift the expansion slot cover from the

expansion slot.

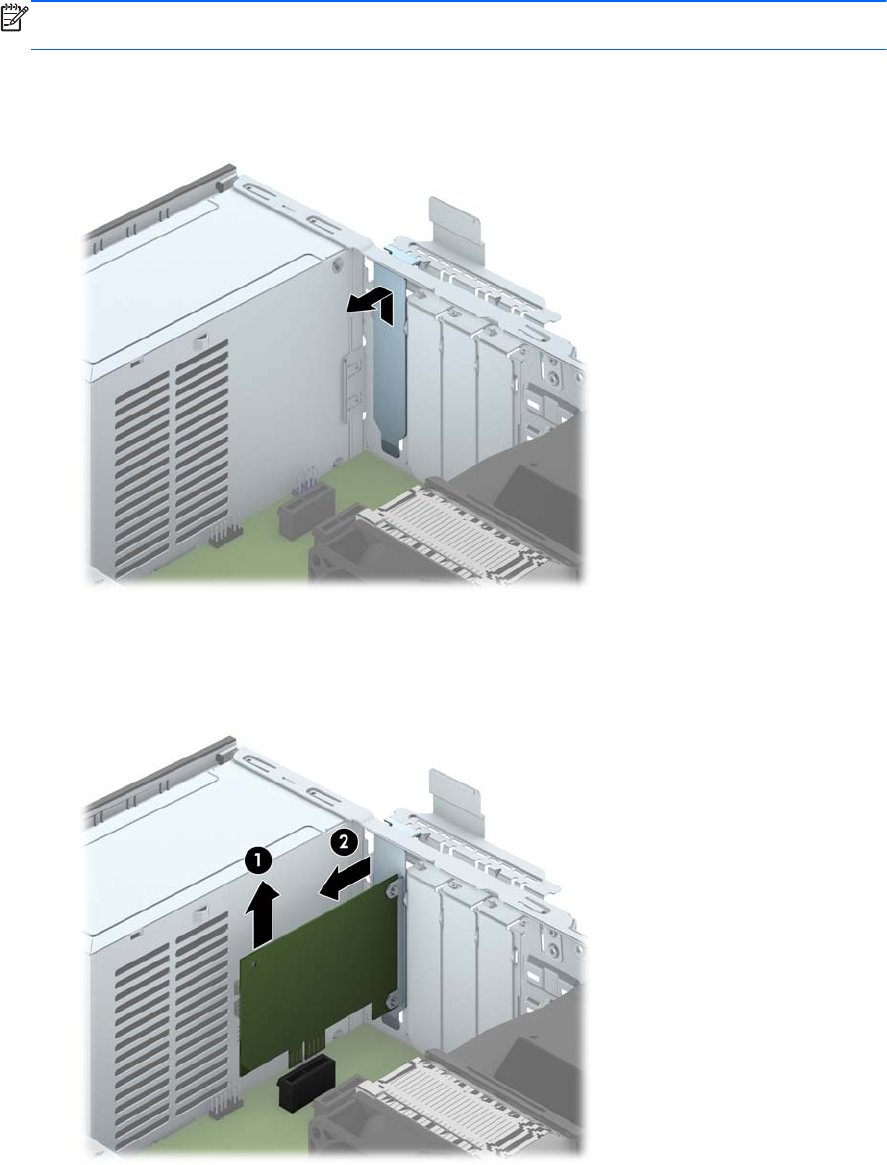

b. If you are removing a PCI Express x1 card, hold the card at each end and carefully rock it

back and forth until the connectors pull free from the socket. Lift the card straight up to

remove it. Be sure not to scrape the card against other components.

22 Chapter 2 Tower (TWR) hardware upgrades ENWW

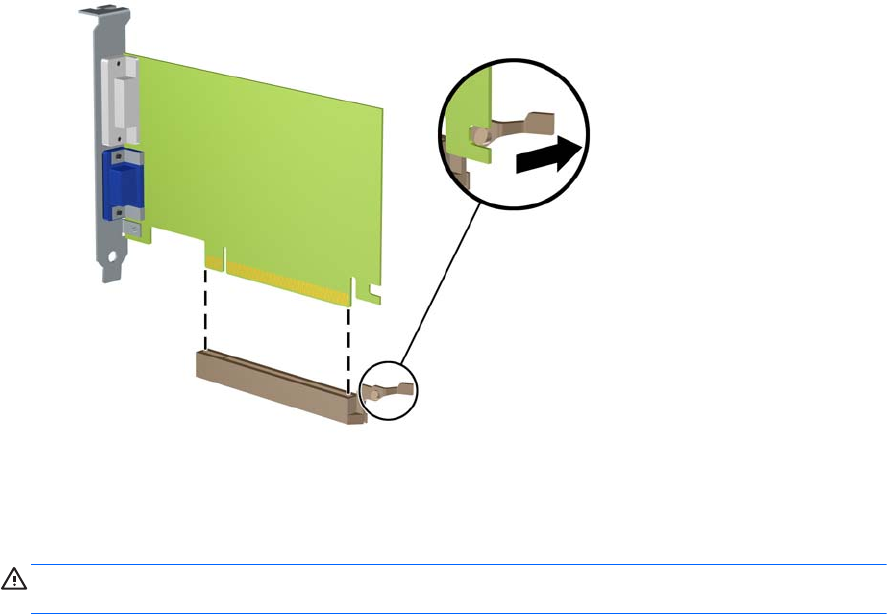

c. If you are removing a PCI Express x16 card, pull the retention arm on the back of the

expansion socket away from the card and carefully rock the card back and forth until the

connectors pull free from the socket. Lift the card straight up to remove it. Be sure not to

scrape the card against other components.

9. Store the removed card in anti-static packaging.

10. If you are not installing a new expansion card, install an expansion slot cover to close the open

slot.

CAUTION: After removing an expansion card, you must replace it with a new card or

expansion slot cover for proper cooling of internal components during operation.

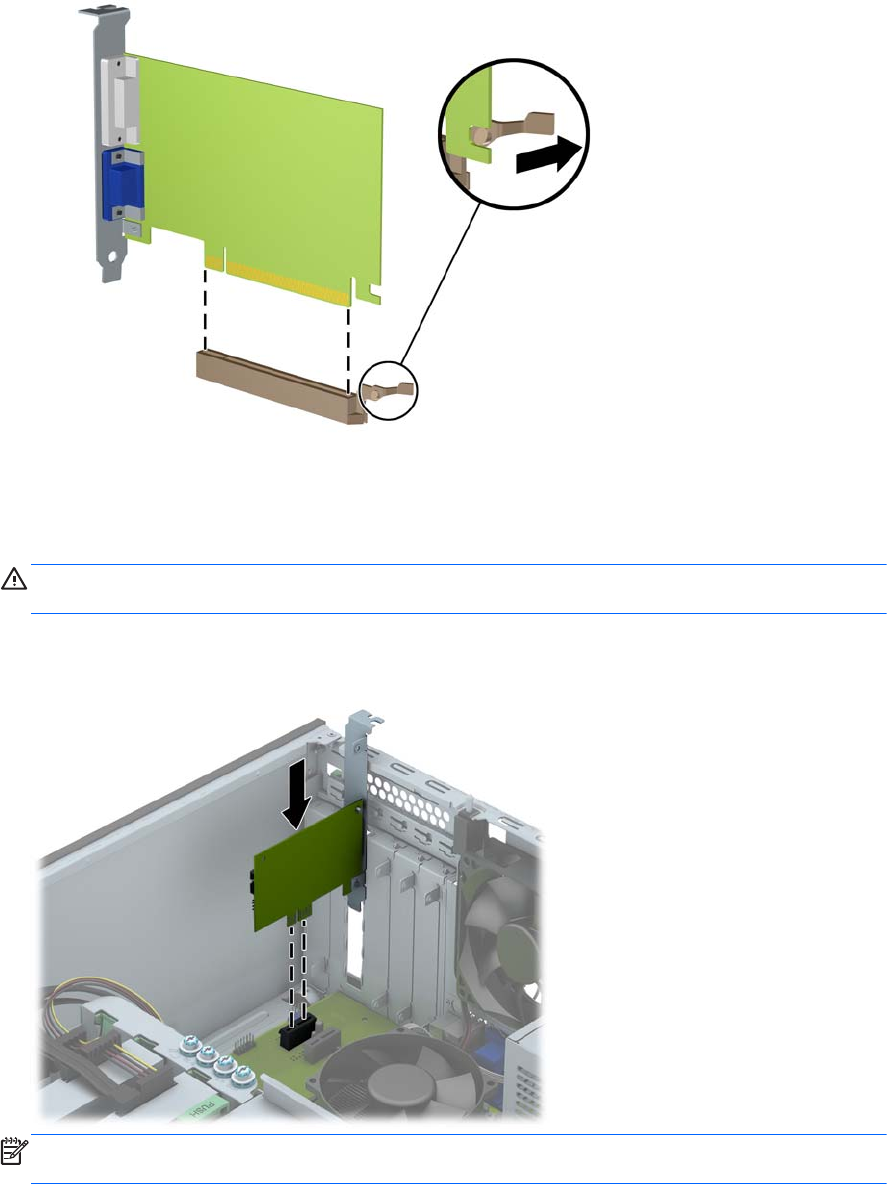

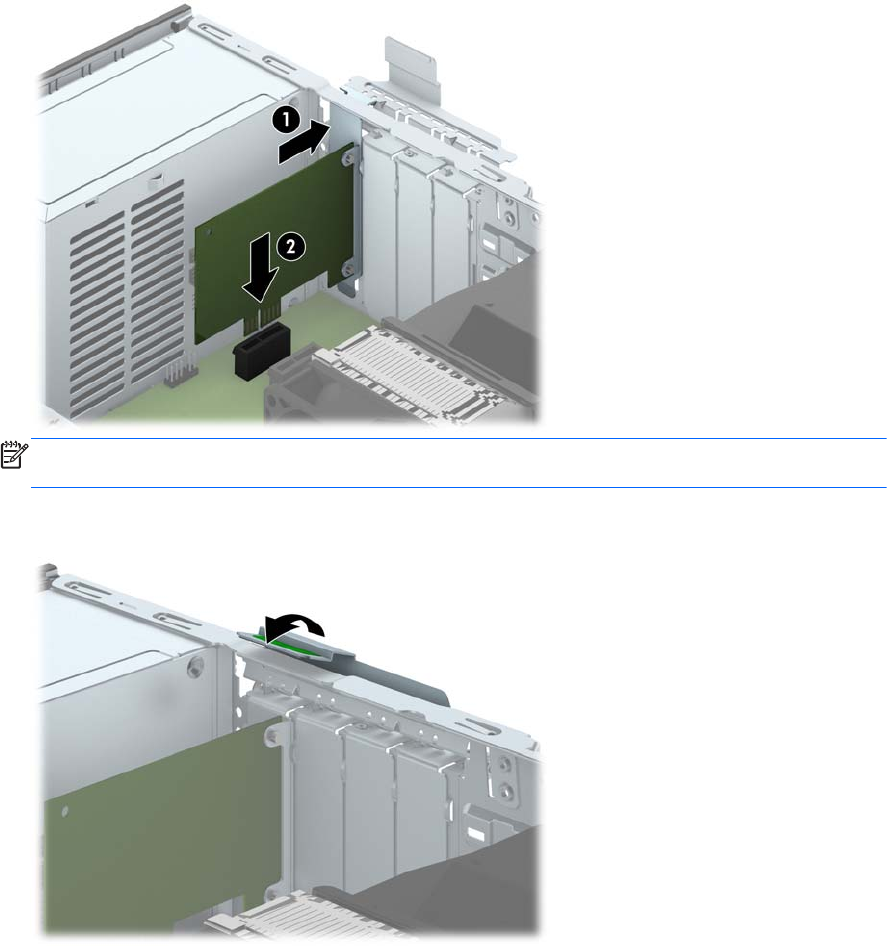

11. To install a new expansion card, slide the bracket on the end of the card down into the slot on

the back of the chassis and press the card down firmly into the socket on the system board.

NOTE: When installing an expansion card, press firmly on the card so that the whole

connector seats properly in the expansion card slot.

ENWW Removing or installing an expansion card 23

12. Close the expansion card retention latch, making sure that it snaps firmly into place.

13. Connect external cables to the installed card, if needed. Connect internal cables to the system

board, if needed.

14. Replace the computer access panel.

15. Reconnect the power cord and turn on the computer.

16. Lock any security devices that were disengaged when the computer access panel was removed.

17. Reconfigure the computer, if necessary.

24 Chapter 2 Tower (TWR) hardware upgrades ENWW

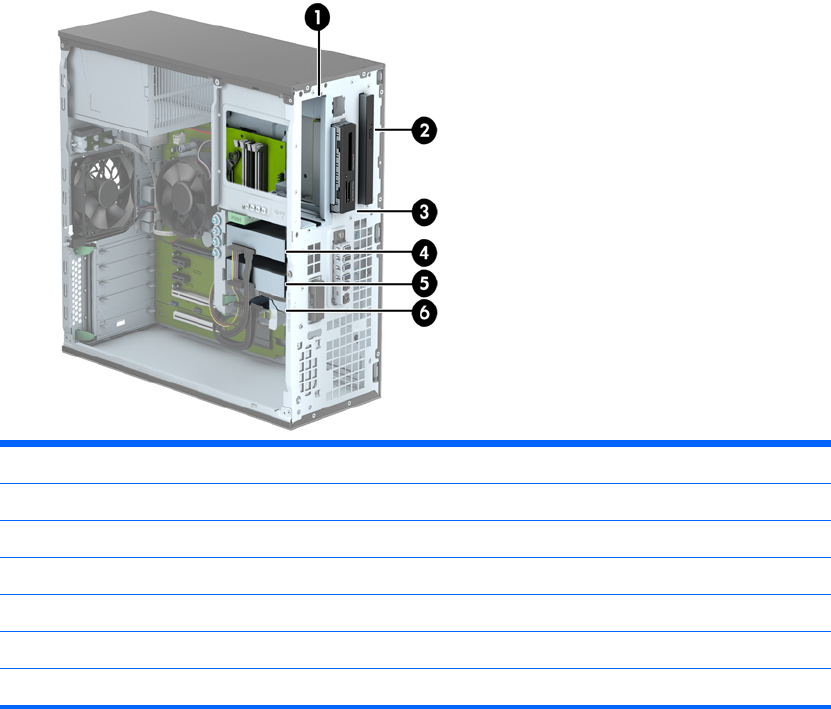

Drive positions

1 5.25-inch half-height drive bay

2 Slim optical drive bay

3 3.5-inch drive bay for optional drive (such as a media card reader)

4 Primary 3.5-inch internal hard drive bay

5 Secondary 3.5-inch internal hard drive bay

6 Secondary 2.5-inch internal hard drive bay

NOTE: The drive configuration on your computer may be different than the drive configuration shown above.

To verify the type and size of the storage devices installed in the computer, run Computer Setup.

ENWW Drive positions 25

Installing and removing drives

When installing drives, follow these guidelines:

●The primary Serial ATA (SATA) hard drive must be connected to the dark blue primary SATA

connector on the system board labeled SATA0.

●Connect secondary hard drives and optical drives to any of the light blue SATA connectors on

the system board (labeled SATA1, SATA2, and SATA3).

●Connect a media card reader USB 3.0 cable with a USB 3.0 to USB 2.0 adapter to the USB 2.0

connector on the system board labeled MEDIA.

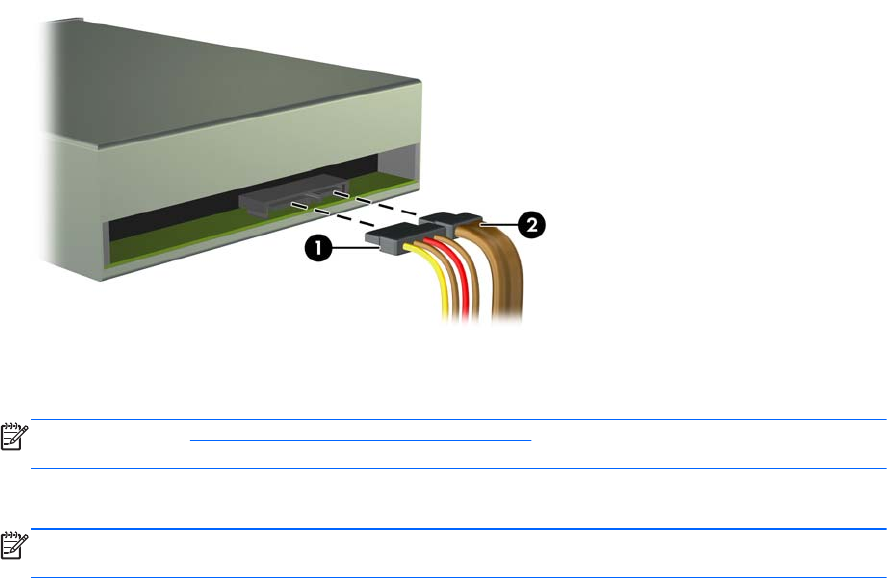

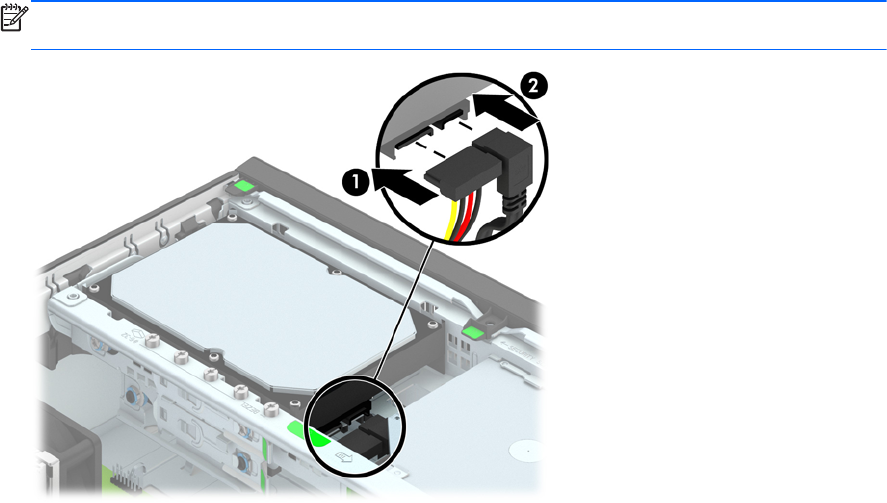

●The power cable for the drives has two branches coming off the system board connector. The

first branch is a three-headed cable with the first connector routed to the 5.25-inch bay, the

second connector routed to the 3.5-inch bay, and the third (two-wire) connector routed to the

slim optical drive bay. The second branch is a three-headed cable with the first connector routed

to the bottom 2.5-inch hard drive bay, the second connector routed to the middle 3.5-inch hard

drive bay, and the third connector routed to the top 3.5-inch hard drive bay.

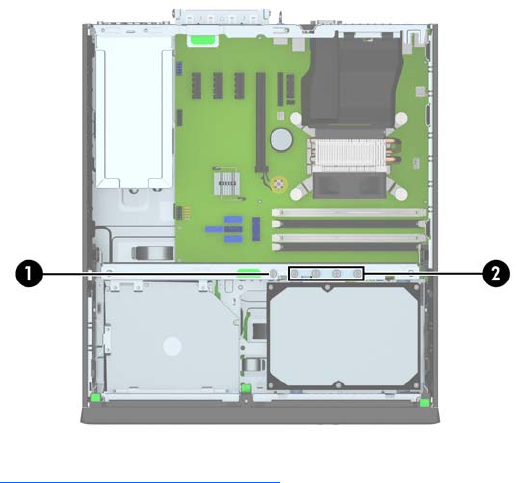

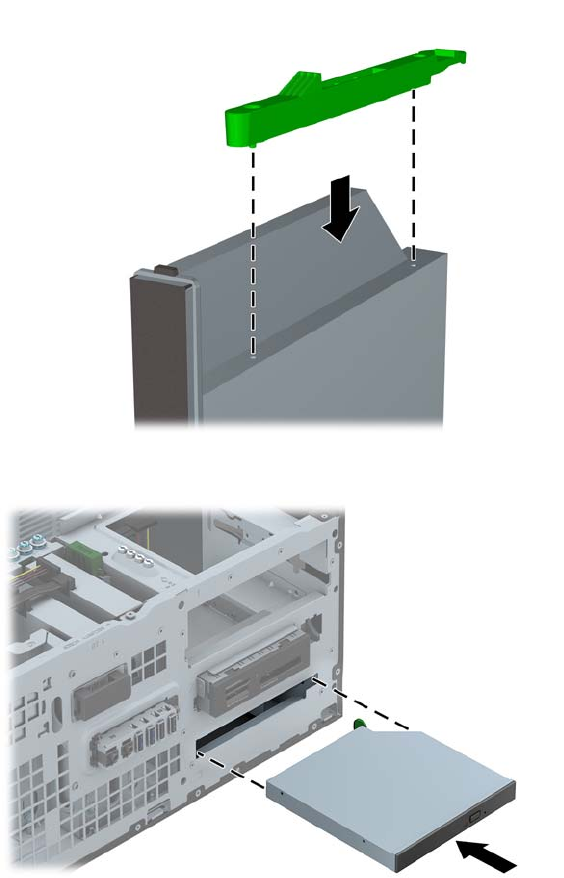

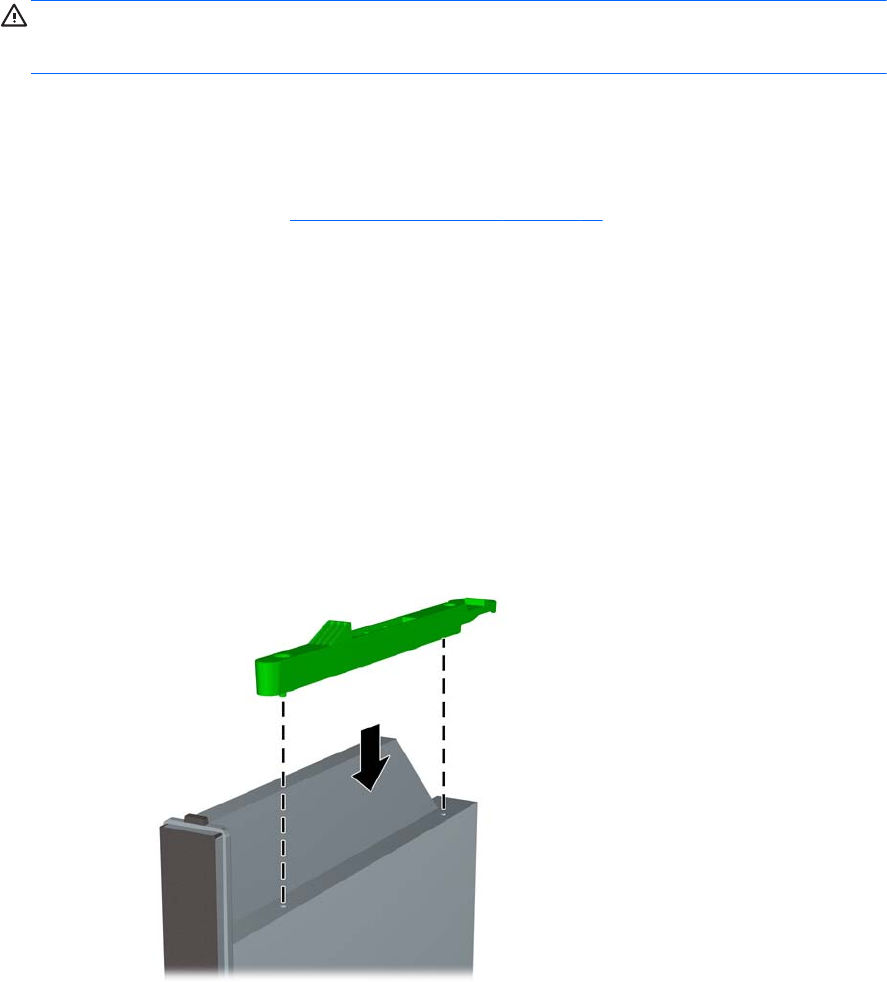

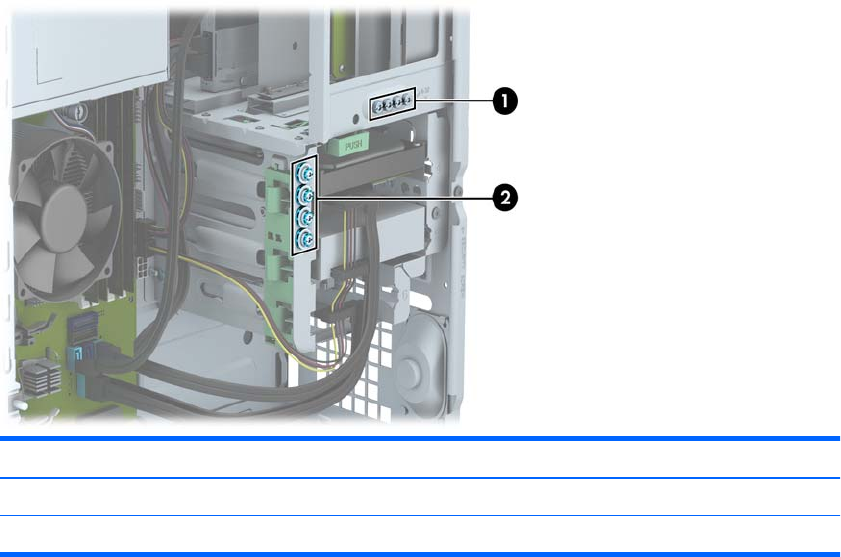

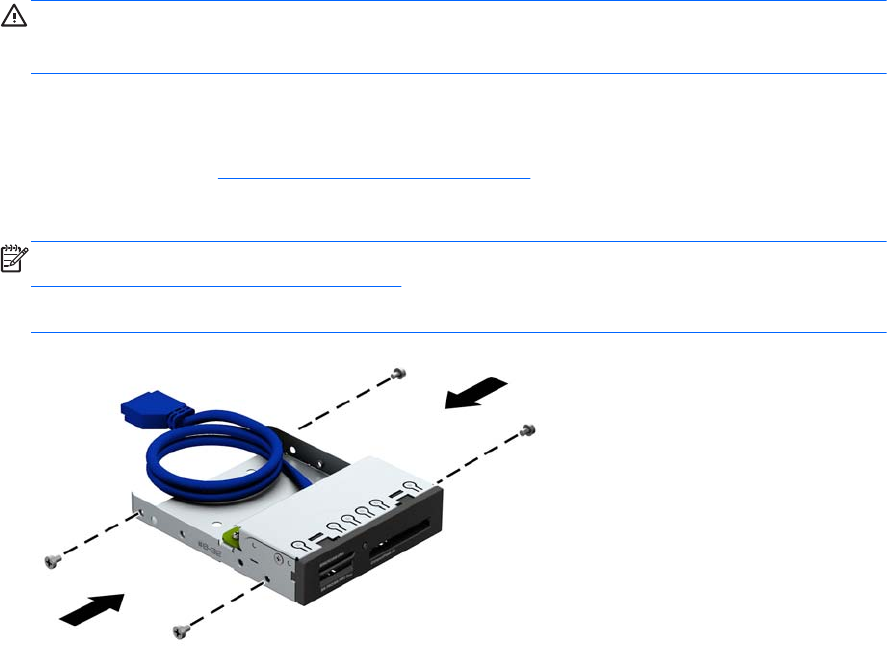

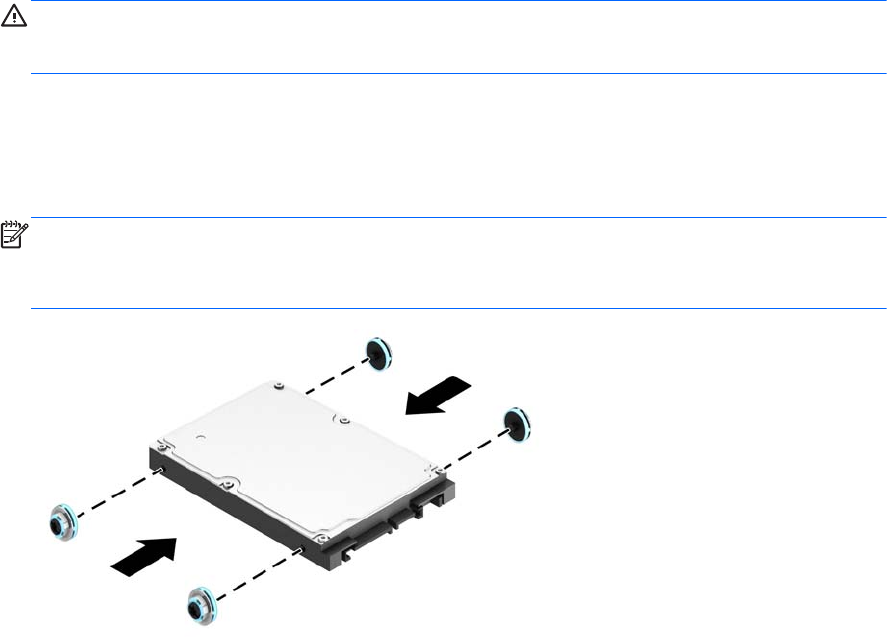

●You must install guide screws to ensure the drive will line up correctly in the drive cage and lock

in place. HP has provided extra guide screws (four 6-32 silver and blue isolation mounting guide

screws and four silver 6-32 standard guide screws) installed on the side of the drive bays. The

6-32 isolation mounting screws are required for 3.5-inch hard drives installed in the 3.5-inch hard

drive bays. The 6-32 standard guide screws are required for a USB 3.0 media card reader

installed in the 3.5-inch optional drive bay. M3 metric guide screws for 5.25-inch optical drives

and M3 isolation mounting guide screws for 2.5-inch hard drives are not provided. If you are

replacing a drive, remove the guide screws from the old drive and install them in the new drive.

No. Guide Screw Device

1 Silver Standard 6-32 Guide Screws USB 3.0 Media Card Reader

2 Silver and Blue 6-32 Isolation Mounting Screws Secondary Hard Drive in 3.5-inch Hard Drive Bay

26 Chapter 2 Tower (TWR) hardware upgrades ENWW

CAUTION: To prevent loss of work and damage to the computer or drive:

If you are inserting or removing a drive, shut down the operating system properly, turn off the

computer, and unplug the power cord. Do not remove a drive while the computer is on or in standby

mode.

Before handling a drive, ensure that you are discharged of static electricity. While handling a drive,

avoid touching the connector. For more information about preventing electrostatic damage, refer to

Electrostatic discharge on page 100.

Handle a drive carefully; do not drop it.

Do not use excessive force when inserting a drive.

Avoid exposing a hard drive to liquids, temperature extremes, or products that have magnetic fields

such as monitors or speakers.

If a drive must be mailed, place the drive in a bubble-pack mailer or other protective packaging and

label the package “Fragile: Handle With Care.”

ENWW Installing and removing drives 27

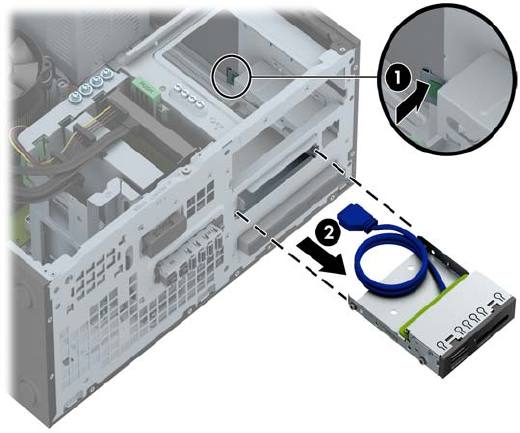

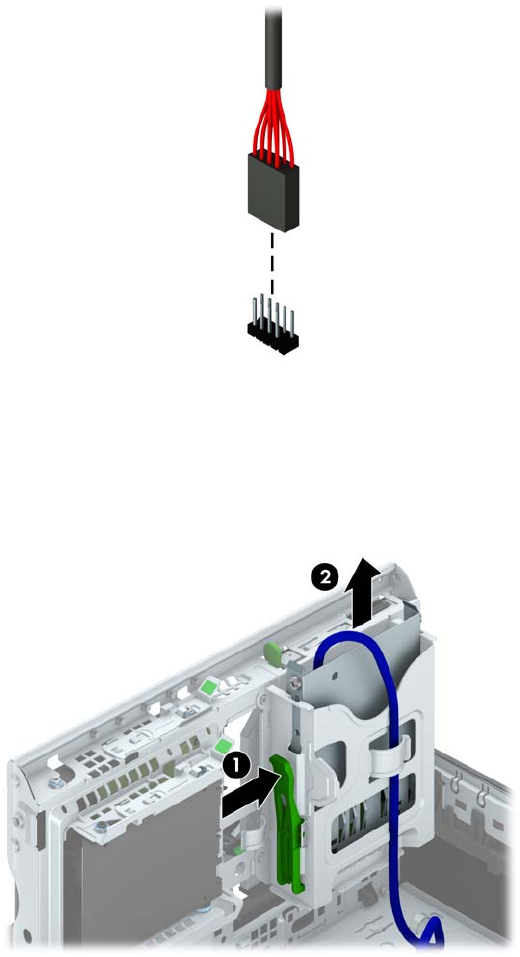

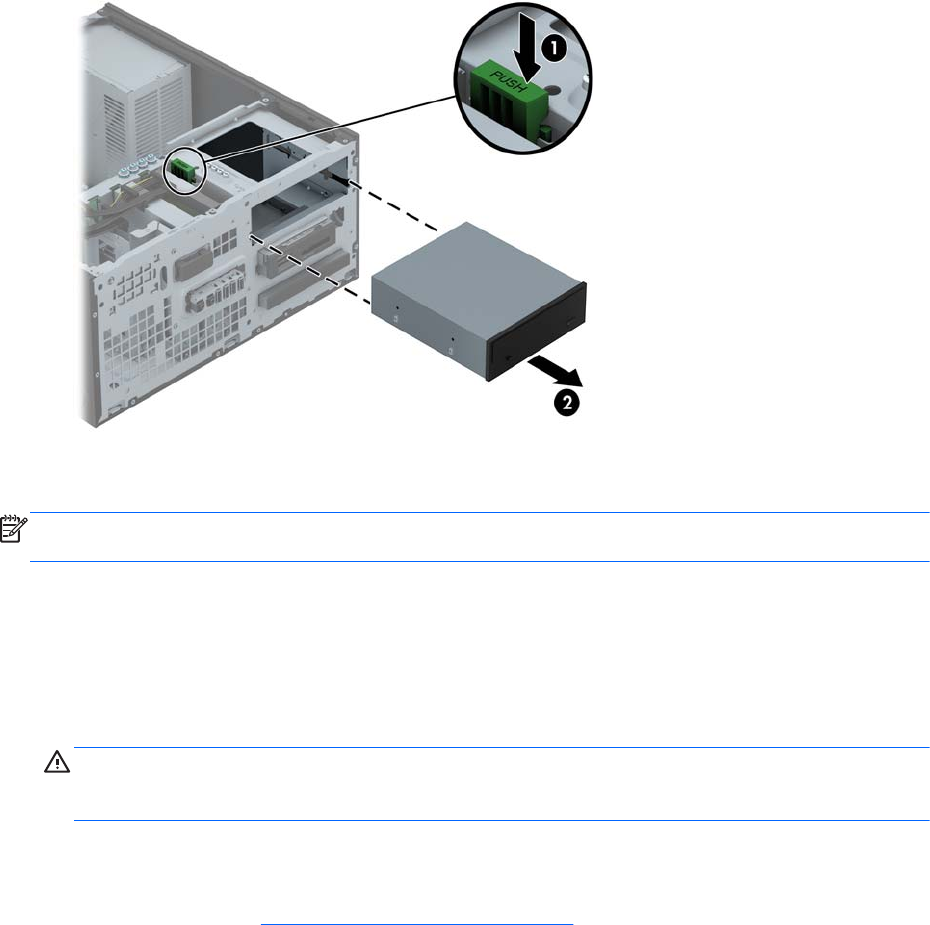

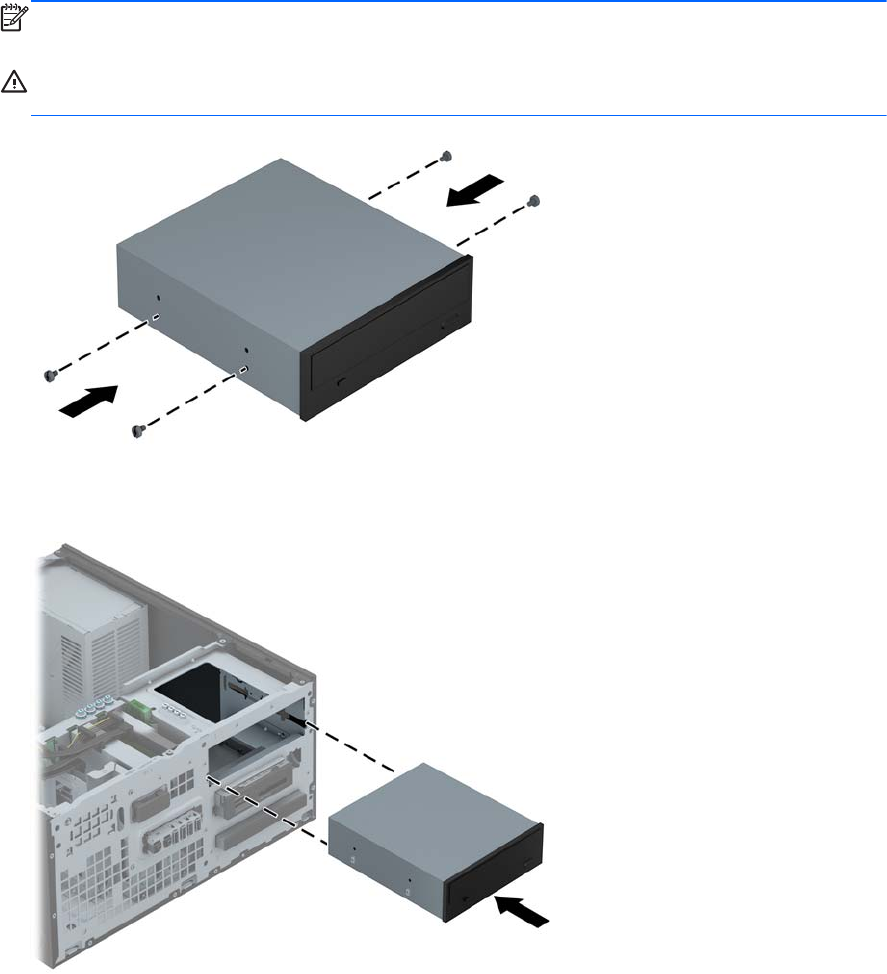

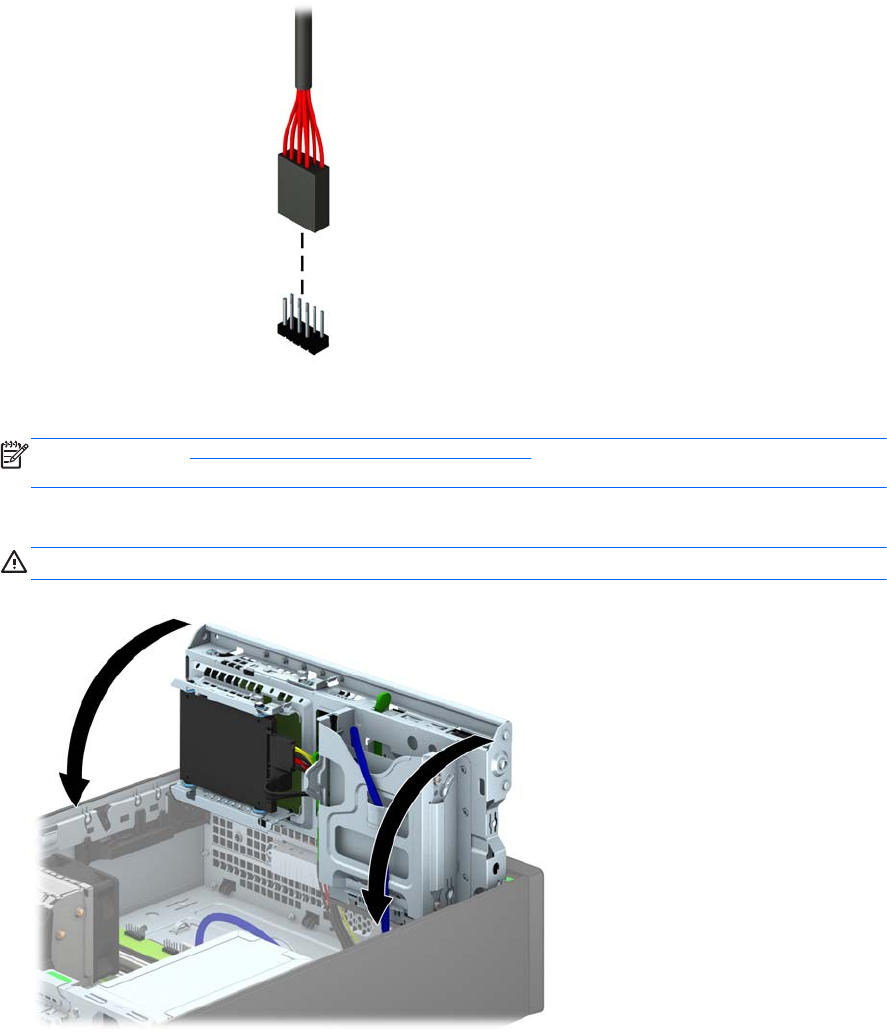

Removing a 5.25-inch drive

NOTE: HP does not offer a 5.25-inch optical drive for this computer model. A 5.25-inch optical drive

may have been installed by the user or third-party vendor.

CAUTION: All removable media should be taken out of a drive before removing the drive from the

computer.

1. Remove/disengage any security devices that prohibit opening the computer.

2. Remove all removable media, such as compact discs or USB flash drives, from the computer.

3. Turn off the computer properly through the operating system, then turn off any external devices.

4. Disconnect the power cord from the power outlet and disconnect any external devices.

CAUTION: Regardless of the power-on state, voltage is always present on the system board

as long as the system is plugged into an active AC outlet. You must disconnect the power cord

to avoid damage to the internal components of the computer.

5. Remove the access panel and front bezel.

6. Disconnect the power cable (1) and data cable (2) from the back of the drive.

CAUTION: When removing the cables, pull the tab or connector instead of the cable itself to

avoid damaging the cable.

28 Chapter 2 Tower (TWR) hardware upgrades ENWW

7. Press down on the green drivelock mechanism (1) and slide the drive from the drive bay (2).

Installing a 5.25-inch drive

NOTE: HP does not offer a 5.25-inch optical drive for this computer model. A 5.25-inch optical drive

can be purchased through a third-party vendor.

1. Remove/disengage any security devices that prohibit opening the computer.

2. Remove all removable media, such as compact discs or USB flash drives, from the computer.

3. Turn off the computer properly through the operating system, then turn off any external devices.

4. Disconnect the power cord from the power outlet and disconnect any external devices.

CAUTION: Regardless of the power-on state, voltage is always present on the system board

as long as the system is plugged into an active AC outlet. You must disconnect the power cord

to avoid damage to the internal components of the computer.

5. Remove the computer access panel.

6. Remove the front bezel. If you are installing a drive in a bay covered by a bezel blank, remove

the bezel blank. See Removing bezel blanks on page 15 for more information.

ENWW Installing and removing drives 29

7. If you are installing an optical drive, install four M3 metric guide screws (not provided) in the

lower holes on each side of the drive.

NOTE: When replacing an optical drive, transfer the four M3 metric guide screws from the old

drive to the new one.

CAUTION: Use only 5-mm long screws as guide screws. Longer screws can damage the

internal components of the drive.

8. Slide the drive into the drive bay, making sure to align the guide screws with the guide slots, until

the drive snaps into place.

30 Chapter 2 Tower (TWR) hardware upgrades ENWW

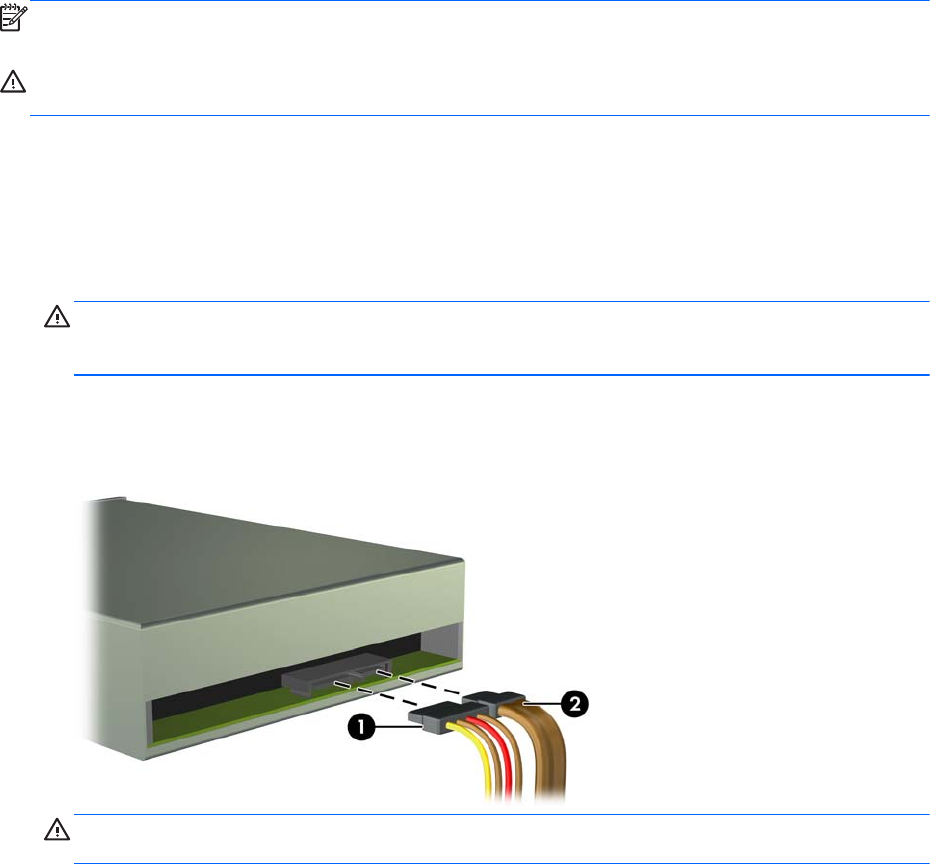

9. Connect the power cable (1) and data cable (2) to the rear of the optical drive.

10. Connect the opposite end of the data cable to one of the light blue SATA connectors on the

system board.

NOTE: Refer to System board connections on page 17 for an illustration of the system board

drive connectors.

11. Replace the front bezel.

NOTE: An optional bezel trim piece that surrounds the front of the 5.25-inch drive is available

from HP. Install the bezel trim piece in the front bezel before replacing the front bezel.

12. Replace the computer access panel.

13. Reconnect the power cord and any external devices, then turn on the computer.

14. Lock any security devices that were disengaged when the access panel was removed.

ENWW Installing and removing drives 31

Removing a 3.5-inch device

CAUTION: All removable media should be taken out of a drive before removing the drive from the

computer.

1. Remove/disengage any security devices that prohibit opening the computer.

2. Remove all removable media, such as compact discs or USB flash drives, from the computer.

3. Turn off the computer properly through the operating system, then turn off any external devices.

4. Disconnect the power cord from the power outlet and disconnect any external devices.

CAUTION: Regardless of the power-on state, voltage is always present on the system board

as long as the system is plugged into an active AC outlet. You must disconnect the power cord

to avoid damage to the internal components of the computer.

5. Remove the access panel and front bezel.

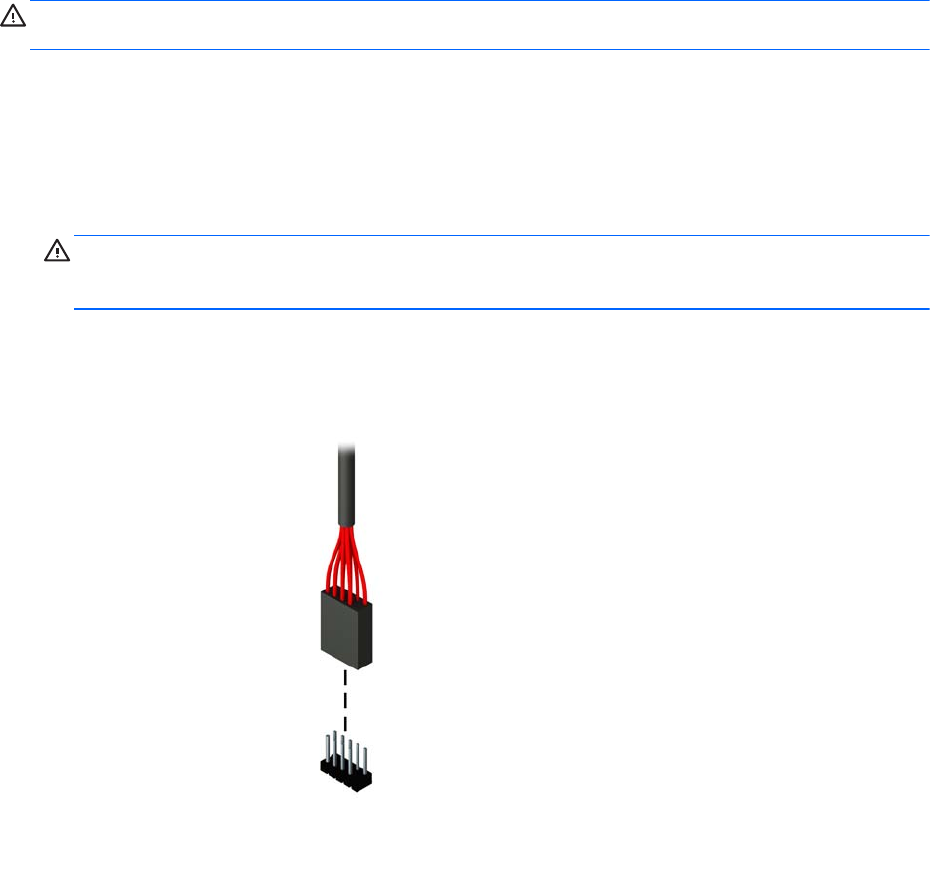

6. Disconnect the drive cables from the rear of the drive, or, if you are removing a media card

reader, disconnect the USB cable from the system board as indicated in the following illustration.

32 Chapter 2 Tower (TWR) hardware upgrades ENWW

7. Press the release lever at the rear of the drive away from the drive (1) and slide the drive from

the drive bay (2).

ENWW Installing and removing drives 33

Installing a 3.5-inch device

1. Remove/disengage any security devices that prohibit opening the computer.

2. Remove all removable media, such as compact discs or USB flash drives, from the computer.

3. Turn off the computer properly through the operating system, then turn off any external devices.

4. Disconnect the power cord from the power outlet and disconnect any external devices.

CAUTION: Regardless of the power-on state, voltage is always present on the system board

as long as the system is plugged into an active AC outlet. You must disconnect the power cord

to avoid damage to the internal components of the computer.

5. Remove the computer access panel.

6. Remove the front bezel. If you are installing a drive in a bay covered by a bezel blank, remove

the bezel blank. See Removing bezel blanks on page 15 for more information.

7. Install 6-32 guide screws in the holes on each side of the drive.

NOTE: HP has supplied four extra 6-32 guide screws on top of the drive cage. Refer to

Installing and removing drives on page 69 for an illustration of the extra guide screws location.

When replacing a drive, transfer the four 6-32 guide screws from the old drive to the new one.

34 Chapter 2 Tower (TWR) hardware upgrades ENWW

8. Slide the drive into the drive bay, making sure to align the guide screws with the guide slots, until

the drive snaps into place.

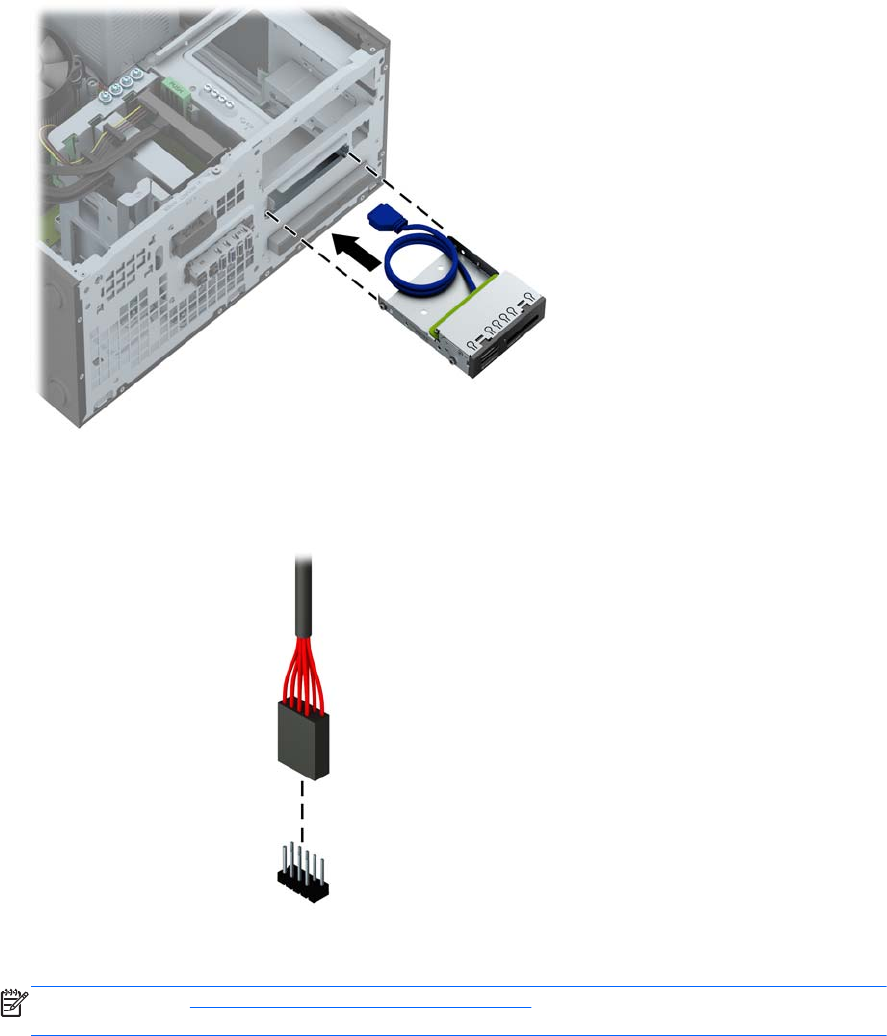

9. If installing a USB 3.0 media card reader, you must use the USB 3.0 to USB 2.0 adapter and

connect the adapter cable from the media card reader to the USB 2.0 connector on the system

board labeled MEDIA.

NOTE: Refer to System board connections on page 60 for an illustration of the system board

drive connectors.

10. Replace the front bezel.

11. Replace the computer access panel.

12. Reconnect the power cord and any external devices, then turn on the computer.

13. Lock any security devices that were disengaged when the access panel was removed.

ENWW Installing and removing drives 35

Removing a slim optical drive

CAUTION: All removable media should be taken out of a drive before removing the drive from the

computer.

1. Remove/disengage any security devices that prohibit opening the computer.

2. Remove all removable media, such as compact discs or USB flash drives, from the computer.

3. Turn off the computer properly through the operating system, then turn off any external devices.

4. Disconnect the power cord from the power outlet and disconnect any external devices.

CAUTION: Regardless of the power-on state, voltage is always present on the system board

as long as the system is plugged into an active AC outlet. You must disconnect the power cord

to avoid damage to the internal components of the computer.

5. Remove the access panel and front bezel.

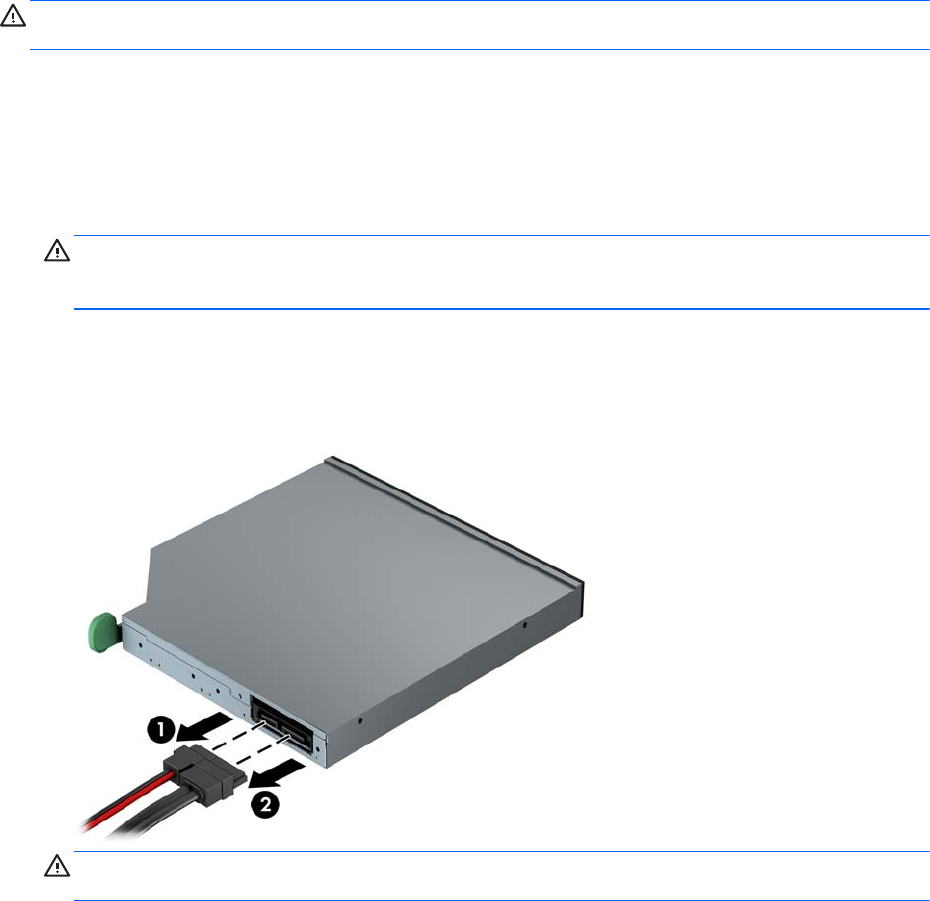

6. Disconnect the power cable (1) and data cable (2) from the back of the drive.

CAUTION: When removing the cables, pull the tab or connector instead of the cable itself to

avoid damaging the cable.

36 Chapter 2 Tower (TWR) hardware upgrades ENWW

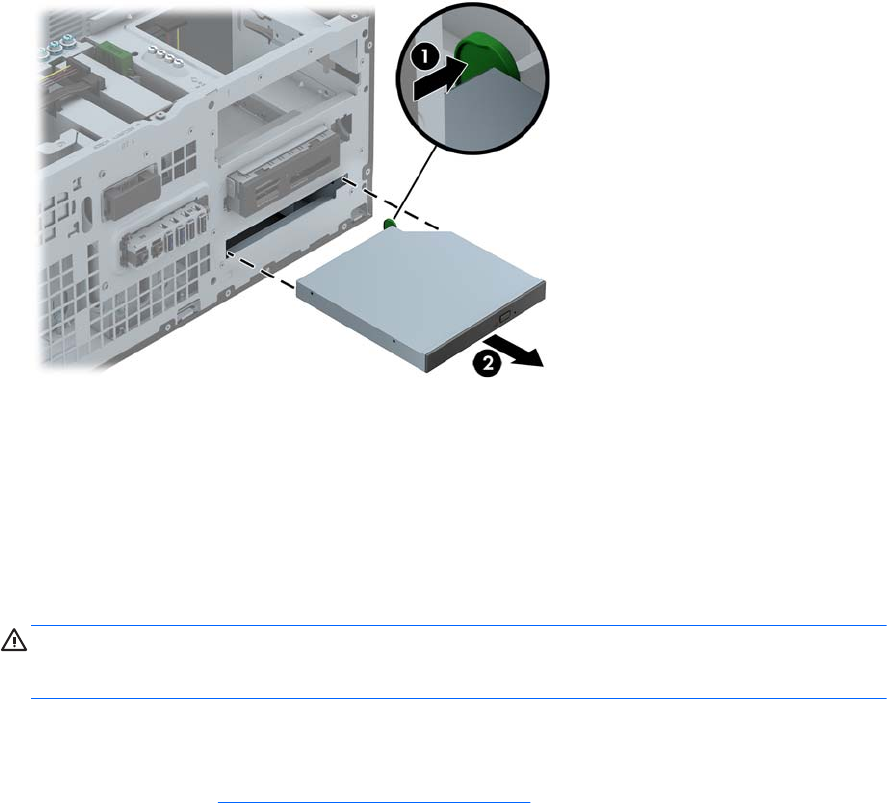

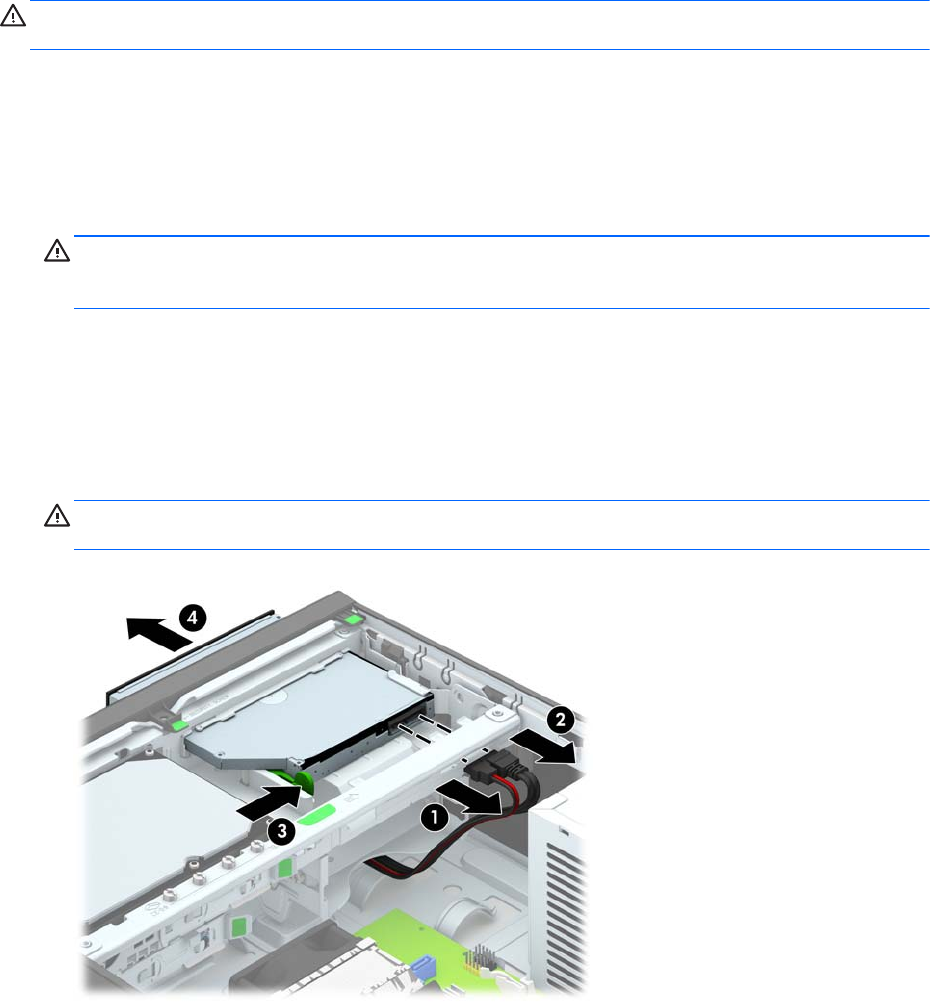

7. Push the green release lever on the right rear side of the drive toward the center of the drive (1),

then slide the drive forward and out of the bay (2).

Installing a slim optical drive

1. Remove/disengage any security devices that prohibit opening the computer.

2. Remove all removable media, such as compact discs or USB flash drives, from the computer.

3. Turn off the computer properly through the operating system, then turn off any external devices.

4. Disconnect the power cord from the power outlet and disconnect any external devices.

CAUTION: Regardless of the power-on state, voltage is always present on the system board

as long as the system is plugged into an active AC outlet. You must disconnect the power cord

to avoid damage to the internal components of the computer.

5. Remove the computer access panel.

6. Remove the front bezel. If you are installing a drive in a bay covered by a bezel blank, remove

the bezel blank. See Removing bezel blanks on page 15 for more information.

7. Before the new optical drive can be used, the release latch must be attached.

a. Peel the backing off the adhesive on the release latch.

b. Without allowing the release latch to touch the optical drive, carefully align the holes on the

release latch with the pins on the side of the optical drive. Make sure the release latch is

oriented properly.

c. Insert the pin at the front of the optical drive into the hole at the end of the release latch,

and press firmly.

ENWW Installing and removing drives 37

d. Insert the second pin, and press the entire release latch firmly to fasten the latch securely

to the optical drive.

8. Slide the optical drive through the front bezel all the way into the bay so that it locks in place.

38 Chapter 2 Tower (TWR) hardware upgrades ENWW

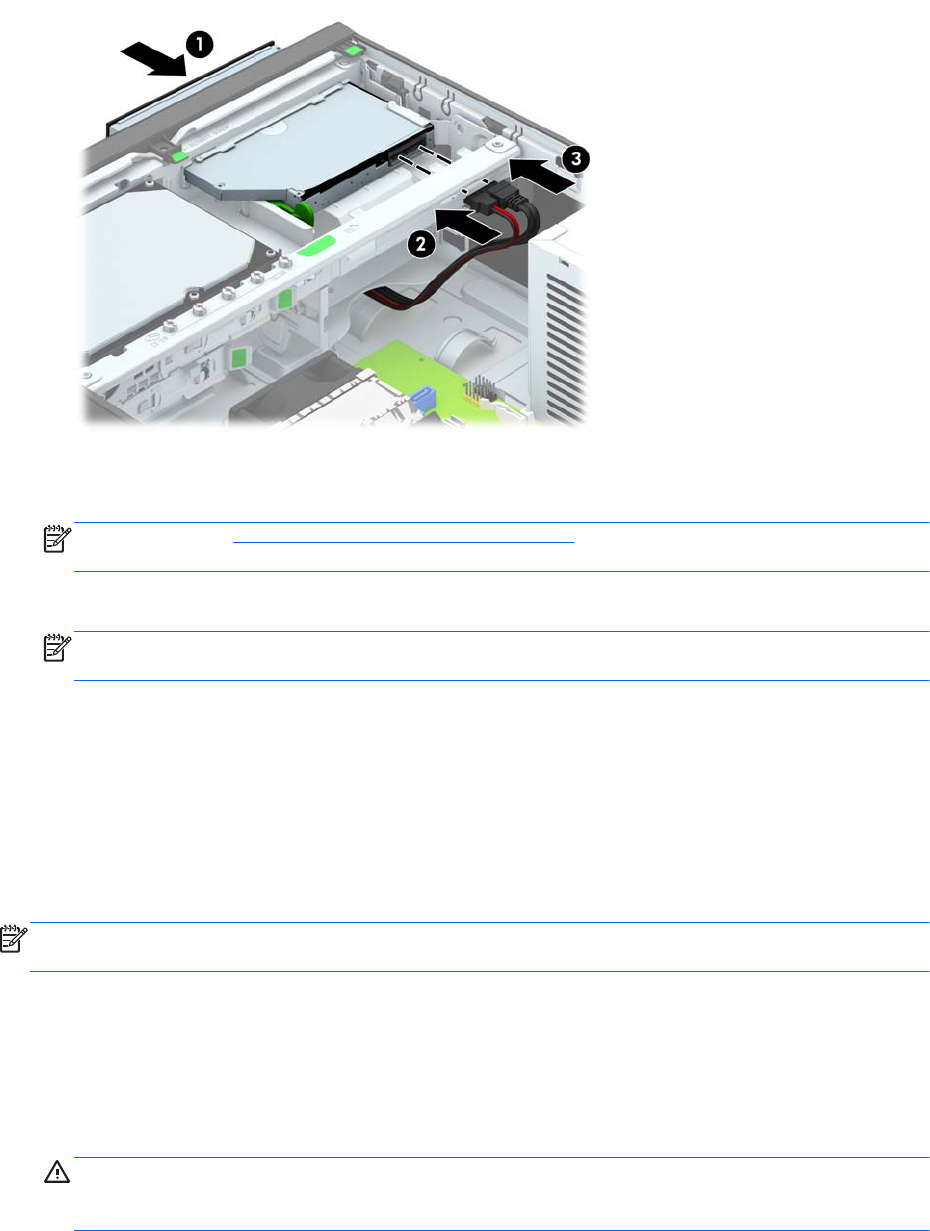

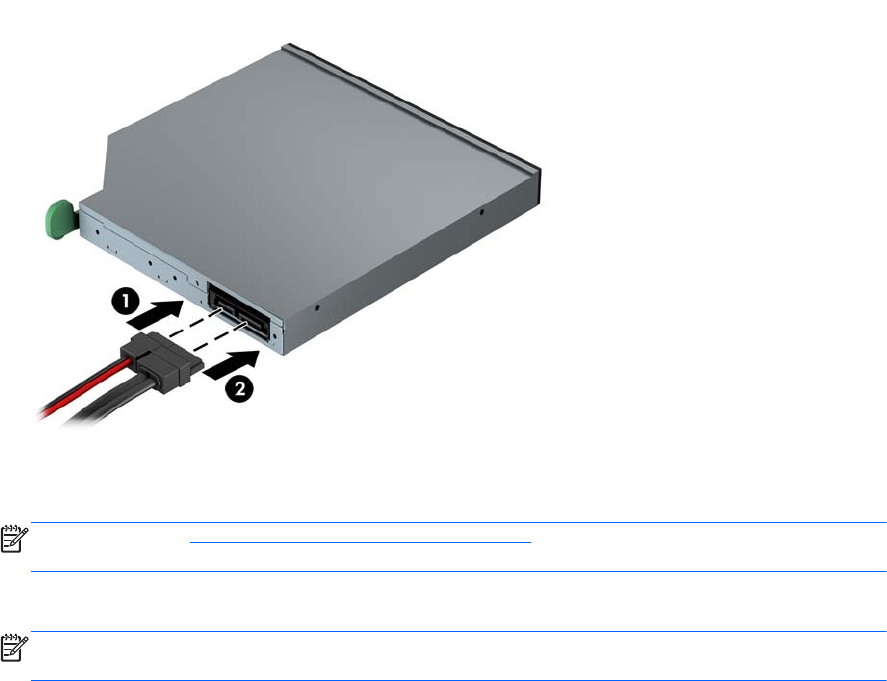

9. Connect the power cable (1) and data cable (2) to the rear of the optical drive.

10. Connect the opposite end of the data cable to one of the light blue SATA connectors on the

system board.

NOTE: Refer to System board connections on page 17 for an illustration of the system board

drive connectors.

11. Replace the front bezel.

NOTE: An optional bezel trim piece that surrounds the front of the slim optical drive is available

from HP. Install the bezel trim piece in the front bezel before replacing the front bezel.

12. Replace the computer access panel.

13. Reconnect the power cord and any external devices, then turn on the computer.

14. Lock any security devices that were disengaged when the access panel was removed.

ENWW Installing and removing drives 39

Removing a 3.5-inch or 2.5-inch hard drive

NOTE: Before you remove the old hard drive, be sure to back up the data from the old hard drive so

that you can transfer the data to the new hard drive.

1. Remove/disengage any security devices that prohibit opening the computer.

2. Remove all removable media, such as compact discs or USB flash drives, from the computer.

3. Turn off the computer properly through the operating system, then turn off any external devices.

4. Disconnect the power cord from the power outlet and disconnect any external devices.

CAUTION: Regardless of the power-on state, voltage is always present on the system board

as long as the system is plugged into an active AC outlet. You must disconnect the power cord

to avoid damage to the internal components of the computer.

5. Remove the computer access panel.

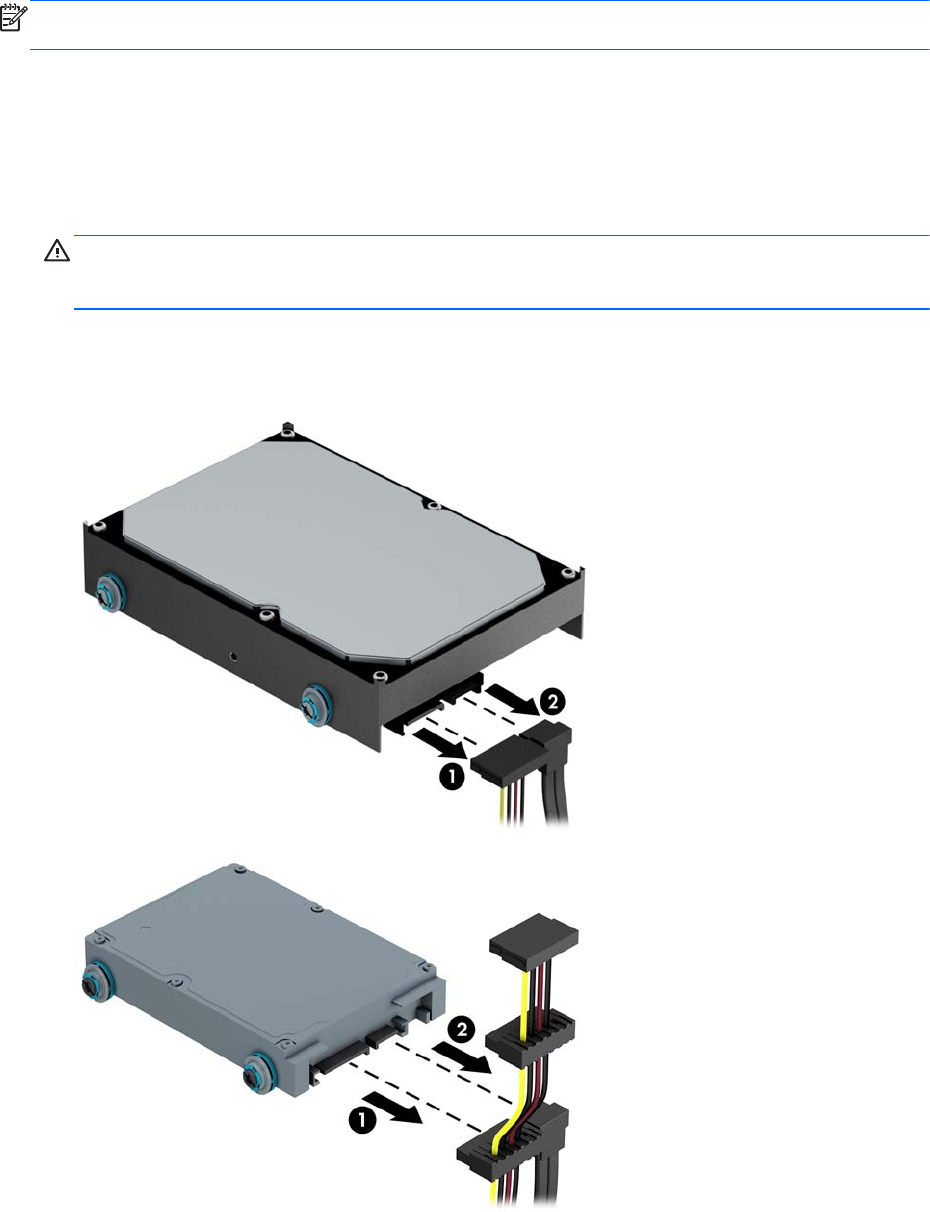

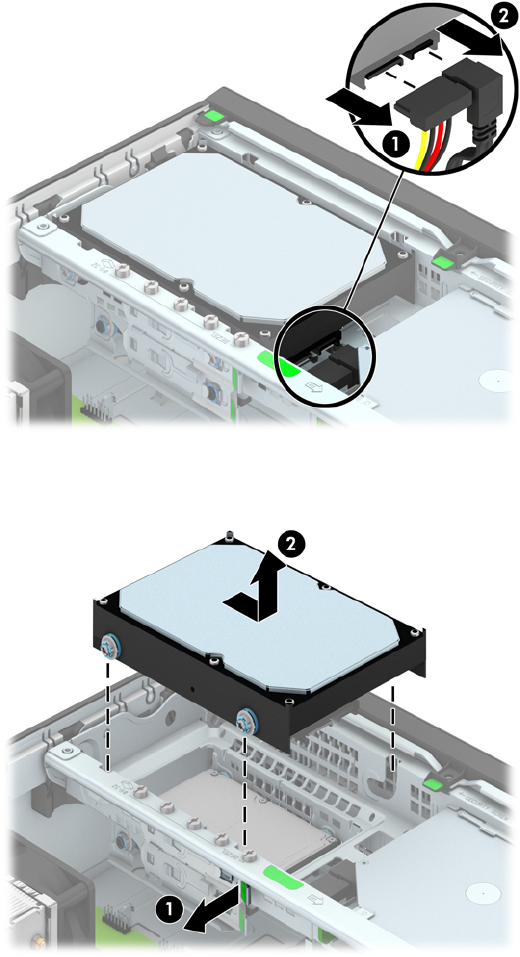

6. Disconnect the power cable (1) and data cable (2) from the back of the hard drive.

40 Chapter 2 Tower (TWR) hardware upgrades ENWW

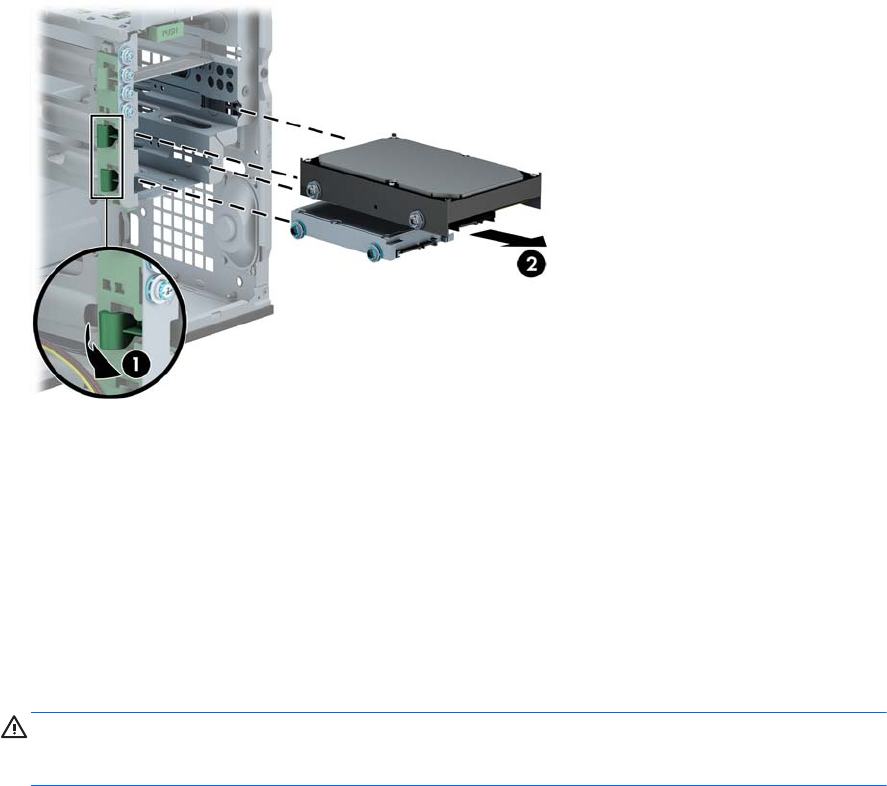

7. Release the drive by pulling the release tab away from the drive (1) and sliding the drive out of

the bay (2).

8. Remove the four guide screws (two on each side) from the old drive. You will need these screws

to install a new drive.

Installing a 3.5-inch or 2.5-inch hard drive

1. Remove/disengage any security devices that prohibit opening the computer.

2. Remove all removable media, such as compact discs or USB flash drives, from the computer.

3. Turn off the computer properly through the operating system, then turn off any external devices.

4. Disconnect the power cord from the power outlet and disconnect any external devices.

CAUTION: Regardless of the power-on state, voltage is always present on the system board

as long as the system is plugged into an active AC outlet. You must disconnect the power cord

to avoid damage to the internal components of the computer.

5. Remove the access panel.

ENWW Installing and removing drives 41

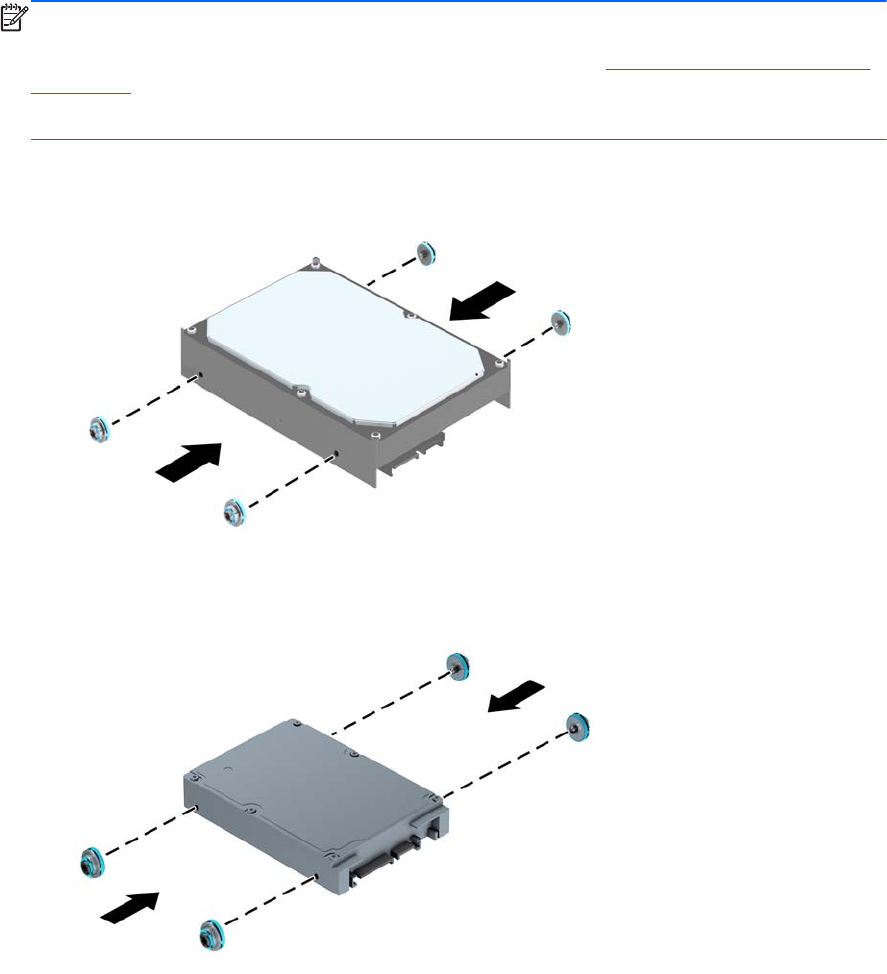

6. Install guide screws on the sides of the drive. 3.5-inch hard drives use standard 6-32 silver and

blue isolation mounting screws. 2.5-inch hard drives use metric M3 black and blue isolation

mounting screws.

NOTE: Four extra 6-32 isolation mounting guide screws for 3.5-inch hard drives are installed

on the exterior of the hard drive bays. Extra guide screws for 2.5-inch hard drives are not

provided on the chassis but can be purchased from HP. Refer to Installing and removing drives

on page 26 for an illustration of the extra 6-32 isolation mounting guide screws location.

If you are replacing a drive, transfer the guides screws from the old drive to the new one.

●If you are installing a 3.5-inch hard drive, install four silver and blue 6-32 isolation mounting

guide screws (two on each side of the drive).

●If you are installing a 2.5-inch hard drive, install four black and blue M3 isolation mounting

guide screws (two on each side of the drive).

42 Chapter 2 Tower (TWR) hardware upgrades ENWW

●You can also install a 2.5-inch hard drive into a 3.5-inch drive bay using an adapter bracket

similar to the example shown below.

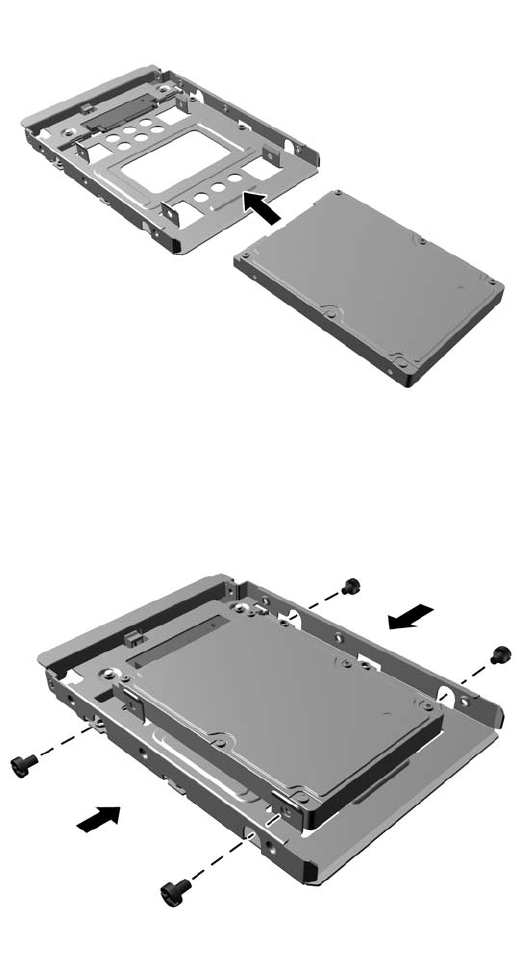

◦Slide the drive into the bay adapter bracket, ensuring the connector on the drive is fully

inserted into the connector on the adapter bracket.

◦Secure the drive to the bay adapter bracket by installing four black M3 adapter bracket

screws through the sides of the bracket into the drive.

ENWW Installing and removing drives 43

◦Install four 6-32 silver and blue isolation mounting guide screws in the adapter bracket

(two on each side of the bracket).

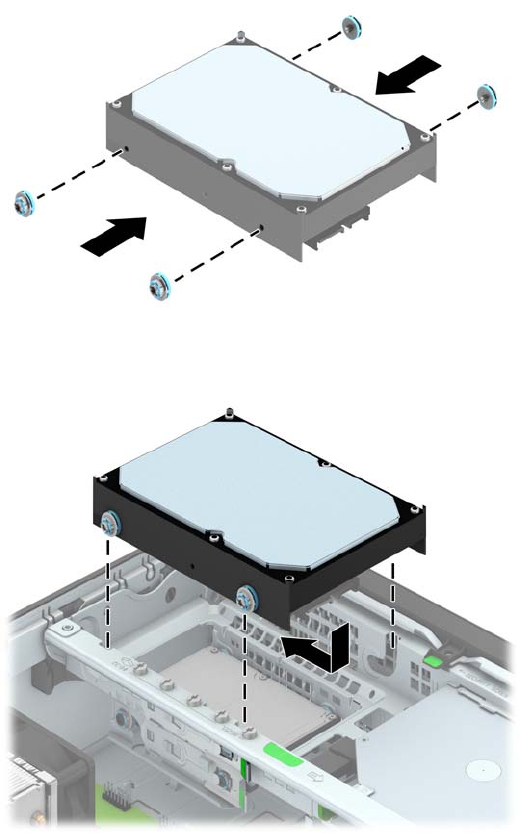

7. Slide the drive into the drive bay, making sure to align the guide screws with the guide slots, until

the drive snaps into place.

44 Chapter 2 Tower (TWR) hardware upgrades ENWW

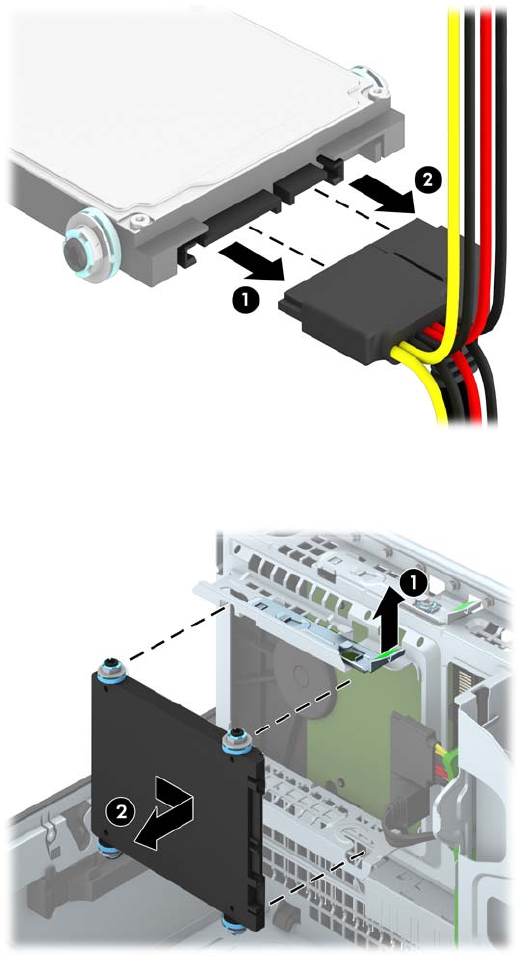

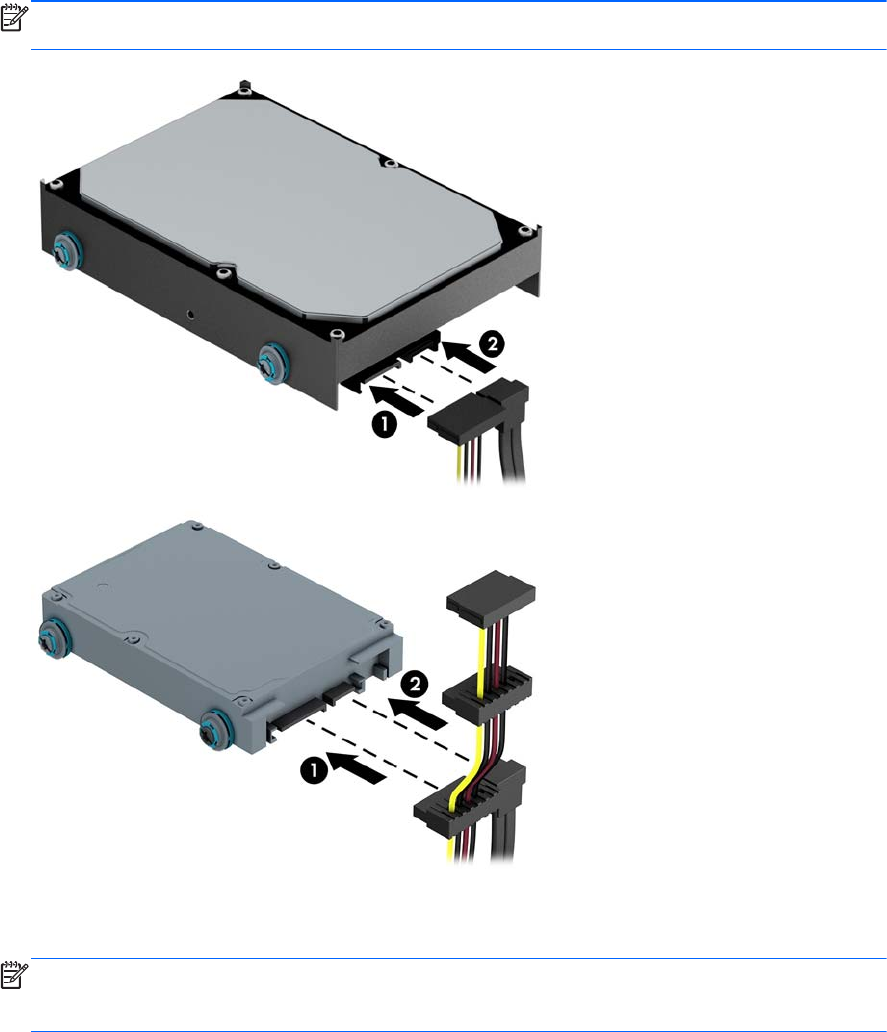

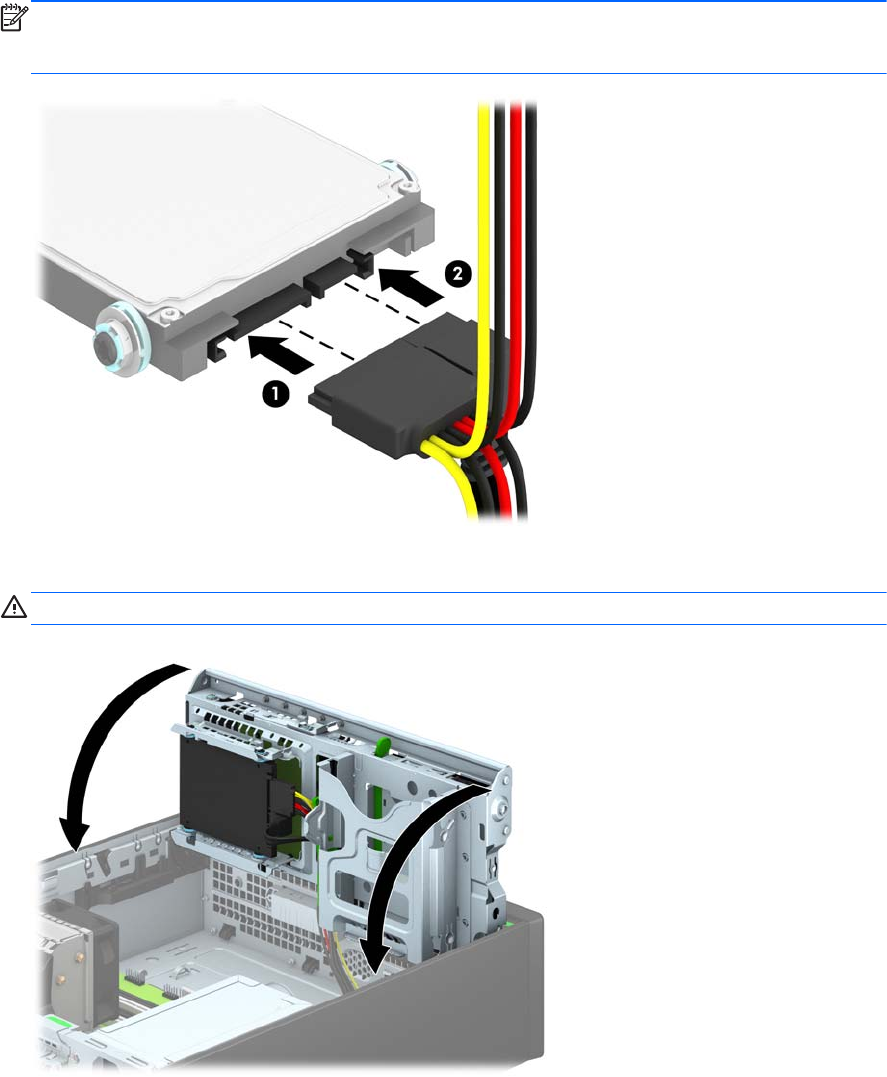

8. Connect the power cable (1) and data cable (2) to the back of the hard drive.

NOTE: The power cable for the hard drives is a three-headed cable that is routed from the

system board to the rear of the hard drive bays.

9. If installing a new drive, connect the opposite end of the data cable to the appropriate system

board connector.

NOTE: You must connect the primary hard drive data cable to the dark blue connector labeled

SATA0 to avoid any hard drive performance problems. If you are adding a second hard drive,

connect the data cable to one of the light blue SATA connectors.

10. Replace the computer access panel.

11. Reconnect the power cord and any external devices, then turn on the computer.

12. Lock any security devices that were disengaged when the access panel was removed.

ENWW Installing and removing drives 45

Installing a security lock

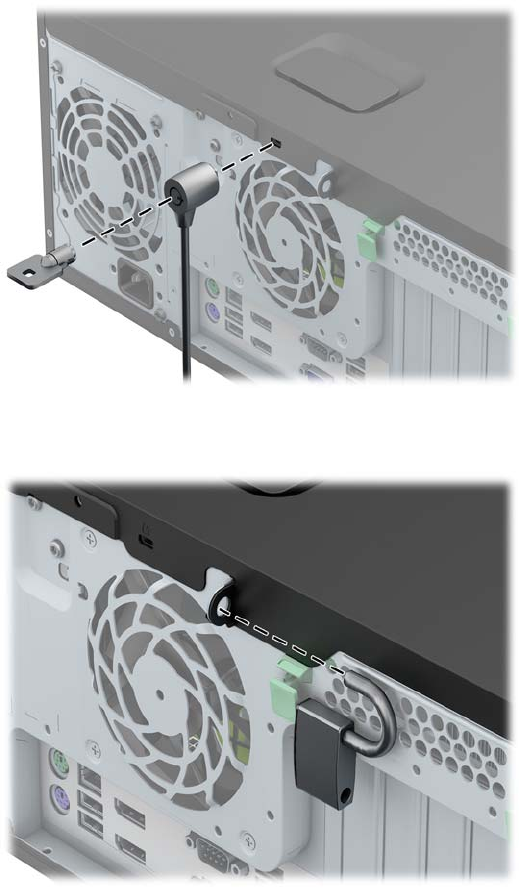

The security locks displayed below and on the following page can be used to secure the computer.

Cable lock

Padlock

46 Chapter 2 Tower (TWR) hardware upgrades ENWW

HP business PC security lock

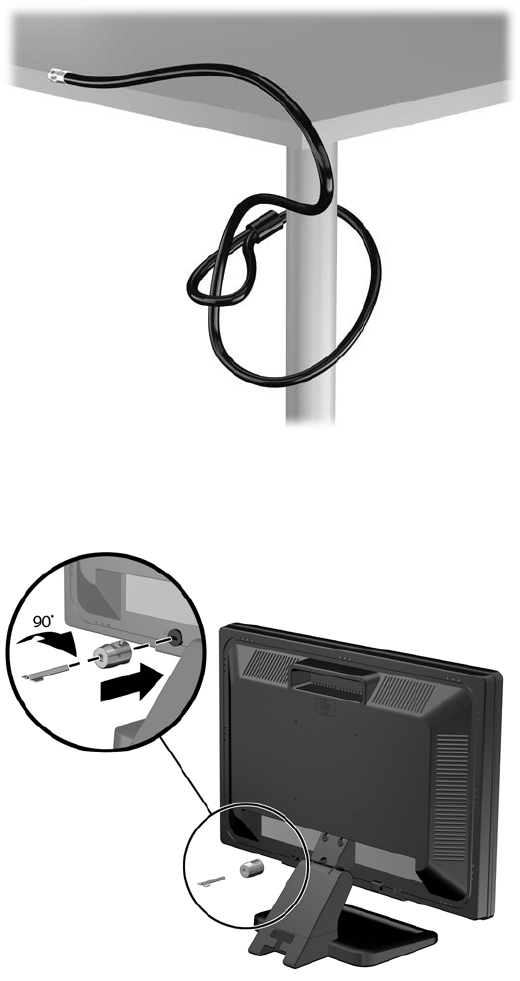

1. Fasten the security cable by looping it around a stationary object.

2. Insert the cable lock into the cable lock slot on the back of the monitor and secure the lock to the

monitor by inserting the key into the key hole on the rear of the lock and rotating the key 90

degrees.

ENWW Installing a security lock 47

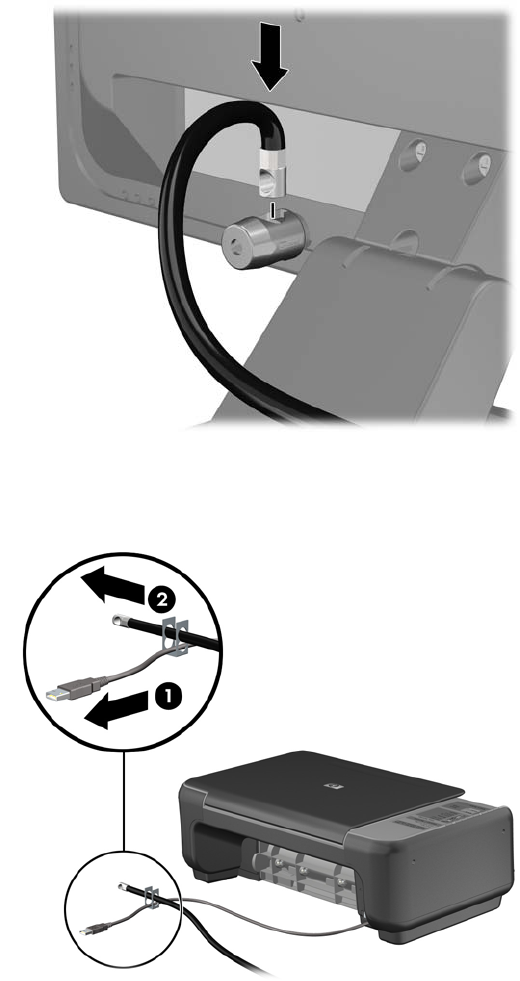

3. Slide the security cable through the hole in the cable lock on the rear of the monitor.

4. Use the bracket provided in the kit to secure other peripheral devices by laying the device cable

across the center of the bracket (1) and inserting the security cable through one of the two holes

in the bracket (2). Use the hole in the bracket that best secures the peripheral device cable.

48 Chapter 2 Tower (TWR) hardware upgrades ENWW

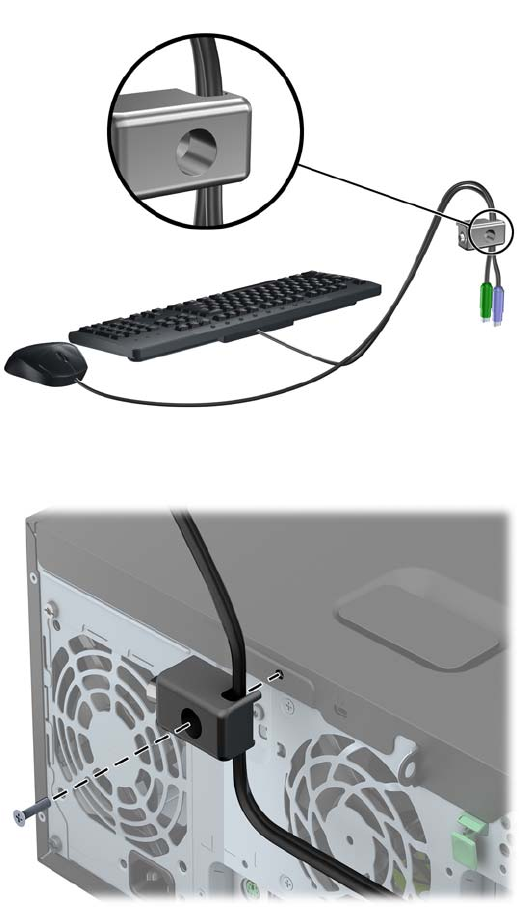

5. Thread the keyboard and mouse cables through the computer chassis lock.

6. Screw the lock to the chassis in the thumbscrew hole using the screw provided.

ENWW Installing a security lock 49

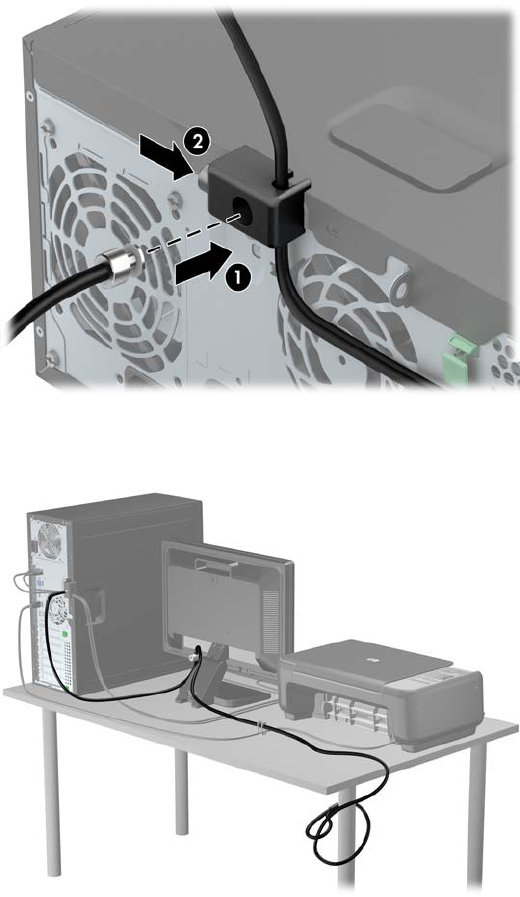

7. Insert the plug end of the security cable into the lock (1) and push the button in (2) to engage the

lock. Use the key provided to disengage the lock.

8. When complete, all devices in your workstation will be secured.

50 Chapter 2 Tower (TWR) hardware upgrades ENWW

Front bezel security

The front bezel can be locked in place by installing a security screw provided by HP. To install the

security screw:

1. Remove/disengage any security devices that prohibit opening the computer.

2. Remove all removable media, such as compact discs or USB flash drives, from the computer.

3. Turn off the computer properly through the operating system, then turn off any external devices.

4. Disconnect the power cord from the power outlet and disconnect any external devices.

CAUTION: Regardless of the power-on state, voltage is always present on the system board

as long as the system is plugged into an active AC outlet. You must disconnect the power cord

to avoid damage to the internal components of the computer.

5. Remove the computer access panel.

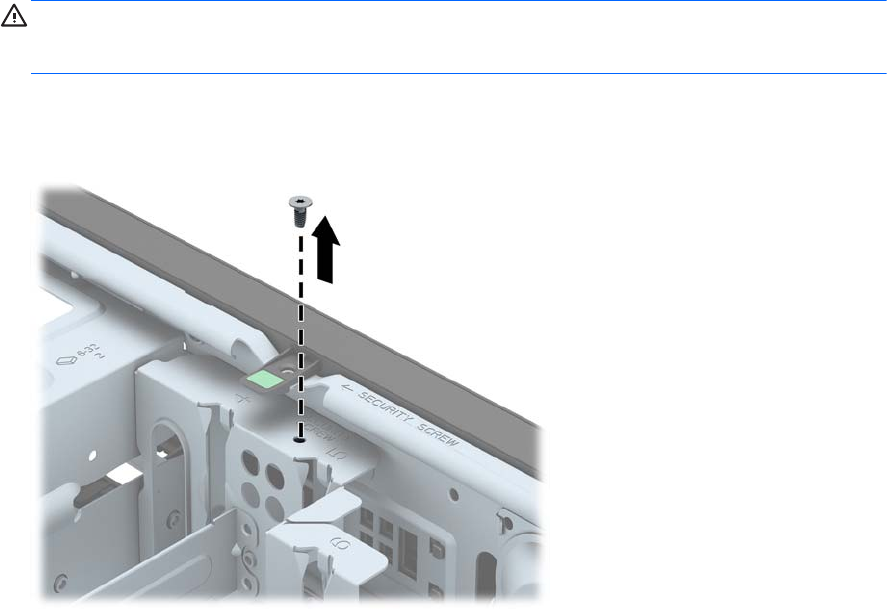

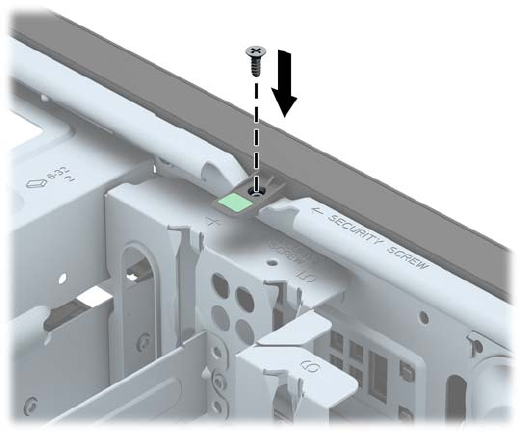

6. Remove the security screw from the side of the hard drive bay just behind the front panel.

ENWW Installing a security lock 51

7. Install the security screw through the middle front bezel release tab to secure the front bezel in

place.

8. Replace the access panel.

9. Reconnect the power cord and turn on the computer.

10. Lock any security devices that were disengaged when the access panel was removed.

52 Chapter 2 Tower (TWR) hardware upgrades ENWW

3 Small Form Factor (SFF) hardware

upgrades

Serviceability features

The computer includes features that make it easy to upgrade and service. No tools are needed for

most of the installation procedures described in this chapter.

Warnings and cautions

Before performing upgrades be sure to carefully read all of the applicable instructions, cautions, and

warnings in this guide.

WARNING! To reduce the risk of personal injury from electrical shock, hot surfaces, or fire:

Disconnect the power cord from the wall outlet and allow the internal system components to cool

before touching.

Do not plug telecommunications or telephone connectors into the network interface controller (NIC)

receptacles.

Do not disable the power cord grounding plug. The grounding plug is an important safety feature.

Plug the power cord in a grounded (earthed) outlet that is easily accessible at all times.

To reduce the risk of serious injury, read the Safety & Comfort Guide. It describes proper workstation,

setup, posture, and health and work habits for computer users, and provides important electrical and

mechanical safety information. This guide is located on the Web at http://www.hp.com/ergo.

WARNING! Energized and moving parts inside.

Disconnect power to the equipment before removing the enclosure.

Replace and secure the enclosure before re-energizing the equipment.

CAUTION: Static electricity can damage the electrical components of the computer or optional

equipment. Before beginning these procedures, ensure that you are discharged of static electricity by

briefly touching a grounded metal object. See Electrostatic discharge on page 100 for more

information.

When the computer is plugged into an AC power source, voltage is always applied to the system

board. You must disconnect the power cord from the power source before opening the computer to

prevent damage to internal components.

ENWW Serviceability features 53

Removing the computer access panel

To access internal components, you must remove the access panel:

1. Remove/disengage any security devices that prohibit opening the computer.

2. Remove all removable media, such as compact discs or USB flash drives, from the computer.

3. Turn off the computer properly through the operating system, then turn off any external devices.

4. Disconnect the power cord from the power outlet and disconnect any external devices.

CAUTION: Regardless of the power-on state, voltage is always present on the system board

as long as the system is plugged into an active AC outlet. You must disconnect the power cord

to avoid damage to the internal components of the computer.

5. If the computer is on a stand, remove the computer from the stand and lay the computer down.

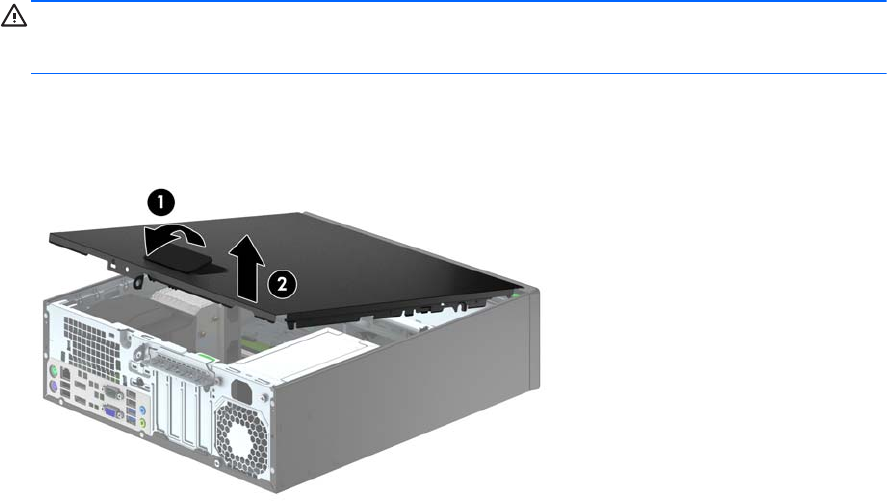

6. Lift up on the access panel handle (1) then lift the access panel off the computer (2).

54 Chapter 3 Small Form Factor (SFF) hardware upgrades ENWW

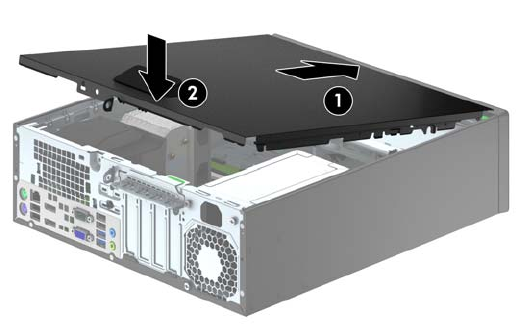

Replacing the computer access panel

Slide the lip on the front end of the access panel under the lip on the front of the chassis (1) then

press the back end of the access panel onto the unit so that it locks into place (2).

ENWW Replacing the computer access panel 55

Removing the front bezel

1. Remove/disengage any security devices that prohibit opening the computer.

2. Remove all removable media, such as compact discs or USB flash drives, from the computer.

3. Turn off the computer properly through the operating system, then turn off any external devices.

4. Disconnect the power cord from the power outlet and disconnect any external devices.

CAUTION: Regardless of the power-on state, voltage is always present on the system board

as long as the system is plugged into an active AC outlet. You must disconnect the power cord

to avoid damage to the internal components of the computer.

5. If the computer is on a stand, remove the computer from the stand and lay the computer down.

6. Remove the computer access panel.

7. Lift up the three tabs on the side of the bezel (1), then rotate the bezel off the chassis (2).

56 Chapter 3 Small Form Factor (SFF) hardware upgrades ENWW

Removing bezel blanks

On some models, there are bezel blanks covering the 3.5-inch and slim optical drive bays that need

to be removed before installing a drive. To remove a bezel blank:

1. Remove the access panel and front bezel.

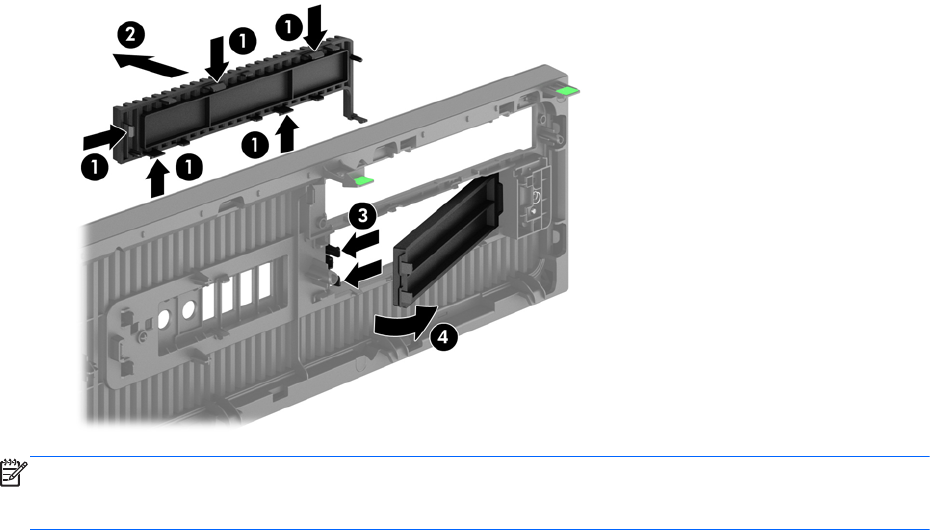

2. To remove a 3.5-inch bezel blank, press inward on the five retaining tabs (1) and pull the blank

off the front bezel (2).

To remove a slim optical drive bezel blank, press the two retaining tabs that hold the bezel blank

in place towards the outer right edge of the bezel (3) and slide the bezel blank back and to the

right to remove it (4).

NOTE: After removing the slim optical drive bezel blank and installing a slim optical drive, you can

install an optional bezel trim piece (available from HP) that surrounds the front of the slim optical

drive.

ENWW Removing bezel blanks 57

Replacing the front bezel

Insert the four hooks on the bottom side of the bezel into the rectangular holes on the chassis (1) then

rotate the top side of the bezel onto the chassis (2) and snap it into place.

58 Chapter 3 Small Form Factor (SFF) hardware upgrades ENWW

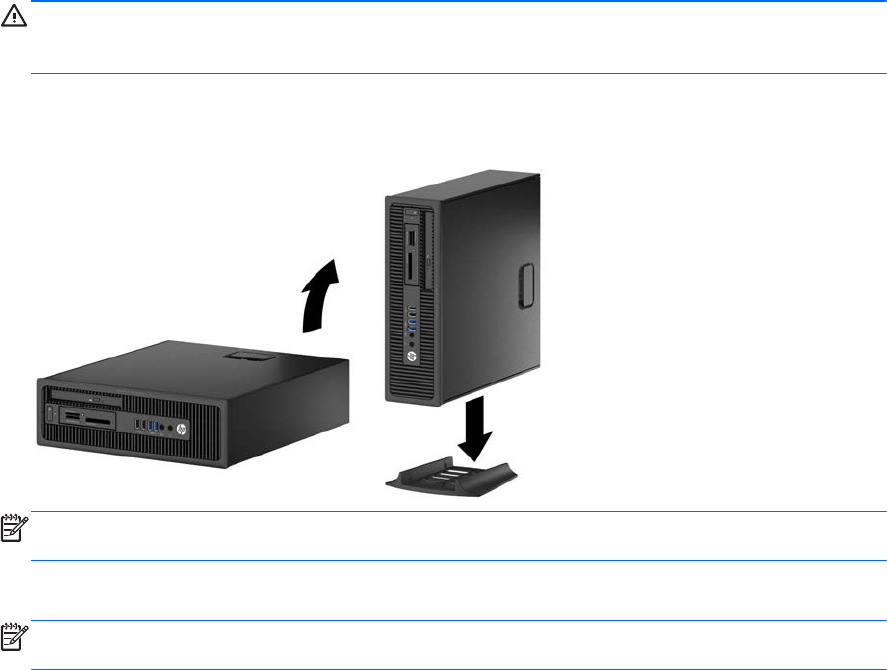

Changing from desktop to tower configuration

The Small Form Factor computer can be used in a tower orientation with an optional tower stand that

can be purchased from HP.

1. Remove/disengage any security devices that prohibit opening the computer.

2. Remove all removable media, such as compact discs or USB flash drives, from the computer.

3. Turn off the computer properly through the operating system, then turn off any external devices.

4. Disconnect the power cord from the power outlet and disconnect any external devices.

CAUTION: Regardless of the power-on state, voltage is always present on the system board

as long as the system is plugged into an active AC outlet. You must disconnect the power cord

to avoid damage to the internal components of the computer.

5. Orient the computer so that its right side is facing down and place the computer in the optional

stand.

NOTE: To stabilize the computer in a tower orientation, HP recommends the use of the

optional tower stand.

6. Reconnect the power cord and any external devices, then turn on the computer.

NOTE: Ensure at least 10.2 centimeters (4 inches) of space on all sides of the computer

remains clear and free of obstructions.

7. Lock any security devices that were disengaged when the access panel was removed.

ENWW Changing from desktop to tower configuration 59

System board connections

Refer to the following illustration and table to identify the system board connectors for your model.

No. System Board Connector System Board Label Color Component

1 PCI Express x1 X1PCIEXP3 white Expansion Card

2 PCI Express x1 X1PCIEXP2 black Expansion Card

3 PCI Express x1 X1PCIEXP1 black Expansion Card

4 PCI Express x16 X16PCIEXP black Expansion Card

5 Parallel Port PAR black Parallel Port

6 Serial Port COMB black Serial Port

7 Hood Lock HLCK black Hood Lock

8 Hood Sensor HSENSE white Hood Sensor

9 DIMM4 (Channel A) DIMM4 white Memory Module

10 DIMM3 (Channel A) DIMM3 black Memory Module

11 DIMM2 (Channel B) DIMM2 white Memory Module

12 DIMM1 (Channel B) DIMM1 black Memory Module

13 Power SATAPWR0 black SATA Drives

14 Power PWR white System Board

15 USB 3.0 FRONT USB3.0 blue Front USB 3.0 Ports

16 SATA 3.0 SATA0 dark blue Primary Hard Drive

17 SATA 3.0 SATA3 light blue Any SATA Device other than the

Primary Hard Drive

18 SATA 3.0 SATA1 light blue Any SATA Device other than the

Primary Hard Drive

60 Chapter 3 Small Form Factor (SFF) hardware upgrades ENWW

No. System Board Connector System Board Label Color Component

19 SATA 3.0 SATA2 light blue Any SATA Device other than the

Primary Hard Drive

20 USB 2.0 MEDIA black USB 2.0 Device, such as a Media

Card Reader

Installing additional memory

The computer comes with double data rate 3 synchronous dynamic random access memory (DDR3-

SDRAM) dual inline memory modules (DIMMs).

DIMMs

The memory sockets on the system board can be populated with up to four industry-standard DIMMs.

These memory sockets are populated with at least one preinstalled DIMM. To achieve the maximum

memory support, you can populate the system board with up to 32-GB of memory configured in a

high-performing dual channel mode.

DDR3-SDRAM DIMMs

For proper system operation, the DDR3-SDRAM DIMMs must be:

●industry-standard 240-pin

●unbuffered non-ECC PC3-12800 DDR3-1600 MHz-compliant

●1.35 volt or 1.5 volt DDR3/DDR3L-SDRAM DIMMs

The DDR3-SDRAM DIMMs must also:

●support CAS latency 11 DDR3 1600 MHz (11-11-11 timing)

●contain the mandatory JEDEC SPD information

In addition, the computer supports:

●512-Mbit, 1-Gbit, and 2-Gbit non-ECC memory technologies

●single-sided and double-sided DIMMs

●DIMMs constructed with x8 and x16 DDR devices; DIMMs constructed with x4 SDRAM are not

supported

NOTE: The system will not operate properly if you install unsupported DIMMs.

Populating DIMM sockets

There are four DIMM sockets on the system board, with two sockets per channel. The sockets are

labeled DIMM1, DIMM2, DIMM3, and DIMM4. Sockets DIMM1 and DIMM2 operate in memory

channel B. Sockets DIMM3 and DIMM4 operate in memory channel A.

The system will automatically operate in single channel mode, dual channel mode, or flex mode,

depending on how the DIMMs are installed.

ENWW Installing additional memory 61
