Windows-powered unified storage built on industry standards
You have better things to do than worry about storage. You're juggling multiple management interfaces, security concerns, and
shrinking backup windows -- all while your users demand more and more space. You need a shared storage solution that's powerful
and easy to manage, and you need it now.
HP X1000 G2 Network Storage Systems are the fast and easy way to add Windows-powered shared storage to your IT environment.
They're versatile unified storage, so you get more for your money since it can be a file server, an iSCSI target for application/virtual
environment storage, or both. You'll spend less time and effort on maintenance and management once you consolidate to a
centralized shared storage system, and industry standards will protect your investment by providing compatibility with your network
and applications. The operating system is pre-installed and comes with HP X1000 Automated Storage Manager, so you'll be up and
running in minutes.
What is an X1000 G2
Network Storage System?
HP X1000 G2 Network Storage Systems are enhanced Windows-powered shared storage solutions for your
datacenter, branch office, or workgroup environment. They are built on industry-standard HP ProLiant
servers and come with the Microsoft® Windows Storage Server 2008 R2 operating system pre-installed.
Like many Network Attached Storage (NAS) devices, they connect via Ethernet, offer optimized file serving
for heterogeneous clients, and are designed to install in minutes. They can also connect to servers or
virtual machines to host application storage with the included iSCSI target. Since HP X1000 G2 Network
Storage Systems are Windows-based, integration into your Windows environment is easy, your antivirus
and backup applications run right on the box, and management has a familiar look and feel. So you can add
shared storage to your network quickly and get back to what matters most: running your business.
What's New
Windows Storage Server 2008 R2 Standard to Enterprise OS Upgrade - for enabling Hosted BranchCache on X1000 G2 Network
Storage Sytems
Models
HP X1400 G2 Network Storage System
HP X1400 G2 Network Storage Systems are 1U rack-mount shared storage solutions that deliver multi-protocol file sharing, print
serving, and application storage in a compact and affordable package. They're easy to install and manage, making them perfect for a
small workgroup, small business or remote office. The X1400 G2 is built on a HP ProLiant DL320 G6 server.
HP X1400 G2 Network Storage System (no drives pre-configured - at least four drives of the same type/capacity,
146GB or greater, must be ordered for pre-installation of OS in the factory. The OS is not a field installable option.)
BV853A
HP X1400 G2 4TB SATA Network Storage System (4 x 1TB SATA LFF HDDs)
BV854A
HP X1400 G2 8TB SATA Network Storage System (4 x 2TB SATA LFF HDDs)
BV855A
QuickSpecs
HP X1000 G2 Network Storage Systems
Overview
DA - 13839 North America — Version 11 — December 28, 2012
Page 1

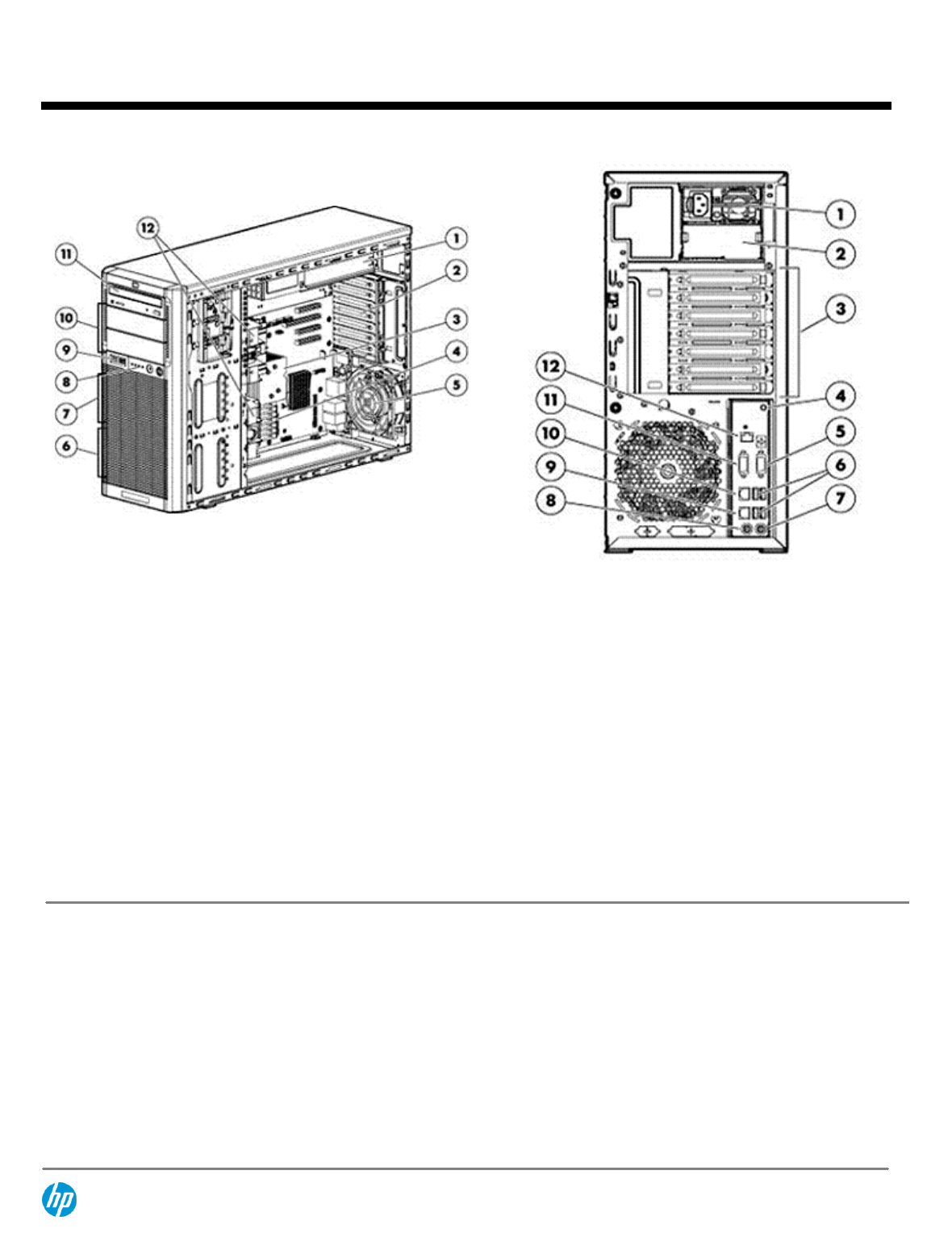

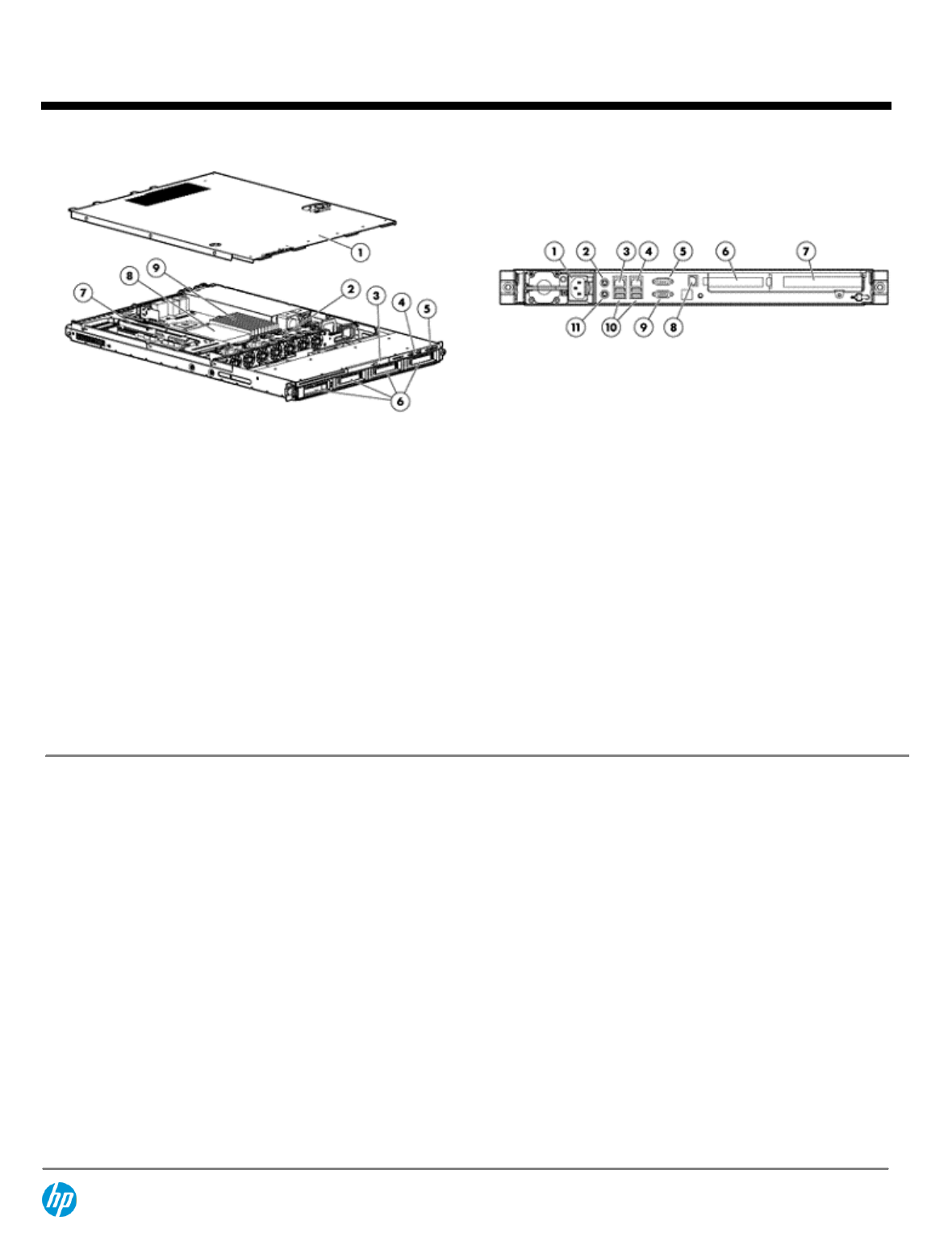

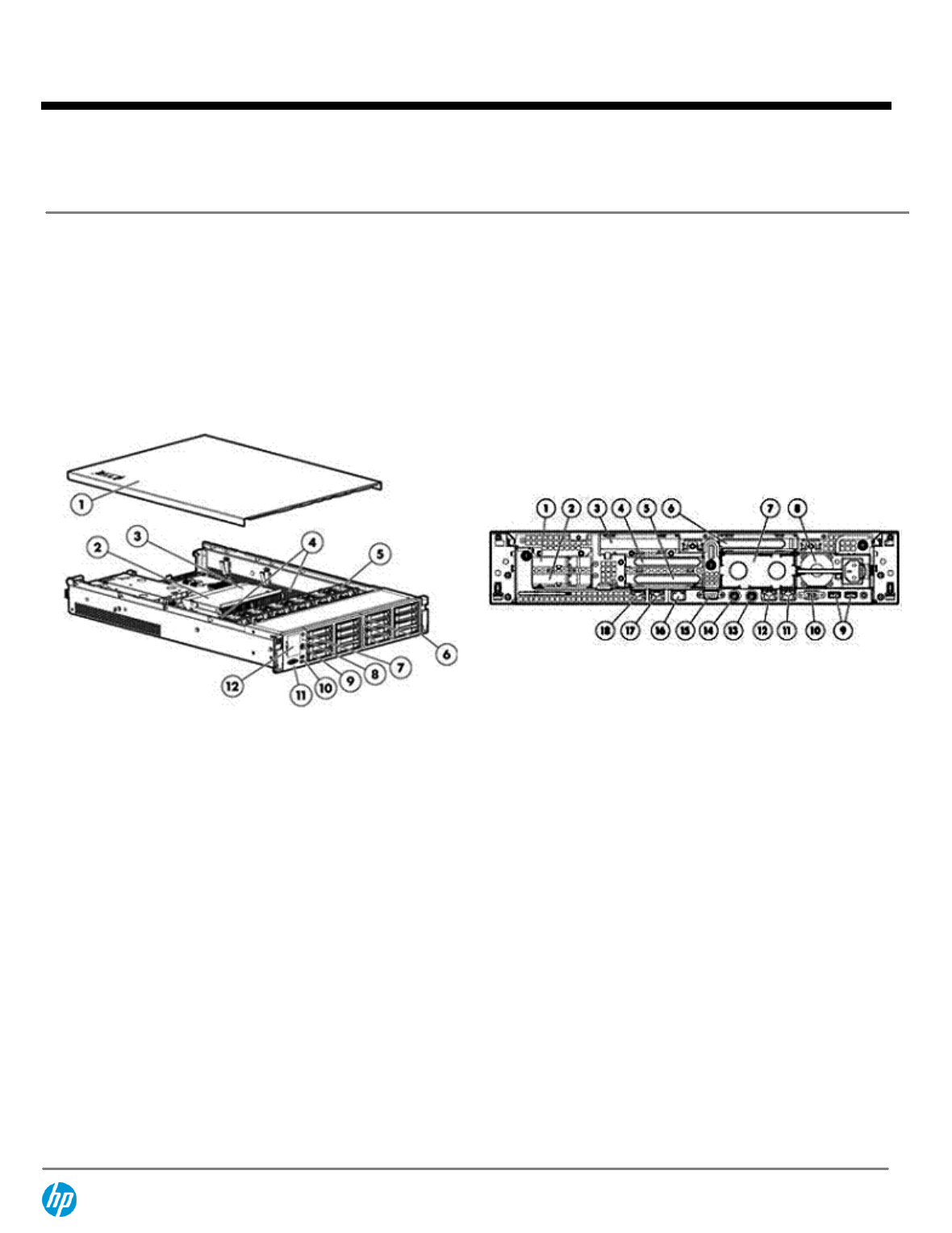

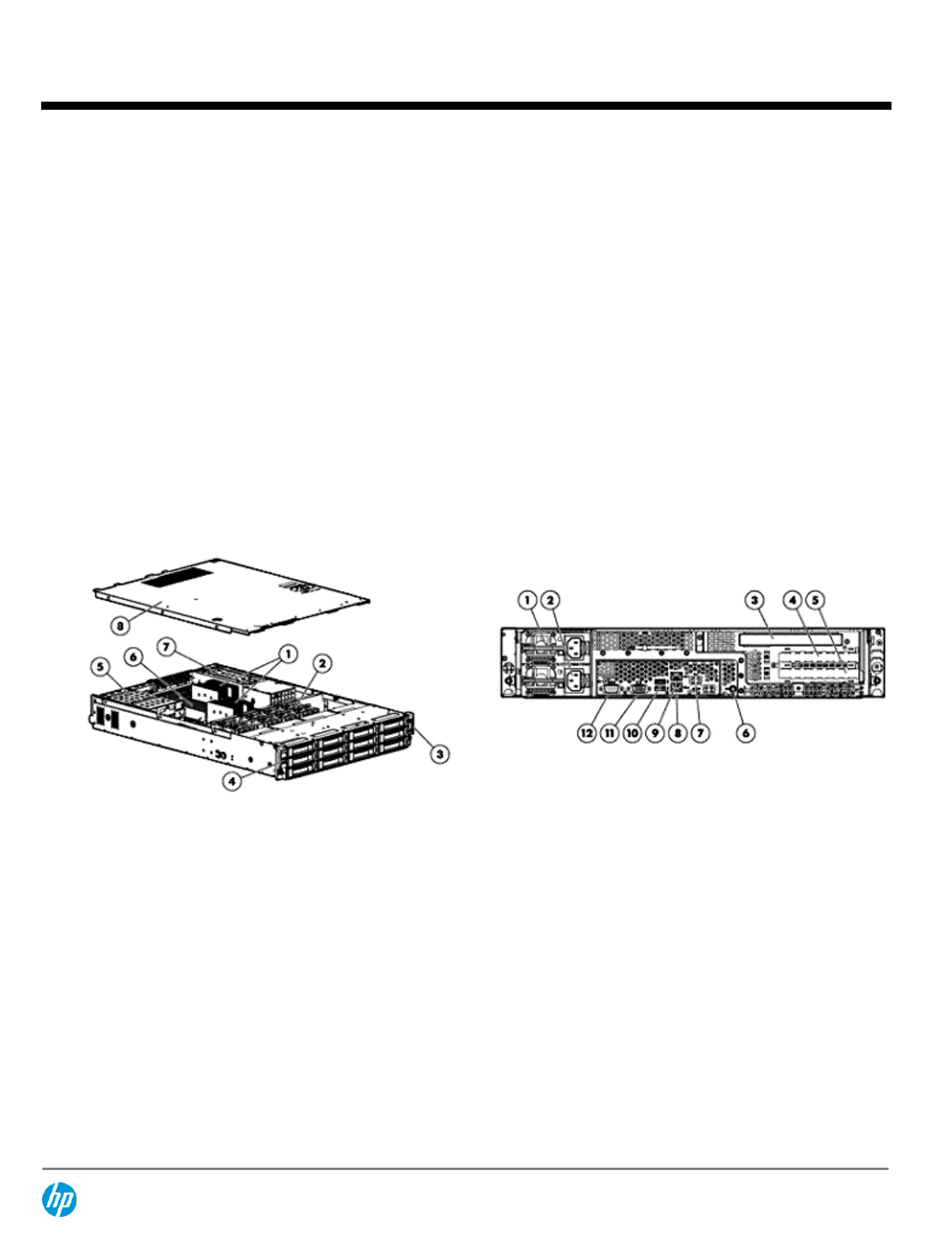

Front View:
Rear View:
1.
Access panel
1.
Power supply
2.
System fans
2.
Mouse connector
3.
DVD-RW drive
3.
NIC 1 Port
4.
USB Ports (2)
4.
NIC 2 Port
5.
Power Button, UID Button, and Front LED Indicators
5.
Serial Port
6.
Four (4) 3.5" hot-plug SAS/SATA hard drive bays
6.
PCIe slot (occupied by Smart Array controller with external
SAS port for expandability)
7.
PCIe expansion slot cage
7.
PCIe slot (open)
8.
Dual-Core Intel® Xeon® processor
8.
Dedicated Integrated Lights-Out 2 management port
9.
DDR3 Registered (RDIMM) memory -- nine slots
9.
VGA Port
10.
USB Ports (4)
11.
Keyboard connector
HP X1500 G2 Network Storage System
HP X1500 G2 Network Storage Systems are 5U tower shared storage solutions that deliver high capacity multi-protocol file sharing,
print serving and application storage in a compact and affordable package. They're easy to install and manage, making them perfect
for a small workgroup, small business or remote office. The X1500 G2 is built on a Hp ProLiant ML330 G6 Server.
NOTE:
A country specific power cord option must be ordered with the X1500 G2. See power cord options section.
HP X1500 G2 Network Storage System (no drives pre-configured - at least two drives of the same type and capacity,
146GB or greater, must be ordered for pre-installation of OS in the factory. The OS is not a field installable option.)
BV856A
HP X1500 G2 4TB SATA Network Storage System (4 x 1TB SATA LFF HDDs)
BV857A
HP X1500 G2 8TB SATA Network Storage System (4 x 2TB SATA LFF HDDs)
BV858A
QuickSpecs
HP X1000 G2 Network Storage Systems
Overview
DA - 13839 North America — Version 11 — December 28, 2012
Page 2
Front View:
Rear View:
1.
Power Supply
1.
Power supply 1
2.
Expansion Slots
2.
Power supply 2 (optional)
3.
Dual-Core Intel® Xeon® processor
3.
Expansion slots
4.
Nine DIMM slots (for 1st Processor)
4.
UID button/LED
5.
Rear System Fan
5.
Video Port
6.
Hard drive bays 5-8
6.
Four USB ports
7.
Hard drive bays 1-4
7.
Keyboard port
8.
LED indicators and power button
8.
Mouse port
9.
USB connectors (2)
9.
Network port1
10.
Removable Media Bays
10.
Network port2
11.
Optical Drive Bays
11.
Serial port
12.
Front System Fans
12.
Dedicated iLO management port
QuickSpecs
HP X1000 G2 Network Storage Systems
Overview
DA - 13839 North America — Version 11 — December 28, 2012
Page 3
HP X1600 G2 Network Storage System
HP X1600 G2 Network Storage Systems deliver high capacity and high performance and drives down your cost per GB. Quad-Core
processing, up to 24TB internal storage capacity, and ready external expandability enhance this ultra-dense 2U shared storage
solution for small, medium, or large IT environments. The X1600 G2 is built on a HP ProLiant DL180 G6 server chassis, with a custom
motherboard supporting iLO2 remote management. There are two models of the X1600, one model contains 12 X LFF HDDs in front
slots and 2 SFF HDD slots in rear and the other model contains 25 x SFF HDDs in front slots only.
HP X1600 G2 Network Storage System (12 open LFF HDD front slots and 2 x 146GB SAS SFF HDDs in rear slots with
pre-installed OS)
BV859A
HP X1600 G2 6TB SATA Network Storage System (6 x 1TB SATA LFF HDDs in front slots for data, 6 open LFF HDD
front slots for expansion and 2 x 146GB SAS SFF HDDs in rear slots with pre-installed OS)
BV860A
HP X1600 G2 12TB SATA Network Storage System (6 x 2TB SATA LFF HDDs in front slots for data, 2 x 146GB SAS SFF
HDDS in rear slots with pre-installed OS)
BV861A
HP X1600 G2 24TB SATA Network Storage System (12 x 2TB SATA LFF HDDS in front slots for data, 2 x 146GB SAS
SFF in rear slots with pre-installed OS)
BV862A
HP X1600 G2 6TB SAS Network Storage System (10 x 600GB SAS SFF HDDs in front slots for data, 13 open SFF HDD
front slots for expansion and 2 x 146GB SAS SFF HDDs in front slots with pre-installed OS)
BV864A
HP X1600 G2 13.8 TB SAS Network Storage System (23 x 600GB SAS SFF HDDs in front slots for data, 2 x 146GB SAS
SFF HDDs in front slots with pre-installed OS)
BV866A
Front View:
Rear View:
1.
Quad-Core Intel® Xeon® processors (one standard, up to two
supported)
1.
Redundant hot-plug power supplies
2.
System fans
2.
Power supply cable socket
3.
Power Button and Front LED Indicators
3.
N/A
4.
USB Ports (2)
4.
(2 SFF drives- sku BV859A, BV860A, BV861A, BV862A only)
5.
PCIe expansion slot cage
5.
PCIe slot (occupied by Smart Array controller with external
SAS port for expandability)
6.
DDR3 Registered (RDIMM) memory - twelve slots
6.
UID LED Button
7.
Power supply cage
7.
Integrated Lights-Out 2 management port
8.
Access panel
NOTE:
Front drive slots can be either 12 LFF or 25 SFF HDDs
8.
NIC 1 Port
9.
NIC 2 Port
10.
USB Ports (2)
QuickSpecs
HP X1000 G2 Network Storage Systems
Overview
DA - 13839 North America — Version 11 — December 28, 2012
Page 4
11.
VGA Port
12.
Serial Port
HP X1800 G2 Network Storage System
HP X1800 G2 Network Storage Systems deliver Enterprise-class performance, expandability, and flexibility. Up to two quad-core
processors, four open PCIe slots for additional options, and built-in external SAS connections for additional disk enclosures make it the
shared storage solution of choice for medium business or datacenter class IT environments. The X1800 G2 is built on a HP ProLiant
DL380 G7 server.
HP X1800 G2 Network Storage System (14 open SFF HDD front slots and 2x146GB SAS SFF HDDs in front slots with
pre-installed OS)
BV868A
HP X1800 G2 4.8 TB SAS Network Storage System (8 x 600GB SAS SFF HDDs in front slots for data, 6 open SFF HDDs
fronts slots for expansion and 2x146GB SAS SFF HDDs in front slots with pre-installed OS)
BV869A
Front View:
Rear View:
1.
Quick removal access panel
1.
PCI slot 5
2.
First Intel Processor
2.
PCI slot 6
3.
Second Intel Processor (optional)
3.
PCI slot 4
4.
Eighteen slots: DDR3 Registered (RDIMM) or Unbuffered
(UDIMM) memory
4.
PCI slot 2
5.
Hot-plug fans, full N+1 redundancy
5.
PCI slot 3
6.
Sixteen 2.5" (Small Form Factor) hot-plug bays
6.
PCI slot 1
7.
UID LED button
7.
Power supply 2
8.
Health LED
8.
Power supply 1
9.
Power On/Standby button and system power LED
9.
USB connectors (2)
10.
USB connectors (2)
10.
Video connector
11.
Video connector
11.
NIC 1 connector
12.
Systems Insight Display
NOTE:
X1800 G2 comes standard with two SFF drive cages
providing a total of 16 SFF drive slots (this is not depicted in
drawing above)
12.
NIC 2 connector
13.
Mouse connector
QuickSpecs
HP X1000 G2 Network Storage Systems
Overview
DA - 13839 North America — Version 11 — December 28, 2012
Page 5
14.
Keyboard connector
15.
Serial connector
16.
iLO 3 NIC connector
17.
NIC 3 connector
18.
NIC 4 connector
QuickSpecs
HP X1000 G2 Network Storage Systems
Overview
DA - 13839 North America — Version 11 — December 28, 2012
Page 6
Manage, expand, and
protect
a single centralized
storage
system
Consolidate islands of direct-attached or network attached storage to one easy-to-use Windows-powered
shared storage platform. Since it's versatile unified storage, it can be a file server (or disk-based backup /
replication target), an iSCSI target for application/virtual environment storage, or both.
Go from out-of-the-box to
sharing storage in
minutes,
not hours.
The Windows-powered operating system is pre-installed and user storage is easy to provision with HP
Automated Storage Manager (ASM), so you can add storage to your network quickly and securely.
Optimized file services for
clients
In a Windows (SMB/CIFS) environment, there's no better way to serve files. Windows Storage Server 2008
R2 delivers better file serving performance than standard Windows Server 2008 R2, has exclusive features
like Single Instance Storage (SIS) file de-duplication, and supports Volume Shadow Copy Service
snapshots. In mixed environments, you get the flexibility of heterogeneous support for additional
protocols like NFS, HTTP, FTP, and WebDAV.
Shared storage for
servers and
virtual machines
NAS isn't just about sharing files any more-it's about sharing information. With the included Microsoft iSCSI
Software Target, you can host storage for applications like Microsoft Exchange, Microsoft SQL, Microsoft
SharePoint, or Oracle, and you can drive additional consolidation by hosting storage for Microsoft Hyper-V,
VMWare, or Xen deployments.
Seamless integration into
your
Windows environment
It's running Windows, so it integrates natively into your Windows Active Directory (AD) and Distributed File
System (DFS) environments, runs your favorite antivirus, backup, and storage management applications,
and the Microsoft Management Console (MMC) user interface has a familiar look and feel.
HP ProLiant industry-
standard
hardware
Relax -- your investment is protected because you're not locked into proprietary platforms. X1000 G2
Network Storage Systems are built on HP ProLiant Server technology and feature Multi-Core Intel® Xeon®
processors, support for SATA or SAS internal hot-plug hard drives, and easy external expansion with HP
D2000 enclosures.
HP X1000 Automated
Storage
Manager Software (HP
ASM)
Create, migrate, manage, and protect shared storage without the need for storage expertise using HP ASM
Software, which is included with all X1000 G2 Network Storage Systems. HP ASM is designed for IT
generalists and is like getting a storage expert in the box. It includes tools to quickly and easily migrate and
manage file and iSCSI data using automated best practice settings, and you can enable optional data
protection features within HP ASM by installing HP Data Protector Express Software.
Intelligent storage
services
Make more efficient use of storage space using the file de-duplicating Single-instance Storage (SIS)
feature and enjoy the benefits of other storage-specific tools like Indexed Search, Quotas, File Screening,
Storage Reporting, and Distributed File System (DFS) Replication.
Remote and Enterprise
manageability
You can manage and troubleshoot from outside the office at both the operating system level (with Remote
Desktop or HTTPS) and at the platform level (using Integrated Lights-Out with the included iLO Advanced
Pack License). X1000 G2 Network Storage Systems also integrate with HP Systems Insight Manager (HP
SIM) and support ProLiant Support Pack.
QuickSpecs
HP X1000 G2 Network Storage Systems
Features and Benefits
DA - 13839 North America — Version 11 — December 28, 2012
Page 7
Operating System
Microsoft Windows Storage Server 2008 R2, Standard x64 Edition
64-bit processing (compatible with 32-bit applications)
Optimized for File Serving: Better file serving performance out of the box than a general-purpose
Windows Server 2008 R2 installation on the same hardware.
HP-enhanced File Server Management Console: Features the familiar look and feel of the Microsoft
Management Console (MMC).
HP Initial Configuration Task Tool: Simplifies and accelerates new device deployment by presenting
basic system settings on your first boot.
Single-instance Storage (SIS): Recovers up to 40% of disk space by de-duplicating files and reducing
the amount of redundant data stored (based on Microsoft internal testing). Identifies duplicate files,
stores a single copy of the file in a central repository, and replaces the files with pointers to the file
in the SIS common store.
Search Enhancements: Indexing Service extracts the information from a set of documents and
organizes it in a way that makes it quick and easy to access that information through the Search
function for computers running Windows 2000, Windows XP or Windows Vista.
File Server Resource Manager (FSRM): Provides both on-demand and scheduled reports detailing
storage use, allows administrators to create and manage folder and volume quotas, and permits
both name-based screening of files and allowing/disallowing file creation on specified folder trees.
File Classification Infrastructure: provides insight into your data to help you manage your data more
effectively, reduce costs and mitigate risks by providing a built-in solution for file classification
allowing administrators to automate manual processes with predefined policies based on the data's
business value. Also provided is an extensible infrastructure upon which ISVs can build end-to-end
solutions that enable organizations to perform advanced classification and data management.
Distributed File System (DFS) Management Console: Updated DFS namespace failover, failback and
prioritization controls.
Distributed File System Replication (DFS-R): State-based, multi-master replication engine that
supports replication scheduling and bandwidth throttling. DFS-R uses a new compression algorithm
that efficiently updates files over limited bandwidth networks by replicating only the changes
needed to ensure global file consistency.
Hosted BranchCache - Using a client/server architecture, Windows 7 client computers cache content
on the local network to an X1000 G2 Network Storage System running Windows Storage Server
2008 R2, known as the Hosted Cache. Other clients who need the same content retrieve it directly
from the Hosted Cache. (only available by upgrading OS from Standard to Enterprise Edition. See
ordering and configuration section for details)
Full support of Volume Shadow Copy Service, which creates point-in-time copies of files and folders
at predetermined time intervals that can then be accessed from client computers.
Unlimited Client Access Licenses (CALs) included
Microsoft Services for Network File System (NFS)
Simultaneous support for multiple file serving protocols, including SMB/CIFS, NFS, HTTP, FTP, and
WebDAV
Print Management Console: Manage multiple printers (license for unlimited printer support) from a
single console, whether locally or over the WAN
Support for any number of SATA or SAS drives and multiple network ports
Support for up to 32GB of SDRAM
For more information on Windows Storage Server 2008 R2 see:
http://www.microsoft.com/windowsserver2008/en/us/wss08.aspx
QuickSpecs
HP X1000 G2 Network Storage Systems
Standard Features
DA - 13839 North America — Version 11 — December 28, 2012
Page 8
Windows Storage Server Roles
X1000 G2 X3000 G2
Active Directory Certificate Services
No No
Active Directory Domain Services
No No
Active Directory Federation Services
No No
Active Directory Lightweight Directory Services
Allowed Allowed
Active Directory Management Services
No No
Application Server
No No
DHCP Server
Allowed Allowed
DNS Server
No No
FAX Server
Enabled Enabled
File Services
Enabled Enabled
Hyper-V
Yes (see note below)
Yes
Network Policy and Access Services
No No
Print Services
Enabled Enabled
Terminal Services
No No
UDDI Services
No No
Web Server (IIS)
Enabled Enabled
Windows Deployment Services
No No
NOTE:
All X1000 G2 products use Windows Storage Server 2008 R2, Standard Edition. The information
below is from the WSS2008 R2 Standard Edition End User License Agreement (EULA):
Running Instances of the Server Software.
i. You may run, at any one time, one instance of the server software in one physical and one virtual
operating system environment on the licensed server.
ii. If you run both permitted instances at the same time, the instance of the server software running in the
physical operating system environment may be used only to:
run hardware virtualization software
provide hardware virtualization services
run software to manage and service operating system environments on the licensed server.
Running Instances of the Additional Software.
You may run or otherwise use any number of instances of additional software listed below in physical or
virtual operating system environments on any number of servers. You may use additional software only
with the server software directly, or indirectly through other additional software.
AD Migration Tool
FRS Monitoring Tools
Remote Desktop Connection Client
RSAT Client
QuickSpecs
HP X1000 G2 Network Storage Systems
Standard Features
DA - 13839 North America — Version 11 — December 28, 2012
Page 9
Microsoft iSCSI Software
Target
Microsoft iSCSI Software Target v3.3
Microsoft iSCSI Software Target versions 3.3 is interoperable with iSCSI initiators that comply with
the standard iSCSI protocol. Microsoft iSCSI Software target version 3.3 supports the following iSCSI
initiators:
Microsoft iSCSI Software Initiator 2.07 and 2.08 in Windows Server 2003.
Microsoft iSCSI Software Initiator in Windows Server 2008 SP1 and SP2.
Microsoft iSCSI Software Initiator in Windows Server 2008 R2.
Microsoft iSCSI Software Initiator in Windows Vista.
Microsoft iSCSI Software Initiator in Windows 7.
Qlogic initiator QLE4062C-SP, firmware 3.00.01.24.
RedHat Enterprise Linux iSCSI Initiator version 5.x.
SuSE Enterprise Linux iSCSI Initiator version 10.x.
Support
HP is the customer's primary contact for the resolution of all iSCSI initiator/iSCSI target interoperability
issues. Microsoft is committed to working with HP to resolve interoperability issues involving the Microsoft
iSCSI Software Target, but Microsoft is not responsible for resolving any issues caused by non-Microsoft
iSCSI initiators.
IETF-ratified iSCSI specification compliant
IPv6 support (note: HP ASM does not support IPv6)
iSNS integration
IPSec encryption
CHAP authentication
Seamless integration into Microsoft Management Console (MMC) user interface
LUN resizing
IP Take-Over support
Multi-Path I/O (MPIO) support
Application-aware snapshots with Microsoft Volume Shadow Copy Service (VSS)
NOTE:
Limit of 512 snapshots per independent iSCSI/Application volume and 64 snapshots for file
share volumes. If iSCSI LUNs and file shares are on a common volume the iSCSI snapshot limit is
448.
Compatible with backup applications certified with Microsoft Windows Server 2008 and Window
Server 2008 R2
Sample Application Server Compatibility: Microsoft Exchange 2000, 2003, and 2007 Servers;
Microsoft SQL Server 2000, 2005, and 2008
Sample Virtual Environment Compatibility: Microsoft Hyper-V, VMWare, Xen
HP X1000 Automated
Storage Manager (HP
ASM) Software
This easy-to-use, integrated storage management tool works from an application point-of-view and can
help you orchestrate the many aspects of your storage environment---even if you lack storage expertise.
It's like having your own storage expert in the box.
File Share creation wizard for CIFS or NFS shares with storage allocation, directory quota
management, and scheduled snapshots.
Quota monitoring and alerting per share or application.
Remote management via Microsoft Internet Explorer or Terminal Services
Best practice and advanced dialog improvements to ASM wizards grant more control to those with
more storage management experience
Support for setup and management of both internal storage as well as supported direct attached
D2000 storage enclosures
QuickSpecs
HP X1000 G2 Network Storage Systems
Standard Features
DA - 13839 North America — Version 11 — December 28, 2012
Page 10
Supports management of tiered storage environments where both SAS and SATA hard drives are
attached to externally-attached HP D2000 enclosures.
You can use ASM to specify a dedicated, primary network--plus a secondary subnet--for your IP-
based storage traffic
Disaster recovery tools work in concert with backup applications to preserve storage subsystem
settings in case they need restored after a system rebuild
Provides end-to-end management and provisioning of iSCSI storage for non-clustered 32-bit and
64-bit Windows Server 2003 or Windows Server 2008 and 2008 R2 hosts (including derivatives like
Windows Small Business Server 2008 and Windows Essential Business Server 2008) from the iSCSI
Target all the way through to the host
Provides management and provisioning of iSCSI storage for standards-compliant non-Windows
iSCSI initiators such as VMWare, Linux, etc.
Application data hosting and migration wizard using HP and Microsoft 'Best Practice' storage
provisioning for Microsoft Exchange 2003/2007 Storage Groups and Microsoft SQL Server
2000/2005/2008
*
databases (
*SQL Server 2008 support requires installation of "SQL Server 2005
Backward Compatibility" option; file stream functionality not supported
).
Application-level capacity provisioning and online growth for shares, SQL Server and Exchange. SQL
Server support includes data file and log directory provisioning and Exchange support includes
Mailstore, Publicstore and log directory provisioning.
Application data hosting and iSCSI Setup wizard for other 'User Defined' Application (Oracle, mySQL,
VMware ESX, etc…)
Data protection policy assignment (snapshots, backup) integrated into application migration and
share creation wizards for data hosted on the system. (Requires HP Data Protector Express
Software)
Data Protector Express Virtual Library (D2D) device provisioning and space management as well as
support for Data Protector Express D2D2Any add-on option. (Requires HP Data Protector Express
Software)
ASM agents now support domain servers (including Windows Server 2008, Small Business Server
2003 and Small Business Server 2008) as application host machines
HP ASM Agent Application & OS Support Matrix
Microsoft Windows
Server 2003 SP1
Microsoft Windows
Small Business
Server 2003
Microsoft Windows
Server 2008 and
2008 R2
Microsoft Windows
Essential Business
Server 2008
Microsoft Exchange
2003 SP1
o o
Microsoft Exchange
2007
o
*
o
*
o
*
o
*
Microsoft SQL
Server 2000 SP4
o o
Microsoft SQL
Server 2005 SP2
oooo
Microsoft SQL
Server 2008
o
**
o
**
o
**
o
**
* Exchange 2007 is only supported on 64-bit Operating Systems
** SQL Server 2008 support requires installation of "SQL Server 2005 Backward Compatibility" option; file
stream functionality not supported
HP ASM Feature Support Matrix
QuickSpecs
HP X1000 G2 Network Storage Systems
Standard Features
DA - 13839 North America — Version 11 — December 28, 2012
Page 11
Microsoft Windows
Server 2003 SP1
Microsoft Windows
Small Business
Server 2003
Microsoft Windows
Server 2008
Microsoft Windows
Essential Business
Server 2008
Data Migration
oooo
Virtual Library (HP
Data Protector
Express Software)
o o
o
***
o
***
Application-aware
snapshots
oooo
Management
Microsoft Management Console (MMC)-based user interface (also accessible via HTTPS)
Remote system management via Remote Desktop or Telnet
HP ProLiant Onboard Administrator (powered by the Integrated Lights-Out management processor)
simplifies server setup, health monitoring, power and thermal control, and lights-out remote
administration. It functions without additional software, and can be accessed from any location via a web
browser.
Capabilities of the HP ProLiant Onboard Administrator include:
Rom-based Setup Utility (RBSU) and Option Rom Configuration for Arrays (ORCA)
IML and iLO event logging
Automatic Server Recovery (ASR)
OS independent hardware health status
Present server power consumption
Virtual Unit ID control
Remote serial console
Virtual power button control
Dynamic Sector Repairing (with Smart Array controller)
Drive Parameter Tracking (with Smart Array controller)
Hot Spare Boot
Advanced license (standard): Virtual KVM remote graphical console, power management capabilities
such as power measurement, regulation, and capping, new iLO Text Console, automatic and on-
demand video recording of server events, global team collaboration for up to four remote users,
virtual media (floppy, CD/DVD, USB key), virtual folders, and enterprise security (directory services
and two-factor authentication).
For additional information, please see:
www.hp.com/go/iLO
Processor / Cache Memory
X1400 G2 X1500 G2 X1600 G2 X1800 G2
Intel® Xeon® Processor
E5503 (2.00 GHz, 4MB L3
Cache, 80W, DDR3-800)
Intel® Xeon® Processor
E5503 (2.00 GHz, 4MB L3
Cache, 80W, DDR3-800)
Intel® Xeon® Processor
E5520 (2.26 GHz, 8MB L3
Cache, 80W, DDR3-1066,
HT, Turbo 1/1/2/2)
Intel® Xeon® Processor
E5640 (2.66 GHz, 12MB
L3 Cache, 80W, DDR3-
1066, HT, Turbo 1/1/2/2)
Chipset
Intel® 5500 Chipset
QuickSpecs
HP X1000 G2 Network Storage Systems
Standard Features
DA - 13839 North America — Version 11 — December 28, 2012
Page 12
Memory
Type
DDR3 Registered (RDIMM) standard
Maximum (by O/S license)
32 GB
X1400 G2 X1500 G2 X1600 G2 X1800 G2
Standard
4GB (2 x 2GB)
4GB (2x 2GB)
6GB (3 x 2GB) 6GB (3 x 2GB)
DIMM Sockets
9 18 12 18
Network Controller
X1400 G2 X1500 G2 X1600 G2 X1800 G2
NIC Ports
2224
Controller
HP NC326i
Integrated Dual
Port Gigabit Server
Adapter
HP NC326i
Integrated Dual
Port Gigabit Server
Adapter
HP NC362i
Integrated Dual
Port Gigabit Server
Adapter
2 x HP NC382i
Integrated Dual
Port Multifunction
Gigabit Server
Adapters with
TCP/IP Offload
Engine
Expansion Slots
Slot Number
Bus Speed
Connector
Width
Bus
Number
*
Form Factor
Notes
X1400 G2
4
x16
PCI-Express
x16
21
Full length,
full height
5
x4
PCI-Express
x8
10
Half length,
half height
Occupied by
Smart Array
controller
X1500 G2
3
X1
PCI Express
Gen 2
x8
7
Full length,
full height
4
X16
PCI Express
Gen 2
x16
13
Full length,
full height
5
X4
PCI Express
Gen 2
x8
10
Full length,
full height
Occupied by
Smart Array
controller
6
X4
PCI Express
Gen 2
x8
4
Full length,
full height
X1600 G2
(LFF front drive
slots)
1
x16
PCI-Express
x8
6
Half length,
half height
3
x8
PCI-Express
x4
5
Full length,
full height
Occupied by
Smart Array
controller
QuickSpecs
HP X1000 G2 Network Storage Systems
Standard Features
DA - 13839 North America — Version 11 — December 28, 2012
Page 13
X1600 G2
(SFF front drive
slots)
1
x16
PCI-Express
x8
1
Half length,
half height
2
x8
PCI-Express
x4
5
Full Length,
full height
Occupied by
Smart Array
controller
3
x8
PCI-Express
x4
4
Full Length,
full height
4
x4
PCI-Express
x4
3
Full length,
full height
X1800 G2
1
x8
PCI-Express
x16
7
Full Length,
full height
2
x4
PCI-Express
x8
10
Half Length,
full height
3
x4
PCI-Express
x8
13
Half Length,
full height
Occupied by
SAS Expander
4
x8
PCI-Express
x16
16
Full length,
full height
Occupied by
Smart Array
Controller
5
x4
PCI-Express
x8
20
Half length,
half height
6
x4
PCI-Express
x8
23
Half length,
half height
* Default bus assignment. Inserting cards with PCI bridges may alter the actual bus
assignment number.
Storage Controller
X1400 G2 X1500 G2 X1600 G2 X1800 G2
Controller(s)
HP Smart Array
P212/256MB
Controller with
battery-backed
write cache
(BBWC)
HP Smart Array
P410/256MB
Controller with
BBWC
HP Smart Array
P212/512MB
Controller with
BBWC (LFF front
drive slots)
HP Smart Array
P812/1GB
Controller with
Flash backed write
cache (FBWC) -
(SFF front drive
slots)
HP Smart Array
P812/1GB
Controller with
Flash backed write
cache (FBWC)
RAID
0/1/1+0/5/5+0
6/6+0
0/1/1+0/5/5+0
6/6+0
0/1/1+0/5/5+0
6/6+0
0/1/1+0/5/5+0
6/6+0
Internal SAS connectors
1 2
1 (LFF) 2 (SFF)
2
External SAS connectors
1 0
1 (LFF) 4 (SFF)
4
NOTE:
Smart Array Advanced Pack License (516471-B21) is included to enable RAID 6, 6+0.
QuickSpecs
HP X1000 G2 Network Storage Systems
Standard Features
DA - 13839 North America — Version 11 — December 28, 2012
Page 14
Storage
Hard Drives
X1400 G2 X1500 G2 X1600 G2 X1800 G2
Internal
Four 3.5" (Large
Form Factor) hot-
plug bays
Eight 3.5"(Large
Form Factor) hot-
plug bays
Twelve 3.5" (Large
Form Factor) hot-
plug bays in front
and, two (Small
Form Factor) hot-
plugs bays in rear
or
25 2.5"(Small
Form Factor) hot-
plug bays in front
(no rear drives)
See specific model
information on
which product is
12LFF or 25 SFF
Sixteen 2.5" (Small
Form Factor) hot-
plug bays
External
Support for
P2000, D2000, and
MDS600
Support for
P2000, D2000 and
MDS600
Support for ,
P2000,D2000, and
MDS600
Support for
P2000, D2000 and
MDS600
Optical Drive
X1400 G2,DVD-
RW, X1500 G2
,DVD-ROM
No internal DVD on
X1600 G2 and
X1800 G2 models
Maximum Storage
Capacity
(raw)
X1400 G2 X1500 G2
X1600 G2 (LFF)
X1600 G2 (SFF)
X1800 G2
Internal SATA
8TB
16TB
24TB(LFF)
*
11.5TB(SFF)
*
7TB
*
Internal SAS
8TB
16TB
24TB(LFF)
*
13.8TB(SFF)
*
8.4TB
*
Internal plus
External
324TB
(8TB internal on
P212 + 100TB
external on P212
+ 216TB external
on additional
P812)
848TB
(16TB internal
on P410 + 184TB
external on P410
+ 648TB external
on three
additional
P812s)
304B
*
(24TB internal
on P212 + 80TB
external on P212
+ 200TB external
on additional
P411)
* Two SFF drives
in rear slots of
unit with pre-
installed OS not
included in
capacity totals
811.8TB
*
(13.8TB internal
on P812 + 166TB
external on P812
+ 200TB external
on additional
P411+ 432TB
external on two
additional
P812s)
*Two SFF drives
in front slots of
unit with pre-
installed OS not
1.006PB
*
( 8.4TB internal
on P812 + 166TB
external on P812
+ 400TB external
on two
additional P411s
+ 432TB on two
additional
P812s)
*Two SFF drives
in front slots of
unit with pre-
installed OS not
QuickSpecs
HP X1000 G2 Network Storage Systems
Standard Features
DA - 13839 North America — Version 11 — December 28, 2012
Page 15
included in
capacity totals
included in
capacity totals
Power Supply
X1400 G2 X1500 G2 X1600 G2 X1800 G2
400 Watts, Non Hot Plug
(optional redundant - see
note in options sections
on adding redundant
power )
750 Watts, Hot Plug
(optional redundant)
750 Watts, Hot Plug
Redundant
750 Watts, Hot Plug
Redundant
Power Cords
X1400 G2 X1500 G2 X1600 G2 X1800 G2
One high voltage power
cord (IEC C13 to C14)
standard
Regional or country
specifc power cord
required
Two high voltage power
cords (IEC C13 to C14)
standard
Two high voltage power
cords (IEC C13 to C14)
standard
NOTE:
X1400 G2, X1600 G2, X1800 G2 Network Storage Systems are primarily connected to PDUs in racks,
so they ship standard with only PDU C-14 to C13 power cord(s). However, you may alternatively plug an
X1000 G2 Network Storage System into a wall receptacle by ordering a separate power cord. For the
X1500, a regional or country specific power cord option must be ordered with the product. (see power cord
options section for more information).
System Fans
X1400 G2 X1500 G2 X1600 G2 X1800 G2
Non-hot plug, Non-
redundant
Non-hot plug, (optional
redundant)
Non-hot plug, redundant
Fully redundant hot plug
(N+1)
Form Factor
X1400 G2 X1500 G2 X1600 G2 X1800 G2
Rack Mount (1U), (1.75
in/4.45 cm)
Tower (5U)
Rack Mount (2U), (3.5
in/8.89 cm)
Rack Mount (2U), (3.5
in/8.89 cm)
Rack Airflow
Requirements
Rack 10000 series Cabinets
The increasing power of new high-performance processor technology requires increased cooling efficiency
for rack-mounted servers. The 10000 Series Racks provide enhanced airflow for maximum cooling,
allowing these racks to be fully loaded with servers using the latest processors.
CAUTION:
If a third-party rack is used, observe the following additional requirements to ensure adequate
airflow and to prevent damage to the equipment:
Front and rear doors: If your 42U server rack includes closing front and rear doors, you must allow 5,350
sq cm (830 square inches) of hole evenly distributed from top to bottom to permit adequate airflow
(equivalent to the required 64 percent open area for ventilation).
Side: The clearance between the installed rack component and the side panels of the rack must be a
minimum of 7 cm (2.75 inches)
CAUTION:
Always use blanking panels to fill all remaining empty front panel U-spaces in the rack. This
arrangement ensures proper airflow. Using a rack without blanking panels results in improper cooling that
can lead to thermal damage.
QuickSpecs
HP X1000 G2 Network Storage Systems
Standard Features
DA - 13839 North America — Version 11 — December 28, 2012
Page 16
NOTE:
For additional information, refer to the Setup and Installation Guide or the Documentation CD
provided with the server, or to the server documentation located in the Support section at the following
URL:
http://h18000.www1.hp.com/products/servers/proliantdl145/index.html
Telco and Threaded Hole
Rack Support
Telco Rack Kit:
NOTE:
Support for all 2-post Telco racks requires the use of the standard rack kit and an additional option
kit from Rack Solutions:
http://www.racksolutions.com/hp
QuickSpecs
HP X1000 G2 Network Storage Systems
Standard Features
DA - 13839 North America — Version 11 — December 28, 2012
Page 17
HP Data Protector
Software
HP Data Protector Software is enterprise data protection and disaster recovery, ensuring recovery from
any disruption. Data Protector integrates a variety of techniques to eliminate backup and recovery
windows. The capabilities to eliminate planned downtime range from online backup and backup of open
files to zero-downtime, zero-impact backup. The software provides industry-leading instant recovery as
well as several disaster recovery alternatives to eliminate unplanned downtime, allowing recovery of
entire data centers in minutes.
Data Protector is enabling organizations to reduce costs by automating routine tasks to maximize the
effectiveness of the data protection staff. For the price of an entry-level product, it provides the enterprise
functionality customers need. Data Protector scales from single server to distributed enterprise, covering
an extensive range of heterogeneous applications, operating environments and storage configurations
with a single solution.
All HP X1000 G2 Network Storage Systems support using Data Protector as a backup software solution.
For more information on HP Data Protector:
http://h18006.www1.hp.com/products/storage/software/dataprotector/index.html
HP Storage Essentials
NAS Manager Software
Provides comprehensive Network Attached Storage (NAS) management capabilities for X1000 Network
Storage Systems. Visualize your distributed HP NAS solutions and centrally manage their capacity,
performance, events, and dependencies to ensure NAS availability and performance and unify SAN and
NAS management. For more information go to:
Storage Essentials - NAS Manager
QuickSpecs
HP X1000 G2 Network Storage Systems
Optional Software
DA - 13839 North America — Version 11 — December 28, 2012
Page 18
These models come with factory-selected drives and the Microsoft Windows Storage Server 2008 R2, Standard Edition operating
system pre-installed
Choose a Pre-configured Model
NOTE:
All options ship separately and are not factory integrated
NOTE:
Model names are based on raw storage capacity, not available user storage.
HP X1000 G2 Network Storage Systems
Common Specifications
Operating System
Microsoft® Windows Storage Server 2008 R2 Standard x64 Edition with
Microsoft iSCSI Software Target and HP X1000 Automated Storage Manager
Software
Optical Drive
For QuickRestore disaster recovery on X1400 G2 a DVD-RW is included. X1500
G2 models include a DVD-ROM. X1600 G2 and X1800 G2 models do not ship
with an optical drive. A USB 2.0 compatible external DVD reader must be used
for Quick Restore recovery. Any USB 2.0 compatible DVD reader will work or
customers may purchase the HP dvd556s 8X USB Powered Slim Multiformat
DVD Writer separately.
Management
Microsoft Management Console (MMC)-based user interface (also accessible
via HTTPS)
Remote Access
HP ProLiant Integrated Lights-Out with Advanced Pack license; Telnet; Remote
Desktop
X1400 G2 Models
Common Specifications
Processor
Intel® Xeon® Processor E5503 2.00 GHz; 1 standard
Memory
4GB (2 x 2GB)
Storage Controller
Smart Array P212 with 256MB of BBWC Controller with 1 internal SAS port for
internal drives and 1 external SAS port for expansion
Internal Drive Support
Standard four 3.5" (Large Form Factor) hot-plug SATA or SAS hard drives
Network Ports
2 x Gigabit Ethernet
Expansion Slots
2 x PCIe (one slot occupied by Smart Array Controller)
Form Factor
1U Rack
HP X1400 G2 4TB SATA Network Storage System
Internal Storage: 4 x 1TB SATA 7.2K 3.5" MDL hot-plug HDDs -Drives factory configured as RAID 5 with OS pre-
installed
BV854A
HP X1400 G2 8TB SATA Network Storage System
Internal Storage: 4 x 2TB SATA 7.2K 3.5" MDL hot-plug HDDs - Drives factory configured as RAID 5 with OS pre-
installed
BV855A
QuickSpecs
HP X1000 G2 Network Storage Systems
Models Pre-configured
DA - 13839 North America — Version 11 — December 28, 2012
Page 19
X1500 G2 Models
Common Specifications
Processor
Intel® Xeon® Processor E5503 2.00 GHz; 1 standard, up to 2 supported
Memory
4GB (2 x 2GB)
Storage Controller
Smart Array P410 with 256MB of BBWC Controller with 2 internal SAS port s
for internal drives, no external SAS port
Internal Drive Support
Standard eight 3.5" (Large Form Factor) hot-plug SATA or SAS hard drives
Network Ports
2 x Gigabit Ethernet
Expansion Slots
4 x PCIe (one slot occupied by Smart Array Controller)
Form Factor
5U Tower
HP X1500 G2 4TB SATA Network Storage System
Internal Storage: 4 x 1TB SATA 7.2K 3.5" MDL hot-plug HDDs - Drives factory configured as RAID 5 with OS pre-
installed
NOTE:
Up to 4 additional internal LFF HDDs supported in open slots.
BV857A
HP X1500 G2 8TB SATA Network Storage System
Internal Storage: 4 x 2TB SATA 7.2K 3.5" MDL hot-plug HDDs - Drives factory configured as RAID 5 with OS pre-
installed
NOTE:
Up to 4 additional internal LFF HDDs supported in open slots.
BV858A
NOTE:
A regional or country specific power cord option must be ordered with X1500. See power cord options
section.
X1600 G2 Models
Common Specifications
Processor
Intel® Xeon® Processor E5520 2.26 GHz; 1 standard, up to 2 supported
Memory
6GB (3 x 2GB)
Storage Controller
Smart Array P212 with 512MB BBWC Controller with 1 internal SAS port for
internal drives and 1 external SAS port for expansion (LFF front slot models)
Smart Array P812 with 1GB FBWC Controller with 2 internal SAS ports for
internal drives and 4 external SAS ports for expansion (SFF front slot models)
Internal Drive Support
Four models with front twelve (12) 3.5" Large Form Factor (LFF) hot-plug drive
bays supporting SAS or SATA and rear two (2) 2.5" Small Form Factor (SFF)
hot-plug drive bays
Two models with twenty five (25) 2.5" Small Form Factor (SFF) hot-plug drive
bays supporting SAS or SATA
Network Ports
2 x Gigabit Ethernet
Expansion Slots
2 x PCIe (one slot occupied by Smart Array Controller) - LFF front slot models
4 x PCIe (one slot occupied by Smart Array Controller) - SFF front slot models
Redundancy
Hot plug redundant power supply
Form Factor
2U Rack
QuickSpecs
HP X1000 G2 Network Storage Systems
Models Pre-configured
DA - 13839 North America — Version 11 — December 28, 2012
Page 20
HP X1600 G2 Network Storage System
Internal Storage: 2 x146GB 6G 15K 2.5" SAS DP ENT hot-plug HDDs in rear drive slots factory configured as RAID
1with pre-installed OS
NOTE:
up to 12 additional internal LFF HDDs supported in open front slots
BV859A
HP X1600 G2 6TB SATA Network Storage System
Internal Storage: 2 x146GB 6G 15K 2.5" DP ENT hot-plug HDDs in rear drive slots factory configured as RAID 1 with
pre-installed OS
Internal Storage: 6 x 1TB SATA 7.2K 3.5" MDL hot-plug HDDs in front drive slots
NOTE:
Up to 6 additional internal LFF HDDs supported in open front slots.
BV860A
HP X1600 G2 12TB SATA Network Storage System
Internal Storage: 2 x146GB 6G 15K 2.5" DP ENT hot-plug HDDs in rear drive slots factory configured as RAID 1 with
pre-installed OS
Internal Storage: 6 x 2TB SATA 7.2K 3.5" MDL hot-plug HDDs in front drive slots
BV861A
HP X1600 G2 24TB SATA Network Storage System
Internal Storage: 2 x146GB 6G 15K 2.5" DP ENT hot-plug HDDs in rear drive slots factory configured as RAID1 with
pre-installed OS
Internal Storage: 12 x 2TB SATA 7.2K 3.5" MDL hot-plug HDDs in front drive slots
BV862A
HP X1600 G2 6TB SAS Network Storage System
Internal Storage: 2 x146GB 6G 15K 2.5" DP ENT hot-plug HDDs in front drive slots factory configured as RAID 1 with
pre-installed OS
Internal Storage: 10 x 600GB 6G SAS 10K 2.5" DP ENT hot-plug HDDs in front drive slots
NOTE:
Up to 13 additional internal SFF HDDs supported in open front slots.
BV864A
HP X1600 G2 13.8TB SAS Network Storage System
Internal Storage: 2 x146GB 6G 15K 2.5" DP ENT hot-plug HDDs in front drive slots factory configured as RAID1 with
pre-installed OS
Internal Storage: 23 x 600GB 6G SAS 10K 2.5" DP ENT hot-plug HDDs in front drive slots
BV866A
X1800 G2 Models
Common Specifications
Processor
Intel® Xeon® Processor E5640 2.66 GHz; 1 standard, up to 2 supported
Memory
6GB (3 x 2GB)
Storage Controller
Embedded Smart Array P812 with 1GB FBWC Controller with 2 internal SAS
ports for internal drives plus integrated Smart Array Controller with 4 external
SAS ports for expansion
Internal Drive Support
Sixteen (16) 2.5" Small Form Factor (SFF) hot-plug drive bays supporting SAS
or SATA
Network Ports
4 x Gigabit Ethernet
Expansion Slots
6 x PCIe (one slot occupied by Smart Array Controller and one slot occupied by
SAS expander)
Redundancy
Hot plug redundant power supply and fully redundant (N+1) hot plug fans
Form Factor
2U Rack
QuickSpecs
HP X1000 G2 Network Storage Systems
Models Pre-configured
DA - 13839 North America — Version 11 — December 28, 2012
Page 21
HP X1800 G2 Network Storage System
Internal Storage: 2 x146GB 6G 15K 2.5" DP ENT hot-plug HDDs in front drive slots factory configured as RAID1 with
pre-installed OS
NOTE:
Up to 14 additional internal SFF drives supported in open front slots.
BV868A
HP X1800 G2 4.8TB SAS Network Storage System
Internal Storage: 2 x146GB 6G 15K 2.5" DP ENT hot-plug HDDs in front drive slots factory configured as RAID1 with
pre-installed OS
Internal Storage: 8 x 600GB 6G SAS 10K SFF DP hot-plug HDDs
NOTE:
Up to 6 additional internal SFF drives supported in open front slots.
BV869A
QuickSpecs
HP X1000 G2 Network Storage Systems
Models Pre-configured
DA - 13839 North America — Version 11 — December 28, 2012
Page 22
These models come with zero drives standard and allow you to select drive quantity, type, and capacity to be integrated at the factory.
Choose a Base Model, then Select Hard Drives
NOTE:
You must select a minimum number of drives with each Base model to accommodate factory installation of the Microsoft
Windows Storage Server 2008 R2 operating system. All drives must be of the same type and a capacity greater than 146GB
NOTE:
Options (other than drives selected as part of the configure-to-order process) ship separately and are not factory integrated.
HP X1000 G2 Network Storage Systems (Base models)
Common Specifications
Operating System
Microsoft Windows Storage Server 2008 R2, Standard x64 Edition with
Microsoft iSCSI Software Target and HP X1000 Automated Storage Manager
Software
Optical Drive
For QuickRestore disaster recovery on X1400 G2 a DVD-RW is included. X1500
G2 models include a DVD-ROM . X1600 G2 and X1800 G2 models do not ship
with an optical drive. A USB 2.0 compatible external DVD reader must be used
for Quick Restore recovery. Any USB 2.0 compatible DVD reader will work or
customers may purchase the HP dvd556s 8X USB Powered Slim Multiformat
DVD Writer separately.
Management
Microsoft Management Console (MMC)-based user interface (also accessible
via HTTPS)
Remote Access
HP ProLiant Integrated Lights-Out with Advanced Pack license; Telnet; Remote
Desktop
Factory Racking
The factory can integrate select X1000 G2 Network Storage Systems with
other HP products such as HP ProLiant Servers, P2000/D2000 arrays, or
Enterprise Virtual Arrays.
NOTE:
#0D1 will appear after the part number on the sales order if HP factory
integration is supported.
X1400 G2 Network Storage System
BV853A
NOTE:
This model does not include pre-configured HDDs. HDDs must be selected as a Factory Integrated Option
(FIO) from the list below. For BV853A, a minimum of 4 HDDs of the same type and a capacity greater than 146GB
must be ordered for integration. BV853A cannot be ordered/shipped with less than 4 HDDs. The four drives will be
factory configured as RAID 5 with the OS pre-installed.
QuickSpecs
HP X1000 G2 Network Storage Systems
Models (Drives Configure-to-Order)
DA - 13839 North America — Version 11 — December 28, 2012
Page 23
Specifications
Processor
Intel® Xeon® Processor E5503 2.00 GHz; 1 standard
Memory
4GB (1 x 2GB)
Storage Controller
Smart Array P212 with 256 MB BBWC Controller with 1 internal SAS port for
internal drives and 1 external SAS port for expansion
Internal Drive Support
Standard four 3.5" (Large Form Factor) hot-plug SATA or SAS hard drives
Network Ports
2 x Gigabit Ethernet
Expansion Slots
2 x PCIe (one slot occupied by Smart Array Controller)
Form Factor
1U Rack
Drive Options
Minimum Number of
Drives Required
4
Maximum Number of
Drives Allowed
4
SAS Enterprise (ENT) and Midline (MDL) Drives 3.5", Hot Plug
HP 600GB 6G SAS 15K rpm LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
516828-B21
HP 450GB 6G SAS 15K rpm LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
516816-B21
HP 300GB 6G SAS 15K rpm LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
516814-B21
HP 3TB 6G SAS 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive
625031-B21
HP 2TB 6G SAS 7.2K rpm LFF (3.5-inch) Dual Port Midline 1yr Warranty Hard Drive
507616-B21
HP 1TB 6G SAS 7.2K rpm LFF (3.5-inch) Dual Port Midline 1yr Warranty Hard Drive
507614-B21
SATA Midline (MDL) and Entry (ETY) Drives 3.5", Hot Plug
HP 3TB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive
628059-B21
HP 2TB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive
507632-B21
HP 1TB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive
454146-B21
HP 500GB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive
458928-B21
HP 250GB 3G SATA 7.2K rpm LFF (3.5-inch) Entry 1yr Warranty Hard Drive
571230-B21
HP 160GB 3G SATA 7.2K rpm LFF (3.5-inch) Entry 1yr Warranty Hard Drive
458945-B21
SATA Hot Plug 3.5" Midline (MDL) Solid State Drives
HP 120GB 3G SATA LFF (3.5-inch) Midline 1yr Warranty Solid State Drive
570763-B21
X1500 G2 Network Storage System
BV856A
NOTE:
This model does not include pre-configured HDDs. HDDs must be selected as a Factory Integrated Option
(FIO) from the list below. For BV856A, a minimum of 2 HDDs of the same type and capacity greater than 146GB must
be ordered for integration. BV856A cannot be ordered/shipped with less than 2 HDDs. The two drives will be factory
configured as RAID 1 with the OS pre-installed.
NOTE:
A country specific power cord option must be ordered with X1500. See power cord options section.
QuickSpecs
HP X1000 G2 Network Storage Systems
Models (Drives Configure-to-Order)
DA - 13839 North America — Version 11 — December 28, 2012
Page 24
Specifications
Processor
Intel® Xeon® Processor E5503 2.00 GHz; 1 standard
Memory
4GB (2 x 2GB)
Storage Controller
Smart Array Controller P410 with 256MB BBWC with 2 internal SAS port for
internal drives, no external SAS ports
Internal Drive Support
Standard eight 3.5" (Large Form Factor) hot-plug SATA or SAS hard drives
Network Ports
2 x Gigabit Ethernet (1 shared with iLO2)
Expansion Slots
2 x PCIe
Form Factor
1U Rack
Drive Options
Minimum Number of
Drives Required
2
Maximum Number of
Drives Allowed
8
SAS Enterprise (ENT) and Midline (MDL) Drives 3.5", Hot Plug
HP 600GB 6G SAS 15K rpm LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
516828-B21
HP 450GB 6G SAS 15K rpm LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
516816-B21
HP 300GB 6G SAS 15K rpm LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
516814-B21
HP 3TB 6G SAS 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive
625031-B21
HP 2TB 6G SAS 7.2K rpm LFF (3.5-inch) Dual Port Midline 1yr Warranty Hard Drive
507616-B21
HP 1TB 6G SAS 7.2K rpm LFF (3.5-inch) Dual Port Midline 1yr Warranty Hard Drive
507614-B21
SATA Midline (MDL) and Entry (ETY) Drives 3.5", Hot Plug
HP 3TB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive
628059-B21
HP 2TB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive
507632-B21
HP 1TB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive
454146-B21
HP 500GB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive
458928-B21
HP 250GB 3G SATA 7.2K rpm LFF (3.5-inch) Entry 1yr Warranty Hard Drive
571230-B21
HP 160GB 3G SATA 7.2K rpm LFF (3.5-inch) Entry 1yr Warranty Hard Drive
458945-B21
SATA Hot Plug 3.5" Midline (MDL) Solid State Drives
HP 120GB 3G SATA LFF (3.5-inch) Midline 1yr Warranty Solid State Drive
570763-B21
X1600 G2 Network Storage System (LFF)
BV859A
NOTE:
This model includes two 146GB SFF HDDs in rear of unit factory configured as RAID1 with the OS pre-
installed. Up to 12 LFF slots are available in the front for data storage.
QuickSpecs
HP X1000 G2 Network Storage Systems
Models (Drives Configure-to-Order)
DA - 13839 North America — Version 11 — December 28, 2012
Page 25
Specifications
Processor
Intel® Xeon® Processor E5520 2.26 GHz; 1 standard, up to 2 supported
Memory
6GB (3 x 2GB)
Storage Controller
Embedded Smart Array P212 with 512MB BBWC Controller with 1 internal SAS
port for internal drives plus integrated Smart Array Controller with 1 external
SAS ports for expansion
Internal Drive Support
Front twelve (12) 3.5" Large Form Factor (LFF) hot-plug drive bays supporting
SAS or SATA and rear two (2) 2.5" Small Form Factor (SFF) hot-plug drive bays
Network Ports
2 x Gigabit Ethernet
Expansion Slots
2 x PCIe (one slot occupied by Smart Array Controller)
Redundancy
Hot plug redundant power supply
Form Factor
2U Rack
Drive Options
Minimum Number of
Drives Required
0
Maximum Number of
Drives Allowed
12
SAS Enterprise (ENT) and Midline (MDL) Drives 3.5", Hot Plug
HP 600GB 6G SAS 15K rpm LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
516828-B21
HP 450GB 6G SAS 15K rpm LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
516816-B21
HP 300GB 6G SAS 15K rpm LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
516814-B21
HP 3TB 6G SAS 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive
625031-B21
HP 2TB 6G SAS 7.2K rpm LFF (3.5-inch) Dual Port Midline 1yr Warranty Hard Drive
507616-B21
HP 1TB 6G SAS 7.2K rpm LFF (3.5-inch) Dual Port Midline 1yr Warranty Hard Drive
507614-B21
SATA Midline (MDL) and Entry (ETY) Drives 3.5", Hot Plug
HP 3TB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive
628059-B21
HP 2TB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive
507632-B21
HP 1TB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive
454146-B21
HP 500GB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive
458928-B21
HP 250GB 3G SATA 7.2K rpm LFF (3.5-inch) Entry 1yr Warranty Hard Drive
571230-B21
HP 160GB 3G SATA 7.2K rpm LFF (3.5-inch) Entry 1yr Warranty Hard Drive
458945-B21
SATA Hot Plug 3.5" Midline (MDL) Solid State Drives
HP 120GB 3G SATA LFF (3.5-inch) Midline 1yr Warranty Solid State Drive
570763-B21
X1800 G2 Network Storage System
BV868A
NOTE:
This model includes two 146GB SFF HDDs factory configured as RAID 1 with the OS pre-installed. Up to 14
SFF slots are available in the front for data storage.
QuickSpecs
HP X1000 G2 Network Storage Systems
Models (Drives Configure-to-Order)
DA - 13839 North America — Version 11 — December 28, 2012
Page 26
Specifications
Processor
Intel® Xeon® Processor E5640 2.66 GHz; 1 standard, up to 2 supported
Memory
6GB (3 x 2GB)
Storage Controller
Embedded Smart Array P812 with 1GB FBWC Controller with 2 internal SAS
ports for internal drives plus integrated Smart Array Controller with 4 external
SAS ports for expansion
Internal Drive Support
Front sixteen (16) 2.5" Small Form Factor (SFF) hot-plug drive bays supporting
SAS or SATA
Network Ports
4 x Gigabit Ethernet
Expansion Slots
6 x PCIe (one slot occupied by Smart Array Controller and one slot occupied by
SAS expander)
Redundancy
Hot plug redundant power supply and fully redundant (N+1) hot plug fans
Form Factor
2U Rack
Drive Options
Minimum Number of
Drives Required
0
Maximum Number of
Drives Allowed
14
SAS Enterprise (ENT) and Midline (MDL) Drives 2.5" Drives, Hot Plug
HP 900GB 6G SAS 10K rpm SFF (2.5-inch) Enterprise 3yr Warranty Hard Drive
619291-B21
HP 600GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
581286-B21
HP 450GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
581284-B21
HP 300GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
507127-B21
HP 146GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
512547-B21
HP 146GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
507125-B21
HP 72GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
512545-B21
HP 1TB 6G SAS 7.2K rpm SFF (2.5-inch) Hot Plug Midline 1yr Warranty Hard Drive
605835-B21
HP 500GB 6G SAS 7.2K rpm SFF (2.5-inch) Dual Port Midline 1yr Warranty Hard Drive
507610-B21
SATA Hot Plug Midline (MDL and Entry (ETY) Drives
HP 1TB 3G SATA 7.2K rpm SFF (2.5-inch) Hot Plug Midline 1yr Warranty Hard Drive
625609-B21
HP 500GB 3G SATA 7.2K rpm SFF (2.5-inch) Midline 1yr Warranty Hard Drive
507750-B21
SATA Hot Plug Midline (MDL) Solid State Drives
HP 120GB 3G SATA SFF (2.5-inch) Midline 1yr Warranty Solid State Drive
572073-B21
QuickSpecs
HP X1000 G2 Network Storage Systems
Models (Drives Configure-to-Order)
DA - 13839 North America — Version 11 — December 28, 2012
Page 27
The following options are available for both pre-configured and drive configure-to-order models
NOTE:
Options ship separately and are not factory integrated
NOTE:
Carefully match options to your model to ensure compatibility
Add Another Processor
You can add a second processor to X1500 G2, X1600 G2 and X1800 G2 models
NOTE:
X1400 G2 models support one processor only.
X1500 G2
HP ML330 G6 Intel® Xeon® E5503 (2.0GHz/2-core/80W/4MB) Processor Kit
603974-B21
X1600 G2
HP DL180 G6 Intel® Xeon® E5520 (2.26GHz/4-core/8MB/80W) Processor Kit
508342-B21
X1800 G2
HP DL380 G7 Intel® Xeon® E5640 (2.66GHz/4-core/12MB/80W) Processor Kit
587480-B21
Add More Memory
NOTE:
All models are expandable to 32GB (limited by O/S license).
NOTE:
Number of available DIMM sockets varies by model.
X1400 G2 / X1500 G2 /
X1600 G2 / X1800 G2
Registered DIMMs (RDIMMs)
HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit
500656-B21
HP 4GB (1x4GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit
500658-B21
HP 4GB (1x4GB) Single Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit
593339-B21
HP 4GB (1x4GB) Single Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power
Memory Kit
NOTE:
Low Voltage DIMMs can only be used with Intel® Xeon® processor 5600 series
processors.
604504-B21
HP 8GB (1x8GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit
500662-B21
HP 8GB (1x8GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power
Memory Kit
NOTE:
Low Voltage DIMMs can only be used with Intel® Xeon® processor 5600 series
processors.
604506-B21
HP 16GB (1x16GB) Quad Rank x4 PC3-8500 (DDR3-1066) Registered CAS-7 Memory Kit
500666-B21
NOTE:
All DDR3 memory option kits consist of one DIMM per kit. For detailed memory
configuration rules and guidelines, please use the Online DDR3 Memory Configuration
Tool:
www.hp.com/go/ddr3memory-configurator
.
NOTE:
Kits described as LP include Low Power DIMMs. For more information on ProLiant
Energy Efficient Features, see:
www.hp.com/go/proliant-energy-efficient
NOTE:
PC3L is a low voltage memory.
QuickSpecs
HP X1000 G2 Network Storage Systems
Options
DA - 13839 North America — Version 11 — December 28, 2012
Page 28
Add a Network Adapter
NOTE:
Expansion slot availability varies by model.
NOTE:
Multifunction Server Adapters support the installed Microsoft Windows Server Scalable Networking Pack, which enables TCP
Chimney offload, Receive-side Scaling (RSS), and Network Direct Memory Access (NetDMA) features.
X1400 G2 / X1500 G2 /
X1600 G2 / X1800 G2
Gigabit Ethernet adapters
HP NC360T PCI Express Dual Port Gigabit Server Adapter
412648-B21
HP NC364T PCI Express Quad Port Gigabit Server Adapter
435508-B21
HP NC365T 4-port Ethernet Server Adapter
593722-B21
HP NC373F PCI Express Multifunction Gigabit Server Adapter
394793-B21
HP NC373T PCI Express Multifunction Gigabit Server Adapter
394791-B21
HP NC375T PCI Express Quad Port Gigabit Server Adapter
538696-B21
HP NC382T PCI Express Dual Port Multifunction Gigabit Server Adapter
458492-B21
10 Gigabit Ethernet Adapters
NOTE:
A minimum of two Gigabytes (2 GB) of server memory is required per each
adapter.
NOTE:
Direct Attach Cable (DAC) for copper environments or fiber transceivers and
cables for fiber-optic environments must be purchased separately.
HP NC522SFP Dual Port 10GbE Gigabit Server Adapter
468332-B21
HP NC550SFP Dual Port 10GbE Server Adapter
581201-B21
HP NC523SFP 10Gb 2-port Server Adapter
593717-B21
HP NC552SFP 10Gb 2-port Ethernet Server Adapter
614203-B21
HP 10 GbE PCI-e G2 Dual Port Network Interface Card
516937-B21
NOTE:
Please see the QuickSpecs for Technical Specifications and additional
information:
www.hp.com/go/ProLiantNICs
X1400 G2 / X1800 G2
HP NC112T PCIe Gigabit Server Adapter
503746-B21
HP Security - TPM
HP Trusted Platform Module Option Kit
488069-B21
Add More Storage
HP X1000 G2 Network Storage Systems come standard with at least one installed Smart Array Controller that supports internal drives.
The Smart Array Controllers in the X1400 G2, X1600 G2 and X1800 G2 also have external ports for expansion to external storage.
NOTE:
Expansion slot availability varies by model.
NOTE:
For the X1400 G2, adding a second Smart Array controller with BBWC cannot be done as there is no space to accommodate the
battery pack for the second SA controller.
X1400 G2 / X1500 G2 /
X1600 G2 / X1800 G2
SAS Controllers
Smart Array P800 Controller
HP Smart Array P800/512 BBWC 2-ports Int/2-ports Ext PCIe x8 SAS Controller
381513-B21
HP Smart Array P212 Controller
HP Smart Array P212/256 1-ports Int/1-ports Ext PCIe x8 SAS Controller
462834-B21
HP Smart Array P212/ZM 1-ports Int/1-ports Ext PCIe x8 SAS Controller
462828-B21
HP Smart Array P411 Controller
QuickSpecs
HP X1000 G2 Network Storage Systems
Options
DA - 13839 North America — Version 11 — December 28, 2012
Page 29
HP Smart Array P411/256 2-ports Ext PCIe x8 SAS Controller
462830-B21
HP Smart Array P411/512 BBWC 2-ports Ext PCIe x8 SAS Controller
462832-B21
HP Smart Array P411/512 FBWC 2-ports Ext PCIe x8 SAS Controller
578229-B21
HP Smart Array P411/1G FBWC 2-ports Ext PCIe x8 SAS Controller
572531-B21
Smart Array P812 Controller
HP Smart Array P812/1G FBWC 2-ports Int/4-ports Ext PCIe x8 SAS Controller
487204-B21
Optional Upgrades
HP 256MB P-series Cache Upgrade
NOTE:
Supported on HP Smart Array P212 Controller
462968-B21
HP 512MB P-Series Battery Backed Write Cache Upgrade
462967-B21
HP 650 mAh P-Series Battery
NOTE:
For X1600 G2, when adding a second SmartArray P212 or P411 Controller and
BBWC, a small spacer must be removed from the second battery holder. This is easily
accomplished using a flat blade screw driver.
462969-B21
NOTE:
Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/13203_na/13203_na.html
(Smart Array P212 Controller)
http://h18000.www1.hp.com/products/quickspecs/13201_na/13201_na.html
(Smart Array P411 Controller)
http://h18000.www1.hp.com/products/quickspecs/12616_na/12616_na.html
(Smart Array P800 Controller)
SAS HBAs
HP Modular Smart Array SC08e 2-ports Ext PCIe x8 SAS Host Bus Adapter
NOTE:
This is a 2 x4 External Port HBA
NOTE:
This is only approved for the HP P2000 G3 SAS Modular Smart Array. 614988-
B21
NOTE:
Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18004.www1.hp.com/products/quickspecs/13651_na/13651_na.html
(SC08e 6Gb HBA)
614988-B21
SCSI HBAs
HP U320e SCSI Dual Channel Host Bus Adapter
NOTE:
The AH62A is only supported on the X1400 G2 and X1600 G2.
AH627A
HP SC11Xe Ultra320 Single Channel/ PCIe x4 SCSI Host Bus Adapter
NOTE:
Recommended HBA for SCSI tape drive connect.
NOTE:
Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/12566_na/12566_na.html
(SC11Xe HBA)
412911-B21
Fibre Channel HBAs
NOTE:
For more information on Fibre Channel HBAs, see:
http://h18006.www1.hp.com/storage/saninfrastructure/hba.html
.
Brocade Fibre Channel HBAs
HP 81B PCIe 8Gb Fibre Channel Single Port Host Bus Adapter
AP769A
HP 82B PCIe 8Gb Fibre Channel Dual Port Host Bus Adapter
AP770A
QuickSpecs
HP X1000 G2 Network Storage Systems
Options
DA - 13839 North America — Version 11 — December 28, 2012
Page 30
HP 41B PCIe 4Gb Fibre Channel Single Port Host Bus Adapter
AP767A
HP 42B PCIe 4Gb Fibre Channel Dual Port Host Bus Adapter
AP768A
Emulex Fibre Channel HBAs
HP 81E 8Gb Single Port PCI-e Fibre Channel Host Bus Adapter
AJ762A
HP 82E 8Gb Dual Port PCI-e Fibre Channel Host Bus Adapter
AJ763A
HP FC2142SR 4Gb PCIe Host Bus Adapter
A8002A
HP FC2242SR 4Gb PCIe DC Host Bus Adapter
A8003A
QLogic Fibre Channel HBAs
HP 81Q PCI-e Fibre Channel Host Bus Adapter
AK344A
HP 82Q 8Gb Dual Port PCI-e Fibre Channel Host Bus Adapter
AJ764A
HP FC1142SR 4Gb PCIe Host Bus Adapter
AE311A
HP FC1242SR 4Gb PCIe DC Host Bus Adapter
AE312A
X1400 G2 / X1500 G2/
X1800 G2
SAS HBAs
HP SC08Ge 2-ports Ext PCIe x8 SAS Host Bus Adapter
488765-B21
NOTE:
Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18004.www1.hp.com/products/quickspecs/13082_na/13082_na.html
(SC08Ge HBA)
HP D2000 Disk Enclosures
HP D2600 Disk Enclosure
AJ940A
HP D2700 Disk Enclosure
AJ941A
HP D2600 w/12 450GB 6G SAS 15K LFF Dual Port HDD 5.4TB Bundle
AW522A
HP D2600 w/12 600GB 6G SAS 15K LFF Dual Port HDD 7.2TB Bundle
AW523A
HP D2700 w/25 146GB 6G SAS 15K SFF Dual Port HDD 3.6TB Bundle
AW524A
HP D2700 w/25 300GB 6G SAS 10K SFF Dual Port HDD 7.5TB Bundle
AW525A
HP D2700 w/25 500GB 6G SAS 7.2K SFF Dual Port MDL HDD 12.5TB Bundle
AW526A
NOTE:
Please see the following QuickSpecs for Technical Specifications additional
D2000 hard drives, controllers, options and cable information:
http://h18000.www1.hp.com/products/quickspecs/13404_na/13404_na.html
MDS600
HP MDS600 with two Dual Port I/O Module System
AJ866A
HP MDS 600 Dual I/O Module Option Kit
AP763A
HP MDS 600 with (35) 1TB LFF SATA Hard Disk Drive Bundle
AP764A
HP MDS 600 with (35) 450GB LFF SAS Hard Disk Drive Bundle
AP765A
HP MDS 600 with (35) 300GB LFF SAS Hard Disk Drive Bundle
AX670A
HP MDS600 with (70) 1TB LFF SATA Hard Disk Drive Bundle
AX668A
HP MDS 600 with (70) 450GB LFF SAS Hard Disk Drive Bundle
AX669A
HP MDS 600 with (70) 300GB LFF SAS Hard Disk Drive Bundle
AX671A
QuickSpecs
HP X1000 G2 Network Storage Systems
Options
DA - 13839 North America — Version 11 — December 28, 2012
Page 31
NOTE:
Please see the following QuickSpecs for Technical Specifications additional
MDS600 hard drive, controllers, options and cable information:
http://h18000.www1.hp.com/products/quickspecs/13257_na/13257_na.html
X1400 G2 / X1500 G2 /
X1600 G2 / X1800 G2
HP Modular Smart Array External Enclosures
HP 60 Modular Smart Array (MSA60)
NOTE:
Rack-mountable 12 drive (3.5" SAS/SATA) 2U enclosure with 3Gb/s SAS host
connectivity and redundant power supplies.
418408-B21
HP MSA60 1.8TB SAS HDD Bundle (MSA60 w/12 146GB 15K SAS LFF HDD)
AG822A
HP MSA60 9TB SATA HDD Bundle (MSA60 w/12 750GB 15K SATA LFF HDD)
AG823A
HP MSA60 3.6TB SAS HDD Bundle (MSA60 w/12 300GB 15K SAS LFF HDD)
AG824A
HP 70 Modular Smart Array (MSA70)
NOTE:
Rack-mountable 25 drive (2.5" SAS/SATA) 2U enclosure with 3Gb/s SAS host
connectivity and redundant power supplies.
418800-B21
HP MSA70 1.8TB SAS HDD Bundle (MSA70 w/25 72GB 15K SAS SFF HDD)
AG825A
HP MSA70 3.6TB SAS HDD Bundle (MSA70 w/25 146GB 10K SAS SFF HDD)
AG893A
NOTE:
Please see the following QuickSpecs for Technical Specifications additional
information:
http://h18000.www1.hp.com/products/quickspecs/12627_na/12627_na.html
(MSA60)
http://h18000.www1.hp.com/products/quickspecs/12652_na/12652_na.html
(MSA70)
X1400 G2 / X1500 G2 /
X1600 G2 / MSA60
Large Form Factor (LFF) Hard Drives
SAS Enterprise (ENT) Drives 3.5", Hot Plug
HP 400GB 3G SAS 10K 3.5" DP ENT HDD
459508-B21
HP 72GB 3G SAS 15K 3.5" DP HDD
384852-B21
SATA Midline (MDL) Drives 3.5", Hot Plug
HP 2TB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive
507632-B21
HP 1TB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive
454146-B21
HP 500GB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive
458928-B21
SATA Entry (ETY) Drives 3.5", Hot Plug
HP 160GB 3G SATA 7.2K rpm LFF (3.5-inch) Entry 1yr Warranty Hard Drive
458945-B21
X1800 G2 / MSA70
Small Form Factor (SFF) Hard Drives
SAS Enterprise (ENT) Drives 2.5" Drives, Hot Plug
HP 300GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
507127-B21
HP 146GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
507125-B21
HP 72GB 3G SAS 10K SFF DP ENT HDD
384842-B21
HP 36GB 3G SAS 15K SFF DP ENT HDD
418369-B21
QuickSpecs
HP X1000 G2 Network Storage Systems
Options
DA - 13839 North America — Version 11 — December 28, 2012
Page 32
NOTE:
SAS Enterprise drives have a 3-year warranty. Please see the QuickSpecs for
Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/12244_na/12244_na.html
SATA Entry (ETY) Drives 2.5", Hot Plug
HP 250GB 3G SATA 5.4K rpm SFF (2.5-inch) Entry 1yr Warranty Hard Drive
460355-B21
HP 120GB 1.5G SATA 5.4K rpm SFF (2.5-inch) Entry 1yr Warranty Hard Drive
458924-B21
NOTE:
SATA drives have a 1 year warranty. Please see the QuickSpecs for Technical
Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/13021_na/13021_na.html
Add a Power Supply
The HP X1500 G2 Network Storage Systems comes standard with one 750W power supply. Add a second power supply for redundancy.
X1500 G2
HP 750W Common Slot High Efficiency Power Supply Kit
512327-B21
Add a Power Cord
HP X1000 G2 Network Storage Systems come standard with at least one rack (IEC-IEC) PDU power cord. If you wish to use wall outlet
power instead, you can choose a country- or region-specific power cord.
NOTE:
A regional or country specific power cord option must be ordered with X1500.
X1400 G2 / X1500
G2/X1600 G2 / X1800 G2
HP 1.83m 10A C13-UL Power Cord
AF556A
Add Optional Software
X1400 G2 / X1500 G2 /
X1600 G2 / X1800 G2
HP Data Protector Express Software
Data Protector Express is simple yet powerful backup and recovery software. It makes
it easy to protect your X1000 G2 Network Storage System and the data stored on it.
The base product is the Data Protector Express Backup Server. Installing this creates
the Data Protector Express Storage Domain and enables data protection features
within HP ASM, including backup of file shares or application stores using application-
aware snapshots to tape, disk, or other removable media target. See
http://www.hp.com/go/simplestorage
for more information.
HP Data Protector Express 4.0 Backup Server (base product)
BB117BA
HP Data Protector Express Software Options
Data Protector Express is a modular software product. Option licenses are installed to
add additional features and protect additional machines.
HP Data Protector Express 4.0 Network Server Agent
Used to add an additional machine to the Data Protector Express Storage Domain for
backup. Or, is used to add an X1000 G2 Network Storage System to an existing Data
Protector Express Storage Domain.
BB121BA
HP Data Protector Express 4.0 Network Server Agent 3 pack
BB122BA
HP Data Protector Express 4.0 Application Online Agent
Enables online protection for Microsoft Exchange Servers and Microsoft SQL Servers.
One LTU needed per machine for each application protected.
BB125BA
QuickSpecs
HP X1000 G2 Network Storage Systems
Options
DA - 13839 North America — Version 11 — December 28, 2012
Page 33
HP Data Protector Express 4.0 Bare Metal Disaster Recovery Option
Add disaster recovery protection to your X1000 G2 Network Storage System or other
machine in the Data Protector Express Storage Domain to get productive again quickly
after a disaster or failure. One LTU per machine that requires automated disaster
recovery.
BB128BA
HP Data Protector Express 4.0 D2Any2Any Option
Enable multi-tier backup between different media types. Automate the movement of
backed up data from backup media to tertiary media for longer term retention and
additional protection. Enables the X1000 G2 Network Storage System to be a disk
backup target with automatic, policy-driven movement of backup data X1000 G2
Network Storage System disk to tape.
BB130BA
HP Data Protector Express 4.0 Drive Expansion Option
Adds support for multi-drive tape libraries, virtual tape libraries and Data Protector
Express Virtual Libraries. One license required for each drive in excess of one per tape
library, virtual tape library or Virtual Library.
BB133BA
NOTE:
For more information on HP Data Protector Express Software:
http://www.hp.com/go/dataprotectorexpress
HP X1000 G2 Network
Storage Servers
HP X1000 G2 Windows Storage Server 2008 R2 Standard to Enterprise Operating
Systems Upgrade
X1000 G2 Network Storage Servers with the Microsoft Windows Storage Server 2008
R2 Standard x64 Edition operating system are eligible for a software-only pay for OS
upgrade to the Microsoft Windows Storage Server 2008 R2 Enterprise x64 Edition
operating system.
For remote office deployments of X1000 G2, Hosted Branch Cache can improve
application responsiveness for remote workers and reduce WAN traffic allowing a lower
cost link to be used between remote and central office locations.
The Hosted Branch Cache capability is only available on the WSS2008 R2 Enterprise
Edition Operating System
For more information on the Hosted BranchCache including design and deployment
guides see the following link:
http://technet.microsoft.com/en-us/network/dd425028
NOTE:
When upgrading an X1000G2 with this sku, it will change the operating system
from WSS2008 R2 Standard Edition to WSS2008 R2 Enterprise Edition. After the
upgrade is complete, the system will operate similar to an X3000 G2 Network Storage
System. Additionally, after the upgrade, Automated Storage Manager (ASM) WILL NO
LONGER be installed on the system and IS NOT supported on the upgraded system.
TC350A
HP X1000 G1 Network
Storage Servers
HP StorageWorks X1000 G1 Upgrade to Windows Storage Server 2008 R2 Standard
Software
All X1000 G1 Network Storage Servers with the Microsoft Windows Storage Server 2008
Standard x64 Edition operating system are eligible for a software-only pay for OS
upgrade to the Microsoft Windows Storage Server 2008 R2 Standard x64 Edition
operating system:
This upgrade requires a clean install and contains all X1000 G2 Network Storage
TC337A
QuickSpecs
HP X1000 G2 Network Storage Systems
Options
DA - 13839 North America — Version 11 — December 28, 2012
Page 34
System features, including Microsoft iSCSI Software Target and HP X1000 Automated
Storage Manager Software.
* A minimum of two OS drives that are the same type and capacity (146GB minimum)
must be present in the system before installation.
NOTE:
Some expansion cards, including HBAs and NICs, may not be supported by
Windows Storage Server 2008 R2. Check Windows Server 2008 R2 driver availability
before purchase and installation.
NOTE:
Check for HP and 3rd-party software qualification with 64-bit Windows Server
2008 R2 operating systems before purchase and installation.
Add a Backup Solution
NOTE:
For the complete listing of data protection offerings for X1000 G2 Network Storage Systems, please visit:
http://www.hp.com/products1/storage/compatibility/tapebackup/NAS/index.html
QuickSpecs
HP X1000 G2 Network Storage Systems
Options
DA - 13839 North America — Version 11 — December 28, 2012
Page 35
Warranty
HP X1000 G2 Network Storage Systems come with a standard 3-3-3 warranty (3 years parts exchange, 3 years labor and 3 years
onsite, next business day response). Software media is warranted to be free of physical defect for a period of 90 days from delivery.
Services Included with the
Product
One year of HP Software Support, standard 9x5 business hours (software advisory and remedial software
telephone support, new version license rights, and media and documentation distribution service).
For increased uptime, productivity and ROI-HP Care Pack packaged services for Storage
These days, you need to get the most out of your storage investment-you can't afford not to. When you buy HP storage products and
solutions, it's also a good time to think about what levels of service and support you may need. To help take the worry out of
deploying, designing, maintaining, and managing your environment, we've designed a portfolio of service options that are as: flexible,
reliable and scalable as your storage. Unlike storage-only vendors, we take a holistic approach to your entire environment, bridging
storage, servers, blades, software and network infrastructures with our HP Care Pack packaged services for Storage.
Protect your business beyond the warranty
When it comes to robustness and reliability, standard warranties on today's computing equipment have matured just as the
technologies have matured. Good news on some fronts-but also a source of potential problems and subsequent consequences that
come from depending on standard warranties alone. Standard warranty protects against product defects and some causes of
downtime- but not the business. By using a standard approach to warranty uplifts, such as HP Care Pack Services, you can reduce
downtime risks and be more certain of operational consistency for both mission-critical and standard business computing. Simply put,
HP Care Pack Services normalize the warranty of combined products - helping you proactively guard against unplanned downtime.
Extending warranties with HP Care Pack Services
For cost-effective upgrading or extending your standard warranty, HP Care Pack Services offer a suite of standard reactive hardware
and software support services that are sold separately, or combined as with our Support Plus and Support Plus 24 services. The
portfolio also provides a combination of proactive and reactive services, such as Proactive 24 Service and Critical Service. In addition,
with HP Proactive Select we offer an innovative approach to service delivery that gives you the flexibility to acquire the specific
proactive services you need today, then add services as your needs evolve. HP Proactive Select offers a broad set of technical or per-
event type service options - including server, storage, and network, SAN device, and software, environment, installation and education
services. Services that you can mix and match depending on your specific requirements, from preliminary planning and equipment
delivery to installation, configuration, integration, and testing, through every level of ongoing support. Our HP Care Pack packaged
services for Storage assures help when you need it most. And for many products, post-warranty HP Care Pack Services are available
when your original warranty has expired.
HP Storage Services: Offering reliability, flexibility and value-just like your storage
HP Storage Services offers a full spectrum of customer care, from technology support to complex migrations to complete completely
managed services. HP Factory Express provides customization, integration and deployment services for turnkey solutions. HP
Education offers flexible, comprehensive training on storage networking, disk storage systems, and storage software to help your IT
staff get the most out of your investments. And HP Financial solutions extend innovative financing and asset management programs
to cost-effective buy, manage and eventually retire your older equipment.
HP Storage Services, the trusted business technology experts who manage your technology in action, because when technology
works, business works.
http://www.hp.com/services/storage
NOTE:
Care Pack Services availability may vary by product and country.
HP Care Pack Services are sold by HP and HP Authorized Service Partners
Services for customers purchasing from HP or an enterprise reseller are quoted using HP order configuration tools.
QuickSpecs
HP X1000 G2 Network Storage Systems
Service and Support, HP Care Pack, and Warranty Information
DA - 13839 North America — Version 11 — December 28, 2012
Page 36
Customers purchasing from a commercial reseller can find HP Care Pack Services at
http://www.hp.com/go/lookuptool
Recommended HP Care Pack Services for optimal satisfaction with your HP product.
Recommended Services
3-Year HP Support Plus 24
For a higher return on your storage investment, HP Support Plus 24 provides integrated hardware and
software support services designed specifically for your technology. Available 24x7, this 3-year combined
reactive support option delivers onsite hardware support and over-the-phone software support around-
the-clock. Leverage the full strength of HP Technology Services - customers can trust the services
professionals at HP to work collaboratively with them, putting our strategic and technical know-how to
work across their entire infrastructure.
Improve uptime with responsive hardware and software services
Enjoy consistent service coverage across geographically dispersed sites
Update HP software at a predictable cost
Increase customer satisfaction-with no interoperability gaps
http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-6638EN.pdf
HP Installation and Startup Service for X1000 G2/X3000 Storage Systems
For smooth startup, HP Installation and Startup Service for X1000 G2/X3000 Storage Systems - provides
deployment of your HP ProLiant Storage Server while helping you establish readily available access to and
management of your critical data and applications. Leverage the full strength of HP Technology Services -
customers can trust the services professionals at HP to work collaboratively with them, putting our
strategic and technical know-how to work across their entire infrastructure.
System installation and setup by a HP technical specialist
Reduced implementation time and cost
Verification prior to installation that all service prerequisites are met
Availability of an HP service specialist to answer basic questions related to this service during the
orientation session
Potential expansion of the number of shares and hosts
http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA2-6112ENL.pdf
HP Proactive Select Service
HP Proactive Select Service improves your IT performance and manageability through the use of cost
effective flexible services. HP provides technical expertise and best practices to accelerate ROI of your
technology investment. Selectable proactive services span a wide range of technology and process
services - a flexible way to purchase proactive services that fit your particular environment and situation.
HP Proactive Select Service is technology agnostic and purchased in addition to your choice of underlying
reactive support.
Access to a list of flexible and customizable proactive service activities
Enhance customers' in-house IT team with complementary assistance from HP
Improved time to solution
Reduce business risk and project costs by accessing HP specialists
Simplify IT operational procedures by leveraging HP best practices
QuickSpecs
HP X1000 G2 Network Storage Systems
Service and Support, HP Care Pack, and Warranty Information
DA - 13839 North America — Version 11 — December 28, 2012
Page 37
http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA2-3842ENN.pdf
Optional HP Care Pack Services that will enhance your HP product experience.
Optional Services
HP Entry Storage Data Migration Service for Windows
For customers who need to safely migrate Windows data within their TCP/IP networks with minimal impact
to their operations:
You have a need to migrate data between Windows servers within your TCP/IP network. Or you have a
need to migrate storage for your Windows servers. Or both. And you need to accomplish these migrations
efficiently while minimizing risk at the same time.
HP Entry Storage Data Migration Service for Windows offers you a cost competitive and convenient way to
accommodate data migration triggered by a need to refresh or consolidate storage, or to create different
storage tiers. This service offers a migration cost in line with the costs of storage products in small and
medium-sized storage environments. The service is delivered via a skilled HP service specialist with special
consideration for data availability, integrity, and ongoing operational performance during the transfer
process.
http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA2-4734ENW.pdf
eSupport
HP eSupport is a portfolio of technology-based services that assist you with managing your business
environment - from the desktop to the data center.
Support Portal
The HP support portal provides one-stop access to the information, tools and services you need to
manage the daily operations of your IT environment.
Features include
:
Access to self-solve tools (including search technical knowledge base)
Efficient logging and tracking of support cases
Collaboration with other business and IT professionals
Download of patches and drivers
Access to diagnostic tools
Proactive notification of relevant information
Access to certain features of the support portal requires an HP service agreement. To access the support
portal, visit:
http://www.hp.com/support
Customer Technical
Training
Consider education as an integral part of your strategy to get the best return on investment for your HP
storage solution. HP offers a variety of training courses on storage software, networking, archiving and
disk storage systems. Our classes are available in many delivery modalities from traditional instructor-led
courses at one of our 80 training centers worldwide to on-site training customized to your needs or online.
www.hp.com/learn/storage
QuickSpecs
HP X1000 G2 Network Storage Systems
Service and Support, HP Care Pack, and Warranty Information
DA - 13839 North America — Version 11 — December 28, 2012
Page 38
HP Services Awards
HP Services continues to be recognized for service and support excellence by customers, partners,
industry organizations and publications around the world. Recent honors and award reflect our services
team's dedications, technical expertise, professionalism and uncompromising commitment to customer
satisfaction. For a list of all our awards, please visit:
http://h20219.www2.hp.com/services/cache/433028-0-0-225-121.htm
Additional Services
Information
For more information about HP Care Pack Services for Storage, please visit:
http://www.hp.com/services/storage
If you have specific questions, contact your local HP representative. Contact information for a
representative in your area can be found at "Contact HP"
http://www.hp.com
QuickSpecs
HP X1000 G2 Network Storage Systems
Service and Support, HP Care Pack, and Warranty Information
DA - 13839 North America — Version 11 — December 28, 2012
Page 39
Standard Memory
DDR3 Registered (RDIMM) with ECC Capabilities
2GB (4 x 2GB): X1400 G2 and X1500 G2
6GB (3 x 2GB): X1600 G2 and X1800 G2
Maximum Memory
32 GB (Limited by OS)
DDR3 memory population guidelines
Installation guidelines for additional memory are summarized below:
For X1400 G2 Network Storage Systems (with nine memory slots)
There are three (3) channels per processor
There are three (3) DIMM slots for each memory channel; nine (9) total slots
Memory channel 1 consists of the three (3) DIMMs that are closest to the processor
Memory channel 3 consists of the three (3) DIMMs that are furthest from the processor
For X1500 G2 with eighteen (18) memory slots:
There are three (3) channels per processor; six (6) channels per server
There are three (3) DIMM slots for each memory channel; eighteen (18) total slots
Memory channel 1 consists of the three (3) DIMMs that are closest to the processor
Memory channel 3 consists of the three (3) DIMMs that are furthest from the processor
For X1600 G2 Network Storage Systems (with twelve memory slots)
There are three (3) channels per processor; six (6) channels total
There are two (2) DIMM slots for each memory channel; twelve (12) total slots
Memory channel 1 consists of the two (2) DIMMs that are closest to the processor
Memory channel 3 consists of the two (2) DIMMs that are furthest from the processor
For X1800 G2 Network Storage Systems (with eighteen memory slots)
There are three (3) channels per processor; six (6) channels total
There are three (3) DIMM slots for each memory channel; eighteen (18) total slots
Memory channel 1 consists of the three (3) DIMMs that are closest to the processor
Memory channel 3 consists of the three (3) DIMMs that are furthest from the processor
DIMM slots that are white should be populated first
Do not mix Unbuffered memory (UDIMMs) with Registered memory (RDIMMs)
Do not install DIMMs if the corresponding processor is not installed
If only one processor is installed in a 2CPU system, only half of the DIMM slots are available
For more information on memory configuration, consult QuickSpecs for the HP ProLiant DL320 G6 Server (X1400 G2), HP ProLiant
ML330 G6 Server (X1500 G2), HP ProLiant DL180 G6 Server (X1600 G2), HP ProLiant DL380 G7 Server (X1800 G2), or the Online DDR3
Memory Configuration Tool:
www.hp.com/go/ddr3memory-configurator
QuickSpecs
HP X1000 G2 Network Storage Systems
Memory
DA - 13839 North America — Version 11 — December 28, 2012
Page 40
X1400 G2
1 - 4
Four 3.5" (LFF) hot plug SATA / SAS hard drive bays
X1500 G2
1-8
Eight 3.5" (LFF) hot plug SATA / SAS hard drive bays
X1600 G2 (12 LFF HDD)
1- 12
Twelve 3.5" (LFF) hot plug SATA / SAS hard drive bays
1600 (25 SFF HDD)
Picture not available
1- 25
Twenty five 2.5" (SFF) hot plug SATA / SAS hard drive
bays
X1800 G2
1 - 16
Sixteen2.5" (SFF) hot plug SAS / SATA hard drive bays
(second drive bay not shown in drawing)
Hard Drive Factory Pre-configurations
Model
Drives
Position Installed
O/S Volume
Notes
QuickSpecs
HP X1000 G2 Network Storage Systems
Storage
DA - 13839 North America — Version 11 — December 28, 2012
Page 41
X1400 G2 4TB SATA
4 x 1TB 3G 7.2K LFF SATA
1 - 4 (X1400 G2)
RAID5 (Drives 1 - 4)
Internal drives connected
to SA P212 internal SAS
port; external SAS port
open for expansion
X1400 G2 8TB SATA
4 x 2TB 3G 7.2K LFF SATA
1 - 4 (X1400 G2)
RAID5 (Drives 1 - 4)
Internal drives connected
to SA P212 internal SAS
port; external SAS port
open for expansion
X1500 G2 4TB SATA
4 x 1TB 3G 7.2K LFF SATA
1 - 4 (X1500 G2)
RAID5 (Drives 1 - 4)
Internal drives connected
to SA P410 internal SAS
port
X1500 G2 8TB SATA
4 x 2TB 3G 7.2K LFF SATA
1 - 4 (X1500 G2)
RAID5 (Drives 1 - 4)
Internal drives connected
to SA P410 internal SAS
port
X1600 G2
2 x 146GB 6G 15K SFF SAS
In rear drive slots
RAID 1
12 open LFF internal drive
slots; Internal drives
connected to SA P212
internal SAS port; external
SAS port open for
expansion
X1600 G2 6TB SATA
2 x 146GB 6G 15K SFF SAS
6 x 1TB 3G 7.2K LFF SATA
In rear drive slots
1 - 6 (X1600 G2)
RAID 1
Six open LFF internal drive
slots; Internal drives
connected to SA P212
internal SAS port; external
SAS port open for
expansion
X1600 G2 12TB SATA
2 x 146GB 6G 15K SFF SAS
12 x 1TB 3G 7.2K LFF
SATA
In rear drive slots
1 - 12 (X1600 G2)
RAID 1
Internal drives connected
to SA P212 internal SAS
port; external SAS port
open for expansion
X1600 G2 24TB SATA
2 x 146GB 6G 15K SFF SAS
12 x 2TB 3G 7.2K LFF
SATA
In rear drive slots
1 - 12 (X1600 G2)
RAID1
Internal drives connected
to SA P212 internal SAS
port; external SAS port
open for expansion
X1600 G2 6TB SAS
2 x 146GB 6G 15K SFF SAS
10 x 300GB 3G 15K LFF
SAS
1 and 2
3 - 12 (X1600 G2)
RAID1 (Drives 1, 2)
23 open SFF slots,
Internal drives connected
to SA P812 internal SAS
port; external SAS ports
open for expansion
X1600 G2 13.8TB SAS
2 x 146GB 6G 15K SFF SAS
23 x 600GB 6G 10K SFF
SAS
1 and 2
3 - 25 (X1600 G2)
RAID1 (Drives 1, 2)
Internal drives connected
to SA P812 internal SAS
port; external SAS ports
open for expansion
X1800 G2
2 x 146GB 6G 10K SFF SAS
1 and 2
RAID1 (Drives 1, 2)
14 open SFF slots,
internal drives connected
to SA P812; external SAS
ports open for expansion
QuickSpecs
HP X1000 G2 Network Storage Systems
Storage
DA - 13839 North America — Version 11 — December 28, 2012
Page 42
X1800 G2 4.8TB SAS
2 x 146GB 6G 15K SFF SAS
8 x 600GB 6G 10K SFF SAS
1 and 2
3 - 10 (X1800 G2)
RAID1 (Drives 1, 2)
6 open SFF slots, Internal
drives connected to P812;
external SAS ports open
for expansion
QuickSpecs
HP X1000 G2 Network Storage Systems
Storage
DA - 13839 North America — Version 11 — December 28, 2012
Page 43
X1400 G2 - see the DL320 G6 QuickSpecs for the HP 400W Factory Integrated Power Supply
Kit
X1500 G2 - see the ML310 G6 QuickSpecs for the HP 750W Common Slot Gold Hot Plug Power
Supply Kit
X1600 G2 / X1800 G2
HP 750W Power Supply
Part Number - AC 750W PSU
512327-B21
Input Voltage Range (Vrms)
100 to 240
Frequency Range (Nominal) (Hz)
50/60
Nominal Input Voltage (Vrms)
100 120 208 200 220 230 240
Maximum Rated Output Wattage
750 750 750 750 750 750 750
Nominal Input Current (Arms)
8.9 7.4 4.3 4.1 3.9 3.7 3.6
Max Rated Input Wattage Rating (Watts)
857 847 824 825 820 820 820
Max. Rated VA (Volt-Amp)
894 884 859 859 854 854 854
Efficiency (%) at Max. Rated Output Wattage
87.5 88.5
91 91
91.5 91.5 91.5
Power Factor
0.97 0.97 0.97 0.97 0.97 0.97 0.97
Leakage Current (mA)
0.42 0.50 0.83 0.87 0.92 0.96 1.00
Max. Inrush Current (A peak)
30 30 30 30 30 30 30
Max. Inrush Current duration (mS)
20 20 20 20 20 20 20
Maximum British Thermal Unit Rating (BTU-Hr)
2925 2892 2812 2812 2797 2797 2797
QuickSpecs
HP X1000 G2 Network Storage Systems
Power Specifications
DA - 13839 North America — Version 11 — December 28, 2012
Page 44
X1400 G2
System Unit
Dimensions
(H x W x D)
(with bezel)
1.70 x 17.64 x 26.85 in (4.32 x 44.80 x 68.20 cm)
Weight
(approximate)
All hard drives, power
supplies, and processors
installed
33.50 lb (15.20kg)
Input Requirements
(per power supply)
Rated Line Voltage
90 - 132 VAC,
180 - 264 VAC
Rated Input Current
6 A (at 100 VAC),
3 A (at 200 VAC)
Rated Input Frequency
47 to 63 Hz
Rated Input Power
486 W (at 100 VAC),
479 W (at 200 VAC)
BTU Rating
Maximum
1836 BTU/hr (at 100 VAC),
1706 BTU/hr (at 200 VAC)
System Inlet
Temperature
Operating
10° to 35°C (50° to 95°F) at sea level with an
altitude derating of 1.0°C per every 305 m (1.8°F
per every 1000 ft) above sea level to a maximum
of 3050 m (10,000 ft), no direct sustained
sunlight. Maximum rate of change is 10°C/hr
(18°F/hr). The upper limit may be limited by the
type and number of options installed.
System performance may be reduced if operating
with a fan fault or above 30°C (86°F).
Non-operating
-30° to 60°C (-22° to 140°F). Maximum rate of
change is 20°C/hr (36°F/hr).
Relative Humidity
(non-condensing)
Operating
10 to 90% relative humidity (Rh), 28°C (82.4°F)
maximum wet bulb temperature, non-
condensing.
Non-operating
5 to 95% relative humidity (Rh), 38.7°C (101.7°F)
maximum wet bulb temperature, non-
condensing.
Altitude
Operating
3050 m (10,000 ft). This value may be limited by
the type and number of options installed.
Maximum allowable altitude change rate is 457
m/min (1500 ft/min).
Non-operating
9144 m (30,000 ft). Maximum allowable altitude
change rate is 457 m/min (1500 ft/min).
Acoustic Noise
Listed are the declared A-Weighted sound power levels (LWAd) and declared
average bystander position A-Weighted sound pressure levels (LpAm) when
the product is operating in a 23°C ambient environment. Noise emissions were
measured in accordance with ISO 7779 (ECMA 74) and declared in accordance
with ISO 9296 (ECMA 109).
Idle
LWAd
6.30 B
LpAm
52.07dBA
QuickSpecs
HP X1000 G2 Network Storage Systems
Technical Specifications
DA - 13839 North America — Version 11 — December 28, 2012
Page 45
Operating
LWAd
6.38 B
LpAm
52.77 dBA
X1500 G2
System Unit
Dimensions
(H x W x D)
(W/O footstand)
7.87 x 16.81 x 24.13 in (200 x 427 x 613 mm)
Weight
(approximate)
All hard drives, power
supplies, and processors
installed
30 kg
Input Requirements
(per power supply)
Rated Line Voltage
100 to 240 VAC
Rated Input Current
7.1 Amps (at 120VAC) to 3.5 Amps (at 240
VAC)
Rated Input Frequency
50 to 60 Hz
Rated Input Power
852 W
BTU Rating
Maximum
460W - 1773 BTU / hr (at 120 VAC), 1715
(at 240 VAC)
750W - 2892 BTU / hr (at 120 VAC), 2797
(at 240 VAC)
1200W - 3530 BTU / hr (at 120 VAC), 4600
(at 240 VAC)
System Inlet
Temperature
Operating
50° to 95° F (10° to 35° C) at sea level with an
altitude derating of 1.8°F per 1,000 ft (1.0° C per
every 305 m) above sea level to a maximum of
10,000 ft (3050 m) no direct sustained sunlight .
Maximum rate of change is 18°F/hr (10°C/hr). The
upper limit may be limited by the type and
number of options installed. System performance
may be reduced if operating with a fan fault or
above 86°F (30°C).
Non-operating
-22° to 140° F (-30° to 60° C)
Relative Humidity
(non-condensing)
Operating
10% to 90% relative humidity (Rh), 82.4°F
(28°C) maximum wet bulb temperature,
noncondensing.
Non-operating
10% to 95% relative humidity (Rh), 101.7°F
(38.7°C) maximum wet bulb temperature,
noncondensing.
Altitude
Operating
10,000 ft (3000m). Maximum allowable altitude
change rate is 1°C per 300m.
Non-operating
10,000 ft (3000m). Maximum allowable altitude
change rate is 1°C per 300m.
Acoustic Noise
Listed are the declared A-Weighted sound power levels (LWAd) and declared
average bystander position A-Weighted sound pressure levels (LpAm) when
the product is operating in a 23°C ambient environment. Noise emissions were
measured in accordance with ISO 7779 (ECMA 74) and declared in accordance
with ISO 9296 (ECMA 109).
QuickSpecs
HP X1000 G2 Network Storage Systems
Technical Specifications
DA - 13839 North America — Version 11 — December 28, 2012
Page 46
X1600 G2
System Unit
Dimensions
(H x W x D)
(with bezel)
3.44x 17.64 x 27.50 in (8.75 x 44.80 x 69.88cm)
Weight
(approximate)
Maximum
(all hard drives, power
supplies and processors
installed)
51.5 lb (19.22 kg)
Input Requirements
(per power supply)
Rated Line Voltage
100 - 240 VAC
Rated Input Current
9.10 A (at 100 VAC),
4.5 A (at 200 VAC)
Rated Input Frequency
50 to 60 Hz
Rated Input Power
910 W (at 100 VAC),
900 W (at 200 VAC)
BTU Rating
Maximum
3107.82 BTU/hr (at 100 VAC),
3073.67 BTU/hr (at 200 VAC)
System Inlet
Temperature
Operating
50° to 95°F (10° to 35°C) at sea level with an
altitude derating of 1.8°F per every 1000 ft (1.0°C
per every 305 m) above sea level to a maximum
of 10,000 ft (3050 m), no direct sustained
sunlight. Maximum rate of change is 18°F/hr
(10°C/hr). The upper limit may be limited by the
type and number of options installed.
System performance may be reduced if operating
with a fan fault or above 86°F (30°C).
Non-operating
-22° to 140° F (-30° to 60° C). Maximum rate of
change is 36° F/hr (20° C/hr).
Relative Humidity
(non-condensing)
Operating
10 to 90% relative humidity (Rh), 82.4° F (28° C)
maximum wet bulb temperature, non-
condensing.
Non-operating
5 to 95% relative humidity (Rh), 101.7° F (38.7° C)
maximum wet bulb temperature, non-
condensing.
Altitude
Operating
10,000 ft (3050 m). This value may be limited by
the type and number of options installed.
Maximum allowable altitude change rate is 1500
ft/min (457 m/min).
Non-operating
30,000 ft (9144 m). Maximum allowable altitude
change rate is 1500 ft/min (457 m/min).
Acoustic Noise
Listed are the declared A-Weighted sound power levels (LWAd) and declared
average bystander position A-Weighted sound pressure levels (LpAm) when
the product is operating in a 23°C ambient environment. Noise emissions were
measured in accordance with ISO 7779 (ECMA 74) and declared in accordance
with ISO 9296 (ECMA 109).
Idle
LWAd
6.7 B
QuickSpecs
HP X1000 G2 Network Storage Systems
Technical Specifications
DA - 13839 North America — Version 11 — December 28, 2012
Page 47
LpAm
51 dBA
Operating
LWAd
6.7 B
LpAm
51 dBA
Emissions Classification
(EMC)
FCC Rating
A
Normative Standards
CISPR 22; EN55022; EN55024; FCC CFR 47, Pt 15;
ICES-003; CNS13438; GB9254; K22;K24; EN
61000-3-2; EN 61000-3-3; EN 60950-1; IEC
60950-1
NOTE:
Product conformance to cited product specifications is based on
sample (type) testing, evaluation, or assessment. This product or family of
products is eligible to bear the appropriate compliance logos and statements.
X1800 G2
System Unit
Dimensions
(H x W x D)
(with bezel)
SFF Drives: 3.38 x 17.54 x 27.25 in (8.59 x 44.55 x 69.22 cm)
LFF Drives: 3.38 x 17.54 x 29.25 in (8.59 x 44.55 x 74.30 cm)
Weight
(approximate)
Maximum
(all hard drives, power
supply, and processor
installed)
60.00 lb (27.27 kg)
Minimum
(one hard drive, power
supply, and processor
installed)
47.18 lb (21.45 kg)
Input Requirements
(per power supply)
Rated Line Voltage
100 to 120 VAC
200 to 240 VAC
Rated Input Current
For 1200 W Power Supply:
10 A (at 100 VAC),
4.9 A (at 200 VAC)
For 750 W Power Supply:
8.9 A (at 100 VAC),
4.3 A (at 200 VAC)
For 460 W Power Supply:
5.5 A (at 100 VAC),
2.6 A (at 200 VAC)
Rated Input Frequency
50 to 60 Hz
Rated Input Power
For 1200 W Power Supply:
930 W (at 100 VAC),
1348 W (at 200 VAC)
For 750 W Power Supply:
857 W (at 100 VAC),
824 W (at 200 VAC)
For 460 W Power Supply:
526 W (at 100 VAC),
505 W (at 200 VAC)
BTU Rating
Maximum
For 1200 W Power Supply:
3530 BTU/hr (at 100 VAC),
4600 BTU/hr (at 200 VAC)
QuickSpecs
HP X1000 G2 Network Storage Systems
Technical Specifications
DA - 13839 North America — Version 11 — December 28, 2012
Page 48
For 750 W Power Supply:
2925 BTU/hr (at 100 VAC),
2812 BTU/hr (at 200 VAC)
For 460 W Power Supply:
1794 BTU/hr (at 100 VAC),
1725 BTU/hr (at 200 VAC)
Power Specifications
NOTE:
To review typical system power ratings use the HP Power Advisor
which is available online located at url: www.hp.com/go/proliant-energy-
efficient or
www.hp.com/go/hppoweradvisor
Power Supply Output
(per power supply)
Rated Steady-State Power
For 1200 W Power Supply:
800 W (at 100 VAC),
900 W (at 120 VAC),
1200 W (at 200 to 240 VAC)
For 750 W Power Supply:
750 W (at 100 to 120 VAC),
750 W (at 200 to 240 VAC)
For 460 W Power Supply:
460 W (at 100 to 120 VAC),
460 W (at 200 to 240 VAC)
Maximum Peak Power
For 1200 W Power Supply:
800 W (at 100 VAC),
900 W (at 120 VAC),
1200 W (at 200 to 240 VAC)
For 750 W Power Supply:
750 W (at 100 to 120 VAC),
750 W (at 200 to 240 VAC)
For 460 W Power Supply:
460 W (at 100 to 120 VAC),
460 W (at 200 to 240 VAC)
System Inlet
Temperature
Operating
10° to 35°C (50° to 95°F) at sea level with an
altitude derating of 1.0°C per every 305 m (1.8°F
per every 1000 ft) above sea level to a maximum
of 3050 m (10,000 ft), no direct sustained
sunlight. Maximum rate of change is 10°C/hr
(18°F/hr). The upper limit may be limited by the
type and number of options installed.
System performance may be reduced if operating
with a fan fault or above 30°C (86°F).
Non-operating
-30° to 60°C (-22° to 140°F). Maximum rate of
change is 20°C/hr (36°F/hr).
Relative Humidity
(non-condensing)
Operating
10 to 90% relative humidity (Rh), 28°C (82.4°F)
maximum wet bulb temperature, non-
condensing.
Non-operating
5 to 95% relative humidity (Rh), 38.7°C (101.7°F)
maximum wet bulb temperature, non-
condensing.
Altitude
Operating
3050 m (10,000 ft). This value may be limited by
the type and number of options installed.
Maximum allowable altitude change rate is 457
m/min (1500 ft/min).
QuickSpecs
HP X1000 G2 Network Storage Systems
Technical Specifications
DA - 13839 North America — Version 11 — December 28, 2012
Page 49
Non-operating
9144 m (30,000 ft). Maximum allowable altitude
change rate is 457 m/min (1500 ft/min).
Acoustic Noise
Listed are the declared A-Weighted sound power levels (LWAd) and declared
average bystander position A-Weighted sound pressure levels (LpAm) when
the product is operating in a 23°C ambient environment. Noise emissions were
measured in accordance with ISO 7779 (ECMA 74) and declared in accordance
with ISO 9296 (ECMA 109).
NOTE:
The Listed sound levels apply to standard shipping configurations.
Additional options may result in increased sound levels.
Idle
1P SKU 2P SKU
LWAd
4.1 B 4.7 B
LpAm
22 dBA 28 dBA
Operating
1P SKU 2P SKU
LWAd
4.1 B 4.7 B
LpAm
22 dBA 28 dBA
Emissions Classification
(EMC)
FCC Rating
Class A
Normative Standards
CISPR 22; EN55022; EN55024; FCC CFR 47, Pt 15;
ICES-003; CNS13438; GB9254; K22;K24; EN
61000-3-2; EN 61000-3-3; EN 60950-1; IEC
60950-1
NOTE:
Product conformance to cited product specifications is based on
sample (type) testing, evaluation, or assessment. This product or family of
products is eligible to bear the appropriate compliance logos and statements.
NOTE:
The Listed sound levels apply to standard shipping configurations.
Additional options may result in increased sound levels.
X1400 G2
Embedded NC326i Dual
Port Gigabit Server
Adapter
Network Interface
10Base-T/
100Base-TX/
1000Base-TX
Compatibility
IEEE 802.3 10Base-T
IEEE 802.3ab 1000Base-T
IEEE 802.3u 100Base-TX
Data Transfer Method
Four lane (x4), 100MHz PCI Express Reference Clock
Network Transfer Rate
10Base-T (Half-Duplex)
10 Mb/s
10Base-T (Full-Duplex)
20 Mb/s
100Base-TX (Half-Duplex)
100 Mb/s
100Base-TX (Full-Duplex)
200 Mb/s
1000Base-TX (Half and
Full-Duplex)
2000 Mb/s
Connector
RJ-45
Cable Support
10Base-T
Categories 3, 4 or 5 UTP; up to 328 ft (100 m)
10/100/1000Base-TX
Category 5 UTP; up to 328 ft (100 m)
QuickSpecs
HP X1000 G2 Network Storage Systems
Technical Specifications
DA - 13839 North America — Version 11 — December 28, 2012
Page 50
X1600 G2
NC362i Integrated Dual
Port Gigabit Server
Adapter
Network Interface
Integrated 10/100/1000BASE-T Transceiver
Combines a triple-speed IEEE 802.3TM - Compliant Media Access
Controller (MAC) with a triple-speed Ethernet transceiver.
Data Transfer Method
Compliant to x1 PCIe Specification
Network Transfer Rate
10Base-T (Half-Duplex)
10 Mb/s
10Base-T (Full-Duplex)
20 Mb/s
100Base-TX (Half-Duplex)
100 Mb/s
100Base-TX (Full-Duplex)
200 Mb/s
1000Base-TX (Half and
Full-Duplex)
2000 Mb/s
Connector
RJ-45
Cable Support
Performs all the physical layer functions for 10BASE-T, 100BASE-T, and
1000BASE-T Ethernet on standard Category 5 UT
X1800 G2
HP NC382i Dual Port
Multifunction Gigabit
Server Adapters
Network Interface
10Base-T/100Base-TX/1000Base-TX
Compatibility
EEE 802.3 10Base-T
IEEE 802.3ab 1000Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3ad 1000Base-TX
IEEE 802.1p 100Base-TX
IEEE 802.1q 100Base-TX
Data Transfer Method
PCI Express, four lanes (x4)
Network Transfer Rate
10Base-T (Half-Duplex)
10 Mb/s
10Base-T (Full-Duplex)
20 Mb/s
100Base-TX (Half-Duplex)
100 Mb/s
100Base-TX (Full-Duplex)
200 Mb/s
1000Base-TX (Half and
Full-Duplex)
2000Mb/s
Connector
Two RJ-45
Cable Support
10Base-T
Categories 3, 4 or 5 UTP; up to 328 ft (100 m)
100Base-TX
Category 5 or higher UTP; up to 328 ft (100 m)
1000BaseTX
Category 5 or higher UTP; up to 328 ft (100 m)
QuickSpecs
HP X1000 G2 Network Storage Systems
Technical Specifications
DA - 13839 North America — Version 11 — December 28, 2012
Page 51
Environment-friendly
Products and Approach
End-of-life Management
and Recycling
Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling
programs in many geographic areas. For trade-in information, please go to:
http://www.hp.com/go/green
. To recycle your product, please go to:
http://www.hp.com/go/green
or contact your nearest HP sales office.
Products returned to HP will be recycled, recovered or disposed of in a
responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide
treatment information for each product type for use by treatment facilities.
This information (product disassembly instructions) is posted on the Hewlett
Packard web site at:
http://www.hp.com/go/green
. These instructions may be
used by recyclers and other WEEE treatment facilities as well as HP OEM
customers who integrate and re-sell HP equipment.
© Copyright 2012 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
Windows is a US registered trademark of Microsoft Corporation. Intel is a US registered trademark of Intel Corporation.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
For hard drives, 1 GB = 1 billion bytes. Actual formatted capacity is less.
QuickSpecs
HP X1000 G2 Network Storage Systems
Technical Specifications
DA - 13839 North America — Version 11 — December 28, 2012
Page 52
