HP OpenView IT/Operations
Administrator’s Reference
Management Server on HP-UX
Edition 3
B6941-90001
HP OpenView IT/Operations
Version A.05.00
February 1999
2
Legal Notices
Hewlett-Packard makes no warranty of any kind with regard to this
manual, including, but not limited to, the implied warranties of
merchantability and fitness for a particular purpose. Hewlett-Packard
shall not be held liable for errors contained herein or direct, indirect,
special, incidental or consequential damages in connection with the
furnishing, performance, or use of this material.
Warranty. A copy of the specific warranty terms applicable to your
Hewlett-Packard product and replacement parts can be obtained from
your local Sales and Service Office.
Year 2000 Readiness. Hewlett-Packard has made every effort to ensure
the accuracy of our product testing. However, because each customer's
environment is different from Hewlett-Packard's laboratory test
environment, it is the customer's responsibility to validate the Year 2000
readiness of these products in their own environment. Therefore,
information about the Year 2000 status of Hewlett-Packard products is
provided “as is” without warranties of any kind and is subject to change
without notice.
Hewlett-Packard makes no representation or warranty respecting the
accuracy or reliability of information about non-Hewlett-Packard
products. Such information, if any, was provided by the manufacturers of
those products and customers are urged to contact the manufacturer
directly to verify Year 2000 readiness.
The information provided here constitutes a Year 2000 Readiness
Disclosure for purposes of the Year 2000 Information and Readiness
Disclosure Act.
Restricted Rights Legend. All rights are reserved. No part of this
document may be photocopied, reproduced, or translated to another
language without the prior written consent of Hewlett-Packard
Company. The information contained in this document is subject to
change without notice.
Use, duplication or disclosure by the U.S. Government is subject to
restrictions as set forth in subparagraph (c) (1) (ii) of the Rights in
Technical Data and Computer Software clause at DFARS 252.227-7013
3
for DOD agencies, and subparagraphs (c) (1) and (c) (2) of the
Commercial Computer Software Restricted Rights clause at FAR 52.227-
19 for other agencies.
HEWLETT-PACKARD COMPANY
3404 E. Harmony Road
Fort Collins, CO 80525 U.S.A.
Use of this manual and flexible disk(s), tape cartridge(s), or CD-ROM(s)
supplied for this pack is restricted to this product only. Additional copies
of the programs may be made for security and back-up purposes only.
Resale of the programs in their present form or with alterations, is
expressly prohibited.
Copyright Notices. ©copyright 1983-99 Hewlett-Packard Company, all
rights reserved.
Reproduction, adaptation, or translation of this document without prior
written permission is prohibited, except as allowed under the copyright
laws.
©copyright 1979, 1980, 1983, 1985-93 Regents of the University of
California
This software is based in part on the Fourth Berkeley Software
Distribution under license from the Regents of the University of
California.
©copyright 1986-1992 Sun Microsystems, Inc.
©copyright 1985-86, 1988 Massachusetts Institute of Technology
©copyright 1989-93 The Open Software Foundation, Inc.
©copyright 1986-1997 FTP Software, Inc. All rights reserved
©copyright 1986 Digital Equipment Corporation
©copyright 1990 Motorola, Inc.
©copyright 1990, 1991, 1992 Cornell University
©copyright 1989-1991 The University of Maryland
©copyright 1988 Carnegie Mellon University
Trademark Notices. UNIX® is a registered trademark in the United
States and other countries, licensed exclusively through X/Open
Company Limited.
4
X Window System is a trademark of the Massachusetts Institute of
Technology.
OSF/Motif is a trademark of the Open Software Foundation, Inc. in the
U.S. and other countries.
Windows NT™ is a U.S. trademark of Microsoft Corporation. Windows®
and MS Windows® are U.S. registered trademarks of Microsoft Corp.
Oracle®, SQL*Net®, and SQL*Plus® are registered U.S. trademarks of
Oracle Corporation, Redwood City, California. Oracle Reports™,
Oracle7™, and Oracle7 Server™ are trademarks of Oracle Corporation,
Redwood City, California.
Java™ is a U.S. trademark of Sun Microsystems, Inc.
Netscape Commerce Server and Netscape Communications Server are
U.S. trademarks of Netscape Communications Corporation.
OpenView® is a registered U.S. trademark of Hewlett-Packard Company.
5
Printing History
The manual printing date and part number indicate its current edition.
The printing date will change when a new edition is printed. Minor
changes may be made at reprint without changing the printing date. The
manual part number will change when extensive changes are made.
Manual updates may be issued between editions to correct errors or
document product changes. To ensure that you receive the updated or
new editions, you should subscribe to the appropriate product support
service. See your HP sales representative for details.
First Edition: June 1996
Second Edition: August 1997
Third Edition: February 1999
6
7
In This Book
This guide is for the person who installs ITO on the managed nodes, and
is responsible for administering and troubleshooting the ITO system. It
covers agent installation, first-time configuration, agent de-installation,
tuning, and troubleshooting. The guide assumes that the reader has a
sound knowledge of HP-UX system and network administration and
troubleshooting. The reader should be able to:
• update the system with new software
• perform remote logins to other systems
• search, locate and edit ASCII files
The reader should be thoroughly familiar with:
• file system organization
• X applications
• HP OpenView NNM platform user interface and services
• Database administration
• ITO concepts
For information on how to install ITO on the management server, see the
HP OpenView IT/Operations Installation Guide for the Management
Server.
For information about upgrading an earlier version of ITO , see the HP
OpenView IT/Operations Software Release Notes.
For information about ITO concepts, see the HP OpenView IT/
Operations Concepts Guide.
8
9
Conventions
The following typographical conventions are used in this manual.
Font Type What the Font Type Represents Example
Italic Book or manual titles, and man page
names Refer to the HP OpenView IT/
Operations Administrator’s
Reference and the opc(1M) manpage
for more information.
Provides emphasis You must follow these steps.
Specifies a variable that you must
supply when entering a command At the prompt type:
rlogin your_name where you
supply your login name.
Parameters to a function The oper_name parameter returns
an integer response.
Bold New terms The monitor agent observes...
Computer Text and items on the computer
screen The system replies: Press Enter
Command names Use the grep command ...
Function names Use the opc_connect()function to
connect ...
File and directory names /opt/OV/bin/OpC/
Process names Check to see if opcmona is running.
Window/dialog box names In the Add Logfile window...
Computer
Bold Text that you must enter At the prompt, type: ls -l
10
Keycap Keyboard keys Press Return.
[Button] Buttons on the user interface. Click [Operator].
Click on the [Apply] button.
Menu
Items A menu name followed by a colon (:)
means that you select the menu,
then the item. When the item is
followed by an arrow (->), a
cascading menu follows.
Select Actions:Utilities->
Reports…
Font Type What the Font Type Represents Example
11
The IT/Operations Documentation Map
ITO provides a set of manuals and online help which aim to assist you in
using ITO and improve your understanding of the underlying concepts.
This section illustrates what information is available and where you can
find it.
HP OpenView IT/Operations Printed Manuals
This section provides an overview of the printed manuals and their
contents.
The HP OpenView IT/Operations Concepts Guide
provides you with an understanding of ITO on two
levels. As an operator, you can learn about ITO's basic
structure; as an administrator, you can use this book to
gain an insight into the setup and configuration of ITO
in your own environment.
The HP OpenView IT/Operations Installation Guide for the Management
Server is for administrators who install ITO software on the
management server and perform initial configuration.
It includes:
• verification of software and hardware requirements
• software installation and de-installation
instructions
• configuration instructions using defaults
The HP OpenView IT/Operations Administrator’s Reference
is for people who install ITO on the managed nodes and
are responsible for the administration and
troubleshooting of ITO in general.
The HP OpenView IT/Operations Error Message Reference
is for administrators involved in ITO problem solving.
It provides a copy of all ITO error messages that have
additional instructional text available. This book
contains no information that is not also available from
the user interface.
12
Managing Your Networks with HP OpenView Network Node Manager
is for administrators and operators. It describes the
basic functionality of HP OpenView Network Node
Manager which is an embedded part of ITO.
The HP OpenView ServiceNavigator Concepts and Configuration Guide
provides information for administrators who are
responsible for installing, configuring, maintaining,
and troubleshooting the HP OpenView
ServiceNavigator. It also contains a high-level
overview of the concepts behind service management.
The HP OpenView IT/Operations Reporting and Database Schema
contains a detailed description of the ITO database
tables and provides examples for generating reports
from the ITO database.
The HP OpenView IT/Operations Software Release Notes
give a description of new features. In addition, they
provide information to help you:
• compare the current software’s features with those
available in previous versions of the software
• determine system and software compatibility
• solve known problems
ITO Online Information
The following information is available online:
The HP ITO Administrator’s Guide to Online Information
is a context-sensistive help system and contains
detailed help for each window of the ITO administrator
GUI as well as step-by-step instructions for performing
administrative tasks.
The HP ITO Operator’s Guide to Online Information
is a context-sensitive help system and contains detailed
help for each window of the ITO operator Motif GUI as
well as step-by-step instructions for operator tasks.
The HP ITO Java-based GUI Online Documentation
is available in HTML-format for the ITO Java-based
operator GUI and the ServiceNavigator, and contains
detailed information about general ITO and
13
ServiceNavigator concepts and tasks for the ITO
operator, as well as reference and troubleshooting
information.
The HP OpenView IT/Operations Man Pages
are available online for ITO.
HP OpenView IT/Operations Developer’s Toolkit
If you purchase the HP OpenView IT/Operations Developer’s Toolkit, you
receive the full ITO documentation set, as well as the following manuals:
The HP OpenView IT/Operations Application Integration Guide
suggests several ways in which external applications
can be integrated into ITO.
The HP OpenView IT/Operations Developer’s Reference
provides an overview of all available application
programming interfaces (APIs).
HP OpenView ECS Designer for NNM and ITO
If you purchase the HP OpenView Event Correlation Services (ECS)
Designer for NNM and ITO, you receive the full ECS Designer
documentation set including the title:
HP OpenView ECS Configuring Circuits for NNM and ITO
which contains information you need to use the ECS
Designer product in the NNM and ITO environments.
Advanced Network Security for HP OpenView IT/Operations
If you purchase the Advanced Network Security (ANS) extension for HP
OpenView IT/Operations , you receive the following additional
documentation:
Advanced Network Security for HP OpenView IT/Operations
provides information for administrators who are
responsible for installing, configuring, maintaining,
and troubleshooting ANS.
Electronic Version of the Manuals
All manuals except the HP OpenView IT/Operations Software Release
Notes are also included as Portable Document Format (PDF) files in the
appropriate documentation software bundle. See the HP OpenView
14
IT/Operations Installation Guide for the Management Server for general
installation instructions using swinstall. The manuals are installed
into the following directory on the management server:
/opt/OV/doc/<LANG>/OpC/
Alternatively, you can download the manuals from the following web
site:
http://ovweb.external.hp.com/lpe/doc_serv
Or, view them in HTML format at:
http://docs.hp.com
ITO DynaText Library
The ITO DynaText Library is a collection of ITO manuals in online
format based on DynaText. DynaText is an application for viewing,
searching, printing, and annotating your online library. The browser and
the manuals are available in the appropriate ITO documentation
software bundle. See the HP OpenView IT/Operations Installation Guide
for the Management Server for general installation instructions using
swinstall. Once the bundle is installed, you can open the library by
selecting Online Manuals from the Help menu of any primary ITO
window.
15
Using the Online Help System
The ITO Motif GUI Online Help System
ITO's Motif GUI online information consists of two separate volumes,
one for operators and one for administrators. In the operator's volume,
you will find the HP OpenView IT/Operations Quick Start describing the
main operator windows. Both volumes include:
❏information you need to perform tasks, whether you are an operator
or an administrator
❏popup menus, reference information about ITO icons, accessible with
just a point and click on the right mouse button
❏information about errors displayed in the ITO-Error Information
window. You can get help either when the error occurs or by using the
message number provided to perform a keyword search within the
help system
❏an index search utility that leads you directly to the desired topic
❏a glossary of terms that are important to users of ITO
❏help on help for users just getting started with online information
systems
❏a printing facility, which allows you to print any or all topics in the
help system (a HP LaserJet printer is required to print graphics)
You can access the help system in any of the following ways:
❏in any active text field or on any active button, press the F1 key,
❏click the Help button in the bottom of any window
❏open the drop-down Help menu from the menu bar
❏click a symbol and use the right-hand mouse button to access the
Help menu
You can then select task lists which are arranged by activity, or window
and field lists. You can access any topic in the help volume from every
help screen. Hyperlinks provide related information on other help topics.
16
You can also get context sensitive help in the Message Browser and
Message Source Templates window. After selecting Help: On
Context from the menu, the cursor changes into a question mark which
you can then position over the area on which you want help. When you
click the mouse button, the required help page is displayed in its help
window.
The ITO Java-based GUI and OV ServiceNavigator Online Documentation
The ITO Java-based GUI online documentation helps operators to
become familiar with and use the ITO product. The following
information is included:
❏Tasks—Step-by-step instructions for using ITO and the OV
ServiceNavigator
❏Concepts—An introduction to the key concepts and features of ITO
and the OV ServiceNavigator.
❏References—Detailed information to help operators maximize their
use of ITO and the OV ServiceNavigator.
❏Troubleshooting—Solutions to common problems you may
encounter while using ITO or the OV ServiceNavigator.
❏Index—An index to help operators quickly find the information they
need.
To view any topic, open the appropriate folders in the frame on the left
and click on the topic title. Hyperlinks provide related information on
other help topics.
Access the help system by selecting Help: Contents from the main
menu of the Java GUI. A web browser opens and displays the help
contents. Note that you must first configure ITO to use your preferred
browser, see the HP OpenView IT/Operations Installation Guide for the
Management Server for more information.
Contents
17
1. Prerequisites for Installing ITO Agent Software
Managed Node Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Hardware Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Software Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
2. Installing ITO Agents on the Managed Nodes
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
General Installation Tips for Managed Nodes. . . . . . . . . . . . . . . . . . . . .47
Installation Tips to be Performed on the Management Server . . . . . .50
Installation Tips for UNIX Managed Nodes. . . . . . . . . . . . . . . . . . . . .50
Installation Tips for AIX Managed Nodes . . . . . . . . . . . . . . . . . . . . . .52
Installation Tips for AIX Managed Nodes Running SP2/HACMP . . .56
Installation Tips for DEC Alpha NT Managed Nodes . . . . . . . . . . . . .61
Installation Tips for Digital UNIX Managed Nodes. . . . . . . . . . . . . . .62
Installation Tips for DYNIX/ptx Managed Nodes . . . . . . . . . . . . . . . .63
Installation Tips for HP-UX 10.x and 11.x Managed Nodes . . . . . . . .63
Installation Tips for IRIX Managed Nodes. . . . . . . . . . . . . . . . . . . . . .70
Installation Tips for MPE/iX Managed Nodes . . . . . . . . . . . . . . . . . . .70
Installation Tips for NCR UNIX SVR4 Managed Nodes . . . . . . . . . . .74
Installation Tips for Novell NetWare Managed Nodes . . . . . . . . . . . .75
Installation Tips for Olivetti UNIX Managed Nodes . . . . . . . . . . . . . .88
Installation Tips for OS/2 Managed Nodes. . . . . . . . . . . . . . . . . . . . . .89
Installation Tips for Pyramid DataCenter/OSx Managed Nodes . . . .92
Installation Tips for SCO OpenServer Managed Nodes . . . . . . . . . . .93
Installation Tips for SCO UnixWare Managed Nodes . . . . . . . . . . . . .93
Installation Tips for SINIX Managed Nodes . . . . . . . . . . . . . . . . . . . .94
Installation Tips for Solaris Managed Nodes . . . . . . . . . . . . . . . . . . . .95
Installation Tips for Windows NT Systems . . . . . . . . . . . . . . . . . . . . .99
3. File Tree Layouts on the Managed-Node Platforms
18
Contents
File Tree Layout on AIX Managed Nodes. . . . . . . . . . . . . . . . . . . . . . . 118
Standalone System or NFS Cluster Server on AIX. . . . . . . . . . . . . . 118
NFS Cluster Client on AIX. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
ITO Default Operator on AIX. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
System Resources Adapted by ITO on AIX . . . . . . . . . . . . . . . . . . . . 119
File Tree Layout on DEC Alpha NT Manged Nodes . . . . . . . . . . . . . . 120
ITO Default Operator on DEC Alpha NT Managed Nodes . . . . . . . 120
System Resources Adapted by ITO on DEC
Alpha NT Managed Nodes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
File Tree Layout on Digital UNIX Managed Nodes. . . . . . . . . . . . . . . 122
Standalone Systems or NFS Cluster Servers on Digital UNIX . . . . 122
NFS Clients on Digital UNIX. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
The ITO Default Operator on Digital UNIX . . . . . . . . . . . . . . . . . . . 123
System Resources Adapted by ITO on Digital UNIX . . . . . . . . . . . . 124
File Tree Layout on HP-UX 10.x and 11.x Managed Nodes . . . . . . . . 125
NFS Cluster Servers on HP-UX 10.x. . . . . . . . . . . . . . . . . . . . . . . . . 125
NFS Cluster Client on HP-UX 10.x . . . . . . . . . . . . . . . . . . . . . . . . . . 126
The ITO Default Operator on HP-UX 10.x and 11.x. . . . . . . . . . . . . 127
System Resources Adapted by ITO on HP-UX 10.x and 11.x. . . . . . 127
File Tree Layout on MPE/iX Managed Nodes . . . . . . . . . . . . . . . . . . . 128
ITO Default Operator on MPE/iX . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
System Resources Adapted by ITO on MPE/iX. . . . . . . . . . . . . . . . . 128
ARPA-to-NS Node-Name Mapping for MPE/iX. . . . . . . . . . . . . . . . . 128
File Tree Layout on NCR UNIX SVR4 Managed Nodes . . . . . . . . . . . 131
Standalone System or NFS Cluster Server on NCR UNIX SVR4 . . 131
NFS Cluster Client on NCR UNIX SVR4 . . . . . . . . . . . . . . . . . . . . . 131
The ITO Default Operator on NCR UNIX SVR4. . . . . . . . . . . . . . . . 132
System Resources Adapted by ITO on NCR UNIX SVR4. . . . . . . . . 132
File Tree Layout on Novell NetWare Managed Nodes. . . . . . . . . . . . . 133
ITO Default Operator on Novell NetWare. . . . . . . . . . . . . . . . . . . . . 133
Contents
19
System Resources adapted by ITO on Novell NetWare . . . . . . . . . . .134
File Tree Layout on Olivetti UNIX Managed Nodes. . . . . . . . . . . . . . .135
Standalone Systems or NFS Cluster Servers on Olivetti UNIX . . . .135
NFS Cluster Clients on Olivetti UNIX . . . . . . . . . . . . . . . . . . . . . . . .136
The ITO Default Operator on Olivetti UNIX . . . . . . . . . . . . . . . . . . .136
System Resources Adapted by ITO on Olivetti UNIX . . . . . . . . . . . .137
File Tree Layout on OS/2 Manged Nodes. . . . . . . . . . . . . . . . . . . . . . . .138
ITO Default Operator on OS/2 Managed Nodes. . . . . . . . . . . . . . . . .138
System Resources adapted by ITO on OS/2 Managed Nodes . . . . . .138
File Tree Layout on Pyramid DataCenter/OSx Managed Nodes . . . . .139
Standalone Systems or NFS Cluster Servers on Pyramid DataCenter/
OSx . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .139
NFS Cluster Clients on Pyramid DataCenter/OSx . . . . . . . . . . . . . .140
The ITO Default Operator on Pyramid DataCenter/OSx . . . . . . . . .140
System Resources Adapted by ITO on Pyramid DataCenter/OSx . .141
File Tree Layout on SCO OpenServer Managed Nodes . . . . . . . . . . . .142
Standalone Systems or NFS Cluster Servers on SCO OpenServer. .142
NFS Cluster Clients on SCO OpenServer. . . . . . . . . . . . . . . . . . . . . .143
The ITO Default Operator on SCO OpenServer. . . . . . . . . . . . . . . . .143
System Resources Adapted by ITO on SCO OpenServer. . . . . . . . . .144
File Tree Layout on SCO UnixWare Managed Nodes . . . . . . . . . . . . . .145
Standalone Systems or NFS Cluster Servers on SCO UnixWare . . .145
NFS Cluster Clients on SCO UnixWare . . . . . . . . . . . . . . . . . . . . . . .146
The ITO Default Operator on SCO UnixWare . . . . . . . . . . . . . . . . . .146
System Resources Adapted by ITO on SCO UnixWare . . . . . . . . . . .147
File Tree Layout on Sequent DYNIX/ptx Managed Nodes . . . . . . . . . .148
Standalone Systems or NFS Cluster Servers
on Sequent DYNIX/ptx. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .148
NFS Cluster Clients on DYNIX/ptx . . . . . . . . . . . . . . . . . . . . . . . . . .149
The ITO Default Operator on Sequent DYNIX/ptx . . . . . . . . . . . . . .149
20
Contents
System Resources Adapted by ITO on Sequent DYNIX/ptx. . . . . . . 150
File Tree Layout for Silicon Graphics IRIX . . . . . . . . . . . . . . . . . . . . . 151
Standalone Systems or NFS Cluster Servers on SGI IRIX . . . . . . . 151
NFS Cluster Client on SGI IRIX . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
The ITO Default Operator on SGI IRIX . . . . . . . . . . . . . . . . . . . . . . 152
System Resources Adapted by ITO on SGI IRIX . . . . . . . . . . . . . . . 152
File Tree Layout on SINIX Managed Nodes. . . . . . . . . . . . . . . . . . . . . 154
Standalone Systems or NFS Cluster Servers on SINIX. . . . . . . . . . 154
NFS Cluster Clients on SINIX. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
The ITO Default Operator on SINIX . . . . . . . . . . . . . . . . . . . . . . . . . 155
System Resources Adapted by ITO on SINIX . . . . . . . . . . . . . . . . . . 156
File Tree Layout on Solaris Managed Nodes . . . . . . . . . . . . . . . . . . . . 157
Standalone Systems or NFS Cluster Servers on Solaris . . . . . . . . . 157
NFS Cluster Client on Solaris . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
The ITO Default Operator on Solaris . . . . . . . . . . . . . . . . . . . . . . . . 158
Solaris System Resources Adapted by ITO . . . . . . . . . . . . . . . . . . . . 158
File Tree Layout on Windows NT Managed Nodes . . . . . . . . . . . . . . . 160
ITO Default Operator on Windows NT . . . . . . . . . . . . . . . . . . . . . . . 161
System Resources Adapted by ITO on Windows NT. . . . . . . . . . . . . 161
4. Software Maintenance on Managed Nodes
Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Installing or Updating ITO Software Automatically . . . . . . . . . . . . . . 167
Manually Activating the ITO Agent on NFS Cluster Clients . . . . . 169
Changing the Communication Type . . . . . . . . . . . . . . . . . . . . . . . . . 170
De-installing ITO Software from Managed Nodes. . . . . . . . . . . . . . . . 173
Manually De-installing ITO Software from AIX Managed Nodes . . 175
Manually De-installing ITO Software from HP-UX Managed Nodes . .
175
Contents
21
Manually De-installing ITO Software from OS/2 Managed Nodes. .175
Manually De-installing ITO Software from Solaris, NCR, and SINIX
Managed Nodes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .176
Manually De-installing ITO Software from Windows NT Managed
Nodes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .176
Manually De-activating the ITO Agent on an NFS Cluster Client. .176
Managing ITO Agent Software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .178
Debugging Software (De-)Installation on Managed Nodes. . . . . . . . . .181
Enabling (De-)Installation Debugging . . . . . . . . . . . . . . . . . . . . . . . .181
5. Configuring ITO
Preconfigured Elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .185
Managed Nodes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .185
Message Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .186
The Message Browser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .187
Message Ownership . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .191
Template Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .193
ITO Users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .195
Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .201
Windows NT Applications (Intel & DEC Alpha-based) . . . . . . . . . . .209
Novell NetWare Applications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .225
OS/2 Applications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .233
Event Correlation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .235
Logfile Encapsulation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .236
SNMP Trap and Event Interception . . . . . . . . . . . . . . . . . . . . . . . . . .243
ITO Message Interception . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .245
MPE/iX-console Message Interception . . . . . . . . . . . . . . . . . . . . . . . .245
Monitored Objects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .251
Templates for External Interfaces. . . . . . . . . . . . . . . . . . . . . . . . . . . .259
General Configuration Tips Regarding File Names. . . . . . . . . . . . . .260
22
Contents
Database Reports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 261
Reports for Administrators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 261
Reports for Operators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 264
Long-term Reports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 265
Report Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 265
Flexible-management Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . 267
Templates for Flexible Management . . . . . . . . . . . . . . . . . . . . . . . . . 267
Time Templates. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 282
Example Templates for Flexible Management . . . . . . . . . . . . . . . . . 286
Variables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 291
Environment Variables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 291
SNMP Variables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 291
Logfile, Console, and ITO Interface Templates. . . . . . . . . . . . . . . . . 294
Threshold Monitor Templates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 295
Broadcast Applications and User Interface. . . . . . . . . . . . . . . . . . . . 296
Time Templates. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 297
6. Installing/Updating the ITO Configuration on the Managed Nodes
Configuration Installation/Update on Managed Nodes . . . . . . . . . . . . 301
Script and Program Distribution to Managed Nodes . . . . . . . . . . . . 301
Distributing the ITO Agent Configuration to the Managed Nodes . 305
7. Integrating Applications into ITO
Integrating Applications into ITO. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 317
Integrating Applications into the Application Desktop . . . . . . . . . . 317
Examples of Application Integration Tasks. . . . . . . . . . . . . . . . . . . . 318
Integrating Applications as Broadcast Commands. . . . . . . . . . . . . . 324
Integrating Applications as Actions. . . . . . . . . . . . . . . . . . . . . . . . . . 325
Integrating Monitoring Applications. . . . . . . . . . . . . . . . . . . . . . . . . 325
Application Logfile Encapsulation . . . . . . . . . . . . . . . . . . . . . . . . . . . 326
Contents
23
Application Message Interception. . . . . . . . . . . . . . . . . . . . . . . . . . . .326
Server Message Stream Interface API . . . . . . . . . . . . . . . . . . . . . . . .326
How ITO Starts ITO Applications and
Broadcasts on Managed Nodes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .327
SMS Integration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .328
EMS Integration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .332
8. ITO Language Support
Language Support on the Management Server. . . . . . . . . . . . . . . . . . .335
Language of Messages on Management Server . . . . . . . . . . . . . . . . .335
Internal Processing Character Set on Management Server . . . . . . .335
ITO GUI Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .336
Language Support on Managed Nodes. . . . . . . . . . . . . . . . . . . . . . . . . .338
Language of Messages on Managed Nodes. . . . . . . . . . . . . . . . . . . . .338
Character Sets for Internal Processing on Managed Nodes . . . . . . .339
The ASCII Character Set. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .340
External Character Set on Managed Nodes . . . . . . . . . . . . . . . . . . . .341
Character Sets supported by the Logfile Encapsulator . . . . . . . . . . .343
Character Conversion in ITO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .345
English Environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .345
Japanese Environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .348
Localized Object Names . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .350
Flexible Management in a Japanese Environment. . . . . . . . . . . . . . . .351
9. An Overview of ITO Processes
Understanding ITO Processes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .355
Management Server Processes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .356
Managed Node Processes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .360
Process Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .366
24
Contents
Secure Networking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 369
The RPC Client/Server Connection . . . . . . . . . . . . . . . . . . . . . . . . . . 369
Processes and Ports. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 370
Restrictions and Recommendations. . . . . . . . . . . . . . . . . . . . . . . . . . 371
10. Tuning, Troubleshooting, Security, and Maintenance
Performance Tuning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 375
Improving SNMP Management Platform Performance . . . . . . . . . . 375
Improving Database Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . 376
Improving ITO’s Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 376
Troubleshooting: Recommended Practices . . . . . . . . . . . . . . . . . . . . . . 378
Troubleshooting: Tracing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 379
Activating Tracing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 380
Interpreting the Trace File. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 382
Troubleshooting: Characterizing the Problem . . . . . . . . . . . . . . . . . . . 383
Debug Information for OS/2 Managed Nodes . . . . . . . . . . . . . . . . . . 384
Troubleshooting: General Considerations . . . . . . . . . . . . . . . . . . . . . . 385
Troubleshooting: How ITO Reports Errors. . . . . . . . . . . . . . . . . . . . . . 386
Errors Reported in Logfiles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 386
Errors Reported via the Message Browser . . . . . . . . . . . . . . . . . . . . 387
Errors Reported via the GUI Error Dialog Box. . . . . . . . . . . . . . . . . 388
Errors Reported via stderr and stdout. . . . . . . . . . . . . . . . . . . . . . . . 389
Troubleshooting: When you Need More Information. . . . . . . . . . . . . . 390
Troubleshooting: Specific Problems. . . . . . . . . . . . . . . . . . . . . . . . . . . . 391
Troubleshooting on the Management Server . . . . . . . . . . . . . . . . . . 391
Troubleshooting on Managed Nodes . . . . . . . . . . . . . . . . . . . . . . . . . 398
NFS Problems and Solutions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 424
Changing Hostnames/IP Addresses . . . . . . . . . . . . . . . . . . . . . . . . . . . 425
Contents
25
Changing the Hostname/IP Address of the Management Server . . .425
Changing the Hostname/IP Address of a Managed Node . . . . . . . . .431
ITO Security. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .435
System Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .435
Network Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .437
Port Security. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .443
ITO Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .450
Auditing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .457
System Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .460
On The ITO Management Server . . . . . . . . . . . . . . . . . . . . . . . . . . . .460
On ITO Managed Nodes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .473
License Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .477
License Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .477
ITO License Maintenance Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . .478
A. ITO Managed Node APIs and Libraries
ITO APIs on Managed Nodes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .483
ITO APIs for Novell NetWare Managed Nodes . . . . . . . . . . . . . . . . . . .484
Writing ITO-enabled NetWare
Loadable Modules. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .484
ITO Managed Node Libraries. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .486
Include Files on all Managed Nodes . . . . . . . . . . . . . . . . . . . . . . . . . .496
Managed Node Makefiles. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .497
B. Administration of MC/ServiceGuard
Overview of HP MC/ServiceGuard . . . . . . . . . . . . . . . . . . . . . . . . . . . . .500
Introducing MC/ServiceGuard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .501
Glossary of MC/ServiceGuard Terms . . . . . . . . . . . . . . . . . . . . . . . . .501
26
Contents
How MC/ServiceGuard Works. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 503
Example 1: MC/ServiceGuard Package Switchover . . . . . . . . . . . . . 503
Example 2: MC/ServiceGuard Local Network Switching. . . . . . . . . 505
MC/ServiceGuard Redundant Data and Control Subnets . . . . . . . . 506
MC/ServiceGuard and IP addresses . . . . . . . . . . . . . . . . . . . . . . . . . . . 508
Portable IP Addresses. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 508
MC/ServiceGuard and ITO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 509
MC/ServiceGuard Support on the Management Server. . . . . . . . . . 509
Troubleshooting ITO in a ServiceGuard Environment . . . . . . . . . . . . 511
ITO SG Logfiles. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 511
Maintenance Notes for ITO/NNM and MC/ServiceGuard . . . . . . . . 511
C. ITO Tables and Tablespaces in the Database
ITO Tables in the Database. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 514
ITO Tables and Tablespace . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 515
D. ITO Man Pages Listing
Overview of ITO Man Pages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 523
Man Pages in ITO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 523
Man Pages for ITO APIs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 526
Man Pages for the HP OpenView ServiceNavigator. . . . . . . . . . . . . 526
Man Pages for the ITO Developer’s Kit APIs . . . . . . . . . . . . . . . . . . 526
27
1 Prerequisites for Installing ITO
Agent Software
28 Chapter 1
Prerequisites for Installing ITO Agent Software
This chapter lists all supported agents and describes the hardware and
software prerequisites for each type of supported agent. This information
is provided in order to help you select the correct agent platforms to use
as ITO managed nodes. Check the minimum requirements thoroughly
for each agent platform that you expect to install as a managed node.
NOTE In this section, ITO managed nodes are also referred to as ITO agents.
Chapter 1 29
Prerequisites for Installing ITO Agent Software
Managed Node Requirements
Managed Node Requirements
To prepare for the installation of ITO on the managed nodes, make sure
that the chosen managed nodes satisfy the following hardware and
software requirements. This section is split into the following sections:
• Hardware requirements
• Software requirements
Hardware Requirements
This section explains what hardware requirements exist for given agent
platforms.
Novell NetWare Hardware Requirements
The Novell NetWare systems you select as managed nodes must meet
the following hardware requirements:
• Novell NetWare 4.1 Server or higher (Novell SMP is not supported)
• 10 MB disk space on each NetWare server in the SYS: volume
• 20 MB disk space for the software depot on the NetWare depot server
in the SYS:volume
• 7 MB additional free RAM on the NetWare server (4 MB for the ITO
agent, 1 MB for TI-RPC, and 0.5 to 2 MB for the NetWare
Management Agent and XCONSOLE). At least 32 MB of server RAM
is suggested for fair performance.
• 16 MB additional free RAM for the ITO agent if you are using
NetWare SFT III file servers
OS/2 Hardware Requirements
The OS/2 systems you select as managed nodes must meet the following
hardware requirements:
❏10 MB disk space free
(About 20 MB required during software installation.)
30 Chapter 1
Prerequisites for Installing ITO Agent Software
Managed Node Requirements
❏The ITO agent must be installed on an HPFS partition: FAT
partitions are not supported for ITO Agent installation and operation.
❏Additional swap space: none
❏Additional RAM: 4MB
UNIX Hardware Requirements
The UNIX systems you select as managed nodes must meet the following
hardware requirements:
❏10 MB disk space free
(About 20 MB is required during software installation.)
❏Additional swap space: none
❏Additional RAM: none
NOTE Only PA-RISC version 1.1 is supported on HP-UX 10.x managed nodes.
Windows NT Hardware Requirements
The Windows NT systems you select as managed nodes must meet the
following minimum hardware requirements:
❏Windows NT 4.0 Workstation or Server
• Windows NT 4.0 Server: 16 MB Memory
• Windows NT 4.0 Workstation: 12 MB Memory
❏10 MB disk space on local NTFS disk
❏During installation, an additional 10 MB of disk space is required on
the local C: drive
Software Requirements
This section lists the specific versions of the various agent operating
systems that are supported by ITO and also provides information
concerning how the software requirements for agents vary according to
the specific operating system. In addition, this section explains what
requirements exist for communication software (DCE and NCS) for each
agent platform.
Chapter 1 31
Prerequisites for Installing ITO Agent Software
Managed Node Requirements
ITO Supported Agent Platforms and Operating
System (OS) Versions
Table 1-1 on page 31 lists the specific versions of the various agent
operating systems that are supported by ITO.
Table 1-1 Supported ITO-Agent Operating System Versions
Operating System Platform Supported OS
Versions
Supported
Communication
Type a
AIX IBM RS/6000
BULL DPX/20 4.1, 4.2, 4.3 DCE
DataCenter/OSx
SVR4 Pyramid 1.1 NCS
Digital UNIX DEC Alpha 4.0 DCE
DYNIX/ptx Intel 486 or higher 4.1.2, 4.1.3, 4.2.0,
4.4.0, 4.4.1, 4.4.2 NCS
HP-UX HP 9000 Technical
Workstations b10.01, 10.10, 10.20
11.0
DCE
DCE
HP-UX HP 9000
Enterprise
Servers c,d
10.01, 10.10, 10.20
11.0
DCE
DCE
IRIX Silicon Graphics 5.3, 6.2, 6.4, 6.5 NCS
MPE/iX HP 3000/900 5.5, 6.0 NCS
NCR UNIX SVR4 NCR System
3xxx/4xxx/5xxx
(Intel 486 or
higher) e
R.03.02 NCS
Novell NetWare Intel 486 or higher 4.1, 4.11, 4.11 SFT
III, EZRPC f
Olivetti UNIX
SVR4.2 Olivetti (INTEL
PCs) 2.4.2 NCS
32 Chapter 1
Prerequisites for Installing ITO Agent Software
Managed Node Requirements
a. DCE can be purchased at additional cost for some of these agent platforms, either
from the platform vendor, or from a third-party supplier.
b. HP 9000/700 workstations are now referred to as HP 9000 Technical
Workstations.
c. HP 9000/800 servers are now referred to as HP 9000 Enterprise Servers.
d. ITO uses the same binaries as for HP 9000 Technical Workstations.
e. NCR hardware types: 4700, 5100, and 5150 are supported only if the installed ver-
sion of the standard NCR UNIX operating system is supported by ITO and any
additional software which is installed does not change the IP address of the NCR
node under any circumstances (takeover, etc).
f. Transport Independent Remote Procedure Call
g. ITO does not yet support special editions of the Windows NT Server operating
system; for example, Windows NT Server Enterprise Edition or Windows NT
Server Terminal Server Edition; nor does it support any software products
extending these editions; for example, WinFrame or MetaFrame from Citrix
Systems, Inc.. Contact your local HP Sales Representative for the latest
information about support for these products.
h. ITO supports the remote protocol calls (RPCs) but not the security features.
Additional agent platforms may also be supported by HP partners, or
directly by HP, either currently or in the near future. For a current list of
supported agent platforms, contact your HP representative.
OS/2 Warp Intel 486 or higher 3.0, 4.0 DCE
SCO OpenServer Intel 486 or higher 3.2 (v4.0, v4.2,
v5.0.0, v5.0.1, v5.0.2,
v5.0.3, v5.0.4, v5.0.5)
NCS
SCO UnixWare Intel 486 or higher 2.1 DCE
SINIX/Reliant Siemens-Nixdorf 5.43, 5.44 NCS/DCE
Solaris Sun SPARCstation 2.5, 2.51, 2.6, 7 NCS
Windows NT Intel 486 or higher 3.51, 4.0 (NT server
and workstation)gDCE h
DEC Alpha
Operating System Platform Supported OS
Versions
Supported
Communication
Type a
Chapter 1 33
Prerequisites for Installing ITO Agent Software
Managed Node Requirements
Communication Software
ITO can use two mechanisms to communicate between the management
server and the client nodes, these are the Distributed Computing
Environment (DCE) and Network Computing System (NCS). Processes
running on the ITO management server communicate using DCE by
default, however, processes on the agents can communicate with the
management server using either DCE or NCS. DCE is the recommended
communication mechanism wherever possible. Table 1-2 on page 33
shows which version of DCE is required for a given agent operating
system.
Table 1-2 DCE version for ITO-Agent Operating Systems
If DCE runtime is not available with your other agent platforms, you will
need to use NCS 1.5.1, with the Local Location Broker Daemon (llbd)
instead of dced/rpcd running on the managed node.
NOTE Starting with DCE version 1.4.1, the DCE daemon (dced) replaces the
RPC daemon (rpcd).
For platforms which support the NCS communication type, the following
configuration step applies. If DCE or NCS runtime is not found on the
managed node during installation, ITO automatically installs the
appropriate NCS components (the llbd and lb_admin programs) on
NCS nodes.
Software Requirements for IBM AIX Managed Nodes
The following software must be installed on AIX managed nodes:
Agent OS Required DCE version
AIX 1.2.1/1.4.1 or higher
Digital UNIX 2.0
HP-UX 1.2.1/1.4.1 or higher
OS/2 1.0.2 or 2.1
SINIX/Reliant 2.0
SCO UnixWare 1.1
Windows NT 1.2.1/1.4.1 or higher
34 Chapter 1
Prerequisites for Installing ITO Agent Software
Managed Node Requirements
❏Operating system. For the supported OS versions, see Table 1-1 on
page 31.
❏DCE RPC:
• DCE RPC.
• For AIX 4.1, it is recommended you install the libc_r.a patch. It
can be found on CD-ROM 5765-393, (titled, AIX V4 Update
CD-ROM). To install, login as root and run: smitty update_all.
• The following filesets must be installed on the AIX 4.1 or 4.2 DCE
RPC managed node:
dce.client.core.rte 2.1.0.6
dce.client.core.rte.rpc 2.1.0.0
dce.client.core.rte.cds 2.1.0.1
dce.client.core.rte.security 2.1.0.5
dce.client.core.rte.time 2.1.0.4
dce.client.core.rte.zones 2.1.0.0
dce.client.core.rte.admin 2.1.0.5
dce.client.core.rte.config 2.1.0.2
dce.client.dfs.rte 2.1.0.6
• The following filesets must be installed on the AIX 4.3 DCE RPC
managed node:
dce.client.core.rte 2.1
❏ARPA/Berkeley Services.
❏The MIB monitoring functionality of ITO requires SNMP-based,
MIB-I (RFC 1156) or MIB-II (RFC 1158) compliant agent software.
Software Requirements for DEC Alpha NT Managed
Nodes
See “Software Requirements for Windows NT Managed Nodes” on page
42 for information regarding the software which has to be installed and
running on managed nodes running DEC Alpha NT:
Software Requirements for Digital UNIX (OSF/1)
Managed Nodes
The following software must be installed on Digital UNIX (OSF/1)
managed nodes:
Chapter 1 35
Prerequisites for Installing ITO Agent Software
Managed Node Requirements
❏Operating System. For the supported OS versions, see Table 1-1 on
page 31.
❏Basic networking services
• OSFCLINET4xx Basic Networking Services
❏DCE Runtime Kit
• DCERTS20x DCE Runtime Services V2.0
NOTE ITO supports DCE versions supplied with the Digital Unix operating
system. However, although the Digital Unix operating system includes
DCE, DCE has to be installed separately as an optional product.
❏Japanese base system (only for managed nodes running Digital Unix
in a Japanese environment)
• IOSJPBASE4xx Japanese Base System
Software Requirements for HP-UX 10.x Managed
Nodes
The following software must be installed on HP-UX 10.x managed nodes:
❏Operating system. For the supported OS versions, see Table 1-1 on
page 31.
❏DCE RPC version 1.2.1 or higher on HP-UX 10.x
(SD-package: DCE-Core.DCE-CORE-RUN)
❏Internet Services
(SD-package: InternetSrvcs.INETSRVCS-RUN)
❏LAN/9000
(SD-package: Networking.NET-RUN)
❏SNMP agent for MIB monitoring.
SD-Package for HP-UX 10.20 and lower: NetworkingSnmpAgent
SD-Package for HP-UX 10.30 and higher: OVSNMPAgent
❏Native Language Support (NLS) Package
(SD-package: OS-Core.NLS-AUX)
36 Chapter 1
Prerequisites for Installing ITO Agent Software
Managed Node Requirements
Software Requirements for HP-UX 11.x Managed
Nodes
The following software must be installed on HP-UX 11.x managed nodes:
❏Operating system. For the supported OS versions, see Table 1-1 on
page 31.
❏DCE RPC version 1.7 or higher on HP-UX 11.x managed nodes.
(SD-package: DCE-Core.DCE-CORE-RUN)
❏DCE/9000 Kernel Thread Support
(SD-package for HP-UX 11.x DCE-KT-Tools)
❏Internet Services
(SD-package: InternetSrvcs.INETSRVCS-RUN)
❏LAN/9000
(SD-package: Networking.NET-RUN)
❏SNMP agent for MIB monitoring.
(SD-Package for HP-UX 11.x and lower: NetworkingSnmpAgent)
(SD-Package for HP-UX 11.x and higher: OVSNMPAgent)
❏Native Language Support (NLS) Package
(SD-package: OS-Core.NLS-AUX)
Software Requirements for MPE/iX Managed Nodes
The following software must be installed on MPE/iX managed nodes:
❏Operating System. For the supported OS versions, see Table 1-1 on
page 31.
❏NCS version 1.5.1 or DCE RPC.
❏NS services.
Software Requirements for NCR UNIX SVR4 Managed
Nodes
The following software must be installed on NCR UNIX SVR4 managed
nodes:
Chapter 1 37
Prerequisites for Installing ITO Agent Software
Managed Node Requirements
❏Operating System. For the supported OS versions, see Table 1-1 on
page 31.
❏If only the Multi-User operating environment is installed, then the
networking package, WIN-TCP, must also be installed.
❏NCS Version 1.5.1 (package NckNidl) or StarPRO DCE Executive
from NCR UNIX SVR4.
If neither NCS nor StarPRO DCE are found on the managed node,
ITO installs llbd and lb_admin during the ITO agent software
installation.
❏The MIB monitoring functionality of ITO requires SNMP-based,
MIB-I (RFC 1156) or MIB-II (RFC 1158) compliant agent software.
Software Requirements for Novell NetWare Managed
Nodes
The following software must be installed on Novell NetWare managed
node:
❏Operating System. For the supported OS versions, see Table 1-1 on
page 31.
❏TCP/IP services configured, running and automatically started
❏Network FRAMING types must be configured (Ethernet II frame type
is required)
❏CLIB.NLM version 4.10 or higher
❏Novell TIRPC (If this product is missing ITO copies the required files
during the installation process.)
❏SNMP daemon configured, running and automatically started
❏XCONSOLE configured and running: remote console access (via
telnet) must be allowed
XCONSOLE.NLM must be installed and configured on each server.
XCONSOLE is part of Novell products like Flex-IP or NetWare/IP.
❏Novell NMA 2.1 installed and configured
Novell NMA 2.1 is a NetWare add-on product and can be purchased
from Novell. Note that almost all ITO NetWare agent
instrumentation is based on NMA. NetWare servers which do not run
NMA can, therefore, only be managed in a very limited way by ITO.
38 Chapter 1
Prerequisites for Installing ITO Agent Software
Managed Node Requirements
❏NetBasic must be installed on NetWare depot servers
NetBasic runtime version 6.00j - Build 4.127 or higher is required for
NetWare depot server(s) (the systems which are used for the ITO
agent software installation). See “Installation Tips for Novell
NetWare Managed Nodes” on page 75 for details on how to get and
install NetBasic.The valid runtime serial number to be used with
NetBasic is delivered together with the ITO NetWare agent at no
additional cost.
Software Requirements for Olivetti UNIX Managed
Nodes
The following software must be installed on Olivetti UNIX managed
nodes:
❏Operating System. For the supported OS versions, see Table 1-1 on
page 31.
❏Olivetti networking support utilities: nsu 2.4
❏Olivetti internet utilities software: inet 2.4
❏Gradient NCS 1.5.1 package SVR4 for x86: NckNidl GR 1.3.1
If NCS is not yet installed on the managed node, ITO installs llbd
and lb_admin during ITO software installation.
❏For use in NFS cluster-client operations, the Olivetti NFS product
(nfs 2.2) must be installed on the managed node.
Software Requirements for OS/2 Managed Nodes
The following software must be installed on managed nodes running
OS/2:
❏Operating system: for the supported OS versions, see Table 1-1 on
page 31.
❏Networking packages for OS/2 Warp 3.0 or OS/2 Warp 4.0
• TCP/IP 3.0 (requires MPTS - included in OS/2 Warp 3.0 Connect
and OS/2 Warp 4.0)
To get the SNMP daemons on OS.2 Warp 4.0, install System View
Agent.
Chapter 1 39
Prerequisites for Installing ITO Agent Software
Managed Node Requirements
TCP/IP (or System View Agent on OS/2 Warp 4.0) includes two
SNMP deamons, snmpd and mib_2. Both must be running when
you install the agent software. They ensure that the management
server is able to determine the node type of the managed node. If
you want to use MIB variable monitoring, both deamonns must
continue to run after the installation.
• DCE Runtime 1.0.2 or 2.1 (part of DSS/DCE for OS/2)
• TME NetFinity required for monitoring of some MIB variables
TME NetFinity is pre-installed on OS/2 Warp 4.0 managed nodes,
but must be installed separately on OS/2 Warp 3.0 managed
nodes. The monitor template os2_cpu_util does not work on
nodes without TME NetFinity installed.
Software Requirements for Pyramid DataCenter/OSx
Managed Nodes
The following software must be installed on Pyramid DataCenter/OSx
managed nodes:
❏Operating System. For the supported OS versions, see Table 1-1 on
page 31.
❏Pyramid TCP/IP software: OpenNet TCP/IP 1.0
❏Gradient NCS 1.5.1 package SVR4 for MIPS: NckNidl GR1.3.0
If NCS is not yet installed on the managed node, ITO installs llbd
and lb_admin during ITO software installation.
❏For use in NFS cluster-client operations, the Pyramid NFS product
(OpenNet NFS 1.1) must be installed on the managed node.
Software Requirements for SCO OpenServer
Managed Nodes
The following software must be installed on SCO OpenServer managed
nodes:
❏Operating System. For the supported OS versions, see Table 1-1 on
page 31.
❏NCS 1.5.1 package or SCO DCE (DCE Executive).
If neither NCS nor DCE are found on the managed node, ITO installs
llbd and lb_admin during the ITO agent software installation.
40 Chapter 1
Prerequisites for Installing ITO Agent Software
Managed Node Requirements
Software Requirements for SCO UnixWare Managed
Nodes
The following software must be installed on SCO UnixWare managed
nodes:
❏Operating System. For the supported OS versions, see Table 1-1 on
page 31.
❏UnixWare Networking Support Utilities:
• nsu 2.1
❏UnixWare internet utilities software:
• inet 2.1
❏DCEcore 1.1
❏For use in NFS cluster-client operations, the following version of the
UnixWare NFS product must be installed on the managed node:
• nfs 2.1
Software Requirements for Sequent DYNIX/ptx
Managed Nodes
The following software must be installed on Sequent managed nodes:
❏Operating System. For the supported OS versions, see Table 1-1 on
page 31.
❏Sequent local area network product: ptx/LAN version 4.0.1. or higher
❏Sequent TCP/IP product: ptx/TCP/IP version 4.0.3 or higher
❏Gradient NCS 1.5.1 package NckNidl.
If NCS is not found on the managed node, ITO installs llbd and
lb_admin during the ITO agent software installation.
Software Requirements for SGI IRIX Managed Nodes
The following software must be installed on IRIX managed nodes:
❏Operating System. For the supported OS versions, see Table 1-1 on
page 31.
Chapter 1 41
Prerequisites for Installing ITO Agent Software
Managed Node Requirements
❏On IRIX 5.3, NCS 1.5.1 package netls_eoe.sw or gr_ncs.sw. On IRIX
6.2, NCS 1.5.1 package license_eoe.sw.netls.server. If neither NCS nor
DCE are found on the managed node, ITO installs llbd and
lb_admin during ITO software installation.
❏On IRIX 5.3, package eoe1.sw.svr4net with System V compatible
networking must be installed. On IRIX 6.2, package
eoe.sw.svr4net with System V compatible networking must be
installed.
❏For diskless operations IRIX NFS must be installed on a cluster
server.
Software Requirements for Siemens-Nixdorf
SINIX/Reliant Managed Nodes
The following software must be installed on SINIX/Reliant managed
nodes:
❏Operating System. For the supported OS versions, see Table 1-1 on
page 31.
❏Siemens-Nixdorf networking packages (5.43):
• tcp
• SImac596
❏NCS 1.5.1
If NCS is chosen as the Node Type in the ITO GUI, and NCS 1.5.1 is
not found on the managed node, ITO installs llbd and lb_admin
during the ITO agent software installation.
❏DCE DCE-CLNT 2.0
If the chosen communication type for the managed node is NCS RPC
and NCS is not installed on the managed node, ITO installs llbd and
lb_admin during the ITO agent software installation. If the
communciation type is set to DCE RPCS (TCP or UDP), CDE-CLNT
must be installed on the managed node
❏Package: attcmd
Software Requirements for Sun Solaris Managed
Nodes
The following software must be installed on Solaris managed nodes:
42 Chapter 1
Prerequisites for Installing ITO Agent Software
Managed Node Requirements
❏Operating System. For the supported OS versions, see Table 1-1 on
page 31.
❏NCS version 1.5.1 or DCE RPC. If neither NCS nor DCE are found on
the managed node, ITO installs llbd and lb_admin during the ITO
agent software installation.
❏ARPA/Berkeley Services.
❏The MIB monitoring functionality of ITO requires the snmpd of the
HP OpenView platform, or SNMP-based, MIB-I (RFC 1156) or MIB-II
(RFC1158) compliant agent software.
Software Requirements for Windows NT Managed
Nodes
The following software must be installed on Windows NT managed
nodes:
❏Required Service Packs:
• Windows NT 3.51: Service Pack 5
• Windows NT 4.0: Service Pack 3 or 4
❏Operating system: for the supported OS versions, see Table 1-1 on
page 31.
❏FTP Service running (required during “ftp Agent Package” type
installation)
❏Schedule Service must not be disabled (required during installation)
❏TCP/IP services running and automatically started
❏RPC Services running (Server, Remote Procedure Call Service) and
automatically started
❏Event Log and SNMP Services (if discovery and other SNMP features
of ITO should be used)
❏The DHCP (dynamic address service for Windows NT clients) must
not be used, since ITO relies on the IP address to identify the
managed nodes.
43
2 Installing ITO Agents on the
Managed Nodes
44 Chapter 2
Installing ITO Agents on the Managed Nodes
This chapter describes how to install the ITO agent software on the
various supported managed nodes, and includes numerous tips for
different operating systems.
The installation procedures assume that you have already installed and
configured the database and ITO on the management server, as
described in the HP OpenView IT/Operations Installation Guide for the
Management Server.
Chapter 2 45
Installing ITO Agents on the Managed Nodes
Overview
Overview
This section contains important information about installing and
de-installing ITO agent software on managed nodes with various
operating systems. This section includes:
❏installation tips
❏steps for installing the ITO agent software on managed nodes
❏automatic installation or update procedures
❏automatic de-installation procedures for managed nodes
Make sure that the kernel parameters are set correctly on UNIX
systems. Although system default values are normally sufficient, the
logfile encapsulator sometimes requires that the number of open files be
increased. You can check and change the system parameters using the
tools listed in Table 2-1 on page 45.
Table 2-1 System Administration Tools
Operating System Tool
AIX SMIT
Digital UNIX setup
DYNIX/ptx menu
HP-UX SAM
IRIX sysmgr
NCR UNIX sysadm
Olivetti UNIX sysadm
Pyramid DataCenter/OSx sysadm
SCO OpenServer 3.2v4*: sysadmsh
3.2v5.0.x: scoadmin
46 Chapter 2
Installing ITO Agents on the Managed Nodes
Overview
NCR UNIX SVR4 and SGI have no automated tools. Windows NT system
parameters cannot be changed.
Table 2-2 on page 46 gives values for kernel parameters on HP-UX
managed nodes. Other agent platforms generally require similar values.
Table 2-2 Important Kernel Parameters for Managed Nodes
a. This number depends upon several factors. Normally a value
of 20 per process is sufficient. However, the more log files con-
figured for the logfile encapsulator, the more file descriptors
are needed. Normally, one logfile requires about one file
descriptor. Any actions which result in processes being
started on the managed node need additional file descriptors.
SCO UnixWare sysadm
SINIX sysadm
Solaris admintool
Operating System Tool
Parameter Description Minimum Value
nfile Maximum number of open
files. 20 a
semmns Required semaphores. 20
shmmax Maximum shared memory. None required.
msgmni Message queues. None required.
nflocks File locks. 10
Chapter 2 47
Installing ITO Agents on the Managed Nodes
General Installation Tips for Managed Nodes
General Installation Tips for Managed
Nodes
❏When possible, install the latest ITO agent software version on all
managed nodes. This will enable the latest ITO features to be used on
those nodes.
❏The names bin, conf, distrib, unknown and mgmt_sv may not be used
for managed nodes. These names are used internally by ITO, and
therefore must not be used as the name of any system.
❏Avoid using host aliases, as this will cause problems in the event that
two aliases are identical.
❏The name of the management server must be known to the managed
node. This means that it must be registered on the name server or in
the local host table: /etc/hosts (UNIX systems), or
HOSTS.NET.SYS (MPE/iX systems). On HP-UX, Solaris, AIX, and
other UNIX SVR4 systems, you can verify this by using the
nslookup command. On systems running; Windows NT, OS/2, or
NetWare use the ping command or NLM.
❏The DCE RPC daemon (dced or rpcd) must be running when
installing or updating the ITO Software on the management server.
Either the DCE RPC daemon (dced or rpcd) or NCS Local Location
Broker daemon (llbd) must be running when installing or updating
the ITO Software on the management server and/or managed node. If
they are not, the ITO services cannot be started. Automatic startup
and integration of the startup functionality in the appropriate boot
procedure is done by ITO only for the dced/rpcd or llbd, and only if
you have selected the Automatic Update of System Resource
Files option, see the Add/Modify Node window in the ITO
administrator GUI.
System resource files are, for example, /etc/rc.config.d (HP-UX
10.x and 11.x), /etc/inittab (AIX), and SYSSTART.PUB.SYS
(MPE/iX)
On HP-UX systems, see the appropriate man pages, for example:
dced(1M),rpcd(1M), or llbd(1M). On MPE/iX systems, see the NCS
online documentation located at: ncsman.pub.hpncs and
manual.pub.hpncs.
48 Chapter 2
Installing ITO Agents on the Managed Nodes
General Installation Tips for Managed Nodes
❏Identify managed nodes having more than one IP address, and
specify the most appropriate address (for example, the IP address of a
fast network connection) in the ITO configuration. Verify that all
other IP addresses of that managed node are also known at the
management server. Otherwise, the messages from the multiple IP
address systems might not be forwarded by ITO.
❏During installation on managed nodes, twice the amount of disk
space actually required by ITO is necessary, because the tape image is
transferred to the managed node before uncompressing and
unpacking it.
❏For MPE/ix managed nodes, use only fully qualified ARPA host
names. It is also recommended that you set the environment variable
HPSYSNAME to the name of your MPE/iX system. The best way to
do this is to insert the setting in a system-wide logon-UDC in the
format:
:HPSYSNAME=<full_qualified_hostname>
Use long host names in your templates only when performing
automatic and/or operator initiated actions.
❏Do not up or downgrade the OS version of the management server or
managed node to a level not supported by ITO. For a list of supported
OS versions on the management server, see the HP OpenView
IT/Operations Installation Guide for the Management Server, and on
the managed nodes, see Table 1-1, “Supported ITO-Agent Operating
System Versions,” on page 31. You can also get this information by
running the following script on the management server:
/opt/OV/bin/OpC/agtinstall/opcversion
❏Check that the system times of the management server and the
managed nodes are synchronized—as far as possible—to guarantee
that the time received on the management server is always later than
the time the message has been generated on the managed node.
❏Make sure you know all the root passwords of all the managed nodes
when you install the ITO agent software.
On UNIX managed nodes, passwords are not required if an .rhosts
entry for root has been made or if the management server is included
in /etc/hosts.equiv (HP-UX 10.x/11.x).
❏If you don’t have enough disk space in your UNIX file system for ITO,
apply one or more of the following solutions:
Chapter 2 49
Installing ITO Agents on the Managed Nodes
General Installation Tips for Managed Nodes
• Use a symbolic link. For example, for HP-UX 10.x:
ln -s /mt1/OV /opt/OV
• Mount a dedicated volume. For example, for AIX:
mount /dev/hd4 /usr/lpp/OV
Note that for HP-UX systems (versions below 10.00),
/etc/update(1M) does not support installation on NFS-mounted
file systems. You can also set the following swinstall option:
write_remote_files=true
❏If you wish to move the management server to some other system,
you must first de-install the ITO managed node software from all
managed nodes, or change the management server entry in the
related ITO information file. For the location of this file, see
Table 10-3 on page 399.
❏If you do not need the functionality of the ITO default operator on
your managed nodes (except on the management server), you can
purge the related information:
UNIX:
• erase the home directory of the user opc_op
• remove the opc_op entry from /etc/passwd
• remove the opcgrp entry from /etc/group
MPE/iX:
• purge the account OVOPR
NOTE The ITO default operator may not be removed from Windows NT
managed nodes because the agents run under the operator’s account.
❏When you upgrade or reinstall ITO software on managed nodes, make
sure that all programs and applications which use the opcmsg(3) or
opcmon(3) API are stopped.
This is important because these and other APIs are stored in the ITO
shared library, which is over-written during ITO software upgrade or
reinstallation. For more information, see the HP OpenView
IT/Operations Developer’s Reference.
50 Chapter 2
Installing ITO Agents on the Managed Nodes
General Installation Tips for Managed Nodes
Installation Tips to be Performed on the
Management Server
❏If you want to stop the configuration and script/program distribution,
for example, if the configuration is invalid, clean the /distrib
directory. This should only be done in an emergency and only after
the ITO management server processes have been stopped.
/var/opt/OV/share/tmp/OpC/distrib
❏Avoid interrupting the software installation or de-installation process
on managed nodes. Doing so will cause a semaphore file to be left on
the management server, and you will not be able to re-invoke the
installation. In this case, remove the file manually.
/var/opt/OV/share/tmp/OpC/mgmt_sv/inst.lock
If you interrupt the software installation or de-installation on the
managed nodes at the time you are asked for a password, your
terminal settings will be corrupted and any commands that you type
will not be echoed in the terminal. If this happens, you can reset the
terminal by typing the following:
stty echo
❏Do not de-install any of the management server bits, for example
OVOPC-ORA or OVOPC, if any managed node is still configured and has
the appropriate ITO bits.
❏Do not de-install the managed node tape images (for example OVOPC-
CLT-ENG/JPN) from the management server, if any managed node of
this type is still configured and has the ITO bits installed on it. If you
do, you will be unable to de- install the ITO agent software using the
ITO GUI.
Installation Tips for UNIX Managed Nodes
General Tips
❏Make sure that uname(1M) returns the short system name.
❏The nameservice (/etc/hosts and/or DNS) needs to be set up so
that all name-service operations (like nslookup) are consistently
resolved to the fully-qualified system name. For example, hostname
is not name-service related and may return the short hostname.
Chapter 2 51
Installing ITO Agents on the Managed Nodes
General Installation Tips for Managed Nodes
❏The non-default log directory on UNIX systems is erased during de-
installation of ITO. Note the following rules about this directory:
• Do not use the same directory for more than one managed node,
this could be a potential problem in cluster environments, or in
cases where the directory is NFS-mounted across several systems.
• Do not use the same log directory for ITO and other applications.
• Do not create subdirectories beyond ITO’s log directory for use by
other applications or other managed nodes.
❏Make sure that inetd’s security file on the managed nodes allows
remshd or ftpd for the management server. For example:
HP-UX 10.x /var/adm/inetd.sec
❏Make sure that root is not registered in /etc/ftpusers on the
managed node, if no .rhosts entry for root and no
/etc/hosts.equiv entry for the management server is available.
❏By default, ITO registers the default operator opc_op with user-ID
777 and group-ID 77, if available, for AIX, and user-ID 777 and
group-ID 177, if available, for SINIX, Olivetti, Pyramid, and SCO
UnixWare. For consistency, make sure that the user-ID and group-ID
are identical on all your managed nodes.
NOTE If you wish to install or re-install the ITO agent manually on nodes with
the ITO Advanced Network Security (ANS) extension, you need to copy
the file nsp_pkg.Z, too. For more information on which platforms are
supported, see the Advanced Network Security Extension for HP
OpenView IT/Operations guide.
Tips for NFS Cluster Client Specials
The ITO software maintenance process for managed nodes makes the
following assumptions about NFS cluster configurations:
❏If the file system containing the ITO agent binaries of a managed
node is NFS-mounted to a file system on another computer, then this
managed node is considered an ITO cluster client. The system that
exports the file system that is mounted by the managed node is called
the cluster server.
CLUSTER SERVER <server>: CLUSTER CLIENT <client>:
exported /opt <------- server:/opt on /opt
52 Chapter 2
Installing ITO Agents on the Managed Nodes
General Installation Tips for Managed Nodes
This assumption is valid for all platforms that support NFS
operations, regardless of special support for diskless nodes. For
example, NCR UNIX does not support diskless configurations but you
can make a cluster of NCR workstations that share common ITO
agent code.
For platforms belonging to the UNIX family that support diskless or
disk- poor cluster nodes:
❏Systems belonging to the same cluster cannot belong to different ITO
environments.
❏Make sure that all ITO agent processes on any cluster node are
completely stopped when installing a new ITO version on the cluster
or when de-installing the ITO software from the cluster; use:
opcagt -kill
❏The agent software component must also be selected for cluster
clients, even if the software is already installed on the cluster server
because node-specific directories, symbolic links, mounts etc. are
established for each cluster node. You can, however, respond with “n”
to the question, “Do you want to force update?”.
❏The ITO agent software package is only installed on the cluster
server when the first cluster member (cluster client or cluster server)
is installed with ITO. The installation process for other cluster clients
only establishes local directories, updates local client resources, and
starts local ITO agents.
Installation Tips for AIX Managed Nodes
❏Verify that at least rshd or ftpd is available if securetcpip is
enabled.
❏Check that the limits specified in /etc/security/limits fit your
requirements. The default,root, and opc_op entries are of special
interest.
❏Verify that one of the following DCE software packages is installed:
• dcebase.base.obj
• dce.client.core.rte.admin
❏The ITO agent software is installed on the /usr/lpp file tree.
Chapter 2 53
Installing ITO Agents on the Managed Nodes
General Installation Tips for Managed Nodes
If the file system which hosts the /usr/lpp file tree is too small to
install ITO Agents, create a symbolic link before installing ITO. For
example: if /bigdisk is a local file system with enough free space:
mkdir -p /bigdisk/OV
ln -s /bigdisk/OV /usr/lpp/OV
In a cluster environment, you must check that /bigdisk is also
accessible from all cluster clients, and that it is mounted from all
client nodes. For example, the local file system /bigdisk on the
cluster client must be mounted to the exported file system /bigdisk
on the cluster server.
❏In ITO version A.02.00 and later, agent software is installed under
the /usr/lpp/OV path name instead of under
/export/lpp/OV/rs6000/aix as it was in earlier versions. Since
/usr (or /usr/lpp) and /export normally belong to different file
systems, this means that enough disk space must exist on /usr (or
/usr/lpp) file system before an upgrade to A.02.10 can be
successfully installed. This differs from other upgrades where
software is installed in the same directories as the previous version.
Disk space occupied by previous versions of ITO agents under
/export/lpp/OV/rs6000/aix will be freed.
❏AIX diskless nodes may initially be created so that root password is
not required. It is possible to remote login on these systems but
command execution with remsh will not be possible because .rhosts is
initially not present on the diskless client. FTP to this type of node
will also not be possible because the root password is empty. It is,
therefore, not possible to install ITO automatically on a diskless node
before either the root password is assigned or the .rhosts file is set
up properly. Note that initially the /etc/hosts file on the diskless node
also does not include the ITO management server.
Manual AIX Agent Installation
In some situations, it may be desirable to install the AIX agent software
without using the management server. This manual installation makes
it possible to prepare the workstation, so that it is ready to become an
ITO managed node when it is later connected to the network. This may
be useful if many workstations are prepared in some central location, or
if one wants to avoid the root connection over the network that is
necessary for a standard agent installation.
54 Chapter 2
Installing ITO Agents on the Managed Nodes
General Installation Tips for Managed Nodes
Install the Agent on the Managed Node:
Use the following instructions to install the ITO AIX agent on an AIX
system that will become an ITO managed node:
1. Copy the ITO agent package to a temporary directory on the managed
node. On the management server, this agent package is located in:
/var/opt/OV/share/databases/OpC/mgd_node/vendor/ibm/\
rs6000/aix/A.05.00/RPC_DCE_[TCP|UDP]/opc_pkg.Z
If you intend to run ITO Advanced Network Security (ANS) on this
node, you also need to copy the file:
/var/opt/OV/share/databases/OpC/mgd_node/vendor/ibm/\
rs6000/aix/A.05.00/RPC_DCE_[TCP|UDP]/nsp_pkg.Z
2. Uncompress the agent package:
uncompress opc_pkg.Z
If appropriate, uncompress the ANS package, too:
uncompress nsp_pkg.Z
3. Install the agent on the node:
installp -ac -I -X -F -d<directory>/opc_pkg all
If appropriate, install ANS on the node, too:
installp -ac -I -X -F -d<directory>/nsp_pkg all
Activate the Node Using the Command Line:
You can activate the agent on the node over the net (without the GUI and
without root access) by using the following command-line steps:
1. After manually installing the agent on the node, enter:
/opt/OV/bin/OpC/install/opcactivate <ITO_mgt_server>\
-cs <server_codeset> -cn <agent_codeset>
This will activate the agent, which will then attempt to send
messages to the management server. For more information about
codesets, see Chapter 8, “ITO Language Support,” on page 333.
Chapter 2 55
Installing ITO Agents on the Managed Nodes
General Installation Tips for Managed Nodes
NOTE Use the opcactivate command with the -mode option to activate:
hacmp for ITO agents on AIX HACMP systems. See also
“Installation Prerequisites for AIX HACMP Agents”
on page 58
cluster
server/client for ITO agents on AIX Cluster-Client systems after
the ITO agent software package has been installed
on the AIX Cluster Server system. For more
information, see “Manually Activating the ITO
Agent on NFS Cluster Clients” on page 169.
See the man page opcactivate(1m) for more information.
2. After the node is connected to the network execute the following two
commands on the management server:
a. /opt/OV/bin/OpC/opcsw -installed <node>
b. /opt/OV/bin/OpC/opchbp -start <node>
This will update the database and start heartbeat polling for the
node. The templates, monitors, commands, and actions must still be
installed using the ITO administrator GUI.
Activate the Node Using the ITO GUI:
After the node with the pre-installed agent is connected to the network,
use this procedure to activate and register the managed node.
1. Add the pre-installed node(s) to the ITO Node Bank using the menu
sequence Actions:Node->Add.
2. Add the node to an ITO node group. The easiest way to do this is to
drag and drop it onto a node group in the ITO Node Group Bank
window.
3. Distribute the ITO configuration to the node:
a. SelectActions:Agents->Install from the menubar of the ITO
Node Bank. The Install /Update ITO Software and
Configuration window opens.
b. Select all components and click [OK].
56 Chapter 2
Installing ITO Agents on the Managed Nodes
General Installation Tips for Managed Nodes
NOTE Do not check [Force Update] otherwise the management server will
re-install the agent.
If the agent is pre-installed on the node, the management server will
activate the node, and install the selected components.
Note that if the agent software is not pre-installed, this action will
install the agent.
4. Execute the following command to verify that the Control, Message,
and Action Agents are all running on the managed node:
/opt/OV/bin/OpC/opcragt -status <node>
Tips for DCE on AIX 4.1 and 4.2
❏To run snmpd at boot time, uncomment the line:
#start /usr/sbin/snmpd “$src_running”
in the file /etc/rc.tcpip.
❏Even though the rpcd daemon does not exist on AIX 4, the SMIT
utility erroneously tries to run it in the option entitled Restart RPC
Daemons in the local machine. Start the dced daemon instead, using
the script /etc/rc.dce or the SMIT option Restart the DCE/DFS
Daemons.
Problems Caused by Missing OS Patches for AIX
❏Sometimes the ITO agent de-installation procedure on AIX 4.1
systems does not return freed disk space when ITO is removed from
the systems. If the ‘df’ output does not reflect the freed disk space,
reboot the machine and check free disk space on /usr with ‘df -k
/usr’.
Installation Tips for AIX Managed Nodes
Running SP2/HACMP
This section includes important information about installing ITO agents
on nodes running HACMP. General installation tips for AIX also apply to
AIX nodes running HACMP. This section is organized as follows:
• ITO Agents in the HACMP environment
• Installation Prerequisites for AIX HACMP Agents
Chapter 2 57
Installing ITO Agents on the Managed Nodes
General Installation Tips for Managed Nodes
• Pre-installation tasks
• Problems with IP aliases in AIX OS
• Installing AIX HACMP agents
ITO Agents in the HACMP Environment
Each node in an HACMP cluster has its own ITO agent and must be
accessible on a fixed IP address, which represents the node in the ITO
Node Bank. This IP address must always remain bound to the same
node. Consequently, IP addresses which are subject to change cannot be
used to install and run an ITO agent running HACMP.
If an additional adapter (network interface card) with a fixed IP address
that is not used by HACMP (as a boot, service or standby adapter) is
available on an HACMP node, it can be used for ITO Agent installation.
However, communication with the ITO server must be possible via this
additional adapter. There is no need to set up IP aliases or modify shell
scripts in this case, and all pre-installation tasks can be skipped. But it is
important that the IP address on this adapter does not change.
If no such adapter is available, each node should be assigned an IP alias
in the same network in which the boot and service IP addresses reside.
In addition, the node must be configured in such a way that this IP alias
address is assigned to the service adapter as an alias for the boot IP
address. Once a fixed IP address or an IP alias is available on a node,
that address must be used to install the ITO agent on the node. After
successful installation of the ITO agent, the IP alias is present in the
/var/lpp/OV/conf/OpC/nodeinfo file in the field OPC_IP_ADDRESS.
To avoid confusion with any other IP addresses that may be set on the
interface or with messages in the Message Browser originating from
addresses other than the service address of the node, the following
naming scheme is recommended in your HACMP environment:
<nodename>_boot for the node’s boot address
<nodename>_svc for node’s service address
<nodename>_stdby for node’s standby address
<nodename>_ito for the node’s IP alias
Where <nodename> is the name of the node as defined in the HACMP
configuration.
58 Chapter 2
Installing ITO Agents on the Managed Nodes
General Installation Tips for Managed Nodes
Note that the status of the icon representing the node in Node Bank
window does not change color immediately when the node in the HACMP
cluster goes down: it will change color only after ITO has determined
that it cannot contact the control agent on that node.
Installation Prerequisites for AIX HACMP Agents
The following software versions are supported:
• AIX 4.2 / 4.3 (DCE agents)
• HACMP 4.2.2
AIX HACMP Agents: General Pre-installation Tasks
You must set the IP alias that is used by the ITO agents during and after
the installation process on each node on which you wish to run the ITO
agent. To set the IP alias:
on AIX v4.3 1. Use the smit menus.
2. In a shell, enter the following command:
smit tcpip
Then select from the menu bar:
Further Configuration -> Network
Interface Selection -> Configure Aliases
-> Add an IPV4 Network Alias
3. Select the desired interface, eg: en0
4. Enter values for the IP address and network mask
on AIX v<4.3 1. Use the following command:
/usr/sbin/ifconfig en0 <IP_Adress> alias
where <IP_Address> is the IP address of the node
on which you want to install the ITO agent for AIX
HACMP.
2. This command can also be included in the file
/etc/rc.net so that the IP alias is set
automatically when the OS is booted.
Chapter 2 59
Installing ITO Agents on the Managed Nodes
General Installation Tips for Managed Nodes
Problems with IP Aliases in AIX OS
One very important consequence of setting the IP alias on the interface
is that HACMP no longer works correctly. This is true for all events that
deal with IP addresses, such as; acquire service address,acquire
takeover address, swap adapter, and so on. The problem is due to a
flaw in the AIX OS, and may be addressed in the following way:
• download and install the appropriate fix(es) for the AIX OS
For managed nodes where AIX OS fixes have already been installed,
refer to “Pre-Installation Instructions for Managed Nodes with the AIX
OS Patch for IP Aliases” on page 59.
It is highly recommended that the appropriate fixes for the AIX OS are
installed to overcome the problems with IP aliases and HACMP. The
fixes may be obtained using IBM’s FixDist package or from their web
site. The following APARs can be used to obtain the fixed versions of
related packages:
• AIX 4.2 IX75987
• AIX 4.3 IX78397
Only after the fixes for the AIX OS have been installed will HACMP
function properly: some HACMP functionality does not work on managed
nodes without the AIX OS fixes installed (e.g. swap adapter event).
Pre-Installation Instructions for Managed Nodes with
the AIX OS Patch for IP Aliases
All HACMP events work once the AIX OS fixes are installed and the IP
alias is set on the interface. However, due to a minor problem with the IP
alias address itself, you do have to reset the IP alias on the interface
after each change of the IP address - the IP alias address no longer works
after the ifconfig command is used to change the main IP address on
the interface. Note that you have to reset the IP alias on all cluster nodes
where the ITO agent is to be installed. The following shell script may be
used to set the IP alias on the interface where the service or boot IP
address is set:
#!/bin/sh
ALIAS_IP=”192.168.1.54”
SERVICE_IP=`/usr/sbin/cluster/utilities/cllsif -cSi \
$LOCALNODENAME | grep “:service:.*:ether” | cut -d: -f7 | uniq`
BOOT_IP=`/usr/sbin/cluster/utilities/cllsif -cSi $LOCALNODENAME |\
grep “:boot:.*:ether” | cut -d: -f7 | uniq`
INTERFACE=`/usr/sbin/cluster/utilities/clgetif -a $SERVICE_IP`
60 Chapter 2
Installing ITO Agents on the Managed Nodes
General Installation Tips for Managed Nodes
if [ $? -ne 0 ]; then
INTERFACE=`/usr/sbin/cluster/utilities/clgetif -a $BOOT_IP`
fi
if [ “$INTERFACE” != ““ ];
then
#IP has changed, set IP alias again on interface with SERVICE_IP
/usr/sbin/ifconfig $INTERFACE $ALIAS_IP alias
fi
The ALIAS_IP variable should contain the same IP address that was
used for the installation of the ITO agent. Remember to change the
ALIAS_IP variable if you copy the shell script to other nodes in the
cluster. This script gets service and boot IP addresses for the local node
and sets the IP alias on the interface where either of the two was found.
In addition, the script can be used as the post-event script for the
following HACMP events:
• acquire service address
• release service address
• swap adapter
Use the SMIT screens by entering the following command in a shell:
smit hacmp. Then select Cluster Configuration -> Cluster
Resources -> Change/Show Cluster Events. Next, select the
appropriate option from the list and fill in the Post-event Command
field. You can put the shell script in the following directory:
/usr/sbin/cluster/local.
Note that from time to time entries like this will appear in the file:
/var/lpp/OV/log/OpC/opcerror:
WARNING opcmsga (Message Agent)(8028) [genmsga.c:535]:
Communication failure to message receiver: Connection
request rejected (dce/rpc).Buffering messages.(OpC30-3)
These entries may safely be ignored. Messages are not lost: they are sent
to the ITO server after communication is re-established. This usually
takes no more than a few seconds.
Installing AIX HACMP Agents
The installation process is straightforward and does not differ from the
installation of the ITO agents on any other computer running AIX, with
the exception of the following:
• the IP alias address must be used as the IP address for the host on
which the ITO agent is to be installed.
Chapter 2 61
Installing ITO Agents on the Managed Nodes
General Installation Tips for Managed Nodes
• The installation script checks if the IP address which is used for the
ITO installation is tied to the boot, service, or standby interfaces, and
issues a warning if this is the case. However, the installation proceeds
nonetheless.
• If you select automatic start of ITO agents, the file /etc/inittab is
also updated so that the clinit entry remains the last one - as is
required by HACMP.
• After successful installation of the ITO agent, the IP alias appears in
the /var/lpp/OV/conf/OpC/nodeinfo file in the field
OPC_IP_ADDRESS.
• The following line is added to the opcinfo file during installation
process:
OPC_NAMESRV_LOCAL_NAME <hostname>
where <hostname> is the name of the host configured with the IP
address used for the installation of the ITO agent. If this IP address
changes, this line should be changed accordingly. Note that this line
must be present in order to ensure that the IP address is the same in
the context of both ITO and ANS (ITO’s Advanced Network Security
extension). This ensures that the same hostname is used by all
security functions that require <hostname> as their argument (e.g.
secret key generation). If this keyword is not present, ANSE functions
retrieve hostname from the RPC runtime, which is often different
from the hostname used for ITO installation, and the ANSE functions
will fail.
Installation Tips for DEC Alpha NT Managed
Nodes
For general information, see “Installation Tips for Windows NT Systems”
on page 99. Note the following important points:
❏path names differ only in the architecture name, for example:
•...ms/intel/nt
•...ms/alpha/nt
❏Fileset is: OVOPC-CLT-ENG.OVOPC-ANT-CLT
❏After entering Label and Hostname in the Add Node window, ITO
looks up and retrieves the following values:
62 Chapter 2
Installing ITO Agents on the Managed Nodes
General Installation Tips for Managed Nodes
• Machine Type: DEC Alpha
• OS name: Windows NT
If SNMP services are not running on the Windows NT node ITO
cannot detect the Machine Type and OS Name. In this case, enter
the appropriate values and continue with the installation.
Manual Installation: DEC Alpha NT Agent
For instructions on manually installing the DEC Alpha NT agent, see
“Manual Installation: Windows NT Agent” on page 111. Note however
that the location on the ITO management server of the opc_pkg.Z,
opc_inst.bat,opc_pre.bat,opcsetup.inf,unzip.exe and
unzip.txt files for the DEC Alpha NT platform is:
/var/opt/OV/share/databases/OpC/mgd_node/vendor/ms/\
alpha/nt/A.05.00/RPC_DCE_TCP
NOTE If you are installing the DEC Alpha NT agent using the instructions in
“Manual Installation: Windows NT Agent” on page 111, all references to
intel in the path name should be replaced with alpha. For example:
/ms/intel/nt should be changed to;/ms/alpha/nt
Installation Tips for Digital UNIX Managed
Nodes
❏The ITO Agent software is installed on the /usr/opt file tree. If
there is not enough space for installation of the ITO agents, create a
symbolic link before installing ITO. For example: if /bigdisk is a
local file system with enough free space:
mkdir -p /bigdisk/OV
ln -s /bigdisk/OV /usr/opt/OV
In a cluster environment, you must check that /bigdisk is also
accessible from all cluster clients, and that it is mounted from all
client nodes. For example, the local file system /bigdisk on the
cluster client must be mounted to the exported file system /bigdisk
on the cluster server.
❏Some logfiles monitored by the logfile encapsulator are not present on
Digital UNIX managed nodes by default. For example:
/var/adm/messages,/usr/adm/lplog, or /var/adm/sialog.
Chapter 2 63
Installing ITO Agents on the Managed Nodes
General Installation Tips for Managed Nodes
To add /var/adm/messages, and /usr/adm/lplog to the managed
node, add the following lines to the /etc/syslog.conf file:
kern.debug /var/adm/messages
lpr.debug /usr/adm/lplog
To add /var/adm/sialogr to the managed node, enter:
touch /var/adm/sialogr
Installation Tips for DYNIX/ptx Managed
Nodes
❏The ITO Agent software is installed on the /opt file tree. An empty
/opt file tree is created during installation of the DYNIX/ptx
operating system. By default, this file tree is positioned on the root
file system. If the root file system is too small for the installation of
ITO agents, create a symbolic link before installing ITO. For example:
if /bigdisk is a local file system with enough free space:
mkdir -p /bigdisk/OV
ln -s /bigdisk/OV /opt/OV
In a cluster environment, you must check that /bigdisk is also
accessible from all cluster clients, and that it is mounted from all
client nodes. For example, the local file system /bigdisk on the
cluster client must be mounted to the exported file system /bigdisk
on the cluster server.
Installation Tips for HP-UX 10.x and 11.x
Managed Nodes
You can install ITO on HP-UX 10.x and 11.x platforms using the
advanced features of HP Software Distributor (HP SD-UX) to help
reduce installation costs and time. You can use this method to install the
ITO agent software package from a software depot on a node other than
the ITO management server.
This feature is especially useful in an environment where a LAN of
managed nodes is managed by the management server over a WAN.
Instead of transferring “x” number of agent packages over the WAN line,
64 Chapter 2
Installing ITO Agents on the Managed Nodes
General Installation Tips for Managed Nodes
the package is installed once on a depot node in the remote LAN.
Subsequent agent installations then get the package from the local
depot.
Figure 2-1 Standard ITO Agent Installation Method
Wide Area Network
(WAN) Local Area Network
(LAN)
ITO Node N
ITO Node 2
ITO Node 1
Management
Server
ITO
Package
ITO Agent
Data Transmission
Key:
Chapter 2 65
Installing ITO Agents on the Managed Nodes
General Installation Tips for Managed Nodes
Figure 2-2 Using HP SD-UX Remote Software Depot to Install ITO on HP-UX
10.x and 11.x Managed Nodes
Creating a Software Depot on a Remote Node
To create an HP-UX 10.x or 11.x Software Distributor (SD) Depot for the
installation of ITO managed nodes:
❏If you don’t have additional licenses, you can only copy the package
locally. If this is the case on the depot node, transfer the ITO software
package from the management server over the WAN to the depot
node using FTP. The ITO software package (opc_pkg.Z) is located in
the following directory on the management server:
for HP-UX 10.x managed nodes:
/var/opt/OV/share/databases/OpC/mgd_node/vendor/hp/\
s[7|8]00/hp-ux10/<
ito_version
>/RPC_DCE_[TCP|UDP]/\
opc_pkg.Z
for HP-UX 11.x managed nodes:
/var/opt/OV/share/databases/OpC/mgd_node/vendor/hp/\
pa-risc/hp-ux11/<ito_version>/RPC_DCE_[TCP|UDP]/\
opc_pkg.Z
❏Copy an uncompressed package into the /tmp directory and execute
as follows:
Local Area Network
(LAN)
Management
Server
ITO
Package
ITO Agent
ITO Node NITO Node 2
Wide Area Network
(WAN)
Data Transmission
(1)
(2)
Manual transfer of package
Trigger remote installation
Key:
SD Depot
(ITO Node 1)
(1)
(2)
Package
ITO Agent
66 Chapter 2
Installing ITO Agents on the Managed Nodes
General Installation Tips for Managed Nodes
swcopy -d -s /tmp/opc_pkg -x source_type=tape -x \
enforce_dependencies=false OVOPC-AGT @ /depot1
If the SD depot does not exist, it is created automatically.
❏To obtain a compressed depot, you must first create a temporary,
uncompressed depot. You can then copy the depot to another depot,
and specify the options -x compress_files=true in the swcopy
command:
swcopy -d -s /depot1 -x enforce_dependencies=false
OVOPC-AGT @ <depot>
If the SD depot does not exist, it is created automatically.
❏To remove the product from the SD depot on the depot node, enter (on
the depot node):
swremove -d OVOPC-AGT @ depot2
❏If the product is the last software in the depot, the depot is
automatically deregistered by the swremove command. This does not
remove the ITO agent software from the node.
Using the Software Depot
Once the SD depot is established, all ITO agents within the LAN can
retrieve the ITO binary package from the SD depot instead of from the
management server, see Figure 2-1 and Figure 2-2. This part of the
installation process is performed automatically.
The install operation is initiated from the administrator’s GUI on the
ITO management server. The management server contacts the managed
node and issues the install command locally on the managed node. The
target managed node then retrieves the software package from the SD
depot using the swinstall command, for more information, see the
swinstall(1M) man page.
To enable the SD, configure the node name for the SD depot using the
Add/Modify Node: Advanced Options window in the ITO
administrator’s GUI. You can choose between the traditional installation
method (default) or use an SD depot.
Manual HP-UX Agent Installation
In some situations, it may be desirable to install the ITO HP-UX agent
software without using the management server. This manual
installation makes it possible to prepare the workstation, so that it is
Chapter 2 67
Installing ITO Agents on the Managed Nodes
General Installation Tips for Managed Nodes
ready to become an ITO managed node when it is later connected to the
network. This may be useful if many workstations are prepared in some
central location, or if one wants to avoid the root connection over the
network that is necessary for a standard agent installation.
Install the Agent on the Managed Node:
Use the following instructions to install the HP-UX agent on an HP-UX
workstation that will become an ITO managed node:
1. Install the agent package files from the ITO management server to
the managed node. You can do this either by copying an SD tape file
to the node, or by using an SD depot. Using an SD tape file allows you
to install the agent without a depot, and without any network
connection. However, if you plan to pre-install many agents, you may
find it more convenient to create and use a depot (see “Creating a
Software Depot on a Remote Node” on page 65).
• Using an SD tape file:
a. Copy the ITO agent package to a temporary directory on the
managed node. On the management server, this agent package
is located in:
for HP-UX 10.x managed nodes:
/var/opt/OV/share/databases/OpC/mgd_node/\
vendor/hp/s[7|8]00/hp-ux10/<
ito_version
>/\
RPC_DCE_[TCP|UDP]/opc_pkg.Z
for HP-UX 11.x managed nodes:
/var/opt/OV/share/databases/OpC/mgd_node/\
vendor/hp/pa-risc/hp-ux11/<ito_version>/\
RPC_DCE_[TCP|UDP]/opc_pkg.Z
NOTE If you intend to run ITO Advanced Network Security (ANS) on this node,
you also need to copy the following file from the same directory (HP-UX
10.x/11.x, as appropriate):
nsp_pkg.Z
b. Uncompress the agent package:
uncompress opc_pkg.Z
If appropriate, uncompress the ANS package, too:
uncompress nsp_pkg.Z
68 Chapter 2
Installing ITO Agents on the Managed Nodes
General Installation Tips for Managed Nodes
c. Install the agent on the node:
swinstall -x source_type=tape -s\
/<full_path>/opc_pkg OVOPC-AGT
If appropriate, install the ANS package on the node, too:
swinstall -x source_type=tape -s\
/<full_path>/nsp_pkg ITOAgentNSP
NOTE For cluster nodes, use swcluster, instead of swinstall, on the cluster
server.
d. Examine the node’s logfile /var/adm/sw/swagent.log. If
any errors occurred during installation, correct the problems
and reinstall.
• Using an existing SD depot:
a. Install the agent on the node:
swinstall -s <depot_host:depot_path> OVOPC-AGT
If appropriate, install the ANS agent package on the node, too:
swinstall -s <depot_host:depot_path>\
ITOAgentNSP
b. Examine the node’s logfile /var/adm/sw/swagent.log. If
any errors occurred during installation, correct the problems
and reinstall.
TIP Installing the agent from the command line is somewhat faster than
with the SD GUI, but it has the disadvantage that it does not notify you
of any warnings found in the analysis phase unless you run it twice and
set the -p option in the first run. If you would like to use the GUI, simply
omit the name of the agent package (OVOPC-AGT) when you enter the
swinstall command.
Installing the agent package will produce dependency errors, because the
package does not hold all the files necessary for the agent to run. If you
want to be certain that all these files exist, you can use the command
/usr/sbin/swlist -l product to get a list of all software that is
installed on the node.
Chapter 2 69
Installing ITO Agents on the Managed Nodes
General Installation Tips for Managed Nodes
Activate the Node Using the Command Line
You can activate the agent on the node over the net (without the GUI and
without root access) by using the following command-line steps:
1. After manually installing the agent on the node, enter:
opcactivate <ITO_mgt_server> -cs <server.codeset> \
-cn <agent.codeset>
See also Chapter 8, “ITO Language Support,” on page 333 for more
information about codesets.
This will activate the agent, which will then attempt to send
messages to the management server.
2. After the node is connected to the network execute the following two
commands on the management server:
a. /opt/OV/bin/OpC/opcsw -installed <node>
b. /opt/OV/bin/OpC/opchbp -start <node>
This will update the database and start heartbeat polling for the
node. The templates, monitors, commands, etc. must still be installed
using the management server GUI.
Activate the Node Using the ITO GUI
After the node with the pre-installed agent is connected to the network,
use this procedure to activate and register the managed node.
1. Add the pre-installed node(s) to the ITO Node Bank using the menu
sequence: Actions-> Node-> Add.
2. Add the node to an ITO node group. The easiest way to do this is to
drag and drop it onto a node group in the ITO Node Group Bank
window.
3. Select: Actions-> Agents-> Install to bring up the Install
/Update ITO Software and Configuration window. Select all
components (but do not check [Force Update] otherwise the
management server will re-install the agent), then click [OK]. If the
agent is pre-installed on the node, the management server will
activate the node, and install the selected components. Note that if
the agent software is not pre-installed, this action will install the
agent.
70 Chapter 2
Installing ITO Agents on the Managed Nodes
General Installation Tips for Managed Nodes
4. Use the command /opt/OV/bin/OpC/opcragt -status <node>
to verify that the Control, Message, and Action Agents are all
running on the managed node.
Installation Tips for IRIX Managed Nodes
❏The ITO agent software is installed on the /opt file tree. If the file
system that hosts the /opt file tree is too small for the installation of
ITO Agents, create a symbolic link before installing ITO. For
example: if /bigdisk is a local file system with enough free space:
mkdir -p /bigdisk/OV
ln -s /bigdisk/OV /opt/OV
In a cluster environment, you must check that /bigdisk is also
accessible from all cluster clients, and that it is mounted from all
client nodes. For example, local file system /bigdisk on the cluster
client must be mounted to the exported file system /bigdisk on the
cluster server.
Installation Tips for MPE/iX Managed Nodes
NOTE Interactive log on and log off UDCs are not supported by ITO. For this
reason, logon and logoff UDCs must be disabled during both software
installation and application starts using the vt3k connection.
❏For software installation, disable the logon/logoff UDCs for
manager.sys, mrg.ovopc and agent.ovopc if these are present.
❏Always set LANG to C before starting the ITO agent software
installation.
❏Use ncktest.pub.hpncs to check IP addresses. For more information,
see the section “RPC Daemon or Local Location Broker Problems and
Solutions” on page 422.
On MPE/iX 6.0 use NSLOOKUP.HPDCE.SYS to check IP addresses.
❏On HP-UX 10.x management servers, ftp is used to install the
MPE/iX agent.
❏In its current release, ITO only supports the domain name service for
IP address resolution. Therefore the (fully qualified) management
server system must be known by the domain name resolver (as
Chapter 2 71
Installing ITO Agents on the Managed Nodes
General Installation Tips for Managed Nodes
configured in RESLVCNF.NET.SYS on the managed node) or, if no
name server is running, the management server name must be locally
registered in HOSTS.NET.SYS.
IP address resolution via Network Directory (NSDIR.NET.SYS) or
Probe (and Probe Proxy) is not supported.
❏If the lanconfig(1M) statement on the management server in
/etc/netlinkrc does not have the ieee parameter, the commands
vt3k(1) and dscopy(1) which are required for ITO software
maintenance and application starts will not work.
❏The logging group on MPE/iX (where the files opcmsglg (local
message logfile), and opcerror reside), must belong to the account
OVOPC; if it does not, ITO services cannot write or create files in that
group. For more information, see the section “System Maintenance”
on page 460.
❏ITO agents run in the job, OPCAGTJ,AGENT.OVOPC; for this
reason, the HPJOBLIMIT must probably be adapted to guarantee
that all jobs, including ITO agents, can be started (as when not
running ITO’s intelligent agents).
The ITO action agent also streams separate jobs for application
startup and command broadcasting. Adapt the HPJOBLIMIT
accordingly.
❏The system boot file SYSSTART.PUB.SYS can be used to set up a
normal user environment automatically when ITO is started. The
contents of this file should include command parameters appropriate
for your environment, such as:
• standard limits for job sessions
• spooler start commands
• stream device identification
• outfence priorities
• event logging, and so on.
ASYSSTART file can contain selected MPE/iX commands (and their
parameters) that the system manager is allowed to execute. Note that
networking commands are excluded and should be executed from a
job that is streamed from SYSSTART, or from a logon UDC for
OPERATOR.SYS.
72 Chapter 2
Installing ITO Agents on the Managed Nodes
General Installation Tips for Managed Nodes
• If the Add/Modify Node window has been used to select the
Automatic Update of System Resource Files option for the
managed node, SYSSTART.PUB.SYS is created or updated, (unless
it already contains a pre-existing ITO entry). It contains the start
sequence for the job stream OPCSTRTJ.BIN.OVOPC, used for
starting the Local Location Broker (llbd) and the ITO agents.
(stream refers to the standard STREAM commands, or to the
node-specific stream utility configured in the administrator’s GUI,
using the Advanced Options window, accessed from the
Add/Modify Node window.) Before ITO agents start up, the
administrator must first ensure that the network services are
running. For an example of this streamed job, see the file:
/var/opt/OV/share/databases/OpC/mgd_node/\
vendor/hps 900/mpe-ix/A.02.10/sysstrtj.
• You can set your own stream facility in order to improve security
by avoiding hard-coded passwords. See the Node Advanced
Options window, accessed from the Add/Modify Node or Node
Defaults window. If you do this, there are no passwords placed in
the ITO job files, and control over the job is given to your own
stream facility. Alternatively, you may leave the ITO default. If
you leave the default, passwords remain unencrypted and the file
OPCSTRTJ.BIN.OVOPC contains the AGENT.OVOPC password.
• The job OPCSTRTJ.BIN.OVOPC for starting the Local Location
Broker and ITO services requires that the network be up and
running. If you have time constraints, increase the PAUSE value
before starting the llbd in OPCSTRTJ.BIN.OVOPC.
• If you want to use a customer-defined job-stream facility, check the
MPE/iX startup file SYSSTART.PUB.SYS before installation of
ITO A.02.00/01 software. If there is an entry for ITO (the
installation process checks for the keyword 'OperationsCenter'),
that entry won't be modified.
You can modify the line that streams the ITO startup job
OPCSTRTJ.BIN.OVOPC manually so that it won't be changed by
later software installation.
For example, change the line:
STREAM OPCSTRTJ.BIN.OVOPC
to
<my job-stream facility> OPCSTRTJ.BIN.OVOPC
Chapter 2 73
Installing ITO Agents on the Managed Nodes
General Installation Tips for Managed Nodes
where <my job-stream facility> for example, is Maestro's
mstream.
If there is no entry for ITO in SYSSTART.PUB.SYS, the automatic
software installation will insert an entry for ITO in
SYSSTART.PUB.SYS where the major parts look like this:
comment ... OperationsCenter
<customer-defined stream-facility>
OPCSTRTJ.BIN.OVOPC
❏The executable library, SNMPXL.NET.SYS, must be available, and
ITO must have execution rights; if not, the ITO Monitoring Agent will
not operate.
❏The TIMEZONE variable must be set to correct differences between
the different time resources used by ITO’s C-routines and MPE’s
intrinsics and commands; if not, messages and error and trace logfiles
receive the wrong creation time stamp. This can cause problems when
working with multiple management servers.
Insert the following call at a global location, for example the logon
UDC or SYSSTART.PUB.SYS:
call: setvar TZ,”TIMEZONE”
Required MPE/iX Patches
❏Patch MPEKXE5A must be installed on all MPE/iX 5.5 systems. This
patch adds routines to the system SL.PUB.SYS that the console
interceptor requires to operate. This patch may be incorporated into
future MPE Power Patch releases.
❏Patch MPEKXE5B must be installed on all MPE/iX 6.0 systems. This
patch adds routines to the system SL.PUB.SYS that the console
interceptor requires to operate. This patch may be incorporated into
future MPE Power Patch releases.
❏Patch ITOED07A must be installed on all MPE/iX 6.0 systems. This
patch provides routines to the XL.PUB.SYS to allow the ITO agent to
call various NCS routines. This patch may become unnecessary for
future MPE agent versions.
74 Chapter 2
Installing ITO Agents on the Managed Nodes
General Installation Tips for Managed Nodes
Installation Tips for NCR UNIX SVR4
Managed Nodes
❏The system name uname -s must not be set to any of the names AIX,
Solaris,HP-UX,SCO,DYNIX/ptx,OSF/1,Digital UNIX,Reliant
UNIX,SINIX,IRIX,Olivetti, or UnixWare.
❏If the Multi-User version of UNIX is installed, ITO can be installed
only after networking package WIN-TCP from NCR UNIX SVR4 is
first installed.
❏If bad login attempts are to be monitored by ITO, file
/var/adm/loginlog must first be manually created. By default,
loginlog does not exist, so no logging is done. To enable logging, the
log file must be created with read and write permission for the owner
root and the group sys. After doing the above, you may configure the
logfile template Bad Logs (NCR UNIX SVR4) for the node.
❏The ITO agent software is installed on the /opt file tree. If the file
system that hosts the /opt file tree is too small for the installation of
ITO Agents, create a symbolic link before installing ITO. For
example: if /bigdisk is a local file system with enough free space:
mkdir -p /bigdisk/OV
ln -s /bigdisk/OV /opt/OV
In a cluster environment, you must check that /bigdisk is also
accessible from all cluster clients, and that it is mounted from all
client nodes. For example, the local file system /bigdisk on the
cluster client must be mounted to the exported file system /bigdisk
on the cluster server.
Manual NCR UNIX SVR4 Agent Installation
For instructions on how to manually install the NCR Agent, use the
instructions in “Manual Solaris Agent Installation” on page 96.
However, note that the location of the agent package opc_pkg.Z on the
ITO management server for the NCR platform is:
/var/opt/OV/share/databases/OpC/mgd_node/vendor/ncr\
3000/unix/A.05.00/RPC_NCS/opc_pkg.Z
Chapter 2 75
Installing ITO Agents on the Managed Nodes
General Installation Tips for Managed Nodes
Installation Tips for Novell NetWare Managed
Nodes
The process for installing the ITO agent software on Novell NetWare
managed nodes differs from the standard installation process used for
other platforms; the NetWare agent installation is semi-automated and
NetWare-server-based. It can be separated into the following phases:
ITO GUI phase
❏Adding the managed nodes to the ITO Node Bank
❏Transferring the ITO agent package to the managed nodes
NetWare Depot Server phase
❏Installing NetBasic on the NetWare depot server
❏Unzipping the ITO agent package
❏Installing the ITO agent software on the managed nodes
• Installing the ITO agent software – ping only
• Assigning and transferring templates to the managed nodes
Note that installing the ITO agent on Novell NetWare SFT III does not
differ from the standard agent installation on Novell NetWare.
Differences are noted in the following sections where they occur during
the installation.
Figure 2-3 on page 76 shows all installation steps made on the ITO
management server and on the Novell NetWare depot server. Note that
the numbers in the installation steps correspond to numbers of the
following instructions.
76 Chapter 2
Installing ITO Agents on the Managed Nodes
General Installation Tips for Managed Nodes
Figure 2-3 Installing the ITO Novell NetWare Agent Package
The ITO GUI Phase
1. Ensure that the Novell NetWare nodes are known to ITO and are
accessible:
2. Transfer
opc_pkg.Z and
unzip.nlm to
NW depot server
(floppy or FTP)
NetWare Depot Server
3. Install NetBasic
4. Unzip opc_pkg.Z
NetWare server 1 NetWare server 2 NetWare server N
ITO Management Server
1. Admin GUI 1st part:
- add NetWare managed nodes
5. Run ITOINST:
install/de-install agent
software on managed
nodes
- run Actions->Install for all
managed nodes; select
Agent Software (ping only)
6. Admin GUI 2nd part:
(template distribution):
- run Actions->Assign
Templates for all managed nodes
- run Actions->Install for all
managed nodes; select every
option except Agent Software
Chapter 2 77
Installing ITO Agents on the Managed Nodes
General Installation Tips for Managed Nodes
a. Add your Novell NetWare managed nodes to the ITO Node Bank.
b. Open the Install / Update ITO Software and
Configuration window, and add the Novell NetWare managed
nodes where you want to install the ITO agent software. Select
[Agent Software] and click on [OK].
This sends the ping command to the nodes.
Note that the agent software package is not automatically copied
to the NetWare depot server. This must be done manually as
explained in the following step.
2. Copy the Novell NetWare agent software from the ITO management
server to a temporary directory on the Novell NetWare Depot Server.
The installation package is located in the following directory on the
management server:
/var/opt/OV/share/databases/OpC/mgd_node/vendor/\
novell/intel/nw/A.05.00/RPC_SUN_TCP/opc_pkg.Z
The above directory also contains the files unzip.nlm and
unzip.txt which are used to unzip the opc_pkg.Z file on the
NetWare depot server. Copy the files to the sys:/system directory
on the NetWare depot server.
The NetWare Depot Server Phase
The NetWare depot server is a NetWare server which installs the ITO
agent software on other NetWare servers. It stores the ITO agent depot
which contains the installation package opc_pkg. All ITO agents are
installed from the depot server.
Prerequisites of the NetWare Depot Server
The selection criteria for determining the depot server are as follows:
• The depot server must have NetWare connectivity to all NetWare
servers where the ITO agent is to be installed. This means that each
NetWare server must be accessible from the depot server by way of
the IPX transport layer.
• IP connectivity must be established throughout the network. You can
use NetWare PING.NLM to check that all NetWare servers are
accessible from the depot server.
78 Chapter 2
Installing ITO Agents on the Managed Nodes
General Installation Tips for Managed Nodes
• It is recommended that the depot server runs ftp so that the ITO
agent package can be easily transferred from the ITO management
server to the depot server.
• NetBasic, from the HiTecSoft company, must be installed on the
NetWare depot server. Note that the NetBasic components bundled
with NetWare 4.11 are not sufficient because some .NLMs (such as
NETMODUL.NLM) which are required for installation are missing.
You do not need to install NetBasic if you already have at least the
runtime version of NetBasic installed on the depot server. Issue the
following command from the DOS workstation command prompt to
check for the correct version:
ndir f:\system\NetBasic.nlm /ver
where f: is the drive letter mapped to SYS:/
If the version you have is 6.00j – Build 4.127 or above you do not need
to install NetBasic.
You also need a Windows 95 or Windows NT version 4.0 system acting
as a NetWare client to perform the NetBasic installation.
3. Install NetBasic on the NetWare depot server.
a. NetBasic is located in the following directory on the ITO
management server:
/var/opt/OV/share/databases/OpC/mgd_node/vendor/\
novell/intel/nw/A.05.00/RPC_SUN_TCP/nbv6.exe
Alternatively, you can obtain NetBasic from the following address:
ftp://ovweb.external.hp.com/pub/NetBasic/nbv6.exe
NOTE HP OpenView can change the location and/or name of the NetBasic
installation file without notice.
b. Run NBV6.EXE on the Windows 95 or Windows NT version 4.0,
and follow the instructions provided during the NetBasic
installation.
c. Select a NetWare server as the depot server to which all .NLMs are
copied.
d. Enter the runtime license number 300-3193-40100022; it is part of
the ITO agent for NetWare.
Chapter 2 79
Installing ITO Agents on the Managed Nodes
General Installation Tips for Managed Nodes
This number does not allow you to use the NetBasic Integrated
Developer Environment. You can not develop or compile your own
NetBasic script programs.
e. After all required NetBasic .NLMs have been successfully installed
on the depot server, the Windows 95 or Windows NT 4.0 system is
no longer needed.
4. Unzip opc_pkg.z, enter:
load unzip sys:/tmp/opc_pkg.Z
Note that this assumes that opc_pkg.Z has been copied to the
directory sys:/tmp.
Figure 2-4 on page 79 shows the file tree layout of the directory
SYS:/ volume: after opc_pkg.Z has been unzipped.
Figure 2-4 File Tree Layout of the ITO NetWare Depot Server
SYS:
DEPOINST.ITO
ITO
<ITO files>
ITOINST
<various NLMs>
<itoinst.ito ‘ini’file>
RT_TIRPC
<runtime version of TIRPC for>
<NetWare 4.x: tirpc.nlm, netdir.nlm,
< spx_nd.nlm, local_nd.nlm, ...>
SYSTEM TMP
<OPC_PKG.Z>
<ITO package>
<UNZIP.NLM, UNZIP.TXT>
<unzip>
80 Chapter 2
Installing ITO Agents on the Managed Nodes
General Installation Tips for Managed Nodes
Prerequisites for Installing the ITO Agent Software
The ITO agent software can be installed using bindery mode or NetWare
Directory Services (NDS). It is recommended to use NDS because
bindery mode may become obsolete with future releases of Novell
NetWare.
Before beginning with the installation, make sure that the following
information is known and all requirements are met:
❏name and IP address of the ITO management server
❏names and IP addresses of the NetWare managed nodes
If you use bindery mode:
•ADMIN usernames and passwords of the NetWare managed nodes
•SET BINDERY CONTEXT =
ou=<organizational_unit>.o=<organization>must be present in
SYS:SYSTEM/AUTOEXEC.NCF on each NetWare server. This is the
default Novell setting.
If you use NDS:
•ADMIN login name and password for the directory tree
❏the software described in “Software Requirements for Novell
NetWare Managed Nodes” on page 37 is installed and running on
each NetWare managed node.
5. Install the ITO agent software on the Novell NetWare managed
nodes.
Do not stop the ITO mangement server processes when installing the
ITO agent software.
a. On the depot server, execute the command itoinst.
The following menu options are displayed:
•Install HP IT/Operations Agent for NetWare 4.x
installs the ITO agent.
•Deinstall HP IT/Operations Agent for NetWare 4.x
de-installs the ITO agent.
•View ‘READ.ME’ file displays the content of README.ITO
file from SYS:/DEPOINST.ITO/ITOINST directory.
Chapter 2 81
Installing ITO Agents on the Managed Nodes
General Installation Tips for Managed Nodes
•Exit Installation immediately exits the procedure.
b. Select the Install HP IT/Operation Agent for NetWare
4.x option and respond to the prompts.
c. Enter the name of the ITO management server.
d. Enter the IP address of the ITO management server.
e. Specify whether you want the name and IP address of the
management server added to the SYS:/ETC/HOSTS.
f. Decide whether you want to use NDS or proceed in bindery mode.
If you answer No, the installation proceeds in bindery mode.
If you answer Yes, you are prompted to log into NDS. Enter the
distinguished login name in the format:
.cn=admin.ou=<organizational_unit>.o=<organization>
For example: .cn=admin.ou=ITO.o=hp
The distinguished login name is made up of the full path from the
root of the directory tree.
g. Schedule a shutdown of the NetWare servers to take place after
the installation. This is optional.
If you have selected this option, the installation procedure asks for
the date and time of the shutdown; the format of the date and time
string is MM–DD–YYYY hh:mm:ss.
Note that you can choose to shut down NetWare SFT III servers.
The systems will be shut down, but cannot be restarted
automatically.
h. Log into NDS or bindery mode depending on what you have
chosen above.
i. A list of all available NetWare servers is displayed; this list has
the following additional options:
•Select all NetWare servers
•Unselect all NetWare servers
You can browse the list, select all, deselect all, or individually
select some NetWare servers; the selected servers in the list are
indicated by a checkmark.
82 Chapter 2
Installing ITO Agents on the Managed Nodes
General Installation Tips for Managed Nodes
Systems running Novell NetWare 3.x or Novell NetWare 5.x are
also listed but cannot be selected. If a Novell NetWare 5.x file
server is accidentally selected, the installation procedure reports
the NetWare version as 3.x and does not allow selection. The
NetWare depot server is listed; note that it can also be an ITO
agent for the NetWare server.
Any NetWare SFT III systems are also on the list and can be
selected in the same way as other Novell NetWare systems.
For each selected server the installation process does the
following:
• If you are using bindery mode, the installation process asks for
the password of the NetWare superuser ADMIN. The
installation procedure tries to log in to the selected NetWare
server. If the login is unsuccessful the installation procedure
displays an error message, and proceeds to the next selected
NetWare server.
If you are using NDS, the superuser ADMIN is already logged
in, and the installation proceeds with the following step.
• Checks that ITO agent processes are not running already.
If OPCAGT.NLM is running on the selected NetWare server,
currently active ITO.NLMs must be stopped manually on the
NetWare server in order to (re-)install the ITO agent.
• Checks for OPCINFO file
If the file exists, the ITO agent is already installed on this
system. If the ITO management server name from the line
OPC_MGMT_SERVER in the file OPCINFO differs from the ITO
management server name entered above, an error reports that
the previous ITO agent is connected to a different ITO
management server. De-install the old ITO agent software and
retry the installation.
• Checks for TCP/IP
TCP/IP must be configured and running on the NetWare
server; this is checked by scanning the list of active .NLM
modules in NetWare server’s memory. If there is no active
TCPIP.NLM,SYS:SYSTEM/AUTOEXEC.NCF is checked for the
string TCPIP so that TCPIP will be loaded with the next server
Chapter 2 83
Installing ITO Agents on the Managed Nodes
General Installation Tips for Managed Nodes
reboot. If the string is found you are notified that in order to
run the ITO agent for the NetWare server, TCP/IP must be
invoked.
If there is no such string the NetWare server may use the
configurator, INETCFG.NLM, to set network parameters.
Inspect the AUTOEXEC.NCF file for inclusion of the string
INITSYS on a separate line to determine if this method is used.
If this is the case the file SYS:ETC/NETINFO.CFG is checked
for the string TCPIP. If the string is found you are warned that
in order to run ITO server, TCP/IP should be invoked and it is
suggested that you also run INETCFG.NLM.
If the presence of TCPIP cannot be determined the procedure
exits. The installation procedure does not try to invoke TCPIP
because of its complexity and the problems that this may
cause.
• Checks for TIRPC
The ITO management server requires the TIRPC module. If
the installation process does not find the module and it is not
located in SYS:SYSTEM, a warning is displayed. You can safely
ignore this warning message because the TIRPC module was
already copied when unzipping the package.
• Checks for XCONSOLE
The active modules list and the AUTOEXEC.NCF and/or
NETINFO.CFG are scanned for XCONSOLE.XCONSOLE requires
REMOTE.NLM. If the strings REMOTE and/or XCONSOLE do not
exist in either of the two configuration files, the installation
procedure updates AUTOEXEC.NCF by inserting the
appropriate command(s) at the end of the file:
either: load remote <remote console password>
or: load xconsole
or both.
If the string REMOTE is not present, the installation procedure
prompts you for the remote console password.
On NetWare SFT III servers, the installation procedure cannot
check whether REMOTE.NLM is running. If it isn’t, you are not
prompted for the remote console password. XCONSOLE.NLM is
84 Chapter 2
Installing ITO Agents on the Managed Nodes
General Installation Tips for Managed Nodes
also checked to make sure that it is running. If it isn’t, all
standard locations are checked for the load xconsole
command. The configuration file of the primary IO Engine is
not searched.
• Checks for NetWare Management Agent (NMA)
The NMA agent is supported by the ITO agent for NetWare
server but this functionality requires NMA to be installed on
the selected NetWare servers; currently NMA installation is
not provided as part of the ITO agent for NetWare server
installation
• Checks for CLIB
The CLIB.NLM version is checked; version 4.10 or higher is
supported.
• Checks the disk space
• Checks the memory
The installation procedure knows how much memory in KB is
needed; this figure is subtracted from the NetWare server
parameter cache buffers. If the calculated amount is more than
30% of NetWare parameter total server work memory the
installation proceeds, otherwise the installation for the current
NetWare server is aborted, and the next selected NetWare
server is processed.
• Copies files
If the source file is a .NLM file, the installation checks if .NLM
already exists on the target NetWare system. If it does, the
NetWare depot server is checked to see what version is
available there. Later versions of .NLM are always copied from
the NetWare depot server to the target. Older versions of .NLM
are only copied to the target if you agreed to overwrite the
.NLM. It is recommended to use the default option, that is; not
to overwrite previous versions.
• Flags directories as ‘purgable’
Deleted files occupy space although Novell NetWare can re-use
the space in a low disk quota situation. Deleted files can be
completely removed with the command-line utility PURGE. If a
directory is marked ‘purgable’ then each deleted file is no
longer kept by Novell.
Chapter 2 85
Installing ITO Agents on the Managed Nodes
General Installation Tips for Managed Nodes
• Updates system configuration files
The Installation procedure updates the OPCINFO file and
writes the ITO start command (OPCAGT.NCF) to the
AUTOEXEC.NCF. On NetWare SFT III systems, OPCAGT.NCF is
added to SYS:SYSTEM/MSAUTO.NCF.
The SYS:/ETC/HOSTS file is updated with the IP address of
the ITO management server if you agreed to add the ITO
management server to the SYS:/ETC/HOSTS file.
The internet name and IP address of the target NetWare
server that is currently processed are also required and must
be entered now. Both are added to the SYS:/ETC/HOSTS file. If
you are installing a NetWare SFT III managed node, enter the
name and IP address of the MS Engine.
• Creates ITO Operator and Group
The NetWare group OPCGRP is created, and the NetWare user
OPC_OP is added to the OPCGRP group; OPC_OP has the
same security level as the user ADMIN. All these actions are
performed in bindery or NDS mode.
CAUTION Do not forget to manually change the password for the user OPC_OP.
j. When all selected servers have been processed a special .NLM is
invoked at the depot server to perform a shutdown at the time you
previously scheduled. The shutdown is only performed if no files
are opened on the NetWare server. There is no forced shutdown.
6. Inform the management server that the agent software has been
successfully installed on the new ITO managed nodes. Enter:
/opt/OV/bin/OpC/opcsw -installed <
node_name
>
7. Assign your templates to the NetWare managed nodes and distribute
the templates, actions, monitors, and commands. See the HP ITO
Administrator’s Guide to Online Information for more information
about assigning and distributing templates.
General Installation Notes for NetWare Nodes
❏Each step of the installation is recorded in the logfile
SYS:DEPOINST.ITO/ITOINST. If you encounter problems during the
installation, check this logfile for warnings and errors, and retry the
installation if necessary.
86 Chapter 2
Installing ITO Agents on the Managed Nodes
General Installation Tips for Managed Nodes
❏NetWare Directory Services (NDS)
If you use NDS to install the ITO agent software, the installation
process creates the file SYS:/OPT/OV/BIN/OPC/INSTALL/NDSINFO
on each managed node. This file contains information about the
position of the managed node in the NDS directory tree so that the
ITO agent .NLMs can log in to NDS when they are started. The ITO
default operator opc_op is also inserted.
If you use bindery mode NDSINFO is not created and the default
context is used.
❏Changed Configuration Files
Each configuration file on the NetWare server that is changed by the
ITO installation process (like AUTOEXEC.NCF) is stored in the same
directory with the extension .ITO; this is in case you need to restore
the old system.
❏SNMPLOG.NLM and the ITO Event Interceptor
The ITO event interceptor and Novell’s SNMPLOG.NLM cannot be used
together. If you experience problems with the ITO event interceptor
check that SNMPLOG.NLM is not loaded. If you need SNMPLOG.NLM to
report traps, disable the ITO event interceptor.
❏Setting /usr/adm/inetd.sec on the Management Server
The ITO agent monitors the connection from the NetWare server to
ITO management server by sending the UDP echo packages. The
UDP echo service must, therefore, be enabled on the ITO
management server. Verify that the echo service is not disabled in the
/usr/adm/inetd.sec file. Note that the echo service is enabled if it
is not listed in the inetd.sec file.
❏Using the ITO NetWare Integration Package
Before installing the ITO Agent Package all users of the NetWare
Integration package must either delete or rename the maps NetWare
Config,NetWare Tools and NetWare Performance. These maps
can be found in the ITO Application Bank window.
❏If you use UDP protocol for agent-server communication, set the data
array size to 2048 bytes or less, otherwise the communication fails for
larger messages. To set the size of data array, use
OPC_RPC_ARRAY_SIZE in opcinfo file. The default value for data
array size when using the UDP protocol is 2048 bytes.
Chapter 2 87
Installing ITO Agents on the Managed Nodes
General Installation Tips for Managed Nodes
❏Note that PATH cannot be changed during runtime on Novell
NetWare managed nodes. All actions, montiors, and commands must
be either fully qualified or must reside in PATH. PATH must be set
before the ITO agents are started.
❏Unsupported ITO Agent Functionality
Due to specifics of the NetWare platform a subset of the ITO agent
functionality is not supported or is implemented in a slightly different
way.
• The opcmsg(1) command and opcmsg(3) API are not
implemented.
• The opcmon(1) command is not implemented. The opcmon(3)
API is implemented.
• MSI on the managed node is not implemented.
• The message interceptor is not implemented.
• Only the regular level of security is implemented.
• The subagent registration file
SYS:/VAR/OPT/OV/CONF/OPC/AGTREG is not encrypted.
• Tracing cannot be switched on/off during agent operation.
• The opcagt(1) command implementation differs from the
implementation on other platforms. Only one instance of the
opcagt command can be started on NetWare. Starting the
opcagt(1) command starts the ITO agent service. It is a common
practice in NetWare that a service opens its own virtual screen on
the console screen. The operator uses this to control the service.
The ITO agent opens a separate virtual screen on NetWare server
console when started. By selecting the options in the menu of the
ITO agent screen the operator is able to start/stop the ITO agents
and query the agents status.
The following actions can be executed by the ITO agent service:
DISPLAY: Prints status of ITO agents to the console
START: Starts or re-initializes the other ITO Agent processes
(equivalent to opcagt -start)
STOP: Stops all ITO agent processes except for the message
agent and the control agent functionality (equivalent to
opcagt -stop)
88 Chapter 2
Installing ITO Agents on the Managed Nodes
General Installation Tips for Managed Nodes
KILL: Stops all ITO agent processes (equivalent to opcagt
-kill)
The console user interface is implemented with the standard
NWSNUT services so that the standard NetWare console
look-and-feel is achieved.
Installation Tips for Olivetti UNIX Managed
Nodes
❏The ITO Agent software is installed on the /opt file tree. If the root file
system is too small for the installation of ITO Agents, create a
symbolic link before installing ITO. For example: if /bigdisk is a
local file system with enough free space:
mkdir -p /bigdisk/OV
ln -s /bigdisk/OV /opt/OV
In a cluster environment, you must check that /bigdisk is also
accessible from all cluster clients, and that it is mounted from all
client nodes. For example, the local file system /bigdisk on the
cluster client must be mounted to the exported file system /bigdisk
on the cluster server.
❏Some of the logfiles checked by the logfile encapsulator are not, by
default, present on Olivetti managed nodes, for example
/var/adm/messages. It is important that all logfiles that are
checked by the logfile encapsulator agent are present on the managed
node. To add the logfile /var/adm/messages to the managed node,
edit the /etc/syslog.conf file by adding the following lines:
kern,mark.debug /var/adm/messages
To create the /var/adm/messages file on the managed node, enter:
touch /var/adm/messages
Then restart the syslog daemon, see the manpage syslog(1m).
❏Make sure that the entry root is not contained in the
/etc/ftpusers file; Otherwise the installation of ITO agents to the
managed nodes will fail.
Chapter 2 89
Installing ITO Agents on the Managed Nodes
General Installation Tips for Managed Nodes
Installation Tips for OS/2 Managed Nodes
Both standard and manual agent installation are supported on OS/2
managed nodes.
Standard OS/2 Agent Installation
❏During the installation, the installation script checks that sufficient
disk space is available on the disk entered in the [Install Onto
Drive] field of the Node Advanced Options window in the ITO
GUI. If there is not enough space available, or, if no disk drive was
specified, the installation script selects the first disk with sufficient
disk space and installs the agent software. The directories \opt\OV
and \var\opt\OV are created for the agent software.
ftp and remsh (rsh) services must be enabled. The installation
requires the following setup:
• On the management server, check [Automatic
(De-)Installation] in the Node Advanced Options window;
a username must be provided for the installation.
• FTP must be enabled for the user who is installing the agent
software, and ftpd must be running. FTP access can be
configured in the TCP/IP Configuration notebook (Security tab), or
by hand, by adding a new user in the \MPTN\ETC\TRUSERS file.
• The user must be allowed to execute commands remotely from the
management server via remsh without supplying a password.
Access can be configured in TCP/IP Configuration notebook
(Security tab, page 2), or by adding a user and host to
\MPTN\ETC\RHOSTS. Also rshd must be started either as a
separate process or by Inetd.
❏If Domain Name Service (DNS) is not present on the managed node,
it is necessary to add at least the management server and the
managed node to the hosts file. This file is located in the directory to
which the environment variable ETC is pointing. The variable ETC is
set in CONFIG.SYS.
❏The DCE daemon must be running before the ITO agents are started.
On DCE 1.0.2, the DCE daemon process can be started through
RPCD.EXE;DCED.EXE on DCE 2.x. If they are not running during the
installation, a warning will be issued.
90 Chapter 2
Installing ITO Agents on the Managed Nodes
General Installation Tips for Managed Nodes
❏Note that PATH cannot be changed during runtime on OS/2 managed
nodes. All actions, montiors, and commands must be either fully
qualified or must reside in PATH. PATH must be set before the ITO
agents are started.
Manual OS/2 Agent Installation
In some situations, it may be desirable to install the OS/2 agent software
without using the management server. A manual installation prepares
the system so that it is ready to become an ITO managed node when it is
later connected to the network. This may be useful if many systems are
prepared in a central location, or if you want to avoid the root connection
over the network that is necessary for a standard agent installation.
Note that RPCD/DCED must be running if the ITO agent software is
installed manually, so that the management server may be informed
about a successful installation. If it is not running, a warning is
displayed along with instructions concerning how to inform the
management server manually.
1. Copy the following files from the management server to a temporary
directory on the OS/2 managed node:
• installation script opcinst.cmd
/var/opt/OV/share/databases/OpC/mgd_node/vendor/\
ibm/intel/os2/A.05.00/RPC_DCE_TCP/install/\
opcinst.cmd
• package opc_pkg.z
/var/opt/OV/share/databases/OpC/mgd_node/vendor/\
ibm/intel/os2/A.05.00/RPC_DCE_TCP/opc_pkg.z
opc_pkg.z can be unpacked by running the OS/2 utility unpack.
2. Add the managed node to the ITO Node Bank.
Note: if you do not do this step now, the installation script will issue a
warning, and tell you how to notify the management server of the
new managed node using the command itonotfy.exe.
3. Run the installation script opcinst.cmd in one of the following ways
on the managed node:
• using the command line options:
Chapter 2 91
Installing ITO Agents on the Managed Nodes
General Installation Tips for Managed Nodes
opcinst.cmd /TAPEDIR:<tape_dir>
/DRIVE:<install_drive>
/MGMT_SERVER:<management_server>
See Table 2-3 on page 91 for a list of available command line
options or type opcinst.cmd /help for help.
• using a response file (a text file that contains default answers):
opcinst.cmd <response_file>
See Table 2-3 on page 91 for a list of available response file
tokens. The following is an example of a typical response file:
INSTALLATION_TMP_DIR C:\TMP
OPC_INSTALLATION_DRIVE C:
MANAGEMENT_SERVER management.server.com
• interactively, by calling the opcinst.cmd command and
responding directly to the prompts of the installation script:
opcinst.cmd
Table 2-3 Command Options for the OS/2 Agent Installation
Option Response File Token Possible Values Value Type
/DRIVE: OPC_INSTALLATION_DRIVE drive:
/INSTSIZE:aN/A any bytes
/LOGDIR: INSTALLATION_LOG_DIR /var/opt/ov/log/opc
(default) [drive:]dir
/MGMT_SERVER: MANAGEMENT_SERVER hostname
/MODE: INSTALL_MODE INSTALL (default)
REMOVE
CHECK
RCHECK
const
/REMOTE:aN/A N/A N/A
/START: OPC_START YES
NO (default)
const
92 Chapter 2
Installing ITO Agents on the Managed Nodes
General Installation Tips for Managed Nodes
a. Used for remote installation only.
Installation Tips for Pyramid DataCenter/OSx
Managed Nodes
❏The ITO Agent software is installed on the /opt file tree. If the root
file system is too small for the installation of ITO Agents, create a
symbolic link before installing ITO. For example: if /bigdisk is a
local file system with enough free space:
mkdir -p /bigdisk/OV
ln -s /bigdisk/OV /opt/OV
In a cluster environment, you must check that /bigdisk is also
accessible from all cluster clients, and that it is mounted from all
client nodes. For example, the local file system /bigdisk on the
cluster client must be mounted to the exported file system /bigdisk
on the cluster server.
❏Some of the logfiles checked by the logfile encapsulator are not, by
default, present on Pyramid managed nodes, for example
/var/adm/badlog. It is important that all logfiles that are checked
by the logfile encapsulator agent are present on the managed node. To
add the logfile /var/adm/badlog to the managed node, edit the
/etc/syslog.conf file by adding the following lines:
auth.warning /var/adm/badlog
To add /var/adm/badlog file to the managed node, enter:
touch /var/adm/badlog
Then restart the syslog daemon, see the manpage syslog(1m).
/UPDATE: UPDATE_CONFIG YES
NO (default)
const
/TAPEDIR: INSTALLATION_TMP_DIR any drive:dir
/TAPESIZE:aN/A any bytes
Option Response File Token Possible Values Value Type
Chapter 2 93
Installing ITO Agents on the Managed Nodes
General Installation Tips for Managed Nodes
❏Make sure that the entry root is not contained in the
/etc/ftpusers file; Otherwise the installation of ITO agents to the
managed nodes will fail.
Installation Tips for SCO OpenServer
Managed Nodes
❏The ITO agent software is installed on the /opt file tree. An empty
/opt file tree is created during installation of the SCO OpenServer
operating system. By default, this file tree is positioned on the root
file system. If the root file system is too small for the installation of
ITO agents, create a symbolic link before installing ITO. For example:
if /bigdisk is a local file system with enough free space:
mkdir -p /bigdisk/OV
ln -s /bigdisk/OV /opt/OV
In a cluster environment, you must check that /bigdisk is also
accessible from all cluster clients, and that it is mounted from all
client nodes. For example, the local file system /bigdisk on the
cluster client must be mounted to the exported file system /bigdisk
on the cluster server.
Installation Tips for SCO UnixWare Managed
Nodes
❏The ITO agent software is installed on the /opt file tree. If there is
not enough space for the installation of the ITO agents, create a
symbolic link before installing ITO. For example: /bigdisk is a local
file system with enough free space:
mkdir -p /bigdisk/OV
ln -s /bigdisk/OV /opt/OV
In cluster environment you must check that /bigdisk is also accessible
from all cluster clients; that it is mounted from all client nodes also.
For example, local file system /bigdisk on cluster client must be
mounted to exported file system /bigdisk on cluster server.
❏Some of the logfiles that are observed by the ITO logfile encapsulator
are not present by default on UnixWare managed nodes, for example
the logfile /var/adm/messages.
94 Chapter 2
Installing ITO Agents on the Managed Nodes
General Installation Tips for Managed Nodes
To add the logfile, edit the file /etc/syslog.co and add the
following lines:
kern,mark.debug /var/adm/messages
To activate your changes, enter:
touch /var/adm/messages
Then restart the syslog daemon, see the man page syslog(1m) for
details.
❏An entry for the user root must not be present in the file
/etc/ftpusers. Otherwise the installation of ITO agents will fail.
Installation Tips for SINIX Managed Nodes
❏The ITO Agent software is installed on the /opt file tree. If the root
file system is too small for the installation of ITO Agents, create a
symbolic link before installing ITO. For example: if /bigdisk is a
local file system with enough free space:
mkdir -p /bigdisk/OV
ln -s /bigdisk/OV /opt/OV
In a cluster environment, you must check that /bigdisk is also
accessible from all cluster clients, and that it is mounted from all
client nodes. For example, the local file system /bigdisk on the
cluster client must be mounted to the exported file system /bigdisk
on the cluster server.
❏Some of the logfiles checked by the logfile encapsulator are not, by
default, present on SINIX managed nodes, for example:
/var/adm/loginlog. It is important that you manually create all
logfiles that are checked by the logfile encapsulator agent. For
example, if bad login attempts are to be monitored by ITO, you must
first create the file /var/adm/loginlog with read and write
permissions for the owner only. The owner must be root and the group
sys. After five unsuccessful attempts to log in, a message is written to
/var/adm/loginlog.
The Su and Cron templates assume that the default setup is used for
the /etc/default/su and /etc/default/cron files. If the default setup is
not used, you must adapt the logfile paths in the templates to match
the actual file names.
Chapter 2 95
Installing ITO Agents on the Managed Nodes
General Installation Tips for Managed Nodes
❏If you want to configure the Domain Name Server (DNS) on a SINIX
managed node, in addition to editing the /etc/resolv.conf file, you
will need to add the line: <nodename> (uname -n)
to the following files:
•/etc/net/ticlts/hosts
•/etc/net/ticots/hosts
•/etc/net/ticotsord/hosts
If the <nodename> is not defined in these three files the ITO
installation will fail because the opcnsl program will be unable to
determine the management server.
Manual SINIX Agent Installation
For instructions on how to manually install the SINIX agent, use the
instructions in “Manual Solaris Agent Installation” on page 96.
However, note that the location of the agent package opc_pkg.Z on the
ITO Management Server for the SINIX platform is:
/var/opt/OV/share/databases/OpC/mgd_node/vendor/ncr\
3000/sinix/A.05.00/RPC_[NCS|DCE_TCP|DCE_UDP]/opc_pkg.Z
Installation Tips for Solaris Managed Nodes
❏Package SUNWaccu MUST be installed on the system if process table
and CPU utilization are to be monitored by ITO. If this package is not
installed, and monitoring templates proc_util and cpu_util are
configured, warning messages will appear in the Message Browser
stating that the corresponding shell scripts failed to execute.
❏If bad login attempts are to be monitored by ITO, the file
/var/adm/loginlog MUST first be manually created. By default,
loginlog does not exist, so no logging is done. To enable logging, the
log file must be created with read and write permission for the owner
root and group sys. You can then configure the logfile template Bad
Logs (Solaris) for the node.
❏The ITO agent software is installed on the /opt file tree. If the file
system that hosts the /opt file tree is too small to install ITO Agents,
create a symbolic link before installing ITO.
For example: if /bigdisk is a local file system with enough free
space:
96 Chapter 2
Installing ITO Agents on the Managed Nodes
General Installation Tips for Managed Nodes
mkdir -p /bigdisk/OV
ln -s /bigdisk/OV /opt/OV
In a cluster environment, you must check that /bigdisk is also
accessible from all cluster clients, and that it is also mounted from all
client nodes. For example, the local file system /bigdisk on the
cluster client must be mounted to the exported file system /bigdisk
on the cluster server.
Manual Solaris Agent Installation
In some situations, it may be desirable to install the Sun Solaris agent
software without using the management server. Manual installation
prepares the workstation to become an ITO managed node when it is
later connected to the network. This is useful if many workstations are
prepared in a central location, or if you want to avoid using the root
connection over the network that is necessary for a standard agent
installation.
Install the Agent on the Managed Node:
Use the following instructions to install the ITO Solaris agent on a
Solaris workstation that will become an ITO managed node:
1. Copy the ITO appropriate agent package (NCS, DCE TCP/UDP) to a
temporary directory on the managed node. On the management
server, the agent packages are located in:
/var/opt/OV/share/databases/OpC/mgd_node/vendor/sun/\
sparc/solaris/A.05.00/RPC_[NCS|DCE_TCP|DCE_UDP]/\
opc_pkg.Z
NOTE If you intend to run ITO Advanced Network Security (ANS) on this node,
you also need to copy the following file from the same directory:
nsp_pkg.Z
2. Uncompress and untar the agent package:
uncompress opc_pkg.Z
tar xvf opc_pkg
If appropriate, uncompress and untar the ANS package, too:
uncompress nsp_pkg.Z
Chapter 2 97
Installing ITO Agents on the Managed Nodes
General Installation Tips for Managed Nodes
tar xvf nsp_pkg
3. Install the agent on the node:
pkgadd -d <directory> -a <directory>/OPC/install/admin \
OPC
If appropriate, install ANS on the node, too:
pkgadd -d <directory> -a <directory>/OPC/install/admin \
ITOAgentNSP
Activate the Node Using the Command Line:
You can activate the agent on the node over the net (without the GUI and
without root access) by using the following command-line steps:
Activate the Node Using the ITO GUI:
After the node with the pre-installed agent is connected to the network,
use this procedure to activate and register the managed node.
1. Add the pre-installed node(s) to the ITO Node Bank using the menu
sequence: Actions:Node->Add.
2. Add the node to an ITO node group. The easiest way to do this is to
drag and drop it onto a node group in the ITO Node Group Bank
window.
3. Distribute the ITO configuration to the node:
a. Select Actions:Agents->Install from the menu bar of the
ITO Node Bank. The Install /Update ITO Software and
Configuration window opens.
b. Select all components and click [OK].
NOTE Do not check [Force Update] otherwise the management server will
re-install the agent.
If the agent is pre-installed on the node, the management server will
activate the node, and install the selected components. Note that if
the agent software is not pre-installed, this action will install the
agent.
4. Execute the following command to verify that the control, message,
and action agents are all running on the managed node:
/opt/OV/bin/OpC/opcragt -status <node>
98 Chapter 2
Installing ITO Agents on the Managed Nodes
General Installation Tips for Managed Nodes
Activate the agent on the managed node:
1. After manually installing the agent on the node, enter:
/opt/OV/bin/OpC/install/opcactivate <ITO_mgt_server>\
-cs <server_codeset> -cn <agent_codeset>
The agent then attempts to send messages to the management server.
For more information about codesets, see Chapter 8, “ITO Language
Support,” on page 333.
NOTE Use the opcactivate command with the -mode option to activate:
hacmp for ITO agents on AIX HACMP systems. See also
“Installation Prerequisites for AIX HACMP Agents”
on page 58
cluster
server/client for ITO agents on AIX Cluster-Client systems after
the ITO agent software package has been installed
on the AIX Cluster Server system. For more
information, see “Manually Activating the ITO
Agent on NFS Cluster Clients” on page 169.
See the man page opcactivate(1m) for more information.
2. After the node is connected to the network execute the following two
commands on the management server:
a. /opt/OV/bin/OpC/opcsw -installed <node>
b. /opt/OV/bin/OpC/opchbp -start <node>
Problems Caused by Missing OS Patches for Solaris
❏If version -04 or -05 of patch 101327 is installed, the ITO installation
fails on Solaris managed nodes with the following message:
tar xof ...core dump
To solve this problem, either:
• Install patch version -06 (or later).
• De-install the old patch.
To check which patches are currently installed on Solaris systems,
enter:
Chapter 2 99
Installing ITO Agents on the Managed Nodes
General Installation Tips for Managed Nodes
showrev -p
Installation Tips for Windows NT Systems
This section explains how to install the ITO agent package on Windows
NT systems. There are four installation procedures that you can use
depending on the network configuration as described in Table 2-4 on
page 99:
NOTE In this manual, a Windows NT installation server is a primary or
backup domain controller with the ITO agent package installed.
Table 2-4 NT-Agent Installation Options
Use the... described
on... to install or upgrade the NT agent
package on...
ftp installation page 103 • a primary or backup domain
controller
• a primary or backup domain
controller that does not give
administrative rightsa to the HP
ITO account on an installation
server in another domain
• a stand-alone system
standard
installation page 106 • a system that has an installation
server in its domain
• a system in a domain that gives
administrative rightsa to the HP
ITO account on an installation
server in another domain
100 Chapter 2
Installing ITO Agents on the Managed Nodes
General Installation Tips for Managed Nodes
a. A standard installation procedure requires the HP ITO
account on the installation server in a trusted domain to have
administrative rights in the trusting domain. Trust refers to
a relationship between Windows NT domains, in which one
domain is aware of the users in another domain, and can
assign rights to those users. The trust relationship is estab-
lished by using the User Manager for Domains, on the pri-
mary domain controller of the trusted and trusting domains.
ftp
re-installation page 109 • a primary or backup domain
controller for the second time
• a primary or backup domain
controller that does not give
administrative rights to the HP
ITO account of a domain with an
installation server
• a stand alone system
manual
installation page 111 • an NT system that is not yet
connected to the network.
• an NT system that is connected to
a network where an ftp connection
with write permission is either
impossible or inadvisable
Use the... described
on... to install or upgrade the NT agent
package on...
Chapter 2 101
Installing ITO Agents on the Managed Nodes
General Installation Tips for Managed Nodes
Figure 2-5 Installing the ITO Windows NT Agent Package
Installation Requirements
❏Requirements for all Windows NT nodes
• Ten MB of space must be free on an NTFS-formatted local disk
that is available to the node.
• Ten MB free disk space must be temporarily available on local C:
drive during installation via the installation server.
Windows NT Windows NT
ftp installation
TRUST
standard installation
Stand-alone
Windows NT
System
ftp installation
Domain 1 Domain 2
standard installation
Possible only if Domain 2 gives
administrative rights to the HP
ITO account in Domain 1
standard installation
Primary or
Backup
Domain
Controller
Primary or
Backup
Domain
Controller
ITO Management Server
102 Chapter 2
Installing ITO Agents on the Managed Nodes
General Installation Tips for Managed Nodes
• Schedule services must not be disabled.
• SNMP services must be running for ITO to automatically identify
the node as an NT system. This is helpful, but not absolutely
necessary for a successful installation.
❏Requirements for a Windows NT Installation Server
• All Windows NT node requirements as listed above.
• Additional four MB of space must be free on an NTFS-formatted
local disk that is available to the node.
• Ten MB free disk space must be temporarily available on the drive
that contains the ftp directory during installation.
• An installation server must be a primary domain controller or a
backup domain controller.
• ftp services must be running on the primary or backup domain
controller if the agent package is being installed from the ITO
management server (this will always be true for the first
installation).
• The ftp service must have read/write permission for drive that
contains the ftp home directory.
❏Requirements for the ITO Management Server
• The ITO management server must be installed with the client
software bundle OVOPC-NT-CLT. You can verify that the bundle
has been installed with the command:
swlist -l fileset OVOPC-CLT.OVOPC-NT-CLT
• If your installation includes 35 or less NT managed nodes, use the
setting for the kernel parameter maxfiles given in the HP
OpenView IT/Operations Installation Guide for the Management
Server. If your installation includes more than 35 NT managed
nodes, increase the setting of maxfiles by:
3*Number_of_additional_NT_nodes + 15
Chapter 2 103
Installing ITO Agents on the Managed Nodes
General Installation Tips for Managed Nodes
ftp Agent Package Installation
This procedure uses ftp to install the agent package from the ITO
management server to a Windows NT primary or backup domain
controller that does not currently have the agent running. This type of
installation must be done at least once; it requires ftp services and one
manual step on the NT system.
Use these instructions for your first Windows NT agent package
installation, or if you need to create an installation server in a domain
that does not give administrative rights to the HP ITO account on an
installation server in another domain.
If an installation server is already available, and you want to install ITO
agent software on additional Windows NT nodes, see “Standard Agent
Package Installation” on page 106.
1. Check the “Installation Requirements” on page 101. Make sure that
your systems meet all the listed requirements.
2. Select Window: Node Bank from any submap to display the ITO
Node Bank window.
3. Select Actions: Node: Add… to display the Add Node window.
4. Fill in the following fields of the Add Node window:
•Label: enter the name of the node as it will appear in the ITO
Node bank. In this example ntserver is used.
•Hostname: enter the complete hostname of the Windows NT
domain controller that you want to set up as the Windows NT
installation server. This example will use the hostname:
ntserver.com. After entering this name and pressing return,
ITO will look up and verify the IP Address, as well as the Net
Type, Machine Type and OS name. Look at this information to
ensure that the OS name is Windows NT.
•As User: This can be the administrator, or even anonymous if the
ftp server allows it
NOTE If SNMP services are not running on the Windows NT node, ITO cannot
detect the OS name, Net type, etc. In this case, select Windows NT and
continue with the installation.
5. Click [Advanced Options] to display the Node Advanced
Options window; the fields below are unique to Windows NT nodes:
104 Chapter 2
Installing ITO Agents on the Managed Nodes
General Installation Tips for Managed Nodes
•Installation Drive: enter the letter of an NTFS drive with
10 megabytes of disk space for the agent software. If the drive that
you specify does not have enough space, or if you leave this field
blank, ITO will search the available local drives for an NTFS drive
that has enough free space.
•Installation Server: leave this field blank. An installation
server is not available for this domain (you are creating one with
this procedure), and any entry here will create an error message
when the installation script runs.
• If Service Pack 1 or 2 is installed on your Windows NT version
3.51 or 4.0 managed node, change the communication type from
DCE RPC (UDP) to DCE RPC (TCP).
6. Click [Close] to dismiss the Advanced Options window, then
[OK] to dismiss the Modify Node window.
The ITO Node Bank window now shows a new symbol with the label
you entered in the Label field, in this example ntserver.
7. Add the new node to a node group so that it can be managed by an
ITO operator:
a. Open the ITO Node Group Bank window and double-click the
node group to which you want to add the node.
Add a new node group if you do not want to use one of the ITO
default node groups. Remember to assign any new node groups to
an operator.
b. Drag the node from the ITO Node Bank window and drop it into
the submap of the node group.
8. You can monitor the rest of the installation by looking at messages
received in the message browser. If you added a new group, configure
the message browser to receive messages from this new group. If the
message browser is open, it will prompt you for a restart when you
finish the step above. If it is not open, add the new node group and
open the message browser now.
9. Click the new icon to highlight it, then choose
Actions: Agents: Install/ Update SW & Config… to display
the Install/Update ITO Software and Configuration
window.
Chapter 2 105
Installing ITO Agents on the Managed Nodes
General Installation Tips for Managed Nodes
10.Under Target Nodes, Select Nodes in list requiring update,
then click [Get Map Selection]; the node name will appear in the
window.
11.Under components, select [Agent Software], then click [OK].
The installation will begin. A new shell will open and start the
installation script. When prompted for the “as user” password, give
the password of the NT system administrator. When prompted for the
HP_ITO password you can either specify a password, or simply press
Enter and ITO will create a password for you.
NOTE If you are installing the ITO agent software on a domain controller, do
not let ITO create a password for you, but specify your own. You will
need this password again when installing on another domain controller.
The installation script will then install the agent package on the NT
node.
NOTE The agent can also be installed via anonymous ftp if you have read/write
access to the ftp home directory drive. Use user ftp and password ftp
NOTE The next five steps must be performed on the NT machine. If the NT
system is not physically near you, you can ask someone near the machine
to perform these steps.
12.At the NT machine, log in as the administrator and open a MS-DOS
command prompt.
13.Switch to the ftp home directory and drive
14.Change directory to temp.
15.Type opc_inst. This invokes a script that takes about two minutes
to execute. The script will set up the domain controller as the
Windows NT managed node that can also function as the installation
server for all other NT nodes.
16.The installation is complete when you see the line Installation
program successfully finished. If the installation fails, check
the contents of the installation log file, located in C:\temp\
inst.log. Examine the log file for lines that begin with E-> to find
the cause of the terminated installation.
106 Chapter 2
Installing ITO Agents on the Managed Nodes
General Installation Tips for Managed Nodes
You can also verify the installation by checking the NT services
window and looking for the entry HP ITO Agent, which should be
running, and the HP ITO installation service, which will not be
running. (This service runs only when you want to install the agent
on another NT system.)
NOTE The next steps must be performed at the ITO management server.
17.At the ITO management server, verify that the agent is running on
the NT node by highlighting the node icon and double-clicking on the
ITO Status application (in the ITO Application Bank window).
This application returns the status of the ITO agent processes. If they
are running, you know that the NT agent is installed and that the NT
domain controller is functioning as the NT installation server.
Standard Agent Package Installation
This procedure uses a Windows NT installation server to install or
upgrade the agent package on Windows NT systems. To use this
procedure, a Windows NT installation server must be available either:
❏in the domain of the system you are installing, or
❏in some other domain where the HP ITO account has administrative
rights on the system where you want to install the agent.
NOTE Ensure that the latest version of the ITO agent software is installed on
the installation server. See “ftp Agent Package Installation” on page 103
for instructions on how to prepare the installation server.
If an installation server that meets these requirements is not available,
create one by using the procedure explained in “ftp Agent Package
Installation” on page 103.
This type of installation does not require ftp services, and can be
performed on any NT system within the installation server’s domain.
This procedure can also be performed on the primary or backup domain
controller of any domain that grants administrative rights to the HP ITO
account of another installation server, and can thus be used to create
other installation servers in other domains.
NOTE Although an installation server can install the agent package on
workstations in other domains, it is recommended to install the agent
package on workstations only from the installation server in that
Chapter 2 107
Installing ITO Agents on the Managed Nodes
General Installation Tips for Managed Nodes
workstation’s domain. This is recommended because the process of
creating an installation server automatically installs the HP ITO
account on the domain controller, where it will have the necessary rights
throughout the domain. (If the HP ITO account does not have
administrative rights throughout the domain, you will have to manually
assign them on each workstation where you install the agent.) For more
information on rights and permissions for the HP ITO account, see “The
HP ITO Account” on page 114.
1. Check the “Installation Requirements” on page 101. Make sure that
your systems meet all the listed requirements.
2. Select Window: Node Bank from any submap to display the ITO
Node Bank window.
3. Select Actions: Node->Add… to display the Add Node window.
4. Fill in the following fields of the Add Node window:
•Label: enter the name of the node as it will appear in the ITO
Node Bank. In this example ntworkstation is used.
•Hostname: enter the complete hostname of the Windows NT
system where you want to install the agent. This example will use
the hostname: ntworkstation.com. After entering this name
and pressing return, ITO will look up and verify the IP Address, as
well as the Net Type, Machine Type and OS name. Look at this
information to ensure that the OS name is Windows NT.
NOTE If SNMP services are not running on the Windows NT node, ITO cannot
detect the OS name, Net type, etc. In this case, select Windows NT and
continue with the installation.
5. Click [Advanced Options] to display the Node Advanced
Options window and fill in the following fields:
•Installation Drive: enter the letter of an NTFS drive with
10 MB of disk space for the agent software. If the drive that you
specify does not have enough space, or if you leave this field blank,
ITO will search the available drives for an NTFS drive that has
enough free space.
108 Chapter 2
Installing ITO Agents on the Managed Nodes
General Installation Tips for Managed Nodes
•Installation Server: enter the name of a Windows NT
domain controller that has been set up as an installation server
(and is in the same domain, or has administrative rights for the
HP ITO account in this domain). This example uses the system
ntserver.com.
• If Service Pack 1 or 2 is installed on your Windows NT version
3.51 or 4.0 managed node, change the communication type from
DCE RPC (UDP) to DCE RPC (TCP).
6. Click [Close] to dismiss the Advanced Options window, then
[OK] in the Add Node window.
7. Add the new node to a node group so that it can be managed by an
ITO operator:
a. Open the ITO Node Group Bank window and double-click the
node group to which you want to add the node.
Add a new node group if you do not want to use one of the ITO
default node groups. Remember to assign any new node groups to
an operator.
b. Drag the node from the ITO Node Bank window and drop it into
the submap of the node group.
8. You can monitor the rest of the installation by looking at messages
received in the message browser. If you added a new group, configure
the message browser to receive messages from this new group. If the
message browser is open, it will prompt you for a restart when you
finish the step above. If it is not open, add the new node group and
open the message browser now.
9. Click the new icon to highlight it, then choose
Actions:Agents->Install/ Update SW & Config… to display
the Install/Update ITO Software and Configuration
window.
10.Under Target Nodes, select [Nodes in list requiring
update], then click [Get Map Selection], the node name will
appear in the window.
11.Under components, select [Agent Software], then click [OK].
The installation will begin. A new shell will open and start the
installation script. When prompted for the HP_ITO password you can
either specify a password, or simply press Enter and ITO will create a
password for you.
Chapter 2 109
Installing ITO Agents on the Managed Nodes
General Installation Tips for Managed Nodes
NOTE If you are installing the ITO agent software on a domain controller, do
not let ITO create a password for you, but specify your own. You will
need this password again when installing on another domain controller.
When installing the agent on another domain controller, use the
password of the HP ITO account on the domain controller where you first
installed the agent software.
The installation script will then install the agent package on the NT
workstation.
12.Verify that the agent is running on the NT node by highlighting the
node icon and double-clicking on the ITO Status application (in the
ITO Application Bank Window). This application returns the
status of the ITO agent processes. If they are running, you know that
the NT agent is installed and that the NT domain controller is
functioning as the NT installation server.
If you wish to examine the installation log, use the ITO Install
Log application in the ITO Application Group: NT Tools
Window.
ftp Agent Package Re-installation
This procedure uses a Windows NT installation server to re-install or
upgrade the agent package that were originally installed on Windows NT
systems using the ftp-installation method.
NOTE If the installation program aborts during the (re)installation of a new
version of the Windows NT agent, check that there are no monitor scripts
running on the managed node. Monitor scripts that are not stopped
during the agent shutdown and which are still running during the
subsequent install process can lead to a situation where the message
catalog is locked, which causes any subsequent installation to fail.
Use the following instructions to re-install or upgrade the agent package
on the first Windows NT primary or backup domain controller. You can
also use these instructions if you need to re-install or upgrade an
installation server in a domain that grants administrative rights to an
HP ITO account in another domain that contains an available
installation server.
110 Chapter 2
Installing ITO Agents on the Managed Nodes
General Installation Tips for Managed Nodes
If an installation server is already available, and you want to re-install
or upgrade ITO agent software on additional Windows NT nodes, see
“Standard Agent Package Installation” on page 106.
1. Check the “Installation Requirements” on page 101. Make sure that
your systems meet all the listed requirements.
2. Select Window:NodeBank from any sub-map to display the ITO
Node Bank window.
3. Select Actions:Node:Modify… to display the Modify Node
window.
4. Click [Advanced Options] to display the Node Advanced
Options window; the fields below are unique to Windows NT nodes:
•Installation Drive: enter the letter of an NTFS drive with
10 megabytes of disk space for the agent software. If the drive that
you specify does not have enough space, or if you leave this field
blank, ITO will search the available local drives for a disk that has
enough free space.
If you are re-installing the ITO agent software, enter the letter of
the NTFS drive where the agent software was installed.
NOTE If you want to re-install on a different NTFS drive, de-install the ITO
agent software first, and then proceed with the ftp installation.
•Installation Server: enter the complete hostname of the
Windows NT system where you want to install the agent. This
example will use the hostname: ntsystem.com.
• If Service Pack 1 or 2 is installed on your Windows NT version
3.51 or 4.0 managed node, change the communication type from
DCE RPC (UDP) to DCE RPC (TCP).
5. Click [Close] to dismiss the Advanced Options window, then
[OK] to dismiss the Modify Node window.
6. Click the new icon to highlight it, then choose
Actions:Agents->Install/ Update SW & Config… to display
the Install/Update ITO Software and Configuration
window.
7. Under Target Nodes, select [Nodes in list requiring
update], then click [Get Map Selection]; the node name will
appear in the window.
Chapter 2 111
Installing ITO Agents on the Managed Nodes
General Installation Tips for Managed Nodes
8. Under components, select [Agent Software], then click [OK].
The installation will begin. A new shell will open and start the
installation script. When prompted for the Administrator password,
give the password of the NT system administrator. When prompted
for the HP_ITO password you can either specify a password, or
simply press Enter and ITO will create a password for you.
NOTE If you are installing the ITO agent software on a domain controller, do
not let ITO create a password for you, but specify your own. You will
need this password again when installing on another domain controller.
The installation script will then install the agent package on the NT
node. You will not receive any installation messages in the message
browser until the installation is complete.
9. Verify that the agent is running on the NT node by highlighting the
node icon and double-clicking the ITO Status application (in the
ITO Application Bank Window).
This application returns the status of the ITO agent processes. If they
are running, you know that the NT agent is installed and that the NT
domain controller is functioning as the NT installation server.
If you wish to examine the installation log, use the ITO Install
Log application (in the ITO Application Group: NT Tools
Window).
Manual Installation: Windows NT Agent
In some situations, it may be desirable to install the ITO NT agent
software on an NT PC without using the management server. This pre-
installation makes it possible to prepare the PC, so that it is ready to
become an ITO managed node when it is later connected to the network.
This may be useful if a large number of PCs are prepared in some central
location, or if you want to avoid using the root connection over the
network that is necessary for a standard agent installation.
NOTE If you are using this section to install the DEC Alpha NT agent, all
references to intel in the path name should be replaced with alpha.
For example:
/ms/intel/nt should be changed to;/ms/alpha/nt
112 Chapter 2
Installing ITO Agents on the Managed Nodes
General Installation Tips for Managed Nodes
To install the NT agent on an NT PC that will become an ITO managed
node:
1. Copy the files listed below from:
/var/opt/OV/share/databases/OpC/mgd_node/vendor/ms/\
[intel | alpha]/nt/A.05.00/RPC_DCE_TCP/
on the ITO management server, to the C:\temp directory of the
managed node:
•opc_pkg.Z (rename this file to opc_pkg.zip)
•opc_pre.bat
•unzip.exe
•unzip.txt
•opcsetup.inf
•opc_inst.bat
•nsp_pkg.Z (Only for nodes with ITO Advanced Network Security
(ANS) installed. Note that you wil have to rename this file
manually to nsp_pkg.zip ).
Always use RPC_DCE_TCP as communication type, if Service Pack 1
or 2 is installed on your Windows NT version 3.51 or 4.0 managed
node. Using RPC_DCE_UDP may cause problems with the operating
system.
2. Edit the opcsetup.inf file, changing the entries for setup drive
and management server as appropriate:
[Setup Drive]
C:
[Management Server]
management_server.domain.com
[Account Password]
(empty by default)
[HP ITO Version]
A.05.00
[Agent Architecture]
ms/intel/nt1
1. [intel | alpha] as appropriate
Chapter 2 113
Installing ITO Agents on the Managed Nodes
General Installation Tips for Managed Nodes
NOTE If the password line is left in its default state (empty) a random
password is generated. If you want to use a specific password, it needs to
be encrypted on the ITO management server with the opcpwcrpt tool,
which resides in /opt/OV/bin/OpC/install.
If you are installing the ITO agent software on a domain controller, do
not let ITO create a password for you, but specify your own. You will
need this password again when installing on another domain controller.
3. Create the following file in the C:\temp directory of the NT managed
node:
• File: nodeinfo
OPC_NODE_TYPE CONTROLLED
OPC_MGMTSV_CHARSET iso88591
(or
sjis
for Japanese)
OPC_NODE_CHARSET acp1252
(or
acp932
for Japanese)
OPC_COMM_TYPE RPC_DCE_TCP
OPC_NSP_TYPE [NONE | SECRET]1 (for ANS only)
OPC_NSP_VERSION 0 (for ANS only)
1. One or the other depending on your ANS setting requirements
NOTE If the ITO agent version A.04.x or lower is already installed on the
managed node, run the following commands to stop the ITO agent on the
node and remove the old nodeinfo file, which is incompatible with ITO
A.05.00 agent, before you continue with the re-installation:
a. \usr\OV\bin\OpC\[intel | alpha]\opcagt -kill
b. del \usr\OV\conf\OpC\<node>\nodeinfo
4. Run the setup batch file on the NT PC from a command prompt:
C:
cd \temp
opc_pre.bat
5. On the management server, add the NT node to the appropriate node
group.
6. When the NT PC is connected to the ITO management server, update
the database and start heartbeat polling for the NT node manually,
from the management server, as follows:
114 Chapter 2
Installing ITO Agents on the Managed Nodes
General Installation Tips for Managed Nodes
a. /opt/OV/bin/OpC/opcsw -installed <node>
b. /opt/OV/bin/OpC/opchbp -start <node>
The HP ITO Account
The standard installation of the ITO agent package on a Windows NT
managed node installs the HP ITO account by default as a member of the
administrators group and consequently gives the account all those
user rights that are available under Windows NT. Although it is
essential that the HP ITO account be a member of the administrators
group, only those user rights listed in Table 2-5 on page 114 are required
by the account to function correctly. All other user rights associated by
default with the HP ITO account may be removed or granted as required.
Table 2-5 Required User Rights for the HP ITO Account
User Right... is required in ITO...
Access this computer from the
network by the NT installation server
Act as part of the operating
system by the ITO action agent to
switch user
Log on as a service by the ITO agent, which runs as
a service
Manage auditing and security log during action execution
Replace a process-level token by the action agent to
switch user
Shut down the system by the shutdown application
115
3 File Tree Layouts on the
Managed-Node Platforms
116 Chapter 3
File Tree Layouts on the Managed-Node Platforms
This chapter provides file trees to show the directory structures on all
Managed Node platforms supported by ITO. These are as follows:
❏AIX
❏DEC Alpha NT
❏Digital UNIX (OSF/1)
❏HP-UX 10.x/11.x
❏MPE/iX
❏NCR UNIX SVR4
❏Novell NetWare
❏Olivetti UNIX
❏OS/2
❏Pyramid DataCenter/OSx
❏SCO OpenServer/UnixWare
❏Sequent DYNIX/ptx
❏Siemens Nixdorf SINIX/Reliant UNIX
❏SGI IRIX
❏Solaris
❏Windows NT
The diagrams showing the file-tree layouts of the various operating
systems in this section use the symbol B to represent the directory
structure indicated in the following diagram:
For each platform, information is provided about the:
❏ITO default operator
❏system resources that are automatically adapted by ITO
B
monitor cmds actions
Key:
Chapter 3 117
File Tree Layouts on the Managed-Node Platforms
❏NFS cluster clients and server systems, where appropriate
For detailed information about the directory contents, see the opc(5)
page. Note that all man pages reside on the management server.
118 Chapter 3
File Tree Layouts on the Managed-Node Platforms
File Tree Layout on AIX Managed Nodes
File Tree Layout on AIX Managed Nodes
The ITO Software on AIX managed nodes is organized in the following
way:
Figure 3-1 ITO Software on AIX Managed Nodes
Standalone System or NFS Cluster Server on
AIX
The cluster server exports the /usr file system with read-only
permissions. The ITO software is located in /usr/lpp/OV with the same
logical and physical path names. This is a different location from
previous releases (/export/lpp/OV/rs6000/aix). This simplification
was possible because ITO software can now operate from the read-only
/usr file system on cluster clients.
NFS Cluster Client on AIX
AIX cluster clients (both diskless, dataless, and diskpoor) are those AIX
systems that have /usr file system NFS mounted. Their cluster server is
the system to which /usr is mounted. No additional mounts are required
on cluster clients on AIX by ITO version A.02.00 and later.
conf tmp log
/usr/lpp/OV
OpC OpC OpC
OpC
install
lib
nls
<lang>
bin conf
B
/var/lpp/OV
include
/usr/lpp/OPC and /lpp/OpC are used by the installp utility for software maintenance
B
OpC
utils
Chapter 3 119
File Tree Layouts on the Managed-Node Platforms
File Tree Layout on AIX Managed Nodes
ITO Default Operator on AIX
The ITO default operator, opc_op, owns /home/opc_op as home
directory. By default, the operator uses the Korn Shell (/bin/ksh) and is
not allowed to log into the system directly (* entry in /etc/passwd).
System Resources Adapted by ITO on AIX
ITO applies changes in the following system resource files:
❏/etc/passwd and /etc/security/passwd - entry for ITO default
operator
❏/etc/group and /etc/security/group - group entry for ITO
default operator
❏/etc/inittab - ITO Agent startup entry; only done, if the
Automatic Update of System Resource Files option has been set
❏/etc/rc.opc - ITO startup file; called by /etc/inittab
Note that if you are working with Network Information Services (NIS or
“yellow pages”) you should adapt the user registration accordingly.
120 Chapter 3
File Tree Layouts on the Managed-Node Platforms
File Tree Layout on DEC Alpha NT Manged Nodes
File Tree Layout on DEC Alpha NT
Manged Nodes
Figure 3-2 ITO Software on DEC Alpha NT Managed Nodes
ITO Default Operator on DEC Alpha NT
Managed Nodes
Information concerning default ITO operators for DEC Alpha NT is the
same as the information concerning default ITO operators for Windows
NT on intel and is described in “ITO Default Operator on Windows NT”
on page 161.
alpha
bin conf tmp
log
\usr\OV
OpC OpC
OpC
<node> <node>
OpC
lib nls
<lang>
bin conf
<node>
include
alpha
install
databases
OpC
mgd_node
vendor <country>
<codeset>
C
utils BB
<node>
Chapter 3 121
File Tree Layouts on the Managed-Node Platforms
File Tree Layout on DEC Alpha NT Manged Nodes
System Resources Adapted by ITO on DEC
Alpha NT Managed Nodes
Information concerning adapted system resources for DEC Alpha NT is
the same as the information concerning adapted system resources for
Windows NT on intel and is described in “System Resources Adapted by
ITO on Windows NT” on page 161.
122 Chapter 3
File Tree Layouts on the Managed-Node Platforms
File Tree Layout on Digital UNIX Managed Nodes
File Tree Layout on Digital UNIX
Managed Nodes
The ITO software on Digital UNIX managed nodes is arranged as
follows:
Figure 3-3 ITO Software on Digital UNIX Managed Nodes
Standalone Systems or NFS Cluster Servers
on Digital UNIX
In general, standalone systems are treated as cluster servers.
The cluster server exports the /usr/opt or /usr file system with
read-only permissions. ITO software is located on the /usr/opt/OV
path, with the logical path name the same as the physical path-name.
NOTE By default, Digital UNIX does not export the /usr/opt or the /usr file
system. You can enable ITO cluster operations manually by exporting
the /usr/opt or /usr file system to one Digital UNIX system, and then
mount it from other Digital UNIX systems. You must set up the cluster
manually before the ITO installation process, so that it is available for
the ITO installation.
bin conf tmp log
/usr/opt/OV
OpC OpC OpC
OpC
install
lib
locale
<lang>
bin conf
/var/opt/OV
include
LC_MESSAGES
B
B
bin
OpC
utils
Chapter 3 123
File Tree Layouts on the Managed-Node Platforms
File Tree Layout on Digital UNIX Managed Nodes
NFS Clients on Digital UNIX
Digital UNIX cluster clients are those Digital UNIX systems that have
the /usr/opt or /usr file system NFS mounted. Their cluster server is
the system to which /usr/opt or /usr is mounted and must also be a
system running Digital UNIX.
The ITO Default Operator on Digital UNIX
The ITO default operator opc_op and the group opcgrp are created as
the ITO default operator if they don’t already exist.
Table 3-1 ITO Entry in /etc/passwd on Digital UNIX Managed Nodes
Table 3-2 ITO Entry in /etc/group on Digital UNIX Managed Nodes
Field Entry
User Name opc_op
Encrypted Password * (no login)
User-ID 777 if still available, or next possible free number
Group-ID 77 if still available, or next possible free number
Description ITO default operator
Home Directory /usr/users/opc_op
Login Shell /bin/sh
Field Entry
Group Name opcgrp
Encrypted
Password empty
Group-ID 77 or higher
Users opc_op
Description ITO default operator group
124 Chapter 3
File Tree Layouts on the Managed-Node Platforms
File Tree Layout on Digital UNIX Managed Nodes
System Resources Adapted by ITO on Digital
UNIX
ITO makes changes in the following system resource files during
installation:
❏/etc/passwd and /etc/shadow (if present), Protected Password
Database (if present) - entry for the default ITO operator
❏/etc/group - group entry for the default ITO operator
❏/sbin/init.d/opcagt - ITO startup/shutdown script
❏/sbin/rc0.d - file K01opcagt created
❏/sbin/rc2.d - file K01opcagt created
❏/sbin/rc3.d - file S97opcagt created
Chapter 3 125
File Tree Layouts on the Managed-Node Platforms
File Tree Layout on HP-UX 10.x and 11.x Managed Nodes
File Tree Layout on HP-UX 10.x and 11.x
Managed Nodes
The ITO software on HP-UX 10.x and 11.x managed nodes is organized
in the following way:
Figure 3-4 ITO Software on HP-UX 10.x and 11.x Managed Nodes
If HP OpenView NNM is also installed on the managed node, only those
directories displayed in bold-face type are created by ITO.
On the management server (which also acts as a managed node) the
software trees shown above is combined with the management server file
tree at installation. For a diagram of the management server file tree,
see the HP OpenView IT/Operations Installation Guide for the
Management Server.
NFS Cluster Servers on HP-UX 10.x
In an NFS diskless environment, each cluster client has its own private
root directory containing files and directories that are private to that
client. The cluster client can access its operating system components on
the cluster server using direct NFS mounts to the shared root directory.
NOTE NFS diskless clusters are not supported on HP-UX 11.x
bin conf tmp
B
log
/opt/OV
OpC OpC OpC
OpC
install
lib
nls
bin conf
/var/opt/OV
include
<lang>
B
bin
OpC
utils
126 Chapter 3
File Tree Layouts on the Managed-Node Platforms
File Tree Layout on HP-UX 10.x and 11.x Managed Nodes
The file system on the NFS cluster server consists of a private root
directory, and one or more shared root directories that are used by the
cluster clients. Each of the shared roots contains the part of the
operating system that can be shared by the cluster clients.
The cluster server exports the file system shown in Figure 3-5 to the
cluster clients.
NOTE You can configure cluster clients for HP-UX 10.01 and above using SAM.
Figure 3-5 Exported File System From HP-UX 10.x Cluster Server to Cluster
Clients
NOTE The cluster server must also be configured as an ITO managed node if
you are monitoring cluster clients, as the tree is only writable for the
cluster server.
NFS Cluster Client on HP-UX 10.x
In general, cluster clients mount directories and swap space from the
cluster server directories.
Each cluster client that is also a managed node, mounts the following
directory with read permissions:
<cluster_server>:/export/shared_roots/os_700/opt
NOTE You can configure cluster clients for HP-UX 10.01 and above using SAM.
export
OV
shared_roots
opt
OS_700
Chapter 3 127
File Tree Layouts on the Managed-Node Platforms
File Tree Layout on HP-UX 10.x and 11.x Managed Nodes
The ITO Default Operator on HP-UX 10.x and
11.x
The ITO default operator, opc_op, owns /home/opc_op as home
directory. By default, the operator uses the Korn Shell (/usr/bin/ksh)
and is not allowed to log into the system directory (a * entry is made for
the password in /etc/passwd).
If the managed node is a Network-Information-Service (NIS or NIS+)
client, you must add the ITO default operator opc_op on the NIS server
before installing the ITO software on a managed node. This ensures that
the ITO default operator opc_op is used by ITO and is consistent on all
systems.
System Resources Adapted by ITO on HP-UX
10.x and 11.x
ITO makes changes in the following system resource files:
❏/etc/passwd - entry for the default ITO operator
❏/etc/group - entry for the default ITO operator
❏/sbin/init.d/opcagt - ITO startup/shutdown script
❏/etc/rc.config.d/opcagt - ITO startup/shutdown configuration
script
❏/sbin/rc3.d - file S941opcagt created
❏/sbin/rc2.d - file K59opcagt created
Note that if you are working with Network Information Services (NIS or
NIS+) you should adapt the user registration accordingly.
128 Chapter 3
File Tree Layouts on the Managed-Node Platforms
File Tree Layout on MPE/iX Managed Nodes
File Tree Layout on MPE/iX Managed
Nodes
Figure 3-6 ITO Software on MPE/iX Managed Nodes
During installation, ITO creates the accounts OVOPC and OVOPR. The
group PUB.OVOPC is not used by ITO.
ITO Default Operator on MPE/iX
The default operator, MGR.OVOPR, on MPE/iX is assigned the dummy
group PUB.OVOPR as home group; for this account and group, the
MPE/iX default capabilities and access rights are applied.
System Resources Adapted by ITO on MPE/iX
ITO makes changes to the following system resource files:
❏SYSSTART.PUB.SYS
ITO agent startup; modification is only done if the Automatic
Update of System Resource Files option has been set.
ARPA-to-NS Node-Name Mapping for MPE/iX
ITO uses the vt3k operation for software (de-)installation purposes and
for a virtual terminal connection from the operator’s Application Desktop
or the administrator’s Application Bank, to an MPE/iX managed node.
The vt3k operation requires the HP Network Services (NS) node name of
the remote HP 3000. However, nodes selected from the map are
identified by the ARPA hostname. By default, a selected node’s ARPA
OVOPC
PUB
BIN
CONF TMP
LOG
TMPACT
TMPCMDS
TMPMON
TMPCONF
MSG
ACTIONS
MONITOR
COMMANDS
Z
HLIB
Chapter 3 129
File Tree Layouts on the Managed-Node Platforms
File Tree Layout on MPE/iX Managed Nodes
hostname is truncated after the first dot (.), and the first part of the
ARPA hostname becomes the NS node name for the vt3k operation. This
mechanism assumes that the truncated name identifies a node in the
same NS domain as the management server, since a fully-qualified NS
node name is unavailable.
If the truncated ARPA host name differs from the NS node name or the
MPE/iX managed node belongs to a different NS domain, ITO supports
the mapping file below to avoid this problem:
/etc/opt/OV/share/conf/OpC/mgmt_sv/vt3k.conf
This file can be a symbolic link to /etc/xnmvt3k.conf or the file below,
used by ITO for remote logins on HP 3000 systems via vt3k:
/etc/opt/OV/share/conf/xnmvt3-k.conf
ITO resolves the ARPA host name to NS node name as follows:
1. It searches for the first line in the vt3k.conf file that begins with a
matching ARPA hostname. If a matching name is found, the NS node
name in the second column is input to the vt3k operation.
2. If no matching ARPA hostname is found in the vt3k.conf file, the
search is repeated with only the first part of the ARPA host name (the
part preceding the first dot). If a matching name is found, the NS
node name in the second column is input to the vt3k operation.
3. If no matching name is found in the /vt3k.conf file or the mapping
file does not exist (the default case), the truncated hostname is input
to the vt3k operation. This case assumes that the name identifies a
node in the same NS domain as the management server, since a
fully-qualified NS node name is missing.
You can configure the vt3k.conf file at any time; you do not have to exit
the ITO GUI or restart any ITO services.
130 Chapter 3
File Tree Layouts on the Managed-Node Platforms
File Tree Layout on MPE/iX Managed Nodes
Figure 3-7 ARPA to NS Node Name Mapping
#ARPA NS node name Comment
#----------------------------------------------------------------------
hpbbli smarty #different node names
#but same domain
hpsgmx18.sgp.hp.com hpsgmx18.sgp.hpcom #same node names, but
#Managed Node belongs to
#different domain as
#management server
topaz.sgp.hp.com nstopaz.mis.hpsg #node names and domains differ
Chapter 3 131
File Tree Layouts on the Managed-Node Platforms
File Tree Layout on NCR UNIX SVR4 Managed Nodes
File Tree Layout on NCR UNIX SVR4
Managed Nodes
Figure 3-8 ITO Software on NCR UNIX SVR4 Stand-alone Systems
The directory /var/sadm/pkg/OPC is used by the pkgadd utility for
software maintenance.
Standalone System or NFS Cluster Server on
NCR UNIX SVR4
In general, stand-alone systems are treated as cluster servers. The
cluster server exports the /opt file system with read-only permissions.
ITO software is located on /opt/OV path, with the same logical and
physical path names.
NOTE By default NCR UNIX does not export the /opt file system. ITO cluster
operations can only be enabled by manually exporting the /opt file
system on one NCR system and then mounting it from one or more NCR
systems. This manual cluster setup must be done before the ITO
installation process in order to have an impact on the ITO installation.
NFS Cluster Client on NCR UNIX SVR4
NCR UNIX cluster clients are those NCR UNIX systems that have /opt
file system NFS mounted. Their cluster server is the system to which
/opt is mounted and must also be a system running NCR UNIX.
bin conf tmp log
/opt/OV
OpC OpC OpC
OpC
install
lib
locale
<lang>
bin conf
/var/opt/OV
include
LC_MESSAGES
B
B
bin
OpC
utils
132 Chapter 3
File Tree Layouts on the Managed-Node Platforms
File Tree Layout on NCR UNIX SVR4 Managed Nodes
The ITO Default Operator on NCR UNIX SVR4
The ITO default operator, opc_op, owns /home/opc_op as home
directory. By default, the operator uses the Bourne Shell (/bin/sh) and
is locked until the passwd(1M) command is executed. User opc_op
belongs to the group opcgrp.
System Resources Adapted by ITO on NCR
UNIX SVR4
ITO makes changes to the following system resource files:
❏/etc/passwd and /etc/shadow - entry for the default ITO operator
❏/etc/group - group entry for the default ITO operator
❏/etc/init.d/opc - ITO startup script
❏/etc/rc2.d - file S93opc is created
❏/etc/rc0.d - file K07opc is created
❏/etc/rc1.d - file K07opc is created
❏/etc/init.d/ncs - NCS startup script, if not already present
❏/etc/rc2.d: file S76ncs is created, if not already present
❏/etc/rc0.d: file K52ncs is created, if not already present
❏/etc/rc1.d: file K52ncs is created, if not already present
Chapter 3 133
File Tree Layouts on the Managed-Node Platforms
File Tree Layout on Novell NetWare Managed Nodes
File Tree Layout on Novell NetWare
Managed Nodes
Figure 3-9 ITO Software on Novell NetWare Managed Nodes
During installation, ITO creates the opc_op account which has the same
security level as the user ADMIN. This account is a normal user account
and is used to execute applications.
ITO Default Operator on Novell NetWare
Table 3-3 ITO Entry in the User Manager for Domains on Novell NetWare
Managed Nodes
BIN CONF TMP LOG
SYS:OPT/OV
OPC OPC OPC
OpC
INSTALL
LIB
<lang> BIN CONF
B
SYS:VAR/OPT/OV
INCLUDE
NLS B
bin
OpC
UTILS
Field Entry
User Name OPC_OP
Encrypted
Password Must be entered manually. Use NETADMIN or
NWADMIN
User-ID N/A
Group-ID N/A
134 Chapter 3
File Tree Layouts on the Managed-Node Platforms
File Tree Layout on Novell NetWare Managed Nodes
System Resources adapted by ITO on Novell
NetWare
During agent software installation, ITO modifies the AUTOEXEC.NCF file.
ITO agent start up command OPCAGT.NCF is added.
The following resources are changed during the ITO agent for NetWare
installation:
SYS:/SYSTEM/AUTOEXEC.NCF
❏OPCAGT.NFC is added to invoke the ITO agent for NetWare software
if this command is not already present in this file
❏LOAD REMOTE <remote_console_password> is added to invoke
the remote console if the user does not yet have a correctly installed
remote console
❏LOAD XCONSOLE is added to invoke the X-windows console if you
have not yet correctly installed this product
SYS:/ETC/HOSTS
❏<server_name> <IP_address> is added for the NetWare server
that is currently installed with ITO agent software if this line is not
already present in this file
❏<mng_server_name> <IP_address> is added when you answer
(Y)es to the question “Do you want to add the ITO management
server to SYS:ETC/HOSTS file?” if this line is not already present in
the HOSTS file
Description OPC_OP is a special user with rights equivalent to
NetWare system administrator ADMIN
Home Directory Not set
Login Shell NetWare deals with login scripts; user OPC_OP does
not have any login script assigned
Field Entry
Chapter 3 135
File Tree Layouts on the Managed-Node Platforms
File Tree Layout on Olivetti UNIX Managed Nodes
File Tree Layout on Olivetti UNIX
Managed Nodes
The ITO software on Olivetti UNIX managed nodes is based on the
typical SVR4 platforms as follows:
Figure 3-10 ITO Software on Olivetti UNIX Managed Nodes
Standalone Systems or NFS Cluster Servers
on Olivetti UNIX
In general, standalone systems are treated as cluster servers.
The cluster server exports the /opt file system with read-only
permissions. ITO software is located on the /opt/OV path, with the
same logical and physical path names.
NOTE By default, Olivetti UNIX does not export the /opt file system. You can
enable ITO cluster operations manually by exporting the /opt file
system to one Olivetti UNIX system, and then mount it from other
Olivetti UNIX systems. You must set up the cluster manually before the
ITO installation process, so that it is available for the ITO installation.
bin conf tmp log
/opt/OV
OpC OpC OpC
OpC
install
lib
locale
<lang>
bin conf
/var/opt/OV
include
LC_MESSAGES
B
B
bin
OpC
utils
136 Chapter 3
File Tree Layouts on the Managed-Node Platforms
File Tree Layout on Olivetti UNIX Managed Nodes
NFS Cluster Clients on Olivetti UNIX
Olivetti UNIX cluster clients are those Olivetti UNIX systems that have
the /opt file system NFS mounted. Their cluster server is the system to
which /opt is mounted and must also be a system running Olivetti
UNIX.
The ITO Default Operator on Olivetti UNIX
The ITO default operator opc_op and the group opcgrp are created as
the ITO default operator if they don’t already exist.
Table 3-4 ITO Entry in /etc/passwd on Olivetti UNIX Managed Nodes
Table 3-5 ITO Entry in /etc/group on Olivetti UNIX Managed Nodes
Field Entry
User Name opc_op
Encrypted Password * (no login)
User-ID 777 if still available, or next possible free number
Group-ID 177 if still available, or next possible free number
Description ITO default operator
Home Directory /usr/opc_op
Login Shell /bin/sh
Field Entry
Group Name opcgrp
Encrypted
Password empty
Group-ID 177 or higher
Users opc_op
Description ITO default operator group
Chapter 3 137
File Tree Layouts on the Managed-Node Platforms
File Tree Layout on Olivetti UNIX Managed Nodes
System Resources Adapted by ITO on Olivetti
UNIX
ITO makes changes in the following system resource files during
installation:
❏/etc/passwd and /etc/shadow (if present), Protected Password
Database (if present) - entry for the default ITO operator
❏/etc/group - group entry for the default ITO operator
❏/etc/init.d/opcagt - ITO startup/shutdown script
❏/etc/rc0.d - file K09opcagt created
❏/etc/rc1.d - file K09opcagt created
❏/etc/rc2.d - file S99opcagt created
❏/etc/init.d/ncs - NCS startup/shutdown script (if not already
present)
❏/etc/rc0.d - file K52ncs created (if not already present)
❏/etc/rc1.d - file K52ncs created (if not already present)
❏/etc/rc2.d - file S76ncs created (if not already present)
138 Chapter 3
File Tree Layouts on the Managed-Node Platforms
File Tree Layout on OS/2 Manged Nodes
File Tree Layout on OS/2 Manged Nodes
Figure 3-11 ITO Software on OS/2 Managed Nodes
ITO Default Operator on OS/2 Managed Nodes
OS/2 does not support a user concept so that no ITO default operator
exists on OS/2 managed nodes.
System Resources adapted by ITO on OS/2
Managed Nodes
During agent software installation, ITO modifies the STARTUP.CMD file,
if the box [Automatic Update of System Resource Files] is
checked in the ITO GUI.
bin lib
OpC nls
Cinstall utils
conf logbin tmp
OpC OpC OpCOpC
bin
B
\var\opt\OV
\opt\OV
B
Chapter 3 139
File Tree Layouts on the Managed-Node Platforms
File Tree Layout on Pyramid DataCenter/OSx Managed Nodes
File Tree Layout on Pyramid
DataCenter/OSx Managed Nodes
The ITO software on Pyramid DataCenter/OSx managed nodes is based
on the typical SVR4 platforms as follows:
Figure 3-12 ITO Software on Pyramid DataCenter/OSx Managed Nodes
Standalone Systems or NFS Cluster Servers
on Pyramid DataCenter/OSx
In general, standalone systems are treated as cluster servers. The
cluster server exports the /opt file system with read-only permissions.
ITO software is located on the /opt/OV path, with the logical path name
the same as the physical path name.
NOTE By default, Pyramid DataCenter/OSx does not export the /opt file
system. You can enable ITO cluster operations manually by exporting
the /opt file system to one Pyramid DataCenter/OSx system, and then
mount it from other Pyramid DataCenter/OSx systems. You must set up
the cluster manually before the ITO installation process, so that it is
available for the ITO installation.
bin conf tmp log
/opt/OV
OpC OpC OpC
OpC
install
lib
locale
<lang>
bin conf
/var/opt/OV
include
LC_MESSAGES
B
B
bin
OpC
utils
140 Chapter 3
File Tree Layouts on the Managed-Node Platforms
File Tree Layout on Pyramid DataCenter/OSx Managed Nodes
NFS Cluster Clients on Pyramid
DataCenter/OSx
Pyramid DataCenter/OSx cluster clients are those Pyramid
DataCenter/OSx systems that have the /opt file system NFS mounted.
Their cluster server is the system to which /opt is mounted and must
also be a system running Pyramid DataCenter/OSx.
The ITO Default Operator on Pyramid
DataCenter/OSx
The ITO default operator opc_op and the group opcgrp are created as
the ITO default operator if they don’t already exist.
Table 3-6 ITO Entry in /etc/passwd on Pyramid DataCenter/OSx Managed
Nodes
Table 3-7 ITO Entry in /etc/group on Pyramid DataCenter/OSx Managed
Nodes
Field Entry
User Name opc_op
Encrypted Password * (no login)
User-ID 777 if still available, or next possible free number
Group-ID 177 if still available, or next possible free number
Description ITO default operator
Home Directory /home/opc_op
Login Shell /bin/sh
Field Entry
Group Name opcgrp
Encrypted Password empty
Chapter 3 141
File Tree Layouts on the Managed-Node Platforms
File Tree Layout on Pyramid DataCenter/OSx Managed Nodes
System Resources Adapted by ITO on
Pyramid DataCenter/OSx
ITO makes changes in the following system resource files during
installation:
❏/etc/passwd and /etc/shadow (if present), Protected Password
Database (if present) - entry for the default ITO operator
❏/etc/group - group entry for the default ITO operator
❏/etc/init.d/opcagt - ITO startup/shutdown script
❏/etc/rc0.d - file K09opcagt created
❏/etc/rc1.d - file K09opcagt created
❏/etc/rc2.d - file S89opcagt created
❏/etc/init.d/ncs - NCS startup/shutdown script (if not already
present)
❏/etc/rc0.d - file K52ncs created (if not already present)
❏/etc/rc1.d - file K52ncs created (if not already present)
❏/etc/rc2.d - file S76ncs created (if not already present)
Group-ID 177 or higher
Users opc_op
Description ITO default operator group
Field Entry
142 Chapter 3
File Tree Layouts on the Managed-Node Platforms
File Tree Layout on SCO OpenServer Managed Nodes
File Tree Layout on SCO OpenServer
Managed Nodes
The ITO software on SCO OpenServer managed nodes is based on the
typical SVR4 platforms as follows:
Figure 3-13 ITO Software on SCO OpenServer Managed Nodes
Standalone Systems or NFS Cluster Servers
on SCO OpenServer
In general, standalone systems are treated as cluster servers.
The cluster server exports the /opt file system with read-only
permissions. The ITO software is located in the /opt/OV path, with the
same logical and physical path names.
NOTE By default, SCO OpenServer does not export the /opt file system. You
can enable ITO cluster operations manually by exporting the /opt file
system on one SCO OpenServer system, then mount it from other SCO
OpenServer systems. You must do cluster setup manually before the ITO
installation process so that it has an effect on the ITO installation.
bin conf tmp log
/opt/OV
OpC OpC OpC
OpC
install
lib
locale
<lang>
bin conf
/var/opt/OV
include
LC_MESSAGES
B
B
bin
OpC
utils
Chapter 3 143
File Tree Layouts on the Managed-Node Platforms
File Tree Layout on SCO OpenServer Managed Nodes
NFS Cluster Clients on SCO OpenServer
SCO OpenServer cluster clients are those SCO OpenServer systems that
have the /opt file system NFS mounted. Their cluster server is the
system to which /opt is mounted and must also be a system running
SCO OpenServer.
The ITO Default Operator on SCO OpenServer
The ITO default operator opc_op and the group opcgrp are created as
the ITO default operator if they don’t already exist.
Table 3-8 ITO Entry in /etc/passwd on SCO OpenServer Managed Nodes
Table 3-9 ITO Entry in /etc/group on SCO OpenServer Managed Nodes
a. HOME_DIR is set to the path name specified in
/etc/default/authsh with the HOME_DIR. The HOME_DIR vari-
able reflects the current settings on the system in question. If
/etc/default/authsh is not present, or HOME_DIR is not set,
then /usr is assumed.
Field Entry
User Name opc_op
Encrypted Password * (no login)
User-ID 778 if still available, or next possible free number
Group-ID 77 if still available, or next possible free number
Description ITO default operator
Home Directory /HOME_DIR /opc_op a
Login Shell /bin/sh (POSIX shell)
Field Entry
Group Name opcgrp
Encrypted
Password empty
144 Chapter 3
File Tree Layouts on the Managed-Node Platforms
File Tree Layout on SCO OpenServer Managed Nodes
System Resources Adapted by ITO on SCO
OpenServer
ITO makes changes in the following system resource files during
installation:
❏/etc/passwd and /etc/shadow (if present), Protected Password
Database (if present) - entry for the default ITO operator
❏/etc/group - group entry for the default ITO operator
❏/etc/init.d/opcagt - ITO startup/shutdown script
❏/etc/rc0.d - file K09opcagt created
❏/etc/rc2.d - file S94opcagt created
❏/etc/init.d/ncs - NCS startup/shutdown script
❏/etc/rc0.d - file K24ncs created
❏/etc/rc2.d - file S93ncs created
Group-ID 77 or higher
Users opc_op
Description ITO default operator group
Field Entry
Chapter 3 145
File Tree Layouts on the Managed-Node Platforms
File Tree Layout on SCO UnixWare Managed Nodes
File Tree Layout on SCO UnixWare
Managed Nodes
The ITO software on SCO UnixWare managed nodes is based on the
typical SVR4 platforms as follows:
Figure 3-14 ITO Software on SCO UnixWare Managed Nodes
Standalone Systems or NFS Cluster Servers
on SCO UnixWare
In general, standalone systems are treated as cluster servers.
The cluster server exports the /opt file system with read-only privileges.
The ITO software is located in the /opt/OV path, with the same logical
and physical path names.
NOTE By default, SCO UnixWare does not export the /opt file system. You can
enable ITO cluster operations manually by exporting the /opt file
system on one SCO UnixWare system, then mount it from other SCO
UnixWare systems. You must do cluster setup manually before the ITO
installation process so that it has an effect on the ITO installation.
conf
B
/opt/OV
OpC
bin
bin conf
B
/var/opt/OV
include
OpC nls
install <lang>
LC_MESSAGES
lib
OpC
bin tmp
OpC
log
OpC
146 Chapter 3
File Tree Layouts on the Managed-Node Platforms
File Tree Layout on SCO UnixWare Managed Nodes
NFS Cluster Clients on SCO UnixWare
SCO UnixWare cluster clients are those SCO UnixWare systems that
have the /opt file system NFS mounted. Their cluster server is the
system to which /opt is mounted and must also be a system running
SCO UnixWare.
The ITO Default Operator on SCO UnixWare
The ITO default operator opc_op and the group opcgrp are created as
the ITO default operator if they don’t already exist.
Table 3-10 ITO Entry in /etc/passwd on SCO UnixWare Managed Nodes
Table 3-11 ITO Entry in /etc/group on SCO UnixWare Managed Nodes
Field Entry
User Name opc_op
Encrypted Password * (no login)
User-ID 777 if still available, or next possible free number
Group-ID 177 if still available, or next possible free number
Description ITO default operator
Home Directory /home /opc_op
Login Shell /bin/sh (POSIX shell)
Field Entry
Group Name opcgrp
Encrypted
Password empty
Group-ID 177 or higher
Users opc_op
Description ITO default operator group
Chapter 3 147
File Tree Layouts on the Managed-Node Platforms
File Tree Layout on SCO UnixWare Managed Nodes
System Resources Adapted by ITO on SCO
UnixWare
ITO makes changes in the following system resource files during
installation:
❏/etc/passwd and /etc/shadow (if present), Protected Password
Database (if present) - entry for the default ITO operator
❏/etc/group - group entry for the default ITO operator
❏/etc/init.d/opcagt - ITO startup/shutdown script
❏/etc/rc0.d - file K09opcagt created
❏/etc/rc1.d - file K09opcagt created
❏/etc/rc2.d - file S95opcagt created
148 Chapter 3
File Tree Layouts on the Managed-Node Platforms
File Tree Layout on Sequent DYNIX/ptx Managed Nodes
File Tree Layout on Sequent DYNIX/ptx
Managed Nodes
The ITO software on Sequent DYNIX/ptx managed nodes is based on the
typical SVR4 platforms as follows:
Figure 3-15 ITO Software on Sequent DYNIX/ptx Managed Nodes
Standalone Systems or NFS Cluster Servers
on Sequent DYNIX/ptx
In general, standalone systems are treated as cluster servers.
The cluster server exports the /opt file system with read-only
permissions. ITO software is located on the /opt/OV path, with the
logical path name the same as the physical path-name.
NOTE By default, Sequent DYNIX/ptx does not export the /opt file system. You
can enable ITO cluster operations manually by exporting the /opt file
system to one DYNIX/ptx system, and then mount it from other
DYNIX/ptx systems. You must set up the cluster manually before the
ITO installation process, so that it is available for the ITO installation.
bin conf tmp log
/opt/OV
OpC OpC OpC
OpC
install
lib
locale
<lang>
bin conf
/var/opt/OV
include
LC_MESSAGES
B
B
bin
OpC
utils
Chapter 3 149
File Tree Layouts on the Managed-Node Platforms
File Tree Layout on Sequent DYNIX/ptx Managed Nodes
NFS Cluster Clients on DYNIX/ptx
Sequent DYNIX/ptx cluster clients are those DYNIX/ptx systems that
have the /opt file system NFS mounted. Their cluster server is the
system to which /opt is mounted and must also be a system running
Sequent DYNIX/ptx.
The ITO Default Operator on Sequent
DYNIX/ptx
The ITO default operator opc_op and the group opcgrp are created as
the ITO default operator if they don’t already exist.
Table 3-12 ITO Entry in /etc/passwd on Sequent DYNIX/ptx Managed Nodes
Table 3-13 ITO Entry in /etc/group on Sequent DYNIX/ptx Managed Nodes
Field Entry
User Name opc_op
Encrypted Password * (no login)
User-ID 777 if still available, or next possible free number
Group-ID 77 if still available, or next possible free number
Description ITO default operator
Home Directory /home /opc_op
Login Shell /bin/sh
Field Entry
Group Name opcgrp
Encrypted Password empty
Group-ID 77 or higher
Users opc_op
Description ITO default operator group
150 Chapter 3
File Tree Layouts on the Managed-Node Platforms
File Tree Layout on Sequent DYNIX/ptx Managed Nodes
System Resources Adapted by ITO on Sequent
DYNIX/ptx
ITO makes changes in the following system resource files during
installation:
❏/etc/passwd and /etc/shadow (if present), Protected Password
Database (if present) - entry for the default ITO operator
❏/etc/group - group entry for the default ITO operator
❏/etc/init.d/opcagt - ITO startup/shutdown script
❏/etc/rc0.d - file K07opcagt created
❏/etc/rc2.d - file S93opcagt created
❏/etc/init.d/ncs - NCS startup/shutdown script
❏/etc/rc0.d - file K52ncs created
❏/etc/rc2.d - file S76ncs created
Chapter 3 151
File Tree Layouts on the Managed-Node Platforms
File Tree Layout for Silicon Graphics IRIX
File Tree Layout for Silicon Graphics
IRIX
The file tree used by the ITO managed node software on IRIX is similar
to other SVR4 platforms and organised in the following way:
Figure 3-16 ITO Software on SGI IRIX Managed Nodes
Standalone Systems or NFS Cluster Servers
on SGI IRIX
In general, stand-alone systems are treated as cluster servers. The
cluster server exports the /opt file system with read-only permissions.
ITO software is located in /opt/OV, with the same logical and physical
path names.
NFS Cluster Client on SGI IRIX
In addition to the general rule for determining cluster clients described
in “Installation Tips for IRIX Managed Nodes” on page 70, there is also
one specific rule for IRIX:
IRIX cluster clients (both diskless, and normal disks) are those IRIX
systems that have either a /usr file system or /opt file system NFS
mounted. Their cluster server is the system to which /usr or /opt is
mounted. If the /opt file system is not already NFS mounted (only /usr
NFS mounted), then ITO mounts /opt to /opt of the cluster server:
bin conf tmp log
/opt/OV
OpC OpC OpC
OpC
install
lib
locale
<lang>
bin conf
/var/opt/OV
include
LC_MESSAGES
B
B
bin
OpC
utils
152 Chapter 3
File Tree Layouts on the Managed-Node Platforms
File Tree Layout for Silicon Graphics IRIX
mount <cluster_server>:/opt /opt
The ITO Default Operator on SGI IRIX
The ITO default operator opc_op and the group opcgrp are created as
the ITO default operator if they don’t already exist.
Table 3-14 ITO Entry in /etc/passwd on SGI IRIX Managed Nodes
Table 3-15 ITO Entry in /etc/group on SGI IRIX Managed Nodes
System Resources Adapted by ITO on SGI
IRIX
ITO makes changes in the following system resource files:
❏/etc/passwd and /etc/shadow (if present) - entry for the default
ITO operator
Field Entry
User Name opc_op
Encrypted Password * (no login)
User-ID 777 if still available, or next possible free number
Group-ID 77 if still available, or next possible free number
Description ITO default operator
Home Directory /var/people/opc_op
Login Shell /bin/sh (POSIX shell)
Field Entry
Group Name opcgrp
Encrypted Password empty
Group-ID 77 or higher
Users opc_op
Description ITO default operator group
Chapter 3 153
File Tree Layouts on the Managed-Node Platforms
File Tree Layout for Silicon Graphics IRIX
❏/etc/group - group entry for the default ITO operator
❏/etc/init.d/opcagt - ITO startup/shutdown script
❏/etc/rc0.d - file K09opcagt created
❏/etc/rc2.d - file S89opcagt is created
❏/etc/exports - on cluster server only; entry for export of /opt
directory
❏/etc/fstab - on cluster client only; entry for mount /opt directory
❏/etc/init.d/grad_nck - NCS startup/shutdown script
❏/etc/rc0.d - file K35nck is created
❏/etc/rc2.d - file S40nck is created
154 Chapter 3
File Tree Layouts on the Managed-Node Platforms
File Tree Layout on SINIX Managed Nodes
File Tree Layout on SINIX Managed
Nodes
The ITO software on SINIX managed nodes is based on the typical SVR4
platforms as follows:
Figure 3-17 ITO Software on SINIX Managed Nodes
Standalone Systems or NFS Cluster Servers
on SINIX
In general, standalone systems are treated as cluster servers.
The cluster server exports the /opt file system with read-only
permissions. ITO software is located on the /opt/OV path, with the
logical path name the same as the physical path name.
NOTE By default, SINIX does not export the /opt file system. You can enable
ITO cluster operations manually by exporting the /opt file system to one
SINIX system, and then mount it from other SINIX systems. You must
set up the cluster manually before the ITO installation process, so that it
is available for the ITO installation.
bin conf tmp log
/opt/OV
OpC OpC OpC
OpC
install
lib
locale
<lang>
bin conf
/var/opt/OV
include
LC_MESSAGES
B
B
bin
OpC
utils
Chapter 3 155
File Tree Layouts on the Managed-Node Platforms
File Tree Layout on SINIX Managed Nodes
NFS Cluster Clients on SINIX
SINIX cluster clients are those SINIX systems that have the /opt file
system NFS mounted. Their cluster server is the system to which /opt
is mounted and must also be a system running SINIX.
The ITO Default Operator on SINIX
The ITO default operator opc_op and the group opcgrp are created as
the ITO default operator if they don’t already exist.
Table 3-16 ITO Entry in /etc/passwd on SINIX Managed Nodes
Table 3-17 ITO Entry in /etc/group on SINIX Managed Nodes
Field Entry
User Name opc_op
Encrypted Password * (no login)
User-ID 777 if still available, or next possible free number
Group-ID 177 if still available, or next possible free number
Description ITO default operator
Home Directory /home/opc_op
Login Shell /bin/sh
Field Entry
Group Name opcgrp
Encrypted Password empty
Group-ID 177 or higher
Users opc_op
Description ITO default operator group
156 Chapter 3
File Tree Layouts on the Managed-Node Platforms
File Tree Layout on SINIX Managed Nodes
System Resources Adapted by ITO on SINIX
ITO makes changes in the following system resource files during
installation:
❏/etc/passwd and /etc/shadow (if present), Protected Password
Database (if present) - entry for the default ITO operator
❏/etc/group - group entry for the default ITO operator
❏/etc/init.d/opcagt - ITO startup/shutdown script
❏/etc/rc0.d - file K09opcagt created
❏/etc/rc1.d - file K09opcagt created
❏/etc/rc2.d - file S89opcagt created
❏/etc/init.d/ncs - NCS startup/shutdown script (if not already
present and communciation type is NCS RPC)
❏/etc/rc0.d - file K52ncs created (if not already present and
communciation type is NCS RPC)
❏/etc/rc1.d - file K52ncs created (if not already present and
communciation type is NCS RPC)
❏/etc/rc2.d - file S76ncs created (if not already present and
communciation type is NCS RPC)
❏/usr/lib/snmplib/libsnmpapi.so -> \
/opt/lib/snmpd/snmplib/libsnmpuser.so - Symbolic link
created if not already present
Chapter 3 157
File Tree Layouts on the Managed-Node Platforms
File Tree Layout on Solaris Managed Nodes
File Tree Layout on Solaris Managed
Nodes
The ITO software on Solaris managed nodes is organized in the following
way:
Figure 3-18 ITO Software on Solaris Managed Nodes
The path /var/sadm/pkg/OPC is used by the pkgadd utility for
software maintenance.
Standalone Systems or NFS Cluster Servers
on Solaris
In general, stand-alone systems are treated as cluster servers. The
cluster server exports the /opt file system with read-only permissions.
ITO software is located on /opt/OV path, with the same logical and
physical path names. This simplification was possible because ITO
software can now operate from the read-only /opt file system on cluster
clients. By default, Solaris does not export the /opt file system; not even
on the cluster server. During the ITO installation process on the cluster
server, care is taken to export the /opt file system if it was not already
exported.
bin conf tmp log
/opt/OV
OpC OpC OpC
OpC
install
lib
locale
<lang>
bin conf
/var/opt/OV
include
LC_MESSAGES
B
B
bin
OpC
utils
158 Chapter 3
File Tree Layouts on the Managed-Node Platforms
File Tree Layout on Solaris Managed Nodes
NFS Cluster Client on Solaris
In addition to the general rule for determining cluster clients described
in the section “Installation Tips for UNIX Managed Nodes” on page 50
there is also one specific rule for Solaris:
Solaris cluster clients (both with and without disks) are those Solaris
systems that have either a /usr or /opt file system NFS mounted. Their
cluster server is the system to which /usr or /opt is mounted. If the
/opt file system is not already NFS mounted (only /usr NFS mounted),
then ITO mounts local /opt to /opt of the cluster server:
mount <cluster_server>:/opt /opt
The ITO Default Operator on Solaris
The ITO default operator, opc_op, owns /home/opc_op as home
directory. By default, the operator uses the Bourne Shell (/bin/sh) and
is locked until the passwd(1M) command is executed. User opc_op
belongs to the group opcgrp.
Currently, user opc_op and group opcgrp are only added locally on the
managed node (useradd or groupadd are used). If the managed node is
a Network-Information-Service (NIS or NIS+) client, the ITO
installation checks if user opc_op is already in the NIS database. If so, no
additional user is installed, otherwise, opc_op is added only locally on the
managed node.
Solaris System Resources Adapted by ITO
ITO makes changes in the following system resource files:
❏/etc/passwd and /etc/shadow - entry for the default ITO operator
❏/etc/group - group entry for the default ITO operator
❏/etc/init.d/opcagt - ITO startup/shutdown script
❏/etc/rc3.d/S99opcagt - file created
❏/etc/rc0.d/K09opcagt - file created
❏/etc/rc1.d/K09opcagt - file created
❏/etc/vfstab - on cluster client only; entry for mount /opt directory
❏/etc/init.d/ncs - NCS startup script (if not already present)
Chapter 3 159
File Tree Layouts on the Managed-Node Platforms
File Tree Layout on Solaris Managed Nodes
❏/etc/rc3.d/S76ncs - file created (if not already present)
❏/etc/rc0.d/K52ncs - file created (if not already present)
❏/etc/rc2.d/K52ncs - file created (if not already present)
160 Chapter 3
File Tree Layouts on the Managed-Node Platforms
File Tree Layout on Windows NT Managed Nodes
File Tree Layout on Windows NT
Managed Nodes
Figure 3-19 ITO Software on Windows NT Managed Nodes
During installation, ITO creates the HP ITO account which has all rights
and privileges that are required for the ITO agent software. It also
creates the opc_op account which is a normal user account and is used to
execute applications.
NOTE The directories represented in Figure 3-19 by the letter Bare created by
the control agent if necessary
intel
bin conf tmp
log
\usr\OV
OpC OpC
OpC
<node> <node> <node>
OpC
lib nls
<lang>
bin conf
<node>
include
intel
install
databases
OpC
mgd_node
vendor <country>
<codeset>
C
utils BB
Chapter 3 161
File Tree Layouts on the Managed-Node Platforms
File Tree Layout on Windows NT Managed Nodes
ITO Default Operator on Windows NT
Table 3-18 ITO User Accounts on Windows NT Managed Nodes
a. All other properties assume the default value
b. NT Workstation
c. P/BDC: Primary/Backup Domain Controller
System Resources Adapted by ITO on
Windows NT
ITO inserts several keys in the Windows NT Registry. The keys and their
associated values can be viewed with the Registry editor, using the
following command %SystemRoot%\System32\regedt32.exe. The
registry editor will show the following keys for ITO:
❏HKEY_LOCAL_MACHINE\SOFTWARE\Hewlett-Packard\
OpenView\ITO
❏HKEY_LOCAL_MACHINE\SYSTEM\Current
ControlSet\Control\Lsa\MSV1_0
❏HKEY_LOCAL_MACHINE\SYSTEM\Current
ControlSet\Services\HP ITO Agent
❏And if on a primary or backup domain controller:
HKEY_LOCAL_MACHINE\SYSTEM\Current
ControlSet\Services\HP ITO Installation Server
Field Entry
User Name HP ITO account opc_op
Encrypted
Password Defined during
installation Same as HP ITO
accounta
Group administratorb or domain
administratorcusers or domain users
Description HP ITO agent account HP ITO operator account
Login Shell None None
162 Chapter 3
File Tree Layouts on the Managed-Node Platforms
File Tree Layout on Windows NT Managed Nodes
163
4 Software Maintenance on
Managed Nodes
164 Chapter 4
Software Maintenance on Managed Nodes
This chapter provides important information about installing and
de-installing ITO software on managed nodes with various operating
systems. The installation, de-installation, and updating of ITO software
is referred to as “software maintenance”. This chapter includes:
❏Installing and upgrading the ITO agent software using the GUI.
❏De-installation of the ITO agent software using the GUI.
❏Checking installed agent software packages on the management
server.
❏Removing ITO agent software packages from the management server
that are no longer required.
NOTE For information about adding an additional ITO agent software package
to the management server, see the HP OpenView IT/Operations
Installation Guide for the Management Server.
Chapter 4 165
Software Maintenance on Managed Nodes
Overview
Overview
ITO software installation, update, and de-installation (software
maintenance) uses functionality provided by the ITO administrator GUI
and is performed using the inst.sh(1M) script. To avoid the verbose
output of this script, you can set a shell variable for user root:
Bourne/Korn OPC_SILENT=1; export OPC_SILENT
Csetenv OPC_SILENT
In order to be able to carry out software maintenance, you need to know
either the root passwords of the managed nodes, or.rhosts entries must
be available for user root (UNIX only). Failing that, make sure the local
/etc/hosts.equiv (on the UNIX managed nodes) contains an entry for
the management server.
Before installing ITO software on the managed nodes, or de-installing
ITO software from the managed nodes, read the section “General
Installation Tips for Managed Nodes” on page 47.
Before you can install ITO on a managed node, you must add the
managed node to the Node Bank window using the ITO Add Node
window, which is accessed by selecting Actions:Node->Add… from the
menu bar of the Node Bank window see Figure 4-1. Alternatively, you
can add nodes to the Node Bank by copying and pasting or dragging and
dropping them from the IP submaps.
166 Chapter 4
Software Maintenance on Managed Nodes
Overview

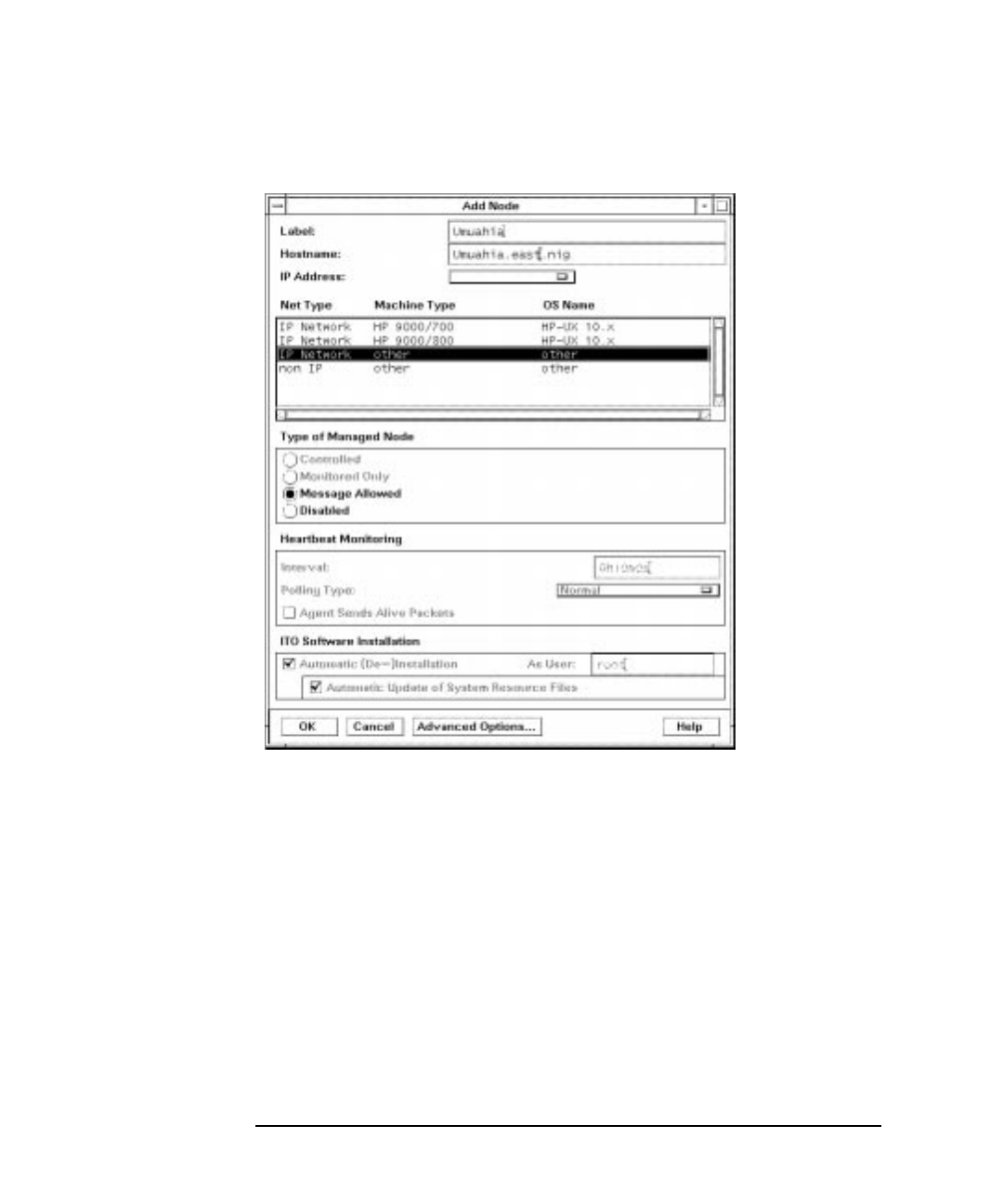

Figure 4-1 Adding a Managed Node to the Node Bank Window
For detailed information about how to set the managed node attributes,
refer to the online help.
Select the Automatic (De-)Installation option, and the ITO software is
automatically installed onto the managed node when you invoke the
installation for this system in the Install/Update ITO Software
and Configuration window.
Chapter 4 167
Software Maintenance on Managed Nodes
Installing or Updating ITO Software Automatically
Installing or Updating ITO Software
Automatically
To install the ITO bits on the managed node automatically, use the
Install/Update ITO Software and Configuration window and
select the Actions:Agents->Install/Update SW & Config… item
in the menu bar.
Figure 4-2 Install/Update ITO Software and Configuration Window
For detailed information about the Install/Update ITO Software
and Configuration window, see the online help. To install or update
the ITO software automatically:
1. Use the Install/Update ITO Software and Configuration
window of the ITO administrator’s GUI and select the appropriate
options. For a software installation or update, the Agent Software
component is the minimum selection.
168 Chapter 4
Software Maintenance on Managed Nodes
Installing or Updating ITO Software Automatically
With the Force Update checkbox unselected (default), only the
differences between the previous configuration and the new
configuration are distributed to the managed nodes. This reduces the
amount of data being transferred, consequently reducing the load on
the network.
2. After clicking on the [OK] button, an additional terminal window
opens, running the installation script, inst.sh(1M). Review the
messages carefully, as the installation script might require your
interaction (for example, if a root password is missing).
First, the inst.sh(1M) script checks that all specified systems are
reachable and accessible by the super user. (If a password is missing,
you are asked to supply one before installation is done.)
Watch the script execution carefully. Your interaction might be
required if any errors or warnings occur.
At the end of the script execution, when you have verified the overall
result of the script run, close the terminal window by pressing Return.
3. Check the local (managed node) installation logfile for any problems:
AIX /tmp/installp.log
DEC Alpha NT c:\temp\inst.log
Digital UNIX (OSF/1) /var/adm/smlogs/setld.log
HP-UX 10.x and 11.x /var/adm/sw/swagent.log
and
/var/adm/sw/swinstall.log
MPE/iX No special logfile available.
NCR UNIX SVR4 /tmp/pkgadd.log
Novell NetWare SYS:DEPOINST.ITO/ITOINST
on NetWare depot server
Olivetti UNIX /tmp/pkgadd.log
OS/2 No special logfile available.
Pyramid DataCenter/OSx /tmp/pkgadd.log
SCO OpenServer /usr/lib/custom/history
Chapter 4 169
Software Maintenance on Managed Nodes
Installing or Updating ITO Software Automatically
This is the same logfile for both
installation and removal
operations. Only one record is
written for each package.
SCO UnixWare /tmp/pkgadd.log
Sequent DYNIX/ptx /tmp/pkgadd.log
SGI IRIX /tmp/inst.log
SINIX /tmp/pkgadd.log
Solaris /tmp/pkgadd.log
Windows NT c:\temp\inst.log
If necessary, for example, if the installation process could not be
reviewed in a terminal window, check the logfile below on the
management server for errors or warnings.
/var/opt/OV/log/OpC/mgmt_sv/install.log
Note that ITO agent software installation does not include configuration
distribution.
Manually Activating the ITO Agent on NFS
Cluster Clients
You can manually activate the ITO agent on an NFS Cluster Client
system. However, the ITO agent software must already be installed on
the NFS Cluster Server system, and the ITO agent software bits must be
available on the target node through an NFS mount of the ITO home
directory (/opt/OV for HP-UX, Solaris, SINIX and NCR; /usr/lpp/OV
for AIX).
The full path-name of opcactivate command is:
AIX /usr/lpp/OV/OpC/install/opcactivate
UNIX (other) /opt/OV/bin/OpC/install/opcactivate
For detailed information about the opcactivate command, see the
opcactivate(1m) man page. All man pages reside on the management
server.
170 Chapter 4
Software Maintenance on Managed Nodes
Installing or Updating ITO Software Automatically
NOTE Manual activation of the ITO agent software on NFS Cluster Client
Nodes is only supported for HP-UX 10.x/11.x, AIX, Solaris, NCR and
SINIX managed node with ITO version A.05.00 and higher. In addition,
only homogeneous NFS Clusters are supported and the cluster server
and cluster client systems must have the same OS.
To manually install the ITO agent on an NFS Cluster-Client managed
node:
1. Install the ITO agent on NFS Cluster Server system (see Install the
Agent on the Managed Node chapter for details).
NOTE This action should be executed only once to install the ITO agents on the
NFS Cluster.
If the ITO agent software is to be re-installed, make sure that the ITO
agents have been stopped on all NFS cluster nodes before starting the
re-installation.
2. Execute the following command on the NFS Cluster Server system
opcactivate -mode cluster_server <node>\
<ITO_mgt_server>
3. Execute the following command on the NFS Cluster Client system:
opcactivate -mode cluster_client
4. After the node is connected to the network execute the following two
commands on the management server:
opcsw -installed <node>
opchbp -start <node>
This updates the database and starts heartbeat polling for the node.
The templates, monitors, commands, and actions must still be
installed using the ITO administrator GUI.
Changing the Communication Type
For the managed node platforms that support both NCS RPC and DCE
RPC, you can choose between these communication types.
Chapter 4 171
Software Maintenance on Managed Nodes
Installing or Updating ITO Software Automatically
NOTE For Windows NT managed nodes running Service Pack 1 or 2, the
communication type must be changed from DCE UDP to DCE TCP to
avoid problems.
If you decide to change the communication type, you must update the
ITO agent software:
1. Ensure that your managed nodes meet the software requirements
described in Chapter 1 of the HP OpenView IT/Operations
Administrator’s Reference. In particular, ensure that the required
DCE RPC software is installed and that the DCE daemon is running
if you switch to DCE RPC.
2. Stop all ITO agent processes, enter:
/opt/OV/bin/OpC/opcragt -stop
3. To change the communication type, you choose between the following
methods depending on the number of managed nodes you want to
modify:
❏If you want to change the communication type for only a small
number of nodes:
a. In the ITO administrator GUI, select the managed node in the
ITO Node Bank for which you want to change the
communication type.
b. Select Actions: Node -> Modify…. The Modify Node
window opens.
c. Click on [Advanced Options], and change the
communication type in the Node Advanced Options window.
Select one of the following options:
•DCE RPC (UDP) (recommended)
•DCE RPC (TCP) (useful when communicating over a WAN)
•NCS RPC
d. Click on [OK] in the Node Advanced Options and the
Modify Node window.
❏If you want to change the communication type for a large number
of managed nodes, you can use the ITO tool opcnode. The easiest
way to do this is to add it as an ITO application to the ITO
Application Bank:
172 Chapter 4
Software Maintenance on Managed Nodes
Installing or Updating ITO Software Automatically
a. In the ITO Application Bank window, select Actions:
Add ITO Application.
b. Enter a name in the Application Name field, and enter the
following in the Application Call field:
/opt/OV/bin/OpC/utils/opcnode -chg_commtype \
comm_type=COMM_DCE_UDP node_list=”$OPC_NODES”
You can also choose COMM_DCE_TCP instead of COMM_DCE_UDP.
Note, however, that COMM_DCE_UDP is recommended.
c. Select Start on Management Server, and specify user root
to execute the application because opcnode must be called
with root permissions. Click on [OK].
opcnode is added as an application to the ITO Application
Bank.
d. Select the nodes for which you want to change the
communication type in the ITO Node Bank or any other node
hierarchy.
e. In the ITO Application Bank, double-click the opcnode
symbol to execute the application.
The communication type changes for all selected nodes. Verify this
by opening the Node Advanced Options window, or calling
opcnode -list -nodes. See also the man page opcnode(1M) for
more information.
4. Use the Install / Update ITO Software and Configuration
window to update the ITO agent software.
Depending on the communication type you have selected in the
previous step, ITO automatically selects the appropriate agent fileset
during the agent software installation.
Chapter 4 173
Software Maintenance on Managed Nodes
De-installing ITO Software from Managed Nodes
De-installing ITO Software from
Managed Nodes
You can choose either of the following methods to de-install ITO software
from the managed nodes:
❏De-install only the ITO software from the managed node.
❏Remove the node and de-install the ITO software.
ITO software is automatically de-installed from managed nodes if they
are configured with the Automatic (De-)Installation option.
The following steps must be applied for automatic node software
de-installation:
1. Delete the managed node symbol from the Node Bank window (for
example, by selecting Actions:Node->Delete (or using the
right-click popup menu) and confirming the following ITO Question
Dialog window by clicking the [Yes] button).
Another ITO Question Dialog window appears, asking about
automatically de-installing software from the managed nodes. When
leaving this window by clicking on the Yes button, the software
de-installation script, inst.sh(1M), is run in an additional terminal
window.
This script checks that all deleted managed nodes are accessible by
root; if passwords are missing, you will be prompted for them.
During script execution, errors or warnings requiring your attention
or interaction may occur.
At the end of the script run, verify the overall result of the script run
and close the terminal window by pressing the Return key.
NOTE If you are de-installing the ITO agent software from a Windows NT
Primary or Backup Domain Controller, the accounts for the domain users
HP ITO account and opc_op must be deleted manually after the
de-installation of the ITO agent software.
2. Check the local (managed node) de-installation logfile for any
problems:
AIX No special logfile available.
174 Chapter 4
Software Maintenance on Managed Nodes
De-installing ITO Software from Managed Nodes
DEC Alpha NT c:\temp\inst.log
Digital UNIX (OSF/1) /var/adm/smlogs/setld.log
HP-UX 10.x and 11.x /var/adm/sw/swagent.log
and
/var/adm/sw/swremove.log
MPE/iX No special logfile available.
NCR UNIX SVR4 /tmp/pkgrm.log
Novell NetWare SYS:DEPOINST.ITO/ITOINST
on the NetWare depot server
Olivetti UNIX /tmp/pkgrm.log
OS/2 No special logfile available.
Pyramid DataCenter/OSx /tmp/pkgrm.log
SCO OpenServer /usr/lib/custom/history
This is the same logfile for both
installation and removal
operations. Only one record is
written for each package.
SCO UnixWare /tmp/pkgrm.log
Sequent DYNIX/ptx /tmp/pkgrm.log
SGI IRIX /tmp/inst.log
SINIX /tmp/pkgrm.log
Solaris /tmp/pkgrm.log
Windows NT c:\temp\inst.log
3. Systems running MPE/iX 5.0 or earlier could experience a problem
using the PURGEACCT command, which leads to a possible
de-installation error. If this occurs, reboot the system and purge the
OVOPC account manually.
Note that you can also manually de-install the ITO agent software which
is, however, only supported on selected managed node platforms. If you
want to de-install the ITO agent software from NFS-cluster clients, you
must use the command opcdeactivate, see the man page
opcactivate(1M). This is not necessary for the standard manual
de-installation.
Chapter 4 175
Software Maintenance on Managed Nodes
De-installing ITO Software from Managed Nodes
Manually De-installing ITO Software from AIX
Managed Nodes
1. Stop all ITO agents running on the managed node.
2. To de-install the ITO agent software from AIX managed nodes, enter:
installp -ug OPC
NOTE Manually de-installing the ITO agent software from AIX managed nodes
is only supported with ITO version A.05.00 and higher.
Manually De-installing ITO Software from
HP-UX Managed Nodes
Manually De-installing ITO Software from
OS/2 Managed Nodes
The installation script opcinst.cmd also de-installs the ITO agent
software from OS/2 managed nodes.
1. On the managed node, change to the directory where opcinst.cmd is
located.
If opcinst.cmd has been removed after the installation, copy the
script from the directory \opt\OV\bin\OpC\install on the
managed node or from the management server to a temporary
location, see “Manual OS/2 Agent Installation” on page 90.
NOTE opcinst.cmd must be executed in a temporary directory; do not run
opcinst.cmd from the directories \opt\OV or \var\opt\OV.
2. To de-install the ITO agent software, enter:
opcinst.cmd /MODE:REMOVE
If you have changed the disk drive where you had previously installed
the ITO agent, enter the new drive when prompted.
Or enter:
opcinst.cmd /MODE:REMOVE /DRIVE:<install_drive>
176 Chapter 4
Software Maintenance on Managed Nodes
De-installing ITO Software from Managed Nodes
If the de-installation fails, stop all ITO agents and remove the directories
\var\opt and \opt\OV from the managed nodes. Manually edit the
startup command STARTUP. CMD to remove ITO-related information.
Manually De-installing ITO Software from
Solaris, NCR, and SINIX Managed Nodes
1. Stop all ITO agents running on the managed node.
2. To de-install the ITO agent software from Solaris managed nodes,
enter:
pkgrm OPC
NOTE Manually de-installing the ITO agent software from Solaris, NCR, and
SINIX managed nodes is only supported with ITO version A.05.00 and
higher.
Manually De-installing ITO Software from
Windows NT Managed Nodes
The installation script opcsetup also de-installs the ITO agent software
from Windows NT managed nodes.
1. Stop all ITO agents running on the managed node
2. On Intel Windows NT, run the following command:
\usr\OV\bin\OpC\intel\opcsetup -u
3. On DEC Alpha NT, run the following command:
\usr\OV\bin\OpC\alpha\opcsetup -u
Manually De-activating the ITO Agent on an
NFS Cluster Client
You can manually de-activate the ITO agent on an NFS cluster client
system. Manual de-activation removes the ITO agent from the NFS
cluster client system. The full path-name of opcdeactivate command
is:
AIX /usr/lpp/OV/OpC/install/opcdeactivate
Chapter 4 177
Software Maintenance on Managed Nodes
De-installing ITO Software from Managed Nodes
UNIX (other) /opt/OV/bin/OpC/install/opcdeactivate
For detailed information about the opcdeactivate command, see the
opcactivate(1m) man page. All man pages reside on the ITO management
server.
NOTE Manual de-activation of the ITO agent software on NFS Cluster Client
Nodes is only supported for HP-UX 10.x/11.x, AIX, Solaris, NCR and
SINIX managed node with ITO version A.05.00 and higher. In addition,
only homogeneous NFS Clusters are supported and the cluster server
and cluster client systems must have the same OS.
To de-activate the ITO agent from the NFS cluster client system
manually:
1. Execute the following command on NFS Cluster Client system:
opcdeactivate -mode cluster_client
2. Execute the following command on the NFS Cluster Server system
opcdeactivate -mode cluster_server <node>
3. De-install ITO agent software from NFS Cluster Server system. For
more information, see “De-installing ITO Software from Managed
Nodes” on page 173.
NOTE This action should be executed only once and after the ITO agent has
been de-activated from all NFS Cluster Nodes.
178 Chapter 4
Software Maintenance on Managed Nodes
Managing ITO Agent Software
Managing ITO Agent Software
Frequently, managed nodes (even of the same architecture) do not run
the same OS versions. This is because different systems are used for
different purposes, for example:
❏production systems running approved OS versions where all required
applications are available
❏development systems running approved or latest OS versions
❏test systems running approved or latest OS versions
Consequently, ITO has to support a growing list of OS versions. Due to
technical limitations and new technologies, future ITO versions might
not always be able to support the entire spectrum of OS versions.
Nonetheless, ITO does provide a way to control this problem by providing
internal management of the ITO agent software version.
If you install a new ITO agent version (having the same fileset name) on
a management server supporting the same (or a super) set of OS versions
as the previously installed ITO agent version, the previous ITO agent
version is erased. However, if you install a new ITO agent version on a
management server supporting only some of the previously supported
OS versions, then both ITO agent versions are kept on the management
server.
Running the script below on the management server will display a
summary of all installed ITO agent packages and the supported OS
versions.
/opt/OV/bin/OpC/agtinstall/opcversion -a
The latest possible ITO agent version supporting the OS version of the
managed node is always installed on that node. The related ITO software
for each supported architecture is available in:
/var/opt/OV/share/databases/OpC/mgd_node/vendor/ \
<platform_selector>/<ito_version>/<package_type>
If an older ITO agent package is no longer required and is not installed
on any managed node, you can remove it by running:
/opt/OV/bin/OpC/install/rm_opc.sh <platform_selector> \
<ito_version>
Chapter 4 179
Software Maintenance on Managed Nodes
Managing ITO Agent Software
Where:
<platform_selector> Is one of the following values:
• dec/alpha/unix
• hp/s700/hp-ux
• hp/s700/hp-ux10
• hp/s800/hp-ux
• hp/s800/hp-ux10
• hp/pa-risc/hp-ux11
• hp/s900/mpe-ix
• ibm/intel/os2
• ibm/rs6000/aix
• ms/alpha/nt
• ms/intel/nt
• ncr/3000/unix
• novell/intel/nw
• olivetti/intel/unix
• pyramid/mips/unix
• sco/intel/unix
• sco/intel/uw
• sequent/intel/dynix
• sgi/mips/irix
• sni/mips/sinix
• sun/sparc/solaris
<ito_version> Is the version of ITO that supports
this agent platform, for example
A.05.00
<package_type> Is the type of RPC communication
used by that platform; either DCE or
NCS or SUN.
180 Chapter 4
Software Maintenance on Managed Nodes
Managing ITO Agent Software
NOTE Do not use swremove to de-install an ITO agent package that you no
longer require. Running swremove is only useful if you wish to de-install
all ITO agent packages of a particular architecture. In addition, remove
the managed nodes from the ITO Node Bank before doing a complete
de-installation of all managed nodes of a given architecture. Otherwise,
the managed nodes can no longer be easily removed using the
administrator GUI.
Chapter 4 181
Software Maintenance on Managed Nodes
Debugging Software (De-)Installation on Managed Nodes
Debugging Software (De-)Installation on
Managed Nodes
ITO provides facilities for debugging the (de-)installation of the ITO
software on the managed nodes. These tools help developers when
testing ITO installation scripts for new platforms, and assist users in
examining errors that occur during the installation of the ITO agent
software.
The following facilities are available:
Command
tracing prints shell commands and their arguments from
installation programs into a file specified in the file
inst_debug.conf as argument of the environment
variable OPC_DEBUG_FILE.
Event tracing can be used in addition to command tracing to record
important events of the installation process into the
existing installation logfile
/var/opt/OV/log/OpC/mgmt_sv/install.log
The (de-)installation process can be debugged both locally (on the
management server) and remotely (on the managed node). A debug
definition file inst_debug.conf is provided to force debugging and to
specify debug options. The debug facility is, therefore, available
regardless of whether the script inst.sh is invoked manually or called
by the ITO GUI.
Enabling (De-)Installation Debugging
The file inst_debug.conf must be edited before starting the
installation process. It can only be edited by user root.
1. Copy the file inst_debug.conf, enter:
cp /etc/opt/OV/share/tmp/OpC/mgmt_sv/inst_debug.conf
\ /var/opt/OV/share/tmp/OpC/mgmt_sv/inst_debug.conf
2. Edit your copy of the file inst_debug.conf by uncommenting the
desired environment variables and by changing the appropriate
values.
182 Chapter 4
Software Maintenance on Managed Nodes
Debugging Software (De-)Installation on Managed Nodes
NOTE The syntax of the file inst_debug.conf is not checked. Be careful when
editing this file because syntax errors will cause the installation process
to abort.
To disable debugging remove the file
/var/opt/OV/share/tmp/OpC/mgmt_sv/inst_debug.conf
For a detailed description of the (de-)installation debug facilities and
examples of the file inst_debug.conf, see the man page
inst_debug(5M).
183
5 Configuring ITO
184 Chapter 5
Configuring ITO
This chapter describes ITO’s preconfigured elements. It also describes
how to distribute the ITO configuration to managed nodes, and how to
integrate applications into ITO. In addition to this chapter, you should
also read the HP OpenView IT/Operations Concepts Guide, to gain a
fuller understanding of the elements and the windows you can use to
review or customize these preconfigured elements.
Chapter 5 185
Configuring ITO
Preconfigured Elements
Preconfigured Elements
This section describes all the preconfigured elements provided by ITO,
including:
❏applications
❏database reports
❏ITO message interception
❏ITO users
❏logfile encapsulation
❏managed nodes
❏the message browser
❏message groups
❏message ownership
❏MPE/iX console message interception
❏monitored objects
❏SNMP event interception
❏template groups
❏templates for external interfaces
Note also the configuration tips in this section.
Managed Nodes
By default, the management server is also configured as a managed node
with the default templates for SNMP event interception, ITO message
interception, logfile encapsulation and monitoring as described in this
section.
The management server belongs to the node group hp_ux. You can add,
modify, and delete node groups using the Node Group Bank window of
the ITO GUI, while working as the ITO administrator.
186 Chapter 5
Configuring ITO
Preconfigured Elements
Message Groups
The Message Group Bank window displays the default Message
Groups provided with ITO. For more information on individual message
groups, see Table 5-1 on page 186.
Table 5-1 ITO Default Message Groups
Message
Group... Description
Backup Messages relating to backup/restore/archiving
functionality (for example, fbackup(1),HP
OpenView Omniback II,HP OmniStorage,
Turbo-Store).
Database Messages relating to database problems
Job Messages relating to job streaming.
Hardware Messages relating to hardware problems
Misc Messages which cannot be assigned to any other
message group. If a message does not have a
message group assigned or the message group is
not configured, the message will belong to the Misc
message group. This message group cannot be
deleted.
NetWare Messages generated by Novell NetWare managed
nodes
Network Messages relating to network/connectivity
problems.
OS Messages relating to malfunctions of the operating
system, I/O, and so forth.
OpC Messages generated by ITO itself. This message
group should not be used by opcmsg(1|3).The ITO
message group cannot be deleted.
Output Messages relating to print spooling/hard-copy
functionality (for example, lp(1),lpr(1),HP
OpenView OpenSpool).
Chapter 5 187
Configuring ITO
Preconfigured Elements
You can add, modify, or delete message groups with the Message Group
Bank window on the ITO GUI, while working as ITO administrator.
The Message Browser
The Message Browser window contains key information concerning
incoming messages. Each line of the Message Browser window displays
a single message and its attributes. ITO displays a value beneath each
attribute for each message. A dash indicates that the message does not
have a value matching the attribute: for example, a dash in the A column
indicates that no automatic action has been configured for this
message. See Figure 5-1 on page 189.
Understanding the Message Browser Headline
The first column in the Message Browser window headline is Sev.,
which tells you at a glance the severity status of the message. The ITO
administrator assigns a severity level to a message based on its
importance in a given operator’s environment. To comply with telecom
standards, ITO recognizes six severity levels. Table 5-2 on page 188
describes ITO’s severity levels:
Performance Messages related to hardware (CPU, disk, process)
and software (for example, HP OpenView
PerfView) malfunctions.
SNMP Messages generated by SNMP traps.
Security Messages related to security violations or attempts
to break into a system.
Message
Group... Description
188 Chapter 5
Configuring ITO
Preconfigured Elements
Table 5-2 Message Severity Levels
NOTE The severity column of the Message Browser window provides a
maximum of four characters to indicate a message’s severity level. Table
5-2 on page 188 shows this abbreviated form in bold, underlined text.
Severity
Level... is color
coded... and means that...
Critical Red a service-affecting condition has occurred
and immediate corrective action is required
Major Orange the severity of the problem is relatively
high and normal use of the object is likely to
be impeded
Minor Yellow a problem of relatively low severity has
occurred, which should not impede normal
use of the object
Warning Cyan a potential or impending, service-affecting
fault has occurred. Action should be taken
to diagnose and correct the problem
Normal Green message output is expected: for example, a
process is starting or completing, or status
information is displayed
? Unknown Blue the severity level cannot be determined
Chapter 5 189
Configuring ITO
Preconfigured Elements
Figure 5-1 Message Attributes and Values
The additional message attributes that appear in the Message Browser
headline are shown in Figure 5-1 on page 189 and described in the
following list:
S Owned/Marked Message State
A flag in this column indicates either that a user has
taken note (Marked) or ownership (Owned) of a
message or that the message is a notification
message. The four types of flag that you may expect to
find in this column indicate that a message is:
Oowned by the user of the browser on
view
Xowned (and therefore restricted in
terms of access) by someone other
than the user of the browser on view
Mmarked by the user of the browser on
view
Na notification message
Only ITO users can own or mark messages, and a
message may only be disowned or unmarked by its
owner or the administrator. For more information, see
“Message Ownership” on page 191.
190 Chapter 5
Configuring ITO
Preconfigured Elements
U Unmatched Message
An Unmatched Message does not match any of the
filters defined for a message source. Filters are sets of
conditions which configure ITO to accept or suppress
messages. These messages require your special
attention because they can represent problems for
which no preconfigured action exists. In general, you
should inform the ITO administrator of unmatched
messages so that they can improve the corresponding
message, or suppress conditions.
I Help instructions
Instructions help you resolve the problem. If available,
these instructions are displayed in the Message
Details window.
A Automatic Action
Indicates that an automatic action has been configured
for the message, and gives the status of the action. The
value of the attribute tells you if the action:
Swas successful
Fhas failed
Ris running
O Operator-initiated Action
Indicates that an operator- initiated action has been
configured for the message, and gives the status of the
action. You start these actions after reviewing the
message. The value of the attribute tells you if an
action is:
Xavailable
Ssuccessful
Ffailed
Rrunning
N Annotations
Chapter 5 191
Configuring ITO
Preconfigured Elements
Indicates if annotations exist for this message. You can
review annotations for procedures used to resolve
similar problems by using the History Browser
window.
E Escalations
Indicates if the message has been escalated to (or from)
another ITO server. The value of the attribute tells you
the message has:
Ebeen escalated to you from another
server
Tbeen escalated by you to another
server
Date Specifies the date the message was received on the ITO
management server.
Time Specifies the time the message was received on the ITO
management server.
Node Specifies the node that issued the message.
Application Specifies the application that was affected by, or
detected, the message.
MsgGroup Specifies the message group the message belongs to.
Object Specifies the object which was affected by, detected, or
caused the message. This can be, for example, a printer
which sent a message when it stopped accepting
requests, or a backup device that sent a message when
a backup stopped.
Description Displays the text of the message. You can review the
message’s original text in the Original Message
window, accessible from the Message Details
window.
Message Ownership
The ITO message ownership feature allows the user to mark or own a
message and, as a consequence, restrict access to it. Marking a message
indicates that an operator or administrator has taken note of a message.
Owning a message indicates that, depending on how the environment
has been configured, an operator or administrator either wishes or has
192 Chapter 5
Configuring ITO
Preconfigured Elements
been forced to take charge of a message in order to carry out actions
associated with that message. In addition, ITO provides different ways to
configure the way message ownership is displayed and enforced.
Ownership Display Modes
There are two ownership-display modes in ITO:
❏Status propagation
❏No Status propagation (Default)
If the display mode is set to No Status propagation, a message’s
severity color changes when it is owned or marked. ITO uses the
following default colors to indicate ownership:
Pink messages that are owned by you
Beige messages that are owned by someone else
In addition, a flag indicating ownership appears in the own-state column
(S) in the Message Browser window, and the own-state color bar at the
bottom of the Message Browser window reflects the new number of
messages owned. In this display mode, the status of a message that is
owned or marked is ignored for the purposes of status propagation in the
Managed Nodes, operator Message Group,Node Bank,Node Group
Bank and administrator’s Message Group Bank windows, as well as
the ITO Alarm symbol in the Node Submap.
If the ownership-display mode is set to Status propagation, then the
status of all messages whether they are owned or not is used in reflecting
status propagation in the related symbols of other submap windows. In
this display mode, the only indication that the a message is owned is a
flag in the own-state column in the Message Browser window.
For more information on which flags you might expect to find in the own-
state column and what they mean, see “Understanding the Message
Browser Headline” on page 187. For information on how to go about
setting the ownership and ownership-display modes, see the HP ITO
Administrator’s Guide to Online Information.
Message-ownership Modes
The administrator determines ownership policy by selecting one of the
following default ownership modes allowed in ITO:
Optional The user has explicitly to take ownership of a message.
Chapter 5 193
Configuring ITO
Preconfigured Elements
Enforced Ownership of messages is no longer optional: it is
enforced.
Informational The concept of ownership is replaced with that of
marking/unmarking. A “marked” message indicates
that an operator has taken note of a message.
In optional mode, the owner of a message has exclusive read-write
access to the message: all other users who have this message in their
browser have only limited access to it. In optional mode, only the owner
of a message may:
❏perform operator-initiated actions related to a message
❏escalate a message
❏acknowledge a message; that is, move a message to the history
database
In enforced ownership mode, an operator either chooses explicitly to
take ownership of a message or, on attempting to perform operations on
a message that is not owned by anybody, that message is assigned to him
automatically. In enforced mode, ownership of a message will be
assigned to the operator who attempts to:
❏perform operator-initiated actions relating to a message
❏escalate a message
❏unacknowledge a message; that is, move a message from the history
database to the active database
In informational mode, a marked message indicates that an operator
has taken note of a message. Marking a message is purely for
informational purposes: it does not restrict or alter operations on the
message in the way that either optional or enforced mode does. An
operator may only unmark messages he himself has marked.
Template Groups
The template administrator uses the Message Source Templates
window to add, modify, or delete templates and template groups. Table
5-3 on page 194 lists the default template groups provided with ITO and
describes briefly what each does:
194 Chapter 5
Configuring ITO
Preconfigured Elements
Table 5-3 ITO Default Template Groups
Template Group Description
Default Default template groups delivered
with ITO
AIX Templates for AIX agent
AIX with HACMP Templates for AIX agents running
HACMP
DYNIX/ptx Templates for DYNIX/ptx agent
Digital UNIX Templates for Digital UNIX agent
ECS Agent Event correlation templates for the
ITO agent a
ECS Management Server Event correlation templates for ITO
management server a
HP-UX 10.x Templates for HP-UX 10.x agent
HP-UX 11.x Templates for HP-UX 11.x agent
IBM OS/2 Templates for IBM OS/2 agent
IRIX Templates for SGI agent
MC/ServiceGuard Templates for MC/ServiceGuard
support
MPE/iX Templates for MPE/iX agent
Management Server Templates for the
ITO Management Server
NCR Templates for NCR agent
Netware Templates for Netware agent
Olivetti Templates for Olivetti agent
PerfView Templates for Perfview integration
Pyramid Templates for Pyramid agent
Chapter 5 195
Configuring ITO
Preconfigured Elements
a. See Table 5-12 on page 236 for more information on supported
platforms for ECS.
You can add, modify, or delete template groups with the Message
Source Templates window in the ITO GUI.
ITO Users
ITO provides a number of user configurations whose default settings
may be used as a base that can be customized to match the requirements
of individual organizations. The user configurations that come as
standard are the:
• ITO administrator
•opc_op operator
•netop operator
•itop operator
To start the ITO GUI, enter the following command:
opc
SCO OpenServer Templates for SCO OpenServer agent
SCO UnixWare Templates for SCO UnixWare agent
SINIX 5.43 Templates for SINIX 5.43 or earlier
agent
SINIX 5.44 Templates for SINIX 5.44 or later
agent
SMS (Windows NT Templates for Windows NT
Systems Management Server
Solaris Templates for Solaris agent
Windows NT Templates for Windows NT agent
Template Group Description
196 Chapter 5
Configuring ITO
Preconfigured Elements
Enter your user name and password in the User Login dialog box
which subsequently appears. See Table 5-4, “ITO User Names and
Passwords” for a list of default user names and passwords for all
preconfigured users.
Table 5-4 ITO User Names and Passwords
In the interests of security, set up a new password using the Change
Password window after logging in to ITO for the first time. The
administrator can also use the Modify User window to change the
password of each configured user.
On HP-UX systems running the HP VUE GUI, you can start the ITO
GUI by opening the System_Admin folder in the Application
Manager window and double-clicking the ITO GUI symbol. A short
introduction to ITO is also available by clicking the ITO symbol in the
System_Info folder of the general toolbox. On HP-UX systems running
the HP CDE GUI, the ITO GUI icon is in the toplevel Application
Manager window. For information describing how to bypass the login
dialog box, see the opc(1) man page.
When a user starts an ITO operator GUI session, the working directory
is defined by environment variable $OPC_HOME (if set) or $HOME. If
neither $OPC_HOME nor $HOME is set, then /tmp is the default working
directory. For more information on access to files and file permissions in
ITO, see “File Access and Permissions” on page 451: for more
information on common ITO variables, see “Variables” on page 291.
Default User Default User Name Default Password
ITO administrator opc_adm OpC_adm
Template
Administrator Configurable Configurable
opc_op operator opc_op OpC_op
netop operator netop NeT_op
itop operator itop ItO_op
Chapter 5 197
Configuring ITO
Preconfigured Elements
The ITO Administrators
ITO supports only one ITO administrator, whose responsibility it is to set
up and maintain the ITO software: multiple template administrators
may be configured using the Add User window to manage
message-source templates. The ITO administrator’s login name,
opc_adm, cannot be modified. Template administrators are set up by the
ITO administrator in the GUI: their administrative responsibility is
limited to template management.
The ITO Operators
ITO provides three default operators which are preconfigured and have
distinct areas of responsibility. The default operators are:
❏opc_op
❏netop
❏itop
For more information on the scope of each default operator, see the HP
OpenView IT/Operations Concepts Guide. The following tables show you
at a glance which node groups, message groups, applications and
application groups are assigned by default to each of the operators.
Table 5-5 Default Node Groups for the ITO Operators
Table 5-6 Default Message Groups for the ITO Operators
Node Group opc_op netop itop
HP-UX ✓✓
Net Devices ✓✓
Message Group opc_op netop itop
Backup ✓✓
Databases ✓✓
Job ✓✓
Misc. ✓✓
Network ✓✓✓
198 Chapter 5
Configuring ITO
Preconfigured Elements
It is important to remember that although the various operators may
have the same message group icon in their respective Message Groups
window, the messages each operator receives and the nodes those
messages come from are not necessarily the same: the responsibility
matrix chosen by the administrator for a given operator determines
which node group sends which messages to which operator.
For example, although, by default, all ITO operators have the Network
message-group icon in their respective Message Groups window, the
node groups that send messages associated with the Network message
group vary according to the operator. The origin of the messages depends
upon the selection the administrator makes in a given operator’s
responsibility matrix.
Table 5-7 Default Application Groups for the ITO Operators
OpC ✓✓
OS ✓✓
Output ✓✓
Performance ✓✓
SNMP ✓✓✓
Security ✓✓
Message Group opc_op netop itop
Application Groups opc_op netop itop
Net. Activity ✓✓
Net. Config ✓✓
Net. Diag. ✓
NNM Tools ✓
NT Tools ✓
OV Services ✓✓
Chapter 5 199
Configuring ITO
Preconfigured Elements
The applications and application groups assigned by default to the ITO
users reflect the responsibility given to them by the administrator. Table
5-7 on page 198 and Table 5-8 on page 199 show you at a glance which
applications and applications groups are assigned by default to each
user. ITO allows you to add, delete, and move applications and
application groups (as well as nodes, node groups, message groups and so
on) by dragging and dropping or copying and pasting. In this way, the
administrator can use the default settings as a base for configuring users
and responsibilities that match the needs of individual environments.
Table 5-8 Default Applications for the ITO Operators
SNMP Data ✓✓
Tools ✓
UN*X Tools ✓
Application Groups opc_op netop itop
Applications opc_op netop itop
Broadcast ✓✓
Demand Poll ✓
Disk Space ✓
IP Map ✓✓
ITO Status ✓✓
Locate Route via SNMP ✓
MIB Browser ✓✓
Motif Sam ✓
Physical Terminal ✓✓
Ping ✓
Print Status ✓
Processes ✓
Remote Ping ✓
200 Chapter 5
Configuring ITO
Preconfigured Elements
UNIX Access to the Managed Node for ITO Users
By default, the UNIX user cannot log into the managed node directly;
this is the result of an asterisk (*) in the password field of /etc/passwd.
Access to ITO’s Virtual Terminal application, and to other applications in
the Application Desktop using the Window (Input/Output) option (see
the Add/Modify Application window) only work if the user is allowed
to log into the managed node on which the application is to be run. The
following methods can be used to enable logins:
❏Provide a $HOME/.rhosts entry on the managed node for every
UNIX user from the management server. $HOME is the home
directory of the executing user on the managed node.
❏On the managed node, provide a /etc/hosts.equiv entry for the
management server. This solution is preferable to the method above if
you log in or run applications on the managed node as many different
users.
❏Set a password for the executing user on the managed node, if not yet
done. Use this password in the corresponding ITO windows.
Access to Windows NT Nodes for ITO Users
The UNIX user has only limited access to Windows NT managed nodes,
most notably; via ITO’s virtual terminal application. This application
is a part of the Windows NT agent, and is not available unless the agent
is running on the Windows NT node. The virtual terminal can be invoked
from ITO Application Group: NT Tools by double clicking the
appropriate icon. No password is required.
It is not possible to direct the Windows NT terminal’s display to a UNIX
terminal. Because of this, access via the virtual terminal is restricted to
command-line actions. Any programs that invoke a graphical user
interface cannot be used.
Telnet (xterm) ✓
Test IP ✓
Virtual Terminal ✓✓
Applications opc_op netop itop
Chapter 5 201
Configuring ITO
Preconfigured Elements
Applications
ITO provides the following applications and application groups in the
administrator’s default Application Bank window:
Table 5-9 Administrator’s Applications and Application Groups
Name Application Application
Group
Broadcast ✓
ITO Status ✓
Jovw ✓
MPE Tools ✓
Net Activity ✓
Net Config ✓
Net Diag ✓
NetWare Config ✓
NetWare Performance ✓
NetWare Tools ✓
NNM Tools ✓
NT Tools ✓
OS/2 Tools ✓
OV Services ✓
Performance ✓
Physical Terminal ✓
Reports ✓
SNMP Data ✓
202 Chapter 5
Configuring ITO
Preconfigured Elements
Broadcast
Broadcast is an ITO application that allows you to issue the same
command on multiple systems in parallel.
❏UNIX:
Default user: opc_op.
Default password: none required, because application is started via
the ITO action agent.
NOTE If the default user has been changed by the operator, you must supply a
password.
❏MPE/iX:
Default user: MGR.OVOPR.
Default password: none required, because application is started via
the ITO action agent.
NOTE If the default user has been changed by the operator, you must supply a
password.
❏Windows NT:
Default user: opc_op.
Default password: none required, because application is started via
the ITO action agent.
NOTE If the default user has been changed by the operator, you must supply a
password.
Tools ✓
UN*X Tools ✓
Virtual Terminal ✓
Name Application Application
Group
Chapter 5 203
Configuring ITO
Preconfigured Elements
Disk Space
ITO shows the current disk usage:
❏UNIX:
Command issued: opcdf
(This is a script calling bdf on HP-UX, and df on Solaris, AIX, NCR
UNIX SVR4, SGI IRIX, SCO OpenServer, SCO UnixWare, Digital
UNIX (OSF/1), DYNIX/ptx, Olivetti UNIX, Pyramid DataCenter/OSx,
and SINIX/Reliant.)
Default user: opc_op.
NOTE If the default user has been changed by the operator, you must supply a
password.
❏MPE/iX:
Command issued: discfree d
Default user: MGR.OVOPR.
NOTE If the default user has been changed by the operator, you must supply a
password.
❏Windows NT
Returns information about all drives on the system, including floppy
drives, CD-ROM drives, and network drives
Default user: HP ITO account.
ITO Agent Status
ITO Agent Status shows the status of the ITO agent on a selected
system. This command runs on the management server.
Run the command:
/opt/OV/bin/OpC/opcragt -status $OPC_NODES
Default user: root (user must be root)
Default password: none required, because application is started via the
ITO action agent.
204 Chapter 5
Configuring ITO
Preconfigured Elements
NOTE If the default user has been changed by the operator, you must supply a
password.
Jovw Applications
This group contains the following applications:
❏Highlight in IP Map
Starts jovw with the submap of the selected node.
❏Jovw
Starts jovw to get network view.
❏OVlaunch
With the ovlaunch command you can start the JMib Browser and
Jovw.
MIB Browser
This is xnmbrowser, the standard HP OpenView MIB Browser.
OV Services and OV Applications
Depending upon the integration mechanism of HP OpenView
applications, ITO logically distinguishes between OV Services and OV
Applications. OV Services are not accessed by double-clicking their
symbols, they are accessed from the menu bar. Some OV Services only
start daemons. The administrator can see OV Service symbols in his
Application Bank window. These can be copied to the operators’
Application Desktop window, as required. For complete coverage of
this topic, see the HP ITO Administrator’s Guide to Online Information.
Double-clicking the HP OpenView symbol “OV Services” in the
Application Bank window displays the following underlying OV
Service symbols:
❏IP Map
❏MIB Grapher
❏MIB Loader
❏Topology Status Polling
❏Demand Poll
Chapter 5 205
Configuring ITO
Preconfigured Elements
NOTE OV Services and OV Applications are always started as user opc_op.
PerfView
Double-clicking the Performance symbol in the Application Bank
window displays the following underlying symbols:
❏Start Glance
❏Start PerfView
Physical Terminal
The script defined as the Physical Terminal command in the
Managed Node Configuration window is called when starting the
physical terminal application.
❏UNIX:
Default user: root.
Default password: none configured.
❏MPE/iX:
Default user: MANAGER.SYS.
Default password: none configured.
❏Windows NT
Default user: administrator
Default Password: none configured
Print Status
Print Status shows the current status of spooling systems:
❏UNIX:
Command issued: lpstat -t
Default user: opc_op.
Default password: none required, because application is started via
the ITO action agent.
206 Chapter 5
Configuring ITO
Preconfigured Elements
NOTE If the default user has been changed by the operator, you must supply a
password.
❏MPE/iX:
Command issued: listspf
Default user: MGR.OVOPR.
Default password: none required, because application is started via
the ITO action agent.
NOTE If the default user has been changed by the operator, you must supply a
password.
❏Windows NT
Print status is unavailable for Windows NT managed nodes.
Processes (UNIX and MPE/iX)
ITO displays the status of the running processes:
❏UNIX:
Command issued: opcps
(This is a script calling ps -eaf on HP-UX, AIX, Solaris, NCR UNIX
SVR4, SGI IRIX, SCO OpenServer, SCO UnixWare, Digital UNIX
(OSF/1), DYNIX/ptx, Olivetti UNIX, Pyramid DataCenter/OSx, and
SINIX/Reliant.)
Default user: opc_op.
NOTE If the default user has been changed by the operator, you must supply a
password.
❏MPE/iX:
Command issued: showproc; pin=1;system;tree
Default user: MANAGER.SYS, because showproc requires SM
capability.
NOTE If the default user has been changed by the operator, you must supply a
password.
❏Windows NT
Chapter 5 207
Configuring ITO
Preconfigured Elements
Command issued: itodiag.exe /processes
Default user: HP ITO account.
Reports for the ITO Operators
This group contains the following reports that can be started as an
application by the ITO operators:
❏Active Message
❏All Active Details
❏All Active Messages
❏All History Messages
❏All Pending Messages
❏History Message
❏OpC Error Report
❏Pending Message
System Administration Manager (SAM) — Motif and
ASCII (HP-UX)
ITO can start the ASCII or Motif version of the SAM user interface on
HP-UX systems. Note that the Motif interface is only available on
HP-UX versions 9.0 and higher.
❏Motif SAM
Command issued: sam
Default user: root (user must be root!)
Default password: none required, because application is started via
the ITO action agent.
NOTE If the default user has been changed by the operator, you must supply a
password.
❏ASCII SAM
Command issued: sam
Default user: root (user must be root!)
Default password: none configured.
208 Chapter 5
Configuring ITO
Preconfigured Elements
Start in window (input/output)
System Management Interface Tool (SMIT) (AIX)
ITO can start the SMIT (System Management Interface Tool) Xuser
interface on AIX systems.
Command issued: smit
Default user: root (user must be root!)
Default password: none required, because application is started via the
ITO action agent.
NOTE If the default user has been changed by the operator, you must supply a
password.
Virtual Terminal and Applications Configured to Use
Window (Input/Output)
For a virtual terminal connection to UNIX systems, ITO uses rlogin for
remote login.
NOTE Make sure that the rlogind has not been configured with the -B (for
banner file) option in the inetd.conf file; this causes problems with the
remote login procedure for Window (Input/Output) applications.
If an .rhosts (or /etc/hosts.equiv) entry is available for the
specified user, or if the default or configured password fits, a remote login
is performed. For a more detailed explanation, see “UNIX Access to the
Managed Node for ITO Users” on page 200.
Default user: opc_op
Default password: none configured
For a virtual terminal connection to MPE/iX systems, ITO uses vt3k as
virtual terminal emulator for HP 3000 nodes running MPE/iX. For ARPA
host name to NS node name mapping, see the section “ARPA-to-NS
Node-Name Mapping for MPE/iX” on page 128.
Default user: MGR.OVOPR
Chapter 5 209
Configuring ITO
Preconfigured Elements
NOTE IBM OS/2 telnet does not require a user name, only the password
associated with a given user name. To use virtual terminal, click:
Customized startup, and enter the password along with a dummy
user name.
Refer to “Virtual Terminal PC” on page 225 for information about a
Virtual Terminal on a Windows NT managed node.
Windows NT Applications (Intel & DEC
Alpha-based)
This section lists and defines the default applications in the Windows NT
Application Bank window, naming the executable that is invoked,
and the user-configurable switches, if any. This section is useful if you
want to learn how existing Windows NT applications can be customized
for your particular situation and requirements.
Cancel Reboot
This application will cancel a system reboot command that was issued
from the ITO reboot application for the selected Windows NT node.
Default: itosdown.exe /a
Description of Values Returned
See “Reboot” on page 216.
Diagnostics
This application collects general diagnostic information for the selected
Windows NT node.
Default: itodiag.exe (returns all information listed below)
User Configurable Parameters:
osversion Returns operating system information.
hardware Returns hardware information.:
• Processor type 386, 486, 586 (Pentium), x686
(Pentium Pro), DEC Alpha
• number of processes in the system
210 Chapter 5
Configuring ITO
Preconfigured Elements
memory Returns the following memory information:
• Total paging-file size (NT swap file)
• Available paging-file
• physical location of the page file and its limits
(minimum, maximum)
network Returns network information.
drives Returns the information listed below for each drive:
DRIVE Returns current drive letter.
NAME Returns any name that is assigned to
that drive.
TYPE Returns one of these four types of
drive:
REMOVABLE (i.e., a floppy drive)
REMOTE (i.e., a network
connection) FIXED (i.e., a local hard
drive) CD-ROM (i.e., a CD disk drive)
FILE SYSTEM Returns one of these file system
types:
NTFS NTFAT DOS HPFS OS/2
TOTAL Returns the total size of the drive in
Megabytes.
FREE N/A will be reported for the name,
File system, and total and free space,
if the drive is not fixed and the disk is
currently inserted (floppy drive or
CD- ROM) or if there is a network
connection that requires a password
(which is case for administrator
connections C$, D$ etc.).
processes Returns the following process information:
•ID
• Name
Chapter 5 211
Configuring ITO
Preconfigured Elements
• Priority (higher number -> higher priority) and
other information.
cpuload Returns CPU load information for each processor on
the system.
Processor
time Returns the percentage of elapsed
time that a processor is busy
executing a non-idle thread. This can
be regarded as the fraction of the
time spent doing useful work. Each
processor is assigned an idle thread
in the idle process which consumes
those unproductive processor cycles
not used by any other threads.
Private time Returns the percentage of processor
time spent in Privileged Mode in non-
idle threads. The Windows NT
service layer, the Executive routines,
and the Windows NT Kernel execute
in Privileged Mode.
User Time Returns the percentage of processor
time spent in User Mode in non-Idle
threads. All application code and
subsystem code executes in User
Mode.
Interrupts/s Returns the number of device
interrupts the processor is
experiencing. A device interrupts the
processor when it has completed a
task or when it otherwise requires
attention.
Ipconfig Returns the Windows NT IP Configuration. This
consists of the:
• Ethernet adapter card name
• IP Address
• Subnet Mask
• Default Gateway
212 Chapter 5
Configuring ITO
Preconfigured Elements
Description of Values Returned:
Refer to the User Configurable Parameters for this application.
ITO Install Log
This application returns the contents of the ITO installation log from the
selected Windows NT node.
Default: cmd.exe /c “type c:\temp\inst.log”
User Configurable Parameters:
None.
Installed Software
This application returns the names of the software that has been entered
in the registry on the selected Windows NT node. Only software that has
created a subtree in the registry will be listed. This will only include
Windows NT software. Older software (e.g., Windows 3.1) will not be
shown.
This function returns all the subtrees from the registry “local machine”
under the key “Software”. All software written for Windows NT will
create a subkey under “Software” to store external parameters. The
itoreg.cfg file is used to filter out unwanted information. See “Reg
Viewer” on page 217, for a sample itoreg.cfg file.
Default: itoreg.exe /enum 3 /key Software /initkey
lm
User Configurable Parameters:
/enum X Returns the subtrees from the specified key.
Information will be printed out to the depth specified
by X.
/key <NAME> Defines the starting point of the subtree to be
processed
/initkey Defines which registry hive to search for <key>.
Chapter 5 213
Configuring ITO
Preconfigured Elements
NOTE For a full description of the NT registry refer to the Windows NT
documentation.
Description of Values Returned:
Refer to the User Configurable Parameters for this application, and to
the Windows NT documentation.
Job Status
This application returns a list of the scheduled jobs entered by the at
function. If the schedule service has not been started, the message “The
service has not been started” will be returned. If nothing is
scheduled on the target node, the message “There are no entries in
the list” is displayed. Otherwise a list of commands is displayed along
with the times at which they are scheduled to run.
Default: at.exe
User Configurable Parameters:
For a full description of creating and removing scheduled jobs, refer to
the Windows NT documentation.
LM Sessions
This application lists sessions between the selected Windows NT node
and other computers on the network. If the selected system is acting as a
logon server, it will show sessions of the users for which it has validated
logons. If no user name is shown by the entry, it indicates that a service
has created this session connection.
Default: net.exe sessions
User Configurable Parameters:
For a full description of net.exe, refer to the Windows NT
documentation.
Description of Values Returned:
Computer The name of the system that has made the connection.
User name Name of the user. If this field is blank it means that the
NT system has a connection, which is typical when a
service has made a log-on.
214 Chapter 5
Configuring ITO
Preconfigured Elements
Opens The number of open resources associated with the
connection.
Idle time Time since this connection was last used.
Local Users
This application prints the name of the user who is locally logged onto
the selected Windows NT node. If you need more information about the
users and sessions, use the Show Users application.
Default: itouser.exe /local
User Configurable Parameters:
See “Show Users” on page 223.
Description of Values Returned:
See “Show Users” on page 223
Memory Load
This application returns information about the current memory usage of
the selected Windows NT node. If you need more information about the
Windows NT node, use the Diagnostics application.
Default: itodiag.exe /memory
User Configurable Parameters:
See“Diagnostics” on page 209.
Description of Values Returned:
See “Diagnostics” on page 209.
NetBios Sessions
This application displays protocol statistics and current TCP/IP
connections using NBT (NetBIOS over TCP/IP) for the selected Windows
NT node.
Default: nbstat.exe -s $OPC_NODE
User Configurable Parameters:
For a full description of nbstat.exe, refer to the Windows NT
documentation.
Chapter 5 215
Configuring ITO
Preconfigured Elements
PerfMon Objs
This application returns all of the performance objects that are defined
on the selected Windows NT node. A non-English NT installation will
return the objects in both the local language and the default language
(US English). This application is used mostly by the administrator to
make the configuration of threshold monitors on Windows NT systems
easier.
Default: opcprfls.exe
User Configurable Parameters:
/a Returns all the performance monitor objects found on
the system (this setting is default).
/o <string> Returns only objects that match the string, starting
from the beginning of the object. For example, /o s
returns the objects system,server, and server
work queues, while /o sy returns system, and
/over matches nothing and returns an error message.
/s Returns a maximum of ten instances, if more are
defined it will print out the message “MULTIPLE
INSTANCES, TOO MANY TO LIST” (this setting is
default).
/f Returns full list, will print all instances no matter how
many are defined.
NOTE The performance objects are always stored in both US English and the
local language if the local language is not also US English. On a German
NT system for example, names are defined for all the objects in both US
English and German. If opcprfls.exe finds a second language, the
message “Second Language found” is displayed, and each object,
counter, or instance thereof is returned in both US English and the local
language. If an object does not have a local language name, only the US
English name is printed. The ITO agent can monitor any of the
performance objects in either US English or the local language, but US
English will be valid on all NT machines, regardless of the local
language.
Description of Values Returned:
Refer to the User Configurable Parameters for this application.
216 Chapter 5
Configuring ITO
Preconfigured Elements
Process Kill
This application kills all processes that are running under the configured
name on the Selected Windows NT node. If the user does not have the
rights to kill the process, an error will be returned.
Default: itokill.exe
User Configurable Parameters:
/pid <process id> Kill process with id <process id>
/name <process name> Kill all processes with name <process
name>
/fForced kill without notification.
/l List all processes. (As this function
uses the registry to get all the process
names, it does not show the .exe after
executable files— this information is
not stored in the registry.)
NOTE Under NT, a user with administrator rights can kill any process, but
normal users can only kill processes that are running under their
account name. If you want the ITO operator to be able to kill any process,
configure the application to run under HP ITO account.
Description of Values Returned:
Refer to the User Configurable Parameters for this application.
Reboot
This application will shutdown and reboot the selected Windows NT
nodes.
Default: itosdown.exe /t 120 /r /w
User Configurable Parameters:
/m <msg> Returns shutdown <msg> in a pop-up window on the
node.
/t <sec> Specifies the delay (in seconds) before the system
shutdown occurs.
/aAborts an ITO initiated system shutdown.
Chapter 5 217
Configuring ITO
Preconfigured Elements
/r Automatic reboot after shutdown. If this option is not
set, the system will only shutdown, but can only be
restarted manually.
/f Force system shutdown. Processes are not allowed to
delay the shutdown for local user interaction (e.g., to
ask if data should be saved). Without this option, the
shutdown might not occur because of processes
running on the system.
/w Pop up a notification window.This allows the local user
to cancel the shutdown process. If this occurs, the
management server will receive an error message.
Description of Values Returned:
Refer to the User Configurable Parameters for this application.
Reg Viewer
This application returns the values and subkeys for the define key of the
Selected Windows NT node. Example:
To view the ITO Agent configuration, modify the application to use:
/enum 1 /initkey LM /key Software\Hewlett-Packard\OpenView\ITO
Default: None, this application requires an entry from the table
below.
User Configurable Parameters:
Table 5-10 Registry Viewer Application Options
To view a key/value:
/view /initkey lm|cu|cr|us /key <path> [/valuename <name>]
To set a key or value:
/set /initkey lm|cu|cr|us /key <path> [/valuename <name> /value
<value>/type REG_SZ|REG_DWORD]
To delete a key or value:
/delete /initkey lm|cu|cr|us /key <path> [/valuename <name>] [/force]
[/set]
218 Chapter 5
Configuring ITO
Preconfigured Elements
/initkey
lm|cu|cr|us Define initial registry key:
lm = KEY_LOCAL_MACHINE
cu = KEY_CURRENT_USER
cr = KEY_CLASSES_ROOT.
us = KEY_USERS.
<pattern> *
Matches any sequence of characters (zero or more).
?
Matches any character.
[SET]
Matches any character in the specified set.
[!SET] or [ˆSET]
Matches any character not in the specified set.
\
Escape a character like ‘]’ or ‘-’.
Use the /view option to scan values.
type <type> Define a entry type (REG_DWORD|REG_SZ).
valuename
<name> Define value
/enum
To scan registry for pattern:
/scan <pattern> /initkey lm|cu|cr|us /key <path> [/view]
To enumerate a registry tree (thereby printing out registry keys to the set depth: emum
uses a config file that verifies keys that should not be processed):
/enum <depth> /initkey lm|cu|cr|us /key <path> [/view]
To execute a registration script: /file <filename> /initkey lm|cu|cr|us
Chapter 5 219
Configuring ITO
Preconfigured Elements
The configuration file name is itoreg.cfg.
Example of exclusion of specific registry keys used
for the display of the installed software:
Exclusions = {
Classes;
Program Groups;
Secure;
Windows 3.1 Migration Status;
Description;
}
Server Config
This application displays settings for the Server service for the selected
Windows NT node.
Default: net.exe config server
User Configurable Parameters:
For a full description of net.exe, refer to the Windows NT
documentation.
Description of Values Returned:
Server Name The name of the server
Comment Comment for the server that is displayed in Windows
NT Screens and with the NET VIEW command
Software
version Version number.
Server is
active on The network connections that the server is using.
Server hidden Specifies whether the server’s computer name appears
on display listings of servers. Note that hiding a server
does not alter the permissions on that server.
Maximum
Logged On
Users Maximum open files per session.
220 Chapter 5
Configuring ITO
Preconfigured Elements
Server Stats
This application displays in-depth statistics about the Server service for
the selected Windows NT node.
Default: net.exe statistics server
User Configurable Parameters:
For a full description of net.exe, refer to the Windows NT
documentation.
Description of Values Returned:
For a full description of net.exe refer to the Windows NT
documentation.
Shares
This application lists the external connections that are available on the
selected Windows NT node. All shares ending with $ are hidden shares
that the NT system makes available for remote administration by
default.
Default: net.exe share
User Configurable Parameters:
None.
Description of Values Returned:
Share name The full name of the available netbios share.
Resource The location of the share on the local machine.
Remark Common Remarks:
Default share These shares are for remote
administration and are available only
to users of the Administrators (or
Domain administrators) group. They
are created by default at startup.
Remote IPC The share for default IPC’s.
Remote Admin The share to the local windows NT
system location.
Chapter 5 221
Configuring ITO
Preconfigured Elements
Show Drivers
This application lists all drivers that are present on the selected
Windows NT node.
Default: itomserv.exe /list d
User Configurable Parameters: see
“Show Services” on page 221
Description of Values Returned:
NAME True name of the service. If you wish to perform actions
on the service, this is the name that should be used.
DISPLAY Description of the service, this is the name that is
normally seen when working with the control panel.
STATUS The status of a service can be, Started (i.e., Running),
Paused, or Stopped (represented by a blank entry).
STARTUP The startup type of a service can be:
Automatic,
boot, or system Service starts every time the system
starts.
Manual Service can be started by a user or a
dependent service.
Disabled Service cannot be started.
Show Services
This application returns a list of the services that are configured on the
selected Windows NT system. If the ITO user does not have the rights to
obtain information about a service, “NA” will be returned for the service
details.
Default: itomserv.exe /list s
User Configurable Parameters:
/start <servicename> Start service <servicename>
/stop <servicename> Stop service <servicename>
/pause <servicename> Pause service <servicename>
/continue <servicename> Continue service <servicename>
222 Chapter 5
Configuring ITO
Preconfigured Elements
/list s | d | a Print a list of installed services:
sList all NT system services.
dList all NT device drivers.
aList all installed services.
/e Set the exit status to a numerical
value:
0 = RUNNING
1 = NOT RUNNING
2 = START_PENDING
3 = STOP_PENDING
4 = CONTINUE_PENDING
5 = PAUSE_PENDING
6 = PAUSED
NOTE Although the /e parameter is not useful from the application bank, it is
included here because it may be useful for use with monitor scripts
Description of Values Returned:
Name Internal name of the service.
Display The name that is normally displayed to the user.
Status The status of a service can be Started, Paused, or
Stopped (indicated by a blank entry).
Startup The startup type of a service can be:
Automatic Service starts every time the system
starts.
Manual Service can be started by a user or a
dependent service.
Disabled Service cannot be started.
N/A User does not have the rights to
obtain in-depth information about
the service.
Chapter 5 223
Configuring ITO
Preconfigured Elements
Show Users
This application displays information about local users and sessions on
the selected Windows NT Node.
Default: itouser.exe /u
User Configurable Parameters:
/u Returns user information for the system. This includes
the name of the current user, the domain this user is
logged into, and the server that validated the log-on.
/s Returns full session information for the system. This
includes system name, net BIOS name, current local
user name, type of the client, the number of open
sessions and the idle time.
/nu Returns number of users logged on by the system.
/ns Returns number of sessions on the system.
/local Returns the name of user logged into the local system.
Description of Values Returned:
Refer to the User Configurable Parameters for this application.
Start Services
This application will start the requested service on the selected Windows
NT node. If a service is disabled (as opposed to being stopped) this
application cannot enable the service. Services may not be enabled
remotely: they must be enabled on the target machine.
Default: itomserv.exe /start <service name>
User Configurable Parameters:
“Show Services” on page 221.
Stop Services
This application stops the requested service. Since administrative rights
are required to stop and start Windows NT services, the user must be
defined as HP ITO Account, and not opc_op.
Default: itomserv.exe / stop <service name>
224 Chapter 5
Configuring ITO
Preconfigured Elements
User Configurable Parameters: see “Show Services” on page 221
TCP/IP Status
This application displays protocol statistics and current active
TCP/IPnetwork connections for the selected Windows NT node
Default: netstat.exe
User Configurable Parameters: Refer to the Windows NT documentation.
Description of Values Returned:
Proto The protocol that is used for the connection.
Local Address The local machine name and port number.
Foreign
Address The full name of machine that it is connected to plus
the port number (the port number can also be
nbsession, which is a netbois connection over
TCP/IP).
State The current state of the connection.
Used Shares
This application returns a list of connections that the selected Windows
NT node has made. If the status is disconnected, a connection is
automatically established as soon as the local user switches to this drive.
Default: net.exe use
User Configurable Parameters:
For a full description of net.exe refer to the Windows NT
documentation.
Description of Values Returned:
Status The state of the connection (e.g., OK, Disconnected
means that the drive connection is defined but not
connected).
Local The local drive letter that is used to access the
connection.
Remoted The name of the machine and the share that is used.
Chapter 5 225
Configuring ITO
Preconfigured Elements
Network The type of network that is providing the connection,
(e.g., Microsoft Windows Network, or 3rd party NFS
software).
Virtual Terminal PC
This application opens a terminal with command-line capabilities to the
target Windows NT system. All output is redirected to the Virtual
Terminal on the management server.
Default: opcvterm.exe
User Configurable Parameters:
None
Workst Stats
This application displays in-depth statistics about the workstation
service for the selected Windows NT node.
Default: net.exe statistics workstation
User Configurable Parameters:
For a full description of net.exe, refer to the Windows NT
documentation.
Description of Values Returned:
For a full description of net.exe, refer to the Windows NT
documentation.
Novell NetWare Applications
This section lists and defines the default applications in the NetWare
Tools,NetWare Config and NetWare Performance application
groups.
ITO for NetWare can manage any NetWare server that is running the
NetWare Management Agent (NMA). You must install the NMA on each
server you want to manage.
You can obtain current and historical trend data and set alarm
thresholds for trend parameters on NMA 2.1 NetWare file servers. You
can also obtain information about the server’s configuration, NLM files,
226 Chapter 5
Configuring ITO
Preconfigured Elements
memory usage, adapters and network interfaces, disks and disk
controllers, volumes, queues, users, connections, open files, and installed
software.
For print servers, NMA 2.1 or later provides additional queue
information that is not available for servers running the older version of
NMA.
NMA 2.1 Agent
The NMA provides real-time server performance data about the
NetWare server alarms that can either be sent to the network and
system management consoles or be locally processed by the ITO agent
and then forwarded to the ITO management console.
The NMA 2.1 agent is a set of NetWare agent NLMs that must be
deployed on each NetWare server that you want to manage from the ITO
console or Novell ManageWise console. The NetWare agent NLMs are:
❏NWTRAP.NLM - 400+ traps with Novell NetExpert help text
❏HOSTMIB.NLM - NetWare Server SNMP Host Resources MIB
❏SERVINST.NLM - NetWare Server SNMP instrumentation
❏NTREND.NLM - NetWare Server server based trending
All NetWare servers from Novell are supported by NMA including all 3.x
and 4.x NetWare servers, SFT III servers, SMP servers, and Mirrored
Servers. These agents are all provided and supported by Novell and can
be purchased as a separate Part No. from the Novell ManageWise
console.
Performance Monitoring
Novell NMA 2.1 Agent NLMs enable you to monitor performance
statistics such as CPU utilization, the number of users and connections,
as well as memory and disk usage (including permanent and allocated
memory, and dirty and allocated cache buffers).
Server faults are managed by monitoring the server’s key parameters.
These conditions are monitored directly at the server and then passed to
the ITO agent via SNMP traps.
Chapter 5 227
Configuring ITO
Preconfigured Elements
NMA monitoring is enabled by configuring the NMA configuration files
NWTREND.INI and TRAPTARG.CFG on the NetWare server. Configuration
of these files is not part of the ITO configuration and distribution
framework.
In addition to the monitors provided by NMA, ITO users can also create
their own ITO templates to monitor any integer MIB variables supported
by NMA. This allows ITO users to monitor NetWare server variables not
monitored internally by the NMA.
NetWare Config
The following application icons are available by default in the NetWare
Config window:
• Down & Reboot
• Down & Restart
NOTE Down & Reboot and Down & Restart cannot be started on NetWare SFT
III systems.
• Restart NMA
The user opc_op can execute these application on the NetWare server.
NetWare Performance
The following application icons are available by default in the NetWare
Performance window:
• Allocated Memory
• Cache Buffers
• Code & Data Memory
• CPU Utilization
• Logged-in Users
• Dirty Cache Buffers
• File Reads
• File Cache Hits
• File Writes
• File KReads
228 Chapter 5
Configuring ITO
Preconfigured Elements
• File KWrites
• Free Redir Area
• KPackets Recvd #min
• KPackets Sent #min
• Memory Monitor
• Packets Recvd #min
• Packets Sent #min
• Queue Wait Time
• Ready Queue Jobs
• Ready Jobs (avg. KB)
• Total Packets Recvd
• Total Packets Sent
• Trend Graph
• Volume Free Space
Applications from this bank execute as user root on the server and make
SNMP GET calls to collect performance data from the NetWare server.
NetWare Tools
The following application icons are available by default in NetWare
Tools window. The user opc_op can execute all of these applications on
the NetWare server except the Xconsole application, which is only used
to run a NetWare console in an X window on the ITO console.
NOTE Note that on NetWare SFT III systems starting applications of the
application group NetWare Tools on the secondary IO Engine can cause
problems, if the secondary IO Engine is already in the state down; the
secondary IO Engine may abend.
Adapters. Determines I/O port address or interrupt conflicts by
viewing a list of adapters:
Default: adapinfo <server_name>
Boot the NetWare Server (NCF). Stops and restarts (cold boots)
the NetWare server, but does not exit the server:
Chapter 5 229
Configuring ITO
Preconfigured Elements
Default: itodown.ncf
Bound Protocols. Lists all the protocols bound to each network board
in a server.
Default: protocls <server_name>
The number of packets sent and received over each protocol is also listed.
By viewing the Bound Protocols object group, you can see which protocols
have the most traffic.
Cold Boot the NetWare Server (NCF). Stops and restarts the
NetWare server. This is done by removing DOS before exiting:
Default: itoreset.ncf <server_name>
Connections. Monitors the status of users and user connections:
Default: conninfo <server_name>
The difference between the data returned by the Connections action and
the Users action is the Connection action’s emphasis on data relating
specifically to connections. This enables you to determine how busy the
server really is and which connections and users are the busiest.
CPU Info. Returns information about devices including the CPU
speed:
Default: cpuinfo <server_name>
Disks. Enables you to get detailed information about the disk drives in
a managed server:
Default: diskinfo <server_name>
Part of the detailed information provided by this action concerns the
fault tolerance of a given disk partition and allows you to determine
whether or not a hard disk is losing data integrity. A number in the
redirected area indicates the number of data blocks that have been
redirected to the Hot Fix (TM) Redirection Area to maintain data
integrity.
If you are checking NetWare SFT III systems, the disks from both file
servers are displayed.
Display a File. Displays a file (copies its content to standard output -
similar to the UNIX cat command):
230 Chapter 5
Configuring ITO
Preconfigured Elements
Default: showfile <file_name>
Please note that these applications must be started via the
customized-startup application so that additional parameters such as
the name of an NLM can be entered.
Installed Software (NW). Displays those products that have been
installed on the server using PINSTALL:
Default: instlsw <server_name>
PINSTALL is a product from Novell used to install software packages
such as NMA on NetWare Servers.
Load/Unload an arbitrary NLM. Loads an NLM:
Default: itoload <nlm_name>
Unloads an NLM:
Default: itounload <nlm_name>
Starting arbitrary NLMs is supported via the itoload and itounload
commands. These applications must be started via a customized start-up
so that additional parameters can be entered.
Memory Use. Monitors memory use:
Default: meminfo <server_name>
The memory-use action displays the following data:
❏Alloc Memory Pool (KB)
❏Cache Buffer (KB)
❏Cache Movable Memory (KB)
❏Cache Non-Movable Memory (KB)
❏Code and Data Memory (KB) - NetWare 4.0 or later
❏Permanent Memory Pool (KB) - NetWare 3.11 and 3.12 only
Mirrored Devices. Provides information about mirrored devices:
Default: mirrdevs <server_name>
NCP Info. Provides statistics about NetWare Core Protocol (NCP):
Default: ncpinfo <server_name>
Chapter 5 231
Configuring ITO
Preconfigured Elements
NetWare Agent Actions. The ITO NetWare agent includes some
preconfigured actions. Most of the preconfigured actions are located in
the file VENDOR.NLM in the vendor file tree. This is different to the
approach usually adopted on Unix-like platforms and on NT, where each
action is stored in a separate script or is executable. However, calling
conventions for NMA preconfigured actions are the same as for Unix-like
platforms. Actions can be called from templates and from applications in
the NetWare Application Bank window.
Some NetWare NCF scripts are implemented in addition to the actions
provided in VENDOR.NLM.
NOTE For preconfigured actions which require an additional parameter
<server_name>, enter the name of the NetWare server where the actions
are being executed.
The NMA actions are described below. Note that some actions take a
while to execute. These actions are marked with an asterisk (*).
Network Interfaces. Displays interface information for each
network board in a server:
Default: netintrf <server_name>
Use Network Interfaces as a troubleshooting tool to determine why a
user cannot log in to a file server. If the frame types are different, you can
change the frame type in the user’s NET.CFG file, edit the user’s frame
type to match the server’s frame type, and restart the user’s system.
NLM Files*. Determines which NLM files are currently loaded on the
server. Includes NLM file version, release date and amount of memory
used by the NLM:
Default: currnlms <server_name>
ODI Info. Provides statistics about buffers for packets received and
ECB requests:
Default: odiinfo <server_name>
Open Files. Enables you to see which files are currently open, what
volume they are reside in, who opened the files, and which connections
are being used:
Default: openfils <server_name>
232 Chapter 5
Configuring ITO
Preconfigured Elements
Print Server. Displays information about printers and queues
attached to print servers:
Default: presvinfo <server_name>
Running Software*. Displays currently running NLMs and their
memory usage:
Default: runsw <server_name>
Queues. Monitors queues, jobs in the queues, and servers attached to
the queues:
Default: quesinfo <server_name>
Set Parameters*. Displays all settings for server configuration:
Default: setparms <server_name>
This is the same information as is returned from the console SET
command.
Trend Parameters*. Displays information on the current trend
parameters:
Default: presvinfo <server_name>
System Summary. Returns information about the server name,
server up-time, OS description
Default: sysumary <server_name>
Users. Monitors user activity to determine, amongst other things, the
optimum server shutdown time:
Default: userinfo <server_name>
Volume. Enables you to determine the exact amount of space available
on every volume in the server:
Default: volinfo <server_name>
NetWare’s server disk storage space is divided into volumes. “Volume”
enables you to view information about the volumes in a server running
NMA software; for example size, free space, how the volumes are
distributed across the disks, and which users are using the space.
XCONSOLE. Opens a NetWare virtual terminal connection to node.
Chapter 5 233
Configuring ITO
Preconfigured Elements
This application requires only the remote console password (which may
be different from the opc_op password).
For NetWare SFT III servers, add another XCONSOLE application
which calls the primary IO Engine rather than the MS Engine as in the
default XCONSOLE application.
NOTE The user name for the Xconsole application is xconsole. This is not a
NetWare user name and is only present in the ITO database as a
warning that the password for the remote console access may be
different to the user opc_op’s password.
OS/2 Applications
Table 5-11, “OS/2 Applications,” on page 233 lists and defines the default
applications in the OS/2 Applications window in the ITO
Application Bank.
Table 5-11 OS/2 Applications
Application Command Description
Check Filesystem CHKDSK.EXE OS/2 native command
Repair Filesystem CHKDSK.EXE OS/2 native command
Reboot Node os2boot.exe Reboots the OS/2 system;
requires OS/2 native utility
setboot.exe.
234 Chapter 5
Configuring ITO
Preconfigured Elements
ITO Control Agent Application on OS/2 Managed
Nodes
The ITO control agent on OS/2 managed nodes is a Presentation
Manager application which displays a window that lets you start, stop,
query the status of, and kill the ITO agents. There is no command line
interface available for the ITO control agent.
NOTE Only the kill operation stops all ITO agent processes. The stop operation
stops all agent processes except for the ITO message agent and the ITO
control agent.
Actions and Programs on OS/2 Managed Nodes
The ITO action agent on OS/2 managed nodes can execute all those
programs the shell (CMD.EXE) can execute, as well as actions
encapsulated in DLLs (Dynamic-link Library). For example, frequently
used monitoring actions for OS/2 managed nodes reside in the DLL
opcvend.dll. This configuration improves performance because actions
are executed very quickly once the DLL is loaded into active memory.
The notation for calling DLL-encapsulated actions is:
<name_of_DLL>-><name_of_entry_function>
See the templates os2_swap_util or os2_disk_util for examples.
List running
processes opcps.cmd Displays the status of
processes and their threads
running on OS/2 managed
node. Uses OS/2 native
utility PSTAT.EXE.
List mounted drives opcdrive.cmd Displays drives (and types)
mounted on an OS/2
managed node.
Display Free Space opcfree.cmd Displays free space, as well
as percentage of utilization,
of both local and network
drives mounted on an OS/2
managed node.
Application Command Description
Chapter 5 235
Configuring ITO
Preconfigured Elements
The default configuration for loading and unloading DLLs can be
changed by adding the following parameters to the
\opt\OV\bin\OpC\install\opcinfo file on the OS/2 managed node:
•OPC_OS2_MAX_NBR_LOADED_DLLS
Specifies the maximum number of DLL that can be loaded
simultaneously. The default value is 10 and should be sufficient for
most installations.
•OPC_OS2_EXTERN_DLL_TIMEOUT
Specifies the timeout in seconds after which an unused DLL is
unloaded. The default is 180 seconds (3 minutes). If this parameter is
set to 0, the DLL is never unloaded. This is not recommended because
while a DLL is loaded in active memory, new versions cannot be
distributed from the management server. If frequent distributions are
required, it is recommended that the value of this parameter is set to
a value lower than 10 seconds.
User-supplied REXX Scripts on OS/2 Managed Nodes
REXX is the default scripting language in OS/2. REXX scripts can, for
example, be used as external monitors or as actions. Note that REXX
command must be delimited by a semicolon or by a CR/LF. If
user-supplied scripts do not conform to these rules, the actions are not
executed successfully.
The ITO action agent does not exit until all running actions have
completed. Therefore, REXX scripts or executables must not run in an
endless loop. Use the option DETACH if an endless script or executable is
required. DETACH places a program in the background and returns the
command to the script immediately.
Event Correlation
ITO’ event-correlation runtime engine is available for both the ITO
management server and the ITO agent and currently runs on the
platforms listed in Table 5-12. For more information on the concepts
behind event correlation as well as the way it works in ITO, see the HP
OpenView IT/Operations Concepts Guide. For help in setting up event
correlation in ITO, see the section on tasks in the HP ITO
Administrator’s Guide to Online Information.
236 Chapter 5
Configuring ITO
Preconfigured Elements
Table 5-12 ITO Event-correlation Runtime: Supported Platforms
Logfile Encapsulation
For detailed information about encapsulated logfiles, refer to the
appropriate template in the ITO GUI. Note that the templates are
configured to collect information from logfiles that are produced by
standard installations. If you are monitoring a non-standard
installation, you should modify the templates to suit your special
situation.
Table 5-13 Encapsulated Logfiles on AIX Managed Nodes
a. Refer to /etc/syslog.conf to determine or to set the actual syslog logfile name
and the events to be logged.
Platform ITO
Management
Server ITO Agent
HP-UX 10.x ✓✓
HP-UX 11.x ✓✓
Solaris: 2.51, 2.6, 7 ✓
Windows NT: 3.51, 4.0 ✓
Logfile Description Template Name
/var/adm/aix_sulog Switch user logfile. Su (AIX)
/var/adm/audit log Auditing information logfile Audit Log (AIX)
/tmp/syslog aSyslog daemon logfile Syslog (AIX)
/etc/security/failed
login (binary format) History of AIX failed logins Bad logs (AIX)
/var/adm/wtmp (binary
format) History of logins, logouts
and data changes Logins (AIX)
/var/adm/ras/errors
(binary format) Messages generated by the
AIX kernel Kernel Logs (AIX)
Chapter 5 237
Configuring ITO
Preconfigured Elements
Table 5-14 Encapsulated Logfiles on AIX HACMP Managed Nodes
Table 5-15 Encapsulated Logfiles on Digital UNIX Managed Nodes
a. /var/adm/messages must be present in the /etc/syslog.conf file.
b. If /var/adm/sialog is not present, add it using: touch /var/adm/sialog
c. /var/adm/lplog must be present in /etc/syslog.conf file
Before editing syslog.conf on your Digital UNIX system, please read
the man page syslog.conf(1M). If /var/adm/messages is not
already included in syslog.conf, add the following line using tabs, not
spaces:
kern.debug /var/adm/messages
After editing the /etc/syslog.conf file, create the file
/var/adm/messages (for example, using the touch command) with
the following ownership and permission:
-rw-r----- 1 root adm messages
Then restart the syslogd process.
Logfile Description Template Name
/var/adm/cluster.log HACMP cluster logs HACMP logfile (AIX)
Logfile Description Template Name
/var/adm/cron/log Cron logfile Cron (Digital UNIX)
/var/adm/messages aOS messages OS Msgs (Digital UNIX)
/usr/adm/sialog bSIA logfile SIA (Digital UNIX)
/var/adm/wtmp History of logins Logs (Digital UNIX)
/usr/adm/lplog cLine printer daemon logfile Lplog (Digital UNIX)
238 Chapter 5
Configuring ITO
Preconfigured Elements
Table 5-16 Encapsulated Logfiles on HP-UX 10.x Managed Nodes
a. For this template to work, you must first start the ITO Kernel Message Logger
(opckmsg). This is most easily done by adding the command
/opt/OV/bin/OpC/opckmsg to the system boot file. A corresponding entry is
provided (commented with “#”) by installing ITO on HP-UX 10.x managed nodes.
You therefore only need to delete the comment sign (”#”) from the line “#
start_opckmsg”, for the template to work.
Logfile Description Template Name
/var/adm/sulog su(1); Switch user logfile Su (10.x HP-UX)
/var/adm/cron/log cron(1M); Clock daemon
logfile Cron (10.x HP-UX)
/var/adm/syslog
/syslog.log
syslogd(1M); Syslog
daemon logfile Syslog (10.x HP-UX)
/etc/rc.log Messages during system
boot up Boot (10.x HP-UX)
/var/adm/btmp (binary
format) History of bad login
attempts Bad Logs (10.x HP-UX)
/var/adm/wtmp (binary
format) History of logins, logouts,
and data changes Logins (10.x HP-UX)
/var/opt/OV/log/OpC/
dmesg.out Messages generated by the
HP- UX 10.x kernel Kernel Logs (10.x HP-UX) a
/var/adm/
syslog/mail.log
sendmail(1) logfile Mailqueue (10.x HP-UX)
Chapter 5 239
Configuring ITO
Preconfigured Elements
Table 5-17 Encapsulated Logfiles on NCR UNIX SVR4
Managed Nodes
Table 5-18 Encapsulated Logfiles on Olivetti UNIX Managed Nodes
a. You must manually create the /var/adm/messages in the /etc/syslog.conf
file.
Logfile Description Template Name
/var/adm/loginlog History of NCR UNIX
SVR4 failed logins Bad Logs (NCR UNIX SVR4)
/var/cron/log Cron logfile Cron (NCR UNIX SVR4)
/etc/.osm NCR GIS (NCR) UNIX OS
messages OS Msgs (NCR UNIX SVR4)
/var/adm/sulog Switch user logfile Su (NCR UNIX SVR4)
/var/adm/wtmpx History of logins Logs (NCR UNIX SVR4)
Logfile Description Template Name
/var/cron/log Cron logfile Cron (Olivetti UNIX)
/var/adm/messages aOlivetti OS messages OS Msgs (Olivetti UNIX)
/var/adm/sulog Switch user logfile Su (Olivetti UNIX)
/var/adm/wtmpx History of logins Logs (Olivetti UNIX)
/var/lp/logs/lpsched Printer services logfile Lp Serv (Olivetti UNIX)
/var/lp/logs/request
sPrinter Requests logfile Lp Req (Olivetti UNIX)
240 Chapter 5
Configuring ITO
Preconfigured Elements
Table 5-19 Encapsulated Logfiles on Pyramid DataCenter/OSx Managed
Nodes
Table 5-20 Encapsulated Logfiles on SCO OpenServer Managed Nodes
Logfile Description Template Name
/var/cron/log Cron logfile Cron (PYRAMID)
/etc/.osm Pyramid OS messages OS Msgs (PYRAMID)
/var/adm/sulog Switch user logfile Su (PYRAMID)
/var/adm/wtmpx History of logins Logins (PYRAMID)
/var/adm/badlog History of bad logins Bad Logs (PYRAMID)
/usr/spool/lp/logs/l
psched Line printer deamon logfile Lp Serv (PYRAMID)
/usr/spool/lp/logs/r
equests Printer requests logfile Lp Req (PYRAMID)
Logfile Description Template Name
/usr/lib/cron/log Cron logfile Cron (SCO OpenServer)
/usr/adm/messages OS messages OS Msgs (SCO OpenServer)
/usr/adm/sulog Switch user logfile Su (SCO OpenServer)
/etc/wtmp History of logins Logs (SCO OpenServer)
/usr/adm/syslog Syslog daemon logfile Syslog (SCO OpenServer)
/usr/spool/lp/logs/l
psched Printer services logfile Lp Serv (SCO OpenServer)
/usr/spool/lp/logs/r
equests Printer requests logfile Lp Req (SCO OpenServer)
Chapter 5 241
Configuring ITO
Preconfigured Elements
Table 5-21 Encapsulated Logfiles on SCO UnixWare Managed Nodes
Table 5-22 Encapsulated Logfiles on SGI IRIX Managed Nodes
Table 5-23 Encapsulated Logfiles on Sequent DYNIX/ptx Managed Nodes
a. Requires the logfile /var/adm/messages in the file /etc/syslog.conf
a. requires the logfile /var/adm/SYSLOG in the file /etc/syslog.conf
Logfile Description Template Name
/var/cron/log Cron logfile Cron (UnixWare)
/var/adm/messagesaOS messages OS Msgs (UnixWare)
/var/adm/sulog Switch user logfile Su (UnixWare)
/var/adm/wtmpx History of logins Logs (UnixWare)
/var/lp/logs/lpsched Printer services Logfile Lp Serv (UnixWare)
/var/lp/logs/request
sPrinter Requests Logfile Lp Req (UnixWare)
Logfile Description Template Name
/var/adm/loginlog History of failed login
attempts Bad Logs (IRIX)
/var/cron/log Cron logfile Cron (IRIX)
/var/adm/sulog Switch user logfile Su (IRIX)
/var/adm/SYSLOGaSyslog daemon logfile Syslog (IRIX)
/var/adm/wtmpx History of logins Logins (IRIX)
Logfile Description Template Name
/usr/lib/cron Cron logfile Cron (DYNIX/ptx)
/usr/adm/messages OS messages OS Msgs (DYNIX/ptx)
/usr/adm/sulog Switch user logfile Su (DYNIX/ptx)
/var/adm/wtmp History of logins Logs (DYNIX/ptx)
242 Chapter 5
Configuring ITO
Preconfigured Elements
Table 5-24 Encapsulated Logfiles on Siemens Nixdorf SINIX/Reliant
Managed Nodes
Table 5-25 Encapsulated Logfiles on Solaris Managed Nodes
a. Default setup is used in the /etc/default/cron file
b. Default setup is used in /etc/default/su file
c. You must manually create the /var/adm/loginlog file
/usr/spool/adm/syslog Syslog daemon logfile Syslog (DYNIX/ptx)
/usr/spool/lp/logs/lps
ched Printer services logfile Lp Serv (DYNIX/ptx)
/usr/spool/lp/remotelp Remote printer services
log Rlp Serv (DYNIX/ptx)
/usr/spool/lp/logs/req
uests Printer requests logfile Lp Req (DYNIX/ptx)
Logfile Description Template Name
/var/cron/log aCron logfile Cron (SINIX)
/etc/.osm SINIX OS messages OS Msgs (SINIX)
/var /adm/sulog bSwitch user logfile Su (SINIX)
/var/adm/wtmpx History of logins Logins (SINIX)
/var/adm/loginlog cBad login attempts Bad Logs (SINIX)
Logfile Description Template Name
/var/adm/loginlog History of Solaris failed
logins Bad Logs (Solaris)
/var/cron/log Cron logfile Cron (Solaris)
/var/adm/messages System logfile Syslog (Solaris)
Logfile Description Template Name
Chapter 5 243
Configuring ITO
Preconfigured Elements
Table 5-26 Encapsulated Logfiles on Windows NT Managed Nodes
There are no preconfigured logfile templates available for OS/2 managed
nodes. However, it is possible to monitor any text file. For example, the
output of remote access daemons such as ftpd,rshd, or telnetd, can
be redirected to a file which can then be monitored by the ITO Logfile
Encapsulator. Logfile templates are easily created in the Message
Source Templates window of the ITO GUI if you know the name and
the full path of the file to be monitored.
SNMP Trap and Event Interception
For details about which traps are intercepted by default, have a look at
the SNMP trap templates in the Message Source Templates window
of the ITO administrator GUI. By default, ITO intercepts SNMP traps
from any application sending traps to the opctrapd daemon running on
the management server and on all managed nodes where the OV trap
daemon (ovtrapd) is running, or where port 162 can be accessed directly.
The ITO event interceptor is supported on the following platforms:
❏AIX 4.1, 4.2, and 4.3 (direct port access mode)
/var/adm/sol_sulog Switch user logfile Su (Solaris)
/var/adm/wtmpx History of logins Logins (Solaris)
/var/opt/OV/tmp/OpC/
dmesg.outMessages generated by the
Solaris kernel Kernel Logs (Solaris)
Logfile Description Template Name
System Eventlog Logs system events dflt_SysEvlog
Application Eventlog Logs all events of integrated
applications dflt_ApplEvLog
Security Eventlog Logs all audit information dflt_SecEvlog
SMS Logs all SMS specific NT
events NT_SMS
Logfile Description Template Name
244 Chapter 5
Configuring ITO
Preconfigured Elements
❏HP-UX 10.x and 11.x
❏Novell NetWare 4.1, 4.11 with NMA 2.1
❏Solaris 2.5 and above
❏Windows NT 3.51 and 4.0
The following kinds of traps can be intercepted:
❏Well-defined traps, such as system coldstart, network interface
up/down, and so forth.
❏HP OpenView internal traps, for example, those originating from
netmon.
ITO Distributed Event Interception
ITO Distributed Event Interception allows you to intercept SNMP traps
on systems other than the ITO management server. This provides
performance benefits by allowing the local processing of messages.
Automatic actions, for example, can be triggered and executed directly on
the node or in the subnet, instead of being first forwarded to the
management server.
❏Basic Configuration
1. Make sure that SNMP devices have only one SNMP destination,
or that there is only one system serving as the NNM collection
station for the management server (preferably, the collection
station connected via the fastest network). The destination
system(s) for SNMP devices on HP-UX nodes is set in the
/etc/SnmpAgent.d/snmpd.conf file with a
trap_dest:<nodename> statement.
2. If NNM is not running on the node where you want to intercept
events, add the following line to the opcinfo file on that node:
SNMP_SESSION_MODE NO_TRAPD
3. Assign and distribute the trap template to the node.
❏Configuration to Avoid Duplicate Messages
Make certain that an ITO agent (and thus, an ITO event interceptor)
runs on all NNM collection stations. Use the Print Collection Station
application in the NNM Tools application group to verify which
managed nodes are set up as NNM collection stations.
Chapter 5 245
Configuring ITO
Preconfigured Elements
Event Interception on Novell NetWare Managed
Nodes
There are two preconfigured templates for Novell NetWare:
❏NetWare NMA 2.1 Threshold Traps
❏NetWare NMA 2.1 Traps
NetWare NMA 2.1 threshold traps can be used to filter traps originating
from the NetWare NMA when one of the 25 NMA thresholds is exceeded.
NetWare NMA 2.1 traps template filters the 379 traps that can be
generated by the NMA module when an important event on the NetWare
server occurs.
Event Interception with ECS
opctrapd connects by default to the correlated event flow of pmd. You
can change this behavior by adding an appropriate statement to the
opcinfo file on the managed node. Syntax:
SNMP_EVENT_FLOW [ALL|RAW|CORR]
opctrapd connects to the default ECS stream of pmd. If required, you
can configure opctrapd to connect to a specific ECS stream of pmd by
specifying the ECS stream in the opcinfo file:
SNMP_STREAM_NAME <stream_name>
ITO Message Interception
By default, any message submitted via the opcmsg(1) command or via
the opcmsg(3) API is intercepted. For message attribute defaults,
logging options and so forth, see the template, opcmsg(1|3).
See also “EMS Integration” on page 332 for an example how opcmsg
intercepts messages from other applications.
MPE/iX-console Message Interception
ITO is able to intercept messages that are sent to the MPE/iX console.
Some of these messages already have a predefined message
classification, which ITO maps where possible to a message group and
severity level. Table 5-27 on page 246 shows how MPE/iX classifications
are mapped to ITO Message Groups.
246 Chapter 5
Configuring ITO
Preconfigured Elements
For details about the MPE/iX console messages which are intercepted,
inspect the MPE/iX console template MPE Cons Msgs in the Message
Source Templates window.
Table 5-27 Default Message Mapping on MPE/iX Managed Nodes
For information on how MPE/iX messages are mapped to the ITO
severity levels, see Table 5-28 on page 246.
Table 5-28 MPE/iX and ITO Message Mapping Severity
MPE/iX Classification ITO Message Group
Database Misc
DTC Misc
Hardware Hardware
Jobs Job
Logging Misc
MPE/iX OS
Network Network
Printer Output
Performance Performance
Security Security
Spooler Output
Storage Backup
MPE Severity Level ITO Severity Level
0 Unknown
1 Normal
2 Warning
3 Critical
Chapter 5 247
Configuring ITO
Preconfigured Elements
Mapping NMEV Markers
Messages from the MPE operating system might contain so-called Node
Management Event (NMEV) markers. ITO uses these markers to map
MPE/iX console messages to the severity, message group, application,
and object fields for ITO messages.
NMEV markers have the format NMEV#pcc@aaa, where:
pMPE/iX Message Severity mapped to ITO severity; if it
is not in the range of 0 to 3, it is an invalid marker and
the pattern is treated as normal text. (See Table 5-28
on page 246 for the possible values.)
cc MPE/iX Message Class mapped to the ITO Object field
(optional; values from 0 to 99). The MPE/iX message
class is currently not used by MPE. If this field is
omitted, the default 00 is used.
aaa MPE/iX Application ID identifying the source of the
message, mapped to the ITO Application field
(optional; values from 0 to 310).
If the @aaa portion is omitted, it is set to the default
value of @310. This maps the message to the message
group Misc and the application Console Event.
Table 5-29 shows how NMEV markers are mapped in ITO.
Some of the entries in the ITO Message Group column are not configured
as default ITO message groups when ITO is installed. Messages sent to
those message groups are routed to the message group Misc as described
in Table 5-28 on page 246. Create these message groups if you want
those messages to be routed to groups other than Misc.
Table 5-29 NMEV Marker Mapping
MPE/iX
Application
ID
ITO Message
Group Application/OS Subsystem
052 Performance Laser/RX
053 Database Allbase/SQL
194 Network Public Networking
248 Chapter 5
Configuring ITO
Preconfigured Elements
195 Network Network-OSI
196 Network Network-NS
198 Network Network-SNA
200 Output Ciper Devices
206 OS I/O Services
211 Output Native Mode Spooler
212 Output Page Printer
213 Output Device Manager
214 Storage Printer,Tape,Spool
215 Storage Software Resiliency
216 OS Threshold Mgr
217 Storage Store/Restore
218 Job Jobs/Sessions
220 OS Process Manager
221 Logging System Logging
222 OS Transaction Mgmt
224 Logging User Logging
225 Hardware SPU Switchover
226 OS Reply Info Table
227 OS System Manager
228 Output High End Printer
229 Hardware Diagnostic-System
230 OS Command Interpreter
MPE/iX
Application
ID
ITO Message
Group Application/OS Subsystem
Chapter 5 249
Configuring ITO
Preconfigured Elements
For example, the marker NMEV#200@214 would generate a message with
the severity Warning, in the message group Storage, concerning the
application Printer,Tape,Spool.
If no ITO-to-MPE/iX mapping is available for an MPE/iX console
message intercepted by ITO, the original MPE/iX classification is used as
a default value and the message appears in the message group Misc
until you configure a message group that more accurately suits your
requirements. If you require different mapping, you can apply the ITO
concept of message regrouping.
The ITO attribute mapping is defined in the file
CONSDESC.COMMANDS.OVOPC, delivered by default with the MPE agent
installation. See “Generating a New NMEV Marker” on page 249 for
more information about how to configure this file to map NMEVs other
than the ones defined in Table 5-29.
Generating a New NMEV Marker
The ITO Console Interceptor supports all methods of generating NMEV
event messages. An NMEV event marker can be generated in the
following ways:
231 OS System & Error Mgmt
232 OS Label Management
233 Storage Magneto-Optic Lib
234 DTC Terminal I/O
235 DTC DCC Surrogate
236 Storage Labeled Tape
237 Security MPE/iX Security
238 OS Native Language
239 Hardware UPS Monitoring
310 Misc Console Event
MPE/iX
Application
ID
ITO Message
Group Application/OS Subsystem
250 Chapter 5
Configuring ITO
Preconfigured Elements
❏by inserting the marker into the text of a TELLOP command.
❏by inserting the marker into a parameter for calling the PRINTOP
command.
❏by calling the NMEVENT intrinsic by way of a program.
The NMEV marker string can be placed in TELLOP messages. This can
be useful for generating messages to ITO from within jobs or sessions.
The PRINTOP intrinsic can also be used to send the NMEV marker to the
console from programs. In both cases, the MPE/iX Console Interceptor
processes the message. In all cases, the valid NMEV marker is stripped
from the text of the message before the messages is forwarded to the
message browser.
The NMEVENT intrinsic performs a function similar to opcmsg(3).
Some networking and other third-party applications may use this
intrinsic but it is recommended that all applications that generate ITO
events use the opcmsg(3) call instead of the NMEVENT API.
New NMEV markers may be added to the consdesc file so that ITO can
map user-defined NMEV markers to user-defined ITO message groups,
application and object fields. It is not recommended to create
user-defined IDs because it is possible that the user-defined application
IDs could conflict with HP-defined ID in the future, if HP added entries
to the default consdesc file. The default consdesc file is located in
the following directory on the management server:
/var/opt/OV/share/databases/OpC/mgd_node/vendor/hp/s900\
/mpe-ix/<
ito_version
>/cmds/consdesc.Z
This file is compressed and must be uncompressed before you can start
editing it. Place your customized version of this file into the following
directory on the management server, and distribute it using the
Install / Update ITO Software and Configuration window.
You do not need to compress it; ITO does that for you.
/var/opt/OV/share/databases/OpC/mgd_node/customer/hp\
/s900/mpe-ix/cmds/consdesc
After the distribution the file is located at CONSDESC.COMMANDS.OVOPC
on the MPE/iX managed node.
NOTE You must restart the MPE/iX console interceptor on your MPE/iX
managed node to activate the changes in the file
CONSDESC.COMMANDS.OVOPC:
Chapter 5 251
Configuring ITO
Preconfigured Elements
/opt/OV/bin/OpC/opcragt -start
Monitored Objects
Table 5-30 Object Thresholds on the Management Server
Table 5-31 illustrates what the threshold values are for the various
monitors supplied with ITO for the managed nodes and how often it is
compared to the actual value. Although in most cases threshold values
and polling intervals are the same across platforms some of the utilities
do not run on all the platforms. Such instances are indicated in Table
5-31 by footnotes. You may want to adjust the polling interval to a value
more suitable to your environment.
Object Description Threshold Polling
Interval
disk_util Monitors disk space utilization on the root
disk 90% 10m
distrib_mon Monitors the software distribution process 20% 10m
mondbfile Monitors free space on disk, and the
remaining space available for Oracle
autoextend datafiles
0% 10m
proc_util Monitors process table utilization 75% 5m
swap_util Monitors SWAP utilization; this value can
only be monitored on HP-UX versions 8.07
or higher
80% 5m
252 Chapter 5
Configuring ITO
Preconfigured Elements
Table 5-31 Object Thresholds on the Managed Nodes
NOTE No preconfigured monitors are available for Novell NetWare managed
nodes.
a. Digital UNIX = 90%: No AIX or HP-UX 10.x
b. Digital UNIX = 10 mins: No AIX or HP-UX 10.x,
c. No SCO OpenServer or SINIX
d. No Digital UNIX
e. No Digital UNIX
f. SCO OpenServer only
g. SCO OpenServer only
h. No SCO OpenServer or SINIX
Object Description Threshold Polling
Interval
(mins)
cpu_util Monitors CPU utilization: requires the
sar program 95%a2b
disk_util Monitors disk space utilization on the root
disk 90% 10
Inetd Number of executing instances of inetd
(Internet Daemon) 0.5 5
MailQueue
Length Length of the sendmail queue: number of
unsent mail messages 30 2c
proc_util Monitors process table utilization 75%d5e
sco_tmp Size in disk blocks of the ITO /tmp
directory on a SCO OpenServer managed
node
1000f60g
sendmail Number of executing instances of
sendmail 0.5 5h
swap_util Monitors SWAP utilization. In the case of
HP-UX, versions 8.07 or higher only 80% 5
Chapter 5 253
Configuring ITO
Preconfigured Elements
Table 5-32 Object Thresholds on Windows NT Managed Nodes
Table 5-33 Object Thresholds on OS/2 Managed Nodes
Object Description Threshold Polling
Interval
(mins)
dflt_disk_util_NT Monitors free disk space on C: drive 10% 10
dflt_cpu_util_NT Monitors processor use. A message is
sent only if the threshold is exceeded
for four consecutive minutes
95% 1
dflt_rpcss_NT Monitors the RPC services. 90% 30
Object Description Threshold Polling
Interval
(mins)
os2_disk_util Monitors disk space utilization on C:
disk 90% 10m
os2_cpu_utilaMonitors processor utilization 95 1m
os2_swap_util Monitors SWAP utilization 16 MB 5m
inetd_mon Checks if Inetd (Inet Daemon) is
running 0.5 30m
snmpd_mon Checks if snmpd is running 0.5 10m
mib2_mon Checks if mib_2 is running. 0.5 10m
inetd_mon_extbExternal monitor for Inetd 0.5 scheduled
action
dependent
254 Chapter 5
Configuring ITO
Preconfigured Elements
a. Requires TME NetFinity; see “Software Requirements for OS/2 Managed Nodes” on
page 38.
b. Used with the scheduled action Multiple external monitors.
c. Requires external monitors to be configured for each process.
Monitoring Objects in the Windows NT Performance
Monitor
The ITO Threshold Monitor can be configured to monitor objects in the
Windows NT Performance Monitor.
To monitor Windows NT objects, set the Monitor to Program, then in the
Monitor Program or MIB ID field, enter NTPerfMon\\. This
case-sensitive designator should preface all requests to the NT
performance monitor. The syntax for requests is shown in Figure 5-2 on
page 255, and explained below.
snmpd_mon_ext External monitor for Snmpd 0.5 schedule
action
dependent
mib2_mon_ext External monitor for Mib_2 0.5 schedule
action
dependent
Multiple
external
monitorsc
Scheduled action that checks which
processes are running N/A 5m
Object Description Threshold Polling
Interval
(mins)
Chapter 5 255
Configuring ITO
Preconfigured Elements
Figure 5-2 NT Performance Monitor Syntax
The language for the command may be either in English, or in the local
language defined for the Windows NT system where the template will be
used. English should be used if the template is intended for use in more
than one system with different languages.
Object and Counter
❏These values are fixed labels that can be found for each object you
want to monitor by using the NT Performance Monitor (found in the
NT Tools group).
❏These labels are not case-sensitive, but must include any spaces as
shown in Figure 5-2 on page 255. In this example, LogicalDisk,
logicaldisk, or LOGICALDISK will work correctly, but Logical
Disk will not.
❏If you omit the % sign from the counter label, the monitor returns the
raw value instead of the percentage.
Parent Instance and Instance
❏These values vary according to what is being monitored. The example
in Figure 5-2 on page 255 shows 0, (in this case, the SCSI port) and
C: (in this case, the drive letter). Valid values can be found using NT
Performance Monitor (found in the NT Tools group). Parent instance
and instance of the example will appear as 0==>C in the Performance
Monitor.
❏These fields may also be filled with a question mark (?), which will
allow the string to match any valid value. If the example in Figure 5-2
on page 255, were modified to look like this:
NTPerfMon\\LogicalDisk\\% Free Space\\? \\C: the
template will match the C: drive regardless of which SCSI port it is
associated with.
NTPerfMon\\
LogicalDisk
\\
% Free Space
\\
0
\\
C:
Object
CounterParent Instance
Instance
256 Chapter 5
Configuring ITO
Preconfigured Elements
❏A parent instance may or may not exist. If there is no parent
instance, simply omit it from the syntax. If there were no parent
instance for the example in Figure 5-2 on page 255, the line would
look like this:
NTPerfMon\\LogicalDisk\\% Free Space\\C:
ITO will attempt to locate the objects when the agent is started, or when
a new template is assigned to the node. If ITO cannot immediately locate
the object, it will wait for two minutes and then search again. If ITO
cannot locate the object after five attempts, it will send a message to the
message browser, notifying the administrator that the object could not be
found. The monitor will not begin to search again until the agent is
restarted, or the template is reinstalled.
Monitoring MIB Variables of TME NetFinity on OS/2
Managed Nodes
The ITO monitor agent can be configured to monitor MIB variables
provided by the TME NetFinity product. The following prerequisites
must be met on the OS/2 managed node:
❏TME NetFinity must be installed (TME NetFinity is pre-installed
with OS/2 Warp 4.0)
❏the file NETVIEW_PATH\BIN\AGENT\DMISA.MAP must contain the
following entry:
“1.3.6.1.4.1.2.5.11.1.10” 1 1 1 1 “TME 10 NetFinity Services” 0 0
where NETVIEW_PATH is the directory where the SystemView agent
is installed (OS/2 Warp 4.0 SNMP daemons)
If the MIB OID (Object Idenitifer) 1.3.6.1.4.1.2.5.11.1.10 is already
used, use the next free one (only the last number will differ), but
make sure that the template on the management server reflects that
change.
❏Start the DMI subagent (DMISA.EXE, part of SystemView agent); if
it is already running, stop and restart it.
Table 5-34 on page 257 gives an overview of all MIB variable attributes
of TME NetFinity. You can retrieve the same information by entering:
snmpwalk -c public <myhost.domain.com> \
1.3.6.1.4.1.2.5.11.1.10
where <myhost.domain.com> is the name of your system.
Chapter 5 257
Configuring ITO
Preconfigured Elements
Table 5-34 Attribute IDs of TME NetFinity MIB Variables
Attribute Name Attribute ID Value
CPU Utilization 2872344980 Percent
Drive C: Space Used 1663545058 Megabytes Used
Drive D: Space Used 1663545059 Megabytes Used
Drive C: Space Remaining 1663545570 Megabytes Free
Drive D: Space Remaining 1663545571 Megabytes Free
IP Packets Sent 1314150980 Packets/Sec
IP Packets Received with Errors 1314150981 Packets/Sec
Locked Memory 1653400672 Megabytes
Memory Usage 1653400673 Megabytes
Print Jobs Queued 107264 Jobs
Process Count 2872344981 Processes
Swap file size 1921839360 Megabytes
Swap space remaining 1921839361 Megabytes
TCP Connections 1314150982 TCP Connections
TCP/IP Sockets 1314150983 TCP/IP Sockets
TCP/IP Interface 0 - Unicast
Packets Sent 1314140225 Packets/Sec
TCP/IP Interface 0 - Broadcast
Packets Sent 1314140226 Packets/Sec
TCP/IP Interface 0 - Bytes Sent 1314140227 Bytes/Sec
TCP/IP Interface 0 - Unicast
Packets Received 1314140228 Packets/Sec
TCP/IP Interface 0 - Broadcast
Packets Received 1314140229 Packets/Sec
258 Chapter 5
Configuring ITO
Preconfigured Elements
Calculating the Value of a MIB Variable
MIB variables have the following format and can be calculated by
replacing the angle brackets with the desired value:
<OID>.2.5.11.1.10.1.3.1.<X>.6.<ID>
where:
•<OID> is the Object Identifier entered in the file DMISA.MAP
•<X> specifies the attribute to be monitored; see Table 5-35
Table 5-35 Attribute Values of TME NetFinity MIB Variables
•<ID> is the attribute ID; see Table 5-34, “Attribute IDs of TME
NetFinity MIB Variables,” on page 257
Once you have calculated the value of the MIB variable and written a
program or script to monitor this value, you configure a threshold
monitor template in the Message Source Templates window.
TCP/IP Interface 0 - Bytes
Received 1314140230 Bytes/Sec
Thread Count 2872344982 Threads
UDP Datagrams Sent 1314150977 Packets/Sec
UDP Datagrams Received 1314150978 Packets/Sec
Attribute Name Attribute ID Value
Value Attribute
1 Attribute ID
2 Attribute Name
3 Current Value (integer)
4 Current Value (thousands)
5 Current Value (string)
6 Value Units
7 Recording enabled
Chapter 5 259
Configuring ITO
Preconfigured Elements
Monitoring MIB Objects from other Communities
MIB objects can also be monitored from communities other than public.
To do this, add the following line to the opcinfo file on the managed
node (see Table 10-3 on page 399 for the location of the opcinfo file on
all platforms):
SNMP_COMMUNITY <community>
where <community> is the community for which the snmpd is configured.
If SNMP_COMMUNITY is not set, the default community public is used. See
the documentation supplied with the SNMP daemon for information
about determining the configuration of snmpd.
Templates for External Interfaces
ITO provides an example for calling an external trouble ticket system or
external notification service in:
/opt/OV/bin/OpC/extern_intf/ttns_mail.sh
This script sends a corresponding mail to all operators responsible for
that message.
Customer scripts and programs for calling external interfaces can also be
placed in extern_intf, if it is intended they be erased when
de-installing ITO.
NOTE If your script is a shell script, the first line must contain a statement
such as the following.
#!/usr/bin/sh
Otherwise the execution of your script or program may fail.
By default, no notification is configured. Notification maintenance is
available under the Actions:Utilities->Notification Service…
menu. Again, by default, no trouble ticket system interface is configured
either. You can set up one using the Actions:Utilities->Trouble
Ticket… menu.
260 Chapter 5
Configuring ITO
Preconfigured Elements
General Configuration Tips Regarding File
Names
If you provide actions/cmds/monitor command files for MPE/iX
managed nodes on the management server in:
/var/opt/OV/share/databases/OpC/mgd_node/\
customer/hp/s900/mpe-ix
make sure that the file names are not longer than 8 characters. The
characters underscore ( _ ) and dash ( - ) are not allowed.
MPE/iX does not distinguish between upper and lower case letters.
Only ASCII files are supported. Binaries for automatic distribution to
MPE/iX are not supported because the appropriate MPE/iX file code is
not known to the management server.
Chapter 5 261
Configuring ITO
Database Reports
Database Reports
ITO provides preconfigured reports for the administrator and for
operators. In addition, customized reports can be created using the
report writer supplied with the installed database or any other
report-writing tool. The reports may be:
• displayed in a window
• saved to a file
• printed.
You may define the printer using the X resource, OpC.printCommand in
the general application defaults file:
/opt/OV/lib/X11/app-defaults/<language>/Opc
or in your private file: $HOME/.Xdefaults
In addition, you can use ITO’s enhanced reporting features in
conjunction with the OpenView Service Reporter functionality to retrieve
specific information directly from the database and publish and view the
resulting reports in graphically rich formats on the web. For more
information, see the documentation supplied with the OpenView Service
Reporter product and the HP OpenView IT/Operations Concepts Guide.
Reports for Administrators
You can access ITO administrator reports by selecting
Actions:Utilities->Reports… in the ITO GUI. Note, however, that
if you are in any of the administrator’s browser windows, you can only
access operator reports.
262 Chapter 5
Configuring ITO
Database Reports
Table 5-36 Preconfigured Reports for the ITO Administrator
Report Name Description
Action Report Action audit report for all operators showing ITO user, UNIX
user, source (GUI, API, CLI, etc), date, time, report area and
action (un/successfull). Only available for audit level, “Full”.
All Active Messages Report on the number of active messages per message group
All History Messages Report on all history messages for an operator (short
description)
Audit Report Report on all areas of all users showing; ITO users, source
(GUI, API, CLI), date, time, report area and any associated
actions. The “audit-level” setting determines which areas are
included in the report.
ITO Error Report Review of the ITO error logfile on the management server:
/var/opt/usr/OV/log/OpC/mgmt_sv/opcerror a
Logon Report Logon audit report for all operators ITO user, showing UNIX
user, source (GUI, API, CLI, etc), date, time, report area
(logon/off) and (un/successfull) actions. This report is only
available for audit levels above “Login Times”.
Nodes Overview Report on all configured nodes showing node name, machine
type, node type (message-allowed, controlled etc), license,
heartbeat polling settings.
Node Config Report Report on all resulting template to node assignments
Node Report Detailed report on a selected managed node
Node Groups Overview Report on all configured Node Groups indicating which nodes
and external nodes belong to which node groups
Node Group Report Detailed report on a selected Node Group, similar to “Nodes
Overview” plus user and message-group assignments for the
given node group.
Oper. Active Message Report on all active messages for an operator (short
description)
Oper. Active Details Report on all active messages for an operator (detailed
description)
Chapter 5 263
Configuring ITO
Database Reports
a. For more information about the logfiles containing the errors, see the section “On
The ITO Management Server” on page 460.
Additional reports can be defined by customizing the file:
/etc/opt/OV/share/conf/OpC/mgmt_sv/reports/<lang>/\
admin.rpts
Operator Overview Short description of all configured operators, including real
and logon names, role, rights and responsibilities.
Operator Report Detailed report on a selected operator: includes
responsibility matrix (node and message groups), available
applications, and assigned user profiles.
Operator Pending
Messages Short description of pending messages for a given operator
Operator History
Messages Short description of history (acknowledged) messages for a
given operator
Templates Overview Lists all templates and shows to which template groups the
various templates belong.
Templates Summary Report about all aspects of all templates: this might take a
long time to generate.
Template Detail Detailed report on one selected template
Unmonitored Report on configured but currently unmonitored objects
indicating, for example, unassigned node group or message
group combinations
User Action Report Same as “Action Report” but for one selected user
User Audit Report Same as “Audit Report” but for one selected user.
User Logon Report Same as “Logon Report” but for one selected user
User Profile Overview Report on all configured user profiles.
User Profile Report Detailed report on one selected user profile
Working ITO Users Report on all ITO users who are currently logged on giving,
for example, the IP address of their machine
Report Name Description
264 Chapter 5
Configuring ITO
Database Reports
If no absolute path is specified, the output of all ITO administrator
reports is saved by default in the directory of the Unix user that started
the ITO administrator session. This directory is defined by
$OPC_HOME, if set, $HOME, or /tmp in that order. All files that are
created when the administrator saves report output are owned by the
administrator’s Unix user, which may but need not be root.
Reports for Operators
ITO operator reports are accessed by selecting
Actions:Utilities->Reports… from the menu bar of the Message
Browser window.
Table 5-37 Preconfigured Reports for ITO Operators
Report Name Description
All Active Messages Short report on all active messages seen by
the user who runs the report
All Active Details Detailed report on all active messages seen
by the user who runs the report
All History Messages Brief report on all history messages seen by
the user who runs the report.
All Pending Messages Brief report on all pending messages see by
the user who runs the report
All Pending Details Detailed report on all pending messages seen
by the user who runs the report
ITO Error Report Review of the ITO error logfile on the
management server:
/var/opt/OV/log/OpC/mgmt_sv/opcerr
or a
Sel. Active Message Report on selected active messages
Sel. Active Details Detailed report on selected active messages
Sel. History Message Report on selected history (acknowledged)
messages
Chapter 5 265
Configuring ITO
Database Reports
a. For more information about the logfiles, see the section “On
The ITO Management Server” on page 460.
You can define additional reports by customizing the file:
/etc/opt/OV/share/conf/OpC/mgmt_sv/reports/<lang>/\
oper.rpts
Whenever an operator saves report output to a file without specifying an
absolute path (starting with “/”) the file is stored in the operator’s Unix
working directory, which is defined by $OPC_HOME (if set), $HOME, or
/tmp in that order or priority. In addition, the file is owned by the
operator’s unix user, not by opc_op, unless the operator logged in as unix
user opc_op. The permissions of the file will be according to the umask as
set before the ITO Operator GUI was started.
Long-term Reports
ITO allow’s you to generate statistical and trend-analysis reports over a
defined period of time. These reports can be configured to cover periods
from as little as a few days to as much as weeks or even months.
Note that the tool /opt/OV/bin/OpC/opcdbmsgmv moves all messages
that are marked as acknowledged to the history-message tables in the
database, where they are retained with little or no negative impact on
operational tasks. Although automatically started every two hours by
the ITO control manager, opcdbmsgmv also may be called manually for
trouble-shooting purposes.
Report Security
For reasons of security, ITO restricts access to the database for
report-writing tools to a database user, opc_report, who has read-only
access. The opc_report user makes use of the Oracle report role
Sel. History Details Detailed report on selected history
(acknowledged) Messages
Sel. Pending Messages Brief report on selected pending messages
Sel. Pending Details Detailed report on selected pending
messages
Report Name Description
266 Chapter 5
Configuring ITO
Database Reports
opc_report_role, which is a kind of database user profile that may also
be used in cases where it is necessary to allow additional database users
access to the database in order to create reports using information in the
ITO database tables.
SQL*Net requires a listener process running on the database node in
order to accept net connections. The listener process accepts connection
requests from any legal database user. If you wish to tighten security
still further, there are products available (for example, from Oracle)
which help improve general communication security in this area. For
more information, see the Oracle product documentation.
NOTE The web-reporting server must be on the same side of any firewall as the
ITO database server. Any other configuration is not supported.
Chapter 5 267
Configuring ITO
Flexible-management Configuration
Flexible-management Configuration
This section describes the conventions that need to be adhered to when
setting up flexible management using the example templates provided in
ITO. The section provides information on:
• flexible management templates, including:
• follow-the-sun configuration
• configuring responsible managers
• switching management responsibility
• service hours and scheduled outages
• template keywords
• time templates and time zone handling
• syntax conventions
• practical examples
For additional help concerning the tasks involved in setting up the
flexible management features in ITO, see the sections on
flexible-management tasks in the HP ITO Administrator’s Guide to
Online Information.
Templates for Flexible Management
ITO provides a set of ASCII templates which you can copy and edit to
define the ITO features required to set up and use flexible management
features in a widely-distributed environment. Table 5-38 provides a brief
description of each template, which are located in the following directory:
/etc/opt/OV/share/conf/OpC/mgmt_sv/tmpl_respmgrs
Several examples of the syntax to be used when configuring time
templates are provided at the end of the section. For specific help with
using the templates to set up flexible management features, see the
section on flexible-management tasks in the HP ITO Administrator’s
Guide to Online Information.
268 Chapter 5
Configuring ITO
Flexible-management Configuration
Table 5-38 Example Templates for ITO Flexible Management
Template Name Description
backup-server Defines the responsible managers for an ITO backup server.
Management responsibility can be switched to a backup server if the
ITO primary server fails. This template defines two management
servers (M1) and (M2); management server M2 can act as a backup
server for management server M1.
escmgr Defines the responsible managers for message escalation.
This template defines two management servers (M1) and (M2);
management server M2 has permission to escalate messages, at any
time, to management server M1.
example.m2 Example template combining the follow-the-sun and service-oriented
message distribution functions.
example.m3 Additional example template for the follow-the-sun functions.
followthesun Defines the time templates and responsible managers for ITO
follow-the-sun responsibility switching. This template defines three
management servers (M1), (M2), and (M3) which can switch
responsibility at different times of the day and week.
hierarchy Defines the target management server to which messages can be
escalated in the hierarchical escalation of messages to a central
management server MC.
hier.specmgr Provides an example of hierarchical management responsibility in
which SNMP traps are sent to the local management server; all other
messages are sent to the primary management server.
hier.time.all Provides an example of hierarchical management responsibility
switching between two servers according to a follow-the-sun time
template.
hier.time.spec Provides an example of hierarchical management responsibility in
which SNMP traps are sent to the local management server; all other
messages are sent to the primary management server according to a
follow-the-sun time template.
Chapter 5 269
Configuring ITO
Flexible-management Configuration
Keywords in Flexible-management Templates
The following is a list of the keywords (and their definition) that ITO
uses to define the various elements required in a flexible management
configuration:
❏CONDSTATUSVARS
See: “The Condition-status Variable” on page 278
❏RESPMGRCONFIG
Start of the responsible manager configuration.
❏DESCRIPTION
A string containing a short manager description.
❏SECONDARYMANAGERS
hierarchy.agt Defines the responsible managers for hierarchical management
responsibility switching for all nodes. This template defines two
management servers M1 and MC where M1 is configured as the
primary manager for all nodes, and MC is configured as an
action-allowed manager for all nodes.
hierarchy.sv Defines the responsible managers for hierarchical management
responsibility switching for regional management servers.
msgforw Defines the responsible managers for manager-to-manager
message forwarding. This template defines the
message-forwarding target rules.
outage Defines the period of time in which a service is to be provided or a
system (such as a database server) or service is scheduled to be
unavailable.
service Defines the responsible managers for service-related message
distribution, for example, competence centers, etc. This template
defines a local management server (M1), and two examples of service
centers: a database service center (DBSVC) and an application service
center (ASVC).
Template Name Description
270 Chapter 5
Configuring ITO
Flexible-management Configuration
A secondary ITO manager of an agent. This management server has
permission to take over responsibility and become the primary ITO
manager for an agent.
• SECONDARYMANAGER
• NODE <node>
The node name of the SECONDARYMANAGER.
• DESCRIPTION
A string containing the description of the
SECONDARYMANAGER.
❏ACTIONALLOWMANAGERS
An ITO manager that is allowed to execute actions on the managed
node and to which the action response (for example, command
broadcast) is sent. Only the primary ITO manager can configure
action-allowed managers for an agent.
• ACTIONALLOWMANAGER
• NODE
The node name of the ACTIONALLOWMANAGER. You can use
the variable $OPC_PRIMARY_MGR to specify that this will always
be the primary manager.
• DESCRIPTION
A string containing a short description of the
SECONDARYMANAGER.
❏MSGTARGETRULES
• MSGTARGETRULE
Rules to configure the MSGTARGETRULECONDS and the
MSGTARGETMANAGERS.
• DESCRIPTION
A string containing the description of the MSGTARGETRULE.
❏MSGTARGETMANAGERS
An ITO manager to which the agents send ITO messages and the
action responses that correspond to those ITO messages (result of
automatic actions). An ITO message is sent to only one ITO manager.
Chapter 5 271
Configuring ITO
Flexible-management Configuration
This is also used to escalate messages from one manager to another.
• MSGTARGETMANAGER
Management server to which you forward a message.
NOTE Always specify the IP address of the target management server as
0.0.0.0. The real IP address is then resolved by the domain name
service (DNS).
• TIMETEMPLATE
The name of the corresponding time template. You can use the
variable $OPC_ALWAYS if the time condition is always true. When
you use this keyword, message transfer to the target manager will
not depend on the time.
• OPCMGR
The node name of the ITO Manager. You can use the keyword,
$OPC_PRIMARY_MGR to denote that this will always be the
primary manager.
• MSGCONTROLLINGMGR
Attribute of a message target manager enabling it to switch
control of a message.
• NOTIFYMGR
Attribute of a message target manager enabling it to notify itself.
This is set by default if no attribute is defined for the message
target manager.
• ACKNONLOCALMGR
Attribute for a message rule to force a direct acknowledgment of a
notification message on a source management server.
❏MSGTARGETRULECONDS
• MSGTARGETRULECOND
These conditions tell the agent to which management server to
send specific messages, based on message attributes and/or time.
The message agent evaluates the message target conditions by
reading the file mgrconf. If the mgrconf file does not exist, the
272 Chapter 5
Configuring ITO
Flexible-management Configuration
messages are sent to the management server name stored in the
primmgr file. If the primmgr file does not exist, messages are
sent according to the opcsvinfo file.
• DESCRIPTION
A string describing the message target rule condition.
• SEVERITY
A severity level from: Unknown, Normal, Warning, Minor, Major,
Critical.
• NODELIST
A list of nodes.
• NODE <node>
A node can be specified in different ways, for example: NODE
IP 0.0.0.0 hpbbn If the node is defined using the format IP
<ipaddress> or IP <ipaddress> <string>, you should normally
use the IP address “0.0.0.0”. The real IP address is then
resolved by the domain name service (DNS).
• APPLICATION
A string containing the application name.
• MSGGRP
A string containing the name of the message group.
• OBJECT
A string containing the name of the object.
• MSGTYPE
A string containing the description of the message type.
• MSGCONDTYPE
Two condition types are possible:
• Match
The condition is true if the specified attributes are matched.
• Suppress
The condition is true if the specified attributes are not
matched.
Chapter 5 273
Configuring ITO
Flexible-management Configuration
• MSGOPERATION
Three types are possible, see Table 5-39 on page 277:
• Suppress
• Log-only
• Inservice
Template Syntax
You can use the syntax described in the following sections as a basis for
configuring flexible management features (for example, the switching of
responsibility between managers) in the template files provided. For
further information, see the man pages opcmom(4) and
opcmomchk(1m), and the README file in the template directory:
/etc/opt/OV/share/conf/OpC/mgmt_sv/tmpl_respmgrs
In the syntax examples that follow, the “e” character represents an
empty string.
A pound or hash sign (#) must precede any comments in a template. ITO
considers all characters up to the new line a comment. If you want to use
quotation marks in a syntax string, escape the quotation marks with a
backslash. For example, \”quotation\”.
Syntax for Responsible Manager Configuration
respmgrconfigs ::= <respmgrconfigs> RESPMGRCONFIG DESCRIPTION
<string> <respmgrconds> | e
respmgrconds ::= SECONDARYMANAGERS <secondmgrs>
ACTIONALLOWMANAGERS <actallowmgrs>
[MSGTARGETRULES <msgtargetrules>]
secondmgrs ::= <secondmgrs> SECONDARYMANAGER NODE <node>
[DESCRIPTION <string>] | e
actallowmgrs ::= <actallowmgrs> ACTIONALLOWMANGER NODE <node>
[DESCRIPTION <string>] | e
msgtargetrules ::= <msgtargetrules> MSGTARGETRULE DESCRIPTION
<string> <msgtargetrule> | e
msgtargetrule ::= MSGTARGETRULECONDS <mtrconditions>
MSGTARGETMANAGERS <msgtargetmgrs>
| MSGTARGETRULECONDS <mtrconditions>
MSGTARGETMANAGERS <msgtargetmgrs>
ACKNONLOCALMGR
mtrconditions ::= <mtrconditions> MSGTARGETRULECOND DESCRIPTION
<string> <mtrcond> | e
mtrcond ::= <mtrcond> SEVERITY <severity> | <mtrcond>
NODE <nodelist> | <mtrcond> APPLICATION
<string> | <mtrcond> MSGGRP <string> |
274 Chapter 5
Configuring ITO
Flexible-management Configuration
<mtrcond> OBJECT <string> | <mtrcond> MSGTYPE
<string> | <mtrcond> MSGCONDTYPE
<msgcondtype> | e
severity ::= Unknown | Normal | Warning | Critical | Minor
| Major
msgcondtype ::= Match | Suppress
nodelist ::= <node> | <nodelist> <node>
node ::= IP <ipaddress> | IP <ipaddress> <string>
| OTHER <string>
string ::= “any alphanumeric string”
ipaddress ::= <digits>.<digits>.<digits>.<digits>
Syntax for Time Templates
timetmpls ::= <timetmpls> TIMETEMPLATE <string> DESCRIPTION
<string> <conditions> | e
conditions ::= TIMETMPLCONDS <timetmplconds> | e
timetmplconds ::= <timetmplconds> TIMETMPLCOND <timetmplcond>
timetmplcond ::= [TIMECONDTYPE <timecondtype>] [TIME FROM
<time> TO <time>] [WEEKDAY <weekday>]
[DATE <exact_date>] | e
timecondtype ::= Match | Suppress
time ::= <hh>:<mm>
weekday ::= ON <day> | FROM <day> TO <day>
exact_date ::= ON <date> | FROM <date> TO <date>
day ::= Monday | Tuesday | Wednesday | Thursday
| Friday | Saturday | Sunday
date ::= <mm>/<dd>/<yyyy> |<mm>/<dd>/*
Syntax for Management Responsibility Switching
configfile := [TIMETEMPLATES <timetmpls>] RESPMGRCONFIGS
<respmgrconfigs>
Syntax for Message Target Rules
msgtargetmgrs ::= <msgtargetmgrs> MSGTARGETMANAGER TIMETEMPLATE
<string> OPCMGR <node> | <msgtargetmgrs>
MSGTARGETMANAGER TIMETEMPLATE <string> OPCMGR
<node> MSGCONTROLLINGMGR | <msgtargetmgrs>
MSGTARGETMANAGER TIMETEMPLATE <string> OPCMGR
<node> NOTIFYMGR | e
You can replace the <string> variable with $OPC_ALWAYS to specify that
the time condition is always true. To specify that the current primary
manager is always used as the message target server, replace the <node>
variable with $OPC_PRIMARY_MGR
Syntax for Service Hours and Scheduled Outages
In the following description of the syntax rules for templates used to
define service hours and scheduled outages, the “e” character represents
an empty string:
Chapter 5 275
Configuring ITO
Flexible-management Configuration
configfile := [TIMETEMPLATES <timetmpls>]
[CONDSTATUSVARS] <statusvarsdef>]
RESPMGRCONFIGS <respmgrconfigs>
Syntax for the declaration of condition status variables:
statusvarsdef ::= <statusvarsdef> CONDSTATUSVAR <string> <bool> |e
Syntax for the Time Template:
timetmpls ::= <timetmpls> TIMETEMPLATE <string> DESCRIPTION
<string> <timetmpldefs> <conditions> |e
timetmpldefs ::= TIMEZONETYPE <timezonetype> TIMEZONEVALUE
<string>| e
timezonetype ::= Fix | Local
conditions ::= TIMETMPLCONDS <timetmplconds> | e
timetmplconds1 ::= <timetmplconds> TIMETMPLCOND
<timetmplcond>
timetmplcond ::= [TIMECONDTYPE <timecondtype>] [TIME FROM
<time> TO <time>] [WEEKDAY <weekday>]
[DATE <exact_date>] | e
timecondtype ::= Match | Unmatch 1
time ::= <hh>:<mm>
weekday ::= ON <day> | FROM <day> TO <day>
exact_date ::= ON <date> | FROM <date> TO <date>
day ::= Monday | Tuesday | Wednesday | Thursday
| Friday | Saturday | Sunday
date ::= <mm>/<dd>/<yyyy> |<mm>/<dd>/*
Syntax for service hours and scheduled outages
respmgrconfigs ::= <respmgrconfigs> RESPMGRCONFIG DESCRIPTION
<string> <respmgrconds> | e
respmgrconds ::= MSGTARGETRULES <msgtargetrules>
msgtargetrules ::= <msgtargetrules> MSGTARGETRULE
DESCRIPTION <string> <msgtargetrule> | e
msgtargetrule ::= MSGTARGETRULECONDS <mtrconditions>
MSGOPERATIONS <msgoperations>
mtrconditions ::= <mtrconditions> MSGTARGETRULECOND
DESCRIPTION <string> <mtrcond> | e
mtrcond ::= <mtrcond> CONDSTATUSVAR <string> |
<mtrcond> SEVERITY <severity> |
<mtrcond> NODE <nodelist> |
<mtrcond> APPLICATION <string> |
<mtrcond> MSGGRP <string> |
<mtrcond> OBJECT <string> |
<mtrcond> MSGTYPE <string> |
<mtrcond> TEXT <string>2|
<mtrcond> SERVICE <string> 2 |
<mtrcond> MSGCONDTYPE <msgcondtype> | e
bool ::= True | False
severity ::= Unknown | Normal | Warning | Critical
| Minor | Major
msgcondtype ::= Match | Unmatch
1. Service hours only
2. Pattern matching only available in <string>
276 Chapter 5
Configuring ITO
Flexible-management Configuration
nodelist ::= <node> | <nodelist> <node>
node ::= IP <ipaddress> | IP <ipaddress> <string>
| OTHER <string>
string ::= “any alphanumeric string”
ipaddress ::= <digits>.<digits>.<digits>.<digits>
NOTE You can replace the <string> variable with $OPC_ALWAYS to specify
that the time condition is always true.
Syntax for Message Operations:
msgoperations ::= <msgoperations> MSGOPERATION TIMETEMPLATE
<msgoperation> <msgoperations> MSGOPERATION
TIMETEMPLATE <string> <msgoperation>
msgoperation ::= INSERVICE|SUPPRESS|LOGONLY
NOTE The time template is compared with the creation time of the message on
the managed node. Message creation time is always defined in GMT.
Templates for Service Hours and Scheduled Outages
The ITO administrator configures service hours and scheduled outages
on the management server with a template similar to the one used to
configure flexible management. The syntax used to configure service
hours and scheduled outages is the same as that used to configure
flexible management and consequently may be checked with the
opcmomchk tool. For more information on template syntax, see “Syntax
for Time Templates” on page 274 and “Syntax for Service Hours and
Scheduled Outages” on page 274. The template for service hours and
scheduled outages allows you to suppress,log only, or buffer
(inservice) messages that match certain conditions for defined time
periods.
The template is located in the following directory:
/etc/opt/OV/share/conf/OpC/mgmt_sv/tmpl_respmgrs/outage.
Before making any changes, copy the file to the working directory;
/etc/opt/OV/share/conf/OpC/mgmt_sv/work_respmgrs. Once
the template file is ready for use, it should be moved to the directory;
/etc/opt/OV/share/conf/OpC/mgmt_sv/respmgrs, and a new ITO
session started in order for the new configuration to be read and
implemented. Note that the templates must not be renamed: ITO looks
for specific, template file name. For more information on how to set up
both service hours and scheduled outages, see the section on Flexible
Management Tasks in the HP ITO Administrator’s Guide to Online
Chapter 5 277
Configuring ITO
Flexible-management Configuration
Information. Table 5-39 on page 277 shows the parameters in the
template used to define service hours and scheduled outages and gives a
brief explanation of their scope:
Table 5-39 Parameters for the Service-Hours Template
NOTE Scheduled outages and service hours may be configured by an external
application. However, the designated external application must create
the template for outages and service hours and use the opccfgout(1M)
command to control outages.
Messages buffered in the Pending Messages Browser window are
automatically moved to the Message Browser window as soon as the
specified buffer time expires. You can change this behavior by setting the
value of the OPC_AUTO_DEBUFFER parameter in the opcsvinfo file
on the ITO management server to FALSE. IN this case, messages remain
in the Pending Messages Browser window.
In addition, you can change the value of the message attributes:
• Forward to Trouble Ticket
• Forward to Notification Interface
and, in conjunction with the time template, forward messages to a
trouble-ticket or notification interface according to time of day. For
example, set the following values in the service-hours template to
forward messages to the Trouble-Ticket interface:
Parameter Description
SUPPRESS In the context of service hours and scheduled
outages: delete messages. Message-related actions
triggered by the ITO management server are not
started if the SUPPRESS option is defined.
LOGONLY Send matching messages to the history browser.
INSERVICE If the message condition matches and the time
template condition does not, send messages to the
Pending-Messages Browser, where they remain
until the unbuffer time condition is matched or
the message is manually unbuffered.
278 Chapter 5
Configuring ITO
Flexible-management Configuration
MSGOPERATION TIMETEMPLATE “SLA_cust1” TROUBLETICKET True
MSGOPERATION TIMETEMPLATE “SLA_cust2” NOTIFICATION False
For more information on these and other variables, see “Syntax for
Service Hours and Scheduled Outages” on page 274.
The Condition-status Variable. Status variables for conditions
allow you to enable and disable conditions dynamically. The conditions
are used in message-target-rules conditions and must be declared at be
beginning of the template after the TIMETEMPLATES values. ITO allows the
declaration of several variables for one conditions as well as one variable
in several conditions. For example, an external interface can set the state
of many conditions with one call. The following abbreviated (...) example
of a template defining service hours sets the condition status variable for
SAP to true:
TIMETEMPLATES
...
CONDSTATUSVARS
CONDSTATUSVAR “sap” True
...
RESPMGRCONFIG
...
MESSAGETARGETRULECONDS
MESSAGETARGETRULECOND
DESCRIPTION “Filter SAP messages”
CONDSTATUSVAR “sap”
APPLICATION “Sap”
MSGOPERATIONS
MSGOPERATION
INSERVICE
NOTE Status variables are persistent: they are not affected by the message
manager stopping and restarting.
The Time zone String. Since the creation time of an ITO message is
always defined in UTC regardless of where in the world the managed
node is located, ITO messages also contain an indication of the difference
between UTC and the local time on the managed node. In this way, the
Chapter 5 279
Configuring ITO
Flexible-management Configuration
ITO management server is able to calculate the local time of the
managed node which sent the message and decide whether or not it is
appropriate to act.
Service Hours are usually defined in terms of the local time on the
managed node. For example, a service provider uses the Service Hours
template to tell the ITO management server that managed nodes in
various time zones must be supported between 08:00 and 16:00 local
time. Templates for Scheduled Outages define time in terms of the local
time on the server providing the service that is scheduled to be
unavailable. For example, the administrator of an ITO management
server in the UK knows that a SAP server situated in Eastern United
States will be unavailable for maintenance reasons between 22:00 and
02:00 US EST.
The templates for scheduled outages and service hours on the ITO
management server can contain a string that defines a fixed local time
zone (e.g. EST for US Eastern Standard Time). The ITO management
server uses the value of the time zone string and the time (in UTC) to
calculate the fixed local time on the given management server for which
an outage has been scheduled. The following example illustrates the
syntax for the time zone string:
TIMEZONETYPE FIX TIMEZONEVALUE EST
By default, ITO evaluates time conditions for both service hours and
scheduled outages by comparing the time frame defined for each
condition to the time the message is received on the ITO management
server. However, this behavior can be modified by setting a parameter in
the opcsvinfo file in the following manner:
• to force the ITO management server to use the message creation time
on the local managed node to evaluate scheduled outage hours rather
than the message arrival time on the ITO management server, enter
the following string in the opcsvinfo file:
OPC_OUTAGE_USE_CREATE_TIME TRUE
• to force the ITO management server to use the message creation time
on the local managed node to evaluate defined service hours rather
than the message arrival time on the ITO management server, enter
the following string in the opcsvinfo file:
OPC_SERVHRS_USE_AGENT_TZ TRUE
280 Chapter 5
Configuring ITO
Flexible-management Configuration
This string instructs the ITO management server to apply the time
frame for service hours defined on the ITO management server (e.g.
08:00 -- 16:00) as a sliding time frame for managed nodes in their
respective local time zone.
NOTE It is important to ensure that the local time is correctly set on the
managed node.
The Command-line Interface. The message manager does not
automatically read the configuration template for outages and service
hours each time the template file is modified, for example by the system
administrator or an external application. The command-line tool
opccfgout(1M) may be used to start the reconfigure request:
opccfgout -update
Additional options allow you to set status variables for the conditions:
opccfgout -set_cond <cond_stat_var>
[-true|-false|-default]
To list the current status of the status variables, enter:
opccfgout -list_cond <cond_stat_var>|-all
The Message-forwarding Template
ITO allows you to control both the generation of notification messages to
be sent to remote management servers and the switch of control for a
message with one, single template which you configure and assign to the
source management server and check using the tool opcmomchk. ITO
stores the message-forwarding template in:
/etc/opt/OV/share/conf/OpC/mgmt_sv/respmgrs/msgforw
The configuration and syntax in the template is similar to that required
for the message-escalation template except that:
• You can specify more than one target management server per
message
• Target management servers to which you forward a message can also
have the attribute MSGCONTROLLINGMGR set in order to be able
to switch control of a message themselves
• Target management servers to which you forward a message can also
notify themselves by setting the attribute NOTIFYMGR
Chapter 5 281
Configuring ITO
Flexible-management Configuration
• Setting the attribute ACKNONLOCALMGR per message rule forces
a direct acknowledge of a notification message on the source
management server
The template accepts any of the following message attributes in a
message condition (for more information on message attributes see the
man page opcmom(4)):
• OBJECT
• APPLICATION
• MSGGRP
• SEVERITY
• NODE
• MSGCONDTYPE
The administrator can set several parameters to configure message
forwarding on the various target managers. These parameters are
required for the management of system and network resources and can
be added directly to the opcsvinfo file on each target management
server. Table 5-40 provides more information about these parameters,
their default values, and a short description of the function of each
parameter. The value of the parameters must be set for each target
manager. If no value is specified, the default value is set.
Table 5-40 Message Forwarding Parameters
Parameter Name Default
Value Description
OPC_ACCEPT_NOTIF_MSSGS TRUE accept notification messages
from other management servers
OPC_ACCEPT_CTRL_SWTCH_MSGS TRUE accept control-switched messages
from other management servers
OPC_ACCEPT_CTRL_SWTCH_ACKN TRUE accept acknowledgment for
control-switched messages from
other management servers
OPC_FORW_NOTIF_TO_TT FALSE forward notification messages to
trouble ticket or notification
service
282 Chapter 5
Configuring ITO
Flexible-management Configuration
Time Templates
A time template consists of:
❏The name used to refer to the time template.
❏The time conditions.
Each time condition defines a specific time period and contains the
definition of the time, day of the week, and/or date. The local time
zone is always used to evaluate the template.
NOTE When specifying a time, use the 24-hour clock notation. For example,
instead of 1:00 p.m., enter 13:00.
An example of a time template is shown in the section “Syntax for Time
Templates” on page 274. You can also see the man page opcmom(4), and
the example templates in the following directory:
/etc/opt/OV/share/conf/OpC/mgmt_sv/tmpl_respmgrs
OPC_FORW_CTRL_SWTCH_TO_TT TRUE forward control-switch messages to
trouble ticket or notification
service
OPC_SEND_ACKN_TO_CTRL_SWTCH TRUE send acknowledge to
control-switched messages
OPC_SEND_ANNO_TO_CTRL_SWTCH TRUE send annotation to
control-switched messages
OPC_SEND_ANT_TO_CTRL_SWTCH TRUE send action-related data to
control-switched messages
OPC_SEND_ANNO_TO_NOTIF TRUE send annotation to notification
messages
OPC_SEND_ANT_TO_NOTIF TRUE send action-related data to
notification messages
OPC_ONE_LINE_MSG_FORWARD FALSE controls forwarding in larger
manager hierarchies
Parameter Name Default
Value Description
Chapter 5 283
Configuring ITO
Flexible-management Configuration
NOTE To correct time differences between the different time resources used by
the ITO C-routines and the MPE/iX intrinsics and commands, the
TIMEZONE variable must be set on MPE/iX managed nodes. If not,
messages can be sent to the wrong management server as they are
processed using the incorrect time. For information about setting the
TIMEZONE variable for MPE/iX nodes, see Chapter 2 of the HP
OpenView IT/Operations Administrator’s Reference.
The following examples show various ways to specify time formats in the
time templates:
❏No Time
If you do not specify a particular time, day of the week, or year, ITO
assumes that you want the condition to be true for 24 hours, from
00:00 to 24:00 every day of the year.
ITO requires you set up a time template for the message target rules
even if the scheduled action does not depend on time. You can use the
variable OPC_ALWAYS to configure time templates when the condition
is always true.
❏Specific Dates or Times
If you specify a condition, ITO assumes the conditions should
continually exist for the time/day specified. For example:
• If you specify only Tuesday, ITO will evaluate the condition as true
every Tuesday from 00:01 to 23:59 throughout the year, every
year. Use the syntax:
WEEKDAY ON Tuesday
• Specifying January 1 and nothing else will match a condition
every January 1st of every year. Use the syntax:
DATE ON 01/01/*
❏Time Periods
For example:
• To set a time period from 7:00 to 17:00, use the syntax:
TIME FROM 7:00 TO 17:00
• To set a time period from Monday to Friday, use the syntax:
WEEKDAY FROM Monday TO Friday
284 Chapter 5
Configuring ITO
Flexible-management Configuration
• To set a time period from the year 1995 to 2000, use the syntax:
DATE FROM 01/01/1995 TO 12/31/1999
• To set a time on December 31 1998, from 23:00 to 23:59, use the
syntax:
TIME FROM 23:00 TO 23:59 DATE ON 12/31/1998
If you include the day of the week (for example, Monday April 1,
1997), ITO cross-checks the day and date you have entered to make
sure that they match the calendar. If they do not match, however, the
action will not be correctly completed. ITO does not issue an error
message.
❏Dates or Periods Using a Wildcard (*)
For example:
To set a condition for December 1st every year, use the syntax:
DATE ON 12/01/*
To set a condition from August 6th to September 10th every year, use
the syntax:
DATE FROM 08/06/* TO 09/10/*
Keywords for Time Templates
❏TIMETEMPLATE <string>
<string> contains the template name.
❏DESCRIPTION
A string containing a short description of the time template.
❏TIMETMPLCONDS
• TIMETMPLCOND
• TIMECONDTYPE
A time condition defines a single time interval. Several time
conditions together comprise a time period. A time condition
allows you to use combinations of time, day of the week, and date
to define a time period.
Chapter 5 285
Configuring ITO
Flexible-management Configuration
NOTE At least one of the following parts must be used for the definition. ITO
does not interpret any one of the following parts as “always”.
• Match
If the current time is within the defined time period, the time
condition is true.
• Suppress
If the current time is within the defined time period, the time
condition is false.
• TIME FROM <time> TO <time>
Specify a time period. Set the <time> using the format:
<HH>:<MM>
NOTE The FROM <time> must be before the TO <time>. For example: FROM
18:00 TO 24:00 or FROM 0:00 TO 6:00
• WEEKDAY
You can specify every day of the week: Monday, Tuesday,
Wednesday, Thursday, Friday, Saturday, Sunday
• ON <day>
At one day of the week, for example Sunday.
• FROM <day>TO <day>
A time period, for example:
FROM Monday TO Wednesday
•DATE
The date must have one of the following formats:
<MM>/<DD>/<YYYY> <MM>/<DD>/<YY> <MM>/<DD>/*
Note: ITO will not check that the time period is correct. For
example 10/35/* will not be recognized as an invalid date.
ON <date> FROM <date> TO <date>
286 Chapter 5
Configuring ITO
Flexible-management Configuration
Example Templates for Flexible Management
This section provides a number of example templates which illustrate a
simple implementation of selected flexible management features:
• “Management Responsibility Switch”
• “Follow-the-Sun Responsibility Switch”
• “Message Forwarding between Management Servers”
• “Service Hours”
• “Scheduled Outage”
Management Responsibility Switch
#
# Configuration file
# /etc/opt/OV/share/conf/OpC/mgmt_sv/respmgrs/f887818
# and managed node hptest with
# the IP address 15.136.120.24 (= f887818 in hex notation)
#
TIMETEMPLATES
TIMETEMPLATE “shift1”
DESCRIPTION “Time Template 1”
TIMETMPLCONDS
TIMETMPLCOND
TIMECONDTYPE Match
TIME FROM 10:00 TO 14:00
WEEKDAY FROM Monday TO Friday
TIMETMPLCOND
TIMECONDTYPE Match
TIME FROM 17:00 TO 24:00
WEEKDAY FROM Monday TO Friday
TIMETEMPLATE “shift2”
DESCRIPTION “Time Template 2”
TIMETMPLCONDS
TIMETMPLCOND
TIMECONDTYPE Match
TIME FROM 6:00 TO 18:00
WEEKDAY FROM Monday TO Friday
DATE 1/1/95
RESPMGRCONFIGS
RESPMGRCONFIG
DESCRIPTION “responsible mgrs for agents in Europe”
SECONDARYMANAGERS
SECONDARYMANAGER
NODE IP 0.0.0.0“hptest.bbn.hp.com”
DESCRIPTION “Boeblingen”
SECONDARYMANAGER
NODE IP 0.0.0.0 “hpsystem.bbn.hp.com”
DESCRIPTION “Boeblingen gateway”
ACTIONALLOWMANAGERS
ACTIONALLOWMANGER
NODE IP 0.0.0.0 “hptest.bbn.hp.com”
DESCRIPTION “Boeblingen”
Chapter 5 287
Configuring ITO
Flexible-management Configuration
ACTIONALLOWMANGER
NODE IP 0.0.0.0 “hpsystem.bbn.hp.com”
DESCRIPTION “Boeblingen gateway”
ACTIONALLOWMANGER
NODE IP 0.0.0.0 “$OPC_PRIMARY_MGR”
DESCRIPTION “ITO primary manager”
MSGTARGETRULES
MSGTARGETRULE
DESCRIPTION “other messages”
MSGTARGETRULECONDS
MSGTARGETMANAGERS
MSGTARGETMANAGER
TIMETEMPLATE “shift2”
OPCMGR NODE IP 0.0.0.0 “system.aaa.bb.com”
Follow-the-Sun Responsibility Switch
#
# Time-template configurations for follow-the-sun functions
#
# Three responsible managers are used in this example
TIMETEMPLATES
# time template 1
TIMETEMPLATE ”shift1”
DESCRIPTION ”Time Template 1 ”
# Time template for shift1
# this include the time from 17:00 to 24:00 and from
# 0:00 to 6:00
# on the weekday Monday to Friday
TIMETMPLCONDS
TIMETMPLCOND
TIME FROM 0:00 TO 6:00
WEEKDAY FROM Monday TO Friday
TIMETMPLCOND
TIME FROM 17:00 TO 24:00
WEEKDAY FROM Monday TO Friday
TIMETEMPLATE ”shift2”
DESCRIPTION ”Time Template 2 ”
# Time template for shift2
# this includes the time from 6:00 to 17:00
# on the weekday Monday to Friday
TIMETMPLCONDS
TIMETMPLCOND
TIME FROM 6:00 TO 17:00
WEEKDAY FROM Monday TO Friday
# time template 3
TIMETEMPLATE ”shift3”
DESCRIPTION ”Time Template 3 ”
# Time template for shift3
# this include the time from 0:00 to 24:00 (the whole day)
# on the weekday Saturday and Sunday
TIMETMPLCONDS
TIMETMPLCOND
TIME FROM 0:00 TO 24:00
WEEKDAY FROM Saturday TO Sunday
#
# Responsible Manager Configurations for follow the sun
# functionality
#
288 Chapter 5
Configuring ITO
Flexible-management Configuration
RESPMGRCONFIGS
RESPMGRCONFIG
DESCRIPTION ”responsible managers M1 ”
SECONDARYMANAGERS
SECONDARYMANAGER
NODE IP 0.0.0.0 ”M1”
DESCRIPTION ”secondary manager M1”
SECONDARYMANAGER
NODE IP 0.0.0.0 ”M2”
DESCRIPTION ”secondary manager M2”
SECONDARYMANAGER
NODE IP 0.0.0.0 ”M3”
DESCRIPTION ”secondary manager M3”
ACTIONALLOWMANAGERS
ACTIONALLOWMANAGER
NODE IP 0.0.0.0 ”M1”
DESCRIPTION ”action allowed manager M1”
ACTIONALLOWMANAGER
NODE IP 0.0.0.0 ”M2”
DESCRIPTION ”action allowed manager M2”
ACTIONALLOWMANAGER
NODE IP 0.0.0.0 ”M3”
DESCRIPTION ”action allowed manager M3”
MSGTARGETRULES
MSGTARGETRULE
DESCRIPTION ”target rule description ”
MSGTARGETRULECONDS
# for all messages
MSGTARGETMANAGERS
MSGTARGETMANAGER
# target manager from 17:00 to 24:00
# and 00:00 to 6:00
# from Monday to Friday
TIMETEMPLATE ”shift1”
OPCMGR IP 0.0.0.0 ”M1”
# target manager from 6:00 to 17:00
# from Monday to Friday
MSGTARGETMANAGER
TIMETEMPLATE ”shift2”
OPCMGR IP 0.0.0.0 ”M2”
# target manager on the whole weekend
MSGTARGETMANAGER
TIMETEMPLATE ”shift3”
OPCMGR IP 0.0.0.0 ”M3”
Message Forwarding between Management Servers
If you install the following simple example of a message-forwarding
template on a server called Source, Source will:
• Forward messages with message group DATABASE to a database
expert center (dbexpert) and pass control of the message to this
center, inform a second server (dbnotify) and, finally, cause the
message to be acknowledged directly on the local ITO server
Chapter 5 289
Configuring ITO
Flexible-management Configuration
• Inform another server (Treasury) about messages concerning
financial and CAD applications
• Inform server (master) about critical messages coming from nodes x1
and x2
TIMETEMPLATES
# none
RESPMGRCONFIGS
RESPMGRCONFIG
DESCRIPTION “msg-forwarding target specification”
MSGTARGETRULES
MSGTARGETRULE
DESCRIPTION “Database”
MSGTARGETRULECONDS
MSGTARGETRULECOND
DESCRIPTION “Database messages”
MSGGRP “DATABASE”
MSGTARGETMANAGERS
MSGTARGETMANAGER
TIMETEMPLATE “$OPC_ALWAYS”
OPCMGR IP 0.0.0.0 “dbexpert”
MSGCONTROLLINGMGR
MSGTARGETMANAGER
TIMETEMPLATE “$OPC_ALWAYS”
OPCMGR IP 0.0.0.0 “dbnotify”
ACKNONLOCALMGR
MSGTARGETRULE
DESCRIPTION “Financial Application”
MSGTARGETRULECONDS
MSGTARGETRULECOND
DESCRIPTION “Financial appl. msg”
APPLICATION “xyz”
MSGTARGETRULECOND
DESCRIPTION “CAD appl. messages”
APPLICATION “CAD”
OBJECT “objxy”
MSGTARGETMANAGERS
MSGTARGETMANAGER
TIMETEMPLATE “$OPC_ALWAYS”
OPCMGR IP 0.0.0.0 “Treasury”
MSGTARGETRULE
DESCRIPTION “Crit. events from imp. systems”
MSGTARGETRULECONDS
MSGTARGETRULECOND
DESCRIPTION ““
SEVERITY Critical
NODE IP 0.0.0.0 “x1”
MSGTARGETRULECOND
DESCRIPTION ““
SEVERITY Critical
NODE IP 0.0.0.0 “x2”
MSGTARGETMANAGERS
MSGTARGETMANAGER
TIMETEMPLATE “$OPC_ALWAYS”
OPCMGR IP 0.0.0.0 “master”
290 Chapter 5
Configuring ITO
Flexible-management Configuration
Service Hours
The following example template defines service hours for a SAP server
with the node name saparv01. This node has to be in service on
weekdays from 08:00 hours to 16:00 hours.
TIMETEMPLATES
# time template
TIMETEMPLATE “service hours”
DESCRIPTION “template match for service hours”
TIMETMPLCONDS
TIMETMPLCOND
TIME FROM 08:00 TO 16:00
WEEKDAY FROM Monday TO Friday
RESPMGRCONFIGS
RESPMGRCONFIG
DESCRIPTION “Define service hours for a SAP server”
MSGTARGETRULES
MSGTARGETRULE
DESCRIPTION “Buffer msg outside service hrs for SAP”
MSGTARGETRULECONDS
MSGTARGETRULECOND
DESCRIPTION “Node with SAP server”
NODE IP 0.0.0.0 “sapsrv01”
MSGOPERATIONS
MSGOPERATION
TIMETEMPLATE “outside service hours”
INSERVICE
Scheduled Outage
The following example template defines a scheduled outage that
suppresses all messages relating to the application oracle from node
sapsrv01.
CONDSTATUSVARS
CONDSTATUSVAR “ora_on_sapsrv01” False
RESPMGRCONFIGS
RESPMGRCONFIG
DESCRIPTION “define outage for oracle on node orasv01”
MSGTARGETRULES
MSGTARGETRULE
DESCRIPTION “outage for oracle on node orasv01”
MSGTARGETRULECONDS
MSGTARGETRULECOND
DESCRIPTION “Node with oracle server”
CONDSTATUSVAR “ora_on_sapsrv01”
NODE IP 0.0.0.0 “sapsrv01”
APPLICATION “oracle”
MSGOPERATIONS
MSGOPERATION
SUPPRESS
Chapter 5 291
Configuring ITO
Variables
Variables
This section lists and defines the variables that can be used with ITO,
and gives an output example, where appropriate. Each variable is shown
with the required syntax.
NOTE It is also often useful to surround the variable with quotes, especially if it
may return a value that contains spaces.
Environment Variables
The variables listed below can be used before starting up ITO.
$OPC_BRC_HISTSIZE(env variable)
Returns the value of the environment variable for the
length of the user’s Broadcast Command history. The
maximum number of commands saved is 128 per user.
$OPC_ENV(env variable)
Returns the value of the environmental variable for the
user who has started ITO, for example PATH,
NLS_LANG, EDITOR, SHELL, HOME, TERM.
$OPC_HOME Returns the working directory of the user who starts
an ITO GUI session. If $OPC_HOME is not set, the
working directory is /tmp.If the unix user that started
the ITO GUI has no write permission in /tmp, an
error message is displayed but the GUI still starts.
SNMP Variables
The variables listed below can be used in most SNMP logfile text entry
fields (exceptions are noted). The variables can be used within ITO, or
passed to external programs.
<$#> Returns the number of variables in an
enterprise-specific SNMP trap (generic trap 6
Enterprise specific ID). Sample output: 2
292 Chapter 5
Configuring ITO
Variables
<$*> Returns all variables assigned to the trap. Sample
output:
[1] .1.1 (OctetString): arg1 [2] .1.2
(OctetString): kernighan.c.com
<$@> Returns the time the event was received as the number
of seconds since the Epoch (Jan 1, 1970) using the
time_t representation. Sample output: 859479898
<$1> Returns one or more of the possible trap parameters
that are part of an SNMP trap. (<$1> returns the first
variable, <$2> returns the second variable, etc.)
<$\>1> Returns all attributes greater than n as value strings,
useful for printing a variable number of arguments.
<$\>0> is equivalent to $* without sequence numbers,
names, or types. Sample output: richie.c.com
<$\>+1> Returns all attributes greater than n as name:value
string. Sample output: .1.2: richie.c.com
<$+2> Returns the nth variable binding as name:value. (Note:
not valid in the command field.)
Sample output: .1.2: ritchie.c.com
<$\>-n > Returns all attributes greater than n as [seq] name
(type): value strings. Sample output: [2] .1.2
(OctetString): kernighan.c.com
<$-2> Returns the nth variable binding as
[seq] name-type:value. (Note: not valid in command
field.) Sample output:
[2] .1.2 (OctetString): ritchie.c.com
<$A> Returns the node which produced the trap.
Sample output: ritchie.c.com
<$C> Returns the community of the trap.
Sample output: public
<$c> Returns the event’s category. Sample output: SNMP
<$E> Returns the enterprise ID of the trap.
Sample output: .1.3.6.1.4.1.11.2.17.1
<$e> Returns the enterprise object ID. Sample output:
.1.3.6.1.4.1.11.2.17.1
Chapter 5 293
Configuring ITO
Variables
<$F> Returns the textual name of the remote pmd’s machine
if the event was forwarded.
Sample output: kernighan.c.com
<$G> Returns the generic trap ID. Sample output: 6
<$MSG_OBJECT> Returns the name of the object associated with the
event. This is set in the Message Defaults section of
the Add/Modify SNMP Trap window. Note: this
returns the default object, not the object set in the
conditions window.
<$N> Returns the event name (textual alias) of the event
format specification used to format the event, as
defined in the Event Configurator.
Sample output: OV_Node_Down
<$O> Returns the name (object identifier) of the event.
Sample output:
.1.3.6.1.4.1.11.2.17.1.0.58916865
<$o> Returns the numeric object identifier of the event.
Sample output:
.1.3.6.1.4.1.11.2.17.1.0.58916865
<$R> Returns the true source of the event. This value is
inferred via the transport mechanism which delivered
the event. Sample output: kernighan.c.com
<$r> Returns the implied source of the event. This may not
be the true source of the event if the true source is
proxying for another source, such as when a monitoring
application running locally is reporting information
about a remote node. Sample output: richie.c.com
<$S> Returns the specific trap ID. Sample output: 5891686
<$s> Returns the event’s severity. Sample output: Normal
<$T> Returns the trap time stamp. Sample output: 0
<$V> Returns the event type, based on the transport from
which the event was received. Currently supported
types are SNMPv1, SNMPv2, CMIP, GENERIC, and
SNMPv2INFORM. Sample output: SNMPv1
<$X> Returns the time the event was received using the local
time representation. Sample output: 17:24:58
294 Chapter 5
Configuring ITO
Variables
<$x> Returns the date the event was received using the local
date representation. Sample output: 03/27/97
Logfile, Console, and ITO Interface Templates
The variables listed below can be used in most logfile, Console, and ITO
Interface template text entry fields (exceptions are noted). The variables
can be used within ITO, or passed to external programs.
<$OPTION(N)> Returns the value of an optional variable that is set by
opcmsg or opcmon (for example, <$OPTION(A)>
<$OPTION(B)>, etc.). Refer to the opcmsg or opcmon
man page for information about how to set this
variable.
<$MSG_APPL> Returns the name of the application associated with
the message. This name is set in the Message Defaults
section of the Add/Modify Logfile or Add/Modify
Console Messages windows. However, if a console
message already has a value for this field,
<$MSG_APPL> is not overwritten by an entry in the
Add/Modify Console Messages window. Sample
output:
/usr/bin/su(1) Switch User
<$MSG_GRP> Returns the default message group of the message, as
set in the Message Defaults section of the Add/Modify
Logfile, Add/Modify Console Messages,
Add/Modify Interface Messages window.
Sample output: Security
<$MSG_SEV> Returns the default value for the severity of the
message. This is set in the Message Defaults section of
the Add/Modify Logfile, Add/Modify Console
Messages, Add/Modify Interface Messages
window.
Sample output: Normal
<$MSG_TEXT> Returns the full text of the message. Sample output:
SU 03/19 16:13 + ttyp7 bill-root
<$MSG_TYPE> Returns the default name set for Message Type. This is
set in the Add/Modify Console Messages or
Condition No. window.
Chapter 5 295
Configuring ITO
Variables
<$OPC_MGMTSV> Returns the name of the current ITO management
server. Sample output:
richie.c.com
The following variables are only available for the MPE/iX console
message source template. See “Generating a New NMEV Marker” on
page 249 for a description of the format of the NMEV marker and how it
is generated.
<$NMEV_SEV> Returns the severity of the message as set within the
NMEV marker, if the marker is present in the original
messages.
Sample output: 2
<$NMEV_APPL> Returns the MPE/iX Application ID that is set within
the NMEV marker, if the marker was present in the
original message.
Sample output: 05
<$NMEV_CLASS> Returns the class field that was set within the NMEV
marker, if the marker was present in the original
message.
Sample output: 194
Threshold Monitor Templates
The variables listed below can be used in most threshold monitor
template text entry fields (exceptions are noted). The variables can be
used within ITO, or passed to external programs.
<$MSG_ID> Returns the unique identity number of the message, as
generated by the message agent. (Note: suppressed
messages do not have message IDs.) Sample output:
6e998f80-a06b-71d0-012e-0f887a7c0000
<$MSG_NODE> Returns the IP address of the node on which the
message originates. Sample output: 14.136.122.123
<$MSG_NODE_NAME>
Returns the name of the node on which the message
originates. Sample output: richie.c.com
<$NAME>
296 Chapter 5
Configuring ITO
Variables
Returns the name of a threshold monitor. This is set in
the Monitor Name field of the Add/Modify Monitor
window. Sample output: cpu_util
<$THRESHOLD> Returns the value set for a monitor threshold. This is
set in the Threshold: field on the Add/Modify
Monitor window. Sample output: 95.00
<$VALAVG> Returns the average value of all messages reported by
the threshold monitor. Sample output: 100.00
<$VALCNT> Returns the number of times that the threshold
monitor has delivered a message to the browser.
Sample output: 1
<$VALUE> Returns the value measured by a threshold monitor.
Sample output: 100.00
Broadcast Applications and User Interface
The variables listed below can be used in most broadcast application text
entry fields (exceptions are noted). The variables can be used within ITO,
or passed to external programs.
$OPC_ENV(env variable)
Returns the value of the environment variable for the
user who has started ITO, for example PATH,
NLS_LANG, EDITOR, SHELL, HOME, TERM.
$OPC_EXT_NODES
Returns the node pattern of all external nodes that are
selected at the time the application is executed. The
names are separated by spaces.
$OPC_GUI_CLIENT
Returns the hostname of the client where the
Java-based GUI is currently running.
$OPC_MSGIDS_ACT
Returns the Message IDs (UUIDs) of the messages
currently selected in the Active/All and any openView
Message Browser(s). Note that if the same message is
selected in more than one of these browsers, the
Chapter 5 297
Configuring ITO
Variables
duplicate selections will be ignored. Sample output:
85432efa-ab4a-71d0-14d4-0f887a7c0000
a9c730b8-ab4b-71d0-1148-0f887a7c0000
$OPC_MSGIDS_HIST
Returns the Message IDs (UUID) of the messages
currently selected in the History Message Browser.
Sample output:
edd93828-a6aa-71d0-0360-0f887a7c0000
ee72729a-a6aa-71d0-0360-0f887a7c0000
$OPC_MSGIDS_PEND
Returns the Message IDs (UUID) of the messages
currently selected in the Pending Messages Browser.
Sample output:
edd95828-ac2a-71d0-0360-0f887a7c0000
ee96729a-ada9-71d0-0360-0f887a7c0000
$OPC_NODES Returns the names of all regular nodes that are
selected at the time the application is executed. The
names are separated by spaces. The nodes need not be
in the node bank. Nodes can be selected directly in a
submap of the IP Map. Sample output:
kernighan.c.com richie.c.com
$OPC_USER Returns the name of the ITO user who is currently
logged in on the management server. Sample output:
opc_adm
Time Templates
The variables listed below can be used in ITO time templates. See
/etc/opt/OV/share/conf/OpC/mgmt_sv/
tmpl_respmgrs/example.m2. For example.
$OPC_ALWAYS This variable allows you to specify
that the time condition is always
true.
$OPC_PRIMARY_MGR This variable enables ITO to always
send the messages to the current
primary manager.
298 Chapter 5
Configuring ITO
Variables
299
6 Installing/Updating the ITO
Configuration on the Managed
Nodes
300 Chapter 6
Installing/Updating the ITO Configuration on the Managed Nodes
This chapter describes how to install/update the ITO configuration on
the managed nodes. In addition to this chapter, you should also read the
HP OpenView IT/Operations Concepts Guide, for a fuller understanding
of the elements and the windows you can use to review or customize
them.
Chapter 6 301
Installing/Updating the ITO Configuration on the Managed Nodes
Configuration Installation/Update on Managed Nodes
Configuration Installation/Update on
Managed Nodes
This section contains information concerning the distribution of the ITO
agent configuration within your environment.
Script and Program Distribution to Managed
Nodes
ITO enables you to distribute commonly-used scripts and programs to
the managed nodes. ITO only distributes these scripts and programs if
they are not installed on the managed node, or if a newer version is
available on the management server. However, in order to reduce
network traffic and speed up distribution, note the following points:
1. Put only commonly used binaries into the
/var/opt/OV/share/databases/OpC/mgd_node/customer/\
<arch>/{monitor|actions|cmds}
subdirectories, because the entire directory contents are installed on
each specified node, where <arch> is:
❏hp/s700/hp-ux
❏hp/s700/hp-ux10
❏hp/pa-risc/hp-ux11
❏hp/s800/hp-ux
❏hp/s800/hp-ux10
❏hp/s900/mpe-ix
❏dec/alpha/unix
❏ibm/intel/os2
❏ibm/rs6000/aix
❏ms/alpha/nt
❏ms/intel/nt
❏ncr/3000/unix
302 Chapter 6
Installing/Updating the ITO Configuration on the Managed Nodes
Configuration Installation/Update on Managed Nodes
❏novell/intel/nw
❏olivetti/intel/unix
❏pyramid/mips/unix
❏sco/intel/unix
❏sco/intel/uw
❏sequent/intel/dynix
❏sgi/mips/irix
❏sni/mips/sinix
❏sun/sparc/solaris
2. If you need a certain binary to be present only on specific systems,
transfer the file manually. Furthermore, do not put the file in the
default directory on the managed nodes. because the contents of this
directory are erased each time the binaries are distributed. For
example, do not put customized commands in the directory:
/opt/OV/bin/OpC/cmds
3. Specify the full path name of the customized script in the appropriate
ITO configuration. Alternatively, make sure the file is available via
the $PATH settings of the executing user on the managed node.
This is an example of a customized script to determine running
processes, which can be called as an application on the Application
Desktop or as a broadcast command:
/name/opc_op/scripts/my_ps
or
my_ps
and the $PATH variable of the executing user on the managed node
must contain /name/opc_op/scripts.
4. If many distribution requests are handled by the distribution
manager at the same time, the performance of other ITO services
such as the message manager can slow down. If this happens, some
managed nodes might not be able to receive data because the
distribution manager is too busy, and a warning message is displayed.
To avoid this:
• Minimize the number of managed nodes getting new configuration
data at the same time:
Chapter 6 303
Installing/Updating the ITO Configuration on the Managed Nodes
Configuration Installation/Update on Managed Nodes
• Select only a few nodes at a time in the IP map,Node Bank, or
Node Group Bank window.
• In the Node Bank or Node Group Bank window, open the
Configure Management Server window by selecting
Actions: Server->Configure… This is shown in Figure
6-1. Set a low number in the Parallel Distribution field.
For more information, press F1 to see help on this field.
• Reduce the process priority of opcdistm (distribution manager)
on the management server using the renice(1) command.
304 Chapter 6
Installing/Updating the ITO Configuration on the Managed Nodes
Configuration Installation/Update on Managed Nodes

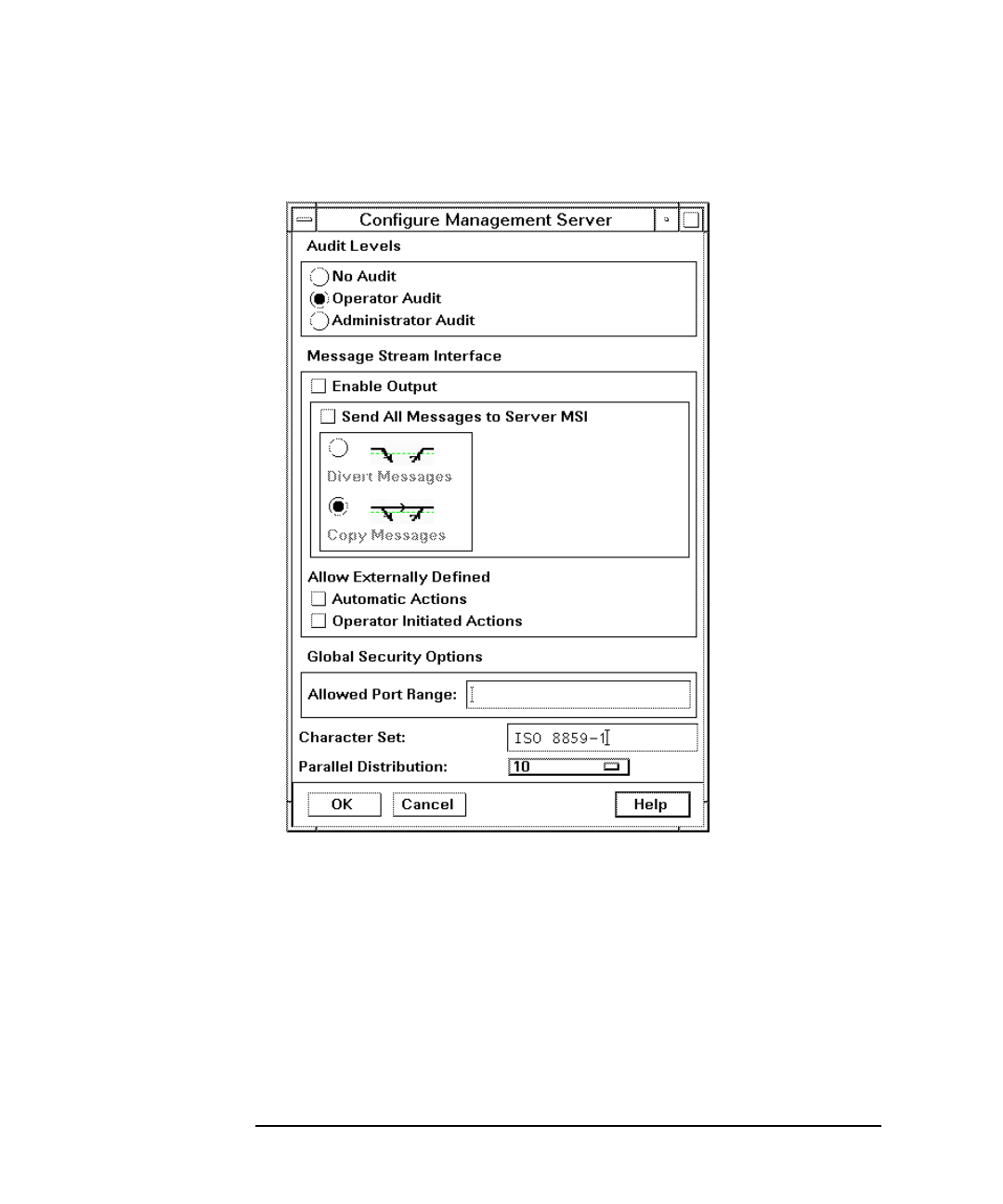

Figure 6-1 Configure Management Server Window
5. If identical files for actions|cmds|monitor are found in the following
directories:
/var/opt/OV/share/databases/OpC/mgd_node/customer/\
<arch>
and:
/var/opt/OV/share/databases/OpC/mgd_node/vendor/\
<arch>/<ito_version>/<package_type>
the customer’s file is used in preference.
Chapter 6 305
Installing/Updating the ITO Configuration on the Managed Nodes
Configuration Installation/Update on Managed Nodes
6. ITO compresses the monitor|actions|cmds binaries. Do not put a
file into the following directory, if the same file name already exists
with a .Z extension:
/var/opt/OV/share/databases/OpC/mgd_node/customer/\
<arch>/{monitor|actions|cmds}
Tips for Script Program Distribution to UNIX
Managed Nodes
❏For mixed clusters, the monitor|actions|cmds scripts and
programs need only be installed once for each architecture type, by
selecting one appropriate cluster node.
❏The file names of the monitor|actions|cmds binaries must not be
longer than 14 characters (including the .Z extension if compressed).
This limitation is set to ensure smooth processing on nodes running
with short file names.
Tips for Script Program Distribution to HP-UX
Managed Nodes
Customer-written programs for HP 9000 series 700 computers (Technical
Workstations) should be compiled using the -DA1.1 option (HP-PA
compatibility mode). This is because these programs must also run on
HP 9000 series 800 computers (Enterprise Servers). (ITO does not
distinguish between these two architectures.) If this is not possible, the
following symbolic link must be replaced by an ordinary s800/hp-ux
directory tree for HP-UX 10.x managed nodes:
/var/opt/OV/share/databases/OpC/mgd_node/customer/hp\
/s800/hp-ux -> ../../s700/hp-ux
Distributing the ITO Agent Configuration to
the Managed Nodes
After customizing the configuration and assigning templates to managed
nodes, distribute the managed node configuration by selecting both the
appropriate managed nodes, and the Templates component in the
Install/Update ITO Software and Configuration window. If no
configuration change has been made since the last configuration
distribution, no new distribution is triggered unless you select the Force
Update option.
306 Chapter 6
Installing/Updating the ITO Configuration on the Managed Nodes
Configuration Installation/Update on Managed Nodes
If you have configured actions or monitors in your templates, or
commands in your Application Bank/Desktop, these binaries must be
distributed as described in the following subsection.

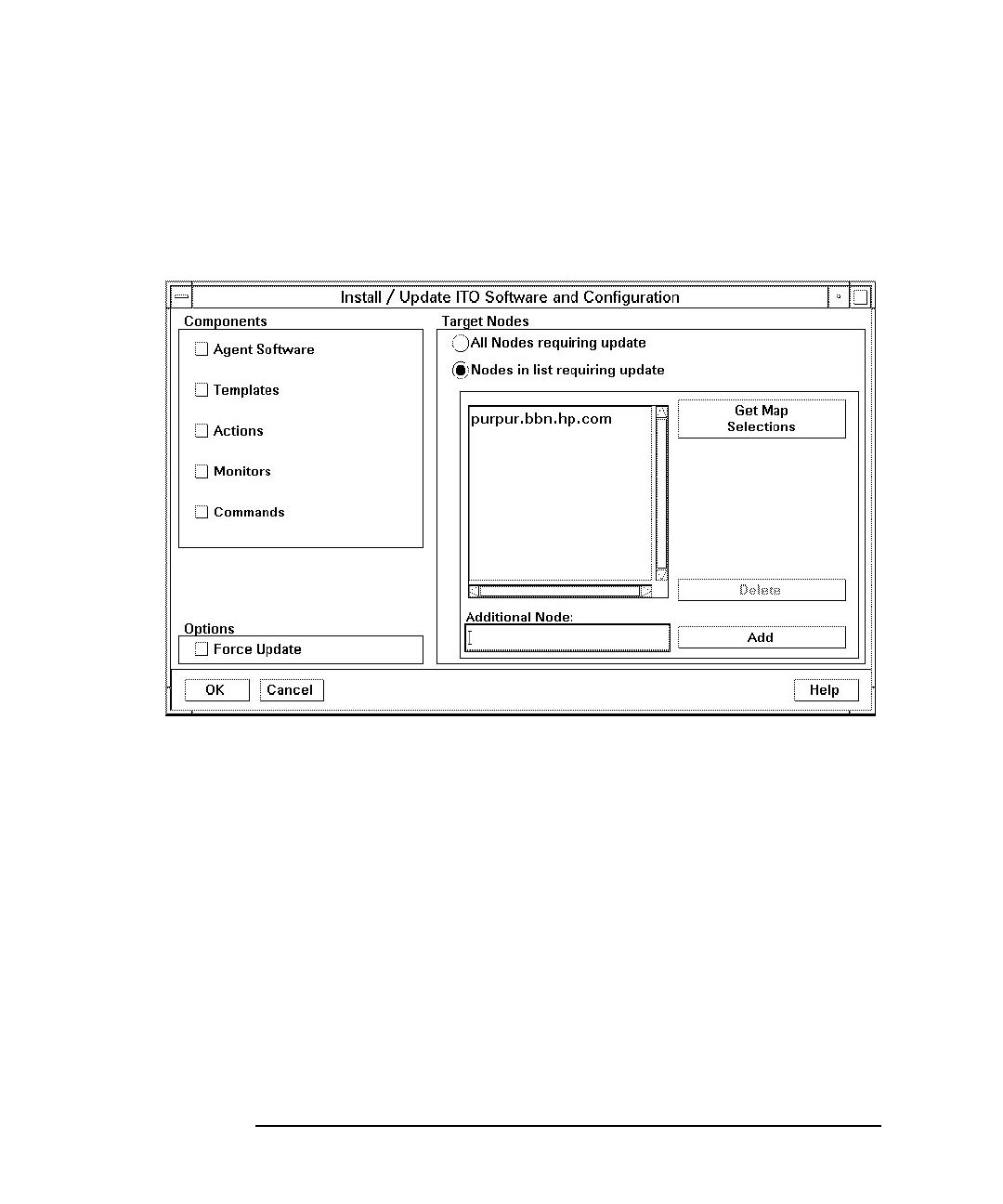

Figure 6-2 Install/Update ITO Software and Configuration Window
Installing/Updating Scripts and Programs on
Managed Nodes
ITO provides the distribution of commonly-used scripts and programs.
These can be called as automatic or as operator-initiated actions, or as
scheduled actions. Furthermore, these scripts can be used for
broadcasting commands or other procedures from the Application
Desktop, or they can be used by the monitoring agent and logfile
encapsulator.
To distribute the appropriate files, select the corresponding options in
the Install/Update ITO Software and Configuration window.
These scripts and programs are distributed only if they are not already
installed on the managed node, or when a newer version is available on
the management server.
Chapter 6 307
Installing/Updating the ITO Configuration on the Managed Nodes
Configuration Installation/Update on Managed Nodes
NOTE To update only the changes in the configuration, do not select the Force
Update option; the Force Update option (re-)distributes all files
causing an increase in network load.
The scripts and programs must be located in the directories on the
management server as listed in Table 6-1.
Table 6-1 Location of Scripts and Programs Provided by Customers
a. Where <arch> is the platform-specific directory, for example: hp/s700/hp-ux10
On managed nodes, the scripts and programs are put into the directories
listed in Table 6-2 and Table 6-3.
Script/Program Location a
Automatic,
Operator -initiated,
and Scheduled
Actions
/var/opt/OV/share/databases/OpC/mgd_node/customer\
/<arch>/actions/*
Monitoring scripts/
programs used by
monitoring agent
and logfile
encapsulator
/var/opt/OV/share/databases/OpC/mgd_node/customer\
/<arch>/monitor/*
Scripts/programs
called via
Command
Broadcast or
started from the
Application Desktop
/var/opt/OV/share/databases/OpC/mgd_node/customer\
/<arch>/cmds/*
308 Chapter 6
Installing/Updating the ITO Configuration on the Managed Nodes
Configuration Installation/Update on Managed Nodes
Table 6-2 Temporary Directories for Distributed Scripts
and Programs on Managed Nodes
Managed Node Operating
System Temporary Directory
DEC Alpha Windows NT /usr/OV/tmp/OpC/bin/alpha/actions
/usr/OV/tmp/OpC/bin/alpha/cmds
/usr/OV/tmp/OpC/bin/alpha/monitor
DEC Alpha AXP Digital UNIX /var/opt/OV/tmp/OpC/bin/actions
/var/opt/OV/tmp/OpC/bin/cmds
/var/opt/OV/tmp/OpC/bin/monitor
HP 3000/900 MPE/iX TMPACT.OVOPC
TMPCMDS.OVOPC
TMPMON.OVOPC
.ZOVOPC (for compressed files)
HP 9000/[78]00 HP-UX 10.x
and 11.x /var/opt/OV/tmp/OpC/bin/actions
/var/opt/OV/tmp/OpC/bin/cmds
/var/opt/OV/tmp/OpC/bin/monitor
IBM RS/6000, Bull
DPX/20 AIX /var/lpp/OV/tmp/OpC/bin/actions
/var/lpp/OV/tmp/OpC/bin/cmds
/var/lpp/OV/tmp/OpC/bin/monitor
Chapter 6 309
Installing/Updating the ITO Configuration on the Managed Nodes
Configuration Installation/Update on Managed Nodes
Intel 486 or higher DYNIX/ptx /var/opt/OV/tmp/OpC/bin/actions
/var/opt/OV/tmp/OpC/bin/cmds
/var/opt/OV/tmp/OpC/bin/monitor
Novell NetWare sys:/var/opt/OV/tmp/OpC/bin/actions
sys:/var/opt/OV/tmp/OpC/bin/cmds
sys:/var/opt/OV/tmp/OpC/bin/monitor
OS/2 \var\opt\OV\tmp\OpC\bin\actions
\var\opt\OV\tmp\OpC\bin\cmds
\var\opt\OV\tmp\OpC\bin\monitor
SCO
OpenServer
and UnixWare
/var/opt/OV/tmp/OpC/bin/actions
/var/opt/OV/tmp/OpC/bin/cmds
/var/opt/OV/tmp/OpC/bin/monitor
Windows NT /usr/OV/tmp/OpC/bin/intel/actions
/usr/OV/tmp/OpC/bin/intel/cmds
/usr/OV/tmp/OpC/bin/intel/monitor
NCR System
3xxx/4xxx/5xxx
(Intel 486 or
higher)
UNIX SVR4 /var/opt/OV/tmp/OpC/bin/actions
/var/opt/OV/tmp/OpC/bin/cmds
/var/opt/OV/tmp/OpC/bin/monitor
Olivetti (Intel PCs) Olivetti UNIX
SVR4 /var/opt/OV/tmp/OpC/bin/actions
/var/opt/OV/tmp/OpC/bin/cmds
/var/opt/OV/tmp/OpC/bin/monitor
Pyramid
mips_r3000 Pyramid
DataCenter/OSx /var/opt/OV/tmp/OpC/bin/actions
/var/opt/OV/tmp/OpC/bin/cmds
/var/opt/OV/tmp/OpC/bin/monitor
Managed Node Operating
System Temporary Directory
310 Chapter 6
Installing/Updating the ITO Configuration on the Managed Nodes
Configuration Installation/Update on Managed Nodes
The binaries are located in the temporary directories only during the
distribution phase. When distribution is completed, the local ITO action
and monitor agents are stopped, the binaries moved/copied to their final
destination, and the ITO action and monitor agents restarted.
Table 6-3 Target Directories for Distributed Scripts and Programs on
Managed Nodes
Siemens Nixdorf SINIX /var/opt/OV/tmp/OpC/bin/actions
/var/opt/OV/tmp/OpC/bin/cmds
/var/opt/OV/tmp/OpC/bin/monitor
Silicon Graphics IRIX /var/opt/OV/tmp/OpC/bin/actions
/var/opt/OV/tmp/OpC/bin/cmds
/var/opt/OV/tmp/OpC/bin/monitor
Sun SPARCstation Solaris /var/opt/OV/tmp/OpC/bin/actions
/var/opt/OV/tmp/OpC/bin/cmds
/var/opt/OV/tmp/OpC/bin/monitor
Managed Node Operating
System Temporary Directory
Managed
Node OS Directory Access Rights
DEC Alpha
AXP Digital
UNIX /var/opt/OV/bin/OpC/actions rwxr — r —
(owner:root)
/var/opt/OV/bin/OpC/cmds rwxr-xr-x
(owner:root)
/var/opt/OV/bin/OpC/monitor rwxr — r —
(owner:root)
DEC Alpha WindowsNT /usr/OV/bin/OpC/alpha/actions Administrator
(full access)
/usr/OV/bin/OpC/alpha/cmds Administrator
(full access)
/usr/OV/bin/OpC/alpha/monitor Administrator
(full access)
Chapter 6 311
Installing/Updating the ITO Configuration on the Managed Nodes
Configuration Installation/Update on Managed Nodes
HP 9000/700
HP 9000/800. HP-UX
10.x and
11.x
/var/opt/OV/bin/OpC/actions rwxr — r —
(owner: root)
/var/opt/OV/bin/OpC/cmds rwxr-xr-x
(owner: root)
/var/opt/OV/bin/OpC/monitor rwxr — r —
(owner: root)
HP 3000/900 MPE/iX ACTIONS.OVOPC
cap=BA,IA,PM,MR,DS,PH R,X,L,A,W,S:AC
COMMANDS.OVOPC
cap=BA,IA,PM,MR,DS,PH R,X:ANY;L,A,W,S:
AC
MONITOR.OVOPC
cap=BA,IA,PM,MR,DS,PH R,X,L,A,W,S:AC
IBM RS/6000,
Bull DPX/20 AIX /var/lpp/OV/OpC/actions rwxr — r —
(owner: root)
/var/lpp/OV/OpC/cmds rwxr-xr-x
(owner: root)
/var/lpp/OV/OpC/monitor rwxr — r —
(owner: root)
Managed
Node OS Directory Access Rights
312 Chapter 6
Installing/Updating the ITO Configuration on the Managed Nodes
Configuration Installation/Update on Managed Nodes
Intel 486 or
higher Novell
NetWare sys:/var/opt/OV/tmp/OpC/bin/\
actions Administrator
(full access)
sys:/var/opt/OV/tmp/OpC/bin/\
cmds Administrator
(full access)
sys:/var/opt/OV/tmp/OpC/bin/\
monitor Administrator
(full access)
OS/2 \var\opt\OV\bin\OpC\actions rwxa
\var\opt\OV\bin\OpC\cmds rwxa
\var\opt\OV\bin\OpC\monitor rwxa
SCO
OpenServer
UnixWare
DYNIX
/var/opt/OV/bin/OpC/actions rwxr — r —
(owner:root)
/var/opt/OV/bin/OpC/cmds rwxr-xr-x
(owner:root)
/var/opt/OV/bin/OpC/monitor rwxr — r —
(owner:root)
WindowsNT /usr/OV/bin/OpC/intel/actions Administrator
(full access)
Everyone (rx)
/usr/OV/bin/OpC/intel/cmds Administrator
(full access)
Everyone (rx)
/usr/OV/bin/OpC/intel/monitor Administrator
(full access)
Everyone (rx)
Managed
Node OS Directory Access Rights
Chapter 6 313
Installing/Updating the ITO Configuration on the Managed Nodes
Configuration Installation/Update on Managed Nodes
NCR System
3xxx/4xxx/5xx
x (Intel 486 or
higher
UNIX SVR4 /var/opt/OV/bin/OpC/actions rwxr — r —
(owner:root)
/var/opt/OV/bin/OpC/cmds rwxr-xr-x
(owner:root)
/var/opt/OV/bin/OpC/monitor rwxr — r —
(owner:root)
Olivetti
(INTEL PCs) Olivetti
UNIX /var/opt/OV/bin/OpC/actions rwxr-r-
(owner: root)
/var/opt/OV/bin/OpC/cmds rwxr-xr-r-x
(owner: root)
/var/opt/OV/bin/OpC/monitor rwxr-r-
(owner: root)
Pyramid
mips_r3000 Data
Center/ OSx /var/opt/OV/bin/OpC/actions rwxr-r-(owner:
root)
/var/opt/OV/bin/OpC/cmds rwxr-xr-r-x
(owner: root)
/var/opt/OV/bin/OpC/monitor rwxr-r-
(owner: root)
Siemens
Nixdorf SINIX /var/opt/OV/bin/OpC/actions rwxr — r —
(owner:root)
/var/opt/OV/bin/OpC/cmds rwxr-xr-x
(owner:root)
/var/opt/OV/bin/OpC/monitor rwxr — r —
(owner:root)
Managed
Node OS Directory Access Rights
314 Chapter 6
Installing/Updating the ITO Configuration on the Managed Nodes
Configuration Installation/Update on Managed Nodes
a. OS/2 has only write-access permission; files that can be read can also be executed if
a read-only flag is set. OS/2 does not support a user concept.
The ITO action agent and monitor agent append the appropriate
directories to the $PATH setting of the executing user.
Silicon
Graphics IRIX /var/opt/OV/bin/OpC/actions rwxr — r —
(owner:root)
/var/opt/OV/bin/OpC/cmds rwxr-xr-x
(owner:root)
/var/opt/OV/bin/OpC/monitor rwxr — r —
(owner:root)
Sun
SPARCstation Solaris /var/opt/OV/bin/OpC/actions rwxr — r —
(owner: root)
/var/opt/OV/bin/OpC/cmds rwxr-xr-x
(owner: root)
/var/opt/OV/bin/OpC/monitor rwxr — r —
(owner: root)
Managed
Node OS Directory Access Rights
315
7 Integrating Applications into
ITO
316 Chapter 7
Integrating Applications into ITO
This chapter describes how to integrate applications into ITO. The HP
OpenView IT/Operations Concepts Guide provides more detailed
information on the elements and the windows you can use to carry out
the integration. See also the HP OpenView IT/Operations Application
Integration Guide available with the HP OpenView IT/Operations
Developer’s Toolkit.
Chapter 7 317
Integrating Applications into ITO
Integrating Applications into ITO
Integrating Applications into ITO
ITO allows graphical invocation of applications (“point and click”) by
means of the operators’ Application Desktop. A different set of
applications can be assigned to each ITO operator to match specific
requirements.
If you have purchased an application which is prepared for ITO
integration (for example, HP OpenView OpenSpool, HP OpenView
OmniBack II, or HP OpenView OmniStorage) you can integrate it
quickly and easily using opccfgupld(1M).
You can integrate applications into the following components of ITO:
❏operators’ Application Desktop or administrator’s ITO
Application Bank
❏broadcast
❏automatic/operator-initiated actions, and scheduled actions
❏monitoring
❏logfile encapsulation
❏SNMP trap and message interception
This section also explains how ITO starts applications and broadcasts.
Integrating Applications into the Application
Desktop
You can add your own applications to the ITO Application Bank and
assign them to an operator. The applications are then invoked when the
operator double-clicks a symbol in the Application Desktop. You can
add the following types of applications to the ITO Application Bank:
• ITO applications
• HP OpenView applications
318 Chapter 7
Integrating Applications into ITO
Integrating Applications into ITO
ITO Applications
Typically, ITO applications are utilities that provide services of a general
nature. When integrated into the Application Desktop, they help
build a set of management tools.
The application is invoked when the user double-clicks the icon that
represents it. Information, such as selected nodes, can be passed as
arguments to the applications, and the applications are invoked using
the ITO access mechanisms. You add the application by filling in the
appropriate fields in the Add ITO Application and Add Internal
Application window. This is the easiest and quickest method to
integrate an application into the ITO Application Bank. For further
details, see the administrator’s online help and the HP OpenView
IT/Operations Application Integration Guide.
HP OpenView Integrated Applications
Plug-in of HP OpenView integrated applications is provided by
Application Registration Files (ARFs) which define how users access
applications and how application processes are managed. HP OpenView
applications also have access to HP OpenView windows through the HP
OpenView Windows Applications Programming Interface (API). This is
useful, for example, for generating application-specific submaps, as done
by HP OpenView OpenSpool, HP OpenView OmniBack II, and HP
OpenView OmniStorage. For more details about general HP OpenView
application integration, see the HP OpenView Windows Developers
Guide.
For more information concerning how to integrate HP OpenView
applications into ITO, see the administrator’s online help and HP
OpenView IT/Operations Application Integration Guide.
Examples of Application Integration Tasks
Integrating the IP Map and Network Node Manager
for IP
Applications which are a part of Network Node Manager are already
integrated with the HP OpenView platform. Therefore, these
applications can easily be integrated into ITO as OV Applications or OV
Services.
However, note that:
Chapter 7 319
Integrating Applications into ITO
Integrating Applications into ITO
❏If you have defined them to do so in the application registration file
(ARF), both OV Application and OV Service integrations can cause a
daemon to start running when the ITO session is started.
❏By integrating ITO as an OV Application you integrate a single action
as a desktop icon (as defined in the ARF).
❏By integrating ITO as an OV Service you integrate all actions as
menu items (as defined in the ARF).
NOTE New users who do not have the IP-Map application assigned can still log
in to ITO and run the command; ovw -map <user_name>, which opens
a “fake” IP Map for the specified user that is also present each time the
same user subsequently starts ITO. However, the user cannot do
anything with this faked IPMap as the full menus and services that are
usually present in the IP Map window are not available in this instance.
The ITO administrator should ensure that the directory tree
/var/opt/OV/share/databases/openview/mapdb is owned by root.
Allowing an Operator to View and Manage the opology of
IP Networks in the IP Map.
1. Working as the administrator, from the menu bar of the root IP Map,
select Window:Application Bank…. The ITO Application
Bank window opens.
2. Double-click on the application group labeled OV Services.
3. Drag and drop the application labeled IP Map into an operator’s
Assigned Applications window to enable the operator to manage
the IP topology.
4. (Re-)start the operator session.
5. Verify that the IP topology is being built under the IP Internet symbol
in the root submap.
Integrating “Ethernet Traffic HP” as an OV Application.
1. Working as the administrator, from the menu bar of the root IP Map,
select Window:Application Bank…. The ITO Application
Bank window opens.
2. As administrator, from the menu bar select
Actions:Applications->Add OV Application…. The Add OV
Application window opens.
320 Chapter 7
Integrating Applications into ITO
Integrating Applications into ITO
3. In the Add OV Application window enter the following application
attributes:
Application Name: Ethernet Traffic HP
OV Registration Application Name: IP Graphs
OV Registration Action Identifier: etherTrafficHP
And select [Use Objects selected by Operator].
4. Click on [OK].
5. Invoke this application as administrator and as operator:
a. As administrator:
Log out and log in again, to use this OV Application. Select a node
and double-click on the Ethernet Traffic HP application in
the ITO Application Bank.
Drag and drop this OV application into an operator’s Assigned
Applications window to enable the operator to monitor the
ethernet traffic. (Re-)start the operator’s session.
b. As operator:
Select a node and double-click on the Ethernet Traffic
application in the Application Desktop.
Integrating “IP Activity Monitoring - Tables” as an OV
Service.
1. Working as the administrator, from the menu bar of the root IP Map,
select Window:Application Bank…. The ITO Application
Bank window opens.
2. As administrator, from the menu bar select
Actions:Applications->Add OV Service…. The Add OV
Service window opens.
3. In the Add OV Service window enter the following application
attributes:
Application Name: IP Monitoring - Tables
OV Registration Application Name: IP Tables
4. Click on [OK].
5. Invoke this application as administrator and as operator:
Chapter 7 321
Integrating Applications into ITO
Integrating Applications into ITO
a. As administrator:
Log out and log in again to use this OV Service, click on a node and
select one of the menu items in the IP Map under
Performance:Network Activity or
Configuration:Network Configuration.
Copy this OV Service into an operator’s Application Desktop
to enable the operator to monitor the IP tables.
b. As operator:
(Re-)start your session, click on a node and select one of the menu
items under Performance:Network Activity or
Configuration:Network Configuration.
Integrating the RPM Performance Tools
ITO provides preconfigured elements to integrate the HP RPM
performance tools: MeasureWare Agent, PerfView, and GlancePlus. The
following preconfigured elements are provided in the application group
Performance:
❏Start PerfView
This application enables you to graph performance data on the
selected managed node(s). This application runs on the management
server and requires that HP PerfView is installed on the management
server.
❏Start Glance
This application starts HP GlancePlus on the managed node. This
requires that HP GlancePlus is first installed on the managed node.
In addition, ITO allows you to receive alarms from HP MeasureWare
Agents. As performance data is collected by the MeasureWare agent, it is
compared with the alarm conditions specified in the MeasureWare alarm
definitions file to determine whether the conditions have been met.
When an alarm condition is met, an alarm is generated and a message is
sent to the ITO agent. The ITO agent then forwards the alarm to the ITO
user(s) responsible for performance messages. The user may select a
performance alarm and then click on the [Perform Action] button in
the Message Browser to cause PerfView to run locally and graph the
MeasureWare metrics relating to the specific alarm to examine the
relevant metrics.
322 Chapter 7
Integrating Applications into ITO
Integrating Applications into ITO
ITO has predefined conditions in the opcmsg(1|3) template that allow
it to integrate the MeasureWare alarming functionality into ITO. The
opcmsg template defines the messages that can come from the
MeasureWare agent, together with the operator-initiated action that
starts PerfView.
To enable the PerfView/MeasureWare integration on an ITO agent, do
the following:
1. Assign the opcmsg(1|3) template to all managed nodes.
2. Distribute the [Commands] and [Templates] components to the
managed nodes.
To enable the GlancePlus integration, do the following:
❏Distribute the [Commands] components to the managed nodes.
For more information, see the HP OpenView MeasureWare Agent User’s
Manual and the online help for HP PerfView and HP GlancePlus.
Integrating PerfView 4.0 and MeasureWare Agents
PerfView 3.0 integration is based on the logfile encapsulation of
PerfView’s alarm log database (logfile PerfView, template group
Perfview).With PerfView 4.0, the PerfView agent is replaced by
MeasureWare software called PCS (Performance Collection Software).
This software uses unique alarm definitions, which send alarms to the
performance manager system. It is possible to configure the software to
send:
❏additional SNMP Traps in case of an alarm
❏an ITO message via opcmsg(1|3)
ITO has predefined conditions in the opcmsg(1|3) template that allow
it to use MeasureWare functionality on the ITO agent. To run the
PerfView 4.0/MeasureWare integration on an ITO Agent, first install
PerfView for all managed nodes monitored by PerfView/ITO, then
perform the following steps:
1. Assign the opcmsg(1|3) template to all managed nodes.
2. Distribute the [Commands] and [Templates] components to the
managed nodes.
3. Assign the PerfView 4.0/MeasureWare application to the appropriate
operators.
Chapter 7 323
Integrating Applications into ITO
Integrating Applications into ITO
Running PerfView 3.0 and PerfView 4.0 in parallel
If you upgrade some managed nodes from PerfView 3.0 to the
MeasureWare agent, remember to perform either one of the following
two steps to avoid receiving redundant PerfView alarms:
❏unregister MeasureWare agents from the PerfView 3.0 analysis
station (PerfView’s central alarm logfile)
❏modify the PerfView logfile template in ITO to intercept only the
events originating from those managed nodes where PerfView 3.0 is
installed
Allowing the Operator to Control ITO Agents
By default only an ITO administrator is allowed to start or stop ITO
agents on the managed nodes via the ITO GUI. However, changes to this
policy may be made by updating ITO Status, which ITO provides (in
the Application Bank) as a preconfigured ITO Application.
If you wish to allow the operators to control ITO agents, make two copies
of the “ITO Status” application, exchange the parameters, label and
description texts and, finally, assign these applications to your operators.
To do this, carry out the following steps:
1. From the menu bar, select Window:Application Bank…. The
Application Bank window opens.
2. Select the application ITO Status from the Application Bank.
3. Copy this application using Actions:Application->Copy and
modify it to become the ITO Agents Start application:
a. Change the attributes as follows:
Application Name: ITO Agents Start
Description: Starting of ITO Agents
Application call:
/opt/OV/bin/OpC/opcragt -start $OPC_NODES
Start on Target Node List: leave field empty
Executing user: root
Password: leave field empty
324 Chapter 7
Integrating Applications into ITO
Integrating Applications into ITO
b. Select [No Window] (for example, X Application) from the option
button.
c. Click on [OK].
4. Select again the application labeled ITO Status from the
Application Bank.
5. Copy this application using Actions:Application->Copy and
modify it to become the ITO Agents Stop application:
a. Change the attributes as follows:
Application Name: ITO Agents Stop
Description: Stopping of ITOAgents
Application call:
/opt/OV/bin/OpC/opcragt -stop $OPC_NODES
Start on Target Node List: leave field empty
Executing user: root
Password: leave field empty
b. Select [No Window] (for example, X Application) from the option
button.
c. Click on [OK].
6. Assign the new applications to the appropriate users.
Integrating Applications as Broadcast
Commands
Applications can be launched on several systems at the same time using
the ITO broadcast command facility in the Application
Desktop/Application Bank.
The application must be accessible via the executing user’s $PATH
settings on UNIX systems, or the path must be fully qualified on the
Broadcast Command window. Note that the application must be
available on the managed node.
You can also distribute simple and widely used applications via ITO to
managed nodes as explained in “Distributing the ITO Agent
Configuration to the Managed Nodes” on page 305.
Chapter 7 325
Integrating Applications into ITO
Integrating Applications into ITO
Integrating Applications as Actions
An application or script may be configured to run as an automatic or
operator-initiated action, or a scheduled action. An automatic action is
triggered by a message received in ITO. An operator-initiated action is
merely enabled by a message received in ITO; it is executed by the
operator. Operator-initiated actions may also be triggered by the
administrator, via the message browser. Scheduled actions are
configured by the administrator and execute a routine task at a
configured time. These actions are always performed by the ITO action
agent, which operates as root on UNIX systems, as AGENT.OVOPC on
MPE/iX systems, and as HP ITO Account on Windows NT systems. Note
that the action must be available on the managed node.
NOTE Note that HP ITO Account is part of the Administrator, Domain
Administrator and User Administrator groups. If an action is prohibited
for one of these groups, the HP ITO Account will not be able to perform
that action.
The application must be accessible via the root’s $PATH settings on
UNIX systems, or the path must be fully qualified on the corresponding
message condition configuration window.
You can also distribute simple and widely used applications via ITO to
the managed node as explained in “Distributing the ITO Agent
Configuration to the Managed Nodes” on page 305.
Integrating Monitoring Applications
Applications can be used for monitoring purposes if they deliver the
monitored object status using the opcmon(1) command or opcmon(3)
API.
The monitoring application must be accessible via the root’s $PATH
settings on UNIX systems, or the path must be fully qualified on the
corresponding monitor configuration window. Note that the application
must be available on the managed node.
You can also distribute simple and widely used monitoring applications
via ITO to the managed node as explained in “Distributing the ITO
Agent Configuration to the Managed Nodes” on page 305.
326 Chapter 7
Integrating Applications into ITO
Integrating Applications into ITO
Application Logfile Encapsulation
Applications can be monitored by observing their logfiles. Logfile entries
can be forwarded into ITO, or suppressed. The message can be
restructured and ITO specific attributes can be set up. For more details
refer to the Message Source Templates window of the ITO
administrator’s GUI.
NOTE Most applications running on Windows NT systems use Eventlogs. The
information in these databases can be extracted by the logfile
encapsulator, but there are some differences in the set-up procedure.
Refer to the ITO online help or the HP OpenView IT/Operations
Concepts Guide for more information.
Application Message Interception
The applications that ITO can make use of to integrate a message,
include:
❏Logfiles
❏SNMP traps
❏opcmsg(1) command
❏opcmsg(3) API
These messages can then be either suppressed or forwarded according to
the configuration of ITO. In addition, the message can be restructured,
and ITO-specific attributes set up. For MPE/iX systems, ITO also
supports console message interception.
For more details, see the Message Source Template window in the
administrator’s ITO GUI.
Server Message Stream Interface API
Applications can also register to receive messages on the management
server using the Message Stream Interface (MSI) API on the ITO
management server. This interface lets you plug in event correlation
engines, and statistical analysis tools to establish a link to other network
and system management applications.
Chapter 7 327
Integrating Applications into ITO
Integrating Applications into ITO
Messages are intercepted before they are added to the ITO database and
before they are displayed in the ITO message browsers. For further
information, see the documentation available with the HP OpenView
IT/Operations Developer’s Toolkit.
How ITO Starts ITO Applications and
Broadcasts on Managed Nodes
Before the application or the broadcast command is started on the
managed node, the profile of the executing user is performed
programmatically. Note the following restrictions concerning user
profiles:
❏Do not ask for specific user input in the profile. Instead, you can
provide an appropriate default value, to be returned only when Return
is pressed.
For example, the following script for HP-UX 10.x produces an endless
loop if no valid answer is specified.
#!/usr/bin/sh
TERM=””
while [ -z ”${TERM}” ]
do
echo ”Type of terminal (hp|vt100): \c”
read TERM
if [ ”${TERM}” != ”hp” -a ”${TERM}” != ”vt100” ]
then
TERM=””
fi
done
The correct way to specify the default value is shown below. Note that
if no valid answer is specified, a default value is used.
#!/usr/bin/sh
echo ”Type of terminal (hp=default|vt100): \c”
read TERM
if [ ”${TERM}” != ”hp” -a ”${TERM}” != ”vt100” ]
then
TERM=hp
fi
❏Command broadcast and startup of the following applications (none
of which require a separate terminal window) are done via the ITO
action agent:
• application configured as Window (Output Only)
• application configured as Window (Input/Output)
328 Chapter 7
Integrating Applications into ITO
Integrating Applications into ITO
• application configured as No Window (eg X Application)
During the profile execution stdin,stdout and stderr are not
available, so you should avoid commands reading from standard
input or writing to standard output/error. Especially avoid commands
such as:
•stty
•tset
• startup of window (input/output) applications
❏If a delay of more than 2 seconds occurs during output or input
activity, ITO assumes that an error has occurred, and it stops
execution. This could happen, for example, if a program runs for more
than 2 seconds without generating output.
❏Do not ask more than four questions in the user’s profile, since ITO
only answers up to four prompts with Return.
❏Do not add a logout message to the user’s profile because ITO adds
the message at the end of the applications output. In addition, do not
use sequences of escape characters in the profile because these are
also added to the application output, causing it to be garbled.
SMS Integration
The ITO/SMS integration is a collection of monitors and templates that
provides the ITO NT agent with the ability to monitor an SMS
installation in the PC subnet of an IT environment. This allows ITO
users to monitor the environment of NT nodes, and to restart SMS
services if they fail.
NT agents installed on every Site Server report SMS information about
the entire SMS hierarchy without using any SMS mechanisms.
Supported Versions of SMS
ITO supports both the English and the Japanese System Management
Server (SMS) 1.2 on Microsoft Windows NT Server 3.51 and 4.0.
Chapter 7 329
Integrating Applications into ITO
Integrating Applications into ITO
How to integrate ITO with SMS
The ITO/SMS integration has two parts. The first consists of the
standard NT application event log template, and the second consists of a
specific SMS application event log template and fourteen threshold
monitors. This sections explains how to set up and install these
templates and monitors.
1. Assign the SMS monitors and templates to the appropriate NT
servers.
The SMS integration contains fourteen threshold monitors that
monitor SMS services, an UP and DWN monitors for each service
(see Table 7-1). One or both of these monitors should be assigned to
the NT systems that run the services that the templates will monitor.
The DWN monitor sends ITO a message when the service that it
monitors is down, and either automatically restarts the service, or
provides the operator with the command that will restart it. The UP
monitor sends ITO a message when the service is running again. (UP
monitors never have an associated action.)
Table 7-1 ITO SMS Monitors for SMS Services
ITO SMS Monitors SMS Service Restart*
NT_DWN_SMS_CLIENT_CONFIG_MANAGER Client Configuration Manager OA
NT_UP_SMS_CLIENT_CONFIG_MANAGER none
NT_DWN_SMS_EXECUTIVE Executive OA
NT_UP_SMS_EXECUTIVE none
NT_DWN_SMS_HIERARCHY_MANAGER Hierarchy Manager AA
NT_UP_SMS_HIERARCHY_MANAGER none
NT_DWN_SMS_INVENTORY_AGENT Inventory Agent OA
NT_UP_SMS_INVENTORY_AGENT none
NT_DWN_SMS_PACKAGE_COMMAND_MANAGER Package Command Manager OA
NT_UP_SMS_PACKAGE_COMMAND_MANAGER none
330 Chapter 7
Integrating Applications into ITO
Integrating Applications into ITO
* OA = Operator Action; AA= Automatic Action
The Application Event Log template, NT SMS, must be assigned to
any SMS Site Server of the SMS hierarchy, but cannot be assigned to
the logon,distribution, or helper servers because duplicate
reprocessing of problems will result. These servers are also logged
into the NT application event log of the Site Server. The Application
Event Log template must be on a Site Server— even if the site is
distributed.
2. Customize the conditions for the templates.
There are two templates that must be considered when customizing
the template conditions for the SMS Site Server: the SMS-specific
application event log template, and the default NT application event
log template.
A suppress unmatched condition is the first condition of the SMS
application event log template. This condition suppresses all NT
application event log entries that are not SMS-related, thus ensuring
that the entire set of 586 match conditions is not checked
unnecessarily for non-SMS log entries.
The default NT Logfile encapsulator template, dflt_ApplEvLog, has
aforward unmatched flag set by default. This means that if both
templates are installed on an SMS Site Server, two messages will be
generated for each SMS-related event log entry: one by the SMS
template and one by the default NT Logfile template. To avoid this
problem, add one additional suppress matched condition at the
beginning of the default NT Logfile template that suppresses
SMS-related messages. This condition needs to match the string SMS
in the application field of the message.
This additional condition is needed only if you assign both templates
to the same node and if the you keep the forward unmatched
condition set in the default template.
NT_DWN_SMS_SITE_CONFIG_MANAGER Site Configuration Manager AA
NT_UP_SMS_SITE_CONFIG_MANAGER none
NT_DWN_SMS_TRAP_FILTER Trap Filter none
NT_UP_SMS_TRAP_FILTER none
ITO SMS Monitors SMS Service Restart*
Chapter 7 331
Integrating Applications into ITO
Integrating Applications into ITO
3. Distribute the templates (and the agent as well, if it is not already
installed).
How SMS messages relate to ITO messages
When ITO reports SMS messages in the Message Browser, it assigns a
Message Group and Message Object that is appropriate to the message.
The tables below show how the SMS messages will be mapped in ITO.
Table 7-2 SMS Message assignment to ITO Message Groups
Table 7-3 SMS Event Assignment to ITO Message Objects
SMS Message ITO Message Group
All messages containing one of the words:
inventory, job, package, instruction, or
compress.
Jobs
All SMS network errors that are not related
to jobs. Network
All SMS security errors that are not related
to jobs. Security
All SMS database errors that are not related
to jobs. DB
All remaining errors. OS
SMS Events ITO Message Objects
All events that are related to setup,
installation, configuration. Configuration
All events that can be related to inventory
collection. Inventory
All events that can be related to package
distribution. Distribution
All events that can be related to application
errors. Application
All remaining events. Miscellaneous
332 Chapter 7
Integrating Applications into ITO
Integrating Applications into ITO
EMS Integration
The Event Monitoring Service (EMS) provides a mechanism for
monitoring system resources on HP-UX and sending notifications about
these system resources when they change in an observable way. EMS has
been integrated into ITO so that it is possible to forward EMS
notifications to ITO via the opcmsg (3) API. EMS events complement the
range of ITO message sources in that they provide data which is not
immediately accessible to ITO; for example, monitors for the status of
peripheral components.
Monitoring requests for EMS are configured using the EMS GUI client
which is integrated into SAM, the HP-UX system administration tool. To
start the EMS GUI, start SAM, for example from the ITO Application
Bank window, and double-click on the Resource Management icon, then
on the Event Monitoring Service icon. opcmsg(3) has been
integrated into the EMS GUI and can be selected as a notification target
for EMS events.
EMS also provides preconfigured conditions for the ITO Interface
Messages template for use with ITO. The ITO-EMS template can be
downloaded from http://software.hp.com; click on High
Availability, then on Event Monitoring Service Developer’s
Kit. Download the tar file from the web page and follow the instructions
given in the readme.ito file.
EMS is available from DART and must be installed before you can use
the ITO-EMS templates. For more information about EMS, see the
documentation supplied with the EMS product. EMS is only supported
on HP Enterprise Servers running HP-UX 10.20 or 11.00.
333
8 ITO Language Support
334 Chapter 8
ITO Language Support
This chapter describes the language dependencies of the ITO
management server processes, managed node commands and processes,
and the ITO GUI. It also describes the languages and LANG settings
supported for the various ITO platforms. In addition, you will find
information on the character sets supported by ITO.
Chapter 8 335
ITO Language Support
Language Support on the Management Server
Language Support on the Management
Server
On the management server, localization considerations impact:
❏The language used for displaying the status messages of the ITO
server and managed nodes in the ITO Motif GUI.
❏The character set used for internal processing.
Language of Messages on Management Server
When the ITO server processes are started, for example, with ovstart
ovacomm and ovstart opc, the currently set locale is evaluated and the
related message catalog is selected for use. This usually takes place
during system boot, with ovstart being issued by:
/sbin/init.d/ov500
At this point, the LANG variable is set to C or not yet set.
If you require the ITO server processes to send their status messages in
a different (supported) language, set LANG before ovstart ovacomm is
called.
Internal Processing Character Set on
Management Server
ITO supports the Oracle database character sets:
❏WE8ISO8859P1
❏JA16SJIS
WE8ISO8859P1 is an 8-bit character set which corresponds to
ISO8859-1 and supports most Western European languages. The Shift
-JIS character set is used for the Japanese environment only.
The database character set is set during the ITO installation and
determines the internal processing character set of the management
server. The database and the ITO management server must have the
same internal character set so that they are able to process data
correctly and to minimize character set conversions during runtime. The
336 Chapter 8
ITO Language Support
Language Support on the Management Server
locale settings used to start the ITO processes must be compatible to the
database character set. All input data on the management server must
be given in this character set.
ITO GUI Considerations
ITO uses the setting of the environment variable LANG, to determine
the language of the message catalog and the GUI. When starting the ITO
GUI, the following settings for this variable are supported:
❏C, *.iso88591, *.roman8
❏ja_JP.SJIS
In the Japanese version of ITO, most text entry fields in the GUI allow
you to enter more characters than the database accepts. ITO returns a
corresponding error message and asks you to reduce the number of
entered characters.
Note that the Message Browser displays 8-bit characters (characters of
the code value 128 or higher) as dots when LANG is set to C or
C.iso88591. This only affects how messages are displayed in the GUI; the
contents of the ITO database remain unchanged.
TIP ITO also supports running an English ITO GUI in a Japanese
environment. In this case, however, although you are running on a
Japanese management server you will receive messages and some labels
in Japanese, due to various HP OpenView platform restrictions.
If your management server is in a Japanese environment, but you want
to receive English messages, set the following language variables as
shown: LANG=ja_JP.SJIS, and LC_MESSAGES=C.
When working with international keyboards, make sure that you have
set the KBD_LANG variable accordingly. For example, to enter German
text containing an umlaut into the ITO GUI:
KBD_LANG=de_DE.iso88591; export KBD_LANG
Important X-Resources used by ITO:
The fonts used through the resources described below must be
compatible with the internal character set used by the management
server. In other words, if you run an environment using the ISO8859-1
character set, your fonts should be iso8859-1 fonts. If not, some labels or
messages may not display correctly.
Chapter 8 337
ITO Language Support
Language Support on the Management Server
ITO uses the system-wide X-resources for window titles and icon labels.
Table 8-1 System-wide X Resources in a VUE and CDE Environment
ITO-specific resources are set in one of the files listed below:
❏English: /opt/OV/lib/X11/app-defaults/C/Opc
❏Japanese: /opt/OV/lib/X11/app-defaults/ja_JP.SJIS/Opc
Table 8-2 ITO-Specific X Resources Used for Fonts
Resource Description
*FontList Font used for window titles.
Vuewm*icon*fontList Font used for icon titles.
Resource Description
Opc.fixedTextFont Font used in list boxes, for example, in the Message Browser.
Opc.variableTextFont Font used for other labels in the GUI.
Opc.buttonFont Font used for push buttons, for example, Close.
338 Chapter 8
ITO Language Support
Language Support on Managed Nodes
Language Support on Managed Nodes
Language of Messages on Managed Nodes
ITO managed-node processes determine the language of their messages
by the locale that is set. Therefore, if you want these processes to
generate, for example, Japanese messages, you must make sure that the
locale, and therefore LANG, is set appropriately before opcagt -start
is called.
The locale for the ITO agents is set in the system startup script, for
example /etc/rc.config.d/opcagt on HP-UX 10.x and 11.x. Set
START_LANG to the locale you want the ITO agent to start in and restart
your agents.
See Chapter 3, “File Tree Layouts on the Managed-Node Platforms,” for
the location of the system resource files adapted by ITO on all supported
agent platforms.
See Table 8-5 on page 341 for LANG settings supported on English
managed nodes, and Table 8-6 on page 343 for LANG settings supported
on Japanese managed nodes.
NOTE Windows NT, DEC Alpha NT, Novell NetWare, and OS/2 managed nodes
use the NT System Language. A LANG environment variable is not
available.
NOTE HP-UX, AIX, Solaris, Digital UNIX, and Windows NT (Intel-based) are
supported in Japanese and English environments.
MPE/iX, SGI IRIX, SCO OpenServer, SCO UnixWare, NCR UNIX SVR4,
Siemens Nixdorf SINIX, Sequent DYNIX/ptx, Olivetti UNIX, Pyramid
DataCenter/OSx, OS/2, and Windows NT on DEC Alpha are only
supported in the English environment.
Fileset Requirements on Managed Nodes
Some operating systems must have a specific fileset installed for code-set
conversion. See “Managed Node Requirements” on page 29 for software
requirements on all managed node platforms.
Chapter 8 339
ITO Language Support
Language Support on Managed Nodes
Character Sets for Internal Processing on
Managed Nodes
The character sets available on platforms supported by ITO can differ
from the character set used in the ITO database. Consequently, when a
message is generated on a managed node, it must often be converted
before it can be sent to the management server and stored in the
database.
ITO takes care of this conversion. If necessary, automatic character-set
conversions take place through ITO managed node processes before a
message is sent to the server.
The character set supported for managed nodes depends on the
environment. If you operate in an English environment, your database
character set is WE8ISO8859P1 (Oracle) and the following character sets
are supported for ITO managed nodes:
Table 8-3 Supported Character Sets on Managed Nodes in an English
Environment
a. Code Page 1252 is analogous to ISO 8859-1.
If you operate in a Japanese environment, your database character set is
Shift JIS, and the following character sets are supported for ITO
managed nodes:
Platform Character Set
HP-UX ISO 8859-1, ROMAN8, ASCII
MPE/iX ROMAN8
Solaris, AIX, NCR UNIX SVR4, SCO OpenServer, SCO
UnixWare, SGI IRIX, Digital UNIX (OSF/1), Sequent
DYNIX/ptx, Siemens Nixdorf SINIX, Olivetti UNIX,
Pyramid DataCenter/OSx
ISO 8859-1, ASCII
Windows NT (Intel and DEC Alpha), Novell NetWare,
OS/2 Multilingual ANSI Code
Page 1252a, ASCII
340 Chapter 8
ITO Language Support
Language Support on Managed Nodes
Table 8-4 Supported Character Sets on Managed Nodes in a Japanese
Environment
a. For Solaris, Shift JIS is only supported with Solaris version 2.6 and higher.
b. 2-byte Extended UNIX Code.
c. Code Page 932 is analogous to Shift JIS.
The character set used for a node can be modified in the Advanced
Options window of the Add/Modify Node window. All managed node
processing is performed using this character set.
The ASCII Character Set
ASCII is supported as internal character set on the managed node and as
character set for the ITO Logfile Encapsulator. It is a 7-bit character set
and therefore a subset of the 8-bit Shift JIS character set. This means
that ASCII can be converted to Shift JIS without loss of data and enables
you to manage English nodes (running with ASCII as internal character
set) with a Japanese management server. Note however, that if you are
using ASCII as the character set for internal processing ( in the Node
Advanced Options window), you must also specify ASCII as the
character set for the monitored logfile messages.
NOTE To change the character set of the ITO Logfile Encapsulator on the
managed node, you must first deassign and remove the logfile template
from the managed nodes. Once the template has been successfully
removed, stop and start the agent processes, change the character set
from multibyte to ASCII, and assign and distribute the template.
To manage English nodes with a Japanese management server, you must
assign templates to the managed node which only contain ASCII data.
Japanese installations can upload English templates in addition to the
multibyte Japanese templates from the ITO database but must change
the template name to be able to do so. Make sure to set LANG=C before
calling opccfgupld(1M).
Platform Character Set
HP-UX, AIX, Solaris, Digital UNIX Shift JISa, EUC b, ASCII
Windows NT (intel-based) Japanese ANSI Code Page 932 c, ASCII
Chapter 8 341
ITO Language Support
Language Support on Managed Nodes
External Character Set on Managed Nodes
All commands provided for ITO managed nodes, such as opcmsg(1M) or
opcmon(1M), interpret (the character set of) their command line
arguments by the locale setting. This character set may also be different
from the database character set and the managed node processing
character set. All command input is also converted before it is acted upon
by any managed node processes.
The following table shows the values of LANG supported by ITO, and the
related external character set, in an English environment.
Table 8-5 External Character Sets in an English Environment
Platform LANG External
Character Set
AIX C
<lang>.ISO8859-1
<lang>.IBM-850
ASCII
ISO 8859-1
OEM Code Page 850
Digital UNIX C
<lang>.ISO8859-1
ASCII
ISO 8859-1
HP-UX 10.x/11.x C
<lang>.roman8
<lang>.iso88591
ASCII
ROMAN8
ISO 8859-1
MPE/iX NATIVE-3000 ROMAN8
Novell NetWare LANG variable not available ASCII
OEM Code Page 850
OEM Code Page 437
ANSI Code Page
1252
342 Chapter 8
ITO Language Support
Language Support on Managed Nodes
<lang> refers to any language that is supported by the operating system.
Although it is possible to specify literally any language in this field, you
can receive ITO messages only in a language supported by ITO. ITO only
uses the value of LANG to determine the external character set.
Messages are therefore in LANG=C in this case.
The following table shows the values of LANG supported by ITO, and the
related external character set, in a Japanese environment.
OS/2 LANG variable not available ASCII
ISO 8859-1
OEM Code Page 437
OEM Code Page 850
NCR UNIX SVR4, SCO
UnixWare, SGI IRIX, Sequent
DYNIX/ptx, Olivetti UNIX,
Pyramid DataCenter/OSx
C
<lang>.iso8859-1
ASCII
ISO 8859-1
SCO OpenServer C
<lang>.8859
ASCII
ISO 8859-1
Siemens Nixdorf SINIX C
<lang>.88591
ASCII
ISO 8859-1
Solaris C
<lang>
ASCII
ISO 8859-1
Windows NT LANG variable not available OEM Code Page 850
OEM Code Page 437
ANSI Code page
1252
ASCII
Platform LANG External
Character Set
Chapter 8 343
ITO Language Support
Language Support on Managed Nodes
Table 8-6 External Character Sets in a Japanese Environment
a. Only with Solaris 2.6 and later.
Character Sets supported by the Logfile
Encapsulator
The ITO Logfile Encapsulator is capable of monitoring files with
different character sets. You can specify a character set for each file
monitored by ITO. The character set can be different from the character
set defined for that managed node but must be compatible.
NOTE If you are using ASCII as the character set for internal processing (by
setting the locale to C), you must also specify ASCII as the character set
for the monitored logfile messages. ASCII is a subset of Shift JIS and can
be converted without loss of data; Shift JIS logfiles cannot be converted
to ASCII without risking loss of data.
Table 8-6 on page 343 shows all the supported character sets for various
logfile messages.
NOTE Code Page 932 or Code Page 1252 are the only character sets valid for
the NT EventLog.
Platform LANG External Character Set
AIX C
ja_JP, <lang>.IBM-932,
<lang>.IBM-eucJP
ASCII
Shift JIS
EUC
HP-UX 10.x and 11.x
Digital UNIX C
ja_JP.SJIS
ja_JP.eucJP
ASCII
Shift JIS
2-byte EUC
Solaris C
ja_JP.PCKa
ja
ASCII
Shift JISa
EUC
Windows NT LANG variable not available ANSI Code page 932, ASCII
344 Chapter 8
ITO Language Support
Language Support on Managed Nodes
Table 8-7 Character sets supported by the Logfile Encapsulator
Character Set
Windows
NT
Nodes
HP-UX, Solaris,
AIX, Digital UNIX
Nodes
NetWare,
OS/2
Nodes
Other
Nodes
English
Japanese
English
Japanese
English
English
ASCII ✔✔ ✔ ✔ ✔ ✔
ISO 8859-1 ✔✔✔
no MPE
ROMAN 8 HP-UX MPE
American EBCDIC HP-UX
Multilingual OEM code
page 850 ✔AIX ✔
OEM US code page 437 ✔✔
Multilingual ANSI code
page 1252 ✔NetWare
Japanese ANSI code
page 932 ✔
Shift JIS ✔
Solaris
2.6
EUC (2-byte Extended
UNIX code) ✔
Chapter 8 345
ITO Language Support
Character Conversion in ITO
Character Conversion in ITO
English Environment
Figure 8-1 ITO Configuration and Related Character Sets in an English
Environment
DB
OVwindows
ISO 8859-1
HP-UX
MPE
Solaris
AIX
NCR UNIX
ISO 8859-1
logfiles:
opcerror
opcmsglg
monitored
logfile
configuration
files
user command:
opcmsg
opcmon
opcagt
Roman8/
Roman8
ISO 8859-1
ISO 8859-1
action
agent
ISO 8859-1
ISO 8859-1
output to disk
reports
broadcast (save)
opccfgupld
MIB
Ext. CS
Node CS
User def.
Node CS
SV CS
Management Server
SGI IRIX
SCO OS
WE8ISO8859P1
(Oracle)
opccfgdwn
Key:
ISO 8859-1
MOM
config
SV CS = Server Character Set
Ext. CS = External Character Set
Digital UNIX
DYNIX/ptx
ITO Server
ITO UI
Olivetti UNIX
ISO 8859-1/
SINIX
Pyramid DC
NetWare
Windows NT
Managed Nodes
SCO UW
OS/2
DEC Alpha NT ACP1252
ASCII
ASCII
ISO 8859-1
ASCII
ISO 8859-1
ASCII
ISO 8859-1
ASCII
ISO 8859-1
ASCII
ISO 8859-1
ASCII
ISO 8859-1
ASCII
ISO 8859-1
ASCII
ISO 8859-1
ASCII
ISO 8859-1
ASCII
ISO 8859-1
ASCII
ISO 8859-1
ASCII
ASCII
ACP1252
ASCII
ACP1252
ASCII
SNMP
traps
Node CS
346 Chapter 8
ITO Language Support
Character Conversion in ITO
Management Server:
❏Local Logfile entries (opcerror), history download, etc., are
processed using the ISO 8859-1 character set.
❏Configuration upload and download is done using ISO 8859-1.
No runtime conversion is done on the management server. Conversion is
only performed for managed node configuration files if the ITO agents on
HP-UX or MPE/iX are running with the processing character set,
ROMAN8.
Managed Nodes:
❏Incoming SNMP events are always interpreted as being ASCII.
❏Input through user commands is always converted from the external
character set to the node character set.
❏No input conversion is done for configuration files; configuration files
are always in the node processing character set, as defined in the
Add/Modify Node window.
❏No output conversion is done for local ITO logfiles; the contents of
logfiles are always in the node processing character set, as defined in
the Add/Modify Node window.
❏MIB processing is always performed in the node processing character
set.
❏Action agents receive their input in the management server character
set, and convert it into the node processing character set, before
actions are started.
Example:
Scenario ITO agent-processing character set is ROMAN8.
LANG=de_DE.iso88591
opcmsg msg_text=“This is a message with ä, ü, ö”
Conversion Input conversion of the opcmsg is from ISO8859-1 to
ROMAN8 before the ITO message interceptor
evaluates the message attributes.
Chapter 8 347
ITO Language Support
Character Conversion in ITO
Output conversion, before forwarding the message to
the management server, is from ROMAN8 to
ISO8859-1/WE8ISO8859P1 (the database character
set).
Tips
On HP-UX, it is possible to define different character sets for different
managed nodes. It is recommended that you set the character set most
frequently used on each managed node. For example, if you mostly
monitor logfiles with ROMAN8 characters, you should use ROMAN8 for
your managed nodes. Similarly, if your environment mostly generates
input data for ITO in the ISO 8859-1 character set, you should set the
managed node character set to ISO 8859-1. If in doubt, use ISO 8859-1.
Note that you can use a different character set for each managed node.
You determine the managed node character set by the character sets
used in your environment.
348 Chapter 8
ITO Language Support
Character Conversion in ITO
Japanese Environment
Figure 8-2 ITO Configuration and Related Character Sets in a Japanese
Environment
Management Server:
❏Local Logfile entries (opcerror), history download, and so on, are
performed using the Shift JIS character set.
❏Configuration upload and download is performed using Shift JIS.
No runtime conversion is done on the management server. Conversion is
only performed for managed node configuration files if the ITO agents on
HP-UX, Solaris, AIX, and Digital UNIX are running with the processing
character set EUC.
Managed Nodes:
❏Incoming SNMP events are always interpreted as ASCII.
DB
OVwindows
Shift JIS
HP-UX
Solaris
AIX
Shift JIS
logfiles:
opcerror
opcmsglg
monitored
logfile
configuration
files
user command:
opcmsg
opcmon
opcagt
Shift JIS
EUC
Shift JIS
Shift JIS
action
agent
Shift JIS
Shift JIS
output to disk
reports
broadcast (save)
opcfgupld
SNMP
traps
MIB
Ext. CS
Node CS
User def.
Node CS
SV CS
Managed NodesManagement Server
opccfgdwn
Shift JIS
MOM
config
ITO Server
ITO UI
Windows NT ACP932
Digital UNIX
ASCII
ASCII
Shift JIS
EUC
ASCII
Node CS
Shift JIS
EUC
ASCII
Shift JIS
EUC
ASCII
Chapter 8 349
ITO Language Support
Character Conversion in ITO
❏Input through user commands is always converted from the external
character set to the node character set.
❏No input conversion is performed for configuration files; configuration
files are always in the node character set.
❏No output conversion is done for local logfiles; the contents of logfiles
is always in the node character set.
❏MIB processing is always performed in the node character set.
❏Action agents receive their input in the management server character
set, and convert it into the node character set before actions are
started.
Example:
Scenario ITO agent-processing character set on an HP-UX 10.x
managed node is EUC.
LANG=ja_JP.SJIS
opcmsg msg_text=”This is a message with Shift JIS
characters”
Conversion Input conversion of the opcmsg is from Shift JIS to
EUC.
Output conversion, before forwarding the message to
the management server, is from EUC to Shift JIS (the
database character set).
Tips
On HP-UX, it is possible to define different character sets for different
managed nodes. It is recommended that you set the character set most
frequently used on each managed node. For example, if you mostly
monitor logfiles with Shift JIS characters, you should use Shift JIS for
your managed nodes. Similarly, if your environment mostly generates
input data for ITO in the EUC character set, you should set the managed
node character set to EUC. If in doubt, use Shift JIS.
Note that you can use a different character set for each HP-UX managed
node. You determine the managed node character set by the character
sets used in your environment.
350 Chapter 8
ITO Language Support
Localized Object Names
Localized Object Names
Although most of the ITO-specific configuration can be localized, there
are some restrictions.
Restrictions
❏Only ASCII characters are supported in node names.
❏The name of ITO objects, for example, the template name, message
group name, or node group name, is used as an internal identifier by
ITO and therefore should not be localized. Names are only displayed
in the ITO GUI if a label hasn’t been specified. To display localized
object names in the ITO GUI, assign a label to the object. You can
then localize the label.
Recommendations
Use only ASCII characters for:
❏File names (for example, automatic actions, scheduled actions,
monitor scripts and programs, full qualified Trouble Ticket interface,
notification services, physical console).
❏ITO operator names.
❏Monitored object names.
❏ITO operator passwords and the ITO administrator password.
ITO supports language dependencies for reports, Application
Registration Files (ARFs), symbols, fields and ITO defaults.
Chapter 8 351
ITO Language Support
Flexible Management in a Japanese Environment
Flexible Management in a Japanese
Environment
If your management server runs with the character set Shift JIS, but
your managed nodes are running with the character set EUC, you must
perform some extra configuration steps; namely you have to manually
convert the MoM configuration file on the management server from Shift
JIS to EUC, enter:
/usr/bin/iconv -f sjis -t euc <mom_orig> > <mom_new>
where <mom_orig> is the name of the original configuration file in Shift
JIS, and <mom_new> is the IP address of the managed node in Hex, as
returned by the command opc_ip_addr.
Alternatively, you can convert the mgrconf file on the EUC managed
nodes.
NOTE The above conversion can also be applied to the allnodes file if all
managed nodes are running EUC. In mixed environments, that is Shift
JIS and EUC, you have to create node-specific configuration files.
352 Chapter 8
ITO Language Support
Flexible Management in a Japanese Environment
353
9 An Overview of ITO Processes
354 Chapter 9
An Overview of ITO Processes
This chapter provides a functional overview of ITO: it describes ITO
manager and agent processes and subprocesses, and lists files used by
ITO. The chapter is divided into sections that describe the following:
❏Management Server Processes
❏Managed Node Processes
❏Secure Networking
Figure 9-1 on page 355 provides a functional overview of the major parts
of ITO.
Chapter 9 355
An Overview of ITO Processes
Understanding ITO Processes
Understanding ITO Processes
ITO’s agents and managers communicate by means of Remote Procedure
Calls (RPCs) based on DCE or NCS, files (=queues), pipes, or signals.
These mechanisms apply to communication between the management
server and the managed nodes as well as to communication between
processes running locally on the management server.
Figure 9-1 A Functional Overview of ITO
logfile
Console Msg
System Values
regroup
Broadcast
threshold exceeded
Message Sources
Monitor Sources
Display
Manager
Action
Manager
Message
Agent
Monitor
Agent
thresholds
Action
Agent
Message
Manager
Managed
Nodes Management
Server
Display
Stations
Shell Scripts
Programs
....
Supplied Actions
Logfile
SNMP Traps
Logfile
Encapsulator
Console
Interceptor
Event
Interceptor
SNMP MIB
others
Monitor
Script/Program
Monitor
Script/Program
SNMP
(Ext.) Agent
NT Eventlog
filter
+
actions
Operator-Initiated
Action
Automatic Action
Local Automatic Action
External
Trouble Ticket
System
External
Notification
Service
msg
data-
base
opcmsg Command
Interceptor
WWW UI
Server
Motif
GUI
Motif
GUI
Java
GUI
Java
GUI
356 Chapter 9
An Overview of ITO Processes
Understanding ITO Processes
For more information on how the processes communicate with one
another and what each process does, see “Management Server Processes”
on page 356 and “Managed Node Processes” on page 360.
Management Server Processes
The following list gives details of which processes run on the ITO
management server, what each process does, and, where necessary, how
the processes interact:
opc The ITO GUI logon program is used by the ITO
administrator and by ITO operators and calls either
opcuiadm and opcuiopadm or opcuiop according to
the User Name specified.
opcactm The action manager feeds the action agents with
automatic and operator-initiated actions, scheduled
actions, application-startup and broadcasting
information via the control agent. In addition,
external instruction texts are determined using this
mechanism.
ovoareqsdr The request sender informs the control agents to
start, stop, or update their local ITO agents. The
request sender is also responsible for ITO’s self-
monitoring of ITO manager services, and for the
heartbeat-polling of the managed nodes.
opcctlm The control manager starts and stops all other ITO
manager processes, performs all licence checking, and
controls the ITO database maintenance functionality.
opcdispm The display manager serves the ITO Motif-based
GUI. The display manager also feeds the action
manager with operator-initiated actions, application
startup (not requiring a separate terminal) or
broadcasting information issued by the ITO operator.
Several ITO user GUIs may be active at the same time,
but only one Motif-based GUI can be run for each ITO
operator.
opcdistm The distribution manager distributes node-specific
configurations to managed nodes in response to
requests by the distribution agent (opcdista). Sub-
processes (opctts) are forked for each parallel
Chapter 9 357
An Overview of ITO Processes
Understanding ITO Processes
distribution session. In addition, scripts and programs
required for automatic and operator-initiated actions,
scheduled actions, monitoring and broadcasting
requests, can also be distributed via the distribution
manager. The distribution manager also starts a child
process, the communication manager, for inter-
management-sever communication.
opcecm The event-correlation manager connects to the
Server MSI to allow access to and modification of
messages from the ITO message flow by the event-
correlation (EC) engine. Depending on filters and
conditions, the messages are then correlated and
written back to ITO and appear in the Message
Details window (available from the Message
Browser) with the message source: MSI opcecm. Like
all server processes, opcecm is controlled by the control
manager, opcctlm.
opcmsgm The message manager receives messages from the
managed nodes via the message receiver (opcmsgr).
The messages can be re-grouped and logged by the
message manager running on the management server.
The message manager is also responsible for adding
annotations, triggering notifications, and for
forwarding the message to the trouble-ticket and
notification-service manager for external
notification and trouble- ticket generation.
opcforwm The message forwarding manager relieves the
message manager opcmsgm of time-consuming tasks,
such as sending messages to remote managers, in order
to allow the message manager to manage messages
more effectively. On the local, “source” management
server, the message-forwarding manager receives data
from the message manager (in the form of messages),
the action manager (action responses) and the display
manager (message operations such as acknowledge,
add annotation, and so on).
The message-forwarding manager sends data to the
message receiver on the “target” management
server(s).
358 Chapter 9
An Overview of ITO Processes
Understanding ITO Processes
opcmsgr The message receiver collects all messages from
managed nodes; it is an auxiliary process of the
message manager, designed to guarantee quick
message acceptance. opcmsgr accepts messages from
NCS agents only.
opcmsgrd Similar to opcmsgr,opcmsgrd accepts messages from
NCS, DCE, and Sun-RPC agents.
opctss The distribution manager subprocesses (opctss)
transfer configuration data to the distribution agent
using TCP/IP.
opcttnsm The trouble-ticket and notification-service
manager feeds the external notification interface and/
or the external trouble-ticket interface with the
appropriate message attributes. It is only an auxiliary
process of the message manager, designed to
guarantee high message throughput. If an external
instruction text is specified for a message, opcttnsm
evaluates this help text by way of the Action Manager.
opcuiadm The ITO GUI for the ITO administrator, required for
the administrator’s configuration activities. Note that
an additional opcuiopadm process is started. Runs as
user root.
opcuiop The ITO GUI for the ITO operator for message
browsing and application startup. One instance of
opcuiop runs for each operator. Runs as the operator’s
unix user.
opcuiopadm The ITO GUI for the ITO administrator, required for
the administrator’s operator functionality (message
browsing, application startup). Runs as the ITO
administrator’s unix user.
opcuitadm The ITO GUI for the ITO template administrator,
required for the template administrator’s configuration
activities. Runs as user root.
opcuiwww The opcuiwww server process serves the ITO Java-
based operator GUIs. It forwards all communication
requests between the Java-based GUIs and the
display manager.
Chapter 9 359
An Overview of ITO Processes
Understanding ITO Processes
ITO Files on the Management Server
The directory /var/opt/OV/share/tmp/OpC/mgmt_sv contains the
files listed and explained in Table 9-1 on page 359.
Table 9-1 Pipes and Queue Files on the Management Server
Server File
Name File Contents and Function
actreqp/
actreqq Queue/pipe pipe used by the display manager,message
manager,TTNS manager, (and action manager) to pass
action requests to the action manager
actrespp/
actrespq Queue/pipe used by the message receiver,request sender,
and action manager to pass action responses to the action
manager
ctrlq/ctrlp Queue/pipe between the display manager and control
manager
cfgchanges File to inform the ITO management server processes about
configuration changes; for example, regroup conditions, nodes,
trouble-ticket, notification service.
dispq<#>
dispp<#> Queue/pipe between the display manager and GUI
(opcuiop/opcuiadm). One instance for each ITO GUI that is
running
forwmgrp/
forwmgrq Queue/pipe between used by the message manager,display
manager,action manager, and the forward manager to
pass data to be forwarded to other management servers
magmgrp/
magmgrq Queue/pipe between the message dispatcher and the
request handler
mpicdmp/
mpicdmq Queue/pipe used by the display manager and message-
stream-interfaces to transfer control sequences for message-
change event handling
mpicmmp/
mpicmmq Queue/pipe used by the message manager and message-
stream-interfaces to transfer control sequences for message
handling via the MSI
360 Chapter 9
An Overview of ITO Processes
Understanding ITO Processes
Managed Node Processes
The following list gives details of which processes run on the ITO
managed node, what each process does, and, where necessary, how the
processes interact:
mpimmp/
mpimmq Queue/pipe used by the message manager and message-
stream-interfaces to transfer messages from MSI-programs to
the message manager
msgmgrq/
msgmgrp Queue/pipe between the message receiver and message
manager.
oareqhdl File used by the Open Agent request handler to store
connections to other processes.
opcecap/
opcecaq Queue/pipe used to pass messages from the message
manager to the event correlation manager
pids ITO Manager’s process IDs are controlled by the ITO control
manager, which is also used for self-monitoring.
rqsdbf Buffer file used by the request sender to store requests if the
control agent on a given managed node can not be accessed
rqsp/rqsq Queue/pipe between the request handler and the request
sender. Also used by the display manager and the action
manager
trace Trace logfile: only available when tracing is activated; used for
support purposes. For more information on how to active
tracing refer to the section on troubleshooting.
ttnsarp/
ttnsarq Queue/pipe used by the trouble-ticket manager and action
manager when message instructions have to be fetched by
the TTNS manager
ttnsq/ttnsp Queue/pipe between the message manager and trouble-
ticket manager and notification service manager.
Server File
Name File Contents and Function
Chapter 9 361
An Overview of ITO Processes
Understanding ITO Processes
opcacta The action agent,opcacta, is responsible for the
starting and controlling of automatic and operator-
initiated actions, and scheduled actions (scripts,
programs). The action agent is also used for command
broadcasting and for applications configured as
Window (Input/Output) in the Add/Modify ITO
Application window.
opcdista The distribution agent requests node-specific
configurations from the distribution manager
(opcdistm). Scripts and programs required for
automatic and operator-initiated actions, scheduled
actions, monitoring and broadcasting requests, can also
be distributed via the distribution manager.
opceca The event-correlation agent connects to the agent
MSI in the same way that the ECS runtime library is
integrated into the ITO server. This connection allows
access to and modification of messages from the ITO
message flow on the agent; those messages modified by
this process appear in the Message Details window
(available from the Message Browser) with the
message source “MSI: opceca”. Like all agent processes,
opceca is controlled by the control agent.
opcle The logfile encapsulator scans one or more application-
and/or system-logfiles—including the Windows NT
Eventlog—for messages or patterns specified by the
ITO administrator. The logfile encapsulator forwards
the scanned and filtered messages to the message
agent.
opcmona The monitor agent monitors the following and checks
the values it finds against predefined thresholds:
❏system parameters (for example, CPU load, disk
utilization, kernel parameters)
❏SNMP MIBs
❏other parameters if specified
If a threshold is exceeded, a message is generated and
forwarded to the message agent. The polling interval
of the monitored object can be configured by the ITO
administrator. In addition, the opcmon(1) command
362 Chapter 9
An Overview of ITO Processes
Understanding ITO Processes
and opcmon(3) API can be used (asynchronously) to
feed the monitor agent with the current threshold
values.
Note that opcmona does not immediately begin
monitoring when agents are started. Instead, it waits
one polling interval, and only then executes the
monitor script for the first time. Typically, polling
intervals are of the order of 30 seconds to 5 minutes.
opcmsga The message agent receives messages from the
logfile encapsulator, the monitor agent, the
console interceptor, the event interceptor and the
message interceptor on the local system. The
messages are forwarded to the message receiver
running on the management server; if the connection
to the management server has been lost, the messages
are buffered locally. The message agent triggers local
automatic actions by forwarding the task to the action
agent.
opcmsgi The message interceptor receives and processes
incoming messages. The opcmsg(1) command and
opcmsg(3) API can be used to forward messages into
ITO. Conditions can be set up to integrate or suppress
chosen message types.
opcconsi The MPE/iX console message interceptor is the
message interface for feeding MPE/iX console messages
into ITO. Conditions can be set to integrate or suppress
chosen message types.
opcctla The control agent starts and stops all ITO agents,
and performs ITO self-monitoring tasks. The control
agent is informed of new configuration and
distribution requests by the request sender.
opctrapi The event interceptor is the message interface for
feeding SNMP events into ITO. Conditions can be set
to integrate or suppress selected message types.
ITO Files on Managed Nodes
The location of the files that the various processes use on the managed
node depends on the agent platform as described in Table 9-2 on page
363.
Chapter 9 363
An Overview of ITO Processes
Understanding ITO Processes
Table 9-2 Locating Process-related Files on the Managed Nodes
The files that the ITO processes on the managed node use are described
in Table 9-3 on page 364.
Platform File Location
AIX /var/lpp/OV/tmp/OpC
DEC Alpha NT \usr\OV\tmp\OpC\<node>
HP-UX 10.x and 11.x
Digital UNIX
NCR UNIX SVR4
Olivetti UNIX
OS/2
Pyramid DataCenter/OSx
SCO OpenServer
SCO UnixWare
Sequent DYNIX/ptx
SGI IRIX
Solaris
/var/opt/OV/tmp/OpC
MPE/iX TMP.OVOPC
Novell NetWare SYS:/var/opt/OV/tmp/OpC
Windows NT \usr\OV\tmp\OpC\<node>
364 Chapter 9
An Overview of ITO Processes
Understanding ITO Processes
Table 9-3 Pipes and Queue Files on the Managed node
Agent File
Name File Contents and Function
actagtp/
actagtq Queue/pipe for pending action requests for the action agent
filled by the message agent and the control agent. The
action agent polls the queue every 5 seconds.
monagtq/
monagtp Queue on UNIX systems between ITO monitor command
opcmon(1) respectively ITO monitor API opcmon(3) and
monitor agent. The monitor agent checks the queue after
the termination of the triggered monitor scripts/programs or
at least every 15 seconds, if externally monitored objects are
configured.
mpicmap/
mpicmaq Queue/pipe used by the message agent and message-stream-
interfaces to transfer control sequences for message handling
via the MSI.
mpimap/
mpimaq Queue/pipe used by the message agent and message-stream-
interfaces to transfer messages from MSI programs to the
message agent
msgagtdf File that holds any messages that cannot be passed to the
management server (for example, if the network is down). The
messages will be read from this file once the management
server is available.
msgagtp/
msgagtq Queue/pipe for local buffering of messages which have to be
sent to the message receiver when the management server
is not accessible.
msgip/msgiq Queue (only on UNIX systems) between ITO message
command opcmsg(1) or ITO message API opcmsg(3) and
ITO message interceptor.
opcecap/
opcecaq Queue/pipe to pass messages from the message agent to the
event correlation agent
pids Process IDs of ITO agents controlled by the control agent.
Chapter 9 365
An Overview of ITO Processes
Understanding ITO Processes
ITO Agent Configuration Files
The ITO agent specific configuration files are described below. The file
location is platform dependent as shown in Table 9-4 on page 365:
Table 9-4 Locating Agent-configuration Files on the Managed Nodes
trace (ASCII) ITO trace logfile. For more information on activating tracing
see the section on troubleshooting in the HP OpenView IT/
Operations Administrator’s Reference.
aa* Temporary files used by the action agent, for example, to
store the action or application output written to stderr and
sdtout.
moa* Temporary files used by the monitor agent
Agent File
Name File Contents and Function
Platform Agent File Location
AIX /var/lpp/OV/conf/OpC
DEC Alpha NT \usr\OV\conf\OpC\<node>
HP-UX 10.x and 11.x
Digital UNIX
NCR UNIX SVR4
Olivetti UNIX
OS/2
Pyramid DataCenter/OSx
SCO OpenServer
SCO UnixWare
Sequent DYNIX/ptx
SGI IRIX
Solaris
/var/opt/OV/conf/OpC
MPE/iX CONF.OVOPC
Novell NetWare SYS:/var/opt/OV/conf/OpC
Windows NT \usr\OV\conf\OpC\<node>
366 Chapter 9
An Overview of ITO Processes
Understanding ITO Processes
The directories in Table 9-4 on page 365 contain files which are listed in
Table 9-5 on page 366. Table 9-5 also explains what the files do and
whether or not the contents of the files are encrypted:
Table 9-5 Agent-configuration Files and their Contents
Process Security
Although IT/Operations carries out basic authorization checks
independently of DCE when communication between the management
server and the managed nodes is required, DCE allows the
implementation of a much more stringent security policy at process level
between, for example, an RPC client and an RPC server, specifically in
the areas of authentication and data protection.
The level of data protection is chosen by the client, although the server
has the option of deciding whether a chosen level is sufficient. ITO sees
the concept of authentication in the context of either the RPC client or
the RPC server. For example, just as a server needs to determine
whether or not an incoming request is from a genuine ITO client, an RPC
client also needs to be sure that the server it is calling is a real ITO
server.
File Contents Encrypted?
le logfile encapsulation configuration Yes
msgi opcmsg(1) and opcmsg(3)
message interceptor Yes
trapi SNMP event interceptor Yes
consi MPE/iX console interceptor Yes
monitor monitor agent template file Yes
mgrconf MOM configuration file No
primmgr MOM configuration file No
nodeinfo node specific ITO configuration
information, for example, the
logging directory, the type of
managed node internal character
set. All ITO agents read this file.
No
Chapter 9 367
An Overview of ITO Processes
Understanding ITO Processes
Process Authentication
An important step in the authentication procedure that an ITO RPC
process goes through involves the obtaining of a login context. Every
secure RPC process has a login context, which it either inherits from its
parent process or establishes itself. The login context requires a name (or
principal) and a password (or key). Since ITO processes usually run
without any user interaction, reliance on an inherited login context is not
sufficiently secure. So, each process creates its own login context with a
name and password that must be registered at the DCE security service.
However, like UNIX, multiple processes may run within the same login
context. Management and maintenance of the login context is carried out
internally by the control agent and control manager.
Once the authentication process has completed successfully, a connection
is established, and the RPC request-reply sequence starts.
Authentication can be limited to the connection, the first RPC Client-
Server call or all RPCs between client and server. The following simple
example of communication between an RPC client and an RPC server
illustrates the procedure in the context of ITO. In this case, the RPC
client is the message agent on the managed node, and the RPC server is
the message receiver on the management server:
1. The message agent (RPC client) reads its password from the key file.
2. The message agent uses the password to log in to the security server,
procure a login context, and obtain a server ticket.
3. The message agent sends an RPC request to the message receiver
(RPC server).
4. The message receiver compares the ticket with the password
contained in the key file.
5. If the password matches, the message receiver tells the message
agent to proceed with its RPC request.
Process Names and Passwords
In ITO, both the management server and the managed nodes run RPC
clients and servers at the same time. This allows ITO to simplify a given
process’ requirements for configuration information prior to an RPC call,
namely:
❏name and own password
❏security level
368 Chapter 9
An Overview of ITO Processes
Understanding ITO Processes
However, this configuration information must be present on both the
management server and the managed node.
ITO associates two names with the two types of node in its environment,
namely: one each for the management server and the managed node. All
management server processes then run under the name associated with
the management server, and all managed node processes under the
identity of the name associated with the managed node.
In addition, ITO allows you to select and configure the security level your
particular environment requires for an individual managed node: the
value is stored in the given managed node’s opcinfo file and in the
relevant entry in the database on the management server. In this way,
security on a given managed node may be changed to handle, for
example, the addition of sensitive connections through a firewall.
ITO may be configured in such a way as to be able to overcome a
situation where, owing to the temporary unavailability or mis-
configuration of the security service, a process is required either to run in
unauthenticated mode or to fail. For example, if a management server
process such as the request sender receives an authentication failure
when calling a control agent on a managed node, an error message is
generated, which appears in the Message Browser window. The
administrator is then able to take immediate corrective action, for
example, by temporarily changing the security level on the managed
node in question to allow the retransmitted request to succeed.
Chapter 9 369
An Overview of ITO Processes
Secure Networking
Secure Networking
ITO’s concept of securing a network is based on the idea of improving the
security of the connection between processes either within a network or
across multiple networks as well as through routers and other restrictive
devices. For example, you could limit access to a network or a section of a
network by restricting the set of nodes (with or without ITO agents
running on them) that are allowed to communicate with the
management server across restrictive routers or even a packet-filtering
firewall. It is not important to ITO which element, the server or the
network of managed nodes, is inside or outside the firewall. For example,
a network of nodes inside a firewall could be managed by a management
server outside the firewall. Conversely, a management server inside a
firewall can manage nodes in or outside.
One way of limiting access to a network and consequently improving the
network’s inherent security would be to restrict to a specific range of
ports all connections between ITO processes on the management server
and a managed node. To simplify matters, ITO sets the default value on
the managed node to “No security” and allows you to select the security
configuration node by node. In this way, the administrator can change a
given node’s security level depending, for example, on whether or not
there is a need for a given node to communicate across a firewall or
through a restricted router.
The RPC Client/Server Connection
A connection between an RPC-server and an RPC-client needs at least
two ports: one on the server machine, one on the client. Each ITO process
that is either an RPC client or RPC server has its own port for
communication: the port remains blocked by the ITO process which owns
it until the process exits, whereupon the port becomes free for dynamic
assignment to the next RPC client-server request. For more information
on dynamic port assignment in ITO, see “Processes and Ports” on page
370.
An RPC client using DCE or NCS does not automatically know the port
number of the RPC server on the remote system and, consequently, has
to obtain this information before initiating an RPC request. The first
thing it does is to look up in the LLBD or RPCD on the remote system
the specific port number of the RPC server it needs to talk to: the LLBD
370 Chapter 9
An Overview of ITO Processes
Secure Networking
or RPCD always runs on UDP 135, a reserved port which must be
accessible even through a firewall. Once it has the port number of the
RPC server, the RPC client can initiate the RPC call.
Processes and Ports
In addition to the checks and controls that a DCE environment supplies
for authentication and data integrity both prior to and during
connections between processes, ITO allows you to combat security
breaches more effectively by restricting to a specific range which you
define in the GUI the port numbers that processes may use. ITO then
assigns these port numbers dynamically to the processes that are
granted an RPC connection. The port numbers are configurable and are
checked against the defined range each time an RPC server registers
itself or an RPC client requests a connection.
If a service request for a port number within the range specified in the
GUI is refused because none is available, the process starts anyway and
ITO assigns a port number outside the permitted range. However, a
possible consequence of this is that the newly assigned port may not be
available either. In this case, ITO generates an error message. For more
information on how to set port ranges and the consequences of incorrect
port assignment, see the HP ITO Administrator’s Guide to Online
Information.
Dynamic Port Assignment through a Firewall:
Example Scenario
If the security precautions of a given environment require that a
restriction be applied to the nodes, ports or protocols that are allowed to
pass a packet-filtering firewall, the administrator might configure the
firewall to enable, for example, the port range 1050 to 1300 on the
managed nodes and ports 1200 to 1500 on the server for ITO traffic. The
administrator does this by “switching off” all port numbers not in the
specified range to traffic in the direction specified. The only exception to
this is port 135 which is used for access to the RPCD/LLBD and must not
be blocked. All ITO-specific traffic then has to go through the designated
ports. The scenario described below would be the consequence of such a
configuration:
❏The Control Agent on a managed node registers TCP/UDP port 1050
in its unique RPCD/LLBD and listens there for ITO traffic.
Chapter 9 371
An Overview of ITO Processes
Secure Networking
❏The Message Receiver on the server registers TCP/UDP port 1200 in
its unique RPCD/LLBD and listens there for ITO traffic.
❏The Distribution Manager on the server registers TCP/UDP port
1051 in its unique RPCD/LLBD and listens there for ITO traffic.
❏RPC clients doing lookups in the RPCD/LLBDs find this information
and request connections to the Control Agent, Message Receiver and
so on at the port numbers listed.
Note that, in addition to allowing you to restrict the allocation of port
numbers, ITO also allows you to work through firewalls that implement
NAT (Network Address Translation) by configuring the file
/opt/OV/share/conf/OpC/mgmt_sv/opc.hosts on the ITO
management server in the following manner:
<alternative_ip_address> <agent_node_name_known_to_the_server>
In the ITO GUI, you set up the ITO node with the IP-address that the
ITO server knows through its DNS-server or hostname resolution. In the
opc.hosts file, you tell the ITO management server that it should
accept another IP-address for this node.
Restrictions and Recommendations
If the systems participating in the ITO environment are connected via a
fast network (LAN), it is generally recommended that you choose UDP
rather than TCP as the DCE RPC protocol. UDP requires significantly
less overhead and is therefore faster and less demanding of resources. If
the managed nodes and management server are connected over a slow or
busy network (WAN, X.25 etc.), or even if the volume of data to be
transmitted is large, it is more reliable to use TCP. Note that TCP
requires at least one socket to be permanently open for each managed
node.
However, if you do choose the DCE RPC (UDP) option as the
communication type between managed node and management server,
you should bear in mind that ITO’s configuration distribution and
Common Agent bulk transfer both require a plain TCP socket connection
to be open. So, if for example a packet-filtering firewall system is located
between a management server and managed node communicating via
DCE RPC (UDP) and the firewall has a specific range of ports opened
(reflected in the ITO configuration), this range must always be open for
TCP, too.
372 Chapter 9
An Overview of ITO Processes
Secure Networking
373
10 Tuning, Troubleshooting,
Security, and Maintenance
374 Chapter 10
Tuning, Troubleshooting, Security, and Maintenance
This chapter contains information for administrators who perform
system maintenance, performance tuning, and troubleshooting. It also
describes some important security information, and how to change the
hostname and IP address of your management server and manged nodes.
Chapter 10 375
Tuning, Troubleshooting, Security, and Maintenance
Performance Tuning
Performance Tuning
In general, you can carry out the following to improve system
performance:
❏Increase the RAM, in order to reduce disk swapping
❏Upgrade the CPU
❏Do not use the LAN/9000 logging and tracing commands nettl(1M)
and netfmt(1M) unless absolutely necessary
❏Use different physical disks for the file systems and for swap space
❏Use high-bandwidth network links between the management server,
managed nodes and display stations
Improving SNMP Management Platform
Performance
To improve SNMP management platform performance, reduce or
eliminate those HP OpenView Network Node Manager processes which
are not used, or are used only infrequently:
❏Stop netmon(1M), increase its polling interval, or un-manage
segments which are not of interest.
❏Reduce the amount of memory used by ovwdb(1M) (the HP
OpenView Windows object database daemon) for managing large
numbers of nodes.
❏Do not use the logging and tracing options provided for the HP
OpenView Network Node Manager daemons (trapd, netmon, etc.)
unless absolutely necessary.
❏Configure the management server as a secondary Domain Name
Server.
❏Reduce the number of background graphics in the HP OpenView
submaps to the minimum.
376 Chapter 10
Tuning, Troubleshooting, Security, and Maintenance
Performance Tuning
❏Suppress the appearance of the ITO Alarm Severity symbol in the HP
OpenView submaps by changing the ITO app-defaults file. Set the
line Opc.statusPropOnAllNodes in the file
/opt/OV/lib/X11/app-defaults/<language>/Opc to False.
The default setting is True.
For details about HP OpenView Network Node Manager performance
tuning, refer to the corresponding part of the “Configuration” chapter in
the HP OpenView Network Node Manager Administrator’s Reference. See
also the HP OpenView SNMP Management Platform Performance and
Configuration Guide.
Improving Database Performance
Split the database over several disks as described in your Oracle
database manuals.
Periodically reorganize the database, by running opcdbreorg (1M).
This frees unused pages as well as restructuring the index tables. For
more details, see the opcdbreorg (1M) man page.
In addition, you should periodically tune the database by running
optimizedb followed by sysmod. Note, however, that during this
process, applications cannot work on the database.
For details about an Oracle database, see the documentation supplied
with the database and the online documentation in
/opt/OV/ReleaseNotes/opc_db.tuning.
Improving ITO’s Performance
To both increase the speed of the GUI and to reduce the memory needed
to run it, reduce the number of active and acknowledged messages in the
Message Browsers:
❏Specify more precise filters (message conditions) for capturing
messages.
❏Specify more (local) automatic actions with automatic message
acknowledgment after successful operation.
❏Download the history database of acknowledged messages more
often.
❏Improve processing performance on the management server by:
Chapter 10 377
Tuning, Troubleshooting, Security, and Maintenance
Performance Tuning
1. Reducing the number of managed nodes for parallel configuration
distribution (Configure Management Server window, [Actions:
Server: Configure…]).
2. Making sure operators close any View- and History-Browser
windows not currently required. This reduces:
• the amount of RAM required for the GUI
• the time required for updating Browser windows when new
messages are intercepted or acknowledged.
3. Minimizing overlapping operator workspaces. In other words, an
operator should only be allocated the same nodes and message
groups as another operator, if it is absolutely necessary.
❏Increase the heartbeat-polling interval for the managed node activity
check.
Improve processing performance on the managed nodes by:
❏Using message-text match conditions with the case-sensitive check as
often as possible. This flag can be set in several places, including the
Advanced Options window of the Add/Modify/Copy Logfile
window.
❏Changing the sequence of the message and suppress conditions so
that those most frequently required are near the top of the list. This
prevents much wasted processing of conditions which cannot find a
match to a logfile. (Message and Suppress Conditions window.)
❏Setting the polling interval for logfile (Modify Logfile window) and
threshold monitoring (Modify Monitor window) as high as is
possible, while at the same time receiving adequate data.
378 Chapter 10
Tuning, Troubleshooting, Security, and Maintenance
Troubleshooting: Recommended Practices
Troubleshooting: Recommended
Practices
Following these practices helps you isolate, recover from, and often
prevent, problems:
❏Make sure that both the management server and the managed node
system meet the hardware, software, and configuration prerequisites.
See the HP OpenView IT/Operations Installation Guide for the
Management Server for a list of prerequisites.
❏Make sure all the required patches are correctly installed
❏Make sure that the following directories are included in your PATH:
•/opt/OV/bin/OpC
•/opt/OV/bin/OpC/install
❏Do not modify HP OpenView product files, such as X resources,
without retaining copies of the original files.
❏Make sure that you are not using up too much of your management
station’s CPU and system resources by collecting too much data, or by
setting polling intervals which are too frequent for object monitoring.
❏Use ovstatus opc,ovstatus ovoacomm or opcsv -status, and
opcagt -status (opcragt -status) to check whether all
processes are up and running. If not, simply restart the missing
processes.
Chapter 10 379
Tuning, Troubleshooting, Security, and Maintenance
Troubleshooting: Tracing
Troubleshooting: Tracing
ITO provides a tracing facility which helps you to investigate the cause of
a problem. For example, if processes or programs abort, performance is
greatly reduced, or unexpected results appear. Trace logfiles can provide
pointers to where and when the problem occurred.
Tracing can be activated for specific management server and/or agent
processes by adding a statement to the opcsvinfo and/or opcinfo file.
To simplify the interpretation of the trace logfile, tracing can be activated
for specific functional areas by specifying one or more functional areas in
the trace statement. “Activating Tracing” on page 380 shows how to use
the trace statement, and Table 10-1 gives a list of all available functional
areas that may be used for tracing. Note that some areas are not
available for some processes.
Table 10-1 Functional Tracing Areas
<area> Description
ACTN Actions
ALIVE Agent-alive check
ALL All tracing areas (except DEBUG)
DB Database
DEBUG Debugging information (very detailed)a
DIST Distribution
GUI User interface
INIT Initialization
INST Installation
INT Internal
LIC Licensing
MISC Miscellaneous
MSG Message flow
380 Chapter 10
Tuning, Troubleshooting, Security, and Maintenance
Troubleshooting: Tracing
a. Use this option carefully as it provides extensive and detailed
information.
Activating Tracing
You can activate the ITO trace facility for the management server and/or
the agent processes by modifying the following files:
❏Management server processes:
/opt/OV/bin/OpC/install/opcsvinfo
❏HP-UX 10.x and 11.x managed node processes (refer to Table 10-3,
“Location of the opcinfo File on ITO Managed Nodes,” on page 399 for
file locations on other supported platforms):
/opt/OV/bin/OpC/install/opcinfo
or:
/var/opt/OV/conf/OpC/nodeinfo
NOTE When changing the attributes of a managed node, the nodeinfo file is
overwritten by the distribution process. It is therefore recommended that
you include the trace statement in the opcinfo file.
1. Add OPC_TRACE TRUE in the opcsvinfo and/or opcinfo file.
2. Select the appropriate functional area or management server/agent
process by including one of the following statements:
OPC_TRACE_AREA <area>[,<area>]
OPC_TRC_PROCS <proc>[,<proc>] (selected server/agent process)
OPC_DBG_PROCS <proc>[,<proc>] (erver/agent process with DEBUG)
NAME Name resolution
NLS Native Language support
OCOMM Open agent communication
PERF Performance
SEC Security
<area> Description
Chapter 10 381
Tuning, Troubleshooting, Security, and Maintenance
Troubleshooting: Tracing
See Table 10-1 “Functional Tracing Areas” for a list of all available
areas. MSG and ACTN are enabled by default.
NOTE Spaces are not allowed between entries in the lists for
OPC_TRACE_AREA and OPC_TRC_PROCS.
3. To receive verbose trace information output, add:
OPC_TRACE_TRUNC FALSE
OPC_TRACE_TRUNC TRUE is enabled by default.
4. Inform the running ITO software of the configuration change as user
root:
❏management server processes:
/opt/OV/bin/OpC/opcsv -trace
or restart the management server processes:
/opt/OV/bin/OpC/opcsv -start
❏managed node processes:
/opt/OV/bin/OpC/opcagt -trace
or re-start the managed node processes:
/opt/OV/bin/OpC/opcagt -start
The following example shows an opcsvinfo file with tracing activated:
#################################################################
# File: opcsvinfo
# Description: OpC Installation Information of Management Server
# Package: HP OpenView IT/Operations
# Status:
#
# (c) Copyright Hewlett-Packard Co. 1998
#
#################################################################
OPC_INSTALLED_VERSION A.05.00
OPC_MGMT_SERVER arthur.ashe.hp.com
OPC_INSTALLATION_TIME 23/01/98 15:06:18
OPC_TRACE TRUE
OPC_TRACE_AREA INT,ACTN
OPC_TRACE_TRUNC FALSE
#################################################################
# end of opcsvinfo
#################################################################
382 Chapter 10
Tuning, Troubleshooting, Security, and Maintenance
Troubleshooting: Tracing
Interpreting the Trace File
The trace information is written to the following trace logfile:
❏Management server trace file:
/var/opt/OV/share/tmp/OpC/mgmt_sv/trace
❏HP-UX 10.x and 11.x managed node trace file (refer to Chapter 3 of
the HP OpenView IT/Operations Administrator’s Reference for file
locations on other supported platforms):
/var/opt/OV/tmp/OpC/trace
The general format of the trace information is the following:
<mm/dd/yy> <hh:mm:ss> <process_name>(pid)[<area>]: <detailed
information>
mm/dd/yy date
hh:mm:ss time
process_name process name
pid process ID
area functional area as specified in the trace statement
detailed
information detailed information about the process
NOTE New trace information is appended to existing trace logfiles. It is
therefore recommended to delete the file to prevent it from becoming too
large.
Chapter 10 383
Tuning, Troubleshooting, Security, and Maintenance
Troubleshooting: Characterizing the Problem
Troubleshooting: Characterizing the
Problem
When you encounter a symptom associated with a problem, make a note
of all associated information:
❏Scope: What is affected?
• Distinguish between management server and managed node
problems.
• If you suspect that a problem lies on a managed node, try to
duplicate it on a different node, to find out whether it is
node-specific.
• Distinguish between the administrator GUI and the operator
GUI.
• If you suspect that a problem lies with an operator, try to test it on
another operator, to see whether the problem can be duplicated.
❏Context: What has changed? Determine if anything has changed on
your network or with the product configuration:
• Hardware
• Software
• Patches
• Files
• Security
• Configuration
• Name services
• Routing
• Utilization
❏Duration: How long, and how often? Is the problem consistent (fails
every time) or intermittent (fails only sometimes)?
384 Chapter 10
Tuning, Troubleshooting, Security, and Maintenance
Troubleshooting: Characterizing the Problem
Debug Information for OS/2 Managed Nodes
On OS/2 managed nodes, ITO provides an REXX (OS/2 scripting
language) script, \opt\OV\bin\OpC\utils\opcclct.cmd. Run this
script when you are in a situation that requires attention of a support
engineer.
The script collects all necessary information and gathers important files
on the OS/2 managed node, and gives instructions how to send this
information to the support team. This may help to reduce response time
from your support team.
Chapter 10 385
Tuning, Troubleshooting, Security, and Maintenance
Troubleshooting: General Considerations
Troubleshooting: General
Considerations
Consider the following when troubleshooting ITO:
❏ITO is an application that is both memory- and swap-space intensive.
Problems may occur simply due to the exhaustion of resources.
❏Communication between the ITO management server processes is
based on DCE remote procedure calls, which may cause occasional
failures and time-outs of manager/agent communications.
❏If you are using the Berkeley Internet Name Domain (BIND) or
similar name services on your network, pay special attention to hosts
with multi-hosted interfaces (more than one LAN card).
386 Chapter 10
Tuning, Troubleshooting, Security, and Maintenance
Troubleshooting: How ITO Reports Errors
Troubleshooting: How ITO Reports
Errors
This section describes how ITO processes and reports errors during
operation. The section is broken down into three areas:
❏Errors reported via logfiles.
❏Errors reported via the Message Browser.
❏The Error Dialog Box in the GUI.
❏stdout and stderr in the shell.
Errors Reported in Logfiles
Error messages are written to two different locations:
1. All errors detected by the ITO server or by agent processes are
written to the appropriate log file.
2. In addition (if possible) an ITO message is generated for display in
the Message Browser.
In event of a problem, you should always check the ITO error log files.
The following list indicates where you may find information relating to
the operations described:
❏Errors reported by ITO manager processes on the management
server during operation, are written to
/var/opt/OV/log/OpC/mgmt_sv/opcerror
❏Errors reported during the installation of software on the managed
nodes, are written to the following file on the management server.
/var/opt/OV/log/OpC/mgmt_sv/inst_err.log
❏Errors reported by agent processes during the operation of ITO are
written (on the appropriate managed node) to the locations specified
in Table 10-2 on page 387:
Chapter 10 387
Tuning, Troubleshooting, Security, and Maintenance
Troubleshooting: How ITO Reports Errors
Table 10-2 Errors Reported by the Agent Processes
❏Oracle database-related errors or errors from Oracle, are reported in
the following logfile:
/var/opt/OV/log/OpC/mgmt_sv/ora_err.log
Errors Reported via the Message Browser
In most cases when an error is written to the opcerror log files on the
management server or on a managed node, ITO tries to generate a
message and display it on the Message Browser of any users responsible
for monitoring the message group, OpC.
Under certain circumstances, it is not possible to display a message in
the operator GUI. In general, this occurs when a required process is not
running or functioning (for instance, the message agent, message
receiver, message manager, display manager, display receiver).
If a message is not found in the Browser, make sure that the workspace
is configured to receive messages from that managed node.
Forwarding Unmatched Messages
Unmatched messages, that is, messages that match neither message nor
suppress conditions assume the default severity value assigned by the
message source template that processed them. The user can change the
severity value to enable messages that match the assigned severity level
condition to be forwarded. However, it is recommended that the assigned
default severity value “Unknown” not be used as the consequence could
Platform File Name and Location
HP-UX 10.x and 11.x
Solaris, NCR UNIX, SCO
OpenServer, SCO
UnixWare, DYNIX/ptx,
Digital UNIX,
SINIX/Reliant, Olivetti
UNIX, Pyramid DC/OSx,
IRIX
/var/opt/OV/log/OpC/opcerror
AIX /var/lpp/OV/log/OpC/opcerror
Windows NT (alpha, intel) \usr\OV\log\OpC\opcerror
388 Chapter 10
Tuning, Troubleshooting, Security, and Maintenance
Troubleshooting: How ITO Reports Errors
be that messages relating to serious or critical problems are marked as
“X” in the “U” (Unmatched) column in the message browser and, as a
consequence, possibly ignored.
In addition, such unmatched messages should be reported to the ITO
administrator, in order to improve the existing templates by adding
appropriate message or suppress conditions.
Errors Reported via the GUI Error Dialog Box
Any errors which relate to the GUI processes are displayed in an error
dialog box, which automatically pops up when required. Typical error
situations are:
❏User errors:
• syntax errors when typing input
• semantic errors (for example, unknown system)
• required objects not selected while performing a task
❏Communication problems between user interface processes and the
display manager (for example, an action cannot be performed because
the management server is down). This includes errors reported from
X applications and applications configured as No Window started
from the Application Desktop, and errors reported by starting
operator-initiated actions.
❏Errors originating from HP OpenView functionality used in the GUI
(for example, a submap can not be created, because the HP OpenView
Windows map does not have write permissions).
❏Problems in retrieving or writing data to or from the database (for
example, it may not be possible to get detailed message information
from the database).
All these errors are reported in the error log files. If problems with the
database occur, the user receives a general message that a problem
exists, while more detailed information is written to the error log file.
Chapter 10 389
Tuning, Troubleshooting, Security, and Maintenance
Troubleshooting: How ITO Reports Errors
Errors Reported via stderr and stdout
When starting ITO commands or scripts (for example, opcagt and
opcsv), errors which occur during the operation are reported to the
stderr/stdout device assigned to the calling shell. Errors reported by
terminal applications started from the application desktop, are also
displayed on stderr and stdout.
390 Chapter 10
Tuning, Troubleshooting, Security, and Maintenance
Troubleshooting: When you Need More Information
Troubleshooting: When you Need More
Information
Further information to help you troubleshoot is available in:
❏The HP OpenView IT/Operations Software Release Notes, or the files
in the ReleaseNotes directory:
/opt/OV/ReleaseNotes
❏ITO online help.
❏The documentation set provided with ITO.
❏HP OpenView documentation for the given platform.
❏Oracle Database manuals.
Chapter 10 391
Tuning, Troubleshooting, Security, and Maintenance
Troubleshooting: Specific Problems
Troubleshooting: Specific Problems
This section provides problem descriptions and troubleshooting steps in
the following areas:
❏Management Server
• Database
• ITO Server Processes
• ITO GUI
• HP-UX and Services
❏Managed Nodes
• Installation Problems:
UNIX
MPE/iX
• Runtime Problems:
Platform Independent
UNIX
HP-UX
MPE/iX
llbd and dced/rpcd
MIB Access
❏Network File System
Security issues and system maintenance are discussed at the end of the
chapter.
Troubleshooting on the Management Server
This section includes descriptions of specific problems that may occur on
the ITO management server and provides a solution. For other problems
that are not listed here, you can refer to the following manuals:
392 Chapter 10
Tuning, Troubleshooting, Security, and Maintenance
Troubleshooting: Specific Problems
❏”Troubleshooting” chapter in the HP OpenView Network Node
Manager Reference.
❏”Troubleshooting” chapter in HP OpenView Data Management
Administrator’s Reference.
❏Manuals supplied with the database.
Oracle-specific Database Problems and Solutions
Problem ITO process cannot be started. The following error message (or similar) is
displayed on standard error:
Database error: ORA-01034 : ORACLE not available
ORA-07318 smsget = open error when opening sgadef.dbf file
HP-UX Error: 2: No such file or directory (OpC50-15)
Could not connect to database P:openview
Please check that the database processes are running (OpC50-2)
Description The Oracle database services are not running.
Solution Start the Oracle database:
su oracle -c “{ORACLE_HOME}/bin/dbstart”
Problem Creation of the ITO database was successful but opcdbinst or
opcdbinit fails.
Description A The database creation is done as Oracle DBA with connect internal.
opcdbinst and opcdbinit, however, connect to the specific
ORACLE_SID over the Oracle pipe driver as user opc_op
Chapter 10 393
Tuning, Troubleshooting, Security, and Maintenance
Troubleshooting: Specific Problems
Description B ITO connects to Oracle as user opc_op using OS authentication. Oracle
allows you to define a prefix for OS authentication users. ITO adds the
user opc_op with the assumption that no prefix is used. If you have
defined a prefix, ITO will be unable to connect.
Solution A Check that the file /etc/oratab exists. Check that /etc/oratab is
readable by user opc_op. Check that /etc/oratab contains a line with
your ORACLE_SID. Check that user opc_op is properly setup.
Solution B If no other users of the database use OS authentication, you can change
the prefix:
• Add or change the line defining the prefix in the file:
${ORACLE_HOME}/dbs/init${ORACLE_SID}.ora
os_authent_prefix = ““
• Stop all processes accessing the database
• Restart the Oracle database. The new prefix is now active. If other
users also use OS authentication, you can change the prefix used by
ITO as follows:
• Destroy the ITO specific parts in the database using:
opcdbsetup -r
• Change the following line in the ITO database setup script
/opt/OV/bin/OpC/opcdbsetup to contain the actual value:
OS_AUTHENT_PREFIX=””
• Setup the ITO database again using opcdbsetup
394 Chapter 10
Tuning, Troubleshooting, Security, and Maintenance
Troubleshooting: Specific Problems
Problem Could not connect to Oracle when using SQL*Net, with following error
message:
Database error: ORA-12158: (Cnct err, can’t get err txt
See Servr Msgs & Codes Manual) (OpC50-15)
Description ITO connects as user opc_op to the database. For this reason, the
current directory (the directory where you started ITO) must be readable
by user opc_op
Solution Allow read and execute access to all users to the directory from which you
normally start ITO or change the directory to a directory accessible by
opc_op before starting ITO
Problem Cannot start Oracle database
Description The Oracle database cannot be started because the Oracle resources are
already in use.
Solution Check that Oracle is not already running. Check whether some
inter-process communication facilities are not freed by the Oracle
processes: ipcs | grep oracle. If there are some IPC facilities left,
clean them up using: ipcrm. Check whether the Oracle SGA definition
file, ${ORACLE_HOME}/dbs/sgadef${ORACLE_SID}.dbf still exists,
and if so, remove it.
If other instances of Oracle are running on the same system, shut down
these instances before clearing semaphores and shared-memory using
ipcrm(1M).
Problem Cannot create Oracle database. opcdbsetup exits with following error:
insufficient privileges, not connected
Description Connect internal requires that the primary group of the DBA user is
dbaA. The default DBA user is the UNIX user oracle.
Solution Correct the Oracle DBA user using SAM and assign him the group dba
Chapter 10 395
Tuning, Troubleshooting, Security, and Maintenance
Troubleshooting: Specific Problems
ITO Server Problems and Solutions
Problem The ITO management server status is completely corrupted, even after
the ovstop opc and ovstart opc sequence.
Description Lots of corrupted messages in the message browser; lots of critical ITO
error messages, ITO agents on managed nodes cannot be stopped/started,
configuration distribution does not work, and so forth. Despite these
symptoms, opcsv -status may report that not all ITO manager
processes are correctly operating.
Solution Perform the following steps:
1. Stop all ITO GUIs that are running, by exiting the ITO user interface
([File: Exit]).
2. Stop the ITO management server processes:
/opt/OV/bin/ovstop opc ovoacomm
3. Erase all ITO temporary files:
rm -f /var/opt/OV/share/tmp/OpC/mgmt_sv/*
Note that all pending messages (not yet saved in the database) and all
pending actions (automatic actions, operator-initiated actions,
scheduled actions, command broadcast) will be lost.
4. Restart the ITO management server process:
/opt/OV/bin/OpC/opcsv -start
5. Restart the ITO GUIs:
opc
396 Chapter 10
Tuning, Troubleshooting, Security, and Maintenance
Troubleshooting: Specific Problems
ITO GUI Problems and Solutions on the Management
Server
Problem Old (no longer interesting/valid) messages are sent to the external
trouble ticket system and/or external notification service when restarting
the ITO management server after a long down-time.
Description The messages to be forwarded to the trouble external ticket system
and/or external notification service will be queued in
/var/opt/OV/share/tmp/OpC/mgmt_sv/ttnsq queue file under
heavy system load or if one instance of the trouble ticket interface or
notification service interface is already running. If the ITO management
processes are stopped for a long time, the pending requests will be sent to
the appropriate external interface after ITO Manager is restarted even if
they are no longer of interest.
Solution Erase ttnsq before starting the ITO management services again.
Problem When starting the ITO administrator GUI, the HP OpenView Windows
(ovw) Root window is created, but the following error message is
immediately displayed:
ovw: Could not resolve hostname (mgmt_server_host_name) for licensing
Description HP OpenView Windows (ovw) did not have permission to look up the name
of the management server in /etc/hosts (this is necessary for license
checking).
Solution Make sure that /etc/hosts is readable for user opc_op:
chmod 444 /etc/hosts
Problem ITO GUI aborts when using the HP OpenView copy and paste function.
Description When copying HP OpenView objects from one submap to another using
the standard HP OpenView copy and paste functions, the ITO GUI
sometimes makes a core dump.
Solution Install HP OpenView SNMP patch DFIX1271. Patches are available
from your Hewlett-Packard representative.
Chapter 10 397
Tuning, Troubleshooting, Security, and Maintenance
Troubleshooting: Specific Problems
Problem Ungraceful abort of the ITO GUI, leaving some ovhelp processes still
running.
Description After ungraceful shutdown of the ITO user interface, ovhelp processes
remain running.
Solution If HP OpenView platform processes and ITO-related services are
stopped, you can kill the remaining processes manually:
ps -eaf | grep ovhelp
kill <proc_id>
Problem HP OpenView Windows (ovw) objects have been hidden and are no longer
visible.
Description Using the third mouse button action “Hide Symbol” means the symbol
will no longer be displayed on the map. In the OV status line the number
of hidden symbols is shown.
Solution Show symbols by clicking on [Edit: Show Hidden Objects: For This
Submap].
Problem Icon Labels changed using OVW functionality do not appear to be
updated.
Description Changing the labels for icons on the ITO Node Bank, Node Group Bank,
etc. using OVW functionality does not update the labels as stored in the
ITO database; this means the OVW variable
IPMAP_NO_SYMBOL_CHANGES has no effect.
Solution Use the appropriate ITO dialog boxes (i.e. Modify Node window, Modify
Message Group window, etc.)
398 Chapter 10
Tuning, Troubleshooting, Security, and Maintenance
Troubleshooting: Specific Problems
Troubleshooting on Managed Nodes
This section includes descriptions of specific problems that may occur on
the ITO managed nodes and provides a solution.
1. Identify the ITO version installed on the management server by
looking at the /opt/OV/bin/OpC/install/opcsvinfo file on the
management server.
Problem Ungraceful abort of the ITO GUI leaving some GUI processes still
running
Description You receive the error message The user is already logged on.
(50-17), when logging on to ITO after the ITO GUI has crashed while
users were still logged on.
Solution Some GUI processes may still be running; check for the following
processes and kill them:
opcuiadm
opcuiop
opcdispr
ovw
If these processes are not running, but you still receive the error message,
delete the entry for logged-on operators from the ITO database:
su - oracle
svrmgrl
connect internal;
select * from opc_op.opc_op_runtime;
To delete the entry for a specific user (currently logged on):
delete from opc_op.opc_op_runtime where name =
‘<username>’;
To delete the entry for a all users (currently logged on):
delete from opc_op.opc_op_runtime;
commit;
exit
exit
Chapter 10 399
Tuning, Troubleshooting, Security, and Maintenance
Troubleshooting: Specific Problems
2. Check the entry OPC_INSTALLED_VERSION in the opcinfo file on
the managed node. See Table 10-3 on page 399 for the location of the
opcinfo file on the various agent platforms.
Table 10-3 Location of the opcinfo File on ITO Managed Nodes
3. To obtain more detailed information, use the what(1) command for
UNIX systems:
For example, for HP-UX 10.x and 11.x managed nodes:
what /opt/OV/bin/OpC/opc*
AIX /usr/lpp/OV/OpC/install/opcinfo
DEC Alpha NT \usr\OV\bin\OpC\alpha\install\opcinfo
Digital UNIX /usr/opt/OV/bin/OpC/install/opcinfo
HP-UX 10.x and 11.x /opt/OV/bin/OpC/install/opcinfo
MPE/iX OPCINFO.BIN.OVOPC
NCR UNIX SVR4 /opt/OV/bin/OpC/install/opcinfo
Novell NetWare sys:/opt/OV/bin/OpC/install/opcinfo
Olivetti UNIX /opt/OV/bin/OpC/install/opcinfo
OS/2 \opt\OV\bin\OpC\install\opcinfo
Pyramid DataCenter/OSx /opt/OV/bin/OpC/install/opcinfo
SCO OpenServer /opt/OV/bin/OpC/install/opcinfo
SCO UnixWare /opt/OV/bin/OpC/install/opcinfo
Sequent DYNIX /opt/OV/bin/OpC/install/opcinfo
SGI IRIX /opt/OV/bin/OpC/install/opcinfo
Siemens Nixdorf SINIX /opt/OV/bin/OpC/install/opcinfo
Solaris /opt/OV/bin/OpC/install/opcinfo
Windows NT \usr\OV\bin\OpC\intel\install\opcinfo
400 Chapter 10
Tuning, Troubleshooting, Security, and Maintenance
Troubleshooting: Specific Problems
ITO Installation Problems and Solutions on UNIX
Managed Nodes
ITO Installation Problems with Multi-homed Hosts
Installation of the ITO agent software includes distributing a nodeinfo
file to the managed nodes. This file contains information about the
managed node, such as the parameter OPC_IP_ADDRESS, used by the
management server to identify the managed node in communication.
The nodeinfo file is automatically updated when the administrator
modifies the IP-address using the Modify Node window.
You need to follow these instructions when you specify an IP-address
using the opcmsg(1) command to send messages to the management
server.
Use the netstat(1) command to check if a host is multi-homed. An
example of the HP-UX output follows:
#netstat -r
Routing tables
Destination Gateway Flags Refs Use Interface
193.1.4.1 193.1.3.1 UH 0 36598 ni0
127.0.0.1 157.0.0.1 UH 52 1919 lo0
15.136.120 15.136.120.91 U 30 86115 lan0
193.1.3 193.1.3.1 U 7 2904156 ni0
15.136.121 55.136.121.11 U 0 11121 lan1
Problem The installation script inst.sh (1M) prompts for a password in an
endless loop, even if the correct password has been specified.
Description If no .rhosts entry is available for root on the managed node, the ITO
installation will prompt for the root password. If you have specified the
correct password and the message
rexec: Lost connection
is displayed, then possibly the management server is not yet known on
the managed node.
Solution Add the management server entry to /etc/hosts and/or update your
Name Server if one is used.
Chapter 10 401
Tuning, Troubleshooting, Security, and Maintenance
Troubleshooting: Specific Problems
Where ni0 is a point-to-point connection (PPL, SLIP, or PPP), and lan0
and lan1 are ethernet interfaces (lo0 is present on every system and
represents the loopback interface). In these environments, the following
problems can occur:
❏The agent processes on the managed node are up and running, but no
messages are shown in the browser
❏The control agent does not start and, as a result, no further ITO agent
processes run
❏The templates are not distributed to the managed node
❏Actions and application results are not received by the management
server
These problems are a result of:
❏an incomplete name service configuration, or
❏problems with IP connectivity (for example, missing routes to the
other LAN interfaces).
Incomplete Name Service Configuration. Commonly the result
of the host name for a managed node (or management server) stored in
the name service not containing all host name/IP-address associations,
incomplete name-service configuration prevents ITO from applying its
authorization algorithm.
ITO checks the IP-address of the managed node and then sends a
message to the IP-addresses for this node which it received from the
name service. If ITO does not find the IP-address of the sender, it simply
discards this message.
You can check the name service by using the nslookup(1) command in
the following way:
#nslookup jacko
Name Server: nameserver.bbn.hp.com
Address: 15.136.129.111
Name: jacko.bbn.hp.com
Address: 15.136.123.138, 15.136.25.14
or, when /etc/hosts is used as the name service:
#nslookup jacko
402 Chapter 10
Tuning, Troubleshooting, Security, and Maintenance
Troubleshooting: Specific Problems
Using /etc/hosts on : jacko
Name: jacko.bbn.hp.com
Address: 15.136.123.138
Aliases: jacko
Note that this command only returns the first IP-address when using
/etc/hosts as the name service.
The managed node uses the IP-address of the first network interface
card it finds (by scanning the internal network interface list). The order
of the network interfaces depends on the interface type installed on the
managed node. For example, if an X.25 and an Ethernet interface are
installed, the IP-address of the X.25 interface is used by the managed
node, since this interface comes before the Ethernet interface in the
internal network interface list.
If the management server has stored the IP-address bound to the
Ethernet interface of this managed node in its database, but the name
service the management server uses has no association to the X.25
IP-address of the managed node, a message sent by this managed node
will be rejected.
For example, if the managed node jacko.bbn.hp.com has the
IP-addresses 193.1.1.1 for the X.25 interface, and 15.136.120.169 for the
Ethernet interface. The name service used by the managed node is
displayed as follows:
/etc/hosts
----------
15.136.120.169 jacko.bbn.hp.com jacko_15 # Ethernet
193.1.1.1 jacko.bbn.hp.com jacko_x.25 # X.25
The name service used by the management server has the following
entry for jacko. bbn.hp.com:
/etc/hosts
----------
15.136.120.169 jacko.bbn.hp.com jacko
In the above scenario, as the message contains the IP-address 193. 1. 1.1
which is not known on the management server, a message to the
managed node jacko would be rejected. There are two ways to resolve
this problem:
1. Add the second X.25 IP-address to the management server’s name
service:
Chapter 10 403
Tuning, Troubleshooting, Security, and Maintenance
Troubleshooting: Specific Problems
/etc/hosts
----------
15.136.120.169 jacko.bbn.hp.com jacko
193.1.1.1 jacko.bbn.hp.com jacko_x.25
and restart ITO.
2. In cases where it is not possible to add host name/IP-address
associations (for example, in fire-wall environments), a special ITO
configuration file can contain the association (this configuration file
must be created manually):
/etc/opt/OV/share/conf/OpC/mgmt_sv/opc.hosts
------------------------------------
193.1.1.1 jacko.bbn.hp.com
Then restart ITO.
It is also required that all IP-addresses of the management server are
known by ITO. You can do this by either specifying all host
name/IP-address associations in the name service, or by specifying it in
the opc.hosts file as shown in the following example:
Management server “arthur.bbn.hp.com”
/etc/hosts
----------
193.1.4.1 arthur.bbn.hp.com arthur 193
15.136.121.2 arthur.bbn.hp.com arthur
192.1.1.1 arthur.bbn.hp.com arthur-fddi
Note that ITO uses the fully qualified hostname for identifying a
managed node or management server, and for resolving the
IP-addresses. Therefore, the name service entries of the following
example will not solve the above problem:
/etc/hosts
----------
193.1.4.1 arthur.bbn.hp.com arthur 193
15.136.121.2. arthur.bbn.hp.com arthur
192.1.1.1 arthur.bbn.hp.com arthur-fddi
In this case, the resolution of arthur. bbn.hp.com would only return
193.1.4.1, and not all three addresses.
IP Connectivity. You can check IP-connectivity by using the
ping(1M) command as follows:
# ping 193.1.4.1
404 Chapter 10
Tuning, Troubleshooting, Security, and Maintenance
Troubleshooting: Specific Problems
returns:
PING 193.1.4.1: 64 byte packets
----193.1.4.1 PING Statistics----
3 packets transmitted, 0 packets received, 100% packet loss
after pressing Ctrl-C. This indicates that no connection was possible
using address 193.1.4.1.
If the following scenario were to exist:
The managed node and management server both have two LAN
interfaces, but are only connected through the 15.136.120 subnet. There
is no route from the management server to the managed node through
the 193.1.1 subnet, or from the managed node to the management server
through the 194.1.1 subnet respectively.
To use a specific subnet in this environment, you must select the
IP-address of the managed node manually from the GUI. In the above
scenario the communication should be bound to subnet 15.136.120. You
can select the appropriate IP-address from either the Add Node or
Modify Node window of the ITO administrator (the management
server’s name service must contain both IP-addresses for the node
jacko.bbn.hp.com).
On the managed node, you must edit the opcinfo file in the platform-
specific install directory (for more information, see Table 10-3 on page
399). To set the path which the managed node uses for communication
with the management server, specify the following parameter in the
opcinfo file: OPC_RESOLVE_IP 15.136.120.2. A corresponding
opcinfo file could then look like the one shown in the following
example:
Managed Node
jacko.bbn.hp.com
Management Server
arthur.bbn.hp.com
lan0:193.1.1.1 lan1:15.136.120.1
lan1:15.136.120.2
lan0:194.1.1.1
Chapter 10 405
Tuning, Troubleshooting, Security, and Maintenance
Troubleshooting: Specific Problems
#################################################################
# File: opcinfo
# Description: ITO Installation Information of Managed Node
# Package: HP OpenView IT/Operations
#################################################################
OPC_INSTALLED_VERSION A.05.00
OPC_MGMT_SERVER arthur.ashe.tennis.com
OPC_INSTALLATION_TIME 10/13/98 13:37:44
OPC_RESOLVE_IP 15.111.222.333
#################################################################
# end of opcinfo
#################################################################
After these changes, the managed node’s agents must be restarted using:
/opt/OV/bin/OpC/opcagt -start
Note that the changes in opcinfo are lost when the ITO agent software
is re-installed.
Installation Problems and Solutions on MPE/iX
Managed Nodes
Problem Installation aborts because MPE/iX system name is not known on the
management server.
Description A The LAN card is not configured with the ieee option required for vt3k
operations.
Solution A Get the current lanconfig statement from /etc/netlinkrc on the
management server, and resubmit the command with the additional ieee
parameter.
grep lanconfig /etc/netlinkrc
lanconfig…ieee
406 Chapter 10
Tuning, Troubleshooting, Security, and Maintenance
Troubleshooting: Specific Problems
NOTE No interactive logon/logoff UDCs are allowed.
Description B No ARPA-to-NS node-name mapping is defined in
/etc/opt/OV/share/conf/OpC/mgmt_sv/vt3k.conf and the NS
node for the management server is not set, or it belongs to a different
domain.
Solution B1 Specify a corresponding mapping in vt3k.conf. (See the section
“ARPA-to-NS Node-Name Mapping for MPE/iX” on page 128).
Solution B2 Check and set the NS node name of the management server:
nodename
nodename <ns_name>
Problem Installation aborts due to interactive logon/logoff UDC.
Description ITO uses vt3k during ITO agent software installation. During the
installation period, the interactive logon/logoff UDCs for
MANAGER.SYS, MGR.OVOPC and AGENT.OVOPC are NOT
supported.
Solution Deactivate interactive logon/logoff UDCs.
Chapter 10 407
Tuning, Troubleshooting, Security, and Maintenance
Troubleshooting: Specific Problems
Platform-independent Runtime Managed Node
Problems and Solutions
Problem MPE/iX “request replies” from the ITO management server via
X-redirection from MPE/iX managed nodes can fail.
Description Starting an X-application from the application desktop (or as an
operator-initiated action etc.) produces the action annotation:
“unknown node: ERROR can’t open display” (or similar)
Solution Check that the environment variable DISPLAY on the management
server is set to a long hostname; for example xyz.bbn.hp.com:0.0, not
xyz:0.0. This display-string is passed to the agent when it tries to start
the X-application by redirecting the display to the management server.
The agent may not be able to resolve the short hostname nor, as a
consequence, start the X-application. If an operator-initiated or
auto-action started the application, an annotation will be added. If a
desktop application or broadcast command failed, an error dialog box
pops up.
Problem The agent software installation on MPE/iX managed nodes fails with the
following error message:
vt3k_opcchk failed
Description This happens when the variable LANG is set to a language other than C
on the MPE/iX managed node.
Solution Always set LANG to C before installing the ITO agent software.
408 Chapter 10
Tuning, Troubleshooting, Security, and Maintenance
Troubleshooting: Specific Problems
Problem ITO does not work as expected after an OS upgrade.
Description Updating the operating system might mean that ITO no longer works as
expected. For example, system boot/shutdown files have been modified;
the file system layout or the command paths could have been changed;
the shared libraries have been modified, etc.
Solution Check that the installed OS version is still supported by ITO:
/opt/OV/bin/OpC/agtinstall/opcversion -a
If the installed OS version is not supported by the current version of the
ITO agents, ask your HP representative for assistance and available
patches.
Problem ITO configuration is not installed on the managed node. For this reason,
the ITO logfile encapsulator, message interceptor, console interceptor and
event interceptor do not run.
Description A The managed node contains several LAN cards, and therefore several IP
addresses. Possibly there are several host names. The ITO agents use an
IP address not known on the management server for the corresponding
host name.
Solution A Make sure that all the IP addresses of all the managed nodes are known
to the management server. Update the Name Services and/or
/etc/hosts accordingly:
nslookup <managed_node>
Description B As Description A, but the managed node in question belongs to a different
sub-net or domain and is configured to have a short hostname.
Solution B As Solution A, but also configure the managed node hostname as a fully
qualified hostname.
Chapter 10 409
Tuning, Troubleshooting, Security, and Maintenance
Troubleshooting: Specific Problems
Problem After an application upgrade, ITO no longer works as expected.
Description After the upgrade of installed applications on the managed node, logfile
encapsulation, MPE/iX console message interception, and so forth,
appear not to work properly. This could be caused by different message
patterns, localized logfiles, different path and/or file name of the logfiles,
and so forth.
Solution Check the related application manual and update the ITO message
sources accordingly.
Problem X application cannot be started on a managed node.
Description If you start an X application on a managed node, that system must be
allowed to redirect the display to your display station.
Solution Specify on your display station, for each managed node where X
applications operate:
xhost + <managed_node>
To grant access to everyone:
xhost +
Problem Application can no longer be started from the Application Desktop.
Description A An application is no longer installed on the managed node.
Solution A Re-install or remove the application from the administrator’s Application
Bank and/or the operator’s Application Desktop.
Description B An application has been upgraded, and its command path, access security
or something else has been changed.
Solution B Adapt the ITO default application startup accordingly.
Description C User’s password for default application startup has been changed.
410 Chapter 10
Tuning, Troubleshooting, Security, and Maintenance
Troubleshooting: Specific Problems
Solution C If you change the password on the managed nodes for default users of an
application startup from the ITO Application Desktop, you must adapt
the password in the ITO configuration, too. This is only necessary if the
application is configured as having a Window (Input/Output), and if no
appropriate .rhosts or /etc/hosts.equiv entry is available.
Description D When any kind of application is started (Window (Input/Output);
Window (Output Only); No Window) the calling user’s profile is
executed. If the overall execution takes more than 2 seconds or before
anything is written to standard output, ITO assumes that an error has
occurred and the application startup will be terminated.
Solution D Simplify the user’s profile so that it executes faster or writes more
information to standard output. Also, check that the user’s profile does
not prompt for specific input.
Description E The command path length (inclusive of parameters) is too long for an
application configured as having a Window (Input/Output). Only 70
characters are available for command path and resolved parameters
(such as $OPC_NODES).
Solution E Do not specify the full command path. Put this path in the executing
user’s PATH variable. Avoid hard-coded parameters and only pass
dynamic parameters. Instead of calling the application with lots of
hard-coded parameters, use a script which internally calls the application
with the required parameters. Instead of configuring this application to
run in a Window (Input/Output), set this option to No Window, and
start an hpterm/xterm on that managed node.
Problem Command broadcast or application startup does not work on all selected
systems.
Description A Not all systems are controlled. Command broadcasting and application
startup is only granted on controlled nodes and not on monitored,
messages-allowed,disabled or message-allowed nodes.
Solution A Change the node type of the managed nodes to controlled (unless the
node is an external node, in which case this is not possible).
Description B The command or application is not available on all selected systems.
Solution B Install the command or application where it is missing.
Chapter 10 411
Tuning, Troubleshooting, Security, and Maintenance
Troubleshooting: Specific Problems
Description C The command or application path is different; for example, /usr/bin/ps
(HP-UX 10.x, 11.x).
Solution C. Use (hard or symbolic) links or copy the command or application to the
appropriate destination. Write a script/program which calls the right
command or application, depending on the platform. For example:
my_ps.sh
#!/bin/sh
ARCH=‘uname -s‘
if [ ${ARCH} = ”HPUX” -o ${ARCH} = ”AIX” ]
then
/bin/ps -eaf
elif [ ${ARCH} = ”AIX” ]
then
/usr/bin/ps -ax
else’’
echo ”Unsupported architecture ${ARCH}”
exit 1
fi
Description D The command or application parameters are different.
Solution D Write a script or program using the appropriate parameters; see the
example above.
Description E Inconsistent passwords for the calling user on the selected managed
nodes. ITO provides only one common password for the assigned default
operator on UNIX managed node as well as one common password for the
assigned default operator on MPE/IX managed nodes. Furthermore, only
one password can be specified for default application startup. So both
command broadcasting (using customized user/password) or application
startup will fail. Note that a password is only required for Window
(Input/Output) applications, or if the customer changes the default
settings.
Solution E 1. Split your broadcast for systems having the same user password.
2. Provide a common password for all selected managed nodes. Be aware
of applied password-aging mechanisms. Alternatively, for applications
configured as using a Window (Input/Output), an appropriate
.rhosts or /etc/hosts.equiv entry is also sufficient.
3. Use the assigned default user for command broadcasting and the
startup of applications configured as using a Window (Input/Output).
In this case, the action will be performed by the ITO action agent and
no password need be provided.
412 Chapter 10
Tuning, Troubleshooting, Security, and Maintenance
Troubleshooting: Specific Problems
Problem ITO Agents are corrupt, even after running the opcagt -stop; opcagt
-start sequence.
Description opcagt -status reports that not all ITO agents are up and running;
automatic or operator-initiated actions and scheduled actions are not
executed, and applications are not started as requested. Actions are not
acknowledged, even after a successful run.
Solution Check the status of an ITO managed node by running the following
command on that system locally:
AIX /usr/lpp/OV/OpC/opcagt -status
DEC Alpha NT \usr\OV\bin\OpC\alpha\opcagt -status
HP-UX10.x/11.x,
Solaris, NCR
UNIX SVR4, SGI
IRIX, SCO
OpenServer,
SCO UnixWare,
DYNIX/ptx,
Digital UNIX,
Olivetti UNIX,
and Pyramid
DataCenter OS/x,
OS/2 /opt/OV/bin/OpC/opcagt -status
MPE/iX opcagt.bin.ovopc -status
Windows NT \usr\OV\bin\OpC\intel\opcagt -status
Check the local opcerror file for indications of where the problem may
be originating. For the location of this file, see “Errors Reported in
Logfiles” on page 386. If the ITO agent status is corrupt, even after the
opcagt -stop; opcagt -start sequence, perform the steps specified
in the following tables, working locally on the managed node as user
root. All pending messages not yet sent to the management server and
all pending actions (for example, automatic and operator-initiated
actions, scheduled actions and command broadcast) will be lost.
Chapter 10 413
Tuning, Troubleshooting, Security, and Maintenance
Troubleshooting: Specific Problems
Table 10-4 Clean-up and Restart of ITO Agents on HP-UX 10.x/11.x
Managed Nodes
a. If the managed node is also the ITO management server, stop the
ITO user interfaces and manager services. To do this: 1. Check that
all ITO GUIs are terminated (ps -eaf | grep opcui). If they are
not, terminate them using the [File: Exit] or (Ctrl+E) functions on
any HP OpenView submap owned by ITO or use the kill(1) com-
mand. 2. Stop the server processes: ovstop opc ovoacomm
b. If the managed node is also the ITO management server, restart the
ITO user interfaces and manager services, too: ovstart opc
ovoacomm
Task HP-UX 10.x and 11.x Managed Nodes
1. Stop ITO agents, including
the control agent: /opt/OV/bin/OpC/opcagt -kill
2. Check that all ITO agents
are stopped. a/opt/OV/bin/OpC/opcagt -status
3. Check the list of agent
PIDs given by the opcagt
-status command. If any
PIDs are not stopped, use the
kill (1M) command. Do not
kill the ITO Kernel Message
Logger opckmsg if running
on the managed node.
ps -eaf | grep opc kill <proc_id>
4. Check that no ITO
processes are still registered
with the llbd or dced/rpcd
daemons.
/usr/sbin/ncs/lb_admin
/opt/dce/bin/rpccp or
/opt/dce/bin/dcecp
5. Remove temporary ITO
files. rm -f /var/opt/OV/tmp/OpC/*
6. Restart ITO agents. b/opt/OV/bin/OpC/opcagt -start
414 Chapter 10
Tuning, Troubleshooting, Security, and Maintenance
Troubleshooting: Specific Problems
Table 10-5 Clean-up and Restart ITO Agents on Other SVR4 Managed Nodes
Task
Solaris, NCR UNIX SVR4, SCO
OpenServer, SCO UnixWare, SGI IRIX,
Olivetti UNIX, Pyramid
DataCenter/OSx, Digital UNIX,
andOS/2
1. Stop ITO agents, including
the control agent. /opt/OV/bin/OpC/opcagt -kill
OS/2: use the GUI
Digital UNIX:
/usr/opt/OV/bin/OpC/opcagt -kill
2. Check that all ITO agents
are stopped. opcagt -status
3. Check again that all ITO
agents are stopped using the
list of agent PIDs given by the
opcagt - status
command. If any are not
stopped, execute the kill
(1M) command.
ps -eaf|grep opc kill <proc_id>
4. Check that no ITO
processes are still registered
with the llbd or dced/rpcd
daemons.
/usr/sbin/ncs/lb_admin
/opt/dce/bin/rpccp
or/opt/dce/bin/dcecp
OS/2: \opt\dcelocal\bin\rpccp
or \opt\dcelocal\bin\dcecp
5. Remove temporary ITO
files. rm -f /var/opt/OV/tmp/OpC/*
6. Restart ITO agents. /opt/OV/bin/OpC/opcagt -start
Chapter 10 415
Tuning, Troubleshooting, Security, and Maintenance
Troubleshooting: Specific Problems
Table 10-6 Clean-up and Restart of ITO Agents on AIX and MPE/iX Managed
Nodes
UNIX Managed Node Runtime Problems and
Solutions
Task AIX MPE/iX
1. Stop ITO agents,
including the control
agent.
/usr/lpp/OV/OpC/opcagt
-kill
opcagt.bin.ovopc -kill
2. Check that all ITO
agents are stopped. /usr/lpp/OV/OpC/opcagt
-status
opcagt.bin.ovopc
-status
3. Check again that
all ITO agents are
stopped using the list
of agent PIDs given
by the
opcagt-status
command. If any are
not stopped, execute
the kill (1M)
command.
ps -eaf|grep opc
kill <proc_id>
showproc
;system;tree;pin=1
(MPE/iX processes cannot be
killed)
4. Check that no ITO
processes are still
registered with the
llbd or dced/rpcd
daemons.
/etc/ncs/lb_admin
/opt/dce/bin/rpccp or
/opt/dce/bin/dcecp
lbadmin.pub.hpncs
5. Remove temporary
ITO files. rm -f
/var/lpp/OV/tmp/OpC/*
purge@.tmp.ovopc
6. Restart ITO agents. /usr/lpp/OV/OpC/opcagt
-start
opcagt.bin.ovopc
-start
416 Chapter 10
Tuning, Troubleshooting, Security, and Maintenance
Troubleshooting: Specific Problems
Problem Automatic or operator-initiated action, scheduled action, command
broadcast, or application hangs and does not terminate.
Description Due to programming errors or requests for user input, automatic and/or
operator-initiated actions, or scheduled actions can hang and not finish.
Solution Determine the process ID of the endlessly running action using the ps
command. Issue a kill command for the specific process ID.
Problem Distribution of scripts or programs belonging to actions, monitor, or
commands components fails.
Description A No disk space is available to store scripts/programs in a temporary or
target directory. See Table 6-2 on page 308 and Table 6-3 on page 310.
Solution A Provide enough disk space and redistribute the appropriate components.
Description B An instance of the program is running and cannot be overridden on UNIX
platforms. ITO moves the actions|cmds|monitor directory to a
directory with the same name and the extension .old before installing
the latest binaries. Afterwards, all files in .old are erased. If this is not
possible because text files are “busy”, the file and the directory are left.
During reinstallation of the actions|cmds|monitor binaries, ITO tries
once again to delete the entries in the .old directories. If this is not
possible, the ITO control agent generates an error message and stops. For
the location of the actions|cmds|monitor directories and .old
directories see Table 6-3 on page 310.
Solution B Find the still running instance of the actions|cmds|monitor binary
and kill it manually; afterwards re-distribute the actions,, comands, etc.
Chapter 10 417
Tuning, Troubleshooting, Security, and Maintenance
Troubleshooting: Specific Problems
Problem User’s profile is not executed as expected when broadcasting a command
or starting an application.
Description The profile of the executing user is executed before starting the
command/application on the managed node. The profile execution might
not work as expected under the following conditions:
• profile prompts in a loop for specific user input and does not provide a
default setting, if only Return has been pressed
• strange terminal settings are done
• the profile execution spends more than 2 seconds
Solution See “How ITO Starts ITO Applications and Broadcasts on Managed
Nodes” on page 327.
Problem Scripts or other actions on the managed node do not execute, and the
action agent log file reports script not found.
Description The PATH variable prepared by the action agent was changed by a
startup file.
When ITO agents are started on a system where the korn shell is used
and root’s profile points to a startup file where PATH is set explicitly, the
PATH variable set by the action agent is lost after the script is executed
by korn shell.
Solution Change the setup for user root so that the PATH variable is set by
extending it PATH=$PATH:/new/path/
Problem The following error message is displayed:
Cannot create semaphore, invalid argument
Description Semaphores are not set up properly in the kernel.
Solution Use ipcs to report on the status of the inter-process communication
facilities. Re- configure the kernel accordingly.
418 Chapter 10
Tuning, Troubleshooting, Security, and Maintenance
Troubleshooting: Specific Problems
MPE/iX Managed Node Runtime Problems and
Solutions
Problem Extremely long time for command broadcasting and application startup.
Description The command broadcasting and application startup are done within jobs.
When the job limit is reached, the jobs are queued. Non-ITO jobs also
increase the number of running/pending jobs. By default, ITO runs one
job to control its agents and up to four additional jobs for command
broadcasting and/or application startup.
Solution Increment the job limit (HPJOBLIMIT) if required.
Problem When distributing command,action, or monitor scripts or programs, it
may happen that current actions, commands, and monitors cannot be
replaced.
Description The commands,actions, or monitors are still in use (scripts or
programs are running; text file is busy). The user receives a warning to
this effect. In most cases, this causes no problems, since the existing
actions, monitors, or commands are not often modified (in other words,
the newly-distributed files are equivalent to those in use).
Solution If the user wants explicitly to change a program or script on MPE/iX
which is running, he or she must: Stop the MPE agents:
opcragt -stop <MPE-NODE>
Repeat the distribution (the distribution will restart the agents again).
Chapter 10 419
Tuning, Troubleshooting, Security, and Maintenance
Troubleshooting: Specific Problems
Problem ITO agents stop processing due to too many files being open.
Description If the permanent file, LASTUUID.PUB.HPNCS has not been created, NCS
creates a temporary one, which it does not close. Over a period of time, it
tries to re-creates this file many times. The result is that the number of
open file descriptors increases, and the system table used to administrate
open files is overloaded. It is then not possible to open any new files.
Solution Check that the file LASTUUID.PUB.HPNCS exists:
listf LASTUUID.PUB.HPNCS
If the file does not exist, stop all ITO agents, working as user
AGENT.OVOPC:
opcagt.bin -kill
Create a new file as user MGR.HPNCS:
hello agent.ovopc
opcagt.bin -kill
hello mgr.hpncs
build lastuuid.pub.hpncs
hello agent.ovopc
opcagt.bin -start
420 Chapter 10
Tuning, Troubleshooting, Security, and Maintenance
Troubleshooting: Specific Problems
Problem Command broadcast and application does not terminate.
Description The command broadcasting and application startup are done within jobs
named OPCAAJOB. If such a job does not terminate, perform the
following solution.
Solution 1. Check that a job OPCAAJOB is available; if so, get the job number(s)
<num>:
showjob
2. If more than one job OPCAAJOB is available, determine the job
number you need: for each found job number determine the
corresponding spool file id <spf_id>:
listspf o@;seleq=[jobnum=#j<num>]
Check the spool file contents to determine the job number of the
hanging job:
print o<spf_id>.out.hpspool
3. Delete the appropriate OPCAAJOB:
abortjob #j<num>
Problem Invalid status returned for automatic operator-initiated actions when
running in parallel and an action fails.
Description ITO uses the same environment for running automatic and operator-
initiated actions in parallel, so only one set of job control words
(CIERROR, etc.) are available. If one action fails, the execution of all
other actions is also interpreted as failed even if they were successful.
Solution Re-run operator-initiated actions. Verify automatic action results using
the appropriate tools, for example, virtual terminal, application startup,
and remote command execution.
Chapter 10 421
Tuning, Troubleshooting, Security, and Maintenance
Troubleshooting: Specific Problems
OS/2 Managed Node Runtime Problems and Solutions
Problem Automatic or operator-initiated action, or scheduled action does not
terminate.
Description Due to an endless loop programming error the automatic or
operator-initiated action, or scheduled action does not terminate.
Solution Find the programming error in your scripts/programs and restart the
ITO agents after you have fixed the problem.
opcagt.bin.ovopc -start
Problem Critical error message 30-511 when executing scheduled actions.
Description The output of the scheduled action cannot be read correctly.
Solution The scheduled action executes correctly; you can safely ignore this error
message.
Problem Setting the port range for MPE/iX managed nodes has no effect.
Description You can set the port range in the Node Advanced Options window, but
this doesn’t have any effect. MPE/iX managed nodes cannot communicate
with the ITO management server through a firewall.
Solution There is no workaround available.
Problem Action agent cannot redirect stdout and stderr.
Description Action agent cannot redirect stdout and stderr.
Solution Add the parameter OPC_OS2_MAX_NBR_OPEN_FILES to the
\opt\OV\bin\OpC\install\opcinfo file to set the maximum number
of open files to 100 (OS/2 default is 20).
422 Chapter 10
Tuning, Troubleshooting, Security, and Maintenance
Troubleshooting: Specific Problems
RPC Daemon or Local Location Broker Problems and
Solutions
Problem ITO agent processes cannot be stopped.
Description If you receive a message that some ITO agent processes could not be
stopped, or if you find that agent processes are still running although the
control agent exited, stop all running ITO agent processes.
Solution Stop the processes by executing
\opt\OV\bin\OpC\utils\opckill.exe.
Problem Control agent does not come up on node, or ITO error log file contains
errors indicating an NCS or DCE problem.
Description If a registered ITO process stops responding, even though it is running,
there may be a problem with the NCS local location broker daemon
(llbd), or the DCE RPC daemon (dced/rpcd).
Solution For UNIX systems: check that the dced/rpcd is running on the
management server, and that either an llbd or dced/rpcd is running on
all managed nodes.
ps -eaf | grep dced (rpcd)
ps -eaf | grep llbd
You can use the tools rpccp/dcecp to check that rpcd/dced is running.
You can use the tool lb_admin to check whether all registered services
can still be reached or not. For MPE systems: If the problem occurs on
an MPE node, this tool is also available, but under the name
lbadmin.pub.hpncs. In addition, a tool called ncktest.pub.hpncs is
available to check whether NCS is configured properly. The most
important sub-commands for ncktest are:
• broker local debug
• config
• files
• loopback
Chapter 10 423
Tuning, Troubleshooting, Security, and Maintenance
Troubleshooting: Specific Problems
Accessing the MIB of the Managed Node
To grant ITO access to the MIB of the managed node, you must ensure
that the get-community-name is set in one of the following ways:
❏Edit the opcinfo file on the managed node (see Table 10-3 on page
399 for the location of the opcinfo file on all platforms), and add the
following line:
SNMP_COMMUNITY <community>
where <community> is the community for which the snmpd is
configured.
If SNMP_COMMUNITY is not set, the default community public is
used. If it is set, the specified community name is used for snmp-get
operations and should match one of the get-community strings in the
snmpd configuration file.
❏ Or edit the configuration file for the SNMP daemon:
on HP-UX 10.x and 11.x managed nodes:
/etc/SnmpAgent.d/snmpd.conf
get-community-name: enter the community name for the SNMP
agent. More than one community name can be specified by adding a
line for each community name. This can be set to one of the following:
• When left empty:
The SNMP agent responds to get requests using any community
name.
• If a community name is entered, the SNMP agent only responds to
get requests using this community name, for example:
get-community-name: secret
get-community-name: public
ITO requires this access for:
❏monitoring MIB effectively
❏the automatic resolution of node attributes when you configure a new
node in ITO.
For more details, see the related snmpd man page. For HP-UX, see the
HP OpenView SNMP Agent Administrator’s Guide.
424 Chapter 10
Tuning, Troubleshooting, Security, and Maintenance
Troubleshooting: Specific Problems
NFS Problems and Solutions
Problem The logfile encapsulator reports the warning message:
Unable to get status of file <filename>. Stale NFS handle.
Description The logfile encapsulator can sometimes perceive logfiles set up on NFS as
being open, even after they have been removed. This causes an attempted
access to fail.
Solution Change the policy by closing the logfile between reads. Select Window:
Message Source Templates to open the Message Source
Templates window. Make sure that logfiles are listed, click on the
desired logfile, then on [Modify…]. In the Modify Logfile window,
click on [Close after Read].)
Chapter 10 425
Tuning, Troubleshooting, Security, and Maintenance
Changing Hostnames/IP Addresses
Changing Hostnames/IP Addresses
Frequently, a node has several IP addresses and hostnames. You may
need to change an IP addresses if a node becomes a member of another
sub-net. In this case, the IP address or fully qualified domain name may
change
In general, on HP-UX systems, the IP address and the related hostname
are configured in:
❏/etc/hosts
❏the Domain Name Service (DNS), or
❏the Network Information Service (NIS)
ITO also configures the hostname and IP address of the managed nodes’
management server in the management server database.
If you are moving from a non-name-server environment to a name-server
environment (DNS, BIND), make sure the name server has access to the
new IP address.
Hostnames work within IP networks to identify a managed node. While
a node may have many IP addresses, the hostname is used to pin-point a
specific node. The system hostname is the string returned when you use
the UNIX hostname(1) command.
Changing the Hostname/IP Address of the
Management Server
Change the hostname and/or IP address of the management server in
two stages. Firstly, set up the change by stopping processes and changing
the name. Then, restart and reconfigure ITO for your changes to take
effect. See the following section for information on how to change the
hostname/IP address of the managed nodes.
NOTE You must de-install the ITO agent software from the management server
before changing the hostname of the management server. Re-install the
ITO agent software when you have finished this task. For more
information on de-installing and re-installing the agent software, see the
HP OpenView IT/Operations Installation Guide for the Management
Server.
426 Chapter 10
Tuning, Troubleshooting, Security, and Maintenance
Changing Hostnames/IP Addresses
Before You Change the Hostname/IP Address of the
Management Server
1. Stop all ITO processes on your management server. This includes the
manager, agent and user-interface processes running on this system.
a. Stop all running ITO user interfaces by selecting Map:Exit.
b. When changing the IP address of the management server, stop the
ITO agents on your management server.
/opt/OV/bin/OpC/opcagt -kill
c. Stop the ITO manager processes:
/opt/OV/bin/ovstop opc ovoacomm
d. Check that no ITO processes are running:
ps -eaf | grep opc
e. If an ITO process is still running, kill it manually:
kill <proc_id>
All ITO intelligent agents on ITO managed nodes will start
buffering their messages.
2. Make sure the database is running. If it is not running, start it with
the following commands:
su - oracle
$ORACLE_HOME/bin/svrmgrl
connect internal
startup
exit
exit
For more information about the Oracle database, see the HP
OpenView IT/Operations Installation Guide for the Management
Server.
3. Change the ITO management server's IP-address and/or node name
in the ITO database according to the “old/new name” naming scheme
below:
/opt/OV/bin/OpC/utils/opcchgaddr -force -label \
<label> IP <old_addr><old_name> IP <new_addr> \
<new_name>
Chapter 10 427
Tuning, Troubleshooting, Security, and Maintenance
Changing Hostnames/IP Addresses
Where:
-force The name service is not consulted.
The database is not checked for
duplicate node names.
-label <label>Modifies the label of the node to
<label>. The new label is
displayed in the Node Bank.
<old_addr>The IP address of old node.
<new_addr>The IP address of new (renamed)
node.
<old_name>The node name of old node.
<new_name>The node name of new (renamed)
node.
4. Shut down the database:
su - oracle
$ORACLE_HOME/bin/svrmgrl
connect internal
shutdown
exit
exit
5. Stop OpenView and all other integrated services (including ITO):
/opt/OV/bin/ovstop
6. Modify the following ITO management server configurations:
a. To change the hostname, edit the following files. Always replace
any occurrence of the old hostname with the new one:
/opt/OV/bin/OpC/install/opcsvinfo
/var/opt/OV/share/databases/openview/ovwdb/ovserver
/etc/opt/OV/share/conf/ovspmd.auth
/etc/opt/OV/share/conf/ovwdb.auth
/etc/opt/OV/share/conf/ovw.auth
b. To change the IP address, check whether the file
/opt/OV/bin/OpC/install/opcinfo contains the parameter
OPC_IP_ADDRESS. If it does, update the file with the new IP
address.
428 Chapter 10
Tuning, Troubleshooting, Security, and Maintenance
Changing Hostnames/IP Addresses
7. Reconfigure the ITO management server system with the new
hostname/IP address. For details, see the HP-UX System Manager’s
Guide.
To change the host name permanently, run the special initialization
script /sbin/set_parms.
Switching to a name server environment: If moving from a “non-name
server” environment to a “name server” environment, make sure the
name server has the new hostname/IP address available.
8. Restart your ITO management server system.
Restarting and Reconfiguring the System After
Changing a Hostname/IP Address
1. Stop the management server if it is running:
/opt/OV/bin/ovstop opc ovoacomm
2. Start the OpenView Topology Manager Daemon Service:
/opt/OV/bin/ovstart ovtopmd
3. If you changed the hostname, you must also update the ITO subagent
configuration:
rm /etc/opt/OV/share/conf/OpC/mgmt_sv/svreg
touch /etc/opt/OV/share/conf/OpC/mgmt_sv/svreg
opt/OV/bin/OpC/install/opcsvreg -add \
/etc/opt/OV/share/conf/OpC/mgmt_sv/itosvr.reg
To reconfigure additionally installed subagent packages, please refer
to the manuals supplied with these packages.
4. If the netmon process automatically starts up when the system starts
up, stop the netmon process:
/opt/OV/bin/ovstop netmon
5. Remove all entries from the SNMP configuration cache:
/opt/OV/bin/xnmsnmpconf -clearCache
6. Update the creation time of objects contained in the ovtopmd
database. This will cause the objects to reappear in all maps the next
time they are synchronized:
/opt/OV/bin/ovtopofix -U
Chapter 10 429
Tuning, Troubleshooting, Security, and Maintenance
Changing Hostnames/IP Addresses
7. Restart the netmon process:
/opt/OV/bin/ovstart netmon
8. Use the ping command to update OpenView’s “knowledge” of the
changed hostname:
ping <new_hostname>
9. Update the OpenView Topology Database with:
/opt/OV/bin/nmdemandpoll <new_name>
10.Make sure the database is running. If it is not running, start it with
the following commands:
su - oracle
$ORACLE_HOME/bin/svrmgrl
connect internal
startup
exit
exit
For information on the Oracle database, see the HP OpenView
IT/Operations Installation Guide for the Management Server.
11.Start OpenView and all other integrated services (including ITO):
/opt/OV/bin/ovstart
NOTE At this point the agent will start forwarding its buffered messages.
12.Start the ITO GUI, and log in as administrator.
13.Check that the templates are assigned to the new node (they should
still be).
14.If you changed the hostname, re-distribute all Event-Correlation
templates assigned to the management server. Select
Actions:Server->Install / Update Server Templates from
the menu bar of the Node Bank window.
15.Make the following changes depending on whether your system is the
only management server in your environment or one of many
operating in a flexible-management environment.
430 Chapter 10
Tuning, Troubleshooting, Security, and Maintenance
Changing Hostnames/IP Addresses
If you are not operating in a multi-management server environment
(see opcmom(4)), perform the following steps on all managed nodes
that are configured in the Node Bank and which are running an ITO
agent:
a. Shut down the ITO agents:
/opt/OV/bin/OpC/opcagt -kill
b. Update the agent’s opcinfo file with the ITO management
server’s new hostname. See Table 10-3 on page 399 for the location
of the opcinfo file on the managed nodes.
c. Restart the ITO agent processes:
/opt/OV/bin/OpC/opcagt -start
If you are running your system in a multi-management-server
environment (using flexible-management features), carry out the
following steps:
a. Perform steps a through c above only on those nodes that contain
the modified ITO management server in their opcinfo file.
b. If the modified ITO management server is configured as a primary
manager for some managed nodes, update those managed nodes
by running the following command from the modified ITO
management server:
/opt/OV/bin/OpC/opcragt -primmgr [ -all | \
[ -nodegrp <group>…] <node>…]
c. Make sure that your hostname/IP-address changes are reflected in
all appropriate configurations and templates across the entire
flexible-management environment. Refer to opcmom(4) for how to
setup, modify or distribute the templates in a
flexible-management environment.
16.If you have setup manager-to-manager message forwarding, you will
need to modify the hostname and IP-address manually on all
management servers that have the changed system in their node
bank. In addition, check message-forwarding or escalation templates
on the management servers concerned for occurrences of the old
hostname/IP address and modify accordingly. The following file needs
to be checked:
/etc/opc/OV/share/conf/OpC/respmgrs/msgforw/escmgr
Chapter 10 431
Tuning, Troubleshooting, Security, and Maintenance
Changing Hostnames/IP Addresses
Changing the Hostname/IP Address of a
Managed Node
NOTE When changing the hostname of a managed node, you must de-install the
ITO agent software from that node before proceeding with the following
step. Re-install the ITO agent software when you have finished with this
task. For more information on de-installing and re-installing the agent
software, see the HP OpenView IT/Operations Installation Guide for the
Management Server.
1. On all ITO managed nodes whose IP address you want to change, stop
the ITO agent processes:
/opt/OV/bin/OpC/opcagt -kill
2. On the management server, ensure that the database is running. If it
is not running, start it now with the following command:
su - oracle
$ORACLE_HOME/bin/svrmgrl
connect internal
startup
exit
exit
For more information about the Oracle database, see the HP
OpenView IT/Operations Installation Guide for the Management
Server.
3. On the management server system, for all the managed nodes that
will be modified, change the ITO managed node's IP-address/node
name in the ITO database according to the “old/new name” naming
scheme below:
/opt/OV/bin/OpC/utils/opcchgaddr -sync -force \
-label <label> IP <old_addr> <old_name> IP \
<new_addr> \ <new_name>
Where:
-sync synchronizes any changes to
hostname/IP address with the
ITO run-time components.
432 Chapter 10
Tuning, Troubleshooting, Security, and Maintenance
Changing Hostnames/IP Addresses
-force The name service is not consulted.
The database is not checked for
duplicate node names.
-label <label>Modifies the label of the node to
<label>. The new label is
displayed in the Node Bank.
<old_addr>The IP address of old node.
<new_addr>The IP address of new (renamed)
node.
<old_name>The node name of old node.
<new_name>The node name of new (renamed)
node.
4. For all ITO managed nodes you want to modify:
a. Reconfigure the ITO managed node system to the new
hostname/IP-address. If you are moving from a “non-name server”
environment to a “name server” environment, make sure the
name server has access to the new hostname/IP-address.
b. Reboot your ITO managed node system.
c. If the ITO agent processes did not automatically restart when you
rebooted the system, restart them now:
/opt/OV/bin/OpC/opcagt -start
5. Perform the following procedures on your management server:
a. Stop netmon:
/opt/OV/bin/ovstop netmon
b. Remove all entries from the SNMP configuration cache:
/opt/OV/bin/xnmsnmpconf -clearCache
c. Update the creation time of objects contained in the ovtopmd
database. This will cause the objects to reappear in all maps the
next time they are synchronized:
/opt/OV/bin/ovtopofix -U
d. Restart netmon:
/opt/OV/bin/ovstart netmon
Chapter 10 433
Tuning, Troubleshooting, Security, and Maintenance
Changing Hostnames/IP Addresses
6. On your management server for all ITO managed nodes whose
hostname/IP-address you want to change:
a. Use the ping command to update OpenView’s “knowledge” of the
changed hostname and IP address:
ping <new_name>
b. Update the OpenView Topology Database with:
/opt/OV/bin/nmdemandpoll <new_name>
7. Resynchronize the ITO server processes and GUIs:
a. Restart the ITO Administrator’s and Operator’s GUI, using ths
following menu option in any of the main ITO windows:
File: Restart Session
8. If the old hostname is referred to in any ITO templates (such as in the
Node field in the Actions section of the Conditions No. window
for remote automatic actions), perform steps a and b below. You have
to do these workaround steps since opcchgaddr changes only
‘central’ tables containing node information; the internal ID is not
modified. This means the template itself is not changed in the
database. Therefore, the special flag indicating the template has been
modified will not be set. Merely using Force Update will not update
the database since ITO caches the templates as flat files if they have
been distributed once.
a. Force ITO to re-create templates out of the database by removing
cached templates from the last distribution:
cd /etc/opt/OV/share/conf/OpC/mgmt_sv/templates
rm -f ‘find . -type f‘
b. Distribute the modified configuration to all managed nodes using
any template that refers to the modified hostname:
1. In one of the main windows, select
Actions:Agents->Distribute.
2. In the Distribute ITO Software and Configuration
window, select the component [Templates].
3. Select [Force Update] and [Nodes in list requiring
update].
434 Chapter 10
Tuning, Troubleshooting, Security, and Maintenance
Changing Hostnames/IP Addresses
4. Select the managed nodes in the Node Bank window, and click
[Get Map Selections] in the Distribute ITO Software
and Configuration window.
5. Click [OK].
If you are operating ITO in a distributed management server
environment (Manager-of-Manager environment)
If you are running ITO in a multi-management server environment
(refer to opcmom(4) for more details), perform the following steps:
1. Follow steps 2 through 7 above on all management server systems
that control or monitor the modified node.
2. Carry out step 8 on all ITO management server systems that refer in
any ITO template to the old hostname.
Chapter 10 435
Tuning, Troubleshooting, Security, and Maintenance
ITO Security
ITO Security
The steps that an administrator needs to carry out to improve system
security involve much more than configuring software: in general terms,
the administrator needs to look at system security first and then
investigate problems that relate to network security. Finally, the
administrator needs to investigate the security implications and
possibilities that are addressed during the configuration of ITO itself.
This section covers the areas mentioned in this paragraph, namely:
❏System Security
❏Network Security
❏Port Security
❏ITO Security
System security covers the problems that need to be addressed to allow
the ITO management server and managed node to run on a “trusted”
system. Network security involves the protection of data that is
exchanged between the management server and the managed node and
is primarily DCE related. ITO security looks at the security- related
aspects of application setup and execution, operator-initiated actions,
and so on.
System Security
The following sections describe the areas that the administrator needs to
address in order to install and run ITO on an HP-UX system that is C2
compliant. For information on how to make a system C2 compliant, see
the relevant, product-specific documentation. Note that it is essential
that the underlying operating system be rendered secure first.
The section on system security covers the following areas:
❏General Security Guidelines in ITO
❏Restrictions
436 Chapter 10
Tuning, Troubleshooting, Security, and Maintenance
ITO Security
General Security Guidelines in ITO
A C2-secure or “trusted” system uses a number of techniques to improve
security at system level. These techniques would include, amongst other
things, the following:
❏Imposing strict password and user authentication methods for the
UNIX login
❏Auditing networking, shared memory, file systems and so on
❏Controlling access to terminals
❏Managing access to files
For information about the implications these security recommendations
can have with regard to the configuration of ITO, see “Restrictions” on
page 436.
Restrictions
Running ITO in a C2-secure environment imposes a number of
important restrictions on the ITO configuration. Table 10-7 on page 436
lists those areas and provides a brief explanation of the cause of the
restriction. It is the administrator’s decision as to where security
priorities lie.
Table 10-7 Restrictions in a C2-secure Environment
Restricted Area Explanation
ACLs Although C2 recommends the use of ACLs, the OpenView
file tree does not support them. In addition, opc_backup
and opc_restore are not aware of ACLs.
Agent Installation If root-login over the network is not allowed, the ITO
agent has to be installed manually. For more information
about installing the agent manually, see the HP OpenView
IT/Operations Installation Guide for the Management
Server
Application Passwords Password aging and changing can lead to problems with
remote application startup.
Chapter 10 437
Tuning, Troubleshooting, Security, and Maintenance
ITO Security
Network Security
Network security involves the protection of data that is exchanged
between the management server and the managed node and is primarily
DCE related. ITO addresses the problem of network security by
controlling the authenticity of the parties, in this case the RPC client and
server, before granting a connection and ensuring the integrity of data
passed over the network during the connection.
Although ITO carries out its own, basic authorization checks when
communication between the management server and the managed nodes
is required, DCE allows the implementation of more stringent security at
process level between an RPC client and an RPC server, specifically in
the areas of authentication and privacy, or data protection.
The level of data protection is chosen by the client, although the server
has the option of deciding whether a chosen level is sufficient, and ITO
sees the concept of authentication in the context of either the RPC client
or the RPC server. For example, in the same way that an RPC server
needs to determine whether or not an incoming request is from a genuine
ITO client, an RPC client also needs to be sure that the server it is
calling really is an ITO server.
The section on network security covers the following areas:
❏DCE Configuration
❏Authentication
❏Process names and passwords
❏Port security
❏Processes and port numbers
Basic DCE Configuration
If you want to protect communication between the ITO management
server and managed nodes using DCE’s security mechanisms, you need
to carry out some extra configuration steps. First of all, a DCE server
installation must be available in the local network. The DCE server
installation provides:
❏Cell Directory Service (CDS)
❏DCE security service
❏DCE Distributed Time Service (DTS)
438 Chapter 10
Tuning, Troubleshooting, Security, and Maintenance
ITO Security
In addition, all participating nodes must be member of DCE cells, which
are configured to trust each other.
ITO does not require specific DCE configuration. An installed DCE
runtime (client part) including shared libraries and the RPC daemon
(rpcd/dced) are sufficient. However, these components are necessary on
all ITO managed nodes running a DCE, ITO agent. The client
components include the necessary client parts for authenticated RPC,
too. Consequently, it is not necessary to install additional DCE
components on all managed nodes.
For more detailed information on DCE, see the product-specific
documentation and “Configuring DCE Nodes to use Authenticated
RPCs” on page 439.
DCE Servers
It is necessary to have at least one Cell Directory Service and a security
server running in a DCE cell. These systems should be reliable,
sufficiently powerful (CPU, RAM), and connected via a fast network link
to all participating ITO nodes. Although a DCE server system can also be
an ITO management server or a managed node, it is recommended that
the DCE servers be separate from the ITO management server in order
to distribute demand on resources. It is also highly recommended that
you consider the option of configuring the DCE server system as an ITO
managed node. In this way, ITO can monitor the health and status of the
DCE server system.
NOTE In addition to the DCE runtime package, a dedicated, DCE, server
system requires the DCE server components, which have to be purchased
separately.
DCE Nodes
Each managed node running the DCE ITO agent and each management
server must be member of a DCE cell. The initial cell member must be a
DCE server system—this step configures the DCE-cell administrator
cell_admin, who plays an important role in all further DCE
configuration. To configure a node to run in a DCE cell, use the DCE
utility dce_config, which provides a menu-driven configuration of the
local node. The user must run this utility on each node which is intended
to be used for DCE authenticated RPC. ITO nodes which are not also
DCE server systems have to be set up as client nodes. For details refer to
the DCE installation manuals.
Chapter 10 439
Tuning, Troubleshooting, Security, and Maintenance
ITO Security
Configuring DCE Nodes to use Authenticated RPCs
The DCE names and accounts, required by ITO to use authenticated
RPCs, are set up by using opc_sec_register_svr.sh and
opc_sec_register.sh. You need to run opc_sec_register_svr.sh
once on the ITO management server and opc_sec_register.sh for
each managed node which requires the ITO accounts, and only after you
have configured the node (using dce_config) as part of a wider DCE
environment. The final step in the configuration process involves using
the ITO GUI to set the security level for the management server and
individual managed nodes.
NOTE opc_sec_register_svr.sh and opc_sec_register.sh require a
DCE login context to complete successfully. Before running
opc_sec_register_svr.sh or opc_sec_register.sh you must log
into DCE as cell_admin, using the command dce_login. It is also
important to switch to UNIX user root before logging into DCE. This
applies to both the management server and the managed node.
To configure the ITO management server and managed nodes to use
authenticated RPCs, perform the following steps:
1. Ensure that each managed node and the management server are
members of a DCE cell as well as a DCE server system itself. To add a
node to a DCE cell, run the DCE utility dce_config locally on each
of the nodes to be added.
2. As UNIX user root, log in as the DCE user cell_admin, and execute
the following command:
dce_login cell_admin <cell_admin password>
This opens a new shell with a DCE login context:
3. Execute the following script as UNIX user root once on the
management server:
/opt/OV/bin/OpC/install/opc_sec_register_svr.sh -s
4. Subsequently, you have to run the script as user root and with a valid
DCE login context on each of the managed nodes that requires the
DCE authentication of RPCs. This may be done remotely from the
management server only if automatic password generation has been
disabled for the managed node:
/opt/OV/bin/OpC/install/opc_sec_register.sh <node1>\
<node2> ...
440 Chapter 10
Tuning, Troubleshooting, Security, and Maintenance
ITO Security
Or locally on each of the managed nodes:
/opt/OV/bin/OpC/install/opc_sec_register.sh
These steps can be repeated if necessary.
NOTE To undo any of the steps you have carried out using the script
opc_sec_register_svr.sh or opc_sec_register.sh , use the
-remove option.
5. Use the ITO GUI to select the appropriate security level for the
managed node or management server using DCE RPCs. By default,
the security level is set to “No Security”. To set or change the security
level:
a. Open the ITO Node Bank window.
b. Click the node whose security level you want to change.
c. Open the following sequence of windows:
Actions:Node->Set Defaults->Advanced Options
if you want to change the default setting for all nodes, or:
Actions:Node->Modify->Advanced Options
if you want to change the default setting for an individual node
d. Fill in the relevant fields in the Communications Parameters
section. ITO’s online help provides guidance on the options
provided.
e. Close the Advanced Options window.
f. Click [OK] in the ITO Node Defaults or Node Modify
window.
NOTE Note that the domestic version of DCE (dced.Dom U.S./Canada only)
must be installed. If you select a DCE Security Level in the Node
Advanced Options window, but have no domestic version installed, the
communication between the ITO agent and the management server will
fail. If this happens, set the DCE Security Level toNo Authentication
of RPCs, and remove the appropriate entry in the managed node’s
nodeinfo file. Then manually restart the ITO agents.
Chapter 10 441
Tuning, Troubleshooting, Security, and Maintenance
ITO Security
Authentication
DCE’s security mechanism allows you to protect the communication
between server and managed node using DCE RPC. An important step in
the authentication procedure that an DCE RPC process goes through
involves the obtaining of a login context. A secure RPC process has a
login context, which it either inherits from its parent process or
establishes itself. The login context requires a name (or principal) and a
password (or key), which are checked by the DCE security server prior
to a connection. Since ITO processes usually run without any user
interaction, reliance on an inherited login context is not suitable.
Consequently, the ITO processes create their own login context with a
name and password that must be registered at the DCE security service.
The RPC clients use the login context to get a server-specific ‘ticket’
which will then be passed with each RPC. The client obtains this ticket
from the DCE security service only if it has already passed the
authentication process. This ticket contains a key which is not visible to
the client application and known only to the security service and the
server. The RPC server verifies the ticket using the server’s password in
the key file and rejects non- matching RPCs, i.e. if a client receives a
successful response from the server, it knows that an authentic server
processed the request. The only information the server has at this point
is whether or not the client is authentic. Subsequently, it extracts from
the RPC handle the following information:
❏the client’s name
❏the level of protection the client has chosen
Once the authentication process has completed successfully, a connection
is established, and the RPC call sequence initiates. You can configure
ITO to carry out the authentication check at the RPC connection to a
server, at the beginning of each RPC client-server call, or for each
network packet.
In the context of ITO, Figure 10-1 on page 442 uses the example of
message transmission to illustrate the authentication process the DCE
client and server go through. The numerical call outs in Figure 10-1 on
page 442 point to further information, which is provided in the following
list:
1. The RPC client (opcmsga) reads its password from the key file
2. The RPC client logs in, gets a login context, and obtains a
security-server ticket
442 Chapter 10
Tuning, Troubleshooting, Security, and Maintenance
ITO Security
3. The RPC client sends the RPC request
4. The RPC server (opcmsgr) checks the ticket with the password in the
key file
Figure 10-1 The DCE RPC Client-Server Authentication Process
Process Names and Passwords
In ITO, both the management server and the managed nodes run RPC
clients and servers at the same time. Perhaps paradoxically, this allows
ITO to simplify a given process’ requirements for configuration
information prior to an RPC call, namely:
❏name and own password
❏security level
However, this configuration information must be present on both the
management server and the managed node.
In the context of DCE, ITO associates just two names (or principals)
with the two types of node in its environment, namely: one each for the
management server and the managed node. All management server
process then run under the name associated with the management
server, and all processes relating to the managed node in question run
under the identity of the name associated with the managed node. For
Managed
Node
Management
Server
opcctlm
opcctla opcmsga
opcmsgr
DCE
security
server
ITO RPC ITO RPC
Login
Login
Key file
Key file
Read password
for login
Read password
for login
Check incoming
requests
Check
requests
incoming 1
2
3
4
Chapter 10 443
Tuning, Troubleshooting, Security, and Maintenance
ITO Security
example, if the ITO management server ‘garlic.spices.com’ and the
managed node ‘basil.herbs.com’ are configured to run with
authenticated RPCs the following principals will be created:
❏opc/opc-mgr/garlic.spices.com
❏opc/opc-agt/basil.herbs.com
In DCE, a name or principal (garlic.spices.com) belongs to a group
(opc-mgr), which in turn belongs to an organization (opc). The only
exception to this rule in ITO is the principal opc-agt-adm:
opc-agt-adm is a member of the group and organization none, which is
a special principal that is primarily used in the administration of
accounts and passwords.
In addition, ITO allows you to select and configure the security level your
particular environment requires for an individual managed node: the
value is stored in the given managed node’s nodeinfo file and on the
management server in the relevant entry in the database. In this way,
security on a given managed node may be changed to handle, for
example, the addition of sensitive connections.
ITO may be configured in such a way as to be able to overcome a
situation where, owing to the temporary unavailability or poor
configuration of the security service, a process is required to run in
unauthenticated mode or fail. For example, if a management server
process such as the request sender receives an authentication failure
when calling a control agent on a managed node, an error message is
generated, which appears in the Message Browser window. The
administrator is then able to take immediate corrective action, for
example, by temporarily changing the security level on the managed
node in question to allow the retransmitted request to succeed. However,
care should be taken in situations such as this, since an error in the
connection could in certain circumstances indicate that the system is
under “attack”.
Port Security
One simple but effective way of limiting access to a network and
consequently improving the network’s inherent security is to restrict to a
specific range of ports all connections between processes. This applies to
all network traffic and not just RPCs. In the context of ITO, you can do
this on two distinct levels:
444 Chapter 10
Tuning, Troubleshooting, Security, and Maintenance
ITO Security
❏Packet-filtering firewalls may lock a range of ports to inbound or
outbound traffic. If this is true, then:
❏ITO’s managed nodes and management server must be configured to
restrict all RPC connections to the same range of port numbers as
those specified at the firewall
A connection between an RPC server and an RPC client needs at least
two ports; one on the server machine, one on the client. Each ITO process
that is either an RPC client or RPC server has its own port for
communication: the port remains blocked by the ITO process which owns
it until the process exits, whereupon the port becomes free for dynamic
assignment to the next RPC client-server request. For more general
information on dynamic port assignment in ITO, see “Processes and Port
Numbers” on page 444 and the HP OpenView IT/Operations Concepts
Guide.
An RPC client using DCE or NCS does not automatically know the port
number of the RPC server on the remote system and, consequently, has
to obtain this information before initiating an RPC request. It does this
by contacting the llbd or rpcd on the remote system and looking up the
specific port number of the RPC server it needs to connect to. With this
information, the RPC client sends the “real” request for “real”
information to the RPC server at the port number it obtained.
NOTE The llbd/rpcd always runs on UDP 135, a reserved port which must
always be accessible even through a firewall.
Processes and Port Numbers
In addition to using the checks and controls that a DCE environment
supplies for authentication and data integrity both prior to and during
connections between processes, the administrator can combat security
breaches within ITO by restricting to a specific range, defined in the
GUI, the port numbers that ITO-specific processes use. Conversely, the
ability to define this range of ports means that the administrator can
also configure ITO to run in an environment where, for security reasons,
routers or packet-filtering firewalls restrict the use of ports to a specific
and, often, quite limited range.
Chapter 10 445
Tuning, Troubleshooting, Security, and Maintenance
ITO Security
ITO assigns port numbers dynamically to those processes that are
granted an RPC connection. The port numbers are configurable and are
checked against the range defined in the GUI each time an RPC server
registers itself. Information relating to the assignment of ITO-specific
port numbers may be found in:
❏the llbd (for NCS)
❏the rpcd/dced (for DCE)
NOTE NCS agents will not run on managed nodes where a DCE agent is
installed and running unless NCS support is built into the rpcd/dced.
Table 10-8 on page 445 lists the ports that ITO requires. For more
information on port restrictions in a firewall environment, see Figure
10-2 on page 449.
Table 10-8 Port Allocation in ITO
If a service request for a port number within the range specified is
refused because none is available, the process will not start. If such an
occurrence arises, you can stop the ITO server processes and use the
utility /opt/OV/bin/OpC/utils/opc_reset_ports to delete the
Service Protocol Inbound Ports Outbound Ports
NCS llbd UDP 135 above 1023
NCS glbd (licensing) UDP (broadcast) above 1023
DCE rpcd UDP/TCP 135 above 1023
ftpd TCP 20 (data transfer)
21 (control) above 1023
rexecd TCP 512 below 1023
rlogind TCP 513 below 1023
telnetd TCP 23 above 1023
remshd TCP 514 below 1023
DCE/NCS RPC server processes UDP/TCP configurable;
recommended: >1023 above 1023
ITO heartbeat polling ICMP - -
446 Chapter 10
Tuning, Troubleshooting, Security, and Maintenance
ITO Security
defined port range on the management server. Subsequently, you will
need to restart the server processes and increase the port range. On the
managed node, you need to delete the variable
OPC_COMM_PORT_RANGE in the nodeinfo file and restart the
agents. You can then configure a bigger range for this managed mode
and, after a successful distribution, restart the agent.
Table 10-9 Ports Required by the ITO Agent
a. m=number of ITO Server in parallel use
n = number of agents in parallel use
b. Local = connects to the display server on the local machine
ITO
Component Agent Process Ports
Required aPort
Type/No b
rpc-server rpcd 1 135
control agent
(opcctla)1-
rpc-client message agent
(opcmsga)2-
distribution agent
(opcdista)2-
distribution agent
(opcdista) to
socket server
1-
Chapter 10 447
Tuning, Troubleshooting, Security, and Maintenance
ITO Security
Table 10-10 Ports Required by the ITO Management Server
a. m=number of ITO Server in parallel use
n = number of agents in parallel use
b. Local = connects to the display server on the local machine
ITO Component Server Process Ports
Required aPort
Type/No b
rpc-server rpcd 1 135
message receiver
(opcmsgrd)1-
distribution
manager
(opcdistm)
1-
display manager
(opcdispm)1-
socket server
(opctss)1-10 -
rpc-client request sender
(ovoareqsdr)2 * n -
action manager
(opcactm)2 local
forward manager
(opcforwm)2 * m + 2 local
JAVA UI server opcuiwww 1 2531
opcragt 2 * n -
JAVA GUI (socket
based) 1 2531
ITO SE JAVA GUI 1 4348
TT & notification
service mgr opcttnsm 2 local
448 Chapter 10
Tuning, Troubleshooting, Security, and Maintenance
ITO Security
NOTE You need to stop and restart both the management server and the agent
processes in order to enable any changes to (or initial configuration of)
the port ranges on the ITO management server and the managed node.
It is important to remember that the port range applies to both the TCP
and UDP protocols. However, although the RPC server attempts to
register with both protocols in the same port range, the RPC clients only
use the communication type selected for a given node in the Node
Defaults Advanced Options window to contact a server. So, if the
allocation of a UDP port in the desired range fails but the TCP port
allocation succeeds, the connection will succeed if the communication
type is set to TCP.
NOTE NCS always uses UDP.
NOTE MPE/iX managed nodes cannot communicate with the ITO management
server through a firewall. Setting the port range has no effect.
Port Restrictions
Any router acting as a packet-filtering firewall in an ITO environment
must be configured to keep the ports specified in Figure 10-2 open for
communication between the ITO management server and the managed
nodes. It is recommended that the minimum number of ports for the
management server (specified in range 1 in Figure 10-2) be in the order
of 50, although this depends on the number of calling managed nodes.
The minimum port range on the managed node (range 2) should be 10.
You set ranges 1 and 2 in the ITO GUI using the Allowed Port Range
field in the Configure Management Server window and the advanced
options part of the Node Defaults window and the Node Modify
windows, respectively.
Setting the port range for ITO does not reserve the ports in the defined
range exclusively for ITO processes. Other applications can register
(accidentally or otherwise) on ports in the range you specify, and this can
lead to a situation where, if the defined port range is small, no more
ports are available for allocation to ITO at a given time. In addition,
when you define the port range, you should take into account that extra
ports are required for such processes as opctss (socket server), opccmm,
and opccma which are spawned by the distribution manager
opcdistm, and that an extra port is also required for each bulk transfer
and distribution.
Chapter 10 449
Tuning, Troubleshooting, Security, and Maintenance
ITO Security
NOTE Although the allowed port range of given managed nodes may differ if
the managed nodes are connected to the ITO management server
through a different router, all managed nodes that use the same router
must use the same port range.
Figure 10-2 Compulsory Firewall Port Ranges in ITO
The DCE environment variable RPC_RESTRICTED_PORTS controls
the DCE RPC server runtime’s tendency occasionally to open additional
ports outside the range specified in ITO, when called by clients using
UDP. Since the managed nodes may make DCE RPC calls (using UDP) to
the rpcd on the management server, it is important that the rpcd/dced
runs in an environment (on the management server) where the value of
RPC_RESTRICTED_PORTS is set to match the port range defined both
on the ITO management server and at the firewall. The value of
RPC_RESTRICTED_PORTS needs to be set in the following way in the
DCE system startup files. For example:
RPC_RESTRICTED_PORTS=tcp[range]1:udp[range1]
NOTE Whatever protocol you choose in the ITO GUI for RPC connections, the
allowed port range you define must always be open for TCP in both
directions at the firewall to allow for bulk data transmission.
ITO Management Server ITO Managed Node
[*]
135
Range 2
[*]
135
Range 1
450 Chapter 10
Tuning, Troubleshooting, Security, and Maintenance
ITO Security
ITO Security
The administrator needs to investigate the security implications and
possibilities that are addressed during the configuration of ITO itself.
For example, managed nodes will only allow those management servers
that it recognizes as action-allowed managers to execute
operator-initiated actions. ITO security looks at the security-related
aspects of application set up and execution, operator-initiated actions,
and so on. The section on ITO security covers the following areas:
❏Accessing ITO
❏Program security
❏Database security
❏Application setup and execution
❏Executing and forwarding actions
❏The location of queue files
Accessing ITO
Only ITO registered users can access the ITO GUI. By default, the users
opc_adm and opc_op are available. The ITO user names and
passwords have no direct relation to UNIX user names and passwords.
However, it is possible to use UNIX user names, and if the user name is
defined in the ITO database, the user is not prompted for a password.
This is the fastest way to open an ITO GUI. Furthermore, it is
recommended that system administrators map unix user names (1:1) to
ITO operator names. In addition, The ITO administrator can change
operators’ passwords, but cannot see any new password an operator
sets—the characters are masked by asterisks. By default, operators can,
of course, change their own passwords.
To remove the change password functionality from all operators,
comment the following lines:
Action “Change Password”
{
}
in /etc/opt/OV/share/conf/OpC/mgmt_sv/appl/registration/\
C/opc_op/opcop
Chapter 10 451
Tuning, Troubleshooting, Security, and Maintenance
ITO Security
File Access and Permissions
When a user starts an ITO operator GUI session, the working directory
is defined by environment variable $OPC_HOME (if set) or $HOME. If
neither $OPC_HOME nor $HOME is set, then /tmp is the default working
directory. For more information on common ITO variables, see
“Variables” on page 291.
If the unix user that started the ITO operator GUI has no write
permission in the default working directory, an error message is
displayed but the ITO GUI starts nonetheless. However, any subsequent
attempt by the operator to write files to the default directory will fail
unless the directory permissions are changed. This includes the
automatic save of the broadcast-command history file. In addition,
whenever an operator saves application, instruction, or report output to
a file without specifying an absolute path, the file is stored in the user's
working directory and owned by the operator's unix user ID, not by
opc_op (unless the operator logged in as unix user opc_op). The
permissions of the file will reflect the value of umask as set before the
ITO operator GUI was started. Operators who want to share files with
other operators need to set (or ask the system administrator to set) the
appropriate file and group and permissions for the desired degree of
sharing. ITO will no longer change any of these settings automatically.
However, ITO operators are not able to make unauthorized changes, and
all ITO configuration files remain secure. Any files that are created when
the administrator saves report and application output are owned by the
administrator's unix user and saved in the $OPC_HOME directory if no
absolute path is specified.
NOTE “Write” permission for the group can be overridden by "no write"
permission for the owner. In addition, ITO operator ARFs (and related
symbolic links and directories) that are changed by the administrator
remain readable and traversable by all and not just opc_op.
The Administrator GUI
In the Motif administrator GUI (the GUI that is started when the ITO
user opc_adm logs on), the unix process that is used for making
configuration changes, opcuiadm, runs with root permissions. However,
opcuiopadm, the unix process that is used for the administrator’s
browser, runs under the unix user ID of the user who started the Motif
administrator GUI rather than unix user opc_op.
452 Chapter 10
Tuning, Troubleshooting, Security, and Maintenance
ITO Security
It is neither necessary nor specifically recommended to start the Motif
administrator GUI as a unix user with root privileges (user ID 0). In
addition, when saving the output of database reports on the ITO
configuration, the owner of the files that are written is the unix user who
started ITO. Otherwise, the behavior of the administrator GUI is the
same as the operator GUI.
The Operator GUI
During installation the ownership and permissions of the opcrlogin
utility will be set as follows:
-r-xr-x--- root opcgrp /opt/OV/bin/OpC/opcrlogin
In addition, when opening an ITO Virtual Terminal or starting an ITO
Input/Output Application on a node, the.rhosts entry for the operator’s
unix user (if present) is used in preference to the entry for user opc_op
in order to enable the operator to log on without entering a password.
Integrated applications (menu items introduced using an ITO “OV
Service” application or registered actions represented by an ITO “OV
Application”) that are started from ITO start under the same unix user
as the operator, which is not usually opc_op.
Program Security
The HP-UX 10.x and 11.x programs /opt/OV/bin/OpC/opc and
/opt/OV/bin/OpC/opcuiadm) have the s-bit (set user-ID on execution).
For MPE/iX, note that the job OPCSTRTJ.BIN.OVOPC contains the
readable password of AGENT.OVOPC if the standard STREAM facility
is used. If you have specified a customized stream command in the
Advanced Options sub-window of the Add/Modify Node window, no
password is inserted in OPCSTRTJ.BIN.OVOPC. Note that this entry
is only established during first-time installation, or if the ITO entry is
found in SYSSTART.PUB.SYS.
Change the job according to your security policies. The job is streamed
during system boot by SYSSTART.PUB.SYS and is responsible for
starting the Local Location Broker (if not yet running) and the ITO
agents.
Chapter 10 453
Tuning, Troubleshooting, Security, and Maintenance
ITO Security
Database Security
Security of the database is controlled by the operating system and by the
database itself. Users must have an OS logon for either remote or local
access to the data. Once a user is logged on, security mechanisms of the
database control access to the database and tables.
For all other database security aspects see Using Relational Databases
with HP OpenView Network Node Manager and the vendor’s manuals
supplied with the database.
ITO Application Setup and Execution
Applications run under the account (user and password) specified by the
administrator during application configuration. The action agent uses
the information in this account before executing an application, that is, it
switches to the user specified and then uses the name and password
stored in the application request to start the application.
Application execution can be compromised by the use of password aging.
Password aging is a feature of C2 that expires passwords after:
❏a specific period of time has passed
❏a specific date has been reached
❏a certain number of unsuccessful login attempts have been made
Administrators need to bear in mind that if this feature is enabled, it
could lead to application startup failures where the account that a given
application uses is temporarily inaccessible. In this case, the user or
system administrator has to change the password.
Remote Login and Command Execution
Security issues concerning remote login and command execution are
described here for ITO and for UNIX and MPE/iX platforms:
❏If he does not apply the default user (setup by the ITO administrator)
for command broadcast or application startup, the ITO operator must
know the corresponding password. Otherwise, the
command/application will fail.
❏When starting applications configured as Window (Input/Output):
• the password must be specified with the application attributes
-Or-
454 Chapter 10
Tuning, Troubleshooting, Security, and Maintenance
ITO Security
• an appropriate .rhosts entry or /etc/hosts.equiv
functionality must be available
-Or-
• the password must be specified interactively.
For more information on user accounts, access to files, and general file
permissions, see “File Access and Permissions” on page 451.
Passwords on DCE Managed Nodes
When executed on the management server with the -server option, the
ITO utility opc_sec_register_svr.sh creates a special principal
opc-agt-adm which has the permissions needed to modify accounts on
the managed node. Normally, the ITO agents log into DCE at startup
using the primary principal opc/opc-agt/<hostname>. However, if
this login fails for any reason, the ITO control agent then attempts to
login as opc-agt-adm and to generate a new random password for it’s
primary account. The new password will be updated in both the DCE
registry and the local keytab file. Generally, the initial DCE login will fail
in only the following situations, any of which may be rectified by logging
in on the managed node and running opc_sec_register.sh manually:
❏After installation (or after running for the first time in authenticated
mode) and if the opc_sec_register.sh utility was executed on the
management server to create the managed node account. In this case,
the local keytab file doesn’t exist. If opc_sec_register.sh has been
executed locally on the managed node, it does create the requisite,
local keytab file.
❏The managed node’s keytab file was removed or corrupted for any
other reason.
❏The managed node’s password expired while the control agent was
not running and, as a consequence, is the control agent is unable to
login and generate a new one.
It is possible to simply disable or even remove the opc-agt-adm account
using standard DCE utilities. However, if you do disable or remove the
opc-agt-adm account, the automatic password recovery process will be
compromised. This does not affect automatic password generation while
the agent is running and password expiration is enabled.
Chapter 10 455
Tuning, Troubleshooting, Security, and Maintenance
ITO Security
Passwords on UNIX Managed Nodes
The ITO default operator opc_op cannot login into the system via login,
telnet, etc. due to a * entry in the /etc/passwd file. Furthermore,
.rhosts entries are not provided. If you want to provide a virtual
terminal or application startup (requiring a Window (Input/Output)
for the ITO default operator, set the password or provide .rhosts or
/etc/hosts.equiv functionality. Note that the opc_op’s password
should be consistent for all managed nodes.
For example, the $HOME/.rhosts entry, where $HOME is the home
directory on the managed node, of the executing user:
<management_server> opc_op
Passwords on MPE/iX Managed Nodes
The ITO default operator MGR.OVOPR does not have a password
assigned by default. You can set an appropriate password for user MGR,
for his home group PUB or for the account OVOPR.
Also, note the following:
Account
Passwords By default no passwords are set for account OVOPC
and OVOPR.
Group
Passwords By default no passwords are set for any group in
account OVOPC and OVOPR.
User Passwords MGR.OVOPC
By default no password is specified.
AGENT.OVOPC
By default no password is specified.
MGR.OVOPR
By default no password is specified.
Passwords on Windows NT Managed Nodes
The password for the HP ITO account can be assigned during the
installation of the agent software. If a password is not assigned, a default
password will be created; a password is not assigned by default.
456 Chapter 10
Tuning, Troubleshooting, Security, and Maintenance
ITO Security
Passwords on Novell NetWare Managed Nodes
The password for the default operator opc_op is not assigned during the
installation of the agent software. For security reasons, it is strongly
recommended to assign a password to opc_op, using NetWare tools, after
the agent software is installed.
Automatic and Operator-initiated Actions
Action requests and action responses can contain sensitive information
(application password, application responses and so on), which might be
of interest to intruders. In a secure system this might not be a problem.
However, if these requests and responses have to pass through a firewall
system or even over the Internet where packets may be routed through
many unknown gateways and networks, then administrators need to
think in terms of the measures required to improve security.
In addition, automatic and operator-initiated actions are currently
executed as root. Consequently, in order to prevent security holes, it is
essential that the administrator:
❏protect any shell scripts (for example, those used to switch user) by
assigning minimal rights
❏choose carefully the commands which an application uses
Queue Files
The queue files for the message interceptor (msgiq) and the monitor
agent (monagtq) and used by opcmsg and opcmon for communicating
with their corresponding processes have read/write permission for
everyone. Sensitive messages can be read by displaying these queue files
as a regular user.
In addition, the administrator also needs to take into account the fact
that the opcmsg and opcmon commands allow anybody to send a
message which triggers automatic action attached to a message even on
another node.
Chapter 10 457
Tuning, Troubleshooting, Security, and Maintenance
Auditing
Auditing
ITO distinguishes between different modes and levels of audit control.
The mode determines who is permitted to change the level of auditing;
the level determines what kind of auditing information is being collected.
Your company policy determines which auditing mode, normal or
enhanced, is used. Normal audit control is the default mode after
installation. In normal mode the ITO administrator can change the level
of auditing using the Configure Management Server window.
Enhanced audit control can only be set by the user root, and cannot be
reset without re-initializing the database.
You can select from the following audit levels:
❏[No Audit]
ITO does not maintain any auditing information.
❏[Operator Audit]
ITO maintains audit information about:
• operator logins and logouts, including attempted logins
• changes to the ITO user passwords
• all actions started from the browsers and from the Application
Desktop:
Operator Audit is the default level after installation.
❏[Administrator Audit]
ITO maintains audit information about user logins and logouts,
including attempted logins and changes to the ITO user passwords.
In addition, ITO creates audit entries when actions are started from
the message browsers and in the Application Bank, and when the
configuration of ITO users, managed nodes, node groups, or templates
changes. See Table 10-11 on page 458 for a complete overview of the
audit areas that are included in this level.
458 Chapter 10
Tuning, Troubleshooting, Security, and Maintenance
Auditing
Table 10-11 Audit Areas of the Administrator Audit Level
Audit Area Administrator Level
GUIaAPIbCLIc
ITO User
• logon
• logoff
• change password
✔
✔
✔
✔
✔
✔
Actions, Applications, Broadcasts
• start
• add/modify/ delete
✔
✔
✔
✔
Message Source Templates
• add/modify/delete
• add/modify/delete automatic and
operator-initiated action
• add/modify/delete condition
✔
✔
✔
✔
✔
✔
✔
✔
✔
Managed Nodes
• configuration
• distribution of actions, monitor, and commands
• changes to node defaults
• template assignment
✔
✔
✔
✔
✔
✔
✔
Node Groups
• add/modify/delete
• managed node assignment
✔
✔
✔
✔
ITO User Configuration
• add/modify/delete ✔✔
Chapter 10 459
Tuning, Troubleshooting, Security, and Maintenance
Auditing
a. ITO creates an audit entry when the action is carried out using the GUI.
b. ITO creates an audit entry when the action is carried out using an API. Note that
no entry in this column only indicates that no audit information is being
collected; it does not indicate that no APIs are available.
c. ITO creates an audit entry when the action is carried out using a command line
interface (CLI). Note that no entry in this column only indicates that no audit
information is being collected; it does not indicate that no command line inter-
faces are available.
Note that if you change an existing audit level, the new level is applied
only after the operator has begun a new ITO session.
Audit information can be written to a report for future review, and can be
displayed in the ITO Reports window. You can view these reports on
your screen, write them to a file, or print them.
NOTE We strongly recommend that you download audit information regularly
from the database if you have set the audit level to Administrator
Audit and you are running ITO in a large environment with a high
number of managed nodes and users. Otherwise your database may
quickly run out of space.
See the HP ITO Administrator’s Guide to Online Information for
information about how to configure auditing.
Database Maintenance ✔
Trouble Ticket ✔
Notification ✔
Audit Area Administrator Level
GUIaAPIbCLIc
460 Chapter 10
Tuning, Troubleshooting, Security, and Maintenance
System Maintenance
System Maintenance
You perform system maintenance on both the management server and on
managed nodes. Management server maintenance is split into the
following areas:
❏System backups
❏Database
❏HP OpenView platform
❏ITO directories and files
You can configure scheduled actions to help you with routine
system-maintenance tasks. For more information on how to schedule
actions, see the HP ITO Administrator’s Guide to Online Information.
On The ITO Management Server
ITO provides the following methods for backing up data on the ITO
management server:
•opc_backup - off-line backup
•ovbackup.ovpl - automated backup
The ITO configuration is not only on the management server but also on
the managed nodes. Consequently, if the restored configuration on the
management server does not match the current configuration on a
managed node, errors relating to missing instruction text or incorrectly
assigned templates may occur. For this reason, it is recommended that
after a backup has been restored, the templates, action, command and
monitor scripts are redistributed to all managed nodes using the force
update option.
Data backed-up with one tool must be recovered with the backup tool’s
corresponding restore tool. For example, use opc_recover to restore
data backed up with opc_backup: similarly, ovrestore.ovpl must be
used to recover data saved using ovbackup.ovpl.
NOTE Archive-log mode is a term used in Oracle to denote a state in which
periodic automatic saves of data are performed and any changes to data
files stored in redo log files. These redo log files are subsequently
Chapter 10 461
Tuning, Troubleshooting, Security, and Maintenance
System Maintenance
archived. For more information, see the appropriate Oracle
documentation. For information on how to set up Archive-log mode in
ITO, see “Maintaining the Database” on page 468 and the section on
database tasks in the HP ITO Administrator’s Guide to Online
Information.
Off-line Backup
The opc_backup tool offers two backup possibilities, which allow you to
backup ITO configuration data only, include the current and history
messages, too, or do a full backup that includes the ITO binaries and
installation defaults. However, all ITO GUIs have to be shut down and
all OpenView services stopped, including the ITO server processes. Then,
the Oracle database is shut down, and a complete off-line backup is
performed. If you are considering using this method to backup your data,
the following advantages and disadvantages should be noted:
• archive-log mode is not needed, which means
• better overall performance
• less disk space required
• you can only recover to the state of the most recent full backup
• binaries are backed up, too (if full mode is used)
• all OV services and GUIs have to be stopped
For an overview of the backup functions, see the following man pages:
opc_backup(1M) and opc_recover(1M).
Automated Backup
ITO integrates its own backup and restore scripts with those provided by
Network Node Manager (NNM), ovbackup.ovpl, and
ovrestore.ovpl in order to carry out a complete automated backup of
the database while the ITO GUI and server processes are running. This
automated backup is designed to be run with a cron job or an ITO
scheduled action. For more information on the NNM automated-backup
scripts as well as the automated-backup scripts provided by ITO, see the
sections; “The ovbackup.ovpl Command” and “The ovrestore.ovpl
Command” on page 465.
462 Chapter 10
Tuning, Troubleshooting, Security, and Maintenance
System Maintenance
If you are considering using the automated method to backup your data,
you should take into consideration the following advantages and
disadvantages:
• there is no need to exit the ITO GUI, although OVW actions are not
possible for a short time, for example; starting applications in the
Application Desktop window.
• ITO server processes, ITO Operator Web GUI, trouble ticket and
notification services remain fully operational.
• a partial recovery of the Oracle database is possible, for example:
• up to a given time
• individual damaged tablespaces
• Oracle’s archive-log mode must be enabled, which means:
• reduced overall performance
• more disk space required
• no binaries are backed up
Temporary files such as queue files are excluded from the backup. When
the backup starts, the ITO GUI pops up a notification window and some
OVW maps remain blocked for the duration of the backup. Any task that
cannot be completed before the backup starts remains idle until the
backup is finished and then resumes and completes.
Note that the backup does not include Oracle’s online, redo, log files,
which cannot be backed up while the database is running. However,
Oracle does allow you to mirror these files on different disks so that they
can be recreated in the event of problems. Refer to the Oracle
documentation for more details.
The scripts provided by ITO for automated backups use Oracle’s online
backup method, which requires the database run in archive-log mode.
Oracle’s archive-log mode is not the default setting for the Oracle
database: it has to be configured manually. Briefly, in archive-log mode,
Oracle stores any changes to data files between full backups in
numbered redo log files. The redo log files are used in the event of a
crash to restore a configuration from the most recent, full backup. For
more information see Oracle’s product documentation. To enable
archive-log mode in Oracle:
1. Close all ITO open sessions, and stop ovw. Enter: ovstop
Chapter 10 463
Tuning, Troubleshooting, Security, and Maintenance
System Maintenance
2. Shutdown the database
3. Set the archive log parameters in the init.ora file:
$ORACLE_HOME/dbs/init${ORACLE_SID}.ora
a. Uncomment the following line to start the archive process:
log_archive_start = true
b. Uncomment the following line to specify the archive directory, and
fill in the corresponding values for <ORACLE_BASE> and
<ORACLE_SID>:
log_archive_dest = <ORACLE_BASE>/<ORACLE_SID>/arch
NOTE For Oracle 8, remember to append a slash (/) to the directory path, for
example: <ORACLE_BASE>/<ORACLE_SID>/arch/. If not, Oracle will
use the wrong archive-log directory name.
c. Uncomment the following line to define the names of the archived
log files:
log_archive_format = “T%TS%S.ARC”
4. Start-up the database and enable archive-log mode. Enter the
following commands as user oracle:
svrmgrl
SVRMGR>connect internal
SVRMGR>startup mount
SVRMGR>alter database archivelog;
SVRMGR>alter database open;
SVRMGR>exit
5. After enabling archive-log mode, it is recommended you shutdown the
database again and take a full off-line backup of the database as a
foundation for later online backups.
The opcwall Command. The new command line utility
opcwall(1) allows the administrator to notify any running ITO Motif
GUIs of an imminent automated backup. For example, opcwall can be
configured to inform users ten minutes before the backup is scheduled to
start that, if they want to continue to work, they can use the Web GUI for
the duration of the backup.
opcwall {-user <user_name>} <Message Text>
464 Chapter 10
Tuning, Troubleshooting, Security, and Maintenance
System Maintenance
where <user_name> is the name of the operator you want to receive the
message, and <message text> is the text of the message you want the
operator to see. If the -user option is not specified, all operators receive
the message.
The ovbackup.ovpl Command. The automated backup command
ovbackup.ovpl pauses running processes and flushes their data to disk
before backing up the NNM databases and the data of integrated
applications. After the backup has completed, the NNM processes are
resumed. The command accepts the following options:
ovbackup.ovpl [-operational] [-analytical] [-d \
<destination>]
If the -d option is not specified, the following default location is used;
/var/opt/OV/tmp/ovbackup. If the -d option is specified, the
following location is used; <destination>/ovbackup. The destination
defined with the -d option must be a file system (which may be mounted)
and should contain sufficient space to complete the backup.
Approximately 300MB of free disk space is required to backup a fresh
ITO installation: bigger environments wil require more space. The
backup may then be completed by using a command such as fbackup to
save the backup to an archive medium such as a tape device. For more
information on the command-line options, see the man page
ovbackup.ovpl(1M). Briefly, ovbackup.ovpl carries out the following
high-level steps:
• Backup operational data (if the -operational option or no option at
all is specified):
1. Run all of the backup scripts found in the directory;
$OV_CONF/ovbackup/pre_pause/ including the ITO script:
ito_oracle.sh, which performs the on-line backup of the Oracle
database outside the ovpause time-frame and moves the (old)
archive log files to the staging area. These archive logs are not
subsequently restored: they are only required if the backup is
corrupt for some reason and an earlier backup has to be used.
2. Call ovpause to pause all NNM processes (and block OVW API
calls).
3. Run all the backup scripts found in the directory;
$OV_CONF/ovbackup/checkpoint/operational/ including
the ITO script: ito_checkpoint.sh, which reads the current
time stamp of Oracle, copies to the staging area those offline redo
Chapter 10 465
Tuning, Troubleshooting, Security, and Maintenance
System Maintenance
logs not moved by ito_oracle.sh and copies the ITO
configuration in the file system that is not backed up by
nnm_checkpoint.ovpl.
The NNM script nnm_checkpoint.ovpl backs up all operational
NNM databases and also backs up the directory $OV_CONF, which
includes some ITO configuration files, the NNM database (flat)
files, and the NNM configuration files.
4. Call ovresume to resume operation of NNM processes.
5. Run all of the backup scripts found in the directory;
$OV_CONF/ovbackup/post_resume
• Backup analytical data (if the -analytical option or no option at all
is specified):
Run all of the backup scripts found in the directory;
$OV_CONF/ovbackup/checkpoint/analytical including
nnm_checkpoint.ovpl and backs up the NNM analytical repository
if the embedded database is used.
NOTE ovbackup.ovpl stores progress information in the file:
/var/opt/OV/tmp/ovbackup.log.
The ovrestore.ovpl Command. The ovrestore.ovpl command
restores a backup or parts of a backup created with ovbackup.ovpl and
accepts the following command-line options:
ovrestore.ovpl [-operational] [-analytical] [-d \
<destination>]
If you still have the backup on disk, you can use the -d option to specify
the directory where the backup image resides. Otherwise, you will need
to restore the image to disk from the archive medium first before running
the ovrestore.ovpl command with the -d option. For more
information on the command-line options, see the man page
ovrestore.ovpl(1M). Briefly, ovrestore.ovpl carries out the
following high-level steps:
1. Check that no OpenView or integrated processes are running
2. Restore operational data (if the-operational option or no option at
all is specified):
466 Chapter 10
Tuning, Troubleshooting, Security, and Maintenance
System Maintenance
Run all of the restore scripts found in the directory;
$OV_CONF/ovbackup/restore/operational/ including
ito_restore.sh and nnm_restore.ovpl. The ito_restore.sh
script restores the Oracle database asking you to choose between the
following restore options:
a. to the state of the last backup?
b. to the most recent state? - a rollforward is done based on the
off-line redo logs from the backup and the off-line redo logs on the
system.
3. Restore analytical data (if the -analytical option or no option at all
is specified):
Run all of the restore scripts found in the directory;
$OV_CONF/ovbackup/restore/analytical/ including
nnm_restore.ovpl.
NOTE ovrestore.ovpl stores progress information in the same file as
ovbackup.ovpl, namely: /var/opt/OV/tmp/ovbackup.log
The ito_restore.sh script which is integrated in the
ovrestore.ovpl script allows you to restore the complete Oracle
database either to the state of the backup or to the most recent state (a
rollforward is done based on the off-line, redo logs). However, using
Oracle’s archive-log mode offers more possibilities. For example:
• you can retrieve single, corrupt data files from the backup and
recover them with off-line redo logs.
• with a backup and off-line redo logs, you can recover data up to a
specified point in time.
Recovery Scenarios after an Automated Backup
The automated backup scripts backup only configuration data and
dynamic data. Consequently, if binaries or static configuration files are
lost, they have to be recovered (before the restore) in one of the following
ways:
• Re-install ITO. If SD (Software Distributor) thinks ITO is already
installed, you may need to use the option Reinstall Fileset even
if the same revision already exists.
Chapter 10 467
Tuning, Troubleshooting, Security, and Maintenance
System Maintenance
• Use a full offline backup that was taken with opc_backup with the
full option
• Restore a full offline backup of the complete system
To restore the database to its state at the time of the last backup
requires only data contained in the backup. This means, that the restore
will work even if you have to re-install ITO. However, the restore is
incomplete from an Oracle point of view, since it is not done to the latest
state. In addition, Oracle log numbers are reset in the control files and in
the online redo logs. The control files are restored from a backup control
file, and missing online redo log files are re-created by the Oracle recover
process.
Recovering the database to the latest state is a little more complicated.
This scenario uses not only the data contained in the backup but also
data on the system itself (online redo logs and archive logs since the last
backup). In addition, this method may introduce inconsistencies between
the configuration files (restored to the state of the backup) and the data
in the database (restored to the latest possible state). Consequently, the
recovery scenario will work only if the following restrictions apply:
• All control files must exist. Normally, control files are mirrored. If one
of the control file still exists, it can be copied from one location to the
other. However, this should be done by an Oracle DBA. The scripts
will only restore to the latest state if all control files exist.
• All online redo log files must exist. Online redo log files can be
mirrored. If one of the online redo log files in a log group still exists, it
can be copied to the other locations. This should be done by an Oracle
DBA. The scripts will only restore to the latest state if all redo log
files exist.
• The Oracle log number has not been reset since the backup
• All archived redo logs made since the backup still exist
• No ITO users have been modified since the backup (this modifies files
in the file system)
• No ECS templates have been added since the backup
NOTE The ITO queue files are neither backed up with the automated backup
scripts nor deleted during the restore. In addition, the messages in the
queue files at the time of the backup are not in the database and are
468 Chapter 10
Tuning, Troubleshooting, Security, and Maintenance
System Maintenance
processed only when the ITO processes are next restarted. If corrupt
queue files prevent the server processes from being started, remove the
queue files.
1. Stop all ITO server processes:
/opt/OV/bin/ovstop
2. Remove a selected or all temporary files:
rm -f /var/opt/OV/share/tmp/OpC/mgmt_sv/*
3. Restart the ITO server processes:
/opt/OV/bin/ovstart
Maintaining the Database
To ensure that the ITO database runs efficiently, you should perform the
following tasks periodically:
❏Download history messages and audit information using the
Database Maintenance window.
To restore previously backed-up history messages or audit
information, see the opchistupl(1m) or opcaudupl(1m) man
pages in the HP OpenView IT/Operations Man Pages.
❏Backup the ITO configuration regularly. See the previous sections for
more informations on what backup possibilities are available in ITO.
❏Re-organize the database using opcdbreorg. This tool frees empty
pages and re-organizes the B-trees. For more details, see the
opcdbreorg(1m) man page.
❏If a very large number of messages have been produced—perhaps by
an inappropriately configured template—operators may find that
their Message Browser takes a long time to open. In this case, as
user root use the command-line utilities opcack or opcackmsg to
acknowledge these messages and move them to the history database.
For more details, see the opcack(1m) and opcackmsg(1m) man
pages.
Chapter 10 469
Tuning, Troubleshooting, Security, and Maintenance
System Maintenance
❏The ITO database files automatically consume the extra disk space
required to cope with any growth. If a disk runs out of space, you can
use other disks to add additional files for a tablespace. See the Oracle
information for more information.
❏Every time a user runs the command; connect internal, Oracle
adds an audit file to the directory; $ORACLE_HOME/rdbms/audit.
Since the monitor template, mondbfile, runs the connect
internal command every ten minutes or so, it is advisable to review
the files in this directory regularly and remove them if necessary.
Upgrading the Oracle Database Version
ITO A.04.00 supported Oracle 7.2.3, 7.3.3, and 7.3.4 (after recertification)
on HP-UX 10.x, and Oracle 7.3.4 on HP-UX 11.0. ITO A.05.00 supports
Oracle 7.3.4 and 8.0.5 on HP-UX 10.20 and Oracle 8.0.5 on HP-UX 11.0.
Binaries for a given version of Oracle on HP-UX 10.20 are not the same
as the binaries for the same Oracle version on HP-UX 11.0 - they are
different releases. Consequently, if you upgrade the operating system
from HP-UX 10.20 to HP-UX 11.0, you will have to upgrade the
database, too.
NOTE If you are using the HP-UX 10.20 operating system, we recommend you
upgrade to Oracle 7.3.4. Since this version of the Oracle database is
supported by both ITO 4.x and ITO A.05.00, you can verify that the
database upgrade worked using the current ITO installation. This makes
the subsequent ITO easier.
If you are using the same version of Oracle (7.3.4) for ITO 04.0x and
A.05.00, you can maintain the old database. If you are going to upgrade
the database version, you should download the configuration data with
opccfdwn(1m). You can choose to download messages, too. This
configuration data can be uploaded to the new database using
opccfgupld(1m) after you have installed the new ITO software.
Upgrade the Oracle database as described in the documentation supplied
with the database. If you changed the setting of the ORACLE_HOME
variable when upgrading the database, you will have to manually change
the setting of ORACLE_HOME in the following files, which are created,
modified, or used by ITO:
❏/etc/oratab
❏/etc/profile
470 Chapter 10
Tuning, Troubleshooting, Security, and Maintenance
System Maintenance
❏/etc/csh.login
❏/etc/rc.config.d/ovoracle
❏/etc/opt/OV/share/conf/ovdbconf
You will need to change the database release entry and check the
.profile and .cshrc files of the users that require access to the
database, for example; oracle, root, and opc_op.
❏/etc/tnsnames.ora (if SQL*Net is used)
❏/etc/listener.ora (if SQL*Net is used)
❏/etc/sqlnet.ora (if SQL*Net is used)
NOTE Upgrading the Oracle database version (7.3.4 to 8.0.5) within ITO
A.05.00:
•ORACLE_HOME may be set in the files listed above: but it is not a
requirement.
• ITO creates a symbolic link libopcora.sl which points to the
current Oracle installation. Change this link to point to the new
(upgrade) installation. Enter:
rm -f /opt/OV/libcl/libopcora.sl
ln -s $ORACLE_HOME/lib/libclntsh.sl \
/opt/OV/lib/libopcora.sl
Database Configuration Tips
Although using Oracle’s archivelog mode helps to reduce the loss of data
after a backup and restore, Oracle offers additional ways to avoid data
loss in the unlikely event that a disk fails. If you have access to more
than one disk, it is recommended that you take a look at the following
configuration tips and use the information to help you implement such a
scenario in your own ITO environment:
• Move one or more Oracle control files to the second disk:
1. Create the directories on the second disk:
mkdir -p /u02/oradata/openview
chown oracle:dba /u02/oradata/openview
Chapter 10 471
Tuning, Troubleshooting, Security, and Maintenance
System Maintenance
2. Shutdown the database
3. Move selected control file(s) to a directory on the other disk, for
example from disk /u01 to disk /u02:
mv /u01/oradata/openview/control03.ctl \
/u02/oradata/openview/control03.ctl
4. Modify the control file name(s) in:
$ORACLE_HOME/dbs/init${ORACLE_SID}.ora, for example,
from:
control_files = (/u01/oradata/openview/control01.ctl,
/u01/oradata/openview/control02.ctl,
/u01/oradata/openview/control03.ctl)
to the following:
control_files = (/u01/oradata/openview/control01.ctl,
/u01/oradata/openview/control02.ctl,
/u02/oradata/openview/control03.ctl)
5. Restart the database
• Create a second (or even third) set of mirrored, online redo logs on the
second (or third) disk. ITO installs Oracle in such a way that, by
default, it has three redo log groups, each containing one member.
The following example creates a second set of redo log files in the
directory; /u02/oradata/openview. Modify the directory names
(and repeat the steps) as required:
1. Create the directories on the second disk, for example;
mkdir -p /u02/oradata/openview
chown oracle:dba /u02/oradata/openview
2. Do the following as user oracle in svrmgrl:
connect internal;
alter database add logfile member
‘/u02/oradata/openview/redo01.log’ to group 1;
alter database add logfile member
‘/u02/oradata/openview/redo02.log’ to group 2;
alter database add logfile member
‘/u02/oradata/openview/redo03.log’ to group 3;
472 Chapter 10
Tuning, Troubleshooting, Security, and Maintenance
System Maintenance
exit
Maintaining the HP OpenView Platform
❏Erase the trap daemon logfile /var/opt/OV/log/trapd.log if you
no longer need the entries. A large trapd.log can reduce the
performance of ITO. A backup file
/var/opt/OV/log/trapd.log.old is provided.
For detailed information about system maintenance in HP OpenView,
see the HP OpenView Network Node Manager Administrator’s
Reference.
Maintaining ITO Directories and Files
❏Do not clean up the mgmt_sv directory
/var/opt/OV/share/tmp/OpC/mgmt_sv because it contains
important runtime data. You can cleanup this directory if you are
unable to use another solution or there are too many unprocessed and
old messages.
❏If you no longer need the logfiles, you should backup and then erase
the continuously growing ITO software
installation/update/de-installation logfile
/var/opt/OV/log/OpC/mgmt_sv/install.log. The logfile
inst_err.log and inst_sum.log do not continuously grow
because they are generated for each ITO software (de-)installation
and/or update.
❏You should backup and then erase the ITO error/warning logfile
/var/opt/OV/log/OpC/mgmt_sv/opcerror and its backups. ITO
uses an automatic backup logfile mechanism having up to four files. If
the opcerror logfile size is greater than 1 MB, ITO automatically
performs the following:
• if existent: move opcerro2 to opcerro3
• if existent: move opcerro1 to opcerro2
• move opcerror to opcerro1
Chapter 10 473
Tuning, Troubleshooting, Security, and Maintenance
System Maintenance
On ITO Managed Nodes
You should periodically backup, and then erase, local ITO logfiles (and
their backups). ITO uses 90% of the specified log directory size for local
message logging and 10% for error/warning logging. ITO also uses an
automatic backup mechanism for the logfiles (four on UNIX systems,
nine on MPE/iX). For example, the configured size of a UNIX log
directory is 10 MB and is allocated in the following way:
❏9 MB for local message logging.
Since there are four logfiles, if the opcmsglg file size is greater than
9/4 MB, ITO performs the following tasks:
• if it exists, move opcmsgl2 to opcmsgl3
• if it exists, move opcmsgl1 to opcmsgl2
• move opcmsglg to opcmsgl1
❏1 MB for local error/warning message logging.
Since there are four logfiles, if the opcerror file size is greater than
1/4 MB, ITO performs the following tasks:
• if it exists, move opcerro2 to opcerro3
• if it exists, move opcerro1 to opcerro2
• move opcerror to opcerro1
Unless there is no alternative, or if there are too many unprocessed and
old messages, do not clean up the directories listed in Table 10-12 on
page 474: these directories contain important runtime data:
474 Chapter 10
Tuning, Troubleshooting, Security, and Maintenance
System Maintenance
Table 10-12 Managed Node Directories Containing Runtime Data
HP-UX 10.x, and 11.x, and Window NT Managed Nodes
The following table describes where local logfiles reside on managed
nodes running; HP-UX 10.x, and 11.x and Windows NT.
Operating System on the
Managed Node Directories Containing Runtime Data
AIX /var/lpp/OV/tmp/OpC
/var/lpp/OV/tmp/OpC/bin
/var/lpp/OV/tmp/OpC/conf
DEC Alpha NT \usr\OV\tmp\OpC\<node>
\usr\OV\tmp\OpC\bin\alpha
\usr\OV\tmp\OpC\conf\<node>
HP-UX 10.x / 11.x, Digital UNIX,
DYNIX/ptx, IRIX, NCR UNIX SVR4,
Olivetti UNIX, Pyramid
DataCenter/OSx, OS/2, SCO
OpenServer, SCO UnixWare,
SINIX/Reliant, Solaris,
/var/opt/OV/tmp/OpC
/var/opt/OV/tmp/OpC/bin
/var/opt/OV/tmp/OpC/conf
MPE/iX TMP.OVOPC TMPACT.OVOPC TMPCMDS.OVOPC
TMPCONF.OVOPC TMPMON.OVOPC Z.OVOPC
Novell NetWare SYS:/var/opt/OV/tmp/OpC
SYS:/var/opt/OV/tmp/OpC/bin
SYS:/var/opt/OV/tmp/OpC/conf
Windows NT \usr\OV\tmp\OpC\<node>
\usr\OV\tmp\OpC\bin\intel
\usr\OV\tmp\OpC\conf\<node>
Chapter 10 475
Tuning, Troubleshooting, Security, and Maintenance
System Maintenance
Table 10-13 Local Logfiles on HP-UX 10.x, 11.x, and Windows NT Managed
Nodes
AIX and MPE/iX Managed Nodes
The following table describes where local logfiles reside on managed
nodes running AIX and MPE/iX.
Table 10-14 Local Logfiles on AIX and MPE/iX Managed Nodes
Avoid local logging on MPE/iX managed nodes as far as possible, as this
can slow down your system. This is because of the way in which seeks are
implemented in large MPE/iX files.
Also, check the size of the file OPCMSGLG.LOG.OVOPC regularly and,
after you have done a backup, purge the file. To limit the size of this file
you can also change the value for Max. Size in the Node Advanced
Options window.
Other Managed Nodes
The following table describes where local logfiles reside for managed
nodes running: Digital UNIX, DYNIX/ptx, NCR UNIX SVR4, Olivetti
UNIX, Pyramid DataCenter/OSx, OS/2, SCO OpenServer, SCO
UnixWare, SGI IRIX, SINIX.
Logfile Windows NT HP-UX 10.x and 11.x
Default Logfile path /usr/OV/log/OpC/<node> /var/opt/OV/log/OpC
ITO errors/warnings opcerror opcerro(1-3) opcerror opcerro(1-3)
ITO messages opcmsglg opcmsgl(1-3) opcmsglg opcmsgl(1-3)
Logfile AIX MPE/iX
Default Logfile path /var/lpp/OV/log/OpC LOG.OVOPC
ITO errors/warnings opcerror, opcerro(1-3) OPCERROR OPCERRO(1-8)
ITO messages opcmsglg,opcmsgl(1-3) OPCMSGLG OPCMSGL(1-8)
476 Chapter 10
Tuning, Troubleshooting, Security, and Maintenance
System Maintenance
Table 10-15 Local Logfiles on Other Managed Nodes
Logfile Digital UNIX, DYNIX/ptx, NCR UNIX SVR4, Olivetti UNIX,
Pyramid DataCenter/OSx, OS/2, SCO OpenServer, SCO
UnixWare, SGI IRIX, SINIX/Reliant, and Solaris
Default Logfile path /var/opt/OV/log/OpC
ITO errors/warnings opcerror,opcerro(1-3)
ITO messages opcmsglg,opcmsg (1-3)
Chapter 10 477
Tuning, Troubleshooting, Security, and Maintenance
License Maintenance
License Maintenance
ITO uses the OVKey license mechanism for the installation and
maintenance of the product licenses. The OVKey license technology is
based on node-locked licenses with license passwords in a license file -
not on a central license server. One clear and significant advantage of
this approach is that it is not necessary to set up a license server which
handles the licenses. In addition, the product may be used even behind
firewalls and in Service Guard environments. ITO provides a command
-line tool, opclic, to maintain the licenses. For more information on the
command-line interface, opclic,, see “ITO License Maintenance Tools”
on page 478.
After installation, the ITO administrator replaces the Instant-On
licence with the correct license. The licence maintenance tool opclic
ensures that the license file does not contain more than one server
license.
License Types
License types relate very strictly to the ITO product structure. Each
sub-product or licensable feature has its own license type and product
number. However, not all licenses will be required for ITO to run. In
some cases a message in the Message Browser window informs the
customer when no license is available, or a license has expired. For more
detailed information on the types of licenses available in ITO, see Table
10-16 on page 478.
478 Chapter 10
Tuning, Troubleshooting, Security, and Maintenance
License Maintenance
Table 10-16 License Types for ITO A.05.00
a. Not installed with opclic: generated at runtime by the management
server
ITO License Maintenance Tools
ITO provides a command-line interface for the maintenance of licenses.
The principal tool, opclic provides functions to:
• list the installed licenses
• add and delete licenses
• check for inconsistencies
License Type Description
Management
Stations ITO Management
Server ITO license with 2 users
Development Kit Limited management server license
with 5 Nodes and 1 User. NNM can
manage a maximum of 25 objects with
this license.
Instant-On aSame as the ITO management server
license. Runtime = 120 days
Emergency aSame as the ITO management server
license. Runtime = 14 days
Evaluation Evaluation license with full
functionality. Runtime = 120 days
Management
Server
Upgrades
ITO Management
Server upgrade
for NNM
Full ITO management server license.
Extensions ITO Managed
Nodes Managed node licenses
ECS Designer Not handled by ITO
ANSE Security
Extension Enables secure communication
Chapter 10 479
Tuning, Troubleshooting, Security, and Maintenance
License Maintenance
• check whether the user has enough licenses for his environment
The opclic command accepts the following parameters and usage:
opclic { -add <license_pwd> [-force] } |
{ -list } |
{ -delete } |
{ -report } |
{ -help }
For more information on what the various opclic parameters do, see
Table 10-17 on page 479.
Table 10-17 Command-line Options for opclic
Command
-line
Option Description Notes
add adds new license
passwords •opclic does not allow more than one server
license password in the license file.
• Passwords added using unsupported
methods are invalid: ITO will not start, and
the invalid password(s) must be removed
with opclic (see also list).
• Use the optional force parameter to replace
licenses. Note that the server-license
password is not overwritten if the force
parameter is not set: a warning message is
written to stdout instead.
list lists the installed ITO
licenses opclic supports <license_types>. For more
information on what types of licence are
available in ITO, see Table 10-16 on page 478.
480 Chapter 10
Tuning, Troubleshooting, Security, and Maintenance
License Maintenance
delete delete a specified license
password <license_pwd> • An ITO management server license may not
be removed with the delete option: it can
only be removed or replaced with:
-add <license_pwd> -force
report list details of the
installed licenses • ITO management server license type:
start/end time
• ITO managed node licenses [#total #used
#free <Tier>]
• ITO user licenses [#total]
• warnings for duplicate or invalid license
passwords
help lists opclic usage
information, including: • all command-line parameters
Command
-line
Option Description Notes
481
A ITO Managed Node APIs and
Libraries
482 Appendix A
ITO Managed Node APIs and Libraries
This chapter provides information about:
❏ITO APIs on Managed Nodes
❏ITO APIs for Novell NetWare Managed Nodes
❏ITO Managed Node Libraries
❏Include Files on all Managed Nodes
❏Managed Node Makefiles
Appendix A 483
ITO Managed Node APIs and Libraries
ITO APIs on Managed Nodes
ITO APIs on Managed Nodes
Table A-1 ITO APIs on Managed Nodes
See the appropriate man pages for detailed information about these
commands.
NOTE The ITO commands opcmon(1),opcmack(1), and opcmsg(1) are not
supported for Novell NetWare managed nodes.
An example of how the API functions are used is available in the file
opcapitest.c on the management server in the directory
/opt/OV/OpC/examples/progs/. See “Managed Node Makefiles” on
page 497 for a list of the corresponding makefiles.
API Command Description
n/a opcmack(1) Acknowledges an ITO message received from the message
agent on the managed node and sent to the appropriate
management server.
opcmon(3) opcmon(1) Feed the current value of a monitored object into the ITO
monitoring agent on the local managed node.
opcmsg(3) opcmsg(1) Submit a message to the ITO message interceptor on the
local managed node.
484 Appendix A
ITO Managed Node APIs and Libraries
ITO APIs for Novell NetWare Managed Nodes
ITO APIs for Novell NetWare Managed
Nodes
A set of ITO agent APIs is provided for Novell NetWare agents. These
APIs provide inter-process communication between ITO agents and the
custom NLMs; in particular, the parent/child relationship. See Table A-2
on page 484 for more information about these APIs.
Table A-2 ITO APIs on Novell NetWare Managed Nodes
Writing ITO-enabled NetWare
Loadable Modules
An example of an action, HELLO.NLM, is given below. This action is
executed by the ITO action agent and the output is captured as an ITO
annotation:
#define OPC_NLM
#include “opcnwapi.h”
main( int argc, char **argv )
{
int handle;
OVnlm_init( argc, argv, &handle );
printf( “%s: Hello world!\n”, argv[0] );
OVnlm_exit( handle, 0 );
}
Command Description
OVnlm_init() Must be the first function called in the main() function of
an ITO-enabled NetWare Loadable Module (NLM). This
function initializes the ITO related variables and returns
a handle which must be used in all subsequent calls in
this NLM.
OVnlm_exit() Must be used to terminate the execution of ITO-enabled
NLM instead of the usual exit() function.
OVnlm_exit() is required to inform the parent ITO
Agent NLM that the custom NLM has finished and to
provide exit code to the parent.
Appendix A 485
ITO Managed Node APIs and Libraries
ITO APIs for Novell NetWare Managed Nodes
An additional example is provided in the following file on the
management server:
/opt/OV/OpC/examples/progs/nwopcnlm.c
486 Appendix A
ITO Managed Node APIs and Libraries
ITO Managed Node Libraries
ITO Managed Node Libraries
NOTE Customer applications must be linked to ITO using the libraries and link
and compile options given in Table A-3 on page 486. Integration is only
supported if this is the case.
ITO C functions are available in a shared library. The related definitions
and return values are defined in the ITO include file, opcapi.h. See
Chapter 3, “File Tree Layouts on the Managed-Node Platforms,” on page
115 for the location of this include file on all supported platforms.
Table A-3 Libraries for the ITO Managed Nodes
ITO Version ITO A.03.xx ITO A.04.xx ITO A.05.00
HP-UX 11.0
DCE
Library n/a libopc_r.sl libopc_r.sl
Libraries
linked to the
ITO library.
n/a /usr/lib/libdce.1
/usr/lib/libc.1
/usr/lib/libdcekt.1
/usr/lib/libpthread.1
/usr/lib/libnsl.1
/usr/lib/libc.1
Link and
compile
options
n/a -lopc_r -ldce -lc_r -lopc_r
Description n/a The ITO A.04.xx HP-UX 11.x
agent is a re-certified HP-UX
10.x agent and does not make
use of any HP-UX 11.x specific
features, for example Kernel
Threads.
The HP-UX 11.x agent is a
native 11.x agent and uses
Kernel Threads which cannot
be intermixed with
Posix/DCE Threads.
Since Kernel Threads were
not available on HP-UX 10.x
and because the HP-UX 11.x
object format is incompatible
with the HP-UX 10.x object
format, applications that
were integrated with the ITO
version A.04.02 software
must be re-compiled on
HP-UX 11.0 before the can be
integrated with ITO version
A.05.00.
Appendix A 487
ITO Managed Node APIs and Libraries
ITO Managed Node Libraries
HP-UX 10.01, 10.10, 10.20
DCE
Library libopc_r.sl libopc_r.sl
(libopc.sl —>
libopc_r.sl)
libopc_r.sl
(libopc.sl —>
libopc_r.sl)
Libraries
linked to the
ITO library.
/usr/lib/libdce.1
/usr/lib/libc.1
/usr/lib/libdce.1
/usr/lib/libc.1
/usr/lib/libdce.1
/usr/lib/libc.1
Link and
compile
options
-lopc_r -ldce -lc_r -lopc_r (-ldce -lc_r) -lopc_r
Description libopc_r.sl is the reentrant
version of the agent library for
the use of DCE. It is not
exchangeable with the NCS
version.
The compatibility link from
libopc.sl to libopc_r.sl
was introduced with patch
PHSS_15265 to match the
documentation.
Linking libdce.sl and
libc_r.sl was recommended
but not necessary.
Last version with the
compatibility link.
Linking of libdce.sl and
libc_r.sl is not
recommended.
HP-UX 10.01, 10.10, 10.20
NCS
Library libopc78.sl n/a n/a
Libraries
linked to the
ITO library.
/usr/lib/libnck.1 n/a n/a
Link and
compile
options
-lopc78 (-lnck) n/a n/a
Description libopc78.sl is the reentrant
version of the agent library for
the use of NCS. It is not
exchangeable with the DCE
version.
n/a n/a
ITO Version ITO A.03.xx ITO A.04.xx ITO A.05.00
488 Appendix A
ITO Managed Node APIs and Libraries
ITO Managed Node Libraries
HP-UX 9.00, 9.01, 9.03, 9.04, 9.05, 9.07
DCE
Library libopc78_r.sl libopc_r.sl
(libopc78_r.sl —>
libopc_r.sl)
n/a
Libraries
linked to the
ITO library.
/usr/lib/libdce.1
/usr/lib/libc_r.1
/usr/lib/libdce.1
/usr/lib/libc_r.1
n/a
Link and
compile
options
-D_REENTRANT
-lopc78_r -ldce -lc_r
-D_REENTRANT
-lopc_r -ldce -lc_r
n/a
Description This library is not
exchangeable with the NCS
version.
Between ITO A.03.xx and ITO
A.04.xx the name of this
library was changed. On some
systems a compatibility link is
necessary.
This library is not
exchangeable with the NCS
version.
n/a
HP-UX 9.00, 9.01, 9.03, 9.04, 9.05, 9.07
NCS
Library libopc78.sl libopc78.sl n/a
Libraries
linked to the
ITO library.
/usr/lib/libnck.a
/lib/lib/lib.l
/usr/lib/libnck.a
/lib/lib/lib.l
n/a
Link and
compile
options
-lopc78 -lopc78 n/a
Description This library is not
exchangeable with the DCE
version.
This library is not
exchangeable with the DCE
version.
n/a
MPE 5.0, 5.5, 6.0
NCS
Library libapixl.lib.ovopc libapixl.lib.ovopc libapixl.lib.ovopc
Libraries
linked to the
ITO library.
n/a n/a n/a
Link and
compile
options
info=”Ih”
link
cap=pm,ia,ba,mr,ds;&
rl=libcinit.lib.sys;&
xl=opcapixl.lib
info=”Ih”
link
cap=pm,ia,ba,mr,ds;&
rl=libcinit.lib.sys;&
xl=opcapixl.lib
info=”Ih”
link
cap=pm,ia,ba,mr,ds;&
rl=libcinit.lib.sys;&
xl=opcapixl.lib
Description n/a n/a n/a
ITO Version ITO A.03.xx ITO A.04.xx ITO A.05.00
Appendix A 489
ITO Managed Node APIs and Libraries
ITO Managed Node Libraries
Sun Solaris 2.5, 2.5.1, 2.6, 7
NCS
Library libopc.so libopc.so libopc.so
Libraries
linked to the
ITO library.
libov.a and libovutil.a
are statically linked into
libopc.so
/usr/lib/libw.so
/usr/lib/libnck.a
/usr/lib/libsocket.so
/usr/lib/libnsl.so
/usr/lib/libgcc.a
libov.a and libovutil.a
are statically linked into
libopc.so
/usr/lib/libw.so
/usr/lib/libnck.a
/usr/lib/libgcc.a
/usr/lib/libsocket.so
/usr/lib/libnsl.so
Link and
compile
options
-lopc -lopc -lnsp -lov
-lovutil
(-lsocket -lnsl)
-lopc -nsp (-lsocket
-lnsl)
Description n/a n/a n/a
SunOS 4.1.3, 4.1.4
NCS
Library libopcapi.a libopcapi.a n/a
Libraries
linked to the
ITO library.
n/a
Link and
compile
options
-lopcapi (-lxpg -lc)-lopcapi -lxpg -lc n/a
Description The example Makefile is
incomplete. n/a n/a
ITO Version ITO A.03.xx ITO A.04.xx ITO A.05.00
490 Appendix A
ITO Managed Node APIs and Libraries
ITO Managed Node Libraries
AIX 3.2, 4.1, 4.2, 4.3
DCE
Library libopc_r.o libopc_r.a (AIX 4.x)
libopc_r.o (AIX 3.2)
libopc_r.a
Libraries
linked to the
ITO library.
AIX 3.2:
/usr/lib/libdce.a
/usr/lib/libpthreads.a
/usr/lib/libc_r.a
/usr/lib/libiconv.a
AIX 4.x:
/usr/lpp/OV/lib/libnsp.
a
/usr/lib/libdce.a
/usr/lib/libiconv.a
/usr/lpp/OV/lib/libnsp.
a
/usr/lib/libdce.a
/usr/lib/libiconv.a
Link and
compile
options
-D_THREAD_SAVE
-D_CMA_NOWRAPPERS_
-lopc_r -lpthreads
-lc_r
-D_THREAD_SAVE (3.2)
-D_CMA_NOWRAPPERS_
-lopc_r -lpthreads
-lc_r
-D_CMA_NOWRAPPERS_
-lopc_r -lpthreads
-lc_r
Description Version 3.2 is obsolete with
ITO A.05.00.
Note:
Only ITO A.04.xx integrations
built on AIX 4.x with above
options can be run on ITO
A.05.00
AIX 3.2, 4.1, 4.2, 4.3
NCS
Library libopc.o libopc.o n/a
Libraries
linked to the
ITO library.
/usr/lib/libnck.a
/usr/lib/libiconv.a
n/a
Link and
compile
options
-lopc -D_THREAD_SAVE (AIX 3.2)
-D_CMA_NOWRAPPERS_
-lopc -lpthreads -lc_r
n/a
Description AIX 3.2 only n/a
ITO Version ITO A.03.xx ITO A.04.xx ITO A.05.00
Appendix A 491
ITO Managed Node APIs and Libraries
ITO Managed Node Libraries
NCR UNIX SVR4 R.03.00, R.03.01, R.03.02
NCS
Library libopc.so libopc.so libopc.so
Libraries
linked to the
ITO library.
/usr/lib/libnck.a
/usr/lib/libsocket.so
/usr/lib/libnsl.a
/usr/lib/libnck.a
/usr/lib/libsocket.so
/usr/lib/libnsl.a
/usr/lib/libnck.a
/usr/lib/libsocket.so
/usr/lib/libnsl.a
Link and
compile
options
-lopc -lsocket -lnsl
-lc -lucb
-lopc -lsocket -lnsl
-lc -lucb -lnsp
-lopc -lsocket -lnsl
-lc -lucb -lnsp
Description n/a n/a n/a
SGI IRIX 5.3, 6.2, 6.4, 6.5
NCS
Library libopc.so libopc.so libopc.so
Libraries
linked to the
ITO library.
/usr/lib/libnck.a
/usr/lib/libc.so
/opt/OV/lib/libnsp.so
/usr/lib/libnck.a
/usr/lib/libnsl.so
/usr/lib/libc.so
/opt/OV/lib/libnsp.so
/usr/lib/libnck.a
/usr/lib/libnsl.so
/usr/lib/libc.so
Link and
compile
options
-lopc -lsocket -lnsl -lopc -lsocket -lnsl -lopc -lsocket -lnsl
Description n/a n/a n/a
Sequent DYNIX/ptx 4.0, 4.1.2, 4.1.3, 4.2.0, 4.4.0, 4.4.1, 4.4.2
NCS
Library libopc.so libopc.so libopc.so
Libraries
linked to the
ITO library.
/usr/lib/libncka.
/usr/lib/libintl.a
/usr/lib/libsocket.so
/usr/lib/librpc.so
/usr/lib/libnsl.so
/usr/lib/libinet.so
/usr/lib/libsec.a
/usr/lib/libseq.c
/usr/lib/libnck.a
/usr/lib/libinet.so
/usr/lib/libnsl.so
/usr/lib/librpc.so
/usr/lib/libsec.a
/usr/lib/libseq.a
/usr/lib/libsocket.so
/usr/coff/lib/libintl.a
/usr/lib/libnck.a
/usr/lib/libinet.so
/usr/lib/libnsl.so
/usr/lib/librpc.so
/usr/lib/libsec.a
/usr/lib/libseq.a
/usr/lib/libsocket.so
/usr/coff/lib/libintl.a
Link and
compile
options
-lopc -lnsp -lsocket -lopc -lnsp -lsocket -lopc -lnsp -lsocket
Description No example makefile
available. n/a n/a
ITO Version ITO A.03.xx ITO A.04.xx ITO A.05.00
492 Appendix A
ITO Managed Node APIs and Libraries
ITO Managed Node Libraries
Siemens Nixdorf SINIX/Reliant 5.41, 5.42, 5.43, 5.44
DCE
Library n/a libopc_r.so libopc_r.so
Libraries
linked to the
ITO library.
n/a thr_cc is used which comes
with its own libraries thr_cc is used which comes
with its own libraries
Link and
compile
options
n/a -lopc_r -lnsp -ldce
-lsocket_r
-lresolv_r -lm_r -lc
-lopc_r -lnsp -ldce
-lsocket_r
-lresolv_r -lm_r -lc
-lnsl_r_i
Description n/a Available as patch
PHSS_13598. n/a
Siemens Nixdorf SINIX/Reliant 5.41, 5.42, 5.43, 5.44
NCS
Library libopc.so libopc.so libopc.so
Libraries
linked to the
ITO library.
/usr/lib/libnck.a
/usr/lib/libsocket.so
/usr/lib/libnsl.so
mips_cc is used which comes
with its own libraries mips_cc is used which comes
with its own libraries
Link and
compile
options
-lopc -lnck -lnsp
-lsocket -lnsl -lc
-lucb
-lopc -lnck -lnsp
-lsocket -lnsl -lc
-lucb
Description n/a Available as patch
PHSS_15160. n/a
Pyramid DataCenter OS/x 1.1
NCS
Library n/a libopc.so libopc.so
Libraries
linked to the
ITO library.
n/a
Link and
compile
options
n/a -lopc -lnsp -lnck
-lsocket -lnsl
-lc -lucb
-lopc -lnsp -lnck
-lsocket -lnsl
-lc -lucb
Description n/a n/a n/a
ITO Version ITO A.03.xx ITO A.04.xx ITO A.05.00
Appendix A 493
ITO Managed Node APIs and Libraries
ITO Managed Node Libraries
SCO UnixWare 2.1
DCE
Library n/a libopc_r.so libopc_r.so
Libraries
linked to the
ITO library.
n/a /usr/lib/libdce.so
/usr/lib/libsocket.so
/usr/lib/libnsl.so
/usr/css/lib/libgen.a
/usr/lib/libdce.so
/usr/lib/libsocket.so
/usr/lib/libnsl.so
/usr/css/lib/libgen.a
Link and
compile
options
n/a -lopc_r -lnsp -lsocket
-lnsl
-lopc_r -lnsp -lsocket
-lnsl
Description n/a n/a n/a
SCO OpenServer 3.0, 3.2vx
NCS
Library libopc.a libopc.a libopc.a
Libraries
linked to the
ITO library.
no libraries linked with
libopc no libraries linked with
libopc no libraries linked with
libopc
Link and
compile
options
-lopc -lsocket -lnsl_s
-lx
-lopc -lsocket -lnsl_s
-lx
-lopc -lsocket -lnsl_s
-lx
Description n/a n/a n/a
DEC Alpha Digital UNIX OSF/1 3.2, 4.0, 4.2, 5.0
DCE
Library libopc.so libopc_r.so libopc_r.so
Libraries
linked to the
ITO library.
/usr/lib/libnck.a
/usr/lib/libc.a
/usr/lib/libcxx.so
/usr/lib/libiconv.so
/usr/shlib/libiconv.so
/usr/shlib/libdce.so
/usr/shlib/libdce_r.so
(optional)
/usr/shlib/libphtreads.
so
/usr/shlib/libpthread.s
o
/usr/shlib/libmach.so
/usr/shlib/libexc.so
/usr/shlib/libc.so
/usr/shlib/libcxx.so
/usr/shlib/libiconv.so
/usr/shlib/libdce.so
/usr/shlib/libdce_r.so
(optional)
/usr/shlib/libphtreads.
so
/usr/shlib/libpthread.s
o
/usr/shlib/libmach.so
/usr/shlib/libexc.so
/usr/shlib/libc.so
/usr/shlib/libcxx.so
Link and
compile
options
n/a -lopc_r -lopc_r
Description n/a Available as patch
PHSS_15055. n/a
ITO Version ITO A.03.xx ITO A.04.xx ITO A.05.00
494 Appendix A
ITO Managed Node APIs and Libraries
ITO Managed Node Libraries
DEC Alpha Digital UNIX OSF/1 3.2, 4.0, 4.2, 5.0
NCS
Library n/a libopc.so n/a
Libraries
linked to the
ITO library.
n/a /usr/lib/libnck.a
/usr/lib/libc.a
/usr/shlib/libiconv.so
/usr/shlib/libcxx.so
n/a
Link and
compile
options
n/a -lopc n/a
Description n/a n/a n/a
DEC Alpha on Windows NT 3..51, 4.0
DCE
Library n/a n/a
Libraries
linked to the
ITO library.
n/a n/a Same as Windows. NT on
Intel
Link and
compile
options
n/a n/a
Description n/a n/a Use *.mak files to build.
Intel on Windows NT 3..51, 4.0
DCE
Library opc.dll
opcappi.dll
opc.dll
opcapi.dll
opc.dll
opcapi.dll
Libraries
linked to the
ITO library.
Link and
compile
options
Description Use *.mak files to build. Use *.mak files to build. Use *.mak files to build.
ITO Version ITO A.03.xx ITO A.04.xx ITO A.05.00
Appendix A 495
ITO Managed Node APIs and Libraries
ITO Managed Node Libraries
Intel on OS/2 Warp 3.0, 4.0
DCE
Library n/a opcpblib.lib opcpblib.lib
Libraries
linked to the
ITO library.
n/a DCEOS2.LIB
SO32DLL.LIB
TCP32DLL.LIB
DDE4MBS.LIB
OS2386.LIB
OPCNSP.LIB
OPCMEM.LIB
DCEOS2.LIB
SO32DLL.LIB
TCP32DLL.LIB
DDE4MBS.LIB
OS2386.LIB
OPCNSP.LIB
OPCMEM.LIB
Link and
compile
options
n/a
Description n/a *.LIB files reference some
DLLs.
Available as patch
PHSS_15162.
*.LIB files reference some
DLLs.
Novell NetWare 4.1, 4.1 SFT III, 4.11, 4.11 SFT III
EZ-RPC
Library n/a libopc.lib libopc.lib
Libraries
linked to the
ITO library.
n/a No libraries linked. No libraries linked.
Link and
compile
options
n/a -DOPC_NW -DNW
-DCSM_ONC -bt=NETWARE
-DOPC_NW -DNW
-DCSM_ONC -bt=NETWARE
Description n/a libopc.lib is only used as
archive library for API
developers - it is not used at
runtime.
libopc.lib is only used as
archive library for API
developers - it is not used at
runtime.
Intel on Olivetti SVR4.2 2.4.1
NCS
Library n/a libopc.so libopc.so
Libraries
linked to the
ITO library.
n/a /usr/lib/libnck.a
/usr/lib/socket.so
/usr/lib/libnsl.so
/usr/lib/libnck.a
/usr/lib/socket.so
/usr/lib/libnsl.so
Link and
compile
options
n/a -lnsp -lsocket -lnsl
-lc -lucb
-lnsp -lsocket -lnsl
-lc -lucb
Description n/a
ITO Version ITO A.03.xx ITO A.04.xx ITO A.05.00
496 Appendix A
ITO Managed Node APIs and Libraries
ITO Managed Node Libraries
Include Files on all Managed Nodes
NOTE See “Libraries for ITO Integrations” on page 31 for important
information about platforms that support both the NCS and the DCE
ITO agent.
Table A-4 on page 496 gives the location of the ITO include files on all
managed node platforms.
Table A-4 ITO Include Files
Platform OS Include File
HP 9000/700
HP 9000/800 HP-UX 10.x and 11.x /opt/OV/include/opcapi.h
Sun SPARCstation Solaris /opt/OV/include/opcapi.h
IBM RS/6000 Bull DPX/20 AIX /usr/lpp/OV/include/opcapi.h
NCR 3xxx/4xxx (Intel 486 or
higher) UNIX SVR4 /opt/OV/include/opcapi.h
Intel 486 or higher SCO OpenServer /opt/OV/include/opcapi.h
Intel 486 or higher SCO UnixWare /opt/OV/include/opcapi.h
Silicon Graphics Indigo IRIX /opt/OV/include/opcapi.h
DEC Alpha AXP Digital UNIX /usr/opt/OV/include/opcapi.h
Intel 486 or higher DYNIX/ptx /opt/OV/include/opcapi.h
Olivetti (INTEL PCs) Olivetti UNIX SVR4 /opt/OV/include/opcapi.h
Pyramid mips_r3000 DataCenter/OSx
SVR4 /opt/OV/include/opcapi.h
HP 3000/900 MPE/iX OPCAPI.H.OVOPC
Intel 486 or higher NT \usr\OV\include\opcapi.h
Appendix A 497
ITO Managed Node APIs and Libraries
ITO Managed Node Libraries
An example of how the API functions are used is available in the file
opcapitest.c on the management server in the directory
/opt/OV/OpC/examples/progs/
Managed Node Makefiles
The directory /opt/OV/OpC/examples/progs on the management
server also contains the makefiles for building the examples. They use
the correct compile and link options needed to get a correctly built
executable.
❏Makef.aix
❏Makef.dec
❏Makef.hpux10
❏Makef.hpux11
❏Makef.irix
❏Makef.mpe-ix
❏Makef.ncr
❏Makef.nw
❏Makef.oli
❏Makef.os2
❏Makef.ptx
❏Makef.pyr
❏Makef.sco
❏Makef.sinix
❏Makef.sinix-dce
Intel 486 or higher Novell NetWare SYS:.opt/OV/include/opcapi.h,op
cnwapi.h
DEC Alpha NT \usr\OV\include\opcapi.h
Intel 486 or higher OS/2 \opt\OV\include\opcapi.h
Platform OS Include File
498 Appendix A
ITO Managed Node APIs and Libraries
ITO Managed Node Libraries
❏Makef.solaris
❏Makef.uxw
For Windows NT use the Microsoft Developer Studio 4.2 or higher. See
also /opt/OV/OpC/examples/progs/README
Management Server Makefile
The following makefile is available in the directory
/opt/OV/OpC/examples/progs on the management server.
❏Makef.hpsv (makefile for the management server on HP-UX)
499
B Administration of
MC/ServiceGuard
500 Appendix B
Administration of MC/ServiceGuard
Overview of HP MC/ServiceGuard
Overview of HP MC/ServiceGuard
This appendix provides background information for system
administrators working with ITO in HP MC/ServiceGuard clusters. It
assumes that you are familiar both with MC/ServiceGuard and the
general concepts of ITO. For more detailed information about
MC/ServiceGuard, see the Managing MC/ServiceGuard manual. To
install and configure ITO in an MC/ServiceGuard cluster, see Appendix
B in the HP OpenView IT/Operations Installation Guide for the
Management Server.
Appendix B 501
Administration of MC/ServiceGuard
Introducing MC/ServiceGuard
Introducing MC/ServiceGuard
Multi-Computer/ServiceGuard is a powerful hardware and software
solution that can switch control from one ITO management server to
another if a management server fails. Critical information is stored on
shared disks that are also mirrored. Uninterruptible power supplies
(UPS) are also included to guarantee continuous operation if a power
failure occurs.
A highly-available computer system is one that provides access to your
data and applications if a system component fails, for example, a CPU or
network-interface card.
When your system includes MC/ServiceGuard, your applications can be
transferred automatically and quickly from a failed CPU to a functioning
CPU. To provide this extra level of confidence, you must have the
necessary system components. For example, two or more CPUs and two
or more independent disks allow a configuration that eliminates single
points of failure. In addition, MC/ServiceGuard also provides the
software support to control the transfer of your applications to another
CPU or network after a system failure. MC/ServiceGuard can also be
used to transfer the control of the running applications to another CPU
during maintenance of either management server.
The systems belonging to the MC/ServiceGuard installation make up a
ServiceGuard cluster.
Glossary of MC/ServiceGuard Terms
The following terms are used in this section:
Package An application together with associated programs,
resources, and files. Control of the package may be
transferred to another CPU in the event of failure of
the original CPU or network. Note that a package can
run only once in an SG cluster.
Service A process that is monitored by MC/ServiceGuard. A
service can be an application program, or the resources
needed by an application program. Services are started
by starting a package, and stopped by halting a
502 Appendix B
Administration of MC/ServiceGuard
Introducing MC/ServiceGuard
package. If a service fails while a package is running,
the package may be halted and restarted on an
Adoptive Node.
MC/Service
Guard Daemon A daemon that monitors the state of the SG cluster, all
nodes in the cluster, all network resources, and all
services. The daemon reacts to failures and transfers
control of packages. It also runs the package control
script.
Original Node The node on which the package is running before SG
initiates a transfer of control.
Adoptive Node A node to which SG can transfer control of a package. A
package may have several adoptive nodes. Note that
you can define packages that only run on a subset of all
SG cluster nodes.
Adoptable
Package A package for which the control can be transferred to
an adoptive node by SG. You can specify if and to where
you want control of a package to be transferred in the
event of failure or if you want the package to fail.
Package
Custody This is the node on which the package is currently
running.
Appendix B 503
Administration of MC/ServiceGuard
How MC/ServiceGuard Works
How MC/ServiceGuard Works
The following examples illustrate scenarios in which MC/ServiceGuard
is used to switch control of a package between different cluster servers:
Example 1: MC/ServiceGuard Package
Switchover
The SG cluster shown in Figure B-1 represents a typical scenario:
❏Node 1 runs the application packages A and B
❏Node 2 is runs the application package C
❏Node 3 is runs the application packages D, E, and F
❏The nodes are connected by two redundant LANs connected by way of
a bridge
❏Each node has its own root disk and shares volume groups
504 Appendix B
Administration of MC/ServiceGuard
How MC/ServiceGuard Works
Figure B-1 MC/ServiceGuard Package Switchover: Before the Switch
Assume that node 1 fails. Node 2 is an adoptive node for Package A, but
for Package B no adoptive node is specified; therefore the applications
specified in Package B will not be transferred in the event of node failure.
However, Package B will be protected from a possible network failure by
local network switching.
NOTE Transfering control of a package to another node does not transfer the
program counter. Processes in a transferred package will restart from
the beginning. If necessary, all processes in a package must be written so
that they can detect such a restart.
When a node fails, the CPU is halted immediately using a Transfer Of
Control (TOC) which is an immediate halt without a graceful shutdown.
Bridge
Package A Package D
Package C
Root 1 Root 2 Root 3
Root 2
Mirror
Node 1 Node 2 Node 3
Package
A Disk Package
F Disk
Package
E Disk
Package
D Disk
Package
C Disk
Package
B Disk
Package
A Mirror
Package
D Mirror
Package
F Mirror
Package
E Mirror
Package
B Mirror
Package
C Mirror
LAN 0
LAN 1
Package B
Package E
Package F
Appendix B 505
Administration of MC/ServiceGuard
How MC/ServiceGuard Works
Figure B-2 MC/ServiceGuard Package Switchover: After the Switch
Example 2: MC/ServiceGuard Local Network
Switching
The example below shows two SG nodes connected by one virtual LAN.
LANs 0 and 1 are connected by a bridge and act as one subnet. Node 1
and node 2 communicate by way of LAN 0. LAN 1 is in standby mode.
Figure B-3 MC/ServiceGuard LAN Switchover: Before the Switch
Package
C Mirror
Bridge
Package A Package F
Package E
Package D
Package C
Root 1 Root 2 Root 3
Root 2
Mirror
Node 1 Node 2 Node 3
Package
A Disk Package
F Disk
Package
E Disk
Package
D Disk
Package
C Disk
Package
B Disk
Package
A Mirror Package
D Mirror
Package
F Mirror
Package
E Mirror
Package
B Mirror
LAN 0
LAN 1
Bridge
LAN 1 LAN 0 LAN 1 LAN 0
NODE 1 NODE 2
LAN 0
LAN 1
506 Appendix B
Administration of MC/ServiceGuard
How MC/ServiceGuard Works
Assume that the LAN 0 network interface card on node 2 fails:
❏The standby LAN interface, LAN 1, takes on the identity of LAN 0 on
node 2. The subnet and IP addresses are switched to the hardware
path associated with LAN 1. The switch is transparent at the TCP/IP
level.
❏MC/ServiceGuard re-routes communications without having to
transfer the control of packages between nodes.
Figure B-4 MC/ServiceGuard LAN Switchover: After the Switch
MC/ServiceGuard Redundant Data and
Control Subnets
In general, you have two redundant subnets for ServiceGuard clusters:
❏A subnet used by the package applications for the data transfer, and
❏A subnet used by SG to transfer the heartbeat signal to and from each
SG node.
If your network traffic is very heavy, your SG clusters should have two or
more subnets. It is common to find three LAN interfaces all bridged, with
heartbeat over LAN0, LAN1 as standby for both, and LAN3 as the data
LAN. LAN1 can backup either subnet.
Bridge
LAN 1 LAN 0 LAN 1 LAN 0
NODE 1
LAN 0
LAN 1
NODE 2
Appendix B 507
Administration of MC/ServiceGuard
How MC/ServiceGuard Works
Figure B-5 MC/ServiceGuard Redundant Data and
Heartbeat Subnets
The heartbeat interval is set in the SG cluster configuration file.
Heartbeat time-out is the length of time that the SG cluster will wait for
a node’s heartbeat before performing a transfer of package.
Subnet B
Bridge
Package A Package B
Package C
NODE 2
NODE 1
Primary LAN: Heartbeat/Data
Dedicated Heartbeat LAN
Subnet A
LAN 1
LAN 3
LAN 0
Standby LAN: Heartbeat/Data
508 Appendix B
Administration of MC/ServiceGuard
MC/ServiceGuard and IP addresses
MC/ServiceGuard and IP addresses
One of the many useful features of MC/ServiceGuard is the ability to
assign multiple IP addresses to a single LAN interface card.
Each primary network interface card has a unique IP address. This
address is fixed to the node and is not transferable to another node. Each
package may also have a unique IP address that is associated with the
package, and is taken over by the adoptive node if control of the package
is transferred. The node that currently holds the IP address of a package
controls that package.
Portable IP Addresses
Each package may have its own hostname. The IP address of the package
points to this hostname. You must assign a unique IP address and an
optional hostname to each package. A program can then use its own
hostname as the input to gethostbyname() which will return its IP
address.
Appendix B 509
Administration of MC/ServiceGuard
MC/ServiceGuard and ITO
MC/ServiceGuard and ITO
MC/ServiceGuard (SG) provides a mechanism to start and stop
applications. This means that products running in an SG environment
must provide a package containing information about how to start and/or
stop the application. These packages are transfered between the SG
cluster nodes if a switch-over occurs. The package is referred to as the
ITO SG package in this section.
All SG cluster nodes have a hostname and a fixed IP address. In
addition, an SG package has a hostname and an IP address that can be
switched from one SG cluster node to another, together with the SG
package.
MC/ServiceGuard Support on the
Management Server
NNM 5.0 does not support MC/ServiceGuard directly. In other words, it
is not possible to create an NNM 5.0 ServiceGuard package. However, it
is possible to run NNM 5.0 independently on each SG cluster node.
NMM 6.0 can run as a ServiceGuard package if tightly integrated in the
ITO package. Since ITO 5.0, it is not supported to run NNM
independently on each SG cluster node when ITO is running as MC/SG
package.
NOTE It would help to let the netmon run for one day on each cluster node
before taking the ITO SG environment online. This enables the net to be
discovered.
The following figure illustrates the concepts behind running ITO in an
SG environment:
510 Appendix B
Administration of MC/ServiceGuard
MC/ServiceGuard and ITO
Figure B-6 ITO Management Server on MC/ServiceGuard Systems:
Conceptual View
To reduce the amount of data on the shared disk, only
/var/opt/OV/share and /etc/opt/OV/share are installed on the
shared disk.
NOTE ITO can only be installed on a SG cluster node after the SG software is
installed.
ITO/NNM
Oracle
Server
ITO
Agent ITO
Agent
ServiceGuard Node1 ServiceGuard Node 2
active connections if the ITO server is running on Node 2
RDMS
binaries
active connections if the ITO server is running on Node 1
binaries
shared
files
ITO/NNM
Server
binaries
Appendix B 511
Administration of MC/ServiceGuard
Troubleshooting ITO in a ServiceGuard Environment
Troubleshooting ITO in a ServiceGuard
Environment
This chapter describes some of the problems you might encounter when
working with ITO SG packages, and provides some specific
troubleshooting hints. For more general troubleshooting information, see
the troubleshooting section in the Managing MC/ServiceGuard manual.
ITO SG Logfiles
MC/ServiceGuard and the ITO SG package use the following two logfiles:
❏/var/adm/syslog/syslog.log
This logfile contains general error messages from MC/ServiceGuard.
❏/etc/cmcluster/OpC/OpC.cntl.log
This contains the output of the ITO SG package during startup and
shutdown.
If you do encounter problems with the ITO SG package, make sure that
you check the contents of both files.
Maintenance Notes for ITO/NNM and
MC/ServiceGuard
The ITO MC/SG package can be set to maintenance mode to avoid a
switch-over of the package when ITO is stopped. This is neoclassical
when you run a backup or if a patch has to be installed. The shared disk
and may the database must be available in this case. You can enable
maintenance mode by touching the file /tmp/mainNNM. The monitor
scripts nnm.mon and ito.mon does not trigger a package switch-over if
the file /tmp/mainNNM exists
512 Appendix B
Administration of MC/ServiceGuard
Troubleshooting ITO in a ServiceGuard Environment
513
C ITO Tables and Tablespaces in
the Database
514 Appendix C
ITO Tables and Tablespaces in the Database
ITO Tables in the Database
ITO Tables in the Database
See the HP OpenView IT/Operations Reporting and Database Schema
for detailed information about the ITO tables in the RDBMS.
Appendix C 515
ITO Tables and Tablespaces in the Database
ITO Tables and Tablespace
ITO Tables and Tablespace
An Oracle database uses tablespaces to manage the available disk space.
You can assign datafiles of a fixed size to tablespaces. The size of the
various datafiles assigned to a tablespace determines the size of the
tablespace.
To increase the size of a tablespace, you must add a datafile of a
particular size to the tablespace. You can do this interactively using the
Oracle tool, Server Manager, or using the sql command: alter
tablespace add datafile. Table C-1 on page 516 shows the default
tablespace design and the assigned database tables.
For more information about improving the performance of your database
see the online documentation in:
/opt/OV/ReleaseNotes/opc_db.tuning
516 Appendix C
ITO Tables and Tablespaces in the Database
ITO Tables and Tablespace
Table C-1 ITO Tables and Tablespaces in an Oracle Database
Tables/
Description Table-
space Size Remarks
opc_act_messages OPC_1 SIZE 4M
AUTOEXTEND ON NEXT 6M
MAXSIZE 500M
DEFAULT STORAGE (
INITIAL 2M
NEXT 2M
PCTINCREASE 0 )
Tables with
heavy load.
Indexes not on
the same disk
as table, thus
providing extra
tablespace.
opc_anno_text
opc_annotation
opc_msg_text
opc_orig_ msg_text
OPC_2 SIZE 5M
AUTOEXTEND ON NEXT 6M
MAXSIZE 500M
DEFAULT STORAGE (
INITIAL 1M
NEXT 1M
PCTINCREASE 0 )
Tables with
heavy load.
Indexes not on
the same disk
as table, thus
providing extra
tablespace.
opc_node_names OPC_3 SIZE 1M
AUTOEXTEND ON NEXT 1M
MAXSIZE 500M
DEFAULT STORAGE (
INITIAL 256K
NEXT 256K
PCTINCREASE 0 )
Table with very
frequent access.
All other tables OPC_4 SIZE 20M
AUTOEXTEND ON NEXT 1M
MAXSIZE 500M
DEFAULT STORAGE (
INITIAL 32K
NEXT 256K
PCTINCREASE 0 )
none
Appendix C 517
ITO Tables and Tablespaces in the Database
ITO Tables and Tablespace
Default
tablespace of user
opc_op
OPC_5 SIZE 1M
AUTOEXTEND ON NEXT 1M
MAXSIZE 500M
DEFAULT STORAGE (
INITIAL 32K
NEXT 32K
PCTINCREASE 0 )
none
opc_hist_messages OPC_6 SIZE 4M
AUTOEXTEND ON NEXT 1M
MAXSIZE 500M
DEFAULT STORAGE (
INITIAL 2M
NEXT 2M
PCTINCREASE 0 )
Tables with
heavy load.
Indexes not on
the same disk
as table, thus
providing extra
tablespace.
opc_hist_msg_text OPC_7 SIZE 4M
AUTOEXTEND ON NEXT 1M
MAXSIZE 500M
DEFAULT STORAGE (
INITIAL 2M
NEXT 2M
PCTINCREASE 0 )
Tables with
heavy load.
Indexes not on
the same disk
as table, thus
providing extra
tablespace.
opc_hist_orig_text OPC_8 SIZE 4M
AUTOEXTEND ON NEXT 1M
MAXSIZE 500M
DEFAULT STORAGE (
INITIAL 2M
NEXT 2M
PCTINCREASE 0 )
Tables with
heavy load.
Indexes not on
the same disk
as table, thus
providing extra
tablespace.
Tables/
Description Table-
space Size Remarks
518 Appendix C
ITO Tables and Tablespaces in the Database
ITO Tables and Tablespace
opc_hist_
annotation
opc_hist_anno_
text
OPC_9 SIZE 4M
AUTOEXTEND ON NEXT 1M
MAXSIZE 500M
DEFAULT STORAGE (
INITIAL 2M
NEXT 2M
PCTINCREASE 0 )
Tables with
heavy load.
Indexes not on
the same disk
as table, thus
providing extra
tablespace.
Temporary data
(used for sorting) OPC_TEMP SIZE 1M
AUTOEXTEND ON NEXT 1M
MAXSIZE 500M
DEFAULT STORAGE (
INITIAL 512K
NEXT 512K
PCTINCREASE 0 )
none
Index tablespace
for active
messages
OPC_INDEX1 SIZE 10M
AUTOEXTEND ON NEXT 1M
MAXSIZE 500M
DEFAULT STORAGE (
INITIAL 1M
NEXT 1M
PCTINCREASE 0 )
Other disk than
for opc_act_
messages
tablespaces.
Index tablespace
for history
messages
OPC_INDEX2 SIZE 10M
AUTOEXTEND ON NEXT 1M
MAXSIZE 500M
DEFAULT STORAGE (
INITIAL 1M
NEXT 1M
PCTINCREASE 0 )
Other disk than
for opc_hist_
messages
tablespaces.
Tables/
Description Table-
space Size Remarks
Appendix C 519
ITO Tables and Tablespaces in the Database
ITO Tables and Tablespace
Table C-2 Non-ITO Specific Tablespace
Tables/
Description Tablespace Size Remarks
Tablespace
containing the
system tables.
SYSTEM SIZE 50M
DEFAULT STORAGE (
INITIAL 16K
NEXT 16K
PCTINCREASE 50 )
none
Temporary data. TEMP SIZE 2M
AUTOEXTEND ON NEXT 1M
MAXSIZE 500M
DEFAULT STORAGE (
INITIAL 100K
NEXT 100K
PCTINCREASE 0 )
none
Rollback
segments (this
tablespace is not
ITO specific)
RBS1 SIZE 1M
AUTOEXTEND ON NEXT 1M
MAXSIZE 500M
DEFAULT STORAGE (
INITIAL 500K
NEXT 500K
MINEXTENTS 10
PCTINCREASE 0 )
Tablespace with
heavy load.
Tablespace for
Oracle Tool Tables
(e.g., report writer)
TOOLS SIZE 1M
AUTOEXTEND ON NEXT 1M
MAXSIZE 100M
DEFAULT STORAGE (
INITIAL 100K
NEXT 100K
PCTINCREASE 0 )
none
520 Appendix C
ITO Tables and Tablespaces in the Database
ITO Tables and Tablespace
521
D ITO Man Pages Listing
522 Appendix D
ITO Man Pages Listing
This appendix provides a list of each man page for the HP OpenView
IT/Operations Developer’s Toolkit. To refer to the man pages, call them
from the command line by using: man <manpagename>. If you wish to
print the man pages, you can use the command:
man <manpagename> | col -lb | lp -d printer_name
Appendix D 523
ITO Man Pages Listing
Overview of ITO Man Pages
Overview of ITO Man Pages
You can access the following ITO man pages, either directly at the
command line, or by way of the online help:
Man Pages in ITO
Man Page Summary
call_sqlplus.sh(1) Calls SQL*Plus.
inst.sh(1M) Install ITO software on managed
nodes.
inst_debug(5) Debug an installation of the ITO
agent software.
opc(1|5) Start the ITO GUI.
opc_audit_secure(1M) Locks the audit level in the ITO
database and allows directories for
the history and audit download to be
set.
opc_backup(5) Back up the ITO configuration.
opc_backup(1M) Interactively save ITO environment
for Oracle.
opc_recover(5) Recover the ITO configuration.
opc_recover(1M) Interactively recover the ITO
environment for Oracle.
opcack(1M) Externally acknowledge active
messages.
opcackmsg(1M) Externally acknowledge active
messages using message IDs.
opcackmsgs(1M) Externally acknowledge active
messages using specific message
attributes.
opcactivate(1M) Activate an ITO pre-installed agent.
524 Appendix D
ITO Man Pages Listing
Overview of ITO Man Pages
opcadddbf(1M) Add a new datafile to an Oracle
tablespace.
opcagt(1M) Administer agent processes on a
managed node.
opcagtreg(1M) Registration tool for subagents.
opcagtutil(1M) Parse the agent platform file and
perform operation with extracted
data.
opcaudupl(1M) Upload audit data into the ITO
database.
opcaudwn(1M) Download audit data into the ITO
database.
opccfgdwn(1M) Download configuration data from
the database to flat files.
opccfgout(1M) Configure condition status variables
for scheduled outages in ITO.
opccfgupld(1M) Upload configuration data from flat
files into the database.
opcchgaddr(1M) Change the node address of nodes in
the ITO database.
opccltconfig(1M) Configure ITO client filesets.
opcconfig(1M) Configure an ITO management
server.
opcdbidx(1M) Upgrade the structure of the ITO
database.
opcdbinit(1M) Initialize the database with default
configuration.
opcdbinst(1M) Create or destroy the ITO database
scheme.
opcdbpwd(1M) Change the password of the ITO
database user opc_op.
opcdbreorg(1M) Re-organize the tables in the ITO
database.
Appendix D 525
ITO Man Pages Listing
Overview of ITO Man Pages
opcdbsetup(1M) Create the tables in the ITO
database.
opcdbupgr(1M) Upgrade the ITO database from a
previous version to the current
version of ITO.
opcdcode(1M) View ITO encrypted template files.
opcgetmsgids(1m) Get message IDs to an original
message ID.
opchbp(1M) Switch heartbeat polling of managed
nodes on/off.
opchistdwn(1M) Download ITO history messages to a
file.
opchistupl(1M) Upload history messages into ITO
database.
opcmack(1) Acknowledge an ITO message by
specifying the message ID.
opcmgrdist(1M) Distribute ITO configuration between
management servers.
opcmom(4) Overview of ITO MoM functionality.
opcmomchk(1) Syntax checking tool for MoM
templates.
opcmon(1) Forward value of monitored object to
the ITO monitoring agent on the local
managed node.
opcmsg(1) Submit a message to ITO.
opcpat(1) Test program for ITO pattern
matching.
opcragt(1M) Remotely administer agent services
for ITO on managed node.
opcskm(3) Secret-key management tool.
opcsqlnetconf(1M) Configure the ITO database to use an
SQL*Net connection.
opcsv(1M) Administer ITO manager services.
526 Appendix D
ITO Man Pages Listing
Overview of ITO Man Pages
opcsvreg(1M) Registration tool for server
configuration files.
opcsvskm(1M) Secret-key management tool on the
management server.
opcsw(1M) Set the software status flag in the
ITO database.
opctmpldwn(1M) Download and encrypt ITO message
source templates.
opcupgrade(1M) Upgrade an earlier version of ITO to
the current version (A.05.00).
opcwall(1) Send a message to the currently
logged in ITO users.
ovtrap2opc(1M) Convert trapd.conf file and the ITO
template file.
Man Pages for ITO APIs
Man Page Summary
opcmon(3) Forward value of monitored object to
the ITO monitoring agent on the local
managed node.
opcmsg(3) Submit a message to ITO.
Man Pages for the HP OpenView
ServiceNavigator
Man Page Summary
opcservice(1M) Configure the HP OpenView
ServiceNavigator.
Man Pages for the ITO Developer’s Kit APIs
Man Page Summary
msiconf(4) Configuration file for the ITO
message manager.
Appendix D 527
ITO Man Pages Listing
Overview of ITO Man Pages
opc_comif_close(3) Close an instance of the
communication queue interface.
opc_comif_freedata(3) Free data that was allocated by
opc_comif_read().
opc_comif_open(3) Open an instance of the
communication queue interface.
opc_comif_read(3) Read information from a queue.
opc_comif_read_request(3) Read information from a queue.
opc_comif_write(3) Write information into a queue.
opc_comif_write_request(3) Write information into a queue.
opc_connect_api(3) ITO Connection API.
opc_distrib(3) Distribute the ITO agent
configuration.
opcagtmon_send(3) Forward monitored object value to
ITO.
opcagtmsg_api(3) API to handle messages on ITO
agents.
opcanno_api(3) API to managed ITO message
annotations.
opcapp_start(3) API to start an ITO application.
opcappl_api(3) API to configure and start ITO
applications.
opcapplgrp_api(3) API to configure ITO application
groups.
opcconf_api(3) API to get ITO configuration.
opcdata(3) APIs for accessing the attributes of
the ITO data structure.
opcdata_api(3) Describes how to access the ITO data
structure using the ITO Data API.
opcif_api(3) API to work with the ITO Message
Stream Interface.
opciter(3) ITO iterator to step through opcdata
container.
528 Appendix D
ITO Man Pages Listing
Overview of ITO Man Pages
opcmsg_api(3) Functions to manage ITO messages.
opcmsggrp_api(3) Functions to manage ITO message
groups.
opcmsgregrpcond_api(3) Functions to create and modify ITO
message regroup conditions.
opcnode_api(3) Functions to configure ITO managed
nodes.
opcnodegrp_api(3) Functions to configure ITO node
groups.
opcnodehier_api(3) Functions to configure ITO node
hierarchies.
opcprofile_api(3) Functions to configure ITO user
profiles.
opcregcond(3) Set of APIs to access fields of the ITO
registration condition structure.
opctempl_api(3) Functions to configure ITO message
source templates.
opctempfile_api(3) Functions to configure ITO templates
using template files.
opctemplgrp_api(3) Functions to configure ITO template
groups.
opctransaction_api(3) Functions to start, commit, and
rollback transactions.
opcuser_api(3) Functions to configure ITO users.
Index 529
AR = Administrator’s Reference Guide CG = Concepts Guide
Master Index
This index contains references to three ITO manuals. All page numbers are
prefaced with a two letter abbreviation indicating the manual that contains the
reference. For example, the index entry security,CG:67,AR:349,AR:365, shows
that information about security can be found in the Concepts Guide on page 67,
and also on pages 349 and 365 in the Administrator’s Reference.
A
accessing
a terminal or console,CG:85
acknowledging messages,
CG:88,CG:90
automatic,CG:90
acknowledgment,CG:90
actagtq file,AR:360
action-allowed manager,CG:258
actions,CG:31,CG:37
applications,CG:40
automatic,CG:37,CG:77,
CG:78,CG:209
defining,CG:208
distributing to managed nodes,
CG:226
evaluating results,CG:76,
CG:85
integrating applications as,
AR:323
message-bound,CG:37
operator-initiated,CG:39,
CG:78,CG:209
restarting,CG:78
what are they?,CG:37
Actions from Condition No.
window,CG:208
adapted system resources
AIX managed nodes,AR:119
MPE/iX,AR:128
NCR UNIX SVR4,AR:132
Windows NT,AR:161
Add ITO Interface Message
window,CG:164
Add Logfile window,CG:162
Add MPE/iX Console Messages
window,CG:180
Add SNMP Trap window,
CG:178
Add User Profile Hierarchy
window,CG:135
adding
nodes,CG:103
administrator
audit,AR:453
concepts,CG:91,CG:226
configuration,AR:195,AR:197
file permissions,AR:447
message policy,CG:218
role,CG:42
setting up environment,CG:95
administrator default password,
AR:196
administrator GUI
group and file permissions,
AR:447
administrator login,AR:196
administrator windows
Actions for message conditions,
CG:208
Add Configuration,CG:144
Add ITO Application,CG:120,
CG:122
Add ITO Interface Messages,
CG:164
Add Logfile,CG:162
Add Message Group,CG:116
Add MPE/iXConsole Messages,
CG:180
Add Node,CG:108
Add Operator,CG:126
Add OV Application,CG:120
Add SNMP Trap,CG:178
Add User Profile Hierarchy,
CG:135
Application Bank,CG:118
Condition No.,CG:190
Condition Test Results,
CG:210
Define Configuration,CG:143
Groups for Operator,CG:129
Install/Update ITO Software
and Configuration,CG:228
ITO Node Defaults,CG:111
Message and Suppress
Conditions,CG:188
Node Bank,CG:99
Node Group Bank,CG:114
Options,CG:215
SNMP Trap Condition No.,
CG:191
Threshold Monitors,CG:173
admintool utility,AR:45
advanced options,CG:162
agent activation
on NFS cluster clients,AR:169
agent de-activation
on NFS cluster clients,AR:176
agent software
distribution,CG:226
agent software and node
clusters,AR:52
AIX
missing OS patches,AR:56
SMIT utility,AR:45
AIX HACMP managed nodes
installation prerequisites,
AR:58
AIX managed node
requirements,AR:33
AIX managed nodes,AR:52
default operator,AR:119
file tree,AR:118,AR:119
HACMP,AR:56
manual de-installation,
AR:175
manual installation,AR:53,
AR:58,AR:60
NFS cluster clients,AR:118
standalone or NFS cluster
server,AR:118
system resources,AR:119
troubleshooting,AR:411
alarm severities,AR:372
alternative operator,CG:203
American EBCDIC,AR:342
annotating messages,CG:87,
CG:88
Annotations window,CG:87
530 Index
Master Index
This index contains references to three ITO manuals. All page numbers are
prefaced with a two letter abbreviation indicating the manual that contains the
reference. For example, the index entry security,CG:94,AR:397,AR:416, shows
that information about security can be found on page 94 in the Concepts Guide,
and also on pages 397 and 416 in the Administrator’s Reference.
AR = Administrator’s Reference Guide; CG = Concepts Guide
APIs
C library on managed nodes,
AR:498
command,AR:485
on managed nodes,AR:485
on Novell NetWare managed
nodes,AR:486
server message stream,
AR:324
application
broadcast,AR:202
configuration,AR:201,AR:205
disk space,AR:203
Highlight in IP Map,AR:204
ITO agent status,AR:203
Jovw,AR:204
logfile encapsulation,AR:324
MIB browser,AR:204
OV Service,AR:204
OVlaunch,AR:204
PerfView,AR:205
physical terminal,AR:205
print status,AR:205
processes,AR:206
SAM,AR:207
SMIT,AR:208
virtual terminal,AR:208
Application Bank
ITO Status,AR:321
Application Bank window,
CG:117,CG:121,CG:122
application defaults file,CG:58,
AR:372
Application Desktop
broadcasting,CG:82,CG:83
setting up,CG:130
terminal sessions,CG:85
using,CG:80
window,CG:55,CG:80
Application Desktop integration,
AR:315,AR:316
application integration,AR:315
as actions,AR:323
as broadcast commands,
AR:322
distribution,AR:315
HP OpenView,AR:315,
AR:316
IP Map,AR:316
monitoring,AR:323
Network Node Manager for IP,
AR:316
applications,CG:40
adding to Application Bank,
CG:119
Customized Application Call
Window,CG:122
Customized startup,CG:122
HP OpenView,CG:119
integrating into Application
Desktop,CG:82
integrating into ITO,AR:313
integration examples,AR:316
OS/2,AR:233
setting up,CG:117,CG:121,
CG:122
starting,CG:81
architecture
message processing,CG:34
ARPA to NS node name mapping
for MPE/iX,AR:128,AR:130
ASCII character set,AR:338
assigning templates,CG:142,
CG:143
assigning user profiles,CG:132
attributes
message,AR:187
attributes of nodes,CG:103
audit
areas,AR:454
entries,AR:453
levels,AR:453
modes,AR:453
authenticated RPCs,AR:435
authentication
ITO process,AR:363,AR:437
automated backup,AR:457
opcwall command,AR:459
automatic acknowledgments,
CG:90
automatic actions,CG:37,
CG:77,CG:78,CG:209
restarting,CG:78
automatic software installation/
update,AR:167,AR:169
B
backing up your environment,
AR:456
backup,CG:233,AR:457,
AR:460
automated,AR:457
database configuration,
AR:466
off-line,CG:233,AR:457
on-line,CG:233,AR:460
opc_backup,CG:233,AR:457
advantages and disadvantag-
es,CG:234
opcwall command,AR:459
ovbackup,CG:233,AR:456,
AR:457,AR:460
advantages and disadvantag-
es,CG:234
recovery scenarios,AR:462
restore,CG:234
backup manager,CG:257
bindery mode,AR:80
bovbackup
recovery scenarios,AR:462
bracket expressions,CG:203
broadcast
configuration,AR:202
integrating applications as,
AR:322
broadcast command history,
CG:84
Master Index
This index contains references to three ITO manuals. All page numbers are
prefaced with a two letter abbreviation indicating the manual that contains the
reference. For example, the index entry security,CG:94,AR:397,AR:416, shows
that information about security can be found on page 94 in the Concepts Guide,
and also on pages 397 and 416 in the Administrator’s Reference.
Index 531
AR = Administrator’s Reference Guide; CG = Concepts Guide
Broadcast Command window,
CG:82
Broadcast Output window,
CG:83
broadcasting commands,CG:82,
CG:83,CG:227
browser settings
saving,CG:60
Browser View - History
Messages window,CG:73
Browser View window,CG:59
print contents,CG:74
save settings,CG:60,CG:73
browsing
messages,CG:60
browsing messages,CG:68
C
C libraries
on managed nodes,AR:488
C library APIs,AR:498
cell_adm,AR:434
changing
hostname information,AR:427
IP address information,
AR:421
message text,CG:66
severity,CG:66
the hostname of a managed
node,AR:427
the hostname of a managed
node and re-configuring
ITO,AR:427
the hostname of the
management server in
ITO,AR:421
the IP address of the
management server or a
managed node and re-
configuring ITO,AR:421
character set
ASCII,AR:338
character sets
character conversion,AR:343
external character set,AR:339
fileset requirements for HP-UX
Managed Nodes,AR:336
logfile encapsulator set,
AR:341
managed nodes,AR:337
management server,AR:333
valid for logfile encapsulator,
AR:342
client/server communication,
AR:30
cluster clients
manual activation,AR:169
manual de-activation,AR:176
clustered node
configuration distribution,
CG:230
cmd.exe,AR:212
collecting
messages,CG:146
command APIs
on managed nodes,AR:485
commands
broadcasting,CG:82,CG:83,
CG:227
communication type,AR:170
concepts
administrator,CG:91,CG:226
operator,CG:48,CG:224
template administrator,
CG:133
Condition No. window,CG:190
Condition Test Results window,
CG:210
conditions,CG:182,CG:218
Advanced Options window,
CG:162
message,CG:189
reformatting messages,
CG:207
regroup,CG:215
responses to messages,CG:208
setting up,CG:186
setting up regroup,CG:216
suppress unmatched,CG:186
condition-status variable,
AR:278
configuration,AR:184
actions distribution,CG:226
agent software distribution,
CG:226
applications,AR:201,AR:205
backing it up,AR:456
broadcast,AR:202
clustered nodes,CG:230
commands distribution,
CG:227
database reports,AR:261
DCE,AR:433
disk space,AR:203
distributing to managed nodes,
AR:299
distribution,CG:226
distribution hints,CG:230
external interface templates,
AR:259
installing/updating,CG:226,
AR:297
ITO agent status,AR:203
ITO environment,CG:91,
CG:226
ITO message interception,
AR:245
logfile encapsulation,AR:236
managed nodes,AR:185
message groups,AR:186,
AR:187,AR:195
MIB browser,AR:204
monitored objects,AR:251
monitors distribution,CG:226
MPE/iX console message
interception,AR:245
OV Service,AR:204
PerfView,AR:205
532 Index
Master Index
This index contains references to three ITO manuals. All page numbers are
prefaced with a two letter abbreviation indicating the manual that contains the
reference. For example, the index entry security,CG:94,AR:397,AR:416, shows
that information about security can be found on page 94 in the Concepts Guide,
and also on pages 397 and 416 in the Administrator’s Reference.
AR = Administrator’s Reference Guide; CG = Concepts Guide
physical terminal,AR:205
preconfigured elements,
AR:185,AR:260
print status,AR:205
processes,AR:206
SAM,AR:207
SMIT,AR:208
SNMP event interception,
AR:243
template groups,AR:193
templates distribution,CG:226
users,AR:195,AR:200
virtual terminal,AR:208
configuration template
message forwarding,AR:280
Configurations
distributing,CG:259
configuring
a managed node to a new
hostname,AR:427
administrators,AR:197
operators,AR:197
template groups,CG:141
the managed node to a new IP
address,AR:421
the management server to a
new IP address,AR:421
user profiles,CG:134
configuring nodes,CG:103
configuring templates,CG:138
CONSDESC.COMMANDS.OVO
PC file,AR:250
console access,CG:85
continuous
threshold monitors,CG:172
control agent
on OS/2 managed nodes,
AR:234
conventions
typographical,Preface:7
copy and paste function,CG:107
correlation
events,CG:32
example ITO templates,
CG:156
ITO messages,CG:150
messages on the managed
node,CG:153
messages on the management
server,CG:154
Customized Application Call
window,CG:82
customized application startup,
CG:81
Customized Login window,
CG:85
Customizing Your Environment,
CG:58
D
data synchronization,CG:231
transaction concept,CG:231
database
backup configuration tips,
AR:466
maintaining,AR:464
security,AR:449
tuning,AR:372
database reports configuration,
AR:261
database tables,AR:498
DCE
authenticated RPCs,AR:435
cell_adm,AR:434
communication type,AR:170
configuration,AR:433
DCE nodes,AR:434
DCE server,AR:434
dce_config,AR:434
opc-agt-adm,AR:450
passwords,AR:450
debugging
disabling,AR:182
enabling,AR:181
software (de-)installation,
AR:181
DEC Alpha NT managed nodes,
AR:61
default operator,AR:120
file tree,AR:120
manual installation,AR:62
default
password,AR:196
defaults
attributes,CG:63
message attributes,CG:186,
CG:215
message groups,CG:116,
AR:186,AR:194
reformatting message
attributes,CG:207
template groups,CG:142
threshold monitors,CG:175
de-installation
manual from AIX nodes,
AR:175
manual from OS/2 nodes,
AR:175
manual from Solaris nodes,
AR:175,AR:176
manual from Windows NT
nodes,AR:176
de-installing
software from managed nodes,
AR:173
depot server
Novell NetWare,AR:77
detailed report,CG:221
details of messages,CG:64
Digital UNIX
managed node requirements,
AR:34
managed nodes,AR:62
system resources adapted,
AR:124
Digital UNIX managed nodes
file tree,AR:122
Master Index
This index contains references to three ITO manuals. All page numbers are
prefaced with a two letter abbreviation indicating the manual that contains the
reference. For example, the index entry security,CG:94,AR:397,AR:416, shows
that information about security can be found on page 94 in the Concepts Guide,
and also on pages 397 and 416 in the Administrator’s Reference.
Index 533
AR = Administrator’s Reference Guide; CG = Concepts Guide
ITO default operator,AR:123
NFS cluster clients,AR:123
NFS cluster servers,AR:122
standalone systems,AR:122
directories on managed nodes,
AR:305,AR:308
directory
working,AR:447
disabled nodes
background color,CG:112
disk space
configuration,AR:203
distributing
the configuration,CG:226
distributing the configuration,
CG:226
distribution
agent software,CG:226
command line tool,CG:228
duplicate templates,CG:230
force update option,CG:228
hints,CG:230
HP-UX managed nodes,
AR:303
ITO configuration,CG:226,
AR:303
node configuration,CG:226
scripts and programs,AR:299,
AR:303
UNIX managed nodes,AR:303
distribution list
for messages,CG:265
DLLs
on OS/2 managed nodes,
AR:234
downloading,CG:260
DYNIX/ptx
menu utility,AR:45
system resources adapted,
AR:150
DYNIX/ptx managed nodes,
AR:63
file tree,AR:148
ITO default operator,AR:149
NFS cluster clients,AR:149
NFS cluster servers,AR:148
standalone systems,AR:148
E
EMS Integration,AR:330
enhanced reports,CG:224,
CG:225
environment
administrator,CG:93
backing it up,AR:456
operators,CG:49
reviewing your,CG:49
setting up,CG:95
error messages report,CG:221
errors reported via logfiles,
AR:382
errors reported via Stderr and
Stdout,AR:385
errors reported via the Error
Dialog Box,AR:384
errors reported via the Message
Browser,AR:383
escalating messages,CG:243
EUC,AR:342
event correlation
in ITO,CG:150
ITO event interceptor,AR:245
supported platforms,AR:235
event interceptor,CG:175
events
correlating,CG:32
correlating on the managed
node,CG:153
correlating on the management
server,CG:154
example correlation templates,
CG:156
interceptor,CG:152
NNM ECS,CG:152
PerfView,AR:321
examples
MPE message conditions,
CG:211
pattern matching,CG:201
SNMP Trap condition,CG:212
threshold monitor condition,
CG:213
execution security,AR:449
expression anchoring,CG:202
expressions for multiple
characters,CG:203
external character set
character sets,AR:339
external interface templates,
AR:259
external nodes,CG:104
F
Fast Link,CG:55
field
additional parameters,CG:124
file permissions
administrators,AR:447
ARFs,AR:447
integrated applications,
AR:447
operators,AR:447
report output,AR:447
file tree
AIX managed nodes,AR:118,
AR:119
DEC Alpha NT managed
nodes,AR:120
Digital UNIX managed nodes,
AR:122
DYNIX/ptx managed nodes,
AR:148
HP-UX 10.x managed nodes,
AR:125,AR:127
HP-UX 11.x managed nodes,
AR:125
534 Index
Master Index
This index contains references to three ITO manuals. All page numbers are
prefaced with a two letter abbreviation indicating the manual that contains the
reference. For example, the index entry security,CG:94,AR:397,AR:416, shows
that information about security can be found on page 94 in the Concepts Guide,
and also on pages 397 and 416 in the Administrator’s Reference.
AR = Administrator’s Reference Guide; CG = Concepts Guide
MPE/iX managed nodes,
AR:128
NCR UNIX SVR4,AR:131
Novell NetWare managed
nodes,AR:133
Olivetti UNIX managed nodes,
AR:135
OS/2 managed nodes,AR:138
Pyramid DataCenter/OSx
managed nodes,AR:139
SCO OpenServer managed
nodes,AR:142
SCO UnixWare managed
nodes,AR:145
SGI IRIX managed nodes,
AR:151
SINIX managed nodes,AR:154
Solaris managed nodes,
AR:157
Windows NT,AR:160
file trees on managed nodes,
AR:116
filtering
internal messages,CG:218
filters,CG:182,CG:218
message and suppress
conditions,CG:186,
CG:193
Message Conditions Advanced
Options window,CG:162
multiple templates,CG:184
regroup conditions,CG:215
Firewall,AR:365
dynamic port assigment,
AR:366
NAT,AR:367
port assigment,AR:439
port security,AR:439
rpcd/llbd access,AR:365
flexible management
configuration syntax,AR:267
correlating messages in,
CG:155
example templates,AR:286
template keywords,AR:269
templates,AR:267
force update option,CG:228
forward unmatched messages,
CG:141,CG:184,CG:185,
CG:187
forwarding
messages,CG:261
ftp re-installation process
for Windows NT agent,AR:100
functional tracing areas,
AR:375,AR:376
functionality,CG:24
Message Management,CG:35
G
GlancePlus,AR:319
Graphical User Interface
permissions,CG:93
troubleshooting,AR:392
user ID,CG:93
GUI
administrator group and file
permissions,AR:447
configuration changes,CG:231
data synchronization,CG:231
operator,AR:448
re-synchronizing,CG:231
user ID,CG:93
H
HACMP
installation tips for AIX
managed nodes,AR:56
hardware requirements
managed nodes,AR:29,AR:30
Highlight in IP Map,AR:204
History Message Browser
window,CG:54,CG:72
holding area,CG:100
hostnames
changing the hostname of the
management server,
AR:421
modifying hostname
information,AR:427
how to
change IP addresses,AR:421
HP OpenView
adding applications,CG:119
adding services,CG:119
applications in ITO,AR:315,
AR:316
copy and paste function,
CG:107
nodes,CG:106
HP OpenView Service Reporter,
CG:225
HP-UX 10.x managed node
requirements,AR:35,AR:36
HP-UX 10.x managed nodes,
AR:63
file tree,AR:125
NFS file tree,AR:125
troubleshooting,AR:409
HP-UX 11.x managed node
requirements,AR:35,AR:36
HP-UX 11.x managed nodes,
AR:63
file tree,AR:125
HP-UX managed nodes
manual installation,AR:66
troubleshooting,AR:394
I
implementing message policy,
CG:218
Install/Update ITO Software and
Configuration window,
CG:228
installation
agent activation on NFS
cluster clients,AR:169
Master Index
This index contains references to three ITO manuals. All page numbers are
prefaced with a two letter abbreviation indicating the manual that contains the
reference. For example, the index entry security,CG:94,AR:397,AR:416, shows
that information about security can be found on page 94 in the Concepts Guide,
and also on pages 397 and 416 in the Administrator’s Reference.
Index 535
AR = Administrator’s Reference Guide; CG = Concepts Guide
agent de-activation on NFS
cluster clients,AR:176
AIX HACMP managed nodes
tips,AR:56
AIX managed nodes tips,
AR:52
automatic,AR:167,AR:169
DEC Alpha NT,AR:61
Digital UNIX managed nodes
tips,AR:62
DYNIX/ptx managed nodes
tips,AR:63
HP-UX 10.x managed nodes
tips,AR:63
HP-UX 11.x managed nodes
tips,AR:63
IRIX managed nodes tips,
AR:70
managed node tips,AR:47
managed nodes,AR:45,
AR:165
manual on AIX nodes,AR:53,
AR:58,AR:60
manual on DEC Alpha NT
nodes,AR:62
manual on HP-UX nodes,
AR:66
manual on OS/2 nodes,AR:90
manual on Solaris nodes,
AR:96
manual on Windows NT nodes,
AR:111
MPE/iX managed nodes tips,
AR:70
NCR UNIX SVR4 managed
nodes tips,AR:74
manual installation,AR:74
Novell NetWare,AR:75,AR:85
Olivetti UNIX managed nodes
tips,AR:88
OS/2,AR:89
prerequisites on AIX HACMP
nodes,AR:58
Pyramid DataCenter/OSx
managed nodes tips,
AR:92
SCO OpenServer managed
nodes tips,AR:93
SCO UnixWare managed nodes
tips,AR:93
SINIX managed nodes tips,
AR:94
manual installation,AR:95
Solaris managed nodes tips,
AR:95
tips for management server,
AR:50
UNIX managed nodes tips,
AR:50
Windows NT,AR:99
installation drive for Windows
NT agent software,AR:104,
AR:110
installation on managed nodes
preparing,AR:45
installing ITO on managed
nodes,AR:44,AR:163
prerequisites,AR:28
installing/updating
ITO configuration and
software,CG:226
instruction text interface,
CG:79,CG:208
instructions for operator,CG:79
intercepting messages,CG:146
interceptor
event,CG:152
internal messages
filtering,CG:218
IP address
modifying IP address
information,AR:421
IP Map
application integration,
AR:316
monitoring IP activity,AR:317
Operator View,AR:317
topology management,AR:317
IP submaps,CG:106
IRIX managed nodes,AR:70
ISO 8859-1,AR:342
ITO
administrator login and
default password,AR:196
default operator for AIX nodes,
AR:119
directory and file maintenance,
AR:468
enhanced reports,CG:224,
CG:225
error messages report,CG:221
functionality,CG:24
introduction,CG:24
managed node installation,
AR:45,AR:165
message correlation
server process flow,CG:155
message interception
configuration,AR:245
message sources,CG:146
operator login and default
password,AR:196
possible trouble areas,AR:382
preparing installation on
managed nodes,AR:45
starting,AR:195
supported OS versions on
managed nodes,AR:31
troubleshooting processes,
AR:391,AR:392
tuning performance,AR:372
version management on
managed nodes,AR:178
ITO agent status configuration,
AR:203
ITO agents
operator control,AR:321
ITO API message source,
CG:146
536 Index
Master Index
This index contains references to three ITO manuals. All page numbers are
prefaced with a two letter abbreviation indicating the manual that contains the
reference. For example, the index entry security,CG:94,AR:397,AR:416, shows
that information about security can be found on page 94 in the Concepts Guide,
and also on pages 397 and 416 in the Administrator’s Reference.
AR = Administrator’s Reference Guide; CG = Concepts Guide
ITO default operator
DEC Alpha NT,AR:120
Digital UNIX managed nodes,
AR:123
DYNIX/ptx managed nodes,
AR:149
MPE/iX,AR:128
NCR UNIX SVR4,AR:132
Novell NetWare,AR:133
Olivetti UNIX managed nodes,
AR:136
OS/2,AR:138
SCO OpenServer managed
nodes,AR:143
SCO UnixWare managed
nodes,AR:146
SGI IRIX,AR:152
SINIX managed nodes,
AR:140,AR:155
Windows NT,AR:161
ITO event interceptor
event correlation,AR:245
on managed nodes,AR:244
SNMP traps,CG:175,AR:243
ITO GUI
language support,AR:334
ITO GUI phase
Novell NetWare,AR:76
ITO Reports window,CG:222
ITO Status
updating,AR:321
itodiag.exe,AR:209,AR:214
itokill.exe,AR:216
itomserv.exe,AR:221,AR:223
itop
operator,CG:45
itop login,AR:196
itop password,AR:196
itoreg.exe,AR:212
itosdown.exe,AR:209,AR:216
itouser.exe,AR:214
itouser.exe /u,AR:223
J
Java-based operator GUI,CG:49
Jovw,AR:204
K
kernel parameters,AR:46
L
LANG variable
setting,AR:334
language support,AR:331,
AR:348
ITO GUI,AR:334
object names,AR:348
on managed nodes,AR:336
on the management server,
AR:333
licence
maintainence,AR:473
types,AR:473
local location broker
troubleshooting,AR:418
local logfiles
for AIX and MPE/iX managed
nodes,AR:471
local logfiles on managed nodes,
AR:469
localized object names,AR:348
logfile encapsulation
configuration,AR:236
logfile encapsulator set
character sets,AR:341
logfile message source,CG:146,
CG:160
Add Logfile window,CG:162
encapsulator,CG:160
logfiles
MC/ServiceGuard,AR:493
variables,AR:294
logging
messages,CG:214,CG:215
messages on management
server,CG:209
login
process login context,AR:363
login context,AR:437
login security,AR:449
long-term reports,AR:265
opcdbmsgmv,AR:265
M
maintenance
database,AR:464
ITO,CG:226
ITO directories and files,
AR:468
managed nodes,AR:468
managed nodes software,
AR:166
OpenView platform,AR:468
system,AR:456
makefiles,AR:499
managed node
adding a node,AR:166
files
actagtp/q,AR:360
action agent,AR:360
monagtp/q,AR:360
monitor agent,AR:360
mpicmap/q,AR:360
mpimap/q,AR:360
msgagtdf,AR:360
msgagtp/q,AR:360
msgip/q,AR:360
opcecap/q,AR:360
pids,AR:360
trace,AR:360
local logfiles for HP-UX 10.x,
AR:470
managed node attributes,
AR:166
managed node requirements
AIX,AR:33
Master Index
This index contains references to three ITO manuals. All page numbers are
prefaced with a two letter abbreviation indicating the manual that contains the
reference. For example, the index entry security,CG:94,AR:397,AR:416, shows
that information about security can be found on page 94 in the Concepts Guide,
and also on pages 397 and 416 in the Administrator’s Reference.
Index 537
AR = Administrator’s Reference Guide; CG = Concepts Guide
DEC Alpha NT,AR:34
Digital UNIX,AR:34
HP-UX 10.x,AR:35,AR:36
HP-UX 11.x,AR:35,AR:36
MPE/iX,AR:36
NCR UNIX SVR4,AR:36
Novell NetWare,AR:37
Olivetti UNIX,AR:38
OS/2,AR:38
Pyramid DataCenter/OSx,
AR:39
SCO OpenServer,AR:39
SCO UnixWare,AR:40
Sequent,AR:40,AR:41
SGI IRIX,AR:40
Solaris,AR:41
Windows NT,AR:42,AR:101
managed nodes
(de-)installation debugging,
AR:181
agent software distribution,
CG:226
AIX,AR:52
AIX file tree,AR:118,AR:119
AIX HACMP,AR:56
APIs,AR:485
C libraries,AR:488
character sets,AR:337
clusters and agent software,
AR:52
command APIs,AR:485
configuration,AR:185
configuration files,AR:361
DEC Alpha NT,AR:61
DEC Alpha NT file tree,
AR:120
de-installation of software,
AR:173
Digital UNIX,AR:62
Digital UNIX file tree,AR:122
DYNIX/ptx,AR:63
DYNIX/ptx file tree,AR:148
example makefiles,AR:499
file tree layouts,AR:116
files,AR:358
hardware requirements,
AR:29,AR:30
HP-UX,AR:303
HP-UX 10.x,AR:63
HP-UX 10.x file tree,AR:125,
AR:127
HP-UX 11.x,AR:63
HP-UX 11.x file tree,AR:125
installation,AR:45,AR:165
installation prerequisites,
AR:28
installation tips,AR:47
installing ITO,AR:44,AR:163
installing scripts and
programs,AR:304
IRIX,AR:70
IRIX file tree,AR:151
local logfiles,AR:469
local logfiles for AIX and MPE/
iX,AR:471
maintenance,AR:468
MPE/iX,AR:70
MPE/iX file tree,AR:128
NCR UNIX SVR4,AR:74
manual installation,AR:74
NCR UNIX SVR4 file tree,
AR:131
Novell NetWare,AR:75
Novell NetWare file tree,
AR:133
object monitoring,AR:252
Olivetti UNIX,AR:88
Olivetti UNIX file tree,AR:135
OS requirements,AR:31
OS/2,AR:89
OS/2 file tree,AR:138
processes,AR:356,AR:357,
AR:358
Pyramid DataCenter/OSx,
AR:92
Pyramid DataCenter/OSx file
tree,AR:139
requirements,AR:29
SCO OpenServer,AR:93
SCO OpenServer file tree,
AR:142
SCO UNIX file tree,AR:145
SCO UnixWare,AR:93
security,CG:112
setting up,CG:98
SINIX,AR:94
manual installation,AR:95
SINIX file tree,AR:154
software requirements,AR:30
Solaris,AR:95
Solaris file tree,AR:157
target directories for scripts
and programs,AR:308
temporary directories for
scripts and programs,
AR:305
troubleshooting,AR:394,
AR:420
UNIX,AR:50,AR:303
Windows NT,AR:99
Windows NT file tree,AR:160
Managed Nodes window,CG:50
Management server
distributing configurations to,
CG:259
management server
action-allowed,CG:258
as managed node,CG:98,
AR:185
changing its hostname,AR:421
character sets,AR:333
escalating messages,CG:243
files,AR:355
actreqp/q,AR:355
actrespp/q,AR:355
cfgchanges,AR:355
ctrlp/q,AR:355
dispp/q,AR:355
538 Index
Master Index
This index contains references to three ITO manuals. All page numbers are
prefaced with a two letter abbreviation indicating the manual that contains the
reference. For example, the index entry security,CG:94,AR:397,AR:416, shows
that information about security can be found on page 94 in the Concepts Guide,
and also on pages 397 and 416 in the Administrator’s Reference.
AR = Administrator’s Reference Guide; CG = Concepts Guide
forwmgrp/q,AR:355
magmgrp/q,AR:355
mpicdmp/q,AR:355
mpicmmp/q,AR:355
mpimmp/q,AR:355
msgmgrp/q,AR:355
oareqhdl,AR:355
opcecap/q,AR:355
pids,AR:355
rqsdbf,AR:355
rqsp/q,AR:355
trace,AR:355
ttnsarp/q,AR:355
ttnsp/q,AR:355
installation tips,AR:50
language support,AR:333
maintenance,AR:456,AR:468
managing messages,CG:148
message target rules,CG:254
Node Bank window,CG:99
Node Hierarchy Bank window,
CG:100
object monitoring on,AR:251
operating multiple,CG:239
processes,AR:352,AR:355
regroup conditions,CG:215
SNMP traps,CG:178
specifying backup manager,
CG:257
specifying primary manager,
CG:256
time templates,CG:255
troubleshooting,AR:387
manager of manager,CG:237
managing messages,CG:35
managing templates,CG:136
manual de-installation
from AIX nodes,AR:175
from OS/2 nodes,AR:175
from Solaris nodes,AR:175,
AR:176
from Windows NT nodes,
AR:176
manual installation
on AIX nodes,AR:53,AR:58,
AR:60
on DEC Alpha NT nodes,
AR:62
on HP-UX nodes,AR:66
on OS/2 nodes,AR:90
on Solaris nodes,AR:96
on Windows NT nodes,AR:111
mask operator,CG:204
maximum threshold,CG:169
MC/ServiceGuard,AR:482
IP addresses,AR:490
local network switching,
AR:487
package,AR:483
package switchover,AR:485
service,AR:483
troubleshooting,AR:493
MeasureWare
agents, PCS,AR:320
integrating with Perfview 4.0
in ITC,AR:320
MeasureWare Agent,AR:319
receiving alarms from,AR:319
menu utility,AR:45
message
attributes,AR:187
browser,AR:187
conditions,CG:186,CG:189,
CG:196
correlating in ITO,CG:150
distribution list,CG:265
filtering internal,CG:218
ownership,AR:191
printing,CG:53
Scheduled Outage,AR:276
scheduled outage,CG:219
Service Hours,AR:276
service hours,CG:218
what is,CG:33
message and suppress conditions
pattern matching,CG:200
window,CG:188
message attributes,CG:63,
CG:66
Message Browser Layout
window,CG:68
Message Browser window,
CG:53,CG:62
setting a view,CG:59
message buffering during service
hours,CG:218
Message Condition Advanced
Options window,CG:162
message correlation
agent process flow,CG:154
Message Details window,CG:65
message forwarding
managing,CG:268
parameters,AR:281
template,CG:264
to trouble-ticket systems,
CG:267
troubleshooting,CG:268
Message Group window
no popup,CG:58
message groups,CG:36
assigning to operators,CG:128
configuration,AR:186,
AR:187,AR:195
default,CG:116
setting up,CG:115,CG:116
window,CG:52
message policy
implementing,CG:146
Message Processing Interface,
CG:183
Message Source Templates
window,CG:133,CG:139
message stream interface
registration conditions,
CG:197
message suppression during
scheduled outages,CG:219
message target rules,CG:254
Master Index
This index contains references to three ITO manuals. All page numbers are
prefaced with a two letter abbreviation indicating the manual that contains the
reference. For example, the index entry security,CG:94,AR:397,AR:416, shows
that information about security can be found on page 94 in the Concepts Guide,
and also on pages 397 and 416 in the Administrator’s Reference.
Index 539
AR = Administrator’s Reference Guide; CG = Concepts Guide
message text
changing,CG:66
message-bound actions,CG:37
messages,CG:33
acknowledging,CG:88,CG:90
annotating,CG:87,CG:88
attributes,CG:63
back up,AR:456
browsing effectively,CG:60,
CG:68
conditions,CG:140
controlling manager,CG:264
control-switch,CG:262
correlating in flexible
management
environments,CG:155
defining regroup conditions,
CG:216
details,CG:64
escalation,CG:65,AR:191
evaluating sources,CG:147
filtering internal,CG:218
filters,CG:182
forwarding,CG:159,CG:261
history,CG:72
how managing helps,CG:148
implementing policy,CG:218
ITO message interface,CG:163
logfiles,CG:160
managing,CG:35
marking and unmarking,
CG:70
matched,CG:214
MPE/iX console,CG:179
notification,CG:160,CG:263
ownership display modes,
CG:70,AR:192
ownership modes,CG:70,
AR:192
owning,AR:189
owning and disowning,CG:70
pending,CG:54,CG:74
printing,CG:53
processing steps,CG:34
read-only,CG:160
reference,CG:160
reformatting,CG:207
regrouping,CG:215,CG:218
responses,CG:208
routing,CG:159
severity,AR:188
SNMP trap,CG:178
sources,CG:33,CG:140,
CG:146,CG:149
status propagation,CG:70,
AR:192
suppress conditions,CG:141
switching control,CG:159
templates,CG:141
types from ITO,CG:214
unbuffer,CG:54
unmatched,CG:214
MIB access
troubleshooting,AR:419
MIB browser configuration,
AR:204
MIB object,CG:166
MIB objects
from other communities,
AR:259,AR:419
monitoring,CG:166
minimum threshold,CG:169
Modify Message Attributes
window,CG:67
modifying
hostname,AR:421
IP address information,
AR:421
message text,CG:66,CG:67
severity,CG:66
MoM functions
example configuration
templates,AR:267
monagtq/monagtp files,AR:360
monitored objects
applications,AR:323
configuration,AR:251
monitoring
MIB variables on OS/2,
AR:256,AR:259,AR:419
monitoring logfiles,CG:160
monitoring trapd.log,CG:105
monitors
distributing to managed nodes,
CG:226
setting up threshold monitors,
CG:165,AR:254
setting up Windows NT
threshold monitors,
AR:254
MPE message condition
example,CG:211
MPE/iX
adapted system resources,
AR:128
CONSDESC.COMMANDS.OV
OPC file,AR:250
console message interception
configuration,AR:245
generating NMEV marker,
AR:249
NMEV marker mapping,
AR:247
MPE/iX console message source,
CG:146,CG:179
MPE/iX managed node
requirements,AR:34,AR:36
MPE/iX managed nodes,AR:70
default operator,AR:128
file tree,AR:128
firewall configuration,AR:444
name mapping,AR:128,
AR:130
troubleshooting,AR:411,
AR:414
MPE/iX managed nodes
installation
troubleshooting,AR:401
MSG_APPL,AR:294
540 Index
Master Index
This index contains references to three ITO manuals. All page numbers are
prefaced with a two letter abbreviation indicating the manual that contains the
reference. For example, the index entry security,CG:94,AR:397,AR:416, shows
that information about security can be found on page 94 in the Concepts Guide,
and also on pages 397 and 416 in the Administrator’s Reference.
AR = Administrator’s Reference Guide; CG = Concepts Guide
MSG_GRP,AR:294
MSG_ID,AR:295
MSG_NODE,AR:295
MSG_NODE_NAME,AR:295
MSG_OBJECT,AR:293
MSG_SEV,AR:294
MSG_TEXT,AR:294
MSG_TYPE,AR:294
msgagtq file,AR:360
msgiq/msgip files,AR:360
multiple mangement server,
CG:239
multiple templates,CG:183
N
NAME,AR:295
NAT
node configuration in ITO,
AR:367
nbstat.exe,AR:214
NCR SV.4 managed nodes
troubleshooting,AR:410
NCR UNIX SVR4
adapted system resources,
AR:132
file tree,AR:131
ITO default operator,AR:132
managed node requirements,
AR:36
NFS cluster servers,AR:131
NDS,AR:80,AR:86
net.exe,AR:213,AR:219,
AR:220,AR:224,AR:225
netbios,AR:224
netop
operator,CG:45
netop login,AR:196
netop password,AR:196
netstat.exe,AR:224
NetWare managed nodes
bindery mode,AR:80
NetWareDirectory Services,
AR:80,AR:86
network management,CG:31
networking
Network Node Manager,
AR:316
NFS
troubleshooting,AR:420
NFS cluster client
SGI IRIX,AR:151
Solaris,AR:158
NFS cluster clients
AIX,AR:118
Digital UNIX managed nodes,
AR:123
DYNIX/ptx managed nodes,
AR:149
manual activation,AR:169
manual de-activation,AR:176
Olivetti UNIX managed nodes,
AR:136
Pyramid DataCenter/OSx
managed nodes,AR:140
SCO OpenServer managed
nodes,AR:143
SCO UnixWare managed
nodes,AR:146
SINIX managed nodes,AR:155
NFS cluster servers
NCR UNIX SVR$,AR:131
SGI IRIX,AR:151
Solaris,AR:157
NFS managed nodes
HP-UX 10.x,AR:125
NMEV marker
generating,AR:249
mapping to ITO,AR:247
NNM collection station
check for existence,CG:178
NNM ECS,CG:152
node attributes,CG:103
Node Bank window,CG:99
node groups
assigning to operators,CG:128
configuring,CG:112
node hiearchies
definition,CG:100
holding area,CG:100
Node Hierarchy Bank window,
CG:100
node name mapping for MPE/iX,
AR:128,AR:130
nodes
adding,CG:103
external,CG:104
understanding,CG:106
NOT operator,CG:204
notification service forwarding,
CG:209
notification service interface,
AR:259
Novell NetWare
installation,AR:85
Novell NetWare Applications,
AR:225
Novell NetWare managed node
requirements,AR:37
Novell NetWare managed nodes,
AR:75
APIs,AR:486
default operator,AR:133
file tree,AR:133
installation logfile,AR:85
ITO GUI Phase,AR:76
NDS,AR:80
preparing the NetWare depot
server,AR:77
Novell NetWare SFT III
installation,AR:75
NTPerfMon,AR:255
O
object monitoring
on managed nodes,AR:252
Master Index
This index contains references to three ITO manuals. All page numbers are
prefaced with a two letter abbreviation indicating the manual that contains the
reference. For example, the index entry security,CG:94,AR:397,AR:416, shows
that information about security can be found on page 94 in the Concepts Guide,
and also on pages 397 and 416 in the Administrator’s Reference.
Index 541
AR = Administrator’s Reference Guide; CG = Concepts Guide
on management server,
AR:251
on OS/2 managed nodes,
AR:253
object names
language support,AR:348
OEM_L1,AR:342
OEM_US,AR:342
Olivetti
sysadm utility,AR:45
Olivetti UNIX managed node
requirements,AR:38
Olivetti UNIX managed nodes,
AR:88
file tree,AR:135,AR:139
ITO default operator,AR:136
NFS cluster clients,AR:136
NFS cluster servers,AR:135,
AR:139
standalone systems,AR:135,
AR:139
system resources adapted,
AR:137,AR:141
opc process,AR:352
OPC_ALWAYS,AR:297
opc_backup,CG:233,AR:457
OPC_BRC_HISTSIZE,AR:291
OPC_ENV,AR:291,AR:296
OPC_EXT_NODES,AR:296
OPC_GUI_CLIENT,AR:296
OPC_HOME,AR:291
OPC_MGMTSV,AR:295
OPC_MSGIDS_ACT,AR:296
OPC_MSGIDS_HIST,AR:297
OPC_MSGIDS_PEND,AR:297
OPC_NODES,AR:297
opc_op
operator,CG:44
opc_op login,AR:196
opc_op password,AR:196
OPC_PRIMARY_MGR,AR:297
opc_report,AR:265
opc_report_role,AR:265
opc_sec_register.sh,AR:435
opc_sec_register_svr.sh,AR:435
OPC_USER,AR:297
opcacta process,AR:357
opcactivate,AR:54,AR:69,
AR:98
opcactm process,AR:352
opcapi.h,AR:488
opccfgout,AR:280
opcconsi process,AR:358
opcctla process,AR:358
opcctlm process,AR:352
opcdbinit
troubleshooting,AR:390
opcdbmsgmv,AR:265
opcdispm process,AR:352
opcdistm process,AR:352,
AR:357
opceca process,AR:357
opcecm process,AR:353
opcforwm process,AR:353
opcgrp,AR:447
opchbp,AR:55,AR:69,AR:98
opcinfo file
activating tracing,AR:376
DLLs on OS/2 managed nodes,
AR:235
example,AR:377
installation of multi-homed
hosts,AR:400
location on managed nodes,
AR:395
SNMP_COMMUNITY,
AR:259,AR:419
opcle process,AR:357
opcmona process,AR:357
opcmsg message source,CG:146,
CG:163
opcmsga process,AR:358
opcmsgi process,AR:358
opcmsgm process,AR:353
opcmsgr process,AR:354
opcprfls.exe,AR:215
opcsw,AR:55,AR:69,AR:98
opctrapi process,AR:358
opctss process,AR:354
opcttnsm process,AR:354
opcuiadm process,AR:354
opcuiop process,AR:354
opcuiopadm process,AR:354
opcuiwww process,AR:354
opcvterm.exe,AR:225
opcwall command,AR:459
OpenSpool,CG:124
OpenView platform
maintaining,AR:468
operator
adding a new,CG:126,CG:230
Application Desktop,CG:55,
CG:57,CG:80,CG:130
application starts,CG:81
applications,CG:127,CG:131
assigning message and node
groups,CG:128
audit,AR:453
automatic actions,CG:77,
CG:78
broadcast a command,CG:82
browsing messages,CG:53,
CG:54
capabilities,CG:127
concepts,CG:48,CG:224
configuration,AR:197
customizing your environment,
CG:58
evaluating actions,CG:76,
CG:85
file permissions,AR:447
initiated actions,CG:39,
CG:78,CG:209
instructions,CG:79
ITO default on AIX nodes,
AR:119
itop,CG:45,CG:128
managed nodes,CG:50,
CG:51,CG:127
542 Index
Master Index
This index contains references to three ITO manuals. All page numbers are
prefaced with a two letter abbreviation indicating the manual that contains the
reference. For example, the index entry security,CG:94,AR:397,AR:416, shows
that information about security can be found on page 94 in the Concepts Guide,
and also on pages 397 and 416 in the Administrator’s Reference.
AR = Administrator’s Reference Guide; CG = Concepts Guide
message groups,CG:52,CG:53
netop,CG:45,CG:128
notifying and investigating,
CG:64,CG:74
opc_op,CG:44,CG:128
problem-solving tasks,CG:76,
CG:85
reviewing your environment,
CG:49
role,CG:43
setting up,CG:125
solving problems,CG:85
tasks,CG:48,CG:224
terminal/console access,CG:85
tools,CG:131
windows,CG:49,CG:57
operator default password,
AR:196
operator GUI,AR:448
operator login,AR:196
operator windows
Annotations,CG:87
Application Desktop,CG:55,
CG:80
Broadcast Command,CG:82
Broadcast Output,CG:83
Browser View - Active
Browsers,CG:59
Browser View - History
Messages window,CG:73
Customized Application Call,
CG:82
Customized Login,CG:85
History Browser,CG:72
ITO Reports,CG:222
Managed Nodes,CG:50
Message Browser,CG:53,
CG:62
Message Browser Layout,
CG:68
Message Details,CG:65
Message Groups,CG:52
Modify Message Attributes,
CG:67
Pending Messages Browser,
CG:74
Report Output,CG:224
View Message Browser,CG:59
operator-initiated actions
restarting,CG:78
opmon command,CG:191
OPTION(N),AR:294
Options window,CG:215
OR operator,CG:203
Oracle database
ITO tables,AR:498
ITO tablespace,AR:499
troubleshooting,AR:388
OS/2 applications,AR:233
OS/2 managed node
requirements,AR:38
OS/2 managed nodes,AR:89
control agent,AR:234
default operator,AR:138
DLLs,AR:234
file tree,AR:138
manual de-installation,
AR:175
manual installation,AR:90
object monitoring,AR:253
troubleshooting,AR:380,
AR:417
OS/2 manged nodes
monitoring MIB variables,
AR:256
outage
opccfgout,AR:280
template syntax,AR:274
condition-status variable,
AR:278
timezone string,AR:278
OV services,AR:204
ovbackup,CG:233,AR:457,
AR:460
ovoareqsdr process,AR:352
ovrestore,CG:234,AR:461
recovery scenarios,AR:462
redo logs,CG:234
ovtrapd,CG:177
own
messages,AR:191
ownership display mode,CG:70,
AR:192
own-state
display mode,CG:70,AR:192
P
parameters
additional,CG:124
password
aging,AR:449
default,AR:196
Windows NT managed nodes,
AR:451
password security
MPE/iX,AR:451
UNIX,AR:451
patches
missing OS patches for AIX,
AR:56
OS patches for Solaris,AR:98
PATH,AR:413
pattern matching
expressions,CG:202
threshold monitor conditions,
CG:191
pattern-matching
defaults,CG:183
message and suppress
conditions,CG:200
PCS
MeasureWare integration,
AR:320
Pending Messages Browser
window,CG:54,CG:74
Performance Collection Software
Master Index
This index contains references to three ITO manuals. All page numbers are
prefaced with a two letter abbreviation indicating the manual that contains the
reference. For example, the index entry security,CG:94,AR:397,AR:416, shows
that information about security can be found on page 94 in the Concepts Guide,
and also on pages 397 and 416 in the Administrator’s Reference.
Index 543
AR = Administrator’s Reference Guide; CG = Concepts Guide
MeasureWare integration,
AR:320
performance tuning,AR:371,
AR:373
performing daily tasks,CG:48
PerfView,AR:319
configuration,AR:205
running V3.0 and 4.0 in
parallel,AR:321
physical terminal,CG:85
physical terminal configuration,
AR:205
pids file,AR:360
platform-independent problems
troubleshooting,AR:403,
AR:411
port
dynamic assignment of,
AR:366,AR:440
through firewalls,AR:366,
AR:439
restrictions,AR:444
through firewalls,AR:444
security through firewalls,
AR:439
preconfigured elements in ITO,
AR:185,AR:260
pre-installed agent See manual
installation
primary manager,CG:256
print status configuration,
AR:205
printing messages,CG:53
problems
accessing terminal or console,
CG:85
instructions for solving,CG:79
investigating,CG:64
notifying,CG:62
solving,CG:76,CG:85
process
authentication,AR:363,
AR:437
login context,AR:363,AR:437
names in ITO,AR:363,AR:438
passwords in ITO,AR:363,
AR:438
port number,AR:366,AR:440
security,AR:362,AR:433
processes configuration,AR:206
Pyramid
sysadm utility,AR:45
Pyramid DataCenter/OSx
managed nodes,AR:92
ITO default operator,AR:140
NFS cluster clients,AR:140
requirements,AR:39
Q
queue files
secure location of,AR:452
R
re-configuring ITO
modifying hostname
information and re-
configuring ITO,AR:427
modifying IP address
information and re-
configuring ITO,AR:421
recovery scenarios from auto-
backup,AR:462
redo logs,CG:234
regroup conditions,CG:138,
CG:197,CG:215
regrouping messages,CG:215,
CG:218
Report Output window,CG:224
reports
administrator,AR:261
application group,AR:207
database,AR:261
enhanced,CG:224,CG:225
long-term,AR:265
opc_report,AR:265
opc_report_role,AR:265
opcdbmsgmv,AR:265
operator,AR:207
security,AR:265
service,CG:224,CG:225
reports, generating,CG:221
rerunning automatic actions,
CG:78
reset level
threshold monitors,CG:170
responses to messages,CG:208
responsibilities,CG:127
restarting automatic actions,
CG:78
restore,AR:461
on-line,AR:461
ovrestore,AR:461
restore backed-up data,CG:234
REXX scripts
on OS/2 managed nodes,
AR:235
ROMAN 8,AR:342
routing
messages,CG:261
RPM performance tools,AR:319
GlancePlus,AR:319
PerfView,AR:319
S
SAM
configuration,AR:207
SAM utility,AR:45
saving
broadcast commands,CG:84
browser settings,CG:60
scalability scenarios,CG:271
Scheduled Outage,AR:276
configuring,CG:220
template,CG:220,AR:290
scheduled outage,CG:219
SCO
sysadmsh utility,AR:45
544 Index
Master Index
This index contains references to three ITO manuals. All page numbers are
prefaced with a two letter abbreviation indicating the manual that contains the
reference. For example, the index entry security,CG:94,AR:397,AR:416, shows
that information about security can be found on page 94 in the Concepts Guide,
and also on pages 397 and 416 in the Administrator’s Reference.
AR = Administrator’s Reference Guide; CG = Concepts Guide
SCO OpenServer
system resources adapted,
AR:144
SCO OpenServer managed node
requirements,AR:39
SCO OpenServer managed
nodes,AR:93
file tree,AR:142
ITO default operator,AR:143
NFS cluster clients,AR:143
NFS cluster servers,AR:142
standalone systems,AR:142
SCO UnixWare
system resources adapted,
AR:147
SCO UnixWare managed node
requirements,AR:40
SCO UnixWare managed nodes,
AR:93
file tree,AR:145
ITO default operator,AR:146
NFS cluster clients,AR:146
NFS cluster servers,AR:145
standalone systems,AR:145
script and program distribution,
AR:299,AR:303
SD depot
creating,AR:63
security,CG:96,AR:431,
AR:451
application setup,AR:449
authentification,AR:433
data protection,AR:433
database,AR:449
guidelines,CG:96
ITO access,CG:41
ITO process names,AR:363,
AR:438
ITO process passwords,
AR:363,AR:438
ITO processes,AR:362,
AR:433
levels,AR:439
login and execution,AR:449
login context,AR:437
managed node,CG:112
MPE/iX passwords,AR:451
names,AR:438
network,CG:96
password aging,AR:449
privacy,AR:433
program,AR:448
queue files,AR:452
restrictions,CG:97
system,CG:96
UNIX passwords,AR:451
Sequent managed node
requirements,AR:40
server message stream API,
AR:324
Server process
opcactm,AR:352
opcctlm,AR:352
opcdispm,AR:352
opcdistm,AR:352,AR:357
opcecm,AR:353
opcforwm,AR:353
opcmsgm,AR:353
opcmsgr,AR:354
opctss,AR:354
opcttnsm,AR:354
opcuiadm,AR:354
opcuiop,AR:354
opcuiopadm,AR:354
opcuiwww,AR:354
ovoareqsdr,AR:352
Service Hours,AR:276
Command Line Interface,
AR:280
configuring,CG:220
opccfgout,AR:280
template,CG:220,AR:290
template syntax,AR:274
condition-status variable,
AR:278
timezone string,AR:278
service hours,CG:218
service reports,CG:224,CG:225
services
HP OpenView,CG:119
Settings
Browser Settings window,
CG:60,CG:73
Browser View window,CG:60,
CG:73
Save Browser Settings
window,CG:60,CG:73
severity
changing,CG:66
severity of messages,AR:188
SGI IRIX
ITO default operator,AR:152
managed node requirements,
AR:40
NFS cluster client,AR:151
NFS cluster servers,AR:151
standalone systems,AR:151
system resources adapted,
AR:152
SGI IRIX managed nodes
file tree,AR:151
Shift JIS,AR:342
short report,CG:221
SINIX managed node
requirements,AR:41
SINIX managed nodes,AR:94
file tree,AR:154
ITO default operator,AR:155
NFS cluster clients,AR:155
NFS cluster servers,AR:154
standalone systems,AR:154
system resources adapted,
AR:156
SMIT configuration,AR:208
SMIT utility,AR:45
SMS integration,AR:326
SNMP
event interception
configuration,AR:243
Master Index
This index contains references to three ITO manuals. All page numbers are
prefaced with a two letter abbreviation indicating the manual that contains the
reference. For example, the index entry security,CG:94,AR:397,AR:416, shows
that information about security can be found on page 94 in the Concepts Guide,
and also on pages 397 and 416 in the Administrator’s Reference.
Index 545
AR = Administrator’s Reference Guide; CG = Concepts Guide
trap interception
configuration,AR:243
variables,AR:291
SNMP community,CG:166
SNMP platform
tuning,AR:371
SNMP Trap condition
example,CG:212
SNMP Trap Condition No.
window,CG:191
SNMP trap message source,
CG:146,CG:178
SNMP traps,CG:178
SNMP_COMMUNITY,AR:259,
AR:419
snmpd.conf,CG:178
software
supported OS on managed
nodes,AR:31
software depot
creating,AR:65
using,AR:66
software distributor (HP-UX
10.x),AR:63
installation tips,AR:63
software distributor (HP-UX
11.x),AR:63
installation tips,AR:63
software installation/update
configuration to managed
nodes,AR:299
software requirements
managed nodes,AR:30
Solaris
admintool utility,AR:45
missing OS patches,AR:98
NFS cluster servers,AR:158
Solaris managed node
requirements,AR:41
Solaris managed nodes
file tree,AR:157
manual de-installation,
AR:175,AR:176
manual installation,AR:96
troubleshooting,AR:410
spooladm,CG:124
standalone or NFS cluster server
AIX,AR:118
standalone systems
SGI IRIX,AR:151
Solaris,AR:157
standard installation process
for Windows NT agent,AR:99
start
ITO,AR:195
starting ITO’s operator
interface,AR:195
status propagation,CG:50,
CG:70,AR:192
SunOS managed nodes
troubleshooting,AR:410
suppress conditions,CG:186,
CG:196
suppress duplicate-message
defaults,CG:183
suppress unmatched conditions,
CG:186,CG:196
suppressed messages,CG:214
synchronization
configuration data,CG:231
data locking,CG:231
ITO GUI,CG:231
transaction concept,CG:231
syntax
NTPerfMon,AR:255
Service Hours
templates,AR:274
sysadm utility,AR:45
sysadmsh utility,AR:45
system management,CG:31
System Management Server (see
SMS),AR:326
system resources adapted
Digital UNIX,AR:124
DYNIX/ptx,AR:150
Olivetti UNIX,AR:137
Pyramid DataCenter/OSx,
AR:141
SCO OpenServer,AR:144
SCO UnixWare,AR:147
SGI IRIX,AR:152
SINIX,AR:156
T
tablespaces,AR:499
target
nodes,CG:274
template
example,CG:157,CG:159
interface down,CG:157
node down,CG:157
switch user,CG:159
variables,AR:294
template administrator,CG:136
role,CG:43
template groups,CG:137,
CG:141
assigning,CG:143
configuration,AR:193
configuring,CG:141
defaults,CG:142
hierarchy,CG:142
templates
Add MPE/iX Console Messages
window,CG:180
application specific,CG:186
assigning,CG:142,CG:143
configuring,CG:138
defining a regroup condition,
CG:216
distributing to managed nodes,
CG:145,CG:226,CG:229
external interface,AR:259
filters,CG:182,CG:218
flexible management,AR:267
defining time templates,
AR:282
examples,AR:286
546 Index
Master Index
This index contains references to three ITO manuals. All page numbers are
prefaced with a two letter abbreviation indicating the manual that contains the
reference. For example, the index entry security,CG:94,AR:397,AR:416, shows
that information about security can be found on page 94 in the Concepts Guide,
and also on pages 397 and 416 in the Administrator’s Reference.
AR = Administrator’s Reference Guide; CG = Concepts Guide
keywords,AR:269
syntax,AR:273
ITO message interface,CG:163
logfile message,CG:160
management-responsibility
switch
configuration syntax,AR:274
managing,CG:136
message forwarding
configuration,AR:280
variables,AR:281
message-target rules
configuration syntax,AR:274
MPE/iX console message,
CG:179
Outage
condition-status variable,
AR:278
parameters,AR:277
syntax,AR:274
timezone string,AR:278
responsible manager
configuration syntax,AR:273
Service Hours,CG:220,
AR:276
condition-status variable,
AR:278
parameters,AR:277
syntax,AR:274
timezone string,AR:278
SNMP trap,CG:178
threshold monitors,CG:165,
CG:175
threshold monitors, for
Windows NT,AR:254
time templates
configuration syntax,AR:274
keywords,AR:284
Windows NT threshold
monitors,AR:254
terminal access,CG:85
testing message and suppress
conditions,CG:210
THRESHOLD,AR:296
threshold monitor conditions,
CG:191
example,CG:213
threshold monitor template
variables,AR:295
threshold monitors
advanced monitoring,CG:191
continuous,CG:172
defaults,CG:175
defining,CG:173
integrating,CG:172
maximum type,CG:169
minimum type,CG:169
placing in directories,CG:172
setting up,CG:165,CG:175
templates,CG:165,CG:175
with reset level,CG:170
without reset level,CG:171
time templates,CG:254,CG:255
defining,AR:282
keywords,AR:284
variables,AR:297
timezone string,AR:278
TME NetFinity
monitoring MIB variables,
AR:256
trace (ASCII) file,AR:360
tracing
activate,AR:376
functional areas,AR:375,
AR:376
logfile,AR:375,AR:378
troubleshooting,AR:375
transaction concept,CG:231
trap interceptor, see event
interceptor
trap_dest,CG:178
trapd.log,CG:105
Trouble Ticket
and message forwarding,
CG:267
trouble ticket interface,AR:259
trouble ticket system
forwarding,CG:209
troubleshooting,AR:374,
AR:420
accessing the MIB,AR:419
activate tracing,AR:376
debugging software
installation,AR:181
Graphical User Interface,
AR:392
ITO processes,AR:391,
AR:392
local location broker,AR:418
managed nodes,AR:394,
AR:420
management server,AR:387
MPE/iX managed nodes,
AR:414
MPE/iX managed nodes
installation,AR:401
NFS,AR:420
on OS/2 managed nodes,
AR:380
opcdbinit,AR:390
Oracle database,AR:388
OS/2 managed nodes,AR:417
platform-independent
problems,AR:403,AR:411
tracing,AR:375
UNIX managed nodes,
AR:411,AR:413
UNIX managed nodes
installation,AR:396
when you need more
information,AR:386
trust, and Windows NT domains,
AR:100
tuning
database,AR:372
ITOs performance,AR:372
SNMP platform,AR:371
Master Index
This index contains references to three ITO manuals. All page numbers are
prefaced with a two letter abbreviation indicating the manual that contains the
reference. For example, the index entry security,CG:94,AR:397,AR:416, shows
that information about security can be found on page 94 in the Concepts Guide,
and also on pages 397 and 416 in the Administrator’s Reference.
Index 547
AR = Administrator’s Reference Guide; CG = Concepts Guide
U
unbuffer
messages,CG:54
time,CG:54
UNIX managed nodes,AR:50
troubleshooting,AR:411,
AR:413
UNIX managed nodes
installation
troubleshooting,AR:396
unmatched messages,CG:214
update
automatic,AR:167,AR:169
uploading,CG:260
User Bank window,CG:125
user profiles,CG:41
assigning,CG:132
concept,CG:41,CG:134
configuring,CG:134
user roles,CG:41
users configuration,AR:195,
AR:200
V
VALAVG,AR:296
VALCNT,AR:296
VALUE,AR:296
variables,AR:291
condition status,AR:278
console,AR:294,AR:295
interface template,AR:294
logfile template,AR:294
SNMP,AR:291
threshold monitor template,
AR:295
time templates,AR:297
timezone string,AR:278
version management on
managed nodes,AR:178
versions
OS on ITO managed nodes,
AR:31
View Message Browser window,
CG:54,CG:59
viewing environments,CG:31
virtual terminal,CG:85
configuration,AR:208
W
Windows NT
adapted system resources,
AR:161
Performance Monitor,
monitoring values in,
AR:254
Windows NT Applications,
AR:209
Cancel Reboot,AR:209
Diagnostics,AR:209
Installed Software,AR:212
ITO Install Log,AR:212
Job Status,AR:213
LM Sessions,AR:213
Local Users,AR:214
Memory Load,AR:214
NetBios Sessions,AR:214
PerfMon Objs,AR:215
Process Kill,AR:216
Reboot,AR:216
Reg Viewer,AR:217
Server Config,AR:219
Server Stats,AR:220
Shares,AR:220
Show Drivers,AR:221
Show Services,AR:221
Show Users,AR:223
Start Services,AR:223
Stop Services,AR:223
TCP/IP Status,AR:224
Used Shares,AR:224
Virtual Terminal PC,AR:225
Workst Stats,AR:225
Windows NT managed node
requirements,AR:42
Windows NT managed nodes
default operator,AR:161
file tree,AR:160
manual de-installation,
AR:176
Windows NT nodes
ftp installation,AR:103
ftp re-installation,AR:109
ftp reinstallation,AR:100
installation,AR:99
installation requirements,
AR:101
manual installation,AR:111
standard installation,AR:99,
AR:106
the HP ITO account,AR:114
trust between domains,
AR:100
user rights,AR:114
with reset, threshold monitors,
CG:170
without reset, threshold
monitors,CG:171
X
X Resources,CG:58,AR:334
548 Index
Master Index
This index contains references to three ITO manuals. All page numbers are
prefaced with a two letter abbreviation indicating the manual that contains the
reference. For example, the index entry security,CG:94,AR:397,AR:416, shows
that information about security can be found on page 94 in the Concepts Guide,
and also on pages 397 and 416 in the Administrator’s Reference.
AR = Administrator’s Reference Guide; CG = Concepts Guide
