HP-UX Directory Server administration server guide
Table of Contents
1 Introduction to HP-UX Directory Server
2 Admin Server configuration
3 Admin express
- 3.1 Managing servers in Admin Express
- 3.2 Configuring Admin Express
4 Admin Server command-line tools
- 4.1 sec-activate
- 4.2 modutil
5 Support and other resources
Glossary
Index

HP-UX Directory Server administration server

guide

HP-UX Directory Server Version 8.1

HP Part Number: 5900-0312

Published: September 2009

Edition: 1

Confidential computer software. Valid license from HP required for possession, use or copying. Consistent with FAR 12.211 and 12.212, Commercial

Computer Software, Computer Software Documentation, and Technical Data for Commercial Items are licensed to the U.S. Government under

vendor's standard commercial license.

The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express

warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP

shall not be liable for technical or editorial errors or omissions contained herein.

Table of Contents

1 Introduction to HP-UX Directory Server.........................................................................5

2 Admin Server configuration...........................................................................................7

2.1 Directory Server file locations...........................................................................................................7

2.2 Starting and stopping the Admin Server..........................................................................................7

2.2.1 Starting and stopping Admin Server from the console............................................................7

2.2.2 Starting and stopping Admin Server from the command Line................................................8

2.3 Opening the Admin Server console..................................................................................................8

2.4 Viewing logs....................................................................................................................................10

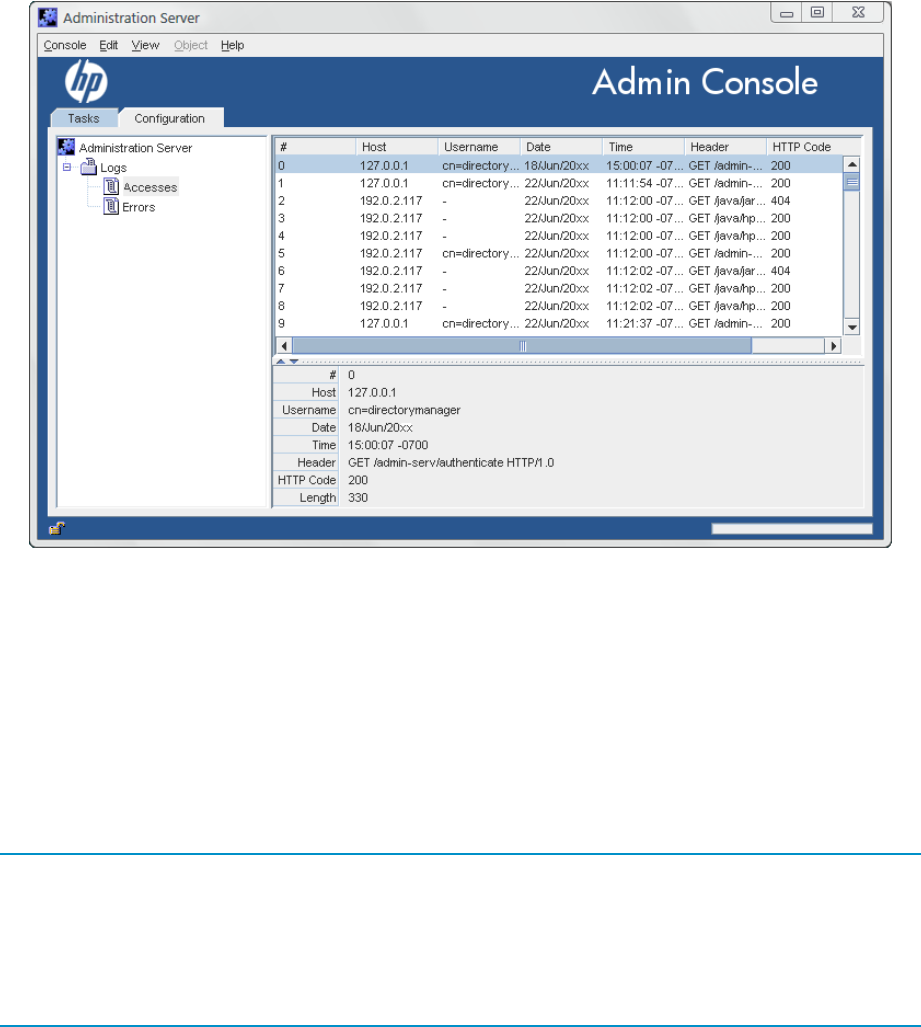

2.4.1 Viewing the logs through the console.....................................................................................10

2.4.2 Viewing logs in the command line..........................................................................................11

2.4.3 Changing the log name in the console....................................................................................12

2.4.4 Changing the log location in the command line.....................................................................13

2.5 Changing the port number..............................................................................................................13

2.5.1 Changing the port number in the console...............................................................................13

2.5.2 Changing the port number in the command line...................................................................14

2.6 Setting host restrictions...................................................................................................................15

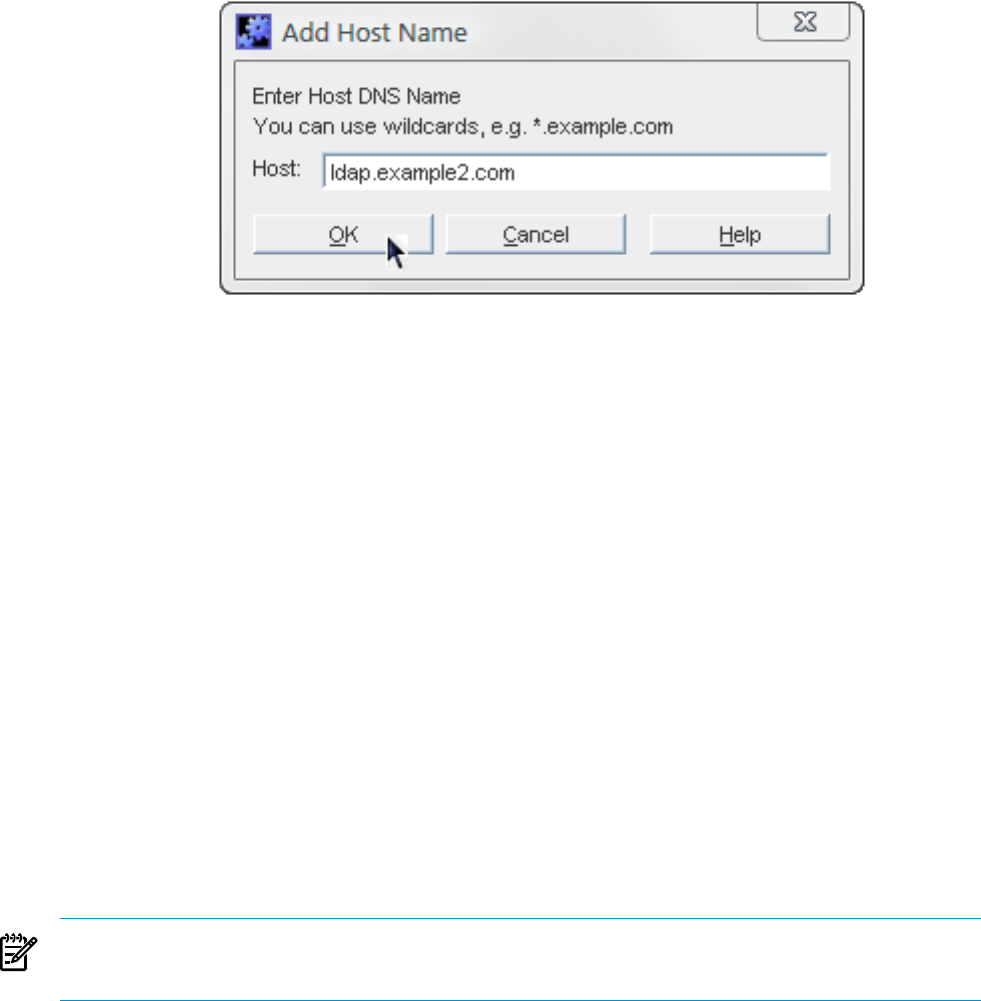

2.6.1 Setting host restrictions in the console....................................................................................15

2.6.2 Setting host restrictions in the command line.........................................................................16

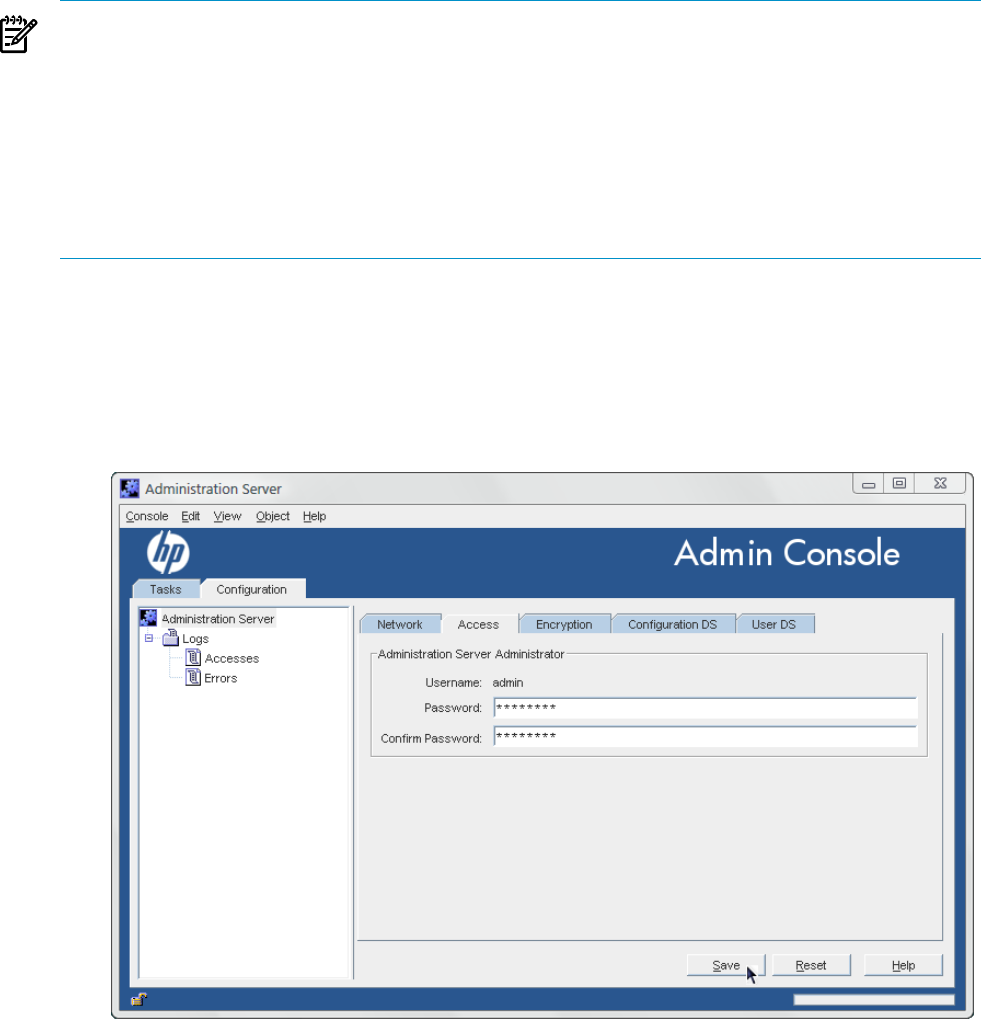

2.7 Changing the admin user's name and password............................................................................17

2.8 Working with SSL............................................................................................................................18

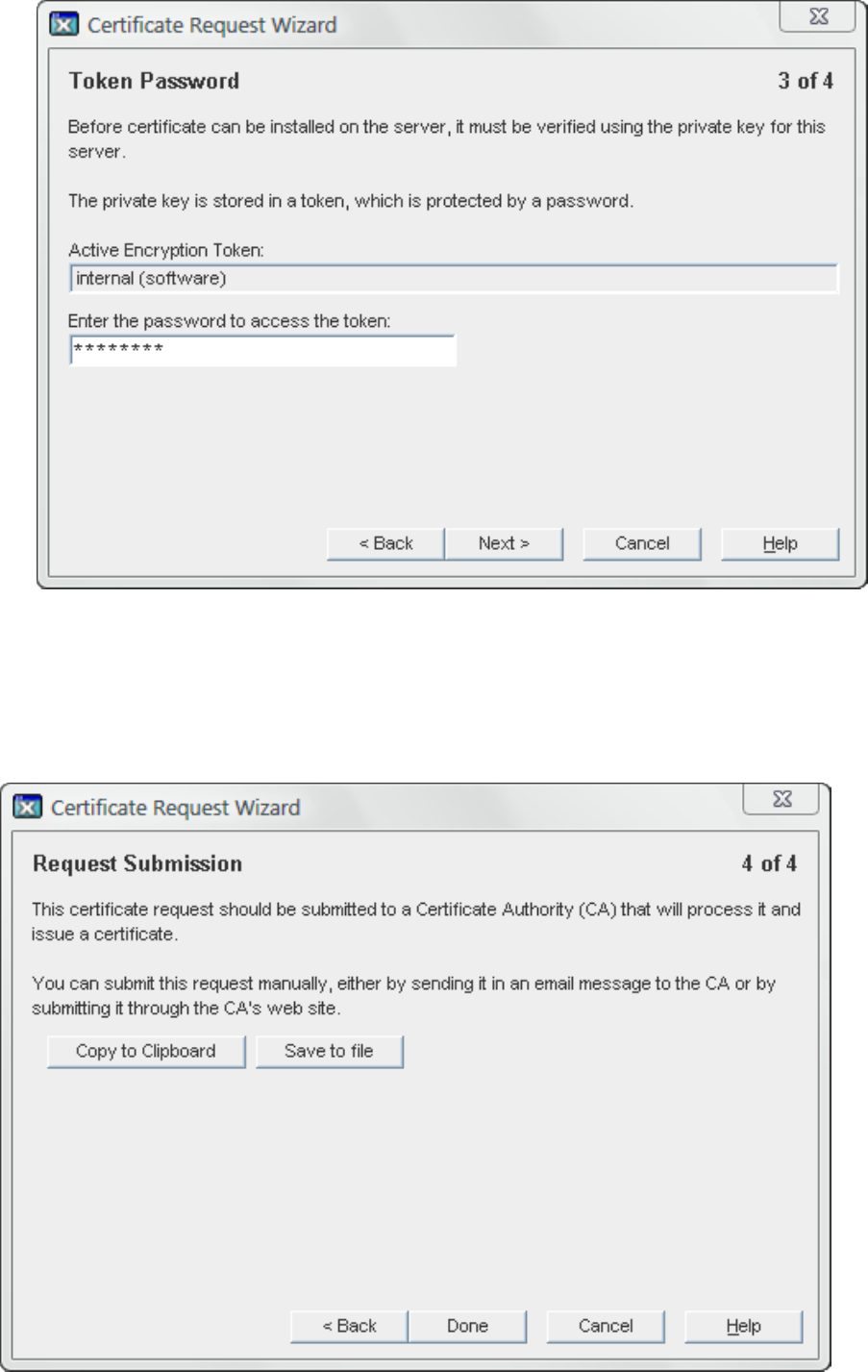

2.8.1 Requesting and installing a server certificate.........................................................................19

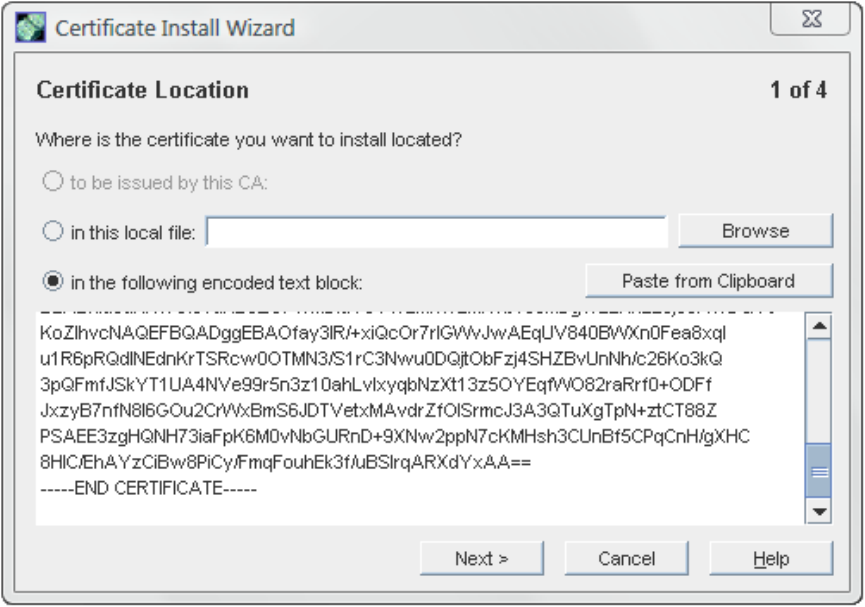

2.8.2 Installing a CA certificate........................................................................................................23

2.8.3 Enabling SSL............................................................................................................................27

2.8.4 Creating a password file for the Admin Server......................................................................29

2.9 Changing Directory Server settings................................................................................................30

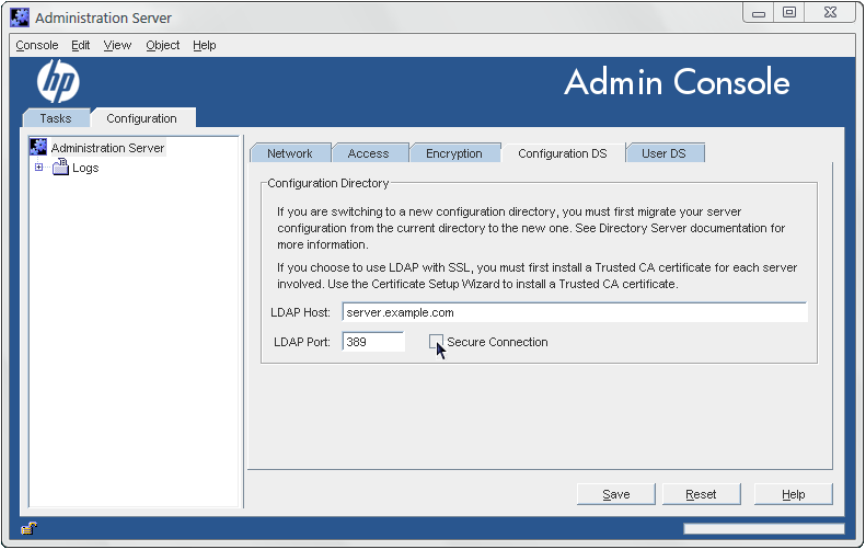

2.9.1 Changing the configuration directory host or port.................................................................30

2.9.2 Changing the user directory host or port................................................................................31

3 Admin express..............................................................................................................33

3.1 Managing servers in Admin Express..............................................................................................33

3.1.1 Opening Admin Express.........................................................................................................33

3.1.2 Starting and stopping servers.................................................................................................33

3.1.3 Viewing server logs.................................................................................................................33

3.1.4 Viewing server information....................................................................................................34

3.1.5 Monitoring replication from Admin Express.........................................................................34

3.2 Configuring Admin Express...........................................................................................................37

3.2.1 Admin Express file locations...................................................................................................37

3.2.2 Admin Express configuration files..........................................................................................37

3.2.2.1 Files for the Admin Server welcome page......................................................................37

3.2.2.2 Files for the replication status appearance......................................................................39

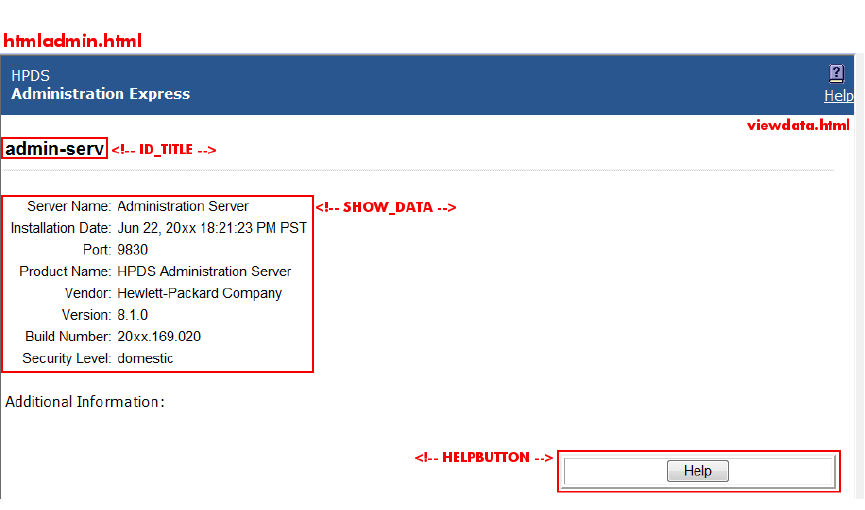

3.2.2.3 Files for the server information page..............................................................................40

3.2.2.4 Files for the server logs page...........................................................................................41

3.2.3 Admin Express directives.......................................................................................................42

4 Admin Server command-line tools.............................................................................45

4.1 sec-activate.......................................................................................................................................45

4.2 modutil............................................................................................................................................45

Table of Contents 3

5 Support and other resources.......................................................................................51

5.1 Contacting HP.................................................................................................................................51

5.1.1 Information to collect before contacting HP...........................................................................51

5.1.2 How to contact HP technical support.....................................................................................51

5.1.3 HP authorized resellers...........................................................................................................51

5.1.4 Documentation feedback.........................................................................................................51

5.2 Related information.........................................................................................................................51

5.2.1 HP-UX Directory Server documentation set...........................................................................51

5.2.2 HP-UX documentation set......................................................................................................52

5.2.3 Troubleshooting resources......................................................................................................53

5.3 Typographic conventions................................................................................................................53

Glossary............................................................................................................................55

Index.................................................................................................................................65

4 Table of Contents

1 Introduction to HP-UX Directory Server

Identity management and directory services with HP-UX Directory Server use three components,

working in tandem:

•A Java-based management console

•An administration server which also functions as a web server

•An LDAP directory server

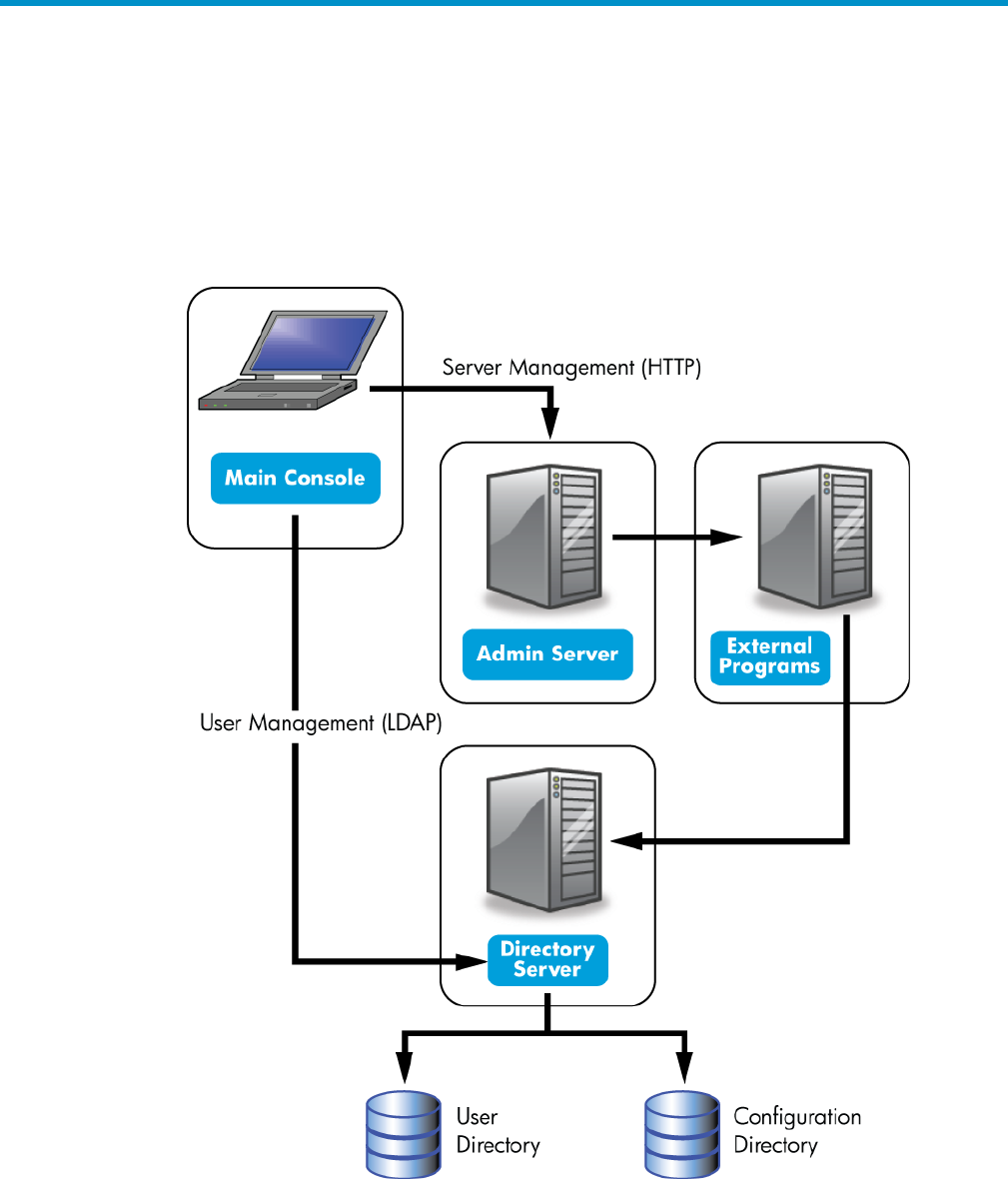

Figure 1-1 Interactions between the Console, Admin Server, and Directory Server

The Admin Server processes configuration requests for Directory Server instances and performs

many common server tasks, such as stopping and starting server instances. Directory services

are usually divided into two categories:

•Configuration databases, which store the Console and Admin Server settings and some

Directory Server configuration.

•User databases, which contain user and group information.

These databases can be kept in the same Directory Server instance, but it is also possible to break

these services into separate Directory Server instances. In that case, a Directory Server instance's

configuration is stored in a separate Directory Server, called the Configuration Directory Server,

and user data is stored in the User Directory Server. Because the Admin Server processes server

configuration requests for the HP-UX Directory Server, the Configuration Directory Server and

User Directory Server instances are both defined in the Admin Server configuration.

As a web server, the Admin Server provides all the online functions of the Directory Server,

including handling connections to the Console and hosting web applications such as Admin

Express. Clients connect to the Admin Server both over secure and standard connections, since

the Admin Server supports both HTTP or HTTPS, if SSL/TLS is enabled.

When HP-UX Directory Server is installed, then the Admin Server is automatically installed and

configured as well. There can be multiple Directory Server instances on a single machine, and

all use the same instance of Admin Server.

NOTE: There can be only one Admin Server per machine. This single Admin Server instance

can handle multiple instances of Directory Server and other clients which can use the Admin

Server.

When the Console is opened to manage an instance of Directory Server, even if the Console is

on a different machine than the server instance being managed, it contacts the local Admin Server

instance to perform the requested tasks. For example, Admin Server can execute programs to

modify the server and application settings that are stored in the configuration directory or to

change the port number that a server listens to.

The Admin Server itself can be managed through its own Java-based interface, by editing its

configuration files, or through command-line tools.

6 Introduction to HP-UX Directory Server

2 Admin Server configuration

The Admin Server is a separate server from the HP-UX Directory Server, although they work

interdependently. The Admin Server processes, file locations, and configuration options are also

separate. This chapter covers the Admin Server information, including starting and stopping the

Admin Server, enabling SSL, viewing logs, and changing Admin Server configuration properties,

such as the server port number.

2.1 Directory Server file locations

HP-UX Directory Server conforms to the Filesystem Hierarchy Standards. For more information

on FHS, see the FHS homepage, http://www.pathname.com/fhs/.

The following table specifies the location of files and directories installed with Directory Server:

Table 2-1 Location of Directory Server files and directories

LocationFile or directory

/var/opt/dirsrv/admin-serv/log

Log files

/etc/opt/dirsrv/admin-serv

Configuration files

/var/opt/dirsrv/admin-serv/run

Runtime files

/opt/dirsrv/bin

/opt/dirsrv/sbin

Binaries

/opt/dirsrv/lib

Libraries

2.2 Starting and stopping the Admin Server

The Admin Server is running when the setup-ds-admin.pl configuration script completes.

Avoid stopping and starting the server to prevent interrupting server operations.

•When starting in SSL, the start script prompts for the password for the security (SSL

certificate) database. It is possible to restart in SSL without being prompted for a password

by using a password file. See “Creating a password file for the Admin Server” for more

information.

If there is not password file, then the Admin Server cannot be restarted in SSL through the

Console, only the command-line scripts.

•Rebooting the host system can automatically start the Admin Server's httpd process. The

script /sbin/init.d/Hpds-adm starts httpd if the parameter HPDS_ADMIN is set to 1

in /etc/rc.config.d/Hpds-adm. Setting HPDS_ADMIN to 0disables the automatic start

up.

2.2.1 Starting and stopping Admin Server from the console

1. Start the Console, and open the Admin console.

/opt/dirsrv/bin/hpds-idm-console -a http://localhost:9830

2. In the Tasks tab, click Restart Server or Stop Server.

2.1 Directory Server file locations 7

When the Admin Server is successfully started or stopped from the Console, the server displays

a message box stating that the server has either started or shut down.

2.2.2 Starting and stopping Admin Server from the command Line

The following scripts start, stop, or restart the Admin Server:

Start: /opt/dirsrv/sbin/start-ds-admin

Stop: /opt/dirsrv/sbin/stop-ds-admin

Restart: /opt/dirsrv/sbin/restart-ds-admin

2.3 Opening the Admin Server console

Run the following script to launch the main Console:

/opt/dirsrv/bin/hpds-idm-console

When the login screen opens, the Admin Server prompts for the username, password, and Admin

Server location. The Admin Server location is a URL; for a standard connection, this has the

http: prefix for a standard HTTP protocol. If SSL/TLS is enabled, then this uses the https:

prefix for the secure HTTPS protocol.

8 Admin Server configuration

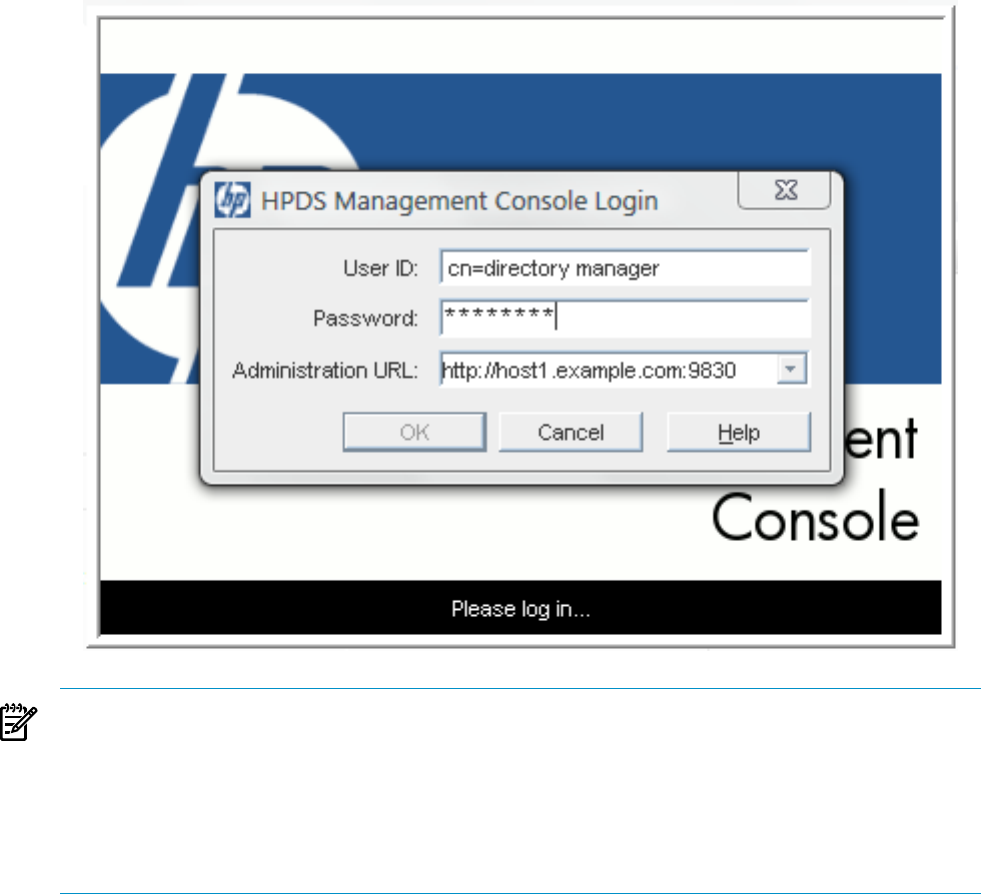

Figure 2-1 Login box

TIP:

It is possible to send the Admin Server URL and port with the start script. For example:

/opt/dirsrv/bin/hpds-idm-console -a http://localhost:9830

The -a option is a convenience, particularly for logging into a Directory Server for the first time.

On subsequent logins, the URL is saved. If the Admin Server port number is not passed with

the hpds-idm-console command, then the server prompts for it at the Console login screen.

This opens the main Console window. To open the Admin Server Console, select the Admin

Server instance from the server group on the left, then click the Open at the top right of the

window.

2.3 Opening the Admin Server console 9

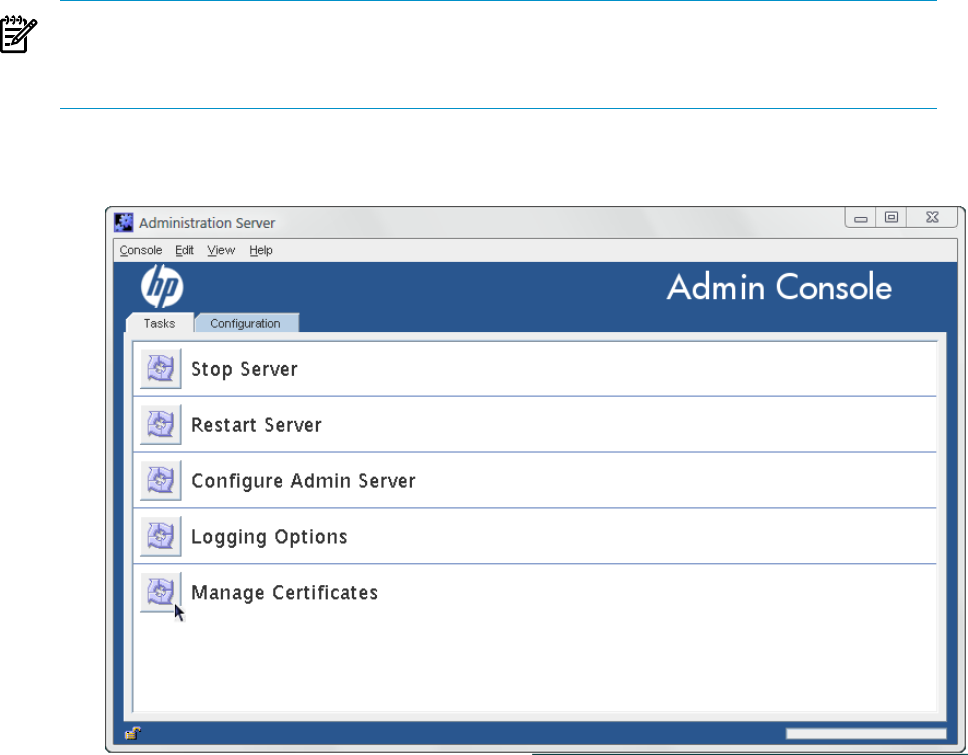

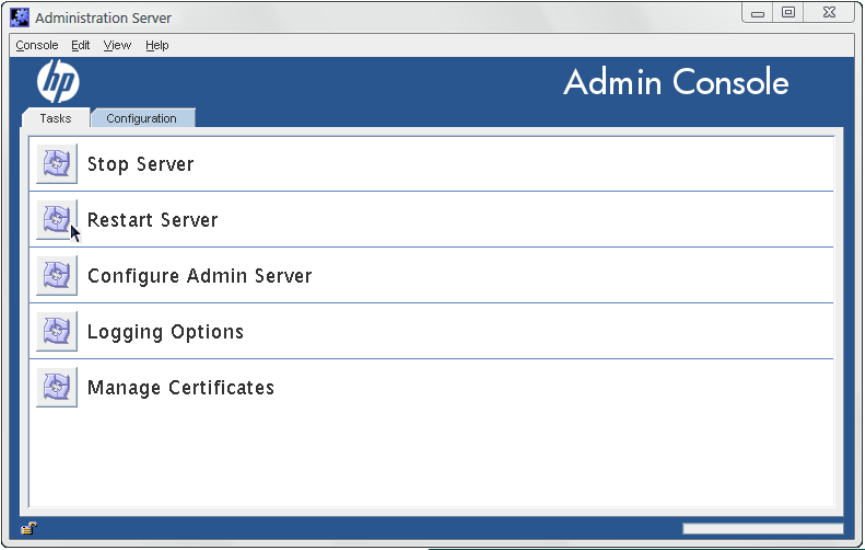

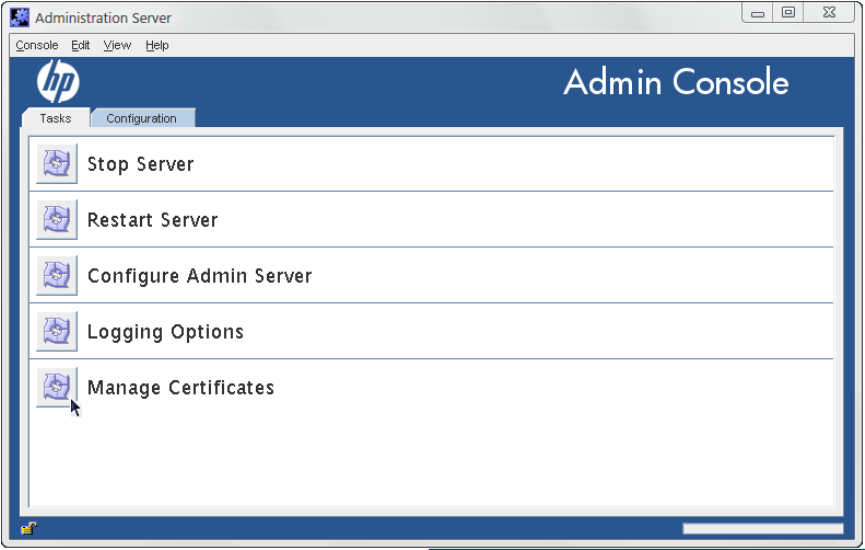

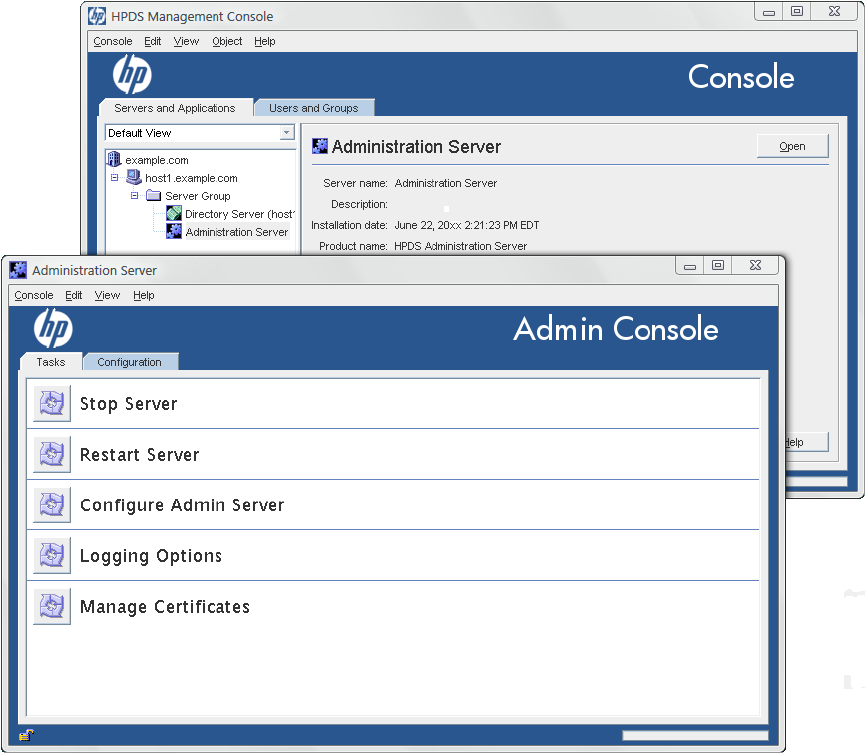

Figure 2-2 The Admin Server console

2.4 Viewing logs

Log files monitor activity for Admin Server and can help troubleshoot server problems. Admin

Server logs use the Common Logfile Format, a broadly supported format that provides information

about the server.

Admin Server generates two kinds of logs:

Access logs Access logs show requests to and responses from the Admin Server. By default,

the file is located at /var/opt/dirsrv/admin-serv/log/access.

Error logs Error logs show messages for errors which the server has encountered since

the log file was created. It also contains informational messages about the

server, such as when the server was started and who tried unsuccessfully to

log on to the server. By default, the file is located at /var/opt/dirsrv/

admin-serv/log/error.

The logs can be viewed through Admin Server Console or by opening the log file.

2.4.1 Viewing the logs through the console

1. Open the Admin Server management window.

2. Click the Configuration tab.

3. Expand the Logs directory, and click the log file name, either Accesses or Error.

10 Admin Server configuration

2.4.2 Viewing logs in the command line

The access log, by default, is at /var/opt/dirsrv/admin-serv/log/access. To view the

access log, open it with a paging utility such as more.

Access logs show connections to the Admin Server based on the IP address of the client, the

username, and the method that the request was sent. Each line has the following format:

ip_address - bind_DN [timestamp -0500] "GET|POST cgi" HTTP_response bytes

Example logs are shown in Example 2-1 “Example access logs”.

Example 2-1 Example access logs

127.0.0.1 - cn=directory manager [23/Dec/2009:19:32:52 -0500] "GET

/admin-serv/authenticate HTTP/1.0" 200 338

192.168.123.121 - cn=directory manager [23/Dec/2009:19:33:14 -0500] "POST

/admin-serv/tasks/Configuration/ServerSetup HTTP/1.0" 200 244

192.168.123.121 - cn=directory manager [23/Dec/2009:19:33:16 -0500] "GET

/admin-serv/tasks/Configuration/ReadLog?op=count&name=access HTTP/1.0"

200 10

The error log, by default, is at /var/opt/dirsrv/admin-serv/log/error. To view the

error log, open it with a paging utility such as more.

Error logs record any problem response from the Admin Server. Like the access log, error logs

also records entries based the client's IP adress, along with the type of error message, and the

message text:

[timestamp] [severity] [client ip_address error_message

The severity message indicates whether the error is critical enough for administrator

intervention. [warning],[error], and [critical] require immediate administrator action.

Any other severity means the error is informational or for debugging.

Example logs are shown in Example 2-2 “Example error logs”.

2.4 Viewing logs 11

Example 2-2 Example error logs

[Mon Dec 22 23:44:59 2009] [notice] [client 127.0.0.1] adm\

serv_host_ip_check: ap_get_remote_host could not resolve 127.0.0.1

[Mon Dec 22 23:44:59 2009] [notice] [client 127.0.0.1] adm\

serv_host_ip_check: host [localhost.localdomain] did not match pattern

[*.example.com] -will scan aliases

[Mon Dec 22 23:44:59 2008] [notice] [client 127.0.0.1] adm\

serv_host_ip_check: host alias [localhost] did not match pattern

[*.example.com]

[Mon Dec 22 23:44:59 2008] [notice] [client 127.0.0.1] adm\

serv_check_authz(): passing [/admin-serv/authenticate] to the userauth

handler

[Mon Dec 22 23:45:16 2008] [notice] [client 192.168.123.121] adm\

serv_host_ip_check: ap_get_remote_host could not resolve 192.168.123.121

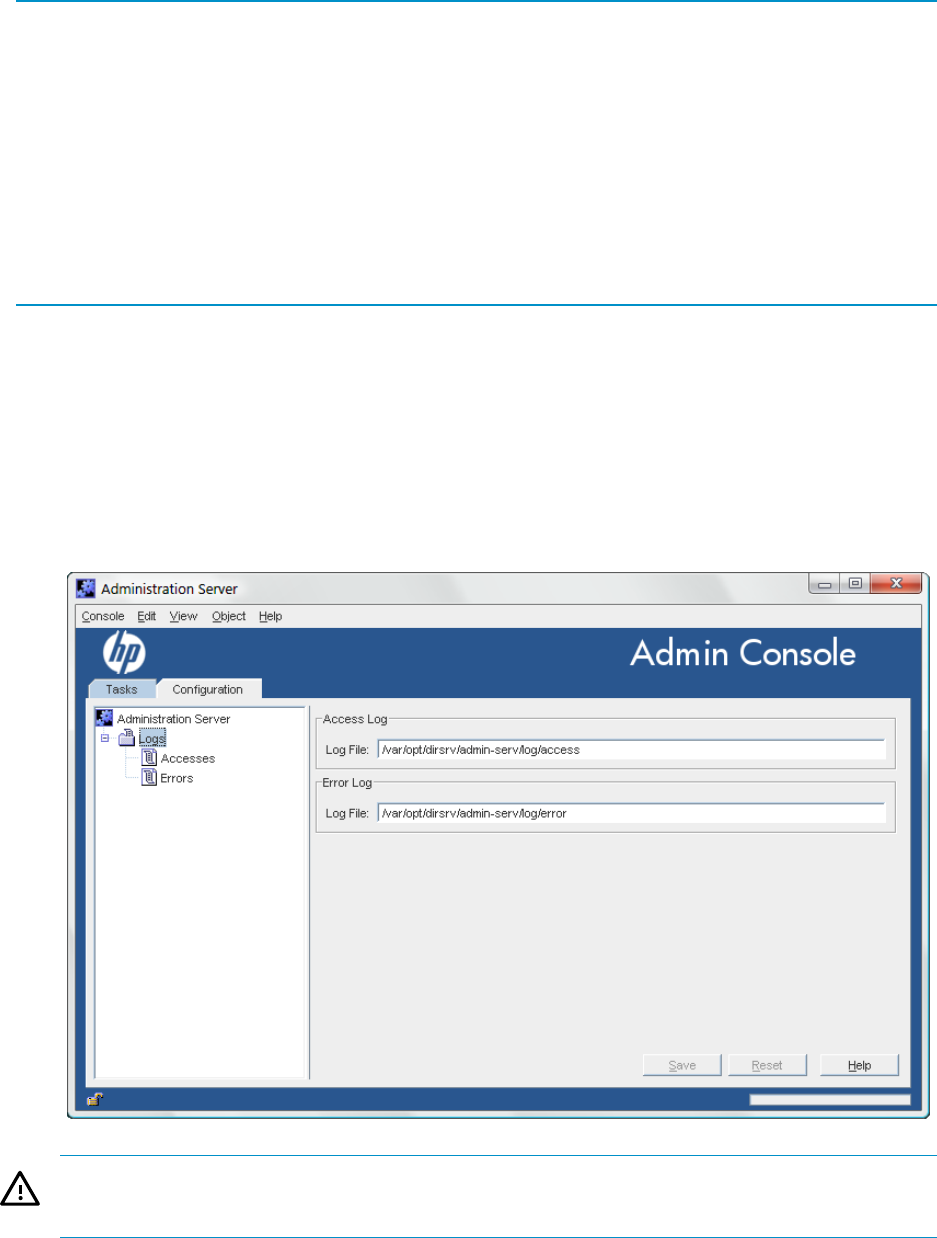

2.4.3 Changing the log name in the console

The access and error log files' names can be changed to rotate the files. This rotation has to be

done manually to create new files if the existing log files become too large.

1. Open the Admin Server management window.

2. Click the Configuration tab.

3. Click Logs in the left panel.

4. In the Logs window on the right, enter the new log file name.

WARNING!

The path to the log file is absolute and cannot be changed.

5. Click OK to save the changes.

6. Open the Tasks tab, and click the Restart Server button to restart the server and apply the

changes.

12 Admin Server configuration

2.4.4 Changing the log location in the command line

The access and error log files' names and locations can be changed to rotate the files. This rotation

has to be done manually to create new files if the existing log files become too large. The location

can be changed if the default location in /var/opt/dirsrv/admin-serv/log does not meet

the application needs.

The Admin Server configuration is stored in two locations. The main entry is an LDAP entry in

the Configuration Directory Server's o=NetscapeRoot database. The other is the console.conf

file. Changing the log settings requires changing both settings.

1. Edit the Admin Server configuration entry in the Configuration Directory Server.

a. Get the name of the Admin Server entry. Because the Admin Server entry has a special

object class,nsAdminConfig, it is possible to search for the entry using that object

class to retrieve the DN.

ldapsearch -D "cn=directory manager" -w secret -p 389 -h server.example.com \

-b "o=NetscapeRoot" "(objectclass=nsAdminConfig)" dn

version:1

dn: cn=configuration, cn=admin-serv-example, cn=HPDS Administration

Server, cn=Server Group, cn=server.example.com, ou=example.com,

o=NetscapeRoot

b. The Admin Server entry can be edited using ldapmodify. The access and error log

settings are stored in the nsAccessLogs and nsErrorLogs attributes, respectively.

For example:

ldapmodify -D "cn=directory manager" -w secret -p 389 -h server.example.com

dn: cn=configuration, cn=admin-serv-example, cn=HPDS Administration

Server, cn=Server Group, cn=server.example.com, ou=example.com,

o=NetscapeRoot

changetype:modify

replace:nsAccessLog

nsAccessLog:/var/opt/dirsrv/admin-serv/log/access_new

Click Enter twice to submit the operation, then Control-Cto close ldapmodify.

2. Open the Admin Server configuration directory.

cd /etc/opt/dirsrv/admin-serv

3. Edit the console.conf file. For the access log, edit the path and file name in the CustomLog

parameter. For the error log, edit the path and file name in the ErrorLog parameter.

CustomLog /var/opt/dirsrv/admin-serv/log/access_new common

ErrorLog /var/opt/dirsrv/admin-serv/log/error_new

Leave the term common after the access log path; this means that the access log is in the

Common Log Format.

4. Restart the Admin Server.

/opt/dirsrv/sbin/restart-ds-admin

2.5 Changing the port number

The port number specifies where an instance of Admin Server listens for messages.

The default port number for Admin Server is set when the instance is first installed and the

configuration script, such as setup-ds-admin.pl, is run. The default port number is 9830,

although if that number is in use, then the setup program will use a randomly-generated number

larger than 1024 or one can assign any port number between 1025 and 65535.

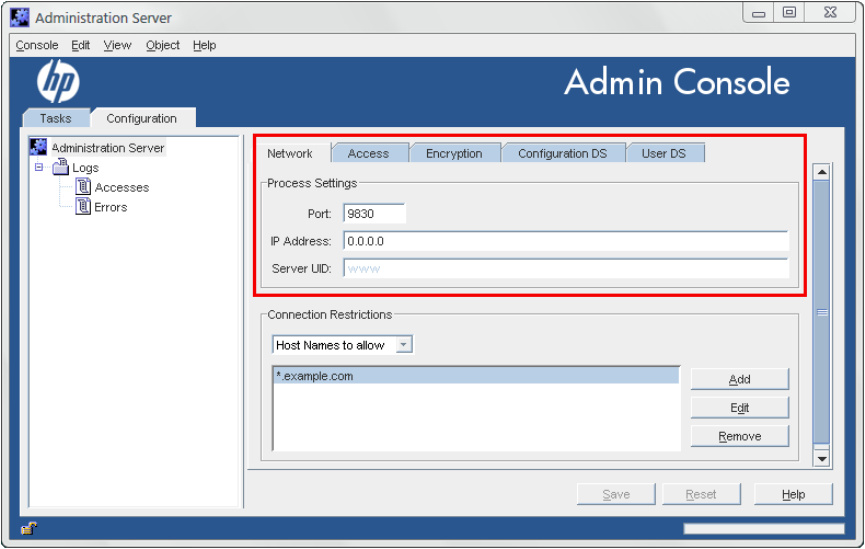

2.5.1 Changing the port number in the console

1. Open the Admin Server management window.

2. Click the Configuration tab.

2.5 Changing the port number 13

3. Click the Network tab.

4. Enter the port number for the Admin Server instance in the Port field. The Admin Server

port number has a default number of 9830.

5. Click OK.

6. Open the Tasks tab, and click the Restart Server button to restart the server and apply the

changes.

7. Close the Console, then restart the Console, specifying the new Admin Server port number

in the connection URL.

2.5.2 Changing the port number in the command line

The port number for the Admin Server is 9830 by default.

The Admin Server configuration is stored in two locations. The main entry is an LDAP entry in

the Configuration Directory Server's o=NetscapeRoot database. The other is the console.conf

file. Changing the port number requires changing both settings.

1. Edit the Admin Server configuration entry in the Configuration Directory Server.

a. Get the name of the Admin Server entry. Since the Admin Server entry has a special

object class, nsAdminConfig, it is possible to search for the entry using that object

class to retrieve the DN.

ldapsearch -D "cn=directory manager" -w secret -p 389 -h server.example.com \

-b "o=NetscapeRoot" "(objectclass=nsAdminConfig)" dn

version:1

dn: cn=configuration, cn=admin-serv-example, cn=HPDS Administration

Server, cn=Server Group, cn=server.example.com, ou=example.com,

o=NetscapeRoot

b. The Admin Server entry can be edited using ldapmodify. The port number is set in

the nsServerPort attribute. For example:

ldapmodify -D "cn=directory manager" -w secret -p 389 -h server.example.com

dn: cn=configuration, cn=admin-serv-example, cn=HPDS Administration

Server, cn=Server Group, cn=server.example.com, ou=example.com,

o=NetscapeRoot

14 Admin Server configuration

changetype:modify

replace:nsServerPort

nsServerPort:10030

Click Enter twice to submit the operation, then Control+C to close ldapmodify.

2. Open the Admin Server configuration directory.

cd /etc/opt/dirsrv/admin-serv

3. Edit the Listen parameter in the console.conf file.

Listen 0.0.0.0:10030

4. Restart the Admin Server.

/opt/dirsrv/sbin/restart-ds-admin

2.6 Setting host restrictions

Connection restrictions specify which hosts are allowed to connect to the Admin Server. You

can list these hosts by DNS name, IP address, or both. Only host machines listed within the

connection restriction parameters are allowed to connect to the Admin Server. This setting allows

wildcards within a domain or an IP address range to make setting connection restrictions simpler.

2.6.1 Setting host restrictions in the console

1. Open the Admin Server management window.

2. Click the Configuration tab.

3. Click the Network tab.

4. The Connection Restrictions area displays a list of hosts allowed to connect to the Admin

Server. The drop-down list specifies whether the list entries are added by DNS name or by

IP address. The list is evaluated first by host names, then by IP addresses.

5. Click the Add button to add another host to the list of allowed computers. To add a host

name, make sure the drop-down list at the top reads Host Names to allow; to add an IP

address, select IP Addresses to allow.

6. Fill in the host information.

2.6 Setting host restrictions 15

The *wildcard can be used to specify a group of hosts. For instance, *.example.com

allows all machines in the example.com domain to access the instance. Entering 205.12.*.

allows all hosts whose IP addresses begin with 205.12 to access the instance.

When specifying IP address restrictions, include all three separating dots. If you do not, the

Admin Server returns an error message.

7. Click OK to close the Add... dialog box, then click the Save button to save the new host.

8. Open the Tasks tab, and click the Restart Server button to restart the server and apply the

changes.

To change the information for a host or IP address listed, click the Edit button and change the

given information. To remove an allowed host or IP address, select the host from the list, and

click Remove.Admin Server.

2.6.2 Setting host restrictions in the command line

Host restrictions sets rules for what network clients can connect to the Admin Server and,

therefore, to services which use the Admin Server. There are two kinds of host restrictions,

restrictions based on the host or domain name and restrictions based on the IP address.

The Admin Server host restrictions are set in the main configuration entry in the Configuration

Directory Server's o=NetscapeRoot database. There are two attributes for setting host

restrictions, nsAdminAccessAddresses and nsAdminAccessHosts for IP addresses and

host names, respectively.

NOTE:

The Admin Server supports both IPv4 and IPv6 addresses.

The Admin Server entry can be edited using ldapmodify.

To set host restrictions:

1. Get the name of the Admin Server entry. Since the Admin Server entry has a special object

class, nsAdminConfig, it is possible to search for the entry using that object class to retrieve

the DN.

ldapsearch -D "cn=directory manager" -w secret -p 389 -h server.example.com \

-b "o=NetscapeRoot" "(objectclass=nsAdminConfig)" dn

version:1

dn: cn=configuration, cn=admin-serv-example, cn=HPDS Administration

Server, cn=Server Group, cn=server.example.com, ou=example.com,

o=NetscapeRoot

2. To set IP address-based restrictions, edit the nsAdminAccessAddresses attribute.

ldapmodify -D "cn=directory manager" -w secret -p 389 -h server.example.com

dn: cn=configuration, cn=admin-serv-example, cn=HPDS Administration

Server, cn=Server Group, cn=server.example.com, ou=example.com,

16 Admin Server configuration

o=NetscapeRoot

changetype:modify

replace:nsAdminAccessAddresses nsAdminAccessAddresses:72.5.*.*

Click Enter twice to submit the operation, then Ctrl-Cto close ldapmodify.

The nsAdminAccessAddresses value can use wildcards to allow ranges. For example,

to allow all IP addresses:

nsAdminAccessAddresses:*

To allow only a subset of addresses on a local network:

nsAdminAccessAddresses:192.168.123.*

3. To set host name or domain-based restrictions, edit the nsAdminAccessHosts attribute.

ldapmodify -D "cn=directory manager" -w secret -p 389 -h server.example.com

dn: cn=configuration, cn=admin-serv-example, cn=HPDS Administration

Server, cn=Server Group, cn=server.example.com, ou=example.com,

o=NetscapeRoot

changetype:modify

replace:nsAdminAccessHosts

nsAdminAccessHosts:*.example.com

Click Enter twice to submit the operation, then Control+C to close ldapmodify.

4. Restart the Admin Server to apply the changes.

/opt/dirsrv/sbin/restart-ds-admin

2.7 Changing the admin user's name and password

During installation, you are asked to enter a username and password for the Configuration

Administrator, the user authorized to access and modify the entire configuration directory.

The Configuration Administrator entry is stored in the directory under the following DN:

uid=userID,ou=Administrators,ou=TopologyManagement,o=NetscapeRoot

The Configuration Administrator's username and password are managed through the Directory

Server and are represented in an LDAP entry; this is described in the HP-UX Directory Server

administrator guide.

During installation, the Configuration Administrator's username and password are used to

automatically create the Administration Server Administrator. This user can perform

a limited number of administrative tasks, such as starting, stopping, and restarting servers in a

local server group. The Administration Server Administrator is created for the purpose of logging

into the Console when the Directory Server is not running.

The Administration Server Administrator does not have an LDAP entry; it exists only as an entity

in a local configuration file, /etc/opt/dirsrv/admin-serv/admpw.

Even though they are created at the same time during installation, and are identical at that time,

the Configuration Administrator and Administration Server Administrator are two separate

entities. If you change the username or password for one in the Console, the Console does not

automatically make the same changes for the other.

The Administration Server Administrator has full access to all configuration settings in the Admin

Server. The information for the admin user is set on the Access tab in the Console.

2.7 Changing the admin user's name and password 17

NOTE:

The Admin Server administrator username and password are stored in the /etc/opt/dirsrv/

admin-serv/admpw file. For example:

admin:{SHA}W6ph5Mm5Pz8GgiULbPgzG37mj9g=

The password is encrypted and cannot be changed directly in the admpw file. The username can

be changed in this file, but cannot be used to log into the Console unless the password is updated

in the Console first. For this reason, it is better to edit the Administration Server Administrator

username and password only through the Admin Server Console.

To change the Administration Server Administrator's ID or password:

1. Open the Admin Server management window.

2. Click the Configuration tab.

3. Click the Access tab.

4. Change the admin user's name or password. The username is the ID given for logging into

the Admin Server.

5. Click Save.

2.8 Working with SSL

The Admin Server can run over HTTPS (secure HTTP) if SSL is enabled on the server. There are

steps to enabling SSL:

1. Generating and submitting a certificate request.

2. Receiving and installing the certificate.

3. Trusting the certificate authority (CA) which issued the certificate.

4. Changing the Admin Server configuration to allow SSL connections.

18 Admin Server configuration

2.8.1 Requesting and installing a server certificate

The Admin Server Console has a tool, the Certificate Request Wizard, which generates a valid

certificate request to submit to any certificate authority (CA).

1. In the Admin Server Console, select the Tasks tab, and click Manage Certificates.

2. Create a certificate request.

a. Select the Server Certs tab, and click the Request button.

Click Next.

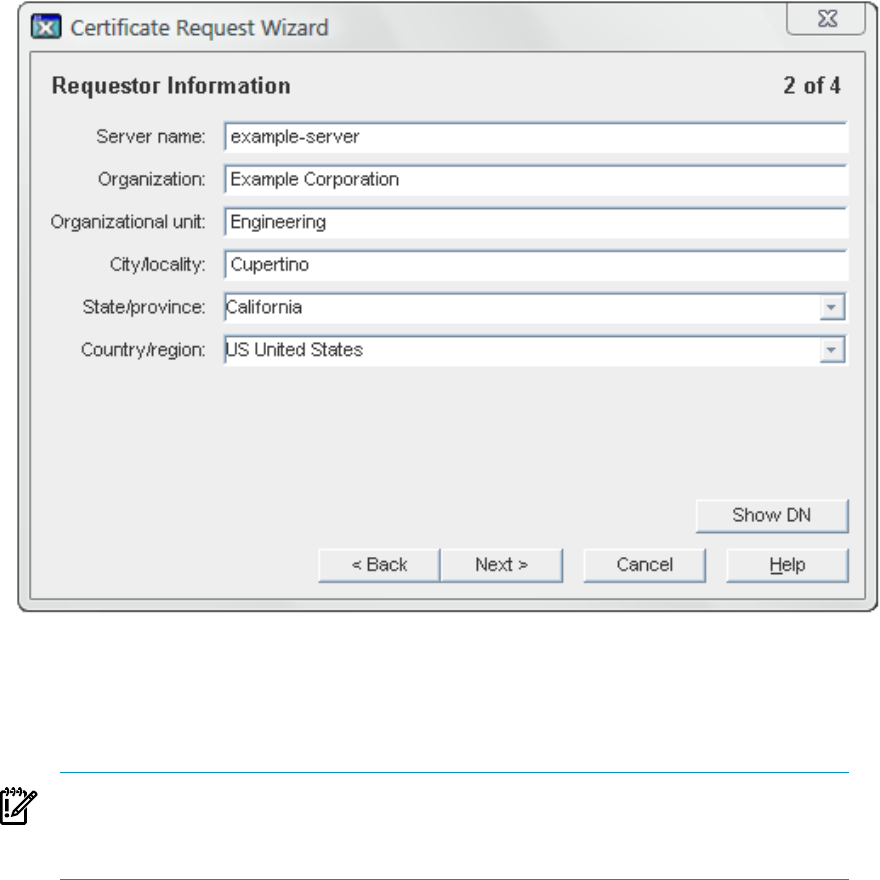

b. Enter the Requester Information in the blank text fields, then click Next.

2.8 Working with SSL 19

•Server Name.

The fully qualified host name of the Directory Server as it is used in DNS and

reverse DNS lookups; for example, server.example.com. The server name is

critical for client-side validation to work, which prevents man-in-the-middle attacks.

IMPORTANT:

This must be a valid host name that can be resolved correctly by all Admin Server

clients, or TLS/SSL will not work.

•Organization.

The legal name of the company or institution. Most CAs require this information

to be verified with legal documents such as a copy of a business license.

•Organizational Unit.

(Optional) A descriptive name for the organization within the company.

•Locality.

(Optional) The company's city name.

•State or Province.

The full name of the company's state or province (no abbreviations).

•Country.

The two-character abbreviation for the country's name (ISO format). The country

code for the United States is US.

c. Enter the password that used to protect the private key, and click Next.

20 Admin Server configuration

The Next button is grayed out until a password is supplied.

3. The Request Submission dialog box provides two ways to submit a request: directly to

the CA (if there is one internally) or manually. To submit the request manually, select Copy

to Clipboard or Save to File to save the certificate request which will be submitted to the

CA.

2.8 Working with SSL 21

To submit the request to a CA manually, either email it or use the web form for the CA, if

one is available. Copy the certificate request information and submit it using the appropriate

method.

-----BEGIN NEW CERTIFICATE REQUEST-----

MIIBrjCCARcCAQAwbjELMAkGA1UEBhMCVXMxEzARBgNVBAgTCkNBTElGT1J

OSUExLDAqBgVBAoTI25ldHNjYXBlIGNvbW11bmljYXRpb25zIGNvcnBvcmF

0aW9uMRwwGgYDVQQDExNtZWxsb24ubmV0c2NhcGUuY29tMIGfMA0GCSqGSI

b3DQEBAQUAA4GNADCBiQKBgQCwAbskGh6SKYOgHy+UCSLnm3ok3X3u83Us7

ug0EfgSLR0f+K41eNqqRftGR83emqPLDOf0ZLTLjVGJaH4Jn4l1gG+JDf/n

/zMyahxtV7+mT8GOFFigFfuxaxMjr2j7IvELlxQ4IfZgWwqCm4qQecv3G+N

9YdbjveMVXW0v4XwIDAQABoAAwDQYK

------END NEW CERTIFICATE REQUEST-----

4. Wait for the CA to respond with the server certificate; this can be as short as a few hours for

an internal CA or as long as several weeks for a third-party CA.

5. Save the issued certificate to a file.

NOTE:

Keep a backup of the certificate data in a safe location. If the system ever loses the certificate

data, the certificate can be reinstalled using the backup file.

6. Install the certificate.

a. Select the Tasks tab, and click Manage Certificates.

b. Select the Server Certs tab, and click Install.

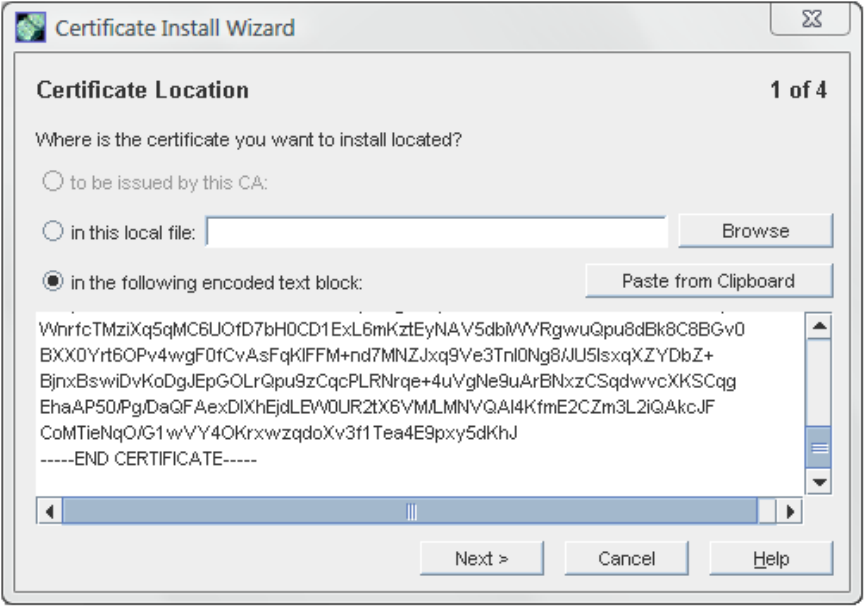

c. Give the absolute path to the certificate (In this local file radio button) or paste the

certificate text in the text box (In the following encoded text block radio button), then

click Next.

22 Admin Server configuration

d. Check that the certificate information displayed is correct, and click Next.

e. Name the certificate, and click Next.

f. Provide the password that protects the private key. This password is the same as the

one provided in step c.

After installing the server certificate, configure the Admin Server to trust the CA which issued

the server's certificate.

2.8.2 Installing a CA certificate

To configure the Admin Server to trust the CA, obtain the CA's certificate and install it into the

server's certificate database. Some commercial CAs provide a web site that allow users to

automatically download the certificate, while others will email it back to users.

After receiving the CA certificate, use the Certificate Install Wizard to configure the Admin

Server to trust the CA.

1. In the Admin Server Console, select the Tasks tab, and click Manage Certificates.

2.8 Working with SSL 23

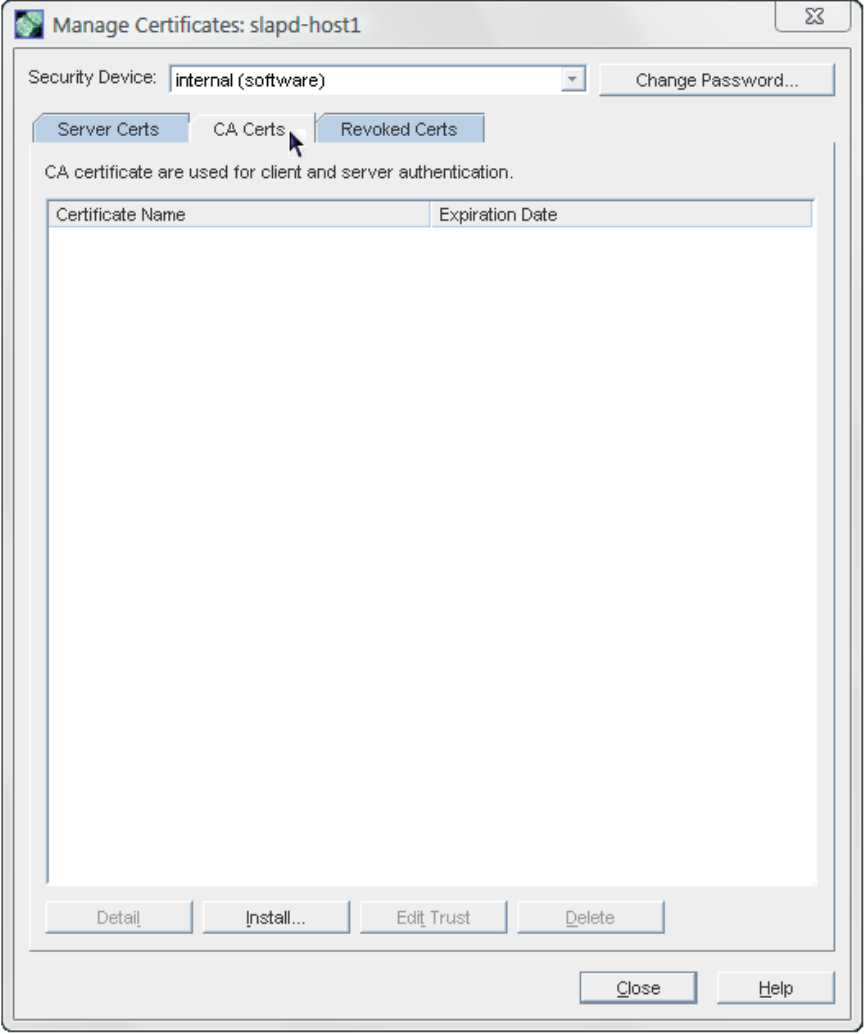

2. Go to the CA Certs tab, and click Install.

24 Admin Server configuration

3. If the CA's certificate is saved to a file, enter the path in the field provided. Alternatively,

copy and paste the certificate, including the headers, into the text box. Click Next.

2.8 Working with SSL 25

4. Click Next to move through the panels that show the CA certificate information and the

certificate name.

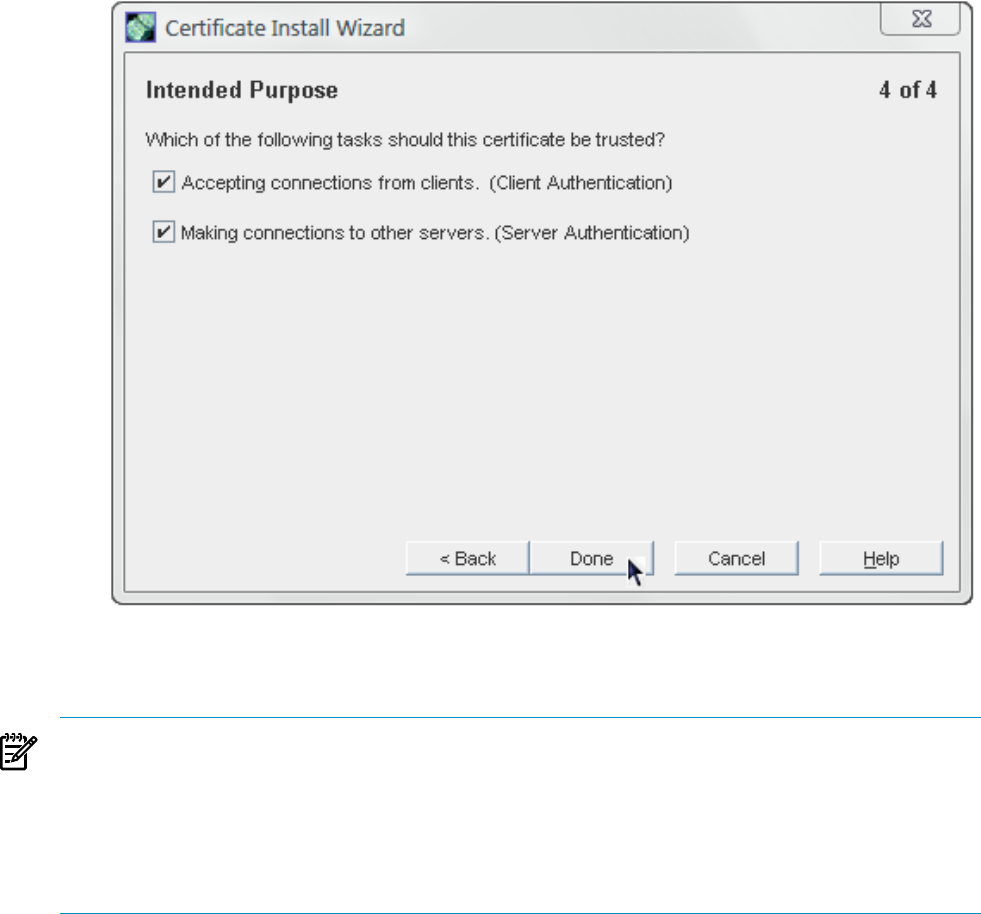

5. Select the purpose of trusting this certificate authority; it is possible to select both options:

•Accepting connections from clients (Client Authentication).

The server checks that the client's certificate has been issued by a trusted certificate

authority.

•Accepting connections to other servers (Server Authentication).

This server checks that the directory to which it is making a connection (for replication

updates, for example) has a certificate that has been issued by a trusted certificate

authority.

26 Admin Server configuration

6. Click Done.

After installing the CA certificate, it is listed in the CA Certificates tab in the Console.

NOTE:

If a CA certificate is incorrectly generated, it is listed in the Server Certificates tab in the Console

rather than the CA Certificates tab. The certificate still works as a CA certificate, even though

it is listed in the wrong tab.

Still, request certificates from a real certificate authority to minimize the risk of using an incorrectly

generated certificate and breaking SSL/TLS in the Admin Server.

2.8.3 Enabling SSL

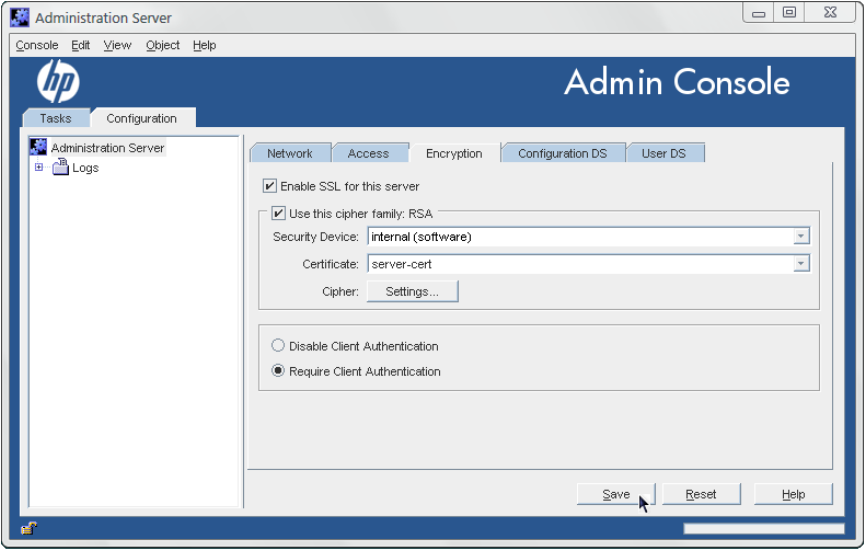

1. Open the Admin Server management window.

2. Click the Configuration tab.

3. Click the Encryption tab.

2.8 Working with SSL 27

4. Select the Enable SSL for this server checkbox.

5. Select the Use this cipher family: RSA checkbox.

6. Choose the security device where the key is stored. By default, the key is stored in the local

key database, Internal (Software-based). If the key is stored on an external device (such as

a smart card), select that device from the menu.

7. Choose the server certificate to use with SSL.

The certificates available in the token certificate database are listed in the drop-down menu.

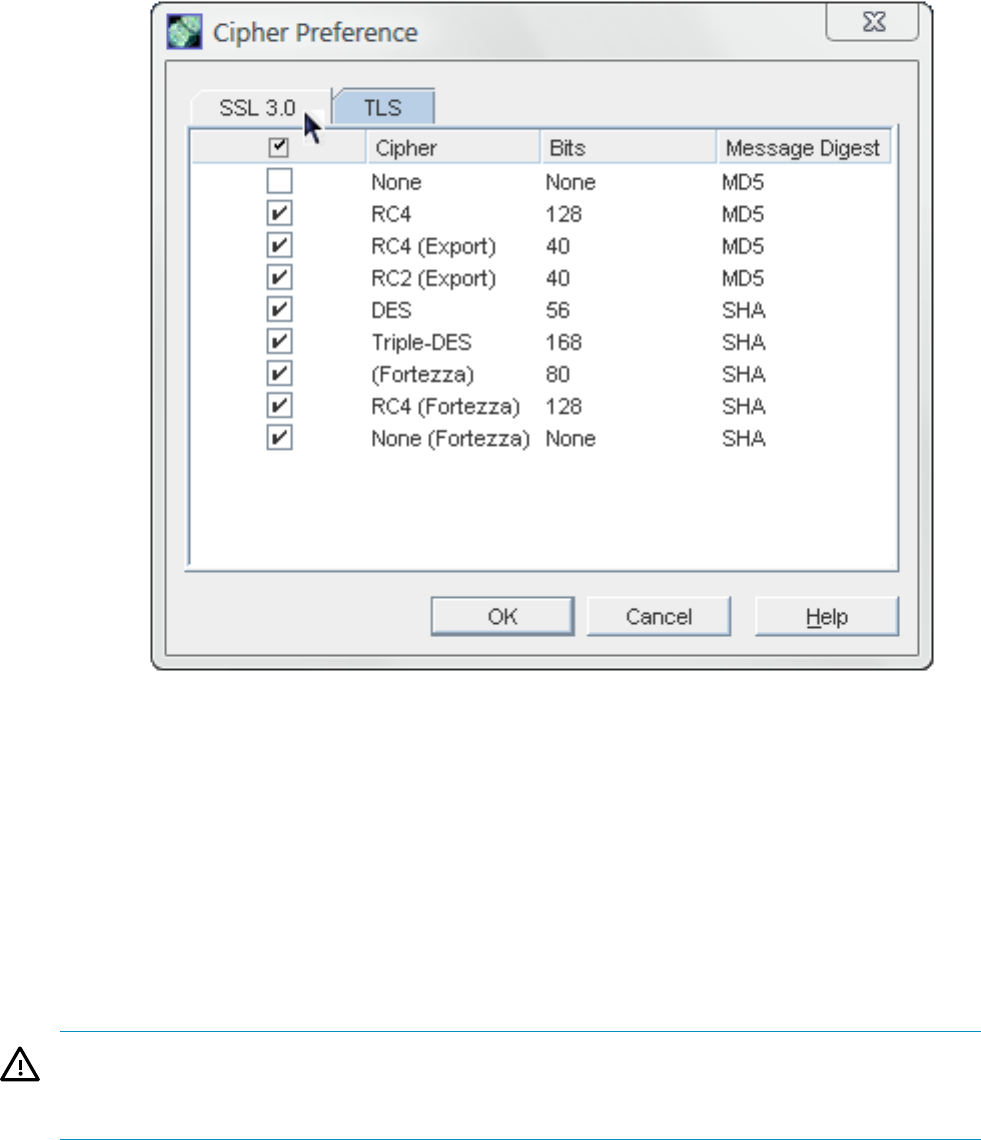

8. Click the Settings button to set the ciphers that the Admin Server accepts for SSL/TLS

connections.

28 Admin Server configuration

9. Set whether to require client authentication to the Admin Server. Client authentication

means that the server checks that the client's certificate has been issued by a trusted CA.

10. Click Save.

2.8.4 Creating a password file for the Admin Server

Normally, if SSL is enabled, the server prompts for a security password when the Admin Server

is restarted:

Starting dirsrv-admin

Please enter password for "internal" token:

The Admin Server can use a password file when TLS/SSL is enabled so that the server restarts

silently, without prompting for the security password.

WARNING!

This password is stored in clear text within the password file, so its use represents a significant

security risk. Do not use a password file if the server is running in an unsecured environment.

1. Open the Admin Server configuration directory.

cd /etc/opt/dirsrv/admin-serv

2. Create a password file named password.conf. The file should include a line with the

token name and password, in the form token:password. For example:

internal:secret

For the NSS software crypto module (the default software database), the token is always

called internal.

The password file should be owned by the Admin Server user and set to read-only by the

Admin Server user, with no access to any other user (mode 0400).

2.8 Working with SSL 29

NOTE:

To find out what the Admin Server user ID is, run grep in the Admin Server configuration

directory:

cd /etc/opt/dirsrv/admin-serv

grep \^User console.conf

3. In the /etc/opt/dirsrv/admin-serv directory, edit the nss.conf file to point to the

location of the new password file.

# Pass Phrase Dialog:

# Configure the pass phrase gathering process.

# The filtering dialog program (`builtin' is a internal

# terminal dialog) has to provide the pass phrase on stdout.

NSSPassPhraseDialog file:/etc/opt/dirsrv/admin-serv/password.conf

4. Restart the Admin Server. For example:

/opt/dirsrv/sbin/restart-ds-admin

After TLS/SSL is enabled, then the Admin Server can only be connected to using HTTPS. All the

previous HTTP (standard) URLs for connecting to the Admin Server and its services no longer

work. This is true whether connecting to the Admin Server using the Console or using a web

browser.

2.9 Changing Directory Server settings

The Admin Server stored information about the Directory Server Configuration Directory

(which stores the instance configuration information) and the Directory Server User Directory

(which stores the actual directory entries). These can be the same directory instance, but they do

not have to be. The settings for both of those databases can be edited in the Admin Server

configuration so that it communicates with a different Directory Server instance.

2.9.1 Changing the configuration directory host or port

Configuration data are stored under o=NetscapeRoot in the Configuration Directory. The

configuration database contains server settings such as network topology information and server

instance entries. When server configuration changes are stored in the configuration directory

subtree.

WARNING!

Changing the Directory Server host name or port number impacts the rest of the servers in the

server group. Changing a setting here means the same change must be made for every server in

the server group.

1. Open the Admin Server management window.

2. Click the Configuration tab.

3. Click the Configuration DS tab.

4. Set the Configuration Directory Server connection information.

30 Admin Server configuration

• The LDAP Host is the host name of the Configuration Directory Server machine.

• The LDAP Port is the port number to use for the Directory Server instance. The regular

LDAP port is 389; the default LDAPS (secure) port number is 636.

• Check the Secure Connection checkbox to use the secure port. Before checking this

box, make sure that the Configuration Directory Server has enabled SSL.

5. Click Save.

2.9.2 Changing the user directory host or port

The user directory is used for authentication, user management, and access control. It stores all

user and group data, account data, group lists, and access control instructions (ACIs).

There can be multiple user directories in a single deployment because using multiple user

directories enhances overall performance for organizations which are geographically spread out,

which have high usage, or have discrete divisions which benefit from individual directories.

Admin Server can be configured to authenticate users against multiple user directories.

To change the information for the user directory:

1. Open the Admin Server management window.

2. Click the Configuration tab.

3. Click the User DS tab.

4. Set the User Directory Server connection information.

5. Edit the user directory information.

2.9 Changing Directory Server settings 31

The Use Default User Directory radio button uses the default user directory associated

with the domain. To use multiple Directory Server instances or to use a different instance,

select the Set User Directory radio button and set the required information:

• The LDAP Host and Port field specifies the location of the user directory instance.

It is possible to configure multiple locations for the user directory for authentication

and other directory functions; separate each location with a space. For example:

server.example.com:389 alt.example.com:389

NOTE:

If more than one location is given in the LDAP Host and Port field, the settings for the

remaining fields will apply to all those instances.

• Check the Secure Connection box to use SSL to connect to the user directory. Only

select this if the Directory Server is already configured to use SSL.

• Give the User Directory Subtree. For example:

dc=example,dc=com

Every location listed in the LDAP Host and Port field must contain that subtree and

the subtree must contain the user information.

• Optionally, enter the Bind DN and Bind Password for the user which connects to the

user directory.

6. Click Save.

32 Admin Server configuration

3 Admin express

3.1 Managing servers in Admin Express

Admin Express provides a quick, simple web-based gateway to do basic management of servers.

There are three tasks that can be performed through Admin Express:

•Stopping and starting the server

•Checking the server access, error, and audit logs

•Monitoring the progress and information for replication betweehn Directory Servers

3.1.1 Opening Admin Express

The Admin Server services pages URL is the Admin Server host and port. For example:

http://ldap.example.com:9830/

The Admin Express page is always available at that URL.

NOTE:

If SSL/TLS is enabled on the Admin Server, then the URL must use the prefix https: with the

same port number. The standard HTTP URLs will not work.

https://ldap.example.com:9830/

3.1.2 Starting and stopping servers

On the main Admin Express page, there are buttons to turn servers off and on.

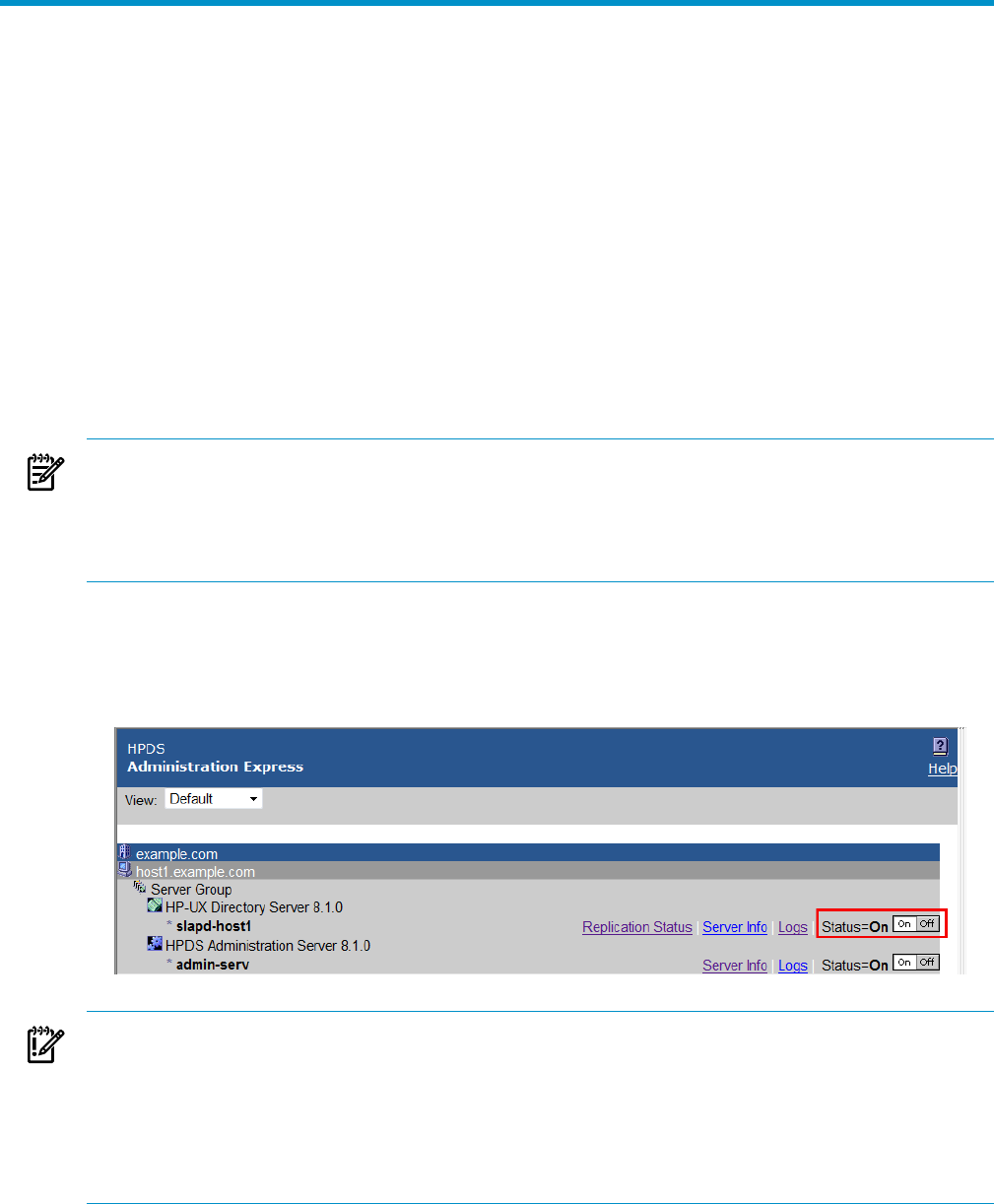

Figure 3-1 Stopping and stopping servers

IMPORTANT:

If either the Admin Server or the Configuration Directory Server is turned off through the Admin

Express page, then it must be restarted through the command line, not through the Admin

Express On/Off buttons because Admin Express requires access to both the Admin Server and

Configuration Directory Server in order to function.

Other Directory Server instances can be safely stopped and restarted through Admin Express.

3.1.3 Viewing server logs

Admin Express can show and search the access and error logs for Directory Server and Admin

Server and the audit logs for the Directory Server.

1. In the Admin Express page, click the Logs link by the server name.

2. Select which log type to view, how many lines to return, and any string to search for, and

click OK.

3.1 Managing servers in Admin Express 33

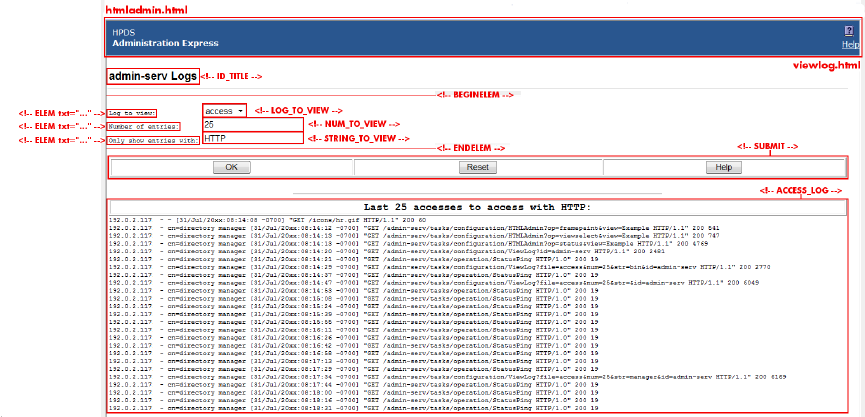

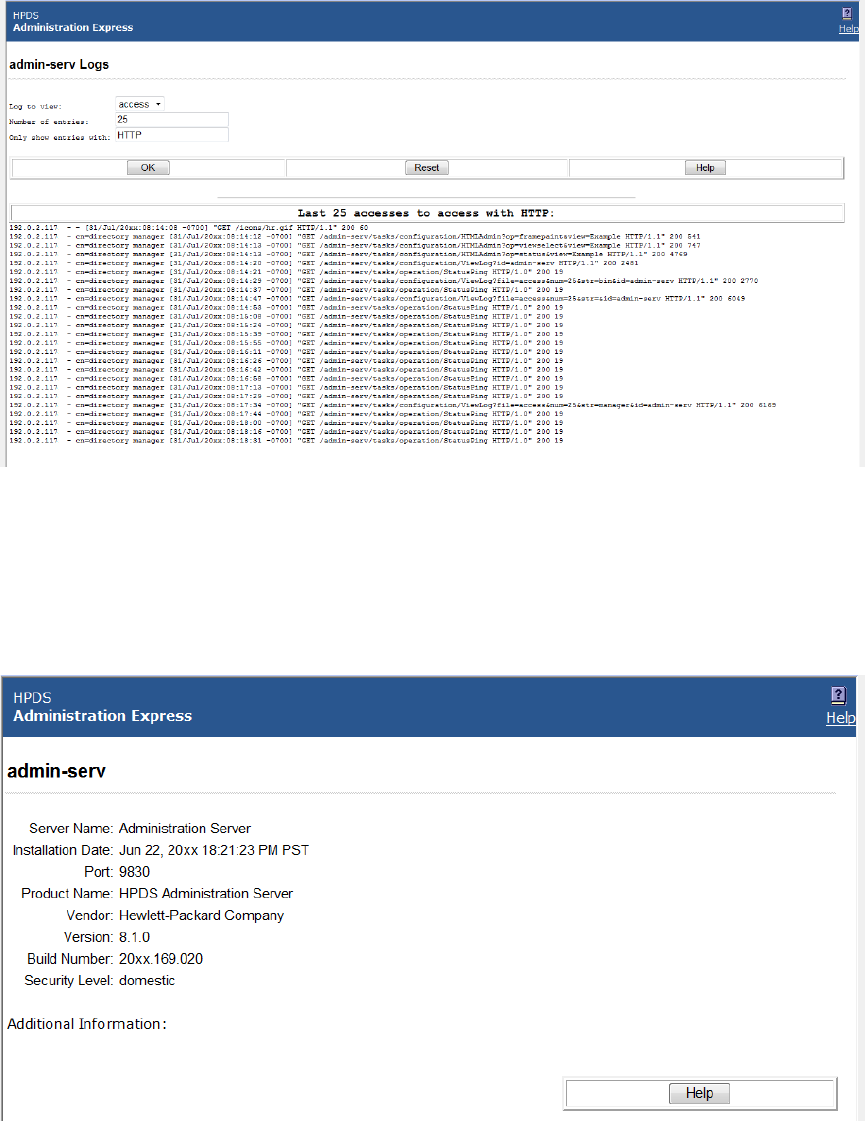

Figure 3-2 Checking logs

3.1.4 Viewing server information

The Server Info link on the Admin Express page opens a page with the basic description of the

server instance, such as the build number, installation date, and server port number. This is the

same information displayed in the Console when an instance is selected.

Figure 3-3 Checking server information

The Directory Server information is located in the

/etc/opt/dirsrv/slapd-instance_name/dse.ldif file; the Admin Server information

is located in .conf files in the /etc/opt/dirsrv/admin-serv directory.

3.1.5 Monitoring replication from Admin Express

Admin Express has an option to monitor replication status in real-time, meaning that it shows

the number of updates, times the most recent updates were sent, error and success messages,

replication schedule, the replicated directory suffix, and other information. Unlike other ways

of checking replication status, the Admin Express Replication Status page shows the real-time

34 Admin express

status of replication, including updates in progress, current changes sequence numbers, and the

lag between when a change is made on the supplier and when that change is sent to the consumer.

Monitoring replication is set up using a simple configuration file which specifies which server

to monitor and what supplier and consumer replicas to include in the status page.

When trying to monitor replication status through Admin Express, remember two things:

•The Replication Status page is only available for supplier servers. (It can be opened for

other types of replicas; there's just no information available and has the message The

server is not a master or it has no replication agreement.)

•The configuration file must be in a directory that is accessible to Admin Server, and the file

must be readable by the Admin Server user. By default, the user is nobody.

The user is set in the console.conf file. To check the user, use the grep command to

return the value:

grep \^User /etc/opt/dirsrv/admin-serv/console.conf

The configuration file should be readable by the Admin Server user and no other users, so

consider resetting the permissions on the file:

chmod 0400 filename

To view in-progress status of replication in Admin Express:

1. Create a configuration file. The configuration file lists all the servers to monitor for replication,

giving their host name, port, the bind credentials to use, and optional settings for aliases

and time lag colors.

#Configuration File for Monitoring Replication Via Admin Express

[connection] Required. Gives the server host, port, supplier bind DN, and password.

host1.example.com:389:cn=replication manager:mypassword

host2.example.com:3891:cn=replication manager:altpassword

[alias] Optional. Gives a friendly-name alias to the servers and consumers.

M1 = host1.example.com:389

M2 = host2.example.com:3891

C1 = host3.example.com:3892

C2 = host4.example.com:3890

[color] Optional. Sets the color for the time lag boxes.

0 = #ccffcc

5 = #FFFFCC

60 = #FFCCCC

The configuration file must be in a directory that is accessible to the Admin Server, and the

file must be readable by the Admin Server user. By default, the user is nobody.

The user is set in the console.conf file. To check the user, use the grep command to

return the value:

grep \^User /etc/opt/dirsrv/admin-serv/console.conf

The configuration file should be readable by the Admin Server user and no other users, so

consider resetting the permissions on the file:

chmod 0400 filename

2. In the Admin Server web page, click the Admin Express link, and log in.

3. Click the Replication Status link by the supplier server name.

4. Type the path to the configuration file in the Configuration file field. Also, set the refresh

rate, which is how frequently the replication status page updates; the default is 300 seconds.

3.1 Managing servers in Admin Express 35

Figure 3-4 Viewing replication status

5. Click OK.

The Replication Status page shows the status for sending updates to every consumer listed in

the configuration file.

Figure 3-5 Viewing replication status

DescriptionTable

The table header shows the replica ID of the supplier replica, the replicated suffix root

(such as dc=example,dc=com), and the maximum change state number (CSN) on

the supplier. (The CSN is the ID of the latest change on the supplier, while the max

CSN for the supplier shows the last update it received.)

Table header

The ID number of the most recent CSN the consumer has received that originated from

the supplier.

Max CSN

How long it takes for the consumer to receive updates from the supplier; this is the

time difference between the supplier and the consumer's max CSNs. When a consumer

is in sync with its supplier, the time lag is 0.

Time lag

Gives the time of the last update for the consumer (the time the last CSN entry was

sent).

Last Modify Time

Gives the name of the supplier sending updates to that consumer; this can be useful if

a consumer receives updates from multiple suppliers or there are multiple suppliers

being monitored on the Replication Status page.

Supplier

The number of changes that were sent from the supplier and the number skipped in

the replication update. The numbers are kept in suppliers' memory only and are cleared

if the supplier is restarted.

Sent/Skipped

The status code (and meaning) for the last update. This column can indicate a possible

deadlock if all the suppliers complain that they cannot acquire a busy replica. It is

normal for there to be a busy message if one of the suppliers is doing an update.

Update Status

The timestamps for when the most recent update process started and ended.Update Start and End

The configured replication schedule. 0:-: means that the consumer is continually

updated by the supplier.

Schedule

Indicates whether the supplier connects to the consumer over SSL.SSL?

36 Admin express

3.2 Configuring Admin Express

Admin Express can be edited for the page appearance, but most functionality is controlled

through the web server or the Admin Server configuration and should be edited through those

servers, not by editing the configuration files directly.

3.2.1 Admin Express file locations

The directories for all the Admin Express configuration files are listed in Table 3-1 “Admin

Express file directories”; the specific files are described in each section describing the different

Admin Express page configurations.

Table 3-1 Admin Express file directories

DescriptionFile or directory

Contains the local.conf,httpd.conf, and other configuration files

which define the Admin Server and configure the web server.

/etc/opt/dirsrv/admin-serv

Contains the HTML files and graphics used for the Admin Express

appearance.

/opt/dirsrv/share/html

3.2.2 Admin Express configuration files

The behavior for Admin Express is mostly set through the web server configuration and should

not be edited. The other Admin Express configuration is set through directives which insert data

or form fields.

3.2.2.1 Files for the Admin Server welcome page

The configuration files for the introductory page for the web applications are located in the

Admin Express directory, /opt/dirsrv/share/html. The main file is admserv.html.

3.2 Configuring Admin Express 37

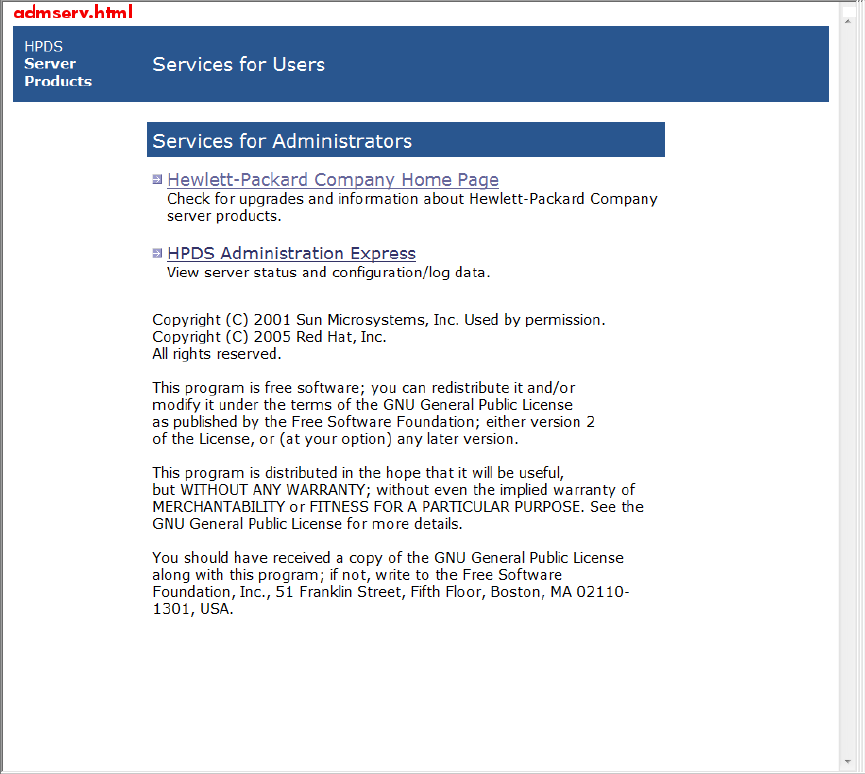

Figure 3-6 Intro page elements

All the formatting for the page is set inline. The text files are inserted using the INCLUDEIFEXISTS

directive.

<td bgcolor="#9999cc" colspan="4"> <font color="white"

size="+1"><font face="Verdana, sans-serif">Services

for Administrators</font></font></td>

</tr>

</tr>

The text files themselves have inline formatting for the inserted table rows.

38 Admin express

3.2.2.2 Files for the replication status appearance

There are two pages for monitoring the replication status. The first is for the configuration page,

which requires two files:

•The body of the page, /opt/dirsrv/share/html/monreplication.html

•The heading of the page, /opt/dirsrv/share/html/htmladmin.html

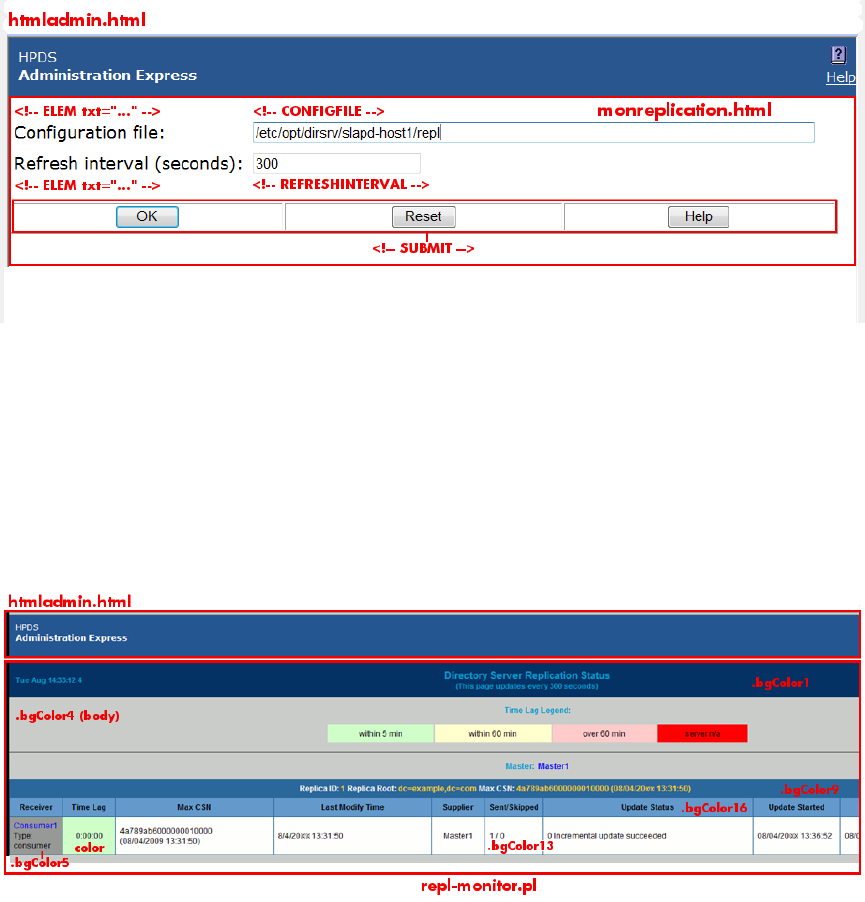

Figure 3-7 Monitoring replication setup page elements

The Replication Status page uses two script-related configuration files:

•The body of the page, which is configured in the replication monitoring script, /opt/

dirsrv/bin/repl-monitor.pl

•Optionally, the configuration file for the replication monitoring, which can configure the

time lag colors with the [colors] section

•The heading of the page, /opt/dirsrv/share/html/htmladmin.html

Figure 3-8 Monitoring replication view page elements

The text for the table headings, labels, and page sections are set in the Perl script. For example:

#Print the header of consumer

print "\n<tr class=bgColor16>\n";

print "<th nowrap>Receiver</th>\n";

print "<th nowrap>Time Lag</th>\n";

print "<th nowrap>Max CSN</th>\n";

....

print "</tr>\n";

The styles for the Replication Status page are printed in the Perl script in the <style> tag in

the HTML header. Many of the classes are the same as those in the style.css for the other

3.2 Configuring Admin Express 39

web applications. These can be edited in the Perl script or by uncommenting the stylesheet

reference and supplying a CSS file. For example:

# print the HTML header

print "Content-type: text/html\n\n";

print "<!DOCTYPE HTML PUBLIC \"-//W3C//DTD HTML 3.2//EN\"><html>\n";

print "<head><title>Replication Status</title>\n";

# print "<link type=text/css rel=stylesheet href=\"master-style.css\">\n";

print "<style text/css>\n";

print "Body, p, table, td, ul, li {color: #000000; font-family: Arial,

Helvetica, sans-serif; font-size: 12px;}\n";

print "A {color:blue; text-decoration: none;}\n";

print "BODY {font-family: arial, helvetica, sans-serif}\n";

print "P {font-family: arial, helvetica, sans-serif}\n";

print "TH {font-weight: bold; font-family: arial, helvetica, sans-serif}\n";

print "TD {font-family: arial, helvetica, sans-serif}\n";

print ".bgColor1 {background-color: #003366;}\n";

print ".bgColor4 {background-color: #cccccc;}\n";

print ".bgColor5 {background-color: #999999;}\n";

print ".bgColor9 {background-color: #336699;}\n";

print ".bgColor13 {background-color: #ffffff;}\n";

print ".bgColor16 {background-color: #6699cc;}\n";

print ".text8 {color: #0099cc; font-size: 11px; font-weight:

bold;}\n";

print ".text28 {color: #ffcc33; font-size: 12px; font-weight:

bold;}\n";

print ".areatitle {font-weight: bold; color: #ffffff; font-family:

arial, helvetica, sans-serif}\n";

print ".page-title {font-weight: bold; font-size: larger; font-family:

arial, helvetica, sans-serif}\n";

print ".page-subtitle {font-weight: bold; font-family: arial, hel\

vetica, sans-serif}\n";

print "</style></head>\n<body class=bgColor4>\n";

3.2.2.3 Files for the server information page

There are two files formatting the server information page:

•The body of the page, /opt/dirsrv/share/html/viewdata.html

•The heading of the page, /opt/dirsrv/share/html/htmladmin.html

Figure 3-9 Server information page elements

40 Admin express

The viewdata.html file is very simple, using only the two directives to insert the server data,

plsut other directives to insert other information. For the Admin Server, the SHOW_DATA directive

takes the information from the /etc/opt/dirsrv/admin-serv/local.conf file. For the

Directory Server, it takes the data from the

/etc/opt/dirsrv/slapd-instance_name/dse.ldif file. The ID_TITLE is the name of

the server instance.

<body text="#000000" bgcolor="#FFFFFF" link="#666699" vlink="#666699"

alink="#333366">

<br>

<p>

<p>

<font face="PrimaSans BT, Verdana, sans-serif"><font size=-1>Additional

Information:</font></font>

<p>

<p>

</table>

</body>

3.2.2.4 Files for the server logs page

There are two files formatting the server logs page:

•The body of the page, /opt/dirsrv/share/html/viewlog.html

•The heading of the page, /opt/dirsrv/share/html/htmladmin.html

Figure 3-10 Log view page elements

The page information is set through the inserted directives. The server instance name is set in

the ID_TITLE directive. The log is displayed through the ACCESS_LOG directives. The form at

the top is formatted with directive pairs, one which sets the descriptive text and the other inserting

the field type. For example, this sets the log type menu:

3.2 Configuring Admin Express 41

....

</font></font>

</form>

3.2.3 Admin Express directives

The Admin Express directives are HTML comments that are interpreted by the CGI scripts; these

directives are used to set form fields and to pull data from the server configuration and log files.

Table 3-2 Admin Express directives

ExampleDescriptionDirective

Inserts the server log file.

ACCESS_LOG

ADMURL

Marks the opening of form input elements. This

is always paired with ENDELEM.

BEGINELEM

CHECK_UPGRADE

<!-- ELEM txt="Field name

here: " -->

Inserts a text element. This has one argument,

txt=, which defines the text to use.

ELEM

<!-- ELEMADD txt="Field

name here: " -->

Inserts a text element. This has one argument,

txt=, which defines the text to use.

ELEMADD

Marks the ending of form input elements. This is

always paired with BEGINELEM.

ENDELEM

Inserts a button to open context-specific help.

HELP_BUTTON

Inserts a link to the general Admin Express help

file.

HELPLINK

HIDDEN_ID

Inserts the name of the server instance, such as

admin-serv or example (if the Directory Server

instance name is slapd-example)

ID_TITLE

<!-- INCLUDEIFEXISTS

"file.html" -->

Inserts the contents of the HTML file. The inserted

file should include both the text and any HTML

markup.

INCLUDEIFEXISTS

Inserts a drop-down menu with the types of logs

available to view.

LOG_TO_VIEW

Inserts a form field to set the number of lines to

return.

NUM_TO_VIEW

Inserts a form field to set the refresh interval (in

seconds) for replication monitoring.

REFRESHINTERVAL

SERVHOST

SERVPORT

Inserts the server data from the configuration file,

including the port number, installation date, and

build number.

SHOW_DATA

SHOW_URL

SITEROOT

42 Admin express

Table 3-2 Admin Express directives (continued)

ExampleDescriptionDirective

Inserts a form field to use to set the search string

for the logs.

STRING_TO_VIEW

Inserts a three-button set: to save or submit the

form; to reset the form; and to open a help topic.

SUBMIT

3.2 Configuring Admin Express 43

4 Admin Server command-line tools

The Admin Server has command-line utilities which make it easier to manage the Admin Server

without having to launch the Admin Console.

This chapter explains where to find and how to use the Admin Server tools.

4.1 sec-activate

The sec-activate tool activates and deactivates SSL for the Admin Server.

•“Location”

•“Syntax”

Location The sec-activate tool is located in the /opt/dirsrv/lib/cgi-bin directory.

Syntax

sec-activate serverRoot SSLEnabled

DescriptionArgument

The location of the Admin Server configuration directory. The default location is /etc/

opt/dirsrv/admin-serv.

serverRoot

Sets whether to turn SSL on or off for the Admin Server.SSLEnabled

For example:

sec-activate /etc/opt/dirsrv/admin-serv on

4.2 modutil

The modutil tool is a command-line utility for managing PKCS #11 module information stored

in secmod.db files or hardware tokens. modutil can perform a variety of security database

operations:

•Adding and deleting PKCS #11 modules

•Changing passwords

•Setting defaults

•Listing module contents

•Enabling or disabling slots

•Enabling or disabling FIPS-140-1 compliance

•Assigning default providers for cryptographic operations

•Creating key3.db,cert8.db, and secmod.db security databases.

Security module database management is part of a process that typically involves managing key

databases (key3.db files) and certificate databases (cert8.db files). The key, certificate, and

PKCS #11 module management process generally begins with creating the keys and key database

necessary to generate and manage certificates and the certificate database.

•“Location”

•“Syntax”

•“Tasks and options”

•“JAR information file”

•“Examples of using modutil”

Location The modutil tool is located in the /opt/dirsrv/bin folder.

Syntax

modutil task [option]

4.1 sec-activate 45

Where task is one of the commands listed in Table 4-1 “Task commands for modutil” and

option is from Table 4-2 “Options for modutil”. Each modutil command can take one task

and one option.

Tasks and options You can use the modutil tool to perform a number of different tasks. These

tasks are specified through the use of commands and options. Commands specify the task to

perform. Options modify a task command.

NOTE:

Each modutil command can take one task and one option.

Table 4-1 “Task commands for modutil” describes what the modutil commands do and what

options are available for each. Table 4-2 “Options for modutil” defines what the options do.

Table 4-1 Task commands for modutil

Allowed optionsDescriptionTasks

-libfile libraryFile

-mechanisms mechanismList

Adds the named PKCS #11 module

to the database.

-add moduleName

-pwfile passwordFile

-newpwfile newPasswordFile

Changes the password for the named

token. If the token has not been

initialized, this option initializes it

with the supplied password. In this

context, the term password is

equivalent to a personal identification

number (PIN).

-changepw token

-dbdir dbFolderCreates new secmod.db,key3.db,

and cert8.db files. If any of these

security databases already exist in a

specified directory, the modutil tool

displays an error message.

-create

-mechanisms mechanismList

Sets the security mechanisms for

which the named module is a default

provider.

-default moduleName

Deletes the named module.

You cannot delete the internal PKCS

#11 module.

-delete moduleName

-slot slotName

Disables all slots on the named

module. To disable a specific slot, use

the -slot option.

-disable moduleName

-slot slotName

Enables all slots on the named

module. To enable a specific slot, use

the -slot option.

-enable moduleName

Enables or disables FIPS-140-1

compliance for the internal module.

true enabled FIPS compliance, and

false disable FIPS compliance.

-fips true |false

Disables the modutil tool's

interactive prompts so it can be run

from a script. Use this command only

after manually testing each planned

operation to check for warnings and

to ensure that bypassing the prompts

will cause no security lapses or loss

of database integrity.

-force

46 Admin Server command-line tools

Table 4-1 Task commands for modutil (continued)

Allowed optionsDescriptionTasks

-installdir

installation_directory

-tempdir temporaryFolder

Adds a new PKCS #11 module to the

database. The module must be

contained in the named JAR file.

The JAR file identifies all files to

install, the module name, and

mechanism flags. It should also

contain any files to be installed on the

target machine, including the PKCS

#11 module library and other files,

such as documentation.

The JAR file uses the Netscape Server

PKCS #11 JAR format. See “JAR

information file” for more

information on creating JAR files.

-jar JARfile

Shows basic information about the

contents of the secmod.db file. To

display detailed information about a

particular module, including its slots

and tokens, specify a value for

moduleName.

-list [moduleName]

-mechanisms mechanismList

Specifies the security mechanisms for

which the named module will not be

a default provider.

-undefault moduleName

Table 4-2 “Options for modutil” describes the different options for the modutil task commands.

Table 4-2 Options for modutil

DescriptionOption

Specifies a folder in which to access or create security module database files.

This argument is required for every command. This should point to the Admin

Server configuration directory. For example:

-dbdir /etc/opt/dirsrv/admin-serv

-dbdir dbFolder

Specifies the root installation folder for the files supplied with the

-jarJAR-file task. The installation_directory folder should be one

in which it is appropriate to store dynamic library files.

-installdir

installation_directory

Specifies the library file which contains the PKCS #11 module that is being

added to the database. Use the full path to identify the file.

-libfile libraryFile

4.2 modutil 47

Table 4-2 Options for modutil (continued)

DescriptionOption

Specifies the security mechanisms for which a particular module is the default

provider. The mechanismList is a colon-separated list of mechanism names.

Enclose this list in quotation marks if it contains spaces. The module becomes

a default provider for the listed mechanisms when those mechanisms are

enabled. If more than one module is assigned as a mechanism's default

provider, the mechanism's default provider is listed as undefined. The

following mechanisms are currently available:

•RSA

•DSA

•RC2, RC4, and RC5

•AES

•DES

•DH

•SHA1 and SHA256

•SSL and TLS

•MD2 and MD5

•RANDOM (for random number generation)

•FRIENDLY (for certificates that are publicly readable).

-mechanisms mechanismList

Specifies a text file containing a token's new password. This allows the

password to be automatically updated when using the -changepw command.

-newpwfile newPasswordFile

Instructs modutil not to open the certificate or key databases. This has several

effects:

•When used with the -changepw command, no one is able to set or change

the password on the internal module, because the password is stored in

key3.db.

•When used with the -create command, only a secmod.db file will be

created; cert8.db and key3.db will not be created.

•When used with the -jar command, signatures on the JAR file will not

be checked.

-nocertdb

Specifies a text file containing a token's current password. This allows

automatic entry of the password when using the -changepw command.

-pwfile passwordFile

Specifies a particular slot to enable or disable when using the -enable or

-disableoptions.

-slot slotName

Specifies a folder in which to store temporary files created by the -jar

command. If a temporary folder is not specified, the current folder is used.

-tempdir temporaryFolder

JAR information file JAR (Java Archive) is a platform-independent file format that aggregates

many files into one. JAR files are used by modutil to install PKCS #11 modules. When modutil

uses a JAR file, a special JAR information file must be included. This information file contains

special scripting instructions and must be specified in the JAR file's MANIFEST file. Although

the information file can have any name, it is specified using the Pkcs11_install_script

METAINFO command.

For details on how to declare this METAINFO command in the MANIFEST, see http://docs.sun.com/

source/816-6164-10/contents.htm.

If a PKCS #11 installer script is stored in the information file pk11install, the text file for the

Signing Tool contains the following METAINFO tag:

+ Pkcs11_install_script: pk11install

Examples of using modutil

•“Creating database files”

•“Displaying module information”

•“Setting a default provider”

48 Admin Server command-line tools

•“Enabling a slot”

•“Enabling FIPS compliance”

•“Adding a cryptographic module”

•“Changing the password on a token”

Creating database files To create a set of security management database files in a directory:

modutil -create -dbdir /etc/opt/dirsrv/admin-serv

WARNING: Performing this operation while the browser is running could cause

corruption of your security databases. If the browser is currently running,

you should exit browser before continuing this operation. Type

'q <enter>' to abort, or <enter> to continue:

Creating "/etc/opt/dirsrv/admin-serv/key3.db"...done.

Creating "/etc/opt/dirsrv/admin-serv/cert8.db"...done.

Creating "/etc/opt/dirsrv/admin-serv/secmod.db"...done.

Displaying module information To retrieve detailed information about a specific module:

modutil -list -dbdir /etc/opt/dirsrv/admin-serv

Using database directory /etc/opt/dirsrv/admin-serv...

Listing of PKCS #11 Modules

-----------------------------------------------------------

1. NSS Internal PKCS #11 Module

slots: 2 slots attached

status: loaded

slot: NSS Internal Cryptographic Services

token: NSS Generic Crypto Services

slot: NSS User Private Key and Certificate Services

token: NSS Certificate DB

-----------------------------------------------------------

Setting a default provider To make a specific module the default provider for the RSA, DSA,

and RC2 security mechanisms:

modutil -default "Cryptographic Module" -dbdir /etc/opt/dirsrv/admin-serv \

-mechanisms RSA:DSA:RC2

WARNING: Performing this operation while the browser is running could cause

corruption of your security databases. If the browser is currently running,

you should exit browser before continuing this operation. Type 'q <enter>'

to abort, or <enter> to continue:

Using database directory /etc/opt/dirsrv/admin-serv...

Successfully changed defaults.

Enabling a slot To enable a particular slot in a module:

modutil -enable "Cryptographic Module" -slot "Cryptographic Reader" \

-dbdir /etc/opt/dirsrv/admin-serv

WARNING: Performing this operation while the browser is running could cause

corruption of your security databases. If the browser is currently running,

you should exit browser before continuing this operation. Type

'q <enter>' to abort, or <enter> to continue:

Using database directory /etc/opt/dirsrv/admin-serv...

Slot "Cryptographic Reader" enabled.

Enabling FIPS compliance To enable FIPS-140-1 compliance in the Admin Server's internal

module:

4.2 modutil 49

modutil -fips true

WARNING: Performing this operation while the browser is running could cause

corruption of your security databases. If the browser is currently running,

you should exit browser before continuing this operation. Type

'q <enter>' to abort, or <enter> to continue:

FIPS mode enabled.

Adding a cryptographic module To add a new cryptographic module to the database:

modutil -dbdir "/etc/opt/dirsrv/admin-serv" -add "Cryptorific Module" \

-libfile "/crypto.so" -mechanisms RSA:DSA:RC2:RANDOM

WARNING: Performing this operation while the browser is running could cause

corruption of your security databases. If the browser is currently running,

you should exit browser before continuing this operation. Type 'q <enter>'

to abort, or <enter> to continue:

Using database directory /etc/opt/dirsrv/admin-serv...

Module "Cryptorific Module" added to database.

Changing the password on a token To change the password for a security device in use by a

module.

modutil -dbdir "/etc/opt/dirsrv/admin-serv" -changepw "Admin Server Certificate DB"

WARNING: Performing this operation while the browser is running could cause

corruption of your security databases. If the browser is currently running,

you should exit browser before continuing this operation. Type 'q <enter>'

to abort, or <enter> to continue:

Using database directory /etc/opt/dirsrv/admin-serv...

Enter old password:

Enter new password:

Re-enter new password:

Token "Admin Server Certificate DB" password changed successfully.

50 Admin Server command-line tools

5 Support and other resources

5.1 Contacting HP

5.1.1 Information to collect before contacting HP

Be sure to have the following information available before you call contact HP:

•Software product name

•Hardware product model number

•Operating system type and version

•Applicable error message

•Third-party hardware or software

•Technical support registration number (if applicable)

5.1.2 How to contact HP technical support

Use the following methods to contact HP technical support:

•In the United States, see the Customer Service / Contact HP United States website for contact

options:

http://welcome.hp.com/country/us/en/contact_us.html

•In other locations, see the Contact HP Worldwide website for contact options:

http://welcome.hp.com/country/us/en/wwcontact.html

5.1.3 HP authorized resellers

For the name of the nearest HP authorized reseller, see the following sources:

•In the United States, see the HP U.S. service locator website at:

http://www.hp.com/service_locator

•In other locations, see the Contact HP worldwide website at:

http://welcome.hp.com/country/us/en/wwcontact.html

5.1.4 Documentation feedback

HP welcomes your feedback. To make comments and suggestions about product documentation,

send a message to:

docsfeedback@hp.com

Include the document title and manufacturing part number in your message. All submissions

become the property of HP.

5.2 Related information

5.2.1 HP-UX Directory Server documentation set

•HP-UX Directory Server release notes

The release notes contain important information on new features, fixed bugs, known issues

and workarounds, and other important information for this specific version of the HP-UX

Directory Server.

•HP-UX Directory Server administrator guide

This guide contains information and procedures you need to perform to maintain your

Directory Server.

5.1 Contacting HP 51

•HP-UX Directory Server administration server guide

The Admin Server is a support server that drives access to the Directory Server Console ,

provides a web server for Directory Server web applications, and stores some Directory

Server configuration. This guide covers how to manage the Admin Server through the

Console, through the command line, and through the web services. It also covers basic

Admin Server concepts.

•HP-UX Directory Server configuration, command, and file reference

This document provides reference information on the command line scripts, configuration

attributes, and log files shipped with the Directory Server.

•HP-UX Directory Server console guide

This guide covers the basic structure of the Console for both the Directory Server and the

Admin Server and provides an overview of how to use the main Console to manage users

and access within the Console.

•HP-UX Directory Server deployment guide

This guide covers the basic considerations that should be addressed before deploying the

Directory Server. The decisions made during this phase can have a significant and lasting

affect on the effectiveness, efficiency, and scalability of your Directory Server. You should

have a good understanding of your Directory Server requirements before moving on to the

installation phase.

•HP-UX Directory Server installation guide

This manual contains information and procedures for installing your Directory Serveras

well as procedures for migrating from Netscape Directory Server 6.21 or Red Hat Directory

Server 7.1.

•HP-UX Directory Server plug-in reference

This reference document describes server plug-ins, as well as how to write server plug-ins

in order to customize and to extend the capabilities of the HP-UX Directory Server.

•HP-UX Directory Server schema reference

This reference provides an overview of some of the basic concepts of the directory schema,

including lists and descriptions of default schema files, and descriptions of object classes,

attributes, object identifiers (OIDs), schema checking, and extending server schema.

For the latest information about HP-UX Directory Server, including current release notes, complete

product documentation, technical notes, and white papers, as well as other HP Internet and

Security products, see the HP-UX Directory Server documentation site at:

http://docs.hp.com/en/internet.html.

5.2.2 HP-UX documentation set

For the latest information about the HP-UX operating system, including current release notes,

complete product documentation, technical notes, and white papers, see the HP-UX Operating

Environments documentation sites for the version of HP-UX you use:

•HP-UX 11i v3 Operating Environments: http://docs.hp.com/en/oshpux11iv3.html

•HP-UX 11i v2 Operating Environments: http://docs.hp.com/en/oshpux11iv2.html

52 Support and other resources

5.2.3 Troubleshooting resources

•You can search a technical knowledge database available on the HP IT Resource Center

(ITRC) website at:

http://itrc.hp.com/

•To seek solutions to problems, you can post messages on the ITRC Forums page at the

following website (select the HP-UX area in the Areas of peer problem solving section):

http://forums.itrc.hp.com/

5.3 Typographic conventions

This document uses the following typographical conventions:

Book title The title of a book. On the web, this can be a hyperlink to the

book itself.

Command A command name or command phrase, for example ls -a.

Computer output Information displayed by the computer.

Ctrl+x or Ctrl-xA key sequence that indicates you must hold down the keyboard

key labeled Ctrl while you press the letter x.

ENVIRONMENT VARIABLE The name of an environment variable, for example, PATH.

Key The name of a keyboard key. Return and Enter both refer to the

same key.

Term A term or phrase that is defined in the body text of the document,

not in a glossary.

User input Indicates commands and text that you type exactly as shown.

Replaceable The name of a placeholder that you replace with an actual value.

[ ] In command syntax statements, these characters enclose optional

content.

{ } In command syntax statements, these characters enclose required

content.

| The character that separates items in a linear list of choices.

... Indicates that the preceding element can be repeated one or more

times.

WARNING An alert that calls attention to important information that, if not

understood or followed, results in personal injury.

CAUTION An alert that calls attention to important information that, if not

understood or followed, results in data loss, data corruption, or

damage to hardware or software.

IMPORTANT An alert that calls attention to essential information.

NOTE An alert that contains additional or supplementary information.

TIP An alert that provides helpful information.

5.3 Typographic conventions 53

Glossary

access control

instruction

See ACI.

access control list See ACL.

access rights In the context of access control, specify the level of access granted or denied. Access rights are

related to the type of operation that can be performed on the directory. The following rights

can be granted or denied: read, write, add, delete, search, compare, selfwrite, proxy and all.

account

inactivation

Disables a user account, group of accounts, or an entire domain so that all authentication

attempts are automatically rejected.

ACI An instruction that grants or denies permissions to entries in the directory.

Hp Ux Directory Server Administrators Guide Administration

Navigation menu

Versions of this User Manual:

Views

Navigation
