HP-UX Whitelisting A.01.00 Administrator

Guide

HP-UX 11iv3

HP Part Number: 5992-5210

Published: September 2010

Edition: 1

©Copyright 2010 Hewlett-Packard Development Company, L.P.

Confidential computer software. Valid license from HP required for possession, use or copying. Consistent with FAR 12.211 and 12.212, Commercial

Computer Software, Computer Software Documentation, and Technical Data for Commercial Items are licensed to the U.S. Government under

vendor's standard commercial license. The information contained herein is subject to change without notice. The only warranties for HP products

and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as

constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

Itanium™, Xeon™, and Pentium™ are trademarks of Intel Corporation in the U.S. and other countries. UNIX®is a registered trademark of The

Open Group.

Table of Contents

1 Security features..............................................................................................................9

1.1 File access policies.............................................................................................................................9

1.1.1 File lock access controls.............................................................................................................9

1.1.2 Identity-based access controls.................................................................................................10

1.2 Capabilities......................................................................................................................................10

1.2.1 mem...........................................................................................................................................10

1.2.2 wmd...........................................................................................................................................10

1.2.3 dlkm........................................................................................................................................10

1.2.4 api...........................................................................................................................................11

2 Product overview..........................................................................................................13

2.1 WLI architecture..............................................................................................................................13

2.1.1 Commands..............................................................................................................................14

2.1.1.1 Application API...............................................................................................................14

2.1.1.2 Applications....................................................................................................................15

2.1.1.3 Stackable file system module..........................................................................................15

2.1.1.4 Policy enforcement manager...........................................................................................15

2.1.1.5 File systems.....................................................................................................................16

2.2 WLI database...................................................................................................................................16

2.3 WLI metadata files..........................................................................................................................16

2.3.1 .$WLI_FSPARMS$..................................................................................................................17

2.3.2 .$WLI_POLICY$.....................................................................................................................17

2.3.3 .$WLI_SIGNATURE$..............................................................................................................17

3 Key usage.....................................................................................................................19

3.1 Generating keys...............................................................................................................................19

3.2 User keys.........................................................................................................................................20

3.3 Administrator keys..........................................................................................................................20

4 Installing, removing, and upgrading..........................................................................21

4.1 Installation requirements................................................................................................................21

4.2 Installing WLI..................................................................................................................................21

4.3 Removing WLI................................................................................................................................22

4.4 Upgrading WLI...............................................................................................................................23

5 Configuring...................................................................................................................25

5.1 Authorizing the recovery key..........................................................................................................25

5.2 Authorizing administrator keys......................................................................................................25

5.3 Signing DLKMs...............................................................................................................................26

5.4 Backing up the WLI database..........................................................................................................26

5.5 Rebooting to restricted mode............................................................................................................27

6 Enhancing security with WLI.......................................................................................29

6.1 Signing an executable binary..........................................................................................................29

6.2 Creating a FLAC policy...................................................................................................................29

6.3 Creating an IBAC policy..................................................................................................................30

6.4 Removing a file access policy..........................................................................................................30

Table of Contents 3

6.5 Enabling DLKMs to load during boot.............................................................................................30

6.6 Loading unsigned DLKMs..............................................................................................................31

7 Backup and restore considerations............................................................................33

7.1 Overview.........................................................................................................................................33

7.2 WLI database files...........................................................................................................................33

7.2.1 Write protected........................................................................................................................34

7.2.2 Read/write protected files.......................................................................................................34

7.2.3 Recommendations...................................................................................................................34

7.3 Policy protected and metadata files................................................................................................34

7.3.1 FLAC policies..........................................................................................................................35

7.3.2 IBAC policies...........................................................................................................................35

7.3.3 Metadata files..........................................................................................................................35

7.3.4 Recommendations...................................................................................................................35

8 HP Serviceguard considerations.................................................................................37

8.1 Overview.........................................................................................................................................37

8.2 Administration................................................................................................................................37

8.2.1 WLI database...........................................................................................................................37

8.2.2 Policy protected files...............................................................................................................38

9 Troubleshooting and known issues.............................................................................39

9.1 Software distributor issues..............................................................................................................39

9.2 WLI reinstallation............................................................................................................................39

9.3 Lost WLI administrator key or passphrase ....................................................................................39

9.4 WLI database corruption.................................................................................................................39

10 Support and other resources.....................................................................................41

10.1 Contacting HP...............................................................................................................................41

10.1.1 Before you contact HP...........................................................................................................41

10.1.2 HP contact information.........................................................................................................41

10.1.3 Subscription service...............................................................................................................41

10.1.4 Documentation feedback.......................................................................................................41

10.2 Related information.......................................................................................................................41

10.3 Typographic conventions..............................................................................................................42

Alibwliapi example.................................................................................................45

A.1 Instructions.....................................................................................................................................45

A.2 makefile.......................................................................................................................................45

A.3 FLAC add and delete program......................................................................................................46

A.4 IBAC add and delete program.......................................................................................................46

B Administration examples.............................................................................................49

C Quick setup examples.................................................................................................53

C.1 Installing WLI.................................................................................................................................53

C.2 Configuring WLI............................................................................................................................53

C.2.1 Authorizing an administrator key..........................................................................................53

C.2.2 Authorizing a user key...........................................................................................................53

C.3 FLAC policies..................................................................................................................................54

4 Table of Contents

C.3.1 Creating a FLAC policy..........................................................................................................54

C.3.2 Enabling a FLAC policy..........................................................................................................54

C.3.3 Testing a FLAC policy............................................................................................................54

C.3.4 Disabling a FLAC policy........................................................................................................55

C.3.5 Removing a FLAC policy.......................................................................................................55

C.4 IBAC policies..................................................................................................................................55

C.4.1 Creating an IBAC policy.........................................................................................................55

C.4.2 Enabling an IBAC policy........................................................................................................55

C.4.3 Testing an IBAC policy...........................................................................................................55

C.4.4 Disabling an IBAC policy.......................................................................................................56

C.4.5 Removing an IBAC policy......................................................................................................56

Glossary............................................................................................................................57

Index.................................................................................................................................59

Table of Contents 5

List of Figures

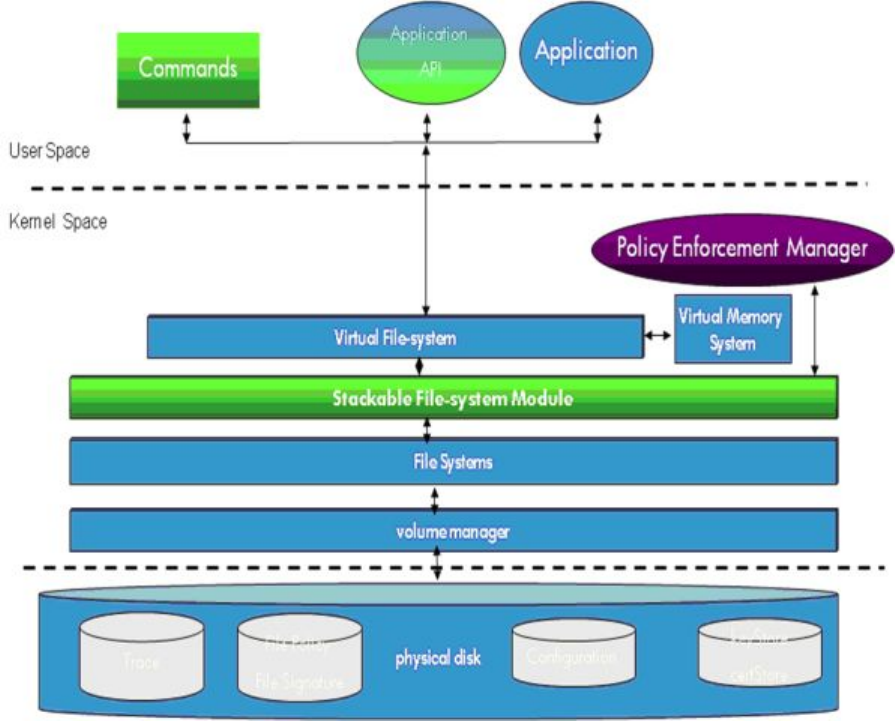

2-1 WLI architecture............................................................................................................................14

6 List of Figures

List of Examples

B-1 Execute manual WLI configuration..............................................................................................49

B-2 Backing up policy protected files..................................................................................................49

B-3 Restoring policy protected files.....................................................................................................50

B-4 Backup and restore without wliwrap..........................................................................................51

7

8

1 Security features

HP-UX Whitelisting (WLI) provides security features complementary to discretionary access

controls, sometimes referred to as DAC restrictions. DAC restrictions are based on defined users

and groups, and the ownership and permission bits associated with every type of file. DAC

restrictions are generated through user commands and enforced within the kernel domain on

the processes comprising every application.

WLI is a cryptographic key-based product. Whitelisting security features are based on RSA key

ownership and encryption technology. WLI security features are imposed through RSA signatures

and enforced through signature verification. Therefore, regular files and directories may be

protected from access by any user including superuser.

Whitelisting security features are divided into the following categories:

File access policies WLI users can restrict access to regular and directory files by

generating policies that are enforced within the kernel domain.

WLI then grants access only to applications meeting the policy

requirements for the protected files.

Capabilities When WLI is installed, certain system resources known to be

security risks are prevented from access by all applications. A

user owning an administrator key can authorize a WLI-signed

application to access these resources. Other users, as well as the

owner of the administrator key, can then execute the signed

application and access the protected resource. In WLI

terminology, a capability is granted to an application to permit

access to a protected resource.

1.1 File access policies

WLI file access policies are generated with the wlipolicy command and enforced by WLI

kernel components when access is requested by application threads. Enforcement of these policies

does not include alteration of ownership, permissions bits, and other file status information

stored on physical media. Enforcement is accomplished by cryptographic verification of

application and policy signatures stored in metadata, followed by access denial to threads that

do not meet policy rules.

User ID and group ID values are not factors within WLI policy enforcement. However, the

traditional UNIX ownership and permission bit restrictions are not avoided by files with WLI

file access policies. After WLI allows access to a policy-restricted file, the executing thread

continues into file-system-specific processing as if WLI is not installed.

1.1.1 File lock access controls

This policy type is abbreviated as FLAC in WLI manpages and other literature. A FLAC policy

assigned to a regular file prevents it from being modified, deleted, or renamed within the parent

directory. A FLAC policy permits read access if allowed by file permission bits.

A FLAC policy assigned to a directory prevents its content from changing; files cannot be added

to or deleted from the directory. A FLAC policy on a directory also locks all its files against

modification or renaming. Files in subdirectories of a FLAC-protected directory are not affected.

The user ID or effective user ID of a process is not a factor for enforcement of this policy type.

Even root or the file owner may not override a FLAC policy. A FLAC policy does not replace

file permission bit restrictions. The policy is enforced in addition to permission bit restrictions.

Read and execute permission for a FLAC protected file is controlled entirely by its permission

bits.

1.1 File access policies 9

A FLAC policy prevents modification of file status information such as modification time,

permission bits, owner ID, and group ID stored within the file inode.

1.1.2 Identity-based access controls

Abbreviated as IBAC, this policy type denies access to a designated file or directory for all

executables except those specifically authorized. File or directory access is normally granted to

an executing binary if all access restrictions are met. In addition to traditional UNIX restrictions,

an IBAC policy identifies a specific executable binary that, once authenticated, is permitted to

access the protected file. A single file can have multiple IBAC policies, each one identifying a

particular executable.

An IBAC policy prevents unauthorized executables from opening a file. An executable specified

in an IBAC policy is sometimes referred to as an authorized executable for the IBAC-protected

file. If access to an IBAC protected file is permitted by WLI, then read, write, and execute

permissions are determined by the file permission bits and effective userid. Other restrictions

imposed outside of WLI, such as ACLs, are not be affected by WLI.

The user ID or effective user ID of a process is not directly involved in the enforcement of this

policy type as well. A binary executable must have a valid WLI signature for it to be included

in an IBAC policy. When an IBAC protected file is opened, the signature on the binary executing

the open() is verified through the corresponding public key.

1.2 Capabilities

The WLI A.01.00 release provides the following capabilities corresponding to system operations

that are protected when WLI security mode is restricted. Capabilities may be granted to binary

executables on a permanent basis using wlisign, or only for a single execution with wliwrap.

1.2.1 mem

WLI does not allow read or write operations on the memory image files /dev/mem and /dev/

kmem unless mem capability is granted to the binary executable attempting the open(). Some

commands like adb open the memory image files to query and update kernel memory. Because

these are device special files, WLI file access policies cannot be assigned to them.

If mem capability is granted to an executing process that is attempting to open one of the memory

image files, the open() is still subject to failure from traditional open() restrictions such as those

imposed by file permission bits.

1.2.2 wmd

WLI does not allow its metadata to be created or written to unless wmd capability is granted to

the executable requesting access. The wmd capability also allows read access on metadata files

with WLI read protection. These restrictions are enforced whether the metadata is stored in VxFS

name streams or protected metadata files. For more information about WLI metadata files, see

Section 2.3 (page 16). This capability is useful for backup and restore commands like tar.

1.2.3 dlkm

WLI permits the system to load a DLKM if the DLKM has been signed with wlisign using an

authorized key. The signature on the DLKM is not required to include dlkm capability. The

authorized key used for the signing also does not require dlkm capability.

Unsigned DLKMs can also be loaded. If the key authorizing wliwrap execution is granted dlkm

capability, the wliwrap command grants dlkm capability to its child process. The child process

can be an executing instance of kcmodule. The command file /usr/sbin/kcmodule must

also be signed to be recognized as an authorized executable. The signature on /usr/sbin/

kcmodule is not required to include dlkm capability.

10 Security features

This capability is intended to alleviate a security issue associated with dynamic loading. The

user must have root authority to dynamically load, and a WLI administrator key must grant

dlkm capability directly or through another authorized key.

1.2.4 api

WLI permits an application to execute functions contained within the shared object library /opt/

wli/lib/libwliapi.so by granting api capability. This library provides functions to

programmatically create, delete, and update policies described in Section 1.1 (page 9). The key

signing the executable that invokes libwliapi.so functions must be granted api capability

through wlicert. The executable is not required to have api capability.

The services provided by libwliapi are also provided by the wlipolicy command to users

holding an authorized key. For an implementation example using libwliapi, see “libwliapi

example” (page 45).

1.2 Capabilities 11

12

2 Product overview

WLI is a security enhancement product that relies on RSA keys and cryptographic algorithms

to restrict access to regular files, directories, and certain protected resources. WLI is complementary

to the traditional access restrictions imposed by file ownership and permission bits. An executable

permitted by WLI to access a file does not bypass permission bit checks, ACLs, or other security

mechanisms.

For more detail on WLI commands and files, see the manpages installed with WLI. For a complete

list of manpages and more technical information, see wli(5).

In discussions involving RSA, “key” is synonymous with “private key” throughout this document,

because a private key holds all key information and the public key is merely a subset.

IMPORTANT: WLI requires OE B.11.31.0909 or later.

For more information, see Section 4.2 (page 21).

IMPORTANT: WLI is supported on VxFS file systems at revision 4.1 or later and on other HP-UX

11iv3 non-VxFS file systems such as HFS.

WLI file access policy enforcement is supported only for regular files and directories residing

on HFS, VxFS, and NFS file systems. Some applications access physical storage directly, bypassing

the supported file systems. Examples are Oracle ASM and Veritas CFS.

2.1 WLI architecture

For an illustration of WLI architecture, see Figure 2-1 (page 14). WLI commands restrict access

to designated files by generating access policies. Some system resources are also restricted. WLI

kernel software enforces access restrictions by examining policy information in real time during

access requests on files.

2.1 WLI architecture 13

Figure 2-1 WLI architecture

2.1.1 Commands

WLI commands are described in detail through the HP-UX manpage facility on installed platforms,

and are not reproduced here. The following briefly describes these commands:

wlipolicy Manage WLI file access policies

wlisign Manage WLI signatures on binary executables

wlitool Sign ELF executable files with or without WLI installed

wliwrap Run commands with WLI capabilities

wlixfr Transfer WLI file access policies from one file to another

wliadm Manage WLI administrator keys

wlicert Manage WLI user keys and capabilities

wlisys Manage WLI configuration attributes

wlisyspolicy Manage WLI security attributes

wlitrace Unsupported diagnostic tool for HP support personnel only

2.1.1.1 Application API

The shared library /opt/wli/lib/libwliapi.so provides API functions for applications to

add, delete, and verify access rights for WLI file access policies. For details on libwliapi

functions, see libwliapi(3).

14 Product overview

The ability to execute functions within this library is a resource protected by WLI. As with other

resources protected by WLI, access must explicitly be granted through WLI using authorized

RSA keys.

2.1.1.2 Applications

Enforcement of WLI file access policies and resource restrictions is imposed on all applications

and commands. Application binaries and files have no requirements for modification or relinking.

A user may restrict application access to local files and directories through WLI commands.

Applications are permitted access to files and resources protected by WLI through WLI commands.

When the WLI security mode is restricted, access policies on all local regular files and directories

are enforced. All user applications, including those invoked by root user (uid 0), are not permitted

to override access restrictions imposed by WLI.

WLI also provides the security mode maintenance. This mode is unsecure and only recommended

when the system is inaccessible to all but administration personnel. WLI policy enforcement and

resource protection are not enabled in this mode.

WLI uses FIPS 140-2 certified OpenSSL 1.1.2 archive libcrypto.a, based on OpenSSL

A.00.09.07m. This archive is stored at /opt/openssl/fips/0.9.7/lib/hpux64/

libcrypto.a when included with an OpenSSL version such as A.00.09.08l.003. For more

information about FIPS 140-2 (Federal Information Processing Standard 140-2), see http://

www.openssl.org/docs/fips.

Because functions from this archive are statically linked into WLI commands, the archive is not

required to be present on platforms where WLI is installed. WLI uses libcrypto.a functions

to parse RSA key files generated by all OpenSSL versions. The OpenSSL license is stored at

/opt/ wli/OpenSSL.LICENSE as part of the WLI installation.

2.1.1.3 Stackable file system module

The HP-UX Stackable File System allows modification of the kernel file system stack through

inclusion of one or more executable modules that conform to the VFS interface. A module can

be inserted into the file system stack between the VFS layer and one or more file system type

modules such as VxFS (JFS) or HFS.

Modifing existing filesystem type modules is not necessary; the kernel is relinked and rebooted.

When the relinked kernel becomes active, the inserted module becomes a component in the file

system stack.

When WLI installs, its file system module is inserted between VFS and the local file system type

modules that handle local data storage. When a file is opened by an application for read or write

access, the WLI file system module causes the open() to fail if a WLI policy on the file would be

violated.

2.1.1.4 Policy enforcement manager

This component enforces WLI file access rules. Only the following access policy types are provided:

•A FLAC policy limits access to a specific WLI-signed binary executable.

•An IBAC policy limits access to a designated set of executables.

A WLI administrator key may also allow access to specific system resources protected by WLI,

such as the /dev/mem and /dev/kmem special files.

WLI maintains a database of file access policies and resource restrictions generated by users and

administrators. This database is referenced by the Policy Enforcement Manager from within the

kernel domain. The Policy Enforcement Manager is called by the WLI file system module to

determine if a restriction imposed by WLI should prevent access.

2.1 WLI architecture 15

2.1.1.5 File systems

WLI security features are imposed on all directories and regular files that reside in file systems

called through the VFS layer.

WLI generates metadata to keep track of its file access policies. Policy metadata might become

scattered in files throughout a file system. VxFS (aka JFS) at revision 5.0.1 or later is an exception

because metadata can be stored within a named stream. A named stream is associated with a

file inode, but is not accessible through the usual open() on the file.

Because a proprietary utility like Symantec NetBackup is required for backing up named streams,

the administrator may choose to have metadata stored on files only.

WLI also generates signature metadata for signed executable binaries. For native ELF binaries,

the metadata is stored within a special section of the file. PA-RISC binaries are also executable

on IA platforms, but their metadata is stored in files similar to policy metadata files.

Special device files within file systems are not affected by WLI with the exception of /dev/mem

and /dev/kmem. In restricted mode, access to these files is denied except to applications explicitly

granted the mem capability. For more information on WLI capabilities, see “Security features”

(page 9) and wli(5).

2.2 WLI database

WLI maintains a set of regular files and directories under /etc/wli. Some files contain

configuration data referenced during system boot, and others maintain user and administrator

key associations within WLI. These files are installed with WLI or are generated when WLI is

initialized, as described in “Configuring” (page 25). WLI prohibits write access to these files in

restricted mode. In maintenance mode, the entire database can be read or written without WLI

restrictions.

The following directories are under /etc/wli:

/etc/wli/keys Directory containing password-encrypted administrator

private keys, one per file. In maintenance mode, the directory

can be read and written. Read/write access is prohibited for

all files in this directory in restricted mode.

/etc/wli/certificates Directory containing public keys authorized for run-time

verification of file access policies.

The following files are under /etc/wli:

/etc/wli/wlicert.conf File mapping WLI capabilities to authorized public keys.

For details on content, see wlicert.conf(4). WLI does not

permit write access to this file in restricted mode.

/etc/wli/wlisyspolicy.conf File containing security parameters read into kernel

memory early in the HP-UX boot process. For details on

content, see wlisys(1M) and wlisyspolicy(1M).

/etc/wli/wlisys.conf File containing initialization parameters for WLI kernel

components. For details on content, see wlisys(1M).

2.3 WLI metadata files

WLI generates at least one metadata file. The number of metadata files generated depends on

file system version, value of the wmdstoretype attribute, and file system type.

The following sections describe the metadata file types. All metadata file types have WLI write

protection in restricted mode. To override WLI protection for file backup, see Section 1.2.2

(page 10).

16 Product overview

2.3.1 .$WLI_FSPARMS$

These metadata files are regular files containing metadata storage types for the file system where

they reside. This file always appears in the root directory of a file system that also contains WLI

metadata. The metadata storage type is indicated by the wmdstoretype parameter. For details, see

wlisys(1M). The following storage types are available:

auto If the file system is VxFS at revision 5.0.1 or later, metadata is stored in a named

stream. A named stream is associated with the protected file inode and not accessible

to most commands. For VxFS file systems at revision 5.0 or earlier and all other file

system types, metadata storage is the same as described in the following entry for

pseudo.

pseudo Metadata is stored separately in files within directories always named

.$WLI_POLICY$, described in the following section. These metadata directories

always reside in the parent directory of the policy protected files.

2.3.2 .$WLI_POLICY$

Directories named .$WLI_POLICY$ contain policy metadata files, and appear if the wmdstoretype

parameter has value pseudo, or the file system type is VxFS 5.0 or earlier. These directories also

appear for all non-VxFS file systems. In addition to write protection, WLI does not allow read

access to all files under directories with this name.

Each file in this directory has the same name as a file that is assigned an access policy through

wlipolicy in the parent directory. For example, if /tmp contains the following files with WLI

access policies:

%ls -l /tmp/JdMB4NJ1 /tmp/T1df07xe

-rw------- 1 joe users 2723 May 4 14:49 /tmp/JdMB4NJ1

-rw------- 1 joe users 8199 Jun 3 20:46 /tmp/T1df07xe

Then, /tmp/ .$WLI_POLICY$ contains the corresponding policy metadata files:

%ls -l /tmp/.\$WLI_POLICY\$

-rw------- 1 joe users 2048 Jul 15 15:29 JdMB4NJ1

-rw------- 1 joe users 2048 Jun 3 20:47 T1df07xe

NOTE: The ’\’ escape character is used to escape ‘$’, a special character to shell interpreters.

2.3.3 .$WLI_SIGNATURE$

Directories named .$WLI_SIGNATURE$ contain signature metadata files. In addition to write

protection, WLI does not allow read access to all files under directories with this name.

Each file in this directory has the same name as a non ELF binary that is signed with wlisign

in the parent directory. For example, if /tmp contains non ELF binaries:

%ls -l CXkiELYm wpSzpxzI

-rw------- 1 joe users 1809 Dec 9 2009 /tmp/CXkiELYm

-rw------- 1 joe users 1809 Mar 21 03:13 /tmp/wpSzpxzI

Then, /tmp/ .$WLI_SIGNATURE$ contains the corresponding signature metadata files:

%ls -l /tmp/.\$WLI_SIGNATURE\$

-rw------- 1 joe users 2048 Jul 15 01:33 /tmp/CXkiELYm

-rw------- 1 joe users 2048 Jul 15 01:36 /tmp/wpSzpxzI

NOTE: The ’\’ escape character is used to escape ‘$’, a special character to shell interpreters.

ELF-formatted binaries signed by wlitool or wlisign store their signature metadata within

a section of the binary file and do not have separate metadata files.

2.3 WLI metadata files 17

18

3 Key usage

WLI defines two key types. User keys can sign executable binaries and generate file access policies.

Administrator keys have all the authority of user keys, but also can be used to authorize changes

to the WLI database.

WLI depends on RSA keys for authorization of many of its command operations. A WLI command

with the “1M” manpage designation means an administrator key is required to execute at least

one command option, not the traditional root user (user ID 0). A “1” manpage indicates the

command options can be authorized with a user key. Except for wliadm -i, WLI does not

reference user or group ID for command operations.

Because an RSA private key contains all the information held within the corresponding public

key, the term “key” is synonymous with “private key”. This terminology is common in

cryptographic literature.

3.1 Generating keys

WLI administrator and user keys are generated with the openssl command tool installed on

HP-UX as part of the OpenSSL product. For the highest level of security, a 2048 bit key length

is recommended. Other supported key lengths are 512, 1024, and 1536 bits. Files with RSA keys

in PEM format are required for WLI command operations that require keys.

The openssl command also provides several cipher options for passphrase encryption of RSA

keys. The aes256 cipher is among the ciphers offered by OpenSSL. This cipher is the AES-256

cipher from the Advanced Encryption Standard chosen by the U.S. government in 2001 as a

standard for encryption. The aes256 cipher is highly recommended but not required. Any cipher

offered by OpenSSL is supported by WLI.

The genrsa subcommand creates an RSA private key. For a complete synopsis, see genrsa(1).

The following is sufficient to generate keys for WLI:

%openssl genrsa [-passout <arg>] -<cipher> -out <file> <length>

where:

<arg> is the passphrase source and value if -passout is used. If not supplied, the /dev/

tty device prompts for it. For details, see openssl(1).

<cipher>is the algorithm for encrypting the private key.

<file>is the file containing the generated private key. The default file format is PEM, the

only RSA key file format recognized by WLI.

<length>is the number of bits in the generated private key.

If a passphrase is not specified with genrsa, the user is prompted to enter a passphrase. Using

the cipher and length recommendations mentioned previously, an example of key creation key

is:

%openssl genrsa -aes256 -out /wli/priv.pem 2048

The rsa subcommand displays the numerical components of an RSA key. To view the key

created in the previous example:

%openssl rsa -in /wli/priv.pem -noout -text

A prompt appears for the passphrase in this example because it is not included. RSA protocol

for encrypting and decrypting messages intends that the private key and its passphrase are secret

quantities. WLI follows this convention.

The RSA public key is a subset of the information comprising the private key. For the key /wli/

priv.pem generated above, the public key /wli/pub.pem can be extracted with the following

rsa subcommand:

%openssl rsa -in /wli/priv.pem -out /wli/pub.pem -pubout

3.1 Generating keys 19

As in the previous example, a prompt appears for the private key passphrase because it is not

included. RSA public keys are generally not considered secret quantities and are not encrypted.

Not protecting public keys does not cause a security breach. WLI follows this convention.

3.2 User keys

A user key can have no authorization for WLI operations and still suffice for creating WLI file

access policies and signing executable binaries. WLI user authorization enables a key for verifying

signatures and file access policies during run-time operations.

A WLI administrator key can authorize an RSA key to enable run-time enforcement of WLI

policies created with the key. This authorization is accomplished by copying the public key and

associated information into a file under WLI database directory /etc/wli/certificates.

For details on authorizing keys, see wlicert(1M).

User key authorization enables the following:

•An authorized key enables a WLI file access policy to be enforced for run-time access requests

on the file. The public key must verify the signature on the file access policy as part of

enforcement.

•Any key can generate a WLI policy but only an authorized key can verify a policy signature.

For details on generating file access policies, see wlipolicy(1).

•Capabilities can be granted to an authorized key. The file /etc/wli/wlicert.conf retains

information on authorized keys that also have capabilities. An authorized key with a

capability can authorize an executable to use a particular WLI-protected resource.

•Any unauthorized key can sign and grant a capability to an executable. For the executable

to use the WLI-protected resource, the key used for its signing must be authorized as a user

key and granted the capability. For details on granting capabilities to executables, see

wlisign(1). For granting capabilities to authorized keys, see wlicert(1M).

3.3 Administrator keys

A WLI administrator key has all the authority of an authorized user key. A WLI administrator

key also has authority to execute WLI administrative commands.

Multiple WLI administrator keys can be defined. The number of administrator keys depends on

site security requirements and is left to the discretion of WLI administrators.

Administrator authority is required to:

•Grant WLI administrator authority to keys with wliadm. The key can already have WLI

user authority.

•Remove administrator authority from a key with wlicert. A key can remove its own

administrator authority.

•Grant one or more capabilities to a key. An administrator key can grant a capability to itself.

•Grant user authority to a key for file access policy enforcement with wlicert. All

administrator keys are authorized for policy enforcement without an explicit grant through

wlicert. Set the storage type for WLI metadata with wlisys. A key is not required for

storage type retrieval.

•Set WLI security attributes with wlisyspolicy. A key is not required to query these

attribute values.

•Sign executable binaries that are invoked through wliwrap to execute with one or more

capabilities. An administrator key is not required to authorize execution of wliwrap.

Execution of wliwrap can be authorized by any user key that is granted the capabilities.

20 Key usage

4 Installing, removing, and upgrading

To install, remove, or upgrade WLI, HP recommends the following procedures.

4.1 Installation requirements

Hardware requirement

HP Integrity servers

Operating system requirements

The operating system must be HP-UX 11iv3 at level B.11.31.0909 or later.

To determine the level of HP-UX 11iv3 installed on your system:

%swlist | grep HPUX11i

For example:

%swlist | grep HPUX11i

HPUX11i-DC-OE B.11.31.0909 HP-UX Data Center Operating Environment

If your HP-UX 11iv3 system level is earlier than B.11.31.0909, download this release from:

https://h20392.www2.hp.com/portal/swdepot/try.do?productNumber=SD

Patch requirements

The following corequisite patches are required for WLI installation:

•HP-UX patch PHKL_38951—VFS cumulative patch

•HP-UX patch PHKL_39401—VM cumulative patch

•HP-UX patch PHKL_40450—DLKM cumulative patch

These patches are bundled with the WLI product and are installed if necessary.

Disk space requirements

•At least 28 MB of disk space must be available on file system “/”.

•At least 24 MB of disk space available on file system “/stand”.

System reboot

The system automatically reboots following installation.

4.2 Installing WLI

Only a root user (user ID 0) can successfully install WLI. To install WLI, use the following

procedure:

1. Review Section 4.1 (page 21)

2. Log in to the target system as the root user.

3. Go to the HP Software Depot:

http://www.hp.com/go/softwaredepot

4. Search for HP-UX Whitelisting. Read the product information webpage for the latest updates

and release information.

5. Click Receive for Free >>.

6. Enter your registration information. Read and accept the Terms and Conditions and the

Software License Agreement. Click Next.

4.1 Installation requirements 21

7. Click Download.

8. Save the HP-UX WhiteList Infrastructure bundle as a local file on your system. Use the file

name /tmp/<wli-depotname>.depot, for example.

9. Verify the depot file is saved on your system with the following command:

#swlist -d @ /tmp/<wli-depotname>.depot

10. Install the bundle:

#swinstall -x autoreboot=true -s /tmp/<wli-depotname>.depot WhiteListInf

11. Verify the installation:

#swverify WhiteListInf

If WLI is installed correctly on the system, the swverify command includes the following text

in the reported data:

Verification succeeded

WLI relies on the OpenSSL product for RSA key generation, but the OpenSSL product is not

required for installation. The latest version of OpenSSL is recommended, but any version

installable on HP-UX 11iv3 is sufficient. You can download the latest version from:

https://h20392.www2.hp.com/portal/swdepot/displayProductInfo.do?productNumber=OPENSSL11I

OpenSSL installs by default with every HP-UX OE release, but might have been removed or not

installed with the OE. To determine the OpenSSL version and verify its content, enter:

%swlist OpenSSL

%swverify OpenSSL

4.3 Removing WLI

The administrator should consider creating a backup of policy protected files, signed binaries,

and metadata files. If reinstallation is planned, keys used for generating policies and signatures

are recognized by WLI if the keys are authorized following reinstallation.

WLI does not track access policies assigned to files and signatures generated on binaries. File

and signature metadata becomes transparent once the kernel is rebuilt without the WLI

component. WLI metadata does not impact file access or command execution once WLI is

removed.

The presence of old metadata can inhibit new policy and signature generation if WLI is reinstalled.

If reinstallation is planned, HP recommends backup and removal of all known signatures and

policies.

To remove WLI, use the following procedure:

1. Retrieve the security attributes for WLI:

%wlisyspolicy -g

If protection mode is restricted, change to maintenance.

2. Skip this step if protection mode is maintenance.

To set protection mode to maintenance:

%wlisyspolicy -s mode=maintenance -k <admin_private_key>

where:

<admin_private_key> is a WLI administrator private key. A prompt appears for the

key passphrase.

3. If allow security downgrade is deferred, a reboot is required for protection mode to switch to

maintenance. Following reboot of the system, verify that protection mode is maintenance:

%wlisyspolicy -g

22 Installing, removing, and upgrading

4. Log in to the target system as the root user.

5. Remove WLI:

%swremove -x autoreboot=true WhteListInf

The machine automatically reboots after rebuilding the kernel without the WLI module.

6. Manual cleanup:

WLI does not keep track of metadata files generated by WLI commands. These metadata

files are listed in Section 2.3 (page 16).

4.4 Upgrading WLI

WLI upgrades will become available through revisions of WLI. If you already have WLI installed

on your system and are upgrading to a later revision, use the following procedure:

1. Change the security mode of WLI to maintenance:

%wlisyspolicy -s mode=maintenance -k <wli_admin_key>

2. This step is recommended by HP but not required. Back up the WLI database:

%tar -cvf wli_keydbxx.tar /etc/wli

NOTE: You can use an equivalent command.

3. Install the later WLI revision. For details, see Section 4.2 (page 21).

4. After reboot, configuration scripts execute automatically unless deferred by the swinstall

command. If configuration was deferred:

%swconfig WLI

5. Configuration files stored in the WLI database and preserved from the previous revision

are:

/etc/wli/wlisys.conf

/etc/wli/wlisyspolicy.conf

New versions of these files are copied to the system at the following respective locations:

/opt/wli/newconfig/etc/wlisys.conf

/opt/wli/newconfig/etc/wlisyspolicy.conf

If the new versions contain additional structure and information, copy the old versions to

a safe location. Copy the new versions to the respective database locations. The administrator

can also choose to set attribute values in the new files to match those in the old files.

6. Do not complete the manual configuration steps listed in “Configuring” (page 25). The WLI

database is identical at this time except possibly for the file replaced in step 5.

7. If the configuration files were modified or replaced in step 5, refresh the backup archive to

contain the newer file versions.

8. Set the security mode to restricted. This step requires the passphrase of a WLI administrator

key:

%wlisyspolicy -s mode=restricted -k <wli_admin_key>

9. The following must be executed by root user:

#shutdown -r

4.4 Upgrading WLI 23

24

5 Configuring

When WLI installation completes, the system reboots. The kernel rebuilt with WLI components

becomes active, enabling WLI services. By default, SD-UX configuration scripts execute following

the reboot. SD-UX configuration can optionally be postponed by the installer. Whether SD-UX

configuration completes during or following system initialization, a few manual steps are

necessary to bring WLI to a completely operational state. To take full advantage of WLI features,

perform the following tasks:

•Authorize the recovery key

•Authorize administrator keys

•Identify and sign essential DLKMs

•Back up the WLI database

•Reboot with security mode set to restricted

5.1 Authorizing the recovery key

After WLI is installed and the server is rebooted, the wliadm command must be executed to

initialize database files and authorize the recovery key. Root user (user ID 0) authority is required

to execute the initialization command:

%wliadm -i <pub_key>-k <priv_key>[-p <src:val>]

where:

<pub_key> is the public key file extracted from <priv_key> in PEM format.

<priv_key>is an OpenSSL-generated RSA key file in PEM format.

<src:val> is the passphrase source and value. If the -p option is not included, A prompt

appears for the passphrase at the /dev/tty device.

You can execute this command only once for each installation. The specified key becomes the

recovery key for WLI. The recovery key is a special key for granting administrator authority to

other RSA keys and should be stored safely. You can replace it by reinstalling WLI or restoring

the WLI database backup described in this section. After the recovery key is authorized, it can

grant WLI administrative capability to other keys. The recovery key is limited to granting

administrator capability.

5.2 Authorizing administrator keys

At least one administrator key is necessary to authorize the WLI administrator commands. To

simplify security maintenance, the number of authorized administrator keys should be minimal,

even though an unlimited amount is allowed. The recovery key generated in the previous

procedure must generate the first administrator key.

An administrator key can be used for all WLI operations, including granting itself capabilities.

For details on authorizing keys for WLI administration, see wliadm(1M). For details on granting

capabilities, see wlicert(1M).

HP recommends all administrator keys are authorized before the reboot because the database

file holding administrator keys cannot be backed up or restored after the system is rebooted with

WLI security mode set as restricted.

Root user (user ID 0) authority is not required to authorize a key for WLI administration. The

user must have read permission on the key and know the passphrase. To authorize an

administrator key:

%wliadm -n <user>.<instance>-k <priv_key>[-p <src:val>]<pub_key>

where:

<user> is the key identifier; user is a valid user ID.

5.1 Authorizing the recovery key 25

<instance> is the key identifier; instance is a string chosen by an administrator.

<priv_key>is the recovery key or previously authorized administrator key.

<src:val> is the passphrase source and value. If the -p option is not included, a prompt

appears for the passphrase at the /dev/tty device.

<pub_key>is the public key being authorized for WLI administrator authority.

Changing administrator key passphrases does not impact WLI database files. Generating a new

WLI database backup following passphrase changes to user or administrator keys is not necessary.

5.3 Signing DLKMs

WLI protects a system against rogue DLKMs in restricted mode. For a DLKM to be loaded by the

system during boot, it must be signed with wlisign using an authorized key. The signing key

does not require dlkm capability. The signature permits the DLKM to be authenticated by WLI

before it is loaded.

One essential DLKM that loads during boot is the Kernel Random Number Generator, /usr/

conf/mod/rng. Before setting WLI to restricted mode and rebooting the system, it is necessary

to sign this DLKM. If /home/jane/jane.priv is a key with WLI administration authority,

the following procedure allows /usr/conf/mod/rng to load and initialize during boot:

IMPORTANT: This procedure must be performed as root user. Root user authority is required

to load and unload DLKMs.

1. Unload the DLKM:

#kcmodule rng=unused

2. Sign the DLKM:

#wlisign -a -k /home/jane/jane.priv /usr/conf/mod/rng

3. Load the DLKM:

#kcmodule rng=best

where:

jane is a valid user ID.

jane.priv is the key identifier.

priv is an arbitrary string chosen by the administrator.

It is important that the DLKM is reloaded after signing. Repeat these steps for all DLKMs loaded

during boot. A root user needs to repeat these steps if usr/conf/mod/rng is replaced by

software update.

5.4 Backing up the WLI database

After all administrator keys are authorized, HP recommends backing up the WLI database while

the security mode is maintenance. A backup of administrator key files is not possible after WLI is

operational in restricted mode. For details of the WLI database, see Section 2.2 (page 16). For

more information about backup, see Section 7.1 (page 33). To backup the WLI database in

maintenance mode:

%tar -cf wli.tar /etc/wli

For this example, tar is used. Proprietary backup utilities or cpio also work.

No procedure changes are required for restoring a database backup in maintenance mode.

In restricted mode, a database backup cannot be restored because of read/write protection on

administrator key storage.

26 Configuring

5.5 Rebooting to restricted mode

WLI installs and configures when security mode is set to maintenance. This mode disables all WLI

file and resource protection, allowing the installer to complete all the previous steps.

After all administrator keys are authorized and a WLI database backup is generated, the system

can be rebooted for WLI to operate in restricted mode:

%wlisyspolicy -s mode=restricted -k <wli_admin_key>

The following must be executed by root user:

#shutdown -r

Following reboot, WLI is completely operational in the secure restricted mode.

5.5 Rebooting to restricted mode 27

28

6 Enhancing security with WLI

This section describes basic operations that are intended to help the reader gain familiarity with

WLI. This section assumes:

•WLI is successfully initialized.

•At least one administrator key is created.

•The WLI security mode is restricted.

•Both ibac and flac security attributes are enabled.

For details on setting WLI security attributes, see wlisyspolicy(1M).

6.1 Signing an executable binary

In the following example, a user wants to sign /usr/bin/vi to make it an authorized executable.

Only authorized executables can be designated to access IBAC-protected files. The user does not

have superuser authority and /usr/bin/vi permission bits do not allow the user to write a

WLI signature. The user decides to copy the binary into the home directory. This allows the user

to set permission bits and set WLI access restrictions.

User procedure:

1. Create an RSA key as described in Section 3.1 (page 19).

2. Store the private and public key files in the home directory as joepriv1 and joepub1.

3. Copy the binary:

%cd /home/joe; cp /usr/bin/vi joe_vi

4. Adjust permissions:

%chmod ug+w joe_vi

5. Sign it:

%wlisign -a -k joepriv1 joe_vi

For a process executing joe_vi to be authenticated, the public key must be stored in the WLI

database. Storing the public key in the database requires an administrator key.

Administrator procedure:

• Use the private key admin.pvt to authorize the user’s public key for signature verification:

%wlicert -i joe.key1 -k admin.pvt /home/joe/joepub1

The public key is now in the WLI database and available for verifying signatures in both signature

and policy metadata. The joe_vi command will authenticate when it is used to open files that

specify it in an IBAC policy.

6.2 Creating a FLAC policy

A user owns file /home/joe/joefile and wants to make it available to all, but protect it

against modification or deletion by all other users including superuser.

User procedure:

1. Create an RSA key as described in Section 3.1 (page 19).

2. Store the private and public key files as joepriv and joepub. The user has chosen /home/

joe for key storage in the following steps.

3. Create the FLAC policy:

%wlipolicy -f -a -k /home/joe/joepriv /home/joe/joefile

6.1 Signing an executable binary 29

The policy metadata is created and resides in a protected file or named stream, depending on

the current value of the metadata storage attribute and possibly the file system type.

The administrator owns key admin.pvt. The administrator must authorize the user key for

policy enforcement:

%wlicert -i joe.key -k ./admin.pvt /home/joe/joepub

The administrator chose identifier joe.key to represent the user's key in the WLI database.

Now /home/joe/joefile is protected against deletion and alteration.

NOTE: The user and administrator can be the same person and user ID.

TIP: An administrator key can create the FLAC policy.

6.3 Creating an IBAC policy

In the following example, the user wants /home/joe/joefile2 accessible only through

/home/joe/joe_vi. The user adjusted the group permissions for joe_vi so that only he and

a specific group can execute joe_vi. The user's private key is joepriv.

User procedure:

1. Sign joe_vi:

%cd /home/joe

%wlisign -a -k joepriv -e joe_vi

2. Create the IBAC policy:

%wlipolicy -i -a -k joepriv -e joe_vi joefile2

The administrator must authorize the user key for policy enforcement as in Section 6.2 (page 29):

%wlicert -i joe.key -k ./admin.pvt /home/joe/joepub

NOTE: The keys used to sign joe_vi and create the IBAC policy are the same. This is not a

requirement and the keys can be different.

Now, joefile2 can only be opened by joe_vi. Any user, including superuser, receives a

“Permission denied” message if access is attempted with /usr/bin/vi or other executable.

IBAC and FLAC policies are mutually exclusive. A file can have any number of IBAC policies

assigned to it, but only one IBAC.

6.4 Removing a file access policy

In the following example, the user wants to remove the FLAC policy.

User procedure:

• Delete the policy:

%cd /home/joe

%wlipolicy -f -d -k joepriv1 -e joe_vi joefile

The same key used to create the FLAC policy is necessary to delete the policy. Any user that can

read the key and knows the passphrase can delete it.

6.5 Enabling DLKMs to load during boot

For this example, the system administrator identified /usr/conf/mod/ciss as a DLKM that

loads during boot. The DLKM must be signed now that WLI is installed to continue to load

30 Enhancing security with WLI

during boot. To enable boot-time loading of a DLKM, it must be signed by an authorized key.

The administrator owns WLI administrator key adminpriv. Like all administrator keys,

adminpriv is authorized for signature verification automatically when it is granted WLI

administrator authority.

Following WLI installation the system reboots and WLI is initially in maintenance mode. Verify

the DLKM to be signed is unloaded:

IMPORTANT: This procedure must be performed as root user. Root user authority is required

to load and unload DLKMs.

1. Unload the DLKM:

#kcmodule ciss=unused

2. Sign the DLKM:

#wlisign -a -k /home/admin1/adminpriv /usr/conf/mod/ciss

3. Load the DLKM:

#kcmodule ciss=loaded

A root user needs to repeat these steps if usr/conf/mod/ciss is replaced by software update.

Signing with an authorized user key is also sufficient. The key does not require WLI administrator

authority.

NOTE: Granting dlkm capability to the authorizing key or to the dlkm is not necessary.

6.6 Loading unsigned DLKMs

The following example demonstrates how a WLI administrator can dynamically load /usr/

conf/mod/bigdlkm into the kernel domain, without writing a signature. The current state of

the DLKM is unused, and the administrator owns administrator key adminpriv with extracted

public key adminpub. Because WLI capabilities are not granted to keys automatically, the

administrator must grant dlkm capability to adminpriv with wlicert:

%cd /home/admin1

%wlicert -c admin1.key1 -s -k adminpriv -o -dlkm

The key adminpriv granted dlkm capability to itself.

An administrator key must also be used to sign /usr/sbin/kcmodule, the command that

loads the unsigned DLKM. Granting dlkm capability to the command is not necessary:

%wlisign -a -k adminpriv /usr/sbin/kcmodule

The wliwrap command now executes kcmodule as a child process. Because WLI does not affect

non-WLI restrictions, it is necessary to become root user to satisfy the effective user ID requirement

for executing /usr/sbin/kcmodule.

%su root

#wliwrap -k adminpriv -o -dlkm “/usr/sbin/kcmodule bigdlkm=loaded”

In this example, the wliwrap command temporarily added dlkm capability to the kcmodule

process.

6.6 Loading unsigned DLKMs 31

32

7 Backup and restore considerations

7.1 Overview

This section describes how WLI-protected files are read from and written back to their original

locations when the WLI security mode is restricted.Maintenance mode is necessary for some files

to backup and restore. Because backup and restore procedures vary considerably across HP-UX

installations, no specific commands or procedures are recommended.

With WLI installed and configured, backup and restore procedures depend on the WLI security

mode, as described in wlisyspolicy(1M). In maintenance mode, WLI access restrictions are completely

disabled. Backup and restore operations are the same as if WLI is not installed. Files produced

or installed by WLI can be read or written with only file ownership and permissions bits restricting

access.

The security downgrade from switching to maintenance mode even temporarily might be

unacceptable. To maintain a highly secure environment, both administrators and users might

need to backup and restore files with the server online and mode set to restricted only.

In restricted mode, access restrictions on WLI protected files and directories inhibits typical backup

and restore operations. Additional actions are necessary for backup and restore operations on

WLI database files and policy protected files. The system administrator needs to create new or

adjust existing backup and restore procedures.

Changing the passphrase of a WLI key, either administrator or user, does not affect any files

covered in the following sections. Guidelines for systems with high security often include

passphrase change requirements. Such requirements do not imply more frequent WLI file backups.

Symantec NetBackup is required for backup and restore operations if the value of the wmdstoretype

attribute is auto and WLI protected files exist on a VxFS file system at revision 5.0.1 or later. This

attribute and file system combination causes policy protected file metadata to be stored in a

named data stream. A named data stream is associated with a file inode, but is not accessible to

traditional HP-UX commands. For more details and syntax on setting wmdstoretype, see wlisys(1M).

The fundamental operations are reading protected files for backup commands and writing these

same files back to their original locations for restore commands. Difficulties encountered are

essentially the same whether traditional UNIX commands like tar and cpio are used or

proprietary tools like Symantec NetBackup.

HP recommends that administrators implement or modify backup and restore procedures that

include all files with WLI protection. For discussion of backup and restore operations, WLI

protected files can be divided into the following categories:

•WLI database files—managed through WLI administrator commands

•Policy protected and metadata files—managed through WLI user commands

7.2 WLI database files

The WLI database is described in (page 16). Files comprising this database are managed by

commands that require an administrator key:

wliadm

wlicert

wlisys

wlisyspolicy

WLI database files can have following protection classes:

write protected

read/write protected

7.1 Overview 33

7.2.1 Write protected

WLI does not inhibit reading of write protected files. Files in this class can be read and backed

up in accordance with the file ownership and permission bits. Files in this class are:

/etc/wli/certificates/*

/etc/wli.wlicert.conf

/etc/wli/wlisys.conf

/etc/wli/wlisyspolicy.conf

For backup procedures, these files can be treated the same as other directories and regular files.

Restoration of backup archives for these files is only recommended if the WLI database is

corrupted. WLI protects against writes to these file locations in restricted mode. If the WLI database

is corrupted, the entire database should be restored from the most recent archive, for internal

consistency.

For an example of the procedure for restoring files in this class using wmd capability, see

“Administration examples” (page 49).

7.2.2 Read/write protected files

Files in this class have WLI read and write protection. Even with wmd capability granted to a

command, these files cannot be backed up or restored. Files in this class are:

/etc/wli/keys/*

These files include encrypted administrator keys that are read/write protected for security reasons.

HP recommends that all WLI administrator keys are generated during initialization, followed

by a backup, while the system is in maintenance mode. Authorizing new administrator keys

should be very uncommon. Only the wliadm command updates keys in this class.

Except for files in this class, backups can be generated in restricted mode. The recovery key, or

any administrator key can have its passphrase changed without affecting the WLI database.

7.2.3 Recommendations

•Avoid adding and deleting administrator keys as much as possible because this obsoletes

a WLI database backup. A backup archive can only be refreshed in maintenance mode if

administrator keys are added or deleted. Only the wliadm command can add or delete

administrator keys.

•Refresh WLI database backups when the wlisys,wlisyspolicy, and wlicert commands are

executed. Updates from these commands can be backed up in restricted mode.

•Do not attempt to restore a WLI database backup in restricted mode. Restoring a WLI Database

is only possible in maintenance mode. Backup in restricted mode should only be considered

as a disaster recovery operation.

•Do not restore a WLI Database on a system different than the one for which the archive was

created. Restoring a WLI database backup on a different system results in unpredictable

behavior and WLI failure.

•Do not partially restore a WLI database. Restore the archive entirely to maintain its internal

consistency. The database maintains internal relationships between different files that must

be intact for WLI to operate correctly.

7.3 Policy protected and metadata files

Files in this class include files with access protection policies and files created by WLI to store

metadata. The WLI protections are in effect only in restricted mode. For more detail on backing

up and restoring policy protected files and metadata, see Example B-2 (page 49) and Example B-3

(page 50). For more detail on backing up policy protected files and metadata without wliwrap,

Example B-4 (page 51).

34 Backup and restore considerations

7.3.1 FLAC policies

A file with a FLAC policy can be read but cannot be overwritten unless wmd capability is granted

to the executing process. FLAC protection is not enforced with wmd capability. This enables the

file and its policy metadata to be restored from an archive over an existing copy of the

FLAC-protected file.

7.3.2 IBAC policies

Without wmd capability, a file with an IBAC policy can be read or written only if an IBAC policy

identifies the read or write command as an authorized executable. IBAC policies are effectively

overridden by wmd, permitting backup and restore operations to complete successfully. Therefore,

wmd capability must be granted to backup and restore operations that involve WLI policy protected

files.

7.3.3 Metadata files

WLI metadata files are described in Section 2.3 (page 16). The WLI protections are in effect only

in restricted mode. All WLI metadata file protections are overridden when wmd capability is

granted to the executing process. This permits all metadata to be archived and restored together

with the files pertaining to the metadata.

7.3.4 Recommendations

•HP recommends using wliwrap to grant wmd capability. The wliwrap command grants

wmd only during execution of a backup or restore operation. A key that is granted wmd is

then always necessary to execute backup and restore operations.

•Refresh backups of policy protected files immediately following creation of new policies.

Archives on policy protected files and metadata can easily be created and refreshed in

restricted mode.

7.3 Policy protected and metadata files 35

36

8 HP Serviceguard considerations

8.1 Overview

HP Serviceguard provides clustering services at the application level for HA. If a critical

component failure occurs on the designated primary node of a product, HP Serviceguard activates

the product on an alternate node through failover package scripting.

The failed-over product requires the same resources on the alternate nodes as were available on

the primary node before the critical failure. These resources can include a set of loaded binaries,

awakened processes, and reconfigured telecommunication ports. For an HA product to be entirely

compatible with HP Serviceguard, enabling resources must be automated through the failover

scripting.

WLI has no associated processes in user or kernel space. Therefore, failover packaging is not

required for WLI by itself. However, a product that accesses files protected by WLI access policies

might need some adjustments to its failover packaging.

WLI does not affect device special files with the exception of /dev/mem and /dev/kmem. A

failover package does not need modification for WLI services with regard to the transitioning

of communication and storage links between nodes.

The WLI database contains certain files unique to each platform that cannot be shared among

cluster nodes. The WLI database must also reside on the root file system, which is mounted early

following the kernel initialization phase of boot. Because the WLI database is not sharable among

nodes, successful product failover depends on WLI administrative command operations being

executed identically on each node following the initial installation.

Veritas Storage Foundation CFS is not supported by WLI. Policies assigned to files residing on

CFS file systems are not enforced.

The shared library functions in /opt/wli/lib/libwliapi.so are not supported on HP

Serviceguard clusters in this release.

8.2 Administration

Items for consideration are divided into the following general categories:

•The WLI database

•Policy protected files

8.2.1 WLI database

To ensure the initial configuration of the WLI database is consistent across all nodes, HP

recommends performing the following procedure:

1. Install WLI on all cluster nodes where it will be used, following the procedure in Section 4.2

(page 21).

2. On a single node only, complete the tasks described in “Configuring” (page 25), including

generating a backup of the WLI database in /etc/wli.

3. Copy the WLI database generated in the previous step to all other cluster nodes where WLI

is installed.

4. Copy the set of RSA keys to be authorized as WLI recovery and administrator keys to all

nodes if they do not reside on a CFS file system. If the keys are copied, passphrases might

vary but the RSA keys must be identical.

5. Restore the WLI database backup on all nodes where WLI is installed. Do not complete any

of the “Configuring” (page 25) tasks.

6. The WLI configuration on the cluster nodes is complete. Execute the final configuration

tasks of switching to restricted mode and rebooting on all nodes with WLI.

8.1 Overview 37

WLI installation and configuration on the cluster is now complete. Following reboot of all nodes,

WLI is operational in restricted mode. To maintain the WLI database consistently and ensure

product failovers will be successful, HP recommends the following procedure:

1. Execute WLI administrative commands wliadm,wlicert,wlisys, and wlisyspolicy

identically on all nodes. This ensures the WLI database that includes all authorized user

keys, granted capabilities and associations is uniform.

2. After WLI is initialized and configured, the WLI databases on different nodes contains

different information if administrative commands are not identically executed across the

cluster.

3. To minimize the need to switch WLI to restricted mode, avoid using wliadm. Deleting and

adding administrator keys requires refreshment of an archive in maintenance mode, whereby

all WLI restrictions are not enforced.

4. Minimize the use of WLI administrative commands and the total time taken to execute these

commands across nodes. The WLI database differs between nodes while WLI administrator

command operations are in progress. This could adversely affect product failover and

multi-node product behavior.

5. If a failover occurs, the WLI database on the primary node can be unavailable for updates.

Before failback of any applications, you must update the recovered node with all WLI

commands executed after the failure.

8.2.2 Policy protected files

WLI policy enforcement must appear consistent across all nodes. To ensure file access policies

are enforced with the same results across all nodes, HP recommends performing the following

tasks:

•Examine product failover scripting for instances of non shared files protected by WLI file

access policies. An example might be configuration data residing under /etc. Because user

keys can generate polices on non shared files, the policies must be verified as identical across

all nodes to avoid potential failover problems.

•Sign binary executables identically across all nodes using the same keys. If the commands

are on shared storage file systems for failover or on CFS for multinode applications, only

one copy of the binary executable is necessary for all nodes.

•Generate file access policies identically across all nodes on nonshared file systems. A file

access policy for a file residing in a file system on shared media, such as a member of the

HP StorageWorks EVA family, is enforced on all nodes.

•Verify user IDs (/etc/passwd entries) and group IDs (/etc/group entries) are consistent

across all nodes. File permissions and ownership restrictions are not affected by WLI and

can cause file access variations across nodes on WLI protected nodes.

38 HP Serviceguard considerations

9 Troubleshooting and known issues

9.1 Software distributor issues

Signing an ELF formatted binary adds a signature metadata section to the binary file. This action

has the side effect of changing the file modification time and size. If the binary happens to be

delivered as part of a product, the swverify command registers errors.

If error free swverify analysis on a product is important, sign and use a duplicate of the

command whenever practical. If using a copy is not practical, the SD-UX product database can

be updated with swmodify so that swverify errors are not reported.

For example, if /usr/bin/ssh and /usr/sbin/sshd are signed, clear the swverify error

with the following:

%wlisign -a -k userkey1 /usr/bin/ssh

%wlisign -a -k userkey1 /usr/sbin/sshd

%swmodify -x files=’/usr/bin/ssh /usr/sbin/sshd” Secure_Shell.SECURE_SHELL

9.2 WLI reinstallation

Residual file access policy and signature metadata from a previous installation can interfere with

a WLI reinstallation. The metadata from a previous installation can prevent generation of new

file access policies and signatures.

When WLI is removed by swremove, the WLI database must be deleted to allow a possible

reinstallation to install and configure correctly. But WLI does not keep track of policies and

signed files, and they are not removed when the product is removed.

This problem does not appear if WLI is upgraded to a later revision. The WLI database remains

intact, and the manual configuration steps should not be executed for WLI upgrades.

Consider the following habits for administrators and users:

•Minimize using administrator keys for generating policies and signatures. Removing

authorization from administrator keys has more impact than from user keys.

•Remove policies and signatures when no longer needed.

9.3 Lost WLI administrator key or passphrase

A new administrator key can always be authorized through wliadm if the recovery key is

available and its passphrase is known. Always store the recovery key and passphrase safely. The

recovery key is not useful except for authorizing administrator keys and you can store it apart

from the system where it has authority.

WLI keys are wrapped (encrypted with a cipher and passphrase) by the OpenSSL genrsa

subcommand. If the passphrase is lost, no procedure exists to recover or decrypt the wrapped

private key. For security, delete an administrator key with unknown passphrase. To delete an

administrator key with missing passphrase:

%wliadm -d <user>.<instance>-k <recovery_key>

For more information about generating RSA keys and authorizing as WLI administrative keys,

see “Key usage” (page 19) and wliadm(1).

9.4 WLI database corruption

The database can become corrupted if the underlying storage device sustains physical damage.

If the files comprising the database lose their integrity, WLI can display unpredictable behavior.

The WLI database needs to be restored from an archive.

9.1 Software distributor issues 39

For a WLI database archive to be internally consistent, the archive must contain all files residing

under /etc/wli. These files must not have any intervening updates.

The database is updated through the wliadm,wlicert,wlisys, and wlisyspolicy commands.

The database can be restored from archive only with WLI security mode set as maintenance. The

security mode is cached within kernel space, not read from the database. The security mode in

effect can only be determined by:

%wlisyspolicy -g

To switch to maintenance mode:

%wlisyspolicy -s mode=maintenance -k <admin_key>

The command might return a message that a reboot is necessary. Following reboot, query once

more with wlisyspolicy to verify maintenance mode is in effect.

To restore the WLI database from archive:

%su root

#rm -r /etc/wli

If deletion fails for any file, reboot the system with a kernel that does not contain WLI.

#tar -xf /tmp/wlikeydb.tar

Or use an equivalent archive restore operation.

If the WLI database has been severely damaged, switching to maintenance mode might not be

possible. To maintain the highest possible security, the security mode defaults to restricted if the

initialization value cannot be read from the WLI database.

If the system cannot be switched to maintenance mode using wlisyspolicy, a kernel must be

booted that does not contain the WLI components.

To rebuild the kernel without wli:

#kcmodule wli=unused

#shutdown -r

Following reboot, all WLI file access policies and resource protections are disabled. After restoring

the WLI database, the WLI kernel can be rebuilt and rebooted:

#kcmodule wli=static

#shutdown -r

40 Troubleshooting and known issues

10 Support and other resources

10.1 Contacting HP

10.1.1 Before you contact HP

Be sure to have the following information available before you contact HP:

•Technical support registration number (if applicable)

•Product serial number

•Product identification number

•Applicable error message

•Add-on boards or hardware

•Third-party hardware or software

•Operating system type and revision level

10.1.2 HP contact information

For the name of the nearest HP authorized reseller:

•See the Contact HP worldwide (in English) webpage (http://welcome.hp.com/country/us/

en/wwcontact.html).

For HP technical support:

•In the United States, for contact options see the Contact HP United States webpage (http://

welcome.hp.com/country/us/en/contact_us.html). To contact HP by phone:

— Call 1-800-HP-INVENT (1-800-474-6836). This service is available 24 hours a day, 7 days

a week. For continuous quality improvement, calls may be recorded or monitored.

— If you have purchased a Care Pack (service upgrade), call 1-800-633-3600. For more

information about Care Packs, refer to the HP website (http://www.hp.com/hps).

•In other locations, see the Contact HP worldwide (in English) webpage (http://

welcome.hp.com/country/us/en/wwcontact.html).

10.1.3 Subscription service

HP recommends that you register your product at the Subscriber's Choice for Business website:

http://www.hp.com/country/us/en/contact_us.html

After registering, you will receive email notification of product enhancements, new driver

versions, firmware updates, and other product resources.

10.1.4 Documentation feedback

HP welcomes your feedback. To make comments and suggestions about product documentation,

complete the form at http://www.hp.com/bizsupport/feedback/ww/webfeedback.html. Include

the document title and manufacturing part number. All submissions become the property of HP.

10.2 Related information

Documents

•OpenSSL A.00.09.08n.010, A.00.09.08n.011, and A.00.09.08n.012 Release Notes HP-UX 11i v1,

HP-UX 11i v2,and HP-UX 11i v3:

http://www.hp.com/go/hpux-security-docs

Click HP-UX OpenSSL Software.

10.1 Contacting HP 41

•Symantec NetBackup™ Snapshots, Continuous Data Protection, and Replication:

http://eval.symantec.com/mktginfo/enterprise/white_papers/

b-techbrief_nbu_snapshots_replction_cdp_WP-20719041.en-us.pdf

•For a high level description of HP-UX file systems, see HP-UX System Administrator's Guide:

Overview HP-UX 11i Version 3:

http://bizsupport2.austin.hp.com/bc/docs/support/SupportManual/c02281492/c02281492.pdf

Websites

•HP-UX Whitelisting documentation website:

http://www.hp.com/go/hpux-security-docs

Click HP-UX Security Products and Features Software.

•HP Serviceguard Solutions for high availability and disaster recovery:

http://www.hp.com/go/serviceguardsolutions

•HP Serviceguard publications:

http://www.hp.com/go/hpux-serviceguard-docs

•Veritas Storage Foundation Cluster File System:

http://www.symantec.com/business/storage-foundation-cluster-file-system

10.3 Typographic conventions

This document uses the following typographical conventions:

%,$, or #A percent sign represents the C shell system prompt. A dollar

sign represents the system prompt for the Bourne, Korn, and

POSIX shells. A number sign represents the superuser prompt.

audit(5) A manpage. The manpage name is audit, and it is located in

Section 5.

Command A command name or qualified command phrase.

Computer output Text displayed by the computer.

Ctrl+x A key sequence. A sequence such as Ctrl+x indicates that you

must hold down the key labeled Ctrl while you press another

key or mouse button.

ENVIRONMENT VARIABLE The name of an environment variable, for example, PATH.

[ERROR NAME] The name of an error, usually returned in the errno variable.

Function() The name of a function.

Key The name of a keyboard key. Return and Enter both refer to the

same key.

Parameter The name of a parameter.

Term The defined use of an important word or phrase.

User input Commands and other text that you type.

Variable The name of a placeholder in a command, function, or other

syntax display that you replace with an actual value.

[] The contents are optional in syntax. If the contents are a list

separated by |, you must choose one of the items.

{} The contents are required in syntax. If the contents are a list

separated by |, you must choose one of the items.

42 Support and other resources

... The preceding element can be repeated an arbitrary number of

times.

 Indicates the continuation of a code example.

| Separates items in a list of choices.

WARNING A warning calls attention to important information that if not

understood or followed will result in personal injury or

nonrecoverable system problems.

CAUTION A caution calls attention to important information that if not

understood or followed will result in data loss, data corruption,

or damage to hardware or software.

IMPORTANT This alert provides essential information to explain a concept or

to complete a task.

NOTE A note contains additional information to emphasize or

supplement important points of the main text.

10.3 Typographic conventions 43

44

Alibwliapi example

This example demonstrates how libwliapi functions add and delete WLI file access policies.

A.1 Instructions

This example requires an authorized WLI administrator key.

<admin_key> WLI administrator's private key

<admin_pass> Passphrase for <admin_key>

1. Copy the makefile and source files below to a test directory.

2. %su root

3. The makefile builds executables, adds user wliusr1, and generates ukey.pvt

#make all

4. #wlicert -i wliusr1.inst1 -k <admin_key> -p pass:<admin_pass> ukey.pub

5. #wlicert -c wliusr1.inst1 -s -k <admin_key> -p pass:<admin_pass> -o api

6. #su wliusr1

7. %wlisign -a -k ukey.pvt -p pass:mypasswd -o api api_flac_test

8. %wlisign -a -k ukey.pvt -p pass:mypasswd -o api api_ibac_test

9. %api_flac_test

10. %api_ibac_test

Cleanup:

1. #wlicert -d wliusr1.inst1 -k <admin_key> -p pass:<admin_pass>

2. #make clean

A.2 makefile

# Makefile for exercising libwliapi functions

SHELL = /bin/sh

CC = cc

LD = ld

CFLAGS = +DD64

INCLUDES = -I/opt/wli/include -I/usr/include/openssl

# make secure binaries

LDOPTS = +noenvvar +nodefaultrpath +b/opt/wli/lib

LDPATH = -L/opt/wli/lib

# LIBS = -lwliapi -lsec -lcrypto

LIBS = -lwliapi -lcrypto

COMPILE = $(CC) $(CFLAGS) $(INCLUDES)

.c.o:

$(COMPILE) -c $< -o $@

all: user_setup progs

progs: api_flac_test api_ibac_test

api_flac_test: api_flac_test.o

$(LD) -o $@ api_flac_test.o $(LDOPTS) $(LDPATH) $(LIBS)

echo "flac test file" >flac_test

api_ibac_test: api_ibac_test.o

$(LD) -o $@ api_ibac_test.o $(LDOPTS) $(LDPATH) $(LIBS)

echo "ibac test file" >ibac_test

ukey.pvt:

openssl genrsa -aes256 -passout pass:mypasswd -out ukey.pvt 2048

ukey.pub: ukey.pvt

A.1 Instructions 45

openssl rsa -passin pass:mypasswd -out ukey.pub -in ukey.pvt -pubout

user_setup: api_flac_test api_ibac_test ukey.pvt ukey.pub

if ! grep -q wliusr1 /etc/passwd; then \

useradd wliusr1; \

chown wliusr1 flac_test; chmod a+w flac_test; \

chown wliusr1 ibac_test; chmod a+w ibac_test; \

chown wliusr1 api_flac_test; chmod u+w flac_test; \

chown wliusr1 api_ibac_test; chmod u+w ibac_test; \

chown wliusr1 ukey.pvt; chmod go-w ukey.pvt; \

chown wliusr1 ukey.pub; chmod go-w ukey.pub; \

clean:

rm -f *.o api_flac_test api_ibac_test

if grep -q wliusr1 /etc/passwd; then \

userdel -F wliusr1; \

fi

rm -f flac_test ibac_test

rm -f ukey.pub ukey.pvt

A.3 FLAC add and delete program

/*

* (C) Copyright 2010 Hewlett-Packard Development Company, L.P.

*

* Description:

* api_flac_test.c

*/

#include<stdio.h>

#include<fcntl.h>

#include<sys/errno.h>

#include<api.h>

#define FLAC_TEST "flac_test"

main(int argc, char *argv[])

{

wli_fap_t ptype = WLIAPI_FAP_FLAC;

wliapi_err_t err = WLIAPI_SUCCESS;

int fd = 0;

fd = open(FLAC_TEST, O_CREAT|O_TRUNC|O_RDWR, 0666);

if ( fd < 0 ) {

(void) fprintf(stderr,

"Failed to create a test file; error %d\n", errno);

return(-1);

}

close(fd);

err = wli_add_fap(FLAC_TEST, ptype);

if (err) {

(void) fprintf(stderr,

"Failed to add fap %d\n", err);

return(-1);

}

err = wli_del_fap(FLAC_TEST, ptype);

if (err) {

fprintf(stderr,

"Failed to del fap %d\n", err);

}

return(err);

}

A.4 IBAC add and delete program

/*

* (C) Copyright 2010 Hewlett-Packard Development Company, L.P.

*

* Description:

46 libwliapi example

* wliapitest.c

*/

#include<stdio.h>

#include<fcntl.h>

#include<sys/errno.h>

#include<api.h>

#define IBAC_TEST "ibac_test"

main(int argc, char *argv[])

wli_fap_t ptype = WLIAPI_FAP_IBAC;

wliapi_err_t err = WLIAPI_SUCCESS;

int fd = 0;

fd = open(IBAC_TEST, O_CREAT|O_TRUNC|O_RDWR, 0666);

if ( fd < 0 ) {

(void) fprintf(stderr,

"Failed to create a test file; error %d\n", errno);

return(-1);

}

close(fd);

err = wli_add_fap(IBAC_TEST, ptype);

if (err) {

fprintf(stderr, "Failed to add fap %d\n", err);

return(-1);

}

err = wli_check_fap(IBAC_TEST, ptype, WLIAPI_FREAD);

if (err) {

fprintf(stderr, "Failed to check fap %d\n", err);

return(-1);

}

err = wli_del_fap(IBAC_TEST, ptype);

if (err) {

fprintf(stderr, "Failed to del fap %d\n", err);

}

return(err);

}

A.4 IBAC add and delete program 47

48

B Administration examples

Example B-1 Execute manual WLI configuration

The recovery key is authorized by root user:

#wliadm -i recov.pub -k recov.pvt

RSA key adm1.pvt is generated per HP recommendations and its public key extracted:

#openssl genrsa -aes256 -out adm1.pvt 2048

#openssl rsa -in adm1.pvt -out adm1.pub -pubout

RSA key adm1.pvt is granted WLI administrator authority by the recovery key:

#wliadm -n adm1.key1 -k recov.pvt adm1.pub

The public key extracted from adm1.pvt is adm1.pub. User root must know the passphrase

for recov.pvt, but does not know the passphrase for adm1.pvt. User adm1 is a user listed in

/etc/passwd, and knows the passphrase for adm1.pvt.

Because adm1.pvt has WLI administrator authority, it can authorize itself for all capabilities:

#wlicert -c adm1.key1 -o mem,wmd,dlkm,api -s -k adm1.pvt

Any user can visually verify this key as an administrator key with all capabilities:

%wlicert -l adm1.key1

The rng DLKM must be signed along with several others. The loaded DLKMs are listed and

signed (only rng signing displayed):

%kcmodule | grep loaded

%cd /usr/conf/mod

%wlisign -a -k /home/adm1/adm1.pvt rng

The system does not have Symantec NetBackup installed and therefore must have policy metadata

stored in files to create policy protected file backups:

%wlisys -s wmdstoretype=pseudo -k /home/adm1/adm1.pvt

Security guidelines specify only one WLI administrator key can be authorized. Because the WLI

security mode is restricted, the read/write protected portion of the WLI database can be read and

archived:

%tar -cvf wlikeydb.tar /etc/wli/keys

The security mode can now be switched to restricted:

%wlisyspolicy -s mode=restricted -k /home/adm1/adm1.pvt

All administrative commands are now executed for the immediate future. The WLI database

archive is now updated with the WLI database files having only write protection:

%tar -rvf wlikeydb.tar /etc/wli/certificates /etc/wli/*.conf

The system is now ready for shutdown and reboot.

Example B-2 Backing up policy protected files

HP recommends using wliwrap to backup and restore policy protected files and associated

metadata when restricted mode is in effect. To avoid granting permanent wmd capability to the

backup and restore commands, use wliwrap to enable wmd only for a single execution of a

command.

The user owns key adm1.pvt which was granted administrator authority in Example B-1

(page 49).

For this example, /usr/bin/tar is used for both backup and restore. Other HP-UX or vendor

product commands, such as cpio or commands included with Symantec NetBackup, can be

substituted for tar backup and restore operations.

49

To meet file permission bits requirements (DAC restrictions), the user must have root authority

to modify tar with wlisign. The command is signed with the administrator key:

%su root

#wlisign -a -k adm1.pvt /usr/bin/tar

The wmd capability is not granted to /usr/bin/tar. Only the key authorizing execution of

wliwrap must be granted wmd capability. File permission bits restrictions (DAC permissions)

on /usr/bin/tar must be met for wlisign, therefore the signing was executed by root user.

Signing tar with an administrator key is required because it executes as a child process of

wliwrap. If tar is signed by a WLI key without administrator privilege, wmd capability is not

granted through wliwrap.

The key authorizing wliwrap execution must have wmd capability. The key can be granted wmd

before or after the signing, but must be granted wmd before tar executes as a child process of

wliwrap. To grant wmd to key adm1.pvt:

%wlicert -s -c wli.admin1 -o wmd -k adm1.pvt

In Example B-1 (page 49), all capabilities are granted to adm1.pvt, but only the capabilities

granted in the previous command are necessary. The backup can now be generated because wmd

is granted through key adm1.pvt.

%wliwrap -k adm1.pvt -o wmd "/tar -cvf tartest.tar /tmp/tartest"

wliwrap: process capability wmd set

wliwrap: executing command: tar -cvf tartest.tar /tmp/tartest

a ./tartest/tfile1 1 blocks

a ./tartest/tfile2 1 blocks

a ./tartest/tfile3 1 blocks

a ./tartest/.$WLI_POLICY$/tfile1 4 blocks

a ./tartest/.$WLI_POLICY$/tfile2 4 blocks

a ./tartest/.$WLI_POLICY$/tfile3 4 blocks

The wmd capability granted to the executing process overrides any IBAC, allowing tar to read

all files. Granting an IBAC policy to any file to allow the backup to proceed is not necessary.

Protected files and associated metadata files are now stored on the archive tartest.tar. The

metadata storage is either pseudo or the file system is not VxFS 5.0.1 or later. If VxFS named data

streams are used for metadata storage, the .$WLI_POLICY$ directory and its files do not appear.

For details on setting metadata storage type, see wlisys(1M).

The administrator key is used to authorize wliwrap execution and grant wmd capability to the

tar child process in this example. This is done only for convenience because it is likely the same

user would sign the backup command and generate backups. A WLI user key without

administrator authority is sufficient to authorize wliwrap execution.

The tar command is executed with the effective user ID of the login user in this example. The

owner and group IDs of the generated archive matches the login values of owner and group, as

if tar is executed directly.

This preparation for backing up policy protected files can be applied to backing up non ELF

binary executables with associated metadata in .$WLI_SIGNATURE$ directories. A

.$WLI_FSPARMS$ file can also be backed up. This procedure can be applied to backing up an

entire file system containing policy protected files and signed executables.

Example B-3 Restoring policy protected files

HP recommends using wliwrap to backup and restore policy protected files and associated

metadata. Granting permanent wmd capability to a command with wliwrap is not necessary, as

demonstrated in Example B-2 (page 49).

This example demonstrates how to restore the backup archive generated in Example B-2 (page 49).

As with the generation of the archive, the WLI security mode is restricted so all WLI file access

policies are enforced. Guidelines for the server do not allow security to be downgraded at any

time.

50 Administration examples

Using the administrator key adm1.pvt for authorization, tar is invoked as a child process of

wliwrap. For details about the key signing and granting wmd, see Example B-2 (page 49).

You must restore the archive onto a file system with the same type of metadata storage as the

generated archive. Otherwise, WLI can not enforce the policies.

If the archive metadata storage type is unknown, execute the following to look for policy metadata

files:

%tar -vtf tartest.tar

rwxrwxrwx 0/0 0 Aug 8 02:32 2010 ./tartest/.$WLI_POLICY$/

rwxrwxrwx 0/0 2048 Aug 8 02:52 2010 ./tartest/.$WLI_POLICY$/tfile1

rw-r--r-- 0/3 2048 Aug 6 03:21 2010 ./tartest/.$WLI_POLICY$/tfile2

rw-r--r-- 0/3 2048 Aug 8 02:47 2010 ./tartest/.$WLI_POLICY$/tfile3

The archive contains metadata stored in regular files, not VxFS named streams.

To determine which policy protected files are already on the file system and the storage type,

locate the file system root directory and query the metadata storage type:

%bdf mydir

Filesystem kbytes used avail %used Mounted on

/dev/vg00/lvol4 5242880 85192 5117472 2% /tmp

%cat /tmp/'.$WLI_FSPARMS$'

wmdtype=pseudo

The file system and archive storage types match, and it is safe to proceed.

If the file system root directory does not contain a .$WLI_FSPARMS$ file, the file system cannot

contain policy protected files. If the file system has no policy protected files, the metadata storage

type is determined by the value of the wmdstoretype attribute set with wlisys, not the metadata

files restored from the archive. The user can set the correct storage type if necessary:

%wlisys -k adm1.pvt -s wmdstoretype=pseudo

The archive is now restored:

%wliwrap -k adm1.pvt -o wmd "/tar -xvf wrap.tar /tmp/tartest"

wliwrap: process capability wmd set

wliwrap: executing command: tar -xvf wrap.tar /tmp/tartest

x ./tartest/tfile1 1 blocks

x ./tartest/tfile2 1 blocks

x ./tartest/tfile3 1 blocks

x ./tartest/.$WLI_POLICY$/tfile1 4 blocks

x ./tartest/.$WLI_POLICY$/tfile2 4 blocks

x ./tartest/.$WLI_POLICY$/tfile3 4 blocks

Similar to Example B-2 (page 49), metadata files under .$WLI_SIGNATURE$ directories and

.$WLI_FSPARMS$ files can also be restored with the wliwrap command. Therefore, an entire

file system can be restored with this procedure.

Example B-4 Backup and restore without wliwrap

The alternative to temporarily granting wmd capability with wliwrap is to permanently grant

wmd with wlisign. This example describes how to create an archive containing policy protected

files with a backup command granted permanent wmd capability. The archive is then restored

with a restore command also granted permanent wmd capability.

For this example, the platform has VxFS 5.0.1 file systems installed and the wmdstoretype attribute

has value auto, set by the wlisys command. This combination implies that named data streams

are used to store policy protected metadata. Veritas NetBackup is then required to backup files

with named data streams. The bpbackup and bprestore commands are installed for backup

and restore operations respectively.

The commands are signed and granted wmd:

%wlisign -a -k adm1.pvt -o wmd /usr/openv/netbackup/bin/bpbackup

%wlisign -a -k adm1.pvt -o wmd /usr/openv/netbackup/bin/bprestore

51

To grant wmd to the commands, the adm1.pvt key must be a WLI administrator key. This key

was granted administrator privilege in Example B-1 (page 49).

The bpbackup and bprestore commands are now able to backup and restore metadata in

named data streams as well as in regular files. These commands have wmd capability that grants

read/write access to all metadata, whether stored in named streams or in regular files under

.$WLI_POLICY$ directories. The wmd capability also permits bpbackup and bprestore to

access policy protected files without permanent regard to policy restrictions. Due to security

concerns, HP does not recommend granting a command permanent wmd capability.

For example, to start a user backup of the files listed in backup_list:

%bpbackup -f backup_list

To restore the files in backup_list:

%bprestore -f backup_list

File ownership and permissions bits must also allow access to bpbackup and bprestore.

52 Administration examples

C Quick setup examples

This guide offers quick setup examples for installing WLI and creating file access policies.

C.1 Installing WLI

1. Go to the HP Software Depot:

http://www.hp.com/go/softwaredepot

2. Click Security and manageability.

3. Scroll down and select HP-UX Whitelisting.

4. Click Installation at the bottom of the page.

5. Review the software requirements.

6. Click Receive for Free >> at the bottom of the page.

7. Sign in as a registered user. You need to register as a new user if you are not already

registered.

8. Select WLI A.01.00 for HP-UX 11iv3 and complete the required fields.

9. Click Next >>.

10. Click Get Software at the bottom of the page.

11. On the Get Software tab, click Download Directly >> to receive the WLI depot.

12. On the Get Documentation tab, click Download Directly >> to receive the installation

instructions.

13. For installation on platforms without HP-UX Serviceguard, complete the steps in “HP-UX

WLI Installation Procedure” included with the installation instructions.

14. On HP-UX Serviceguard clusters, consider cluster-wide installation. For details, consult “HP

Serviceguard considerations” (page 37).

C.2 Configuring WLI

For details on configuring WLI, follow the procedure in “Configuring” (page 25), including

generating the first administrator key as described in Section 5.2 (page 25). An administrator

key can authorize execution of all WLI commands.

C.2.1 Authorizing an administrator key

The procedure to authorize an administrator key is described in “Configuring” (page 25). For

example, assume adm is a user listed in /etc/passwd and owns the recovery key /home/adm/

recov.pvt authorized during WLI configuration. User adm enters the following to authorize

/home/adm/adm.pvt as an administrator key:

%wliadm -n adm.admin1 -k /home/adm/recov.pvt /home/adm/adm.pub

A prompt appears for the passphrase for the recovery key.

As mentioned in “Configuring” (page 25), reboot the system to complete WLI configuration.

C.2.2 Authorizing a user key

You can optionally authorize user keys to generate file access policies and signatures. Authorizing

the user key is necessary for WLI to enforce file access policies generated by a user key. To

authorize a user key:

%wlicert -i <user>.<instance>-k <privkey> <pubkey>

where:

<user> A valid user from /etc/passwd

<instance>An arbitrary string chosen by the user

<privkey>Any administrator private key

C.1 Installing WLI 53

<pubkey>Public key being authorized

For example, user adm uses administrator key /home/adm/adm.pvt to authorize /home/usr1/

usr.pub as a WLI user key:

%wlicert -i usr1.key1 -k /home/adm/adm.pvt /home/usr1/usr.pub

C.3 FLAC policies

A FLAC policy prevents a regular file or directory from being modified, deleted, or renamed. It

also prevents change of ownership and permission bits, modification time, and other persistent

information associated with the file. These restrictions apply to all users including root user. A

file is locked when it has a FLAC policy actively being enforced by WLI. A user must own a file

to assign it a FLAC policy.

C.3.1 Creating a FLAC policy

In this example, the file /tmp/passwd is locked. The administrator private key is /home/adm/

adm.pvt. The user private key file is /home/usr1/usr.pvt. The user public key file is /home/

usr1/usr.pub. To generate the FLAC policy:

%wlipolicy -f -a -k /home/usr1/usr.pvt /tmp/passwd

A prompt appears for the passphrase for /home/usr1/usr.pvt.

C.3.2 Enabling a FLAC policy

If /home/usr1/usr.pvt is authorized as a WLI user key, as in the example in Section C.2.2

(page 53), no further action is necessary. The key can be authorized after policy generation with

the identical command:

%wlicert -i usr1.key1 -k /home/adm/adm.pvt /home/usr1/usr.pub

A prompt appears for the passphrase for /home/adm/adm.pvt.

C.3.3 Testing a FLAC policy

For example, the FLAC created and enabled in the previous example is tested. Verify that

system-wide policy enforcement is in effect:

%wlisyspolicy -g

The returned messages must include:

“Values in effect currently:”

write lock protection (FLAC): enabled

protection mode: restricted

If either or both of the above settings are not in effect, system-wide FLAC policy enforcement

can be enabled with:

%wlisyspolicy -s mode=restricted,flac=enabled -k /home/adm/adm.pvt

Any user, including root, cannot modify, rename, or delete /tmp/passwd:

%mv /tmp/passwd /tmp/x

mv: /tmp/x: rename: Permission denied

%rm /tmp/passwd

/tmp/passwd: 666 mode ? (y/n) y

rm: /tmp/passwd not removed. Permission denied

%echo hello >> /tmp/passwd

ksh: /tmp/passwd: cannot create

Any user with read permission on the file can still read its content:

%cat /tmp/passwd

hi there

54 Quick setup examples

C.3.4 Disabling a FLAC policy

After reboot of the system, the final task for WLI configuration, WLI is in the highest security

state. To disable FLAC policy enforcement:

1. The administrator removes system-wide enforcement:

%wlisyspolicy -s flac=disabled -k /home/adm/adm.pvt

or

%wlisyspolicy -s mode=maintenance -k /home/adm/adm.pvt

The wlisyspolicy command returns a message indicating a reboot is necessary for the

security downgrade to be in effect if the downgrade attribute has value deferred.

2. The administrator removes /home/usr1/usr.pub authorization:

%wlicert -d usr1.key1 -k /home/adm/adm.pvt

C.3.5 Removing a FLAC policy

To remove a FLAC policy as user:

%wlipolicy -f -d -k /home/usr1/usr.pvt /tmp/passwd

To remove a FLAC policy as administrator:

%wlipolicy -f -d -k /home/adm/adm.pvt /tmp/passwd

C.4 IBAC policies

An IBAC policy prevents a regular file or directory from being accessed by all binary executables

except those explicitly identified. The access restrictions apply to all users including root user.

Multiple IBAC policies can be assigned to a file. A user must own a file to assign it an IBAC

policy. In the following example, the file /tmp/secret is assigned an IBAC policy allowing

/usr/bin/cat access. The administrator private key is /home/adm/adm.pvt. The user private

key file is /home/usr1/usr.pvt and the user public key file is /home/usr1/usr.pub.

C.4.1 Creating an IBAC policy

A binary executable must be signed to be specified in an IBAC policy. To sign /usr/bin/cat:

%wlisign -a -k /home/usr1/usr.pvt /usr/bin/cat

The user must have write permission on /usr/bin/cat. Normally only root with user ID 0 can

generate this signature.

To generate the IBAC policy:

%wlipolicy -i -a -k /home/usr1/usr.pvt -e /usr/bin/cat /tmp/secret

A prompt appears for the passphrase for /home/usr1/usr.pvt in both previous operations.

C.4.2 Enabling an IBAC policy

To enforce the IBAC policy:

%wlicert -i usr1.key1 -k /home/adm/adm.pvt /home/usr1/usr.pub

A prompt appears for the passphrase for /home/adm/adm.pvt.

C.4.3 Testing an IBAC policy

For example, the IBAC created and enabled in the previous example is tested. Assume /tmp/

secret has only the IBAC policy for /usr/bin/cat, as assigned in the previous example.

Verify system-wide policy enforcement is in effect:

%wlisyspolicy -g

The returned messages must include:

C.4 IBAC policies 55

“Values in effect currently:”

write lock protection (IBAC): enabled

protection mode: restricted

If either of the above settings are not in effect, IBAC policy enforcement can be enabled with:

%wlisyspolicy -s mode=restricted,ibac=enabled -k /home/adm/adm.pvt

Access to all other executables is denied:

%/usr/bin/more /tmp/secret

/tmp/secret: Permission denied

%/usr/bin/head /tmp/secret

/tmp/secret: Permission denied

Any user with read permission on /tmp/secret can read it:

%cat /tmp/secret

hi there

C.4.4 Disabling an IBAC policy

After reboot of the system, the final task for WLI configuration, WLI is in the highest security

state. To disable IBAC policy enforcement:

1. The administrator removes system-wide enforcement:

%wlisyspolicy -s ibac=disabled -k /home/adm/adm.pvt

or

%wlisyspolicy -s mode=maintenance -k /home/adm/adm.pvt

The wlisyspolicy command returns a message indicating a reboot is necessary for the

security downgrade to be in effect if the downgrade attribute has value deferred.

2. The administrator removes key /home/usr1/usr.pub authorization:

%wlicert -d usr1.key1 -k /home/adm/adm.pvt

C.4.5 Removing an IBAC policy

To remove an IBAC policy as user:

%wlipolicy -i -d -k /home/usr1/usr.pvt /tmp/secret

To remove an IBAC policy as administrator:

%wlipolicy -i -d -k /home/adm/adm.pvt /tmp/secret

56 Quick setup examples

Glossary

ASM Oracle Automatic Storage Management

authorized

executable

A signed binary executable specified in an IBAC policy. The executable is permitted access to

the protected file also specified in the IBAC.

CFS Veritas Cluster File System

DAC Discretionary Based Access Controls. A traditional file access control used on Unix-based

operating systems.

DLKM Dynamically Loadable Kernel Module

FAP File Access Policy. WLI metadata that restricts access to a regular file or directory. IBAC and

FLAC policies are FAPs. A file can have multiple IBAC policies but only one FLAC.

FLAC File Lock Access Control. This file access policy restricts access to read-only for all executables.

HA High Availability

IBAC Identity Based Access Control. This file access policy restricts access to an authorized executable.

maintenance

mode

WLI does not enforce file access policies and resource restrictions. All read and write protection

on WLI database files is disabled.

named stream VxFS feature that allows a single file inode to be associated with multiple data streams. On

VxFS 5.0.1 and later VxFS revisions, WLI stores policy and signature metadata in a named

stream associated with the file for which the policy or signature applies.

restricted mode WLI enforces file access policies and resource restrictions in accord with other security attributes.

Read and write protection on WLI database files is enabled.

rng The HP-UX kernel random number generator. Strong random numbers are generated from the

informational entropy in system interrupt arrival times from networking and other external

sources.

RSA Rivest, Shamir & Adleman. Algorithms and protocol for generating asymmetric cryptographic

keys and establishing secure communications.

VFS Virtual File System. The kernel component that virtualizes file system operations for NFS, HFS,

and VxFS for storage management on physical media.

57

58

Index

Symbols

.$WLI_FSPARMS$, 17

.$WLI_POLICY$, 17

.$WLI_SIGNATURE$, 17

A

access controls

file lock, 9

identity-based, 10

administrator key

lost, 39

administrator keys, 20

authorizing, 25

API, 14

api, 11

applications, 15

architecture, 13

B

backup, 26, 33

backup recommendations, 34, 35

C

configuring, 25

contacting HP, 41

D

database, 16

database corruption, 39

database files, 33

DLKM, 26

loading, 30

unsigned loading, 31

dlkm, 10

E

example

backing up policy protected files, 49

backup and restore without wliwrap, 51

libwliapi, 45

manual configuration, 49

restoring policy protected files, 50

F

file access policies, 9

file access policy

removing, 30

file lock access controls, 9

file systems, 16

files

database, 33

metadata, 34, 35

protected, 34, 38

FLAC, 9, 46

FLAC policies, 35

FLAC policy, 29

G

generating keys, 19

glossary, 57

I

IBAC, 10, 46

IBAC policies, 35

IBAC policy, 30

identity-based access controls, 10

installation requirements, 21

installing, 21

K

known issues, 39

L

libwliapi, 45

M

mem, 10

metadata files, 16, 34, 35

P

passphrase

lost, 39

policies

FLAC, 35

IBAC, 35

policy enforcement manager, 15

product overview, 13

protected files, 34, 38

Q

quick setup examples, 53

configuration, 53

FLAC policies, 54

IBAC policies, 55

installation, 53

R

rebooting, 27

recommendations

backup, 34, 35

restore, 34, 35

recovery key

authorizing, 25

reinstallation, 39

related information, 41

removing, 21, 22

resources, 41

restore, 33

restore recommendations, 34, 35

restricted mode, 27

59

S

security enhancement, 29

security features, 9

serviceguard, 37

administration, 37

overview, 37

wli database, 37

signing executable binary, 29

software distributor issues, 39

stackable file system module, 15

support, 41

T

troubleshooting, 39

typographic conventions, 42

U

upgrading, 21, 23

user keys, 20

W

wmd, 10

60 Index

61
