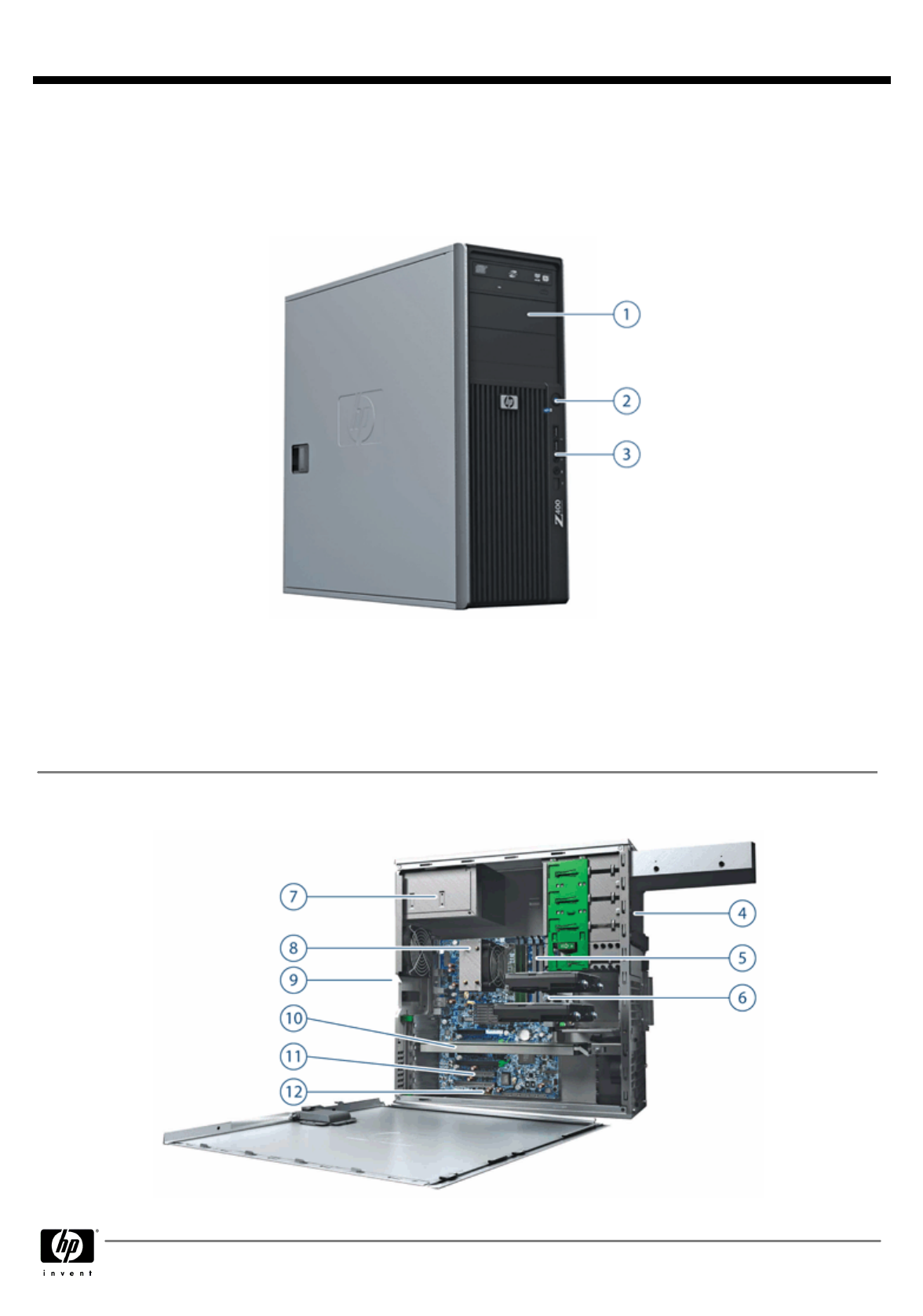

3 External 5.25" Bays

2.

Power Button

3.

Front I/O: 2 USB 2.0, 1 IEEE 1394a (optional card required), Headphone,

Microphone

QuickSpecs

HP Z400 Workstation

Overview

DA - 13276 Worldwide QuickSpecs — Version 1 — 3.30.2009

Page 1

4.

3 External 5.25” Bays

9.

Rear I/O: 6 USB 2.0, PS/2 keyboard/mouse

1 RJ-45 to Integrated Gigabit LAN

1 Audio Line In, 1 Audio Line Out, 1 Microphone In

5.

4 DIMM Slots for DDR3 ECC Memory

6.

2 Internal 3.5” Bays

10.

2 PCIe x16 Gen2 Slots

7.

475W, 85% efficient Power Supply

11..

1 PCIe x4 Gen2, 1 PCIe x4 Gen1, 2 PCI Slots

8.

Dual/Quad Core Intel 3500 Series Processors

12

4 Internal USB 2.0 ports

Form Factor

Convertible Minitower

Compatible Operating

Systems

Genuine Windows Vista® Business 32-bit*

Genuine Windows Vista® Business 64-bit*

Genuine Windows Vista® Business 32-bit with downgrade to Windows® XP Professional 32-bit custom

installed** (expected available until August 2009)

Genuine Windows Vista® Business 64-bit with downgrade to Windows® XP Professional x64 custom

installed** (expected available until August 2009)

HP Linux Installer Kit for Linux (includes drivers for both 32-bit & 64-bit OS versions of Red Hat Enterprise

Linux WS4 and WS5 - see:

http://www.hp.com/workstations/software/linux

)

Novell Suse SLED 11 (expected availability May 2009)

*Certain Windows Vista product features require advanced or additional hardware. See

http://www.microsoft.com/windowsvista/getready/hardwarereqs.mspx

and

http://www.microsoft.com/windowsvista/getready/capable.mspx

for details. Windows Vista Upgrade

Advisor can help you determine which features of Windows Vista will run on your computer. To

download the tool, visit

http://www.windowsvista.com/upgradeadvisor

.

**Windows Vista Business disk may also be included for future upgrade if desired. To qualify for this

downgrade an end user must be a business (including governmental or educational institutions) and is

expected to order at least 25 customer systems with the same custom image.

Available Processors

Intel® Xeon® Processor W3503 2.40 GHz, 4MB cache, 1066 memory, 4.8GT/s QPI, Dual-Core

Intel Xeon Processor W3505 2.53 GHz, 4MB cache, 1066 memory, 4.8GT/s QPI, Dual-Core

Intel Xeon Processor W3520 2.66 GHz, 8MB cache, 1066 memory, 4.8 GT/s QPI, Quad-Core, HT,

Turbo

Intel Xeon Processor W3540 2.93 GHz, 8MB cache, 1066 memory, 4.8 GT/s QPI, Quad-Core, HT,

Turbo

Intel Xeon Processor W3570 3.20 GHz, 8MB cache, 1333 memory, 6.4 GT/s QPI, Quad-Core, HT,

Turbo

Available Processor

Disclaimers

Intel processor numbers are not a measurement of higher performance. Processor numbers differentiate

features within each processor family, not across different processor families. See:

http://www.intel.com/products/processor_number/

for details.

64-bit computing on Intel® 64 architecture requires a computer system with a processor, chipset, BIOS,

operating system, device drivers and applications enabled for Intel 64 architecture. Processor will not

operate (including 32-bit operation) without an Intel 64 architecture-enabled BIOS. Performance will vary

depending on your hardware and software configurations. See:

http://www.intel.com/info/em64t

for

more information.

Dual-Core and Quad-Core technologies are designed to improve performance of multithreaded software

products and hardware-aware multitasking operating systems and may require appropriate operating

system software for full benefits; check with software provider to determine suitability; Not all customers or

software applications will necessarily benefit from use of these technologies.

Intel's numbering is not a measurement of higher performance.

QuickSpecs

HP Z400 Workstation

Overview

DA - 13276 Worldwide QuickSpecs — Version 1 — 3.30.2009

Page 2

Color

Jack Black/Alloy metallic

Convertibility

Yes. 5.25" drives rotate for Minitower or Desktop orientation.

Expansion Slots

(see

system board section for

more details)

2 PCI slots (full-height, full-length)

1 PCI Express Gen2 slot x8 mechanical/x4 electrical

1 PCI Express Gen1 slot x8 mechanical/x4 electrical

2 PCI Express x16 Gen2 slots (one dedicated for graphics)

Expansion Bays

(see

storage section for more

details)

2 internal 3.5" bays

3 external 5.25" bays

NOTE:

Third external 5.25" bay is not full depth; maximum depth 170 mm (6.7 inches)

Front I/O

2 USB 2.0, 1 IEEE 1394 (requires optional PCI card to function), 1 audio out, and 1 microphone.

Rear I/O

6 USB 2.0, 1 optional serial port, 2 PS/2, RJ-45 (NIC), 1 audio line in, 1 audio line out, 1 microphone

in; audio ports can be retasked to function as line in, line out, microphone, or headphone.

Interfaces Supported

22-in-1 Media Card Reader (optional)

Chassis Dimensions

(W x

D x H)

Standard minitower orientation: 6.6 x 17.9 x 17.7 in (16.79 x 45.53 x 45.02 cm)

Converted desktop orientation: 6.6 x 17.9 x 17.7 in (16.79 x 45.53 x 45.02 cm)

Weight

Exact weights depend upon configuration

Minimum: 29.8 lbs (13.5 kg)

Standard: 33.2 lbs (15.1 kg)

Maximum: 43.2 lbs (19.6 kg)

Temperature

Operating:

40° to 95°F (5° to 35°C)

Non-operating

–40° to 140° F (–40° to 60° C)

Humidity

Operating:

8% to 85%

Non-operating

8% to 90%

Maximum Altitude

(non-

pressurized)

Operating:

10,000 feet; 3,000 m

Non-operating

30,000 feet; 9,100 m

Power Supply

475 watts wide-ranging, active Power Factor Correction, 85% Efficient

QuickSpecs

HP Z400 Workstation

Overview

DA - 13276 Worldwide QuickSpecs — Version 1 — 3.30.2009

Page 3

Processors

Factory

Configured

Option

Kit

Option

Kit Part

Number

Support

Notes

Quad-Core Intel® Xeon® Processor 3500 Series with Intel® 64 Architecture

Intel Xeon W3503, 2.40GHz, 4MB cache, 1066

memory, 4.8GT/s QPI, Dual-Core

Y

N

Intel Xeon W3505, 2.53GHz, 4MB cache, 1066

memory, 4.8GT/s QPI, Dual-Core

Y

N

Intel Xeon W3520, 2.66GHz, 8MB cache, 1066

memory, 4.8GT/s QPI, Quad-Core, HT, Turbo

Y

N

Intel Xeon W3540, 2.93GHz, 8MB cache, 1066

memory, 4.8GT/s QPI, Quad-Core, HT, Turbo

Y

N

Intel Xeon W3570, 3.20GHz, 8MB cache, 1333

memory, 6.4GT/s, Quad-Core, HT, Turbo

Y

N

When ordering two processors, the second processor must be the same as the first. Intel processor

numbers are not a measurement of higher performance. Processor numbers differentiate features within

each processor family, not across different processor families. See:

http://www.intel.com/products/processor_number/

for details.

Dual-Core and Quad-Core technologies are designed to improve performance of multithreaded software

products and hardware-aware multitasking operating systems and may require appropriate operating

system software for full benefits; check with software provider to determine suitability; Not all customers or

software applications will necessarily benefit from use of these technologies.

64-bit computing on Intel® 64 architecture requires a computer system with a processor, chipset, BIOS,

operating system, device drivers and applications enabled for Intel 64 architecture. Processor will not

operate (including 32-bit operation) without an Intel 64 architecture-enabled BIOS. Performance will vary

depending on your hardware and software configurations. See:

http://www.intel.com/info/em64t

for

more information.

Intel's numbering is not a measurement of higher performance.

Sub-Section Description/Notes

For hard drives, 1 GB = 1 billion bytes; TB = 1 trillion bytes. Actual formatted capacity is less. Up to 12

GB of hard drive (or system disk) is reserved for the system recovery software (XP and XP Pro). Up to 3 GB

of system disk is reserved for system recovery software (Vista).

SAS Hard Drives

Factory

Configured

Option

Kit

Option Kit

Part

Number

Support

Notes

HP SAS (Serial Attached SCSI) Hard Drives for HP Workstations

146 GB 15K rpm SAS 3.0 Gb/s 3.5" Hard Drive

Y Y

EA330AA

300 GB 15K rpm SAS 3.0 Gb/s 3.5" Hard Drive

Y Y

EM174AA

450 GB 15K rpm SAS 3.0 Gb/s 3.5" Hard Drive

Y Y

FM803AA

Sub-Section Description/Notes

QuickSpecs

HP Z400 Workstation

Supported Components

DA - 13276 Worldwide QuickSpecs — Version 1 — 3.30.2009

Page 4

Up to (4) 3.5-inch 7200 rpm SATA drives:160, 250, 320, 500, 1000, 1500 GB; 6.0 TB max

Up to (4) 2.5-inch 10K rpm SATA drives:160, 300 GB 1.2 TB max

Up to (4) 3.5-inch 15K rpm SAS devices: 146, 300, 450, 600 GB; 2.42 TB max

Removable Boot Drive option

SATA Hard Drives

SATA (Serial ATA) Hard Drives for HP Workstations

160 GB 7,200 rpm SATA 3.0 Gb/s with NCQ 3.5"

Hard Drive

Y Y

PV944A

250 GB 7,200 rpm SATA 3.0 Gb/s with NCQ 3.5"

Hard Drive

Y Y

EA788AA

320 GB 7,200 rpm SATA 3.0 Gb/s with NCQ 3.5"

Hard Drive

Y Y

FH963AA

500 GB 7,200 rpm SATA 3.0 Gb/s with NCQ 3.5"

Hard Drive

Y Y

PV943A

1 TB 7,200 rpm SATA 3.0 Gb/s with NCQ 3.5" Hard

Drive

Y Y

GE262AA

160 GB 10K rpm SATA with NCQ 2.5" Hard Drive

Y Y

EW222AA

300 GB 10K rpm SATA with NCQ 2.5" Hard Drive

Y Y

FM802AA

NOTE:

SAS Controller, not integrated, is required)

For hard drives, 1 GB = 1 billion bytes; TB = 1 trillion bytes. Actual formatted capacity is less. Up to 12

GB of hard drive (or system disk) is reserved for the system recovery software (XP and XP Pro). Up to 3 GB

of system disk is reserved for system recovery software (Vista).

Hard Drive

Controllers

Factory

Configured

Option Kit

Option Kit Part

Number

Support Notes

Integrated SATA 3.0 Gb/s Controller

Integrated SATA 3.0 Gb/s

Y

N

Factory integrated RAID on motherboard for SATA drives

RAID 0 Configuration - Striped Array

Y

N

See note 1

RAID 0 Data Configuration -- Boot/OS Drive + 2

Drive Striped Array

Y

N

See note 1

RAID 1 Configuration - Mirrored Array

Y

N

See note 1

LSI 3041E 4-Port SAS 3.0 Gb/s RAID Card

LSI 3041E 4-Port SAS 3.0 Gb/s RAID Card

Y Y

EH417AA

See note 2

and 3

LSI MegaRAID® SAS 8888ELP Host Bus Adapter (HBA)

LSI 8888ELP 8-port SAS HW RAID Card

N

Y

GE258AA

SATA hardware RAID is not supported on Linux systems. The Linux kernel, with built-in software RAID, provides

excellent functionality and performance. It is a good alternative to hardware-based RAID. Please visit

http://h20000.www2.hp.com/bc/docs/support/SupportManual/c00060684/c00060684.pdf

for RAID

capabilities with Linux.

All drives must be identical in type and capacity

All RAID arrays must be less than 2 TB

NOTE

1: Requires identical hard drives (speeds, capacity, interface. Specific user-configured hardware SAS

RAID configurations are supported on this Linux system. Please visit:

http://www.hp.com/support/linux_hardware_matrix

for details.

QuickSpecs

HP Z400 Workstation

Supported Components

DA - 13276 Worldwide QuickSpecs — Version 1 — 3.30.2009

Page 5

NOTE 2

: Specific user-configured hardware SAS RAID configurations are supported on this Linux system.

Please visit:

http://www.hp.com/support/linux_hardware_matrix

for details.

NOTE 3

: Not supported when HD drive 1 is SATA

Graphics

Factory

Configured

Option

Kit

Option Kit

Part

Number

Support Notes

Supported

Multi

Mixed

Professional 2D

NVIDIA Quadro NVS 450 512 MB PCIe

Graphics Card

Y Y

FH519AA

2nd card must

be NVS 295

1

NVIDIA Quadro NVS 295 256MB PCIe

Graphics Card

Y Y

FY943AA

2nd card must

be NVS 295

2

NVIDIA Quadro NVS 290 256 MB PCIe

Graphics Card with 'DMS-59 to Dual DVI

cable' included - for Workstations

N

Y

GN502AA

1 or 2 of these

cards are

supported - 2nd

card must be

NVS 290 or

NVS 440

2

Entry 3D

NVIDIA Quadro FX 380 256MB PCIe

Graphics Card

Y Y

NB769AA

2

ATI FirePro V3700 256MB PCIe Graphics

Card

Y Y

FY944AA

2

NVIDIA Quadro FX 580 512MB PCIe

Graphics Card

Y Y

FY945AA

2

Mid-range

3D

NVIDIA Quadro FX 1800 768MB PCIe

Graphics Card

Y Y

FY946AA

2

ATI FirePro V5700 512MB PCIe Graphics

Card

Y Y

VY947AA

2

High End 3D

NVIDIA Quadro FX 3800 1.0GB PCIe

Graphics Card (NOT AVAILABLE UNTIL

JUNE 2009)

Y Y

FY949AA

1

ATI FirePro V7750 1.0GB PCIe Graphics

Card

Y Y

FY948AA

1

NVIDIA Quadro FX 4800 1.5GB PCIe

Graphics Card

Y Y

FQ138AA

1

NVIDIA Quadro CX - The Accelerator for

Creative Suite 4

Y

N

1

QuickSpecs

HP Z400 Workstation

Supported Components

DA - 13276 Worldwide QuickSpecs — Version 1 — 3.30.2009

Page 6

Memory

CTO

Support Notes

PC3-10600 DDR3-1333 ECC Unbuffered DIMMs CTO

1GB (1x1GB) DDR3-1333 ECC Unbuffered RAM 1-CPU

2GB (2x1GB) DDR3-1333 ECC Unbuffered RAM 1-CPU

3GB (3x1GB) DDR3-1333 ECC Unbuffered RAM 1-CPU

4GB (4x1GB) DDR3-1333 ECC Unbuffered RAM 1-CPU

4GB (2x2GB) DDR3-1333 ECC Unbuffered RAM 1-CPU

6GB (3x2GB) DDR3-1333 ECC Unbuffered RAM 1-CPU

8GB (2x4GB) DDR3-1333 ECC Unbuffered RAM 1-CPU

8GB (4x2GB) DDR3-1333 ECC Unbuffered RAM 1-CPU

12GB (3x4GB) DDR3-1333 ECC Unbuffered RAM 1-CPU

16GB (4x4GB) DDR3-1333 ECC Unbuffered RAM 1-CPU

Sub-Section Description/Notes

NOTE:

Configurations less than 1 GB are not supported on Windows Vista 64 or Vista 64 downgrade

to XP 64. DIMMs should be distributed across all three memory channels for optimal performance.

Each processor supports up to 3 channels of DDR3 memory. To realize full performance at least 1 DIMM

must be inserted into each channel. To get full 6 channel support, 2 processors MUST be installed.

AMO

PC3-10600 DDR3-1333 ECC Unbuffered DIMMs AMO

1GB (1x1GB) DDR3-1333 ECC Unbuffered RAM

2GB (1x2GB) DDR3-1333 ECC Unbuffered RAM

4GB (1x4GB) DDR3-1333 ECC Unbuffered RAM

NOTE:

Only unbuffered DDR3 DIMMs are supported.

Multimedia and Audio

Devices

Factory

Configured

Option

Kit

Option Kit

Part

Number

Support

Notes

Integrated Intel/Realtek HD ALC262 Audio

Y

N

HP Thin USB Powered Speakers

Y Y

KK912AA

Creative X-Fi Titanium PCIe Audio Card

Y Y

NH222AA

QuickSpecs

HP Z400 Workstation

Supported Components

DA - 13276 Worldwide QuickSpecs — Version 1 — 3.30.2009

Page 7

Optical and Removable

Storage

Factory

Configured

Option

Kit

Option Kit

Part

Number

Support Notes

HP 16X DVD-ROM SATA Drive

Y Y

AR629AA

See note 1

HP 16X DVD+-RW SuperMulti SATA Drive

Y Y

AR630AA

HP Blu-ray Writer

Y Y

AR482AA

1.44 MB Diskette Drive (1 only)

Y Y

NK360AA

HP 22-in-1 Media Card Reader Kit (Workstations)

Y Y

NK361AA

Actual speeds may vary. Does not permit copying of commercially available DVD movies or other

copyright protected materials. Intended for creation and storage of your original material and other lawful

uses. Double Layer discs can store more data than single layer discs. However, double-layer discs burned

with this drive may not be compatible with many existing single-layer DVD drives and players.

As Blu-ray is a new format containing new technologies, certain disc, digital connection, compatibility

and/or performance issues may arise, and do not constitute defects in the product. Flawless playback on

all systems is not guaranteed. In order for some Blu-ray titles to play, they may require a DVI or HDMI

digital connection and your display may require HDCP support. HD-DVD movies cannot be played on this

workstation.

NOTE 1

: Not supported as a 2nd drive option.

Controller Cards

Factory

Configured

Option

Kit

Option Kit

Part

Number

Support

Notes

HP FireWire/IEEE 1394a PCI Card

Y Y

PA997A

HP IEEE 1394b FireWire PCIe Card

Y Y

NK653AA

Monitors

Factory

Configured

Option

Kit

Option

Kit Part

Number

Support

Notes

HP LP1965 19-inch LCD Monitor

Y Y

RA373A

HP LP2275w 22-inch Widescreen LCD Monitor

Y Y

KE289A

HP LP2475w 24-inch Widescreen LCD Monitor

Y Y

KD911A

HP DreamColor LP2480zx Professional Display

Y Y

GV546A

HP LP3065 30-inch Widescreen LCD Monitor

Y Y

EZ320A

NOTE:

Supported by all Operating Systems available from HP (screen size diagonally measured)

QuickSpecs

HP Z400 Workstation

Supported Components

DA - 13276 Worldwide QuickSpecs — Version 1 — 3.30.2009

Page 8

Networking and

Communications

Factory

Configured

Option

Kit

Option Kit

Part

Number

Support Notes

Integrated Broadcom 5764 PCIe LOM Controller

Y

N

Broadcom NetXtreme Gigabit Ethernet Plus NIC

(PCIe)

Y Y

FS215AA

This is a PCI

Express card

based on the

Broadcom

5761 chip.

Intel Gigabit CT Desktop NIC

N

Y

FH969AA

NOTE 1

: Certain Windows Vista product features require advanced or additional hardware. See

http://www.microsoft.com/windowsvista/getready/hardwarereqs.mspx

and

http://www.microsoft.com/windowsvista/getready/capable.mspx

for details. Windows Vista Upgrade

Advisor can help you determine which features of Windows Vista will run on your computer. To download

the tool, visit

http://www.windowsvista.com/upgradeadvisor

.

"Gigabit" Ethernet indicates compliance with IEEE standard 802.3ab for Gigabit Ethernet, and does not

connote actual operating speed of 1 Gb/sec. For high speed transmission, connection to a Gigabit

Ethernet server and network infrastructure is required.

Racking and Physical

Security

Factory

Configured

Option

Kit

Option

Kit Part

Number

Support

Notes

Security Cable with Kensington Lock

N

Y

PC766A

HP Solenoid Hood Lock & Hood Sensor

HP (CMT) Solenoid Lock

N

Y

DE618A

HP xw4/Z4 Depth Adjustable Fixed Rail Rack Kit

N

Y

EK729AA

Input Devices

Factory

Configured

Option

Kit

Option Kit

Part

Number

Support

Notes

HP PS/2 Standard Keyboard

Y Y

DT527A

HP USB Standard Keyboard

Y Y

DT528A

HP PS/2 Optical Scroll Mouse

Y Y

EY703AA

HP USB 2-Button Optical Scroll Mouse

Y Y

DC172B

HP USB Laser Mouse

Y Y

GW405AA

HP USB Optical 3-Button Mouse

Y Y

DY651A

HP USB Smart Card Keyboard

N

Y

ED707AA

HP 2.4GHz Wireless Keyboard & Mouse

N

Y

NB896AA

HP USB Optical 3-Button 2.9M OEM Mouse

N

Y

ET424AA

HP SpaceExplorer 3D USB Controller

N

Y

RY429AA

HP SpacePilot 3D USB Intelligent Controller

N

Y

EF390AA

QuickSpecs

HP Z400 Workstation

Supported Components

DA - 13276 Worldwide QuickSpecs — Version 1 — 3.30.2009

Page 9

Other Hardware

Factory

Configured

Option

Kit

Option Kit

Part

Number

Support

Notes

Configure minitower in desktop orientation

Y

N

HP ENERGY STAR 5.0 Enabled Configuration

Y

N

HP Workstation Mouse Pad

Y

N

Japan

only.

HP eSATA PCI Cable Kit

Y Y

GM110AA

HP Power Cord Kit

N

Y

DM293A

HP 2nd Serial Port Adapter

N

Y

PA716A

HP Internal USB Port Kit

N

Y

EM165AA

HP Optical Bay HDD Mounting Bracket

N

Y

NQ099AA

HP Workstation to LTO SAS Int. Cable

N

Y

EH925A

HP Fan and Front Card Guide Kit

N

Y

DY648A

Software

Factory

Configured

Option

Kit

Option

Kit Part

Number

Support Notes

HP Performance Tuning Framework

Y

N

Roxio Easy Media Creator (CD or DVD burner)

Y

N

Intervideo WinDVD with DVD player

Y

N

HP Backup and Recovery

Y

N

Supported on

Windows XP

ONLY

PDF Complete

Y

N

Microsoft Office 2007 Small Business Edition

Y

N

Microsoft Office 2007 Trial Edition

Y

N

HP Client Manager Software v6.2 (optional

download)

Y

N

HP ProtectTools Security

Y

N

Must select as

a Configure to

Order Option.

Delivered as a

"Drop in the

Box" CD

QuickSpecs

HP Z400 Workstation

Supported Components

DA - 13276 Worldwide QuickSpecs — Version 1 — 3.30.2009

Page 10

Operating Systems

Support Notes

Genuine Windows Vista® Business

32-bit

Certain Windows Vista product features require advanced or

additional hardware. See

www.microsoft.com/windowsvista/getready/hardwarereqs.mspx

and

www.microsoft.com/windowsvista/getready/capable.mspx

for details. Windows Vista Upgrade Advisor can help you

determine which features of Windows Vista will run on your

computer. To download the tool, visit

www.windowsvista.com/upgradeadvisor

.

Genuine Windows Vista® Business

64-bit

Certain Windows Vista product features require advanced or

additional hardware. See

www.microsoft.com/windowsvista/getready/hardwarereqs.mspx

and

www.microsoft.com/windowsvista/getready/capable.mspx

for details. Windows Vista Upgrade Advisor can help you

determine which features of Windows Vista will run on your

computer. To download the tool, visit

www.windowsvista.com/upgradeadvisor.

Genuine Windows Vista® Business

32-bit with downgrade to

Windows® XP Professional 32-bit

custom installed

Windows Vista Business disk may also be included for future

upgrade if desired. To qualify for this downgrade an end user must

be a business (including governmental or educational institutions)

and is expected to order at least 25 customer systems with the same

custom image.

Genuine Windows Vista® Business

64-bit with downgrade to

Windows® XP Professional x64

custom installed

Windows Vista Business disk may also be included for future

upgrade if desired. To qualify for this downgrade an end user must

be a business (including governmental or educational institutions)

and is expected to order at least 25 customer systems with the same

custom image.

HP Linux Installer Kit

see:

http://www.hp.com/workstations/software/linux

QuickSpecs

HP Z400 Workstation

Supported Components

DA - 13276 Worldwide QuickSpecs — Version 1 — 3.30.2009

Page 11

System Board

System Board Form Factor

ATX 9.6 x 12 inches (243.84 x 304.8 mm)

Processor Socket

Single LGA1366

CPU Bus Speed

QPI: Up to 6.4GT/sec

Chipset

Intel® X58 Express

Super I/O Controller

SMSC SCH5327, Rev B

Memory Expansion Slots

4 DDR3 memory slots

Memory Type Supported

DDR3, UDIMM (Unbuffered), ECC

Memory Modes

Channel Interleaved

Memory Speed Supported

800MHz, 1066MHz and 1333MHz DDR3

Memory Protection

ECC available on data, parity on address and command

Memory

Maximum Memory

NOTE:

* Maximum memory capacities assume 64-bit operating systems, such as genuine Windows®

Vista Business 64, XP Professional x64 Edition, Red Hat Linux 64-bit. Genuine Windows Vista Business

32 and XP Professional (32-bit) support up to 4 GB. 32-bit Linux supports up to 8 GB.

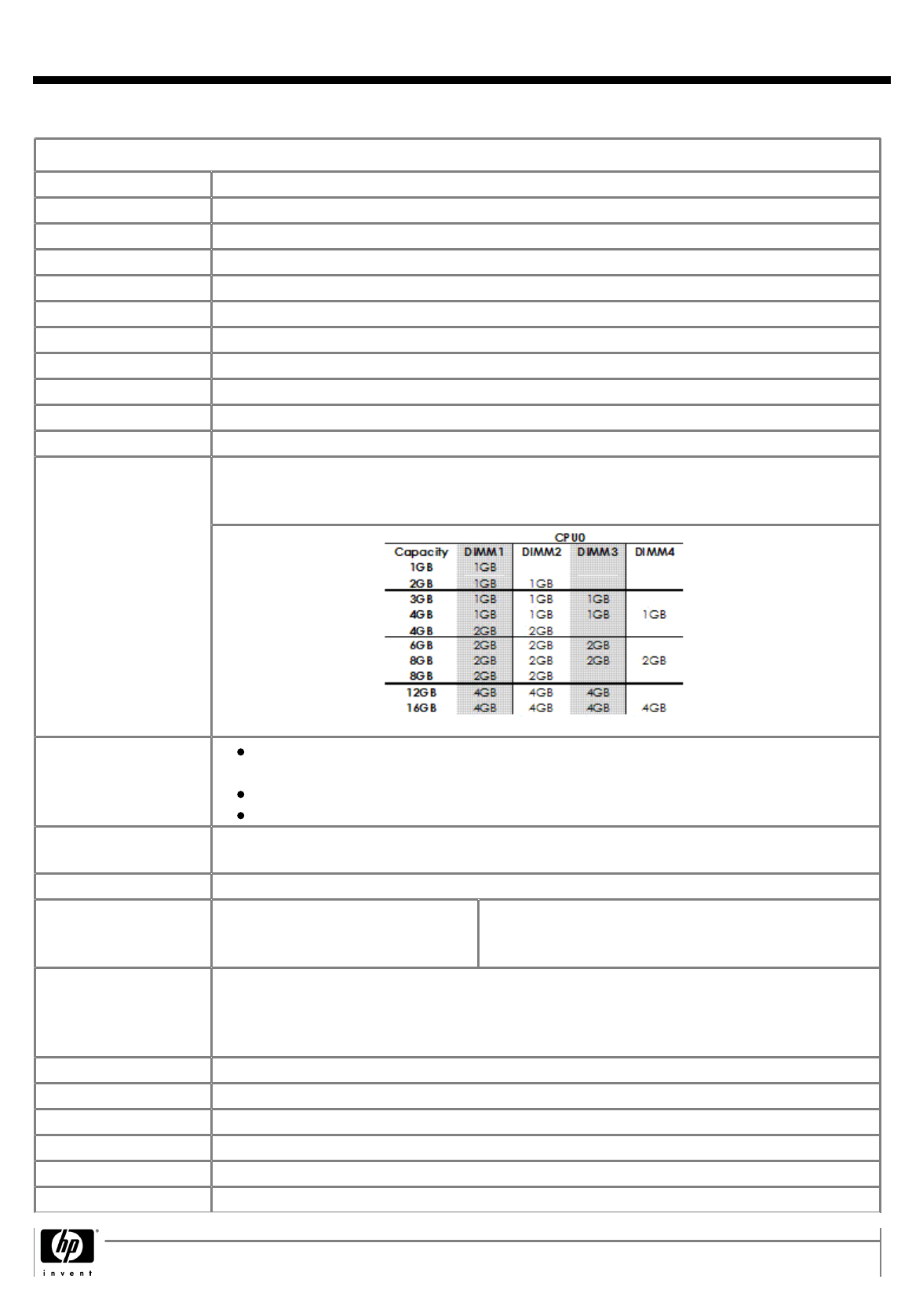

Memory Configuration

(Supported)

The 4GB DIMM for Z400 and Z600 is NOT compatible with the 4GB DIMMs offered on the

Z800.

They are NOT interchangeable.

Only ECC DIMMs are supported.

PCI Express Connectors

(Gen2 Rev 0.7 connectors)

1 x8 PCIe (x4)

PCI Connectors

(5.0V)

2 PCI

Interfaces Supported

SATA

Integrated 6-channel SATA 3.0Gb/sec controller with RAID 0,

1, 5, 10 and NCQ. (Factory integrated RAID is Microsoft

Windows only)

Serial Attached SCSI

Hardware RAID is not supported on Linux systems. The Linux kernel, with built-in software RAID, provides

excellent functionality and performance. It is a good alternative to hardware-based RAID. Please visit

http://h20000.www2.hp.com/bc/docs/support/SupportManual/c00060684/c00060684.pdf

for

RAID capabilities with Linux.

Integrated RAID

NOTE:

Requires identical hard drives (speeds, capacity, interface)

Integrated Graphics

No

Network Controller

Integrated HP Gbit LAN by Broadcom

External SATA

(eSATA)

4 ports are eSATA configurable with optional eSATA After-Market Option cable kit.

IDE connector

No

Floppy connector

Yes

QuickSpecs

HP Z400 Workstation

System Technical Specifications

DA - 13276 Worldwide QuickSpecs — Version 1 — 3.30.2009

Page 12

Network Controller

Management capabilities WOL, PXE 2.1 and ASF 2.0

Serial

1 internal header (requires optional Serial Port Adaptor)

2nd Serial

No

Parallel

No

Audio

High Definition Integrated Realtek ALC262 Audio with Line in, Line Out, Microphone, Headphone

CD-ROM input/Audio

No

AUX INPUT; Audio

Yes

IEEE 1394 Connector(s)

Front

1 IEEE 1394a (requires optional PCI card to function)

Rear

No

Internal

No

USB Connector(s)

Front

2 USB 2.0

Rear

6 USB 2.0

Internal

2 USB 2.0 headers

HD Integrated Audio

High Definition Integrated Realtek ALC262 Audio with Line in, Line Out, Microphone, Headphone

Flash ROM

Yes

Clear Fan Header

No

CPU Fan Header

Yes

Chasiss Fan Header

1 Rear System Chassis Fan Header, 1 Optional Front Chassis Fan Header

Front PCI Fan Header

Yes

Front Control

Panel/Speaker Header

Yes

CMOS Battery Holder -

Lithium

Yes

Integrated Trusted Platform

Module

Integrated TPM 1.2

Power Supply Headers

Yes

Power Switch, Power LED

& Hard Drive LED Header

Yes

Clear Password Jumper

Yes

Serial Port

1 internal header (requires optional Serial Port Adaptor)

Parallel Port

No

Keyboard/Mouse

USB or PS/2

Power Supply

475w 80+ BRONZE, Custom

Operating Voltage Range

90-269 VAC

Rated Voltage Range

118V

Rated Line Frequency

400 Hz

Operating Line Frequency

Range

393-407 Hz

Rated Input Current

10A @ 118 VAC

Heat Dissipation

Maximum 2027 btu/hr (511 kg-cal/hr)

Power Supply Fan

92x25 mm variable speed

ENERGY STAR® qualified

(Config Dependent)

Yes

QuickSpecs

HP Z400 Workstation

System Technical Specifications

DA - 13276 Worldwide QuickSpecs — Version 1 — 3.30.2009

Page 13

80 PLUS Compliant

Yes, Bronze

FEMP Standby Power

Compliant 115V (Wake-

on LAN disabled) (<2W

in S5 - Power Off)

Yes

Power consumption in

sleep mode (as defined by

ENERGY STAR) - Suspend

to RAM (S3)

<5W

Built-in Self Test (BIST) LED

Yes

Surge Tolerant Full

Ranging Power Supply

(withstands power surges

up to 2000V)

Yes

Hood Lock Header

Yes

Hood Sensor Header

Yes

ASF 2.0

(Alert Standard

Format)

Yes

Z400 Required Power Supply Info

Power Supply

475 watt custom power supply - (Wide Ranging Active PFC)

Operating Voltage Range

90 - 269 VAC

Rated Voltage Range

100 - 240 VAC

118 VAC

Rated Line Frequency

50-60 Hz

400 Hz

Operating Line Frequency Range

47 - 66 Hz

393 - 407 Hz

Rated Input Current

10 A @ 110-127 VAC

6 A @ 200-240 VAC

10 A @118 VAC

Heat Dissipation (Configuration and software

dependent)

Typical 954 btu/hr (240.3 kg-cal/hr)

Maximum 1977 btu/hr (498.2 kg-cal/hr)

Power Supply Fan

92x25 mm variable speed

Energy Star Compliant (config dependent)

YES

80 PLUS® Compliant

Yes, Bronze

FEMP Standby Power Compliant@115V (Wake-on

LAN disabled)(<2W in S5-Power Off)

YES

EuP Compliant@230V (<1 W in S5-Power Off)

YES

Power Consumption in sleep mode (as defined by

ENERGY STAR) - Suspend to RAM (S3) (Instantly

Available PC) measured at 115V.

<6W

Built-in Selft Test LED

YES

Surge Tolerant Full Ranging Power Supply (withstands

power surges up to 2000V

YES

*Input Voltage Restrictions

QuickSpecs

HP Z400 Workstation

System Technical Specifications

DA - 13276 Worldwide QuickSpecs — Version 1 — 3.30.2009

Page 14

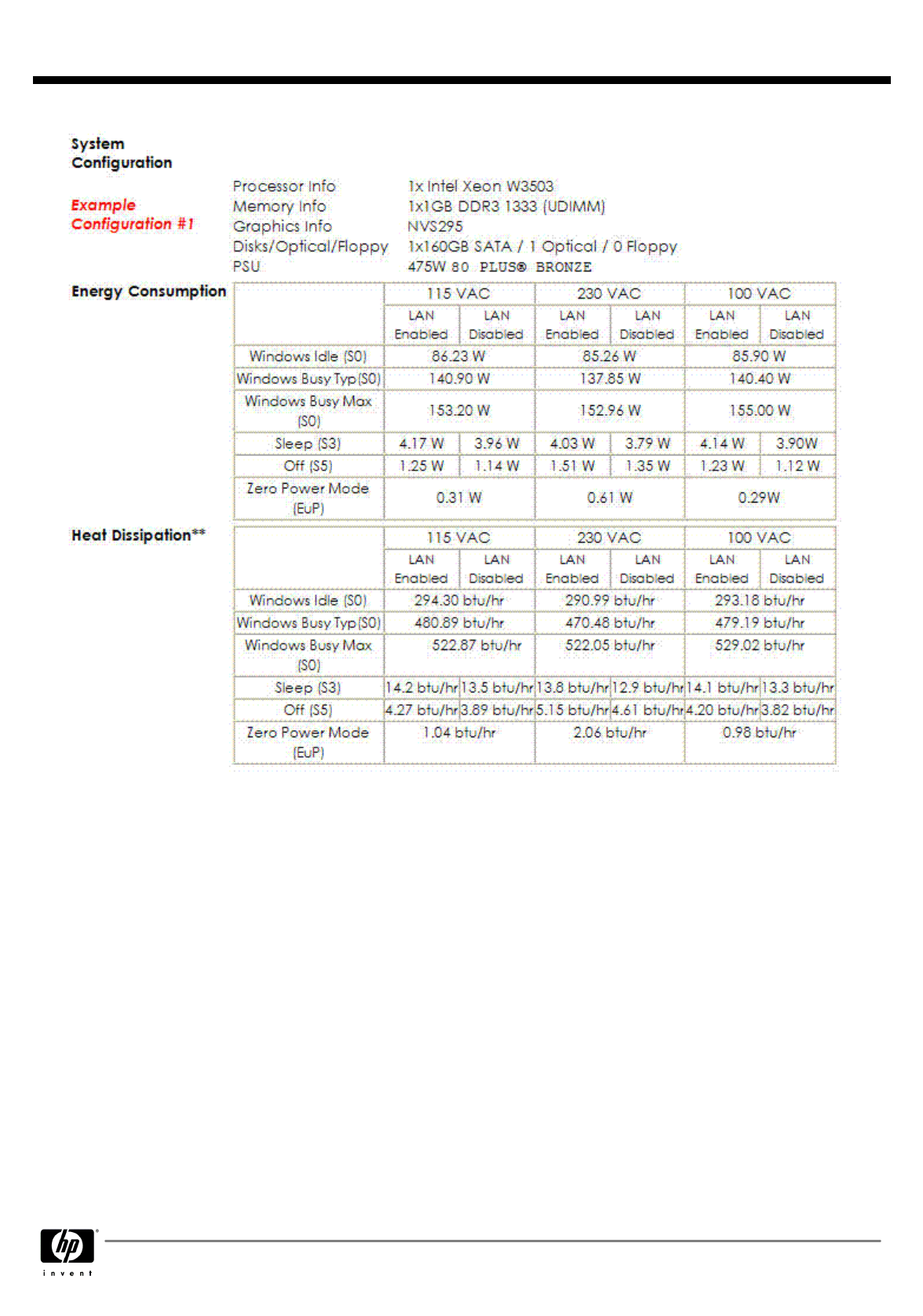

QuickSpecs

HP Z400 Workstation

System Technical Specifications

DA - 13276 Worldwide QuickSpecs — Version 1 — 3.30.2009

Page 15

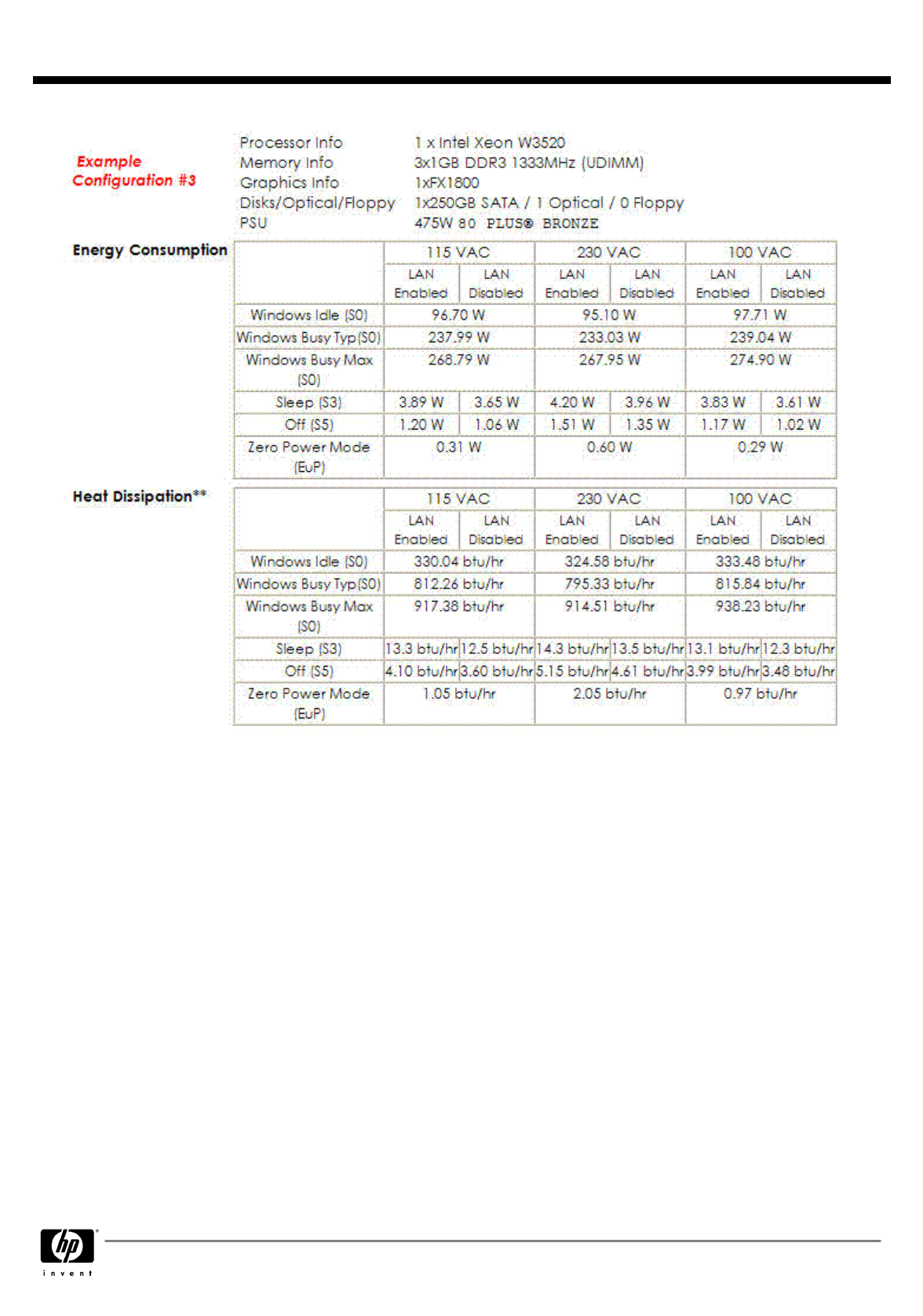

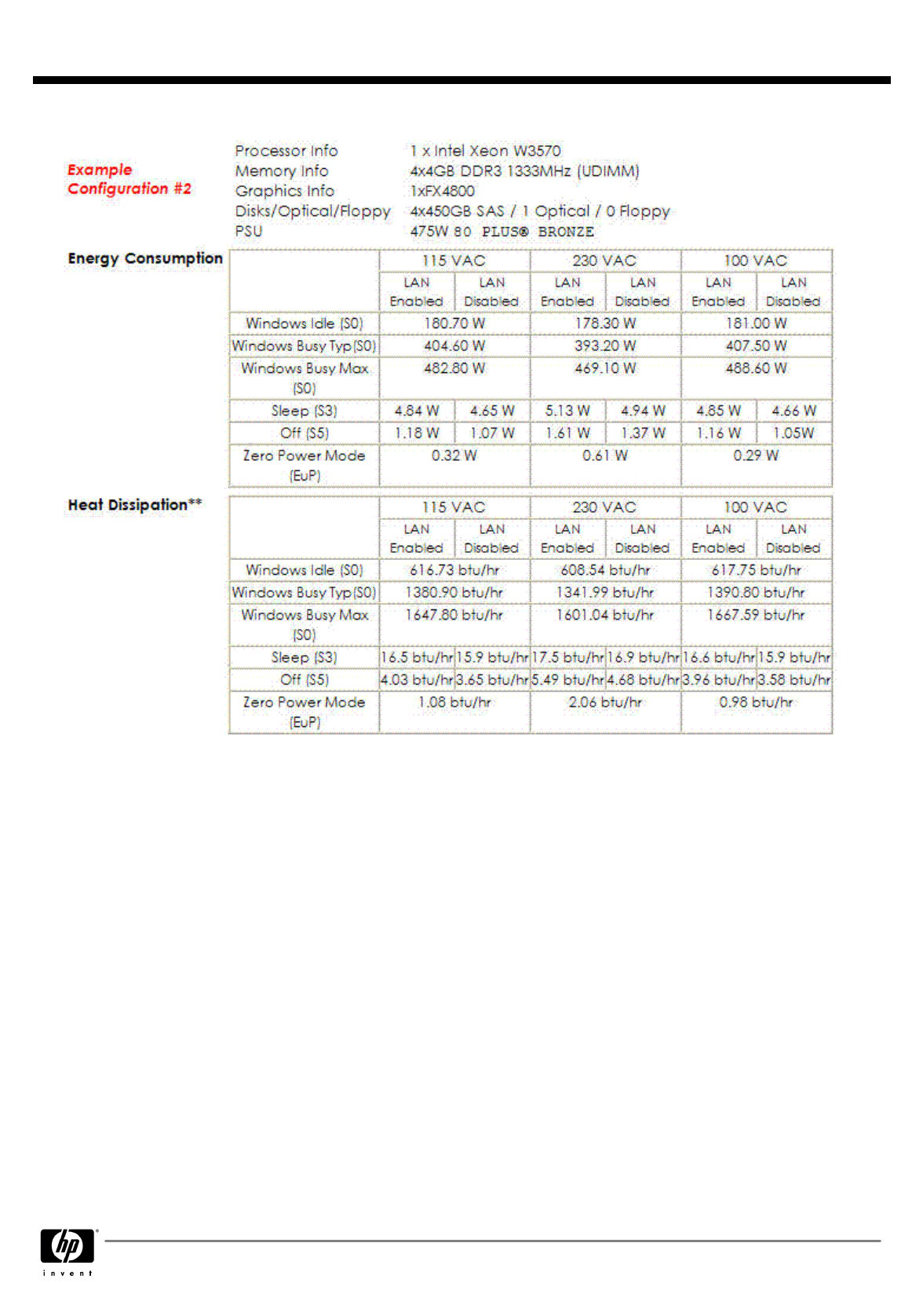

QuickSpecs

HP Z400 Workstation

System Technical Specifications

DA - 13276 Worldwide QuickSpecs — Version 1 — 3.30.2009

Page 16

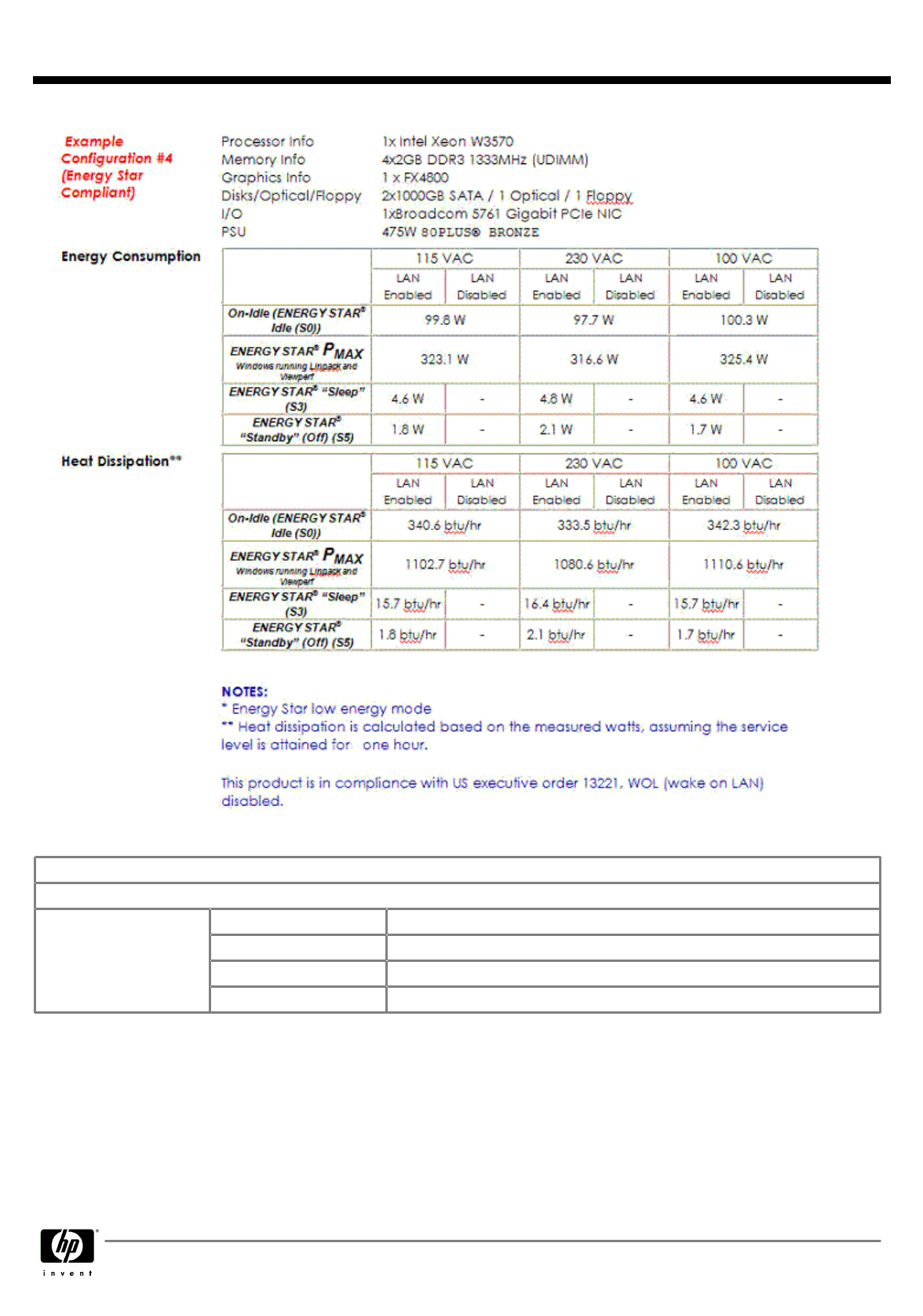

QuickSpecs

HP Z400 Workstation

System Technical Specifications

DA - 13276 Worldwide QuickSpecs — Version 1 — 3.30.2009

Page 17

Declared Noise Emissions

(Entry-level and High-end configurations)

System Configuration

(Entry level)

Processor Info

Intel Xeon Processor W3505 2.53 GHz

Memory Info

4 x 1GB DDR3 1333 MHz

Graphics Info

NVIDIA Quadro NVS 295

Disks/Optical/Floppy

1 x 160 GB 7200 RPM SATA / DVD-ROM / No Floppy

QuickSpecs

HP Z400 Workstation

System Technical Specifications

DA - 13276 Worldwide QuickSpecs — Version 1 — 3.30.2009

Page 18

Declared Noise Emissions

(in accordance with ISO

7779 and ISO 9296)

Sound Power

( LWAd, bels )

Deskside Sound Pressure

Idle

3.9 Bels

23 dB

SATA Hard drive

Operating (random reads)

4.2 Bels

25 dB

Floppy Drive Operating

(continuous copy)

4.7 Bels

29 dB

DVD-ROM Operating

(sequential reads)

5.1 Bels

38 dB

System Configuration

(High-end)

Processor Info

Intel Xeon Processor W3570 3.20 GHz

Memory Info

4 x 1GB DDR3 1333 MHz

Graphics Info

NVIDIA Quadro FX 4600

Disks/Optical/Floppy

2 x 450 GB 15K SAS / DVD-ROM / No Floppy

Declared Noise Emissions

(in accordance with ISO

7779 and ISO 9296)

Sound Power

( LWAd, bels )

Deskside Sound Pressure

Idle

4.6 Bels

27 dB

SATA Hard drive

Operating (random reads)

5.2 Bels

35 dB

Floppy Drive Operating

(continuous copy)

5.0 Bels

32 dB

DVD-ROM Operating

(sequential reads)

5.3 Bels

38 dB

Environmental

Requirements

Temperature

Operating: 40° to 95° F (5° to 35° C)

Non-operating: -40° to 140° F (-40° to 60° C)

Humidity

Operating: 8% to 85% RH, non-condensing

Non-operating: 8% to 90% RH, non-condensing

Maximum Altitude

Operating: 10,000 feet (3,000 m)

Non-operating: 30,000 feet (9,100 m)

Dynamic (new)

Shock

Operating: ½-sine: 40g, 2-3ms

Non-operating:

½-sine: 160 cm/s, 2-3ms (~100g)

square: 422 cm/s, 20g

NOTE:

Values represent individual shock events and do not indicate

repetitive shock events.

Vibration

Operating random: 0.5g (rms), 5-300 Hz

Non-operating random: 2.0g (rms), 10-500 Hz

NOTE:

Values do not indicate continuous vibration.

Cooling

Above 5000 ft (1524 m) altitude, maximum operating temperature is de-

rated by 1.8° F (1° C) per 1000 ft (305 m) elevation increase

Physical Security and Serviceability

QuickSpecs

HP Z400 Workstation

System Technical Specifications

DA - 13276 Worldwide QuickSpecs — Version 1 — 3.30.2009

Page 19

Access Panel

Tool-less

Includes system board and memory information

Optical Drive

Tool-less

Floppy Drive

Tool-less

Hard Drives

Tool-less

Expansion Cards

Tool-less

Processor Socket

Tool-less

Green User Touch Points

Yes, on tool-free internal chassis components

Color-coordinated Cables

and Connectors

Yes

Memory

Tool-less

System Board

Tool-less

Dual Color Power and HD

LED on Front of Computer

Yes

Configuration Record SW

Yes

Over-Temp Warning on

Screen

Yes

Restore CD Set

Restores the computer to its original factory shipping image - Can be obtained via HP Support

Dual Function Front Power

Switch

Yes, causes a fail-safe power off when held for 4 seconds

Padlock Support

Yes (optional): Locks side cover and secures chassis from theft

0.22-in diameter padlock loop at rear of system

Cable Lock Support

Yes, Kensington Cable Lock (optional): Locks side cover and secures chassis from theft

3 mm x 7 mm slot at rear of system

Universal Chassis Clamp

Lock Support

Yes (optional): Locks side cover and locks cables to chassis. Secures chassis from theft and allows

multiple units to be chained together when used with optional cable

Threaded feature at rear of system

Solenoid Lock and Hood

Sensor

Yes (optional)

The Solenoid Hood Lock eliminates the need for a physical key by making the chassis lockable through

software and a password. You can also lock and unlock the chassis remotely over the network. The

Sensor Kit detects when the access panel has been removed

Rear Port Control Cover

Yes, locks rear IO cables to prevent cable theft

Serial, Parallel, USB,

Audio, Network,

Enable/Disable Port

Control

Yes, enables or disables serial, USB, audio, and network ports

Removable Media

Write/Boot Control

Yes, prevents ability to boot from removable media on supported devices (and can disable writes to

media)

Power-On Password

Yes, prevents an unauthorized person from booting up the workstation

Setup Password

Yes, prevents an unauthorized person from changing the workstation configuration

3.3V Aux Power LED on

System PCA

Yes

NIC LEDs (integrated)

(Green & Amber)

Yes

CPUs and Heatsinks

A T-15 Torx or flat blade screwdriver is needed to remove the CPU heatsink before the CPU can be

removed. CPU removal is tool-less

QuickSpecs

HP Z400 Workstation

System Technical Specifications

DA - 13276 Worldwide QuickSpecs — Version 1 — 3.30.2009

Page 20

Power supply diagnostic

LED

Yes

Power Button

Yes, ACPI multi-function

Power LED

Yes, blue (normal), red (fault)

Hard drive activity LED

Yes, green

Internal speaker

Yes

System/Emergency ROM

Flash Recovery

Recovers corrupted system BIOS.

OS CD (Restore OS CD)

Restores computer to its original factory shipping Operating System - No recovery CDs will ship with

Windows XP, Vista or Linux - an ISO image will be available on an HD partition.

ASF 2.0 support (Alert

Standard Format)

Industry-standard specification for network alerting in operating system-absent environments

Cooling Solutions

Air cooled forced convection, liquid cooling (optional)

Power Supply Fans

92 mm x 92 mm x 25 mm 2-wire (non-serviceable)

CPU Heatsink Fan(s)

Mainstream (<=95W): 80 mm x 80 mm x 15 mm 5-wire PWM

Performance (>95W): 92 mm x 92 mm x 25 mm 5-wire PWM

Chassis Fans

92 mm x 92mm x 25 mm 4-wire PWM

Memory Fans

No

Insight Diagnostics

HP Insight Diagnostics Offline Edition

The diagnostics utility enables you to perform testing and to view critical computer hardware and

software configuration information from various sources. This utility enables you to:

Run diagnostics

iew the hardware configuration of the system

Key features and benefits

HP Insight Diagnostics simplifies the process of effectively identifying, diagnosing, and isolating the

hardware issues. In addition to robust management tools, service tools can be invaluable in quickly

resolving system problems. To streamline the service process and resolve problems quickly, it is necessary

to have the right information available at the time that a service call is placed. The primary information

requirement, which is also the one that provides the greatest insight into potential system issues, is the

configuration of the system. Insight Diagnostics helps provide higher system availability. Typical uses of

the Insight Diagnostics are:

Testing and diagnosing apparent hardware failures

Documenting system configurations for upgrade planning, standardization, inventory tracking,

disaster recovery, and maintenance

Sending configuration information to another location for more in-depth analysis

Access Panel Key Lock

No

ACPI-Ready Hardware

Advanced Configuration and Power Management Interface (ACPI).

Allows the system to wake from a low power mode.

Controls system power consumption, making it possible to place individual cards and peripherals

in a low-power or powered-off state without affecting other elements of the system

Trusted Platform Module

Chip with optional

ProtectTools Software

Yes, Infineon SLB9635TT1.2

Integrated Chassis

Handles

No

QuickSpecs

HP Z400 Workstation

System Technical Specifications

DA - 13276 Worldwide QuickSpecs — Version 1 — 3.30.2009

Page 21

Power Supply

Requires T15 Torx or flat blade screwdriver

PCI Card Retention

Yes, rear (all), middle (none), front (full-length cards with extender)

Flash ROM

Yes

Diagnostic Power Switch

LED on board

Yes

Clear Password Jumper

Yes

Clear CMOS Button

Yes

CMOS Battery Holder for

easy Replacement

Yes

DIMM Connectors for

easy Upgrade

Yes

HP ProtectTools Security

Manager

Yes - Not supported on Microsoft XP x64 or Linux

BIOS

BIOS 32-bit Services

Standard BIOS 32-bit Service Directory Proposal v0.4

PCI 3.0 Support

Full BIOS support for PCI Express through industry standard interfaces.

ATAPI

ATAPI Removable Media Device BIOS Specification Version 1.0.

BBS

BIOS Boot Specification v1.01.

WMI Support

WMI is Microsoft's implementation of Web-Based Enterprise Management (WBEM) for Windows. WMI

is fully compliant with the Distributed Management Task Force (DMTF) Common Information Model (CIM)

and WBEM specifications.

BIOS Boot Spec 1.01+

Provides more control over how and from what devices the workstation will boot.

BIOS Power On

Users can define a specific date and time for the system to power on.

ROM Based Computer

Setup Utility (F10)

Review and customize system configuration settings controlled by the BIOS.

System/Emergency ROM

Flash Recovery with Video

Recovers system BIOS in corrupted Flash ROM.

Replicated Setup

Saves BIOS settings to diskette or USB flash device in human readable file. Repset.exe utility can then

replicate these settings on machines being deployed without entering Computer Configuration Utility (F10

Setup).

SMBIOS

System Management BIOS 2.6, for system management information.

Boot Control

Disables the ability to boot from removable media on supported devices.

Memory Change Alert

Alerts management console if memory is removed or changed.

Thermal Alert

Monitors the temperature state within the chassis. Three modes:

NORMAL - normal temperature ranges

ALERTED - excessive temperatures are detected. Raises a flag so action can be taken to avoid

shutdown or provide for a smoother system shutdown

SHUTDOWN - excessive temperatures are encountered. Automatically shuts down the computer

without warning before hardware component damage occurs

Remote ROM Flash

Provides secure, fail-safe ROM image management from a central network console.

ACPI

(Advanced

Configuration and Power

Management Interface)

Allows the system to enter and resume from low power modes (sleep states).]

Enables an operating system to control system power consumption based on the dynamic

workload.

Makes it possible to place individual cards and peripherals in a low-power or powered-off state

QuickSpecs

HP Z400 Workstation

System Technical Specifications

DA - 13276 Worldwide QuickSpecs — Version 1 — 3.30.2009

Page 22

without affecting other elements of the system.

Supports ACPI 2.0 for full compatibility with 64-bit operating systems.

Ownership Tag

A user-defined string stored in non-volatile memory that is displayed in the BIOS splash screen.

Remote Wakeup/Remote

Shutdown

System administrators can power on, restart, and power off a client computer from a remote location.

ASF 2.0 Compliant

Allows workstation status to be monitored on a remote console.

Instantly Available PC

(Suspend to RAM - ACPI

sleep state S3)

Allows for very low power consumption with quick resume time.

Remote System Installation

via F12 (PXE 2.1) (Remote

Boot from Server)

Allows a new or existing system to boot over the network and download software, including the

operating system.

ROM revision levels

Reports the system BIOS revision level in Computer Configuration Utility (F10 Setup). Version is available

through an industry standard interface (SMBIOS) so that management SW applications can use and

report this information.

System board revision

level

Allows management SW to read the revision level of the system board

Revision level is digitally encoded into the HW and cannot be modified.

Start-up Diagnostics

(Power-on Self-Test)

Assesses system health at boot time with selectable levels of testing.

Auto Setup when new

hardware installed

System automatically detects addition of new hardware.

Keyboard-less Operation

The system can be booted without a keyboard.

Localized ROM Setup

Common BIOS image supports System Configuration Utility (F10 Setup) menus in 12 languages with

local keyboard mappings.

Asset Tag

The user or MIS to set a unique tag string in non-volatile memory.

Per-slot Control

Allows I/O slot parameters (option ROM enable/disable, bus latency) to be configured individually.

Adaptive Cooling

Control parameters are set according to detected hardware configuration for optimal acoustics.

Pre-boot Diagnostics

(Pre-video) critical errors are reported via beeps and blinks on the power LED.

Industry Standard

Specification Support

Industry Standard

Revision Supported by the BIOS

ACPI

Advanced Configuration and Power Management Interface, Version 2.0c

ASF

Alert Standard Format Specification, Version 2.0

ATA

(IDE)

AT Attachment 6 with Packet Interface (ATA/ATAPI-6), Revision 3b

CD Boot

"El Torito" Bootable CD-ROM Format Specification Version 1.0

EDD

Enhanced Disk Drive Specification Version 1.1

BIOS Enhanced Disk Drive Specification Version 3.0

EHCI

Enhanced Host Controller Interface for Universal Serial Bus, Revision 1.0

PCI

PCI Local Bus Specification, Revision 2.3

PCI Power Management Specification, Revision 1.1

PCI Firmware Specification, Revision 3.0, Draft .7

PCI Express

PCI Express Base Specification, Revision 2.0

PMM

POST Memory Manager Specification, Version 1.01

SATA

Serial ATA Specification, Revision 1.0a

Serial ATA 3.0Gb/s: Extensions to Serial ATA 1.5Gb/s, Revision 1.0

QuickSpecs

HP Z400 Workstation

System Technical Specifications

DA - 13276 Worldwide QuickSpecs — Version 1 — 3.30.2009

Page 23

SPD

PC SDRAM Serial Presence Detect (SPD) Specification, Revision 1.2B

TPM

Trusted Computing Group TPM Specification Version 1.2

UHCI

Universal Host Controller Interface Design Guide, Revision 1.1

USB 1.1

Universal Serial Bus Revision 1.1 Specification

USB 2.0

Universal Serial Bus Revision 2.0 Specification

SMBIOS

System Management BIOS Reference Specification, Version 2.6

System Software Management and Updating

HP Client Management

Solutions

Visit:

http://www.hp.com/go/easydeploy

Product Change

Program to proactively communicate Product Change Notifications (PCNs) and Customer

Advisories by email to customers, based on a user-defined profile.

PCNs provide advance notification of hardware and software changes to be implemented in the

factory providing time to plan for transition.

Customer Advisories provide concise, effective problem resolution, greatly reducing the need to call

technical support.

Support Software CD &

WWW

Yes

HP Client Manager

Visit:

http://www.hp.com/go/easydeploy

System Software Manager

(free)

Visit:

http://www.hp.com/go/ssm

Social and Environmental

Responsibility

Eco-Label Certifications &

Declarations

This product has received or is in the process of being certified to the following approvals and may be

labeled with one or more of these marks:

ENERGY STAR® (energy-saving features available on selected configurations -Windows only)

US Federal Energy Management Program (FEMP)

China Energy Conservation Program

IT ECO declaration

Japan PC Green label*

*This product conforms to the examination standards (2003 version) under JEITA's 'PC Green Label

System.'

Batteries

This product complies with ISO standards:

EU Directive 91/ 157/ EEC

EU Directive 93/ 86/ EEC

EU Directive 98/ 101/ EEC

Batteries used in the product do not contain:

Mercury greater than 5ppm by weight

Cadmium greater than 10ppm by weight

Lead greater than 4000ppm by weight

Battery size: CR2032 (coin cell)

Battery type: Lithium

Restricted Material Usage

This product does not contain any of the following substances in excess of regulatory limits (refer to the HP

General Specification for the Environment at

QuickSpecs

HP Z400 Workstation

System Technical Specifications

DA - 13276 Worldwide QuickSpecs — Version 1 — 3.30.2009

Page 24

http://www.hp.com/hpinfo/globalcitizenship/environment/supplychain/gen_specifications.html

):

Asbestos

Batteries - Mercury

Batteries - Cadmium

Batteries - Lead (non-rechargeable)

Batteries - Non-rechargeable Alkaline and Carbon-Zinc Batteries

Batteries - Classification as "Not Restricted" for Transport

Brominated Flame Retardants (PBBs, PBDEs, including DecaBDE)

Brominated Flame Retardants (all BFRs in external case plastic parts)

Cadmium and its compounds

Certain Azo Colorants

Chlorinated Hydrocarbons

Chlorinated Paraffins

Formaldehyde

Formaldehyde - emissions

Hexavalent Chromium and its compounds in metallic applications

Hexavalent Chromium and its compounds in non-metallic applications

Lead and its compounds

Lead in paint

Lead in Polyvinyl Chloride (PVC) coating of external cables, wires and cords

Mercury and its compounds

Nickel on external surfaces

Ozone Depleting Substances (ODS)

Polycyclic Aromatic Hydrocarbons (PAH)

Perfluorooctane sulfonates (PFOS) in parts

Perfluorooctane sulfonates (PFOS) in preparations

Polychlorinated Biphenyls (PCBs) and Polychlorinated Terphenyls (PCTs)

Polychlorinated Naphthalenes

Polyvinyl Chloride (PVC) in external case plastic parts

Radioactive Substances

Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)

Packaging

HP Workstation product packaging meets the following (refer to the HP General Specification for the

Environment at

http://www.hp.com/hpinfo/globalcitizenship/environment/supplychain/gen_specifications.html

:

Does not contain restricted substances listed in HP Standard 011-1 General Specification for the

Environment (see link above).

Does not contain ozone-depleting substances (ODS).

Design packaging materials for ease of disassembly.

Does not contain heavy metals (lead, mercury, cadmium or hexavalent chromium) in excess of 100

ppm sum total for all heavy metals listed.

Maximizes the use of post-consumer recycled content materials in packaging materials.

All packaging material is recyclable.

Reduces size and weight of packages to improve transportation fuel efficiency.

Plastic packaging materials are marked according to ISO 11469 and DIN 6120 standards.

Longevity and Upgrading

This product is designed to be upgraded, possibly extending its useful life by several years. Spare parts

are available throughout the warranty period and for up to 5 years after the end of production.

Upgradeability features contained in the product include:

Intel LGA775 processor socket

QuickSpecs

HP Z400 Workstation

System Technical Specifications

DA - 13276 Worldwide QuickSpecs — Version 1 — 3.30.2009

Page 25

12 USB ports

7 rear

3 internal - 1 Type A

2 front

3 PCI slots

4 PCI Express slots

1 PCI Express ×1 slot

2 Gen2 PCI Express ×16 slots

Packaging Materials

External

Cardboard carton and insert: 1.536 kg

Internal

LDPE Foam: .366 kg

End-of-Life Management

and Recycling

Hewlett-Packard offers end-of-life HP product return and recycling programs in many geographic areas.

To recycle your product, please go to:

http://www.hp.com/recycle

or contact your nearest HP sales

office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.

Hewlett-Packard Corporate

Environmental Information

For more information about HP's commitment to the environment:

[link to new HP white paper now in progress]

Global Citizenship Report:

http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html

Eco-label certifications:

http://www.hp.com/hpinfo/globalcitizenship/environment/productdesign/ecolabels.html

ISO 14001 certificates:

http://www.hp.com/hpinfo/globalcitizenship/environment/operations/envmanagement.html

Service, Support and

Warranty

On-site Warranty and Service (

Note 1

): One and three-years, limited warranty and service offering delivers

on-site, next business-day (

Note 2

) service for parts and labor and includes free telephone support (

Note 3

)

8am - 5pm. Global coverage (

Note 2

) ensures that any product purchased in one country and transferred

to another, non-restricted country will remain fully covered under the original warranty and service offering

NOTE 1:

Terms and conditions may vary by country. Certain restrictions and exclusions apply.

NOTE 2:

On-site service may be provided pursuant to a service contract between HP and an authorized

HP third-party provider, and is not available in certain countries. Global service response times are based

on commercially reasonable best effort and may vary by country.

NOTE 3:

Technical telephone support applies only to HP-configured, HP and HP-qualified, third-party

hardware and software. Toll-free calling and 24 x 7 support may not be available in some countries.

HP Care Pack Services extend service contracts beyond the standard warranties. Service starts from date

of hardware purchase. To choose the right level of service for your HP product, use the HP Care Pack

Services Lookup Tool at

http://www.hp.com/go/lookuptool

. Additional HP Care Pack Services

information by product is available at

http://www.hp.com/hps/carepack

. Service levels and response

times for HP Care Packs may vary depending on your geographic location

Additional Information

This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive -

2002/95/EC.

This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE)

Directive - 2002/96/EC.

Plastic parts weighing over 25 grams used in the product are marked per ISO 11469 and

ISO1043.

This product contains 0% recycled materials (by weight)

This product is >90% recycle-able when properly disposed of at end of life.

QuickSpecs

HP Z400 Workstation

System Technical Specifications

DA - 13276 Worldwide QuickSpecs — Version 1 — 3.30.2009

Page 26

Processors

Intel Xeon W3503, 2.40GHz, 4MB cache, 1066 memory, 4.8GT/s QPI, Dual-Core

Intel Xeon W3505, 2.53GHz, 4MB cache, 1066 memory, 4.8GT/s QPI, Dual-Core

Intel Xeon W3520, 2.66GHz, 8MB cache, 1066 memory, 4.8GT/s QPI, Quad-Core, HT, Turbo

Intel Xeon W3540, 2.93GHz, 8MB cache, 1066 memory, 4.8GT/s QPI, Quad-Core, HT, Turbo

Intel Xeon W3570, 3.20GHz, 8MB cache, 1333 memory, 6.4GT/s, Quad-Core, HT, Turbo

Introduction

Intel's latest-generation microarchitecture represents the next step in unprecedented processor performance and dynamic scalability.

Designed from the ground up to take advantage of hafnium-based Intel® 45nm hi-k metal gate silicon technology, Intel®

Microarchitecture (Nehalem) unleashes parallel processing performance enabled by Intel® QuickPath technology providing an

integrated memory controller and high-speed interconnect per independent processing core.

Performance and Features

Maximum multitasking performance Intel® Microarchitecture (Nehalem) offers the latest in processor innovation, including:

'Dynamic scalability, managed cores, threads, cache, interfaces, and power for energy-efficient performance on demand.

Design and performance scalability for servers, workstations, notebooks and desktops with support for 2-8+ cores and up to

16+ threads with Intel® Hyper-Threading Technology (Intel® HT Technology), and scalable cache sizes, system interconnects,

and integrated memory controllers.

Intel® Turbo Boost Technology delivers additional performance automatically when needed by taking advantage of the

processor's power and thermal headroom. This enables increased performance of both multi-threaded and single-threaded

workloads.

Intel Hyper-Threading Technology brings high-performance applications into mainstream computing with 1-16+ threads

optimized for a new generation multi-core processor architecture.

Scalable shared memory of Intel® QuickPath technology features memory distributed to each processor with integrated

memory controllers and high-speed point-to-point interconnects to unleash the performance of future versions of next-generation

Intel® multi-core processors.

Multi-level shared cache improves performance and efficiency by reducing latency to frequently used data.

Turbo Boost Technology

This technology now built into Xeon 3500 Series Quad-Core processors will increase the speed of your processor on demand (from

OS) if the CPU is operating below power / thermal specifications:

Benefit of Turbo Boost (how much CPU speed up) depends on number of active cores

Likelihood of Turbo Boost operation increases when less cores are active

Likelihood of Turbo Boost operation increases when dynamic power mgt is enabled

QuickSpecs

HP Z400 Workstation

Technical Specifications - Processors

DA - 13276 Worldwide QuickSpecs — Version 1 — 3.30.2009

Page 27

HP SAS (Serial Attached

SCSI) Hard Drives for HP

Workstations

300 GB

(15K)

Capacity

300 GB

Height

1 in; 2.5 cm

Width

Media Diameter

3.5 in; 8.9 cm

Physical Size

4 in; 10.2 cm

Interface

SAS

Synchronous Transfer Rate

(Maximum)

3.0 Gb/s

Buffer

16 MB

Seek Time

(typical reads,

includes controller

overhead, including

settling)

Single Track

0.2 ms

Average

3.5 ms

Full Stroke

6.7 ms

Rotational Speed

15,000 rpm

Logical Blocks

585,937,500 - 512 byte blocks

Operating Temperature

50° to 95° F (10° to 35° C)

146 GB

(15K)

Capacity

146 GB

Height

1 in; 2.5 cm

Width

Media Diameter

3.5 in; 8.9 cm

Physical Size

4 in; 10.2 cm

Interface

SAS

Synchronous Transfer Rate

(Maximum)

3.0 Gb/s

Buffer

16 MB

Seek Time

(typical reads,

includes controller

overhead, including

settling)

Single Track

0.2 ms

Average

3.5 ms

Full Stroke

6.7 ms

Rotational Speed

15,000 rpm

Logical Blocks

86,749,488 - 512 byte blocks

Operating Temperature

50° to 95° F (10° to 3°5 C)

450 GB

(15K)

Capacity

450 GB

Height

1 in; 2.5 cm

Width

Media Diameter

3.5 in; 8.9 cm

Physical Size

4 in; 10.2 cm

Interface

SAS

Synchronous Transfer Rate

(Maximum)

3.0 Gb/s

Buffer

16 MB

Seek Time

(typical reads,

includes controller

overhead, including

settling)

Single Track

0.2 ms

Average

3.6 ms

Full Stroke

6.6 ms

QuickSpecs

HP Z400 Workstation

Technical Specifications - Hard Drives

DA - 13276 Worldwide QuickSpecs — Version 1 — 3.30.2009

Page 28

Rotational Speed

15,000 rpm

Logical Blocks

879, 097, 968 - 512 byte blocks

Operating Temperature

50° to 95° F (10° to 35° C)

SATA (Serial ATA) Hard

Drives for HP

Workstations

160,041,885,696

bytes

(10K)

Capacity

160,041,885,696 bytes

Height

1 in; 2.5 cm

Width

Media Diameter

3.5 in; 8.9 cm

Physical Size

4 in; 10.2 cm

Interface

Serial ATA (1.5 Gb/s), Native Command Queuing

enabled

Synchronous Transfer

Rate

(Maximum)

Up to 150 MB/s

Buffer

16 Mbytes

Seek Time

(typical

reads, includes

controller overhead,

including settling)

Single Track

0.3 ms

Average

4.6 ms

Full Stroke

10.2 ms

Rotational Speed

10,000 rpm

Logical Blocks

312,581,808

Operating Temperature

41 to 131 F (5 to 55 C)

1,000,204,886,016

bytes

(7,200)

Capacity

1,000,204,886,016 bytes

Height

1 in; 2.5 cm

Width

Media Diameter

3.5 in; 8.9 cm

Physical Size

4 in; 10.2 cm

Interface

Serial ATA (3.0 Gb/s), Native Command Queuing

enabled

Synchronous Transfer

Rate

(Maximum)

Up to 300 MB/s

Buffer

32 MB

Seek Time

(typical

reads, includes

controller overhead,

including settling)

Single Track

2 ms

Average

11 ms

Full Stroke

21 ms

Rotational Speed

7,200 rpm

Logical Blocks

1,953,525,168

Operating Temperature

41 to 131 F (5 to 55 C)

500,107,862,016

bytes

(7,200)

Capacity

500,107,862,016 bytes

Height

1 in; 2.5 cm

Width

Media Diameter

3.5 in; 8.9 cm

Physical Size

4 in; 10.2 cm

Interface

Serial ATA (3.0 Gb/s), Native Command Queuing

enabled

QuickSpecs

HP Z400 Workstation

Technical Specifications - Hard Drives

DA - 13276 Worldwide QuickSpecs — Version 1 — 3.30.2009

Page 29

Synchronous Transfer

Rate

(Maximum)

300 MB/s

Buffer

16 MB

Seek Time

(typical

reads, includes

controller overhead,

including settling)

Single Track

2 ms

Average

11 ms

Full Stroke

21 ms

Rotational Speed

7,200 rpm

Logical Blocks

976,773,168

Operating Temperature

41 to 131 F (5 to 55 C)

250,059,350,016

bytes

(7,200)

Capacity

250,059,350,016 bytes

Height

1 in; 2.5 cm

Width

Media Diameter

3.5 in; 8.9 cm

Physical Size

4 in; 10.2 cm

Interface

Serial ATA (3.0 Gb/s), Native Command Queuing

enabled

Synchronous Transfer

Rate

(Maximum)

300 MB/s

Buffer

16 MB

Seek Time

(typical

reads, includes

controller overhead,

including settling)

Single Track

2 ms

Average

11 ms

Full Stroke

21 ms

Rotational Speed

7,200 rpm

Logical Blocks

488,397,168

Operating Temperature

41 to 131 F (5 to 55 C)

160,041,885,696

bytes

(7,200)

Capacity

160,041,885,696 bytes

Height

1 in; 2.5 cm

Width

Media Diameter

3.5 in; 8.9 cm

Physical Size

4 in; 10.2 cm

Interface

Serial ATA (3.0 Gb/s), Native Command Queuing

enabled

Synchronous Transfer

Rate

(Maximum)

300 MB/s

Buffer

8 MB

Seek Time

(typical

reads, includes

controller overhead,

including settling)

Single Track

2 ms

Average

11 ms

Full Stroke

21 ms

Rotational Speed

7,200 rpm

Logical Blocks

312,581,808

Operating Temperature

41 to 131 F (5 to 55 C)

QuickSpecs

HP Z400 Workstation

Technical Specifications - Hard Drives

DA - 13276 Worldwide QuickSpecs — Version 1 — 3.30.2009

Page 30

300,069,052,416

bytes

(10K)

Capacity

300,069,052,416 bytes

Height

0.6 in; 1.53 cm

Width

Media Diameter

2.5 in; 6.36 cm

Physical Size

4 in; 10.17 cm

Interface

Serial ATA (3.0Gb/s), Native Command Queuing

enabled

Synchronous Transfer

Rate

(Maximum)

Up to 300 MB/s

Buffer

16 MB

Seek Time

(typical

reads, includes

controller overhead,

including settling)

Single Track

0.7 ms (maximum)

Average

4.4 ms

Full Stroke

9.5 ms

Rotational Speed

10,000 rpm

Logical Blocks

586,072,368

Operating Temperature

41° to 131° F (5° to 55° C)

320,072,933,376

bytes

(7,200)

Capacity

320,072,933,376 bytes

Height

0.98 in; 2.5 cm

Width

Media Diameter

3.5 in; 8.9 cm

Physical Size

4.0 in; 10.17 cm

Interface

Serial ATA (3.0 Gb/s), Native Command Queuing

enabled

Synchronous Transfer

Rate

(Maximum)

300 MB/s

Buffer

8 MB

Seek Time

(typical

reads, includes

controller overhead,

including settling)

Single Track

2

Average

12

Full Stroke

21

Rotational Speed

7,200 rpm

Logical Blocks

625,142,448

Operating Temperature

41° to 131° F (5° to 55° C)

QuickSpecs

HP Z400 Workstation

Technical Specifications - Hard Drives

DA - 13276 Worldwide QuickSpecs — Version 1 — 3.30.2009

Page 31

LSI 3041E 4-Port SAS 3.0

Gb/s RAID Card

PCI Bus

PCI-Express x4 lanes

PCI Modes

Bus Master DMA

RAID Levels

RAID 0, 1, 1E and 10E

PCI Data Burst Transfer

Rate

250 MB/s per lane half duplex

500 MB/s per lane full duplex

1,000 MB/s 4-lane half duplex

SAS Bandwidth

Half Duplex

Single lane – 300 MB/s

Wide Port (2 lanes) – 600 MB/s

Wide Port (4 lanes) – 1200 MB/s

Full Duplex

Single SAS Lane – 600 MB/s

Wide Port (2 lanes) –1200 MB/s

Wide Port (4 lanes) – 2400 MB/s

PCI Card Type

3.3 volt add-in c

PCI Voltage

12 V ± 10%

PCI Power

7.5 Watts

Bracket

Full height and Low-profile

Certification Level

PCI-Express 1.0a

IO Bus

Four 3 Gb/s SAS/SATA ports

SAS Processor

LSISAS1064E

Internal Connectors

Four- SATA x1 connectors

External Connectors

None

Maximum Number of

SCSI Devices

122

LED Indicators

On-board activity and fault LEDs

Integrated Mirroring

Integrated Mirroring option available

LSI MegaRAID® SAS

8888ELP Host Bus

Adapter (HBA)

PCI Bus

PCI-Express x8 lanes

PCI Modes

Bus Master DMA

RAID Levels

RAID 0, 1, and 5

RAID spans 10 and 50

PCI Data Burst Transfer

Rate

Up to 3Gb/s per port

Full Duplex

Up to 1.5 GB/s

PCI Voltage

+3.3V Add-in Card

PCI Power

7.5 Watts

Certification Level

PCI-Express 1.0a

IO Bus

Eight 3Gb/s SAS/SATA ports

Internal Connectors

Two SAS SFF8087 x4

External Connectors

Two SAS SFF8088 x4

Maximum Number of

SCSI DeviceS

32

LED Indicators

Connector LEDs indicate whether the internal or external connector is active

for ports 0-3 and 4-7

QuickSpecs

HP Z400 Workstation

Technical Specifications - Hard Drive Controllers

DA - 13276 Worldwide QuickSpecs — Version 1 — 3.30.2009

Page 32

NVIDIA Quadro NVS

450 512 MB PCIe

Graphics Card

Form Factor

ATX Full Height, 1/2 length

Passive cooling

Bus Type

PCI Express x16, Generation 2.0

Memory

512 MB GDDR3 (256MB per GPU)

Connectors

Four DisplayPort;

Four DisplayPort to DVI-D adapters included.

('DisplayPort to VGA' and 'DisplayPort to Dual Link DVI' adapters available as

an accessory)

Maximum Resolution

DisplayPort connectors support ultra-high-resolution panels (up to 2560 x

1600)

Supported Graphics APIs

OpenGL 3.0

Direct X 10.0

Available Graphics

Drivers

Genuine Microsoft Windows Vista(64-bit and 32-bit), Microsoft Windows XP

Professional(64-bit and 32-bit)

Red Hat Enterprise Linux(RHEL) WS4 & 5 Desktop/Workstation

HP qualified drivers may be preloaded or available from the HP support web

site:

http://welcome.hp.com/country/us/eng/software_drivers.html

.

Novell SUSE Linux Enterprise drivers may be obtained from:

ftp://download.nvidia.com/novell or http://www.nvidia.com

Power consumption

35 Watts

NVIDIA Quadro NVS

295 256MB Graphics

Card

Form Factor

2.731 inches (H) × 6.600 inches (L), Half-Height

Graphics Controller

NVIDIA Quadro NVS 295 Graphics Board

Bus Type

PCI Express x16, Generation 2.0

Memory

256 MB GDDR3 SDRAM unified graphics memory

Connectors

2 DisplayPort

Comes with 2 DisplayPort to DVI-D Adapters

('DisplayPort to VGA' and 'DisplayPort to DL DVI' adapters available as an

accessory)

Maximum Resolution

Two DisplayPort outputs drive two digital displays up to 2560 x 1600

Display Output

Drives DisplayPort enabled digital displays at resolutions up to 2560 ×

1600 at 60 Hz with reduced blanking

Drives DVI enabled digital displays at resolutions up to 1920 × 1200

at 60 Hz with reduced blanking (through DisplayPort to DVI-D (single

link) cable)

Supported Graphics APIs

OpenGL 3.0

DirectX 10.0

Available Graphics

Drivers

Genuine Windows Vista Business (64-bit and 32-bit)

Microsoft Windows XP Professional (64-bit and 32-bit)

Red Hat Enterprise Linux(RHEL) WS4 & 5 Desktop/Workstation

HP qualified drivers may be preloaded or available from the HP support Web

site:

http://welcome.hp.com/country/us/en/support.html

Novell SUSE Linux Enterprise drivers may be obtained from:

ftp://download.nvidia.com/novell

or

http://www.nvidia.com

QuickSpecs

HP Z400 Workstation

Technical Specifications - Graphics

DA - 13276 Worldwide QuickSpecs — Version 1 — 3.30.2009

Page 33

Power consumption

22.69 Watts

NVIDIA Quadro NVS

290 256 MB PCIe

Graphics Card

Form Factor

Low Profile

Bus Type

PCIe x16

Memory

256 MB 400MHz DDR2 SDRAM unified frame buffer, Z-buffer and Texture

storage

Connectors

DMS-59, includes DMS-59 to Dual DVI-I cable. DMS-59 to Dual VGA cable

available as an option.

Maximum Resolution

Dual integrated analog display controllers supporting up to two analog

displays at 2048x1536 @ 85Hz on both displays or dual digital displays at

1920x1200 (single-link).

NVIEW advanced multi-display desktop and application management

seamlessly integrated into Microsoft® Windows®

RAMDAC

Integrated dual 400MHz

Image Quality Features

Full-screen, full-frame video playback of HDTV and DVD content

DVD-ready motion compensation for MPEG-2

Independent hardware color controls for video overlay

Hardware color-space conversion (YUV 4:2:2 and 4:2:0)

IDCT motion compensation

5-tap horizontal by 3-tap vertical filtering

8:1 up/down scaling

Programmable Video

Processor

Full-screen, full-frame video playback of HDTV and DVD content

DVD-ready motion compensation for MPEG-2

Independent hardware color controls for video overlay

Hardware color-space conversion (YUV 4:2:2 and 4:2:0)

IDCT motion compensation

5-tap horizontal by 3-tap vertical filtering

8:1 up/down scaling

Display Output

Dual integrated analog display controllers supporting up to two analog

displays at 2048x1536 @ 85Hz on both displays or dual digital displays at

1920x1200 (single-link).

NVIEW advanced multi-display desktop and application management

seamlessly integrated into Microsoft® Windows®

Supported Graphics APIs

OGL 2.1 & DX10 Support; Shader Model 4.0

Available Graphics

Drivers

Genuine Windows Vista Business(64-bit and 32-bit), Microsoft Windows XP

Professional(64-bit and 32-bit)(Provides full native Dual View mode, Span or

Big Desktop mode, and Clone mode )

Red Hat Enterprise Linux(RHEL) WS3, WS4 & 5 Desktop/Workstation

HP qualified drivers may be preloaded or available from the HP support web

site:

http://welcome.hp.com/country/us/eng/software_drivers.html

.

Novell SUSE Linux Enterprise drivers may be obtained from:

ftp://download.nvidia.com/novell or http://www.nvidia.com

High-Resolution

AntiAliasing

Color planes: 32-bit color buffer

Overlay planes: Hardware supported

CUDA™ Parallel

Processor Cores

NVIDIA Quadro NVS 290 (256 MB DH) PCIe Graphics Card with full

height bracket attached, DMS-59 to Dual DVI cable, Workstation Software

Driver CD, documentation.

QuickSpecs

HP Z400 Workstation

Technical Specifications - Graphics

DA - 13276 Worldwide QuickSpecs — Version 1 — 3.30.2009

Page 34

NVIDIA Quadro FX 380

256MB Graphics Card

Form Factor

4.376 inches (H) × 6.60 inches (L)

Graphics Controller

NVIDIA Quadro FX 380 Graphics Board

Bus Type

PCI Express x16, Generation 2.0

Memory

256 MB GDDR3 SDRAM unified graphics memory

Connectors

2 Dual Link DVI-I

Two DVI-I to VGA adapters included

Maximum Resolution

Two dual-link DVI-I outputs drive two digital displays at resolutions up to 2560

x 1600 @ 60Hz or two analog displays at resolutions up to 2048 x 1536

@ 85Hz

RAMDAC

Dual Internal 400 MHz DAC

Shading architecture

Full Shader Model 4.0 (OpenGL 2.1/DirectX 10 class)

Long fragment programs (unlimited instructions)

Long vertex programs (unlimited instructions)

Looping and subroutines (up to 256 loops per vertex program)

Dynamic flow control

Conditional execution

Supported graphics APIs

OpenGL 3.0

Direct X 10.0

Available graphics drivers

Genuine Windows Vista Business(64-bit and 32-bit), Microsoft Windows XP

Professional(64-bit and 32-bit)

Red Hat Enterprise Linux(RHEL) WS4 & 5 Desktop/Workstation

HP qualified drivers may be preloaded or available from the HP support Web

site:

http://welcome.hp.com/country/us/en/support.html

Novell SUSE Linux Enterprise drivers may be obtained from:

ftp://download.nvidia.com/novell

or

http://www.nvidia.com

High-level Shader

Languages

Optimized compiler for Cg and Microsoft HLSL

OpenGL 2.1 and DirectX 10 support

Open source compiler

CUDA™ Parallel

Processor Cores

16

Power consumption

33.91 Watts

QuickSpecs

HP Z400 Workstation

Technical Specifications - Graphics

DA - 13276 Worldwide QuickSpecs — Version 1 — 3.30.2009

Page 35

ATI FirePro V3700

256MB Graphics Card

Form Factor

4.40 inches (H) × 6.70 inches (L) (11.18 cm (H) × 17.02 cm (L))

Graphics Controller

ATI FirePro V3700 Graphics Board

Bus Type

PCI Express x16, Generation 2.0

Memory

256 MB GDDR3 SDRAM unified graphics memory

Connectors

2 Dual Link DVI-I

Two DVI-I to VGA adapters included

Maximum Resolution

Two dual-link DVI-I outputs drive two digital displays at resolutions up to 2560

x 1600 @ 60Hz or two analog displays at resolutions up to 2048 x 1536

@ 85Hz

Shading architecture

Full Shader Model 4.0

40 Stream Processing Units

Dynamic load balancing and resource allocation for vertex, geometry,

and pixel shaders

Common instruction set and texture unit access supported for all types

of shaders

Dedicated branch execution units and texture address processors

Supported graphics APIs

OpenGL 2.1

DirectX 10.1

Available graphics drivers

Genuine Windows Vista Business (64-bit and 32-bit)

Microsoft Windows XP Professional (64-bit and 32-bit)

HP qualified drivers may be preloaded or available from the HP support Web

site:

http://welcome.hp.com/country/us/en/support.html

Linux drivers may be obtained from:

http://ati.amd.com/support/driver.html

Power consumption

32 Watts

NVIDIA Quadro FX 580

512MB Graphics Card

Form Factor

4.376 inches (H) × 6.60 inches (L)

Graphics Controller

NVIDIA Quadro FX 580 Graphics Board

Bus Type

PCI Express x16, Generation 2.0

Memory

512MB GDDR3 SDRAM unified graphics memory

Connectors

2 DisplayPort, 1 Dual-Link DVI-I.

One DisplayPort to DVI and one DVI to VGA adapter included

('DisplayPort to VGA' and 'DisplayPort to Dual Link DVI' adapters available as

an accessory)

Maximum Resolution

Two DisplayPort outputs drive two digital displays up to 2560 x 1600

One dual-link DVI-I output drives one digital display at resolutions up to

2560 x 1600 @ 60Hz or one analog display at resolutions up to

2048 x 1536 @ 85Hz

RAMDAC

Single Internal 400 MHz DAC

Shading architecture

Full Shader Model 4.0 (OpenGL 2.1/DirectX 10 class)

Long fragment programs (unlimited instructions)

Long vertex programs (unlimited instructions)

QuickSpecs

HP Z400 Workstation

Technical Specifications - Graphics

DA - 13276 Worldwide QuickSpecs — Version 1 — 3.30.2009

Page 36

Looping and subroutines (up to 256 loops per vertex program)

Dynamic flow control

Conditional execution

Supported graphics APIs

OpenGL 3.0

Direct X 10.0

Available graphics drivers

Genuine Windows Vista Business(64-bit and 32-bit), Microsoft Windows XP

Professional(64-bit and 32-bit)

Red Hat Enterprise Linux(RHEL) WS4 & 5 Desktop/Workstation

HP qualified drivers may be preloaded or available from the HP support Web

site:

http://welcome.hp.com/country/us/en/support.html

Novell SUSE Linux Enterprise drivers may be obtained from:

ftp://download.nvidia.com/novell

or

http://www.nvidia.com

High-level Shader

Languages

Optimized compiler for Cg and Microsoft HLSL

OpenGL 2.1 and DirectX 10 support

Open source compiler

CUDA™ Parallel

Processor Cores

32

Power consumption

40 Watts

NVIDIA Quadro FX 1800

768MB Graphics Card

Form Factor

4.376 inches (H) x 7.8 inches (L)

Graphics Controller

NVIDIA Quadro FX 1800 Graphics Board

Bus Type

PCI Express x16, Generation 2.0

Memory

768MB GDDR3 SDRAM unified graphics memory

Connectors

2 DisplayPort, 1 Dual-Link DVI-I.

One DisplayPort to DVI-D and one DVI to VGA adapter included

('DisplayPort to VGA' and 'DisplayPort to Dual Link DVI' adapters available as

an accessory)

Maximum Resolution

Two DisplayPort outputs drive two digital displays up to 2560 x 1600

One dual-link DVI-I output drives one digital display at resolutions up to

2560 x 1600 @ 60Hz or one analog display at resolutions up to

2048 x 1536 @ 85Hz

RAMDAC

Single Internal 400 MHz DAC

Shading Architecture

Full Shader Model 4.0 (OpenGL 2.1/DirectX 10 class)

Long fragment programs (unlimited instructions)

Long vertex programs (unlimited instructions)

Looping and subroutines (up to 256 loops per vertex program)

Dynamic flow control

Conditional execution

Supported Graphics APIs

OpenGL 3.0

Direct X 10.0

Available Graphics

Drivers

Genuine Windows Vista Business(64-bit and 32-bit), Microsoft Windows XP

Professional(64-bit and 32-bit)

Red Hat Enterprise Linux(RHEL) WS4 & 5 Desktop/Workstation

QuickSpecs

HP Z400 Workstation

Technical Specifications - Graphics

DA - 13276 Worldwide QuickSpecs — Version 1 — 3.30.2009

Page 37

HP qualified drivers may be preloaded or available from the HP support Web

site:

http://welcome.hp.com/country/us/en/support.html

Novell SUSE Linux Enterprise drivers may be obtained from:

ftp://download.nvidia.com/novell

or

http://www.nvidia.com

High-level Shader

Languages

Optimized compiler for Cg and Microsoft HLSL

OpenGL 2.1 and DirectX 10 support

Open source compiler

CUDA™ Parallel

Processor Cores

64.

Power consumption

59 Watts

ATI FirePro V5700

512MB Graphics Card

Form Factor

4.40 inches (H) × 6.70 inches (L) (11.18 cm (H) × 17.02 cm (L))

Graphics Controller

ATI FirePro V5700 Graphics Board

Bus Type

PCI Express x16, Generation 2.0

Memory

512 MB GDDR3 SDRAM unified graphics memory

Connectors

2 DisplayPort, 1 Dual-Link DVI-I.

One DisplayPort to DVI and one DVI to VGA adapter included

('DisplayPort to VGA' and 'DisplayPort to Dual Link DVI' adapters available as

an accessory)

Maximum Resolution

Two DisplayPort outputs drive two digital displays up to 2560 x 1600

One dual-link DVI-I output drives one digital display at resolutions up to

2560 x 1600 @ 60Hz or one analog display at resolutions up to

2048 x 1536 @ 85Hz

Shading architecture

Full Shader Model 4.0

320 Stream Processing Units

Dynamic load balancing and resource allocation for vertex, geometry,

and pixel shaders

Common instruction set and texture unit access supported for all types

of shaders

Dedicated branch execution units and texture address processors

Supported graphics APIs

OpenGL 2.1

DirectX 10.1

Available graphics drivers

Genuine Windows Vista Business (64-bit and 32-bit)

Microsoft Windows XP Professional (64-bit and 32-bit)

HP qualified drivers may be preloaded or available from the HP support Web

site:

http://welcome.hp.com/country/us/en/support.html

Linux drivers may be obtained from:

http://ati.amd.com/support/driver.html

Power consumption

56 Watts

QuickSpecs

HP Z400 Workstation

Technical Specifications - Graphics

DA - 13276 Worldwide QuickSpecs — Version 1 — 3.30.2009

Page 38

NVIDIA Quadro FX 3800

1.0GB Graphics Card

(NOT AVAILABLE UNTIL

JUNE 2009)

Form Factor

4.376 inches (H) x 9.0 inches (L)

Single slot card

Graphics Controller

NVIDIA Quadro FX 3800 Graphics Board

Bus Type

PCI Express x16, Generation 2.0

Memory

1GB GDDR3 SDRAM unified graphics memory

Connectors

2 DisplayPort, 1 Dual-Link DVI-I.

One DisplayPort to DVI-D and one DVI to VGA adapter included

('DisplayPort to VGA' and 'DisplayPort to Dual Link DVI' adapters available as

an accessory)

Maximum Resolution

Two DisplayPort outputs drive two digital displays up to 2560 x 1600

One dual-link DVI-I output drives one digital display at resolutions up to

2560 x 1600 @ 60Hz or one analog display at resolutions up to

2048 x 1536 @ 85Hz

RAMDAC

Single Internal 400 MHz DAC

Shading architecture

Full Shader Model 4.0 (OpenGL 2.1/DirectX 10 class)

Long fragment programs (unlimited instructions)

Long vertex programs (unlimited instructions)

Looping and subroutines (up to 256 loops per vertex program)

Dynamic flow control

Conditional execution

Supported graphics APIs

OpenGL 3.0

Direct X 10.0

Available graphics drivers

Genuine Windows Vista Business(64-bit and 32-bit), Microsoft Windows XP

Professional(64-bit and 32-bit)

Red Hat Enterprise Linux(RHEL) WS4 & 5 Desktop/Workstation

HP qualified drivers may be preloaded or available from the HP support Web

site:

http://welcome.hp.com/country/us/en/support.html

Novell SUSE Linux Enterprise drivers may be obtained from:

ftp://download.nvidia.com/novell

or

http://www.nvidia.com

High-level Shader

Languages

Optimized compiler for Cg and Microsoft HLSL

OpenGL 2.1 and DirectX 10 support

Open source compiler

CUDA™ Parallel

Processor Cores

192

Power consumption

107.9 Watts

QuickSpecs

HP Z400 Workstation

Technical Specifications - Graphics

DA - 13276 Worldwide QuickSpecs — Version 1 — 3.30.2009

Page 39

ATI FirePro V7750

1.0GB Graphics Card

Form Factor

4.40 inches (H) × 13.0 inches (L) (11.18 cm (H) × 33.02 cm (L))

Graphics Controller

ATI FirePro V7750 Graphics Board

Bus Type

PCI Express x16, Generation 2.0

Memory

1024 MB GDDR3 SDRAM unified graphics memory

Connectors

2 DisplayPort, 1 Dual-Link DVI-I.

One DisplayPort to DVI and one DVI to VGA adapter included

('DisplayPort to VGA' and 'DisplayPort to Dual Link DVI' adapters available as

an accessory)

Maximum Resolution

Two DisplayPort outputs drive two digital displays up to 2560 x 1600

One dual-link DVI-I output drives one digital display at resolutions up to

2560 x 1600 @ 60Hz or one analog display at resolutions up to

2048 x 1536 @ 85Hz

Shading architecture

Full Shader Model 4.0

320 Stream Processing Units

Dynamic load balancing and resource allocation for vertex, geometry,

and pixel shaders

Common instruction set and texture unit access supported for all types

of shaders

Dedicated branch execution units and texture address processors

Supported graphics APIs

OpenGL 2.1

DirectX 10.1

Available graphics drivers

Genuine Windows Vista Business (64-bit and 32-bit)

Microsoft Windows XP Professional (64-bit and 32-bit)

HP qualified drivers may be preloaded or available from the HP support Web

site:

http://welcome.hp.com/country/us/en/support.html

Linux drivers may be obtained from:

http://ati.amd.com/support/driver.html

Power consumption

76 Watts

QuickSpecs

HP Z400 Workstation

Technical Specifications - Graphics

DA - 13276 Worldwide QuickSpecs — Version 1 — 3.30.2009

Page 40

NVIDIA Quadro FX 4800

1.5GB PCIe Graphics

Card

Form Factor

4.36" (H) x 10.5" (L)

Dual slot card

Graphics Controller

NVIDIA Quadro FX 4800 graphics board

Bus Type

PCI Express x16, Generation 2.0

Memory

1.5 GB GDDR3 SDRAM unified graphics memory

Connectors

2 DisplayPort, 1 Dual-Link DVI-I, 1 3-pin Mini DIN stereo output, Two

DisplayPort to DVI-D adapters included

('DisplayPort to VGA' and 'DisplayPort to Dual Link DVI' adapters available as

an accessory)

Maximum Resolution

2 DisplayPort connectors support ultra-high-resolution panels (up to

2560 x 1600)

Dual-link DVI-I output drives one digital display at resolutions up to

2560 x 1600 @ 60Hz

Internal 400 MHz DACs-One analog display up to 2048 x 1536 @

85Hz

Shading Architecture

Full Shader Model 4.0 (OpenGL 2.1/DirectX 10 class)

Long fragment programs (unlimited instructions)

Long vertex programs (unlimited instructions)

Looping and subroutines (up to 256 loops per vertex program)

Dynamic flow control

Conditional execution

Supported Graphics APIs

OpenGL 3.0

Direct X 10.0

Available Graphics

Drivers

Genuine Windows Vista Business (64-bit and 32-bit)

Microsoft Windows XP Professional (64-bit and 32-bit)

Red Hat Enterprise Linux(RHEL) WS4 & 5 Desktop/Workstation

HP qualified drivers may be preloaded or available from the HP support Web

site:

http://welcome.hp.com/country/us/en/support.html

Novell SUSE Linux Enterprise drivers may be obtained from:

ftp://download.nvidia.com/novell

or

http://www.nvidia.com

High-Resolution

AntiAliasing

Rotated Grid Full-Scene Antialiasing (RG FSAA)

32xFSAA dramatically reduces visual aliasing artifacts or "jaggies" at

resolution up to 1920 x 1200

64x FSAA SLI Mode

High-level Shader

Languages

Optimized compiler for Cg and Microsoft HLSL

OpenGL 2.1 and DirectX 10 support

Open source compiler

CUDA™ Parallel

Processor Cores

192

Power consumption

146 Watts

QuickSpecs

HP Z400 Workstation

Technical Specifications - Graphics

DA - 13276 Worldwide QuickSpecs — Version 1 — 3.30.2009

Page 41

NVIDIA Quadro CX

Form Factor

4.36" (H) x 10.5" (L)

Dual slot card

Graphics Controller

NVIDIA Quadro CX 1.5GB Graphics Card

Bus Type

PCI Express x16, Generation 2.0

Memory

1.5 GB GDDR3 SDRAM unified graphics memory

Connectors

2 DisplayPort, 1 Dual-Link DVI-I, 1 3-pin Mini DIN stereo output.

Two DisplayPort to DVI-D adapters included

('DisplayPort to VGA' and 'DisplayPort to Dual Link DVI' adapters available as

an accessory)

Maximum Resolution

2 DisplayPort connectors support ultra-high-resolution panels (up to

2560 x 1600)

Dual-link DVI-I output drives one digital display at resolutions up to

2560 x 1600 @ 60Hz

Internal 400 MHz DACs-One analog display up to 2048 x 1536 @

85Hz

RAMDAC

400MHz

Shading Architecture

Full Shader Model 4.0 (OpenGL 2.1/DirectX 10 class)

Long fragment programs (unlimited instructions)

Long vertex programs (unlimited instructions)

Looping and subroutines (up to 256 loops per vertex program)

Dynamic flow control

Conditional execution

Supported Graphics APIs

OpenGL 3.0

Direct X 10.0

Available Graphics

Drivers

Genuine Windows Vista Business (64-bit and 32-bit)

Microsoft Windows XP Professional (64-bit and 32-bit)

HP qualified drivers may be preloaded or available from the HP support Web

site:

http://welcome.hp.com/country/us/en/support.html

High-Resolution

AntiAliasing

Rotated Grid Full-Scene Antialiasing (RG FSAA)

32xFSAA dramatically reduces visual aliasing artifacts or "jaggies" at

resolution up to 1920 x 1200

64x FSAA SLI Mode

High-level Shader

Languages

Optimized compiler for Cg and Microsoft HLSL

OpenGL 2.1 and DirectX 10 support

Open source compiler

CUDA™ Parallel

Processor Cores

192

Power consumption

146 Watts

QuickSpecs

HP Z400 Workstation

Technical Specifications - Graphics

DA - 13276 Worldwide QuickSpecs — Version 1 — 3.30.2009

Page 42

Integrated Intel/Realtek

HD ALC262 Audio

Type

Integrated

High Definition Codec

Yes

FM Synthesis Support

Yes

OPL3 FM Synthesis

Support

Yes

Sound Blaster

Compatibility

Yes

Meets Premium

performance for Windows

Logo Program 3.0

Yes

Audio Jacks

Front panel microphone in and headphone out - fixed usage.

Rear panel line in and line out jacks - jacks are retaskable

One Line-In* (12-K ohm Input Impedance)*

NOTE:

External Speakers need to be powered externally.

Sampling

3 stereo ADCs support 16/20-bit PCM format with 44.1K/48K/96kHz

sample rate

2 stereo DAC supports 16/20/24-bit PCM format with

44.1K/48K/96K/192kHz sample rate

Wavetable Syntheses

(software)

Yes – GM and FM Midi Support, Direct Music and Down Loadable Soundset

(4 Meg DLS Level 1 and 2 Support)

3D Positional Sound

No

Digital Audio

Yes

Analog Audio

Yes

DVD Audio

Yes

Number of Channels on

Line-Out

Stereo (Left & Right channels)

Internal Audio Speaker

Power Rating

1.5 W

Internal Speaker

Yes

Hardware Equalizer for

Internal Speaker

No

External Speaker Jack

(Line-Out)

Yes

QuickSpecs

HP Z400 Workstation

Technical Specifications - Multimedia and Audio Devices

DA - 13276 Worldwide QuickSpecs — Version 1 — 3.30.2009

Page 43

HP Thin USB Powered

Speakers

Frequency Response

(-

3dB, 24-bit/96kHz input)

FO to 20kHz

Dimensions

Speakers: 5.72 x 3.74 x 0.96 in (14.52 x 9.50 x 2.45 cm) per speaker

On/Off/Volume Controls

Right side of right speaker

Power LED

Front of right speaker (green)

Watts

2/3 watt (normal/maximum)

Net weight

0.68 lbs (0.31kg)

Environmental

(all

conditions non-condensing)

Temperature

(operating):

14° to 104° F (-10° to 40° C)

Relative Humidity

(operating):

40% to 90%

Speaker cable length

Input cord: 5.91 ft (1800mm±35mm)

L-channel cord: 3.28 ft (1000mm±35mm)

USB cord: 5.91 ft (1800mm±35mm)

Color

HP Carbonite

Kit Contents

One pair of HP Thin USB Powered Speakers with attached audio signal and

USB power cables for connecting to your PC

HP Warranty documentation

SoundBlaster (Creative

Labs) X-Fi Titanium PCIe

Audio Card

24-bit Analog-to-Digital

conversion of analog

inputs

96kHz sample rate

24-bit Digital-to-Analog

conversion of digital

sources

96kHz to analog 7:1 speaker output

24-bit Digital-to-Analog

conversion of stereo

digital sources

8, 11.025, 16, 22.05, 24, 32, 44.1, 48 and 96kHz

16-bit to 24-bit recording

sampling rates

16-bit/44.1kHz, 16-bit/48kHz, 24-bit/44.1kHz, 24-bit/48kHz and 24-

bit/96kHz with direct monitoring

Enhanced SoundFont

support

Up to 24-bit resolution

Signal-to-Noise Ratio

(2okHz Low-pass filter, A-

Weighted)

109dB

Total Harmonic Distortion

+ Noise at 1kHz

(20kHz

Low-pass filter)

.004%

Frequency Response

(-

3dB, 24-bit/96kHz input)

10Hz to 46kHz

Frequency Response

(-

3dB, 24-bit/192kHz

input)

10Hz to 46kHz

Speaker and Headphone

connections

Stereo to 7.1 (Line Out via three 3.5mm mini jacks)

Flexijack

Line In/ Microphone In/Optical Out via shared 3.5mm mini jack

Front Panel Header

Intel HD Audio Compatible (2x5 pin)

QuickSpecs

HP Z400 Workstation

Technical Specifications - Multimedia and Audio Devices

DA - 13276 Worldwide QuickSpecs — Version 1 — 3.30.2009

Page 44

Operating System

Microsoft Windows Vista Business 64

Microsoft Windows Vista Business 32

Microsoft® Windows® XP Professional SP2

Microsoft Windows XP Professional x64 Edition

Minimum System

Requirements

System RAM

512MB

Operating System

Windows Vista 32-bit and 64-bit version or

Windows XP 32-bit or 64-bit version

QuickSpecs

HP Z400 Workstation

Technical Specifications - Multimedia and Audio Devices

DA - 13276 Worldwide QuickSpecs — Version 1 — 3.30.2009

Page 45

NOTE 1

: Actual speeds may vary. Does not permit copying of commercially available DVD movies or other copyright protected

materials. Intended for creation and storage of your original material and other lawful uses. Double Layer discs can store more data

than single layer discs. However, double-layer discs burned with this drive may not be compatible with many existing single-layer

DVD drives and players.

HP DVD-ROM Drive

Description

5.25-inch, half-height, tray-load

Mounting Orientation

Either horizontal or vertical

Interface Type

SATA/ATAPI

Dimensions

(WxHxD)

5.9 x 1.7 x 8.0 in (15.0 x 4.4 x 20.3 cm)

Disc Capacity

DVD-ROM

Single layer: Up to 4.7 GB Double layer: Up to

8.5 GB

Access Times

DVD-ROM Single Layer

< 140 ms (typical)

CD-ROM Mode 1

< 125 ms (typical)

Full Stroke DVD

< 250 ms (seek)

Full Stroke CD

< 210 ms (seek)

Power

Source

SATA DC power receptacle

DC Power Requirements

5 VDC ± 5%-100 mV ripple p-p

12 VDC ± 5%-200 mV ripple p-p

DC Current

5 VDC - <1000 mA typical, < 1600 mA

maximum

12 VDC - < 600 mA typical, < 1400 mA

maximum

Operating Environmental

(all conditions non-

condensing)

Temperature

41° to 122° F (5° to 50° C)

Relative Humidity

10% to 90%

Maximum Wet Bulb

Temperature

86° F (30° C)

Operating Systems

Supported

Windows Vista Business 64

*

Windows Vista

Business 32

*

, Windows Vista Home Basic 32

*

,

Windows 2000, Windows XP Professional or

Windows XP Home 32

*

.

Red Hat Enterprise Linux(RHEL) WS3, WS4, 5

Desktop/Workstation

Novell SLES 9 & SLE 10

No driver is required for this device. Native

support is provided by the operating system.

* Certain Windows Vista product features

require advanced or additional hardware.

Windows Vista Upgrade Advisor can help you

determine which features of Windows Vista will

run on your computer. To download the tool,

visit:

http://www.windowsvista.com/

upgradeadvisor

. For Windows Vista system

requirements, visit:

http://www.windowsvista.com/

systemrequirements

.

QuickSpecs

HP Z400 Workstation

Technical Specifications - Optical and Removable Storage

DA - 13276 Worldwide QuickSpecs — Version 1 — 3.30.2009

Page 46

HP DVD+/-RW Drive

Description

5.25-inch, half-height, tray-load

Mounting Orientation

Either horizontal or vertical

Interface Type

SATA/ATAPI

Dimensions

(WxHxD)

5.9 x 1.7 x 8.0 in (15.0 x 4.4 x 20.3 cm)

Disc Formats

DVD-RAM

DVD+R

DVD+RW

DVD+R DL

DVD-R DL

DVD-R

DVD-RW

CD-R

CD-RW

Disc Capacity

DVD-ROM

8.5 GB DL or 4.7 GB standard

Full Stroke DVD

< 250 ms (seek)

Full Stroke CD

< 210 ms (seek)

Maximum Data Transfer

Rates

CD ROM Read

CD-ROM, CD-R Up to 40X

CD-RW Up to 32X

DVD ROM Read

DVD-RAM

Up to 12X

DVD+RW

Up to 8X

DVD-RW

Up to 8X

DVD+R DL

Up to 8X

DVD-R DL

Up to 8X

DVD-ROM

Up to 16X

DVD-ROM DL

Up to 8X

DVD+R

Up to 16X

DVD-R

Up to 16X

Power

Source

SATA DC power receptacle

DC Power Requirements

5 VDC ± 5%-100 mV ripple p-p

12 VDC ± 5%-200 mV ripple p-p

DC Current

5 VDC -1000 mA typical, 1600 mA maximum

12 VDC -600 mA typical, 1400 mA maximum

Operating Environmental

(all conditions non-

condensing)

Temperature

41° to 122° F (5° to 50° C)

Relative Humidity

10% to 90%

Maximum Wet Bulb

Temperature

86° F (30° C)

Operating Systems

Supported

Windows Vista Business 64

*

, Windows Vista

Business 32

*

, Windows Vista Home Basic 32

*

,

Windows 2000, Windows XP Professional or

Windows XP Home 32

*

.

Red Hat Enterprise Linux(RHEL) WS3, WS4, 5

Desktop/Workstation

Novell SLES 9 & SLE 10

No driver is required for this device. Native support

is provided by the operating system.

QuickSpecs

HP Z400 Workstation

Technical Specifications - Optical and Removable Storage

DA - 13276 Worldwide QuickSpecs — Version 1 — 3.30.2009

Page 47

* Certain Windows Vista product features require

advanced or additional hardware. Windows Vista

Upgrade Advisor can help you determine which

features of Windows Vista will run on your

computer. To download the tool, visit:

http://www.windowsvista.com/upgradeadvisor

.

For Windows Vista system requirements, visit:

http://www.windowsvista.com/

systemrequirements

.

* LightScribe functionality is not natively supported

by Linux distributions. Customers may download

LightScribe Linux drivers from:

http://www.lightscribe.com/

downloadSection/linux/index.aspx

Kit Contents

HP SATA SuperMulti LightScribe DVD Writer drive,

LightScribe software, Roxio Easy Media Creator

software, Intervideo WinDVD Software, installation

guide, and DVD+R media.

HP Blu-Ray Writer

Description

5.25-inch, half-height, tray-load

Mounting Orientation

Either horizontal or vertical

Interface Type

SATA

Dimensions

(WxHxD)

5.9 x 1.7 x 8.0 in (15.0 x 4.4 x 20.3 cm)

Disc Formats

BD-ROM

BD-R

BD-RE

DVD-RAM

DVD+R

DVD+RW

DVD+R DL

DVD-R DL

DVD-R

DVD-RW

CD-R

CD-RW

Disc Capacity

DVD-ROM

8.5 GB DL or 4.7 GB standard

Blu-ray

50 GB DL or 25 GB standard

Full Stroke DVD

< 250 ms (seek)

Full Stroke CD

< 210 ms (seek)

Blu-ray

Blu-ray

Startup Time

(Time to drive

ready from tray loading)

BD-ROM (SL/DL)

25S / 28S

BD-R (SL/DL)

25S / 28S

BD-RE (SL/DL)

25S / 28S

DVD-ROM (SL/DL)

18S / 18S

DVD-R (SL/DL)

25S / 25S

DVD-RW

25S

QuickSpecs

HP Z400 Workstation

Technical Specifications - Optical and Removable Storage

DA - 13276 Worldwide QuickSpecs — Version 1 — 3.30.2009

Page 48

DVD+R (SL/DL)

25S / 25S

DVD+RW

25S

DVD-RAM

45S

CD-ROM

45S

Maximum Data Transfer

Rates

CD ROM Read

CD-ROM

CD-R

CD-RW

Up to 40X

Up to 40X

Up to 40X

DVD ROM Read

DVD-RAM

Up to 5X

DVD+RW

Up to 10X

DVD-RW

Up to 10X

DVD+R DL

Up to 8X

DVD-R DL

Up to 8X

DVD-ROM

Up to 16X

DVD-ROM DL

Up to 8X

DVD+R

Up to 12X

DVD-R

Up to 12X

Blu-Ray

BD-ROM

Up to 6X

BD-ROM DL

Up to 4.8X

BD-R

Up to 6X

BD-R DL

Up to 4.8X

BD-R

Up to 6X

BD-RE SL/DL

Up to 4.8X

Power

Source

SATA DC power receptacle

DC Power Requirements

5 VDC ± 5%-100 mV ripple p-p

12 VDC ± 10%-100 mV ripple p-p

DC Current

5 VDC -900 mA typical, 1200 mA maximum

12 VDC -1000 mA typical, 1600 mA maximum

Operating Environmental

(all conditions non-

condensing)

Temperature

41° to 122° F (5° to 50° C)

Relative Humidity

15% to 80%

Maximum Wet Bulb

Temperature

86° F (30° C)

Operating Systems

Supported

Windows Vista Business 64*, Windows Vista

Business 32*, Windows Vista Home Basic 32*,

Windows 2000, Windows XP Professional or

Windows XP Home 32*.

Red Hat Enterprise Linux(RHEL) WS3, WS4, 5

Desktop/Workstation

Novell SLES 9 & SLE 10

No driver is required for this device. Native

support is provided by the operating system.

Kit Contents

HP Blue Laser RW Drive, LightScribe software,

Roxio Easy Media Creator software, Intervideo

WinDVD Software, installation guide.

Disclaimer

As Blu-Ray is a new format containing new technologies, certain disc, digital

connection, compatibility and/or performance issues may arise, and do not

QuickSpecs

HP Z400 Workstation

Technical Specifications - Optical and Removable Storage

DA - 13276 Worldwide QuickSpecs — Version 1 — 3.30.2009

Page 49

constitute defects in the product. Flawless playback on all systems is not

guaranteed. In order for some Blu-Ray titles to play, they may require a DVI or

HDMI digital connection and your display may require HDCP support. HD-

DVD movies cannot be played on this workstation.

HP 22-in-1 Media Card

Reader

Description

The Media Card Reader device uses the same physical form factor and

mounting as a Floppy Disk Drive. The device connects to a 2x5 two-channel

USB header on the motherboard of the system. There is no USB controller

card provided. Please see the Disc Formats section below for a list of flash

memory card formats that are supported.

Mounting Orientation

The Media Card Reader can be mounted in a dedicated Floppy Drive bay (if

the chassis provides one) or in an appropriate Optical Bay adapter. It will

operate in any orientation.

Interface Type

USB 2.0 (one channel dedicated to the separate USB port; one channel

dedicated to the flash memory card slots)

Dimensions

(WxHxD)

4.9 x 4.0 x 1.0 in (124.5 x 101.6 x 25.4 mm)

Disc Formats

xD-Picture

Micro SD

Micro SDHC

SD

SDHC

Mini SD

Mini SDHC

MultiMediaCard (MMC)

Reduced Size MultiMediaCard (RS MMC)

MultiMedia Card 4.2 (MMC Plus, including MMC Plus HC)

Reduced Size MultiMedia Card 4.2 (MMC Mobile, including MMC Mobile

HC)

CompactFlash Card Type I

CompactFlash Card Type II

MicroDrive

Memory Stick (MS)

MagicGate Memory Stick (MG)

MagicGate Memory Stick Duo

Memory Stick Select

Memory Stick Duo (MS Duo)

Memory Stick PRO (MS PRO)

Memory Stick PRO Duo (MS PRO Duo)

Memory Stick PRO-HG Duo

Two additional formats are usable with adapters (not supplied):

MMC Micro

Memory Stick Micro (M2)

QuickSpecs

HP Z400 Workstation

Technical Specifications - Optical and Removable Storage

DA - 13276 Worldwide QuickSpecs — Version 1 — 3.30.2009

Page 50

HP FireWire/IEEE 1394a

PCI Card

Data Transfer Rate

Burst Data Rate up to 400 Mbps

Device Interface Protocol

IEEE-1394a

Devices Supported

IEEE-1394 compliant devices

Bus Type

PCI card with brackets for low profile and full height PCI slots.

Certification Level

FCC Part 15B, cULus 60950, CE Mark EN55022B(1995)/EN55024-

1998 STD, Taiwan BSMI CNS13438, Korea MIC

Ports

Two IEEE 1394 6-Pin Connector (Rear)

Internal Connectors

One 10-Pin (9 Contacts) Custom Connector

System Requirements

Windows Vista Business 64

*

, Windows Vista Business 32

*

, Windows Vista

Home Basic 32

*

, Windows 2000, Windows XP Professional or Windows

XP Home 32

*

. No driver is required for this device. Native support is

provided by the operating system.

* Certain Windows Vista product features require advanced or additional

hardware. Windows Vista Upgrade Advisor can help you determine which

features of Windows Vista will run on your computer. To download the tool,

visit:

http://www.windowsvista.com/upgradeadvisor

. For Windows Vista

system requirements, visit:

http://www.windowsvista.com/systemrequirements

.

Pentium II 266 or above

128-MB RAM

1-GB Hard Drive

CD-ROM drive

Built-in sound system

Available PCI slot

Temperature - Operating

50° to 131° F (10° to 55° C)

Temperature - Storage

-22° to 140° F (-30° to 60° C)

Relative Humidity -

Operating

20% to 80%

Operating Systems

Supported

Windows Vista Business 64

*

, Windows Vista Business 32

*

, Windows Vista

Home Basic 32

*

, Windows 2000, Windows XP Professional or Windows

XP Home 32

*

* Certain Windows Vista product features require advanced or additional

hardware. Windows Vista Upgrade Advisor can help you determine which

features of Windows Vista will run on your computer. To download the tool,

visit:

http://www.windowsvista.com/upgradeadvisor

. For Windows Vista

system requirements, visit:

http://www.windowsvista.com/systemrequirements

.

QuickSpecs

HP Z400 Workstation

Technical Specifications - Controller Cards

DA - 13276 Worldwide QuickSpecs — Version 1 — 3.30.2009

Page 51

HP IEEE 1394b FireWire

PCIe Card

Data Transfer Rate

Supports up to 800 Mbps

Devices Supported

IEEE-1394 compliant devices

Bus Type

PCIe card full height PCIe slots

Ports

Two IEEE-1394b bilingual 9-Pin Connector (Rear)

Internal Connectors

One 10-Pin header Custom Connector

System Requirements

Microsoft Windows XP Professional, Windows XP Home, Windows Vista.

Not supported on Linux. Pentium® III or higher processor 128-MB RAM 1-GB

Hard Drive CD-ROM drive Built in sound system Available PCI slot

Temperature – Operating

50° to 131° F (10° to 55° C)

Temperature – Storage

–22° to 140° F (–30° to 60° C)

Relative Humidity –

Operating

20% to 80%

Compliances

FCC Part 15B, cULus 60950, CE Mark EN55022B(1995)/EN55024-

1998 STD, Taiwan BSMI CNS13438, Korea MIC

Operating Systems

Supported

Microsoft Windows XP and Windows Vista

QuickSpecs

HP Z400 Workstation

Technical Specifications - Controller Cards

DA - 13276 Worldwide QuickSpecs — Version 1 — 3.30.2009

Page 52

NOTE 1

: "Gigabit" Ethernet indicates compliance with IEEE standard 802.3ab for Gigabit Ethernet, and does not connote actual

operating speed of 1 Gb/sec. For high speed transmission, connection to a Gigabit Ethernet server and network infrastructure is

required.

Integrated Broadcom

5764 PCIe LOM

Controller

Connector

RJ45

Data Rates Supported

10/100/1000BT

Bus Architecture

PCIe X1

Alerting

ASF 2.0

Broadcom (5761)

NetXtreme Gigabit

Ethernet Plus NIC

Connector

RJ-45

Controller

Broadcom 5761 PCI-Express LAN Controller

Memory

8 MB NVRAM serial Flash

Data Rates Supported

10/100/1000 Mbps

Compliance

IEEE 802.1P, 802.1Q, 802.2, 802.3, 802.3AB, 802.3u, and 802.3x

Bus Architecture

PCI-Express

Data Path Width

Single Channel PCI-Express

Data Transfer Mode

Bus Master DMA

Hardware Certifications

FCC class B, Canada and US NRTL Mark, C-Tick for Australia, BSMI for

Taiwan, VCCI for Japan, MIC for Korea, GOST for Russia, UL listed

(E212044), European Union Notice (CE 0682)

Power Requirement

1.8W @ 3.3V

Boot ROM Support

Yes

Network Transfer Mode

Full-duplex

Half-duplex (not available for the 1000BASE-T transceiver)

Network Transfer Rate

10BASE-T (half-duplex) 10 Mbps

10BASE-T (full-duplex) 20 Mbps

100BASE-TX (half-duplex) 100 Mbps

100BASE-TX (full-duplex) 200 Mbps

1000BASE-T (full-duplex) 2000 Mbps

Operating Temperature

32° to 131°F (0° to 55° C)

Operating Humidity

131° F (55° C) with 5% to 95% non-condensing humidity

Dimensions

2.75 in x 4.13 in (7 cm x 10.5 cm), low profile compatible

Operating System Driver

Support

Windows Vista 32-bit SP1, Windows Vista x64 SP1, Windows XP 32 bit

professional, Windows XP x64 .

Management Capabilities

ACPI, WOL and DMI 2.0, PXE 2.0, WfM 2.0, Broadcom mgmt utility,

ASF2.0, DASH 1.0 and DASH 1.1 profiles

Kit Contents

Broadcom NetXtreme Gigabit Ethernet Plus NIC, Broadcom NetXtreme

Gigabit Ethernet Plus NIC USB Cable Assembly, CD, drivers, quick install

guide, product warranty statement

QuickSpecs

HP Z400 Workstation

Technical Specifications - Networking and Communications

DA - 13276 Worldwide QuickSpecs — Version 1 — 3.30.2009

Page 53

Intel Gigabit CT Desktop

NIC

Connector

RJ-45

Controller

Intel WG82574L Gigabit Ethernet Controller

Memory

Integrated Dual 48K configurable transmit receive FIFO Buffers

Data Rates Supported

10/100/1000 Mbps

Compliance

IEEE 802.1P, 802,1Q, 802.2, 802.3, 802.3AB and 802.3u compliant,

802.3x flow control

Bus Architecture

PCI-E 1.0a

Data Path Width

X1, 250 MB/s, Bi-directional interface

Data Transfer Mode

Bus-master DMA

Hardware Certifications

FCC, B, CE, TUV- cTUVus Mark Canada and United States, TUV- GS Mark

for European Union

Power Requirement

Aux 3.3V, 3.0 Watts in 1000base-T and 2.0 Watts in 100Base-T

Boot ROM Support

Yes

Network Transfer Rate

10BASE-T (half-duplex) 10 Mbps

10BASE-T (full-duplex) 20 Mbps

100BASE-TX (half-duplex) 100 Mbps

100BASE-TX (full-duplex) 200 Mbps

1000BASE-T (full-duplex) 2000 Mbps

Operating Temperature

32° to 131°F (0° to 55° C)

Operating Humidity

85% at 131° F (55° C)

Dimensions

4.75 x 2.25 x 0.8 in (12.1 x 5.7 x 2.0 cm)

Operating System Driver

Support

Windows Vista Business 64, Windows Vista Business 32, Windows XP

Professional, Windows XP x64.

Red Hat Enterprise Linux 4, Red Hat Enterprise Linux 5.

Management Capabilities

WOL , PXE, DMI, WFM 2.0

Kit Contents

Intel Gigabit CT Desktop NIC, low profile bracket, CD containing Intel

PROset II NIC drivers, quick install guide, product warranty statement

© Copyright 2009 Hewlett-Packard Development Company, L.P.

The information contained herein is subject to change without notice.

All rights reserved. Microsoft, Windows, Windows Vista, and Windows XP are registered trademarks or trademarks of Microsoft

Corporation in the U.S. and/or other countries. Intel, the Intel logo, Pentium, and Pentium Inside are trademarks or registered

trademarks of Intel Corporation or its subsidiaries in the United States and other countries. Linux is a registered trademark of Linus

Torvalds in the United States and other countries.

Warranty - year(s) Protected by HP Services, including a 3 years parts, 3 years labor, and 3 years onsite service (3/3/3) standard

warranty. Terms and conditions vary by country. Certain restrictions and exclusions apply.

QuickSpecs

HP Z400 Workstation

Technical Specifications - Networking and Communications

DA - 13276 Worldwide QuickSpecs — Version 1 — 3.30.2009

Page 54
