HP LaserJet M1120 MFP Series
Software Technical Reference
HP LaserJet M1120 MFP Series
Software Technical Reference
Copyright and license
©2008 Copyright Hewlett-Packard
Development Company, L.P.
Reproduction, adaptation or translation
without prior written permission is prohibited,
except as allowed under the copyright laws.
The information contained herein is subject
to change without notice.
The only warranties for HP products and
services are set forth in the express warranty
statements accompanying such products
and services. Nothing herein should be
construed as constituting an additional
warranty. HP shall not be liable for technical
or editorial errors or omissions contained
herein.
Edition 1, 1/2008
Trademark credits
Adobe®, Adobe Photoshop®, Acrobat®,
PostScript®, and the Acrobat logo® are
trademarks of Adobe Systems Incorporated.
ENERGY STAR® and the ENERGY STAR logo®
are US registered marks of the United States
Environmental Protection Agency.
Microsoft®, Windows®, Windows NT 4.0®
Windows® XP, and Windows Vista® are
U.S. registered trademarks of Microsoft
Corporation.
Pentium® is a trademark or registered
trademark of Intel Corporation or its
subsidiaries in the United States and other
countries.
Table of contents
1 Purpose and scope
Introduction ........................................................................................................................................... 1
HP LaserJet M1120 MFP ..................................................................................................................... 3
Printing-system software ...................................................................................................................... 4
MS Windows system requirements ..................................................................................... 4
Operating-system support .................................................................................................. 4
Full software installation ...................................................................................... 4
Standalone drivers .............................................................................................. 5
Driver support in other operating systems .......................................................... 5
Availability ........................................................................................................................... 5
Software on the Web ........................................................................................... 5
In-box software CD ............................................................................................. 5
Windows partition ............................................................................... 6
CD versions ........................................................................................ 8
Documentation availability and localization ........................................................................................ 11
HP LaserJet M1120 MFP Series User Guide .................................................................... 12
Hewlett-Packard LaserJet M1120 MFP Install Notes ........................................................ 13
2 Software description
Introduction ......................................................................................................................................... 15
Windows printing-system software ..................................................................................................... 16
Software and installer ........................................................................................................ 16
HP LaserJet M1120 MFP Series software CD for MS Windows systems ....... 16
Installer features ................................................................................................ 17
HP LaserJet host-based print driver .................................................................................. 18
Print-driver version numbers for MS Windows operating systems .................... 18
HP Embedded Web Server (HP LaserJet M1120n MFP only) ........................................................... 19
Information ......................................................................................................................... 19
Device Status .................................................................................................... 19
Device Configuration ......................................................................................... 20
Supplies Status ................................................................................................. 21
Network Summary ............................................................................................. 21
Settings .............................................................................................................................. 21
Networking ......................................................................................................................... 21
ENWW iii

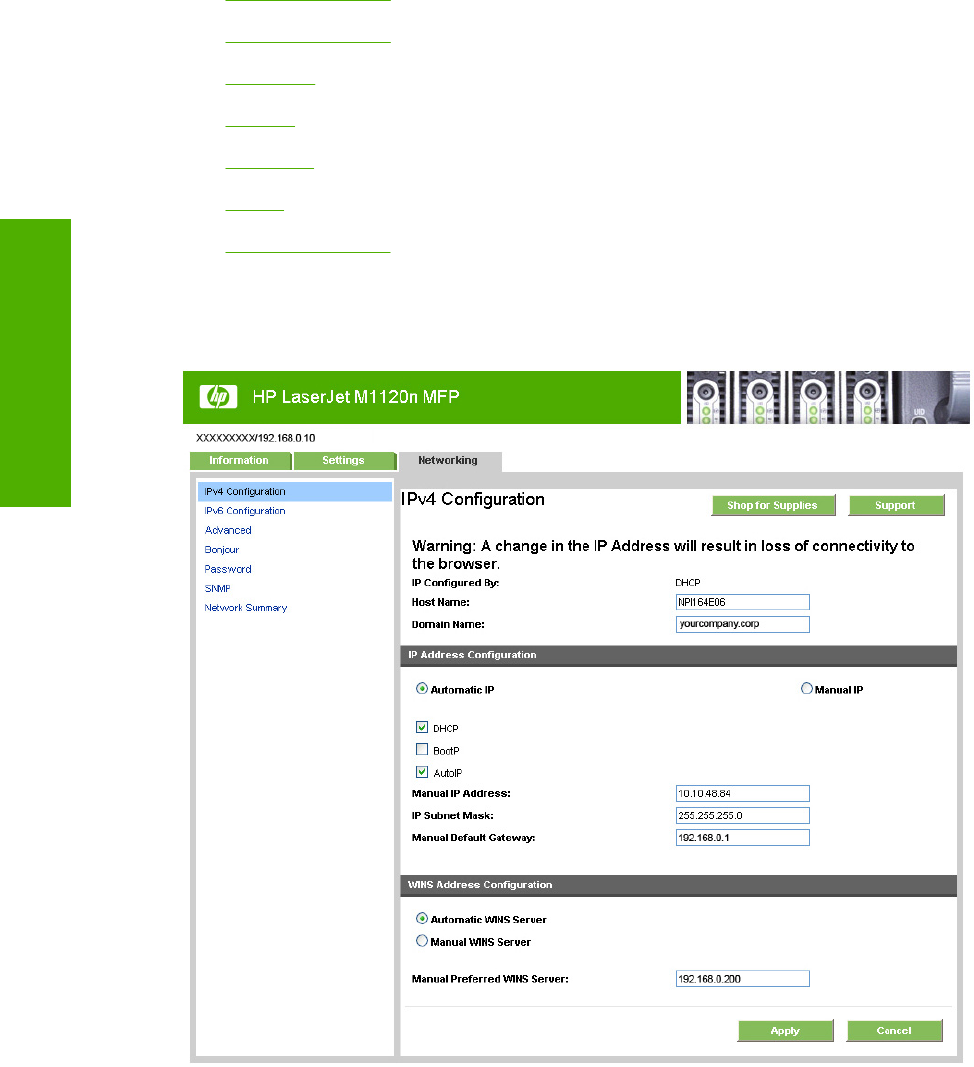

IPv4 Configuration ............................................................................................. 22
IPv6 Configuration ............................................................................................. 23
Advanced .......................................................................................................... 23
Bonjour .............................................................................................................. 24
Password .......................................................................................................... 24
SNMP ................................................................................................................ 25
Network Summary ............................................................................................. 25
HP Extended Capabilities ................................................................................................................... 27
HP Status Application ......................................................................................................................... 28
Scanning software .............................................................................................................................. 29
Scanning methods ............................................................................................................. 29
HP LaserJet Scan software ............................................................................................... 29
E-mail ................................................................................................................ 31
Scan drivers ....................................................................................................................... 32
TWAIN driver ..................................................................................................... 32
TWAIN compatibility ......................................................................... 32
TWAIN scanning does not work with some programs ...................... 32
Additional information about TWAIN ................................................ 32
TWAIN driver user interface (MS Windows) ..................................... 33
WIA driver ......................................................................................................... 40
Optional software ............................................................................................................................... 49
Text-recognition software .................................................................................................. 49
About text-recognition reliability ........................................................................ 49
Readiris text-recognition software ..................................................................................... 49
3 Install MS Windows software components
Installation overview .......................................................................................................................... 52
Installation options .............................................................................................................................. 53
Microsoft Windows installation for direct connections ....................................................... 53
Microsoft Windows installation for computers on a network .............................................. 53
Set up Microsoft Windows Sharing (peer-to-peer networking) .......................................... 54
Set up the MS Windows 2000 host computer ................................................... 54
Set up the MS Windows Server 2003 or MS Windows XP host computer ....... 55
Set up the client computers ............................................................................... 55
Detailed MS Windows installation instructions ................................................................................... 57
User uninstall ...................................................................................................................................... 79
Uninstall methods .............................................................................................................. 79
Uninstall instructions for MS Windows operating systems ................................ 79
Add or repair software using the installation CD ................................................................ 81
4 Host-based driver features for MS Windows
Introduction to host-based printing ..................................................................................................... 84
Access to the driver ............................................................................................................................ 85
iv ENWW
Printing Preferences tab set .............................................................................................. 85
Properties tab set ............................................................................................................... 85
Help system ........................................................................................................................................ 86
What's this? Help ............................................................................................................... 86
Context-sensitive Help ....................................................................................................... 86
Paper Type Warning .......................................................................................................... 86
Driver tabs .......................................................................................................................................... 87
Printing Preferences tab set .............................................................................................. 87
Advanced tab features ...................................................................................... 87
Paper/Output .................................................................................... 88
Printer Features ................................................................................ 88
Paper/Quality tab features ................................................................................ 89
Print Task Quick Sets ....................................................................... 89
Paper Options ................................................................................... 91
Use Different Paper/Covers options ................................................. 94
Document preview image ................................................................. 96
Print Quality ...................................................................................... 97
Effects tab features ........................................................................................... 97
Print Task Quick Sets ....................................................................... 98
Resizing Options .............................................................................. 98
Document preview image ................................................................. 99
Watermarks .................................................................................... 100
Finishing tab features ...................................................................................... 103
Print Task Quick Sets ..................................................................... 103
Document Options .......................................................................... 103
Document preview image ............................................................... 107
Orientation ...................................................................................... 108
Services tab features ...................................................................................... 109
Properties tab set ............................................................................................................. 109
Device Settings tab features ........................................................................... 110
Jam Recovery ................................................................................. 110
Print density .................................................................................... 110
Status Message .............................................................................. 110
Courier Font Type ........................................................................... 111
Allow Manual Duplexing ................................................................. 111
About tab features ........................................................................................... 111
Driver Files: .................................................................................... 111
Configuration Status: ...................................................................... 111
5 Macintosh software and utilities
Introduction ....................................................................................................................................... 113
Macintosh printing-system software ................................................................................................. 114
Additional software .......................................................................................................... 114
ENWW v
System requirements ....................................................................................................... 114
Availability ........................................................................................................................ 114
Software on the Web ....................................................................................... 115
Macintosh software ......................................................................... 115
Software component availability ..................................................... 115
In-box printing-system software CDs .............................................................. 115
Macintosh partition ......................................................................... 115
CD versions .................................................................................... 115
Macintosh install and uninstall instructions ...................................................................................... 117
Macintosh component descriptions ................................................................................. 117
PDEs ............................................................................................................... 117
Install notes ..................................................................................................... 117
Online help ...................................................................................................... 117
Screen fonts .................................................................................................... 117
Install the Macintosh software ......................................................................................... 118
General installation for Macintosh operating systems ..................................... 118
Installation dialog-box options for Macintosh .................................................. 118
Device setup ................................................................................................... 121
Uninstall ........................................................................................................................... 122
Uninstall the Macintosh software .................................................................... 122
Macintosh remote firmware updates ................................................................................................ 123
Remote firmware update by using the HP Printer Utility .................................................. 123
TWAIN driver user interface (Macintosh) ......................................................................................... 124
6 Engineering Details
Introduction ....................................................................................................................................... 127
Media attributes ................................................................................................................................ 128
Media sources and destinations ...................................................................................... 128
Driver-supported paper sizes ........................................................................................... 128
Driver-supported paper types .......................................................................................... 130
Custom paper sizes ......................................................................................................... 131
Remote firmware updates ............................................................................................................... 132
Print a configuration page ............................................................................................... 132
Downloading the new firmware from the HP Web site .................................................... 132
Download new firmware to the device ............................................................................. 132
Device messages during the firmware update ................................................................ 133
Index ................................................................................................................................................................. 135
vi ENWW
List of tables
Table 1-1 Software technical reference overview .............................................................................................. 1
Table 1-2 Features of the HP LaserJet M1120 MFP Series .............................................................................. 3
Table 1-3 AR – FR ............................................................................................................................................. 9
Table 1-4 HE – PL .............................................................................................................................................. 9
Table 1-5 PT – ZHTW ...................................................................................................................................... 10
Table 1-6 Documentation availability ............................................................................................................... 11
Table 2-1 Supported e-mail programs .............................................................................................................. 32
Table 4-1 Standard paper types and engine speed ......................................................................................... 93
Table 4-2 Page orientation ............................................................................................................................. 105
Table 5-1 Adding a printer in Macintosh operating systems .......................................................................... 118
Table 6-1 HP LaserJet M1120 MFP Series paper sources and destination .................................................. 128
Table 6-2 Supported paper sizes and attributes ............................................................................................ 128
Table 6-3 Supported input paper types .......................................................................................................... 130
Table 6-4 Custom paper sizes ...................................................................................................................... 131
Table 6-5 Troubleshooting a firmware update .............................................................................................. 133
Table 6-6 Troubleshooting a firmware update failure .................................................................................... 133
Table 6-7 Update messages .......................................................................................................................... 134
ENWW vii
viii ENWW
List of figures
Figure 1-1 Installation software CD documentation and support screen ......................................................... 11
Figure 2-1 Installation software CD browser ................................................................................................... 17
Figure 2-2 HP EWS – Device Status page ....................................................................................................... 19
Figure 2-3 HP EWS – Device Configuration page ........................................................................................... 20
Figure 2-4 HP EWS – Supplies Status page .................................................................................................... 21
Figure 2-5 HP EWS – Settings tab ................................................................................................................... 21
Figure 2-6 HP EWS – IP v4 Configuration page .............................................................................................. 22
Figure 2-7 HP EWS – IP v6 Configuration page .............................................................................................. 23
Figure 2-8 HP EWS – Advanced page ............................................................................................................. 23
Figure 2-9 HP EWS – Bonjour page ................................................................................................................ 24
Figure 2-10 HP EWS – Password page ........................................................................................................... 24
Figure 2-11 HP EWS – SNMP page ................................................................................................................ 25
Figure 2-12 HP EWS – Network Summary page ............................................................................................. 26
Figure 2-13 HP Extended Capabilities screen ................................................................................................. 27
Figure 2-14 Sample pop-up error status message ........................................................................................... 28
Figure 2-15 hp LaserJet Scan dialog box ........................................................................................................ 30
Figure 2-16 Scan Settings dialog box .............................................................................................................. 31
Figure 2-17 TWAIN driver user interface (MS Windows) ................................................................................. 33
Figure 2-18 TWAIN driver user interface – Resize ........................................................................................... 35
Figure 2-19 TWAIN driver user interface – Resolution ..................................................................................... 36
Figure 2-20 TWAIN driver user interface – Lighten/Darken ............................................................................. 37
Figure 2-21 TWAIN driver user interface – Sharpen ........................................................................................ 38
Figure 2-22 TWAIN driver user interface – Color Adjustment .......................................................................... 39
Figure 2-23 TWAIN driver user interface – B/W Threshold .............................................................................. 40
Figure 2-24 Welcome to the Scanner and Camera Wizard dialog box ............................................................ 41
Figure 2-25 Choose Scanning Preferences dialog box .................................................................................... 42
Figure 2-26 Picture Name and Destination dialog box ..................................................................................... 43
Figure 2-27 Scanning Picture dialog box ......................................................................................................... 44
Figure 2-28 Other Options dialog box .............................................................................................................. 45
Figure 2-29 Completing the Scanner and Camera Wizard dialog box ............................................................. 46
Figure 2-30 Select Device dialog box ............................................................................................................... 47
Figure 2-31 Scan using (device name) dialog box ........................................................................................... 47
Figure 2-32 Downloading picture dialog box .................................................................................................... 48
Figure 3-1 Step 1 - CD Browser window .......................................................................................................... 57
ENWW ix
Figure 3-2 Step 2 - Choose Easy Install or Advanced Install dialog box ......................................................... 58
Figure 3-3 Step 3 - Please Allow All HP Install Wizard Processes dialog box ................................................. 59
Figure 3-4 Step 4 - Installing dialog box ........................................................................................................... 60
Figure 3-5 Step 5 - License Agreement dialog box .......................................................................................... 61
Figure 3-6 Step 6 - HP Privacy Policy dialog box ............................................................................................. 62
Figure 3-7 Step 7 - HP Extended Capabilities dialog box ................................................................................ 63
Figure 3-8 Step 8 - Select Printer dialog box ................................................................................................... 64
Figure 3-9 Step 9 - Printer Connections dialog box ......................................................................................... 65
Figure 3-10 Step 10 - Connect your device now - disconnected dialog box .................................................... 66
Figure 3-11 Step 10 - Connect your device now - connected dialog box ......................................................... 67
Figure 3-12 Step 11 - Identify Printer dialog box .............................................................................................. 68
Figure 3-13 Step 12 - Searching dialog box ..................................................................................................... 69
Figure 3-14 Step 13 - Printer Not Found dialog box ........................................................................................ 70
Figure 3-15 Step 14 - Check Printer Connection dialog box ............................................................................ 71
Figure 3-16 Step 15 - Specify Printer dialog box ............................................................................................. 72
Figure 3-17 Configuration Page ....................................................................................................................... 73
Figure 3-18 Step 16 - Printer Found dialog box ............................................................................................... 74
Figure 3-19 Step 17 - Confirm Network Settings dialog box ............................................................................ 75
Figure 3-20 Step 18 - Confirm Changing Settings dialog box .......................................................................... 76
Figure 3-21 Step 19 - Change TCP/IP Settings dialog box .............................................................................. 77
Figure 3-22 Step 20 - Congratulations! Software installation is complete. dialog box ..................................... 78
Figure 3-23 Step 21 - User cancelled installation dialog box ........................................................................... 78
Figure 3-24 The Are you sure you want to uninstall this product? dialog box .................................................. 79
Figure 3-25 Uninstalling dialog box .................................................................................................................. 80
Figure 3-26 Please reboot your computer dialog box ...................................................................................... 80
Figure 3-27 CD Browser - Main screen ............................................................................................................ 81
Figure 3-28 Please select from the following dialog box .................................................................................. 82
Figure 4-1 HP LaserJet M1120 MFP host-based driver overview ................................................................... 84
Figure 4-2 A typical paper type warning ........................................................................................................... 86
Figure 4-3 Advanced tab ................................................................................................................................. 87
Figure 4-4 Paper/Quality tab ........................................................................................................................... 89
Figure 4-5 Paper Options group box .............................................................................................................. 91
Figure 4-6 Custom Paper Size dialog box ........................................................................................................ 92
Figure 4-7 Front Cover setting ........................................................................................................................ 95
Figure 4-8 First Page, Other Pages, and Last Page options .......................................................................... 96
Figure 4-9 Effects tab ..................................................................................................................................... 97
Figure 4-10 Preview images - Legal on Letter; Scale to Fit off (left) and on (right) ........................................ 99
Figure 4-11 Watermark Details .................................................................................................................... 100
Figure 4-12 Finishing tab ............................................................................................................................... 103
Figure 4-13 Print on Both Sides Instructions .................................................................................................. 104
Figure 4-14 Page-order preview images ....................................................................................................... 107
Figure 4-15 Services tab ............................................................................................................................... 109
Figure 4-16 Device Settings tab ..................................................................................................................... 110
Figure 4-17 About tab ..................................................................................................................................... 111
xENWW
Figure 5-1 Step 1 - Insert the HP LaserJet M1120 MFP Series software CD ................................................ 118
Figure 5-2 Step 2 - Run the printing-system software CD .............................................................................. 119
Figure 5-3 Step 3 - Main CD screen ............................................................................................................... 119
Figure 5-4 Step 4 - Authenticate .................................................................................................................... 120
Figure 5-5 Step 5 - License agreement, screen 1 ......................................................................................... 120
Figure 5-6 Step 6 - Software License Agreement, screen 2 .......................................................................... 121
Figure 5-7 Step 7 - Install files ........................................................................................................................ 121
Figure 5-8 Printer List screen ......................................................................................................................... 122
Figure 5-9 The configuration is not supported. screen (Macintosh) ............................................................... 124
Figure 5-10 Image Capture Devices screen (Macintosh) ............................................................................... 124
Figure 5-11 HP LaserJet M1120 MFP preview image settings screen (Macintosh) ...................................... 125
Figure 5-12 HP Scan Settings screen (Macintosh) ........................................................................................ 125
ENWW xi
xii ENWW
1 Purpose and scope
Introduction
This software technical reference (STR) provides information about and troubleshooting tips for the
HP LaserJet M1120 MFP Series software.
This STR is prepared in an electronic format to serve as a quick-reference tool for Customer Care Center
(CCC) agents, support engineers, system administrators, management information systems (MIS)
personnel, andHP LaserJet M1120 MFP Series end users, as appropriate.
The following information is included in this STR:
●Descriptions of print drivers, operating system support, and system modifications
●Procedures for installing and uninstalling software components
●Descriptions of various HP LaserJet M1120 MFP Series topics, including engineering details
The following table describes the structure of this STR.
Table 1-1 Software technical reference overview
Chapter Content
Chapter 1, Purpose and scope This chapter contains basic information about the HP LaserJet M1120 MFP Series
and theHP LaserJet M1120 MFP Series software:
●Overview of the HP LaserJet M1120 MFP Series
●Printing-system software overview, including the following topics:
◦System requirements
◦Operating-system support
◦Availability
●HP LaserJet software documentation
Chapter 2, Software description This chapter provides an overview of the printing-system software installer and
print drivers.
This chapter also contains general information about other software features,
including the following topics:
●HP LaserJet Scan software program and driver
●Readiris Professional text-recognition
Chapter 3, Install Microsoft® (MS)
Windows® printing-system components
This chapter provides instructions for installing the HP LaserJet M1120 MFP
Series in MS Windows operating systems.
ENWW Introduction 1
Purpose and scope
Chapter Content
Chapter 4, Host-based driver features for
MS Windows
This chapter provides detailed descriptions of the host-based driver features for
MS Windows.
Chapter 5, Installation for Macintosh
operating systems
This chapter provides instructions for installing the HP LaserJet M1120 MFP
Series in Macintosh operating systems and using Macintosh features.
Chapter 6, Engineering details This chapter contains information about the following special topics:
●Media attributes
●Remote firmware update
For information about the location of information within chapters, see the table of contents. An index is
provided in this STR.
Additional detailed information about the HP LaserJet M1120 MFP Series software is published in an
addendum to this STR. The following information is available only in the addendum:
●Lists of installed files
●System-modification information, such as changes to the registry and registry keys
●Descriptions of known software issues and solutions
Topics:
●HP LaserJet M1120 MFP
●Printing-system software
●Documentation availability and localization
Table 1-1 Software technical reference overview (continued)
2 Chapter 1 Purpose and scope ENWW
Purpose and scope
HP LaserJet M1120 MFP
The following table describes the features of the device.
Table 1-2 Features of the HP LaserJet M1120 MFP Series
Feature HP LaserJet M1120 MFP Series
HP Product Numbers ●CB537A (HP LaserJet M1120 MFP)
●CC459A (HP LaserJet M1120n MFP)
Memory ●32 megabytes (MB) of random-access memory (RAM)
Speed ●Prints letter-size pages at speeds up to 20 pages per minute (ppm)
and A4-size pages at speeds up to 19 ppm.
●First page out in less than 7 seconds
Connectivity ●A 2.0 hi-speed universal serial bus (USB) port
●HP LaserJet M1120n MFP includes a 10/100 Base-T Ethernet network
port
●HP LaserJet M1120n MFP supports IPv4 and IPv6 network protocols
Paper handling ●Priority input tray holds up to 10 sheets of paper or 1 envelope
●Tray 1 holds up to 250 sheets of paper or 10 envelopes
●Output bin holds up to 100 sheets of paper
Print ●Prints at 600 dots per inch (dpi) and FastRes 1200 dpi
●Includes adjustable settings to optimize print quality
●Manual two-sided (duplex) printing
Copy ●Copies at 300 dpi
●Manual two-sided (duplex) copying
Scan ●Flatbed scanner
●HP LaserJet Scan software and driver
●Provides 1200 pixels per inch (ppi) full-color scanning
●Readiris optical character recognition (OCR)
NOTE: The OCR software is not installed with the HP LaserJet
M1120 MFP Series software. The OCR software is included on a
separate CD and requires a separate installation.
Printer driver features ●HP LaserJet M1120 MFP Series host-based driver
●FastRes 1200 produces 1200 dpi print quality for fast, high-quality
printing of business text and graphics
Economical printing ●Provides N-up printing (printing more than one page on a sheet)
●Provides an EconoMode setting, which uses less toner
Supplies ●Uses a no-shake print cartridge
●The product ships with a 1,000-page (average yield) starter cartridge.
The average yield for replacement cartridges is 2,000 pages.
ENWW HP LaserJet M1120 MFP 3
Purpose and scope
Printing-system software
Topics:
●MS Windows system requirements
●Operating-system support
●Availability
MS Windows system requirements
●Pentium® II or compatible processor
●233-MHz processor with 64 MB RAM
●35 MB of disk space
●Minimum 16-color/grayscale display with 800 x 600 pixel resolution super video graphics array
(SVGA)
●Onboard USB port
●CD-ROM drive or Internet connection
Operating-system support
MS Windows operating systems provide full-featured support for the HP LaserJet M1120 MFP Series.
Operating systems that are not described in this document provide varying levels of functionality.
NOTE: Throughout this document, MS Windows XP is used to denote MS Windows XP Home Edition,
and MS Windows XP Professional, unless noted otherwise.
The HP LaserJet M1120 MFP Series software does not support MS Windows 3.1x, MS Windows NT®
4.0, MS Windows 95, MS Windows 98, MS Windows Millennium Edition (Me), or MS Windows Server
2000.
For more information about the HP LaserJet M1120 MFP Series, go to the following Web site:
www.hp.com/support/ljm1120
Topics:
●Full software installation
●Standalone drivers
●Driver support in other operating systems
Full software installation
The following operating systems support the full software installation for the HP LaserJet M1120 MFP
Series:
●MS Windows Vista (32-bit)
●MS Windows Server 2003 (32-bit)
4 Chapter 1 Purpose and scope ENWW
Purpose and scope
●MS Windows XP (32-bit)
●MS Windows 2000
Standalone drivers
The following operating systems support the HP LaserJet M1120 MFP Series print and scan drivers:
●MS Windows Vista (64-bit)
●MS Windows Server 2003 (64-bit)
●MS Windows XP (64-bit)
Driver support in other operating systems
The HP LaserJet M1120 MFP Series print and scan drivers are also supported in the following operating
system:
●Mac OS X V10.3 and later
NOTE: For Mac OS V10.4 and later, PPC and Intel Core Processor Macs are supported.
Availability
Download the software from the Web, or order it on a CD from HP fulfillment centers.
NOTE: This STR describes drivers that are shipped with the printing-system software CD. This STR
does not describe any drivers that might be released by support personnel.
Topics:
●Software on the Web
●In-box software CD
Software on the Web
All software that is contained on the installation CD is also available on the Web.
Web deployment is the preferred method for obtaining the latest software. The HP Web site offers an
option for automatic e-mail notification of new software releases.
The HP LaserJet M1120 MFP Series software is available for download at the following Web site:
www.hp.com/go/ljm1120_software
In-box software CD
The software CD for the HP LaserJet M1120 MFP Series contains a variety of files for installing the
software on the computer.
NOTE: The Readiris software uses a separate installer that comes on a separate CD.
ENWW Printing-system software 5
Purpose and scope
The HP LaserJet M1120 MFP Series software CD is divided into two partitions, one for each of the
following operating systems:
●MS Windows
●Macintosh
The files in each partition include documentation files and files that are required in order to install and
uninstall the software components.
Topics:
●Windows partition
●CD versions
Windows partition
The root directory in the MS Windows partition of the software CD contains the HPSETUP.EXE file, the
SETUP.EXE file, and the following directories and support files:
●Arabic
●Bulgarian
●Catalan
●Cestina
●Dansk
●Deutsch
●DotNet
●Eesti
●English
●Espanol
●ExtCap
●Francais
●Greek
●Hebrew
●Hrvatski
●images
●Indonesian
●Italiano
●Kazakh
●Korean
●LangFls
6 Chapter 1 Purpose and scope ENWW
Purpose and scope
●Latviski
●Lietuviskai
●Magyar
●Nederlands
●Norsk
●NtwkPortMon
●Polski
●Portugues
●Romanian
●Russian
●ScanTo
●Screen Fonts
●Simplified_Chinese
●Slovak
●Slovenian
●Srpski
●Suomi
●Svenska
●Thai
●Traditional_Chinese
●Turkce
●Ukrainian
●Utilities
●vcredist
●Viet_Nam
●x64
The software files and help documentation for each language reside in the following subdirectories:
●Manuals
●Digital Imaging
To view the files, insert the HP LaserJet M1120 MFP Series software CD into the CD-ROM drive, right-
click Start, click Explore, and then select the CD-ROM drive.
ENWW Printing-system software 7
Purpose and scope
CD versions
The HP LaserJet M1120 MFP Series software CD is available in a single version (Part No.
CB537-60120) that contains software in these languages:
●AR = Arabic
●BG = Bulgarian
●CA = Catalan
●CS = Czech (Cestina)
●DA = Danish (Dansk)
●DE = German (Deutsch)
●EL = Greek
●EN = English
●ES = Spanish (Español)
●ET = Estonian (Eesti)
●FI = Finnish (Suomi)
●FR = French (Français)
●HE = Hebrew
●HR = Croatian (Hrvatski)
●HU = Hungarian (Magyar)
●ID = Indonesian
●IT = Italian (Italiano)
●KK = Kazakh
●KO = Korean
●LT = Lithuanian (Lietuviskai)
●LV = Latvian (Latviski)
●NL = Dutch (Nederland)
●NO = Norwegian (Norsk)
●PL = Polish (Polski)
●PT = Brazilian Portuguese (Português)
●RO = Romanian
●RU = Russian
●SK = Slovak
●SL = Slovenian
8 Chapter 1 Purpose and scope ENWW
Purpose and scope
●SV = Swedish (Svenska)
●TH = Thai
●TR = Turkish (Turkçe)
●UK = Ukrainian
●VI = Vietnamese
●ZHCN = Simplified Chinese
●ZHTW = Traditional Chinese
The following tables list the software components that are supported in each language.
Table 1-3 AR – FR
Component AR BG CA CS DA DE EL EN ES ET FI FR
HP LaserJet M1120
host-based driver
x x x x x x x x x x x x
Common MS Windows
Installer
x x x x x x x
Add Printer Wizard
Installer
x
CD Browser x x x x x x x
HP LaserJet Scan x x x x x x x
Fonts x x x x x x x x
HP Web Registration x x x x x x x
HP LaserJet M1120
MFP User Guide (.PDF
file)
x x x x x x x x x x x x
HP LaserJet M1120
MFP User Guide
(.CHM file)
x x x x x x x x x x x x
Hewlett-Packard
LaserJet M1120 MFP
Install Notes
x x x x x xx xxxx x
Table 1-4 HE – PL
Component HE HR HU ID IT KK KO LT LV NL NO PL
HP LaserJet M1120
host-based driver
x x x x x x x x x x x x
Common MS Windows
Installer
x x x x x x
Add Printer Wizard
Installer
CD Browser x x x x x x
HP LaserJet Scan x x x x x x
ENWW Printing-system software 9
Purpose and scope
Component HE HR HU ID IT KK KO LT LV NL NO PL
Fonts x x x x x
HP Web Registration x x x x x x
HP LaserJet M1120
MFP User Guide (.PDF
file)
x x x x x x x x x x x x
HP LaserJet M1120
MFP User Guide (.CHM
file)
x x x x x x x x x x x x
Hewlett-Packard
LaserJet M1120 MFP
Install Notes
xxxxxxxxxxxx
Table 1-5 PT – ZHTW
Component PT RO RU SK SL SR SV TH TR UK VI ZHC
N
ZHT
W
HP LaserJet M1120
host-based driver
x x x x x x x x x x x x x
Common MS
Windows Installer
x x x x x x
Add Printer Wizard
Installer
CD Browser x x x x x x
HP LaserJet Scan x x x x x x x
Fonts x x x x
HP Web Registration x x x x x x
HP LaserJet M1120
MFP User Guide
(.PDF file)
x x x x x x x x x x x x x
HP LaserJet M1120
MFP User Guide
(.CHM file)
x x x x x x x x x x x x x
Hewlett-Packard
LaserJet M1120 MFP
Install Notes
xxxxxxxxxxxxx
Table 1-4 HE – PL (continued)
10 Chapter 1 Purpose and scope ENWW
Purpose and scope
Documentation availability and localization
On the main screen of the printing-system software CD browser, click Help to open the HP LaserJet
M1120 MFP Series documentation and support screen.
Figure 1-1 Installation software CD documentation and support screen
The following table listsHP LaserJet M1120 MFP Series documents that are available for each operating
system.
Table 1-6 Documentation availability
Document MS Windows Vista
MS Windows Server
2003
MS Windows XP
MS Windows 2000
Macintosh
Hewlett-Packard LaserJet M1120 MFP Install Notes x x
HP LaserJet M1120 MFP User Guide (.PDF file) x x
HP LaserJet M1120 MFP User Guide (.CHM file) x
ENWW Documentation availability and localization 11
Purpose and scope
Access to HP LaserJet documents depends on the type of document and its location:
●Some documents can be opened from the CD Browser.
●Some documents appear on the software CD and can be opened by navigating to the folder where
they reside.
●Some documents are available on the Web through links in the CD Browser or CD folders.
Documents are available in the following file formats:
●Portable Document Format (.PDF). The HP LaserJet M1120 MFP Series software CD includes
Adobe® Acrobat® Reader for viewing online documentation.
●Compiled HTML (.CHM). When you click a documentation link to a .CHM document, a Microsoft
HTML Viewer opens the file on the computer screen.
●Hypertext Markup (.HTM). When you click a documentation link to an .HTM document, a Web
browser opens the file on the computer screen.
The following documents are available:
●HP LaserJet M1120 MFP Series User Guide
●Hewlett-Packard LaserJet M1120 MFP Install Notes
HP LaserJet M1120 MFP Series User Guide
The HP LaserJet M1120 MFP Series User Guide describes the basic device features.
To view this guide from the software CD, follow these steps:
1. In the main screen of the CD browser, click Help.
2. Click Users Guide.
The guide opens as an MS Windows Help file (.CHM file). This readable, onscreen version of the guide
is provided in accordance with the Americans with Disabilities Act (ADA).
You can also gain access to the file by following these steps:
1. Insert the software CD into the CD-ROM drive.
2. Navigate to the <language>\Manuals folder.
3. Open HP1120UG.CHM.
The HP LaserJet M1120 MFP Series User Guide is provided as a printable .PDF file. To print the guide,
follow these steps:
1. Insert the software CD into the CD-ROM drive.
2. Navigate to the <language>\Manuals folder.
3. Open HP1120UG.PDF.
When the file is open, click File and then click Save As to save a copy of the file to another location.
12 Chapter 1 Purpose and scope ENWW
Purpose and scope
Hewlett-Packard LaserJet M1120 MFP Install Notes
The Hewlett-Packard LaserJet M1120 MFP Install Notes (in .HTM format) contains important
information about device features, instructions for installing the printing-system software, and technical
assistance.
To view this guide from the software CD, follow these steps:
1. In the main screen of the CD browser, click Help.
2. Click Install Notes.
You can also gain access to the file by following these steps:
1. Insert the software CD into the CD-ROM drive.
2. Navigate to the <language>\Manuals folder.
3. Open LJM1120_INSTALLNOTES.HTM.
ENWW Documentation availability and localization 13
Purpose and scope
14 Chapter 1 Purpose and scope ENWW
Purpose and scope
2 Software description
Introduction
The HP LaserJet M1120 MFP Series comes with software and installers for MS Windows and Apple
Computer, Inc., Macintosh systems. For information about specific system installers, drivers, and
components, see the section that corresponds to that operating system.
NOTE: The HP Toolbox is not available on the HP LaserJet M1120 MFP Series.
Topics:
●Windows printing-system software
●HP Embedded Web Server (HP LaserJet M1120n MFP only)
●HP Extended Capabilities
●HP Status Application
●Scanning software
●Optional software
ENWW Introduction 15
Software description
Windows printing-system software
Topics:
●Software and installer
●HP LaserJet host-based print driver
Software and installer
Topics:
●HP LaserJet M1120 MFP Series software CD for MS Windows systems
●Installer features
HP LaserJet M1120 MFP Series software CD for MS Windows systems
In the MS Windows Vista, MS Windows Server 2003, MS Windows XP, and MS Windows 2000 operating
systems, insert the HP LaserJet M1120 MFP Series software CD into the CD-ROM drive to open an
interactive CD browser. Use the CD browser to install the print driver and related components, and to
gain access to online user documentation.
NOTE: Readiris Professional V11.0 text-recognition software by IRIS is also included with the
HP LaserJet M1120 MFP Series products. This software is included on a separate CD and uses a
separate installer.
The following figure shows the main screen of the HP LaserJet M1120 MFP Series printing-system
software CD. If the screen does not appear when you insert the software CD into the CD-ROM drive,
follow these steps to open the CD browser:
1. Click Start.
2. Click Run.
3. Click Browse…, and navigate to the root directory of the software CD.
4. Double-click the SETUP.EXE file to start the installer.
16 Chapter 2 Software description ENWW
Software description
Figure 2-1 Installation software CD browser
The main screen of the software CD contains options in the left panel. Move the cursor over each option
to see a description of the option.
NOTE: The options on devices might differ from the illustration.
Install. The installation wizard guides the HP LaserJet M1120 MFP Series software installation.
Help. Use this option to view the HP LaserJet M1120 MFP Series user documentation and support. The
following options are available:
●Install Notes
●Users Guide
●Product Support Website
Installer features
The common installer is designed to provide a simple and consistent installation method for the device.
The common installer is available for the MS Windows Vista, MS Windows Server 2003, MS Windows
XP, and MS Windows 2000 operating systems and features an interactive software interface.
The HP LaserJet M1120 MFP Series software CD also includes the following features:
●The HP LaserJet Uninstaller Utility
●HP Extended Capabilities
ENWW Windows printing-system software 17
Software description
●HP Status Application
●The HP LaserJet Scan software
All of the MS Windows system components are installed by using the HP LaserJet M1120 MFP Series
common installer. The installer automatically detects the language of choice and the operating system.
If required, the installer also updates the device firmware.
HP LaserJet host-based print driver
HP LaserJet M1120 MFP Series host-based print driver provides access to the printing features, such
as paper-handling and print-quality features, and communication between the computer and the device.
The printing system includes software for end users and network administrators who are working in the
following operating systems:
●MS Windows Vista (32-bit), MS Windows Server 2003 (32-bit), MS Windows XP (32-bit), and MS
Windows 2000
●Apple Mac OS X V10.3 and later
NOTE: For the latest information about the software components, see the readme files on the CD. For
additional information about installing the software, see the Hewlett-Packard LaserJet M1120 MFP
Install Notes on the software CD.
Print-driver version numbers for MS Windows operating systems
Access to print-driver version numbers varies, depending on the operating system in which the
HP LaserJet M1120 MFP Series is installed.
NOTE: For a list of HP LaserJet M1120 MFP Series print drivers, updated HP software, and device-
support information, go to the following Web site:
www.hp.com/go/ljm1120_software
The MS Windows Vista, MS Windows Server 2003, MS Windows XP, and MS Windows 2000 operating
systems support the HP host-based driver. When using an HP host-based driver in one of these
operating systems, follow these steps to find driver-version information:
1. Click Start.
2. Select Settings.
3. Click Printers and Faxes (in MS Windows Vista, MS Windows Server 2003, and MS Windows
XP) or Printers (in Windows 2000).
4. Right-click the device icon.
5. Click Properties.
6. Click the About tab.
18 Chapter 2 Software description ENWW
Software description
HP Embedded Web Server (HP LaserJet M1120n MFP only)
The HP Embedded Web Server (HP EWS) is a Web-based application that allows users to control
settings on the HP LaserJet M1120n MFP through a Web browser. To open the HP EWS, connect the
device to the network, open a Web browser, and type the IP address for the device in the address bar.
NOTE: If you have HP LaserJet M1120 MFP or if the HP LaserJet M1120n MFP is connected to the
computer through the USB port, you do not have access to the HP EWS.
The following tabs are available in the HP EWS:
●Information
●Settings
●Networking
Information
Use the Information tab to access and print detailed information regarding device and supply status,
device configuration, network configuration, and usage.
The Status tab contains the following pages:
●Device Status
●Device Configuration
●Supplies Status
●Network Summary
Device Status
The Device Status page shows device status messages. The Device Status page also shows some
pertinent device information and device settings.
Figure 2-2 HP EWS – Device Status page
ENWW HP Embedded Web Server (HP LaserJet M1120n MFP only) 19
Software description
Device Configuration
The Device Configuration page shows the values of all of the settings that are available in the device.
The contents of this page are consistent with the configuration page that the firmware generates.
Figure 2-3 HP EWS – Device Configuration page
20 Chapter 2 Software description ENWW
Software description
Supplies Status
The Supplies Status page shows the status of all of the device supplies, including the print cartridges.
Figure 2-4 HP EWS – Supplies Status page
Network Summary
The Network Summary link opens the Network Summary page on the Networking tab.
Settings
Use the Settings tab to view and change print settings for the device.
Figure 2-5 HP EWS – Settings tab
Networking
Use the Networking tab to view and change settings for the network connection and communication
with the device. The following pages are available:
ENWW HP Embedded Web Server (HP LaserJet M1120n MFP only) 21
Software description
●IPv4 Configuration
●IPv6 Configuration
●Advanced
●Bonjour
●Password
●SNMP
●Network Summary
IPv4 Configuration
Figure 2-6 HP EWS – IP v4 Configuration page
22 Chapter 2 Software description ENWW
Software description
IPv6 Configuration
Figure 2-7 HP EWS – IP v6 Configuration page
Advanced
Use the Advanced page to configure the enabled settings and other settings, such as link speed, for
the device.
Figure 2-8 HP EWS – Advanced page
ENWW HP Embedded Web Server (HP LaserJet M1120n MFP only) 23
Software description
Bonjour
Use the Bonjour page to enable or disable the Bonjour settings for the device.
Figure 2-9 HP EWS – Bonjour page
Password
Use this page to set or change the administrator password.
Figure 2-10 HP EWS – Password page
24 Chapter 2 Software description ENWW
Software description
SNMP
Use this page to configure the simple network management protocol (SNMP) settings for the device.
Figure 2-11 HP EWS – SNMP page
ENWW HP Embedded Web Server (HP LaserJet M1120n MFP only) 25
Software description
Network Summary
The Network Summary page contains information about the network and its enabled features.
Figure 2-12 HP EWS – Network Summary page
26 Chapter 2 Software description ENWW
Software description
HP Extended Capabilities
When installing the device, you have the option of participating in HP's voluntary program for
communication between your system and HP. This feature, available through software that is included
on the software CD, helps HP monitor toner usage.
If you select the option to participate, you receive an invitation about two weeks after installation. It
contains full disclosure of the information to be communicated. Participation is entirely voluntary, and
the impact on processing and connecting speed is negligible. Personal information is never sent to HP
without permission. TCP/IP addresses are used only to enable the connection and for security purposes.
Figure 2-13 HP Extended Capabilities screen
If you decline the invitation, the dialog box does not appear again and no data is gathered.
ENWW HP Extended Capabilities 27
Software description
HP Status Application
Status will be reported in two ways:
●In the standard MS Windows spooler
●By using the HP Status Application, which provides a more user-friendly method of viewing the
status of the device and the print job
The HP Status Application relays device status through the input/output (I/O) communication interface.
The HP Status Application will provide pop-up error status messages from the time the printer driver is
sending data to the device until the device has completed processing the print data. This includes
printing all of the pages and the device going back to a ready state.
Figure 2-14 Sample pop-up error status message
28 Chapter 2 Software description ENWW
Software description
Scanning software
Topics:
●Scanning methods
●HP LaserJet Scan software
●Scan drivers
Scanning methods
Scan from the HP LaserJet device by using any of the following methods.
●From a computer. Click Start, select Programs, select HP, select the name of the device, and
then click M1120 MFP Scan To.
●From a TWAIN- or WIA-compliant software program. Check the Help system in the software
program to learn how to scan from a TWAIN- or WIA-compliant scanner from within that program.
●From the Camera and Scanner Wizard on Windows XP. In MS Windows XP, click Start, click
Control Panel, double-click Scanners and Cameras, and then double-click the HP LaserJet
device scanner icon. The Camera and Scanner Wizard appears. Follow the onscreen directions
to save your scanned item to a file.
HP LaserJet Scan software
Use the HP LaserJet Scan software to scan from the HP LaserJet device or to read from a file, and then
complete any of the following tasks with the data:
●Save the scanned item to a file.
●Attach the scanned item to an e-mail.
●Open the scanned item with any third-party software program that supports the drag-and-drop
function.
●Perform text recognition on the scanned item through Readiris (if Readiris text-recognition software
is installed on the computer).
The HP LaserJet Scan software is set up to scan by default , but the General tab does provide an
override to save a scanned item to a file. This is helpful both for testing when a scanner is not available
and for converting existing files into some other output file type. The following file types are currently
supported:
●.PDF
●.TIFF (both regular and compressed)
ENWW Scanning software 29
Software description
Readiris supports the following output file types:
●.DCA
●.DOC
●.DW
●.HTM
●.MM
●.PDF
●.RTF
●.TXT
●.WP
●.WPS
●.WS
●.WS2
The HP LaserJet Scan software is composed of a simple user interface that provides a Where should
the data go? drop-down menu, a Scan button, a Cancel button, and a Settings... button.
Figure 2-15 hp LaserJet Scan dialog box
The Where should the data go? drop-down menu contains any user-defined Quick Sets and the
following default destinations:
●Save it to a file
●Send it through e-mail
●Send it to another software program
●Send it to the Readiris OCR software (if Readiris software is installed)
Click Settings... to open a more detailed property dialog box called the Scan Settings dialog box, which
contains options to change the scan settings. The tabs that are available in the Scan Settings dialog
box depend on the destination that you select on the Where should the data go? drop-down menu.
For example, the E-mail tab appears only if the selected destination is Send it through e-mail. Quick
Sets are also available to store settings that are used on a regular basis.
30 Chapter 2 Software description ENWW
Software description
Figure 2-16 Scan Settings dialog box
If you do not change any settings in the Scan Settings dialog box, the HP LaserJet Scan software
prompts for any needed information, such as a filename if sending the scanned item to a file folder or
an e-mail address if sending the scanned item in e-mail. If you specify an e-mail address in the Scan
Settings dialog box before scanning the item, the e-mail is sent automatically without the new-message
dialog box opening.
Because the Scan Settings dialog box contains only a limited set of variables, more functionality is
available when using command-line arguments.
Every time the HP LaserJet Scan software is used, an HPPSCAN2.LOG file is generated within the
current user's temporary directory. The HPPSCAN2.LOG file develops a log of operations and aids in
troubleshooting problems.
Scanning to a file sends the scanned image to a MY SCANS directory in the MY DOCUMENTS folder.
CAUTION: If you move the My Documents folder, the My Scans folder does not follow to the new
location. It remains hard-coded to the current-user's home, and scan jobs continue to be stored there.
Selecting the third-party destination option saves the scanned image to a file of the specified file type.
The HP LaserJet Scan software then starts the specified software program by appending the filename
to the software filename. Because the HP LaserJet Scan software does not support automatic discovery
of software programs, specify the correct software program and specify a file type that the program
supports. The HP LaserJet Scan software opens when the filename is passed as a command-line
argument.
E-mail
The HP LaserJet software for MS Windows supports only 32-bit messaging application programming
interface-(MAPI-) compliant e-mail programs, and does not support Internet-based e-mail programs
such as Hotmail or Yahoo. The following table lists some examples of supported e-mail programs.
ENWW Scanning software 31
Software description
Table 2-1 Supported e-mail programs
Program Name MS Windows OS Macintosh OS
Microsoft Entourage Mac OS X
Microsoft Outlook Yes; Outlook 97, Outlook 98, Outlook 2000, Outlook XP Mac OS X
Microsoft Outlook Express Yes
Lotus Notes Yes; V3.0 and later
E-mail is always sent through the default e-mail client. To identify the default e-mail client in MS Windows
XP (the path varies for other MS Windows operating systems), click Start, click Settings, click Control
Panel, click Network and Internet Options, click Internet Options, click the Programs tab, and look
at the E-mail setting.
Sending a scan to e-mail generally uses the simple MAPI protocol. If the e-mail address is added before
scanning, extended MAPI can be used to avoid security messages while the program tries to send the
e-mail automatically. Setting a MapiLevel registry key forces the scan program to always use either
simple or extended MAPI. This might be required if scanning to e-mail fails even when the default e-
mail client is set up correctly.
Scan drivers
The HP LaserJet M1120 MFP Series software includes the following integrated scan drivers.
●TWAIN driver
●Windows Image Acquisition (WIA) driver
TWAIN driver
The HP LaserJet M1120 MFP Series software includes a TWAIN driver user interface that provides
great flexibility and a wide range of image-quality options. TWAIN is an industry standard scanning
protocol. Initiate scans from the HP LaserJet device by using any TWAIN-compliant program.
TWAIN compatibility
TWAIN-compliant programs acquire documents directly from the HP LaserJet device. Programs that
follow the TWAIN standards should work.
NOTE: HP LaserJet devices support the required core functions for TWAIN compliance, but have only
limited support for extended TWAIN options.
TWAIN scanning does not work with some programs
For programs that are not TWAIN-compliant, use the following process as a workaround.
1. Use the HP LaserJet Scan software to scan the document, in .TIFF format (or any other file type
that the software supports), into a folder.
2. Import the .TIFF file into the program.
Additional information about TWAIN
For more information about TWAIN, visit the following Web site:
32 Chapter 2 Software description ENWW
Software description
www.twain.org
TWAIN driver user interface (MS Windows)
To scan a page:
1. Place the page to be scanned on the flatbed scanner.
2. Click Start, select Programs or All Programs, select HP, and then click HP LaserJet M1120
MFP.
3. Select and click M1120 MFP Scan To.
4. In the Where should the data go? drop-down menu, select the desired destination for the scanned
image, and then click Scan.
The HP LaserJet M1120 MFP Series scans a preview image of the page on the flatbed scanner and
the TWAIN driver user interface appears with the preview scan image.
Figure 2-17 TWAIN driver user interface (MS Windows)
The TWAIN driver user interface contains the following drop-down menus, options, tabs, and buttons:
ENWW Scanning software 33
Software description
NOTE: Many of the options in the drop-down menus control the same features that are available by
using the TWAIN user interface tabs and buttons.
●Scan. This drop-down menu contains the following options:
◦New Scan. Use this option to rescan the image. Flatbed previews are always at 75 dpi and
in color.
◦Accept. Use this option to rescan the image if the original is on a flatbed scanner and then
send the image back to a program with the specified settings.
◦Exit. Use this option to exit the HP LaserJet Scan software.
●Basic. This drop-down menu contains the following options:
◦Rotate. Use this option to rotate the scanned image 90° to the left or 90° to the right.
◦Zoom. Use this option to zoom in or out on the selected area of the scan. This automatically
starts a rescan if one is needed to obtain a clear image.
◦Resize. Use this option to change the selection area for final scan. The final scan is performed
within this selection area.
◦Lighten/Darken. Use this option to lighten or darken the scanned image.
◦Reset Tools. Use this option to reset all the controls to their default values.
●Advanced. This drop-down menu contains the following options:
◦Resolution. Use this option to designate the final resolution for the image. The software
interpolates resolutions that are above 1200 dpi.
◦B/W Threshold. Use this option to adjust the black and white threshold, and to specify which
color channel is used for the scan.
◦Mirror. Use this option to flip the scanned image horizontally.
◦Invert Colors. Use this option to invert the colors in the scanned image.
◦Color Adjustment. Use option tab to adjust the color on the scanned image.
●Output Type. This drop-down menu contains the following options:
◦Millions of Colors (default)
◦256 Colors (8 bit)
◦256 Colors (web palette)
◦256 Colors (system palette)
◦256 Gray Shades
◦Black White (1 bit)
34 Chapter 2 Software description ENWW
Software description
●Help. This drop-down menu contains links to the following help documents:
◦User's Manual
◦HP Photo Imaging Help
◦About HP Scanning
●Resize. Use this tab to control the selection area for the final scan. The final scan is performed
within this selection area.
Figure 2-18 TWAIN driver user interface – Resize
ENWW Scanning software 35
Software description
●Resolution. Use this tab to designate the resolution for the final scan. The software interpolates
resolutions that are above 1200 dpi.
NOTE: Scans that are above 1200 dpi can take a long time to complete and can consume large
amounts of memory.
Figure 2-19 TWAIN driver user interface – Resolution
36 Chapter 2 Software description ENWW
Software description
●Lighten/Darken. Use this tab to lighten or darken the final scan.
Figure 2-20 TWAIN driver user interface – Lighten/Darken
ENWW Scanning software 37
Software description
●Sharpen. Use this tab to control the sharpness of the final scan.
Figure 2-21 TWAIN driver user interface – Sharpen
38 Chapter 2 Software description ENWW
Software description
●Color Adjustment. Use this tab to adjust the color on the final scan.
Figure 2-22 TWAIN driver user interface – Color Adjustment
ENWW Scanning software 39
Software description
●B/W Threshold. Use this tab to adjust the black and white threshold, and to specify which color
channel is used for the final scan.
NOTE: Select Black White (1 bit) in the Output Type drop-down menu to enable the control on
this tab.
Figure 2-23 TWAIN driver user interface – B/W Threshold
●Invert Colors. Use this button to invert the colors in the scanned image.
●Mirror. Use this button to flip the scanned image horizontally.
●Preview. Use this button to rescan the preview image.
●Scan. Use this button to complete the final scan with the selected output settings.
●Cancel. Use this button to cancel the scan.
WIA driver
In MS Windows XP, you can access the Windows Image Acquisition (WIA) driver directly or by using
the MS Windows Scanner and Camera Wizard.
40 Chapter 2 Software description ENWW
Software description
Access the WIA driver using the MS Windows Scanner and Camera Wizard
1. Right-click on the scanner icon in the My Computer folder and click Scan. Select Microsoft
Scanner and Camera Wizard, and then click OK.
-or-
Right-click on the scanner icon in the My Computer folder and click Scanner Wizard.
-or-
Right-click on the scanner icon in the Scanners and Cameras folder in the Control Panel and
click Scan. Select Microsoft Scanner and Camera Wizard, and then click OK.
-or-
Right-click on the scanner icon in the Scanners and Cameras folder in the Control Panel and
click Scanner Wizard.
2. The Welcome to the Scanner and Camera Wizard dialog box appears.
Figure 2-24 Welcome to the Scanner and Camera Wizard dialog box
Click Next to continue.
ENWW Scanning software 41
Software description
3. The Choose Scanning Preferences dialog box appears.
Figure 2-25 Choose Scanning Preferences dialog box
Use this dialog box to choose your picture type and to set custom settings for each type. Click
Preview to see your picture before it is scanned. Click Next to continue.
42 Chapter 2 Software description ENWW
Software description
4. The Picture Name and Destination dialog box appears.
Figure 2-26 Picture Name and Destination dialog box
Add a name, select a file format, and choose a destination for your scanned image on this dialog
box, then click Next to continue.
ENWW Scanning software 43
Software description
5. The Scanning Picture dialog box appears.
Figure 2-27 Scanning Picture dialog box
After the scan is finished, click Next to continue.
44 Chapter 2 Software description ENWW
Software description
6. The Other Options dialog box appears.
Figure 2-28 Other Options dialog box
Select either of the first two options and click Next to get help performing those tasks. Select
Nothing. I'm finished working with these pictures. and click Next to continue.
ENWW Scanning software 45
Software description
7. The Completing the Scanner and Camera Wizard dialog box appears.
Figure 2-29 Completing the Scanner and Camera Wizard dialog box
Click Finish to complete the wizard.
Access the WIA driver directly using a WIA-compliant software program
WIA has its own user interface. It is relatively simple and does not contain the wide range of image-
quality options that are available in the TWAIN driver user interface.
NOTE: Some software programs, such as Microsoft Word, have their own software interface that runs
on top of the WIA driver. In these cases, the software interface will look and behave differently the
process that is described here.
1. Open a WIA-compliant software program, such as Microsoft Paint.
2. Click File, and then click From scanner or camera.
NOTE: Note that some software programs might use other commands for this function, such as
Acquire.
46 Chapter 2 Software description ENWW
Software description
3. The Select Device dialog box appears.
Figure 2-30 Select Device dialog box
4. Click the device name, and then click Properties to make adjustments to the scan settings. Click
Next to continue.
5. The Scan using (device name) dialog box appears.
Figure 2-31 Scan using (device name) dialog box
Select the type of item you want to scan, and then click Preview. Click Scan to continue.
ENWW Scanning software 47
Software description
6. The Downloading picture dialog box appears.
Figure 2-32 Downloading picture dialog box
7. After the scan is completed, the scanned document appears in the main MS Paint work area.
When using the WIA scan driver, modify the brightness and contrast after the scan. Contrast or
brightness modifications cannot be set on the device. Only native device resolutions are supported, and
software interpolation is not performed. The WIA scan driver supports the following compression types:
●None
●.TIFF
48 Chapter 2 Software description ENWW
Software description
Optional software
This section describes third-party software programs that the device supports.
Text-recognition software
The device software has an integrated text-recognition feature. This feature is also known as optical
character recognition, or OCR. Text-recognition is also available through the third-party software
program Readiris, which is included on a separate CD that comes with the device.
About text-recognition reliability
Text-recognition software turns an image into computer-editable text by analyzing the image and
defining the characters. The accuracy obtained through text-recognition software depends on the
quality, size, and structure of the original document, and on the quality of the scan itself. To obtain the
best possible results when using text-recognition software, use the following guidelines:
●Scan directly from the text-recognition software.
●Process only pages that contain 9-point text or larger.
●Limit pages that contain underlining, forms, graphics, rotated text, photographs, and handwriting.
●Scan images squarely.
●Make sure that the pages are free of extraneous marks.
●Maximize the scanning resolution. Use a minimum of 300 dpi.
●Process only pages that have crisp, clear text. Letters that have gaps, that "bleed" along their
edges, or that touch other letters do not work well. Text that is aligned closely to nontext items,
such as graphics, might also degrade text-recognition results.
●Fine-tune the amount of black and white on scanned images. See the user guide for information.
●Avoid scanning from thin paper that has information printed on the back side. The information on
the back can bleed through.
Even when following these recommendations, less-than-perfect image results can occur. This is
because text-recognition technology is evolving and is still less than perfect.
Readiris text-recognition software
The Readiris Professional V11.0 text-recognition software by IRIS converts scanned images into text
that can be edited in word-processing programs.
NOTE: The Readiris CD is not set up at fulfillment. The CD is available from Global Support
Organization (GSO) or HP Parts in accordance with contractual and licensing agreements.
The Readiris user interface is available in the following languages:
●Dutch
●English
●French
●German
ENWW Optional software 49
Software description
●Italian
●Korean
●Portuguese-Brazillian
●Simplified Chinese
●Spanish
NOTE: Readiris can perform text recognition (also known as optical character recognition, or OCR)
in 124 languages.
Readiris Professional V11.0 supports text recognition in 2-byte Asian characters. Set the operating
system to display 2-byte characters in order to see the text.
NOTE: For better text-recognition scanning results, start Readiris and scan directly into the program.
Readiris Professional V11.0 automatically starts a wizard to guide this process.
When Readiris is installed on the computer, it appears as an option in the destination dropdown box in
the HP Scan software. Select Readiris as the destination to scan the image into .TIFF format. Readiris
automatically starts the text-recognition process.
The Readiris software uses a separate installer that comes on a separate CD. The initial release of the
HP LaserJet M1120 MFP Series includes Readiris Professional (V11.0 for MS Windows, V11.5 for
Macintosh) software.
50 Chapter 2 Software description ENWW
Software description
3 Install MS Windows software
components
NOTE: This chapter covers information about installing the HP LaserJet M1120 MFP Series software
for MS Windows.
Topics:
●Installation overview
●Installation options
●Detailed MS Windows installation instructions
●User uninstall
ENWW 51
Install MS Windows
software components
Installation overview
The software for the HP LaserJet M1120 MFP Series comes on a single CD. On computers running MS
Windows Vista, MS Windows Server 2003, MS Windows XP, and MS Windows 2000, the SETUP.EXE
file installs the HP LaserJet M1120 MFP Series software from the CD onto the hard disk and updates
MS Windows files.
For all of the supported operating systems, the Installer guides the installation process as you provide
information about the computer environment.
52 Chapter 3 Install MS Windows software components ENWW
Install MS Windows
software components
Installation options
The HP LaserJet M1120 MFP Series software can be used with the HP LaserJet M1120 MFP in the
following configurations:
●Install the HP LaserJet M1120 MFP Series software on a computer that is directly connected to
the device through a USB port and is running MS Windows Vista, MS Windows Server 2003, MS
Windows XP, and MS Windows 2000.
●Install the HP LaserJet M1120 MFP Series software on a computer that has access to a local area
network (LAN) to which the HP LaserJet M1120n MFP is also connected, and is running MS
Windows Vista, MS Windows Server 2003, MS Windows XP, or MS Windows 2000. The HP
LaserJet M1120n MFP has onboardnetworking that connects to a LAN through a 10/100Base-T
(RJ-45) port.
●Install theHP LaserJet M1120 MFP Series software on a computer that is directly connected to the
device through a USB port and is running MS Windows Vista, MS Windows Server 2003, MS
Windows XP, or MS Windows 2000. Then share the HP LaserJet M1120 MFP with other users on
the network by using MS Windows sharing.
NOTE: Scanning functions cannot be shared.
Microsoft Windows installation for direct connections
Use the following instructions to install the device software on a computer that is running MS Windows
Vista, MS Windows Server 2003, MS Windows XP, or MS Windows 2000.
NOTE: Set up and turn on the HP LaserJet M1120 Series MFP before installing the software. Do
not connect the HP LaserJet M1120 Series MFP to the computer until the prompt appears.
You must have administrator privileges to install the software on MS Windows Vista, MS Windows
Server 2003, MS Windows XP, or MS Windows 2000.
1. Quit all open programs.
2. Insert the HP LaserJet M1120 MFP Series software CD into the CD-ROM drive.
NOTE: If the CD does not start automatically, click Start, click Run, and then browse to and
double-click the SETUP.EXE file in the root directory of the CD.
3. Follow the onscreen prompts to install the software.
4. When the installation is nearly complete, the Setup Complete! dialog box appears. Click Finish
to finish the installation and print a test page.
5. If prompted to restart the computer, click Yes.
Microsoft Windows installation for computers on a network
Each computer that has the HP LaserJet M1120 MFP Series software installed has access to all of the
product features over a network connection. This access is available through onboard networking that
comes standard on the HP LaserJet M1120n MFP.
NOTE: Networking is not available on the HP LaserJet M1120 MFP.
ENWW Installation options 53
Install MS Windows
software components
Follow these steps to install the HP LaserJet M1120 MFP Series software on networked computers
running MS Windows Vista, MS Windows Server 2003, MS Windows XP, or MS Windows 2000.
1. Quit all open programs.
2. Insert the HP LaserJet M1120 MFP Series software CD into the CD-ROM drive.
NOTE: If the CD does not start automatically, click Start, click Run, and then browse to and
double-click the SETUP.EXE file in the root directory of the CD.
3. Follow the onscreen prompts to install the software.
4. When the Installer software prompts you to select how the printer will be connected, select Connect
via the network, and then click Next. Follow the instructions on the screen.
5. When the installation is completed, a setup dialog box appears that asks whether or not you want
to print a test page. Click Yes.
6. If you are prompted to restart the computer, click Yes.
Set up Microsoft Windows Sharing (peer-to-peer networking)
This section contains instructions for using MS Windows Sharing to make the device available to network
users when the device is directly connected to a computer.
NOTE: This STR outlines the procedures for sharing a device through MS Windows Sharing (peer-
to-peer networking). If these procedures are not successful, contact Microsoft at the following Web site:
www.microsoft.com. Because it is a function of Microsoft operating systems and not of the HP printer
drivers, HP does not support peer-to-peer networking.
In MS Windows-sharing, the person who uses the computer that is directly connected to the device can
allow other users on the network to print to the HP LaserJet M1120 MFP Series product.
When the HP LaserJet M1120 MFP is shared, install the print driver on all of the computers that can
print to the HP LaserJet M1120 MFP.
NOTE: Scanning functions cannot be shared.
NOTE: The host computer must be turned on for the shared clients to print to the HP LaserJet M1120
MFP.
Set up the MS Windows 2000 host computer
At the computer that is directly connected to the HP LaserJet M1120 MFP, perform the following steps:
1. Click Start, click Settings, and then click Printers.
2. In the device list, right-click the icon for the HP LaserJet M1120 MFP, and then click Sharing.
3. On the Sharing tab, click the Share As option button, and then type a name for the HP LaserJet
M1120 MFP in the Share Name field. Click OK.
NOTE: The device Share Name is limited to 8 characters.
54 Chapter 3 Install MS Windows software components ENWW
Install MS Windows
software components
Set up the MS Windows Server 2003 or MS Windows XP host computer
At the computer that is directly connected to the HP LaserJet M1120 MFP, perform the following steps:
1. Click Start and then click Printers and Faxes.
2. In the device list, right-click the icon for the HP LaserJet M1120 MFP and then click Sharing.
3. On the Sharing tab, click the Share this printer option button and type a name for the HP LaserJet
M1120 MFP in the Share Name field. Click OK.
NOTE: The device Share Name is limited to 8 characters.
4. Click the Ports tab. Click to clear the Enable bidirectional support check box, and then click
OK.
Set up the client computers
When the host computer is set up to share the HP LaserJet M1120 MFP, also configure the client
computers. Perform the following steps at all the other network computers that will use the HP LaserJet
M1120 MFP.
Set up MS Windows 2000 client computers
1. Click Start, click Settings, and then click Printers.
2. Double-click the Add Printer icon to open the Add Printer wizard.
3. Click Next to start the wizard.
4. Click the Network Printer option button, and then click Next.
5. Type the path and share name of the HP LaserJet M1120 MFP to connect to or click Browse and
navigate to it.
6. Click Next.
7. Click Yes or No when asked if you want to use this device as your default printer for MS Windows-
based programs, and then click Next.
8. Click Finish to complete the installation and close the Add Printer wizard.
NOTE: You might need the software CD to complete the print-driver installations.
Set up MS Windows Server 2003 or MS Windows XP client computers
1. Click Start and then click Printers and Faxes.
2. In the column to the left, under Printer Tasks, click Add a printer to open the Add Printer wizard.
3. Click Next to start the wizard.
4. Click the A network printer or a printer attached to another computer option button, and then
click Next.
5. Type the path and share name of the HP LaserJet M1120 MFP to connect to or click Browse and
navigate to it.
6. Click Next.
ENWW Installation options 55
Install MS Windows
software components
7. Click Yes or No when asked if you want to use this device as your default printer for MS Windows-
based programs, and then click Next.
8. Click Finish to complete the installation and close the Add Printer wizard.
56 Chapter 3 Install MS Windows software components ENWW
Install MS Windows
software components
Detailed MS Windows installation instructions
The following section shows the dialog box options that appear during the HP LaserJet M1120 MFP
Series software installation on MS Windows Vista, MS Windows Server 2003, MS Windows XP, or MS
Windows 2000 operating systems.
NOTE: HP recommends that you install the software before connecting the HP LaserJet M1120 MFP
to the computer (software-first installation). These instructions are for a software-first installation.
Use these instructions the first time that you install the HP LaserJet M1120 MFP software.
1. To begin the installation, insert the software CD into the CD-ROM drive and then click Install on
the main screen of the CD Browser.
Figure 3-1 Step 1 - CD Browser window
If the screen does not appear when the software CD is inserted into the CD-ROM drive, follow
these steps to open the CD Browser:
a. Click Start.
b. Click Run.
c. Click Browse… and then navigate to the root directory of the software CD.
d. Double-click the SETUP.EXE file to start the installer.
e. Click Install to begin the installation process.
ENWW Detailed MS Windows installation instructions 57
Install MS Windows
software components
2. The Choose Easy Install or Advanced Install dialog box appears.
Figure 3-2 Step 2 - Choose Easy Install or Advanced Install dialog box
Click The Software End User License Agreement to read the agreement. Click The
Recommended Software Package to see what is included in the recommended installation for
the HP LaserJet M1120 MFP Series software.
To automatically accept installation agreements and install the recommended software package,
click Easy Install.
To review the installation agreements and default settings during the installation process, click
Advanced Install.
Click Click Here For the HP Privacy Policy to read the privacy policy.
Click Next to go to the Please Allow All HP Install Wizard Processes dialog box (step 3).
Click Cancel to cancel the installation and go to the User cancelled installation dialog box (step
21).
58 Chapter 3 Install MS Windows software components ENWW
Install MS Windows
software components
3. The Please Allow All HP Install Wizard Processes dialog box appears.
Figure 3-3 Step 3 - Please Allow All HP Install Wizard Processes dialog box
Click Back to go back to the Choose Easy Install or Advanced Install dialog box (step 2).
Click Next to go to the Installing dialog box (step 4).
Click Cancel to cancel the installation and go to the User cancelled installation dialog box (step
21).
ENWW Detailed MS Windows installation instructions 59
Install MS Windows
software components
4. The Installing dialog box appears.
Figure 3-4 Step 4 - Installing dialog box
The Installing dialog box appears periodically during the installation process. This dialog box
includes progress bars for the individual elements of the installation and for overall installation
progress.
If you chose the Easy Install option, the Select Printer dialog box appears next (step 8).
If you chose the Advanced Install option, the License Agreement dialog box appears next (step
5).
60 Chapter 3 Install MS Windows software components ENWW
Install MS Windows
software components
5. The License Agreement dialog box appears.
Figure 3-5 Step 5 - License Agreement dialog box
Click the I accept the terms in the license agreement. option, and then click Next to go to the
HP Privacy Policy dialog box (step 6).
Click I do not accept the terms in the license agreement. if you do not accept the agreement.
Clicking this option disables the Next button.
Click Back to return to the Please Allow All HP Install Wizard Processes dialog box (step 3).
Click Cancel to cancel the installation and go to the User cancelled installation dialog box (step
21).
ENWW Detailed MS Windows installation instructions 61
Install MS Windows
software components
6. The HP Privacy Policy dialog box appears.
Figure 3-6 Step 6 - HP Privacy Policy dialog box
Click Next to go to the HP Extended Capabilities dialog box (step 7).
Click Back to return to the HP License Agreement dialog box (step 5).
Click Cancel to cancel the installation and go to the User cancelled installation dialog box (step
21).
62 Chapter 3 Install MS Windows software components ENWW
Install MS Windows
software components
7. The HP Extended Capabilities dialog box appears.
Figure 3-7 Step 7 - HP Extended Capabilities dialog box
If you select the Install HP Extended Capabilities option, a dialog box appears two weeks after
installing the device inviting participation in the HP Product Survey Program.
If you select the Do not install HP Extended Capabilities option, you will not be invited to
participate in the HP Product Survey Program.
Click More Information to find out more about HP Extended Capabilities and the HP Product
Survey Program.
Click Next to go to the Select Printer dialog box (step 8).
Click Back to return to the HP Privacy Policy dialog box (step 6).
Click Cancel to cancel the installation and go to the User cancelled installation dialog box (step
21).
ENWW Detailed MS Windows installation instructions 63
Install MS Windows
software components
8. The Select Printer dialog box appears.
Figure 3-8 Step 8 - Select Printer dialog box
Click the name of the printer model to install, and then click Next to go to the Printer
Connections dialog box (step 9).
If you chose the Easy Install option, clicking Back takes you to the Please Allow All HP Install
Wizard Processes dialog box (step 3).
If you chose the Advanced Install option, clicking Back takes you to the HP Extended
Capabilities dialog box (step 7).
Click Cancel to cancel the installation and go to the User cancelled installation dialog box (step
21).
64 Chapter 3 Install MS Windows software components ENWW
Install MS Windows
software components
9. The Printer Connections dialog box appears.
Figure 3-9 Step 9 - Printer Connections dialog box
Click Connected directly to this computer to install software for a direct connection. Then click
Next to go to the Connect your device now dialog box (step 10).
Click Connect via the network to install software for a network connection. Then click Next to go
to the Identify Printer dialog box (step 11).
Click Back to go back to the Select Printer dialog box (step 8).
Click Cancel to cancel the installation and go to the User cancelled installation dialog box (step
21).
ENWW Detailed MS Windows installation instructions 65
Install MS Windows
software components
10. If you chose Connected directly to this computer, the Connect your device now dialog box
appears. If you chose Connect via the network, go to step 11.
Figure 3-10 Step 10 - Connect your device now - disconnected dialog box
a. When this dialog box appears, make sure your product is powered on, then connect the USB
cable between the computer and the product. If you need help, click Help for more information.
Click Cancel to cancel the installation and go to the User cancelled installation dialog box
(step 21).
66 Chapter 3 Install MS Windows software components ENWW
Install MS Windows
software components
b. After the USB cable is connected, the Connect your device now dialog box looks like the
following illustration.
Figure 3-11 Step 10 - Connect your device now - connected dialog box
c. The installation process continues automatically.
NOTE: If required, the installer updates the device firmware. This might take several
minutes.
When the installation is complete, the Congratulations! Software installation complete. dialog
box appears (step 20).
ENWW Detailed MS Windows installation instructions 67
Install MS Windows
software components
11. If you chose a network installation, the Identify Printer dialog box appears next.
Figure 3-12 Step 11 - Identify Printer dialog box
Click Select from a list of detected printers (Recommended) to have the installer find available
printers on the network. Clicking Next with this option takes you to the Searching dialog box (step
12).
Click Specify a printer by address to designate a specific printer on the network. Clicking Next
with this option takes you to the Specify Printer dialog box (step 15).
Click Back to return to the Printer Connections dialog box (step 9).
Click Cancel to cancel the installation and go to the User cancelled installation dialog box (step
21).
68 Chapter 3 Install MS Windows software components ENWW
Install MS Windows
software components
12. The Searching dialog box appears next.
Figure 3-13 Step 12 - Searching dialog box
The installer searches the network for available printers. If the printer is found on the network, the
Printer Found dialog box appears (step 16). If the printer is not found, the Printer Not Found
dialog box appears (step 13).
Click Stop to stop the search for printers. The search is paused until you click Restart to continue
the search or Back to return to the Identify Printer dialog box (step 11).
Click Cancel to cancel the installation and go to the User cancelled installation dialog box (step
21).
ENWW Detailed MS Windows installation instructions 69
Install MS Windows
software components
13. If the printer is not found on the network, the Printer Not Found dialog box appears.
Figure 3-14 Step 13 - Printer Not Found dialog box
Click Help for information about disabling firewalls.
Click Back to return to the Identify Printer dialog box (step 11).
Click Next to go to the Check Printer Connection dialog box (step 14).
Click Cancel to cancel the installation and go to the User cancelled installation dialog box (step
21).
70 Chapter 3 Install MS Windows software components ENWW
Install MS Windows
software components
14. The Check Printer Connection dialog box appears.
Figure 3-15 Step 14 - Check Printer Connection dialog box
This dialog box offers troubleshooting tips for finding the printer on the network.
Click Search again for all available printers and then click Next to return to the Searching dialog
box (step 12).
Click Specify a printer by address and then click Next to search for a specific printer. The Specify
Printer dialog box appears (step 15).
Click Help to get more information.
Click Back to return to the Printer Not Found dialog box (step 13).
Click Cancel to cancel the installation and go to the User cancelled installation dialog box (step
21).
ENWW Detailed MS Windows installation instructions 71
Install MS Windows
software components
15. The Specify Printer dialog box appears next.
Figure 3-16 Step 15 - Specify Printer dialog box
Click the appropriate option to specify a printer using the Hardware Address (MAC), the IP
Address (IPv4), or the IP Hostname fields. You can find this information by printing a configuration
page for the product. Clicking Next with any of these options takes you to the Printer Not
Found dialog box (step 13) or to the Printer Found dialog box (step 16).
Click Back to return to the Identify Printer dialog box (step 11).
Click Cancel to cancel the installation and go to the User cancelled installation dialog box (step
21).
Printing a configuration page
a. On the product control panel, press Setup.
b. Use the arrow buttons to select Reports, and then press OK.
c. Use the arrow buttons to select Config report, and then press OK.
72 Chapter 3 Install MS Windows software components ENWW
Install MS Windows
software components
d. You can find the product hardware address and IP information in the lower left portion of the
page, as shown in Figure 3–17.
Figure 3-17 Configuration Page
ENWW Detailed MS Windows installation instructions 73
Install MS Windows
software components
16. The Printer Found dialog box appears next.
Figure 3-18 Step 16 - Printer Found dialog box
Click Yes, install this printer. and then click Next to continue to the Confirm Network
Settings dialog box (step 17).
Click No, I want to install a different printer. and then click Next to return to the Identify
Printer dialog box (step 11).
Click Help to get more information.
Click Back to return to the Identify Printer dialog box (step 11).
Click Cancel to cancel the installation and go to the User cancelled installation dialog box (step
21).
74 Chapter 3 Install MS Windows software components ENWW
Install MS Windows
software components
17. The Confirm Network Settings dialog box appears.
Figure 3-19 Step 17 - Confirm Network Settings dialog box
Click Change Settings to go to the Confirm Changing Settings dialog box (step 18).
Click Next to accept the settings and continue the installation. If required, the installer updates the
device firmware. This might take several minutes. When the installation is complete, the
Congratulations! Installation is complete. dialog box appears (step 20).
Click Back to return to the Printer Found dialog box (step 16).
Click Cancel to cancel the installation and go to the User cancelled installation dialog box (step
21).
ENWW Detailed MS Windows installation instructions 75
Install MS Windows
software components
18. If you chose Change Settings, the Confirm Changing Settings dialog box appears.
Figure 3-20 Step 18 - Confirm Changing Settings dialog box
Click Yes and then click Next to go to the Change TCP/IP Settings dialog box (step 19).
Click No and then click Next to return to the Confirm Network Settings dialog box (step 17).
Click Help to get more information.
Click Back to return to the Confirm Network Settings dialog box (step 17).
Click Cancel to cancel the installation and go to the User cancelled installation dialog box (step
21).
76 Chapter 3 Install MS Windows software components ENWW
Install MS Windows
software components
19. The Change TCP/IP Settings dialog box appears.
Figure 3-21 Step 19 - Change TCP/IP Settings dialog box
Change the settings in the IP Address (IPv4), Subnet Mask, or Gateway fields, or click Suggest
Settings to have the installer find the appropriate values. Click Next to return to the Confirm
Network Settings dialog box (step 17).
Click Help to get more information.
Click Back to return to the Confirm Network Settings dialog box (step 17).
Click Cancel to cancel the installation and go to the User cancelled installation dialog box (step
21).
ENWW Detailed MS Windows installation instructions 77
Install MS Windows
software components
20. The Congratulations! Software installation is complete. dialog box appears.
Figure 3-22 Step 20 - Congratulations! Software installation is complete. dialog box
The Print Test Page checkbox is selected by default. Leave this box selected to print a test page
to the device.
Click Finish to complete the installation and close the installer window.
21. If you clicked Cancel at any point in the installation process, the User cancelled installation dialog
box appears.
Figure 3-23 Step 21 - User cancelled installation dialog box
Click Close to close the installer window.
78 Chapter 3 Install MS Windows software components ENWW
Install MS Windows
software components
User uninstall
Topics:
●Uninstall methods
●Add or repair software using the installation CD
Uninstall methods
Uninstall instructions for MS Windows operating systems
NOTE: To uninstall the software from MS Windows Vista, MS Windows Server 2003, MS Windows
XP, or MS Windows 2000, log on with Administrator privileges.
1. Quit all open programs.
2. Click Start, select Programs (or All Programs in MS Windows Server 2003 or MS Windows XP),
select HP, select HP LaserJet M1120 MFP, and then click Uninstall.
3. The Are you sure you want to uninstall this product? dialog box appears.
Figure 3-24 The Are you sure you want to uninstall this product? dialog box
Click Yes to continue to the Uninstalling dialog box (step 4).
Click No to cancel the uninstall process and close the dialog box.
ENWW User uninstall 79
Install MS Windows
software components
4. The Uninstalling dialog box appears and the uninstall process begins.
Figure 3-25 Uninstalling dialog box
A progress bar reflects the status of the uninstall process.
5. When the uninstall process is complete, the Please reboot your computer dialog box appears.
Figure 3-26 Please reboot your computer dialog box
Click OK to restart your computer and finish the uninstall process.
80 Chapter 3 Install MS Windows software components ENWW
Install MS Windows
software components
Add or repair software using the installation CD
After installing the software, use the installation CD to add another printer or repair installation errors.
1. Insert the CD into the CD-ROM drive.
Figure 3-27 CD Browser - Main screen
Click Install to continue.
ENWW User uninstall 81
Install MS Windows
software components
2. The Please select from the following dialog box appears.
Figure 3-28 Please select from the following dialog box
Click Repair to repair installation errors.
Click Add another printer to add another printer.
Click Cancel to exit the process.
3. After clicking an option, click Next and then follow the onscreen prompts to complete the process.
82 Chapter 3 Install MS Windows software components ENWW
Install MS Windows
software components
4 Host-based driver features for MS
Windows
Topics:
●Introduction to host-based printing
●Access to the driver
●Help system
●Driver tabs
ENWW 83
Host-based driver
features for MS Windows
Introduction to host-based printing
The HP LaserJet M1120 MFP is a host-based device. Host-based printing differs from PCL printing by
computing the print job on the host computer rather than computing it in the device formatter. The
following illustration shows how the HP LaserJet M1120 MFP Series printing-system software works.
Figure 4-1 HP LaserJet M1120 MFP host-based driver overview
As a host-based printing system, the HP LaserJet M1120 MFP print driver uses MS Windows to convert
the graphics device interface (GDI) or device driver interface (DDI) calls from software programs into
JBIG (standard-compression) compressed pages. These pages are sent in “chunks” through the driver
to the device formatter.
The HP LaserJet M1120 MFP print driver also receives status messages from the formatter firmware.
These messages are passed to the Status Application, which displays them.
The HP LaserJet M1120 MFP formatter has 2 MB of read-only memory (ROM) and 32 MB of random
access memory (RAM). Both the firmware and the compressed page must fit into the 32 MB of RAM.
84 Chapter 4 Host-based driver features for MS Windows ENWW
Host-based driver
features for MS Windows
Access to the driver
To gain access to driver settings from within most software programs, click File, click Print, and then
click Properties. The appearance and names of the driver tabs that appear can vary, depending on the
operating system. These settings apply only while the software program is open.
You can also control the driver directly from the Printers folder. These settings change the default
settings for all software programs.
●In MS Windows 2000, click Start, select Settings, select Printers, right-click the device name, and
then click Printing Preferences to gain access to the same set of driver tabs that the software
program controls.
●In MS Windows Server 2003 or MS Windows XP, click Start, select Settings, select Printers and
Faxes (MS Windows XP Professional) or Printers and Other Hardware Devices (MS Windows
XP Home), right-click the device name, and then click Printing Preferences to gain access to the
same set of driver tabs that the software program controls.
Click Properties after right-clicking the device name to gain access to the Properties tab set, which
controls the driver behavior and driver connections.
Printing Preferences tab set
The HP LaserJet M1120 MFP host-based Printing Preferences tabs contain options for formatting
documents for the HP LaserJet M1120 MFP. Gain access to the Printing Preferences tabs either
through the software program or through the MS Windows Printers folder.
The following tabs are included in Printing Preferences tab set:
●Advanced
●Paper/Quality
●Effects
●Finishing
●Services
Properties tab set
The Properties tab set contains information about and options for configuring the device.
NOTE: MS Windows also has tabs in the Properties tab set. For information about those tabs, see
the documentation that came with the computer.
ENWW Access to the driver 85
Host-based driver
features for MS Windows
Help system
The HP LaserJet M1120 MFP Series host-based driver includes a full-featured Help system to provide
assistance with printing and configuration options. The following Help options are available:
●What's this? Help
●Context-sensitive Help
●Paper Type Warning
What's this? Help
"What's this?" Help is supported in MS Windows Vista, MS Windows Server 2003, MS Windows XP, or
MS Windows 2000. Access "What's this?" Help messages in the following ways:
●Right-click a control and click What's this?, and a pop-up Help window appears.
●Click the ? button at the upper-right corner of the frame, next to the X, to change the cursor to an
arrow with a question mark. Use this special cursor to select a control, and the pop-up Help window
for that feature appears.
●Press the F1 key, and the Help window for the currently selected control appears.
Context-sensitive Help
Press the Help button on a driver tab or in a dialog box, and context-sensitive Help appears.
Paper Type Warning
Paper type warnings are unsolicited messages that appear in response to specific actions. These
messages appear in response to selections that could damage the device. For example, if you select
Bond in the Type is: drop-down menu, a message appears warning you to change the setting before
printing on other types of paper.
Figure 4-2 A typical paper type warning
86 Chapter 4 Host-based driver features for MS Windows ENWW
Host-based driver
features for MS Windows
Driver tabs
Topics:
●Printing Preferences tab set
●Properties tab set
Printing Preferences tab set
Topics:
●Advanced tab features
●Paper/Quality tab features
●Effects tab features
●Finishing tab features
●Services tab features
Advanced tab features
Use the Advanced tab to set the number of copies, collation, and print-job output options. The following
illustration shows the Advanced tab.
Figure 4-3 Advanced tab
ENWW Driver tabs 87
Host-based driver
features for MS Windows
Paper/Output
The following settings are in the Paper/Output group box:
●Collate
●Copy
Collate
The Collate option becomes active if the Copy setting is greater than 1. Select Collate to collate multiple
copy print jobs.
Copy
This setting is useful for software programs that do not provide a copy count. If a copy count is available
in the software program, set the copy count in the software program. Copy specifies the number of
copies to print.
The requested number of copies appears in the Copy option. Select the number by typing in the box or
by using the up and down arrows to the right of the text box. For the HP LaserJet M1120 MFP Series,
valid entries are numbers from 1 to 9999. The copies value will not advance from the maximum number
(9999) to 1 when the up arrow is used, or change from 1 to the maximum number (9999) when the down
arrow is used.
When you click another group box or leave the Advanced tab, invalid entries into the edit box (such as
non-numerical input, numbers less than 1, or numbers greater than the maximum allowed) change to
the last valid value that appeared in the box. The default number of copies is 1.
Because the number of copies can be set from some software programs, conflicts can arise between
the software program and the driver. In most cases, the software program and the driver communicate
so that the number of copies set in one location (such as the program) appears in the other (such as
the driver). For some programs, this communication does not happen, and the copies values are treated
independently. For example, setting 10 copies in the program and then setting 10 copies in the driver
will result in 100 copies (10 x 10) being printed. Set the number of copies in the program, wherever
possible.
Printer Features
The following settings are in the Printer Features group box:
●Print all Text as Black
●REt
Print all Text as Black
Print all Text as Black is off by default. When selected, the driver prints all text as black regardless of
the original document text color. However, white text remains white as a fail-safe method of printing
reverse typeface against a dark background. This setting does not affect graphic images on the page.
Print all Text as Black remains selected only for the current print job.
REt
Resolution Enhancement technology (REt) refines the print quality of characters by smoothing out
jagged edges that can occur on the angles and curves of a printed image. It is On by default. Select
Off if graphics, particularly scanned images, are not printing clearly.
88 Chapter 4 Host-based driver features for MS Windows ENWW
Host-based driver
features for MS Windows
Paper/Quality tab features
Use the Paper/Quality tab to specify the size, type, and source of the paper for the HP LaserJet M1120
MFP Series. You can also use this tab to indicate different paper-selection choices for the first page,
other pages, and back cover of the document. The following illustration shows the Paper/Quality tab.
Figure 4-4 Paper/Quality tab
Print Task Quick Sets
The first group box in the upper portion of the Paper/Quality tab is Print Tasks Quick Sets. Because
they are all the same control, any change to the Print Task Quick Sets group box that is made on the
Paper/Quality tab affects the Print Task Quick Sets group boxes on the other driver tabs. The following
tabs contain Quick Sets group boxes:
●Paper/Quality
●Effects
●Finishing
Use the Print Task Quick Sets setting to store the current combination of driver settings that appears
on all of the other print driver tabs. Print Task Quick Sets are user-defined printing specifications (such
as paper size, pages per sheet, and so on). The Print Task Quick Sets control does not appear on the
driver Properties tabs.
The following selections are available in the Print Task Quick Sets drop-down menu:
●Default Print Settings
ENWW Driver tabs 89
Host-based driver
features for MS Windows
●User's Manual
●Type new Quick Set name here
Default Print Settings
When you select Default Print Settings, nearly all of the settings are restored to the combination that
existed after the driver was installed (the original settings). However, if the attribute combinations that
are associated with watermark definitions or custom paper sizes have been changed or deleted, the
original settings are not restored.
Type new Quick Set name here appears in the Print Task Quick Sets menu automatically if no other
driver settings have been changed since the driver was installed, or if all of the driver settings match the
original settings. Otherwise, the setting in the Print Task Quick Sets menu is the same label that
appeared when a user on the computer last closed the printing Properties dialog box by clicking OK.
User's Manual
The User's Manual option provides a Print Task Quick Sets setting for optimal printing of the HP
LaserJet M1120 MFP Series User Guide.
Type new Quick Set name here
By default, the Print Task Quick Sets menu is set to Type new Quick Set name here. When you
change any of the default settings on any of the Printing Preferences driver tabs, Type new Quick
Set name here appears in the Print Task Quick Sets menu and the Save button becomes active.
Highlight the words Type new Quick Set name here, type the name for the new Print Task Quick Set,
and then click Save. Print Task Quick Sets are saved in the system registry. To delete a Print Task
Quick Set, select it from the drop-down menu and then click Delete.
Store a maximum of 25 Print Task Quick Sets on any system. If you attempt to save too many, a
message box appears that states: There are too many Quick Sets defined. Please delete some
before adding new ones.
90 Chapter 4 Host-based driver features for MS Windows ENWW
Host-based driver
features for MS Windows
Paper Options
The settings specified in the Paper Options group box on the Paper/Quality tab apply to all of the
pages of the document. The following illustration shows the Paper Options group box and the selections
available.
Figure 4-5 Paper Options group box
The following are settings in the Paper Options group box:
●Size is:
●Source is:
●Type is:
Size is:
The Size is: setting is a drop-down menu that lists all of the supported paper sizes.
Specify the size for all the settings in the Paper Options group box. You must use the same size of
paper for the entire print job. That is, if the print job uses letter-size paper, any option that you select
from the available Use Different Paper/Covers options must also use letter-size paper.
NOTE: Certain software programs can override the size command and specify different paper sizes
within a single document.
For the Other Pages and Back Cover settings, select a source (tray) and paper type that differ from
the settings selected for First Page. If a conflict exists among paper source, paper size, and/or paper
type, and you choose to keep the conflicting settings, the settings are processed in the following order:
paper size, paper type, and then paper source.
Because driver settings are overridden by paper-size settings in most software programs, use the driver
to set paper size only for software programs that don't have a paper-size setting, such as NotePad, or
when producing a book or a booklet that does not require different paper sizes.
NOTE: When using a software program that has a paper-size setting, specify different paper sizes
within a single document by using the Use Different Paper/Covers options.
For more information about paper sizes, see Media attributes on page 128.
ENWW Driver tabs 91
Host-based driver
features for MS Windows
Use Different Paper/Covers check box
When the Use Different Paper/Covers check box is selected, the Front Cover, First page, Other
pages, Last page, and Back Cover options become available. Click any of these options and then
select Size is:, Source is:, and Type is: for each option.
Custom Paper Size group
Click the Custom button to open the Custom Paper Size dialog box.
Figure 4-6 Custom Paper Size dialog box
Use the Custom Paper Size dialog box to create or modify custom-paper-size information. The Custom
Paper Size dialog box contains the following options:
●Name field. Click the text box to type a name for the custom paper size or click the drop-down
menu to select a custom paper size that is already defined.
●Paper Size group box. If you type in a size that is too large or too small, the driver automatically
adjusts the size.
◦Width: spin box. Use the spin controls to select the width for the custom paper size, or click
in the text box to type the width.
◦Height: spin box. Use the spin controls to select the height for the custom paper size, or click
in the text box to type the height.
●Units group box. Select inches or millimeters to define the custom paper size.
Click Save to save the custom size or click Close to return to the Paper/Quality tab.
Source is:
The Source is: setting specifies the source tray to use for printing a document.
92 Chapter 4 Host-based driver features for MS Windows ENWW
Host-based driver
features for MS Windows
The Source is: drop-down menu can contain the following options:
●Auto Select
●Manual Feed
●Tray 1
The default setting is Auto Select. When this is selected, the device uses the source tray that supports
the selected paper size. If you select a source tray other than Auto Select, make sure that the correct
paper size is loaded in the source tray.
For more information about paper sources, see Media attributes on page 128.
Type is:
The Type is: drop-down menu shows all the paper types that the HP LaserJet M1120 MFP Series
supports. When you use the default setting, Letter, the device uses the default paper type, which is
usually Plain.
The following standard paper types appear in the lists.
Table 4-1 Standard paper types and engine speed
Paper type Engine speed
Plain Full – 1:1
HP Multipurpose Paper Full – 1:1
HP Office Paper Full – 1:1
HP All-in-One Printing Paper Full – 1:1
HP LaserJet Paper Full – 1:1
HP Premium Choice LaserJet Paper Full – 1:1
Preprinted Full – 1:1
Letterhead Full – 1:1
Transparency Half – 1:2
Prepunched Full – 1:1
Labels Half – 1:2
Bond Half – 1:2
1
Recycled Full – 1:1
Color Full – 1:1
Light (< 75 g/m2)Full – 1:1
Heavy (90 to 105 g/m2)Half – 1:2
1
Cardstock (105 to 176 g/m2)Half – 1:2
1
Envelope Half – 1:2
1
Rough Half – 1:2
1
1Throughput for continuous printing might be less than 4 pages per minute as a result of fuser heating limitations.
ENWW Driver tabs 93
Host-based driver
features for MS Windows
The default setting is Plain. If you select a different setting, make sure that the correct paper type is
loaded in the tray selected in the Source is: setting.
For more information about paper types, see Media attributes on page 128.
Use Different Paper/Covers options
Print books that include different paper types by using the Use Different Paper/Covers options.
Select the Use Different Paper/Covers check box to make the following settings appear in the group
box, along with associated options:
●Front Cover
●First Page
●Other Pages
●Last Page
●Back Cover
To use Use Different Paper/Covers options, configure the setting for the print job. Each option for the
Use Different Paper/Covers setting is described in the sections that follow this procedure. Use the
following instructions to configure the setting.
To configure the Use Different Paper/Covers options for a print job
For each option, set a different tray by using the Source Is: drop-down menu. For some options, the
Type is: drop-down menu is also available.
1. To use different paper or cover stock, select the Use Different Paper/Covers check box. A list of
options appears in the dialog box. The full set of selections is visible by using the down arrow button
to the right of the list to scroll.
2. To use different paper for the pages within the print job, select the appropriate option (Front
Cover, First Page, Other Pages, Last Page, or Back Cover) in the dialog box. A check mark
appears to the left of the option when a setting is changed using the Source is: or Type is: drop-
down menus.
3. Click OK to print.
NOTE: Use the same size of paper for the entire print job. All options selected from the available Use
Different Paper/Covers options use the size selected in the First Page settings.
When you change the type and source of the paper and covers, the settings remain configured until you
close the software program.
Each option for the Use Different Paper/Covers setting is described in the following sections.
Front Cover and Back Cover options
Use these options to include a blank or preprinted front cover or back cover on a document.
94 Chapter 4 Host-based driver features for MS Windows ENWW
Host-based driver
features for MS Windows
The following illustration shows the Front Cover setting and options. These options are the same for
the Back Cover setting.
Figure 4-7 Front Cover setting
The Front Cover and Back Cover options are as follows:
●Add a Blank or Preprinted Cover check box
●Source is: drop-down menu
●Type is: drop-down menu
When you select Front Cover or Back Cover, also select the Add a Blank or Preprinted Cover check
box to enable the setting. When this check box is selected, the Source is: and Type is: drop-down
menus become available and a check mark appears next to the Front Cover or Back Cover option.
NOTE: The Back Cover options are not available when the Booklet Layout setting is enabled on the
Finishing tab. For two-page-per-sheet (2-up) booklet printing, include a cover by selecting different
paper for the first page only. The back cover setting is unavailable, because this page would be printed
in the middle of a booklet.
The Source is: setting specifies the source tray to use for adding a back cover to the document. The
list of source trays depends on the installed accessories. Any optional paper trays that are installed
through the Configure tab also appear here. For more information about the Source is: setting, see
the Source is: on page 92 section of this chapter.
The Type is: drop-down menu shows all of the paper types that the printer supports. For more
information about the Type is: drop-down menu settings, see the Type is: in the Type is: on page 93
section of this chapter.
ENWW Driver tabs 95
Host-based driver
features for MS Windows
First Page, Other Pages, and Last Page options
Use these options to select an alternative paper size, type, or source for the first page, other pages, or
last page of a document. The following illustration shows the appearance of the Paper Options group
box when the Use Different Paper/Covers check box is selected.
Figure 4-8 First Page, Other Pages, and Last Page options
The First Page, Other Pages, and Last Page options are as follows:
●Size is: drop-down menu
●Source is: drop-down menu
●Type is: drop-down menu
The Size is: driver setting for the first page applies to the entire print job. When this is set, the setting
becomes unavailable for all the other Use Different Paper/Covers options.
Document preview image
The document preview image is a line-drawn image of a page that represents graphics and text. The
document preview image is always oriented so that the contents of the page are right-side-up. The
document preview image appears in the upper-right corner of the Paper/Quality, Effects, and
Finishing tabs.
Switching between tabs does not change the location or appearance of the document preview image.
Move the mouse over the document preview image, and the mouse cursor changes from an arrow to a
gloved hand. Toggle between portrait and landscape page orientation by clicking on the image.
96 Chapter 4 Host-based driver features for MS Windows ENWW
Host-based driver
features for MS Windows
Print Quality
The Print Quality group box contains the Print Quality drop-down box and the EconoMode check
box.
The default setting for Print Quality is FastRes 1200.
This setting controls resolution, which refers to the number of dots per inch (dpi) used to print the page.
As resolution is increased, the quality (clarity and visual appeal) of print on the page is improved.
However, higher resolution might also result in longer printing times. The following Print Quality options
are available in the drop-down box:
●FastRes 1200
●600 dpi
Select the EconoMode check box in conjunction with any of the print quality settings. When using
EconoMode, the device uses less toner on each page. Using this option might extend the life of the print
cartridge and can lower the cost per page, but also reduces print quality. Using the EconoMode feature
with non-HP print cartridges can result in toner spillage or device damage.
Effects tab features
Use the Effects tab to create unique paper effects such as scaling and watermarks. The following
illustration shows the Effects tab.
Figure 4-9 Effects tab
The Effects tab contains the following controls:
ENWW Driver tabs 97
Host-based driver
features for MS Windows
●Print Task Quick Sets
●Resizing Options
●Document preview image
●Watermarks
Print Task Quick Sets
Use the Print Task Quick Sets control to store the current combination of driver settings that are found
on all other Printing Preferences driver tabs. Print Task Quick Sets are either preset or user-defined
printing specifications, such as paper size and pages per sheet. For more information, see Print Task
Quick Sets on page 89 in the Paper/Quality tab section of this guide.
Resizing Options
The Resizing Options group box consists of the following controls:
●Actual Size
●Print Document On
●Scale to Fit
●% of Normal Size
Actual Size
Select the Actual Size option to print the page at normal size. This option is the default.
Print Document On
Select the Print Document On option to format the document for one paper size and then print the
document on a different paper size, with or without scaling the image to fit the new paper size.
The Print Document On control is disabled by either of the following conditions:
●The % of Normal Size value is not 100.
●The Pages per Sheet value (on the Finishing tab) is not 1.
When Print Document On is selected, the drop-down menu shows the available paper sizes. The list
contains all of the standard paper sizes that are supported by the selected paper source and any custom
sizes that have been created. When Print Document On is selected, Scale to Fit is automatically
selected.
Scale to Fit
The Scale to Fit option box specifies whether each formatted document page image is scaled to fit the
target paper size. By default, Scale to Fit is selected when Print Document On is selected. If the setting
is turned off, then the document page images will not be scaled, and are instead centered at full size
on the target paper. If the document size is larger than the target paper size, then the document image
is clipped. If it is smaller, then it is centered within the target paper. The following illustration shows
98 Chapter 4 Host-based driver features for MS Windows ENWW
Host-based driver
features for MS Windows
preview images for a document that is formatted for legal-size paper and where the Print Document
On check box is selected and the target size is specified as Letter.
Figure 4-10 Preview images - Legal on Letter; Scale to Fit off (left) and on (right)
When the size for which the document is formatted (that is, the logical size) differs from the target size,
the preview image uses a dashed gray line to show the boundaries of the logical page in relation to the
target page size.
% of Normal Size
The % of Normal Size option provides a slider bar to use for scaling the percentage setting. The default
setting in the entry box is 100% of normal size. Normal size is defined as the paper size that is selected
within the driver or what the driver receives from the software program (if the software program does
not negotiate the paper size with the driver). The driver scales the page by the appropriate factor and
sends it to the device.
The limits of the range are from 25% to 400%, and any values outside the range are adjusted to those
limits as soon as the focus is removed from the control (that is, when the Tab key is pressed or another
control is selected).
Any change to the scale also changes the page preview, which increases or decreases from the upper-
left corner of the preview.
The slider bar controls the scale directly. The value in the edit box changes as the scroll bar indicator
is dragged, and the preview image is updated to the new image scale. Each click on the scroll bar arrows
increases or decreases the scale by 1%. Each click on the slider bar affects the scale by 10%.
You cannot achieve an exact value by dragging the scroll bar indicator at the default Microsoft Windows
resolution; use the scroll bar indicator to approximate the value, and then use the scroll bar arrows to
refine the value.
The following settings disable % of Normal Size:
●Print Document On (on the Effects tab) is selected
●Pages per Sheet (on the Finishing tab) is not 1
Document preview image
The document preview image is a line-drawn image of a page that represents graphics and text. The
document preview image is always oriented so that the contents of the page are right-side up. The
document preview image appears in the upper-right corner of most Printing Preferences driver tabs
(the Paper/Quality, Effects, and Finishing tabs).
ENWW Driver tabs 99
Host-based driver
features for MS Windows
Switching between tabs does not change the location or appearance of the document preview image.
Move the mouse over the document preview image, and the mouse cursor changes from an arrow to a
gloved hand. Toggle between portrait and landscape page orientation by clicking on the image.
Watermarks
Use the Watermarks feature to select a watermark, create a custom watermark (text only), or edit an
existing watermark. The following watermarks are preset in the driver.
●Current Watermarks
●Watermark Message
●Message Angle
●Font Attributes
The drop-down menu shows alphabetically sorted watermarks that are currently available on the system
plus the string "(none)", which indicates that no watermark is selected. This is the default setting. Any
watermark selected from this list appears in the preview image.
When the First Page Only check box is selected, the watermark is printed only on the first page of the
document. The First Page Only check box is disabled when the current watermark selection is "(none)".
Watermarks are applied to logical pages. For example, when Pages per Sheet is set to "4" and First
Page Only is turned off, four watermarks appear on the physical page (one on each logical page).
Click Edit, and the Watermark Details dialog box appears.
Figure 4-11 Watermark Details
100 Chapter 4 Host-based driver features for MS Windows ENWW
Host-based driver
features for MS Windows
The dialog box shows a preview image and provides options for creating a new watermark and
controlling the message angle and font attributes.
Click OK to accept all of the changes that are made in the Watermark Details dialog box. However,
clicking Cancel does not cancel all of the changes. If you make changes to a watermark, and then select
a different watermark or click New, all of the changes made to the previous watermark are saved, and
only the current, unsaved changes can be canceled.
Current Watermarks
The Current Watermarks group box contains a list of available watermarks, both the predefined
watermarks made available in the driver and any new watermarks that have been created.
To create a new watermark, click New. The new watermark appears in the Current Watermarks list
and in the Watermark Message edit box as "&Units" until you name it. The name typed in the
Watermark Message field appears in the Current Watermarks group box in the Watermark Details
dialog box and in the Watermarks group box on the Effects tab.
To name the new watermark, type the selected watermark text in the Watermark Message edit box.
To delete a watermark, select the watermark in the Current Watermarks list and click Delete. A warning
appears asking whether you are sure you want to delete the selected item. Click Cancel if you want to
keep the watermark. Click OK to delete the selected watermark.
NOTE: No more that 30 watermarks can be saved in the Current Watermarks list at one time. When
the limit of 30 watermarks is reached, the New button is disabled.
To edit an existing watermark, select the watermark in the Current Watermarks list. If you change the
Watermark Message for that watermark, you are, in effect, creating a new watermark.
Watermark Message
The Watermark Message is also the name that identifies the watermark in the Current Watermarks
list, except when more than one watermark has the same message. For example, several different
watermarks can contain the message DRAFT, each with a different typeface or font size. When this
occurs, the string is appended with a space, a pound sign, and a number (for example, Draft #2). When
a number is added, the number two is used first, but if the resulting name is also in the list, then the
number increases until the name is unique (Draft #3, Draft #4, and so on).
Message Angle
Use the controls in the Message Angle group box to print the watermark in different orientations in
relation to the text on the page. The settings are Diagonal, Horizontal, or Angle (custom). The default
is Diagonal. All three settings automatically center the watermark string within the page; the selection
of a particular setting affects only the angle of the string placement. Diagonal places the text along a
line that spans the lower-left to upper-right corners of the page. Horizontal places the text along a line
that spans the mid-left and mid-right edges of the page. Angle places the text at the specified angle
across the page.
Font Attributes
Use the controls in the Font Attributes group box to change the font and the shading, size, and style
of the font.
ENWW Driver tabs 101
Host-based driver
features for MS Windows
The Font Attributes group box contains the following controls:
●Name drop-down menu
●Color drop-down menu
●Shading drop-down menu
●Size spin box
●Style drop-down menu
Name
The Name drop-down menu lists fonts that are currently installed on the system. The default is language-
dependent.
Color
The Color option is a fixed, unalterable set of color choices for the watermark: Gray.
Shading
The default Shading setting for new and preset watermarks is Very Light. The following range of shades
is available from the Shading drop-down menu:
●Lightest
●Very Light (default)
●Light
●Medium Light
●Medium
●Medium Dark
●Dark
●Very Dark
●Darkest
These values represent the intensity of the gray that is used. A choice of Light produces a lightly
saturated gray watermark. A choice of Lightest produces the lightest shade of watermark; Darkest
produces a black watermark.
Size
Font sizes from 1 to 999 points are available from the Size menu. The default point size is language-
dependent. The choice of Regular, Bold, Italic, and Bold Italic is available from the Style drop-down
menu.
Style
The choice of Regular, Bold, Italic, and Bold Italic is available from the Style drop-down menu. The
default Style setting for new and preset watermarks is Regular.
102 Chapter 4 Host-based driver features for MS Windows ENWW
Host-based driver
features for MS Windows
Finishing tab features
Use the Finishing tab to print booklets and control the paper output. The following illustration shows
the Finishing tab.
Figure 4-12 Finishing tab
The Finishing tab contains the following controls:
●Print Task Quick Sets
●Document Options
●Document preview image
●Orientation
Print Task Quick Sets
Use the Print Task Quick Sets control to store the current combination of driver settings that appear
on all of the other Printing Preferences driver tabs. Print Task Quick Sets are either preset or user-
defined printing specifications, such as paper size and pages per sheet. For more information, see Print
Task Quick Sets on page 89 in the Paper/Quality tab section of this chapter.
Document Options
The Document Options group box contains the following controls:
●Print on Both Sides
ENWW Driver tabs 103
Host-based driver
features for MS Windows
●Flip Pages Up
●Booklet layout
●Pages per Sheet
●Print Page Borders
●Page Order
Print on Both Sides
NOTE: The Print on Both Sides check box is unavailable if the Allow Manual Duplexing option is
disabled on the Device Settings tab in the Properties tab set.
The default setting for the Print on Both Sides option is off (not selected). Selecting Print on Both
Sides makes the Flip Pages Up and Booklet Printing options available.
When a print job is sent to the device with the Print on Both Sides option selected, the even pages
print, and then the following dialog box appears with instructions to complete the manual duplex process.
Figure 4-13 Print on Both Sides Instructions
104 Chapter 4 Host-based driver features for MS Windows ENWW
Host-based driver
features for MS Windows
Instructions for manually printing on both sides
Follow these steps to manually print on both sides.
1. Click File, click Print, and then click Properties.
2. Click the Finishing tab, and then click the Print on Both Sides check box. Click OK to continue.
3. When the even-numbered pages have printed, the Load Tray (X) - Press OK message appears
on the device control panel and the Print on Both Sides Instructions dialog box appears on the
computer screen.
a. Without changing the orientation, remove the paper stack from the output bin. Do not discard
blank sheets.
b. Insert the paper stack into the same input tray that the even-numbered pages (first sides)
were printed from, maintaining the same orientation (that is, with the same edge of the page
feeding into the device first).
c. Press the OK button to print the odd-numbered pages.
Flip Pages Up
The Flip Pages Up check box, enabled only when Print on Both Sides is selected, is used to specify
the duplex-binding option. By default, the Flip Pages Up check box is not selected. The following table
demonstrates the results of selecting this box, depending on the paper orientation selected on the
Finishing tab.
Table 4-2 Page orientation
Orientation (Finishing tab) Flip Pages Up selected Flip Pages Up not selected
Portrait Short-edge binding Long-edge binding
Landscape Long-edge binding Short-edge binding
When Print on Both Sides is selected, the document preview image changes to show a spiral binding
along either the left edge or the top edge of the page. In addition, a folded-over corner appears in the
lower-right portion of the preview image, indicating that printing occurs on the back side. An arrow on
the folded-over corner points in the direction that the pages would be flipped if they were bound together.
Short-side binding is for print jobs with pages that read by flipping over like the pages of a notepad.
Long-side binding is for print jobs with pages that read by turning like the pages of a book.
Booklet layout
The Booklet Layout drop-down menu, visible when Print on Both Sides is selected, offers choices
that are based on the current paper size. The default setting for the Booklet Printing drop-down menu
is Off.
●Left Edge Binding
●Right Edge Binding
Selecting Left Edge Binding or Right Edge Binding changes the document preview image to show
the location of the binding. If the Pages per Sheet setting is on the default setting of 1, it automatically
changes to 2 pages per sheet. Changing the Pages per Sheet setting manually to 4, 6, 9, or 16 pages
per sheet disables the booklet setting.
ENWW Driver tabs 105
Host-based driver
features for MS Windows
The Booklet Layout setting is disabled when A6 or B6 (JIS) is selected as the paper size, and an
incompatibility-error message appears when you click OK to close the driver.
Book and booklet printing
The HP LaserJet M1120 MFP Series supports book and booklet printing.
A book is a print job consisting of at least two pages that can have a different paper type for the first
page, other pages, or back cover. Use the First Page, Other Pages, and Back Cover settings on the
Paper/Quality tab (available when you select the Use Different Paper check box) to select different
paper for these pages.
A booklet is a print job that places two pages on each side of a sheet that can be folded into a booklet
that is half the size of the paper type. Use the Booklet Layout drop-down menu on the Finishing tab
to control booklet settings.
Printing a Booklet
Complete the following steps to print a booklet.
1. Click File, click Print, and then click Properties.
2. Click the Device Settings tab and select the Print on Both Sides check box.
3. In the Booklet Layout drop-down menu, select the type of booklet printing that you want. For
example, Right Edge Binding.
4. Click OK in the print driver.
5. Click OK in the Print dialog box to print.
Printing a book
You can print a book in which the first page, other pages, and back cover have different paper types.
For more information, see the Paper/Quality tab features on page 89 section of this chapter.
Pages per Sheet
Use the Pages per Sheet option to select the number of pages to print on a single sheet of paper.
If you print more than one page per sheet, the pages appear smaller and are arranged on the sheet in
the order that they would otherwise be printed. The Pages per Sheet drop-down menu provides six
settings:
●1 page per sheet (default)
●2 pages per sheet
●4 pages per sheet
●6 pages per sheet
●9 pages per sheet
●16 pages per sheet
NOTE: Selecting an option other than 2 pages per sheet makes booklet printing unavailable.
106 Chapter 4 Host-based driver features for MS Windows ENWW
Host-based driver
features for MS Windows
Print Page Borders
Related controls indented beneath the Pages per Sheet edit box are Print Page Borders and Page
Order, which become active when Pages per Sheet is greater than 1.
Print Page Borders sets a line around each page image on a printed sheet to help visually define the
borders of each logical page.
Page Order
The Page Order drop-down menu contains four selections:
●Right, then Down
●Down, then Right
●Left, then Down
●Down, then Left
The preview document image changes to reflect alterations in these settings, as shown by the examples
in the following illustration.
Figure 4-14 Page-order preview images
●2 pages per sheet
●4 pages per sheet
●6 pages per sheet
●9 pages per sheet
●16 pages per sheet
Document preview image
The document preview image is a line-drawn image of a page that represents graphics and text. The
document preview image is always oriented so that the contents of the page are right-side up. The
document preview image appears in the upper-right corner of most Printing Preferences driver tabs
(the Paper/Quality, Effects, and Finishing tabs).
Switching between tabs does not change the location or appearance of the document preview image.
Move the mouse over the document preview image, and the mouse cursor changes from an arrow to a
gloved hand. Toggle between portrait and landscape page orientation by clicking on the image.
ENWW Driver tabs 107
Host-based driver
features for MS Windows
Orientation
The Orientation group box contains the following options:
●Portrait option button
●Landscape option button
●Rotate 180 degrees check box
Portrait option button
Select this feature to print the document in Portrait orientation. This is the default setting.
Landscape option button
Select this feature to print the document in Landscape orientation.
Rotate by 180 degrees check box
Select this feature to rotate the document image on the paper 180°. For example: If the return address
on an envelope is smudged, try using this setting and feed the envelope so that the return address area
is fed into the device first.
108 Chapter 4 Host-based driver features for MS Windows ENWW
Host-based driver
features for MS Windows
Services tab features
Use the Services tab to gain access to Internet services for the device. The following illustration shows
the Services tab.
Figure 4-15 Services tab
The Services tab contains the Select a destination drop-down menu with the following selections:
●Support and Troubleshooting
●Product Manuals
●Check for Driver Updates
●Order Supplies
If you have Internet access, select any of these items and then click Go! to open the corresponding HP
Web page.
Properties tab set
Topics:
●Device Settings tab features
●About tab features
ENWW Driver tabs 109
Host-based driver
features for MS Windows
Device Settings tab features
Use the Device Settings tab to control driver behavior and driver connections. The following illustration
shows the Device Settings tab.
Figure 4-16 Device Settings tab
Jam Recovery
Select On to reprint a page if a paper jam occurs. Select Off to not reprint a page if a paper jam occurs.
Off is the default setting.
NOTE: Jobs print faster when Off is selected.
Print density
Use this control to specify how much toner is put on the page. 3 is the default setting.
Status Message
Select On to allow error messages to display on the computer screen during error conditions. Select
Off to not allow error messages to display on the computer screen during error conditions. On is the
default setting.
NOTE: The paper-out message still appears when Off is selected.
110 Chapter 4 Host-based driver features for MS Windows ENWW
Host-based driver
features for MS Windows
Courier Font Type
Select Regular to print any text by using TrueType Courier or Courier New with normal weight. Select
Dark to print any text by using TrueType Courier or Courier New with a dark weight but without changing
the font attributes in a program. Regular is the default setting.
Allow Manual Duplexing
Use this setting to allow printing on both sides of a page using manual two-sided printing. This option
is selected by default.
About tab features
The About tab provides detailed information about the driver. It contains an overall build number after
the model name, and specific information about each of the components. The information varies
according to the HP LaserJet M1120 MFP Series model, driver, date, and version numbers. The
following illustration shows the About tab.
Figure 4-17 About tab
Driver Files:
The Driver Files: box lists driver installation file names and their version numbers.
Configuration Status:
The Configuration Status: box lists the Service Id number and the page count.
ENWW Driver tabs 111
Host-based driver
features for MS Windows
112 Chapter 4 Host-based driver features for MS Windows ENWW
Host-based driver
features for MS Windows
5 Macintosh software and utilities
Introduction
The HP LaserJet M1120 MFP Series comes with printing software and installers for Apple Computer,
Inc., Macintosh operating systems.
Topics:
●Macintosh printing-system software
●Macintosh install and uninstall instructions
●Macintosh remote firmware updates
●TWAIN driver user interface (Macintosh)
ENWW Introduction 113
Macintosh
Macintosh printing-system software
The HP LaserJet M1120 MFP Series printing system for Macintosh is composed of the Printer Setup
Utility (Mac OS X V10.3, v10.4 and later) and HP-created printer dialog extension (PDE) files. The driver
uses these files to determine the features and postscript commands that the device supports. The
following components are installed:
●The HP LaserJet Installer for Mac OS X V10.3, v10.4 and later
●LIBRARY/PRINTERS/PPDS/CONTENTS/RESOURCES/LANGUAGE.LPROJ (for Mac OS X)
NOTE: Installation CD version 1.0 does not support the Intel-based Macintosh operating system.
Topics:
●Additional software
●System requirements
●Availability
Additional software
The following software utilities also install with the HP LaserJet M1120 MFP Series software for
Macintosh systems.
●HP Director. Use the HP Director to gain access to product-specific software, default settings,
status, and onscreen Help. By using the HP Director, you can scan various types of originals, make
copies, configure and maintain the device, and see user documentation.
●HP Scan. Use the HP Scan function to select scan options and then store the image to a file. Open
the scanning software from the HP LaserJet Director.
●HP Setup Utility. Use the HP Setup Utility to configure and manage the HP printers installed on
your system.
System requirements
●G3, G4, or G5 PowerPC processor
●Mac OS X V10.3 and later, with 128 MB RAM and 50 MB of available hard-disk space
●CD-ROM drive or Internet connection
Availability
This document provides information about the availability of the HP LaserJet M1120 MFP Series
printing-system software and related software and firmware. Printing-system software on a CD is
available from HP fulfillment centers.
Topics:
●Software on the Web
●In-box printing-system software CDs
114 Chapter 5 Macintosh software and utilities ENWW
Macintosh
Software on the Web
All software that is contained on the installation CD is also available on the Web.
Web deployment is the preferred method for obtaining the latest software. The Web site offers an option
for automatic e-mail notification about new software releases.
NOTE: This document describes drivers that are shipped with the printing-system software CD. This
document does not describe any drivers that support personnel might release.
Topics:
●Macintosh software
●Software component availability
Macintosh software
The HP LaserJet M1120 MFP Series software is available for download at the following Web site:
www.hp.com/go/ljm1120_software
Software component availability
The following HP LaserJet software components are available:
●PDE files for Mac OS X V10.3 and later
In-box printing-system software CDs
The software CD for the HP LaserJet M1120 MFP Series contains the files for installing the software
on the computer.
Topics:
●Macintosh partition
●CD versions
Macintosh partition
The HP LaserJet M1120 MFP Series software CD is divided into two partitions, one for each of the
following operating systems:
●MS Windows
●Macintosh
The Macintosh software files are grouped by language and reside in the following directories:
●Mac OS X (the HP LaserJet Installer)
●PDF (manuals)
CD versions
The software CD for the HP LaserJet M1120 MFP Series contains the files for installing the software
on the computer.
ENWW Macintosh printing-system software 115
Macintosh
The HP LaserJet M1120 MFP Series software CD (Part No. CB537-60120) is available in a single
version which contains software in various languages:
●DE = German (Deutsch)
●EN = English
●ES = Spanish (Español)
●FR = French (Français)
●IT = Italian (Italiano)
●NL = Dutch (Nederland)
116 Chapter 5 Macintosh software and utilities ENWW
Macintosh
Macintosh install and uninstall instructions
The HP LaserJet M1120 MFP Series comes with software and installers for MS Windows and Apple
Computer, Inc., Macintosh systems. The following information includes procedures for installing and
removing the HP LaserJet M1120 MFP Series printing-system software for Macintosh operating
systems.
Topics:
●Macintosh component descriptions
●Install the Macintosh software
●Uninstall
Macintosh component descriptions
The device includes the following software for Macintosh computers:
●PDEs for Mac OS X V10.3 and later
Topics:
●PDEs
●Install notes
●Online help
●Screen fonts
PDEs
Printer Dialog Extensions (PDEs) are code plug-ins (for Mac OS X V10.3 and later only) that provide
access to device features, such as number of copies, duplexing, and quality settings.
Install notes
This text file contains important information about device features, instructions for installing the printing-
system software, and technical assistance.
Online help
This HTML-based help system replaces the Apple Guide help system that was provided with
Mac OS 9.x HP devices. The help system is in English only, and can be viewed through a browser or
in the Macintosh OS Help Center.
Screen fonts
The software for Macintosh operating systems no longer includes a font installer. The HP LaserJet
M1120 MFP Series printer uses previously installed system fonts when it is installed on a Macintosh
computer.
ENWW Macintosh install and uninstall instructions 117
Macintosh
Install the Macintosh software
On a Macintosh computer, the installation procedures are basically the same for a network administrator,
a network client, or a single user. Install the software on any computer that has access rights to the
device.
Topics:
●General installation for Macintosh operating systems
●Installation dialog-box options for Macintosh
●Device setup
General installation for Macintosh operating systems
1. Insert the Macintosh software CD into the CD-ROM drive.
NOTE: If the CD screen does not open automatically, double-click the HP LaserJet M1120
MFP CD-ROM icon on the desktop to open the CD-ROM window.
2. Double-click the Mac OS X icon.
NOTE: The Continue button appears only after you type the "admin" password in the
Authenticate dialog box.
3. The main Installer dialog box appears. Click Install and then follow the onscreen instructions to
complete the software installation.
NOTE: Be patient when you are installing the software. The installer must perform an initial
search of the computer for up to 1 minute. During this time the installer might appear to be stalled.
4. When software installation is complete, click Restart.
5. The HP Setup Utility launches autmatically. Continue with the steps for setting up a device in the
Device Setup section.
The software program used to finish setting up the device varies by operating system. The following
table shows the print setup tools that are available.
Table 5-1 Adding a printer in Macintosh operating systems
Operating System Print Center Printer Setup Utility
Mac OS X V10.3.9 x
Mac OS X V10.4.1 x x
Installation dialog-box options for Macintosh
The following sequence describes the dialog box options that appear during the HP LaserJet M1120
MFP Series software installation on Macintosh systems.
To begin the installation, insert the HP LaserJet M1120 MFP Series software CD into the CD-ROM drive.
Figure 5-1 Step 1 - Insert the HP LaserJet M1120 MFP Series software CD
118 Chapter 5 Macintosh software and utilities ENWW
Macintosh
Double-click the HP LaserJet M1120 MFP icon that appears on the desktop.
Figure 5-2 Step 2 - Run the printing-system software CD
Double-click the HP LaserJet M1120 MFP folder.
Figure 5-3 Step 3 - Main CD screen
Double-click the HP LaserJet M1120 MFP Series Installer.app.
ENWW Macintosh install and uninstall instructions 119
Macintosh
Figure 5-4 Step 4 - Authenticate
Type the username and the password that provides administrator privileges, and then click OK to
continue.
Click Cancel to close the installer.
Figure 5-5 Step 5 - License agreement, screen 1
In the drop-down menu at the top of the screen, select the language for the installation.
Print... opens the Page Setup dialog box for your default printer so that you can print a copy of the
license agreement.
Save opens the system Save dialog box so that you can save the text of the software license agreement
to disk.
Continue presents the option to agree or disagree to the terms of the software license agreement.
Go Back returns you to the main CD screen.
120 Chapter 5 Macintosh software and utilities ENWW
Macintosh
Figure 5-6 Step 6 - Software License Agreement, screen 2
Click Agree to continue the installation.
Figure 5-7 Step 7 - Install files
The Installing dialog box appears, showing the progress of the installation.
Device setup
After installing the software in Macintosh operating systems, the device must be set up.
1. In the Applications folder, open the Utilities folder, and then run the Printer Setup Utility. The
Printer List appears.
2. Connect the USB cable to the computer and the device, and then turn on the device to continue
the setup.
ENWW Macintosh install and uninstall instructions 121
Macintosh
3. The device appears in the Printer List, as shown in the following figure.
Figure 5-8 Printer List screen
Uninstall
Topics:
●Uninstall the Macintosh software
Uninstall the Macintosh software
To uninstall the Macintosh software, do the following:
1. In the Applications folder, open the Hewlett-Packard folder, and then double-click Uninstaller.
2. Follow the on-screen instructions to remove the software.
NOTE: The uninstaller removes all software components except for the print driver. See Manual
uninstall for Macintosh to remove the print driver.
122 Chapter 5 Macintosh software and utilities ENWW
Macintosh
Macintosh remote firmware updates
Topics:
●Remote firmware update by using the HP Printer Utility
Remote firmware update by using the HP Printer Utility
Make sure that the tools and files that are necessary for the update are available. Get the HP Printer
Utility and the M1120 MFPFW.RFU file, which is the firmware file for the device. The HP Printer Utility
is a software program that is available only for Mac OS X V10.3 and later.
The HP Printer Utility and the firmware file (M1120 MFPFW.RFU) can be downloaded from the following
Web site:
http://www.hp.com/go/ljM1120_firmware
Get the firmware file and the HP Printer Utility, and then begin the update process. Complete the
following steps:
1. Open the HP Printer Utility.
2. Select Update Firmware, click Choose, browse to firmware upgrade file, and then click Open.
3. On the Update Firmware screen, click Update.
NOTE: If an error message appears on the screen indicating that the device is offline, verify that
the device is turned on. If it is, ignore the message. The Updating screen appears and the update
proceeds as expected.
4. The update process can take several minutes. Let the process finish without further interaction with
the device or the computer. The messages described in the section Device messages during the
firmware update on page 133 appear on the control panel.
NOTE: The device automatically turns off and then on again to activate the update; this can
happen more than once. At the end of the update process, the READY message appears on the
control panel. Do not turn off the device or interfere with the update until this message appears.
5. Print a configuration page and verify that the firmware revision number matches the revision of the
current update.
ENWW Macintosh remote firmware updates 123
Macintosh
TWAIN driver user interface (Macintosh)
To scan a page:
1. Place the page to be scanned on the flatbed scanner
2. Open the Macintosh Image Capture program. The The configuration is not supported. screen
appears.
Figure 5-9 The configuration is not supported. screen (Macintosh)
Click OK.
NOTE: The The configuration is not supported. screen only appears the first time that you
scan an image using the TWAIN software.
3. In the toolbar, click Devices, and then click Browse devices. The Image Capture Devices screen
appears.
Figure 5-10 Image Capture Devices screen (Macintosh)
Highlight the device name, select the Use TWAIN software option, and then click OK.
124 Chapter 5 Macintosh software and utilities ENWW
Macintosh
4. In the toolbar, click Devices, and then click Browse devices. The Image Capture Devices screen
appears again. Highlight the device name. In the toolbar, select Options, and then click Scan....
The HP LaserJet M1120 MFP preview image settings screen appears.
Figure 5-11 HP LaserJet M1120 MFP preview image settings screen (Macintosh)
Select the options for the final scan, and then click Scan....
The HP LaserJet M1120 MFP scans a preview image of the page on the flatbed scanner and the HP
Scan Settings screen appears.
Figure 5-12 HP Scan Settings screen (Macintosh)
The Scan Settings screen contains the following options, drop-down menus, and buttons:
●Image Type. Use this option to set the image type.
●Resolution. Use this drop-down menu to set the resolution for the scan. This drop-down menu
contains the following options:
◦150 x 150
◦300 x 300 (default)
◦600 x 600
◦1200 x 1200
●Cancel. Use this button to cancel the scan.
●Scan. Use this button to complete the final scan.
ENWW TWAIN driver user interface (Macintosh) 125
Macintosh
126 Chapter 5 Macintosh software and utilities ENWW
Macintosh
6 Engineering Details
Introduction
Topics:
●Media attributes
●Remote firmware updates
ENWW Introduction 127
Engineering Details
Media attributes
Topics:
●Media sources and destinations
●Driver-supported paper sizes
●Driver-supported paper types
●Custom paper sizes
Media sources and destinations
The following table indicates the standard paper sources and destination for the HP LaserJet M1120
MFP Series.
Table 6-1 HP LaserJet M1120 MFP Series paper sources and destination
Paper sources 10-sheet or 3-envelope manual feed tray Standard
150-sheet paper or 10-envelope tray
(tray 1)
Standard
Paper destination 100-sheet output bin Standard
Driver-supported paper sizes
The following table lists the features and attributes of various paper listed under the Size Is: drop-down
menu on the Paper tab. The list order can vary, depending on the device and operating system. The
list contains all of the following sizes, and might contain sizes from other drivers.
Table 6-2 Supported paper sizes and attributes
Paper sizes Width Height
Letter 216 mm
(8.5 inches)
279 mm
(11.0 inches)
Letter-R 279 mm
(11 inches)
216 mm
8.0 inches
Statement 140 mm
(5.5 inches)
216 mm
(8.5 inches)
8K 269 mm
(10.6 inches)
391 mm
(15.4 inches)
8K 259 mm
(10.2 inches)
368 mm
(14.5 inches)
8K 273 mm
(10.75 inches)
394 mm
(15.5 inches)
16K 184 mm 260 mm
128 Chapter 6 Engineering Details ENWW
Engineering Details
Paper sizes Width Height
(7.24 inches) (10.24 inches)
16K 195 mm
(7.68 inches)
197 mm
(7.75 inches)
16K 273 mm
(10.75 inches)
197 mm
(7.75 inches)
8.5 x 13 216 mm
(8.5 inches)
330 mm
(13 inches)
A4 211 mm
(8.3 inches)
297 mm
(11.69 inches)
A5 147 mm
(5.8 inches)
211 mm
(8.3 inches)
A6 105 mm
(4.14 inches)
148 mm
(5.83 inches)
B5 (JIS) 183 mm
(7.2 inches)
257 mm
(10.1 inches)
B6 128 mm
(5.1 inches)
182 mm
(7.2 inches)
S Postcard (JIS) 100 mm
(3.94 inches)
148 mm
(5.83 inches)
D Postscard (JIS) 100 mm
(3.94 inches)
200 mm
(7.87 inches)
D Postscard (JIS) 148 mm
(5.83 inches)
200 mm
(7.87 inches)
Envelope #10 105 mm
(4.13 inches)
241 mm
(9.5 inches)
Envelope B5 176 mm
(6.93 inches)
250 mm
(9.84 inches)
Envelope C5 162 mm
(6.38 inches)
229 mm
(9.02 inches)
Envelope DL 110 mm
(4.33 inches)
220 mm
(8.66 inches)
Envelope Monarch 99 mm
(3.88 inches)
190 mm
(7.5 inches)
Executive 185 mm 267 mm
Table 6-2 Supported paper sizes and attributes (continued)
ENWW Media attributes 129
Engineering Details
Paper sizes Width Height
(7.3 inches) (10.5 inches)
Executive (JIS) 216 mm
(8.5 inches)
330 mm
(13.0 inches)
Legal 216 mm
(8.5 inches)
356 mm
(14.0 inches)
Custom Minimum:
76 mm
(3.0 inches)
Maximum:
216 mm
(8.5 inches)
Minimum:
127 mm
(5.0 inches)
Maximum:
356 mm
(14.0 inches)
Driver-supported paper types
The following table shows the paper types that the HP LaserJet M1120 MFP Series print-drivers support.
Table 6-3 Supported input paper types
Media types (command string) Manual feed tray Tray 1 (150-sheet) Manual duplexing
Unspecified Y Y Y
Plain Y Y Y
HP Multipurpose Paper Y Y Y
HP Office Paper Y Y Y
HP All-in-one Printing Paper Y Y Y
HP LaserJet Paper Y Y Y
HP Premium Choice LaserJet Paper Y Y Y
Preprinted Y Y Y
Letterhead Y Y Y
Transparency Y Y N
Prepunched Y Y Y
Labels Y Y N
Bond Y Y Y
Recycled Y Y Y
Color Y Y Y
Light (< 75 g/m2)Y N Y
Heavy (90 – 105 g/m2)YY N
Table 6-2 Supported paper sizes and attributes (continued)
130 Chapter 6 Engineering Details ENWW
Engineering Details
Media types (command string) Manual feed tray Tray 1 (150-sheet) Manual duplexing
Cardstock (105 – 176 g/m2)Y Y N
Envelope Y Y N
Rough Y Y N
Custom paper sizes
The following table shows custom paper sizes that are available for the HP LaserJet M1120 MFP Series.
Table 6-4 Custom paper sizes
Tray Dimensions Minimum Maximum
Manual feed tray) Width 76 mm (3.0 inches) 312 mm (12.28 inches)
Height 127 mm (5.0 inches) 470 mm (18.5 inches)
Tray 1 (150-sheet) Width 148.0 mm (5.83 inches) 297 mm (11.7 inches)
Height 210 mm (8.26 inches) 432 mm (17 inches)
Table 6-3 Supported input paper types (continued)
ENWW Media attributes 131
Engineering Details
Remote firmware updates
The HP LaserJet M1120 MFP Series features remote firmware update (RFU) capability. The method
for downloading remote firmware updates from the Web site is similar to that used to download the latest
printing-system software and print drivers.
The process for remotely upgrading firmware involves three steps:
1. Determine the current level of firmware that is installed on the device.
2. Go to the HP Web site and download the latest firmware to the computer.
3. Download the new firmware to the device.
Topics:
●Print a configuration page
●Downloading the new firmware from the HP Web site
●Download new firmware to the device
●Device messages during the firmware update
Print a configuration page
To determine the current level of firmware, view the configuration page. To print a configuration page,
follow these instructions.
1. On the product control panel, press Setup.
2. Use the arrow buttons to select Reports, and then press OK.
3. Use the arrow buttons to select Config report, and then press OK.
4. Look in the "Printer Information" section on the configuration page for the firmware date code. The
firmware date code looks something like this: 20051002 07.000.0.
Downloading the new firmware from the HP Web site
The firmware update file and an associated readme file are packaged together as a self-extracting .EXE
file. For detailed instructions about how to download the .EXE file, go to the following URL:
www.hp.com/support/ljm1120mfp_firmware
Download new firmware to the device
For support information about downloading new firmware from the Web, go to www.hp.com/support/
lmj1120mfp_firmware
The device can receive a firmware update when the device is in a READY state. The device waits for
all of the I/O channels to become idle before performing the update.
NOTE: If the firmware update involves a change in the format of nonvolatile random-access memory
(NVRAM), any menu settings that are changed from the default settings will return to default settings.
The settings must be changed again if you want them to be different from the defaults. Examples of
settings that are affected in this way are tray types, default symbol sets, and Web-access alerts.
132 Chapter 6 Engineering Details ENWW
Engineering Details
The elapsed time for an update depends on the I/O transfer time, as well as the time that it takes for the
device to reinitialize. The I/O transfer time depends on a number of things, including the speed of the
host computer that is sending the update and the I/O method (parallel or network). The reinitialization
time depends on the specific hardware configuration of the device, such as the number of EIO devices
installed, the presence of external paper-handling devices, and the amount of memory that is installed.
Finally, any print jobs that are ahead of the RFU job in the queue are printed before the update is
processed.
Use one of the methods described in this manual to update the device firmware.
Device messages during the firmware update
The following table lists the causes and results of possible interruptions to the firmware update.
Table 6-5 Troubleshooting a firmware update
Cause Result
The job was cancelled from the control panel. No update has occurred.
A break in the I/O stream occurred during send (for example,
the parallel cable was removed).
No update has occurred.
A power cycle occurred during the RECEIVING UPGRADE
process.
No update has occurred.
A power cycle occurred during the PERFORMING
UPGRADE process.
No update has occurred. Resend the update through a parallel
port.
A power cycle occurred during the INITIALIZING process. The update has been completed.
Print jobs that are sent to the device while an update is in process do not interrupt the update.
All HP LaserJet devices leave the factory with the most recent firmware version installed. If a remote
firmware update fails in an MS Windows operating system, the .RFU file must be resent.
If a remote firmware update fails in a Macintosh operating system, contact support from an HP Customer
Care Center.
The following table lists possible reasons for the failure of a remote firmware update and the corrective
action required for each situation.
Table 6-6 Troubleshooting a firmware update failure
Reason for firmware update failure Corrective action
The .RFU file is corrupted. The device recognizes that the file is corrupted and rejects the update. Download
the file again and send the new file to the device. Download the file from
www.hp.com/go/ljm1120_firmware.
The wrong device is contained in
the .RFU file.
The device recognizes the device mismatch and rejects the update. Download the
correct file and send it to the devicet. Download the file from www.hp.com/go/
ljm1120_firmware.
The upgrade was interrupted. See Table 6-7 Update messages on page 134.
A flash hardware failure occurred. Although it is extremely unlikely, the devicet might have a hardware failure. Call
technical support to address the problem (see the flyer that came with the device
for a local telephone support list).
ENWW Remote firmware updates 133
Engineering Details
Three messages appear during a normal update process; a fourth (RESEND UPGRADE) appears only
if the update process does not succeed.
Table 6-7 Update messages
Device message Explanation
RECEIVING UPGRADE This message appears from the time the device recognizes the beginning of
an .RFU update until the time the device has verified the validity and integrity of
the .RFU update.
NOTE: If the remote firmware update process is interrupted before the firmware
is downloaded (while RECEIVING UPGRADE appears on the control-panel
display), the firmware file must be sent again. No message appears on the device
control panel to indicate that the update was interrupted.
PERFORMING UPGRADE This message appears while the device is reprogramming the firmware.
NOTE: If power is lost during the flash DIMM update (while PERFORMING
UPGRADE appears on the control-panel display), the update is interrupted and
the message RESEND UPGRADE appears on the control-panel display.
INITIALIZING This message appears from the time that the device has finished reprogramming
the DIMM until the device reinitializes.
RESEND UPGRADE This message appears (in English only) if the firmware update fails because the
RFU process is interrupted. It can also occur if firmware for accessories (such as
the duplex unit or an output device becomes is corrupted. Perform another update
by any means that is supported by the device, regardless of the connection
(network, parallel, or USB).
RFU LOAD ERROR
SEND RFU UPGRADE
This message appears (in English only) if the firmware update fails because the
print-engine firmware is corrupted.
NOTE: To verify that the firmware update succeeded, print a new configuration page from the control
panel and verify that the firmware date code on the configuration page has changed.
134 Chapter 6 Engineering Details ENWW
Engineering Details
Index
Symbols/Numerics
% of Normal Size setting 99
A
About tab 111
accessibility 12
Actual Size settings 98
ADA (Americans with Disabilities
Act) compliance 12
Adobe Acrobat Reader
viewing documentation 11
Advanced page, HP EWS 23
Advanced tab features 87
agreement, software license
Macintosh 120
Windows 61
Allow Manual Duplexing 111
Americans with Disabilities Act
(ADA) compliance 12
autorun CD-ROM, Windows 17
B
Basic Installation, Windows 17
binding settings 105
black, printing text as 88
Bonjour page, HP EWS 24
booklets 105
both sides, printing on
allowing 111
paper supported 130
settings 104
C
cartridges 3
CD-ROM
directory structure,
Macintosh 115
directory structure,
Windows 6
documentation 11, 17
installer, Windows
software 16
installing Macintosh
software 118
languages, Macintosh 115
languages, Windows 8
repairing Windows
software 81
CHM files, viewing 12
Choose Easy Install or Advanced
Install dialog box 58
client computers, setting up 55
Collate option 88
color text, printing as black 88
common installer, features 17
components, software
availability 5
configuration page, printing 132
context-sensitive help 86
Copy option 88
Courier Font Type 111
covers, paper settings 91, 94
Custom Installation, Windows 17
custom paper sizes
settings 92
supported 131
D
default settings 85
density settings 110
destinations, paper 128
Device Settings tab 110
device setup, Macintosh 121
Device Status page
EWS (HP Embedded Web
Server) 19
dialog boxes, Macintosh
installation 118
dialog boxes, Windows installation
about 57
Choose Easy Install or
Advanced Install 58
HP Extended Capabilities 63
HP Software License
Agreement 61
directory structure, software CD-
ROM
Macintosh 115
Windows 6
disk space requirements
Macintosh 114
Windows 4
Document Options 103
document preview image 96
documentation
install notes 13
pritning quick set 90
User Guide 12
viewing 11, 17
double-sided printing
allowing 111
paper supported 130
settings 104
downloading
firmware 132
Macintosh software 115
Windows software 5
dpi (dots per inch)
Print Quality settings 97
specifications 3
drivers
About tab 111
accessing 85
Device Settings tab 110
direct connection
installation 53
document preview image 96
Effects tab 97
Finishing tab 103
ENWW Index 135
Help system 86
host-based printing, about 84
included 18
Macintosh 114
Paper/Quality tab 89
Printer Properties tab 85
Printing Preferences tab 85
Printing Preferences tab
set 87
Properties tab set 109
Quick Sets 89
scan 32, 124
Services tab 109
standalone 5
version numbers 18
duplexing
allowing 111
paper supported 130
settings 104
E
e-mail programs supported 32
EconoMode 97
Effects tab 97
Entourage, Microsoft 32
error message settings 110
EWS (HP Embedded Web Server)
Advanced page 23
Bonjour page 24
Device Configuration page 20
Device Status page 19
Information tab 19
Networking tab 21
Password page 24
settings 21
SNMP page 25
Supplies Status page 21
Extended Capabilities dialog
box 63
Extended Capabilities, HP 27
F
FastRes 97
features, hardware 3
file formats, scanning 30
Finishing tab 103
firmware
determining current level 132
downloading 132
Macintosh updates 123
messages during update 133
troubleshooting updates 133
updating remotely 132
verifying installation 134
first page out 3
Flip Pages Up settings 105
fonts
Courier settings 111
Macintosh 117
Full Installation, Windows 17
G
guides. See documentation
H
help
context-sensitive 86
host-based driver 86
Macintosh 117
What's this 86
host computer, setting up 55
host-based driver
about 84
About tab 111
accessing 85
Device Settings tab 110
direct connection
installation 53
document preview image 96
Effects tab 97
Finishing tab 103
Help system 86
operating systems
supported 18
Paper/Quality tab 89
Printer Properties tab 85
Printing Preferences tab 85
Printing Preferences tab
set 87
Properties tab set 109
Quick Sets 89
Services tab 109
version number 18
HP Extended Capabilities 27
HP Extended Capabilities dialog
box 63
HP LaserJet Scan software 29
HP Printer Utility, Macintosh 123
HP Software License Agreement
dialog box
Windows 61
HP Status Application 28
HP Toolbox, not supported 15
HTML files, viewing 12
I
Information tab, HP EWS 19
input trays. See trays
install notes 13
installation
dialog boxes, Macintosh 118,
121
direct connections 53
Macintosh software 118
options 52
system requirements for
Macintosh 114
system requirements for
Windows 4
Windows dialog boxes 57
installers
common, features 17
Windows 16
J
Jam Recovery options 110
L
landscape orientation
Flip Pages Up 105
option 108
languages
CD-ROMs, Macintosh 115
Readiris software 49
Windows CD-ROMs 8
Windows directory structure 6
LaserJet Scan software 29
license agreement
Macintosh 120
Windows 61
localized versions
Macintosh 115
Readiris software 49
Windows CD-ROMs 8
Windows directory structure 6
Lotus Notes 32
136 Index ENWW
M
Macintosh
components, software 117
device setup 121
dialog boxes, installation 118
directory structure, software CD-
ROM 115
documentation 11
firmware upgrades 123
fonts supported 117
host-based driver support 18
install notes 117
installing software 118
localized software CDs 115
online help 117
operating systems
supported 4
PDEs 117
software components 114
software license
agreement 120
system requirements 114
TWAIN options 124
uninstalling software using
utility 122
Web sites, software 115
manual feed tray
capacity 3
paper supported 130
manuals. See documentation
media. See paper
memory
installation requirements for
Macintosh 114
installation requirements for
Windows operating
systems 4
product, included 3
Microsoft Entourage 32
Microsoft Outlook 32
Microsoft Windows. See Windows
N
Networking tab, HP EWS 21
networks, peer-to-peer 54
number of copies 88
O
OCR
accuracy 49
file types supported 30
languages supported 49
software programs
supported 49
operating systems
availability of software
components 5
host-based driver support 18
standalone drivers 5
supported 4
optical character recognition. See
OCR
orientation, page
Flip Pages Up 105
options 108
Outlook 32
P
page orientation
Flip Pages Up 105
options 108
pages per minute 3
Pages per Sheet settings 106
paper
Allow Manual Duplexing 111
custom sizes supported 131
custom sizes, settings 92
driver settings 91
Jam Recovery options 110
Pages per Sheet settings 106
Print Document On
settings 98
Print on Both Sides
settings 104
Scale to Fit setting 98
Size is settings 91
Source is settings 92
sources and destinations 128
tray capacities 3
Type is settings 93
types and sizes
supported 128
types supported 130
Use Different Paper/Covers
option 91, 94
Paper Options 91
paper type warnings 86
Paper/Output settings 88
Paper/Quality tab 89
Password page, HP EWS 24
PDEs (Printer Dialog
Extensions) 117
PDF files
viewing 12
peer-to-peer networking 54
Percent of Normal Size
setting 99
port specifications 3
portrait orientation
Flip Pages Up 105
options 108
preview image 96
Print all Text as Black 88
print cartridges 3
Print density settings 110
Print Document On settings 98
Print on Both Sides
allowing 111
paper supported 130
settings 104
Print Quality settings 97
Printer Dialog Extensions
(PDEs) 117
Printer Features settings 88
Printer List, Macintosh 121
Printer Properties tab 85
Printing Preferences tab set 85,
87
printing User Guide 12, 90
Properties tab set 109
Q
quality settings 97
Quick Sets 89
R
Readiris software
file types supported 30
languages supported 49
reliability of OCR 49
regional versions, CD-ROMs
Macintosh 115
Windows 6, 8
remote firmware updates
about 132
determining current firmware
level 132
downloading 132
Macintosh 123
messages 133
ENWW Index 137
troubleshooting 133
verifying installation 134
removing Macintosh software
using utility 122
removing Windows software
using wizard 79
repairing installation errors 81
Resizing Option settings 98
resolution
Print Quality settings 97
specifications 3
Resolution Enhancement
technology 88
REt 88
rotated page orientation 108
S
saving settings 89
Scale to Fit setting 98
scanning
e-mail programs supported 32
HP LaserJet Scan
software 29
methods 29
settings 30
TWAIN driver features 32
TWAIN driver Windows
features 33
TWAIN Macintosh
options 124
WIA driver features 40
screen-readable
documentation 12
Services tab 109
settings
accessing 85
Quick Sets 89
Settings tab, HP EWS Device
Configuration utility 21
sharing 54
size settings 98
sizes, paper
custom 92, 131
settings 91
supported 128
SNMP page, HP EWS 25
software license agreement
Macintosh 120
Windows 61
Source is settings 92
sources, paper. See trays
speed specifications 3
standalone drivers 5
Status Application 28
Status Message settings 110
Supplies Status page, EWS (HP
Embedded Web Server) 21
system requirements
Macintosh 114
Windows 4
T
text-recognition software
file formats supported 30
languages supported 49
reliability of 49
Toolbox, not supported 15
trays
capacities 3
included 128
paper supported 130
Source is settings 92
troubleshooting
firmware upgrades 133
TWAIN 32
TWAIN driver
features 32
Macintosh options 124
troubleshooting 32
Windows options 33
two-sided printing
allowing 111
paper supported 130
settings 104
types, paper
driver settings 93
supported 130
U
uninstalling Macintosh software
using utility 122
uninstalling Windows software
using wizard 79
updating firmware remotely. See
remote firmware updates
USB port specifications 3
Use Different Paper/Covers
option 91, 94
User Guide
printing 12
printing quick set 90
viewing 12
V
version numbers, drivers 18
W
watermarks 100
Web sites
firmware 132
Macintosh software 115
TWAIN 33
Windows software 5
What's this Help 86
WIA driver 40
Windows
availability of software
components 5
dialog boxes, installation 57
directory structure, software CD-
ROM 6
documentation 11
driver versions 18
host-based driver support 18
host-based printing 84
installation options 52
installer, CD-ROM 16
installing software 53
languages, CD versions 8
operating systems
supported 4
sharing, setting up 54
system requirements 4
uninstalling software using
wizard 79
What's this Help 86
138 Index ENWW
