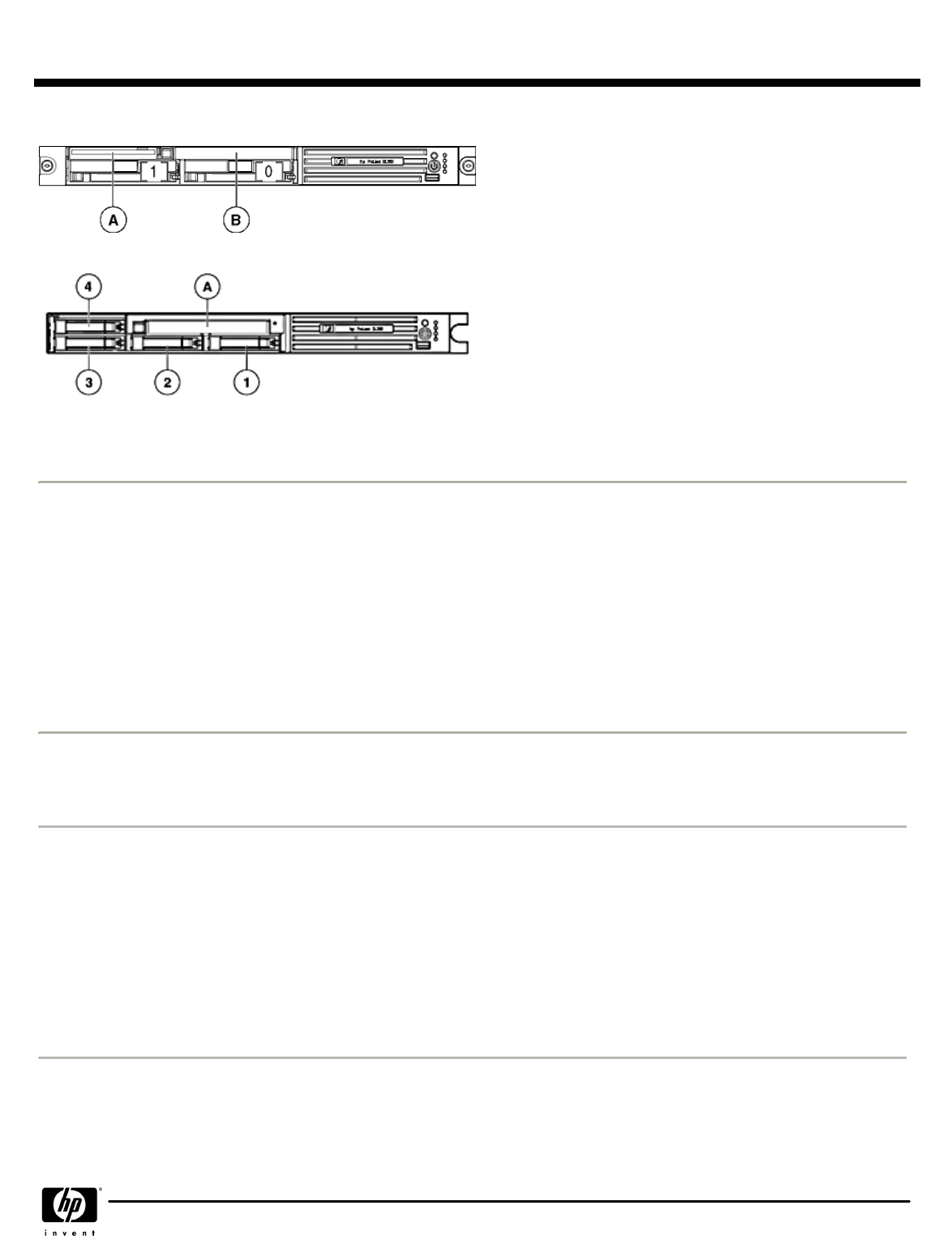

Ultra320 SCSI and SATA Model
Ultra320 SCSI and SATA ModelUltra320 SCSI and SATA Model
Ultra320 SCSI and SATA Model
Serial Attached SCSI (SAS) Model
Serial Attached SCSI (SAS) ModelSerial Attached SCSI (SAS) Model
Serial Attached SCSI (SAS) Model

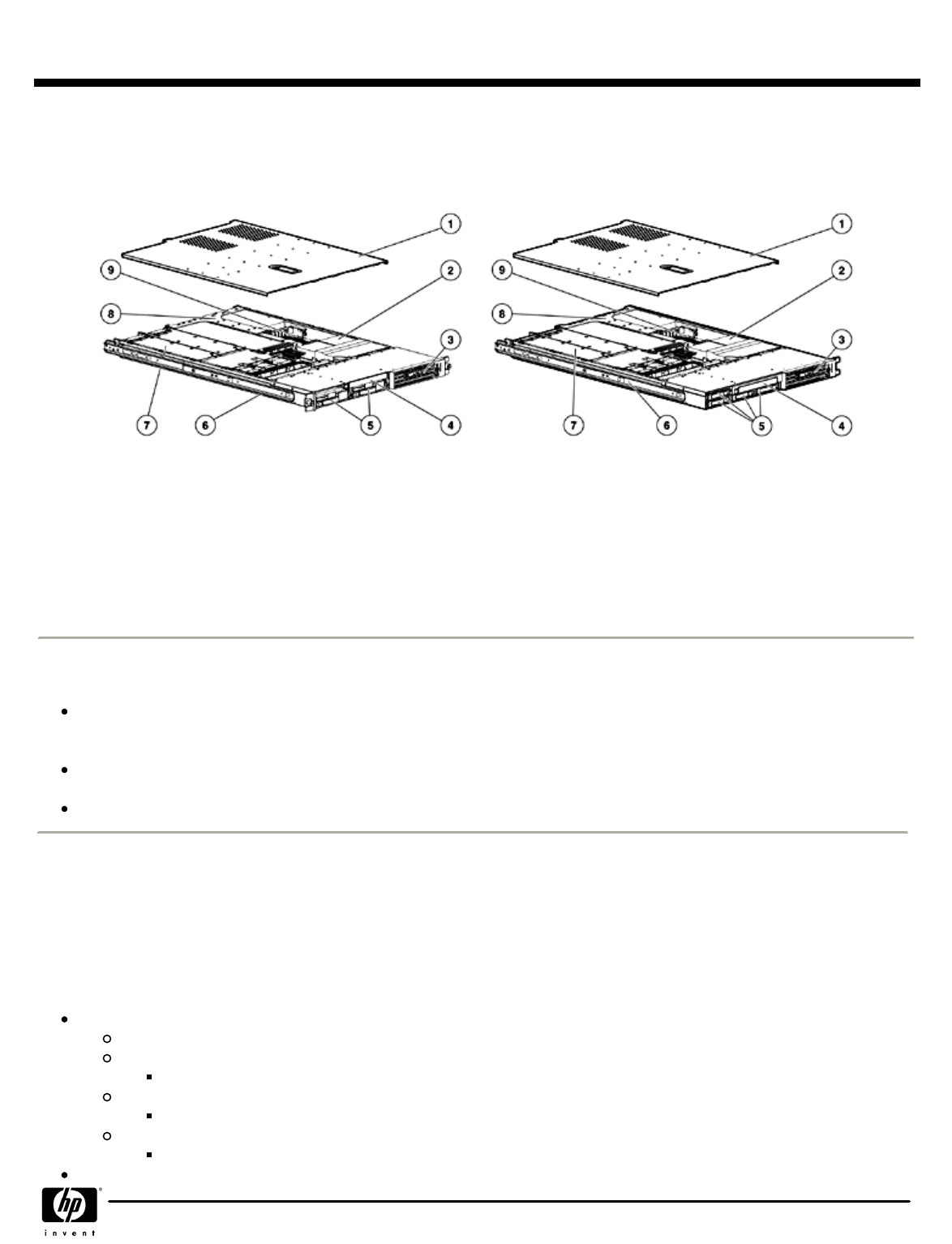

1.
Removable server hood
2.
Up to two Intel Xeon™ processors
3.
Removable processor fan assembly with front and secure
internal USB ports
4.
Removable media bay
5.
Two Ultra320 hot plug drive bays; or
Two SATA pluggable drive bays; or
Four Serial Attached SCSI hot plug drive bays
6.
Sliding rails standard for in rack servicing
7.
Redundant power supplies
8.
1 full length and 1 half length PCI-X slots (optional PCI
Express)
9.
Up to 12 GB DDR2 PC2-3200 SDRAM
What's New
What's NewWhat's New
What's New
2.8 GHz Dual-core Intel® Xeon™ processors are now available with the powerful HP ProLiant DL360 G4p Serial Attached
SCSI (SAS) model. Offering up to a 50% performance increase over single-core processors, the Dual-core Intel Xeon offers a
2x2MB L2 cache and 64-bit capability.
3.8 GHz Intel® Xeon™ processors are available now available with robust HP ProLiant DL360 G4p SCSI and SAS models
and includes 2MB L2 cache and 64-bit support.
Introducing Xeon™ 3.0 GHz low voltage processor for performance per watt optimization in dense server environments.
At A Glance
At A GlanceAt A Glance
At A Glance
Combining concentrated 1U compute power, integrated Lights-Out management, and essential fault tolerance, the DL360 is
optimized for space constrained installations. Dual Xeon processors, DDR2 SDRAM, and PCI-X and PCI Express technology provide
a high performance system ideal for the full range of scale out applications. What's more, the DL360 G4p steps up the fault tolerant
in an ultra dense platform with redundant power, redundant fans, and online spare memory, embedded RAID capability, and full-
featured remote Lights-Out management.
Processors
ProcessorsProcessors
Processors
:
64-bit Intel® Xeon™ processors supporting 64-bit extension and 64-bit Microsoft Windows and Linux operating systems
SAS Model - best performance:
Up to 2.8 GHz Dual-core and 3.8 GHz single-core Intel Xeon processor options
SCSI Model - best price/performance:
Up to 3.8 GHz single-core processor Intel Xeon processor options
SATA Model - best priced:
Up to 3.6 GHz single-core processor Intel Xeon processor options
Memory
MemoryMemory
Memory
:
QuickSpecs
HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)
Overview
DA - 12166 North America — Version 24 — August 15, 2006
Page 1
Up to 12 GB of PC2-3200 DDR2 400 SDRAM; with 2-way interleaving
Advanced ECC memory standard; optional Online Spare Memory
Storage Controller
Storage ControllerStorage Controller
Storage Controller
:
SAS Model - best performance:
Smart Array P600 RAID Controller with 256MB transportable battery backed cache
SCSI Model - best price/performance:
Embedded Smart Array 6i RAID Controller with optional 128MB transportable battery backed cache (SCSI
models)
SATA Model - best priced:
Embedded 2 Port SATA Controller (SATA models)
Internal Drive Support
Internal Drive SupportInternal Drive Support
Internal Drive Support
:
SAS Model - best performance:
Up to four Small Form Factor (SFF) Serial Attached SCSI (SAS) hot plug hard drives or four SFF Serial ATA (SATA)
hard drives
SCSI Model - best price/performance:
Up to two Universal SCSI hot plug disk drives
SATA Model - best priced:
Up to two pluggable Serial ATA disk drives
Network Controller
Network ControllerNetwork Controller
Network Controller
:
Embedded NC7782 Dual Port PCI-X 10/100/1000T Gigabit network adapter
Expansion Slots
Expansion SlotsExpansion Slots
Expansion Slots
:
Two 64-bit/133 MHz PCI-X slots
Optional PCI-X to PCI-Express conversion kit
USB Ports
USB PortsUSB Ports
USB Ports
:
3 Total (1) front, (1) internal, (1) rear accessible port
Redundancy
RedundancyRedundancy
Redundancy
:
Fan redundancy, standard
Hot plug power supply with optional 1+1 redundancy
Management
ManagementManagement
Management
:
Built in reliability and availability features: embedded RAID, redundant fans, redundant power option, pre-failure
notifications, and Lights-Out Management
Integrated Lights-Out (iLO) remote management embedded on every HP ProLiant DL360 G4p
Optional Integrated Lights-Out support for Power Regulator for ProLiant and introducing support for the draft DMTF
System Management Architecture for Server Hardware Command Line Protocol standard
HP Power Regulator for ProLiant delivering server level, policy based power management with industry leading energy
efficiency and savings on system power and cooling costs
Support for iLO Shared Network Port enables access to the iLO management processor through one of the embedded
system NICs
ProLiant Essential Foundation Pack standard, including HP Systems Insight Manager, SmartStart, SmartStart Scripting
Toolkit, Subscriber's Choice and ROM Based Setup Utility (RBSU).
Form Factor
Form FactorForm Factor
Form Factor
:
1U Rack form factor (1.75")
Deployment/Serviceability
Deployment/ServiceabilityDeployment/Serviceability
Deployment/Serviceability
:
Sliding rails for in rack servicing ship standard; optional ambidextrous cable management arm
Warranty
WarrantyWarranty
Warranty
:
Protected by HP Services and a worldwide network of resellers and service providers. Three-year Next Business Day, on-
site limited global warranty. Certain restrictions and exclusions apply. Pre-Failure Notification on processors, memory,
and SCSI hard drives. SATA hard drives have a one-year warranty.
QuickSpecs
HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)
Overview
DA - 12166 North America — Version 24 — August 15, 2006
Page 2
NOTE:
NOTE:NOTE:
NOTE:
For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory
Integrated Models" section.
Processor
ProcessorProcessor
Processor
One of the following
depending on Model
Intel Xeon Processor 2.8 GHz/800MHz -2MB L2
Intel Xeon Processor 3.0 GHz/800MHz -2MB L2
Intel Xeon Processor 3.0 GHz/800MHz -2MB L2, Low Voltage
Intel Xeon Processor 3.2 GHz/800MHz -2MB L2
Intel Xeon Processor 3.4 GHz/800MHz -2MB L2
Intel Xeon Processor 3.6 GHz/800MHz -2MB L2
Intel Xeon Processor 3.8 GHz/800MHz -2MB L2
Dual-core Intel Xeon Processor 2.8 GHz/800MHz - 2x2MB L2
NOTE:
NOTE:NOTE:
NOTE:
Dual-core processor is supported on HP ProLiant DL360 G4p Serial Attached SCSI (SAS) models
only.
Processor Cache
Processor CacheProcessor Cache
Processor Cache
2MB Level 2 cache memory
Upgradeability
UpgradeabilityUpgradeability
Upgradeability
Upgradeable to dual processing
Chipset
ChipsetChipset
Chipset
Intel chipset is E7520
Memory Protection &
Memory Protection &Memory Protection &
Memory Protection &
Functionality
FunctionalityFunctionality
Functionality
Advanced ECC (multi-bit error protection)
Online spare
2-way interleaving
Memory
MemoryMemory
Memory
Type
PC2-3200 DDR2 400 SDRAM
Standard
1 GB (2 x 512 MB)
Standard (on some
models)
2 GB (2 x 1024 MB)
Maximum
12 GB
Network Controller
Network ControllerNetwork Controller
Network Controller
Embedded NC7782 Dual Port PCI-X 10/100/1000T Gigabit network adapter
QuickSpecs
HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)
Standard Features
DA - 12166 North America — Version 24 — August 15, 2006
Page 3
Expansion Slots
Expansion SlotsExpansion Slots
Expansion Slots
Slot Number
Slot NumberSlot Number
Slot Number
Bus Speed
Bus SpeedBus Speed
Bus Speed
Bus Number
Bus NumberBus Number
Bus Number
*
Device
DeviceDevice
Device
Number
NumberNumber
Number
**
Hot Plug
Hot PlugHot Plug
Hot Plug
PCI Voltage
PCI VoltagePCI Voltage
PCI Voltage
1
64-bit/133MHz
PCI-X
7 0
no
3.3 Volt
1
x8 PCI Express (option)
3 0
no
n/a
2
64-bit/133MHz
PCI-X
10
0
no
3.3 Volt
2
x8 PCI Express (option)
13
0
no
n/a
*
NOTE:
NOTE:NOTE:
NOTE:
Default bus assignment. Inserting cards with PCI bridges may alter the actual bus assignment
number.
**
NOTE:
NOTE:NOTE:
NOTE:
Slots are enumerated differently based on OS. MS OS's enumerate from lowest to highest
Device ID by bus (starting with the lowest bus).
NOTE:
NOTE: NOTE:
NOTE:
All slots can accept universal keyed PCI cards.
Manageability
ManageabilityManageability
Manageability
Integrated Lights-Out (iLO) Management (integrated on motherboard)
Storage Controllers
Storage ControllersStorage Controllers
Storage Controllers
SAS Models
HP Smart Array P600 Controller with 256MB Cache (installed in PCI-X slot)
NOTE:
NOTE:NOTE:
NOTE:
The Smart Array P600 controller offers an external 4X SAS port for
additional storage expansion.
SCSI Models
HP Smart Array 6i Controller (embedded)
NOTE:
NOTE:NOTE:
NOTE:
The HP ProLiant DL360 G4p does not offer an external SCSI port.
SATA Models
HP embedded 2 Port SATA Controller (integrated on system board)
NOTE:
NOTE: NOTE:
NOTE:
The HP embedded 2 Port SATA controller does not support RAID, hot
plug drive functionality or drive activity LEDs.
NOTE:
NOTE:NOTE:
NOTE:
SATA RAID 0, 1 is available with the optional purchase of the HP 8-
port SAS HBA (347786-B21) and HP SAS/SATA Cable Kit (398307-B21) -
hot-plug drive functionality and drive activity LEDS not supported.
Storage
StorageStorage
Storage
Optical Drives
Ejectable CD-ROM (Standard in most models), DVD-ROM, or DVD-RW
drives, or Slimline floppy
NOTE:
NOTE: NOTE:
NOTE:
Slimline Floppy Diskette Drive is not supported in SCSI and SATA
models.
Diskette Drive
1.44 MB Diskette Drive
NOTE:
NOTE:NOTE:
NOTE:
Standard in SCSI models; optional in SATA models; not available in
SAS models.
Drive Bays
SAS Model: 4 Small Form Factor
SCSI Model: 2 HP Universal SCSI
SATA Model: 2 Pluggable SATA
Maximum Internal
Maximum InternalMaximum Internal
Maximum Internal
Storage Type
Storage TypeStorage Type
Storage Type
SAS Model
288 GB SAS
4 x 72GB Serial SCSI
240GB SATA
4 x 60GB Serial ATA
SCSI Model
600GB
2 x 300GB Ultra320 SCSI
SATA Model
1 TB
2 x 500GB Serial ATA
QuickSpecs
HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)
Standard Features
DA - 12166 North America — Version 24 — August 15, 2006
Page 4
Interfaces
InterfacesInterfaces
Interfaces
Serial
1
Pointing Device (Mouse)
1
Graphics
1
Hot Plug Keyboard
1
USB Ports
3 (rear, front, internal)
NOTE:
NOTE:NOTE:
NOTE:
Please see the following URL for additional information regarding
USB support:
http://h18004.www1.hp.com/products/servers/platforms/usb-support.html
.
Network RJ-45
2
iLO remote management
port
1
Graphics
GraphicsGraphics
Graphics
Integrated ATI RAGE XL Video Controller with 8-MB SDRAM Video Memory
Form Factor
Form FactorForm Factor
Form Factor
Rack (1U), (1.75 in/4.45 cm)
ProLiant Essentials
ProLiant EssentialsProLiant Essentials
ProLiant Essentials
Foundation Pack
Foundation PackFoundation Pack
Foundation Pack
Software
SoftwareSoftware
Software
HP Systems Insight
Manager
HP's new HP Systems Insight Manager (HP SIM) helps maximize system
uptime and performance and reduce system maintenance costs by providing
proactive notification of problems before those problems result in unplanned
downtime or reduced productivity. HP SIM are both easy to set up work with
the Insight Management Agents, integrated Lights-Out and Remote Insight
Lights-Out Edition, and Version Control Agents to deliver robust fault,
configuration, and asset management as well as remote administration. With
HP SIM customers will also be able to take advantage of role-based security;
the ability to manage ProLiant, Integrity, and HP 9000 systems; and plug-ins
for storage, client, printer, and power management as well as server rapid
deployment, performance management, and workload management. For
more details on HP SIM visit
http://www.hp.com/go/hpsim
.
SmartStart
SmartStart is a tool that simplifies server setup, providing a rapid way to
deploy reliable and consistent server configurations. For more information,
please visit the SmartStart Web site at
http://www.hp.com/servers/smartstart
.
SmartStart version supported (minimum): SmartStart 7.2.
Insight Management
Agents
The Insight Management Agents form the foundation for HP's Intelligent
Manageability strategy. They provide direct, browser-based access to in-
depth instrumentation built into HP servers, workstations, desktops, and
portables, and send alerts to HP System Insight Manager and other
enterprise management applications in case of subsystem or environmental
failures. For additional information about the Management Agents and other
management products from HP, please visit the management Web site at
http://www.hp.com/servers/manage
.
Subscriber's Choice
Subscriber's Choice Driver and Support Alerts/Notifications is a web-based
email subscription service that provides automatic delivery of software and
driver change notifications for ProLiant products. Sign up at
http://www.hp.com/go/subscriberschoice
and customize your profile to
receive various new alerts as they become available, on a weekly or monthly
basis.
QuickSpecs
HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)
Standard Features
DA - 12166 North America — Version 24 — August 15, 2006
Page 5
ROMPaq, support
software, and
configuration utilities
The latest software, drivers, and firmware fully optimized and tested for your
ProLiant server and options available in SmartStart or downloadable from
Software and Drivers download pages:
http://www.hp.com/go/support
Insight Diagnostics Online
Edition
The most advanced configuration analysis, reporting and troubleshooting
utilities used by HP and at your fingertips, available in SmartStart.
Optional ProLiant
Essentials Value Packs
Optional software offerings that selectively extend the functionality of an
Adaptive Infrastructure to address specific business problems and needs:
Rapid Deployment Pack (RDP) is an automated deployment and
provisioning solution for all ProLiant servers. RDP includes the ProLiant
Integration Module featuring ProLiant server pre-configured events for
OS installation, and optimized software drivers, firmware and
management agents. Every RDP disc includes a 7-day, 10-node trial
licenses for evaluation purposes. RDP requires a license for each
server deployed and is available for purchase with HP servers. For
more information, visit: http://www.hp.com/servers/rdp.
Workload Management Pack - provides easier management of
complex environments, improving overall server utilization and
enabling Windows® 2000 customers for the first time to confidently
deploy multiple applications on a single multiprocessor ProLiant
Server.
Integrated Lights-Out Advanced Pack - upgrades the Integrated Lights-
Out processor to full virtual presence and control with graphical
console and virtual media.
Performance Management Pack - a performance management
solution that identifies and explains hardware performance bottlenecks
on ProLiant servers and attached options enabling users to better
utilize their valuable resources.
Intelligent Networking Pack - detects and analyzes network bottlenecks
or broken network linkages and steers traffic to the optimum route
based on network conditions, plus it provides an extra layer of
protection. The virus throttle feature of the solution slows the
propagation of fast spreading virus
Vulnerability and Patch Management Pack - identifies and remediates
software security vulnerabilities due to missing patches as well
operating system configurations that can be exploited by viruses,
worms, and other blended threats
Virtual Machine Management Pack - provides central management
and control of virtual machines from Microsoft and VMware.
Integrated approach provides the ability to manage both physical and
virtual resources from a single management console.
Server Migration Pack - The Server Migration Pack automates the
manual processes required for migrating servers between physical or
virtual platforms (P2V, V2P, and V2V).
Server Migration Pack - P2P Edition: Upgrading or replacing your
existing server? Effortlessly transition to new servers with automated,
accurate and affordable migration of OS, application and data.
NOTE:
NOTE:NOTE:
NOTE:
Flexible and volume quantity license kits are available for ProLiant Essentials Value Packs. Refer
to
http://www.hp.com/servers/proliantessentials
or the various ProLiant Essentials Value Pack product
QuickSpecs for more information.
NOTE:
NOTE: NOTE:
NOTE:
For more information regarding ProLiant Essentials Software, please see the following URL:
http://www.hp.com/servers/proliantessential
.
QuickSpecs
HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)
Standard Features
DA - 12166 North America — Version 24 — August 15, 2006
Page 6
Industry Standard
Industry StandardIndustry Standard
Industry Standard
Compliance
ComplianceCompliance
Compliance
ACPI 1.0b Compliant
PCI 2.2 Compliant
Microsoft® Logo certifications
USB 1.1 and 2.0 Compliant
Remote Manageability
Remote ManageabilityRemote Manageability
Remote Manageability
Integrated Lights-Out (iLO) Standard Management:
Virtual Text Remote Console
Virtual Power Button Control
Dedicated & shared LAN Connectivity
Browser and command line access
Automatic IP Configuration via DHCP/DNS/WINS
Industry Standard 128-bit Secure Sockets Layer (SSL) and Secure Shell Security
IML and iLO Event Logging
Support for 12 user accounts with customizable access privilege
Integrated Lights Out Advanced Pack (optional)
Remote Lights out Edition ll (optional)
Intelligent Manageability
Intelligent ManageabilityIntelligent Manageability
Intelligent Manageability
HP Systems Insight Manager
SmartStart
Remote Insight Lights-Out Edition ll (optional)
ROM-Based Setup Utility (RBSU)
Remote-Flash Redundant ROM
Integrated Management Log (IML)
Server Health logging
Automatic Server Recovery-2 (ASR-2)
System Interconnect Status Indicators
Dynamic sector repairing and drive parameter tracking (with Smart Array controllers)
Hot Spare Boot
(
NOTE:
NOTE:NOTE:
NOTE:
Upon the event of a failed processor or VRM in a multi-processing environment, the system will
automatically reboot and use the remaining good processor(s).)
Power Down Utility
Pre-Failure Warranty (covers processors, as well as
SCSI
hard drives and memory)
Security
SecuritySecurity
Security
Power-on password
Keyboard password
Diskette drive control
Diskette boot control
QuickLock, Network Server Mode
Removable CD and Diskette Drive Assembly
Serial interface control
Administrator's password
Disk configuration lock
Integrated Lights-Out has 12 customizable user accounts and SSL encryption
Integrated Lights-Out can be disabled via a Global Setting
QuickSpecs
HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)
Standard Features
DA - 12166 North America — Version 24 — August 15, 2006
Page 7
Server Power Cords
Server Power CordsServer Power Cords
Server Power Cords
High line and an additional low line cord ships standard with all part numbers.
UPS Power Cord Matrix
UPS Power Cord MatrixUPS Power Cord Matrix
UPS Power Cord Matrix
Please see the UPS Power Cord Matrix for cable descriptions, requirements, and specifications for UPS
units:
ftp://ftp.compaq.com/pub/products/servers/proliantstorage/power-protection/powercordmatrix.pdf
.
Power Supply
Power SupplyPower Supply
Power Supply
SAS Models:
535W Optional (1+ 1 redundant) power supply
NOTE:
NOTE: NOTE:
NOTE:
PN 389830-B21 contains the optional power supply and an IEC
power cable only; purchase if connecting to PDU/UPS that supports IEC
cables. PN 389830-001 contains a low line (NEMA) power cord only.
SCSI & SATA Models:
460W Optional (1+ 1 redundant) power supply
NOTE:
NOTE:NOTE:
NOTE:
PN 354587-B21 contains the optional power supply and an IEC
power cable only; purchase if connecting to PDU/UPS that supports IEC
cables. PN 354587-001 contains a low line (NEMA) power cord only.
System Fans
System FansSystem Fans
System Fans
7 fans ship standard; Fan redundancy standard
Required Cabling
Required CablingRequired Cabling
Required Cabling
For required cabling information, refer to the Web site at
http://h18000.www1.hp.com/products/servers/proliantdl360/
.
OS Support
OS SupportOS Support
OS Support
Microsoft Windows 2000 Server
Microsoft Windows Server 2003
Novell NetWare
Linux (Red Hat, SuSE, UnitedLinux)
Solaris
VMware Virtualization Software
NOTE:
NOTE:NOTE:
NOTE:
SAS, SCSI and SATA models may have different OS support. Please see OS Support Matrix.
NOTE:
NOTE:NOTE:
NOTE:
For a more complete and up-to-date listing of supported OSs and versions, please visit our OS
Support Matrix page at:
http://www.hp.com/go/supportos
.
NOTE:
NOTE:NOTE:
NOTE:
For more complete and up-to-date information on how to buy server operating systems from HP
please visit the OS product site at:
http://h18004.www1.hp.com/products/servers/software/OEM.html
NOTE:
NOTE:NOTE:
NOTE:
For a listing of the latest drivers available for the HP ProLiant DL360, please see:
http://h18023.www1.hp.com/support/files/server/us/index.html
.
NOTE:
NOTE:NOTE:
NOTE:
For a more complete and up-to-date information on Linux support, please visit HP Linux Web
site at
http://h18000.www1.hp.com/products/servers/linux/hpLinuxcert.html
.
NOTE:
NOTE:NOTE:
NOTE:
For more information on HP's Certified and Supported ProLiant Servers, please visit the VMware
Server Support Matrix at:
http://h18004.www1.hp.com/products/servers/software/vmware/hpvmwarecert.html
.
QuickSpecs
HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)
Standard Features
DA - 12166 North America — Version 24 — August 15, 2006
Page 8
Rack Airflow
Rack AirflowRack Airflow
Rack Airflow
Requirements
RequirementsRequirements
Requirements
Rack 10000 series Cabinets
Rack 10000 series CabinetsRack 10000 series Cabinets
Rack 10000 series Cabinets
The increasing power of new high-performance processor technology requires increased cooling
efficiency for rack-mounted servers. The 10000 Series Racks provide enhanced airflow for maximum
cooling, allowing these racks to be fully loaded with servers using the latest processors.
CAUTION:
CAUTION: CAUTION:
CAUTION:
If a third-party rack is used, observe the following additional requirements to ensure
adequate airflow and to prevent damage to the equipment:
Front and rear doors
:
If your 42U server rack includes closing front and rear doors, you must
allow 830 square inches (5,350 sq cm) of hole evenly distributed from top to bottom to permit
adequate airflow (equivalent to the required 64 percent open area for ventilation).
Side:
The clearance between the installed rack component and the side panels of the rack must be
a minimum of 2.75 inches (7 cm).
CAUTION:
CAUTION: CAUTION:
CAUTION:
Always use blanking panels to fill all remaining empty front panel U-spaces in the rack. This
arrangement ensures proper airflow. Using a rack without blanking panels results in improper cooling
that can lead to thermal damage.
NOTE:
NOTE: NOTE:
NOTE:
For additional information, refer to the Setup and Installation Guide or the Documentation CD
provided with the server, or to the server documentation located in the Support section at the following
URL:
http://h18000.www1.hp.com/products/servers/proliantdl360/index.html
.
Factory Express Portfolio
Factory Express PortfolioFactory Express Portfolio
Factory Express Portfolio
for Servers and Storage
for Servers and Storagefor Servers and Storage
for Servers and Storage
HP Factory Express offers configuration, customization, integration and deployment services for HP
servers and storage products. Customers can choose how their factory solutions are built, tested,
integrated, shipped and deployed.
Factory Express offers service packages for simple configuration, racking, installation, complex
configuration and design services as well as individual factory services, such as image loading, asset
tagging, and custom packaging. HP products supported through Factory Express include a wide array of
servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000
servers as well as the MSA1000, VA7xxx, EVA, XP, rackable tape libraries and configurable network
switches.
For more information on Factory Express services for your specific server model please contact your sales
representative or go to
http://www.hp.com/go/factory-express
.
Customer Builder
Customer BuilderCustomer Builder
Customer Builder
Please see the Enterprise Configurator for configuration assistance at:
http://www.hp.com/products/configurator
.
QuickSpecs
HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)
Standard Features
DA - 12166 North America — Version 24 — August 15, 2006
Page 9
Service and Support
Service and SupportService and Support
Service and Support
This product is covered by a global limited warranty and supported by HP Services and a worldwide
network of resellers and service providers. Hardware diagnostic support and repair is available for three
years from date of purchase. Support for software and initial setup is available for 90 days from date of
purchase. Additional support may be covered under the warranty or available for an additional fee.
Enhancements to warranty services are available through HP Care Pack services or customized service
agreements.
NOTE:
NOTE:NOTE:
NOTE:
Limited warranty includes 3 year parts, 3 year labor, 3-year on-site support
.
NOTE:
NOTE:NOTE:
NOTE:
SATA drives have a 1 year warranty.
Care Pack services provide a range of life cycle support options that let you choose the service levels that
meet your business requirements, from basic to mission-critical.
A full range of HP Care Pack hardware and software services are available including:
Installation and start up
Education courses
Extended onsite hardware coverage hours from same business day 13 hours, 5 day to 24 hours, 7
days call window with options including 4-hour response or 6-hour Call To Repair
Comprehensive range of software technical support for Microsoft, Linux, ProLiant Essentials and
VMWare-based IT solutions helping to deliver high level of application availability. Response times
range from 30 mins for critical problems to 2 hours.
System Management, Performance Services and Mission Critical Support Solution
HP Care Pack services include coverage for the HP branded hardware options qualified for the server,
purchased at the same time or afterward, internal to the enclosure, as well as 22" and smaller external
monitors and tower UPS options up to 3kVA; these items will be covered at the same service level and
for the same coverage period as the server. Coverage of UPS Battery is not included, standard warranty
terms & conditions apply. For servers or storage systems installed within a rack, service also covers all HP
qualified rack options installed within the same rack.
NOTE:
NOTE:NOTE:
NOTE:
For more information on HP Care Pack services, contact any of our worldwide sales offices or
resellers or visit our worldwide Web site on the internet at:
http://www.hp.com/hps/carepack
NOTE:
NOTE:NOTE:
NOTE:
For more complete information on HP Services offerings, customers and resellers, please visit us
at:
http://www.hp.com/hps
NOTE:
NOTE:NOTE:
NOTE:
Additional information regarding worldwide limited warranty and technical support is available
at:
http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html
QuickSpecs
HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)
Standard Features
DA - 12166 North America — Version 24 — August 15, 2006
Page 10
SAS Models
SAS ModelsSAS Models
SAS Models
DL360R04p Dual-core
DL360R04p Dual-coreDL360R04p Dual-core
DL360R04p Dual-core
X2.8-2x2MB/800, 1GB
X2.8-2x2MB/800, 1GBX2.8-2x2MB/800, 1GB
X2.8-2x2MB/800, 1GB
SAS
SASSAS
SAS
408579-001
Processor
ProcessorProcessor
Processor
(1) Dual-core Intel Xeon Processor 2.8 GHz/800MHz standard (up to 2
supported)
Cache Memory
Cache MemoryCache Memory
Cache Memory
2MB level 2 cache
Memory
MemoryMemory
Memory
1 GB (2 x 512 MB) Standard to 12 GB (Maximum) of PC2-3200 DDR2 400
SDRAM
Network Controller
Network ControllerNetwork Controller
Network Controller
Embedded NC7782 Dual Port PCI-X 10/100/1000T Gigabit network
adapter
Storage Controller
Storage ControllerStorage Controller
Storage Controller
HP Smart Array P600 Controller
Hard Drives
Hard DrivesHard Drives
Hard Drives
None ship standard; system supports up to four Serial SCSI or Serial ATA
drives.
Remote Management
Remote ManagementRemote Management
Remote Management
Integrated Lights-Out (iLO) Standard Management (embedded)
Power Supply
Power SupplyPower Supply
Power Supply
One 535W power supply (redundant power supply optional)
Optical Drive
Optical DriveOptical Drive
Optical Drive
Slimline CD-ROM Drive
PCI-X Slots
PCI-X SlotsPCI-X Slots
PCI-X Slots
1 full length and 1 half length 64bit/133 MHz PCI-X slot
NOTE:
NOTE:NOTE:
NOTE:
Full length slot is occupied with HP Smart Array P600 Controller and
is not available.
Form Factor
Form FactorForm Factor
Form Factor
Rack (1U), (1.75 in/4.45 cm)
DL360R04p X3.0-
DL360R04p X3.0-DL360R04p X3.0-
DL360R04p X3.0-
2MB/800, 1GB SAS
2MB/800, 1GB SAS2MB/800, 1GB SAS
2MB/800, 1GB SAS
389820-001
Processor
ProcessorProcessor
Processor
(1) Intel Xeon Processor 3.0 GHz/800MHz standard (up to 2 supported)
Cache Memory
Cache MemoryCache Memory
Cache Memory
2MB level 2 cache
Memory
MemoryMemory
Memory
1 GB (2 x 512 MB) Standard to 12 GB (Maximum) of PC2-3200 DDR2 400
SDRAM
Network Controller
Network ControllerNetwork Controller
Network Controller
Embedded NC7782 Dual Port PCI-X 10/100/1000T Gigabit network
adapter
Storage Controller
Storage ControllerStorage Controller
Storage Controller
HP Smart Array P600 Controller
Hard Drives
Hard DrivesHard Drives
Hard Drives
None ship standard; system supports up to four Serial SCSI or Serial ATA
drives.
Remote Management
Remote ManagementRemote Management
Remote Management
Integrated Lights-Out (iLO) Standard Management (embedded)
Power Supply
Power SupplyPower Supply
Power Supply
One 535W power supply (redundant power supply optional)
Optical Drive
Optical DriveOptical Drive
Optical Drive
Slimline CD-ROM Drive
PCI-X Slots
PCI-X SlotsPCI-X Slots
PCI-X Slots
1 full length and 1 half length 64bit/133 MHz PCI-X slot
NOTE:
NOTE:NOTE:
NOTE:
Full length slot is occupied with HP Smart Array P600 Controller and
is not available.
Form Factor
Form FactorForm Factor
Form Factor
Rack (1U), (1.75 in/4.45 cm)
QuickSpecs
HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)
Models
DA - 12166 North America — Version 24 — August 15, 2006
Page 11
DL360R04p X3.2-
DL360R04p X3.2-DL360R04p X3.2-
DL360R04p X3.2-
2MB/800, 2GB SAS RPS
2MB/800, 2GB SAS RPS2MB/800, 2GB SAS RPS
2MB/800, 2GB SAS RPS
389821-001
Processor
ProcessorProcessor
Processor
(1) Intel Xeon Processor 3.2 GHz/800MHz standard (up to 2 supported)
Cache Memory
Cache MemoryCache Memory
Cache Memory
2MB level 2 cache
Memory
MemoryMemory
Memory
2 GB (2 x 1024 MB) Standard to 12 GB (Maximum) of PC2-3200 DDR2
400 SDRAM
Network Controller
Network ControllerNetwork Controller
Network Controller
Embedded NC7782 Dual Port PCI-X 10/100/1000T Gigabit network
adapter
Storage Controller
Storage ControllerStorage Controller
Storage Controller
HP Smart Array P600 Controller
Hard Drives
Hard DrivesHard Drives
Hard Drives
None ship standard; system supports up to four Serial SCSI or Serial ATA
drives.
Remote Management
Remote ManagementRemote Management
Remote Management
Integrated Lights-Out (iLO) Standard Management (embedded)
Power Supply
Power SupplyPower Supply
Power Supply
Two 535W power supplies (1+1 redundant)
Optical Drive
Optical DriveOptical Drive
Optical Drive
Slimline CD-ROM Drive
PCI-X Slots
PCI-X SlotsPCI-X Slots
PCI-X Slots
1 full length and 1 half length 64bit/133 MHz PCI-X slot
NOTE:
NOTE:NOTE:
NOTE:
Full length slot is occupied with HP Smart Array P600 Controller and
is not available.
Form Factor
Form FactorForm Factor
Form Factor
Rack (1U), (1.75 in/4.45 cm)
DL360R04p X3.4-
DL360R04p X3.4-DL360R04p X3.4-
DL360R04p X3.4-
2MB/800, 2GB SAS RPS
2MB/800, 2GB SAS RPS2MB/800, 2GB SAS RPS
2MB/800, 2GB SAS RPS
389822-001
Processor
ProcessorProcessor
Processor
(1) Intel Xeon Processor 3.4 GHz/800MHz standard (up to 2 supported)
Cache Memory
Cache MemoryCache Memory
Cache Memory
2MB level 2 cache
Memory
MemoryMemory
Memory
2 GB (2 x 1024 MB) Standard to 12 GB (Maximum) of PC2-3200 DDR2
400 SDRAM
Network Controller
Network ControllerNetwork Controller
Network Controller
Embedded NC7782 Dual Port PCI-X 10/100/1000T Gigabit network
adapter
Storage Controller
Storage ControllerStorage Controller
Storage Controller
HP Smart Array P600 Controller
Hard Drives
Hard DrivesHard Drives
Hard Drives
None ship standard; system supports up to four Serial SCSI or Serial ATA
drives.
Remote Management
Remote ManagementRemote Management
Remote Management
Integrated Lights-Out (iLO) Standard Management (embedded)
Power Supply
Power SupplyPower Supply
Power Supply
Two 535W power supplies (1+1 redundant)
Optical Drive
Optical DriveOptical Drive
Optical Drive
Slimline CD-ROM Drive
PCI-X Slots
PCI-X SlotsPCI-X Slots
PCI-X Slots
1 full length and 1 half length 64bit/133 MHz PCI-X slot
NOTE:
NOTE:NOTE:
NOTE:
Full length slot is occupied with HP Smart Array P600 Controller and
is not available.
Form Factor
Form FactorForm Factor
Form Factor
Rack (1U), (1.75 in/4.45 cm)
QuickSpecs
HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)
Models
DA - 12166 North America — Version 24 — August 15, 2006
Page 12
DL360R04p X3.6-
DL360R04p X3.6-DL360R04p X3.6-
DL360R04p X3.6-
2MB/800, 2GB SAS RPS
2MB/800, 2GB SAS RPS2MB/800, 2GB SAS RPS
2MB/800, 2GB SAS RPS
389823-001
Processor
ProcessorProcessor
Processor
(1) Intel Xeon Processor 3.6 GHz/800MHz standard (up to 2 supported)
Cache Memory
Cache MemoryCache Memory
Cache Memory
2MB level 2 cache
Memory
MemoryMemory
Memory
2 GB (2 x 1024 MB) Standard to 12 GB (Maximum) of PC2-3200 DDR2
400 SDRAM
Network Controller
Network ControllerNetwork Controller
Network Controller
Embedded NC7782 Dual Port PCI-X 10/100/1000T Gigabit network
adapter
Storage Controller
Storage ControllerStorage Controller
Storage Controller
HP Smart Array P600 Controller
Hard Drives
Hard DrivesHard Drives
Hard Drives
None ship standard; system supports up to four Serial SCSI or Serial ATA
drives.
Remote Management
Remote ManagementRemote Management
Remote Management
Integrated Lights-Out (iLO) Standard Management (embedded)
Power Supply
Power SupplyPower Supply
Power Supply
Two 535W power supplies (1+1 redundant)
Optical Drive
Optical DriveOptical Drive
Optical Drive
Slimline CD-ROM Drive
PCI-X Slots
PCI-X SlotsPCI-X Slots
PCI-X Slots
1 full length and 1 half length 64bit/133 MHz PCI-X slot
NOTE:
NOTE:NOTE:
NOTE:
Full length slot is occupied with HP Smart Array P600 Controller and
is not available.
Form Factor
Form FactorForm Factor
Form Factor
Rack (1U), (1.75 in/4.45 cm)
DL360R04p X3.8-
DL360R04p X3.8-DL360R04p X3.8-
DL360R04p X3.8-
2MB/800, 2GB SAS RPS
2MB/800, 2GB SAS RPS2MB/800, 2GB SAS RPS
2MB/800, 2GB SAS RPS
394919-001
Processor
ProcessorProcessor
Processor
(1) Intel Xeon Processor 3.8 GHz/800MHz standard (up to 2 supported)
Cache Memory
Cache MemoryCache Memory
Cache Memory
2MB level 2 cache
Memory
MemoryMemory
Memory
2 GB (2 x 1024 MB) Standard to 12 GB (Maximum) of PC2-3200 DDR2
400 SDRAM
Network Controller
Network ControllerNetwork Controller
Network Controller
Embedded NC7782 Dual Port PCI-X 10/100/1000T Gigabit network
adapter
Storage Controller
Storage ControllerStorage Controller
Storage Controller
HP Smart Array P600 Controller
Hard Drives
Hard DrivesHard Drives
Hard Drives
None ship standard; system supports up to four Serial SCSI or Serial ATA
drives.
Remote Management
Remote ManagementRemote Management
Remote Management
Integrated Lights-Out (iLO) Standard Management (embedded)
Power Supply
Power SupplyPower Supply
Power Supply
Two 535W power supplies (1+1 redundant)
Optical Drive
Optical DriveOptical Drive
Optical Drive
Slimline CD-ROM Drive
PCI-X Slots
PCI-X SlotsPCI-X Slots
PCI-X Slots
1 full length and 1 half length 64bit/133 MHz PCI-X slot
NOTE:
NOTE:NOTE:
NOTE:
Full length slot is occupied with HP Smart Array P600 Controller and
is not available.
Form Factor
Form FactorForm Factor
Form Factor
Rack (1U), (1.75 in/4.45 cm)
QuickSpecs
HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)
Models
DA - 12166 North America — Version 24 — August 15, 2006
Page 13
SCSI Models
SCSI ModelsSCSI Models
SCSI Models
DL360R04p X3.8-
DL360R04p X3.8-DL360R04p X3.8-
DL360R04p X3.8-
2MB/800, 2GB SCSI,
2MB/800, 2GB SCSI,2MB/800, 2GB SCSI,
2MB/800, 2GB SCSI,
RPS
RPSRPS
RPS
376235-001
Processor
ProcessorProcessor
Processor
(1) Intel Xeon Processor 3.8 GHz/800MHz standard (up to 2 supported)
Cache Memory
Cache MemoryCache Memory
Cache Memory
2MB level 2 cache
Memory
MemoryMemory
Memory
2 GB (2 x 1 GB) Standard to 12 GB (Maximum) of PC2-3200 DDR2 400
SDRAM
Network Controller
Network ControllerNetwork Controller
Network Controller
Embedded NC7782 Dual Port PCI-X 10/100/1000T Gigabit network
adapter
Storage Controller
Storage ControllerStorage Controller
Storage Controller
Smart Array 6i Controller (U320, embedded on system board)
NOTE:
NOTE:NOTE:
NOTE:
The HP ProLiant DL360 G4p does not offer an external SCSI port.
Hard Drives
Hard DrivesHard Drives
Hard Drives
None ship standard; system supports up to two hot plug U320 drives
NOTE:
NOTE:NOTE:
NOTE:
The HP ProLiant DL360 G4p SCSI models only support U320
Universal Hot Plug drives.
Remote Management
Remote ManagementRemote Management
Remote Management
Integrated Lights-Out (iLO) Standard Management (embedded)
Power Supply
Power SupplyPower Supply
Power Supply
Two 460W power supplies
Optical Drive
Optical DriveOptical Drive
Optical Drive
24x IDE CD-ROM Drive (Low-profile)
Diskette Drive
Diskette DriveDiskette Drive
Diskette Drive
1.44 MB Diskette Drive
PCI-X Slots
PCI-X SlotsPCI-X Slots
PCI-X Slots
1 full length and 1 half length 64bit/133MHz PCI-X slot
Form Factor
Form FactorForm Factor
Form Factor
Rack (1U), (1.75 in/4.45 cm)
DL360R04p X3.6-
DL360R04p X3.6-DL360R04p X3.6-
DL360R04p X3.6-
2MB/800, 1GB SCSI
2MB/800, 1GB SCSI2MB/800, 1GB SCSI
2MB/800, 1GB SCSI
376236-001
Processor
ProcessorProcessor
Processor
(1) Intel Xeon Processor 3.6 GHz/800MHz standard (up to 2 supported)
Cache Memory
Cache MemoryCache Memory
Cache Memory
2MB level 2 cache
Memory
MemoryMemory
Memory
1 GB (2 x 512 MB) Standard to 12 GB (Maximum) of PC2-3200 DDR2 400
SDRAM
Network Controller
Network ControllerNetwork Controller
Network Controller
Embedded NC7782 Dual Port PCI-X 10/100/1000T Gigabit network
adapter
Storage Controller
Storage ControllerStorage Controller
Storage Controller
Smart Array 6i Controller (U320, embedded on system board)
NOTE:
NOTE:NOTE:
NOTE:
The HP ProLiant DL360 G4p does not offer an external SCSI port.
Hard Drives
Hard DrivesHard Drives
Hard Drives
None ship standard; system supports up to two hot plug U320 drives
NOTE:
NOTE: NOTE:
NOTE:
The HP ProLiant DL360 G4p SCSI models only support U320
Universal Hot Plug drives.
Remote Management
Remote ManagementRemote Management
Remote Management
Integrated Lights-Out (iLO) Standard Management (embedded)
Power Supply
Power SupplyPower Supply
Power Supply
One 460W power supply (redundant power supply optional)
Optical Drive
Optical DriveOptical Drive
Optical Drive
24x IDE CD-ROM Drive (Low-profile)
Diskette Drive
Diskette DriveDiskette Drive
Diskette Drive
1.44 MB Diskette Drive
PCI-X Slots
PCI-X SlotsPCI-X Slots
PCI-X Slots
1 full length and 1 half length 64bit/133MHz PCI-X slot
Form Factor
Form FactorForm Factor
Form Factor
Rack (1U), (1.75 in/4.45 cm)
QuickSpecs
HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)
Models
DA - 12166 North America — Version 24 — August 15, 2006
Page 14
DL360R04p X3.6-
DL360R04p X3.6-DL360R04p X3.6-
DL360R04p X3.6-
2MB/800, 2GB SCSI,
2MB/800, 2GB SCSI,2MB/800, 2GB SCSI,
2MB/800, 2GB SCSI,
RPS
RPSRPS
RPS
378705-001
Processor
ProcessorProcessor
Processor
(1) Intel Xeon Processor 3.6 GHz/800MHz standard (up to 2 supported)
Cache Memory
Cache MemoryCache Memory
Cache Memory
2MB level 2 cache
Memory
MemoryMemory
Memory
2 GB (2 x 1 GB) Standard to 12 GB (Maximum) of PC2-3200 DDR2 400
SDRAM
Network Controller
Network ControllerNetwork Controller
Network Controller
Embedded NC7782 Dual Port PCI-X 10/100/1000T Gigabit network
adapter
Storage Controller
Storage ControllerStorage Controller
Storage Controller
Smart Array 6i Controller (U320, embedded on system board)
NOTE:
NOTE: NOTE:
NOTE:
The HP ProLiant DL360 G4p does not offer an external SCSI port.
Hard Drives
Hard DrivesHard Drives
Hard Drives
None ship standard; system supports up to two hot plug U320 drives
NOTE:
NOTE: NOTE:
NOTE:
The HP ProLiant DL360 G4 SCSI models only support U320
Universal Hot Plug drives.
Remote Management
Remote ManagementRemote Management
Remote Management
Integrated Lights-Out (iLO) Standard Management (embedded)
Power Supply
Power SupplyPower Supply
Power Supply
Two 460W power supplies (1+1 redundant)
Optical Drive
Optical DriveOptical Drive
Optical Drive
24x IDE CD-ROM Drive (Low-profile)
Diskette Drive
Diskette DriveDiskette Drive
Diskette Drive
1.44 MB Diskette Drive
PCI-X Slots
PCI-X SlotsPCI-X Slots
PCI-X Slots
1 full length and 1 half length 64bit/133MHz PCI-X slot
Form Factor
Form FactorForm Factor
Form Factor
Rack (1U), (1.75 in/4.45 cm)
DL360R04p X3.4-
DL360R04p X3.4-DL360R04p X3.4-
DL360R04p X3.4-
2MB/800, 2GB SCSI,
2MB/800, 2GB SCSI,2MB/800, 2GB SCSI,
2MB/800, 2GB SCSI,
RPS
RPSRPS
RPS
380079-001
Processor
ProcessorProcessor
Processor
(1) Intel Xeon Processor 3.4 GHz/800MHz standard (up to 2 supported)
Cache Memory
Cache MemoryCache Memory
Cache Memory
2MB level 2 cache
Memory
MemoryMemory
Memory
2 GB (2 x 1-GB) Standard to 12 GB (Maximum) of PC2-3200 DDR2 400
SDRAM
Network Controller
Network ControllerNetwork Controller
Network Controller
Embedded NC7782 Dual Port PCI-X 10/100/1000T Gigabit network
adapter
Storage Controller
Storage ControllerStorage Controller
Storage Controller
Smart Array 6i Controller (U320, embedded on system board)
NOTE:
NOTE:NOTE:
NOTE:
The ProLiant DL360 G4p does not offer an external SCSI port.
Hard Drives
Hard DrivesHard Drives
Hard Drives
None ship standard; system supports up to two hot plug U320 drives
NOTE:
NOTE:NOTE:
NOTE:
The ProLiant DL360 G4p SCSI models only support U320 Universal
Hot Plug drives.
Remote Management
Remote ManagementRemote Management
Remote Management
Integrated Lights-Out (iLO) Standard Management (embedded)
Power Supply
Power SupplyPower Supply
Power Supply
Two 460W power supply (1+1 redundant)
Optical Drive
Optical DriveOptical Drive
Optical Drive
24x IDE CD-ROM Drive (Low-profile)
Diskette Drive
Diskette DriveDiskette Drive
Diskette Drive
1.44 MB Diskette Drive
PCI-X Slots
PCI-X SlotsPCI-X Slots
PCI-X Slots
1 full length and 1 half length 64bit/133MHz PCI-X slot
Form Factor
Form FactorForm Factor
Form Factor
Rack (1U), (1.75 in/4.45 cm)
QuickSpecs
HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)
Models
DA - 12166 North America — Version 24 — August 15, 2006
Page 15
DL360R04p X3.4-
DL360R04p X3.4-DL360R04p X3.4-
DL360R04p X3.4-
2MB/800, 1GB SCSI
2MB/800, 1GB SCSI2MB/800, 1GB SCSI
2MB/800, 1GB SCSI
376237-001
Processor
ProcessorProcessor
Processor
(1) Intel Xeon Processor 3.4 GHz/800MHz standard (up to 2 supported)
Cache Memory
Cache MemoryCache Memory
Cache Memory
2MB level 2 cache
Memory
MemoryMemory
Memory
1 GB (2 x 512 MB) Standard to 12 GB (Maximum) of PC2-3200 DDR2 400
SDRAM
Network Controller
Network ControllerNetwork Controller
Network Controller
Embedded NC7782 Dual Port PCI-X 10/100/1000T Gigabit network
adapter
Storage Controller
Storage ControllerStorage Controller
Storage Controller
Smart Array 6i Controller (U320, embedded on system board)
NOTE:
NOTE: NOTE:
NOTE:
The HP ProLiant DL360 G4p does not offer an external SCSI port.
Hard Drives
Hard DrivesHard Drives
Hard Drives
None ship standard; system supports up to two hot plug U320 drives
NOTE:
NOTE: NOTE:
NOTE:
The HP ProLiant DL360 G4 SCSI models only support U320
Universal Hot Plug drives.
Remote Management
Remote ManagementRemote Management
Remote Management
Integrated Lights-Out (iLO) Standard Management (embedded)
Power Supply
Power SupplyPower Supply
Power Supply
One 460W power supply (redundant power supply optional)
Optical Drive
Optical DriveOptical Drive
Optical Drive
24x IDE CD-ROM Drive (Low-profile)
Diskette Drive
Diskette DriveDiskette Drive
Diskette Drive
1.44 MB Diskette Drive
PCI-X Slots
PCI-X SlotsPCI-X Slots
PCI-X Slots
1 full length and 1 half length 64bit/133MHz PCI-X slot
Form Factor
Form FactorForm Factor
Form Factor
Rack (1U), (1.75 in/4.45 cm)
DL360R04p X3.2-
DL360R04p X3.2-DL360R04p X3.2-
DL360R04p X3.2-
2MB/800, 1GB SCSI
2MB/800, 1GB SCSI2MB/800, 1GB SCSI
2MB/800, 1GB SCSI
379753-001
Processor
ProcessorProcessor
Processor
(1) Intel Xeon Processor 3.2 GHz/800MHz standard (up to 2 supported)
Cache Memory
Cache MemoryCache Memory
Cache Memory
2MB level 2 cache
Memory
MemoryMemory
Memory
1 GB (2 x 512 MB) Standard to 12 GB (Maximum) of PC2-3200 DDR2 400
SDRAM
Network Controller
Network ControllerNetwork Controller
Network Controller
Embedded NC7782 Dual Port PCI-X 10/100/1000T Gigabit network
adapter
Storage Controller
Storage ControllerStorage Controller
Storage Controller
Smart Array 6i Controller (U320, embedded on system board)
NOTE:
NOTE: NOTE:
NOTE:
The HP ProLiant DL360 G4p does not offer an external SCSI port.
Hard Drives
Hard DrivesHard Drives
Hard Drives
None ship standard; system supports up to two hot plug U320 drives
NOTE:
NOTE: NOTE:
NOTE:
The HP ProLiant DL360 G4 SCSI models only support U320
Universal Hot Plug drives.
Remote Management
Remote ManagementRemote Management
Remote Management
Integrated Lights-Out (iLO) Standard Management (embedded)
Power Supply
Power SupplyPower Supply
Power Supply
One 460W power supply (redundant power supply optional)
Optical Drive
Optical DriveOptical Drive
Optical Drive
24x IDE CD-ROM Drive (Low-profile)
Diskette Drive
Diskette DriveDiskette Drive
Diskette Drive
1.44 MB Diskette Drive
PCI-X Slots
PCI-X SlotsPCI-X Slots
PCI-X Slots
1 full length and 1 half length 64bit/133MHz PCI-X slot
Form Factor
Form FactorForm Factor
Form Factor
Rack (1U), (1.75 in/4.45 cm)
QuickSpecs
HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)
Models
DA - 12166 North America — Version 24 — August 15, 2006
Page 16
DL360R04p X3.0-
DL360R04p X3.0-DL360R04p X3.0-
DL360R04p X3.0-
2MB/800, 1GB SCSI
2MB/800, 1GB SCSI2MB/800, 1GB SCSI
2MB/800, 1GB SCSI
380325-001
Processor
ProcessorProcessor
Processor
(1) Intel Xeon Processor 3.0 GHz/800MHz standard (up to 2 supported)
Cache Memory
Cache MemoryCache Memory
Cache Memory
2MB level 2 cache
Memory
MemoryMemory
Memory
1 GB (2 x 512 MB) Standard to 12 GB (Maximum) of PC2-3200 DDR2 400
SDRAM
Network Controller
Network ControllerNetwork Controller
Network Controller
Embedded NC7782 Dual Port PCI-X 10/100/1000T Gigabit network
adapter
Storage Controller
Storage ControllerStorage Controller
Storage Controller
Smart Array 6i Controller (U320, embedded on system board)
NOTE:
NOTE: NOTE:
NOTE:
The HP ProLiant DL360 G4p does not offer an external SCSI port.
Hard Drives
Hard DrivesHard Drives
Hard Drives
None ship standard; system supports up to two hot plug U320 drives
NOTE:
NOTE: NOTE:
NOTE:
The HP ProLiant DL360 G4 SCSI models only support U320
Universal Hot Plug drives.
Remote Management
Remote ManagementRemote Management
Remote Management
Integrated Lights-Out (iLO) Standard Management (embedded)
Power Supply
Power SupplyPower Supply
Power Supply
One 460W power supply (redundant power supply optional)
Optical Drive
Optical DriveOptical Drive
Optical Drive
24x IDE CD-ROM Drive (Low-profile)
Diskette Drive
Diskette DriveDiskette Drive
Diskette Drive
1.44 MB Diskette Drive
PCI-X Slots
PCI-X SlotsPCI-X Slots
PCI-X Slots
1 full length and 1 half length 64bit/133MHz PCI-X slot
Form Factor
Form FactorForm Factor
Form Factor
Rack (1U), (1.75 in/4.45 cm)
SATA Models
SATA ModelsSATA Models
SATA Models
DL360R04p X3.6-
DL360R04p X3.6-DL360R04p X3.6-
DL360R04p X3.6-
2MB/800, 1GB SATA
2MB/800, 1GB SATA2MB/800, 1GB SATA
2MB/800, 1GB SATA
378704-001
Processor
ProcessorProcessor
Processor
(1) Intel Xeon Processor 3.6 GHz/800MHz standard (up to 2 supported)
Cache Memory
Cache MemoryCache Memory
Cache Memory
2MB level 2 cache
Memory
MemoryMemory
Memory
1 GB (2 x 512 MB) Standard to 12 GB (Maximum) of PC2-3200 DDR2 400
SDRAM
Network Controller
Network ControllerNetwork Controller
Network Controller
Embedded NC7782 Dual Port PCI-X 10/100/1000T Gigabit network
adapter
Storage Controller
Storage ControllerStorage Controller
Storage Controller
Embedded SATA controller
NOTE:
NOTE:NOTE:
NOTE:
The HP embedded 2 Port SATA controller does not support RAID, hot
plug drive functionality or drive activity LEDs.
NOTE:
NOTE:NOTE:
NOTE:
SATA RAID 0, 1 is available with the optional purchase of the HP 8-
port SAS HBA (347786-B21) and HP SAS/SATA Cable Kit (398307-B21) -
hot-plug drive functionality and drive activity LEDS not supported.
Hard Drives
Hard DrivesHard Drives
Hard Drives
None ship standard; system supports up to two Serial ATA drives
Remote Management
Remote ManagementRemote Management
Remote Management
Integrated Lights-Out (iLO) Standard Management (embedded)
Power Supply
Power SupplyPower Supply
Power Supply
One 460W power supply (redundant power supply optional)
Optical Drive
Optical DriveOptical Drive
Optical Drive
Optional CD, DVD on SATA Models
Diskette Drive
Diskette DriveDiskette Drive
Diskette Drive
Optional floppy on SATA Models
PCI-X Slots
PCI-X SlotsPCI-X Slots
PCI-X Slots
1 full length and 1 half length 64bit/133MHz PCI-X slot
Form Factor
Form FactorForm Factor
Form Factor
Rack (1U), (1.75 in/4.45 cm)
QuickSpecs
HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)
Models
DA - 12166 North America — Version 24 — August 15, 2006
Page 17
DL360R04p X3.4-
DL360R04p X3.4-DL360R04p X3.4-
DL360R04p X3.4-
2MB/800, 1GB SATA
2MB/800, 1GB SATA2MB/800, 1GB SATA
2MB/800, 1GB SATA
380078-001
Processor
ProcessorProcessor
Processor
(1) Intel Xeon Processor 3.4 GHz/800MHz standard
Cache Memory
Cache MemoryCache Memory
Cache Memory
2MB level 2 cache
Memory
MemoryMemory
Memory
1 GB (2 x 512 MB) Standard to 12 GB (Maximum) of PC2-3200 DDR2 400
SDRAM
Network Controller
Network ControllerNetwork Controller
Network Controller
Embedded NC7782 Dual Port PCI-X 10/100/1000T Gigabit network
adapter
Storage Controller
Storage ControllerStorage Controller
Storage Controller
Embedded SATA controller
NOTE:
NOTE: NOTE:
NOTE:
The HP embedded 2 Port SATA controller does not support RAID, hot
plug drive functionality or drive activity LEDs.
NOTE:
NOTE:NOTE:
NOTE:
SATA RAID 0, 1 is available with the optional purchase of the HP 8-
port SAS HBA (347786-B21) and HP SAS/SATA Cable Kit (398307-B21) -
hot-plug drive functionality and drive activity LEDS not supported.
Hard Drives
Hard DrivesHard Drives
Hard Drives
None ship standard; system supports up to two Serial ATA drives
Remote Management
Remote ManagementRemote Management
Remote Management
Integrated Lights-Out (iLO) Standard Management (embedded)
Power Supply
Power SupplyPower Supply
Power Supply
One 460W power supply (redundant power supply optional)
Optical Drive
Optical DriveOptical Drive
Optical Drive
Optional CD, DVD, CD-RW/DVD combo on SATA Models
Diskette Drive
Diskette DriveDiskette Drive
Diskette Drive
Optional floppy on SATA Models
PCI-X Slots
PCI-X SlotsPCI-X Slots
PCI-X Slots
1 full length and 1 half length 64bit/133 MHz PCI-X slot
Form Factor
Form FactorForm Factor
Form Factor
Rack (1U), (1.75 in/4.45 cm)
DL360R04p X3.2-
DL360R04p X3.2-DL360R04p X3.2-
DL360R04p X3.2-
2MB/800, 1GB SATA
2MB/800, 1GB SATA2MB/800, 1GB SATA
2MB/800, 1GB SATA
379752-001
Processor
ProcessorProcessor
Processor
(1) Intel Xeon Processor 3.2 GHz/800MHz standard (up to 2 supported)
Cache Memory
Cache MemoryCache Memory
Cache Memory
2MB level 2 cache
Memory
MemoryMemory
Memory
1 GB (2 x 512 MB) Standard to 12 GB (Maximum) of PC2-3200 DDR2 400
SDRAM
Network Controller
Network ControllerNetwork Controller
Network Controller
Embedded NC7782 Dual Port PCI-X 10/100/1000T Gigabit network
adapter
Storage Controller
Storage ControllerStorage Controller
Storage Controller
Embedded SATA controller
NOTE:
NOTE:NOTE:
NOTE:
The HP embedded 2 Port SATA controller does not support RAID, hot
plug drive functionality or drive activity LEDs.
NOTE:
NOTE: NOTE:
NOTE:
SATA RAID 0, 1 is available with the optional purchase of the HP 8-
port SAS HBA (347786-B21) and HP SAS/SATA Cable Kit (398307-B21) -
hot-plug drive functionality and drive activity LEDS not supported.
Hard Drives
Hard DrivesHard Drives
Hard Drives
None ship standard; system supports up to two Serial ATA drives
Remote Management
Remote ManagementRemote Management
Remote Management
Integrated Lights-Out (iLO) Standard Management (embedded)
Power Supply
Power SupplyPower Supply
Power Supply
One 460W power supply (redundant power supply optional)
Optical Drive
Optical DriveOptical Drive
Optical Drive
Optional CD, DVD on SATA Models
Diskette Drive
Diskette DriveDiskette Drive
Diskette Drive
Optional floppy on SATA Models
PCI-X Slots
PCI-X SlotsPCI-X Slots
PCI-X Slots
1 full length and 1 half length 64bit/133 MHz PCI-X slot
Form Factor
Form FactorForm Factor
Form Factor
Rack (1U), (1.75 in/4.45 cm)
QuickSpecs
HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)
Models
DA - 12166 North America — Version 24 — August 15, 2006
Page 18
DL360R04p X3.0-
DL360R04p X3.0-DL360R04p X3.0-
DL360R04p X3.0-
2MB/800, 1GB SATA
2MB/800, 1GB SATA2MB/800, 1GB SATA
2MB/800, 1GB SATA
380324-001
Processor
ProcessorProcessor
Processor
(1) Intel Xeon Processor 3.0 GHz/800MHz standard (up to 2 supported)
Cache Memory
Cache MemoryCache Memory
Cache Memory
2MB level 2 cache
Memory
MemoryMemory
Memory
1 GB (2 x 512 MB) Standard to 12 GB (Maximum) of PC2-3200 DDR2 400
SDRAM
Network Controller
Network ControllerNetwork Controller
Network Controller
Embedded NC7782 Dual Port PCI-X 10/100/1000T Gigabit network
adapter
Storage Controller
Storage ControllerStorage Controller
Storage Controller
Embedded SATA controller
NOTE:
NOTE:NOTE:
NOTE:
The HP embedded 2 Port SATA controller does not support RAID, hot
plug drive functionality or drive activity LEDs.
NOTE:
NOTE:NOTE:
NOTE:
SATA RAID 0, 1 is available with the optional purchase of the HP 8-
port SAS HBA (347786-B21) and HP SAS/SATA Cable Kit (398307-B21) -
hot-plug drive functionality and drive activity LEDS not supported.
Hard Drives
Hard DrivesHard Drives
Hard Drives
None ship standard; system supports up to two Serial ATA drives
Remote Management
Remote ManagementRemote Management
Remote Management
Integrated Lights-Out (iLO) Standard Management (embedded)
Power Supply
Power SupplyPower Supply
Power Supply
One 460W power supply (redundant power supply optional)
Optical Drive
Optical DriveOptical Drive
Optical Drive
Optional CD, DVD combo on SATA Models
Diskette Drive
Diskette DriveDiskette Drive
Diskette Drive
Optional floppy on SATA Models
PCI-X Slots
PCI-X SlotsPCI-X Slots
PCI-X Slots
1 full length and 1 half length 64bit/133 MHz PCI-X slot
Form Factor
Form FactorForm Factor
Form Factor
Rack (1U), (1.75 in/4.45 cm)
QuickSpecs
HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)
Models
DA - 12166 North America — Version 24 — August 15, 2006
Page 19
NOTE:
NOTE: NOTE:
NOTE:
HP does not allow factory integration of options into standard models listed above.
Configure-to-order servers must start with a CTO Chassis.
NOTE:
NOTE:NOTE:
NOTE:
This product offering does not support HP Factory Express Server Configuration Level 1.
NOTE:
NOTE:NOTE:
NOTE:
FIO indicates that this option only available as a Factory Installable Option.
Step 1: Base Configuration (choose one of the following configurable models)
Step 1: Base Configuration (choose one of the following configurable models)Step 1: Base Configuration (choose one of the following configurable models)
Step 1: Base Configuration (choose one of the following configurable models)
Models
ModelsModels
Models
HP ProLiant DL360G4p SATA Rack CTO Chassis
382146-405
Factory Integrated Model ships with:
Factory Integrated Model ships with:Factory Integrated Model ships with:
Factory Integrated Model ships with:
Embedded NC7782 Dual Port PCI-X 10/100/1000T Gigabit NIC
Embedded SATA Controller (SATA RAID functionality is available via OS)
Integrated Lights-Out (iLO) embedded
1 full length and 1 half length 64-bit/133 MHz PCI-X slot
7 fans; N+1 fan redundancy
Rack (1U), (1.75 in/4.45 cm)
HP ProLiant DL360G4p SCSI Rack CTO Chassis
382147-405
Factory Integrated Model ships with:
Factory Integrated Model ships with:Factory Integrated Model ships with:
Factory Integrated Model ships with:
Embedded NC7782 Dual Port PCI-X 10/100/1000T Gigabit NIC
Smart Array 6i Controller (Ultra320 SCSI, RAID, embedded)
Integrated Lights-Out (iLO) embedded
1 full length and 1 half length 64-bit/133 MHz PCI-X slots
1.44MB Diskette Drive
7 fans; N+1 fan redundancy
Rack (1U), (1.75 in/4.45 cm)
HP ProLiant DL360G4p SAS Rack CTO Chassis
389831-405
Factory Integrated Model ships with:
Factory Integrated Model ships with:Factory Integrated Model ships with:
Factory Integrated Model ships with:
Embedded NC7782 Dual Port PCI-X 10/100/1000T Gigabit NIC
Integrated Lights-Out (iLO) embedded
1 full length and 1 half length 64-bit/133 MHz PCI-X slots
7 fans; N+1 fan redundancy
Rack (1U), (1.75 in/4.45 cm)
Step 1A: If SAS Model, Choose SAS Starter Kit or Controller (only one of the following)
Step 1A: If SAS Model, Choose SAS Starter Kit or Controller (only one of the following)Step 1A: If SAS Model, Choose SAS Starter Kit or Controller (only one of the following)
Step 1A: If SAS Model, Choose SAS Starter Kit or Controller (only one of the following)
SAS Controller
SAS ControllerSAS Controller
SAS Controller
HP Smart Array P600 Controller
NOTE:
NOTE: NOTE:
NOTE:
This is a required selection if one of the two following SAS Starter Kits is not
selected. If choosing this part number, 2.5" SAS hard drives must still be selected
under Step 4.
337972-B21
SAS Starter Kit
SAS Starter KitSAS Starter Kit
SAS Starter Kit
NOTE:
NOTE:NOTE:
NOTE:
SAS Starter Kits are not compatible with the SCSI or SATA models.
SAS Starter Kit - 36GB
NOTE:
NOTE:NOTE:
NOTE:
Includes Smart Array P600 Performance Array Controller with 256MB BBWC
and (2) 36GB SFF SAS Universal Hard Drives.
396221-B21
SAS Starter Kit - 72GB
NOTE:
NOTE:NOTE:
NOTE:
Includes Smart Array P600 Performance Array Controller with 256MB BBWC
and (2) 72GB SFF SAS Universal Hard Drives.
396220-B21
QuickSpecs
HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)
Configuration Information - Factory Integrated Models
DA - 12166 North America — Version 24 — August 15, 2006
Page 20
Step 2: Choose Required Options (only one of the following from each list unless otherwise
Step 2: Choose Required Options (only one of the following from each list unless otherwiseStep 2: Choose Required Options (only one of the following from each list unless otherwise
Step 2: Choose Required Options (only one of the following from each list unless otherwise
noted)
noted)noted)
noted)
Processors
ProcessorsProcessors
Processors
Intel Dual-core X2.8GHz/800-2x2MB DL360G4 FIO processor
408585-L21
Intel X2.8GHz/800-2MB DL360G4 FIO processor
399042-L21
Intel X3.0GHz/800-2MB DL360G4 FIO processor
380327-L21
Intel X3.0GHz/800-2M LV DL360G4 FIO processor
394921-L21
Intel X3.2GHz/800-2MB DL360G4 FIO processor
379817-L21
Intel X3.4GHz/800-2MB DL360G4 FIO processor
376243-L21
Intel X3.6GHz/800-2MB DL360G4 FIO processor
376242-L21
Intel X3.8GHz800-2M DL360G4 FIO processor
376241-L21
NOTE:
NOTE:NOTE:
NOTE:
Dual-core processor is supported on HP ProLiant DL360 G4p Serial Attached
SCSI (SAS) model only.
Base Memory
Base MemoryBase Memory
Base Memory
1 GB Advanced ECC PC2-3200 DDR2 SDRAM DIMM Memory Kit (2 x 512 MB)
343055-B21
2 GB Advanced ECC PC2-3200 DDR2 SDRAM DIMM Memory Kit (2 x 1 GB)
343056-B21
4 GB Advanced ECC PC2-3200 DDR2 SDRAM DIMM Memory Kit (2 x 2 GB)
343057-B21
Optical Drive
Optical DriveOptical Drive
Optical Drive
(may or may not be
required. See notes)
NOTE:
NOTE:NOTE:
NOTE:
Optical Drives are OPTIONAL if choosing the (389831-405) SAS Rack CTO
Chassis Model or (382146-405) SATA Rack CTO Chassis Model in Step 1.
NOTE:
NOTE: NOTE:
NOTE:
An Optical Drive is REQUIRED if choosing the 382147-405 SCSI Rack CTO
Chassis Model in Step 1.
Slimline CD-RW/DVD-ROM Combo Option Kit
NOTE:
NOTE:NOTE:
NOTE:
This CD-RW/DVD-ROM Drive (PN 331903-B21) is for SAS and SCSI models.
It is not supported in SATA models.
331903-B21
Slimline DVD-ROM Drive (8X/24X) Option Kit
NOTE:
NOTE: NOTE:
NOTE:
This DVD-ROM Drive (PN 264007-B21) is for SAS and SCSI models. It is not
supported in SATA models.
264007-B21
Step 3: Choose Additional Factory Integratable Options
Step 3: Choose Additional Factory Integratable OptionsStep 3: Choose Additional Factory Integratable Options
Step 3: Choose Additional Factory Integratable Options
Diskette Drive
Diskette DriveDiskette Drive
Diskette Drive
Slimline Ejectable Floppy Drive
NOTE:
NOTE:NOTE:
NOTE:
This Diskette Drive is for SAS (389831-405) models.
390164-B21
1.44 MB Diskette drive
NOTE:
NOTE:NOTE:
NOTE:
This Diskette Drive is for SATA (382146-405) models
354588-B21
Optical Drive
Optical DriveOptical Drive
Optical Drive
NOTE:
NOTE:NOTE:
NOTE:
Optical Drives are OPTIONAL if choosing the (389831-405) SAS Rack CTO
Chassis Model or (382146-405) SATA Rack CTO Chassis Model in Step 1.
NOTE:
NOTE:NOTE:
NOTE:
An Optical Drive is REQUIRED if choosing the 382147-405 SCSI Rack CTO
Chassis Model in Step 1.
Slimline DVD-ROM Drive (8X/24X) Option Kit
NOTE:
NOTE:NOTE:
NOTE:
This DVD-ROM Drive (PN 264007-B21) is for SAS and SCSI models. It is not
supported in SATA models.
264007-B21
Slimline CD-RW/DVD-ROM Combo Option Kit
NOTE:
NOTE:NOTE:
NOTE:
This CD-RW/DVD-ROM Drive (PN 331903-B21) is for SAS and SCSI models.
It is not supported in SATA models.
331903-B21
QuickSpecs
HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)
Configuration Information - Factory Integrated Models
DA - 12166 North America — Version 24 — August 15, 2006
Page 21
Power Supply
Power SupplyPower Supply
Power Supply
460W HP redundant power supply with IEC cord only
NOTE:
NOTE:NOTE:
NOTE:
For SCSI and SATA Models.
354587-B21
535W HP redundant power supply with IEC cord only
NOTE:
NOTE:NOTE:
NOTE:
For SAS Models.
389830-B21
535W HP redundant power supply with NEMA cord only
NOTE:
NOTE:NOTE:
NOTE:
for SAS Models.
389830-001
Step 4: Choose Additional Options for Factory Integration
Step 4: Choose Additional Options for Factory IntegrationStep 4: Choose Additional Options for Factory Integration
Step 4: Choose Additional Options for Factory Integration
NOTE:
NOTE:NOTE:
NOTE:
For additional options, please refer to the "Options" section below.
QuickSpecs
HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)
Configuration Information - Factory Integrated Models
DA - 12166 North America — Version 24 — August 15, 2006
Page 22
NOTE:
NOTE: NOTE:
NOTE:
Some options may not be factory integratable. Please contact your local sales representative for additional information.
HP ProLiant DL360 G4p
HP ProLiant DL360 G4pHP ProLiant DL360 G4p
HP ProLiant DL360 G4p
Unique Options
Unique OptionsUnique Options
Unique Options
Intel Xeon Dual-core 2.8 GHz/800MHz-2x2MB Processor Option Kit
NOTE:
NOTE:NOTE:
NOTE:
This processor option kit (PN 408585-B21) supports the HP ProLiant DL360
G4p SAS only.
408585-B21
Intel Xeon 2.8G Hz/800MHz-2MB Processor Option Kit
NOTE:
NOTE:NOTE:
NOTE:
This processor option kit (PN 399042-B21) supports the HP ProLiant DL360
G4p only.
399042-B21
Intel Xeon 3.0 GHz/800MHz-2MB Processor Option Kit
NOTE:
NOTE:NOTE:
NOTE:
This processor option kit (PN 380327-B21) supports the HP ProLiant DL360
G4p only
.
380327-B21
Intel Xeon 3.0 GHz/800MHz-2MB Low Voltage Processor Option Kit
NOTE:
NOTE:NOTE:
NOTE:
This processor option kit (PN 394921-B21) supports the HP ProLiant DL360
G4p only.
394921-B21
Intel Xeon 3.2 GHz/800MHz-2MB Processor Option Kit
NOTE:
NOTE:NOTE:
NOTE:
This processor option kit (PN 379817-B21) supports the HP ProLiant DL360
G4p only
.
379817-B21
Intel Xeon 3.4 GHz/800MHz-2MB Processor Option Kit
NOTE:
NOTE:NOTE:
NOTE:
This processor option kit (PN 376243-B21) supports the HP ProLiant DL360
G4p only.
376243-B21
Intel Xeon 3.6 GHz/800MHz-2MB Processor Option Kit
NOTE:
NOTE:NOTE:
NOTE:
This processor option kit (PN 376242-B21) supports the HP ProLiant DL360
G4p only.
376242-B21
Intel Xeon 3.8 GHz/800MHz-2MB Processor Option Kit
NOTE:
NOTE:NOTE:
NOTE:
This processor option kit (PN 376241-B21) supports the HP ProLiant DL360
G4p only
.
376241-B21
PCI-e Riser option (to convert one or both PCI-X to PCI-e slots)
354589-B21
460W HP redundant power supply with IEC cord only
354587-B21
460W HP redundant power supply with NEMA cord only
NOTE:
NOTE:NOTE:
NOTE:
The HP ProLiant DL360 G4p ships with an IEC-IEC power cord used for rack
mounting with Power Distribution Units (PDUs). For stand-alone deployments or
installation without a rack, models ship with two power cords: IEC-IEC and NEMA
cords.
354587-001
535W HP redundant power supply with IEC cord only
389830-B21
535W HP redundant power supply with NEMA cord only
NOTE:
NOTE:NOTE:
NOTE:
The HP ProLiant DL360 G4p ships with an IEC-IEC power cord used for rack
mounting with Power Distribution Units (PDUs). For stand-alone deployments or
installation without a rack, models ship with two power cords: IEC-IEC and NEMA
cords.
389830-001
ProLiant Essentials
ProLiant EssentialsProLiant Essentials
ProLiant Essentials
Value Pack Software
Value Pack SoftwareValue Pack Software
Value Pack Software
ProLiant Essentials Integrated Lights-Out Advanced Pack
ProLiant Essentials Integrated Lights-Out Advanced PackProLiant Essentials Integrated Lights-Out Advanced Pack
ProLiant Essentials Integrated Lights-Out Advanced Pack
ProLiant Essentials Integrated Lights-Out Advanced Pack, 1 server License
Featuring:
Featuring:Featuring:
Featuring:
sophisticated virtual administration features for ultimate control of servers
in the data centers and remote sites.
263825-B21
NOTE:
NOTE:NOTE:
NOTE:
For additional ProLiant Integrated Light-Out Advanced Pack License Kits
please see the QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/11052_na/11052_na.HTML
ProLiant Essentials Intelligent Networking Pack
ProLiant Essentials Intelligent Networking PackProLiant Essentials Intelligent Networking Pack
ProLiant Essentials Intelligent Networking Pack
QuickSpecs
HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)
Options
DA - 12166 North America — Version 24 — August 15, 2006
Page 23
ProLiant Essentials Intelligent Networking Pack - Windows Edition, Single Server
License
NOTE:
NOTE:NOTE:
NOTE:
For use with a single server. Contains one license with a unique license
activation key and documentation.
372906-B21
NOTE:
NOTE:NOTE:
NOTE:
For additional ProLiant Intelligent Networking Pack License Kits please see the
QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/12062_na/12062_na.HTML
ProLiant Essentials Intelligent Networking Pack - Linux Edition, Single Server License
397004-B21
NOTE:
NOTE:NOTE:
NOTE:
For additional ProLiant Intelligent Networking Pack - Linux License Kits please
see the QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/12327_na/12327_na.HTML
ProLiant Essentials Performance Management Pack
ProLiant Essentials Performance Management PackProLiant Essentials Performance Management Pack
ProLiant Essentials Performance Management Pack
ProLiant Essentials Performance Management Pack, Single-Server License
NOTE:
NOTE:NOTE:
NOTE:
For use with a single server. Contains one license with a unique license
activation key, HP Management CD and documentation.
NOTE:
NOTE:NOTE:
NOTE:
The most recent version of the software can always be downloaded at
http://www.hp.com/products/pmp
.
306696-B21
NOTE:
NOTE:NOTE:
NOTE:
For additional ProLiant Performance Management Pack License Kits please
see the QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/11925_na/11925_na.HTML
ProLiant Essentials Rapid Deployment Pack Windows Edition Release
ProLiant Essentials Rapid Deployment Pack Windows Edition ReleaseProLiant Essentials Rapid Deployment Pack Windows Edition Release
ProLiant Essentials Rapid Deployment Pack Windows Edition Release
Rapid Deployment Pack, Single-Server License
NOTE:
NOTE:NOTE:
NOTE:
This license allows 1 server to be deployed and managed via RDP.
267196-B21
NOTE:
NOTE:NOTE:
NOTE:
For additional ProLiant Essentials Rapid Deployment Pack License Kits please
see the QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/11053_na/11053_na.HTML
ProLiant Essentials Workload Management Pack
ProLiant Essentials Workload Management PackProLiant Essentials Workload Management Pack
ProLiant Essentials Workload Management Pack
ProLiant Essentials Workload Management Pack, Single Server License
303284-B21
NOTE:
NOTE:NOTE:
NOTE:
For additional ProLiant Workload Management Pack License Kits please see
the QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/11452_na/11452_na.HTML
ProLiant Essentials Virtualization Management Software
ProLiant Essentials Virtualization Management SoftwareProLiant Essentials Virtualization Management Software
ProLiant Essentials Virtualization Management Software
ProLiant Essentials Virtual Machine Management Pack, Single-Server License
NOTE:
NOTE:NOTE:
NOTE:
For use with a single server. Contains one license with a unique license
activation key and documentation.
372214-B21
ProLiant Essentials Server Migration Pack, Single-Migration License
NOTE:
NOTE:NOTE:
NOTE:
Contains one license, enabling 1 server migration, with a unique license
activation key and documentation.
375345-B21
ProLiant Essentials Server Migration Pack - Physical to ProLiant Edition, Single-
Migration License
412978-B21
NOTE:
NOTE:NOTE:
NOTE:
This license allows 1 server to be migrated from a physical server to a virtual
machine. Or this license can be used to migrate a virtual machine from one
virtualization layer i.e. VMware GSX to a different virtualization layer such as VMware
ESX or Microsoft Virtual Server 2005.
NOTE:
NOTE:NOTE:
NOTE:
For additional ProLiant Essentials Virtualization Management Software License
Kits please see the QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/12328_na/12328_na.HTML
ProLiant Essentials Vulnerability and Patch Management Pack
ProLiant Essentials Vulnerability and Patch Management PackProLiant Essentials Vulnerability and Patch Management Pack
ProLiant Essentials Vulnerability and Patch Management Pack
QuickSpecs
HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)
Options
DA - 12166 North America — Version 24 — August 15, 2006
Page 24
ProLiant Essentials Vulnerability and Patch Management Pack, Single-Server License
NOTE:
NOTE:NOTE:
NOTE:
For use with a single server. Contains one license with a unique license
activation key and documentation.
371645-B21
NOTE:
NOTE:NOTE:
NOTE:
For additional ProLiant Vulnerability and Patch Management Pack License
Kits, please see the QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/12111_na/12111_na.HTML
NOTE:
NOTE:NOTE:
NOTE:
Flexible and volume quantity license kits are available for ProLiant Essentials
Value Packs. Refer to
http://www.hp.com/servers/proliantessentials
or the various
ProLiant Essentials Value Pack product QuickSpecs for more information.
NOTE:
NOTE:NOTE:
NOTE:
For more information regarding ProLiant Essentials Software, please see the
following URL:
http://www.hp.com/servers/proliantessentials
.
HP Control Tower
HP Control TowerHP Control Tower
HP Control Tower
BladeSystem p-class
BladeSystem p-classBladeSystem p-class
BladeSystem p-class
Management Software
Management SoftwareManagement Software
Management Software
HP Control Tower for HP p-Class BladeSystem, Media pack (CD) – No licenses
included
412956-B21
NOTE:
NOTE: NOTE:
NOTE:
This optional Media pack CD contains the ISO image for the HP Control
Tower management appliance that must be installed the HP ProLiant DL360 G4
(SCSI) server. Server must be acquired separately.
NOTE:
NOTE: NOTE:
NOTE:
This Media pack is optional because the latest ISO image may be
downloaded at no cost from:
http://www.hp.com/go/controltower
ProLiant Software
ProLiant SoftwareProLiant Software
ProLiant Software
Maintenance Subscription
Maintenance SubscriptionMaintenance Subscription
Maintenance Subscription
ProLiant Software Maintenance Subscription
355060-B21
ProLiant Software Maintenance Single Release
356573-B21
ProLiant Foundation Pack Single Release
356604-B21
NOTE:
NOTE: NOTE:
NOTE:
Please see the SmartStart QuickSpecs for additional information regarding the
subscription purchase:
http://h18000.www1.hp.com/products/quickspecs/North_America/11073.html
Processor
ProcessorProcessor
Processor
Intel Xeon Dual-core 2.8 GHz/800MHz-2x2MB Processor Option Kit
NOTE
NOTENOTE
NOTE
:
This processor option kit (PN 408585-B21) supports the HP ProLiant DL360
G4p SAS only.
408585-B21
Intel Xeon 2.8 GHz/800MHz-2MB Processor Option Kit
NOTE:
NOTE:NOTE:
NOTE:
This processor option kit (PN 399042-B21) supports the HP ProLiant DL360
G4p only.
399042-B21
Intel Xeon 3.0 GHz/800MHz-2MB Processor Option Kit
NOTE:
NOTE:NOTE:
NOTE:
This processor option kit (PN 380327-B21) supports the HP ProLiant DL360
G4p only.
380327-B21
Intel Xeon 3.0 GHz/800MHz-2MB Processor Option Kit, Low Voltage
NOTE:
NOTE:NOTE:
NOTE:
This processor option kit (PN 394921-B21) supports the HP ProLiant DL360
G4p only.
394921-B21
Intel Xeon 3.2 GHz/800MHz-2MB Processor Option Kit
NOTE:
NOTE:NOTE:
NOTE:
This processor option kit (PN 379817-B21) supports the HP ProLiant DL360
G4p only.
379817-B21
Intel Xeon 3.4 GHz/800MHz-2MB Processor Option Kit
NOTE:
NOTE:NOTE:
NOTE:
This processor option kit (PN 376243-B21) supports the HP ProLiant DL360
G4p only.
376243-B21
Intel Xeon 3.6 GHz/800MHz-2MB Processor Option Kit
NOTE:
NOTE:NOTE:
NOTE:
This processor option kit (PN 376242-B21) supports the HP ProLiant DL360
G4p only.
376242-B21
QuickSpecs
HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)
Options
DA - 12166 North America — Version 24 — August 15, 2006
Page 25
Intel Xeon 3.8 GHz/800MHz-2MB Processor Option Kit
NOTE:
NOTE:NOTE:
NOTE:
This processor option kit (PN 376241-B21) supports the HP ProLiant DL360
G4p only.
376241-B21
Memory
MemoryMemory
Memory
(DIMMs)
1 GB Advanced ECC PC2-3200 DDR2 SDRAM DIMM Memory Kit (2 x 512 MB)
343055-B21
2 GB Advanced ECC PC2-3200 DDR2 SDRAM DIMM Memory Kit (2 x 1 GB)
343056-B21
4 GB Advanced ECC PC2-3200 DDR2 SDRAM DIMM Single Rank Memory Kit (2 x 2
GB)
343057-B21
4 GB Advanced ECC PC2-3200 DDR2 SDRAM DIMM Dual Rank Memory Kit (2 x 2
GB)
375004-B21
Optical Drives
Optical DrivesOptical Drives
Optical Drives
Slimline CD-RW/DVD-ROM Combo Option Kit
NOTE:
NOTE:NOTE:
NOTE:
This CD-RW/DVD-ROM Drive (PN 331903-B21) is for SCSI and SAS models
only. It is not supported in SATA models.
331903-B21
Slimline DVD-ROM Drive (8X/24X) Option Kit (Servers)
NOTE:
NOTE:NOTE:
NOTE:
This DVD-ROM Drive (PN 264007-B21) is supported on SCSI and SAS
models.
264007-B21
HP DVD
+
R/RW 8X Slim
NOTE:
NOTE:NOTE:
NOTE:
This DVD
+
R/RW 8X Slim (PN 383975-B21) is supported on SCSI and SAS
models.
383975-B21
Diskette Drive
Diskette DriveDiskette Drive
Diskette Drive
Slimline Ejectable Floppy drive
NOTE:
NOTE:NOTE:
NOTE:
This Diskette Drive is for SAS models only.
390164-B21
1.44 MB Diskette Drive
NOTE:
NOTE:NOTE:
NOTE:
This 1.44MB Diskette Drive (PN 354588-B21) is supported on SCSI and SATA
models only.
NOTE:
NOTE: NOTE:
NOTE:
Ships standard in SCSI models.
354588-B21
Hard Drives
Hard DrivesHard Drives
Hard Drives
Ultra320 – Hot Plug
Ultra320 – Hot PlugUltra320 – Hot Plug
Ultra320 – Hot Plug
NOTE:
NOTE: NOTE:
NOTE:
The HP ProLiant DL360 G4p SCSI models support U320 Universal Hot Plug
drives.
HP 300GB U320 10K Universal HDD
350964-B22
HP 146GB U320 10K Universal HDD
286716-B22
HP 72GB U320 10K Universal HDD
286714-B22
HP 300GB U320 15K Universal HDD
411089-B22
HP 146GB U320 15K Universal HDD
347708-B22
HP 72GB U320 15K Universal HDD
286778-B22
HP 36GB U320 15K Universal HDD
286776-B22
NOTE:
NOTE:NOTE:
NOTE:
Please see the Hard Drive QuickSpecs for Technical Specifications such as
capacity, height, width, interface, transfer rate, seek time, physical configuration, and
operating temperature:
http://h18000.www1.hp.com/products/quickspecs/11531_na/11531_na.HTML
Serial-ATA (SATA) Hot Plug Hard Drive (For use with SATA Models)
Serial-ATA (SATA) Hot Plug Hard Drive (For use with SATA Models)Serial-ATA (SATA) Hot Plug Hard Drive (For use with SATA Models)
Serial-ATA (SATA) Hot Plug Hard Drive (For use with SATA Models)
NOTE:
NOTE:NOTE:
NOTE:
The HP embedded 2 Port SATA controller does not support RAID, hot plug
drive functionality or drive activity LEDs.
HP 500GB 1.5G SATA 7.2K 3.5" HDD
395473-B21
QuickSpecs
HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)
Options
DA - 12166 North America — Version 24 — August 15, 2006
Page 26
HP 250GB 1.5G SATA 7.2K 3.5" HDD
349239-B21
HP 160GB 1.5G SATA 7.2K 3.5" HDD
349238-B21
HP 80GB 1.5G SATA 7.2K 3.5" HDD
349237-B21
HP 60GB 1.5G SATA 5.4K SFF HDD
NOTE:
NOTE:NOTE:
NOTE:
SATA drives have a 1-year warranty. Please see the SATA Hard Drive
QuickSpecs for Technical Specifications such as capacity, height, width, interface,
transfer rate, seek time, physical configuration, and operating temperature:
http://h18000.www1.hp.com/products/quickspecs/11940_na/11940_na.HTML
Serial Attached SCSI (SAS) SFF Hot Plug (For use with SAS Models)
Serial Attached SCSI (SAS) SFF Hot Plug (For use with SAS Models)Serial Attached SCSI (SAS) SFF Hot Plug (For use with SAS Models)
Serial Attached SCSI (SAS) SFF Hot Plug (For use with SAS Models)
HP 36GB 3G SAS 10K SFF HDD
375859-B21
HP 72GB 3G SAS 10K SFF HDD
375861-B21
NOTE:
NOTE: NOTE:
NOTE:
All SFF SAS Universal Hard Drives are supported ONLY by HP ProLiant DL360
G4p SAS models.
NOTE:
NOTE:NOTE:
NOTE:
Please see the SAS Hard Drive QuickSpecs for Technical Specifications such
as capacity, height, width, interface, transfer rate, seek time, physical configuration,
and operating temperature:
http://h18000.www1.hp.com/products/quickspecs/12224_na/12224_na.HTML
Storage Controllers
Storage ControllersStorage Controllers
Storage Controllers
SCSI Controllers
SCSI ControllersSCSI Controllers
SCSI Controllers
128MB Battery Backed Write Cache Enabler Option Kit
NOTE:
NOTE:NOTE:
NOTE:
Upgrade for Smart Array 6i Controller.
346914-B21
Smart Array 6402/128 Controller
NOTE:
NOTE: NOTE:
NOTE:
For support of external drives only.
273915-B21
Smart Array 6404/256 Controller
NOTE:
NOTE: NOTE:
NOTE:
For support of external drives only.
273914-B21
Smart Array 642 Controller
NOTE:
NOTE: NOTE:
NOTE:
For support of external drives only.
291967-B21
128MB Battery-Backed Cache Enabler
NOTE:
NOTE:NOTE:
NOTE:
This 128MB BBWC supports the Smart Array 641 Controller and Smart Array
642 Controller.
351580-B21
Ultra320 Expansion Module for SA-6402
NOTE:
NOTE: NOTE:
NOTE:
For support of external drives only.
273911-B21
64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2
374654-B21
NOTE:
NOTE: NOTE:
NOTE:
Please see the following Controller or SCSI Adapter QuickSpecs for Technical
Specifications such as PCI Bus, PCI Peak Data Transfer Rate, SCSI Protocols
supported, SCSI Peak Data Transfer Rate, Channels, SCSI Ports, Drives supported,
Cache, RAID support, and additional information:
http://h18000.www.1.hp.com/products/quickspecs/12030_na/12030_na.HTML
(Smart Array 6i)
http://h18000.www1.hp.com/products/quickspecs/11587_na/11587_na.HTML
(Smart Array 6400 Series)
http://h18000.www1.hp.com/products/quickspecs/11563_na/11563_na.HTML
(Smart Array 642)
http://h18000.www.1.hp.com/products/quickspecs/11943_na/11943_na.HTML
(U320 SCSI G2 HBA)
SAS Controller
SAS ControllerSAS Controller
SAS Controller
HP Smart Array P600 Controller
337972-B21
512MB DDR BBWC Upgrade
372538-B21
QuickSpecs
HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)
Options
DA - 12166 North America — Version 24 — August 15, 2006
Page 27
NOTE:
NOTE: NOTE:
NOTE:
Ships standard with SAS model.
NOTE:
NOTE:NOTE:
NOTE:
Please see the following Controller QuickSpecs for Technical Specifications
such as PCI Bus, PCI Peak Data Transfer Rate, SCSI Protocols supported, SCSI Peak
Data Transfer Rate, Channels, SCSI Ports, Drives supported, Cache, RAID support,
and additional information:
http://h18000.www1.hp.com/products/quickspecs/12247_na/12247_na.HTML
(Smart P600 Controller)
SAS HBA
SAS HBASAS HBA
SAS HBA
HP 8 Internal Port SAS HBA with RAID
NOTE:
NOTE: NOTE:
NOTE:
Supports SAS/SATA models. RAID 0,1 supported.
347786-B21
NOTE:
NOTE: NOTE:
NOTE:
Please see the HBA QuickSpecs for additional information:
http://h18004.www.1.hp.com/products/quickspecs/12332_na/12332_na.html
HP SATA/SAS 1U Cable Kit
NOTE:
NOTE:NOTE:
NOTE:
Required for HP SAS/SATA HBA use with HP ProLiant DL360 G4p SAS or
SATA models.
398307-B21
Communications
CommunicationsCommunications
Communications
HP NC150T PCI 4-port Gigabit 1000T Combo Switch Adapter
367132-B21
HP NC310F PCI-X 1000SX Gigabit Server Adapter
368169-B21
HP NC320T PCI Express 1000T Gigabit Server Adapter
367047-B21
HP NC370F PCI-X Multifunction 1000SX Gigabit Server Adapter
374193-B22
HP NC370T PCI-X Multifunction 1000T Gigabit Server Adapter
374191-B22
HP NC373F PCI Express Multifunction Gigabit Server Adapter
394793-B21
HP NC380T PCI Express Dual Port Multifunction Gigabit Server Adapter
394795-B21
HP NC1020 PCI 1000T Gigabit Server Adapter
353377-B21
HP NC7170 PCI-X Dual Port 1000T Gigabit Server Adapter
313881-B21
HP NC7771 PCI-X 1000T Gigabit Server Adapter
290563-B21
NOTE:
NOTE:NOTE:
NOTE:
Any NIC (except the NC1020) on the option list can be used for redundancy
with the embedded NC7782 Dual Port Network Controller. When teaming with other
NICs or with the embedded NIC, the lack of Jumbo Frames and LSO features on the
NC1020 will cause high end NICs to have those features disabled. (e.g.
incompatibility issues with the other option NICs for that platform).
Management Options
Management OptionsManagement Options
Management Options
Remote Insight Lights-Out Edition II
227251-001
High Performance
High PerformanceHigh Performance
High Performance
Solutions
SolutionsSolutions
Solutions
HPCC Myrinet Fiber NIC
257894-006
QuickSpecs
HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)
Options
DA - 12166 North America — Version 24 — August 15, 2006
Page 28
Tape Drives
Tape DrivesTape Drives
Tape Drives
NOTE:
NOTE:NOTE:
NOTE:
For the complete listing of Tape Drive offerings, please see:
http://www.hp.com/products1/storage/compatibility/tapebackup/ISS/index.html
For recommended tape drive offerings for this ProLiant server see the following:
USB Tape Drives
USB Tape DrivesUSB Tape Drives
USB Tape Drives
HP StorageWorks DAT 40 USB External Tape Drive (Carbonite)
DW023A
HP StorageWorks DAT 72 USB External Tape Drive (Carbonite)
DW027A
Ultrium Tape Drives - External, Rack-Mount and Array
Ultrium Tape Drives - External, Rack-Mount and ArrayUltrium Tape Drives - External, Rack-Mount and Array
Ultrium Tape Drives - External, Rack-Mount and Array
HP StorageWorks Ultrium 232 External Tape Drive (Carbonite)
DW065B
HP StorageWorks Ultrium 232 Internal Tape Drive (Carbonite)
NOTE:
NOTE:NOTE:
NOTE:
No internal tape drives fit inside the HP ProLiant DL360 G4p. The internal
drive shown here is for the 1U or 3U Rack-mount Kit.
DW064A
HP StorageWorks Ultrium 448 External Tape Drive (Carbonite)
DW017B
NOTE:
NOTE: NOTE:
NOTE:
Please see the HP StorageWorks Ultrium Tape Drive QuickSpecs for
additional options such as controllers, media, and other related items:
http://h18006.www1.hp.com/products/quickspecs/11739_na/11739_na.html
http://h18006.www1.hp.com/products/quickspecs/12128_na/12128_na.html
For an up-to-date listing of the latest O/S and software support details for HP Ultrium
tape drives, please visit:
http://www.hp.com/go/connect
DAT Drives - External, Rack-Mount and Array Module
DAT Drives - External, Rack-Mount and Array ModuleDAT Drives - External, Rack-Mount and Array Module
DAT Drives - External, Rack-Mount and Array Module
HP StorageWorks DAT 72 SCSI External Tape Drive (Carbon)
Q1523B
HP StorageWorks 1U Rack-mount kit with one DAT 72 (Carbon)
A7443A
NOTE:
NOTE: NOTE:
NOTE:
Please see the DAT Tape Drive QuickSpecs for controllers, media, and other
options:
http://h18000.www1.hp.com/products/quickspecs/11883_na/11883_na.HTML
For an up-to-date listing of the latest O/S and software support details for HP DAT
drives, please visit:
http://www.hp.com/go/connect
Rack-Mount Tape Drive Enclosures
Rack-Mount Tape Drive EnclosuresRack-Mount Tape Drive Enclosures
Rack-Mount Tape Drive Enclosures
HP StorageWorks 1U Rack-Mount Kit
NOTE:
NOTE:NOTE:
NOTE:
The 1U Rack-mount Kit can support up to 2 half-height tape drives and is
compatible with multiple Single-Ended and LVD SCSI tape drives including DAT 24,
DAT 40, DAT 72, DLT VS80, DLT VS160, Ultrium 215, Ultrium 232, and Ultrium 448
tape drives.
A7445B
HP StorageWorks 1U USB Rack-Mount Kit
A8007A
1U USB Cable Option Kit
NOTE:
NOTE:NOTE:
NOTE:
Converts a 1U SCSI rack-mount kit to a USB interface to support the USB tape
drives.
396114-B21
HP StorageWorks 3U Rack-Mount Kit
NOTE:
NOTE: NOTE:
NOTE:
The 3U Rack-mount Kit can support up to (2) full-height or (4) half-height tape
drives and compatible with multiple Single-Ended and LVD SCSI tape drives including
DAT 24, DAT 40, DAT 72, DLT VS80, DLT VS160, SDLT 320, SDLT 600, Ultrium
215, Ultrium 230, Ultrium 232, Ultrium 460, Ultrium 448 and Ultrium 960 tape
drives.
274338-B22
NOTE:
NOTE:NOTE:
NOTE:
Please see the Rack-Mount Tape Drive Kits QuickSpecs for additional
information regarding these kits:
http://h18000.www1.hp.com/products/quickspecs/10854_na/10854_na.HTML
QuickSpecs
HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)
Options
DA - 12166 North America — Version 24 — August 15, 2006
Page 29
Tape Autoloaders
Tape AutoloadersTape Autoloaders
Tape Autoloaders
HP StorageWorks 1/8 Tape Autoloader
HP StorageWorks 1/8 Tape AutoloaderHP StorageWorks 1/8 Tape Autoloader
HP StorageWorks 1/8 Tape Autoloader
HP StorageWorks 1/8 Ultrium 960 Tape Autoloader
AF204A
HP StorageWorks 1/8 Ultrium 448 Tape Autoloader
AF203A
HP StorageWorks 1/8 Ultrium 232 Tape Autoloader
AF202A
1/8 Tape Autoloader Rackmount Kit
NOTE:
NOTE:NOTE:
NOTE:
Required to install the 1/8 tape autoloader in a standard 19-inch rack.
C9268R
NOTE:
NOTE:NOTE:
NOTE:
Please reference the 1/8 Tape Autoloader QuickSpecs at
http://www.hp.com/go/automation
for additional information needed to create a
complete solution; reference current compatibility information at
http://www.hp.com/go/ebs
.
Tape Libraries
Tape LibrariesTape Libraries
Tape Libraries
HP StorageWorks MSL2024 Tape Library
HP StorageWorks MSL2024 Tape LibraryHP StorageWorks MSL2024 Tape Library
HP StorageWorks MSL2024 Tape Library
HP StorageWorks MSL2024 1 Ultrium 960 Drive Library
AG115A
HP StorageWorks MSL2024 1 Ultrium 960 FC Drive Library
AG326A
HP StorageWorks MSL2024 1 Ultrium 448 Drive Library
AG116A
HP StorageWorks MSL2024 2 Ultrium 448 Drive Library
AG117A
HP StorageWorks MSL4048 Tape Library
HP StorageWorks MSL4048 Tape LibraryHP StorageWorks MSL4048 Tape Library
HP StorageWorks MSL4048 Tape Library
HP StorageWorks MSL4048 1 Ultrium 448 Drive Library
AG320A
HP StorageWorks MSL4048 2 Ultrium 448 Drive Library
AG321A
HP StorageWorks MSL4048 1 Ultrium 960 Drive Library
AG322A
HP StorageWorks MSL2024 1 Ultrium 960 FC Drive Library
AG326A
HP StorageWorks MSL4048 2 Ultrium 960 Drive Library
AG323A
HP StorageWorks MSL4048 2 Ultrium 960 FC Drive Library
AG325A
HP StorageWorks MSL6000 Tape Library
HP StorageWorks MSL6000 Tape LibraryHP StorageWorks MSL6000 Tape Library
HP StorageWorks MSL6000 Tape Library
Ultrium 960 technology
Ultrium 960 technologyUltrium 960 technology
Ultrium 960 technology
HP StorageWorks MSL6030 1 Ultrium 960 Dr LVDS Library
AD606B
HP StorageWorks MSL6030 1 Ultrium 960 Dr FC Library
AD608B
HP StorageWorks MSL6030 2 Ultrium 960 Dr LVDS Library
AD607B
HP StorageWorks MSL6030 2 Ultrium 960 Dr FC Library
AD609B
Ultrium 460 technology
Ultrium 460 technologyUltrium 460 technology
Ultrium 460 technology
HP StorageWorks MSL6030 1 Ultrium 460 Dr LVDS Library
AD598B
HP StorageWorks MSL6030 1 Ultrium 460 Dr FC Library
AD600B
HP StorageWorks MSL6030 2 Ultrium 460 Dr LVDS Library
AD599B
HP StorageWorks MSL6030 2 Ultrium 460 Dr FC Library
AD601B
NOTE:
NOTE:NOTE:
NOTE:
Please reference the MSL2024, MSL4048, and MSL6000 Tape Library
QuickSpecs at
http://www.hp.com/go/automation
for additional information needed
to create a complete solution; reference current compatibility information at
http://www.hp.com/go/ebs
.
Power Cords
Power CordsPower Cords
Power Cords
NOTE:
NOTE: NOTE:
NOTE:
The HP ProLiant DL360 G4p ships with an IEC-IEC power cord used for rack
mounting with Power Distribution Units (PDUs). For stand-alone deployments or
installation without a rack, models will ship with two power cords: IEC-IEC (142257-
002) and C13-Nema 5-15P (103541-001) cords.
QuickSpecs
HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)
Options
DA - 12166 North America — Version 24 — August 15, 2006
Page 30
HP StorageWorks
HP StorageWorksHP StorageWorks
HP StorageWorks
Modular Smart Array 20
Modular Smart Array 20Modular Smart Array 20
Modular Smart Array 20
HP StorageWorks Modular Smart Array 20
NOTE:
NOTE: NOTE:
NOTE:
Rack-mountable 12 (SATA) drive enclosure with U320 Host connectivity,
redundant power supplies.
335921-B21
HP StorageWorks Modular Smart Array 20 Starter Kit
NOTE:
NOTE: NOTE:
NOTE:
Rack-mountable 12 (SATA) drive enclosure with U320 Host connectivity,
redundant power supplies. Includes Smart Array 6402/128 Controller.
366172-B21
NOTE:
NOTE:NOTE:
NOTE:
The Modular Smart Array Enclosure 20 Family supports the SATA 1.5Gb/s
3.5”
Hot Plug Hard Drives.
HP StorageWorks
HP StorageWorksHP StorageWorks
HP StorageWorks
Modular Smart Array 30
Modular Smart Array 30Modular Smart Array 30
Modular Smart Array 30
HP StorageWorks Modular Smart Array 30 SB
NOTE:
NOTE:NOTE:
NOTE:
Rack-mountable 14 drive enclosure with single bus, redundant power supplies
302969-B21
HP StorageWorks Modular Smart Array 30 DB
NOTE:
NOTE:NOTE:
NOTE:
Rack-mountable 14 drive enclosure with dual bus, redundant power supplies
302970-B21
NOTE:
NOTE: NOTE:
NOTE:
The Modular Smart Array Enclosure 30 Family supports the Wide Ultra3,
Ultra320 Hot Plug Hard Drives.
HP StorageWorks
HP StorageWorksHP StorageWorks
HP StorageWorks
Modular Smart Array 50
Modular Smart Array 50Modular Smart Array 50
Modular Smart Array 50
HP StorageWorks Modular Smart Array 50 Enclosure
364430-B21
NOTE:
NOTE:NOTE:
NOTE:
Supported by the SAS Models only.
NOTE:
NOTE:NOTE:
NOTE:
Please see the Modular Smart Array 50 QuickSpecs for additional information
including configuration steps and additional options needed for a complete solution
at:
http://h18000.www1.hp.com/products/quickspecs/12245_na/12245_na.HTML
HP StorageWorks
HP StorageWorksHP StorageWorks
HP StorageWorks
Modular Smart Array 500
Modular Smart Array 500Modular Smart Array 500
Modular Smart Array 500
HP StorageWorks Modular Smart Array 500 Generation 2
335880-B21
NOTE:
NOTE: NOTE:
NOTE:
Please see the Modular Smart Array 500 Generation 2 QuickSpecs for
additional information including configuration steps and additional options needed
for a complete solution at:
http://h18000.www1.hp.com/products/quickspecs/11956_na/11956_na.HTML
HP StorageWorks
HP StorageWorksHP StorageWorks
HP StorageWorks
Modular Smart Array
Modular Smart ArrayModular Smart Array
Modular Smart Array
1000
10001000
1000
HP StorageWorks Modular Smart Array 1000
201723-B22
NOTE:
NOTE: NOTE:
NOTE:
Please see the Modular Smart Array 1000 QuickSpecs for additional options
and configuration information at
http://h18000.www1.hp.com/products/quickspecs/11033_na/11033_na.HTML
HP StorageWorks
HP StorageWorksHP StorageWorks
HP StorageWorks
Modular Smart Array
Modular Smart ArrayModular Smart Array
Modular Smart Array
1500 cs
1500 cs1500 cs
1500 cs
Modular Smart Array 1500 Controller Shelf
AA986A
NOTE:
NOTE:NOTE:
NOTE:
Please see the StorageWorks Modular SAN Array 1500 cs QuickSpecs for
additional options and configuration information at:
http://www.hp.com/go/MSA1500cs
QuickSpecs
HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)
Options
DA - 12166 North America — Version 24 — August 15, 2006
Page 31
StorageWorks Options
StorageWorks OptionsStorageWorks Options
StorageWorks Options
NOTE:
NOTE:NOTE:
NOTE:
The following is a list of all Fibre Channel Host Bus Adapters for Windows and
Linux. For detailed compatibility information please see:
http://h18006.www1.hp.com/storage/saninfrastructure/hba.html
StorageWorks 2 Gb, 64-bit/133 MHz PCI-X-to-Fibre Channel Host Bus Adapter for
Windows, Linux and Netware
281541-B21
StorageWorks 2 Gb, Dual Port, 64-Bit/133 MHz PCI-X-to-Fibre Channel Host Bus
Adapter Windows, Linux and Netware
321835-B21
HP StorageWorks 2 Gb, single channel, 133 MHz PCI-X-to-Fibre Channel Host Bus
Adapter Windows and Linux
A7388A
HP StorageWorks 2 Gb, dual channel, 133 MHz PCI-X-to-Fibre Channel Host Bus
Adapter Windows and Linux
A7387A
HP StorageWorks FC2142SR 4Gb PCI-E HBA for Windows and Linux
A8002A
HP StorageWorks FC2242SR Dual Channel 4 Gb PCI-E HBA for Windows and Linux
A8003A
HP StorageWorks FC1142SR 4Gb PCI-E HBA for Windows and Linux
AE311A
HP StorageWorks FC1242SR Dual Channel 4 Gb PCI-E HBA for Windows and Linux
AE312A
HP StorageWorks FC2143 4Gb PCI-X 2.0 HBA for Windows and Linux
AD167A
HP StorageWorks FC2243 4Gb PCI-X 2.0 DC HBA for Windows and Linux
AD168A
HP Storageworks FC1143 4Gb PCI-X 2.0 HBA
AB429A
HP Storageworks FC1243 4Gb PCI-X 2.0 DC HBA
AE369A
Cluster Options
Cluster OptionsCluster Options
Cluster Options
ProLiant Cluster Starter Kit
364023-B21
NOTE:
NOTE: NOTE:
NOTE:
For additional information regarding the ProLiant Cluster Starter Kit please see
the following QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/11935_na/11935_na.html
HP HA/F200 for Entry SAN Cluster
364026-B22
NOTE:
NOTE:NOTE:
NOTE:
For additional information regarding the ProLiant Cluster for Entry Level SAN
please see the following QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/11932_na/11932_na.html
ProLiant Cluster HA/F500 for the Enterprise SAN
364024-B21
NOTE:
NOTE: NOTE:
NOTE:
For additional information regarding the ProLiant Cluster HA/F500 for
Enterprise SAN please see the following QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/11933_na/11933_na.html
HP Serviceguard for Linux ProLiant Cluster A.11.16 for SUSE SLES 9 and Red Hat EL
& 4 (2 node license cluster kit)
305199-B26
HP Serviceguard for Linux A.11.16 for SUSE SLES9 and Red Hat EL 3 & 4 (single
license version)
307754-B26
HP Serviceguard for Linux and Red Hat Global File System - 1 year subscription
T2798AA#001
HP Serviceguard for Linux and Red Hat Global File System - 3 years subscription
T2798AA#003
NOTE:
NOTE:NOTE:
NOTE:
For additional information regarding HP Serviceguard for Linux, please see
the following QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/11518_na/11518_na.html
QuickSpecs
HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)
Options
DA - 12166 North America — Version 24 — August 15, 2006
Page 32
Uninterruptible Power
Uninterruptible PowerUninterruptible Power
Uninterruptible Power
Systems – Rack
Systems – RackSystems – Rack
Systems – Rack
Mountable
MountableMountable
Mountable
HP UPS R1500 XR (1440VA, 1340 Watt), Low Voltage
204404-001
HP, R1.5kVA UPS, 1U
AF419A
HP UPS R3000 XR (2880VA, 2700 Watt), Low Voltage
192186-001
HP UPS R3000 XR (3000VA, 2700 Watt), High Voltage
192186-002
HP UPS R3000 XR (3000VA, 2700 Watt), High Voltage (16A IEC309 Plug)
192186-B32
HP UPS R3000 XR (3000VA, 2700 Watt), High Voltage (16A CEE 7/7 SCHUKO
Plug)
192186-B33
HP UPS R3000 XR (3000VA, 2700 Watt), High Voltage (16A BS-546 Plug)
192186-AR1
HP R3000 VA UPS, 2U, L5-30
NOTE:
NOTE:NOTE:
NOTE:
Replaces non-RoHs compliant part number 192186-001.
AF422A
HP R3000 VA UPS, 2U, L6-20
NOTE:
NOTE:NOTE:
NOTE:
Replaces non-RoHs compliant part number 192186-002.
AF423A
HP UPS R5500 XR, (5000VA, 4500 Watt), High Voltage
326529-D71
HP R5500 VA UPS
NOTE:
NOTE:NOTE:
NOTE:
Replaces non-RoHs compliant part number 326529-D71.
AF426A
HP Monitored Power
HP Monitored PowerHP Monitored Power
HP Monitored Power
Distribution Unit
Distribution Unit Distribution Unit
Distribution Unit
(PDU)
HP Monitored Power Distribution Unit: Full Rack Version
HP Monitored Power Distribution Unit: Full Rack VersionHP Monitored Power Distribution Unit: Full Rack Version
HP Monitored Power Distribution Unit: Full Rack Version
HP 17.3 kVA S2324 Monitored PDU- dual input, 3-phase, 24A
370959-D71
HP 8.3 kVA S1324 Monitored PDU- single input, 3-phase, 24A
370960-D71
HP 16.6 kVA S2140 Monitored PDU- dual input, 1-phase, 40A
370961-D71
HP 8.6 S1140 Monitored PDU- single input, 1-phase, 40A
370962-D71
HP 17.3 kVA S2324 Monitored PDU- dual input, 3U, 24A
NOTE:
NOTE:NOTE:
NOTE:
Replaces non-RoHs compliant part number 370959-D71.
AF503A
HP 8.3 kVA S1324 Monitored PDU- single input, 3U, 24A
NOTE:
NOTE:NOTE:
NOTE:
Replaces non-RoHs compliant part number 370960-D71.
AF504A
HP 16.6 kVA S2140 Monitored PDU- dual input, 1U, 40A
NOTE:
NOTE:NOTE:
NOTE:
Replaces non-RoHs compliant part number 37061-D71.
AF505A
HP 8.6 S1140 Monitored PDU- single input, 1U, 40A
NOTE:
NOTE: NOTE:
NOTE:
Replaces non-RoHs compliant part number 370962-D71.
AF506A
QuickSpecs
HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)
Options
DA - 12166 North America — Version 24 — August 15, 2006
Page 33
Modular PDUs 1U/0U
Modular PDUs 1U/0UModular PDUs 1U/0U
Modular PDUs 1U/0U
(Up to 32 outlets)
NOTE:
NOTE: NOTE:
NOTE:
1U/0U mounting
brackets shipped with
the unit (optimized for
10000 and 9000 series
racks).
Fixed Cord Extension Bars
NOTE:
NOTE:NOTE:
NOTE:
Two extension bar sticks; each with (7) C13 plugs.
351655-B21
Fixed Cord PDU
NOTE:
NOTE: NOTE:
NOTE:
Four Fixed Cord Extension Bars, and one 24A, HV mPDU L6-30P core.
351655-D72
HP Modular Power Distribution Units (mPDU), Low Volt Model, 24A (100-127 VAC)
NOTE:
NOTE: NOTE:
NOTE:
This mPDU (252663-D71) may also be used to connect the low volt model of
the UPS R3000 XR.
252663-D71
HP Modular Power Distribution Units (mPDU), High Volt Model, 24A (200-240 VAC)
252663-D72
HP Modular Power Distribution Units (mPDU), High Volt Model, 40A (200-240 VAC)
NOTE:
NOTE: NOTE:
NOTE:
This mPDU (252663-B21), 40A model has a hardwired input.
252663-B21
HP Modular Power Distribution Unit (mPDU), High Volt Model, 16A (200-240 VAC)
252663-B24
HP Modular Power Distribution Unit (mPDU), High Volt Model, 40A, Attached Cord
252663-D73
NOTE:
NOTE: NOTE:
NOTE:
This PDU has a detachable input power cord and allows for adaptability to
country specific power requirements. This model may also be used with the high volt
UPSs R3000 XR and R6000 - need to order cable PN 340653-001.
NOTE:
NOTE: NOTE:
NOTE:
Please see the following Modular Power Distribution Unit (Zero-U/1U
Modular PDUs) QuickSpecs for additional options including shorter jumper cables
and country specific power cords:
http://h18000.www1.hp.com/products/quickspecs/11041_na/11041_na.HTML
USB Options
USB OptionsUSB Options
USB Options
HP USB 2-Button Optical Scroll Mouse (Carbonite/Silver)
DC172B
USB 1.44-MB External Diskette Drive (Carbonite)
DC141B
HP ProLiant DL360 G4p
HP ProLiant DL360 G4pHP ProLiant DL360 G4p
HP ProLiant DL360 G4p
Deployment Options
Deployment OptionsDeployment Options
Deployment Options
460W HP redundant power supply with IEC cord only
354587-B21
460W HP redundant power supply with NEMA cord only
NOTE:
NOTE:NOTE:
NOTE:
The HP ProLiant DL360 G4p ships with a single IEC-IEC power cord used for
rack mounting with Power Distribution Units (PDUs). For stand-alone deployments or
installation without a rack, models ship with two power cords: IEC-IEC and NEMA
cords.
354587-001
535W HP redundant power supply with IEC cord only
389830-B21
535W HP redundant power supply with NEMA cord only
NOTE:
NOTE:NOTE:
NOTE:
The HP ProLiant DL360 G4p ships with an IEC-IEC power cord used for rack
mounting with Power Distribution Units (PDUs). For stand-alone deployments or
installation without a rack models ship with two power cords: IEC-IEC and NEMA
cords.
389830-001
Rack Kits
Rack KitsRack Kits
Rack Kits
1U Cable Management Arm
NOTE:
NOTE:NOTE:
NOTE:
Package contains two cable management arms.
365403-B21
QuickSpecs
HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)
Options
DA - 12166 North America — Version 24 — August 15, 2006
Page 34
HP Rack 5000 Series
HP Rack 5000 SeriesHP Rack 5000 Series
HP Rack 5000 Series
(Graphite Metallic)
HP 5642 Rack Unassembled
358254-B21
NOTE:
NOTE:NOTE:
NOTE:
Please see the HP Rack 5642 QuickSpecs for additional part numbers and
Technical Specifications such as height, width, depth, weight, and color:
http://h18000.www1.hp.com/products/quickspecs/12074_div/12074_div.HTML
(Worldwide)
NOTE:
NOTE:NOTE:
NOTE:
For additional information regarding Rack Cabinets, please see the following
URL:
http://www.hp.com/go/rackandpower
.
HP Rack 10000 G2
HP Rack 10000 G2HP Rack 10000 G2
HP Rack 10000 G2
Series
SeriesSeries
Series
(Carbon/Graphite
Metallic)
10642 G2 (42U) Rack Cabinet - Pallet
AF001A
10642 G2 (42U) Rack Cabinet - Shock Pallet
AF002A
10642 G2 (42U) Rack Cabinet - Crated
AF003A
10642 G2 (42U) Rack Cabinet, with Extension - Shock Pallet
AF004A
10642 G2 (42U) Rack Cabinet, without door - Shock Pallet
AF005A
10642 G2 (42U) Rack Cabinet - with Extension, without door - Shock Pallet
AF006A
10636 G2 (36U) Rack Cabinet - Pallet
AF011A
10636 G2 (36U) Rack Cabinet - Shock Pallet
AF012A
10636 G2 (36U) Rack Cabinet - Crated
AF013A
10636 G2 (36U) Rack Cabinet , with Extension - Shock Pallet
AF014A
10636 G2 (36U) Rack Cabinet, without door - Shock Pallet
AF015A
10636 G2 (36U) Rack Cabinet, with Extension, without door - Shock Pallet
AF016A
NOTE:
NOTE:NOTE:
NOTE:
It is mandatory to use a shock pallet when shipping racks with equipment
installed.
NOTE:
NOTE:NOTE:
NOTE:
Please see the Rack 10000 G2 QuickSpecs for Technical Specifications such
as height, width, depth, weight, and color:
http://h18000.www1.hp.com/products/quickspecs/12402_na/12402_na.HTML
NOTE:
NOTE:NOTE:
NOTE:
For additional information regarding Rack Cabinets, please see the following
URL:
http://www.hp.com/go/rackandpower
.
HP Rack 10000 Series
HP Rack 10000 SeriesHP Rack 10000 Series
HP Rack 10000 Series
(Graphite Metallic)
10642 (42U) Infrastructure Rack (Low Voltage)
379006-001
10642 (42U) Infrastructure Rack (High Voltage)
379005-001
HP Rack S10614 (14U) Rack Cabinet - Shock Pallet
292302-B22
HP Rack 10842 (42U, 800mm wide) – Pallet
257415-B21
HP Rack 10842 (42U, 800mm wide) – Shock Pallet
257415-B22
HP Rack 10647 (47U) – Pallet
245160-B21
HP Rack 10647 (47U) – Crated
245160-B23
HP Rack 10642 (42U) – Pallet
245161-B21
HP Rack 10642 (42U) – Shock Pallet
245161-B22
HP Rack 10642 (42U) – Crated
245161-B23
HP Rack 10636 (36U) – Pallet
245162-B21
HP Rack 10636 (36U) – Shock Pallet
245162-B22
HP Rack 10636 (36U) – Crated
245162-B23
HP Rack 10622 (22U) – Pallet
245163-B21
HP Rack 10622 (22U) – Shock Pallet
245163-B22
HP Rack 10622 (22U) – Crated
245163-B23
QuickSpecs
HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)
Options
DA - 12166 North America — Version 24 — August 15, 2006
Page 35
NOTE:
NOTE: NOTE:
NOTE:
xxxxxx-B21 (pallet) used to ship empty racks shipped on a truck. -B22 (shock
pallet) used to ship racks with equipment installed (by custom systems, VARs and
Channels). xxxxxx-B23 (crated) used for air shipments of empty racks.
NOTE
NOTENOTE
NOTE
:
It is mandatory to use a shock pallet in order to ship racks with equipment
installed. Not all HP equipment is qualified to be shipped in the Rack 10000 series
NOTE
NOTENOTE
NOTE
:
Please see the Rack 10000 QuickSpecs for Technical Specifications such as
height, width, depth, weight, and color:
http://h18000.www1.hp.com/products/quickspecs/10995_na/10995_na.HTML
NOTE:
NOTE: NOTE:
NOTE:
For additional information regarding Rack Cabinets, please see the following
URL:
http://www.hp.com/go/rackandpower
Keyboards and Monitors
Keyboards and MonitorsKeyboards and Monitors
Keyboards and Monitors
TFT7210R Rack Mounted 17" Monitor
NOTE:
NOTE:NOTE:
NOTE:
For a complete list of Monitors please view the following URL:
http://www.hp.com/go/kvm
348373-B21
TFT7600 Rackmount Keyboard Monitor
AG052A
1U Rackmount Keyboard with USB
AG072A
NOTE:
NOTE:NOTE:
NOTE:
For additional information regarding Rack Options, please see the following
URL:
http://www.hp.com/go/rackandpower
HP KVM Switch Options
HP KVM Switch OptionsHP KVM Switch Options
HP KVM Switch Options
2x1x16 IP Console Switch with Virtual Media
AF601A
4x1x16 IP Console Switch with Virtual Media
AF602A
2x16 Server Console Switch with Virtual Media
AF600A
PS/2 Virtual Media Interface Adapter, 1 pack
NOTE:
NOTE:NOTE:
NOTE:
Requires PS/2 and one USB port on server.
AF604A
Server Console Switch (KVM), 0 x 1 x 8 port
336044-B21
Server Console Switch (KVM), 0 x 2 x 16 port
336045-B21
PS/2 Interface Adapter, 1 pack
262588-B21
PS/2 Interface Adapter, 8 pack
262587-B21
USB Interface Adapter, 1 pack
336047-B21
Serial Interface adapter - 1 Pack with power supply
373035-B21
NOTE:
NOTE:NOTE:
NOTE:
Cat5e cables are required to connect Interface Adapters to Console Switches.
Cat5e cables can be found at the following URL:
http://www.hp.com/go/kvm
.
HP 1x 4 USB/PS2 KVM Switch, TT
371301-D71
HP 1x 4 USB/PS2 KVM Switch, RM
371302-B21
HP PS2 KVM Cable with audio, 6', 2-pack
371730-B21
HP USB KVM Cable with audio, 6', 2-pack
371729-B21
NOTE:
NOTE:NOTE:
NOTE:
For additional information regarding KVM switches, Serial Console servers,
rack mount monitors, keyboards and all related options please see the following URL:
http://www.hp.com/go/kvm
.
QuickSpecs
HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)
Options
DA - 12166 North America — Version 24 — August 15, 2006
Page 36
HP Serial Console Server
HP Serial Console ServerHP Serial Console Server
HP Serial Console Server
Options
OptionsOptions
Options
HP 16 Port Serial Console Server
AF101A
HP 48 Port Serial Console Server
AF102A
Serial Adapter, RJ45-DB9 DCE Female, 1 Pack
AF103A
Serial Adapter, RJ45-DB9 DCE Female, 8 Pack
AF110A
NOTE:
NOTE:NOTE:
NOTE:
Cat5e cables are required to connect Serial Adapters to Serial Console
Servers. Additional Serial Adapters and Cat5e cables can be found at the following
URL:
http://www.hp.com/go/kvm
.
NOTE:
NOTE:NOTE:
NOTE:
For additional information regarding KVM switches, Serial Console servers,
rack mount monitors, keyboards and all related options please see the following URL:
http://www.hp.com/go/kvm
.
Service and Support
Service and SupportService and Support
Service and Support
Offerings
Offerings Offerings
Offerings
(HP Care Pack
Services)
Hardware Services 4-Hour On-site Service
Hardware Services 4-Hour On-site ServiceHardware Services 4-Hour On-site Service
Hardware Services 4-Hour On-site Service
4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic
U4496E
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
U4497E
Hardware Services 6-Hour Call to Repair On-site Service
Hardware Services 6-Hour Call to Repair On-site ServiceHardware Services 6-Hour Call to Repair On-site Service
Hardware Services 6-Hour Call to Repair On-site Service
6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years,
Electronic
U4498E
Hardware Services Next Business Day On-Site Service
Hardware Services Next Business Day On-Site ServiceHardware Services Next Business Day On-Site Service
Hardware Services Next Business Day On-Site Service
Hardware Installation, Electronic
U4506E
Installation & Start-Up of a ProLiant server and Microsoft or Linux O/S per the
Customer Description and/or Data Sheet. To be delivered on a scheduled basis 8am-
5pm, M-F, excl. HP holidays, Electronic
U4507E
Support Plus
Support PlusSupport Plus
Support Plus
Onsite HW support, 8am-9pm, M-F, 4hr response and Microsoft O/S SW Tech
support offsite, onsite at HP's discretion, 8am-9pm, M-F 2hr response time excl. HP
holidays, Electronic
U4508E
Support Plus 24
Support Plus 24Support Plus 24
Support Plus 24
Onsite HW support 24x7, 4hr response and Microsoft O/S SW Tech support offsite,
onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
U4509E
Onsite HW support 24x7, 4hr response and SuSE Linux SW Tech support offsite,
onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
U6310E
Onsite HW support 24x7, 4hr response and Red Hat ES Linux SW Tech support
offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
U8332E
NOTE:
NOTE: NOTE:
NOTE:
For more information, customer/resellers can contact
http://www.hp.com/services/carepack
.
QuickSpecs
HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)
Options
DA - 12166 North America — Version 24 — August 15, 2006
Page 37
NOTE:
NOTE: NOTE:
NOTE:
Memory configurations listed do not apply to "Factory Integrated Models".
HP ProLiant DL360 G4p Standard Models
HP ProLiant DL360 G4p Standard ModelsHP ProLiant DL360 G4p Standard Models
HP ProLiant DL360 G4p Standard Models
Standard Memory
Standard MemoryStandard Memory
Standard Memory
1 GB PC2-3200 DDR2 400 Registered SDRAM DIMM installed (2 x 512 MB SDRAM DIMM)
Upgrading Memory and Memory Interleaving
Upgrading Memory and Memory InterleavingUpgrading Memory and Memory Interleaving
Upgrading Memory and Memory Interleaving
When upgrading memory, DIMMs 1A and 2A must match. DIMMs 3B and 4B, and DIMMs 5C and 6C must match and must be
installed as a pair. When DIMMs 1A and 2A are populated the system is automatically configured for 2:1 interleaving. When four or
six DIMMs are populated with identical DIMMs the system is automatically configured for bank interleaving.
Standard Memory Plus Optional Memory
Standard Memory Plus Optional MemoryStandard Memory Plus Optional Memory
Standard Memory Plus Optional Memory
Up to 9 GB memory is available with the standard memory of 1 GB and the optional installation of PC2-3200 DDR2 400
Registered SDRAM DIMM memory kits.
Standard Memory Replaced with Optional Memory
Standard Memory Replaced with Optional MemoryStandard Memory Replaced with Optional Memory
Standard Memory Replaced with Optional Memory
Up to 12 GB of memory is available with the removal of the standard 512 MB of memory and the optional installation of PC2-3200
DDR2 400 Registered SDRAM DIMM memory kits.
NOTE:
NOTE: NOTE:
NOTE:
Chart does not represent all possible configurations.
Memory
MemoryMemory
Memory
Slot
SlotSlot
Slot
1
11
1 2
22
2 3
33
3 4
44
4 5
55
5 6
66
6
Standard
StandardStandard
Standard
1 GB
1 GB1 GB
1 GB
512 MB
512 MB512 MB
512 MB 512 MB
512 MB512 MB
512 MB
Empty
EmptyEmpty
Empty Empty
EmptyEmpty
Empty Empty
EmptyEmpty
Empty Empty
EmptyEmpty
Empty
Optional
OptionalOptional
Optional
9 GB
9 GB9 GB
9 GB
512 MB
512 MB512 MB
512 MB 512 MB
512 MB512 MB
512 MB
2 GB
2 GB2 GB
2 GB 2 GB
2 GB2 GB
2 GB 2 GB
2 GB2 GB
2 GB 2 GB
2 GB2 GB
2 GB
Maximum
MaximumMaximum
Maximum
12 GB
12 GB12 GB
12 GB
2 GB
2 GB2 GB
2 GB 2 GB
2 GB2 GB
2 GB 2 GB
2 GB2 GB
2 GB 2 GB
2 GB2 GB
2 GB 2 GB
2 GB2 GB
2 GB 2 GB
2 GB2 GB
2 GB
NOTE:
NOTE:NOTE:
NOTE:
In the online spare configuration, the ROM automatically configures the last populated bank as the spare memory. If only
banks A and B are populated, bank B is the spare bank. If banks A, B, and C are populated, bank C is the spare bank, Online spare
memory is configured through RBSU.
Following are memory options available from HP:
1 GB Advanced ECC PC2-3200 DDR2 SDRAM DIMM Memory Kit (2 x 512 MB)
343055-B21
2 GB Advanced ECC PC2-3200 DDR2 SDRAM DIMM Memory Kit (2 x 1 GB)
343056-B21
4 GB Advanced ECC PC2-3200 DDR2 SDRAM DIMM Single Rank Memory Kit (2 x 2 GB)
343057-B21
4 GB Advanced ECC PC2-3200 DDR2 SDRAM DIMM Dual Rank Memory Kit (2 x 2 GB)
375004-B21
QuickSpecs
HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)
Memory
DA - 12166 North America — Version 24 — August 15, 2006
Page 38
HP ProLiant DL360 G4p RPS Models
HP ProLiant DL360 G4p RPS ModelsHP ProLiant DL360 G4p RPS Models
HP ProLiant DL360 G4p RPS Models
Standard Memory
Standard MemoryStandard Memory
Standard Memory
2 GB PC3200 DDR 400 Registered SDRAM DIMM installed (2 x 1 GB SDRAM DIMM)
Upgrading Memory and Memory Interleaving
Upgrading Memory and Memory InterleavingUpgrading Memory and Memory Interleaving
Upgrading Memory and Memory Interleaving
When upgrading memory, DIMMs 1A and 2A must match. DIMMs 3B and 4B, and DIMMs 5C and 6C must match and must be
installed as a pair. When DIMMs 1A and 2A are populated the system is automatically configured for 2:1 interleaving. When four or
six DIMMs are populated with identical DIMMs the system is automatically configured for bank interleaving.
S
tandard Memory Plus Optional Memory
tandard Memory Plus Optional Memorytandard Memory Plus Optional Memory
tandard Memory Plus Optional Memory
Up to 10 GB memory is available with the standard memory of 2 GB and the optional installation of PC2-3200 DDR2 400
Registered SDRAM DIMM memory kits.
Standard Memory Replaced with Optional Memory
Standard Memory Replaced with Optional MemoryStandard Memory Replaced with Optional Memory
Standard Memory Replaced with Optional Memory
Up to 12 GB of memory is available with the removal of the standard 1 GB of memory and the optional installation of PC2-3200
DDR2 400 Registered SDRAM DIMM memory kits.
NOTE:
NOTE:NOTE:
NOTE:
Chart does not represent all possible configurations.
Memory
MemoryMemory
Memory
Slot
SlotSlot
Slot
1
11
1 2
22
2 3
33
3 4
44
4 5
55
5 6
66
6
Standard
StandardStandard
Standard
2 GB
2 GB2 GB
2 GB 1 GB
1 GB1 GB
1 GB 1 GB
1 GB1 GB
1 GB
Empty
EmptyEmpty
Empty Empty
EmptyEmpty
Empty Empty
EmptyEmpty
Empty Empty
EmptyEmpty
Empty
Optional
OptionalOptional
Optional
10 GB
10 GB10 GB
10 GB
1 GB
1 GB1 GB
1 GB 1 GB
1 GB1 GB
1 GB 2 GB
2 GB2 GB
2 GB 2 GB
2 GB2 GB
2 GB 2 GB
2 GB2 GB
2 GB 2 GB
2 GB2 GB
2 GB
Maximum
MaximumMaximum
Maximum
12 GB
12 GB12 GB
12 GB
2 GB
2 GB2 GB
2 GB 2 GB
2 GB2 GB
2 GB 2 GB
2 GB2 GB
2 GB 2 GB
2 GB2 GB
2 GB 2 GB
2 GB2 GB
2 GB 2 GB
2 GB2 GB
2 GB
NOTE:
NOTE:NOTE:
NOTE:
In the online spare configuration, the ROM automatically configures the last populated bank as the spare memory. If only
banks A and B are populated, bank B is the spare bank. If banks A, B, and C are populated, bank C is the spare bank, Online spare
memory is configured through RBSU.
Following are memory options available from HP:
1 GB Advanced ECC PC2-3200 DDR2 SDRAM DIMM Memory Kit (2 x 512 MB)
343055-B21
2 GB Advanced ECC PC2-3200 DDR2 SDRAM DIMM Memory Kit (2 x 1 GB)
343056-B21
4 GB Advanced ECC PC2-3200 DDR2 SDRAM DIMM Single Rank Memory Kit (2 x 2 GB)
343057-B21
4 GB Advanced ECC PC2-3200 DDR2 SDRAM DIMM Dual Rank Memory Kit (2 x 2 GB)
375004-B21
NOTE:
NOTE:NOTE:
NOTE:
Online Spare Memory is not supported when using 2-rank DIMMs. A total of 8 ranks are supported on the HP ProLiant
DL360 G4p, A maximum of 4, 2-rank DIMMs can be populated. If you plan to mix DIMM types, 2-rank DIMMs must be installed in
the first bank, 1 rank DIMMs can then be installed in subsequent banks.
The following is the memory population rules for the HP ProLiant ProLiant DL360 G4p.
Key:
Key:Key:
Key:
S denotes single rank kit, D denotes Dual rank kit, and X denotes no install.
Bank A
Bank ABank A
Bank A
Bank B
Bank BBank B
Bank B
Bank C
Bank CBank C
Bank C
NOTES:
NOTES:NOTES:
NOTES:
S
X X
S S
X
S S S
D
X X
Online spare not supported
D
S
X
Online spare not supported
D
S S
Online spare not supported
D D
X
Online spare not supported
QuickSpecs
HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)
Memory
DA - 12166 North America — Version 24 — August 15, 2006
Page 39
1,0
Two Ultra320 Hot Pluggable Hard Drive Bays;
SATA model also available
A
1.44-MB Diskette Drive (removeable)
B
Low-Profile 24x IDE CD-ROM (ejectable)
1,2,3,4
Four SSF Serial Attached SCSI Hot Pluggable Hard
Drive Bays
A
Multibay: Slimline 24x CD-ROM (ejectable)
Drive Support - SAS Models
Drive Support - SAS ModelsDrive Support - SAS Models
Drive Support - SAS Models
Quantity
QuantityQuantity
Quantity
Supported
SupportedSupported
Supported
Position
PositionPosition
Position
Supported
SupportedSupported
Supported
Controller
ControllerController
Controller
Removable Media
Removable MediaRemovable Media
Removable Media
Slimline 1.44-MB Diskette
Drive
Up to 1
A
Integrated
Slimline 24x IDE CD-ROM
Drive
Up to 1
A
Integrated IDE
Slimline DVD-Rom Drive
(8x/24x) Option Kit
(Servers)
Up to 1
A
Integrated IDE
Drive Support - SCSI Models
Drive Support - SCSI ModelsDrive Support - SCSI Models
Drive Support - SCSI Models
Quantity
QuantityQuantity
Quantity
Supported
SupportedSupported
Supported
Position
PositionPosition
Position
Supported
SupportedSupported
Supported
Controller
ControllerController
Controller
Removable Media
Removable MediaRemovable Media
Removable Media
1.44-MB Diskette Drive
Up to 1
A
Integrated
Slimline 24x IDE CD-ROM
Drive
Up to 1
B
Integrated IDE
Slimline DVD-Rom Drive
(8x/24x) Option Kit
(Servers)
Up to 1
B
Integrated IDE
QuickSpecs
HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)
Storage
DA - 12166 North America — Version 24 — August 15, 2006
Page 40
Hard Drives
Hard DrivesHard Drives
Hard Drives
Ultra320 Hot Pluggable Drives
Ultra320 Hot Pluggable DrivesUltra320 Hot Pluggable Drives
Ultra320 Hot Pluggable Drives
NOTE:
NOTE: NOTE:
NOTE:
The HP ProLiant DL360 G4p only supports U320 Universal drives.
Quantity
QuantityQuantity
Quantity
Supported
SupportedSupported
Supported
Position
PositionPosition
Position
Supported
SupportedSupported
Supported
Controller
ControllerController
Controller
300GB U320 10K
146.8GB U320 10K
72.8GB U320 10K
300GB U320 15K
146.8GB U320 15K
72.8GB U320 15K
36.4GB U320 15K
Up to 2
0-1
Smart Array 6i Controller (integrated on system board)
NOTE:
NOTE:NOTE:
NOTE:
The HP ProLiant DL360 G4p does not offer an external SCSI
port.
Smart Array 6402/128 Controller
Smart Array 6404/256 Controller
Smart Array 642 Controller
64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2
SAS Hard Drive
SAS Hard DriveSAS Hard Drive
SAS Hard Drive
Quantity
QuantityQuantity
Quantity
Supported
SupportedSupported
Supported
Position
PositionPosition
Position
Supported
SupportedSupported
Supported
Controller
ControllerController
Controller
2.5-inch
2.5-inch2.5-inch
2.5-inch
36 GB 10,000 rpm
72 GB 10,000 rpm
4
1-4
Smart Array P600 Controller
Serial-ATA (SATA) Hard Drive
Serial-ATA (SATA) Hard DriveSerial-ATA (SATA) Hard Drive
Serial-ATA (SATA) Hard Drive
NOTE:
NOTE: NOTE:
NOTE:
The HP embedded 2 Port SATA controller does not support RAID, hot plug drive functionality or drive activity LEDs.
Quantity
QuantityQuantity
Quantity
Supported
SupportedSupported
Supported
Position
PositionPosition
Position
Supported
SupportedSupported
Supported
Controller
ControllerController
Controller
80GB 1.5G SATA 7.2K
160GB 1.5G SATA 7.2K
250GB 1.5G SATA 7.2K
500GB 1.5G SATA 7.2K
Up to 2
0-1
HP embedded 2 Port SATA Controller with RAID 0/1 support
60GB 1.5G SATA 5.4K
Up to 2
0-1
HP embedded 2 Port SATA Controller with RAID 0/1 support
External Storage
External StorageExternal Storage
External Storage
Quantity
QuantityQuantity
Quantity
Supported
SupportedSupported
Supported
Position
PositionPosition
Position
Supported
SupportedSupported
Supported
Host Controller or Adapter
Host Controller or AdapterHost Controller or Adapter
Host Controller or Adapter
Modular Smart Array 20
Family
Please see the
Modular Smart
Array 20
QuickSpecs to
determine
configuration
requirements
External
Smart Array 6402/128 Controller
Smart Array 6404/256 Controller
Smart Array 642 Controller
64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2
Modular Smart Array 30
Family
Please see the
Modular Smart
Array 30
QuickSpecs to
determine
configuration
requirements.
External
Smart Array 6402/128 Controller
Smart Array 6404/256 Controller
Smart Array 642 Controller
64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2
QuickSpecs
HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)
Storage
DA - 12166 North America — Version 24 — August 15, 2006
Page 41
Modular Smart Array 50
Enclosure
2
External
HP Smart Array P600 Controller
Modular Smart Array 500
G2 System
1
External
Smart Array 642 Controller (used as Host Bus Adapter)
Please see the Modular Smart Array 500 G2 QuickSpecs for the
latest list of supported HBAs:
http://www.hp.com/go/msa500
Modular Smart Array
1500 cs
Please see the
Modular Smart
Array 1500 cs
QuickSpecs
below to
determine
configuration
requirements
External
Please see the Modular Smart Array 1500 cs QuickSpecs (URL
below) for the latest list of supported HBAs
Modular Smart Array
1000
Please see the
Modular Smart
Array 1000
QuickSpecs
below to
determine
configuration
requirements
External
Please see the Modular Smart Array 1000 QuickSpecs (URL below)
for the latest list of supported HBAs
Modular Smart Array 1000:
http://h18000.www1.hp.com/products/quickspecs/11033_na/11033_na.HTML
Modular Smart Array 1500 cs:
http://www.hp.com/go/MSA1500cs
Tape Drives, Tape Autoloaders, & Tape Libraries
Tape Drives, Tape Autoloaders, & Tape LibrariesTape Drives, Tape Autoloaders, & Tape Libraries
Tape Drives, Tape Autoloaders, & Tape Libraries
NOTE:
NOTE: NOTE:
NOTE:
For an up-to-date listing of the latest O/S Support details for each of the Tape Drives listed below, please see the following:
http://h18000.www1.hp.com/products/quickspecs/North_America/10233.html
NOTE:
NOTE:NOTE:
NOTE:
For an up-to-date listing of the latest O/S Support details for each of the Tape Autoloaders and Tape Libraries listed below,
please see the following:
http://h18000.www1.hp.com/products/quickspecs/North_America/10809.html
NOTE:
NOTE:NOTE:
NOTE:
For complete listing of tape drive offerings see
http://www.hp.com/products1/storage/compatibility/tapebackup/ISS/index.html
Quantity
QuantityQuantity
Quantity
Supported
SupportedSupported
Supported
Position
PositionPosition
Position
Supported
SupportedSupported
Supported
Controller
ControllerController
Controller
QuickSpecs
HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)
Storage
DA - 12166 North America — Version 24 — August 15, 2006
Page 42
HP StorageWorks Tape
HP StorageWorks TapeHP StorageWorks Tape
HP StorageWorks Tape
Drives, External
Drives, ExternalDrives, External
Drives, External
Ultrium 232
Ultrium 448
Ultrium 460
DAT 40
DAT 72
DLT VS80
DLT VS160
SDLT 320
Up to 2
External
64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2
HP StorageWorks Tape
HP StorageWorks TapeHP StorageWorks Tape
HP StorageWorks Tape
Drives, External
Drives, ExternalDrives, External
Drives, External
DAT 24 USB
DAT 40 USB
DAT 72 USB
Up to 2
External
USB Port
HP StorageWorks Tape
HP StorageWorks TapeHP StorageWorks Tape
HP StorageWorks Tape
Drives, External
Drives, ExternalDrives, External
Drives, External
Ultrium 960
SDLT 600
1
External
64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2
HP StorageWorks
HP StorageWorksHP StorageWorks
HP StorageWorks
Autoloaders, External
Autoloaders, ExternalAutoloaders, External
Autoloaders, External
1/8 Tape Autoloader
1 autoloader per
SCSI channel
External
64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2
HP StorageWorks Rack-
HP StorageWorks Rack-HP StorageWorks Rack-
HP StorageWorks Rack-
mount Tape Drive
mount Tape Drivemount Tape Drive
mount Tape Drive
Enclosures
EnclosuresEnclosures
Enclosures
1U Rack-Mount Kit
3U Rack-Mount Kit
5U Rack-Mount Kit
1 per SCSI
channel
External
64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2
HP StorageWorks Tape
HP StorageWorks TapeHP StorageWorks Tape
HP StorageWorks Tape
Libraries, External
Libraries, ExternalLibraries, External
Libraries, External
MSL2024 (Ultrium 448
and 960-based)
MSL4048 (Ultrium 448
and 960-based)
MSL6000 (Ultrium 960
and 460-based)
MSL6000 (SDLT 600-
based)
Please reference
the MSL Tape
Library
QuickSpecs to
determine
configuration
requirements
External
Please consult the EBS connectivity matrix at
http://www.hp.com/go/ebs
for detailed connectivity information.
QuickSpecs
HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)
Storage
DA - 12166 North America — Version 24 — August 15, 2006
Page 43
To review typical system power ratings use the Active Answers Power Calculator which is available via the online tool located at URL:
http://h30099.www3.hp.com/configurator/calc/Power%20Calculator%20Catalog.xls
To drill down to calculators:
- Click on: "ProLiant Servers"
- Click on the Server of interest. Example: DL360 G4p
- Click on: "Power Calculator" link. (You may need to scroll down to see it)
QuickSpecs
HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)
Power Specifications
DA - 12166 North America — Version 24 — August 15, 2006
Page 44
System Unit
System UnitSystem Unit
System Unit
Dimensions
Dimensions Dimensions
Dimensions
(H x W x D)
1.70 x 16.78 x 27.75 in (4.32 x 42.62 x 70.49 cm)
Weight
WeightWeight
Weight
Maximum (two hard drives
installed, two power
supply, two processor)
37 lb (16.78 kg)
No hard drives installed,
one power supply, one
processor
27.5 lb (12.47 kg)
Input Requirements
Input RequirementsInput Requirements
Input Requirements
Rated Input Voltage
100 to 240 VAC
Rated Input Current
5.85 Amps (100 V) to 2.85 Amps (200 V)
Rated Input Frequency
50 to 60 Hz
Rated Input Power
585 W (100VAC) to 565 W (200VAC)
NOTE:
NOTE:NOTE:
NOTE:
585 W of Rated Input Power is for the
Maximum Peak Output Power of
535 W.
BTU Rating
BTU RatingBTU Rating
BTU Rating
2000 BTU/HR
NOTE:
NOTE:NOTE:
NOTE:
The BTU rating
listed is for the Rated Input
Power of 585 W.
Power Specifications
Power SpecificationsPower Specifications
Power Specifications
To review typical system power ratings use the Power Calculator which is
available via the online tool located at URL:
http://h30099.www3.hp.com/configurator/calc
/Power%20Calculator%20Catalog.xls
To drill down to calculators:
- Click on: "ProLiant Servers"
- Click on the Server of interest. Example: DL360 G4p
- Click on: "Power Calculator" link. (You may need to scroll down to see it)
Power Supply Output
Power Supply OutputPower Supply Output
Power Supply Output
Power
PowerPower
Power
(per power supply)
Rated Steady-State Power
535 W
Temperature Range
Temperature RangeTemperature Range
Temperature Range
Operating
10° to 35°C at sea level with an altitude derating
of 1.0°C per every 300m (1000ft) above sea
level to a maximum of 3000m (10,000ft), no
direct sustained sunlight. Maximum rate of
change is 10°C/Hr.
Storage
-30° to 60°C - Maximum rate of change is
20°C/Hr.
Relative Humidity
Relative HumidityRelative Humidity
Relative Humidity
(non-condensing)
Operating
10 to 90% relative humidity (Rh), 28°C maximum
wet bulb temperature
Storage
5 to 95% relative humidity (Rh), 38.7°C
maximum wet bulb temperature
Maximum Wet Bulb
Maximum Wet BulbMaximum Wet Bulb
Maximum Wet Bulb
Temperature
TemperatureTemperature
Temperature
38.7° C
SCSI Connectors
SCSI ConnectorsSCSI Connectors
SCSI Connectors
No external VHDCI
connector
Acoustic Noise
Acoustic NoiseAcoustic Noise
Acoustic Noise
Idle
(Fixed Disk Drives
Spinning)
L
L L
L
WAd
WAdWAd
WAd
(BELS)
6.6
QuickSpecs
HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)
Technical Specifications
DA - 12166 North America — Version 24 — August 15, 2006
Page 45
L
L L
L
pAm
pAmpAm
pAm
(dBA)
50
Operating
(Random Seeks to Fixed
Disks)
L
L L
L
WAd
WAdWAd
WAd
(BELS)
6.9 BELS
L
L L
L
pAm
pAmpAm
pAm
(dBA)
53 dBA
Smart Array 6i Controller
Smart Array 6i ControllerSmart Array 6i Controller
Smart Array 6i Controller
(integrated on system
board)
(SCSI models)
(SCSI models)(SCSI models)
(SCSI models)
Data Compatible with all
Data Compatible with allData Compatible with all
Data Compatible with all
Smart Array Controllers
Smart Array ControllersSmart Array Controllers
Smart Array Controllers
Yes
Instant Upgrades to other
Instant Upgrades to otherInstant Upgrades to other
Instant Upgrades to other
Smart Array Controllers
Smart Array ControllersSmart Array Controllers
Smart Array Controllers
Yes
Consistent Software
Consistent SoftwareConsistent Software
Consistent Software
Manageability Tools
Manageability ToolsManageability Tools
Manageability Tools
Yes
PCI-X Bus
PCI-X BusPCI-X Bus
PCI-X Bus
64-bit up to 133 (integrated on system board)
PCI-X Peak Data Transfer
PCI-X Peak Data TransferPCI-X Peak Data Transfer
PCI-X Peak Data Transfer
Rate
RateRate
Rate
1066 MB/s
SCSI Protocols Supported
SCSI Protocols SupportedSCSI Protocols Supported
SCSI Protocols Supported
Ultra320, Ultra3, Ultra2
SCSI Peak Data Transfer
SCSI Peak Data TransferSCSI Peak Data Transfer
SCSI Peak Data Transfer
Rate
RateRate
Rate
320 MB/s
Channels
ChannelsChannels
Channels
1
SCSI Ports
SCSI PortsSCSI Ports
SCSI Ports
(external/internal)
0/1
Drives Supported
Drives SupportedDrives Supported
Drives Supported
(maximum)
2 drives
Cache
CacheCache
Cache
64 MB Read Cache
Battery-Backed Write
Battery-Backed WriteBattery-Backed Write
Battery-Backed Write
Cache
CacheCache
Cache
Yes, with installation of Battery-Backed Write Cache Enabler, up to 128MB
RAID Support
RAID SupportRAID Support
RAID Support
0, 1, 1+0, 5
Logical Drives
Logical DrivesLogical Drives
Logical Drives
(maximum)
32 logical drives
Online Configuration
Online ConfigurationOnline Configuration
Online Configuration
Yes
Online Capacity
Online CapacityOnline Capacity
Online Capacity
Expansion
ExpansionExpansion
Expansion
Yes
Logical Drive Capacity
Logical Drive CapacityLogical Drive Capacity
Logical Drive Capacity
Extension
ExtensionExtension
Extension
Yes
Online Stripe Size
Online Stripe SizeOnline Stripe Size
Online Stripe Size
Migration
MigrationMigration
Migration
Yes
Online RAID Level
Online RAID LevelOnline RAID Level
Online RAID Level
Migration
MigrationMigration
Migration
Yes
Online Spare Support
Online Spare SupportOnline Spare Support
Online Spare Support
Yes
Automatic Data Recovery
Automatic Data RecoveryAutomatic Data Recovery
Automatic Data Recovery
Yes
Drive Roaming
Drive RoamingDrive Roaming
Drive Roaming
Yes
QuickSpecs
HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)
Technical Specifications
DA - 12166 North America — Version 24 — August 15, 2006
Page 46
Integrated Serial ATA
Integrated Serial ATAIntegrated Serial ATA
Integrated Serial ATA
Controller
ControllerController
Controller
(SATA models)
(SATA models)(SATA models)
(SATA models)
Simultaneous drive
Simultaneous driveSimultaneous drive
Simultaneous drive
transfer channels
transfer channelstransfer channels
transfer channels
Support for up to 2 hard drives
Transfer rate synchronous
Transfer rate synchronousTransfer rate synchronous
Transfer rate synchronous
(maximum theoretical)
(maximum theoretical)(maximum theoretical)
(maximum theoretical)
150 MB/s per channel; 300MB/s in RAID 0 pair
Protocol
ProtocolProtocol
Protocol
Serial ATA
Drive support
Drive supportDrive support
Drive support
HP Universal Serial ATA
Data transfer modes
Data transfer modesData transfer modes
Data transfer modes
ATA data-transfer modes supported
SATA 1.0, SATA II
PIO modes 0-4
Multiword DMA modes 0-2
Ultra DMA modes 0-6
Feature
FeatureFeature
Feature
Supports Pre-Failure Warranty of SATA Hard Drives
Support for Systems Insight Manager
Supports multiple logical volumes
Setup through ROM based Array Configuration Utility
Installation scripting support
OS Support
OS SupportOS Support
OS Support
Microsoft Windows 2000 Server
Microsoft Windows Server 2003
Novell NetWare
Linux (Red Hat, SuSE, UnitedLinux)
NOTE:
NOTE:NOTE:
NOTE:
This controller does not support LED functions. This controller does not support Hot Plug
functions.
Smart Array P600
Smart Array P600Smart Array P600
Smart Array P600
Controller
ControllerController
Controller
(SAS models only)
(SAS models only)(SAS models only)
(SAS models only)
Disk Drive and Enclosure
Disk Drive and EnclosureDisk Drive and Enclosure
Disk Drive and Enclosure
Protocol Support
Protocol SupportProtocol Support
Protocol Support
3 Gbps SAS (Serial Attached SCSI)
1.5 Gbps SATA (Serial Advanced Technology Attachment)
Architecture
ArchitectureArchitecture
Architecture
1.5 Gb SATA
SAS Connectors
SAS ConnectorsSAS Connectors
SAS Connectors
1 internal SFF8484 & 1 external SFF8470 / internal SFF8484 shared x4
Wide SAS Ports
12 Gbps per x4 Wide SAS Port (4 x 3 Gbps)
Data Transfer Method
Data Transfer MethodData Transfer Method
Data Transfer Method
64-bit wide, PCIX 133 MHz (1 GB/s maximum bandwidth)
PCI Bus Speed
PCI Bus SpeedPCI Bus Speed
PCI Bus Speed
PCIX-133 and 3.3 volt PCI compatibility only
Memory Bus Speed
Memory Bus SpeedMemory Bus Speed
Memory Bus Speed
DDR-266 and 72 bit wide bus
PCI
PCIPCI
PCI
64-bit, 133-MHz PCI-X (1 GB/s maximum bandwidth)
Simultaneous Drive
Simultaneous DriveSimultaneous Drive
Simultaneous Drive
Transfer Ports
Transfer PortsTransfer Ports
Transfer Ports
PCI-X and 3.3 volt PCI compatibility only
Port Transfer Rate
Port Transfer RatePort Transfer Rate
Port Transfer Rate
2 x4 Wide SAS Ports
Software upgradeable
Software upgradeableSoftware upgradeable
Software upgradeable
Firmware
FirmwareFirmware
Firmware
12 Gb/s per x4 Wide SAS Port (4 x 3 Gb/s)
Cache Memory
Cache MemoryCache Memory
Cache Memory
Yes
Logical Drives Supported
Logical Drives SupportedLogical Drives Supported
Logical Drives Supported
256 MB Read/Write (512-MB module upgrade available);
ECC protection, battery-backed, and removable
Maximum Capacity
Maximum CapacityMaximum Capacity
Maximum Capacity
Up to 32 logical drives
Up to 2.2 TB per logical drive
Memory Addressing
Memory AddressingMemory Addressing
Memory Addressing
2.7 TB (38 x 72 GB)
64-bit, supporting servers memory greater than 4 GB
QuickSpecs
HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)
Technical Specifications
DA - 12166 North America — Version 24 — August 15, 2006
Page 47
RAID Support
RAID SupportRAID Support
RAID Support
RAID 6 (Advanced Data Guarding)
RAID 5 (Distributed Data Guarding)
RAID 1+0 (Striping & Mirroring)
RAID 0 (Striping)
Upgradeable Firmware
Upgradeable FirmwareUpgradeable Firmware
Upgradeable Firmware
Disk Drive and
Disk Drive andDisk Drive and
Disk Drive and
4-MB flashable ROM
Enclosure Protocol
Enclosure ProtocolEnclosure Protocol
Enclosure Protocol
Support
SupportSupport
Support
3 Gb SAS and 1.5 Gb SATA
Embedded NC7782 Dual
Embedded NC7782 DualEmbedded NC7782 Dual
Embedded NC7782 Dual
Port PCI-X
Port PCI-XPort PCI-X
Port PCI-X
10/100/1000T
10/100/1000T10/100/1000T
10/100/1000T
Gigabit network adapter
Gigabit network adapterGigabit network adapter
Gigabit network adapter
Network Interface
Network InterfaceNetwork Interface
Network Interface
10/100/1000-T
Compatibility
CompatibilityCompatibility
Compatibility
EEE 802.3 10Base-T
IEEE 802.3ab 1000Base-T
IEEE 802.3u 100Base-TX
Data Transfer Method
Data Transfer MethodData Transfer Method
Data Transfer Method
64-bit/66MHz PCI-X
Network Transfer Rate
Network Transfer RateNetwork Transfer Rate
Network Transfer Rate
10Base-T (Half-
Duplex)
10 Mb/s
10Base-T (Full-
Duplex)
20 Mb/s
100Base-TX
(Half-Duplex)
100 Mb/s
100Base-TX (Full-
Duplex)
200 Mb/s
1000Base-TX
(Half and Full-
Duplex)
2000 Mb/s
Connector
ConnectorConnector
Connector
RJ-45
Cable Support
Cable SupportCable Support
Cable Support
10Base-T
Categories 3, 4 or 5 UTP up to 328 ft (100 m)
10/100/1000
Base-TX
Category 5 UTP up to 328 ft (100 m)
© Copyright 2006 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
Microsoft and Windows NT are US registered trademarks of Microsoft Corporation. Intel is a US registered trademark of Intel
Corporation.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
For hard drives, 1 GB = 1 billion bytes. Actual formatted capacity is less.
QuickSpecs
HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)HP ProLiant DL360 Generation 4p (G4p)
HP ProLiant DL360 Generation 4p (G4p)
Technical Specifications
DA - 12166 North America — Version 24 — August 15, 2006
Page 48
