HP ProLiant DL370 G6 (Rack)

HP ProLiant DL370 G6 (Rack)HP ProLiant DL370 G6 (Rack)

HP ProLiant DL370 G6 (Rack)

Front View:

Front View:Front View:

Front View:

Rear View:

Rear View:Rear View:

Rear View:

Quick removal access panel

Mouse connector

Three Hot-plug fans (standard) Five (optional)

Keyboard connector

Intel Quad-Core Processor (Performance model includes

two processors)

Serial connector

iLO 2 connector

Eighteen slots for DDR3 Registered or Unbuffered Memory

Two USB connectors

SAS/SATA drive cage

9 Available PCI-Express Gen2 expansion slots

Optional drive cage bay

Expansion slot riser bay

Power on/stanby button

Four NIC connectors

System Insight Display

Video connector

Removal media bay

10.

Power supply bay 2

10.

DVD-ROM drive

11.

Power supply bay 1 (populated)

11.

Optional slimline optical drive bay

12.

9 Available PCI-Express Gen2 slots

QuickSpecs

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

Overview

DA - 13242 Worldwide — Version 3 — April 2, 2009

Page 1

HP ProLiant ML370 G6 (Tower)

HP ProLiant ML370 G6 (Tower)HP ProLiant ML370 G6 (Tower)

HP ProLiant ML370 G6 (Tower)

Front View:

Front View:Front View:

Front View:

Rear View:

Rear View:Rear View:

Rear View:

Three Hot-plug fans (standard) Five (optional)

Expansion slot riser bay

Quick removal access panel

Four NIC connectors

Intel Quad-Core Processor (Performance model includes

two processors)

Serial connector

Power supply bay 2

Eighteen slots for DDR3 Registered or Unbuffered Memory

Power supply bay 1 (populated)

SAS/SATA drive cage

Mouse connector

Optional drive cage bay

Keyboard connector

Power on/stanby button

Video connector

System Insight Display

Two USB connectors

Removal media bay

10.

iLO 2 connector

10.

DVD-ROM drive

11.

9 Available PCI-Express Gen2 expansion slots

11.

Optional slimline optical drive bay

12.

9 Available PCI-Express Gen2 slots

At A Glance

At A GlanceAt A Glance

At A Glance

The next generation of the HP ProLiant ML370 (expandable tower chassis) and the new HP ProLiant DL370 (4U rack optimized

chassis) deliver Industry-leading management tools, leading performance, expandability, flexibility and the latest energy efficient

technologies. These servers are well-suited for deployment in growing businesses, remote office sites, or datacenters and have been

designed to bring you (our customer) the utmost confidence to run your business.

Features included in both the HP ProLiant ML370 G6 and the HP ProLiant DL370 G6:

Processors:

Processors:Processors:

Processors:

Up to two Intel® Xeon® 5500 Series processors

Intel® 5520 chipset

Memory:

Memory:Memory:

Memory:

18 DIMM slots

Up to 144GB, using PC3-8500R DDR3 Registered (RDIMM) memory, operating at 800MHz when fully populated at 3

DIMMs per Channel in 18 slots.

Up to 24GB, using PC3-10600E DDR3 Unbuffered (UDIMM) memory, operating at 1066MHz when fully populated at

2 DIMMs per Channel in 12 slots.

QuickSpecs

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

Overview

DA - 13242 Worldwide — Version 3 — April 2, 2009

Page 2

Storage Controller:

Storage Controller:Storage Controller:

Storage Controller:

Entry Models: HP Smart Array P410i/256 MB Controller (RAID 0/1/1+0/5/5+0)

NOTE:

NOTE:NOTE:

NOTE:

Entry Models available for ML370 G6 models only.

Base Models: HP Smart Array P410i/256 MB Controller (RAID 0/1/1+0/5/5+0)

Performance Models: HP Smart Array P410i/512 MB BBWC Controller (RAID 0/1/1+0/5/5+0

Available upgrades: 256MB, 512MB with BBWC, Battery kit upgrade (for BBWC), and Smart Array Advanced Pack

(SAAP)

Internal Drive Support:

Internal Drive Support:Internal Drive Support:

Internal Drive Support:

Up to 24 small form factor (SFF) or 14 large form factor (LFF) hot-plug drive bays to support Serial-attached SCSI (SAS)

and Serial ATA (SATA) drives

Standard half-height DVD-ROM (all models)

Two open half-height media bays available for tape drives, optical media, optional SAS HDD cage

Network Controller:

Network Controller:Network Controller:

Network Controller:

HP NC375i Integrated Quad Port Multifunction Gigabit Server Adapter

Expansion Slots:

Expansion Slots:Expansion Slots:

Expansion Slots:

Nine PCIe2 slots available (see "Standard Features -Expansion Slots" section below for more details)

Graphic Cards

Graphic CardsGraphic Cards

Graphic Cards

Supports up to 3 x 300W Graphic Cards via Graphic Card Power Adapter kit

NOTE:

NOTE: NOTE:

NOTE:

2 PCIe Gen2 x16 (mechanical/electrical); 1 PCIe Gen2 x16 (mechanical) x8 (electrical)

Ports:

Ports:Ports:

Ports:

USB 2.0 support

5 total ports: (2) ports up front; (2) ports in back; (1) port internal

1 internal Secure Digital (SD) slot

Redundancy:

Redundancy:Redundancy:

Redundancy:

Multiple layers of fault tolerance through critical component redundancy (power supply and fan redundancy), mirrored

memory, embedded RAID capability, and full-featured remote Lights-Out management

Power Sources:

Power Sources:Power Sources:

Power Sources:

Dual Common Slot Bay for Right Sized, Hot plug and Redundant Power options

HP 1200W CS HE Silver Power Supply (optional)

HP 750W CS HE Gold Power Supply (standard on some models)

HP 460W CS HE Gold Power Supply (standard on some models)

Management:

Management:Management:

Management:

HP Insight Control suite server management software

HP ProLiant Onboard Administrator (powered by the HP Integrated Lights-Out 2 management processor) for simplified

server setup, health monitoring and recovery, power and thermal control, and lights-out remote administration.

Integrated Lights-Out 2 Advanced unlocks the full capabilities of the ProLiant Onboard Administrator with high

performance Integrated Remote Console, multi-user console sharing, video record and replay, and virtual media,

including virtual folders for rapid server updates.

Convenient Systems Insight Display for quick and easy front view server diagnostics

ProLiant Essential Foundation Pack standard, including HP Systems Insight Manager, SmartStart, SmartStart Scripting

Toolkit, Subscriber's Choice and ROM Based Setup Utility (RBSU)

Automatic Server Recovery (ASR), ROM Based Setup Utility (RBSU), HP System Insight Manager, Status LEDs including

system health, UID, and SmartStart

Form Factor:

Form Factor:Form Factor:

Form Factor:

4U Tower Chassis and 4U Rack Optimized Chassis

Redesigned 4U Tower Chassis and the new 4U Rack Optimized Chassis to better meet our customer's density

requirements

Operating Systems:

Operating Systems:Operating Systems:

Operating Systems:

Supports Windows, RHEL, SLES, OEL, Solaris, VMware, and Citrix Essentials for XenServer

Deployment/Serviceability:

Deployment/Serviceability:Deployment/Serviceability:

Deployment/Serviceability:

Quick Deploy Rail System includes sliding universal rails, an ambidextrous cable management arm and quick release

levers for fast and easy serviceability

QuickSpecs

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

Overview

DA - 13242 Worldwide — Version 3 — April 2, 2009

Page 3

Tool-less access to all system components for easy in rack serviceability

Customer Self Repair (CSR): HP products are designed with many CSR parts to minimize repair time and allow for

greater flexibility in performing defective parts replacement

Warranty:

Warranty:Warranty:

Warranty:

This product is covered by a global limited warranty and supported by HP Services and a worldwide network of HP

Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of

purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to

warranty services are available through HP Care Pack services or customized service agreements. SATA hard drives

have a one-year warranty. SAS Enterprise drives have a three-year warranty.

NOTE:

NOTE: NOTE:

NOTE:

Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response.

Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two

categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when

customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but

may involve added complexity. Customers may choose to have HP replace Optional CSR parts at no charge. Additional

information regarding worldwide limited warranty and technical support is available at:

http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html

QuickSpecs

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

Overview

DA - 13242 Worldwide — Version 3 — April 2, 2009

Page 4

NOTE:

NOTE:NOTE:

NOTE:

For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory

Integrated Models" section.

Processor

ProcessorProcessor

Processor

One of the following

depending on Model

Quad-Core Processors

Quad-Core ProcessorsQuad-Core Processors

Quad-Core Processors

Intel® Xeon® Processor X5570 (2.93 GHz, 8MB L3 Cache, 95W, DDR3-1333, HT, Turbo 2/2/3/3)

Intel® Xeon® Processor X5560 (2.80 GHz, 8MB L3 Cache, 95W, DDR3-1333, HT, Turbo 2/2/3/3)

Intel® Xeon® Processor X5550 (2.66 GHz, 8MB L3 Cache, 95W, DDR3-1333, HT, Turbo 2/2/3/3)

Intel® Xeon® Processor E5540 (2.53 GHz, 8MB L3 Cache, 80W, DDR3-1066, HT, Turbo 1/1/2/2)

Intel® Xeon® Processor E5530 (2.40 GHz, 8MB L3 Cache, 80W, DDR3-1066, HT, Turbo 1/1/2/2)

Intel® Xeon® Processor E5520 (2.26 GHz, 8MB L3 Cache, 80W, DDR3-1066, HT, Turbo 1/1/2/2)

Intel® Xeon® Processor E5506 (2.13 GHz, 4MB L3 Cache, 80W, DDR3-800)

Intel® Xeon® Processor E5504 (2.00 GHz, 4MB L3 Cache, 80W, DDR3-800)

Intel® Xeon® Processor L5520 (2.26 GHz, 8MB L3 Cache, 60W, DDR3-1066, HT, Turbo 1/1/2/2)

Dual-Core Processors

Dual-Core ProcessorsDual-Core Processors

Dual-Core Processors

Intel® Xeon® Processor E5502 (1.86 GHz, 4MB L3 Cache, 80W, DDR3-800)

NOTE:

NOTE:NOTE:

NOTE:

Up to 2 processors supported. Performance configurations include two processors. Mixing

different processor models is not supported.

NOTE:

NOTE:NOTE:

NOTE:

HT indicates that the processor model supports Intel® Hyper-Threading Technology.

NOTE:

NOTE:NOTE:

NOTE:

Turbo indicates the maximum potential frequency increment when using Intel® Turbo Boost

Technology, with 4, 3, 2, and 1 cores active.

NOTE:

NOTE:NOTE:

NOTE:

DDR3 speed is the maximum memory speed of the processor. Actual memory speed may

depend on the quantity and type of DIMMs installed.

NOTE:

NOTE:NOTE:

NOTE:

For the Intel 5500 Series, the letter preceding the model number indicates the

performance/wattage of the processor. "X" denotes High Performance/Wattage; "E" denotes Enterprise

Performance/Wattage (Mainstream); and "L" denotes Lower Wattage.

Cache Memory

Cache MemoryCache Memory

Cache Memory

One of the following

depending on Model

8MB (1 x 8MB) Level 3 cache

NOTE:

NOTE:NOTE:

NOTE:

All processor models except for those identified below.

4MB (1 x 4MB) Level 3 cache

NOTE:

NOTE:NOTE:

NOTE:

For processors E5506/E5504/E5502.

Chipset

ChipsetChipset

Chipset

Intel® 5520 chipset

NOTE:

NOTE:NOTE:

NOTE:

For more information regarding Intel chipsets, please see the following URL:

http://www.intel.com/products/server/chipsets/

Upgradeability

UpgradeabilityUpgradeability

Upgradeability

Upgradeable to 2 processors

Memory Protection

Memory ProtectionMemory Protection

Memory Protection

Advanced ECC

Mirroring mode

Lock-step mode

QuickSpecs

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

Standard Features

DA - 13242 Worldwide — Version 3 — April 2, 2009

Page 5

Memory

MemoryMemory

Memory

Type

DDR3 Registered (RDIMM) or Unbuffered (UDIMM)

Standard (Performance

Models)

12 GB (6 x 2 GB) RDIMM

Standard (Base Models)

6 GB (3 x 2 GB) RDIMM

Standard (Entry Model)

4 GB (2 x 2 GB) UDIMM

Maximum (RDIMM)

144 GB (18 x 8 GB) for Registered Memory configurations

Maximum (UDIMM)

24 GB (12 x 2 GB) for Unbuffered Memory configurations

NOTE:

NOTE:NOTE:

NOTE:

Depending on the memory configuration and processor model, the memory speed may run at

1333MHz, 1066MHz, or 800MHz. Please see the Online Memory Configuration Tool at:

www.hp.com/go/ddr3memory-configurator

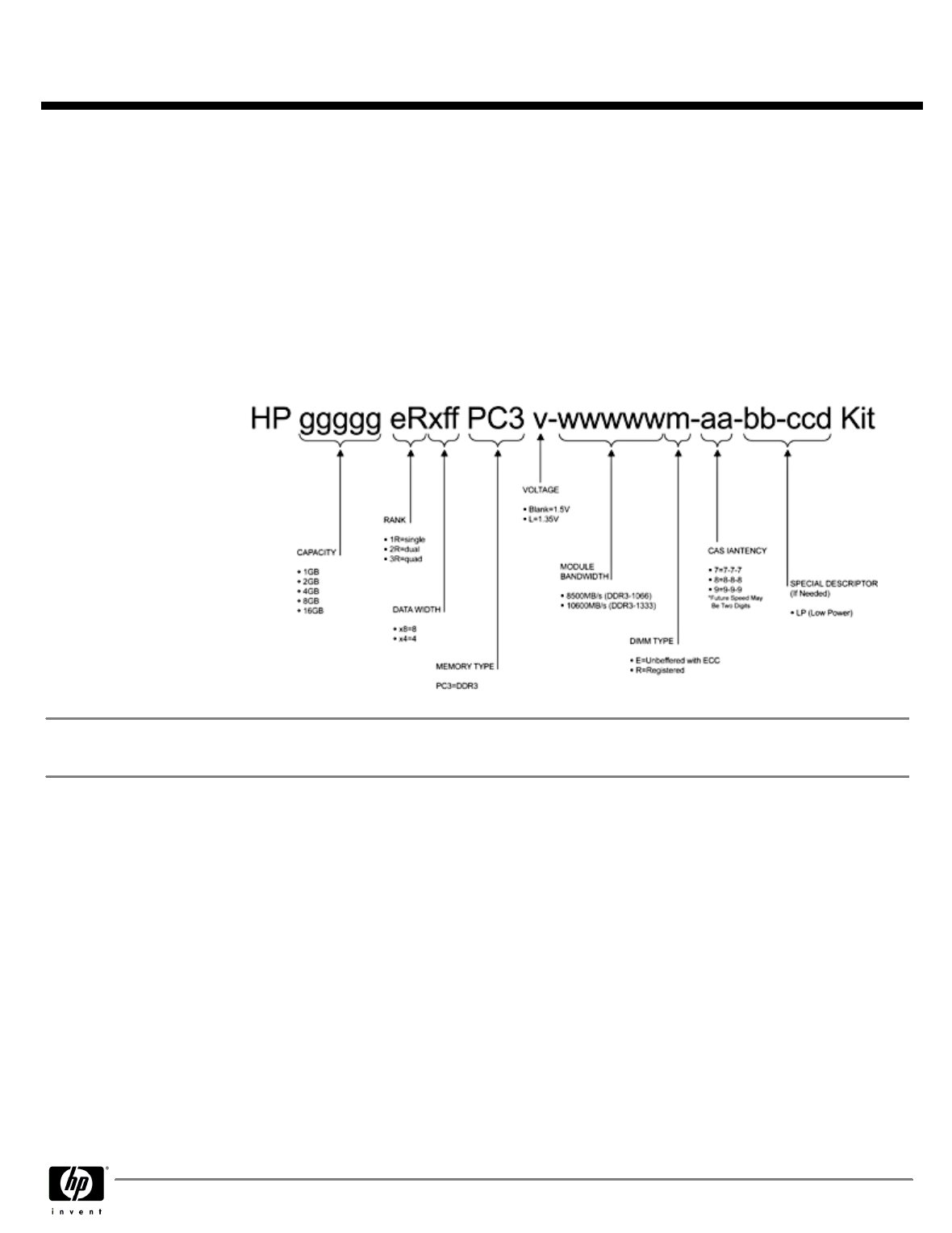

DDR3 memory options part number decoder

DDR3 memory options part number decoderDDR3 memory options part number decoder

DDR3 memory options part number decoder

Network Controller

Network ControllerNetwork Controller

Network Controller

HP NC375i Integrated Quad Port Multifunction Gigabit Server Adapter

Expansion Slots

Expansion SlotsExpansion Slots

Expansion Slots Expansion Slots

Expansion SlotsExpansion Slots

Expansion Slots

Technology

TechnologyTechnology

Technology

Width

WidthWidth

Width

Connector

ConnectorConnector

Connector

Width

WidthWidth

Width

Form Factor

Form FactorForm Factor

Form Factor

Notes

NotesNotes

Notes

PCIe

x4 x8

Half length, full

height slot

PCIe2

x4 x8

Full length, full

height slot

PCIe2

x16 x16

Full length, full

height slot

PCIe2

x4 x8

Full length, full

height slot

PCIe2

x4 x8

Full length, full

height slot

PCIe2

x16

Full length, full

height slot

PCIe2

x4 x8

Full length, full

height slot

QuickSpecs

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

Standard Features

DA - 13242 Worldwide — Version 3 — April 2, 2009

Page 6

PCIe2

x16 x16

Full length, full

height slot

PCIe2

x4 x8

Full length, full

height slot

PCIe2

X8 X8

Half length, full

height slot

Utilized by NIC

controller "Use

the correct

model number

for the NIC"

* Default bus assignment. Inserting cards with PCI bridges may alter the actual bus assignment number.

Storage Controller

Storage ControllerStorage Controller

Storage Controller

One of the following

depending on Model

Entry Models

HP Smart Array P410i/256 MB Controller (RAID 0/1/1+0/5/5+0)

Base Models

HP Smart Array P410i/256 MB Controller (RAID 0/1/1+0/5/5+0)

Performance Models

HP Smart Array P410i/512 MB BBWC Controller (RAID 0/1/1+0/5/5+0/6)

Available upgrades: 256MB, 512MB with BBWC, Battery kit upgrade (for BBWC), and Smart Array

Advanced Pack (SAAP).

Storage

StorageStorage

Storage

Diskette Drive

None Standard

Optical Drive

SATA DVD ROM (standard in all models)

Hard Drives

None Standard

Maximum Internal

Maximum InternalMaximum Internal

Maximum Internal

Storage Type

Storage TypeStorage Type

Storage Type

Hot Plug SFF SAS

7.20TB

24 x 300GB

Hot Plug LFF SAS

14 TB

14 x 1TB

Interfaces

InterfacesInterfaces

Interfaces

Serial

1 (rear)

Pointing Device (Mouse)

VGA

1 (+1 front VGA on rack models)

Keyboard

Network RJ-45

4 (rear)

ILO 2.0 remote

management port

SD slot

USB 2.0 Ports

5 (2 on the rear, 2 on the front, 1 internal)

NOTE:

NOTE:NOTE:

NOTE:

Please see the following URL for additional information regarding

USB support:

http://h18004.www1.hp.com/products/servers/platforms/usb-support.html

Dedicated USB 2.0 Port

1 (available for DAT USB tape connectivity)

NOTE:

NOTE:NOTE:

NOTE:

Internal USB ports are optimal for the attachment of HP DAT USB

Internal Tape Drives

QuickSpecs

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

Standard Features

DA - 13242 Worldwide — Version 3 — April 2, 2009

Page 7

Graphics

GraphicsGraphics

Graphics

Integrated ATI RN50, 64 MB video standard

16 bit color: maximum resolution of 1600 x 1200

32 bit color: maximum resolution of 1280 x 1024

NOTE:

NOTE:NOTE:

NOTE:

Maximum resolution available via iLO 2 remote console is 1280 x 1024.

Form Factor

Form FactorForm Factor

Form Factor

4U Rack and Tower form factor (7 in, 17.8 cm)

HP Insight Control suite

HP Insight Control suiteHP Insight Control suite

HP Insight Control suite

HP Insight Control suite delivers essential management, including proactive health management, lights

out remote control, optimization of power usage, rapid server deployment, performance analysis,

vulnerability scanning and patch management and virtual machine management.

HP Insight Control suite installs and licenses the following components by default using a wizard-based

integrated installer:

HP Systems Insight Manager

HP iLO Advanced Pack

HP Insight Rapid Deployment software

HP Insight Power Manager software

HP Insight Performance Manager module

HP Insight Vulnerability and Patch Manager module

HP Insight Virtual Machine Manager software for ProLiant

Additional Insight Software standalone products and management tools included on the Insight Software

media kit can be installed manually:

HP Insight Server Migration software for ProLiant

NOTE:

NOTE:NOTE:

NOTE:

HP Insight Server Migration software for ProLiant is licensed separately from Insight

Control suite.

HP Insight Remote Support Standard

HP Insight Remote Support Advanced (previously Service Essentials Remote Support Pack)

NOTE:

NOTE:NOTE:

NOTE:

HP Insight Server Migration software for ProLiant can be installed from the SMP CD included in

the Insight Software media kit.

NOTE:

NOTE: NOTE:

NOTE:

For additional product and licensing information about HP Insight Control suite, visit:

http://www.hp.com/go/ice

NOTE:

NOTE:NOTE:

NOTE:

As of Feb. 1, 2009, HP iLO Power Management Pack is being discontinued. Customer can

either purchase HP Insight Control suite which contains all the components of IPMP or the standalone

components which include iLO Advanced, Insight Power Manager software and System Insight Manager.

HP Insight Control Environment for Linux (ICE-Linux) provides comprehensive discovery, imaging &

deployment, monitoring, and management for Linux-based ProLiant server platforms. Built on the

industry-leading HP Systems Insight Manager framework, this solution integrates open source technology

with experience leveraged from HP's Linux products in HP ICLE and HP XC Clusters, while providing

paths to the future with developing management technologies.

HP Insight Control suite and most HP Insight Software products include a one year of 24 x 7 HP Software

Technical Support and Update Service ensuring rapid access to HP support staff and proactive delivery

of software updates. For more information about this service, please visit:

QuickSpecs

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

Standard Features

DA - 13242 Worldwide — Version 3 — April 2, 2009

Page 8

http://www.hp.com/services/insight

HP ProLiant Onboard

HP ProLiant OnboardHP ProLiant Onboard

HP ProLiant Onboard

Administrator

AdministratorAdministrator

Administrator

HP ProLiant Onboard Administrator (powered by the Integrated Lights-Out 2 management processor)

simplifies server setup, health monitoring, power and thermal control, and lights-out remote

administration of ProLiant ML, DL, and BL servers. HP ProLiant Onboard Administrator functions without

additional software, and can be accessed from any location via a web browser. It works hand-in-hand

with HP Systems Insight Manager, Insight Control, and Insight Dynamics - VSE suite helping customers

unlock the value of the ProLiant platform and deliver the highest possible quality of IT service to the

business.

Capabilities of the HP ProLiant Onboard Administrator embedded in ProLiant ML/DL servers include, but

are not limited to the following:

Rom-based Setup Utility (RBSU) and Option Rom Configuration for Arrays (ORCA)

IML and iLO event logging

Automatic Server Recovery (ASR)

OS independent hardware health status

Present server power consumption

Virtual Unit ID control

Remote serial console

Virtual power button control

Dynamic Sector Repairing (with Smart Array controller)

Drive Parameter Tracking (with Smart Array controller)

Hot Spare Boot

NOTE:

NOTE: NOTE:

NOTE:

Upon the event of a failed processor in a multi-processing environment, the system will

automatically reboot and attempt to use the remaining good processor.

Unlock the full remote administration capabilities of HP ProLiant Onboard Administrator with Integrated

Lights-Out 2 Advanced.

Server Management

Server ManagementServer Management

Server Management

Stand Alone Software

Stand Alone SoftwareStand Alone Software

Stand Alone Software

Product - ProLiant

Product - ProLiantProduct - ProLiant

Product - ProLiant

Essentials

EssentialsEssentials

Essentials

HP Systems Insight

Manager

HP Systems Insight Manager (HP SIM) provides a unified, secure and

extensible standards-based environment to centrally manage servers, storage

and other infrastructure devices, (both HP and non-HP) across multiple

operating system platforms.

For additional information, please see:

www.hp.com/go/insight

HP Insight Rapid

Deployment software

HP Insight Rapid Deployment Software (RDP) extends HP Systems Insight

Manager with a complete deployment solution for HP ProLiant servers. RDP

provides a central location to configure server hardware, deploy Windows,

Linux and VMware ESX operating environments and install HP ProLiant

Support Pack drivers using images and scripted profiles. For more

information, visit:

http://www.hp.com/go/rdp

HP Server Migration Pack

- Universal Edition

Upgrading, replacing, or virtualizing your existing server? Effortlessly

transition to new virtual or physical HP ProLiant servers or BladeSystem with

automated, accurate and affordable migration of OS, application and data.

SMP Universal automates the manual processes required for migrating

servers between physical or virtual platforms, whether migrating to VMware

or Microsoft virtual machines. SMP Universal allows all of the following

migrations:

QuickSpecs

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

Standard Features

DA - 13242 Worldwide — Version 3 — April 2, 2009

Page 9

physical to ProLiant

physical to virtual

virtual to virtual

virtual to ProLiant

NOTE:

NOTE:NOTE:

NOTE:

For more information, visit:

http://www.hp.com/go/migrate

HP Insight Dynamics - VSE

suite for ProLiant

The HP Insight Dynamics - VSE suite for ProLiant is advanced infrastructure

management software that allows you to analyze and optimize your adaptive

infrastructure to manage physical and virtual resources in the same way. HP

Insight Dynamics - VSE gives you a powerful toolkit to accelerate complex

technology projects and simplify daily operations. It enables you to plan

capacity and power continuously, balance across physical and virtual

resources, ensure cost-effective high availability and provision infrastructure

consistently.

HP Insight Orchestration, an optional extension to Insight Dynamics - VSE,

enables IT organizations to provision infrastructure consistently and

automatically from pools of shared resources using a self-service portal.

Resources provisioned can range from a single virtual machine to complex

multi-tier environments and their associated physical and virtual resource

requirements. HP Insight Recovery, also an optional extension for Insight

Dynamics - VSE, enables cost-effective disaster recovery for physical and

virtual environments. Application environments can be reactivated in minutes

with the touch of a button to a remote location

NOTE:

NOTE:NOTE:

NOTE:

For more information, visit:

http://www.hp.com/go/insightdynamics

http://www.hp.com/go/insightorchestration

www.hp.com/go/insightrecovery

HP Integrated Lights-Out

(iLO) Advanced Pack

Unlocks the full capabilities of the ProLiant Onboard Administrator with

comprehensive remote control including Virtual KVM remote graphical

console, power management capabilities such as power measurement,

regulation, and capping, new iLO Text Console, automatic and on-demand

video recording of server events, global team collaboration for up to four

remote users, virtual media (floppy, CD/DVD, USB key), virtual folders, and

enterprise security (directory services and two-factor authentication). For

additional information, please see:

www.hp.com/go/iLO

HP iLO Power

Management Pack

Energy-efficient management software that delivers centralized control,

reliable security, and energy savings for your BladeSystem infrastructure.

iPMP combines the total control of iLO 2 Advanced in the area of remote

management with the energy monitoring and control of the Insight Power

Manager to deliver a robust solution capable of full remote control and

power management of ProLiant servers through a unified interface within HP

Systems Insight Manager. For additional information, please see:

www.hp.com/go/iLO

HP Accelerated iSCSI Pack

Enables the embedded Multifunction network controller to serve as both a

NIC and an iSCSI HBA providing access to SAN storage over the same

connection used for networking. Processing of the protocol stack is offloaded

to the NIC reducing CPU utilization and greatly improving the speed with

which the requests are processed and sent to the network. For additional

information, please see:

www.hp.com/go/iscsi

QuickSpecs

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

Standard Features

DA - 13242 Worldwide — Version 3 — April 2, 2009

Page 10

HP Insight Power Manager

(IPM)

Upgrades the single-server remote management capabilities of iLO

Select/Advanced to include centralized reporting and policy-based

management of power consumption and thermal output provided by the

Insight Power Manager. IPM unifies all of this functionality within a single

user interface - HP Systems Insight Manager. For additional information,

please see:

www.hp.com/go/ipm

NOTE:

NOTE:NOTE:

NOTE:

Flexible and volume quantity license kits are available for ProLiant Essentials Value Packs. Refer

to:

http://www.hp.com/servers/proliantessentials

or the various ProLiant Essentials Value Pack product

QuickSpecs for more information.

Core Infrastructure

Core InfrastructureCore Infrastructure

Core Infrastructure

Management

ManagementManagement

Management

HP Foundation Pack

Managing the growing number of servers can be complex and expensive for

your organization. IT managers need to address changing business needs

with tools that meet the challenges of managing today's complex

Datacenters.

HP provides management solutions that are designed to simplify a server's

installation, configuration and maintenance throughout the entire server

lifecyle. This provides the customer with higher levels of operational efficiency

and highly reliable systems:

www.hp.com/go/foundation

The foundation pack includes:

HP SmartStart

HP Management

HP ProLiant Firmware Maintenance

SmartStart version supported (minimum): SmartStart 8.20

http://www.hp.com/servers/smartstart

NOTE:

NOTE:NOTE:

NOTE:

In an effort to support reducing our environmental impact, the HP

ProLiant Essentials Foundation Pack media will be available as a selectable

option for this server at time of order of a CTO SKU. This will allow

customers to order the number of media kits that best meet their needs and

eliminate receiving unnecessary duplicate media.

Insight Management

Providers (WBEM)

The HP Insight Management WBEM Providers leverage the rich set of base-

level instrumentation provided by the system management controllers and

drivers, I/O controllers and drivers, and system firmware interfaces delivering

in-depth hardware management, including hardware inventory data, system

state, and event notifications.

Key Benefits Include:

Heightened Security

Single integrated Security Model

Built using industry standard secure protocols and encryption

algorithms (SSL, SSH)

Reduce the number of entry points into internal network

Reduced complexity of setup and configuration

Delivers standards-based management across vendor platforms

Robust in-depth and usable data that is provided to the HP System

Management Homepage and Central Management Console

Guaranteed event delivery

Reduces overall load on the server by smaller agent footprint and

maintenance burden

QuickSpecs

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

Standard Features

DA - 13242 Worldwide — Version 3 — April 2, 2009

Page 11

Provides in-depth hardware management, inventory data, system state,

and event notifications

The Insight Management Providers are included on ProLiant Support Packs.

For additional information about the Management Providers please visit

http://www.hp.com/go/HPwbem

Insight Management

Agents (SNMP)

The Insight Management Agents should be installed on all HP servers to

present system instrumentation, health and configuration information into HP

Systems Insight Manager and the HP System Management Homepage. The

HP System Management Homepage aggregates systems data from Insight

Management Agents and other HP management tools, providing a

consolidated browser-based interface for managing individual servers.

Insight Management Agents and The HP System Management Homepage

are included on ProLiant Support Packs, and can also be installed using the

server profiles provided with the Rapid Deployment Pack.

For additional information about the Management Agents and the HP System

Management Homepage please visit the management Web site at:

http://www.hp.com/servers/manage

Subscriber's Choice

Subscriber's Choice Driver and Support Alerts/Notifications is a web-based

email subscription service that provides software and driver change

notifications for ProLiant products. Sign up at:

http://www.hp.com/go/subscriberschoice

and customize your profile to receive various new alerts as they become

available, on a weekly or monthly basis.

ProLiant Support Packs

and ROMPaq, software

The latest software, drivers, and firmware fully optimized and tested for your

ProLiant server and options, available through ProLiant Support Packs the HP

Insight Rapid Deployment Software, SmartStart or downloaded from software

and drivers download pages website at:

http://www.hp.com/go/support

HP Serviceguard for Linux

HP Serviceguard for LinuxHP Serviceguard for Linux

HP Serviceguard for Linux

(SGLX)

(SGLX)(SGLX)

(SGLX)

HP Serviceguard for Linux provides high availability clustering for Linux applications running on HP

Integrity, HP ProLiant and other supported industry-standard servers. Serviceguard for Linux reduces

planned and unplanned downtime and delivers efficient, continuous access to business-critical

applications - with all of the enterprise features you expect from HP.

This high availability clustering solution is designed to protect applications and services from a wide

variety of software and hardware failures, monitoring the health of each server (node) and quickly

responding to failures such as those that affect system processes, system memory, LAN media and

adapters, and application processes.

For the most recent list of Linux distributions & kernels, servers and storage supported with Serviceguard

for Linux, please see:

ftp://ftp.compaq.com/pub/products/servers/ha/linux/SGLX_Certification_Matrix.pdf

The following is a quick summary of HP Serviceguard for Linux features and support:

Supported Virtual Machines

SG/LX in HP Integrity Virtual Machines guests

SG/LX in VMware ESX guests

SG/LX in Red Hat and SUSE Xen hosts (DOM0)

QuickSpecs

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

Standard Features

DA - 13242 Worldwide — Version 3 — April 2, 2009

Page 12

Application Integration Toolkits

HP Serviceguard for Linux Oracle Database Toolkit

HP Serviceguard Extension for SAP on Linux (SGeSAP/LX)

Free Application Integration Toolkits:

Apache

MySQL

NFS

PostgreSQL

Samba

Tomcat

Sendmail

Disaster Tolerant Solutions

HP Serviceguard for Linux Extended Distance Cluster (XDC) extends cluster distances up to

100 km, utilizes software RAID mirroring for data replication and is storage array

independent

HP StorageWorks XP/EVA Cluster Extension Software for Linux (CLX) works seamlessly with

HP Serviceguard for Linux, HP StorageWorks Continuous Access, and HP Disk Arrays to

automate failover and failback between sites

Software updates are distributed by HP Services to customers with support contracts

NOTE:

NOTE:NOTE:

NOTE:

For additional information including software and server support on HP Serviceguard for Linux,

visit:

http://www.hp.com/go/sglx

or see the HP Serviceguard for Linux QuickSpecs.

NOTE:

NOTE:NOTE:

NOTE:

HP Serviceguard for Linux products for HP ProLiant and select 3rd party x86 class servers include

one year of 24 x 7 HP Software Technical Support and Update Service ensuring rapid access to HP

support staff and proactive delivery of software updates. For more information about this service, please

visit:

http://www.hp.com/services/swsupport

Industry Standard

Industry StandardIndustry Standard

Industry Standard

Compliance

ComplianceCompliance

Compliance

ACPI V2.0 Compliant

PCI-Express Gen2

PXE Support

WOL Support

Microsoft® Logo certifications

USB 2.0

SMBIOS 2.6.1

Security

SecuritySecurity

Security

Power-on password

Keyboard password

Diskette drive control

Diskette boot control

QuickLock, Network Server Mode

Parallel and serial interface control

Administrator's password

QuickSpecs

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

Standard Features

DA - 13242 Worldwide — Version 3 — April 2, 2009

Page 13

Security Trusted Platform

Security Trusted PlatformSecurity Trusted Platform

Security Trusted Platform

Module

ModuleModule

Module

The TPM (Trusted Platform Module) is a microcontroller chip that can securely store artifacts used to

authenticate the server platform. These artifacts can include passwords, certificates and encryption keys.

Windows® BitLocker™ Drive Encryption (BitLocker) is a data protection feature available in Windows

Server® 2008. BitLocker leverages the enhanced security capabilities of a Trusted Platform Module

(TPM) version 1.2. The TPM works with BitLocker to help protect user data and to ensure that a server

running Windows Server 2008 has not been tampered with while the system was offline.

For more information about TPM, including a white paper, go to

www.hp.com/go/TPM

NOTE:

NOTE: NOTE:

NOTE:

ProLiant OS pre-installed units will come with the partition required for TPM deployment.

NOTE:

NOTE:NOTE:

NOTE:

The TPM key is unique to every TPM deployed server and must be retained. Misplacing or losing

the key could result in data loss.

Server Power Cords

Server Power CordsServer Power Cords

Server Power Cords

High voltage power cord ships standard with all part numbers. Localized cables included with

geographic specific models in other world regions.

NOTE:

NOTE: NOTE:

NOTE:

ProLiant DL servers no longer ship standard with NEMA power cords (187335-001) that allow

connection to 110V US wall outlets in a home or office. ProLiant DL servers are primarily connected to

PDU's in data center racks so they now ship standard with only a PDU power cord (416151-B21). If a

user wishes to power a ProLiant DL server using a 110V receptacle (NEMA-15), the above NEMA power

cord must be ordered separately.

UPS Power Cord Matrix

UPS Power Cord MatrixUPS Power Cord Matrix

UPS Power Cord Matrix

Please see the UPS and PDU cable matrix that lists cable descriptions, requirements, and specifications

for UPS and PDU units:

http://h18004.www1.hp.com/products/servers/proliantstorage/power-protection/index.html

Power Supply

Power SupplyPower Supply

Power Supply

HP has a new design for ProLiant power. The new Common Slot Power Supply bay. This design provides

the customer with commonality in power supplies across multiple platforms to save on the cost of spares

and allows HP to offer multiple power solutions to fit the customers' needs. Many HP ProLiant Servers

come with Common Slot, High Efficiency and Right-Size Power Supplies. Common Slot (CS) designates

commonality of the power supply across multiple ProLiant servers. HP's new Common Slot power

supplies are designed for highest efficiency to provide power efficiency without degrading performance

of the ProLiant. Power Supplies will have efficiency ratings up to 92%. There are three Right Size power

options available, depending on the configuration of your server. To make sure you select the correct

power supply to meet your configuration, we suggest that you use the HP Power Advisor to decide the

"Right-Size" for your configuration. All HP Common Slot power sources are UL, CE Mark Compliant, Hot

Plug and Redundant.

QuickSpecs

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

Standard Features

DA - 13242 Worldwide — Version 3 — April 2, 2009

Page 14

Common Slot ProLiant

Common Slot ProLiantCommon Slot ProLiant

Common Slot ProLiant

It is highly recommended that you use the HP Power Advisor in defining the "Right-Size" power supply for

your needs. HP offers three Power Supply Options:

460Watts, Common Slot,92% Efficiency

750Watts, Common Slot, 92% Efficiency

1200Watts, Common Slot, 90% Efficiency

HP's ProLiant Common Slot Power supplies (460W & 750W) meet multiple Energy Efficiency Initiatives.

Climate Savers Computing Initiative GOLD, ECOS Consulting 80PLUS GOLD and plans on offering

models that meet the Energy Star for Server requirements when they are published.

HP's ProLiant Common Slot Power supplies (1200W) meet multiple Energy Efficiency Initiatives. Climate

Savers Computing Initiative Bronze, ECOS Consulting 80PLUS Bronze Power Supply requirements.

Redundant Power: Optional (1+ 1 or n+n redundant) power supplies can be purchased through power

supply option kits (see Redundant Options for part numbers).

System Fans

System FansSystem Fans

System Fans

(3) Hot Plug fans ship standard (for full redundancy you can purchase the HP ML and DL 370G6

Redundant Fan Kit; PN: 508107-B231)

Required Cabling

Required CablingRequired Cabling

Required Cabling

For external storage cabling information, refer to the Web site at:

www.hp.com/servers/dl370

www.hp.com/servers/ml370

OS Support

OS SupportOS Support

OS Support

Microsoft Windows Server

Microsoft Windows Server Hyper V

Red Hat Enterprise Linux (RHEL)

SUSE Linux Enterprise Server (SLES)

Oracle Enterprise Linux 5 (OEL)

Solaris 10 for x86/x64 based Systems

VMware

Citrix Essentials for XenServer

NOTE:

NOTE:NOTE:

NOTE:

For more information on HP's Certified and Supported ProLiant Servers for OS and Virtualization

Software and latest listing of software drivers available for your server, please visit our Support Matrix at:

http://www.hp.com/go/ossupport

and our driver download page

http://www.hp.com/support/ML370G6

QuickSpecs

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

Standard Features

DA - 13242 Worldwide — Version 3 — April 2, 2009

Page 15

Rack Airflow

Rack AirflowRack Airflow

Rack Airflow

Requirements

RequirementsRequirements

Requirements

Rack 10000 series Cabinets

Rack 10000 series CabinetsRack 10000 series Cabinets

Rack 10000 series Cabinets

The increasing power of new high-performance processor technology requires increased cooling

efficiency for rack-mounted servers. The 10000 Series Racks provide enhanced airflow for maximum

cooling, allowing these racks to be fully loaded with servers using the latest processors.

CAUTION:

CAUTION:CAUTION:

CAUTION:

If a third-party rack is used, observe the following additional requirements to ensure

adequate airflow and to prevent damage to the equipment:

Front and rear doors

: If your 42U server rack includes closing front and rear doors, you must

allow 830 square inches (5,350 sq cm) of hole evenly distributed from top to bottom to permit

adequate airflow (equivalent to the required 64 percent open area for ventilation).

Side

: The clearance between the installed rack component and the side panels of the rack must be

a minimum of 2.75 inches (7 cm).

CAUTION:

CAUTION:CAUTION:

CAUTION:

Always use blanking panels to fill all remaining empty front panel U-spaces in the rack. This

arrangement ensures proper airflow. Using a rack without blanking panels results in improper cooling

that can lead to thermal damage.

NOTE:

NOTE:NOTE:

NOTE:

For additional information, refer to the Setup and Installation Guide or the Documentation CD

provided with the server, or to the server documentation located in the Support section at the following

URL:

www.hp.com/servers/dl370

www.hp.com/servers/ml370

Telco Rack Support

Telco Rack SupportTelco Rack Support

Telco Rack Support

ProLiant rack mount servers and tower-to-rack kits include snap-on quick deploy side rails designed to

accommodate both round and square hole rack rails. Telco rack solutions for ProLiant servers are

available through the following URL:

http://www.racksolutions.com/hp

Factory Express Portfolio

Factory Express PortfolioFactory Express Portfolio

Factory Express Portfolio

for Servers and Storage

for Servers and Storagefor Servers and Storage

for Servers and Storage

HP Factory Express offers configuration, customization, integration and deployment services for HP

servers and storage products. Customers can choose how their factory solutions are built, tested,

integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex

configuration and design services as well as individual factory services, such as image loading, asset

tagging, and custom packaging. HP products supported through Factory Express include a wide array of

servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000

servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries and configurable network

switches.

For more information on Factory Express services for your specific server model please contact your sales

representative or go to:

http://www.hp.com/go/factory-express

HP Enterprise

HP EnterpriseHP Enterprise

HP Enterprise

Configurator

ConfiguratorConfigurator

Configurator

The HP eConfigure-Enterprise Configurator now provides factory default racking for our HP hardware

portfolio. This approach is aligned with our strategic direction to meet the needs and expectations of our

valued customers. If you require "custom" rack configuration, please contact HP's Customer Business

Center or an Authorized Partner for assistance.

http://www.hp.com/products/configurator

QuickSpecs

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

Standard Features

DA - 13242 Worldwide — Version 3 — April 2, 2009

Page 16

Service and Support

Service and SupportService and Support

Service and Support

HP Care Pack services provide total care and support expertise with committed response designed to

meet your IT and business needs.

HP Care Pack services include coverage for the HP branded hardware options qualified for the server

and purchased at the same time or afterward that are internal to the enclosure. This also includes the

22" and smaller external monitors and tower UPS options up to 3kVA. These items will be covered at the

same service level and for the same coverage period as the server. Coverage of UPS Battery is not

included, and standard warranty terms & conditions apply. For servers or storage systems installed within

a rack, service also covers all HP qualified rack options installed within the same rack.

To fully capitalizing on your HP ProLiant servers' capabilities requires a service partner who thoroughly

understands your server technology and systems environment. HP Services, an industry leader in

provision of multi vender support solutions, provides a range of support services designed to meet the

varying needs of your business. Whether an SMB, or large global corporation, HP has a ProLiant server

support offer to help you speedily deploy and maximize system uptime.

Recommended Service

Recommended ServiceRecommended Service

Recommended Service

- simplify ProLiant solution implementation, maintenance, and management.

Support

SupportSupport

Support

- 3-Year 4-Hour response 24x7 Same Business Day Coverage only

Deployment Service

Deployment ServiceDeployment Service

Deployment Service

- Installation and Start up only

Enhanced Service

Enhanced ServiceEnhanced Service

Enhanced Service

- optimize service level to increase IT performance and availability.

Support

SupportSupport

Support

- 3-Year Support Plus 24 only

Refer to the information on "Installation & Start-Up" for service on ProLiant server and Microsoft or Linux

O/S per the Customer Description and/or Data Sheet; to be delivered on a scheduled basis 8am-5pm,

M-F, excluding HP holidays.

NOTE:

NOTE:NOTE:

NOTE:

For a complete listing of service offerings and information visit:

http://www.hp.com/services/proliantservices

http://www.hp.com/go/proliant/carepack

QuickSpecs

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

Standard Features

DA - 13242 Worldwide — Version 3 — April 2, 2009

Page 17

NOTE:

NOTE:NOTE:

NOTE:

For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory

Integrated Models" section.

Tower Models

Tower ModelsTower Models

Tower Models

HP ML370 G6 Base

HP ML370 G6 BaseHP ML370 G6 Base

HP ML370 G6 Base

Model

ModelModel

Model

ML370 E5540 6GB

ML370 E5540 6GBML370 E5540 6GB

ML370 E5540 6GB

487791-xx1

Processor(s)

Processor(s)Processor(s)

Processor(s)

(1) Intel® Xeon® Processor E5540 (2.53 GHz, 8MB L3 Cache, 80W,

DDR3-1066, HT, Turbo 1/1/2/2)

Cache Memory

Cache MemoryCache Memory

Cache Memory

8MB (1 x 8MB) Level 3 cache

Memory

MemoryMemory

Memory

6 GB (3 x 2 GB) PC3-10600 (DDR3-1333) Registered DIMMs

Network Controller

Network ControllerNetwork Controller

Network Controller

HP NC375i Integrated Quad Port Multifunction Gigabit Server Adapter

Storage Controller

Storage ControllerStorage Controller

Storage Controller

HP Smart Array P410i/256MB Controller

Hard Drive

Hard DriveHard Drive

Hard Drive

None ship standard

Internal Storage

Internal StorageInternal Storage

Internal Storage

(8) SFF SAS/SATA HD Bays (Standard); Up to (24) SFF SAS/SATA with

optional drive cage (up to three 8 SFF drive cage can be installed)

Optical Drive

Optical DriveOptical Drive

Optical Drive

SATA DVD ROM

PCI-Express Slots

PCI-Express SlotsPCI-Express Slots

PCI-Express Slots

10 slots - (9) available PCI-e Gen2 slots (

NOTE:

NOTE:NOTE:

NOTE:

10 slots available, one is

taken by the NIC riser card

)

Power Supply

Power SupplyPower Supply

Power Supply

(1) 750W Hot Plug Power Supply

Fans

FansFans

Fans

(3) Hot Plug Fans

Form Factor

Form FactorForm Factor

Form Factor

4U Tower

HP ML370 G6 Entry

HP ML370 G6 EntryHP ML370 G6 Entry

HP ML370 G6 Entry

Model

ModelModel

Model

ML370 E5520 4GB

ML370 E5520 4GBML370 E5520 4GB

ML370 E5520 4GB

487795-xx1

Processor(s)

Processor(s)Processor(s)

Processor(s)

(1) Intel® Xeon® Processor E5520 (2.26 GHz, 8MB L3 Cache, 80W,

DDR3-1066, HT, Turbo 1/1/2/2)

Cache Memory

Cache MemoryCache Memory

Cache Memory

8MB (1 x 8MB) Level 3 cache

Memory

MemoryMemory

Memory

4 GB (2 x 2 GB) PC3-10600E (DDR3-1333) Registered DIMMs

Network Controller

Network ControllerNetwork Controller

Network Controller

HP NC375i Integrated Quad Port Multifunction Gigabit Server Adapter

Storage Controller

Storage ControllerStorage Controller

Storage Controller

HP Smart Array P410i/256MB Controller

Hard Drive

Hard DriveHard Drive

Hard Drive

None ship standard

Internal Storage

Internal StorageInternal Storage

Internal Storage

(8) SFF SAS/SATA HD Bays (Standard); Up to (24) SFF SAS/SATA with

optional drive cage (up to three 8 SFF drive cage can be installed)

Optical Drive

Optical DriveOptical Drive

Optical Drive

SATA DVD ROM

PCI-Express Slots

PCI-Express SlotsPCI-Express Slots

PCI-Express Slots

10 slots - (9) available PCI-e Gen2 slots (

NOTE:

NOTE: NOTE:

NOTE:

10 slots available, one is

taken by the NIC riser card

)

Power Supply

Power SupplyPower Supply

Power Supply

(1) 460W Hot Plug Power Supply

Fans

FansFans

Fans

(3) Hot Plug Fans

Form Factor

Form FactorForm Factor

Form Factor

4U Tower

QuickSpecs

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

Models

DA - 13242 Worldwide — Version 3 — April 2, 2009

Page 18

Rack Models

Rack ModelsRack Models

Rack Models

HP DL370 G6 Base

HP DL370 G6 BaseHP DL370 G6 Base

HP DL370 G6 Base

Model

ModelModel

Model

DL370 E5530 6GB

DL370 E5530 6GBDL370 E5530 6GB

DL370 E5530 6GB

487794-xx1

Processor(s)

Processor(s)Processor(s)

Processor(s)

(1) Intel® Xeon® Processor E5530 (2.40 GHz, 8MB L3 Cache, 80W,

DDR3-1066, HT, Turbo 1/1/2/2)

Cache Memory

Cache MemoryCache Memory

Cache Memory

8MB (1 x 8MB) Level 3 cache

Memory

MemoryMemory

Memory

6 GB (3 x 2 GB) PC3-10600 (DDR3-1333) Registered DIMMs

Network Controller

Network ControllerNetwork Controller

Network Controller

HP NC375i Integrated Quad Port Multifunction Gigabit Server Adapter

Storage Controller

Storage ControllerStorage Controller

Storage Controller

HP Smart Array P410i/256MB Controller

Hard Drive

Hard DriveHard Drive

Hard Drive

None ship standard

Internal Storage

Internal StorageInternal Storage

Internal Storage

(8) SFF SAS/SATA HD Bays (Standard); Up to (24) SFF SAS/SATA with

optional drive cage (up to three 8 SFF drive cage can be installed)

Optical Drive

Optical DriveOptical Drive

Optical Drive

SATA DVD ROM

PCI-Express Slots

PCI-Express SlotsPCI-Express Slots

PCI-Express Slots

10 slots - (9) available PCI-e Gen2 slots (

NOTE:

NOTE: NOTE:

NOTE:

10 slots available, one is

taken by the NIC riser card

)

Power Supply

Power SupplyPower Supply

Power Supply

(1) 750W Redundant Hot Plug Power Supply

Fans

FansFans

Fans

(3) Hot Plug Fans

Form Factor

Form FactorForm Factor

Form Factor

4U Rack

HP DL370 G6

HP DL370 G6HP DL370 G6

HP DL370 G6

Performance Model

Performance ModelPerformance Model

Performance Model

DL370 E5550 12GB

DL370 E5550 12GBDL370 E5550 12GB

DL370 E5550 12GB

487790-xx1

Processor(s)

Processor(s)Processor(s)

Processor(s)

(2) Intel® Xeon® Processor X5550 (2.66 GHz, 8MB L3 Cache, 95W,

DDR3-1333, HT, Turbo 2/2/3/3)

Cache Memory

Cache MemoryCache Memory

Cache Memory

8MB (1 x 8MB) Level 3 cache

Memory

MemoryMemory

Memory

12 GB (6 x 2 GB) PC3-10600 (DDR3-1333) Registered DIMMs

Network Controller

Network ControllerNetwork Controller

Network Controller

HP NC375i Integrated Quad Port Multifunction Gigabit Server Adapter

Storage Controller

Storage ControllerStorage Controller

Storage Controller

HP Smart Array P410i/512MB with BBWC

Hard Drive

Hard DriveHard Drive

Hard Drive

None ship standard

Internal Storage

Internal StorageInternal Storage

Internal Storage

(8) SFF SAS/SATA HD Bays (Standard); Up to (24) SFF SAS/SATA with

optional drive cage (up to three 8 SFF drive cage can be installed)

Optical Drive

Optical DriveOptical Drive

Optical Drive

SATA DVD ROM

PCI-Express Slots

PCI-Express SlotsPCI-Express Slots

PCI-Express Slots

10 slots - (9) available PCI-e Gen2 slots (

NOTE:

NOTE:NOTE:

NOTE:

10 slots available, one is

taken by the NIC riser card

)

Power Supply

Power SupplyPower Supply

Power Supply

(2) 750W Redundant Hot Plug Power Supplies

Fans

FansFans

Fans

(5) Fully Redundant Hot Plug Fans

Form Factor

Form FactorForm Factor

Form Factor

4U Rack

QuickSpecs

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

Models

DA - 13242 Worldwide — Version 3 — April 2, 2009

Page 19

Country Code Key

Country Code KeyCountry Code Key

Country Code Key

Tower Code Key

Tower Code KeyTower Code Key

Tower Code Key

Rack Code Key

Rack Code KeyRack Code Key

Rack Code Key

XX=00

U.S. English U.S. English

XX=01

Australia

N/A

XX=03

N/A

XX=04

Germany

N/A

XX=05

France

N/A

XX=20

Brazil Brazil

XX=29

Japan Japan

XX=37

APD APD

XX=42

Europe Europe

XX=AA

PRC PRC

QuickSpecs

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

Models

DA - 13242 Worldwide — Version 3 — April 2, 2009

Page 20

NOTE:

NOTE:NOTE:

NOTE:

This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are

ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for information on CTO

product offerings and requirements.

NOTE:

NOTE:NOTE:

NOTE:

HP does not allow factory integration of options into standard models listed above. Configure-to-order servers must start

with a CTO Chassis.

NOTE:

NOTE:NOTE:

NOTE:

FIO indicates that this option only available as a Factory Installable Option.

Step 1: Base Configuration (choose one of the following configurable models)

Step 1: Base Configuration (choose one of the following configurable models)Step 1: Base Configuration (choose one of the following configurable models)

Step 1: Base Configuration (choose one of the following configurable models)

Models

ModelsModels

Models

HP ProLiant ML370 G6 Tower Models

HP ProLiant ML370 G6 Tower ModelsHP ProLiant ML370 G6 Tower Models

HP ProLiant ML370 G6 Tower Models

HP ProLiant ML370 G6 SFF CTO Chassis

483880-B21

NOTE:

NOTE:NOTE:

NOTE:

Supports Small Form Factor (SFF) - 2.5" Drives

Factory Integrated Model ships with:

Factory Integrated Model ships with:Factory Integrated Model ships with:

Factory Integrated Model ships with:

HP NC375i Integrated Quad Port Multifunction Gigabit Server Adapter

Integrated Lights-Out embedded

HP Smart Array P410i/Zero Memory Controller

(8) Hot-Plug (SFF) SAS/SATA Drive Bays

(9) available PCI-e Gen2 slots

(5) USB ports

(3) Hot Plug Fans

Tower Form Factor

HP ProLiant ML370 G6 LFF CTO Chassis

483879-B21

NOTE:

NOTE:NOTE:

NOTE:

Supports Large Form Factor (LFF) - 3.5" Drives

Factory Integrated Model ships with:

Factory Integrated Model ships with:Factory Integrated Model ships with:

Factory Integrated Model ships with:

HP NC375i Integrated Quad Port Multifunction Gigabit Server Adapter

Integrated Lights-Out embedded

HP Smart Array P410i/Zero Memory Controller

(6) Hot-Plug (LFF) SAS/SATA Drive Bays

(9) available PCI-e Gen2 slots

(5) USB ports

(3) Hot Plug Fans

Tower Form Factor

HP ProLiant DL370 G6 Rack Models

HP ProLiant DL370 G6 Rack ModelsHP ProLiant DL370 G6 Rack Models

HP ProLiant DL370 G6 Rack Models

HP ProLiant DL370 G6 SFF CTO Chassis

483874-B21

NOTE:

NOTE:NOTE:

NOTE:

Supports Small Form Factor (SFF) - 2.5" Drives

Factory Integrated Model ships with:

Factory Integrated Model ships with:Factory Integrated Model ships with:

Factory Integrated Model ships with:

HP NC375i Integrated Quad Port Multifunction Gigabit Server Adapter

Integrated Lights-Out embedded

HP Smart Array P410i/Zero Memory Controller

(8) Hot-Plug (SFF) SAS/SATA Drive Bays

(9) available PCI-e Gen2 slots

(5) USB ports

(3) Hot Plug Fans

4U Rack Form Factor

HP ProLiant DL370 G6 LFF CTO Chassis

483873-B21

NOTE:

NOTE:NOTE:

NOTE:

Supports Large Form Factor (LFF) - 3.5" Drives

Factory Integrated Model ships with:

Factory Integrated Model ships with:Factory Integrated Model ships with:

Factory Integrated Model ships with:

HP NC375i Integrated Quad Port Multifunction Gigabit Server Adapter

QuickSpecs

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

Configuration Information - Factory Integrated Models

DA - 13242 Worldwide — Version 3 — April 2, 2009

Page 21

Integrated Lights-Out embedded

HP Smart Array P410i/Zero Memory Controller

(6) Hot-Plug (LFF) SAS/SATA Drive Bays

(9) available PCI-e Gen2 slots

(5) USB ports

(3) Hot Plug Fans

4U Rack Form Factor

Step 2: Choose Required Options (only one of the following from each list)

Step 2: Choose Required Options (only one of the following from each list)Step 2: Choose Required Options (only one of the following from each list)

Step 2: Choose Required Options (only one of the following from each list)

Processors

ProcessorsProcessors

Processors

NOTE:

NOTE:NOTE:

NOTE:

If High Performance Model features are desired, 2nd processor is included in

the Performance Pack part numbers in Step 3 below.

Quad-Core Processors

Quad-Core ProcessorsQuad-Core Processors

Quad-Core Processors

Intel® Xeon® Processor X5570 (2.93 GHz, 8MB L3 Cache, 95W, DDR3-1333, HT,

Turbo 2/2/3/3), FIO

495930-L21

Intel® Xeon® Processor X5560 (2.80 GHz, 8MB L3 Cache, 95W, DDR3-1333, HT,

Turbo 2/2/3/3), FIO

495932-L21

Intel® Xeon® Processor X5550 (2.66 GHz, 8MB L3 Cache, 95W, DDR3-1333, HT,

Turbo 2/2/3/3), FIO

495934-L21

Intel® Xeon® Processor E5540 (2.53 GHz, 8MB L3 Cache, 80W, DDR3-1066, HT,

Turbo 1/1/2/2), FIO

495936-L21

Intel® Xeon® Processor E5530 (2.40 GHz, 8MB L3 Cache, 80W, DDR3-1066, HT,

Turbo 1/1/2/2), FIO

495938-L21

Intel® Xeon® Processor E5520 (2.26 GHz, 8MB L3 Cache, 80W, DDR3-1066, HT,

Turbo 1/1/2/2), FIO

495940-L21

Intel® Xeon® Processor E5506 (2.13 GHz, 4MB L3 Cache, 80W, DDR3-800), FIO

495942-L21

Intel® Xeon® Processor E5504 (2.00 GHz, 4MB L3 Cache, 80W, DDR3-800), FIO

495944-L21

Intel® Xeon® Processor L5520 (2.26 GHz, 8MB L3 Cache, 60W, DDR3-1066, HT,

Turbo 1/1/2/2), FIO

505511-L21

Dual-Core Processors

Dual-Core ProcessorsDual-Core Processors

Dual-Core Processors

Intel® Xeon® Processor E5502 (1.86 GHz, 4MB L3 Cache, 80W, DDR3-800), FIO

495946-L21

Base Memory

Base MemoryBase Memory

Base Memory

Registered DIMMs (RDIMMs)

Registered DIMMs (RDIMMs)Registered DIMMs (RDIMMs)

Registered DIMMs (RDIMMs)

HP 2GB 2Rx8 PC3-10600R-9 Kit

500656-B21

HP 4GB 2Rx4 PC3-10600R-9 Kit

500658-B21

HP 4GB 4Rx8 PC3-8500R-7 LP Kit

500660-B21

HP 8GB 2Rx4 PC3-8500R-7 Kit

516423-B21

Unbuffered with ECC DIMMs (UDIMMs)

Unbuffered with ECC DIMMs (UDIMMs)Unbuffered with ECC DIMMs (UDIMMs)

Unbuffered with ECC DIMMs (UDIMMs)

HP 1GB 1Rx8 PC3-10600E-9 Kit

500668-B21

HP 2GB 2Rx8 PC3-10600E-9 Kit

500670-B21

NOTE:

NOTE:NOTE:

NOTE:

All DDR3 memory option kits consist of one DIMM per kit. For detailed

memory configuration rules and guidelines, please use the Online DDR3 Memory

Configuration Tool:

www.hp.com/go/ddr3memory-configurator

NOTE:

NOTE:NOTE:

NOTE:

Kits described as LP include Low Power DIMMs. For more information on

ProLiant Energy Efficient Features, see:

http://h18004.www1.hp.com/products/servers/platforms/energyefficient/

Power Supply

Power SupplyPower Supply

Power Supply

NOTE:

NOTE:NOTE:

NOTE:

Refer to HP Power Advisor when selecting a power supply for your

QuickSpecs

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

Configuration Information - Factory Integrated Models

DA - 13242 Worldwide — Version 3 — April 2, 2009

Page 22

configuration,

www.hp.co/go/hppoweradvisor

. Many HP ProLiant Servers now offer

new power options, including Common Slot Power Supplies. These power supplies

come in multiple power ratings and higher efficiency levels to offer the Right Size

solution to fit your configuration. This provides improved power delivery and the

advantage of reclaiming lost power. Prior to making a power supply selection it is

"highly recommended" that the "HP Power Advisor" is run to determine the right size

power supply for your server configuration. The HP Power Advisor is located at

www.hp.com/go/proliant-energy-efficient

" or

www.hp.com/go/hppoweradvisor

HP 460W CS HE Power Supply Kit

503296-B21

HP 750W CS HE Power Supply Kit

512327-B21

HP 1200W CS HE Power Supply Kit

500172-B21

NOTE:

NOTE:NOTE:

NOTE:

Option Kits contain optional power supply, an IEC power cable and PDU IEC

cables.

Step 3: Choose Additional Factory Integratable Options

Step 3: Choose Additional Factory Integratable OptionsStep 3: Choose Additional Factory Integratable Options

Step 3: Choose Additional Factory Integratable Options

Controllers

ControllersControllers

Controllers

NOTE:

NOTE:NOTE:

NOTE:

If Additional Memory Cache Module or Controller is Required please pick one

of the following:

HP 256 MB P-series cache module FIO

NOTE:

NOTE:NOTE:

NOTE:

Available for P410i only.

534108-B21

512MB BBWC

462967-B21

HP Smart Array P212/256 MB w/ Battery FIO

491191-B21

HP Smart Array P410/256 MB w/ Battery FIO

491195-B21

HP Smart Array P411/256 MB w/ Battery FIO

491193-B21

Integrated hypervisor

Integrated hypervisorIntegrated hypervisor

Integrated hypervisor

(iHV)

NOTE:

NOTE: NOTE:

NOTE:

HP VMware ESXi free download from

www.software.hp.com

- select

Virtualization

HP VMware 3i Enterprise 2p Lic SW

NOTE:

NOTE: NOTE:

NOTE:

For additional information and options kits, please see the QuickSpecs at:

www.hp.com/go/vmware

NOTE:

NOTE: NOTE:

NOTE:

HP XenServer Select Edition free download from:

http://h20392.www2.hp.com/portal/swdepot/displayProductInfo.do?

productNumber=HPXS

430341-B21

HP Essentials -XenServer Platinum Nm Lic

530753-B21

HP ProLiant Virtual Console Full License

508293-B21

XenServer HP Ent Upg iSW Lic

464676-B21

Citrix Essentials for XenServer Enterprise Edition

NOTE:

NOTE:NOTE:

NOTE:

For additional information and options kits, please see the Citrix Essentials for

XenServer QuickSpecs at

www.hp.com/go/citrix

508294-B21

Performance Packs

Performance PacksPerformance Packs

Performance Packs

Performance Packs are necessary to configure a HP ProLiant DL370 G6 or a HP

ProLiant ML370 G6 to a High Performance Model which includes the latest

performance technologies and enterprise class availability features pre-installed for

convenience and value. The Performance Pack includes a 2nd processor, redundant

fans, power supply, and memory expansion board.

NOTE:

NOTE:NOTE:

NOTE:

Must also select 447326-B21 to achieve parity to DL370 G6 or ML370 G6

High Performance Models.

HP DL370 G6 and ML370 G6 X5550 HPM FIO Perf Kit

516727-B21

QuickSpecs

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

Configuration Information - Factory Integrated Models

DA - 13242 Worldwide — Version 3 — April 2, 2009

Page 23

Step 4: Choose Additional Options for Factory Integration

Step 4: Choose Additional Options for Factory IntegrationStep 4: Choose Additional Options for Factory Integration

Step 4: Choose Additional Options for Factory Integration

NOTE:

NOTE:NOTE:

NOTE:

For additional options, please refer to the "Core Options" and "Additional Options" section below.

QuickSpecs

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

Configuration Information - Factory Integrated Models

DA - 13242 Worldwide — Version 3 — April 2, 2009

Page 24

NOTE:

NOTE:NOTE:

NOTE:

Some options may not be factory configurable. Please contact your local sales representative for additional information.

HP ProLiant ML370 and

HP ProLiant ML370 andHP ProLiant ML370 and

HP ProLiant ML370 and

DL370 G6 Unique

DL370 G6 UniqueDL370 G6 Unique

DL370 G6 Unique

Options

OptionsOptions

Options

(8) Small Form Factor (SFF) 2nd Drive Cage Kit

507803-B21

(6) Large Form Factor (LFF) Backplane Kit

507810-B21

(2) Large Form Factor (LFF) Drive Cage Kit

487936-B21

HP ML370 G6 Tower to Rack Conversion Kit

515031-B21

HP ML and DL 370G6 Redundant Fan Kit

508107-B21

Processors

ProcessorsProcessors

Processors

Quad-Core Processors

Quad-Core ProcessorsQuad-Core Processors

Quad-Core Processors

Intel® Xeon® Processor X5570 (2.93 GHz, 8MB L3 Cache, 95W, DDR3-1333, HT,

Turbo 2/2/3/3)

495930-B21

Intel® Xeon® Processor X5560 (2.80 GHz, 8MB L3 Cache, 95W, DDR3-1333, HT,

Turbo 2/2/3/3)

495932-B21

Intel® Xeon® Processor X5550 (2.66 GHz, 8MB L3 Cache, 95W, DDR3-1333, HT,

Turbo 2/2/3/3)

495934-B21

Intel® Xeon® Processor E5540 (2.53 GHz, 8MB L3 Cache, 80W, DDR3-1066, HT,

Turbo 1/1/2/2)

495936-B21

Intel® Xeon® Processor E5530 (2.40 GHz, 8MB L3 Cache, 80W, DDR3-1066, HT,

Turbo 1/1/2/2)

495938-B21

Intel® Xeon® Processor E5520 (2.26 GHz, 8MB L3 Cache, 80W, DDR3-1066, HT,

Turbo 1/1/2/2)

495940-B21

Intel® Xeon® Processor E5506 (2.13 GHz, 4MB L3 Cache, 80W, DDR3-800)

495942-B21

Intel® Xeon® Processor E5504 (2.00 GHz, 4MB L3 Cache, 80W, DDR3-800)

495944-B21

Intel® Xeon® Processor L5520 (2.26 GHz, 8MB L3 Cache, 60W, DDR3-1066, HT,

Turbo 1/1/2/2)

505511-B21

Dual-Core Processors

Dual-Core ProcessorsDual-Core Processors

Dual-Core Processors

Intel® Xeon® Processor E5502 (1.86 GHz, 4MB L3 Cache, 80W, DDR3-800)

495946-B21

Memory

MemoryMemory

Memory

Registered DIMMs (RDIMMs)

Registered DIMMs (RDIMMs)Registered DIMMs (RDIMMs)

Registered DIMMs (RDIMMs)

HP 2GB 2Rx8 PC3-10600R-9 Kit

500656-B21

HP 4GB 2Rx4 PC3-10600R-9 Kit

500658-B21

HP 4GB 4Rx8 PC3-8500R-7 LP Kit

500660-B21

HP 8GB 2Rx4 PC3-8500R-7 Kit

516423-B21

Unbuffered with ECC DIMMs (UDIMMs)

Unbuffered with ECC DIMMs (UDIMMs)Unbuffered with ECC DIMMs (UDIMMs)

Unbuffered with ECC DIMMs (UDIMMs)

HP 1GB 1Rx8 PC3-10600E-9 Kit

500668-B21

HP 2GB 2Rx8 PC3-10600E-9 Kit

500670-B21

NOTE:

NOTE:NOTE:

NOTE:

All DDR3 memory option kits consist of one DIMM per kit. For detailed

memory configuration rules and guidelines, please use the Online DDR3 Memory

Configuration Tool:

www.hp.com/go/ddr3memory-configurator

NOTE:

NOTE: NOTE:

NOTE:

Kits described as LP include Low Power DIMMs. For more information on

ProLiant Energy Efficient Features, see:

http://h18004.www1.hp.com/products/servers/platforms/energyefficient/

QuickSpecs

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

Core Options

DA - 13242 Worldwide — Version 3 — April 2, 2009

Page 25

Optical Drives

Optical DrivesOptical Drives

Optical Drives

HP Half-Height SATA DVD-ROM Optical Drive

447326-B21

HP Half-Height SATA DVD RW Optical Drive

447328-B21

HP Slim SATA DVD RW Optical Drive

481043-B21

HP Slim SATA DVD-ROM Optical Drive

481041-B21

Hard Drives

Hard DrivesHard Drives

Hard Drives

NOTE:

NOTE:NOTE:

NOTE:

Transfer rates of drives are dependent on the maximum transfer rate

supported by the HBA or Controller. Refer to the HBA or Controller technical

specifications for details.

SAS Hot Plug SFF Enterprise (ENT) Drives

SAS Hot Plug SFF Enterprise (ENT) DrivesSAS Hot Plug SFF Enterprise (ENT) Drives

SAS Hot Plug SFF Enterprise (ENT) Drives

NOTE:

NOTE:NOTE:

NOTE:

Please note that SFF 2.5" (small form factor) drives can only be installed on

tower or rack models with SFF chassis (models).

HP 300GB 6G SAS 10K SFF DP ENT HDD

507127-B21

HP 300GB 3G SAS 10K SFF DP ENT HDD

492620-B21

HP 146GB 6G SAS 10K SFF DP ENT HDD

507125-B21

HP 146GB 3G SAS 10K SFF DP ENT HDD

418367-B21

HP 146GB 3G SAS 15K SFF DP ENT HDD

504062-B21

HP 72GB 3G SAS 15K SFF DP ENT HDD

418371-B21

HP 72GB 3G SAS 10K SFF DP ENT HDD

384842-B21

HP 36GB 3G SAS 15K SFF DP ENT HDD

418369-B21

NOTE:

NOTE:NOTE:

NOTE:

SAS Enterprise drives have a 3 year warranty. Please see the QuickSpecs for

Technical Specifications and additional information:

http://h18000.www1.hp.com/products/quickspecs/12244_div/12244_div.html

(Worldwide)

SAS Hot Plug 3.5" Enterprise (ENT) Drives

SAS Hot Plug 3.5" Enterprise (ENT) DrivesSAS Hot Plug 3.5" Enterprise (ENT) Drives

SAS Hot Plug 3.5" Enterprise (ENT) Drives

HP 450GB 3G SAS 15K 3.5" DP ENT HDD

454232-B21

HP 400GB 3G SAS 10K 3.5" DP ENT HDD

459508-B21

HP 146GB 3G SAS 15K 3.5" DP ENT HDD

384854-B21

HP 72GB 3G SAS 15K 3.5" DP ENT HDD

384852-B21

SAS Hot Plug 3.5" Midline (MDL) Drives

SAS Hot Plug 3.5" Midline (MDL) DrivesSAS Hot Plug 3.5" Midline (MDL) Drives

SAS Hot Plug 3.5" Midline (MDL) Drives

NOTE:

NOTE:NOTE:

NOTE:

Please note that LFF 3.5" (large form factor) drives can only be installed on

tower or rack models with LFF chassis (models).

HP 1TB 3G SAS 7.2K DP MDL HDD

461137-B21

HP 750GB 3G SAS 7.2K DP MDL HDD

461135-B21

SATA Hot Plug SFF Entry (ETY) Drives

SATA Hot Plug SFF Entry (ETY) DrivesSATA Hot Plug SFF Entry (ETY) Drives

SATA Hot Plug SFF Entry (ETY) Drives

NOTE:

NOTE:NOTE:

NOTE:

Please note that SFF 2.5" (small form factor) drives can only be installed on

tower or rack models with SFF chassis (models).

HP 250GB 3G SATA 5.4K SFF ETY HDD

460355-B21

HP 120GB 1.5G SATA 5.4K SFF ETY HDD

458924-B21

NOTE:

NOTE:NOTE:

NOTE:

SATA hard drives have a 1-year warranty. Please see the QuickSpecs for

Technical Specifications and additional information:

http://h18000.www1.hp.com/products/quickspecs/13021_div/13021_div.html

(Worldwide)

SATA Hot Plug 3.5" Midline (MDL) Drives

SATA Hot Plug 3.5" Midline (MDL) DrivesSATA Hot Plug 3.5" Midline (MDL) Drives

SATA Hot Plug 3.5" Midline (MDL) Drives

HP 1TB 3G SATA 7.2K 3.5" MDL HDD

454146-B21

QuickSpecs

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

Core Options

DA - 13242 Worldwide — Version 3 — April 2, 2009

Page 26

HP 750GB 3G SATA 7.2K 3.5" MDL HDD

458930-B21

HP 500GB 3G SATA 7.2K 3.5" MDL HDD

458928-B21

HP 250GB 3G SATA 7.2K 3.5" MDL HDD

458926-B21

NOTE:

NOTE:NOTE:

NOTE:

SATA hard drives have a 1-year warranty. Please see the QuickSpecs for

Technical Specifications and additional information:

http://h18000.www1.hp.com/products/quickspecs/13021_div/13021_div.html

(Worldwide)

Communications

CommunicationsCommunications

Communications

HP NC112T PCIe Gigabit Server Adapter

503746-B21

HP NC360T PCI Express Dual Port Gigabit Server Adapter

412648-B21

HP NC364T PCI Express Quad Port Gigabit Server Adapter

NOTE:

NOTE:NOTE:

NOTE:

There is a maximum of five NC364T PCI Express Quad Port Gigabit Server

Adapters allowed in this server.

435508-B21

HP NC373F PCI Express Multifunction Gigabit Server Adapter

394793-B21

HP NC373T PCI Express Multifunction Gigabit Server Adapter

394791-B21

HP NC382T PCI Express Dual Port Multifunction Gigabit Server Adapter

458492-B21

HP NC522SFP Dual Port 10GbE Server Adapter

NOTE:

NOTE:NOTE:

NOTE:

A minimum of two gigabyte (2 GB) of server memory is required per each

NC522SFP adapter.

468332-B21

HP NC524SFP Dual Port 10GbE Module

489892-B21

NOTE:

NOTE:NOTE:

NOTE:

Please see the QuickSpecs for Technical Specifications and additional

information:

www.hp.com/go/ProLiantNICs

Redundant Options

Redundant OptionsRedundant Options

Redundant Options

CAUTION:

CAUTION:CAUTION:

CAUTION:

Many HP ProLiant Servers now offer new power options, including

Common Slot Power Supplies. These power supplies come in multiple power ratings

and higher efficiency levels to offer the Right Size solution to fit your configuration.

This provides improved power delivery and the advantage of reclaiming lost power.

Prior to making a power supply selection it is "highly recommended" that the "HP

Power Advisor" is run to determine the right size power supply for your server

configuration. The HP Power Advisor is located at

www.hp.com/go/proliant-energy-

efficient

. In ProLiant Servers that have more than one power slot (bay), only same size

power supplies are recommended. If non-matched power supplies are inserted you

will get errors and operation will fail.

HP 460W CS HE Power Supply Kit

503296-B21

HP 750W CS HE Power Supply Kit

512327-B21

HP 1200W CS HE Power Supply Kit

500172-B21

NOTE:

NOTE:NOTE:

NOTE:

Option Kits contain optional power supply, an IEC power cable and PDU IEC

cables.

HP ML and DL 370G6 Redundant Fan Kit

508107-B21

QuickSpecs

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

Core Options

DA - 13242 Worldwide — Version 3 — April 2, 2009

Page 27

HP Insight Control Suite

HP Insight Control SuiteHP Insight Control Suite

HP Insight Control Suite

NOTE:

NOTE:NOTE:

NOTE:

Electronic licensing options are available for Insight Control suites software

products. Please see the appropriate Insight Control QuickSpecs for additional

information.

www.hp.com/go/ice

HP Insight Control suite

HP Insight Control suiteHP Insight Control suite

HP Insight Control suite

HP Insight Control suite, No Media 1-Server License including 1 year of 24x7

Technical Support and Updates

NOTE:

NOTE:NOTE:

NOTE:

This part number can be purchased as a single license or as multiple licenses

with a single activation key. Customer will receive a license entitlement certificate via

e-mail. The license entitlement certificate must be redeemed online or via fax in order

to obtain the license activation key(s). Includes one year of 24 x 7 HP Software

Technical Support and Update Service. Only available directly from HP and select

resellers in the Americas region.

452148-B22

HP Insight Software Media Kit

NOTE:

NOTE:NOTE:

NOTE:

Insight Software DVD media without licenses. Contains Insight Manager and

Insight Software products and components licensed by Insight Control suite. Uses an

integrated installer to perform quick and accurate software installation and updates.

436222-B21

NOTE:

NOTE:NOTE:

NOTE:

For additional License Kits, please see the QuickSpecs at:

http://h18000.www1.hp.com/products/quickspecs/12631_div/12631_div.html

HP Insight Control Linux Edition

HP Insight Control Linux EditionHP Insight Control Linux Edition

HP Insight Control Linux Edition

HP Insight Control Environment for Linux, Media pack (DVD) - No licenses included

NOTE:

NOTE:NOTE:

NOTE:

This optional Media pack DVD contains the ISO image for HP Insight Control

Environment for Linux, HP System Insight Manager, HP Insight Power Manager, HP

Virtual Machine Management Pack, and an integrated installer. Servers must be

acquired separately.

NOTE:

NOTE:NOTE:

NOTE:

This Media pack is optional because the latest ISO image and latest updates

may be downloaded at no cost from:

http://www.hp.com/go/ice-linux

(click on

Download button).

464422-B22

HP Insight Control Environment for Linux, No Media, 1-Server license, including one

year of 24x7 Technical Support and Updates

NOTE:

NOTE:NOTE:

NOTE:

This part number can be used to purchase one (1) license with a single

activation key. Customer will receive a printed license entitlement certificate via

physical shipment. The license entitlement certificate must be redeemed online or via

fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP

Software Technical Support and Update Service.

NOTE:

NOTE:NOTE:

NOTE:

One certificate is shipped for each license.

464423-B22

NOTE:

NOTE:NOTE:

NOTE:

For additional License Kits, please see the QuickSpecs at:

http://h18000.www1.hp.com/products/quickspecs/13019_div/13019_div.html

Server Management

Server ManagementServer Management

Server Management

Stand Alone Software

Stand Alone SoftwareStand Alone Software

Stand Alone Software

NOTE:

NOTE:NOTE:

NOTE:

Electronic licensing options are available for select software products. Please

see the appropriate Insight Software standalone product QuickSpecs for additional

information.

Deploy

DeployDeploy

Deploy

HP Insight Rapid Deployment software

HP Insight Rapid Deployment softwareHP Insight Rapid Deployment software

HP Insight Rapid Deployment software

HP Insight Rapid Deployment software No Media 1-Server License including 1 year of

24x7 Technical Support and Updates

NOTE:

NOTE:NOTE:

NOTE:

This license allows 1 server to be deployed and managed via RDP. Customer

will receive a printed license entitlement certificate via physical shipment. The license

452151-B21

QuickSpecs

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

Additional Options

DA - 13242 Worldwide — Version 3 — April 2, 2009

Page 28

entitlement certificate must be redeemed online or via fax in order to obtain the

license activation key(s). Includes one year of 24 x 7 HP Software Technical Support

Service

NOTE:

NOTE:NOTE:

NOTE:

For additional License Kits, please see the QuickSpecs at:

http://h18000.www1.hp.com/products/quickspecs/11053_div/11053_div.html

HP Insight Server Migration software for ProLiant

HP Insight Server Migration software for ProLiantHP Insight Server Migration software for ProLiant

HP Insight Server Migration software for ProLiant

HP Insight Server Migration software for ProLiant, No Media, Physical / Virtual to

ProLiant Single Migration License, including 1 year of 24x7 Technical Support and

Updates

NOTE:

NOTE:NOTE:

NOTE:

This license allows 1 physical to ProLiant or virtual to ProLiant migration.

Customer will receive a printed license entitlement certificate and documentation via

physical shipment. The license entitlement certificate must be redeemed online or via

fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP

Software Technical Support and Update Service.

460750-B21

HP Insight Server Migration software for ProLiant, No Media, Physical / Virtual to

Virtual Single Migration License, including 1 year of 24x7 Technical Support and

Updates

NOTE:

NOTE:NOTE:

NOTE:

This license allows 1 physical to virtual or virtual to virtual migration.

Customer will receive a printed license entitlement certificate and documentation via

physical shipment. The license entitlement certificate must be redeemed online or via

fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP

Software Technical Support and Update Service.

460753-B21

HP Insight Server Migration software for ProLiant, No Media, 1-Year Unlimited

Migration License, including 1 year of 24x7 Technical Support

NOTE:

NOTE:NOTE:

NOTE:

This license allows unlimited migrations (physical to ProLiant, physical to

virtual, virtual to virtual, and virtual to ProLiant) for one year. Customer will receive a

printed license entitlement certificate and documentation via physical shipment. The

license entitlement certificate must be redeemed online or via fax in order to obtain

the license activation key(s). Includes one year of 24 x 7 HP Software Technical

Support Service.

460756-B21

NOTE:

NOTE:NOTE:

NOTE:

For additional License Kits, please see the QuickSpecs at:

http://h18000.www1.hp.com/products/quickspecs/12855_div/12855_div.html

Monitor

MonitorMonitor

Monitor

HP Insight Dynamics-VSE suite for ProLiant

HP Insight Dynamics-VSE suite for ProLiantHP Insight Dynamics-VSE suite for ProLiant

HP Insight Dynamics-VSE suite for ProLiant

HP Insight Dynamics-VSE with Insight Control Environment, 1-server license including

1 year of 24x7 Technical Support and Updates

NOTE:

NOTE:NOTE:

NOTE:

This license supports HP ProLiant ML/DL and c-Class Blade servers. Customer

will receive a printed license entitlement certificate via physical shipment.

483527-B21

HP Insight Dynamics-VSE without Insight Control Environment, 1-server license

including 1 year of 24x7 Technical Support and Updates

NOTE:

NOTE:NOTE:

NOTE:

This license supports HP ProLiant ML/DL and c-Class Blade servers. Customer

will receive via email a receipt and link to a license entitlement certificate.

483531-B21

NOTE:

NOTE:NOTE:

NOTE:

For additional License Kits, please see the QuickSpecs at:

http://h18000.www1.hp.com/products/quickspecs/13050_div/13050_div.html

Control

ControlControl

Control

HP Integrated Lights-Out Select Pack

HP Integrated Lights-Out Select PackHP Integrated Lights-Out Select Pack

HP Integrated Lights-Out Select Pack

HP Integrated Lights-Out Select Pack, No Media, 1-Server License

NOTE:

NOTE:NOTE:

NOTE:

For additional License Kits, please see the QuickSpecs at:

http://h18000.www1.hp.com/products/quickspecs/12362_div/12362_div.html

452158-B21

QuickSpecs

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

Additional Options

DA - 13242 Worldwide — Version 3 — April 2, 2009

Page 29

HP Integrated Lights-Out Advanced Pack

HP Integrated Lights-Out Advanced PackHP Integrated Lights-Out Advanced Pack

HP Integrated Lights-Out Advanced Pack

HP Integrated Lights-Out Advanced Pack, No Media, 1-Server License, including 1

year of 24x7 Technical Support and Updates

NOTE:

NOTE:NOTE:

NOTE:

For additional License Kits, please see the QuickSpecs at:

http://h18000.www1.hp.com/products/quickspecs/12362_div/12362_div.html

512485-B21

Optimize

OptimizeOptimize

Optimize

HP Accelerated iSCSI Pack

HP Accelerated iSCSI PackHP Accelerated iSCSI Pack

HP Accelerated iSCSI Pack

HP Accelerated iSCSI Pack, No Media, Single License

NOTE:

NOTE:NOTE:

NOTE:

For use with a single NIC port. Contains one license with a unique license

activation key and documentation.

NOTE:

NOTE:NOTE:

NOTE:

For additional License Kits, please see the QuickSpecs at:

http://h18000.www1.hp.com/products/quickspecs/12466_div/12466_div.html

452679-B21

HP Insight Power Manager (IPM)

HP Insight Power Manager (IPM)HP Insight Power Manager (IPM)

HP Insight Power Manager (IPM)

HP Insight Power Manager software, No Media, 1-Server License, including 1 year of

24x7 Technical Support and Updates

NOTE:

NOTE:NOTE:

NOTE:

Customers purchasing this upgrade must already have an iLO Advanced or

Select license on each managed server. Customer will receive a printed license

entitlement certificate via physical shipment. The license entitlement certificate must be

redeemed online or via fax in order to obtain the license activation key(s). Includes

one year of 24 x 7 HP Software Technical Support and Update Service.

NOTE:

NOTE:NOTE:

NOTE:

For additional License Kits, please see the QuickSpecs at:

http://h18000.www1.hp.com/products/quickspecs/12623_div/12623_div.html

452677-B21

NOTE:

NOTE:NOTE:

NOTE:

Flexible and volume quantity license kits are available for Value Packs. Refer

http://www.hp.com/servers/proliantessentials

or the various QuickSpecs for more

information.

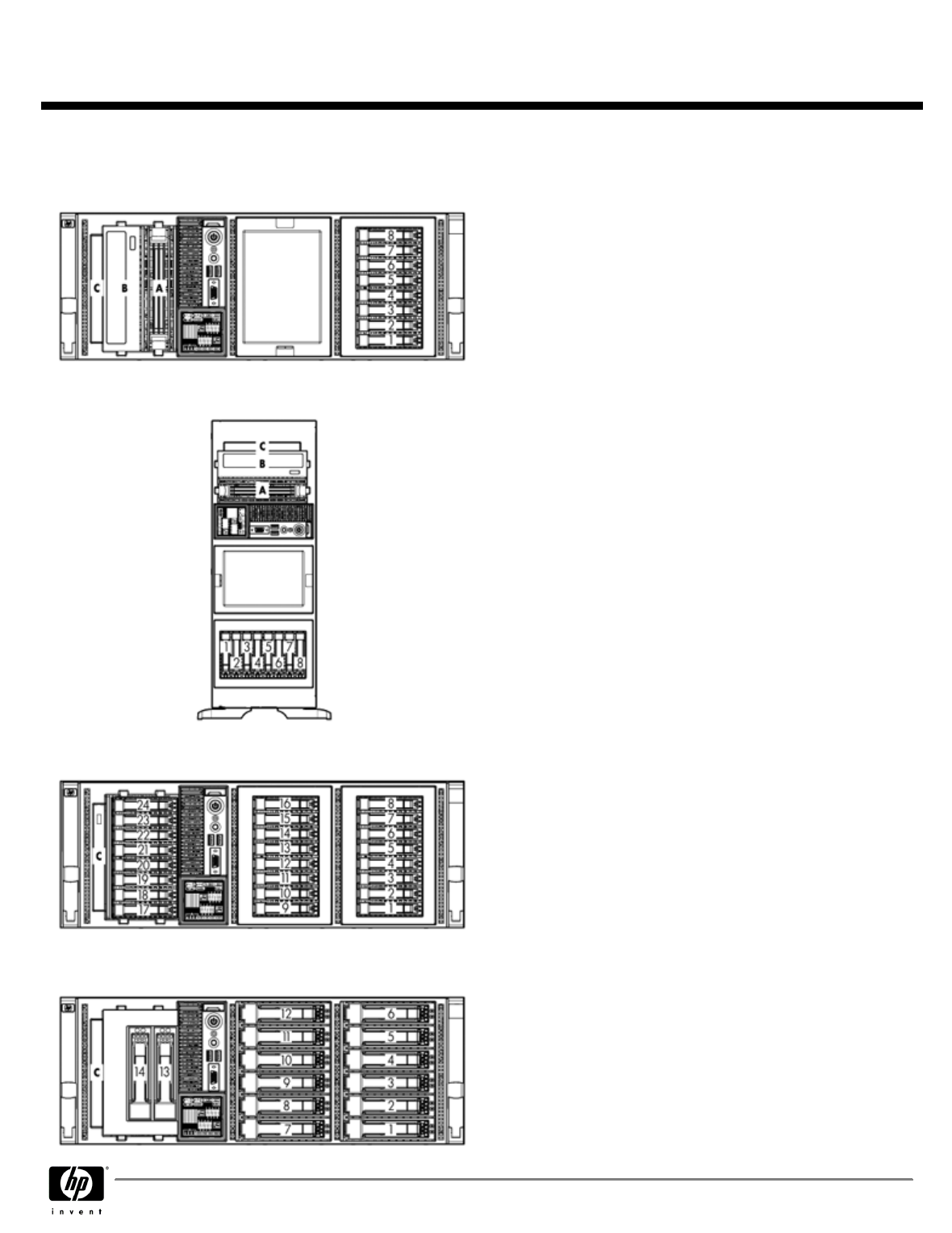

Drive Cage Options

Drive Cage OptionsDrive Cage Options

Drive Cage Options

(8) Small Form Factor (SFF) 2nd Drive Cage Kit

507803-B21

(6) Large Form Factor (LFF) Backplane Kit

507810-B21

(2) Large Form Factor (LFF) Drive Cage Kit

487936-B21

Security

SecuritySecurity

Security

HP Trusted Platform Module Option Kit

488069-B21

QuickSpecs

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

Additional Options

DA - 13242 Worldwide — Version 3 — April 2, 2009

Page 30

Storage Controllers

Storage ControllersStorage Controllers

Storage Controllers

SAS Controllers

SAS ControllersSAS Controllers

SAS Controllers

Smart Array P800 Controller

Smart Array P800 ControllerSmart Array P800 Controller

Smart Array P800 Controller

HP Smart Array P800/512 BBWC Controller

381513-B21

Smart Array P212 Controller

Smart Array P212 ControllerSmart Array P212 Controller

Smart Array P212 Controller

HP Smart Array P212/ZM Controller

462828-B21

HP Smart Array P212/256 MB Controller

462834-B21

256 MB Cache

462968-B21

Smart Array P410 Controller

Smart Array P410 ControllerSmart Array P410 Controller

Smart Array P410 Controller

HP Smart Array P410/256 MB Controller

462862-B21

HP Smart Array P410/512 MB with BBWC Controller

462864-B21

512MB BBWC

462967-B21

Smart Array P411 Controller

Smart Array P411 ControllerSmart Array P411 Controller

Smart Array P411 Controller

HP Smart Array P411/256 MB Controller

462830-B21

HP Smart Array P411/512 MB with BBWC Controller

462832-B21

512MB BBWC

462967-B21

NOTE:

NOTE:NOTE:

NOTE:

Please see the QuickSpecs for Technical Specifications and additional

information:

http://h18000.www1.hp.com/products/quickspecs/12616_div/12616_div.html

(Smart Array P800 Controller)

http://h18000.www1.hp.com/products/quickspecs/13203_div/13203_div.html

(Smart Array P212 Controller)

http://h18000.www1.hp.com/products/quickspecs/13201_div/13201_div.html

(Smart Array P410 Controller)

http://h18000.www1.hp.com/products/quickspecs/13202_div/13202_div.html

(Smart Array P411 Controller)

SAS Controller Options

SAS Controller OptionsSAS Controller Options

SAS Controller Options

HP SAS Expander Card

NOTE:

NOTE:NOTE:

NOTE:

For use with the additional 8 SFF drive cage (507803-B21).

468406-B21

NOTE:

NOTE: NOTE:

NOTE:

Please see the QuickSpecs for Technical Specifications and additional

information:

http://h18004.www1.hp.com/products/quickspecs/13232_div/13232_div.html

(SAS Expander Card)

SAS HBA

SAS HBASAS HBA

SAS HBA

HP SC08Ge Host Bus Adapter

488765-B21

NOTE:

NOTE: NOTE:

NOTE:

Please see the QuickSpecs for Technical Specifications and additional

information:

http://h18004.www1.hp.com/products/quickspecs/13082_div/13082_div.html

(SC08Ge HBA)

QuickSpecs

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

Additional Options

DA - 13242 Worldwide — Version 3 — April 2, 2009

Page 31

Power Cords

Power CordsPower Cords

Power Cords

NOTE:

NOTE: NOTE:

NOTE:

HP ProLiant servers ships with an IEC-IEC power cord used for rack mounting

with Power Distribution Units (PDUs).

Nema 5-15P to IEC320-C13, North America low voltage (6 ft/2 m)

AF556A

Power Cord, Euro, 10A 250 V Straight (6 ft/1.83 m)

AF568A

Power Cord, UK, 10A 250 V Straight (6 ft/1.83 m)

AF570A

Power Cord, Danish, 10A 250 V Straight (6 ft/1.83 m)

AF566A

Power Cord, Swiss, 10A 250 V Straight (6 ft/1.83 m)

AF565A

Power Cord, Italian, 10A 250 V Straight (6 ft/1.83 m)

AF571A

Power Cord, South Africa, 10A 250 V Straight (8.2 ft/2.5 m)

AF567A

Tape Drives

Tape DrivesTape Drives

Tape Drives

NOTE:

NOTE:NOTE:

NOTE:

For the complete listing of Tape Drive offerings, please see:

http://www.hp.com/products1/storage/compatibility/tapebackup/ISS/index.html

For recommended tape drive offerings for this ProLiant server see the following:

USB Tape Drives

USB Tape DrivesUSB Tape Drives

USB Tape Drives

HP StorageWorks DAT 160 USB Internal Tape Drive

Q1580A

SAS Tape Drives

SAS Tape DrivesSAS Tape Drives

SAS Tape Drives

NOTE:

NOTE: NOTE:

NOTE:

For the ML370 G6, HP recommends purchasing the HP Smart Array P212

Controller (462828-B21) for a dedicated SAS HBA for tape.

HP StorageWorks LTO-2 Ultrium 448 SAS Internal Tape Drive

DW085A

HP StorageWorks LTO-3 Ultrium 920 SAS Internal Tape Drive

EH847A

HP StorageWorks LTO-4 Ultrium 1760 SAS Internal Tape Drive

EH919A

NOTE:

NOTE:NOTE:

NOTE:

Please refer to the "Tape Drives, Tape Autoloaders & Tape Libraries" table in

the Storage section of this document for a list of SAS controllers with tape support.

Disk-Based Backup

Disk-Based BackupDisk-Based Backup

Disk-Based Backup

RDX Removable Disk Backup

RDX Removable Disk BackupRDX Removable Disk Backup

RDX Removable Disk Backup

HP StorageWorks RDX500 Internal Removable Disk Backup System

NOTE:

NOTE: NOTE:

NOTE:

500GB of Disk Storage.

AJ934A

D2D Backup

D2D BackupD2D Backup

D2D Backup

HP StorageWorks D2D120 Backup System with Data Protector Express Software Kit

NOTE:

NOTE:NOTE:

NOTE:

2TB of Disk Storage

EH924A

HP StorageWorks D2D130 Backup System with LTO-3 Ultrium 920 SAS Tape Drive

NOTE:

NOTE:NOTE:

NOTE:

3TB of Disk Storage.

EH952A

HP StorageWorks D2D2503i Backup System

NOTE:

NOTE: NOTE:

NOTE:

3TB of Disk Storage.

EH945A

HP StorageWorks D2D4004i Backup System

NOTE:

NOTE:NOTE:

NOTE:

4.5TB of Disk Storage.

EH938A

NOTE:

NOTE:NOTE:

NOTE:

Please see the HP D2D Backup Systems QuickSpecs for additional

information:

http://www.hp.com/go/d2d

QuickSpecs

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

Additional Options

DA - 13242 Worldwide — Version 3 — April 2, 2009

Page 32

Tape Autoloaders

Tape AutoloadersTape Autoloaders

Tape Autoloaders

HP StorageWorks 1/8 G2 Tape Autoloader

HP StorageWorks 1/8 G2 Tape AutoloaderHP StorageWorks 1/8 G2 Tape Autoloader

HP StorageWorks 1/8 G2 Tape Autoloader

HP StorageWorks 1/8 G2 LTO-4 Ultrium 1760 SAS Tape Autoloader

AK377A

HP StorageWorks 1/8 G2 LTO-3 Ultrium 920 SAS Autoloader

AH558A

HP StorageWorks 1/8 G2 Tape Autoloader Rack Kit

NOTE:

NOTE:NOTE:

NOTE:

Required to install the 1/8 G2 Autoloaders in a standard 19-inch rack;

includes rails and rackmount instructions.

AH166A

NOTE:

NOTE:NOTE:

NOTE:

Please reference the Tape Autoloader QuickSpecs at:

http://www.hp.com/go/automation

for additional information needed to create a

complete solution; reference current compatibility information at:

http://www.hp.com/go/ebs

Tape Libraries

Tape LibrariesTape Libraries

Tape Libraries

HP StorageWorks MSL2024 Tape Library

HP StorageWorks MSL2024 Tape LibraryHP StorageWorks MSL2024 Tape Library

HP StorageWorks MSL2024 Tape Library

HP StorageWorks MSL2024 1 LTO-4 Ultrium 1760 SAS Drive Library

AK378A

HP StorageWorks MSL2024 1 LTO-3 Ultrium 920 SAS Drive Library

AH559A

HP StorageWorks MSL4048 Tape Library

HP StorageWorks MSL4048 Tape LibraryHP StorageWorks MSL4048 Tape Library

HP StorageWorks MSL4048 Tape Library

HP StorageWorks MSL4048 2 LTO-4 Ultrium 1760 SAS Drive Library

AK380A

HP StorageWorks MSL4048 1 LTO-3 Ultrium 920 SAS Drive Library

AH560A

NOTE:

NOTE:NOTE:

NOTE:

Please reference the MSL Tape Library QuickSpecs at:

http://www.hp.com/go/automation

for additional information needed to create a

complete solution; reference current compatibility information at:

http://www.hp.com/go/ebs

High Availability Cluster

High Availability ClusterHigh Availability Cluster

High Availability Cluster

Options

OptionsOptions

Options

HP Serviceguard for Linux

HP Serviceguard for LinuxHP Serviceguard for Linux

HP Serviceguard for Linux

HP Serviceguard Linux for HP ProLiant/x86 Servers

Licensed per physical server

Includes media and One Year 24x7 Software Support & Updates

463831-B21

HP Serviceguard Linux Oracle Database Toolkit for HP ProLiant/x86 Servers

Licensed per cluster

Includes media and One Year 24x7 Software Support & Updates

463833-B21

HP Serviceguard Extension for SAP on Linux for HP ProLiant/x86 Servers

Licensed per physical server

Includes media and One Year 24x7 Software Support & Updates

463834-B21

HP Serviceguard Linux Extended Distance Cluster (XDC) for HP ProLiant/x86 Servers

Licensed per physical server

Includes media and One Year 24x7 Software Support & Updates

463835-B21

NOTE:

NOTE:NOTE:

NOTE:

The above is not a complete list of all HP Serviceguard for Linux product

numbers For a detailed list of supported configuration/certification options for HP

Serviceguard for Linux please refer to the HP Serviceguard for Linux Configuration &

Ordering Guide available at:

http://www.hp.com/go/sglx/info

NOTE:

NOTE:NOTE:

NOTE:

HP Serviceguard for Linux products running on x86 platforms now include one

year of 24 x 7 Software Technical Support and Updates. Please see the Support

Information section of the HP Serviceguard for Linux QuickSpecs for details.

NOTE:

NOTE:NOTE:

NOTE:

For additional information including a complete list of Product Numbers for

HP Serviceguard for Linux, please see the following QuickSpecs at:

http://h18000.www1.hp.com/products/quickspecs/11518_div/11518_div.html

(Worldwide)

QuickSpecs

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

Additional Options

DA - 13242 Worldwide — Version 3 — April 2, 2009

Page 33

StorageWorks Options

StorageWorks OptionsStorageWorks Options

StorageWorks Options

StorageWorks Fibre Channel HBA

StorageWorks Fibre Channel HBAStorageWorks Fibre Channel HBA

StorageWorks Fibre Channel HBA

NOTE:

NOTE:NOTE:

NOTE:

The following is a list of all Fibre Channel Host Bus Adapters for Windows and

Linux. For detailed compatibility information please see:

http://h18006.www1.hp.com/storage/saninfrastructure/hba.html

HP StorageWorks FC2142SR 4Gb PCI-e HBA

A8002A

HP StorageWorks FC2242SR Dual Channel 4Gb PCI-e HBA

A8003A

HP StorageWorks FC1142SR 4Gb PCI-e HBA

AE311A

HP StorageWorks FC1242SR Dual Channel 4Gb PCI-e HBA

AE312A

HP StorageWorks 81Q PCI-e FC HBA

AK344A

HP StorageWorks 81E 8Gb PCI-e FC HBA

AJ762A

HP StorageWorks 82E 8Gb Dual-port PCI-e FC HBA

AJ763A

HP StorageWorks 82Q 8Gb Dual Port PCI-e FC HBA

AJ764A

StorageWorks SCSI HBA

StorageWorks SCSI HBAStorageWorks SCSI HBA

StorageWorks SCSI HBA

HP U320e SCSI Host Bus Adapter

NOTE:

NOTE:NOTE:

NOTE:

Recommended Dual Channel Ultra320 SCSI Controller for connecting multi-

drive MSL tape libraries to ProLiant servers.

AH627A

HP StorageWorks 50

HP StorageWorks 50HP StorageWorks 50

HP StorageWorks 50

Modular Smart Array

Modular Smart ArrayModular Smart Array

Modular Smart Array

HP StorageWorks 50 Modular Smart Array

364430-B21

NOTE:

NOTE:NOTE:

NOTE:

Please see the QuickSpecs for additional options and configuration

information at:

http://h18000.www1.hp.com/products/quickspecs/12245_div/12245_div.html

(Worldwide)

HP StorageWorks 60

HP StorageWorks 60HP StorageWorks 60

HP StorageWorks 60

Modular Smart Array

Modular Smart ArrayModular Smart Array

Modular Smart Array

HP StorageWorks 60 Modular Smart Array

418408-B21

NOTE:

NOTE:NOTE:

NOTE:

Please see the QuickSpecs for additional options and configuration

information at:

http://h18000.www1.hp.com/products/quickspecs/12627_div/12627_div.html

(Worldwide)

HP StorageWorks 70

HP StorageWorks 70HP StorageWorks 70

HP StorageWorks 70

Modular Smart Array

Modular Smart ArrayModular Smart Array

Modular Smart Array

HP StorageWorks 70 Modular Smart Array

418800-B21

NOTE:

NOTE:NOTE:

NOTE:

Please see the QuickSpecs for additional options and configuration

information at:

http://h18000.www1.hp.com/products/quickspecs/12652_div/12652_div.html

(Worldwide)

QuickSpecs

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

Additional Options

DA - 13242 Worldwide — Version 3 — April 2, 2009

Page 34

Uninterruptible Power

Uninterruptible PowerUninterruptible Power

Uninterruptible Power

Systems - Tower

Systems - TowerSystems - Tower

Systems - Tower

HP T1000v Uninterruptible Power System

HP T1000v Uninterruptible Power SystemHP T1000v Uninterruptible Power System

HP T1000v Uninterruptible Power System

HP T1000v UPS

NOTE:

NOTE: NOTE:

NOTE:

The T1000v is available in China and India only.

AF443A

NOTE:

NOTE:NOTE:

NOTE:

Please see the QuickSpecs for additional information:

http://h18000.www1.hp.com/products/quickspecs/13130_div/13130_div.html

(Worldwide)

HP T1500 G3 UPS Models

HP T1500 G3 UPS ModelsHP T1500 G3 UPS Models

HP T1500 G3 UPS Models

HP T1500 G3 UPS, NA

AF450A

HP T1500 G3 UPS, INTL

AF451A

NOTE:

NOTE:NOTE:

NOTE:

Please see the QuickSpecs for additional information:

http://h18000.www1.hp.com/products/quickspecs/13160_div/13160_div.html

(Worldwide)

Uninterruptible Power

Uninterruptible PowerUninterruptible Power

Uninterruptible Power

Systems - Rack

Systems - RackSystems - Rack

Systems - Rack

HP R1500 G2 UPS

HP R1500 G2 UPSHP R1500 G2 UPS

HP R1500 G2 UPS

HP, R1.5kVA UPS, 1U, NA

AF419A

HP, R1.5kVA UPS, 1U, INTL

AF418A

HP, R1.5kVA UPS, 1U, JPN/TW

AF421A

NOTE:

NOTE:NOTE:

NOTE:

Please see the QuickSpecs for Technical Specifications and additional

information:

http://h18000.www1.hp.com/products/quickspecs/12507_div/12507_div.html

(Worldwide)

HP R3000 UPS

HP R3000 UPSHP R3000 UPS

HP R3000 UPS

HP R3000 VA UPS, 2U, DTC, INTL

AF414A

HP R3000 VA UPS, 2U, L5-30, NA

AF422A

HP R3000 VA UPS, 2U, L6-20, NA

AF423A

HP R3000 VA UPS, 2U, L6-20, JPN

AF424A

HP R3000 VA UPS, 2U, L5-30, JPN

AF425A

NOTE:

NOTE:NOTE:

NOTE:

Please see the QuickSpecs for Technical Specifications and additional

information:

http://h18000.www1.hp.com/products/quickspecs/10671_div/10671_div.html

(Worldwide)

HP R3000v Uninterruptible Power System

HP R3000v Uninterruptible Power SystemHP R3000v Uninterruptible Power System

HP R3000v Uninterruptible Power System

HP R3000v UPS

NOTE:

NOTE:NOTE:

NOTE:

The R3000v is available in China and India only.

AF444A

NOTE:

NOTE:NOTE:

NOTE:

Please see the QuickSpecs for Technical Specifications and additional

information:

http://h18000.www1.hp.com/products/quickspecs/13129_div/13129_div.html

(Worldwide)

HP Rack-Mountable R5500 UPS

HP Rack-Mountable R5500 UPSHP Rack-Mountable R5500 UPS

HP Rack-Mountable R5500 UPS

HP R5500 VA UPS, INTL

AF416A

HP R5500 VA UPS, NA/JPN

AF426A

NOTE:

NOTE:NOTE:

NOTE:

Please see the QuickSpecs for Technical Specifications and additional

information:

http://h18000.www1.hp.com/products/quickspecs/11871_div/11871_div.html

(Worldwide)

QuickSpecs

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

Additional Options

DA - 13242 Worldwide — Version 3 — April 2, 2009

Page 35

HP Monitored Power

HP Monitored PowerHP Monitored Power

HP Monitored Power

Distribution Unit

Distribution UnitDistribution Unit

Distribution Unit

(PDU)

HP Monitored Power Distribution Unit: Full Rack Version

HP Monitored Power Distribution Unit: Full Rack VersionHP Monitored Power Distribution Unit: Full Rack Version

HP Monitored Power Distribution Unit: Full Rack Version

HP 17.3 kVA S2324 Monitored PDU- dual input, 3Ø24A (NA/JPN)

AF503A

HP 8.6 kVA S1324 Monitored PDU- single input, 3Ø, 24A (NA/JPN)

AF504A

HP 16.6 kVA S2140 Monitored PDU- dual input, 1Ø, 40A (NA/JPN)

AF505A

HP 8.3 S1140 Monitored PDU- single input, 1Ø, 40A (NA/JPN)

AF506A

HP 22.1 kVA S2316 Monitored PDU- dual input, 3Ø, 16A (INTL)

AF507A

HP 11 kVA S1316 Monitored PDU- single input, 3Ø, 16A (INTL)

AF508A

HP 14.7 kVA S2132 Monitored PDU- dual input, 1Ø, 32A (INTL)

AF509A

HP 7.3 kVA S1132 Monitored PDU- single input, 1Ø, 32A (INTL)

AF510A

HP Monitored Power Distribution Unit: Half Rack Version

HP Monitored Power Distribution Unit: Half Rack VersionHP Monitored Power Distribution Unit: Half Rack Version

HP Monitored Power Distribution Unit: Half Rack Version

HP 4.9 kVA S124 Monitored PDU- single input, 1Ø, 24A (NA/JPN)

AF914A

HP 7.3 kVA S132 Monitored PDU- single input, 1Ø, 32A (INTL)

AF915A

NOTE:

NOTE:NOTE:

NOTE:

Please see the QuickSpecs for Technical Specifications and additional

information:

http://h18000.www1.hp.com/products/quickspecs/12118_div/12118_div.html

(Worldwide)

Modular PDUs 1U/0U

Modular PDUs 1U/0UModular PDUs 1U/0U

Modular PDUs 1U/0U

(Up to 32 outlets)

NOTE:

NOTE:NOTE:

NOTE:

1U/0U mounting

brackets shipped with

the unit (optimized for

10000 and 9000 series

racks).

Fixed Cord Extension Bars

NOTE:

NOTE:NOTE:

NOTE:

Two extension bar sticks; each with (7) C13 plugs.

351655-B21

3.6kVA Model - mPDU, 16A, High (WW)

252663-B24

2.8 kVA Model - mPDU, 24A, Low (NA/JPN)

252663-D71

4.9kVA Model - mPDU, 24A, High (NA/JPN)

252663-D72

7.3kVA Model - mPDU, 32A, High (INT'L)

252663-B31

8.3kVA Model - mPDU, 40A, High (WW)

252663-B21

8.3kVA Model - mPDU, 40A, High (power cord attached) (NA/JPN)

252663-D73

9.2kVA Model - mPDU, 40A, High (power cord attached) (INTL)

252663-B32

NOTE:

NOTE:NOTE:

NOTE:

For additional information on HP Power Distribution Units including

accessories please go to:

www.hp.com/go/pdu

(Worldwide)

USB Options

USB OptionsUSB Options

USB Options

HP USB 2-Button Optical Scroll Mouse (Carbonite/Silver)

DC172B

USB 1.44-MB External Diskette Drive (Carbonite)

DC141B

HP USB 04 Standard Keyboard

DT528A#ABA

Rack Kit

Rack KitRack Kit

Rack Kit

HP ML370 G6 Tower to Rack Conversion Kit

515031-B21

QuickSpecs

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

Additional Options

DA - 13242 Worldwide — Version 3 — April 2, 2009

Page 36

HP Rack 5000 Series

HP Rack 5000 SeriesHP Rack 5000 Series

HP Rack 5000 Series

(Graphite Metallic)

HP 5642 Rack Unassembled

358254-B21

NOTE:

NOTE:NOTE:

NOTE:

Please see the QuickSpecs for Technical Specifications and additional

information:

http://h18000.www1.hp.com/products/quickspecs/12074_div/12074_div.html

(Worldwide)

NOTE:

NOTE:NOTE:

NOTE:

For additional information regarding Rack Cabinets, please see the following

URL:

http://www.hp.com/go/rackandpower

HP Rack 10000 G2

HP Rack 10000 G2HP Rack 10000 G2

HP Rack 10000 G2

Series

SeriesSeries

Series

(Carbon/Graphite

Metallic)

10642 G2 (42U) Rack Cabinet - Pallet

AF001A

10642 G2 (42U) Rack Cabinet - Shock Pallet

AF002A

10642 G2 (42U) Rack Cabinet - Crated

AF003A

10642 G2 (42U) Rack Cabinet, with Extension - Shock Pallet

AF004A

10636 G2 (36U) Rack Cabinet - Pallet

AF011A

10636 G2 (36U) Rack Cabinet - Shock Pallet

AF012A

10636 G2 (36U) Rack Cabinet - Crated

AF013A

10636 G2 (36U) Rack Cabinet, with Extension - Shock Pallet

AF014A

10622 G2 (22U) Rack Cabinet - Pallet

AF021A

10622 G2 (22U) Rack Cabinet - Shock Pallet

AF022A

10642 G2 (42U) Rack Cabinet 1200mm Deep - Shock Pallet

AF034A

10642 G2 (42U) Rack Cabinet 1200mm Deep - Pallet

AF038A

10842 G2 (42U) 800mm Wide Rack Cabinet - Pallet

AF041A

10842 G2 (42U) 800mm Wide Rack Cabinet - Shock Pallet

AF042A

10647 G2 (47U) Rack Cabinet - Pallet

AF031A

HP Rack S10614 (14U) Rack Cabinet - Shock Pallet

292302-B22

10647 G2 (47U) Rack Cabinet 1200mm Deep - Shock Pallet

NOTE:

NOTE:NOTE:

NOTE:

Due to handling and shipping requirements, AF044A is only orderable

through HP Factory Express. It is not for direct sales. Customer site surveys are

required before an order is approved. CTO orders may require additional lead time.

AF044A

10647 G2 (47U) Rack Cabinet 1200mm Deep - Pallet

AF045A

NOTE:

NOTE:NOTE:

NOTE:

It is mandatory to use a shock pallet when shipping racks with equipment

installed.

NOTE:

NOTE:NOTE:

NOTE:

xxxxxx-B22 (shock pallet) used to ship racks with equipment installed (by

custom systems, VARs and Channels).

NOTE:

NOTE:NOTE:

NOTE:

Please see the QuickSpecs for Technical Specifications and additional

information:

http://h18000.www1.hp.com/products/quickspecs/12402_div/12402_div.html

(Worldwide)

NOTE:

NOTE:NOTE:

NOTE:

For additional information regarding Rack Cabinets, please see the following

URL:

http://www.hp.com/go/rackandpower

QuickSpecs

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

Additional Options

DA - 13242 Worldwide — Version 3 — April 2, 2009

Page 37

Keyboards and Monitors

Keyboards and MonitorsKeyboards and Monitors

Keyboards and Monitors

TFT7600 Rackmount Keyboard Monitor US

AG052A

TFT7600 Rackmount Keyboard Monitor UK

AG053A

TFT7600 Rackmount Keyboard Monitor GR

AG054A

TFT7600 Rackmount Keyboard Monitor FR

AG055A

TFT7600 Rackmount Keyboard Monitor IT

AG056A

TFT7600 Rackmount Keyboard Monitor SP

AG057A

TFT7600 Rackmount Keyboard Monitor DEN

AG058A

TFT7600 Rackmount Keyboard Monitor NOR

AG059A

TFT7600 Rackmount Keyboard Monitor SE/FI

AG060A

TFT7600 Rackmount Keyboard Monitor SWI

AG061A

TFT7600 Rackmount Keyboard Monitor PORT

AG062A

TFT7600 Rackmount Keyboard Monitor BEL

AG063A

TFT7600 Rackmount Keyboard Monitor JPN2

AG064A

TFT7600 Rackmount Keyboard Monitor RUS

AG065A

TFT7600 Rackmount Keyboard Monitor INTL

AG066A

1U Rackmount Keyboard with USB, US

AG072A

1U Rackmount Keyboard with USB, UK

AG073A

1U Rackmount Keyboard with USB, GR

AG074A

1U Rackmount Keyboard with USB, FR

AG075A

1U Rackmount Keyboard with USB, ITL

AG076A

1U Rackmount Keyboard with USB, SP

AG077A

1U Rackmount Keyboard with USB, DEN

AG078A

1U Rackmount Keyboard with USB, NOR

AG079A

1U Rackmount Keyboard with USB, SE/FI

AG080A

1U Rackmount Keyboard with USB, SWI

AG081A

1U Rackmount Keyboard with USB, PORT

AG082A

1U Rackmount Keyboard with USB, BEL

AG083A

1U Rackmount Keyboard with USB, JPN2

AG084A

1U Rackmount Keyboard with USB, RUS

AG085A

1U Rackmount Keyboard with USB, INTL

AG086A

NOTE:

NOTE:NOTE:

NOTE:

For additional information regarding Rack Cabinets, please see the following

URL:

http://www.hp.com/go/rackandpower

QuickSpecs

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

Additional Options

DA - 13242 Worldwide — Version 3 — April 2, 2009

Page 38

HP KVM Switch Options

HP KVM Switch OptionsHP KVM Switch Options

HP KVM Switch Options

2x1x16 IP Console Switch with Virtual Media

AF601A

4x1x16 IP Console Switch with Virtual Media

AF602A

2x16 Server Console Switch with Virtual Media

AF600A

PS/2 Virtual Media Interface Adapter, 1 pack

NOTE:

NOTE:NOTE:

NOTE:

Requires PS/2 and one USB port on server.

AF604A

Server Console Switch (KVM), 0 x 1 x 8 port

336044-B21

Server Console Switch (KVM), 0 x 2 x 16 port

336045-B21

PS/2 Interface Adapter, 1 pack

262588-B21

PS/2 Interface Adapter, 8 pack

262587-B21

NOTE:

NOTE:NOTE:

NOTE:

Cat5e cables are required to connect Interface Adapters to Console Switches.

Cat5e cables can be found at the following URL:

http://www.hp.com/go/kvm

HP 1x4 Console Switch (ALL)

AF611A

PS2 Server Console Cable, 6 ft, 2 pack

AF612A

USB Server Console Cable, 6 ft, 2 pack

AF613A

NOTE:

NOTE:NOTE:

NOTE:

For additional information regarding KVM switches, Serial Console servers,

rack mount monitors, keyboards and all related options please see the following URL:

http://www.hp.com/go/kvm

HP Serial Console Server

HP Serial Console ServerHP Serial Console Server

HP Serial Console Server

Options

OptionsOptions

Options

HP 16 Port Serial Console Server (worldwide)

AF101A

HP 48 Port Serial Console Server (worldwide)

AF102A

Serial Adapter, RJ45-DB9 DCE Female, 1 Pack

AF103A

Serial Adapter, RJ45-DB9 DCE Female, 8 Pack

AF110A

NOTE:

NOTE:NOTE:

NOTE:

Cat5e cables are required to connect Serial Adapters to Serial Console

Servers. Additional Serial Adapters and Cat5e cables can be found at the following

URL:

http://www.hp.com/go/kvm

NOTE:

NOTE:NOTE:

NOTE:

For additional information regarding KVM switches, Serial Console servers,

rack mount monitors, keyboards and all related options please see the following URL:

http://www.hp.com/go/kvm

QuickSpecs

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

Additional Options

DA - 13242 Worldwide — Version 3 — April 2, 2009

Page 39

Service and Support

Service and SupportService and Support

Service and Support

Offerings

OfferingsOfferings

Offerings

(HP Care Pack Services)

Hardware Services On-site Service

Hardware Services On-site ServiceHardware Services On-site Service

Hardware Services On-site Service

4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic

U4528E

4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic

U4529E

Hardware Services 6-Hour Call to Repair On-site Service

Hardware Services 6-Hour Call to Repair On-site ServiceHardware Services 6-Hour Call to Repair On-site Service

Hardware Services 6-Hour Call to Repair On-site Service

6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years,

Electronic

U4530E

Installation & Start-up Services

Installation & Start-up ServicesInstallation & Start-up Services

Installation & Start-up Services

Hardware Installation, Electronic

U4538E

Installation & Start-Up of a ProLiant server and Microsoft or Linux O/S per the

Customer Description and/or Data Sheet. To be delivered on a scheduled basis 8am-

5pm, M-F, excl. HP holidays, Electronic

U4539E

Support Plus

Support PlusSupport Plus

Support Plus

Onsite HW support, 8am-9pm, M-F, 4hr response and Microsoft O/S SW Tech

support offsite, onsite at HP's discretion, 8am-9pm, M-F 2hr response time excl. HP

holidays, Electronic

U4540E

Support Plus 24

Support Plus 24Support Plus 24

Support Plus 24

Onsite HW support 24x7, 4hr response and Microsoft O/S SW Tech support offsite,

onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic

U4541E

Onsite HW support 24x7, 4hr response and SuSE Linux SW Tech support offsite,

onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic

U6311E

Onsite HW support 24x7, 4hr response and Red Hat ES Linux SW Tech support

offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic

U8333E

NOTE:

NOTE:NOTE:

NOTE:

For more information, customer/resellers can contact:

http://www.hp.com/services/carepack

QuickSpecs

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

Additional Options

DA - 13242 Worldwide — Version 3 — April 2, 2009

Page 40

NOTE:

NOTE:NOTE:

NOTE:

Memory configurations listed do not apply to "Factory Integrated Models".

HP ProLiant DL370 G6 Models

HP ProLiant DL370 G6 ModelsHP ProLiant DL370 G6 Models

HP ProLiant DL370 G6 Models

HP ProLiant ML370 G6 Models

HP ProLiant ML370 G6 ModelsHP ProLiant ML370 G6 Models

HP ProLiant ML370 G6 Models

DDR3 memory population guidelines

DDR3 memory population guidelinesDDR3 memory population guidelines

DDR3 memory population guidelines

For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool:

www.hp.com/go/ddr3memory-configurator

Some DIMM installation guidelines are summarized below:

For servers with eighteen (18) memory slots:

There are three (3) channels per processor; six (6) channels per server

There are three (3) DIMM slots for each memory channel; eighteen (18) total slots

Memory channel 1 consists of the three (3) DIMMs that are closest to the processor

Memory channel 3 consists of the three (3) DIMMs that are furthest from the processor

DIMM slots that are white should be populated first

Do not mix Unbuffered memory (UDIMMs) with Registered memory (RDIMMs)

Do not install DIMMs if the corresponding processor is not installed

If only one processor is installed in a 2CPU system, only half of the DIMM slots are available

To maximize performance, balance the total memory capacity between all installed processors

It is not required, but it is recommended to load the channels similarly if possible

You can only have up to eight (8) ranks installed per channel

You can only install two quad-rank DIMMs per channel

You can only install two UDIMMs per channel; if available, the third slot in the channel must remain empty

Populate DIMMs from heaviest load (quad-rank) to lightest load (single-rank) within a channel

Heaviest load (DIMM with most ranks) within a channel goes furthest from the chipset

For memory mirroring mode, channel 3 must be unpopulated. Channels 1 and 2 are populated identically

For lock-step mode, channel 3 must be unpopulated. DIMMs in channels 1 and 2 will be installed in pairs. The paired slots

will be 1,4; 2,5; 3;6 on a 3DPC system or 1,4; 2,5; on a 2DPC system

No mixing DIMM voltage; all DIMMs must be the same voltage

DIMM Type ->

Registered Dimms (RDIMMs)

Registered Dimms (RDIMMs)Registered Dimms (RDIMMs)

Registered Dimms (RDIMMs)

Unbuffered with ECC DIMMs (UDIMMs)

Unbuffered with ECC DIMMs (UDIMMs)Unbuffered with ECC DIMMs (UDIMMs)

Unbuffered with ECC DIMMs (UDIMMs)

DIMM Rank ->

Dual Rank (2R)

Dual Rank (2R)Dual Rank (2R)

Dual Rank (2R)

Quad Rank (4R)

Quad Rank (4R)Quad Rank (4R)

Quad Rank (4R)

Single Rank (1R)

Single Rank (1R)Single Rank (1R)

Single Rank (1R)

Dual Rank (2R)

Dual Rank (2R)Dual Rank (2R)

Dual Rank (2R)

DIMM Capacity ->

2GB 4GB 8GB 2GB 4GB 1GB 2GB 1GB 2GB

DIMM Native Speed

(MHz) ->

1333 1333 1066

1066 1333

* *

1333

SLOTS THAT CAN BE POPULATED

SLOTS THAT CAN BE POPULATEDSLOTS THAT CAN BE POPULATED

SLOTS THAT CAN BE POPULATED

18 slot servers

18 18 18

12 12

* *

MAXIMUM CAPACITY (GB)

MAXIMUM CAPACITY (GB)MAXIMUM CAPACITY (GB)

MAXIMUM CAPACITY (GB)

18 slot servers

36 72

144

48 12

* *

POPULATED DIMM SPEED (MHz)

POPULATED DIMM SPEED (MHz)POPULATED DIMM SPEED (MHz)

POPULATED DIMM SPEED (MHz)

1 DIMM Per Channel

1333 1333 1066

1066 1333

* *

1333

2 DIMM Per Channel

1066 1066 1066

800

1066

* *

1066

3 DIMM Per Channel

800 800 800

******

* not supported by HP at this time.

NOTES:

NOTES:NOTES:

NOTES:

QuickSpecs

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

Memory

DA - 13242 Worldwide — Version 3 — April 2, 2009

Page 41

Mixing DIMM speeds is allowed, but the system processor speed rules always override the DIMM capabilities

If you do mix DIMM speeds, the memory bus will default to the minimum clock rate of all DIMMs in the system - even if the

slower DIMM is on the other processor

If you install 1x 1066MHz DIMM in channel 1 and 1x 1333MHz DIMM in channel 2, you still run at 1066MHz

If you install 1x 1066MHz DIMM in channel 1 and 5x 1333MHz DIMMs with 1 DIMM Per Channel (DPC) in each of the other

channels, you run at 1066MHz

If you install 3DPC in one channel (if applicable) and 1DPC in all other channels, you run at 800MHz

95 Watt CPU's are required for 1333MHz DIMM speeds. All other CPU's are capable of up to 1066MHz

References to the above MHz speeds are for the various speeds of DDR3 DIMMs; 1333 refers to DDR3-1333, etc.

DIMM slot and configuration diagrams

DIMM slot and configuration diagramsDIMM slot and configuration diagrams

DIMM slot and configuration diagrams

Basic memory slot & population diagram

Basic memory slot & population diagramBasic memory slot & population diagram

Basic memory slot & population diagram

Population order; start with "A" first, "B" second, "C" third, etc.

18 DIMM SLOTS (9 per CPU node)

18 DIMM SLOTS (9 per CPU node)18 DIMM SLOTS (9 per CPU node)

18 DIMM SLOTS (9 per CPU node)

CPU1

CPU1CPU1

CPU1 CPU2

CPU2CPU2

CPU2

slot #

population order

slot #

population order

Chnl 1

Chnl 2

Chnl 3

Standard memory configuration (1 CPU model)

Standard memory configuration (1 CPU model)Standard memory configuration (1 CPU model)

Standard memory configuration (1 CPU model)

6GB, consisting of three (3) 2GB dual-rank PC3-10600 RDIMMs

CPU1

CPU1CPU1

CPU1 CPU2

CPU2CPU2

CPU2

slot #

population order

slot #

population order

Chnl 1

G; empty

Chnl 1

D; empty

A; 2GB DIMM

A; empty

Chnl 2

H; empty

Chnl 2

E; empty

B; 2GB DIMM

B; empty

Chnl 3

I; empty

Chnl 3

F; empty

C; 2GB DIMM

C; empty

QuickSpecs

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

Memory

DA - 13242 Worldwide — Version 3 — April 2, 2009

Page 42

Standard memory plus optional memory (1 CPU model)

Standard memory plus optional memory (1 CPU model)Standard memory plus optional memory (1 CPU model)

Standard memory plus optional memory (1 CPU model)

54GB, consisting of three (3) 2GB RDIMMs plus six (6) 8GB RDIMMs

3x 2GB dual-rank PC3-10600 RDIMMs

6x 8GB dual-rank PC3-8500 RDIMMs

CPU1

CPU1CPU1

CPU1 CPU2

CPU2CPU2

CPU2

slot #

population order

slot #

population order

Chnl 1

G; 8GB DIMM

G; empty

Chnl 1

D; 8GB DIMM

D; empty

A; 2GB DIMM

A; empty

Chnl 2

H; 8GB DIMM

H; empty

Chnl 2

E; 8GB DIMM

E; empty

B; 2GB DIMM

B; empty

Chnl 3

I; 8GB DIMM

I; empty

Chnl 3

F; 8GB DIMM

F; empty

C; 2GB DIMM

C; empty

Standard memory replaced with optional memory (1 CPU model)

Standard memory replaced with optional memory (1 CPU model)Standard memory replaced with optional memory (1 CPU model)

Standard memory replaced with optional memory (1 CPU model)

RDIMM maximum configuration

RDIMM maximum configurationRDIMM maximum configuration

RDIMM maximum configuration

72GB, consisting of nine (9) 8GB dual-rank PC3-8500 RDIMMs

CPU1

CPU1CPU1

CPU1 CPU2

CPU2CPU2

CPU2

slot #

population order

slot #

population order

Chnl 1

G; 8GB DIMM

G; empty

Chnl 1

D; 8GB DIMM

D; empty

A; 8GB DIMM

A; empty

Chnl 2

H; 8GB DIMM

H; empty

Chnl 2

E; 8GB DIMM

E; empty

B; 8GB DIMM

B; empty

Chnl 3

I; 8GB DIMM

I; empty

Chnl 3

F; 8GB DIMM

F; empty

UDIMM maximum configuration (1 CPU model)

UDIMM maximum configuration (1 CPU model)UDIMM maximum configuration (1 CPU model)

UDIMM maximum configuration (1 CPU model)

12GB, consisting of six (6) 2GB dual-rank PC3-10600 UDIMMs

QuickSpecs

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

Memory

DA - 13242 Worldwide — Version 3 — April 2, 2009

Page 43

CPU1

CPU1CPU1

CPU1 CPU2

CPU2CPU2

CPU2

slot #

population order

slot #

population order

Chnl 1

G; empty

Chnl 1

D; 2GB DIMM

D; empty

A; 2GB DIMM

A; empty

Chnl 2

H; empty

Chnl 2

E; 2GB DIMM

E; empty

B; 2GB DIMM

B; empty

Chnl 3

I; empty

Chnl 3

F; 2GB DIMM

F; empty

C; 2GB DIMM

C; empty

Standard memory replaced with optional memory (2 CPU model)

Standard memory replaced with optional memory (2 CPU model)Standard memory replaced with optional memory (2 CPU model)

Standard memory replaced with optional memory (2 CPU model)

RDIMM maximum configuration

RDIMM maximum configurationRDIMM maximum configuration

RDIMM maximum configuration

144GB, consisting of eighteen (18) 8GB PC3-8500 RDIMMs

CPU1

CPU1CPU1

CPU1 CPU2

CPU2CPU2

CPU2

slot #

population order

slot #

population order

Chnl 1

G; 8GB DIMM

Chnl 1

D; 8GB DIMM

A; 8GB DIMM

Chnl 2

H; 8GB DIMM

Chnl 2

E; 8GB DIMM

B; 8GB DIMM

Chnl 3

I; 8GB DIMM

Chnl 3

F; 8GB DIMM

C; 8GB DIMM

UDIMM maximum configuration (2 CPU model)

UDIMM maximum configuration (2 CPU model)UDIMM maximum configuration (2 CPU model)

UDIMM maximum configuration (2 CPU model)

24GB, consisting of twelve (12) 2GB dual-rank PC3-10600 UDIMMs

QuickSpecs

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

Memory

DA - 13242 Worldwide — Version 3 — April 2, 2009

Page 44

CPU1

CPU1CPU1

CPU1 CPU2

CPU2CPU2

CPU2

slot #

population order

slot #

population order

Chnl 1

G; empty

Chnl 1

D; 2GB DIMM

A; 2GB DIMM

Chnl 2

H; empty

Chnl 2

E; 2GB DIMM

B; 2GB DIMM

Chnl 3

I; empty

Chnl 3

F; 2GB DIMM

C; 2GB DIMM

NOTE:

NOTE:NOTE:

NOTE:

Capacity references are rounded to the common Gigabyte values.

1GB = 1024MB

2GB = 2048MB

4GB = 4096MB

8GB = 8192MB

Following are memory options available from HP:

Following are memory options available from HP:Following are memory options available from HP:

Following are memory options available from HP:

Memory

MemoryMemory

Memory

Registered DIMMs (RDIMMs)

Registered DIMMs (RDIMMs)Registered DIMMs (RDIMMs)

Registered DIMMs (RDIMMs)

HP 2GB 2Rx8 PC3-10600R-9 Kit

500656-B21

HP 4GB 2Rx4 PC3-10600R-9 Kit

500658-B21

HP 4GB 4Rx8 PC3-8500R-7 LP Kit

500660-B21

HP 8GB 2Rx4 PC3-8500R-7 Kit

516423-B21

Unbuffered with ECC DIMMs (UDIMMs)

Unbuffered with ECC DIMMs (UDIMMs)Unbuffered with ECC DIMMs (UDIMMs)

Unbuffered with ECC DIMMs (UDIMMs)

HP 1GB 1Rx8 PC3-10600E-9 Kit

500668-B21

HP 2GB 2Rx8 PC3-10600E-9 Kit

500670-B21

NOTE:

NOTE:NOTE:

NOTE:

All DDR3 memory option kits consist of one DIMM per kit. For detailed

memory configuration rules and guidelines, please use the Online DDR3 Memory

Configuration Tool:

www.hp.com/go/ddr3memory-configurator

NOTE:

NOTE:NOTE:

NOTE:

Kits described as LP include Low Power DIMMs. For more information on

ProLiant Energy Efficient Features, see:

http://h18004.www1.hp.com/products/servers/platforms/energyefficient/

QuickSpecs

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

Memory

DA - 13242 Worldwide — Version 3 — April 2, 2009

Page 45

Removable media bay

(B) SATA DVD-ROM Drive (Standard in all BTO

Models)

Optical Drive (blank)

1-8

Eight SFF SAS/SATA HD Bays (Standard in all BTO

Models)

Removable media bay

SATA DVD-ROM Drive (Standard in all BTO Models)

Optical Drive (blank)

1-8

Eight SFF SAS/SATA HD Bays (Standard in all BTO

Models)

1-24

Twenty-four small form factor (SFF) hot-plug drive bays

to support Serial-attached SCSI (SAS) and Serial ATA

(SATA) drives with optional drive cages (up to three 8

SFF drive cage can be installed)

1-14

Fourteen large form factor (LFF) hot-plug drive bays to

support Serial-attached SCSI (SAS) and Serial ATA

(SATA) drives with optional drive cages

QuickSpecs

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

Storage

DA - 13242 Worldwide — Version 3 — April 2, 2009

Page 46

Drive Support

Drive SupportDrive Support

Drive Support

Quantity

QuantityQuantity

Quantity

Supported

SupportedSupported

Supported

Position

PositionPosition

Position

Supported

SupportedSupported

Supported

Controller

ControllerController

Controller

Removable Media

Removable MediaRemovable Media

Removable Media

Half-Height SATA DVD-

ROM Optical Drive

Up to 2

A, B

Integrated IDE

Half-Height SATA DVD

RW Optical Drive

Up to 2

A, B

Integrated IDE

HP Slim SATA DVD-ROM

Optical Drive

Up to 2

NOTE:

NOTE:NOTE:

NOTE:

Also

please use if the

3 drive cage is

populated

Integrated IDE

HP Slim SATA DVD RW

Optical Drive

Up to 2

NOTE:

NOTE:NOTE:

NOTE:

Also

please use if the

3 drive cage is

populated

Integrated IDE

Hard Drives

Hard DrivesHard Drives

Hard Drives

NOTE:

NOTE:NOTE:

NOTE:

Transfer rates of drives are dependent on the maximum transfer rate supported by the HBA or Controller. Refer to the HBA

or Controller technical specifications for details.

SAS Hot Plug SFF Enterprise (ENT) Drives

SAS Hot Plug SFF Enterprise (ENT) DrivesSAS Hot Plug SFF Enterprise (ENT) Drives

SAS Hot Plug SFF Enterprise (ENT) Drives

Quantity

QuantityQuantity

Quantity

Supported

SupportedSupported

Supported

Position

PositionPosition

Position

Supported

SupportedSupported

Supported

Controller

ControllerController

Controller

300GB 6G SAS 10K DP

300GB 3G SAS 10K DP

146GB 6G SAS 10K DP

146GB 3G SAS 10K DP

146GB 3G SAS 15K DP

72GB 3G SAS 10K DP

72GB 3G SAS 15K DP

36GB 3G SAS 15K DP

Up to 24

1-8

1-24

HP Smart Array P800/512 BBWC Controller

HP Smart Array P212/Zero Memory Controller

HP Smart Array P212/ 256 MB Controller

HP Smart Array P410/256 MB Controller

HP Smart Array P410/512 MB BBWC Controller

HP Smart Array P411/256 MB Controller

HP Smart Array P411/512 MB BBWC Controller

SAS Hot Plug 3.5" Enterprise (ENT) Drives

SAS Hot Plug 3.5" Enterprise (ENT) DrivesSAS Hot Plug 3.5" Enterprise (ENT) Drives

SAS Hot Plug 3.5" Enterprise (ENT) Drives

Quantity

QuantityQuantity

Quantity

Supported

SupportedSupported

Supported

Position

PositionPosition

Position

Supported

SupportedSupported

Supported

Controller

ControllerController

Controller

450GB 3G SAS 15K DP

400GB 3G SAS 10K DP

146GB 3G SAS 15K DP

72GB 3G SAS 15K DP

Up to 14

1-14

HP Smart Array P800/512 BBWC Controller

HP Smart Array P212/Zero Memory Controller

HP Smart Array P212/ 256 MB Controller

HP Smart Array P410/256 MB Controller

HP Smart Array P410/512 MB BBWC Controller

HP Smart Array P411/256 MB Controller

HP Smart Array P411/512 MB BBWC Controller

QuickSpecs

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

Storage

DA - 13242 Worldwide — Version 3 — April 2, 2009

Page 47

SAS Hot Plug 3.5" Midline (MDL) Drives

SAS Hot Plug 3.5" Midline (MDL) DrivesSAS Hot Plug 3.5" Midline (MDL) Drives

SAS Hot Plug 3.5" Midline (MDL) Drives

Quantity

QuantityQuantity

Quantity

Supported

SupportedSupported

Supported

Position

PositionPosition

Position

Supported

SupportedSupported

Supported

Controller

ControllerController

Controller

1TB 3G SAS 7.2K DP

750GB 3G SAS 7.2K DP

Up to 14

1-14

HP Smart Array P800/512 BBWC Controller

HP Smart Array P212/Zero Memory Controller

HP Smart Array P212/ 256 MB Controller

HP Smart Array P410/256 MB Controller

HP Smart Array P410/512 MB BBWC Controller

HP Smart Array P411/256 MB Controller

HP Smart Array P411/512 MB BBWC Controller

SATA Hot Plug SFF Entry (ETY) Drives

SATA Hot Plug SFF Entry (ETY) DrivesSATA Hot Plug SFF Entry (ETY) Drives

SATA Hot Plug SFF Entry (ETY) Drives

Quantity

QuantityQuantity

Quantity

Supported

SupportedSupported

Supported

Position

PositionPosition

Position

Supported

SupportedSupported

Supported

Controller

ControllerController

Controller

250GB 3G SATA 5.4K

120GB 1.5G SATA 5.4K

Up to 24

1-8

1-24

HP Smart Array P800/512 BBWC Controller

HP Smart Array P212/Zero Memory Controller

HP Smart Array P212/ 256 MB Controller

HP Smart Array P410/256 MB Controller

HP Smart Array P410/512 MB BBWC Controller

HP Smart Array P411/256 MB Controller

HP Smart Array P411/512 MB BBWC Controller

SATA Hot Plug 3.5" Midline (MDL) Drives

SATA Hot Plug 3.5" Midline (MDL) DrivesSATA Hot Plug 3.5" Midline (MDL) Drives

SATA Hot Plug 3.5" Midline (MDL) Drives

Quantity

QuantityQuantity

Quantity

Supported

SupportedSupported

Supported

Position

PositionPosition

Position

Supported

SupportedSupported

Supported

Controller

ControllerController

Controller

1TB 3G SATA 7.2K

750GB 3G SATA 7.2K

500GB 3G SATA 7.2K

250GB 3G SATA 7.2K

Up to 14

1-14

HP Smart Array P800/512 BBWC Controller

HP Smart Array P212/Zero Memory Controller

HP Smart Array P212/ 256 MB Controller

HP Smart Array P410/256 MB Controller

HP Smart Array P410/512 MB BBWC Controller

HP Smart Array P411/256 MB Controller

HP Smart Array P411/512 MB BBWC Controller

QuickSpecs

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

Storage

DA - 13242 Worldwide — Version 3 — April 2, 2009

Page 48

External Storage

External StorageExternal Storage

External Storage

Quantity

QuantityQuantity

Quantity

Supported

SupportedSupported

Supported

Position

PositionPosition

Position

Supported

SupportedSupported

Supported

Host Controller or Adapter

Host Controller or AdapterHost Controller or Adapter

Host Controller or Adapter

50 Modular Smart Array

Up to 4

External

HP Smart Array P800/512 BBWC Controller

60 Modular Smart Array

Up to 4

External

HP Smart Array P212/Zero Memory Controller

HP Smart Array P212/ 256 MB Controller

Up to 8

HP Smart Array P411/256 MB Controller

HP Smart Array P411/512 MB BBWC Controller

70 Modular Smart Array

Up to 2

External

HP Smart Array P212/Zero Memory Controller

HP Smart Array P212/ 256 MB Controller

Up to 4

HP Smart Array P800/512 BBWC Controller

HP Smart Array P411/256 MB Controller

HP Smart Array P411/512 MB BBWC Controller

Tape and Disk-Based Backup

Tape and Disk-Based BackupTape and Disk-Based Backup

Tape and Disk-Based Backup

NOTE:

NOTE:NOTE:

NOTE:

For a complete listing of compatible tape and disk-based backup offerings, please visit:

www.hp.com/go/connect

Position

PositionPosition

Position

Supported

SupportedSupported

Supported

Controller

ControllerController

Controller

Part Number

Part NumberPart Number

Part Number

Internal USB Tape Drives

Internal USB Tape DrivesInternal USB Tape Drives

Internal USB Tape Drives

DAT 40 USB

DAT 72 USB

DAT 160 USB

B,C

USB 2.0 Port

N/A

USB Tape Drives, External

USB Tape Drives, ExternalUSB Tape Drives, External

USB Tape Drives, External

DAT 40 USB

DAT 72 USB

DAT 160 USB

1U Rack-Mount Kit

External

USB 2.0 Port

N/A

SAS Tape Drives, Internal

SAS Tape Drives, InternalSAS Tape Drives, Internal

SAS Tape Drives, Internal

DAT 160 SAS

LTO-2 Ultrium 448 SAS

LTO-3 Ultrium 920 SAS

LTO-4 Ultrium 1760 SAS

B,C

HP Smart Array P212/Zero Memory Controller

462828-B21

SAS Tape Drives, Internal

SAS Tape Drives, InternalSAS Tape Drives, Internal

SAS Tape Drives, Internal

LTO-4 Ultrium 1840 SAS

B+C

HP Smart Array P212/Zero Memory Controller

462828-B21

SAS Tape Drives, External

SAS Tape Drives, ExternalSAS Tape Drives, External

SAS Tape Drives, External

DAT 160 SAS

LTO-2 Ultrium 448 SAS

LTO-3 Ultrium 920 SAS

LTO-4 Ultrium 1760 SAS

LTO-4 Ultrium 1840 SAS

1U Rack-Mount

3U Rack-Mount

External

HP Smart Array P212/Zero Memory Controller

462828-B21

QuickSpecs

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

Storage

DA - 13242 Worldwide — Version 3 — April 2, 2009

Page 49

SAS Tape Automation,

SAS Tape Automation,SAS Tape Automation,

SAS Tape Automation,

External

ExternalExternal

External

1/8 G2 Autoloader

MSL2024

MSL4048

MSL8096

External

HP Smart Array P212/Zero Memory Controller

462828-B21

Fibre Tape Automation,

Fibre Tape Automation,Fibre Tape Automation,

Fibre Tape Automation,

External

ExternalExternal

External

MSL2024

MSL4048

MSL8096

MSL6000

External

Please consult the EBS connectivity matrix at:

http://www.hp.com/go/ebs

for detailed connectivity information.

N/A

HP StorageWorks RDX

HP StorageWorks RDXHP StorageWorks RDX

HP StorageWorks RDX

Removable Disk Backup

Removable Disk BackupRemovable Disk Backup

Removable Disk Backup

System, Internal

System, InternalSystem, Internal

System, Internal

RDX160

RDX320

RDX500

B,C

USB 2.0 Port

N/A

HP StorageWorks RDX

HP StorageWorks RDXHP StorageWorks RDX

HP StorageWorks RDX

Removable Disk Backup

Removable Disk BackupRemovable Disk Backup

Removable Disk Backup

System, External

System, ExternalSystem, External

System, External

RDX160

RDX320

RDX500

External

USB 2.0 Port

N/A

HP StorageWorks D2D

HP StorageWorks D2DHP StorageWorks D2D

HP StorageWorks D2D

Backup Systems

Backup SystemsBackup Systems

Backup Systems

D2D120

D2D130

D2D2503i

D2D4004i

External

Embedded Network Controller

N/A

QuickSpecs

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

Storage

DA - 13242 Worldwide — Version 3 — April 2, 2009

Page 50

HP 460W Power Supply

HP 460W Power SupplyHP 460W Power Supply

HP 460W Power Supply

Part Number - AC 460W PSU

Part Number - AC 460W PSUPart Number - AC 460W PSU

Part Number - AC 460W PSU

503296-B21

Input Voltage Range (Vrms)

Input Voltage Range (Vrms)Input Voltage Range (Vrms)

Input Voltage Range (Vrms)

100 to 240

Frequency Range (Nominal) (Hz)

Frequency Range (Nominal) (Hz)Frequency Range (Nominal) (Hz)

Frequency Range (Nominal) (Hz)

50/60

Nominal Input Voltage (Vrms)

Nominal Input Voltage (Vrms)Nominal Input Voltage (Vrms)

Nominal Input Voltage (Vrms)

100

100100

100 120

120120

120 208

208208

208 200

200200

200 220

220220

220 230

230230

230 240

240240

240

Maximum Rated Output Wattage

460 460 460 460 460 460 460

Nominal Input Current (A rms)

5.5 4.5 2.6 2.5 2.4 2.3 2.2

Max Rated Input Wattage Rating

(Watts)

526 520 505 505 503 503 503

Max. Rated VA (Volt-Amp)

548 542 527 527 524 524 524

Efficiency (%) at Max. Rated Output

Wattage

87.5 88.5

91 91

91.5 91.5 91.5

Power Factor

0.97 0.97 0.97 0.97 0.97 0.97 0.97

Leakage Current (mA)

0.42 0.50 0.83 0.87 0.92 0.96 1.00

Max. Inrush Current (A peak)

30 30 30 30 30 30 30

Max. Inrush Current duration (mS)

20 20 20 20 20 20 20

Maximum British Thermal Unit

Rating (BTU-Hr)

1794 1773 1725 1725 1715 1715 1715

HP 750W Power Supply

HP 750W Power SupplyHP 750W Power Supply

HP 750W Power Supply

Part Number - AC 750W PSU

Part Number - AC 750W PSUPart Number - AC 750W PSU

Part Number - AC 750W PSU

512327-B21

Input Voltage Range (Vrms)

Input Voltage Range (Vrms)Input Voltage Range (Vrms)

Input Voltage Range (Vrms)

100 to 240

Frequency Range (Nominal) (Hz)

Frequency Range (Nominal) (Hz)Frequency Range (Nominal) (Hz)

Frequency Range (Nominal) (Hz)

50/60

Nominal Input Voltage (Vrms)

Nominal Input Voltage (Vrms)Nominal Input Voltage (Vrms)

Nominal Input Voltage (Vrms)

100

100100

100 120

120120

120 208

208208

208 200

200200

200 220

220220

220 230

230230

230 240

240240

240

Maximum Rated Output Wattage

750 750 750 750 750 750 750

Nominal Input Current (A rms)

8.9 7.4 4.3 4.1 3.9 3.7 3.6

Max Rated Input Wattage Rating

(Watts)

857 847 824 825 820 820 820

Max. Rated VA (Volt-Amp)

894 884 859 859 854 854 854

Efficiency (%) at Max. Rated Output

Wattage

87.5 88.5

91 91

91.5 91.5 91.5

Power Factor

0.97 0.97 0.97 0.97 0.97 0.97 0.97

Leakage Current (mA)

0.42 0.50 0.83 0.87 0.92 0.96 1.00

Max. Inrush Current (A peak)

30 30 30 30 30 30 30

Max. Inrush Current duration (mS)

20 20 20 20 20 20 20

Maximum British Thermal Unit

Rating (BTU-Hr)

2925 2892 2812 2812 2797 2797 2797

QuickSpecs

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

Power Specifications

DA - 13242 Worldwide — Version 3 — April 2, 2009

Page 51

HP 1200W Power Supply

HP 1200W Power SupplyHP 1200W Power Supply

HP 1200W Power Supply

Part Number - AC

Part Number - ACPart Number - AC

Part Number - AC

500172-B21

Operational Input Voltage Range

Operational Input Voltage RangeOperational Input Voltage Range

Operational Input Voltage Range

(Vrms)

(Vrms)(Vrms)

(Vrms)

100 to 240

Frequency Range (Nominal) (Hz)

Frequency Range (Nominal) (Hz)Frequency Range (Nominal) (Hz)

Frequency Range (Nominal) (Hz)

50/60

Nominal Input Voltage (Vrms)

Nominal Input Voltage (Vrms)Nominal Input Voltage (Vrms)

Nominal Input Voltage (Vrms)

100

100100

100 120

120120

120 208

208208

208 200

200200

200 220

220220

220 230

230230

230 240

240240

240

Maximum Rated Output Wattage

800 900

1200 1200 1200 1200 1200

Nominal Input Current (A rms)

9.7 9.0 7.0 6.8 6.4 9.1 5.9

Max Rated Input Wattage Rating

(Watts)

930

1034 1348 1348 1348 1348 1348

Max. Rated VA (Volt-Amp)

970

1079 1406 1406 1406 1406 1406

Efficiency (%) at Max. Rated Output

Wattage

86 87 89 89 89 89 89

Power Factor

0.97 0.97 0.97 0.97 0.97 0.97 0.97

Leakage Current (mA)

0.42 0.50 0.83 0.87 0.92 0.96 1.00

Max. Inrush Current (A peak)

30 30 30 30 30 30 30

Max. Inrush Current duration (mS)

20 20 20 20 20 20 20

Maximum British Thermal Unit

Rating (BTU-Hr)

3174 3530 4600 4600 4600 4600 4600

To review typical system power ratings use the Active Answers HP Power Advisor which is available via the online tool located at

URL:

www.hp.com/go/proliant-energy-efficient

www.hp.com/go/hppoweradvisor

To drill down to calculators:

- Click on: "ProLiant Servers"

- Click on the Server of interest. Example: DL370 G6 or ML370 G6

- Click on: "Power Calculator" link. (You may need to scroll down to see it)

QuickSpecs

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

Power Specifications

DA - 13242 Worldwide — Version 3 — April 2, 2009

Page 52

System Unit

System UnitSystem Unit

System Unit

Tower Dimensions

Tower DimensionsTower Dimensions

Tower Dimensions

(H x W x D) (with bezel)

18.52 x 9.75 x 29.12 in (47.04 x 24.77 x 73..96 cm)

Rack Dimensions

Rack DimensionsRack Dimensions

Rack Dimensions

(H x W x D) (with bezel)

6.88 x 19.03 x 27.53 in (17.48 x 48.34 x 69.93 cm)

Tower Weight

Tower WeightTower Weight

Tower Weight

(approximate)

Maximum

(two hard drives, power

supply, and processor

installed)

103.06 lbs (46.75 kg)

Minimum

(one hard drive, power

supply, and processor

installed)

66,14 lbs (30.00 kg)

Rack Weight

Rack WeightRack Weight

Rack Weight

(approximate)

Maximum

(two hard drives, power

supply, and processor

installed)

103.06 lbs (46,75 kg)

Minimum

(one hard drive, power

supply, and processor

installed)

55.12 lbs (25.00 kg)

Input Requirements

Input RequirementsInput Requirements

Input Requirements

(per power supply)

Rated Line Voltage

90 - 132 VAC,

180 - 264 VAC

Rated Input Current

7.5A (at 100 VAC),

3.8A (at 200 VAC)

Rated Input Frequency

47 to 63 Hz

Rated Input Power

980W (at 100 VAC)

1035W (at 120 VAC)

1170W (at 240 VAC)

BTU Rating

BTU RatingBTU Rating

BTU Rating

Maximum

460W - 1773 BTU / hr (at 120 VAC), 1715 (at

240 VAC)

750W - 2892 BTU / hr (at 120 VAC), 2797 (at

240 VAC)

1200W - 3530 BTU / hr (at 120 VAC), 4600 (at

240 VAC)

Power Specifications

Power SpecificationsPower Specifications

Power Specifications

To review typical system power ratings use the HP Power Advisor which is

available via the online tool located at URL:

www.hp.com/go/proliant-

energy-efficient

- Click on the system of interest. Example: DL370 G6 or ML370 G6

- Follow the instructions of the next screens.

Power Supply Output

Power Supply OutputPower Supply Output

Power Supply Output

(per power supply)

Rated Steady-State Power

460 W (at 100 VAC)

Maximum Peak Power

460 W (at 200 VAC)

460 W (at 100 VAC)

460 W (at 200 VAC)

NOTE:

NOTE:NOTE:

NOTE:

See Power Supply Specifications tables

for complete details on 460W PSU and optional

750W and 1200W Power Supply Options.

System Inlet Temperature

System Inlet TemperatureSystem Inlet Temperature

System Inlet Temperature

Operating

10° to 35°C (50° to 95°F) at sea level with an

QuickSpecs

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

Technical Specifications

DA - 13242 Worldwide — Version 3 — April 2, 2009

Page 53

altitude derating of 1.0°C per every 305 m

(1.8°F per every 1000 ft) above sea level to a

maximum of 3050 m (10,000 ft), no direct

sustained sunlight. Maximum rate of change is

10°C/hr (18°F/hr). The upper limit may be

limited by the type and number of options

installed.

System performance may be reduced if operating

with a fan fault or above 30°C (86°F).

Non-operating

-30° to 60°C (-22° to 140°F). Maximum rate of

change is 20°C/hr (36°F/hr).

Relative Humidity

Relative HumidityRelative Humidity

Relative Humidity

(non-condensing)

Operating

10 to 90% relative humidity (Rh), 28°C (82.4°F)

maximum wet bulb temperature, non-

condensing.

Non-operating

5 to 95% relative humidity (Rh), 38.7°C

(101.7°F) maximum wet bulb temperature, non-

condensing.

Altitude

AltitudeAltitude

Altitude

Operating

3048 m (10,000 ft). This value may be limited by

the type and number of options installed.

Maximum allowable altitude change rate is 457

m/min (1500 ft/min).

Non-operating

9144 m (30,000 ft). Maximum allowable

altitude change rate is 457 m/min (1500 ft/min).

Acoustic Noise

Acoustic NoiseAcoustic Noise

Acoustic Noise

Listed are the declared A-Weighted sound power levels (LWAd) and declared

average bystander position A-Weighted sound pressure levels (LpAm) when

the product is operating in a 23°C ambient environment. Noise emissions

were measured in accordance with ISO 7779 (ECMA 74) and declared in

accordance with ISO 9296 (ECMA 109).

Idle

IdleIdle

Idle

L WAd

5.6 B for 1P Non-Redundant; 5.5 B for 2P

Redundant

L pAm

39 dB for 1P Non-Redundant; 39 dB for 2P

Redundant

Operating

OperatingOperating

Operating

L WAd

5.6 B for 1P Non-Redundant; 5.5 B for 2P

Redundant

L pAm

39 dB for 1P Non-Redundant; 39 dB for 2P

Redundant

NOTE:

NOTE: NOTE:

NOTE:

The Listed sound levels apply to standard shipping configurations.

Additional options may result in increased sound levels.

Emissions Classification

Emissions ClassificationEmissions Classification

Emissions Classification

(EMC)

FCC Rating

Class B

Normative Standards CISPR 22; EN55022; EN55024; FCC CFR 47,

Pt 15; ICES-003; CNS13438; GB9254;

K22;K24; EN 61000-3-2; EN 61000-3-3; EN

60950-1; IEC 60950-1

QuickSpecs

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

Technical Specifications

DA - 13242 Worldwide — Version 3 — April 2, 2009

Page 54

NOTE:

NOTE:NOTE:

NOTE:

Product conformance to cited product specifications is based on

sample (type) testing, evaluation, or assessment. This product or family of

products is eligible to bear the appropriate compliance logos and

statements.

Smart Array P410i

Smart Array P410iSmart Array P410i

Smart Array P410i

Controller

ControllerController

Controller

Dimensions

DimensionsDimensions

Dimensions

(not including bracket)

Low Profile PCIe Form Factor

7.5 in x 9.5 in x 2.25 in (19.05 cm x 24.13 cm x 5.72 cm)

Disk Drive and Enclosure

Disk Drive and EnclosureDisk Drive and Enclosure

Disk Drive and Enclosure

Interface - Transfer rate

Interface - Transfer rateInterface - Transfer rate

Interface - Transfer rate

3G SAS (Serial Attached SCSI)/6G SAS Capable

1.5G SATA (Serial ATA)/3G SATA Capable

SAS Connectors

SAS ConnectorsSAS Connectors

SAS Connectors

2 internal (Mini-SAS) x8 wide port connectors

Cache Memory Speed

Cache Memory SpeedCache Memory Speed

Cache Memory Speed

DDR2-800MHz with 40 or 72-bit wide bus provides up to 4.2 GB/s

maximum bandwidth.

Server Interface

Server InterfaceServer Interface

Server Interface

x8 5G PCIe 2.0 provides 4GB/s maximum bandwidth

SAS Speed

SAS SpeedSAS Speed

SAS Speed

x8 3G SAS provides 2.4GB/s maximum bandwidth

Cache Memory

Cache MemoryCache Memory

Cache Memory

40-bit 256MB ECC protected cache (72-bit 512MB BBWC module

upgrades available); transportable with battery-backed upgrade

Logical Drives Supported

Logical Drives SupportedLogical Drives Supported

Logical Drives Supported

Up to 12 logical drives

Maximum Logical Drive

Maximum Logical DriveMaximum Logical Drive

Maximum Logical Drive

Capacity

CapacityCapacity

Capacity

Greater than 2TB

Host Memory Addressing

Host Memory AddressingHost Memory Addressing

Host Memory Addressing

64-bit, supporting greater than 4GB server memory space

RAID Support

RAID SupportRAID Support

RAID Support

RAID 6, 6+0 (Advanced Data Guarding)

NOTE:

NOTE:NOTE:

NOTE:

The minimum of 256 MB cache, battery kit, and Smart Array

Advanced Pack License Key upgrade is required to enable RAID 6, 6+0

RAID 5, 5+0 (Distributed Data Guarding)

NOTE:

NOTE:NOTE:

NOTE:

The 256 MB & Battery Kit upgrade is required to enable RAID 5,

5+0 support of the Smart Array P410i

RAID 1+0 (Striping & Mirroring)

RAID 0 (Striping)

Upgradeable Firmware

Upgradeable FirmwareUpgradeable Firmware

Upgradeable Firmware

Upgradeable Firmware with recovery ROM feature

QuickSpecs

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

Technical Specifications

DA - 13242 Worldwide — Version 3 — April 2, 2009

Page 55

NC375i Integrated Quad

NC375i Integrated QuadNC375i Integrated Quad

NC375i Integrated Quad

Port Multifunction Gigabit

Port Multifunction GigabitPort Multifunction Gigabit

Port Multifunction Gigabit

Server Adapter

Server AdapterServer Adapter

Server Adapter

Network Interface

Network InterfaceNetwork Interface

Network Interface

10Base-T/100Base-TX/1000Base-TX

Compatibility

CompatibilityCompatibility

Compatibility

IEEE 802.3 10Base-T

IEEE 802.3ab 1000Base-T

IEEE 802.3u 100Base-TX

IEEE 802.3ad 1000Base-TX

IEEE 802.1p 100Base-TX

IEEE 802.1q 100Base-TX

Data Transfer Method

Data Transfer MethodData Transfer Method

Data Transfer Method

PCI Express, four lanes (x4)

Network Transfer Rate

Network Transfer RateNetwork Transfer Rate

Network Transfer Rate

10Base-T (Half-Duplex)

10 Mb/s

10Base-T (Full-Duplex)

20 Mb/s

100Base-TX (Half-Duplex)

100 Mb/s

100Base-TX (Full-Duplex)

200 Mb/s

1000Base-TX (Half and

Full-Duplex)

2000 Mb/s

Connector

ConnectorConnector

Connector

RJ-45

Cable Support

Cable SupportCable Support

Cable Support

10Base-T

Categories 3, 4 or 5 UTP up to 328 ft (100 m)

100Base-TX

Category 5 or higher UTP; up to 328 ft (100 m)

1000Base-TX

Category 5 or higher UTP; up to 328 ft (100 m)

Environment-friendly

Environment-friendlyEnvironment-friendly

Environment-friendly

Products and Approach

Products and ApproachProducts and Approach

Products and Approach

End-of-life Management

End-of-life ManagementEnd-of-life Management

End-of-life Management

and Recycling

and Recyclingand Recycling

and Recycling

Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling

programs in many geographic areas. For trade-in information, please go to:

http://www.hp.com/go/green

. To recycle your product, please go to:

http://www.hp.com/go/green

or contact your nearest HP sales office.

Products returned to HP will be recycled, recovered or disposed of in a

responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide

treatment information for each product type for use by treatment facilities.

This information (product disassembly instructions) is posted on the Hewlett

Packard web site at:

http://www.hp.com/go/green

. These instructions may

be used by recyclers and other WEEE treatment facilities as well as HP OEM

customers who integrate and re-sell HP equipment.

The information contained herein is subject to change without notice.

Intel, the Intel logo, Xeon and Xeon Inside are trademarks of Intel Corporation in the U.S. and other countries.

Microsoft and Windows NT are US registered trademarks of Microsoft Corporation. Intel is a US registered trademark of Intel

Corporation.

The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and

services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial

errors or omissions contained herein.

For hard drives, 1GB = 1 billion bytes. Actual formatted capacity is less.

QuickSpecs

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)HP ProLiant DL370 Generation 6 (G6)

HP ProLiant DL370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)HP ProLiant ML370 Generation 6 (G6)

HP ProLiant ML370 Generation 6 (G6)

Technical Specifications

DA - 13242 Worldwide — Version 3 — April 2, 2009

Page 56

Hp Proliant Dl370 Users Manual Generation 6 (G6) BRHP ML370

DL370 to the manual e910420c-1683-4b37-af9c-f2e3254aabf7

Navigation menu

Versions of this User Manual:

Views

Navigation
