HP ProLiant G6
© 2006 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice
HP ProLiant
Industry Standard Server
HP Confidential NDA required

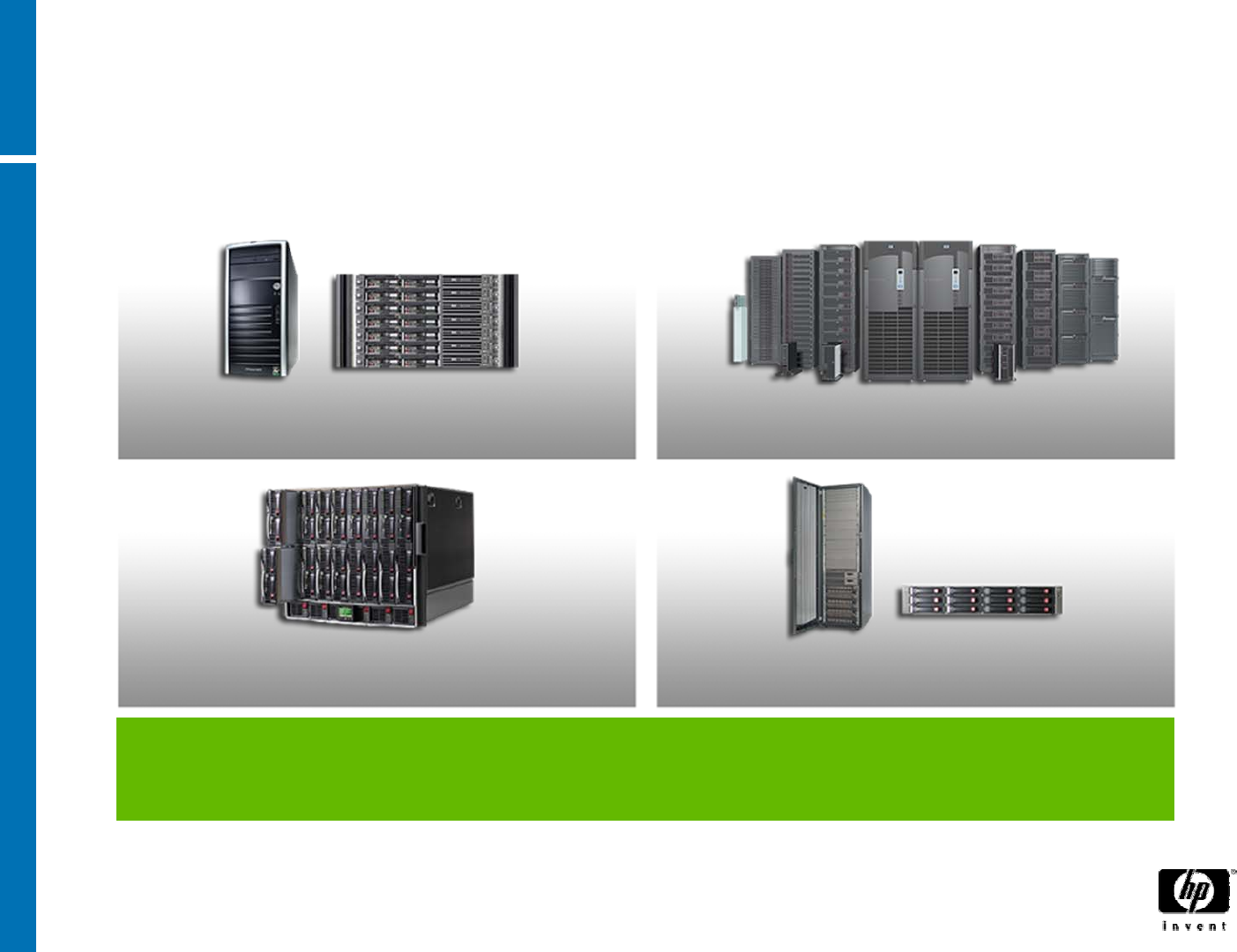

ESS – Enterprise Server & Storage
The best high-volume AND high-value solutions
HP ProLiant HP Integrity/Integrity NonStop
HP BladeSystem HP StorageWorks
Infrastructure Software
HP Confidential NDA required

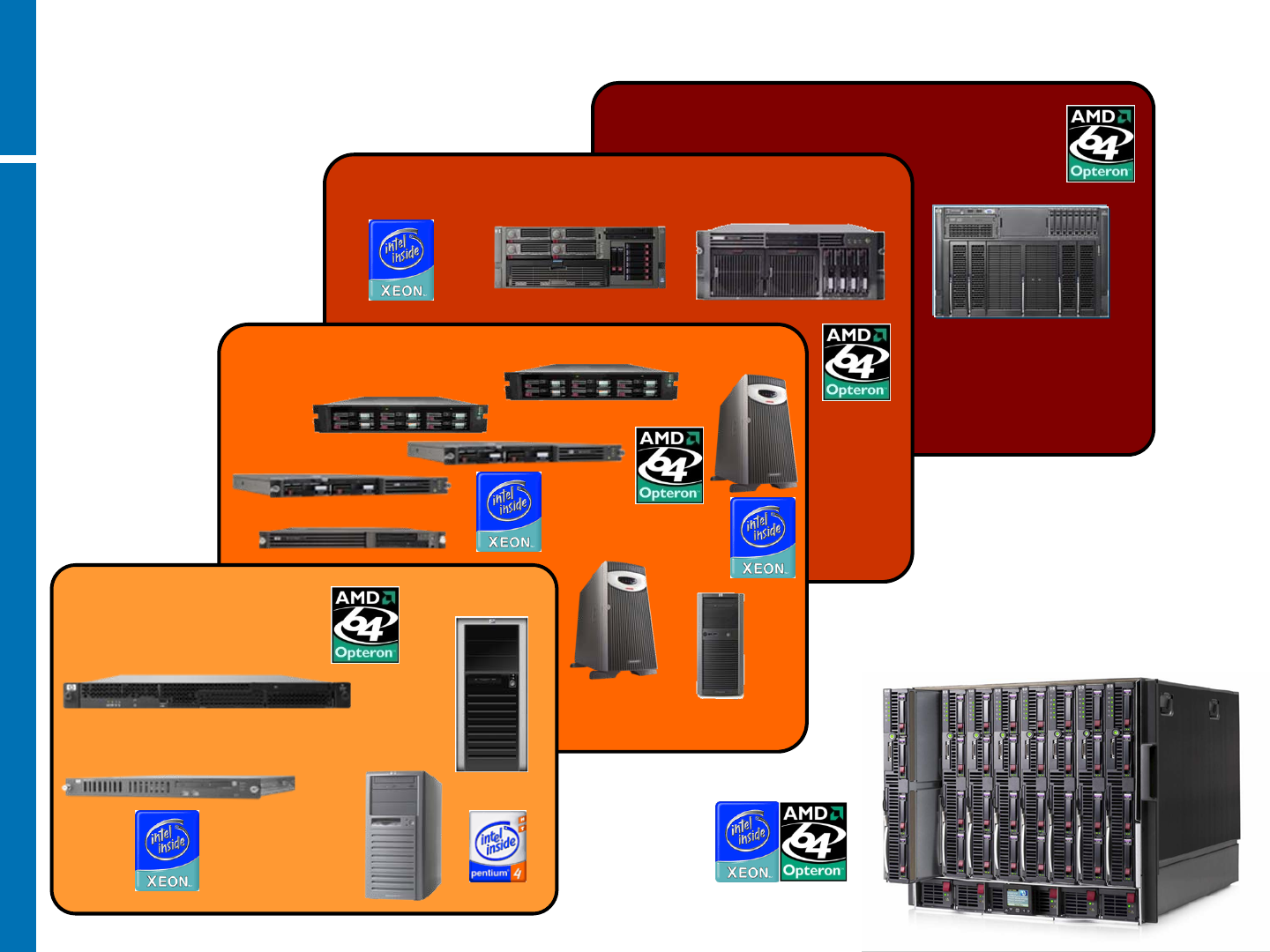

HP ProLiant Server Familie
DL585
300
ML350
ML370
DL380
DL320
DL360
ML150
ML110, ML115
DL120, DL160, DL180
100
DL165, DL185
500 DL580
HP BladeSystem
DL385
ML310
DL365
DL785
700
HP Confidential NDA required

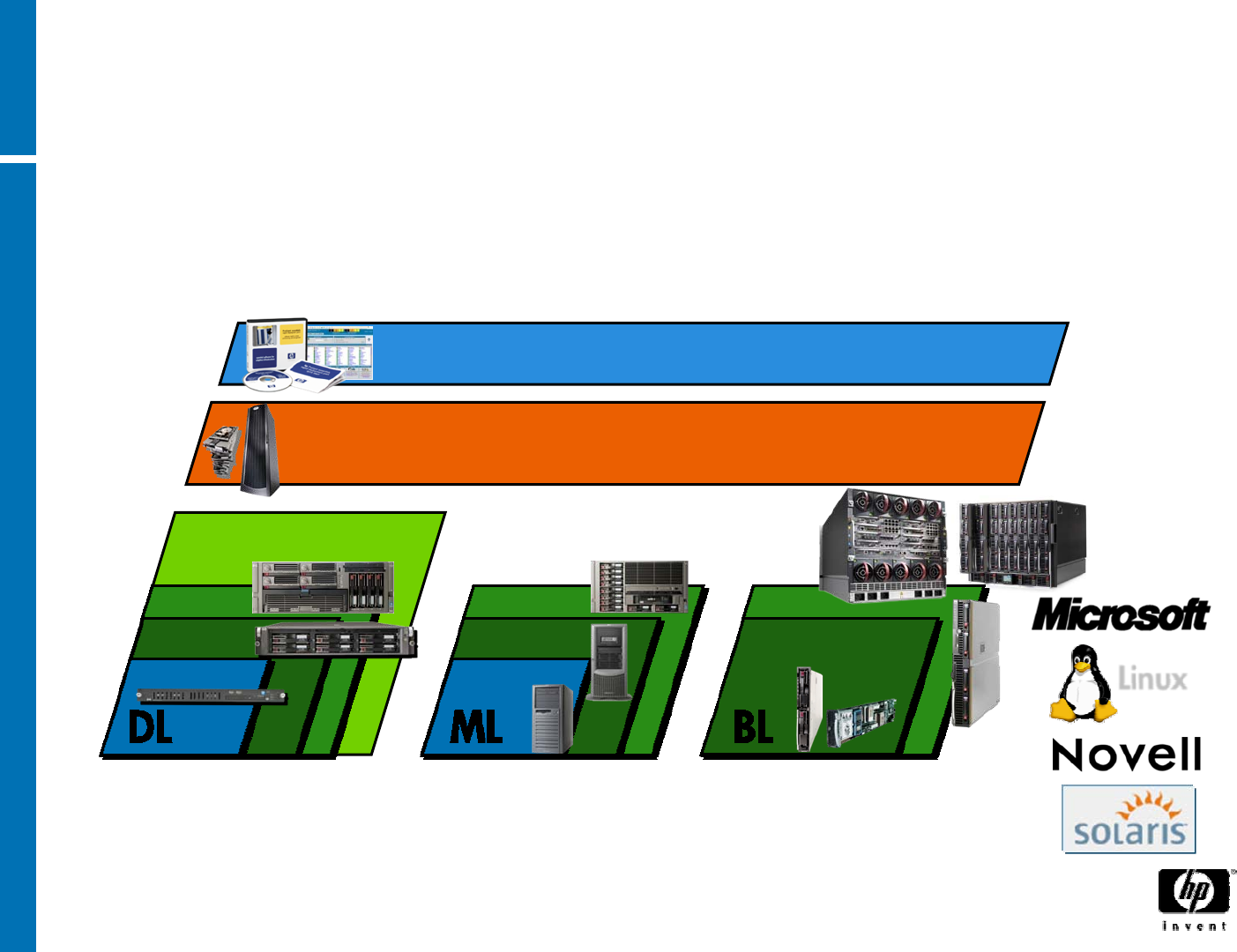

HP ProLiant Server Linien
Industry Standard tools for an Adaptive Enterprise
ProLiant Enablers
ProLiant Essentials
Universal Smart Array storage, rack and power
HP ProLiant BL
Maximum
flexibility and
control
HP ProLiant DL
Density-optimized
for rack mount
environments
HP ProLiant ML
Maximum
expansion
for rack and tower
300 series
500 series
ML
100 series
300 series
500 series
DL
100 series Linux
BL
c3000
c7000
c-Class
HP Confidential NDA required

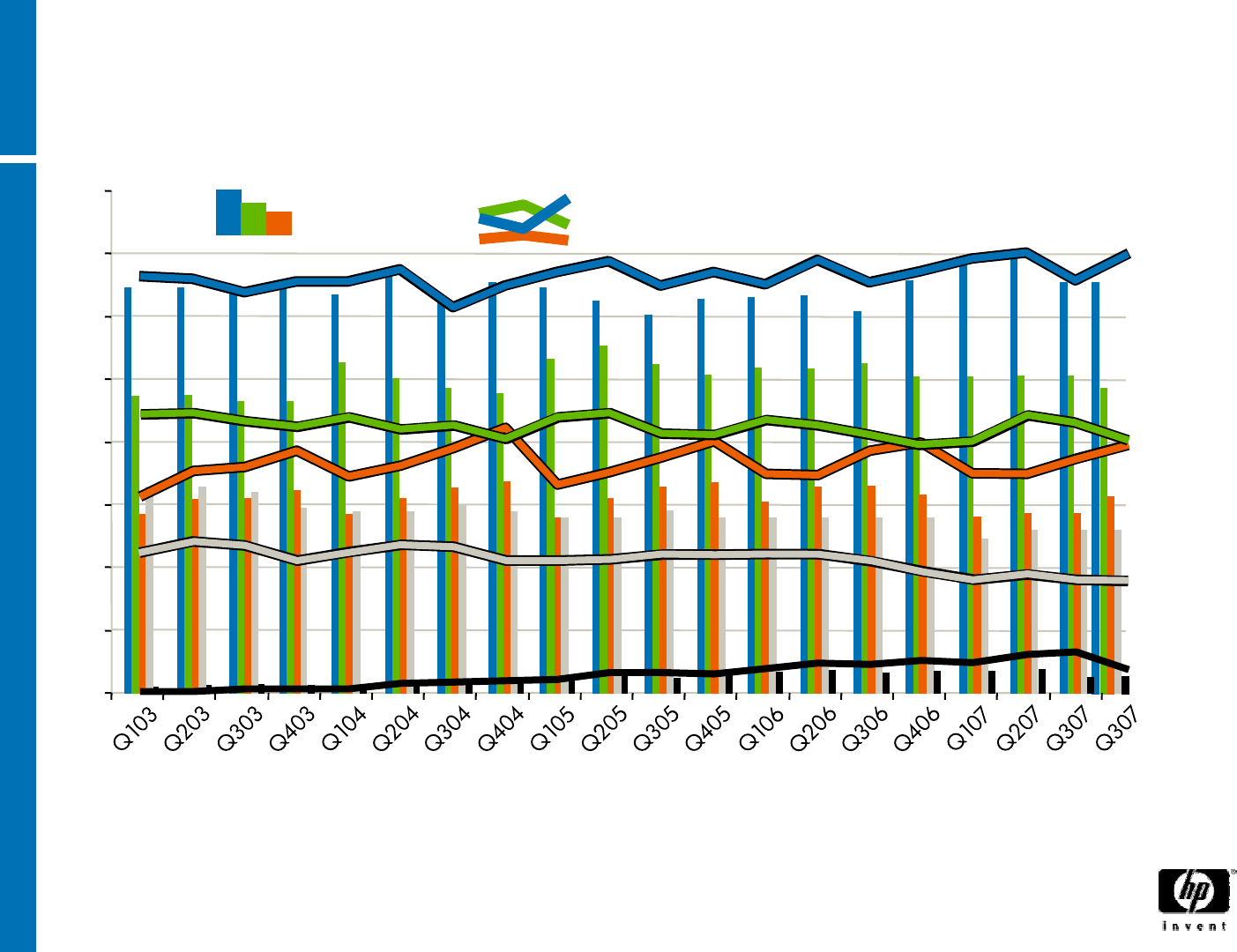

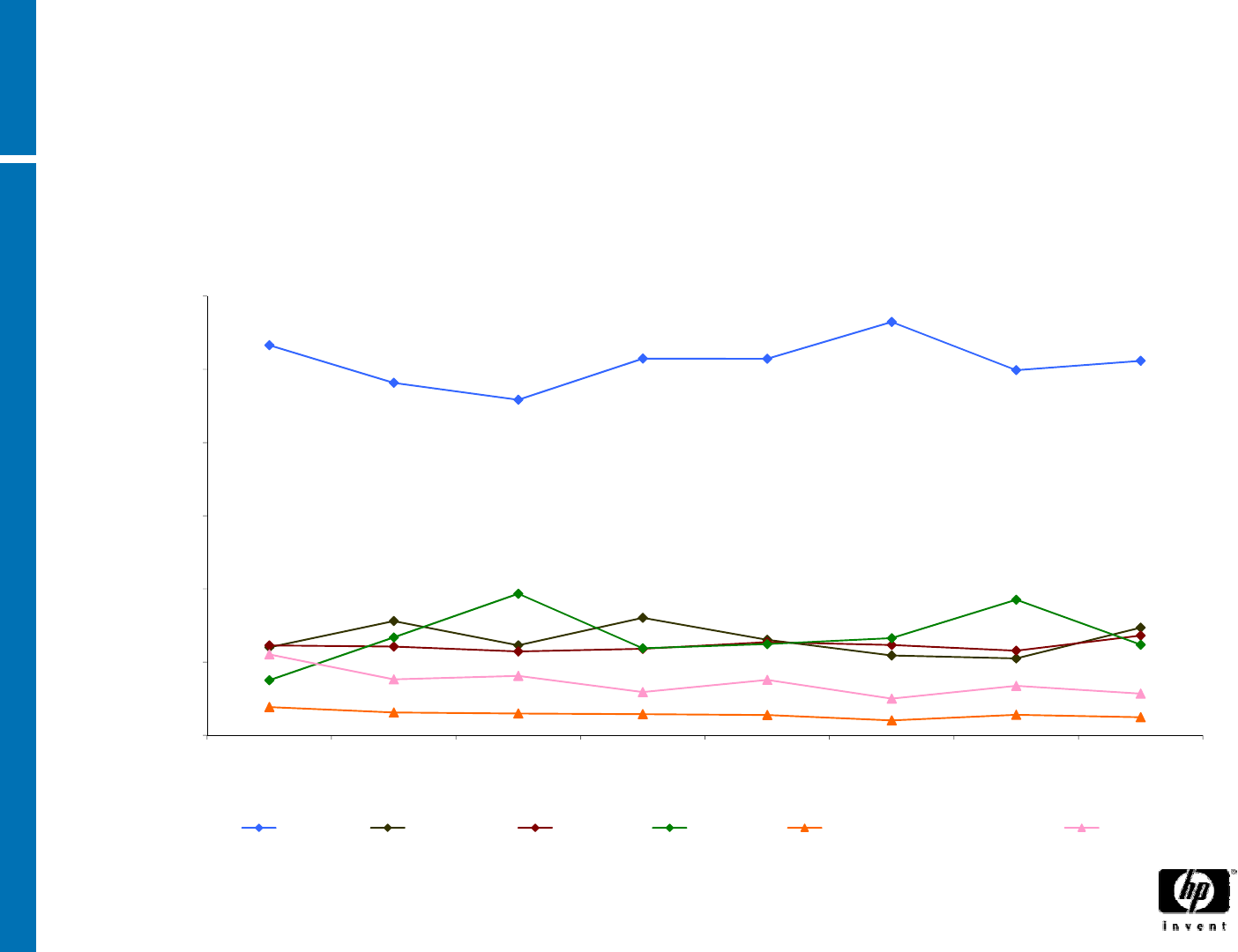

Weltweiter x86 Market share
0%
5%
10%
15 %
20%
25%
30%
35%
40%
HP
Units Revenue
Dell
IBM
Whitebox
Sun
Source: IDC Worldwide Quarterly Server Tracker: 4Q07, February 26, 2008
HP Confidential NDA required
Österreich x86 Market Share
7
0,0%
10,0%
20,0%
30,0%
40,0%
50,0%
60,0%
Q2 2006 Q3 2006 Q4 2006 Q1 2007 Q2 2007 Q3 2007 Q4 2007 Q1 2008
Units
HP Fujitsu Dell IBM Maxdata Others
HP Confidential NDA required

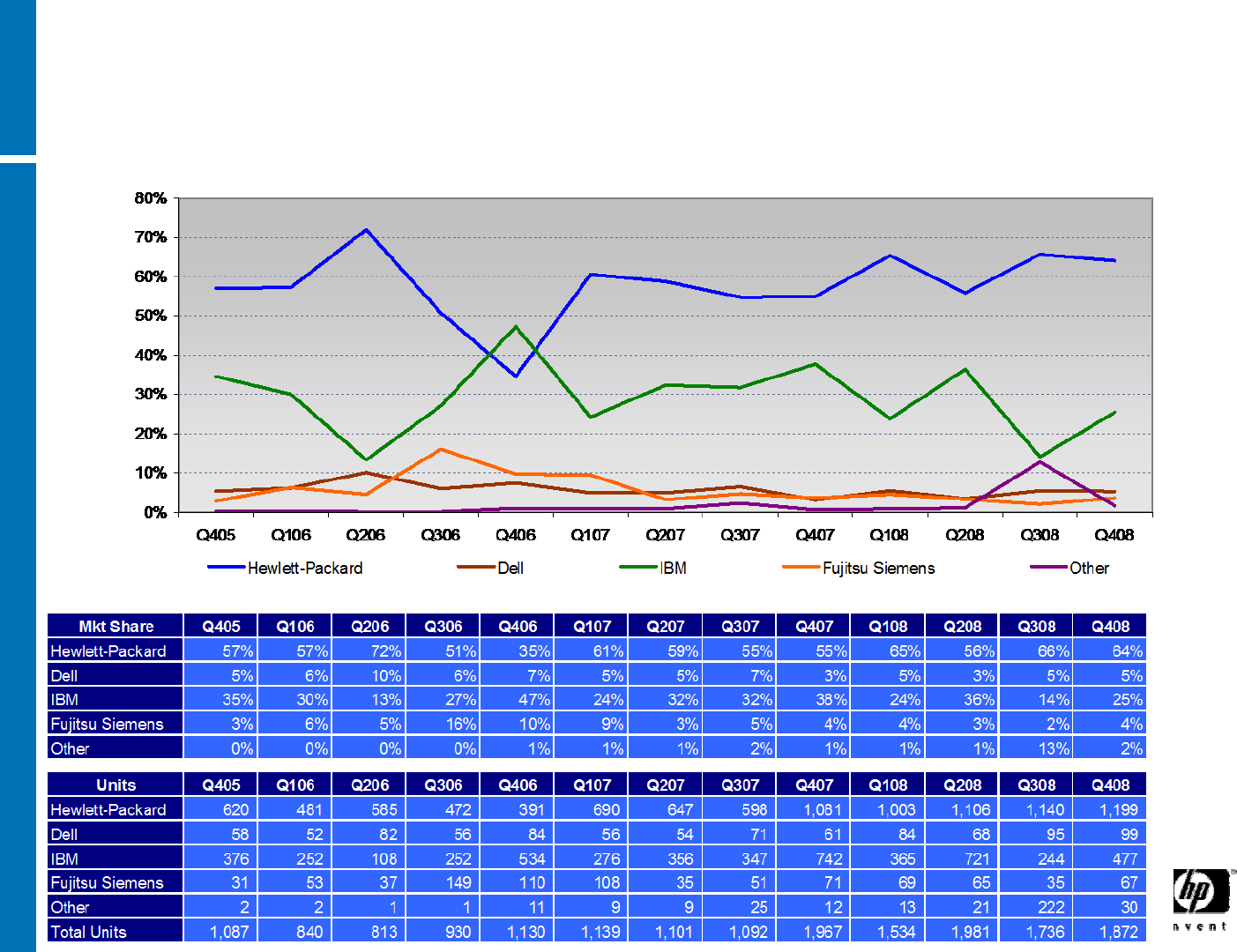

x86 Mkt Share Evolution – Blades Units
Austria Source:
IDC_Qshare_Q408_EMEA_HP.xls
HP Confidential NDA required

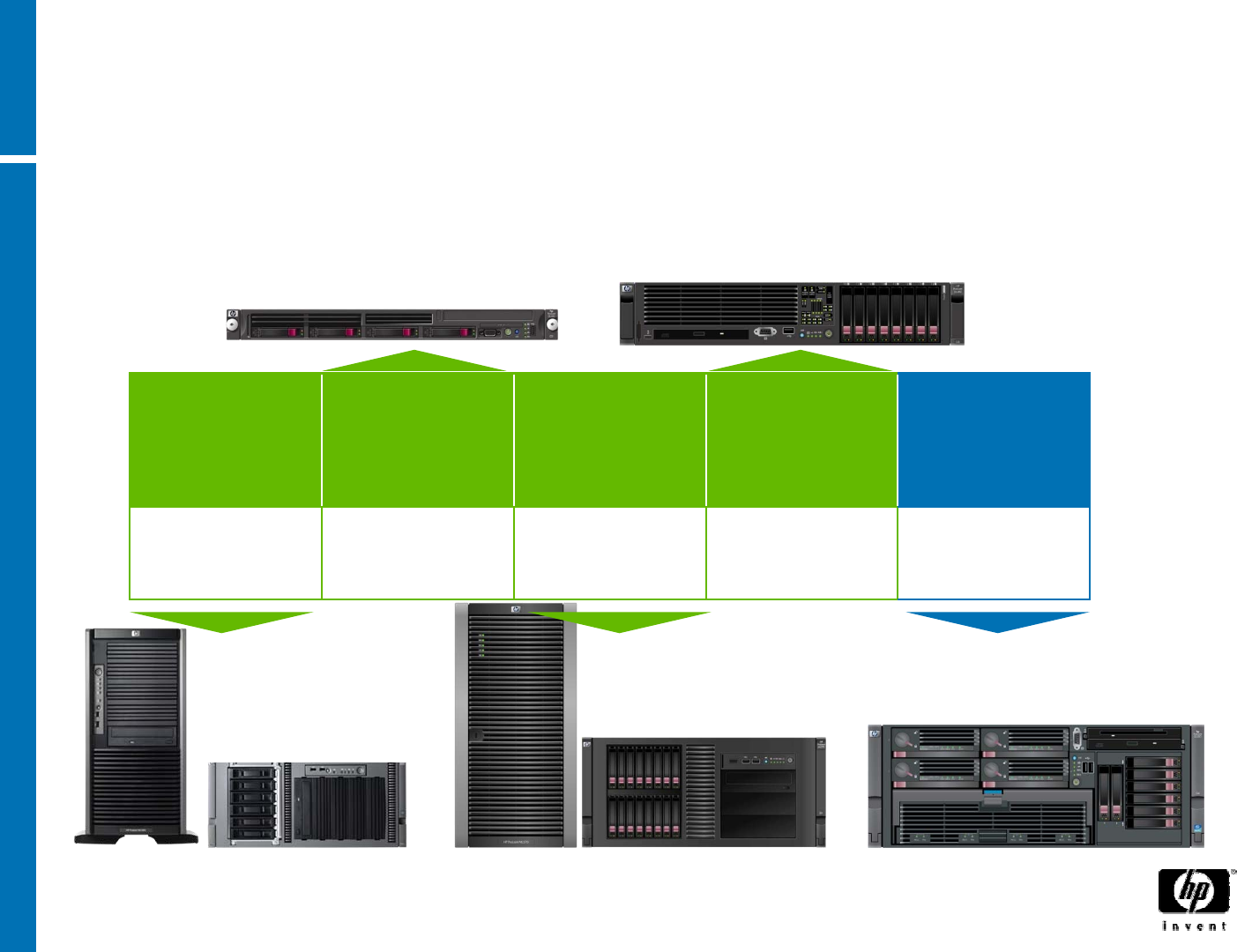

ProLiant enterprise server line-up
ML350 ML370
DL380
DL360
DL580
Intel Xeon-based systems
ML350
Best Selling
Tower Server

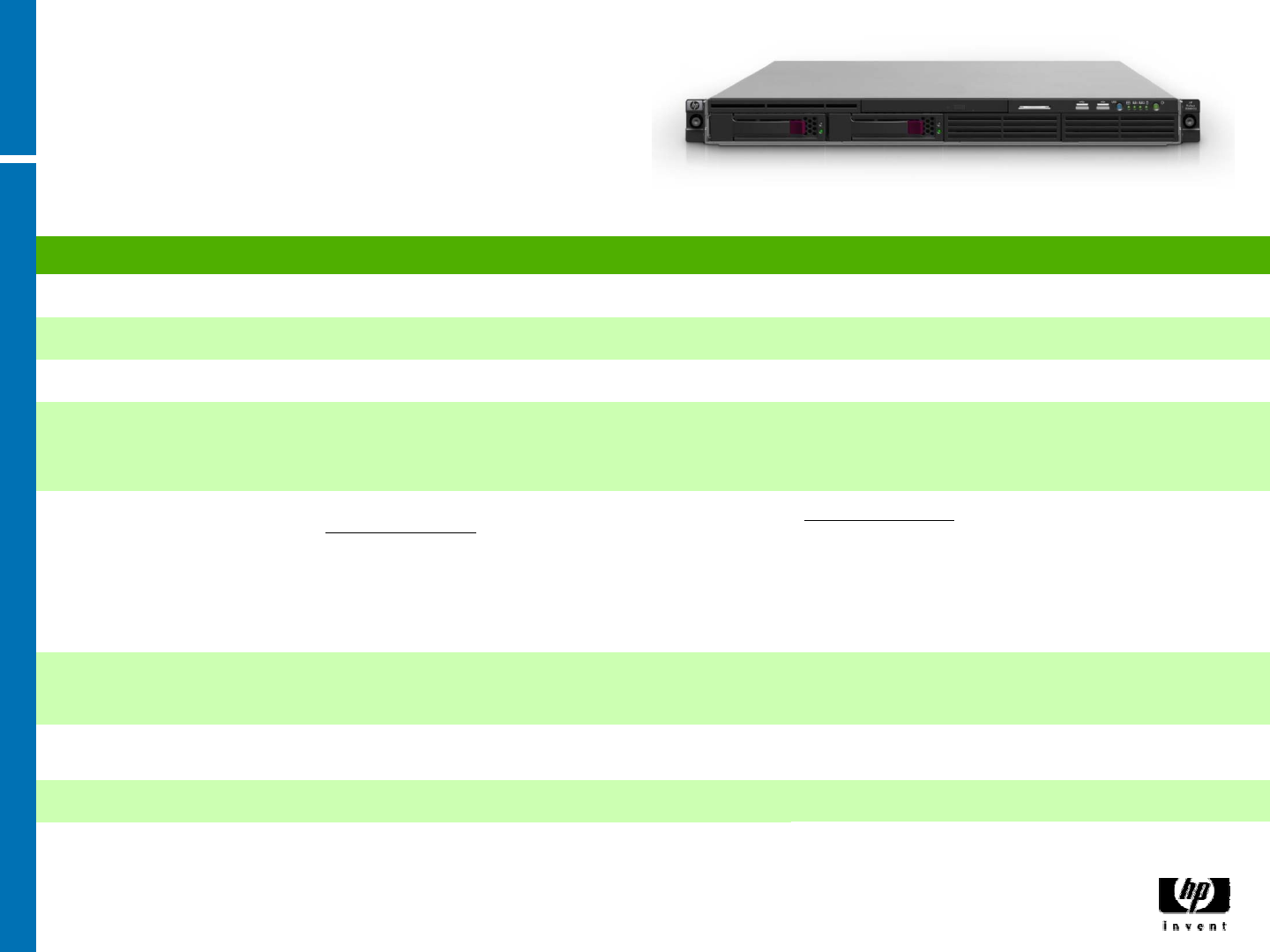

DL360
Best Selling
1U Server
ML370
Best
Performing 2P
x86
DL380
#1 Server
World Wide
DL580
#1 4-socket
server
Branch Office
& Enterprise
Minded SMBs
Concentrated
Compute
Power
Performance &
Virtualization Versatile,
Dependable
Workhorse
The High
Availability
4-way
HP Restricted. For HP and Channel Partner Internal Use. May be shared with select customers under CDA.
HP Confidential NDA required

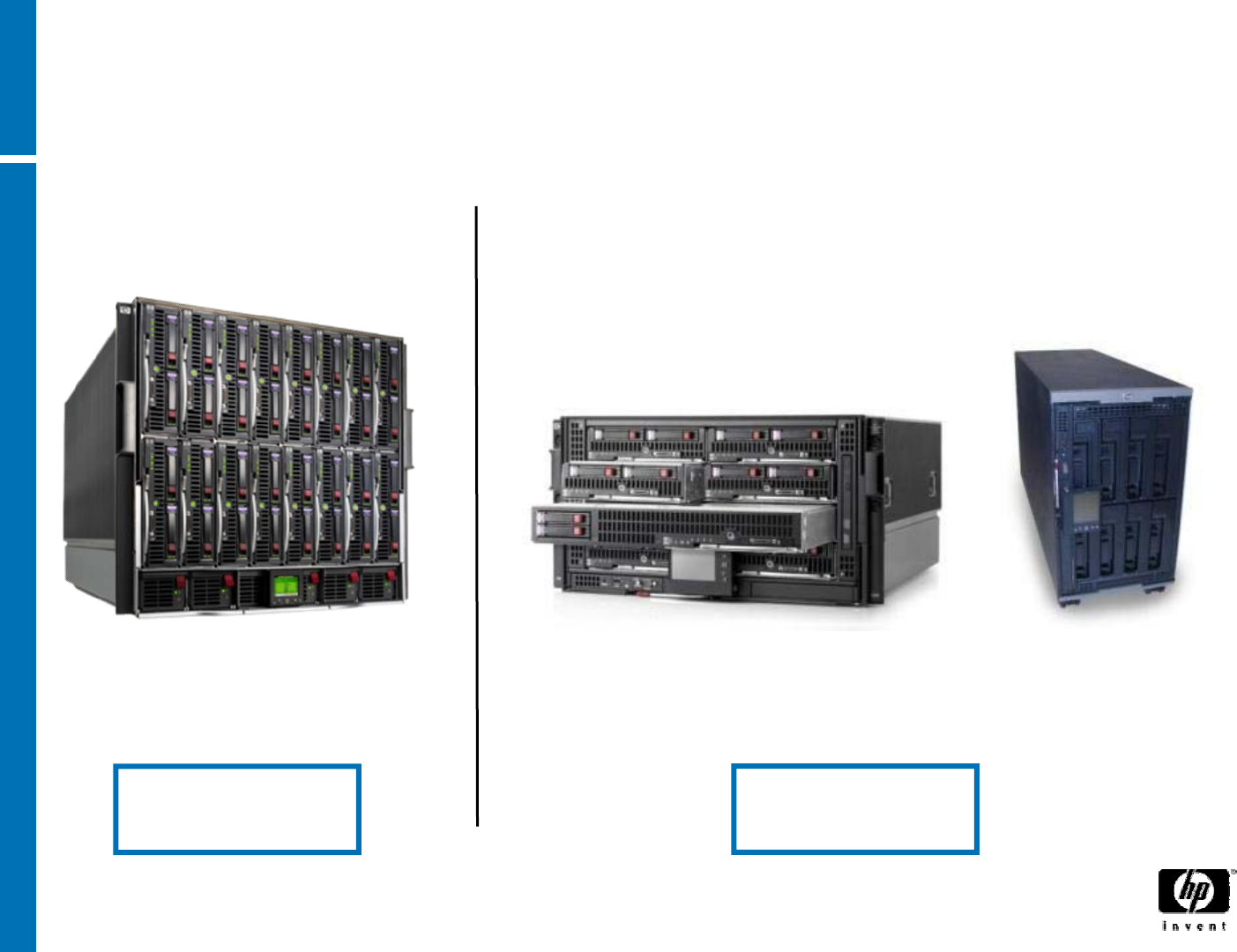

The HP BladeSystem Enclosure portfolio
Time-Smart, Energy-Efficient, Cost-savvy
2006 September 2007
Rack-able or set on a table
c3000
Place on a
floor using
the Tower
version
C3000 Tower
Datacenter
optimized
c7000
Holds 16 c-
Class server
blades
Holds 8 c-Class
server blades
Remote sites and midmarket
HP Confidential NDA required

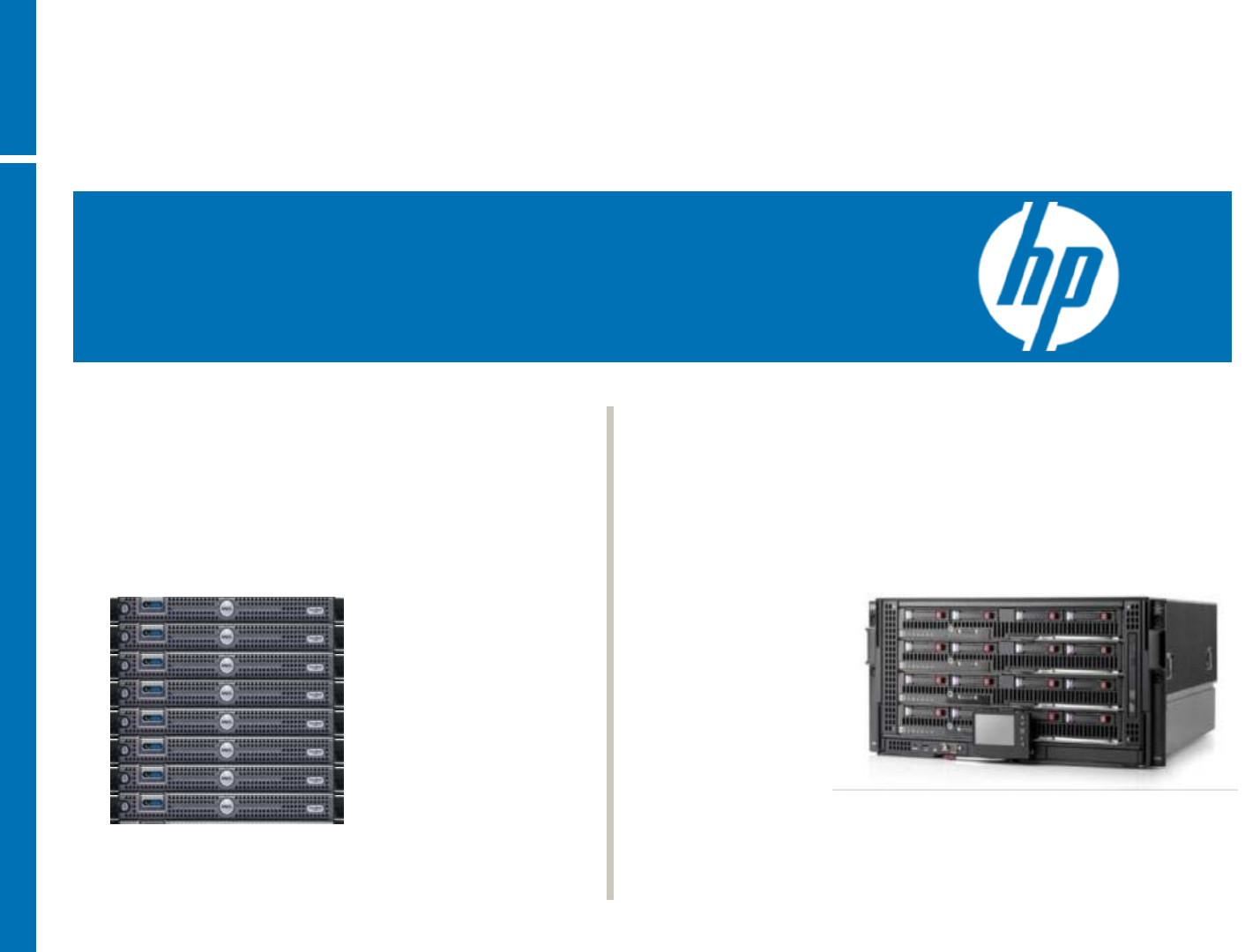

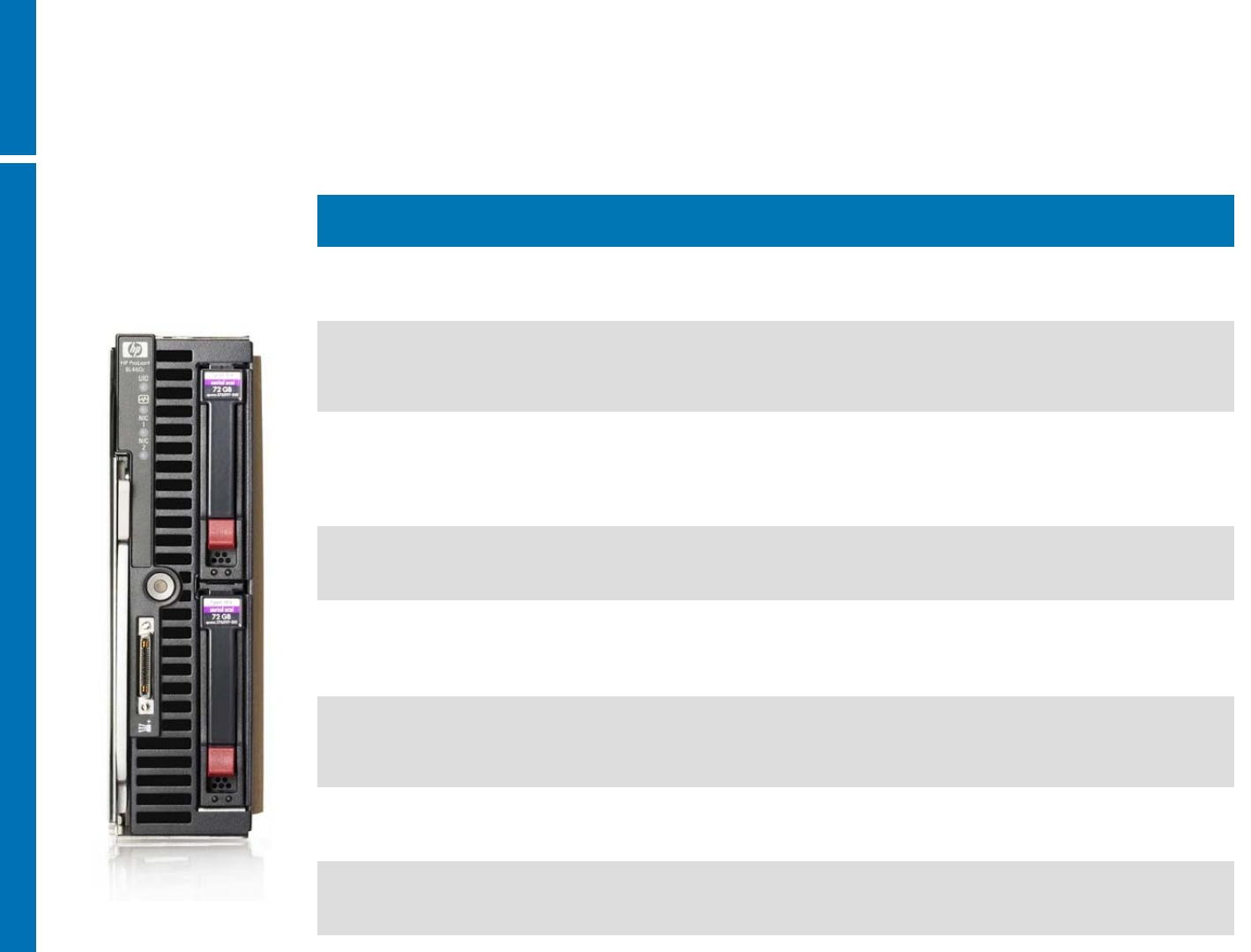

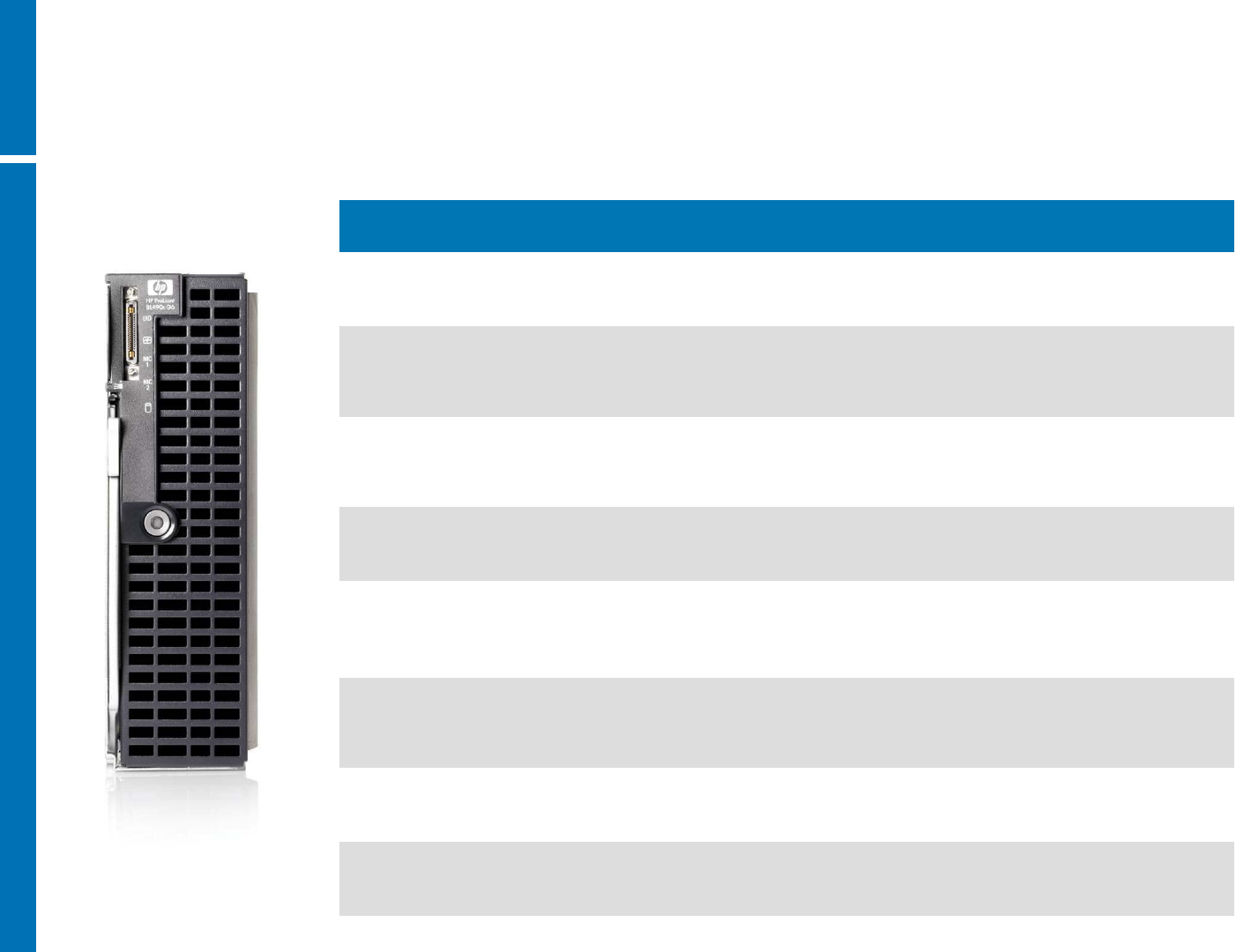

HP BL460c
(Intel 5140 dual-core)
Power:
2720 VA
@100% CPU Util.
Cooling:
172 CFM
Acoustics:
7.4 bels
8 x1U severs
Power:
3856 VA
@100% CPU Util.
Cooling:
323 CFM
Acoustics:
8.1 bels
8 HP c-Class servers
Assumptions:
•Same load/same configuration (2 x 5140 CPU w/ 8 DIMMs each running Prime95 @100%)
•CFM (Cubic feet per minute) of air (costs to run datacenter equipment for cooling are significant)
(Intel 5140 dual-core)
482 VA per server 340 VA per server
Customers win with HP Thermal Logic
less power
per sever
30% less CFM
47% 38%
quieter
Blades benötigen weniger Energie als normale
Server!
HP Confidential NDA required

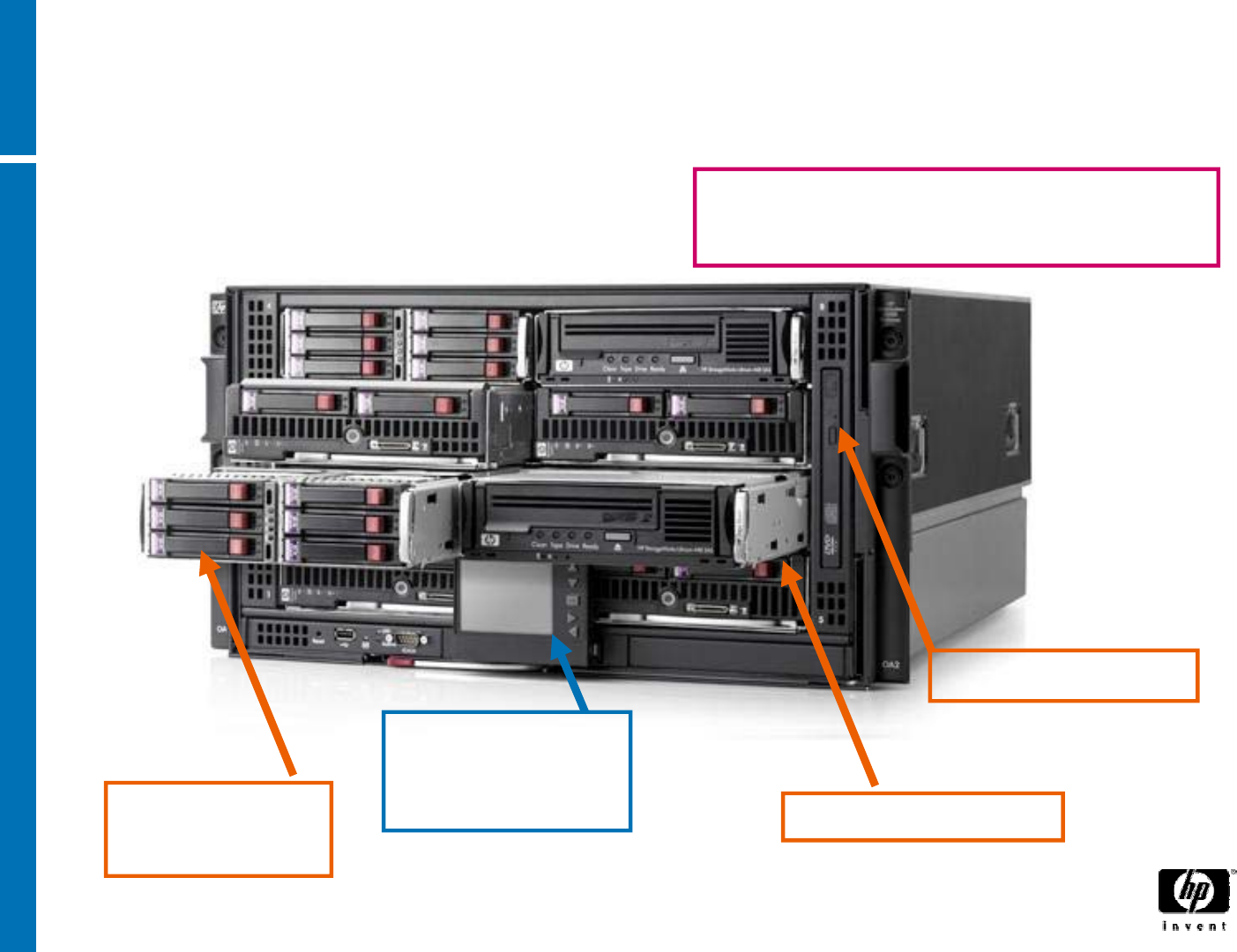

c3000 Front View
•8 Device bays
•Accepts c-Class Blades (servers &
storage)
Onboard
Administrator &
Insight Display
Direct attached/
Shared Storage
1 2
3 4
5 6
7 8
Tape Back Up Blade
Optional DVD drive
HP Confidential NDA required

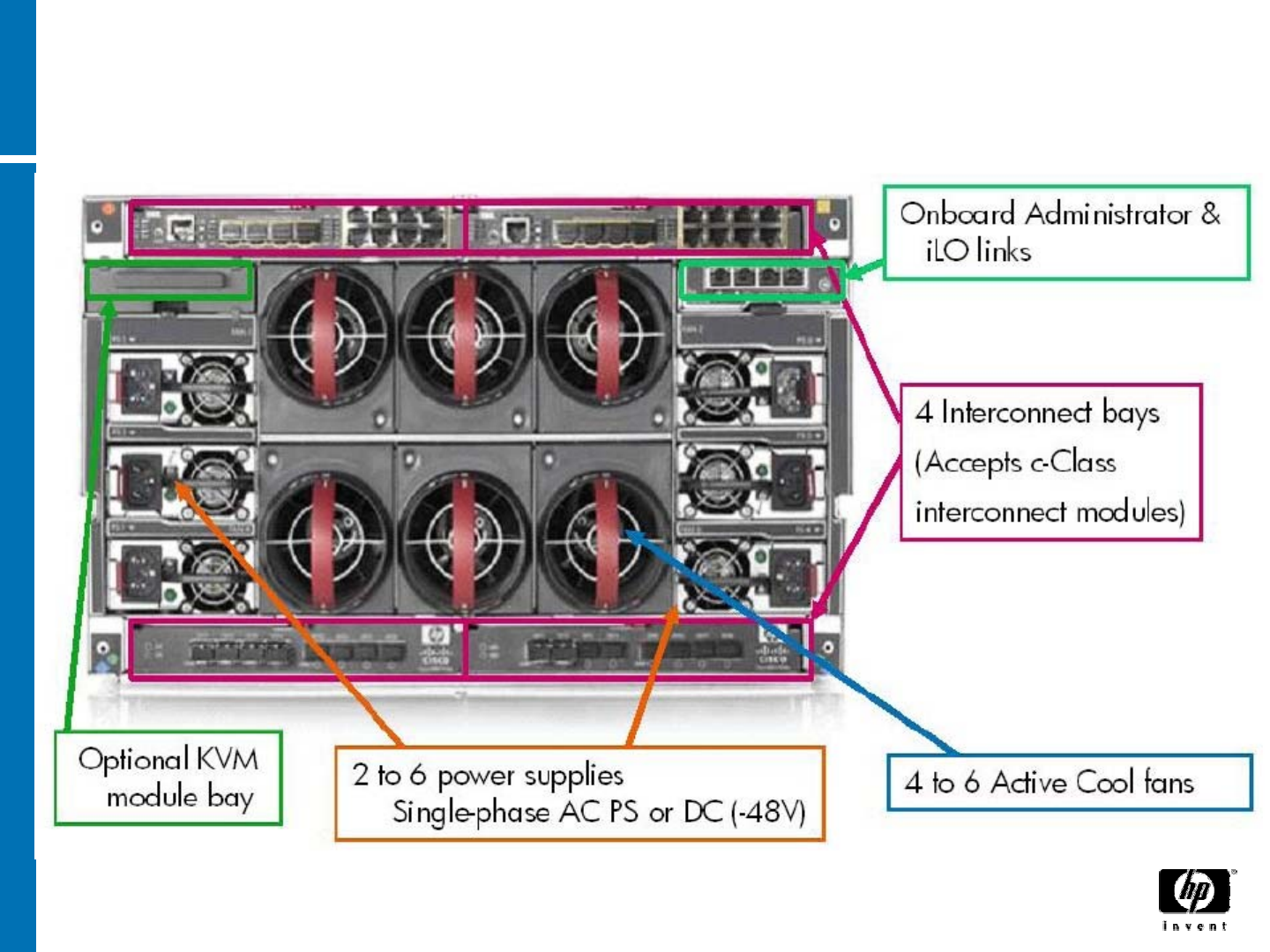

c3000 Rear View
HP Confidential NDA required

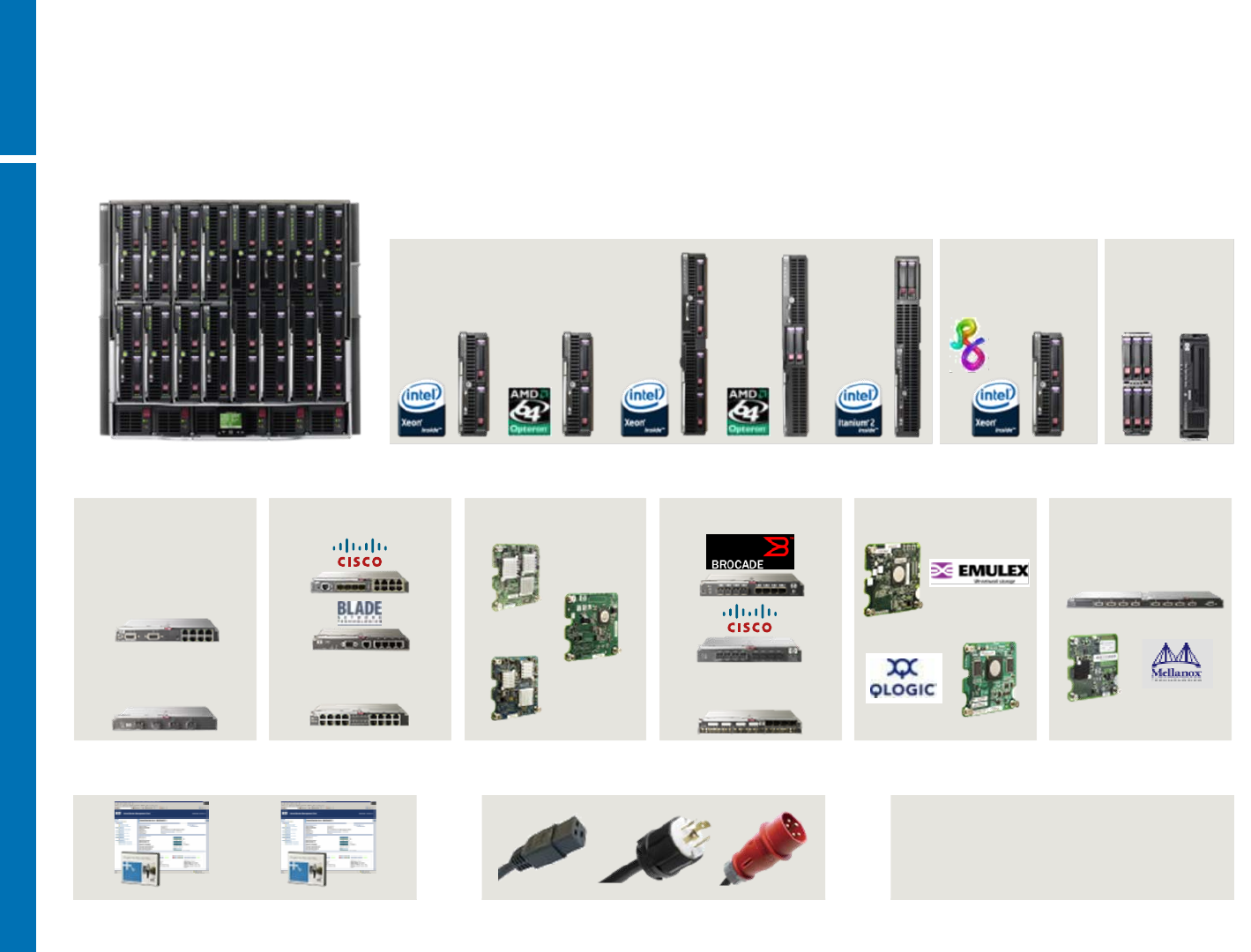

HP BladeSystem c-Class Portfolio
A Full Range of 2P and 4P Blades
Interconnect choices for LAN, SAN, and Scale-Out Clusters
Virtual
Connect
LAN Ethernet NICs SAN Fibre Channel InfiniBand
4X DDR
h
h
hh
Server Blades Workstation
Blades Storage
Blades
Unified Management Choice of Power Complete Services
Assessment
Implementation
Support
© 2006 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice
HP ProLiant G6
HP Confidential NDA required
Leading Efficiency
•Control your power budget
•Dynamic power capping
•Conserve energy
Increased Power Efficiency over
G5
•Energy Star rated
•All power supplies
are up to 92%
efficient
•SpecPower
Leadership
Right-sized Power Supplies
•Only pay for the power you need
•Fuller load resulting in greater
efficiency
•Choose from 460W, 750W or
1200W power supplies
Ultimate power management
HP Confidential NDA required
Continued Leadership in Energy Efficiency
•Dynamic Power Capping
•Intelligent Power & Cooling Savers
oSea of Sensors
oPower Down Mode Support on DDR-3
oDynamic Power Management of unused i/o ports.
oIndividual Fan Management for Dynamic cooling and power
management.
•Intel Nehalem performance with lower power envelopes.
Power/Cooling
efficiency
•HP Common Power Slot- one power source fits many
platforms - reduced spares
•Higher Efficiency Power Supplies, up to 92% to meet
Energy Star and Climate Savers Gold requirements.
•Right-Sizing for the perfect power fit improved capacity
•High Efficiency and Load Balancing Modes for
Redundant Power Supplies.
Power
delivery
NEW
HP Confidential NDA required
18

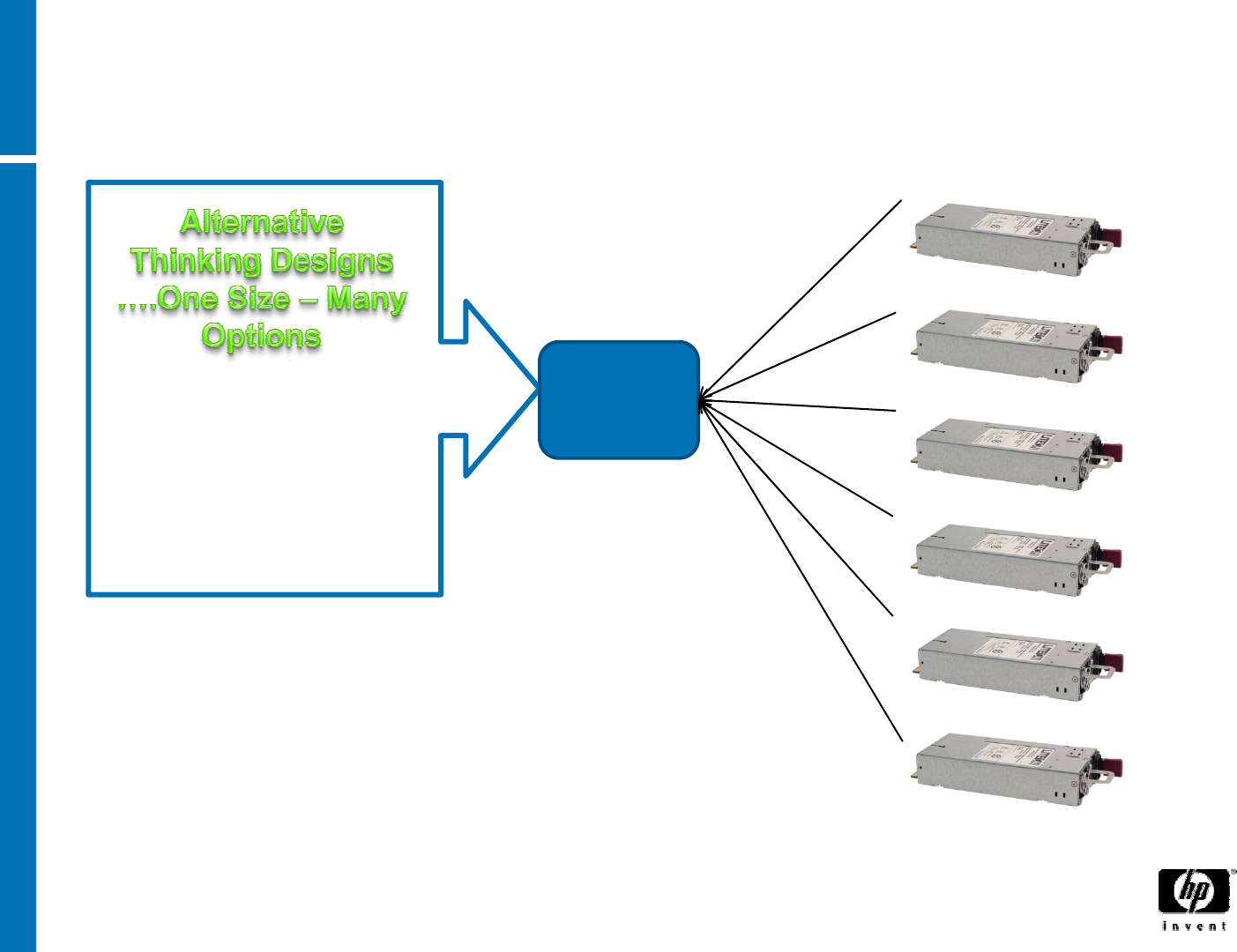

G6 Common Slot Power Strategy
•Right-Sized to reclaim wasted/lost power in the rack. Reclaim
power with just the size power supply you need.
•Improved power efficiencies up to 90% and 92%, which are
targets for Energy Star
•Meets requirements for SpecPower leadership, Climate Savers
and Energy Star for Servers Gold
•Flexibility to fit data center infrastructure needs 100-240Vac, -
48Vdc, 400Hz Military, High Line AC, etc.
•Simplified serviceability – reduces data center spares
Common
Slot
Military Solutions
High Voltage AC/DC options
Alternative AC and DC Solutions
48Vdc 1200W up to 90% efficiency
1200W AC up to 90% efficiency
460W AC up to 92% efficiency
750W AC up to 92% efficiency
Commonality across
ProLiant, Integrity,
StorageWorks,
ProCurve
HP Confidential NDA required

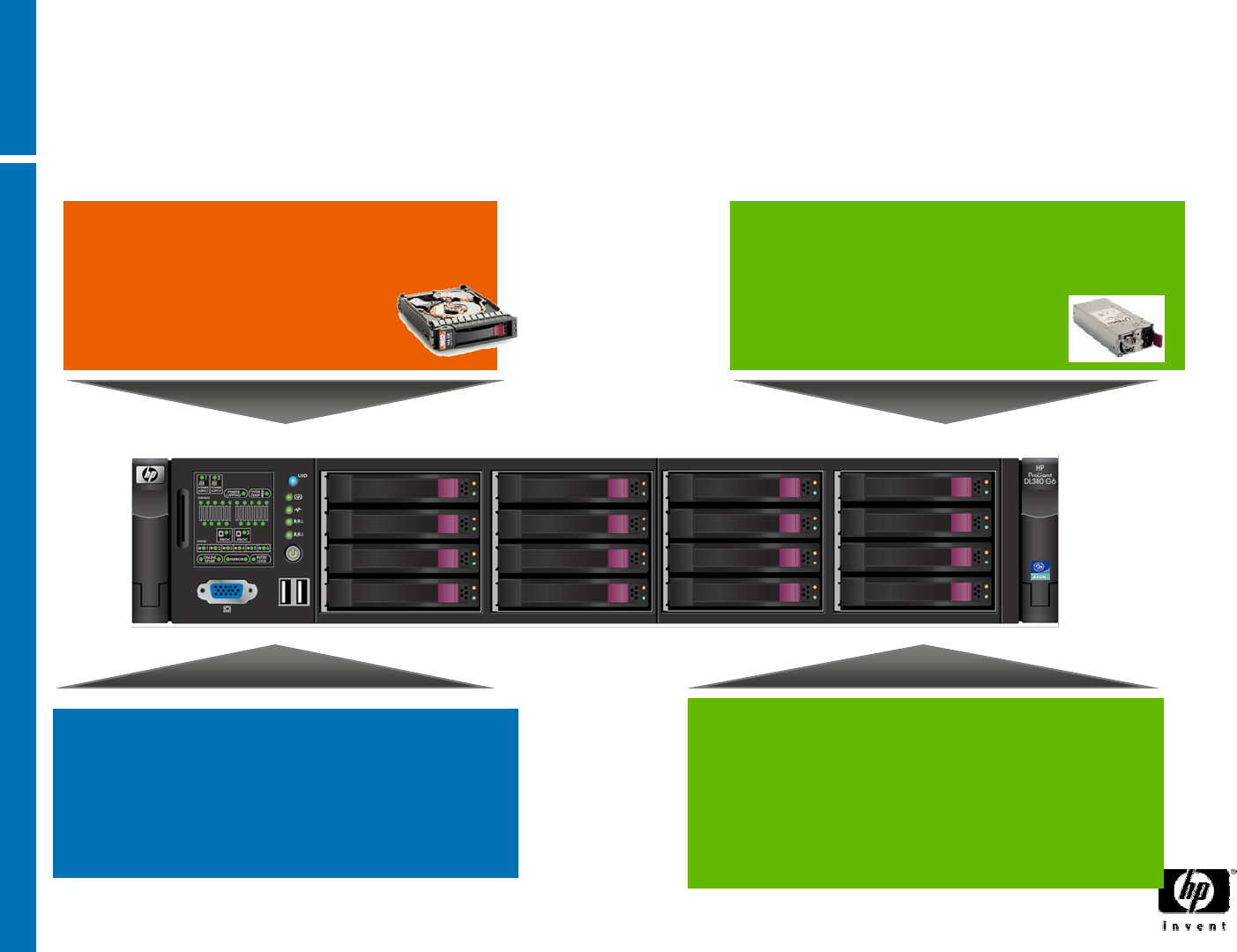

Extreme Flexibility
Flexible storage
•More servers with choice of
LFF or SFF drives
•Choice of SSD support
Common power slot
•Reduces # of spares needed
•Simplifies Ordering
Flexible Smart Array Portfolio
•Mix and match cache with batteries
for performance and availability

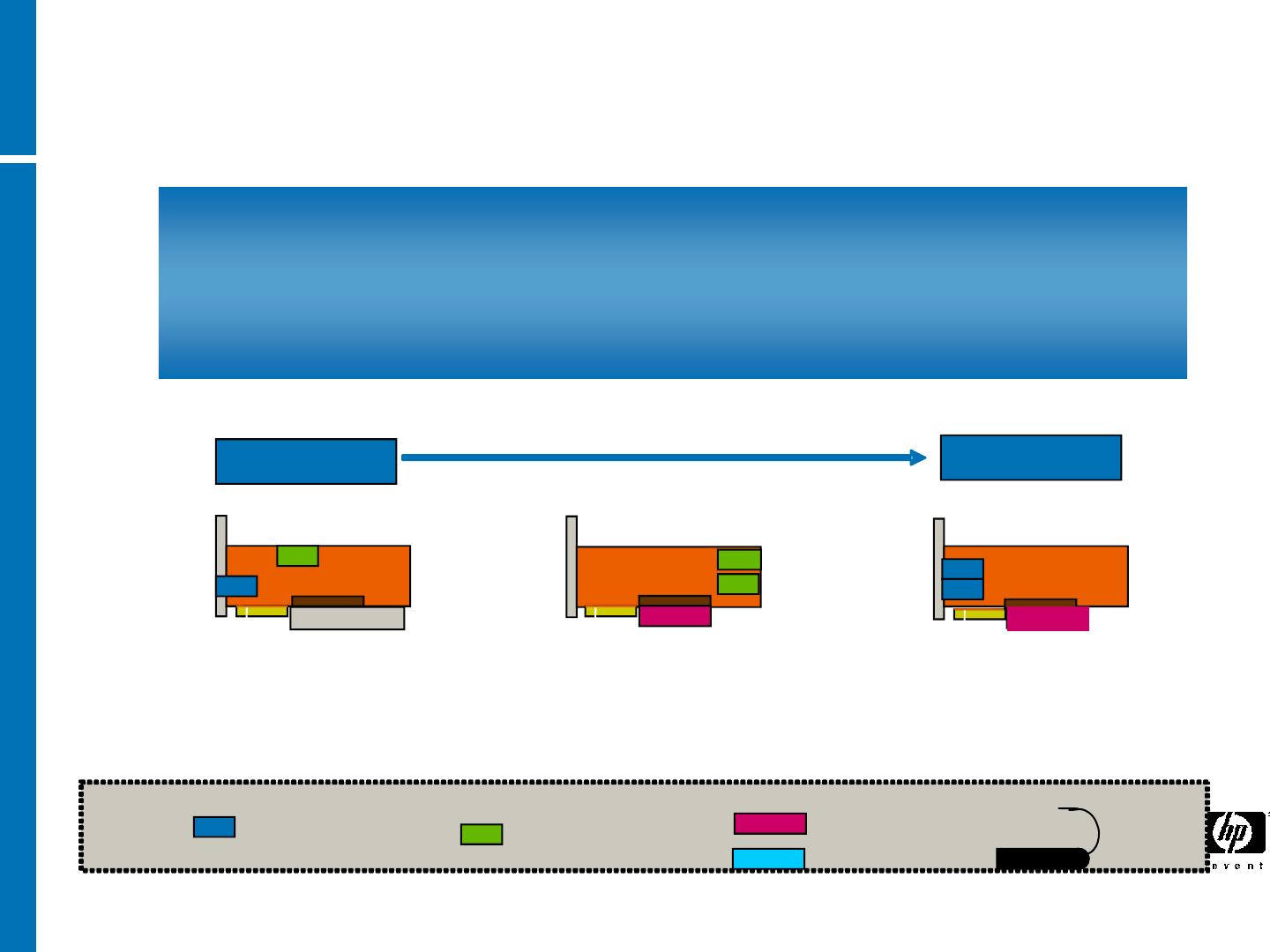

Flexible I/O
•More Slots / More I/O choice
(PCI-E x8,x16 and PCI-X)
•More 10GbE options
© 2006 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice
ProLiant G6:Technology
Prozessor
HP Confidential NDA required

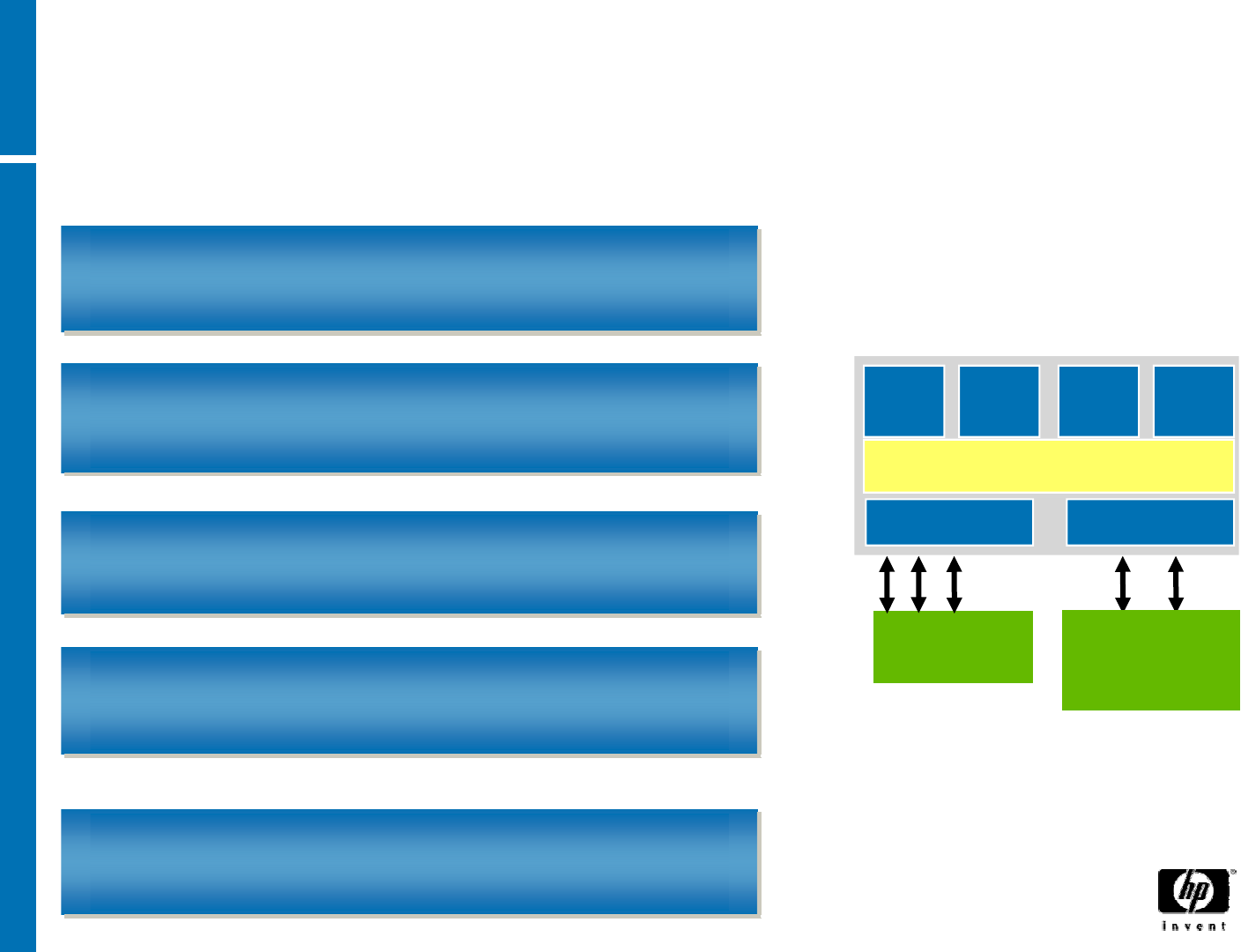

Nehalem Processor
Higher performance, better power efficiency, more adaptable
QuickPath Architecture
Delivers additional performance, bandwidth, and reliability
Integrated Memory Controller
Each processor now has a dedicated memory controller
Turbo Mode
Additional processing boost during peak demand periods
Dynamic Power Management
Hyper-Threading Technology
Enhances performance and energy efficiency
Core
8M Shared Cache
CoreCoreCore
Memory
Controller Link
Controller
2x Intel
QuickPath
interconnect
3x DDR3
channels
HP Confidential NDA required
Intel Nehalem Processor Details
Power:
•95W, 80W, 60W¹
Process:
•45nm CPU
Features:
•2 or 4 cores
•8M on-chip Shared Cache
•Simultaneous Multi-
Threading capability (SMT)
•Intel®QuickPath
Interconnect up to 6.4
GT/s, each direct. per link
•Integrated Memory
Controller (DDR3)
•New instructions
Socket:
•New LGA 1366 Socket
Nehalem-EP
Core
8M Shared Cache
CoreCoreCore
Memory
Controller Link
Controller
2x Intel
QuickPath
interconnect
3x DDR3
channels
HP Confidential NDA required

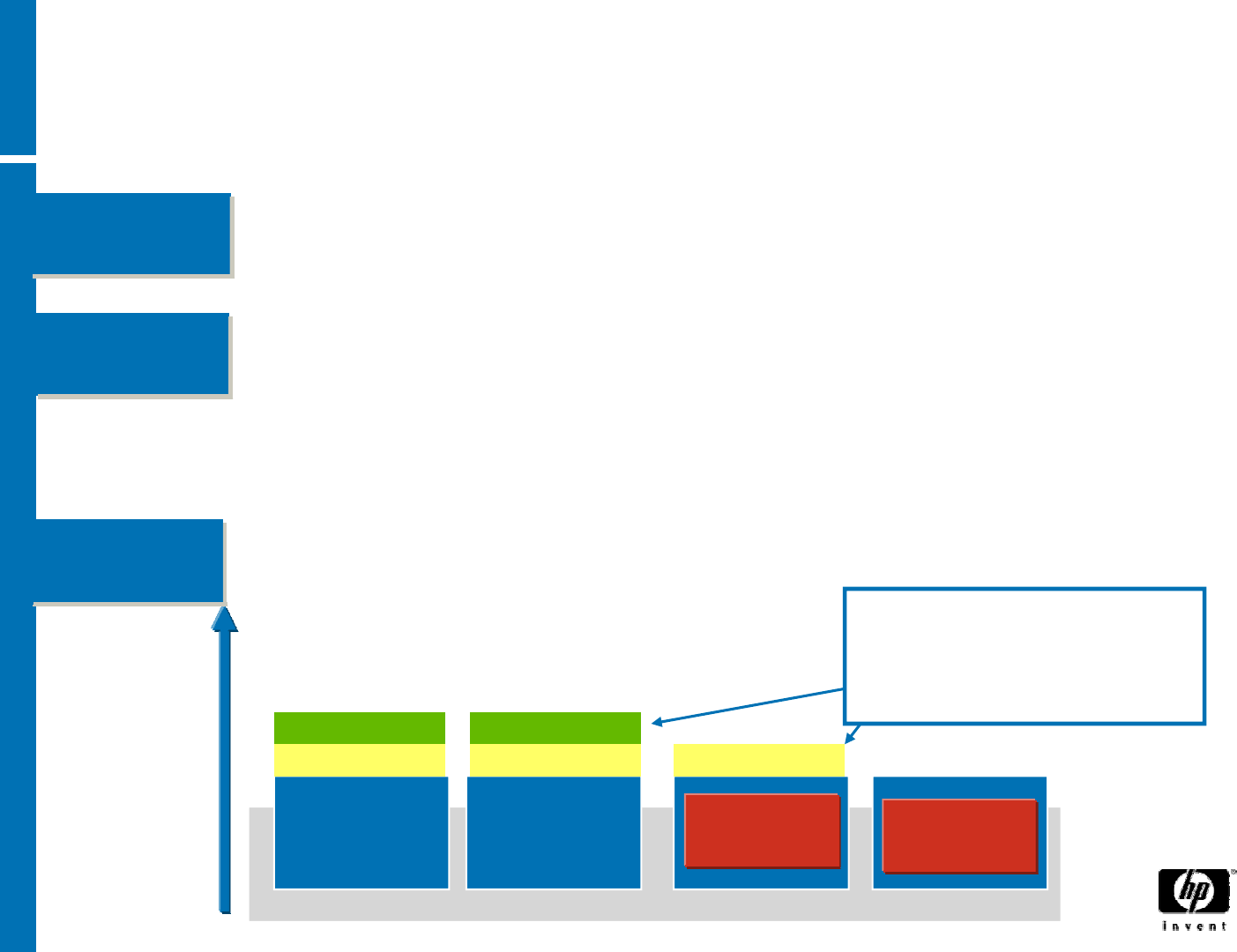

Nehalem Turbo Mode
Frequency (F)
CoreCoreCoreCore
Description CPU operates at higher-than-stated frequency when
operating below power and thermal design points
3 Methods
of Control
1. Off: CPU operates only at rated frequency
2. Automatic: OS requests higher perf state, CPU determines turbo
frequency (recommended)
3. Manual:
•User can manually disable cores (reboot required) via BIOS
•Less cores means more likely turbo will happen
*within power and
thermal constraints,
depends on processor
model
Core
turned off
Core
turned off
One 4-core processor
In response to workload
demand adds additional
performance bins as
cores are turned off *
Example
HP Confidential NDA required

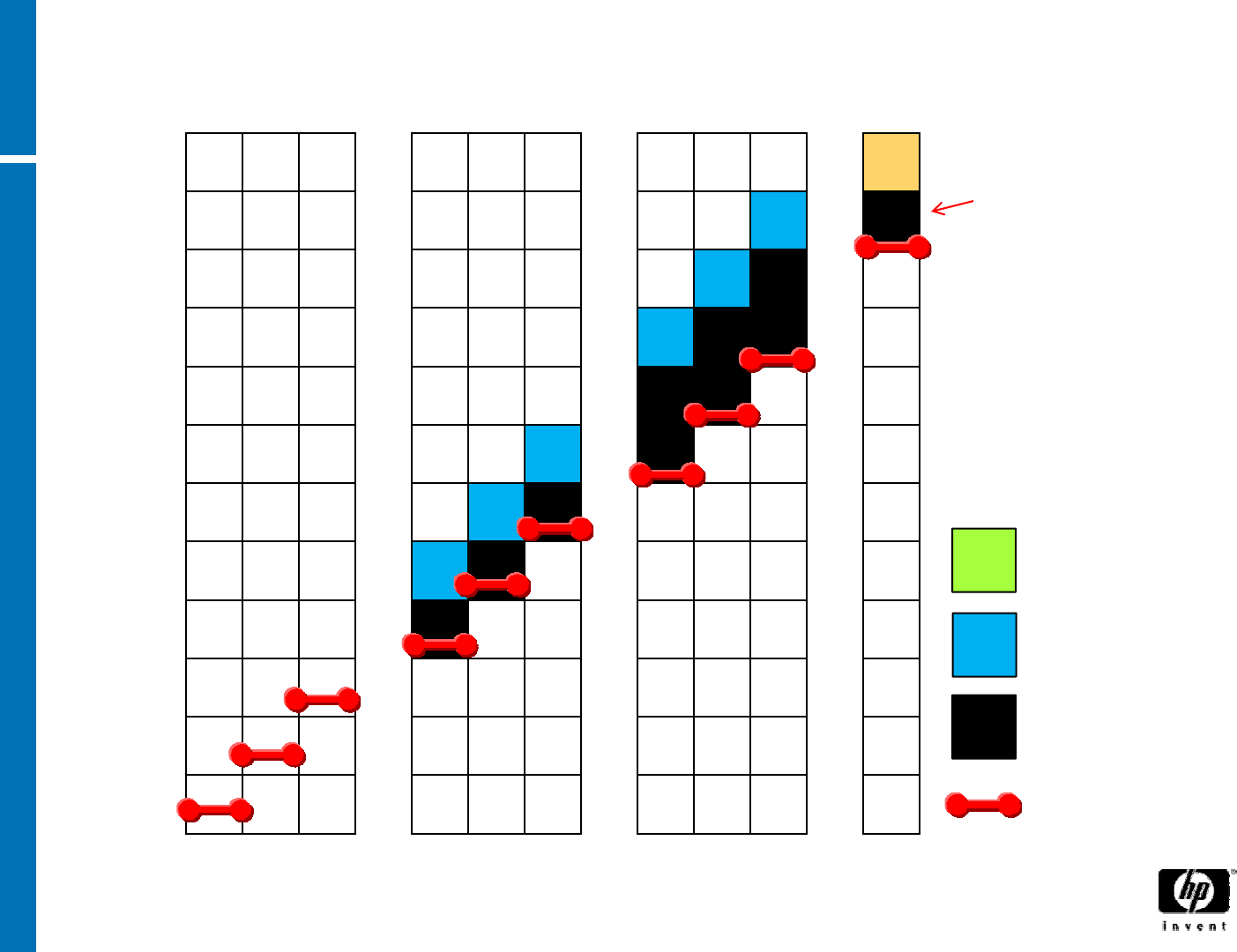

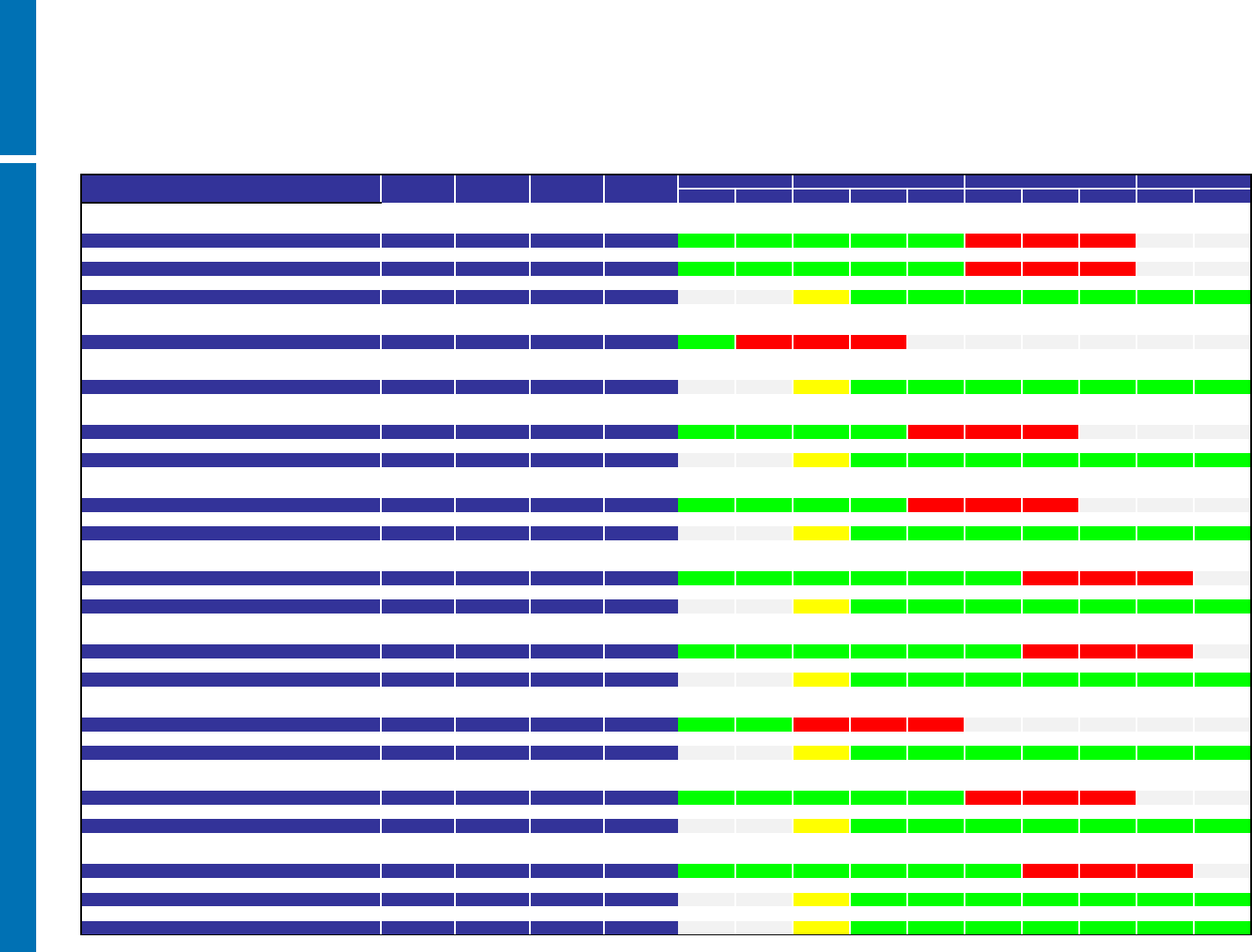

Nehalem-EP Turbo Mode Frequencies
1.86 GHz DC
2.00 GHz
2.13 GHz
2.26 GHz
2.40 GHz
2.53 GHz
2.66 GHz
2.80 GHz
2.93 GHz
3.06 GHz
3.20 GHz
3.33 GHz
3.46 GHz
Perf (95W) WS (130W)
4C/3C turbo
1C/2C turbo
Base Freq
+1
+2 +1
+2
+2
+3
+3
+3
+2
Volume (80W)Value (80W)
+2
+2
+2
1C turbo only
+1
+1 4C/3C/2C
operation
ProLiant
G6:Technology
Memory
HP Confidential NDA required
New DDR-3 Memory Benefits
Lower latency
•24GB/sec with DDR-2
•64GB/sec with DDR-3
25% power
savings over DDR2
•Voltage reduced from 1.8V to
1.5 V
•Thermal temperature sensors
allow power down when idle
Flexibility
•Unbuffered DIMMs
•Registered DIMMs
Larger memory footprints
•Increased slot counts with G6
•Max Memory up to 24GB with U-DIMMs
•Max Memory up to 144GB with R-DIMMs
Bandwidth doubles
•DDR-2; 667MHz 4 channels
•DDR-3; 1333MHz 6 channels
HP Confidential NDA required
Customer choice with DDR-3
Memory Technology Comparison
RDIMMs
Greater capacity, ECC
w/advanced memory protection
UDIMMs
Smaller capacity, lower price
points, ECC
Capacities at launch 2GB, 4GB, 8GB 1GB, 2GB
Max. DIMMs/Channel 3 Dual Rank 2 Dual Rank
Advanced Memory
Protection
ECC support
Lower Cost
Ranks/DIMM support 1, 2, 4 1, 2
DRAM support x4, x8 x8
Maximum capacity 144GB max capacity
(18 slots, dual rank)
24GB max capacity
(12 slots)
Note: No Mixing of RDIMM and UDIMM
HP Confidential NDA required
216 April

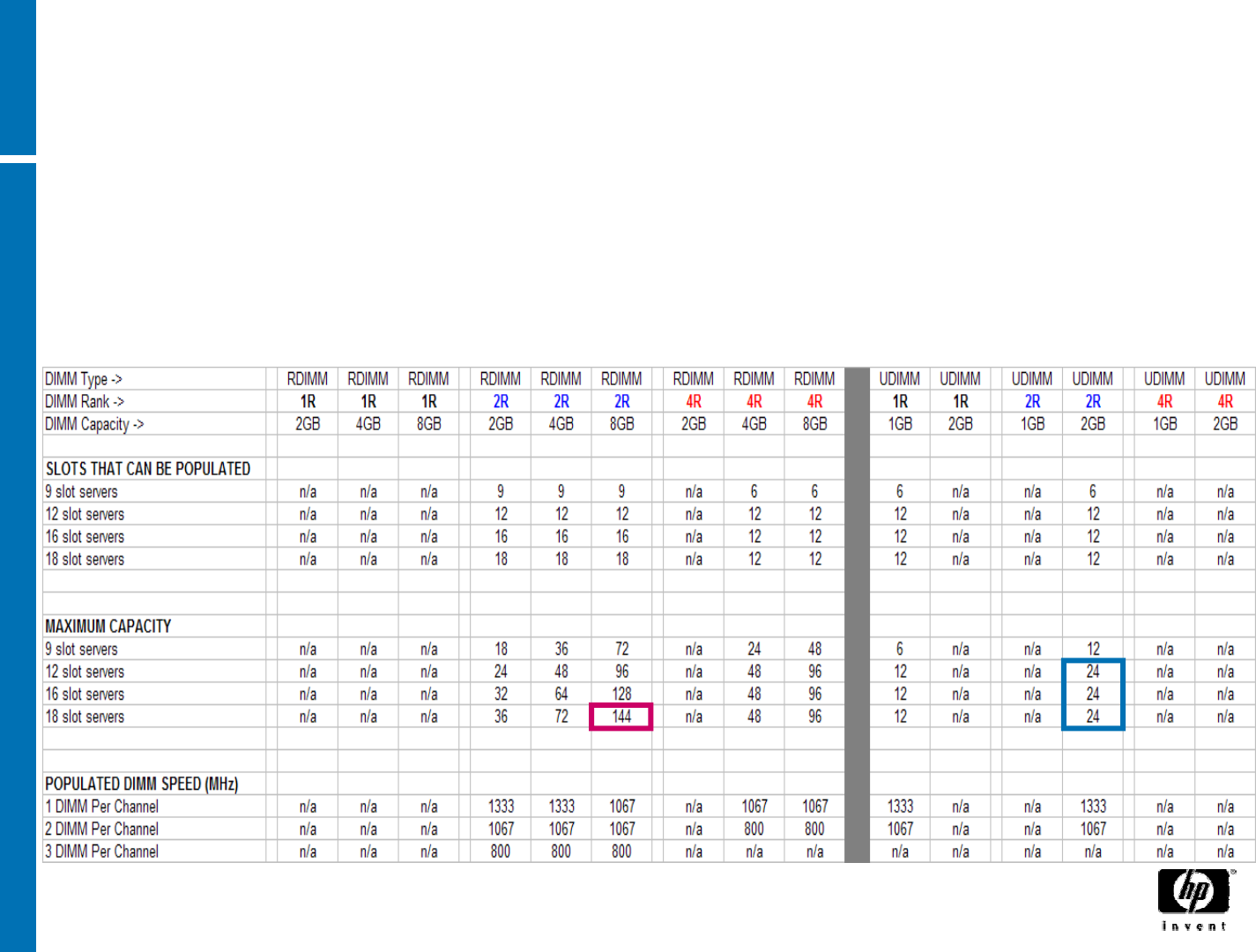

DDR3 memory capacities
•RDIMM maximum capacity 144GB (8GB 2Rank)
•UDIMM maximum capacity 24GB (2GB 2Rank)
95 Watt processors needed to run 1333MHz.
See population rules for additional guidelines.
ProLiant G6:Technology
Smart Array &
Hard Drives
HP Confidential NDA required
30
HP Confidential NDA required
256MB
New Modular Smart Array Controller
Configurations
New Modular solutions
Common form factor, hardware, and firmware
Seamless upgradeability from zero memory to 512 BBWC
4
44
4
4
4
4
External
Connectors 4Internal
Connectors Supported cache
options
256MB
512MB
256MB
BBWC
BBWC
Upgrade
Features
Performance
Entry
Zero memory
Smart Array P212 Smart Array P411Smart Array P410/P410i
adding battery without
–
HP Confidential NDA required
3
Support Continued
•Internal and External Devices
–SAS/SATA HDD (internal only)
–Tape Drives (internal and external)
–DAT 160 SAS
–LTO448
–LTO920
–LTO1840
•Servers
–ML350 G6
–ML370 G6
–DL380 G6
–DL385 G5p
–DL385 G6
–DL580 G5
–DL785 G5
–DL785 G5p
•Controllers
–P410 with cache
–P410i with cache
HP SAS Expander Card
Ports Available
•Support 24 drive bays plus external
•Internal/External Split
−8 internal ports used for Smart Array
connection
•One Mini SAS 8i internal connector
−24 internal ports used for HDD/tape
connection
•Three Mini-SAS 8i internal connectors
−4 external ports for tape
•One Mini-SAS 4x external connector
Support
•3.0 Gbps SAS and 1.5 Gbps SATA
−FW upgrade to 6 Gbps SAS and 3 Gbps
SATA in Summer 09
•PCIe full-height card just using PCIe power
HP Confidential NDA required
Smart Array Advanced Pack (SAAP) –
January 2009
What is SAAP?
SAAP is a paradigm shift in how features are received and utilized by the introduction of “silver
bullet” features to continue driving SAS, Smart Array value and differentiation .
SAAP Release 1 Features - ILP$329
−RAID 6 (ADG)
−RAID 60
−Advanced Capacity Expansion (ACE)
−Split Mirrors and Recombining of them in offline
mode
−Secure Drive Erase
−Performance Optimization – Degraded Reads
and Read Coalescing (VOD)
Customer Values
Control over environment
Tunable stacks/Flexibility
Deployment methodology
ProLiant
G6:Technology
Nics
HP Confidential NDA required
New Embedded NICs on ProLiant G6 Servers
G6
Platform Networking
Controller HP
Model What’s
New
DL160
DL180 Intel 82576 HP NC362i Dual port, high-
performance gigabit
connectivity designed
for a multi-core and
virtualized platform
DL360
DL380 Broadcom 5709 HP NC382i Latest multifunction NIC
supporting TCP/IP
offload and iSCSI
iSCSI IS NOW
INCLUDED FREE – NO
LICENSE REQUIRED
Four ports on DL380 G6
DL/ML370 NetXen 3031 HP NC375i Four 1GbE ports
TWO EMBEDDED NIC
PORTS CAN BE
UPGRADED TO 10GbE
DL320
ML330
ML350
Broadcom 5715 HP NC326i Dual port performance
designed to support
reliability, flexibility,
and expandability
ML150 Broadcom 5723 HP NC107i Single port Gigabit
performance for cost-
effective, entry-level
platforms
ProLiant G6:Technology
Onboard
Administrator
powered by iLo2
HP Confidential NDA required

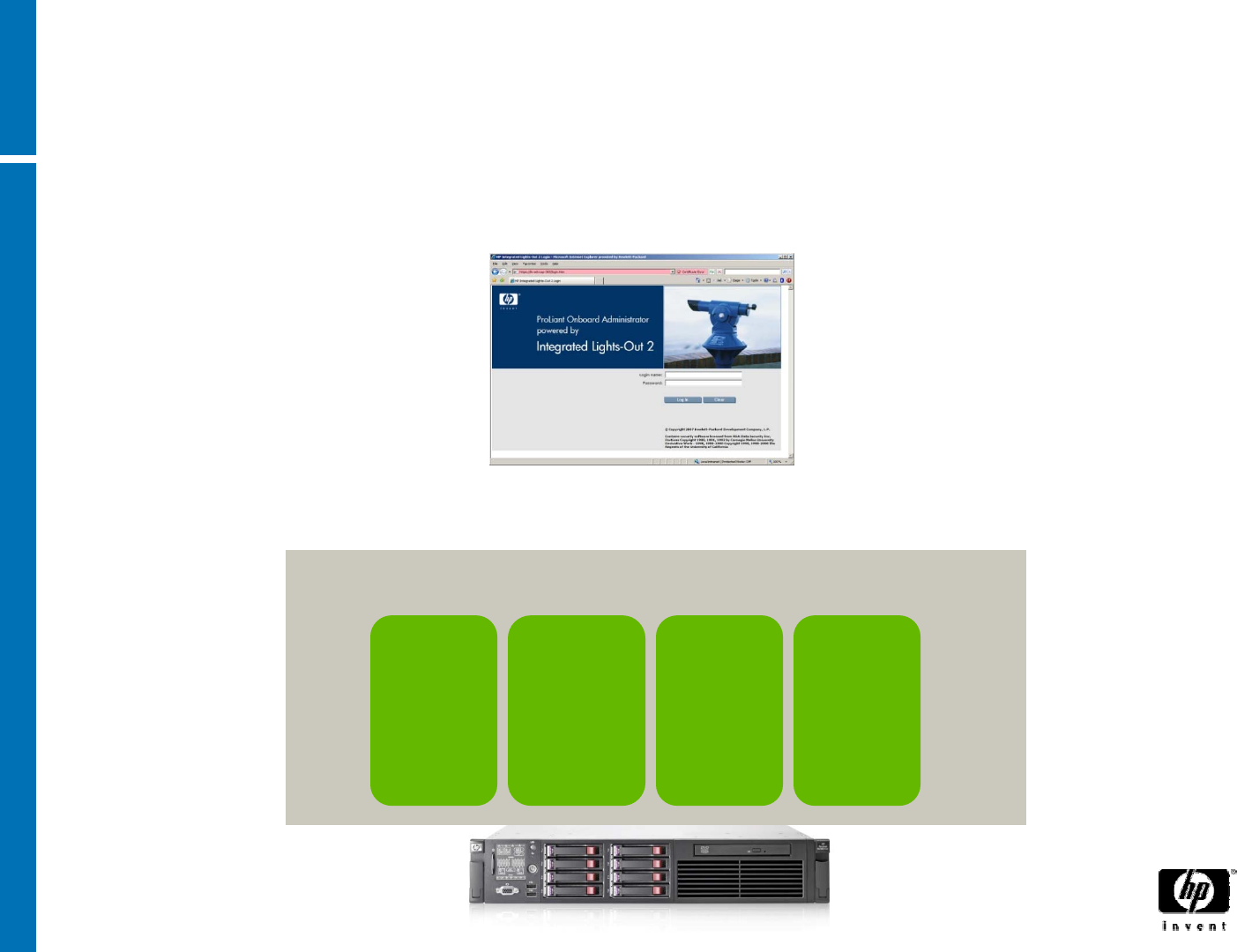

ProLiant Onboard Administrator
The core of ProLiant manageability
36 16 April 2009 HP Confidential - need to know required
Save hundreds or
thousands in travel cost
and downtime
Enable hands off
deployment for one
server or hundreds
Investigate server health
in any situation from
any location
ProLiant Onboard Administrator
Extended
Embedded
Health
Simplified
Server
Setup
Power &
Thermal
Control
iLO
Remote
Admin.
HP Confidential NDA required
37
HP Integrated Lights-Out iLO 2
•iLO 2 help you manage your ProLiant G6 agentlessly
−Status, presence, redundancy
−Fan, temperature, power supplies, VRM
−Hard Drive presence
−Server status
−ProLiant F6 Fan Control and DIMM Temperature metrics
•iLO 2 can help you manage your ProLiant G6 server power
consumption
−Receive data from ProLiant G6 servers to calculate the hottest core
temperature
−Gain access to server registers
−Decrease system power consumption when a temperature threshold is
breached
•And much more!
−Logging memory issues, power throttling, etc…
HP Confidential NDA required

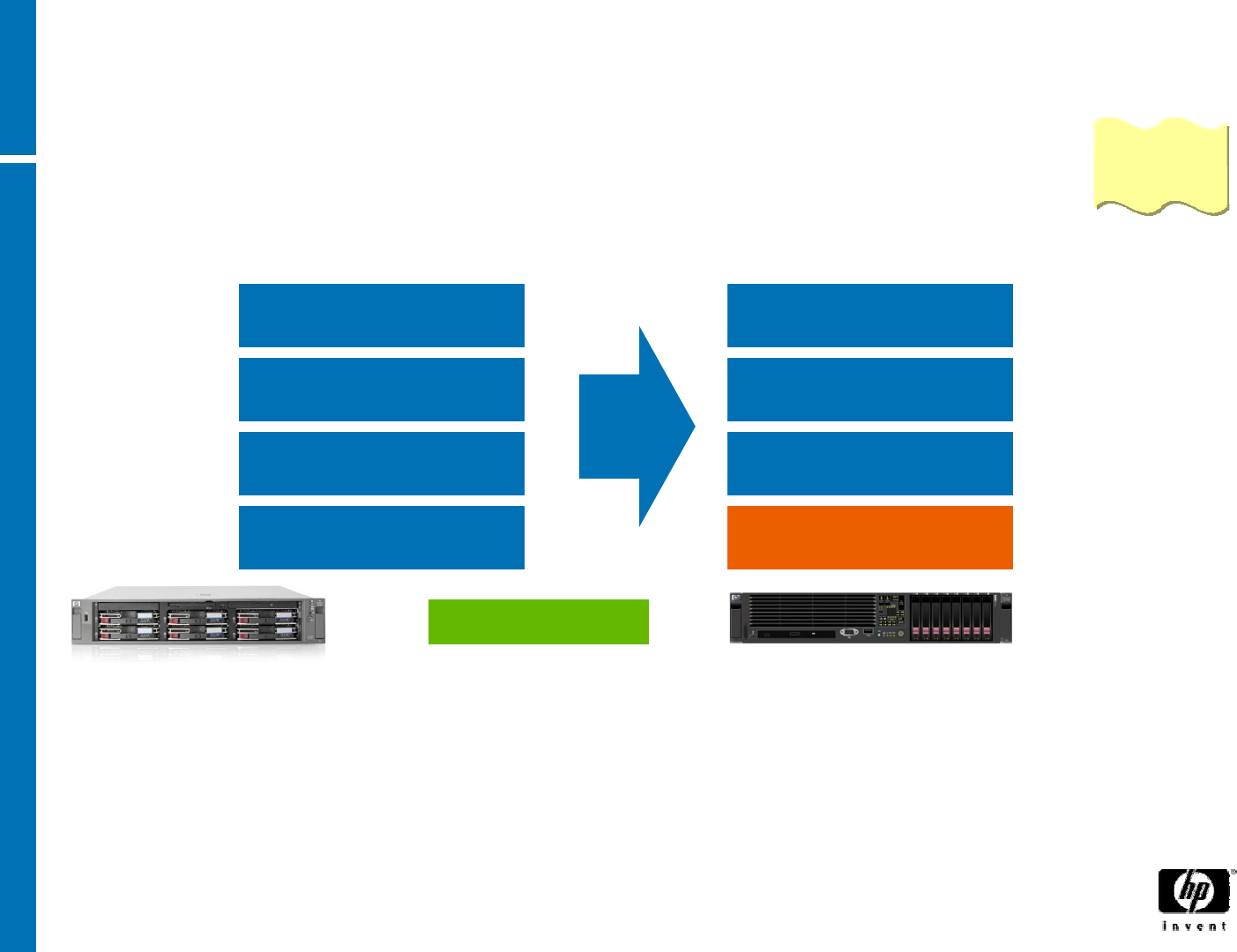

Simply migrate your existing server to G6
No need for from-the-ground-up deployment
Automated migration process takes care of driver compatibility
Drop or resize partitions during migration
Confidently upgrade, Accelerate deployment
Minimize cost of transition
Drivers
OS
Application
Data
New Drivers
Same OS
Same Application
Same Data
or other
other brand
Server Migration Pack Universal Edition
Available
late April
2009
HP Confidential NDA required
HP ProLiant Easy Set-up CDs -
New Features for 100 series G6 servers
ProLiant 100 series G6 servers get this capability as each server announces. Ships
as part of server BOM.
Supported in 2009:
• All of the above on DL1xx
G6 servers as servers
announce.
Assisted Installation –Single server
Deployment
Ships with 100 series
ML servers
Ships with G6 100
series DL servers
Supported March 2008:
•On ML110 G5 & ML115
G5 servers
Update (online flash)
Deployment & Update CD - 1 per model
Manual Installation –Single server
G6 ISO Image
Web download
SmartStart
Scripting Toolkit
for 100 series DL servers –
Multi-server
HP Smart Update Manager –
Single & Multi-server for Assisted Installation
New
w/
G6
Smart Component
G5 ISO Image
Web download
Assisted Installation –Single server
Deployment
Manual Installation –Single server
Deployment Update
Supported in 2009: ML100 G6 servers as they
announce:
• Assisted and Manual Installation
• Deployment updates.
New
w/
G6
Smart Component
Update
New
w/
G6
Blue = new w/ProLiant 100 series G6
ProLiant 300 series
G6 Product Details
HP Confidential NDA required
DL360 G5 DL360 G6
Processor Intel Xeon 5000 Sequence Intel Nehalem - EP
Memory 8 Sockets, DDR2 667MHz 64GB max. 18 Sockets, DDR3 800Mhz to 1333MHz 144GB max.
Drive Bays 6 SFF SAS/SATA 8SFF SAS/SATA
Storage Controller P400i/E200i P410i
Slots
2 Available Slots
-1full length x16 PCI-e /-1 low profile PCI-e x8
-1 optional PCI-x 133 replace full length PCI-
2 Available Slots
-1full length x16 PCI-e Gen2/-1 low profile x8 PCI-e
Gen2
-1 optional PCI-x 133 replace full length PCI-e
Networking 2 NIC ports [NC373i Multifunction (Broadcom) 2 NIC ports, NC382i
Ports Front: USB (1), video
Rear: USB (2), Video, NIC / Internal: USB (1)
Front: USB (1), video
Rear: USB (2), Video, NIC / Internal: USB (1)/ SD slot
(1)
Management ILO 2 Onboard Administrator w/ ILO 2
Security TPM option
Redundancy Fan: N+1
Power:1
Fan: N+1
Power:1

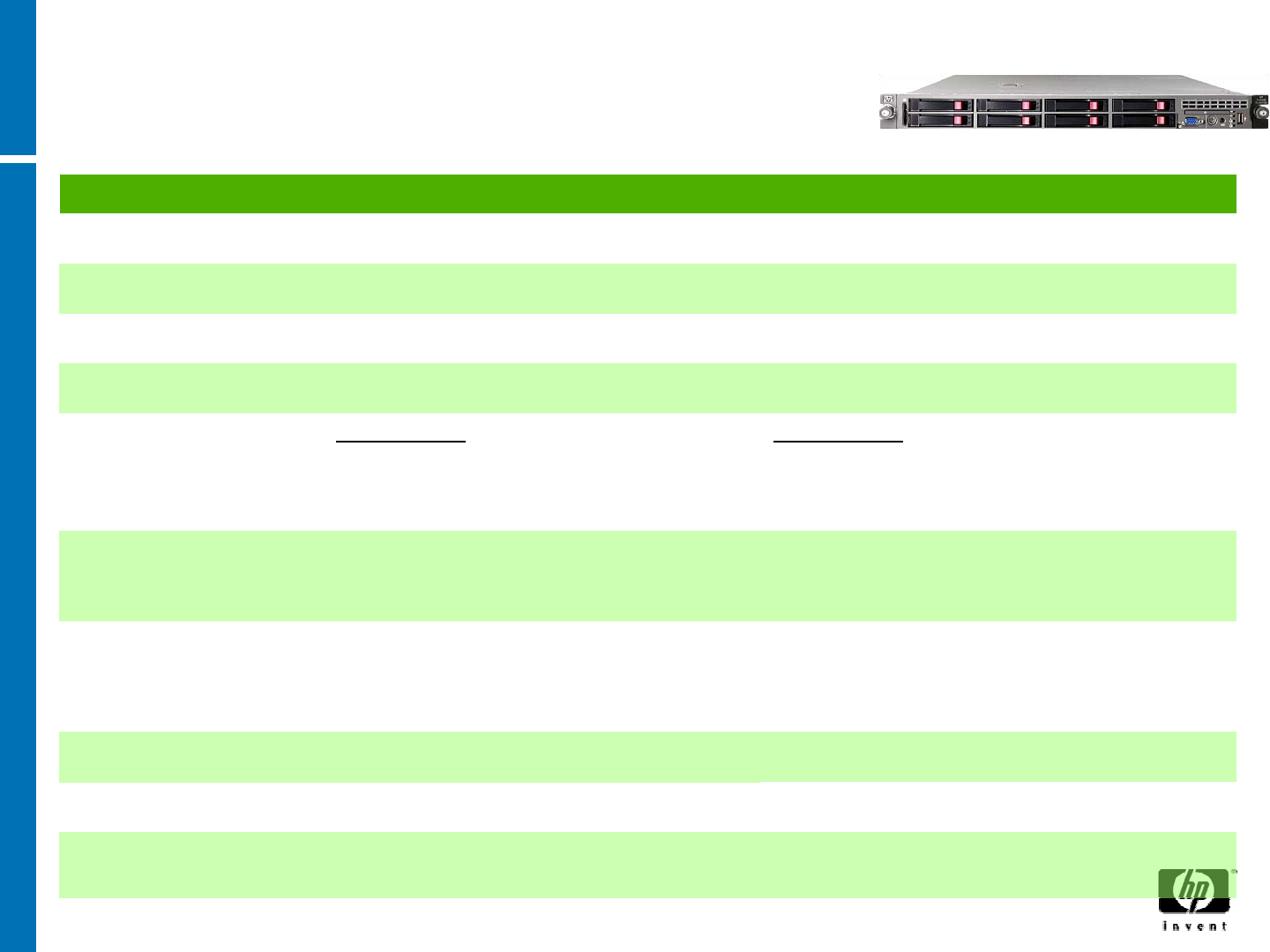

HP ProLiant DL360
HP Confidential NDA required

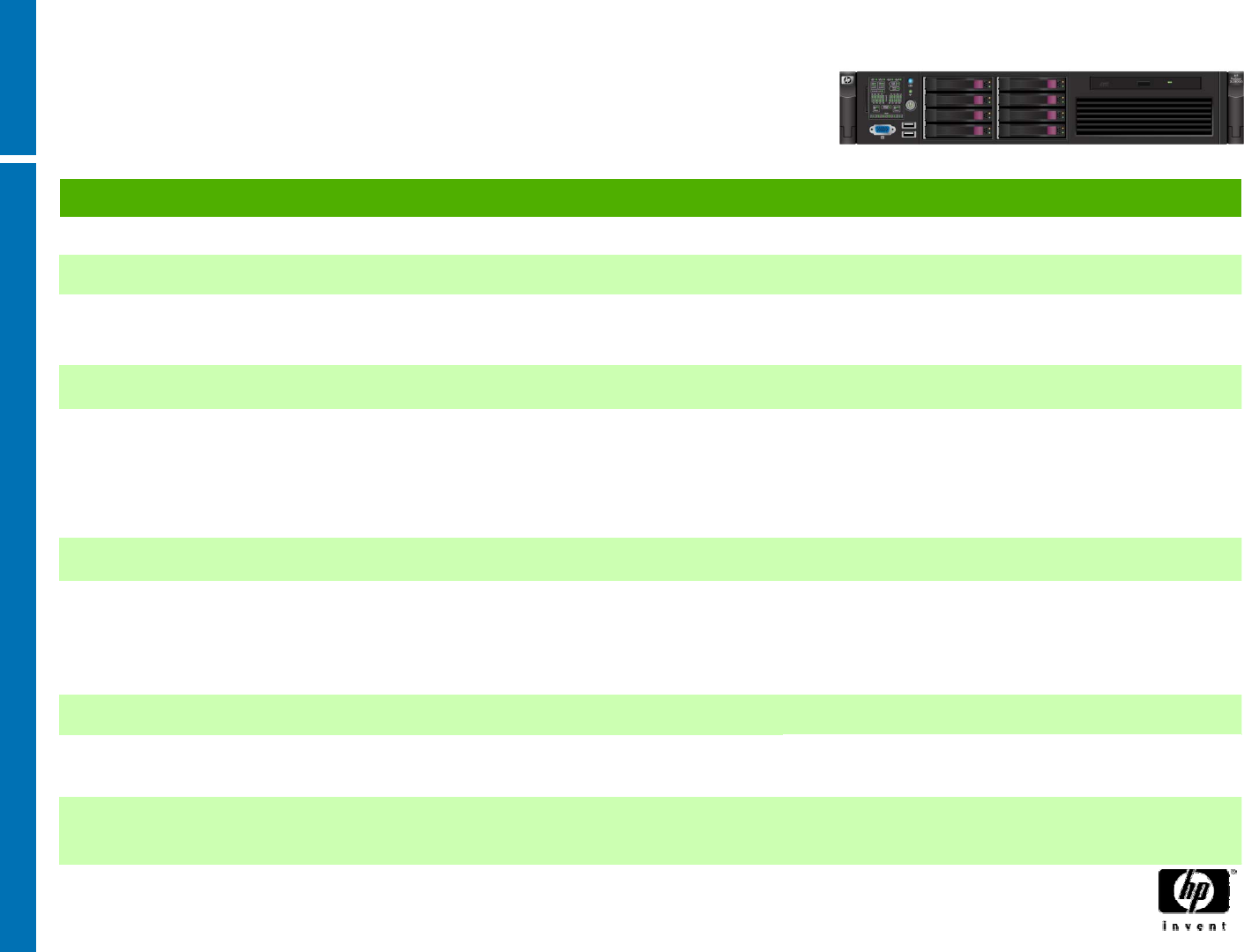

HP ProLiant DL380
DL380 G5 DL380 G6
Processor Intel Xeon 5000 Sequence Intel Nehalem - EP
Memory 8 Sockets, DDR2 667MHz 64GB max. 18 Sockets, DDR3 800Mhz to 1333MHz 144GB max.
Drive Bays 8 SFF SAS/SATA Up to 16 SFF SAS/SATA or 6 LFF SAS/SATA
(Different drive cages for SFF and LFF)
Storage Controller P400/E200 P410i
Slots
PCI-E Gen 1:
Embedded: 2X4 PCI-E
Standard Riser: 1X4 and 2 X8 PCI-E
Optional Riser: PCI-X/PCI-E (2 PCI-X, 1X8 PCI-E)
(Max. PCI-E slots: 4)
PCI-E Gen 2:
Standard Riser: 1X8 and 2 X4 PCI-E
Optional Risers: X16 PCI-E; PCI-X/PCI-E (2 PCI-X/133,
1X8, 1 X4 PCI-E (Max. PCI-E slots: 6)
Networking 2 NIC ports,NC373i 4 NIC ports, NC382i
Ports
Front: USB (2), video
Rear: USB (2), Video, NIC
Internal: USB (1)
Front: USB (2), video
Rear: USB (2), Video, NIC
Internal: USB (1)/ SD slot (1)
Management ILO 2 Onboard Administrator w/ ILO 2
Security TPM option
Redundancy Fans: Hot plug with optional redundancy
Power: 1
Fans: Hot plug with optional redundancy
Power: 1
HP Confidential NDA required

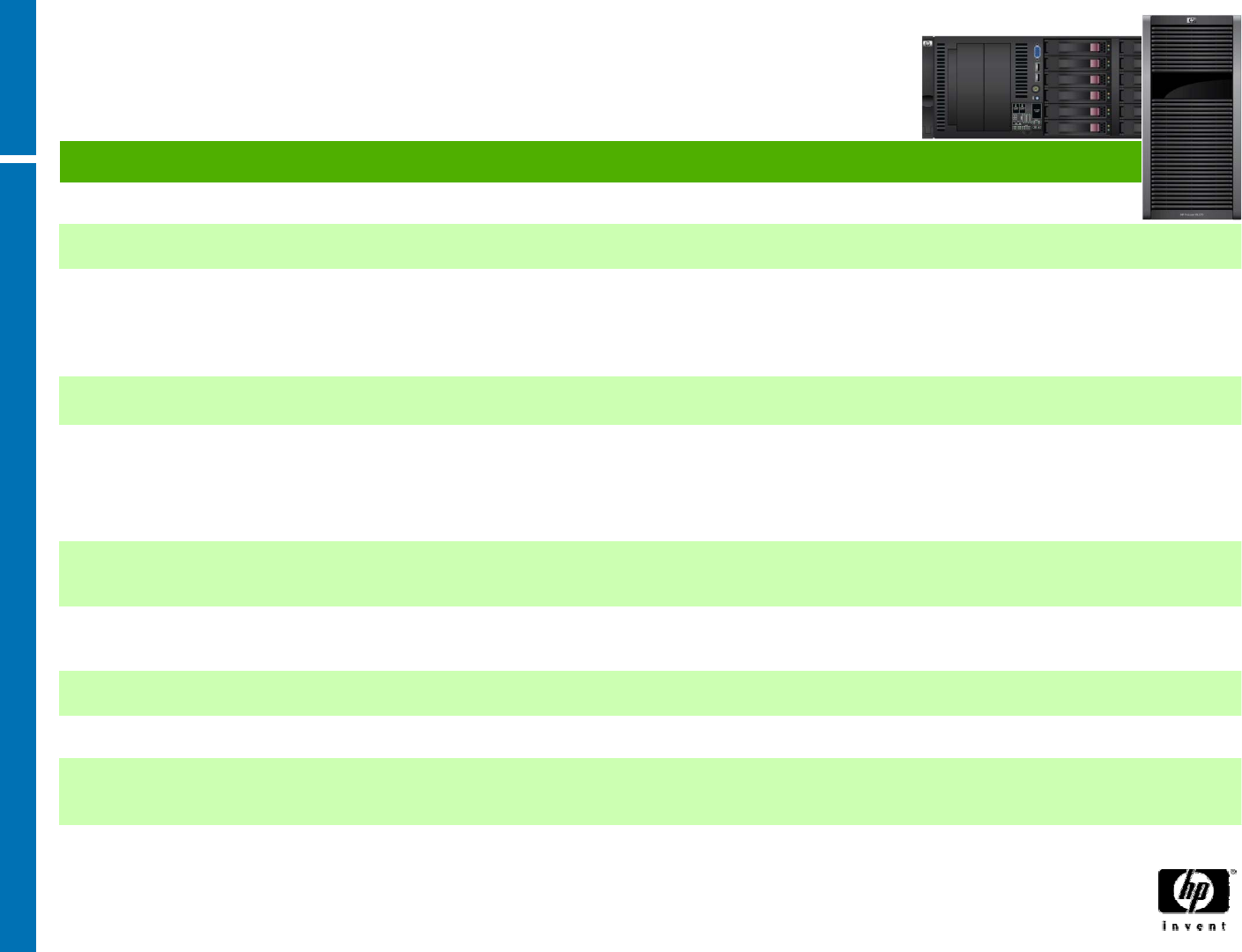

HP ProLiant ML350
ML350 G5 ML350 G6
Processor Intel Xeon 5000 Sequence Intel Nehalem - EP
Memory 8 Sockets, DDR2 667MHz 32GB max. 18 Sockets, DDR3 800Mhz to 1333MHz 144GB
max.
Drive Bays 8 SFF or 6 LFF SAS/SATA
Up to 16 SFF SAS/SATA or 8 LFF SAS/SATA
(Different drive cages for SFF and LFF)
5 removable half height media bay
Storage Controller P400/E200 P410i
Slots
PCI-E
5 Available slots
3 full-length PCIe x8 (x4 speed) Gen1
1 64bit PCI-X (1-133MHz, 2-100MHz)
Option for 2 PCI-X slots replacing a
PCIe slot
PCI-E Gen 2
8 Available slots
1 full-length PCIe x16 (x8 speed) Gen2
1 full-length PCIe x8 Gen2
4 full-length PCIe x8 (x4 speed) Gen2
1 full-length PCIe x8 (x4 speed) Gen1
Option for 2 PCI-X slots replacing a
PCIe slot (similar to G5)
Networking 1 NIC port, NC373i 2 NIC ports, NC326i
Ports
Front: USB (2)
Rear: USB (2), Video, NIC
Internal: USB (1)
Front: USB (2)
Rear: USB (2), Video, NIC (2)
Internal: USB (2), SD slot (1)
Management ILO 2 Onboard Administrator w/ ILO 2
Security TPM option
HP Confidential NDA required
HP ProLiant DL370 and ML370
ML370 G5 DL370 and ML370 G6
Processor Intel Xeon 5000 Sequence Intel Nehalem - EP
Memory 16Sockets; DDR2 667MHz 64GB 18 Sockets, DDR3 800Mhz to 1333MHz 144GB max.
Drive Bays
8 SFF hot plug SAS or SATA standard
16 SFF Hot plug SAS or SATA optional
2 Media Bays (2 half height) standard
Up to 24 SFF hot plug SAS or SATA standard; or 14
LFF
3 Media Bays (2 half height, 1 slim line) standard
Storage Controller P400/E200 P410i
Slots
PCI-e Gen 1
9 slots
8 available: (6) PCI-E x4
(2) PCI-X 64-Bit/133MHz
PCI-e Gen 2
9 slots (2x16, 2x8, 5x4)
Accelerators 300 watt in x16 slots
2 PCI-x slots optional (replacing PCI-e slots)
Networking 2 NIC ports, NC373i 4 NIC ports, NetXen (w/10G optional
upgrade card)
Ports Front: USB (2), video / Rear: USN (2), Video, NIC
Internal: USB (2)
Front: USB (2), video / Rear: USN (2), Video, NIC
Internal: USB (2)/ SD slot (1)
Management ILO 2 Onboard Administrator w/ ILO 2
Security TPM option
Redundancy Fan:
RPS:
Fan:
RPS:
Form Factor 5U 4U
ProLiant 100 series
G6 Product Details
HP Confidential NDA required

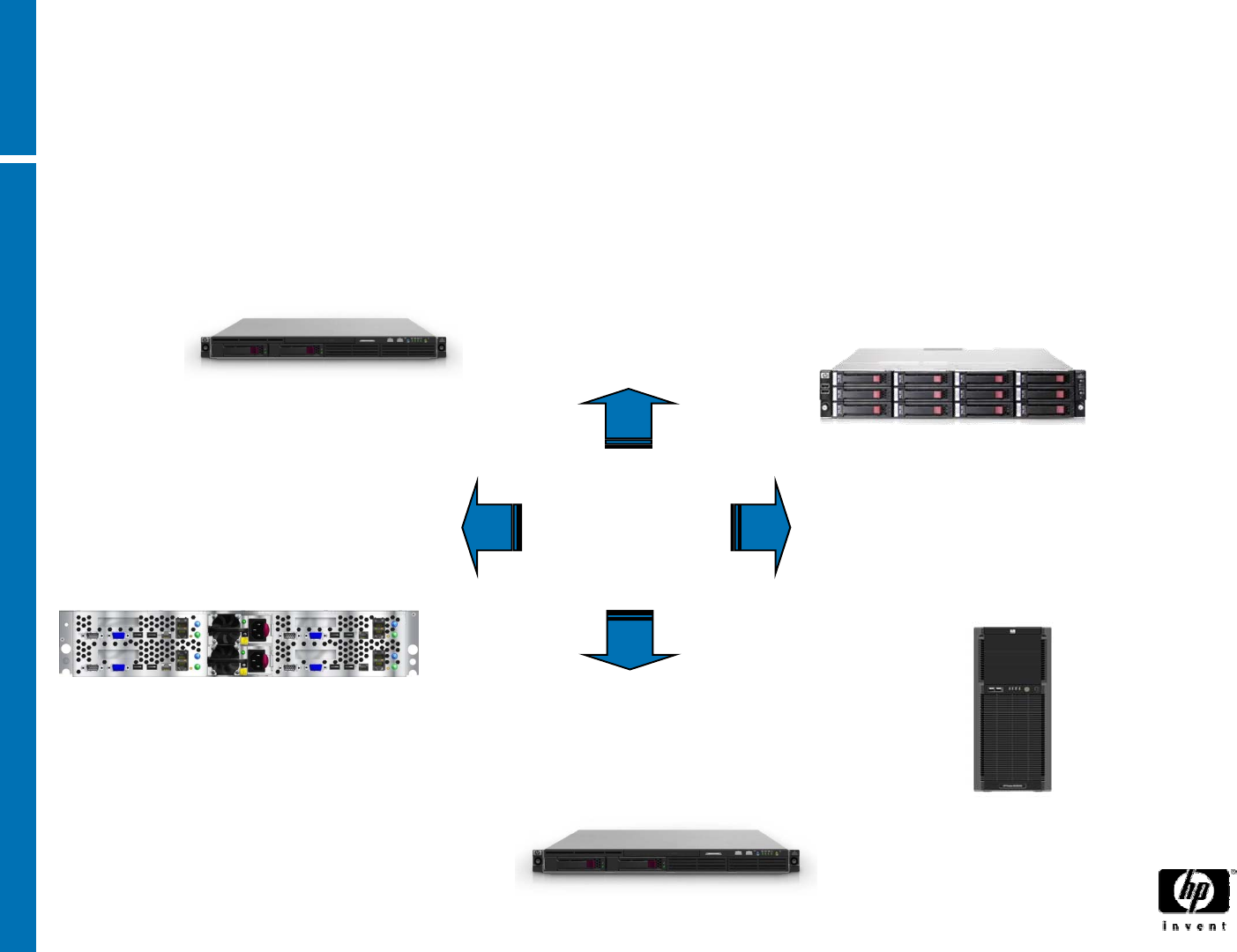

HP ProLiant 100 series
DL120
DL180
ML150
Cost…
Performance…
Density… Expansion…
G6
DL160
HP Confidential NDA required
HP ProLiant DL160
DL160 G5 DL160 G6
Processor (2) Xeon (Harpertown/Wolfdale) (2) Xeon (Nehalem EP)
Memory 8 Sockets, DDR2 667-800MHz FBD 18 Sockets, DDR3 1067/1333
Drive Bays 4 LFF SATA/SAS NHP/HP Up to 4 LFF or 8 SFF SATA/SAS NHP/HP
Storage Controller
SW RAID embedded with NHP models;
SAS HBA with HP models;
Smart Array optional
HP SW RAID embedded with NHP skus;
Smart Array P212 with HP skus;
Smart Array P4xx, P8xx optional
Slots
2 Available slots
1 full-length PCI-E gen 2 x16 gen 2
1 half length low-profile PCI-E gen 2 x16
2 optional PCI-X 133 replaces full-length PCI-E and 1 PCI-X 133
low profile
2 Available slots
1 full-height/full length PCI-E x16 Gen2 OR
1 internal only LP card with PCI-E x8 Gen2 and
1HL/FH PCI-E x16 Gen2
2 optional PCI-X 133 replaces full-length PCI-E and 1 PCI-X 133
low profile
Networking Dual-port gigabit NIC
(2 NC7782) 2 Gigabit NICs
Ports USB: 2 front, 1 internal, 2 rear
Video, Serial, PS/2 USB: 2 front, 1 internal, 2 rear
Video, Serial, PS/2
Security TPM option
Management LO100i LO100i; System setup and update, SNMP health
agents, SIM support (Polaris & Lighthouse)
High performance, highly efficient compute for scale-out environments
HP Confidential NDA required

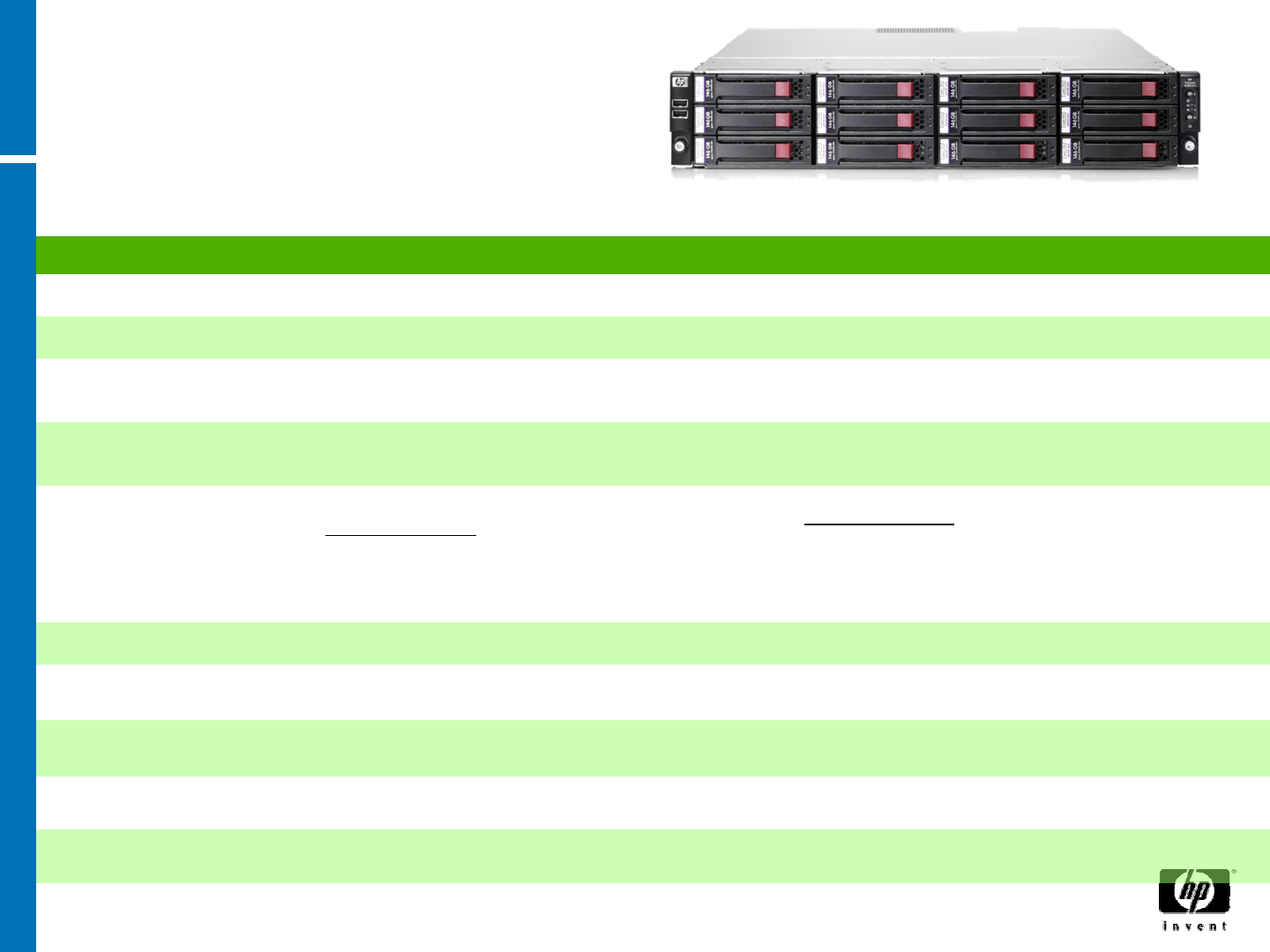

HP ProLiant DL180
DL180 G5 DL180 G6
Processor Xeon Quad/Dual Core 2P Xeon (Nehalem EP)
Memory 6 Sockets, DDR2 667 FBD 12 Sockets , DDR3 1067/1333
Drive Bays 4/8/12 LFF SATA/SAS 4/8/12/14 LFF SATA/SAS (4/8/12 standard
+2 rear upgrade) 8/25 SFF
Storage Controller SATA RAID embedded with entry models;
SA E200 or P400 on other models;
HP SATA RAID with entry models (ICH-9);
P212 and P410 on other models
Slots
3 Available slots
2 full-length PCI-e x4
1 low-profile PCI-e x8
2 optional PCI-X 133 replaces full-length PCI-E slots
3 Available slots
2 full-length PCI-E x8 Gen 2
1 low-profile PCI-E x16 Gen 2
2 optional PCI-X 133 replaces full-length PCI-E OR
1 optional PCI-E x16 Gen 2
Networking 1 Gigabit NIC 2Gigabit NICs
Ports USB: 2 front, 1 internal, 2 rear
Video, Serial, PS/2 USB: 2 front, 1 internal, 2 rear
Video, Serial, PS/2
Management LO100 LO100; System setup and update, health agents,
SIM support (Polaris & Lighthouse)
Security TPM option
Redundancy HP RPS HP RPS
High capacity, highly efficient
compute for scale-out environments
HP Confidential NDA required
ML150 G5 ML150 G6
Processor Intel Xeon 5000 Sequence Intel Nehalem - EP
Memory 6 Sockets, [RB] 16GB max. 12 Sockets, DDR3 48 GB max (24GB at launch)
Drive Bays [4] [LFF] SAS/SATA+ optional 2nd cage for 4
additional drives
[4] [LFF] SAS/SATA+ optional 2nd cage for 4
additional drives
Storage Controller Embedded SATA RAID 0/1
Optional SC40Ge/SC44Ge/8 Port SAS HBA
Embedded SATA RAID 0/1
Optional SA controllers
Slots
6 Available Slots
5 PCI-e Gen 1
1 PCI 33/32 3.3V
5 Available Slots
1 PCIe x8 Gen1
2 PCIe x8 Gen2
1 PCIe x16 Gen2
1 32b/33MHz PCI 3.3V
Networking Broadcom 5722 Broadcom 5723
Ports
Front: USB (2),
Rear: USB (4),
Internal: USB (1); 1 Serial, 1 VGA, 1 LAN
Front: USB (2),
Rear: USB (4), keyboard, mouse,Video, 1 Serial, 1
Dedicated Management port, 1 GbE Port
Internal: USB (2), tape, drive
Management LO100c LO100c
Security TPM option
HP ProLiant ML150
HP ProLiant G6
Blade Systems
HP Confidential NDA required
5HP Confidential –HP Internal Use Only
ProLiant Generation Features
G5
Intel: Front Side Bus architecture; Fully-
Buffered (FB) DDR2 DIMMs
AMD: NUMA; RDDR-2 DIMMs
G6
Intel : Nahalem processors; NUMA;
DDR3 memory
AMD: Shanghai, Istanbul processors
Low Power DIMM options Low Power DIMM options
Interceptor-based Smart Array
controllers PMC-based Smart Array controllers; SA
Advanced Pack
2.5” SAS, SATA HDDs 2.5” SAS, SATA, SSD HDDs
Integrated 1Gb Ethernet Integrated 10Gb Ethernet; Flex-10 in
some cases
PCI Express 1.0 PCI Express 2.0
Internal USB ports Internal USB ports & SD card slots
iLO-2 iLO-2
TPM; Rack: Common power supplies
General guidance only; some features may not be available in some products
HP Confidential NDA required
5HP Confidential –HP Internal Use Only
HP ProLiant BL460c G6
BL460c G6
Processor •Up to two Dual- or Quad-Core Intel® Xeon® processor 5500 series
(Nehalem-EP)
Memory
•12 DIMM Sockets
•Registered or Unbuffered DDR3 DIMMs, up to DDR3-1333
•96 GB max
Internal Storage
•2 SFF hot-plug drive bays for SAS or SATA HDDs
•Smart Array P410i RAID controller with optional cache & BBWC;
RAID 0/1 support
•Direct-Attached and Shared Storage connect options
Networking •Embedded dual-port Flex-10 10GbE Multifunction server adapter
Mezzanine Slots
•2 mezzanine slots
•x8 PCIe Type-1 Mezzanine expansion slot
•x8 PCIe Type-2 Mezzanine expansion slot
Additional
Features
•Internal USB 2.0 connector
•Internal SD Card slot
•TPM support
Management •Integrated Lights Out 2 Standard Blade Edition
•Power Meter, Power Regulator, Power Capping
Density •16 server blades in 10U enclosure
•8 server blades in 6U enclosure
HP Confidential NDA required
5HP Confidential –HP Internal Use Only
BL460c Improved Power Efficiency
BL460c and BL460c G5: 1P Xeon E5450 (3.0GHz, 80W), 2 x 1GB FBDIMM, 1 x 72GB SAS
BL460c G6: 1P Nahalem (2.8GHz, 95W), 2 x 1GB DDR3-1333 UDIMMs, 1 x 72GB SAS
0
10
20
70
80
90
Standby Windows Idle
BL460c
BL460c G5
BL460c G6
watts
17 %
Decrease
HP Confidential NDA required
5HP Confidential –HP Internal Use Only
HP ProLiant BL490c G6
BL490c G6
Processor •Up to two Quad-Core Intel® Xeon® processor 5500 series
(Nehalem-EP)
Memory
•18 DIMM Sockets
•DDR3 Registered or Unbuffered DDR3 DIMMs, up to DDR3-1333
•144 GB max
Internal Storage
•2 SFF non hot-plug drive bays (SSD only)
•HP Embedded SATA Controller
•Direct-Attached and Shared Storage connect options
Networking •Embedded dual-port Flex-10 10GbE Multifunction server adapter
Mezzanine Slots
•2 mezzanine slots
•x8 PCIe Type-1 Mezzanine expansion slot
•x8 PCIe Type-2 Mezzanine expansion slot
Additional Features
•Internal USB 2.0 connector
•Internal SD Card slot
•TPM support
Management •iLO-2 Standard Blade Edition
•Power Meter, Power Regulator, Power Capping
Density •16 server blades in 10U enclosure
•8 server blades in 6U enclosure
HP Confidential NDA required

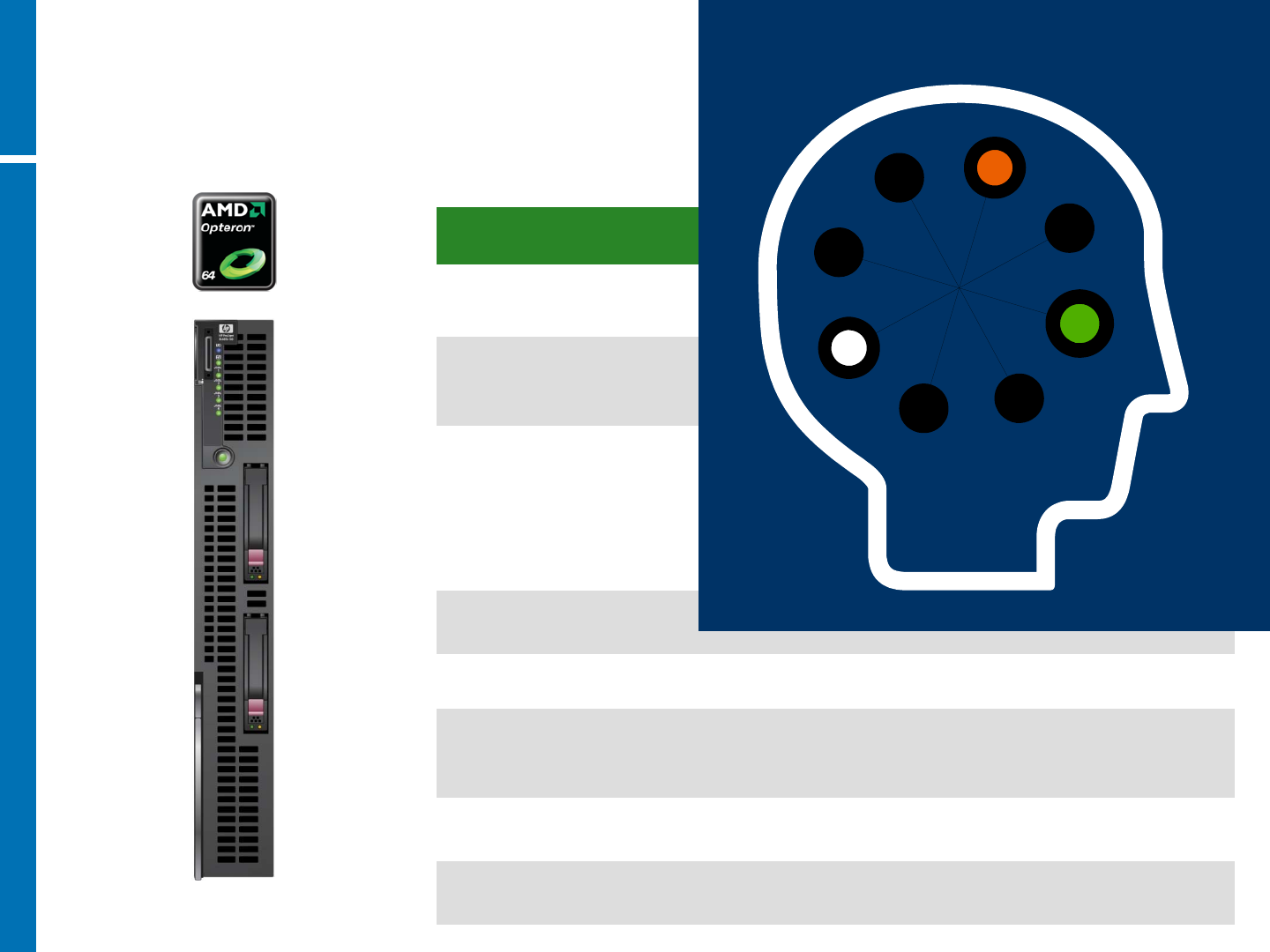

HP ProLiant BL685c G6
BL685c G6
Processor •Up to four Quad-Core AMD Opteron™ processors
(Shanghai)
Memory
•32 DIMM Sockets
•PC2-6400 Registered DDR2 (800 MHz)
•256GB max (with 667 MHz 8GB DIMMs)
Internal Storage
•2 SFF hot-plug drive bays (SAS or SATA)
•2 non hot-plug drive bays (SSD only)
•Smart Array P400i controller (512MB cache) with
optional BBWC
•RAID 0/1 support
•Direct-Attached and Shared Storage connect options
Networking •2 embedded dual-port Flex-10 10GbE Multifunction
server adapters
Mezzanine Slots 3 PCIe x8 mezzanine expansion slots
Additional Features
•Internal USB 2.0 connector
•Internal SD Card slot
•TPM support
Management •iLO-2 Standard Blade Edition
•Power Meter, Power Regulator, Power Capping
Density •8 server blades in 10U enclosure
•4 server blades in 6U enclosure
HP Confidential – NDA Required
© 2008 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice
Transition
G5 -> G6
HP Confidential NDA required
Transition Roadmap
BESCHREIBUNG LAUNCH INTRO EOL DISC 2. FQ '09 3. FQ '09 4. FQ '09 1. FQ '10
Mär. '09 Apr. '09 Mai '09 Jun. '09 Jul. '09 Aug. '09 Sep. '09 Okt. '09 Nov. '09 Dez. '09
BL460c Server
HP BL460c G1 1. Aug. '09 31. Okt. '09
HP BL460c G5 1. Aug. '09 31. Okt. '09
HP BL460c G6 30. Mär. '09 1. Mai '09 >>>
BL480c Server
HP BL480c G1 1. Apr. '09 30. Jun. '09
BL490c Server
HP BL490c G6 30. Mär. '09 1. Mai '09 >>>
DL160 Server
HP DL160 G5 1. Jul. '09 30. Sep. '09
HP DL160 G6 30. Mär. '09 1. Mai '09 >>>
DL180 Server
HP DL180 G5 1. Jul. '09 30. Sep. '09
HP DL180 G6 30. Mär. '09 1. Mai '09 >>>
DL360 Server
HP DL360 G5 1. Sep. '09 30. Nov. '09
HP DL360 G6 30. Mär. '09 1. Mai '09 >>>
DL380 Server
HP DL380 G5 1. Sep. '09 30. Nov. '09
HP DL380 G6 30. Mär. '09 1. Mai '09 >>>
ML150 Server
HP ML150 G5 1. Mai. '09 31. Jul. '09
HP ML150 G6 30. Mär. '09 1. Mai '09 >>>
ML350 Server
HP ML350 G5 1. Aug. '09 31. Okt. '09
HP ML350 G6 30. Mär. '09 1. Mai '09 >>>
ML370 Server
HP ML370 G5 1. Sep. '09 30. Nov. '09
HP ML370 G6 30. Mär. '09 1. Mai '09 >>>
HP DL370 G6 30. Mär. '09 1. Mai '09 >>>

Navigation menu
