HP StorageWorksAll-in-One SB600c Storage Blade Solutionuser guide

HP StorageWorks

All-in-One SB600c Storage Blade Solution

user guide

452693001

Part number: 452693–001

First edition: September 2007

Legal and notice information

The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth

in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting

an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

Microsoft, Windows, Windows XP, and Windows NT are U.S. registered trademarks of Microsoft Corporation.

Printed in the US

Contents

Aboutthisguide .......................... 7

Intendedaudience...................................... 7

Relateddocumentation.................................... 7

Documentconventionsandsymbols .............................. 8

Rackstability ........................................ 8

HPtechnicalsupport..................................... 9

Productwarranties...................................... 9

Subscriptionservice ..................................... 9

HPwebsites......................................... 9

Documentationfeedback ................................... 9

1Setup .............................. 11

Shippingcartoncontents ................................... 11

InstallinganHPBladeSystemc-Classenclosure.......................... 11

HPBladeSystemc7000Enclosure ............................. 11

HPBladeSystemc3000Enclosure ............................ 12

Installationguidelines ................................... 12

HPAiOSB600cServerandStorageBlades........................ 13

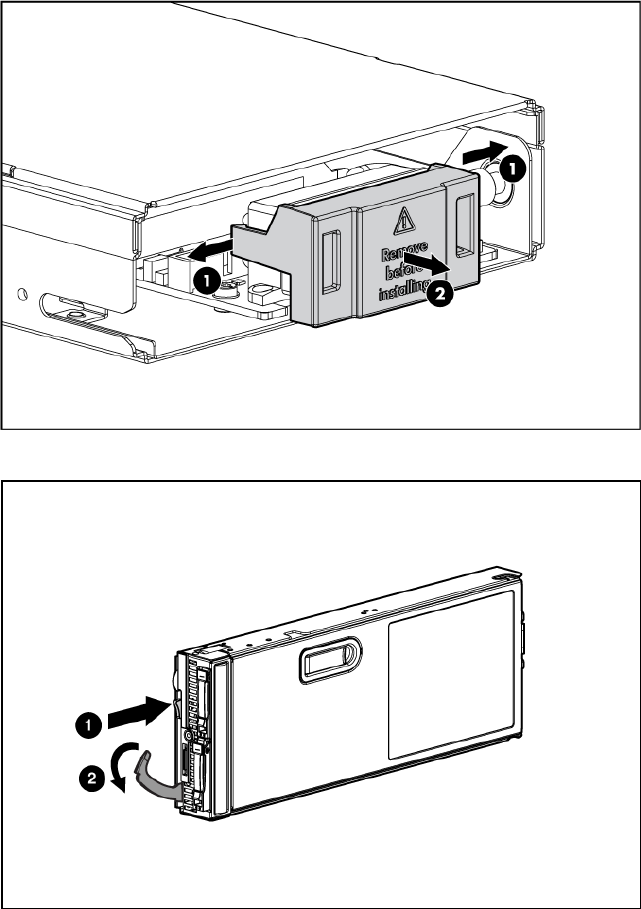

InstallingtheHPAiOSB600cServerandStorageBlades .................... 13

Installinginterconnectmodules.............................. 17

Interconnect bay numbering and device mapping for the c7000 Blade enclosure . . . . . . . . 17

Interconnect bay numbering and device mapping for the c3000 Blade enclosure . . . . . . . . 18

2Operations........................... 19

PoweringuptheHPAll-in-OneSB600cStorageBladeSolution.................. 19

PoweringdowntheHPAll-in-OneSB600cStorageBladeSolution................. 19

VirtualPowerButton .................................. 20

ManualPowerButton.................................. 20

RemovingtheHPAiOSB600cServerBlade.......................... 20

Removingtheaccesspanel ................................. 21

Installingtheaccesspanel ................................. 22

3HardwareOptionsinstallationandcabling ............. 23

Introduction........................................ 23

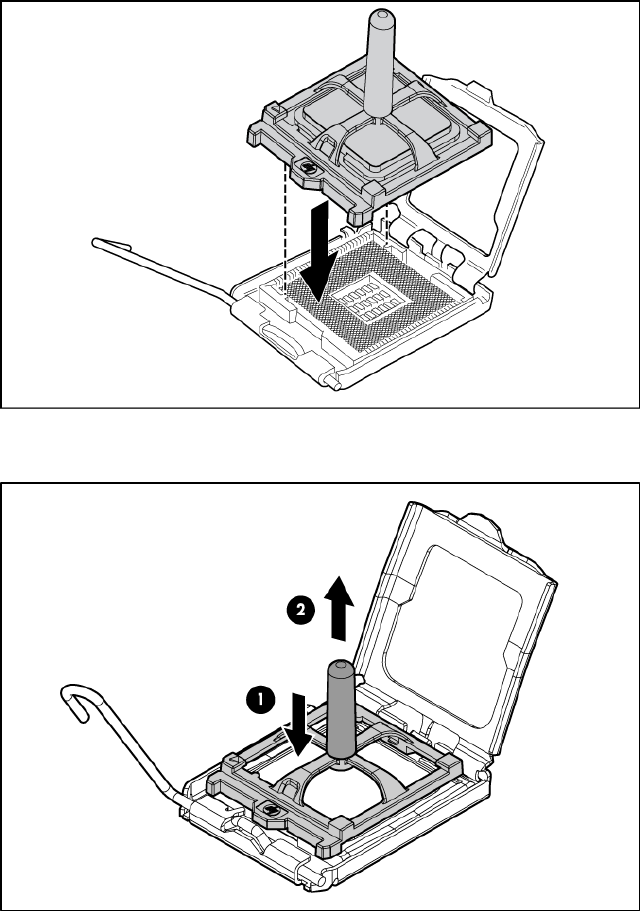

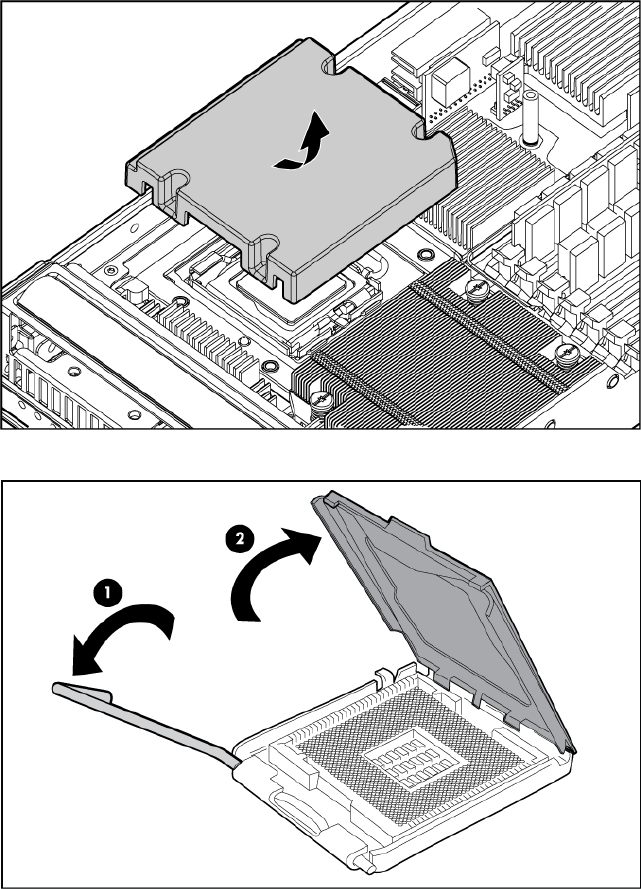

Processoroption...................................... 23

Memoryoptions...................................... 31

InstallingFBDIMMs .................................. 31

Mezzaninecardoption................................. 31

Cabling ......................................... 33

UsingthelocalI/Ocable................................ 33

ConnectinglocallytoaserverbladewithvideoandUSBdevices............... 33

AccessingaserverbladewithlocalKVM....................... 33

Accessingaserverbladewithlocalmediadevices................... 34

4 Conﬁgurationutilities ...................... 37

iLO2 .......................................... 37

SystemRecoveryDVD ................................... 37

iLO2virtualDVD-ROM................................. 38

All-in-One SB600c Storage Blade Solution 3

USBDVD-ROM .................................... 38

Conﬁgurationtools..................................... 38

Array ConﬁgurationUtility ............................... 38

Keepingthesystemcurrent ................................. 39

All-in-OneSB600cStorageBladeSolutionupdates..................... 39

HPCarePack..................................... 39

5 Troubleshooting . . ........................ 41

Troubleshootingresources.................................. 41

HPwebsite...................................... 41

Storagesystemdocumentation.............................. 41

Subscriber’sChoice .................................. 41

White papers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Firmware updates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

AAll-in-OneSB600cStorageBladeSolutioncomponents........ 43

HPAll-in-OneSB600cServerBladeLEDs ........................... 43

HPAll-in-OneSB600cStorageBladeLEDs .......................... 45

SASandSATAcomponents................................. 46

Systemboardcomponents ................................. 48

Mezzanine connector deﬁnitions............................. 49

Systemmaintenanceswitches .............................. 49

BRegulatoryComplianceNoticesandSafety.............. 51

Regulatory compliance identiﬁcationnumbers ......................... 51

FederalCommunicationsCommissionnotice.......................... 51

FCCratinglabel.................................... 51

ClassAEquipment................................... 52

ClassBEquipment................................... 52

Declaration of conformity for products marked with the FCC logo, United States only . . . . . . . . . 52

Modiﬁcations....................................... 52

Cables.......................................... 52

Canadiannotice(AvisCanadien) .............................. 53

EuropeanUnionregulatorynotice .............................. 53

DisposalofwasteequipmentbyusersinprivatehouseholdsintheEuropeanUnion ......... 53

Japanesenotice...................................... 54

BSMInotice........................................ 54

Koreannotice....................................... 54

Lasercompliance ..................................... 55

Batteryreplacementnotice ................................. 55

Taiwanbatteryrecyclingnotice ............................... 55

Preventingelectrostaticdischarge............................... 56

Groundingmethodstopreventelectrostaticdischarge...................... 56

Environmental speciﬁcations................................. 57

Index .............................. 59

1..

2..

3..

4..

5..

6..

7..

8..

9..

10 ..

11 ..

12 ..

13 ..

14 ..

Figures

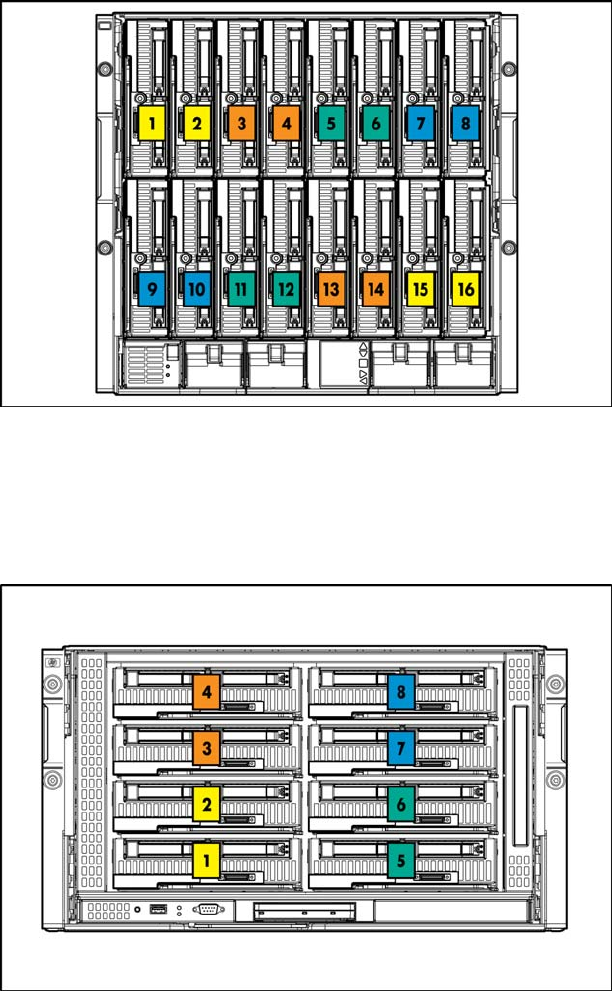

c7000Enclosurehalf-heightdevicebaynumbering................. 12

c3000Enclosurehalf-heightdevicebaynumbering................. 12

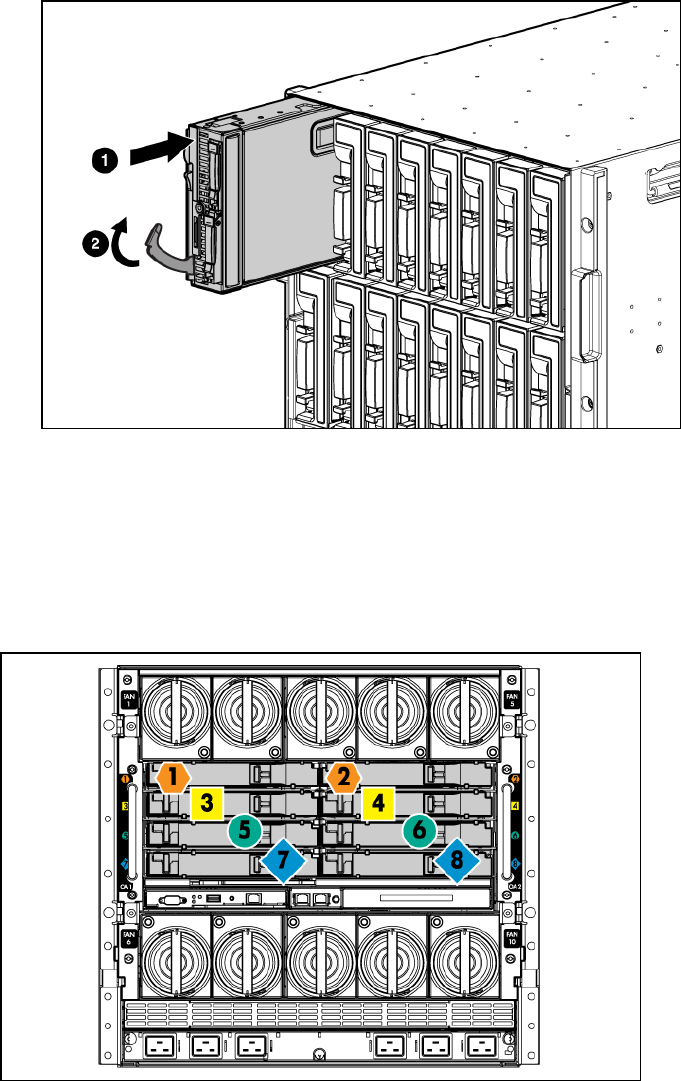

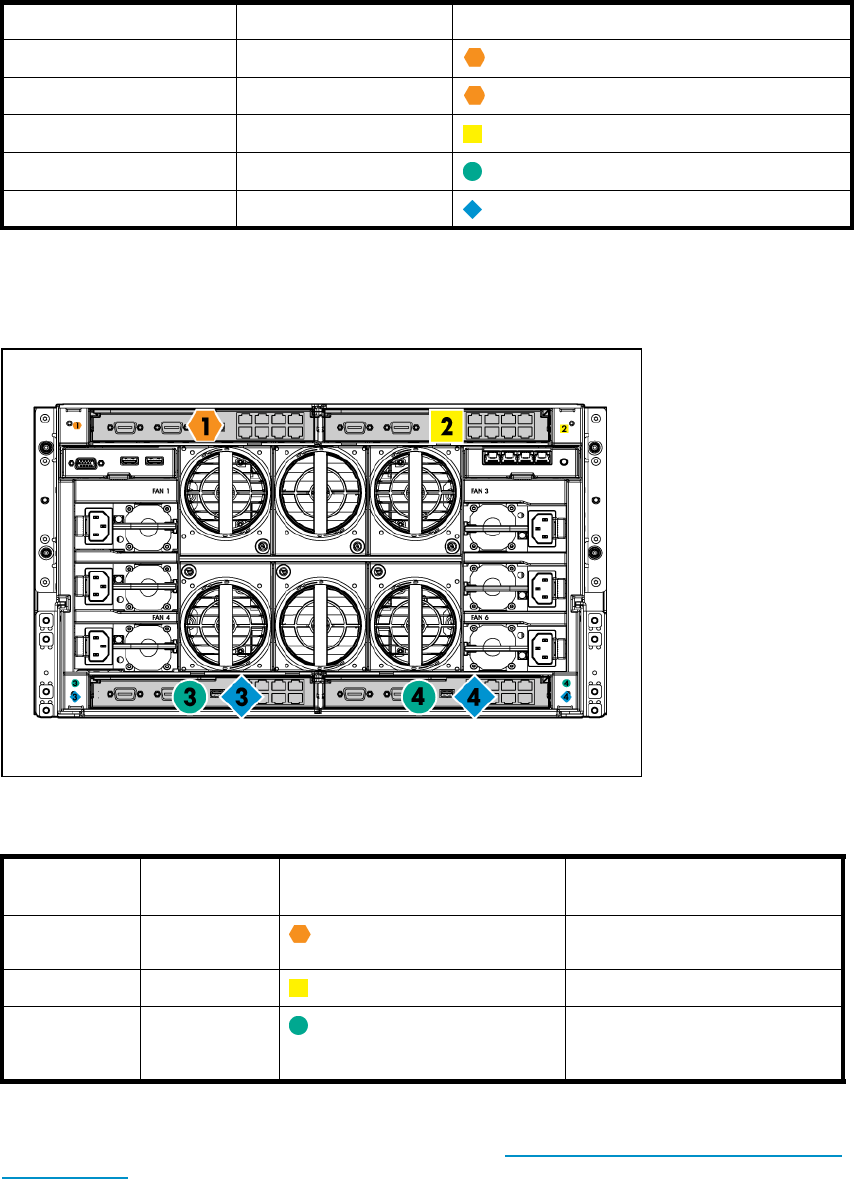

c7000Bladeenclosureinterconnectbaynumbering................. 17

c3000Bladeenclosureinterconnectbaynumbering ................ 18

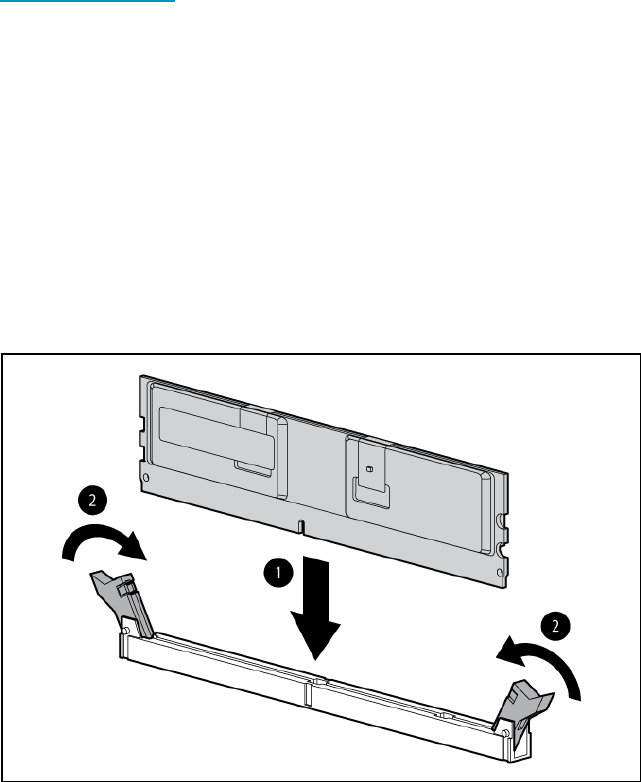

InstallingFBDIMMs............................... 31

Removingthemezzanineconnectorcover..................... 32

Installingthemezzaninecard........................... 32

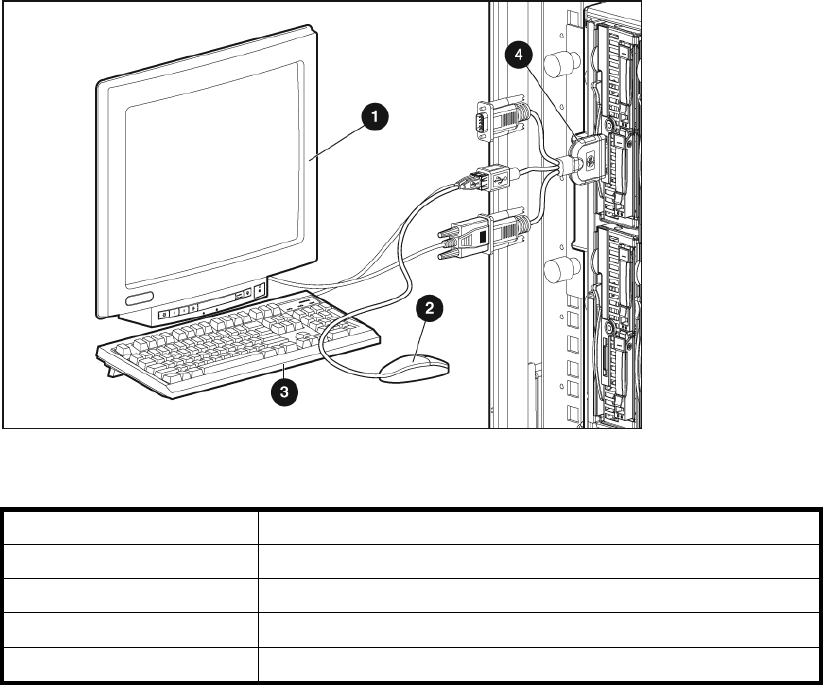

ConnectingwithalocalKVM .......................... 34

Connectingwithlocalmediadevices....................... 35

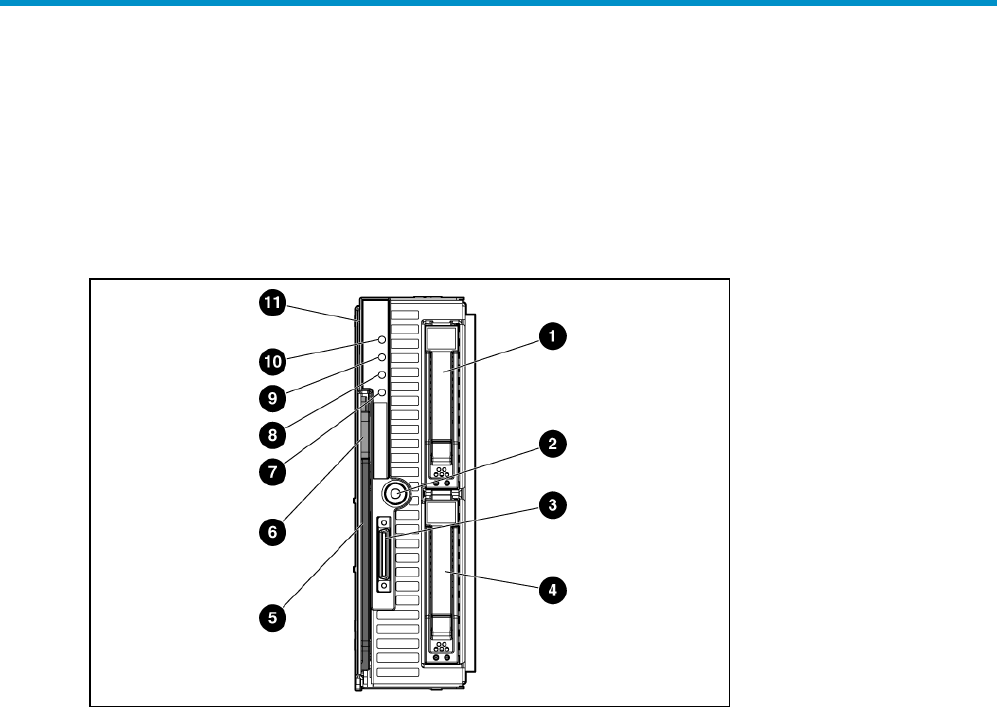

HPAll-in-OneSB600cServerBladeLEDs ..................... 43

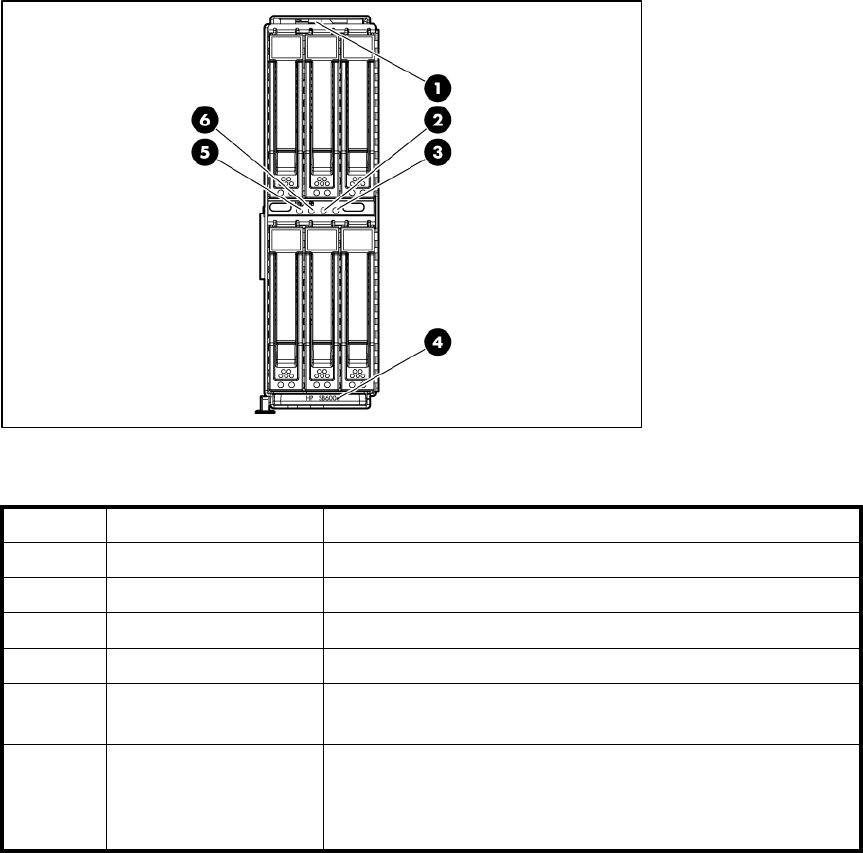

HPAll-in-OneSB600cStorageBladeLEDs..................... 45

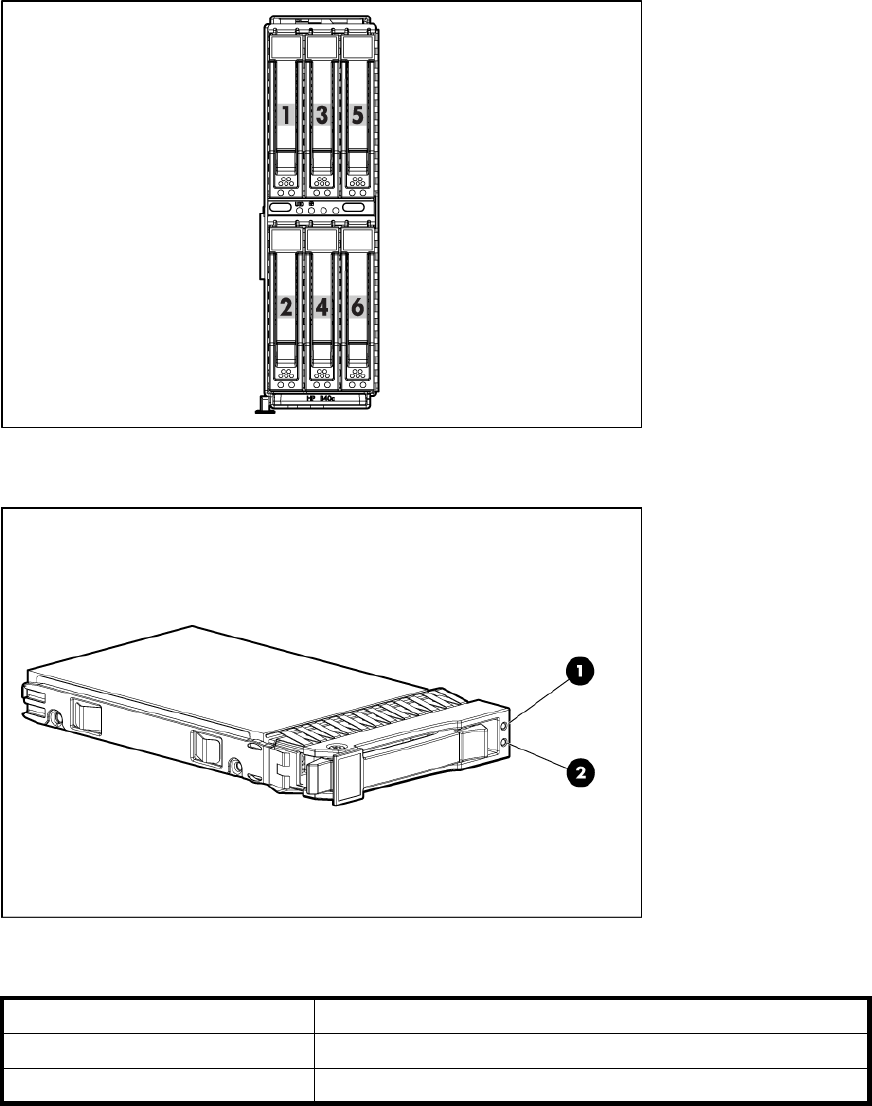

SASandSATAdevicenumbers ......................... 46

SASandSATAharddriveLEDs ......................... 46

Systemboardcomponents............................ 48

All-in-One SB600c Storage Blade Solution 5

1..

2..

3..

4..

5..

6..

7..

8..

9..

10 ..

11 ..

12 ..

13 ..

14 ..

15 ..

16 ..

Tables

Documentconventions .............................. 8

Interconnect bay numbering and device mapping c7000 Blade enclosure ....... 18

Interconnect bay numbering and device mapping ports c3000 Blade enclosure . . . . . 18

LocalKVMconnectioncomponents........................ 34

USBHubdevices ............................... 35

HPAll-in-OneSB600cServerBladeLEDs ..................... 44

HPAll-in-OneSB600cStorageBladeLEDs..................... 45

SASandSATAharddriveLEDs ......................... 46

SASandSATAharddriveLEDcombinations.................... 47

Systemboardcomponents............................ 48

FBDIMM slotnumbering ............................ 49

Mezzanine connector deﬁnitions......................... 49

Systemmaintenanceswitches .......................... 49

Disposalofwasteequipement.......................... 53

Batteryreplacementnotice ........................... 55

Environmental speciﬁcations........................... 57

About this guide

This guide provides information about:

• All-in-One SB600c Storage Blade Solution

Intended audience

HP assumes you are qualiﬁed in the servicing of computer equipment and trained in recognizing hazards

in products with hazardous energy levels. This guide is intended for IT administrators with knowledge of:

• installation of servers and storage systems

• administration of servers and storage systems

• troubleshooting servers and storage systems

Related documentation

The following documents provide related information:

• HP BladeSystem Onboard Administrator user guide

• HP Integrated Lights-Out 2 user guide

• HP BladeSystem c3000 enclosure setup and installation guide

• HP BladeSystem c7000 enclosure setup and installation guide

• HP Proliant Blade troubleshooting guide

You can ﬁnd these documents from the Manuals page of the HP Business Support Center website:

http://www.hp.com/support/manuals

In the Storage section, click Disk Storage Systems and then select your product.

All-in-One SB600c Storage Blade Solution 7

Document conventions and symbols

Table 1 Document conventions

Convention Element

Blue text: Table 1 Cross-reference links and e-mail addresses

Blue, underlined text: http://www.hp.com website addresses

Bold text • Keys that are pressed

• Text typed into a GUI element, such as a box

• GUI elements that are clicked or selected, such as

menu and list items, buttons, tabs, and check boxes

Italic text Text emphasis

Monospace text • File and directory names

• System output

• Code

• Commands, their arguments, and argument values

Monospace, italic text • Code variables

• Command variables

Monospace, bold text Emphasized monospace text

WARNING!

Indicates that failure to follow directions could result in bodily harm or death.

CAUTION:

Indicates that failure to follow directions could result in damage to equipment or data.

IMPORTANT:

Provides clarifying information or speciﬁc instructions.

NOTE:

Provides additional information.

TIP:

Provideshelpful hintsand shortcuts.

Rack stability

Rack stability protects personnel and equipment.

8 About this guide

WARNING!

To reduce the risk of personal injury or damage to equipment:

• Extend leveling jacks to the ﬂoor.

• Ensure that the full weight of the rack rests on the leveling jacks.

• Install stabilizing feet on the rack.

• In multiple-rack installations, fasten racks together securely.

• Extend only one rack component at a time. Racks can become unstable if more than one component

is extended.

HP technical support

For worldwide technical support information, see the HP support website:

http://www.hp.com/support

Before contacting HP, collect the following information:

• Product model names and numbers

• Technical support registration number (if applicable)

• Product serial numbers

• Error messages

• Operating system type and revision level

• Detailed questions

Product warranties

For information about HP StorageWorks product warranties, see the warranty information website:

http://www.hp.com/go/storagewarranty

Subscription service

HP recommends that you register your product at the Subscriber’s Choice for Business website:

http://www.hp.com/go/e-updates

After registering, you will receive e-mail notiﬁcation of product enhancements, new driver versions,

ﬁrmware updates, and other product resources.

HP websites

For additional information, see the following HP websites:

• http://www.hp.com

• http://www.hp.com/go/storage

• http://www.hp.com/service_locator

• http://www.hp.com/support/manuals

• http://www.hp.com/support/downloads

Documentation feedback

HP welcomes your feedback.

All-in-One SB600c Storage Blade Solution 9

To make comments and suggestions about product documentation, please send a message to

storagedocs.feedback@hp.com. All submissions become the property of HP.

About this guide

1 Setup

In this section:

• Shipping carton contents

• Installing an HP BladeSystem c-Class enclosure

• Installation guidelines

• Installing the HP AiO SB600c Server and Storage Blades

Shipping carton contents

When unpacking the HP All-in-One SB600c Storage Blade Solution, check for the following items:

• HP Storageworks SB600c server blade

• HP StorageWorks SB600c storage blade

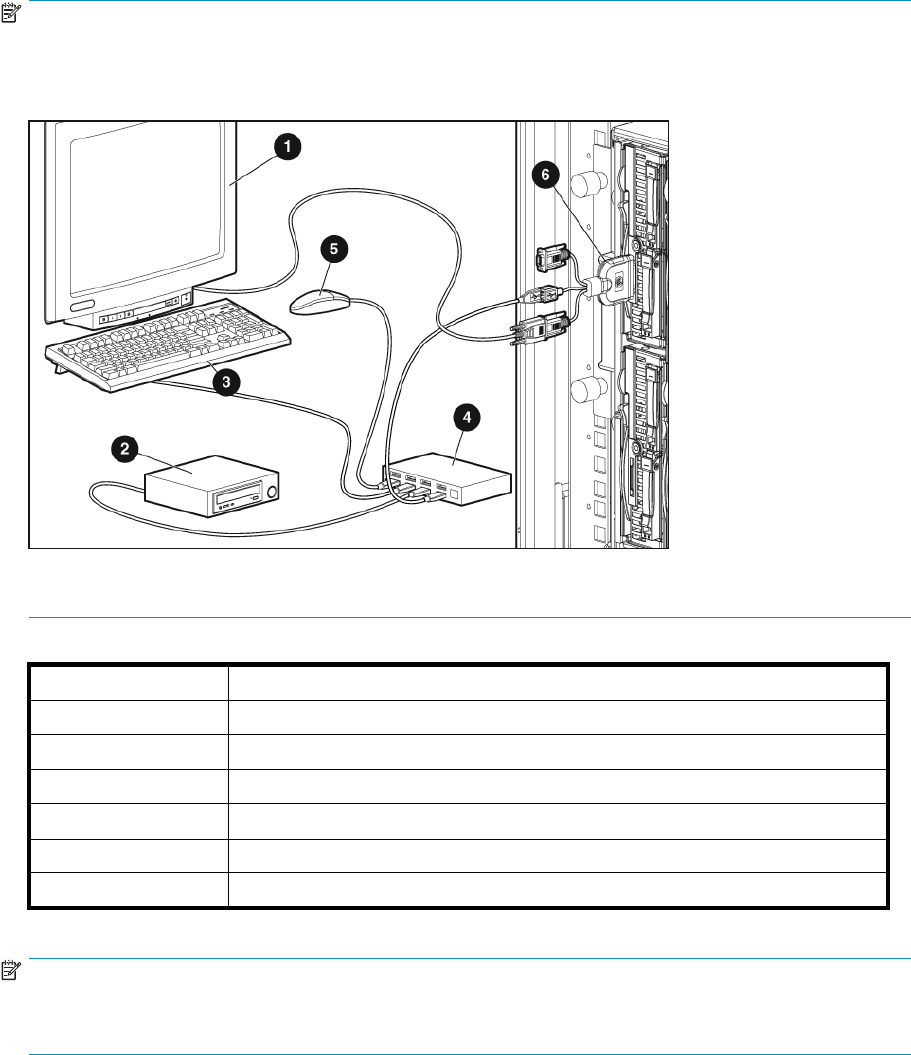

• Local I/O cable

• Documentation Kit, Safety and Disposal Documentation CD

• HP StorageWorks AiO Storage Blade System Recovery DVD

• End User License Agreement

Documentation is also available in the following locations:

• Documentation CD that ships with the enclosure

• HP Business Support Center website http://www.hp.com/support

• HP Technical Documentation websitehttp://docs.hp.com

Installing an HP BladeSystem c-Class enclosure

Before performing any procedures speciﬁctothe HP AiO SB600cStorage Blade Solution, install

an HP BladeSystem c-Class enclosure.

IMPORTANT:

If your HP AiO SB600c Storage Blade Solution is factory-integrated, the server and storage blades are

pre-installed in an HP BladeSystem c-Class enclosure. For instructions on connecting the enclosure to the

network and powering it on, see the installation guides that are shipped with the enclosures.

HP BladeSystem c7000 Enclosure

The colors correspond to a partner bay; for example 1 and 2 are in one partner bay.

All-in-One SB600c Storage Blade Solution 11

Figure 1 c7000 Enclosure half-height device bay numbering

HP BladeSystem c3000 Enclosure

The colors correspond to a partner bay; for example 1 and 2 are in one partner bay.

Figure 2 c3000 Enclosure half-height device bay numbering

Installation guidelines

Observe the following guidelines when installing the server and storage blades for the HP AiO SB600c:

• Install the storage blade prior to installing the server blade

• Before installing and initializing the server blade, install any server blade options, such as an

additional processor or mezzanine card.

Onboard Administrator is used to conﬁgure the enclosure and the HP AiO SB600c. To function with the

HP AiO SB600c, Onboard Administrator version 1.30 or later is required.

12 S e t u p

HP AiO SB600c Server and Storage Blades

SB600c server and storage blades support each other in partner bays. Each partner bay will hold one

server blade and one storage blade.

• If the storage blade is installed in an odd-numbered bay, install the partner server blade in

the adjacent even-numbered bay to the right.

• If the storage blade is installed in an even-numbered bay, install the partner server blade in

the adjacent odd-numbered bay to the left.

Installing the HP AiO SB600c Server and Storage Blades

IMPORTANT:

Install the storage blade prior to installing the server blade.

CAUTION:

To prevent improper cooling and thermal damage, do not operate the server blade or the enclosure

unless all hard drive and device bays are populated with either a component or a blank.

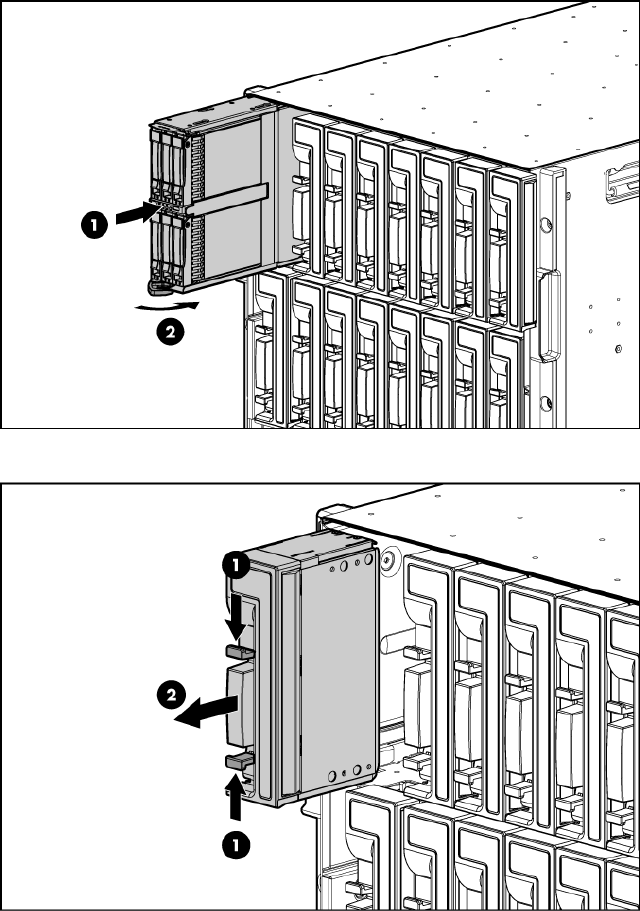

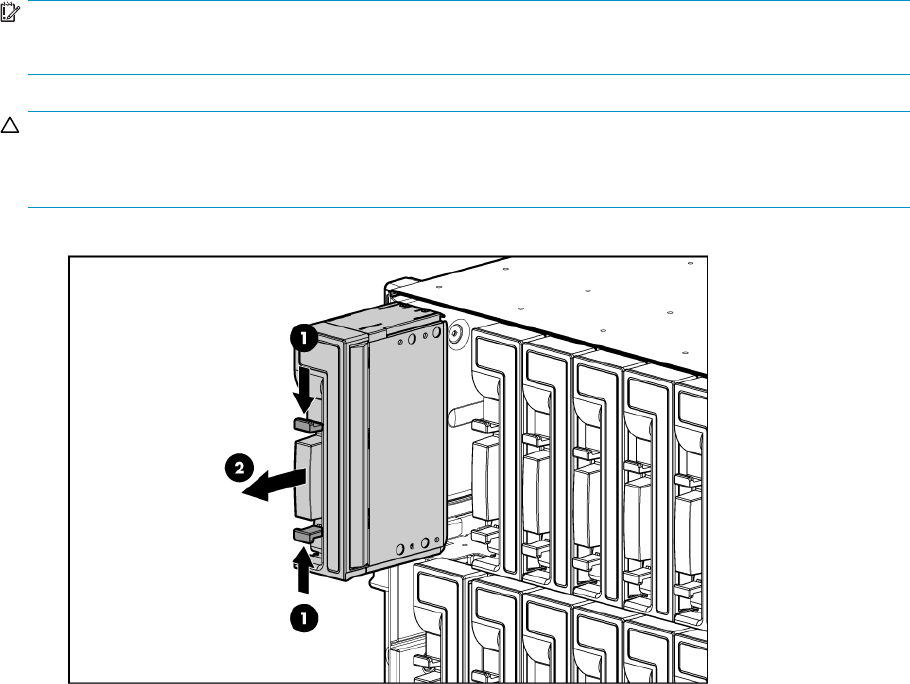

1. Remove the blank.

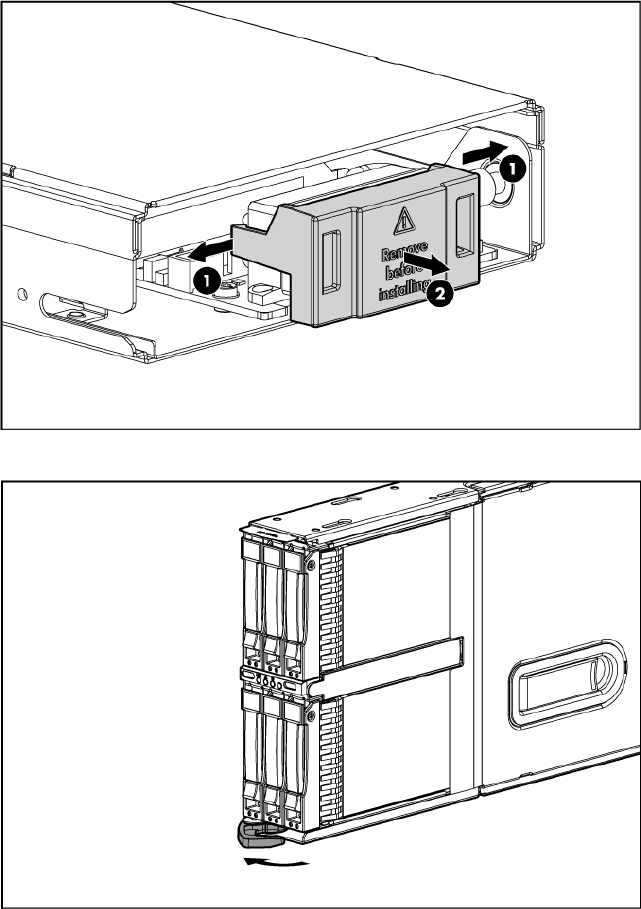

2. Remove the enclosure connector cover.

All-in-One SB600c Storage Blade Solution 13

3. Open the locking clip at the bottom of the front panel of the storage blade.

4. Install the storage blade by inserting it fully into one of the two partner bays, and closing the

locking clip.

14 Setup

5. Remove a second blank from the adjacent partner bay.

6. Remove the enclosure connector cover from the server blade and the Product Licenses Agreement

label.

All-in-One SB600c Storage Blade Solution 15

7. Open the locking clip on the left side of the server blade.

8. Install the server blade by inserting it fully into the device bay and closing the locking clip.

16 S e t u p

Installing interconnect modules

For speciﬁc steps to install interconnect modules, see the documentation that ships with the interconnect

module.

Interconnect bay numbering and device mapping for the c7000 Blade enclosure

Figure 3 c7000 Blade enclosure interconnect bay numbering

To support network connections for speciﬁc signals, install an interconnect module in the bay

corresponding to the embedded NIC or mezzanine signals.

All-in-One SB600c Storage Blade Solution 17

Table 2 Interconnect bay numbering and device mapping c7000 Blade enclosure

Server blade signal Interconnect bay Interconnect bay labels

NIC 1 (Embedded) 1

NIC 2 (Embedded) 2

Mezzanine 1 3and 4

Mezzanine 2 5and 6

7and 8

Interconnect bay numbering and device mapping for the c3000 Blade enclosure

Figure 4 c3000 Blade enclosure interconnect bay numbering

Table 3 Interconnect bay numbering and device mapping ports c3000 Blade enclosure

Server blade

signal Interconnect

bay number Interconnect bay label Notes

NICs 1, 2

(embedded) 1 —

Mezzanine 1 2 Four port cards connect to bay 2

Mezzanine 2 3,4 Four port cards; Ports 1 and

3 connect to bay 3. 2 and 4

connect to bay 4.

For detailed port mapping information, see theHP BladeSystem Enclosure installation poster or the

HP BladeSystem Enclosure setup and installation guide at http://www.hp.com/go/bladesystem/

documentation

18 Se t up

2Operations

In this section:

• Powering up the HP All-in-One SB600c Storage Blade Solution

• Powering down the HP All-in-One SB600c Storage Blade Solution

• Removing the HP AiO SB600c Server Blade

• Removing the access panel

• Installing the access panel

Powering up the HP All-in-One SB600c Storage Blade Solution

1. Ensure the server blade is powered down.

2. Install the HP AiO SB600c storage blade.

See Installing the HP AiO SB600c Server and Storage Blades on page 13 for installing storage

blades.

3. After the storage blade is installed, the system health LED ﬂashes amber.

4. Install the server blade.

See Installing the HP AiO SB600c Server and Storage Blades on page 13 for installing server blades.

5. The Onboard Administrator initiates an automatic power-up sequence when the server blades

are installed. If the default setting is changed, use one of the following methods to power

up the server blade:

• Use a virtual power button selection through iLO 2.

• Select the virtual power button on the Onboard Administrator interface.

•Press an

d release the Power On/Standby button on the server blade.

6. When the server blade goes from the standby mode to the full power mode, the system power

LED changes from amber to green.

For more information about the Onboard Administrator, see HP BladeSystem Onboard Administrator

user guide.

For more information about iLO 2, see iLO 2 on page 37 for more information.

Powering down the HP All-in-One SB600c Storage Blade

Solution

Two different methods are available to power down the HP AiO SB600c Storage Blade Solution, a virtual

power button and a power button located on the HP AiO SB600c Server Blade.

The preferred method for closing down the HP AiO SB600c is using the virtual power button through

OnBoard Administrator.

NOTE:

Before powering down the HP AiO SB600c for any upgrade or maintenance procedures, perform

a backup of critical server data and programs.

All-in-One SB600c Storage Blade Solution 19

IMPORTANT:

When the server blade is in standby mode, auxiliary power is still being provided. To remove all power

from the server blade, remove the server blade from the enclosure.

To power down the HP AiO SB600c, ﬁrst power down the HP AiO SB600c Server Blade. Depending on

the Onboard Administrator conﬁguration, use one of the following methods to power down the server

blade, the virtual power button or the manual power button located on the server blade.

Virtual Power Button

Two ways are available to access the virtual power button, either through the Onboard Administrator

interface or through iLO 2.

• Select the virtual power button through the Onboard Administrator interface. (Preferred method)

• Use a virtual power button selection through iLO 2.

This method initiates a controlled remote shutdown of applications and the OS before the server blade

enters standby mode. You must be logged into the server to complete this task.

Manual Power Button

The manual Power On/Standby button is located on the server blade.

• Press and release the Power On/Standby button.

This method initiates a controlled shutdown of applications and the OS before the server blade enters

standby mode. You must be logged into the server to complete this task

• Press and hold the Power On/Standby button for more than 4 seconds to force the server

blade to shut down.

CAUTION:

This method should only be used when no other shut down methods are available. Applications and

ﬁles could be permanently corrupted from this method.

This method forces the server blade to enter standby mode without properly exiting applications and

the OS. It provides an emergency shutdown method in the event of a hung application.

After initiating a virtual power down command, be sure that the server blade goes into standby mode

by observing that the system power LED is amber.

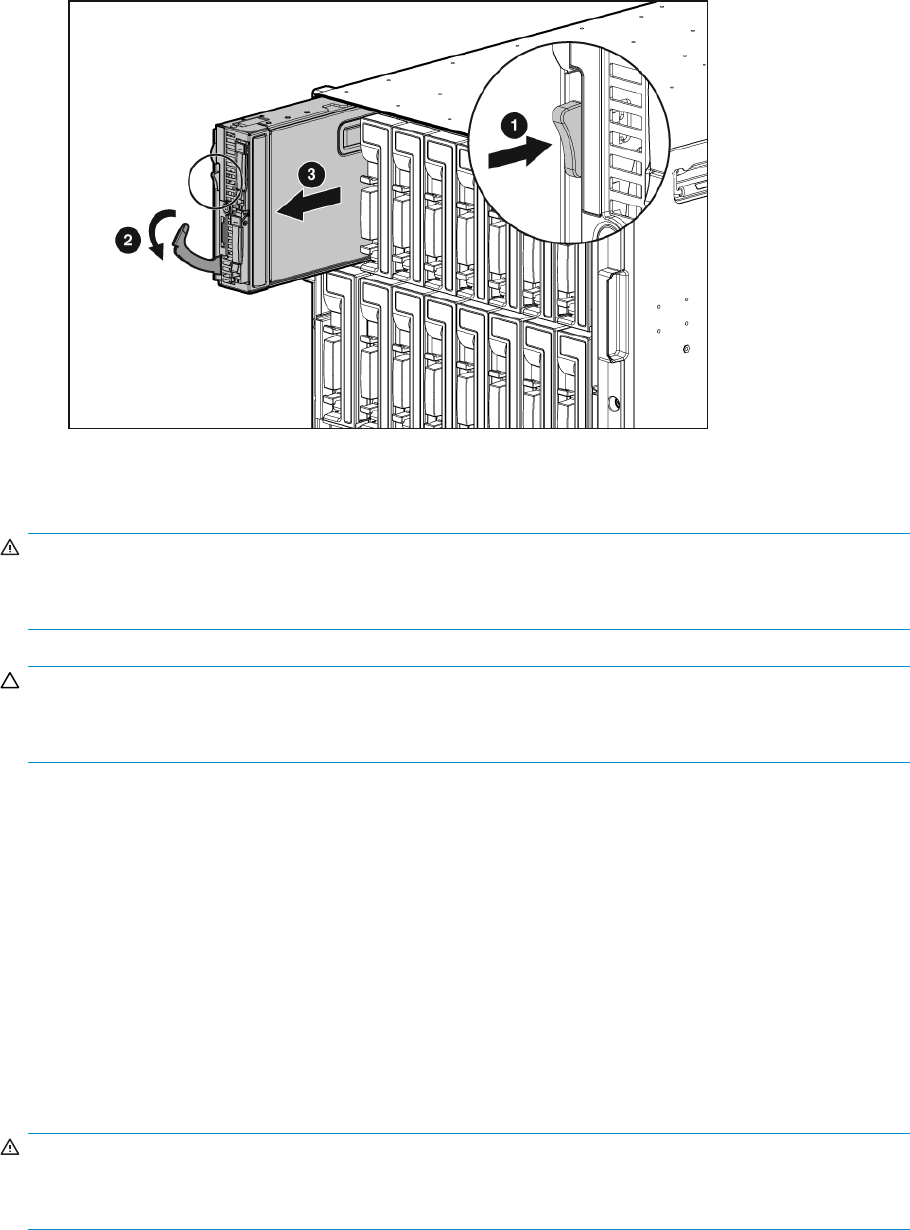

Removing the HP AiO SB600c Server Blade

To remove the component:

1. Identify the proper server blade.

2. Power down the server blade.

See Powering down the HP All-in-One SB600c Storage Blade Solution on page 19 for more

information.

3. Ensure the server is completely off before removing the blade from the chassis.

4. Open the locking clip located on the lower left of the server blade.

20 Operations

5. Remove the server blade from the chassis.

6. Place the server blade on a ﬂat, level work surface.

WARNING!

To reduce the risk of personal injury from hot surfaces, allow the drives and the internal system

components to cool before touching them.

CAUTION:

To prevent damage to electrical components, properly ground the server blade before beginning any

installation procedure. Improper grounding can cause Electrostatic Discharge (ESD).

Removing the access panel

To remove the component:

1. Power down the server blade.

See Powering down the HP All-in-One SB600c Storage Blade Solution on page 19 for more

information.

2. Remove the server blade.

See Installing the HP AiO SB600c Server and Storage Blades on page 13 for more information.

3. Lift the access panel latch and slide the access panel to the rear.

4. Remove the access panel.

WARNING!

To reduce the risk of personal injury from hot surfaces, allow the drives and the internal system

components to cool before touching them.

All-in-One SB600c Storage Blade Solution 21

CAUTION:

To prevent damage to electrical components, properly ground the server blade before beginning any

installation procedure. Improper grounding can cause ESD.

Installing the access panel

1. Place the access panel on top of the server blade with the hood latch open. Allow the panel to

extend past the rear of the server blade approximately 0.8 cm (0.2 in).

2. Engage the anchoring pin with the corresponding hole in the latch.

3. Push down on the hood latch. The access panel slides to a closed position.

22 Operations

3 Hardware Options installation

and cabling

In this section

•Introduction

• Processor option

•Memory options

•Cabling

Introduction

The following gives information for installing components and cabling for the HP All-in-One SB600c

Storage Solution.

WARNING!

If more than one option is being installed, read the installation instructions for all the hardware options

and identify similar steps to streamline the installation process.

CAUTION:

To prevent damage to electrical components, properly ground the server before beginning any installation

procedure. Improper grounding can cause electrostatic discharge.

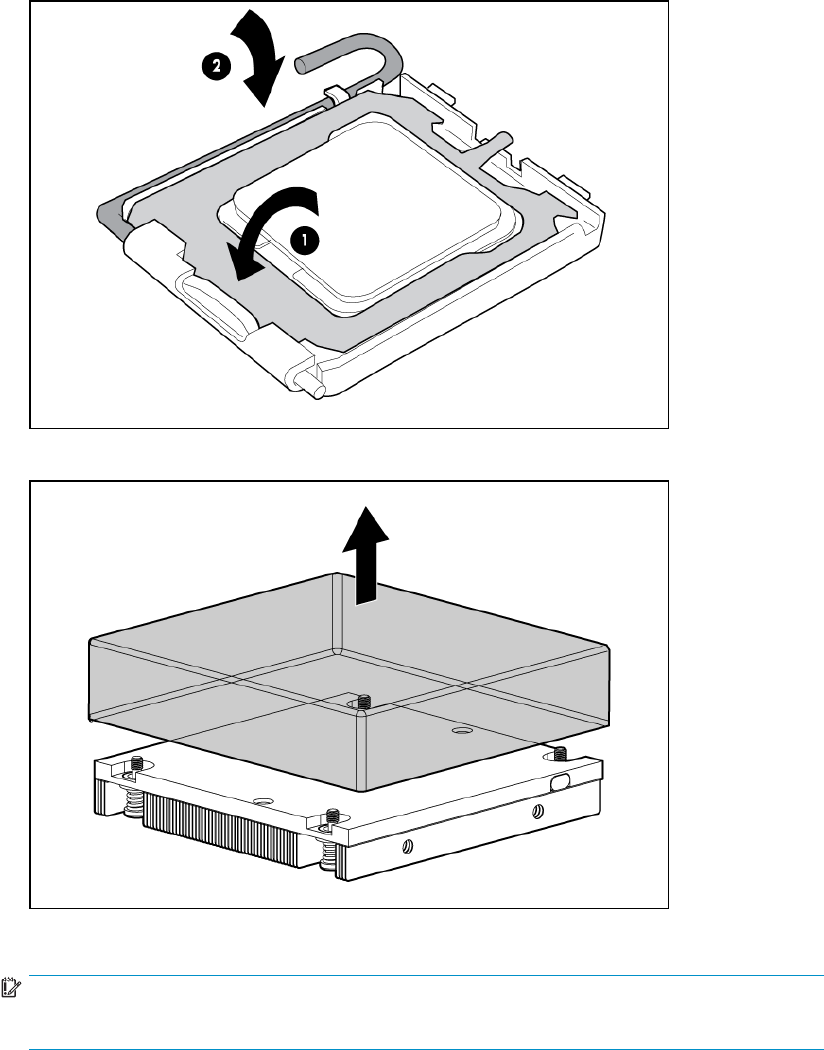

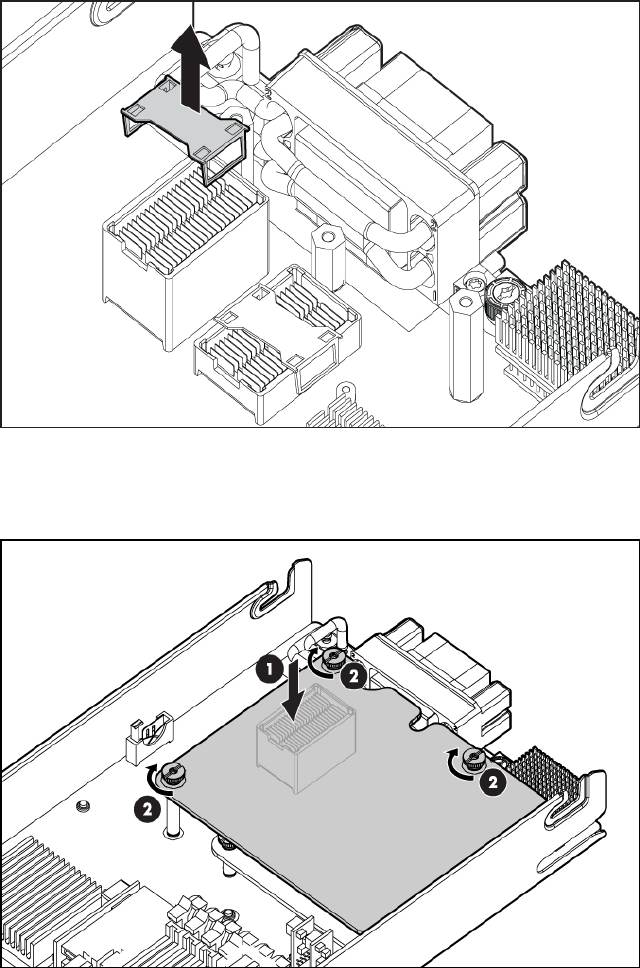

Processor option

WARNING!

To reduce the risk of personal injury from hot surfaces, allow the drives and the internal system

components to cool before touching them.

CAUTION:

To avoid damage to the system board:

• Do nottouch theprocessorsocketcontacts.

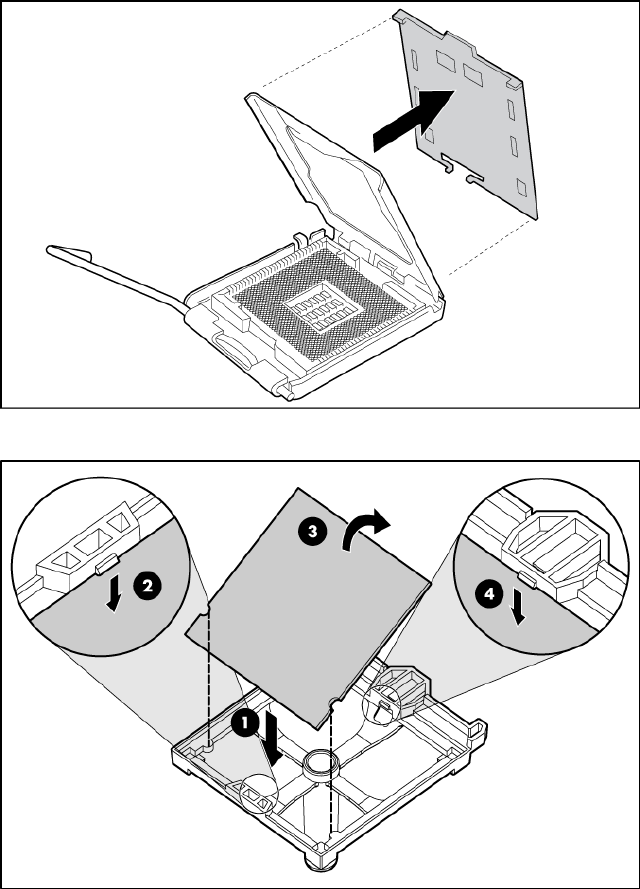

• Always install the processor socket cover after removing the processor from the socket.

• Do not tilt or slide the processor when lowering the processor into the socket.

CAUTION:

To avoid damage to the processor:

• Handle the processor only by the edges.

• Do not touch the bottom of the processor, especially the contact area.

All-in-One SB600c Storage Blade Solution 23

CAUTION:

To prevent possible server malfunction and damage to the equipment, multiprocessor conﬁgurations must

contain processors with the same part number.

CAUTION:

To prevent possible server blade overheating, always populate processor socket 2 with a processor and a

heatsink or a processor cover and a heatsink blank.

CAUTION:

The heatsink thermal interface media is not reusable and must be replaced if the heatsink is removed

from the processor after it has been installed.

IMPORTANT:

When installing the heatsink, align the guide pins on the processor retention bracket with the alignment

holes in the heatsink.

IMPORTANT:

Processor socket 1 must always be populated. If processor socket 1 is empty, the server blade does not

power up.

NOTE:

Do not discard the processor protective cover. Always install the processor protective cover if the

processor is removed from the socket.

To install the component:

1. Power down the server blade.

See Powering down the HP All-in-One SB600c Storage Blade Solution on page 19 for more

information.

2. Remove the server blade.

See Removing the HP AiO SB600c Server Blade on page 20 for more information.

3. Remove the access panel.

See Removing the access panel on page 21 for more information.

4. Remove all hard drives.

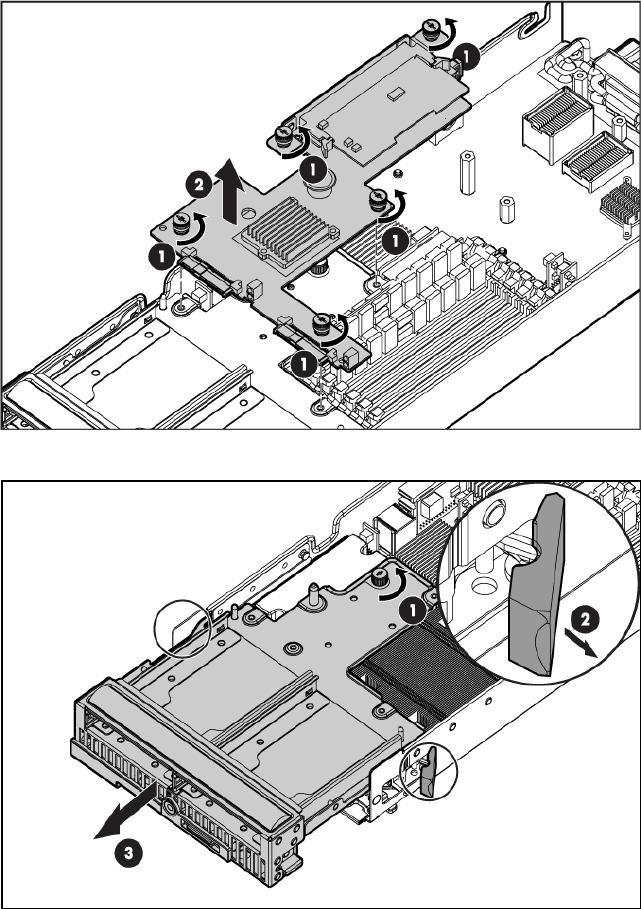

5. Remove the hard drive backplane.

24 Hardware Options installation and cabling

6. Remove the front panel/hard drive cage assembly.

7. Remove the heatsink blank. Retain the heatsink blank for future use.

All-in-One SB600c Storage Blade Solution 25

8. Open the processor retaining latch and the processor socket retaining bracket.

9. Remove the processor socket protective cover.

26 Hardware Options installation and cabling

10. If the processor has separated from the installation tool, carefully re-insert the processor in the tool.

11 . Align the processor installation tool with the socket and install the processor.

All-in-One SB600c Storage Blade Solution 27

12. Press down ﬁrmly until the processor installation tool clicks and separates from the processor, and

then remove the processor installation tool.

13. Close the processor socket retaining bracket and the processor retaining latch.

28 Hardware Options installation and cabling

14. Removethethermalinterfaceprotectivecoverfromtheheatsink.

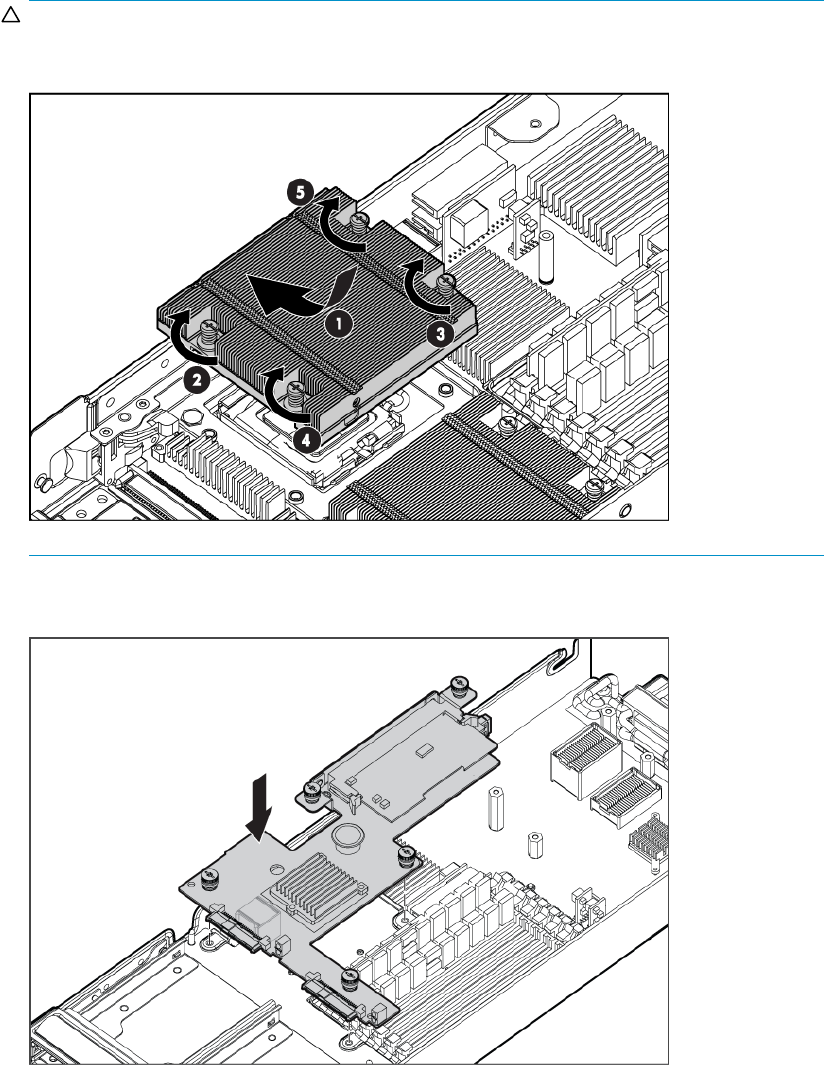

15 . Install the heatsink.

IMPORTANT:

Be sure the processor remains inside the processor installation tool.

All-in-One SB600c Storage Blade Solution 29

CAUTION:

Heatsink retaining screws should be tightened in diagonally opposite pairs (in an "X"

pattern).

16. Install the front panel/hard drive cage assembly.

17 . Install the hard drive backplane. Press down on the connector to seat the board.

18. Install the hard drives.

19. Install the access panel. See Installing the access panel on page 22 for more information.

20. Install the server blade. See Installing the HP AiO SB600c Server and Storage Blades on page 13

for more information.

30 Hardware Options installation and cabling

Memory options

The HP AiO SB600c Server Blade is conﬁgured with 2 GB of memory. The server contains eight FBDIMM

slots and the Operating System can address up to 4 GB of memory. Using the Advanced Memory

Protection options will allow 4 GB more of memory to be used as an online spare or mirrored memory.

See http://www.hp.com for more information.

Installing FBDIMMs

To install the component:

1. Power down the server blade.

See Powering down the HP All-in-One SB600c Storage Blade Solution on page 19 for more

information.

2. Remove the server blade. See Removing the HP AiO SB600c Server Blade on page 20 for more

information.

3. Remove the access panel. See 21 for more information.

4. Install the FBDIMM.

Figure 5 Installing FBDIMMs

5. Install the access panel. See Installing the access panel on page 22 for more information.

6. Install the server blade.

See Installing the HP AiO SB600c Server and Storage Blades on page 13 for more information.

7. Power up the server blade.

See PoweringuptheHPAll-in-OneSB600cStorageBladeSolutionon page 19 for more information.

Mezzanine card option

Optional mezzanine cards are classiﬁed as Type I mezzanine cards and Type II mezzanine cards.

The card type determines where it can be installed in the server blade. Optional mezzanine cards

enable network connectivity and provide Fibre Channel support. For mezzanine card locations, see

System board components on page 48 for more information.

•Install Type I mezzanine cards on either mezzanine 1 connector or mezzanine 2 connector.

All-in-One SB600c Storage Blade Solution 31

•Install Type II mezzanine cards only on mezzanine 2 connector.

To install the component:

1. Power down the server blade.

See 19 for more information.

2. Remove the server blade.

See Removing the HP AiO SB600c Server Blade on page 20 for more information.

3. Remove the access panel. See Removing the access panel on page 21 for more information.

4. Remove the mezzanine connector cover.

Figure 6 Removing the mezzanine connector cover

5. Install the mezzanine card. Press down on the connector to seat the board.

Figure 7 Installing the mezzanine card.

6. Install the access panel. See Installing the access panel on page 22

32 Hardware Options installation and cabling

7. Install the server blade. See Installing the HP AiO SB600c Server and Storage Blades on page 13

Cabling

In this section

•Usingtheloca

lI/Ocable

• Connecting locally to a server blade with video and USB devices

Using the local I/O cable

The local I/O cable enables the user to perform server blade administration, conﬁguration, and

diagnostic procedures by connecting video and USB devices directly to the server blade.

Connecting locally to a server blade with video and USB devices

Use the local I/O cable to connect a monitor and any of the following USB devices:

•USB hub

•USB keyboard

•USB mouse

•USB DVD-ROM drive

•USB diskette drive

Multiple conﬁgurations are possible. This section offers two possible conﬁgurations.

Accessing a server blade with local KVM

CAUTION:

Before disconnecting the local I/O cable from the connector, always squeeze the release buttons on the

sides of the connector. Failure to do so can result in damage to the equipment.

NOTE:

For this conﬁguration, a USB hub is not necessary. To connect additional devices, use a USB hub.

1. Connect the local I/O cable to the server blade.

2. Connect the video connector to a monitor.

3. Connect a USB mouse to one USB connector.

4. Connect a USB keyboard to the second USB connector.

All-in-One SB600c Storage Blade Solution 33

Figure 8 Connecting with a local KVM

Table 4 Local KVM connection components

Item Description

1Monitor

2USBmouse

3USB keyboard

4Local I/O cable

Accessing a server blade with local media devices

Use the following conﬁguration when conﬁguring a server blade or loading software updates and

patches from a USB DVD-ROM or a USB diskette.

1. Connect the local I/O cable to the server blade.

2. Connect the video connector to a monitor.

3. Connect a USB hub to one USB connector.

4. Connect the following to the USB hub:

•USBDVD-ROMdrive

•USBkeyboard

•USBmouse

•USBdiskette

34 Hardware Options installation and cabling

NOTE:

Use a USB hub when connecting a USB diskette drive and/or USB DVD-ROM drive to the server blade.

The USB hub provides additional connections.

Figure 9 Connecting with local media devices

Table 5 USB Hub devices

Item Description

1Monitor

2USB DVD-ROM drive or diskette drive

3USB keyboard

4USB hub

5USB mouse

6Local I/O cable

NOTE:

For more information about hardware and cabling conﬁgurations, see the documents that ship with

the c-Class enclosures.

All-in-One SB600c Storage Blade Solution 35

36 Hardware Options installation and cabling

4Conﬁguration utilities

In this section

•iLO2

• System Recovery DVD

•Conﬁguration tools

•Keepingthesystemcurrent

iLO 2

iLO 2 is a standard component of ProLiant c-Class server blades that provides server health and remote

server blade manageability. Its features are accessed from a network client device using a supported web

browser. In addition to other features, iLO 2 provides keyboard, mouse, and video (text and graphics)

capability for a server blade, regardless of the state of the host OS or host server blade.

iLO 2 includes an intelligent microprocessor, secure memory, and a dedicated network interface. This

design makes iLO 2 independent of the host server blade and its OS. iLO 2 provides remote access to

any authorized network client, sends alerts, and provides other server blade management functions.

Using a supported web browser, you can:

•Remotely access the console of the host server blade, including all text mode and graphics mode

screens with full keyboard and mouse controls.

•Remotely power up, power down, or reboot the host server blade.

•Remotely boot a host server blade to a virtual media image to perform a ROM upgrade or

install anOS.

•Send alerts from iLO 2 regardless of the state of the host server blade.

•Access advanced troubleshooting features provided by iLO 2.

•Launch a web browser, use SNMP alerting, and diagnose the server blade with HP SIM.

•Conﬁgure static IP bay settings for the dedicated iLO 2 management NICs on each server blade

in an enclosure for faster deployment.

To connect to the server blade using iLO 2, install the server blade in an enclosure. Onboard

Administrator assigns an IP address to enable iLO 2 connectivity to the server blade.

The c-Class tab enables you to control speciﬁc settings for the HP BladeSystem. iLO 2 also provides

web-based status for the HP BladeSystem conﬁguration.

For detailed information about iLO 2, refer to the HP Integrated Lights-Out User Guide on the HP website

http://www.hp.com/servers/lights-out.

System Recovery DVD

The System Recovery DVD is used to restore the system to factory defaults. Keep this DVD in a safe place.

You may boot from the DVD and restore the system to the factory condition at any time. This allows you

to recover the system if all other means to boot the system fails. While the recovery process makes

every attempt to preserve the existing data volumes, you should have a backup of your data if at all

possible before recovering the system.

All-in-One SB600c Storage Blade Solution 37

WARNING!

During a recovery process, this DVD overwrites the original OS logical drives. All data on these

drives will be erased.

Two methods are available for system recovery:

•iLO virtual DVD-ROM

•USB DVD-ROM

NOTE:

Using iLO 2 virtual DVD-ROM to restore your system will take longer than the USB DVD-ROM method.

iLO 2 virtual DVD-ROM

This method uses iLO 2 virtual System Recovery DVD to restore your original OS.

TorestorewithaniLO2virtualSystemRecoveryDVD:

1. Insert the System Restore DVD into the client PC that is using the iLO 2 Remote Console.

2. Remotely access the server blade through iLO 2.

3. Click the Virtual Devices tab.

4. Select Virtual Media.

5. Use the Virtual Media applet to select the local DVD or image ﬁle and connect the Virtual DVD to

the server blade.

6. Use the iLO 2 Virtual Power Button feature to reboot the server blade.

7. Follow the quick restore instructions

USB DVD-ROM

This method uses System Recovery DVD to restore your original OS.

To restore with the System Recovery DVD:

1. UsethelocalI/OcabletoconnectaUSBDVD-ROMdrivetotheserverblade.

See Accessing a server blade with local media devices on page 34

2. Insert the System Recovery DVD into the USB DVD-ROM drive.

3. Reboot the server blade.

4. After the server blade boots, follow the quick restore instructions.

Conﬁguration tools

Array Conﬁguration Utility

NOTE:

ACU does not support mixing SAS and SATA drives in the same logical volume.

ACU is a browser-based utility with the following features:

•Runs as a local application or remote service

38 Conﬁguration utilities

•Supports online array capacity expansion, logical drive extension, assignment of online spares,

and RAID or stripe size migration

•Suggests the optimum conﬁguration for an unconﬁgured system

•Provides different operating modes, enabling faster conﬁguration or greater control over the

conﬁguration options

•Remains available any time that the server is on

•Displays on-screen tips for individual steps of a conﬁguration procedure

For optimum performance, the minimum display settings are 800 × 600 resolution and 256 colors.

Servers running Microsoft® operating systems require Internet Explorer 5.5 (with Service Pack 1) or later.

For more information, refer to the Conﬁguring Arrays on HP Smart Array Controllers Reference Guide

on the Documentation CD or the HP website http://www.hp.com.

Keeping the system current

All-in-One SB600c Storage Blade Solution updates

Use care when applying operating system updates (service packs, hotﬁxes, and patches). Before

updating the operating system, read the release notes for each update. If you do not require speciﬁcﬁxes

from the update, HP recommends that you do not apply the updates.

If you decide to apply an operating system update:

1. Perform a full system backup.

2. Apply the operating system update, using the instructions provided.

3. Install the current drivers.

To obtain downloads for the All-in-One Storage Blade Solution, go to http://www.hp.com/go/

AiOstorage.

HP Care Pack

HP Care Pack Services offer upgraded service levels to extend and expand standard product warranty

with easy-to-buy, easy-to-use support packages that help you make the most of your server investments.

Refer to the Care Pack website http://www.hp.com/hps/carepack/servers/cp_proliant.html.

All-in-One SB600c Storage Blade Solution 39

40 Conﬁguration utilities

5 Troubleshooting

Troubleshooting resources

The HP ProLiant Servers Troubleshooting Guide provides simple procedures for resolving common

problems as well as a comprehensive course of action for fault isolation and identiﬁcation, error message

interpretation, issue resolution, and software maintenance.

To obtain the guide, refer to any of the following sources and then select the HP ProLiant Servers

Troubleshooting Guide:

•The Business Support Center on the http://www.hp.com/support.Navigatetotheserver

technical support page. Under self-help resources, select ProLiant Troubleshooting Guide.

•The Technical Documentation website http://www.docs.hp.com. Select Enterprise Servers,

Workstations and Systems Hardware, and then the appropriate server.

HP web site

Troubleshooting tools and information, as well as the latest drivers and ﬂash ROM images, are available

at http://www.hp.com.

Storage system documentation

Storage system documentation is the set of documents provided with a storage system. Most storage

system documents are available as a PDF ﬁle or a link on the documentation CD. Storage system

documentation can be accessed from http://www.hp.com/support/manuals). Under the storage section,

click Disk Storage Systems and then select your product.

Subscriber’s Choice

HP Subscriber’s Choice is a customizable subscription sign-up service that customers use to receive

personalized e-mail product tips, feature articles, driver and support alerts, or other notiﬁcations.

To create a proﬁle and select notiﬁcations, see http://www.hp.com/go/subscriberschoice.

White papers

White papers are electronic documents on complex technical topics. Some white papers

contain in-depth details and procedures. Topics include HP products, HP technology, operating

systems, networking products, and performance issues. See the HP Business Support Center at

http://www.hp.com/go/bizsupport.

Firmware updates

Firmware is software that is stored in Read-Only Memory (ROM). Firmware is responsible for the behavior

of the system when it is ﬁrst switched on and for passing control of the server to the operating system.

When referring to the ﬁrmware on the system board of the server, it is called the System ROM or the

BIOS. When referring to the ﬁrmware on another piece of hardware conﬁgured in the server, it is called

Option ROM. These systems have hard drives and Smart Array Controller options that have ﬁrmware

that can be updated.

It is important to update the ﬁrmware (also called “ﬂashing the ROM”) as part of regular server

maintenance. In addition, checking for speciﬁcﬁrmware updates in between regular updates helps to

keep the server performing optimally. HP recommends checking for a ﬁrmware update before sending a

part back to HP for replacement.

All-in-One SB600c Storage Blade Solution 41

Apply the latest ﬁrmwareandsoftwareupdatesusingtheHPAll-in-OneServiceReleaseDVD.TheDVD

provides software updates, upgrades, and enhancements for the storage system. The Service Release can

be ordered without cost from http://software.hp.com. Onthewebsite,selectthe“StorageandNAS”

category. The latest service release version appears in the list of available software.

42 Troubleshooting

A All-in-One SB600c Storage Blade

Solution components

HP All-in-One SB600c Server Blade LEDs

Figure 10 HP All-in-One SB600c Server Blade LEDs

All-in-One SB600c Storage Blade Solution 43

Table 6 HP All-in-One SB600c Server Blade LEDs

Item Description Status

1Hard drive bay 1 N/A

2Power On/Standby button N/A

3Local I/O connector* N/A

4Hard drive bay 2 N/A

5Server blade handle N/A

6Release button N/A

7NIC 2 LED* Green = Network linked

Green ﬂashing = Network activity

Off = No link or activity

8NIC 1 LED* Green = Network linked

Green ﬂashing = Network activity

Off = No link or activity

9Health LED Green = Normal

Flashing = Booting

Amber = Degraded condition

Red= Critical condition

10 UID LED Blue = Identiﬁed

Blue ﬂashing = Active remote management

11 Serial pull tab N/A

44 All-in-One SB600c Storage Blade Solution components

HP All-in-One SB600c Storage Blade LEDs

Figure 11 HP All-in-One SB600c Storage Blade LEDs

Table 7 HP All-in-One SB600c Storage Blade LEDs

Item Description Status

1Serial Pull tab N/A

2Reserved N/A

3Reserved N/A

4Storage Blade Handle N/A

5UIDLED Blue = Identiﬁed

Off=Notidentiﬁed

6System Health LED

Green = Normal operation

Flashing amber = Degraded condition

Flashing red = Critical condition

All-in-One SB600c Storage Blade Solution 45

SAS and SATA components

Figure 12 SAS and SATA device numbers

Figure 13 SAS and SATA hard drive LEDs

Table 8 SAS and SATA hard drive LEDs

Item Description

1Fault/UID LED (amber/blue)

2Online LED (green)

46 All-in-One SB600c Storage Blade Solution components

Table9SASandSATAharddriveLEDcombinations

Online/activity

LED (green)

Fault/UID LED

(amber/blue)

Interpretation

On,off,orﬂashing Alternating amber

and blue The drive has failed, or a predictive failure alert has been

received for this drive; it also has been selected by a

management application.

On,off,orﬂashing Steadily blue The drive is operating normally, and it has been selected by

a management application.

On Amber, ﬂashing

regularly (1 Hz)

A predictive failure alert has been received for this drive.

Replace the drive as soon as possible.

On Off The drive is online, but it is not active currently.

Flashing regularly

(1 Hz) Amber, ﬂashing

regularly (1 Hz)

Do not remove the drive. Removing a drive may terminate

the current operation and cause data loss.The drive is part

of an array that is undergoing capacity expansion or stripe

migration, but a predictive failure alert has been received for

this drive. To minimize the risk of data loss, do not replace

the drive until the expansion or migration is complete.

Flashing regularly

(1 Hz) Off Do not remove the drive. Removing a drive may terminate the

current operation and cause data loss.The drive is rebuilding,

or it is part of an array that is undergoing capacity expansion

or stripe migration.

Flashingirregularly Amber, ﬂashing

regularly (1 Hz)

The drive is active, but a predictive failure alert has been

received for this drive. Replace the drive as soon as possible.

Flashing irregularly Off The drive is active, and it is operating normally.

Off Steadily amber A critical fault condition has been identiﬁed for this drive,

and the controller has placed it ofﬂine. Replace the drive as

soon as possible.

Off Amber, ﬂashing

regularly (1 Hz)

A predictive failure alert has been received for this drive.

Replace the drive as soon as possible.

Off Off The drive is ofﬂine, a spare, or not conﬁgured as part of an

array.

All-in-One SB600c Storage Blade Solution 47

System board components

Figure 14 System board components

Table 10 System board components

Item Description

1System board thumbscrew

2Processor socket 2

3Processor socket 1 (populated)

4Hard drive backplane connector

5FBDIMMs (8)

6Embedded NICs (2)

7Mezzanine connector 1 [Type I mezzanine only (shown)]

8Battery

9Mezzanine connector 2 [Type I (shown) or Type II mezzanine]

10 System maintenance switch (SW2)

11 System board thumbscrew

12 Enclosure connector

The symbols correspond to the symbols located on the interconnect bays.

48 All-in-One SB600c Storage Blade Solution components

Table 11 FBDIMM slot numbering

FBDIMM slots Memory bank Memory branch

1and3 A0

5and7 B1

2and4 C0

6and8 D1

Mezzanine connector deﬁnitions

Table 12 Mezzanine connector deﬁnitions

Item PCIe

Mezzanine connector 1 x4, Type I mezzanine card only

Mezzanine connector 2 x8, Type 1 or II mezzanine card

APCIex4mezz

anine connector supports x8 cards at up to x4 speeds. A PCIe x8 mezzanine connector

supports x16 cards at up to x8 speeds.

System maintenance switches

Table 13 System maintenance switches

Position Function Default

1* iLO 2 security override Off

2Conﬁguration lock Off

3Reserved Off

4Reserved Off

5* Password disabled Off

6* Reset conﬁguration Off

7Reserved Off

8Reserved Off

*To access redundant ROM, set S1, S5, and S6 to ON.

All-in-One SB600c Storage Blade Solution 49

50 All-in-One SB600c Storage Blade Solution components

B Regulatory Compliance Notices

and Safety

In this section

• Regulatory compliance identiﬁcation numbers

• Federal Communications Commission notice

• Declaration of conformity for products marked with the FCC logo, United States only

•Modiﬁcations

•Cables

• Canadian notice (Avis Canadien)

•EuropeanUnionregulatorynotice

• Disposal of waste equipment by users in private households in the European Union

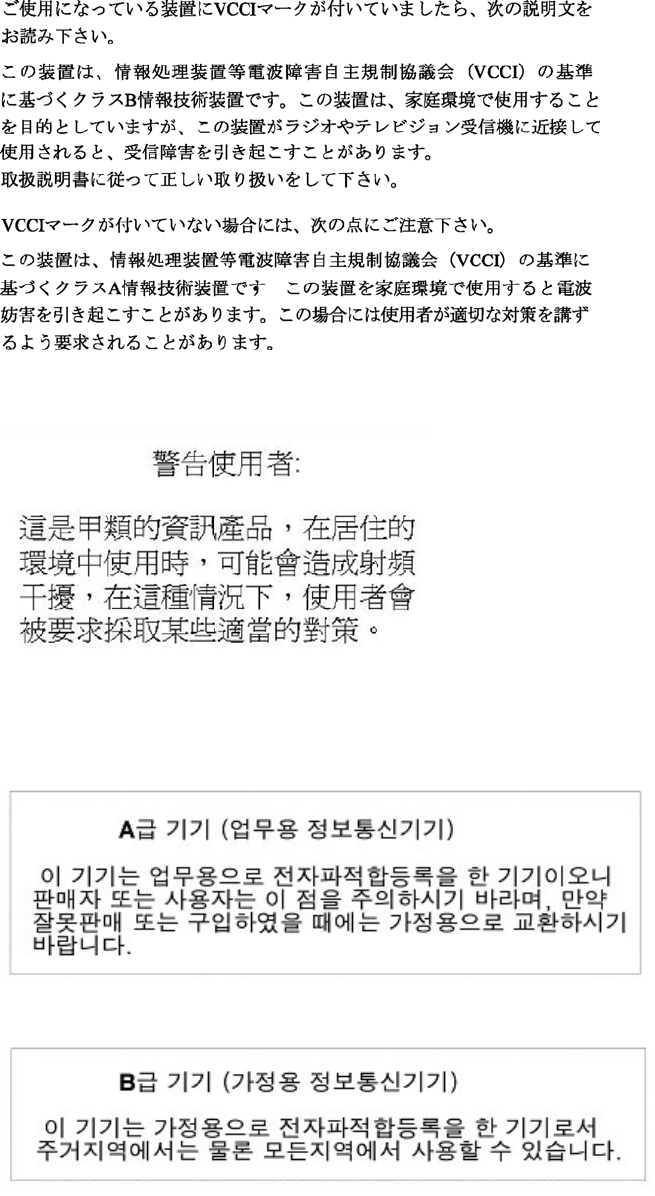

• Japanese notice

•BSMInotice

• Korean notice

• Laser compliance

• Battery replacement notice

•Taiwanbatteryrecyclingnotice

• Preventing electrostatic discharge

• Grounding methods to prevent electrostatic discharge

•Environmentalspeciﬁcations

Regulatory compliance identiﬁcation numbers

For the purpose of regulatory compliance certiﬁcations and identiﬁcation, this product has been

assigned a unique regulatory model number. The regulatory model number can be found on the

product nameplate label, along with all required approval markings and information. When requesting

compliance information for this product, always refer to this regulatory model number. The regulatory

model number is not the marketing name or model number of the product.

Federal Communications Commission notice

Part 15 of the Federal Communications Commission (FCC) Rules and Regulations has established Radio

Frequency (RF) emission limits to provide an interference-free radio frequency spectrum. Many electronic

devices, including computers, generate RF energy incidental to their intended function and are, therefore,

covered by these rules. These rules place computers and related peripheral devices into two classes, A

and B, depending upon their intended installation. Class A devices are those that may reasonably be

expected to be installed in a business or commercial environment. Class B devices are those that may

reasonably be expected to be installed in a residential environment (for example, personal computers).

The FCC requires devices in both classes to bear a label indicating the interference potential of the device

as well as additional operating instructions for the user.

FCC rating label

The FCC rating label on the device shows the classiﬁcation (A or B) of the equipment. Class B devices

have an FCC logo or ID on the label. Class A devices do not have an FCC logo or ID on the label. After

you determine the class of the device, refer to the corresponding statement.

All-in-One SB600c Storage Blade Solution 51

Class A Equipment

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant

to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference when the equipment is operated in a commercial environment. This equipment generates,

uses, and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. Operation of this equipment in a

residential area is likely to cause harmful interference, in which case the user will be required to correct

the interference at personal expense.

Class B Equipment

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant

to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception, which

can be determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit that is different from that to which the receiver is

connected.

•Consult the dealer or an experienced radio or television technician for help.

Declaration of conformity for products marked with the FCC

logo, United States only

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

For questions regarding this product, contact us by mail or telephone:

•Hewlett-Packard Company P. O. Box 692000, Mail Stop 530113 Houston, Texas 77269-2000

•1-800-HP-INVENT (1-800-474-6836). (For continuous quality improvement, calls may be recorded

or monitored.)

For questions regarding this FCC declaration, contact us by mail or telephone:

•Hewlett-Packard Company P. O. Box 692000, Mail Stop 510101 Houston, Texas 77269-2000

•1281- 514 - 3 333

To identify this product, refer to the part, series, or model number found on the product.

Modiﬁcations

TheFCCrequirestheusertobenotiﬁed that any changes or modiﬁcations made to this device that are not

expressly approved by Hewlett-Packard Company may void the user’s authority to operate the equipment.

Cables

ConnectionstothisdevicemustbemadewithshieldedcableswithmetallicRFI/EMIconnectorhoods

in order to maintain compliance with FCC Rules and Regulations.

52 Regulatory Compliance Notices and Safety

Canadian notice (Avis Canadien)

Class A equipment

This Class A digital apparatus meets all requirements of the Canadian Interference-Causing Equipment

Regulations.

Cet appareil numérique de la classe A respecte toutes les exigences du Règlement sur le matériel

brouilleur du Canada.

Class B equipment

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment

Regulations.

Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel

brouilleur du Canada.

European Union regulatory notice

This product complies with the following EU Directives:

•Low Voltage Directive 73/23/EEC

•EMC Directive 89/336/EEC

Compliance with these directives implies conformity to applicable harmonized European standards

(European Norms) which are listed on the EU Declaration of Conformity issued by Hewlett-Packard for

this product or product family.

This compliance is indicated by the following conformity marking placed on the product:

This marking is valid for non-Telecom products and EU harmonized Telcom products (e.g. Bluetooth). This

marking is valid for EU non-harmonized Telecom products.

Disposal of waste equipment by users in private households

in the European Union

Table 14 Disposal of waste equipement

This symbol on the product or on its packaging

indicatesthatthisproductmustnotbedisposedof

with your other household waste. Instead, it is your

responsibility to dispose of your waste equipment

by handing it over to a designated collection point

for the recycling of waste electrical and electronic

equipment. The separate collection and recycling of

your waste equipment at the time of disposal will

help to conserve natural resources and ensure that it

is recycled in a manner that protects human health

and the environment. For more information about

where you can drop off your waste equipment for

recycling, please contact your local city ofﬁce, your

household waste disposal service or the shop where

you purchased the product.

All-in-One SB600c Storage Blade Solution 53

Japanese notice

BSMI notice

Korean notice

Class A equipment

Class B equipment

54 Regulatory Compliance Notices and Safety

Laser compliance

This product may be provided with an optical storage device (that is, CD or DVD drive) and/or ﬁber

optic transceiver. Each of these devices contains a laser that is classiﬁed as a Class 1 Laser Product

in accordance with US FDA regulations and the IEC 60825-1. The product does not emit hazardous

laser radiation.

Each laser product complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser

Notice No. 50, dated May 27, 2001; and with IEC 60825-1:1993/A2:2001.

WARNING!

Use of controls or adjustments or performance of procedures other than those speciﬁed herein or in

the laser product’s installation guide may result in hazardous radiation exposure. To reduce the risk

of exposure to hazardous radiation:

•Donottrytoopenthemoduleenclosure.Therearenouser-serviceablecomponentsinside.

•Do not operate controls, make adjustments, or perform procedures to the laser device other

than those speciﬁed herein.

•Allow only HP Authorized Service technicians to repair the unit.

The Center for Devices and Radiological Health (CDRH) of the U.S. Food and Drug Administration

implemented regulations for laser products on August 2, 1976. These regulations apply to laser products

manufactured from August 1, 1976. Compliance is mandatory for products marketed in the United States.

Battery replacement notice

WARNING!

The computer contains an internal lithium manganese dioxide, a vanadium pentoxide, or an alkaline

battery pack. A risk of ﬁre and burns exists if the battery pack is not properly handled. To reduce the

risk of personal injury:

•Do not attempt to recharge the battery.

•Do not expose the battery to temperatures higher than 60°C (140°F).

•Do not disassemble, crush, puncture, short external contacts, or dispose of in ﬁre or water.

Table 15 Battery replacement notice

Batteries, battery packs, and accumulators should not

be disposed of together with the general household

waste. To forward them to recycling or proper

disposal, please use the public collection system or

return them to HP, an authorized HP Partner, or their

agents.

For more information about battery replacement or proper disposal, contact an authorized reseller or an

authorized service provider.

Taiwan battery recycling notice

The Taiwan EPA requires dry battery manufacturing or importing ﬁrms in accordance with Article 15

of the Waste Disposal Act to indicate the recovery marks on the batteries used in sales, giveaway or

promotion. Contact a qualiﬁed Taiwanese recycler for proper battery disposal.

All-in-One SB600c Storage Blade Solution 55

Preventing electrostatic discharge

To prevent damaging the system, be aware of the precautions you need to follow when setting up the

system or handling parts. A discharge of static electricity from a ﬁnger or other conductor may damage

system boards or other static-sensitive devices. This type of damage may reduce the life expectancy of

the device.

To prevent electrostatic damage:

•Avoid hand contact by transporting and storing products in static-safe containers.

•Keep electrostatic-sensitive parts in their containers until they arrive at static-free workstations.

•Place parts on a grounded surface before removing them from their containers.

•Avoid touching pins, leads, or circuitry.

•Always be properly grounded when touching a static-sensitive component or assembly.

Grounding methods to prevent electrostatic discharge

Several methods are used for grounding. Use one or more of the following methods when handling or

installing electrostatic-sensitive parts:

•Use a wrist strap connected by a ground cord to a grounded workstation or computer chassis.

Wrist straps are ﬂexible straps with a minimum of 1 megohm

±10 percent resistance in the ground cords. To provide proper ground, wear the strap snug against

the skin.

•Use heel straps, toe straps, or boot straps at standing workstations. Wear the straps on both feet

when standing on conductive ﬂoors or dissipating ﬂoor mats.

•Use conductive ﬁeld service tools.

•Use a portable ﬁeld service kit with a folding static-dissipating work mat.

If you do not have any of the suggested equipment for proper grounding, have an authorized reseller

install the part.

For more information on static electricity or assistance with product installation, contact an authorized

reseller.

56 Regulatory Compliance Notices and Safety

Environmental speciﬁcations

Table 16 Environmental speciﬁcations

Speciﬁcation Value

Temperature range*

Operating 10°Cto35°C(50

°F to 95°F)

Shipping -40°C to 60°C (-40°F to 140°F)

Storage -20°Cto60°C(-4to140°C)

Maximum wet bulb temperature 30°C (86°F)

Relative humidity (noncondensing)**

Operating 10% to 90%

Shipping 10%to90%

Storage 10% to 95%

* All temperature ratings shown are for sea level. An altitude derating of 1°C per 304.8 m (1.8°F per

1,000 ft) to 3048 m (10,000 ft) is applicable. No direct sunlight allowed. Upper operating limit is 3,048m

(10,000 ft) or 70 Kpa/10.1 psia. Upper non-operating limit is 9,144 m (30,000 ft) or 30.3 KPa/4.4 psia.

** Storage maximum humidity of 95% is based on a maximum temperature of 45°C (113°F). Altitude

maximum for storage corresponds to a pressure minimum of 70 KPa.

All-in-One SB600c Storage Blade Solution 57
