1 Product introduction
1.1 Exterior
This specification applies to HCE300 products, the appearance of all
the information and operation to HCE300.

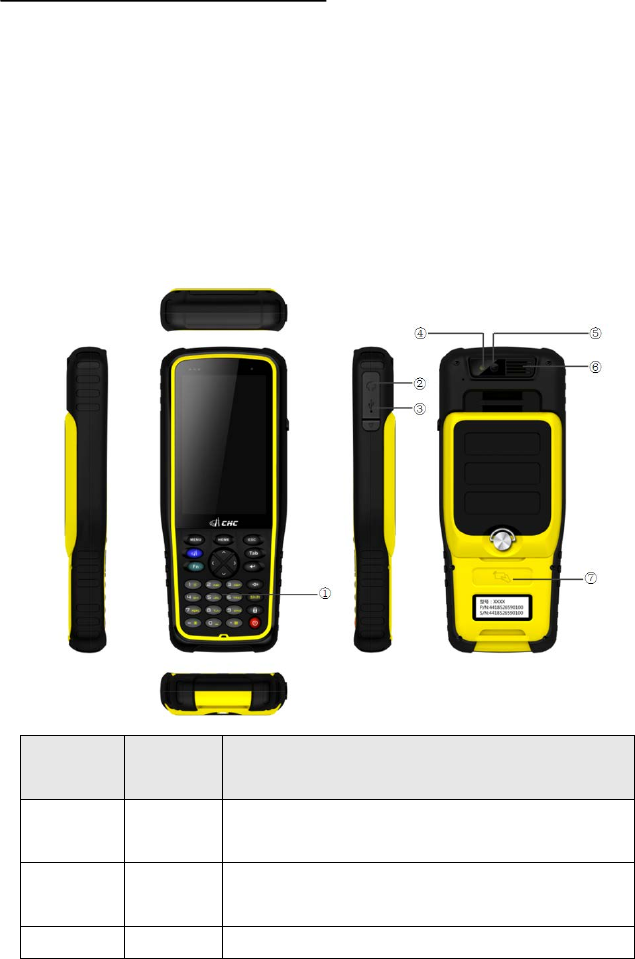

Serial
number Name Explanation
1 keyboard Enter numbers, uppercase and lowercase letters and common
punctuation through the keyboard.
2 Headphone
jack
The position of headphones plugged，not plug the headphone or
earphone is pulled out must be timely plug waterproof plug.
3 USB jack The position of USB cable insertion,not insert the USB
7
cable or cable is pulled out must be timely plug waterproof plug.
4 Flash lamp When the light is weak,turn on the flash lamp in order
to enhance environmental brightness
5 Camera The camera is used to take pictures
6 Speaker Play music and the videos’ sound port

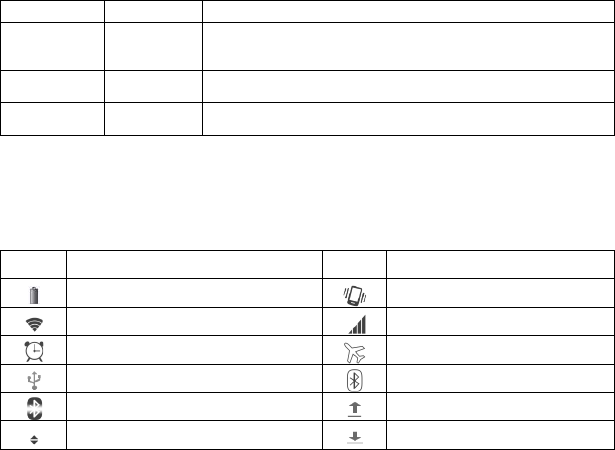

1.2 Display icon Introduction
Icon
Explanation
Icon
Explanation
The current battery charge
Vibrate mode
Wifi status
signal strength of hand book
Alarm clock
Airplane mode
Data transfer mode
Bluetooth already open
Bluetooth status
Upload application
Wifi sync download upload
Download application
1.3 Charging Hand Book
Be sure to use the original charger and data lines when charging.
The power prompt insufficient when the battery is low.
When the power is further reduced, the product will make tone sound, and
subsequently shut down.
HCE300 Android 手簿使用说明书
8
2 Basic functions
2.1 Switch
long press [power] key for bootable when the machine is shutdown .
In the state of power-on, short press [power] key to enter sleep mode,Press [power]
key will pop-up select screen, select shutdown click to confirm machine is turn off.
2.2 Data transmission
1. Hand book can connect to computer by USB cable.
2.The screen will pop up [USB Mass Storage Device], click [Turn on USB
storage] If the product does not has above tips, you need to click open the USB
storage device, and then click OK when USB is already connected in the drop-down
status bar.
3.The computer will pop up the USB storage device, you can browse data from
RAM.
4.it is recommend that the copy contents should put into memory card in
[Download] file folder.
5. Break the disconnect between product and PC after finishing copying.
6.Open hand book, you can find your copy contents in storage folder from the
processes of [File Manager] → [phone] → [Download].
9
2.3 Restore factory settings
1.Press the HOME key to enter the [Menu] → [System Settings] → [Reset]
→ [backup and restore factory settings]
2. Press [Restore Factory Settings] → [Reset phone], hand book will
automatically shut down and restart.
Note：after choosing[format phone storage], the memory data in hand book will
be cleared!
HCE300 Android 手簿使用说明书
10

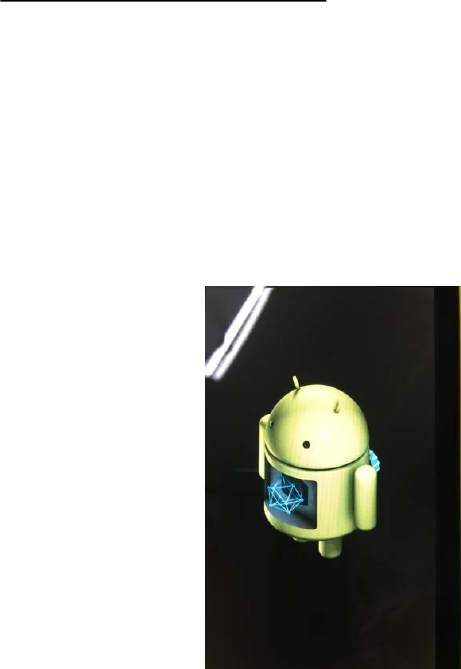

3 Hand-book system upgrade
1.The update files【update.zip】should copy to the root directory of your memory
card.
2.Hand book shutdown, long press [HOME] + [Power] to open the hand book,
and then boot into recovery mode.
3.Press the MENU key to enter the upgrade interface.
11

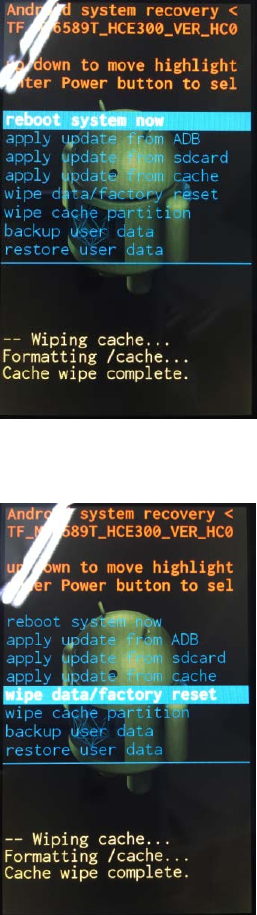

4.Clear users data:select[wipe data/factory reset],press the power button to
confirm.
HCE300 Android 手簿使用说明书
12

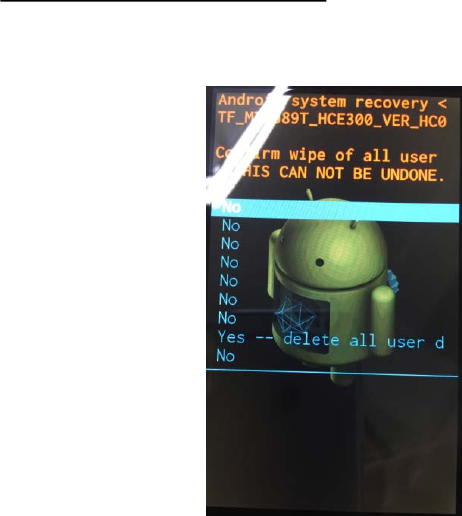

5.Delete user data: Select [yes-delete all users data],press the power button to
confirm.

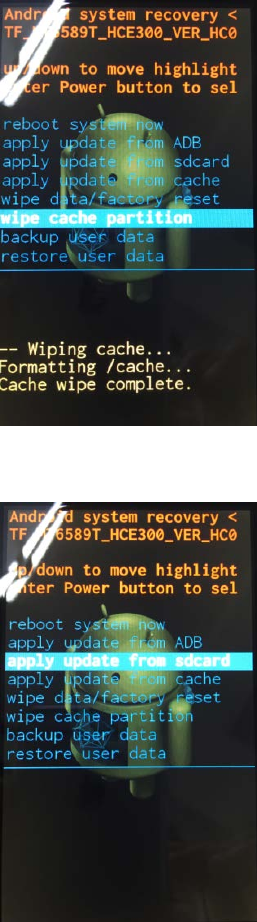

6.Clear the system cache：select[wipe cache partition],press the power button to
confirm.
13

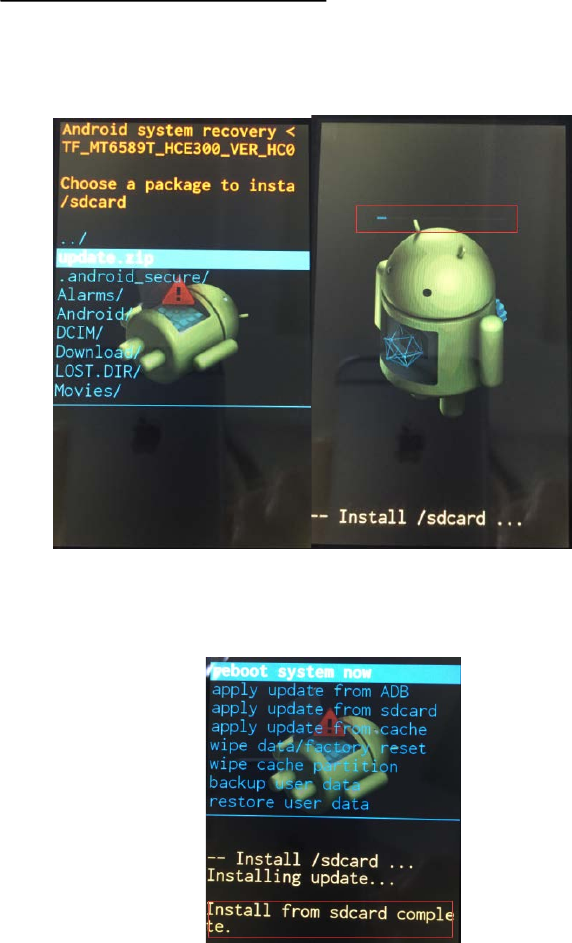

7.System upgrade: select[apply update from SD card],press power button to
confirm, as shown below.
HCE300 Android 手簿使用说明书
14
8.Select[update.zip],press power button to confirm and start the ARM11upgrade,
waiting to progress bar has completed.
9. After the upgrade is complete,prompt[Install from SD card complete], and
then select[reboot system now],press the power button to confirm hand book has
rebooted .
15
4 Technical support
If the prompts and techniques of commonly asked questions in this operating
manual cannot deal with the problems, please contact your local Huace service
personnel.
Customer Service toll-free hotline: 400-620-6818 (24-hour free hotline)
Website：www.huace.cn
Shanghai Huace Navigation Technology Co., Ltd website provides the latest
information on Huace products, the "technical support"column in website provides the
service of manual download for dealing with common problems to users and
customers support by email.
HCE300 Android 手簿使用说明书
16
Accessories - Common failure analysis and
troubleshooting
This chapter will help you diagnose and solve some common problems from
hand book.
Warnings
Do not attempt to repair the device for yourself, if you do this, HuaCe will
irresponsible for warranting repair.
Question: hand-book can not boot
Possible Causes Solutions
The battery is dead Change the new and fully charged battery
Battery wafer does not contact
with battery correctly
Use pliers to adjust the battery wafer in order to make battery
contact correctly
Question
：
hand book cannot connect with computer
Possible Causes Solutions
Data cable is damaged Please change other data lines and retry
Driver problem Please check the device manager in case of unknown device
in there, and then right click to re-update the drive
Question
：
Hand book can not enter the system
Possible Causes Solutions
System damage Contact your local salers to re-update the hand book system
Install unknown software Remove the user data in hand book and re-install the land star
software
Question
：
WiFi or Bluetooth cannot search receiver
Possible Causes Solutions
17
Receiver Bluetooth has been
occupied Turn off the receiver, then open to reconnect the Bluetooth
Exceed the communication range
of WiFi or Bluetooth Moves into the coverage area and search again
HCE300 Android 手簿使用说明书
18
19
FCC Statement
1. This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including
interference that may cause undesired operation.
2. Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment.
NOTE:
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of
the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
SAR Information Statement
Your wireless phone is a radio transmitter and receiver. It is designed and
HCE300 Android 手簿使用说明书
20
manufactured not to exceed the emission limits for exposure to
radiofrequency (RF) energy set by the Federal Communications
Commission of the U.S. Government. These limits are part of
comprehensive guidelines and establish permitted levels of RF energy for
the general population. The guidelines are based on standards that were
developed by independent scientific organizations through periodic and
thorough evaluation of scientific studies. The standards include a
substantial safety margin designed to assure the safety of all persons,
regardless of age and health. The exposure standard for wireless mobile
phones employs a unit of measurement known as the Specific Absorption
Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg. * Tests for
SAR are conducted with the phone transmitting at its highest certified
power level in all tested frequency bands. Although the SAR is
determined at the highest certified power level, the actual SAR level of
the phone while operating can be well below the maximum value. This is
because the phone is designed to operate at multiple power levels so as to
use only the power required to reach the network. In general, the closer
you are to a wireless base station antenna, the lower the power output.
Before a phone model is available for sale to the public, it must be tested
and certified to the FCC that it does not exceed the limit established by
the government adopted requirement for safe exposure. The tests are
performed in positions and locations (e.g., at the ear and worn on the
body) as required by the FCC for each model. The highest SAR value for
this model phone when tested for use at the face is 0.700W/Kg and when
worn on the body, as described in this user guide, is
0.785W/Kg(Body-worn measurements differ among phone models,
depending upon available accessories and FCC requirements). The
maximum scaled SAR in hotspot mode is 0.785W/Kg. While there may
be differences between the SAR levels of various phones and at various
positions, they all meet the government requirement for safe exposure.
The FCC has granted an Equipment Authorization for this model phone
with all reported SAR levels evaluated as in compliance with the FCC
RFexposure guidelines. SAR information on this model phone is on file
with the FCC and can be found under the Display Grant section of
http://www.fcc.gov/ oet/fccid after searching on
FCC ID: SY4B-01006 Additional information on Specific Absorption
Rates (SAR) can be found on the Cellular Telecommunications Industry
Asso-ciation (CTIA) web-site at http://www.wow-com.com. * In the
United States and Canada, the SAR limit for mobile phones used by the
public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The
standard incorporates a sub-stantial margin of safety to give additional
protection for the public and to account for any variations in
21
measurements.
Body-worn Operation
This device was tested for typical body-worn operations. To comply with
RF exposure requirements, a minimum separation distance of 15mm must
be maintained between the user’s body and the handset, including the
antenna. Third-party belt-clips, holsters, and similar accessories used by
this device should not contain any metallic components. Body-worn
accessories that do not meet these requirements may not comply with RF
exposure requirements and should be avoided. Use only the supplied or
an approved antenna.
