Huafurui Technology CUBOTR11 Smart Phone User Manual 15 R11 UserMan r1

Shenzhen Huafurui Technology Co., Ltd Smart Phone 15 R11 UserMan r1

15_R11 UserMan, r1

1 CUBOT User Manual Smart Phone Model:R11 LOGICOM

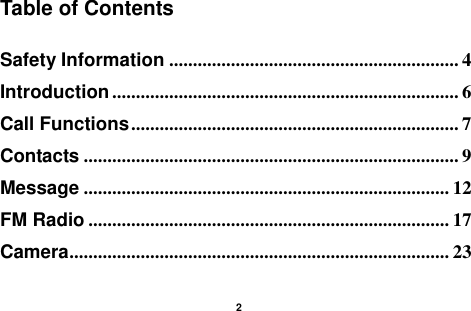

2 Table of Contents Safety Information ............................................................. 4 Introduction ......................................................................... 6 Call Functions ..................................................................... 7 Contacts ............................................................................... 9 Message ............................................................................. 12 FM Radio ............................................................................ 17 Camera ................................................................................ 23

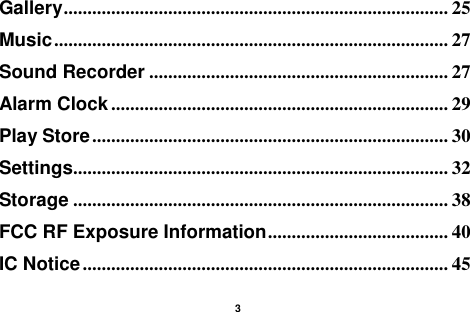

3 Gallery ................................................................................. 25 Music ................................................................................... 27 Sound Recorder ............................................................... 27 Alarm Clock ....................................................................... 29 Play Store ........................................................................... 30 Settings............................................................................... 32 Storage ............................................................................... 38 FCC RF Exposure Information ...................................... 40 IC Notice ............................................................................. 45

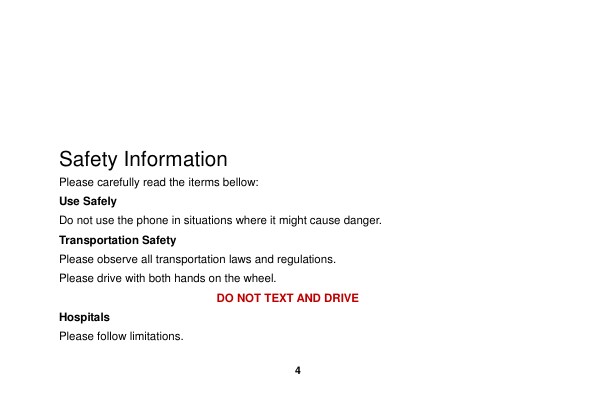

4 Safety Information Please carefully read the iterms bellow: Use Safely Do not use the phone in situations where it might cause danger. Transportation Safety Please observe all transportation laws and regulations. Please drive with both hands on the wheel. DO NOT TEXT AND DRIVE Hospitals Please follow limitations.

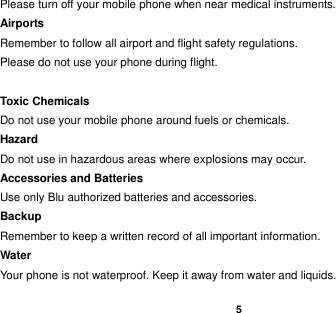

5 Please turn off your mobile phone when near medical instruments. Airports Remember to follow all airport and flight safety regulations. Please do not use your phone during flight. Toxic Chemicals Do not use your mobile phone around fuels or chemicals. Hazard Do not use in hazardous areas where explosions may occur. Accessories and Batteries Use only Blu authorized batteries and accessories. Backup Remember to keep a written record of all important information. Water Your phone is not waterproof. Keep it away from water and liquids.

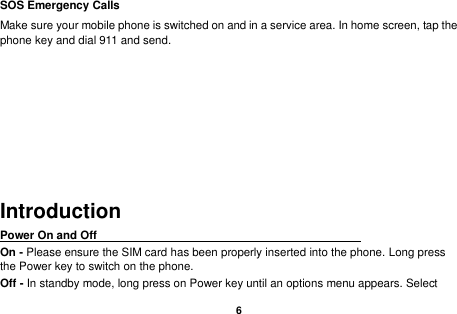

6 SOS Emergency Calls Make sure your mobile phone is switched on and in a service area. In home screen, tap the phone key and dial 911 and send. Introduction Power On and Off On - Please ensure the SIM card has been properly inserted into the phone. Long press the Power key to switch on the phone. Off - In standby mode, long press on Power key until an options menu appears. Select

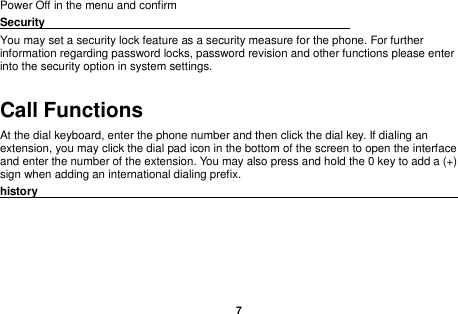

7 Power Off in the menu and confirm Security You may set a security lock feature as a security measure for the phone. For further information regarding password locks, password revision and other functions please enter into the security option in system settings. Call Functions At the dial keyboard, enter the phone number and then click the dial key. If dialing an extension, you may click the dial pad icon in the bottom of the screen to open the interface and enter the number of the extension. You may also press and hold the 0 key to add a (+) sign when adding an international dialing prefix. history

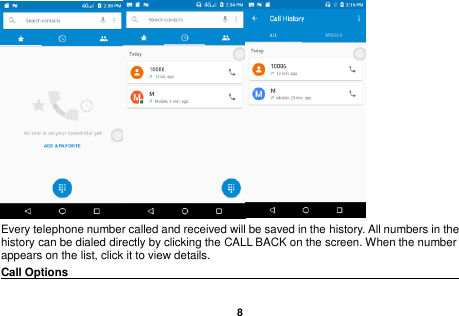

8 Every telephone number called and received will be saved in the history. All numbers in the history can be dialed directly by clicking the CALL BACK on the screen. When the number appears on the list, click it to view details. Call Options

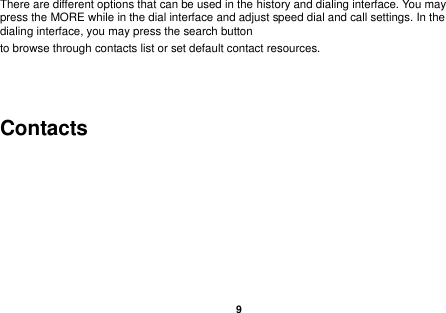

9 There are different options that can be used in the history and dialing interface. You may press the MORE while in the dial interface and adjust speed dial and call settings. In the dialing interface, you may press the search button to browse through contacts list or set default contact resources. Contacts

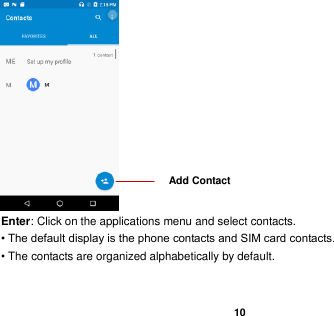

10 Enter: Click on the applications menu and select contacts. • The default display is the phone contacts and SIM card contacts. • The contacts are organized alphabetically by default. Add Contact

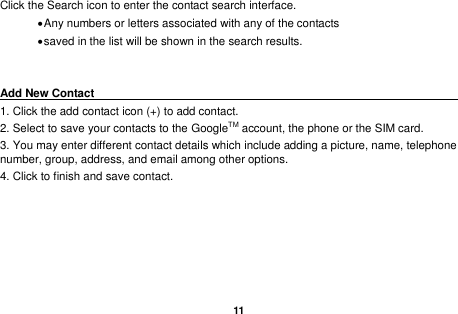

11 Click the Search icon to enter the contact search interface.  Any numbers or letters associated with any of the contacts  saved in the list will be shown in the search results. Add New Contact 1. Click the add contact icon (+) to add contact. 2. Select to save your contacts to the GoogleTM account, the phone or the SIM card. 3. You may enter different contact details which include adding a picture, name, telephone number, group, address, and email among other options. 4. Click to finish and save contact.

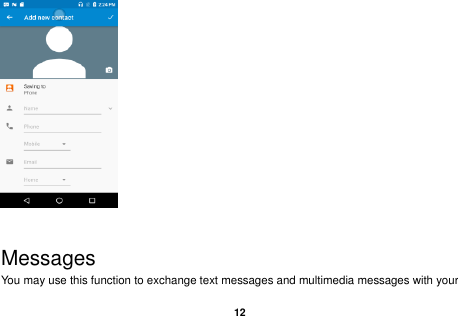

12 Messages You may use this function to exchange text messages and multimedia messages with your

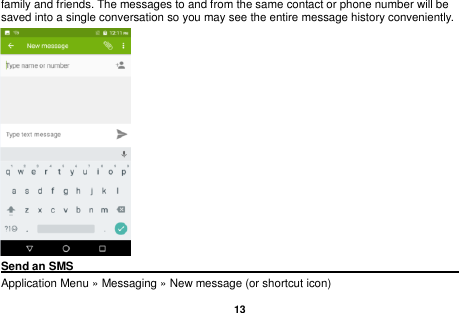

13 family and friends. The messages to and from the same contact or phone number will be saved into a single conversation so you may see the entire message history conveniently. Send an SMS Application Menu » Messaging » New message (or shortcut icon)

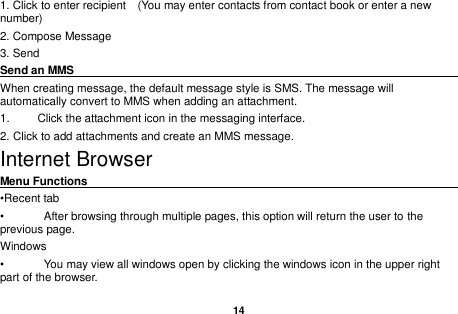

14 1. Click to enter recipient (You may enter contacts from contact book or enter a new number) 2. Compose Message 3. Send Send an MMS When creating message, the default message style is SMS. The message will automatically convert to MMS when adding an attachment. 1. Click the attachment icon in the messaging interface. 2. Click to add attachments and create an MMS message. Internet Browser Menu Functions •Recent tab • After browsing through multiple pages, this option will return the user to the previous page. Windows • You may view all windows open by clicking the windows icon in the upper right part of the browser.

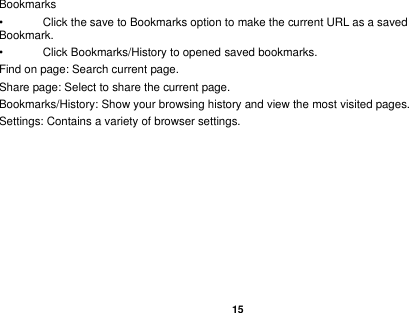

15 Bookmarks • Click the save to Bookmarks option to make the current URL as a saved Bookmark. • Click Bookmarks/History to opened saved bookmarks. Find on page: Search current page. Share page: Select to share the current page. Bookmarks/History: Show your browsing history and view the most visited pages. Settings: Contains a variety of browser settings.
16

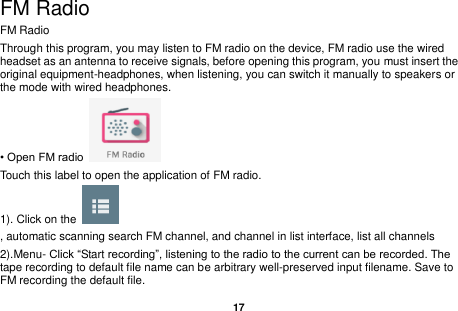

17 FM Radio FM Radio Through this program, you may listen to FM radio on the device, FM radio use the wired headset as an antenna to receive signals, before opening this program, you must insert the original equipment-headphones, when listening, you can switch it manually to speakers or the mode with wired headphones. • Open FM radio Touch this label to open the application of FM radio. 1). Click on the , automatic scanning search FM channel, and channel in list interface, list all channels 2).Menu- Click “Start recording”, listening to the radio to the current can be recorded. The tape recording to default file name can be arbitrary well-preserved input filename. Save to FM recording the default file.

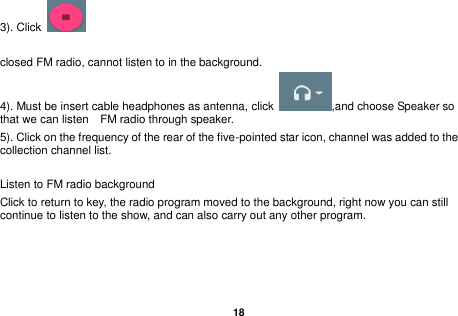

18 3). Click closed FM radio, cannot listen to in the background. 4). Must be insert cable headphones as antenna, click ,and choose Speaker so that we can listen FM radio through speaker. 5). Click on the frequency of the rear of the five-pointed star icon, channel was added to the collection channel list. Listen to FM radio background Click to return to key, the radio program moved to the background, right now you can still continue to listen to the show, and can also carry out any other program.

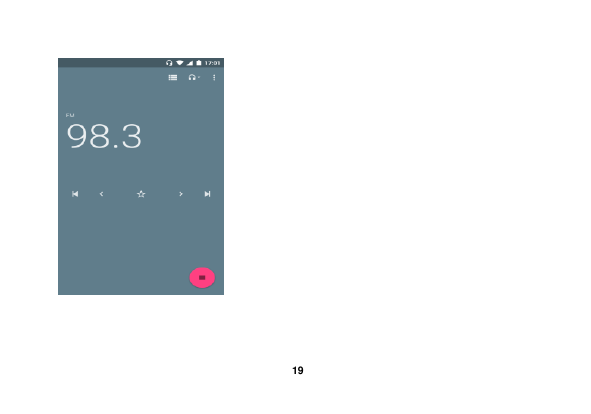

19

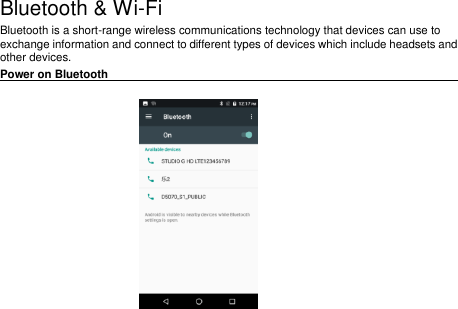

20 Bluetooth & Wi-Fi Bluetooth is a short-range wireless communications technology that devices can use to exchange information and connect to different types of devices which include headsets and other devices. Power on Bluetooth

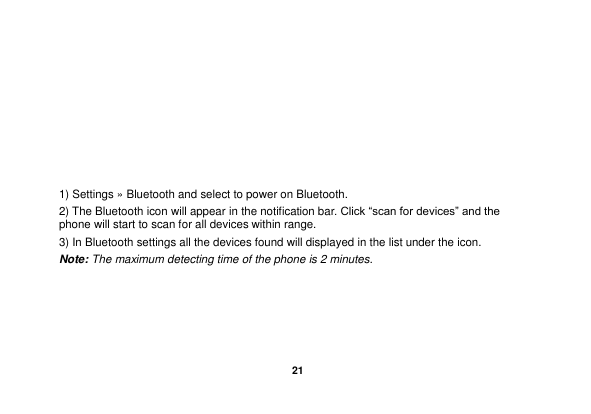

21 1) Settings » Bluetooth and select to power on Bluetooth. 2) The Bluetooth icon will appear in the notification bar. Click “scan for devices” and the phone will start to scan for all devices within range. 3) In Bluetooth settings all the devices found will displayed in the list under the icon. Note: The maximum detecting time of the phone is 2 minutes.

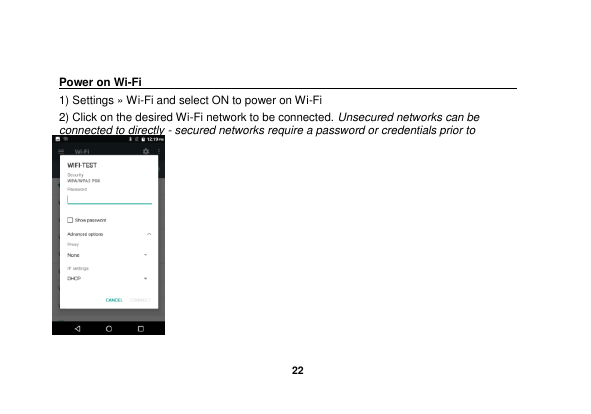

22 Power on Wi-Fi 1) Settings » Wi-Fi and select ON to power on Wi-Fi 2) Click on the desired Wi-Fi network to be connected. Unsecured networks can be connected to directly - secured networks require a password or credentials prior to connection.

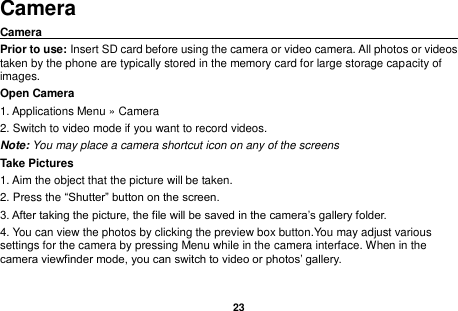

23 Camera Camera Prior to use: Insert SD card before using the camera or video camera. All photos or videos taken by the phone are typically stored in the memory card for large storage capacity of images. Open Camera 1. Applications Menu » Camera 2. Switch to video mode if you want to record videos. Note: You may place a camera shortcut icon on any of the screens Take Pictures 1. Aim the object that the picture will be taken. 2. Press the “Shutter” button on the screen. 3. After taking the picture, the file will be saved in the camera’s gallery folder. 4. You can view the photos by clicking the preview box button.You may adjust various settings for the camera by pressing Menu while in the camera interface. When in the camera viewfinder mode, you can switch to video or photos’ gallery.

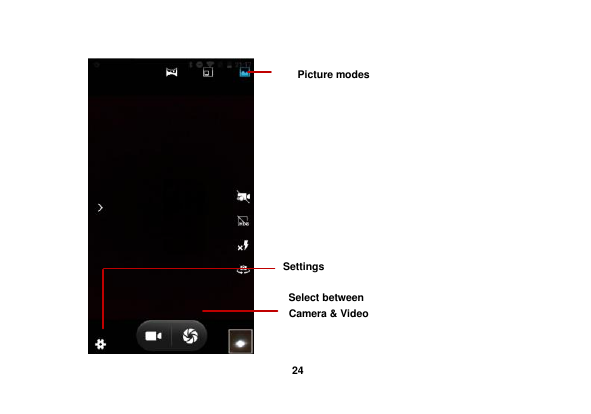

24 Select between Camera & Video Settings Picture modes
25 Gallery Open Images Applications Menu » Gallery Share Pictures You may share pictures by sending them through different types of installed applications. You may also send pictures through the MMS message function by composing a message and attaching the picture. Any image can also be sent via the Bluetooth function by selecting Bluetooth equipment that has been paired. Adjust Image Press Menu and Edit to adjust images You may select from different effects that may include:

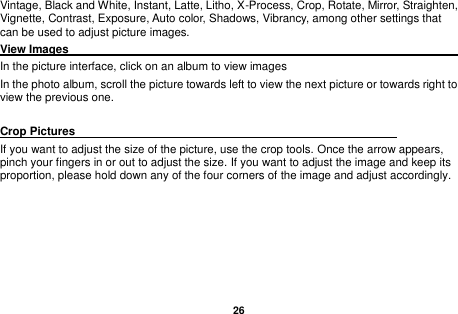

26 Vintage, Black and White, Instant, Latte, Litho, X-Process, Crop, Rotate, Mirror, Straighten, Vignette, Contrast, Exposure, Auto color, Shadows, Vibrancy, among other settings that can be used to adjust picture images. View Images In the picture interface, click on an album to view images In the photo album, scroll the picture towards left to view the next picture or towards right to view the previous one. Crop Pictures If you want to adjust the size of the picture, use the crop tools. Once the arrow appears, pinch your fingers in or out to adjust the size. If you want to adjust the image and keep its proportion, please hold down any of the four corners of the image and adjust accordingly.

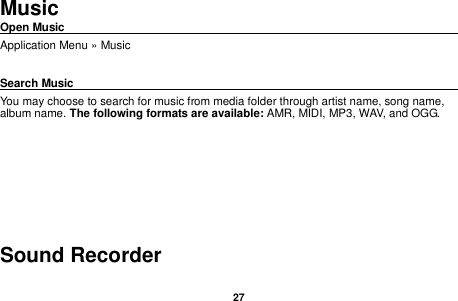

27 Music Open Music Application Menu » Music Search Music You may choose to search for music from media folder through artist name, song name, album name. The following formats are available: AMR, MIDI, MP3, WAV, and OGG. Sound Recorder

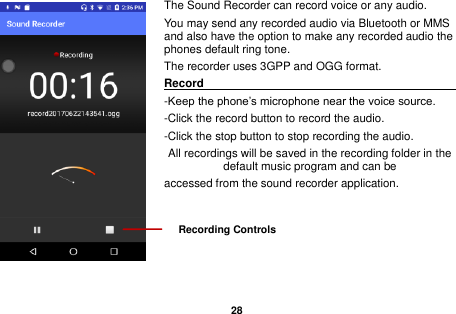

28 The Sound Recorder can record voice or any audio. You may send any recorded audio via Bluetooth or MMS and also have the option to make any recorded audio the phones default ring tone. The recorder uses 3GPP and OGG format. Record -Keep the phone’s microphone near the voice source. -Click the record button to record the audio. -Click the stop button to stop recording the audio. All recordings will be saved in the recording folder in the default music program and can be accessed from the sound recorder application. Recording Controls

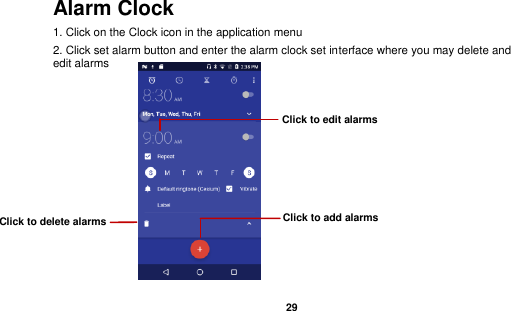

29 Alarm Clock 1. Click on the Clock icon in the application menu 2. Click set alarm button and enter the alarm clock set interface where you may delete and edit alarms Click to delete alarms Click to add alarms Click to edit alarms

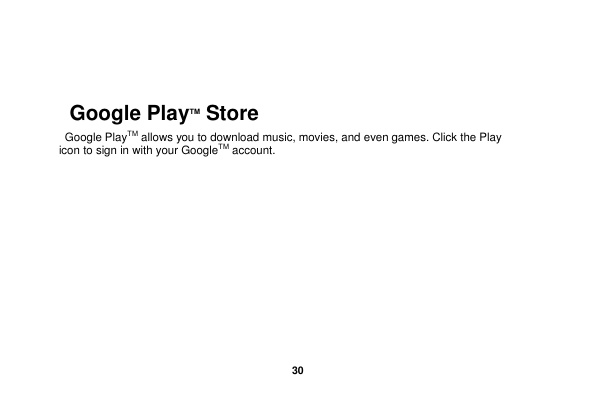

30 Google PlayTM Store Google PlayTM allows you to download music, movies, and even games. Click the Play icon to sign in with your GoogleTM account.

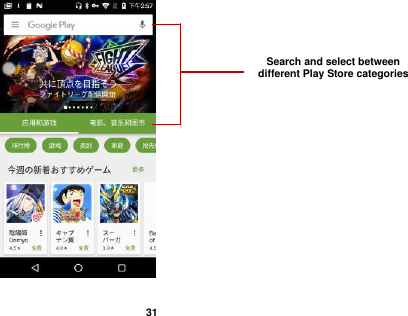

31 Search and select between different Play Store categories

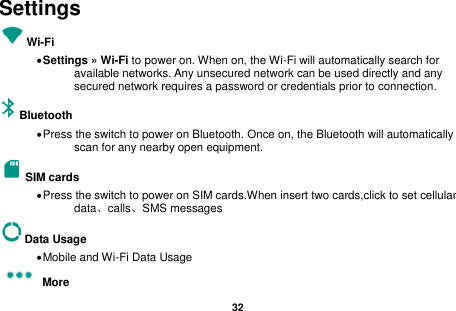

32 Settings Wi-Fi  Settings » Wi-Fi to power on. When on, the Wi-Fi will automatically search for available networks. Any unsecured network can be used directly and any secured network requires a password or credentials prior to connection. Bluetooth  Press the switch to power on Bluetooth. Once on, the Bluetooth will automatically scan for any nearby open equipment. SIM cards  Press the switch to power on SIM cards.When insert two cards,click to set cellular data、calls、SMS messages Data Usage  Mobile and Wi-Fi Data Usage More

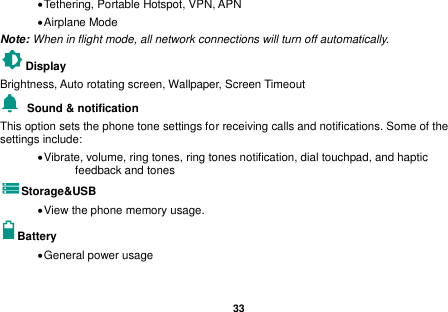

33  Tethering, Portable Hotspot, VPN, APN  Airplane Mode Note: When in flight mode, all network connections will turn off automatically. Display Brightness, Auto rotating screen, Wallpaper, Screen Timeout Sound & notification This option sets the phone tone settings for receiving calls and notifications. Some of the settings include:  Vibrate, volume, ring tones, ring tones notification, dial touchpad, and haptic feedback and tones Storage&USB  View the phone memory usage. Battery  General power usage

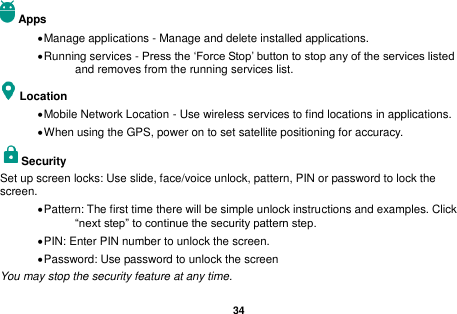

34 Apps  Manage applications - Manage and delete installed applications.  Running services - Press the ‘Force Stop’ button to stop any of the services listed and removes from the running services list. Location  Mobile Network Location - Use wireless services to find locations in applications.  When using the GPS, power on to set satellite positioning for accuracy. Security Set up screen locks: Use slide, face/voice unlock, pattern, PIN or password to lock the screen.  Pattern: The first time there will be simple unlock instructions and examples. Click “next step” to continue the security pattern step.  PIN: Enter PIN number to unlock the screen.  Password: Use password to unlock the screen You may stop the security feature at any time.

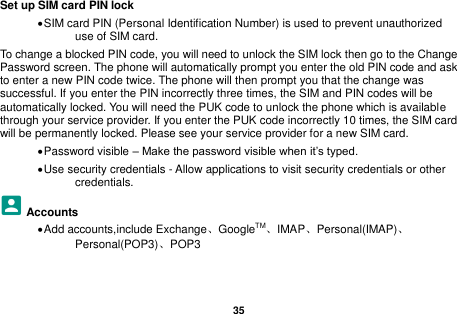

35 Set up SIM card PIN lock  SIM card PIN (Personal Identification Number) is used to prevent unauthorized use of SIM card. To change a blocked PIN code, you will need to unlock the SIM lock then go to the Change Password screen. The phone will automatically prompt you enter the old PIN code and ask to enter a new PIN code twice. The phone will then prompt you that the change was successful. If you enter the PIN incorrectly three times, the SIM and PIN codes will be automatically locked. You will need the PUK code to unlock the phone which is available through your service provider. If you enter the PUK code incorrectly 10 times, the SIM card will be permanently locked. Please see your service provider for a new SIM card.  Password visible – Make the password visible when it’s typed.  Use security credentials - Allow applications to visit security credentials or other credentials. Accounts  Add accounts,include Exchange、GoogleTM、IMAP、Personal(IMAP)、Personal(POP3)、POP3

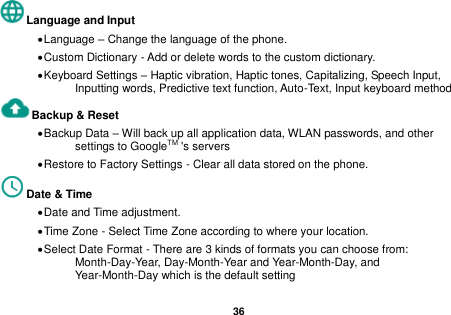

36 Language and Input  Language – Change the language of the phone.  Custom Dictionary - Add or delete words to the custom dictionary.  Keyboard Settings – Haptic vibration, Haptic tones, Capitalizing, Speech Input, Inputting words, Predictive text function, Auto-Text, Input keyboard method Backup & Reset  Backup Data – Will back up all application data, WLAN passwords, and other settings to GoogleTM 's servers  Restore to Factory Settings - Clear all data stored on the phone. Date & Time  Date and Time adjustment.  Time Zone - Select Time Zone according to where your location.  Select Date Format - There are 3 kinds of formats you can choose from: Month-Day-Year, Day-Month-Year and Year-Month-Day, and Year-Month-Day which is the default setting

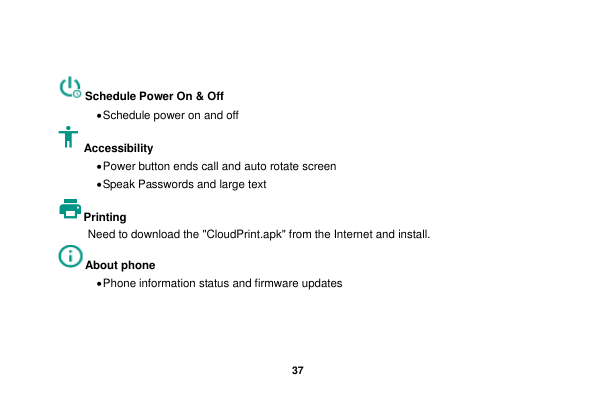

37 Schedule Power On & Off  Schedule power on and off Accessibility  Power button ends call and auto rotate screen  Speak Passwords and large text Printing Need to download the "CloudPrint.apk" from the Internet and install. About phone  Phone information status and firmware updates

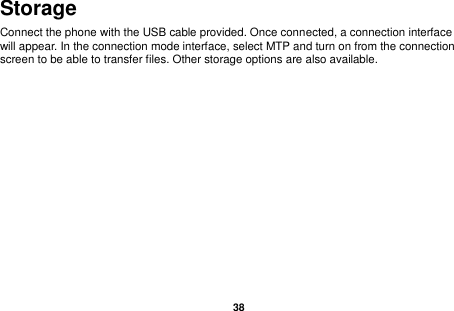

38 Storage Connect the phone with the USB cable provided. Once connected, a connection interface will appear. In the connection mode interface, select MTP and turn on from the connection screen to be able to transfer files. Other storage options are also available.
39

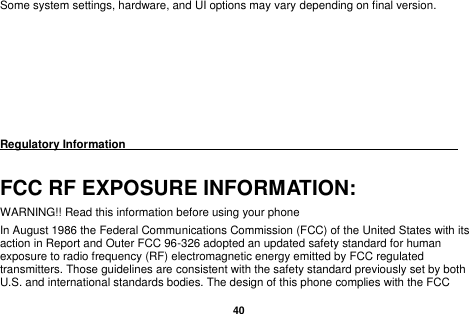

40 Some system settings, hardware, and UI options may vary depending on final version. Regulatory Information FCC RF EXPOSURE INFORMATION: WARNING!! Read this information before using your phone In August 1986 the Federal Communications Commission (FCC) of the United States with its action in Report and Outer FCC 96-326 adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC

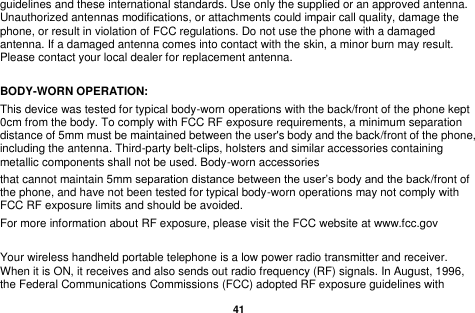

41 guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. BODY-WORN OPERATION: This device was tested for typical body-worn operations with the back/front of the phone kept 0cm from the body. To comply with FCC RF exposure requirements, a minimum separation distance of 5mm must be maintained between the user's body and the back/front of the phone, including the antenna. Third-party belt-clips, holsters and similar accessories containing metallic components shall not be used. Body-worn accessories that cannot maintain 5mm separation distance between the user’s body and the back/front of the phone, and have not been tested for typical body-worn operations may not comply with FCC RF exposure limits and should be avoided. For more information about RF exposure, please visit the FCC website at www.fcc.gov Your wireless handheld portable telephone is a low power radio transmitter and receiver. When it is ON, it receives and also sends out radio frequency (RF) signals. In August, 1996, the Federal Communications Commissions (FCC) adopted RF exposure guidelines with

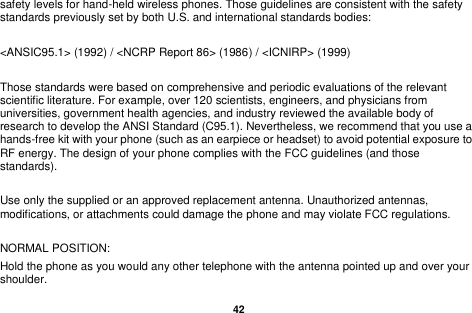

42 safety levels for hand-held wireless phones. Those guidelines are consistent with the safety standards previously set by both U.S. and international standards bodies: <ANSIC95.1> (1992) / <NCRP Report 86> (1986) / <ICNIRP> (1999) Those standards were based on comprehensive and periodic evaluations of the relevant scientific literature. For example, over 120 scientists, engineers, and physicians from universities, government health agencies, and industry reviewed the available body of research to develop the ANSI Standard (C95.1). Nevertheless, we recommend that you use a hands-free kit with your phone (such as an earpiece or headset) to avoid potential exposure to RF energy. The design of your phone complies with the FCC guidelines (and those standards). Use only the supplied or an approved replacement antenna. Unauthorized antennas, modifications, or attachments could damage the phone and may violate FCC regulations. NORMAL POSITION: Hold the phone as you would any other telephone with the antenna pointed up and over your shoulder.

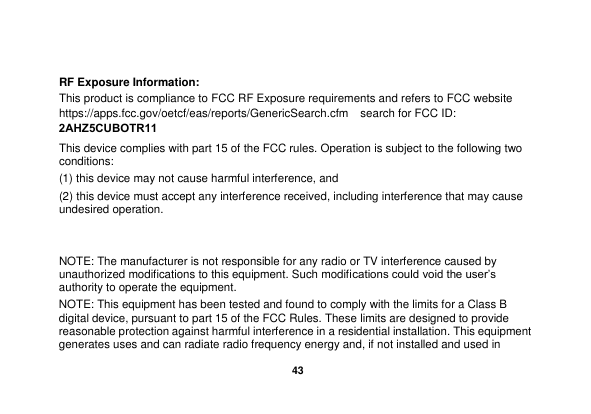

43 RF Exposure Information: This product is compliance to FCC RF Exposure requirements and refers to FCC website https://apps.fcc.gov/oetcf/eas/reports/GenericSearch.cfm search for FCC ID: 2AHZ5CUBOTR11 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in

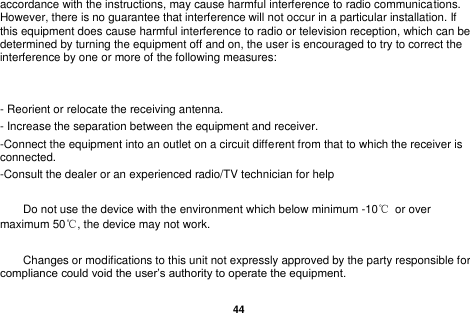

44 accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help Do not use the device with the environment which below minimum -10℃ or over maximum 50℃, the device may not work. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
