Huawei Technologies 502HW Mobile WiFi with LTE band 25, 26, 41, Wi-Fi 2.4G and 5G User Manual

Huawei Technologies Co.,Ltd Mobile WiFi with LTE band 25, 26, 41, Wi-Fi 2.4G and 5G

Contents

User Manual

1
Quick Start
2
Thank you for purchasing the Mobile WiFi. This Mobile
WiFi brings you a high speed wireless network connection.
This document will help you understand your Mobile WiFi so you can start using it right away.
Please read this document carefully before using your Mobile WiFi.
For detailed information about the functions and configurations of the Mobile WiFi, refer to
the online help on the web management page that comes with the Mobile WiFi.
For detailed instructions for logging in to the web management page, refer to "Logging In to
the Web Management Page".
3
Getting to Know Your Mobile WiFi
Note:
The Mobile WiFi function descriptions and illustrations in this document are for your
reference only. The product you have purchased may vary.
Application Scenarios
Wi-Fi devices (such as smartphones, tablet computers, and game consoles) or computers can
all access the Internet through Mobile WiFi. The specific connection procedure depends on the
operating system of the Wi-Fi device or computer. Establish a connection according to your
device's specific instructions.
4

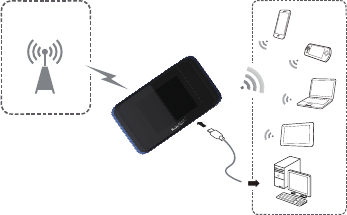

Scenario 1: Accessing the Internet Using an LTE or 3G, Network
The Mobile WiFi uses your operator's LTE or 3G network to access the Internet.
LTE/3G
5

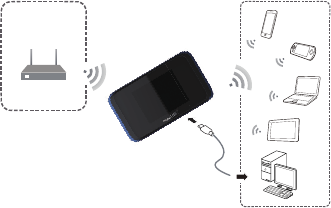

Scenario 2: Accessing the Internet Using a Wi-Fi Network
When you use the Mobile WiFi in Wi-Fi coverage areas, for example, an airport, cafe, hotel, or
your home, the Mobile WiFi can access the Internet via Wi-Fi networks, helping save your LTE
or 3G network usage.
WLAN
6

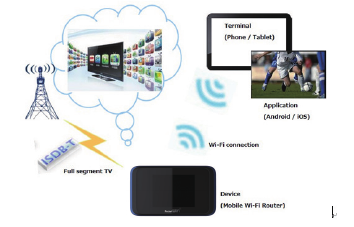

Scenario 3: Accessing the Mobile WiFi to watch TV
The TV function must perform with the application on the terminal which is making Wi-Fi
connection with the Mobile WiFi.
7
Appearance
Power button
Screen
TV antenna (antenna can be pull out)
Jack for external TV antenna (external antenna for
improvement in sensitivity of TV)
Micro USB port
8

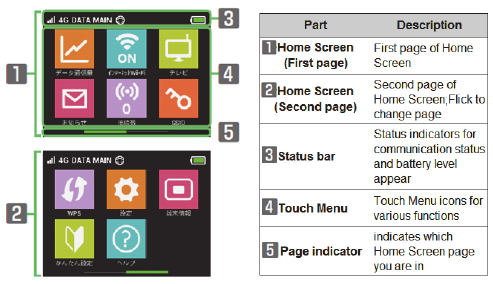

Screen
9

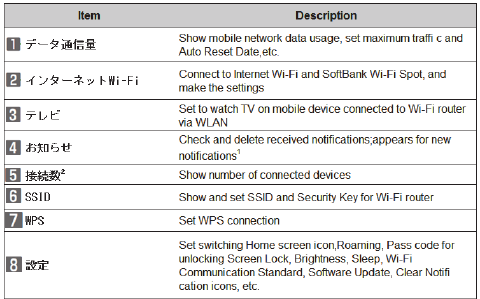

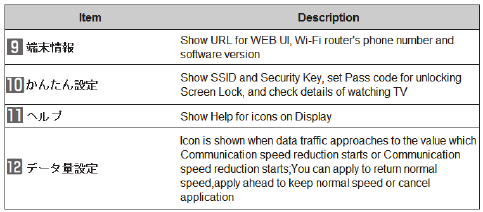

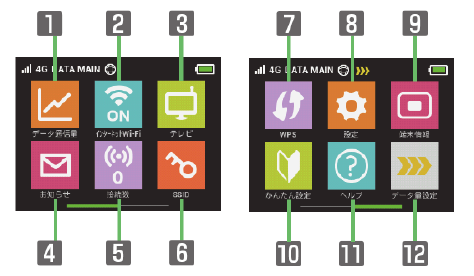

Touch Menu Icons
10
11
12
SSID and Wireless Network Encryption Key
When a Wi-Fi device establishes a connection to the Mobile WiFi for the first time, you may
need to enter the default Service Set Identifier (SSID) and wireless network encryption key.
The default SSID and encryption key are printed on the Mobile WiFi label.
It is recommended that you can log in to the web management page and change your SSID
and wireless network encryption key.
13
Getting Started
Charging the Battery
If the Mobile WiFi has not been used for a long time or if the battery is fully depleted, the
Mobile WiFi may not power on immediately after the charger is plugged in. Please charge the
battery for a while before attempting to power on the Mobile WiFi.
Method 1: Use the charger to charge the device
Note:
Only use chargers compatible with the
Mobile WiFi and provided by a designated
manufacturer. Use of an incompatible
charger or one from an unknown
manufacturer may cause the Mobile WiFi
to malfunction, fail, or could even cause a
fire. Such use voids all warranties, whether expressed or implied, on the product.
The Mobile WiFi’s charger model is HW-050100XYW. X and Y represent letters or
numbers that vary by region. For details about the specific charger model, contact an
14
authorized dealer.
Method 2: Charge the device through a computer connection

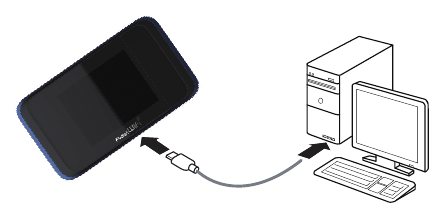

Use the data cable provided with your device to connect the Mobile WiFi to the computer.
15
Turning on the Mobile WiFi

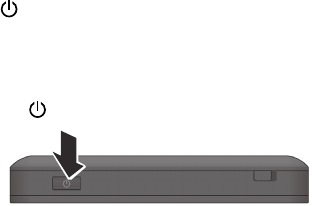

Press and hold the button until the screen lights up, indicating that the Mobile WiFi is
turned on.
You can log in to the web management page and turn the fast boot function on or off. This
function greatly reduces the Mobile WiFi's boot-up time.
Note:
Press and hold the button to turn off the Mobile WiFi.
16
Connecting to the Internet
Using an LTE or 3G Network
The Mobile WiFi's management parameters have been preset according to your operator's
requirements.
If data is transmitted, the Mobile WiFi will automatically connect to the Internet. If data is not
transmitted for a period of time, the Mobile WiFi will automatically disconnect from the
network connection.
Note:
You can log in to the web management page and enable or disable the automatic dialing
while roaming function. If this function is turned off, when the Mobile WiFi enters a
roaming network, it will automatically disconnect from the Internet connection that has
already been established. You will need to manually establish this network connection
again.
17
Using a Wi-Fi Network
1. Ensure that the Internet WLAN function is enabled.
2. The Mobile WiFi automatically connects to a Wi-Fi hotspot set by your service provider or
yourself. When the Mobile WiFi is connected to a Wi-Fi network, and the Wi-Fi
hotspot SSID are displayed on the screen.
Note:
After connecting to a Wi-Fi network, the Mobile WiFi automatically reconnects to the
network the next time you are under that network's coverage.
For details about adding Wi-Fi hotspots, see “Adding a Wi-Fi Hotspot”.
18
Logging In to the Web Management Page
1. Make sure the connection between the Mobile WiFi and the Wi-Fi device or computer is
working normally.
2. Open the browser, and enter http://192.168.128.1 in the address box.
Note:
If the IP address conflicts with other IP addresses on the network, the IP address of the
Mobile WiFi automatically changes. Check the current IP address on the Mobile WiFi
screen.
3. Enter the user name and password to log in to the web management page.
Note:
The default user name is admin.
The default password is admin.
19
Daily Use
Battery Saving Mode
If the Mobile WiFi has been inactive for some time, the Mobile WiFi enters the standby mode,
in which the display screen turns off. Pressing any button causes the display screen to light up.
When the Mobile WiFi is being powered only by the battery, you can choose to enable or
disable the automatic Wi-Fi turnoff function. If this function is enabled and if no Wi-Fi devices
access the Mobile WiFi for a period of time, the Wi-Fi turns off automatically. You can press any
button to turn the Wi-Fi on again.
Verifying the PIN
If the PIN verification function is enabled, log in to the web management page and enter the
correct PIN according to the instructions. PIN/PUK codes are supplied by your operator along
with the SIM card. For details, please consult your operator.
20
Turning Internet WLAN Off
1. Touch the Internet Wi-Fi icon on the screen.
2. Touch to turn Internet WLAN off.
Note:
Alternatively, you can log in to the Mobile WiFi's web management page to enable or
disable Internet WLAN.
21
Adding a Wi-Fi Hotspot
1. Log in to the web management page.
2. From the settings page, choose Internet Wi-Fi.
3. Scan for Wi-Fi hotspots and connect to the desired one.
Example 1: Connecting to a Computer (for example, running the
Windows 7 operating system) through Wi-Fi
1. Ensure that the Mobile WiFi's Wi-Fi function is on.
2. Select Start > Control Panel > Network and Internet > Connect to a network.
Note:
Before establishing a Wi-Fi connection, ensure that the computer is equipped with a
wireless network adapter. If the computer indicates a wireless network connection, the
wireless network adapter can be used. Otherwise, verify that your wireless network
adapter is working properly.
3. Select the wireless network connection with the Mobile WiFi's SSID and click Connect.
22
Note:
If the wireless network connection is encrypted, enter the correct wireless network
encryption key.
The default SSID and encryption key are printed on the Mobile WiFi label.
4. Wait a moment for the wireless network connection icon to appear in the system tray in
the lower right corner of the computer screen. The wireless network connection is then
established.
23
Example 2: Connecting to a Tablet Computer (for example, iPad)
through Wi-Fi
1. Touch Settings > WLAN to turn on WLAN.
2. The tablet computer automatically
searches for wireless connections and
displays a list of access points.
3. Select the access point with the Mobile
WiFi's SSID.
4. If required, enter the correct wireless
network encryption key, and tap Join.
(The lock icon indicates that the encryption
key is required to connect to this wireless
network.)
Note:
Wi-Fi devices, such as an iPhone, iPod touch, PS3 and NDSi, can all access the Internet
through the Mobile WiFi. For specific operations, refer to the Wi-Fi device's user manual.
24
Tips
When the Mobile WiFi is in use for an extended period of time, it will become warm and may
overheat. Should this happen, the Mobile WiFi will automatically close the network connection
and turn off to protect itself from damage. If this occurs, place the Mobile WiFi in a well
ventilated space to allow the heat to dissipate, then turn it on and continue to use it as normal.
If you are unable to use the Mobile WiFi as normal, try the following:
Consult the online help on the web management page.
Restart the Mobile WiFi.
Restore the Mobile WiFi to the factory settings.
Consult your operator.
Version: V100R001_01 Part Number: 3101XXXX
